Pioneer Pro 1140Hd Users Manual ARB1573 A
If not then 366322056PRO940HDOperatingInstructions Manual: ://www.pioneerelectronics.com/pio/pe/images/portal/cit_11221/366322056PRO940HDOperatingInstructions
If not then 366322046PRO1540HDOperatingInstructions Manual: ://www.pioneerelectronics.com/pio/pe/images/portal/cit_11221/366322046PRO1540HDOperatingInstructions
PRO-940HD to the manual e20c3aff-9fe0-4183-8742-cc4cfb47540b
2015-01-26
: Pioneer Pioneer-Pro-1140Hd-Users-Manual-334372 pioneer-pro-1140hd-users-manual-334372 pioneer pdf
Open the PDF directly: View PDF
.
Page Count: 120 [warning: Documents this large are best viewed by clicking the View PDF Link!]
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
11)
12)
13)
14)
WARNING: This product equipped with a three-
wire grounding (earthed) plug - a plug that has a third
(grounding) pin. This plug only fits a grounding-type
power outlet. If you are unable to insert the plug into an
outlet, contact a licensed electrician to replace the
outlet with a properly grounded one. Do not defeat the
safety purpose of the grounding plug D3-4-2-1-6_A_En
WARNING: To prevent a fire hazard, do not place
any naked flame sources (such as a lighted candle) on
the equipment. D3-4-2-1-7a_A_En
NOTE TO CATV SYSTEM INSTALLER
THIS REMINDER IS PROVIDED TO CALL THE CATV
SYSTEM INSTALLER’S ATTENTION TO ARTICLE
820-40 OF THE NEC THAT PROVIDES GUIDELINES
FOR PROPER GROUNDING AND, IN PARTICULAR,
SPECIFIES THAT THE CABLE GROUND SHALL BE
CONNECTED TO THE GROUNDING SYSTEM OF
THE BUILDING, AS CLOSE TO THE POINT OF
CABLE ENTRY AS PRACTICAL. D1-4-2-8_En
This digital television is capable of receiving analog
basic, digital basic and digital premium cable
television programming by direct connection to a cable
system providing such programming. A security card
provided by your cable operator is required to view
encrypted digital programming. Certain advanced and
interactive digital cable services such as video-on-
demand, a cable operator’s enhanced program guide
and data-enhanced television services may require the
use of a set-top box. For more information call your
local cable operator.

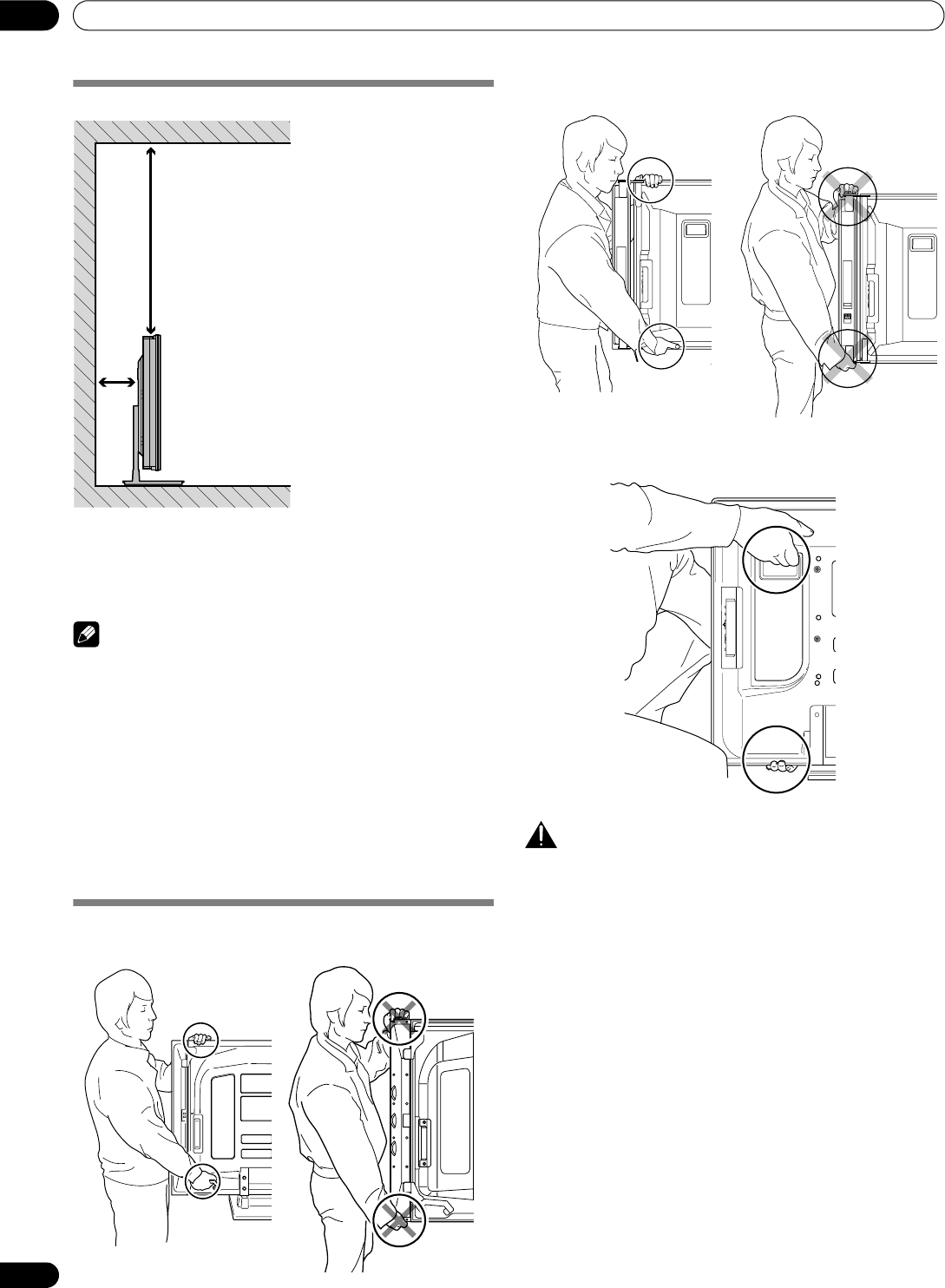

VENTILATION CAUTION:
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation. For the minimum space required, see page
20.
WARNING: Slots and openings in the cabinet are
provided for ventilation to ensure reliable operation of
the product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as newspapers,
table-cloths, curtains) or by operating the equipment
on thick carpet or a bed.
PDP_PRO1540HD.book Page 2 Wednesday, August 2, 2006 6:01 PM
English
WARNING: THE APPARATUS IS NOT
WATERPROOFS, TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE AND DO NOT PUT ANY WATER
SOURCE NEAR THIS APPARATUS, SUCH AS VASE,
FLOWER POT, COSMETICS CONTAINER AND
MEDICINE BOTTLE ETC.
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product will expose you to lead, a chemical known to
the State of California and other governmental entities
to cause cancer and birth defects or other reproductive
harm. Wash hands after handling.
Information to User
Alteration or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.
[For Canadian model]
This Class B digital apparatus complies with Canadian
ICES-003.
FEDERAL COMMUNICATIONS
COMMISSION DECLARATION OF
CONFORMITY
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Product Name: Plasma Display System
Model Number: PRO-1540HD/PRO-1140HD/PRO-940HD
Product Category: Class B Personal Computers &
Peripherals
Responsible Party Name: PIONEER ELECTRONICS
SERVICE, INC.
Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA
90801-1760, U.S.A.
Phone: 800-421-1625
For Business Customer URL
http://www.PioneerUSA.com
STANDBY: When placed into the standby mode, the main power flow is cut and the unit is no longer
fully operational.
STANDBY/ON Indicator: The indicator is lit red when the unit is in the standby mode and lit blue when it is in the
power-on mode. No operation can be performed when the indicator is off. However, the
Plasma Display System will still consume some power as long as the power cord is
inserted into the power outlet.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_En
CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the
unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and
televisions, use shielded cables and connectors for connections.
D8-10-3a_En
IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.
PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND
KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY.
D1-4-2-6-1_En
CAUTION: The power switch does not completely separate the unit from the mains in off position. Therefore
install the unit suitable places easy to disconnect the mains plug in case of the accident. The mains plug of unit
should be unplugged from the wall socket when left unused for a long period of time.
CAUTION:
Operating Environment
Operating environment temperature and humidity:
+0 ˚C to +40 ˚C (+32 ˚F to +104 ˚F), less than 85 %RH (cooling vents not blocked) Do not install this unit in a
poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
PDP_PRO1540HD.book Page 3 Wednesday, August 2, 2006 6:01 PM
4
En
Contents
Contents
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate your model properly. After you have finished
reading the instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the
explanatory drawings. However the method of connecting and operating the unit is the same.
Illustrations shown in this manual are for the PRO-1140HD unless otherwise specified.
01 Important User Guidance Information
02 Safety Precautions

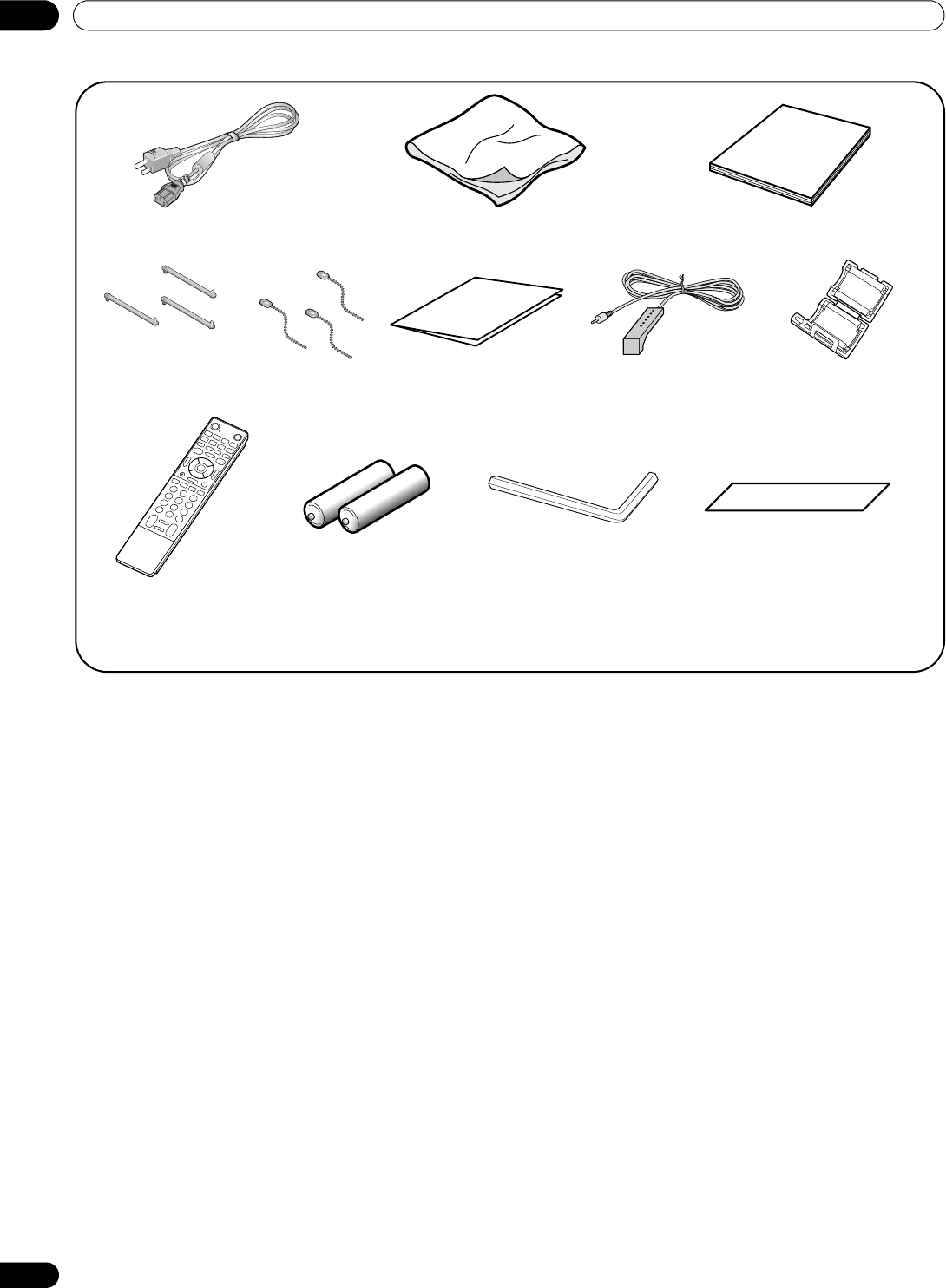

03 Supplied Accessories

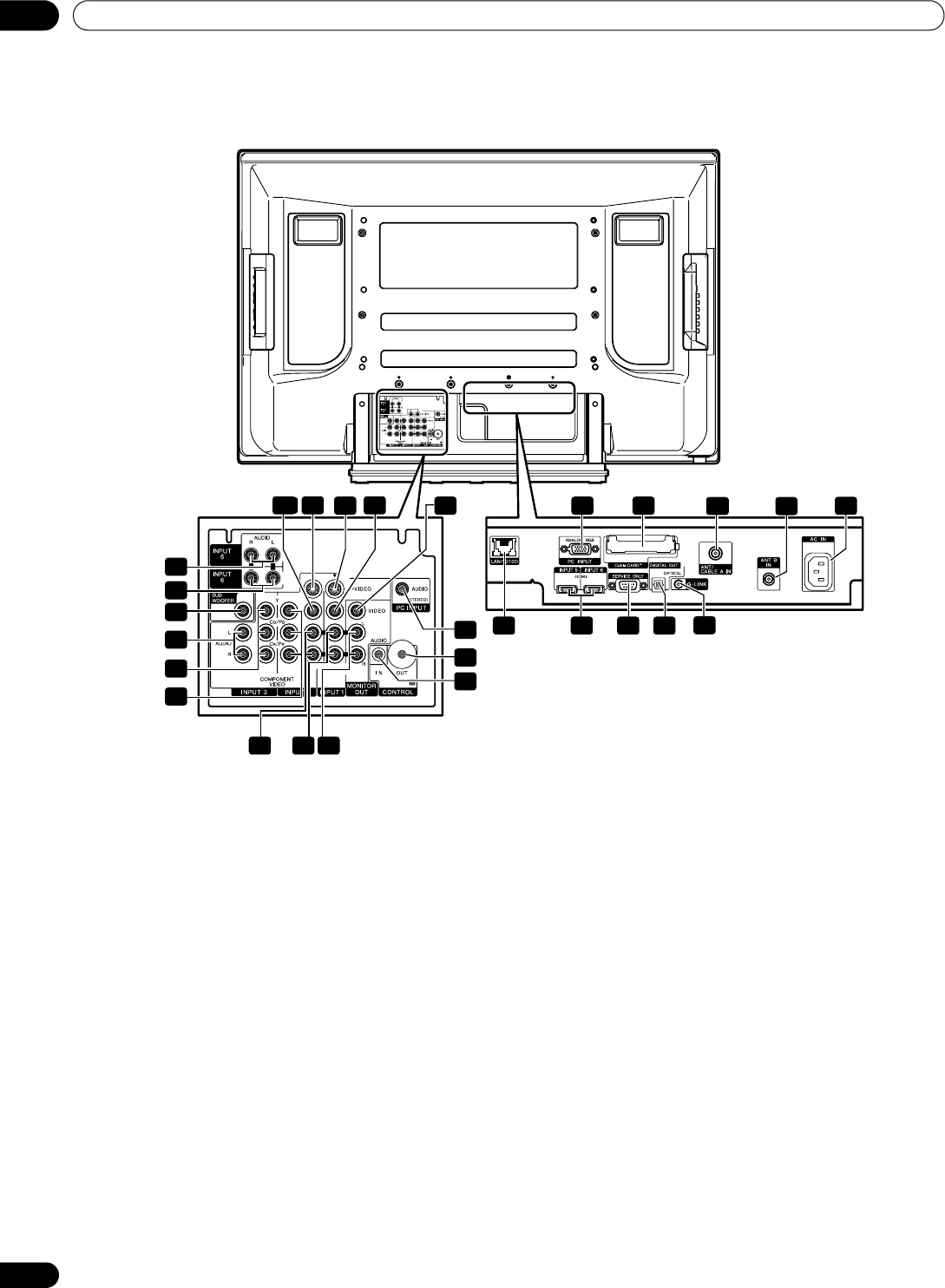

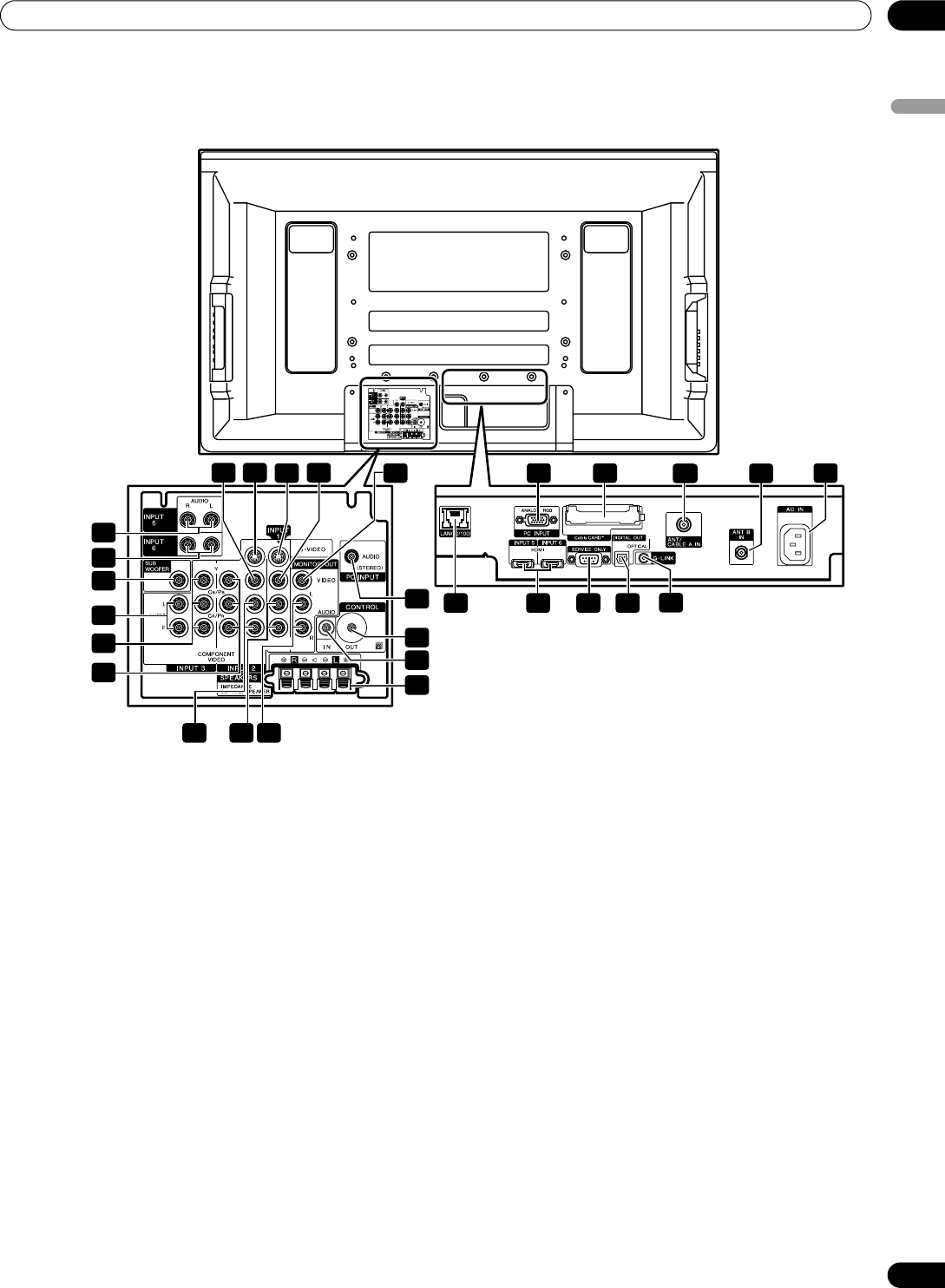

04 Part Names

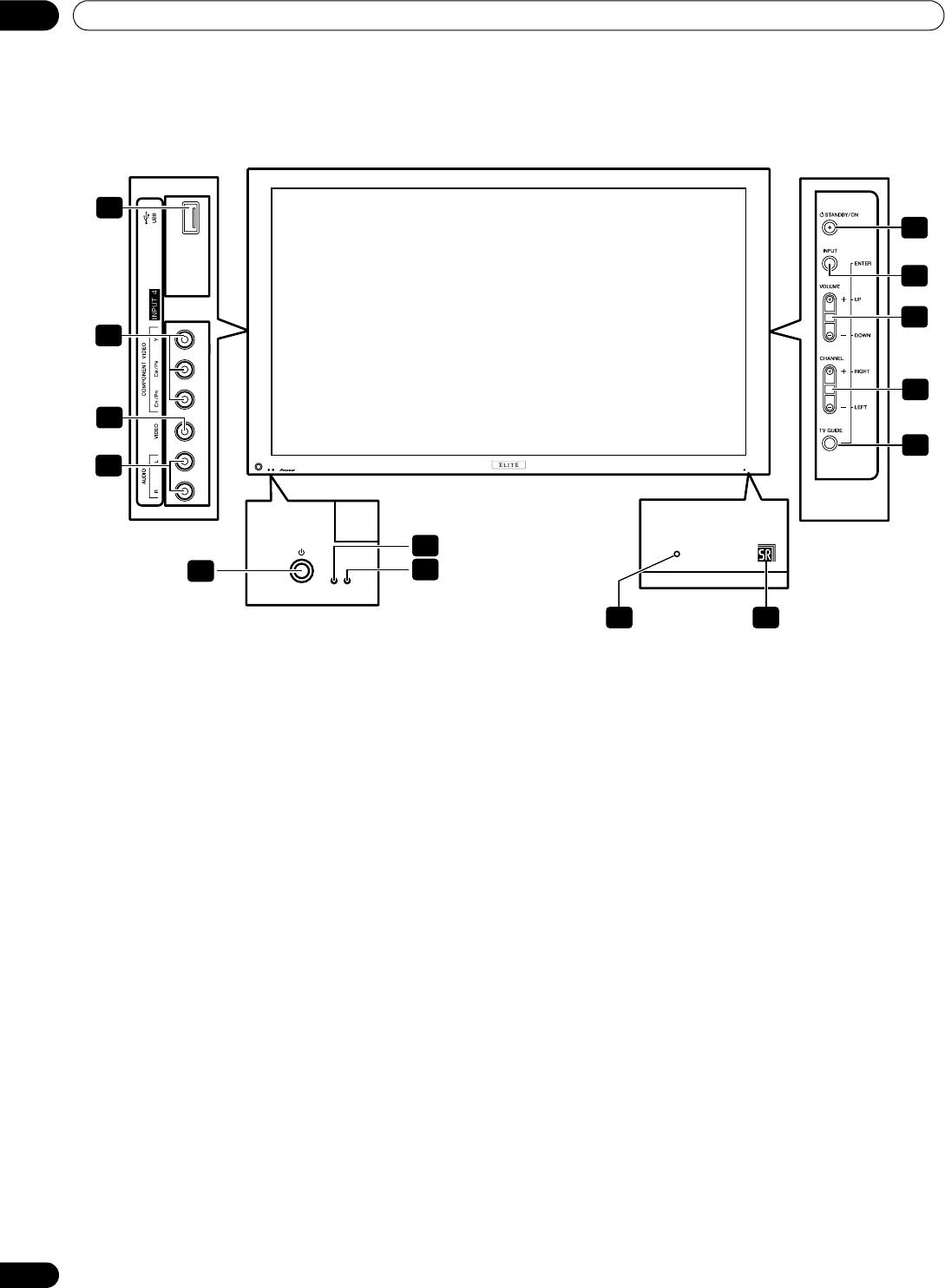

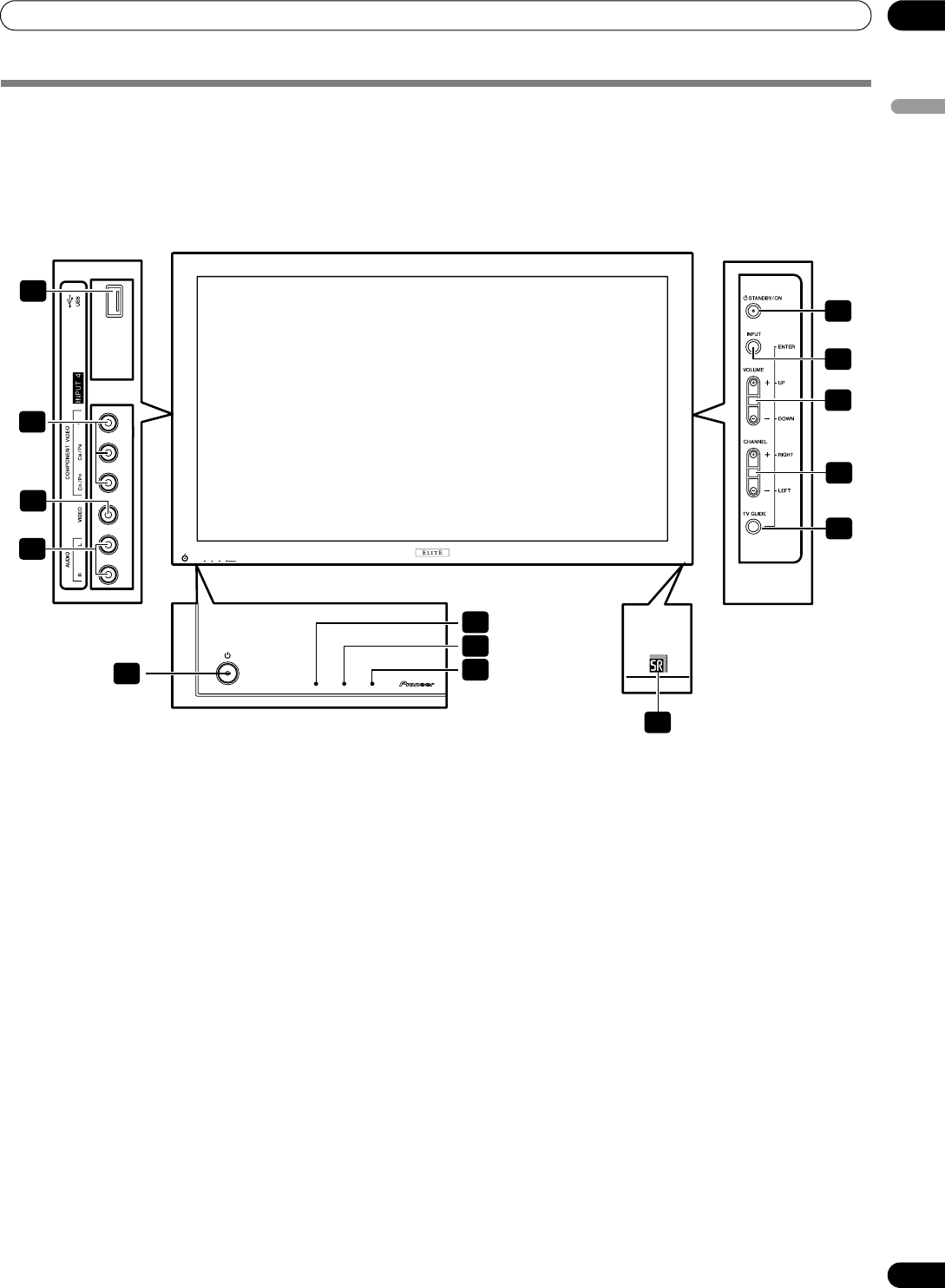

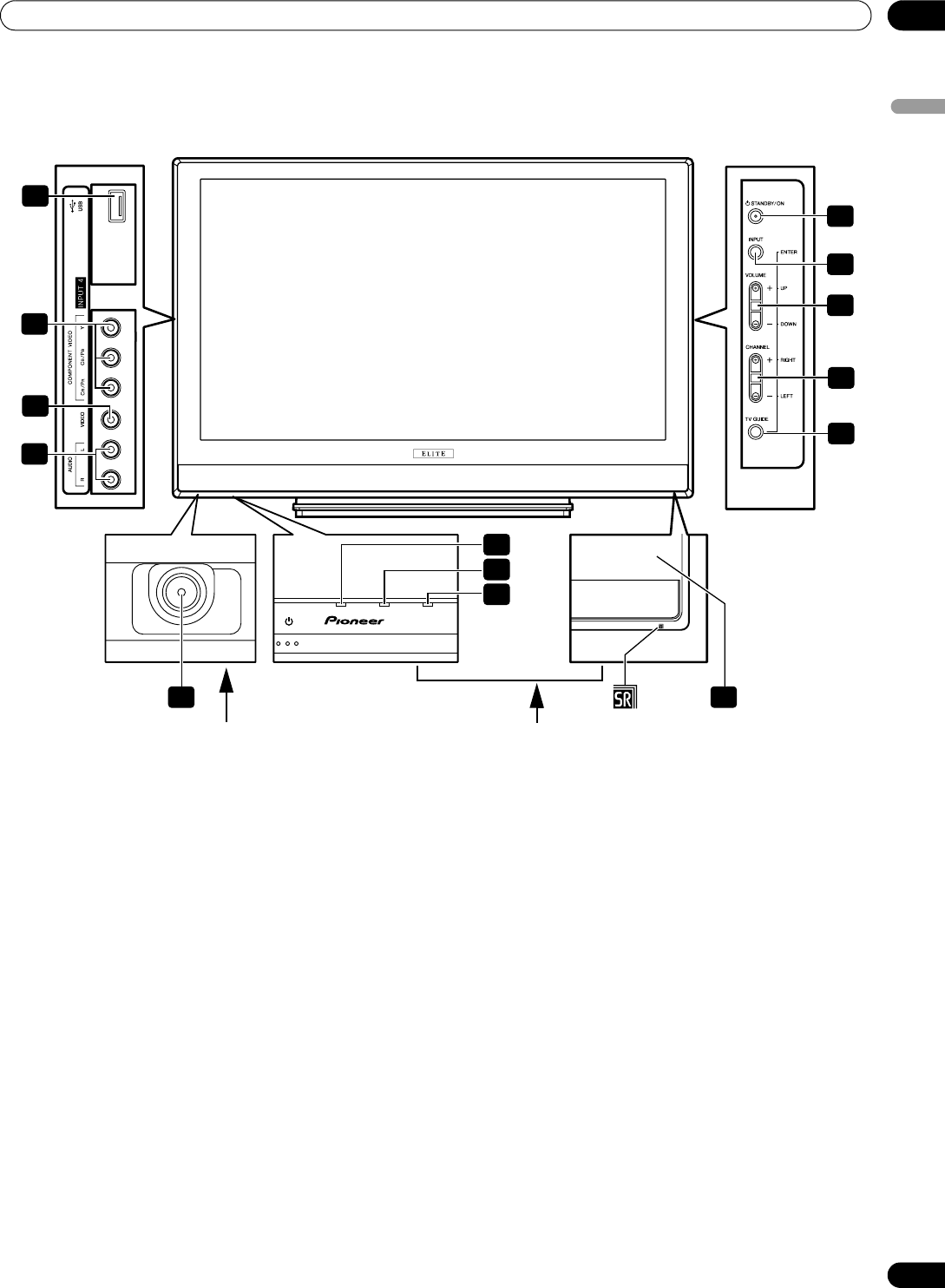

Plasma Display ...........................................13

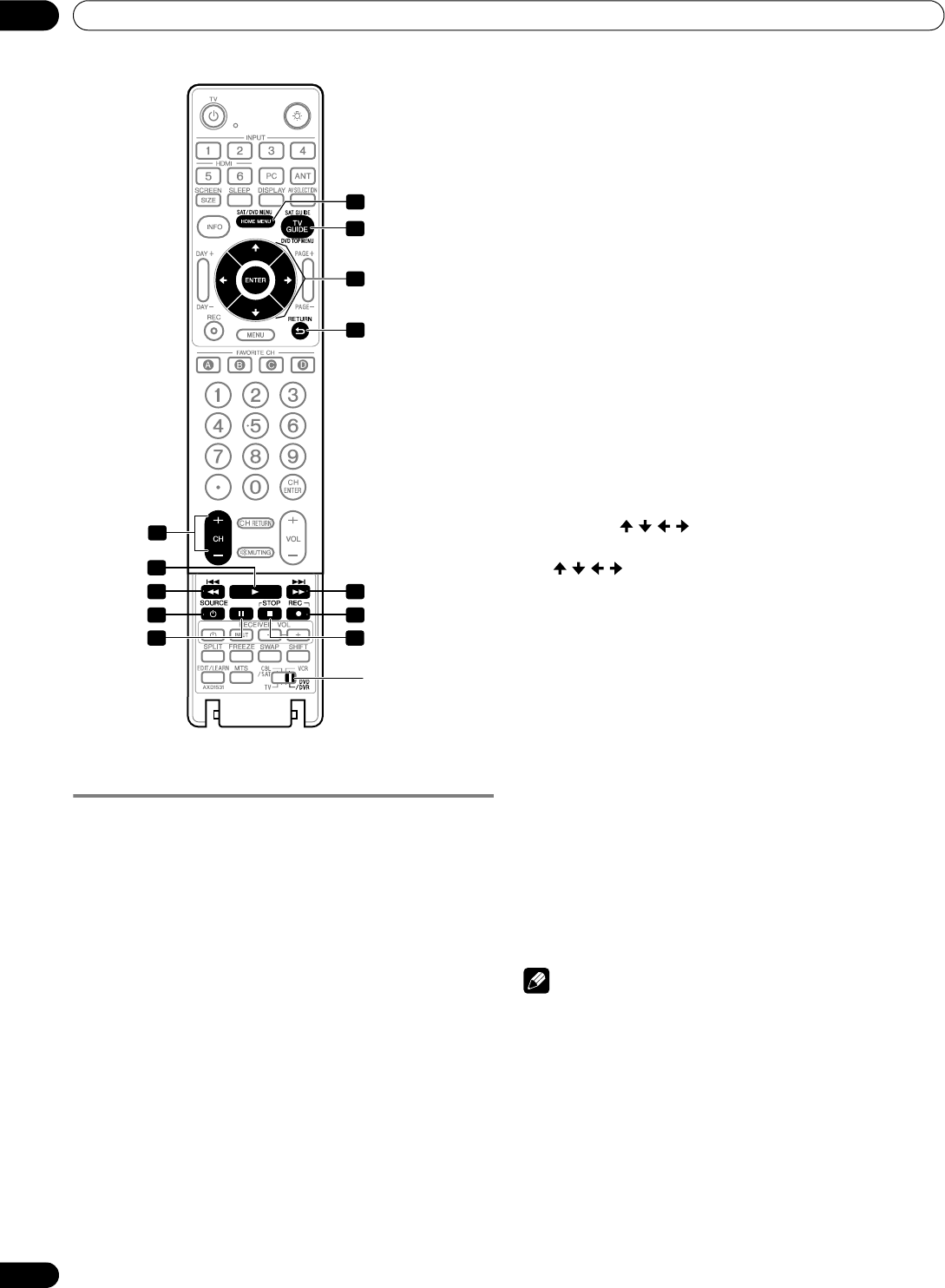

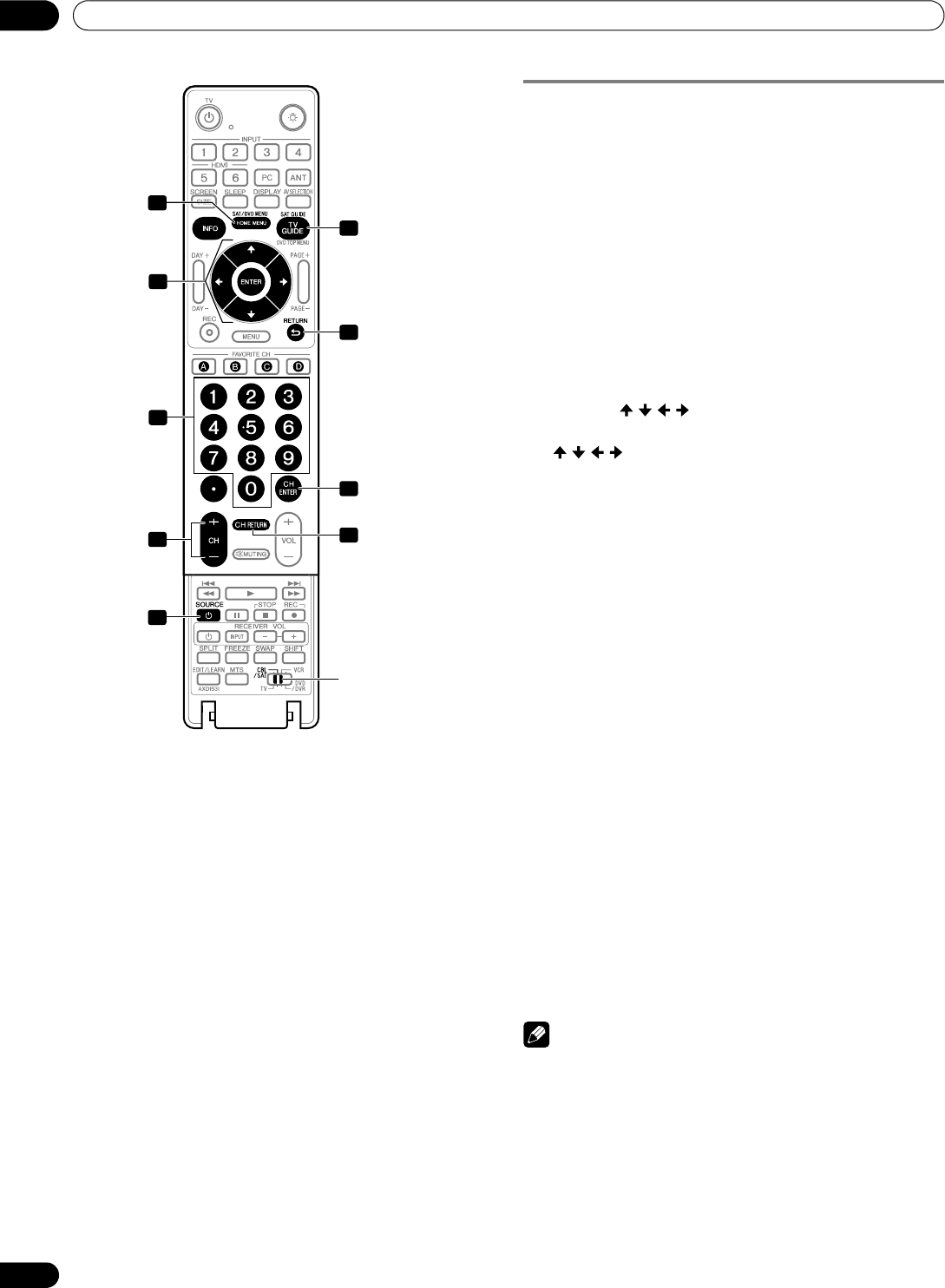

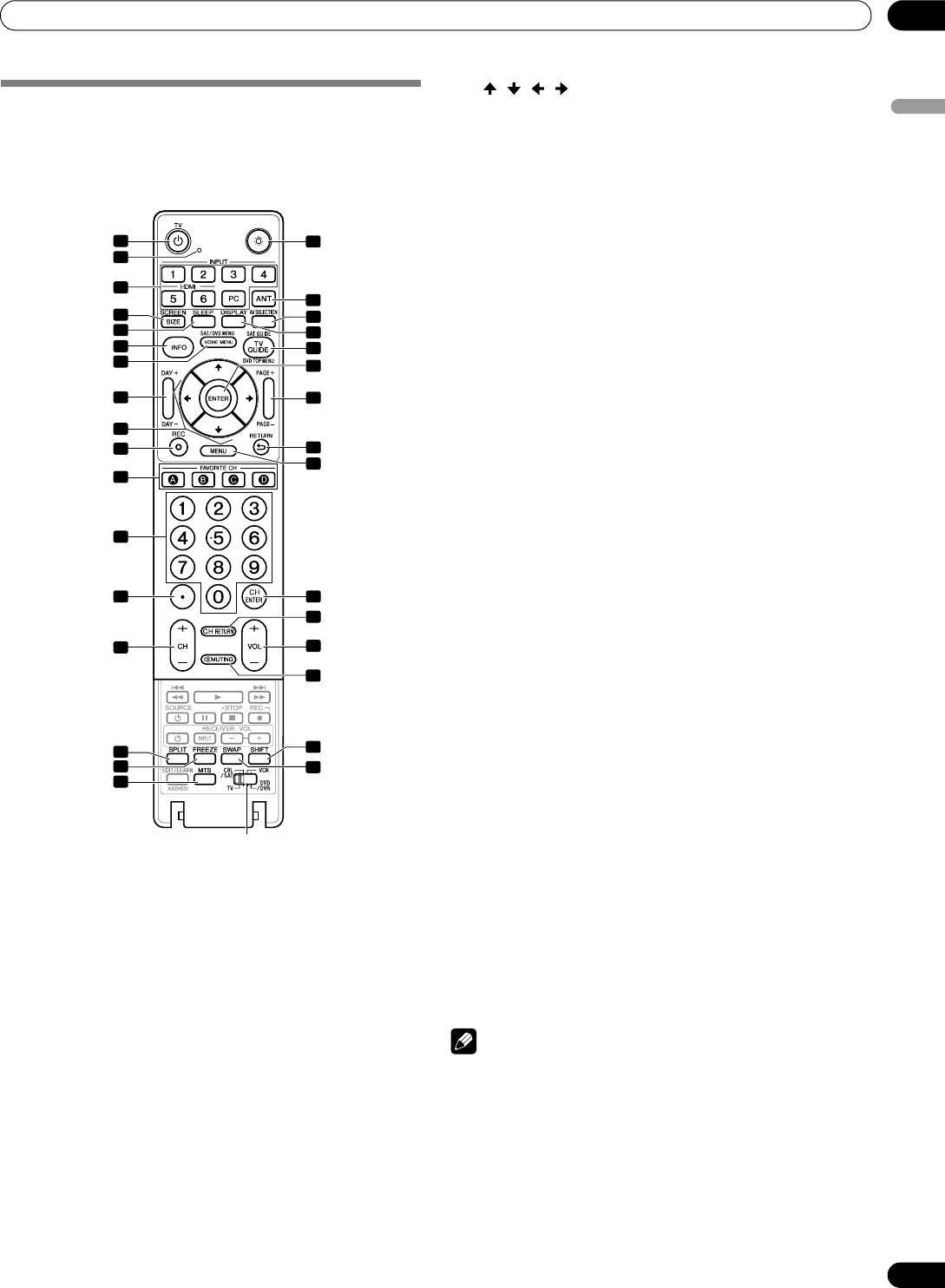

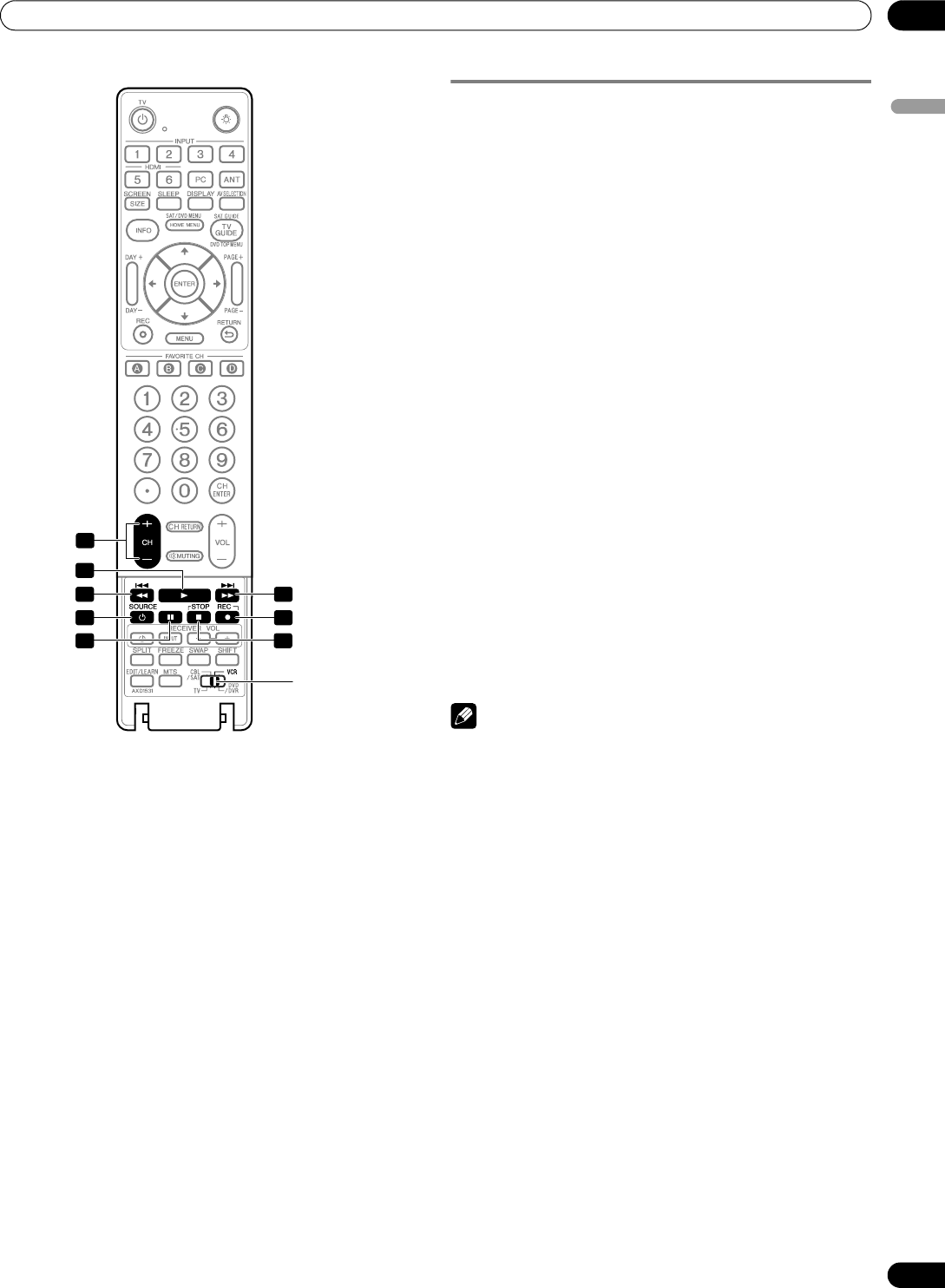

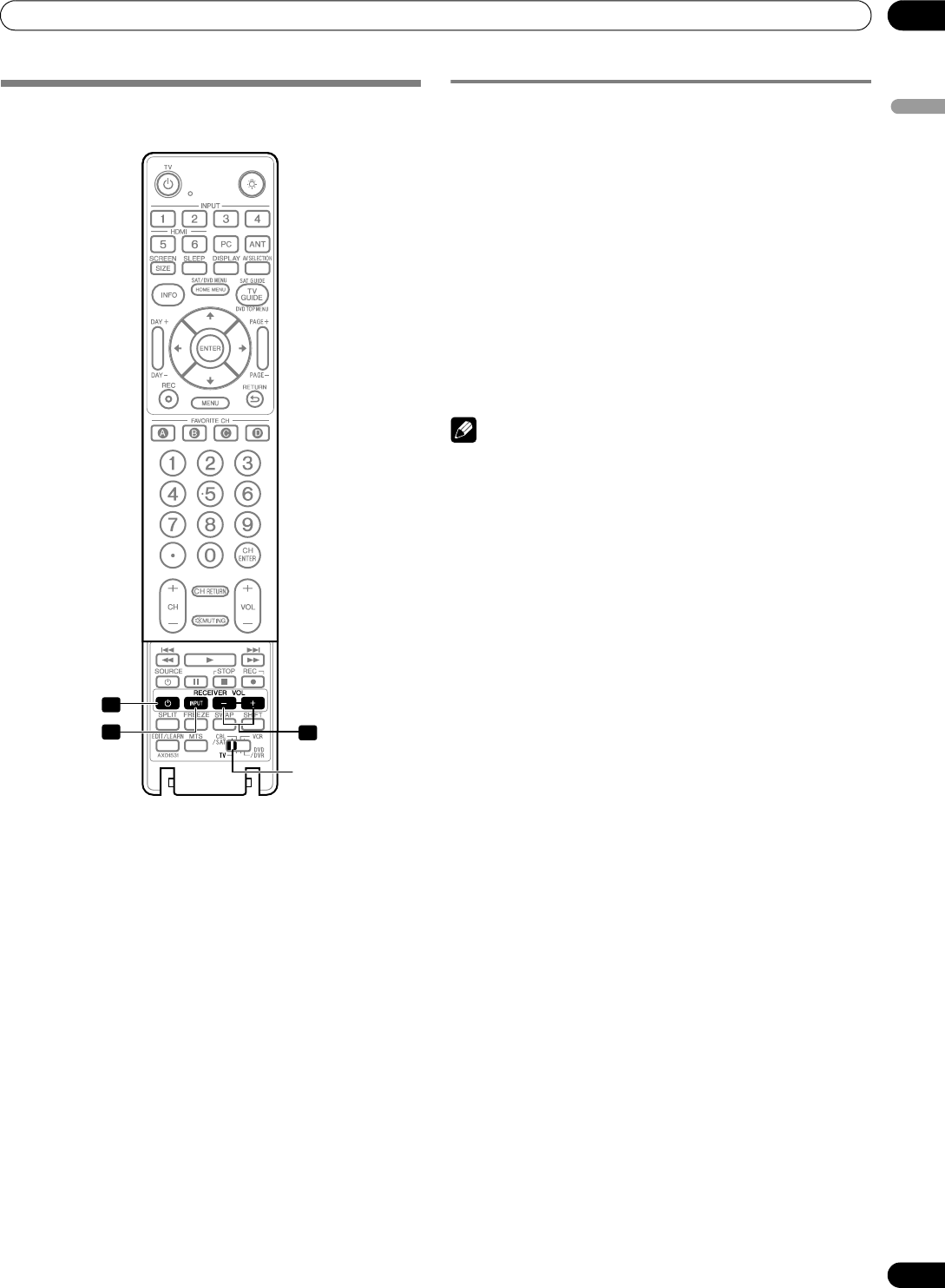

Remote control unit ...................................19
05 Preparation
Installing the Plasma Display ...................20
Moving the Plasma Display .......................20

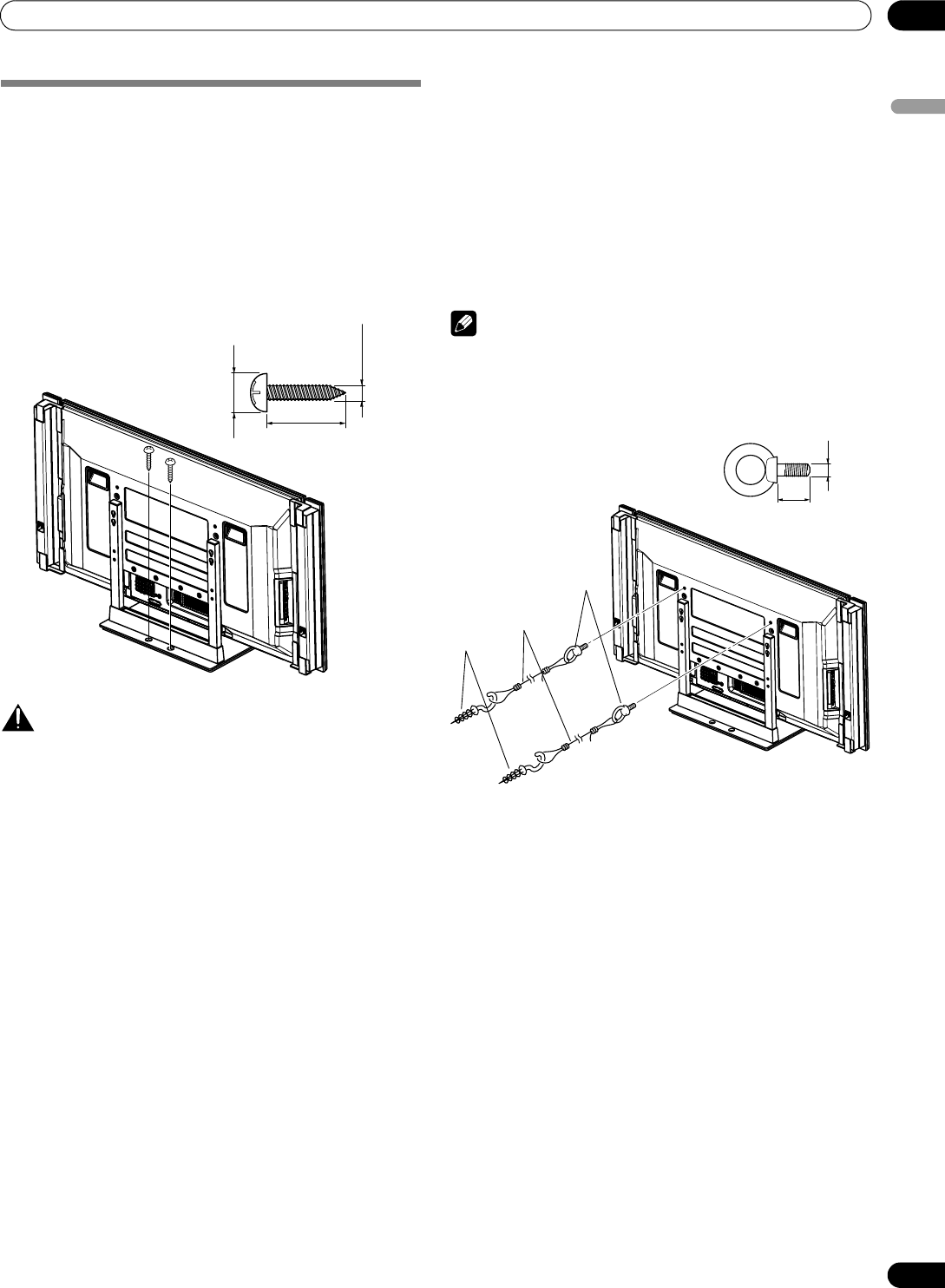

Preventing the Plasma Display from
Falling Over .................................................21

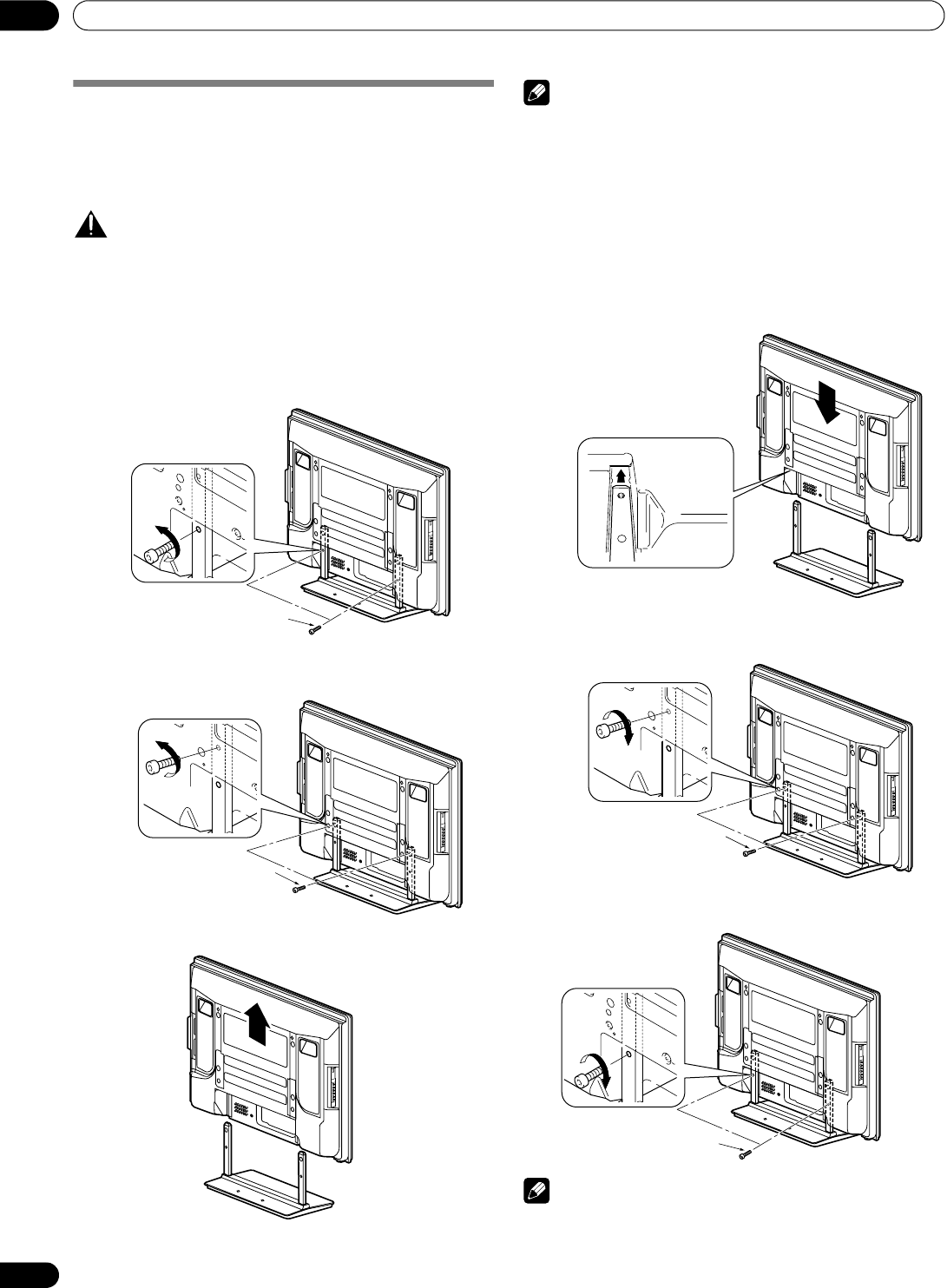

Attaching/detaching the PIONEER stand
(for PRO-940HD only) ................................22
Cable connections for watching digital
and/or conventional TV channels .............23

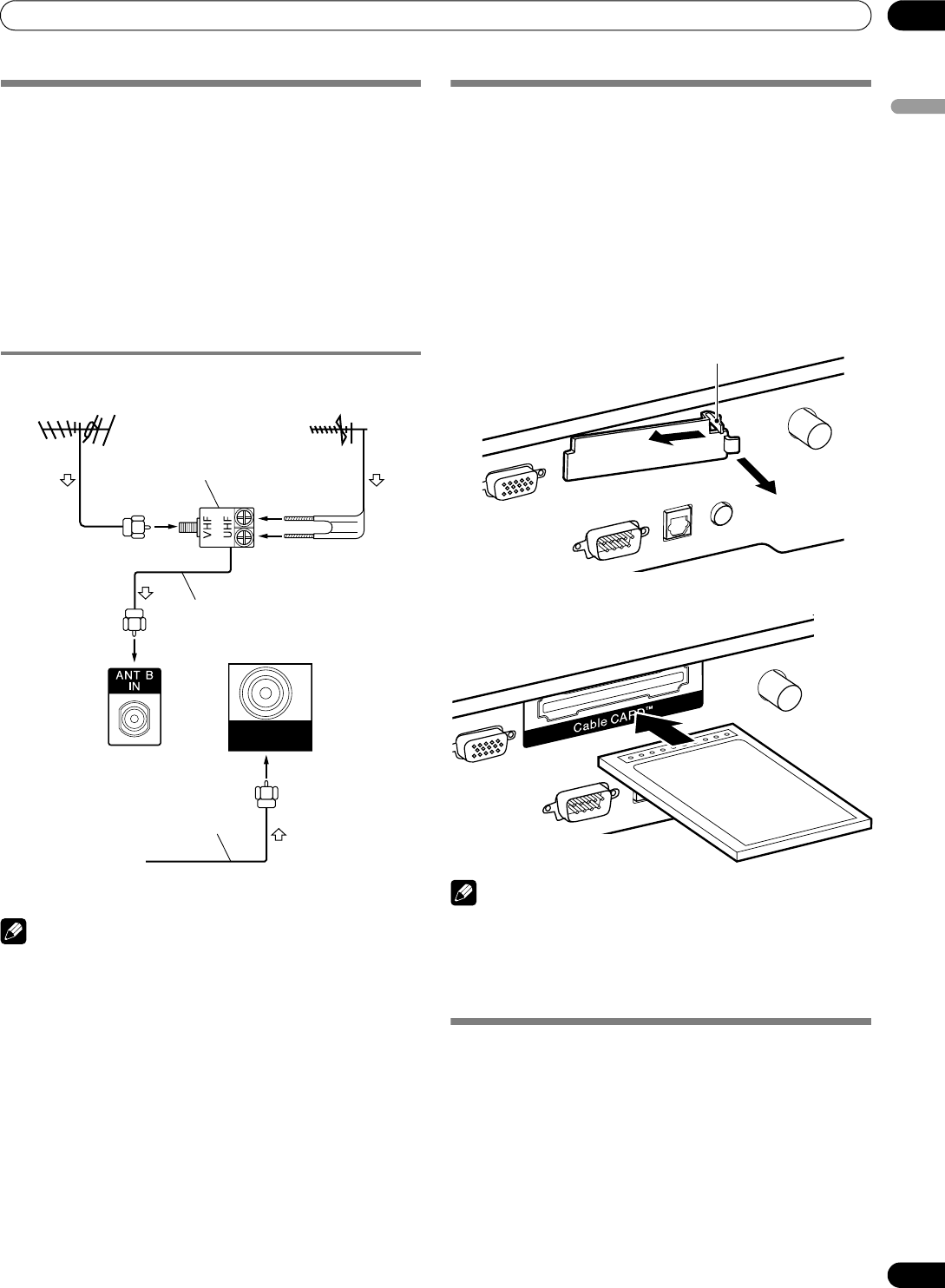

Connecting VHF/UHF antennas and a
Cable .......................................................23
Inserting the CableCARD™ .......................23
Switching between antenna A and B .......23

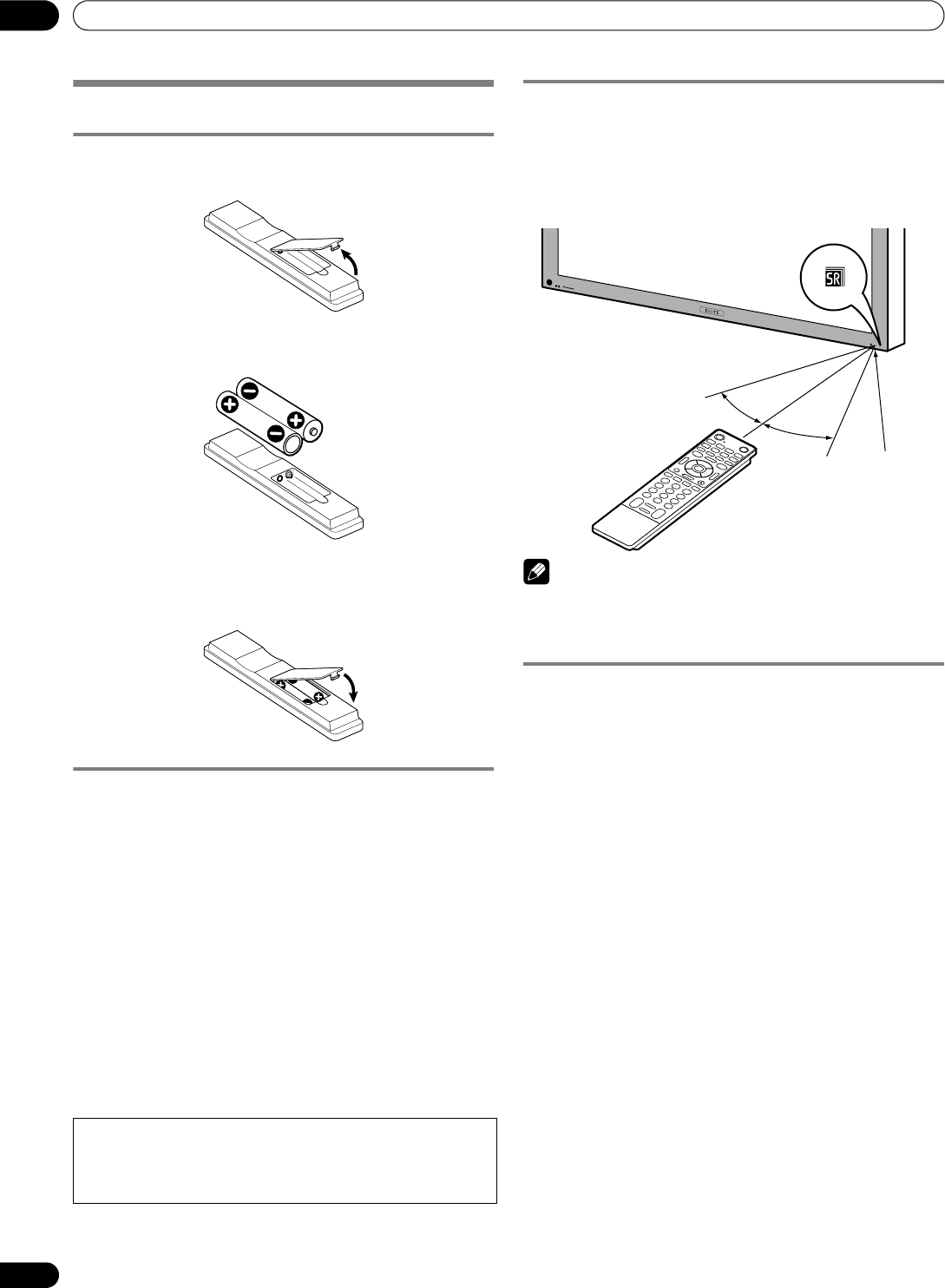

Preparing the remote control unit ............24
Inserting batteries .................................24
Cautions regarding batteries ................24

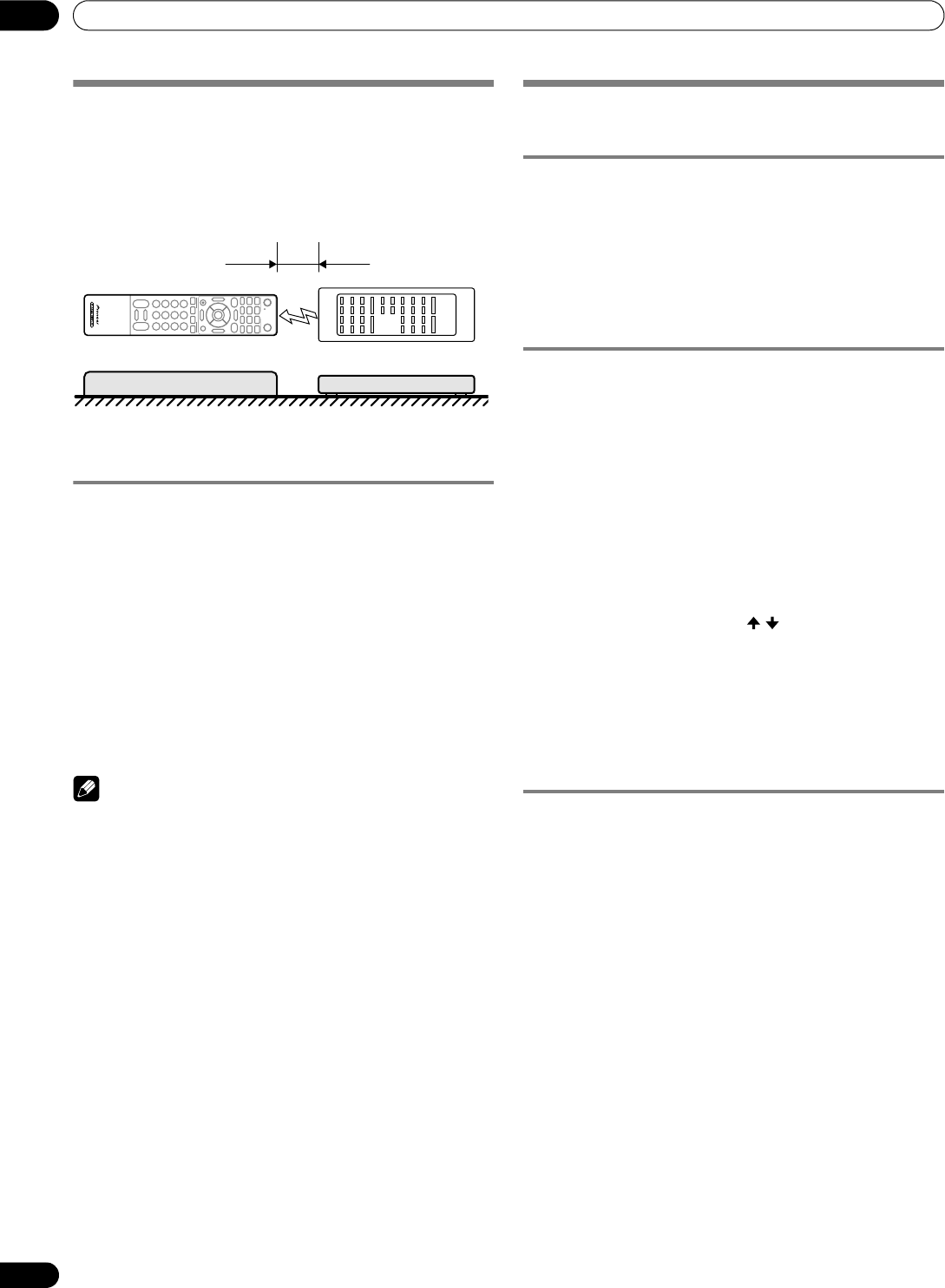

Allowed operation range of the remote
control unit .............................................24
Cautions regarding the remote control
unit ..........................................................24

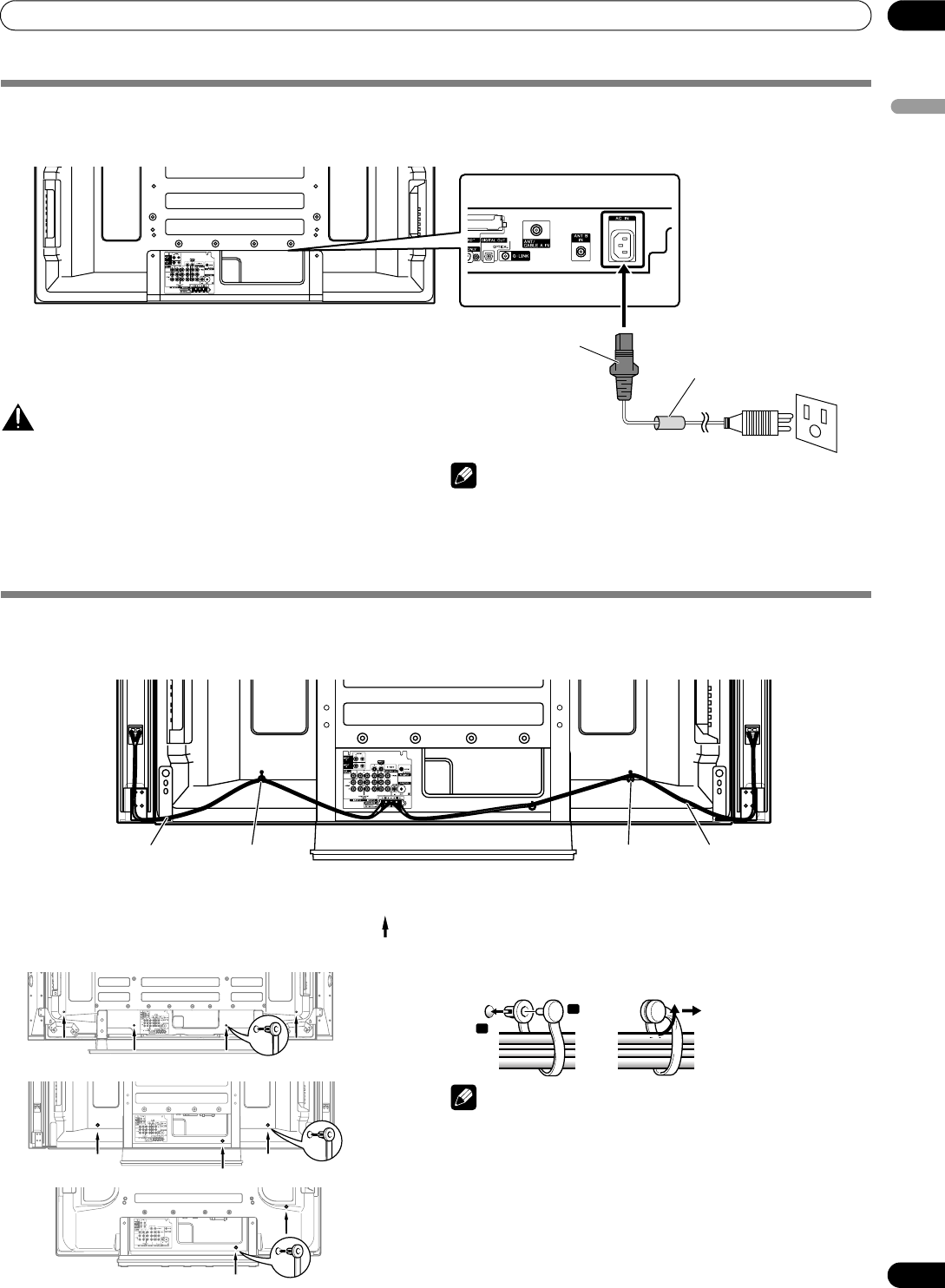

Connecting the power cord .......................25
Routing cables ...........................................25
06 Basic Operations

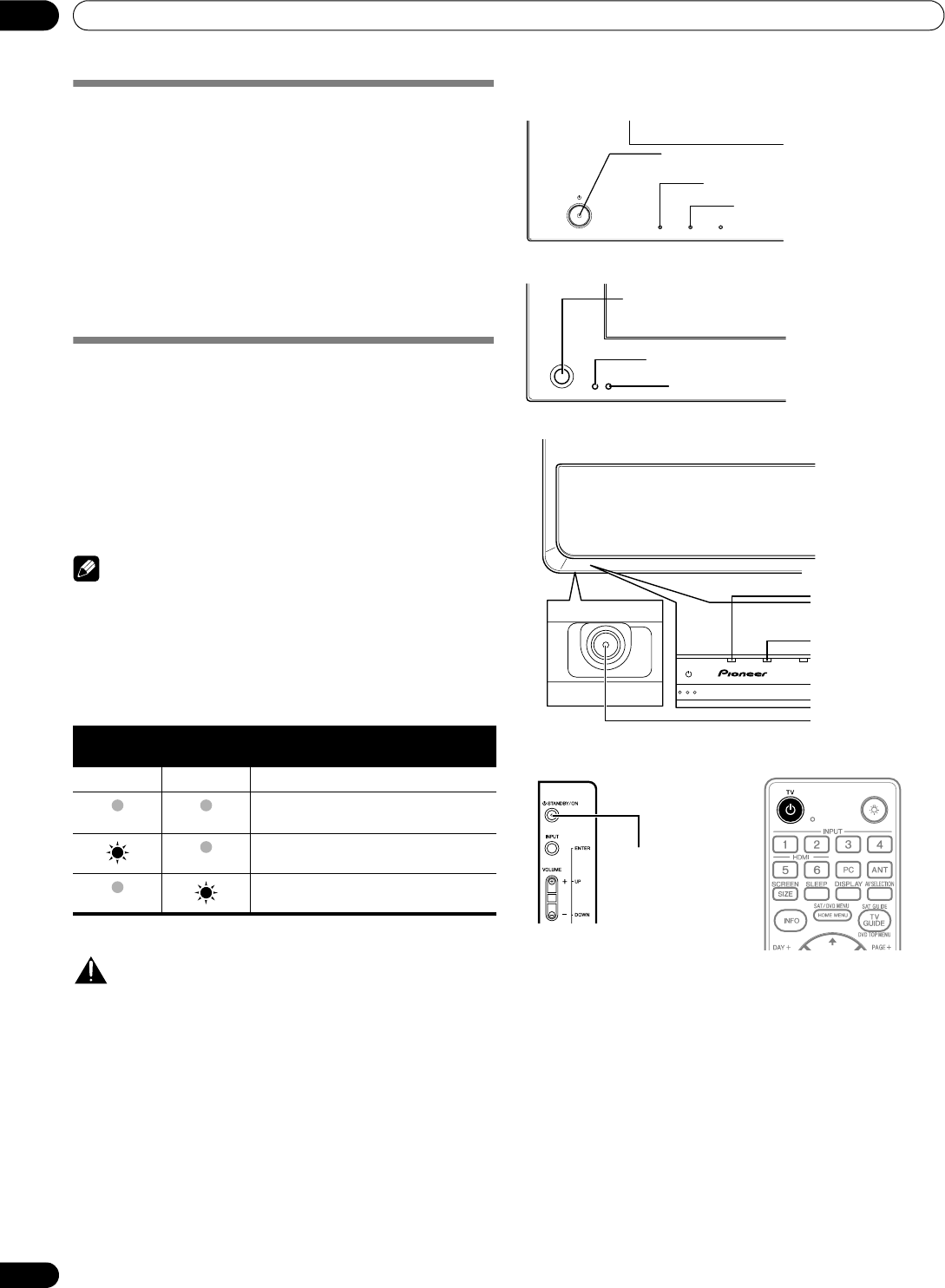

Turning on the power .................................26
Turning off the power .................................26
Watching TV channels ...............................27
Selecting the antenna ...........................27

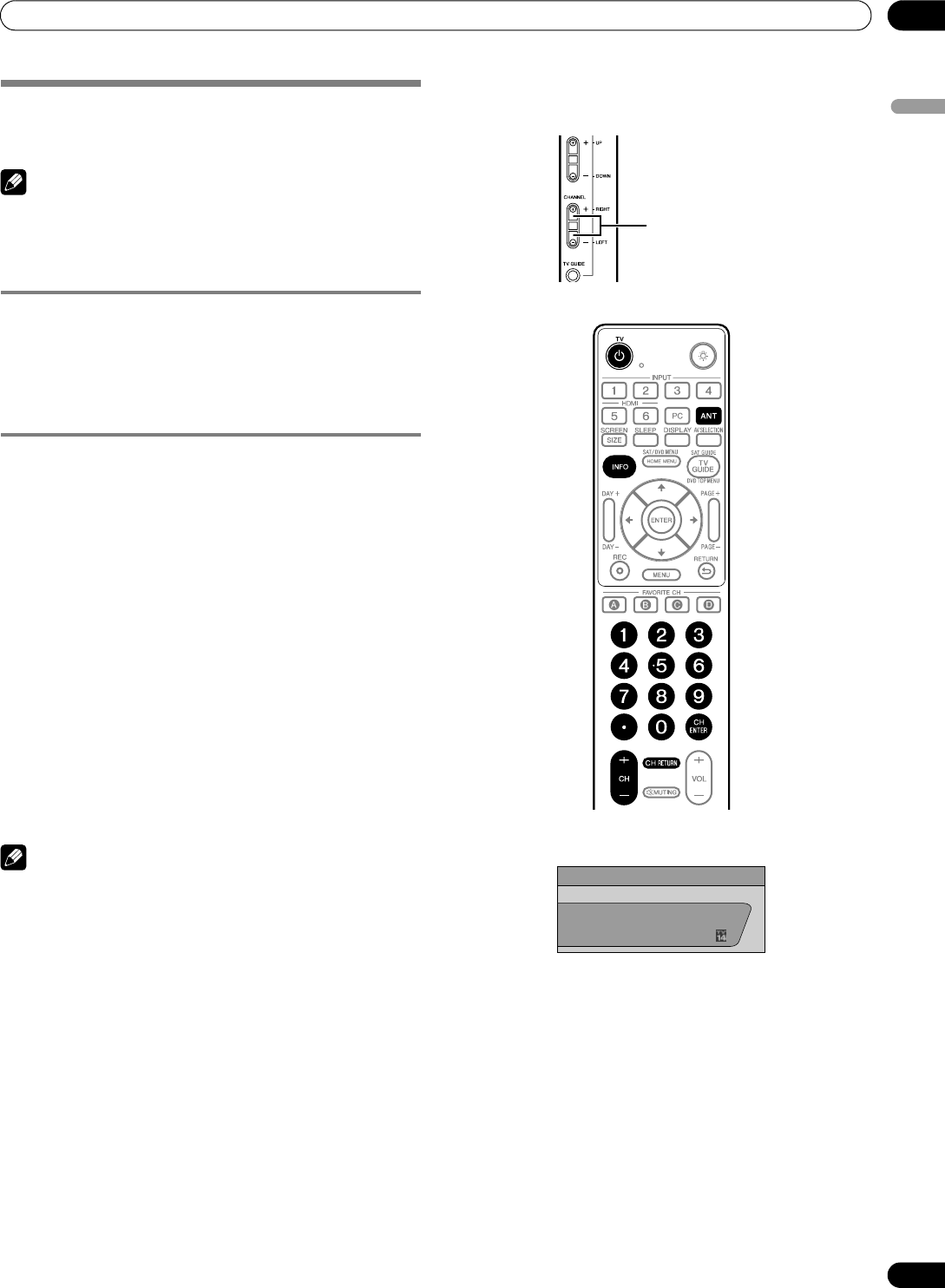

Changing channels ...............................27

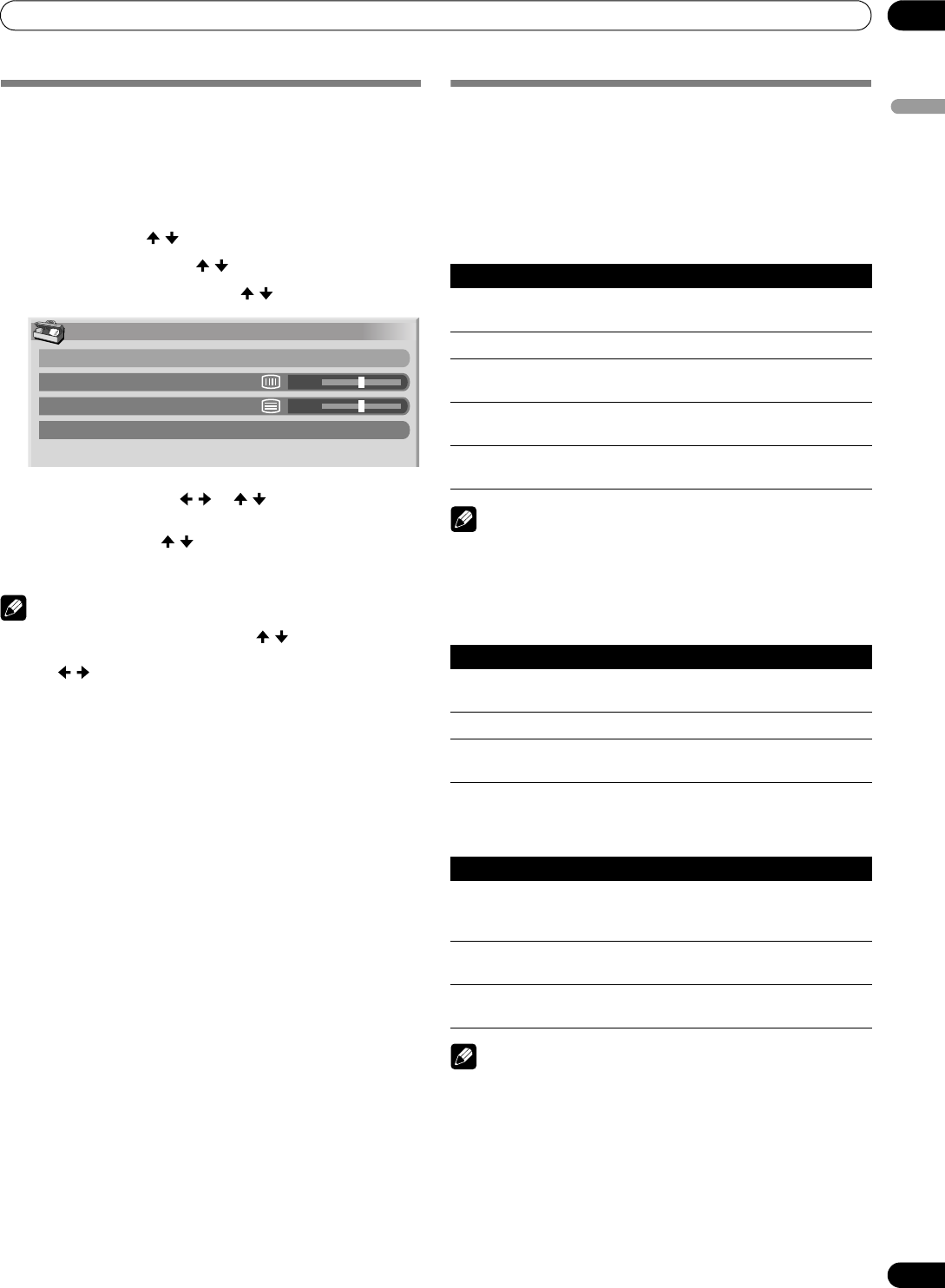

Changing the volume and sound .........28
Changing the language ........................28
Setting MTS/SAP mode ........................29
Viewing a channel banner ....................30
Using the POD service ......................... 30

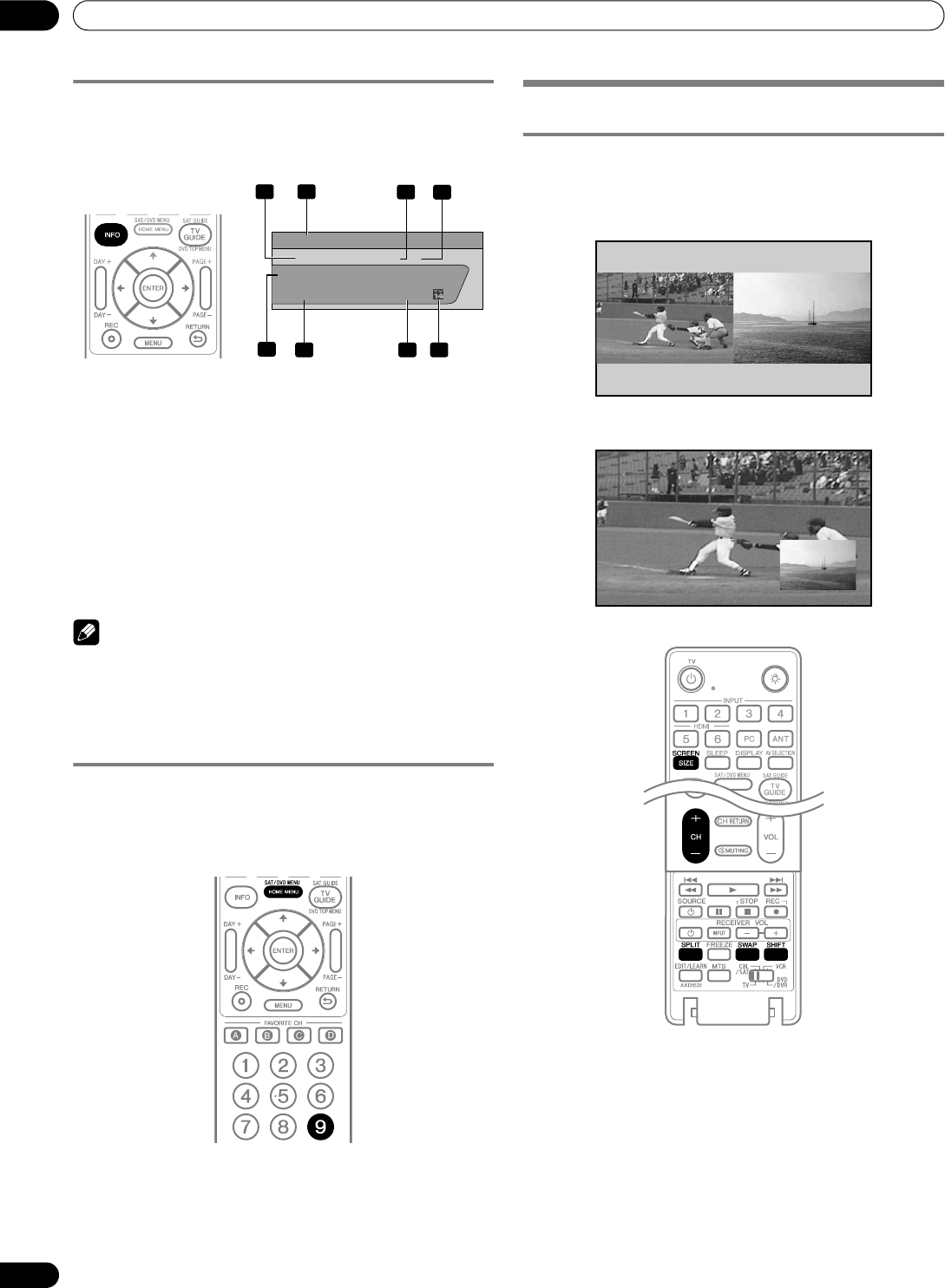

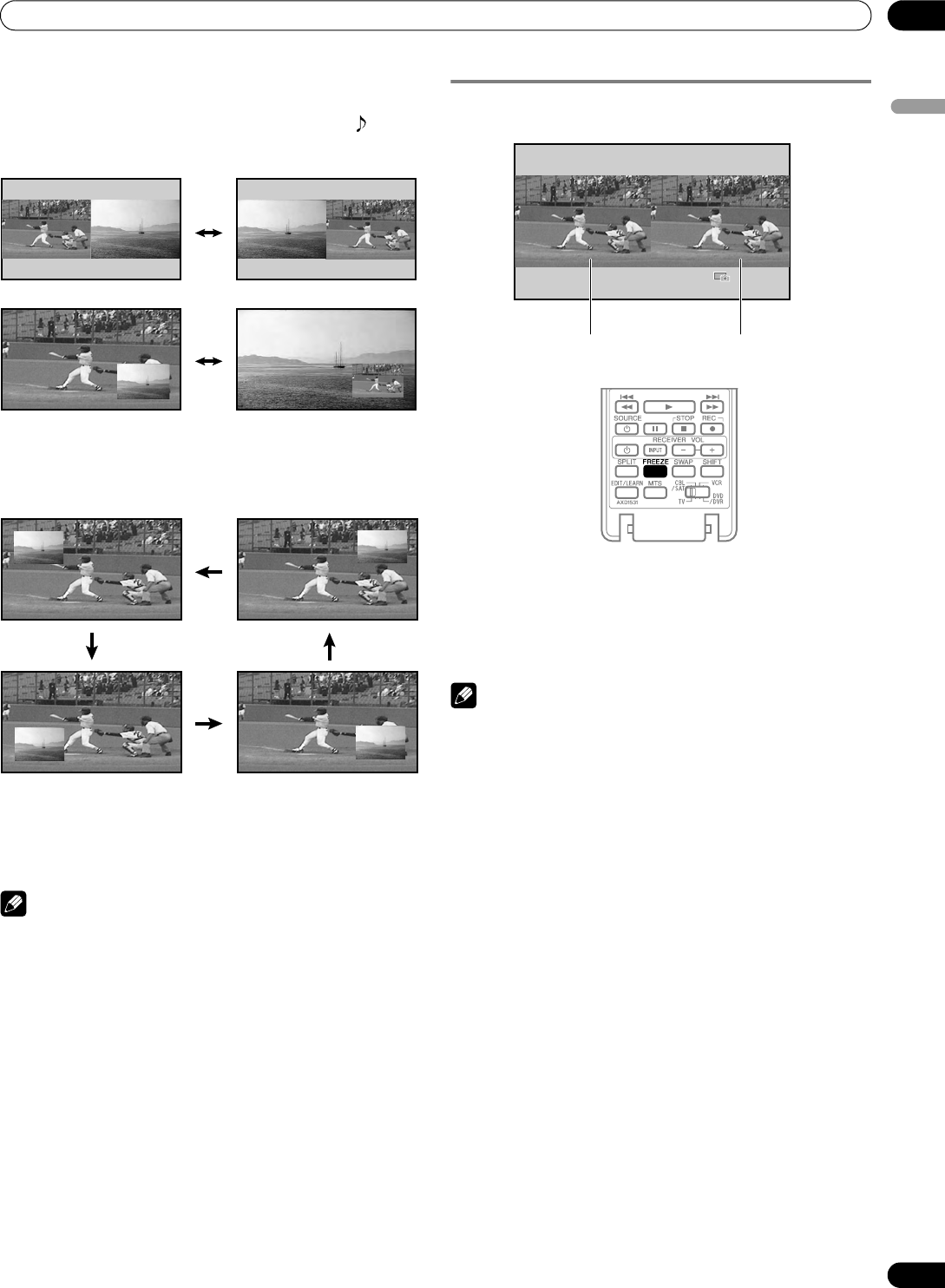

Using the multiscreen functions ............. 30
Splitting the screen .............................. 30
Freezing images .................................... 31

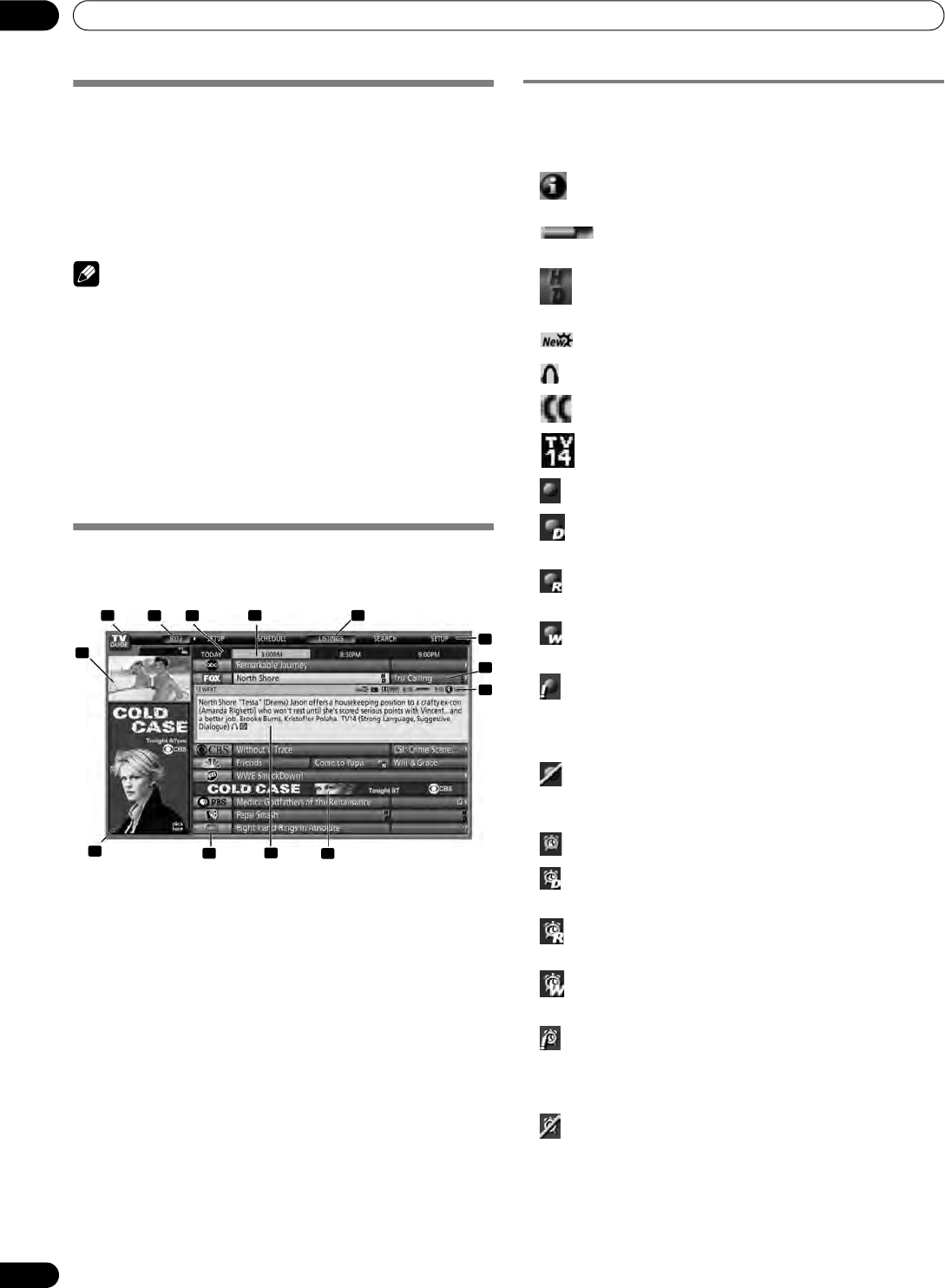

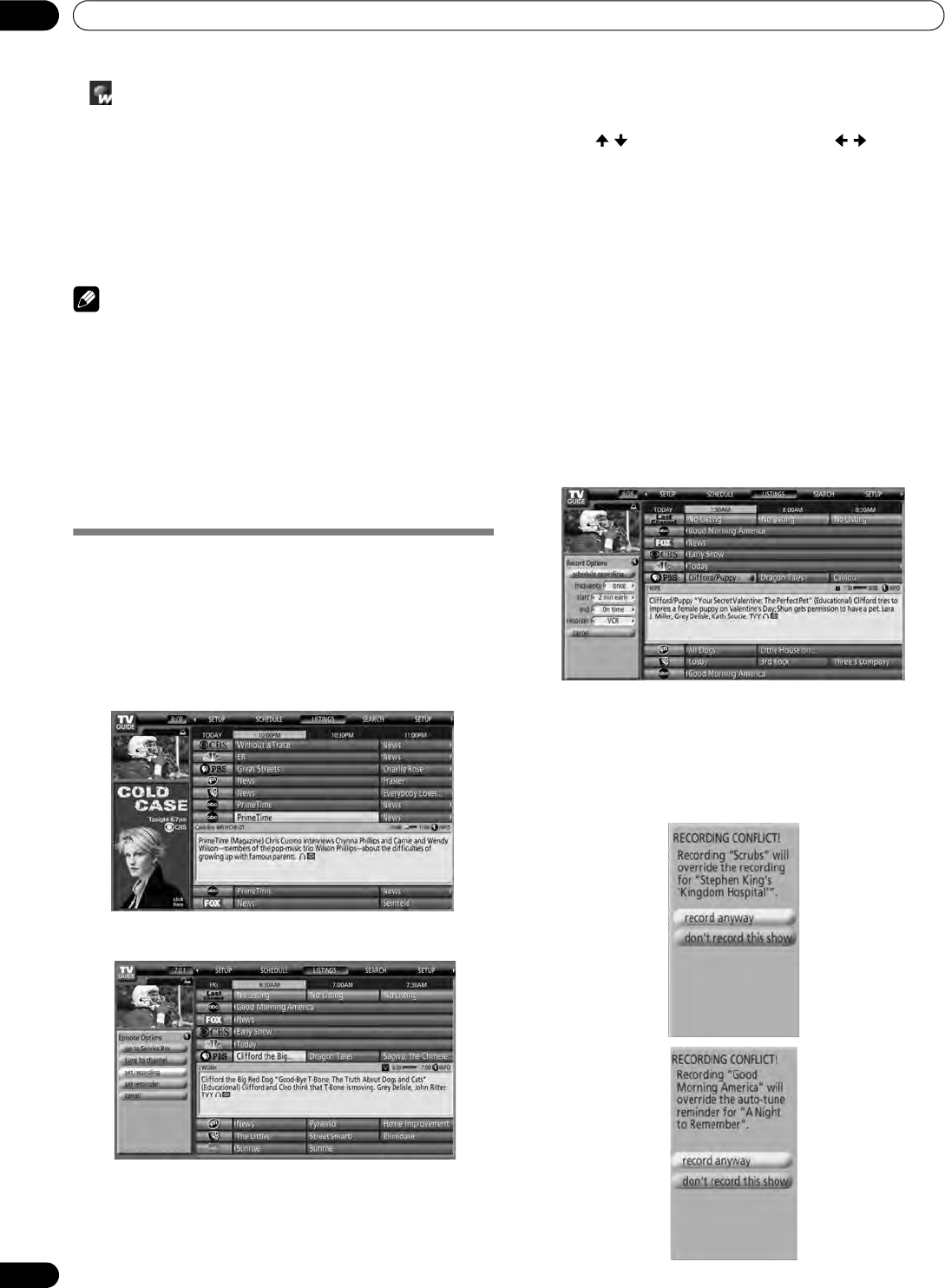

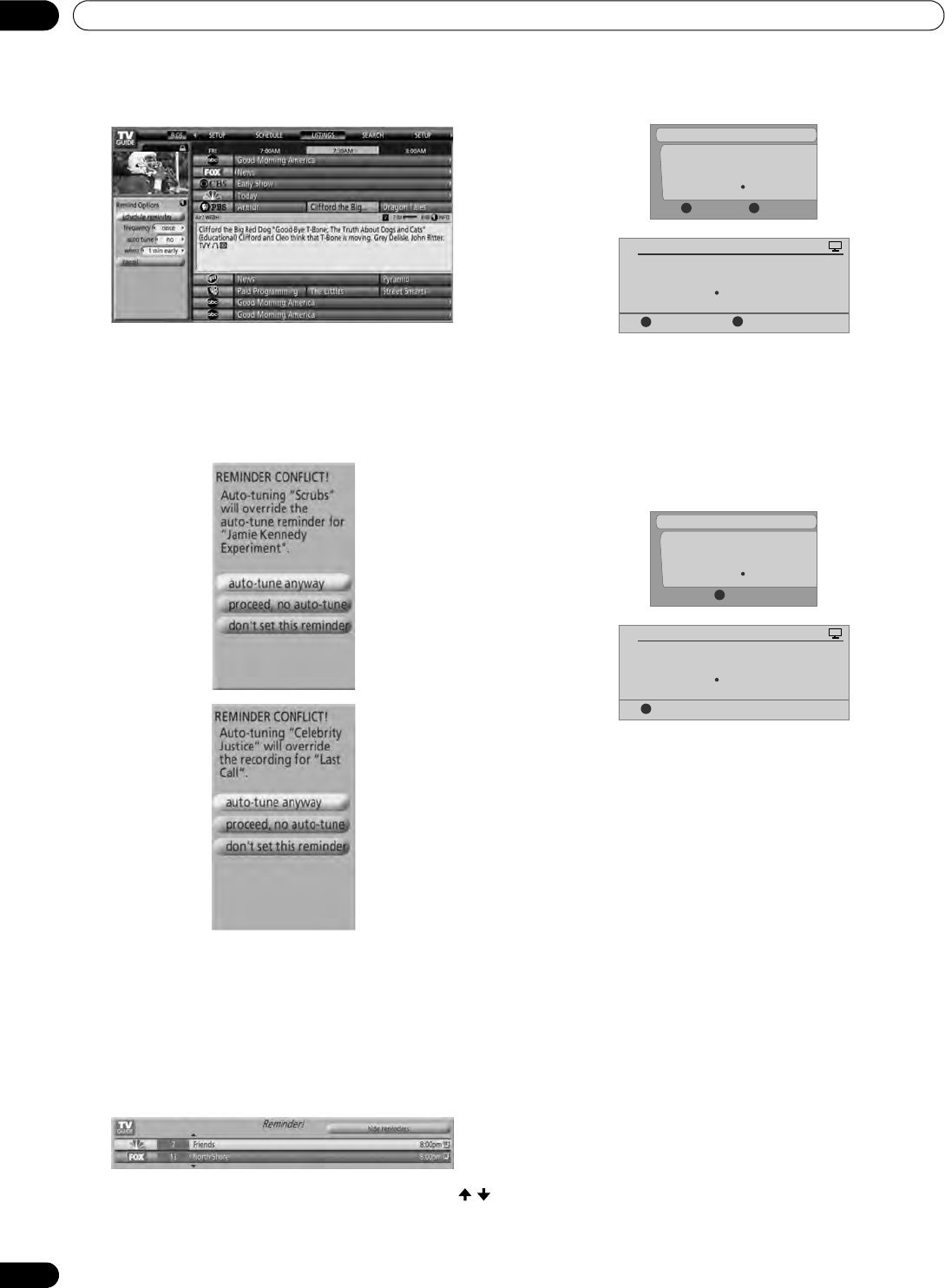

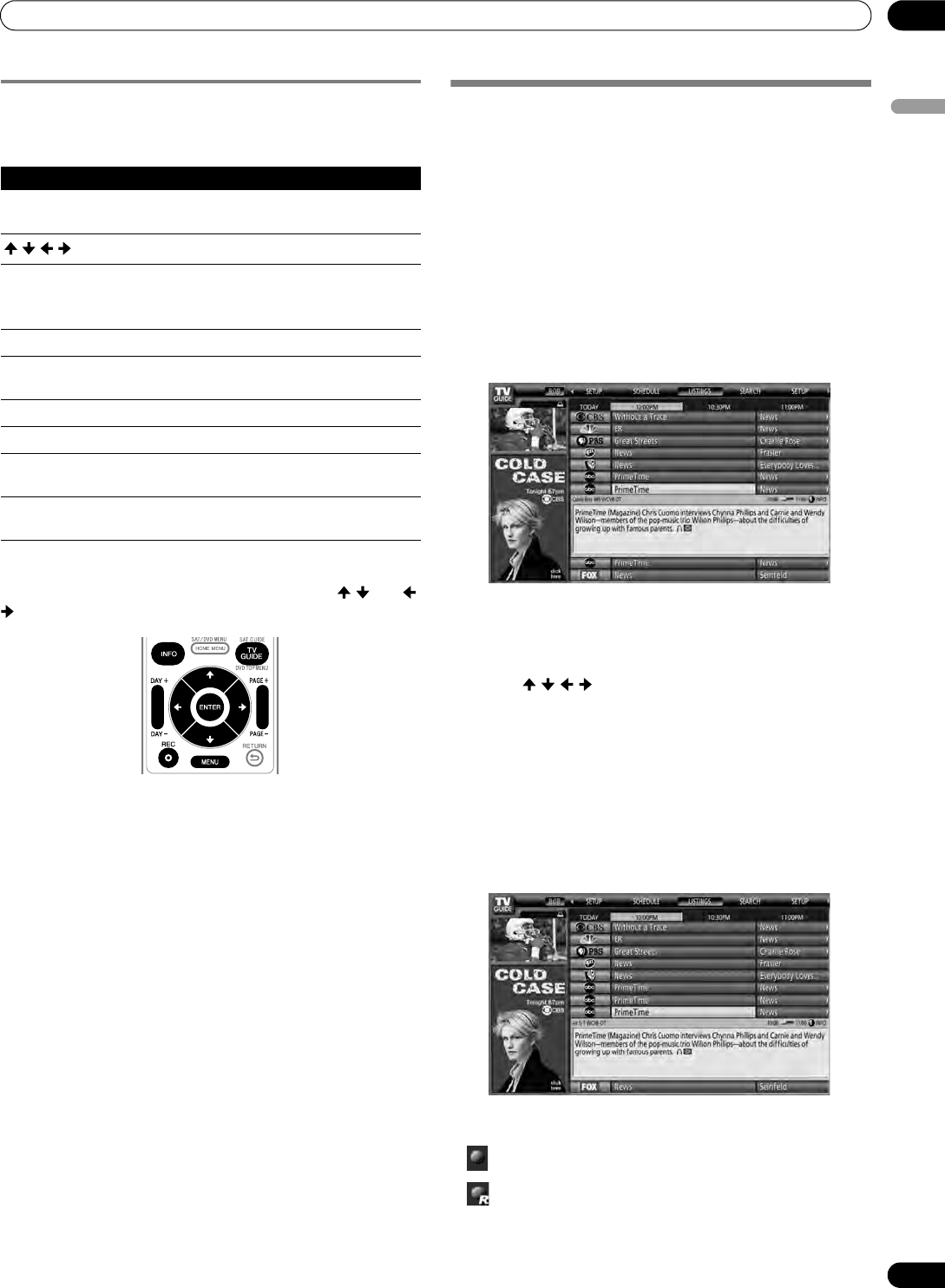

07 TV Guide On Screen™ System Setup

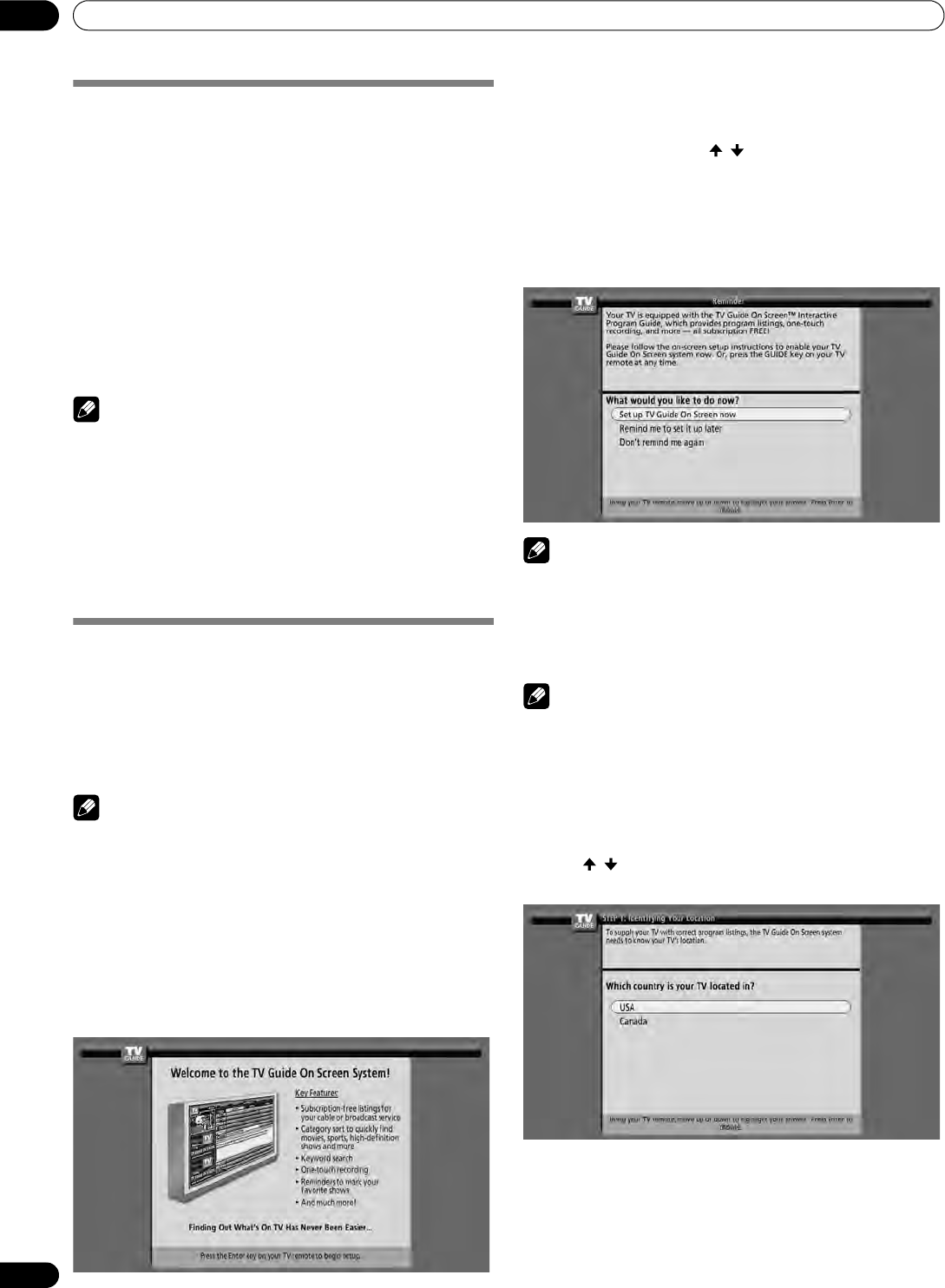

About the TV Guide On Screen™
system ........................................................ 32
Setting up the TV Guide On Screen™
system ........................................................ 32
08 Menu Setup
Menu Configuration .................................. 36
AV mode menus ................................... 36
PC mode menus ................................... 36
Menu operations ................................... 36
09 Tuner Setup
Setting up TV channels ............................. 37
Using Auto Channel Preset ................. 37
Setting for skipping unwanted
channels ................................................ 37
Setting up TV channels manually ....... 37
Checking signal strength ..................... 37
Checking the CableCARD ID ............... 38

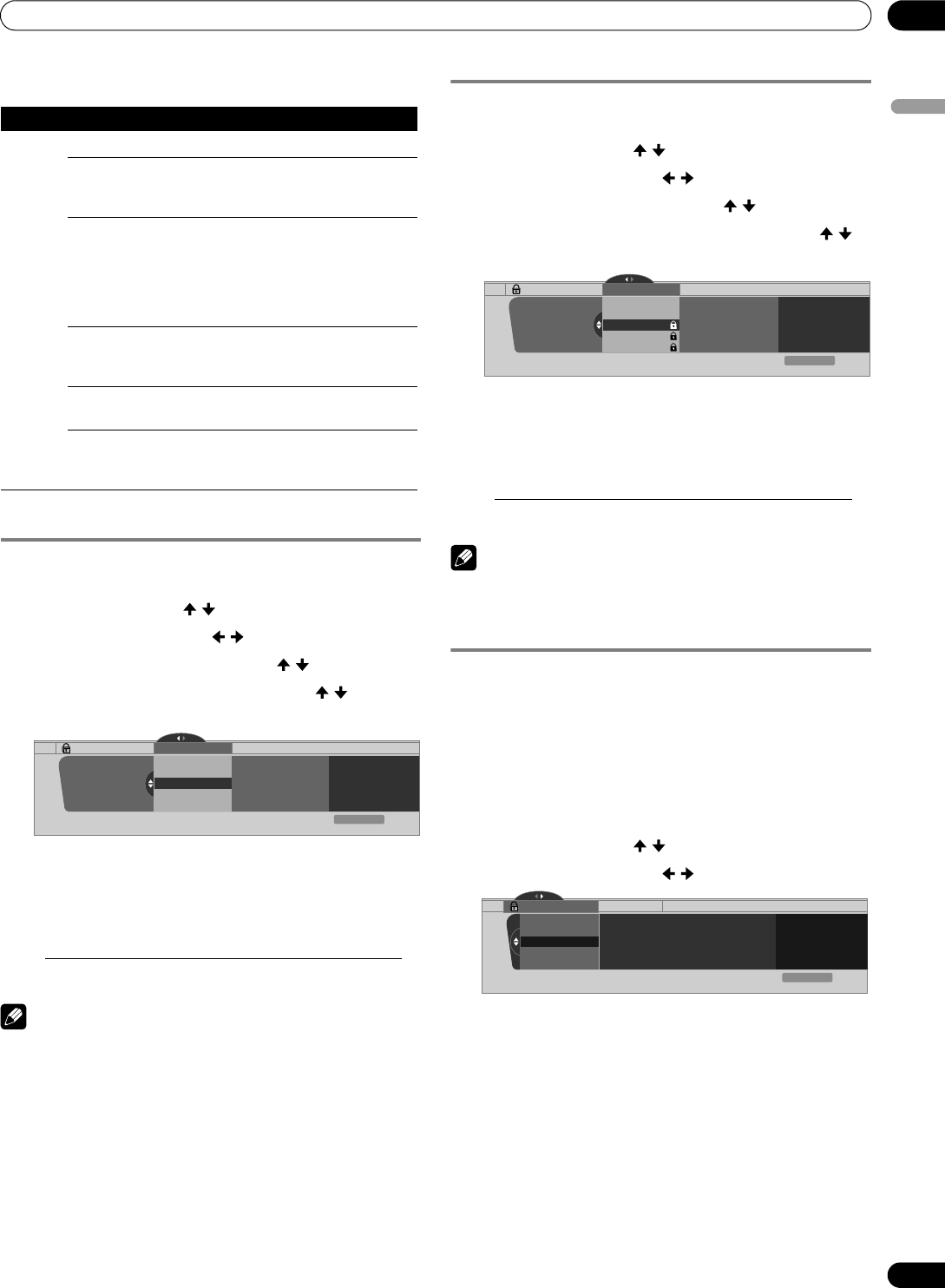

Parental Control ........................................ 38
Changing the password ....................... 38
Clearing the password ......................... 39
Activating the Parental Control ........... 39
Setting the voluntary movie rating
system (MPAA) ..................................... 39
Setting the TV ratings ........................... 39
Setting the TV Parental Guidelines
(TV Guidelines) ...................................... 40
Blocking Not Rated TV programs ........ 40
Canadian rating systems ..................... 40
Setting Canadian English ratings ....... 41
Setting Canadian French ratings ........ 41
Setting new ratings .............................. 41
Deleting new ratings ............................ 42
Temporarily deactivating the Parental
Control ................................................... 42
Setting your favorite channels ................. 43
PDP_PRO1540HD.book Page 4 Wednesday, August 2, 2006 6:01 PM
5
En
Contents
English

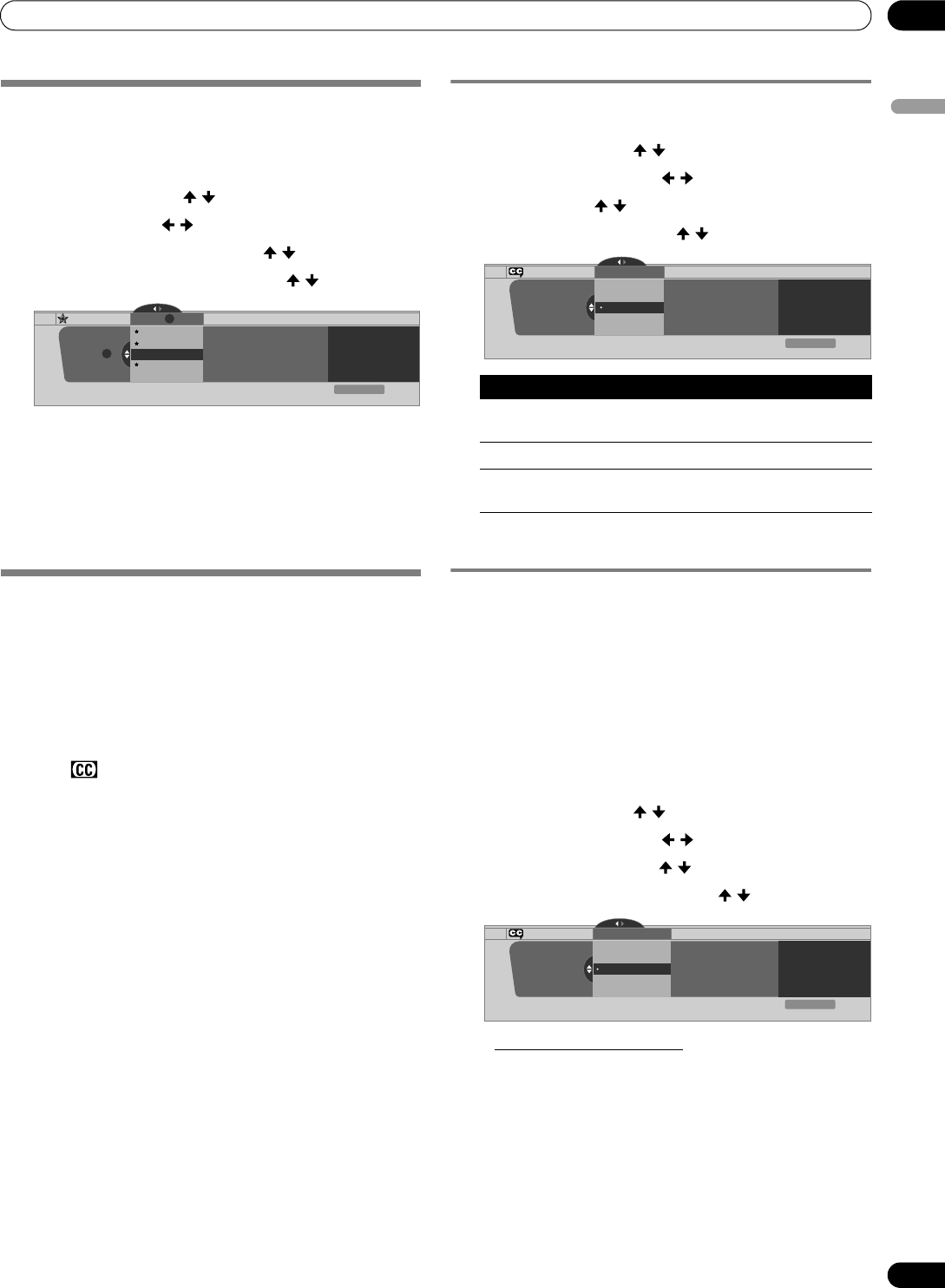

Setting up closed captions ....................... 43
Activating the closed caption .............. 43
Selecting the type of conventional
closed captions ..................................... 43
Selecting digital closed captions ........ 44
Selecting digital closed caption
parameters ............................................ 44
Clock Setting ............................................. 44
10 TV Guide On Screen™ System Operation
Using the TV Guide On Screen™
system ........................................................ 46
Screen components .................................. 46
TV Guide On Screen™ icons ................ 46
TV Guide On Screen™ navigation ....... 47
The Listings screen ................................... 47
Recording programs ................................. 48
Setting program reminders ...................... 49
Searching for programs ........................... 51
Searching by category .......................... 51

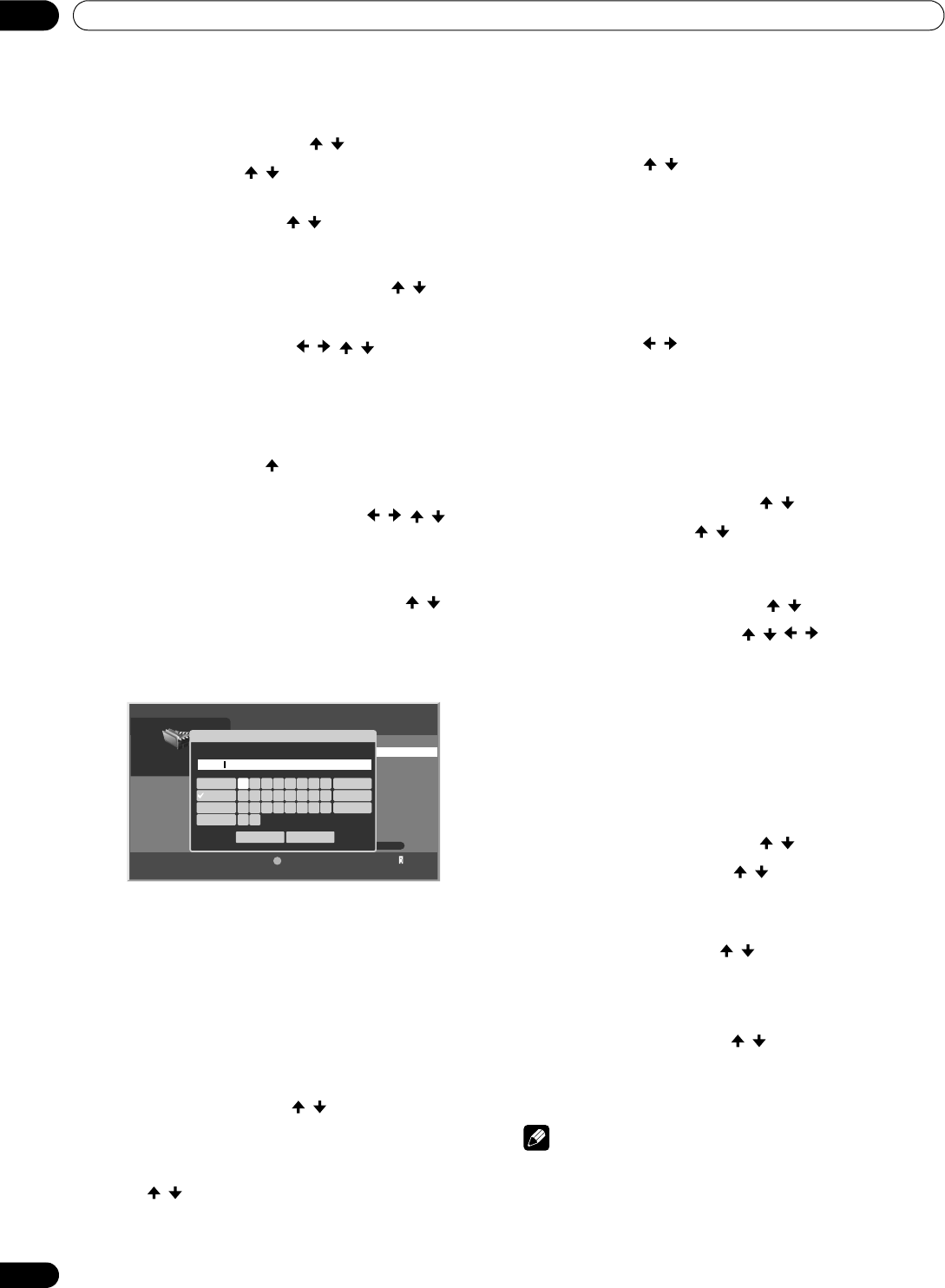

Searching by keyword .......................... 52
Alphabetical search ............................. 53
The search Episode Options menu ..... 53
Scheduling recordings and reminders ... 54
The Schedule Options menu ............... 54

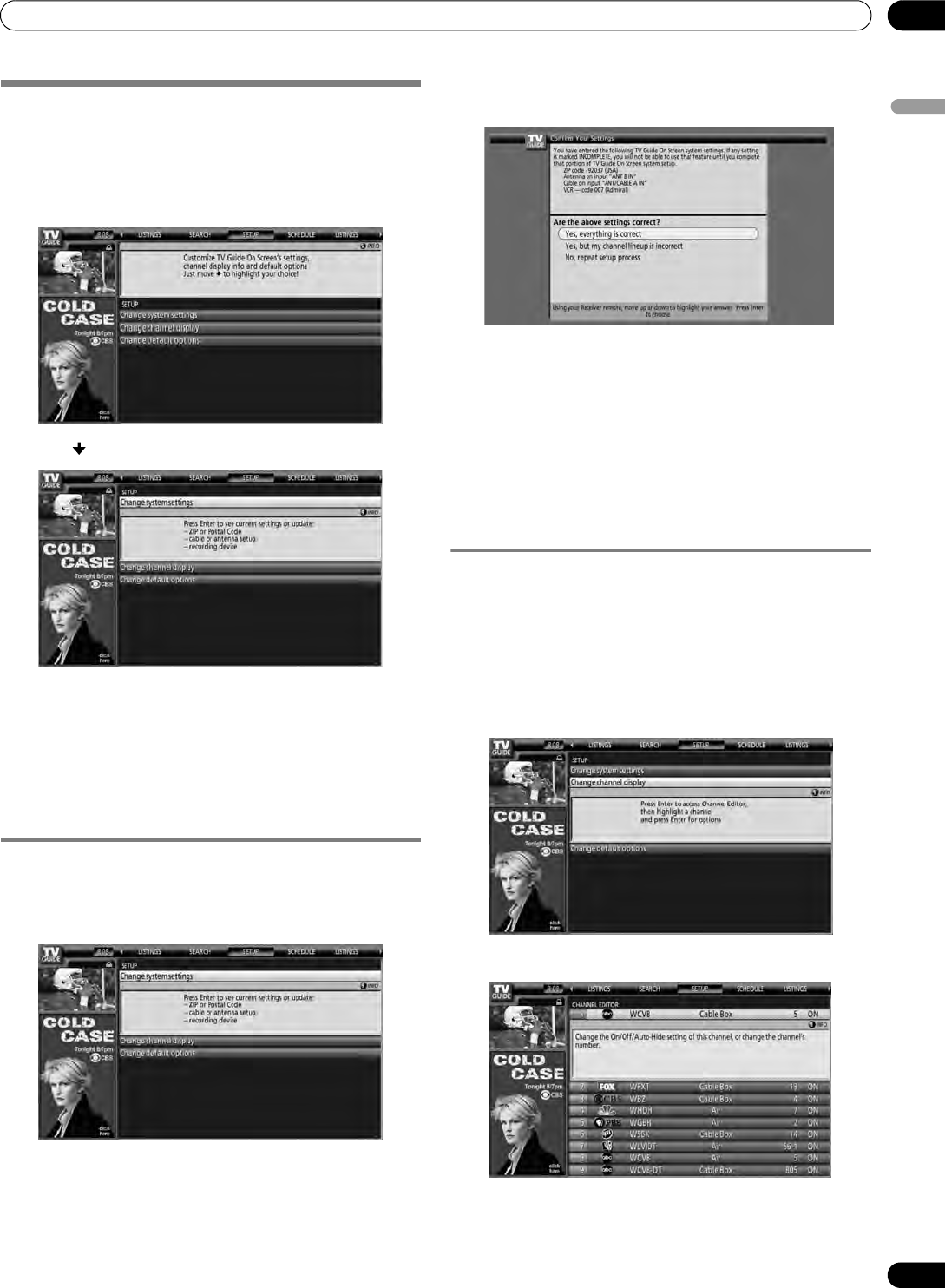

Changing setup options ........................... 55
Changing the System Settings ............ 55
Changing the Channel Display
settings .................................................. 55
Changing the Default Options ............. 56
11 Adjustments and Settings
Sleep Timer ................................................ 57

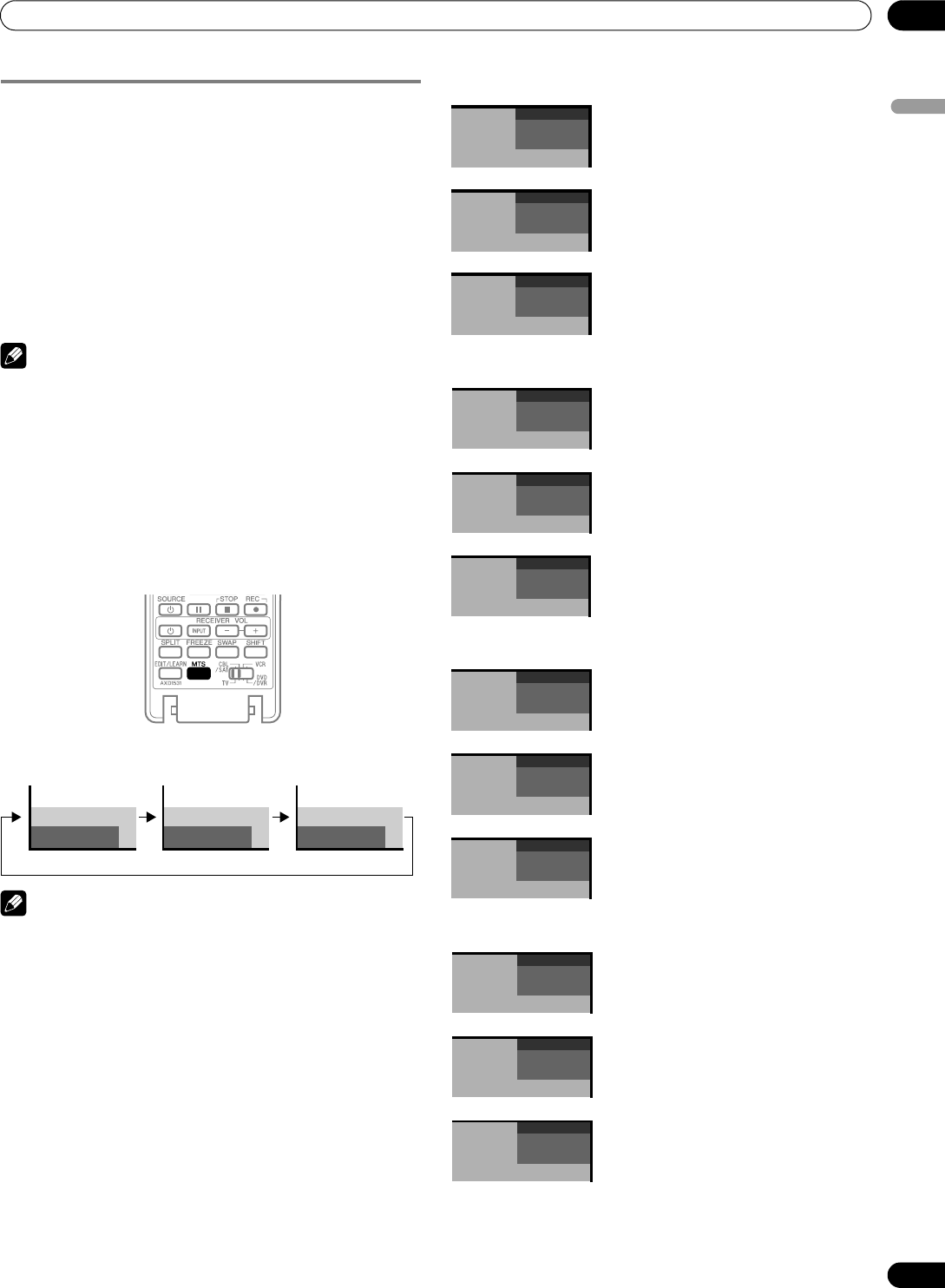

AV Selection .............................................. 57
Basic picture adjustments ....................... 58
Advanced picture adjustments ................ 59
Using PureCinema ............................... 59
Using Color Temp ................................. 59
Using CTI ............................................... 60
Using Color Management .................... 60
Using Color Space ................................ 60
Using Intelligent Color ......................... 60
Eliminating noise from images ........... 61
Using the Dynamic Range Expander
(DRE) functions .................................... 61
Using the 3DYC and I-P Mode ............. 62
Sound adjustments ................................... 62
FOCUS ................................................... 63
Front Surround ..................................... 63
Power Control ............................................ 63
Energy Save ........................................... 63
No Signal off (AV mode only) ............... 63
No Operation off (AV mode only) ......... 64
Power Management
(PC mode only) ...................................... 64
Image position adjustment
(AV mode only) .......................................... 64
Automatic image position and clock
(Hertz) adjustments (PC mode only) ....... 64
Manual image position and clock
adjustments (PC mode only) .................... 65
Selecting a screen size manually ............. 65
Selecting a screen size automatically ..... 66
Selecting a screen size for 4:3 aspect
ratio signals ........................................... 66
Changing the brightness on both sides of
the screen (Side Mask) ............................. 67
Language setting ....................................... 67
12 Using External Equipment
About External Equipment ....................... 68
Watching a DVD image ............................ 68
Connecting a DVD player ..................... 68
Displaying a DVD image ...................... 68
Watching a VCR image ............................. 68
Connecting a VCR ................................. 68
Displaying a VCR image ....................... 68
Using HDMI Input ..................................... 69
Connecting HDMI equipment ............. 69

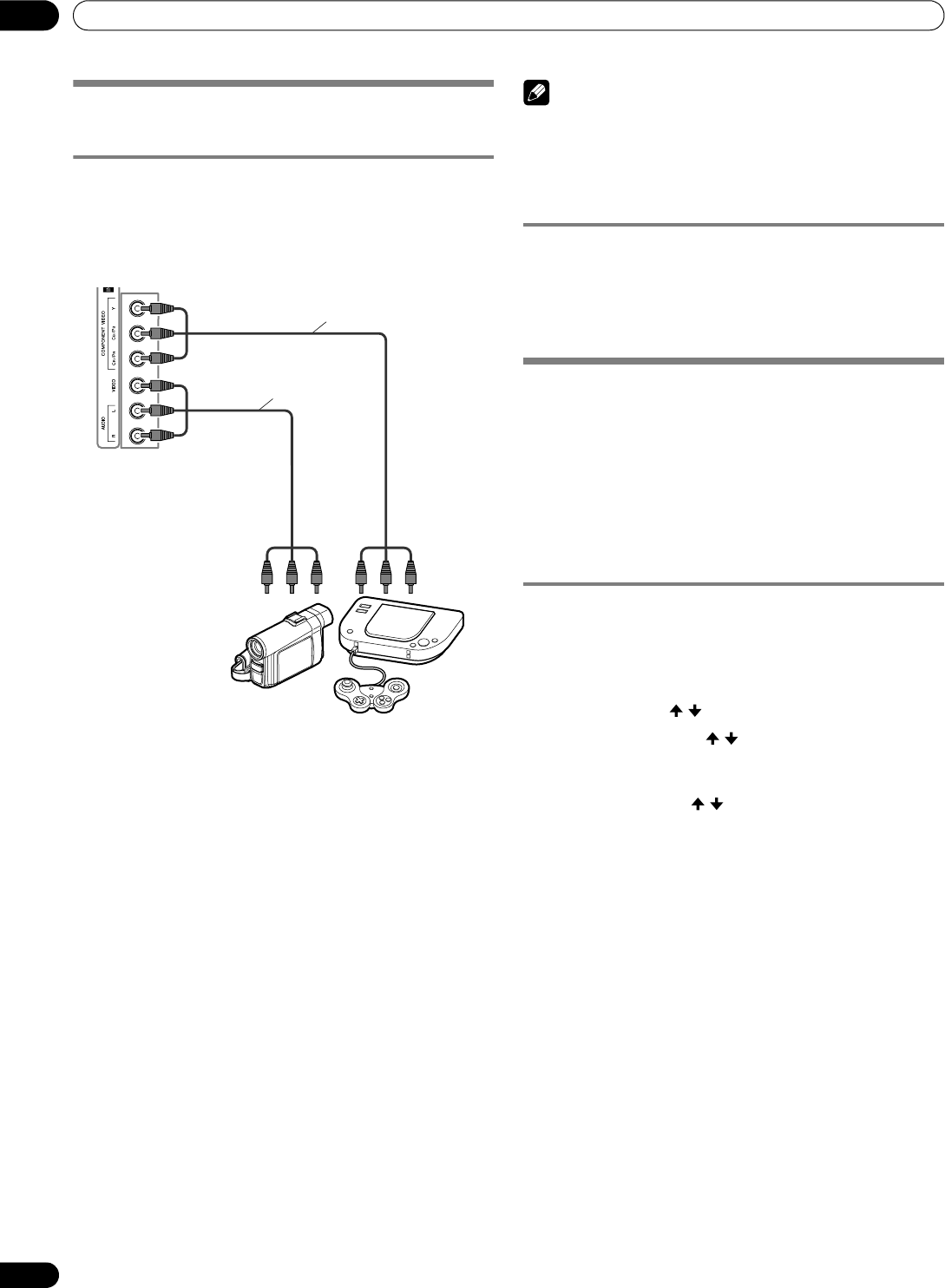

Using a game console or watching
camcorder images .................................... 70
Connecting a game console or
camcorder ............................................. 70
Displaying an image of the game
console or camcorder .......................... 70
Recording digital TV programs using
a VCR .......................................................... 70
Avoiding unwanted feedback .............. 70
Connecting a recorder ......................... 71
Connecting other audio equipment ......... 71
Connecting an AV receiver .................. 71
Watching an image from a computer ..... 72
Connecting a personal computer ........ 72
Displaying an image from a PC ........... 72
Computer compatibility chart .................. 73
G-LINK™ connection ................................. 73

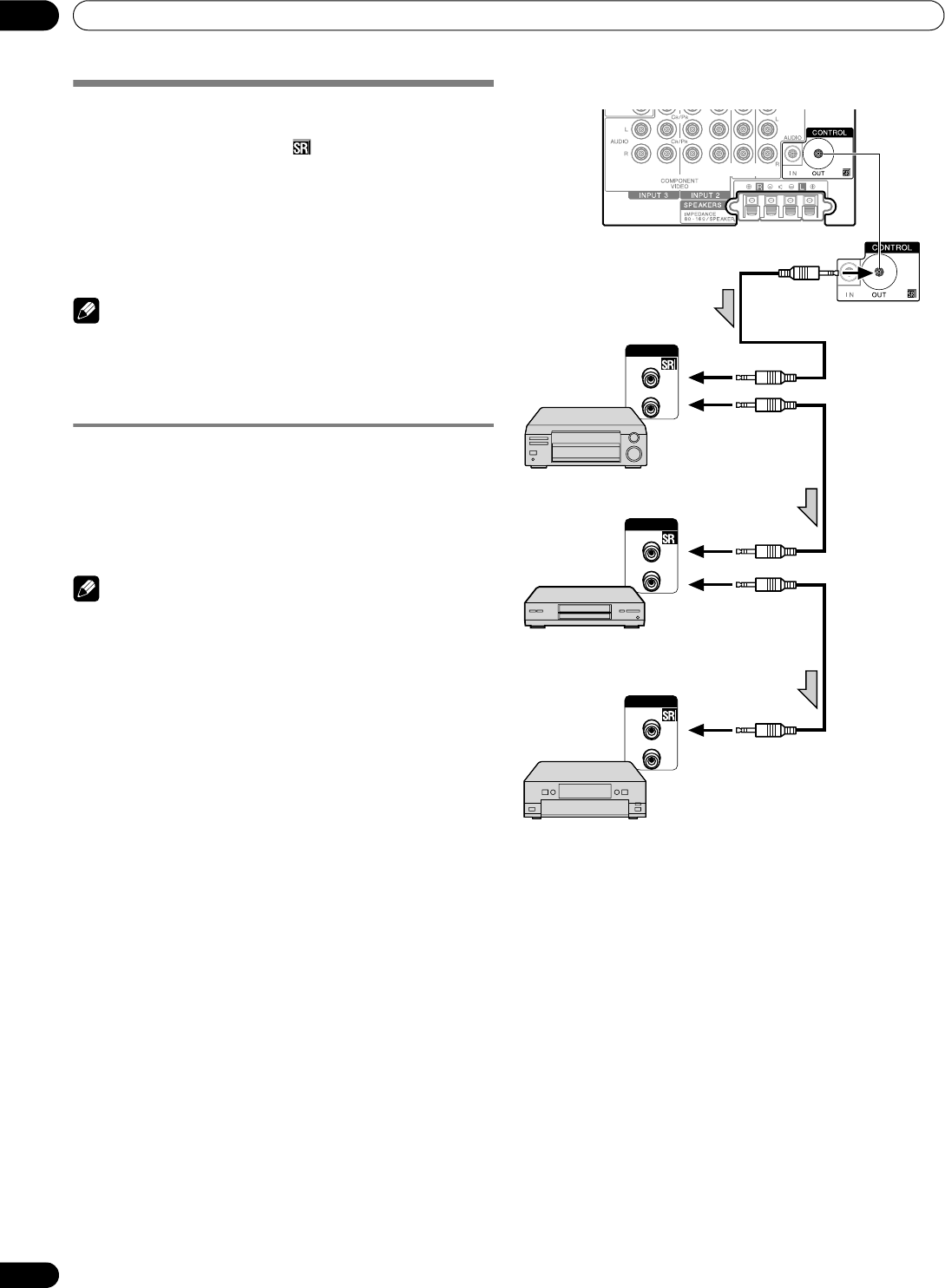

Connecting control cables ....................... 74
About SR+ ............................................ 74
PDP_PRO1540HD.book Page 5 Wednesday, August 2, 2006 6:01 PM
6
En
Contents

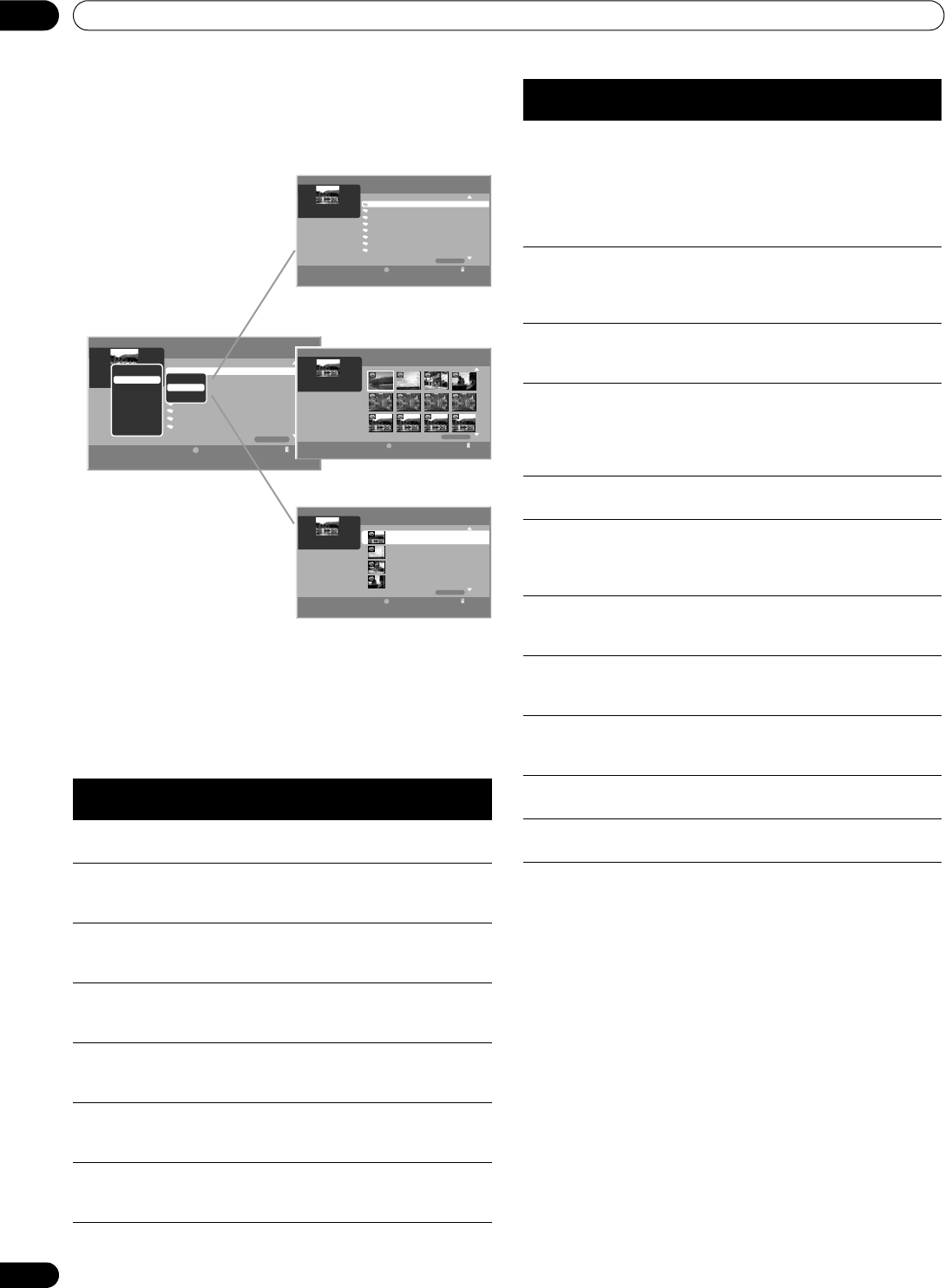

Enjoying the Home Media Gallery ............75
Making network connections ...............76

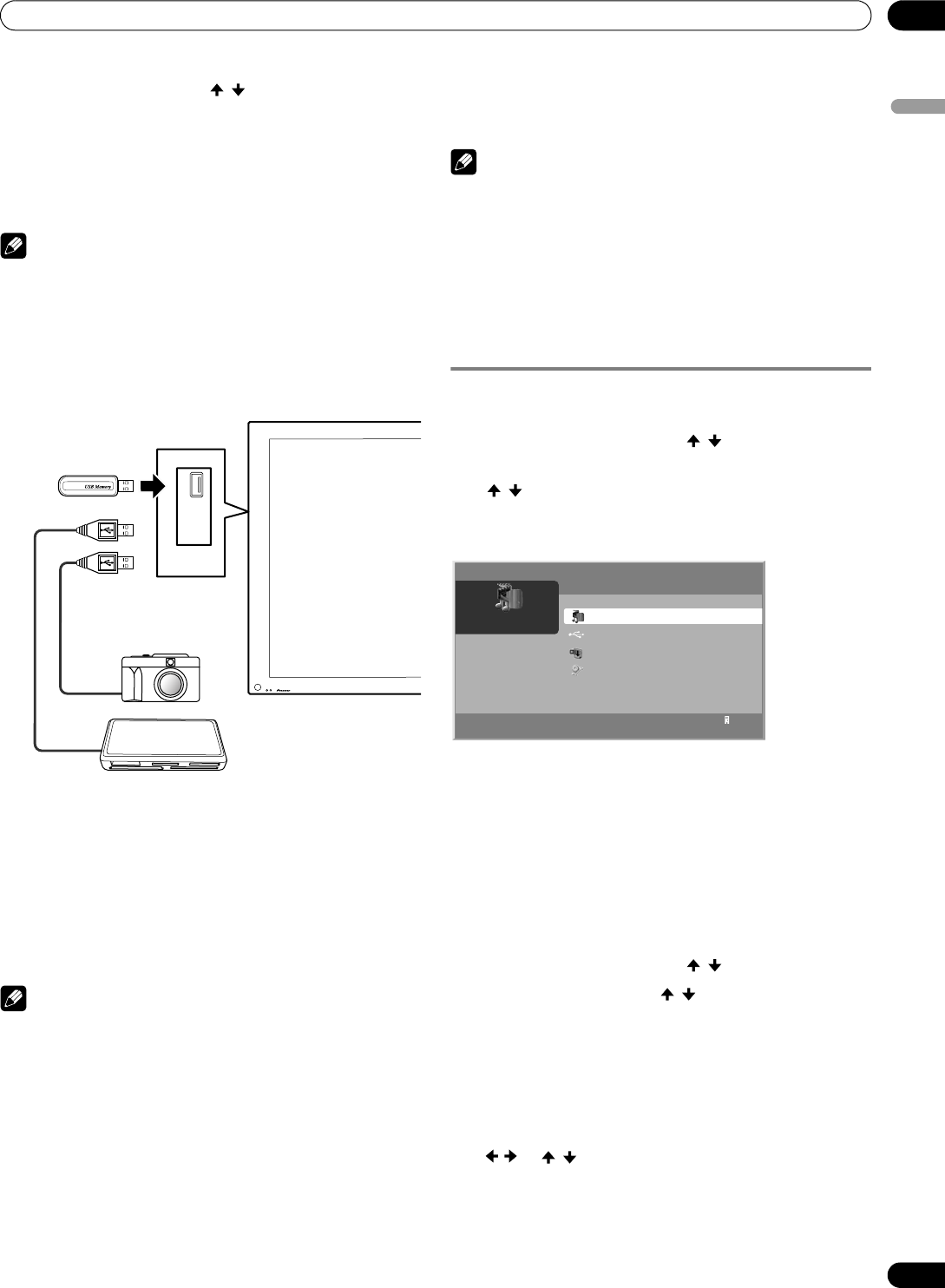

Connecting a USB device .....................76
Starting the Home Media Gallery
function ..................................................77
Enjoying movie files ..............................79
Enjoying music files ..............................82
Enjoying photo files ...............................83
Other useful functions ..........................86
Glossary ..................................................91
13 Useful Remote Control Features
Learning function of the remote
control unit .................................................92
Using the learning function .................92
Presetting manufacturer codes to
control other devices .................................92
Presetting manufacturer codes ...........92
Library Search ........................................92
Delete Learning .....................................92
Manufacturing Reset ............................93
Programming codes ............................94
CABLE ....................................................94
SATELLITE ..............................................94
VCR .........................................................95
PVR .........................................................97
DVD .........................................................97
DVD-R .....................................................98
LD ............................................................98
Using the remote control unit to control
other devices ..............................................99
Receiver control buttons .......................99
CBL/SAT control buttons ....................100
VCR control buttons ............................101
DVD/DVR control buttons ...................102
14 Appendix
Troubleshooting .......................................103

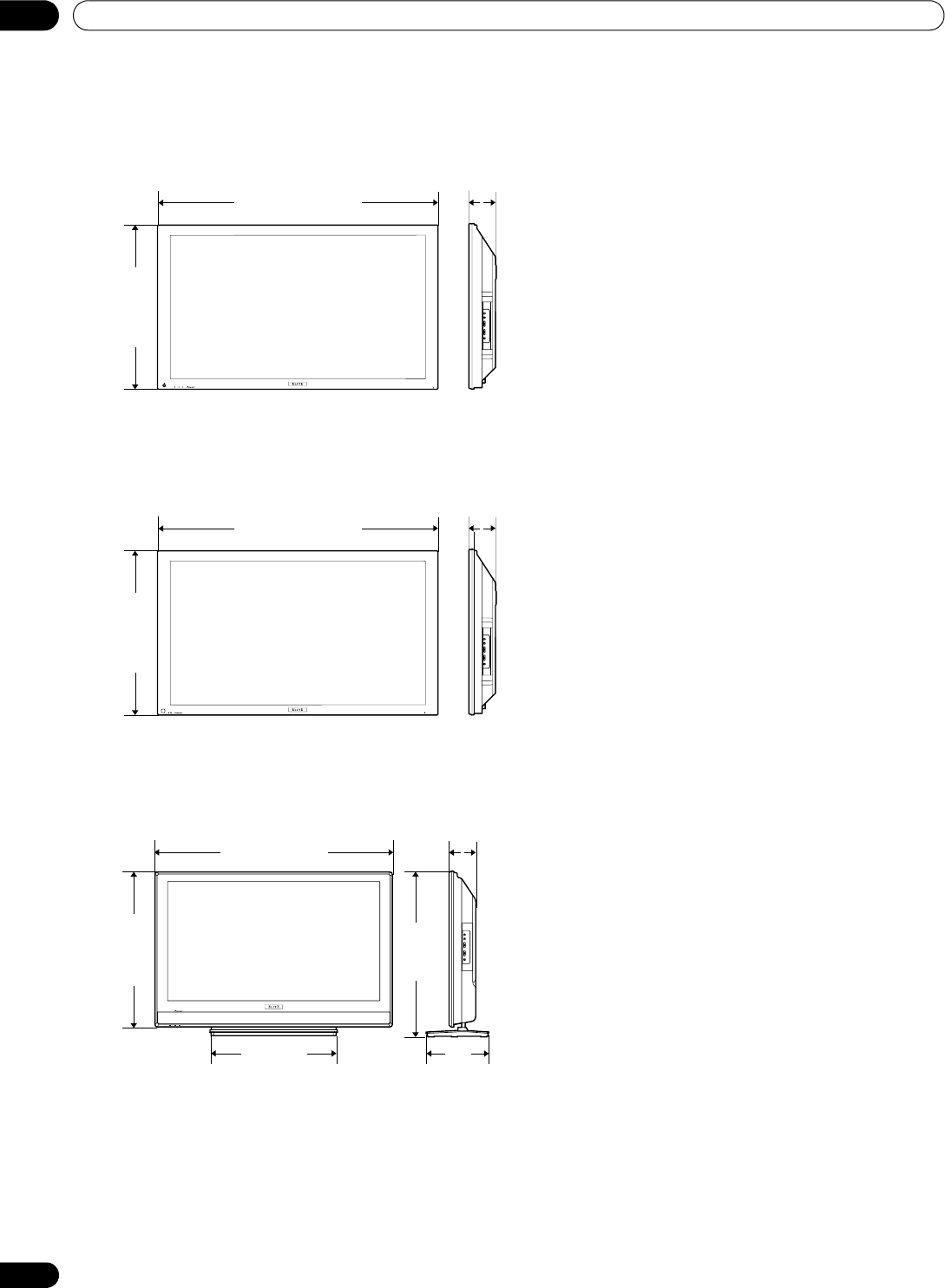

Specifications ...........................................117
PDP_PRO1540HD.book Page 6 Wednesday, August 2, 2006 6:01 PM
7
En
Important User Guidance Information 01
English
Important User Guidance Information
In order to obtain maximum enjoyment from this Pioneer
PureVision PRO-1540HD/PRO-1140HD/PRO-940HD Plasma
Display Panel, please first read this information carefully.
With the Pioneer PureVision PRO-1540HD/PRO-1140HD/PRO-
940HD, you can be assured of a high quality Plasma Display
Panel with long-life and high reliability. To achieve images of
exceptional quality, this Pioneer Plasma Display Panel
incorporates state-of-the-art design and construction as well
as precise and highly advanced technology.
The Pioneer PureVision PRO-1540HD/PRO-1140HD/PRO-
940HD incorporates the latest in color filter technology – Direct
Color Filter. This filter technology improves color reproduction
over previous models. It also eliminates the need for a glass
panel to be layered in front of the plasma panel. This feature
which furthers Pioneer’s goal of reducing environmental waste
in consumer electronics, during the manufacturing process
and in the future during the recycling process.
Over the course of its lifetime, the luminosity of the Pioneer
PRO-1540HD/PRO-1140HD/PRO-940HD Plasma Display
System will diminish very slowly, which happens to all
phosphor-based screens (for example, a traditional tube-type
television). To enjoy beautiful and bright images on your
Pioneer Plasma Display Panel for many years to come, please
carefully read and follow the usage guidelines below.
Usage guidelines
All phosphor-based screens (including conventional tube-type
televisions) can be affected by static images appearing for a
prolonged period. Plasma displays are no exception to this
rule. After-image and permanent effects on the screen can be
avoided by taking some basic precautions.
• Whenever possible, avoid showing the same image or low-
motion pictures (e.g. closed-captioned images or video
game images which have static portions).
• Avoid viewing the On Screen Display (OSD) for extended
periods (from a DVD player, VCR, and all other components).
• Do not leave the same picture, freeze-framed or paused
continuously, shown over a long period of time when using
the still picture mode from a TV, VCR, DVD player or any
other component.
• Images which have both very bright areas and very dark
areas side by side should not be displayed for a prolonged
period of time.
• When playing a video game, the “GAME” mode setting within
“AV Selection” is strongly recommended. However, please
do not use this mode for long periods of time.
• After playing a game, displaying a PC image, or any still
image, it is best to view a normal moving picture in the
“WIDE” or “FULL” screen setting for over 3 times longer than
the previous still/moving image was shown.
• After using the Plasma Display System, always switch the
display to Standby.
• Extensive viewing of content with top, bottom, or side masks
may cause uneven wear. After viewing masked content, view
full screen motion video for an equal or greater amount of
time.

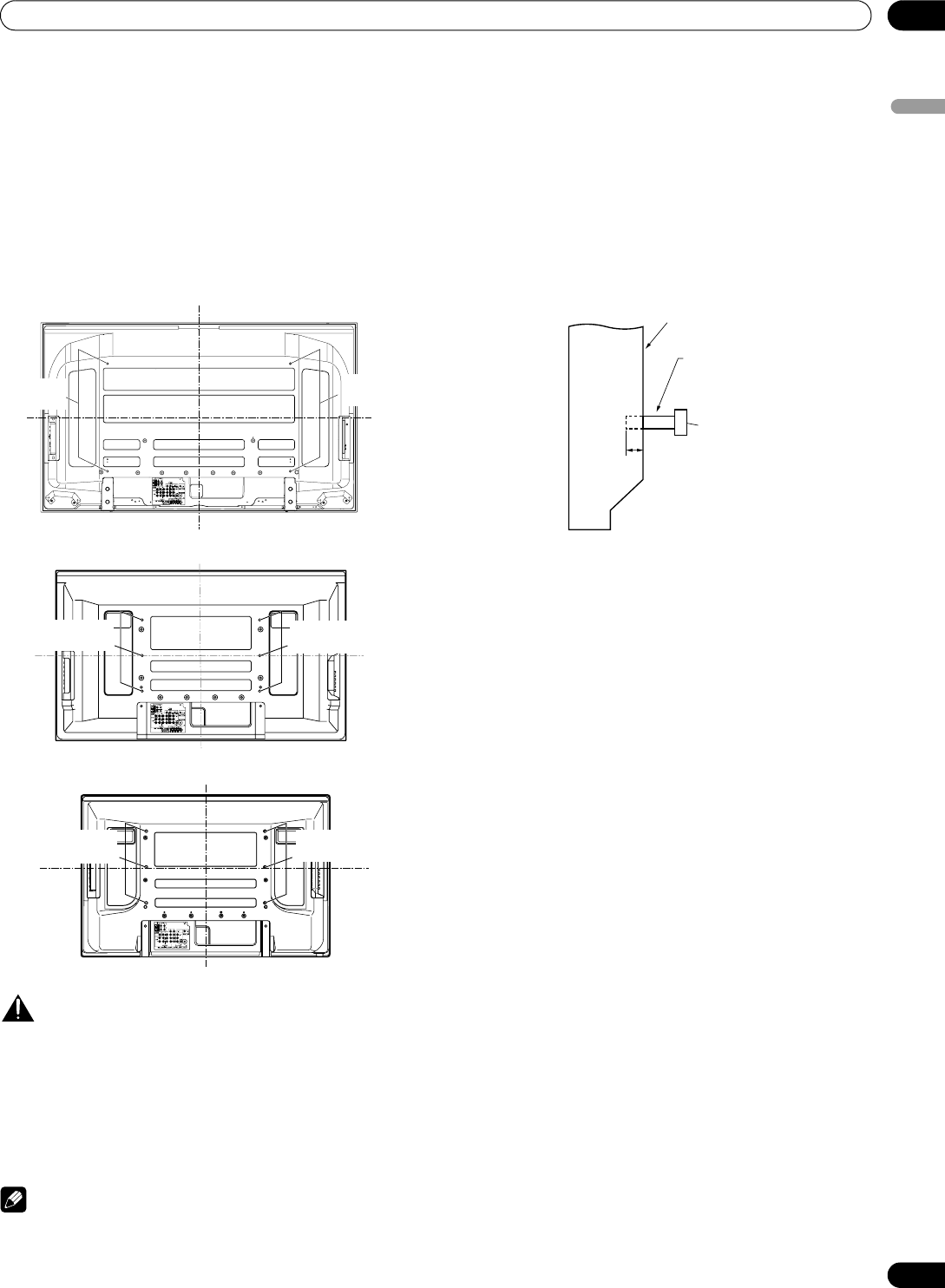

Installation guidelines
The Pioneer PureVision PRO-1540HD/PRO-1140HD/PRO-
940HD Plasma Display Panel incorporates a very thin design.
To ensure safety, please take the proper measures when
mounting or installing the Plasma Display. Prevent the unit
from tipping over during vibration or accidental movement.
This product should be installed by using only parts and
accessories designed by PIONEER. Use of installation or
mounting accessories other than PIONEER-approved stands
or brackets may result in instability and could cause injury. For
custom installation, please consult the dealer where the unit
was purchased. To ensure correct installation, experienced
and qualified experts must install the unit. PIONEER is not
responsible for accident or damage caused by the use of parts
and/or accessories manufactured by other unauthorized
companies.
To avoid malfunction and overheating when installing, make
sure that the vents on the main unit are not blocked. To ensure
proper venting:
• Distance the unit slightly from other equipment, walls, etc.
For the minimum space required around the unit, see page
20.
• Do not place the unit inside a narrow place where ventilation
is poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove
dust build-up. Use a vacuum cleaner set to its lowest suction
setting to clear dust.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted at an angle without proper
anchoring.
• Do not invert the product.
Using the unit without proper ventilation may cause the
internal temperature to rise, and could result in possible
malfunction. When the surrounding or internal temperature
exceeds a certain degree, the display automatically powers
OFF in order to cool the internal electronics.
Malfunction can be caused by many factors: inappropriate
installation site, improper assembly/installation/mounting,
improper operation of or modifications made to this product,
etc. PIONEER is not responsible for accidents or malfunction
caused by the above situations.
NOTE
The following points are typical effects and characteristics of a
phosphor-based matrix display and as such, are not covered by
the manufacturer’s limited warranties:
• Permanent residual images upon the panel’s phosphors.
• Existence of a small number of inactive light cells.
• Panel generated sounds (Fan motor noise, electrical circuit
humming, glass panel buzzing, etc.)
PDP_PRO1540HD.book Page 7 Wednesday, August 2, 2006 6:01 PM
8
En
Important User Guidance Information
01
CAUTION
PIONEER bears no responsibility for any damage arising from
incorrect use of the product malfunctions when in use, other
product related problems, and use of the product except in
cases where the company must be liable.
Plasma Display protection function
When still images (such as photos and computer images) stay
on the screen for an extended period of time, the screen
slightly dims. This function automatically adjusts the
brightness to protect the screen when a still image is detected.
The screen is dimmed for approximately three minutes.
Information of pixel defect
Plasma screens display information using pixels. Pioneer
plasma display panels contain a very large number of pixels. (A
42" panel has over 2.3 million pixels, a 50" panel has over 3.1
million pixels and a 60" panel over 3.1 million pixels). All
Pioneer plasma panels are manufactured using a very high
level of ultra-precision technology and undergo individual
quality control.
In rare cases, one or more pixels may remain switched Off or
On. A pixel that remains Off appears as a tiny black dot on the
screen while an active pixel appears as a dot of a particular
color.
This effect is common to all plasma displays because it is a
consequence of the technology.
If the defective pixels are visible at a normal viewing distance of
between 2.5 and 3.5 meters (8.2 and 11.5 feet) while viewing a
normal broadcast (i.e. not a test card, still image, or single color
display) please contact Pioneer Customer Support Div. (USA) or

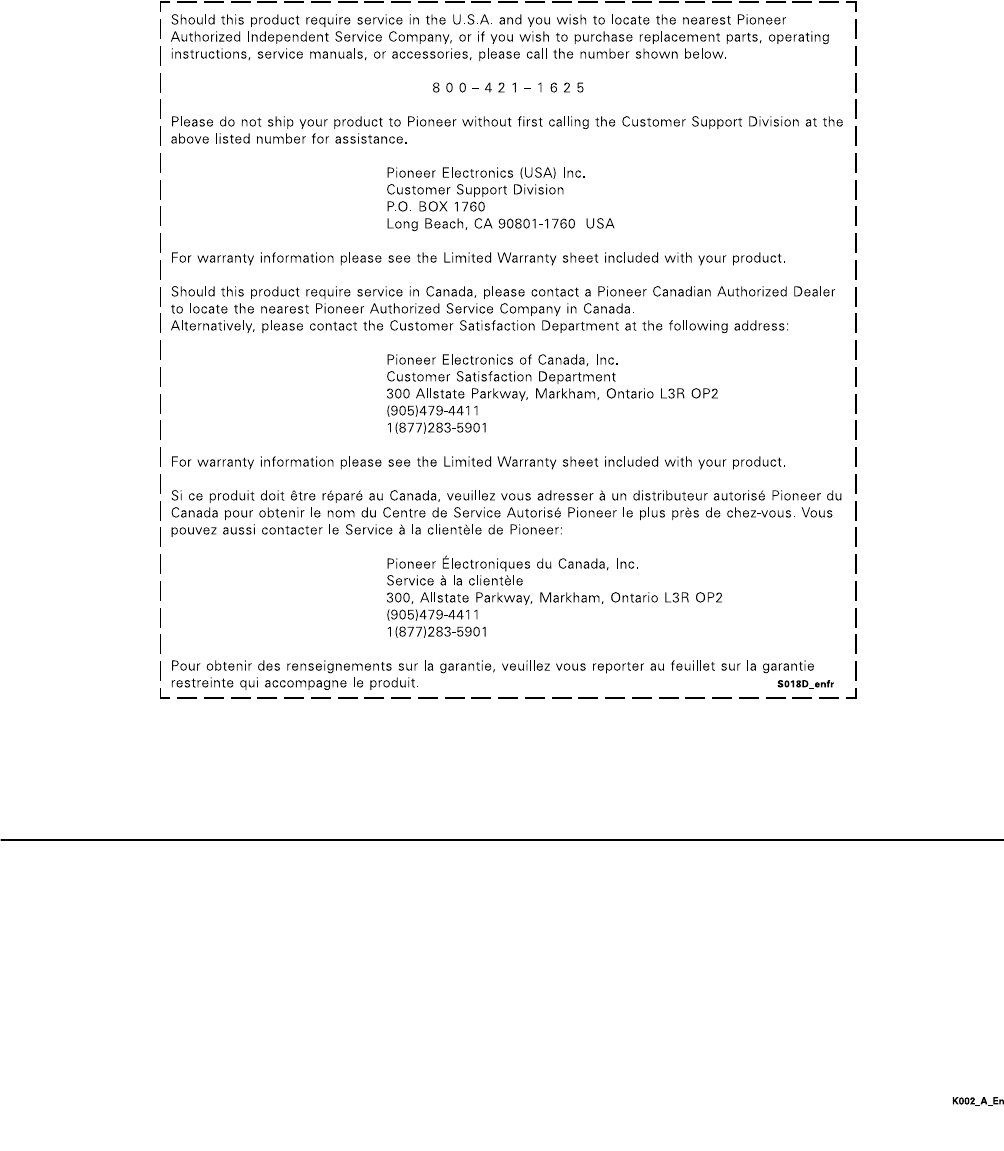

Customer Satisfaction Dept. (CANADA). See back cover for
contact information.
If, however, the fixed pixel(s) can only be seen from a distance
of less than 8 feet or during single color displays then the
appearance is considered normal for plasma technology.
Infrared rays
The Plasma Display releases infrared rays because of the panel
characteristics. Surrounding equipment with remote controls
and wireless headphones using infrared signals can
experience interference. Move any affected equipment to a
location away from the plasma panel.
Radio interference
While this product meets required specifications, the panel
emits a small amount of electronic noise. This noise can affect
radio, computer, and VCR reception. Move devices away from
the panel to reduce or eliminate interference.
Plasma Display driving sound
The screen of the Plasma Display is composed of extremely
fine pixels and these pixels emit light according to received
video signals. This principle may cause you to hear a buzz or
electrical hum coming from the Plasma Display.
Do not attach such items as labels and tape to the
product.
• Labels and tape can mar or discolor the cabinet.
When not using the product for a long time
• If you do not use the product for a long time, the functions of
the product may be adversely affected. Switch ON and run
the product occasionally to maintain quality.
Condensation
• Condensation may take place on the surface or inside of the
panel when the unit is rapidly moved from a cold place to a
warm place or when a heater is turned On in the room. When
condensation occurs, do not switch On the panel until
condensation disappears. Operating the panel when there is
condensation can damage the unit.
Cleaning the surface of the screen and the glossy
surface of the front cabinet
• When cleaning the surface of the screen or the glossy
surface of the front cabinet, gently wipe with the supplied
cleaning cloth or a similar cloth (e.g., cotton, flannel, etc.).
Using a dirty or course material cloth can scratch and
damage the panel’s surfaces.
• If you clean the surface of the screen with a wet cloth, water
droplets may enter into the product, resulting in a
malfunction.
Cleaning the cabinet
• When cleaning other panel surfaces, gently wipe with a
clean soft cloth (e.g., cotton, flannel, etc.). Using a dirty or
course material cloth can scratch and damage the panel’s
surfaces.
• The cabinet of this product is mostly composed of plastic. Do
not use chemicals such as benzene or thinner to clean the
cabinet. Using these chemicals can strip the surface coating
or cause cabinet deterioration.
• Do not expose the product to a volatile gas or fluid such as
pesticide. Do not apply rubber or vinyl products to the
cabinet for long periods of time. The effect of plasticizer on
the cabinet can strip the surface coating or cause
deterioration.
• If you clean the surface of the cabinet with a wet cloth, water
droplets may enter into the product, resulting in a
malfunction.
Handles at the rear of the Plasma Display
• Do not remove the handles from the rear of the Plasma
Display.
• When moving the Plasma Display, ask another person for
help and use the handles attached to the rear of the Plasma
Display. Do not move the Plasma Display by holding only a
single handle. Use the handles as shown on page 20.
• Do not use the handles to hang, suspend, or anchor the
panel.
Fan motor noise
The rotation speed of the cooling fan motor increases when the
ambient temperature of the Plasma Display becomes high.
You may hear the sound of the fan motor at that time.
PDP_PRO1540HD.book Page 8 Wednesday, August 2, 2006 6:01 PM
9
En
Important User Guidance Information 01
English
About the menu window size following video
format switch
The video program that you watch may be high definition (HD)
or standard definition (SD). This Plasma Display is designed to
scale to either HD or SD signals. If the video program’s
definition type changes while a menu window is displayed on
the screen (for example: HD → SD or SD → HD), the menu size
may temporarily shrink or enlarge until the scaling is complete.
For example, switching between a TV program and an external
digital video recorder (D-VHS) while viewing a menu can cause
the menu window size to fluctuate.
If this happens, the menu will return to its normal size after two
to three seconds. This action is normal, and does not indicate
a problem with your Plasma Display Panel.
Image Retention
When a static image is shown on a display for several hours, a
faint imprint of the image, known as image retention, can
remain. This image retention may be temporary or permanent.
Although caused by different things, image retention can
occur on all display technologies, including plasma and LCD.
On today’s plasma displays, permanent image retention is less
of a worry. Most image retention can be improved simply by
watching a motion video sequence.
Image retention, also known as burn-in, can occur in all
phosphor-based display systems (including CRT television
systems–both direct view and projection–as well as plasma
display systems). To avoid image retention or burn-in, do not
show a still image for an extended period. Recommended
guidelines are as follows:
• Do not display static images such as still images, fixed
images from PC or TV game equipment, and/or fixed images
such as time of day indicator or channel logo display for long
periods.
• Do not display content in the 4:3 aspect ratio (black or gray
bars on left and right side of content) or letter-box content
(black bars above and below content) for extended periods of
time, or use either of these viewing modes repeatedly within
a short period of time. This plasma display system is
equipped with multiple wide-screen viewing modes; use one
of these screen modes to fill the entire screen with content.
• Displaying dark images after showing a still image for an
extended time may cause image retention. In most cases,
the image retention can be corrected by displaying bright
images for a similar period of time.
Warning: Displaying a still image on the panel for a long period
of time can cause the image to be burned in to the screen
permanently.
CAUTION
Panel sticking and after-image lag
• Displaying the same images such as still images for a long
time may cause after-image lagging. This may occur in the
following two cases.
1 After-image lagging due to remaining electric load
When image patterns with very high peak luminance are
displayed for more than one(1) minute, after-image lagging
may occur due to the remaining electrical load. The after-
images remaining on the screen disappears when moving
images are shown. The time for the after-images to disappear
depends on the luminance of the still image and the length of
time displayed.
2 After-image (lag image) due to burning
Avoid displaying the same image on the Plasma Display
continuously over a long period of time. If the same image is
displayed continuously for several hours, or for shorter periods
but over several days, a permanent after-image may remain on
the screen due to burning of the fluorescent materials. Such
images may become less noticeable if moving images are later
displayed but they do not disappear completely.
NOTE
• When a program menu, TV Guide screen or frozen image is
displayed for 5 to 10 minutes, the system automatically turns
the screen off to prevent damage from screen burning.
• To prevent screen burning, the display position is
automatically changed slightly when the power is switched
on or the input changed. Depending on the broadcast
content, some parts of the picture may not be visible.
Preventing damage from screen burning
• Please show images in full screen unless doing so causes
copyright infringement. See page 65.
• The Energy save function can be set to help prevent screen
burn-in. See page 63.
CAUTION
DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART,
STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY
FALL, CAUSING SERIOUS PERSONAL INJURY AND SERIOUS
DAMAGE TO THE PRODUCT. USE ONLY WITH A CART,
STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY
THE MANUFACTURER, OR SOLD WITH THE PRODUCT.
FOLLOW THE MANUFACTURER’S INSTRUCTIONS WHEN
INSTALLING THE PRODUCT. ONLY USE MOUNTING
ACCESSORIES RECOMMENDED BY THE MANUFACTURER.
A PRODUCT AND CART COMBINATION SHOULD BE MOVED
WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND
UNEVEN SURFACES MAY CAUSE THE COMBINED UNIT TO
OVERTURN.
PDP_PRO1540HD.book Page 9 Wednesday, August 2, 2006 6:01 PM
10
En
Safety Precautions
02
Safety Precautions
This product has been engineered and manufactured with the
highest priority on safety. However, improper use can result in
electric shock and/or fire. To prevent injury, please observe the
following instructions when installing, operating and cleaning
the product. To ensure your safety and prolong the service life
of your product, please read the following precautions carefully
before using the product.
• Read all operating instructions before operating the panel.
• Keep this manual safe for future reference.
• Observe all warnings on the product and in the operating
instructions.
• Follow all operating instructions.
• Cleaning—Unplug the power cord from the wall outlet
before cleaning the product. To clean the product, use the
supplied cleaning cloth or other soft cloth (e.g., cotton,
flannel, etc.). Do not use liquid or aerosol cleaners.
• Do not use attachments unless recommended by the
manufacturer. Use of unauthorized attachments can result
in accidents.
• Do not use the product near water (bathtub, washbasin,
kitchen sink, laundry area, swimming pool, in a wet or damp
basement, etc.).
• Do not place the product on an unstable cart, stand, tripod
or table. Placing the product on an unstable base can cause
the product to fall, resulting in serious personal injuries as
well as damage to the panel. Use only a cart, stand, tripod,
bracket or table recommended by the manufacturer or sold
with the unit. When mounting the product on a wall, follow
the manufacturer’s instructions precisely. Use only
mounting hardware recommended by the manufacturer.
• Sudden stops, excessive pushing and uneven floors can
cause a unit mounted on a cart to fall. Move the cart with
caution.
• Openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient
ventilation can cause overheating and/or shorten the life of
the panel. Do not place the product on a bed, sofa, rug or
other similar surface since material can block the vents. This
product is not designed for built-in installations. Do not
place the product in an enclosed place such as a bookcase
or rack unless properly vented.
• This product must operate on a power source as stated on
the specification label. If you are not sure of the type of power
supply used in your home, consult your dealer or local power
company.
• Power cord protection—The power cords must be routed
properly to prevent being stepped on or being pinched
between objects. Check entire length of all cables to guard
against pinching.
• This panel contains glass elements. Sudden impacts from
dropping or hitting the panel can break the glass. If the panel
is broken, avoid contact with the glass shards.
• Do not overload AC outlets or extension cords. Overloading
can cause fire or electric shock.
• Never insert objects through vents or openings. High voltage
flows in the product, inserting an object can cause electrical
shock and/or short internal parts. For the same reason, do
not spill water or liquids into the products.
• Do not attempt to service the product yourself. Removing
covers can expose you to high voltage and other dangerous
conditions. Request service from qualified and authorized
service personnel.
• If any of the following conditions occurs, unplug the power
cord from the AC outlet and arrange for repairs with qualified
service personnel.
• power cord or plug is damaged
• liquid spilled or objects fallen into unit
• exposed to rain or water
• product fails to perform as described in the operating
instructions
Do not touch the controls other than those described in
the operating instructions. Improper adjustments can
cause damage, which often requires correction by a
qualified technician
• unit dropped or damaged
• abnormal appearance of picture
• Replacement parts must meet or exceed specifications set
by the manufacturer. Use of unauthorized parts can result in
fire, electric shock and/or other danger.
• Upon completion of service or repair work, request that the
service technician perform periodic safety checks to ensure
that the product is in proper operating condition.
• When mounting the product on a wall or ceiling, install the
panel according to the method recommended by the
manufacturer.
• Keep the product away from heat sources such as radiators,
heaters, stoves and other heat-generating devices (including
amplifiers).
• Unplug the power cord from the wall outlet before installing
the speakers.
• Never expose the screen of the Plasma Display Panel to a
strong impact. The screen may be broken, resulting in fire or
personal injury.
• Do not expose the Plasma Display Panel to direct sunlight
for a long period of time. The optical characteristics of the
front protection panel changes, resulting in discoloration or
warping.
• The approximate weight of each Plasma Display Panel is as
follows:
- PRO-1540HD - 51.5 kg (113.6 lbs.)
- PRO-1140HD - 34.3 kg (75.7 lbs.)
- PRO-940HD - 31.7 kg (69.9 lbs.)
(with stand)
Unpacking, carrying, and installing requires two or more
people.
PDP_PRO1540HD.book Page 10 Wednesday, August 2, 2006 6:01 PM
11
En
Safety Precautions 02
English
Installation Precautions
Observe the following precautions when installing the panel using optional mounting methods such as the bracket.
When using the optional brackets or equivalent items
• Ask your dealer to perform the installation.
• Use only the supplied bolts.
• For details, see the instruction manual that comes with the optional bracket (or equivalent mounting item).
When using other items
• Consult your dealer.
• The following four to six mounting holes can be used for the installation:
CAUTION
• Use at least four mounting holes symmetrical to the vertical and horizontal median lines.
• Use M8 screws, which go 12 mm to 18 mm (0.5 inches to 0.7 inches) in depth from the mounting surface of the Plasma Display.
See the side view above.
• Be careful not to block rear vents on the Plasma Display.
• Install the Plasma Display on a flat surface to avoid warping the glass.
• The diagrams above show the location of standard mounting screw holes. Holes other than those shown above are for specific
mounting methods and should not be used unless a mounting option’s instructions require their use.
NOTE
• Use the optional PIONEER mounting products whenever possible.
• PIONEER shall not be liable for any personal injury or property damage that results from using mounting items other than the
optional PIONEER products.
Side view
Mounting surface
Plasma
Display
Mounting
bracket (or
equivalent item)
M8 screw
12 mm to 18 mm
(0.5 inches to 0.7 inches)
Mounting
hole
Mounting
hole
Median line
Median line
Rear view (PRO-940HD)
Mounting
hole
Median line
Median line
Mounting
hole
Rear view (PRO-1540HD)
Rear view (PRO-1140HD)
Mounting
hole Median line
Mounting
hole
Median line
PDP_PRO1540HD.book Page 11 Wednesday, August 2, 2006 6:01 PM
12
En
Supplied Accessories
03
Supplied Accessories
Power cord (2 m/6.6 feet)
Bead band
×
3
Cleaning cloth
AA size battery x 2
(Alkaline battery for
remote control unit)
Remote control unit
Operating instructions
G-LINK cable (3 m/9.8 feet)
Hexagonal wrench x 1
(Diagonal size: 6 mm)
(for PRO-940HD only)
Speed clamp
×
3 Ferrite coreWarranty card
Terminal position sheet
(for use when mounting
the Plasma Display on the wall)
(for PRO-1540HD only)
PDP_PRO1540HD.book Page 12 Wednesday, August 2, 2006 6:01 PM
13
En
Part Names 04
English
Part Names
Plasma Display
1a
POWER
button
(See page 26)
2
POWER ON indicator
(See page 26)
3
STANDBY indicator
(See page 26)
4
REC TIMER indicator
5
Remote control sensor
(Side view)
6 STANDBY/ON
button
7INPUT
button (
ENTER
button*)
8 VOLUME UP/DOWN
buttons (
UP/DOWN
buttons*)
9 CHANNEL UP/DOWN
buttons (
LEFT/
RIGHT
buttons*)
10 TV GUIDE
button*
11
USB port
12
INPUT 4 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
13
INPUT 4 terminal (VIDEO)
14
INPUT 4 terminals (AUDIO)
* ability to operate the TV Guide On Screen™ system.
5
6
8
9
10
7
11
13
12
14
1
3
2
4
Front/side view
(PRO-1540HD)
PDP_PRO1540HD.book Page 13 Wednesday, August 2, 2006 6:01 PM
14
En
Part Names
04
1a
POWER
button
(See page 26)
2
POWER ON indicator
(See page 26)
3
STANDBY indicator
(See page 26)
4
REC TIMER indicator
5
Remote control sensor
(Side view)
6 STANDBY/ON
button
7INPUT
button (
ENTER
button*)
8 VOLUME UP/DOWN
buttons (
UP/DOWN
buttons*)
9 CHANNEL UP/DOWN
buttons (
LEFT/
RIGHT
buttons*)
10 TV GUIDE
button*
11
USB port
12
INPUT 4 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
13
INPUT 4 terminal (VIDEO)
14
INPUT 4 terminals (AUDIO)
* ability to operate the TV Guide On Screen™ system.
54
6
8
9
10
7
11
13
12
14
13
2
Front/side view
(PRO-1140HD)
PDP_PRO1540HD.book Page 14 Wednesday, August 2, 2006 6:01 PM
15
En
Part Names 04
English
1a
POWER
button
(See page 26)
2
POWER ON indicator
(See page 26)
3
STANDBY indicator
(See page 26)
4
REC TIMER indicator
5
Remote control sensor
(Side view)
6 STANDBY/ON
button
7INPUT
button (
ENTER
button*)
8 VOLUME UP/DOWN
buttons (
UP/DOWN
buttons*)
9 CHANNEL UP/DOWN
buttons (
LEFT/
RIGHT
buttons*)
10 TV GUIDE
button*
11
USB port
12
INPUT 4 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
13
INPUT 4 terminal (VIDEO)
14
INPUT 4 terminals (AUDIO)
* ability to operate the TV Guide On Screen™ system.
6
8
9
10
7
11
13
12
14
5
1
4
3
2
Front/side view
Viewed from below of the display
(PRO-940HD)
Viewed from the front side of the display
PDP_PRO1540HD.book Page 15 Wednesday, August 2, 2006 6:01 PM
16
En
Part Names
04

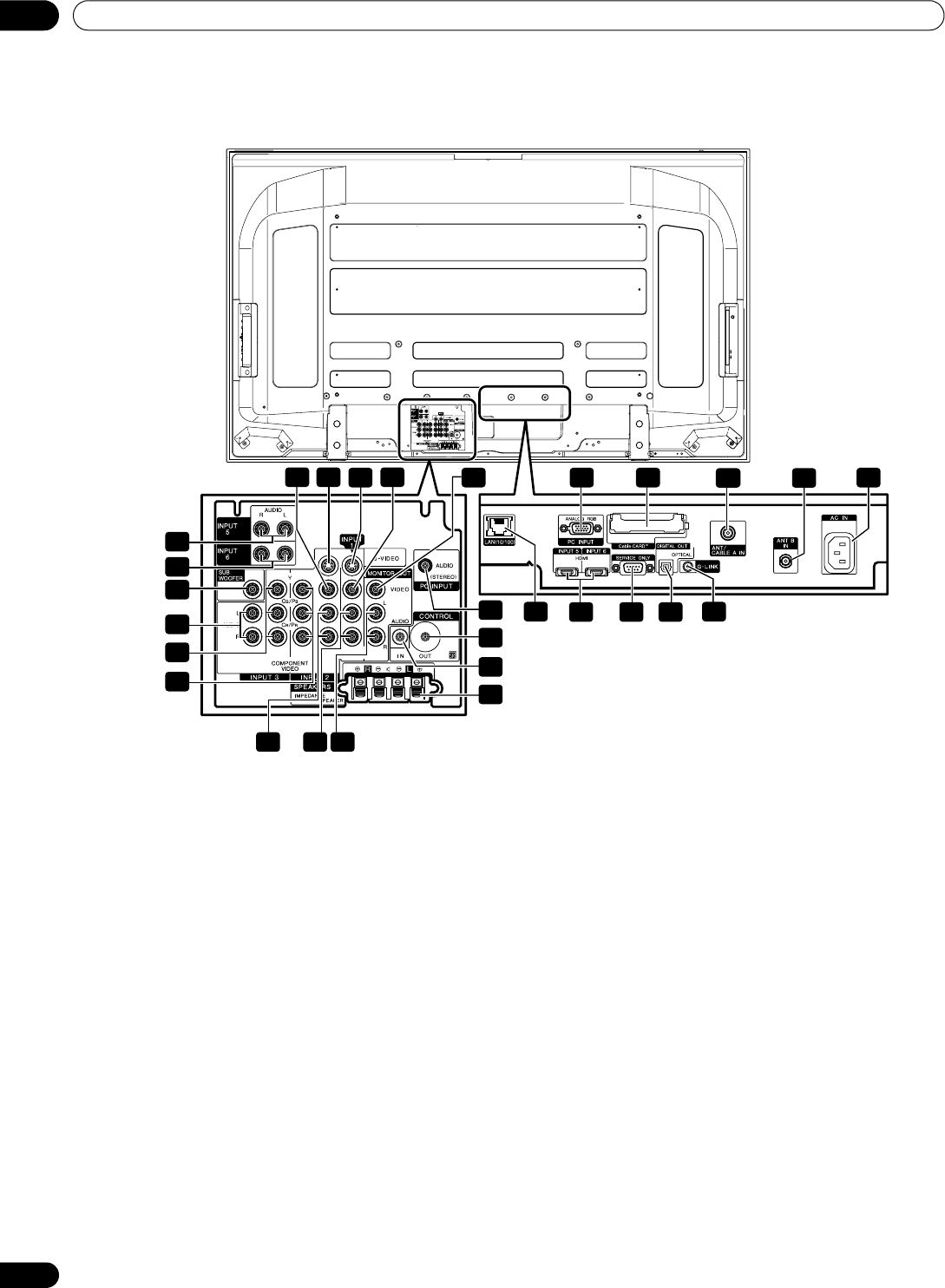

1
PC INPUT terminal (ANALOG RGB)
2
CableCARD™ slot
3
ANT/CABLE A IN terminal
4
ANT B IN terminal
5
AC IN terminal
6
Ethernet cable port
7
HDMI terminals (INPUT 5/INPUT 6)
8
RS-232C terminal (used for factory setup)
9
DIGITAL OUT terminal (OPTICAL)
10
G-LINK terminal
11
INPUT 5 terminals (AUDIO)
12
INPUT 6 terminals (AUDIO)
13
SUB WOOFER terminal
14
INPUT 3 terminals (AUDIO)
15
INPUT 3 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
16
INPUT 2 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
17
INPUT 2 terminal (VIDEO)
18
INPUT 2 terminal (S-VIDEO)
19
INPUT 2 terminals (AUDIO)
20
INPUT 1 terminals (AUDIO)
21
INPUT 1 terminal (S-VIDEO)
22
INPUT 1 terminal (VIDEO)
23
MONITOR OUT terminal (VIDEO)
24
MONITOR OUT terminals (AUDIO)
25
PC INPUT terminal (AUDIO)
26
CONTROL OUT terminal
27
CONTROL IN terminal
28
SPEAKER (R/L) terminals
1 2 3
87 9 106
26
27
28
25
16
13
14
11
12
15
17 21
18 22 23
19 2024
45
Rear view
(Terminals located on the upper
edge of the compartment)
(PRO-1540HD)
PDP_PRO1540HD.book Page 16 Wednesday, August 2, 2006 6:01 PM
17
En
Part Names 04
English
1
PC INPUT terminal (ANALOG RGB)
2
CableCARD™ slot
3
ANT/CABLE A IN terminal
4
ANT B IN terminal
5
AC IN terminal
6
Ethernet cable port
7
HDMI terminals (INPUT 5/INPUT 6)
8
RS-232C terminal (used for factory setup)
9
DIGITAL OUT terminal (OPTICAL)
10
G-LINK terminal
11
INPUT 5 terminals (AUDIO)
12
INPUT 6 terminals (AUDIO)
13
SUB WOOFER terminal
14
INPUT 3 terminals (AUDIO)
15
INPUT 3 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
16
INPUT 2 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
17
INPUT 2 terminal (VIDEO)
18
INPUT 2 terminal (S-VIDEO)
19
INPUT 2 terminals (AUDIO)
20
INPUT 1 terminals (AUDIO)
21
INPUT 1 terminal (S-VIDEO)
22
INPUT 1 terminal (VIDEO)
23
MONITOR OUT terminal (VIDEO)
24
MONITOR OUT terminals (AUDIO)
25
PC INPUT terminal (AUDIO)
26
CONTROL OUT terminal
27
CONTROL IN terminal
28
SPEAKER (R/L) terminals
1 2 3
876 9 10
26
27
28
25
16
13
14
11
12
15
17 21
18 22 23
19 2024
45
Rear view
(Terminals located on the upper
edge of the compartment)
(PRO-1140HD)
PDP_PRO1540HD.book Page 17 Wednesday, August 2, 2006 6:01 PM
18
En
Part Names
04
1
PC INPUT terminal (ANALOG RGB)
2
CableCARD™ slot
3
ANT/CABLE A IN terminal
4
ANT B IN terminal
5
AC IN terminal
6
Ethernet cable port
7
HDMI terminals (INPUT 5/INPUT 6)
8
RS-232C terminal (used for factory setup)
9
DIGITAL OUT terminal (OPTICAL)
10
G-LINK terminal
11
INPUT 5 terminals (AUDIO)
12
INPUT 6 terminals (AUDIO)
13
SUB WOOFER terminal
14
INPUT 3 terminals (AUDIO)
15
INPUT 3 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
16
INPUT 2 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
17
INPUT 2 terminal (VIDEO)
18
INPUT 2 terminal (S-VIDEO)
19
INPUT 2 terminals (AUDIO)
20
INPUT 1 terminals (AUDIO)
21
INPUT 1 terminal (S-VIDEO)
22
INPUT 1 terminal (VIDEO)
23
MONITOR OUT terminal (VIDEO)
24
MONITOR OUT terminals (AUDIO)
25
PC INPUT terminal (AUDIO)
26
CONTROL OUT terminal
27
CONTROL IN terminal
1 2 3
86 7 9 10
26
27
25
16
13
14
11
12
15
17 21
18 22 23
19 2024
45
Rear view
(Terminals located on the upper
edge of the compartment)
(PRO-940HD)
PDP_PRO1540HD.book Page 18 Wednesday, August 2, 2006 6:01 PM
19
En
Part Names 04
English
Remote control unit
This section describes the button functions when the mode is
set to TV. To use the remote for controlling other equipment,
see “Using the remote control unit to control other devices”
starting on page 99.
1TV
a
:
Turns ON the Plasma Display Panel or
places it in Standby.
2
Transmission confirmation LED
3INPUT
: Selects an input source for the Plasma
Display Panel. (INPUT 1, INPUT 2, INPUT 3, INPUT 4,
INPUT 5, INPUT 6 and PC)
4 SCREEN SIZE
: Selects the screen size.
5SLEEP
: Sets the sleep timer.
6INFO
: Displays a channel banner when a TV
program is being watched.
(When the TV Guide On Screen™ system is in
operation, information about the currently
highlighted channel appears on screen (when
available).)
7HOME MENU
: Displays the Home Menu screen
8 DAY +/–
: Jumps to the next or previous day of
program listings in the TV Guide On Screen™ Listing
service.
9
/ / / : Selects a desired item on the menu
screen
10 REC
: When using the TV Guide On Screen™ System,
triggers recording to a connected VCR
11 FAVORITE CH (A, B, C, D)
:
Selects any of the four preset channels (see page 43
for details to set the FAVORITE CH)
While watching, toggle the set channels by
pressing A, B, C and D
.
12 0 – 9
: Selects the channel
13 •(dot)
: Enters a dot
When entering the number of a sub-channel.
14 CH +/–
: Selects the channel.
15 SPLIT
: Switches the screen mode: 2-screen, picture-
in-picture, single-screen
16 FREEZE
: Freezes a frame from a moving image.
Press again to cancel the function.
17 MTS
: Selects MTS/SAP or language depending on
the program being watched
18 D:
Lights up all buttons
Lights turn off if no operations are performed within
5 seconds. This is used for remote control use in
dark locations.
19 ANT
: Selects the antenna (A, B) (see page 23 for
details)
20 AV SELECTION
: Selects audio and video settings.
(AV mode: STANDARD, DYNAMIC, MOVIE, GAME,
PURE, USER. PC mode: STANDARD, USER)
21 DISPLAY
: Displays the channel information
22 TV GUIDE
: Displays the TV Guide On Screen™
system
23 ENTER
: Executes a command
24 PAGE +/–
(for the TV Guide On Screen™ system):
Scrolls the program listing screen vertically.
25 RETURN
: Returns to the previous menu screen
26 MENU
: Displays a panel menu in the TV Guide On
Screen™ system
27 CH ENTER
: Executes a channel number
28 CH RETURN
: Returns to the previous channel
This button is disabled while the TV Guide On
Screen™ system is displayed.
29 VOL +/–
: Sets the volume
30 M
MUTING
: Mutes the sound
31 SHIFT
: Moves the small screen to a different location
when in the picture-in-picture mode
32 SWAP
: Switches between the two screens when in
the 2-screen or picture-in-picture mode
NOTE
• When using the remote control, aim it at the Plasma Display.
• See pages 92 to 102 for buttons not listed on this page.
1
10
11
13
12
14
23
24
25
5
3
4
19
18
20
21
22
7
8
9
26
15
17
16
28
27
30
29
32
31
2
6
Mode switch
(with “TV” selected)
PDP_PRO1540HD.book Page 19 Wednesday, August 2, 2006 6:01 PM
20
En
Preparation
05
Preparation
Installing the Plasma Display
Location
• Avoid direct sunlight.
• Maintain adequate ventilation.
• Because the Plasma Display is heavy, have someone help
you when moving or installing the panel.
NOTE
• Allow enough space around the installed Plasma Display
Panel to ensure proper ventilation.
Using the optional PIONEER stand
(for PRO-1540HD and PRO-1140HD)
• For details on installation, refer to the instruction manual
supplied with the stand.
Using the optional PIONEER speakers
(for PRO-1540HD and PRO-1140HD)
• For details on installation, refer to the instruction manual
supplied with the speaker.
Moving the Plasma Display
(PRO-1540HD)
(PRO-1140HD)
(PRO-940HD)
CAUTION
• These Plasma Display Panels are thin and can be unstable
when held upright. Therefore, at least two people must move
and install these panels.
• Do not hold by the speaker.
• Install the panel on a flat, stable location to avoid warping the
glass components.
• When installing on a rack, etc., someone must steady the
panel at all times.
Over 50 cm
(19 11/16 inches)
Over
10 cm
(3 15/16
inches)
PDP_PRO1540HD.book Page 20 Wednesday, August 2, 2006 6:01 PM
21
En
Preparation 05
English
Preventing the Plasma Display from
Falling Over
During installation, someone must steady the panel at all
times.
Stabilizing on a table or floor
Stabilize the Plasma Display as shown in the diagram using
screws that are 6 mm (1/4 inch) and at least 20 mm (13/16 inch)
long (available from your dealer or other hardware sources).
CAUTION
The installation site should have adequate strength to support
the Plasma Display. A weak installation site could result in
personal injury and property damage. Please take the
necessary safety measures to prevent it from falling during
emergencies, such as earthquakes or construction accidents.
If you do not take these precautions, the Plasma Display could
fall, causing injury or property damage.
Screws, hooks, chains, and other fittings used to secure the
Plasma Display vary according to the composition and
thickness of the surface to which the panel is attached. Inspect
the mounting surface carefully to determine its thickness and
composition; consult a professional installer if necessary.
Using a wall for stabilization
1. Attach fall-prevention bolts (hooks) to the
Plasma Display.
2. Use strong cords to firmly attach the panel
to a wall, pillar, or other sturdy
construction.
3. Repeat attachment for the other side of the
panel.
NOTE
Use hooks, cords, and fittings that are available from your
dealer or other hardware sources.
Recommended hook: Nominal diameter 8 mm (3/8 inch)
Length 12 mm to 15 mm (1/2 inch to 5/8 inch)
20 mm min.
(13/16 inch min.)
9 mm to 15 mm
(3/8 inch to 5/8 inch)
6 mm
(1/4 inch)
12 mm to 15 mm
(1/2 inch to 5/8 inch)
M8
➀
Hook
➁
Cord
Fitting
PDP_PRO1540HD.book Page 21 Wednesday, August 2, 2006 6:01 PM
22
En
Preparation
05
Attaching/detaching the PIONEER stand
(for PRO-940HD only)
The PRO-940HD comes with the PIONEER table top stand
attached. You can mount the display in a rack by detaching the
stand. The method for attaching/detaching the stand varies
depending on the particular panel.
CAUTION
• If mounting the panel on a stand, use only the attached
stand for this model. Other stand models are not authorized
for this panel.
• Two or more people are required to assemble and install this
unit.
Detaching the stand
1Loosen the two installation bolts ➀ using the enclosed
hexagonal wrench.
2Remove the two installation bolts ➁ using the same
hexagonal wrench.
3Lift the Plasma Display from the stand.
• Keep the installation bolts ➀ and ➁ for reattaching the
stand to the Plasma Display at a later date.
NOTE
• Install the panel on a flat, stable location to avoid warping the
glass components.
Reattaching the stand
1Fit the stand’s support columns under the Plasma Display
shown below. Slowly ease the panel down on the
supports.
• Be extremely careful not to insert the stand supports
into any part of the Plasma Display other than the stand
insertion slots. If the panel is mounted improperly, the
communication ports could be damaged or the stand
could be warped.
2Bolt the Plasma Display to the stand at the points
indicated by the arrows.
3Tighten the installation bolts ➀ firmly using the enclosed
hexagonal wrench.
NOTE
• Install the panel on a flat, stable location to avoid warping the
glass components.
• Insert the screws in the holes vertically.
• Do not tighten them with more force than necessary.
Installation bolts
➀
(M8 x 30 mm: silver)
Installation bolts
➁
(M8 x 60 mm: silver)
Line up the column supports with
the bottom of the Plasma Display .
Installation bolts
➁
(M8 x 60 mm: silver)
Installation bolts
➀
(M8 x 30 mm: silver)
PDP_PRO1540HD.book Page 22 Wednesday, August 2, 2006 6:01 PM
23
En
Preparation 05
English
Cable connections for watching digital
and/or conventional TV channels
This system is equipped with two terminals for inputting TV
broadcasting signals, ANT/CABLE A IN and ANT B IN. The
ANT/CABLE A IN terminal accepts both digital and
conventional TV broadcasting signals while the ANT B IN
terminal accepts only conventional TV broadcasting signals.
When using cable TV to watch digital and/or conventional TV
channels, connect to the ANT/CABLE A IN terminal as shown.
To add an outdoor antenna for clearer pictures, connect an
antenna to the ANT B IN terminal. If your outdoor antenna uses
a 75-ohm coaxial cable with an F-type connector, plug it into
the antenna terminal at the rear of the Plasma Display.
Connecting VHF/UHF antennas and a Cable
NOTE
• Connect coaxial cables as shown above. Signal reception
may fail if cables are connected improperly.
• In order to watch cable TV channels, be sure to connect the
cable to the ANT/CABLE A IN terminal.
• The ANT/CABLE A IN and ANT B IN terminals must not
receive the same signals. For example, do not connect the
cable TV line to both the ANT/CABLE A IN and ANT B IN
terminals. Similarly, do not connect an antenna cable to
both the ANT/CABLE A IN and ANT B IN terminals.
• The TV Guide On Screen™ system may not be available in all
areas and is not available with satellite systems. In addition,
as content providers move to digital programming and
broadcasting, TV Guide data may be unavailable or become
unavailable.
Inserting the CableCARD™
The Plasma Display provides a slot for inserting a
CableCARD™. When you are watching digital and/or High
Definition TV channels over cable, the card allows you to use
the cable company’s Point of Deployment (POD) service. This
service presents various types of useful information in Internet-
styled text.
1Confirm that the ANT/CABLE A IN terminal is connected to
the Cable Converter box using a coaxial cable.
2Slide the slot cover tab on the rear of the Plasma Display
to the left then remove the cover while pulling the tab’s
latch down.
3Insert the specified CableCARD™ completely into the slot.
NOTE
• Be sure to insert only the specified CableCARD™.
• Do not insert a PC card.
• The CableCARD™ automatically generates a cable channel
list. It is unnecessary to activate the “Auto Channel Preset”
option.
Switching between antenna A and B
To watch broadcasts via the two antennas, press ANT on the
remote control.
• While watching a broadcast, press ANT to view the feed from
the other antenna.
• While watching in the 2-screen mode (TV image and video
image) with TV selected, press ANT to view the feed from the
other antenna.
•Pressing ANT while watching in the 2-screen mode with two
TV images displayed has no effect.
ANT/
CABLE A IN
VHF antenna
Coaxial
Cable TV
Plasma Display (rear)
U/Vmixer
UHF antenna
Coaxial
Tab
1
2
(Viewed from below of the
Plasma Display)
PDP_PRO1540HD.book Page 23 Wednesday, August 2, 2006 6:01 PM
24
En
Preparation
05
Preparing the remote control unit
Inserting batteries
1Open the battery cover.
2Load the supplied two AA batteries. Insert the negative
polarity (–) ends first.
• The battery polarities must correspond with the (+) and
(–) indicators in the battery compartment.
3Close the battery cover.
Cautions regarding batteries
• The remote control unit cannot operate the system if the
batteries in the unit are weak. When this happens, replace
the batteries with new ones.
• Use alkaline batteries rather than manganese batteries.
• Do not mix battery brands. Different brands have different
characteristics.
• Do not mix old and new batteries. Mixing old and new
batteries can shorten the life of new batteries or cause
chemical leakage in old batteries.
• Do not leave dead batteries in the remote control. Dead
batteries leak chemicals. If you find any chemical leakage,
wipe thoroughly with a clean cloth.
• The batteries supplied with this product may have a shorter
life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended
period of time, remove the batteries.
Allowed operation range of the remote control
unit
To use the remote control, point it at the sensor located at the
bottom right corner of the Plasma Display. The distance from
the remote control sensor must be within 7 m (23 feet) and the
angle relative to the sensor must be within 30 degrees left or
right.
NOTE
• Although the SR logo also appears in the lower right corner
on the PRO-940HD, the sensor is in the same location for all
three panels.
Cautions regarding the remote control unit
• Do not expose the remote control to shock, liquid, or high
humidity.
• Do not place the remote control unit under direct sunlight,
the unit may deform.
• The remote control may not work properly if the panel’s
remote sensor window is under direct sunlight or strong
room lighting. If the remote control fails to function in a
bright environment, try changing the signal angle or move
closer to the panel.
• Objects placed between the remote control and the panel
sensor may block the signal.
• As the batteries become weak, the remote control may need
to be used closer to the panel. Replace the batteries with
new ones if necessary.
• The Plasma Display emits very weak infrared rays from its
screen. Other nearby equipment using an infrared remote
control such as a VCR may receive scrambled or incomplete
commands from its remote control. In this situation, move
the equipment away from the Plasma Display.
• Depending on the environment, infrared rays from the
Plasma Display may corrupt signals sent by the remote
control. These IR waves could also require that the remote
control be used closer to the panel. The strength of infrared
rays emitted from the screen differs, depending on the
image being displayed.
Battery disposal
When disposing of used batteries, please comply with
governmental regulations or environmental public
institution’s rules that apply in your country/area.
30º
30º
7 m
Remote control
sensor
(23 feet)
PDP_PRO1540HD.book Page 24 Wednesday, August 2, 2006 6:01 PM
25
En
Preparation 05
English
Connecting the power cord
Connect the power cord last, after all other components are connected.
Plasma Display (rear view)
NOTE
• Always turn the panel’s power OFF when connecting or
disconnecting power cords.
• Disconnect the power cord from the wall outlet when the
Plasma Display Panel is not going to be used for a long
period of time.
Routing cables
Attaching speed clamps to the main unit
Attach the speed clamps using any of the 4 holes you prefer
(50 inches, 3 holes: 42 inches, 2 holes) marked with an arrow ( )
below, depending on your routing system.
for PRO-1540HD
for PRO-1140HD
for PRO-940HD
Attaching and removing speed clamps
Insert [1] into an appropriate hole on the rear of the Plasma
Display then snap [2] into the back of [1] to lock the clamp.
Speed clamps are designed to be difficult to release once in
place. Please attach them carefully.
Use pliers to twist the clamp 90º, pulling outward. The clamp
may deteriorate over time and become damaged if removed.
NOTE
• Use the supplied speed clamps as necessary.
• Bundle speaker cables so that none are pinched.
Power cord Noise filter
Partially eliminates noise
caused by the power source.
AC IN terminal is
located on the upper
edge of the
compartment.
Rear view
When the speakers are installed on the sides
Speaker cable Speed clamp Speaker cableSpeed clamp
1
2
CAUTION
• Use only the supplied power cord.
• Use only the specified power supply voltage;
neglecting this can result in fire or electric shock.
• For the Plasma Display System, a three-core power
cord with a ground terminal is used for safety
reasons. Always connect the power cord to a
three-pronged outlet and make sure that the cord
is properly grounded.
PDP_PRO1540HD.book Page 25 Wednesday, August 2, 2006 6:01 PM
26
En
Basic Operations
06
Basic Operations
Turning on the power
(from Standby)
1Press a POWER on the Plasma Display if the POWER ON
and STANDBY indicators are off.
• The STANDBY indicator on the Plasma Display lights up
red.
2Press TV a on the remote control unit or STANDBY/ON
on the Plasma Display to turn the system on.
• The POWER ON indicator on the Plasma Display lights
up blue.
Turning off the power
(to Standby)
1Press TV a on the remote control unit or STANDBY/ON
on the Plasma Display.
• The system enters the standby mode and the image on
the screen disappears.
•The STANDBY indicator lights up red.
• This allows the system to automatically receive digital TV
program information while in Standby.
NOTE
• If you are not going to use this system for a long period of
time, unplug the power cord from the power outlet.
Plasma Display status indicators
The table below shows the operational status of the Plasma
Display Panel. Panel indicators reflect the current status of the
Plasma Display.
For other than the above, see “Troubleshooting”on page 103.
CAUTION
• If the POWER ON and STANDBY indicators are off, the
system cannot be powered ON. Pressing the TV a or
STANDBY/ON button has no effect. Press POWER then wait
for the Standby indicator to light (red).
• The Plasma Display System consumes some power as long
as the plug is inserted into an outlet.
Plasma Display
(PRO-1540HD)
(PRO-1140HD)
(PRO-940HD)
Viewed from below of the display (left).
Indicator
Status System Status
POWER ON STANDBY
The Plasma Display has been unplugged
or the Plasma Display is off.
Power to the system is on.
The system is in Standby.
STANDBY indicator
POWER ON indicator
POWER
button
STANDBY indicator
POWER ON indicator
POWER
button
STANDBY
indicator
POWER ON
indicator
POWER
button
STANDBY/ON
button
(Right side view)
PDP_PRO1540HD.book Page 26 Wednesday, August 2, 2006 6:01 PM
27
En
Basic Operations 06
English
Watching TV channels
TV channels must be programmed into your panel. Refer to
“Setting up TV channels” on page 37.
NOTE
• When watching a digital TV program, you may see
emergency alert messages scrolling at the top of the screen.
Those messages are broadcasted by TV stations as
necessary when in emergency situations.
Selecting the antenna
After confirming that the Mode switch on the remote control
has been set to “TV”, press ANT on the remote control unit to
select antenna A or B.
• This selection depends on the connections to the panel’s
antenna input terminals (page 23).
Changing channels
To increase the channel number, press CH + on the remote
control. To decrease the channel number, press CH –.
•CHANNEL +/– on the Plasma Display operates the same as
CH +/– on the remote control.
•Press CH RETURN to switch back to the previous channel.
Press CH RETURN again to return to the current channel.
Using 0 – 9 and • (dot) on the remote control unit
Press any combination of buttons 0 to 9 to select a specific
channel. To select subchannels, use the • (dot) button.
EXAMPLE
• To select channel 5 (1-digit channel), press 5.
• To select channel 25 (2-digit channel), press 2 then 5.
• To select channel 125 (3-digit channel), press 1, 2, then 5.
• To select subchannel 10.01, press 1, 0, • (dot), 0, then 1.
• To select subchannel 10.001 (for cable TV), press 1, 0,
• (dot), 0, 0, then 1.
NOTE
• After entering a channel or subchannel number, press CH
ENTER to tune in the channel more quickly.
• Each time you change a channel, a channel banner appears
that shows information about the currently selected
channel. To clear the channel banner, press INFO.
• If you do not activate the TV Guide On Screen™ system, the
channel banner may not display certain types of program
information.
DTV 2 • 1002.102 A
12:30pm — 2:00pm
XXXXXXXXXX
12:33pm
XXX
Plasma Display (right side view)
CHANNEL +/–
Channel banner
PDP_PRO1540HD.book Page 27 Wednesday, August 2, 2006 6:01 PM
28
En
Basic Operations
06
Changing the volume and sound
To increase the volume, press VOL + on the remote control. To
decrease the volume, press VOL –.
•VOLUME +/– on the Plasma Display operates the same as
VOL +/– on the remote control.
• To mute the sound output, press MUTING. The symbol “ ”
appears on the screen. To return to the previous volume,
press MUTING again. Pressing VOL + also quits muting.
Plasma Display (right side view)
Changing the language
If you have selected a digital TV program that provides multi-
language services, switch among the languages by pressing
MTS on the remote control.
Each time you press MTS, the language switches.
NOTE
• Switchable languages differ depending on the broadcast.
• If the language selected through language setting is
available when the channel or program is changed, you hear
that language.
• If you are watching a digital TV program without sound or
without language information, “N/A” appears on the screen.
If a language other than English, French, or Spanish is
selected, “Others” appears on the screen.
Volume adjustment display
Muting display
VOLUME +/–
PDP_PRO1540HD.book Page 28 Wednesday, August 2, 2006 6:01 PM
29
En
Basic Operations 06
English
Setting MTS/SAP mode
When watching conventional TV programs, use the Multi-
channel Television Sound (MTS) function to enjoy stereo sound
and/or Secondary Audio Programs (SAP).
• Stereo broadcasts
Sports, shows, and concerts can be shown with dynamic
stereo sound.
• SAP broadcasts
MAIN sound: The normal program soundtrack (either in
mono or stereo).
SAP sound: Listen to a second language, supplementary
commentary and other information. (SAP is mono sound.)
NOTE
• Conventional TV channels: TV channels received through the
conventional VHF/UHF frequencies or conventional cable TV
channels
• When stereo sound is difficult to hear, manually switch to
MONO for clearer sound.
• Once MONO is selected, the Plasma Display sound remains
mono even if the system receives a stereo broadcast. You
must reselect STEREO to hear stereo sound again.
• Selecting MTS while the source is from an INPUT (1 to 6) or
a PC does not change the type of sound. The video source
determines the type of sound.
Press MTS to cycle through the types of sound.
NOTE
•The MTS button is disabled while the TV Guide On Screen™
system is displayed.
• In each of the sound types, the display changes according to
the broadcast signals.
When receiving STEREO sound signals
When receiving MONO + SAP sound signals
When receiving STEREO + SAP sound signals
When receiving MONO sound signals
STEREO
STEREO mode
SAP
SAP mode
MONO
MONO mode
A 125
STEREO In STEREO mode
In SAP mode
In MONO mode
A 125
STEREO
A 125
MONO
In STEREO mode
In SAP mode
In MONO mode
A 125
MONO (SAP)
A 125
SAP (MAIN)
A 125
MONO (SAP)
In STEREO mode
In SAP mode
In MONO mode
A 125
STEREO (SAP)
A 125
SAP (STEREO)
A 125
MONO (SAP)
In STEREO mode
In SAP mode
In MONO mode
A 125
MONO
A 125
MAIN
A 125
MONO
PDP_PRO1540HD.book Page 29 Wednesday, August 2, 2006 6:01 PM
30
En
Basic Operations
06

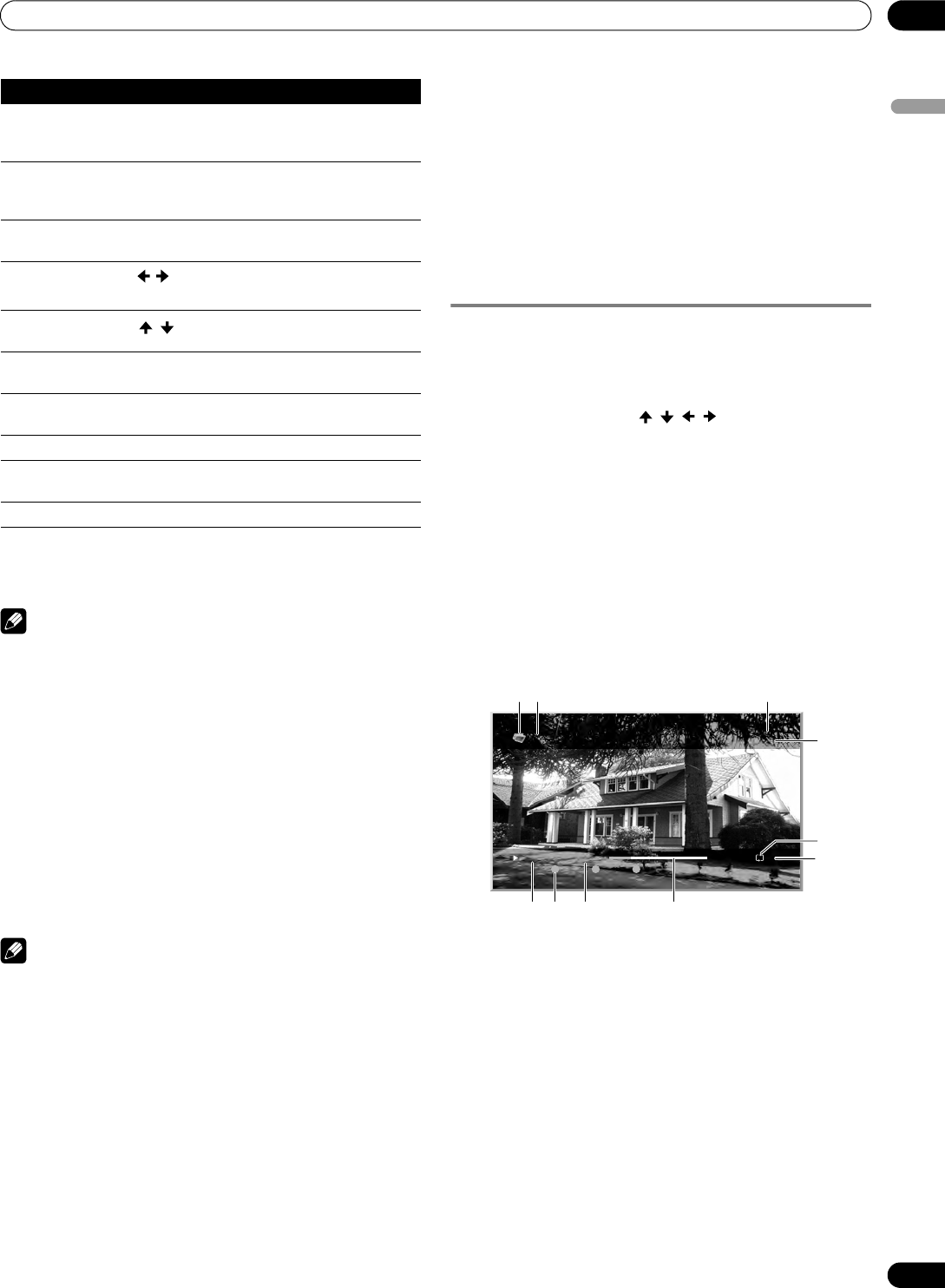

Viewing a channel banner
While watching a TV program, pressing INFO causes a banner
to appear. Pressing INFO again causes the banner to
disappear.
1Station name
2Current time
3Channel number
4Input (Ant. A or Ant. B)
5Program title
6Program time schedule
7Channel logo
8TV rating name or icon
NOTE
• The above information is not displayed unless included in
broadcast signals.
• If you do not activate the TV Guide On Screen™ system, the
channel banner may not display certain types of program
information.
Using the POD service
If you watch digital and/or High Definition TV channels over
cable, you can use the POD service provided by the cable TV
company. This service presents various types of useful
information, using Internet-style text.
Press HOME MENU, 9, 9, then 9 to view the POD display.
Using the multiscreen functions
Splitting the screen
Use the following procedure to select the 2-screen or picture-
in-picture mode.
1Press SPLIT to select the display mode.
• Press SPLIT to cycle through the display options: 2-
screen, picture-in-picture, and single-screen.
DTV 2 • 1002.102 A
12:30pm — 2:00pm
XXXXXXXXXX
12:33pm
XXX
1234
56 7 8
2-screen
Picture-in-picture
PDP_PRO1540HD.book Page 30 Wednesday, August 2, 2006 6:01 PM
31
En
Basic Operations 06
English
• In 2-screen or picture-in-picture mode, press SWAP to
switch the position of the 2 screens.
The active screen (left side) is indicated by a “ ”
symbol. The active screen’s picture and sound can be
adjusted.
• In 2-screen mode, press SCREEN SIZE to change the size
of the left screen.
• In picture-in-picture mode, press SHIFT to move the
position of the small screen counter-clockwise.
2To select an input source, press the appropriate input
source button.
• If watching conventional TV, press CH +/– to change the
channel.
NOTE
•The SPLIT button is disabled while the TV Guide On Screen™
system is displayed.
• The multiscreen function cannot display images from the
same input source or two external input sources at the same
time. Attempting to do so causes a warning message to
appear.
•Press HOME MENU to return to single-screen viewing. The
corresponding menu appears.
• When the two screens show the same analog broadcasting
coming through antenna A and B, the picture quality may
differ between the two screens.
• If you select 19201080p@24 Hz for the main screen in the
SPLIT mode, video images may not display properly.
• Displaying pictures in multi-screen mode for an extended
period may cause an after-image.
Freezing images
Use the following procedure to capture and freeze one frame.
1Press FREEZE.
A still image appears on the right screen while action
continues on the left screen.
2Press FREEZE again to cancel the function.
NOTE
• Freeze is not available when watching in Split Screen.
• If this function is not available, a warning message appears.
• Unless another action is taken, FREEZE automatically
cancels after five minutes.
• Displaying pictures in FREEZE mode for an extended period
may cause an after-image.
Moving image Still image
PDP_PRO1540HD.book Page 31 Wednesday, August 2, 2006 6:01 PM
32
En
TV Guide On Screen™ System Setup
07
TV Guide On Screen™ System Setup
About the TV Guide On Screen™ system
The TV Guide On Screen™ system is a free, interactive on-
screen television program guide. The system offers program
listings, searching by keyword, timer recording, reminders and
more. The TV Guide On Screen™ system is a convenient way to
find out what’s on right now or during the coming week.
Listings can be arranged by channel or by genre. It also allows
you to automatically set your viewing and recording selections
quickly and easily.
Before you can use the TV Guide On Screen™ system, you’ll
need to set it up.
Legal Notices
In the United States, TV GUIDE and other related marks are registered
marks of Gemstar-TV Guide International, Inc. and/or one of its affiliates.
In Canada, TV GUIDE is a registered mark of Transcontinental, Inc. and is
used under license by Gemstar-TV Guide International, Inc.
NOTE
• The TV Guide On Screen™ interactive program guide
provides listings for cable-ready and digital cable services as
well as conventional broadcasts. It does not provide listings
for satellite services.
• Depending on the current settings and selected items, the
setup screen order may differ from the one given in this manual.
Follow the instructions shown on your panel’s screen.
• TV Guide may not be available in all areas. As content
providers move to digital programming and broadcasting, TV
Guide data may be unavailable or become unavailable.
Setting up the TV Guide On Screen™
system
When the Plasma Display is powered On for the first time, you
are automatically taken through the setup process. Once the
panel’s setup is complete, the TV Guide On Screen™ setup
Welcome Screen appears. Access the TV Guide On Screen™
setup menu from the initial Setup reminder screens, or by
pressing TV GUIDE for the first time.
NOTE
• Once you set up the TV Guide On Screen™ system it may
take up to 24 hours for TV program listings to appear. Initially,
all eight days of listings may take up to one week to load (see
Screen 7).
Welcome Screen
Panel setup includes the TV Guide On Screen™ Welcome
screen.
Or press TV GUIDE to begin setup.
• The Welcome Screen lists features in the Guide.
•Press ENTER to display Screen 1.
Reminder Screen
If you previously skipped TV Guide setup, the Reminder Screen
appears when you power On the panel.
To make a selection, press / to highlight an option then
press ENTER.
• “Set up TV Guide On Screen now” displays the first setup
screen.
• “Remind me to set it up later” returns you to watching TV.
• “Don’t remind me again” returns you to watching TV and
stops the reminder screen from appearing upon power On.
NOTE
• If you decide not to set up the Guide immediately, this
reminder screen appears each time you power On the panel
unless “Don’t remind me again” is selected.
System Setup Screens
NOTE
• Once you start the setup procedure, you cannot return to the
previous screens. If you realize you entered incorrect
information, continue with setup. The last screen of the
procedure gives you the opportunity to correct any mistakes
before you exit TV Guide On Screen™ setup.
Screen 1: Country
• This screen asks for the location of your panel.
• Press / to highlight a country.
•Press ENTER to display Screen 2.
PDP_PRO1540HD.book Page 32 Wednesday, August 2, 2006 6:01 PM
33
En
TV Guide On Screen™ System Setup 07
English
Screen 2: Enter ZIP or Postal Code
• If you selected USA in Screen 1, you see the ZIP Code screen.
• Input ZIP Code.
Press the number keys or use / to display a number
then / to move to another field.
•Press ENTER to display Screen 3.
• If you selected Canada in Screen 1, you see the Postal Code
screen.
• Input Postal Code by pressing / to display a character or
number then / to move to another field.
•Press ENTER to display Screen 3.
Screen 3: Do you have Cable?
• If you select “Yes”, you see Screen 4.
• If you select “No”, you see Screen 5.
Screen 4: Which input terminal is the system plugged
into?
• Select “ANT/CABLE A IN” or “ANT B IN” (automatically
advances to Screen 5 after the selection)
Screen 5: Do you have an antenna connected?
• If you select “Yes”, you see Screen 6. (Depending on your
setup configuration, you may see an additional screen. After
that screen, you see Screen 6.)
• If you select “No”, you see Screen 6.
NOTE
• If you selected “No” in Screen 3 then you must select “Yes” in
this screen to receive a channel lineup and listings.
Screen 6: Are the settings correct?
• If you select “Yes”, you see Screen 7.
• If you select “No”, you see Screen 1.
Screen 7: Congratulations
•Press ENTER to display Screen 8.
PDP_PRO1540HD.book Page 33 Wednesday, August 2, 2006 6:01 PM
34
En
TV Guide On Screen™ System Setup
07

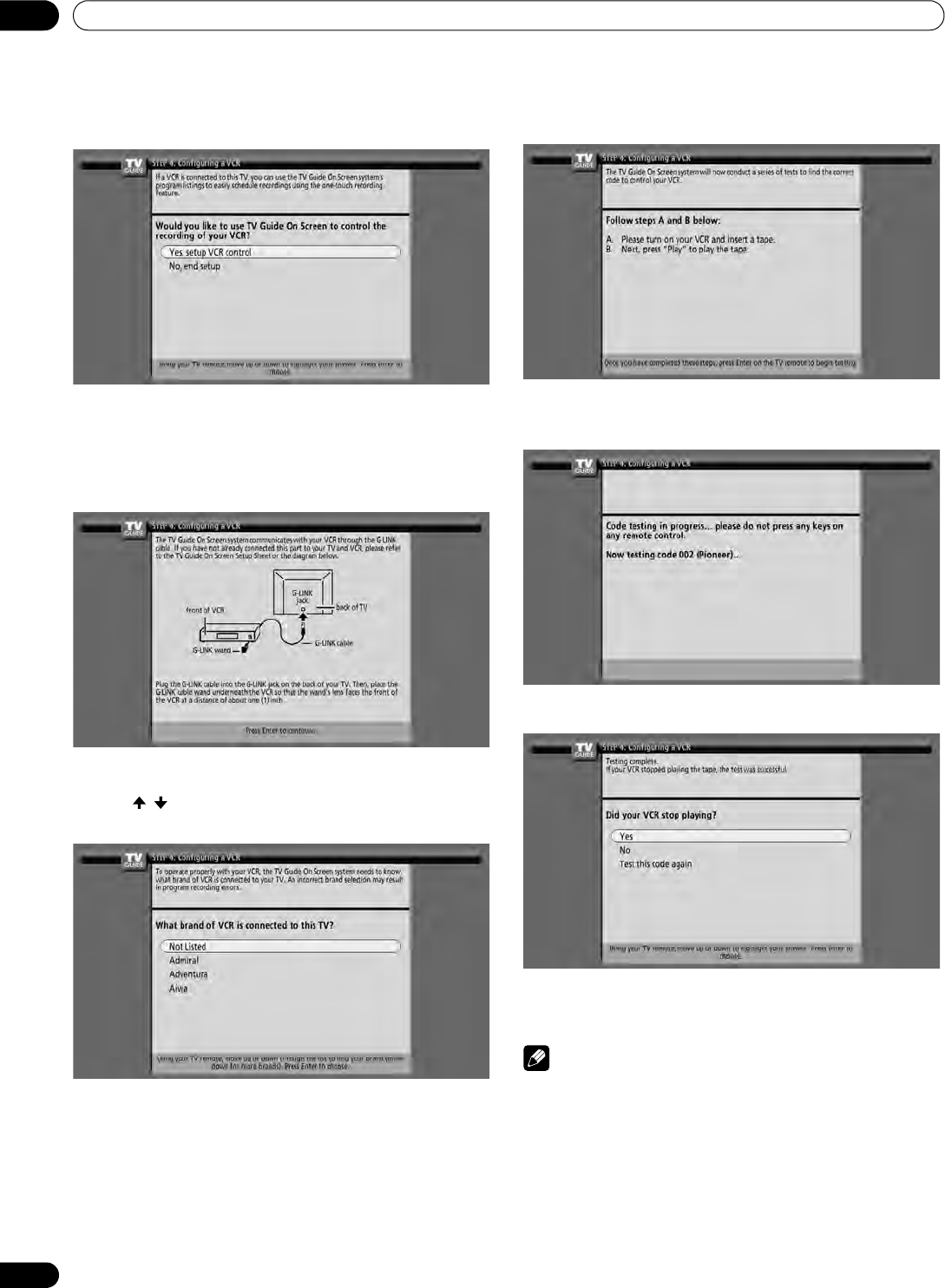

Screen 8: Is a VCR Connected?
• If you select “Yes”, you see Screen 9.
• If you select “No”, you see Screen 14.
Screen 9: VCR Configuration Diagram
• This screen shows the correct way to install the G-LINK cable
from the back of the device to the recording device. Make
sure the G-LINK cable is properly installed.
•Press ENTER to advance to Screen 10.
Screen 10: VCR Brand Name
• Press / to select the brand of the recording device.
•Press ENTER to advance to Screen 11.
Screen 11: VCR Preparation
• Follow the on-screen instructions then press ENTER to
display Screen 12.
Screen 12: VCR Code Testing
• When testing is done, Screen 13 displays automatically.
Screen 13: Did your VCR stop playing?
• If you select “Yes”, you see Screen 14.
• If you select “No”, a different code is tested from Screen 12.
NOTE
• Many VCRs require testing of more than one code to ensure
proper operation with the TV Guide On Screen™ system.
If you select “Test this code again”, the same code from
Screen 12 is sent again.
PDP_PRO1540HD.book Page 34 Wednesday, August 2, 2006 6:01 PM
35
En
TV Guide On Screen™ System Setup 07
English

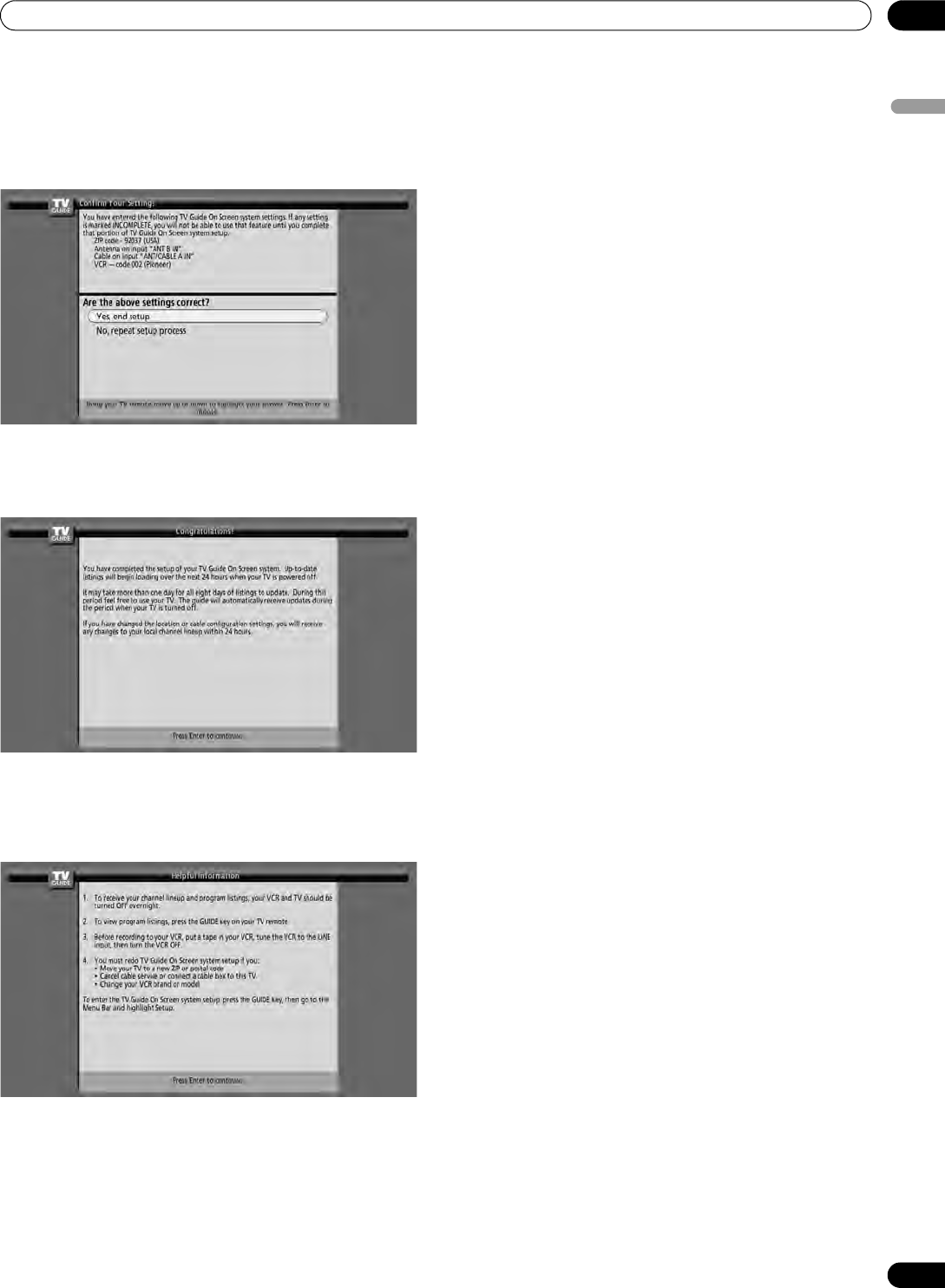

Screen 14: Confirming Your Settings
Verify that the Setup information is correct.
• If it is, select “Yes, end setup” to advance to Screen 15.
• If it is not, select “No, repeat setup process”, to return to
Screen 1.
Screen 15: Congratulations
• You have successfully completed Setup!
•Press ENTER to advance to Screen 16.
Screen 16: Helpful Information
• This screen provides valuable information on using the TV
Guide.
•Press ENTER to watch TV.
PDP_PRO1540HD.book Page 35 Wednesday, August 2, 2006 6:01 PM
36
En
Menu Setup
08
Menu Setup
Menu Configuration
AV mode menus
PC mode menus
Menu operations
The following describes the typical procedure for setting up the
menus. For the actual procedures, see the appropriate pages
that describe individual functions.
1Press HOME MENU.
2Press / (scroll) to select a menu item then press
ENTER.
3Scroll down to the desired submenu item.
• The number of menu layers differs depending on the
menu items.
• If you select “Tuner Setup”, a menu bar appears at the
bottom of the screen. To select a submenu item on the
bar, press / instead of / .
4Press / to select an option (or parameter) then press
ENTER.
• For some menu items, press / instead of / .
5Press HOME MENU to exit the menu.
NOTE
• To return to the upper menu levels, press RETURN.
Home Menu Item Page
Picture AV Selection 57
Contrast 58
Brightness 58
Color 58
Tint 58
Sharpness 58
Pro Adjust 58
Reset 58
Sound Treble 62
Bass 62
Balance 62
Reset 62
FOCUS 63
Front Surround 63
Power Control Energy Save 63
No Signal off 63
No Operation off 64
Sleep Timer 57
Option Position 64
Auto Size 66
4:3 Mode 66
Side Mask 67
HDMI Input 69
Monitor Out 70, 71
Digital Audio Out 72
Language 67
Tuner Setup Parental Control 38 – 42
Favorites 43
Channel Setup 37
Closed Captions 43 – 44
Clock 44
Home Media Gallery 75 – 91
Home Menu Item Page
Picture AV Selection 57
Contrast 58
Brightness 58
Red 58
Green 58
Blue 58
Reset 58
Sound Treble 62
Bass 62
Balance 62
Reset 62
FOCUS 63
Front Surround 63
Power Control Energy Save 63
Power Management 64
Sleep Timer 57
Option Auto Setup 64
Manual Setup 65
Home Media Gallery 75 – 91
PDP_PRO1540HD.book Page 36 Wednesday, August 2, 2006 6:01 PM
37
En
Tuner Setup 09
English

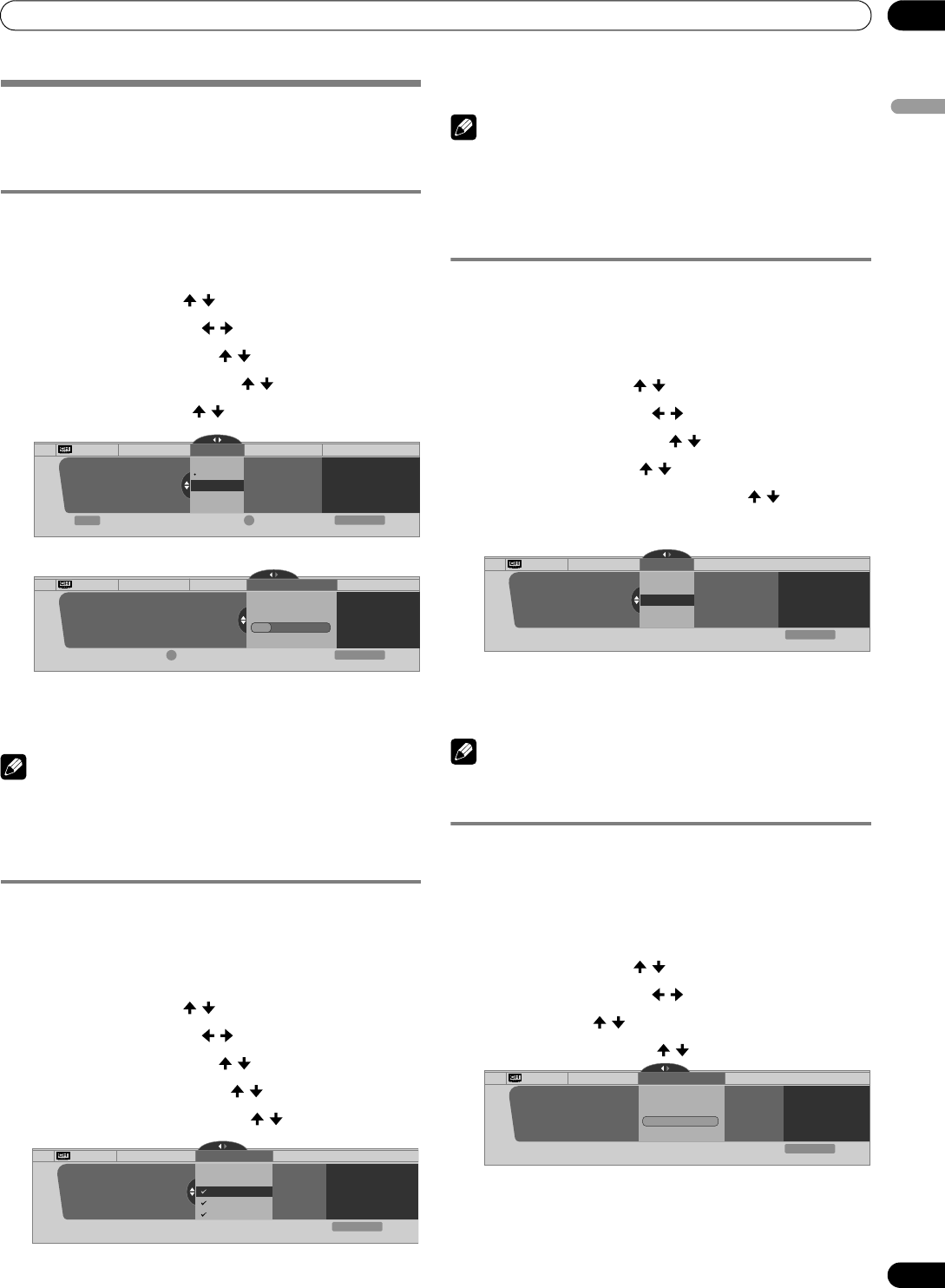

Tuner Setup
Setting up TV channels
This section describes how to search and set up TV channels.
Unless you set up TV channels using Auto Channel Preset, you
may not be able to tune in all available channels.
Using Auto Channel Preset
Auto Channel Preset automatically searches and sets up TV
channels. Press ENTER after each selection.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Channel Setup”. ( / then ENTER)
4Select “Ant. A” or “Ant. B”. ( / then ENTER)
5Select “Auto Channel Preset”. ( / then ENTER)
6Select “Air” or “Cable”. ( / then ENTER)
• Channel search automatically starts.
• To quit Auto Channel Preset, press D.
7After Auto Channel Preset finishes, press HOME MENU to
exit the menu.
NOTE
• When using the Cable Converter, you may need to manually
add Cable Converter output channels.
• When a CableCARD is functioning, select “Ant.B” in step 4
to run Auto Channel Preset.
Setting for skipping unwanted channels
From among TV channels added using Auto Channel Preset,
you can select channels to be skipped using CH+/-. Press
ENTER after each selection.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Channel Setup”. ( / then ENTER)
4Select “Ant. A” or “Ant. B”. ( / then ENTER)
5Select “Channel Keep/Skip”. ( / then ENTER)
6Select a channel to be skipped. ( / then ENTER)
• The check mark next to the channel disappears.
7Press HOME MENU to exit the menu.
NOTE
• To restore skipped channels, use the above procedure but
select (add a check mark) a channel in step 6.
• When using the Cable Converter, you may need to manually
add Cable Converter output channels. Press ENTER after
each selection.
Setting up TV channels manually
This section describes how to manually set up TV channels that
have not been set up by Auto Channel Preset. Press ENTER
after each selection.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Channel Setup”. ( / then ENTER)
4Select “Ant. A” or “Ant. B”. ( / then ENTER)
5Select “Add Channel”. ( / then ENTER)
6Select a channel number to be added. ( / then ENTER)
• You can also use buttons 0 – 9 to enter a channel
number.
• A confirmation screen appears after ENTER is pressed.
7Press A to complete the setup process.
8Press HOME MENU to exit the menu.
NOTE
• To include analog channels, manually add these channels.
Digital channels cannot be added manually.
Checking signal strength
When you have selected antenna A, check the current
channel’s signal strength. Also, use this function when
receiving a channel through a VHF/UHF antenna. Press ENTER
after each selection.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Channel Setup”. ( / then ENTER)
4Select “Ant. A”. ( / then ENTER)
5Select “Signal Strength”. ( / then ENTER)
• Adjust the antenna direction to maximize the signal
strength.
6Press HOME MENU to exit the menu.
Channel Setup
Begin Preset Cancel Exit
Ant. A
Auto Ch. Preset
Cable
Air
Cable
Ant. A Auto Channel Preset
2.0
4.0
6.0
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Enter
Home Menu
D
Channel Setup
Cancel Exit
Ant. A Auto Ch. Preset
Cable
Ant. A Auto Channel Preset
• Cable
One Moment Please … xxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxx
Home Menu
D
Channel Setup Ant. A
Channel Keep/Skip
Ant. A Channel Keep/Skip 2.0
4.0
6.0
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Exit
Home Menu
Channel Setup Ant. A Add Channel
000
Ant. A Add Channel
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
1
Exit
Home Menu
Channel Setup
Exit
Ant. A
Signal Strength
Ant. A
Current: 100
Maximum: 100 xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Home Menu
Signal Strength
PDP_PRO1540HD.book Page 37 Wednesday, August 2, 2006 6:01 PM
38
En
Tuner Setup
09
NOTE
• This function is available only when receiving digital
broadcasting signals.
• When you use the TV Guide On Screen™ system with a cable
service, select “Cable” for “Auto Channel Preset”.
• Executing more than one scan for cables can cause
broadcast reception to fail.
Checking the CableCARD ID
The Plasma Display has a slot for a CableCARD that is used for
managing your information by the cable TV company. The
CableCARD slot is located on the rear of the Plasma Display.
To check your CableCARD ID and the Host ID, follow these
steps.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Channel Setup”. ( / then ENTER)
4Select “POD ID”. ( / )
• The Host ID and CableCARD ID appear.
5Press HOME MENU to exit the menu.

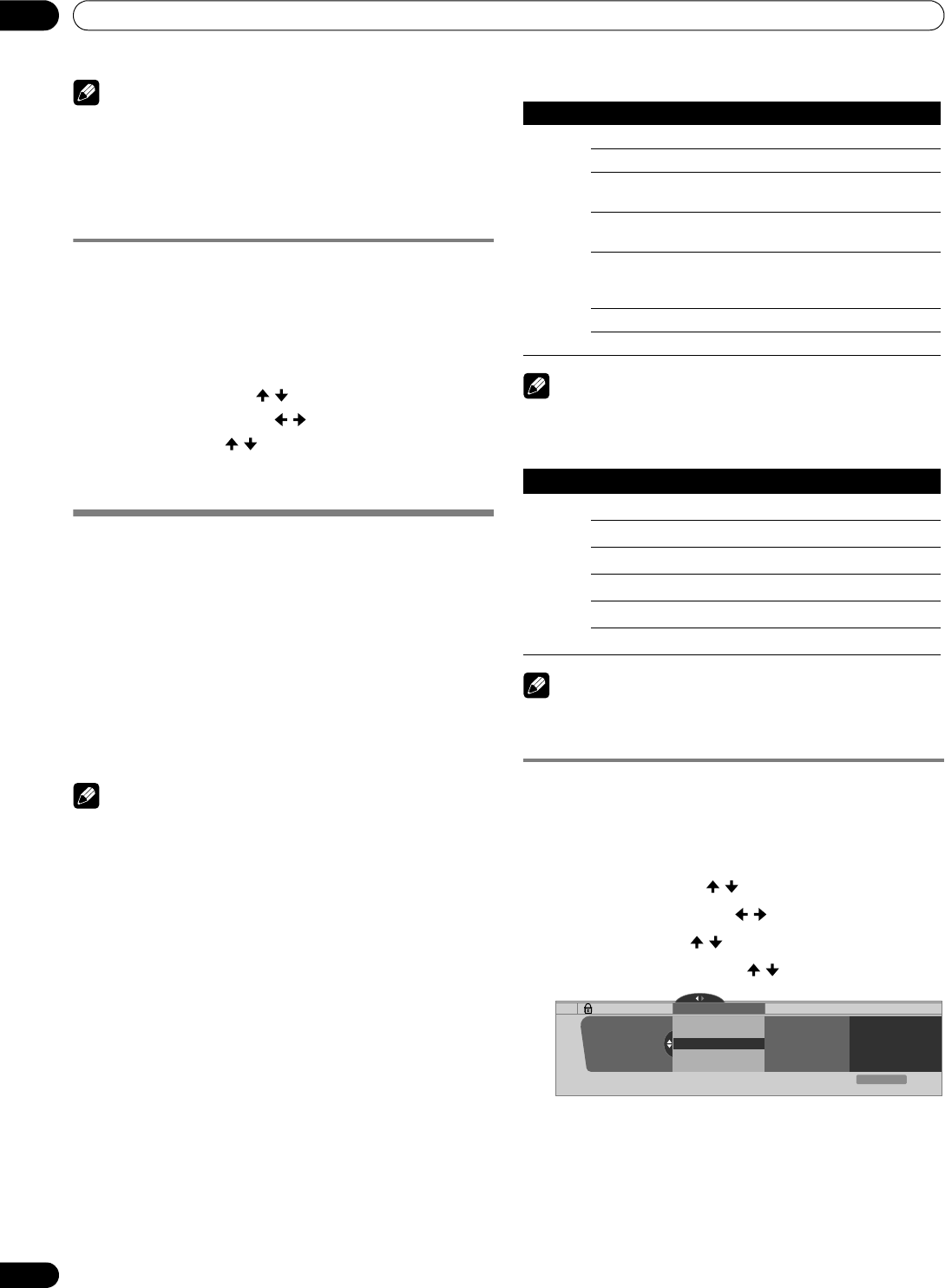

Parental Control
With the Parental Control, adults can prevent younger
audiences from watching inappropriate TV programs, VCR
tapes or DVD contents. When an attempt is made to watch a
blocked program (or content), the Plasma Display shows a
message over a black screen. The Parental Control applies to
both conventional and digital TV channels.
There are three rating systems in the United States: the TV
ratings, TV Parental Guidelines, and movie ratings. Movie
ratings are provided by the Motion Picture Association of
America (MPAA) and are used for original movies not edited
for television.
For the rating system in Canada, see page 40.
NOTE
• In the U.S. TV Parental Guideline Rating System, programs
with a rating of “None” may be blocked on this product.
Examples of programs with a “None” rating include:
• Emergency Bulletins (such as EAS messages, weather
warning and others)
• Locally originated programming
•News
•Political
• Public Service Announcements
•Religious
• Sports
• Weather
• No Parental Control settings can be entered for INPUT 5 and
INPUT 6.
Voluntary movie rating system (MPAA)
NOTE
• The voluntary movie rating system uses an age-based rating.
TV ratings
NOTE
• The system also allows you to select “None”, which blocks
programs with a rating of “None”.

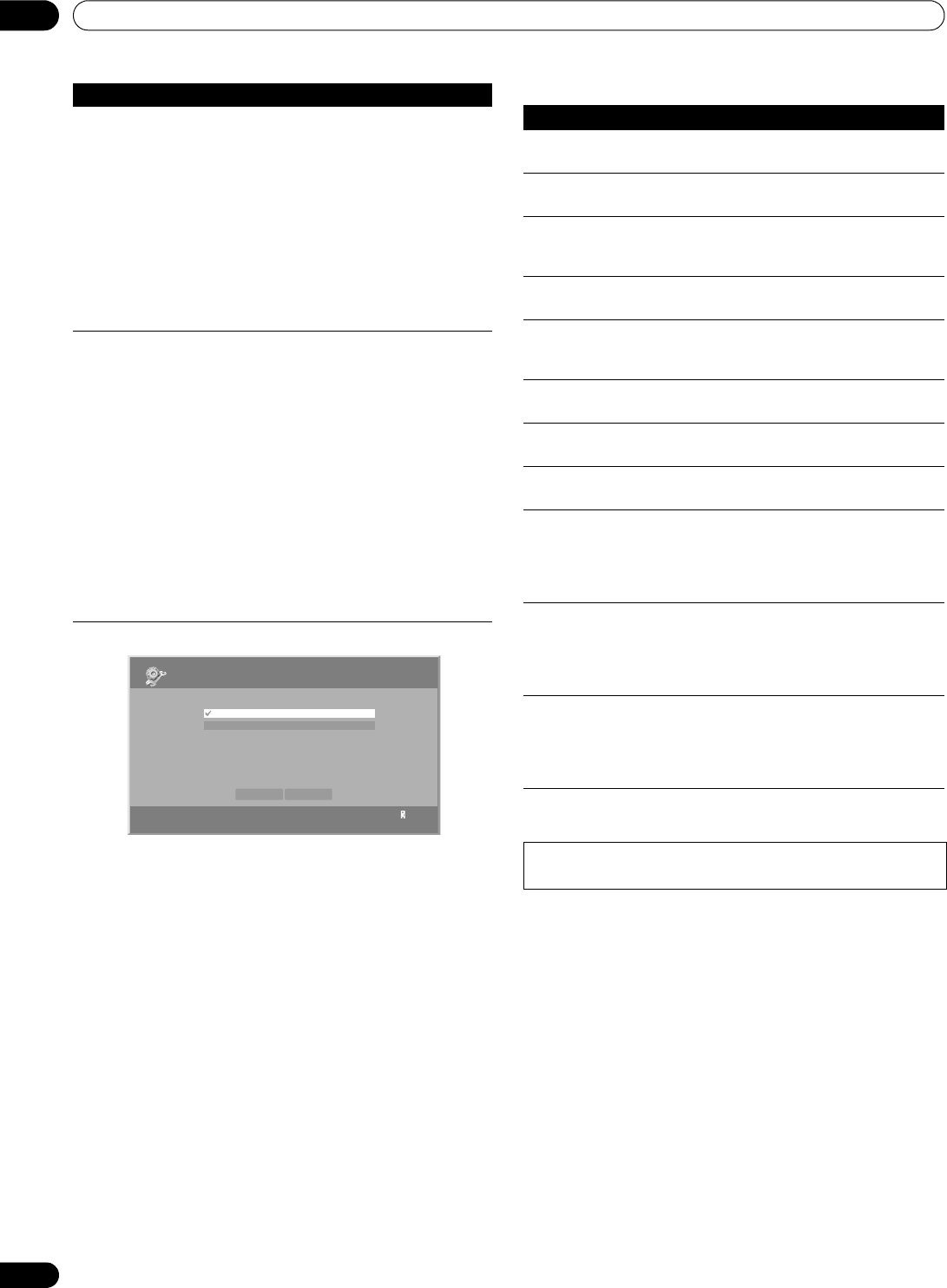

Changing the password
Using a password prevents others from changing Parental
Control settings. The 4-digit password is 1234. Use the
following procedure to change the password.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Password”. ( / then ENTER)
5Select “Change Password”. ( / then ENTER)
6Enter the current 4-digit password, using
the number
buttons
.
7
Enter a 4-digit password to be newly set, using the number
buttons.
8When prompted, enter the same password again.
• A confirmation screen appears.
9Press A.
Rating Description
Age-Base
N/A Not applicable for MPAA ratings
GGeneral audiences. All ages admitted.
PG Parental guidance suggested. Some material may
not be suitable for children.
PG-13 Parents strongly cautioned. Some material may be
inappropriate for children under 13.
RRestricted. Under 17 requires accompanying
parent or adult guardian (age varies in some
jurisdictions).
NC-17 No one 17 and under admitted.
NR Not rated.
Rating Description
Age-Base
TV-Y All children
TV-Y7 Children 7 and above
TV-G General audiences
TV-PG Parental guidance suggested
TV-14 Parents strongly cautioned
TV-MA Mature audiences only
Parental Control Password
Change Password
Password
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Clear Password
Exit
Home Menu
PDP_PRO1540HD.book Page 38 Wednesday, August 2, 2006 6:01 PM

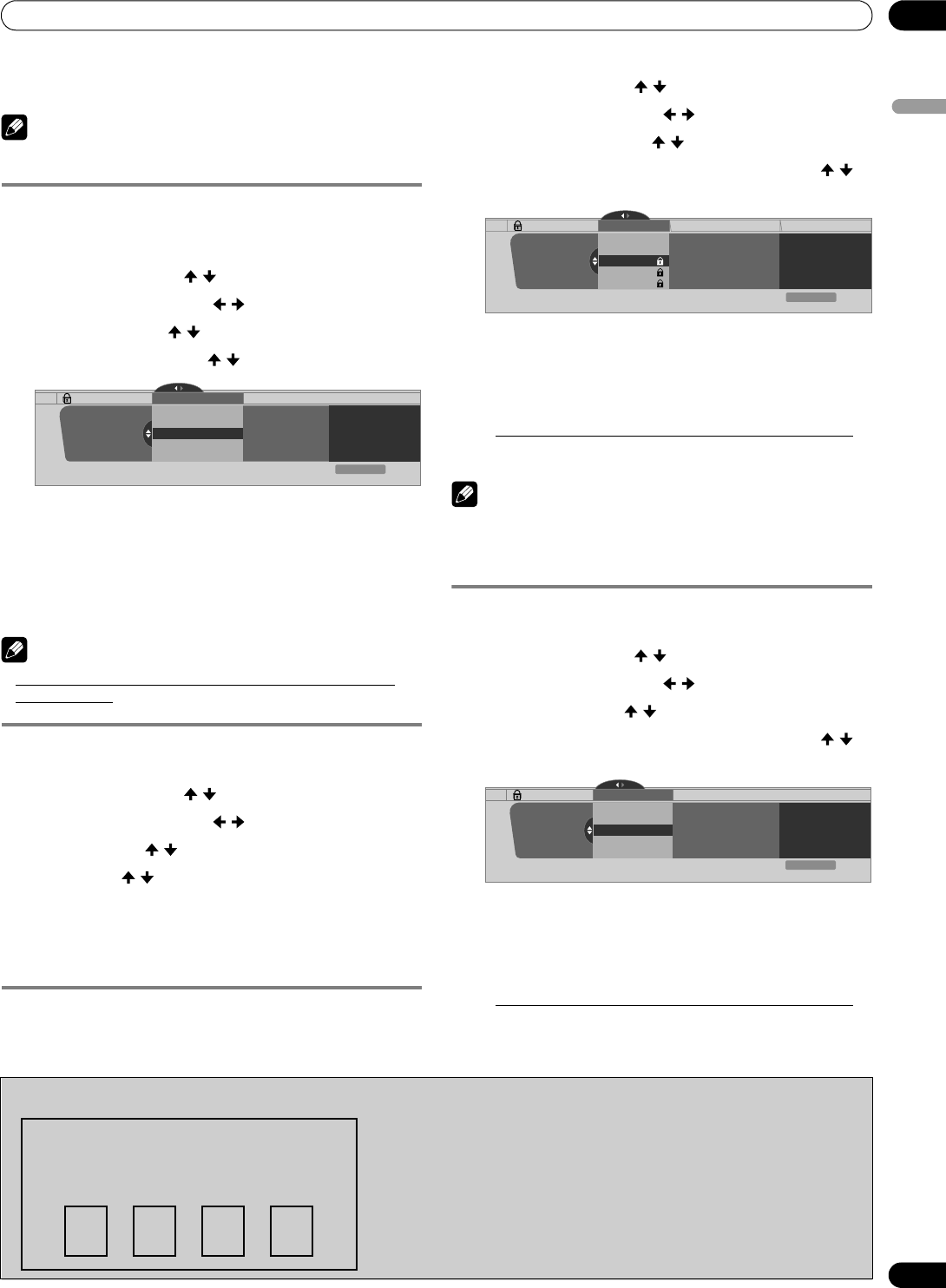

39
En
Tuner Setup 09
English
10 Press HOME MENU to exit the menu.
NOTE
• Write down the password and keep it somewhere safe.
Clearing the password
Use the following procedure to clear the password.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Password”. ( / then ENTER)
5Select “Clear Password”. ( / then ENTER)
6Enter the current 4-digit password, using the number
buttons.
• A confirmation screen appears.
7Press A.
8Press HOME MENU to exit the menu.
NOTE
• The above procedure resets the password to the factory
default (1234).

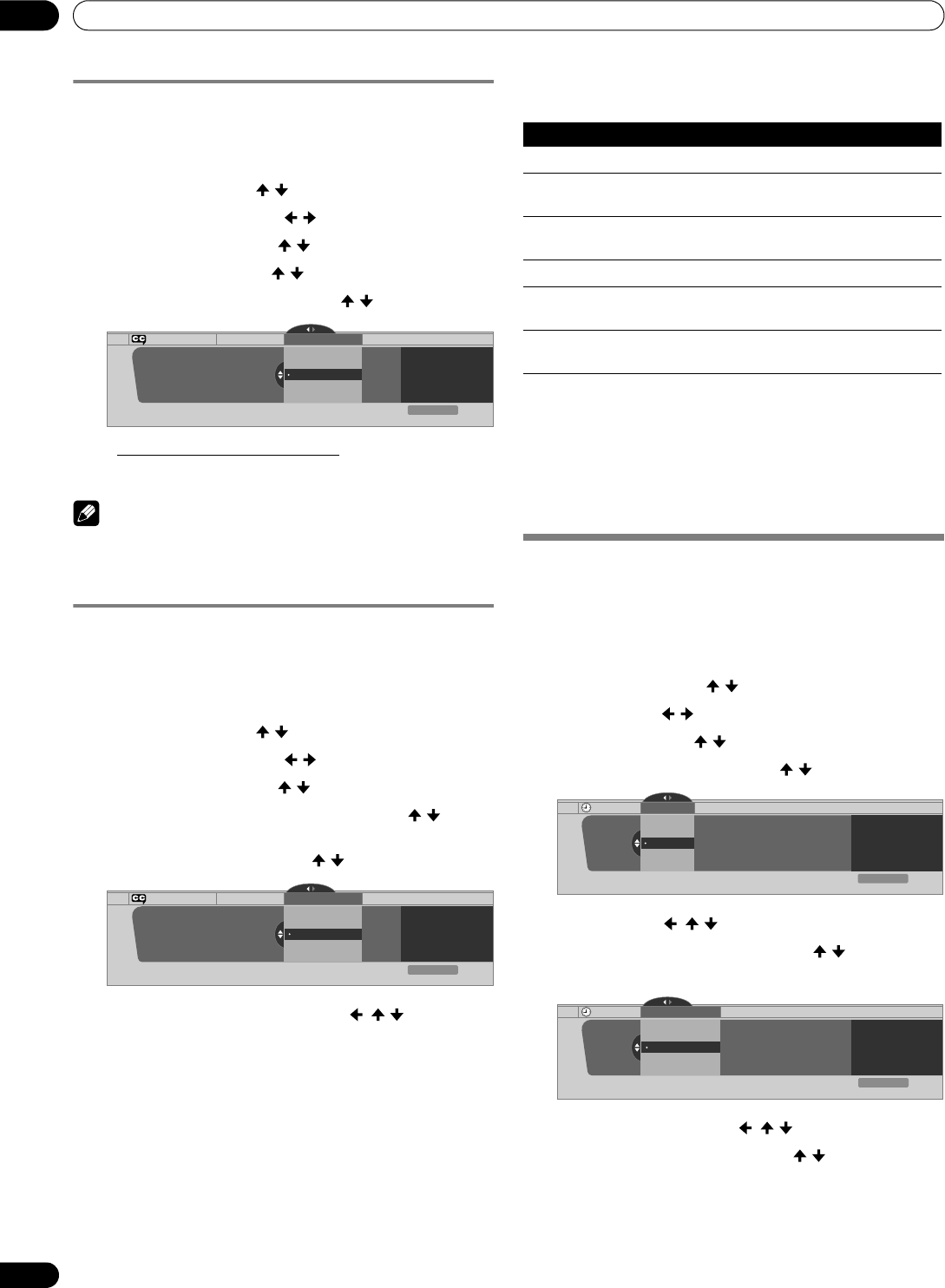

Activating the Parental Control
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Status”. ( / then ENTER)
5Select “On”. ( / then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
7Press HOME MENU to exit the menu.
Setting the voluntary movie rating system
(MPAA)
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “MPAA Ratings”. ( / then ENTER)
5Select the desired rating and change the setting. ( /
then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.

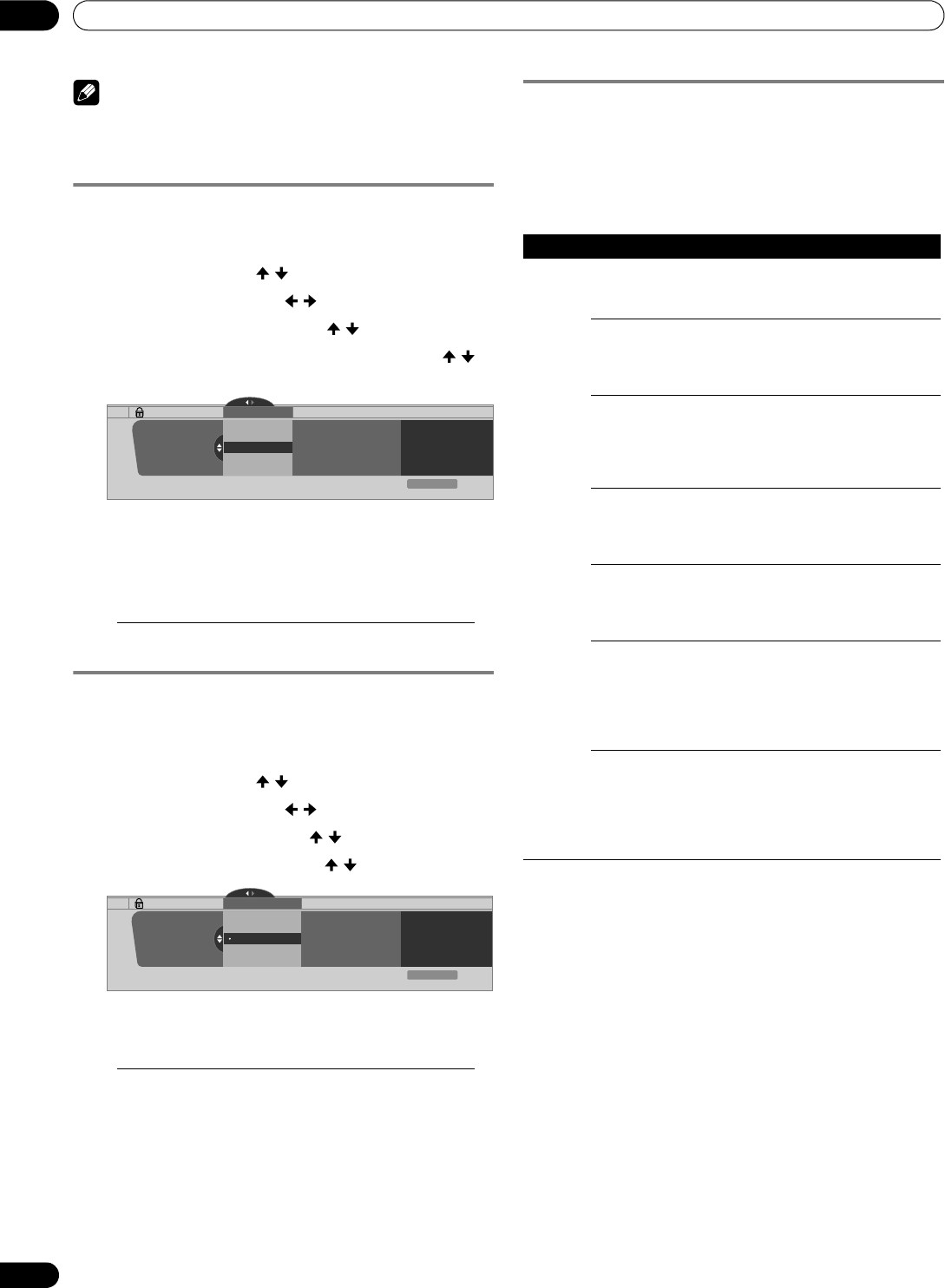

NOTE
• Blocking a rating causes more severe ratings to be
automatically blocked as well. Likewise, unblocking a rating
causes less severe ratings to be automatically unblocked.
Setting the TV ratings
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “TV Ratings”. ( / then ENTER)
5Select the desired rating and change the setting. ( /
then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.
Parental Control Password
Change Password
Password
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Clear Password
Exit
Home Menu
We suggest you write down your password and keep in a safe place.
If you forget the password
When the message “Enter your Password” is displayed in step 6
under “Clearing the password”, press the ENTER button on the
remote control unit and hold it down for 3 seconds or longer.
The password reverts to “1234”.
PRO-1540HD/PRO-1140HD/PRO-940HD
Your password No.:
Parental Control MPAA Ratings
N/A
MPAA Ratings
Blocked MPAA Ratings
N/A, G, PG,PG-13, R, NC-17
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
G
PG
Exit
Home Menu
TV Ratings
TV-Y
TV-Y
TV-Y7
TV Ratings Blocked TV Ratings xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
TV-G
TV-PG
Exit
Home Menu
Parental Control
TV-None
PDP_PRO1540HD.book Page 39 Wednesday, August 2, 2006 6:01 PM
40
En
Tuner Setup
09
NOTE
• Blocking a rating causes more severe ratings to be
automatically blocked. Likewise, unblocking a rating causes
less severe ratings to be automatically unblocked.
Setting the TV Parental Guidelines (TV
Guidelines)
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “TV Parental Guidelines”. ( / then ENTER)
5Select the desired rating and change the setting. ( /
then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.
Blocking Not Rated TV programs
Use the following procedure to block TV programs whose
rating information is unavailable.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Unavailable Ratings”. ( / then ENTER)
5Select “Block” or “Don’t Block”. ( / then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.
Canadian rating systems
Choose either the Canadian English ratings or the Canadian
French ratings. These ratings are based on the Canadian
Radio-Television and Telecommunications Commission
(CRTC) policy.
Canadian English ratings
Parental Control
TV Parental Guidelines
Fantasy Violence
TV Parental Guidelines Blocked TV Parental Guidelines
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Violence
Sexual Situations
Exit
Home Menu
Unavailable Ratings
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Unavailable Ratings
Block
Don’t Block
Parental Control
Exit
Home Menu
Rating Description
Age-Base
EExempt: Includes news, sports, documentaries
and other information programming; talk shows,
music videos, and variety programming.
CChildren: Intended for younger children under the
age of 8 years. Pays careful attention to themes
that could threaten their sense of security and
well-being.
C8+ Children over 8 years old: Contains no portrayal of
violence as the preferred, acceptable, or only way
to resolve conflict; nor encourages children to
imitate dangerous acts which they may see on the
screen.
GGeneral: Considered acceptable for all age
groups. Appropriate viewing for the entire family,
contains very little violence, physical, verbal or
emotional.
PG Parental Guidance: Intended for a general
audience, but may not be suitable for younger
children (under the age of 8) because it could
contain controversial themes or issues.
14+ Over 14 Years: Could contain themes where
violence is one of the dominant elements of the
storyline, but it must be integral to the
development of plot or character. Language usage
could be profane and nudity present within the
context of the theme.
18+ Adults: Intended for viewers 18 years and older
and might contain depictions of violence, which
while related to the development of plot, character
or themes, are intended for adult viewing. Could
contain graphic language and portrayals of sex
and nudity.
PDP_PRO1540HD.book Page 40 Wednesday, August 2, 2006 6:01 PM
41
En
Tuner Setup 09
English
Canadian French ratings
Setting Canadian English ratings
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Canadian English Ratings”. ( / then ENTER)
5Select then change to the desired rating. ( / then
ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.
NOTE
• Blocking a rating causes more severe ratings to be
automatically blocked. Likewise, unblocking a rating causes
less severe ratings to be automatically unblocked.
Setting Canadian French ratings
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Canadian French Ratings”. ( / then ENTER)
5Select the desired rating and change the setting. ( /
then ENTER)
• The password entry screen appears.
6Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• The Plasma Display ships with all ratings unblocked.
7Press HOME MENU to exit the menu.
NOTE
• Blocking a rating causes more severe ratings to be
automatically blocked. Likewise, unblocking a rating causes
less severe ratings to be automatically unblocked.
Setting new ratings
Digital broadcasts now carry new ratings that are not
compatible with the Plasma Display Panel’s original Parental
Control settings. When you first tune in one of these
broadcasts, a New Parental Control menu appears on the
screen. This tells you that you must now change your Parental
Control settings to handle these new ratings. Otherwise,
previously blocked ratings may become unblocked.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
• The new menu is displayed when Status is selected. The
message “Regional ratings have changed. Set Parental
Control ratings again.” appears on the right of the
screen.
Rating Description
Age-Base
EExempt programming.
GGeneral: All ages and children, contains minimal
direct violence, but may be integrated into the plot
in a humorous or unrealistic manner.
8ans+ General but inadvisable for young children: May
be viewed by a wide public audience, but could
contain scenes disturbing to children under eight
who cannot distinguish between imaginary and
real situations. Recommended for viewing with
parent.
13ans+ Over 13 years: Could contain scenes of frequent
violent scenes and therefore recommended for
viewing with parent.
16ans+ Over 16 years: Could contain frequent violent
scenes and intense violence.
18ans+ Over 18 years: Only for adult viewing. Could
contain frequent violent scenes and extreme
violence.
Parental Control
Canadian English Ratings
E
Canadian English Ratings
Blocked Canadian English Ratings
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
C
C8+
Exit
Home Menu
Parental Control
Canadian French Ratings
E
Canadian French Ratings
Blocked Canadian French Ratings
E, G, 8 ans+, 13 ans+, 16 ans+, 18
ans+
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
G
8 ans+
Exit
Home Menu
Parental Control Status
Status
MPAA Ratings
TV Ratings
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
New XXXXXXXXXXXXX
Exit
Home Menu
PDP_PRO1540HD.book Page 41 Wednesday, August 2, 2006 6:01 PM
42
En
Tuner Setup
09
4Select and change the desired rating. ( / then ENTER)
• The menu appears between “Unavailable Ratings” and
“Password”.
• The password entry screen appears.
5Enter your 4-digit password using the number buttons.
• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.
• When you are finished, the word “New” disappears from
the Parental Control menu.
6Press HOME MENU to exit the menu.

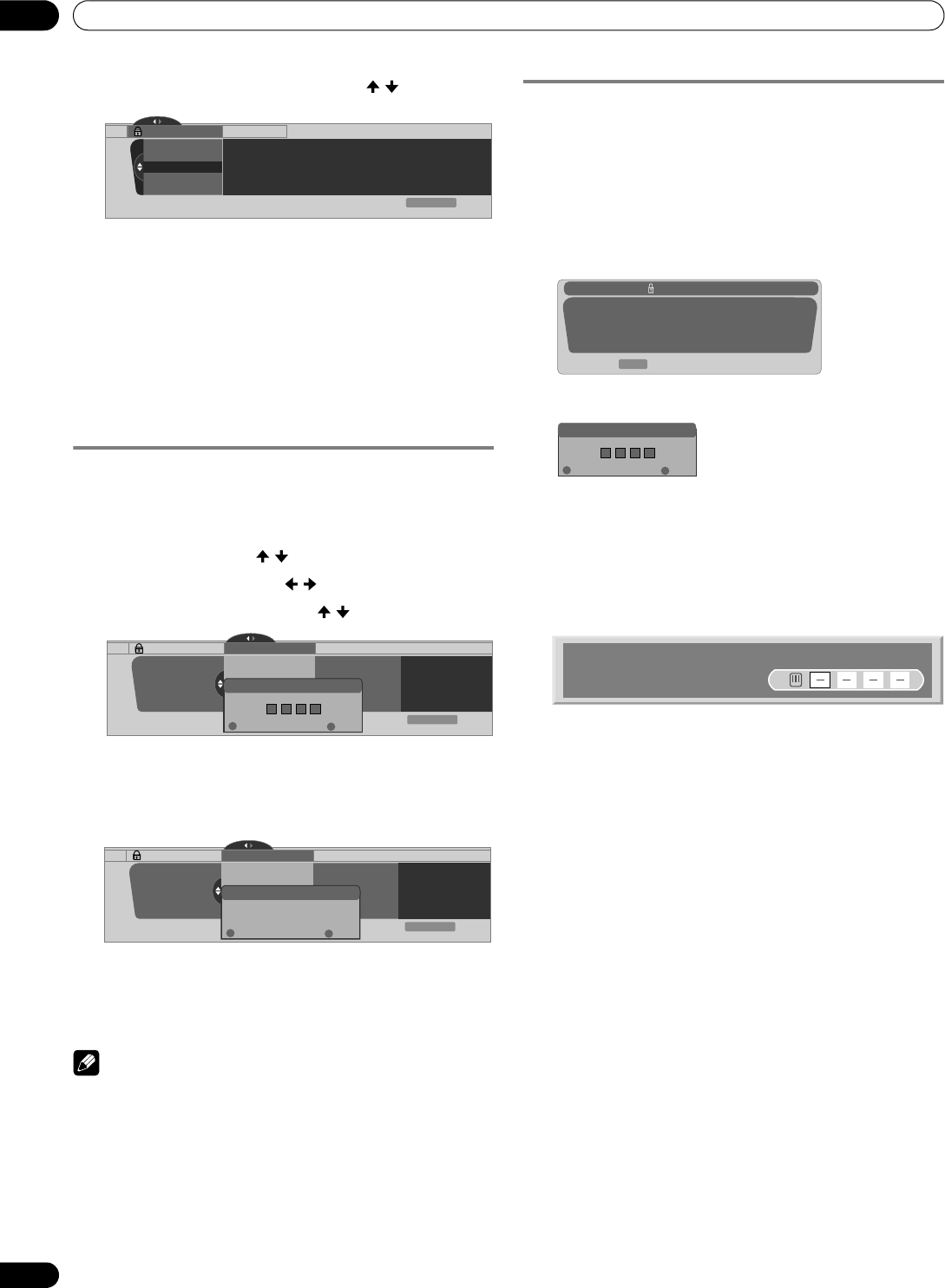

Deleting new ratings
You can delete a New Parental Control menu. When the menu
is deleted, all blocks are removed.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Parental Control”. ( / then ENTER)
4Select “Status” and then “Off”. ( / then ENTER)
• The password entry screen appears.
5Enter your 4-digit password using the number buttons.
6Select A for “Accept” or D for “Cancel”.
• The New Parental Control menu remains. However, if no
settings are entered within 60 seconds, the selection
screen for deleting new ratings disappears.
7Press HOME MENU to exit the menu.
NOTE
• Broadcasts with new (arriving) ratings are not reflected while
the Parental Control menu is open.
• Blocking a rating causes more severe ratings to be
automatically blocked. Likewise, unblocking a rating causes
less severe ratings to be automatically unblocked.
Temporarily deactivating the Parental Control
When the activated Parental Control senses a blocked TV
program (or content), the Plasma Display shows a message
over a blank screen.
The method for temporarily deactivating the Parental Control
differs, depending on the selected input source.
Antenna A or antenna B:
The following screen appears. Press ENTER.
Enter your 4-digit password.
• The password entry screen appears for approximately 60
seconds. If the screen disappears prematurely, press ENTER
to reveal the screen again.
Input 1 – 4:
Enter your 4-digit password. Pressing ENTER again causes the
password entry screen to disappear.
• The above password entry screen also appears during 2-
screen mode, picture-in-picture, and while freezing an
image.
• The password entry screen appears for approximately 60
seconds. After the screen disappears, pressing ENTER
causes it to appear again.
Parental Control New (xxx)
New (xxx)
New (xxx)
Password
New (xxx)
Unavailable Ratings xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
XX
XX
Exit
Home Menu
Parental Control Status
Change Password
Status
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxx
xxxxxxxxxxx
Clear Password
Exit
Home Menu
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
A
Cancel
Clear Entry
D
Enter your Password
A
Off
Parental Control Status
Change Password
Status
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxx
xxxxxxxx
Clear Password
Exit
Home Menu
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
A
Cancel
Accept
D
Reset Digital regional ratings?
A
Off _ _ _ _
WWWWWWW
1000.0000
(Ant. B)
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Parental Control
Disable Parental Control
Enter
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Cancel
Clear Entry
D
A
Enter your Password
Parental Control
Please Input Your Password.
PDP_PRO1540HD.book Page 42 Wednesday, August 2, 2006 6:01 PM
43
En
Tuner Setup 09
English
Setting your favorite channels
Set up to 10 TV channels for each of the four color buttons on
the remote control (40 channels in total).
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Favorites”. ( / then ENTER)
4Select a color button (A, B, C, D). ( / then ENTER)
5Select a TV channel to be registered. ( / then ENTER)
• A star appears beside the favorite channels currently
selected.
• To register another TV channel under the same color
button, repeat step 5. To register another TV channel
under a different color button, repeat steps 4 and 5.
6Press HOME MENU to exit the menu.
Setting up closed captions
Your Plasma Display System is equipped with an internal
closed caption decoder. Closed caption allows you to view
conversations, narration, and sound effects in TV programs
and home videos as subtitles on your Plasma Display screen.
Many digital TV programs also offer closed captioning. Digital
closed captions support changing parameters such as fonts
and colors.
• Not all programs and videos offer closed caption. Please look
for the “ ” symbol to check for closed captioning on a
program or video.
Activating the closed caption
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Closed Captions”. ( / then ENTER)
4Select “Status”. ( / then ENTER)
5Select “On” or “On If Mute”. ( / then ENTER)
6Press HOME MENU to exit the menu.
Selecting the type of conventional closed
captions
Select a conventional TV channel before deciding on a type of
closed captioning. Some digital TV programs provide only
conventional closed captions.
• “CC1”, “CC2”, “CC3”, or “CC4” displays subtitles of TV dramas
and news programs while allowing a full view of the picture.
• “Text1”, “Text2”, “Text3”, or “Text4” superimposes information
over the picture (e.g. TV guide, weather) that is independent
from the TV program in progress.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Closed Captions”. ( / then ENTER)
4Select “Analog Settings”. ( / then ENTER)
5Select the desired closed caption. ( / then ENTER)
• The factory default is “CC1”.
6Press HOME MENU to exit the menu.
Favorites Favorites
Current Favorites A Line Up
B0008.000 A0009.000
Favorites B 9.0
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
A 11.0
B 11.0
A
Exit
Home Menu
A
A0011.000
B 8.0
A 9.0
Item Description
Off
(factory default)
Does not show closed captions
On Always shows closed captions
On If Mute Shows closed captions only when sound is being
muted
Closed Captions Status
Status
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
On
On If Mute
Off
Exit
Home Menu
Analog Settings
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Closed Captions Analog Settings
CC3
CC2
CC1
Text 1
CC4
Exit
Home Menu
PDP_PRO1540HD.book Page 43 Wednesday, August 2, 2006 6:01 PM
44
En
Tuner Setup
09
Selecting digital closed captions
Use the following procedure to select digital closed captions:
Service 1 to 6.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Closed Captions”. ( / then ENTER)
4Select “Digital Settings”. ( / then ENTER)
5Select “Digital Service”. ( / then ENTER)
6Select the desired closed caption. ( / then ENTER)
• The factory default is “Service 1”.
7Press HOME MENU to exit the menu.
NOTE
• When available, the Primary Caption Service is usually
offered for Service 1, and the Secondary Language Service is
usually offered for Service 2.
Selecting digital closed caption parameters
Use the following procedure to change digital closed captions
parameters such as font size, font type, foreground and
background colors.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Closed Captions”. ( / then ENTER)
4Select “Digital Settings”. ( / then ENTER)
5Select “Font Size”, “Font”, or any other item. ( / then
ENTER)
6Select the desired parameter. ( / then ENTER)
7Repeat steps 5 and 6 as necessary. ( , / )
8Press HOME MENU to exit the menu.
The following table shows the available parameters for each
item.
1 Font 1 (monospaced with serifs)/ Font 2 (proportionally spaced with serifs)/
Font 3 (monospaced without serifs)/ Font 4 (proportionally spaced without ser-
ifs)/ Font 5 (casual font)/ Font 6 (cursive font)/ Font 7 (small capitals font)
With “Auto” selected, parameters specified by the provider are
used. If not specified by the provider, the bolded default
parameters are used. Selected parameters override any other
parameters, including those from the provider.

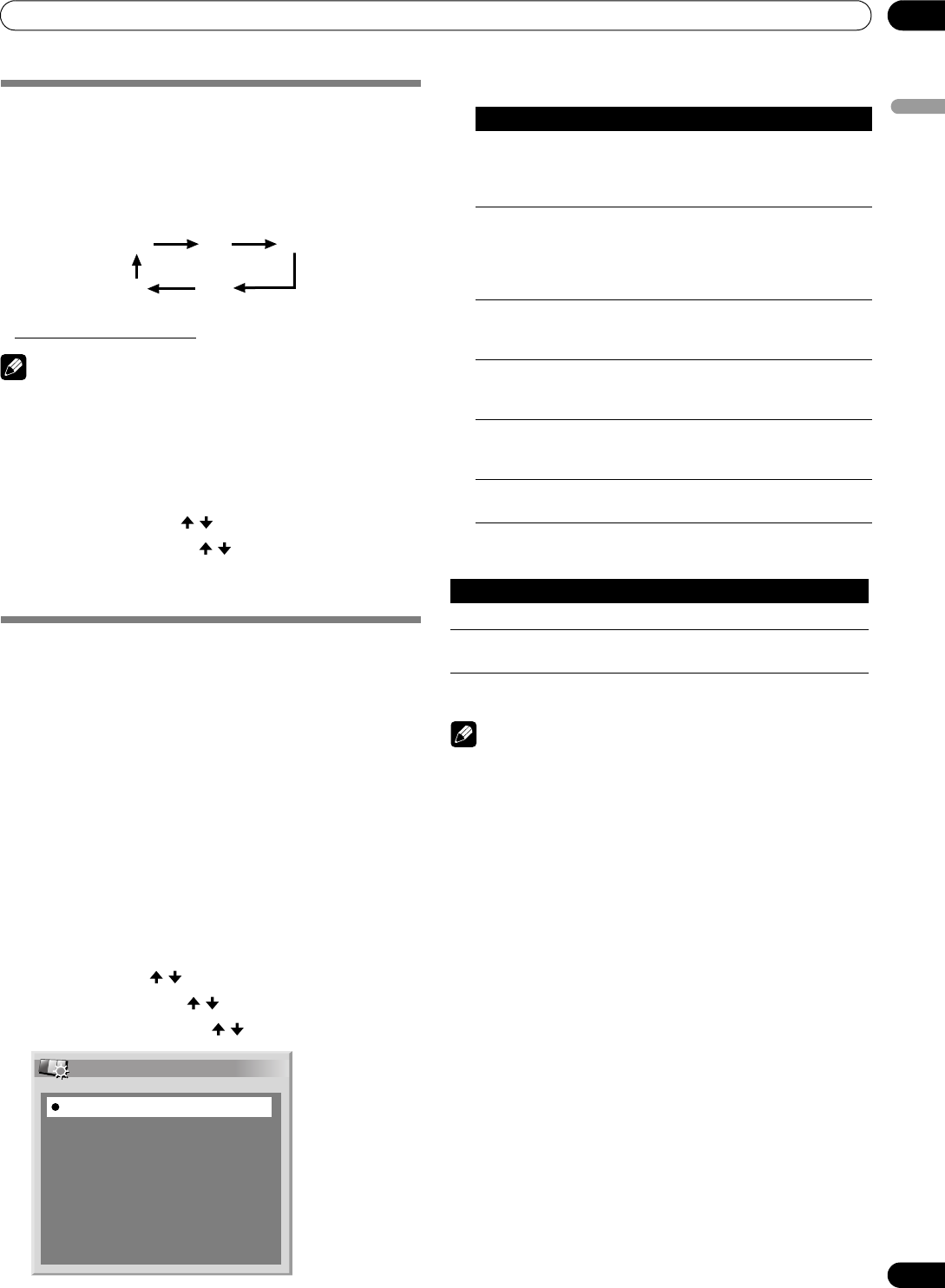

Clock Setting
With “Auto Set” selected for Clock Setting, the system acquires
and sets the time automatically. You can also manually set the
time. If power is lost (unplugged or power outage), the set time
is cleared.
1Press HOME MENU.
2Select “Tuner Setup”. ( / then ENTER)
3Select “Clock”. ( / then ENTER)
4Select “Time Zone”. ( / then ENTER)
5Select a time zone for your area. ( / then ENTER)
6Select “D.S.T.”. ( , / , then ENTER)
7Select “Applies” or “Does Not Apply”. ( / then ENTER)
• Set this option if your area uses Daylight Savings Time.
8Select “Auto/Manual Set”. ( , / , then ENTER)
9Select “Auto Set” or “Manual Set”. ( / then ENTER)
Digital Settings
Digital Settings Digital Service
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Closed Captions Digital Service
Service 3
Service 4
Service 5
Service 2
Service 1
Exit
Home Menu
Digital Settings
Digital Settings Font Size
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Closed Captions Font Size
Small
Standard
Large
Exit
Home Menu
Item Selection
Font Size Auto/ Large/ Standard/ Small
Font1Auto/ Font 1/ Font 2/ Font 3/ Font 4/ Font 5/ Font 6/
Font 7
Font Color Auto/ Black/ White/ Red/ Green/ Blue/ Yellow/
Magenta/ Cyan
Font Opacity Auto/ Solid/ Transparent/ Translucent/Flashing
Background
Color
Auto/ Black/ White/ Red/ Green/ Blue/ Yellow/
Magenta/ Cyan
Background
Opacity
Auto/ Solid/ Transparent/ Translucent
Clock Time Zone
Atlantic
Eastern
Time Zone
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Central
Mountain
Exit
Home Menu
Current Time:
9:55 pm EDT
Monday
05/17/04
Clock Daylight Savings Time
Applies
D.S.T.
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Does Not Apply
Exit
Home Menu
Current Time:
9:56 pm EDT
Monday
05/17/04
PDP_PRO1540HD.book Page 44 Wednesday, August 2, 2006 6:01 PM
45
En
Tuner Setup 09
English
10 If you chose “Auto Set”, select an antenna (A or B) and a
channel number using / and ENTER.
• The date and time is corrected automatically using data
from the selected channel.
If you select “Manual Set”, manually set the date and time
using /, / and ENTER.
11 Press HOME MENU to exit the menu.
NOTE
• If the TV Guide On Screen™ system is active, the Plasma
Display accesses time through the TV Guide On Screen™
system. When the TV Guide is providing the time data, you
cannot set up the clock using the menu. If you select a
parameter for the Clock menu then press ENTER, the menu
screen disappears and a dialog box appears. Press A to clear
the dialog box.
Auto/Manual Set Clock Set Channel
Ant. A
Auto/Manual Set
•Auto Set 2.0
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Clock
Exit
Home Menu
Current Time:
11:58 pm PDT
Monday
05/17/04
Auto/Manual Set Date and Time
3 /17/04
Auto/Manual Set
•Manual Set 11:58pm
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
Clock
5
4
3
6
Exit
Home Menu
Current Time:
11:58 pm PDT
Monday
05/17/04
PDP_PRO1540HD.book Page 45 Wednesday, August 2, 2006 6:01 PM
46
En
TV Guide On Screen™ System Operation
10
TV Guide On Screen™ System Operation
Using the TV Guide On Screen™ system
Before you can use the TV Guide On Screen™ system, you’ll
need to set it up. If you haven’t already done this, please turn to
“TV Guide On Screen™ System Setup”on page 32 before
proceeding.
In order to record TV programs with a VCR, you need to

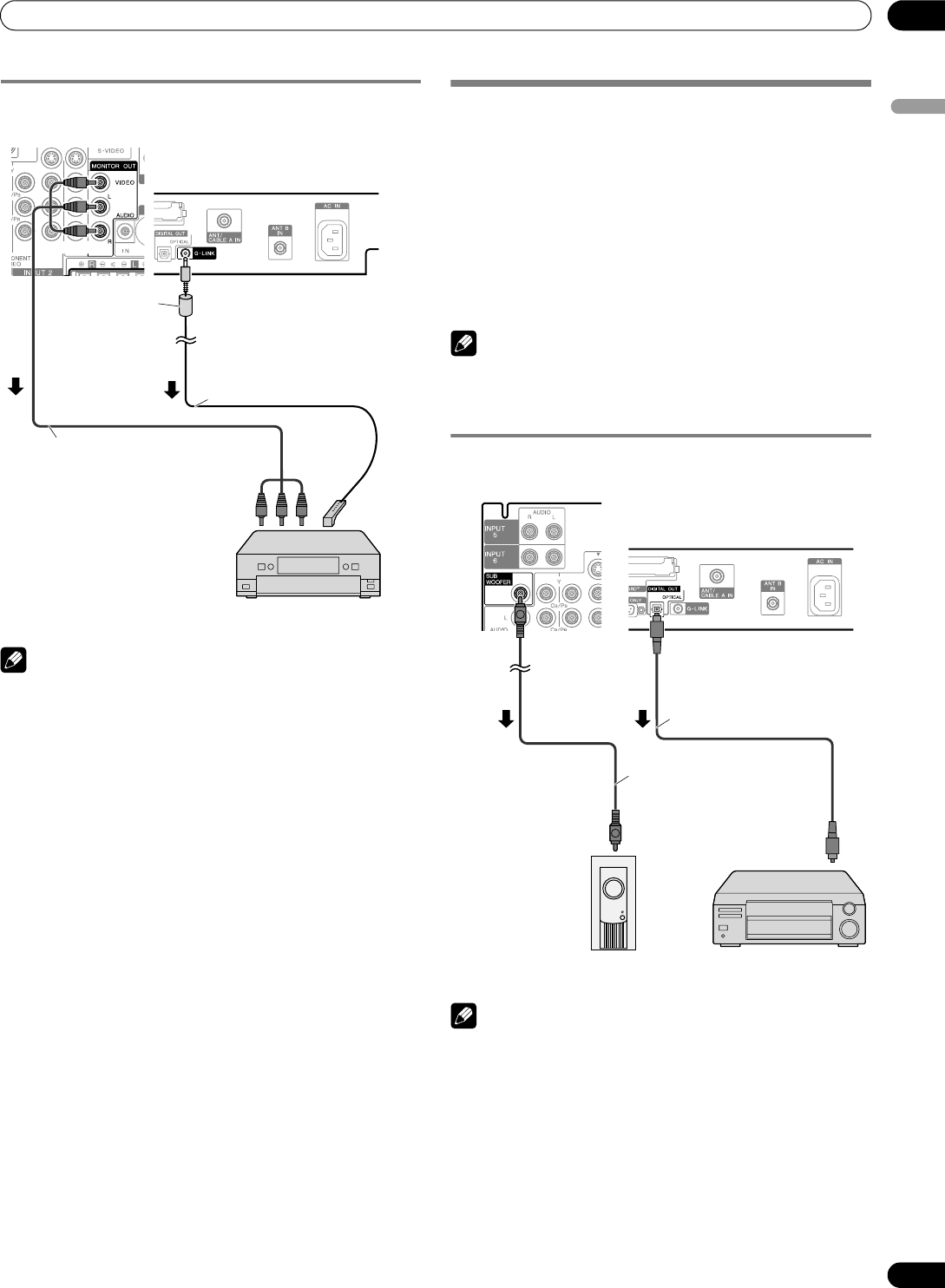

correctly connect the equipment to the Plasma Display. For
VCR connection information, see page 71.
NOTE
• The TV Guide On Screen™ interactive program guide
provides listings for cable-ready and digital cable services as
well as conventional broadcast. It does not provide listings
for satellite services.
• Once the TV Guide On Screen™ system is activated it may
take up to 24 hours to begin receiving TV program listings.
Initially, of all eight days of listings may take up to one week
to load.
• TV Guide may not be available in all areas. As content
providers move to digital programming and broadcasting, TV
Guide data may be unavailable or become unavailable.
Screen components
Many of the screens have common elements to make using the
system easier.
1 TV GUIDE logo
2Clock – Shows the current time
3Time slot – Half-hour time slots are displayed horizontally
4Time tab – Indicates the currently selected time slot
5 Current service label – Indicates the currently selected
service
6 Service bar – Gives access to the various TV Guide
services.
7 Title – Shows the title of the TV program
8 Info Bar – Shows various icons to convey information or
show the status of an item
9 Video window – Allows you to continue watching the
current program while using the Guide
10 Panel ads and panel menu entry – Space for show or
product advertising (and the panel menu)
11 Channel logo
12 Info Box – Shows information about the highlighted item
13 Channel ads – Space to advertise upcoming programs and
specials

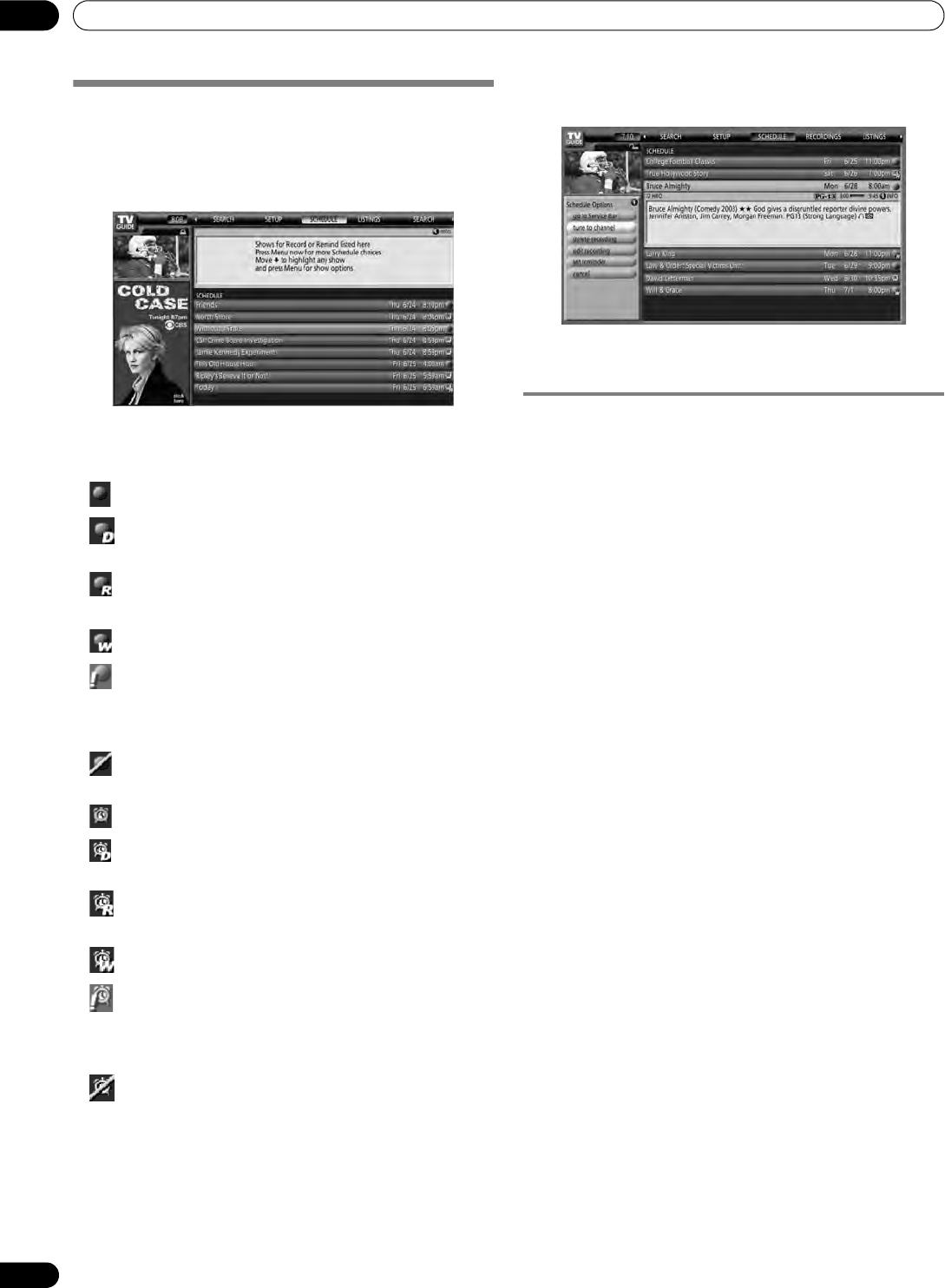

TV Guide On Screen™ icons
Various icons are used to convey information or show the
status of an item. These icons can be on the Info Bar, inside the
Info Box, or beside program titles.
• Info icon – Alerts that additional information is
available (press INFO to display)
• Progress Bar – Shows the elapsed time of the
current program
• HDTV – Indicates that a program is a high-definition
broadcast
• New – The program is new (not a repeat)
• Stereo – The program is broadcast in stereo
• CC – The program is broadcast with closed captioning
• TV Rating – Indicates the age rating for the program
• Record Once – One-time only recording
• Record Daily – Records the same channel and time
every Monday through Friday (manual recording only)
• Record Regularly – Records the same program any day
it airs on the same channel at the same time
• Record Weekly – Records a program every week at the
same time/day
• Record Suspend – The program is set to record, but is
suspended because of a conflict with another recording or
auto tune reminder. The recording resumes when the
conflict is cleared.
• Record Off – The program remains in the SCHEDULE
list but is not recorded until the frequency is changed to one
of the above
• Remind Once – One-time only reminder
• Remind Daily – Reminds for the same channel and time
every Monday through Friday (manual reminder only)
• Remind Regularly – Reminds the same program any
day it airs on the same channel at the same time
• Remind Weekly – Reminds every week at the same
time/day
• Remind Suspend – A reminder is set for the program,
but is suspended because of a conflict with another auto
tune reminder or recording. The reminder resumes when the
conflict is cleared.
• Remind Off – The program remains in the SCHEDULE
list but the reminder is held until the frequency is changed to
one of the above.
12345
6
7
8
9
10 11 12 13
PDP_PRO1540HD.book Page 46 Wednesday, August 2, 2006 6:01 PM
47
En
TV Guide On Screen™ System Operation 10
English
TV Guide On Screen™ navigation
The table below summarizes the TV Guide On Screen™ system
navigation buttons for the remote control.
You can also use the panel’s buttons, TV GUIDE, ENTER, UP/
DOWN, and LEFT/RIGHT to make selections. The UP/DOWN
and LEFT/RIGHT buttons operate the same as the / and /
buttons on the remote control.
The Listings screen
The Listings screen is the main menu for the TV Guide On
Screen™ system. This is the screen you see when you press TV
GUIDE.
Options on the Listings screen include:
• View eight days of program listings.
• Display information about individual programs.
• Select a program to start watching.
• Set a reminder about a program.
• Set a program to record.
• See a thumbnail of any channel in the video window.
• Access panel and channel ads.
1Press TV GUIDE to display the Listings screen.
• With “LISTINGS” highlighted in the Service bar (top of
the screen), press INFO to display (then close) Help
information.
• Press TV GUIDE anytime to exit.
2Press /// to navigate the Listings screen.
• With a program highlighted, press ENTER to start
watching that program.
• Move right for programs showing at later times.
• Press PAGE+/– to scroll one menu page at a time.
• Press INFO to display additional information (if
available) about the currently selected show.
• Press DAY+/– to jump to the next/previous day in the
listings grid.
3To set the highlighted program to record, press REC.
Pressing REC just once sets the program to record. Press
REC repeatedly to change the frequency of the recording:
• Once – Just records the highlighted program
• Regularly – Records the same program any day it airs
on the same channel at the same time1
Key What it does
TV GUIDE Press to display the TV Guide On Screen™ system
(also use to exit).
/// Use to navigate screens (highlight an item)
ENTER Press to confirm a selection or execute an action
Can also be used to display the panel menu when
a future program is highlighted
MENU Press to display a panel menu
INFO Press to cycle through the available information
for the current program or screen
REC Press to set the highlighted program to record
Number buttons Use for numeric entry
PAGE +/– Press to select the previous/next page of
information (where applicable)
DAY +/– Press to jump to the next/previous day of program
listings (if applicable)
PDP_PRO1540HD.book Page 47 Wednesday, August 2, 2006 6:01 PM
48
En
TV Guide On Screen™ System Operation
10
• Weekly – Records the same program at the same time1/
day every week
•No record icon – Does not record.
1The program is recorded if it starts any time up to the midway
point of the originally scheduled program. For example, up to
9:15 for a 9:00 to 9:30 program.
These recording options use the default settings.
To record using settings other than the defaults, use the panel
menu recording option described below.
NOTE
• When TV Guide On Screen™ is not being displayed, you can
record a program simply by pressing the REC button on the
remote control. Press the REC button to record the current
program episode. Recording begins immediately. If the
program is listed in the TV Guide On Screen™, recording
stops at the end of the program. If the program is not listed
in the TV Guide On Screen™ system, recording continues for
30 minutes.
• When TV Guide On Screen™ is not displayed, pressing the
REC button more than once has no effect.
Recording programs
The simplest way to record a program is to highlight it then
press REC (as described above). However, if you want to set
the recording options to anything other than the default, use
the Recording Options panel menu. Here you can adjust the
start and end times, the destination of the recording, etc.
1From LISTINGS, SCHEDULE, or SEARCH, highlight the
program you want to record.
2Press MENU to display the Episode Options menu.
3Highlight “set recording” then press ENTER.
4Set the recording options:
Press / to highlight a field then press / to change
the setting.
•frequency – select whether the program will be
recorded Once, Regularly (at the same time on the
same channel), or Weekly (every week at the same
time/day). The Off option adds the program to the
recording schedule but doesn’t record it (you can set it
to record later).
•start – set the start time of the recording to On time, or
up to 120 minutes before or after the scheduled time.
•end – set the end time of the recording to On time, or
up to 120 minutes before or after the scheduled time.
•recorder – select a recorder to be used for recording.
• If you want to cancel the recording, highlight cancel
then press ENTER.
5Once all the settings have been made, press ENTER to
highlight “schedule recording” then press ENTER again.
• The recording is now set (listed in SCHEDULE) and the
appropriate icon appears on the show title.
If there is a time conflict with a previously scheduled recording
or auto-tune reminder, you will be alerted by one of the
messages below. You can select to record the conflicting
program, or cancel the recording.
PDP_PRO1540HD.book Page 48 Wednesday, August 2, 2006 6:01 PM
49
En
TV Guide On Screen™ System Operation 10
English
When the recording is about to start
The TV Guide On Screen™ system alerts you when a scheduled
recording is about to start and gives you the chance to cancel
the recording.
When you see the on-screen alert, select the next action;
• “change channel, start recording”
• “don’t change channel; cancel recording”
Depending on the situation, the following screens may appear.
Press A to start recording as scheduled or D to cancel
recording.
While recording is in progress
If you attempt to change the channel during recording, the
following screen appears.
Select the next action:
• “don’t change; keep recording”
• “change; stop recording”
Depending on the situation, the following screens may appear.
This reminder remains on-screen for 15 seconds.
Press A to change the channel and quit recording; or press D
not to change the channel and to continue recording.
Setting program reminders
By setting a program reminder you can have the TV alert you
when a program is about to start on another channel. You can
set reminders for individual episodes, or for every time a
program airs.
1From LISTINGS, SCHEDULE, or SEARCH, highlight the
program.
2Press MENU to display the Episode Options menu.
3Highlight “set reminder” then press ENTER.
4Set the reminder options.
Press / to highlight a field; press / to change the
setting.
•frequency – select whether to be reminded just Once,
Regularly (at the same time on the same channel), or
Weekly (every week at the same time/day). The Off
option adds the program to the reminder schedule but
no reminder is given (to be set later).
•auto tune – choose whether the TV should
automatically change channels when a reminder is due.
•when – set when the reminder appears (before, on time,
or after a program has started).
The following timer is about to begin:
Tues. 12/30 12:30am-12:59am
Cancel TimerAccept DA
Timer Alert
Ant. A 1000.000 BRAV022
The following timer is about to begin:
Wed.
1/5 4 : 06
am
- 9 : 08
am
Cancel Timer
Accept D
A
Timer Alert
Ant. A 1000. 5 BRAV022
PLASMA DISPLAY
Changing channels will interrupt a recording in progress.
Recording In Progress
Change Channel Now
ADon't Change Channel
D
Changing channels will interrupt a recording in progress.
Don't Change ChannelChange Channel Now DA
Recording In Progress
REC PLASMA DISPLAY
PDP_PRO1540HD.book Page 49 Wednesday, August 2, 2006 6:01 PM
50
En
TV Guide On Screen™ System Operation
10
5Once all the settings have been made, press ENTER to
highlight “schedule reminder”, then press ENTER again.
• The reminder is now set (listed in SCHEDULE) and the
appropriate icon appears on the show title.
If there is a time conflict with a previously scheduled auto-tune
reminder or recording, you will be alerted. One of the
messages below will appear. You can select to set a reminder
for the conflicting program or cancel the reminder.
When a scheduled reminder is due (auto-tune is OFF)
Depending on your settings, the reminder will appear on your
TV screen shortly before the program is scheduled to start. This
happens when you have selected “NO” for the auto tune. The
reminder remains on-screen for three minutes before it
automatically disappears.
Press
ENTER
to switch to the highlighted program in the
reminder or highlight “hide reminders” to dismiss the reminder.
If more than one reminder is set for the same time, press /
to select which program to watch.
Depending on the situation, the following screens may appear.
The reminder remains on-screen for 15 seconds.
Press A to leave the reminder in effect, or D to dismiss the
reminder.
When scheduled reminder is due (auto-tune is ON)
If the “auto-tune” setting was set to “yes” in the Remind
Options, one of the following screens appears, depending on
the situation.
The screen remains visible for 15 seconds.
Press A to make the Timer Alert screen disappear.
Tues. 12/30 12:30am-12:59am
Cancel TimerAccept DA
Timer Alert
Ant. A 1000.000 BRAV022
Wed.
1/5 4 : 06
am
- 9 : 08
am
Cancel Timer
Accept D
A
Timer Alert
Ant. A 1000. 5 BRAV022
PLASMA DISPLAY
Tues. 12/30 12:30am-12:59am
Accept
A
Timer Alert
Ant. A 1000.000 BRAV022
Wed.
1/5 4 : 06
am
- 9 : 08
am
Accept
A
Timer Alert
Ant. A 1000. 5 BRAV022
PLASMA DISPLAY
PDP_PRO1540HD.book Page 50 Wednesday, August 2, 2006 6:01 PM
51
En
TV Guide On Screen™ System Operation 10
English
Searching for programs
The Search screen lets you search for programs alphabetically,
by category, or by keyword. You can also search for HDTV
programs.

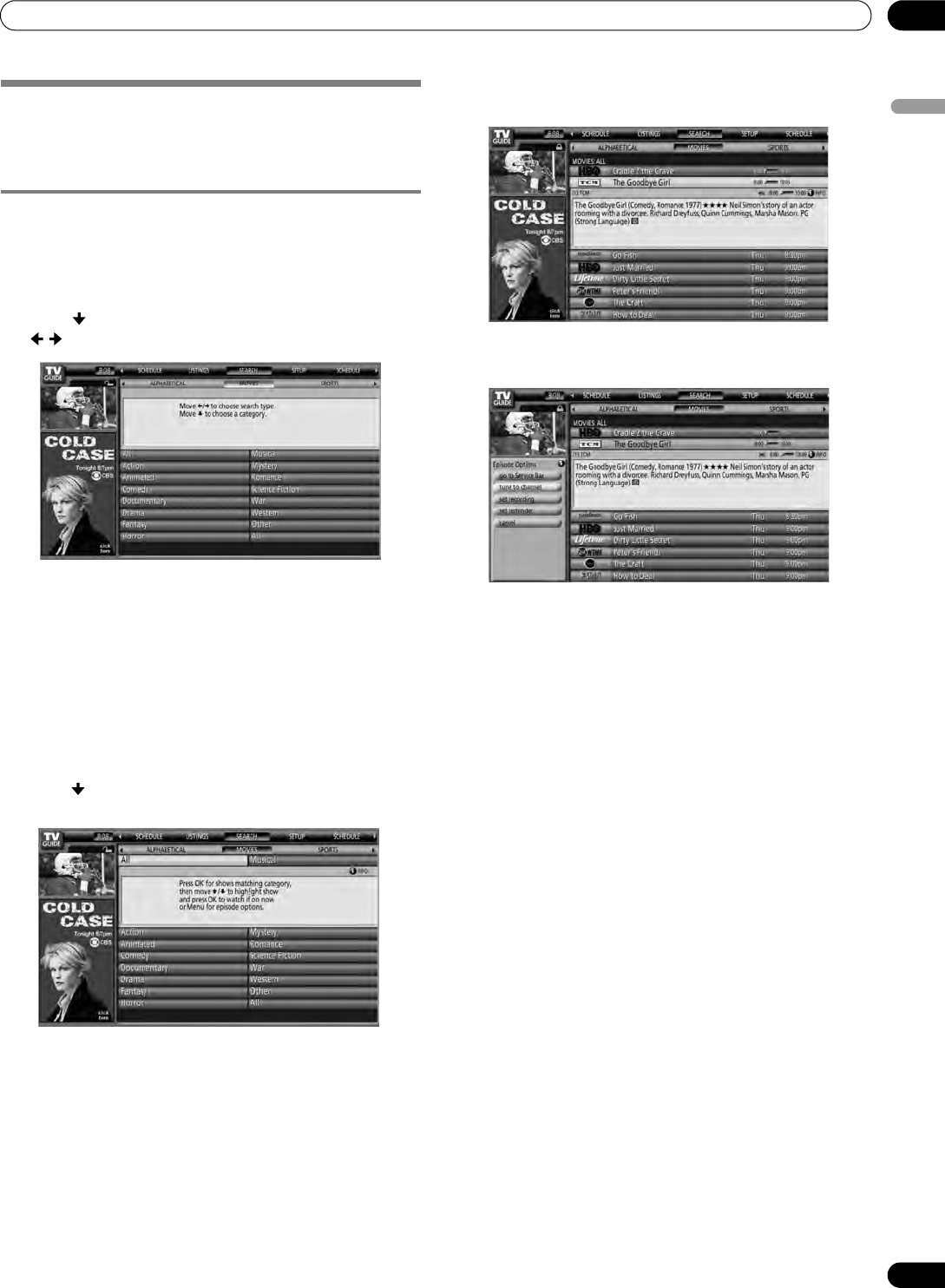

Searching by category
This option supports searching for programs by category, and
then by a further sub-category.
1Select “SEARCH” from the Service bar at the top of the
screen.
2Press to move to the search category bar, then press
/ to select a search category.
• Available categories may include:
•Movies
• Sports
• Children
•Educational
•News
•Variety
•Series
•HDTV
3Press to highlight the search sub-categories then select
a sub-category.
• Sub-categories availability depends upon the category
you choose.
4Press ENTER to list upcoming programs that match the
categories you chose.
5Highlight a program listing then press MENU to display
the Episode Options menu.
• If the program is currently showing, press ENTER to start
watching it immediately.
PDP_PRO1540HD.book Page 51 Wednesday, August 2, 2006 6:01 PM
52
En
TV Guide On Screen™ System Operation
10

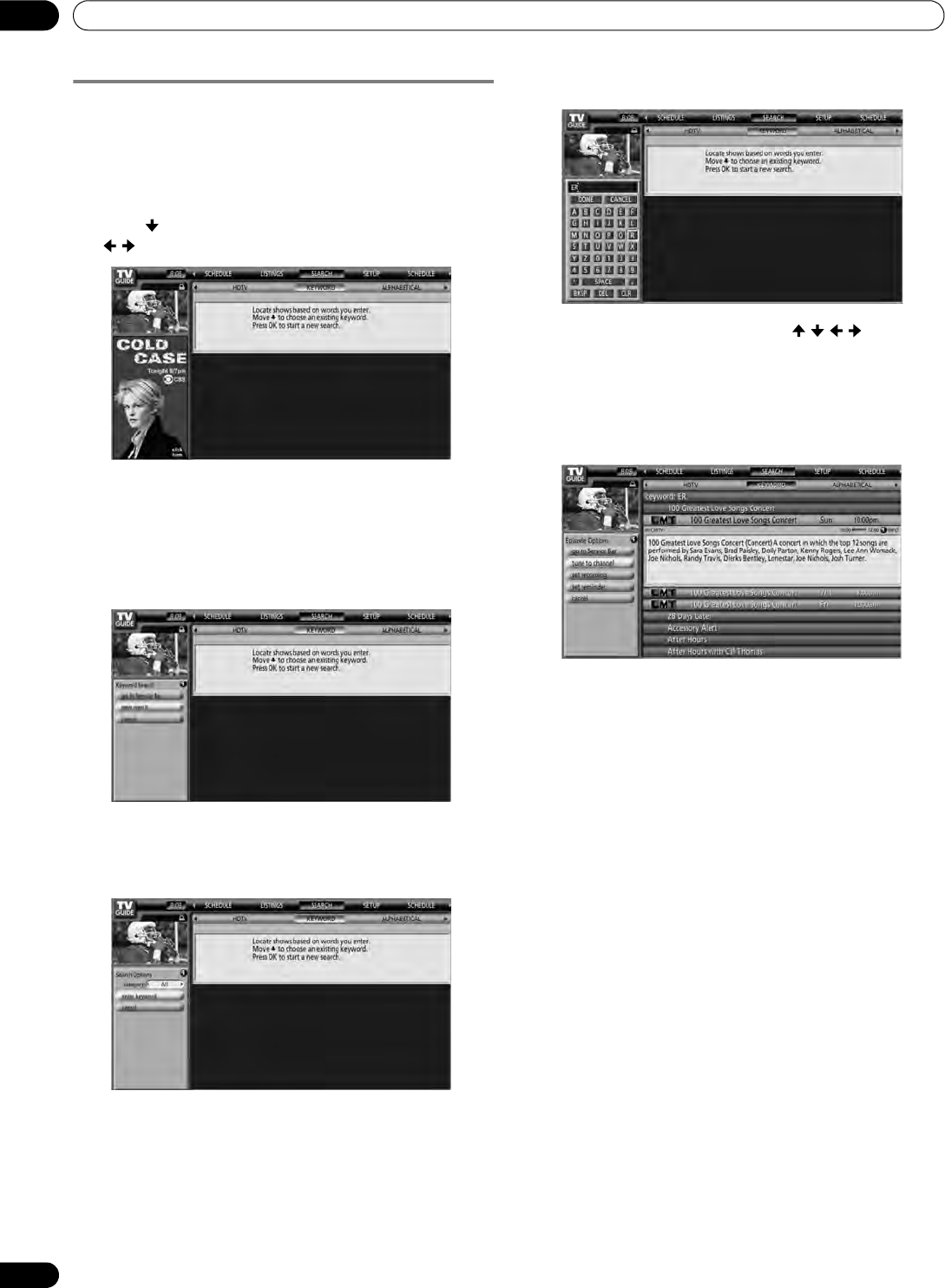

Searching by keyword
This option supports searching for shows based on keywords
you enter. The keywords you create are stored so you can use
them again.
1Select “SEARCH” from the Service bar at the top of the
screen.
2Press to move to the search category bar, then press
/ to select “KEYWORD”.
• Previously entered keywords are displayed. Simply
select one to search for it again.
• To edit or delete a keyword, highlight it then press
MENU. From the panel menu you can choose “edit
search” or “delete search”.
3Press ENTER to display the Keyword Search menu.
4Select “new search”.
5If you want to change the category, scroll up to select the
category you want.
•To search using only the keyword, leave the category set
to “All”.
• If you select a category (“HDTV”, for example) then you’ll
only see programs in that category that also match the
keyword.
6Highlight “enter keyword” then press ENTER.
7Input the keyword for the search.
•Highlight characters by pressing ///, then press
ENTER to input the letter or number.
• The new keyword is stored for future searches.
8Select “DONE” to start the search process.
9Highlight a program listing, then press MENU to display
the Episode Options menu.
• If the program is currently showing, press ENTER to start
watching it immediately.
PDP_PRO1540HD.book Page 52 Wednesday, August 2, 2006 6:01 PM
53
En
TV Guide On Screen™ System Operation 10
English
Alphabetical search
This search is designed to display all programs that start with
a particular letter.
1Select “SEARCH” from the Service bar at the top of the
screen.
2Press to move to the search category bar, then press
/ to select “ALPHABETICAL”.
3Press ENTER.
4Select a letter, then press ENTER to display all programs
starting with that letter.
5Highlight a program then press MENU to display the
Episode Options menu.
• If the program is currently showing, press ENTER to start
watching it immediately.
The search Episode Options menu
From the Episode Options menu you can select:
•go to Service bar – closes the panel menu and returns to
the Service bar at the top of the screen
•tune to channel / watch now – exits the TV Guide On
Screen™ guide and tunes to the channel
•set recording – goes to the Record Options menu
•set reminder – goes to the Remind Options menu
•cancel – closes the panel menu and returns to the
highlighted program
Navigation and search tips
• The / buttons move the highlight between options in the
menu. Use the number buttons to input information.
• If a highlighted field has arrows on either side, press / to
cycle through the options.
•Press ENTER on any option to highlight the default
command (e.g., Done) then press ENTER again to execute
and close the menu.
• Select Cancel then press ENTER to close the menu and
return to the previous screen, or press MENU to close the
menu without saving the changes.
PDP_PRO1540HD.book Page 53 Wednesday, August 2, 2006 6:01 PM
54
En
TV Guide On Screen™ System Operation
10
Scheduling recordings and reminders
From the Schedule area you can review, edit or delete future
recording sessions and reminders.
1Select “SCHEDULE” from the Service bar at the top of the
screen.
Programs marked for reminding or to be recorded (referred to
as scheduled ‘events’) are listed. The icon on the right
indicates the status of the event.
• Once only recording
• Daily Records the same channel and time every
Monday through Friday (manual recording only)
• Regularly – Records the same program any day it airs
on the same channel at the same time1
• Weekly recording (every week at the same time/day)
• Record Suspend – The program is set to record, but is
suspended because of a conflict with another recording or
auto tune reminder. The recording resumes when the
conflict is cleared.
• Off: The program remains in the SCHEDULE list, but is
not recorded.
• Once only reminder
• Daily Reminds for the same channel and time every
Monday through Friday (manual reminder only)
• Regularly – Reminds the same program any day it airs
on the same channel at the same time2
• Weekly reminder (every week at the same time/day)
• Remind Suspend – A reminder is set for the program,
but is suspended because of a conflict with another auto
tune reminder or recording. The reminder activates when the
conflict is cleared.
• Off: The program remains in the SCHEDULE list but the
reminder is not sent.
1The program records if it starts any time up to the midway
point of the originally scheduled program. For example, up to
9:15 for a 9:00 to 9:30 program.
2The reactivated reminder appears if the program starts any
time up to the midway point of the original schedule. For
example, up to 9:15 for a 9:00 to 9:30 program.
2Highlight a program in the list then press MENU to display
the Schedule Options menu.
• Highlight a program in the list to see information related
to that program (data appears in the Info Box).
The Schedule Options menu
Press MENU with either “SCHEDULE” (in the Service bar) or a
program highlighted to access the Schedule Options menu.
When “SCHEDULE” is highlighted in the service bar:
•go to Service Bar – closes the menu and returns to the
Service bar at the top of the screen
•sort by – select a sort order for the program listings
•new manual recording – select then fill in the necessary
fields to set the recording
Select “schedule recording” to save and exit or select “cancel”
to exit without saving.
•new manual reminder – select and then fill in all the
necessary fields to set the reminder. Select “schedule
reminder” when you’re done to save and exit, or select
“cancel” to exit without saving.
•done – closes the menu and returns to the Service bar at the
top of the screen
•cancel – closes the menu without saving changes and
returns to the Service bar at the top of the screen
When a program is highlighted:
•go to Service Bar – closes the menu and returns to the
Service bar at the top of the screen
•watch now – selected program appears (this option is “tune
to channel” for a future program)
•cancel – closes the menu and returns to the highlighted
program listing
For recording:
•set recording – set the program to record (opens the Record
Options menu)
•delete recording – remove the recording from the schedule
(requires confirmation)
•edit recording – edit the recording settings (opens the
Record Options menu)
For reminder:
•set reminder – set a reminder notice for the program (opens
the Remind Options menu)
•delete reminder – remove the reminder from the schedule
(requires confirmation)
•edit reminder – edit the reminder settings (opens the
Remind Options menu)
PDP_PRO1540HD.book Page 54 Wednesday, August 2, 2006 6:01 PM
55
En
TV Guide On Screen™ System Operation 10
English
Changing setup options
You can change TV Guide On Screen™ settings from the Setup
menu. Setup options are divided into three categories: System
Settings, Channel Display, and Default Options.
1Select “SETUP” from the Service bar at the top of the
screen.
2Press to select a Setup option.
Adjustment options appear with each highlighted menu
item.
•System Settings – ZIP/postal code, cable setup, etc.
•Channel Display – Channel position, tuning channel,
display on/off, etc.
•Default Options – General, recording and reminder
defaults
Changing the System Settings
The System Settings include your ZIP/postal code and your
cable TV setup.
1Highlight the “Change System Settings” item.
2Press ENTER to display the current settings and the
options to change them.
3Select one of the options, then follow the on-screen
instructions.
• Yes, everything is correct (displays a helpful information
screen). Press ENTER to quit the TV Guide On Screen™
System.
• Yes, but my channel lineup is incorrect (displays a
screen with alternate channel lineups). Press ENTER to
display the Channel Editor screen.
• No, repeat setup process (displays Screen 1 shown on
page 32).
Changing the Channel Display settings
From the Channel Display settings you can set/change:
• the display setting to always display (On), never display (Off),
or display only when channel information is available (Auto
Hide)
• the tuned channel number
• the channel position in the channel listing
1Highlight the “Change Channel Display” item.
2Press ENTER to display the channel editor.
PDP_PRO1540HD.book Page 55 Wednesday, August 2, 2006 6:01 PM
56
En
TV Guide On Screen™ System Operation
10
3Press / to highlight a channel then press ENTER to go
to the Grid Options menu.
From the Grid Options menu you can set:
•channel – On (display in channel list), Off (don’t display)
or Auto Hide (hide when no program information is
available)
•service – the type of service that the channel operates
on (cable, etc.)
•tune channel – the channel number that the channel
listing is tuned to
•position – place that the channel appears in the
channel list
4After making all selections for the channel, highlight
“done” then press ENTER.
• To cancel without saving the changes, select “cancel”.
Changing the Default Options
The menu provides options to change the default settings for
recordings, reminders, and other general settings.
1Select the “Change Default Options” item.
2Select a default option category.
A different panel menu appears for each option.
General default options
• box size – the initial size of the Info Box (no, small,
large, last used)
•box cycle – the cycle behavior of the Info Box (no only, small
only, large only, no & small, no & large, small & large, all)
•auto guide – Display TV Guide On Screen™ guide
automatically when you turn on the TV
Record defaults
•start – when to start a recording (up to 120 minutes earlier
or later than the program start time, or On time)
•end – when to end a recording (up to 120 minutes earlier or
later than the program end time, or On time)
•recorder – selects a recorder to be used for recording.
Remind defaults
•auto tune – automatically tunes to the correct channel
when a reminder becomes due (Yes or No)
•when – set the display time for the reminder (15 minutes
early to 15 minutes late, or On time)
3When the settings are complete, highlight “done” then
press ENTER.
• To cancel without saving the changes, select “cancel”.
PDP_PRO1540HD.book Page 56 Wednesday, August 2, 2006 6:01 PM
57
En
Adjustments and Settings 11
English
Adjustments and Settings
Sleep Timer
When the selected time elapses, the Sleep Timer automatically
places the system into standby.
Press SLEEP to select the desired time.
• The timer starts counting.
• Each time you press SLEEP, the selection cycles as below:
• The factory default is “Off”.
NOTE
• To cancel the Sleep Timer, select “Off” by pressing SLEEP.
• Five minutes before the selected time elapses, the remaining
time appears every minute.
You can also use this menu to set the Sleep Timer.
1Press HOME MENU.
2Select “Sleep Timer”. ( / then ENTER)
3Select the desired time. ( / then ENTER)
4Press HOME MENU again to exit the menu.
AV Selection
Viewing options depend upon the current environment (e.g.,
room brightness), the type of the current TV program, or the
type of images input from external equipment. To change the
view, follow the directions below.
1Press AV SELECTION.
• The current AV Selection mode appears.
2Press AV SELECTION again before the displayed mode
disappears.
• For AV source, the mode cycles in this order;
STANDARD, DYNAMIC, MOVIE, GAME, PURE and
USER.
• For PC source, the mode toggles between STANDARD
and USER.
You can also use the menu to change the options.
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “AV Selection”. ( / then ENTER)
4Select the desired option. ( / then ENTER)
For AV source
For PC source
5Press HOME MENU again to exit the menu.
NOTE
• You can also press AV SELECTION on the remote control
unit to change the viewing option.
• Selecting the DYNAMIC viewing setting causes all other
viewing options to become unavailable (grayed out).
30 60 90
120
Off
(cancel) (minutes)
AV Selection
STANDARD
DYNAMIC
MOVIE
GAME
PURE
USER
Item Description
STANDARD For a highly defined image in a normally bright
room
This selection is shared by the external input and
TV input sources.
DYNAMIC For a very sharp image with maximum contrast
This mode does not allow manual image quality
adjustment.
This selection is shared by the external input and
TV input sources.
MOVIE For movies
This selection is shared by the external input and
TV input sources.
GAME Lowers image brightness for easier viewing
This selection is shared by the external input and
TV input sources
PURE Reflects input signals as faithfully as possible
For example, you may select this option to check
image materials.
USER Allows you to customize settings as desired
You can set the mode for each input source.
Item Description
STANDARD For a highly defined image in a normally bright room
USER Allows you to customize settings as desired
You can set the mode for each input source.
PDP_PRO1540HD.book Page 57 Wednesday, August 2, 2006 6:01 PM
58
En
Adjustments and Settings
11

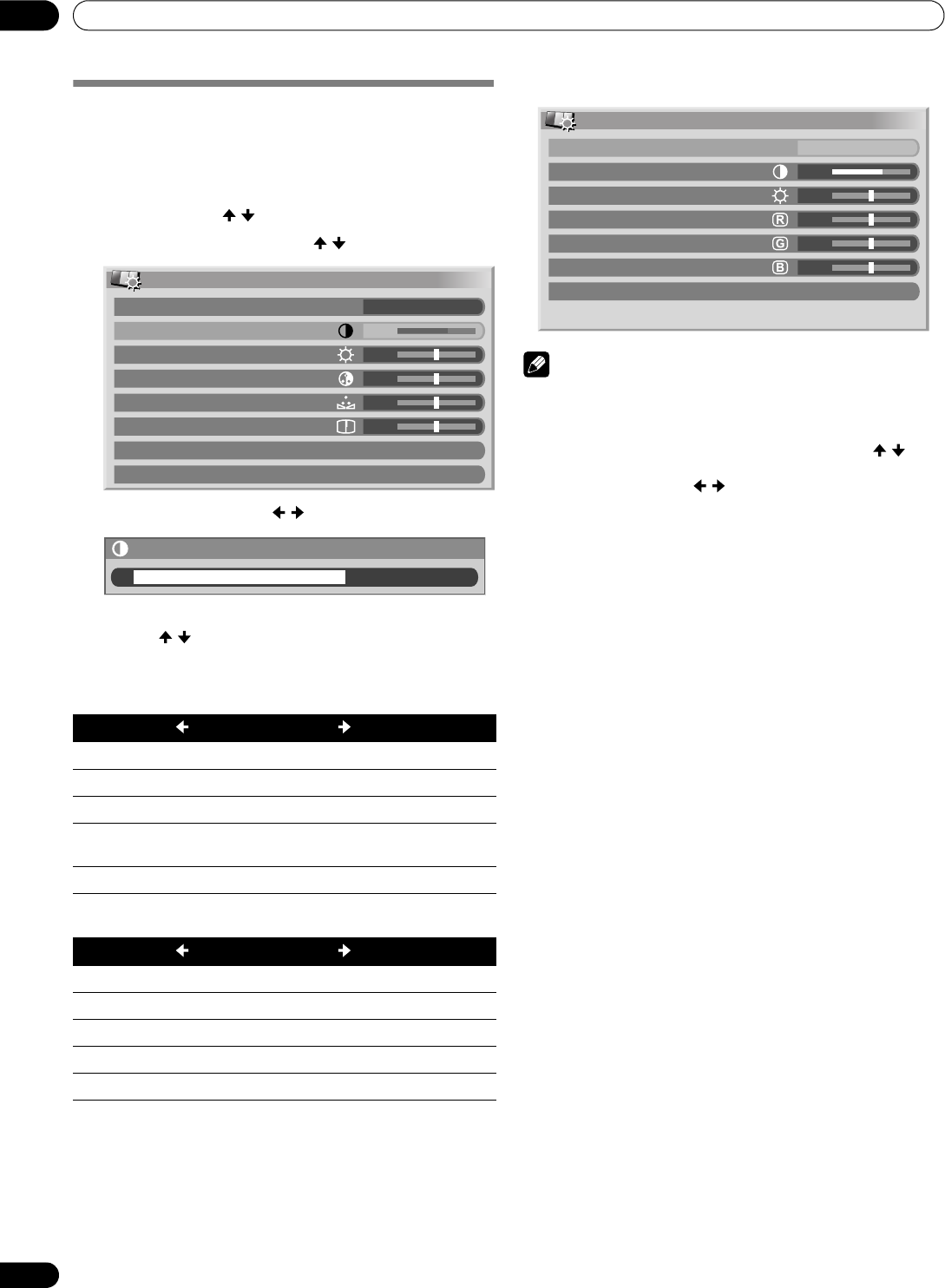

Basic picture adjustments
Adjust the picture to your preference unless DYNAMIC was
selected. The DYNAMIC setting automatically adjusts the
image.
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select an item to be adjusted. ( / then ENTER)
4Select the desired level. ( / )
• When an adjustment screen is displayed, you can also
press / to change the item to be adjusted.
5Press HOME MENU to exit the menu.
For AV source
For PC source
For PC source, the following screen appears:
NOTE
• To perform advanced picture adjustments, select “Pro
Adjust” in step 3 then press ENTER. For the subsequent
procedures see “Advanced picture adjustments” on page 59.
• To restore the factory defaults for all items, press / to
highlight “Reset” in step 3 then press ENTER. A confirmation
screen appears. Press / to select “Yes” then press
ENTER.
Item button button
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Color For less color intensity For more color intensity
Tint Skin tones become
purplish
Skin tones become
greenish
Sharpness For less sharpness For more sharpness
Item button button
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Red For weaker red For stronger red
Green For weaker green For stronger green
Blue For weaker blue For stronger blue
AV Selection
Contrast
Brightness
Color
Tint
Sharpness
Pro Adjust
Reset
STANDARD
40
0
0
0
0
Contrast 40
AV Selection
Contrast
Brightness
Red
Green
Blue
Reset
STANDARD
40
0
0
0
0
PDP_PRO1540HD.book Page 58 Wednesday, August 2, 2006 6:01 PM
59
En
Adjustments and Settings 11
English
Advanced picture adjustments
The Plasma Display System provides various advanced
functions for optimizing the picture quality. For details on these
functions, see the following tables.
Using PureCinema
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “PureCinema”. ( / then ENTER)
5Select the desired parameter. ( / then ENTER)
• For the selectable parameters, refer to the table below.
NOTE
• “Standard” is unavailable for 480p or 720p@60 Hz or
1080p@24 Hz (HDMI) signals.
• “ADV” is unavailable for 1080p@24 Hz (HDMI) signals.
Using Color Temp
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Color Detail”. ( / then ENTER)
5Select “Color Temp”. ( / then ENTER)
6Select the desired parameter. ( / then ENTER)
• If you have selected a desired parameter in this step,
skip steps 7 and 8.
• An option is to apply a fine adjustment. To do this, select
“Manual” first and then press and hold ENTER for at
least three (3) seconds. The manual adjustment screen
appears. Continue to step 7.
7Select an item to be adjusted. ( / then ENTER)
8Select the desired level. ( / )
• To adjust another item, press RETURN, then repeat
steps 7 and 8.
• Press / to select another item for adjustment.
9Press HOME MENU again to exit the menu.
PureCinema
Automatically detects a film-based source (originally encoded at 24
frames/second), analyzes it, then recreates each still film frame for high-
definition picture quality.
Selections Off Deactivates the PureCinema.
Standard Produces smooth and vivid moving
images (film specific) by automatically
detecting recorded image information
when displaying DVD or high-definition
images (e.g., movies) having 24 frames
per second.
ADV Produces smooth and quality moving
images (as shown on theatre screens) by
converting to 72 Hz when displaying DVD
images (e.g., movies) having 24 frames
per second.
Color Temp
Adjusts the color temperature, resulting in a better white balance.
Selections High White with bluish tone
Mid-High Intermediate tone between High and Mid
Mid Natural tone
Mid-Low Intermediate tone between Mid and Low
Low White with reddish tone
Manual Color temperature adjusted to your
preference
Item button button
R High
Fine adjustment for
bright portions
For weaker red For stronger red
G High For weaker green For stronger green
B High For weaker blue For stronger blue
R Low
Fine adjustment for
dark portions
For weaker red For stronger red
G Low For weaker green For stronger green
B Low For weaker blue For stronger blue
PDP_PRO1540HD.book Page 59 Wednesday, August 2, 2006 6:01 PM
60
En
Adjustments and Settings
11

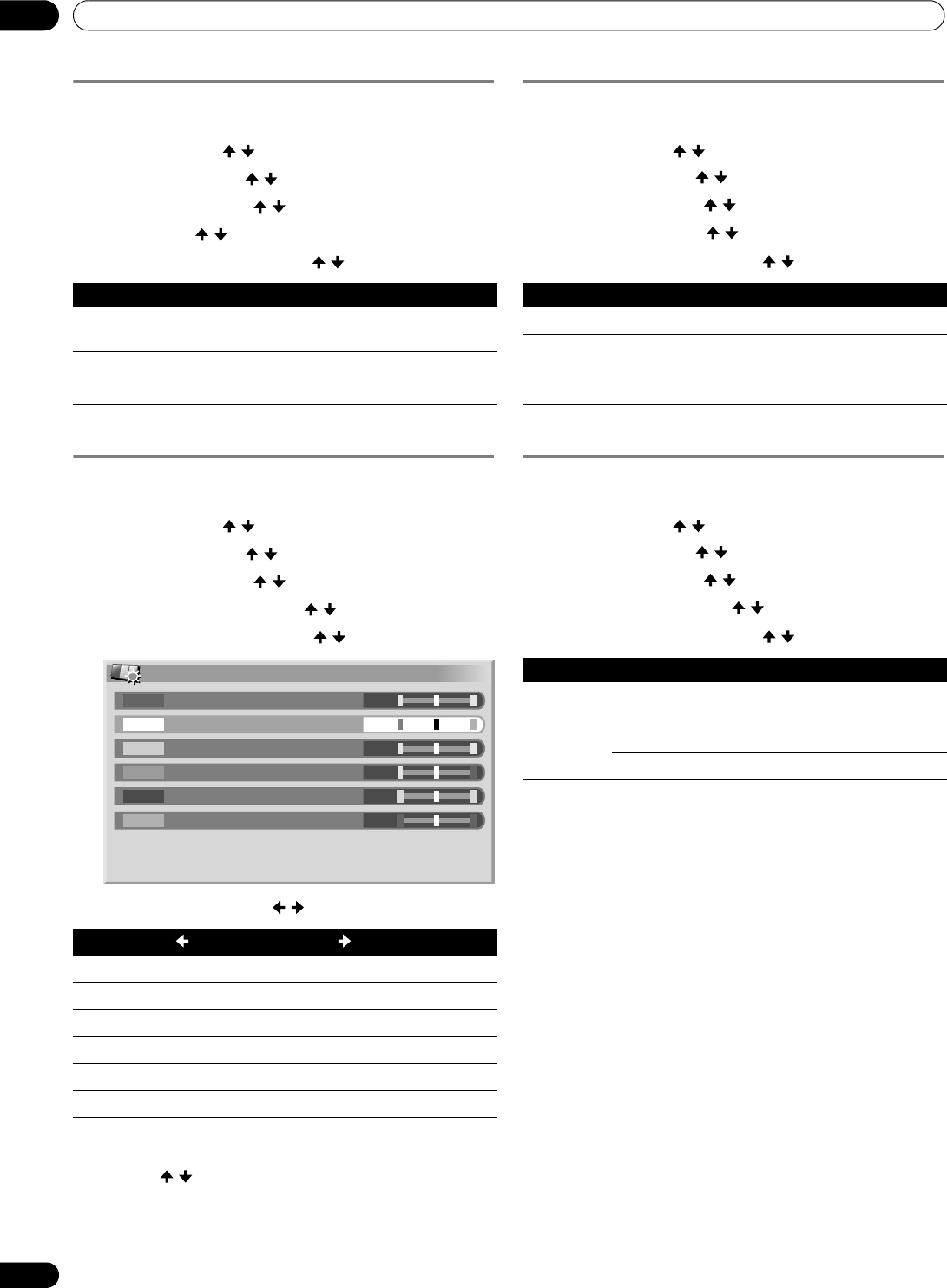

Using CTI
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Color Detail”. ( / then ENTER)
5Select “CTI”. ( / then ENTER)
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
Using Color Management
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Color Detail”. ( / then ENTER)
5Select “Color Management”. ( / then ENTER)
6Select an item to be adjusted. ( / then ENTER)
7Select the desired level. ( / )
• To adjust another item, press RETURN then repeat steps
6 and 7.
• Press / to select another item for adjustment.
8Press HOME MENU again to exit the menu.
Using Color Space
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Color Detail”. ( / then ENTER)
5Select “Color Space”. ( / then ENTER)
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
Using Intelligent Color
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Color Detail”. ( / then ENTER)
5Select “Intelligent Color”. ( / then ENTER)
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
CTI
Color Transient Improvement (CTI) provides images with clearer color
contours.
Selections Off Deactivates CTI
On Activates CTI
Item button button
RCloser to magenta Closer to yellow
YCloser to red Closer to green
GCloser to yellow Closer to cyan
CCloser to green Closer to blue
BCloser to cyan Closer to magenta
MCloser to blue Closer to red
Color Management
0
0
0
0
0
0
Y
R
G
C
B
M
Color Space
Changes the color reproduction space.
Selections 1 Optimized for vivid, vibrant color
reproduction
2 Standard color reproduction
Intelligent Color
Intelligent Color (IC) automatically selects the optimum color tones for an
image.
Selections Off Deactivates Intelligent Color
On Activates Intelligent Color
PDP_PRO1540HD.book Page 60 Wednesday, August 2, 2006 6:01 PM
61
En
Adjustments and Settings 11
English
Eliminating noise from images
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “NR”. ( / then ENTER)
5Select an item to be adjusted. ( / then ENTER)
• Choose “DNR”, “MPEG NR” or “BNR”.
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
Using the Dynamic Range Expander (DRE)
functions
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “DRE”. ( / then ENTER)
5Select an item to be adjusted. ( / then ENTER)
• Choose “Dynamic Contrast”, “Black Level”, “ACL”,
“Gamma” or “Intelligent DRE”.
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
DNR
Digital Noise Reduction (DNR) eliminates video noise for clean, crisp
images.
Selections Off Deactivates DNR
High Enhanced DNR
Mid Standard DNR
Low Moderate DNR
MPEG NR
MPEG NR, video noise reduction for MPEG-encoded content, eliminates
mosquito noise (tiny irregularities in the image) from video when a DVD is
played. The result is a noise-free image.
Selections Off Deactivates MPEG NR
High Enhanced MPEG NR
Mid Standard MPEG NR
Low Moderate MPEG NR
BNR
Block Noise Reduction (BNR) helps reduce mosquito noise appearing in
high-definition images.
Selections Off Deactivates BNR
On Activates BNR
Dynamic Contrast
Dynamic Contrast (DC) emphasizes image contrast so that the difference
between bright and dark areas become more distinct.
Selections Off Deactivates Dynamic Contrast
High Enhanced Dynamic Contrast
Mid Standard Dynamic Contrast
Low Moderate Dynamic Contrast
Black Level
Black Level (BL) emphasizes the dark portions of images so that the
difference between bright and dark areas become more distinct.
Selections Off Deactivates Black Level
On Activates Black Level
ACL
Automatic Contrast Limiter (ACL) automatically selects the optimum
contrast for an image.
Selections Off Deactivates ACL
On Activates ACL
Gamma
Gamma adjusts the image gradation characteristics.
Selections 1 Selects gamma characteristics 1
2 Selects gamma characteristics 2
3 Selects gamma characteristics 3
Intelligent DRE
Intelligent Dynamic Range Expander (DRE) optimizes the image quality.
Selections Off Deactivates Intelligent DRE
On Activates Intelligent DRE
PDP_PRO1540HD.book Page 61 Wednesday, August 2, 2006 6:01 PM
62
En
Adjustments and Settings
11

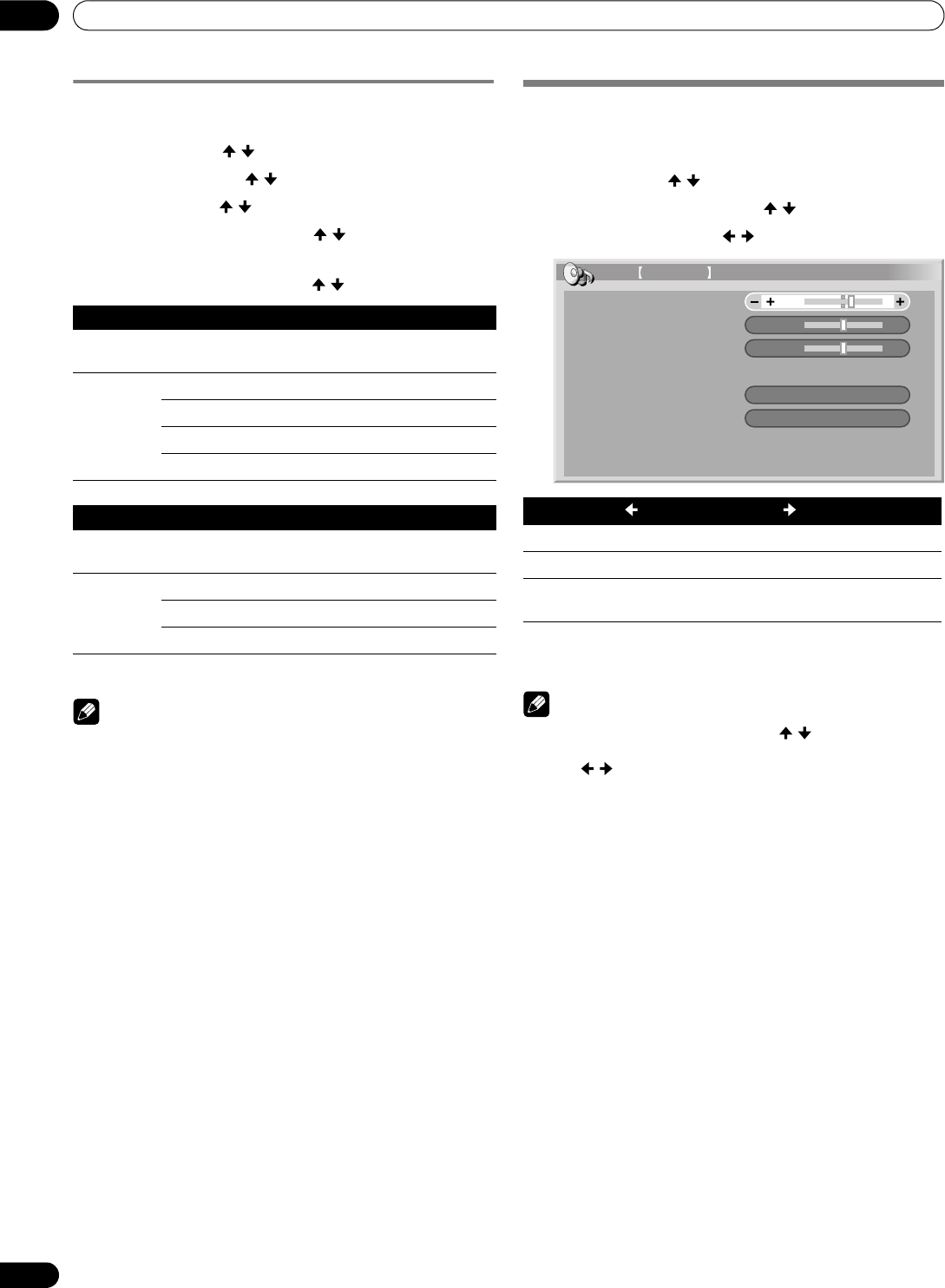

Using the 3DYC and I-P Mode
1Press HOME MENU.
2Select “Picture”. ( / then ENTER)
3Select “Pro Adjust”. ( / then ENTER)
4Select “Others”. ( / then ENTER)
5Select an item to be adjusted. ( / then ENTER)
• Choose “3DYC” or “I-P Mode”.
6Select the desired parameter. ( / then ENTER)
7Press HOME MENU again to exit the menu.
NOTE
• In I-P Mode, the individual parameters are unavailable for
480p and 720p@60 Hz signals.
Sound adjustments
Adjust the sound to your preference. See page 57.
1Press HOME MENU.
2Select “Sound”. ( / then ENTER)
3Select an item to be adjusted. ( / )
4Select the desired level. ( / )
5Press HOME MENU again to exit the menu.
NOTE
• To restore all factory defaults, press / to select “Reset” in
step 3 then press ENTER. A confirmation screen appears.
Press / to select “Yes” then press ENTER.
3DYC
3DYC optimizes characteristics for separating brightness signals and
color signals. This works for both video and still images.
Selections Off Deactivates 3DYC
High Enhanced 3DYC
Mid Standard 3DYC
Low Moderate 3DYC
I-P Mode
I-P Mode optimizes conversion from interlace signals to progressive
signals. This works for both video and still images.
Selections 1 Optimum for video images
2 Standard setting
3 Optimum for still images
Item button button
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance Decreases audio from the
right speaker
Decreases audio from the
left speaker
Bass
Balance
Treble
Reset
FOCUS
Front Surround
0
0
Off
Off
2
Sound STANDARD
PDP_PRO1540HD.book Page 62 Wednesday, August 2, 2006 6:01 PM
63
En
Adjustments and Settings 11
English
FOCUS
Focus shifts the sound-source direction (sound image) upward
and produces clear sound contours.
1Press HOME MENU.
2Select “Sound”. ( / then ENTER)
3Select “FOCUS”. ( / )
4Select the desired parameter. ( / )
5Press HOME MENU again to exit the menu.
Front Surround
Front Surround provides three-dimensional sound effects and/
or a deep, rich bass.
1Press HOME MENU.
2Select “Sound”. ( / then ENTER)
3Select “Front Surround”. ( / )
4Select the desired parameter. ( / )
5Press HOME MENU again to exit the menu.
NOTE
• (WOW) FOCUS is on and TruBass + SRS is selected
for Front Surround
• trademark of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS
Labs, Inc.
Power Control
Power Control provides convenient power saving options.
Energy Save
There are three Energy Save modes to reduce power
consumption.
1Press HOME MENU.
2Select “Power Control”. ( / then ENTER)
3Select “Energy Save”. ( / then ENTER)
4Select “Save1”, “Save2” or “Picture Off”. ( / then
ENTER)
5Press HOME MENU again to exit the menu.
NOTE
• When the signal is coming from a PC, use the Home menu
to set this option.
No Signal off (AV mode only)
The system automatically enters Standby if no signal is
received for 15 minutes.
1Press HOME MENU.
2Select “Power Control”. ( / then ENTER)
3Select “No Signal off”. ( / then ENTER)
4Select “Enable”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
NOTE
• Five minutes before the system is placed into Standby, a
message appears as each minute counts down.
• The system may not enter Standby if the TV program signal
has a high video noise level.
Item Description
Off Deactivates FOCUS
On Activates FOCUS
Item Description
Off Deactivates both SRS and TruBass
SRS Reproduces highly effective three-dimensional sound
TruBass
(factory default)
Provides deep, rich bass using a new technology
TruBass + SRS Provides both TruBass and SRS effects
Item Description
Standard Maximum picture brightness; may increase glass
panel buzzing
Save1 Slightly reduced power consumption and brightness;
optimal setting for most uses
Save2 Lowest power consumption; slightly decreased
brightness
Picture Off Deactivates the screen to save power. To restore the
screen display, press any button other than VOL +/–
and MUTING.
This setting is not memorized by the system.
Item Description
Disable
(factory default)
Does not place the system into Standby
Enable Places the system into Standby if no signal is
received for 15 minutes
PDP_PRO1540HD.book Page 63 Wednesday, August 2, 2006 6:01 PM
64
En
Adjustments and Settings
11
No Operation off (AV mode only)
The system automatically enters Standby when no operation is
performed for three hours.
1Press HOME MENU.
2Select “Power Control”. ( / then ENTER)
3Select “No Operation off”. ( / then ENTER)
4Select “Enable”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
NOTE
• Five minutes before the system is placed into Standby, a
message appears as each minute counts down.
Power Management (PC mode only)
The system automatically enters Standby when no signal is
received from the PC.
1Press HOME MENU.
2Select “Power Control”. ( / then ENTER)
3Select “Power Management”. ( / then ENTER)
4Select “Mode1” or “Mode2”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
Image position adjustment
(AV mode only)
This function adjusts an image’s horizontal/vertical position on
the Plasma Display.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Position”. ( / then ENTER)
4Select “H/V Position Adjust”. ( / then ENTER)
5Adjust the vertical position ( / ) or horizontal position
(/).
6Press HOME MENU again to exit the menu.
NOTE
• To restore the factory defaults, press / to select “Reset”
in step 4 then press ENTER. A confirmation screen appears.
Press / to select “Yes” then press ENTER.
• Adjustments are stored separately for each input source.
• Depending on the displayed video, the image position may
not change even after adjustment.
Automatic image position and clock
(Hertz) adjustments (PC mode only)
Use Auto Setup to automatically adjust image positions and
clock speeds when coming from a PC.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Auto Setup”. ( / then ENTER)
• Auto Setup begins.
4Press HOME MENU again to exit the menu.
NOTE
• When Auto Setup is finished, “Auto Setup completed.”
appears.
• Although “Auto Setup completed.” appears, Auto Setup may
have failed, depending on conditions.
• Auto Setup may fail with a PC image composed of similar
patterns or a monochrome picture. If Auto Setup fails,
change the PC image and try again.
• The PC and the Plasma Display must be turned On before
starting Auto Setup.
Item Description
Disable
(factory default)
Does not place the system into Standby
Enable Places the system into Standby if no operation is
performed for three hours
Item Description
Off
(factory default)
No power management
Mode1 • Places the system into Standby when no signal is
received from the PC for eight minutes
• Although the PC is accessed and a signal is
received again, the system stays off.
• Press STANDBY/ON on the Plasma Display or TV
on the remote control to turn the panel On
Mode2 • Places the system into Standby when no signal is
received for eight seconds
• Access the PC (a signal is received again), the
system turns On
• Press STANDBY/ON on the Plasma Display or TV
on the remote control to turn the panel On.
Position
H/V Position Adjust
Reset
Option
Auto Setup
Manual Setup
PDP_PRO1540HD.book Page 64 Wednesday, August 2, 2006 6:01 PM
65
En
Adjustments and Settings 11
English
Manual image position and clock
adjustments (PC mode only)
Usually you can easily adjust the positions and clock of images
using Auto Setup. Use Manual Setup to optimize the positions
and clock of images when necessary.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Manual Setup”. ( / then ENTER)
4Select an item to be adjusted. ( / then ENTER)
5Perform adjustment. ( / or / )
• With “Clock” or “Phase” selected, you can change the
parameter using / .
6Press HOME MENU again to exit the menu.
NOTE
• To restore all factory defaults, press / to select “Reset” in
step 4 then press ENTER. A confirmation screen appears.
Press / to select “Yes” then press ENTER.
Selecting a screen size manually
In single-screen mode, press SCREEN SIZE to change the size
of the screen. The Video signal determines the available screen
size options.
• The selectable screen sizes differ depending on the type of
input signal.
AV mode
NOTE
• Avoid displaying signals that do not completely fill the
screen. This may cause temporary or permanent image
retention depending on the frequency and duration.
PC mode except for XGA signals
PC mode for XGA signals
(Ex. 1024 × 768 input with PRO-1140HD/PRO-1540HD)
NOTE
• In 2-screen mode, press SCREEN SIZE to change the size of
the left screen.
• For the PRO-940HD the number of panel pixels is different.
Signal processing and actual viewing conditions vary
slightly.
Manual Setup
H/V Position Adjust
Clock
Phase
Reset
0
0
Item Description
4:3 For 4:3 “standard” pictures (side bar appears on each
side)
FULL For 16:9 squeezed pictures
ZOOM For 16:9 letterbox pictures (bars may appear on the top
and bottom on some programs)
CINEMA For 14:9 letterbox pictures (bars may appear on the top
and bottom on some programs)
WIDE In this mode pictures are stretched to fill the screen,
side to side
Item Description
4:3 Fills the screen without altering the input signal aspect
ratio
FULL Full 16:9 screen display
Dot by Dot Matches input signal to the same number of screen
pixels
Item Description
4:3 Matches input signal to the same number of screen
pixels
Optimized for 1024 × 768 display
FULL1 Full 16:9 screen display
Optimized for 1024 × 768 display
FULL2 For wide signal display
Use when displaying 1360 × 768 signal resolution
PDP_PRO1540HD.book Page 65 Wednesday, August 2, 2006 6:01 PM
66
En
Adjustments and Settings
11

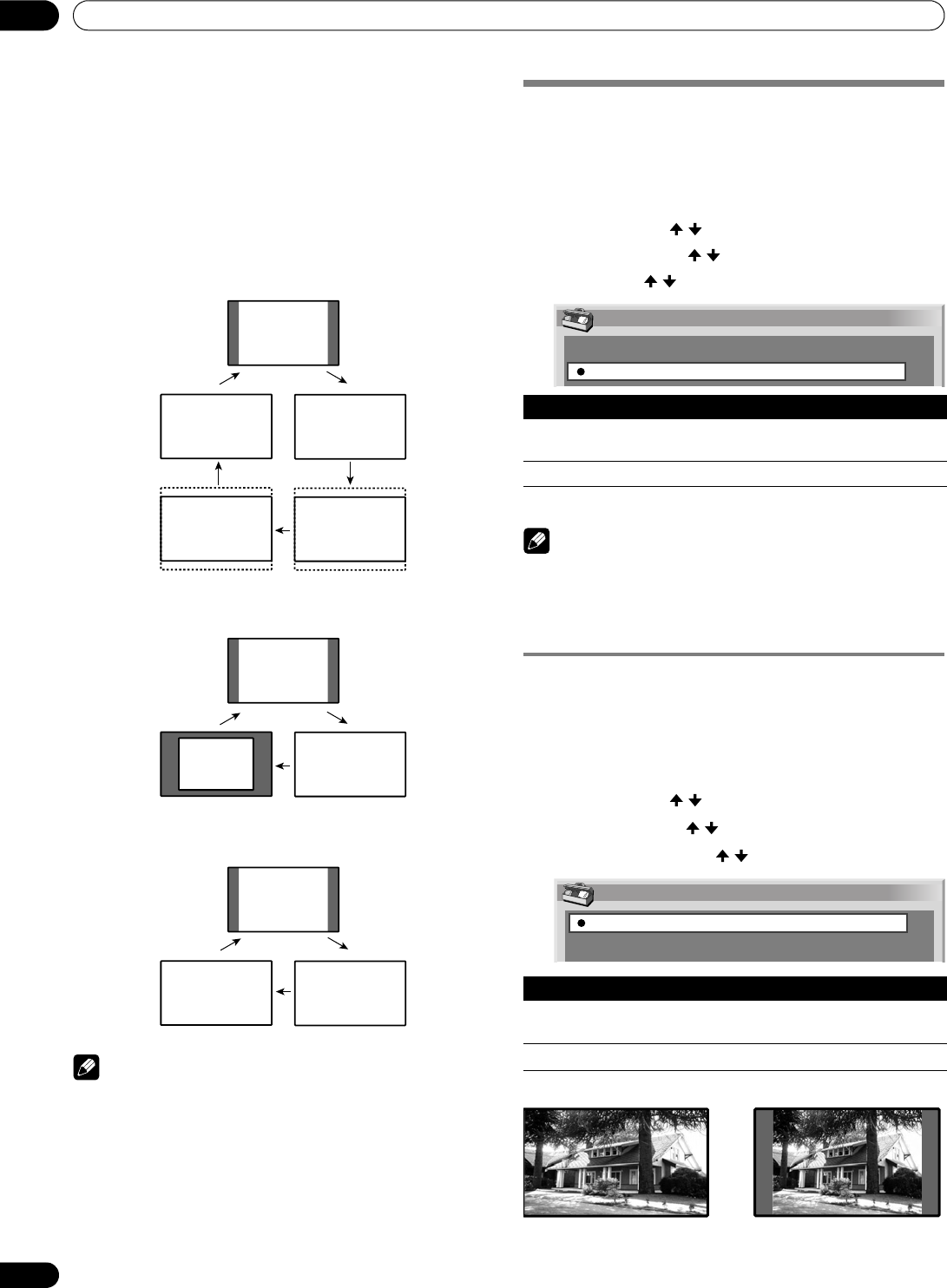

• When watching a High Definition TV broadcast, press
SCREEN SIZE to cycle through FULL, ZOOM, WIDE, and 4:3.
• High Definition TV broadcasting with WIDE selected may
hide some of the screen image. If this is the case, select
FULL.
• Some HD broadcasts may display 4:3 content with side
masks. Extended viewing with the sides masked can cause
uneven wear. After viewing 4:3 content, try watching a
program in full screen motion video.
AV mode
PC mode except for XGA signals
PC mode for XGA signals
NOTE
• The selectable screen sizes may differ depending on the
conditions.
Selecting a screen size automatically
The Plasma Display automatically selects an appropriate
screen size when video signals are received from a connected
HDMI device (see page 69). To activate this function, use the
following procedure.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Auto Size”. ( / then ENTER)
4Select “On”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
NOTE
• Manually select an appropriate screen size if an image does
not automatically switch to the correct screen format.
• When the video signal contains no aspect ratio information,
automatic screen sizing is unavailable.
Selecting a screen size for 4:3 aspect ratio
signals
With the Auto Size function activated, choose whether the
Plasma Display should choose the 4:3 mode or WIDE mode
when 4:3 aspect ratio signals are received.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “4:3 Mode”. ( / then ENTER)
4Select “WIDE” or “4:3”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
4:3
WIDE FULL
CINEMA ZOOM
4:3
Dot by
Dot FULL
4:3
FULL2 FULL1
Item Description
Off
(factory default)
Deactivates the Auto Size function
On Activates the Auto Size function
Item Description
WIDE
(factory default)
Wide image without side masks
4:3 4:3 aspect ratio with side masks
Auto Size
Off
On
4:3 Mode
WIDE
4:3
4:3WIDE
PDP_PRO1540HD.book Page 66 Wednesday, August 2, 2006 6:01 PM
67
En
Adjustments and Settings 11
English

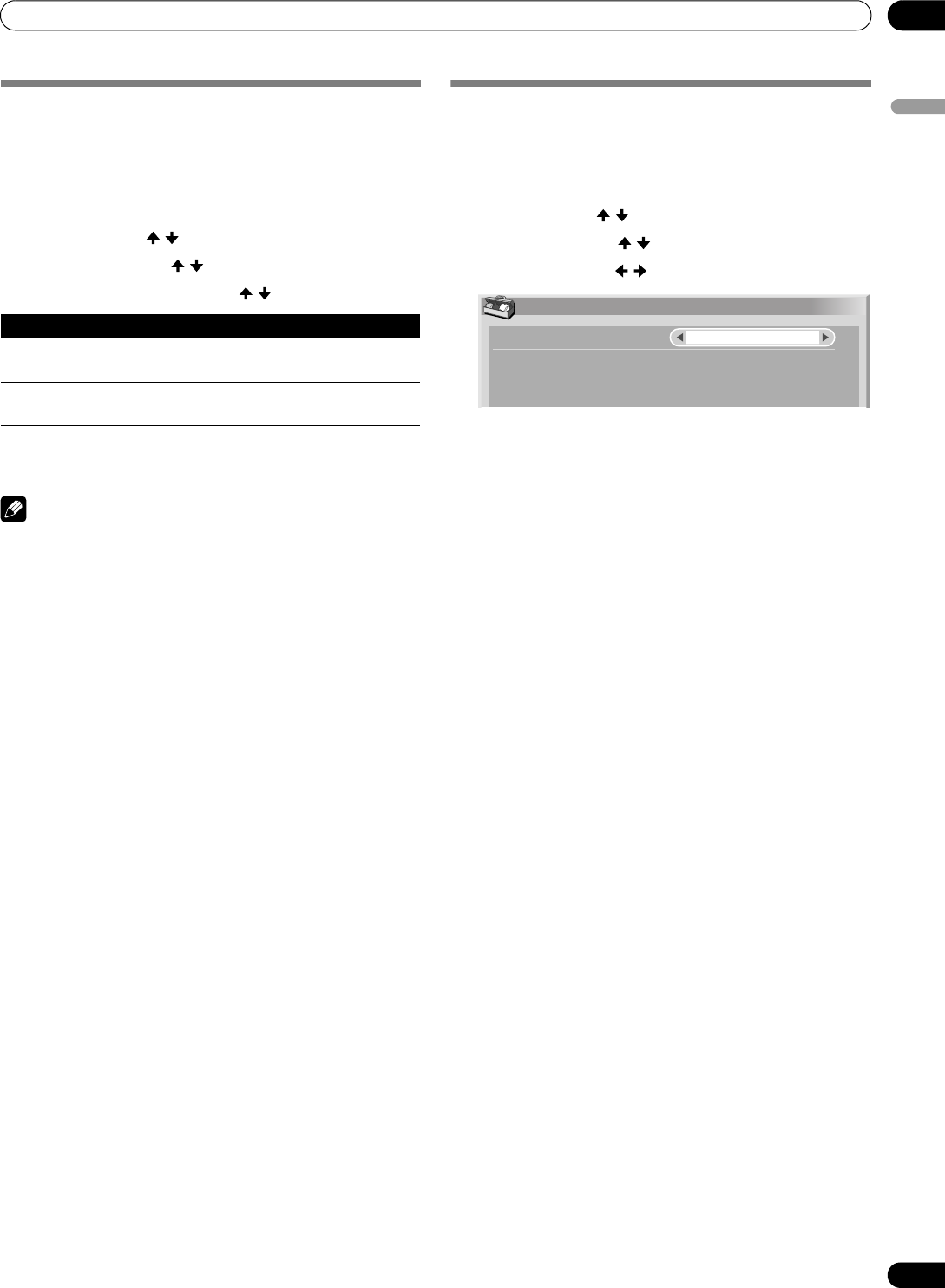

Changing the brightness on both sides
of the screen (Side Mask)
With the 4:3 screen size selected for the AV mode, you can
change the brightness of the gray vertical bars (side masks)
that appear on the sides of the screen.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Side Mask”. ( / then ENTER)
4Select the desired parameter. ( / then ENTER)
5Press HOME MENU again to exit the menu.
NOTE
• Displaying pictures in 4:3 screen mode for an extended
period may cause an after-image. View another program at
full screen afterwards to avoid this issue.
Language setting
To change the language being used for on-screen displays
(such as menus in French or Spanish instead of English),
follow the instructions below.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Language”. ( / then ENTER)
4Select a language. ( / )
5Press HOME MENU again to exit the menu.
Item Description
Fixed
(factory default)
Always sets the same brightness for the gray side
masks
Auto Adjusts the brightness of the gray side masks
according to the brightness of images
Language
Menu English
PDP_PRO1540HD.book Page 67 Wednesday, August 2, 2006 6:01 PM
68
En
Using External Equipment
12
Using External Equipment
About External Equipment
You can connect many types of devices to your Plasma Display
System. Some examples are a DVD player, VCR, PC, game
console, or camcorder.
To view images coming from external equipment, select the
input source using the INPUT buttons on the remote control or
the INPUT button on the Plasma Display.
CAUTION
• To protect equipment, always unplug the Plasma Display
from the power outlet before adding to a DVD player, VCR,
PC, game console, camcorder, or other device.
NOTE
• Refer to the device’s operating instructions (DVD player, PC,
etc.) before connecting the equipment.

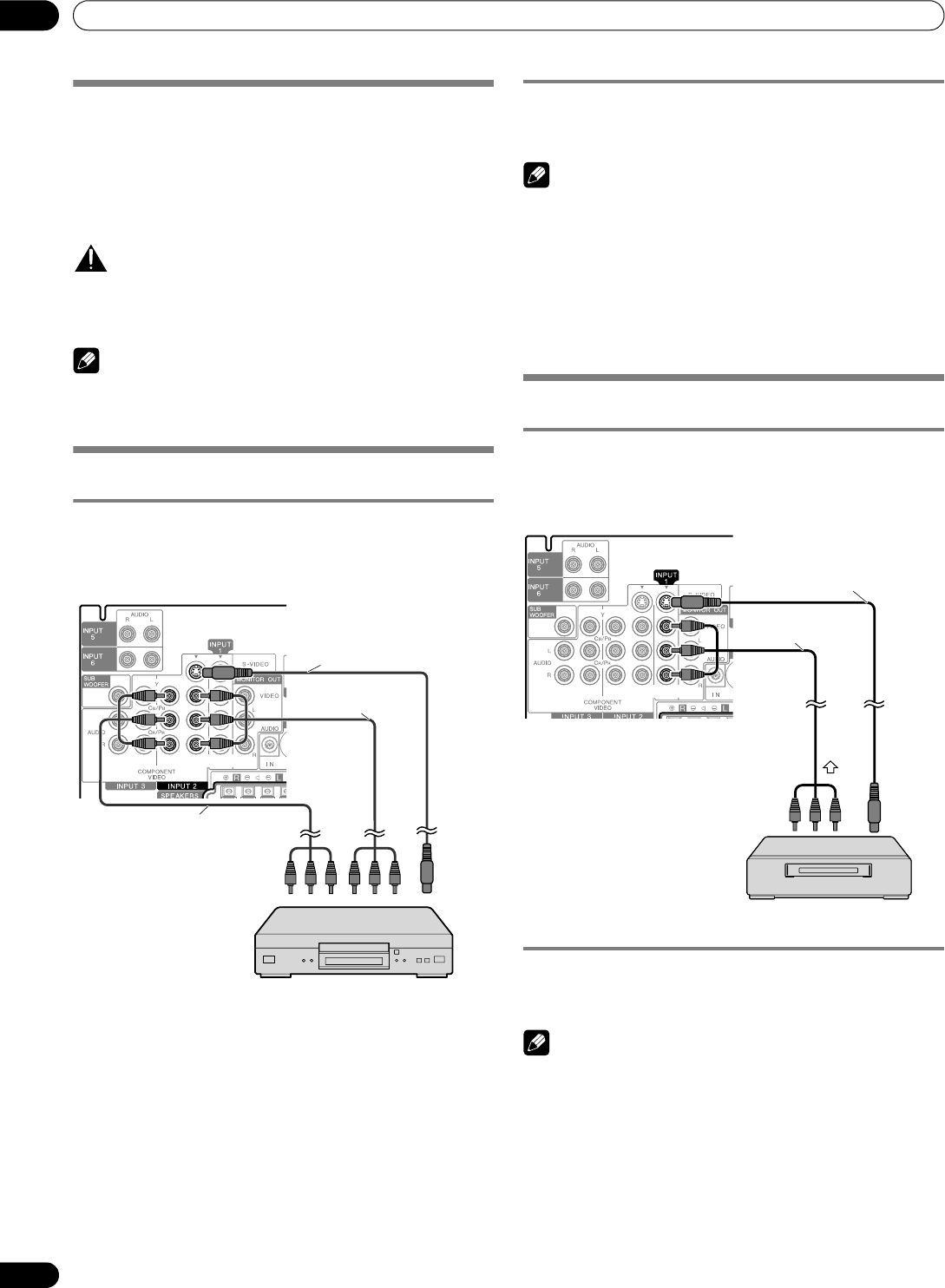

Watching a DVD image
Connecting a DVD player
Use the INPUT 2 terminals when connecting a DVD player or
other audio/visual equipment.
Displaying a DVD image
To watch a DVD image, press INPUT 2 on the remote control
unit or press INPUT on the Plasma Display to select INPUT2.
NOTE
• Refer to your DVD player instruction manual for the signal
type.
• The INPUT 2 terminals are checked whether they are
connected in the following order; 1) Component Video, 2) S-
Video, 3) Video.
Use the desired connection for viewing.
• Connect external equipment to only terminals that are to be
actually used.
Watching a VCR image
Connecting a VCR
Use the INPUT 1 terminals when connecting a VCR or other
audio/visual equipment.
Displaying a VCR image
To watch a VCR image, press INPUT 1 on the remote control
unit or press INPUT on the Plasma Display to select INPUT1.
NOTE
• INPUT 1 checks for S-Video connections first then for Video.
Use the desired connection for viewing.
Plasma Display (rear view)
DVD player
Component Video cable
(sold separately)
AV cable
(sold separately)
S-Video cable
(sold separately)
Plasma Display (rear view)
VCR
S-Video cable
(sold separately)
AV cable
(sold separately)
PDP_PRO1540HD.book Page 68 Wednesday, August 2, 2006 6:01 PM
69
En
Using External Equipment 12
English

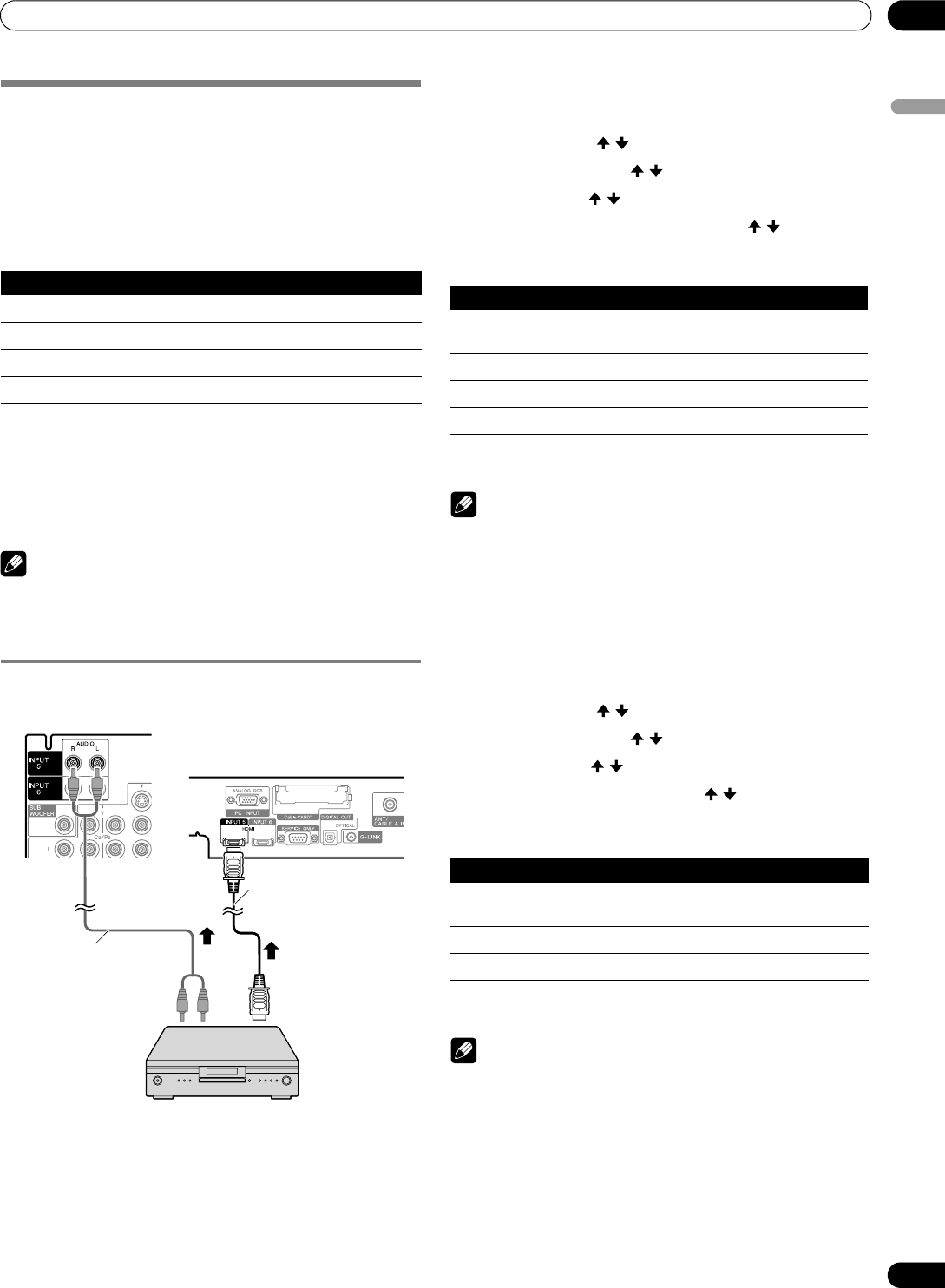

Using HDMI Input
The INPUT 5 and INPUT 6 terminals are HDMI terminals for
digital video and audio signals. To use the HDMI terminal,
specify the types of video and audio signals being sent from the
connected equipment. For signal types refer to the device’s
operating manual.
Before bringing up the menu, press INPUT 5 (or INPUT 6) on
the remote control or press INPUT on the Plasma Display to
select INPUT 5 (or INPUT 6).
For audio, the panel supports the following:
• Linear PCM (STEREO 2ch)
• Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
NOTE
• PC signals are not supported.
• Images are sometimes slow to appear with some external
devices.
Connecting HDMI equipment
To specify the digital video signal type:
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “HDMI Input”. ( / then ENTER)
4Select “Video”. ( / then ENTER)
5Select the type of digital video signals. ( / then ENTER)
• If you select “Auto”, the panel automatically attempts to
identify the type of digital video signal.
6Press HOME MENU again to exit the menu.
NOTE
• If you select a parameter other than “Auto”, verify that the
setting results in the appropriate colors.
• If no image appears, specify another digital video signal type.
• Refer to the external device’s operating instructions for
digital video signal types.
To specify the type of audio signals:
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “HDMI Input”. ( / then ENTER)
4Select “Audio”. ( / then ENTER)
5Select the type of audio signals. ( / then ENTER)
• If you select “Auto”, the panel automatically attempts to
identify the type of audio signal.
6Press HOME MENU again to exit the menu.
NOTE
• If there is no sound, specify another audio signal type.
• Refer to the external device’s operating instructions for
audio signal types.
• Depending on the equipment to be connected, you may also
need to connect analog audio cables.
Input signal correlation table
19201080i@59.94/60 Hz
720480p@59.94/60 Hz
1280720p@59.94/60 Hz
720(1440)480i@59.94/60 Hz
19201080p@24 Hz
Plasma Display (rear view)
HDMI equipment
HDMI cable with
the HDMI mark
(sold separately)
Audio cable (sold
separately)
Use when inputting
analog audio signals.
Viewed from the bottom
of the Plasma Display
Item Description
Auto
(factory default)
Automatically identifies input digital video signals
Color-1 Digital Component Video signals (4:2:2) locked
Color-2 Digital Component Video signals (4:4:4) locked
Color-3 Digital RGB signals locked
Item Description
Auto
(factory default)
Automatically identifies input audio signals
Digital Accepts digital audio signals
Analog Accepts analog audio signals
PDP_PRO1540HD.book Page 69 Wednesday, August 2, 2006 6:01 PM
70
En
Using External Equipment
12
Using a game console or watching
camcorder images
Connecting a game console or camcorder
Use the INPUT 4 terminals to connect a game console,
camcorder, or other audio/visual equipment.
NOTE
• INPUT 4 checks for Component Video connections first then
for Video.
Use the desired connection for viewing.
• Only connect external equipment to terminals that are to be
actually used.
Displaying an image of the game console or
camcorder
To watch an image coming from the game console or
camcorder, press INPUT 4 on the remote control or press
INPUT on the Plasma Display to select INPUT4.
Recording digital TV programs using a
VCR
To record, connect recording equipment such as a VCR to the
panel’s MONITOR OUT terminals (rear of the Plasma Display).
You can also record digital TV programs more easily by using
the TV Guide On Screen™ system. Connect the supplied G-
LINK cable to the G-LINK terminal on the rear of the Plasma
Display. Position the G-LINK cable’s wand so that its light
emitting section faces the remote control sensor on the
recording equipment. For more information, see page 73.
Avoiding unwanted feedback
You can prevent unwanted feedback from affecting the image
quality. To block the signal from the output terminal causing
interference, follow the steps below.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Monitor Out”. ( / then ENTER)
4Select “INPUT1 Prohibit”, “INPUT2 Prohibit”, “INPUT3
Prohibit”, “INPUT4 Prohibit”, “INPUT 5 Prohibit” or
“INPUT 6 Prohibit”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
Plasma Display (left side view)
Camcorder/Game Console
Component Video cable
(sold separately)
AV cable
(sold separately)
PDP_PRO1540HD.book Page 70 Wednesday, August 2, 2006 6:01 PM
71
En
Using External Equipment 12
English
Connecting a recorder
NOTE
• About the MONITOR OUT terminals
The MONITOR OUT terminals cannot output the following
signals:
•Video signals input from the COMPONENT VIDEO terminal
•Video signals from a PC
•Digital video and audio signals from the HDMI terminals
• When watching images from a VCR connected to the panel’s
MONITOR OUT, select an input source (e.g., TV channel
reception) on the VCR other than an external input source.
Selecting an external input source may cause distorted
images or noise.
• Place the VCR in Standby when selecting TV programs to
record using the TV Guide On Screen™ system.
• Using MONITOR OUT may cause delays between the
speaker and AUDIO. If this delay occurs, try muting the
speakers on the Plasma Display. However, you may still
experience some delay between audio and video.
• The MONITOR OUT terminals cannot output any signals for
networked audio or video.
• If degraded picture quality is observed while viewing copy-
protected VOD movies connect the Plasma Display directly
to other TV sets. Do not connect through a VCR.
Connecting other audio equipment
The panel’s digital audio output terminal (optical) can output
Dolby Digital signals. Using an optical digital cable, connect
an AV receiver to the optical terminal on the rear of the Plasma
Display. This allows high-quality audio, such as during a digital
TV broadcast, to play.
If your AV receiver does not have a digital audio input terminal
(optical), connect MONITOR OUT (AUDIO) on the rear of the
Plasma Display to the audio input terminals on the AV receiver.
This method may cause sound delays between the speakers and
AUDIO. Try muting the speakers on the Plasma Display, however,
you may still experience a delay between audio and video.
NOTE
• When using the digital audio output terminal (optical), set
according to the AV receiver’s requirements. For more
information, refer to the AV receiver’s operating instructions.
Connecting an AV receiver
NOTE
• For details, refer to the audio device’s operating instructions.
• The audio accompanying the images shown on the display is
always output to the SUBWOOFER OUTPUT terminal.
• When signals are input from the HDMI terminals, no digital
or analog signals are output from the DIGITAL OUT terminal.
• Input signals from the Home Media Gallery may cause audio
delays between the speakers and OPTICAL. Try muting the
speakers on the Plasma Display; however, you may still
experience delays between audio and video.
Plasma Display (rear view)
VCR
AV cable
(sold separately)
G-LINK cable (supplied)
Viewed from the bottom
of the Plasma Display
Ferrite core
Plasma Display (rear view)
AV receiver
This connection is
not required when
connecting an AV
amp equipped
with surround
sound to a
subwoofer.
Optical digital cable
(sold separately)
Subwoofer
AV cable
(sold separately)
Viewed from the bottom
of the Plasma Display
PDP_PRO1540HD.book Page 71 Wednesday, August 2, 2006 6:01 PM
72
En
Using External Equipment
12

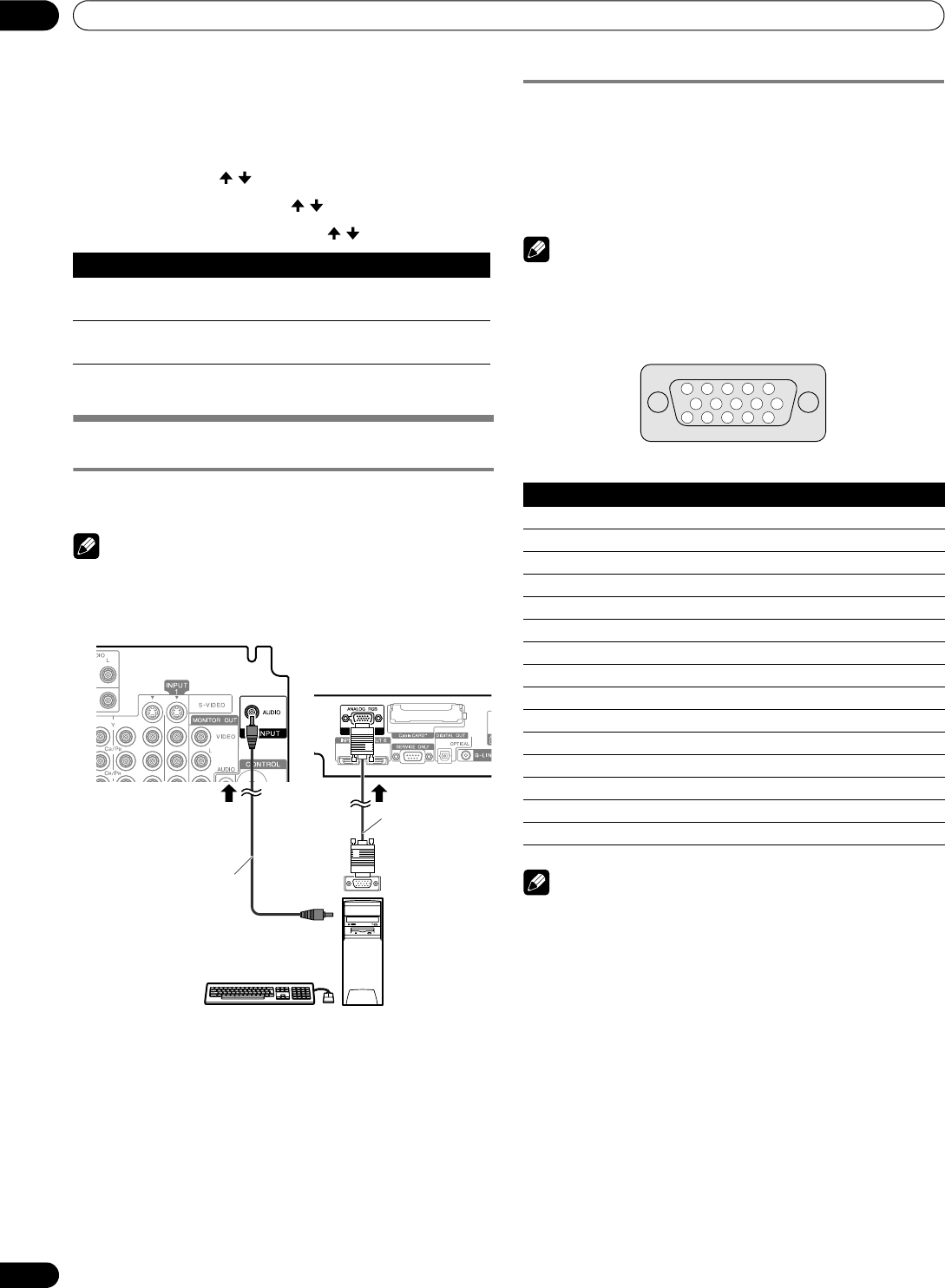

Switching the optical audio signal type
Set up for the DIGITAL AUDIO output terminal (OPTICAL),
according to your AV receiver’s operating instructions.
1Press HOME MENU.
2Select “Option”. ( / then ENTER)
3Select “Digital Audio Out”. ( / then ENTER)
4Select “Dolby Digital” or “PCM”. ( / then ENTER)
5Press HOME MENU again to exit the menu.
Watching an image from a computer
Connecting a personal computer
Use the PC terminals to connect a personal computer (PC).
NOTE
• The PC input terminals are DDC2B-compatible.
• Ability to use Plug & Play depends on the computer.
Displaying an image from a PC
When connected to a PC, the input signal type is automatically
identified. If the image from the PC does not come in clearly,
you may need to use Auto Setup. See page 64.
To watch an image coming from the PC, press PC on the
remote control or press INPUT on the Plasma Display to select
“PC”.
NOTE
• The PC terminals are for PC use only. Do not connect audio/
visual equipment to PC terminals.
Signal names for 15-pin mini D-sub connector
(front view)
NOTE
• An Apple® Macintosh® adaptor may be required for use with
some Macintosh computers.
Item Description
Dolby Digital
(factory default)
Dolby Digital: outputs in the Dolby Digital format
PCM: outputs in the PCM format
PCM Always outputs in the PCM format regardless of the
types of signals
Plasma Display (rear view)
Personal Computer
RGB cable
(sold
separately)
AV cable with a mini plug
(sold separately)
(for PC audio connection)
Viewed from the bottom
of the Plasma Display
Pin No. Signal name
1R
2G
3B
4Not connected
5Not connected
6GND (ground)
7GND (ground)
8GND (ground)
9+5V
10 GND (ground)
11 Not connected
12 SDA
13 HD
14 VD
15 SCL
15 14 13 12
9
11
10
876
54 3 21
PDP_PRO1540HD.book Page 72 Wednesday, August 2, 2006 6:01 PM
73
En
Using External Equipment 12
English

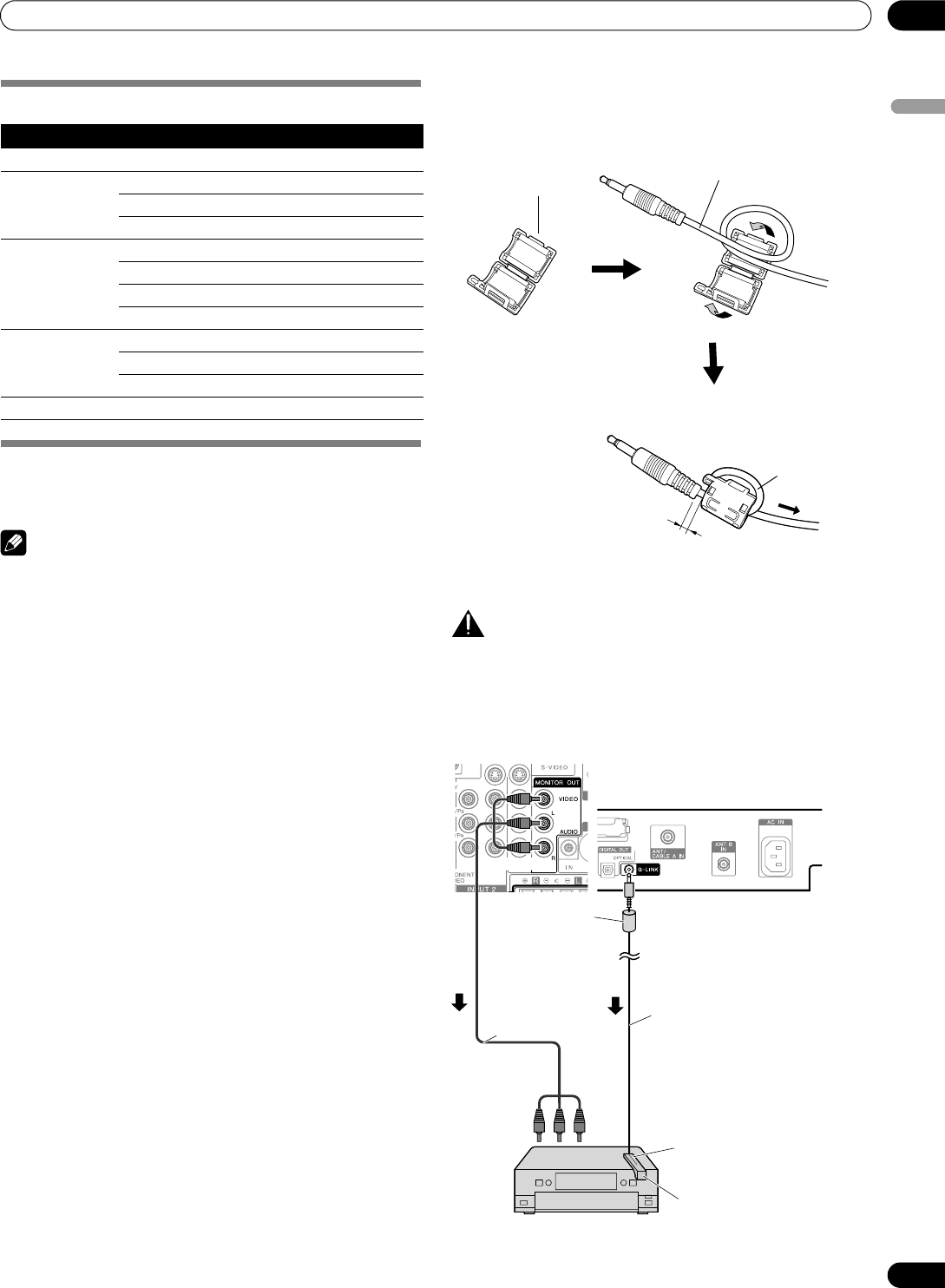

Computer compatibility chart
G-LINK™ connection
To record with a VCR through the TV Guide On Screen™
system, connect the VCR to the panel using the G-LINK cable.
NOTE
• In order to use a VCR with the TV Guide On Screen™ system,
confirm the factors listed below. See “TV Guide On Screen™
System Setup” on page 32.
• The G-LINK cable’s wand must be positioned so that its light
emitting section faces the VCR’s remote control sensor.
• The VCR is in Standby when selecting TV programs to record
using the TV Guide On Screen™ system.
• Avoid the cable loops when making the connection.
Attaching the ferrite core
To help prevent noise, attach the supplied ferrite core to the
connector end of the G-LINK cable as shown.
CAUTION
• Regarding the G-LINK cable, attach the supplied ferrite core.
If you do not do this, this Plasma Display will not conform to
mandatory FCC standards.
When connecting the VCR
Resolution Frequency
720 × 400 70 Hz
640 × 480 60 Hz
72 Hz
75 Hz
800 × 600 56 Hz
60 Hz
72 Hz
75 Hz
1024 × 768 60 Hz
70 Hz
75 Hz
1360 x 768 60 Hz
G-LINK cable
Ferrite core
As close as possible
Pull the cable slightly to
take up any slack
A
.
A
Plasma Display (rear view)
AV cable (sold
separately)
G-LINK cable (supplied)
Point to the remote
control sensor
VCR
G-LINK cable’s wand
Viewed from the bottom
of the Plasma Display
Ferrite core
PDP_PRO1540HD.book Page 73 Wednesday, August 2, 2006 6:01 PM
74
En
Using External Equipment
12
Connecting control cables
Connect control cables between the Plasma Display and other
PIONEER equipment having the logo. These control cables
carry commands from a Pioneer device through its remote
control to the remote control sensor on the Plasma Display.
After the CONTROL IN terminals have been connected, the
remote control sensors on the device does not accept
commands from the remote control. Point the remote control
at the remote control sensor on the Plasma Display to operate
the device.
NOTE
• Make sure that the power is turned Off when connecting
cables.
• Connect all components before plugging cables into the
panel.
About SR+
The CONTROL OUT terminal on the rear of the Plasma Display
supports SR+. This terminal supports linked operations with a
PIONEER AV receiver. SR+ includes functions such as input
switch linkage operation and DSP surround display. For more
information, see the Pioneer AV receiver’s operating
instructions regarding SR+ support.
NOTE
• When connecting control cables, use the SR+ cable.
• When connecting one or more Pioneer devices, directly
connect the Plasma Display and an SR+ supported Pioneer
amplifier. Do not daisychain other equipment between the
Pioneer units.
• When operating devices using SR+, volume on the Plasma
Display is lowered temporarily.
Plasma Display (rear view)
CONTROL
IN
OUT
CONTROL
IN
OUT
CONTROL
IN
OUT
When
SR+
is not used:
Use mono sound control cables with
mini plugs, no resistance (sold
separately)
When
SR+
is used:
Use the SR+ cable (sold as an option).
PDP_PRO1540HD.book Page 74 Wednesday, August 2, 2006 6:01 PM
75
En
Using External Equipment 12
English
Enjoying the Home Media Gallery
With Home Media Gallery, you can enjoy digital content such
as movies, music and photo files. These files can be saved on
one or more media servers connected by a home network
(LAN) or from content stored on USB devices. After connecting
via an Ethernet hub to a media server with network software*,
you can navigate through the server’s digital content using the
Plasma Display. For USB interface, the Plasma Display
supports Mass Storage Class devices.
*Referred to as a “media server” that contains digital content
such as movies, music and photo files. PCs that have pre-
installed media server software and recorders with a media
server function are considered the media server. Use PCs that
have a Windows Media Connect (WMC) server or DLNA
compliant server for the Home Media Gallery function.
Take a Windows Media Connect (WMC) server for example:
Microsoft Media Server is freeware and works with any music
juke-box type software, although is optimized for Windows
Media Player.
Installing Windows Media Connect
Before installing Windows Media Connect, make sure that
Windows XP SP2 and other required software are installed.
See Microsoft Website for details regarding minimum system
requirements and installation procedures.
1 Download the most recent version of Windows Media
Player
This can be downloaded either directly from the Microsoft
Website, or using the Windows Update Installer.
2 Download the most recent Windows Media Connect
software
This can be downloaded either directly from the Microsoft
Website, or using the Windows Update Installer.
Supported file formats
The table below shows supported file formats that can be
played back or displayed on the Plasma Display. These formats
are applicable to both network and USB sources. However,
media server content protected by digital rights management,
such as WMDRM10 (Digital Rights Management for Windows
Media 10), may not play on the Plasma Display.
• Some formats may not be supported depending on the
server type or version used.
• Even with the format included in the above table, some
functions may not operate properly depending on the
content.
• Even with the format included in the above table, some files
may not be played properly through a USB device.
NOTE
• Content may not play or display properly depending on the
conditions of use.
• Sources for this panel include media servers that support
DLNA (Digital Living Network Alliance) and Windows Media
Connect (WMC) running on the LAN network, or SD Card,
MS, MMC, xD Picture and CF that comply with the Mass
Storage File System through a USB interface.
• Supported formats and contents are subject to change. Visit
the Pioneer website for updated information:
http://www.pioneerelectronics.com
• The Home Media Gallery functions as a WMDRM10-ND
(Microsoft Windows Media DRM for networked devices).
Content can only be navigated from the media servers that
support WMDRM10-ND.
• The system may not be able to display content from
incompatible memory cards.
• You cannot use the Home Media Gallery until dimmed
elements on the menu screen turn white.
Digital Audio Output terminal (Optical)
NOTE
• When using the optical output terminal for networked audio or
video:
If the Plasma Display and audio system are in the same room,
you may experience an audio delay between the plasma
speakers and the audio system. Try muting the speakers on
the Plasma Display to correct this delay. However, this action
may cause delays between audio and video.
Type of files Format
Movie MPEG PS (mpg, mpeg, mpe, m2p), MPEG-2 TS/TTS,
WMV (asf, wmv), MPEG4 (mp4)
Music MP3 (mp3), LPCM, WAV (wav), WMA (asf, wma)
Photo JPEG (jpg, jpeg), BMP (bmp), PNG (png), TIFF (tif, tiff),
GIF (gif)
PDP_PRO1540HD.book Page 75 Wednesday, August 2, 2006 6:01 PM
76
En
Using External Equipment
12

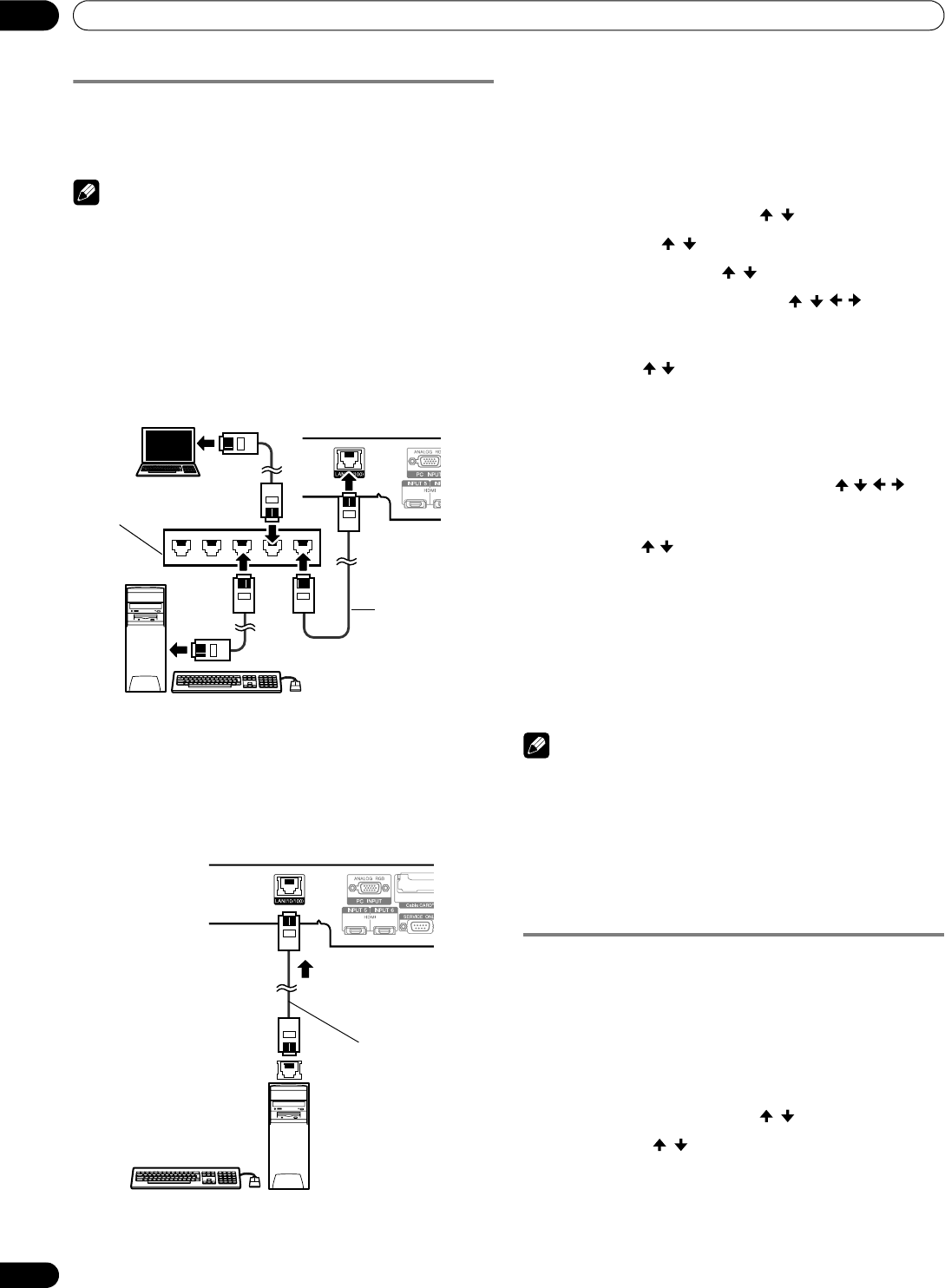

Making network connections
To connect to a network, set up the Home Media Gallery
through the panel’s menu. Connect to a home network (LAN)
via an Ethernet hub or cable directly to a media server.
NOTE
• Although the Home Media Gallery supports 10BASE-T, it is
better to use 100BASE-TX for improved display quality and
speed.
Connecting via an Ethernet hub
If you already operate one or more media servers on a local
area network (LAN), connect the Plasma Display to the
Ethernet (LAN) hub using a standard (“straight-through”)
Ethernet (LAN) cable. See the diagram below.
Connecting directly to a Media Server
To run a PC as a media server, connect the Plasma Display
directly to the PC using a twisted (“cross-over”) Ethernet (LAN)
cable. See the diagram below.
Confirming the IP Address
After making the network connection, follow the instructions
below to confirm the panel’s IP Address before accessing the
network. (The setup is effective for “Auto” only. To perform the
procedure, DHCP on your server or router must be valid.)
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Setup” ( / then ENTER).
4Select “Network Setup” ( / then ENTER).
5Select “Automatically acquire IP” ( / / / then
ENTER).
• The screen turns from “Select” mode to “Input” mode.
6Select “Yes” ( / then ENTER).
• The IP Address is automatically assigned.
• The Home Media Gallery supports Auto IP and DHCP
(Dynamic Host Configuration Protocol). If the system
failed to acquire the IP Address or if you want to obtain
different addresses, select “No” then enter “IP Address”
and “Subnet mask”. Use the 0 to 9 and ///
buttons to enter an address, then press ENTER. You do
not need to enter “Default Gateway” and “DNS Server”.
7Select “OK” ( / then ENTER).
• The “Reset” dialog appears on screen.
8Select “OK” and press ENTER.
• The home network module restarts.
• A message “Setting up Home Media Gallery. Please wait
until initialized.” appears on screen.
• When the initialization is finished, setting values
become effective and the top menu of the Home Media
Gallery returns.
NOTE
• For information on DHCP, refer to network device’s
operating instructions.
• You may need to contact your service provider or network
administrator when manually entering an IP Address.
• Some media servers block or are programmed to block
access to client servers. When connecting the Plasma
Display, check the media server for client server access
rights.
Connecting a USB device
You can also enjoy content stored on memory cards by
connecting a USB device to the Plasma Display. When you
insert a USB memory or multi-card reader into the USB port,
the root directory or the Device List screen appears. In addition,
you can connect your digital camera directly to the Plasma
Display using a USB connector cable.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “USB” ( / then ENTER).
• The Device List is displayed on screen with the selected
device highlighted if you have not checked in the “Single
Server/USB” box after selecting “Setup” and then “Auto
Connection Setup”. If you have checked in the box, the
list is skipped.
Media Server 2
Viewed from the
bottom of the
Plasma Display
Media Server 1
Plasma Display
(rear view)
Ethernet Hub
(Router with hub function)
Straight-through
Cable
Plasma Display
(rear view)
Viewed from the
bottom of the
Plasma Display
Cross-over Cable
Media Server 1
PDP_PRO1540HD.book Page 76 Wednesday, August 2, 2006 6:01 PM
77
En
Using External Equipment 12
English
4Select the desired device ( / then ENTER).
• You can select a device only when the Device List is
displayed.
5Press ENTER to navigate to a folder or play a file/content.
• To return to the previous screen, press RETURN.
6Press HOME MENU again to exit the Home Media Gallery.
NOTE
• If the Home Media Gallery is launched and the “Single
Server/USB” box is checked after selecting “Setup” and then
“Auto Connection Setup”, the system displays the root
directory immediately after inserting a USB device. In this
case, you can start from step 5. When a multi-card reader is
inserted, the Device List appears with the selected device
highlighted. In this case, you can start from step 4.
Readable memory cards
This system reads FAT12, FAT16, FAT32, or VFAT Memory
Cards.
Readable data files
Movie, music and photo files can also be played with the
exception of Digital Rights Management for Windows Media
10 (DRM) protected files.
NOTE
• A single USB device can be connected at a time and no USB
hub connected.
• This system may not be able to display modified or edited
content from a PC or other equipment.
• This system supports the USB Mass Storage Class.
• Some digital cameras may require a setup procedure for
Mass Storage Class data transfer. The setup is done on the
camera. See the operating instructions supplied with the
digital camera.
Removing a USB device
To remove a USB device, exit the Home Media Gallery first and
then disconnect the device.
NOTE
• Be sure to exit the Home Media Gallery screen before
removing the USB device. If you remove the USB device
while the Home Media Gallery screen is displayed, data
inside the memory may be damaged.
• Do not insert or remove the USB device immediately after the
system is switched On or Off. This action may cause data
inside the memory to be damaged.
• PIONEER is not liable for any loss or damage to the data
inside the USB memory.
Starting the Home Media Gallery function
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Media Navigator”, “USB”, “My Playlist” or “Setup”
(/ then ENTER).
• To return to the previous screen, press RETURN.
4Press HOME MENU again to exit the Home Media Gallery.
Navigating the files and folders
By selecting Media Navigator, the previously selected server
menu is automatically displayed on the screen by default (page
90). When only one server is found, the system automatically
connects the server. You can also use the Tool Menu to switch
to another server or manually select a server from the Server
List. The display is automatically changed to a server list if
there are no previously navigated servers.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Media Navigator” ( / then ENTER).
• A server menu appears. The file/folder configuration
may vary depending on the server selected.
• After selecting a category, folder or container and
navigating on subsequent screens, you can find a file
and start the appropriate Player depending on the
selected file.
4Select the desired folder to navigate or file/content to play
(/ or / then ENTER).
5Press ENTER to display a subsequent screen.
• Subsequent screen(s) appears.
• To return to the previous screen, press RETURN.
6Press HOME MENU again to exit the Home Media Gallery.
Plasma Display
USB flash memory
Digital Camera with USB
Mass Storage Class
Flash media via USB adapter (Multi-card Reader )
Media Navigator
USB
My Playlist
Setup
Server
XXXXXX
Home Media Gallery
1
PDP_PRO1540HD.book Page 77 Wednesday, August 2, 2006 6:01 PM
78
En
Using External Equipment
12
Selectable screen display
Menu display options are: “List”, “Thumbnail” or “Thumbnail
List”. Press D then select “Change view” from the Tool Menu to
choose from the screen display options.
Using the Tool Menu
Press D on the remote control to access the pop-up Tool Menu.
Various play and display modes can be selected from the Tool
Menu. The selectable menu items differ depending on the
submenu (see the table below).
*1When a file is selected
*2While music is played
Menu items Function Screen on which Tool
Menu is available
Update to Latest
Information
Updates the server
connection status
Server List (connected/
not connected)
Delete Server Deletes the server(s)
that are dimmed on the
list
Server List (server not
connected)
USB Devices List Moves to the USB
Devices List screen
Folder Contents List
(USB)/Contents List
(USB)
Consecutive
Playback*1
Continuously plays video
content starting from the
selected item
Media Navigator/Folder
Contents List/Contents
List
Detailed Display*1 Displays the detailed
information on the
selected content
Media Navigator/Folder
Contents List/Contents
List
Sort Sorts items in Folder or
Contents List
Media Navigator/Folder
Contents List/Contents
List
Search Searches the desired
items in Folder or
Contents List by word
Folder Contents List/
Contents List
Til
X
All
X
Da
2
Se
X
XXXX
XXXX
XXXX
XXXX
XXXX
List
Thumbnail
Thunbnail List
All Photos
Add to My Playlist
Change view
Sort
Search
Slide Show Settings
Detailed Display
Select Searver
Stop Music
1/27
1
Tool
D
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
All Photos
1/27
1
Tool
D
Title
XXXX
Album
XXXX
Date
2006/11/19
Server
XXXXXX
Title
XXXX
Album
XXXX
Date
2006/11/19
Server
XXXXXX
All Photos
1/27
1
Tool
D
XXXX
XXXX
XXXX
XXXX
All Photos
1/27
1
Tool
D
Title
XXXX
Album
XXXX
Date
2006/11/19
Server
XXXXXX
List screen
Thumbnail screen
Thumbnail List screen
Slide Show Setup Used to set up a slide-
show on the Photo
Player
Server List/Media
Navigator/USB/My
Playlist/Playlist List
(Movie/Music/Photo)/
Folder Contents List/
Contents List/Photo
Player
Add to My
Playlist*1
Adds the selected files
to My Playlist
Media Navigator/Folder
Contents List/Contents
List/Movie Player/Music
Player/Photo Player
Select Server Moves to the Server List
screen
Media Navigator/Folder
Contents List/Contents
List
Stop Music*2 Stops playback of a
music file
Media Navigator/ Playlist
List (Movie/ Music/
Photo)/Folder Contents
List/Contents List/Music
Player/Photo Player
Change Name Used to change content
names in My Playlist
Playlist List (Movie/
Music/Photo)
Change view Switches the screen
display to List,
Thumbnail, or
Thumbnail List
Folder Contents List/
Contents List
Time Search Starts playback at the
preset time on the Movie
or Music Player screen
Movie Player/Music
Player
Slow Playback Plays back in the slow
mode on the Movie or
Music screen
Movie Player/Music
Player
BGM Setup Used to set up the slide-
show BGM on the Photo
Player
Photo Player
Move Moves the order of
content in My Playlist
Contents List (Playlist)
Delete from My
Playlist*1
Deletes the selected
content from My Playlist
Contents List (Playlist)
Menu items Function Screen on which Tool
Menu is available
PDP_PRO1540HD.book Page 78 Wednesday, August 2, 2006 6:01 PM
79
En
Using External Equipment 12
English

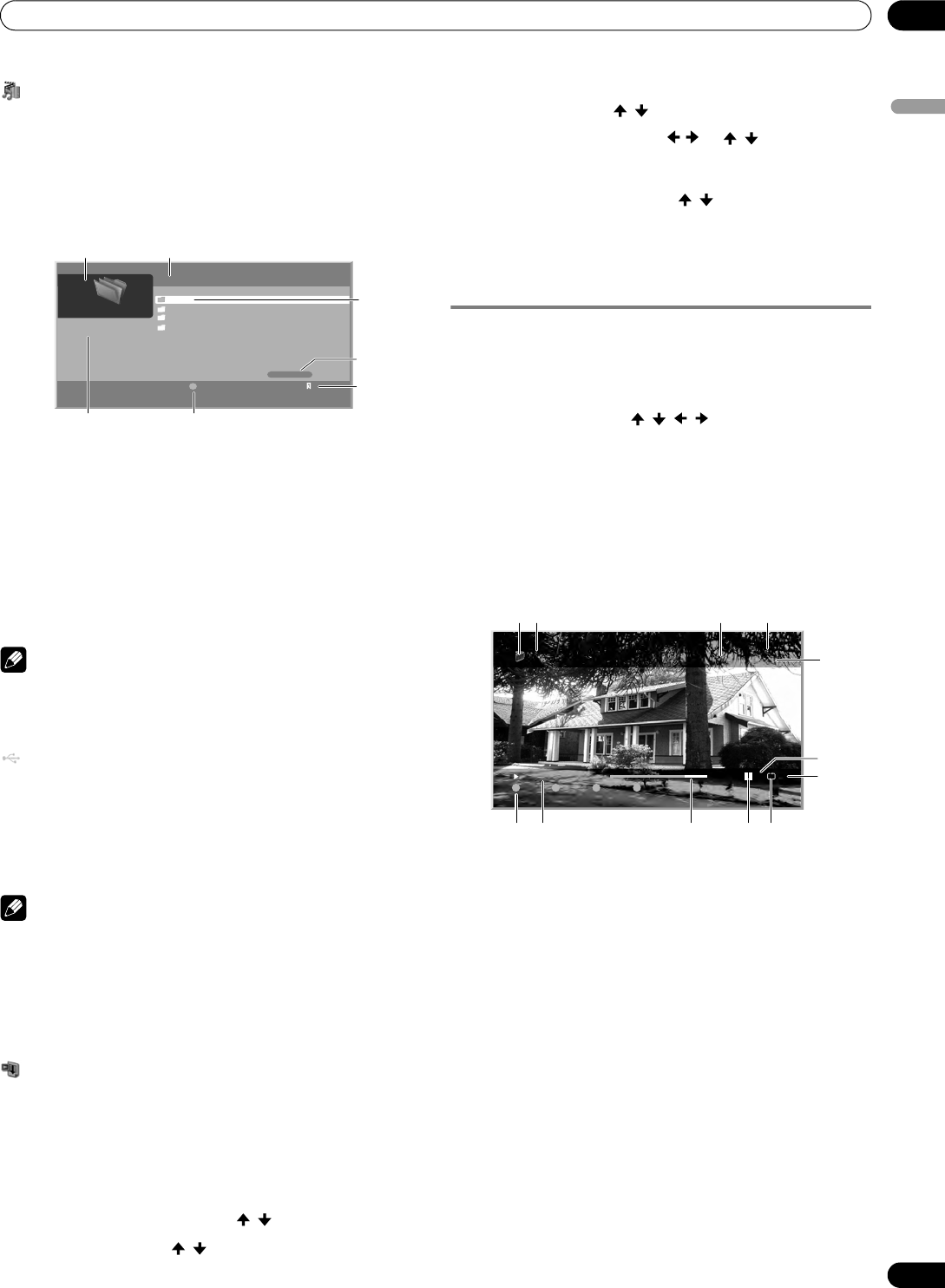

Media Navigator
While navigating through the folders a media server provides,
you can select the desired file to start the corresponding player
by pressing ENTER.
Screen Components
1Thumbnail of the file selected (if obtained)
2Name of the server currently selected
3Current menu level
4Item being selected (highlighted in yellow)
5File number/total number of files
6Number of servers connected
7Key guide
NOTE
• The Media Navigator is not launched depending on the
option selected in “Auto Connection Setup” (page 90). The
screen displays after selecting a server in the server list.
USB
Like navigating through the media servers, you can select the
desired file contained in the device selected on the USB
Devices List screen to start the corresponding player by
pressing ENTER. You can also select the menu displayed on
either “List”, “Thumbnail” or “Thumbnail List” screen. Press D
and select “Change view” from the Tool Menu.
NOTE
• The USB Devices List screen may not be displayed
depending on the option selected in “Auto Connection
Setup”. “Single Server/USB” is selected for “Auto
Connection Setup” by default. You don't need to select a
device in the USB Devices List when you use a single
directory device (USB memory).
My Playlist
Each category (Movie, Music and Photo) has five different
Playlists in which you can register up to 100 files each. The My
Playlist option can contain sound and image files selected in
the “Media Navigator”. To edit a Playlist, use the Tool Menu
(page 78).
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “My Playlist” ( / then ENTER).
4Select a Playlist list from “Movie Playlist”, “Music Playlist”
or “Photo Playlist” ( / then ENTER).
5Select the desired content ( / or / then ENTER).
• The menu can be displayed as a “List”, “Thumbnail” or
“Thumbnail List” screen. Press D then select “Change
view” from the Tool Menu ( / then ENTER).
6Press ENTER to play or display.
• To return to the previous screen, press RETURN.
7Press HOME MENU again to exit the Home Media Gallery.
Enjoying movie files
You can display the menu as a “List”, “Thumbnail” or
“Thumbnail List” screen. Press D then select an option under
“Change view” on the Tool Menu. You can also navigate
through the subsequent or preceding menu levels in the server
or USB device by pressing////ENTER. When you
select movie content from the server menu on the Media
Navigator screen, the Movie Player automatically launches.
Select a category, folder, or device to access the submenu
containing the required file or content.
The Movie Player screen appears when you select a movie file
from My Playlist, just like selecting a file in the server.
Screen Components
1Movie icon
2Title (Category or Folder name)
3Date
4Album name
5Play time
6Play status
7Key guide
8Progress bar
9Audio mode icon
10 A-B repeat mode icon
11 Repeat mode icon
12 Random mode icon (appears when the mode is valid)
Movie
Music
Photos
User Files
Media Navigator
1/4
1
Tool
D
Title
Movie
Server
XXXXXX
4
5
6
13
7
2
Tool
D
Random
C
Repeat
B
A-B
A
XXXX XXXX
2006/11/30 00:00:59
Playback 00
:
00
:
45
L
RA-B
RDM
5
10
12
13
4
89 117 6
2
PDP_PRO1540HD.book Page 79 Wednesday, August 2, 2006 6:01 PM
80
En
Using External Equipment
12
Movie Player key guide
NOTE
• Some functions may not be supported depending on the
server type or version used.
• During playback, an error may arise in time-related
information depending on the content or server software.
• Some functions may not be supported depending on the
content.
Time Search
1In playback mode or PAUSE, press D then select “Time
Search” from the Tool Menu ( / then ENTER).
• A “Time Search” dialog screen appears.
2Select “Hour” and/or “Minute” for “Input Time” ( / then
ENTER).
• Enter the desired time using buttons 0 to 9.
3Press ENTER after the entry is complete.
4Select “OK” ( / then ENTER).
• The movie begins playing from the time you set.
• To cancel the Time Search, select “Cancel” and press
ENTER.
ENTER: Pauses while playback or plays back while in PAUSE
:Fast reverse during playback or when in PAUSE. Each
press toggles the reverse speed between x 2, x 4, x 8,
x 20, x 50, and x 100 or the slow mode speed between
x 1/2, x 1/4, x 1/8, and x 1/16. When the beginning of the
content is reached, it pauses.
:Fast forward while playback or PAUSE. Each press
toggles the forward speed between x 2, x 4, x 8, x 20,
x 50, and x 100 or the slow mode speed between x 1/16,
x 1/8, x 1/4, and x 1/2. When the end of the content is
reached, it pauses.
:Skips 15 seconds backward and plays back or pauses
while in PAUSE
:Skips 15 seconds forward and plays back or pauses
while in PAUSE
(PLAY): Plays back the content
(PAUSE): Pauses the playback
(STOP): Stops the Player and returns to the previous screen
(List/Thumbnail/Thumbnail List)
(FF): Same as (only fast forward function while in the slow
mode)
(RWD): Same as (only fast reverse function while in the slow
mode)
A (BLUE): Sets A-B repeat mode. Sets the desired point A to start
and B to end during playback. To cancel the mode,
press A (BLUE) on the remote control.
B (RED): Every press toggles the repeat mode between “No
Repeat” and “Repeat Once” or between “No Repeat”,
“Repeat Once” and “Repeat All” while in Playlist
C (GREEN): Available only in Playlist or “Consecutive Playback”
mode. Every press toggles the random mode between
“Random Off” and “Random On”.
D (YELLOW): Switches the Tool Menu display on and off. Even if the
Tool Menu is displayed while content is played back, a
movie is kept playing but the time counter and progress
bar do not function.
INFO: Displays the Player status at the bottom of the screen
while a movie is played back. Another press of the key
displays a key guide, as well. Pressing the key once
more cancels all the information display.
MTS: Every press of the key toggles the audio mode between
“L + R”, “L” and “R”
RETURN: Same function as STOP
VOL+, VOL-: Adjusts the sound volume
MUTING: Mutes the sound
HOME MENU: Quit the Home Media Gallery and returns to the last
entry screen. Resumes the content selected again on
the Home Media Gallery.
Play modes
Time Search (Tool Menu) Plays back the selected content
from the time preset on the Movie
Player
Slow
Playback
(Tool Menu) Plays back the content in slow
mode on the Movie or Music
Player
Add to My
Playlist
(Tool Menu) Adds the selected content to My
Playlist List (Not available while
movie content in the Playlist is
played back.)
Stop Movie
Player
(STOP),
RETURN
Stops the Movie Player
Fast Forward/
Fast Reverse /,
/
See the key guide table
Forward/
Reverse
(15 sec.)
/See the key guide table
Play ENTER,
(PLAY)
See the key guide table
A-B Repeat
Mode
A (BLUE) See the key guide table
Repeat Mode B (RED) See the key guide table
Random
Mode
C (GREEN) See the key guide table
(Tool Menu) D (YELLOW) See the key guide table
Time Search
OK Cancel
Input Time
HMin
1
PDP_PRO1540HD.book Page 80 Wednesday, August 2, 2006 6:01 PM
81
En
Using External Equipment 12
English
5Press HOME MENU to exit the Home Media Gallery.
NOTE
• This function may not be supported depending on the
content or server software.
• An error may arise in time-related information depending on
the content or server software.
Slow Playback
1In playback mode or PAUSE, press D then select “Slow
Playback” from the Tool Menu.
2Press ENTER.
• Slow playback begins.
• You can change the playback speed by pressing /
while in the slow mode.
• To discontinue slow playback, press ENTER or PLAY.
The system returns to the normal playback mode.
3Press HOME MENU to exit the Home Media Gallery.
NOTE
• This function may not be supported depending on the
content.
Add to My Playlist
1While navigating or playing, select the file to be added to
My Playlist (/// then ENTER).
2Press D then select “Add to My Playlist” from the Tool
Menu ( / then ENTER).
• A “Playlist Selection” dialog screen appears.
3Select a Playlist ( / then ENTER).
• A check mark is provided beside the selected Playlist.
• When you select a different Playlist and press ENTER,
the mark jumps to the new Playlist from the previously
selected one.
4Select “OK” ( / then ENTER).
• The file is added to the selected Playlist.
• To cancel the operation, select “Cancel” then press
ENTER.
5Press HOME MENU to exit the Home Media Gallery.
Fast Forward/Fast Reverse
1While playing content, press and hold for Fast Reverse
or press and hold for Fast Forward.
Forward/Reverse (15 sec.)
1While playing content, press and hold or to jump
backward or forward in 15-second increments.
A-B Repeat Mode
1While playing content, press A where you want repeat to
start.
2Press A again where you want repeat to end.
• The Player status appears on the screen and the A-B
mode icon changes.
• The selected movie scenes are repeatedly played back.
• To return to normal mode, press A again while in the
A-B repeat mode.
3Press HOME MENU to exit the Home Media Gallery.
NOTE
• The A-B repeat function is only available during playback in
normal mode.
Repeat Mode
1While playing content in the Media Navigator or USB
device, press B to select “Repeat Once”.
• The title being played is repeated.
2Press B again to cancel the repeat mode (“Repeat Off” is
selected).
• After playing the currently selected title, the Player
stops.
3Press HOME MENU to exit the Home Media Gallery.
NOTE
• When playing content in the Playlist, you can select from
“Repeat Off”, “Repeat All” (plays all items in the Playlist
repeatedly) or “Repeat Once” (plays the content being
watched repeatedly).
Random Mode
1While playing content in the Playlist, press C to select
“Random On”.
• Random Repeat playback starts.
2Press C again to cancel the random mode (“Random Off”
is selected).
3Press HOME MENU to exit the Home Media Gallery.
NOTE
• The Random Repeat mode is only available for content in the
Playlist, or in “Consecutive Playback” mode.
Playlist1 20
Playlist2 0
Playlist3 0
Playlist4 0
Playlist5 0
Playlist Selection
OK Cancel
Select a Playlist to register
PDP_PRO1540HD.book Page 81 Wednesday, August 2, 2006 6:01 PM
82
En
Using External Equipment
12
Enjoying music files
You can display the menu as a “List”, “Thumbnail” or
“Thumbnail List” screen. Press D then select an option under
“Change view” on the Tool Menu. You can also navigate
through the subsequent or preceding menu levels in the server
or USB device by pressing ////ENTER.
When you select music content from the server menu on the
Media Navigator screen, the Music Player automatically
launches. Select a category, folder, or device to access the
submenu containing the required file or content. The Music
Player screen appears when you select a music file from My
Playlist, just like selecting a file in the server.
NOTE
• The Music Player only displays a “List” screen.
Screen Components
1Title (Category or Folder name)
2Jacket image (Music icon)
3Music status icon
4Contents list
5Number of items
6Detailed display
7Play status
8Time counter
9Key guide
10 Progress bar
11 A-B repeat mode icon
12 Repeat mode icon
13 Random mode icon
Music Player key guide
NOTE
•Files may not be played back properly depending on the
content.
RDM
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
XXXX
All Music
2/20
XXXX
XXXX
XXXX
00:01:00
Other
Tool
D
Random
C
Repeat
B
A-B
A
Playback 00
:
00
:
14
A-B
5
13
13
4
10
8 11 129 7
2
6
:Moves up a cursor to a title above
:Moves down a cursor to a title below
ENTER: Plays back the selected music content. Pauses the
music content being played if it is highlighted in the
Playlist screen or plays the selected music content if
different content is highlighted by pressing / .
:Fast reverse during playback or when in PAUSE. Each
press toggles the reverse speed between x 2, x 4, x 8,
x 20, x 50, and x 100. When the beginning of the content
is reached, it pauses.
:Fast forward during playback or when in PAUSE. Each
press toggles the forward speed between x 2, x 4, x 8,
x 20, x 50, and x 100. When the end of the content is
reached, it pauses.
RETURN: Returns to the previous screen (List/Thumbnail/
Thumbnail List). Content being played does not stop.
(PLAY): Plays back the selected content. Pauses while in
playback and plays while in PAUSE.
(PAUSE): Pauses the playback
(STOP): Stops the Player and does not return to the previous
screen (Selecting the “Stop Music” from the Tool Menu
also stops the Player.)
(FF): Same as
(RWD): Same as
A (BLUE): Sets A-B repeat mode. Sets the desired point A to start
and B to end during playback. To cancel the mode,
press A (BLUE) on the remote control.
B (RED): Every press toggles the repeat mode between “No
Repeat”, “Repeat Once” and “Repeat All”
C (GREEN): Every press toggles the random mode between
“Random Off” and “Random On”
D (YELLOW): Displays the Tool Menu. Even if the Tool Menu is
displayed while content is played back, music is kept
playing but the time counter and progress bar do not
function.
PAGE+, PAGE-: Available only when there are one or more pages in the
content. Change the pages back and forth.
VOL+, VOL-: Adjusts the sound volume
MUTING: Mutes the sound
HOME MENU: Quit the Home Media Gallery and returns to the last
entry screen
PDP_PRO1540HD.book Page 82 Wednesday, August 2, 2006 6:01 PM
83
En
Using External Equipment 12
English
• Setup procedures for the above play modes are the same as
for the Movie Player.
• Refer to page 78 for the color button D (Tool Menu).
NOTE
• Some functions may not be supported depending on the
server type or version used.
A-B Repeat Mode
1While playing content, press A where you want repeat to
start.
2Press A again where you want repeat to end.
• The Player status appears on the screen and the A-B
repeat mode icon changes.
• The selected part of the title is repeatedly played back.
• To return to normal mode, press A again while in the A-B
repeat mode.
3Press HOME MENU to exit the Home Media Gallery.
NOTE
• The A-B repeat function is only available during playback in
normal mode.
Repeat Mode
1While playing content in the Media Navigator, USB device
or Playlist, press B to select “Repeat All”.
• All titles in the folder or Playlist are played repeatedly.
2Press B again to cancel the repeat mode (“Repeat Once”
is selected).
• The title being played is repeated.
3Press B once more to cancel the repeat mode (“Repeat
Off” is selected).
• After playing the currently selected title, the Player
stops.
4Press HOME MENU to exit the Home Media Gallery.
Random Mode
1While playing content in the Playlist, press C to select
“Random On”.
• Random Repeat playback starts.
2Press C again to cancel the random mode (“Random Off”
is selected).
3Press HOME MENU to exit the Home Media Gallery.
Enjoying photo files
You can display the menu as a “List”, “Thumbnail” or
“Thumbnail List” screen. Press D then select an option under
“Change view” on the Tool Menu. You can also navigate
through the subsequent or preceding menu levels in the server
or USB device by pressing ////ENTER.
When you select photo content from the server menu on the
Media Navigator screen, the Photo Player automatically
launches. The selected content is displayed in full screen by
pressing ENTER. Select a category, folder or device to access
the submenu containing the required file or content.
Pressing ENTER again allows a slideshow to begin. After a
slideshow launches, pressing ENTER toggles between “PLAY”
and “PAUSE”. Instead of pressing ENTER twice, you can press
PLAY to start the slideshow immediately.
The Photo Player screen appears when you select a photo file
from My Playlist, just like selecting a file in the server.
Screen Components
1Photo icon
2Title (Category or Folder name)
3Album name
4Date
5Number of items
6Play status
7Key guide
8Progress bar
9Repeat mode icon
10 Random mode icon
Play modes
Add to My Playlist (Tool Menu) Adds the selected content to My
Playlist List (Not available while
music content is played back.)
Time Search (Tool Menu) Plays back the selected content
from the time preset on the Music
Player
Stop Music (Tool Menu),
(STOP)
Stops the Music Player
Fast Forward/
Fast Reverse /,
/
See the key guide table
Moves Up/Down
a cursor /See the key guide table
Play ENTER,
(PLAY)
See the key guide table
A-B Repeat
Mode
A (BLUE) See the key guide table
Repeat Mode B (RED) See the key guide table
Random
Mode
C (GREEN) See the key guide table
(Tool Menu) D (YELLOW) See the key guide table
Tool
D
Random
C
Repeat
B
XXXX XXXX
2006/11/30
Playback 6 / 27
RDM
4
10
9
13
8
7 56
2
PDP_PRO1540HD.book Page 83 Wednesday, August 2, 2006 6:01 PM
84
En
Using External Equipment
12
Photo Player key guide
• Setup procedures for the above play modes are the same as
for the Movie Player.
• Refer to page 78 for the color button D (Tool Menu).
NOTE
• Some functions may not be supported depending on the
server type or version used.
• In rare cases, the image on the screen may appear jagged
when photo content is selected directly from a USB device.
If this is the case, the problem may be solved by viewing the
photo content through the network after having transferred
it to the server PC.
• Even with the supported format, files may not be played
properly depending on the content.
Setting up the slideshow
You can enjoy a slideshow with music in the background. To
activate this feature, you must register music content in My
Playlist List beforehand (see “My Playlist” on page 79 and
“Setting up BGM” on page 85).
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Media Navigator” ( / then ENTER).
4Press D.
• A pop-up screen of the Tool Menu appears.
5Select “Slide Show Setup” ( / then ENTER).
6Select the desired setup item ( / then ENTER).
7Enter the setting in the “Effect” or “Interval” box ( /
then ENTER).
• Repeat steps 6 and 7 to enter another setup.
ENTER: Starts displaying a photo or playing a slideshow. Pauses
while playback or plays back while in PAUSE.
RETURN: Stops the Player and returns to the previous screen
(List/Thumbnail/Thumbnail List)
, : Displays the previous image content
, : Display the next image content
(PLAY): Plays a slideshow
(PAUSE): Pauses the slideshow
(STOP): Stops the Player and returns to the previous screen
(List/Thumbnail/Thumbnail List)
(FF): Rotates the image 90º clockwise. Each press toggles
the rotation angle by 90º between 90º, 180º, 270º and 0º.
(RWD): Rotates the image 90º counter-clockwise. Each press
toggles the rotation angle by 90º between 270º, 180º,
90º, and 0º.
A (BLUE): Rotates the image 90º clockwise. Each press toggles
the rotation angle by 90º between 90º, 180º, 270º and 0º.
B (RED): Every press toggles the repeat mode between “No
Repeat” and “Repeat All”
C (GREEN): Every press toggles the random mode between
“Random Off” and “Random On”
D (YELLOW): Displays the Tool Menu. If the Tool Menu is displayed
while a slideshow is played, the slideshow and BGM are
paused.
INFO: Displays the Player status at the bottom of the screen
while image content is played. Another press of the key
displays a key guide, as well. No Player information is
displayed when an image is shown in full screen (no
slideshow has been started). Other information may
display. Pressing the key once more cancels all the
information display.
VOL+, VOL-: Adjusts the sound volume
MUTING: Mutes the sound
HOME: Replaced by the Home Menu key. Quit the Home Media
Gallery and returns to the last entry screen.
Play modes
BGM Setup (Tool Menu) Sets up BGM
Slide Show
Setup
(Tool Menu) Allows various slideshow setups
on the Photo player
Add to My
Playlist
(Tool Menu) Adds the selected content to My
Playlist List (Not available while
photo content is displayed.)
Stop Photo
Player
(STOP),
RETURN
Stops the Photo Player
Move File Forward/
Backward
(///)
See the key guide table
Slideshow ENTER,
(PLAY)
See the key guide table
Rotate A (BLUE),
/
See the key guide table
Repeat Mode B (RED) See the key guide table
Random
Mode
C (GREEN) See the key guide table
(Tool Menu) D (YELLOW) See the key guide table
Slide Show Setup
Effect
OK Cancel
Interval 3 seconds
Auto
PDP_PRO1540HD.book Page 84 Wednesday, August 2, 2006 6:01 PM
85
En
Using External Equipment 12
English
8Select “OK” ( / then ENTER).
• The slideshow setup finishes.
NOTE
• After setting the “Interval” time, it may take longer than the
preset time until the next image is obtained.
Starting the slideshow
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select photo content in the Media Navigator, USB device
or My Playlist ( /// then ENTER).
• The photo content is displayed in full screen.
4Press ENTER or (Play) to start a slideshow.
• The slideshow starts and photo images in the folder
automatically display one by one. See “Setting up the
slideshow” (page 84) for setting up the interval time.
• To display a key guide, press INFO.
5Press ENTER or (Pause) to stop the slideshow.
• The Photo Player goes into “PAUSE”.
6Press ENTER again to resume the slideshow.
• To cancel the slideshow and stop the Photo Player,
press RETURN or (Stop) during the playback. The
previous screen returns.
NOTE
•When you press ///, / while photo content
is displayed, the Photo Player goes into “PAUSE”.
Setting up BGM
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select photo content in the Media Navigator, USB device
or My Playlist ( /// then ENTER).
• The Photo Player launches and photo content is
displayed in full screen.
4Press D then select “BGM Setup” from the Tool Menu ( /
then ENTER).
• A “BGM Setup” dialog screen appears.
5Select a Playlist from the list as BGM ( / then ENTER).
• A check mark is provided beside the selected Playlist.
• When you select a different Playlist and press ENTER,
the mark jumps to the new Playlist from the previously
selected one.
6Select “BGM ON”, “BGM ON (Random)” or “BGM OFF”
from the BGM status box ( / then ENTER).
7Select “OK” ( / then ENTER).
Rotating the image
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select photo content in the Media Navigator, USB device
or My Playlist ( /// then ENTER).
• The photo content is displayed in full screen.
• To stop the slideshow, press ENTER again.
4Press ENTER or (Play) to start a slideshow.
• The slideshow starts and photo images in the folder
automatically display one by one.
• To display a key guide, press INFO.
5While using Photo Player, press A to rotate a photo.
• The displayed image rotates by one quarter clockwise.
Each time A is pressed, the image rotates; 90º, 180º,
270º and “Rotate Off”.
• The Photo Player goes into “PAUSE” (the slideshow is in
Stop mode).
6Press ENTER again to resume the slideshow.
• The selected rotation mode is only effective for the
image being displayed. The default setting (“Rotate Off”)
returns when you move and display content on a
different screen.
Repeating the slideshow
1While playing a slideshow, press B to select “Repeat
Once”.
• The slideshow being played is repeated.
2Press B again to cancel the repeat mode (“Repeat Off” is
selected).
• After playing the currently selected slideshow, the
Player stops.
3Press HOME MENU to exit the Home Media Gallery.
Playing the slideshow at random
1While playing a slideshow, press C to select “Random On”.
• Random Repeat playback starts.
2Press C again to cancel the random mode (“Random Off”
is selected).
3Press HOME MENU to exit the Home Media Gallery.
Playlist1 20
Playlist2 0
Playlist3 0
Playlist4 0
Playlist5 0
BGM Setup
BGM ON
OK Cancel
PDP_PRO1540HD.book Page 85 Wednesday, August 2, 2006 6:01 PM
86
En
Using External Equipment
12
Other useful functions
Search
You can search the desired items contained in the Folder or
Contents List by word. Searched results are displayed on the
screen.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select the desired folder and/or content in the Media
Navigator ( /// then ENTER).
4Press D then select “Search” from the Tool Menu ( /
then ENTER).
• A “Search” dialog screen appears.
5Select the “Contains the following” box in “Set the search
condition:” ( / then ENTER).
• The software keyboard appears on the screen.
6Enter the word for search on the software keyboard ( /
// then ENTER).
7Select “OK” on the software keyboard ( / then ENTER).
• The software keyboard disappears.
• To cancel the search, select “Cancel” then press ENTER.
8Select “OK” on the “Search” dialog screen ( / then
ENTER).
• The searching starts based on the word entered and
search results are displayed.
• Even while searching, you can select content to play. To
return to the search screen, press RETURN during
playback.
9Press RETURN to cancel the search mode.
Sort
You can sort the items contained in the Folder or Contents List.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select the desired folder and/or content in the Media
Navigator ( /// then ENTER).
4Press D then select “Sort” from the Tool Menu ( / then
ENTER).
•A “Sort” dialog screen appears.
5Select “Bottom-Up” or “Top-Down” in the “Sort Order” box
(/ then ENTER).
6Select “OK” on the “Sort” dialog screen ( / then
ENTER).
• The sorting starts based on your selection and sort
results are displayed.
• Even while sorting, you can select content to play. To
return to the sort screen, press RETURN during
playback.
7Press RETURN to cancel the sort mode.
NOTE
• The “Select a sorting order.” screen can be displayed while
navigating through the music categories.
Adding files to My Playlist
The Home Media Gallery function provides “My Playlist” - a self-
contained play list that allows you to bookmark your favorite
movie, music and photo files from the network. You can
register, edit, and sort up to 100 files in each Playlist List.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Media Navigator” ( / then ENTER).
4Select the desired music content to add to “My Playlist”
(/ then ENTER).
5Press D to open the Tool Menu.
• A dialog screen appears.
6Press ENTER.
• A check mark is provided in the box at the selected
Playlist List.
7Press to select “OK”.
8Press ENTER.
• The selected content is added to the Playlist.
9Press HOME MENU again to exit the Home Media Gallery.
XXXX
1/24
1
Tool
D
Title
XXXX
Album
XXXX
Date
2006/11/30
Play Time
00:00:59
Server
XXXXXX
Search
Contains the following:
Title
Set the search condition.
OK Cancel
XXXX
1/24
1
Tool
D
Title
XXXX
Album
XXXX
Date
2006/11/30
Play Time
00:00:59
Server
XXXXXX
Sort
Bottom-Up
Sort Order
Title
Select a sorting order.
OK Cancel
Playlist1 20
Playlist2 0
Playlist3 0
Playlist4 0
Playlist5 0
Playlist Selection
Select a Playlist to register
OK Cancel
PDP_PRO1540HD.book Page 86 Wednesday, August 2, 2006 6:01 PM
87
En
Using External Equipment 12
English
Setup
The “Setup” is used for “Network Setup”, “Auto Connection
Setup”, “Default Settings”, “Software Update” and “Home
Media Gallery Version”.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Setup” ( / then ENTER).
4Select “Network Setup”, “Auto Connection Setup”,
“Default Settings”, “Software Update” and “Home Media
Gallery Version” (/// then ENTER).
“Network Setup”
When you select “Network Setup” from the “Setup” menu,
a submenu is displayed to select “Auto” or “Manual” for
network connections.
To automatically set:
The following setup is effective for “Auto” only. To perform
the procedure, DHCP on your server or router must be
valid.
1Select “Automatically acquire IP” then press ENTER.
2Select “Yes” ( / then ENTER).
3Select “OK”. (/// then ENTER).
• A restart dialog screen appears.
4Press ENTER again on the dialog screen.
• The setup finishes.
• The system restarts then the Home Media Gallery
screen returns.
To manually set:
Before setting up, check your media server for IP Address
and Subnet mask.
1Select “Automatically acquire IP” then press ENTER.
2Select “No” ( / then ENTER).
3Select the setup item’s box (/// then ENTER).
• The screen turns to entry mode for “IP Address” and
“Subnet mask”.
• No need to enter “Default Gateway” and “DNS
Server”.
4Enter the figures using buttons 0 to 9.
• Subnet mask (such as 255.255.255.0)
Enter the same figures as you checked.
• IP Address (such as 192.168.201.***)
Enter the same figures as used in the media server
(PC, etc.) you use. For ***, enter 3-digit figures (0 –
254) that have not been used for network
connections yet.
5Press ENTER on the setup item’s box after the entry is
complete.
• The screen turns to setup selection mode.
• Repeat steps 2 to 4 to complete the necessary
setup.
6Select “OK” (/// then ENTER).
• A restart dialog screen appears.
7Press ENTER again on the dialog screen.
• The setup finishes.
• The system restarts then the Home Media Gallery
screen returns.
“Auto Connection Setup”
When you enjoy content on the network, you can select
from the following options: “Last Connected Server” and
“Single Server/USB”. See “Auto Connection Setup” on
page 90.
“Wake on LAN (WOL)” functions to turn the last accessed
server’s power on if the server is WOL-compliant and is in
Standby or sleep mode, then display the Media Navigator
screen. During the WOL is activated, the “Start Server”
dialog screen displays and a message “The server is
starting up.” appears. If the server is not WOL-compliant
or the WOL function fails, the “Start Server” dialog appears
on the “Server List” screen and a message “Failed to start
server.” displays on the dialog screen.
For USB content, the Device List is displayed on the
screen if you have not checked in the “Single Server/USB”
box after selecting “Setup” and then “Auto Connection
Setup”. You can select the desired device and then
content in it. If you have checked in the box, the list is
skipped (default setting) and you can see the folder(s) or
file(s) in the USB device that has a single directory.
“Default Settings”
Setups you have entered within the Home Media Gallery
function return to default. When you select “Reset”, a
confirmation screen “To activate the default settings,
restart Home Media Gallery.” will appear. Press ENTER to
reset to default. When you select “Cancel”, the previous
screen displays ( / then ENTER).
“Software Update”
Select “Next” to follow the procedure on the subsequent
screens or “Cancel” to return to the previous screen ( /
then ENTER). When update is completed, a
confirmation message “To activate the updated software,
restart Home Media Gallery.” appears. See“Software
Update” on page 89.
“Home Media Gallery Version”
You can confirm the version and copyright information on
the Home Media Gallery software. Select “OK” to return to
the previous screen (ENTER).
8Press HOME MENU again to exit the Home Media
Gallery.
Network Setup
Auto Connection Setup
Default Settings
Software Update
Home Media Gallery Version
Setup
1/5
1
PDP_PRO1540HD.book Page 87 Wednesday, August 2, 2006 6:01 PM
88
En
Using External Equipment
12
Editing files in My Playlist
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “My Playlist” ( / then ENTER).
4Select “Movie Playlist”, “Music Playlist” or “Photo Playlist”
from the Playlist category ( / then ENTER).
• Five playlists are displayed.
• Press D to open the Tool Menu and select an item on
this screen or next contents list screen ( / then
ENTER).
• Check the appropriate box: “Change Name”, “Move” or
“Delete from My Playlist” (/// then ENTER).
“Change Name”
1Select “Change Name” from the Tool Menu.
• A dialog screen appears.
2Select “Playlist Name” ( then ENTER).
• The software keyboard appears.
3Select “OK” on the software keyboard (/// then
ENTER).
• The software keyboard disappears and “Playlist Name”
in the “Change Name” dialog screen returns.
4Select “OK” when the new name is entered ( / then
ENTER).
• The editing finishes and “Change Name” dialog screen
disappears.
• The new Playlist displays.
• The on-screen keyboard (“Software Keyboard”) is
displayed only when you select “Search” or “Change
Name”.
“Move”
You can change the listing order of the content registered in
My Playlist.
1Select “Move” from the Tool Menu.
• The content selected is placed in a yellow box (“Source
Selection” mode).
2Select the desired content ( / then ENTER).
• The selected content is highlighted in the yellow box. A
specific icon appears on the left (“Destination Selection
mode”).
3Press / to move the content up or down, then ENTER.
• The highlight in the yellow box disappears and the
specific icon returns to the original one.
• Repeat steps 2 and 3 to move another content.
4Press RETURN.
• A “Playlist” dialog screen appears.
5Select “OK” ( / then ENTER).
• The dialog screen disappears and moving content
finishes.
• To cancel, select “Cancel” then ENTER.
“Delete from My Playlist”
1Select “Delete from My Playlist” from the Tool Menu.
• A dialog screen appears.
2Select “OK” ( / then ENTER).
• The dialog screen disappears and the selected content
is deleted from My Playlist.
• To cancel, select “Cancel” then ENTER.
Playing/displaying files from My Playlist
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “My Playlist” ( / then ENTER).
4Select the desired Playlist from “Movie Playlist”, “Music
Playlist” or “Photo Playlist”.
5Select the desired Playlist List ( / then ENTER).
6Select the desired content (/// then ENTER).
• The selected content is played or displayed.
• To return to the previous screen, press RETURN.
7Press HOME MENU again to exit the Home Media Gallery.
Switching the server
When one or more servers are connected within the network,
you can switch between servers.
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Media Navigator” ( / then ENTER).
• The previous server is selected.
4Press D to open the Tool Menu.
5Choose “Select Server” ( / then ENTER).
• The Server List is displayed.
• Pressing RETURN changes the screen to the Home
Media Gallery.
6Select the desired server ( / then ENTER).
• The screen changes from the selected server to the
Home Media Gallery.
7Press HOME MENU again to exit the Home Media Gallery.
NOTE
• The Home Media Gallery can memorize previously
connected servers. When the Media Navigator is launched,
available servers are automatically searched and connected.
To switch between connected servers, choose server to
another one, select “Select Server” from the Tool Menu.
1/5
Title
Playlist1
Tool
D
20
0
0
0
0
1
Movie Playlist
Soft Keyboard
OK Cancel
Playlist1
Playlist Name
abcde f gh
ijklmnop
qr
yz
st uvwx
1,2,3...
a,b,c...
A,B,C...
@,$,=...
Delete
Clear
Space
PDP_PRO1540HD.book Page 88 Wednesday, August 2, 2006 6:01 PM
89
En
Using External Equipment 12
English
• If a previously connected server can not be found or if the
server is in the sleep mode, the server name is dimmed
(grayed out).
• In some cases, you may be able to start a media server if it
supports “Wake On LAN”. Select the server and press ENTER
to have it transmit a “Wake On LAN” command to the
Plasma Display.
• You cannot select a server unless that media server has been
set up.
Resetting to default
You can reset the setups you have entered within the Home
Media Gallery function to default (See “Default Settings” on
page 87).
1Press HOME MENU.
2Select “Setup” ( / then ENTER).
3Select “Default Settings” ( / then ENTER).
4Select “Reset” ( / then ENTER).
• A restart dialog screen appears.
5Press ENTER on the dialog screen.
• The setup finishes.
• The system restarts then the Home Media Gallery screen
returns.
Other convenient features
Software update is available on the Pioneer website (http://
www.pioneerelectronics.com). Make sure that you have a
USB flash memory. First download the software according to
the guidelines on the website and perform the following
procedure for update:
1Press HOME MENU.
2Select “Home Media Gallery” ( / then ENTER).
3Select “Setup” ( / then ENTER).
4Select “Software Update” ( / then ENTER).
• A “Software Update” submenu appears.
5Select “Next” ( / then ENTER).
• The next screen appears. Complete the procedure
following the guidelines on the screen.
6Press ENTER after the following steps are complete:
“Download”, “Write” and “Verify”
• A restart dialog screen appears.
7Press ENTER after reading a notice on the screen.
• The system is restarted then the Home Media Gallery
screen returns.
• Software update finishes.
NOTE
• On average, it may take 15 minutes or more to complete a
software update.
Screen saver
During navigation, the screen saver launches automatically
if no activity is sensed within five minutes.
• No screen saver is available while a movie or slideshow is
played.
• Pressing any key cancels screen saver. When canceled
with a USB device being connected, connecting operation
resumes.
NOTE
•Pressing INFO to display the Player status or key guide
before screen saver is activated may cause image retention
to appear. Do not display the Player status and key
guide for an extended period of time while playing a
movie or slideshow.
Software Update
Setup
1
Software Update
To check whether the software needs to be updated or not.
Home Media Gallery must be connected to a USB device.
Connect the USB device and press the Next button.
Current Version: 1.x.xx
Next Cancel
PDP_PRO1540HD.book Page 89 Wednesday, August 2, 2006 6:01 PM
90
En
Using External Equipment
12
Dialog Screen Message
• The message consists of “Error”, “Warning” and “Information” and is
displayed for 5 seconds.
“Auto Connection Setup”
For extra convenience, you can toggle between the following
features:
“Last Connected
Server”
When you check in the “Last Connected Server”
box, the Plasma Display accesses the last server
using WOL (“Wake On LAN”) first as the Media
Navigator is selected from the Home Media
Gallery. The Media Navigator displays the last
server when WOL succeeds, while a server list is
displayed when WOL fails.
WOL is activated to turn the last accessed server
On if the server is WOL-compliant and is in
Standby or sleep mode.
“Single Server/
USB”
This function is used only when a USB memory
device or a single server is connected. You do not
need this function when a multi-card reader, or two
or more servers are connected.
USB:
• When USB memory is connected, the Devices
List is skipped as long as you have checked in
the “Single Server/USB” box. If not, the list may
be displayed at any time.
Media Navigator (Server):
• When a single server is connected, the Server
List is skipped as long as you have checked in
the “Single Server/USB” box. If not, the list may
be displayed at any time. When the “Last
Connected Server” box is checked, the other
server setup option – “Single Server/USB” –
becomes invalid.
Setup
1
Auto Connection Setup
OK Cancel
Last Connected Server
Single Server/USB
No. Message Problem
001 Content playback failed
(001).
No details are available
for the error
100 A communication error
occurred (100).
No further details are
available for the error
101 No response from the
server (101).
Timeout period reaches
due to delayed server
response
102 Disconnected from the
network (102).
Cables are
disconnected
103 Invalid response was
received from the
server (103).
Invalid response from
the server
300 This format is not
supported (300).
A file that is not
supported is selected
500 Authorization failed
(500).
Failed to obtain
WMDRM authorization
501 Authorization failed
(501).
Failed to obtain
WMDRM authorization
503 Authorization failed
(503). Please check for
trouble in routers,
hubs, and other
network devices.
Failed to obtain
WMDRM authorization
504 Authorization failed
(504). The maximum
allowed number of
devices are connected
to the server.
Failed to obtain
WMDRM
505 Authorization failed
(505). The content
license is off. Please
turn on the license
from the server.
Failed to obtain
WMDRM authorization
Displaying pictures in the Home Media Gallery for an
extended period may cause an after-image.
PDP_PRO1540HD.book Page 90 Wednesday, August 2, 2006 6:01 PM
91
En
Using External Equipment 12
English
Glossary
Default Gateway
Default gateway is a node on a computer network that serves
as an access point to another network. A default gateway (such
as a computer and router) is used to forward all traffic that is
not addressed to a station within the local subnet.
DHCP (Dynamic Host Configuration Protocol) Server
Provides a mechanism to allocate IP addresses to client hosts.
In most cases, a broadband router serves as a DHCP server in
a home network.
DLNA (Digital Living Network Alliance)
The DLNA authorized logo makes it easy for consumers to
recognize products that meet the new standard for home
network PCs and other digital devices, as set down in the DLNA
Guidelines for interoperability. This allows music, video, etc. to
be enjoyed from various devices over a home network. This unit
is compatible with music, photo and video content, and is
based on the DLNA Interoperability Guidelines v1.0. This unit
can be used to playback music, photos and video stored on a
DLNA-compatible server connected through a LAN cable.
Digital Living Network Alliance (DLNA) is dedicated to the
simplified sharing of digital content, such as digital music,
photos and video among networked consumer electronics (CE)
and PCs. By establishing a platform of interoperability based
on open industry standards, DLNA delivers technical design
guidelines that companies can use to develop digital home
products that share content through wired or wireless
networks in the home.
DNS (Domain Name Service) Server
DNS Server is a server that determines the name of network-
computer within the Internet. The server functions to exchange
IP address to the hostname, hostname to the IP address.
Ethernet
A frame-based computer networking technology for local area
networks (LANs). The Plasma Display supports 100BASE-TX.
IP (Internet Protocol) Address
A unique number that devices use in order to identify and
communicate with each other on a network utilizing the
Internet Protocol standard, such as “192.168.1.xxx”. No
duplicate numbers are allowed within the network.
LAN Cable
A cable that has an 8-pin modular plug on each end and is
different from a telephone plug which has 4 pins. A straight
cable is used when connecting the Plasma Display to a home
network via a hub. A cross-over cable is used when connecting
directly to a PC. Use category 5 (CAT-5) LAN cables.
MAC (Media Access Control) Address
An address attached to the port of any network device with an
IP address. The MAC address is expressed as
“00:e0:36:01:23:xx” and cannot be changed.
Mass Storage Class devices
The standard provides an interface to a variety of storage
devices, such as USB flash memory and digital cameras.
PlaysForSure
This unit incorporates PlaysForSure. “PlaysForSure” is a new
logo program from Microsoft Corporation. You can check for
the PlaysForSure logo at various online stores. Where you see
the PlaysForSure logo, you can be sure that the digital media
you are purchasing (music, video, pictures) will play on this
unit.
Subnet mask
Used when IP addresses are broken into several parts. It is
expressed as “255.255.255.0”. In most cases, the Subnet mask
is automatically assigned by the DHCP server.
USB (Universal Serial Bus)
USB provides a serial bus standard for connecting devices,
usually to computers such as PCs. The Plasma Display
supports the Mass Storage Class.
Windows Media Connect
Microsoft Windows Media Connect is a new technology to
distribute music, photos and video stored on a PC with
Windows XP installed to a stereo system of TV. Using this
technology you can playback files stored on the PC from
various devices wherever you like in your home.
Windows Media DRM
Windows Media DRM is copyright protection technology
developed by Microsoft Corporation. It enables content
providers to distribute over the Internet music, video and other
digital media content in a protected, encrypted file format.
PDP_PRO1540HD.book Page 91 Wednesday, August 2, 2006 6:01 PM
92
En
Useful Remote Control Features
13
Useful Remote Control Features
Learning function of the remote control
unit
You can operate the connected AV products (AV Receiver,
Cable Box, SAT tuner, VCR, DVD, DVD recorder, LD) using the
remote control’s learning function. The remote control can
memorize other remote control’s codes.
Using the learning function
1Slide the Mode switch to match the type of device to be
learned.
2Press EDIT/LEARN and 2 at the same time.
• The LED flashes.
3Press a button to be learned.
• The LED lights up.
• For the functions that can be learned, see pages 99 to
102.
• When the device’s remote is memorized, the LED
flashes.
4Press EDIT/LEARN again to exit the Learn mode.
NOTE
• To exit the Learn mode before it is complete, press EDIT/
LEARN again.
•If the Mode switch selection is changed when EDIT/LEARN
and 2 are pressed (the LED is flashing), the Learn session is
canceled.
•If the Mode switch selection is changed when a button to be
learned is pressed after EDIT/LEARN and 2 have been
pressed (the LED lights up), the Learn session is not
canceled and the selected mode and button remain
effective.
• If no operation is performed for more than one minute after
having pressed EDIT/LEARN and 2 (the LED is flashing), the
Learn session is canceled.
• If a button to be learned is pressed after having pressed
EDIT/LEARN and 2 (the LED is lit), the Learn session is
canceled in 30 seconds and the LED restarts blinking again.
• Code transmission finishes in approximately two seconds.
Do not interrupt it halfway. Wait until the LED flashes again.
• When using any of the receiver buttons (a, INPUT, or
VOL +/–), the learned manufacturer code remains the same
regardless of the Mode switch position or even if the switch
is shifted to a different position.
Presetting manufacturer codes to
control other devices
Presetting manufacturer codes
1Slide the Mode switch to match the type of device to be
preset.
2Press EDIT/LEARN and 1 at the same time.
• The LED flashes.
3Press 0 – 9 to enter the manufacturer code. See page 94.
• Preset mode is finished when the LED blinks Off.
Library Search
In the event that the device code for a particular target unit is
unknown, cycle through the available codes for that type of
device. Sample the functions from each code in order to find
the code that properly operates the target device.
1Slide the Mode switch to match the type of device to be
preset.
2Press EDIT/LEARN and 3 at the same time.
• The LED indicator flashes and the remote control unit
enters the Library Search programming mode.
3Press either SOURCE POWER, PLAY, 1 or CH+ to sample
the selected code.
4If the code is missing, press / to advance to the next
code or return to the previous code and repeat step 3.
5Press ENTER when the code that properly operates the
target device is found.
• All the available buttons for the selected mode are
programmed to the remote control. The remote control
unit returns to normal operation (LED lights for one
second to confirm addition).
Delete Learning
You can delete a learned code by either overwriting it with a
new code on the same button or performing the procedure
below.
1Press EDIT/LEARN and 2 at the same time.
• The LED indicator flashes and the remote control unit
enters the Learning mode.
2Press and hold TV a for more than two seconds.
• The remote control unit starts deleting all learned codes
in the selected mode (marked by a lit LED).
• When completed, the LED blinks Off and the remote
control unit returns to normal operation.
2 cm to 5 cm (0.8 inches to 2.0 inches)
Remote control
(Supplied accessory)
Remote control of
AV product
PDP_PRO1540HD.book Page 92 Wednesday, August 2, 2006 6:01 PM
93
En
Useful Remote Control Features 13
English
Manufacturing Reset
All learned and preset codes can be returned to the factory
defaults regardless of the mode.
1Press EDIT/LEARN and TV a at the same time. The Mode
switch setting is ignored.
• The LED indicator flashes and the remote control unit
enters the Manufacturing Reset mode.
2Press D (yellow) to reset the remote control.
• The manufacturing reset is complete. The LED flashes
for one second then the remote control unit returns to
normal operation.
NOTE
• To exit the Edit mode before it is complete, press EDIT/
LEARN again.
•If the Mode switch selection is changed when in the Edit
mode, the Edit session is canceled.
• If no operation is performed within one minute, the Edit
session is canceled.
• When you enter an unlisted code, the LED flashes
repeatedly.
• If the tables on pages 94 to 98 do not include your device’s
manufacturer or the remote control does not work, use the
Learn mode.
• The initial mode is “PIONEER”.
• When using any of the receiver buttons (a, INPUT, or
VOL +/–) to cancel the Learn mode, follow the procedure
with the Mode switch set to “TV”. You cannot cancel the
mode otherwise.
PDP_PRO1540HD.book Page 93 Wednesday, August 2, 2006 6:01 PM
94
En
Useful Remote Control Features
13
Programming codes
CABLE
SATELLITE
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 0003 0008 0014 0011
0017
General Instrument 0014 0011 Panasonic 0000 0008 0107 0021 Sony 1006 1506 1606
Global 1327 Panther 0637 Sprucer 0021
Americast 0899 GoldStar 0144 Paragon 0000 Starcom 0003 0014
Amino 1602 1822 Hamlin 0009 0273 Philips 1305 0317 Supercable 0276
Bell & Howell 0014 Hitachi 0014 0011 0154 Pioneer 1877 0877 0144 0533
0023 0260 1021
Supermax 0883
Bell South 0899 i3 Micro 1602 Thomson 1256
Birmingham Cable Communications
0276 Jerrold 0476 0810 0276 0003
0012 0014 0011
Pulsar 0000 Tocom 0012
British Telecom 0003
PVP Stereo Visual Matrix
0003 Torx 0003
Clearmaster 0883 KNC 0008 Quasar 0000 Toshiba 0000
ClearMax 0883 LG 0144 RadioShack 0883 Trans PX 0276
Cleartron 1327 Memorex 0000 RCA 1256 0021 Tristar 0883
Coolmax 0883 Motorola 1376 0476 0810 0276
1187 1254 0014 1106
Regal 0279 0273 TS 0003
Daeryung 1877 0877 0477 0008 Rembrandt 0011 United Cable 0003
Digeo 1187 Multitech 0883 Runco 0000 V2 0883
Digi 0637 MultiVision 0012 Samsung 0000 0144 Viewmaster 0883
Director 0476 Myrio 1602 1822 Scientific Atlanta 1877 0877 0477 0008
0017
ViewmaxPro 1544
Dumont 0637 NTL 0003 Vision 0883
Gehua 0476 Optimus 0021 Sejin 1602 Vortex View 0883
General Instrument 0476 0810 0276 0003 Pace 1877 0237 0008 Signature 0011 Zenith 0000 0525 0899
Brand Codes Brand Codes Brand Codes Brand Codes
AlphaStar 0772 Fortec Star 1550 Legend 0269 Realistic 0052
Amino 1615 Galaxis 0270 LG 1226 1414 1750 Samsung 1377 1142 1276 1108
1109 0270 1243 1442
1609
BeauSAT 1586 GE 0392 0566 Magnavox 0724 0722
Century 0856 General Instrument 0869 MegaSat 1551
Channel Master 0212 GOI 0775 1775 Memorex 0724 0269 Sanyo 1219
Chaparral 0053 0209 0216 Goodmans 1246 Mitsubishi 0749 SKY 0856 1856 0099
Coolsat 1806 Gradiente 0856 Motorola 0869 0856 Sony 0639 1639 1640
Crossdigital 1109 Hisense 1535
NEC
0102 0178 1270 Star Choice 0869
Digiturk 1076 Hitachi 0819 1250 Netsat 0099 Star Trak 0180
DirecTV 1377 0392 0566 0639
1639 1142 0247 0749
1749 0724 0819 1856
1076 1108 0099 1109
1392 1414 1442 1443
1444 1538 1609 1640
1750
Homecable 0238 Next Level 0869 STS 0210
HTS 0775 1775 OctalTV 1505 Tivo 1142 1442 1443 1444
1538
Hughes 0749 1749 1442 Panasonic 0247 0701 0152
Hughes Network Systems
1142 0749 1749 1442
1443 1444 1538 1750
Pansat 0647 1551 1807 Toshiba 0749 1749 0790 0819
0082 1285
Paysat 0724
Humax 1790 Philips 1142 0749 1749 0724
0819 0856 1076 0722
0099 1442
UltimateTV 1392 1640
iLo 1535 Ultrasat 1806
Dish Network System 1505 1005 0775 1170
1775
Innova 0099 Uniden 0724 0722 0052 0074
0076 0238
IQ 0210 Pioneer 0329 1442
Dishpro 1505 1005 0775 1775 IQ Prism 0210 Proscan 0392 0566 US Digital 1535
Eastern 1612 Janeil 0152 Proton 1535 USDTV 1535
Echostar 1505 1005 0775 0159
0269 0280 1170 1775
Jerrold 0869 RadioShack 0869 Voom 0869
JVC 0775 1170 1775 RCA 0392 0566 0855 0143
1392
Zenith 0856 1856
Expressvu 0775 1775 Lava 1631
PDP_PRO1540HD.book Page 94 Wednesday, August 2, 2006 6:01 PM
95
En
Useful Remote Control Features 13
English
VCR
Brand Codes Brand Codes Brand Codes Brand Codes
ABS 1972 Craig 0271 Go Video 0240 0432 0526 0649
0663 1137 1150
LG 0037 0045 0042 0209
0038 0040 1037 1137
Admiral 0048 0209 0479 Crown 0072 0278 0020
Adventura 0000 Curtis Mathes 0060 0035 0162 0041
0760 1035
GoldHand 0072 Linksys 1972
Aiko 0278 GoldStar 0037 0209 0038 0225
0226 1137 1237
Lloyd’s 0000 0208
Aiwa 0037 0000 0124 0307
0479 1137
Cybernex 0240 Loewe 0037 0081
CyberPower 1972 Goodmans 0037 0000 0072 0278
0020 0062
Logik 0240 0072
Akai 0041 0061 0106 0175
0242
Cyrus 0081 Lunatron 1137
Daewoo 0045 0104 0278 0020
0046 0210 0212 0561
1137 1278
Gradiente
0000 0008 Luxor 0048 0104 0043 0046
0062 0106Akiba 0072 Graetz 0240 0104 0041
Akura 0271 Granada 0081 0104 0046 LXI 0037
Alba 0209 0072 0278 0020 Dansai 0072 Grandin 0037 0000 0072 M Electronic 0000 0038
Alienware 1972 Daytron 0020 Grundig 0081 0072 0034 0207
0226 0378
Magnasonic 0593 1278
Allegro 1137 De Graaf 0042 0166 Magnavox 0035 0039 0081 0000
0149 0563 0593 1781Ambassador 0020 Decca 0081 0000 Hanseatic 0037
America Action 0278 Dell 1972 Haojie 0240 Magnin 0240
American High 0035 Denon 0042 Harley Davidson 0000 Manesth 0045 0072
Amoisonic 0479 DirecTV 0739 Harman/Kardon 0081 0038 0075 Marantz 0035 0081 0062
Amstrad 0000 Dual 0041 Harwood 0072 Marta 0037
Anam 0162 0037 0240 0278
0226 1037
Dumont 0081 0000 0104 0105 HCM 0072 Matsui 0209 0208
Durabrand 0039 0038 Headquarter 0046 Matsushita 0035 0162 0226 0227
1162Anam National 0162 0226 Dynatech 0000 Hewlett Packard 1972
Anitech 0072 Elbe 0038 HI-Q 0047 Media Center PC 1972
ASA 0037 0081 Elcatech 0072 Hinari 0240 0072 0208 MEI 0035
Asha 0240 Electrohome 0037 0043 Hitachi 0037 0240 0000 0042
0041 0065 0082 0089
0105 0166 0235 0292
1037
Memorex 0035 0162 0037 0048
0039 0047 0240 0000
0104 0209 0046 0307
0479 1037 1048 1162
1237 1262
Asuka 0037 Electrophonic 0037
Audiovox 0037 0278 Emerex 0032
Awa 0043 Emerson 0035 0037 0184 0240
0045 0000 0121 0043
0209 0002 0278 0208
0061 0212 0479 0561
0593 1278 1479 1593
Baird 0000 0104 0041 Howard Computers 1972
Basic Line 0072 0278 0020 HP 1972 Memphis 0072
Beaumark 0240 Hughes Network Systems 0042 0739 Metronic 0081
Bell & Howell 0104 Humax 0739 Metz 0162 0037 0227
Blaupunkt 0162 0034 0226 0227 ESA 1137 Hush 1972 MGA 0240 0043 0061
BPL 0046 ESC 0240 0278 Hypson 0072 MGN Technology 0240
Brandt Electronique 0041 EverFocus 1346 iBUYPOWER 1972 Microsoft 1972
Broksonic 0184 0121 0209 0002
0479 1479 1815
Ferguson 0041 Imperial 0000 Mind 1972
Fidelity 0000 Interfunk 0081 Minolta 0042 0105
Bush 0209 0072 0278 Finlandia 0081 0104 ITT 0240 0104 0041 0046
0106
Mitsubishi 0081 0067 0043 0041
0061 0075 0173 0214
0242 0443 0807
Calix 0037 Finlux 0081 0000 0042 0104
0105Canon 0035 1143 ITV 0037 0278
Capehart 0020 Firstline 0037 0045 0043 0209
0072
Jensen 0041 Motorola 0035 0048
Carver 0081 JVC 0045 0067 0041 0008
0206 0207 0366 1162
1707
MTC 0240 0000
Catron 0020 Fisher 0047 0104 0046 Multitech 0000 0072
CCE 0072 0278 Frontech 0020 Murphy 0000
CGE 0000 Fuji 0035 0033 Kaisui 0072 Myryad 0081
Changhong 0048 0081 Fujitsu 0045 0000 0366 KEC 0037 0278 NAD 0104 0058
Cimline
0072 Funai 0000 0593 1335 1593 Kendo 0209 0106 National 0226
Cineral 0278 Garrard 0000 Kenwood 0067 0041 0038 NEC 0035 0037 0048 0104
0067 0041 0038 0008
0040 0050 0082 0206
0457
CineVision 1137 Gateway 1195 1196 1972 KLH 0072
Citizen 0037 0278 1278 GE 0060 0035 0240 0065
0202 0226 0760 0761
0807 1035 1060
Kodak 0035 0037
Clatronic 0020 Kolin 0043 0041
Colt 0072 Korpel 0072 Neckermann 0081
Condor 0020 GEC 0081 Lenco 0278 Nesco 0072
Craig 0037 0047 0240 0072 General 0045 0020 0366 Leyco 0072 Newave 0037
PDP_PRO1540HD.book Page 95 Wednesday, August 2, 2006 6:01 PM
96
En
Useful Remote Control Features
13
VCR
Brand Codes Brand Codes Brand Codes Brand Codes
Nikko 0037 Pye 0081 SEG 0240 Tensai 0000
Nikon 0034 Qisheng 0060 SEI 0081 Thomas 0000
Niveus Media 1972 Quarter 0046 Seleco 0041 Thomson 0060 0067 0041 0202
Noblex 0240 Quartz 0046 Semp 0045 Thorn 0104 0041
Nokia 0240 0104 0041 0046
0106
Quasar 0035 0162 0077 1035
1162
Sensory Science 0649 1155 Tivo 0618 0636 0739 1337
1996
Sentra 0020
Nordmende 0041 Quelle 0081 Sharp 0048 0209 0062 0807
0848 1048
TMK 0240 0208
Northgate 1972 Radiola 0081 Toshiba 0081 0045 0042 0067
0043 0209 0041 1996
1972 1145 1008 0845
0377 0366 0212 0210
0057 0008
Oceanic 0000 0041 RadioShack 0000 1037 Shinco 0000
Olympus 0035 0226 Radix 0037 Shintom 0104 0072
Onkyo 0222 Randex 0037 Shogun 0240
Optimus 1062 0162 0037 0048
0104 0058 0432 0593
1048 1162 1262
RCA 0060 0035 0240 0000
0042 0149 0077 0105
0106 0065 0202 0226
0058 0760 0761 0807
0880 1035 1060
Siemens 0037 0081 0104
Silva 0037 Totevision 0037 0240
Singer 0045 0072 Touch 1972
Optonica 0062 Sinudyne 0081 Triumph 0208
Orion 0184 0121 0209 0002
0208 0479 1479 1815
Solavox 0020 Uher 0240
Realistic 0035 0037 0048 0047
0000 0104 0046 0062
Sonic Blue 0614 0616 1137 Unitech 0240
Osaki 0037 0000 0072 Sonolor 0046 0062 Universum 0037 0081 0240 0000
0106Otto Versand 0081 ReplayTV 0614 0616 Sontec 0037
Palladium 0037 0041 0072 Rex 0041 Sony 0035 0032 0033 0000
0011 0022 0034 0275
0636 1032 1232 1546
1702 1703 1896 1972
Vector 0045
Panasonic 1062 0035 0162 0077
0225 0226 0227 0246
0378 0616 1035 1162
1262
Ricavision 1972 Vector Research 0038 0040
Ricoh 0034 Victor 0067 0041 0008
Rio 1137 Video Concepts 0045 0040 0061
Roadstar 0037 0240 0072 0278 Stack 9 1972 Videomagic 0037
Pathe Marconi 0041 Runco 0039 STS 0042 Videosonic 0240
Penney 0035 0037 0240 0042
0038 0040 1035 1237
Saba 0041 0206 0207 Sunstar 0000 Viewsonic 1972
Saisho 0209 0208 Suntronic 0000 Villain 0000
Pentax 0042 0065 0105 Salora 0043 0046 0075 0106
0443
Sylvania 0035 0081 0000 0043
0593 1593 1781
Voodoo 1972
Perdio 0000 Wards 0060 0035 0048 0047
0081 0240 0000 0042
0072 0149 0062 0212
0760
Philco 0035 0000 0209 0038
0226 0479 0561
Sampo 0037 0048 Symphonic 0000 0593 1593
Samsung 0240 0045 0210 0212
0432 0649 0663 0739
0760 1014
Systemax 1972
Philips 0035 0081 0000 0062
0226 0563 0593 0618
0739 1081 1181 1266
Tagar Systems 1972
Tandy 0000 0104 Wharfedale 0593
Sanky 0048 0039 Tashiko 0037 0000 White Westinghouse 0209 0072
Phonola 0081 Sansui 0000 0067 0209 0041
0082 0271 0479 1479
Tatung 0081 0045 0000 0067
0041 0008 0366
XR-1000 0035 0000 0072
Pilot 0037 Yamaha 0041 0038
Pioneer 0081 0042 0067 0058
0168 0206 0235 1337
Sanyo 0047 0240 0104 0046
0159 0372
Teac 0000 0041 0278 0307
0526 0593
Yamishi 0072
Yokan 0072
Polk Audio 0081 SBR 0081 Tec 0020 Yoko 0240 0020
Portland 0020 Schaub Lorenz 0000 0104 0041 Technics 0035 0162 0226 0246 Zenith 0039 0033 0000 0209
0034 0479 1137 1139
1479
Profitronic 0240 Schneider 0081 0000 0072 Teco 0035 0037 0048 0041
0038 0040
Proline 0000 Scott 0184 0045 0121 0043
0210 0212
Proscan 0060 0202 0760 0761
1060
Teknika 0035 0037 0000 ZT Group 1972
Sears 0035 0037 0047 0000
0042 0104 0046 0057
0105 1237
Teleavia 0041
Protec 0072 Telefunken 0041
Pulsar 0039 Tenosal 0072
PDP_PRO1540HD.book Page 96 Wednesday, August 2, 2006 6:01 PM
97
En
Useful Remote Control Features 13
English
PVR
DVD
Brand Codes Brand Codes Brand Codes Brand Codes
ABS 1972 HP 1972 Niveus Media 1972 Systemax 1972
Alienware 1972 Hughes Network Systems 0739 Northgate 1972 Tagar Systems 1972
CyberPower 1972 Humax 0739 Panasonic 0616 Tivo 0618 0636 0739
Dell 1972 Hush 1972 Philips 0618 0739 Toshiba 1008 1972
DirecTV 0739 iBUYPOWER 1972 RCA 0880 Touch 1972
EverFocus 1346 Linksys 1972 ReplayTV 0614 0616 Viewsonic 1972
Gateway 1195 1196 1972 Media Center PC 1972 Sonic Blue 0614 0616 Voodoo 1972
Hewlett Packard 1972 Microsoft 1972
Sony
0636 1972 ZT Group 1972
Howard Computers 1972 Mind 1972 Stack 9 1972
Brand Codes Brand Codes Brand Codes Brand Codes
Acoustic Solutions 0730 1242 CineVision 0876 0833 0869 Gateway 1073 1077 1158 1194 Landel 0826
Adcom 1094 Citizen 1277 GE 0522 0815 0717 Lasonic 0798 1173
Advent 1016 Classic 1385 Go Video 0744 0715 0741 0783
0833 0869 1044 1075
1099 1144 1148 1158
1304 1443 1730
Lecson 1533
Afreey 0698 Clatronic 1165 Lenoxx 1127
Aiwa 0641 Coby 0778 0852 1086 1107
1165 1177 1351
LG 0591 0741 0801 0869
1526
Akai 0695 0770 0899 1089
Alba 0672 0539 0717 Craig 0831 Go Vision 1071 1072 LiteOn 1058 1158 1416 1440
Alco 0790 Curtis Mathes 1087
GoldStar
0741 Loewe 0511 0741
Allegro 0869 CyberHome 0816 0874 1019 1023
1024 1117 1129 1502
1537
Goodmans 0790 1004 Logix 0783
Altacom 1224 GPX 0699 0769 Lunatron 0741
Amphion Media Works 0872 1176 1245 Gradiente 0490 0651 Magnavox 0503 0539 0646 0675
0821 1268 1506
AMW 0872 1176 1245 Cydectin 1074 Greenhill 0717
Apex Digital 0672 0717 0755 0794
0796 0797 0830 1004
1020 1056 1061 1100
Daewoo
0784 0705 0770 0833
0869 1169 1172 1234
1242 1441 1443
Grundig 0539 0695 0705 Malata 0782 1159
GVG 1169 Marantz 0539
H & B 1421 Matsui 0672
Arcam 0732 Dansai 0770 Harman/Kardon 0582 0702 McIntosh 1533 1273 1373
Aspire Digital 1168 1407 Dantax 1089 Hitachi 0573 0664 0695 1247 Memorex 0690 0695 0831 1270
Audiologic 0736 Daytek 0872 Hiteker 0672 Metronic 0690
Audiovox 0790 1041 1071 1072
1121 1122
Decca 0770 iLo 1348 1472 Microsoft 0522
Denon 0490 0634 Initial 0717 1472 Minato 0752
Axion 1071 1072 1193 Denver 0778 1107 1316 Innovative Technology 1542 Minowa 1165
B & K 0655 0662 Desay 1407 1455 Integra 0571 0627 Mintek 0839 0717 1472
BBK 1224 Diamond Vision 1316 1609 1610 IRT 0783 Mirror 0752
Bel Canto Design 1571 Dick Smith Electronics 0833 1730 Jaton 1078 Mitsubishi 1521 0521
Bellagio 1245 Digitor 0690 JBL 0702 MixSonic 1130 1611
Blaupunkt 0717 Digitrex 0672 1056 Jensen 1016 Momitsu 1082
Blue Parade 0571 Digix 1272 JMB 0695 MTlogic 1265
Broksonic 0695 0868 1419 Disney 0675 1270 JSI 1423 Mustek 0730 1730
Bush 0690 DiViDo 0705 JVC 0558 0623 0867 1164
1275 1602
Myryad 0894
Byd:sign 0872 DSE 0833 1730 NAD 0591 0692 0741
California Audio Labs 0490 Dual 1068 1085 jWin 1049 1051 Nakamichi 1222
Cambridge Soundworks 0690 Durabrand 1127 Kawasaki 0790 NEC 0785 0869
Cary Audio Design 1477 DVD2000 0521 Kenwood 0490 0534 0682 0737 Nesa 0717
CAVS 1057 ECC 0730 KLH 0717 0790 1020 1149
1261
Next Base 0826
Celestial 1020 Emerson 0591 0675 0821 1268 NexxTech 1402
Centrex 0672 1004 Enterprise 0591 Konka 0711 0719 0720 0721 Nintaus 1051
Centrios 1577 ESA 1443 Koss 0651 0896 1423 Norcent 1003 0872 1107 1265
1457
Changhong 0627 1061 Fintec 1169 Kreisen 1421
Cinea 0831 Fisher 0670 Krell 1498 Olidata 0672
Cinego 1399 Funai 0675 1268 1334 Lafayette 1369 Onkyo 0503 0627 0792
PDP_PRO1540HD.book Page 97 Wednesday, August 2, 2006 6:01 PM
98
En
Useful Remote Control Features
13
DVD
DVD-R
LD
Brand Codes Brand Codes Brand Codes Brand Codes
Oppo 1224 Proscan 0522 Shinco 0717 Toshiba 0503 0695 1045 1154
OptoMedia Electronics 0896 ProVision 0778 Shinsonic 0533 0839 TRANS-continents 0831 1165
Orion 1419 Qwestar 0651 Sigma Designs 0674 Tredex 0799 0800 0803 0804
Oritron 0651 RCA 0522 0571 0717 0790
0822 1022 1132 1193
Slim Art 0784 TYT 0705
Otic 0826 SM Electronic 0690 0730 Umax 0690
Pacific 0831 Recco 0698 Sonic Blue 0869 1099 Universum 0591
Palsonic 0672 0852 Reoc 0752 Sony 0533 1533 0864 1033
1069 1070 1431 1432
1433 1548
Urban Concepts 0503
Panasonic 0503 0490 0632 0703
1010 1011 1362 1462
1490 1762
Revoy 0699 US Logic 0839
Rio
0869 Venturer 0790
RJTech 1360 Sova 1122 Vialta 1509
peeKTon 1224 Roadstar 1051 Sungale 1074 1342 1532 Viewmaster 1224
Philco 0690 0790 Rotel 0623 1178 Superscan 0821 Vizio 1064 1226
Philips 0503 0539 0646 0675
0854 1158 1260 1267
1354
Rowa 0823 1004 SVA 0717 0860 1105 Vocopro 1027
Sampo 0698 0752 1501 Sylvania 0675 0821 1268 Wesder 0699
Samsung 0490 0573 0744 0820
0899 1044 1075
Symphonic 0675 1268 Wintel 1130
PianoDisc 1024 TAG McLaren 0894 Xbox 0522
Pioneer 0525 0571 0631 0632
1475 1476 1571
Sansui 0695 Tatung 0770 XMS 0770
Sanyo 0670 0695 0873 Teac 0571 0717 0692 0790
0809 0833
Xoro 1173
Polaroid 1020 1061 1086 1245
1316 1478 1480 1482
Schneider 0783 Xwave 1001
Schwaiger 0752 Technics 0490 0703 Yamada 0872 1004 1056 1158
1416Polk Audio 0539 Semp 0503 Technosonic 0730
Portland 0770 Sensory Science 1158 Techwood 0692 Yamaha 0490 0539 0545 0817
Prima 1016 Sharp 0630 0675 0752 1256
1419
Tedelex 0690 Yamakawa 0872
Primare 0886 1467 1618 Terapin 1031 Zenith 0503 0591 0741 0869
Princeton 0674 Sharper Image 1117 Theta Digital 0571 Zeus 0784
Proceed 0672
Sherwood
0633 0770 1043 1077 Thomson 0522 Zoece 1265
Brand Codes Brand Codes Brand Codes Brand Codes
Apex Digital 1056 Funai 0675 1334 Loewe 0741 Sensory Science 1158
Aspire Digital 1168 Gateway 1073 1158 1194 Magnavox 0646 1506 Sharp 0630 0675 1419
Coby 1086 Go Video 0741 1158 1304 1730 Mustek 1730 Sony 1033 1069 1070 1431
1432 1433
CyberHome 1129 1502 H & B 1421 Panasonic 0490 1010 1011
Denon 0490 iLo 1348 Philips 0646 1158 Sylvania 0675
Dick Smith Electronics 1730 JVC 1164 1275 Pioneer 0631 1475 1476 Yamada 1056 1158 1416
Digitrex 1056 Kreisen 1421 Polaroid 1086 Zenith 0741
DSE 1730 LG 0741
RCA
0522
Emerson 0675 LiteOn 1158 1416 1440 Samsung 0490
Brand Codes Brand Codes Brand Codes Brand Codes
Aiwa 0203 Magnavox 0194 0217 0241 Philips 0064 0194 Sega 0023
Carver 0064 0194 0323 Marantz 0064 0194 Pioneer 0059 0023 Sharp 0001
Denon 0059 0172 0241 Mitsubishi 0059 0241 Polk Audio 0194 Sony 0193 0201 0270
Disco Vision 0023 NAD 0059 Quasar 0204 Technics 0204
Funai 0203 Nagsmi 0059 Realistic 0203 Telefunken 0059
GoldStar 0172 NEC 0286 Renaissance 0323 Theta Digital 0194
Harman/Kardon 0194 Optimus 0059 Salora 0064 Victor 0245
Hitachi 0023 0395 Panasonic 0204
Samsung
0323 Yamaha 0217
PDP_PRO1540HD.book Page 98 Wednesday, August 2, 2006 6:01 PM
99
En
Useful Remote Control Features 13
English
Using the remote control unit to control
other devices
Receiver control buttons
When a Pioneer receiver is connected to the display, use
buttons 1 to 3 to operate the receiver.
When a non-Pioneer receiver is connected to the display, the
signals for 1 to 3 must first be “learned”. See page 92.
1RECEIVER (STANDBY/ON)
Turns the Pioneer receiver power On and Off.
2 RECEIVER INPUT
Selects the input source connected to the Pioneer
receiver.
3 RECEIVER VOL +/–
Adjusts the Pioneer receiver volume level
Press VOL + to increase the volume and VOL – to decrease
it.
NOTE
• The color-highlighted buttons on the remote control can
memorize the control signal from another device’s remote
control.
3
1
2
Mode switch
(with “TV”
selected)
PDP_PRO1540HD.book Page 99 Wednesday, August 2, 2006 6:01 PM
100
En
Useful Remote Control Features
13
CBL/SAT control buttons
When the CBL/SAT function has been preset by the remote
control’s learning function, the remote control buttons
function as shown below.
• When the Mode switch is set to CBL/SAT, the cable
converter or satellite broadcast tuner connected to the
display, use the buttons shown below to operate the device
(3, 4, 5, 8 and 9 for cable converters and 1 to 7 for satellite
tuners):
• Cable converters or satellite broadcast tuners made by other
manufacturers not listed in the system can be controlled
using the remote control if buttons 1 to 9 have already
learned the functions. See page 92.
1SAT MENU
Displays the satellite broadcasting menu screen
2ENTER, ///
ENTER: Activates the selected function
///:Selects items on the SAT GUIDE screen or
SAT MENU screen
3 0 – 9
Press a button (or buttons) that corresponds to the
channel that you want to watch
4CH +/–
Selects a higher or lower channel
5 SOURCE
Turns the device sending the image On and Off
6 SAT GUIDE
Displays the satellite broadcasting guide screen
• Set up this button with the learning function if necessary
7RETURN
When the CBL/SAT menu is displayed, restores the
immediately previous screen
8CH ENTER*
Enters the selected channel with the direct channel
selection buttons
9 CH RETURN*
Switches between the current channel and the previous
channel you were watching
*Some cable converter manufacturers do not preset CH
ENTER and CH RETURN. Set up these buttons with the
learning function if necessary.
NOTE
• CABLE and SAT cannot be selected at the same time.
• The color-highlighted buttons on the remote control can
learn the control signal from another device’s remote
control.
4
8
7
6
3
5
2
1
9
Mode switch
(with “CBL/SAT”
selected)
PDP_PRO1540HD.book Page 100 Wednesday, August 2, 2006 6:01 PM
101
En
Useful Remote Control Features 13
English
VCR control buttons
When the VCR is preset by the remote control’s learning
function, the remote control buttons function as follows:
(Mode switch must be set to VCR).
• Press the input selector button (INPUT 1–6) that matches
the input terminal connected to the VCR. The VCR can be
operated using 1 to 8.
• VCRs made by manufacturers not listed in the system can be
controlled using the remote control if buttons 1 to 8 have
learned the functions. See page 92.
1CH +/–
Selects the channel on the VCR
2 (PLAY)
Selects playback
3 (RWD)
Rewinds the tape and allows picture search
4SOURCE
Turns the power of the VCR On and Off
5 (PAUSE/STILL)
Pauses playback and displays still pictures
6 (FF)
Rapidly advances the tape and allows picture search
7 (REC)
Starts recording
8 (STOP)
Stops tape transport
NOTE
• The color-highlighted buttons on the remote control can
learn the control signal from another device’s remote
control.
1
4
3
7
6
85
2
Mode switch
(with “VCR”
selected)
PDP_PRO1540HD.book Page 101 Wednesday, August 2, 2006 6:01 PM
102
En
Useful Remote Control Features
13
DVD/DVR control buttons
When the DVD/DVR is preset by the learning function of the
remote control, the remote control unit buttons will function as
follows when the Mode switch of the remote control unit is set
to DVD/DVR.
• When the input selector button having the same number as
the input terminal connected to a DVD player or DVD recorder
is pressed, these players can be operated using
1
to
12
.
• DVD players or DVD recorders made by other manufacturers
and not preset can also be operated using the remote control
unit if 1
to
12 have learned the functions. See page 92.
1 CH +/– (DVD recorder only)
Changes the channel of the tuner built into the DVD
recorder
2 (PLAY)
Selects playback
3 (SCAN)/ (CHAPTER SEARCH)
Continue pressing to go backward
Pressing quickly once takes you to the start of the playing
chapter. Each time it is pressed, playback jumps to the start
of previous chapter.
4 SOURCE
Turns the power of the DVD player or DVD recorder On and
Off
5 (PAUSE/STILL)
Pauses playback and displays still pictures
6 DVD MENU (DVD, DVD recorder)
Displays the DVD menu
7 DVD TOP MENU (DVD, DVD recorder)
Displays the DVD top menu
8 ENTER, /// (DVD, DVD recorder)
ENTER: Activates the selected function
///:Selects items on the DVD MENU screen
9RETURN
When the DVD menu is displayed, restores the
immediately previous screen
10 (SCAN)/ (CHAPTER SEARCH)
Continue pressing for fast forward
Pressing quickly once takes you to the start of the next
chapter. Each time it is pressed, playback jumps to the start
of the next chapter.
11 (REC) (DVD recorder only)
Starts recording
12 (STOP)
Stops playback
If pressing once fails to stop playback on the DVD player or
DVD recorder, press twice to open the disc tray.
11, 12 STOP REC (DVD recorder only)
Press and hold then press to stop recording. This
operation applies to Pioneer DVD recorders only.
NOTE
• A DVD player and a DVD recorder cannot be selected at the
same time.
• The color-highlighted buttons on the remote control can
learn the control signal from another device’s remote
control.
• The remote control buttons can control some LD players. For
the supported LD players, see the LD brands and codes on
page 98.
1
4
3
9
11
10
7
125
2
6
8
Mode switch
(with “DVD/
DVR” selected)
PDP_PRO1540HD.book Page 102 Wednesday, August 2, 2006 6:01 PM
103
En
Appendix 14
English
Appendix
Troubleshooting
Problem Possible Solution
GENERAL
• No power • Is the power cord disconnected? (See page 25)
•Has POWER been turned on? (See page 26)
• Check if you pressed TV on the remote control. (See page 26)
If the indicator on the system lights up red, press TV .
• Power is suddenly turned off • Is the sleep timer set? (See page 57)
• Check the power control setting. (See page 63)
• The system’s internal temperature has increased. Clear/clean the vents. (See page 20)
• A malfunction may have occurred in the home network module.
• The system cannot be operated • External influences such as lightning, static electricity, etc., may cause failures.
Try turning off the Plasma Display or unplugging the power cord. Wait one to two minutes then restore
power to the panel.
• Remote control unit does not operate • Check if POWER is Off. Activate the button when the POWER ON and STANDBY indicators are Off.
• Is the Mode switch set correctly? Slide it to the TV position. (See page 19)
• Are the batteries inserted with polarity aligned (+, –)? (See page 24)
• Are the batteries low? (Replace with new batteries.) (See page 24)
• Point the remote control directly at the panel’s remote control sensor. (See page 24)
• Is the panel under strong or fluorescent lighting?
• Is fluorescent light blinding the remote control sensor?
• POWER ON indicator or STANDBY
indicator is blinking
• The unit’s internal protective circuits may have been activated.
Unplug the panel’s power cord from the power outlet. Wait one to two minutes then plug in the panel again.
If the problem is not solved with this, contact the nearest Pioneer Authorized Independent Service Company,
or the Customer Support Division (see back cover).
PICTURE/SOUND
• Image and sound are absent • Verify that the input source is a TV channel rather than from a PC or a DVD player. (See page 27)
• Check the Parental Control function. (See page 38)
Enter a password to temporarily cancel the Parental Control function. (See page 42)
• Check the cable connection with the antenna. (See page 23)
• Check the cable connection with the source device. (See pages 68 to 74)
• No picture • Is the connection to other components correct? (See pages 68 to 73)
• Is a non-compatible PC signal being input? (See page 72)
• Is picture adjustment correct? (See page 58)
• Sound but no picture • Check if energy-saving “Picture Off” option is selected. With this option selected, the screen is deactivated;
only audio is output. To restore the screen display, press any button other than VOL +/– and MUTING. (See
page 63)
• Picture but no sound • Verify that the volume is set high enough to hear. (See page 28)
• Check if the sound is muted. (See page 28)
• When using a video or PC input source, verify that the audio terminals are also connected.
(See pages 68 to 70 and 72)
• Sound is reversed between the right and
left speakers
• Sound but from only one speaker
• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable
from either speaker has been disconnected. (See page 21)
• Has the balance been correctly adjusted? (See page 62)
• Picture is cut off • Is the image position correct? (See page 64)
• Has the correct screen size been selected? (See page 66)
• Colors are too dark/light or appear
strange
• Adjust the picture tone. (See page 58)
• Is the room too bright? The picture may appear dim in a room that is too bright.
PDP_PRO1540HD.book Page 103 Wednesday, August 2, 2006 6:01 PM
104
En
Appendix
14
OTHER
• TV-Guide data is unavailable • If TV-Guide data cannot be obtained with ANT.A selected for cable connection, select ANT.B for over the air.
In addition, perform the TV-Guide setup again (see page 33):
- Select “No” for cable service on Screen 3.
- Select “Yes” for antenna service on Screen 5.
- Select “ANT B IN” on Screen 4.
• An external device connected to the
USB terminal does not operate
• Confirm that the device is connected to the display. (See page 76)
• Disconnect then reconnect the USB cable. (See page 76)
• Check that the USB cable is shorter than 5 m. (See page 76)
• Check if the USB cable is properly connected. (See page 76)
• Turn Off then On the main power to confirm that the USB device is working.
• Check if the external device works correctly after the USB device was restarted.
• Verify that the digital camera is set to take a picture.
• Confirm that the digital camera is placed in Mass Storage mode.
• To change the digital camera’s configuration, refer to the camera’s instruction manual.
• Photo data stored in a digital still
camera cannot be read through USB
interface
• Confirm that the device is connected to the display. (See page 76)
• Verify that the digital camera is turned On.
• Panel sounds/noises • Panel generated sounds, examples: Fan motor noise, Electrical Circuit Humming/Glass Panel buzzing are
normal operation of a phosphor-based matrix display. Experiment with the available Energy Save modes to
find the best setting for your use. (See page 63)
• Screen shows uneven brightness on the
sides
• Play content that completely fills the screen until unevenness is minimized. Some signals may require the
AV mode setting to be changed. (See page 65)
Home Media Gallery/NETWORK
• No servers are found • Confirm that the PC is On and not in Standby or Sleep. (nothing is chosen in “Select Servers”). When the PC
has started with the “Wake On LAN” (WOL), check if the PC complies with WOL or if the WOL setup has
been properly done on the device manager for BIOS or Windows.
• Check the physical connections (hub, 100BASE-TX/10BASE-T, or crossed cable and other cable quality when
cabled directly to a PC). It is strongly recommended to use 100BASE-TX for playback quality and display
speed.
• Check the logical connections (IP Address setup, DHCP, etc.). Confirm the IP Address is correct if acquired
by Auto IP and Firewall setup. Also check if the IP Address is properly acquired with DHCP on the “Network
Setup” screen that follows the “Setup” menu.
• Check the PC if its media server (Windows Media Connect or DLNA compliant) is running. Restart if
necessary. Check if one or more servers are On (this may cause malfunction).
• Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.
• Check the media server setup. If a client is registered manually the setup procedure may have to be run
again. An option “Not Allowed” may have been selected for connections.
• Wait for a short period then select “Update to Latest Information” from the Tool Menu. (See page 78)
• No previously connected server(s) found
(items in “Select Servers” are dimmed)
• Confirm that the PC is On and not in Standby or Sleep. (nothing is chosen in “Select Servers”). When the PC
has started with the “Wake On LAN” (WOL), check if the PC complies with WOL or if the WOL setup has
been properly done on the device manager for BIOS or Windows.
• Check the physical connections (hub, 100BASE-TX/10BASE-T or crossed cable and other cable quality when
cabled directly to a PC). It is strongly recommended to use 100BASE-TX for playback quality and display
speed.
• Check the logical connections (IP Address setup, DHCP, etc.). Confirm the IP Address when acquired by
Auto IP and Firewall setup. Also check if the IP Address is properly acquired with DHCP on the “Network
Setup” screen that follows the “Setup” menu.
• Check the PC if its media server (Windows Media Connect or DLNA compliant) is running. Restart it if
necessary. Check if one or more servers are On (this may cause malfunction).
• Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.
• Check the media server setup. A setup procedure may be required for connections if a client is registered
manually. An option “Not Allowed” may have been selected for connections.
• Wait for a while and select “Update to Latest Information” from the Tool Menu. (See page 78)
• An available server is selected but
cannot be navigated
• Check if the server is correctly set up for file sharing, if the target folder has been deleted, or if one or more
folders have been corrupted on the server.
• Check if there are too many files in each folder.
• A server is arbitrarily selected • This arbitrary selection happens when the server you used before had been set to display the top menu
screen (if you reset it, other servers connected are also reset). When the “Single Server/USB” option is
selected on the “Auto Connection Setup” screen that follows the “Setup” menu, the server is automatically
accessed if only one server is connected. Use the Tool Menu to select the proper server. (See page 78)
• File/folder configuration differs from one
server to another (strange configuration)
• The Media Navigator displays the server contents as classified by the server.
• If no information (such as ID3 tag) is contained in the file, files cannot be classified on the server.
Problem Possible Solution
PDP_PRO1540HD.book Page 104 Wednesday, August 2, 2006 6:01 PM
105
En
Appendix 14
English
If one of the following error codes appear on screen, check the corresponding message.
Home Media Gallery/PLAYBACK
• Image or sound is interrupted or
distorted (Block noise appears)
• Check the physical connections (hub, 100BASE-TX/10BASE-T, or crossed cable and other cable quality when
cabled directly to a PC). It is strongly recommended to use 100BASE-TX for playback quality and display
speed.
• Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.
• Check if the file complies to the supported format, bit rate or profile. Also check if the file is damaged.
• When connected by a wireless LAN, check if the bit rate is sufficient.
• Some files that comply with the supported format may not be played back or displayed.
• Cannot play or display • Check the physical connections (hub, 100BASE-TX/10BASE-T, or crossed cable and other cable quality when
cabled directly to a PC). It is strongly recommended to use 100BASE-TX for playback quality and display
speed.
• Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.
• Check if the file complies to the supported format, bit rate or profile. Also check if the file is damaged.
• Check if the leasing contract for the server has expired.
• When connected by a wireless LAN, check if the bit rate is sufficient.
• Some files that comply with the supported format may not be played back or displayed.
• It takes time to capture and display a large-sized image. If this is the case, no operation may be performed.
• See the Pioneer website (www.pioneerelectronics.com) for the formats that are supported.
Home Media Gallery/FIRMWARE
• No updates are possible on USB • Check if the device is Mass Storage Class compliant, if it is connected properly, nothing is damaged (power
unit, mode such as Mass Storage mode and media format, etc.), if it contains the supported files, and if the
speed of the device is sufficient (poor device speed may result in interrupted or delayed display of images
due to a bit-rate problem). When using a digital camera that is not Mass Storage Class compliant, insert the
Flash Memory card into the multi-card reader.
• Confirm that the device is correctly inserted or removed.
• Check that the firmware file has been correctly downloaded. Also check the file size.
• See the Pioneer website (www.pioneerelectronics.com) for details.
Home Media Gallery/USB
• USB devices are not properly recognized • Check if the device is Mass Storage Class compliant, if it is connected properly, nothing is damaged (power
unit, mode such as Mass Storage mode and media format, etc.), if it contains the supported files, and if the
speed of the device is sufficient (poor device speed may result in interrupted or delayed display of images
due to a bit-rate problem). When using a digital camera that is not Mass Storage Class compliant, insert the
Flash Memory card into the multi-card reader.
• Confirm that the device is correctly inserted or removed.
• No USB hub is supported. When you connect a home network, connect directly to the device’s USB port.
• Image or sound is interrupted or
distorted (Block noise appears)
• Verify that the file complies with the supported format, bit rate or profile. Also check the file for damage.
• Some files that comply with the supported format may not play back or display properly.
• Check if the device is Mass Storage Class compliant, if it is connected properly, nothing is damaged (power
unit, mode such as Mass Storage mode and media format, etc.), if it contains the supported files, and if the
speed of the device is sufficient (poor device speed may result in interrupted or delayed display of images
due to a bit-rate problem). When using a digital camera that is not Mass Storage Class compliant, insert the
Flash Memory card into the multi-card reader.
Code Message Check
SD04 and
SD11
Powering off. Internal temperature too high.
Check temperature around PDP.
Check if the ambient temperature of the Plasma Display is high.
SD05 (PRO-1540HD/PRO-1140HD)
Internal protection circuit turns power off.
Is there a short in speaker cable?
(PRO-940HD)
Internal protection circuit turns power off.
Check the speaker cable connections between the Plasma Display and the speakers.
Contact the nearest Pioneer Authorized Independent Service Company or the
Customer Support Division. (See back cover)
Problem Possible Solution
PDP_PRO1540HD.book Page 105 Wednesday, August 2, 2006 6:01 PM
106
En
Appendix
14
This product in part uses “OpenSSL” software.
To the extent the OpenSSL software is being used, the following notification applies:
Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: “This product
includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this
software without prior written permission. For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior
written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed
by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written
by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to
conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are ahered to. The following
conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL
documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson
(tjh@cryptsoft.com).
Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a
product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual
message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: “This
product includes cryptographic software written by Eric Young (eay@cryptsoft.com)” The word ’cryptographic’ can be left out
if the rouines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include
an acknowledgement: “This product includes software written by Tim Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code
cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]
PDP_PRO1540HD.book Page 106 Wednesday, August 2, 2006 6:01 PM
107
En
Appendix 14
English
Copyright (c) 1998, 1999, 2000 Thai Open Source Software
Center Ltd and Clark Cooper
Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN
NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING ROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
“Portions of this software are copyright (c) <year> The FreeType Project (www.freetype.org). All rights reserved.” [please replace
<year> with the value from the FreeType version you actually use]
If only executable code is distributed, then the accompanying documentation must state that “this software is based in part on the
work of the Independent JPEG Group”
COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:
If you modify libpng you may insert additional notices immediately following this sentence.
libpng version 1.2.6, September 12, 2004, is Copyright (c) 2004 Glenn Randers-Pehrson, and is distributed according to the same
disclaimer and license as libpng-1.2.5 with the following individual added to the list of Contributing Authors
Cosmin Truta
libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October 3, 2002, are Copyright (c) 2000-2002 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of
Contributing Authors
Simon-Pierre Cadieux
Eric S. Raymond
Gilles Vollant
and with the following additions to the disclaimer:
There is no warranty against interference with your enjoyment of the library or against infringement. There is no warranty that our
efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of
satisfactory quality, performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through 1.0.6, March 20, 2000, are Copyright (c) 1998, 1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of
Contributing Authors:
Tom Lane
Glenn Randers-Pehrson
Willem van Schaik
libpng versions 0.89, June 1996, through 0.96, May 1997, are Copyright (c) 1996, 1997 Andreas Dilger
Distributed according to the same disclaimer and license as libpng-0.88, with the following individuals added to the list of
Contributing Authors:
John Bowler
Kevin Bracey
Sam Bushell
Magnus Holmgren
Greg Roelofs
Tom Tanner
PDP_PRO1540HD.book Page 107 Wednesday, August 2, 2006 6:01 PM
108
En
Appendix
14
libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.
For the purposes of this copyright and license, “Contributing Authors” is defined as the following set of individuals:
Andreas Dilger
Dave Martindale
Guy Eric Schalnat
Paul Schmidt
Tim Wegner
The PNG Reference Library is supplied “AS IS”. The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or
implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors
and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may
result from the use of the PNG Reference Library, even if advised of the possibility of such damage.
Permission is hereby granted to use, copy, modify, and distribute this source code, or portions hereof, for any purpose, without
fee, subject to the following restrictions:
1. The origin of this source code must not be misrepresented.
2. Altered versions must be plainly marked as such and must not be misrepresented as being the original source.
3. This Copyright notice may not be removed or altered from any source or altered source distribution.
The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a
component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment
is not required but would be appreciated.
A “png_get_copyright” function is available, for convenient use in “about” boxes and the like: printf (“%s”,png_get_copyright
(NULL)); Also, the PNG logo (in PNG format, of course) is supplied in the files “pngbar.png” and “pngbar.jpg (88x31) and
“pngnow.png” (98x31). Libpng is OSI Certified Open Source Software. OSI Certified Open Source is a certification mark of the
Open Source Initiative.
Glenn Randers-Pehrson
glennrp@users.sourceforge.net
September 12, 2004
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in
the documentation and/or other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
The GIFLIB distribution is Copyright (c) 1997 Eric S. Raymond
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN
NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Copyright (c) 1988-1997 Sam Leffler
PDP_PRO1540HD.book Page 108 Wednesday, August 2, 2006 6:01 PM
109
En
Appendix 14
English
Copyright (c) 1991-1997 Silicon Graphics, Inc.
THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT
OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Copyright (C) 1995-2004 Jean-loup Gailly and Mark Adler
“Copyright (c) 1998-2003 The OpenSSL Project. All rights reserved.”
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”
Linux Source Notice
The Pioneer Plasma Television is powered by utilizing the Linux operating system. The machine readable copy of the corresponding
source code is available for the cost of distribution. To obtain a copy, please visit
http://www.pioneerelectronics.com/ for more information.
GNU General Public License
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place - Suite 330, Boston, MA 02111-1307, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free software-to make sure the software is free for all its users.
This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.)
You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure
that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source
code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you
can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they
know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this
free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not
the original, so that any problems introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU General Public License
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a
“work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act
of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work
based on the Program (independent of having been made by running the Program). Whether that is true depends on what the
Program does.
PDP_PRO1540HD.book Page 109 Wednesday, August 2, 2006 6:01 PM
110
En
Appendix
14
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy
of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy
and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these
conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or
any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for
such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute
the program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the
Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part
of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose
permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is
to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the
terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms
of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost
of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be
distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is
allowed only for noncommercial distribution and only if you received the program in object code or executable form with
such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work,
complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus
the scripts used to control compilation and installation of the executable. However, as a special exception, the source code
distributed need not include anything that is normally distributed (in either source or binary form) with the major components
(compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies
the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as distribution of the source code, even though third parties are
not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this
License.
However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so
long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify
or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore,
by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to
do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from
the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance
by third parties to this License.
PDP_PRO1540HD.book Page 110 Wednesday, August 2, 2006 6:01 PM
111
En
Appendix 14
English
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program
at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies
directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of
any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is
implemented by public license practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he
or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such
new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies
to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later
version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may
choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to
the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR
ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE
USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to
make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is
found.
<one line to give the program’s name and an idea of what it does.>
Copyright (C) yyyy name of author
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as
published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software
Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
PDP_PRO1540HD.book Page 111 Wednesday, August 2, 2006 6:01 PM
112
En
Appendix
14
Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome
to redistribute it under certain conditions; type ’show c’ for details.
The hypothetical commands ’show w’ and ’show c’ should show the appropriate parts of the General Public License. Of course,
the commands you use may be called something other than ’show w’ and ’show c’; they could even be mouse-clicks or menu
items-whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the
program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program ’Gnomovision’ (which makes passes at compilers) written
by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine
library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do,
use the GNU Lesser General Public License instead of this License.
GNU Lesser General Public License
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2,
hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public
Licenses are intended to guarantee your freedom to share and change free software-to make sure the software is free for all its
users. This license, the Lesser General Public License, applies to some specially designated software packages-typically libraries-
of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully
about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the
explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source
code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are
informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these
rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we
gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must
provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and
recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified
by someone else and passed on, the recipients should know that what they have is not the original version, so that the original
author’s reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot
effectively restrict the users of a free program by obtaining a restrictive license from a patent holder.
Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use
specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser
General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We
use this license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking
a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code
with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary
General Public License. It also provides other free software developers Less of an advantage over competing non-free programs.
These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license
provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it
becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library.
PDP_PRO1540HD.book Page 112 Wednesday, August 2, 2006 6:01 PM
113
En
Appendix 14
English
A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by
limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body
of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the
whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that
is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between
a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the
latter must be combined with the library in order to run.
GNU Lesser General Public License
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder
or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this
License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based
on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library
or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter,
translation is included without limitation in the term “modification”.)
”Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source
code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used
to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act
of running a program using the Library is not restricted, and output from such a program is covered only if its contents
constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true
depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided
that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty;
keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License
along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses
the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure
that, in the event an application does not supply such function or table, the facility still operates, and performs whatever
part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the
application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be
optional: if the application does not supply it, the square root function must still compute square roots.) These requirements
apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be
reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is
a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is
to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library)
on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library.
To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License,
version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has
appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies
to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code
of the Library into a program that is not a library.
PDP_PRO1540HD.book Page 113 Wednesday, August 2, 2006 6:01 PM
114
En
Appendix
14
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under
the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source
code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software
interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to
copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties
are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled
or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an
executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the
library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may
be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work
can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section
6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce
a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit
modification of the work for the customer’s own use and reverse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are
covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you
must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this
License.
Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever
changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable
linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source
code, so that the user can modify the Library and then relink to produce a modified executable containing the modified
Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be
able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time
a copy of the library already present on the user’s computer system, rather than copying library functions into the
executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the
modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in
Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the
above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything
that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work
based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library
facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining
where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your
rights under this License. However, parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify
or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore,
by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do
so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
PDP_PRO1540HD.book Page 114 Wednesday, August 2, 2006 6:01 PM
115
En
Appendix 14
English
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from
the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not
impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing
compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library
at all.
For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly
or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of
any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is
implemented by public license practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he
or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Library under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time.
Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies
to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later
version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose
any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with
these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE
LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR
ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE
USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY
OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
PDP_PRO1540HD.book Page 115 Wednesday, August 2, 2006 6:01 PM
116
En
Appendix
14
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software
that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under
the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most
effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full
notice is found.
<one line to give the library’s name and an idea of what it does.>
Copyright (C) year name of author
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as
published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software
Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307, USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the
library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library ’Frob’ (a library for tweaking knobs) written by James Random
Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
PDP_PRO1540HD.book Page 116 Wednesday, August 2, 2006 6:01 PM
117
En
Appendix 14
English
Specifications
* This conforms to HDMI1.1 and HDCP1.1.
HDMI (High Definition Multimedia Interface) is a digital interface that sends both video and audio signals through a single
cable.
HDCP (High-bandwidth Digital Content Protection) is a technology used to protect copyrighted digital content that use Digital
Visual Interface (DVI).
** This conforms to USB 1.1 and 2.0 specifications.
• Design and specifications are subject to change without notice.
Item 60" Plasma Display
Model: PRO-1540HD
50" Plasma Display
Model: PRO-1140HD
42" Plasma Display
Model: PRO-940HD
Number of pixels 1365 × 768 pixels 1365 × 768 pixels 1024 × 768 pixels
Audio Amplifier 13 W + 13 W (1 kHz, 10 %, 8 Ω) 13 W + 13 W (1 kHz, 10 %, 8 Ω) 13 W + 13 W (1 kHz, 10 %, 8 Ω)
Speakers – –
Woofer: 4.8 cm × 13 cm cone type
Tweeter: 2.5 cm semidome type
Surround System SRS/FOCUS/TruBass SRS/FOCUS/TruBass SRS/FOCUS/TruBass
Power Requirement 120 V AC, 60 Hz, 460 W (30 W
Standby)
120 V AC, 60 Hz, 355 W (26 W
Standby)
120 V AC, 60 Hz, 312 W (26 W
Standby)
Weight Main unit: 51.5 kg (113.6 lbs.) Main unit: 34.3 kg (75.7 lbs.) Main unit: 29.2 kg (64.4 lbs.)
Stand: 2.5 kg (5.5 lbs.) (including
bolts)
Total: 31.7 kg (69.9 lbs.)
Reception System (Digital) ATSC Digital TV system
Circuit type 8VSB/64QAM/256QAM/QPSK demodulation
Tuner VHF/UHF VHF Ch. 2 to 13 UHF Ch. 14 to 69
CATV Ch. 2 to 135
Audio
format
Dolby Digital
Reception System (Analog) American TV standard NTSC system
Circuit type Video signal detection PLL full synchronous detection, PLL digital
Synthesizer system
Tuner VHF/UHF VHF Ch. 2 to 13 UHF Ch. 14 to 69
CATV ANT/CABLE A IN Ch. 1 to 135 ANT B IN Ch. 1 to 125
Audio multiplex BTSC system
Terminals Rear ANT/CABLE A IN 75 Ω UNBAL, F Type for DTV/VHF/UHF/CATV in
ANT B IN 75 Ω UNBAL, F Type for VHF/UHF/CATV in Loop out
INPUT 1 S-VIDEO in, VIDEO in, AUDIO in
INPUT 2 COMPONENT VIDEO in, S-VIDEO in, VIDEO in, AUDIO in
INPUT 3 COMPONENT VIDEO in, AUDIO in
PC Analog RGB in, AUDIO in
INPUT 5 HDMI in*, AUDIO in
INPUT 6 HDMI in*, AUDIO in
MONITOR OUT VIDEO out, AUDIO out
Digital Audio Output Optical
G-LINK 1
ETHERNET 1
CONTROL IN 1
CONTROL OUT 1
SPEAKER 8 Ωto 16 Ω8 Ωto 16 Ω–
SUB WOOFER OUTPUT Variable
CableCARD Point of Deployment
Side INPUT 4 COMPONENT VIDEO in, VIDEO in, AUDIO in
USB USB in**
On-screen display languages English/French/Spanish
PDP_PRO1540HD.book Page 117 Wednesday, August 2, 2006 6:01 PM
118
En
Appendix
14
Dimensions
PRO-1540HD
Unit: mm (inch)
PRO-1140HD
Unit: mm (inch)
PRO-940HD
Unit: mm (inch)
1470 (57-7/8)
880
(34-21/32)
118
(4-21/32)
1224 (48-3/16)
717
(28-1/4)
115
(4-1/2)
559 (22)
679
(26-3/4)
115
(4-1/2)
273
(10-3/4)
719
(28-5/16)
1040 (40-15/16)
PDP_PRO1540HD.book Page 118 Wednesday, August 2, 2006 6:01 PM
119
En
Appendix 14
English
Trademarks
• In the United States, TV GUIDE and other related marks are registered trademarks of Gemstar-TV Guide International, Inc. and/
or one of its affiliates. In Canada, TV GUIDE is a registered mark of Transcontinental, Inc. and is used under license by Gemstar-
TV Guide International, Inc.
• FOCUS, WOW, SRS and h® symbol are trademarks of SRS Labs, Inc.
FOCUS and WOW technologies are incorporated under license from SRS Labs, Inc.
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC
Corporation.
• DDC is a registered trademark of Video Electronics Standards Association.
• CableCARD is a trademark of Cable Television Laboratories, Inc.
• This software is based in part on the work of the independent JPEG Group.
• The names of the companies or institutions are trademarks or registered trademarks of the respective companies or institutions.
• The PlaysForSure logo, Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation
in the United States and/or other countries.
• DLNA and DLNA CERTIFIED™ are trademarks and/or service marks of Digital Living Network Alliance.
License
• The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide International, Inc. and/or one of its
affiliates.
• Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property,
including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails
to protect the content, content owners may ask Microsoft to revoke the software’s ability to use WMDRM to play or copy
protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you
agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to
access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of
this product is prohibited without a license from Microsoft.
• The DLNA logo is permitted to the product that has obtained a DLNA (Digital Living Network Alliance) certificate.
Patent
• The TV Guide On Screen system is protected by one or more of the following United States patents 4,908,713; 6,498,895;
6,850,693; 6,396,546; 5,940,073; 6,239,794 to Gemstar-TV Guide International, Inc. and/or its subsidiaries.
Disclaimer Notice
• Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the
program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your
area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection
with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system.
Copyright protection
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other
limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Important Notice about software upgrade from Pioneer
Attention Pioneer PDP Owners:
Thank you for purchasing a Pioneer Digital Cable Ready (DCR) compatible Plasma TV.
You have purchased the most advanced product of its kind available today.
However, as technology advances, DCR systems may continue to evolve. To maintain compatibility with DCR systems and features,
your Plasma TV may benefit from, or require software upgrades.
As part of our commitment to our customers, Pioneer will send you upgrade software and instructions as needed to keep your
DCR compatible Plasma TV up to date with this technology.
Please take the time to register your DCR compatible Plasma TV at
www.pioneerelectronics.com
This registration enables us to keep you up to date on changes that may occur.
Thank you very much.
Note:
DCR function works only in the USA.
DCR is unavailable in Canada.
Software update for the Home Media Gallery
You can also update the software for the Home Media Gallery at the Pioneer website above. For details, see page 89.
