POSH Mobile S580 Mobile Phone User Manual Welcome to UTOO Phablet

Posh Mobile Limited Mobile Phone Welcome to UTOO Phablet

User Manual

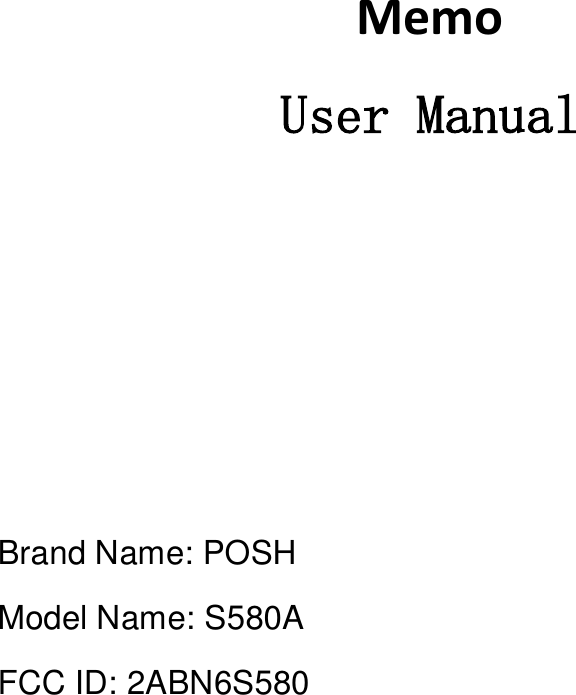

        Memo User Manual            Brand Name: POSH Model Name: S580A FCC ID: 2ABN6S580
 This quick guide is for reference only;  we reserve the right  of any amendments in  the contents without  prior  notice.    Any  pictures  and  explanations  within  should  refer  to  final  interfaces  of actual product.   Dear Sir or Madame: Thanks  for  choosing  phablet.  S580A  is  a  WCDMA/GSM  dual  Sim  smart  mobile  phone.  Please proceed  with  the  following  quick  guide  to  further  understand  the  operation  methods  and functions.    S580A  is  designed  with  Android  system;  support  dual  Sim  and  dual  stand-by.  Except  for  the standard communication function, it also supports Contacts, Messaging, E-mail, Music, Video, FM radio,  Bluetooth,  Wi-Fi,  Clock,  Calculator  and  Calendar  Etc.,  for  your  daily  use.  You  can  also download  more  Apps  from  Play  store  or  third  party  market  to  facilitate  the  working  and recreation needs. Attention: Please do not disassemble the unit by yourself. Proceed to the sales point or the after sales  service  center  for  further  analysis  and  repair  only.  It  is  required  to  provide  guarantees certificate. Safety instruction 1、 Although S580A is designed with Flight mode, it is still recommended to power off the unit while you are on board an aircraft. 2、 Please abide by the local regulations and laws regarding calling when driving. It is advised to use speaker or Bluetooth earphone when you are driving a car. 3、 When  you  are  around  storage  station  for  gas,  chemical  or  explosive  substances,  please follow the relevant laws and signs regarding use of cell phone  4、 Do not put the battery, cell-phone, or charger into Microwave Oven or other high pressure equipments. It may cause damage to the circuit or fire accidents. 5、 Do  not  expose  the  unit  to  places  with  high  temp.;  high  damp  or  dust.  It  may  lead  to malfunction.  6、 Do not place the unit unevenly or unsteadily to prevent falling damages.  7、 Do  not  disassemble  the  unit  by  yourself.  It  may  cause  damage,  electric  leakage,  or  circuit malfunction.  8、 Do not disassemble the battery; it may  cause  battery  leak, skin burn or  explosion.  Wasted battery  should  be  put  into  special  dustbin.  It  is required  to  replace  the  battery  if it  has  a bulge.  9、 Do not disassemble the charger. It may cause injury, electric fire or damage of charger.  10、 Do not charge under damp, sun or near to other liquids. It may cause electric leakage, fire or damage of charge.

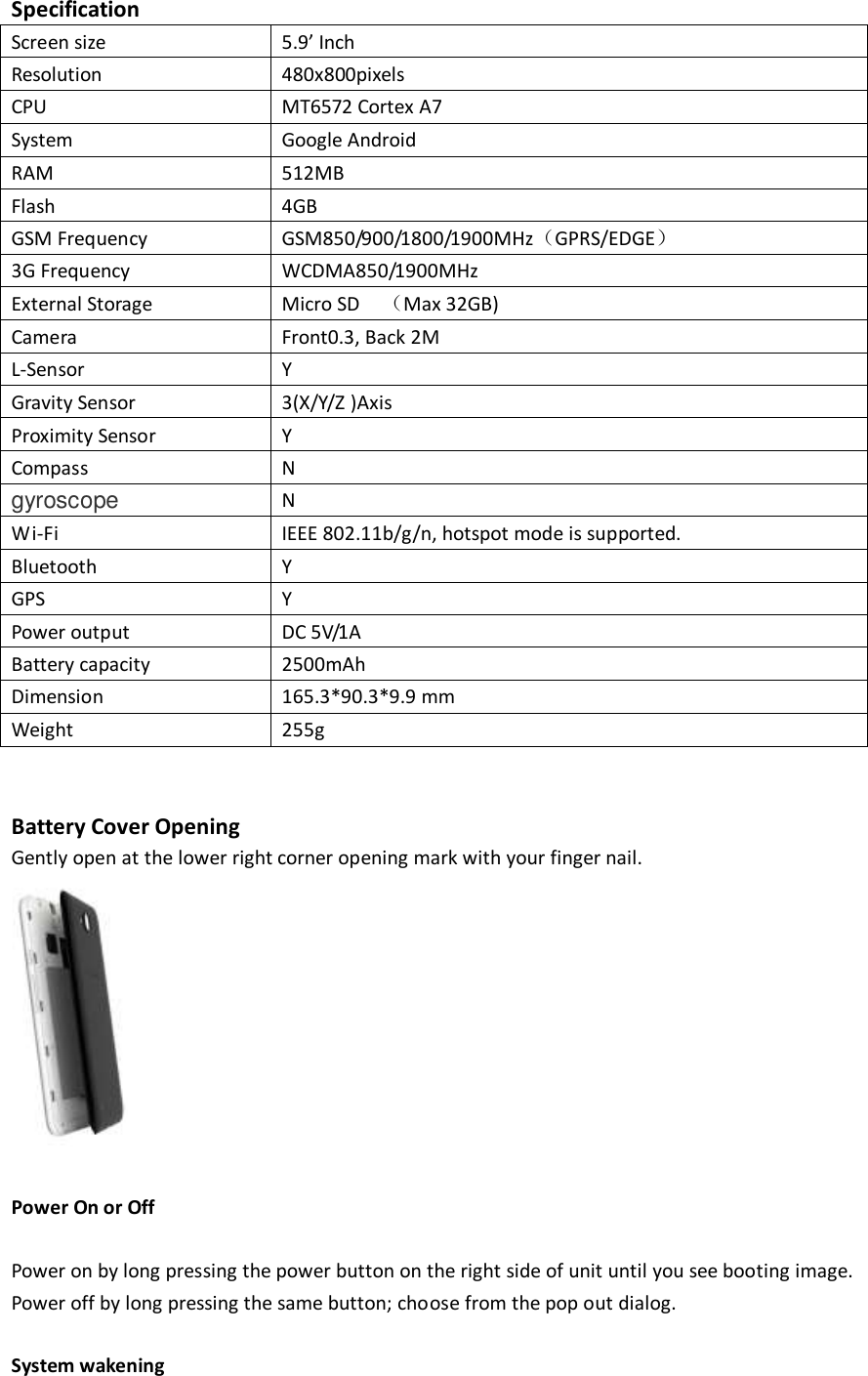

  Specification Screen size 5.9’ Inch Resolution 480x800pixels CPU MT6572 Cortex A7   System Google Android RAM 512MB Flash 4GB GSM Frequency GSM850/900/1800/1900MHz(GPRS/EDGE) 3G Frequency WCDMA850/1900MHz External Storage Micro SD    (Max 32GB) Camera Front0.3, Back 2M L-Sensor Y Gravity Sensor 3(X/Y/Z )Axis Proximity Sensor Y Compass N gyroscope N Wi-Fi IEEE 802.11b/g/n, hotspot mode is supported. Bluetooth Y GPS Y Power output DC 5V/1A Battery capacity 2500mAh Dimension 165.3*90.3*9.9 mm Weight 255g   Battery Cover Opening   Gently open at the lower right corner opening mark with your finger nail.     Power On or Off  Power on by long pressing the power button on the right side of unit until you see booting image.   Power off by long pressing the same button; choose from the pop out dialog.    System wakening

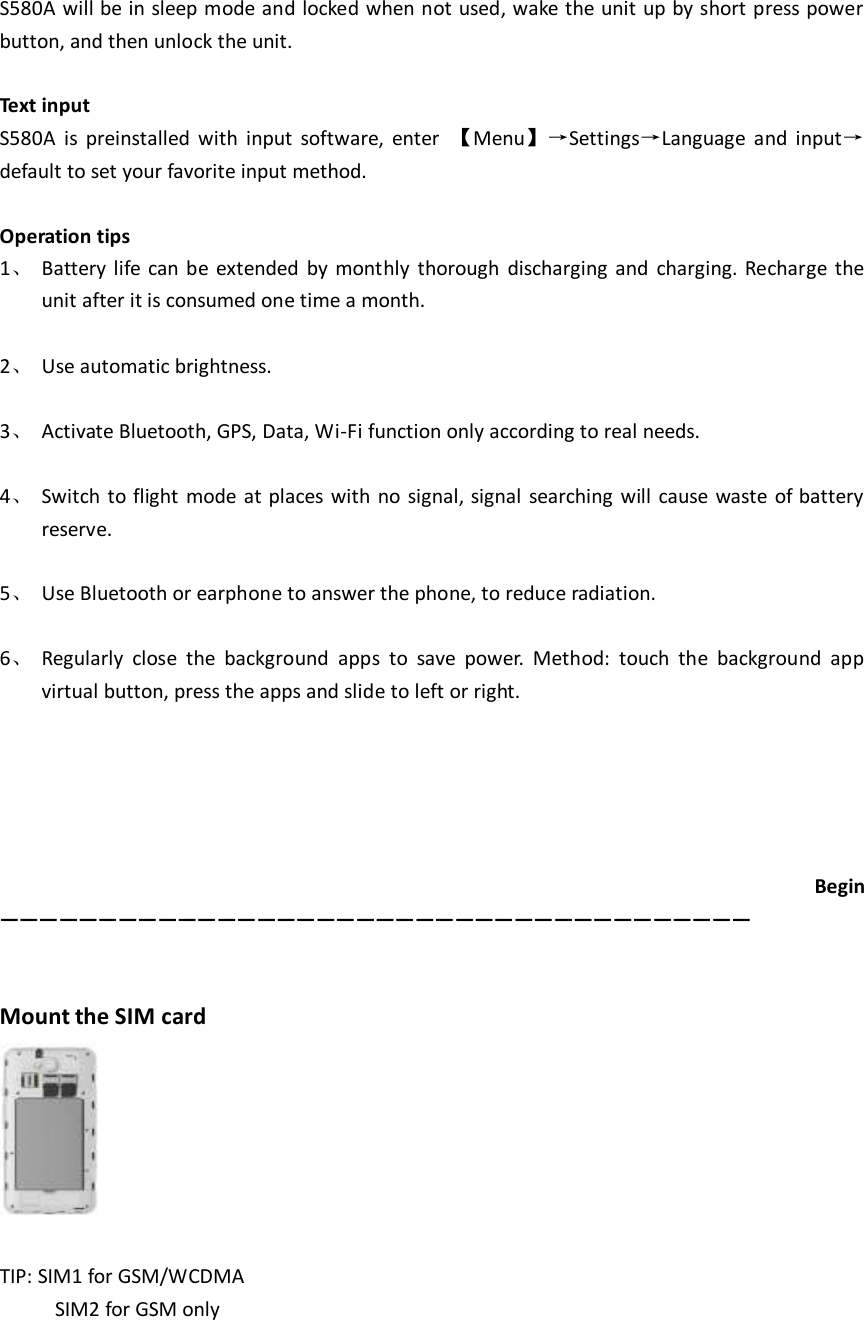

  S580A will be in sleep mode and locked when not used, wake the unit up by short press power button, and then unlock the unit.    Text input S580A  is  preinstalled  with  input  software,  enter  【Menu】→Settings→Language  and  input→default to set your favorite input method.    Operation tips 1、 Battery life  can be extended  by monthly  thorough  discharging and  charging. Recharge the unit after it is consumed one time a month.  2、 Use automatic brightness.  3、 Activate Bluetooth, GPS, Data, Wi-Fi function only according to real needs.  4、 Switch to flight mode  at places with  no signal,  signal  searching will  cause  waste of battery reserve.  5、 Use Bluetooth or earphone to answer the phone, to reduce radiation.  6、 Regularly  close  the  background  apps  to  save  power.  Method:  touch  the  background  app virtual button, press the apps and slide to left or right.                                                                                   Begin ——————————————————————————————————————   Mount the SIM card   TIP: SIM1 for GSM/WCDMA           SIM2 for GSM only

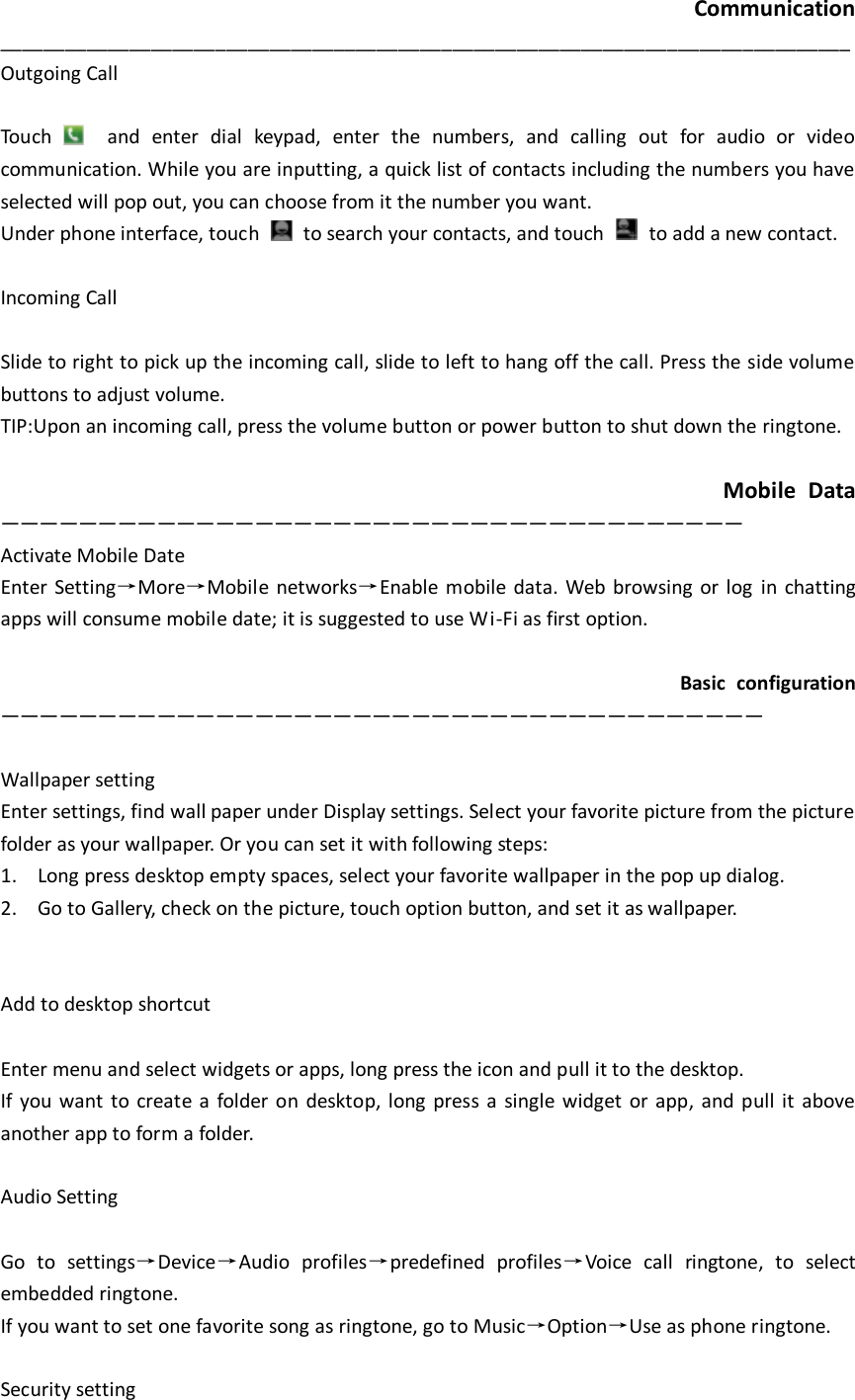

 Communication _______________________________________________________________________________ Outgoing Call  Touch    and  enter  dial  keypad,  enter  the  numbers,  and  calling  out  for  audio  or  video communication. While you are inputting, a quick list of contacts including the numbers you have selected will pop out, you can choose from it the number you want.   Under phone interface, touch    to search your contacts, and touch    to add a new contact.    Incoming Call  Slide to right to pick up the incoming call, slide to left to hang off the call. Press the side volume buttons to adjust volume.     TIP:Upon an incoming call, press the volume button or power button to shut down the ringtone.                                                               Mobile  Data —————————————————————————————————————— Activate Mobile Date Enter Setting→More→Mobile networks→Enable mobile data. Web browsing or log  in chatting apps will consume mobile date; it is suggested to use Wi-Fi as first option.                                                                  Basic  configuration ———————————————————————————————————————  Wallpaper setting Enter settings, find wall paper under Display settings. Select your favorite picture from the picture folder as your wallpaper. Or you can set it with following steps: 1. Long press desktop empty spaces, select your favorite wallpaper in the pop up dialog.   2. Go to Gallery, check on the picture, touch option button, and set it as wallpaper.     Add to desktop shortcut  Enter menu and select widgets or apps, long press the icon and pull it to the desktop.   If you want  to create a  folder on desktop, long  press  a  single  widget  or app,  and pull  it  above another app to form a folder.    Audio Setting  Go  to  settings→Device→Audio  profiles→predefined  profiles→Voice  call  ringtone,  to  select embedded ringtone.   If you want to set one favorite song as ringtone, go to Music→Option→Use as phone ringtone.    Security setting

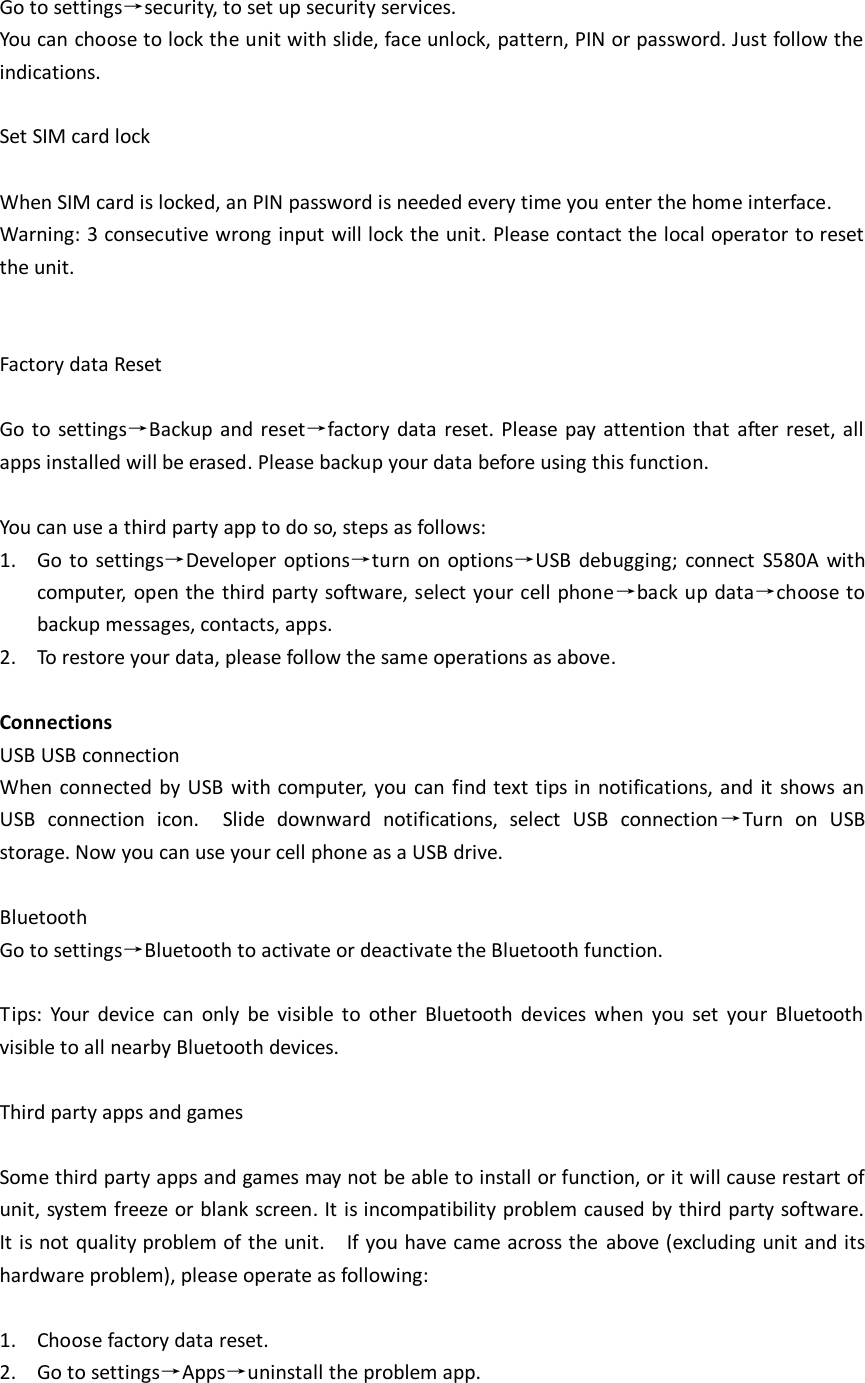

 Go to settings→security, to set up security services.   You can choose to lock the unit with slide, face unlock, pattern, PIN or password. Just follow the indications.    Set SIM card lock  When SIM card is locked, an PIN password is needed every time you enter the home interface.   Warning: 3 consecutive wrong input will lock the unit. Please contact the local operator to reset the unit.     Factory data Reset  Go to settings→Backup and reset→factory data  reset. Please pay attention that  after reset, all apps installed will be erased. Please backup your data before using this function.    You can use a third party app to do so, steps as follows: 1. Go to settings→Developer options→turn  on options→USB  debugging;  connect  S580A  with computer,  open the third party software, select your cell phone→back up data→choose to backup messages, contacts, apps. 2. To restore your data, please follow the same operations as above.    Connections USB USB connection When connected by USB with computer, you can find text tips  in  notifications, and  it  shows an USB  connection  icon.    Slide  downward  notifications,  select  USB  connection→Turn  on  USB storage. Now you can use your cell phone as a USB drive.    Bluetooth Go to settings→Bluetooth to activate or deactivate the Bluetooth function.    Tips:  Your  device  can  only  be  visible  to  other  Bluetooth  devices  when  you  set  your  Bluetooth visible to all nearby Bluetooth devices.    Third party apps and games  Some third party apps and games may not be able to install or function, or it will cause restart of unit, system freeze or blank screen. It is incompatibility problem caused by third party software. It is not quality problem of the unit.    If you have came across the above (excluding unit and its hardware problem), please operate as following:  1. Choose factory data reset. 2. Go to settings→Apps→uninstall the problem app.

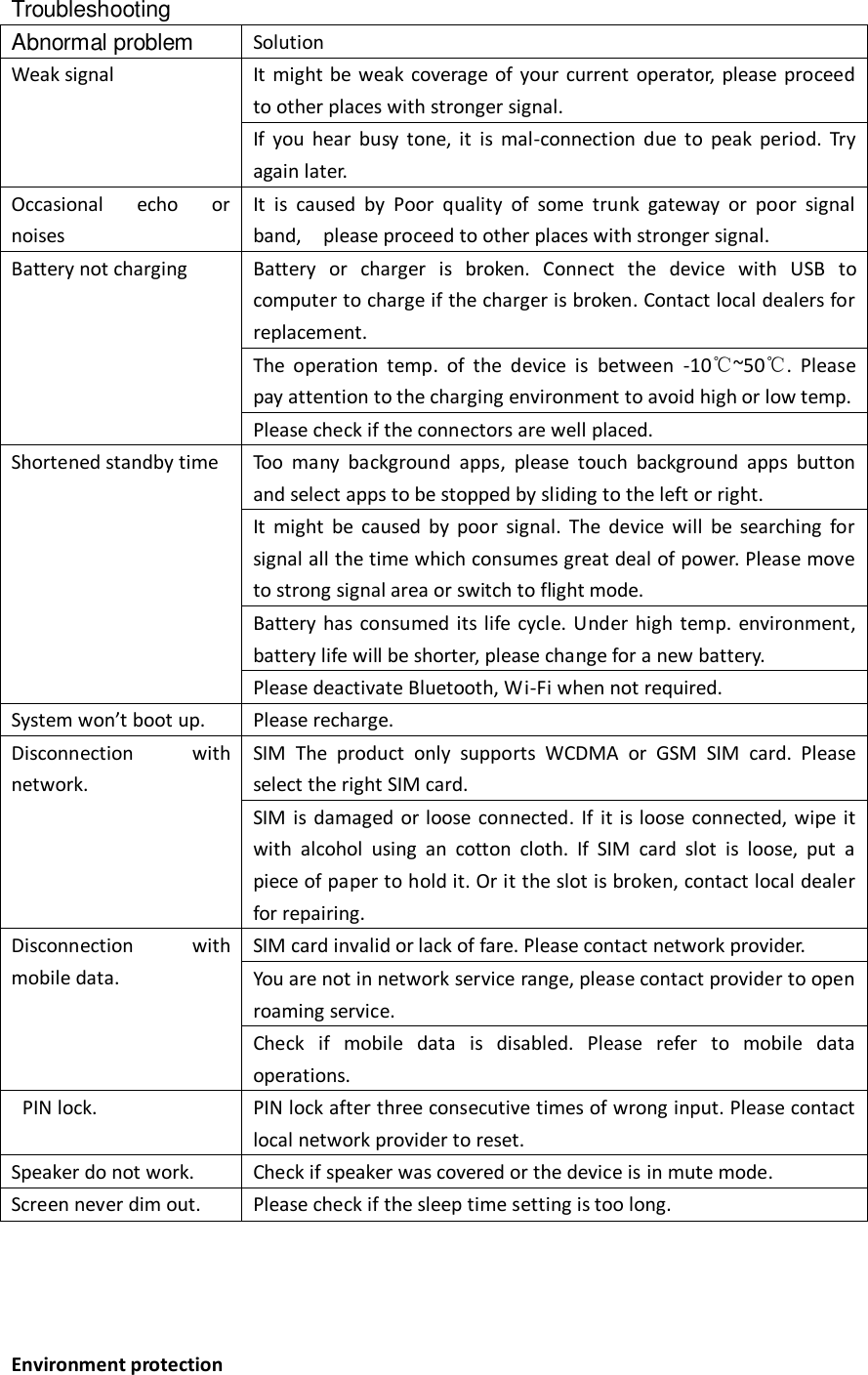

 Troubleshooting Abnormal problem Solution Weak signal It might  be weak coverage of  your current operator, please proceed to other places with stronger signal.   If  you  hear  busy  tone,  it  is  mal-connection  due  to  peak  period.  Try again later.   Occasional  echo  or noises It  is  caused  by  Poor  quality  of  some  trunk  gateway  or  poor  signal band,    please proceed to other places with stronger signal. Battery not charging Battery  or  charger  is  broken.  Connect  the  device  with  USB  to computer to charge if the charger is broken. Contact local dealers for replacement. The  operation  temp.  of  the  device  is  between  -10℃~50℃.  Please pay attention to the charging environment to avoid high or low temp.   Please check if the connectors are well placed.   Shortened standby time Too  many  background  apps,  please  touch  background  apps  button and select apps to be stopped by sliding to the left or right.   It  might  be  caused  by  poor  signal.  The  device  will  be  searching  for signal all the time which consumes great deal of power. Please move to strong signal area or switch to flight mode.   Battery has consumed its life  cycle. Under high temp. environment, battery life will be shorter, please change for a new battery.   Please deactivate Bluetooth, Wi-Fi when not required.   System won’t boot up.   Please recharge.   Disconnection  with network.   SIM  The  product  only  supports  WCDMA  or  GSM  SIM  card.  Please select the right SIM card. SIM is damaged or loose connected.  If  it is  loose  connected,  wipe it with  alcohol  using  an  cotton  cloth.  If  SIM  card  slot  is  loose,  put  a piece of paper to hold it. Or it the slot is broken, contact local dealer for repairing.   Disconnection  with mobile data. SIM card invalid or lack of fare. Please contact network provider. You are not in network service range, please contact provider to open roaming service.   Check  if  mobile  data  is  disabled.  Please  refer  to  mobile  data operations.     PIN lock.   PIN lock after three consecutive times of wrong input. Please contact local network provider to reset.   Speaker do not work.   Check if speaker was covered or the device is in mute mode.   Screen never dim out.   Please check if the sleep time setting is too long.     Environment protection
 Please abide by the local regulations about wasted packing material and battery. Support local recycle activities. Do not toss waste cell phone or battery directly into dustbin or fire to prevent explosion.    Parts azardous substances Casing Pb Hg Cd  PBB PBDE PCB O O O O O O Data cable X O O O O O Earphone X O O O O O Charger X O O O O O Antenna X O O O O O LCD display X O O O O O Buttons  O O O O O DOM  O O O O O LCM film  O O O O O   Camera X O O O O O Conductive Sponge  O O O O O Coating  O O O O O Anti-dust net  O O O O O Vibration Motor X O O O O O Screws  O O O O O  ○:Refer to that the hazardous substance content in the tested part is below the regulated amount in SJ/T-11363-2006 <<limit of hazardous substances in electronic information products>>.   ○:Refer to that the hazardous substance content in the tested part is above the regulated amount in SJ/T-11363-2006 <<limit of hazardous substances in electronic information products>>.              FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone

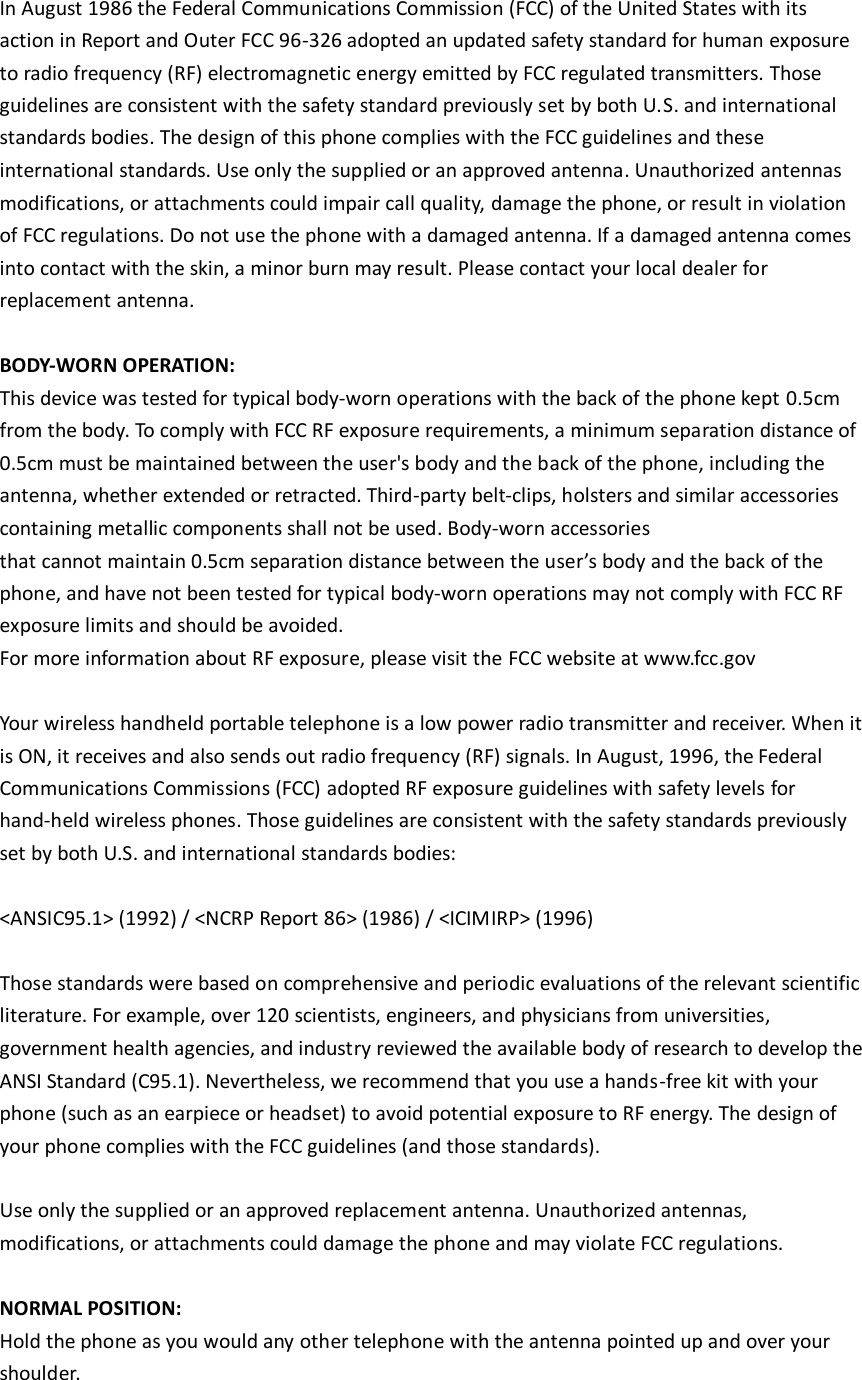

 In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.  BODY-WORN OPERATION: This device was tested for typical body-worn operations with the back of the phone kept 0.5cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.5cm must be maintained between the user's body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components shall not be used. Body-worn accessories that cannot maintain 0.5cm separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov  Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:  <ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP> (1996)  Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The design of your phone complies with the FCC guidelines (and those standards).  Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations.    NORMAL POSITION:   Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder.

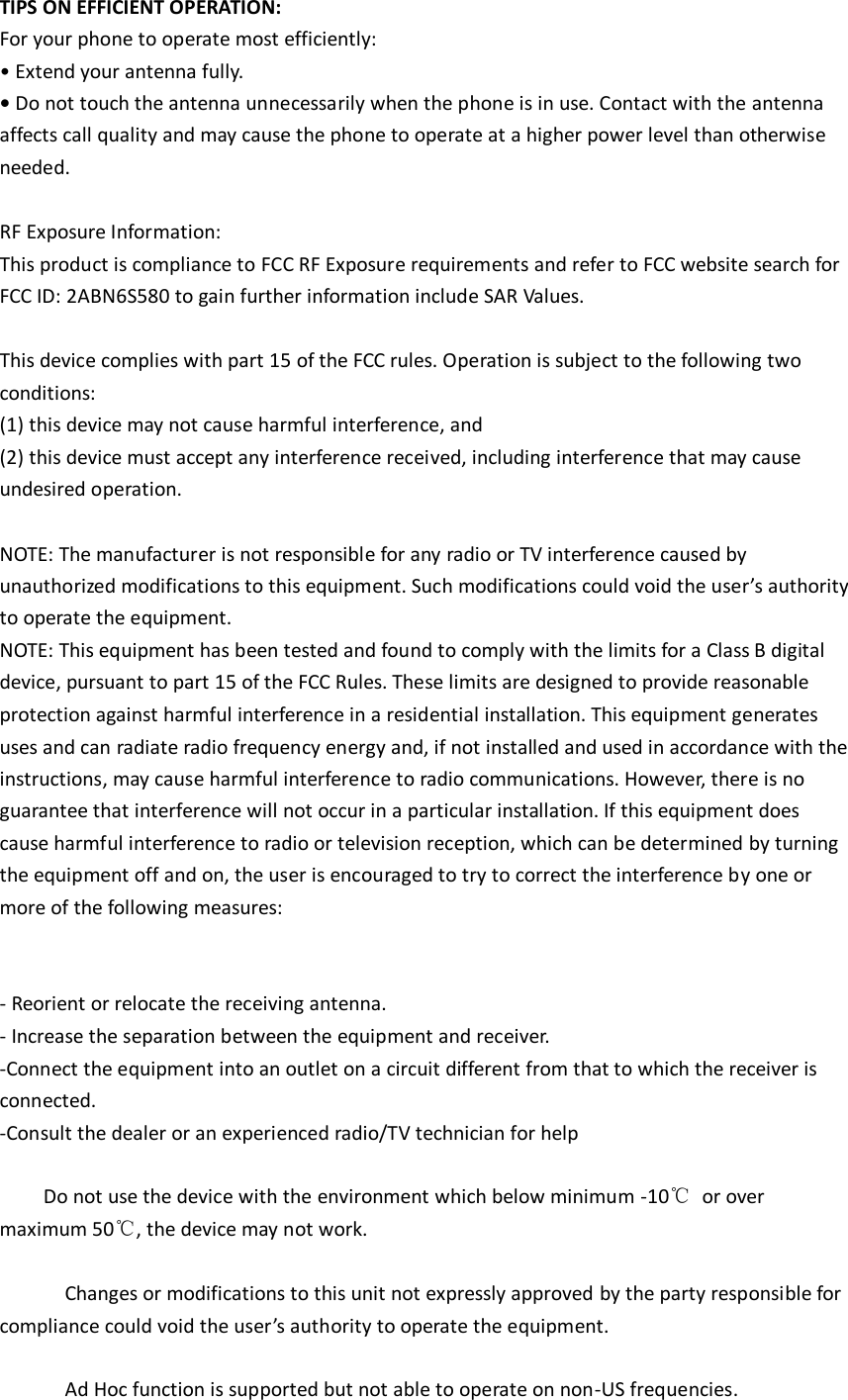

 TIPS ON EFFICIENT OPERATION:   For your phone to operate most efficiently: • Extend your antenna fully. • Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.  RF Exposure Information: This product is compliance to FCC RF Exposure requirements and refer to FCC website search for FCC ID: 2ABN6S580 to gain further information include SAR Values.    This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help          Do not use the device with the environment which below minimum -10℃  or over maximum 50℃, the device may not work.              Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  Ad Hoc function is supported but not able to operate on non-US frequencies.
