OWNERS MANUAL
INSTALLATION AND OPERATING INSTRUCTIONS
REPAIR PARTS LIST
Frame Mounted
Centrifugal Pump
Direct Coupling Drive
Belt Driven
IMPORTANT
For best possible performance and continuous, satisfactory operation,
read these instructions before installing your new pump.
Should service be required, this manual can be a valuable guide.
It should be kept near the installation for ready reference.
Record nameplate data from pump on blank nameplate inside this
manual for future reference.
Berkeley Pumps / 293 Wright Street / Delavan, WI 53115
F00637 (Rev. 7/28/09)
Table of Contents
Page 2 F00637
• SAFETY ...................................................................................................................................3
• INSTALLATION
General Information........................................................................................................3, 4
Foundation..........................................................................................................................5
Direct Coupling Drive..........................................................................................................6
Belt Drive ............................................................................................................................7
Suction Connection .......................................................................................................8-11
Discharge Connection ................................................................................................12, 13
Electrical Connection........................................................................................................14
• START-UP
General Information..........................................................................................................15
Check Pump Rotation.................................................................................................15, 16
Priming ........................................................................................................................15-17
• MAINTENANCE
General Information..........................................................................................................18
Packing .............................................................................................................................19
Impeller Replacement.................................................................................................20, 21
Shaft Maintenance/Replacement .....................................................................................22
General Pump Care..........................................................................................................23
Routine Inspection Checklist ............................................................................................24
• PUMP NOMENCLATURE
General Information..........................................................................................................25
Parts Breakdown ........................................................................................................26, 27
• TROUBLESHOOTING
If Pump Driven By Electric Motor......................................................................................28
If Pump Driven By Air-Cooled or Water-Cooled Engine ...................................................29
• WARRANTY..........................................................................................................................31
Page
General Information
Safety First
Pump Location
F00637 Page 3
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see
this symbol on your pump or in this manual, look
for one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that will cause
serious personal injury, death or major
property damage if ignored.
warns about hazards that will or can
cause serious personal injury, death or
major property damage if ignored.
warns about hazards that will or can
cause minor personal injury or property
damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in
this manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
LOCATION:
Locate the pump as near to the water source as
practical. Make the suction pipe run short and straight
with as few pipe fittings as possible to keep total friction
loss to a minimum.
Install pump in a clean, dry and well drained location if
possible and protect against moisture and adverse
weather conditions. Pump should be located on a level,
hard surface to prevent shifting or tipping. Locate to be
readily accessible for inspection and maintenance.
Careful attention should be taken to assure that Net
Positive Suction Head Available (NPSHA) exceeds Net
Positive Suction Head Required (NPSHR) by the pump
or reduced performance and severe pump damage may
result.

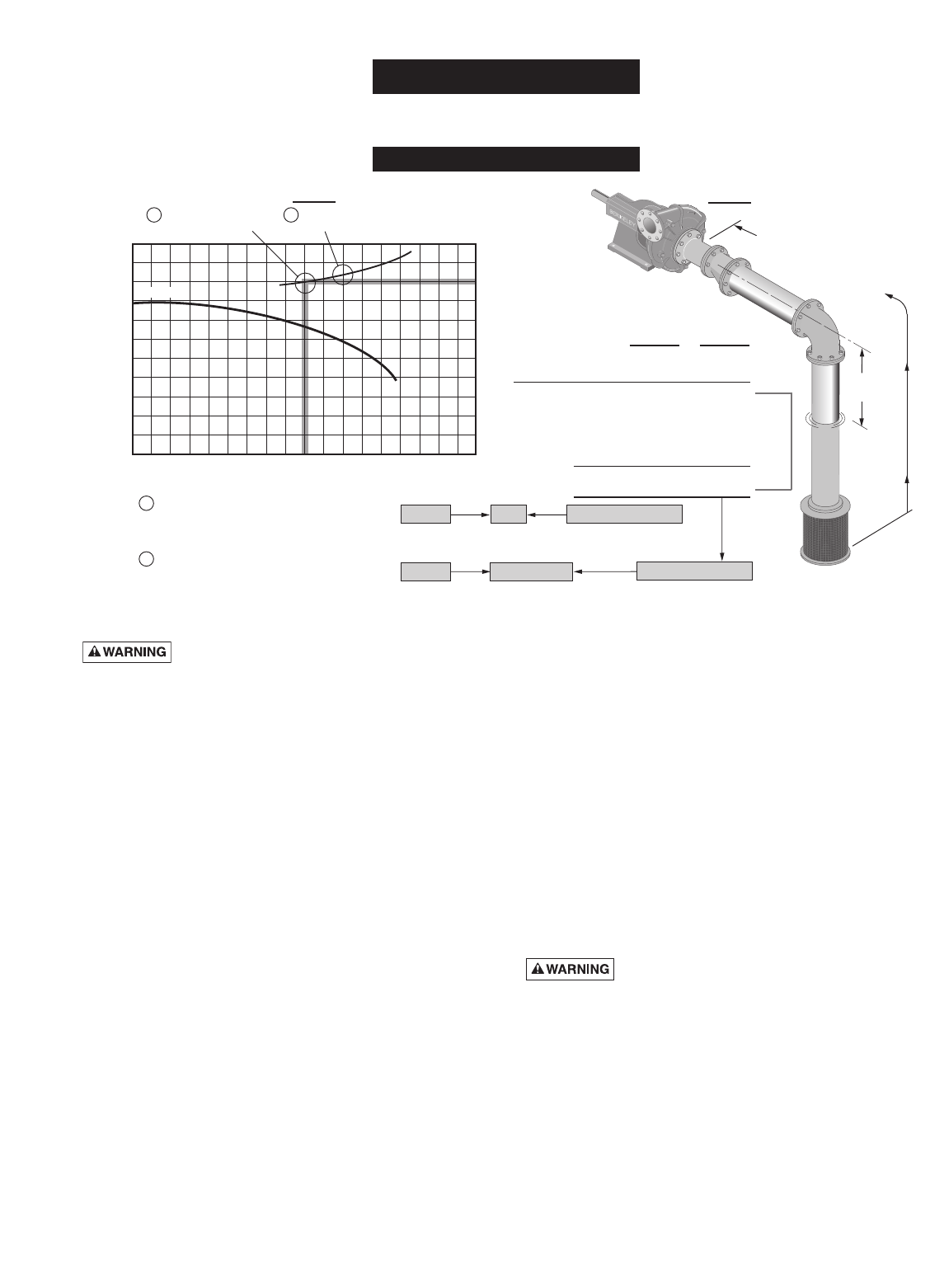

Figure 1, Page 4, illustrates where these terms (NPSHA
/ NPSHR) come from, and how to determine if the
pumping conditions at which you want to operate meet
the proper criteria. When in doubt, consult your nearest
Berkeley Professional Dealer.
NOTE: If pump site is 1000 feet above sea level, sub-
tract 1.2 feet from the NPSHA equation and an ad-
ditional 1.2 feet for each additional 1000 feet of eleva-
tion.
General Safety
Do not allow pump, piping, or any other system
component containing water to freeze. Freezing may
damage system, leading to injury or flooding. Allowing
pump or system components to freeze will void
warranty.
Pump approved liquids only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on
pumps.
Keep work area clean, uncluttered and properly lighted;
store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Rotating parts. Can catch
hands, feet, or clothing.
Stay clear of equipment and
keep shields in place while
pump is running.
Stop motor or engine before
servicing pump.
Read owner’s manual before
using equipment.
WARNING
Electrical Safety
WARNING Wire motor for correct
voltage. See “Electrical”
section of this manual
and motor nameplate.
Ground motor before
connecting to power
supply.
Meet National Electrical
Code and local codes
for all wiring.
Follow wiring
instructions in this
manual when
connecting motor to
power lines.
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply.
General Information
Installation
Page 4 F00637

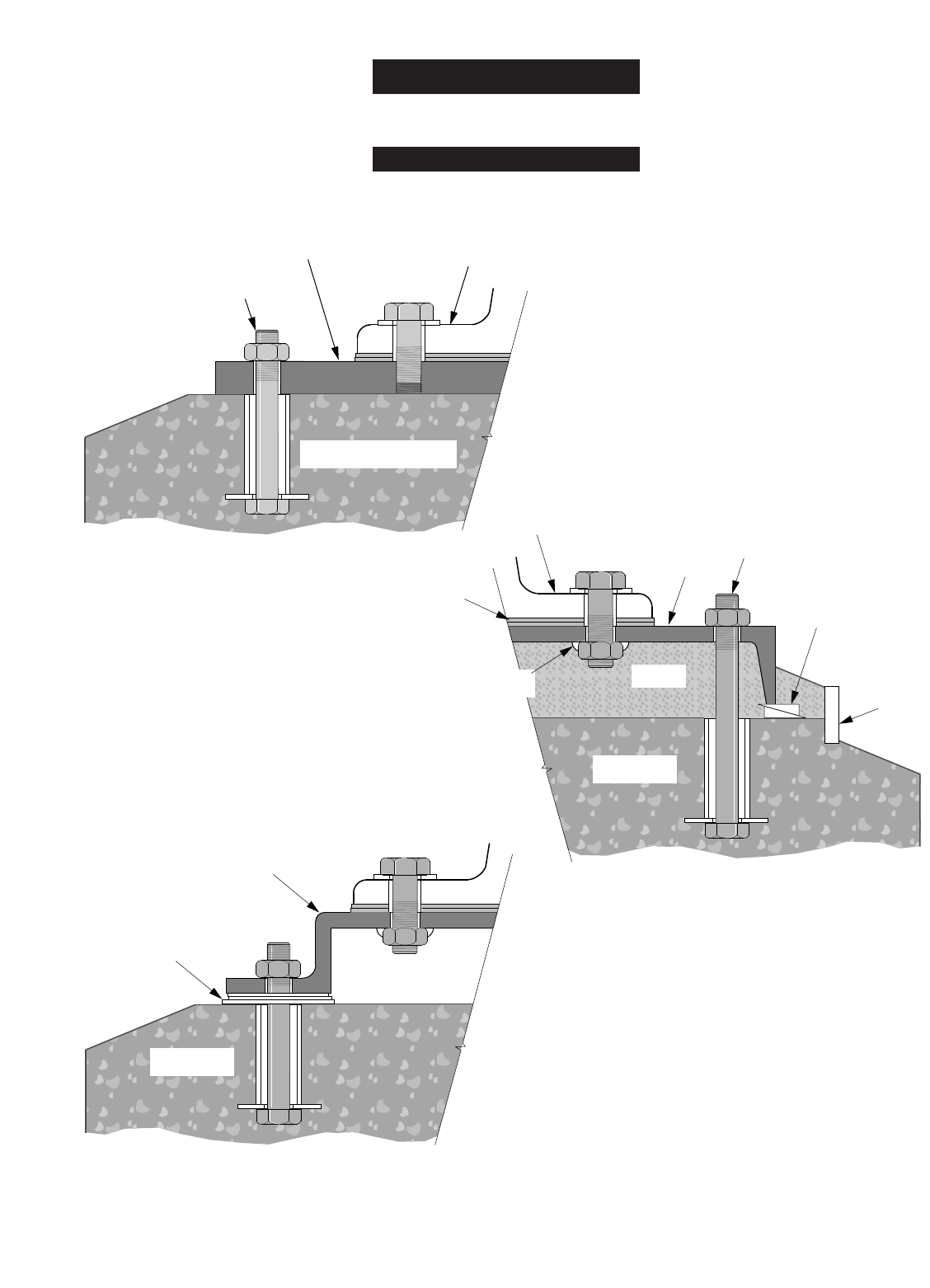

FOUNDATION:
Refer to illustration on page 5.
Heavy weights; risk of crushing toes or
feet. Use care and proper lifting equipment when
handling pump for installation. Size and weight of some
units will require hoists for safe handling.
Pump should be set on a concrete foundation which is
sufficiently substantial to absorb vibration and which
provides a permanent and rigid support.
When properly positioned, the unit will be level, and the
suction and discharge openings of the pump will be
aligned with system piping.
PIPING:
System piping should be at least one commercial pipe
size larger than pump connections and flow velocity
should not exceed eight (8) feet per second. Suction and
discharge pipes must be naturally aligned with pump
connections.
NOTICE: Misalignment of piping with pump case or
excessive pipe strain can cause distortion of pump
components resulting in rubbing, breakage and reduced
pump life.
Insure that piping is supported in a manner that prevents
the exertion of force on pump connections. This can be
checked by the following procedure. With the pump shut
down, remove pipe flange bolts. If the mating flanges
come apart or shift, misalignment is present and causing
pressure on the connections. Adjust pipe supports until
flanges mate without any force. This procedure can be
done throughout piping system.

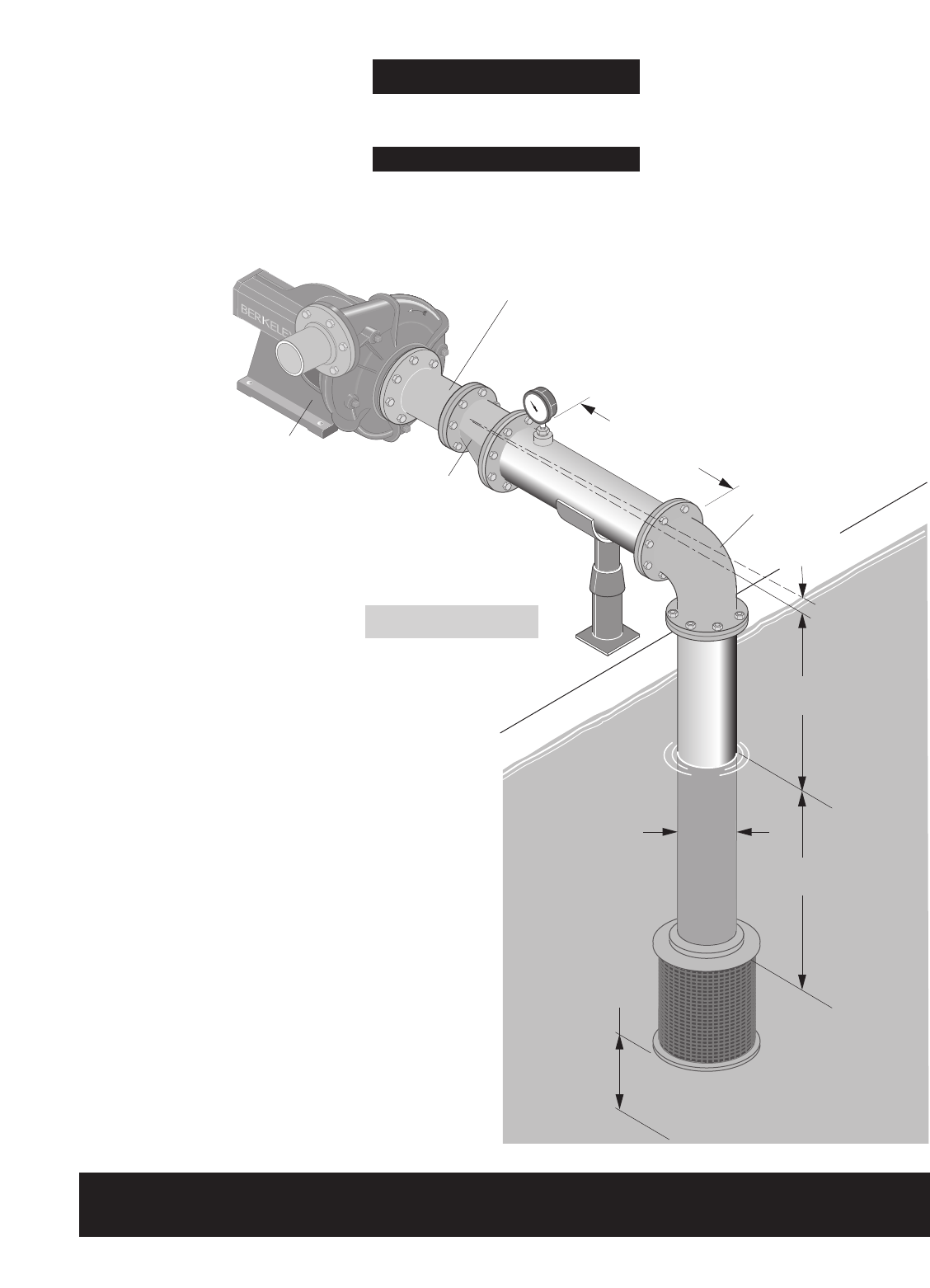

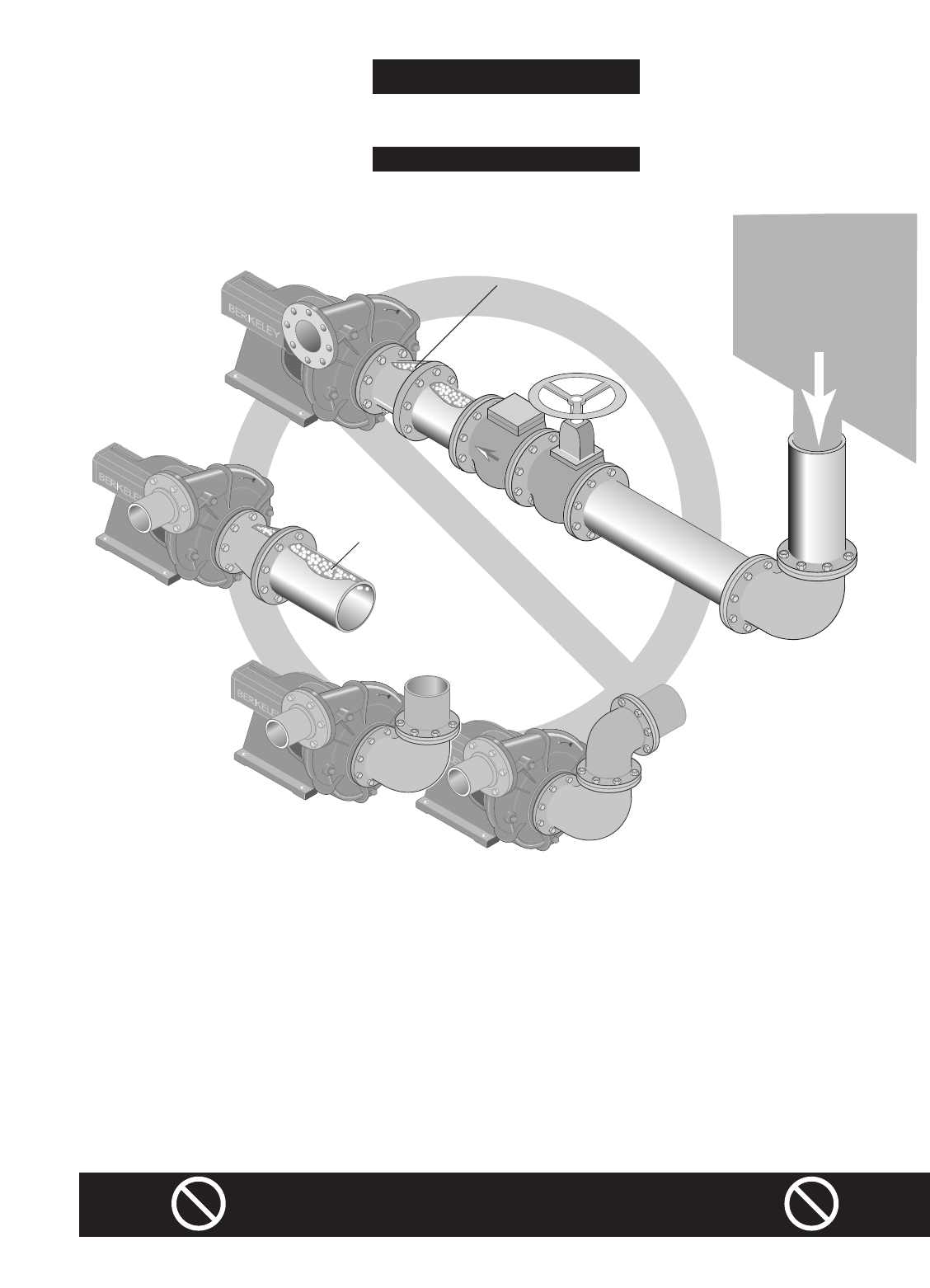

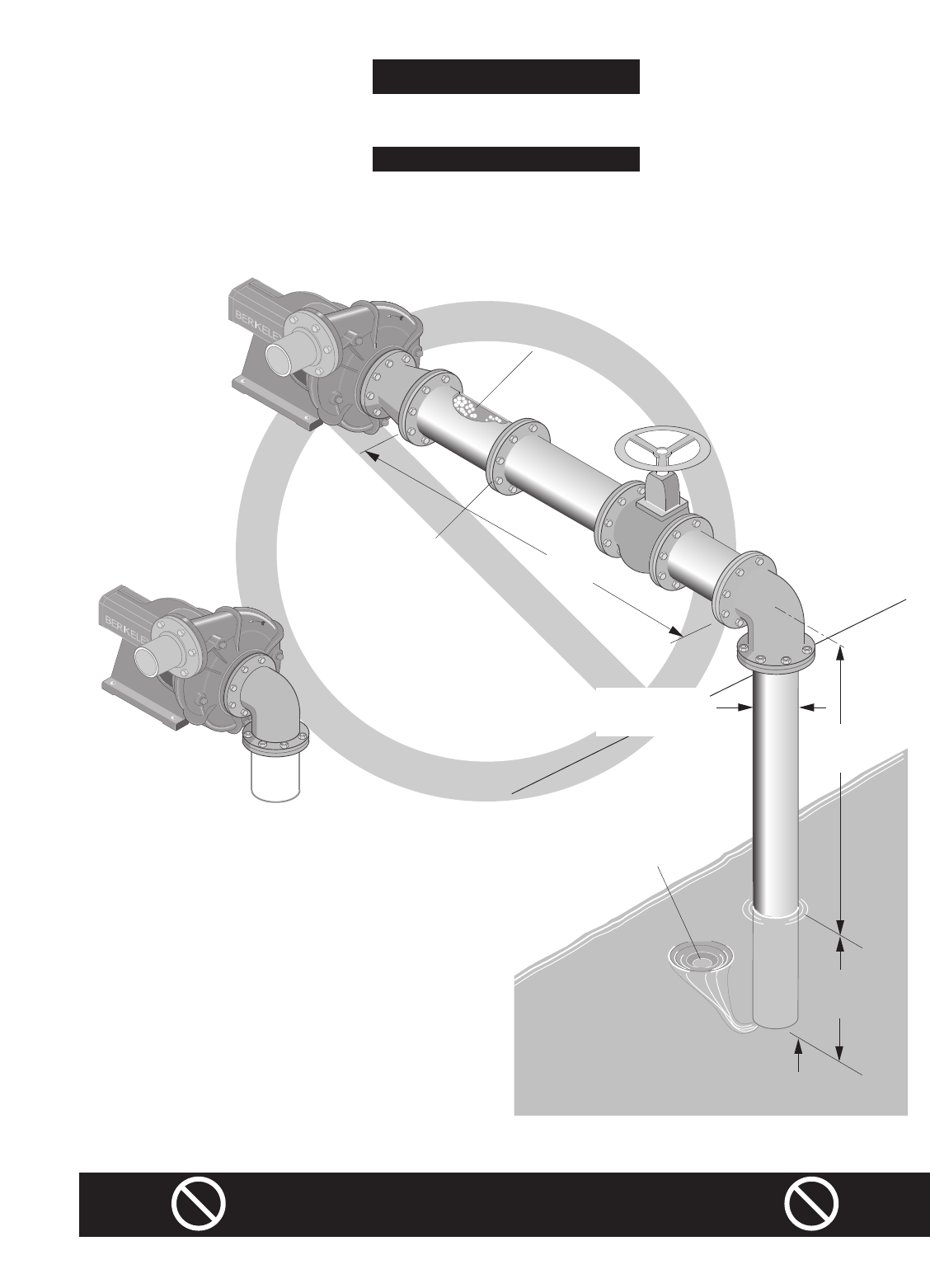

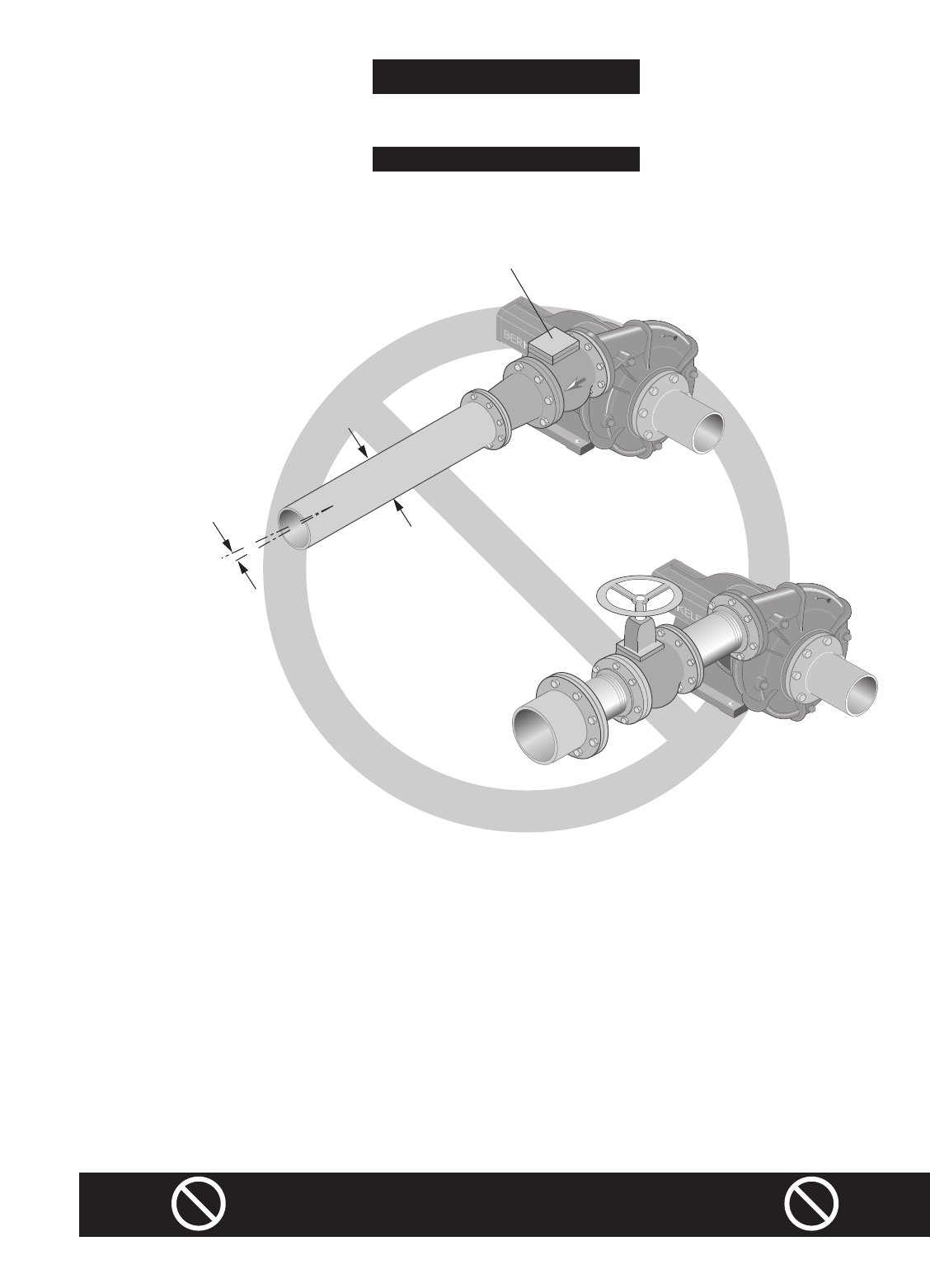

SUCTION PIPING:
Refer to illustrations on Page 8 through Page 11 for
recommended and not recommended practices in
suction connections.
DISCHARGE PIPING:
Refer to illustrations on Pages 12 and 13 for recom-
mended and not recommended practices in discharge
connections.
ELECTRICAL CONNECTION:
If electric motor is used.
NOTE: All wiring should be done by a qualified
electrician.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to pump before
servicing.
Check voltage and phase stamped on pump motor
nameplate before making wiring connections to
electrical system. Be sure they agree with your electric
current supply. They MUST be the same. If in doubt,
check with your local power company.

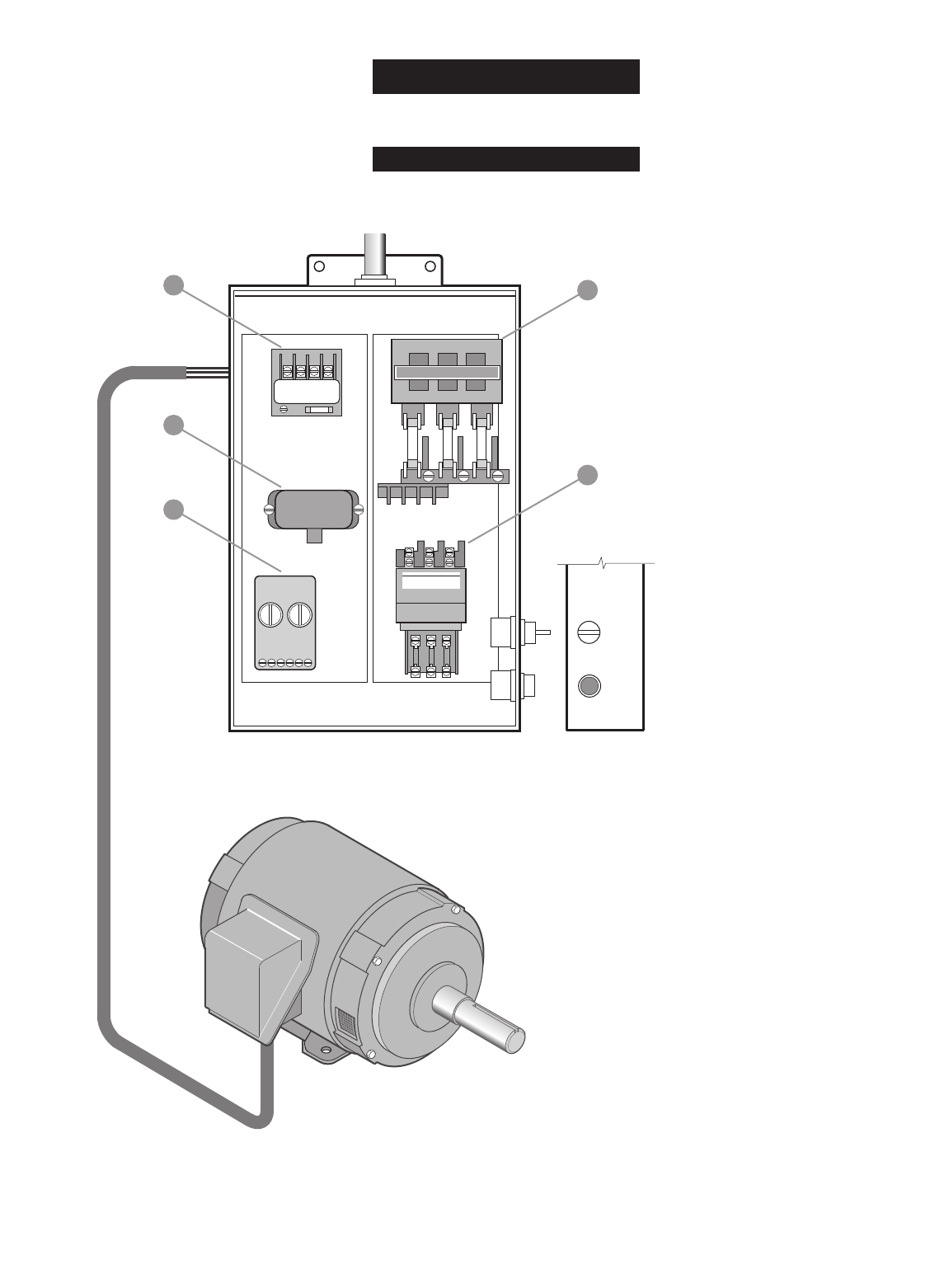

Refer to illustration on Page 14 for minimum recom-
mended pumping panel components that help safeguard
your pump during operation.
0100 200 300 400 500 600 700 800
0
0
10
20
30
20
40
60
80
100
TDH
NPSH in Feet
Gallons Per Minute
NPSHR EXAMPLE
ONLY
NPSHR at this point
(450 gpm) = 10 Feet
NPSHR at this point
(550 gpm) = 14 Feet
A Model B3ZRM operating at 450 GPM
with 68 Feet of Head has a NPSHR of.......... 10 Feet
A Model B3ZRM operating at 550 GPM
with 58 Feet of Head has a NPSHR of.......... 14 Feet
B3ZRM
1800 RPM
NPSHA
7 Feet
Static Lift
Static Lift = 7.0 Feet 7.0 Feet
9.5 Feet
16.5 Feet
16.5 Feet
Theoretical static
lift of centrifugal
pump at sea level =
Total = 15.5 Feet
Total Friction Loss = 8.5 Feet
Subtract Safety Factor 6.0 Feet
Subtract Lift and Friction 15.5 Feet
Practical Limit = 28.0 Feet 28.0 Feet
NPSHA = 12.5 Feet
8.5 Feet total friction loss
@ 450 Gallons per minute.
9.5 Feet total friction loss
@ 550 Gallons per minute.
34.0 Feet
OK
NPSHA = 11.5 Feet
CAVITATION
450 GPM 550 GPM
6.0 Feet
34.0 Feet
A
A
B
B
6025 0609
FIGURE 1
Pump Foundation
Installation
Typical Installations
F00637 Page 5
Drainage
Drain ge
Pump or
Motor Frame
1/2" or thicker
Sole Plate tapped
for hold down bolts
Anchor
Bolts
Pump or
Motor Frame
Shims
for alignment
Anchor
Bolt
Steel
Channel
Concrete
Foundation
Grout
Dam
Drainage
Wedges
Various Heights
Concrete
Foundation
Shims
Pump and Motor
Base
1300 1094
Tack
Weld
Concrete Foundation
Grout
• There are several types of permanent pump/
foundation installations in use. Those pictured above
are typical.
• If grout is used, top of concrete should be left rough
to provide a good bonding surface.
• Foundation should slope away from pump to prevent
liquid from pooling.
Centerline
Caliper
Straight Edge
Distance from Centerline Maximum Allowable T.I.R.
4.00 inches
3.00 inches
2.00 inches
1.00 inch 0.035 inches
0.070 inches
0.105 inches
0.140 inches
"B"
Parallel
"A"
Angular
Table I
6026 0609
Rotating shaft can catch and trap
clothing or body. Coupling guard must
ALWAYS be in place when pump is running. Coupling
guard shown in phantom for pictorial clarity.

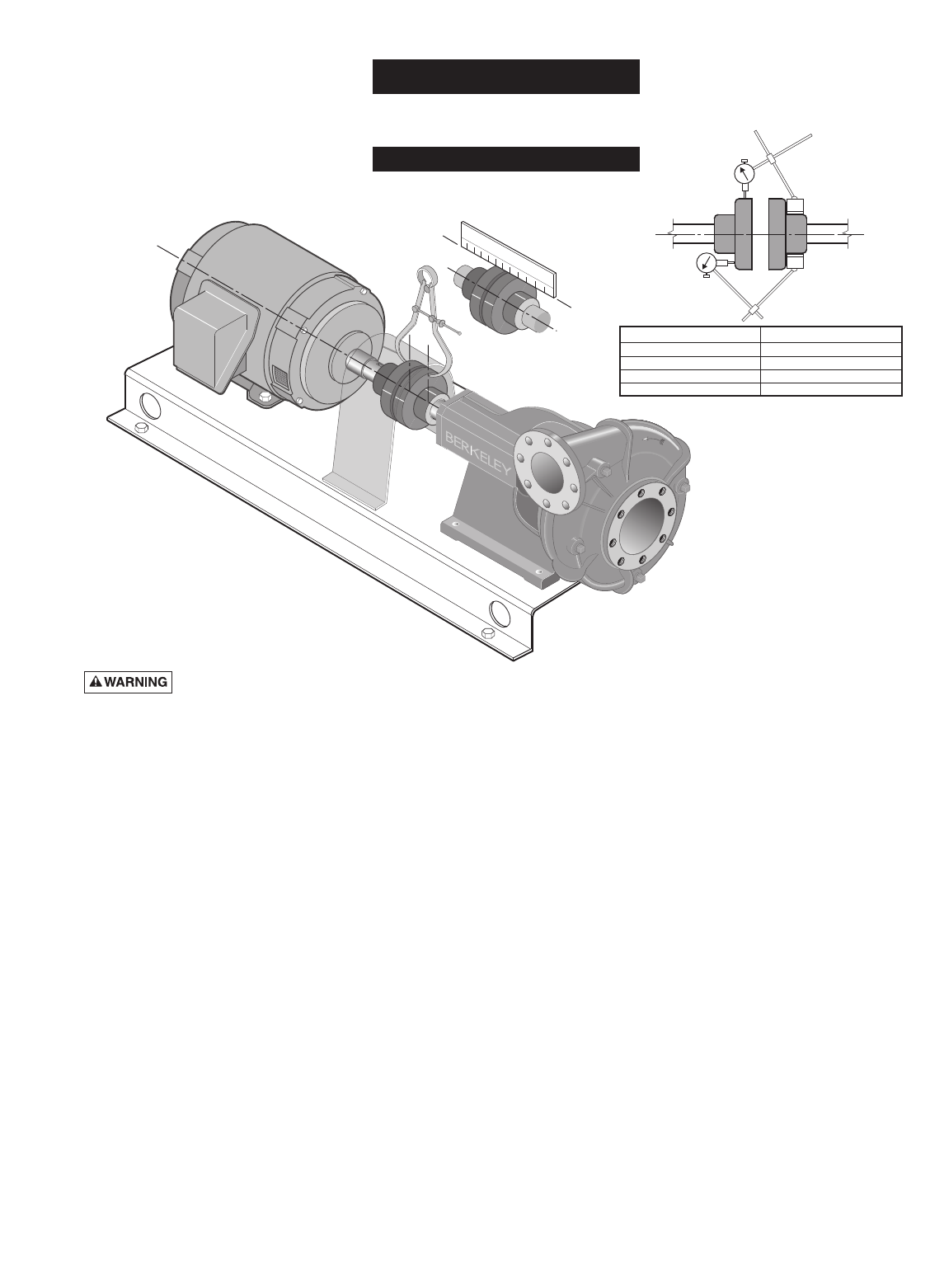

ALIGNMENT OF PUMP AND MOTOR SHAFT
• A flexible coupling (except for double universal joint
shaft) will not compensate for misalignment. After the
pump unit is fastened on the foundation, it is nec-
essary to see that the shafts of the pump and motor
are properly aligned.
• Each motor and pump foot should be shimmed to
avoid shifting or
soft foot.
COURSE ALIGNMENT
• By moving the entire unit, bring suction and discharge
openings of the pump into alignment with the system
piping. Pipes should align without force with the pump
(see Installation Section).
• Bring the pump and motor shaft into approximate
alignment by shifting or shimming the motor. Use a
straight edge to check alignment of the shafts.
• Use calipers, or a wedge thickness gauge to check
the distance between coupling halves. The distance
between halves should be equal at 90 degree
intervals around the coupling, and the shafts should
be concentric when checked with a straight edge.
FINE ALIGNMENT
• Angular and parallel misalignment of the coupling
may be corrected simultaneously. Maintain a sep-
aration between coupling halves, per manufacturer’s
specifications, to avoid preloading of pump and motor
bearings.
• Check and account for indicator sag.
• Clamp dial indicators to the pump and motor shaft as
shown above.
• Start with angular alignment and finish check with
parallel alignment.
• Rotate both the shaft and coupling together by hand.
Note the total indicated runout shown on indicator “A”.
The maximum allowable angular misalignment is 1
degree. Limits of reading on indicator “A” at various
distances from shaft centerline are shown in Table I.
• Continue to rotate both shafts by hand and note the
runout shown on indicator “B”. The maximum allow-
able total indicated runout is .005 inches. Should
either angular or parallel misalignment exceed the
value shown, shift or shim the motor until mis-
alignment is within the allowable limits shown. Do not
move pump unless absolutely necessary. When
shimming, be sure that all feet on the pump and
motor are equally supported to avoid strains on the
castings when the hold down bolts are tightened.
Page 6 F00637
Direct Coupling Drive
Installation
Shaft Alignment
Fine Alignment
Course Alignment
ALIGNMENT

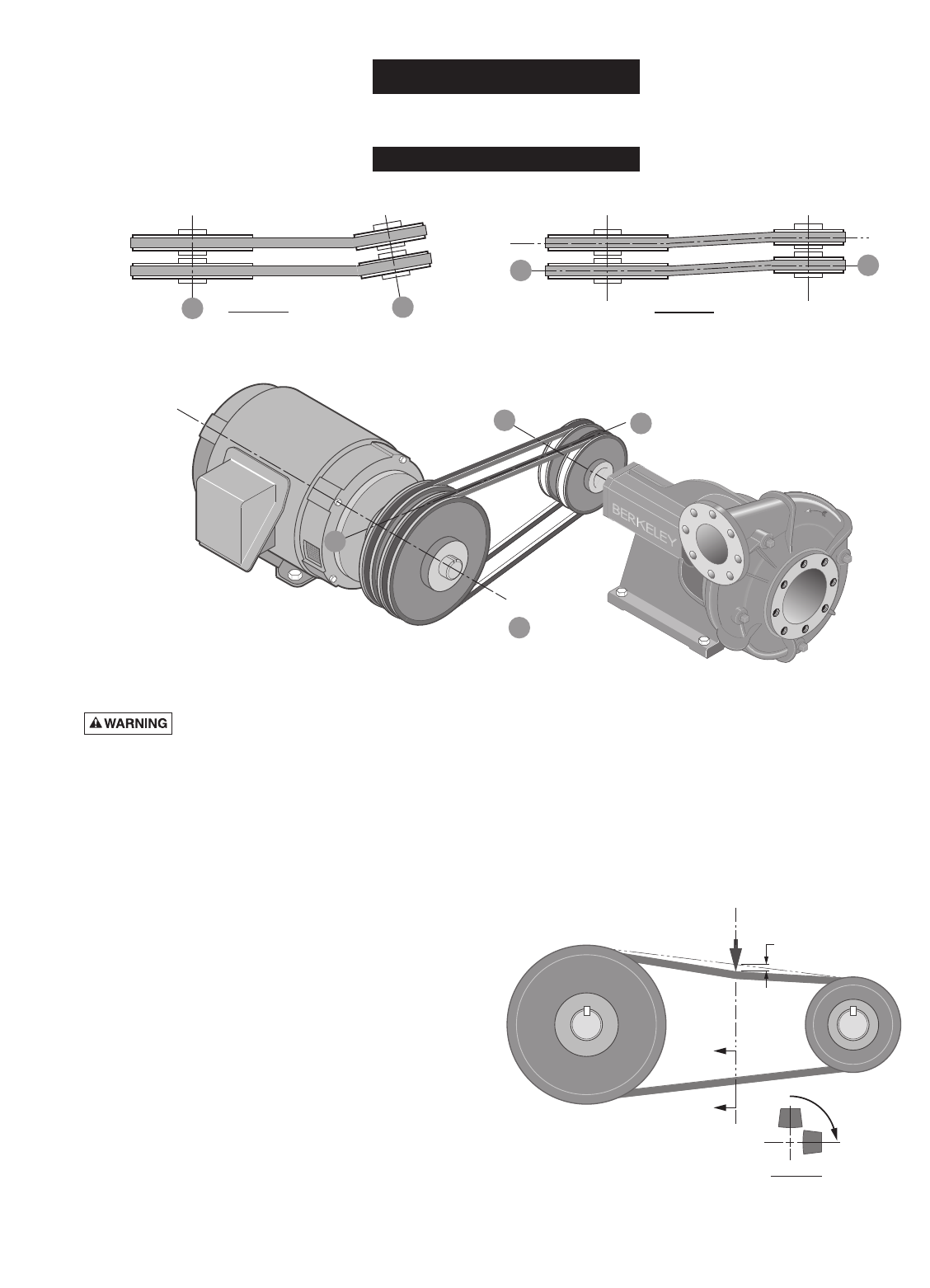

Drive belt can catch and trap clothing
or body. Belt guard must ALWAYS be in
place when pump is running. Belt guard is not shown for
pictorial clarity.
• Drive and pump shaft centerlines (A) must be parallel
as shown. Belt centerlines (B) must be straight as
shown.
• When installing belts, move the driver toward the
pump to allow belts to be placed on pulley. Then,
move the driver away from pump to obtain proper belt
tension as described below.
TENSION
• Multiple belt spans must be equal tension in all belts.
Proper belt tension varies with the size of belt being
used, however a general rule is:
Belts are properly tensioned when one belt can be
depressed one belt thickness at the center of the
span when pressing with thumb.
Another method is that a properly tensioned belt can
be rotated (twisted) one-quarter revolution at the
center of span.
NOTICE: Belts must be tight enough to prevent slip-
ping during operation. Loose belts result in early belt
failure and reduced performance. However, excessive
tightness of belts will result in overheating of the belts
and excessive bearing load in the pump and driver.
• Most Vee-belts will stretch slightly after initial
installation. After a short period of operation, re-
check belt tension and adjust as necessary.
F00637 Page 7
Belt Drive
Installation
Alignment/Proper Belt Tension
Centerline
Centerline
A
A
B
B
B
B
Incorrect
Centerline - A of each shaft and pulley must
be parallel for proper alignment.
Incorrect
Centerline - B represents center of belt and
pulley.This centerline must be straight for
proper alignment.
A
A
6027 0609
Slack should not be more
than one belt thickness.
Proper tension allows one-
quarter revolution of belt.
A
A
A-A
Center of span.
1423 1294
View
Page 8 F00637
Suction Connection
Installation
Suction Lift
Short length of straight pipe after reducer.
( 2 times pipe diameter minimum )
Suction
Gauge
Straight run, short as possible but
at least 6 times pipe diameter ("D")
after elbow to stabilize flow.
As close
as possible
Pipe diameter ("D")
4 x "D"
minimum
1 x "D" minimum
from bottom
Strainer / Foot Valve
To keep debris from entering
pump suction and to maintain
pump prime after shut-off.
Eccentric Reducer
flat side up.
See foundation
section.
Pump driven by remote power
source, direct coupling or
pulley/belt connection.
Support pipe
as required
NOTICE: All connections
must be air tight.
Standard or long
radius elbow.
Slope upward
to pump.
Recommended
• Use pipe, tubing, or reinforced hose to make suction
connection. Hose must have sufficient strength to
resist collapse under the pressure differential that
occurs while pump is running.
• Suction pipe size should be at least one commercial
pipe size larger than opening of pump inlet. Flow
velocity should not exceed 8 ft./sec.
• Suction screen must screen out solids that could clog
pump impeller.
• Suction screen area must be at least four times
suction pipe area.
• Net Positive Suction Head Available (NPSHA) must
exceed Net Positive Suction Head Required
(NPSHR) by the pump or reduced performance and
severe pump damage may result.
• All suction piping must have continuous rise to the
pump suction inlet. A 1/4 inch per foot minimum slope
is recommended.
F00637 Page 9
Suction Connection
Installation
Suction Lift
Do not use
Concentric
Reducer.
Concentric Reducer causes high spots
along the suction line resulting in
air pockets.
Do not install valves
in suction line.
Long run
not recommended
Unsupported
pipe causes
excessive stress
on pump and fittings.
Excess use of pipe fittings
means potential
air leaks.
No support or
uneven mounting
not recommended.
Pipe diameter
("D") undersized
reduces performance High suction
lift should
be avoided.
Less than
4 x "D"
Vortex caused by
insufficient submergence
may cause pump to
lose prime.
No strainer
may cause
pump to
clog.
Insufficient bottom
clearance
Elbow immediately in
front of pump intake
not recommended.
6029 0609
• Suction pipe sloping downward to pump inlet will trap
air which will reduce performance and may cause
pump to lose prime.
• Suction piping that is undersized will create excess
friction losses that may cause cavitation and a
reduction in pump performance.
• Excess fittings and bends in suction line results in
trapped air, reduced performance, and high friction
losses which may cause cavitation.
Not Recommended
Page 10 F00637
Suction Connection
Installation

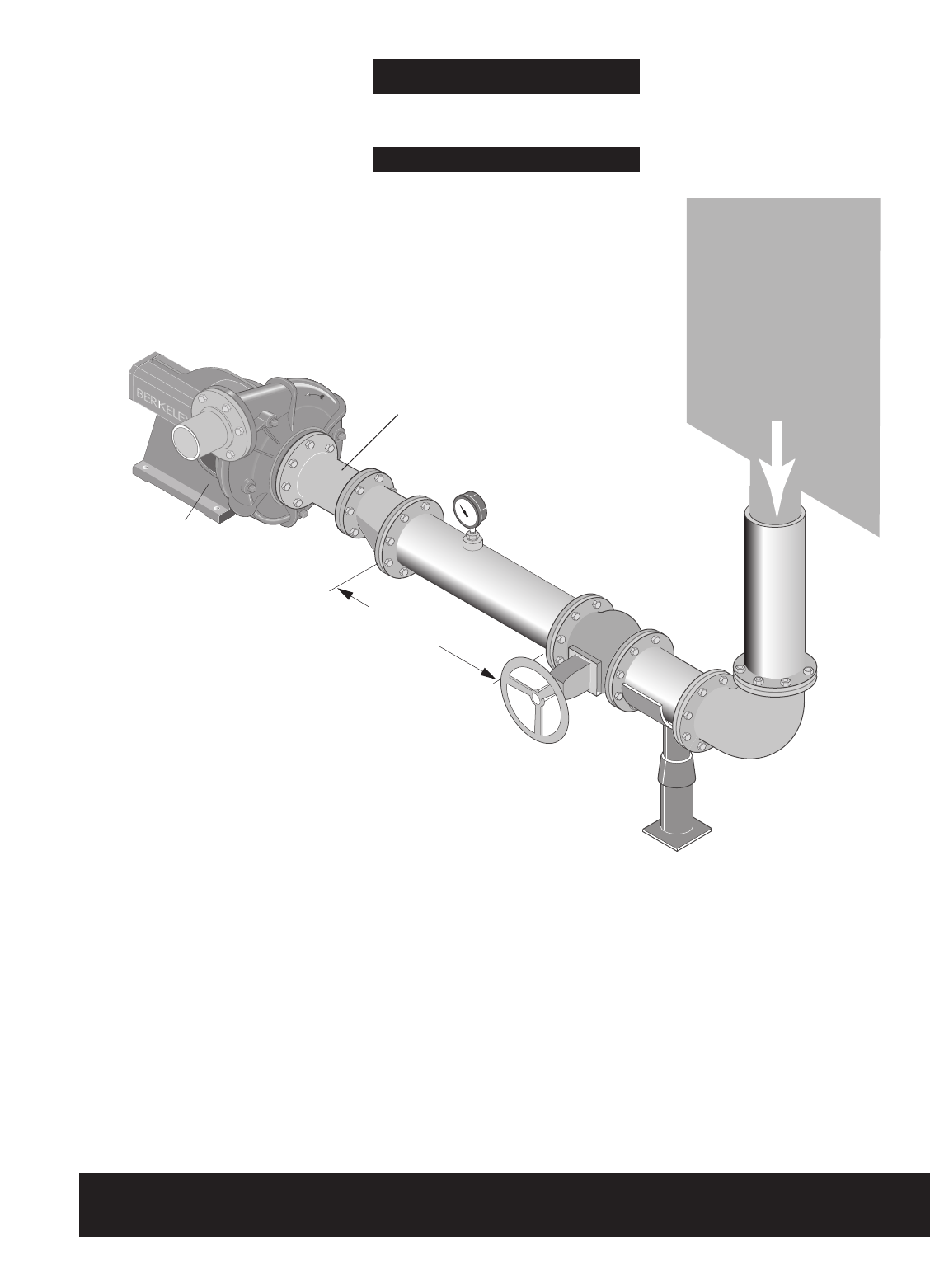

When Flooded Suction Exists
Recommended
See foundation
section.
Pump driven by remote power
source, direct coupling or
pulley/belt connection. Water under
pressure
Support pipe
as required
Short run of straight pipe after reducer
(2 times pipe diameter).
Eccentric Reducer
flat side up.
Maintain minimum liquid
level to prevent vortexing.
Isolation Valve
full open when
pumping.
Standard or
long radius
elbow.
Suction
Gauge
Straight run, short as possible but
at least 6 times pipe diameter after
pipe fitting to stabilize flow.
Slope upward to pump.
6030 0609
• Use pipe, tubing, or reinforced hose to make suction
connection. Hose must have sufficient strength to
resist collapse under the atmospheric pressure
differential that may occur while pump is running.
• It is important, even with a flooded suction condition,
that proper pipe fittings are used so water is delivered
to impeller eye with a smooth flow and consistent
velocity.
• Suction pipe size should be at least one commercial
pipe size larger than opening of pipe inlet. Flow
velocity should not exceed 8 ft./sec.
• An isolation valve is used in a pressurized suction
pipe to permit servicing pump.
• Piping run and connection fittings should be properly
aligned and independently supported to reduce strain
on pump case.
• If solids are present, a strainer should be used to
protect the pump.
F00637 Page 11
Suction Connection
Installation
When Flooded Suction Exists
Water under
pressure
Inverted Eccentric Reducer
may result in
air pocket.
Do not leave
valve partially
closed.
Check Valve
in suction pipe
not needed.
Unsupported
pipe causes
excessive stress
on pump and fittings.
Concentric Reducer may
cause
air pockets.
Valve in upward
position may trap
air.
Miter elbow, short radius
elbow, and double elbows
not recommended.
6031 0609
• Suction piping that is undersized will create excess
friction losses that may cause cavitation and a
reduction in pump performance.
• Excess fittings and bends in suction line result in
trapped air, reduced performance, and high friction
losses which may cause cavitation.
• If check valve is required for back flow prevention,
locate on the discharge side of pump.
Not Recommended
Page 12 F00637
Discharge Connection
Installation
Expansion joint with tie
rods where needed.
Use Concentric Reducer
to mimimize friction losses.
This fitting may be used to
check shut-off head.
Isolation
Valve
Support piping
as required
Discharge pipe diameter at
least one nominal pipe size
larger than discharge opening
in pump.
Non-Slam or
spring loaded
check valve.
Isolation valve to
permit servicing of
check valve or pump.
Discharge
Priming
Valve
Align piping to
minimize flange
stress.
Pressure
Gauge
6032 0609
Recommended
• Use pipe, tubing or reinforced hose to make dis-
charge connection. Material selected must have
sufficient strength for operating pressures.
• Discharge pipe should be sized so that flow velocity
is below 8 feet per second.
• Use ONLY non-slamming check valves to prevent
hydraulic shock (water hammer).
• Use gate, ball, or butterfly valve for isolation. Valve
should be full open during operation.
• Maintain proper pipe size throughout discharge
system, using as few elbows and tees as possible to
keep friction loss to a minimum.
• Install pressure gauge after reducer as shown to
check operating pressure or shut-off head.
This view shows discharge
fittings typical of pump with
flooded suction.
This view shows discharge fittings
typical of pump with suction lift.
F00637 Page 13
Discharge Connection
Installation
Do not use Gate Valve
to throttle flow.
Avoid abrupt change
in pipe size.
Avoid undersized
pipe diameter.
Do not force alignment
that can cause flange
stresses.
Do not leave
pipe unsupported.
Avoid check valves
that cause hydraulic
shock.
6033 0609
Not Recommended
• Avoid excess friction loss caused by numerous
fittings, insufficient pipe diameter, and sharp turns in
pipe run.
• Swing type check valves can permit build-up of
reverse velocity before closing causing hydraulic
shock or “water hammer.”
Page 14 F00637
If Electric Motor Is Used
Installation
Protect Your Investment
1301 1094
1
2
3
AMP TIME
4
5
Incoming Power
L1 L2 L3
AUTO
OFF
HAND
START
Minimum recommended components to protect your
pump during operation. Check all local electrical codes
prior to installation.
❶ Contactor
❷ Lightning Arrestor
❸ Loss of Prime Protection
❹ Fuseable Disconnect
❺ Starter
NEMA 3R Enclosure
F00637 Page 15
CHECK ROTATION:
Before pump is put into operation, rotational direction
must be checked to assure proper performance of
pump. Refer to illustration on Page 16.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to pump before
servicing.
Do not attempt any wiring changes without first
disconnecting power to pump.
PRIMING:
Pump priming is the displacement of air with water in
the pump and suction piping. Pump MUST BE
completely filled with water when operating.
Refer to Page 17 for instruction on the following
conditions:
1. Suction lift with priming pump (water source
below pump).
2. Suction lift with foot valve (water source below
pump).
3. Flooded suction (water source above pump, or
incoming water pressure is greater than
atmospheric pressure).
SPECIAL CASE - HYDRAULIC BALANCED PUMPS:
Hydraulic balanced pumps operate with a very low
positive pressure across the stuffing box, permitting a
much looser fit of the packing rings around the shaft
sleeve to control the loss of water from the pump
through the stuffing box. Because of the looser fit of
the packing rings, air can be more easily drawn into the
pump through the stuffing box when priming the pump
with an air evacuation type primer.
A grease fitting, aligned with the lantern ring in the
packing set, is provided to grease-seal the stuffing box
and minimize air leakage during priming.
If pump cannot be primed due to air leakage through
stuffing box, DO NOT tighten packing. Instead, pump
NLGI No. 4 Water Pump Grease into lantern ring until
back pressure occurs forcing grease into the lantern
ring, grease-sealing the stuffing box. After priming,
when unit is put into operation, the grease will be
flushed out through the packing by the water flowing
outward through the stuffing box. Proceed with normal
adjustment of the packing as described on Page 18.
Note that the grease seal only is used for control of air
leaking during priming, and that only the packing gland
is used to control flow of water through the stuffing box
during normal operation.
When necessary to replenish the grease supply use an
NLGI no. 4 Water Pump Grease.
STARTING:
NOTICE: Never run pump dry. Running pump without
water will overheat pump and damage internal parts.
Always make sure pump is primed prior to start-up.
NOTICE: Refer to maintenance section if pump has
packing for adjustment prior to start-up.
Prime pump by one of the above procedures. Set
discharge valve to minimum flow. Turn on power to
pump. Slowly open discharge valve until desired flow
rate is achieved. Place the “Hand-Off-Auto” selector
switch in the “Auto” position. The pump will be started
automatically when the pilot device signals the motor
starter.
STOPPING:
Pump will stop automatically when the pilot device de-
energizes the motor starter. Turn the “Hand-Off-Auto”
selector switch to “Off” position if you want to stop the
pump while it is running. If hydraulic shock occurs, the
check valve closure rate may need adjustment or
additional controls may be needed.
General Information
Start-up
Page 16 F00637

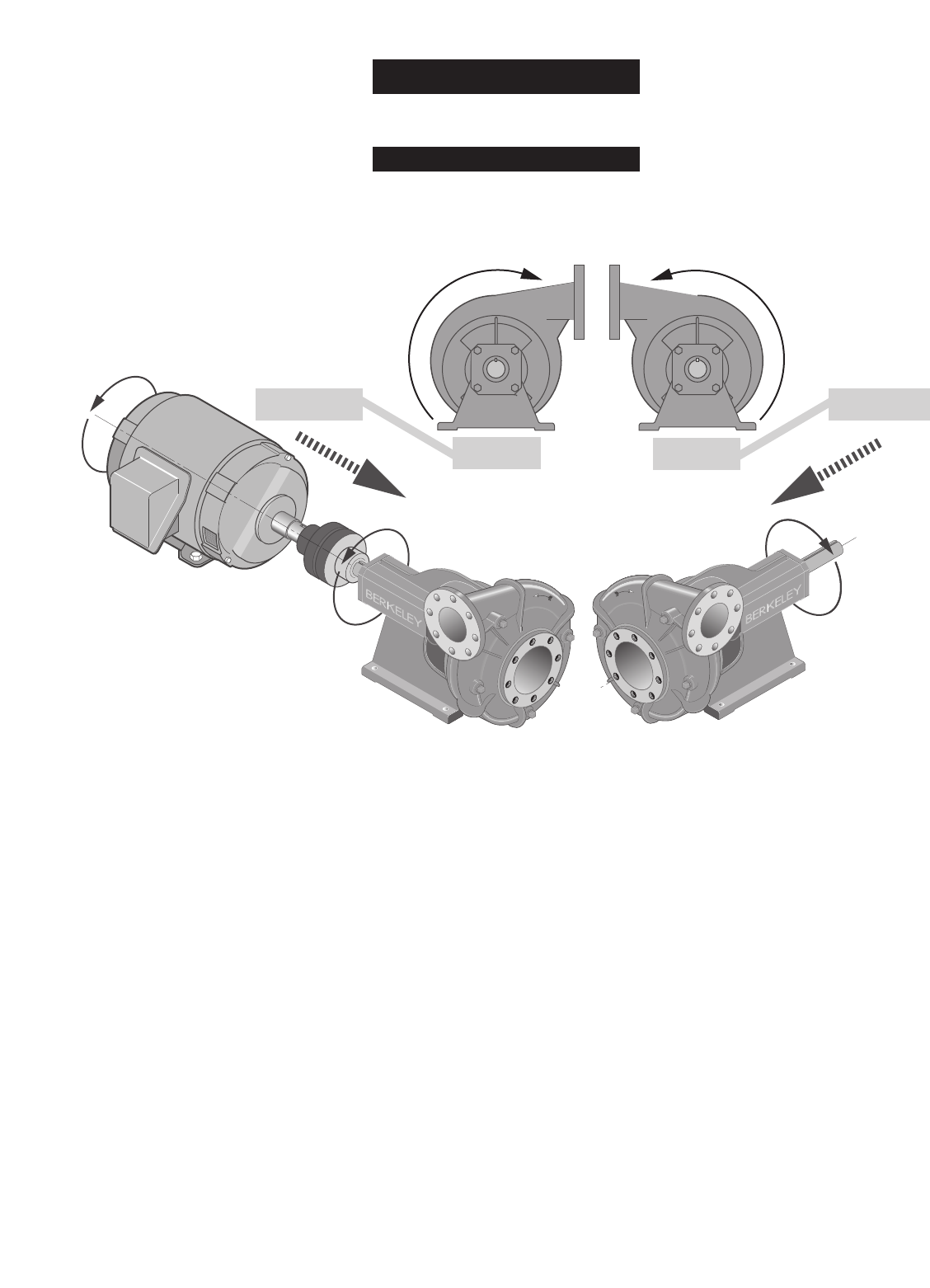

Determine Pump Rotation
Start-up
Viewed from
this direction
Viewed from
this direction
Pump with a
Clockwise
Rotation
Pump with a
Counter-Clockwise
Rotation
C
l
o
c
k
w
i
s
e
r
o
t
a
t
i
o
n
As viewed As viewed
C
o
u
n
t
e
r
-
C
l
o
c
k
w
i
s
e
Engage start switch momentarily
(bump driver) to observe rotational
direction.
12
6
39
12
6
39
6034 0609
• Electric Motors:
Single Phase: Refer to wiring information on the
motor plate to obtain proper rotation.
Three Phase: If pump runs backwards, reverse any
two leads coming off incoming power (L1, L2, L3)
until proper rotation is obtained. Reverse L1 and L2,
or L2 and L3, or L1 and L3.
• Pump running backward - Centrifugal pumps will still
pump liquids, however, GPM and head will be a
fraction of the published performance.
• Engine Driven:
If engine is used for pump driver, check with engine
instruction and operation manual or engine man-
ufacturer to determine how rotation is defined, then
use above illustration for proper connection.
F00637 Page 17
Pump Priming
Start-up
Primer Isolation
Valve
Discharge
Priming
Valve
Hand
Primer
Suction to
Water Source
• Close air tight valve on discharge.
• Remove pipe plug from highest opening on pump
case.
• Completely fill pump and suction piping with water.
• Rotate shaft slowly allowing any air trapped in
impeller to escape.
• When all air has been forced out of pump, replace
pipe plug. Use pipe joint compound on plug threads
and tighten as necessary to prevent leakage.
• Open air vent (or pipe plug) in the highest tapped
opening in pump case.
• Open inlet isolation valve, allowing water to fill the
pump completely and force all air out through vent.
• Rotate shaft slowly allowing any air trapped in
impeller to escape.
• Close vent opening when water without air emerges.
• Close air tight valve.
• Hand primer operation:
1. Open hand primer isolation valve.
2. Work handle of hand primer up and down to
evacuate air from the suction line.
(Refer to primer owner’s manual for proper
procedure).
3. When water flows freely from primer, close hand
primer isolation valve.
(Pump case should now be filled with water).
• Immediately start pump.
• Slowly open discharge valve (if used) until desired
flow is achieved.
(Discharge Priming Valve will open automatically).

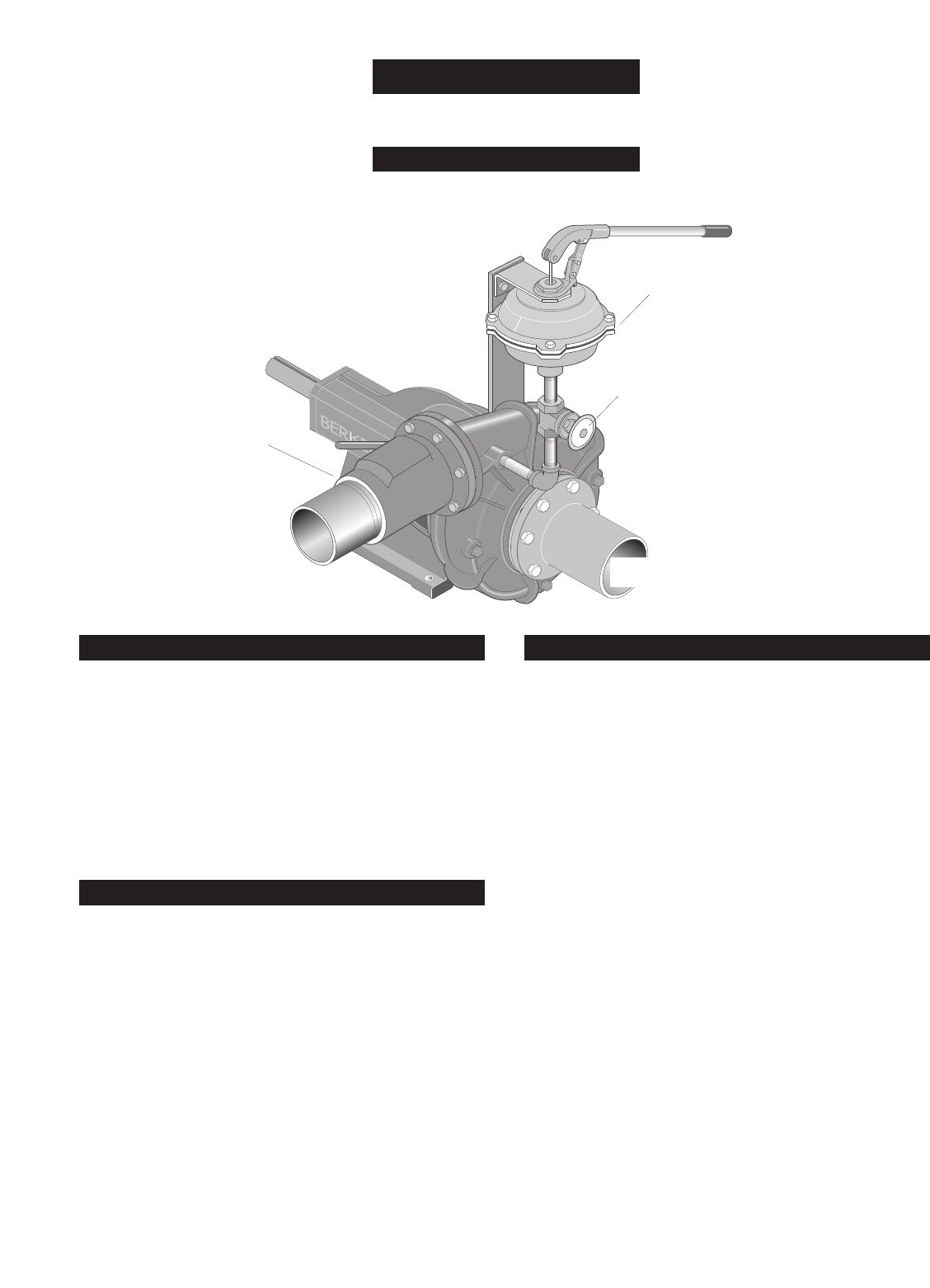

Installations With Suction Lift and Priming Pump.
Installations With Suction Lift and Foot Valve.
Installations With Flooded Suction.
Page 18 F00637
LUBRICATION:
LIQUID END of pump requires no lubrication. Wear
rings, packing rings, and models using a mechanical
shaft seal, are lubricated by the liquid being pumped. Do
not run dry!
BEARING FRAME - add approximately 2 ounces of a
lithium-based NGLI No. 2 extra pressure ball bearing
grease to each bearing during quarterly inspection.
NOTE: Excess grease will cause bearings to run hot.
The following are factory approved brands of grease for
use with Berkeley Pumps: Alvania EP2, Shell Oil;
Mobilith AW2, Mobil Oil, Ronex MP, Exxon, Litholine
EP2, Atlantic Richfield; and Amolith EP2, Amoco.
NOTE: Grease fitting in packing area is for priming only.
See
PRIMING
in start-up section for instruction.
ELECTRIC MOTOR: Refer to motor manufacturer’s
operating manual for complete instruction.
GAS/DIESEL ENGINE: Refer to engine manufacturer’s
operating manual for complete instruction.
PERFORMANCE CHECK:
Periodically check the output of the pump. If perform-
ance is noticeably reduced, refer to Troubleshooting
Chart.
OBSERVATIONAL MAINTENANCE:
When the pump and system operation have been
stabilized, verify that pump unit is operating properly.
Observe the following:
VIBRATION: All rotating machines can be expected to
produce some vibration, however, excessive vibration
can reduce the life of the unit. If the vibration seems
excessive, discontinue operation, determine cause of
the excessive vibration, and correct.
NOISE: When the unit is operating under load, listen
closely for unusual sounds that might indicate that the
unit is in distress. Determine the cause and correct.
OPERATING TEMPERATURE: During operation, heat
is dissipated from the pump and the driver. After a
short period of time, the surface of the pump bracket
will be quite warm (as high as 150°F), which is normal.
If the surface temperature of the pump bracket or
driver is excessive, discontinue operation, determine
cause of the excessive temperature rise, and correct.
Bearings will run hotter for a brief run-in period after
packing which is normal. However, worn bearings will
cause excessive temperatures and need to be
replaced. The pump unit is cooled by the water flowing
through it, and will normally be at the temperature of
the water being pumped.
STUFFING BOX: After a short period of operation,
verify that the stuffing box area and gland are not hot.
If heating is detected, loosen the gland nuts evenly
until water is just running out of stuffing box in a
DROPLET
form (approximately 40-60 drops per
minute). Water must not be streaming or spraying out.
Verify cool operation periodically. Adjust gland nuts
EVENLY
as necessary for lubrication and cooling of
the packing. If packing has been tightened to the limit
of the packing gland travel, additional packing is
necessary.
PACKING:
Starting new pump.
Before starting pump for the first time, loosen gland nuts
and retighten finger tight. Proceed with pump start-up
procedure. Allow packing to leak liberally for a few
moments. Then tighten gland nuts one complete turn
each until leakage is reduced to 40 to 60 drops per
minute.
REPACKING:
Refer to illustrations on Page 19.
MECHANICAL SEAL:
Adjustment or maintenance is normally not required.
The seal is enclosed within the pump and is self
adjusting. Seal is cooled and lubricated by the liquid
being pumped. Consult factory for proper replacement
procedure.
PUMP PROTECTION-
COLD WEATHER/
WET WEATHER INSTALLATIONS:
SYSTEM DRAINS: Provide drain valves to empty
system, including pump case, to prevent freezing
damage.
SHELTER: If possible, provide shelter for unit to protect
from weather. Allow adequate space around pump unit
for service. When effectively sheltered, a small amount
of heat will keep temperature above freezing. Provide
adequate ventilation for unit when running. For severe
weather problems, where other shelter is not practical, a
totally enclosed fan-cooled enclosure can be considered
for electric motors.
CONDENSATION: When the temperature of metal parts
is below dew point and the surrounding air is moist,
water will condense on the metal surfaces and can
cause corrosion damage. In severe situations, a space
heater can be considered to warm the unit.
General Information
Maintenance
F00637 Page 19

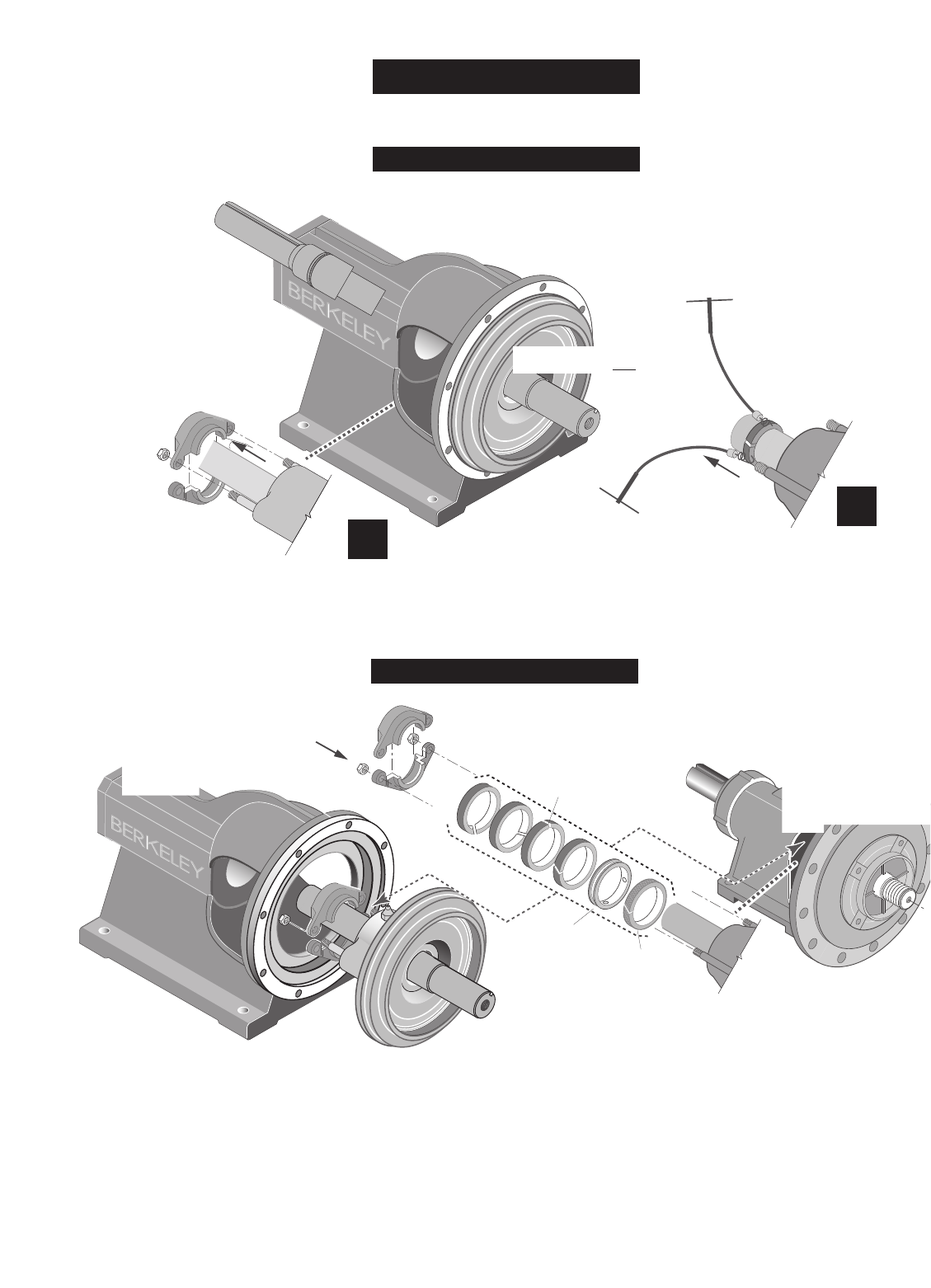

Packing Ring Replacement
Maintenance
Removal
Packing
Gland
Packing
Hooks Packing
Ring
Shaft
Shaft
6036 0609
Pump liquid end removed
for pictorial clarity only.
12
0
H 806
Packing
Gland
Shaft
Pump liquid end and packing
insert removed for pictorial
clarity only. Remove packing
gland and packing rings through
frame cutout.
Metallic
Ring
Lantern Ring
(stays on shaft)
Stagger ring
joints 90 degrees
apart.
Packing
Rings
Typical Packing
Arrangement
Pump liquid end removed
for pictorial clarity only.
Remove packing gland and
packing rings through frame
cutout.
6037 0609
Installing New Rings
• Clean shaft sleeve and packing gland.
• Inspect shaft sleeve for wear, replace if needed.
• Install new packing rings in stuffing box by placing over
shaft sleeve and pushing them in as far as they will go.
• Rotate ring joint 90 degrees when installing each ring as
shown.
• Slide packing gland into position (gland must enter stuffing
box bore) then gently and evenly tighten nuts to force rings
into place and seat (do not over tighten). Loosen nuts again
to hand tight.
• Start primed pump and allow packing to leak liberally.
• While pump is running, evenly tighten gland nuts one
complete turn at a time until leakage is reduced to droplet
form (40 to 60 drops per minute).
• Unfasten hardware holding packing gland in place and slide
back on shaft to expose packing rings. A split packing gland
with threaded studs is shown.
• Remove packing rings from stuffing box using two com-
mercially available packing hooks as shown.
• Slide lantern ring (if used) back to expose any remaining
rings, including metallic. Remove them in the same manner.
See Page 21 for Seal Replacement.
Page 20 F00637
Impeller Replacement
Maintenance
H
H 806
Clockwise Rotation
Volutes shown.
6038 0609

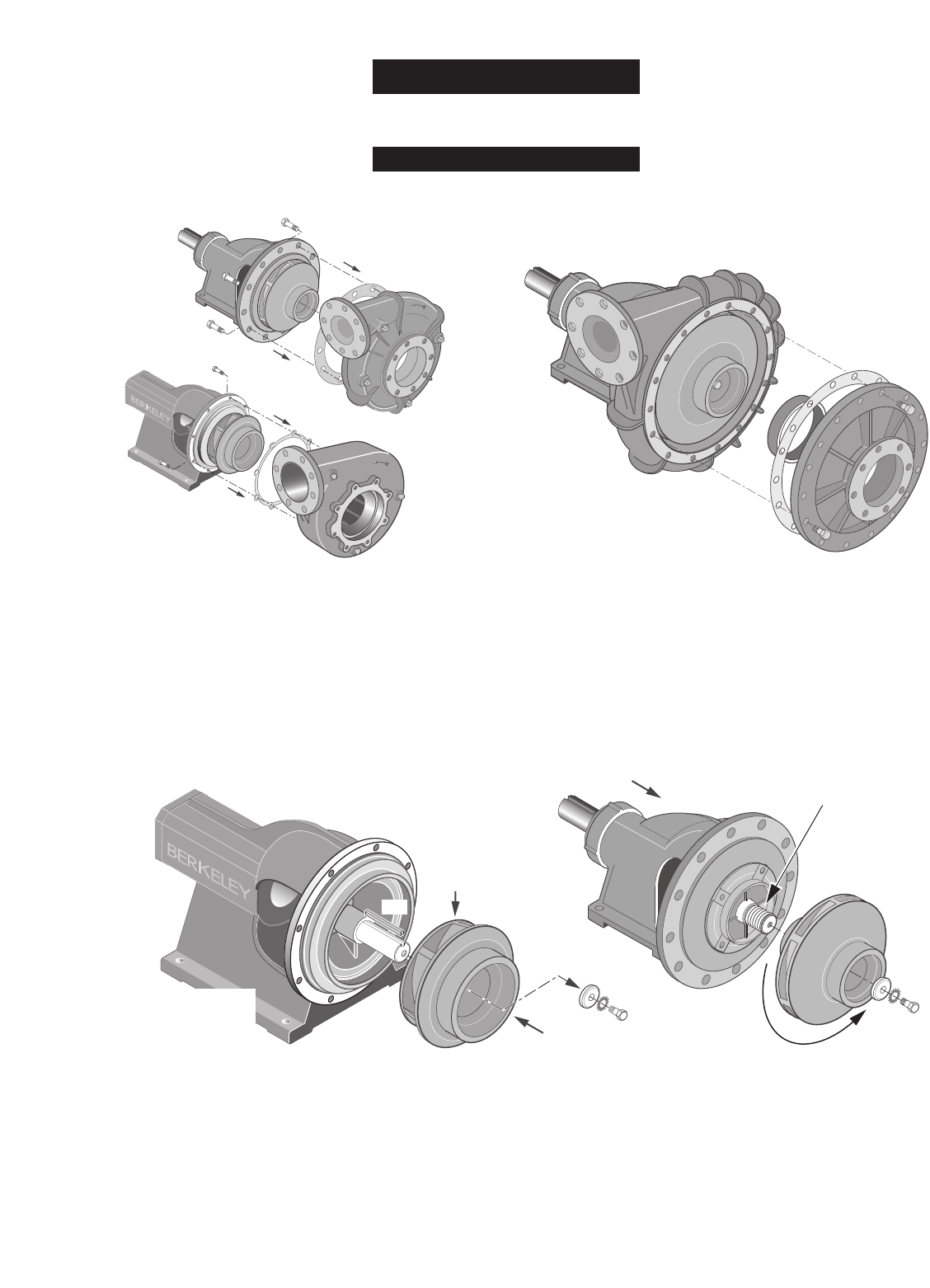

1. Remove the volute and the old gasket(s) and O-Ring(s).
Discard the gaskets and O-rings.
• Check the clearance between the impeller hub and the
volute wear ring. If it is more than .020” on a side,
replace the wear ring.
NOTE: Certain models, such as the B4EY, have a suction
cover which is removed first to gain access to the impeller.
On these models, remove the access cover, then remove
the impeller (see below), and then remove the seal from
the volute.
2. Remove the impeller:
A. Pull keyed impellers off the shaft with a standard gear
puller against the end of the shaft and pulling on the
impeller.
NOTE: Place the puller’s fingers against the back of the
vanes in the impeller. Pulling on the impeller’s unsupported
front or back shroud could easily break the impeller. Never
pull on the supported front or back shroud.
B. Unscrew threaded impellers.
NOTE: Pumps with clockwise rotation as viewed from the
shaft (engine) end have a right-hand threaded impeller.
Pumps with counterclockwise rotation as viewed from the
shaft (engine) end have a left-hand threaded impeller. The
impeller cap screw is always right-hand thread.
80
H 8
4098 1101
H 6
H 806
R
E
M
O
V
E
Clockwise rotation as viewed
from shaft end.
Right Hand Thread
Hold pump shaft
stationary, being
careful not to
damage shaft.
Impeller will be
extremely tight
on shaft.
Key
Gear Puller
Fingers behind
Impeller Vanes
Gear Puller
Jackscrew
Note:
A hexnut placed between the
j
ackscrew and shaft end will
prevent damage to the shaft
and impeller screw threads. 6039 0609
F00637 Page 21
Shaft Maintenance/Replacement
Maintenance
3. If your pump has a bolted in balance ring, remove it; if it
has a pressed in balance ring, leave it in place unless
there isn’t room to get the seal out past it. If it doesn’t
have a balance ring, go to Step 4.
• Check the clearance between the balance ring and
the impeller hub. If it is more than .020” on a side,
replace the balance ring.
4. Remove the seal retaining ring and pull the rotating part
of the seal off the shaft.
Model B4EYRMBM(S) and similar pumps: See the special
section on this page. Others: go to Step 5.
5. Z Series: Pull the seal plate out until it clears the shaft,
bringing the stationary part of the seal out with it. Tap the
seal out of the seal plate and clean the seal cavity.
Other Pumps: Pull the stationary part of the seal out of
the cavity and clean the cavity.
6. Install the new stationary seal in the seal cavity.
• Apply a small amount of mineral oil to the O-Ring or
cup seat of the stationary seal.
• Use the cardboard washer (supplied) and a piece of
pipe as a press; press the stationary seal into place.
• Do not damage the seal face!
7. Reinstall the seal plate (if used) now.
• Cover all shaft threads with tape to protect the seal
during installation.
• Apply a small amount of mineral oil to the inside
diameter of the rubber ring in the rotating seal and to
the outside of the shaft sleeve.
• Slide the seal plate over the shaft now, taking care to
avoid damage to the stationary part of the shaft seal
as it goes over the shaft shoulder.
8. After lubricating the rotating part of the seal, slide it onto
the shaft and sleeve until it seats against the stationary
(ceramic) part.
9. Compress the seal spring on the shaft sleeve and
reinstall the seal retaining ring (if used).
10. Reinstall the balance ring (if used).
11. Slide or thread the impeller onto the shaft until it seats
solidly against the shaft shoulder, then install a new
impeller screw with its associated hardware.
12. Replace the volute. Use new gasket(s) and O-Ring(s).

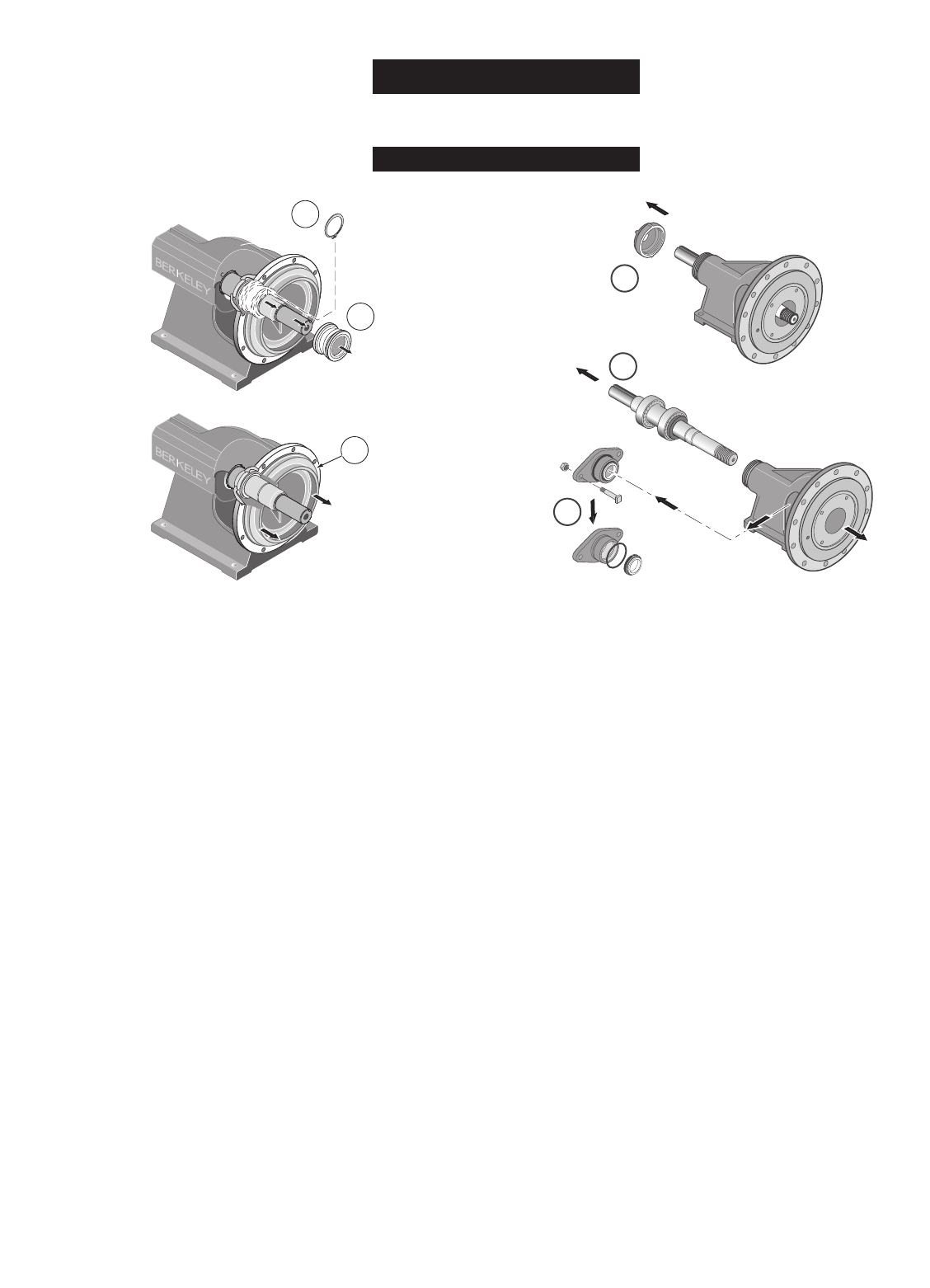

B4EYRMBM(S) and similar pumps (See Picture Above):
After STEP 4, you will need to:
A. Remove the outer bearing cap and slide the shaft
assembly back out of the bracket.
B. Remove the seal retainer and tap out the stationary seal.
C. Clean the seal retainer and shaft (don’t scratch the
shaft!).
D. Apply a small amount of mineral oil to the O-Ring or cup
seat of the stationary seal, to the inside diameter of the
rubber ring in the rotating seal, and to the outside of the
shaft sleeve.
E. Use the cardboard washer (supplied) and a piece of pipe
to press the stationary seal into place.
F. Inspect the oil seal and replace it if necessary.
G. Repack the bearings and reinstall the shaft in the bracket.
NOTE: When the end of the shaft comes through the
front bearing bore in the bracket, slip the slinger and seal
retainer over the end of the shaft. BE SURE you don’t
damage the seal face on the shaft shoulder!
H. Reinstall the outer bearing cap with a new gasket and
proceed to STEP 7 (“Reinstall the shaft sleeve....”)
1
2
6040 0609
3
Remove seal
plate
A
B
C
B4EY Series
Seal Change
Sequence
• Remove volute to expose impeller.
• Peel off old volute gasket (or O-Ring) and discard.
NOTE: Certain models such as the B4EY, are constructed
with a suction cover which is removed first to access impeller.
GENERAL
• Shaft assembly of bearing frame pumps should be
periodically (annually minimum) torn down for inspection of
worn parts, cleaning, and re-greasing. Most importantly, to
check shaft sleeve and bearings for pitting. Replace worn
components as necessary. Parts may be ordered sepa-
rately as required, or for some models, shaft kits are
available that are completely assembled and ready for
installation.
PUMP DISASSEMBLY
• Remove packing gland and packing arrangement as
described in Page 19.
• Remove pump volute and impeller as described on Pages
20 and 21.
• Remove outer bearing cap and slide shaft assembly from
bearing bracket.
• Clean and inspect all components.

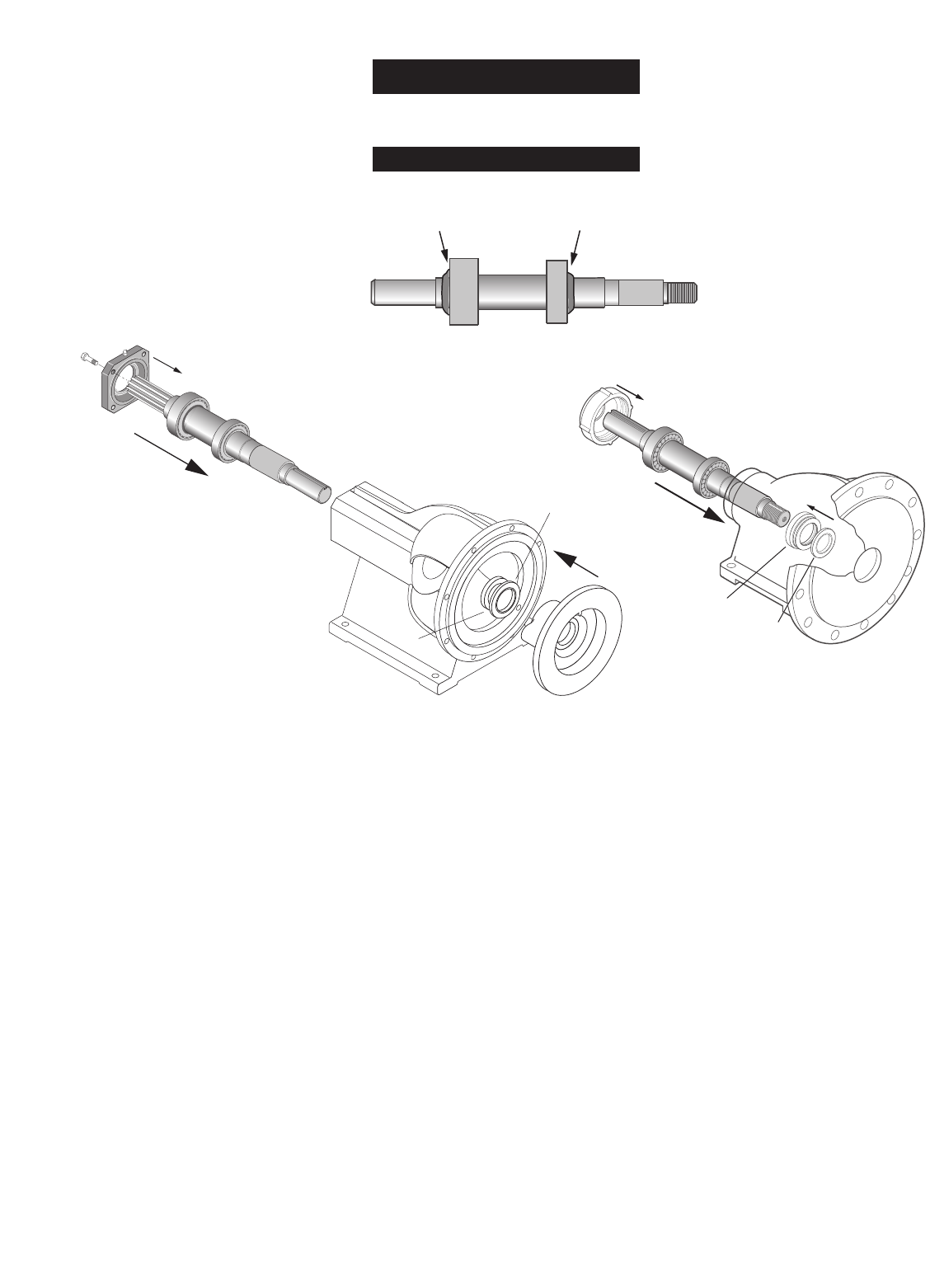

SHAFT INSTALLATION
• Thoroughly steam clean or solvent wash the bearing cavity
of bracket to remove old grease and dirt. Check surface of
bracket for cracks, extreme corrosion, or other defects.
• Pack bearings with a lithium-based NLGI No. 2 extra
pressure ball bearing grease. Force enough grease into
each bearing to fill internal space between the races.
• Coat the bearing bores of bracket with oil. Orient shaft
assembly in the direction shown above. Slide shaft and
bearing assembly into bearing bracket.
Do not force them!
When end of pump shaft comes through inside opening of
bearing cavity, place oil seal, water slinger, and lantern ring
over end of shaft. If packing gland or seal retainer is not of
the split variety, place it over the shaft at this time as well.
Slide shaft on through stuffing box until the first bearing
makes contact with the bracket. Carefully align bearing with
the bearing bore and press or tap bearing assembly into
place. Do not use excessive force.
NOTE: Be sure bearing bores and bracket area are clean and
free of contamination or early bearing failure may occur.
• Reinstall outer bearing cap and oil seal.
• Rotate pump by hand, 10-12 rotations.
• Reassemble pump parts and reinstall unit to piping system.
Refer to
Installation
section in this manual for correct
procedure.
Page 22 F00637
Shaft Maintenance/Replacement
Maintenance
Outer Bearing Cap
with Grease Seal
Water
Slinger
Oil Seal
Make sure bearings are clean;
pack with grease as shown.
Slinger
Bearing Frame
(Bracket)
Inner
Bearing
Cap
Outer
Bearing
Cap
6041 0609
Procedure and parts may vary
slightly depending on pump model.
ROUTINE MAINTENANCE
A well maintained pumping system will extend the life of
the unit and will require fewer repairs. This means less
down time which can be very critical when a constant
delivery of water is required.
A routine maintenance and inspection schedule should
be set up on a weekly, quarterly, and annual basis with
records kept of these actions. For weekly checks see
observational maintenance on Page 18. For quarterly
and annual maintenance, refer to check list on the
following page. Copy page as necessary for continual
usage.
RECOMMENDED SPARE PARTS
It is recommended that the following spare parts be kept
on-site as a minimum back-up to service your pump and
reduce down-time. Check your model/style against parts

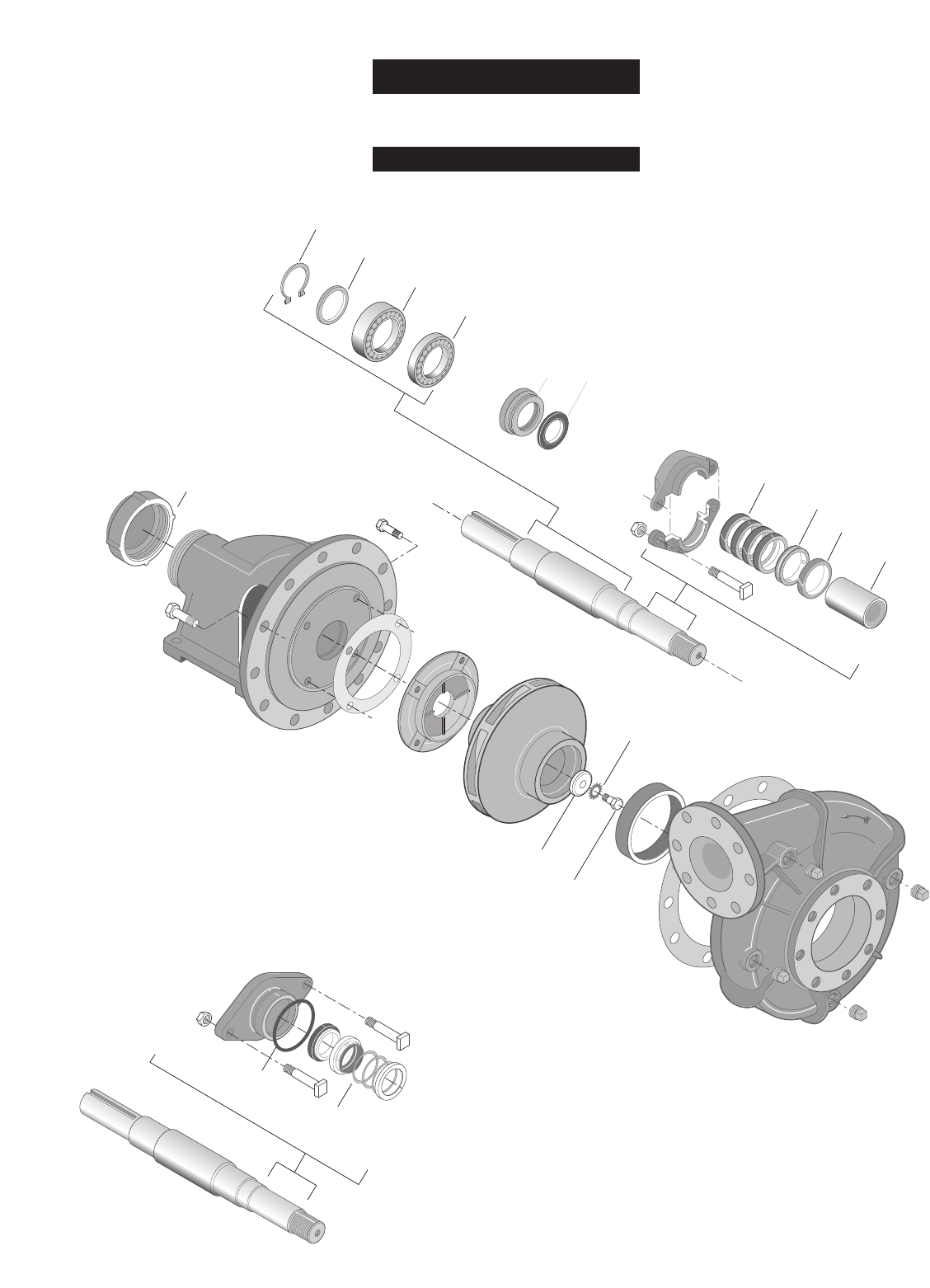

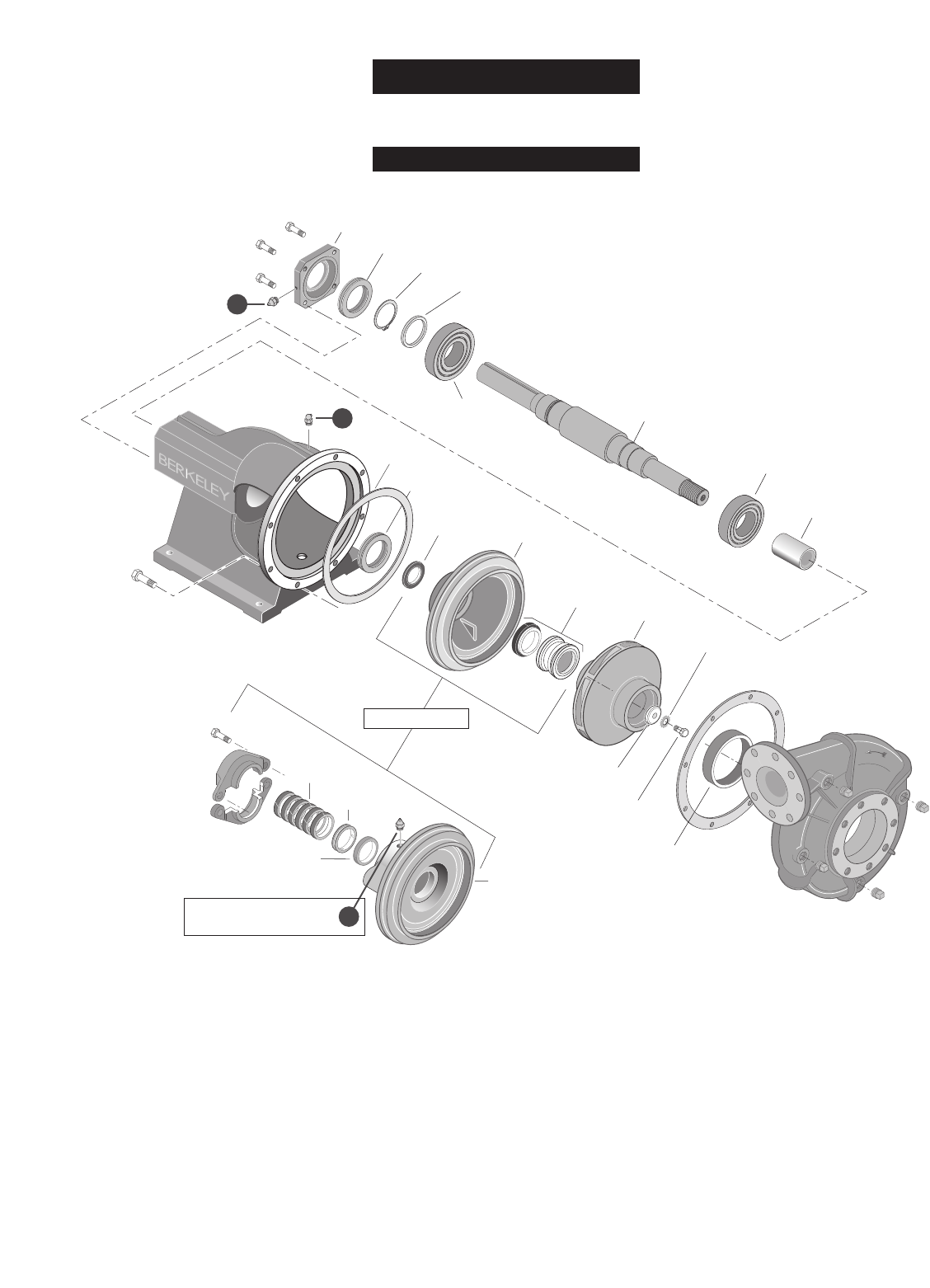

breakdown drawing on Page 25 when selecting spares.
• Mechanical Shaft Seal
• Packing Set and Packing Hooks
• Shaft Sleeve(s)
• All Gaskets and O-Rings Required for One Pump
• Impeller Wear Ring
• Retaining Rings
If having a pump non-operational has severe con-
sequences, a back-up pump should be considered.
Otherwise, a back-up impeller, volute case, bearings
and shaft, would be prudent.
WINTERIZING
If pump is to be out of service for an extended period of
time, such as the winter months, the following storage
procedures should be followed.
• Remove exterior dirt and grime or any substance that
may trap moisture. Exposed metal is subject to
oxidation, prime and repaint if necessary. If this is not
possible, coat with grease or heavy oil.
• Flush suction and discharge lines. Check for leaks at
this time and replace any worn gaskets.
• Remove lowest plug in pump and drain pump casing
and suction and discharge lines.
• Lubricate bearings.
• If possible, keep unit clean and dry during storage
period to guard against corrosion.
• Seal all open ports to keep out foreign objects such
as insects, rodents, dust and dirt.
• Rotate driver shaft periodically to prevent freeze-up of
internal components.
• Shelter unit from elements if possible.
• Work oil into impeller wear ring by dripping oil into the
gap while rotating by hand.
SPRING START-UP
• Inject sufficient grease into the bearings to displace
old grease.
• Visual inspection.
• Rotate by hand, if any binding occurs, disassemble
and inspect.
F00637 Page 23
General Pump Care
Maintenance
Page 24 F00637
I. QUARTERLY INSPECTION
Inspect all system piping connections for leakage
or possible misalignment.
Check pump foundation for soundness and see
that all hold-down bolts are secure.
Complete any lubrication requirements as dictated
by pump and driver owner’s manual.
Inspect packing or mechanical seal for possible
replacement. Examine shaft sleeve, if present, for
wear and replace if necessary.
Inspect pumping plant panel for signs of wear (ie:
replace pitted contactors, etc., as needed).
Check pump and motor bearings from signs of
wear. Repack or replace as necessary.
Check alignment of couplings and/or pulleys and
belt tension if applicable.
________________________________________
II. QUARTERLY INSPECTION
Inspect all system piping connections for leakage
or possible misalignment.
Check pump foundation for soundness and see
that all hold-down bolts are secure.
Complete any lubrication requirements as dictated
by pump and driver owner’s manual.
Inspect packing or mechanical seal for possible
replacement. Examine shaft sleeve, if present, for
wear and replace if necessary.
Inspect pumping plant panel for signs of wear (ie:
replace pitted contactors, etc., as needed).
Check pump and motor bearings from signs of
wear. Repack or replace as necessary.
Check alignment of couplings and/or pulleys and
belt tension if applicable.
________________________________________
NOTES:
III. QUARTERLY INSPECTION
Inspect all system piping connections for leakage
or possible misalignment.
Check pump foundation for soundness and see
that all hold-down bolts are secure.
Complete any lubrication requirements as dictated
by pump and driver owner’s manual.
Inspect packing or mechanical seal for possible
replacement. Examine shaft sleeve, if present, for
wear and replace if necessary.
Inspect pumping plant panel for signs of wear (ie:
replace pitted contactors, etc., as needed).
Check pump and motor bearings from signs of
wear. Repack or replace as necessary.
Check alignment of couplings and/or pulleys and
belt tension if applicable.
________________________________________
IV. QUARTERLY INSPECTION
Inspect all system piping connections for leakage
or possible misalignment.
Check pump foundation for soundness and see
that all hold-down bolts are secure.
Complete any lubrication requirements as dictated
by pump and driver owner’s manual.
Inspect packing or mechanical seal for possible
replacement. Examine shaft sleeve, if present, for
wear and replace if necessary.
Inspect pumping plant panel for signs of wear (ie:
replace pitted contactors, etc., as needed).
Check pump and motor bearings from signs of
wear. Repack or replace as necessary.
Check alignment of couplings and/or pulleys and
belt tension if applicable.
________________________________________
ANNUAL INSPECTION
Inspect pump and entire pumping system for signs
of wear.
Inspect system valves, screens, etc.
If electric motor is used, check windings for degred-
ation, rewind if necessary.
Check pump impeller eye for clearance.
Inspect impeller, volute case, and seal chamber for
signs of excessive wear or corrosion.
Routine Inspection
Maintenance
Record
F00637 Page 25
General Information
Pump Nomenclature
MODEL S.N. OR DATE
IMPELLER DIA.
BERKELEY PUMPS
B.M.
788 0394
MODEL S.N. OR DATE
IMPELLER DIA.
BERKELEY PUMPS
B.M.
344 1093
Record your nameplate data here.
ORDERING REPLACEMENT PARTS:
Locate the Berkeley nameplate on the pump, plate is
normally on the bearing bracket. Information found on
this plate is shown below. To be sure of receiving correct
parts, provide all nameplate data when ordering. The
BM (Bill of Material) number is most important. Write
your nameplate information on the blank nameplate
below for future reference as nameplates can become
worn or lost.
Illustration on the following page show typical com-
ponents used in the assembly of bearing frame mounted
centrifugal pumps. Refer to this drawing when ordering
any replacement parts.
SAMPLE ONLY
B3ZRM
9.00”
G123094
B66161
Page 26 F00637
Parts Breakdown
Bearing Frame Mount
Pump Nomenclature
Packing
Gland
Pump
Shaft
Volute
Case
Volute
Gasket
Wear
Ring
Impeller
Capscrew
Mechanical
Seal
Shakeproof
Lockwasher
Bearing Frame
(Bracket)
Impeller
Slinger
Grease
Seal
Bearing
Cap
Impeller
Washer
Retaining
Ring Thrust
Ring
Shaft
Sleeve
Lantern
Ring
Metallic
Ring
Packing
Rings
Sealed
Bearing
Sealed
Bearing
Seal
Plate
Packing
Housing
Grease
Seal
L
L
Use only water soluble
grease in this fitting.
L
Gasket
Interchangeable
• Drawing is representative of a typical bearing frame
pump, parts on some models may vary slightly.
• Frame mount pumps equipped with a mechanical
seal use the same standard components as the
packing style except as shown in supplemental view.
F00637 Page 27
Bearing Frame Mount
Pump Nomenclature
Parts Breakdown
0
H 806
T
r
a
r
Balance
Ring
Balance
Ring
Gasket
Packing
Gland
Pump
Shaft
Volute
Case
Volute
Gasket
Wear
Ring
Impeller
Capscrew
Seal Retainer
O-Ring
or Gasket
Mechanical
Seal
Shakeproof
Lockwasher
Bracket
(Bearing Frame)
Impeller
Slinger
Inner
Bearing
Cap
Outer
Bearing
Cap
Impeller
Washer
Pump
Shaft
Single row
Bearing
Double row
Bearing
Retaining
Ring Thrust
Ring
772 0394
Shaft
Sleeve
Lantern
Ring Metallic
Ring
Packing
Rings
• Drawing is representative of a typical bearing frame
pump, parts on some models may vary slightly.
• Frame mount pumps equipped with a mechanical
seal use the same standard components as the
packing style except as shown in supplemental view.
Page 28 F00637
Troubleshooting
Maintenance
Electrical Drive Pumps
CAUSE CORRECTIVE ACTION
I. ELECTRICAL
A. No voltage in power system Check phase-to-phase on line side of starter contactor.
Check circuit breaker or fuses.
B. No voltage on one phase Check phase voltage on line side of starter contactor. Isolate open circuit
(Three Phase Units) (circuit breaker, fuse, broken connections, etc.)
C. Low voltage at motor Running voltage across each leg of motor must be ±10% of nominal
voltage shown on nameplate.
D. Motor leads improperly grouped Refer to lead grouping diagram on motor nameplate.
for voltage
E. Control failure Check control device, starter contactor, H-O-A selector switch, etc.,
for malfunction.
F. Thermal overload switch open Check phase-to-phase on line side of starter contactor.
G. Installation failure Check motor or windings to ground with megohmmeter.
H. Open windings Check leg-to-leg with ohmmeter.
I. Frequency variation Check frequency of power system. Must be less than 5% variation from
motor nameplate rating.
II. MECHANICAL
A. Flow through pump completely or Locate and remove obstruction. Refer to Repair Instructions
partially obstructed for disassembly.
B. Wrong direction of rotation Reverse rotation of three phase motor by interchanging any two leads.
See manufacturer’s Instructions for reversing single phase motor.
C. Pump not primed Reprime. Inspect suction system for air leaks.
D. Internal leakage Check impeller for wear of controlled clearances (See Repair Instructions).
E. Loose parts Inspect. Repair.
F. Stuffing box not properly adjusted Adjust gland.
III. SYSTEM
A. Pressure required by system at design Compare pump pressure and flow rate against pump characteristic curve.
flow rate exceeds pressure rating of pump Check for closed or partially closed valve in discharge piping system.
Reduce system pressure requirement. Increase pressure capability of pump.
B. Obstruction in suction piping Locate and remove obstruction.
C. Pressure rating of pump exceeds pressure Compare pump pressure and flow rate against pump characteristic curve.
requirement of system at design flow rate Inspect discharge piping system for breaks, leaks, open by-pass valves, etc.
If necessary, reduce flow rate by partially closing discharge valve.
PROBABLE CAUSE
SYMPTOM GROUP I GROUP II GROUP III
ELECTRICAL MECHANICAL SYSTEM
ABC DE FGH I ABCDEFABC
Pump runs, but no water delivered X X X X
Not enough water delivered X X X X X X X X
Not enough pressure X X X X X X X X
Excessive vibration X X X X X X
Abnormal noise XXX XX XX
Pump stops X X X X X X X X
Overheating X X X X X X X X X
F00637 Page 29
Troubleshooting
Maintenance
Engine Drive Pumps
CAUSE CORRECTIVE ACTION
I. ENGINE
A. Speed too low Refer to engine manufacturer’s manual.
B. Rotating and/or Refer to engine manufacturer’s manual.
reciprocating parts drag
C. Speed too high Refer to pump and engine power curves. Adjust.
D. Loose or broken parts Refer to engine manufacturer’s manual.
E. Improper adjustment Check fuel and ignition systems. Adjust per engine manufacturer’s manual.
F. Fuel supply Check fuel supply, fuel pump, filters, etc.
II. MECHANICAL
A. Flow through pump completely or Locate and remove obstruction. Refer to Repair Instructions
partially obstructed for disassembly.
B. Wrong direction of rotation Reverse rotation of three phase motor by interchanging any two leads.
See manufacturer’s Instructions for reversing single phase motor.
C. Pump not primed Reprime. Inspect suction system for air leaks.
D. Internal leakage Check impeller for wear of controlled clearances (See Repair Instructions).
E. Loose parts Inspect. Repair.
F. Stuffing box not properly adjusted Adjust gland.
III. SYSTEM
A. Pressure required by system at design Compare pump pressure and flow rate against pump characteristic curve.
flow rate exceeds pressure rating of pump Check for closed or partially closed valve in discharge piping system.
Reduce system pressure requirement. Increase pressure capability of pump.
B. Obstruction in suction piping Locate and remove obstruction.
C. Pressure rating of pump exceeds pressure Compare pump pressure and flow rate against pump characteristic curve.
requirement of system at design flow rate Inspect discharge piping system for breaks, leaks, open by-pass valves, etc.
If necessary, reduce flow rate by partially closing discharge valve.
PROBABLE CAUSE
SYMPTOM GROUP I GROUP II GROUP III
ENGINE MECHANICAL SYSTEM
ABC DE FABCDEFABC
Pump runs, but no water delivered X X X X X
Not enough water delivered X X X X X X X
Not enough pressure X X X X X X X
Excessive vibration X X X X X X X X
Abnormal noise X X X X X X X X X X
Pump stops X X X X
Overheating X X X X X X X X X
Page 30 F00637
Warranty
Berkeley
LIMITED WARRANTY
BERKELEY warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below,
that they will be free from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems:
Water Systems Products — jet pumps,
whichever occurs first:
small centrifugal pumps, submersible pumps 12 months from date of original installation, or
and related accessories 18 months from date of manufacture
Pro-SourceTM Composite Tanks 5 years from date of original installation
Pro-SourceTM Steel Pressure Tanks 5 years from date of original installation
Pro-SourceTM Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Agricultural/Commercial:
Centrifugals – close-coupled motor drive, frame 12 months from date of original installation, or
mount, SAE mount, engine drive, VMS, SSCX, 24 months from date of manufacture
SSHM
Submersible Turbines, 6” diameter and larger 12 months from date of original installation, or
24 months from date of manufacture
Our limited warranty will not apply to any product that, in our sole judgement, has been subject to negligence,
misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a
three phase motor with single phase power through a phase converter will void the warranty. Note also that
three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of
the recommended size or the warranty is void.
Your only remedy, and BERKELEY’s only duty, is that BERKELEY repair or replace defective products (at
BERKELEY’s choice). You must pay all labor and shipping charges associated with this warranty and must
request warranty service through the installing dealer as soon as a problem is discovered. No request for
service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.
BERKELEY SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT
DAMAGES WHATSOEVER.
THE FOREGOING LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES
SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty
gives You specific legal rights and You may also have other rights which vary from state to state.
This warranty supersedes and replaces all previous warranty publications.
In the U.S.: BERKELEY, 293 Wright St., Delavan, WI 53115
In Canada: 269 Trillium Dr., Kitchener, Ontario N2G 4W5
F00637 Page 31

Navigation menu
