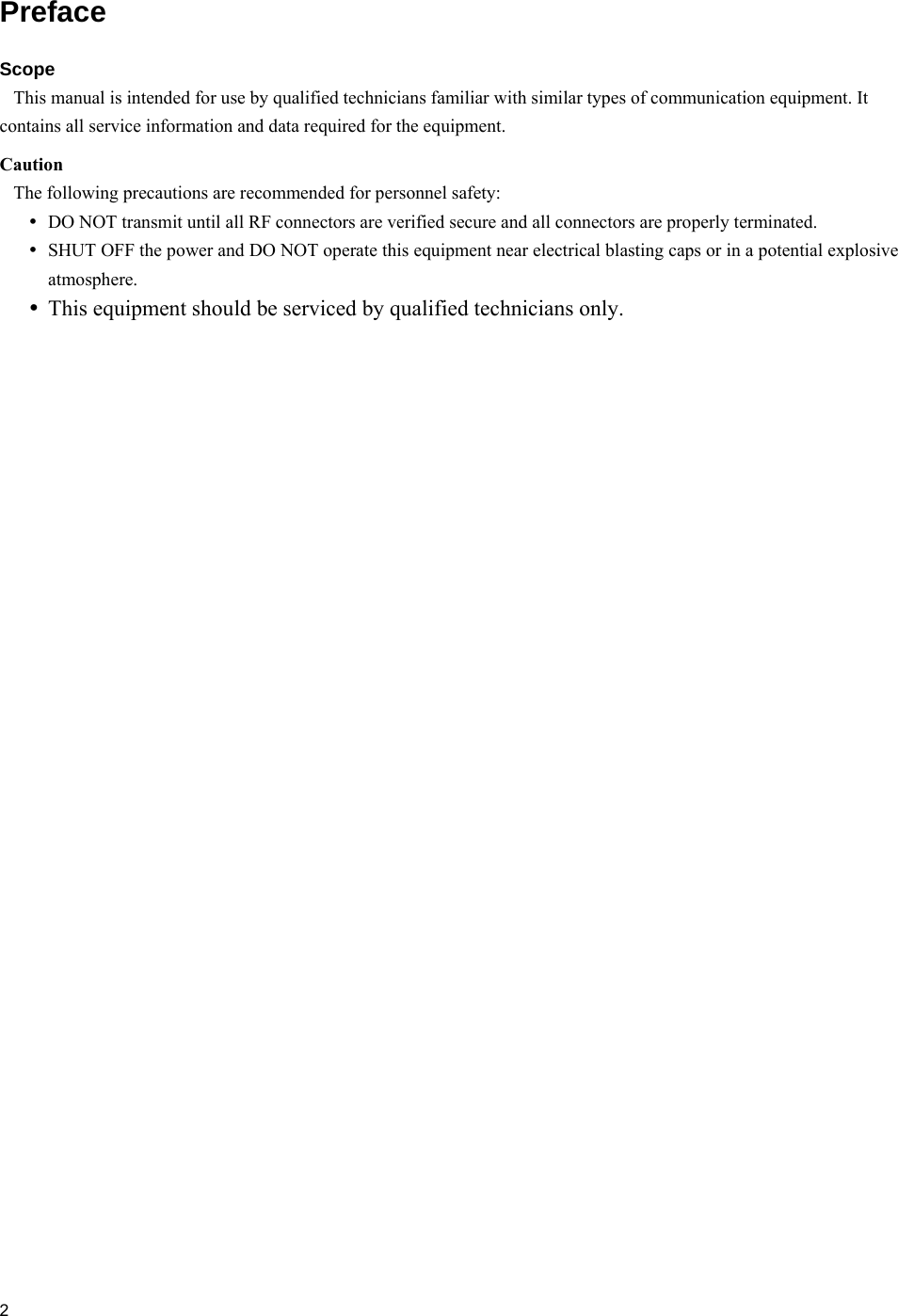

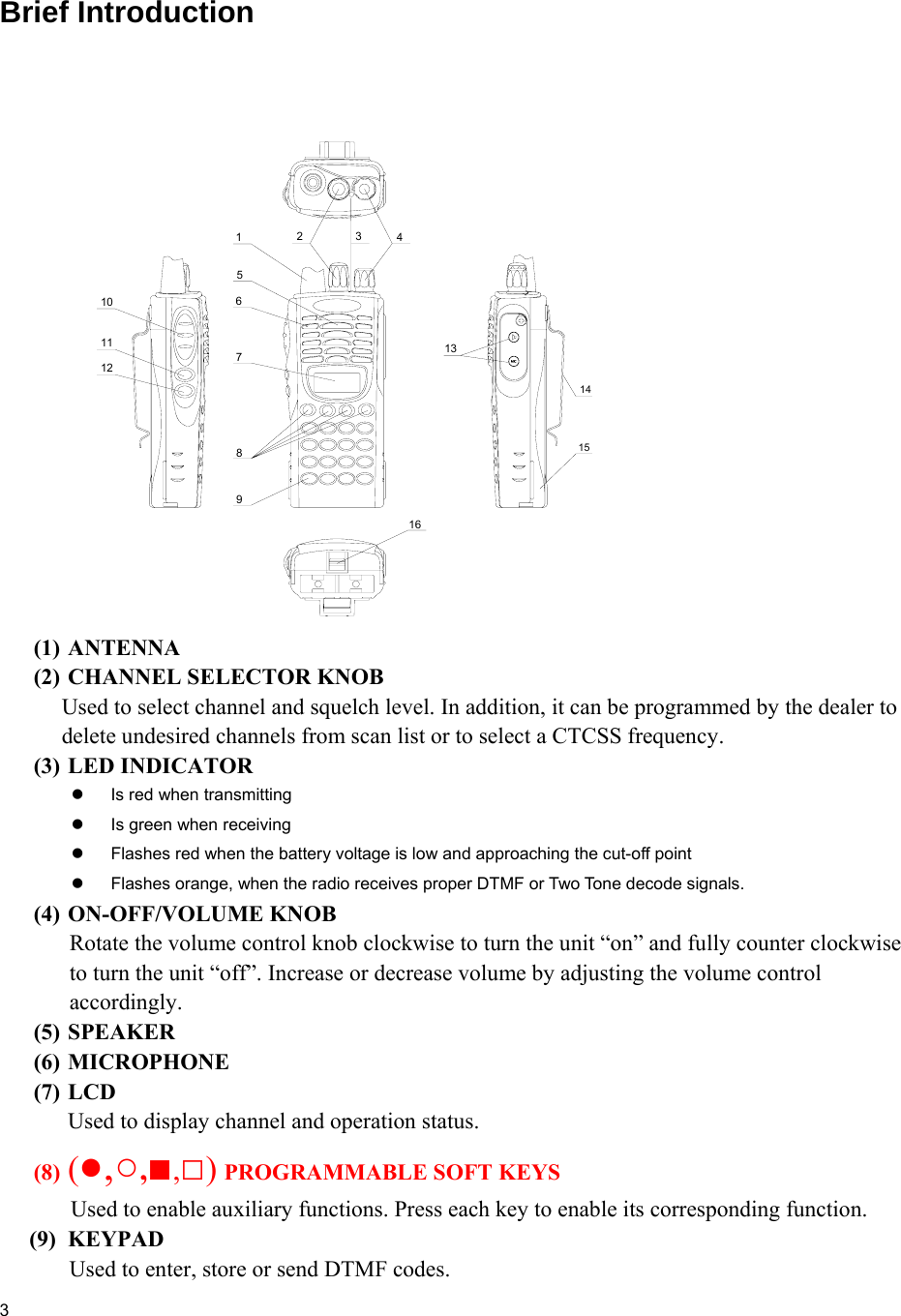

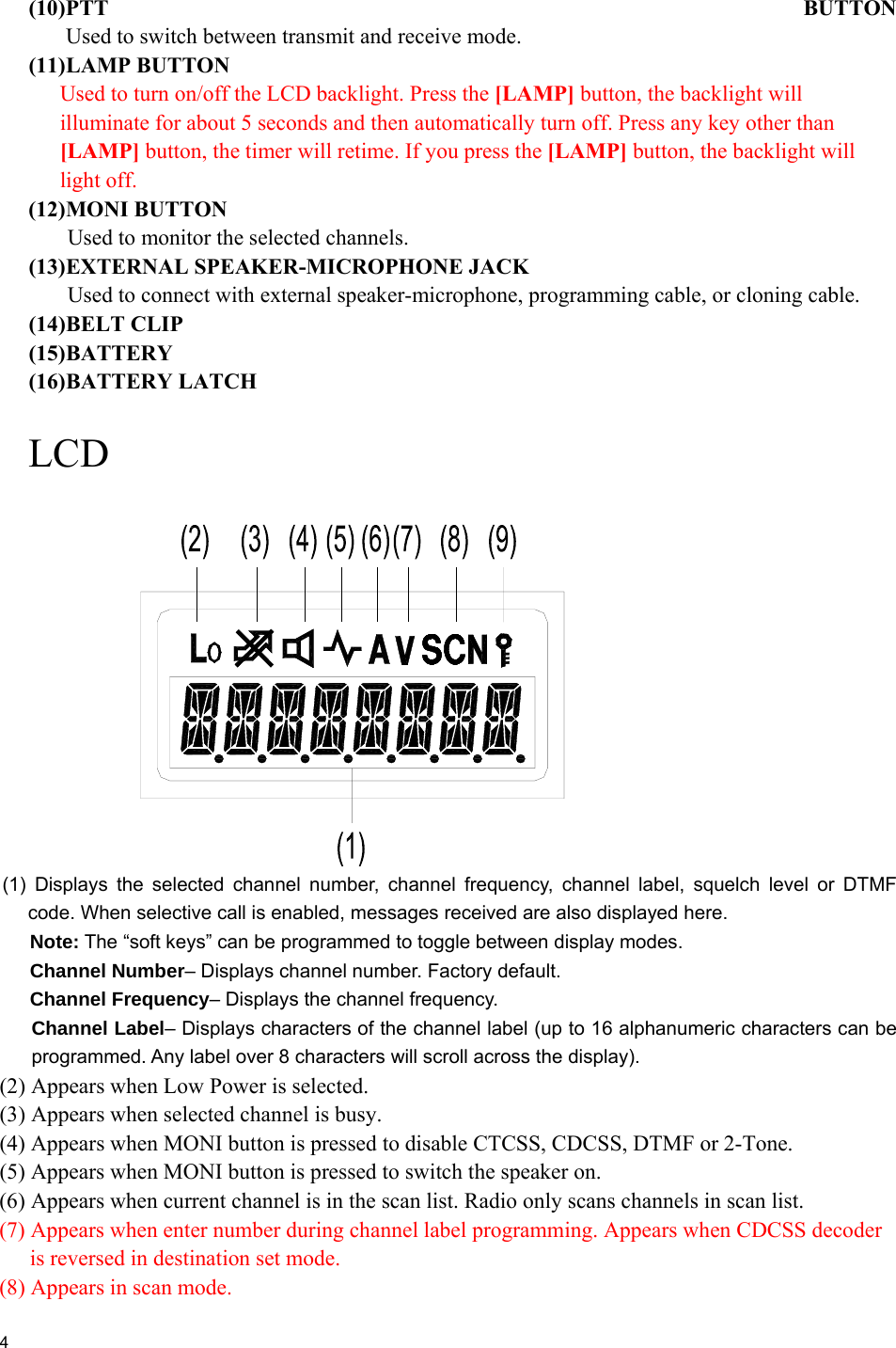

![4 (10) PTT BUTTON Used to switch between transmit and receive mode. (11) LAMP BUTTON Used to turn on/off the LCD backlight. Press the [LAMP] button, the backlight will illuminate for about 5 seconds and then automatically turn off. Press any key other than [LAMP] button, the timer will retime. If you press the [LAMP] button, the backlight will light off. (12) MONI BUTTON Used to monitor the selected channels. (13) EXTERNAL SPEAKER-MICROPHONE JACK Used to connect with external speaker-microphone, programming cable, or cloning cable. (14) BELT CLIP (15) BATTERY (16) BATTERY LATCH LCD (1) Displays the selected channel number, channel frequency, channel label, squelch level or DTMF code. When selective call is enabled, messages received are also displayed here. Note: The “soft keys” can be programmed to toggle between display modes. Channel Number– Displays channel number. Factory default. Channel Frequency– Displays the channel frequency. Channel Label– Displays characters of the channel label (up to 16 alphanumeric characters can be programmed. Any label over 8 characters will scroll across the display). (2) Appears when Low Power is selected. (3) Appears when selected channel is busy. (4) Appears when MONI button is pressed to disable CTCSS, CDCSS, DTMF or 2-Tone. (5) Appears when MONI button is pressed to switch the speaker on. (6) Appears when current channel is in the scan list. Radio only scans channels in scan list. (7) Appears when enter number during channel label programming. Appears when CDCSS decoder is reversed in destination set mode. (8) Appears in scan mode.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-3.png)

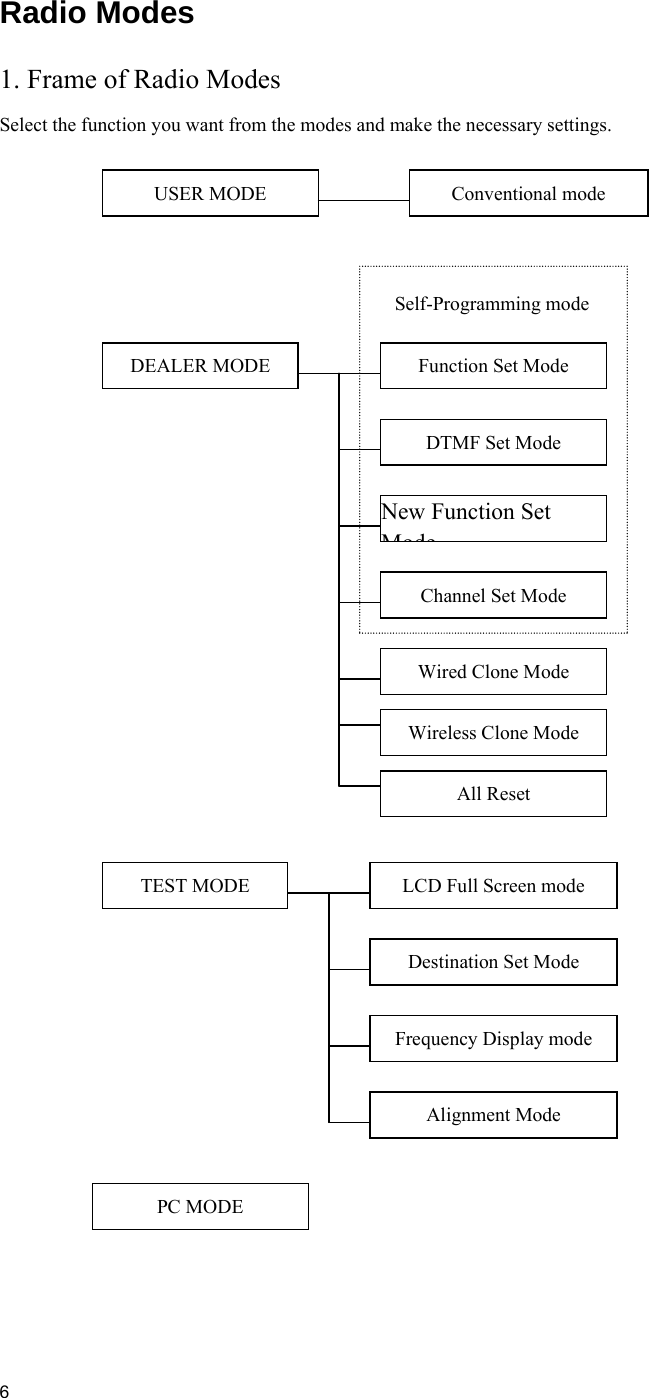

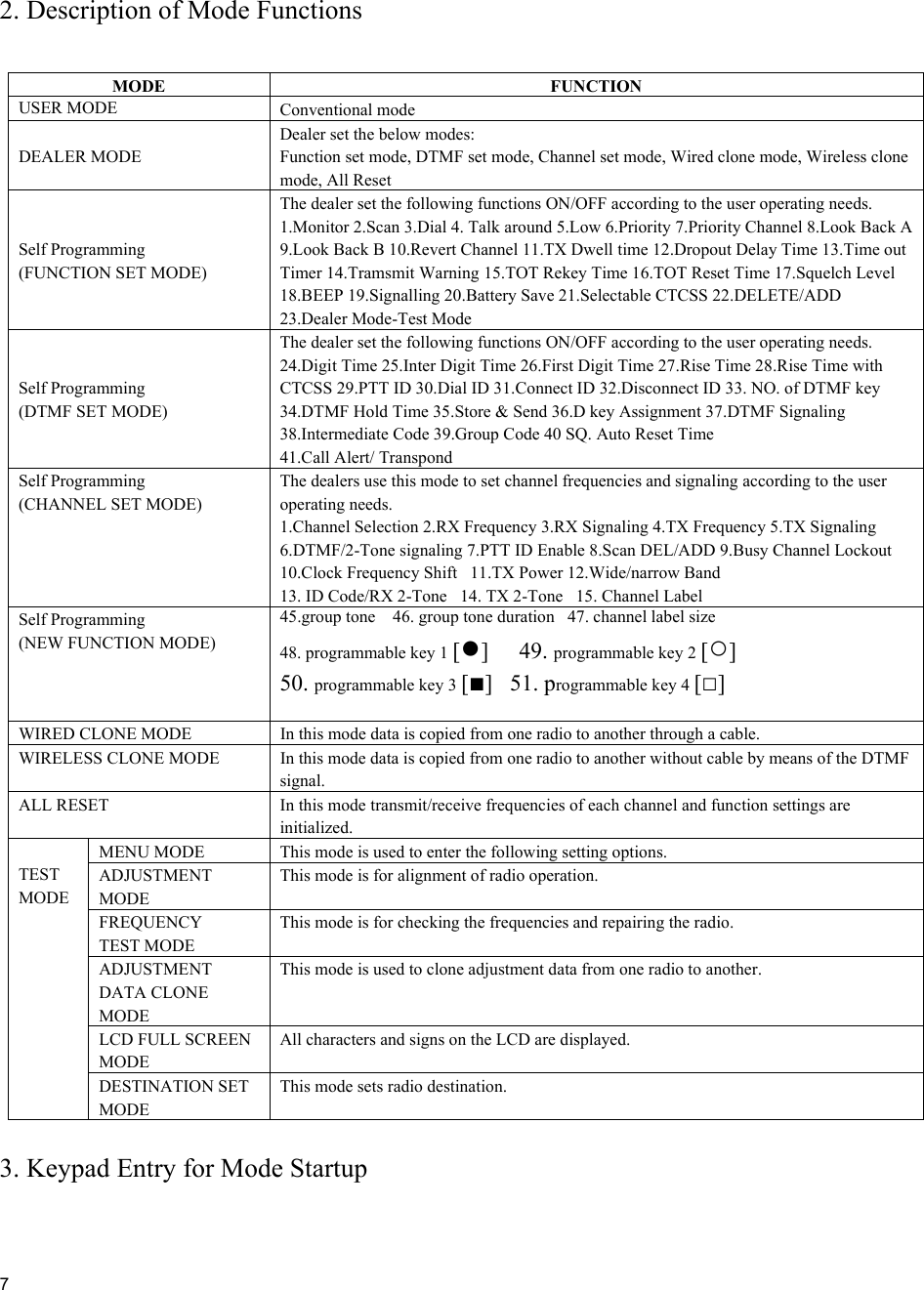

![7 2. Description of Mode Functions 3. Keypad Entry for Mode Startup MODE FUNCTION USER MODE Conventional mode DEALER MODE Dealer set the below modes: Function set mode, DTMF set mode, Channel set mode, Wired clone mode, Wireless clone mode, All Reset Self Programming (FUNCTION SET MODE) The dealer set the following functions ON/OFF according to the user operating needs. 1.Monitor 2.Scan 3.Dial 4. Talk around 5.Low 6.Priority 7.Priority Channel 8.Look Back A 9.Look Back B 10.Revert Channel 11.TX Dwell time 12.Dropout Delay Time 13.Time out Timer 14.Tramsmit Warning 15.TOT Rekey Time 16.TOT Reset Time 17.Squelch Level 18.BEEP 19.Signalling 20.Battery Save 21.Selectable CTCSS 22.DELETE/ADD 23.Dealer Mode-Test Mode Self Programming (DTMF SET MODE) The dealer set the following functions ON/OFF according to the user operating needs. 24.Digit Time 25.Inter Digit Time 26.First Digit Time 27.Rise Time 28.Rise Time with CTCSS 29.PTT ID 30.Dial ID 31.Connect ID 32.Disconnect ID 33. NO. of DTMF key 34.DTMF Hold Time 35.Store & Send 36.D key Assignment 37.DTMF Signaling 38.Intermediate Code 39.Group Code 40 SQ. Auto Reset Time 41.Call Alert/ Transpond Self Programming (CHANNEL SET MODE) The dealers use this mode to set channel frequencies and signaling according to the user operating needs. 1.Channel Selection 2.RX Frequency 3.RX Signaling 4.TX Frequency 5.TX Signaling 6.DTMF/2-Tone signaling 7.PTT ID Enable 8.Scan DEL/ADD 9.Busy Channel Lockout 10.Clock Frequency Shift 11.TX Power 12.Wide/narrow Band 13. ID Code/RX 2-Tone 14. TX 2-Tone 15. Channel Label Self Programming (NEW FUNCTION MODE) 45.group tone 46. group tone duration 47. channel label size 48. programmable key 1 [●] 49. programmable key 2 [○] 50. programmable key 3 [■] 51. programmable key 4 [□] WIRED CLONE MODE In this mode data is copied from one radio to another through a cable. WIRELESS CLONE MODE In this mode data is copied from one radio to another without cable by means of the DTMF signal. ALL RESET In this mode transmit/receive frequencies of each channel and function settings are initialized. MENU MODE This mode is used to enter the following setting options. ADJUSTMENT MODE This mode is for alignment of radio operation. FREQUENCY TEST MODE This mode is for checking the frequencies and repairing the radio. ADJUSTMENT DATA CLONE MODE This mode is used to clone adjustment data from one radio to another. LCD FULL SCREEN MODE All characters and signs on the LCD are displayed. TEST MODE DESTINATION SET MODE This mode sets radio destination.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-6.png)

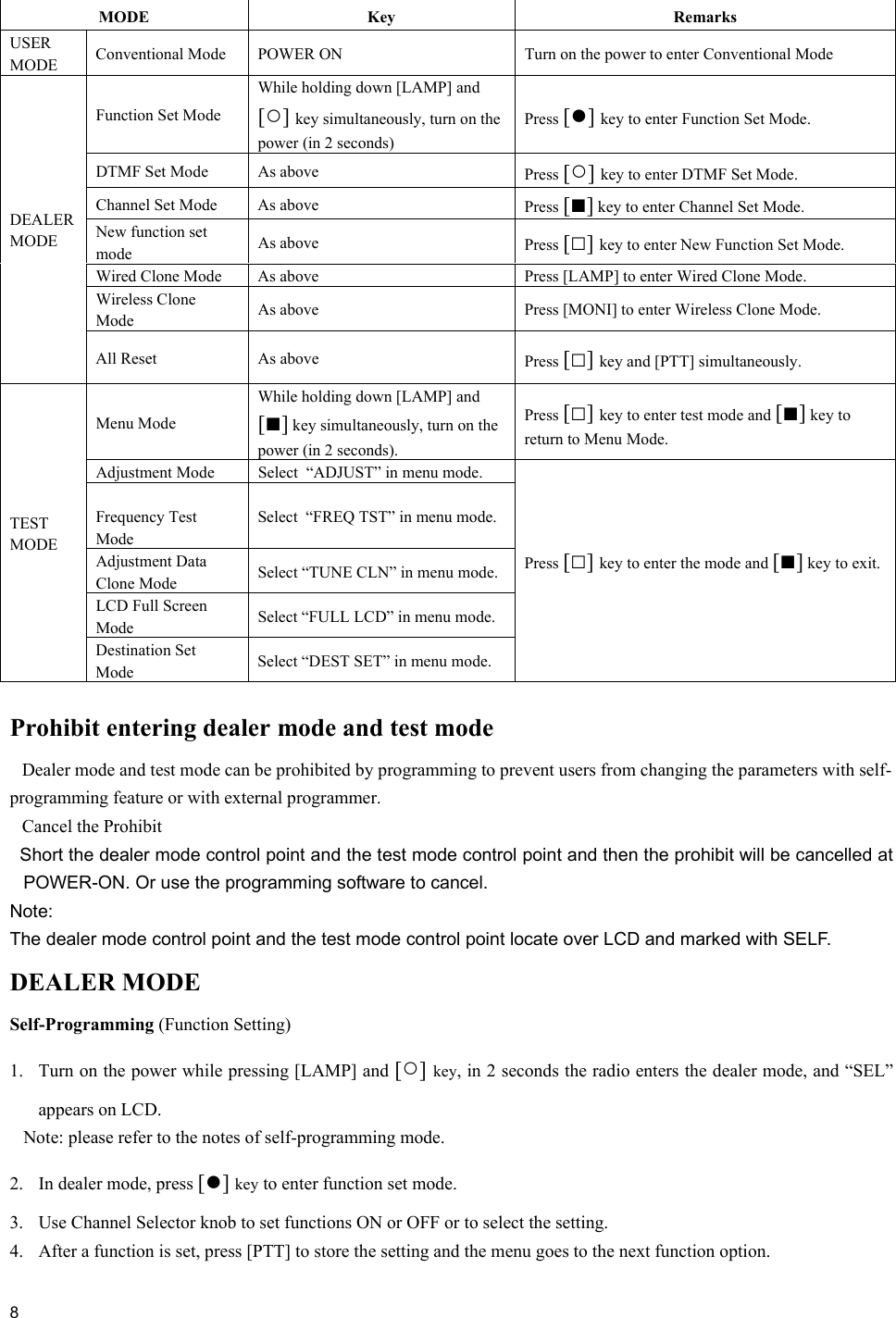

![8 Prohibit entering dealer mode and test mode Dealer mode and test mode can be prohibited by programming to prevent users from changing the parameters with self-programming feature or with external programmer. Cancel the Prohibit Short the dealer mode control point and the test mode control point and then the prohibit will be cancelled at POWER-ON. Or use the programming software to cancel. Note: The dealer mode control point and the test mode control point locate over LCD and marked with SELF. DEALER MODE Self-Programming (Function Setting) 1. Turn on the power while pressing [LAMP] and [○] key, in 2 seconds the radio enters the dealer mode, and “SEL” appears on LCD. Note: please refer to the notes of self-programming mode. 2. In dealer mode, press [●] key to enter function set mode. 3. Use Channel Selector knob to set functions ON or OFF or to select the setting. 4. After a function is set, press [PTT] to store the setting and the menu goes to the next function option. MODE Key Remarks USER MODE Conventional Mode POWER ON Turn on the power to enter Conventional Mode Function Set Mode While holding down [LAMP] and [○] key simultaneously, turn on the power (in 2 seconds) Press [●] key to enter Function Set Mode. DTMF Set Mode As above Press [○] key to enter DTMF Set Mode. Channel Set Mode As above Press [■] key to enter Channel Set Mode. New function set mode As above Press [□] key to enter New Function Set Mode. Wired Clone Mode As above Press [LAMP] to enter Wired Clone Mode. Wireless Clone Mode As above Press [MONI] to enter Wireless Clone Mode. DEALER MODE All Reset As above Press [□] key and [PTT] simultaneously. Menu Mode While holding down [LAMP] and [■] key simultaneously, turn on the power (in 2 seconds). Press [□] key to enter test mode and [■] key to return to Menu Mode. Adjustment Mode Select “ADJUST” in menu mode. Frequency Test Mode Select “FREQ TST” in menu mode. Adjustment Data Clone Mode Select “TUNE CLN” in menu mode. LCD Full Screen Mode Select “FULL LCD” in menu mode. TEST MODE Destination Set Mode Select “DEST SET” in menu mode. Press [□] key to enter the mode and [■] key to exit.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-7.png)

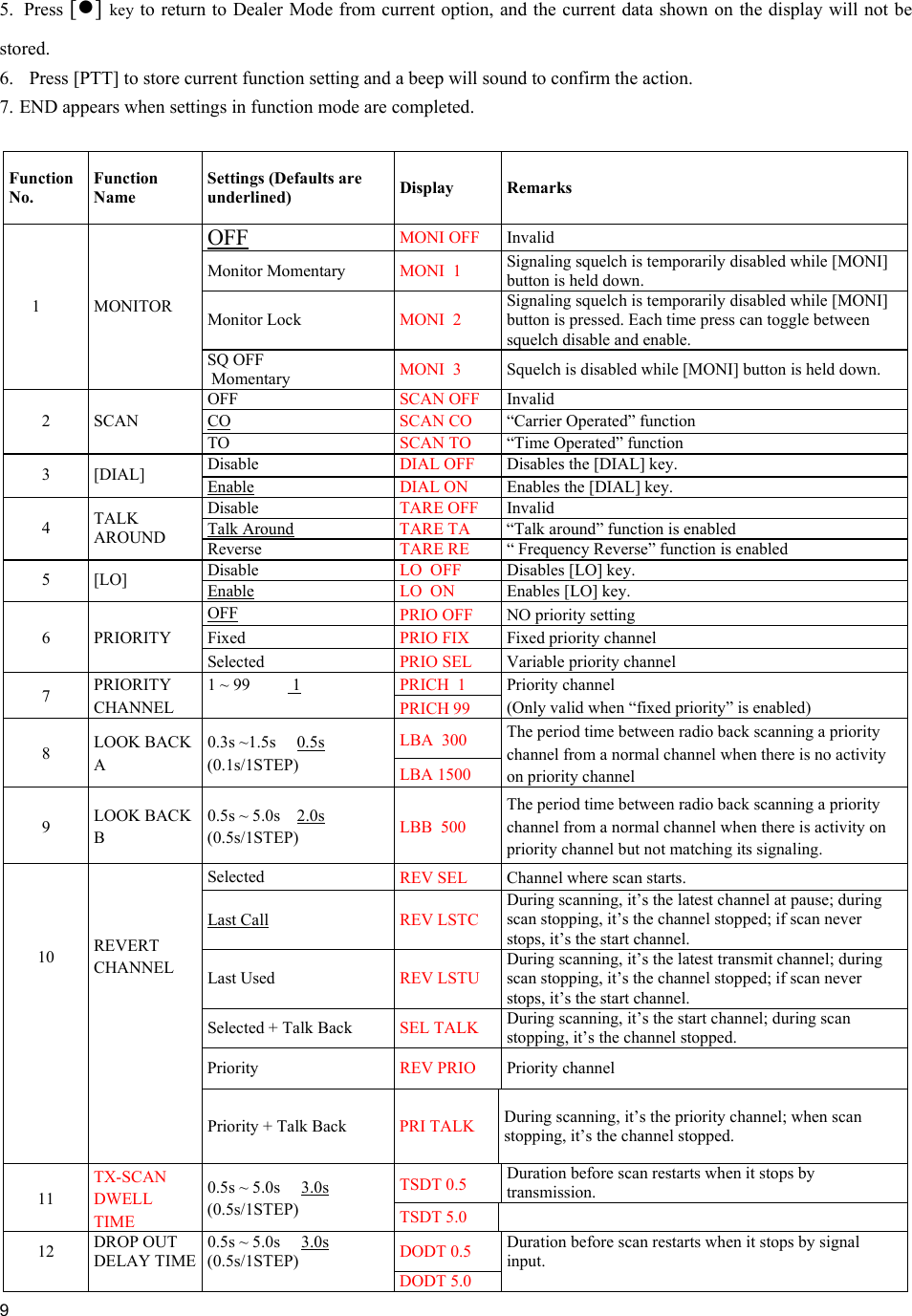

![9 5. Press [●] key to return to Dealer Mode from current option, and the current data shown on the display will not be stored. 6. Press [PTT] to store current function setting and a beep will sound to confirm the action. 7. END appears when settings in function mode are completed. Function No. Function Name Settings (Defaults are underlined) Display Remarks OFF MONI OFF Invalid Monitor Momentary MONI 1 Signaling squelch is temporarily disabled while [MONI] button is held down. Monitor Lock MONI 2 Signaling squelch is temporarily disabled while [MONI] button is pressed. Each time press can toggle between squelch disable and enable. 1 MONITOR SQ OFF Momentary MONI 3 Squelch is disabled while [MONI] button is held down. OFF SCAN OFF Invalid CO SCAN CO “Carrier Operated” function 2 SCAN TO SCAN TO “Time Operated” function Disable DIAL OFF Disables the [DIAL] key. 3 [DIAL] Enable DIAL ON Enables the [DIAL] key. Disable TARE OFF Invalid Talk Around TARE TA “Talk around” function is enabled 4 TALK AROUND Reverse TARE RE “ Frequency Reverse” function is enabled Disable LO OFF Disables [LO] key. 5 [LO] Enable LO ON Enables [LO] key. OFF PRIO OFF NO priority setting Fixed PRIO FIX Fixed priority channel 6 PRIORITY Selected PRIO SEL Variable priority channel PRICH 1 7 PRIORITY CHANNEL 1 ~ 99 1 PRICH 99 Priority channel (Only valid when “fixed priority” is enabled) LBA 300 8 LOOK BACK A 0.3s ~1.5s 0.5s (0.1s/1STEP) LBA 1500 The period time between radio back scanning a priority channel from a normal channel when there is no activity on priority channel 9 LOOK BACK B 0.5s ~ 5.0s 2.0s (0.5s/1STEP) LBB 500 The period time between radio back scanning a priority channel from a normal channel when there is activity on priority channel but not matching its signaling. Selected REV SEL Channel where scan starts. Last Call REV LSTC During scanning, it’s the latest channel at pause; during scan stopping, it’s the channel stopped; if scan never stops, it’s the start channel. Last Used REV LSTU During scanning, it’s the latest transmit channel; during scan stopping, it’s the channel stopped; if scan never stops, it’s the start channel. 10 REVERT CHANNEL Selected + Talk Back SEL TALK During scanning, it’s the start channel; during scan stopping, it’s the channel stopped. Priority REV PRIO Priority channel Priority + Talk Back PRI TALK During scanning, it’s the priority channel; when scan stopping, it’s the channel stopped. TSDT 0.5 Duration before scan restarts when it stops by transmission. 11 TX-SCAN DWELL TIME 0.5s ~ 5.0s 3.0s (0.5s/1STEP) TSDT 5.0 12 DROP OUT DELAY TIME0.5s ~ 5.0s 3.0s (0.5s/1STEP) DODT 0.5 Duration before scan restarts when it stops by signal input. DODT 5.0](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-8.png)

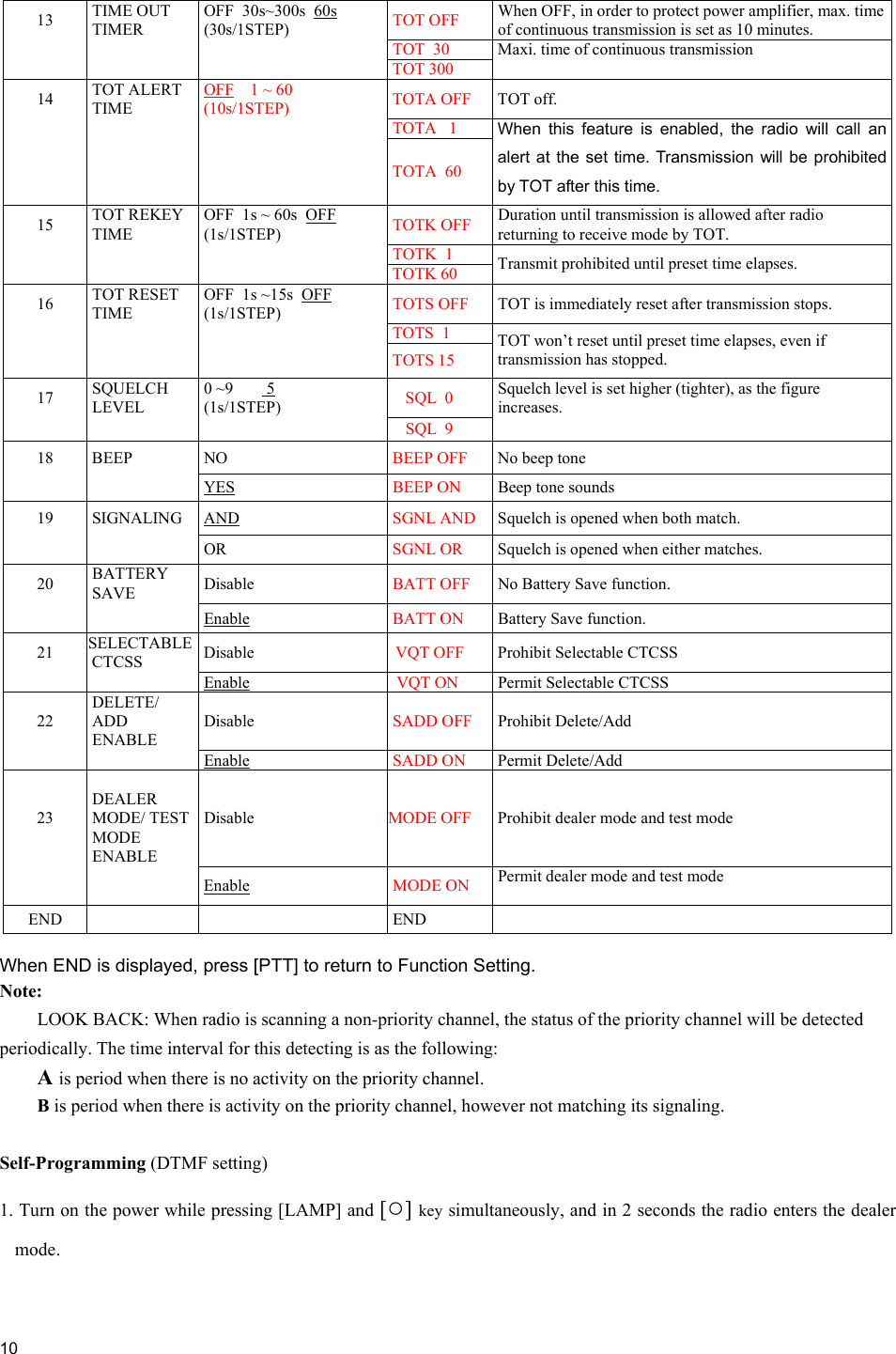

![10 13 TIME OUT TIMER OFF 30s~300s 60s (30s/1STEP) TOT OFF When OFF, in order to protect power amplifier, max. time of continuous transmission is set as 10 minutes. TOT 30 TOT 300 Maxi. time of continuous transmission 14 TOT ALERT TIME OFF 1 ~ 60 (10s/1STEP) TOTA OFF TOT off. TOTA 1 TOTA 60 When this feature is enabled, the radio will call an alert at the set time. Transmission will be prohibited by TOT after this time. 15 TOT REKEY TIME OFF 1s ~ 60s OFF (1s/1STEP) TOTK OFF Duration until transmission is allowed after radio returning to receive mode by TOT. TOTK 1 TOTK 60 Transmit prohibited until preset time elapses. 16 TOT RESET TIME OFF 1s ~15s OFF (1s/1STEP) TOTS OFF TOT is immediately reset after transmission stops. TOTS 1 TOTS 15 TOT won’t reset until preset time elapses, even if transmission has stopped. 17 SQUELCH LEVEL 0 ~9 5 (1s/1STEP) SQL 0 Squelch level is set higher (tighter), as the figure increases. SQL 9 18 BEEP NO BEEP OFF No beep tone YES BEEP ON Beep tone sounds 19 SIGNALING AND SGNL AND Squelch is opened when both match. OR SGNL OR Squelch is opened when either matches. 20 BATTERY SAVE Disable BATT OFF No Battery Save function. Enable BATT ON Battery Save function. 21 SELECTABLECTCSS Disable VQT OFF Prohibit Selectable CTCSS Enable VQT ON Permit Selectable CTCSS 22 DELETE/ ADD ENABLE Disable SADD OFF Prohibit Delete/Add Enable SADD ON Permit Delete/Add 23 DEALER MODE/ TEST MODE ENABLE Disable MODE OFF Prohibit dealer mode and test mode Enable MODE ON Permit dealer mode and test mode END END When END is displayed, press [PTT] to return to Function Setting. Note: LOOK BACK: When radio is scanning a non-priority channel, the status of the priority channel will be detected periodically. The time interval for this detecting is as the following: A is period when there is no activity on the priority channel. B is period when there is activity on the priority channel, however not matching its signaling. Self-Programming (DTMF setting) 1. Turn on the power while pressing [LAMP] and [○] key simultaneously, and in 2 seconds the radio enters the dealer mode.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-9.png)

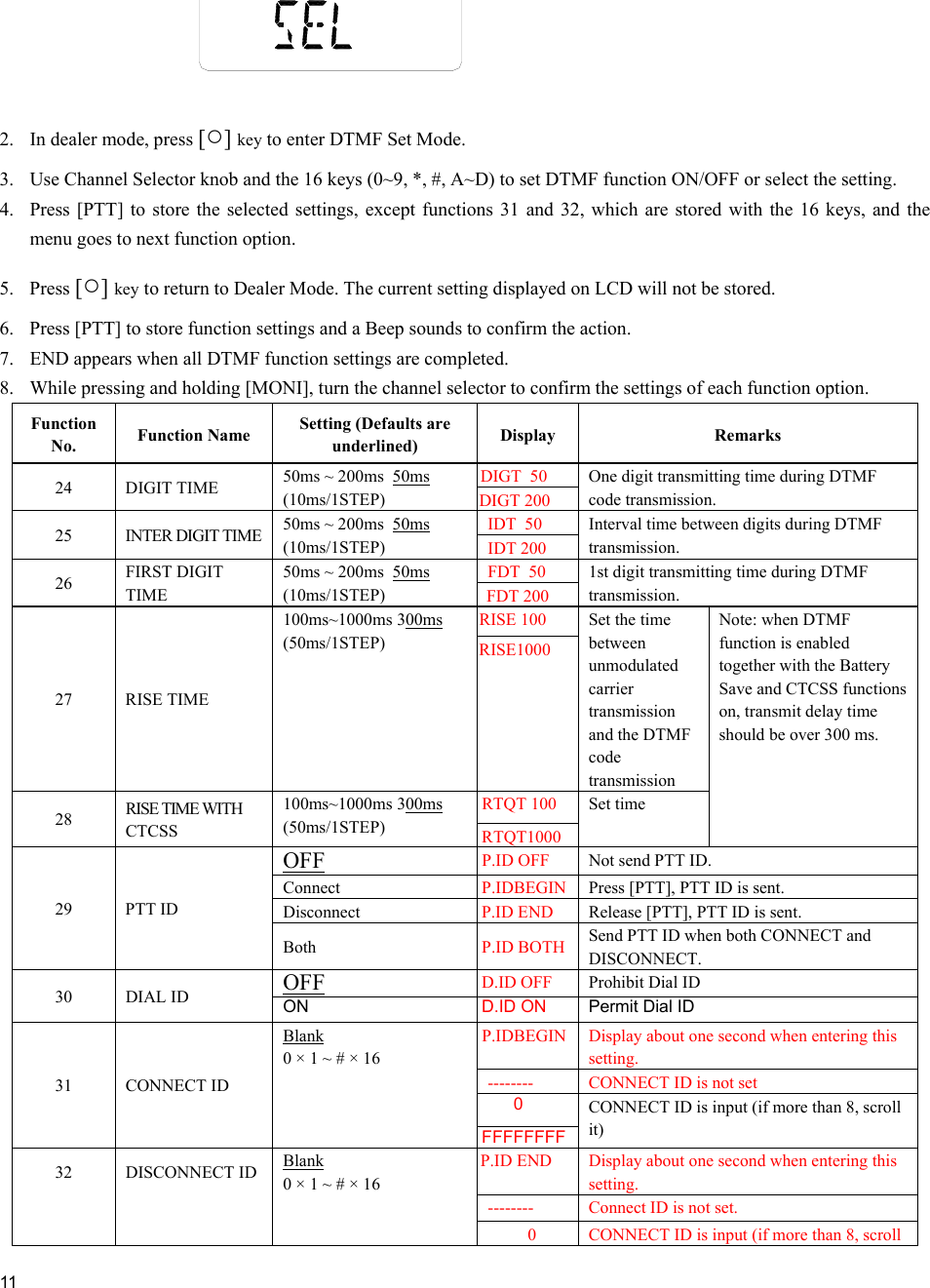

![11 2. In dealer mode, press [○] key to enter DTMF Set Mode. 3. Use Channel Selector knob and the 16 keys (0~9, *, #, A~D) to set DTMF function ON/OFF or select the setting. 4. Press [PTT] to store the selected settings, except functions 31 and 32, which are stored with the 16 keys, and the menu goes to next function option. 5. Press [○] key to return to Dealer Mode. The current setting displayed on LCD will not be stored. 6. Press [PTT] to store function settings and a Beep sounds to confirm the action. 7. END appears when all DTMF function settings are completed. 8. While pressing and holding [MONI], turn the channel selector to confirm the settings of each function option. Function No. Function Name Setting (Defaults are underlined) Display Remarks DIGT 50 24 DIGIT TIME 50ms ~ 200ms 50ms (10ms/1STEP) DIGT 200 One digit transmitting time during DTMF code transmission. IDT 50 25 INTER DIGIT TIME 50ms ~ 200ms 50ms (10ms/1STEP) IDT 200 Interval time between digits during DTMF transmission. FDT 50 26 FIRST DIGIT TIME 50ms ~ 200ms 50ms (10ms/1STEP) FDT 200 1st digit transmitting time during DTMF transmission. RISE 100 27 RISE TIME 100ms~1000ms 300ms (50ms/1STEP) RISE1000 Set the time between unmodulated carrier transmission and the DTMF code transmission RTQT 100 28 RISE TIME WITH CTCSS 100ms~1000ms 300ms (50ms/1STEP) RTQT1000 Set time Note: when DTMF function is enabled together with the Battery Save and CTCSS functions on, transmit delay time should be over 300 ms. OFF P.ID OFF Not send PTT ID. Connect P.IDBEGIN Press [PTT], PTT ID is sent. Disconnect P.ID END Release [PTT], PTT ID is sent. 29 PTT ID Both P.ID BOTH Send PTT ID when both CONNECT and DISCONNECT. OFF D.ID OFF Prohibit Dial ID 30 DIAL ID ON D.ID ON Permit Dial ID P.IDBEGIN Display about one second when entering this setting. -------- CONNECT ID is not set 0 31 CONNECT ID Blank 0 × 1 ~ # × 16 FFFFFFFF CONNECT ID is input (if more than 8, scroll it) P.ID END Display about one second when entering this setting. -------- Connect ID is not set. 32 DISCONNECT ID Blank 0 × 1 ~ # × 16 0 CONNECT ID is input (if more than 8, scroll](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-10.png)

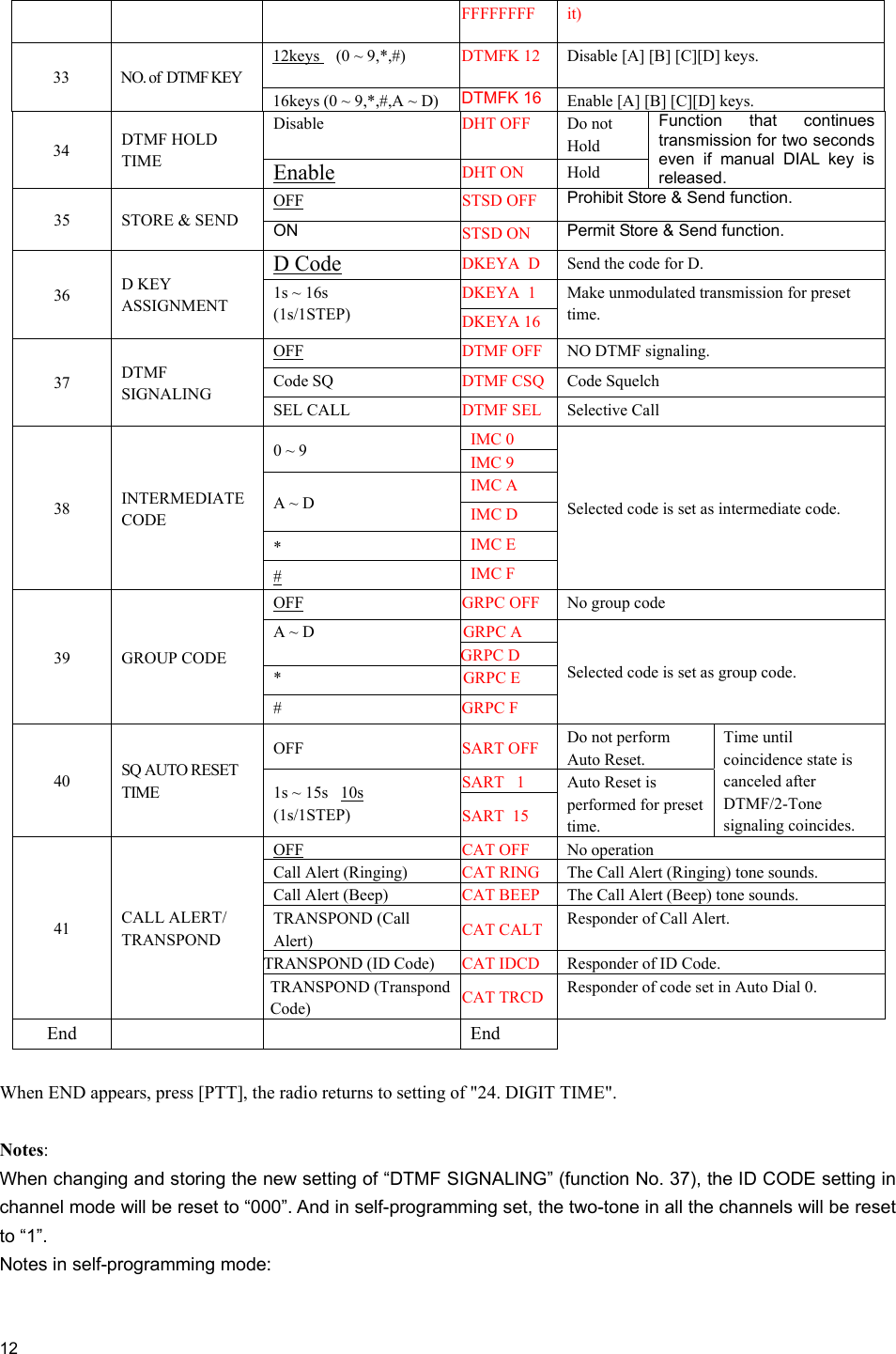

![12 FFFFFFFF it) 12keys (0 ~ 9,*,#) DTMFK 12 Disable [A] [B] [C][D] keys. 33 NO. of DTMF KEY 16keys (0 ~ 9,*,#,A ~ D) DTMFK 16 Enable [A] [B] [C][D] keys. Disable DHT OFF Do not Hold 34 DTMF HOLD TIME Enable DHT ON Hold Function that continues transmission for two seconds even if manual DIAL key is released. OFF STSD OFF Prohibit Store & Send function. 35 STORE & SEND ON STSD ON Permit Store & Send function. D Code DKEYA D Send the code for D. DKEYA 1 36 D KEY ASSIGNMENT 1s ~ 16s (1s/1STEP) DKEYA 16 Make unmodulated transmission for preset time. OFF DTMF OFF NO DTMF signaling. Code SQ DTMF CSQ Code Squelch 37 DTMF SIGNALING SEL CALL DTMF SEL Selective Call IMC 0 0 ~ 9 IMC 9 IMC A A ~ D IMC D * IMC E 38 INTERMEDIATE CODE # IMC F Selected code is set as intermediate code. OFF GRPC OFF No group code GRPC A A ~ D GRPC D * GRPC E 39 GROUP CODE # GRPC F Selected code is set as group code. OFF SART OFF Do not perform Auto Reset. SART 1 40 SQ AUTO RESET TIME 1s ~ 15s 10s (1s/1STEP) SART 15 Auto Reset is performed for preset time. Time until coincidence state is canceled after DTMF/2-Tone signaling coincides. OFF CAT OFF No operation Call Alert (Ringing) CAT RING The Call Alert (Ringing) tone sounds. Call Alert (Beep) CAT BEEP The Call Alert (Beep) tone sounds. TRANSPOND (Call Alert) CAT CALT Responder of Call Alert. TRANSPOND (ID Code) CAT IDCD Responder of ID Code. 41 CALL ALERT/ TRANSPOND TRANSPOND (Transpond Code) CAT TRCD Responder of code set in Auto Dial 0. End End When END appears, press [PTT], the radio returns to setting of "24. DIGIT TIME". Notes: When changing and storing the new setting of “DTMF SIGNALING” (function No. 37), the ID CODE setting in channel mode will be reset to “000”. And in self-programming set, the two-tone in all the channels will be reset to “1”. Notes in self-programming mode:](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-11.png)

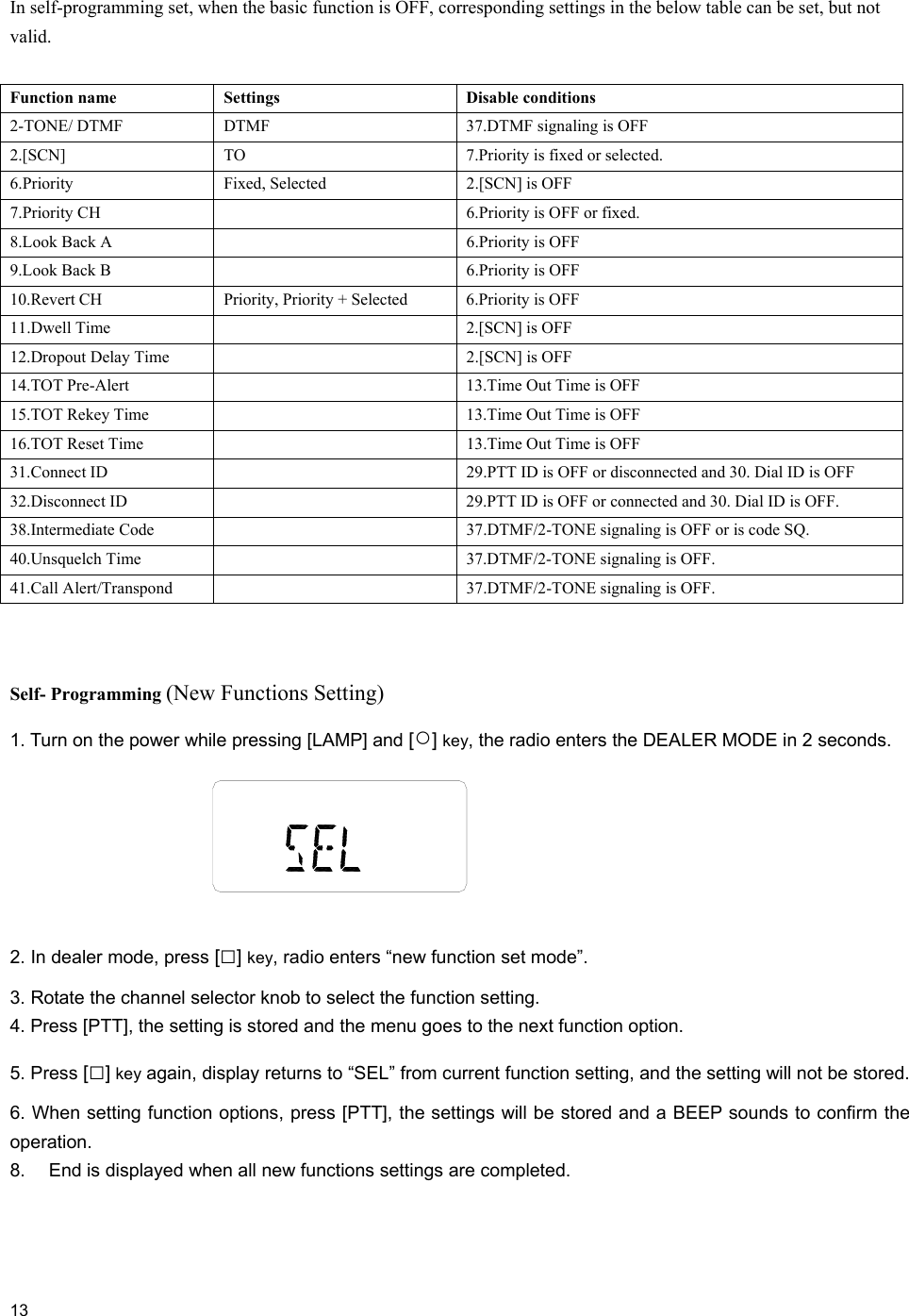

![13 In self-programming set, when the basic function is OFF, corresponding settings in the below table can be set, but not valid. Self- Programming (New Functions Setting) 1. Turn on the power while pressing [LAMP] and [○] key, the radio enters the DEALER MODE in 2 seconds. 2. In dealer mode, press [□] key, radio enters “new function set mode”. 3. Rotate the channel selector knob to select the function setting. 4. Press [PTT], the setting is stored and the menu goes to the next function option. 5. Press [□] key again, display returns to “SEL” from current function setting, and the setting will not be stored. 6. When setting function options, press [PTT], the settings will be stored and a BEEP sounds to confirm the operation. 8. End is displayed when all new functions settings are completed. Function name Settings Disable conditions 2-TONE/ DTMF DTMF 37.DTMF signaling is OFF 2.[SCN] TO 7.Priority is fixed or selected. 6.Priority Fixed, Selected 2.[SCN] is OFF 7.Priority CH 6.Priority is OFF or fixed. 8.Look Back A 6.Priority is OFF 9.Look Back B 6.Priority is OFF 10.Revert CH Priority, Priority + Selected 6.Priority is OFF 11.Dwell Time 2.[SCN] is OFF 12.Dropout Delay Time 2.[SCN] is OFF 14.TOT Pre-Alert 13.Time Out Time is OFF 15.TOT Rekey Time 13.Time Out Time is OFF 16.TOT Reset Time 13.Time Out Time is OFF 31.Connect ID 29.PTT ID is OFF or disconnected and 30. Dial ID is OFF 32.Disconnect ID 29.PTT ID is OFF or connected and 30. Dial ID is OFF. 38.Intermediate Code 37.DTMF/2-TONE signaling is OFF or is code SQ. 40.Unsquelch Time 37.DTMF/2-TONE signaling is OFF. 41.Call Alert/Transpond 37.DTMF/2-TONE signaling is OFF.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-12.png)

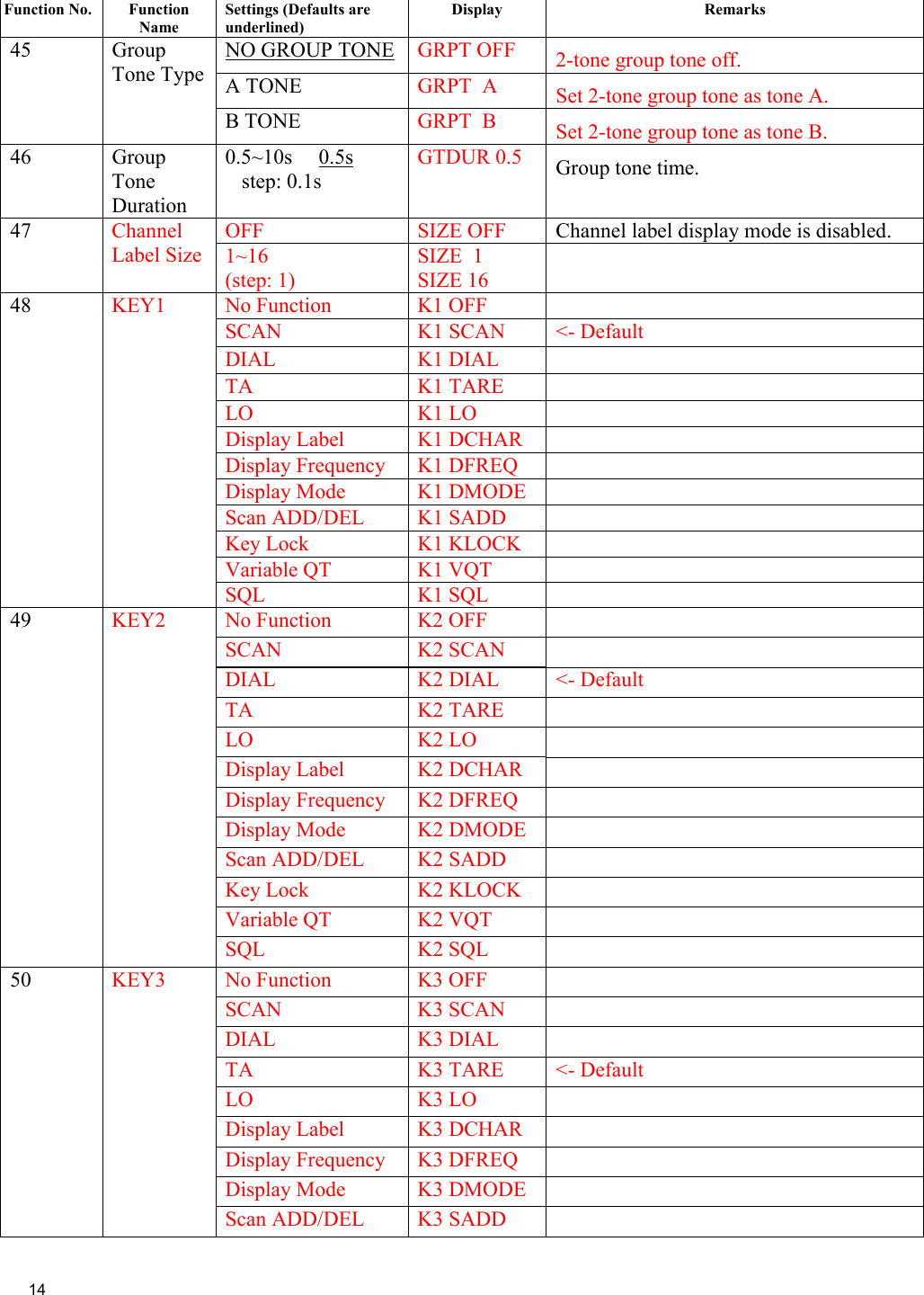

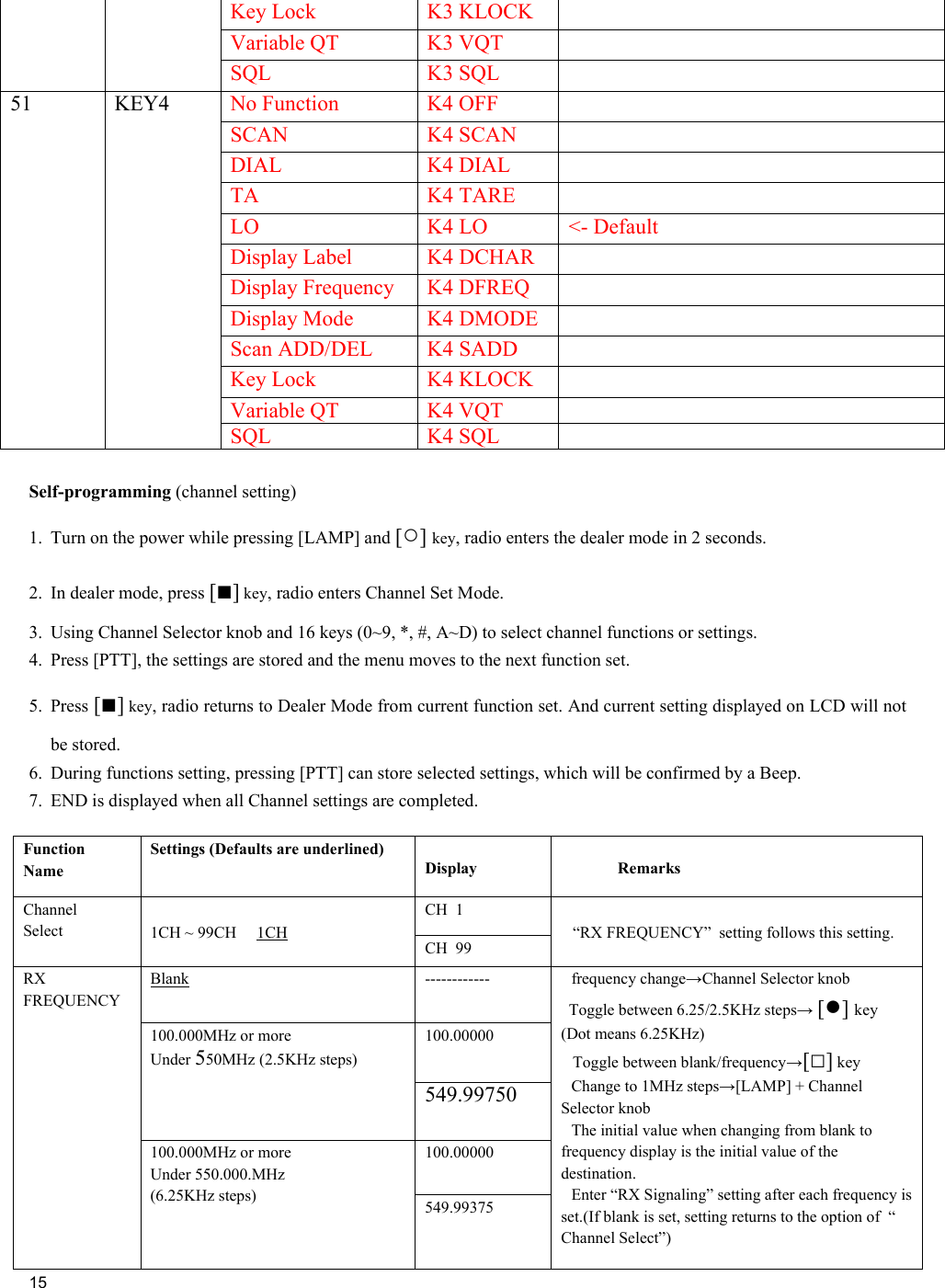

![15 Key Lock K3 KLOCK Variable QT K3 VQT SQL K3 SQL No Function K4 OFF SCAN K4 SCAN DIAL K4 DIAL TA K4 TARE LO K4 LO <- Default Display Label K4 DCHAR Display Frequency K4 DFREQ Display Mode K4 DMODE Scan ADD/DEL K4 SADD Key Lock K4 KLOCK Variable QT K4 VQT 51 KEY4 SQL K4 SQL Self-programming (channel setting) 1. Turn on the power while pressing [LAMP] and [○] key, radio enters the dealer mode in 2 seconds. 2. In dealer mode, press [■] key, radio enters Channel Set Mode. 3. Using Channel Selector knob and 16 keys (0~9, *, #, A~D) to select channel functions or settings. 4. Press [PTT], the settings are stored and the menu moves to the next function set. 5. Press [■] key, radio returns to Dealer Mode from current function set. And current setting displayed on LCD will not be stored. 6. During functions setting, pressing [PTT] can store selected settings, which will be confirmed by a Beep. 7. END is displayed when all Channel settings are completed. Function Name Settings (Defaults are underlined) Display Remarks CH 1 Channel Select 1CH ~ 99CH 1CH CH 99 “RX FREQUENCY” setting follows this setting. Blank ------------ 100.00000 100.000MHz or more Under 550MHz (2.5KHz steps) 549.99750 100.00000 RX FREQUENCY 100.000MHz or more Under 550.000.MHz (6.25KHz steps) 549.99375 frequency change→Channel Selector knob Toggle between 6.25/2.5KHz steps→ [●] key (Dot means 6.25KHz) Toggle between blank/frequency→[□] key Change to 1MHz steps→[LAMP] + Channel Selector knob The initial value when changing from blank to frequency display is the initial value of the destination. Enter “RX Signaling” setting after each frequency is set.(If blank is set, setting returns to the option of “ Channel Select”)](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-14.png)

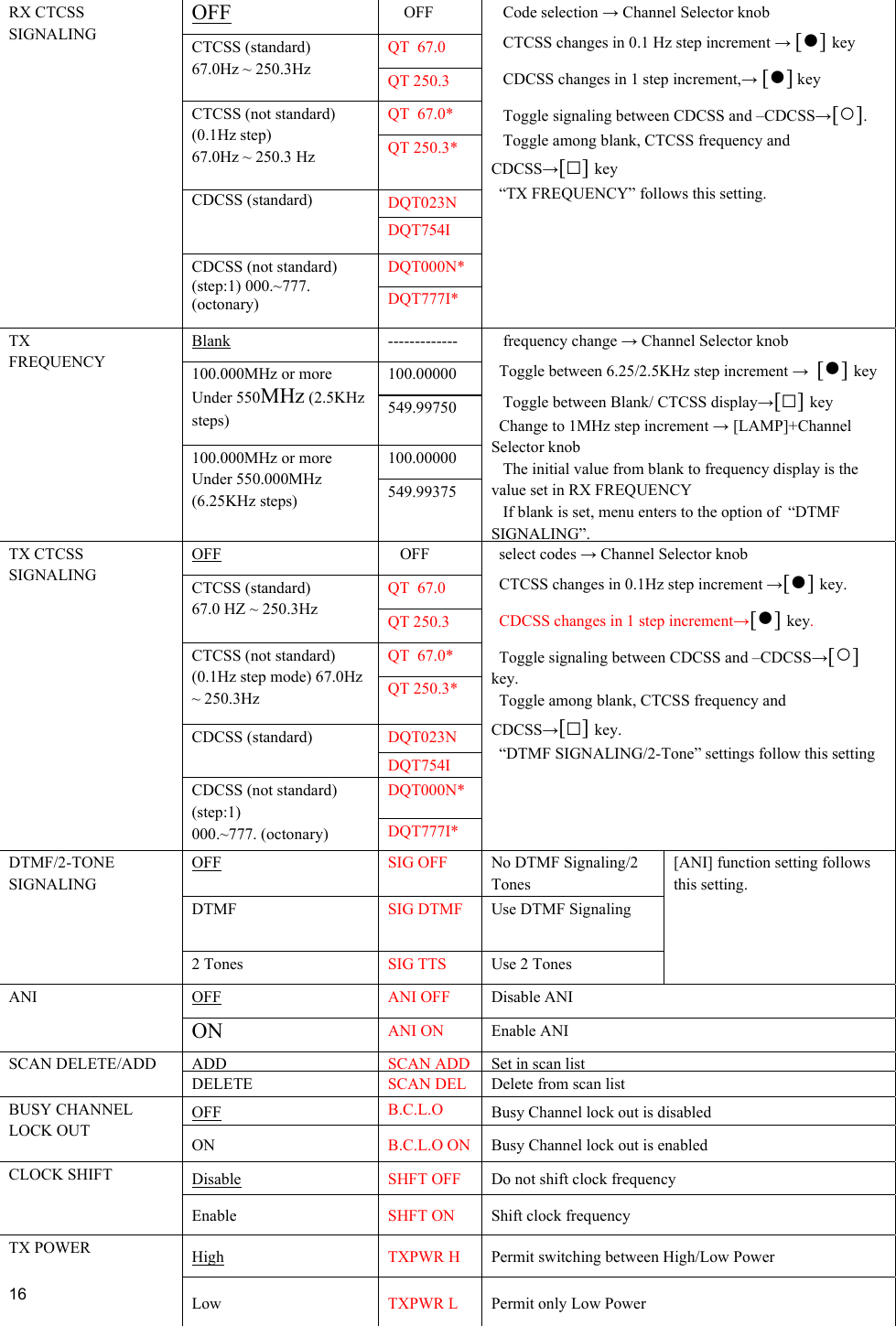

![16 OFF OFF QT 67.0 CTCSS (standard) 67.0Hz ~ 250.3Hz QT 250.3 QT 67.0* CTCSS (not standard) (0.1Hz step) 67.0Hz ~ 250.3 Hz QT 250.3* DQT023N CDCSS (standard) DQT754I DQT000N* RX CTCSS SIGNALING CDCSS (not standard) (step:1) 000.~777. (octonary) DQT777I* Code selection → Channel Selector knob CTCSS changes in 0.1 Hz step increment → [●] key CDCSS changes in 1 step increment,→ [●] key Toggle signaling between CDCSS and –CDCSS→[○]. Toggle among blank, CTCSS frequency and CDCSS→[□] key “TX FREQUENCY” follows this setting. Blank ------------- 100.00000 100.000MHz or more Under 550MHz (2.5KHz steps) 549.99750 100.00000 TX FREQUENCY 100.000MHz or more Under 550.000MHz (6.25KHz steps) 549.99375 frequency change → Channel Selector knob Toggle between 6.25/2.5KHz step increment → [●] key Toggle between Blank/ CTCSS display→[□] key Change to 1MHz step increment → [LAMP]+Channel Selector knob The initial value from blank to frequency display is the value set in RX FREQUENCY If blank is set, menu enters to the option of “DTMF SIGNALING”.OFF OFF QT 67.0 CTCSS (standard) 67.0 HZ ~ 250.3Hz QT 250.3 QT 67.0* CTCSS (not standard) (0.1Hz step mode) 67.0Hz ~ 250.3Hz QT 250.3* DQT023N CDCSS (standard) DQT754I DQT000N* TX CTCSS SIGNALING CDCSS (not standard) (step:1) 000.~777. (octonary) DQT777I* select codes → Channel Selector knob CTCSS changes in 0.1Hz step increment →[●] key. CDCSS changes in 1 step increment→[●] key. Toggle signaling between CDCSS and –CDCSS→[○] key. Toggle among blank, CTCSS frequency and CDCSS→[□] key. “DTMF SIGNALING/2-Tone” settings follow this setting OFF SIG OFF No DTMF Signaling/2 Tones DTMF SIG DTMF Use DTMF Signaling DTMF/2-TONE SIGNALING 2 Tones SIG TTS Use 2 Tones [ANI] function setting follows this setting. OFF ANI OFF Disable ANI ANI ON ANI ON Enable ANI ADD SCAN ADD Set in scan listSCAN DELETE/ADD DELETE SCAN DEL Delete from scan list OFF B.C.L.O Busy Channel lock out is disabled BUSY CHANNEL LOCK OUT ON B.C.L.O ON Busy Channel lock out is enabled Disable SHFT OFF Do not shift clock frequency CLOCK SHIFT Enable SHFT ON Shift clock frequency High TXPWR H Permit switching between High/Low Power TX POWER Low TXPWR L Permit only Low Power](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-15.png)

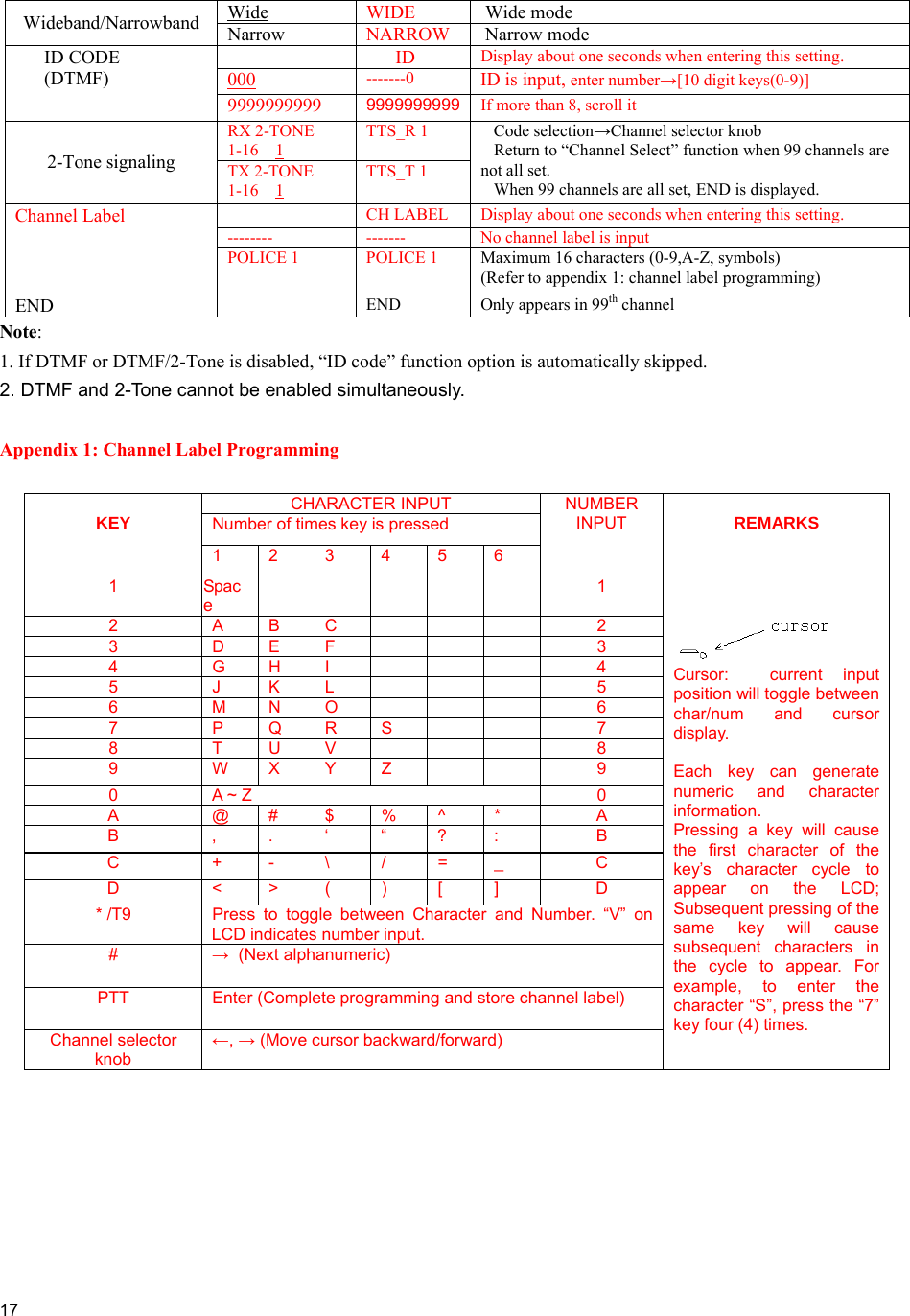

![17 Note: 1. If DTMF or DTMF/2-Tone is disabled, “ID code” function option is automatically skipped. 2. DTMF and 2-Tone cannot be enabled simultaneously. Appendix 1: Channel Label Programming CHARACTER INPUT Number of times key is pressed KEY 1 2 3 4 5 6 NUMBER INPUT REMARKS 1 Space 1 2 A B C 2 3 D E F 3 4 G H I 4 5 J K L 5 6 M N O 6 7 P Q R S 7 8 T U V 8 9 W X Y Z 9 0 A ~ Z 0 A @ # $ % ^ * A B , . ‘ “ ? : B C + - \ / = _ C D < > ( ) [ ] D * /T9 Press to toggle between Character and Number. “V” on LCD indicates number input. # → (Next alphanumeric) PTT Enter (Complete programming and store channel label) Channel selector knob ←, → (Move cursor backward/forward) Cursor: current input position will toggle between char/num and cursor display. Each key can generate numeric and character information. Pressing a key will cause the first character of the key’s character cycle to appear on the LCD; Subsequent pressing of the same key will cause subsequent characters in the cycle to appear. For example, to enter the character “S”, press the “7” key four (4) times. Wide WIDE Wide mode Wideband/Narrowband Narrow NARROW Narrow mode ID Display about one seconds when entering this setting. 000 -------0 ID is input, enter number→[10 digit keys(0-9)] ID CODE (DTMF) 9999999999 9999999999 If more than 8, scroll it RX 2-TONE 1-16 1 TTS_R 1 2-Tone signaling TX 2-TONE 1-16 1 TTS_T 1 Code selection→Channel selector knob Return to “Channel Select” function when 99 channels are not all set. When 99 channels are all set, END is displayed. CH LABEL Display about one seconds when entering this setting. -------- ------- No channel label is input Channel Label POLICE 1 POLICE 1 Maximum 16 characters (0-9,A-Z, symbols) (Refer to appendix 1: channel label programming) END END Only appears in 99th channel](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-16.png)

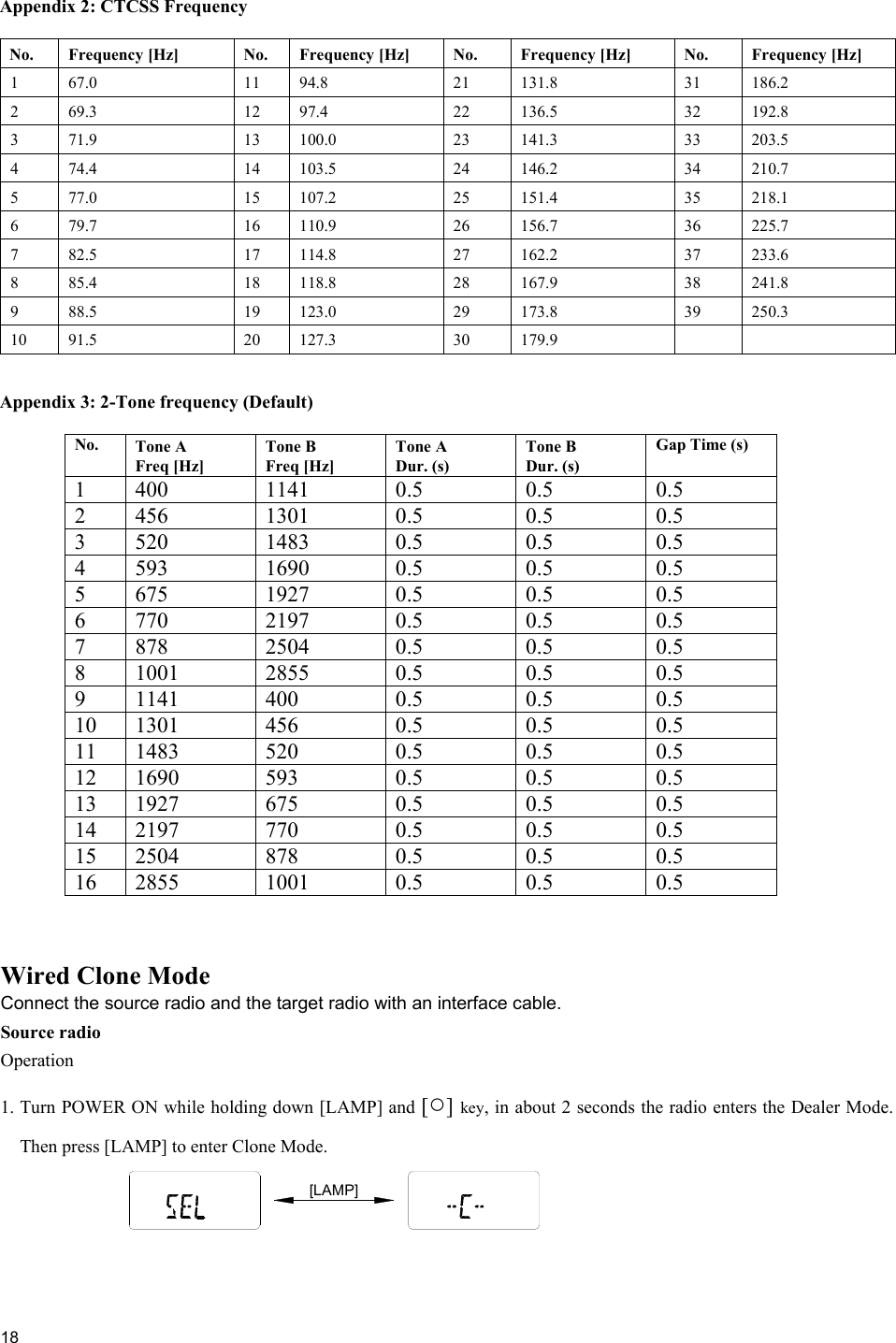

![18 Appendix 2: CTCSS Frequency Appendix 3: 2-Tone frequency (Default) No. Tone A Freq [Hz] Tone B Freq [Hz] Tone A Dur. (s) Tone B Dur. (s) Gap Time (s) 1 400 1141 0.5 0.5 0.5 2 456 1301 0.5 0.5 0.5 3 520 1483 0.5 0.5 0.5 4 593 1690 0.5 0.5 0.5 5 675 1927 0.5 0.5 0.5 6 770 2197 0.5 0.5 0.5 7 878 2504 0.5 0.5 0.5 8 1001 2855 0.5 0.5 0.5 9 1141 400 0.5 0.5 0.5 10 1301 456 0.5 0.5 0.5 11 1483 520 0.5 0.5 0.5 12 1690 593 0.5 0.5 0.5 13 1927 675 0.5 0.5 0.5 14 2197 770 0.5 0.5 0.5 15 2504 878 0.5 0.5 0.5 16 2855 1001 0.5 0.5 0.5 Wired Clone Mode Connect the source radio and the target radio with an interface cable. Source radio Operation 1. Turn POWER ON while holding down [LAMP] and [○] key, in about 2 seconds the radio enters the Dealer Mode. Then press [LAMP] to enter Clone Mode. No. Frequency [Hz] No. Frequency [Hz] No. Frequency [Hz] No. Frequency [Hz] 1 67.0 11 94.8 21 131.8 31 186.2 2 69.3 12 97.4 22 136.5 32 192.8 3 71.9 13 100.0 23 141.3 33 203.5 4 74.4 14 103.5 24 146.2 34 210.7 5 77.0 15 107.2 25 151.4 35 218.1 6 79.7 16 110.9 26 156.7 36 225.7 7 82.5 17 114.8 27 162.2 37 233.6 8 85.4 18 118.8 28 167.9 38 241.8 9 88.5 19 123.0 29 173.8 39 250.3 10 91.5 20 127.3 30 179.9 [LAMP]](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-17.png)

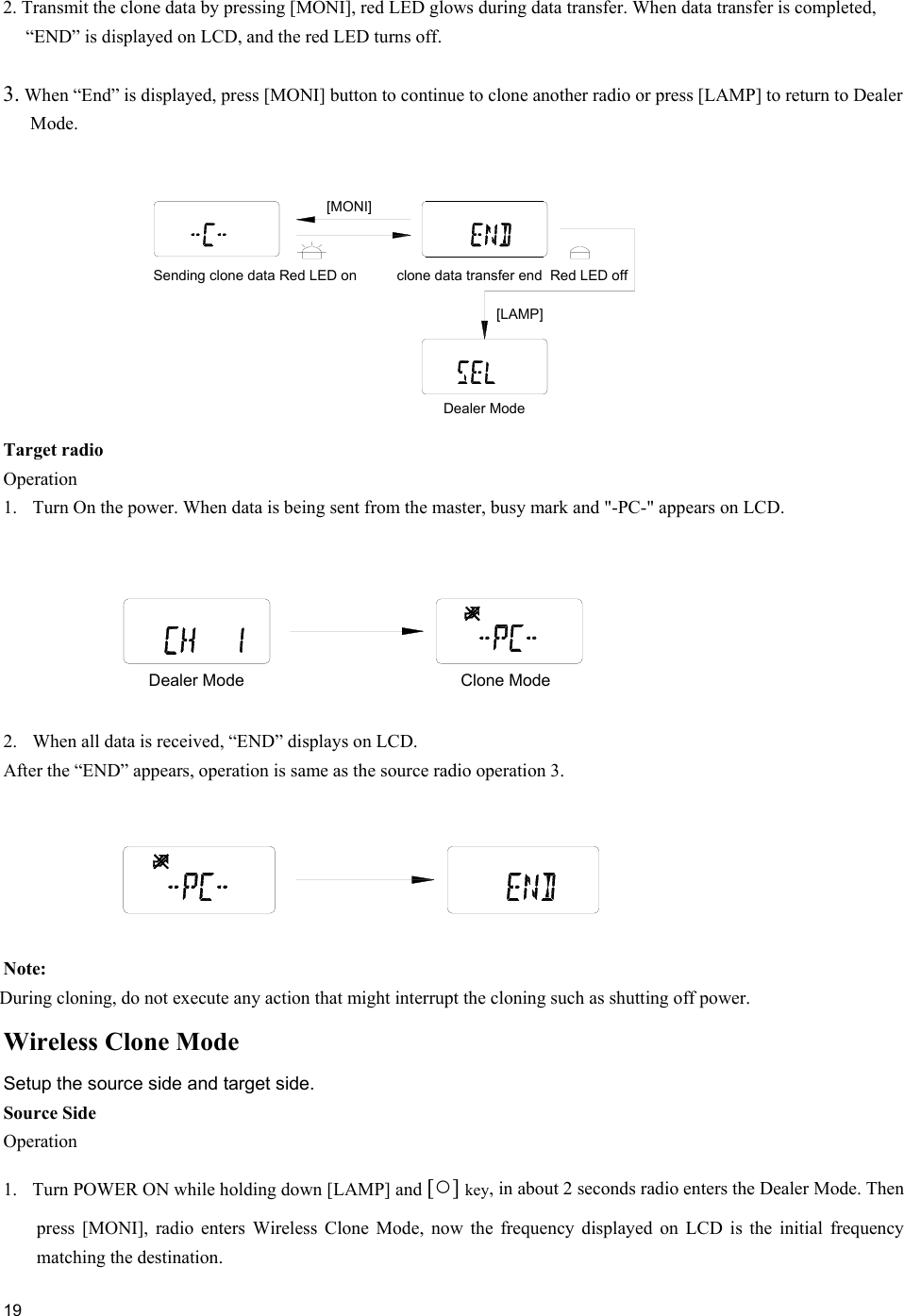

![19 2. Transmit the clone data by pressing [MONI], red LED glows during data transfer. When data transfer is completed, “END” is displayed on LCD, and the red LED turns off. 3. When “End” is displayed, press [MONI] button to continue to clone another radio or press [LAMP] to return to Dealer Mode. Target radio Operation 1. Turn On the power. When data is being sent from the master, busy mark and "-PC-" appears on LCD. 2. When all data is received, “END” displays on LCD. After the “END” appears, operation is same as the source radio operation 3. Note: During cloning, do not execute any action that might interrupt the cloning such as shutting off power. Wireless Clone Mode Setup the source side and target side. Source Side Operation 1. Turn POWER ON while holding down [LAMP] and [○] key, in about 2 seconds radio enters the Dealer Mode. Then press [MONI], radio enters Wireless Clone Mode, now the frequency displayed on LCD is the initial frequency matching the destination. Clone ModeDealer Mode[LAMP]Sending clone data Red LED on clone data transfer end Red LED offDealer Mode[MONI]](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-18.png)

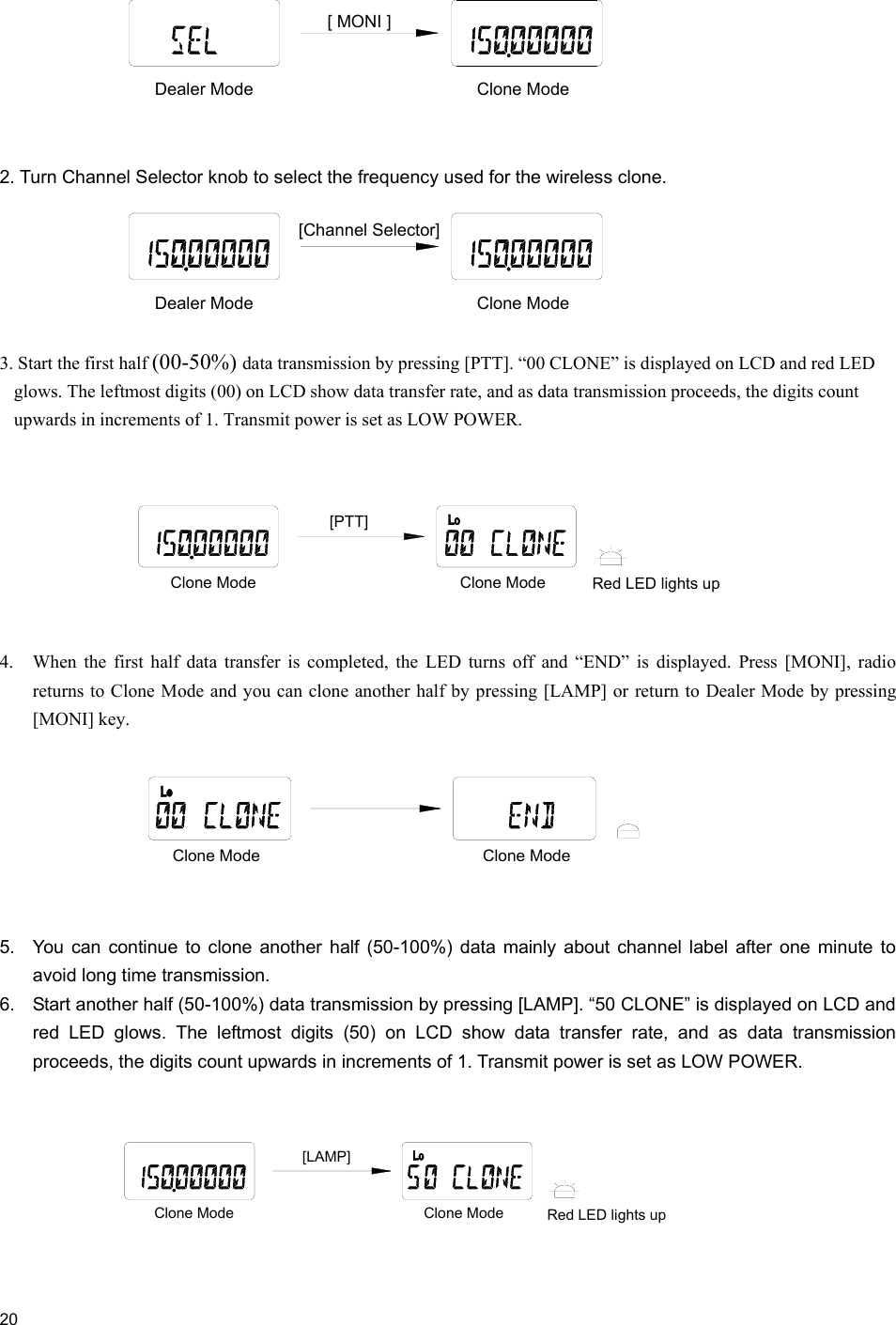

![20 2. Turn Channel Selector knob to select the frequency used for the wireless clone. 3. Start the first half (00-50%) data transmission by pressing [PTT]. “00 CLONE” is displayed on LCD and red LED glows. The leftmost digits (00) on LCD show data transfer rate, and as data transmission proceeds, the digits count upwards in increments of 1. Transmit power is set as LOW POWER. 4. When the first half data transfer is completed, the LED turns off and “END” is displayed. Press [MONI], radio returns to Clone Mode and you can clone another half by pressing [LAMP] or return to Dealer Mode by pressing [MONI] key. 5. You can continue to clone another half (50-100%) data mainly about channel label after one minute to avoid long time transmission. 6. Start another half (50-100%) data transmission by pressing [LAMP]. “50 CLONE” is displayed on LCD and red LED glows. The leftmost digits (50) on LCD show data transfer rate, and as data transmission proceeds, the digits count upwards in increments of 1. Transmit power is set as LOW POWER. Clone ModeDealer Mode[ MONI ]Clone ModeDealer Mode[Channel Selector]Red LED lights up Clone Mode Clone Mode[PTT]Clone ModeClone ModeRed LED lights up Clone ModeClone Mode[LAMP]](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-19.png)

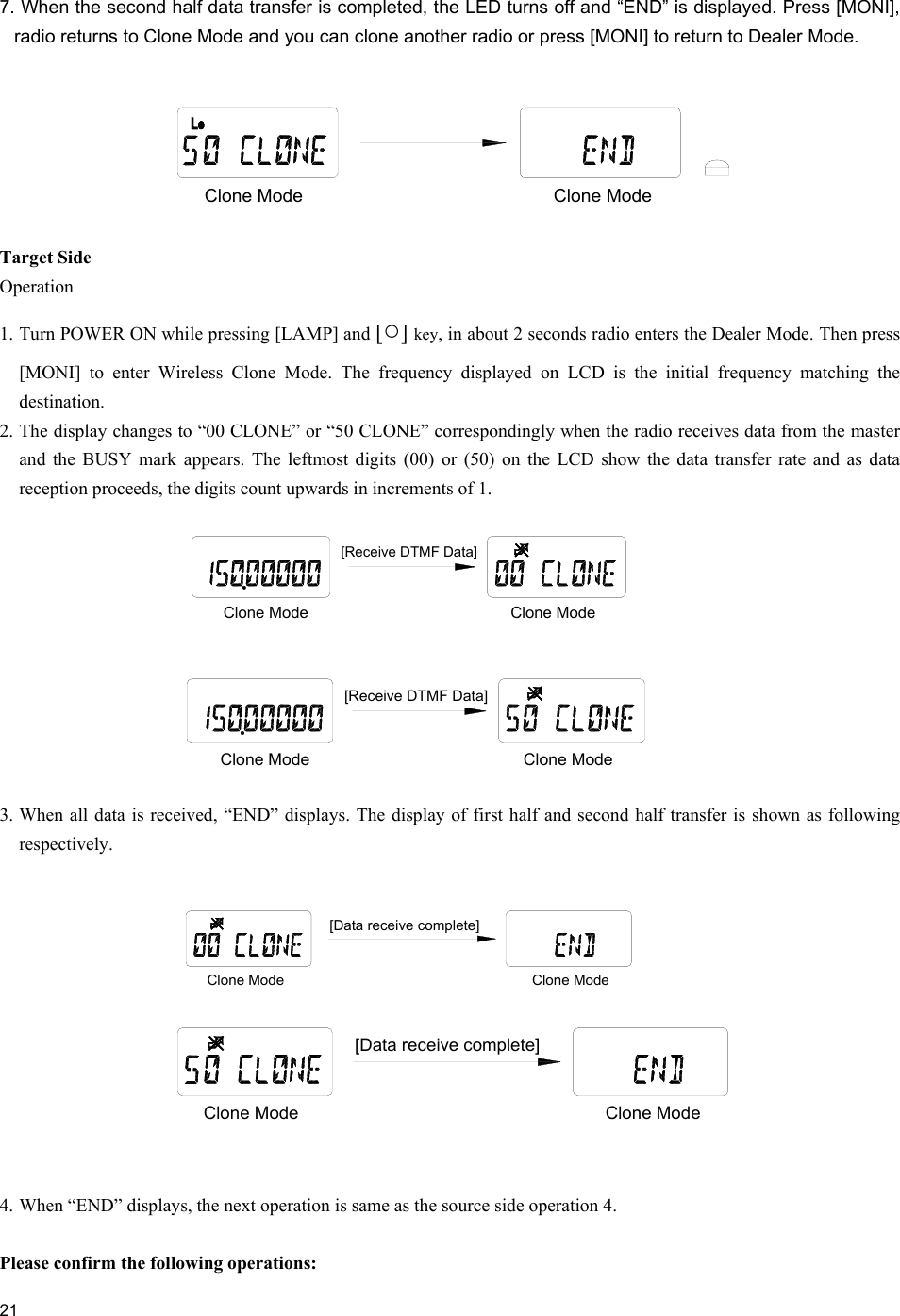

![21 7. When the second half data transfer is completed, the LED turns off and “END” is displayed. Press [MONI], radio returns to Clone Mode and you can clone another radio or press [MONI] to return to Dealer Mode. Target Side Operation 1. Turn POWER ON while pressing [LAMP] and [○] key, in about 2 seconds radio enters the Dealer Mode. Then press [MONI] to enter Wireless Clone Mode. The frequency displayed on LCD is the initial frequency matching the destination. 2. The display changes to “00 CLONE” or “50 CLONE” correspondingly when the radio receives data from the master and the BUSY mark appears. The leftmost digits (00) or (50) on the LCD show the data transfer rate and as data reception proceeds, the digits count upwards in increments of 1. 3. When all data is received, “END” displays. The display of first half and second half transfer is shown as following respectively. 4. When “END” displays, the next operation is same as the source side operation 4. Please confirm the following operations: Clone Mode[Receive DTMF Data]Clone Mode[Data receive complete]Clone ModeClone ModeClone ModeClone ModeClone Mode[Receive DTMF Data]Clone Mode[Data receive complete]Clone Mode Clone Mode](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-20.png)

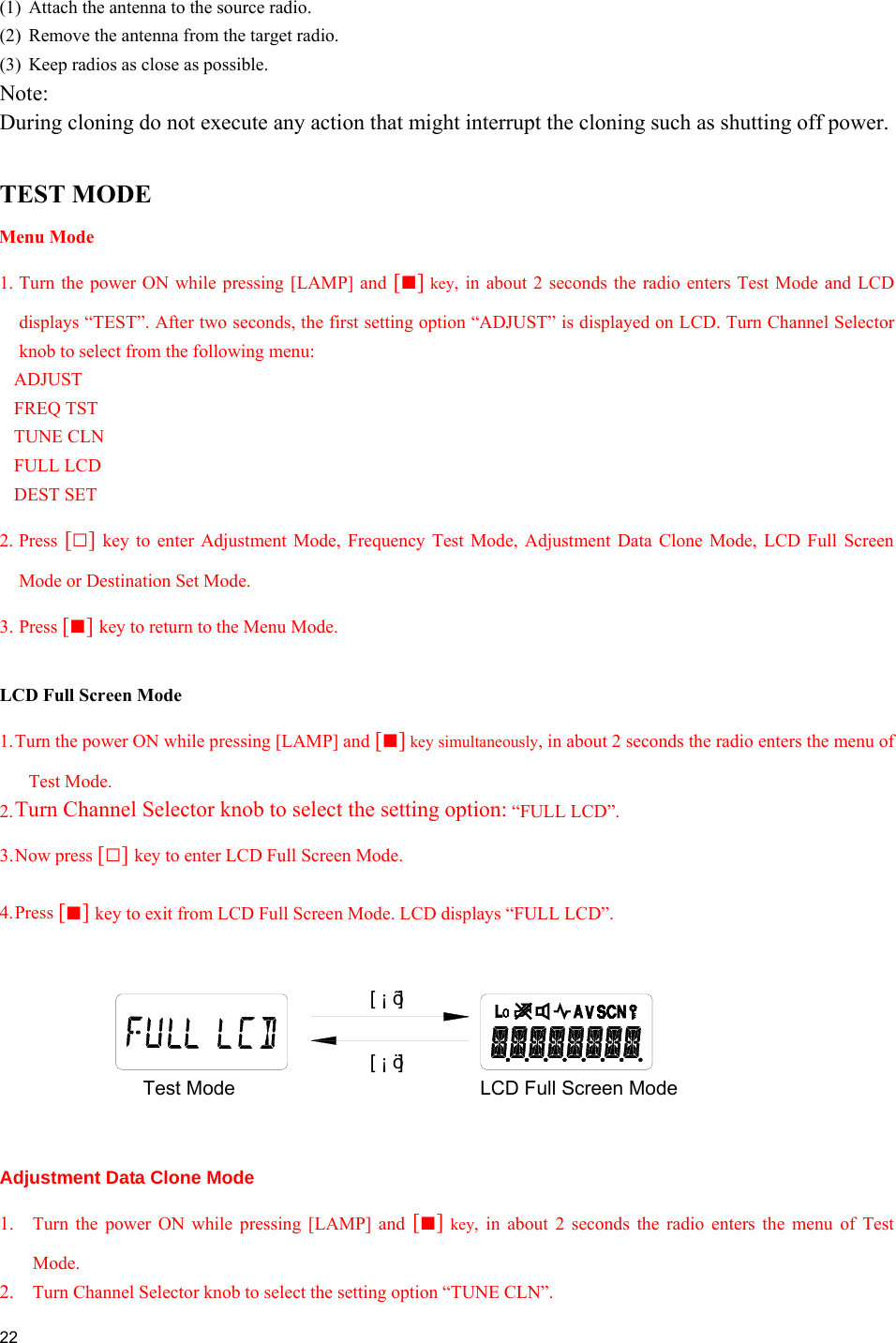

![22 (1) Attach the antenna to the source radio. (2) Remove the antenna from the target radio. (3) Keep radios as close as possible. Note: During cloning do not execute any action that might interrupt the cloning such as shutting off power. TEST MODE Menu Mode 1. Turn the power ON while pressing [LAMP] and [■] key, in about 2 seconds the radio enters Test Mode and LCD displays “TEST”. After two seconds, the first setting option “ADJUST” is displayed on LCD. Turn Channel Selector knob to select from the following menu: ADJUST FREQ TST TUNE CLN FULL LCD DEST SET 2. Press [□] key to enter Adjustment Mode, Frequency Test Mode, Adjustment Data Clone Mode, LCD Full Screen Mode or Destination Set Mode. 3. Press [■] key to return to the Menu Mode. LCD Full Screen Mode 1. Turn the power ON while pressing [LAMP] and [■] key simultaneously, in about 2 seconds the radio enters the menu of Test Mode. 2. Turn Channel Selector knob to select the setting option: “FULL LCD”. 3. Now press [□] key to enter LCD Full Screen Mode. 4. Press [■] key to exit from LCD Full Screen Mode. LCD displays “FULL LCD”. Adjustment Data Clone Mode 1. Turn the power ON while pressing [LAMP] and [■] key, in about 2 seconds the radio enters the menu of Test Mode. 2. Turn Channel Selector knob to select the setting option “TUNE CLN”. LCD Full Screen ModeTest Mode[ ¡ ö ][ ¡ õ ]](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-21.png)

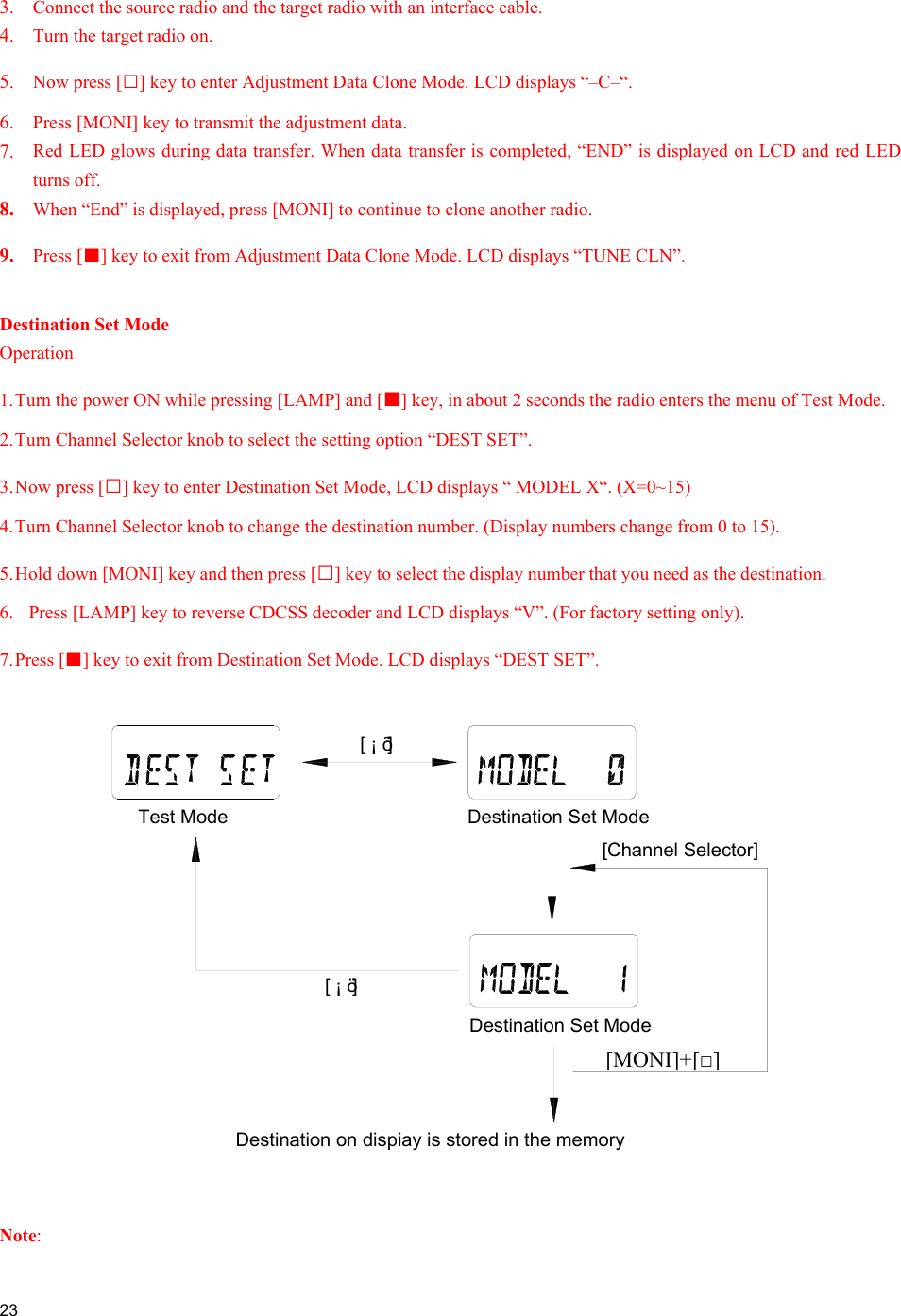

![23 3. Connect the source radio and the target radio with an interface cable. 4. Turn the target radio on. 5. Now press [□] key to enter Adjustment Data Clone Mode. LCD displays “–C–“. 6. Press [MONI] key to transmit the adjustment data. 7. Red LED glows during data transfer. When data transfer is completed, “END” is displayed on LCD and red LED turns off. 8. When “End” is displayed, press [MONI] to continue to clone another radio. 9. Press [■] key to exit from Adjustment Data Clone Mode. LCD displays “TUNE CLN”. Destination Set Mode Operation 1. Turn the power ON while pressing [LAMP] and [■] key, in about 2 seconds the radio enters the menu of Test Mode. 2. Turn Channel Selector knob to select the setting option “DEST SET”. 3. Now press [□] key to enter Destination Set Mode, LCD displays “ MODEL X“. (X=0~15) 4. Turn Channel Selector knob to change the destination number. (Display numbers change from 0 to 15). 5. Hold down [MONI] key and then press [□] key to select the display number that you need as the destination. 6. Press [LAMP] key to reverse CDCSS decoder and LCD displays “V”. (For factory setting only). 7. Press [■] key to exit from Destination Set Mode. LCD displays “DEST SET”. Note: [ ¡ ö ]Test ModeDestination on dispiay is stored in the memory[Channel Selector]Destination Set ModeDestination Set Mode[PTT][ ¡ õ ][MONI]+[□]](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-22.png)

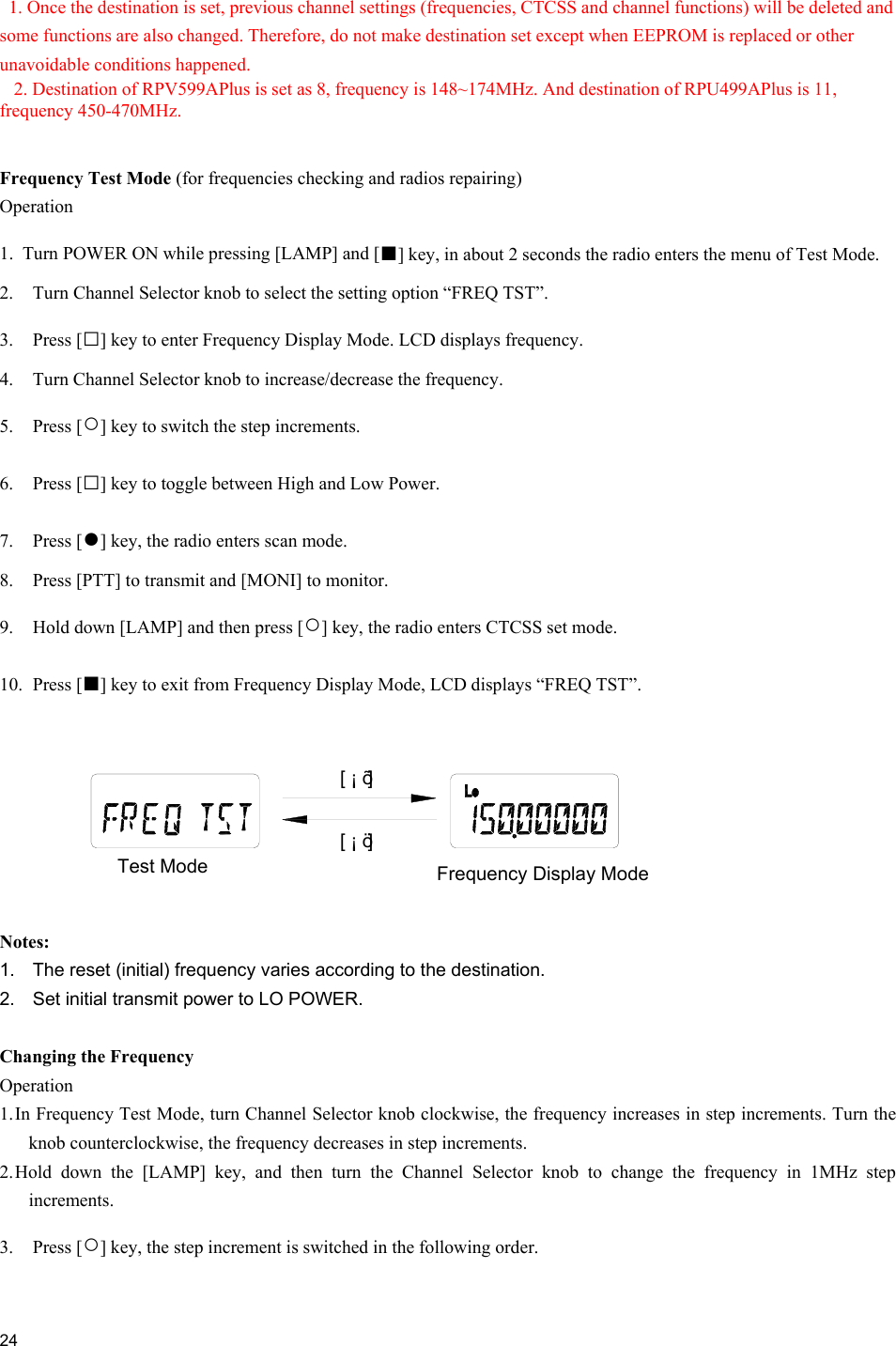

![24 1. Once the destination is set, previous channel settings (frequencies, CTCSS and channel functions) will be deleted and some functions are also changed. Therefore, do not make destination set except when EEPROM is replaced or other unavoidable conditions happened. 2. Destination of RPV599APlus is set as 8, frequency is 148~174MHz. And destination of RPU499APlus is 11, frequency 450-470MHz. Frequency Test Mode (for frequencies checking and radios repairing) Operation 1. Turn POWER ON while pressing [LAMP] and [■] key, in about 2 seconds the radio enters the menu of Test Mode. 2. Turn Channel Selector knob to select the setting option “FREQ TST”. 3. Press [□] key to enter Frequency Display Mode. LCD displays frequency. 4. Turn Channel Selector knob to increase/decrease the frequency. 5. Press [○] key to switch the step increments. 6. Press [□] key to toggle between High and Low Power. 7. Press [●] key, the radio enters scan mode. 8. Press [PTT] to transmit and [MONI] to monitor. 9. Hold down [LAMP] and then press [○] key, the radio enters CTCSS set mode. 10. Press [■] key to exit from Frequency Display Mode, LCD displays “FREQ TST”. Notes: 1. The reset (initial) frequency varies according to the destination. 2. Set initial transmit power to LO POWER. Changing the Frequency Operation 1. In Frequency Test Mode, turn Channel Selector knob clockwise, the frequency increases in step increments. Turn the knob counterclockwise, the frequency decreases in step increments. 2. Hold down the [LAMP] key, and then turn the Channel Selector knob to change the frequency in 1MHz step increments. 3. Press [○] key, the step increment is switched in the following order. Frequency Display Mode[ ¡ ö ][ ¡ õ ]Test Mode](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-23.png)

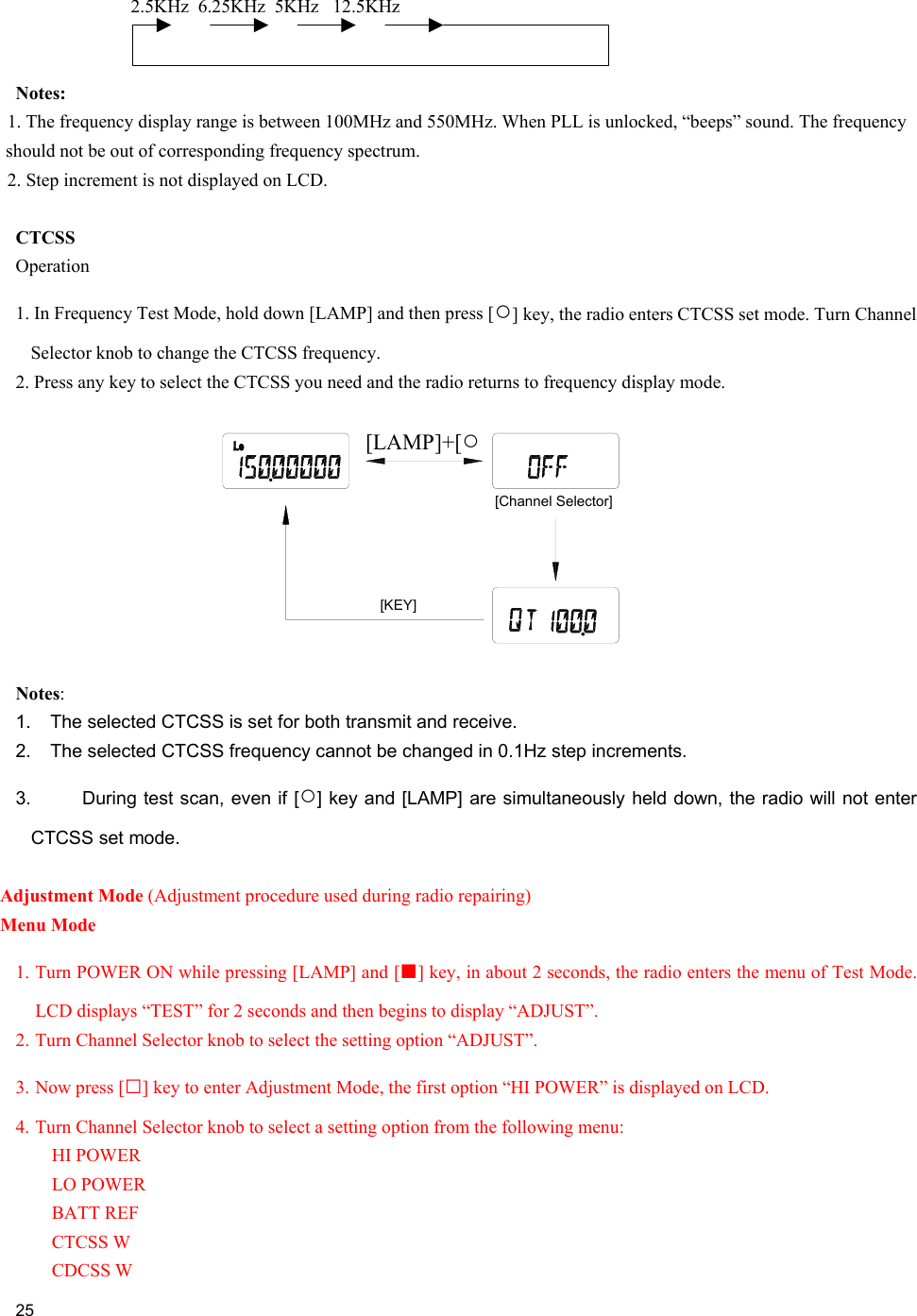

![25 2.5KHz 6.25KHz 5KHz 12.5KHz Notes: 1. The frequency display range is between 100MHz and 550MHz. When PLL is unlocked, “beeps” sound. The frequency should not be out of corresponding frequency spectrum. 2. Step increment is not displayed on LCD. CTCSS Operation 1. In Frequency Test Mode, hold down [LAMP] and then press [○] key, the radio enters CTCSS set mode. Turn Channel Selector knob to change the CTCSS frequency. 2. Press any key to select the CTCSS you need and the radio returns to frequency display mode. Notes: 1. The selected CTCSS is set for both transmit and receive. 2. The selected CTCSS frequency cannot be changed in 0.1Hz step increments. 3. During test scan, even if [○] key and [LAMP] are simultaneously held down, the radio will not enter CTCSS set mode. Adjustment Mode (Adjustment procedure used during radio repairing) Menu Mode 1. Turn POWER ON while pressing [LAMP] and [■] key, in about 2 seconds, the radio enters the menu of Test Mode. LCD displays “TEST” for 2 seconds and then begins to display “ADJUST”. 2. Turn Channel Selector knob to select the setting option “ADJUST”. 3. Now press [□] key to enter Adjustment Mode, the first option “HI POWER” is displayed on LCD. 4. Turn Channel Selector knob to select a setting option from the following menu: HI POWER LO POWER BATT REF CTCSS W CDCSS W [Channel Selector][KEY][LAMP]+[DIAL][LAMP]+[○](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-24.png)

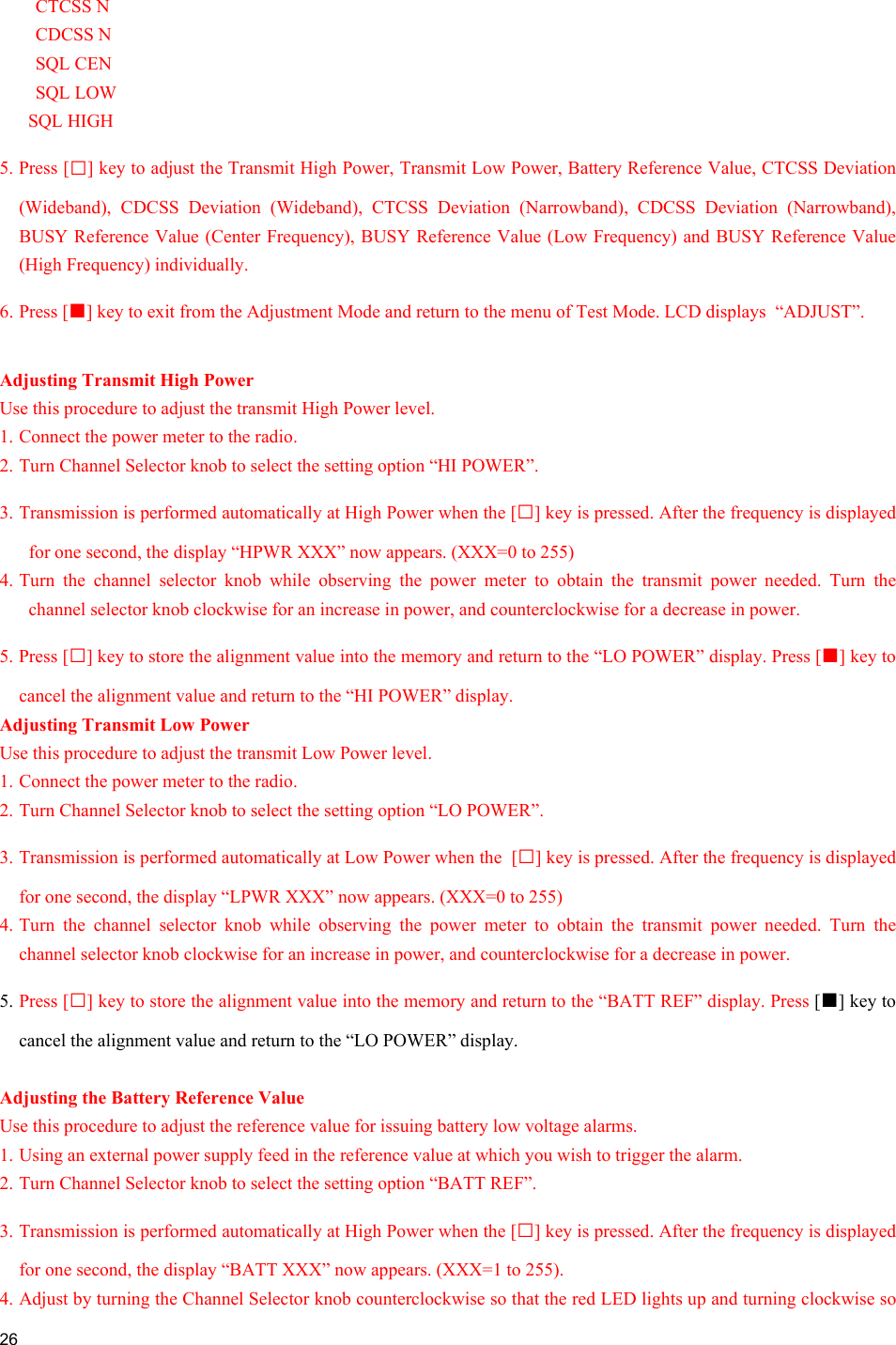

![26 CTCSS N CDCSS N SQL CEN SQL LOW SQL HIGH 5. Press [□] key to adjust the Transmit High Power, Transmit Low Power, Battery Reference Value, CTCSS Deviation (Wideband), CDCSS Deviation (Wideband), CTCSS Deviation (Narrowband), CDCSS Deviation (Narrowband), BUSY Reference Value (Center Frequency), BUSY Reference Value (Low Frequency) and BUSY Reference Value (High Frequency) individually. 6. Press [■] key to exit from the Adjustment Mode and return to the menu of Test Mode. LCD displays “ADJUST”. Adjusting Transmit High Power Use this procedure to adjust the transmit High Power level. 1. Connect the power meter to the radio. 2. Turn Channel Selector knob to select the setting option “HI POWER”. 3. Transmission is performed automatically at High Power when the [□] key is pressed. After the frequency is displayed for one second, the display “HPWR XXX” now appears. (XXX=0 to 255) 4. Turn the channel selector knob while observing the power meter to obtain the transmit power needed. Turn the channel selector knob clockwise for an increase in power, and counterclockwise for a decrease in power. 5. Press [□] key to store the alignment value into the memory and return to the “LO POWER” display. Press [■] key to cancel the alignment value and return to the “HI POWER” display. Adjusting Transmit Low Power Use this procedure to adjust the transmit Low Power level. 1. Connect the power meter to the radio. 2. Turn Channel Selector knob to select the setting option “LO POWER”. 3. Transmission is performed automatically at Low Power when the [□] key is pressed. After the frequency is displayed for one second, the display “LPWR XXX” now appears. (XXX=0 to 255) 4. Turn the channel selector knob while observing the power meter to obtain the transmit power needed. Turn the channel selector knob clockwise for an increase in power, and counterclockwise for a decrease in power. 5. Press [□] key to store the alignment value into the memory and return to the “BATT REF” display. Press [■] key to cancel the alignment value and return to the “LO POWER” display. Adjusting the Battery Reference Value Use this procedure to adjust the reference value for issuing battery low voltage alarms. 1. Using an external power supply feed in the reference value at which you wish to trigger the alarm. 2. Turn Channel Selector knob to select the setting option “BATT REF”. 3. Transmission is performed automatically at High Power when the [□] key is pressed. After the frequency is displayed for one second, the display “BATT XXX” now appears. (XXX=1 to 255). 4. Adjust by turning the Channel Selector knob counterclockwise so that the red LED lights up and turning clockwise so](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-25.png)

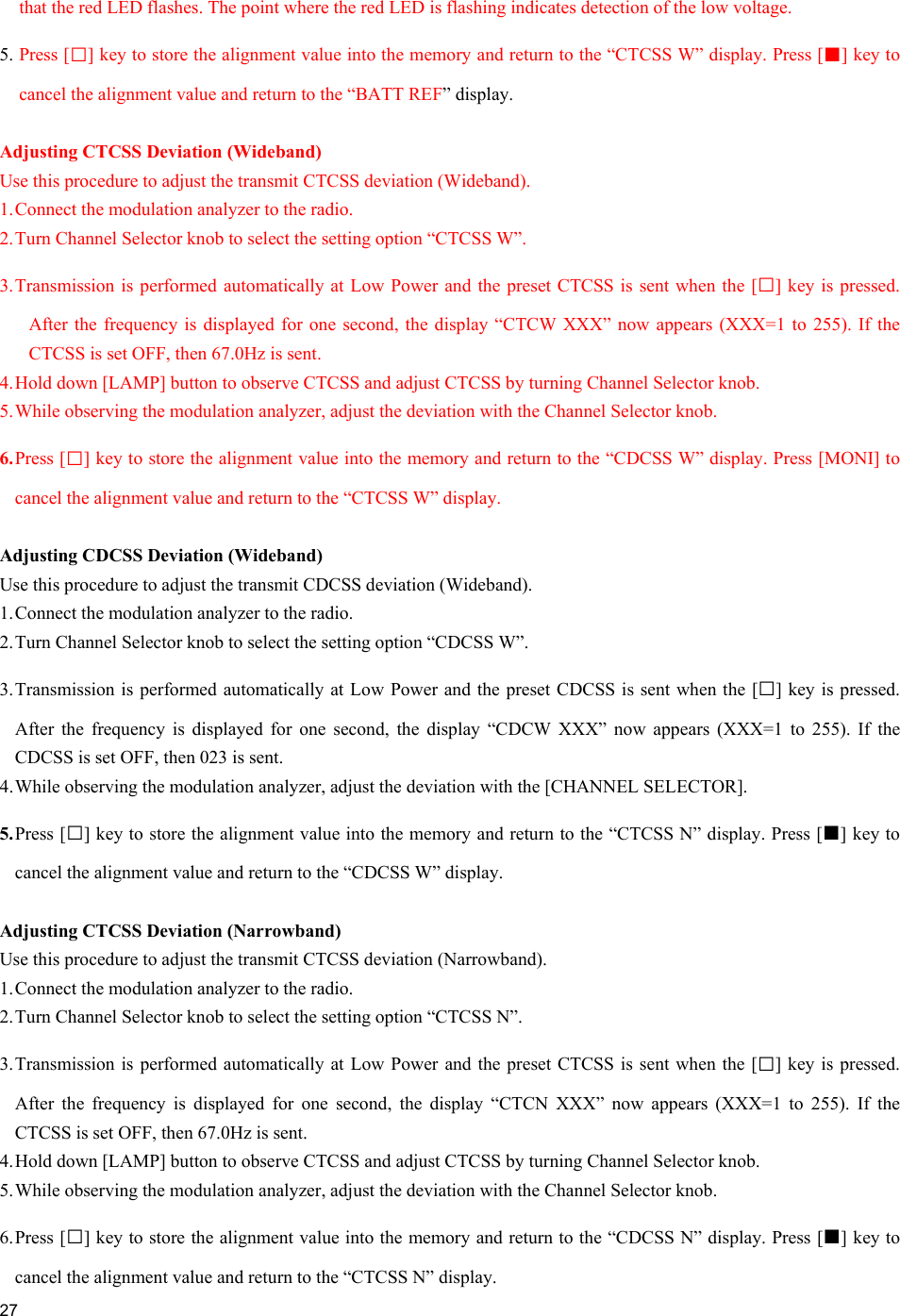

![27 that the red LED flashes. The point where the red LED is flashing indicates detection of the low voltage. 5. Press [□] key to store the alignment value into the memory and return to the “CTCSS W” display. Press [■] key to cancel the alignment value and return to the “BATT REF” display. Adjusting CTCSS Deviation (Wideband) Use this procedure to adjust the transmit CTCSS deviation (Wideband). 1. Connect the modulation analyzer to the radio. 2. Turn Channel Selector knob to select the setting option “CTCSS W”. 3. Transmission is performed automatically at Low Power and the preset CTCSS is sent when the [□] key is pressed. After the frequency is displayed for one second, the display “CTCW XXX” now appears (XXX=1 to 255). If the CTCSS is set OFF, then 67.0Hz is sent. 4. Hold down [LAMP] button to observe CTCSS and adjust CTCSS by turning Channel Selector knob. 5. While observing the modulation analyzer, adjust the deviation with the Channel Selector knob. 6. Press [□] key to store the alignment value into the memory and return to the “CDCSS W” display. Press [MONI] to cancel the alignment value and return to the “CTCSS W” display. Adjusting CDCSS Deviation (Wideband) Use this procedure to adjust the transmit CDCSS deviation (Wideband). 1. Connect the modulation analyzer to the radio. 2. Turn Channel Selector knob to select the setting option “CDCSS W”. 3. Transmission is performed automatically at Low Power and the preset CDCSS is sent when the [□] key is pressed. After the frequency is displayed for one second, the display “CDCW XXX” now appears (XXX=1 to 255). If the CDCSS is set OFF, then 023 is sent. 4. While observing the modulation analyzer, adjust the deviation with the [CHANNEL SELECTOR]. 5. Press [□] key to store the alignment value into the memory and return to the “CTCSS N” display. Press [■] key to cancel the alignment value and return to the “CDCSS W” display. Adjusting CTCSS Deviation (Narrowband) Use this procedure to adjust the transmit CTCSS deviation (Narrowband). 1. Connect the modulation analyzer to the radio. 2. Turn Channel Selector knob to select the setting option “CTCSS N”. 3. Transmission is performed automatically at Low Power and the preset CTCSS is sent when the [□] key is pressed. After the frequency is displayed for one second, the display “CTCN XXX” now appears (XXX=1 to 255). If the CTCSS is set OFF, then 67.0Hz is sent. 4. Hold down [LAMP] button to observe CTCSS and adjust CTCSS by turning Channel Selector knob. 5. While observing the modulation analyzer, adjust the deviation with the Channel Selector knob. 6. Press [□] key to store the alignment value into the memory and return to the “CDCSS N” display. Press [■] key to cancel the alignment value and return to the “CTCSS N” display.](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-26.png)

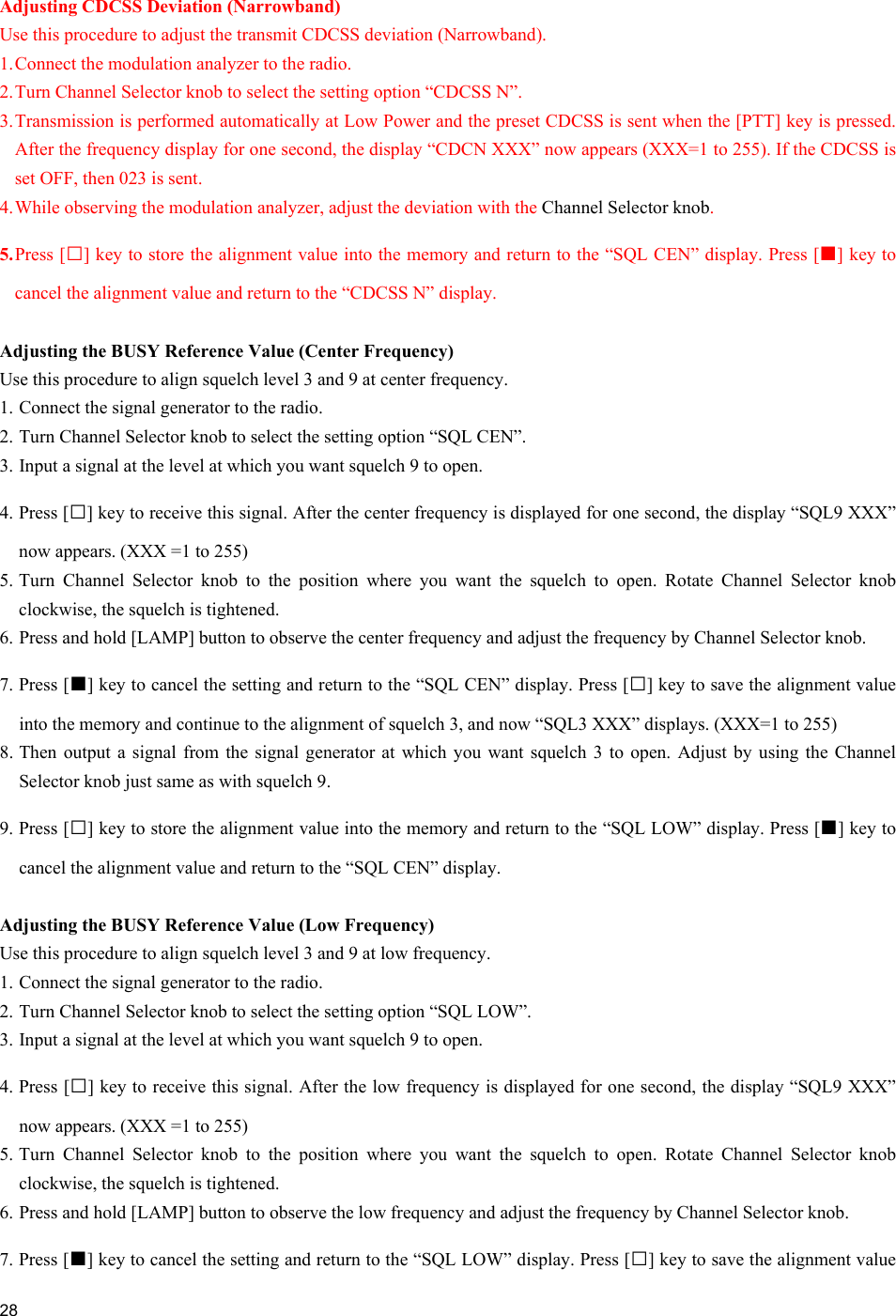

![28 Adjusting CDCSS Deviation (Narrowband) Use this procedure to adjust the transmit CDCSS deviation (Narrowband). 1. Connect the modulation analyzer to the radio. 2. Turn Channel Selector knob to select the setting option “CDCSS N”. 3. Transmission is performed automatically at Low Power and the preset CDCSS is sent when the [PTT] key is pressed. After the frequency display for one second, the display “CDCN XXX” now appears (XXX=1 to 255). If the CDCSS is set OFF, then 023 is sent. 4. While observing the modulation analyzer, adjust the deviation with the Channel Selector knob. 5. Press [□] key to store the alignment value into the memory and return to the “SQL CEN” display. Press [■] key to cancel the alignment value and return to the “CDCSS N” display. Adjusting the BUSY Reference Value (Center Frequency) Use this procedure to align squelch level 3 and 9 at center frequency. 1. Connect the signal generator to the radio. 2. Turn Channel Selector knob to select the setting option “SQL CEN”. 3. Input a signal at the level at which you want squelch 9 to open. 4. Press [□] key to receive this signal. After the center frequency is displayed for one second, the display “SQL9 XXX” now appears. (XXX =1 to 255) 5. Turn Channel Selector knob to the position where you want the squelch to open. Rotate Channel Selector knob clockwise, the squelch is tightened. 6. Press and hold [LAMP] button to observe the center frequency and adjust the frequency by Channel Selector knob. 7. Press [■] key to cancel the setting and return to the “SQL CEN” display. Press [□] key to save the alignment value into the memory and continue to the alignment of squelch 3, and now “SQL3 XXX” displays. (XXX=1 to 255) 8. Then output a signal from the signal generator at which you want squelch 3 to open. Adjust by using the Channel Selector knob just same as with squelch 9. 9. Press [□] key to store the alignment value into the memory and return to the “SQL LOW” display. Press [■] key to cancel the alignment value and return to the “SQL CEN” display. Adjusting the BUSY Reference Value (Low Frequency) Use this procedure to align squelch level 3 and 9 at low frequency. 1. Connect the signal generator to the radio. 2. Turn Channel Selector knob to select the setting option “SQL LOW”. 3. Input a signal at the level at which you want squelch 9 to open. 4. Press [□] key to receive this signal. After the low frequency is displayed for one second, the display “SQL9 XXX” now appears. (XXX =1 to 255) 5. Turn Channel Selector knob to the position where you want the squelch to open. Rotate Channel Selector knob clockwise, the squelch is tightened. 6. Press and hold [LAMP] button to observe the low frequency and adjust the frequency by Channel Selector knob. 7. Press [■] key to cancel the setting and return to the “SQL LOW” display. Press [□] key to save the alignment value](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-27.png)

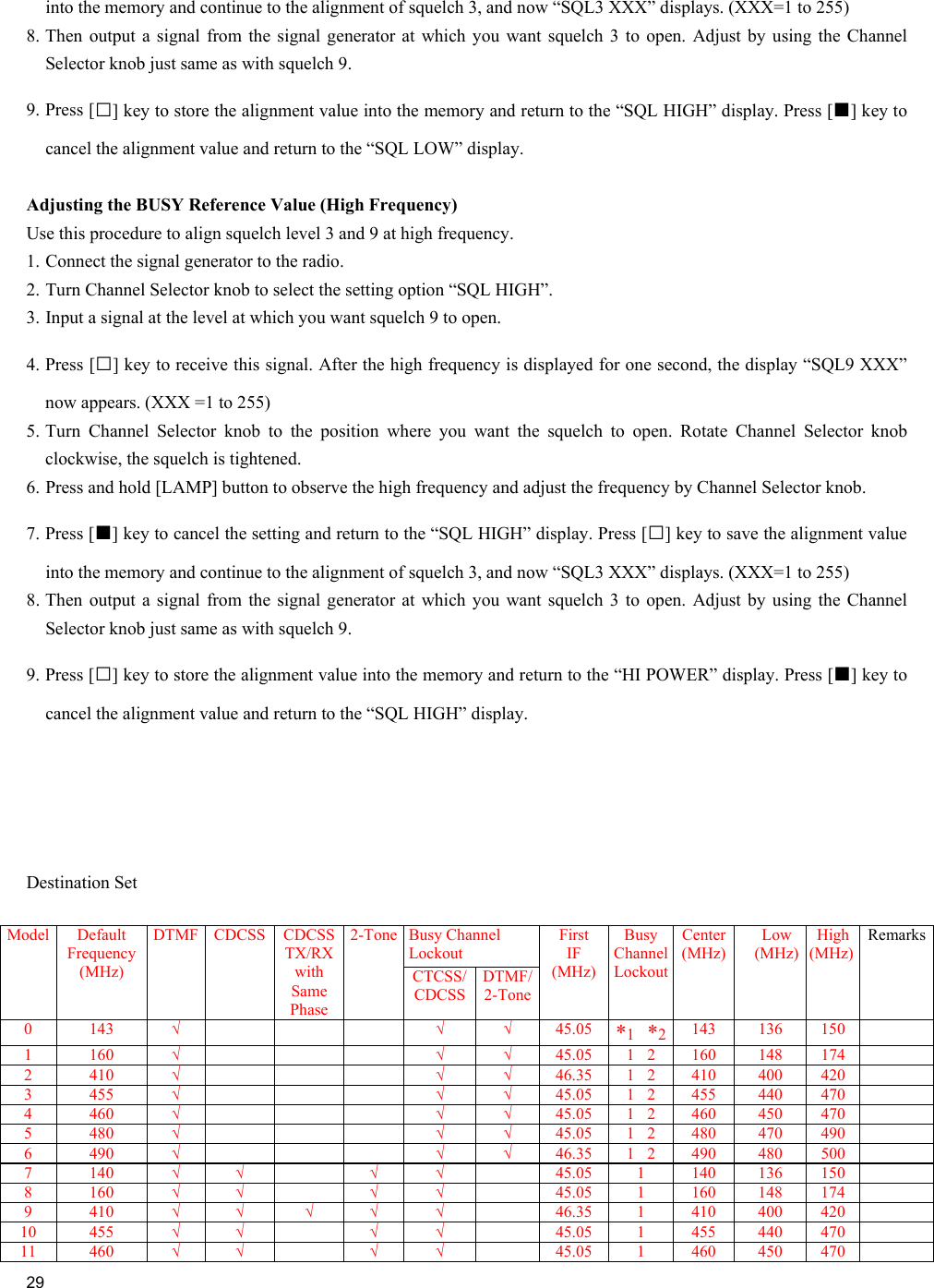

![29 into the memory and continue to the alignment of squelch 3, and now “SQL3 XXX” displays. (XXX=1 to 255) 8. Then output a signal from the signal generator at which you want squelch 3 to open. Adjust by using the Channel Selector knob just same as with squelch 9. 9. Press [□] key to store the alignment value into the memory and return to the “SQL HIGH” display. Press [■] key to cancel the alignment value and return to the “SQL LOW” display. Adjusting the BUSY Reference Value (High Frequency) Use this procedure to align squelch level 3 and 9 at high frequency. 1. Connect the signal generator to the radio. 2. Turn Channel Selector knob to select the setting option “SQL HIGH”. 3. Input a signal at the level at which you want squelch 9 to open. 4. Press [□] key to receive this signal. After the high frequency is displayed for one second, the display “SQL9 XXX” now appears. (XXX =1 to 255) 5. Turn Channel Selector knob to the position where you want the squelch to open. Rotate Channel Selector knob clockwise, the squelch is tightened. 6. Press and hold [LAMP] button to observe the high frequency and adjust the frequency by Channel Selector knob. 7. Press [■] key to cancel the setting and return to the “SQL HIGH” display. Press [□] key to save the alignment value into the memory and continue to the alignment of squelch 3, and now “SQL3 XXX” displays. (XXX=1 to 255) 8. Then output a signal from the signal generator at which you want squelch 3 to open. Adjust by using the Channel Selector knob just same as with squelch 9. 9. Press [□] key to store the alignment value into the memory and return to the “HI POWER” display. Press [■] key to cancel the alignment value and return to the “SQL HIGH” display. Destination Set Busy Channel Lockout Model Default Frequency (MHz) DTMF CDCSS CDCSS TX/RX with Same Phase 2-ToneCTCSS/ CDCSS DTMF/ 2-ToneFirst IF (MHz) Busy Channel LockoutCenter (MHz) Low (MHz) High (MHz)Remarks0 143 √ √ √ 45.05 *1*2143 136 150 1 160 √ √ √ 45.05 12 160 148 174 2 410 √ √ √ 46.35 12 410 400 420 3 455 √ √ √ 45.05 12 455 440 470 4 460 √ √ √ 45.05 12 460 450 470 5 480 √ √ √ 45.05 12 480 470 490 6 490 √ √ √ 46.35 12 490 480 500 7 140 √ √ √ √ 45.05 1 140 136 150 8 160 √ √ √ √ 45.05 1 160 148 174 9 410 √ √ √ √ √ 46.35 1 410 400 420 10 455 √ √ √ √ 45.05 1 455 440 470 11 460 √ √ √ √ 45.05 1 460 450 470](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-28.png)

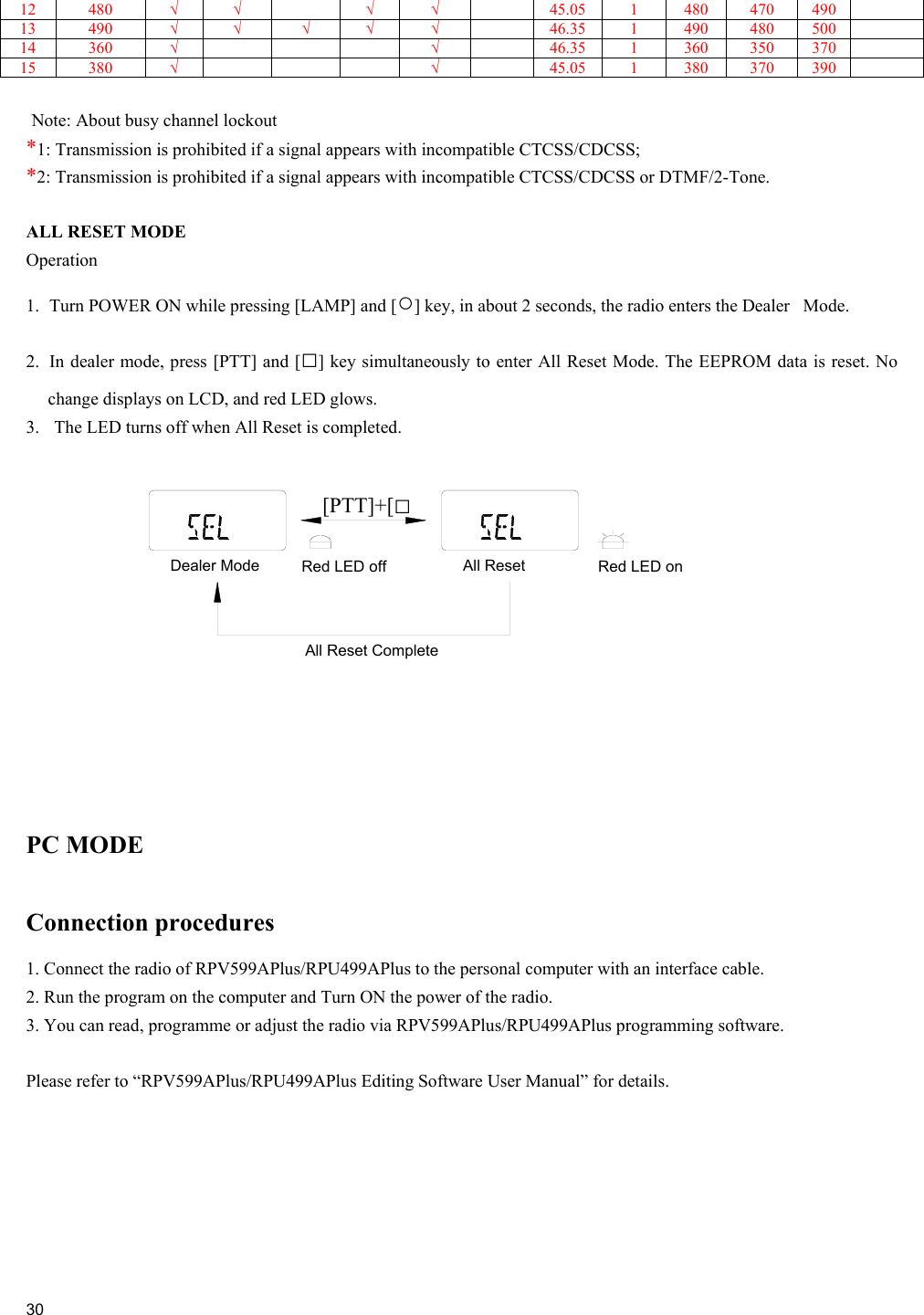

![30 12 480 √ √ √ √ 45.05 1 480 470 490 13 490 √ √ √ √ √ 46.35 1 490 480 500 14 360 √ √ 46.35 1 360 350 370 15 380 √ √ 45.05 1 380 370 390 Note: About busy channel lockout *1: Transmission is prohibited if a signal appears with incompatible CTCSS/CDCSS; *2: Transmission is prohibited if a signal appears with incompatible CTCSS/CDCSS or DTMF/2-Tone. ALL RESET MODE Operation 1. Turn POWER ON while pressing [LAMP] and [○] key, in about 2 seconds, the radio enters the Dealer Mode. 2. In dealer mode, press [PTT] and [□] key simultaneously to enter All Reset Mode. The EEPROM data is reset. No change displays on LCD, and red LED glows. 3. The LED turns off when All Reset is completed. PC MODE Connection procedures 1. Connect the radio of RPV599APlus/RPU499APlus to the personal computer with an interface cable. 2. Run the program on the computer and Turn ON the power of the radio. 3. You can read, programme or adjust the radio via RPV599APlus/RPU499APlus programming software. Please refer to “RPV599APlus/RPU499APlus Editing Software User Manual” for details. Red LED onRed LED off All Reset CompleteAll ResetDealer Mode[PTT]+[LO][PTT]+[□](https://usermanual.wiki/RELM-Communications/RPU499A/User-Guide-417787-Page-29.png)
