ROBOLINK ROBOLINKBLE Robolink Bluetooth module User Manual

RoboLink Inc Robolink Bluetooth module Users Manual

Users Manual

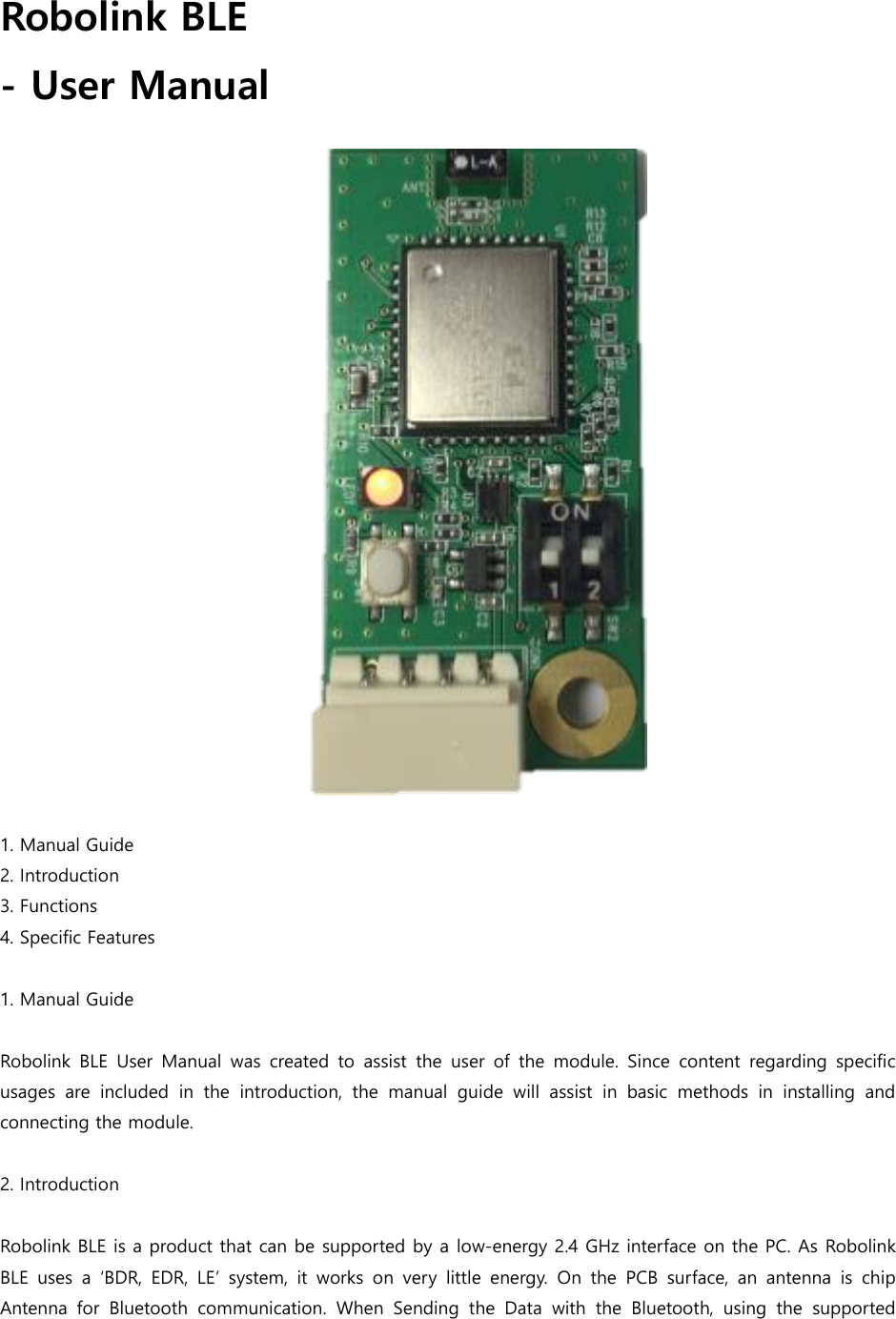

Robolink BLE - User Manual 1. Manual Guide 2. Introduction 3. Functions 4. Specific Features 1. Manual Guide Robolink BLE User Manual was created to assist the user of the module. Since content regarding specific usages are included in the introduction, the manual guide will assist in basic methods in installing and connecting the module. 2. Introduction Robolink BLE is a product that can be supported by a low-energy 2.4 GHz interface on the PC. As Robolink BLE uses a ‘BDR, EDR, LE’ system, it works on very little energy. On the PCB surface, an antenna is chip Antenna for Bluetooth communication. When Sending the Data with the Bluetooth, using the supported

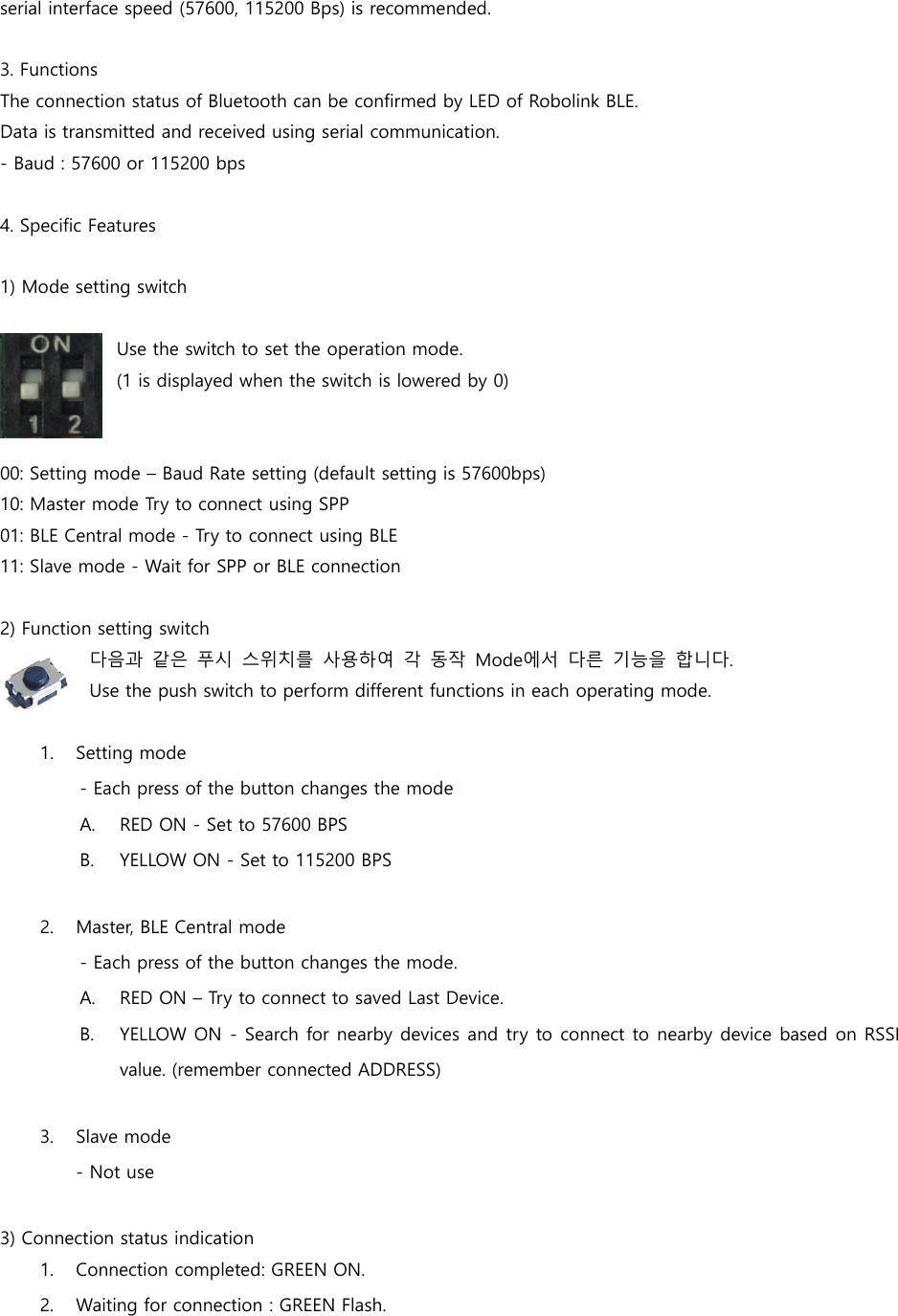

serial interface speed (57600, 115200 Bps) is recommended. 3. Functions The connection status of Bluetooth can be confirmed by LED of Robolink BLE. Data is transmitted and received using serial communication. - Baud : 57600 or 115200 bps 4. Specific Features 1) Mode setting switch Use the switch to set the operation mode. (1 is displayed when the switch is lowered by 0) 00: Setting mode – Baud Rate setting (default setting is 57600bps) 10: Master mode Try to connect using SPP 01: BLE Central mode - Try to connect using BLE 11: Slave mode - Wait for SPP or BLE connection 2) Function setting switch 다음과 같은 푸시 스위치를 사용하여 각 동작 Mode에서 다른 기능을 합니다. Use the push switch to perform different functions in each operating mode. 1. Setting mode - Each press of the button changes the mode A. RED ON - Set to 57600 BPS B. YELLOW ON - Set to 115200 BPS 2. Master, BLE Central mode - Each press of the button changes the mode. A. RED ON – Try to connect to saved Last Device. B. YELLOW ON - Search for nearby devices and try to connect to nearby device based on RSSI value. (remember connected ADDRESS) 3. Slave mode - Not use 3) Connection status indication 1. Connection completed: GREEN ON. 2. Waiting for connection : GREEN Flash.

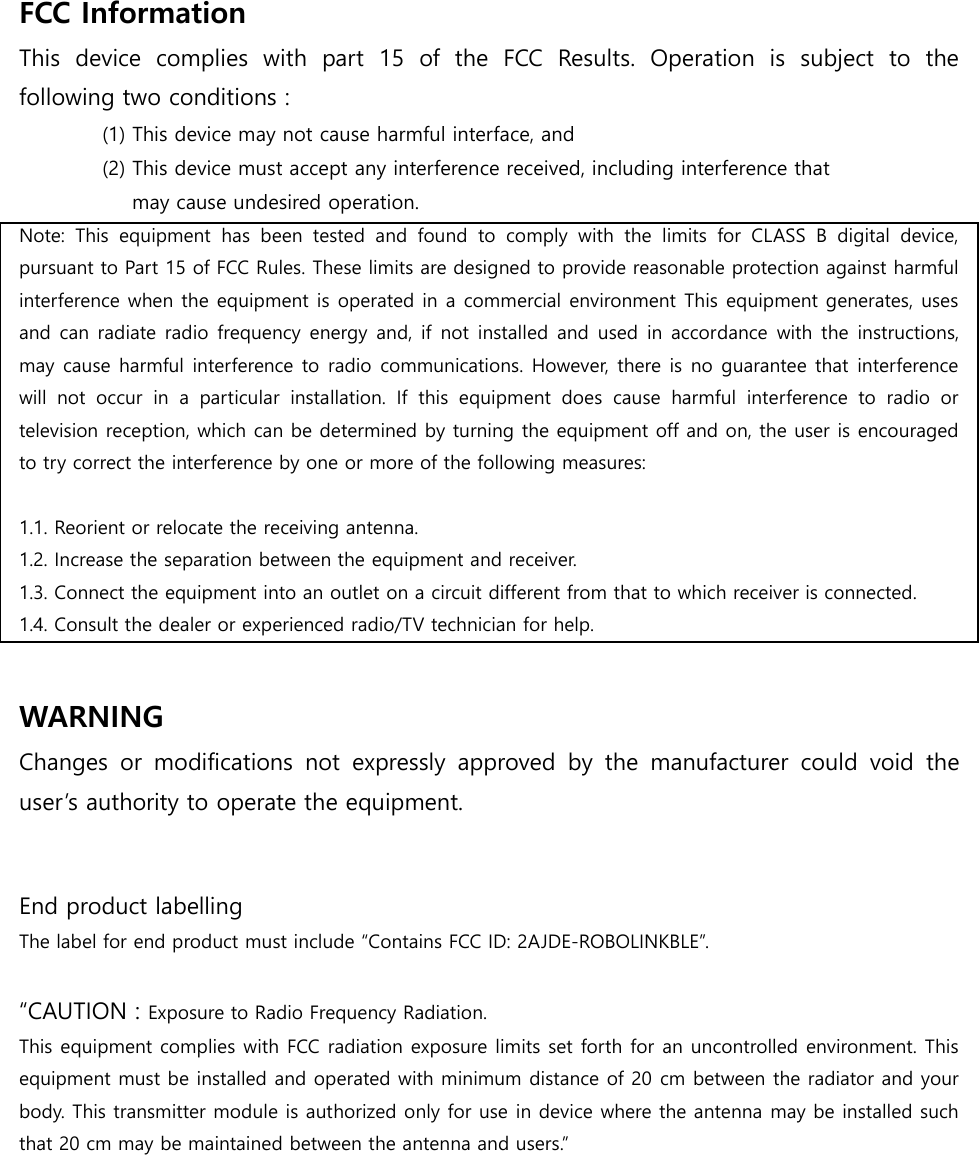

FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.1. Reorient or relocate the receiving antenna. 1.2. Increase the separation between the equipment and receiver. 1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealer or experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. End product labelling The label for end product must include “Contains FCC ID: 2AJDE-ROBOLINKBLE”. “CAUTION : Exposure to Radio Frequency Radiation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users.”
