SOLUM ST-GM3300N ESL Graphic TAG User Manual S TAG Datasheet ST GM42001

SOLUM CO.,LTD. ESL Graphic TAG S TAG Datasheet ST GM42001

Contents

User manual 1 of 2

S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
1/20
CUSTOMER APPROVAL SHEET
Company Name
SOLUM CO.,LTD.
MODEL
ST-GM3300N
CUSTOMER
APPROVAL
□APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.0 )
□CUSTOMER REMARK :
Issued By
Checked By
Approved By
JS Seo
YB Lee
JG Ryu
SOLUM CO.,LTD.
150, Maeyoung-ro(Maetan3-Dong), YoungTong-Gu, Suwon, Gyeonggi-Do, Korea
Tel : 82-31-210-5114
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
2/20
S-TAG Datasheet
S-Label (Electronic Label System)
REV 1.0
SOLUM CO.,LTD.
2015-03-23
Summary
This datasheet presents the general performance and specifications of S-Tag for S-Label ESL (Electronic
Shelf Label) system, which is based on IEEE 802.15.4.
© 2015 Solu-M. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Solu-M.
This document is subject to change without notice.
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
3/20
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 FEATURES .............................................................................................................................. 6
1.2 TYPICAL APPLICATIONS .............................................................................................................. 6
1.3 APPEARANCE ........................................................................................................................... 7
2 SPECIFICATION .................................................................................................................. 8
2.1 PRODUCT SPECIFICATION ........................................................................................................... 8
2.2 RADIO (RF) SPECIFICATION........................................................................................................ 8
2.3 MECHANICAL DRAWING ............................................................................................................. 9
2.4 LABELS ................................................................................................................................ 10
2.5 BARCODE SCANNING ............................................................................................................... 12
3 OPERATION TEST .............................................................................................................. 13
4 ESL OPERATION BY DISPLAY ........................................................................................... 14
5 PACKAGE ........................................................................................................................... 17
6 CAUTIONS FOR TREATMENT............................................................................................. 18
6.1 USAGE ENVIRONMENT ............................................................................................................. 18
6.2 STORAGE AND USE ................................................................................................................. 18
6.3 FCC ................................................................................................................................... 19
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
4/20
Document History
Rev.
Revision history
Page
1.0
Initial release
-
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
5/20
1 General Description
This S-Tag product is a part of Solu-M S-Label (Electronic Shelf Label) system as well as S-Label Gateway
(S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically displays price
and other product information on S-Tags, which has been traditionally printed or written on paper in
places like retail markets.
S-Tag receives product price/information updates from S-Gate and updates or changes its display of price
and other information.
S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication
applications. S-Tag consists of RF transceiver, RF circuitry and ARM Cortex M3 MCU offering IEEE
802.15.4 based network protocol and MAC protocol and other peripheral devices.

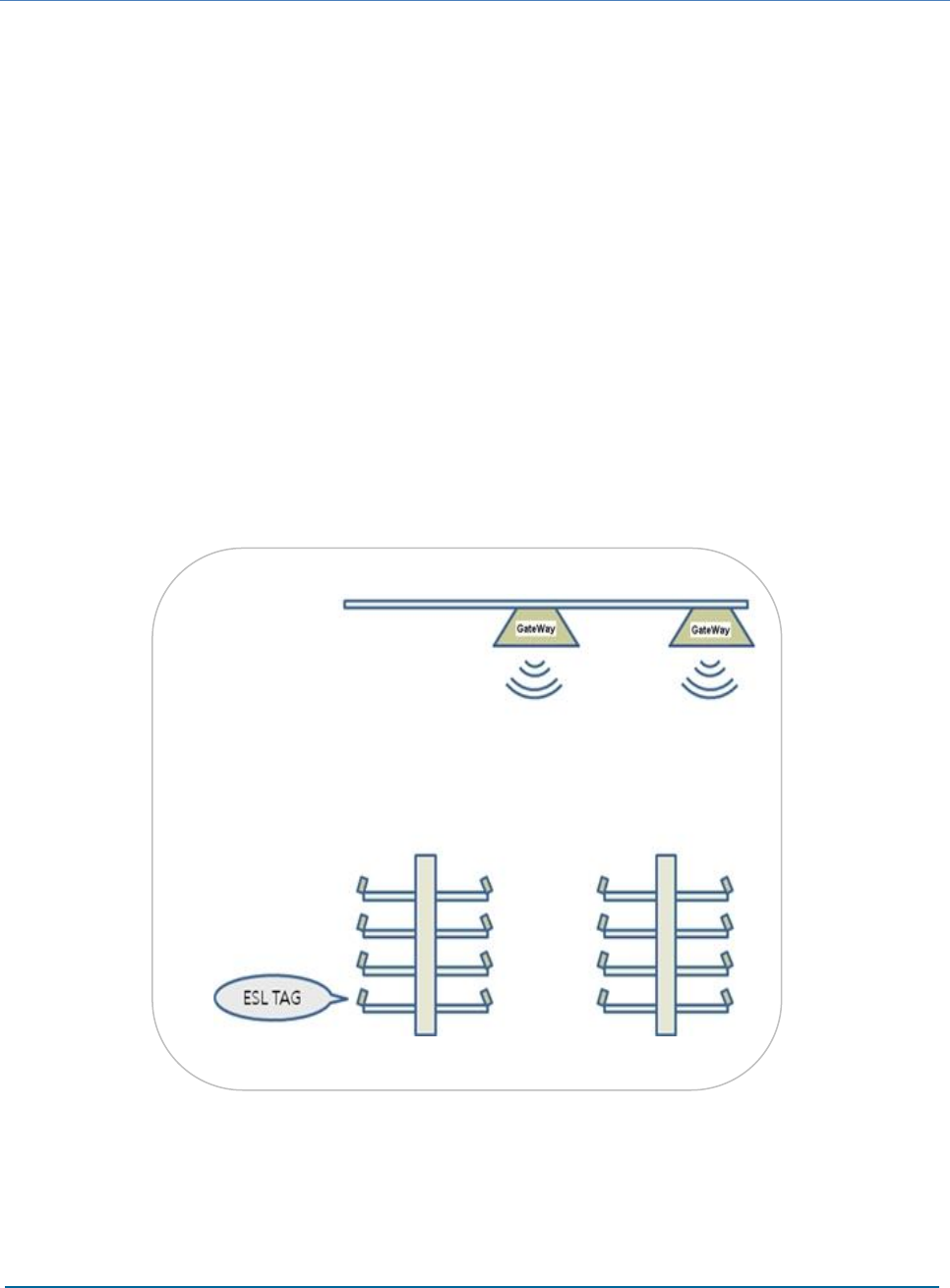

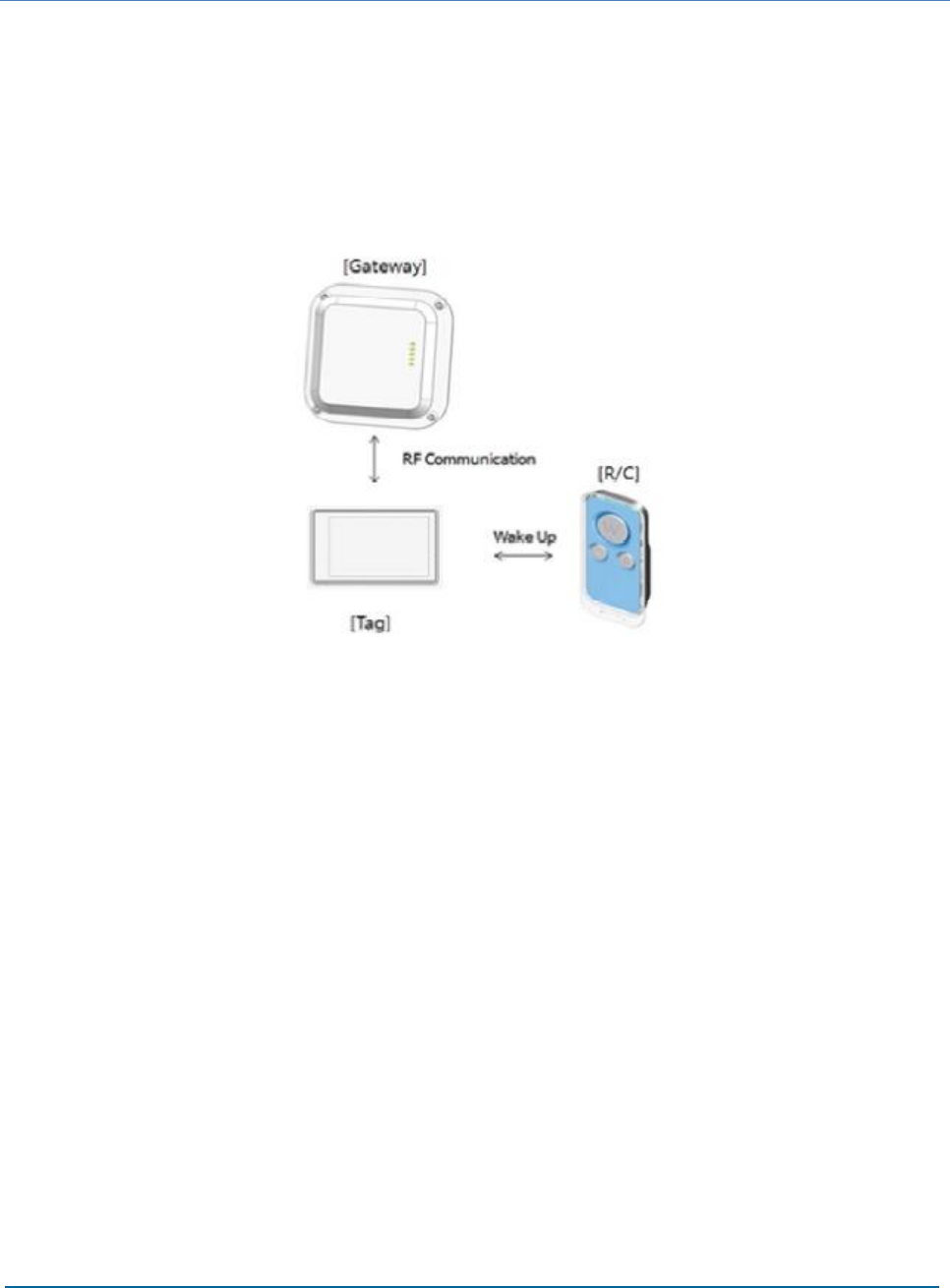

Figure 1 ESL System
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
6/20
1.1 Features
-
-
-
-
-
-
-
-
-
Display : E-Paper Display (EPD) (active type) (87 x58 mm)
Display Color : Black, White
Display Resolution : 300 x 200 pixel (110dpi)
Communication : Wireless communication based on IEEE 802.15.4 (2405~2480MHz)
Operating on 2.4GHz Unlicensed ISM band for ZigBee
Low Power Consumption
External Wakeup : Magnetic Wakeup (using Reed switch)
Outline Dimension : 87 mm x 58 mm x 12 mm
Working condition: Indoor where wireless communication is available.
1.2 Typical Applications
- Retail industry with electronic displays, platforms, solutions and services.
- Intelligently communicating, managing, and optimizing price and product informations.
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
7/20

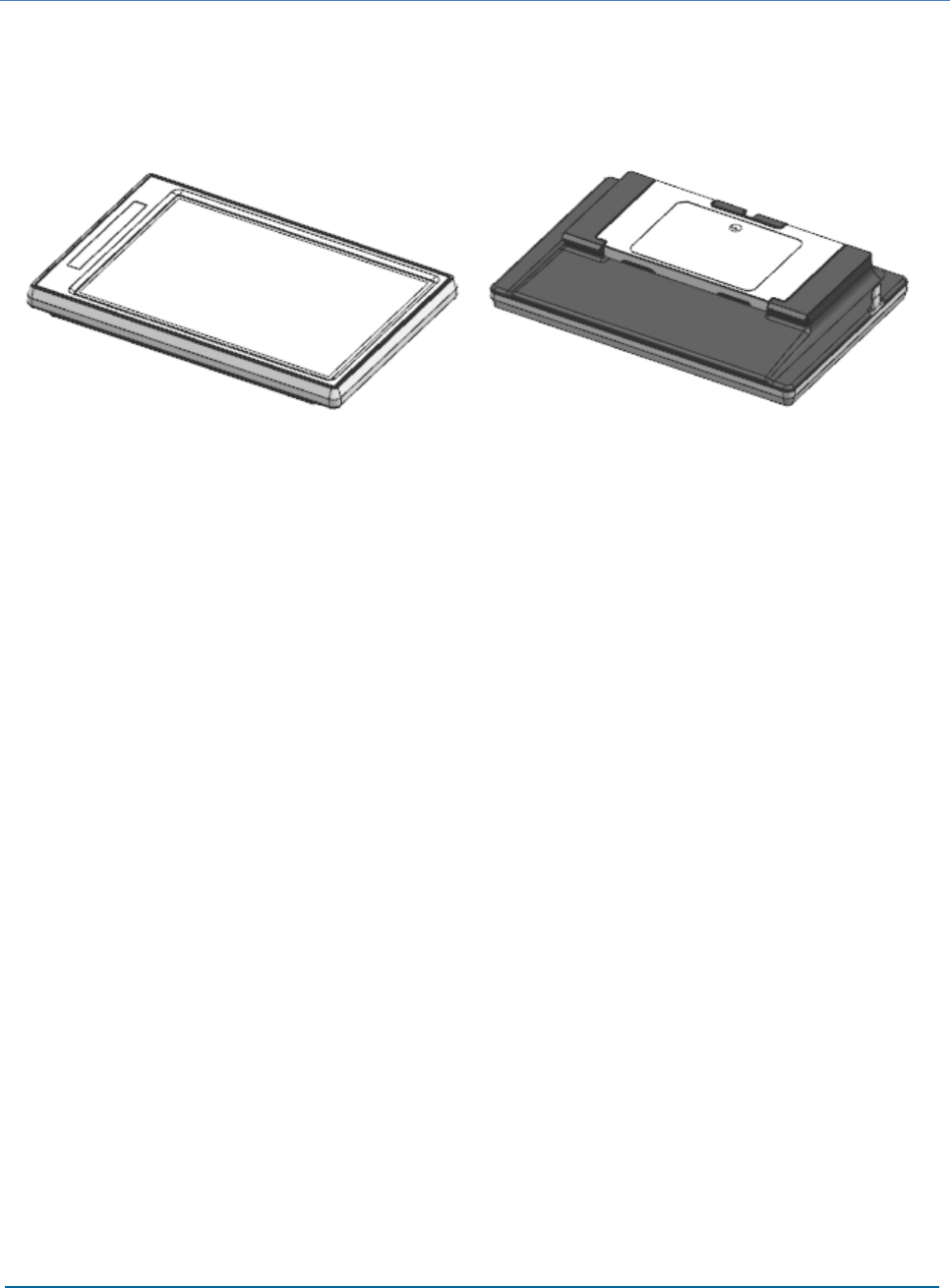

1.3 Appearance
[ Front ]
[ Rear ]
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
8/20
2 Specification
2.1 Product Specification
Item
Description
Size
87.0 x 58.0 x 12.0 mm
Battery
CR2450 Lithium Battery (3V, 2PCS)
2.4 ~ 3.3Vdc (condition : In active status)
Display
EPD PANEL display (Graphic type)
3.3 Inch, 110 Dpi
2Color : White / Black
Housing Color
White
Information display
Price, Unit, Symbol etc.
Communication
Wireless communication based on IEEE 802.15.4 (2405~2480MHz)
Communication Distance
Radius 20m ( Line of Sight)
Operation Temp.
0 ~ 40 ℃ (@20~60% RH)
Etc.
No additional anti-theft locking structure : Rail Mounted only
2.2 Radio (RF)
1
Specification
Item
Parameter
SPEC
Unit
Condition
Min
Typ
Max
TX
Transmit Power
-3
1.5
6
dBm
Error Vector Magnitude
-
10
28
%
When measured for 100 chips
Tx Current
-
33
mA
Total current at max Tx Power
RX
Receiver Sensitivity
-90
-
-
dBm
PER < 1%
1
Test Channel : 2480MHz
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
9/20

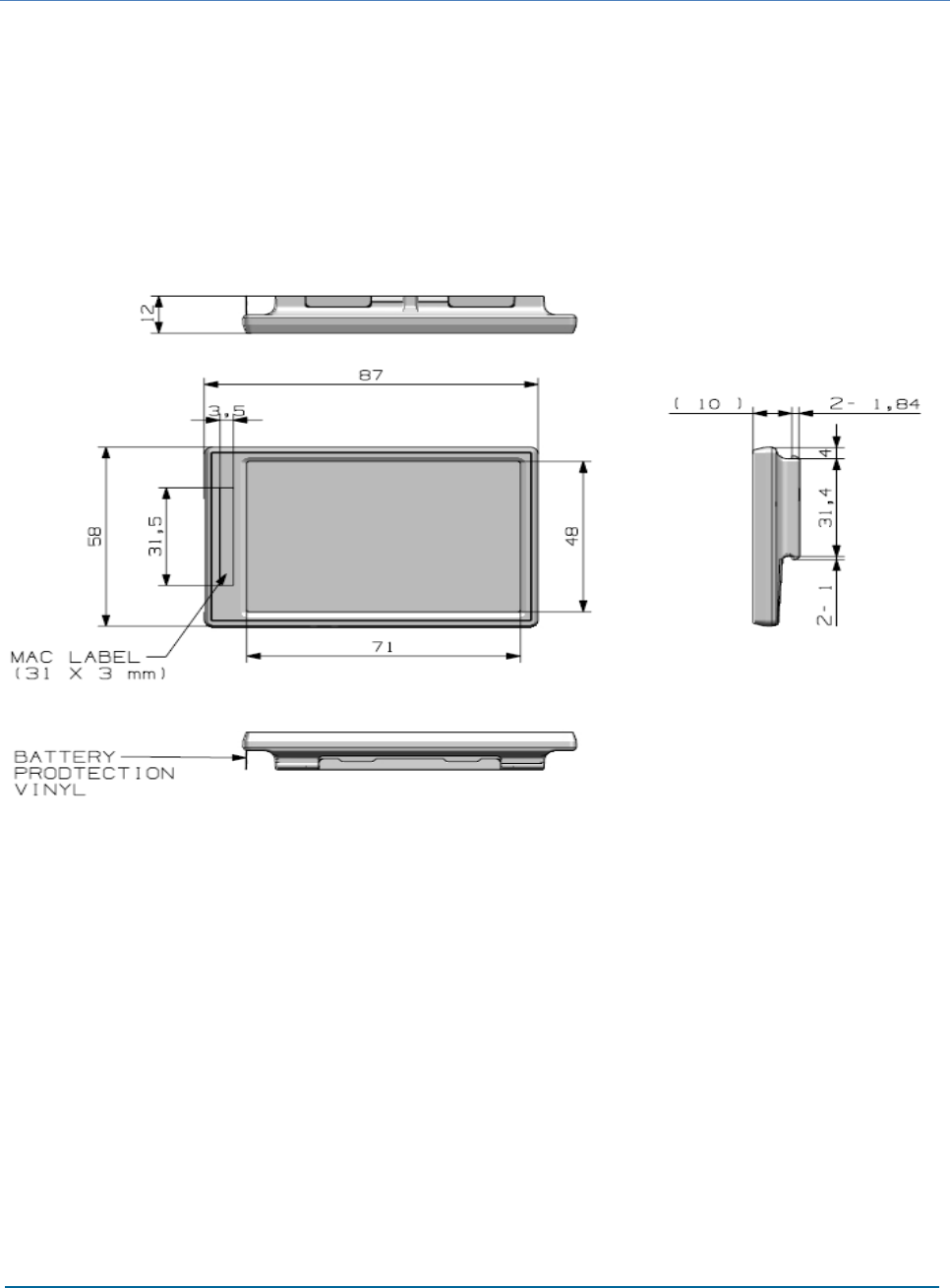

2.3 Mechanical Drawing
2.3.1 Case Dimension
Figure 3 Mechanical Dimension
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
10/20

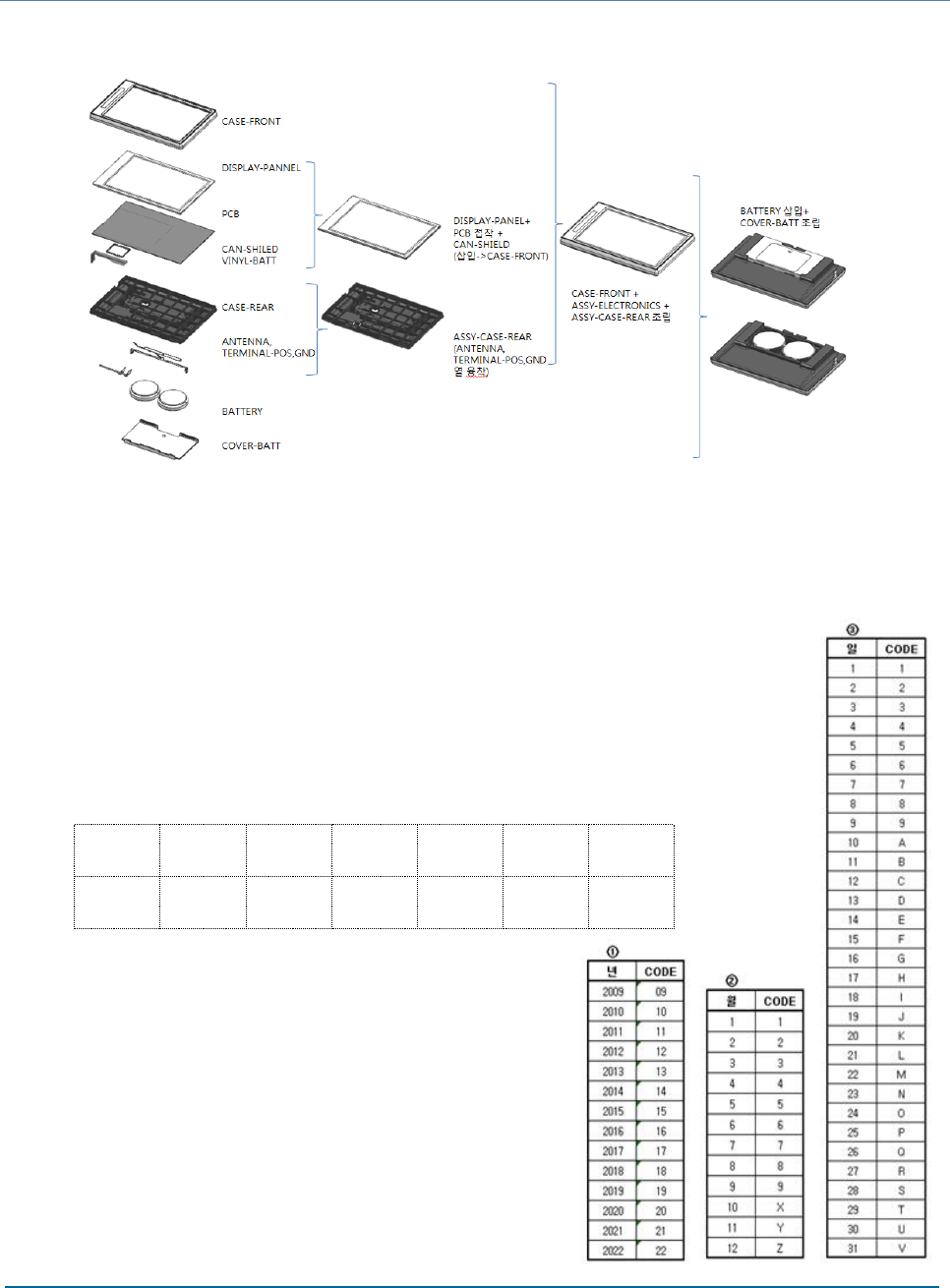

2.3.2 Exploded View
Figure 4 Exploded View
2.4 Labels
2.4.1 Serial Number Information
Serial 1, 2 Code Value
14
3
G
S
A
A
2JW
①
②
③
④
⑤
⑥
⑦
①Year : Last two digits of manufacturing year.
(00 ~ 99, Example : 2014 is '14')
②Month : Manufacturing month
(1 ~ 9, X(10), Y(11), Z(12))
③Date : Manufacturing date
(1 ~ 9, A(10) ~ V(31))
④Vendor : Manufacturing vendor
(S : SEMTHAI, T : TSEM, etc)
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
11/20
⑤Line number : Manufacturing Line number
('A', 'B', 'C', etc)
⑥Revision : Product revision number
(A : First, B : Second, C : Third, etc )
⑦ZigBee IC Lot Number : Last 3 characters

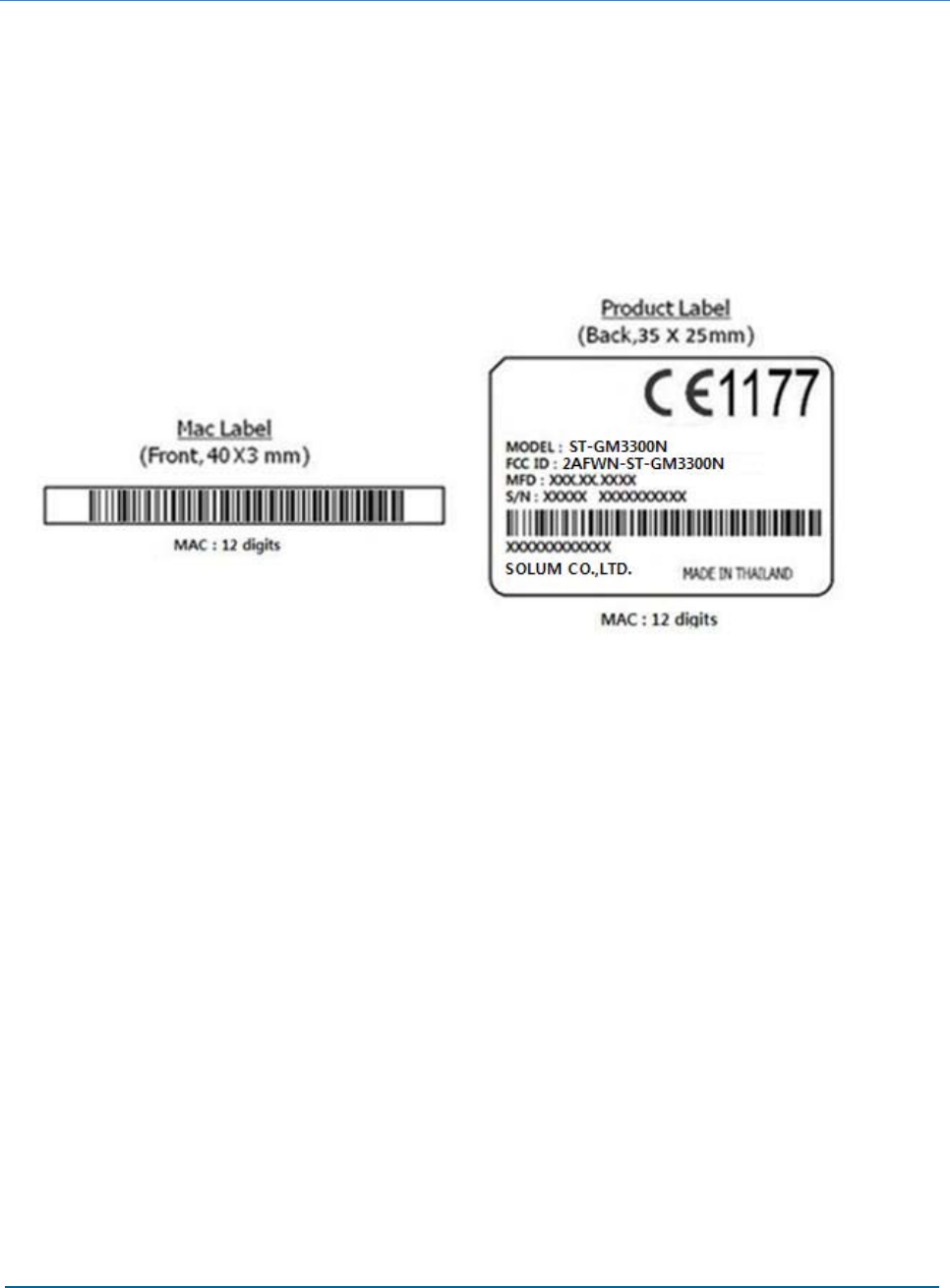

Product and Mac Label Drawings
Figure 5 Product and Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), CE certification mark, FCC
ID and Manufacture (SOLUM CO.,LTD.).
1) Model Name : ST-GM3300N
2) MFD : (Month).(Date).(Year) ex) May.16.2014
3) S/N : Serial Number Information
4) MAC : barcode & barcode number(hexadecimal 16 digits)
- 8 digits(1st ~ 8th) : xxxxxx (Tag I.D.)
- 2 digits(9th ~ 10th) : 29 (Tag size & type)
- 1 digit(11th) : x (Panel type)
- 1 digit(12th) : x (Checksum)
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
12/20

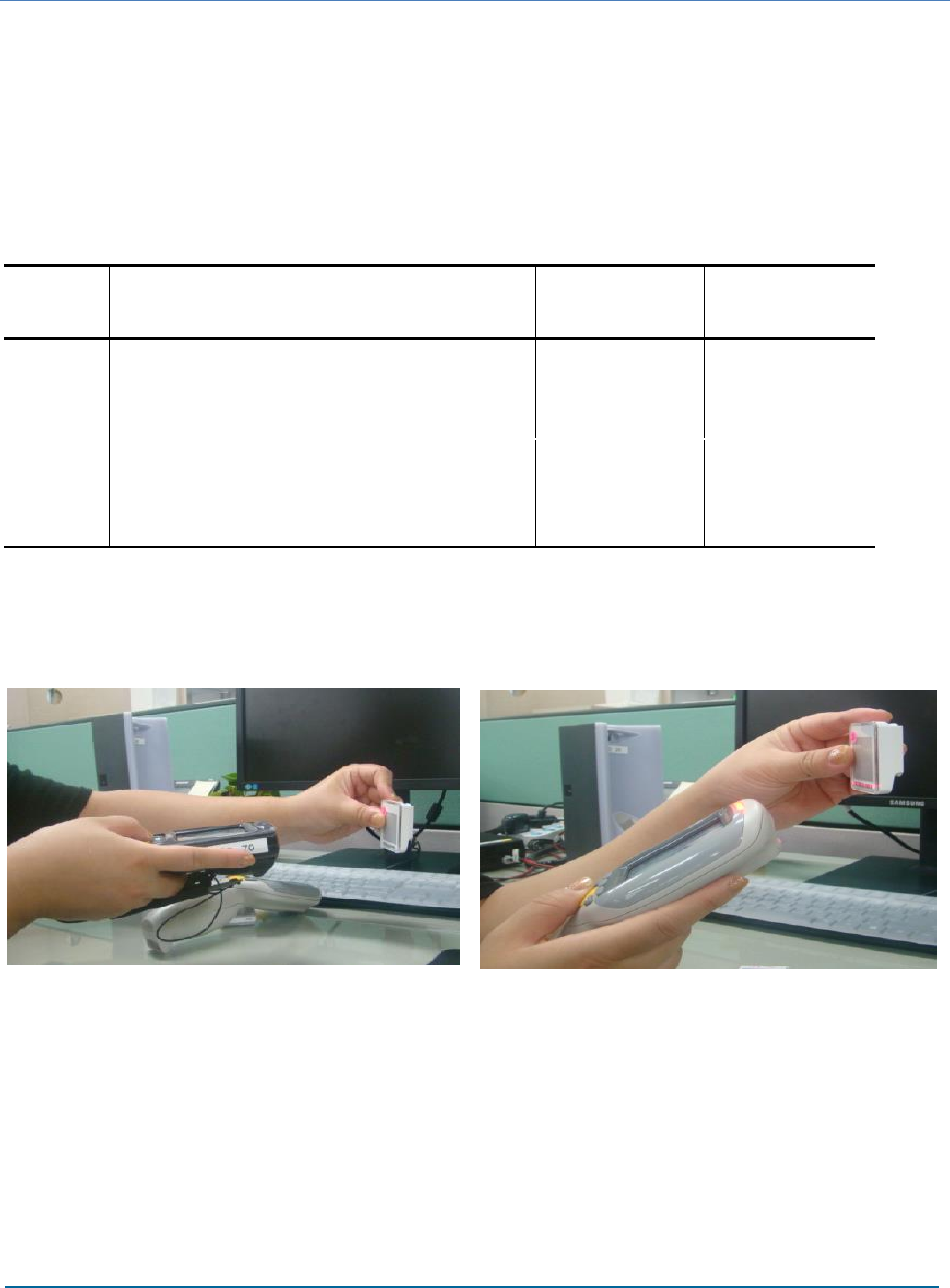

2.5 Barcode Scanning
2.5.1 Barcode Scanning Condition
Typically Scan distance is 8 ~ 9cm and angle is horizontality
Example)
Item
MODEL
Distance
Scanner
SYMBOL
(DS6708-SR20007ZZR)
8~9cm
DATALOGIC
(QUICKSCAN QD2430)
8~9cm
PDA
Motorola
(MC3190-SI2H04E0A)
8~9cm
Motorola
(MC17T-00)
6cm
Motorola
(MC4597-BAPBA0000)
8~9cm
M3
(NA8NWCNMH40078)
8~9cm
<Horizontality> <30º>
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
13/20
3 Operation Test
It will be updated before 2nd release. Below is just a sample.
Equipments : Gateway (S-Gate), R/C (S-TAG), Jig for power supply
Target DUT : EPD TAG
Figure 6 Operation Test
Test Scenario
①Install Tag on Jig
②Ready to Gateway(S-Gate) and R/C
③wake up Tag with R/C
④Tag start to communicate with Gateway
⑤Tag display the numeric information received from Gateway
⑥Check Tag(EPD display status & MAC address value)
⑦Wake up Tag with R/C
⑧Check Tag(EPD display(blank display))
Criterion (Below both two conditions should be all satisfied)
①Good : You can see ‘Black’ → ‘White’ display
②Compare MAC address with that of label attached to Front or Back plane.
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
14/20

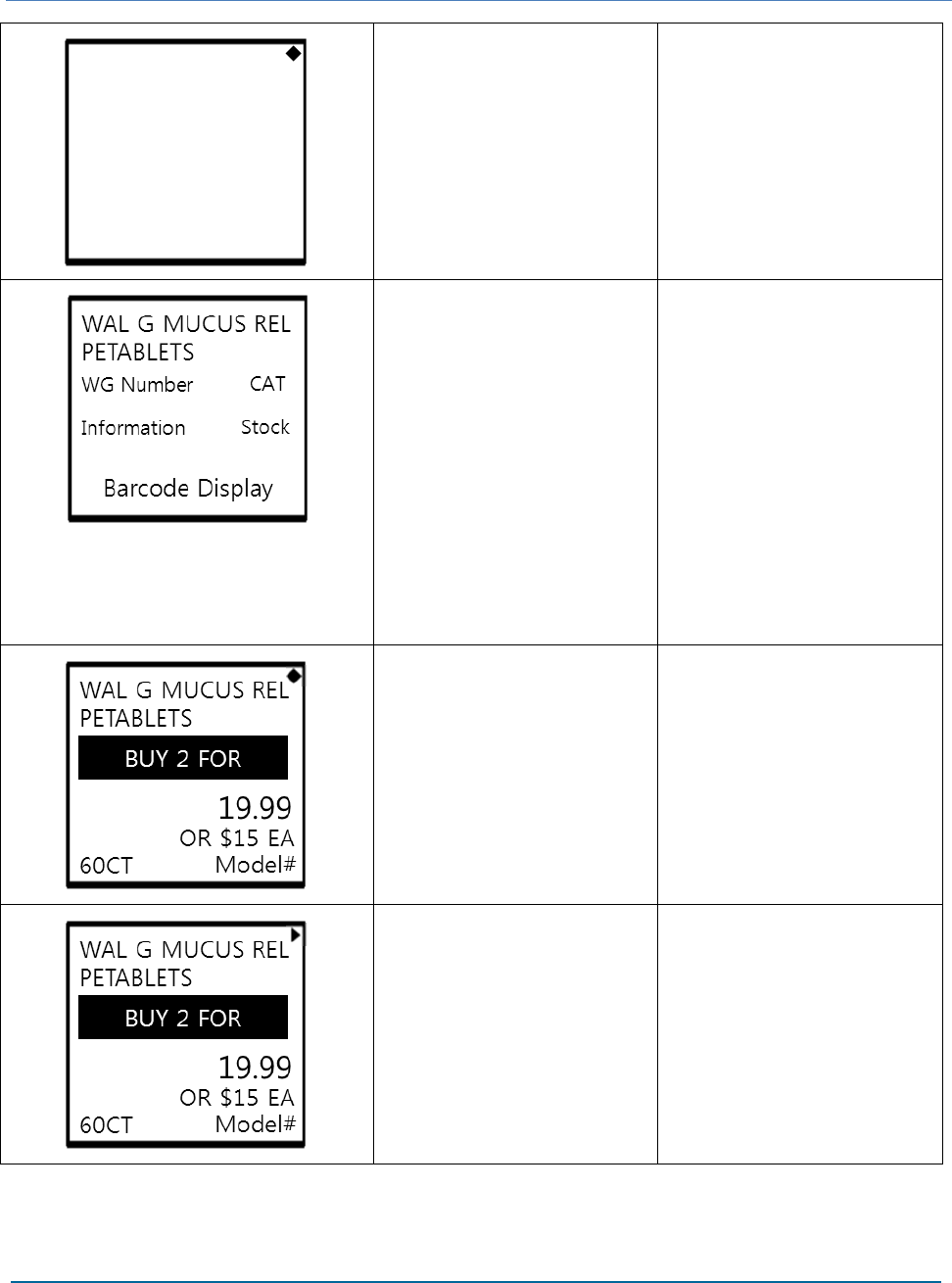

4 ESL Operation by display
It will be updated before 2nd release. Below is just a sample.
Display
State
User Action
STATE: 1
Initial display when shipped
from the manufacturer (Blank
display).
None
STATE: 1
No change.
To assign a tag using a PDA
STATE 1 2
Searching for GWs
(MAC address, tag version
and triangle).
A tag woken up by an RC
STATE 2 4
A tag is connected to a GW
and received price
(Price)
None
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
15/20
STATE 2 3
A tag failed to locate a GW
(blank).
STATE 4 5
When a tag is connected to a
GW, and woken up by an RC,
Next page display predefined.
Display is end, tag wait 10
second wakeup signal by RC.
When signal is detected in
this time, immediately return
first Page and Send Price
Request to GW. No signal in
this time, after 10 second
return first Page and Same
Operation.
Woken up by an RC
STATE 4 6
Connection to a GW is lost
(price and Rectangle on
upper right corner)
None
STATE 6 6
When connection is lost and
woken up by an RC
(blinks with the price and
Rectangle)
Starts to search GWs.
Woken up by an RC
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
16/20

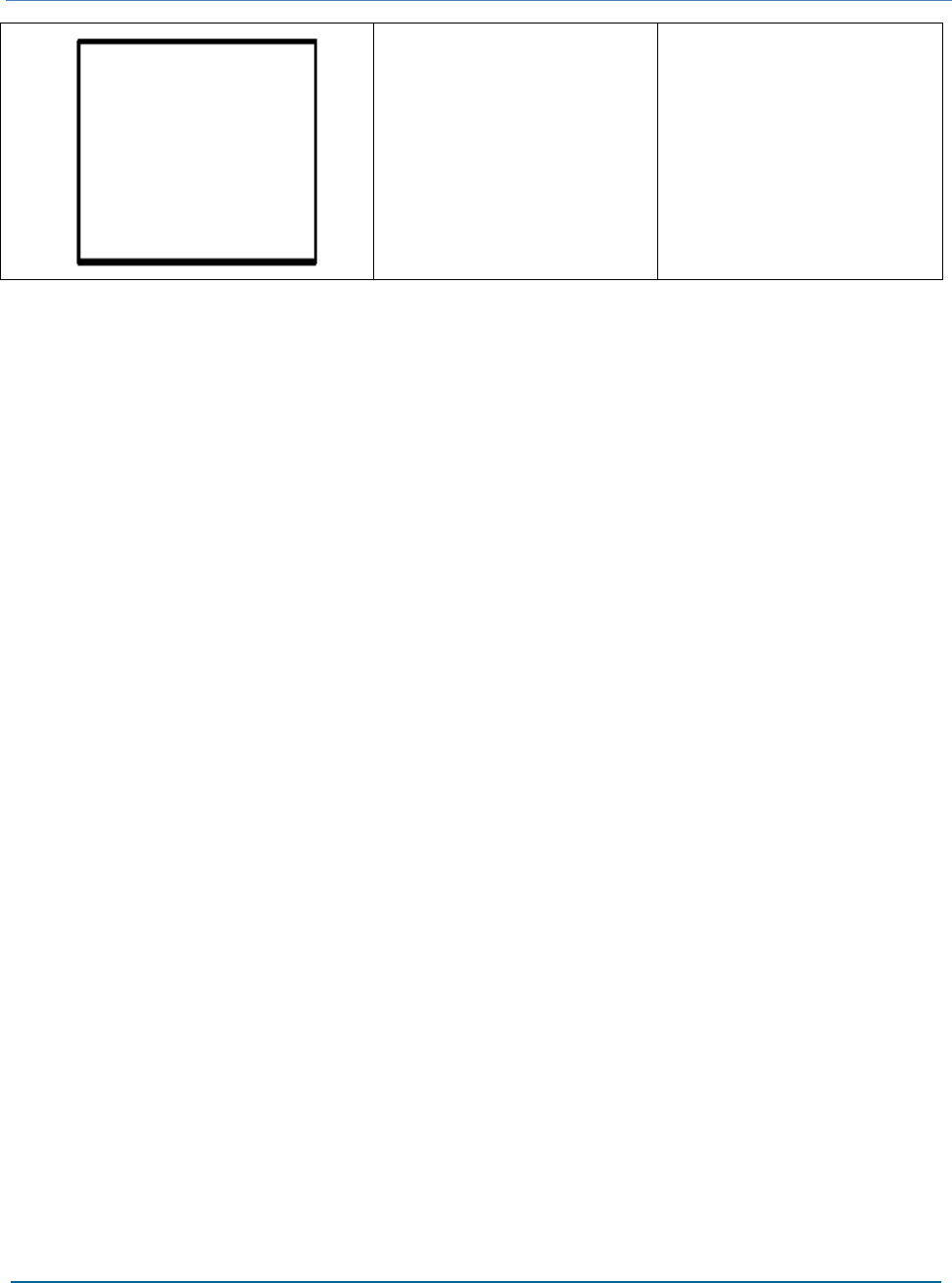

STATE 4 1
Initial display
(Blank display).
To clear an assigned tag
using a PDA
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
17/20

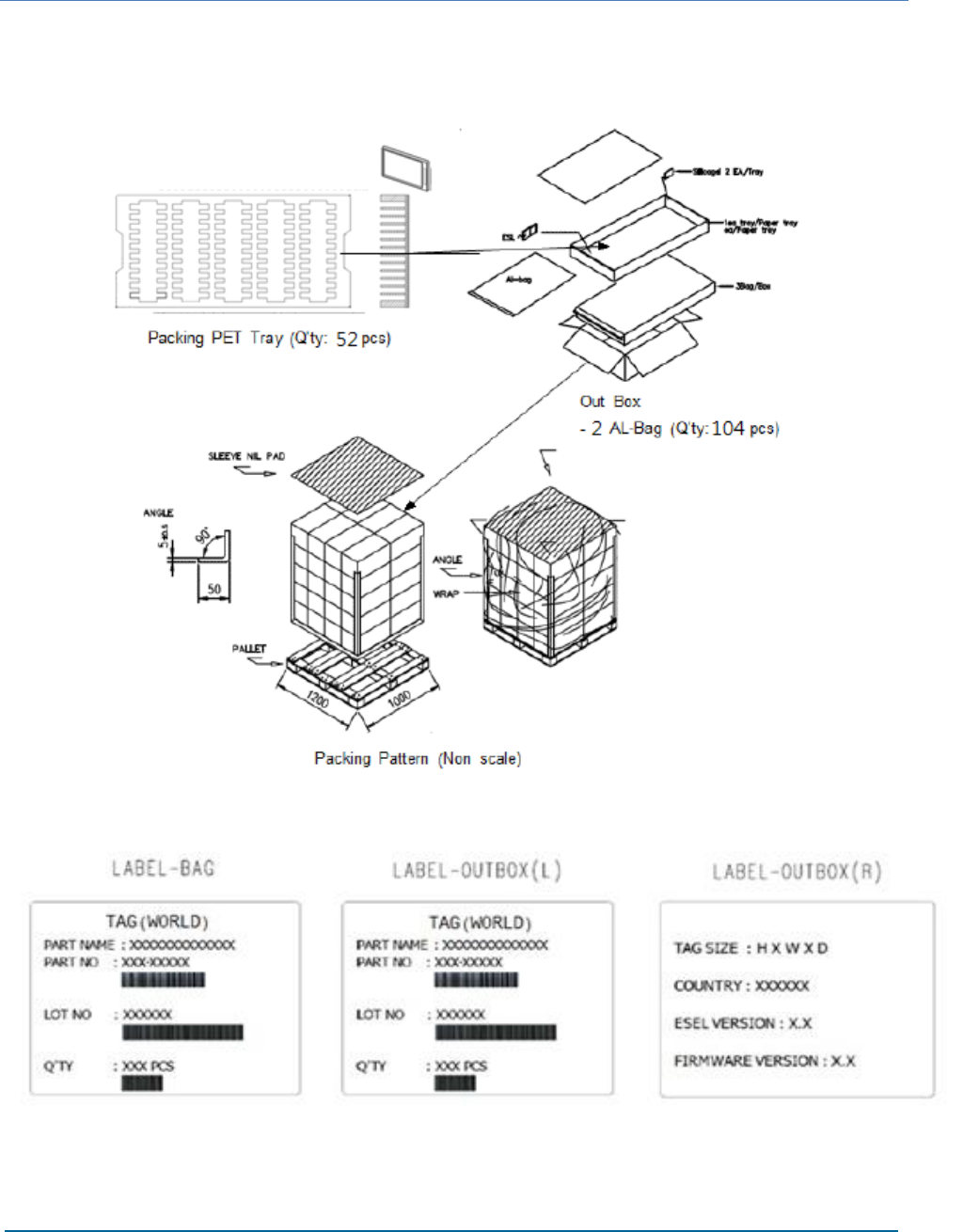

5 Package
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
18/20
6 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper handling.
It is highly recommended that the product should be installed within 3 months from the date of arrival in
the logistics hub. Recommended storage condition is in 0-40 Celsius degree, 20-60% RH environment.
This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,
therefore, may not be used for applications where safety of human lives is concerned.
6.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this
RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
6.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device
itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 0℃ to +40℃. Parts and circuits may be damaged if
used or stored under temperature extremes.
The display panel needs extra care when handling.
- Do not apply any impacts on outside since e-Paper display is fragile.
- Continuous exposure to excessive moisture (over 60% RH) or UV makes display lifetime
shortened.
- Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism.
Contact between the device and a magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
the vicinity of highly pressurized containers.
External impact to the product, such as from being dropped, can damage the product or battery
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
19/20
casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications which share same frequency band,
such as WiFi, Bluetooth, Zigbee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
6.3 FCC
FCC ID : 2AFWN-ST-GM3300N
WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, Including interference that may cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications, However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
S-TAG Datasheet(ST-GM3300N)
Preliminary
REV 1.0
SOLUM CO.,LTD.
20/20
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
This device complies with FCC radiation exposure limits for an uncontrolled environment.
Avoid operating this device at a distance less than 20cm form the user

Navigation menu
