Samsung Electronics Co HG40ND478S LED TV User Manual

Samsung Electronics Co Ltd LED TV

Contents

user manual

To register this product please visit
www.samsung.com/register.

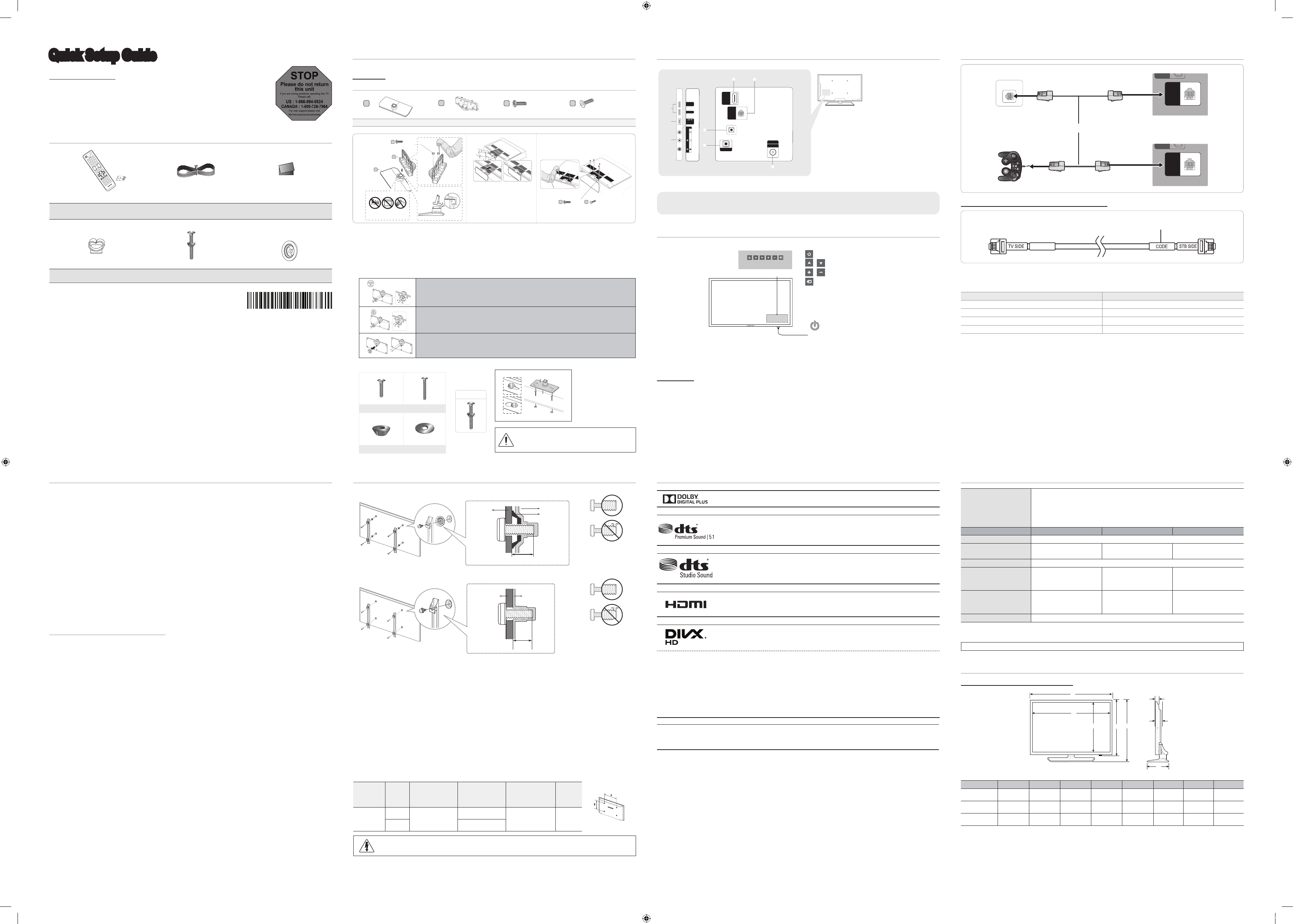

Quick Setup Guide
List of Parts
123
Remote Control (AA59-00817A) &
Batteries (AAA x 2) Power Cord Owner’s Instructions
Safety Guide
6
Holder-Wire stand (1EA) Hotel Mount Kit Wall Mount Adapter
(Depending on the model)
Sound Bar
♦Samsung Sound-Bars and Hospitality TVs in 2015
– Samsung Sound-Bars and hospitality TVs support the ARC feature in HDMI 1.4. If you connect a compatible Samsung
Sound-Bar to a compatible Samsung hospitality TV using a single HDMI cable, guests can listen to the TV’s sound through
the Sound-Bar.
– The item of Sound bar Out in Hospitality Option Menu makes you control to where the TV sound is outputted when the TV
is turned on.
If Sound bar Out is On, the TV sound is automatically outputted in the Sound Bar device only whenever TV is turned on.
If Sound bar Out is Off, the TV sound is automatically outputted in the TV speaker only whenever TV is turned on.
– Models supporting the ARC function are listed below:
• Sound-Bars: HW-E350/E450/E550
HW-F350/F355/FM35/F450/FM45/FM45C/ F550/F551/FM55/FM55C/F750/F751
♦Setting the Sound-Bar to Hotel Mode.
– Set the following Hotel menu options:
• Hotel option > System > Sound Bar Out = On.
• Hotel option > Power On > Power On Volume = User Defined.
• Hotel option > Power On > Power On Volume Num > Set greater than 0.
• Hotel option > Power On > Max Volume > Set greater than 0.
– Connect an HDMI cable from the HDMI OUT jack at the back of the Sound-Bar to the HDMI3 port (supporting ARC) on the
hospitality TV.
– After the Sound-Bar is connected to the hospitality TV, when the TV turns on, the Sound-Bar automatically detects the TV,
and then automatically switches to Hotel Mode.
Sound Bar Hotel mode functional characteristics:
• Power On/Off is synchronized with the TV
• HDMI_CEC defaults to On
• Functions through the “HDMI OUT” port only
• Disables the “Input mode” key on the VFD to prevent unexpected audio-source changes.
• Acquires adjustable Power On and Max Volume settings from the TV’s Hotel option menu. The Sound-Bar’s Power On
Volume and Max Volume values, however, are ½ of the Power On Volume and Max Volume settings in the TV’s Hotel
options menu.
Example: If the TV’s Power On Volume=20 and Max Volume=90, then the Sound Bar’s Power On Volume=10 and Max
Volume=45.
STOP
Please do not return
this unit
If you are having problems operating this TV,
Please call;
US : 1-866-894-0524
CANADA : 1-800-726-7864
For web support please visit
http://www.samsung.com/us/business
5
4
Viewing the Connection Panel
3
4
HDMI IN 1
HDMI IN 2
(DVI)
2
(5V 0.5A)
/CLONING
1
AV IN
AUDIO
VIDEO
EX-LINK
AUDIO OUT
5
ANT IN
AIR/CABLE
HDMI IN
3 (ARC)
1
6
GAME
CONTROL
DATA
7
➣The product color and shape may vary depending on the model.
1 HDMI IN 1, 2(DVI), 3(ARC)
2 USB (5V 0.5A) / CLONING
3 VIDEO / L-AUDIO-R
4 EX-LINK
5 AUDIO OUT
6 ANT IN (AIR/CABLE)
7 GAME CONTROL DATA
When in Hotel mode (Interactive or Standalone), all Channel menu items in the Menu OSD except for the Channel
List are deactivated. If you need to change the channel line up, use the Channel Setup item in the Hotel options
menu.
Notice
TV Controller
The TV’s Controller on the bottom right side of the TV, lets you control the TV without the remote control.
: Turns the TV on or off.
/ : Changes channels.
/ : Adjusts the volume.
: Switchs the available video sources.
Control Menu
Remote control sensor/TV Controller
✎Ifyoupressitrst,thecontrolmenuappears.YoucanselectthefunctionbypressingandholdingtheTV’scontroller.
✎The product color and shape may vary depending on the model.
✎With the TV’s Controller, you cannot perform other operations except for turning the TV on or off, changing the channel,
adjusting the volume, and switching the input source.
Standby mode
YourTVentersStandbymodewhenyouturnitoffandcontinuestoconsumeasmallamountofelectricpower.Tobesafeandto
decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation,
for example). It is best to unplug the power cord.
Installing the LED TV Stand
♦HG40ND478S / HG43ND478S / HG50ND478S
Components
When installing the stand, use the provided components and parts.
A
1 EA
B
1 EA
x8 (M4 X L12)
CD
x 4 (M4 X L12)
•Stand •GuideStand •Screws •SecurityScrews
C
(M4 X L12)
x4
or
D
(Security Screw)
x4
B
A
Front
12 3
C
(M4 X L12)
x4
TOP View
Side
Attention
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
✎Place a soft cloth over the
table to protect the TV, and
then place the TV on the cloth
screen-side down.
✎Insert the Stand Guide into the
slot on the bottom of the TV.
✎Make sure to distinguish between the front and back of the Stand and Stand Guide when connecting them.
✎Make sure that at least two people lift and move the LED TV.
✎When connecting the stand, lay the product down on a soft surface, with the screen facing down, and then fasten the screws.
✎The number of screws may differ depending on the model.
♦Assembling the swivel
The40”andlargerLEDTVshaveswivelstands.YoucansetthesestandssothattheTVswivels20degreesleftandright,60
degrees left and right, or 90 degrees left and right.
20° swivel
ToconguretheTVsothatitswivels20°leftandright,inserttheprongonthebottomofthestandthroughthe
curvedholeintheBracketHolderSwivelmarked20°.Then,xtheBracketHolderSwiveltothestandusingthe
three supplied screws as shown to the left.
60° swivel
ToconguretheTVsothatitswivels60°leftandright,inserttheprongonthebottomofthestandthroughthe
curvedholeintheBracketHolderSwivelmarked60°.Then,xtheBracketHolderSwiveltothestandusingthe
three supplied screws as shown to the left.
90° swivel
ToconguretheTVsothatitswivels90°leftandright,removetheBracketHolderSwivel,andthenscrewthethree
supplied screws into the stand as shown to the left.
♦Hotel Mount Kit
Short Bolt (2EA) Long Bolt (2EA)
Nut (2EA) Washer (2EA)
Bolt + Nut
Top
Bottom
Afxthestandtoa
atsurfacesuchasa
dresser top, desk top, or
entertainment center as
shown.
WARNING: To prevent injury, you must attach this
TVsecurelytotheoor,atable,adressertop,
etc. with the Hotel Mount Kit as described in these
instructions.
Wall Mount Kit Specications (VESA)
40 Inch
TV
Wall mount
Bracket
C
Wall mount
Adapter
43 ~ 50 Inch
TVWall mount
Bracket
C
Installyourwallmountonasolidwallperpendiculartotheoor.Ifyouareattachingthewallmounttobuildingmaterialsother
than plaster board, contact your nearest dealer. If installed on a ceiling or slanted wall, the TV may fall and cause severe
personal injury.
➣Standard dimensions for wall mount kits are shown in the table below.
➣Samsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided.
➣DonotusescrewsthatdonotcomplywiththeVESAstandardscrewspecications.
➣Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw
specications.ScrewsthataretoolongmaycausedamagetotheinsideoftheTVset.
➣ForwallmountsthatdonotcomplywiththeVESAstandardscrewspecications,thelengthofthescrewsmaydiffer
dependingonthewallmountspecications.
➣Donotfastenthescrewstoormly.Thismaydamagetheproductorcausetheproducttofall,leadingtopersonalinjury.
Samsung is not liable for these kinds of accidents.
➣Samsungisnotliableforproductdamageorpersonalinjurywhenanon-VESAornon-speciedwallmountisusedorthe
consumer fails to follow the product installation instructions.
➣Do not mount the TV at more than a 15 degree tilt.
➣Always have two people mount the TV onto a wall.
Product Family TV size in
inches
VESA screw hole
specs (A * B) in
millimeters
C (mm) Standard Screw Quantity
LED-TV
40
200 × 200
32.5 ~ 33.5
M8 4
43 - 50 21.5 ~ 22.5
Do not install your Wall Mount Kit while your TV is turned on. This may result in personal injury due to electric
shock.
Specications
Environmental onsiderations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
50°Fto104°F(10°Cto40°C)
10% to 80%, non-condensing
-4°Fto113°F(-20°Cto45°C)
5% to 95%, non-condensing
Model Name HG40ND478S HG43ND478S HG50ND478S
Display Resolution 1920 x 1080
Screen Size
(Diagonal)
40” Class
(39.5” measured diagonally)
43” Class
(42.5” measured diagonally)
50” Class
(49.5” measured diagonally)
Sound (Output) 10W x 2
Dimensions (WxDxH)
Body
With stand
922.7 x 72.0 x 530.7 mm
922.7x226.5x582.3mm
985.5 x 72.2 x 575.3 mm
985.5x226.5x624.2mm
1140.8x72.9x662.3mm
1140.8x226.5x713.9mm
Weight
Without Stand
With Stand
6.53kg
9.47 kg
7.71 kg
10.65kg
10.50 kg
13.44 kg
Stand Swivel (Left / Right) 20°/60°/90°
➣Designandspecicationsaresubjecttochangewithoutpriornotice.
➣This device is a Class B digital apparatus.
WARNING: This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
Dimensions
HG40ND478S / HG43ND478S / HG50ND478S
6
8
7
1
2
4
3 5
(unit: mm)
1 2 3 4 5 6 7 8
40ND478S 922.7 880.1 487.4 530.7 582.3 40.5 72.0 226.5
43ND478S 985.5 942.9 531.3 575.3 624.2 40.5 72.2 226.5
50ND478S 1140.8 1097.8 618.4 662.3 713.9 41.6 72.9 226.5
Connecting the TV with an SBB or STB
GAME
CONTROL
DATA
X-LINK
G
AM
E
CONTRO
L
D
ATA
X
-
LINK
GAME
CONTROL
DATA
GAME
CONTROL
DATA
X-LINK
G
AM
E
CONTRO
L
D
ATA
X
-
LINK
GAME
CONTROL
DATA
ETH MODEM
List of Vendors and Compatible Data Cables Supplied with the TV
Note the
labeled end.
Conrmthecode
on the Code Label Note the
labeled end.
1. Connect the Lodgenet game controller to the [GAME CONTROLLER/DATA] jack of the TV.
2. Connect the [DATA] jack of the TV to the [ETH MODEM] jack of the STB (SBB) with the data cable.
✎The “ETH MODEM” jack name that you connect the Data Cable to may differ depending on the SBB or STB type.
Vendor Cable code
OCC BN39-00865B
NXTV BN39-01011B
NStreams BN39-01110A
MTI BN39-01011C
DATA Cable
DATA Cable
[TV Rear Panel]
[TV Rear Panel]
or
License
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
ManufacturedunderalicensefromU.S.PatentNo’s:5,956,674,5,974,380,5,978,762,
6,487,535,6,226,616,7,212,872,7,003,467,7,272,567,7,668,723,7,392,195,7,930,184,
7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered
trademarks & DTS Premium Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights
Reserved.
ManufacturedunderalicensefromU.S.PatentNo’s:6,285,767,8,027,477,5,319,713,
5,333,201,5,638,452,5,771,295,5,970,152,5,912,976,7,200,236,7,492,907,8,050,434,
7,720,240,7,031,474,7,907,736and7,764,802.DTS,theSymbol,andDTSandtheSymbol
together are registered trademarks & DTS Studio Sound is a trademark of DTS, Inc. ©2012
DTS, Inc. All Rights Reserved.
ThetermsHDMIandHDMIHigh-DenitionMultimediaInterface,andtheHDMILogoare
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
DivXCertied®toplayDivX®videouptoHD1080p,includingpremiumcontent.
ABOUTDIVXVIDEO:DivX®isadigitalvideoformatcreatedbyDivX,LLC,asubsidiaryofRoviCorporation.Thisisan
ofcialDivXCertied®devicethathaspassedrigoroustestingtoverifythatitplaysDivXvideo.Visitdivx.comformore
informationandsoftwaretoolstoconvertyourlesintoDivXvideos.
ABOUTDIVXVIDEO-ON-DEMAND:ThisDivXCertied®devicemustberegisteredinordertoplaypurchasedDivX
Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
DivX®,DivXCertied®andassociatedlogosaretrademarksofRoviCorporationoritssubsidiariesandareusedunder
license.
CoveredbyoneormoreofthefollowingU.S.patents:7,295,673;7,460,668;7,515,710;7,519,274
Open Source License Notice
Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)
Open Source License Notice is written only English.
BN68-07586B-X2
[HD478S-ZC-QSG]BN68-07586B-X2L02.indd 1 2015-07-13 �� 10:59:04
