THIS APPLIANCE IS DISTRIBUTED BY
www.samsungdvd.com AK68-00076F
ELECTRONICS
User’s Manual
DVD HDD Recorder
DVD-H40E

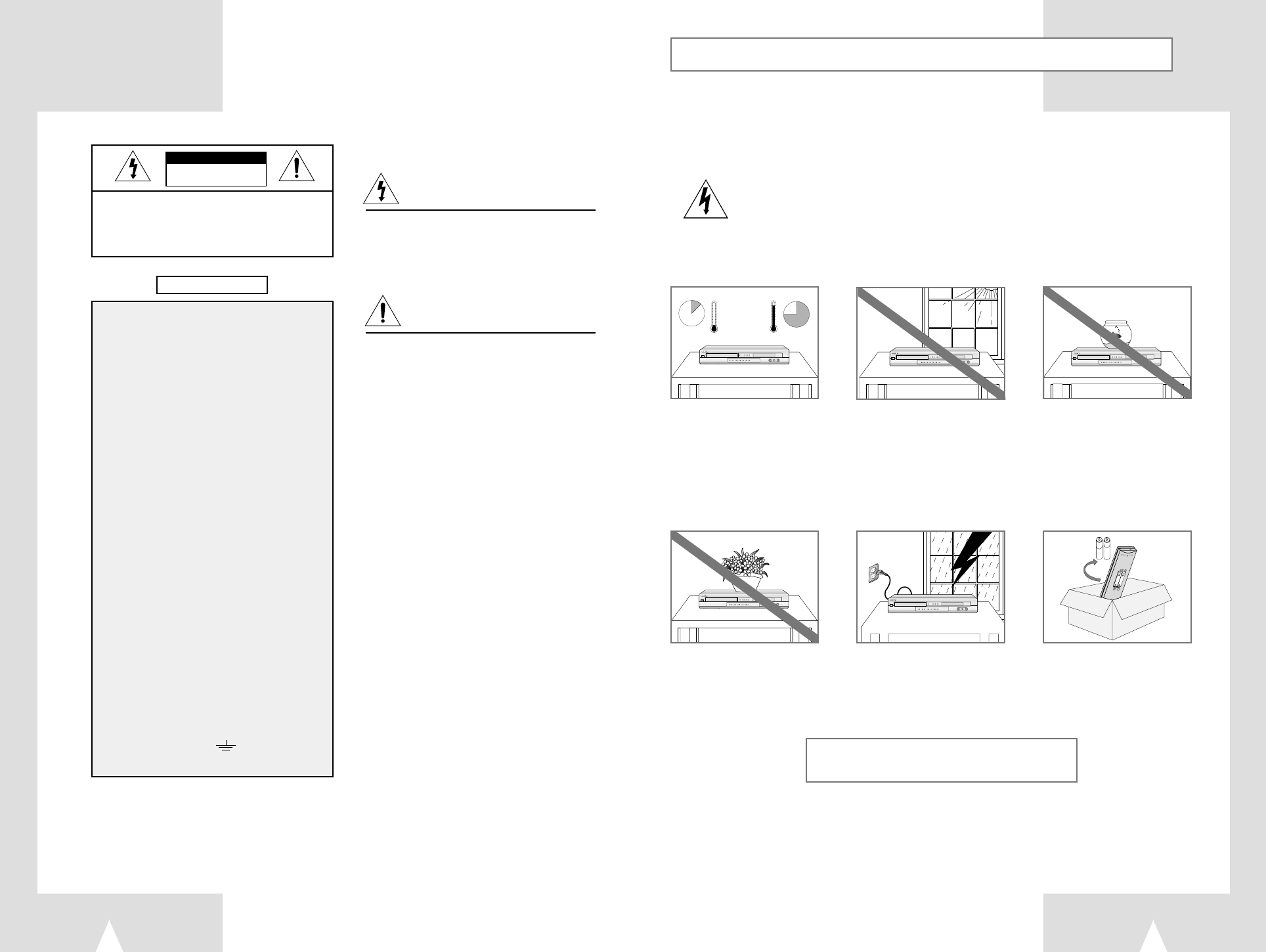

Safety Instructions
32
HH
5¡C
40¡C
10% 75%
The following illustrations represent precautions.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
DO NOT OPEN THE DHR. Refer to service personnel.
Do NOT expose the DHR to
extreme temperature condi-
tions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the DHR to
direct sunlight.
Do NOT expose the DHR to
any liquids.
Do NOT place any objects on
the DHR or remote control.
During a storm and/or light-
ning, unplug the DHR from the
mains jack and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
CAUTION. TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER. NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert you to the presence of
dangerous voltage within the product.
The mains lead on this equipment is supplied with a mould plug
incorporating a fuse. The value of the fuse is indicated on the
pin face of the plug. If it requires replacing, a fuse approved to
BS1362 of the same rating must be used.
Never use the plug with the fuse cover omitted if the cover is
detachable. If a replacement fuse cover is required, it must be
of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your
house or the cable is not long enough to reach a power point,
you should obtain a suitable safety approved extension lead or
consult your dealer for assistance.
However, if there is no alternative to cutting off the plug,
remove the fuse and then safely dispose of the plug.
Do not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code: -
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows: -
The wire coloured BLUE must be connected to the terminal
marked with the letter N or coloured BLUE or BLACK. The wire
coloured BROWN must be connected to the terminal marked
with the letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE LETTER
E OR BY THE EARTH SYMBOL , OR COLOURED
GREEN OR GREEN AND YELLOW.
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION
IMPORTANT NOTE
DANGER
This symbol is intended to alert you to the presence of
important instructions accompanying the product.
CAUTION
Key features of DVD-H40E (cont.)
5
Key features of DVD-H40E
4
1. Digital Video Recording.
2. Recorded Program List.
3. Highlight Play.
4. Editing Recorded Video.
5. DVD, CD, VCD, MP3, Photo CD Play.
6. Digital Audio Juke Box.
7. Family Photo Album.
8. Connection with DVC, VCR or STB.

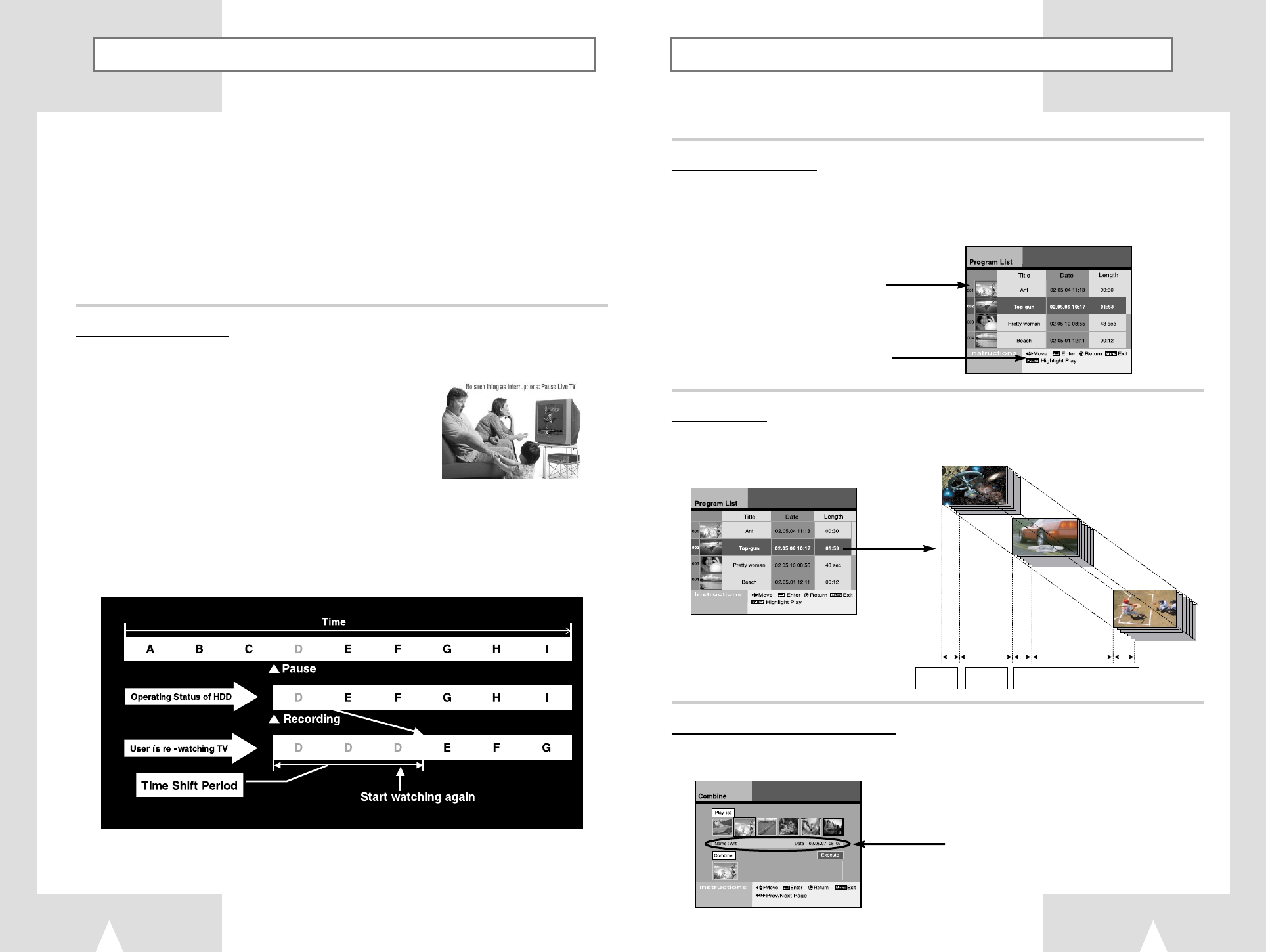

1. Digital Video Recording
“ Instant recording ”of TV program by pushing one button.
Unlike VCR, it provides consumer to record TV program instantly by touching record button on the remote.
“ Live TV Pause ”guarantees consumer not to miss a single
TV scene.
This function allows consumer who is watching TV program
to work on other stuffs without missing a single scene.
“ High Quality Video recording ” from TV DVD (VCD), DVC and
STB to HDD.
It supports 3 video recording modes at the different bit rates such as SQ (2Mbps / 40h), HQ (4Mbps / 20h)
and SHQ (6Mbps / 13 hours). It can be stored up to 500 Clips.
“ Live TV Control ”allows you to go back in time axes and experience what you missed on the live TV
broadcasting.
Simply press the Pause button (
❿
II ) when you leave and when you return, DVD-H40 will instantly replay
what you missed while you were away.
2. Recorded Program List
• If customer record the video program, “ Program List ”will be generated automatically for easy
understanding of the recorded program.
• This program list includes “Title Name”, “Date”and “Length”. Title name can be changed by the
“Title Insert Function”. Date and length information are automatically generated.
3. Highlight Play
• At the program list, if you push “ P – List ”button on the remote, you can preview the highlight of selected
video program like as you can see in the start part of the movie for introducing the next coming movie.
4. Editing the Recorded Video Program

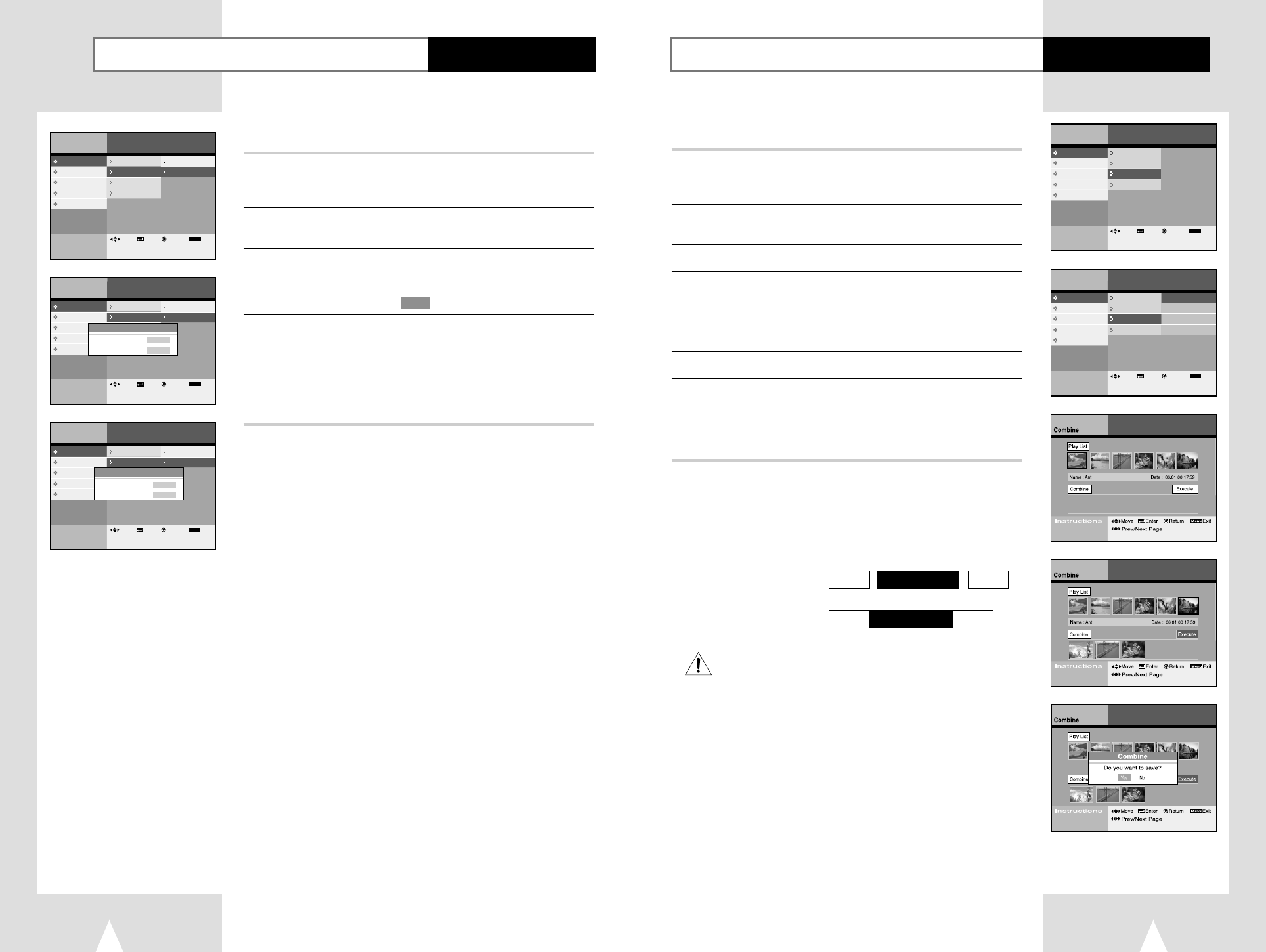

• Samsung DVD-H40 will offer the fun to generate his own video program by himself.
• User can combine 2 or more video programs as a one video program.
Thumbnail picture of the
first clip will be displayed.
Every necessary keys for operating
the current menu screen are also
arranged in this bottom area with
icons and instructions.
Playback
for 5 sec Jump Repeat highlight playback
shows the selected file information
Key features of DVD-H40E (cont.)
7
Key features of DVD-H40E (cont.)
6

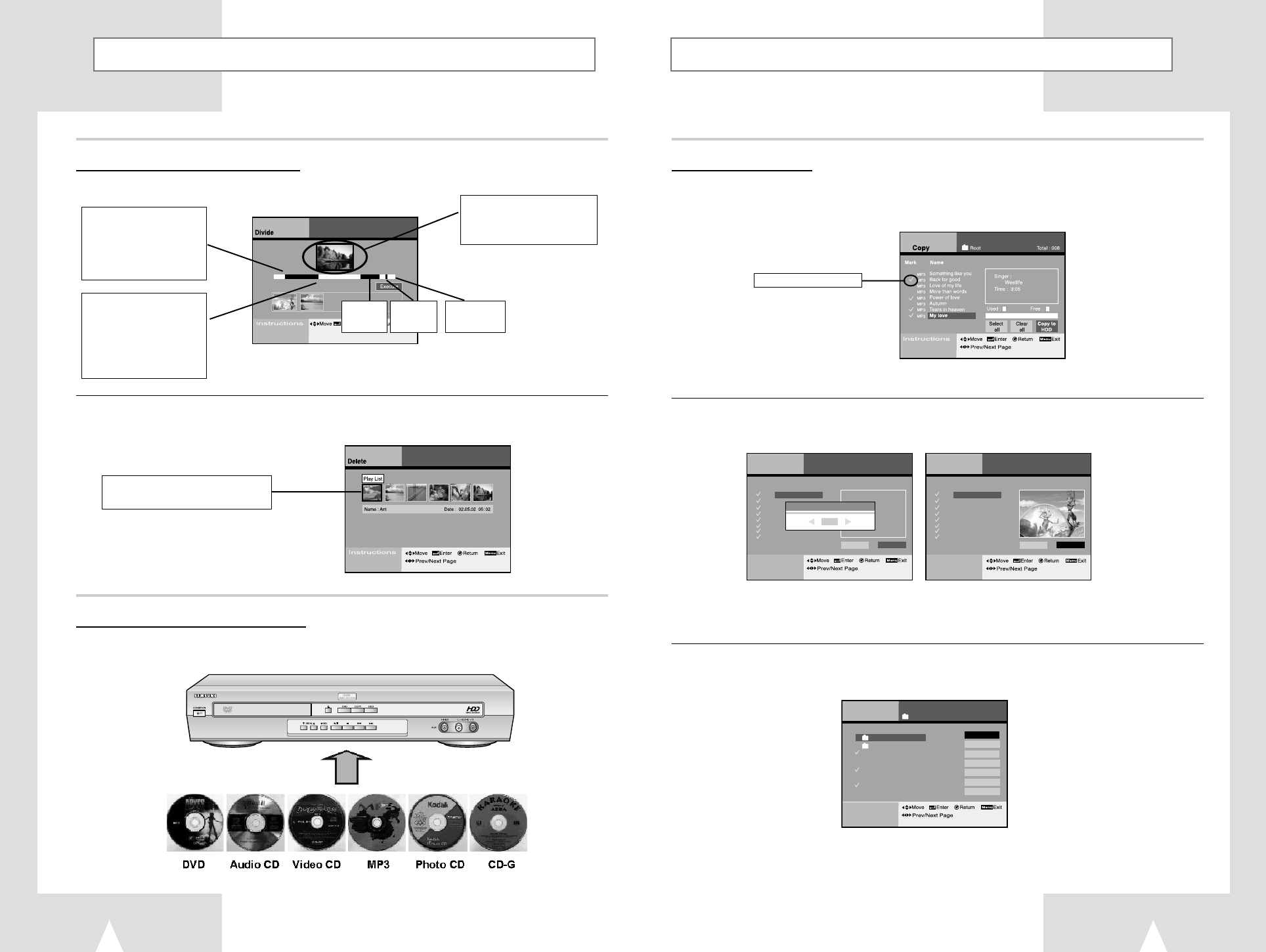

4. Editing the Recorded Video Program
• DVD-H40 can divide selected video program as 2 or more programs.
• DVD-H40 can delete unnecessary video programs.
• Even partial deletion of selected video program is possible.
5. DVD, CD, VCD, MP3, Photo CD Play
• DVD-H40 can play many kinds of discs like as DVD, Audio CD, Video CD, MP3 (CD-R/RW), Photo CD
(Kodak), CD-G, etc.
< end position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(Blue->White)
3. Create sub-picture
divided
File
Current
position
White bar
File length
Selected file enter key, then display
pop-up menu for delete option
< start position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(White -> Blue)
1. playing picture ( I frame )
2. FPS, RPS, pause keys
can be used
6. Digital Audio Jukebox
• “Juke box”enables consumer to enjoy thousands of music in HDD without replacing Audio CD every time.
DVD-H40 allows MP3 music from CD to be downloaded into HDD as many as consumer wants.
( Max. capacity of HDD for MP3 : 10GB)
• If user include his/her favorite photos in the same music folder, then user can enjoy the music slide show
also.
• At the edit mode, user can generate his/her own music folder like as “CLASSIC”, “JAZZ”, “POP SONG” and
so on.
Play list
lnstructions
Repeat All
Slide Show
Mark
Total : 012
Name
Something like you
Back for good
Love of my life
More than words
Power of love
Autumn
Tears in heaven
My love
Singer : Queen
Time : 04:13
MP3
MP3
MP3
MP3
MP3
MP3
MP3
MP3
Slide Show Time
05
Play list
lnstructions
Repeat All Slide Show
Mark Name
Something like you
Back for good
Love of my life
More than words
Power of love
Autumn
Tears in heaven
My love
MP3
MP3
MP3
MP3
MP3
MP3
MP3
MP3
Total : 012
Indicates selected file
Edit
lnstructions
Total : 777
Mark Name
Copy to HDD
Copy to HDD
Copy to HDD
Copy to HDD
Copy to HDD
Copy to HDD
Select All
Clear All
Move File
Delete File
Make Folder
Rename
Delete Folder
pops
Jazz
MP3 BREAD - IF
MP3 HEAVEN
MP3 Video Kill the
MP3 CARELESS WHISPER
MP3 Three Times AL
MP3 I cant Tell you
MP3
Key features of DVD-H40E (cont.)
9
Key features of DVD-H40E (cont.)
8

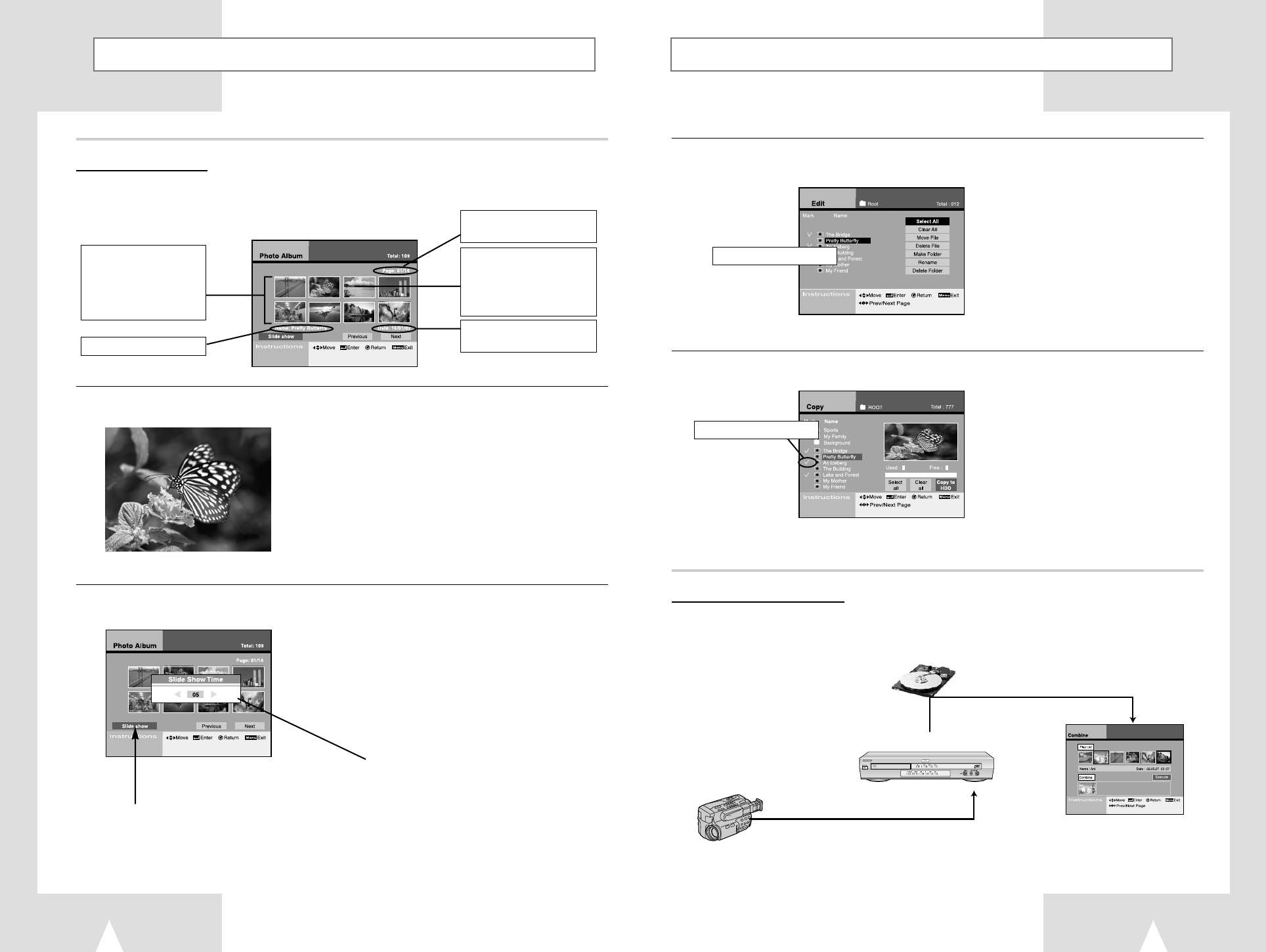

7. Family Photo Album
• Enjoy JPEG Images from CD or HDD with easy & user friendly GUI.
Up to 10,000 JPEG images (Standard file size 100kbyte) can be saved and edited in HDD.
It supports Kodak Photo CD format.
• “Viewing Individual Photo”
• “Slide Show”
• Editing function enables you to select, delete, move or rename your favorite images or photo and
make your own directory.
• User can easily select the photos what he wants to copy from CD to HDD at the below GUI screen.
8. Connection to DVC or DSC
• Connecting DSC or DVC through A/V Input port enables to enjoy and edit those video programs simply
through TV screen.
Limited to 20 string
Indicates selected file
Indicates selected file
Pushed “enter” key, then pop-up menu will be display.
After delay time setting, started slide show.
Time setting range
3 sec ~ 10 sec
Store /Edit in HDD
Enjoy through TV
Image from
DVC or DSC
8 Thumbnails per page
Navigate between
thumbnails using remote
control directional
buttons
Selected photo is
highlighted for enlargement.
“Enter” on remote control
enlarges photo to full
screen
Date show when the
selected photo was taken
Page indicates number of
pages of thumbnails
Contents Contents (cont.)
10 11

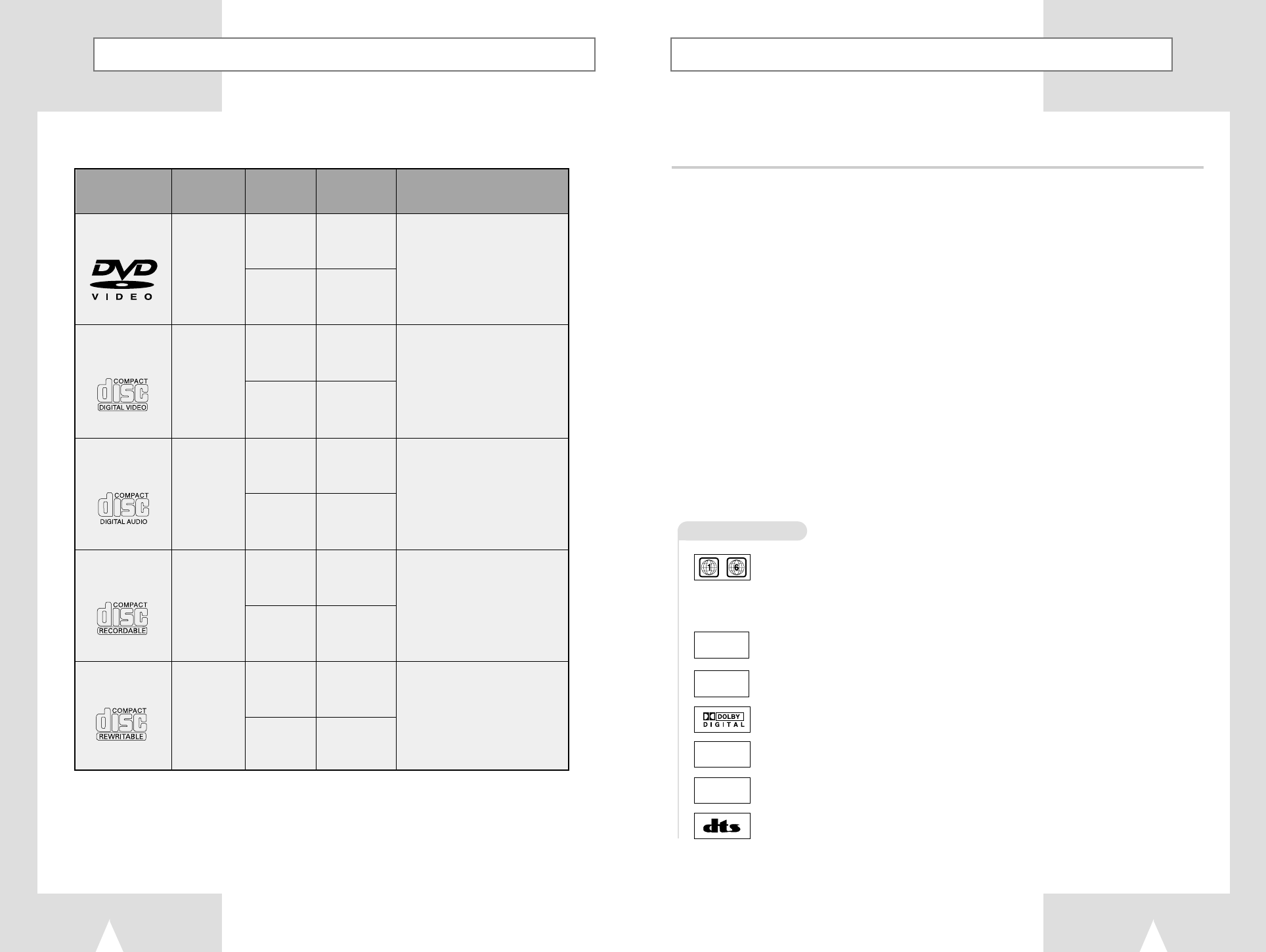

Disc Type and Characteristics 12
MP3 Play (CD-R MP3 disc requirements) 13

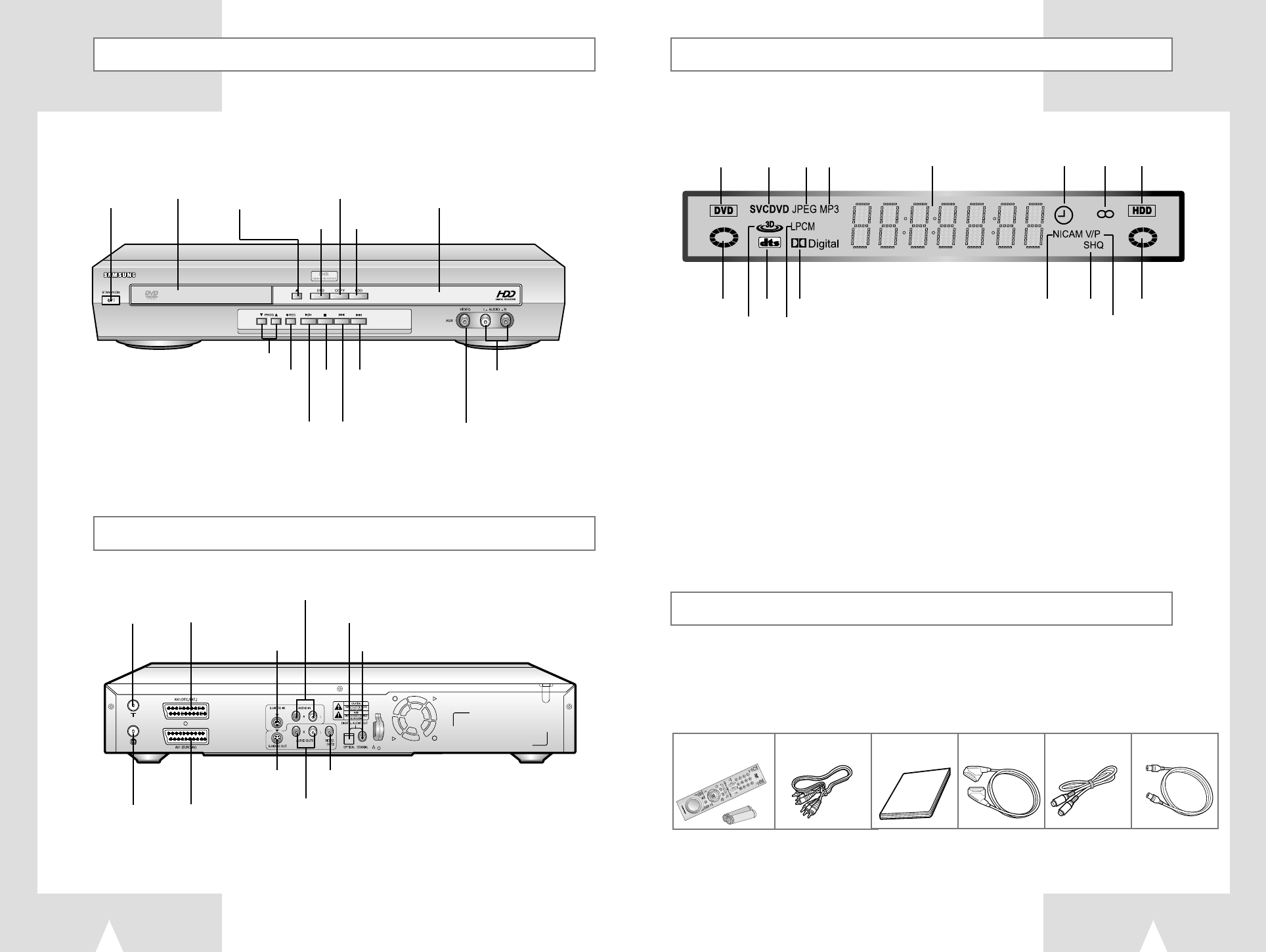

Front View of the DHR(DVD HDD Recorder) 14
Rear View of the DHR(DVD HDD Recorder) 14
Display Indicators 15
Accessaries 15

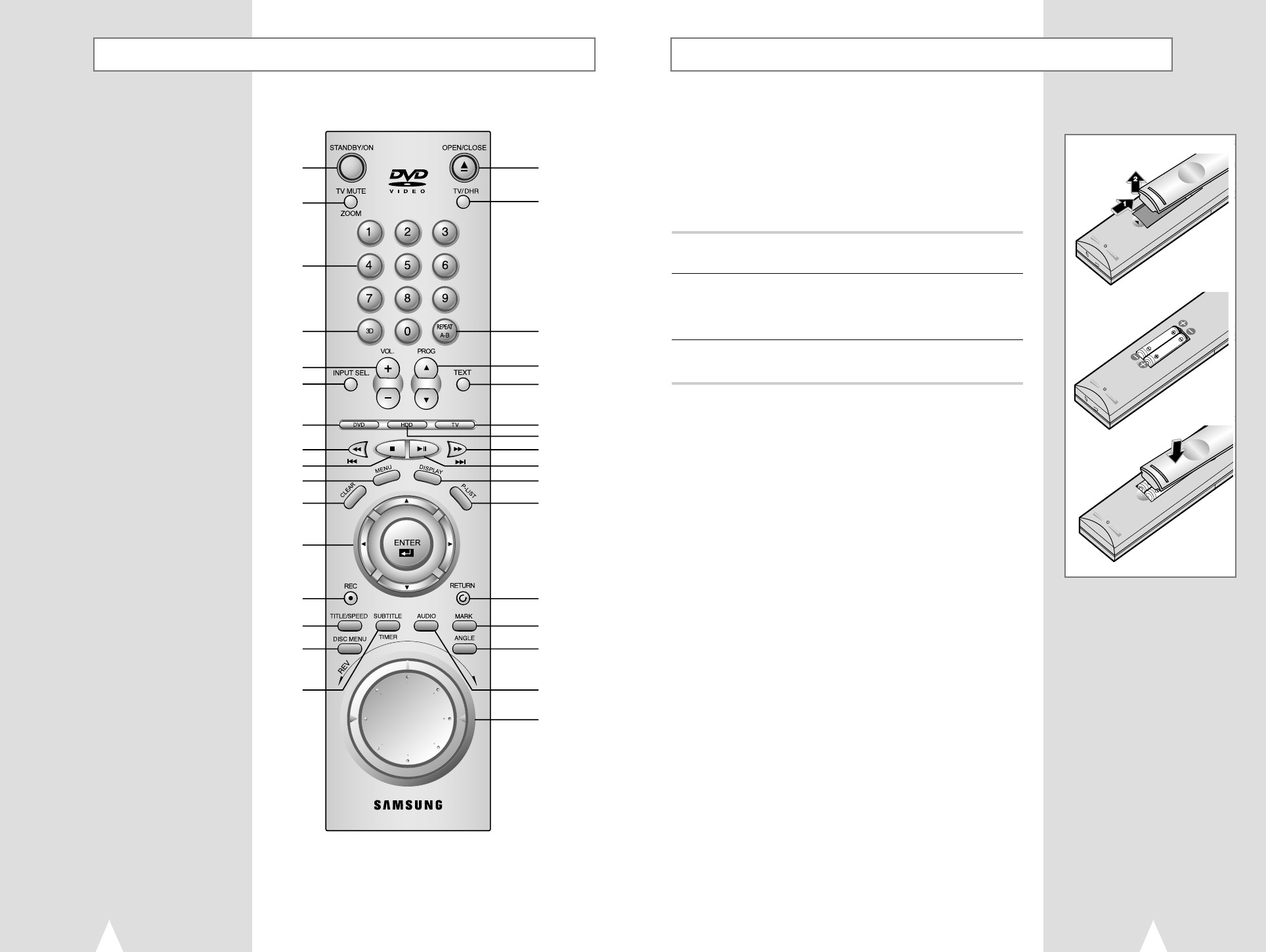

Infrared Remote Control 16
Inserting Batteries in the Remote Control 17

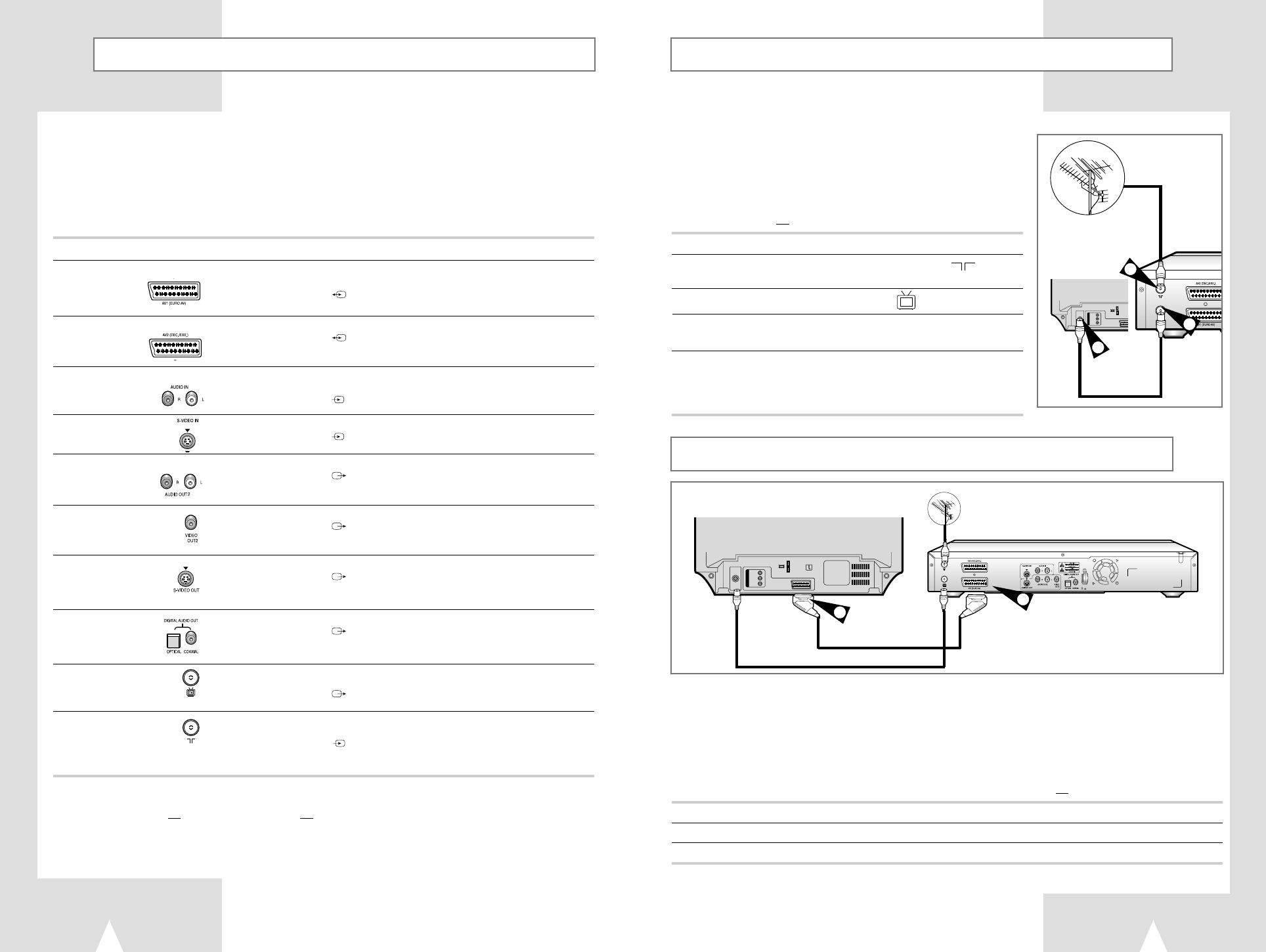

Deciding How to Connect DHR(DVD HDD Recorder) 18
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
19
Connecting DHR(DVD HDD Recorder) to the TV using the SCART Cable
19

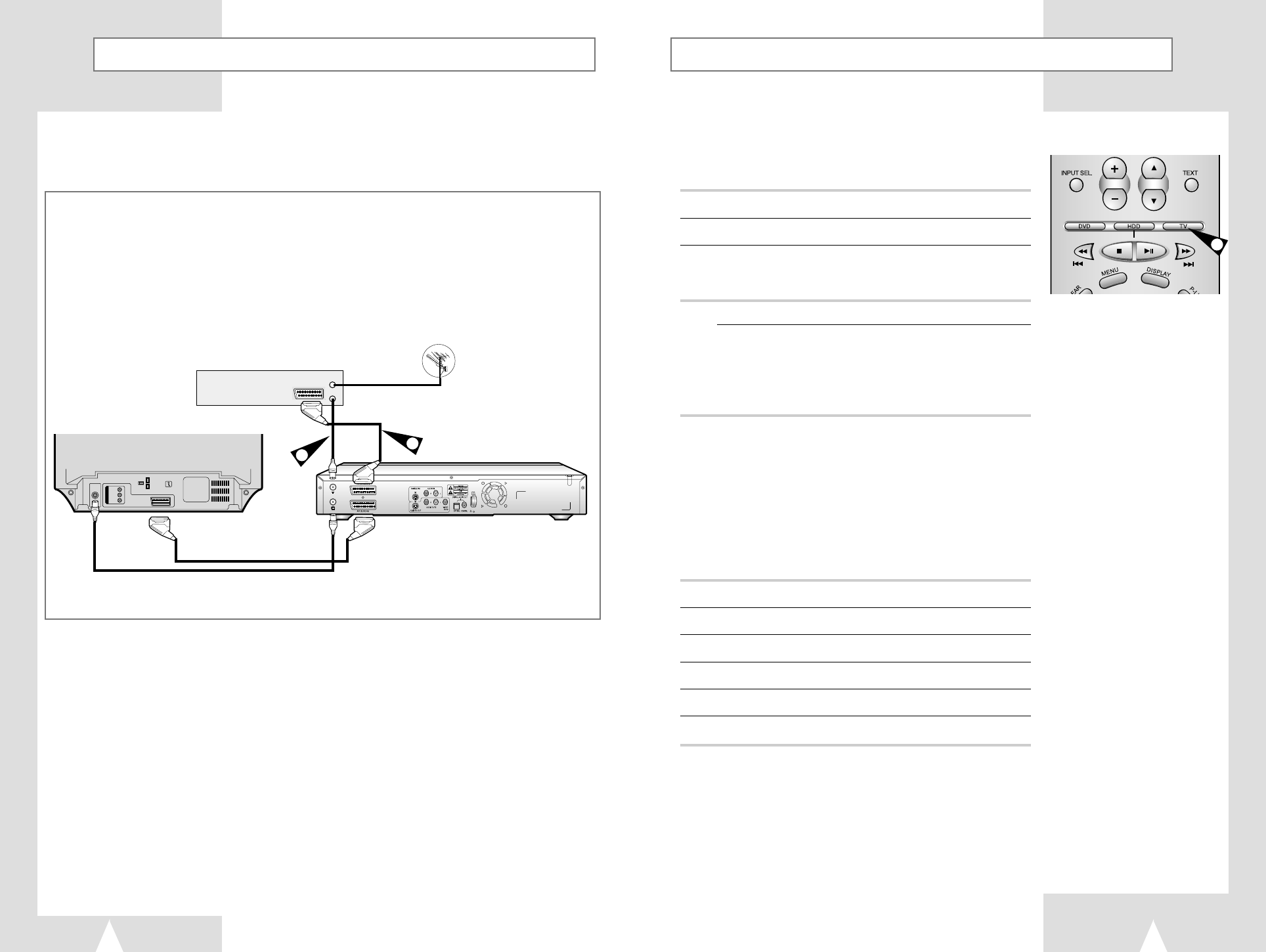

Connecting DHR(DVD HDD Recorder) to a Satellite Receiver or Other Equipment
20
Using the TV Button on the Remote Control 21
Basic Connections/Auto Setup 22
DVD/HDD View 23

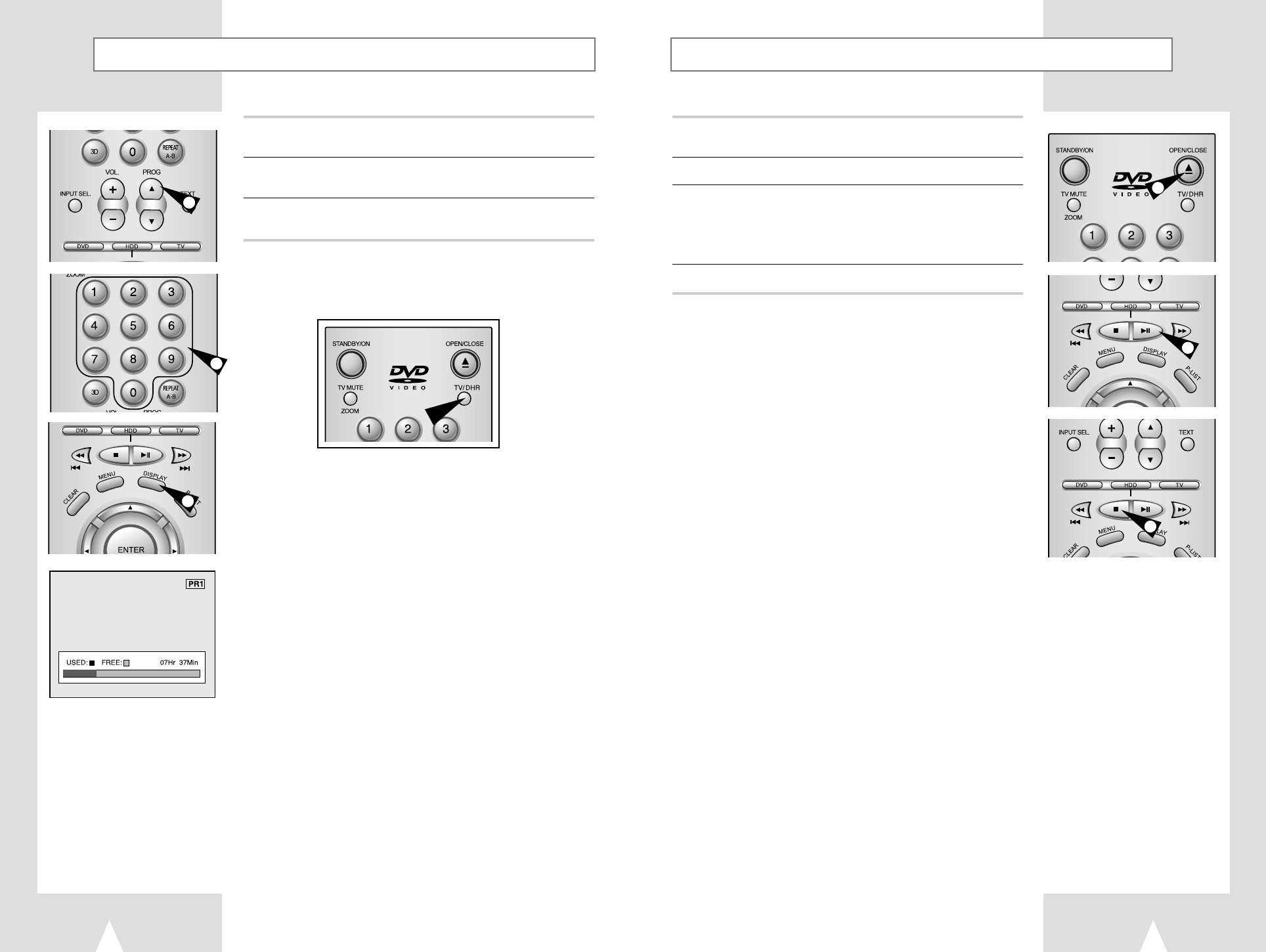

Basic DVD Playback 23
Basic TV Tuner Operations 24
Playing a Disc 25
Digital Recorder
Watch the recorded program in HDD 34
Set the parental lock 35
Change the lock password 36

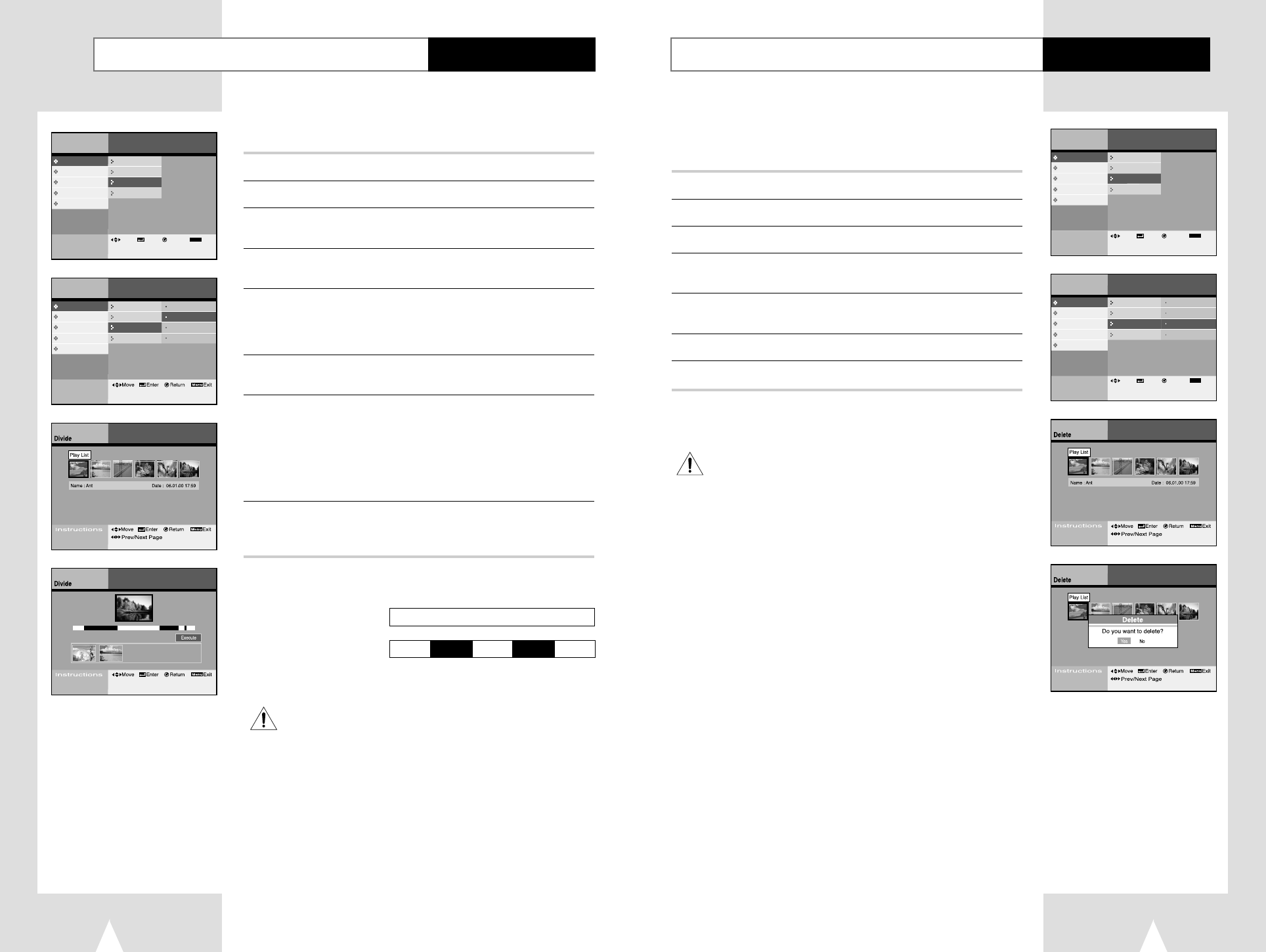

Edit the recorded program in HDD(Combine) 37
Edit the recorded program in HDD(Divide) 38
Edit the recorded program in HDD(Delete) 39

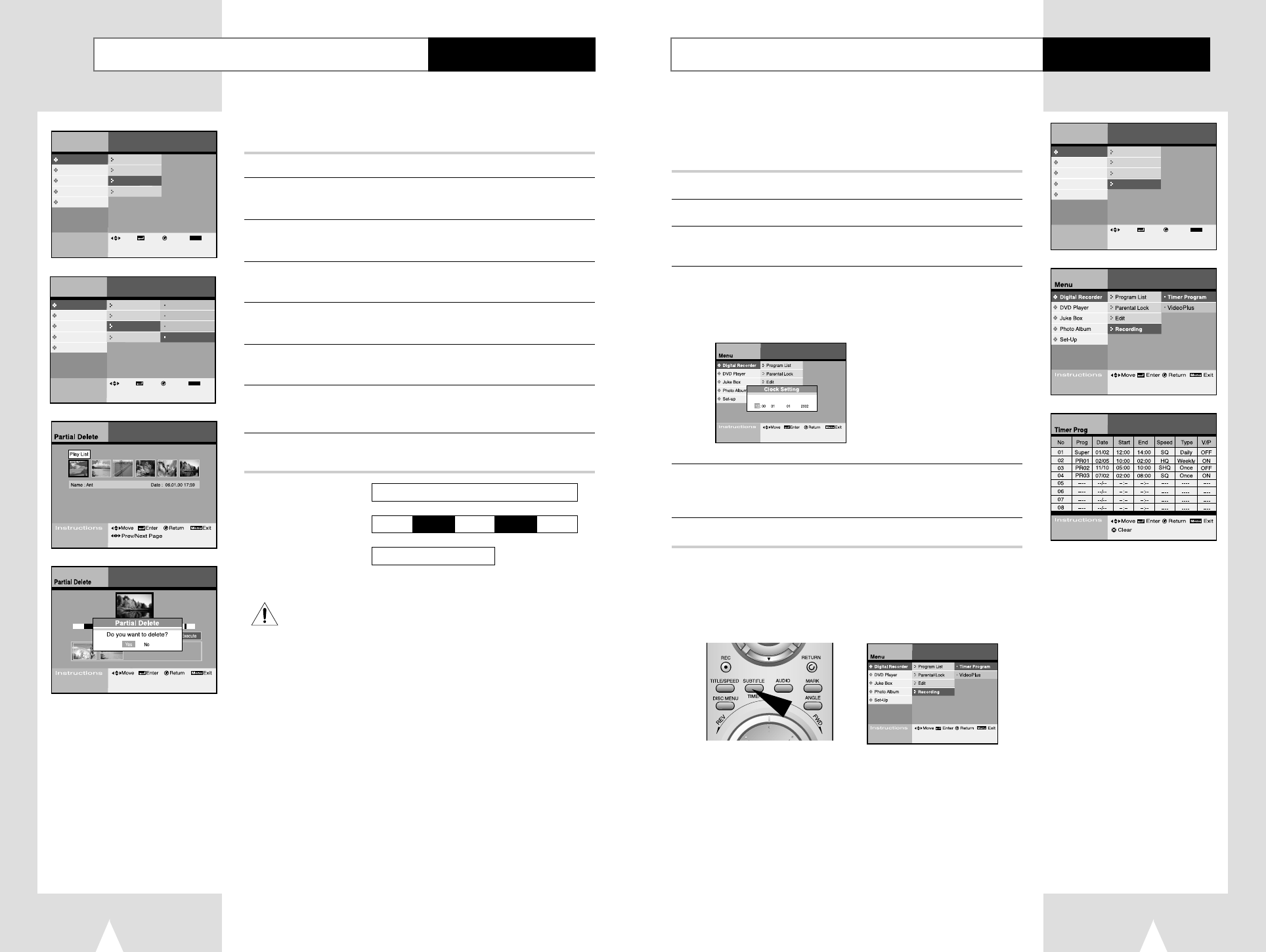

Edit the recorded program in HDD(Partial Delete) 40

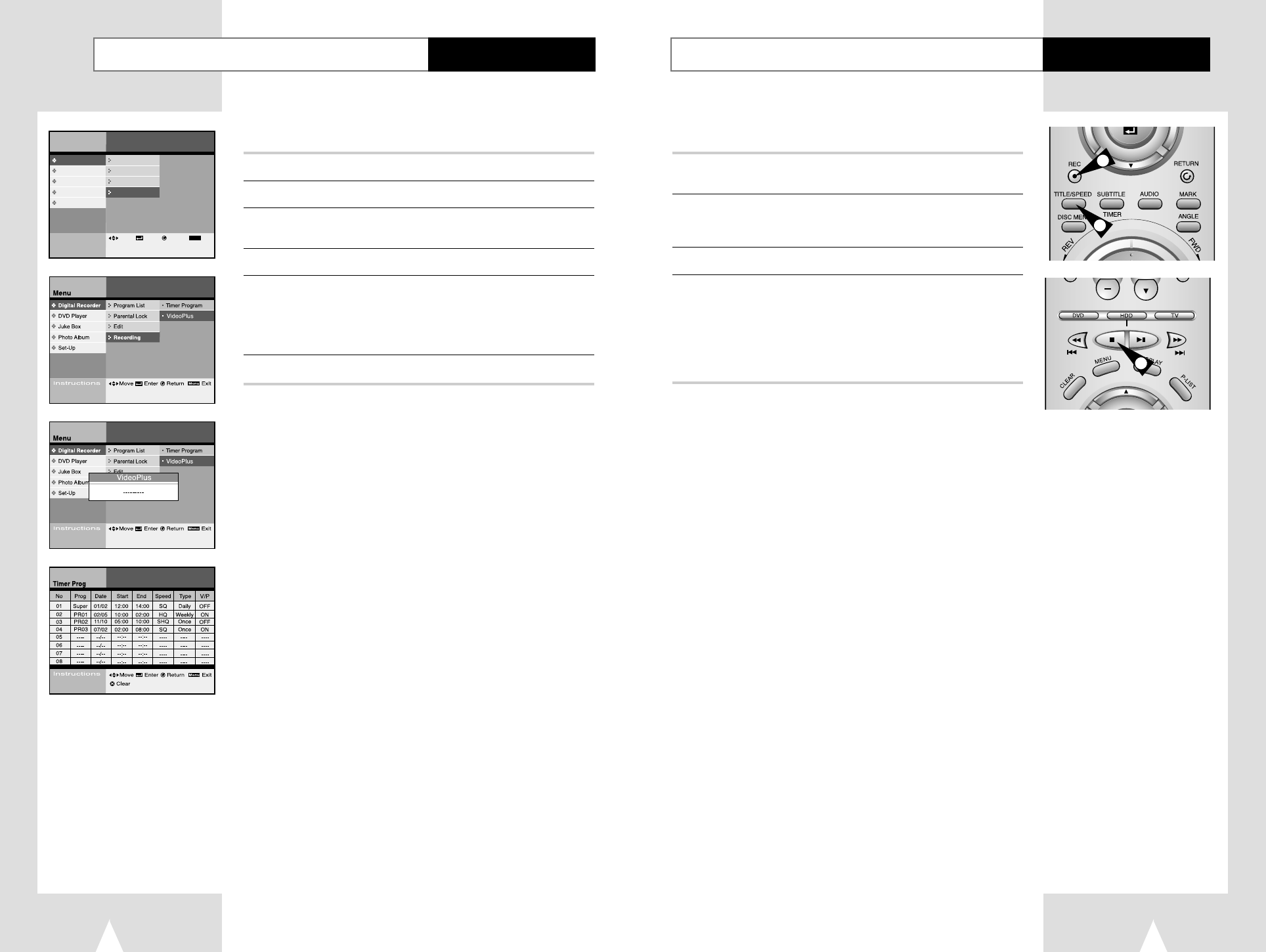

Record TV program(Timer program setting) 41
Record TV program(Videp Plus) 42
Recording Television Broadcast 43

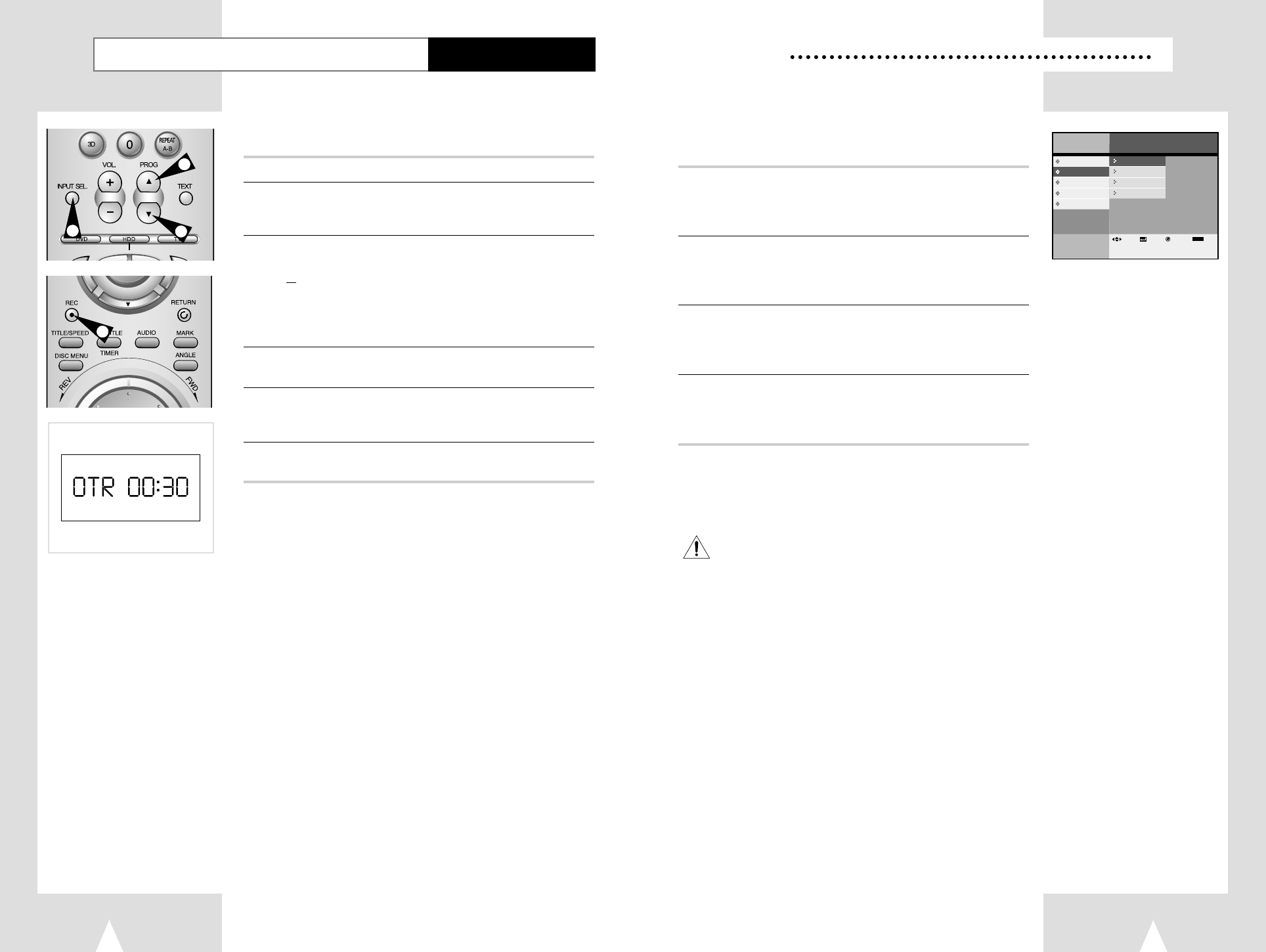

Record TV program (One Touch Recording) 44
DVD player
Disc Copy 46
Preset of DVD language 47
Set the parental lock 48
Change the lock password 49
Using the Disc/Title Menu 50
3D Sound Function 50
Selecting the Audio Language 51
Selecting the Subtitle Language 51
Using the Display Function 52
Special Playback Features 53
A-B Repeat 54
Using the Zoom (DVD/VCD) 55
Changing the Camera Angle 55
Using the Bookmark Function (DVD/VCD) 56
Juke Box

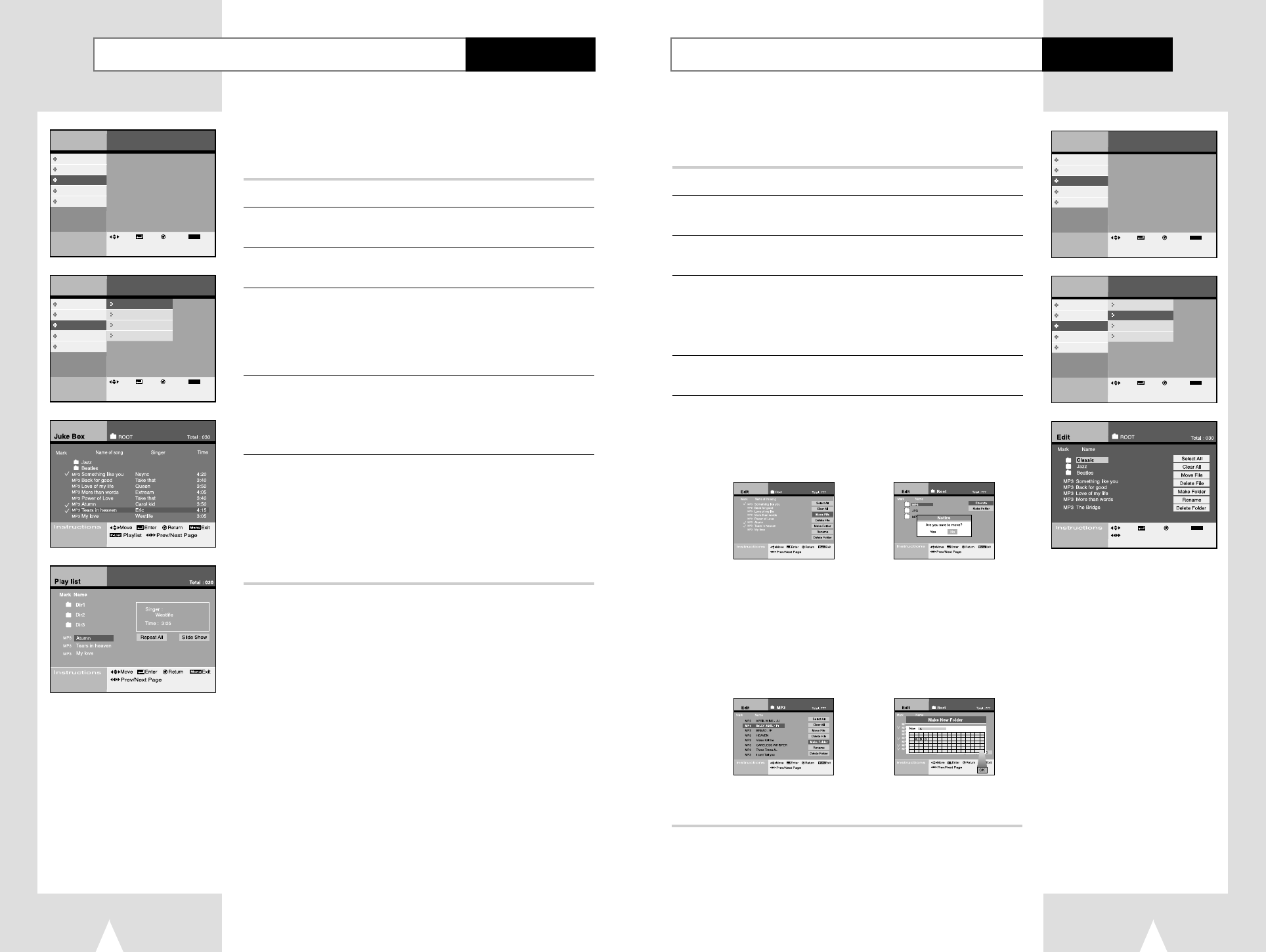

View the MP3 file list in HDD/CD 58
Edit the MP3 file in HDD 59

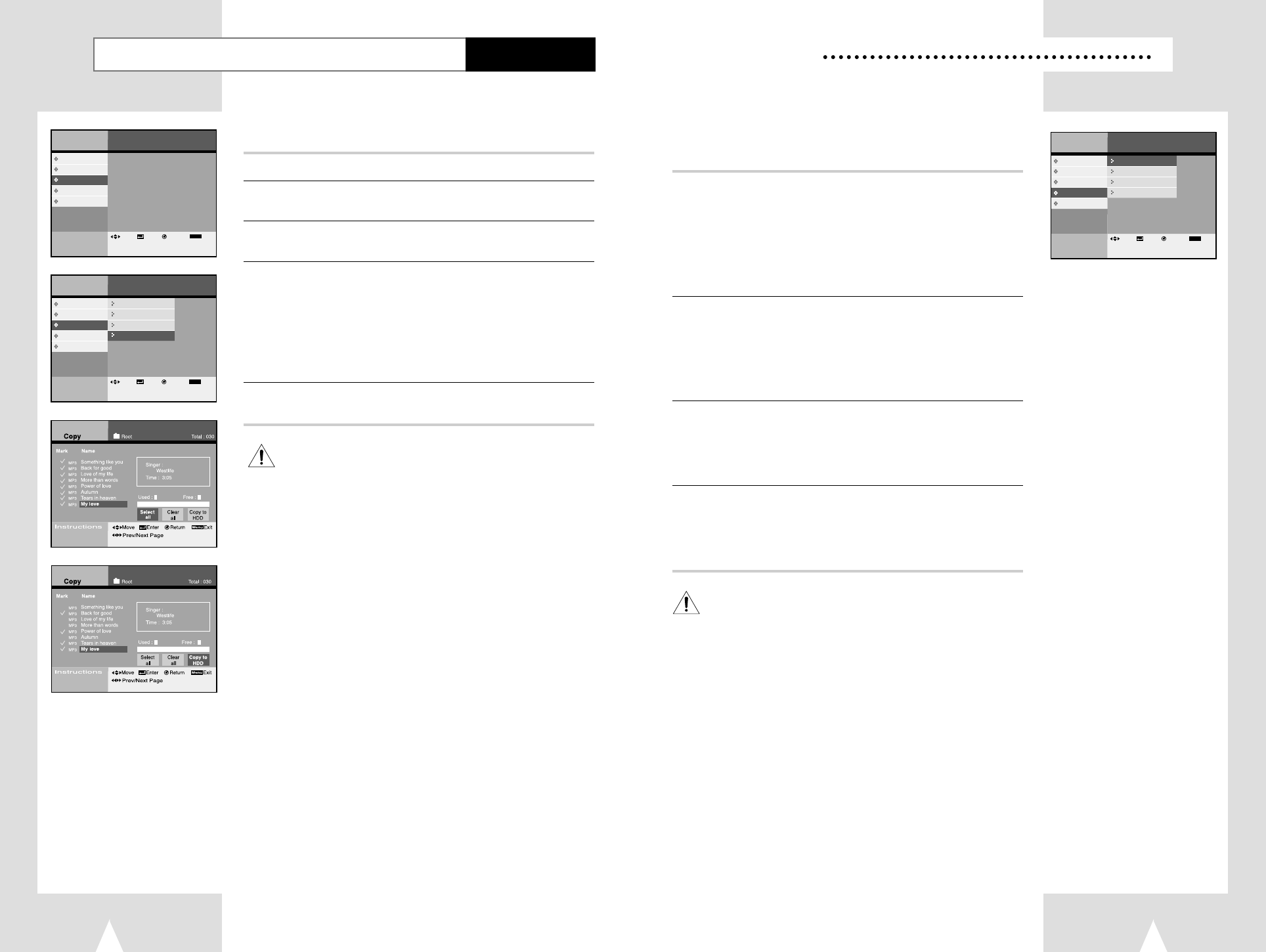

Copy MP3 file from CD to HDD 60
Photo Album

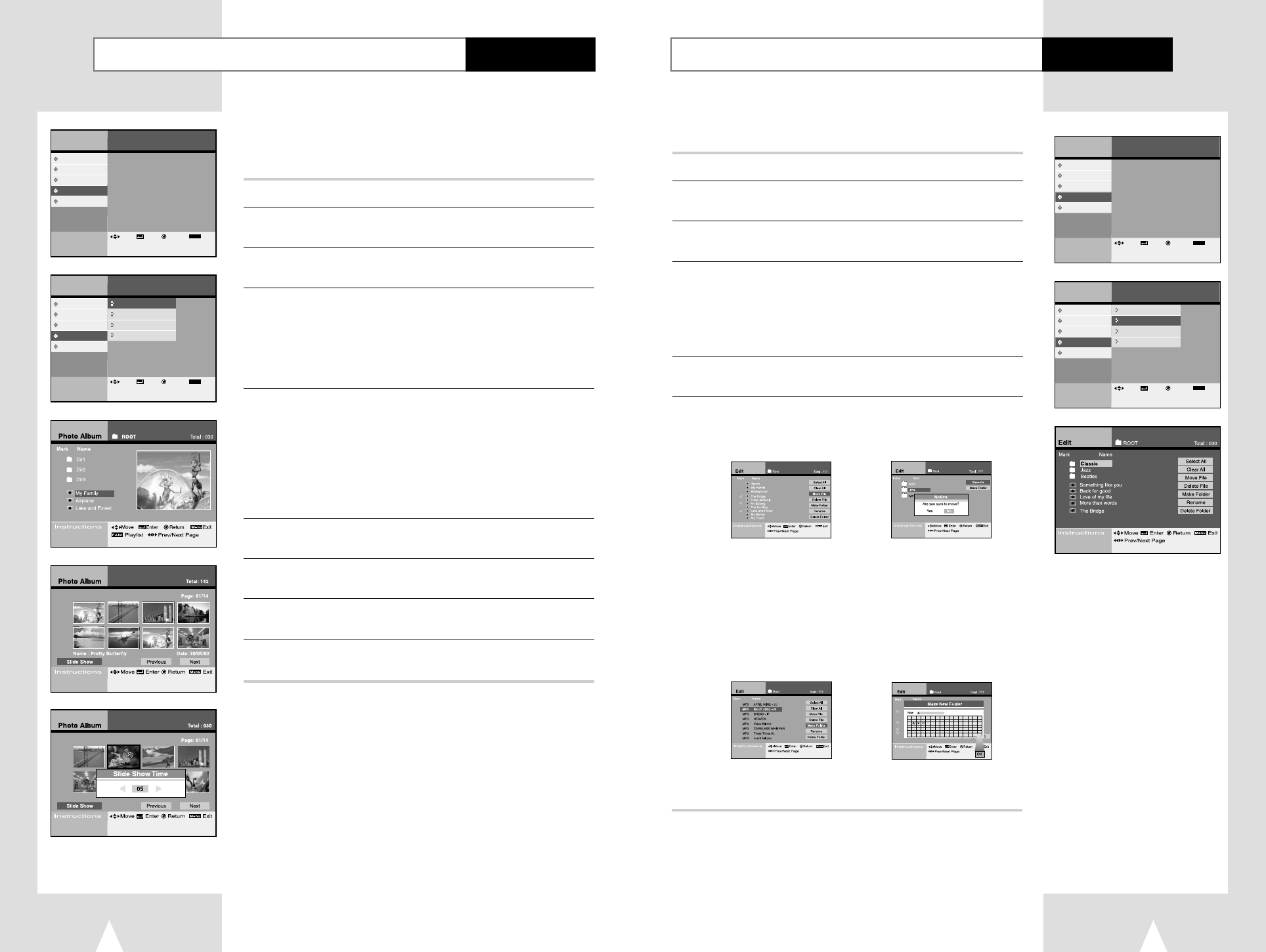

View the JPEG file list in HDD/CD 62
Edit the JPEG file in HDD 63

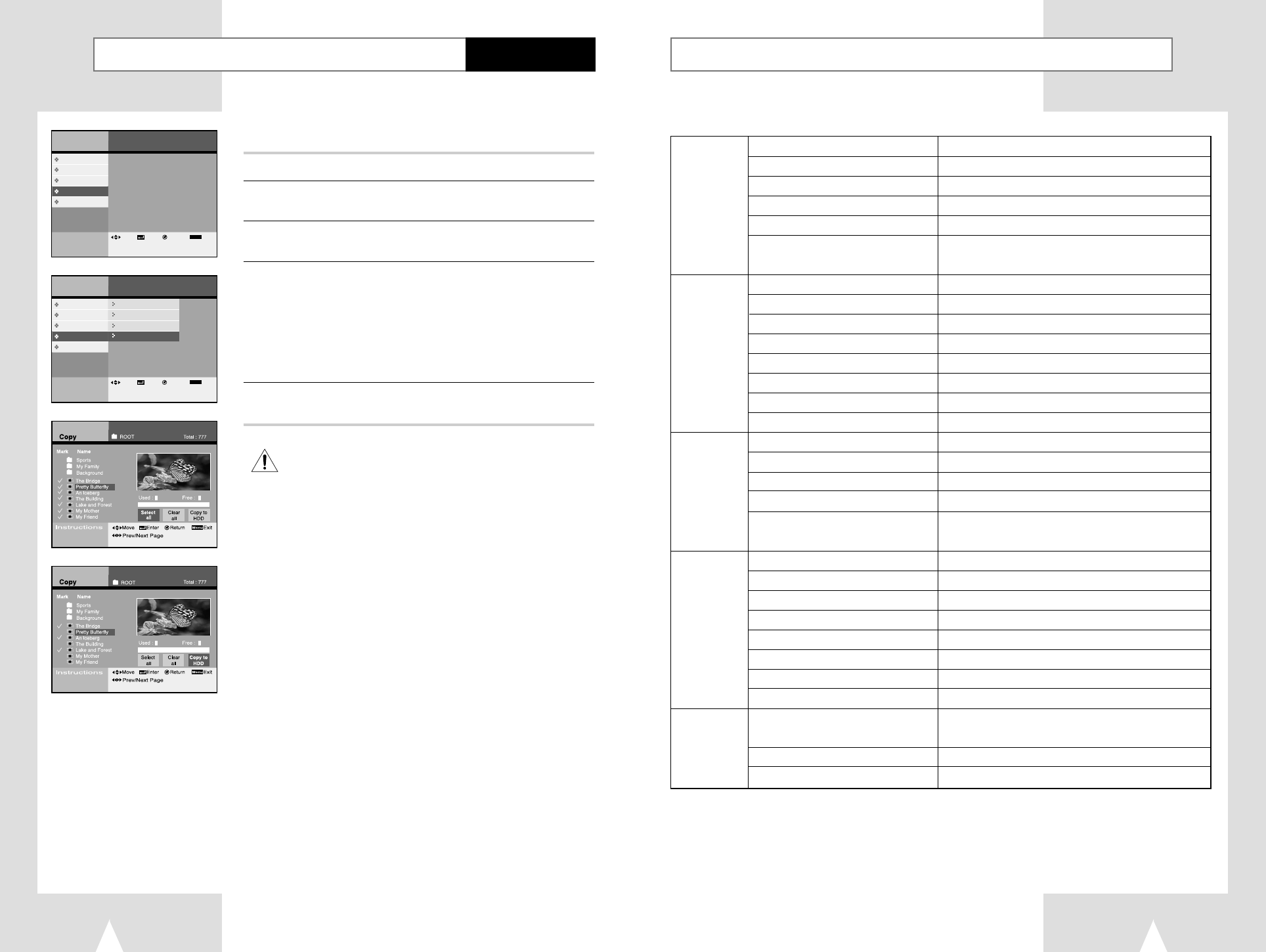

Copy JPEG file from CD to HDD 64
INTRODUCTION
Change set language 27
Set the TV channel 28
Set the clock 29
Set the time-shift buffering time 29
Set the output audio options 30
Set the display options 31
HDD Format 32
SETUP DHR(DVD HDD Recorder)
Technical Specifications 65
Problems and Solutions 66
OTHERS
SET-UP
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corpration and other rights owners. Use of this copyright protection
technology must by authorized by Macrovision Corporized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
MP3 Play (CD-R MP3 disc requirements)
13
Disc Type and Characteristics
12
This DHR player is capable of playing the following types of discs
with the corresponding logos :
12 Cm
8 Cm
Single-sided
240 min.
Double-sided
480 min.
WAV
: 74min
MP3: about 150
JPG: up to file
size
WAV
: 20min
MP3: about 60
JPG: up to file
size
WAV
: 74min
MP3: about 150
JPG: up to file
size
WAV
: 20min
MP3: about 60
JPG: up to file
size
Single-sided
80 min.
Double-sided
160 min.
Audio
+
Video
Audio
+
Video
Audio
+
Video
Audio
+
Video
Audio
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
• Various screen and audio
functions can be easily selected
through the on-screen menu.
• Video with CD sound, VHS
quality & MPEG-1 compression
technology.
• An LP is recorded as an analog
signal with more distortion. CD
is recorded as a Digital Signal
with better audio quality, less
distortion and less deterioration
of audio quality over time.
• Permanent data storage
- cannot be erased or over written.
• Storing music, images, photos.
• Record and rewrite up to 1000
times and can be read
indefinitely
VIDEO-CD
AUDIO-CD
CD-R
CD-RW
12 Cm
8 Cm
74 min.
20 min.
12 Cm
8 Cm
8 Cm
12 Cm
8 Cm
12 Cm
74 min.
20 min.
Disc Types
(Logos)
Recording
Types Disc Size Max.
Playing
Time(files) Characteristics
DVD
When playing CD-R/RW discs, please follow the recommendations below:
• Your MP3 files should be ISO 9660 or JOLIET format.
ISO 9660 format and JOLIET MP3 files are compatible with Microsoft's DOS and Windows, and with
Apple's Mac. These two formats are the most widely used.
• When naming your MP3 files do not exceed 15 characters, and place ".mp3" as the file extension.
General name format of: Title.mp3. When composing your title, make sure that you use 15 characters or
less.
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.
Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at
least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely
give better sound quality. Conversely, files with sampling rates below 128 Kbps will not be played
properly.
• Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the
following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark
of The SDMI Foundation). You cannot copy such files.
➢
* Discs which cannot be played with this player:
• DVD-ROM • DVD-RAM
• CD-ROM • CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
* Ability to play back may depend on recording
conditions:
• DVD-R, +R • CD-RW
• DVD+RW, -RW • Photo CD : JPG file
~
DIGITAL
SOUND
STEREO
• Playback Region Number
• PAL colour system in U.K, France, Germany, Australia, etc.
• Dolby Digital disc
• Digital Audio disc
• Stereo disc
• DTS disc
Disc Markings
Both the DHR player and the discs are coded by region.
These regional codes must match in order for the disc to play. If the codes do not match,
the disk will not be played.
The Region Number for this player is described on the rear panel of the player.
PAL
• NTSC broadcast system in USA,
Canada, Japan, South Korea, etc.
NTSC
Display Indicators
15
Front View of the DHR(DVD HDD Recorder)
14
FRONT PANEL
DISPLAY
CHANNEL BUTTONS
PLAY/PAUSE
BUTTON
STOP
BUTTON
REW /SKIP BACK
BUTTON
RECORD
BUTTON
F.F /SKIP NEXT
BUTTON
OPEN/CLOSE
BUTTON
COPY BUTTON
DVD SELECT
BUTTON
HDD SELECT
BUTTON
DVD DECK
STANDBY/ON
BUTTON
AUX VIDEO
INPUT JACK
AUX AUDIO L, R
INPUT JACK
AV2 (DEC./EXT.) SCART
(EURO-21) JACK
S-VIDEO OUT
JACK
VIDEO OUT2
JACK
AV1 (EURO AV) IN/OUT
SCART (EURO-21) JACK
S-VIDEO IN
JACK
AUDIO L, R IN
JACKS
AUDIO L, R OUT2
JACKS
DIGITAL AUDIO OUT
JACK (OPTICAL)
DIGITAL AUDIO OUT
JACK (COAXIAL)
AERIAL IN
CONNECTOR
OUT TO TV
CONNECTOR
Rear View of the DHR(DVD HDD Recorder)
Accessaries
You have just purchased a SAMSUNG DHR.
Together with your DHR, you will find the following accessaries in the box.
REMOTE CONTROL
& BATTERIES
AUDIO & VIDEO
CABLE
1 2 3 4 5 6 7 8
9 11 13 14 14 15 17
10 12 16
1DVD Deck mode indicator
2Disc type indicator
3JPEG file indicator
4MP3 file indicator
5The time, current position, time remaining or
current status is displayed
6A Timer Recording is programmed or in progress.
7STEREO indicator
8HDD mode indicator
9DVD disc is active
10 3D Sound is active
11 A DVD with a DTS soundtrack is loaded
12 LPCM type indicator
13 Dolby digital indicator
14 NICAM is active
15 Recording Quality indicator
16 VPS/PDC indicator
17 HDD is active
USER’S
MANUAL
SCART CABLE S-VIDEO CABLE
COAXIAL CABLE
Inserting Batteries in the Remote Control
17
Infrared Remote Control
16
1STANDBY/ON button
2ZOOM/TV MUTE button
30~9 button
43D button
5VOLUME +/ - button
6INPUT SELECT button
7DVD button
8REVERSE PICTURE SEARCH/SKIP
PREVIOUS button
9STOP button
10 MENU button
11 CLEAR button
12 ENTER/DIRECTION button
13 RECORD button
14 TITLE/SPEED button
15 DISC MENU button
16 SUBTITLE/TIMER button
17 OPEN/CLOSE button
18 TV/DHR button
19 REPEAT A-B button
20 PROGRAM button
21 TEXT button
22 TV button
23 HDD button
24 FORWARD PICTURE SEARCH/
SKIP NEXT button
25 PLAY/PAUSE button
26 DISPLAY button
27 PLAY LIST button
28 RETURN button
29 MARK button
30 ANGLE button
31 AUDIO button
32 JOG/SHUTTLE
FWD
1
2
3
4
7
6
5
8
9
10
11
12
13
14
15
16
29
30
31
19
20
21
22
23
24
25
26
27
32
28
17
18
You must insert or replace the batteries in the remote control when
you:
◆Purchase the DHR
◆Find that the remote control is no longer working
correctly
1Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2Insert two AA, R6 or equivalent batteries, taking care to respect the
polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3Replace the cover by aligning it with the base of the remote control
and pushing it back into place.
➢Do not mix different battery types (manganese and alkaline
for example).
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
19
Deciding How to Connect DHR(DVD HDD Recorder)
18
You must take into account various factors when connecting audio or video systems:
◆Types of connectors available on your systems
◆Systems connected permanently to the DHR (satellite receiver for example) or temporarily
(camcorder for example)
Your DHR is equipped with the following connectors.
Connector Location Type Direction Recommended Use
AV1 (EURO AV)
Rear SCART In/Out ◆Television
AV2 Rear SCART In/Out ◆Satellite receiver
◆CANAL/DECODER
◆Other VCR/DVD
Audio input Rear Audio RCA In ◆Audio in for S-VIDEO
S-VIDEO Rear S-JACK In ◆S-Video in
input
Audio output Rear Audio RCA Out ◆LINE Audio out
VIDEO output Rear RCA Out ◆LINE Video out
S-VIDEO Rear S-JACK Out ◆S-Video out
output
Digital AUDIO Rear Optical Out ◆Digital Audio out
output
Coaxial
OUT TO TV Rear 75 ΩOut ◆Television
Coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
Coaxial ◆Cable television network
◆Satellite receiver
☛Whenever you connect an audio or video system to your DHR,
ensure that all elements are switched off.
Refer to the documentation supplied with your equipment for detailed
connection instructions and associated safety precautions.
Connecting DHR(DVD HDD Recorder) to the TV using the SCART Cable
To receive television programs a signal must be received from one
of the following sources:
◆An outdoor aerial
◆An indoor aerial
◆A cable television network
◆A satellite receiver
➢Make sure that both the television and the DHR are
switched off before connecting the cables.
1Remove the aerial or network input cable from the television.
2Connect this cable to the 75Ωcoaxial jack marked on the
rear of your DHR.
3Plug the coaxial cable supplied into the jack on your DHR.
4Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5To obtain better quality pictures and sound on your television, you
can also connect your DHR to the television via the SCART cable
(see section below) if your television is equipped with this type of
connection.
TV
You can connect your DHR to the television using the SCART cable if the appropriate input is available
on the television. You thus:
◆Obtain better quality sound and pictures
◆Simplify the setting up procedure of your DHR
➢◆Regardless of the type of connection chosen, you must always connect the coaxial cable
supplied. Otherwise, no picture will be visible on the screen when the DHR is switched off.
◆Make sure that both the television and the DHR are switched off before connecting the cables.
1Connect the coaxial cable as indicated in the above section.
2Connect one end of the SCART cable to the AV1 (EURO AV) jack on the rear of the DHR.
3Plug the other end into the appropriate connector on the television.
3
4
Aerial
SCART Cable
RF coaxial cable
2
3
TV
TV
2
Your DHR remote control will work with Samsung televisions and
compatible brands.
To determine whether your television is compatible, follow the instructions
below.
1Switch your television on.
2Point the remote control towards the television.
3
Hold down the TV button and enter the two-figure code corresponding
to the brand of your television, by pressing the appropriate
numeric buttons.
Brand Codes Brand Codes
SAMSUNG 01 to 06 PHILIPS 02, 20, 22
AKAI 09, 23 SABA 13, 14, 22 to 24
GRUNDIG 09, 17, 21 SONY 15, 16
LOEWE 02 THOMSON 13, 14, 24
PANASONIC 08, 23 to 27 TOSHIBA 07, 16 to 19, 21
• If your television is compatible with the remote control, it will be
switched off. It is now programmed to operate with the remote control.
➢◆
If several codes are indicated for your television brand,
try each one in turn until you find one that works.
◆
When you change the batteries in the remote control,
you must reprogram the code, following the same procedure.
You can control the television using the following buttons.
Button Function
STANDBY/ON Used to switch the television on and off.
INPUT SEL. Used to select an external source.
VOL. + or - Used to adjust the volume of the television.
PROG. Up or Down Used to select the required channel.
TV MUTE Used to toggle the sound on and off.
➢
The various functions will not necessarily work on all
televisions. If you encounter problems, operate the
television directly.
20 21
Using the TV Button on the Remote Control
Connecting DHR(DVD HDD Recorder) to a Satellite Receiver or Other Equipment
You can connect your DHR to a Satellite receiver or other DHR using the SCART cable if the appropriate
outputs are available on the equipment chosen. The following illustrations give a few examples of the
connection possibilities.
1. AV2 IN: By means of 21-pin Scart Cable
Plug the SCART Cable with satellite receiver or other equipment into the AV2 (DEC./EXT.) jack on the rear of the DHR.
After making this connection, select the source by pressing the INPUT SEL. button for the AV2 input sources.
2. By means of RF Coaxial Cable
After making this connection, you must preset the station received through the satellite tuner.
RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the DHR,
e.g. re-adjust to channel 39.
Satellite Receiver or other Equipment
Aerial
Aerial Connector
SCART Cable
RF coaxial cable
2
1
3
22 23
The DHR uses one set of controls to operate DVD & HDD. The
following buttons are helpful in successfully controlling each one.
1Press the STANDBY/ON button on the remote control or the front
panel to turn on the DHR.
2Press the DVD button on the remote control or on the front
panel when you want to control the DVD deck.
• The DVD indicator will light on the Front Panel Display to show
that the DVD deck is selected.
3Press again the HDD button on the remote control or on the
front panel when you want to control the HDD.
• The HDD indicator will light on the Front Panel Display to show
that the HDD is selected.
DVD/HDD View
Follow these instructions to playback a DVD.
1Open disc drawer.
• Press the Open/Close button on the remote control or front panel.
2Insert disc.
• Place the disc in the drawer with the label side of the disc facing
up. If the disc has two sides, orient the disc with the desired label
facing up.
3Close disc drawer.
• Press the Open/Close button on the remote control or front panel
to close the disc drawer.
4Press the
❿
II(Play/Pause) button on the remote control or front
panel.
• Many discs will begin playback automatically when the disc drawer
closes.
• If the DVD has a disc menu, or more than one title, the disc menu
may appear.
5Additional DVD options.
• See pages 45~56.
Basic DVD Playback

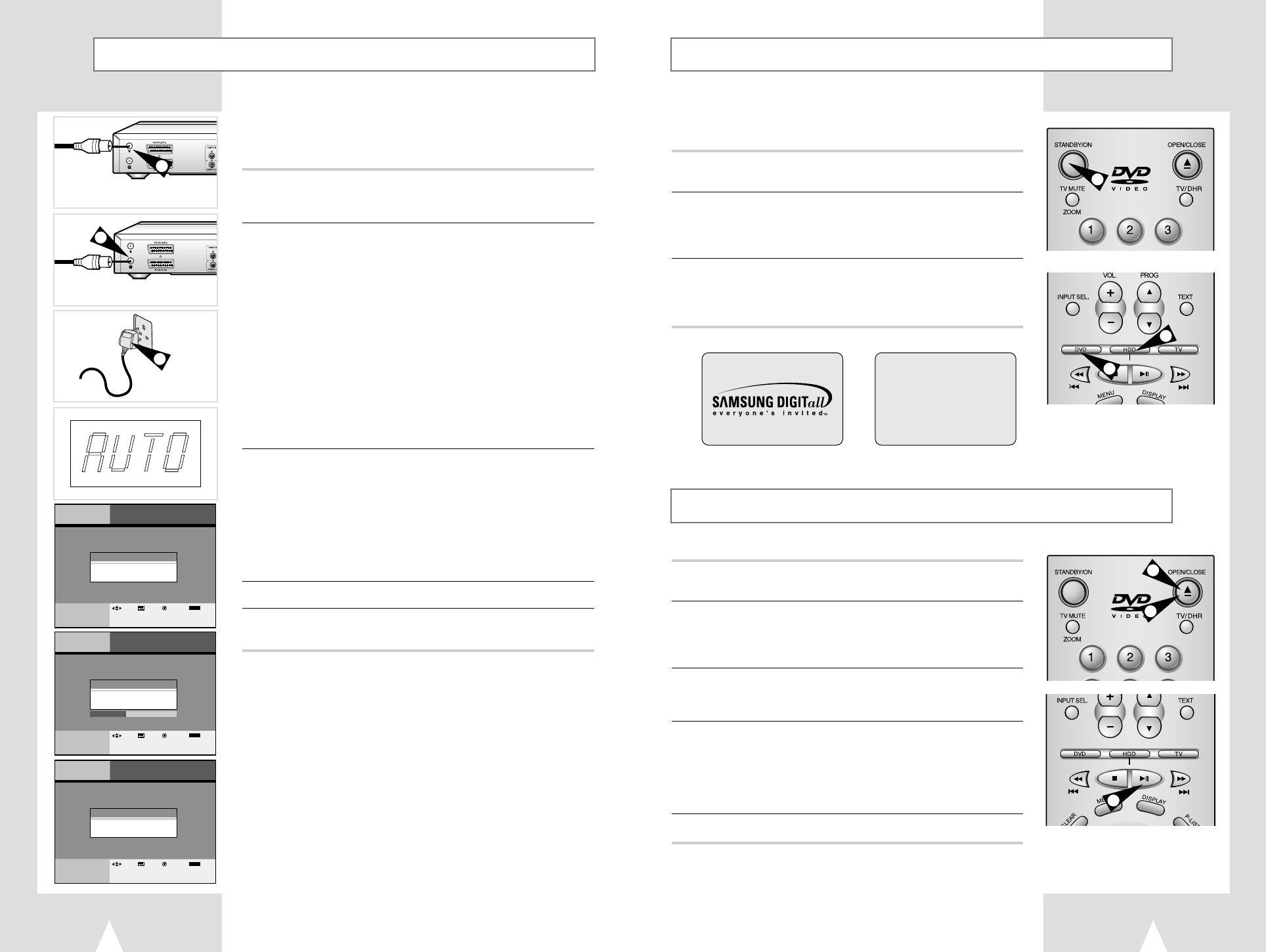

In this section, you will connect the DHR to your television and run
Auto Setup, which automatically searches for channels and sets the
player’s internal clock.
1Connect the RF antenna cable from your indoor/outdoor antenna
or cable wall outlet to the IN(FROM ANT.) jack on the rear panel
of the DHR
2Choose one of the following methods to connect the DHR to
your TV:
RF Connection:
Connect the supplied RF antenna cable from the OUT(TO TV) jack
on the rear panel of the DHR to your television’s Antenna Input.
Line Connection:
Connect an RCA-type audio/video cable(red, white, yellow) from
the LINE OUT jacks on the rear panel of the DHR to your television’s
Line In jacks.
Use red for right audio, white for left audio, and yellow for video.
➢
It is recommended that you use the Line Connection
if your TV is equipped with RCA jacks.
3Connect the DHR power cord to a standard 220~240V/50Hz
wall outlet. Then power is automatically turned on.
•
Don’t press any buttons on the DHR or remote during
auto setup.
“AUTO” blinks while the DHR runs an auto setup procedure, where
it will automatically search for all active channels and set the clock.
• When Auto setting has been completed, the front panel displays
the current time.
•
If Auto Clock set is unable to find the current time
,
you can set the clock manually;See page 29.
4Press the STANDBY/ON button on your TV.
5Set TV to Channel 21~69 or AV.
Be sure to use the same channel you selected.
➢◆ Even if you plan to use the S-Video Output, you MUST
connect the DHR to your television with either the
standard RF or the AV Out connection.
This enables you to operate the DHR setup menu.
Basic Connections/Auto Setup
1
from antenna
or cable
To TV’s
Antenna Input
2
3
1
2
3
3
4
1
LOADING AV1
DVD INITIAL SCREEN HDD INITIAL SCREEN
Auto Setup
Audio Options
ns
Notice
Check Antenna and TV Cable Connection
lnstructions
Enter Return
Menu
ExitMove
Auto Setup
Audio Options
Display Options
Auto CH Search
Please Wait
46%
lnstructions
Enter Return
Menu
ExitMove
Auto Setup
Audio Options
N
Notice
Now searching the clock
lnstructions
Enter Return
Menu
ExitMove
24 25
Basic TV Tuner Operations
1Press the PROG.
❷
buttons.
• Press to change to the next or previous channel.
2Press the 0~9 buttons.
• Press to select channels directly.
3Press the DISPLAY button.
• Display the channel’s information you are watching.
➢◆ When you press the TV/DHR button, you will be
taken directly to the screen of the AV device
connected to the AV2.
1Press the OPEN/CLOSE button.
• The STANDBY indicator light is on and the tray opens.
2Place a disc gently into the tray with the disc’s label facing up.
3Press the PLAY/PAUSE button to start play.
• When a conventional Audio CD (CDDA) is inserted, it is
automatically played back as the File List is displayed on the
screen. For MP3 or Photo CDs, a desired file must be selected
for playback once the File List is displayed on the screen.
4Press the STOP button to stop play.
➢◆ When you stop disc play, the player remembers where
you stopped, so when you press PLAY again, it will
pick up where you left off (unless the disc is
removed, the STOP button is pressed twice or the
player is unplugged.). This function works only when
playing DVD video.
◆ To listen to the next song, press and briefly hold down
the Forward (
❿❿
)button.
◆ If there are more than 8 files on the disc, press the
➛➛
Previous or
❿❿
Next button to view additional pages in
units of 8 contiguous files.
Playing a Disc
1
2
3
3
4
1
2726

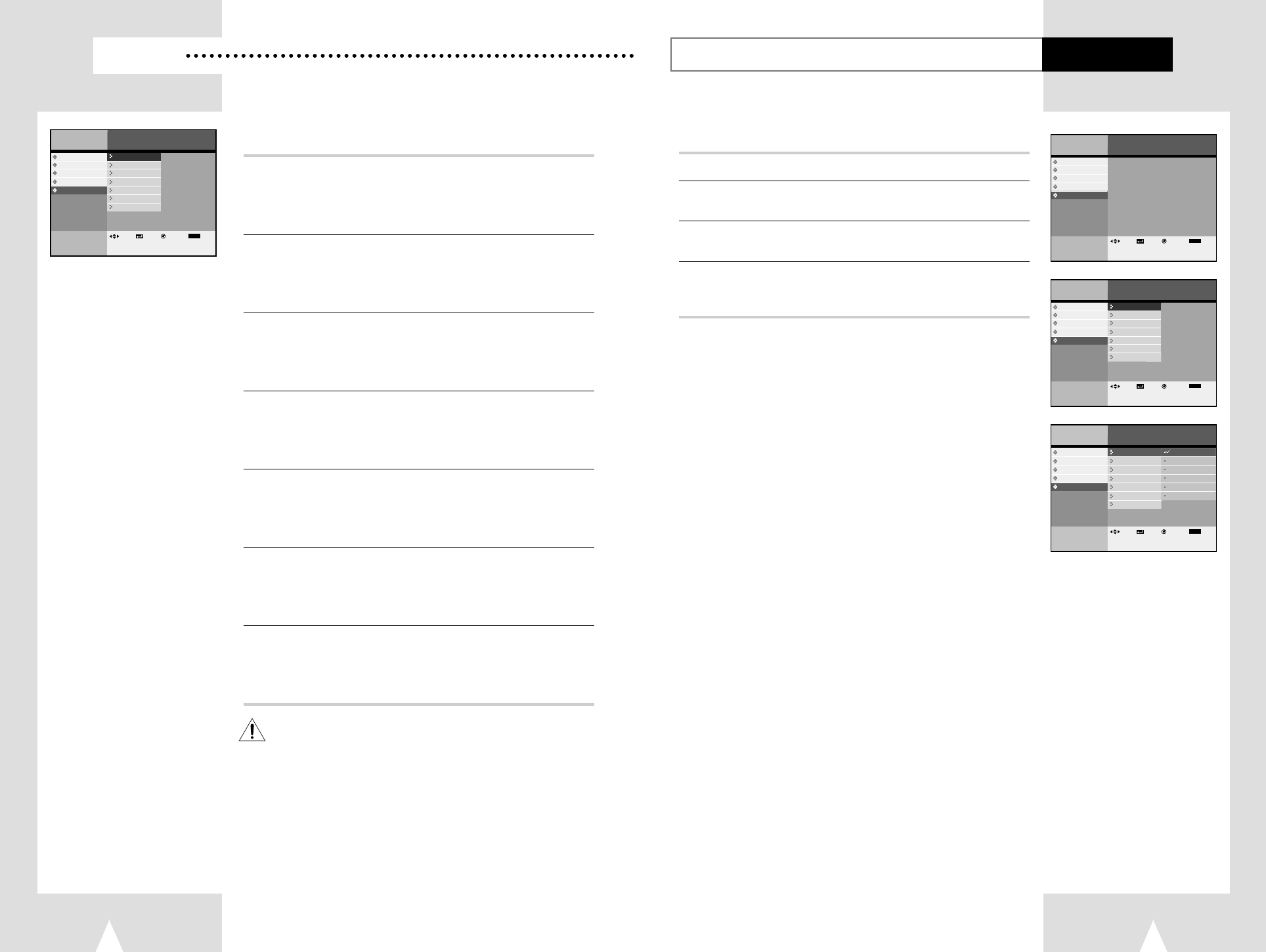

Set-Up
You can setup about special functions of DHR.
Change set language
You can select Menu language.
see page 27
Set the TV channel
You can set air/cable TV channel in manual or automatically.
see page 28
Set the clock
You can adjust clock on front panel display.
see page 29
Set the time-shift buffering time
You can select buffer time for time shift feature
see page 29
Set the output audio option
You can select audio option depends on audio system you have.
see page 30
Set the display option
You can select display option fit to your taste.
see page 31
HDD Format
You can erase all data or change system format in HDD.
see page 32
Change set language
Set-Up
You can select menu language.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Language using
❷
buttons, then press the ENTER or
❿
buttons.
4Select language you want to change using
❷
buttons,
then press the ENTER or
❿
buttons.
• Main menu language would be changed to selected language.
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
2928

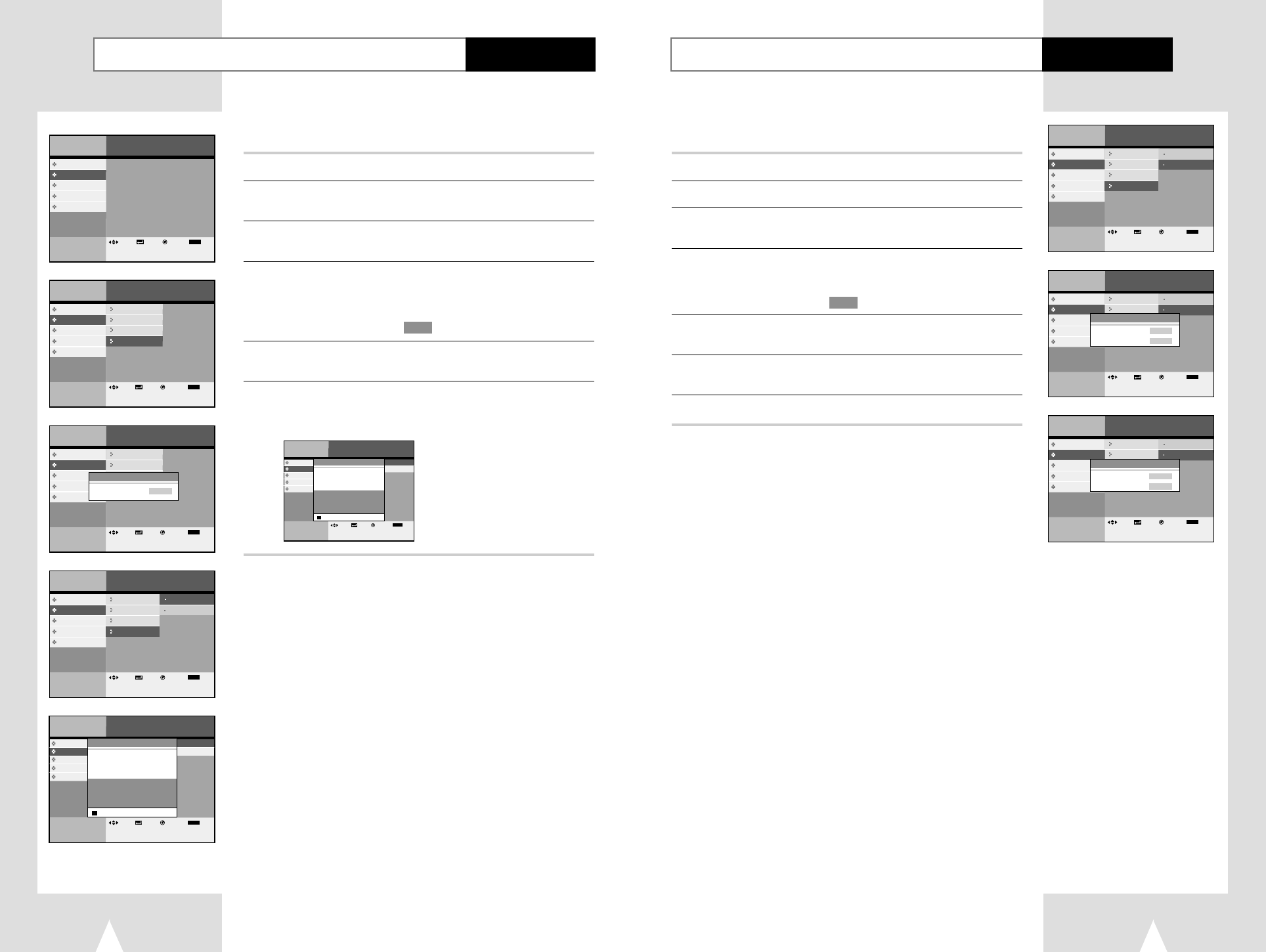

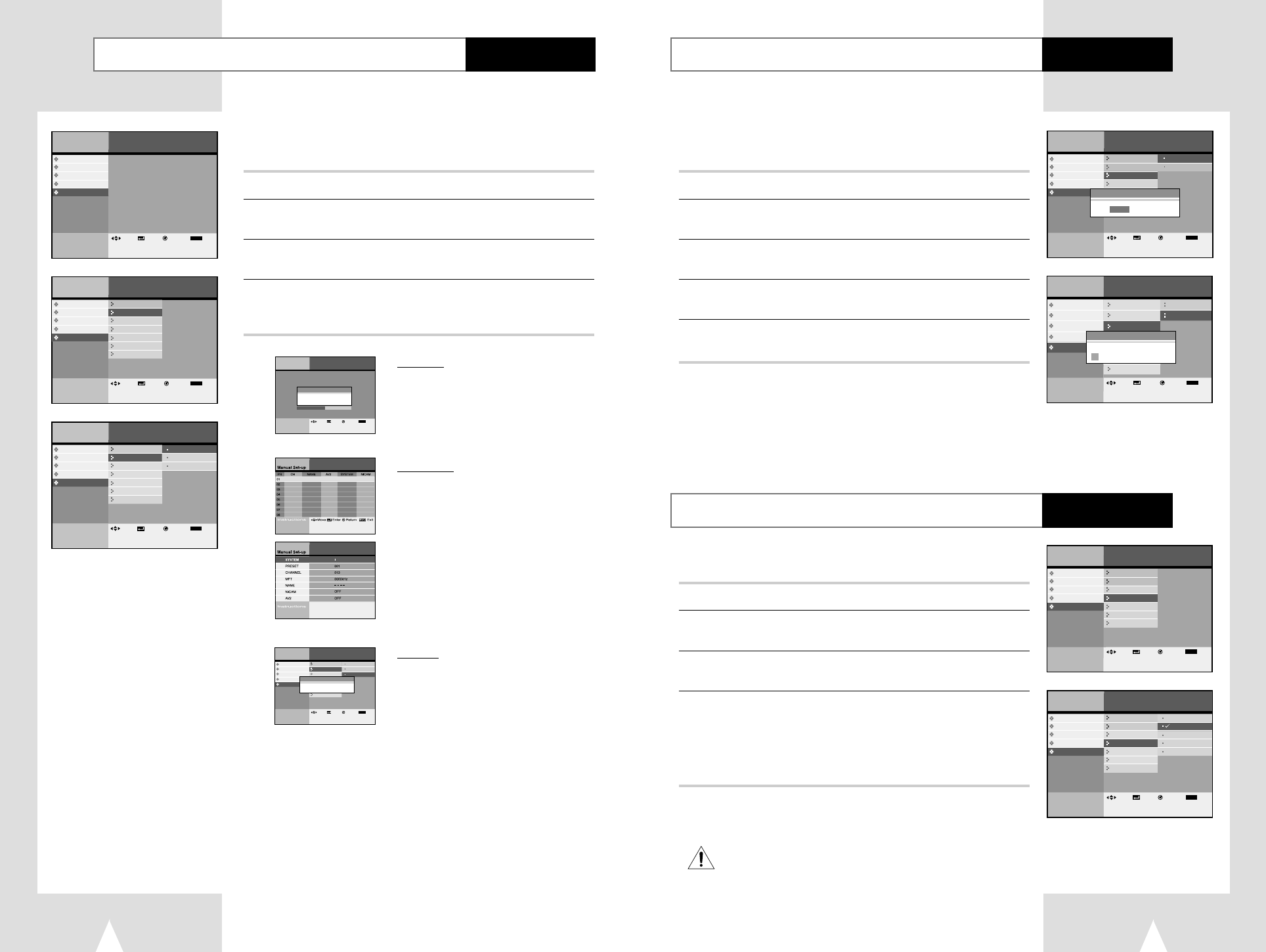

Set the TV channel
Set-Up
You can set air/cable TV channel in manual or automatically.
Also you can add or remove channels.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Channel using
❷
buttons, then press the ENTER or
❿
buttons.
4See below submenu setup.
Select mode using
❷
buttons, then press the ENTER or
❿
buttons.
Output CH
• Select output channel to TV tuner.(21 ~ 69CH)
• Set out channel to TV using
❷❷
buttons, then press the
ENTER button.
• Make sure connect RF coaxial cable between DHR and TV.
Auto Setup
Audio Options
Display Options
Auto CH Search
Please Wait
50%
lnstructions
Enter Return
Menu
ExitMove
Menu
Photo Album
Set-Up
Digital Recorder
lnstructions
Audio Options
Display Options
Language
DVD Player Channel
Juke Box Clock Setting
Auto Set-up
Manual Set-up
Output CH
Buffer Time
HDD Format
Enter Return
Menu
ExitMove
Output CH
60
Auto Set-up
• The DHR will automatically search for all available
channels in the selected Tuner Band.
This procedure may take a few minutes to complete.
• When finished, the lowest channel found will be displayed.
Manual Set-up
• Search & setup individual channel option in manual
• Set channels using
❷❷
➛❿
or 0~9 buttons, then press the
ENTER button to save.
Set the clock
Set-Up
Set the time-shift buffering time
Set-Up
You can adjust present time and see it thru front panel display.
To use timer recording, you have to set the clock.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Clock Setting using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select Manual Clock using
❷
➛❿
buttons, then press the
ENTER button.
5Adjust present time using
❷
➛❿
buttons, then press the
ENTER button.
➢◆ Follow this information if you have chosen manual
clock. Auto Clock is a function that plucks time
information from the TV signal and automatically
synchronizes the clock based on that information.
This function may not work depending on the
broadcast region. This function cannot be used if a
broadcast signal is not received by the antenna.
You never miss live TV programs. DHR memorizes live TV
programs for 30 min up to 2 hours.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Buffer Time using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select hours using
❷
buttons, then press the ENTER or
❿
buttons.
• Over the selected buffer time, erased from starting scene of buffer.
•The shorter buffer time will be helpful to save HDD’s recording
space
•The default buffer time is 1 hour.
➢◆ Press the Return button to move to the start buffered
position.
It can be taken a few seconds when the buffer time is changed.
3130

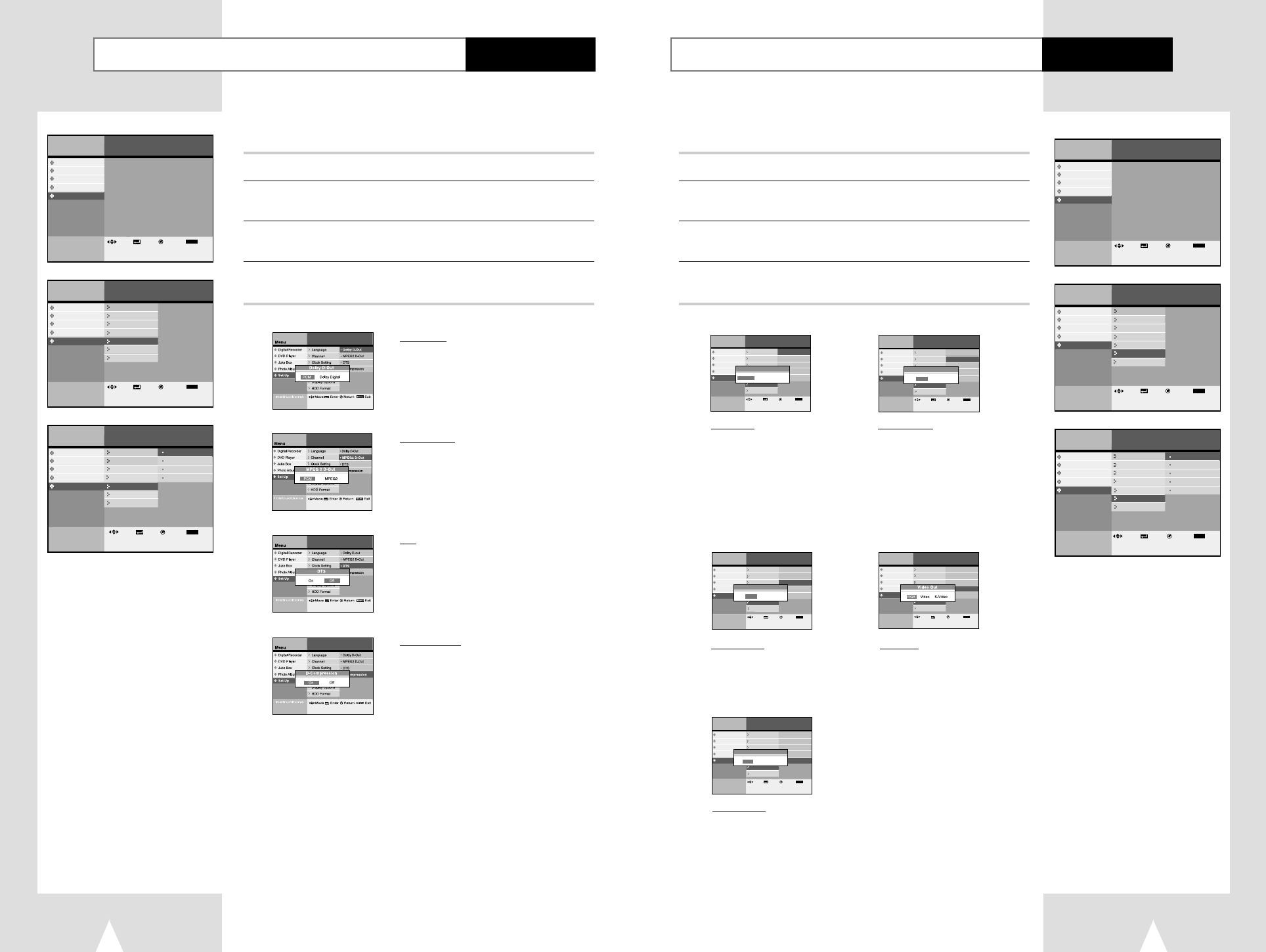

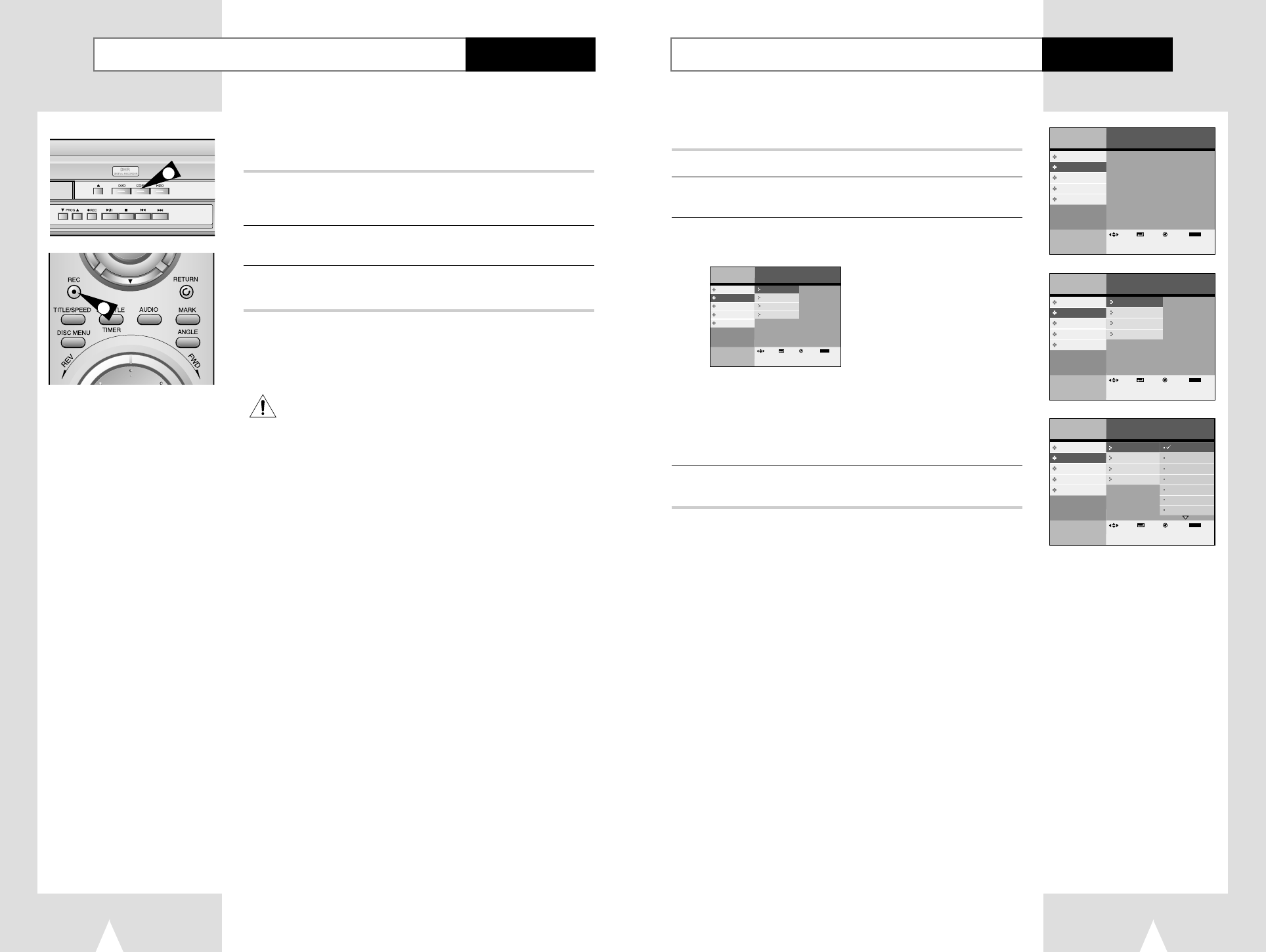

Set the output audio options
Set-Up
You can optimize audio status depends on your audio system.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Audio Options using
❷
buttons, then press the
ENTER or
❿
buttons.
4See below audio output setup. Select mode using
❷
buttons,
then press the ENTER or
❿
buttons.
Set the display options
Set-Up
You can adjust TV display status.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select Display Options using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select option to change using
❷
or
❿
buttons, then press the
ENTER.
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Language
Channel
Clock Setting
Buffer Time
Audio Options
Display Options
• Aspect Ratio
¥ OSD Message
¥ Front Display
¥ Video Out
¥ System
HDD Format
Move Enter Return
Menu
Exit
Aspect Ratio
4:3 PS 4:3 LB 16:9 Wide
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Language
Channel
Clock Setting
Buffer Time
Audio Options
Display Options
¥ Aspect Ratio
• OSD Message
¥ Front Display
¥ Video Out
¥ System
HDD Format
Move Enter Return
Menu
Exit
OSD Message
On Off
Aspect ratio
•
4:3 PS (
Pan-Scan) : Select this for conventional size
TVs
when you want to see the central portion of the
16:9
screen.(Extreme left and right side of movie
picture will be cut off.)
•
4:3 LB (
Letter Box) : Select when you want to see total
16:9
ratio screen DVD supplies, even though you have
a TV
with 4:3 ratio screen. Black bars will appear at the
top and
bottom of the screen.
•
16:9 Wide
: You can view the full 16:9 picture on your
widescreen TV.
OSD Message
• On : Displays playing status icon or message
on screen.
• Off : Not displays playing status icon or message
on screen.
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Language
Channel
Clock Setting
Buffer Time
Audio Options
Display Options
¥ Aspect Ratio
¥ OSD Message
• Front Display
¥ Video Out
¥ System
HDD Format
Move Enter Return
Menu
Exit
Front Display
On Off
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Language
Channel
Clock Setting
Buffer Time
Audio Options
Display Options
¥ Aspect Ratio
¥ OSD Message
• Front Display
¥ Video Out
¥ System
HDD Format
Move Enter Return
Menu
Exit
Color System
PAL SECAM
Front Display
• On : Turn on display panel all the time.
• Off : Turn off display panel all the time.
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Language
Channel
Clock Setting
Buffer Time
Audio Options
Display Options
¥ Aspect Ratio
¥ OSD Message
¥ Front Display
¥ System
• Video Out
HDD Format
Move Enter Return
Menu
Exit
Video Out
• RGB
• Video
• S-Video
Color System
•
PAL : Make sure select PAL when you watch
PAL program.
•
SECAM : Make sure sulect SECAM when you
watch SECAM program.
D-Compression
• This feature compresses the dynamic range (quietest
sound to loudest sound) of a disc’s soundtrack. For
example, action scenes might be loud, while whispered
dialog is quiet. The Dynamic Compression feature evens
out the range of the volume by making loud sounds
quieter and soft sounds louder.
• Off : To select normal dynamic range.
• On : To select compressed dynamic range.
Dolby D-out
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• Dolby Digital : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
• Be sure to select the correct digital output or no audio will
be heard.
DTS
• Off : Does not output digital signal.
• On : Outputs DTS bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
MPEG 2 D-out
• This feature supports only disc encoding to MPEG Audio.
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• MPEG 2 : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
3332
HDD Format
Set-Up
You can erase all data in HDD.
1Press the MENU button.
2Select Set-Up using
❷
buttons, then press the ENTER or
❿
buttons.
3Select HDD Format using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select Format option using
➛❿
buttons, then press the ENTER
button.
• Option 1 : 40Hours recording (SQ Standard)
250 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
• Option 2 : 30Hours recording (SQ Standard)
2500 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
5Select Yes, then press the ENTER button.
• Some options you already setup can be initialized.
6The power will be turned off automatically after formatting the
HDD.
It has a 40Giga Byte large quantity HDD(Hard Disk Drive).
So you can edit saved programs and record in digital
format(MPEG2).
Watch the recorded program in HDD
It shows you recorded program list.
see page 34
Set the parental lock
You can lock adult or violent programs for children.
see page 35~36
Edit the recorded program in HDD
You can combine, divide, delete or partial delete saved programs.
see page 37~40
Record TV program
You can record TV programs by timer recording function or VideoPlus.
see page 41~44
Menu
Photo Album
Set-Up
Digital Recorder
lnstructions
DVD Player
Juke Box
Enter Return
Menu
ExitMove
Buffer Time
Audio Options
Display Options
Language
Channel
Clock Setting
HDD Format
HDD Format
1
2
40Hr
30Hr
250
2500
10k
10k
Video MP3 Photo
1 2
Menu
Photo Album
Set-Up
Digital Recorder
lnstructions
DVD Player
Juke Box
Display Options
TV Type
HDD Format
Clock Setting
Background Change
Buffer Time
Audio Options
Enter Return
Menu
ExitMove
HDD Format
Do you really want to format?
Yes No
Digital Recorder
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
35

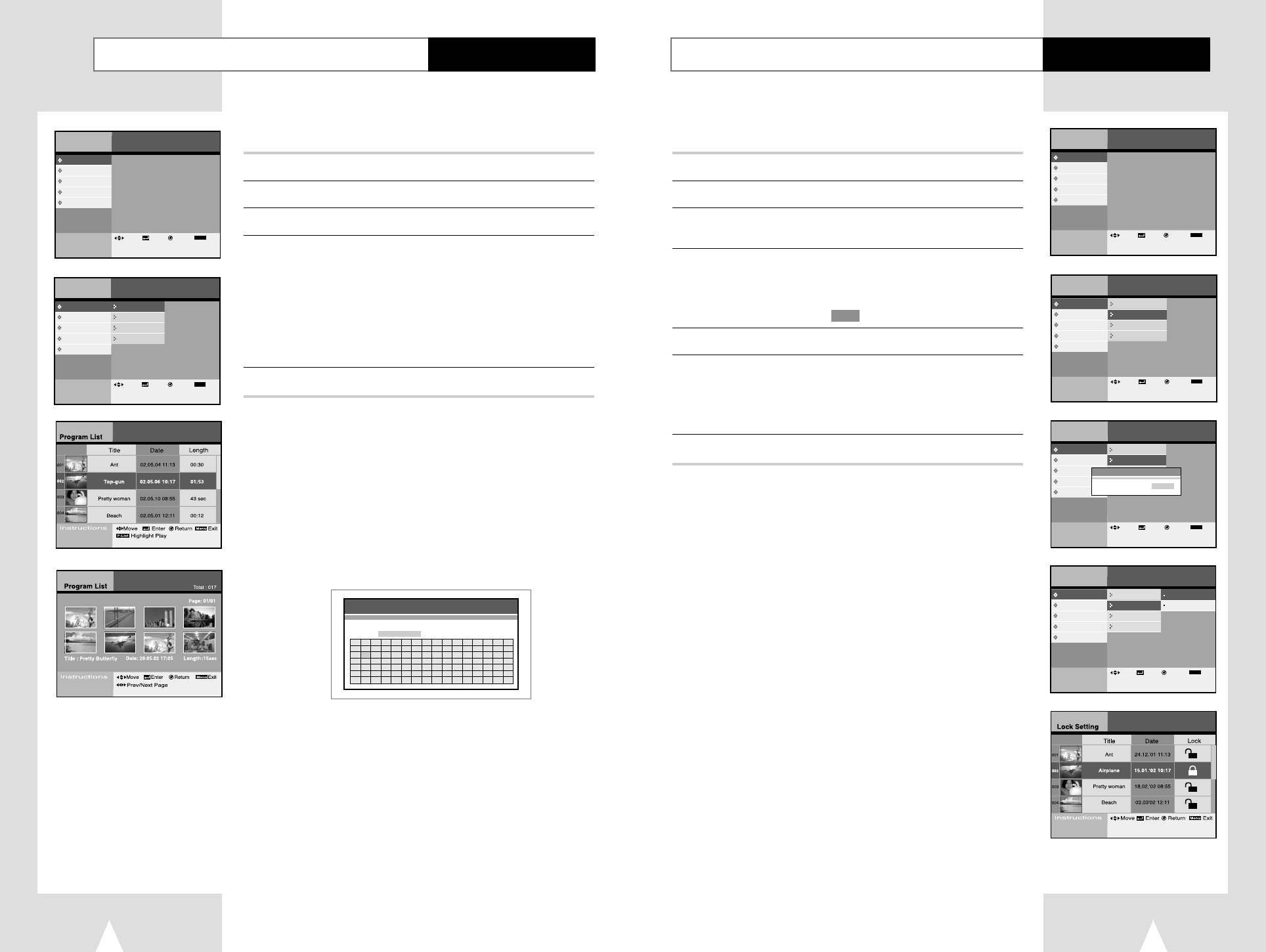

It prevents children from watching adult or violent programs.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Parental Lock using
❷
buttons, then press the ENTER
or
❿
buttons.
4Enter a 4-digit password using the 0-9 buttons on the remote
control.
• Write your password down, and keep it in safe place in case you
need it to change your setting later.
• Initial password is set as 1111 .
5Select Lock Setting, then press the ENTER button.
6Select programs to lock using
❷
buttons, then press
➛
or
❿
button.
• Lock icon is displayed.
• The locked program is not displayed in Program list .
• You must release the locked program first to watch it again.
7Press Return or Menu button to save lock setting.
➢◆
Press the RETURN button to go back to the previous menu.
◆
Press the MENU button to close menu mode.
◆
This password is for HDD only and is different from the
DVD password setting.
◆
See the page 66 when you forget the password.
Set the parental lock Digital Recorder
It shows recorded data and you can make it play.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Program List , then press the ENTER or
❿
buttons.
4Select program to see using
❷
buttons, then press the ENTER
button.
• The Selected program starts to play, then go back to the Program
list after end of playback.
• Press the Stop button during playback, then go back to the Program
list .
• Highlight play
Select program, then press the P-LIST button. The selected program
will be played for 5 seconds in every 5 minutes length.
5Press Text button to change title.
➢◆
Press the RETURN button to go back to the previous menu.
◆
Press the MENU button to close menu mode.
◆
Press the P-LIST button to see program list in direct digest
mode. (See the key-Feature part page 5)
➢
Virtual keyboard
• Select character using
❷
➛❿
buttons, then press the ENTER
button.
• Move cursor to the bottom right corner, then select OK and
press the ENTER or RETURN button to save.
• This is the picture that appears in the program list when the
TEXT key is pressed.
34
Watch the recorded program in HDD Digital Recorder
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
001 002 003 004
005 006 007 008
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
Parental Lock
Enter Password
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
Lock Setting
Change Password
Enter Return
Menu
ExitMove
1111
Title Insert
New
Current : PROGRAM
A
ABC
37
Edit the recorded program in HDD(Combine)
Digital Recorder
36
Change the lock password
You can change password in Parental Lock menu.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Parental Lock using
❷
buttons, then press the ENTER
or
❿
buttons.
4Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set as .
5Select Change Password using
❷
buttons, then press the
ENTER or
❿
buttons.
6Enter new 4-digit password using the 0-9 buttons on the remote
control.
7Enter the new password again to confirm.
➢
If you press RETURN button, then change password procedure
is cancelled.
Digital Recorder
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
Lock Setting
Change Password
Change Password
New Password
Confirm Password
Enter Return
Menu
ExitMove
You can combine several programs to one, so play programs
continuously.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Edit using
❷
buttons, then press the ENTER or
❿
buttons.
4Select Combine, then press the ENTER or
❿
buttons.
5Select a program to combine using
➛❿
buttons, then press
the ENTER button.
• Selected programs are displayed at below window.
• Up to 6 programs can be selected.
• The same program can not be selected.
6Select Execute using
❷
button.
7Press the ENTER button.
• If you would like to combine selected programs, select Yes and
press the ENTER button.
• Selected programs combine to one program.
• The combined program’s initial name is “New”.
➢◆
If you would like to cancel the Combine, select No using
➛❿
buttons and press the ENTER button.
◆
If you would like to erase the selected scene, press clear button,
then the last selected scene will be erased
◆
Only final combined file is saved & displayed in program list.
The original files will be erased.
Original file
After combine ABC
ABC
◆
Live TV control will be stopped at the Edit mode.
◆
The combine operation cannot be performed between files
whose recording qualities (SQ, HQ, or SHQ) are not the
same.
◆
The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
1111
3938
You can divide a program to several parts and save.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Edit using
❷
buttons, then press the ENTER or
❿
buttons.
4Select Divide using
❷
buttons, then press the ENTER or
❿
buttons.
5Select a program to divide using
➛❿
buttons, then press
the ENTER button.
• Selected program is played and playback progress bar is displayed
at below.
6Search parts you want to divide using
➛➛
(REW),
❿❿
(FF),
❿
ll
(Play/Pause) buttons.
7Press the ENTER button at start & end position to divide.
• Press
❿
ll
(Play/Pause) button to search in normal speed.
• Press
➛➛
(REW),
❿❿
(FF) buttons to search in fast.
• Press
❿
ll
(Play/Pause) button at start or end position, then press
the ENTER button in pause mode.
• The selected part would be changed from white to blue color,
and the first scene of part is displayed at bottom.
8You can divide a program to several parts by repeat step 7.
• Up to 6 parts can be selected.
• The divided program’s initial name is “New”.
➢◆
Only final divided parts are saved & displayed in Program
list. The original file will be erased.
Menu
DVD Player
Juke Box
Photo Album
Set-Up
Digital Recorder
lnstructions
Program List
Parental Lock
Edit
Recording
Enter Return
Menu
ExitMove
Menu
DVD Player
Juke Box
Photo Album
Set-Up
Digital Recorder
lnstructions
Program List
Parental Lock
Edit
Combine
Divide
Delete
Partial Delete
Recording
Edit the recorded program in HDD(Delete)
White : Unselected part
Blue : Selected part
Red : Current playback position
Digital Recorder
Edit the recorded program in HDD(Divide)
Digital Recorder
◆
Live TV control will be stopped at the Edit mode.
◆
The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆
Make sure select the END point before move down to the
Execute.
A
A’BC
A’A’
Original file
Divide to parts
After divided, New A’, B, C files will be existed
You can delete recorded programs.
This is used to delete unwanted files to free up more space.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3
Select Edit using
❷
buttons, then press the ENTER or
❿
buttons.
4Select Delete using
❷
buttons, then press the ENTER or
❿
buttons.
5Select a program to delete using
➛❿
buttons, then press the
ENTER or
❿
buttons.
6Select Yes to delete the program using
❷
buttons.
7Selected program is deleted.
➢◆
Press the RETURN button to go back to the previous menu.
◆
Press the MENU button to close menu scene.
◆
Live TV control will be stopped at the Edit mode.
◆
The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
4140
You can delete parts you want to skip like commercial.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Edit using
❷
buttons, then press the
ENTER or
❿
buttons.
4Select Partial Delete using
❷
buttons, then press the
ENTER
or
❿
buttons.
5Select a program to delete using
➛❿
buttons, then press
the ENTER
or
❿
buttons.
6
Search parts you want to delete using
➛➛
(REW),
❿❿
(FF),
❿
ll
(Play
/Pause) buttons.
7Press the ENTER button at start & end position to delete.
•
The selected part would be changed from white to blue
color, and the first scene of blue part is displayed at bottom.
8You can delete part of program by repeat step 7.
• Up to 6 parts can be selected.
➢
Menu
DVD Player
Juke Box
Photo Album
Set-Up
Digital Recorder
lnstructions
Program List
Parental Lock
Edit
Recording
Enter Return
Menu
ExitMove
Menu
DVD Player
Juke Box
Photo Album
Set-Up
Digital Recorder
lnstructions
Program List
Parental Lock
Edit
Combine
Divide
Partial Delete
Delete
Recording
Enter Return
Menu
ExitMove
Record TV program(Timer program setting)
Digital Recorder
White : Unselected part
Blue : Selected part
Red : Current playback position
Edit the recorded program in HDD(Partial Delete)
Digital Recorder
Original file
Delete parts
After delete
A
A’BC
A’A’
A’
You can record TV programs in the HDD.
Make sure present time is set.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Recording using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select Timer Recording, then press the ENTER button.
• If clock was not set, then the pop-up menu is displayed. Set the
present time using
❷
➛❿
buttons, then it goes back to Timer
recoding menu automatically.
5ENTER specific data to record using
❷
➛❿
buttons.
• Press the ENTER button to change or enter data.
• Press clear button to delete programmed schedule.
6Turn off the power after finishing the timer recording.
➢◆
See to page 43 to select recording quality(Speed).
◆
If the current time is set, you can directly move the Timer
Program mode by pressing the TIMER button on the
remote control.
Time Date Month Year
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Program List
Parental Lock
Edit
Recording
◆
Live TV control will be stopped at the Edit mode.
◆
The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆
Make sure select the END point before move down to the
Execute.
4342
You can save watching TV program or DVD title in HDD.
1Press the REC button to save current watching TV program
or DVD title.
2REC icon is displayed on the screen.
• Recording contents will be saved automatically.
You can check saved programs in program list.
3Press the
■
(STOP) button to finish recording.
4Press Speed button to adjust recording quality. The higher
quality is needed more space in HDD.
• Change the recording quality before recording.
After starting record, you can not change quality.
SQ : Standard Quality (2Mbps/40Hr)
HQ : High Quality (4Mbps/20Hr)
SHQ : Super High Quality (6Mbps/13Hr)
You can record TV programs using VideoPlus function.
1Press the MENU button.
2Select Digital Recorder, then press the ENTER or
❿
buttons.
3Select Recording using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select VideoPlus, then press the ENTER or
❿
buttons.
5Enter the program’s VideoPlus code to record, then press
ENTER button.
• Refer to TV program guide magazine to find VideoPlus.
• Make sure set Prog. when you use VideoPlus menu at the first
time.
6Turn off the power after finishing the timer recording.
➢◆
Press the RETURN button to go back to the previous menu.
◆
Press the MENU button to close menu scene.
◆
Press Clear button to delete programmed schedule at Timer
Recording menu.
◆
If the current time is set, you can directly move the Timer
Program mode by pressing the TIMER button on the remote
control.
Recording Television Broadcast
Digital Recorder
Record TV program(VideoPlus) Digital Recorder
3
4
1
You can setup DVD title's language and rate.
Disc Language
You can select DVD title's menu language.
see page 47
Audio Language
You can select DVD title's audio language.
see page 47
Subtitle
You can select DVD title's subtitle language.
see page 47
Parental Lock
You can lock adult or violent DVD titles for children.
see page 48~49
➢The language change functions support only to
multi-language menu included DVD titles.
4544
Your DHR stops automatically after the requested length of time.
1Switch on the television.
2To monitor the programme being recorded, select the
television channel reserved for use with your DHR
(or the AV input if used).
3Select:
• The station to be recorded using the PROG (
or
❷
) buttons
or
• The AV1, AV2 or AUX source using the INPUT SEL. button for a
satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
4Hold the REC button (
●
) down for a while to start recording.
Result: The record indicator appears on the television screen.
5Press the REC button (
●
) several times to increase the
recording time:
• From 30 min. to 8 hours
6If you wish to cancel the recording before the end, press
STANDBY/ON.
Record TV program (One Touch Recording)
Digital Recorder DVD player
3
3
3
4
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
You can copy DVD title to HDD.
Copy protected DVD titles will not be copied.
1Insert DVD title to copy and change to DVD mode using
DVD button on the remote control or DVD button on the
front panel.
2Press the Copy button on the front panel or the REC button on
the remote control.
3Press the
■
(STOP) button to finish copy.
➢
◆ After end of copy, “program”(file name) is created
automatically.
◆ Copy protected titles can not be copied.
4746
2
Preset of DVD language DVD player
Disc Copy
DVD player
You can select language of DVD title's menu, audio, subtitle.
1Press the MENU button.
2Select DVD Player using
❷
buttons, then press the ENTER
or
❿
buttons.
3Select submenu you want to change using
❷
buttons,
then press the ENTER or
❿
buttons.
Disc language
DVD title's menu language selection.
Audio language
DVD title's audio language selection.
Sub-Title
DVD title's subtitle language selection.
4Select language using
❷
buttons, then press the ENTER
button.
➢◆
Press the RETURN button to go back the previous menu.
◆ Press the MENU button to close menu scene.
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Disc Language
Audio Language
Sub-Title
Parental Lock
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Disc Language
Audio Language
Sub-Title
Parental Lock
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Disc Language
Audio Language
Sub-Title
English
Deutsch
Francais
Espanol
ltaliano
Nederlands
Parental Lock
Arabic
2
After 2 hours and 30 minutes copying, it stops automatically.
You can adjust DVD title's rating for children.
1Press the MENU button.
2Select DVD Player using
❷
buttons, then press the ENTER
or
❿
buttons.
3Select Parental Lock using
❷
buttons, then press the ENTER
or
❿
buttons.
4Enter a 4-digit password using the 0-9 buttons on remote control,
then press the ENTER button.
• Write your password down, and keep it in safe place in case you need
it to change your setting later.
• Initial password is set as .
5Select Lock setting using
❷
buttons, then press the ENTER
or
❿
buttons.
6Adjust rate using
❷
buttons, then press the ENTER button.
• If you adjust rating up to 6 level, upper 7, 8 level titles are not played.
• The higher level is the closer to adult or violent titles.
➢◆
This function supports only to DVD title's included
rating information.
◆
This password is for DVD only and is different from
the HDD password setting.
◆
See the page 66 when you forget the password.
Change the lock password
49
DVD player
48
Set the parental lock
DVD player
Menu
lnstructions
Move Enter Return
Menu
Exit
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Disc Language
Audio Language
Sub-Title
Parental Lock
Enter Return
Menu
ExitMove
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Disc Language
Audio Language
Sub-Title
Parental Lock
Parental Lock
Enter Password
Enter Return
Menu
ExitMove
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Audio Language
Sub-Title
Parental Lock
Disc Language Lock Setting
Change Password
Enter Return
Menu
ExitMove
Menu
Photo Album
Set-Up
Digital Recorder
lnstructions
Sub-Title
Parental Lock
DVD Player
Disc Language
Juke Box
Audio Language
Lock Setting
Change Password
Lock Setting
Level 8
Unlock
Adult
Kid Safe
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1
Enter Return
Menu
ExitMove
Menu
Photo Album
Set-Up
Digital Recorder
lnstructions
Sub-Title
Parental Lock
DVD Player
Disc Language
Juke Box
Audio Language
Lock Setting
Change Password
Lock Setting
Level 8
Unlock
Adult
Kid Safe
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1
Enter Return
Menu
ExitMove
You can change password in Parental Lock menu.
1Press the MENU button.
2Select DVD Player, then press the ENTER or
❿
buttons.
3Select Parental Lock using
❷
buttons, then press the ENTER
button.
4Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set to .
5Select Change Password using
❷
buttons, then press the
ENTER or
❿
buttons.
6Enter new 4-digit password using the 0-9 buttons on the remote
control.
7Enter the new password again to confirm.
➢ ◆
If you press RETURN button, then change password
procedure is cancelled.
◆
This password is for DVD only and is different from
the HDD password setting.
1111
1111

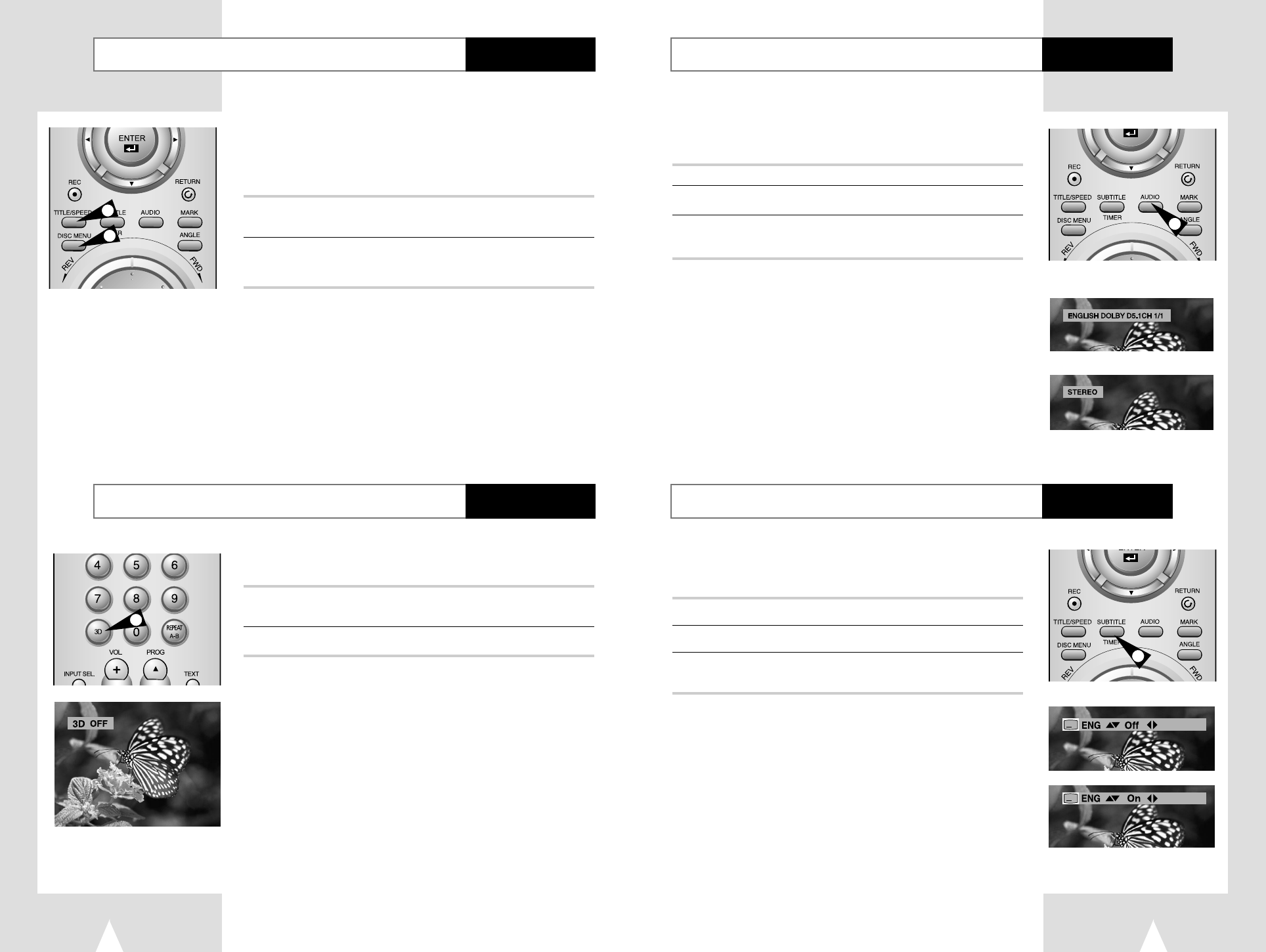

Using the Disc/Title Menu
Many DVDs feature their own menu system, where you can select
Titles, Chapters, Audio Tracks, Subtitles, and special disc features,
such as movie trailers, and information on the cast. Use these
buttons to make selections in the Disc menus.
1Press the DISC MENU button to access DVD's disc menu.
• Move to DVD's disc menu.
2
Press the TITLE button to access DVD's title menu.
• Move to DVD's title menu.
50
DVD player
3D Sound Function
DVD player
You can select a desired language quickly and easily with the AUDIO
button.
1Press the AUDIO button.
2Select the desired language on DVD using
❷
buttons.
3Select audio output mode(Stereo, Right, Left) on VCD/CD using
❷
buttons.
➢
• This function depends on what languages are encoded
on the disc and may not work with all DVDs.
• How to have the same audio language comes up whenever
you play DVD titles ; See “Disc Language/Audio Language
/Sub-Title” on page 47.
You can select a desired subtitle quickly and easily with the
subtitle button.
1Press the SUBTITLE button.
2Select the desired subtitle language using
❷
buttons.
3Select subtitle On/Off using
➛❿
buttons.
➢• This function depends on what languages are encoded on
the disc and may not work with all DVDs.
• How to make the same audio language comes up
whenever you play DVD titles ;See “Disc Language/Audio
Language/Sub-Title" on page 47.
* If DVD titles have own languages, default disc’s language
comes out.
3D Audio is an enhanced audio mode that creates the illusion of
Surround Sound with only two speakers.
1During playback of a disc, press the 3D button on the remote
control.
2Press the 3D button to set 3D SOUND On/Off.
Selecting the Audio Language
51
DVD player
Selecting the Subtitle Language
DVD player
2
1
1
DVD
VCD/CD
1
A
A
1
52

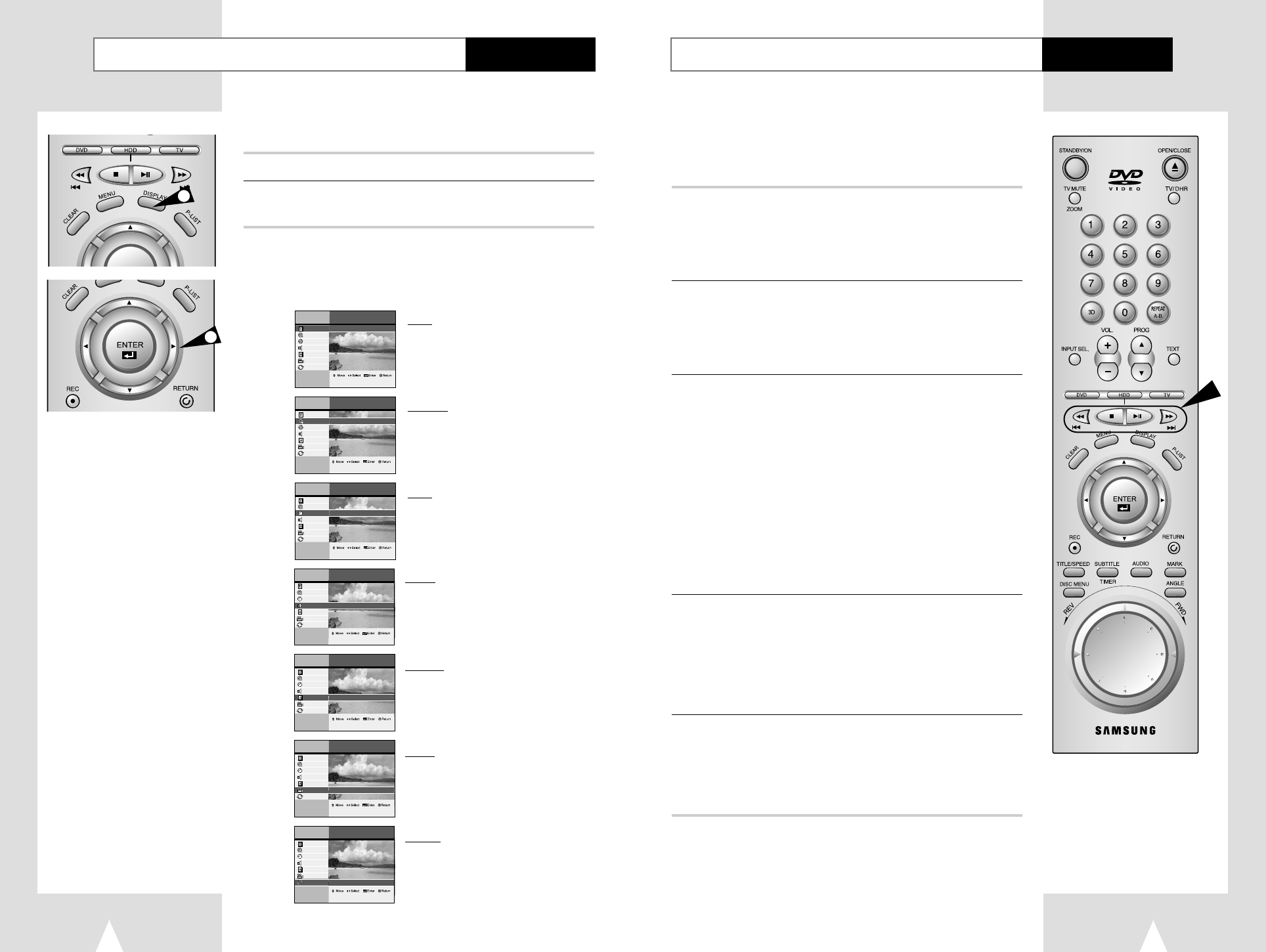

Using the Display Function
DVD player
53
You check DVD title's status or select options.
1Press the Display button during DVD playing.
2Select submenu to change using
❷
buttons, then change option
using
➛❿
buttons.
➢
• If you would like to save changes or escape menu, press
the Return or Display buttons again.
• The display submenu can be changed if you use VCD
using.
Special Playback Features DVD player
Title
Display current playback title's status
and move to a title
Chapter
Display current playback chapter's
status and move to a chapter
Time
Display current playback time
Enter time using 0~9 buttons to more the
scene, then press the ENTER button.
Audio
Display current audio language and
change another
Subtitle
Display current subtitle language and
change another
Repeat
Repeat title or chapter
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
01/40
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
1/5
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
00:00:00
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
AC-3 3CH 1/2
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
korean
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat
1/5
Display
lnstructions
Title
Chapter
Time
Audio
Subtitle
Angle
Repeat Title
Angle
Change scene angles
This function supports only multi-angle
scene included DVD titles.
1
2
During DVD/CD playback you can select from the following
special playback options. To resume normal playback, press the ❿ll
(PLAY/PAUSE) button.
Pause
Press the
❿ll
(PLAY/PAUSE) button on the remote control during playback.
• The picture will Pause and the audio will mute.
• To resume playback, press the
❿ll
(PLAY/PAUSE) button.
• If the player is left in Pause mode for 5 minutes, it will play automatically.
Frame Search (Step)
While in Pause mode, roll the jog on the remote control to forward/backward
one frame at a time.
• Audio is muted during Frame search mode.
• Press
❿ll
(PLAY/PAUSE) to resume normal playback.
Forward/Backward Chapter Search
While a CD or DVD disc is in Play mode, press and hold the Skip
Forward/Backward (
❿❿
/
➛➛
) buttons on the remote control or front panel
to jump forward and backward through disc chapters/tracks.
• Skip Forward will jump to the next chapter/track.
• Skip Back will jump to the beginning of the current chapter/track.
• Press the Skip Back button again to jump to the beginning of the previous
chapter/track.
Forward/Backward Picture Search
While a disc is in Play mode, press and the Forward/Backward (
❿❿
/
➛➛
)
buttons on the remote control or front panel to visually search
forward/backward at 2X - 4X - 8X - 16X - 32X - 64X - 128X speed.
Press
❿ll
(PLAY/PAUSE) button to resume normal speed.
Slow Motion
During playback, press the
❿ll
(PLAY/PAUSE) button to Pause the image.
Then use the Search Forward (
❿❿
) to play in slow motion at variable speeds.
•Each press increases the slow motion speed playback to 1/8, 1/4
or 1/2 of normal speed.
• Audio is muted during slow motion playback.
• Press the
❿ll
(PLAY/PAUSE) button to resume normal playback.
Stop/Resume
• Press the
■
(Stop) button ONCE to stop playback. Press
❿ll
(PLAY/PAUSE) button to resume the current stop position.
• Press the
■
(Stop) button TWICE to completely stop playback.
The next time you press the
❿ll
(PLAY/PAUSE) button, the disc will
start from the beginning.
55

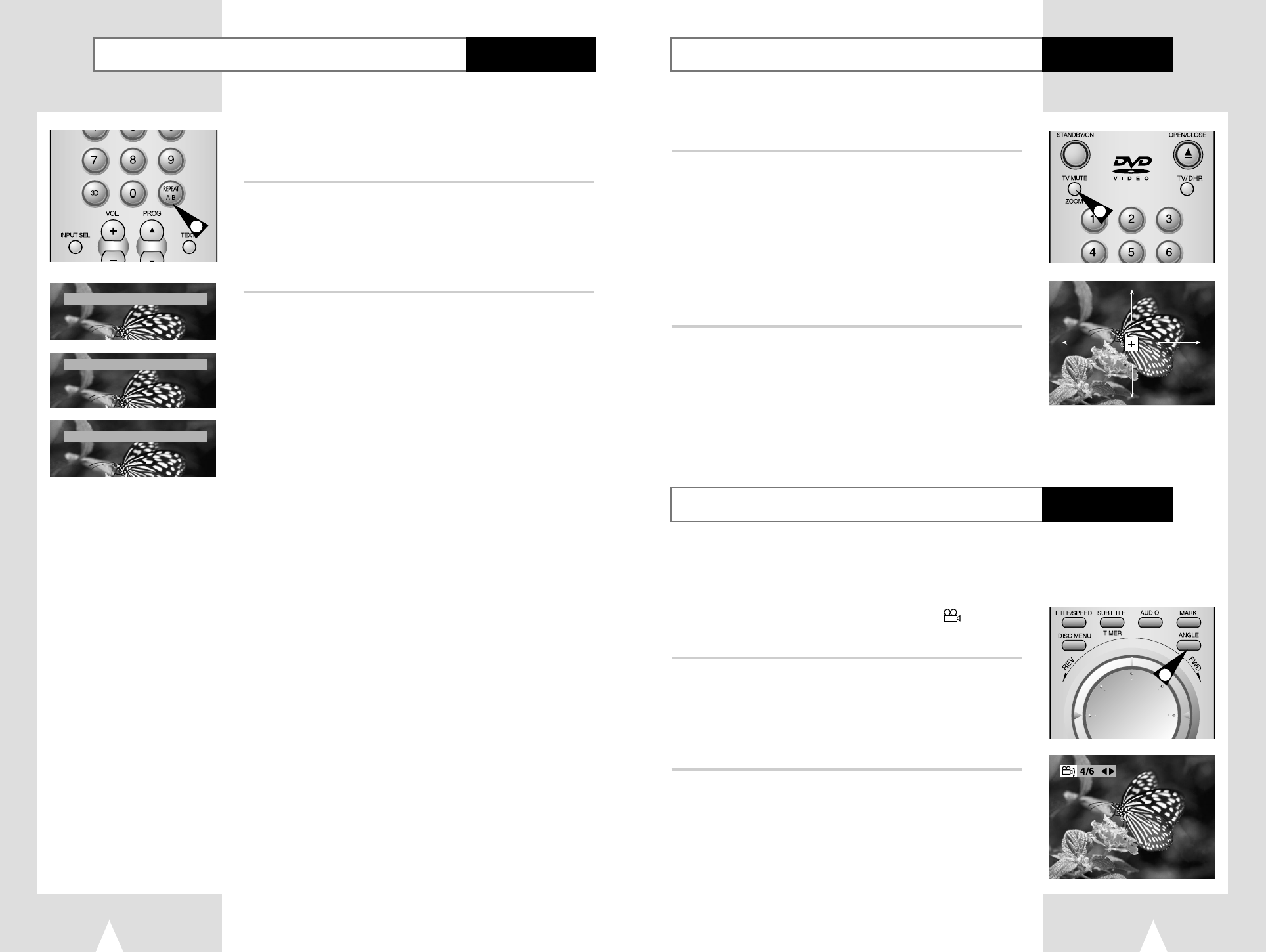

Zooms the scene to see more specific.
1Press the Zoom button during playback or Pause mode.
2Select part of screen to zoom using
❷
➛❿
buttons, then
press the ENTER button.
• DVD : Normal/1.5X/2X/4X
• VCD : Normal/1.5X/2X/4X
3Press the ENTER button.
• During DVD play : press ENTER to zoom in1.5X/2X/4X/2X/1.5X/
Normal in order.
• During VCD play, press ENTER to zoom in 1.5X/2X/1.5X/Normal
in order.
When a DVD contains multiple angles of a particular scene,
you can use the Angle function.
Press the ANGLE button to see if an ANGLE ( ) mark is
present at the upper right hand corner of the screen.
1Press the Angle button when an angle icon is shown at the upper
right hand corner, then angle selection icon will be appeared
at the upper left hand corner.
2Select desired screen angle using
➛❿
buttons.
3To turn off the display, press the ANGLE button again.
Using the Zoom (DVD/VCD) DVD player
Changing the Camera Angle DVD player
1
1
54
A-B Repeat
The A-B Repeat function allows you to repeat any segment of a
DVD or CD. Simply mark the beginning point (A) and the ending
point (B) of the segment you want to review.
1Press the REPEAT A-B button at starting position.
•“A” will be selected when A-B repeat is selected.
“B” will be selected after pressing the REPEAT A-B button.
2Repeat from "A" to "B".
3Press the REPEAT A-B button again to cancel A-B repeat.
DVD player
1
56

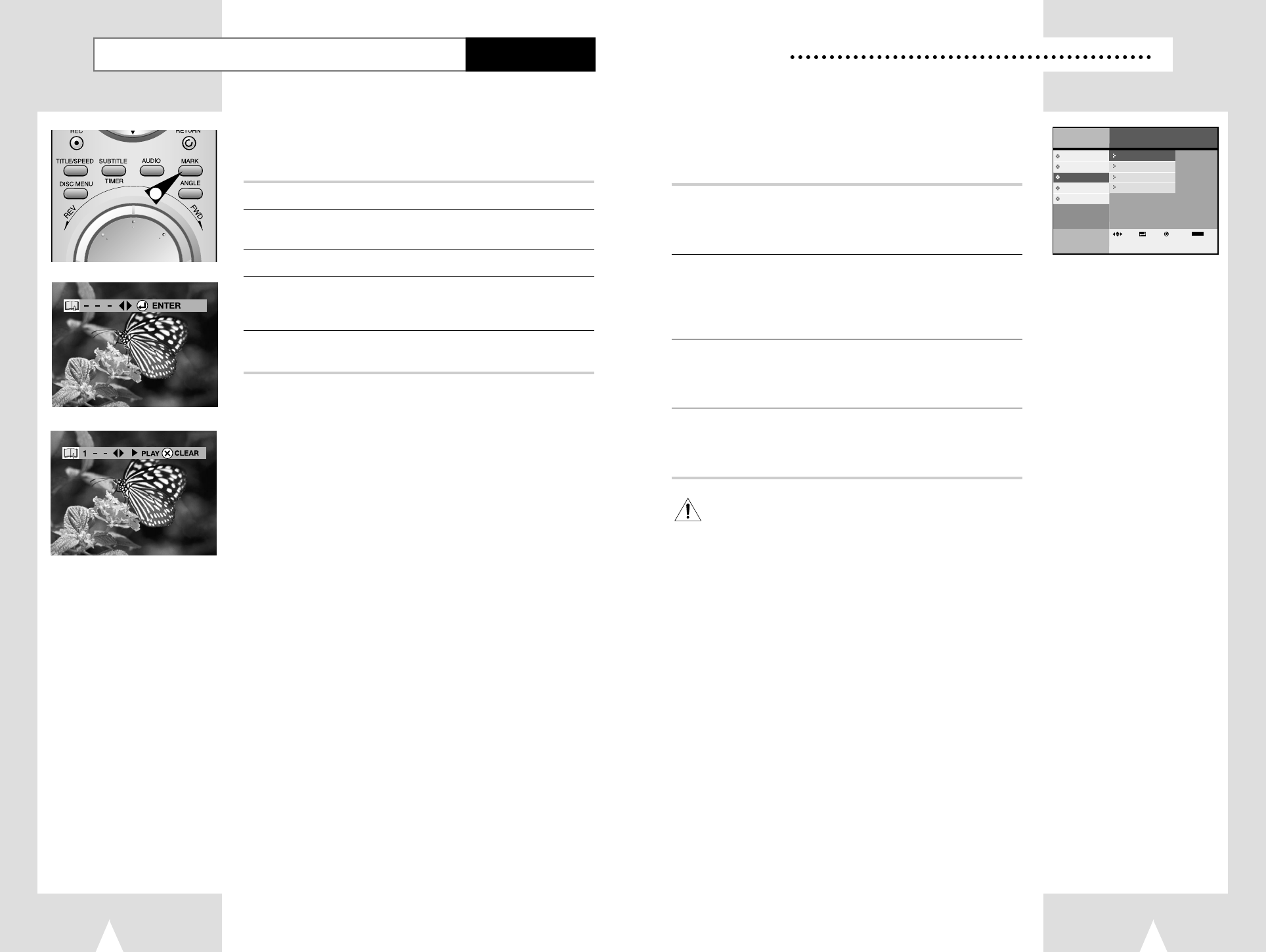

The Bookmark function lets you select parts of a DVD or VCD
(MENU OFF mode) so that you can quickly find the section at a later
time.
1Press the Mark button during playback.
2Mark desired scene using the Enter button.
• You can mark up to 3 scenes.
3Press the Mark button again to turn off menu.
4Press the Mark button to recall marked scenes, then select a
scene(1, 2, or 3) using
➛❿
,
❿ll
buttons.
• The marked scene will be played.
5Delete Mark Number Select a mark number to delete using
➛❿
buttons, then press the Clear button.
➢◆ When in VCD 2.0 mode(Menu On mode), this
function does not work.
◆The Bookmark function may not work depends on
disc.
Using the Bookmark Function (DVD/VCD) DVD player
57
You can play MP3 files in HDD.
You also make your own play-list or edit MP3 files easily.
View the MP3 file list in HDD
You can display saved MP3 files list in HDD and play.
see page 58
Edit the MP3 file in HDD
You can move, copy, save, or delete files and also change file
name in HDD.
see page 59
View the MP3 file list in CD
You can display MP3 files list in CD and play.
see page 58
Copy MP3 file from CD to HDD
You can copy MP3 files from CD to HDD.
see page 60
1
Juke Box
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
You can move, save, or delete files and also change file name in
HDD.
1Press the MENU button.
2Select Juke Box using
❷
buttons, then press the ENTER or
❿
buttons.
3Select HDD Edit using
❷
buttons, then press the ENTER or
❿
buttons.
4Select folder or file using
❷
buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
• If you select folder, then it shows you included files in the folder.
5Move to the right side edit menu using
➛❿
buttons, then edit
selected files using
❷
➛❿
, ENTER buttons.
6In case of move :
Select folder to move using
❷ 
buttons, then press the ENTER
button.
Select Execute using
➛❿
buttons, then press the ENTER button.
Edit the MP3 file in HDD
59
Juke Box
View the MP3 file list in HDD/CD Juke Box
You can display files on screen and play.
• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of
HDD PlayList.
1Press the MENU button.
2Select Juke Box using
❷
buttons, then press the ENTER or
❿
buttons.
3Select HDD Playlist using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select Folder or file using
❷
buttons, then press the ENTER
button.
• Press the ENTER button again to cancel file selection.
➢
If you select folder, then it shows you included files in folder.
5Press the P-LIST button.
• The selected files are displayed in selected order and play the
first file.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
6Select Repeat All using
➛❿
buttons, then press the ENTER
button.
• The selected MP3 files will be played continuously.
Select Slide Show using
➛❿
buttons, then press the ENTER
button.
• The JPEG files will be displayed as a slide show during MP3
playing if JPEG files are in the same folder.
• Press the DISPLAY button to make full screen slideshow.
➢Press ■button to Stop or to select other file.
58
In case of making new folder :
1. Select Make New Folder using
❷ 
buttons, then press the
ENTER button.
2. Enter a new folder name using
❷
➛❿
, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
➢You can make new folder only in the Root.
❿
Select All
Select all files
Clear All
Unselect all files
Move file
Move files to another folder
And after move, existed file would
be deleted.
Delete file
Delete files
Make Folder
Make new folder
Rename
Change file or folder name
Enter the new file or folder
using
❷
➛❿
, ENTER buttons.
Delete Folder
Delete folder
❿
You can display JPEG files in CD or HDD and make your own
Photo Album or edit JPEG files easily.
View the JPEG file list in HDD
You can display up to 8 JPEG files on a screen with thumbnail size
or one JPEG file on a screen with full size. Also you can display
JPEG files continuously thru slideshow function.
see page 62
Edit the JPEG file in HDD
You can move, copy, save, or delete files and also change file
name in HDD.
see page 63
View the JPEG file list in CD
You can display JPEG files list in CD and display on screen.
see page 62
Copy JPEG file from CD to HDD
You can copy JPEG files from CD to HDD.
see page 64
61
Copy MP3 file from CD to HDD
You can copy MP3 files from CD to HDD.
1Press the MENU button.
2Select Juke Box using ❷buttons, then press the ENTER or
❿buttons.
3Select Copy MP3 CD to HDD using
❷
buttons, then press the
ENTER or
❿
buttons.
4Select folder or files to copy from CD to HDD using
❷
buttons, then press the ENTER button.
• Press the ENTER button again to cancel file selection.
➢
• If you would like to choose all files in folder, move to Select
All using ➛❿buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
5Select Copy to HDD using
➛❿
buttons, then press the ENTER
button.
60
Juke Box Photo Album
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
Up to 200 files can be copied at once.
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Enter Return
Menu
ExitMove
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
HDD Playlist
HDD Edit
Copy Photo CD to HDD
CD Playlist
Enter Return
Menu
ExitMove
Edit the JPEG file in HDD
63
Photo Album
View the JPEG file list in HDD/CD Photo Album
You can edit saved JPEG files in HDD.
1Press the MENU button.
2Select Photo Album using
❷
buttons, then press the ENTER
or
❿
buttons.
3Select HDD Edit using
❷
buttons, then press the ENTER or
❿
buttons.
4Select folder or file using
❷
buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
➢
If you select folder, then it shows you included files in the folder.
5Move to the right side edit menu using
➛❿
buttons, then edit
selected files using
❷
➛❿
, ENTER buttons.
6In case of move :
Select Execute using
❷ 
buttons, then press the ENTER button.
You can display files on screen and play.
•
HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of HDD
playlist.
1Press the MENU button.
2Select Photo Album using
❷
buttons, then press the ENTER
or
❿
buttons.
3Select HDD Playlist using
❷
buttons, then press the ENTER
or
❿
buttons.
4Select Folder or file using
❷
buttons, then press the ENTER
button.
• You can preview the selected file at the right side window.
• Press the ENTER button again to cancel file selection.
➢
If you select folder, then it shows you included file’s folder.
5Press the P-LIST button.
• 8 files are display.
➢◆
Select Next using
❷ ➛ ❿
buttons, then press the Enter
button to see the next 8 files.
◆
Select Previous using
❷ ➛ ❿
buttons, then press the Enter
button to see the previous 8 files.
6Select file to see using
➛❿
buttons, then press the ENTER button.
• You can enlarge it to full screen size.
7 Select Slideshow using
❷
➛❿
buttons, then press the ENTER
button.
8 Select interval using
➛❿
buttons, then press the ENTER button.
• Interval is from 3 sec to 10 sec.
9 Slide Show will be started for all JPEG files in playlist on the
screen with full size.
➢◆ Press
❷
➛❿
buttons to rotate pictures.
◆Press the ZOOM button to change picture scale.
(Scale : 25%, 50%, 100%, 150%, 200%)
Press the ENTER button to change scale.
62
In case of making new folder :
1. Select Make New Folder using
❷ 
buttons, then press the
ENTER button.
2. Enter a new folder name using
❷
➛❿
, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
➢You can make new folder only in the Root.
❿
Select All
Select all files
Clear All
Unselect all files
Move file
Move files to another folder
And after move, existed file would
be deleted.
Delete file
Delete files
Make Folder
Make new folder
Rename
Change file or folder name
Enter the new file or folder
using
❷
➛❿
, ENTER buttons.
Delete Folder
Delete folder
❿
65
Technical Specifications
Rated voltage 220 - 240V~, 50Hz
Power consumption 33 Watts
Weight 4.5 Kg
General Size 430mm X 360mm X 70mm
Operating ambient temperature +5°C ~ +35°C
Installation conditions Operation position : Horizontal,
Relative humidity : Below 75%
Video (Rear) Euro Scart Jack 1 : 1.0Vp-p (unbalanced) 75Ω
Audio (Rear) Euro Scart Jack 1 : -8dBm, 47KΩunbalanced
Video (Rear) Euro Scart Jack 2 : 1.0Vp-p (unbalanced) 75Ω
Input Audio (Rear) Euro Scart Jack 2 : -8dBm, 47KΩunbalanced
Video (Rear) S-Video
Audio (Rear) for S-Video using
Video (Front) RCA Jack
Audio (Front) RCA Jack
RF out UHF 21-69 (Initial CH60)
Audio RCA Jack, Euro Scart Jack
Output Audio Digital audio out (OPTICAL, COAXIAL)
Video RCA Jack, Euro Scart Jack
Video S-Video
RGB : Euro Scart Jack
CODEC Format MPEG II
REC Speed SQ(2Mbps), HQ(4Mbps), SHQ(6Mbps)
Color system PAL, SECAM for Video signal output
HDD Tuning system I
Video S/N Above 43dB (standard recording)
Resolution Above 350 lines (standard recording)
Audio S/N Above 70dB (standard recording)
Audio frequency characteristics 20Hz - 20KHz
Disc DVD, CD (12cm), CD (8cm), VIDEO-CD (12cm)
DVD CD-R (12cm), CD-RW (12cm)
Audio S/N 95dB
Audio dynamic range 105dB
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Enter Return
Menu
ExitMove
Menu
lnstructions
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
HDD Playlist
HDD Edit
Copy Photo CD to HDD
CD Playlist
Enter Return
Menu
ExitMove
Copy JPEG file from CD to HDD
You can copy JPEG files from CD to HDD.
1Press the MENU button.
2Select Photo Album using
❷
buttons, then press the ENTER
or
❿
buttons.
3Select Copy Photo CD to HDD using
❷
buttons, then press
the ENTER or
❿
buttons.
4Select files to copy from CD to HDD using
❷
buttons, then
press the ENTER button.
• Press ENTER button to cancel file selection.
➢
• If you would like to choose all files in folder, move to Select
All using ➛❿buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
5Select Copy to HDD using
➛❿
buttons, then press the ENTER
button.
64
Photo Album
Up to 200 files can be copied at once.
Problems and Solutions
(cont.)
67
Problems and Solutions
66
1. No power
- Check that the power plug is connected to a wall outlet.
- Have you pressed the STANDBY/ON button?
2. When the power is turned on, the logo is displayed for some time before the picture appears.
- The DHR has a built-in hard disk drive (HDD). Because of the time required to initialize the hard disk
drive, the logo will be displayed on the screen for about 15 seconds after power-on.
3. The television programme was not recorded
- Check the DHR aerial connections.
- Is the DHR tuner properly set?
- Check the HDD’s free space.
4. Timer recording was unsuccessful
- Was the STANDBY/ON button pressed to activate the timer?
- Re-check the recording start/stop time setting.
- If there was a power failure or interruption during timer recording, the recording will have been
cancelled.
5. The picture is paused or an earlier broadcast than the current time is showing.
- The DHR has the Time Shift function (see page 29) so that you can pause the incoming broadcast signal
and resume watching the program later.
- Press the PLAY/PAUSE (
❿
ll
) button while watching a TV broadcast to pause the picture.
To resume viewing the broadcast, press the
❿
ll
button again.
- If you press the
❿❿
button to watch the broadcast in real-time, the picture will be fast forwarded until
incoming live broadcast is reached and played back at normal speed again.
6. The picture is played back at 2X speed in the reverse direction while watching a broadcast.
- The DHR has the Time-Shift function that allows you to instantly replay certain scenes from the current
television programming. You can watch the program starting from as far back into the program as the
time set in the Setup.
- Press the
➛➛
button to play back at 2X speed in the reverse direction during the reception of a TV
program.
7. The Copy key is pressed, but does not respond.
- The copy function will only work with DVDs, but if they contain a copy-protection signal the copy
operation cannot be performed.
- Discs other than DVDs, such as VCDs and CDs, cannot be copied.
8. The recorded video signals cannot be combined.
- The Combine operation is possible only on the files with the same record speed.
That is, it doesn't work if one file is in SHQ mode and the other is in HQ mode.
9. I have forgotten the password.
- In the DVD mode, while "NO DISC" is displayed, press and hold down both the
■
and
❿
ll
buttons on the
front panel at the same time for over 5 seconds to initialize the password to "1111".
- The password will be initialized to default, but the user setup will remain the same.
10. Disc does not play
- Ensure that the disc is installed with label side facing up.
- Check the region number of the DVD.
- This player cannot play some kinds of discs. (See page 12)
11. The icon appear or screen.
- The features or action cannot be completed at this because;
(1) The DVD’s software restricts it.
(2) The DVD’s software doesn’t support the feature (e.g., angles).
(3) The feature is not available at the moment.
(4) You’re requested a title or chapter number or search time that is out of range.
12. Playback mode differs from the Setup menu selection.
- Some of the function selected in the Setup Menu may not work properly if the disc is not encoded with
the corresponding function.
13. The screen ratio cannot be changed.
- The screen ratio is fixed on your DVDs. (See page 31)
14. No audio.
- Make sure you have selected the correct Digital Output in the Audio Option Menu. (See page 30)
15. If you experience other problems.
- Go the contents and find the section of the instruction book that contains the explanations regarding the
current problem, and follow the procedure once again.
- Turn the power off and on again.
- If the problem still cannot be solved, please contact your nearest authorized service center.
UNITED KINGDOM
This Samsung product is warranted for the period of twelve (12)
months from the original date of purchase, against defective
materials and workmanship. In the event that warranty service is
required, you should return the product to the retailer from whom
it was purchased.
However, Samsung Authorized Dealers and Authorized Service
Centres in other EC Countries will comply with the warranty on
the terms issued to purchasers in the country concerned. In case
of difficulty, details of our Authorized Service Centres are
available from:
Samsung Electronics (U.K.) Ltd.,
Euro Service Centre, Stafford Park 12,
TELFORD, Shropshire TF3 3BJ,
Tel: 0870 242 0303, Fax: 01952 207 117
■WARRANTY CONDITIONS
1. The warranty is only valid if, when warranty service is required,
the warranty card is fully and properly completed and is
presented with the original invoice or sales slip or confirmation,
and the serial number on the product has not been defaced.
2. Samsung’s obligations are limited to the repair or, at its
discretion, replacement of the product or the defective part.
3. Warranty repairs must be carried out by Authorized Samsung
Dealers or Authorized Service Centres. No re-imbursement
will be made for repairs carried out by non Samsung Dealers
and, any such repair work and damage to the products caused
by such repair work will not be covered by this warranty.
4. This product is not considered to be defective in materials nor
workmanship by reason that it requires adaptation in order to
conform to national or local technical or safety standards in
force in any Country other than the one for which the product
was originally designed and manufactured. This warranty will
not cover, and no re-imbursement will be made for such
adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or replacement
of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the
product.
c) Misuse, including the failure to use this product for its
normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God,
War, Public Disturbances, incorrect mains voltage, improper
ventilation or any other cause beyond the control of
Samsung.
6. This warranty is valid for any person who legally acquired
possession of the product during the warranty period.
7. The consumers statutory rights in any applicable national
legislation whether against the retailer arising from the
purchase contract or otherwise are not affected by this
warranty. Unless there is national legislation to the contrary,
the rights under this warranty are the consumers sole rights
and Samsung, its subsidiaries and distributors shall not be
liable for indirect or consequential loss or any damage to
records, compact discs, videos or audio taper or any other
related equipment or material.
SAMSUNG ELECTRONICS (U.K.) LTD.
REPUBLIC OF
IRELAND
ELEC
Please ensure the form above is completed at the time of purchase and
present it to the dealer to quality for guarantee service,
otherwise your guarantee may be affected.
WARRANTY CARD
GUARANTEE
GARANZIA
GARANTI
GARANTÍA
GARANTIE
GARANTIA
ΕΓΓΥΗΣΗ
TAKUU
MODEL NAME
Modelnavn, Nombre de modelo, Nombre del modelo, Nome de modelo, Modellbezeichnung, Modelnaam,
Nom du modèle, II nome di modello, Montevlo proi>ovntoı, Asiakkaan puh.nro, Modelnaven, Modell
SERIAL NO.
Serienummer, No. de serie, Número serial, Seriennummer, Serie nummer, Numéro de série,
II numero di matricola, Ariqmovı kataskeuhvı, Malli, Serienummer., Serienr
DATE OF PURCHASE
Kóbetid, Købsadato, Fecha de compra, Data de compra, Kaufdatum, Datum van aankoop, Date d’achat,
La data d’acquisto, Hmeromhniva agoravı agorasthv, Asiakkaan osoite, Salgsdato, Inköpsdatumv
CUSTOMER’S NAME
Kundesnavn, Kundenavn, Nombre de cliente, Nombrre del cliente, Nome de cliente, Name des Kunden,
Naam van klant, Nom du client, il nome del clinte, Onomatepwvnumo tou agopasthv, Sarjanro, Kundens navn, Kundens
namn
CUSTOMER’S TEL. NO.
Kundesadress, Kundetelefonnummer, No. de Tel. de client, No. de Tel del cliente, Número de telefone de cliente,
Telefonnummer des Kunden, Telefoon nummer van klant, Numéro de téléphone du client, il numero de telefono del client ,
Ariqmovı thlefwvnou tou agorasthv, Myyjän puh.nro, Kundens telefonnr, Kundens telefonnr.
CUSTOMER’S ADDRESS
Kundeasdress, Kundeadresse, Dirección de client, Direccion del cliente, Endereco de cliente, Adresse des Kunden,
Adres van klant, adresse du client, L’indrizzo del cliente. Dieuvqunsh tou agopasthv, Ostopäivä, Kundens adresse,
Customer’s address
DEALER’S NAME
Handlendesnavn, Forhandler, Nombre de negociante, Nombre del vendedor, Nome de vendedor, Name des Händlers,
Naam van handelaar, Nom du marchand, il nome del commerciante, Onoma tou katasthvmatoı, Jalleenmyyjan, Forhandler,
Aterforsaljare
DEALER’S TEL. NO.
Handlendestelesonnummer, Forhandlertelefonnummer, No. de Tel. de negociante, No. de Tel. del vendedor,
Número de telefone de vendedor, Telefonnummer des Handlers, Telefoon nummer van handelaar, Numéro tél´phone du
marchand, il numero di telefono del commeciante, Ariqmovı thlefwvnou tou katasthvmatoı, Myyjän osoite, Forhandlerens
tel.nr., Handlarens telefonnr.
DEALER’S ADDRESS
Handlendesadress, Forhandleradresse, Dirección de negociante, Dirección del vendedor. Endereco de vendedor,
Adresse des Händlers, Adres van handelaar, Adresse du marchand, Dieuvqunsh tou katasthmatoı, Asiakkaan nimi,
Forhandlerens adresse, Handlarens adress
SAMSUNG EUROPEAN BLOC WARRANTY
DEALER'S STAMP & SIGNATURE
CAUTION
CUSTOMER'S SIGNATURE
ELECTRONICS

Navigation menu
