Shure orporated ULXD6J50 Wireless Boundary Transmitter User Manual
Shure Incorporated Wireless Boundary Transmitter
Contents
- 1. User Manual
- 2. User Manual Rev4
User Manual
Le Guide de l’Utilisateur
Guia del Usuario
Guida dell’Utente
Руководство пользователя
Bedienungsanleitung
日本語
繁體中文
Manual do Usuário
사용자 가이드
Panduan Pengguna
用戶指南
Gebruikershandleiding
WARNING: Voltages in this
equipment are hazardous to life. No
user-serviceable parts inside. Refer
all servicing to qualified service
personnel. The safety certifications
do not apply when the operating
voltage is changed from the factory
setting.
This symbol indicates
that dangerous voltage
constituting a risk of
electric shock is present
within this unit.
This symbol indicates
that there are important
operating and maintenance
instructions in the literature
accompanying this unit.
IMPORTANT SAFETY
INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation
openings. Allow sufficient distances
for adequate ventilation and install in
accordance with the manufacturer’s
instructions.
8. DO NOT install near any heat sources
such as open flames, radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not place any open flame sources
on the product.
9. DO NOT defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wider blade or
the third prong are provided for your
safety. If the provided plug does not fit
into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. PROTECT the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11. ONLY USE attachments/accessories
specified by the manufacturer.
12. USE only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. UNPLUG this apparatus during
lightning storms or when unused for
long periods of time.
14. REFER all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
15. DO NOT expose the apparatus to
dripping and splashing. DO NOT put
objects filled with liquids, such as
vases, on the apparatus.
16. The MAINS plug or an appliance
coupler shall remain readily operable.
17. The airborne noise of the Apparatus
does not exceed 70dB (A).
18. Apparatus with CLASS I construction
shall be connected to a MAINS socket
outlet with a protective earthing
connection.
19. To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
20. Do not attempt to modify this product.
Doing so could result in personal injury
and/or product failure.
21. Operate this product within its specified
operating temperature range.
3

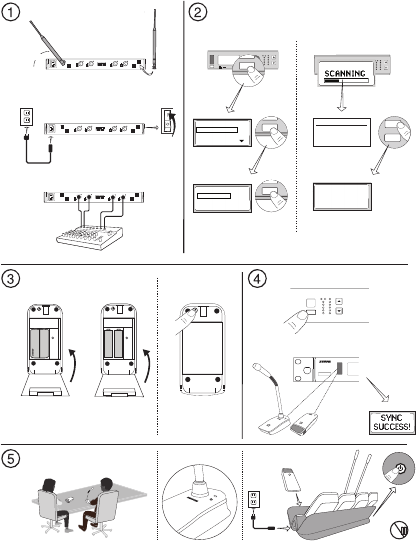

Quick Start Instructions
power
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gainaudio
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gainaudio
aa
b
b
b
c
ULXD4
Digital Wireless Receiver
sync
ENTER
EXIT
SCAN
SB900
b
a
A
150 mA
45°
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
line
mic
a
<15 cm (6 in.)
RF
A B
OL
OL
gainaudio
RX1
sync
1-G: 01CH:03 TxOn
2-G: 01CH:06 TxOn
3-G: 01CH:08 TxOn
4-G: 01CH:12 TxOn
Select RX TO SCAN
1 Receiver
2 Receiver
3 Receiver
CHANNEL SCAN
GROUP SCAN
GROUP SCAN
SCAN COMPLETE
GROUP:01
OPEN FREQ:70
RX CHAN FOUND: 4
Deploy Completed
4 of 4
Channels Set
SYNC TX NOW
EXIT
SCAN
EXIT
SCAN
EXIT
SCAN
+ + +
-
-
+
AA
ULXD4Q
Digital Wireless Receiver
I
I
I
I
I
I
I
I
I
I
I
I
I
b
ac
+
-
-
+
AA
ENTER
EXIT
4
ULXD series boundary and gooseneck microphones and networked charging stations
add new designs to Shure's breakthrough ULX-D wireless line. Boundary and gooseneck
transmitters offer cable-free flexibility for corporate conference rooms, government facilities,
and educational institutions. Use Shure Wireless Workbench® and networked charging
stations to simplify transmitter configuration and monitor charging status. Simply change
settings in Wireless Workbench for all transmitters docked on a charger, instead of syncing
each transmitter individually.
Both microphones run on rechargeable or AA batteries and can be controlled through
external control systems, such as AMX or Crestron. As part of Shure's groundbreaking ULXD
line, both gooseneck and boundary microphones include audio signal encryption, high-
density mode, and the reliability of ULX-D systems. Boundary microphones offer cardioid
and omnidirectional cartridges, and the gooseneck base fits Microflex series gooseneck
microphones.
Included Components
• AA Batteries
Accessories
2-bay networked charger
for gooseneck and
boundary microphones
SBC250
4-bay networked charger
for gooseneck and
boundary microphones
SBC450
8-bay networked charger
for gooseneck and
boundary microphones
SBC850
8-Bay Shure Battery
Charger SBC800
6' USB-A cable with wall
plug for charging Wireless
Transmitters
SBC-
USB-A
Model Variations
ULXD Cardioid
Boundary
Microphone
ULXD6/C
ULXD
Omnidirectional
Boundary
Microphone
ULXD6/O
ULXD Gooseneck
Base ULXD8
5" Cardioid
Gooseneck
Microphone
MX405LP/C
5" Supercardioid
Gooseneck
Microphone
MX405LP/S
10" Cardioid
Gooseneck
Microphone
MX410LP/C
10" Supercardioid
Gooseneck
Microphone
MX410LP/S
15" Cardioid
Gooseneck
Microphone
MX415LP/C
15" Supercardioid
Gooseneck
Microphone
MX415LP/S
5" Gooseneck with
Red Top LED (no
cartridge)
MX405RLP/N
10" Gooseneck with
Red Top LED (no
cartridge)
MX410RLP/N
15" Gooseneck with
Red Top LED (no
cartridge)
MX415RLP/N
10" Cardioid
Dualflex Gooseneck
Microphone
MX410LPDF/C
10" Supercardioid
Dualflex Gooseneck
Microphone
MX410LPDF/S
10" Dualflex
Gooseneck with
Red Top LED (no
cartridge)
MX410RLPDF/N
10" Cardioid
Dualflex Gooseneck
Microphone with
Red Top LED
MX410RLPDF/C
10" Supercardioid
Dualflex Gooseneck
Microphone with
Red Top LED
MX410RLPDF/S
15" Cardioid
Dualflex Gooseneck
Microphone
MX415LPDF/C
15" Supercardioid
Dualflex Gooseneck
Microphone
MX415LPDF/S
15" Dualflex
Gooseneck with
Red Top LED (no
cartridge)
MX415RLPDF/N
15" Cardioid
Dualflex Gooseneck
Microphone with
Red Top LED
MX415RLPDF/C
15" Supercardioid
Dualflex Gooseneck
Microphone with
Red Top LED
MX415RLPDF/S
5

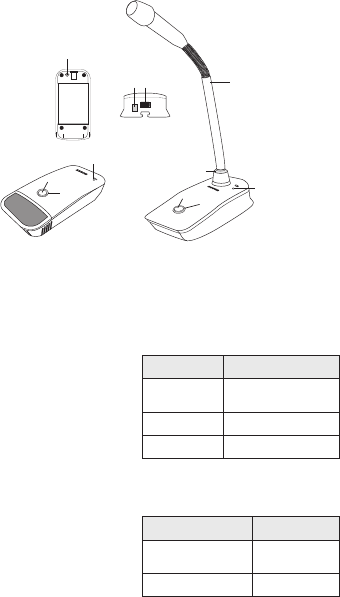

Transmitter Controls and Connectors
① Power Button
Press and hold for two seconds to turn
microphone on or off.
② Mute/Active Button
Four settings are available for the mute/
active button:
- Toggle: Press to switch between
active and mute states
- Push-to-Mute: Hold button to mute
microphone
- Push-to-Talk: Hold button to activate
microphone when speaking
- Disabled: Button functionality off
③ Status LED
Indicates microphone's audio status.
④ Low-Battery LED
- Off = More than 30 minutes of
battery life remain
- On = Less than 30 minutes of
battery life remain
⑤ Infrared (IR) Port
Align with receiver IR port to send
settings to transmitter.
⑥ Charge Connector
Connects to networked chargers.
⑦ Gooseneck Microphone
ULXD8 base fits 5", 10", and 15"
Microflex series microphones.
Status LED
To change status LED behavior, use
Wireless Workbench or ULXD receiver
front panel.
ULXD6 and ULXD8 (with MX400
series gooseneck)
Active Muted
Green (factory
setting)
Red (factory setting)
Red Off
Red Flashing red
ULXD8 (with MX400R series
gooseneck)
Active Muted
Red (factory setting) Off (factory
setting)
Red Flashing
6

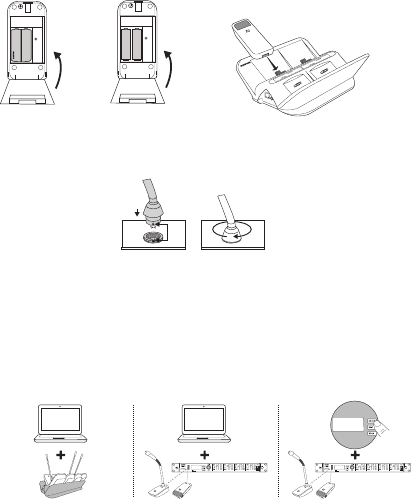

Battery and Charging
Installation
1. Open the battery compartment.
2. Insert one SB900 battery or two AA
batteries. Align +/- terminals on batteries
as shown.
3. Close battery door until it latches.
++
-
-
+
+
Battery Information
See the receiver front panel or the
microphone properties on Wireless
Workbench for detailed battery information.
Charging
Charge transmitters with Shure rechargeable
batteries in networked charging station.
Connecting Gooseneck Microphone to ULXD8 Base
ULXD8 bases fit 5", 10", and 15" Microflex series gooseneck microphones. Connect
microphone to base as shown.
Changing Transmitter Settings
Modify the transmitter's mute/active button behavior, status LED behavior, high-pass filter,
and encryption settings to fit your setup. There are three different ways to change transmitter
settings:
1. Change settings in Wireless Workbench and send to all transmitters on a networked
charger
2. Change settings in Wireless Workbench, send settings to each receiver, and perform an
IR sync between each receiver and transmitter pair
3. Change settings for each transmitter from ULXD receiver front panel and perform an IR
sync
RF
A B
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
For configuration details, see the full manual available at www.shure.com.
7
Frequency Range
Band Frequency Range (
MHz)
G50 470 to 534
G51 470 to 534
G52 479 to 534
H50 534 to 598
H51 534 to 598
H52 534 to 565
H53 534 to 598
J50 572 to 636
J51 572 to 636
K51 606 to 670
K52 606 to 670
L51 632 to 696
L52 632 to 694
L53 632 to 714
P51 710 to 782
P52 710 to 782
JB (Tx
only)
806 to 810
Q51 794 to 806
S50 823 to 865
X51 925 to 937.5
X52 902 to 928
X53 902 to 907.500, 915 to 928
X54 915 to 928
Z16 1240 to 1260
Certifications
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Certified under FCC Part 74, FCC Part 15.
Certified by IC in Canada under RSS-247
and RSS-210,RSS-GEN.
IC: 616A-ULXD6G50, 616A-ULXD6H50,
616A-ULXD6J50, 616A-ULXD6X52,
616A-ULXD8G50, 616A-ULXD8H50,
616A-ULXD8J50, 616A-ULXD8X52.
FCC: DD4ULXD6G50, DD4ULXD6H50,
DD4ULXD6J50, DD4ULXD6X52,
DD4ULXD8G50, DD4ULXD8H50,
DD4ULXD8J50, DD4ULXD8X52.
This product meets the Essential
Requirements of all relevant European
directives and is eligible for CE marking.
Note: For transmitters operating in the V50
and V51 bands: nominal free space antenna
gain at middle of the band is typically -6 dBi,
and rolls off at the band edges an additional
-4 dB.
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
of this device is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes
: (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Note: EMC conformance testing is based on
the use of supplied and recommended cable
types. The use of other cable types may
degrade EMC performance.
The CE Declaration of Conformity can be
obtained from: www.shure.com/europe/
Global
8
compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East
& Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4
Email: info@shure.de
Information to the user
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
LICENSING INFORMATION
Licensing: A ministerial license to operate
this equipment may be required in certain
areas. Consult your national authority
for possible requirements. Changes or
modifications not expressly approved by
Shure Incorporated could void your authority
to operate the equipment. Licensing of Shure
wireless microphone equipment is the user’s
responsibility, and licensability depends on
the user’s classification and application, and
on the selected frequency. Shure strongly
urges the user to contact the appropriate
telecommunications authority concerning
proper licensing, and before choosing and
ordering frequencies.
For the band Z17 (1492-1525 MHz), it must
be used indoors only.
For the band Z19 (1785-1800 MHz), if the
transmitter operates on a frequency below
1790 MHz, it must be used indoors only.
WARNING: Danger of explosion if battery
incorrectly replaced. Operate only with Shure
compatible batteries.
WARNING
• Battery packs may explode or release
toxic materials. Risk of fire or burns. Do
not open, crush, modify, disassemble,
heat above 140°F (60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge
Shure rechargeable batteries
• WARNING: Danger of explosion if battery
incorrectly replaced. Replace only with
same or equivalent type.
• Never put batteries in mouth. If
swallowed, contact your physician or
local poison control center
• Do not short circuit; may cause burns
or catch fire
• Do not charge or use battery packs other
than Shure rechargeable batteries
• Dispose of battery packs properly. Check
with local vendor for proper disposal of
used battery packs.
• Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine, fire
or the like
WARNING: This product contains a chemical
known to the State of California to cause
cancer and birth defects or other reproductive
harm.
Please follow your regional recycling scheme
for batteries, packaging, and electronic
waste.
8
RF exposure warning
RF exposure warning
not be collocated or operatin
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
not be collocated or operatin
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least
20cm from all persons and must
not be collocated or operatin
g in conjunction with any other antenna or transmitter.
