Contents

User Manual I

Technical Data RF220R-IO-Link – Short Form
Remarks: A released RF220R-IO-Link manual does not yet exist. The RF220R-IO-Link
manual, once completed, will contain detailed information about field-data, range for
certain tags and information about how to implement the RF220R in a production site
with communication modules. This detailed information may not be much relevant for
RF220R-IO-Link FCC approval.
Below given are short system overview and technical data which are required in order to
run the RF220R-IO-Link for testing and to check the reader’s function.
RF200 System overview
SIMATIC RF200 is an inductive identification system, based on the standard ISO 15693,
which was specially designed for industrial production for controlling and optimization
material flow.
Contrary to SIMATIC RF300, SIMATIC RF200R-IO-Link is designed for RFID
applications for lower demands on performance (data volume, data transfer speed,
diagnostics). SIMATIC RF200R-IO-Link is a low-price RFID system.
Overview of System Components compatible with RF220R-IO-Link
System
SystemSystem
System
components
componentscomponents
components
Description, Examples
Description, ExamplesDescription, Examples
Description, Examples
Communications modules IO-Link readers are designed to operate
along with an IO-Link Master
• IO-Link Master via Profibus, Profinet
or S7-Systembus.
• IO-Link Implementation available for
Profibus, Profinet, Interbus, AS-i,
EtherCAT, Powerlink.
• IO-Link Master: ET 200eco PN
• IL-Link Master: ET200S
• IO-Link Master: 00S 4SI IO-Link
• IO-Link Master for fieldbus
Tags
(suitable for RF220R-IO-
Link)
• MDS D124
• MDS D160
• MDS D324
• MDS D421
• MDS D422
• MDS D424
• MDS D425
• MDS D428
• MDS D460
Modes of Operation (IO-Link Modes)
Standard-Input-Output (SIO)-Mode:
Tag presence only. No communication between reader and IO-Link master
IO-Link Mode 1 (Scan UID):
Tag presence, Tag-UID read (no external parametrization required)
IO-Link Mode 2:
Low-level parametrization required, Tag-read only.
IO-Link Mode 3:
Higher level parametrization required, Tag read / Tag write, communication module
required.
Technical Data RF220R-IO-Link (short form)
Fea
FeaFea
Feature
tureture
ture
Description, Technical Data
Description, Technical DataDescription, Technical Data
Description, Technical Data
Inductive interface (magnetic field) to
transponder (tag). Carrier frequency for energy
/ data
13,56 MHz
Antenna Integrated loop
Air interface ISO 15693
RF output power (RF power into antenna) 180mW (22.8dBm) into 50Ω
Interface to communications module IO-Link (V1.0)
Baud rate 4,8kBaud and 38,4kBaud
Functions According to IO-Link-Mode: Initialize tag, read tag
(tag ID), write on tag, get status data, antenna
on/off
DC-Voltage (nominal) 24 V DC
Display elements One pair of 2-color-LEDs
(operating voltage, presence, error)
Connector M12 (4-pin.)
ROHS conformity ROHS according to EU 2002/95/EG
Housing
• Dimensions
• Color
• Material
• Coating
Metal Sleeve
• Length: 83mm (3.3in); Diameter: 30mm
(1.18in)
• silver
• CuZn40 Pb2 F43
• Ni4p**SN15 305
Fixing 2 Hex nuts, 30mm
Degree of protection to EN 60529 IP67
Temperature Range (operating) -25°C … +70°C
Weight without hex nuts / with hex nuts 110g (0.22 lbs) / 140g (0.31 lbs)
Current consumption <50mA
Customer benefits when using IO-Link readers
• Entry-Level pricing; no communication module required.
• IO-Link readers are compatible with competitor readers
• Extended diagnosis for all IO-Link sensors
• Easy cabeling
• Easy integration in own application. Easy read-only data access. Useful for entry-level
users without specific RFID-knowledge

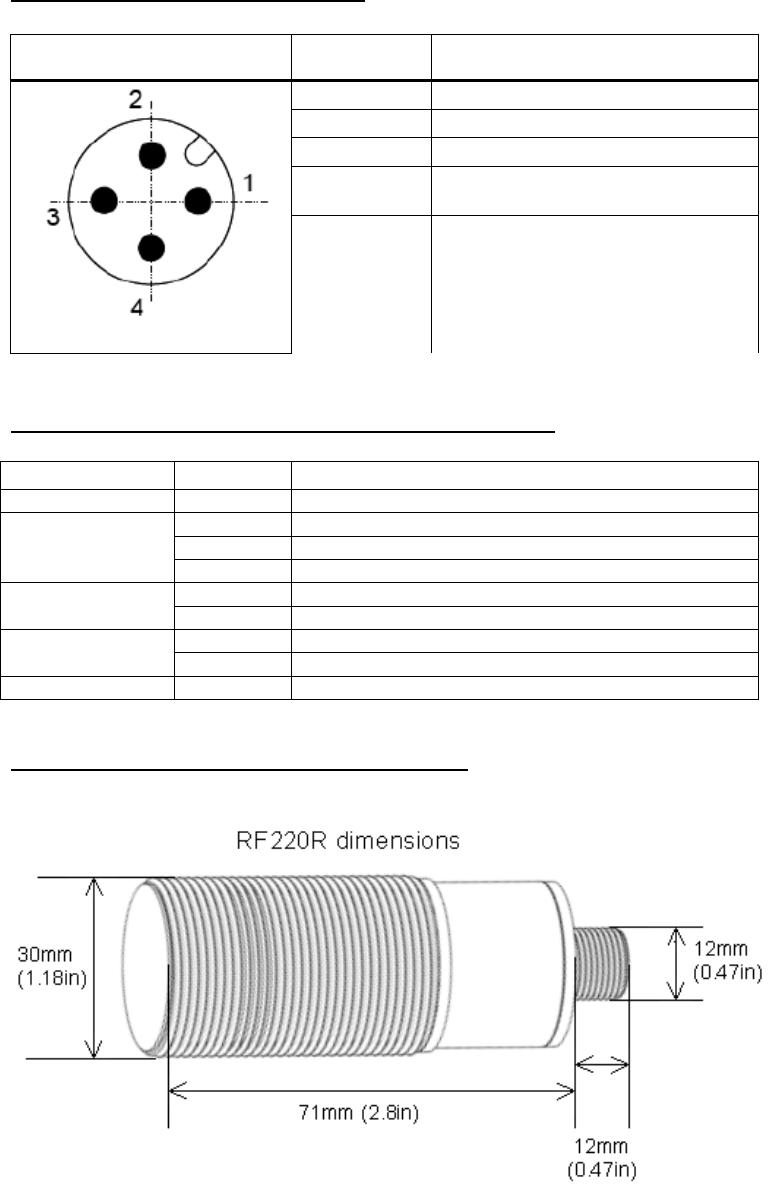

Pin assignment RF220R-IO-Link
M12-4 connector (male) Pin No.
M12 plug
Pin
1 +24V
2 Pin for Firmware download
3 0V (GND)
4 C/Q: IO-Link data and Digital out in SIO-
Mode
LED indicator (display elements) RF220R-IO-Link
LED colour
Meaning
off No DC-power
flashing DC-power on, Antenna off
on SIO-Mode, no tag in field
green
pulsed IO-Link Mode, no tag in field
on SIO-Mode, tag in field yellow
pulsed IO-Link Mode, tag in field
pulsed Reader power-up red
flashing Error, invalid parameter, Watchdog
Red / green flashing Firmware update

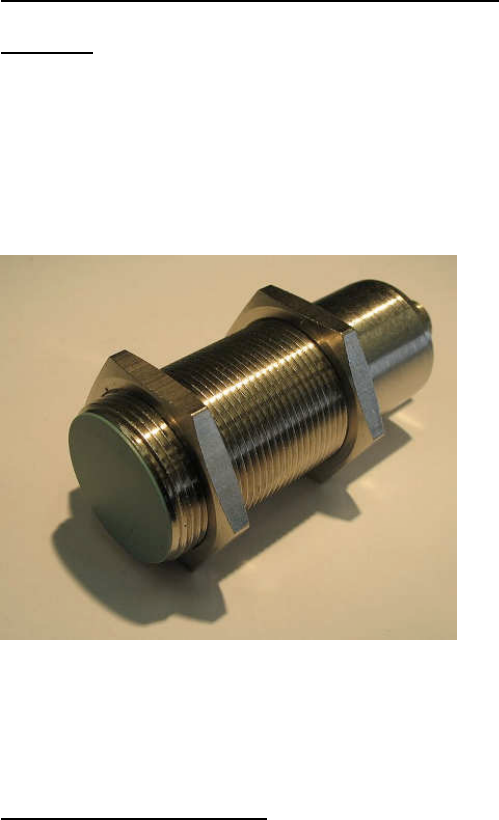

RF220R-IO-Link housing and dimensions
RF220R-IO-Link total length: 83mm (3.27”); sleeve diameter: 30mm (1.18”).
