1. Outdoor AP Installation
Packing List
Before you start to install the ODU, make sure the package contains the
following itemsΚ
ɿ Wireless Outdoor Bridge unit * 1
ɿ Mounting Kit * 1
ɿ Waterproof (IP67) RJ-45 Cable (30M) * 1
ɿ Waterproof (IP66) RF Cable (1M) * 1
ɿ Power Over Ethernet Kit * 1
ɿ Ground Wire * 1
ɿ 2.5” /4” U bolts * 2 and Anchor * 4
ɿ 6 dBi omni directional antenna * 1 (separated package)
ɿ RJ-45 Cable (1.5M) * 1
5
Hardware Installation

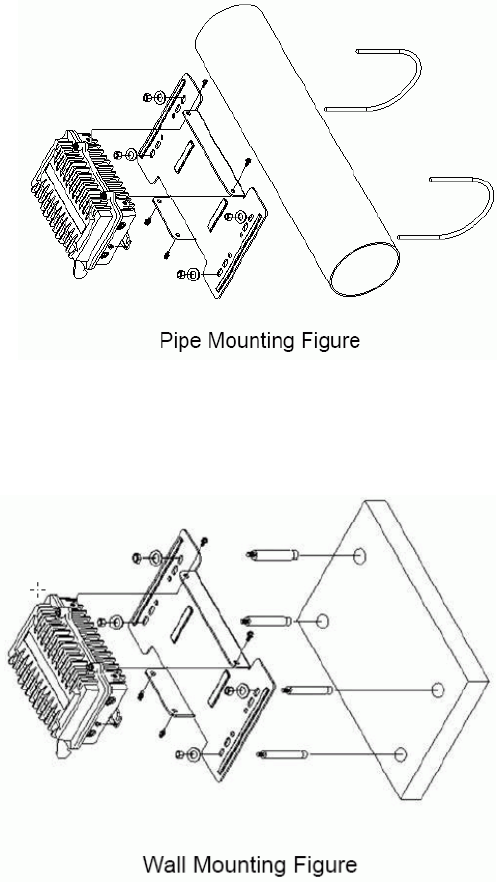

Once you check off everything from the package, you can start to install the
ODU. You can mount to a pipe, a pole or to the side of a building. The steps are
showed in the followingΚ
1. You must mount the ODU into the bracket first.
Note: ALL the 4 screws had been tightened onto the ODU and Bracket
2. You can use the 2 or 4 inches U bolt to mount on the pipe, depending on
the radius of the pipe. (Wall mounting is referred to Wall Mounting Figure) The
two U bolts must be mounted tightly. Be aware of not over-tight the U bolt.
6

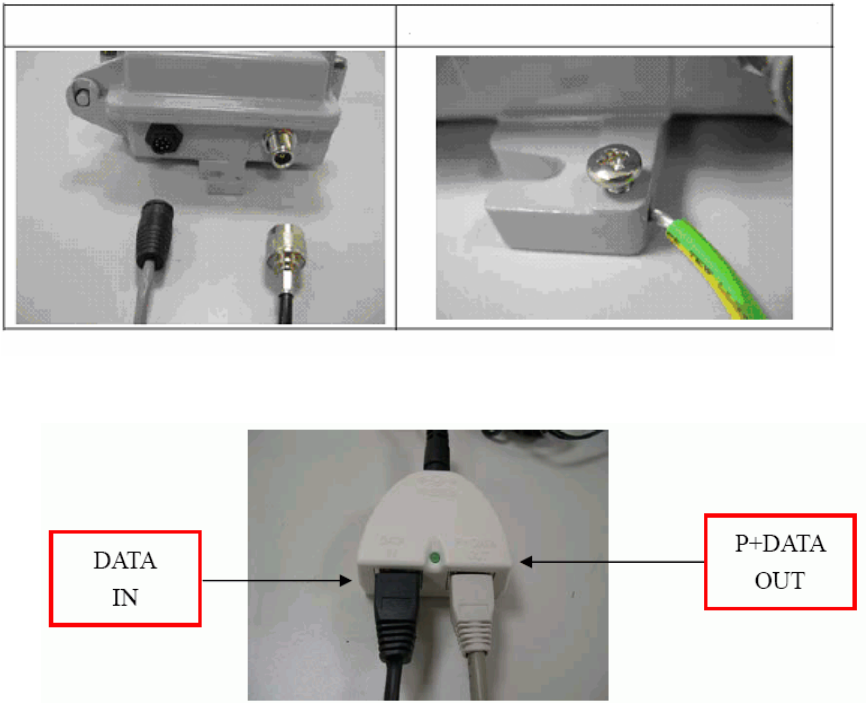

3.. After checking the ODU is mounted well, you can connect the following
two cables: the Waterproof RJ-45 network cable to “P+ DATA OUT” port of ODU
and the RF cable to antenna port. Additional waterproof tool, such as
waterproof tape, is recommended to use to enhance the waterproof function.
It is suggested to have a lightening protector between antenna and antenna
port. Connecting the ground wire as the figure of “ODU ground wire
connection.”
4. Plug the other end of the waterproof RJ-45 cable to the PoE device. The
PoE device is guaranteed only in indoor environment.
Caution: DON’T plug the power cord into PoE device before you finish install
the antenna and Ground wire to ensure the safety.
If the RJ-45 cable’s length is not long enough to connect to your
network
device for indoor parts installation, you can extend the cable length.
However, make sure the maximum length of the RJ-45 cable is shorter
than
100M (about 109 yards) for normal operation under IEEE 802.3ʳstandards.
When you plug the regular RJ-45 cable into the PoE device, you should use
the regular RJ-45 cable to plug into the “DATA IN” of “Power Over Ethernet
Kit” to connect to hub/switch or use the crosslink RJ-45 cable (Not included
in the Packing List) to connect with user’s PC
The waterproof RJ-45 cable must be connected to the “P+DATA OUT” port.
7
Caution:Be careful! Don’t plug the two cables inversely. It will damage the
devices

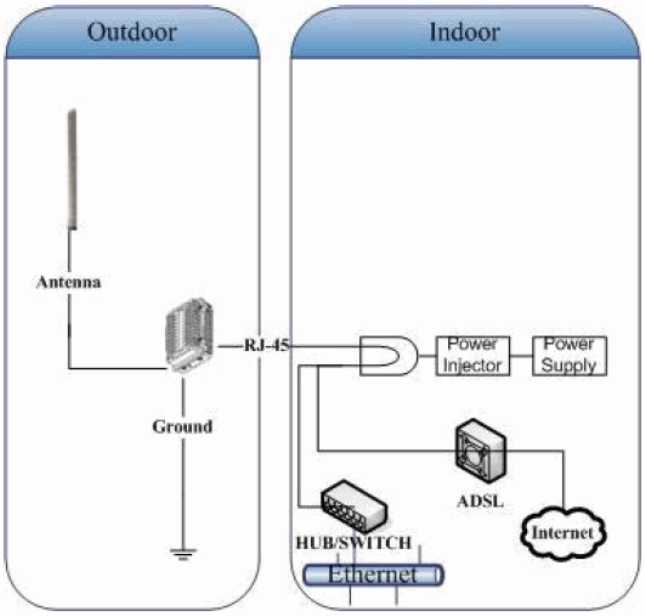

We recommend you refer to the following illustration as a guideline for
hardware installation.
8
2. First Time Configuration
Before Start to Configure

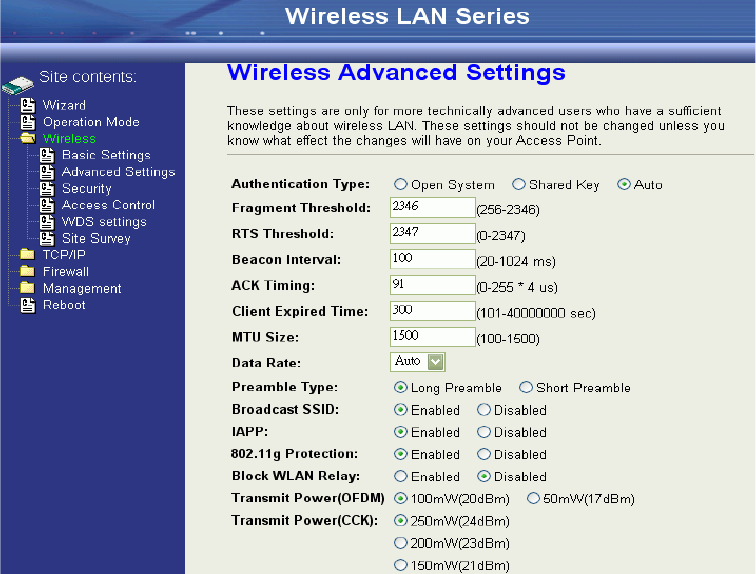

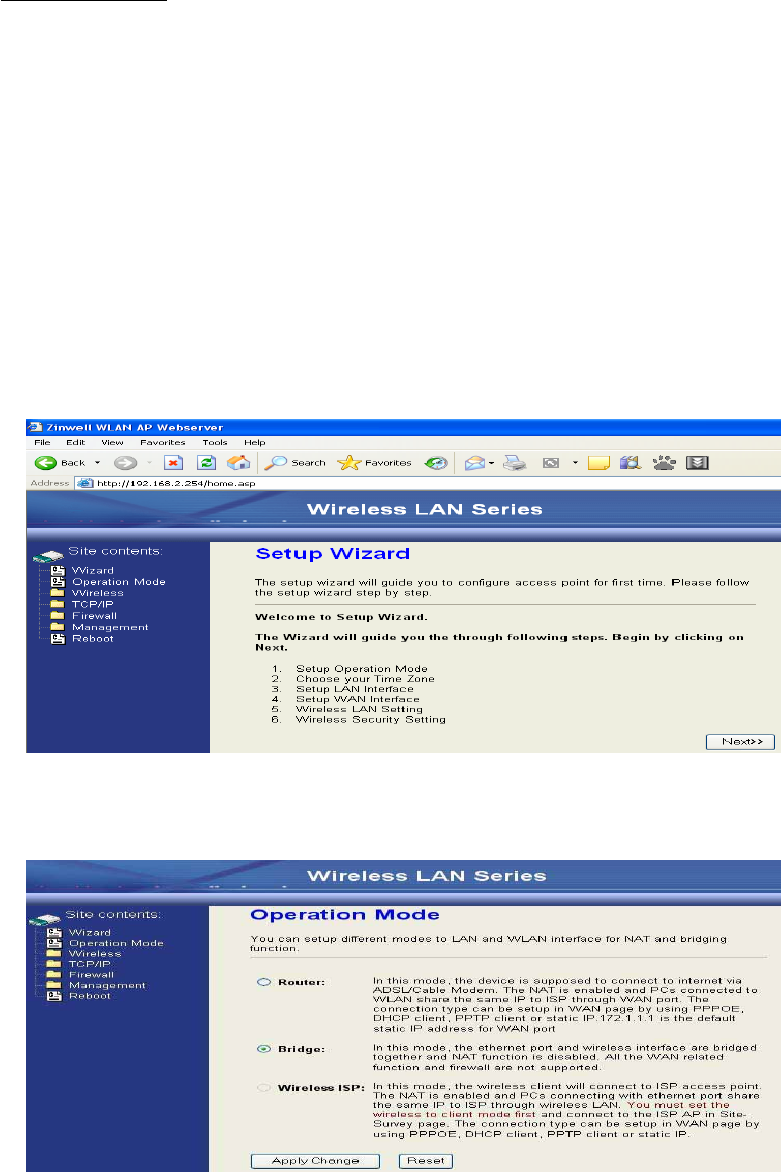

There are two ways to configure the device, one is through web-browser,
and the other is through Secure Shell CLI interface. To access the
configuration interfaces, make sure you are using a computer connected to
the same network as the device. The default IP address of the device is
192.168.2.254, and the subnet-mask is 255.255.255.0.
The device has three operation modes (Router/Bridge/WISP). In bridge
mode, also known as AP Client, you can access the device by both WLAN
(Wireless Local Area Network) and wired LAN. And in router/WISP modes,
the device can be accessed by both WLAN and WAN. The default IP
addresses for the device are 192.168.2.254(for LAN), 172.1.1.1(for WAN),
so you need to make sure the IP address of your PC is in the same subnet as
the device, such as 192.168.2.X (for LAN), 172.1.1.X (for WAN).
Please note that the DHCP server inside the device is default to up and
running. Do not have multiple DHCP servers in your network environment,
otherwise it will cause abnormal situation.
We also provide an auto-discovery tool which is for finding out the IP of
the device. In case, you’ve forgot the IP of the device or the IP of the device
has been changed, you can use the tool to find out the IP of the device even
your PC is not in the same subnet as the device is.
Knowing the Network Application
OUTDOOR AP can act as the following roles, and it supports WDS (Wireless
Distribution System) function.
ɿ Access Point
ɿʳʳʳWDS (Wireless Repeater)
ɿ Bridge/Router
ɿ WISP
ɿ AP Client
The device provides 3 different operation modes and the wireless radio of
device can act as AP/Client/WDS. The operation mode is about the
communication mechanism between the wired Ethernet NIC and wireless
NIC, the following is theʳtypes of operation mode.
9
Router
The wired Ethernet (WAN) port is used to connect with ADSL/Cable
modem and the wireless NIC is used for your private WLAN. The NAT is
existed between the 2
NIC and all the wireless clients share the same public IP address through the
WAN port to ISP. The default IP configuration for WAN port is static IP. You
can access the web server of device through the default WAN IP address
172.1.1.1 and modify the setting base on your ISP requirement.
Bridge
The wired Ethernet and wireless NIC are bridged together. Once the mode
is selected, all the WAN related functions will be disabled.
WISP (Wireless ISP)
This mode can let you access the AP of your wireless ISP and share the
same public IP address form your ISP to the PCs connecting with the wired
Ethernet port of the device. To use this mode, first you must set the wireless
radio to be client mode and connect to the AP of your ISP then you can
configure the WAN IP configuration to meet your ISP requirement.
The wireless radio of the device acts as the following roles.
AP (Access Point
)
he wireless radio of device serves as communications “hub” for wireless
clients and provides a connection to a wired LAN.
AP Client
This mode provides the capability to connect with the other AP using
infrastructure/Ad-hoc networking types. With bridge operation mode, you
can directly connect the wired Ethernet port to your PC and the device
becomes a wireless adapter. And with WISP operation mode, you can
connect the wired Ethernet port to a hub/switch and all the PCs connecting
with hub/switch can share the same public IP address from your ISP.
WDS (Wireless Distribution System)
This mode serves as a wireless repeater; the device forwards the packets
to another AP with WDS function. When this mode is selected, all the
wireless clients can’t survey and connect to the device. The device only
allows the WDS connection.
10
WDS+AP
This mode combines WDS plus AP modes, it not only allows WDS
connections butʳalso the wireless clients can survey and connect to the
device.
The following table shows the supporting combination of operation and
wireless radio modes.
Bridge Router WISP
AP V V X
WDS V V X
Client V X V
AP+WDS V V X

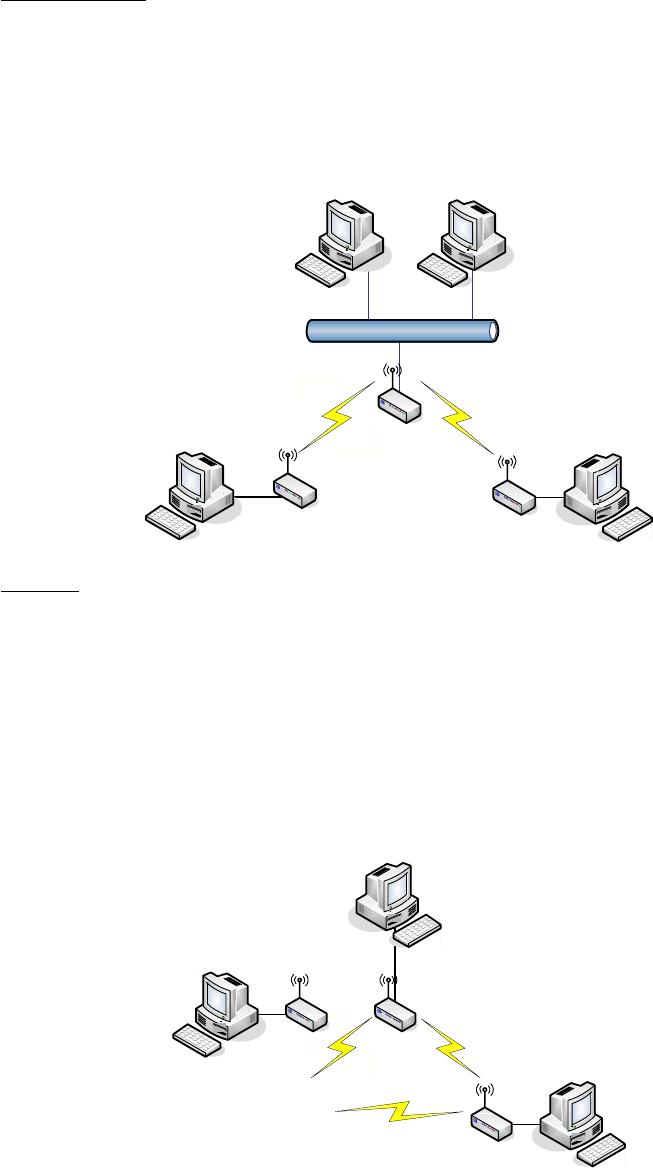

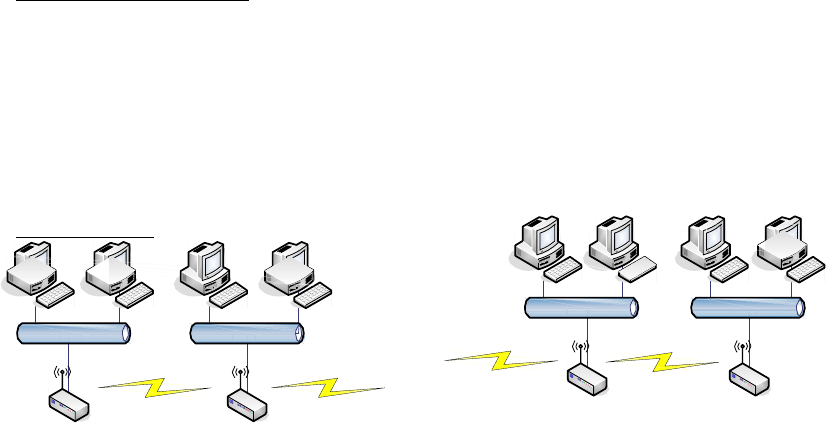

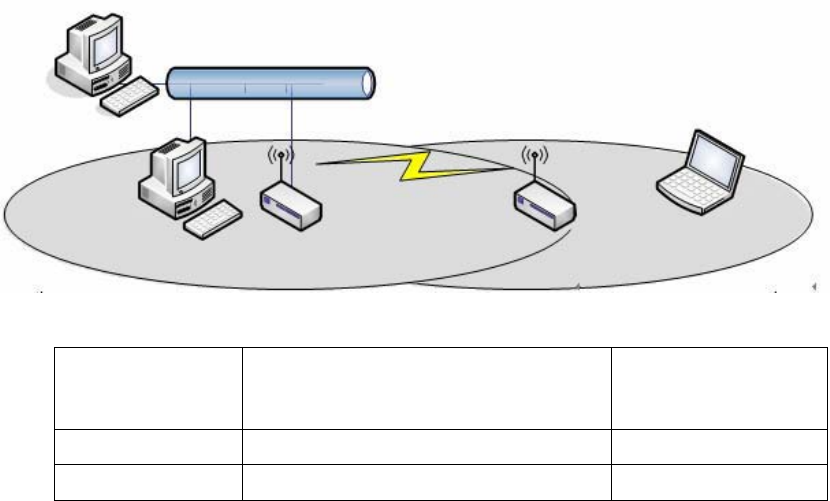

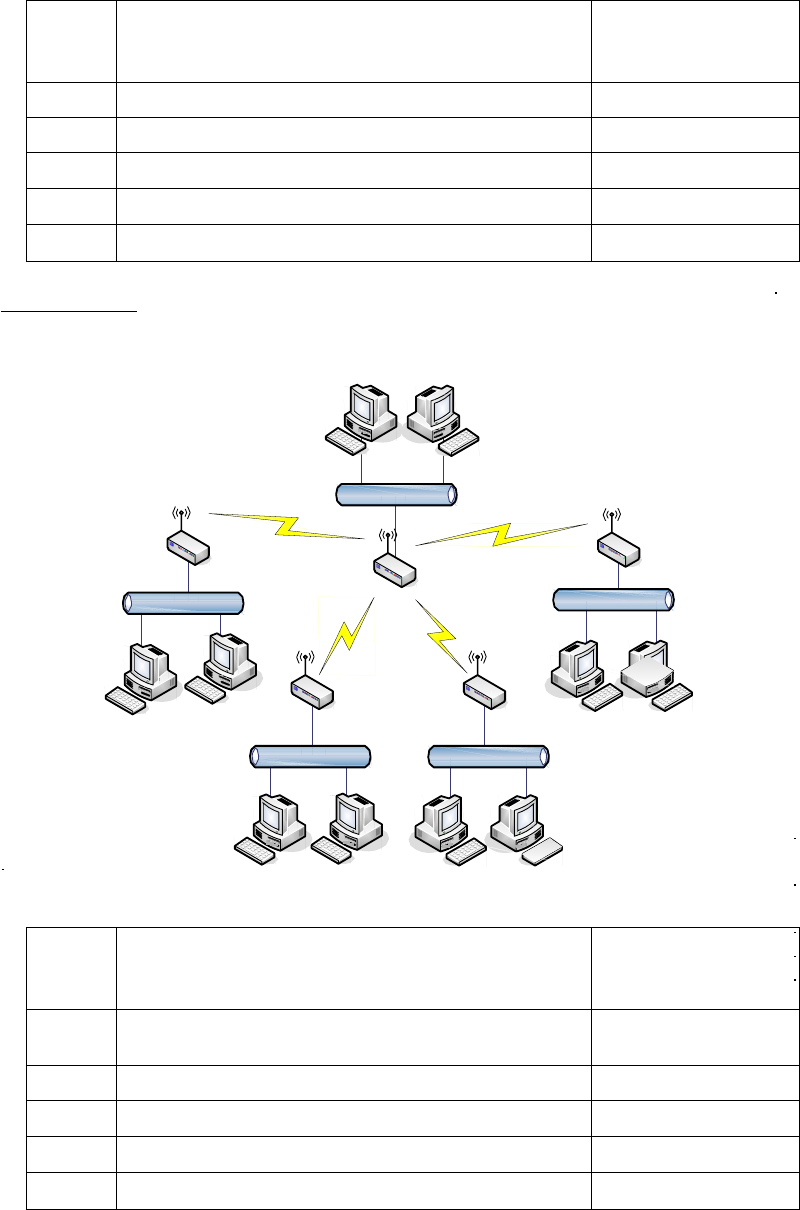

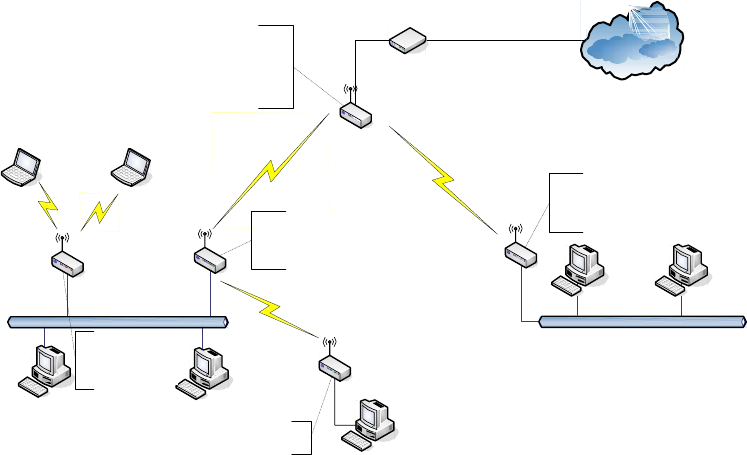

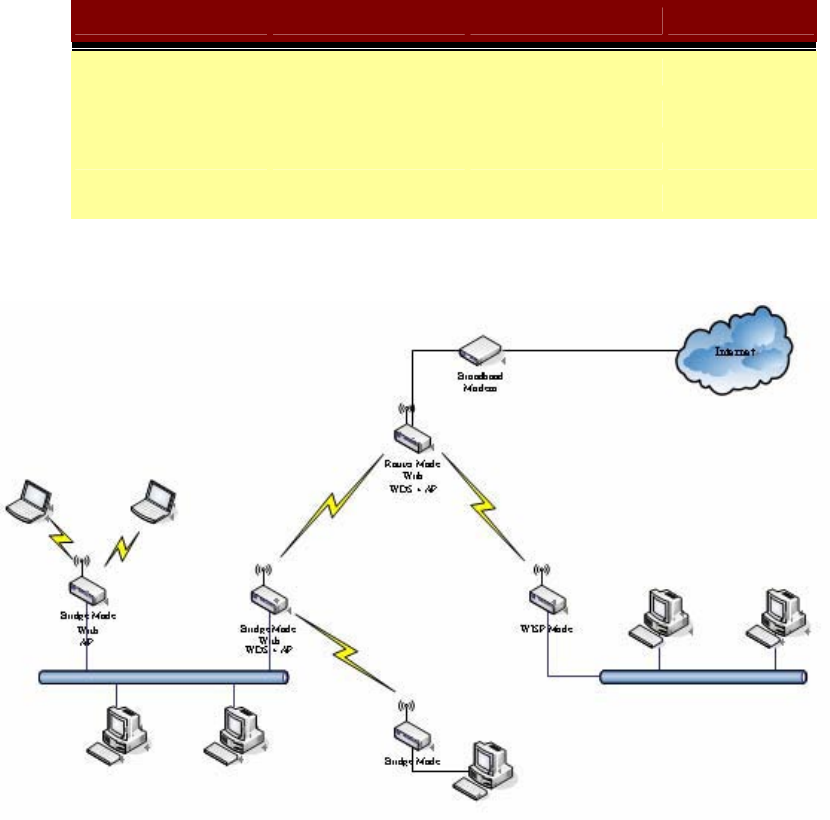

Hereafter are some topologies of network application for your reference.
11
Examples of Configuration
This example demonstrates how to set up a network with different device
configurations. There are 2 DHCP servers (DEV1/DEV4) in the network to
control the IP configuration of 2 domains (192.168.2.x/192.168.3.x). Once
the setting is done, all the PCs can visit Internet through DEV1.
We assume all the devices keep the factory default setting. To make sure
that user can continuing press the rest button for more than 5 seconds to
restore the factory default setting.
The following descriptions show the steps to configure DEV1 to DEV5.
12
Configure DEV1:
1. Connect the ADSL modem to Ethernet port of device using
Ethernet cable.
2. Access the web server (http://192.168.2.254) of device from the
wireless station.
3. Use Wizard page to setup deviceˁ

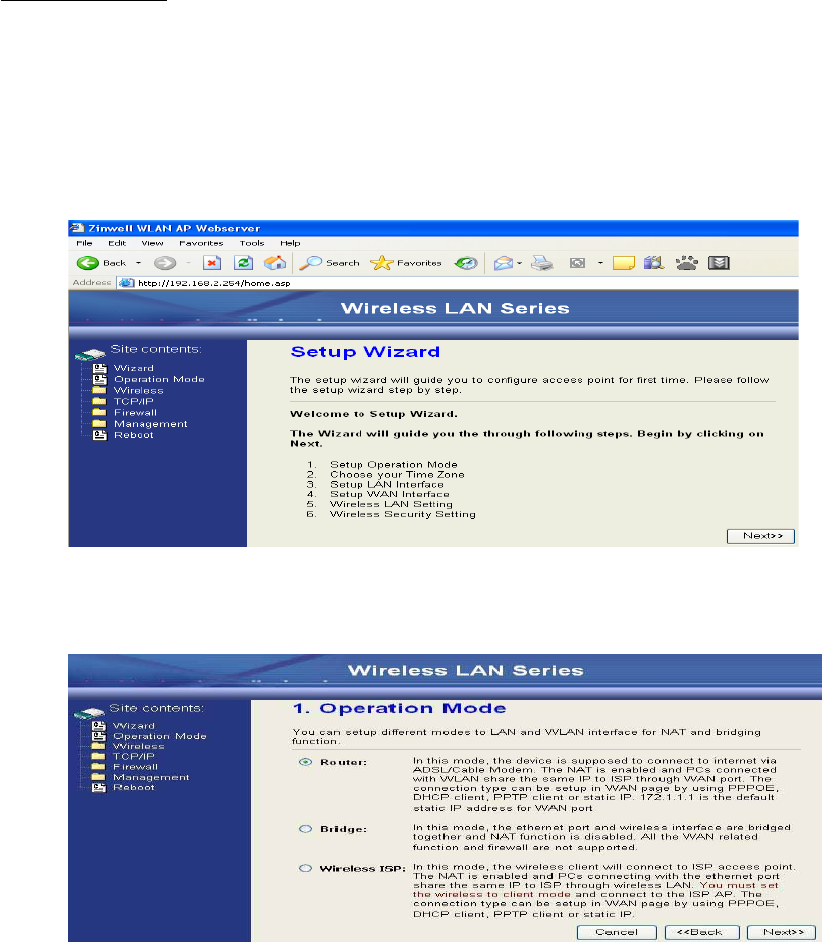

4. Press “Next>>” button then set the “Operation Mode” to “Router”
mode.
13
5. Press “Next>>” button then disable “Time Zone” function.
6. Press “Next>>” button then set the IP address of LAN interface.
7. Press “Next>>” button then select the “PPPoE” for “WAN Access
Type” and fill in the “User Name” and “Password” fields.
14
8. Press “Next>>” button then select the “AP+WDS” for “mode” and ʳ
change theʳSSID to “DEV1”.
9. Press “Next>>” button then select “None” for “Encryption” then
press“Finished” button.
10. Wait for refreshing web page.
15

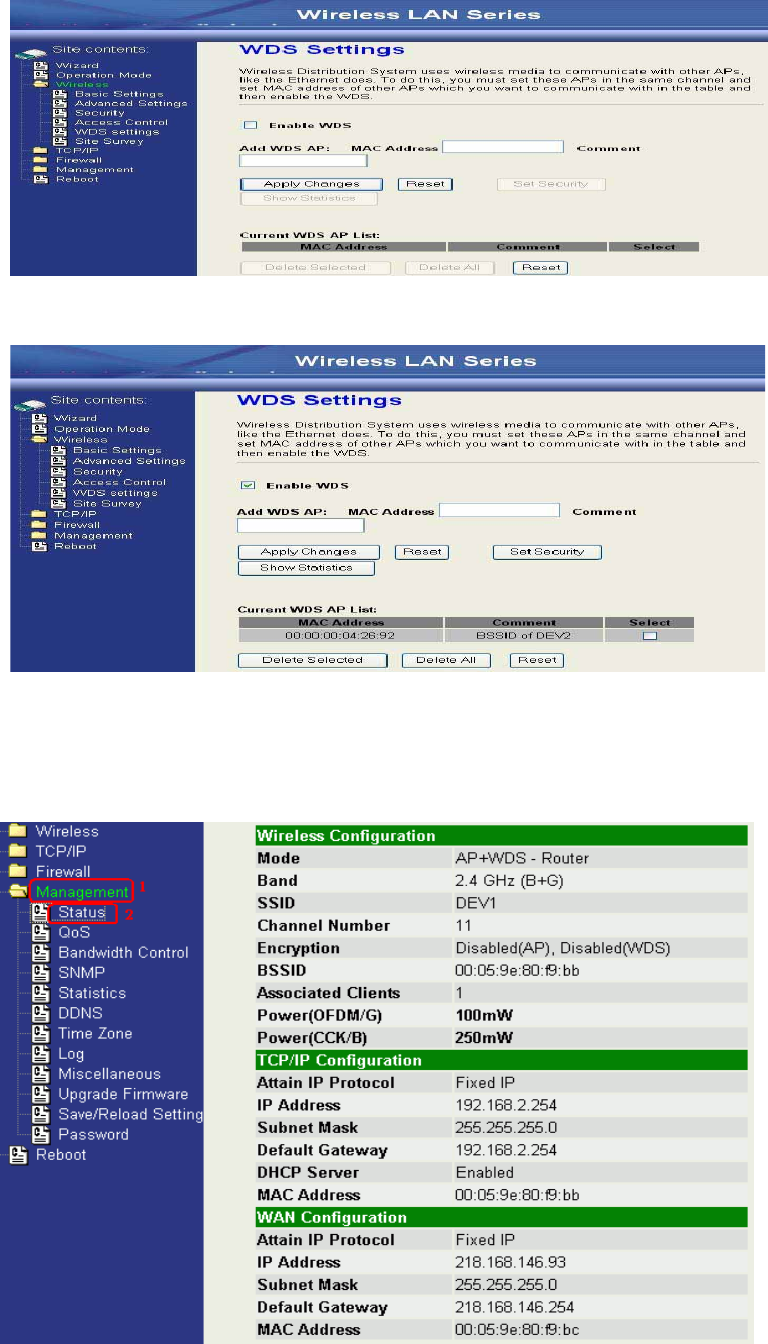

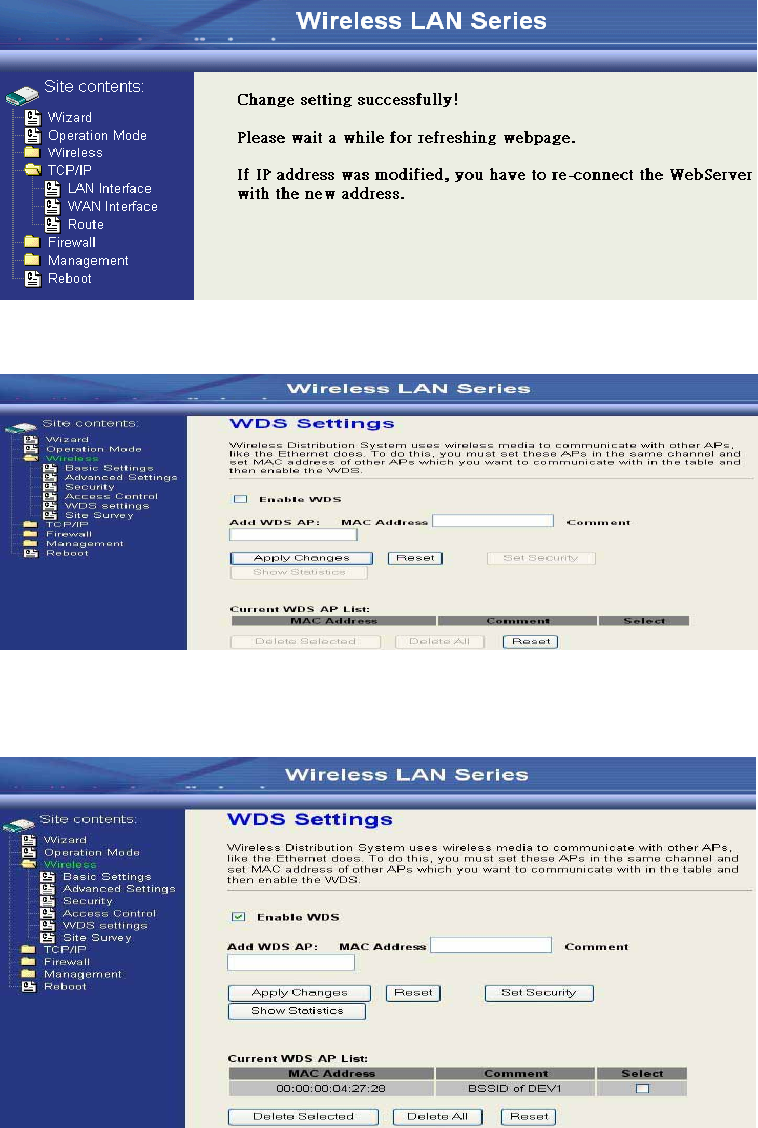

11. Use “WDS Settings” page to configure WDS.
12. Enable WDS function and add the BSSID of DEV2 to “Current WDS
AP List”.
13. Since we access the device by wireless connection, it may
temporarily disconnect when applying the WDS setting. After

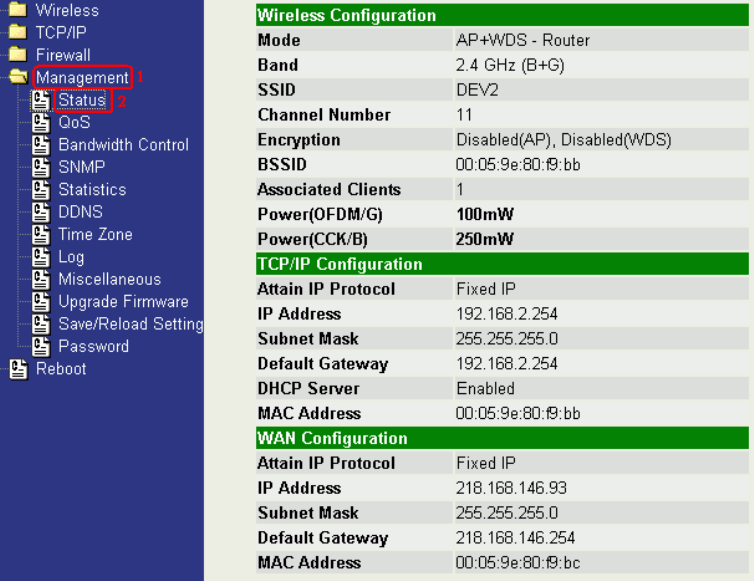

re-connecting to the device, use the “Status” page to check the
settings.
16
Configure DEV2:
1. Access the web server (http://192.168.2.254). of device from the
Ethernet port.
Caution
If you configure multiple devices in the same PC, since the devices have
the same default IP address but different MAC addresses, it may cause you
not able to access the web server of device. If the situation happens, please
try to clean the ARP table of your PC by DOS command “arp –d” then you
can access the web server of device using the default IP address.
2. Use Wizard page to setup device.

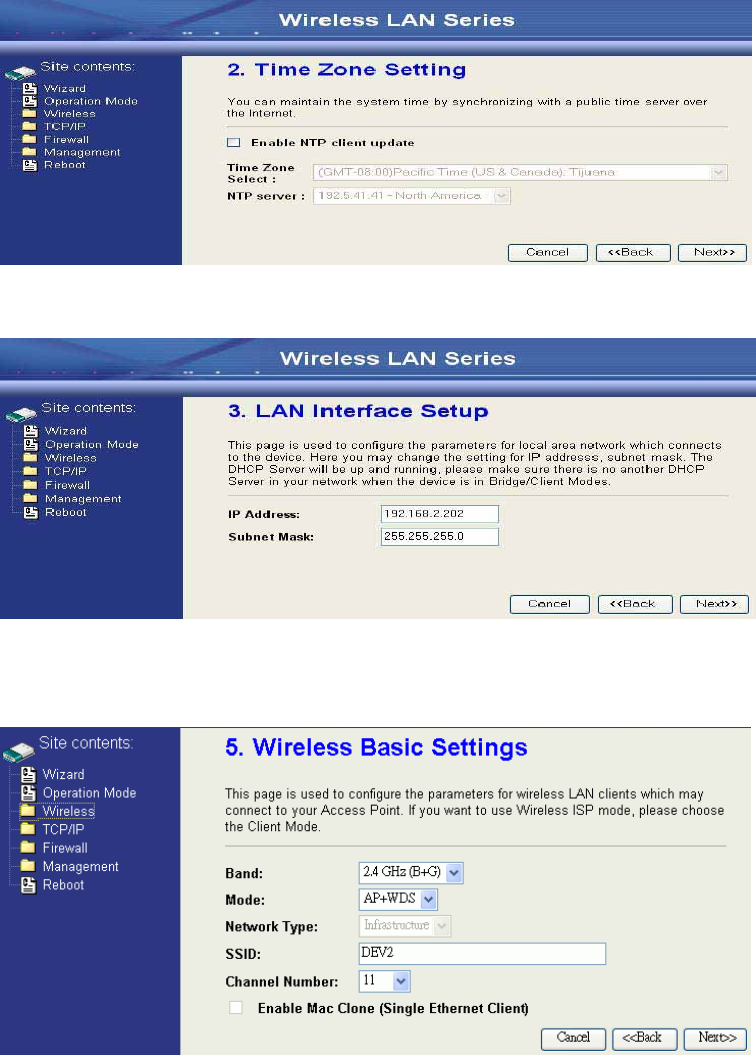

3. Press “Next>>” button then set the “Operation Mode” to “Bridge”
mode.
17
4. Press “Next>>” button then disable “Time Zone” function.
5. Press “Next>>” button then set the IP address of LAN interface.
6. Press “Next>>” button then select the “AP+WDS” for “mode” and
change theʳSSID to “DEV2”.
18
7. Press “Next>>” button then select “None” for “Encryption” then press
“Finished” button.
8. Wait for refreshing web page.

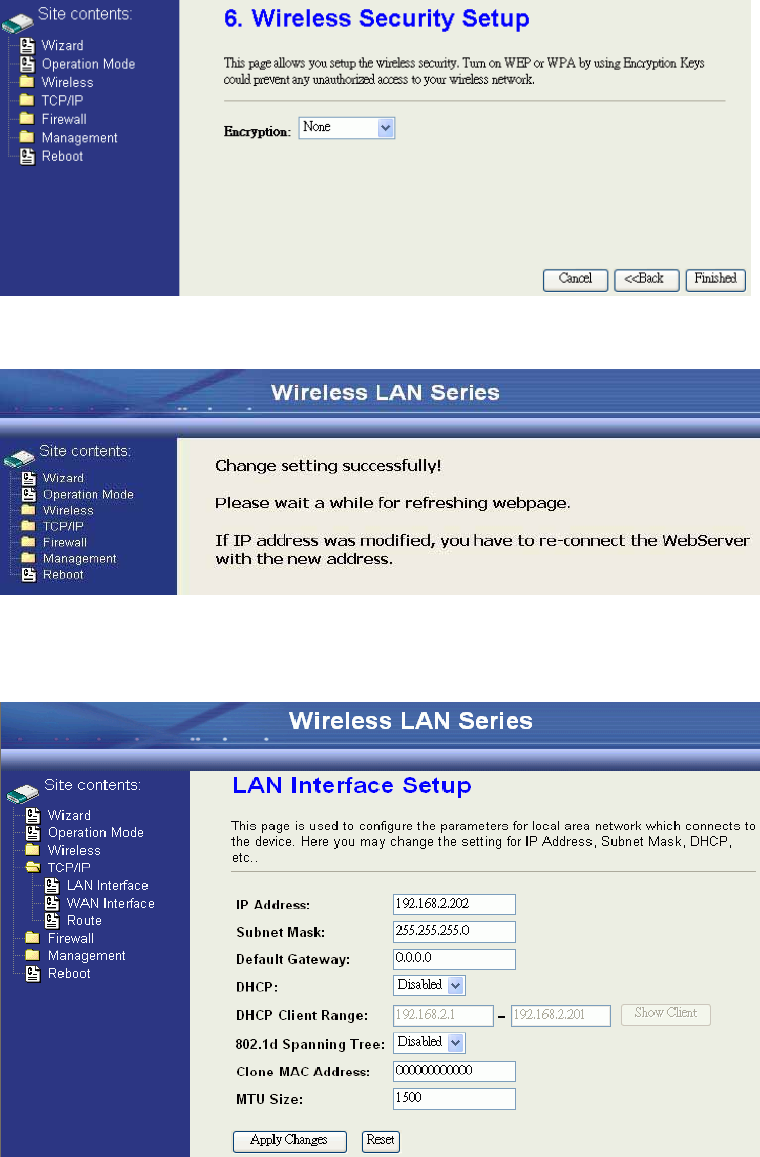

9. Access the web server by new IP address “192.168.2.202” then use
“LAN Interface” page to disable DHCP Server.
19
10. Wait for refreshing web page.
11. Use “WDS Settings” page to configure WDS.
12. Enable WDS function and add the BSSID of DEV1 to “Current WDS
AP List”.
20
13. Use the “Status” page to check the settings.
21
Configure DEV3:
1. Access the web server (http://192.168.2.254) of device from the
Ethernet port.
Caution
If you configure multiple devices in the same PC, since the devices
have the same default IP address but different MAC addresses, it may
cause you not able to access the web server of device. If the situation
happens, please try to clean the ARP table of your PC by DOS
command “arp –d” then you can access the web server of device using
the default IP address.

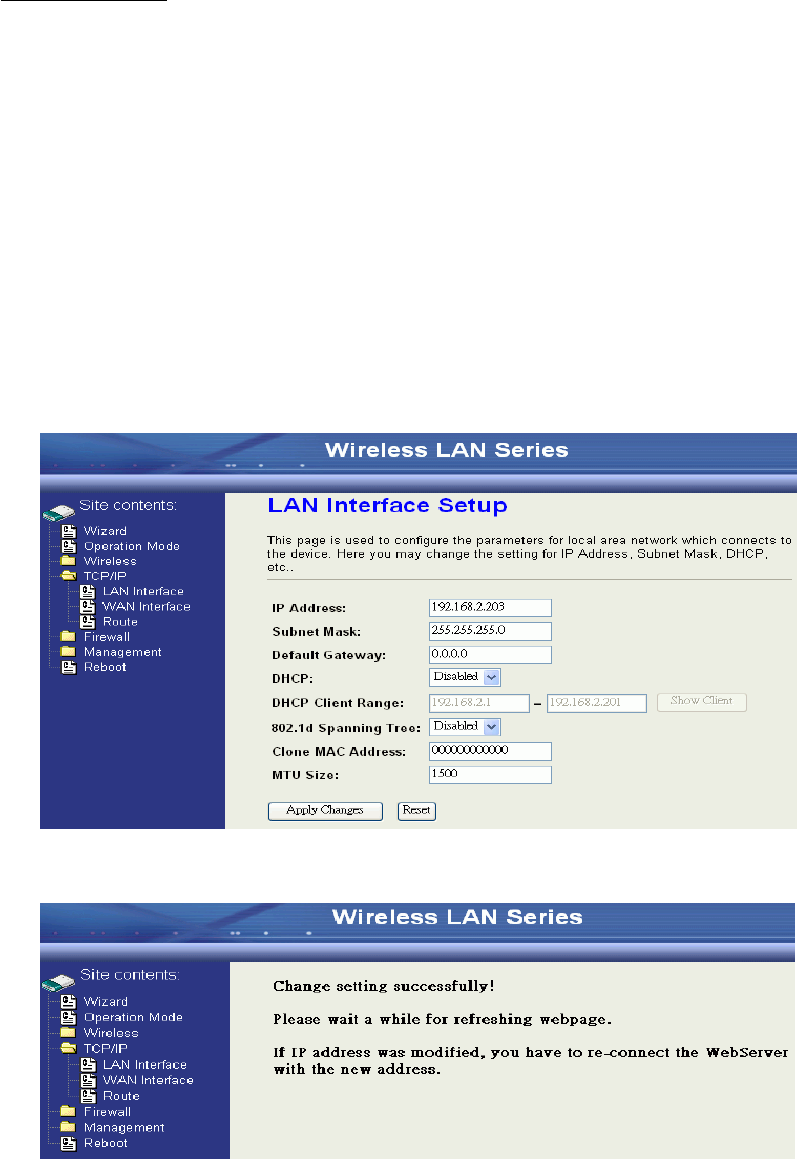

2. Use “LAN Interface” page to set the IP address of LAN interface and
disable
ʳʳʳDHCP server.
3. Wait for refreshing web page.
22

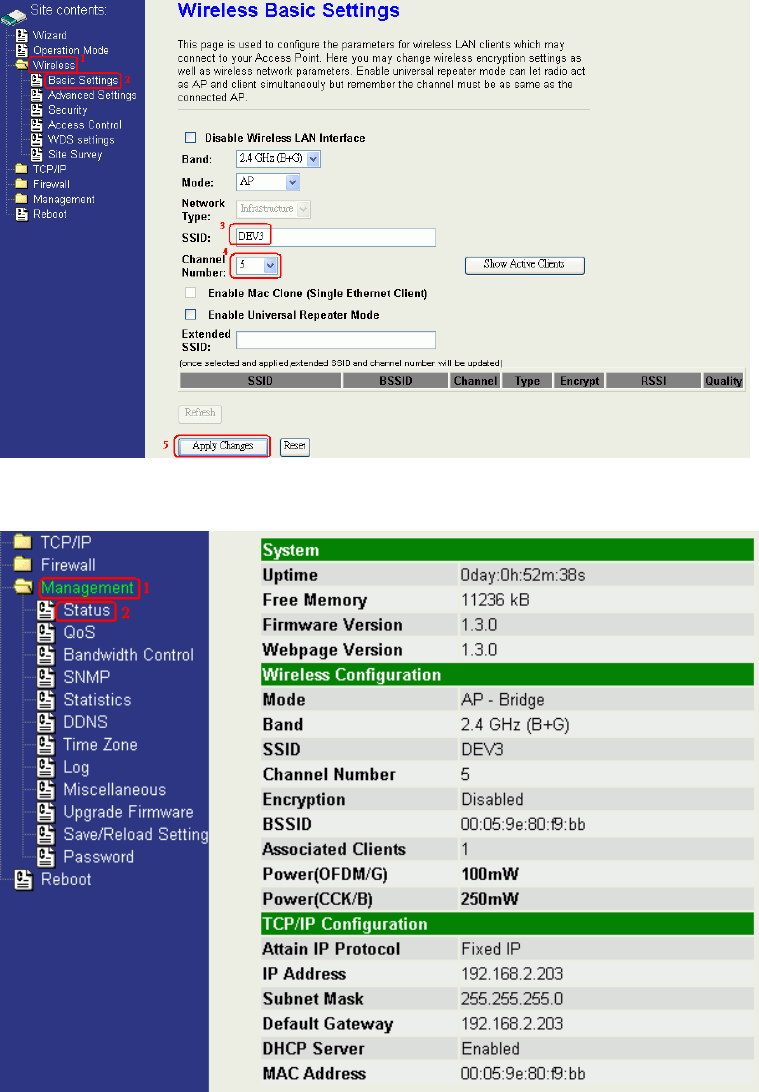

4. Access the web server by new IP address “192.168.2.203” then use
“Basicʳ
Settings” page to change SSID and CHANNEL.
5. Use the “Status” page to check the settings.
23
Configure DEV4:
1. Access the web server (http://192.168.2.254) of device from the
Ethernet port.
Caution
If you configure multiple devices in the same PC, since the devices have the
same default IP address but different MAC addresses, it may cause you
unable to access the web server of device. If the situation happens, please
try to clean the ARP table of your PC by DOS command “arp –d” then you
can access the web server of device using the default IP address.
2. Use Wizard page to setup device.

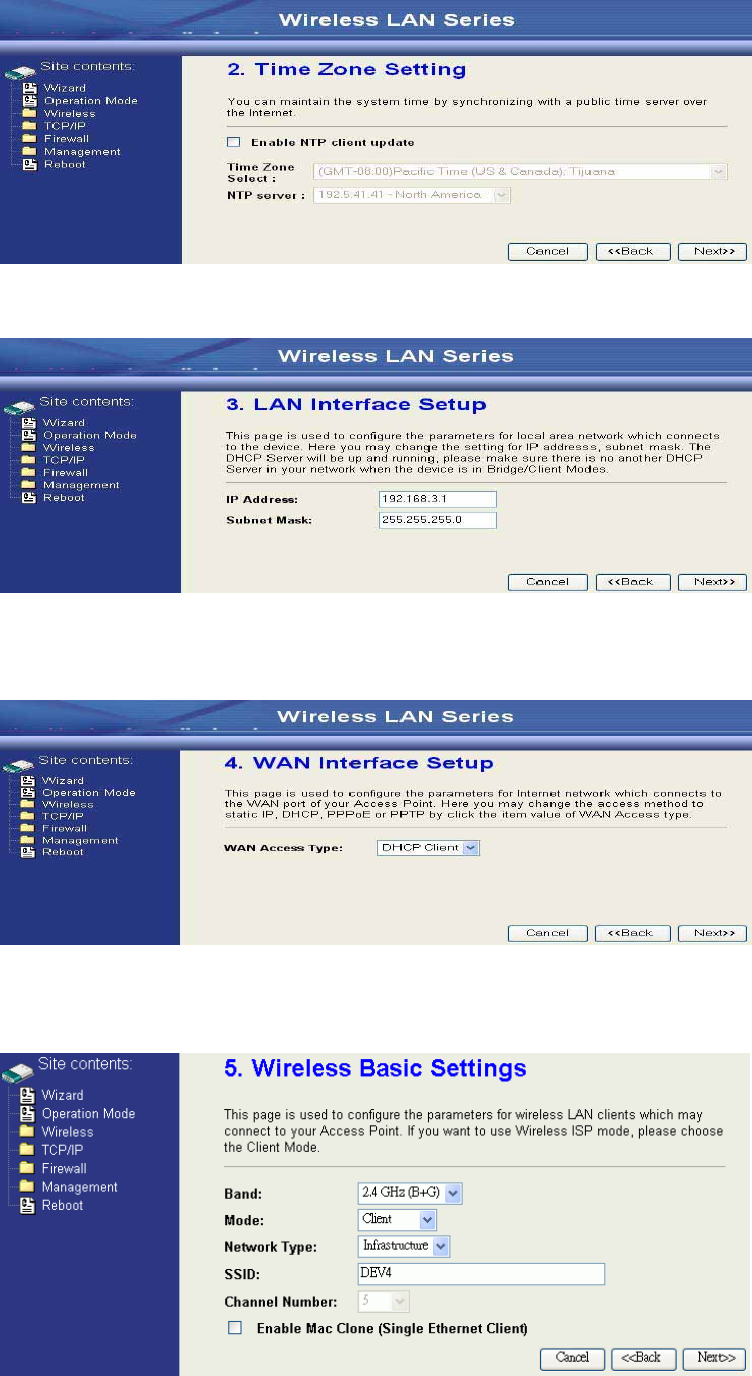

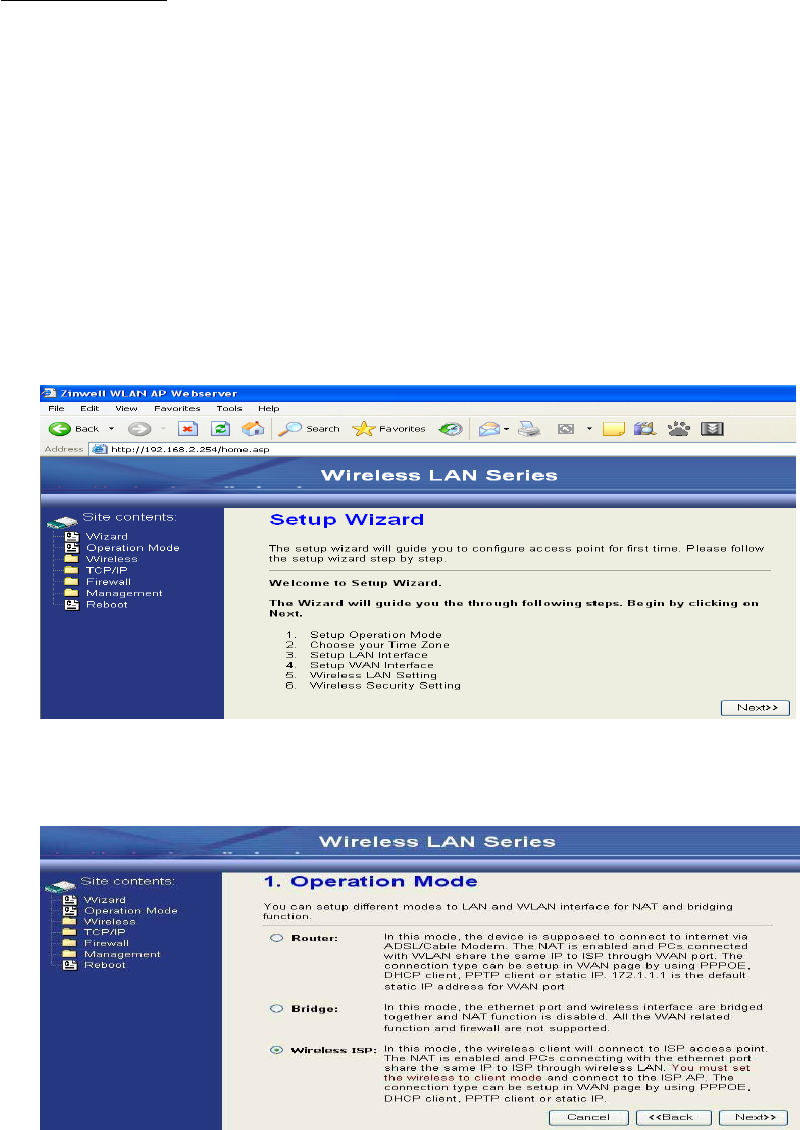

3. Press “Next>>” button then set the “Operation Mode” to “Wireless ISP”
mode.
24
4. Press “Next>>” button then disable “Time Zone” function.
5. Press “Next>>” button then set the IP address of LAN interface.
6. Press “Next>>” button then select the “DHCP Client” for “WAN Access
Type”.

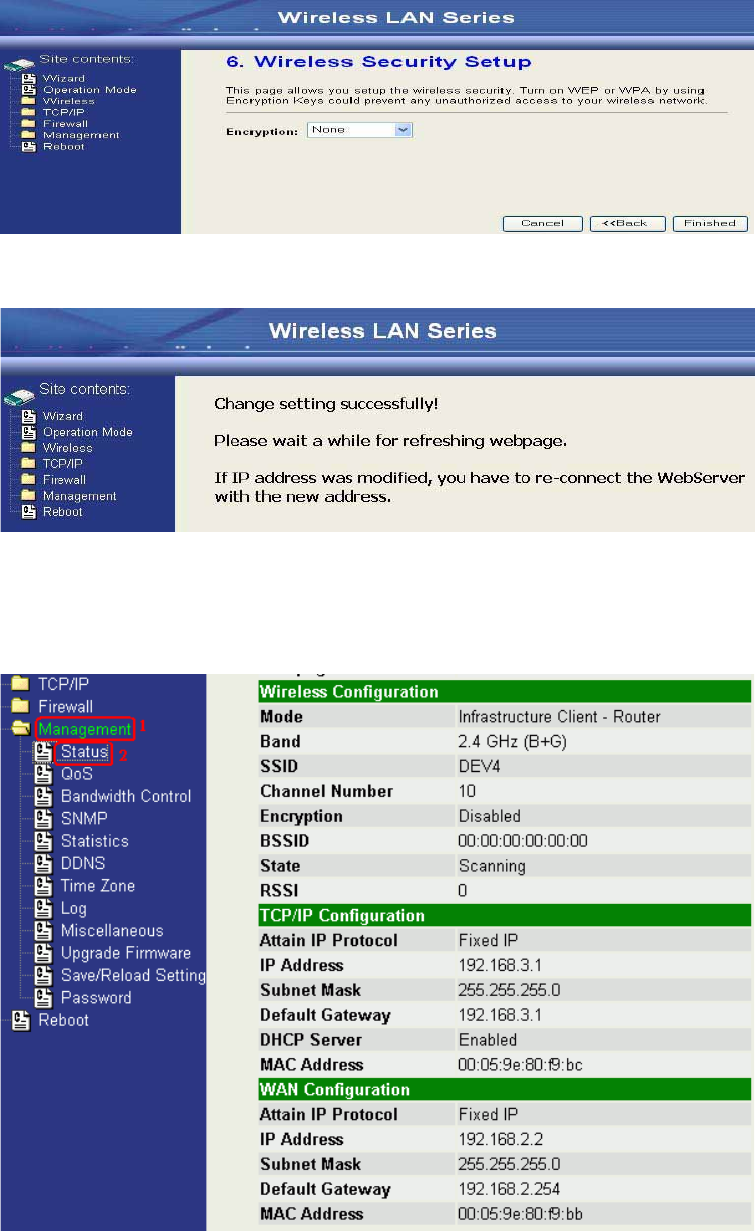

7. Press “Next>>” button then select the “Client” for “mode” and change
theʳSSID to “DEV4”.
25
8. Press “Next>>” button then select “None” for “Encryption” then press
“Finished” button.
9. Wait for refreshing web page.
10.Change the IP address of your PC to 192.168.3.x then access the web
server by the new IP address “192.168.3.1” and use “Status” page check
the setting.
26

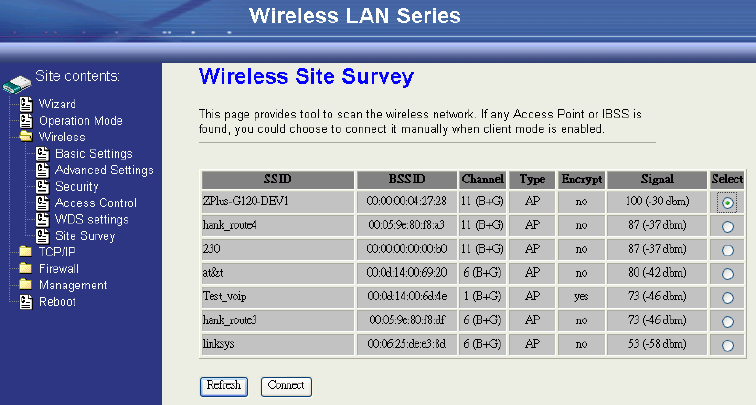

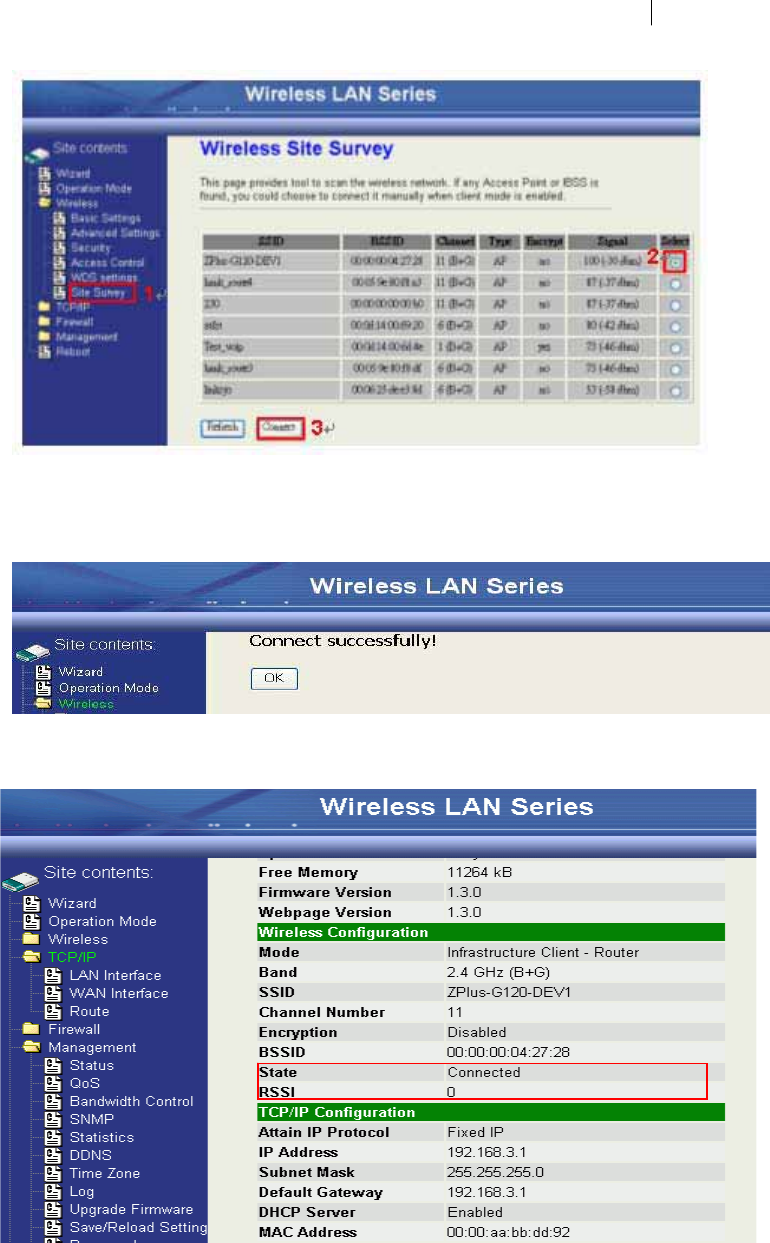

11.If the “State” of “Wireless Configuration” is not “Connected” or you want
to refresh the “RSSI “, please use “Site Survey” page to re-connect a AP.
27
Configure DEV5:
1. Access the web server (http://192.168.2.254) of device from the
Ethernet port.
Caution
If you configure multiple devices in the same PC, since the devices have
the same default IP address but different MAC addresses, it may cause you
unable to access the web server of device. If the situation happens, please
try to clean the ARP table of your PC by DOS command “arp –d” then you
can access the web server of device using the default IP address.

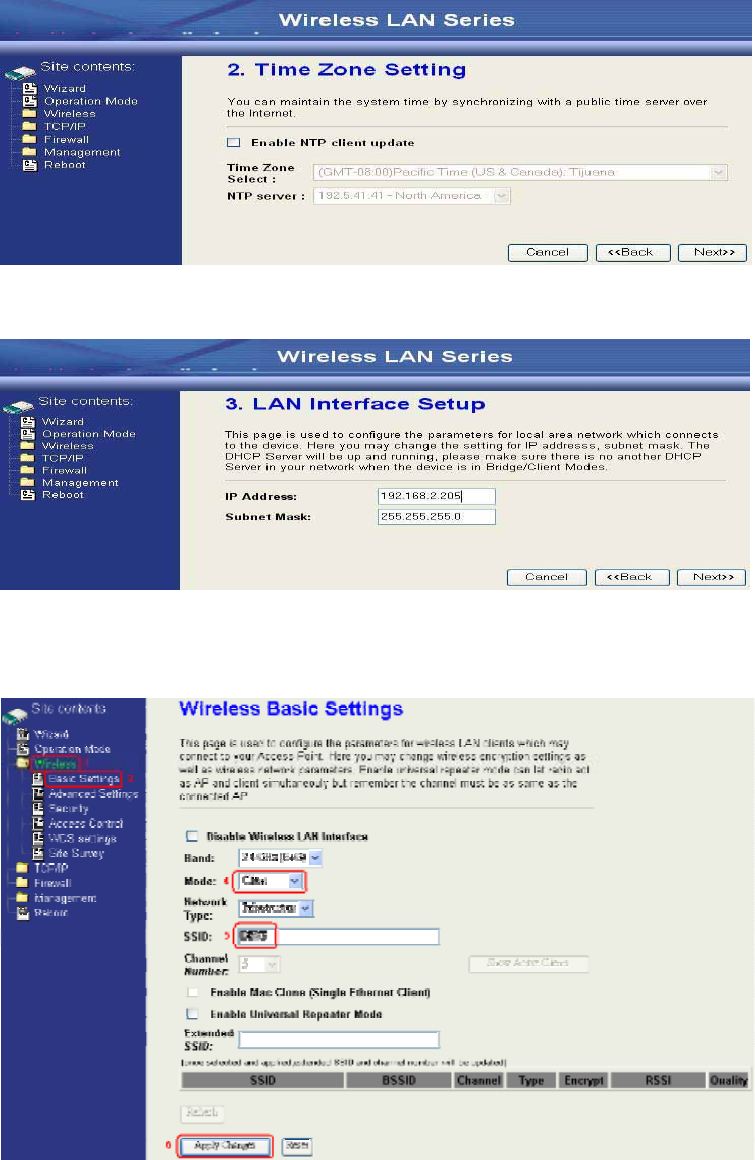

2. Use Wizard page to setup device.
3. Press “Next>>” button then set the “Operation Mode” to “Wireless ISP”
mode.
28
4. Press “Next>>” button then disable “Time Zone” function.
5. Press “Next>>” button then set the IP address of LAN interface.
6. Press “Next>>” button then select the “Client” for “mode” and change
theʳSSID to “DEV5”.
29
7. Press “Next>>” button then select “None” for “Encryption” then pressʳ
“Finished” button.
8. Wait for refreshing web page.

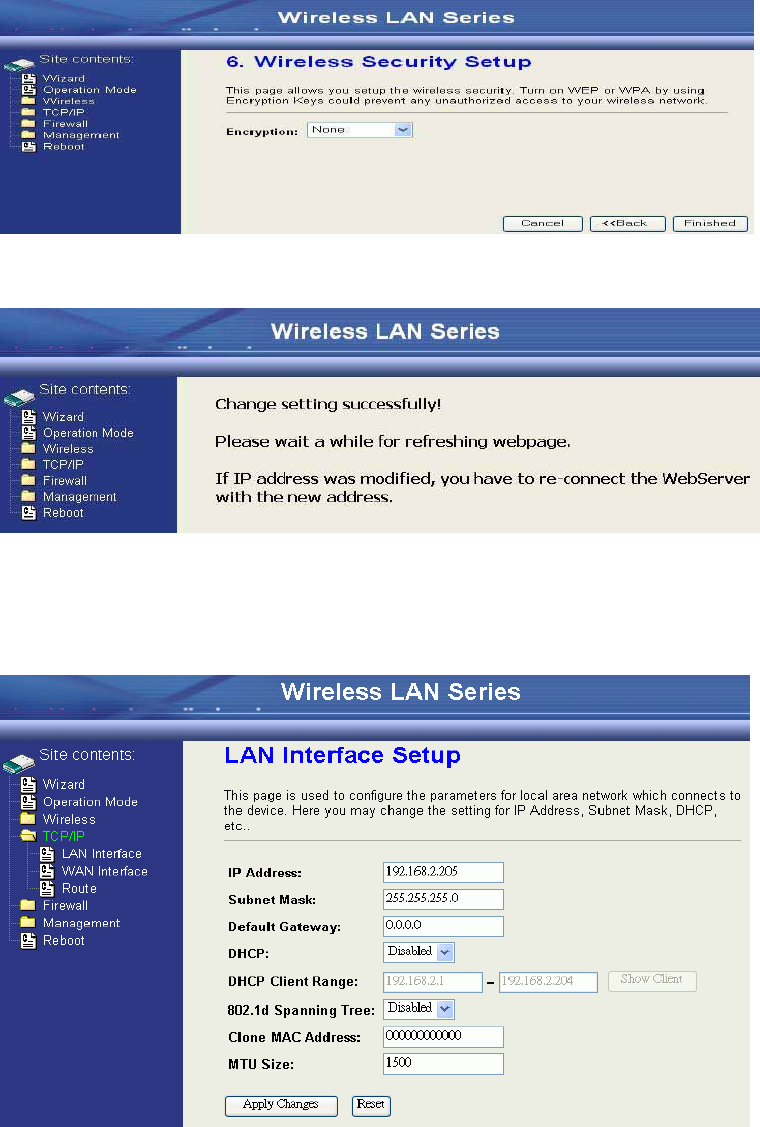

9. Access the web server by the new IP address “192.168.2.205” and useʳ
“LANʳ
Interface” page to disable DHCP Server.
30
10.Wait for refreshing webpage
11.Use “State” page to check setting.
12.If the “State” of “Wireless Configuration” is not “Connected” or you want
to refresh the “RSSI “, please use “Site Survey” page to re-connect a AP.
31

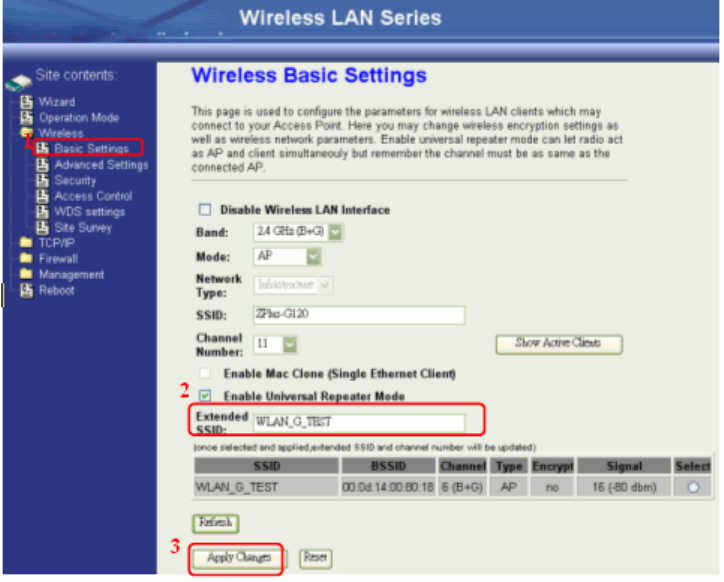

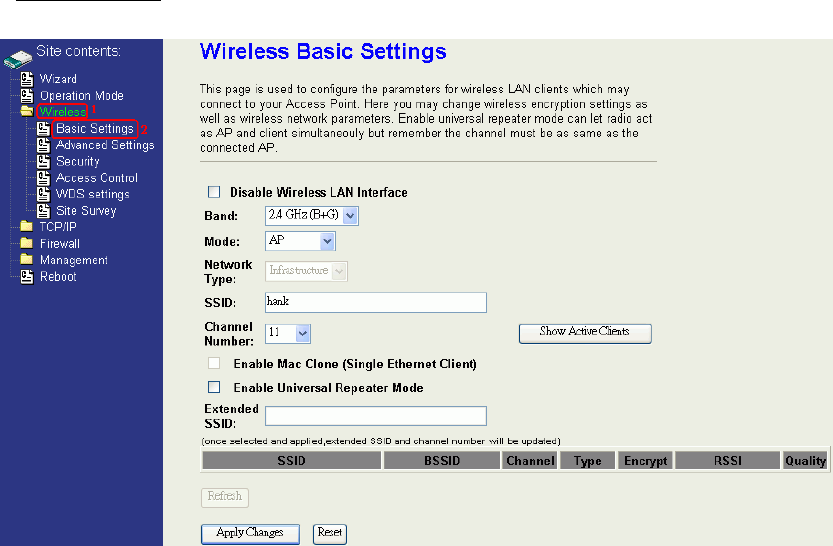

Basic Settings
Disable Wireless LAN Interface
Disable the wireless interface of device

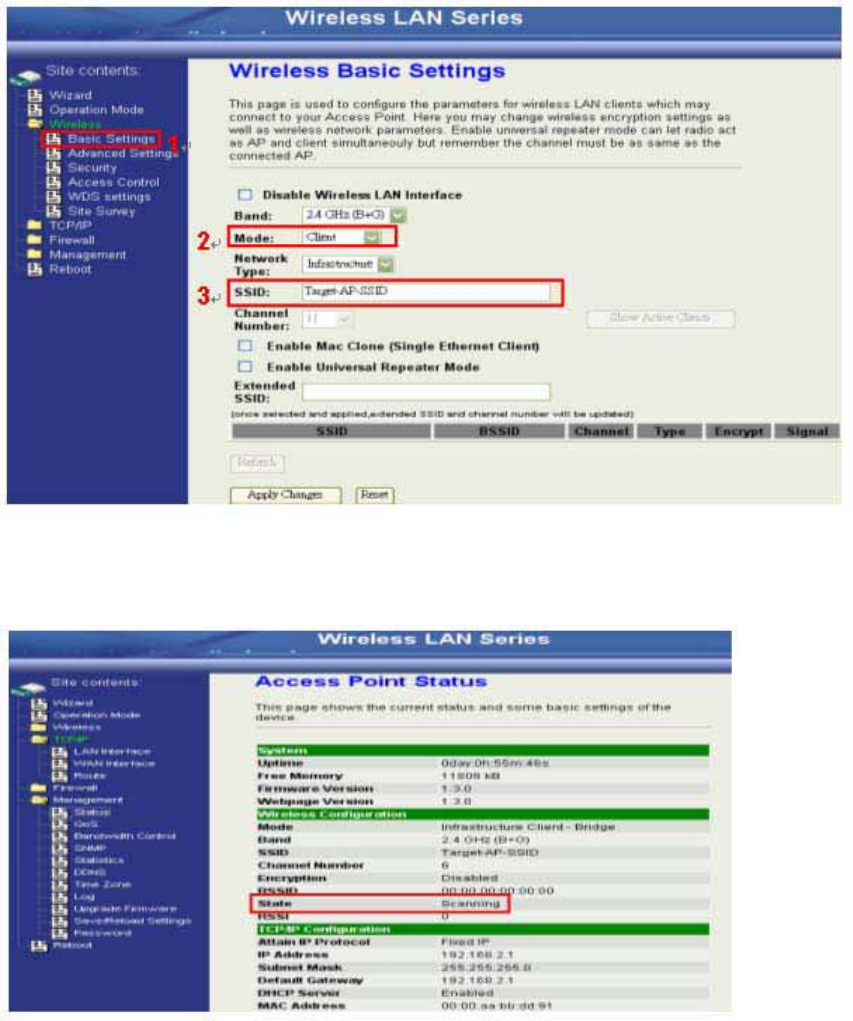

Band:
The device supports 2.4GHz(B), 2.4GHz(G) and 2.4GHz(B+G) mixed modes.
Mode:
The radio of device supports different modes as following:
1. APʳ
The radio of device acts as an Access Point to serves all wireless clients to
join a wireless local network.
2. Client
Support Infrastructure and Ad-hoc network types to act as aʳwireless
adapter.
3. WDSʳ
Wireless Distribution System, this mode serves as a wireless repeater,
only devices with WDS function supported can connect to it, all the wireless
clients can’t survey and connect the device when the mode is selected.
4. AP+WDS
Support both AP and WDS functions, the wireless clients and devices with
WDS function supported can survey and connect to it.
32
Infrastructure:
This type requires the presence of 802.11b/g Access Point. All
communication is done via the Access Point.
Ad Hoc:
This type provides a peer-to-peer communication between wireless
stations. All the communication is done from Client to Client without any
Access Point involved. Ad Hoc networking must use the same SSID and
channel for establishing the wireless connection.
In client mode, the device can’t support the Router mode function including
Firewall and WAN settings.
Ethernet
AP
AP Client #1 AP Client #2
AP Client #1
AP Client #2
AP Client #3
PC #1
PC #2
PC #3
33
SSID:
The SSID is a unique identifier that wireless networking devices use to
establish and maintain wireless connectivity. Multiple access point/bridges
on a network or sub-network can use the same SSID. SSIDs are case
sensitive and can contain up to 32 alphanumeric characters. Do not include
spaces in your SSID.
Channel Number
The following table is the available frequencies (in MHz) for the 2.4-GHz
radio:
Channel No. frequency Country Domain
1 2412 Americas, EMEA, Japan, and China
2 2417 Americas, EMEA, Japan, and China
3 2422 Americas, EMEA, Japan, Israel, and China
4 2427 Americas, EMEA, Japan, Israel, and China
5 2432 Americas, EMEA, Japan, Israel, and China
6 2437 Americas, EMEA, Japan, Israel, and China
7 2442 Americas, EMEA, Japan, Israel, and China
8 2447 Americas, EMEA, Japan, Israel, and China
92452 Americas, EMEA, Japan, Israel, and China
10 2457 Americas, EMEA, Japan, and China
11 2462 Americas, EMEA, Japan, and China
12 2467 EMEA and Japan only
13 2472 EMEA and Japan only
14 2484 Japan only
When set to “Auto”, the device will find the least-congested channel for use.
Associated Client
Show the information of active wireless client stations that connected to
the device.
34
Advanced Settings
These settings are only for more technically advanced users who have
sufficient knowledge about wireless LAN. These settings should not be
changed unless you know what effect the changes will have on your device.
The default setting is optimized for the normal operation. For specific
application, setting configuration will required highly attention to reach
optimistic condition.
NoteΚ
Any unreasonable value change to default setting will reduce the throughput
of the device.
Authentication Type
The device supports two Authentication Types “Open system” and “Shared

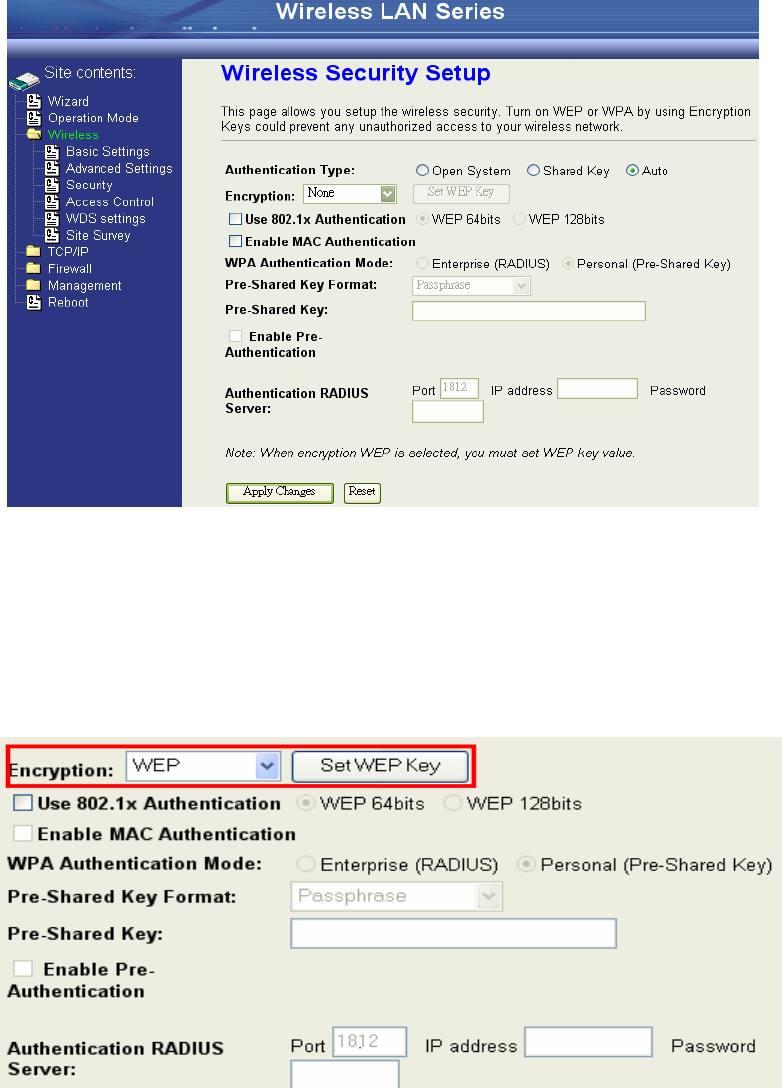

Key”. When you select “Share Key”, you need to setup “WEP” key in
“Security” page (See the next section). The default setting is “Auto”. The
wireless client can associate with the device by using one of the two types.
Fragment Threshold
The fragmentation threshold determines the size at which packets are
fragmented (sent as several pieces instead of as one block). Use a low
setting in areas where communication is poor or where there is a great deal
of radio interference. This function will help you to improve the network
performance.
35
RTS Threshold
The RTS threshold determines the packet size at which the radio issues a
request to send (RTS) before sending the packet. A low RTS Threshold
setting can be useful in areas where many client devices are associating
with the device, or in areas where the clients are far apart and can detect
only the device and not each other. You can enter a setting ranging from 0 to
2347 bytes.
Data Rate
The standard IEEE 802.11b/11g supports 1, 2, 5.5, 11 / 6, 9, 12, 18, 24,
36, 48 and 54 Mbps data rates. You can choose the rate that the device
uses for data transmission. The default value is “auto”. The device will use
the highest possible selected transmission rate.
Beacon Interval
The beacon interval is the amount of time between access point beacons
in mini-seconds. The default beacon interval is 100.
Broadcast SSID
Broadcasting the SSID will let your wireless clients find the device
automatically. If you are building a public Wireless Network, disable this
function can provide better security. Every wireless stations located within
the coverage of the device must connect this device by manually configure
the SSID in your client settings.
Int. Roaming
This function will let Wireless Stations roam among a network
environment with multiple devices. Wireless Stations are able to switch from
one device to another as they move between the coverage areas. Users can

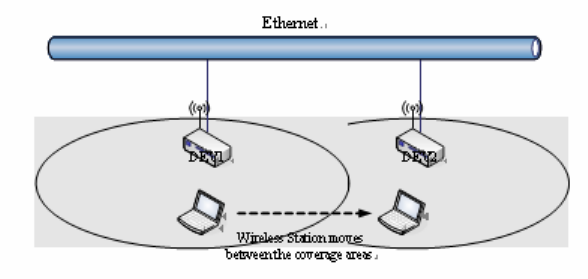

have more wireless working range. An example as the following figure
You should comply with the following instructions to roam among the
wireless coverage areas.
NoteΚʳ
For implementing the roaming function, the setting MUST comply the
following two items.
All the devices must be in the same subnet network and the
SSID must be the same.
If you use the 802.1x authentication, you need to have the
userʳprofile in these devices for the roaming station.
36
Block WLAN Relay (Isolate Client)
The device supports isolation function. If you are building a public
Wireless Network, enable this function can provide better security. The
device will block packets between wireless clients (relay). All the wireless
clients connected to the device can’t see each other.
Transmit Power
The device supports four transmission output power levels 250, 200, 150
andʳ100mW for CCK (802.11b) mode and two transmission output power
levelsʳ100 and 50mW for OFDM (802.11g) mode. User can adjust the power
level to change the coverage of the device. Every wireless stations located
within the coverage of the device also needs to have the high power radio.
Otherwise the wireless stations only can survey the device, but can’t
establish connection with device.
37
Configuring Wireless Security
This device provides complete wireless security function include WEP,
802.1x, WPA-TKIP, WPA2-AES and WPA2-Mixed in different mode (see the
Security Support Table).
The default security setting of the encryption function is disabled. Choose
your preferred security setting depending on what security function you
need.
WEP Encryption Setting
Wired Equivalent Privacy (WEP) is implemented in this device to
prevent unauthorized access to your wireless network. The WEP setting
must be as same as each client in your wireless network. For more secure
data transmission, you can change encryption type to “WEP” and click the
“Set WEP Key” button to open the “Wireless WEP Key setup” page.
38

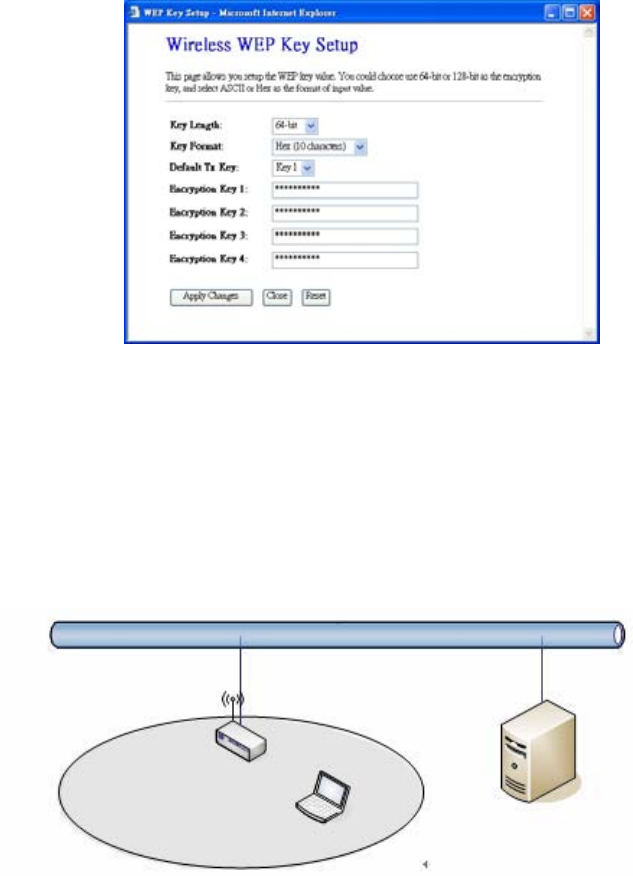

When you decide to use the WEP encryption to secure your WLAN,
please refer to the following setting of the WEP encryption:
ϥʳ 64-bit WEP EncryptionΚ64-bit WEP keys are as same as the encryption
method of 40-bit WEP. You can input 10 hexadecimal digits (0~9, a~f
or A~F) or 5 ACSII chars.
ϥʳ 128-bit WEP EncryptionΚ128-bit WEP keys are as same as the
encryption method of 104-bit WEP. You can input 26 hexadecimal
digitsʳ(0~9, a~f or A~F) or 10 ACSII chars.
ϥʳ The Default Tx Key field decides which of the four keys you want to use
in your WLAN environment.
WEP Encryption with 802.1x Setting
The device supports external RADIUS Server that can secure networks
against unauthorized access. If you use the WEP encryption, you can also
use the RADIUS server to check the admission of the users. By this way
every user must use a valid account before accessing the Wireless LAN and
requires a RADIUS or other authentication server on the network. An
example is shown as following.
39
You should choose WEP 64 or 128 bit encryption to fit with your
network environment first. Then add user accounts and the target device
to the RADIUS server. In the device , you need to specify the IP addressΕ
Password
Shared Secret) and Port number of the target RADIUS server.
WPA Encryption Setting
WPA feature provides a high level of assurance for end-users and
administrators that their data will remain private and access to their
network restricted to authorized users. You can choose the WPA encryption
and select the Authentication Mode.
WPA Authentication Mode
This device supports two WPA modes. For personal user, you can use the
Pre-shared Key to enhance your security setting. This mode requires only an
access point and client station that supports WPA-PSK. For Enterprise,
authentication is achieved via WPA RADIUS Server. You need a RADIUS or
other authentication server on the network.
Enterprise (RADIUS):
When WPA Authentication mode is Enterprise (RADIUS), you have to add
user accounts and the target device to the RADIUS Server. In the device , you
need to specify the IP addressΕPassword (Shared Secret) and Port number
of the target RADIUS server.
Pre-Share Key:
This mode requires only an access point and client station that supports
WPA-PSK. The WPA-PSK settings include Key Format, Length and Value.
They must be as same as each wireless client in your wireless network.
When Key format is Passphrase, the key value should have 8~63 ACSII
chars. When Key format is Hex, the key value should have 64 hexadecimal
digits (0~9, a~f or A~F).
40
Configuring as WLAN Client Adapter
This device can be configured as a wireless Ethernet adapter. In this
mode, the device can connect to the other wireless stations (Ad-Hoc network
type) or Access Point (Infrastructure network type) and you don’t need to
install any driver.
Quick start to configure
Step 1.
In “Basic Settings” page, change the Mode to “Client” mode.
And key in the SSID of the AP you want to connect then press “Apply
Changes” button to apply the change.
Step 2.
Check the status of connection in “Status” web page
The alternative way to configure as following:
41
The Alternative way to configure as following:
Step 1
. In “Wireless Site Survey” page, select one of the SSIDs you
want to connect and then press “Connect” button to establish the link.
Step 2
. If the linking is established successfully. It will show the
messageʳ“Connect successfully”. Then press “OK”.
Step 3.
Then you can check the linking information in “Status” page.
42
Note Κ
If the available network requires authentication and data encryption, you
need to setup the authentication and encryption before step1 and all the
settings must be as same as the Access Point or Station. About the detail
authentication and data encryption settings, please refer the security
section.
Authentication Type
In client mode, the device also supports two Authentication Types “Open
system” and “Shared Key”. Although the default setting is “Auto”, not every
Access Points can support “Auto” mode. If the authentication type on the
Access Point is knew by user, we suggest to set the authentication type as
same as the Access Point.
Data Encryption
In client mode, the device supports WEP and WPA Personal/Enterprise
except WPA2 mixed mode data encryption. About the detail data encryption
settings, please refer the security section.
43
Configuring Universal Repeater
This device can be configured as a Repeater. In this mode, the device can
extend available wireless range of other AP let user can link the network
that they want, Also the device working as AP and Repeater same time.
Following two ways describe how to make Universal Repeater effective.

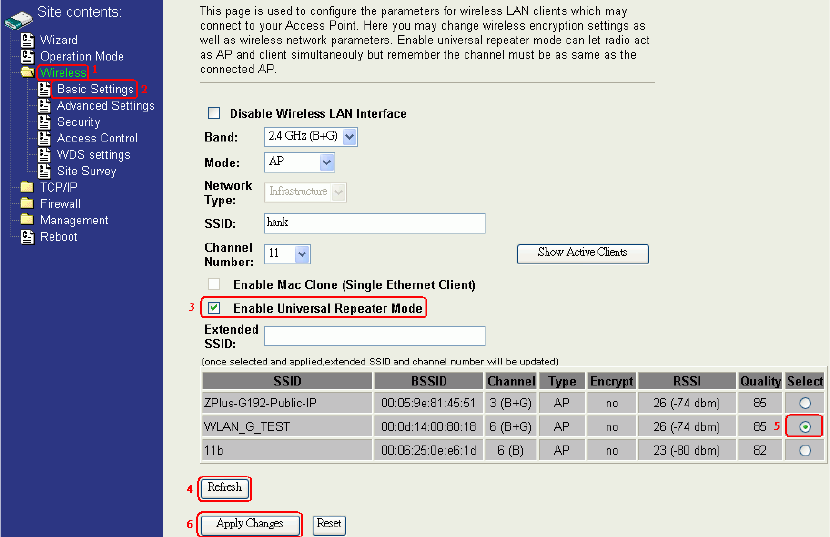

1. Enable Universal Repeater Mode and then select a SSID in the Table
that you want. Final click Apply Changes button to take effective. (Click
Refresh button to make table renew)
Note: Under APΕWDS and AP+WDS mode, The Universal Repeater can take
effective.
44
2. Enter specific SSID in the Extended SSID field and then click Apply
Changes button to take effective.
45
3. Configuring WDS
Wireless Distribution System (WDS) uses wireless media to communicate
with the other devices, like the Ethernet does. This function allows one or
more remote LANs connect with the local LAN. To do this, you must set
these devices in the same channel and set MAC address of other devices
you want to communicate with in the WDS AP List and then enable the
WDS.
When you decide to use the WDS to extend your WLAN, please refer the
following instructions for configuration.
ɿ The bridging devices by WDS must use the same radio channel.
ɿ When the WDS function is enabled, all wireless stations can’t connect the
device.
ɿ If your network topology has a loop, you need to enable the 802.1d
Spanning Tree function.
ɿ You don’t need to add all MAC address of devices existed in your network
to WDS AP List. WDS AP List only needs to specify the MAC address of
devices you need to directly connect to.
ɿ The bandwidth of device is limited, to add more bridging devices will split
the more bandwidth to every bridging device.
WDS network topology
In this section, we will demonstrate the WDS network topologies and
WDS AP List configuration. You can setup the four kinds of network
topologies: bus, star, ring and mesh.
In this case, there are five devices with WDS enabled: WDS1, WDS2, WDS3,
WDS4 and WDS5.
Bus topology:
46
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Address of WDS2 No
WDS2 The MAC Addresses of WDS1 and WDS3 No
WDS3 The MAC Addresses of WDS2 and WDS4 No
WDS4 The MAC Addresses of WDS3 and WDS5 No
WDS5 The MAC Address of WDS4 No
Star topology
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Address of WDS2, WDS3, WDS4
and WDS5 No
WDS2 The MAC Address of WDS1 No
WDS3 The MAC Address of WDS1 No
WDS4 The MAC Address of WDS1 No
WDS5 The MAC Address of WDS1 No
47

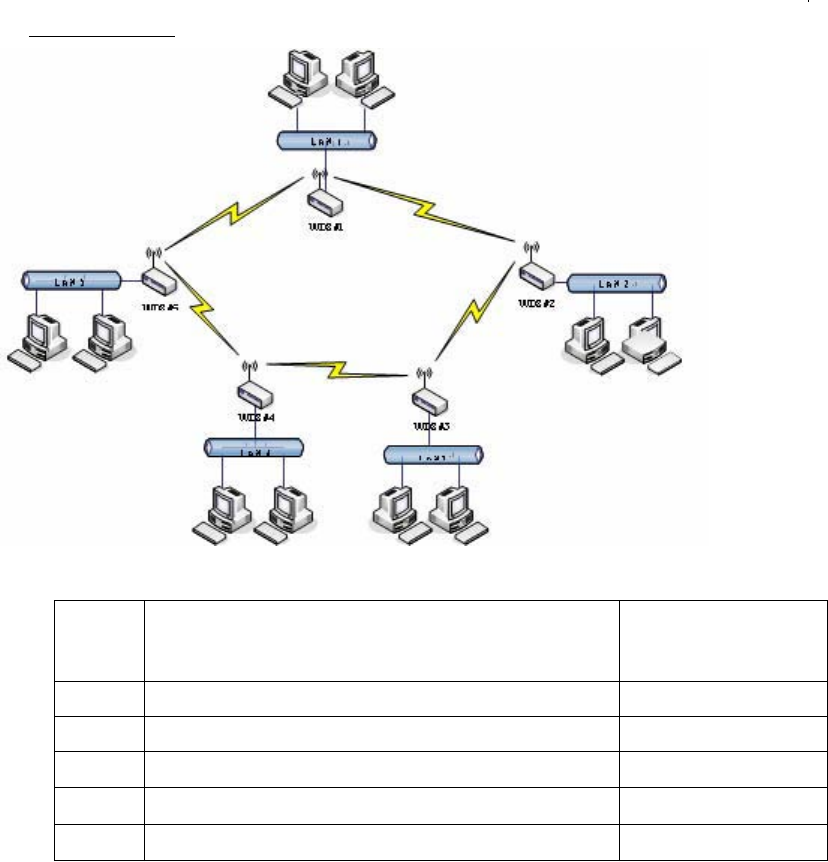

Ring topology:
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Address of WDS2, WDS5 Yes
WDS2 The MAC Address of WDS1, WDS3 Yes
WDS3 The MAC Address of WDS2, WDS4 Yes
WDS4 The MAC Address of WDS3, WDS5 Yes
WDS5 The MAC Address of WDS4, WDS1 Yes
48

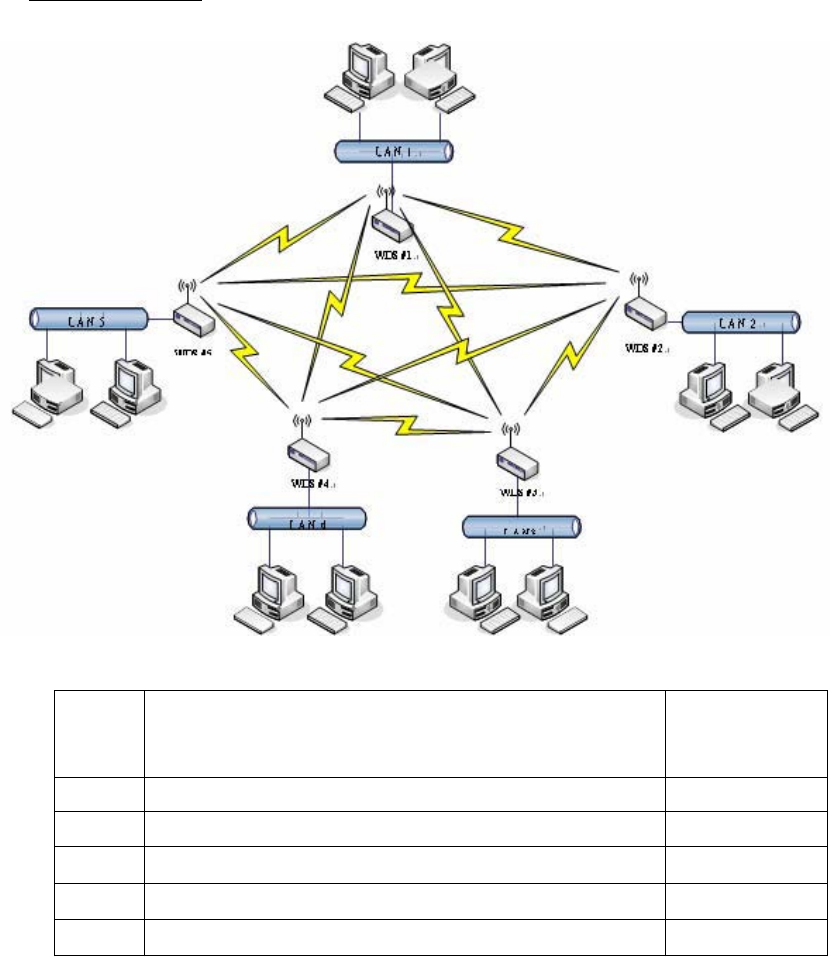

Mesh topologyΚ
Device Entries of WDS AP List
Spanning Tree
Protocol
Required
WDS1 The MAC Address of WDS2, WDS3, WDS4, WDS5 Yes
WDS2 The MAC Address of WDS˄, WDS3, WDS4, WDS5 Yes
WDS3 The MAC Address of WDS˄, WDS2, WDS4, WDS5 Yes
WDS4 The MAC Address of WDS˄, WDS2, WDS3, WDS5 Yes
WDS5 The MAC Address of WDS˄, WDS2, WDSˆ, WDS4 Yes
49
WDS Application
Wireless Repeater
Wireless Repeater can be used to increase the coverage area of another
device (Parent AP). Between the Parent AP and the Wireless Repeater,
wireless stations can move among the coverage areas of both devices.
When you decide to use the WDS as a Repeater, please refer the following
instructions for configuration.
ɿ In AP mode, enable the WDS function
ɿ You must set these connected devices with the same radio channel andʳ
SSID.
ɿ Choose “WDS+AP” mode.
ɿ Using the bus or star network topology.
Description Entries of WDS AP List Spanning Tree
Protocol Requires
Access Point The MAC Address of Repeater Yes
Repeater The MAC Address of Access Point Yes
50
Wireless Bridge
Wireless Bridge can establish a wireless connection between two or more
Wired LANs. When you decide to use the WDS as a Wireless Bridge, please
refer the following instructions for configuration.
ɿ In AP mode, enable the WDS function.
ɿ You must set these connected devices with the same radio channel, but
you may use different SSID.
ɿ Choose “WDS” mode for only wireless backbone extension purpose.
ɿ You can use any network topology, please refer the WDS topology section.

Navigation menu
