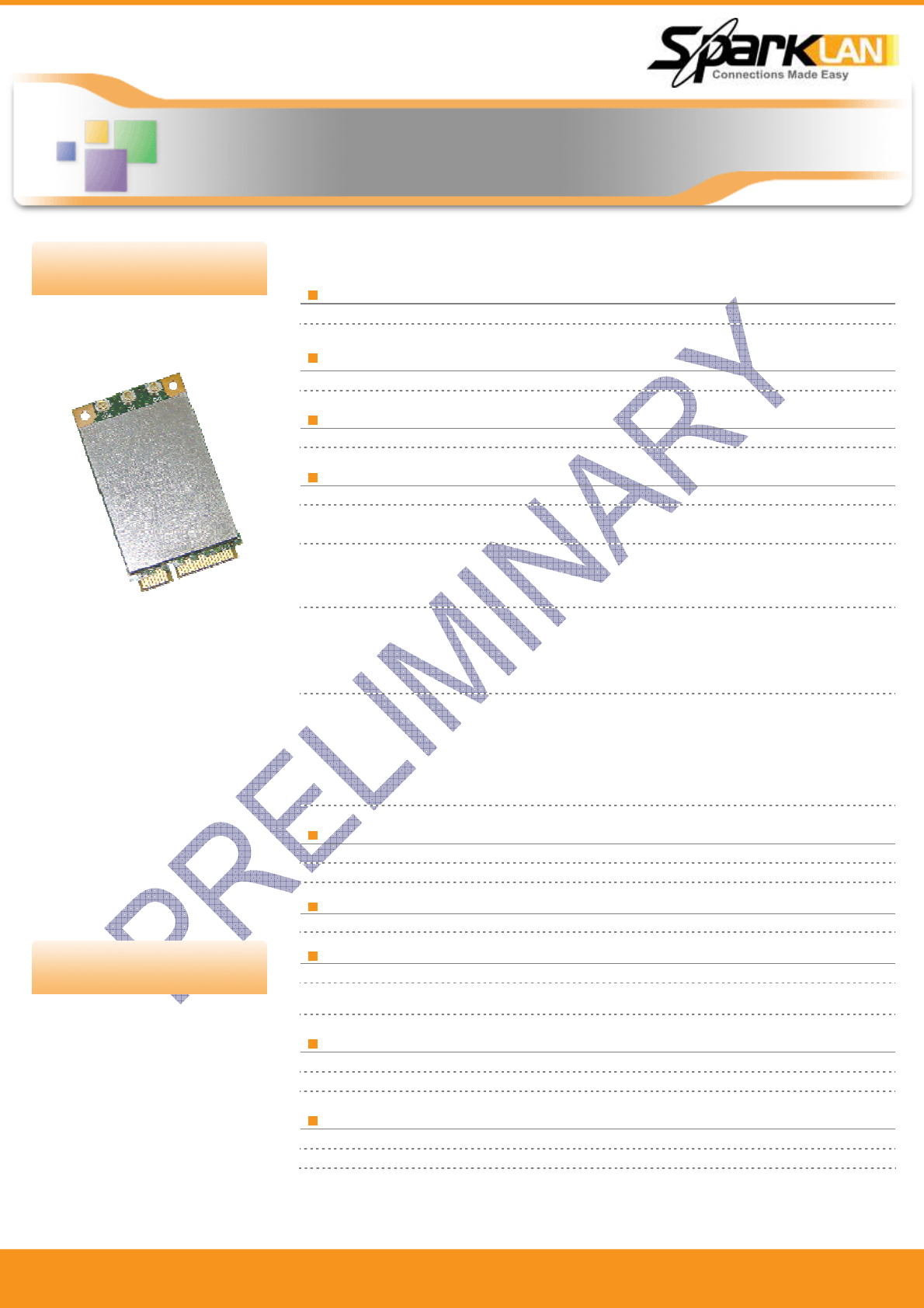

SparkLAN Communications WPEA127NI 802.11a/b/g/n 3T3R Mini PCIe Module User Manual WPEA 127NI v1 1

SparkLAN Communications, Inc. 802.11a/b/g/n 3T3R Mini PCIe Module WPEA 127NI v1 1

Contents

User Manual

W
PEA
-
127NI
w w w . s p a r k l a n . c o m / s a l e s @ s p a r k l a n . c o m / + 8 8 6 - 2 - 2 6 5 9 -
1880
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
■
Reference Design: XB114
■
Chipset: Atheros AR9390-AL1B
■
Interface: Mini PCI Express
■
Industrial-Grade Temperature:
-40 ~ 80°C
■
Wireless connection up to
450Mbps
■
RF 3T3R
■
Output Power up to 18dBm
■
Enhanced wireless security:
64/128-bits WEP, WPA, WPA2
■
Windows XP/ Vista, Win 7,
Linux, Android by request
Reliable High-Speed Industrial Embedded Application
SparkLAN WPEA-127NI is a high-speed 802.11n 3T3R Mini PCI module based on
Atheros XB114 Reference Design (AR9390-AL1B chipset), which delivers up to
450Mbps data rate. It supports the high transmission data rate and reliable
performance of 3 x 3 radios which are ideal for streaming multimedia
applications. It provides 3 stream MIMO configurations, which is easy to
implement to integrate into AP, Client Bridge and embedded system.
Industrial-Grade Temperature Range
WPEA-127NI is able to function under sever weather condition (
-40 ~ 80°C)
, which is
ideal for manufacturers to integrate with their devices that are designed for
wide-temperature range.
Feature

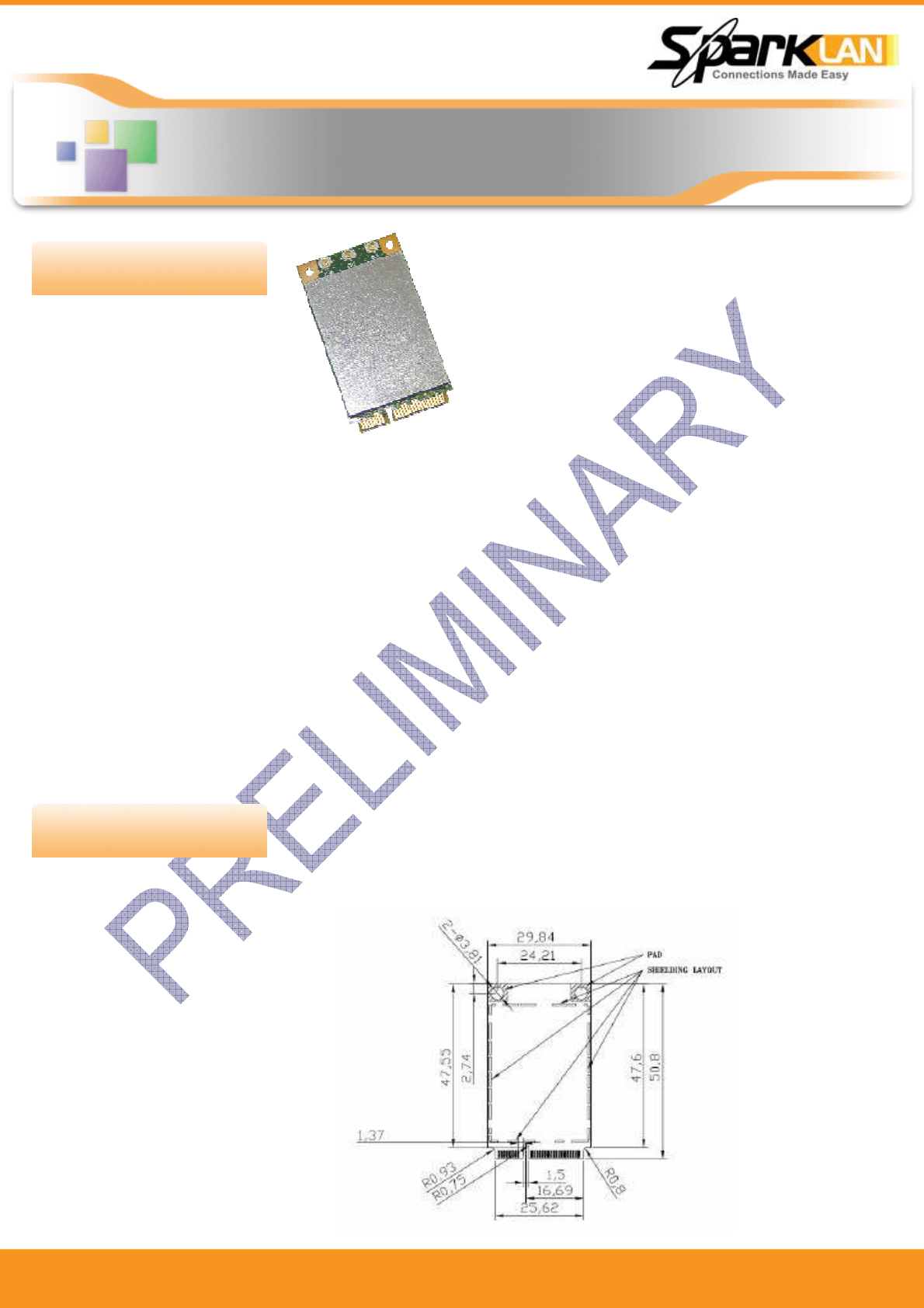

Mechanical Dimension (mm)
802.11a/b/g/n
Industrial-Grade Mini Card
Reference Design: XB114, Atheros AR9390-AL1B
Industrial-Grade Temperature -40 ~ 80°C
Application
■
Networking Equipment
■
Industrial Computers
■
Automation
■
Medical Device
■
POS (Point-of-Sale) System
■
Self-Service KIOSK
■
Gaming Machine
W
PEA
-
127NI
w w w . s p a r k l a n . c o m / s a l e s @ s p a r k l a n . c o m / + 8 8 6 - 2 - 2 6 5 9 -
1880
Specifications
Ordering Info
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
■
WPEA-127NI
802.11a/b/g/n Industrial-
Standard
802.11a/b/g/n
Chipset
Mac/BB/RF Atheros AR9390-AL1B
Host Interface
Mini PCI Express
Radio
Antenna 3 x U.FL connectors, 3T3R
Operating Frequency
11b/g/n ISM Band: 2.400~2.472GHz
11a ISM Band:5.180GHz ~ 5.825GHz
Modulation
802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g: OFDM (BPSK,QPSK,16-QAM,64-QAM)
802.11n: OFDM (BPSK,QPSK,16-QAM,64-QAM)
Output Power
92.0mW for 2412~2462MHz
120.8mW for 5745~5825 MHz
27.6mW for 5180~5240 MHz
51.8mW for 5260~5320 MHz
50.4mW for 5500~5700 MHz
Receive Sensitivity
802.11a: -76dBm ± 2dBm@54Mbps
802.11b: -90dBm ± 2dBm@11Mbps
802.11g: -76dBm ± 2dBm@54Mbps
802.11gn HT20: -74dBm ± 2dBm@ MCS7
802.11gn HT40: -70dBm ± 2dBm@ MCS7
802.11n HT20: -69dBm ± 2dBm@ MCS7
802.11n HT40: -68dBm ± 2dBm@ MCS7
Power consumption
Continue TX 970mA
Continue RX 300mA
Operating Voltage
DC 3.3V ± 5%
Environmental
Temperature Range
-40 ~ 80°C (Operating) -50~95°C (Storing)
Humidity
(Non-Condensing) 5 ~ 90% (Operating) 5% ~ 95% (Storage)
Physical Specification
Dimensions 50.8mm x 29.84mm x 3.3mm
Weight ≤ 7g
Software
Driver Windows XP/ Vista, Win 7, Linux, Android by request
Security 64/128-bits WEP, WPA, WPA2
