SC400

PARTS LIST

Advance model: 9087310020

9099627000(1)2012-07

03 D5IIB ADV 9099627000(1).indd 1 26-Jul-12 10:05:45

03 D5IIB ADV 9099627000(1).indd 2 26-Jul-12 10:05:45

PARTS LIST

07/2012 9099627000 - SC400 1

WHEN ORDERING PARTS

* Use the part numbers from the “Ref. No.” columns in this parts list.

* Specify the model and serial number of the machine.

* Use the space below to record the model and serial number for future reference.

Model Serial No.

* = Optional

#= Modied item No. or New item No.

[ ] = Not shown

TABLE OF CONTENTS

ENG PAGE

GENERAL SYSTEM 2 - 3

SOLUTION SYSTEM 4 - 5

FILTER AND WHEELS SYSTEM 6 - 7

RECOVERY SYSTEM 8 - 9

HANDLE SYSTEM 10 - 11

SQUEEGEE AND LIFT SYSTEM 12 - 13

BRUSH SYSTEM 14 - 15

WIRING SYSTEM 16 - 17

ACCESSORIES 18 - 19

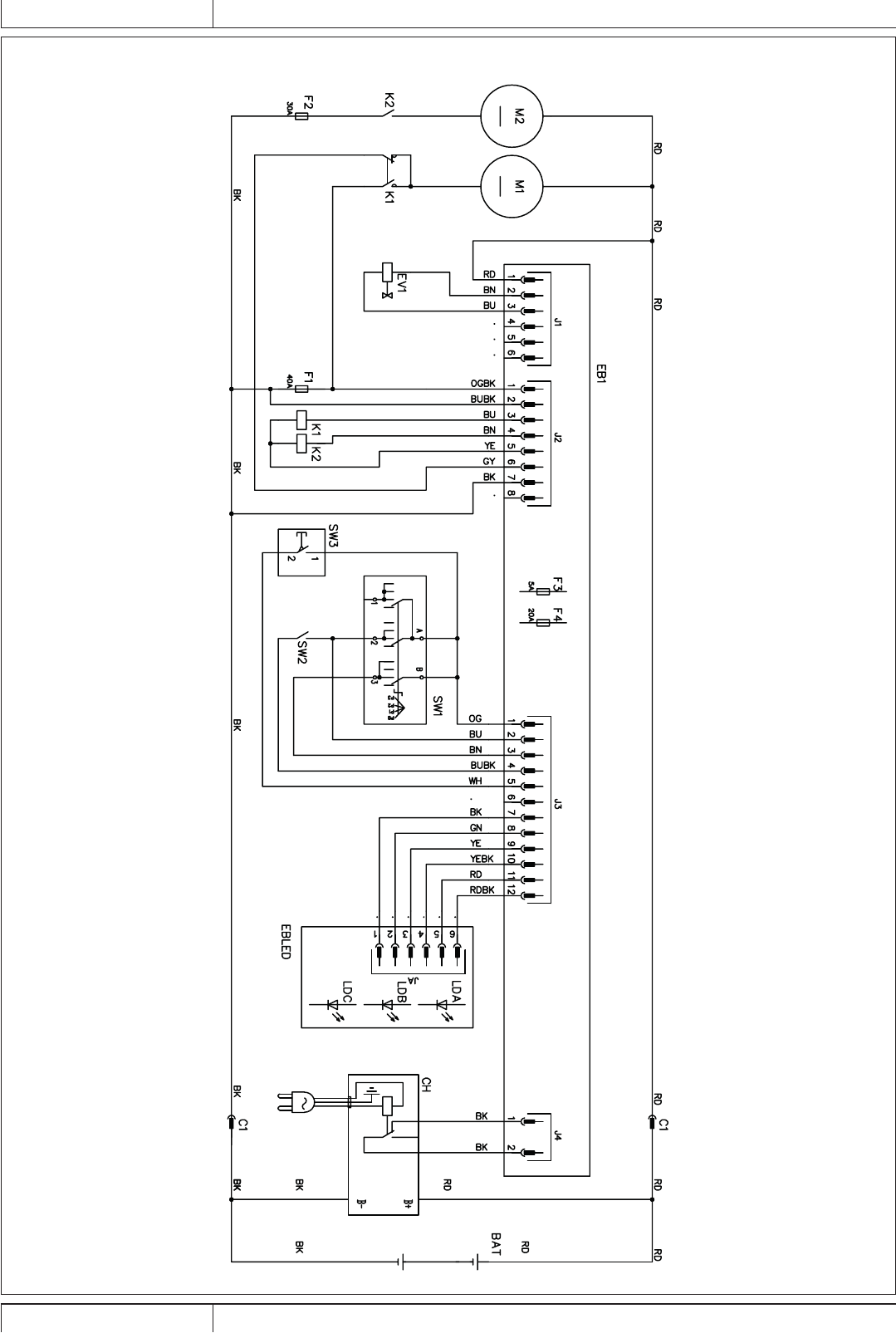

WIRING DIAGRAM 20 - 21

RECOMMENDED SPARE PARTS 22

03 D5IIB ADV 9099627000(1).indd 1 26-Jul-12 10:05:46

PARTS LIST

2SC400 - 9099627000 07/2012

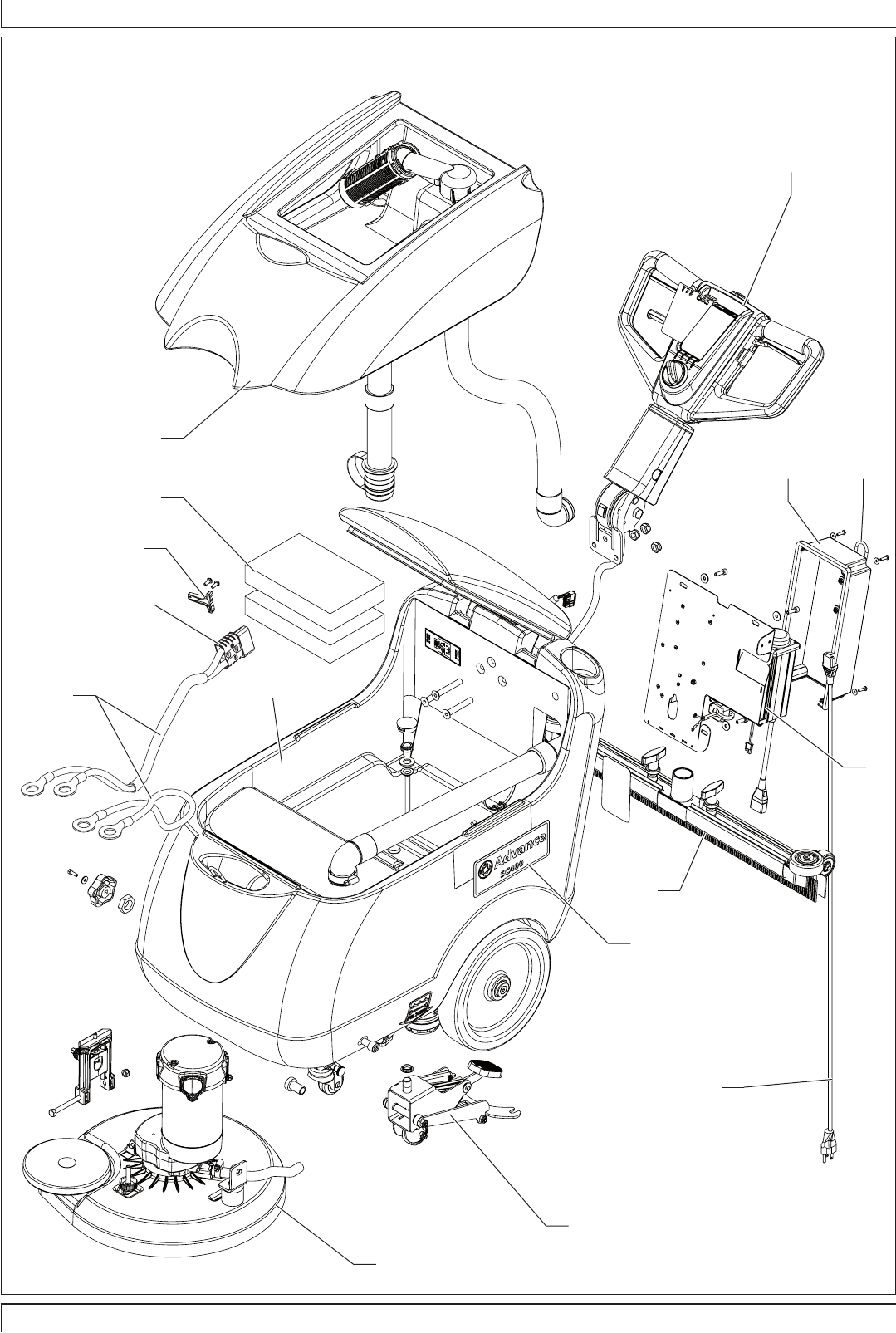

GENERAL SYSTEM

1

12

14

15

11

5 7

6

13

2

39

10

4

8

03 D5IIB ADV 9099627000(1).indd 2 26-Jul-12 10:05:54

PARTS LIST

07/2012 9099627000 - SC400 3

GENERAL SYSTEM

ITEM REF. NO. QTY DESCRIPTION

1 9099775000 1 DECALS SC400 ADVANCE KIT

2 L08812670 2 BATTERY RESTRAINT

3 909 5955 000 1 BATTERY HARNESS

4 9098761000 1 BATTERY CONNECTOR (C1)

5 9099762000 1 COVER ELECTRIC BOX KIT

6 9096914000 1 EXTENTION US PLUG

7 909 5149 000 1 CABLE SUPPORT

8 1464116000 1 HANDLE RED PLASTIC FOR CONNECTOR

9 - 1 SOLUTION SYSTEM

10 - 1 DIRTY WATER TANK SYSTEM

11 - 1 HANDLE SYSTEM

12 - 1 SQUEEGEE LIFT SYSTEM

13 - 1 SQUEEGEE ASSY

14 - 1 BA BRUSH DECK SYSTEM

15 - 1 ELECTRONIC + BATTERY CHARGER SYSTEM

03 D5IIB ADV 9099627000(1).indd 3 26-Jul-12 10:05:54

PARTS LIST

4SC400 - 9099627000 07/2012

SOLUTION SYSTEM

15

13

26

10

21

35

16

20

7

14

29

9

12

5

2

37

23

19

25

33

27

11

3

24

18

31

32

30

22

36

8

28

18

31

32

17

34

1

6

3

4

03 D5IIB ADV 9099627000(1).indd 4 26-Jul-12 10:05:55

PARTS LIST

07/2012 9099627000 - SC400 5

SOLUTION SYSTEM

ITEM REF. NO. QTY DESCRIPTION

K1 1 1 EPDM CAP FOR BATTERY BOX

K1 2 3 WASHER, FLAT XL

K1 3 2 SCREW, PAN PHIL M5X10 LOCTITE

K1 4 1 CLAMP, CABLE Ø12.7

K1 5 3 SCREW, PAN PHIL M6X12

6 9098446000 1 SOLUTION HOSE 600 MM

K1 7 1 TIE, CABLE 4,8X430

8 909 6380 000 1 CLAMP KIT

K1 9 1 WASHER, FLAT XL 5,5X15

K1 10 2 SCREW, HEX HD M8X95

11 9098448000 1 FRESH WATER TANK

K1 12 1 SCREW, HEX THD TO HD M5X16

13 9098466000 1 MOTOR COVER

K1 14 1 SPACER 5.5X8X3

15 9098801000 1 SOUND ABSORBENT FILTER

16 9098802000 1 FILTER LEVEL WATER HOSE

17 9099103000 1 HARNESS BA MACHINE

K1 18 3 TIE, CABLE 4,8X200

19 9099178000 1 BRUSH SUPPORT

20 9098443000 1 ELBOW Ø20

K1 21 1 PLUG, BLACK PLASTIC

22 909 5579 000 1 VACUUM SUCTION HOSE

K1 23 3 AVIBRATION DAMPING EI TYPE

K1 24 1 CLAMP, HOSE D.18

25 909 5564 000 1 ACOUSTIC INSULATION PIPE

26 909 5565 000 1 ACOUSTIC INSULATION PIPE

27 9099184000 1 FILTER

28 9098761000 1 CONNECTOR 50A RED

29 9099195000 1 FRONT ADJUSTABLE SUPPORT

K1 30 1 CLAMP

K1 31 3 SCREW, PAN PHIL M5X12

K1 32 3 FLAT TIE HOLDER

33* 9097290000 1 HOSE FILLING

34 9097383000 1 ELBOW Ø20

K1 35 1 THREAD ROLLING SCR 5X16

36 909 5713 000 1 MOTOR VACUUM KIT (M2)

37 909 5371 000 2 CARBON BRUSH

[K1] 9099763000 1 HARDWARE SOLUTION TANK KIT

03 D5IIB ADV 9099627000(1).indd 5 26-Jul-12 10:05:55

PARTS LIST

6SC400 - 9099627000 07/2012

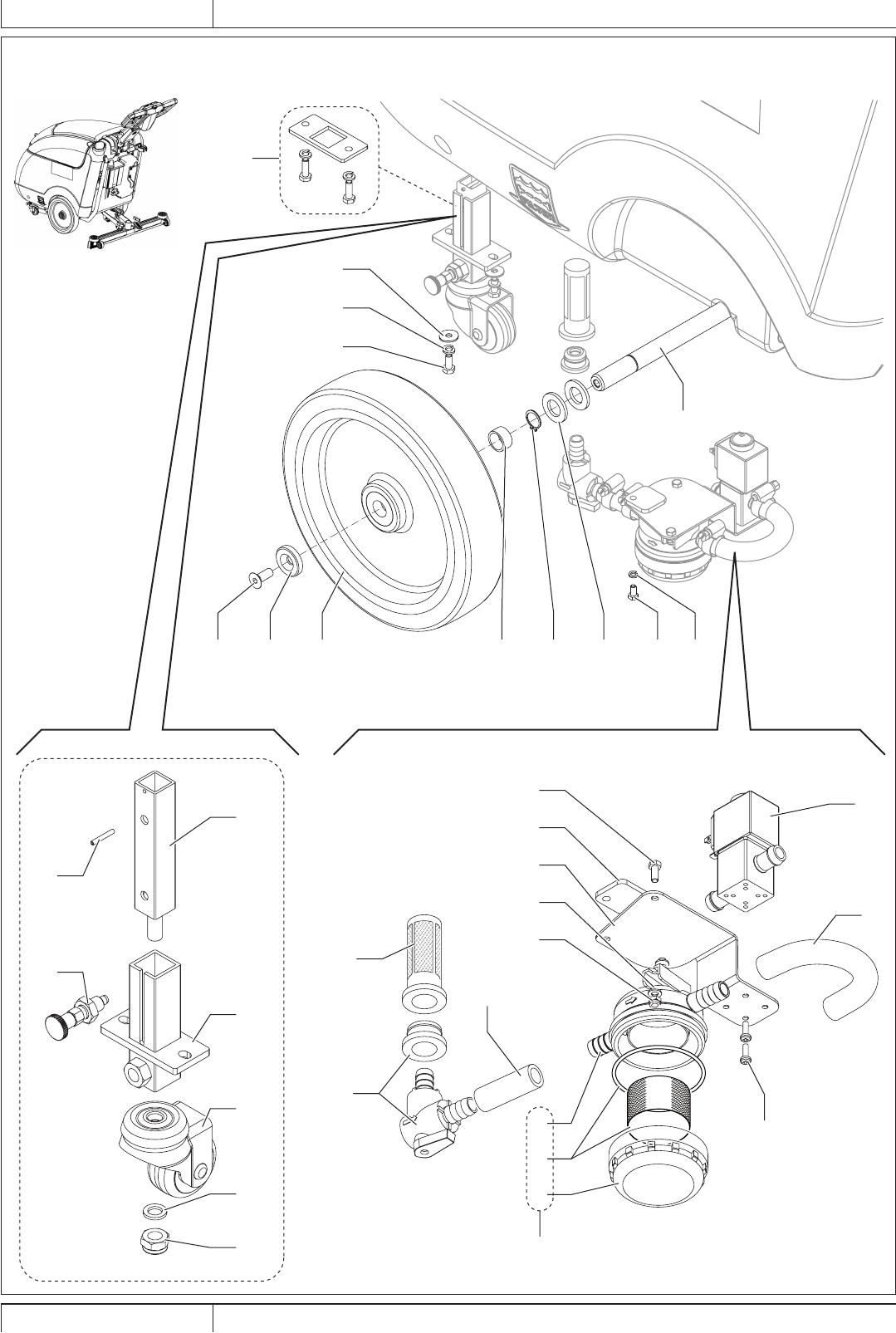

FILTER AND WHEELS SYSTEM

9

4

5

13

11

3

9

12

1

18

17

16

19

20

21

15

6

14

K1

K2

8

7

8

25 26 27 28 29 30 210

22

23

24

32

31

03 D5IIB ADV 9099627000(1).indd 6 26-Jul-12 10:05:55

PARTS LIST

07/2012 9099627000 - SC400 7

FILTER AND WHEELS SYSTEM

ITEM REF. NO. QTY DESCRIPTION

K4 1 2 SCREW,PAN PHIL THD FORM

K4 2 1 SCREW, HEX THD TO HD M5X10

K4 3 2 SCREW, HEX THD TO HD M5X12

K4 4 2 NUT, HEX NYL LOC THIN M5

K4 5 2 WASHER, FLAT 5,3X10

6 9097626000 1 VALVE ELBOW KIT

K1 7 909 5215 000 1 NET & GASKET WATER FILTER

K1 8 1 FILTER SOLUTION

9 9099778000 1 HOSE SOLUTION FILTER KIT

K4 10 1 WASHER, SPLIT LOCK D.5

11 9099200000 1 RUBBER ADHESIVE SPACER

12 9099247000 1 SOLENOID VALVE 24V (EV1)

13 9099179000 1 FILTER - SOLENOID VALVE SUPPORT

14 9096916000 1 FILTER SOLUTION TANK

K3 15 1 NUT, HEX NYL LOC THIN M10

K3 16 1 PIVOT WHEEL 50X24

K3 17 1 MACHINE SUPPORTING ROAD

K3 18 1 MACHINE SUPPORTING ROAD

K3 19 1 PIN, SPRING 3X20

K3 20 1 PLUGER INDEXING

K3 21 1 WASHER, FLAT 10X16X2.0

K4 22 2 WASHER, FLAT XL

K4 23 2 WASHER, SPLIT LOCK D.6

K4 24 2 SCREW, HEX THD TO HD M6X14

K3 25 2 SCREW, FLAT SOCKET HEAD

K3 26 2 BUSHING

27 9099410000 2 WHEEL D250X50 GREY RING BLACK BODY

K3 28 2 SPACER 17X21X10.5

K3 29 2 SHAFT RING D 17

K3 30 4 WASHER, FLAT 17X30

K3 31 1 WHEELS SHAFT

32* 909 6226 000 1 RUBBER SHOCK ABSORBER KIT

K1 9097404000 1 FILTER SOLUTION

K2 9099705000 1 WHEEL KIT

[K3] 9099765000 1 HARDWARE WHEELS SHAFT KIT

[K4] 9099766000 1 HARDWARE FILTER AND SUPPORT KIT

PER WEB: mettere sul 9099705000 una nota con disponibile i seguenti ricambi no a esaurimento scorte

K2 16 909 5560 000 1 PIVOT WHEEL 50X24 RUOTA GIREVOLE 50X24

K2 17 909 5649 000 1 MACHINE SUPPORTING ROAD SUPPORTO ASTA SOSTEGNO MACCHINA

K2 18 909 5658 000 1 MACHINE SUPPORTING ROAD ASTA SOSTEGNO MACCHINA

K2 19 909 6441 000 1 PIN, SPRING 3X20 SPINA ELASTICA 3X20

K2 20 9099135000 1 PLUGER INDEXING PISTONCINO A MOLLA

03 D5IIB ADV 9099627000(1).indd 7 26-Jul-12 10:05:56

PARTS LIST

8SC400 - 9099627000 07/2012

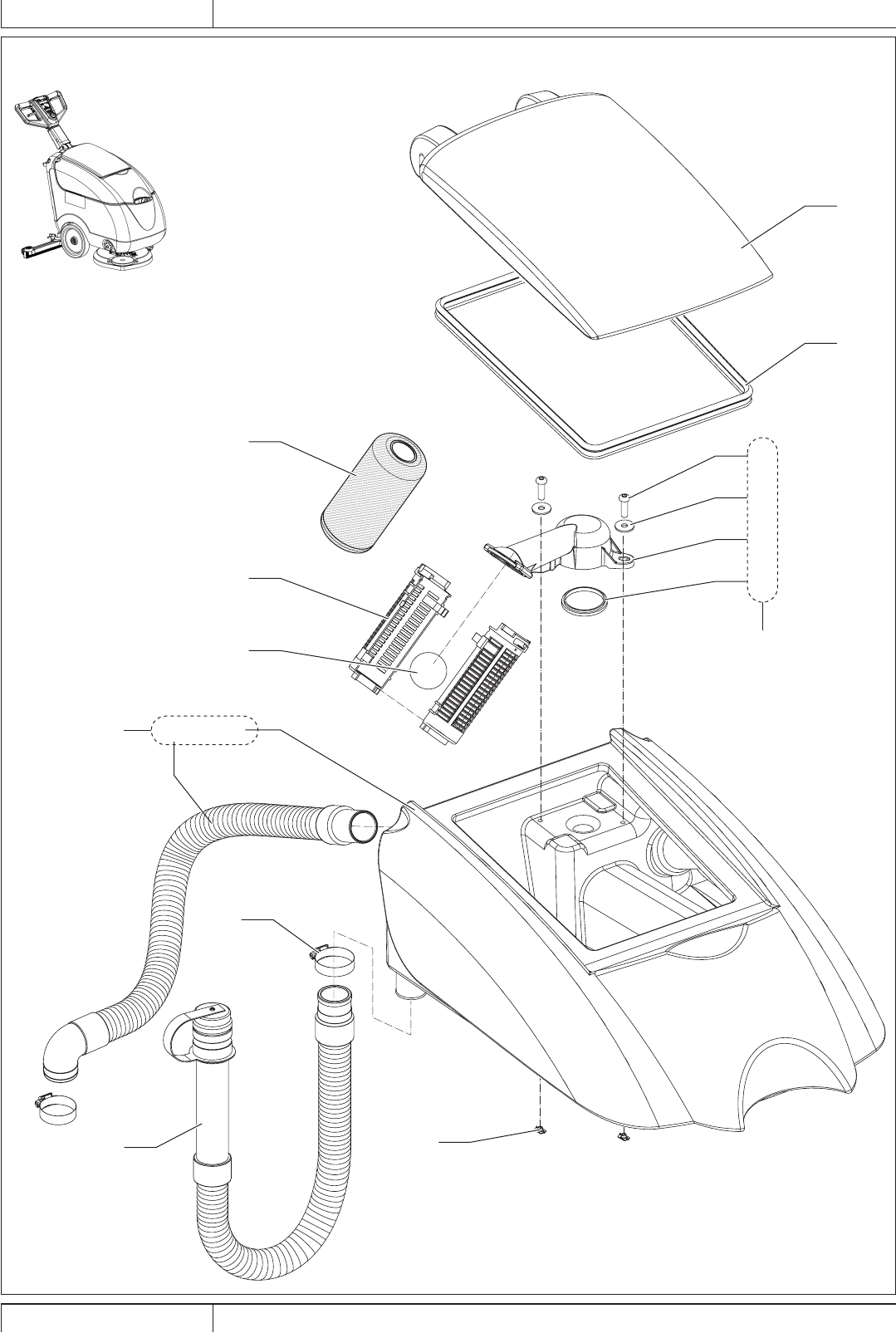

RECOVERY SYSTEM

2

1

11

55

12

13

6

3

14

4

7

8

9

10

K1

K2

03 D5IIB ADV 9099627000(1).indd 8 26-Jul-12 10:05:56

PARTS LIST

07/2012 9099627000 - SC400 9

RECOVERY SYSTEM

ITEM REF. NO. QTY DESCRIPTION

1 909 5716 000 1 GASKET

2909 5553 000 1 TANK COVER

3L08812259 2 FLOAT CAGE

4L08812373 1 FLOATING BALL

K2 5 1 SUPPORT FLOAT SYSTEM

6* 909 5065 000 1 FILTER ANTIFOAMING

K1 7 1RECOVERY TANK

K1 8 909 6060 000 1 SUCTION HOSE

9145 0543 000 2 CLAMP

10 9099687000 1 HOSE DRAIN

K2 11 1 GASKET FLOAT SUPPORT

K2 12 2 WASHER, FLAT XL SS

K2 13 2 SCREW, BUTTON SOC M6X20

K2 14 2 NUT DRIVIN 6X6 SS

K1 909 6061 000 1 RECOVERY TANK + SUCTION HOSE KIT

K2 9099767000 1 SUPPORT FLOAT KIT

03 D5IIB ADV 9099627000(1).indd 9 26-Jul-12 10:05:56

PARTS LIST

10 SC400 - 9099627000 07/2012

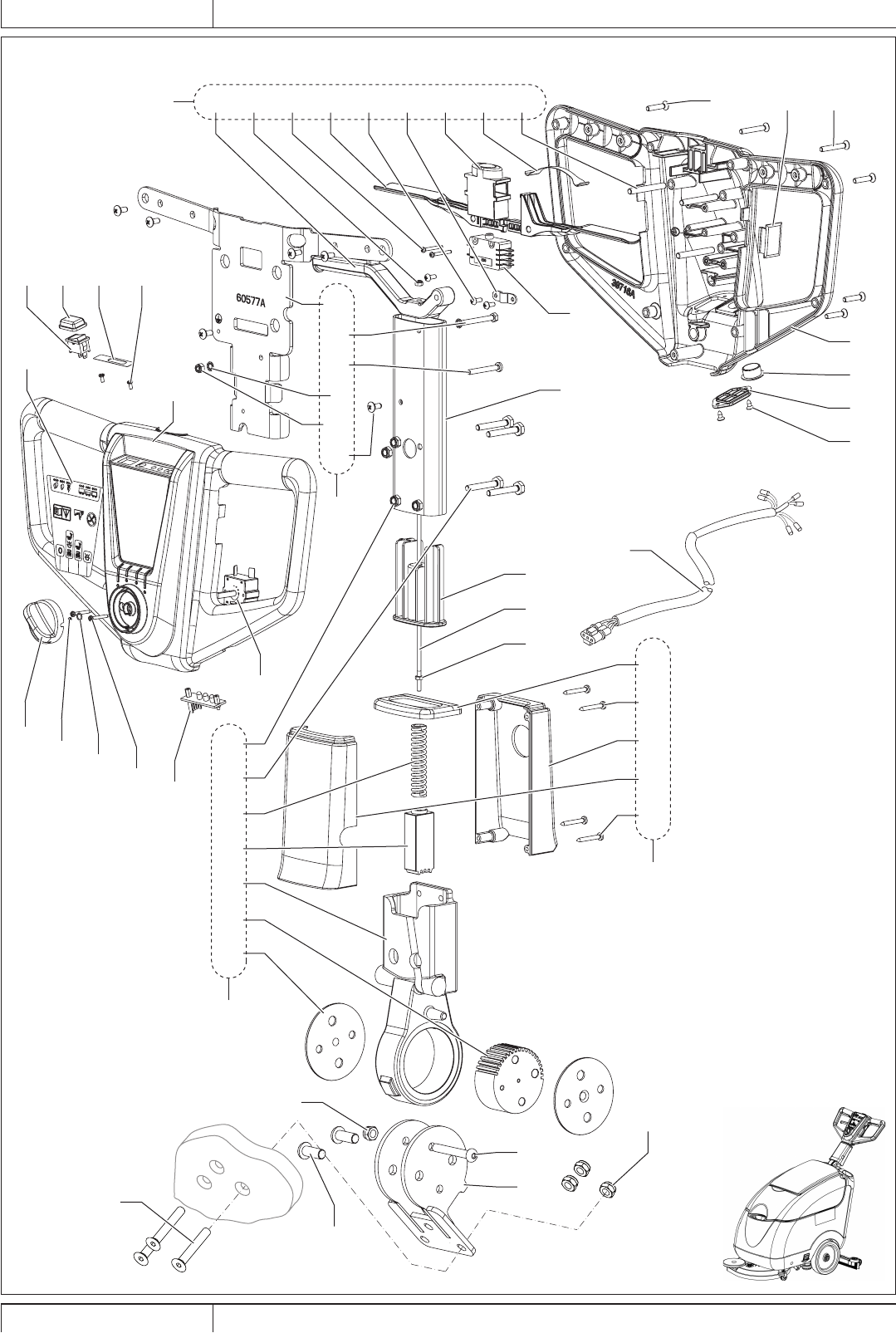

HANDLE SYSTEM

20

4

9

10

19

30

17

16

30

15

2

7

5

8

43

6

36

38 44 35

14K4

27

31

34

1

32

37

33 29 13 39 24 18 21 25

56

41

40

42

26

23

22

28

3

57

11

47 48 50 49 53

12

51

54 45 52 46

55

K1

K3

K2

03 D5IIB ADV 9099627000(1).indd 10 26-Jul-12 10:05:59

PARTS LIST

07/2012 9099627000 - SC400 11

HANDLE SYSTEM

ITEM REF. NO. QTY DESCRIPTION

K3 1 3 WASHER SH #1210-00

K5 2 1 SCREW, BUTTON SOC M8X55

K5 3 1 NUT, HEX NYL LOC THIN M8 SS

K5 4 2 SCREW, FLT PHIL THD FORM M4,2 X 50

K5 5 2 SCREW, BUTTON SOC M 10X25 SS

6 9098805000 1 ROD INDEX

7 9098806000 1 HANDLE SUPPORT

8 9098808000 1 TUBE, HANDLE

9 9098812000 1 CAP

10 9098813000 1 BLACK CAP D.18,5/24

11 9099054000 2 HARNESS HANDLE

12 9098530000 1 COVER HANDLE FRONT

K4 13 2 LEVER SWITCH

K4 14 1 LEVER

K1 15 1 CAP RUBBER

K1 16 1 COVER REAR

K1 17 1 COVER FRONT

K4 18 1 BUTTON INTERLOCK

19 39716A 1 REAR COVER HANDLE

20 40263A 1 SWITCH (SW2)

K4 21 1 SPRING INTERLOCK BUTTON

K2 22 1 GEAR, HANDLE INDEXING

K2 23 1 HOUSING GEAR INDEX

K4 24 1 CLAMP CORD

K4 25 3 PIN HANDLE SUPPORT

K2 26 1 GERA INDEX

K3 27 1 HANDLE SUPPORT

K2 28 2 PLATE, GEAR HOUSING

K4 29 2 SCREW M3x25

K1 30 4 SCREW ST4.2-1.4

K3 31 1 SCREW M5x43

K3 32 1 NUT LOCK M5 SS HEX

K4 33 1 NUT LOCK M4 SS HEX

K3 34 1 SCREW M5x40 SS PAN HEAD PHILLIPS

K5 35 2 SCREW M5x35 SS HEAD PHILLIPS

36 80402A 1 NUT HEX M4 SS

K3 37 6 SCREW M5x12 TRUSS HEAD PHILLIPS

K5 38 6 SCREW M5 X 25 SS FLAT HEAD PHILLIPS

K4 39 3 SCREW, M4 X 10 SS PAN HEAD PHILLIPS

K2 40 4 SCREW M6 X 40 SS HEX HEAD

K2 41 4 NUT LOCK M6 SS HEX

K2 42 1 SPRING COMPRESSION

43 VF47033 1 HOUSING SPRING BLACK

44 VF54041 1 CAP

45 L08603154 1 CAPPUCCIO ANTISPRUZZO

K5 46 2 SCREW, FLT PHIL M5X20 UNI7688

47 9097283000 1 KNOB CONTROL FUNCTIONS

K5 48 1 SCREW, SOC SET

K5 49 2 SCREW, PAN HD THD FORM

K5 50 1 SEAL O-RING M6x1

51 9099056000 1 DECAL CONTROL PANEL BATTERY VERSION

52 9098616000 1 DECAL, BATTERY LED

53 9099053000 1 TWO-COLOURED LED BOARD (EBLED)

54 9099107000 1 SINGLE-POLE MOMENTARY SWICTH (SW3)

55 9099332000 1 ROTATIVE SWITCH (SW1)

K5 56 3 NUT, HEX NYL LOC THIN M10

K5 57 3 SCREW, FLAT SOCKET HEAD

K1 11271A 1 LOWER COVER KIT

K2 56381560 1 BOX HOUSING GEARS KIT

K3 11273A 1 HANDLE SUPPORT KIT

K4 11274A 1 HANDLE SWITCH LEVER KIT

[K5] 9099768000 1 HARDWARE HANDLE BAR KIT

03 D5IIB ADV 9099627000(1).indd 11 26-Jul-12 10:05:59

PARTS LIST

12 SC400 - 9099627000 07/2012

2

3

K5

3

3

3

K4

1

K2

4

K3

K1

K6

K7

5

7

6

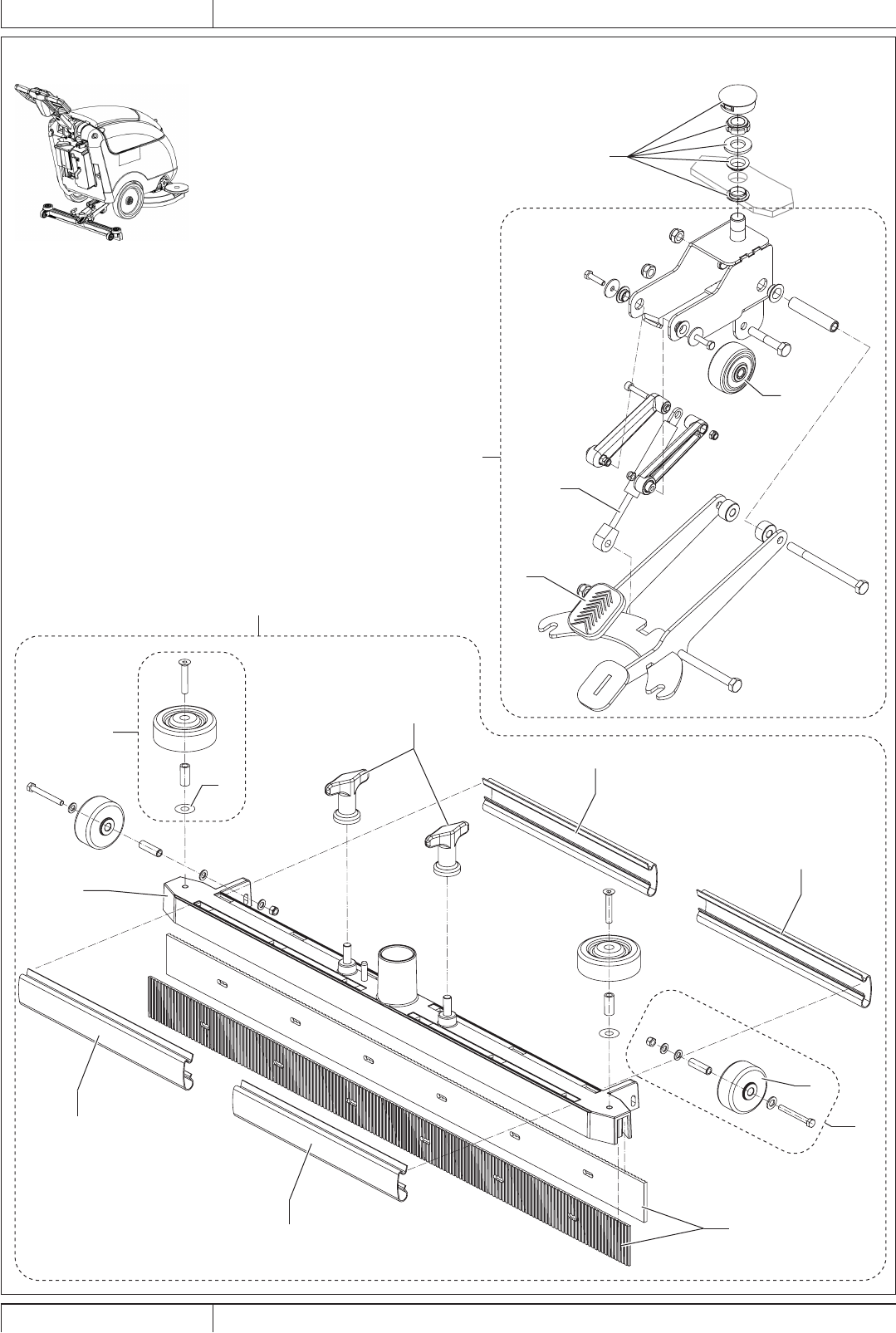

SQUEEGEE AND LIFT SYSTEM

03 D5IIB ADV 9099627000(1).indd 12 26-Jul-12 10:06:00

PARTS LIST

07/2012 9099627000 - SC400 13

SQUEEGEE AND LIFT SYSTEM

ITEM REF. NO. QTY DESCRIPTION

K4 1 L08603665 2 SQUEEGEE WHEEL

K1 2 909 5554 000 1 SQUEEGEE WELDMENT

K1 3 909 5555 000 4 SPRING

K3 4 L08603689 2 WASHER FLAT 6X18 SS

K6 5 L08603665 1 WHEEL D51 SQUEEGEE

K6 6 9099106000 1 COVER, PEDAL

K6 7 909 5637 000 1 GAS SPRING 180N

K1 909 5702 000 1 SQUEEGEE CPL STR.740MM/29 KIT

K1 K2 9097354000 1 BLADES PU KIT 720MM/28

K1 K3 L08603880 1 ROLLER BUMPER KIT

K1 K4 909 5703 000 1 WHEEL SQUEEGEE KIT

K1 K5 9097637000 1 FIXING SQUEEGEE KIT

K6 9099769000 1 SUPPORT SQUEEGEE LIFT KIT

[K7] 9099770000 1 FIXING SUPPORT SQUEEGEE KIT

03 D5IIB ADV 9099627000(1).indd 13 26-Jul-12 10:06:00

PARTS LIST

14 SC400 - 9099627000 07/2012

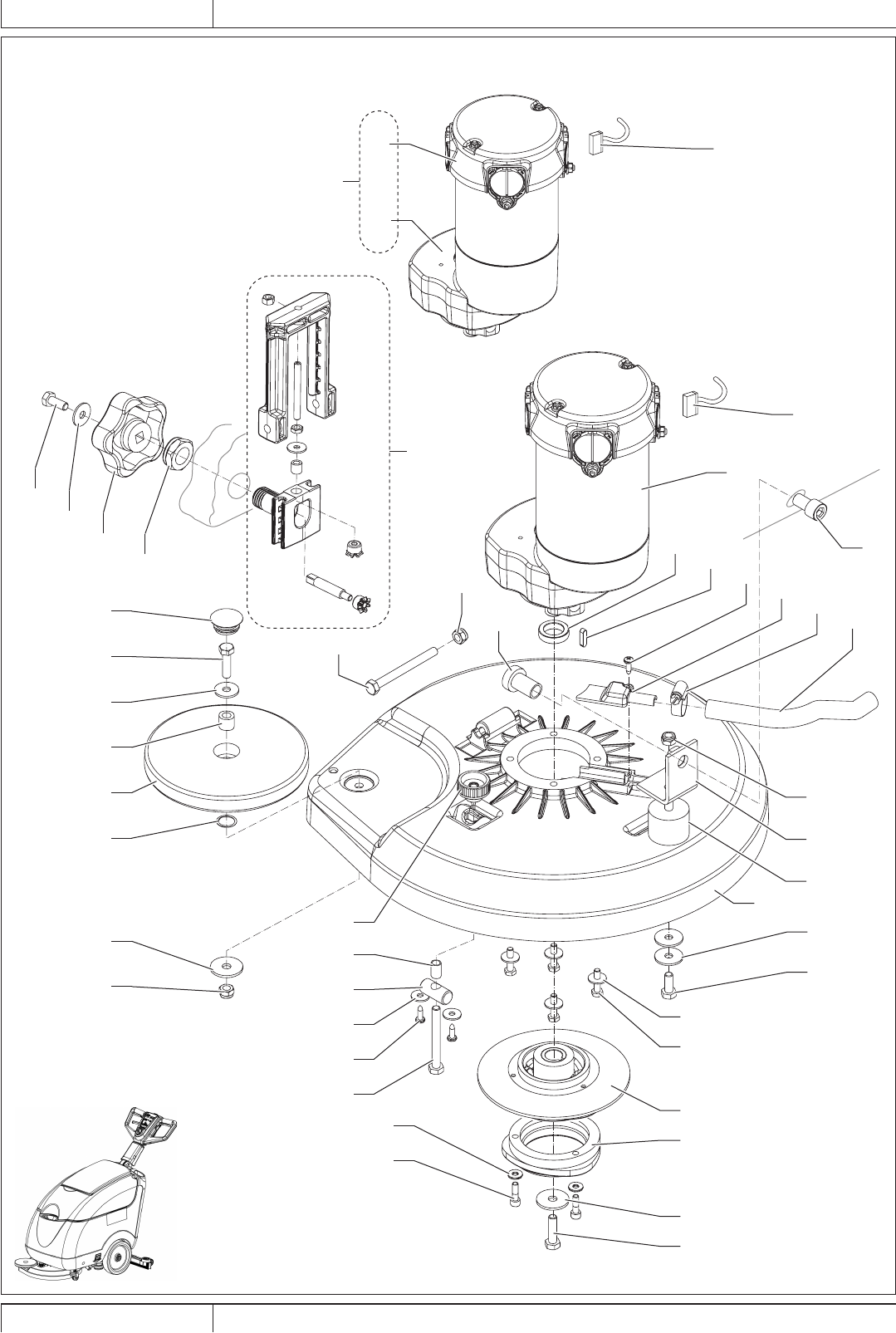

BRUSH SYSTEM

33

4

1

36

13

3

17

16

39

40

8

11

20

25

19

10

22

38

21

46

27

5

15

26

7

24

10

37

34

30

9

2

31

29

28

14

18

23

6

3

15

35

42

41

12

32

45

43

44

03 D5IIB ADV 9099627000(1).indd 14 26-Jul-12 10:06:02

PARTS LIST

07/2012 9099627000 - SC400 15

BRUSH SYSTEM

ITEM REF. NO. QTY DESCRIPTION

1 9098465000 1 KNOB

K1 2 1 WASHER, FLAT XL

K1 3 6 WASHER, FLAT XL SS

K1 4 1 WASHER 5X15 UNI6593

5 145 9774 000 1 KEY 5X5X20

K1 6 1 SPACER WITH HOLE

K1 7 1 CLAMP, HOSE 09/12-22

K1 8 1 SCREW, HEX THD TO HD M8X25

K1 9 1 SCREW, HEX THD TO HD M8X30

K1 10 2 NUT, HEX NYL LOC THIN M8

K1 11 2 WASHER, FLAT XL 9X24 COPPER

K1 12 1 NUT, HEX NYL LOC THIN M8 SS

K1 13 4 SCREW, HEX THD TO HD M6X25 SS

K1 14 1 WASHER, FLAT XL SS

K1 15 3 SCREW, PAN HD THD FORM

16 L08812306 1 HUB.BRUSH R.GEARMOTOR RIGHT

17 L08812480 1 HUB BRUSH

18 909 5964 000 1 KNOB M8

19 9099356000 1 BRACKET SUPPORT BRUSH

20 9097184000 1 VIBRATION DAMPING EI TYPE

21 9098308000 1 REDUCTION GEARMOTOR 450W 24V (M1)

22 9098376000 1 BRUSHES KIT

21 9099805000 1 MOTOR REDUCTION GEAR 520W 24V (M1)

22 909 6893 000 1 BRUSH CARBON KIT 4PCS (FOR 9099805000)

K1 23 1 SPACER

24 9099779000 1 HOSE BRUSH DECK KIT

25 9099093000 1 BRUSH DECK

26 9099190000 1 SOLUTION PIPE SUPPORT COVER

K1 27 1 SPACER 20X30X7.5

K1 28 1 WASHER 15

29 L08812204 1 ROLLER BUMPER

K1 30 1 CAP. BLACK

K1 31 1 SPACER 9X15X13

32 9099771000 1 ADJUSTABLE DECK KIT

K1 33 1 SCREW, HEX M5X16

K1 34 1 SCREW, HEX M8X90

K1 35 1 SCREW, HEX THD TO HD M8X85

K1 36 1 NUT, HEX NYL LOC THIN M10

K1 37 1 BUSHING

K1 38 1 SCREW, SOC HD

39 33003977 1 SCREW, HEX THD TO HD M6x30

40 145 0493 000 1 WASHER, FLAT XL 6,6x24

K1 41 3 SCREW M6X20 UNI5931 SS

K1 42 3 WASHER NORD LOCK M6

43 9099805000 1 MOTOR REDUCTION GEAR 520W 24V (M1)

44 9097114000 1 MOTOR 520W 24V

45 9099851000 1 REDUCTION GEAR

46 909 6893 000 1 BRUSH CARBON KIT 4PCS

[K1] 9099772000 1 HARDWARE BRUSH SYSTEM KIT

03 D5IIB ADV 9099627000(1).indd 15 26-Jul-12 10:06:02

PARTS LIST

16 SC400 - 9099627000 07/2012

WIRING SYSTEM

1328

14 17

14

11

5

9

22

1

11

3

14

7

4

10

12 27 26 12716

15

20

8

21

8

23

24

18

8

2

6

25

19

13

03 D5IIB ADV 9099627000(1).indd 16 26-Jul-12 10:06:03

PARTS LIST

07/2012 9099627000 - SC400 17

WIRING SYSTEM

ITEM REF. NO. QTY DESCRIPTION

K1 1 1 FUSE HOLDER

K1 2 1 SCREW, HEX THD TO HD M5X10

K1 3 2 NUT, HEX M4

K1 4 2 NUT, HEX NYL LOC M3

K1 5 1 NUT, HEX NYL LOC THIN M5

K1 6 1 WASHER, FLAT 5,3X10

K1 7 4 WASHER, FLAT XL 4,3X16

K1 8 4 SCREW, PAN PHIL M4X6

9 145 3824 000 1 STRIP FUSE 40A (F1)

10 145 8513 000 1 30A FUSE, BLADE (F2)

K1 11 2 SCREW, M4X12

K1 12 2 HEX MALE/FEMALE

K1 13 PLASTIC HEXAGONAL SPACER 4

K1 14 6 SCREW M4X8 UNI7688

15 146 0660 000 1 HOLDER FUSE

16 9097209000 1 SWITCH ELECTROMAGNETIC 24V 70A (K1)

17 9098804000 1 PLATE ELECTRICAL COMPONENTS

18 9099102000 1 ELECTRONIC BOARD BA (EB1)

19 9099104000 1 ELETTRICI HARNESS ELECTRICAL BOX

20 9099388000 1 BATTERY CHARGER 24V 8A (CH)

K1 21 2 SCREW, PAN PHIL THD FORM

K1 22 2 SCREW, HEX THD TO HD M3X10

23 145 9852 000 1 5A FUSE, BLADE (F3)

24 909 6678 000 1 FUSIBILE 20A VETRO RIT. (F4)

25 909 6622 000 1 RELAY 24V 40A (K2)

K1 26 3 WASHER, FLAT XL

K1 27 3 SCREW SOC HD

28 9099387000 1 FERRITE

[K1] 9099773000 1 HARDWARE WIRING SYSTEM KIT

03 D5IIB ADV 9099627000(1).indd 17 26-Jul-12 10:06:03

PARTS LIST

18 SC400 - 9099627000 07/2012

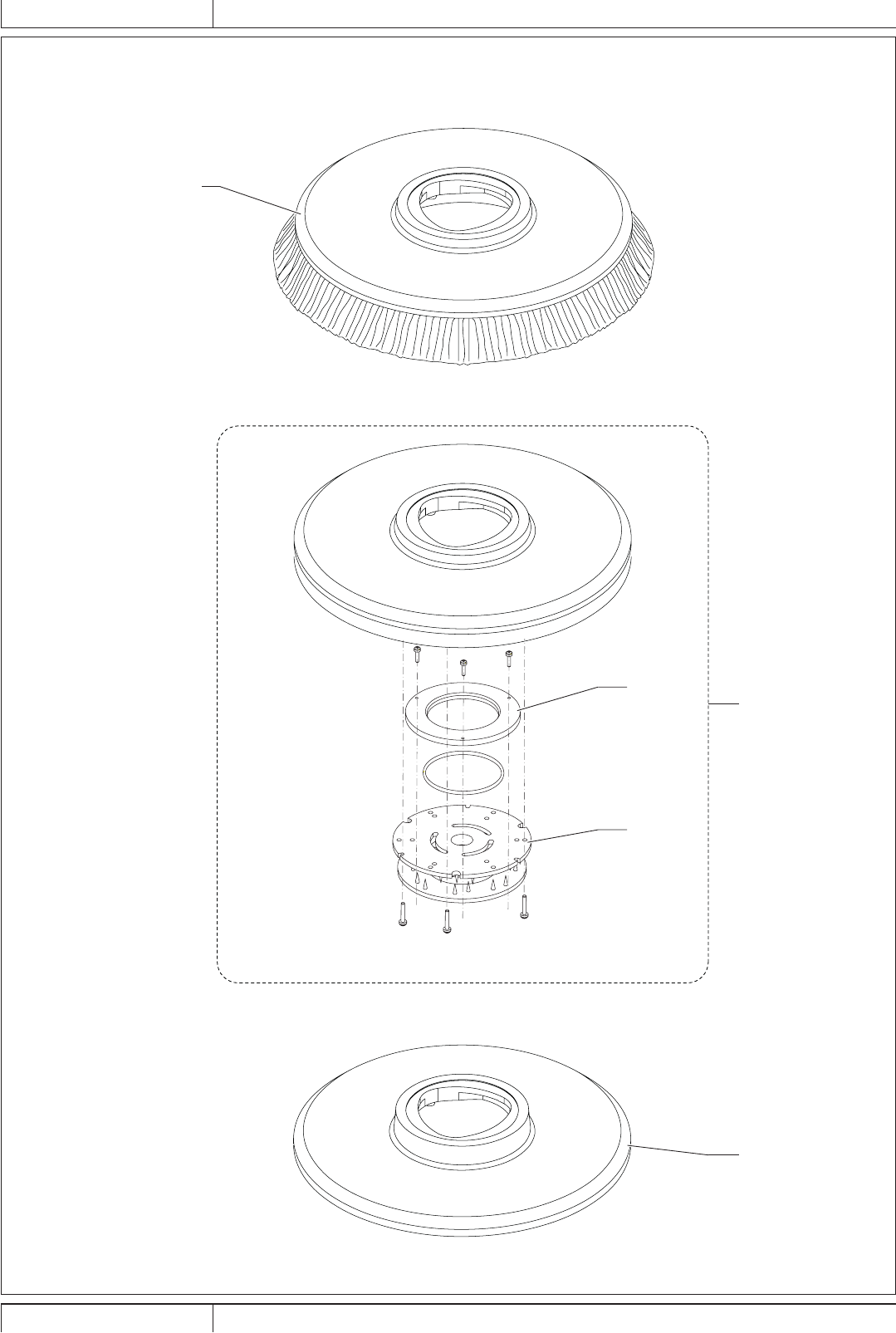

ACCESSORIES

2

5

1

3

4

03 D5IIB ADV 9099627000(1).indd 18 26-Jul-12 10:06:04

PARTS LIST

07/2012 9099627000 - SC400 19

ACCESSORIES

KIT ITEM REF. NO. QTY DESCRIPTION

1* L08812891 1 BRUSH D.430 PROLENE PPL

1* 909 5691 000 1 BRUSH Ø430 MIDLITE GRIT180

1* 909 5692 000 1 BRUSH Ø430 MIDRIT 240

1* 909 5693 000 1 BRUSH Ø430 PROLITE

1* 909 5694 000 1 BRUSH Ø430 UNION MIX

2* 909 5695 000 1 PAD HOLDER 410

3 L08603966 1 RING NYLON

4 L08837030 1 RETAINER PAD

4 L08603965 1 SEAL O-RING

5* 9099669000 1 PAD HOLDER GRIP 17”

[6]* 10001935 1PAD 17 432MM ECO CARPET BONNET 6PCS

[6]* 10001936 1PAD 17 432MM ECO WHITE 5PCS

[6]* 10001937 1PAD 17 432MM ECO TAN 5PCS

[6]* 10001938 1PAD 17 432MM ECO BLACK 5PCS

[6]* 10001939 1PAD 17 432MM ECO BLUE 5PCS

[6]* 10001940 1PAD 17 432MM ECO GREEN 5PCS

[6]* 10001941 1PAD 17 432MM ECO RED 5PCS

[6]* 10002336 1PAD 17 430MM DIAMOND LINE RED 2PCS

[6]* 10002337 1PAD 17 430MM DIAMOND LINE BLUE 2PCS

[6]* 10002338 1PAD 17 430MM DIAMOND LINE YELLOW 2PCS

[6]* 10002339 1PAD 17 430MM DIAMOND LINE GREEN 2PCS

[7]* 80542432 1 CHARGER HF 24V 30A OPTIMA SB50R

[8]* 909 5676 000 1 EXTENTION UK PLUG

[9]* 80561252 1 BATTERY 12V-52AH AGM SPIRALCELL

[9]* 80564200 1 BATTERY 12V-50AH AGM MONOBLOC

[9]* 80561268 1 BATTERY 12V-68AH AGM SPIRALCELL

[9]* 80564310 1 BATTERY 12V-76AH GEL MONOBLOC

[9]* 56206988 1 BATTERY 86 AH MAINT-FREE GEL

03 D5IIB ADV 9099627000(1).indd 19 26-Jul-12 10:06:04

PARTS LIST

20 SC400 - 9099627000 07/2012

WIRING DIAGRAM

03 D5IIB ADV 9099627000(1).indd 20 26-Jul-12 10:06:05

PARTS LIST

07/2012 9099627000 - SC400 21

WIRING DIAGRAM

KEY REF. NO. DESCRIPTION

BAT - 24V BATTERY

C1 9098761000 BATTERY CONNECTOR

CH 9099388000 BATTERY CHARGER

EB1 9099102000 CONTROL PANEL BOARD

EBLED 9099053000 LED BOARD

EV1 9099247000 SOLENOID VALVE DETERGENT

F1 145 3824 000 BRUSH MOTOR FUSE 40A

F2 145 8513 000 VACUUM MOTOR FUSE 30A

F3 145 9852 000 LOW POWER CIRCUIT FUSE 5A

F4 909 6678 000 BRUSH RELEASE FUSE 20A

K1 9097209000 BRUSH MOTOR CONTACTOR

K2 909 6622 000 VACUUM MOTOR RELEAY

LDA - GREEN LED

LDB - GREEN/YELLOW LED

LDC - GREEN/RED LED

M1 9098308000 BRUSH MOTOR

M2 909 5713 000 VACUUM MOTOR

SW1 9099332000 MAIN SWITCH

SW2 40263A BRUSH SAFETY SWITCH

SW3 9099107000 WATER FLOW SWITCH

KEY COLOUR

BK BLACK

BU LIGHT BLUE

BN BROWN

GN GREEN

GY GREY

OG ORANGE

KEY COLOUR

PK PINK

RD RED

VT VIOLET

WH WHITE

YE YELLOW

03 D5IIB ADV 9099627000(1).indd 21 26-Jul-12 10:06:05

PARTS LIST

22 SC400 - 9099627000 07/2012

RECOMMENDED SPARE PARTS

REF. NO. QTY DESCRIPTION

NORMAL WEAR

9097354000 1 BLADES PU KIT 720MM/28

L08812891 1 BRUSH D.430 PROLENE PPL

ORDINARY MAINTENANCE

909 5713 000 1 MOTOR VACUUM KIT (M2)

909 5371 000 2 CARBON BRUSH

9097404000 1 FILTER SOLUTION

909 5716 000 1 GASKET

909 6060 000 1 SUCTION HOSE

L08603665 1 WHEEL D51 SQUEEGEE

9099106000 1 COVER, PEDAL

L08603880 1 ROLLER BUMPER KIT

909 5703 000 1 WHEEL SQUEEGEE KIT

L08812480 1 HUB BRUSH

9097184000 1 VIBRATION DAMPING EI TYPE

9098376000 1 BRUSHES KIT

EXTRA-ORDINARY MAINTENANCE

9098446000 1 SOLUTION HOSE 600 MM

909 6380 000 1 CLAMP KIT

9097626000 1 VALVE ELBOW KIT

9099247000 1 SOLENOID VALVE 24V (EV1)

9099705000 1 WHEEL KIT

145 0543 000 2 CLAMP

40263A 1 SWITCH (SW2)

9099107000 1 SINGLE-POLE MOMENTARY SWICTH (SW3)

9099332000 1 ROTATIVE SWITCH (SW1)

909 5554 000 1 SQUEEGEE WELDMENT

909 5555 000 4 SPRING

909 5637 000 1 GAS SPRING 180N

9098308000 1 REDUCTION GEARMOTOR 450W 24V (M1)

9099771000 1 ADJUSTABLE DECK KIT

145 3824 000 1 STRIP FUSE 40A (F1)

145 8513 000 1 30A FUSE, BLADE (F2)

9097209000 1 SWITCH ELECTROMAGNETIC 24V 70A (K1)

9099102000 1 ELECTRONIC BOARD BA (EB1)

9099104000 1 ELETTRICI HARNESS ELECTRICAL BOX

9099388000 1 BATTERY CHARGER 24V 8A (CH)

03 D5IIB ADV 9099627000(1).indd 22 26-Jul-12 10:06:05

PARTS LIST

07/2012 9099627000 - SC400 23

OPTIONAL

REF. NO. QTY DESCRIPTION

909 6226 000 1 RUBBER SHOCK ABSORBER KIT

909 5065 000 1 FILTER ANTIFOAMING

9097354000 1 BLADES PU KIT 720MM/28

L08812891 1 BRUSH D.430 PROLENE PPL

909 5691 000 1 BRUSH Ø430 MIDLITE GRIT180

909 5692 000 1 BRUSH Ø430 MIDRIT 240

909 5693 000 1 BRUSH Ø430 PROLITE

909 5694 000 1 BRUSH Ø430 UNION MIX

909 5695 000 1 PAD HOLDER 410

9099669000 1 PAD HOLDER GRIP 17”

9099669000 1 PAD HOLDER GRIP 17”

9097290000 1 HOSE FILLING

10001935 1PAD 17 432MM ECO CARPET BONNET 6PCS

10001936 1PAD 17 432MM ECO WHITE 5PCS

10001937 1PAD 17 432MM ECO TAN 5PCS

10001938 1PAD 17 432MM ECO BLACK 5PCS

10001939 1PAD 17 432MM ECO BLUE 5PCS

10001940 1PAD 17 432MM ECO GREEN 5PCS

10001941 1PAD 17 432MM ECO RED 5PCS

10002336 1PAD 17 430MM DIAMOND LINE RED 2PCS

10002337 1PAD 17 430MM DIAMOND LINE BLUE 2PCS

10002338 1PAD 17 430MM DIAMOND LINE YELLOW 2PCS

10002339 1PAD 17 430MM DIAMOND LINE GREEN 2PCS

9099388000 1 BATTERY CHARGER 24V 8A (CH)

80542432 1 CHARGER HF 24V 30A OPTIMA SB50R

909 5676 000 1 EXTENTION UK PLUG

80561252 1 BATTERY 12V-52AH AGM SPIRALCELL

80564200 1 BATTERY 12V-50AH AGM MONOBLOC

80561268 1 BATTERY 12V-68AH AGM SPIRALCELL

80564310 1 BATTERY 12V-76AH GEL MONOBLOC

56206988 1 BATTERY 86 AH MAINT-FREE GEL

03 D5IIB ADV 9099627000(1).indd 23 26-Jul-12 10:06:05

14600 21st Avenue North

Plymouth, MN 55447-3408

www.advance-us.com

Phone: 800-989-2235

Fax: 800-989-6566

©2012 Nilfisk-Advance, Inc.

A Nilfisk-Advance Brand

03 D5IIB ADV 9099627000(1).indd 24 26-Jul-12 10:06:05
