Power Node Radio Module User’s Guide
July 2015 Revision 1.1
3/
17
Read This First
Welcome to the TAGSYS RFID System. This User's Guide is designed to help you get up and
running quickly using this high-quality Radio Frequency Identification (RFID) system. It describes
all you need to know about how to install and use the TAGSYS system and its associated
applications.
This guide is designed for all CIT (Certified Integrators by TAGSYS) and for TAGSYS Expert
Network customers implementing a low-cost and high-performance RFID solution.
This document does not assume any previous knowledge of Radio Frequency Identification (RFID)
technology.
Conventions
If you need assistance
Please contact your nearest TAGSYS Sales Representative or the TAGSYS Welcome Desk at:
Telephone: +33 (0)4 42 18 89 00
Fax: +33 (0)4 42 18 89 01
E-Mail: info@tagsysrfid.com
Website: http://www.tagsysrfid.com
Contact for Comments
We welcome your feedback to help us provide high quality documentation.
For technical comments, please contact our Welcome Desk:
Telephone: +33 (0)4 42 18 89 00
Fax: +33 (0)4 42 18 89 01
E-Mail: info@tagsysrfid.com
Please remember to quote the Document Reference Number DOC16127A1, your job title and your
company.
Symbol Meaning
CAUTION: A note that advises users that a specific action could result in the loss of data or
damage the hardware.
WARNING: A note that advises users that a specific action may result in physical harm.
A note that provides additional information that helps the user performing a task or obtaining
the best performance from the product.
Power Node Radio Module User's Guide
4/17 Revision 1.1 July 2015
Quality Issues
TAGSYS implements stringent quality controls at all stages of its manufacturing process. However,
should you find a defect with this product, please notify your TAGSYS Quality Service
representative using the dedicated Product Return Form.
Telephone: +33 (0)4 42 18 89 00
E-Mail: rma@tagsysrfid.com
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 5/17
Table of Contents
PUBLISHING INFORMATION __________________________________________________________ 2
D
ISCLAIMER AND
L
IMITATION OF
L
IABILITY
__________________________________________________ 2
READ THIS FIRST ____________________________________________________________________ 3
C
ONVENTIONS
_________________________________________________________________________ 3
I
F YOU NEED ASSISTANCE
________________________________________________________________ 3
C
ONTACT FOR
C
OMMENTS
_______________________________________________________________ 3
Q
UALITY
I
SSUES
_______________________________________________________________________ 4
1FOR YOUR SAFETY _______________________________________________________________ 6
1.1G
ENERAL
U
SE
____________________________________________________________________ 6
1.2C
ARE AND
M
AINTENANCE
___________________________________________________________ 6
1.3I
MPORTANT
S
AFETY
I
NFORMATION
____________________________________________________ 7
1.3.1O
PERATING
E
NVIRONMENT
_________________________________________________________ 7
2CERTIFICATION ___________________________________________________________________ 8
2.1R
EGULATORY
N
OTICES
_____________________________________________________________ 8
2.2R
O
HS
(R
ESTRICTION OF THE USES OF CERTAIN
H
AZARDOUS
S
UBSTANCES
) _________________ 9
2.3WEEE
(W
ASTE
E
LECTRICAL AND
E
LECTRONIC
E
QUIPMENT
) ______________________________ 9
3POWER NODE RADIO DESCRIPTION ______________________________________________ 10
4POWER NODE RADIO INTERFACE ________________________________________________ 11
4.1O
VERVIEW OF THE
R
ADIO MODULE
___________________________________________________ 11
4.2H
OW TO CONNECT
A
NTENNA
________________________________________________________ 12
4.2.1R
ECEIVE
(R
X
)
O
NLY
A
NTENNA
_____________________________________________________ 12
4.2.2T
RANSMIT
(T
X
)
RFID
A
NTENNA
____________________________________________________ 13
4.3P
RODUCT
L
ABELLING
_____________________________________________________________ 13
5WARRANTY CONDITIONS _________________________________________________________ 15
5.1W
ARRANTY
______________________________________________________________________ 15
5.2W
ARRANTY
E
XCLUSIONS
___________________________________________________________ 15
5.2.1G
ENERAL
P
ROVISIONS
___________________________________________________________ 16
5.2.2H
OW TO
R
ETURN
D
EFECTIVE
P
RODUCTS
____________________________________________ 16
Power Node Radio Module User's Guide
6/17 Revision 1.1 July 2015
1 For Your Safety
1.1 General Use
The HOT SPOT RADIO MODULE is designed to be reliable and to provide years of trouble-free
service. Please observe the following general tips:
Take care not to scratch the device. Keep the device clean. When working with the device,
use only TAGSYS-approved accessories.
This device is not waterproof and should not be exposed to rain or moisture. Under extreme
conditions, water may enter the circuitry.
Protect the device from extreme temperatures. For example, do not place the device in a
windowed area where the sun may cause extreme temperatures, and keep it away from
heaters and other heat sources.
Do not store or use the device in any location that is extremely dusty, damp, or wet.
Use a soft, damp cloth to clean the device. If the surface of the device becomes soiled,
clean it with a soft cloth moistened with a diluted window-cleaning solution.
1.2 Care and Maintenance
This device is a product of superior design and should be handled with care. The suggestions
below will further increase the lifetime of this device.
• Keep the device and all parts and accessories out of the reach of small children.
• Keep the device dry. Precipitation, humidity and liquids contain minerals that will corrode
electronic circuits.
• Do not use or store the device in dusty, dirty areas. Its moving parts can be damaged.
• Do not store in hot areas. High temperatures can shorten the life of electronic devices,
damage batteries and warp or melt certain plastics.
• Do not store in cold areas. When the device warms up (to its normal temperature), moisture
can form inside the device, which may damage electronic circuit boards.
• Do not attempt to open the device. Non-professional handling of the device may damage it.
• Handle the device with care. Shocks may break internal circuit boards.
• Do not bend the antenna part or lean on it.
• Do not clean the device with harsh chemicals, cleaning solvents or strong detergents.
Gently wipe the device with a soft cloth slightly dampened in a mild soap-and-water
solution.
• Do not paint the device. Paint may clog the device’s moving parts and prevent proper
operation. Paint with metallic contents may limit device performances.
• If the device or any accessory are not working properly, take it to your nearest qualified
TAGSYS representative.
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 7/17
1.3 Important Safety Information
1.3.1 Operating Environment
When connecting the device or any accessory to another device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
As with all RF equipment, users are advised that the equipment should only be used in its normal
operating position.
When placing the antennas in features do make sure that:
- General public is at least 20cm away from any transmitting antenna
- Antennas are not located at less than 20cm from each other
Power Node Radio Module User's Guide
8/17 Revision 1.1 July 2015
2 Certification
2.1 Regulatory Notices
An RFID system typically composed of an RF emission device such as the POWER NODE RADIO
MODULE connected to an antenna is subject to national regulations that may differ by country.
The POWER NODE RADIO MODULE has been designed to comply with Part 15 of the FCC Rules.
POWER NODE RADIO MODULE
WARNING TO USERS IN THE UNITED STATES
FEDERAL COMMUNCIATIONS COMMISSION (FCC) RADIO
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communications. However, there is no guarantee that
interference, will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different to that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by TAGSYS could void the user’s authority
to operate the equipment.
If the Power Node radio module is further integrated in a different product, it is the
responsibility of the manufacturer of this complementary product to obtain the required
approvals for this product.
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 9/17
2.2 RoHS (Restriction of the uses of certain Hazardous
Substances)
TAGSYS certifies that this product is compliant with the European Directive 2002/95/EC for the
restriction in Electric and Electronic Equipment (RoHS) of the use of the following hazardous
substances:
• Lead
• Mercury
• Cadmium
• Hexavalent Chromium
• Polybrominated biphenyl flame retardants
• Polybrominated diphenyl ether flame retardants
This declaration is based on information provided by our suppliers and subcontractors.
2.3 WEEE (Waste Electrical and Electronic Equipment)
This product bears the selective sorting symbol for waste electrical
and electronic equipment (WEEE)
This means that this product must be handled pursuant to European
Directive 2002/96/EC in order to be recycled or dismantled to
minimize its impact on the environment.
bin.
For further information, please contact your local or regional
authorities.
Power Node Radio Module User's Guide
10/17 Revision 1.1 July 2015
3 Power Node radio description
The Power Node radio is intended to be included in a Power Node equipment, which is part of a
“Hot Spot Power Node” system.
The “Hot Spot Power Node” system is designed to emphasize the range of a RFID reader
addressing passive tags. The system uses UHF frequency band, following the FCC 15.247
standard (including frequency hopping feature), and ISO 18000-6c protocol.
In this system, the Hot Spot, that includes a RFID reader, pilots many Power Nodes through
remote links. The Power Nodes are put close to tags areas, in order to energize efficiently the tags.
The Power node repeats and amplifies the RFID interrogation signal. The Hot Spot transmits the
RFID interrogation and receives the backscattered signal from the passive tags.
The remote link to the Power Nodes and the interrogation signals are not transmitted in the same
time intervals.
The Power node radio receives the Hot Spot, RFID interrogation signal, amplifies it and transmits it
to the passive tags.
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 11/17
4 Power Node Radio Interface

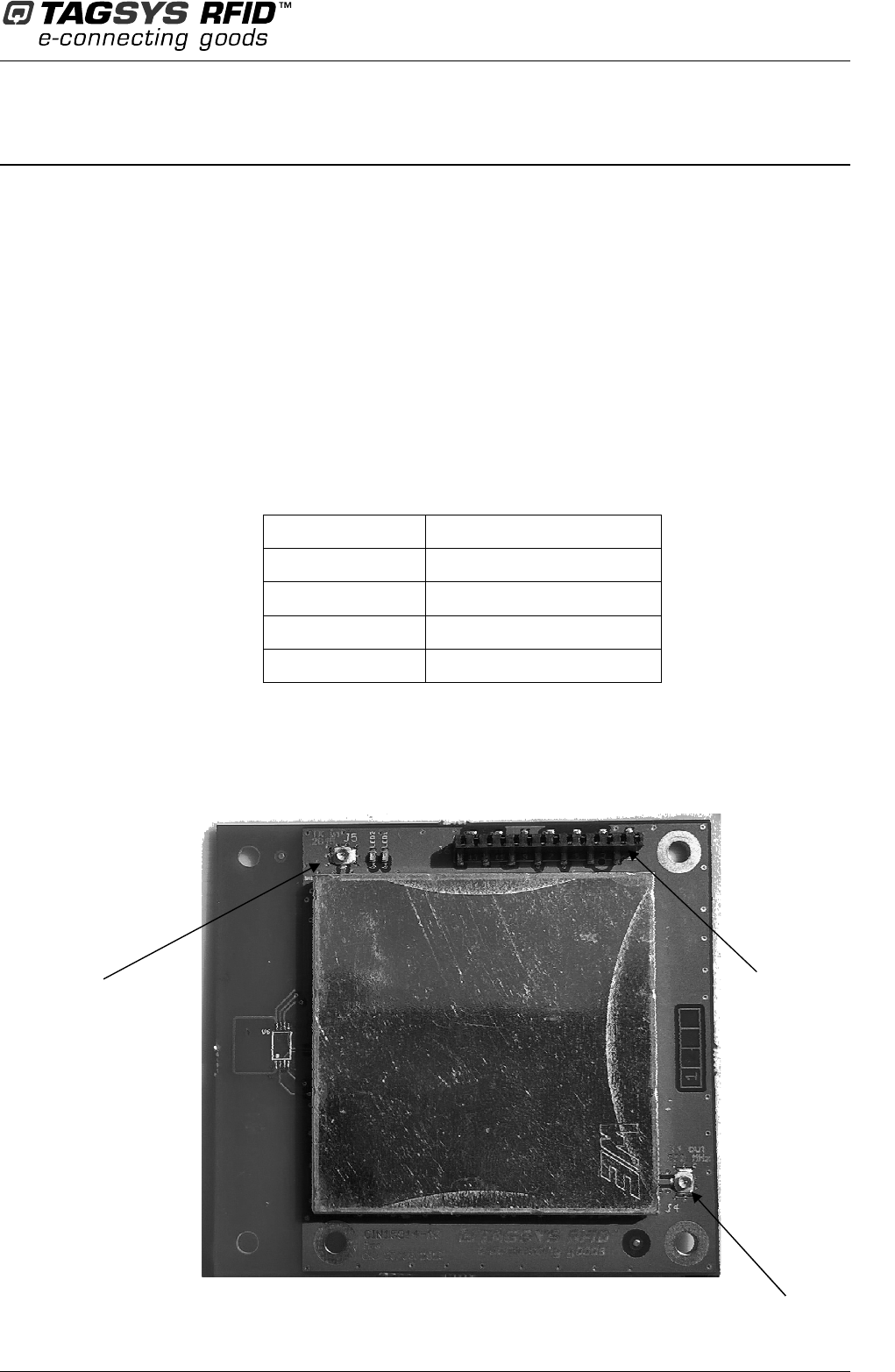

4.1 Overview of the Radio module
The Power node radio modules has two coaxial connections, one for the Hot Spot receive RFID
signal, one for the transmit RFID signal. The three connectors are U.FL type, female, board
receptacles.
The Power node radio is also connected to a Power Node mother-board that pilots it and provides
the supply. The piloting is done through an asynchronous link (RS232 like) with a Tx and a Rx
connections.
The supply voltage is 5.5 V, the maximum current is 1.2 A. The maximum power consumption is
6.6 W.
A common connector, SAMTEC MMS-114-02F-SV, group’s commands and supply signal.
Pin 1,2 Supply ground
Pin 3,4 5.0 V supply
Pin 5 UART Rx
Pin 6 UART Tx
Pin 9 UART Ground
The commands concern the switching on-off, the output power of the module. The module sets
automatically its own gain in order to deliver the same output power from a given input range.
Tx connection
Rx connection Supply and
control
Power Node Radio Module User's Guide
12/17 Revision 1.1 July 2015
4.2 How to connect Antenna
In order to comply with FCC regulations and insure optimum performance, the Power node radio
module must be integrated using the following recommended antennas.
Furthermore a minimum distance of 20cm should be kept between antennas and between general
public for human exposure limitation.
When placing the antennas in features do make sure that:
- General public is at least 20cm away from any transmitting antenna
- Antennas are not located at less than 20cm from each other
4.2.1 Receive (Rx) Only Antenna
Use a 2.45GHz dipole antenna with a maximum cable length of 12cm with a U.FL connector at one
end and a Reversed polarity Front panel SMA Plug Connector.
Figure 1 shows such an antenna screwed onto the SMA plug.
The following Part number should be used.
ANTENNA USE TAGSYS PN REF DESCRIPTION / TYPE
2.45GHz
Receiver only
COMP16026A0
GC-W032-015 Antenna GIGA CONCEPT (Dipole)
2.2 dBi, 2400MHz, SMA-RP male

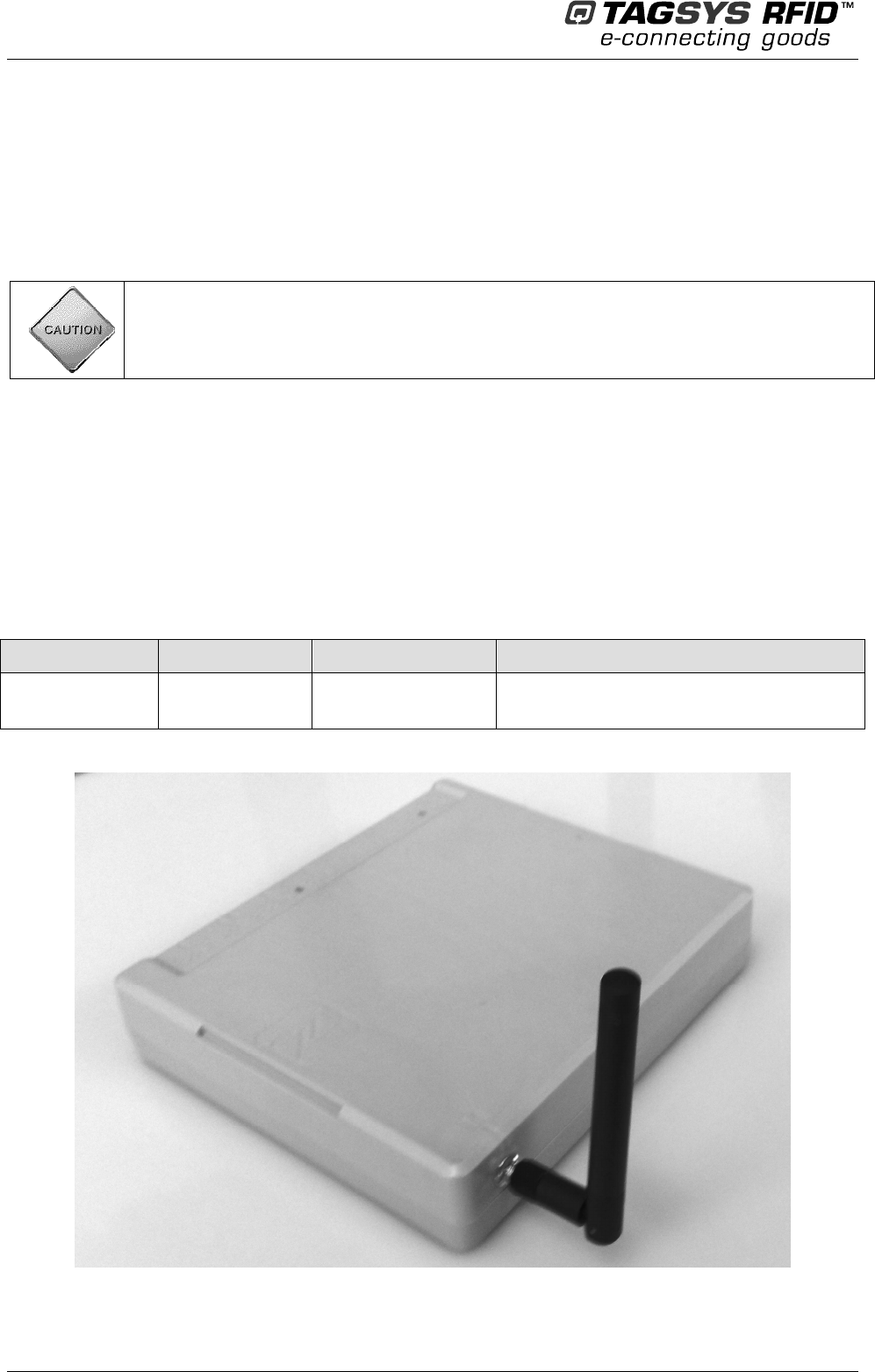

Figure 1: 2.45GHz Dipole Antenna connected to front panel SMA connector
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 13/17
4.2.2 Transmit (Tx) RFID Antenna
Up to four antennas can be connected to front panel SMA antennas. Refer to Figure 2 for a picture
of such an antenna.
These antennas should be placed no less than 20cm away from general public or any other
antenna
The following 915MHz antenna should be used for RFID powering and interrogation:
ANTENNA USE TAGSYS PN REF DESCRIPTION / TYPE
915MHz
Transmission
COMP16027A0
GC-Z22-013-1MLL PCB Antenna 868-915 MHZ + SMA
Male
right angle RG174 low loss 1 M. Gain
2dBi.

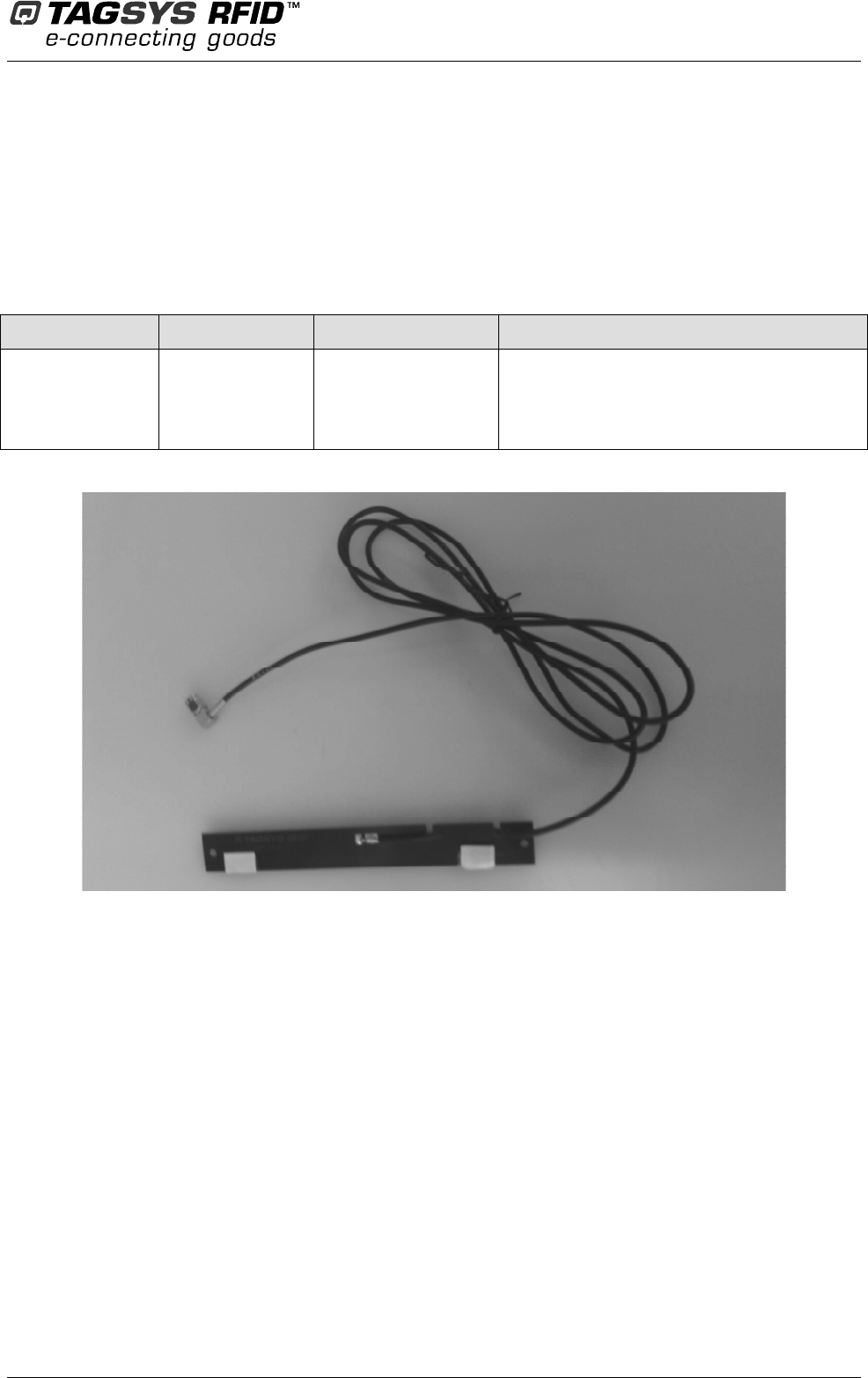

Figure 2 : 915 MHz RFID PCB Antenna with its coaxial cable
4.3 Product Labelling
The final product should be labelled clearly mentioning that it includes an intentional radiator
stating the Power Node FCC ID.
Please refer to Figure 3 to get an example of product labelling.
Power Node Radio Module User's Guide
14/17 Revision 1.1 July 2015
Figure 3 : Example of Product labelling including the Power Node Radio Module
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 15/17
5 Warranty Conditions
5.1 Warranty
TAGSYS warrants that this Product shall comply with the functional specifications set forth herein
for a period of one year from the date of delivery to the Buyer.
TAGSYS warrants that POWER NODE RADIO MODULE and accessories including the batteries
("Products") are free from defects in material and workmanship under normal use and service for
the period commencing upon the date of purchase by the first consumer purchaser and continuing
for one (1) year.
This warranty is valid for the original Buyer of the Product and is not assignable or transferable to
any other party.
TAGSYS cannot be responsible in any way for, and disclaims any liability in connection with the
operation or performance of:
any product in which the Product is incorporated;
any equipment not supplied by TAGSYS which is attached to or used in connection with the
Product; or
the Product with any equipment
This warranty does only cover the Product to the exclusion of any such other equipment.
Optimal operation and performance of the Product are obtained by using TAGSYS’ readers, by
applying TAGSYS installation guidelines and by having your installation reviewed by a TAGSYS’
technical consultant.
TAGSYS warranty does not cover the installation, maintenance or service of the Product and is
strictly limited to the replacement of Products considered as defective by TAGSYS and returned
according to the return procedure defined below; in such case, TAGSYS will, at TAGSYS’ option,
either replace or repair every defective Product or refund the purchase price paid by Buyer to
TAGSYS for the defective Product.
5.2 Warranty Exclusions
Engineering samples and early access products
Defects or damages resulting from storage of the Product under conditions which do not
comply with TAGSYS specifications or normal usage
Defects or damages resulting from use of the Product in abnormal conditions (abnormal
conditions being defined as any conditions exceeding the ones stated in the product
specifications).
Defects or damages from misuse, accident or neglect.
Defects from improper testing, operation, maintenance or installation.
Defects from alteration, modification except modifications or adjustments specifically described
in this Product reference guide, adjustment or repair, or any attempt to do any of the foregoing,
by anyone other than TAGSYS.
Any action on Product that prevents TAGSYS from performing an inspection and test of the
Product in case of a warranty claim.
Tampering with or abuse of the Product.
Power Node Radio Module User's Guide
16/17 Revision 1.1 July 2015
Any use or incorporation by the Buyer or a third party of TAGSYS' Product into lifesaving or life
support devices or systems, or any related products; TAGSYS expressly excludes any liability
for such use.
5.2.1 General Provisions
This warranty sets forth the full extent of TAGSYS responsibility regarding the Product.
In any event, TAGSYS warranty is strictly limited to (at TAGSYS’ sole option) the replacement or
repair or refund of the Products purchase price to TAGSYS, of Products considered as defective
by TAGSYS.
The remedy provided above is in lieu and to the exclusion of all other remedies, obligations or
liabilities on the part of TAGSYS for damages, whether in contract, tort or otherwise, and including
but not limited to, damages for any defects in the Products or for any injury, damage, or loss
resulting from such defects or from any work done in connection therewith or for consequential
loss, whether based upon lost goodwill, lost resale profits, impairment of other goods or arising
from claims by third parties or otherwise.
TAGSYS disclaims any explicit warranty not provided herein and any implied warranty, guaranty or
representation as to performance, quality and absence of hidden defects, and any remedy for
breach of contract, which but for this provision, might arise by implication, operation of law, custom
of trade or course of dealing, including implied warranties of merchantability and fitness for a
particular purpose.
5.2.2 How to Return Defective Products
The Buyer shall notify TAGSYS of the defects within 15 working days after the defects are
discovered.
Defective Products must be returned to TAGSYS in their complete original packaging, provided
such original packaging is available, after assignment by a TAGSYS Quality Department
representative of an RMA (Return Material Authorization) number. If the original packaging is not
available, the Buyer shall ensure that the products are returned to TAGSYS in a packaging that
adequately protects said Products. No Products shall be returned without their proof of purchase
and without the acceptance number relating to the return procedure.
All Products shall be returned, at Buyer’s expense, with a report from the Buyer stating the
complete details of the alleged defect.
Call +33 4 42 18 89 00 for return authorization and shipping address.
If returned Products prove to be non-defective, a charge will be applied to cover TAGSYS’ analysis
cost and shipping costs.
If the warranty does not apply for returned Products (due to age, or application of a warranty
exclusion clause), a quote for replacement will be issued, and no replacement will be granted until
a valid purchase order is received. If no purchase order is received within 30 days after the date of
TAGSYS quote, TAGSYS will return the products and charge the analysis cost and shipping costs.
All replaced Products shall become the property of TAGSYS.
The Product Return Form is included on the following page. This form should accompany any
product you need to return to TAGSYS for analysis in the event of a problem.
Power Node Radio ModuleUser's Guide
July 2015 Revision 1.1 17/17
Product Return Form
Customer Profile:
Company:.................................................................
Address: ...................................................................
City & State: .............................................................
Zip Code: .................................................................
Country: ...................................................................
RMA Number : ........................................
Date : ......................................................................
Contact Name: .......................................................
Contact e-mail: ......................................................
Contact Phone: .......................................................
Contact Fax: ...........................................................
Order identification:
Product Name: .........................................................
Serial or Batch nr : ..................................................
Return Quantity: ....................................................
Reason for return:
........................................................................................................................................................................
........................................................................................................................................................................
........................................................................................................................................................................
........................................................................................................................................................................
........................................................................................................................................................................
To inform TAGSYS of this return, please email it to
RMA@tagsysrfid.com
Address to ship the product with this document attached:
TAGSYS - QUALITY DEPARTMENT - 785, Voie Antiope – Z.I. Athelia III - 13600 La Ciotat - France
To inform TAGSYS of this return, please also fax it to your Customer Service Representative : +33 442-188-901
Return Procedure:
In order to give you a RMA number, please fulfill this document and send it by return to the above email address or to your Customer
Service Representative. Please write the RMA number on the outside of the box. The product returned will go through stringent quality
controls. If the product is no longer under warranty, a final analysis report will be sent to you as soon as possible as well as a quotation for
repair.
Please contact the Quality Representative for further details : +33 442-188-900
Quotation :
In case of no product repair coverage by TAGSYS or product out of warranty period, any quotation will be charged to a fixed price of 100 €
per product.
This amount will be deducted of the repair price in case of the quotation acceptance, or will be kept by TAGSYS in case of quote refusal or
no answer within 2 weeks. If quote is accepted the product will be return on an Exworks basis.
After receiving quote, in case of no answer within 2 weeks, TAGSYS will be entitled to destroy the product.
This product bears the selective sorting symbol for waste electrical and electronic
equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimize its impact on the
environment.
For further information, please contact your local or regional authorities.
