Thank you for purchasing this product, the operational
guidelines below contains important information about safe
and proper use of this device to avoid accidents, so please
read the instructions carefully before use.
Store the unit away from high temperature, extreme moisture
or dust .
Avoid strong impact or any collision with the product.
Do not interrupt the power while in the process of upgrading
or uploading/downloading the firmware, to avoid data loss or
program error.
This product is a high precision electronic product, do not
disassemble or clean it with alcohol, thinner and benzene
solution.
The maker reserves the right to upgrade the product, product
specification and design is subject to change without prior
notice.
Disclaimer: The maker assumes responsibility for warranty
service of the product itself and assume no responsibility for
the data loss.
The unit is not water-proof.
Pictures contained in this manual are for reference only.
！
！
！
！
！
！
！
！
！
Opening Note
2
1.Package Contents
Number Items Quantity
1
2
3
4
5
6
HDMI CABLE
POWER ADAPTOR
AV CABLE
INFRARED REMOTE CONTROLLER
USER MAUNAL
1 PC S
Note: The accessories may be slightly different from the list
above due to different models specifications and subject to the
product purchased.
2. BUTTONS AND PORTS
（Note：The ports and its layout may change for some models,
please refer to silkscreen designators on the unit）
1 PC S
1 PC S
1 PC S
1 PC S
1 PC S

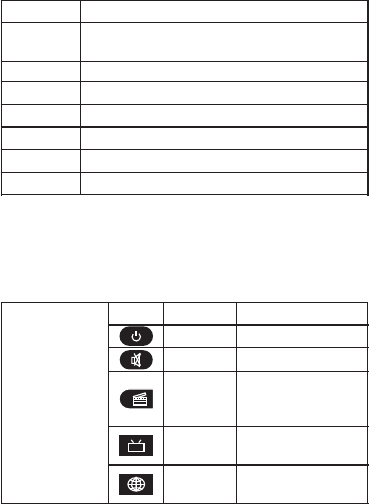

Items Description/Function
DC+5V Connect to power supply, please use or
iginal power adapter
Stream audio and video signal to TV or PC
display with an AV cable(1 to 3)
Connect to a PC via an adapter
Stream audio and high resolution video to
TV or PC display
AV OUT
HDMI
OTG
3
Android TV Box
SPDIF fibre-optical output for audio
Standard RJ45, connect to internet through
network cable
Connect to external memory card
Reinstall system firmware
LAN
TF card slot
Power
Reset
3. The remote control
This device comes with a remote control,of which most
functions can be operated with navigation keys. For some APK,
switch the mouse mode by pressing the mouse key before
operation.
USB Connect to 2.4GHZ USB device
Turn on or off the unit, or let it standby
Connect to 3.5mm microphone
Connect to external SD Card
MIC
SD

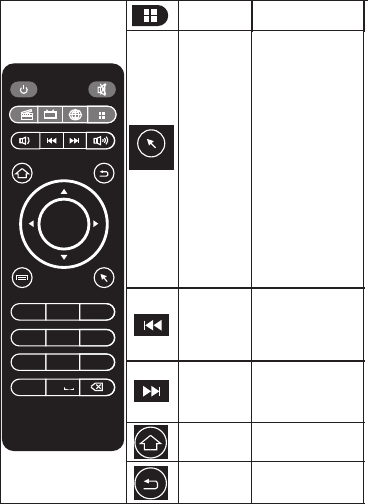

Icon Key Function
Power on/off/standby
Power
Silent Mute the sound
Multimedia Hotkey for music
player
TV Hotkey for video
player
Browser Hotkey for internet
browser
TV
4
Mouse
FF-/CH UP
Turn to last
programme while
playing
FF+/CH
DOWN
Turn to next
programme while
playing
Home Page Back to home page
RETURN
Return to last page
/operation
MOUSE
APK Enter APK listing
Remote
navigation mode
by default,
press mouse key
for 1 second
above to enter
mouse mode,
and press it
for another 1
second above to
return to remote
navigation.
TV
CH+
HOME RE TURN
MEDIA TV APP
OK
VOL- VOL +
CH-
MENU MOUSE
1.;/@ 2ABC 3DEF
4GHI 5JKL 6MNO
7PQRS 8TUV 9WXYZ
1/A/a 0
WEB
5
CH+
Turn to last
channel：Turn to
last programme
while pressing this
key during playing
CH-
Turn to next
channel：Turn to
next programme
while pressing this
key during playing

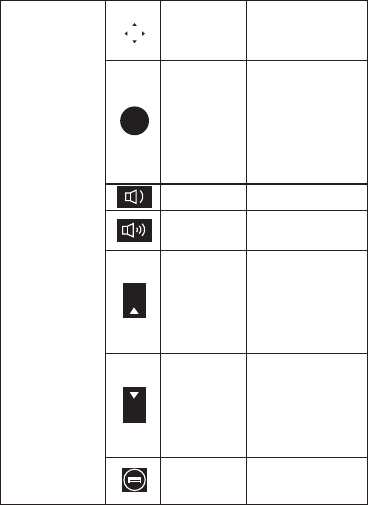

Menu Options
CH+
CH-
Navigation Upward、
downward、left、
right navigation
Confirm
In mouse mode, it
functions as the
left key, while in
remote navigation,
it serves as “enter”
key
Volume up Decrease the sound
Increase the sound
Volume down
OK
6
0～9/ABC Numbers/Letters
/Symbols
Input
method Capital/small letter
Backspace
Move backwards
and delete the
character
1/A/a/中
9WXYZ
1.;/@
4. Get started
4.1 Connection and turn on the unit
The steps below is for connection through an HDMI cable, if an
AV cable is used, please connect it to AV(yellow、R(red)、
L(white) ports respectively on TV.
1.Connect one end of the supplied HDMI cable to the Smart TV
Box, the other end to an HDMI
port on TV or other display device, and connect the AC power
adapter (5V/2A)to the unit and the other end to the power
socket.
2.Turn on the unit by pressing the power key until the LED
indicator lights up.
3.Use TV remote control(the signal source key) to select right
signal path for the HDMI port connected. There are normally
several HDMI ports on a TV, and the connection can be enabled
only when the right signal path is selected. If an AV cable is
used, please select AV port instead.
7
Note：The LED indicator lights up constantly after the device
is switched on or in operation. In standby state, short press
once the power key on the device or on the remote control,
the device is switched on and the LED indicator lights up.
4.2 Home interface
Plug the device into power socket, long press power key until
LED indicator lights up, and after 3-5 seconds, the TV display
shows starting up. After a while, home interface pop up, and
click on APK listing to show icons of all installed APK on the
device.
4.3 Lauguage and input method
Setting→Language and input, select different languages here;
User can install their own input software and check the option
of this input method.
While inputting, you can select input method by clicking on
input area, and then clicking on the icon of keyboard on the
bottom-right corner to show a list of all input methods available
for selection.
Language
English
8
4.4 Connect to internet
Wireless connection
Setting,→Wi-Fi, click on the desired wifi hot spot, and input
password of the wireless router for connection(A wifi icon pops up
on the status bar after connection）
Note：Please ensure that the wireless router has access to
external internet.
Wired connection
a)Plug in one end of the network cable to the LAN port on the
device, and the other end to the router.
b) SettingTurn on ethernet, after connection, an icon of cabled
connection appears on bottom-right corner of the status bar.
英语（美国）
Android键盘
Android keyboard(AOSP)
English(US)
√
√
Google voice typing
Automatic
谷歌拼音输入法
Hide soft input
SPEECH
9
4.5 Install/uninstall APK
4.5.1 APK from unknown source
Please use Google market as the source for APK as much as
possible, when installing APK from other sources, go to setting→
security→check the option of unknown source.
4.5.2 Install APK
Install from Local documents：
a. Copy downloaded APK to USB flash drive, hard drive or SD
card etc，and connect to the TV box.
b. Go to“APK installing widget”，select the desired APK，and
click on install（dependent on memory device connected).
Install from internet：
Option 1：Download APK from internet APK stores(files end
with .APK)，and click on install（if the downloading is
performed through a browser, the status bar will show an icon of
finish after the download，click on install）.
Option 2：Install the APK of APK market first，and then
download APK from the market directly.
4.5.3 Uninstall APK
a. Setting→APK→Manage APK，a list of installed APK pops up.
b. Click on “uninstall”to remove the APK.
10
Click Switch to Mouse mode
Click Switch to touchscreen mode
Click Switch to keyboard mode
Click Return to last step

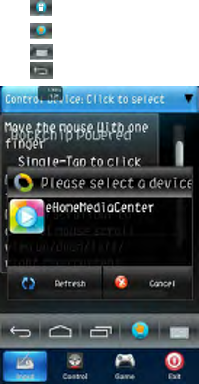

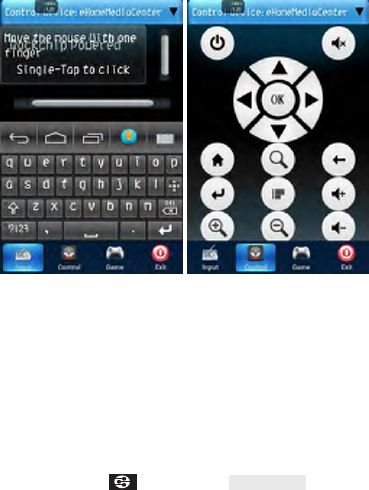

4.6 Turn mobile phone into remote control
Install on the mobile phone“remote control.apk”that is
developed specifically for the device, connect both the phone
and the device to a same wireless router, open this APK from
the phone, click on connection from a pop-up list of optional
devices.
11
4.7 DLNA、Miracast
DLNA
The mobile phone and this device is connected to a same local
network（connected to same wireless router）；Install on the
phone Youtube, PPTV or other DLNA supported video APK，
open the APK and play 1 video programme, click on from
playing interface→ ，and then click
Keyboard mode Remote control mode
eHomeMediaCenter
12
Miracast
Currently it supports only mobile phones and Tablet PC
powered by Android 4.2 or above, and the method for
connection varies for different handheld devices. Generally go
to setting—display, or WI-FI - senor setting. Here is an example
based on xiaomi 2 mobile phone：
Go to WI-FI on phone，select setting—WIFI—WIFI DISPLAY.
Select your device(device name is shown upon access of
WIFIDISPLAY），after connection, the contents on mobile
phone are streamed to TV display.
（note：for some model, this function is not available）
5. Trouble-shooting
1.Question：What to do if a screen problem appears, such as
black screen, splash screen etc.
Answer：Check if the TV is powered on and if the correct signal
route is enabled. If a HDMI cable is plugged into HDMI port 2 on
TV, the signal route for this port should be enabled and also
make sure that the terminal of HDMI cable is good.
2.Question：There is no access to internet after connection
with wireless router.
Answer：Check if the wireless router works well.
13
3.Question：A problem of jamming or stagnant video appears
while playing online video.
Answer：This is due to a limited internet access speed and it is
recommended that a dedicated cable is used for internet
connection.
4.Question：There is no sound for AV output？
Answer：Please check if the sound is muted on TV, and if there
is sound when the video is played on a computer. Check also if
the audio cable (white and red strings) is plugged into audio
input port on TV.
5.Question:The multimedia files are not found on SD card or
USB flash drive？
Answer：Please check if the connection with them is good.
6.Question：The device is stuck on boot screen.
Answer：The device has crashed and if the remote control does
not work, just disconnect the power and reboot the device.
Please contact your seller if you have any other questions.
14
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
interference that may cause undesired
(2) this device
(1) This device may not cause harmful interference, and
two conditions:
subject to the following
les. Operation is
the equipment.
could void the user's authority to operate
responsible for compliance
Any Changes or modifications not expressly approved by the party
FCC Caution:
operation.
This device complies with part 15 of the FCC Ru
must accept any interference received, including
interference that may cause undesired
(2) this device
(1) This device may not cause harmful interference, and
two conditions:
subject to the following
les. Operation is
the equipment.
could void the user's authority to operate
responsible for compliance
Any Changes or modifications not expressly approved by the party
FCC Caution:
operation.
This device complies with part 15 of the FCC Ru
must accept any interference received, including
any other antenna or
ting in conjunction with
operated with minimum distance
alled and
for uncontrolled
This equipment complies with FCC radiation exposure limits set forth
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
environment .This equipment should be inst
20cm between the radiator& your body.
This transmitter must not be co-located or opera
transmitter.
device, pursuant to part 15 of the FCC
limits for a Class B digital
Note: This equipment has been tested and found to comply with the
15
the interference by one or
try to correct
radio or televisi
cause harmful interference to
installation. If this equipment does
no guarantee that interference will not occur in a particular
there is
to radio communications. However,may cause harmful interference
the instructions,
and,
uses and can radiate radio frequency energy
equipment generates
sidential installation. This
against harmful interference in are
protection
Rules. These limits are designed to provide reasonable
if not installed and used in accordance with
on reception, which can be determined by turning
the equipment off and on, the user is encouraged to
more of the following measures:
radio/TV technician for
help.
that to which the receiver is
fferent from
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit di
connected.
—Consult the dealer or an experienced
16

Navigation menu
