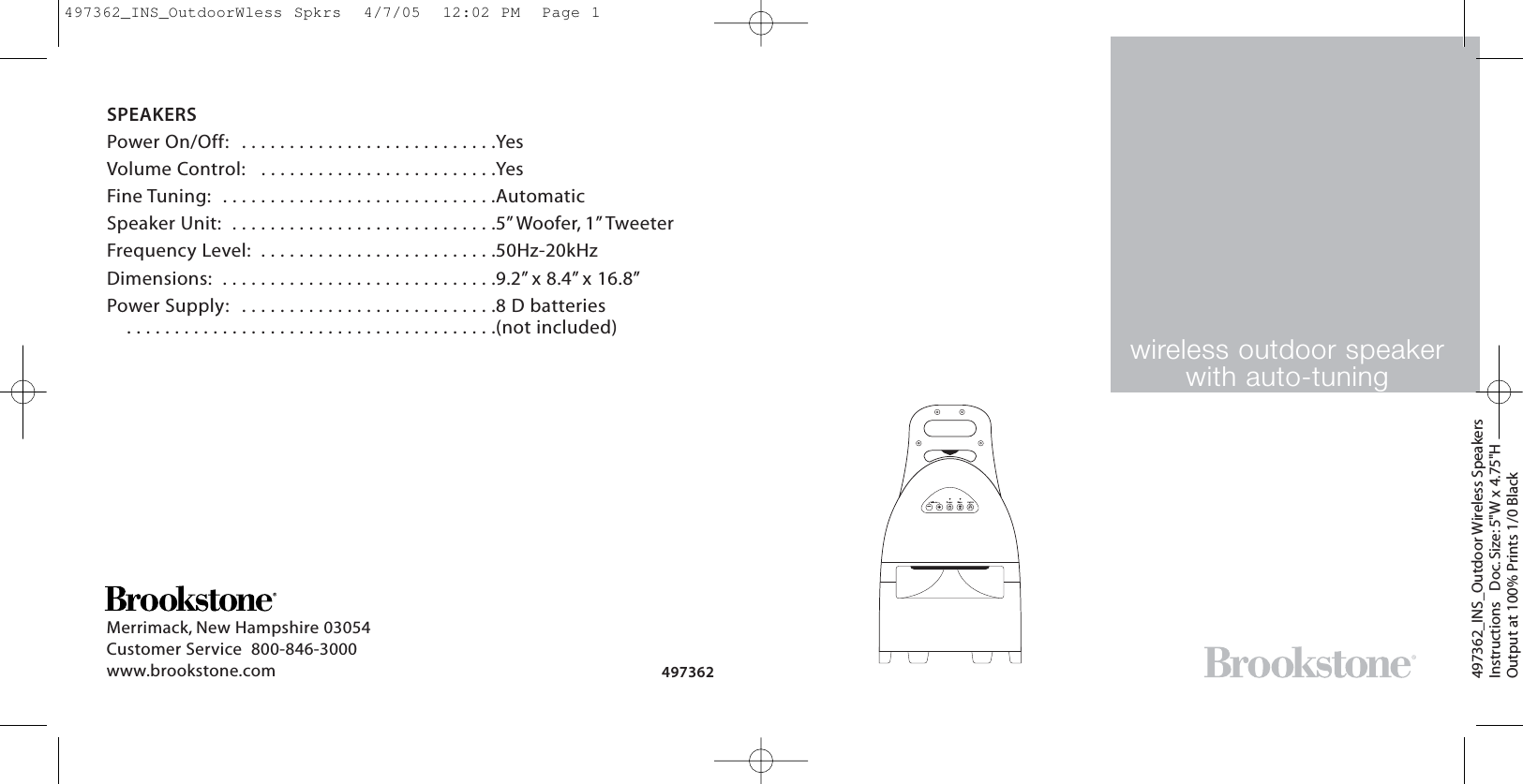

wireless outdoor speakerwith auto-tuning497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black Merrimack, New Hampshire 03054Customer Service 800-846-3000 www.brookstone.com 497362SPEAKERSPower On/Off: . . . . . . . . . . . . . . . . . . . . . . . . . . .YesVolume Control: . . . . . . . . . . . . . . . . . . . . . . . . .YesFine Tuning: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AutomaticSpeaker Unit: . . . . . . . . . . . . . . . . . . . . . . . . . . . .5”Woofer, 1” TweeterFrequency Level: . . . . . . . . . . . . . . . . . . . . . . . . .50Hz-20kHzDimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.2” x 8.4” x 16.8”Power Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . .8 D batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(not included)—+497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 1

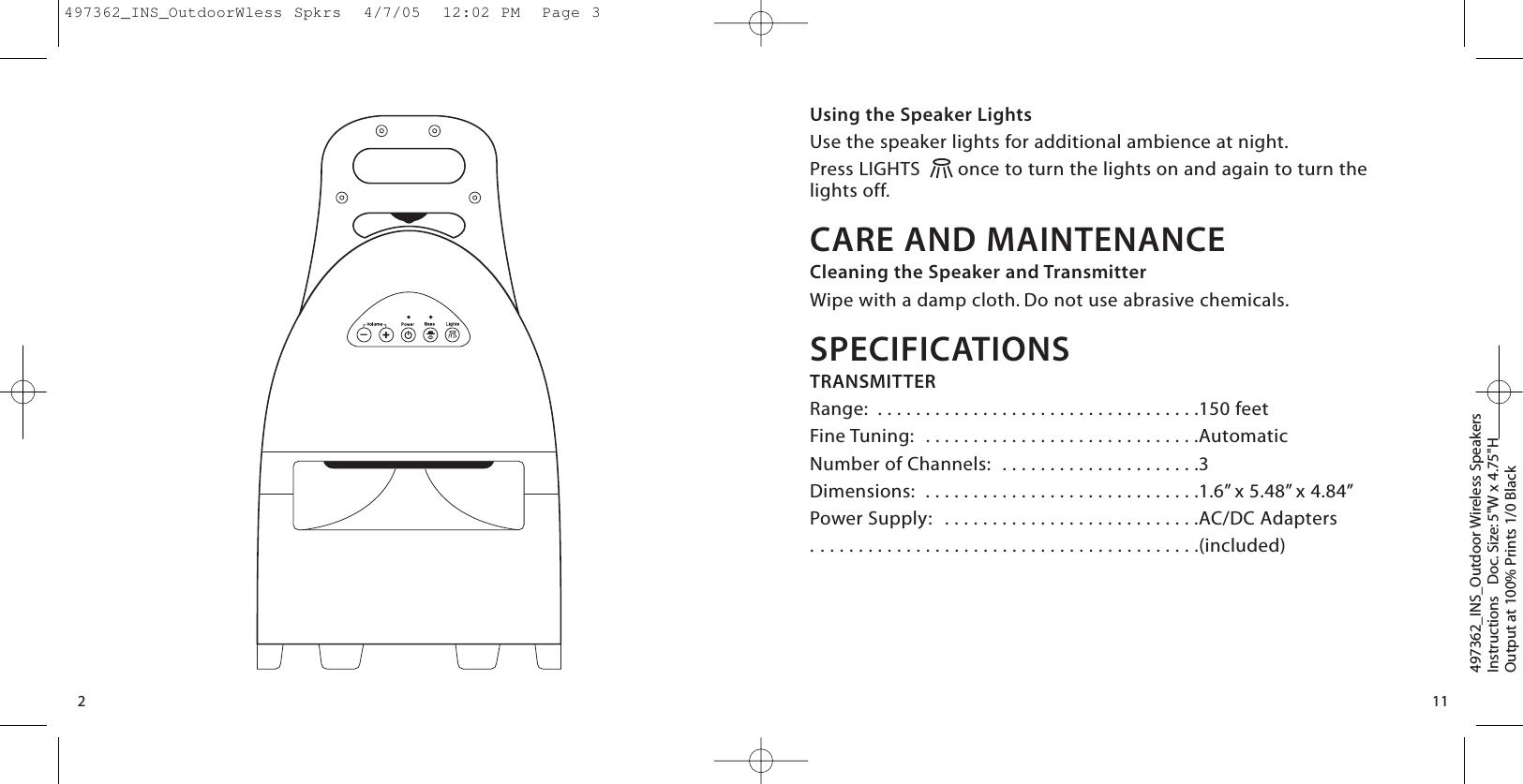

Using the Speaker LightsUse the speaker lights for additional ambience at night.Press LIGHTS once to turn the lights on and again to turn thelights off.CARE AND MAINTENANCECleaning the Speaker and TransmitterWipe with a damp cloth. Do not use abrasive chemicals.SPECIFICATIONSTRANSMITTERRange: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 feetFine Tuning: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AutomaticNumber of Channels: . . . . . . . . . . . . . . . . . . . . .3Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6” x 5.48” x 4.84”Power Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . .AC/DC Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(included)497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black 112—+497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 3

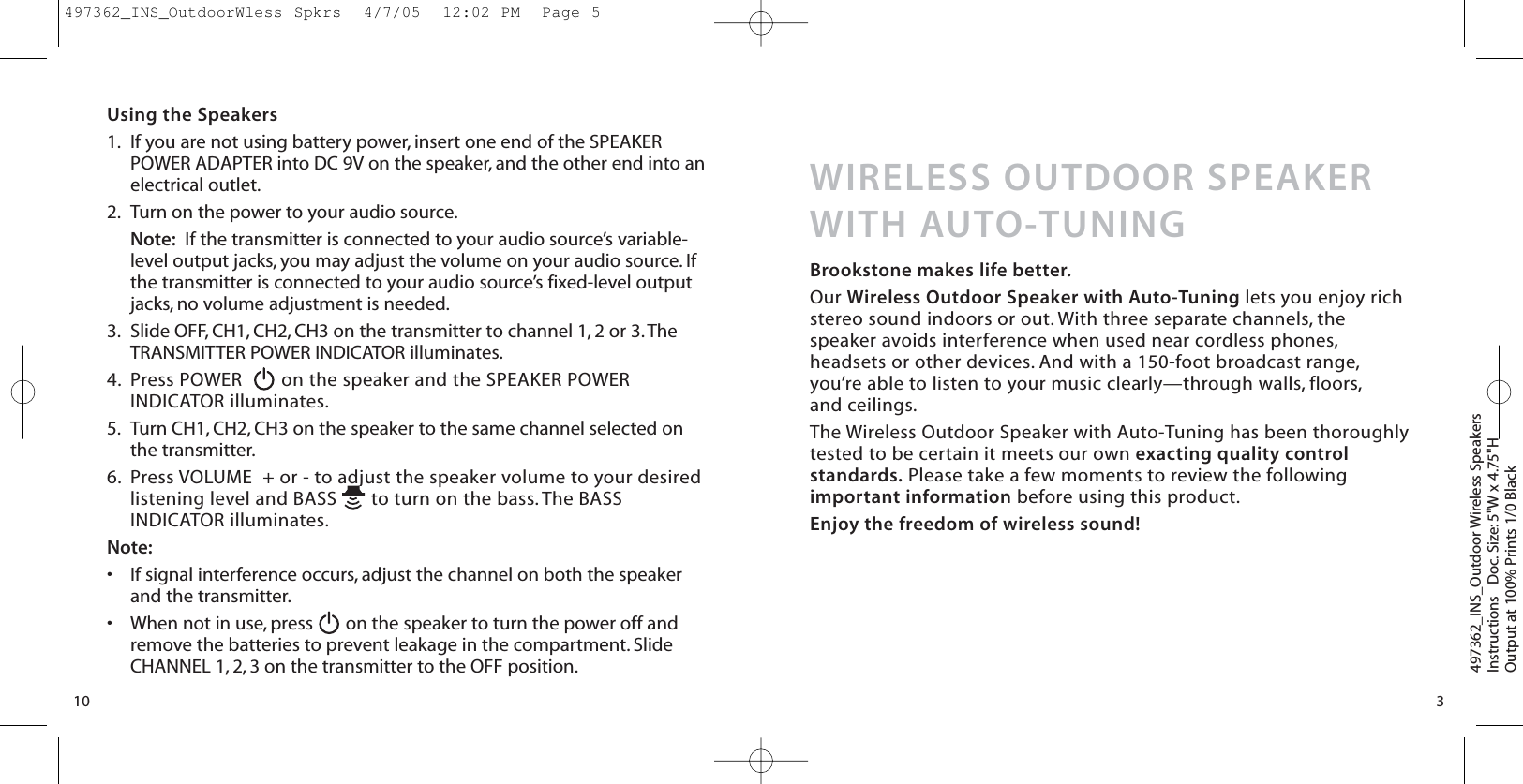

Using the Speakers1. If you are not using battery power, insert one end of the SPEAKERPOWER ADAPTER into DC 9V on the speaker, and the other end into anelectrical outlet.2. Turn on the power to your audio source.Note: If the transmitter is connected to your audio source’s variable-level output jacks, you may adjust the volume on your audio source. Ifthe transmitter is connected to your audio source’s fixed-level outputjacks, no volume adjustment is needed.3. Slide OFF, CH1, CH2, CH3 on the transmitter to channel 1, 2 or 3. TheTRANSMITTER POWER INDICATOR illuminates.4. Press POWER on the speaker and the SPEAKER POWERINDICATOR illuminates.5. Turn CH1, CH2, CH3 on the speaker to the same channel selected onthe transmitter.6. Press VOLUME + or - to adjust the speaker volume to your desiredlistening level and BASS to turn on the bass. The BASSINDICATOR illuminates.Note:•If signal interference occurs, adjust the channel on both the speakerand the transmitter.•When not in use, press on the speaker to turn the power off andremove the batteries to prevent leakage in the compartment. SlideCHANNEL 1, 2, 3 on the transmitter to the OFF position.10497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black WIRELESS OUTDOOR SPEAKERWITH AUTO-TUNINGBrookstone makes life better.Our Wireless Outdoor Speaker with Auto-Tuning lets you enjoy richstereo sound indoors or out. With three separate channels, thespeaker avoids interference when used near cordless phones,headsets or other devices. And with a 150-foot broadcast range,you’re able to listen to your music clearly—through walls, floors,and ceilings.The Wireless Outdoor Speaker with Auto-Tuning has been thoroughlytested to be certain it meets our own exacting quality controlstandards. Please take a few moments to review the followingimportant information before using this product.Enjoy the freedom of wireless sound!3497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 5

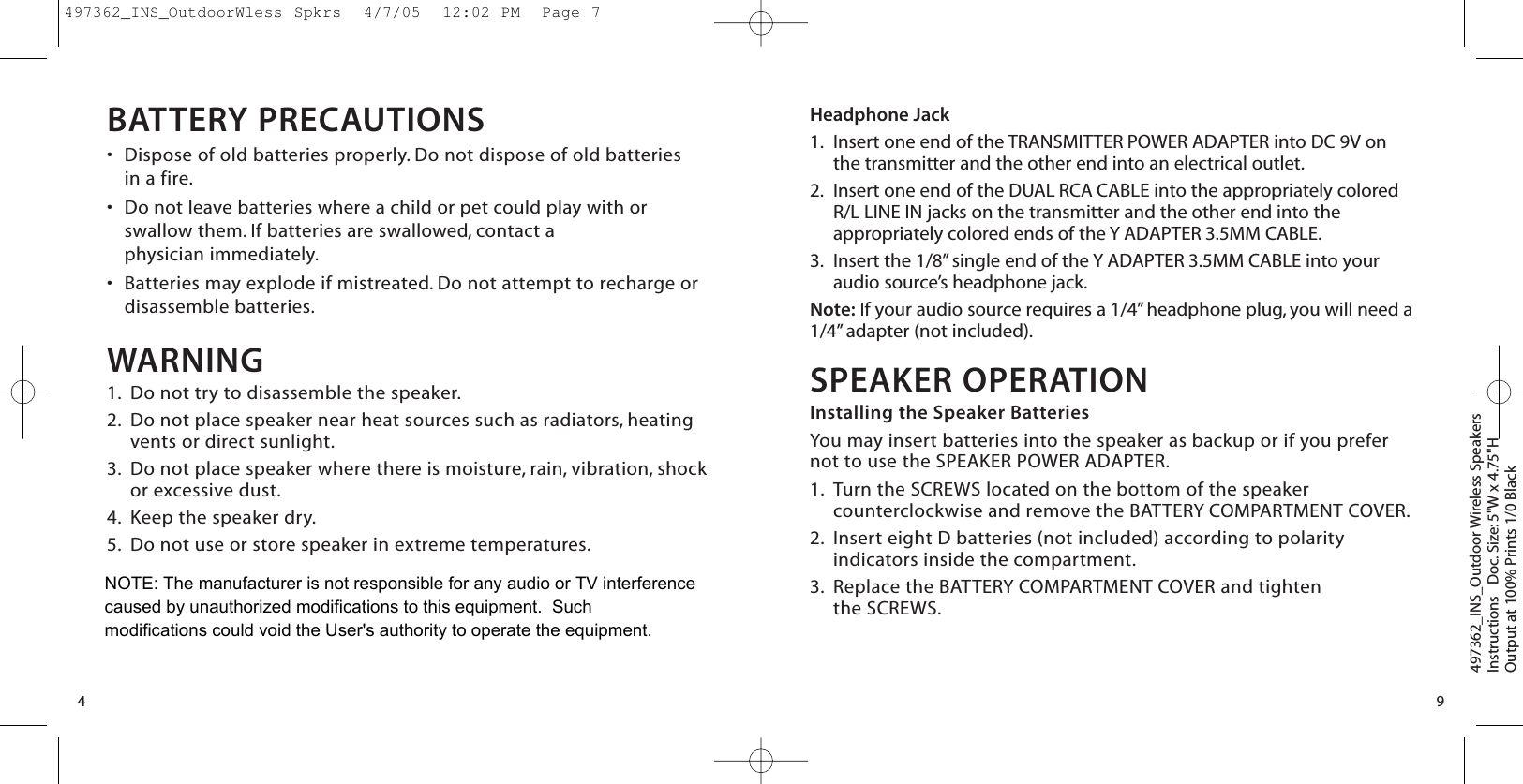

Headphone Jack1. Insert one end of the TRANSMITTER POWER ADAPTER into DC 9V onthe transmitter and the other end into an electrical outlet.2. Insert one end of the DUAL RCA CABLE into the appropriately coloredR/L LINE IN jacks on the transmitter and the other end into theappropriately colored ends of the Y ADAPTER 3.5MM CABLE.3. Insert the 1/8” single end of the Y ADAPTER 3.5MM CABLE into youraudio source’s headphone jack.Note: If your audio source requires a 1/4” headphone plug, you will need a1/4” adapter (not included).SPEAKER OPERATIONInstalling the Speaker BatteriesYou may insert batteries into the speaker as backup or if you prefernot to use the SPEAKER POWER ADAPTER.1. Turn the SCREWS located on the bottom of the speakercounterclockwise and remove the BATTERY COMPARTMENT COVER.2. Insert eight D batteries (not included) according to polarityindicators inside the compartment.3. Replace the BATTERY COMPARTMENT COVER and tighten the SCREWS.497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black 9BATTERY PRECAUTIONS•Dispose of old batteries properly. Do not dispose of old batteries in a fire.•Do not leave batteries where a child or pet could play with orswallow them. If batteries are swallowed, contact a physician immediately.•Batteries may explode if mistreated. Do not attempt to recharge ordisassemble batteries.WARNING1. Do not try to disassemble the speaker.2. Do not place speaker near heat sources such as radiators, heatingvents or direct sunlight.3. Do not place speaker where there is moisture, rain, vibration, shockor excessive dust.4. Keep the speaker dry.5. Do not use or store speaker in extreme temperatures.4497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 7NOTE: The manufacturer is not responsible for any audio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User's authority to operate the equipment.

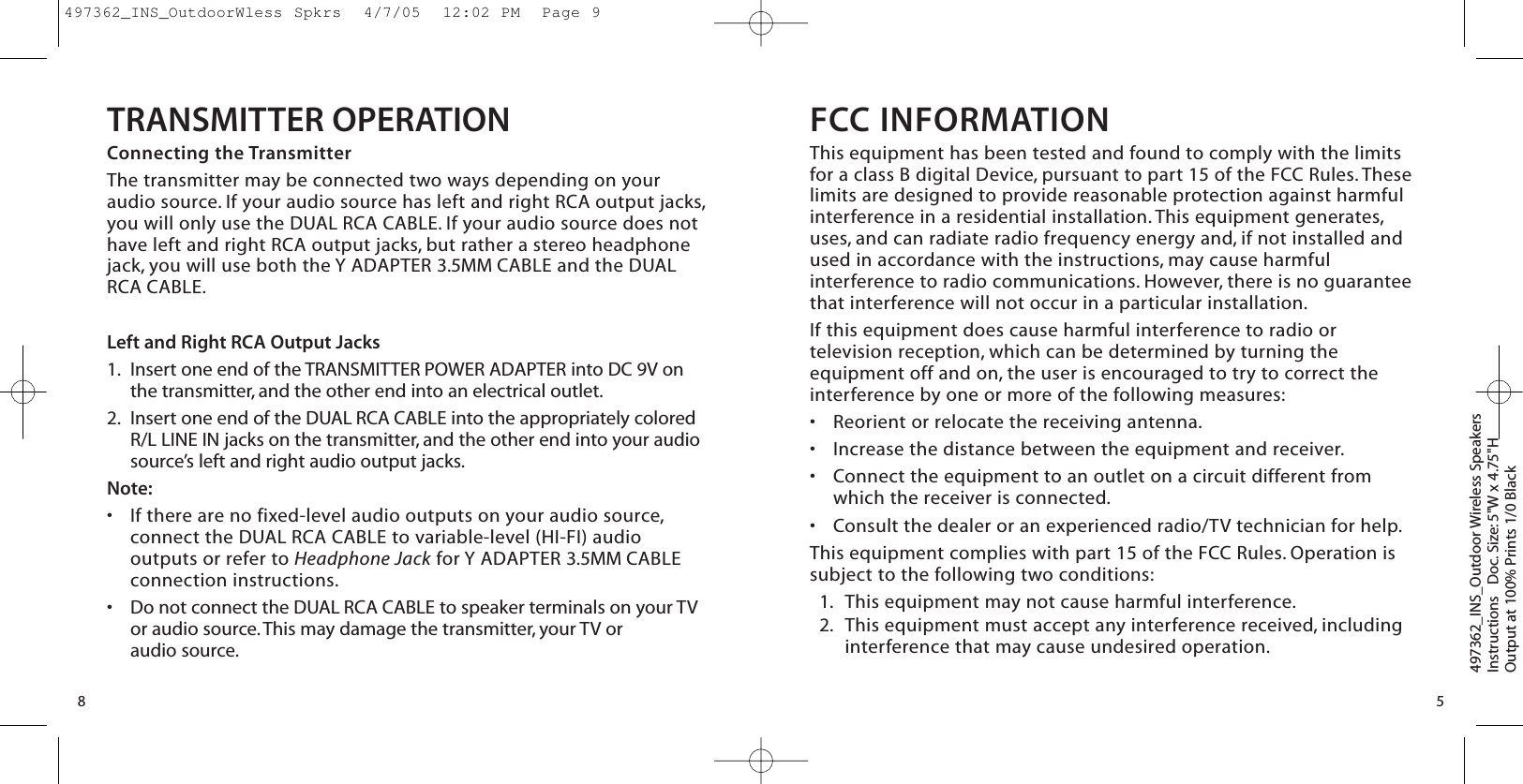

TRANSMITTER OPERATIONConnecting the TransmitterThe transmitter may be connected two ways depending on youraudio source. If your audio source has left and right RCA output jacks,you will only use the DUAL RCA CABLE. If your audio source does nothave left and right RCA output jacks, but rather a stereo headphonejack, you will use both the Y ADAPTER 3.5MM CABLE and the DUALRCA CABLE.Left and Right RCA Output Jacks1. Insert one end of the TRANSMITTER POWER ADAPTER into DC 9V onthe transmitter, and the other end into an electrical outlet.2. Insert one end of the DUAL RCA CABLE into the appropriately coloredR/L LINE IN jacks on the transmitter, and the other end into your audiosource’s left and right audio output jacks.Note:•If there are no fixed-level audio outputs on your audio source,connect the DUAL RCA CABLE to variable-level (HI-FI) audiooutputs or refer to Headphone Jack for Y ADAPTER 3.5MM CABLEconnection instructions.•Do not connect the DUAL RCA CABLE to speaker terminals on your TVor audio source.This may damage the transmitter, your TV or audio source.8FCC INFORMATIONThis equipment has been tested and found to comply with the limitsfor a class B digital Device, pursuant to part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation.If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the distance between the equipment and receiver.•Connect the equipment to an outlet on a circuit different fromwhich the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.This equipment complies with part 15 of the FCC Rules. Operation issubject to the following two conditions:1. This equipment may not cause harmful interference.2. This equipment must accept any interference received, includinginterference that may cause undesired operation.497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black 5497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 9

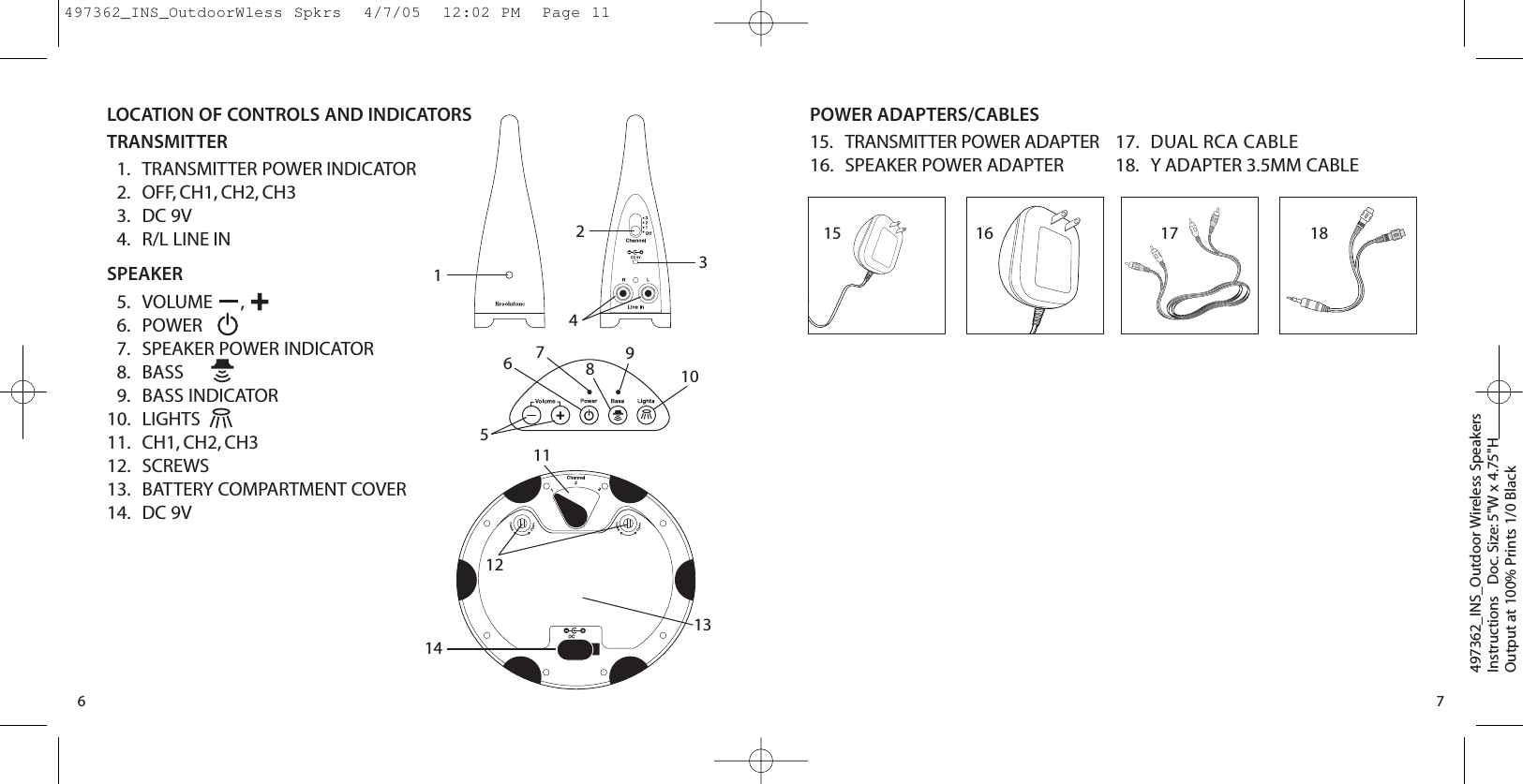

497362_INS_Outdoor Wireless SpeakersInstructions Doc. Size: 5"W x 4.75"HOutput at 100% Prints 1/0 Black 7POWER ADAPTERS/CABLES15. TRANSMITTER POWER ADAPTER16. SPEAKER POWER ADAPTER 17. DUAL RCA CABLE18. Y ADAPTER 3.5MM CABLE15 16 17 18LOCATION OF CONTROLS AND INDICATORSTRANSMITTER1. TRANSMITTER POWER INDICATOR2. OFF, CH1, CH2, CH33. DC 9V4. R/L LINE INSPEAKER5. VOLUME ,6. POWER 7. SPEAKER POWER INDICATOR8. BASS 9. BASS INDICATOR10. LIGHTS 11. CH1, CH2, CH312. SCREWS13. BATTERY COMPARTMENT COVER14. DC 9V61234657891011121314497362_INS_OutdoorWless Spkrs 4/7/05 12:02 PM Page 11
