TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

Application Diagram ...................................................................................................... 4

Installing your Powerline Adapters .................................................. 5

Before you Install ........................................................................................................... 5

Connect a Powerline adapter to your router ................................................................ 5

Add adapters to your network ...................................................................................... 6

Securing your Powerline Network ................................................... 7

Using the Sync button .................................................................................................... 7

Change your default encryption key using the Sync button ..................................... 7

Add adapters using the Sync button ......................................................................... 8

Using the Powerline Utility .............................................................. 9

Powerline Utility System Requirements ........................................................................ 9

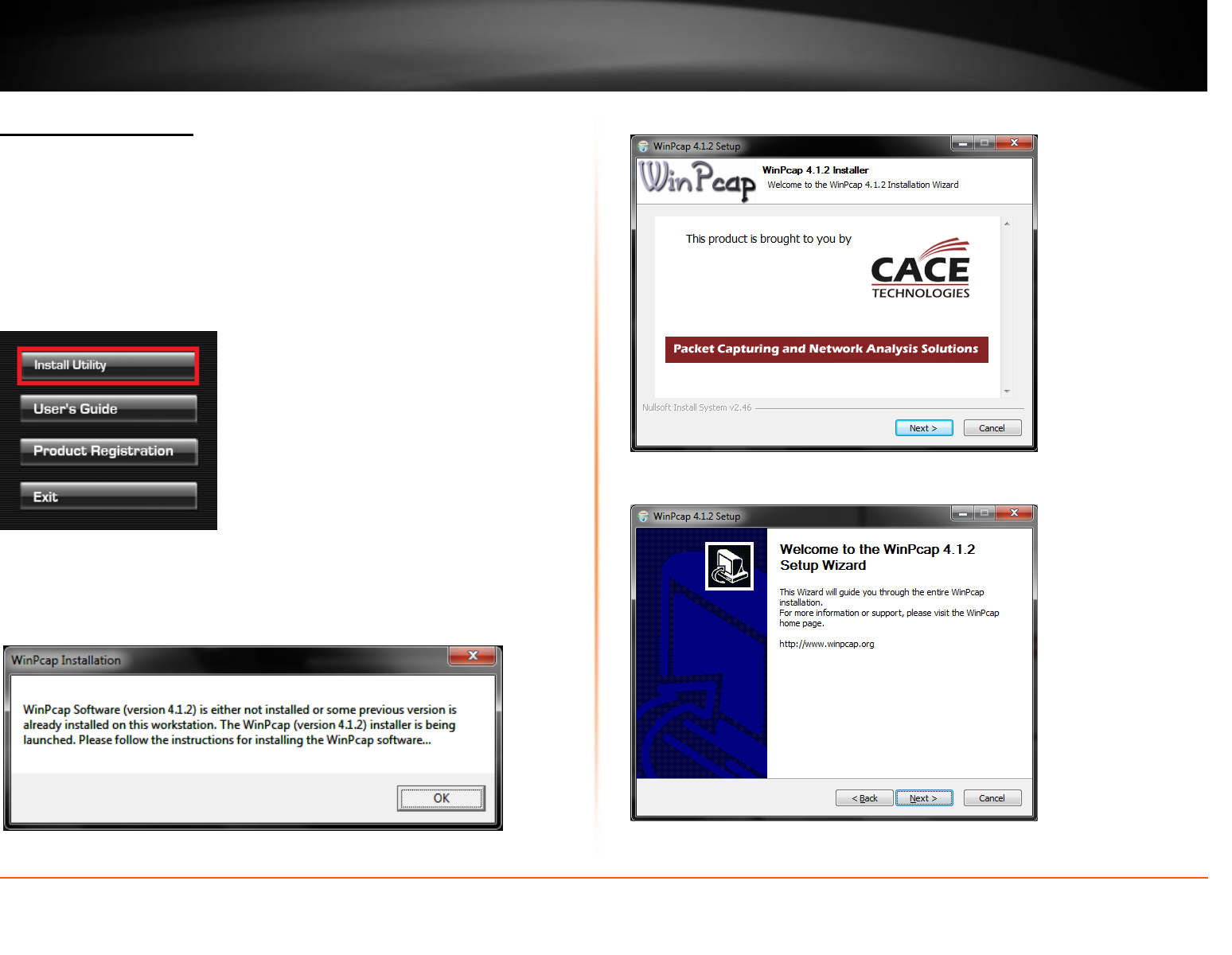

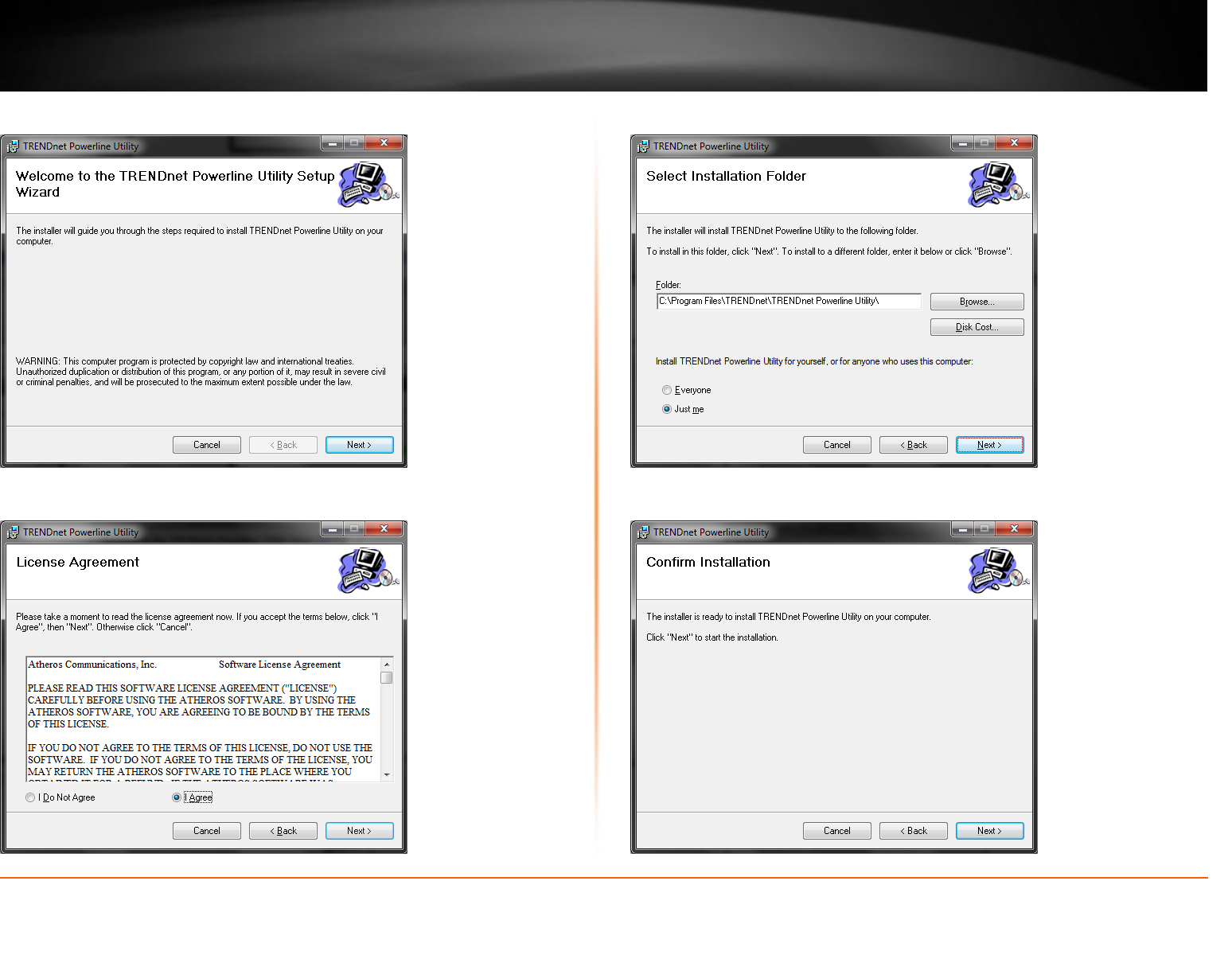

Software Installation.................................................................................................... 10

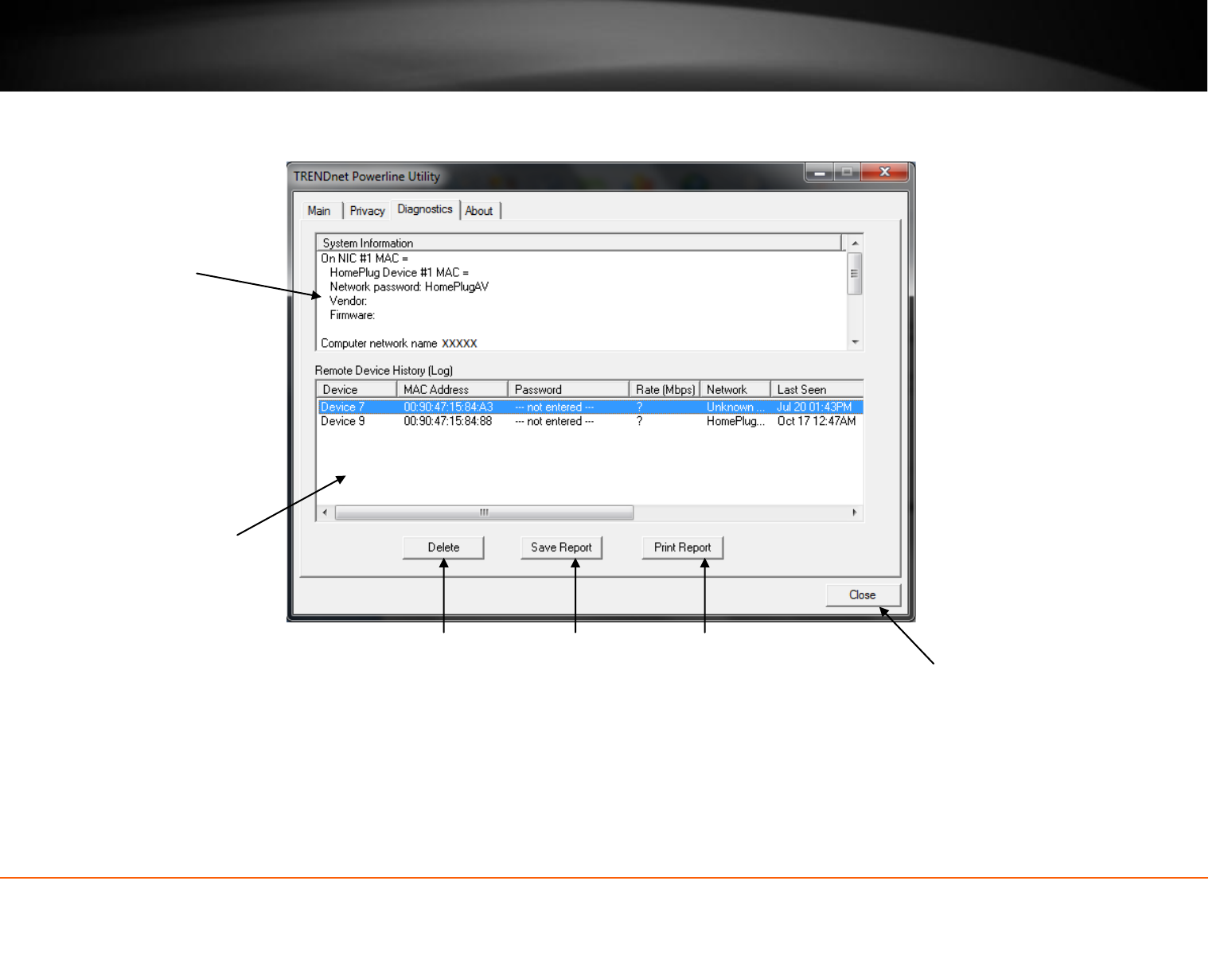

Using the Utility ........................................................................................................... 13

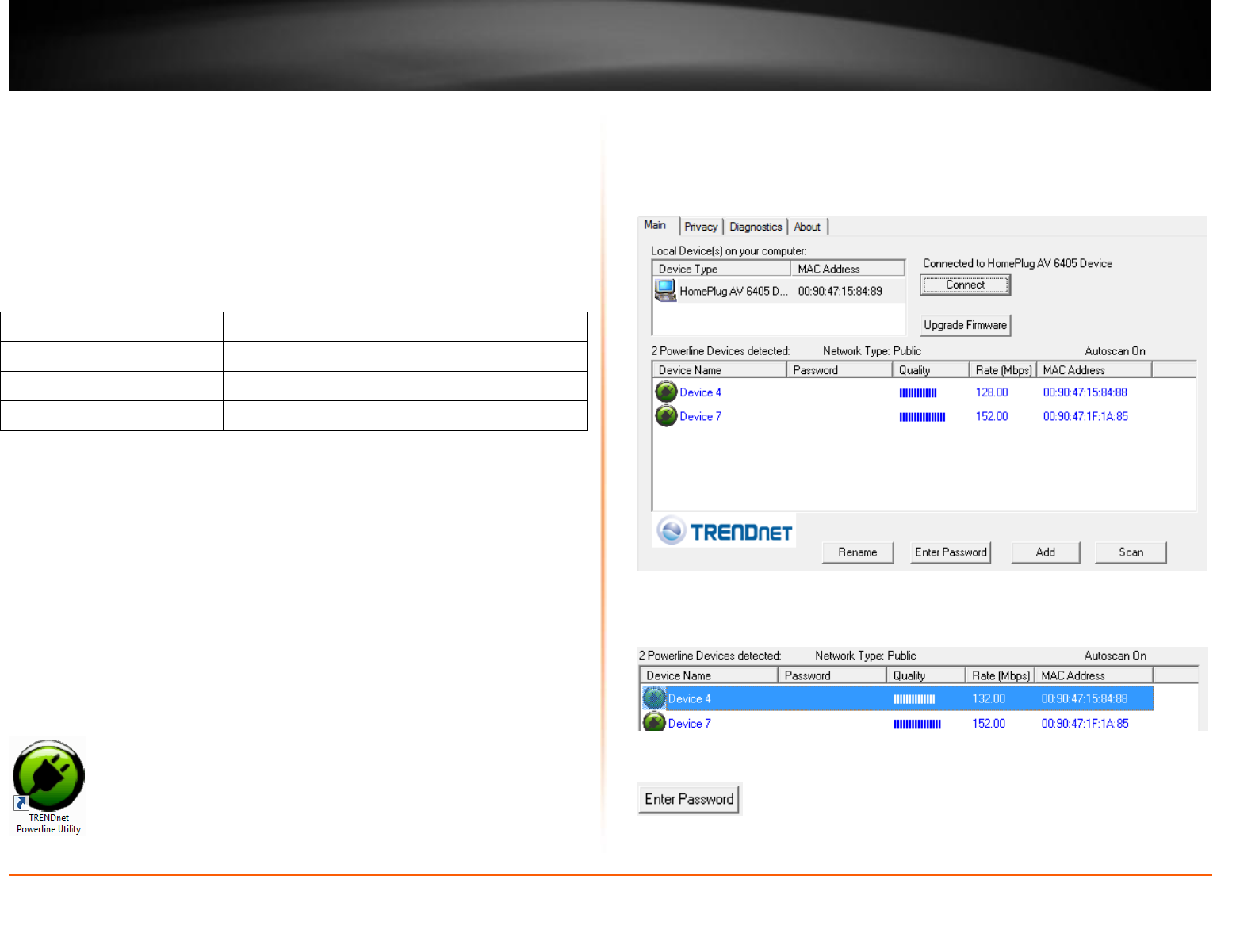

Powerline Utility Overview ..................................................................................... 14

Add adapters in the utility and create a customized encryption key ..................... 18

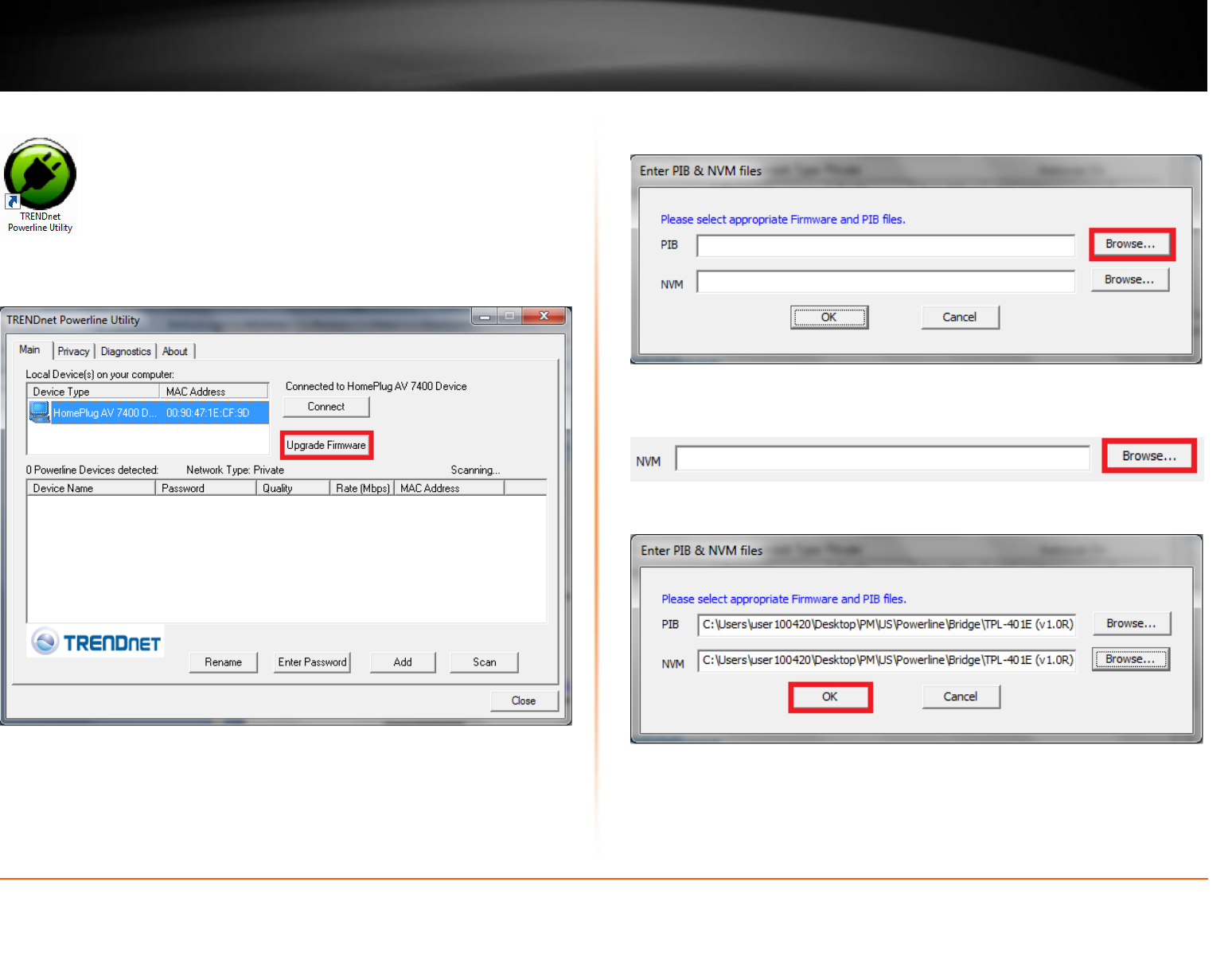

Upgrade Firmware .................................................................................................. 20

Technical Specifications................................................................. 22

Troubleshooting ............................................................................ 23

Appendix ...................................................................................... 24

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

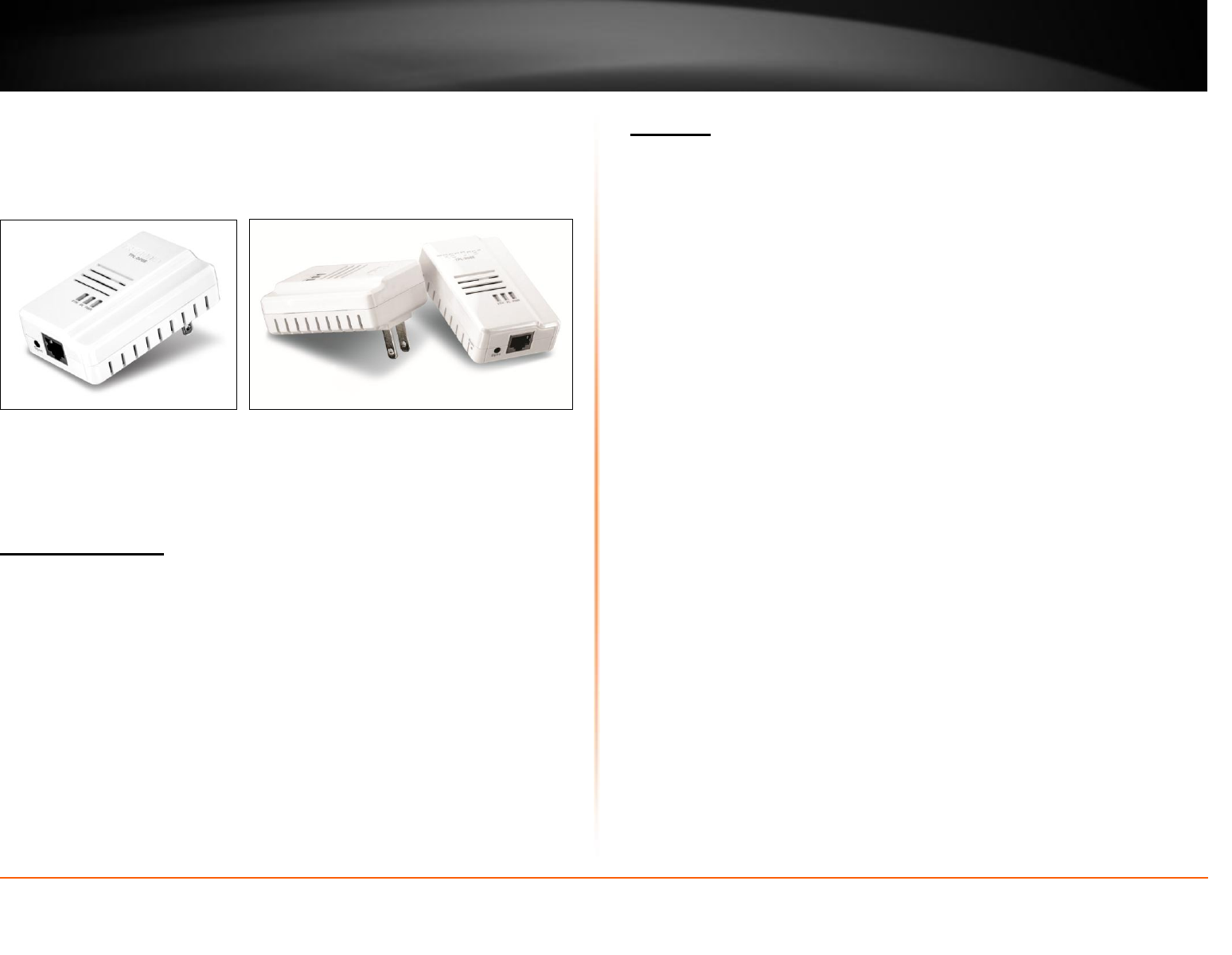

Product Overview

TPL-306E TPL-306E2K

Package Contents

The TPL-306E package includes:

 1 x TPL-306E 200Mbps Compact Powerline AV adapter

 Muti-Language Quick Installation Guide

 CD-ROM (Utility & User’s Guide)

 Network cable (1.5m / 5ft)

The TPL-306E2K package includes:

 2 x TPL-306E 200Mbps Compact Powerline AV adapters

 Muti-Language Quick Installation Guide

 CD-ROM (Utility & User’s Guide)

 2 x network cables (1.5m / 5ft)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

The 200Mbps Compact Powerline AV Adapter, model TPL-306E, uses any electrical

outlet to create a secure high speed building-wide network. Connect one adapter to

your existing network and plug another adapter in to any outlet on your electrical

system for instant high speed network access throughout your home.

The compact form factor offers more space around electrical outlets for other devices.

Adapters connect automatically with no installation required. For added security,

TRENDnet recommends using the one-touch connect button to change the default

network key.

Use up to 6 adapters to network devices in different rooms without the need for new

cabling. Power Save mode reduces power consumption by up to 80%. LED displays

convey device status for easy power management and troubleshooting. Quality of

Service technology prioritizes video, audio, and online gaming. Advanced AES encryption

secures your network. This adapter is ideal for use in buildings that interfere with

wireless networking signals.

 200Mbps building-wide networking over an existing connected electrical

system

 Compliant with the HomePlug® AV and IEEE 1901 standard

 1 x 10/100Mbps Auto-MDIX Ethernet Port

 Compact form factor saves space

 One-touch Sync button to change the default encryption key

 Connect one 200Mbps** Powerline AV Adapter to the Internet and then plug

in up to 5* additional Powerline AV adapters for instant building connectivity

 Share data intensive files, play games, download music, and more at faster data

transfer rates

 Advanced 128-bit AES encryption to ensure total network security

 Power Save mode reduces electrical consumption by 80%

 Neighbor network support for up to 4 overlapping networks

 Three LED indicators: Power (on/off), Powerline Connection (green (best),

amber (better), red (good), off(no connection)), Ethernet Connection (solid

(connection), blinking (transfer activity), off (no connection))

 Network signal transmits up to 300 meters (984 ft.)

 Auto QoS support through traffic classification and multiple priority queuing

 Compatible with all operating systems

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

 Optional management utility compatible with Windows 7 (32/64-bit), Vista

(32/64-bit), and XP (32/64-bit) operating systems

* Maximum of 6 adapters (nodes) for streaming video across your network.

** 200Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary

depending on environment.

*** Networked Powerline devices need to be plugged into power outlets that are on the same

electrical system.

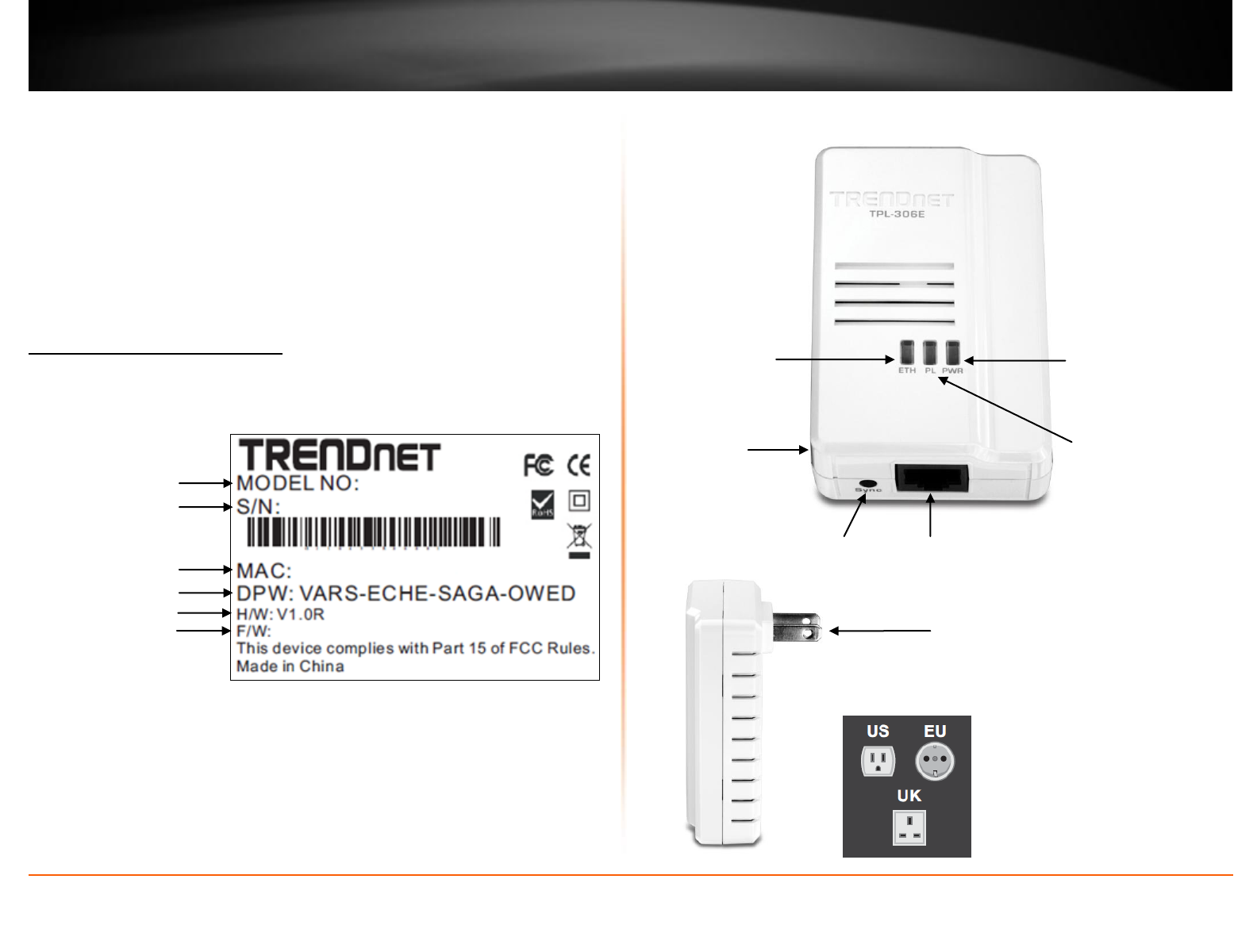

Product Hardware Features

Device Label

Firmware Version

Hardware Version

Device Password (DPW)

Device MAC Address

Device Serial Number

Product Model

Power (PWR) LED

Powerline (PL) LED

Ethernet

Connection (ETH)

LED

Ethernet Port

Sync Button

Reset Button

Power Prong

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

 Ethernet Port - Connect an Ethernet cable (also called network cable) from

your Powerline adapter Ethernet port and to your computer or network device.

 Sync Button – Changes the default encryption key.

 Reset Button – Resets the unit to factory defaults.

 Power Prong – Plugs into an available power outlet.

 Diagnostic LEDs – Indicates the device status and connectivity.

Note: Powerline (PL) LED color indicates the strength and quality of the Powerline

connection through the electrical system.

Note: The following factors may affect the Powerline network’s connection quality:

 Noise – Generated by appliances that are connected to your electrical system

through power outlets that have high power consumption requirements. (e.g.

Microwaves, ovens, blow dryer, iron, dishwasher, etc.) The quality of your

household electrical wiring may also cause additional noise on your electrical

system.

 Distance – Long lengths of electrical wiring through your electrical system

between connected Powerline adapters.

Button

Action

Function

Sync

Push/Hold for 2 sec

Initiate Sync/Connection and generate random

network name/key on first adapter (PWR LED will

start blinking)

Match network name/key on secondary or additional

adapter and connect to first adapter. (PWR LED will

start blinking)

Note: The secondary or additional Powerline

adapter’s Sync button must also be pushed within 2

minutes (120 sec) of pushing the Sync button of the

first adapter in order to establish connectivity.

Push/Hold for 10

sec

Erases the network name/key

(All LEDs will turn off and turn back on)

Reset

Push/Hold for 1 sec

Reset device to factory defaults (All LEDs will turn off

and turn back on)

Note: Will reset to the factory default private

network name “HomePlugAV”

LED

Color

Sequence

Definition

PWR

(Power)

Green

Solid

Device powered On

N/A

Off

Device powered Off

(Powerline)

Green

Solid

Powerline Connected (Connection Quality is

Best)

Blinking

Syncing or Powerline Data

Transmitting/Receiving (Connection Quality

is Best)

Amber

Solid

Powerline Connected (Connection Quality is

Better)

Blinking

Powerline Data Transmitting/Receiving

(Connection Quality is Better)

Red

Solid

Powerline Connected (Connection Quality is

Good)

Blinking

Powerline Data Transmitting/Receiving

(Connection Quality is Good)

N/A

Off

Powerline is not synced or connected

ETH

(Ethernet

Connection)

Green

Solid

10/20 Mbps or 100/200Mbps (Half/Full

Duplex) Connected

Blinking

10/20Mbps or 100/200Mbps (Half/Full

Duplex) Data Transmitting/Receiving

N/A

Off

Port Disconnected/No Ethernet Link

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

Power Saving: The device will automatically reduce power usage when the connected

devices via Ethernet are powered off, unplugged or inactive for more than 3

minutes.

Erp (EuP) Operation: Standby Mode

 Disconnect the Ethernet cables from the device Ethernet ports, and after 3 minutes,

the device will enter standby mode. The Power (PWR) LED will flash every 15

seconds to indicate that the device is currently in standby mode.

 To return to active mode, reconnect the Ethernet cables to the device Ethernet

ports, and the device will re-enter active mode.

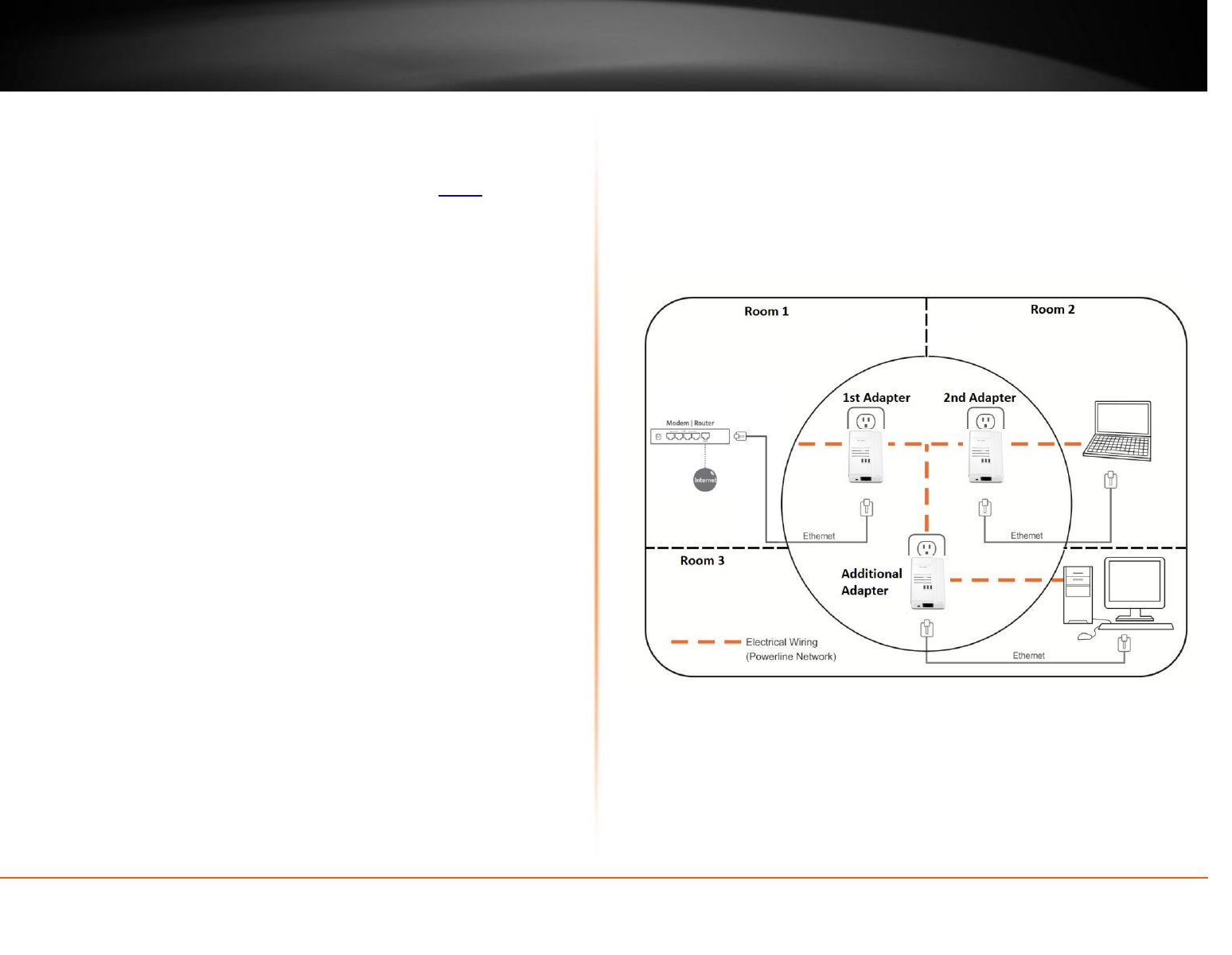

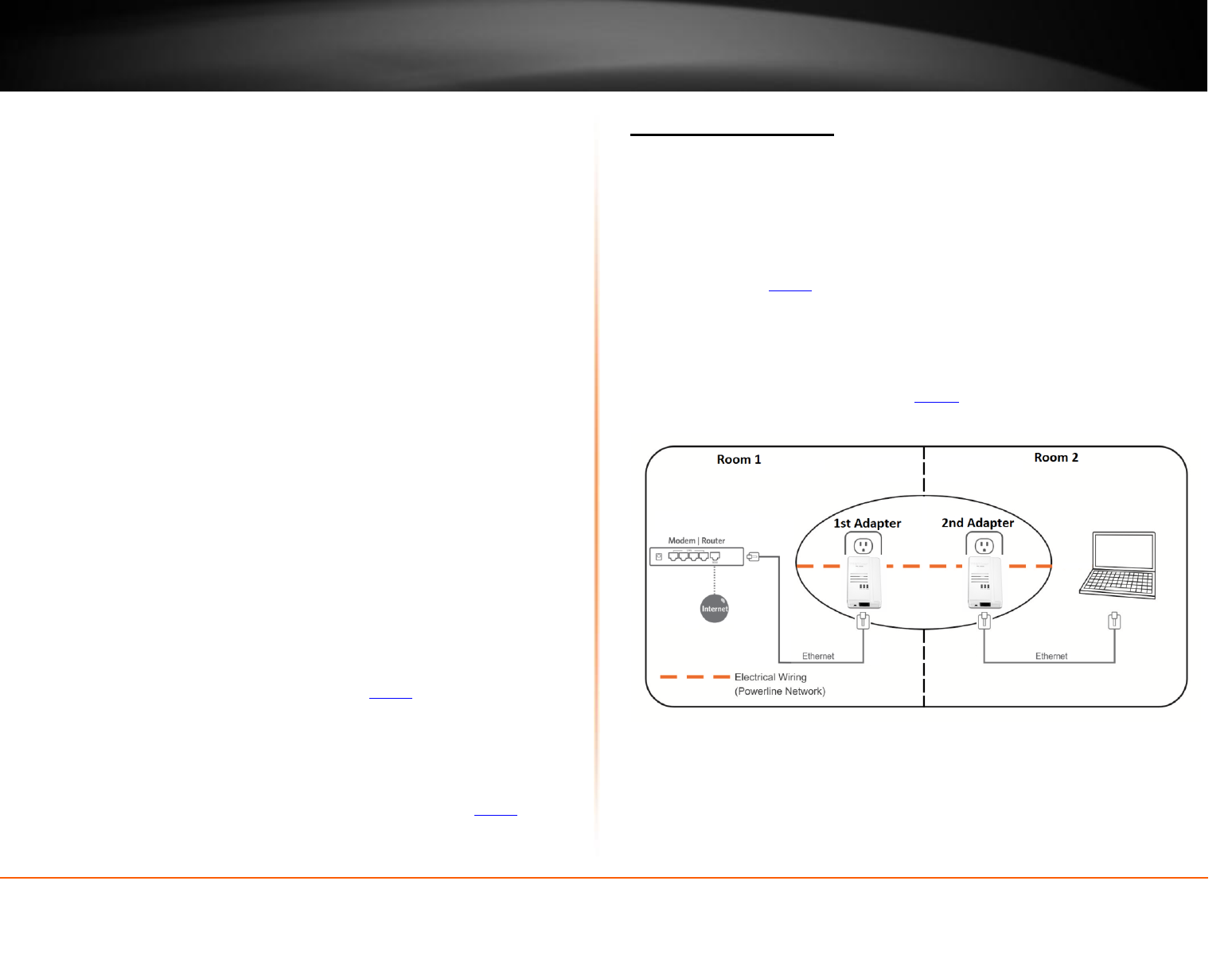

Application Diagram

A router is already installed in the room where the xDSL/Cable modem (typically

supplied by your ISP “Internet Service Provider”) is located in order to physically connect

an Ethernet cable (also called network cable) from the router WAN port to the modem

network port which connects to the Internet. A second Powerline adapter is plugged

into a wall power outlet in another room in order to extend the network connectivity to

the network devices in that room. The Ethernet port of the second Powerline adapter is

then connected to a network enabled TV or other network enabled media device in

order to extend connectivity to these devices allowing access to your network and to

the Internet through the electrical system.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

Installing your Powerline Adapters

Before you Install

1. Before you proceed with the installation, verify the following:

 You already have an existing Ethernet network along with a router already

installed.

 You already have Internet access through your existing network.

 An Ethernet port (also called LAN port) is available on your router.

 Verify that you have at least two Powerline adapters. You will need at least

two Powerline adapters to create a Powerline network.

Note: The TPL-306E package only includes a single Powerline adapter. Please

ensure that your other Powerline adapter is HomePlug® AV or IEEE 1901

compliant (e.g. TRENDnet models TPL-303E, TPL-304E, TPL-305E, TPL-307E, TPL-

310AP, TPL-401E, TPL-402E, TPL-405E, or another TPL-306E.) The TPL-306E2K

package already includes two Powerline adapters.

2. Plan the location of where you will install your Powerline adapters.

 Avoid plugging the adapters into power strips, extension cords, or surge

protectors as this may prevent the adapter from functioning correctly such as

degrading performance.

 Avoid plugging the adapters into wall power outlets that are controlled by a

switch to prevent the Powerline adapter from being turned off accidentally.

 Avoid plugging the adapters into wall power outlets that are located near

appliances that consume a lot of power (e.g. refrigerators, washers, dryers) as

this may degrade performance.

 Make sure there is an available wall power outlet in the room where the router

is installed and also near the router.

 Make sure there is an available wall power outlet in the room where you want

to extend your network connectivity.

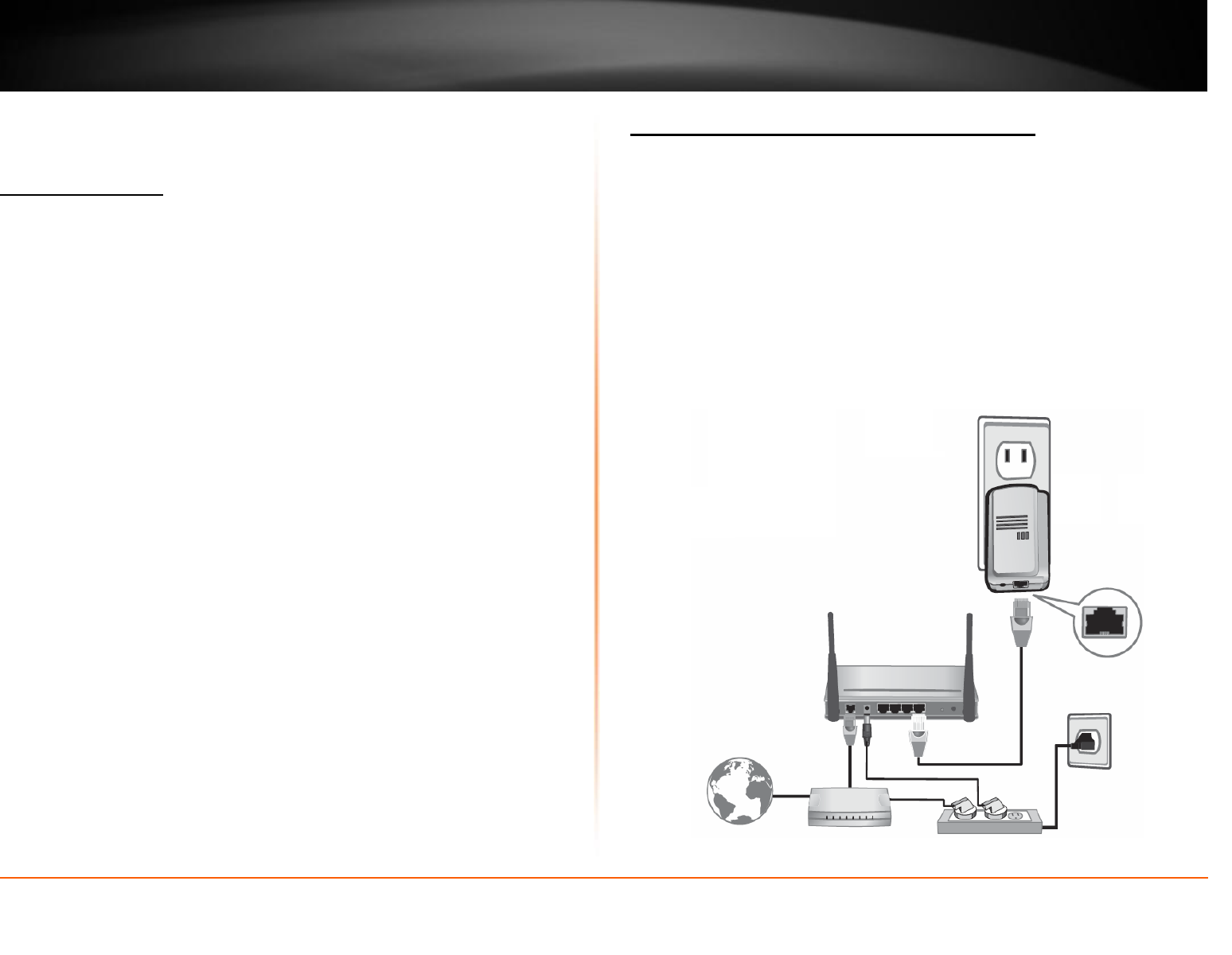

Connect a Powerline adapter to your router

1. Plug the Powerline adapter into an available wall power outlet near your router.

Note: This will allow devices connected to your Powerline network to access the Internet

and other devices connected to your network.

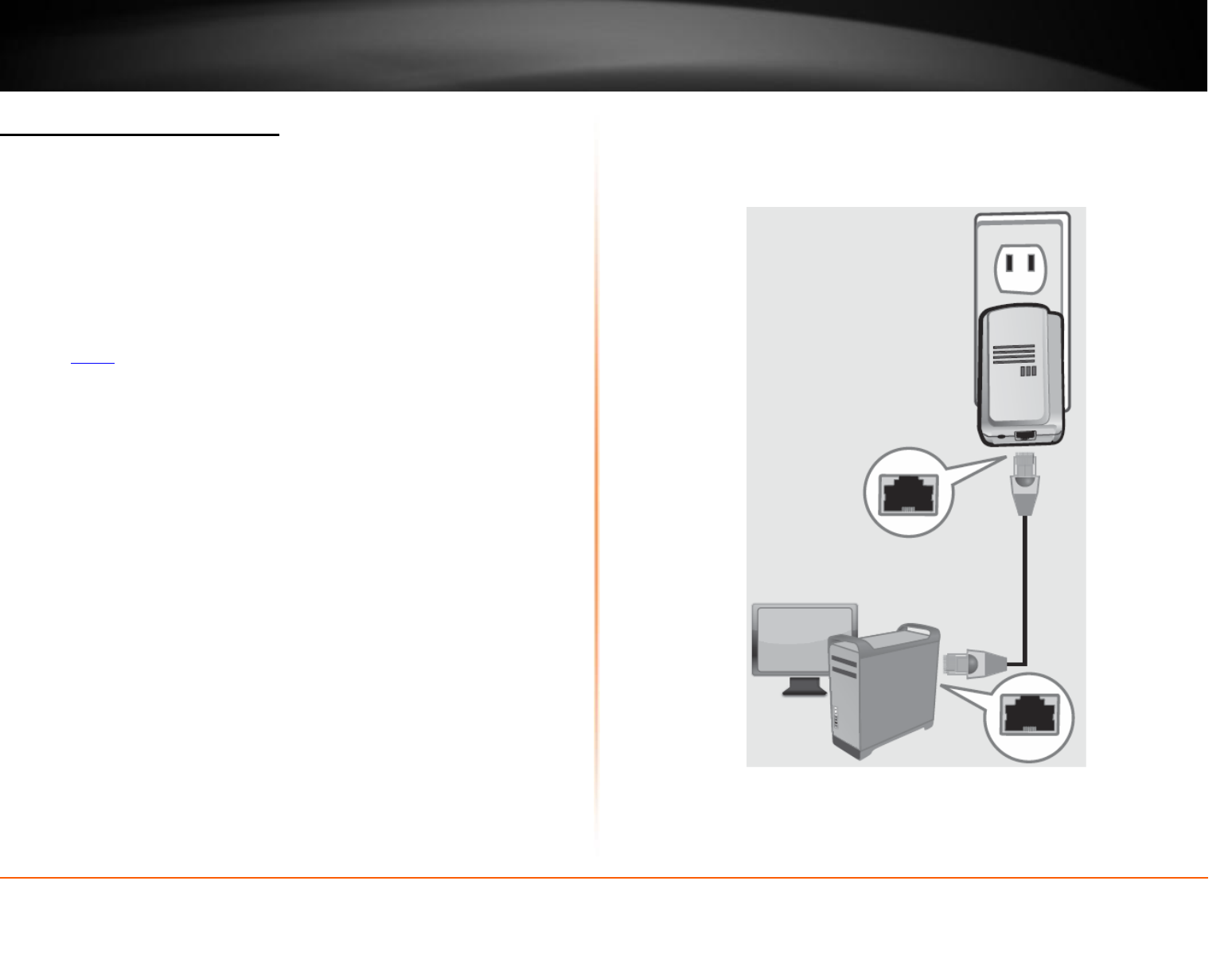

2. Connect the included Ethernet cable (also called network cable) from the Ethernet

port (also called network port) of your Powerline adapter to an available Ethernet port

(also called LAN port) on your router.

3. Once the Powerline adapter is installed and connected to your router, verify that the

Power (PWR) LED is on or blinking and the Ethernet Connection (ETH) LED is on or

blinking.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

Add adapters to your network

Once you have installed and connected the first Powerline adapter to your router, you

can easily extend your network to other rooms by adding additional Powerline adapters.

To extend your network using an additional Powerline adapter:

1. First, make sure the first Powerline adapter is installed and connected to your router.

Note: This will allow devices connected to your Powerline network to access the Internet

and other devices connected to your network. See “Connect a Powerline adapter to your

router” on page 5.

2. Plug the additional Powerline adapter into an available wall power outlet in another

room near a computer or network device (e.g. game consoles, network-enabled TVs,

network attached storage, network media server/players, etc.) that you would like to

connect to your network.

3. Connect the included Ethernet cable (also called network cable) from the Ethernet

port (also called network port) on your Powerline adapter to the to the Ethernet port of

your computer or network device.

4. After the additional Powerline adapter is connected and installed to your computer or

network device, wait for the Powerline (PL) LED to turn on. After the Powerline (PL) LED

turns on, verify that the Power (PWR) LED is on, the Powerline (PL) LED is on or

blinking, and the Ethernet Connection (ETH) LED is on or blinking.

Note: To verify that your Powerline adapters are connected successfully to your network,

you can check if the computers or network devices are able to access the Internet

through your Powerline adapters, or using a computer, check if you are able to access

the network devices connected to your network.

To install additional Powerline adapters in other rooms, repeat the steps above for

each adapter.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

Securing your Powerline Network

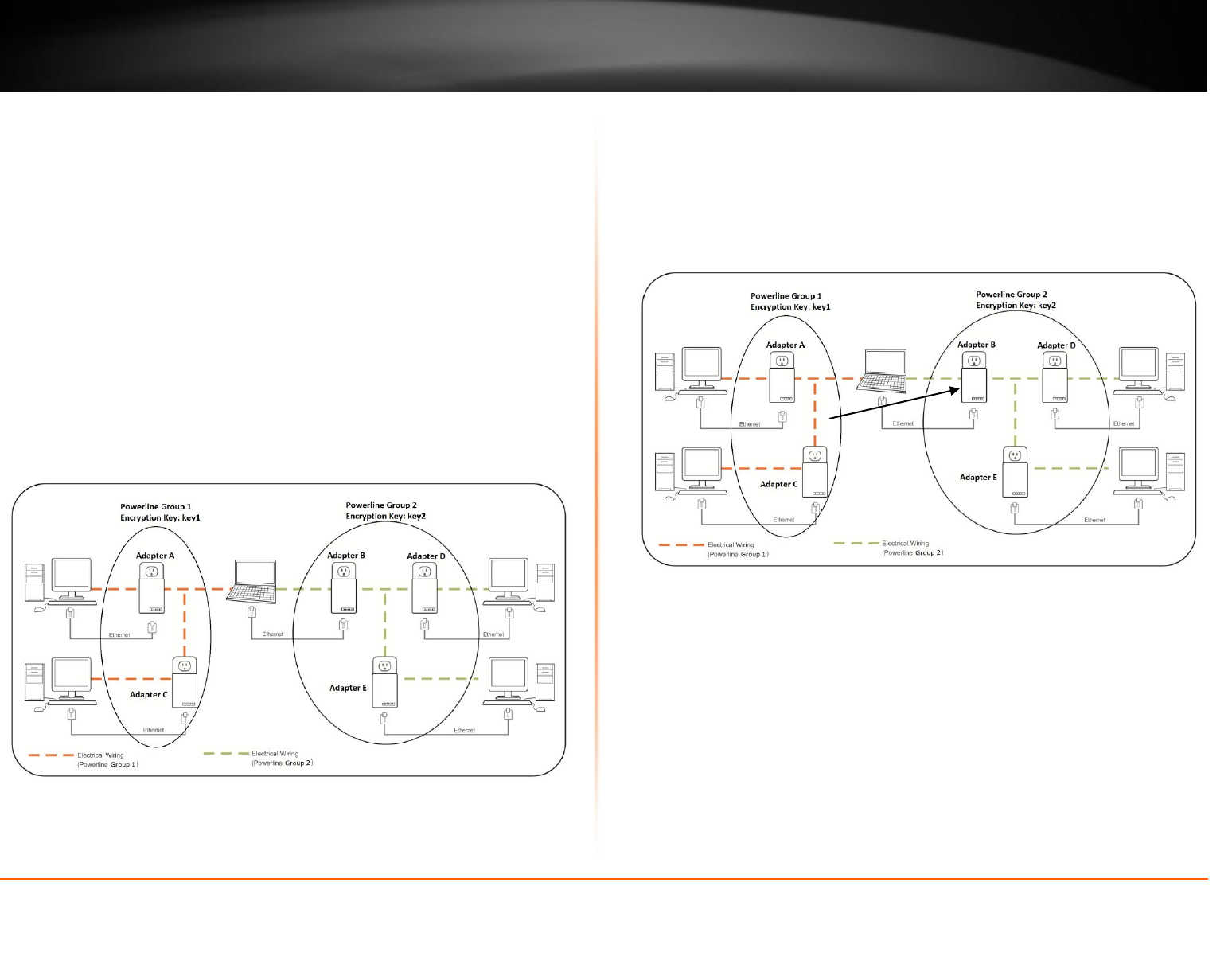

Powerline networks consist of two or more Powerline devices connected together using

the same encryption key. At default settings, all TRENDnet Powerline adapters are

assigned the same encryption key and there is no additional setup required for the first

installation. You would simply need to plug the TRENDnet Powerline adapters into

available wall power outlets and the adapters will connect to each other using the

default encryption key HomePlugAV and create your Powerline network automatically.

In order for your Powerline devices to connect to the same Powerline network, the

same encryption key must be assigned to all Powerline devices in that network.

Powerline devices that are not assigned the same encryption key will not be able to

connect to the Powerline network.

For additional security, it is recommended that you can change the default encryption

key to prevent anyone nearby with a Powerline network from gaining access to your

network.

Note: After the default encryption key has been changed and the Powerline adapters

have been connected using a new encryption key, the Powerline adapters will retain

their security settings when they are unplugged and moved to a new location. No

additional reconfiguration of the Powerline adapters is needed after the default

encryption has been changed.

There are two methods you can change the default encryption key:

 Use the physical Sync button on your Powerline adapter to generate a random

encryption key. See “Using the Sync Button” on page 7.

 Create a customized encryption key for your Powerline network using the

included Powerline Utility. See “Using the Powerline Utility” on page 9.

Using the Sync button

Change your default encryption key using the Sync button

The physical Sync button on the Powerline adapter provides an easy method of

changing the default encryption key. The Sync button generates a random encryption

key for your Powerline network. To create a customized encryption key, see “Using the

Powerline Utility” on page 9.

Note: The default encryption key assigned to TRENDnet Powerline adapters is

HomePlugAV. Before changing the default encryption, please ensure that your

Powerline adapters are already installed and connected using the default encryption key.

See “Installing your Powerline Adapters” on page 5.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

To change the default encryption key between two Powerline adapters:

1. Verify that all Powerline adapters are already installed and connected using the

default encryption key, see “Installing your Powerline Adapters” on page 5.

2. On one of your connected Powerline adapters, push and hold the Sync button for 10

seconds and release it. All LEDs will turn off and turn back on. This will erase the current

encryption key assigned to the first Powerline adapter.

Note: Once you complete this step, the other Powerline adapter will not be able to

communicate to this Powerline adapter.

3. Push and hold the Sync button on the other Powerline adapter for 10 seconds and

release it. All LEDs will turn off and turn back on. This will erase the current encryption

key assigned to the second Powerline adapter.

4. Within 2 minutes, push and hold the Sync button on the first Powerline adapter for 2

seconds and release it. The Power (PWR) LED will start blinking. This will generate a

random encryption key on the first Powerline adapter.

5. Push and hold the Sync button on the second Powerline adapter for 2 seconds and

release it. The Power (PWR) LED will start blinking. This will create a connection

between both Powerline adapters using the new encryption key. All LEDs will turn off

and turn back on and the Powerline (PL) LED will turn on the when adapters are

connected.

Add adapters using the Sync button

If you have changed the default encryption key assigned to your Powerline adapters,

additional adapters will not automatically connect to your Powerline network after they

are plugged into a wall power outlet. For any additional adapters, you will need to

reconfigure any additional Powerline adapters that you add to use the encryption key of

your existing Powerline network.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

To reconfigure an additional Powerline adapter to connect and use the encryption key

of your existing Powerline network:

1. Verify that all existing Powerline adapters are already installed and connected.

2. Push and hold the Sync button on the additional Powerline adapter for 10 seconds

and release it. All LEDs will turn off and turn back on. This will erase the current

encryption key assigned to the additional Powerline adapter.

3. Push and hold the Sync button on one of the existing Powerline adapters connected

to your Powerline network for 2 seconds and release it. The Power (PWR) LED will start

blinking.

4. Within 2 minutes, push and hold the Sync button on the additional Powerline adapter

for 2 seconds and release it. The Power (PWR) LED will start blinking. This will

reconfigure your additional Powerline adapter to connect and use the encryption key of

your existing Powerline network. All LEDs will turn off and turn back on and the

Powerline (PL) LED will turn on the adapters are connected.

To reconfigure the encryption key and connect additional Powerline adapters to your

existing Powerline network, repeat the steps above for each adapter.

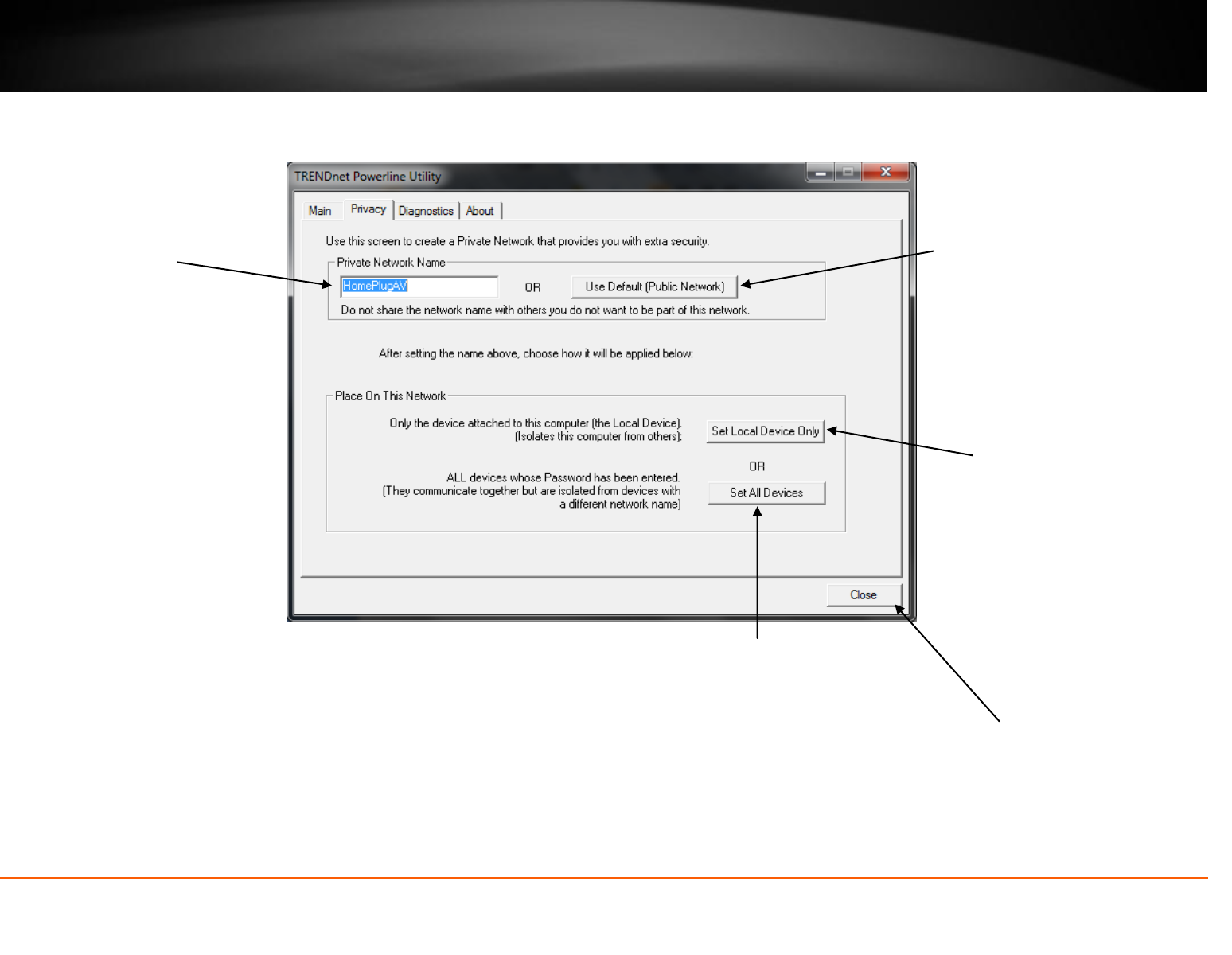

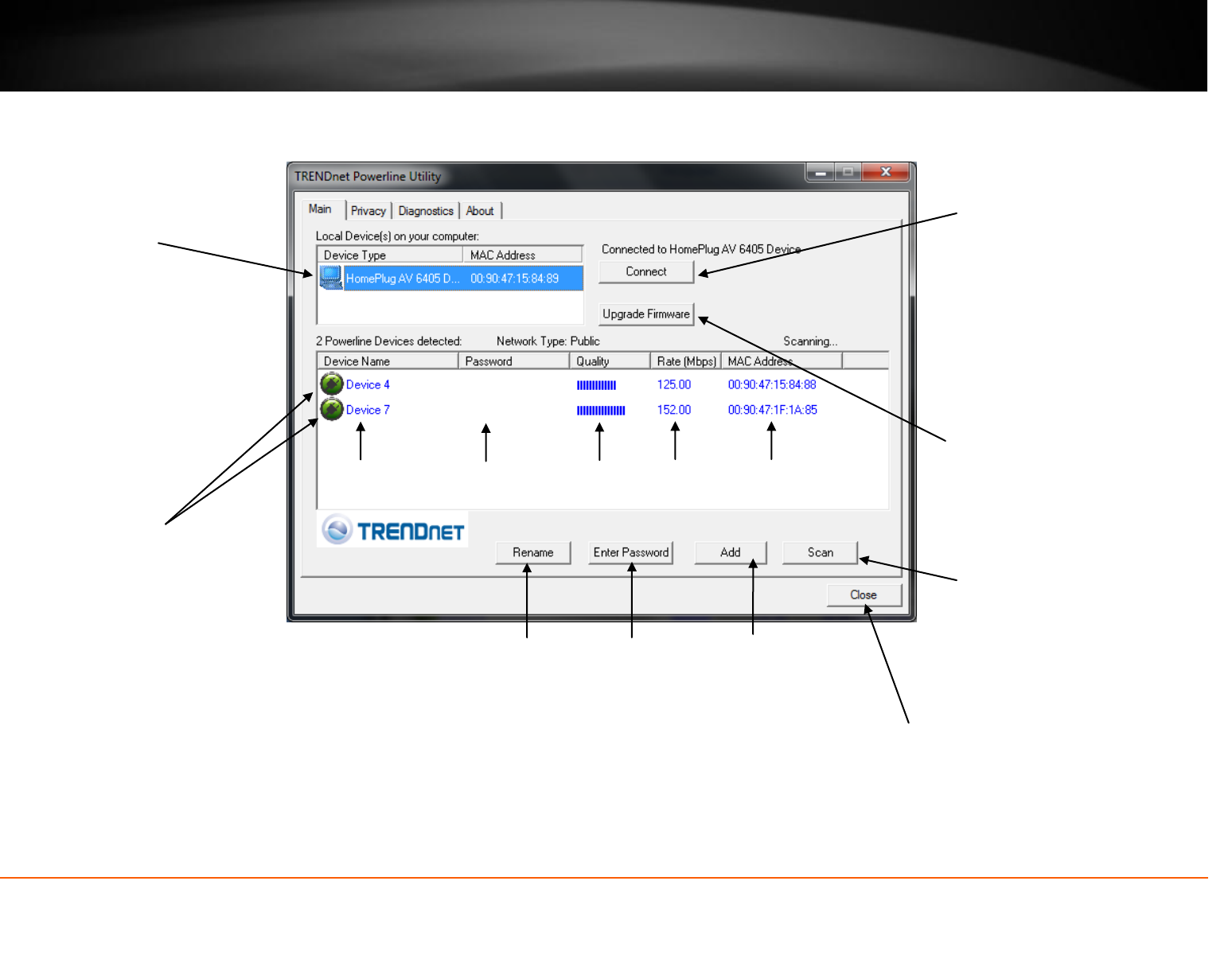

Using the Powerline Utility

The Powerline Utility allows you to do the following:

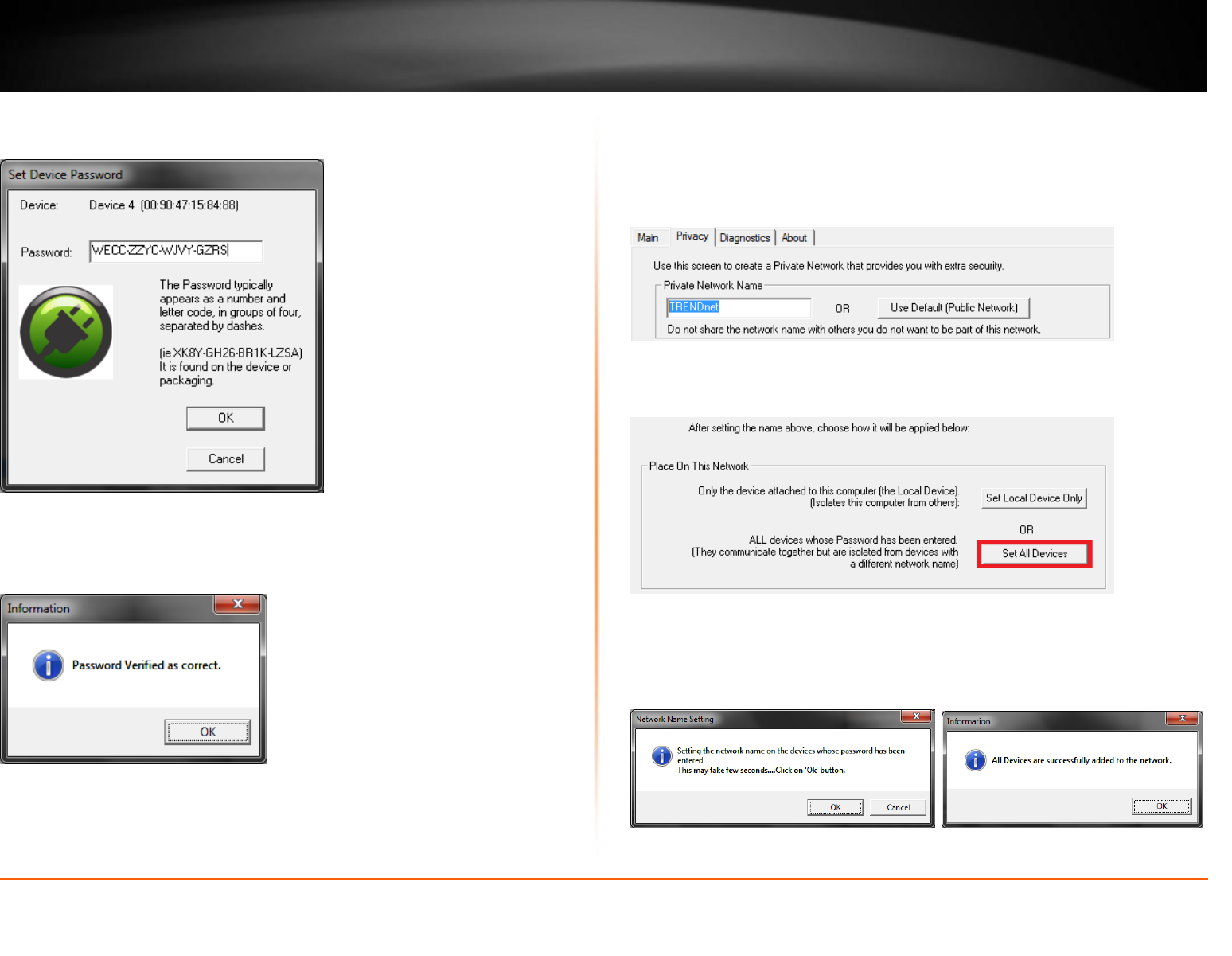

 Create a customized encryption key for your Powerline network and apply it to

multiple Powerline adapters at the same time.

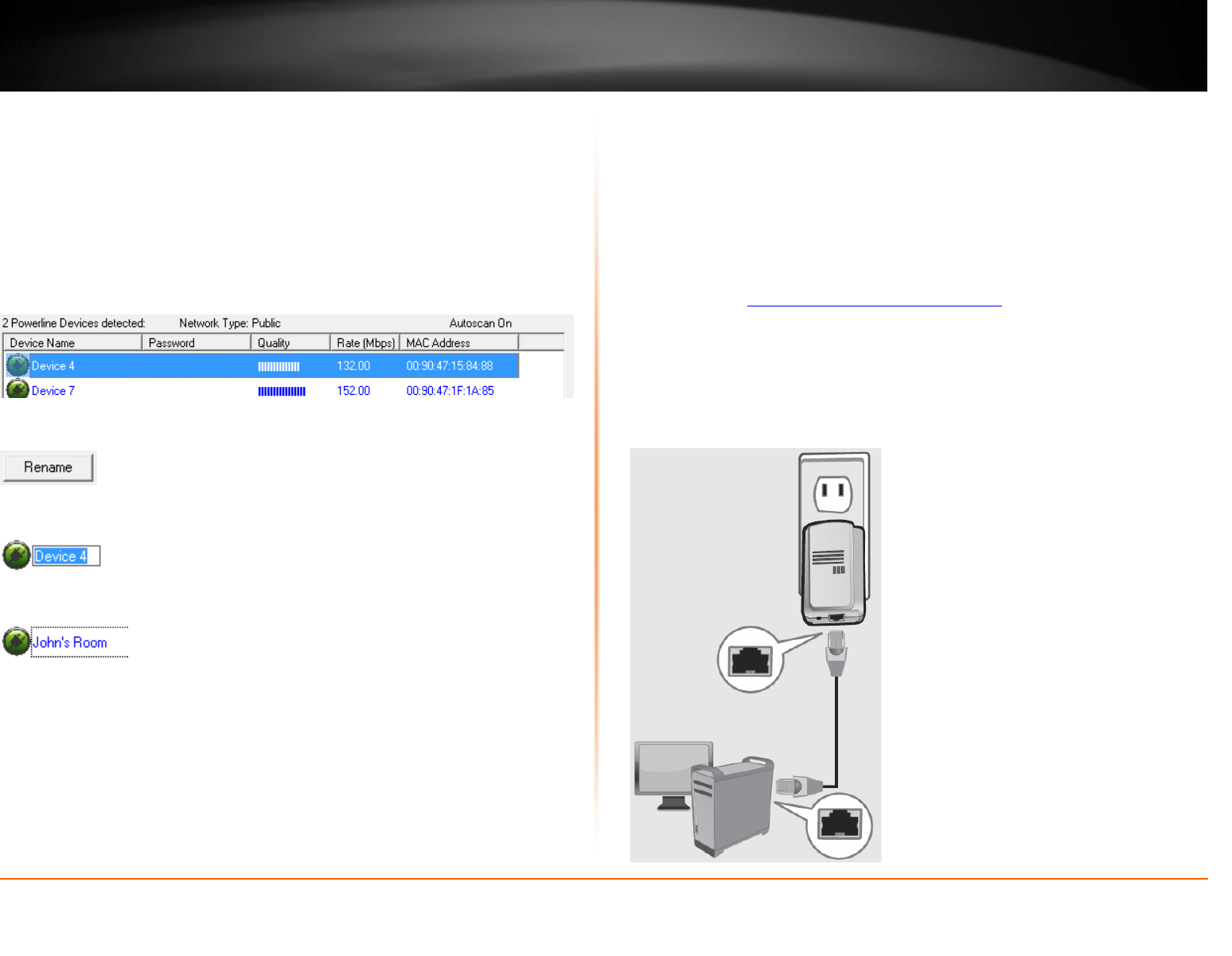

 Allows you to view the Powerline adapters connected to your network (using

the MAC address) and the approximate connection quality and speed of each

Powerline adapter

 View and upgrade your Powerline adapter firmware version.

Note: Link speed displayed in the utility of your Powerline adapters to another

through your electrical system is estimated. Actual link speed may vary.

Before installing and using the utility, please ensure the following:

 Write down the Device Password (DPW) (16-digit characters A-Z only) and MAC

Address (12-digit characters a-f, A-F, 0-9) of each Powerline adapter as this will

be required to change the encryption key for multiple Powerline adapters. See

“Product Hardware Features” on page 2.

 Make sure your computer in which you are installing the utility is connected to

your network and your Powerline adapters are also connected to your network.

 If you have changed your encryption key using the Sync button and you are

creating a customized encryption key, it is required to reset all Powerline

devices to defaults using the physical Reset button on your Powerline adapter

first before using the utility. See “Product Hardware Features” on page 2.

 Please ensure that your Powerline adapters are already installed and connected

and the Ethernet port on each adapter is connected to a device powered on.

Powerline Utility System Requirements

Supported Operating Systems

CPU

Memory

Windows 7 (32/64-bit)

1GHz or above

1GB RAM or above

Windows Vista (32/64-bit)

800MHz or above

512MB RAM or above

Windows XP (32/64-bit)

300MHz or above

256MB RAM or above

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

Software Installation

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. At the CD Autorun Prompt window, click Run Autorun.exe

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

3. At the CD-ROM main menu, click Install Utility.

4. Click OK.

Note: The Powerline Configuration Utility requires the use of the WinPcap application. If

this prompt does not appear, you may already have the WinPcap application installed. If

so, please skip over to Step 11.

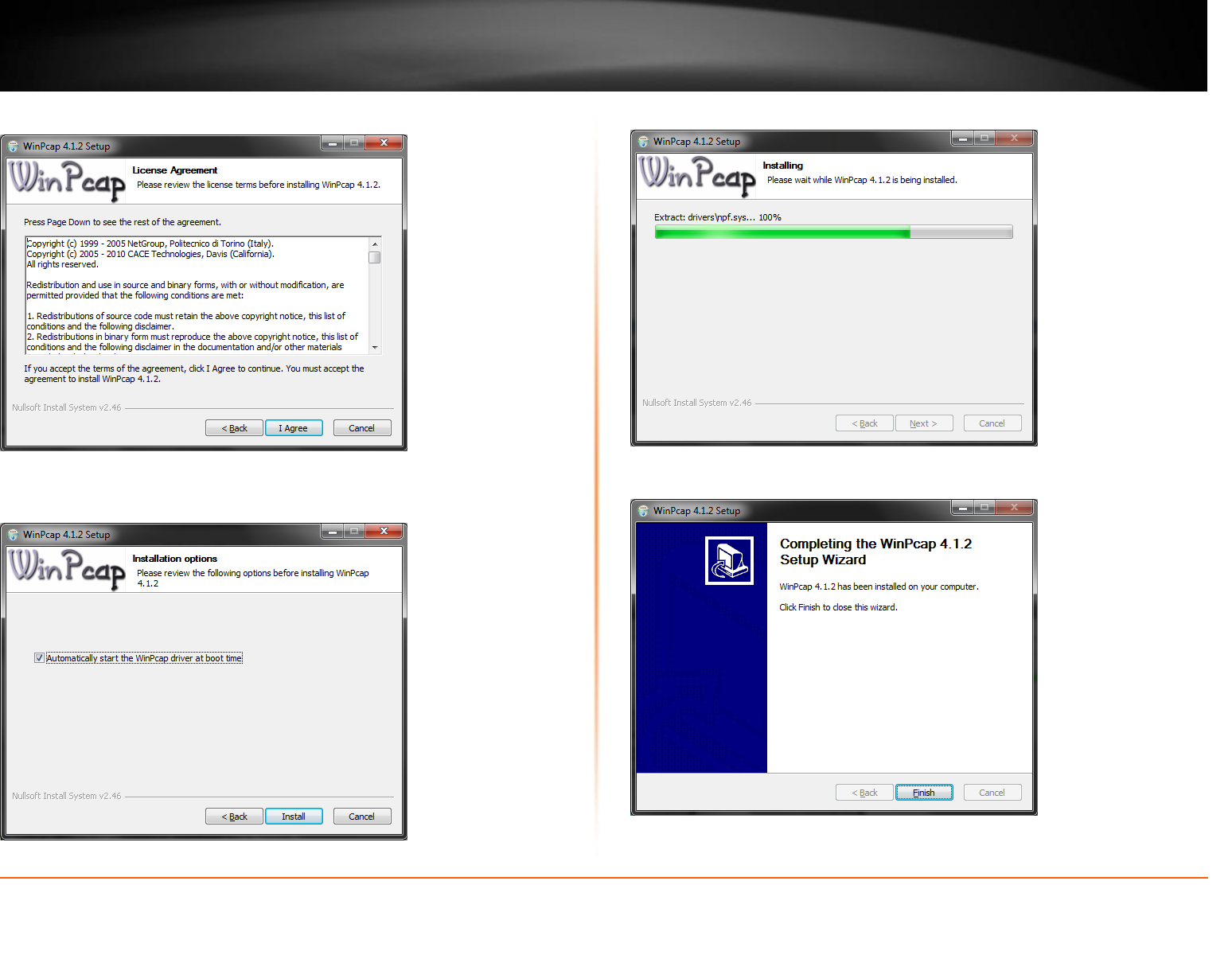

5. At the WinPcap installer window, click Next.

6. In the Setup Wizard window, click Next.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

7. In the License Agreement window, click I Agree.

8. In the Install Options window, leave the option Automatically start the WinPcap

driver at boot time checked and click Install.

9. Wait for the WinPcap installation to complete.

10. After the process is completed, click Finish.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

11. At the Powerline Configuration Utility installation window, click Next.

12. In the License Agreement window, check the radio button I Agree, and click Next.

13. In the Select Installation Folder window, click Next.

14. In the Confirm Installation window, click Next.

TRENDnet User’s Guide

TPL-306E / TPL-306E2K

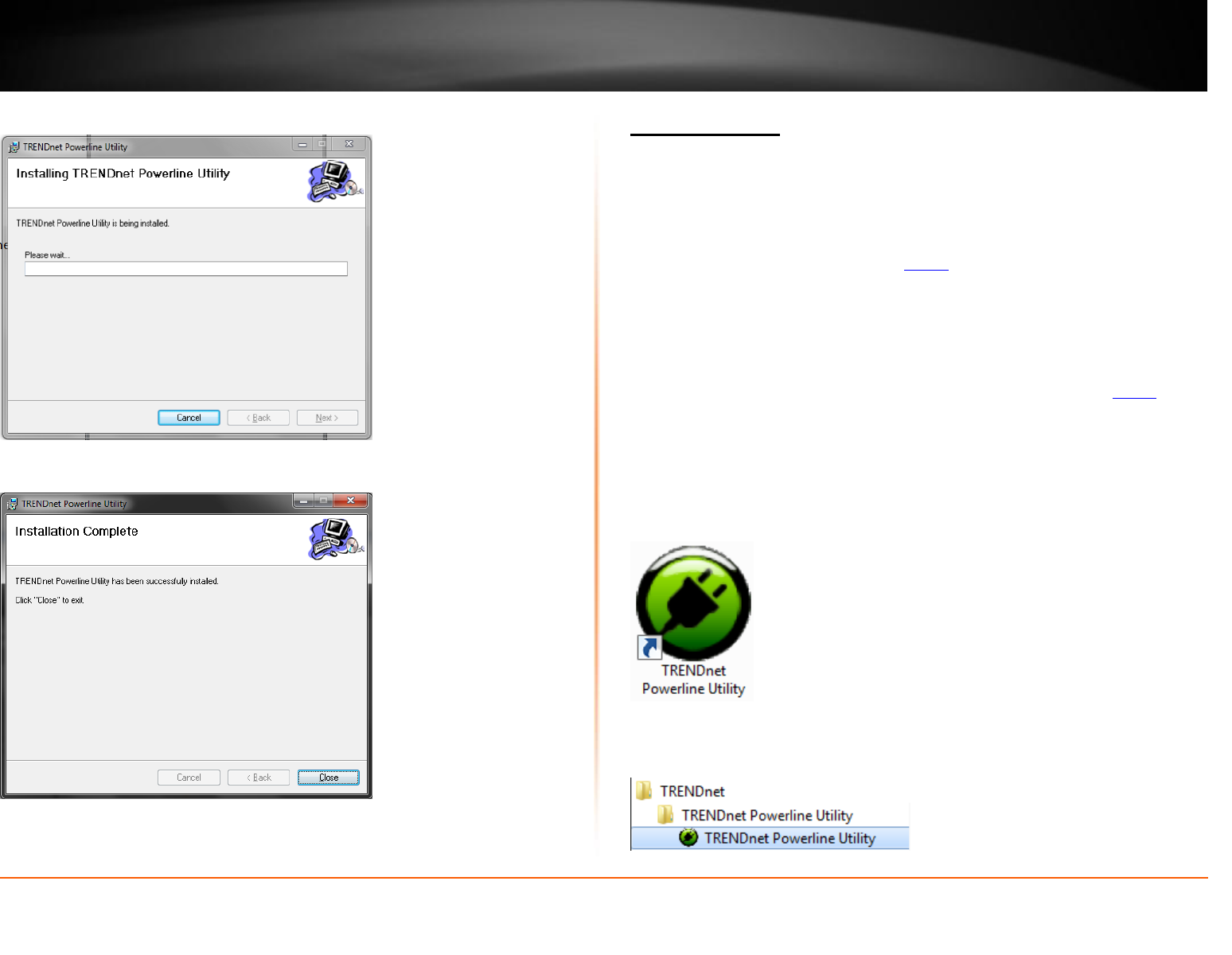

15. Wait for the Powerline Utility installation to complete.

16. At the Installation Complete window, click Close.

17. Reboot your computer to complete the installation.

Using the Utility

Before using the utility, please ensure the following:
