User manual
ENGLISH
VELUX 2
Important information / Warnings 4-6
Getting started
Initial set-up 8-9
Remote control functions 10-11
Operation
Locating and operating a product 12-14
- One skylight 12
- More than one skylight 13-14
Choosing positions 15
Closing the skylight automatically 16
Disabling rain sensor 17
Menu functions
Menu guide 18
Navigating through the menus 19
Time and date 20-21
Changing language 22
Room, Group and Zone 23
- Creating a Room 24-25
- Editing a Room 26-27
- Creating a Group 28-29
Naming 30-31
Favorite settings 32-33
Rearranging order 34-35
Programs 37-51
- My program 38-43
- Shortcut P1/P2 44-51
Contents
Congratulations on your new VELUX product
In order to make the best use of your product please read these instructions on
operation and maintenance.
VELUX 3
Display 52-53
- Display light 52
- Sleep mode 53
Keypad lock 54
Access code 55
Software version 56
Clearing remote control settings 57
Extending the system
Registering new products 58-59
Using additional activation controls 61-65
- Copying to a new remote control 62-63
- Copying to a remote control in operation 64
- Adding products to a remote control in operation 65
- Copying products to other types of activation controls 66-67
Security key 68-69
Resetting
Resetting and preparing for registration 70
Resetting the remote control 71
Adjusting the maximum opening 72-73
Fitting of holder for remote control 74-75
Use and maintenance
Power failure / Mislaid remote control 76
Maintenance 77
Further information
Display symbols 78
Display texts / Glossary 79
VELUX 4
Please keep instructions for future reference and hand them over to any
new user.
Safety
• Before operating ensure that the skylight with electrical products can
be operated without risk of damage to property or injury to people or
animals.
• For personal safety, never have head, hand, arm or any other body
part out of or through the opening of the skylight without first having
switched o main power supply.
• Children must not be allowed to play with the skylight and its electrical
products. The remote control should be kept out of reach of children. Do
not allow children near an open skylight.
• This device is intended for use by persons with the relative experience
and knowledge and who have been given instruction concerning use of
the device by a person responsible for their safety.
• If repair or adjustment work is needed, disconnect from main power sup-
ply and ensure that it cannot be reconnected unintentionally.
• The main power supply cable is for indoor use only.
• It is recommended that a remote control be placed in the room where the
skylight and its electrical products have been installed.
• If the skylight is positioned within reach, the opening of the skylight
operator must be adjusted to reduce the maximum size of the open-
ing (see section Adjusting the maximum opening). Failure to make such
adjustment can result in serious injury or death.
• Make sure that the insect screen is installed before putting the skylight into
use.
• FCC ID: XSG863829 and IC ID: 8642A-863829: Remote control
Certificate of Radio Equipment in Japan: No. 10215191/AA/00
FCC ID: XSG863765 and IC ID: 8642A-863765: Window operator
(skylight operator)
This device complies with part 15 of the FCC and RSS-210 of the IC
rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Important information / Warnings
VELUX 5
• This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This device generates, uses and can radi-
ate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not occur
in a particular installation. If this device does cause harmful interference
to radio or television reception, which can be determined by turning the
device o and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit dierent from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate the device.
• FCC Radiation Exposure Statement: This device complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment
• The term "IC:" before the device certification number only signifies that
the Industry Canada technical specifications were met.
Function
• If the rain sensor gets wet, the skylight automatically closes.
• Disabling the rain sensor while the skylight is open creates a risk of water
to the interior of the building.
• To prevent the skylight from closing because of very fine/weak rain, fog
or dew, the rain sensor is equipped with a heating element to keep the
surface dry.
• If the rain sensor is activated, the skylight will close within approximately
30 seconds. If the skylight is activated with the remote control or another
activation control, it will take up to one minute until the skylight is
completely closed. Therefore, in case of sudden rain, water may enter the
room before the skylight is closed.
• In case of snow and/or ice, the operation of the skylight may be blocked
resulting in damage to the skylight.
VELUX 6
Important information / Warnings
Product
• This product has been designed for use with genuine VELUX products.
Connection to or use with other products may cause damage, malfunc-
tion or injury.
• Electrical products must be disposed of in conformity with all local
codes, ordinances, rules and regulations for electronic waste and not with
household waste.
• Used remote control batteries have to be disposed of in conformity with
the relevant environmental regulations and ordinances.
• Expected lifetime of the remote control battery: Approx 1 year.
• The packaging can be disposed of with usual household waste.
• Radio frequency band: 2.4 GHz.
• Radio frequency range: 110 yards (100 m) free field. Depending on
building construction, the indoor range is approx 30 ft (10 m). However,
constructions with reinforced concrete, metal ceilings and plaster walls
with steel members may reduce the range.
Maintenance and service
• Disconnect from main power supply before carrying out any mainte-
nance, repair, adjustment or service work to the skylight or products con-
nected to it (including battery backup KLB 100, if installed) and ensure
that it cannot be reconnected unintentionally during this time.
• Maintenance and installation must be carried out in consideration to
Health and Safety at work requirements.
• If main power supply cable is damaged, it must be replaced by a qualified
electrical installer in accordance with all local codes, ordinances, rules
and regulations.
• There are no serviceable parts inside the skylight operator.
• Spare parts are available through your VELUX sales company. Please
provide information from the data plate.
• If you have any technical questions, please contact your VELUX sales
company, see telephone list or www.velux.com.
VELUX 7
8 VELUX
P1 P2
Enter
AB

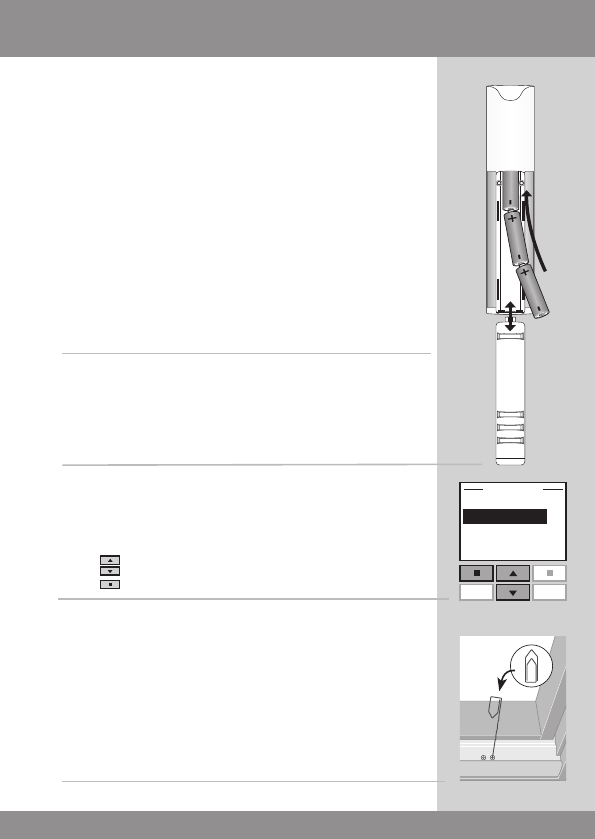

Initial set-up
Products to be operated with the remote control must be
registered in the remote control. Registration, however,
depends on whether the remote control is new or whether
it is already used for operating other products.
1 • If the remote control is already in operation, proceed
with section Registering new products.
• If the remote control is new, proceed as follows.
When the initial set-up has been completed, the registered
products will appear in the display.
2 Slide o the battery cover of remote control as shown.
Insert the three batteries supplied (type AA, 1.5 volt).
Replace cover.

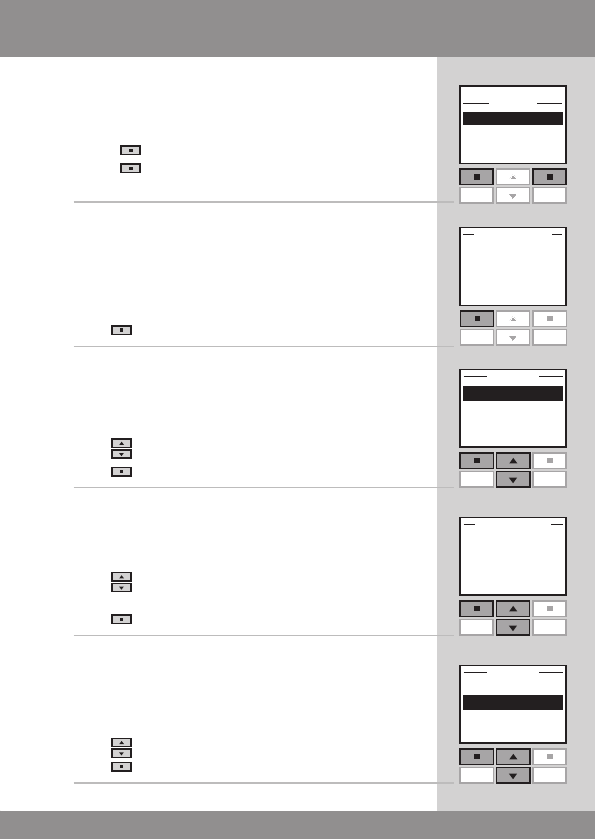

3 Choose language:
Press to highlight your language.
Press "Enter" to confirm your choice.
4 Prepare products for registration in one of the two follow-
ing ways:
• Disconnect the main power supply to the products for
1 minute and then reconnect it.
• Press the button closest to the side frame of the skylight
(B) once.
The products must now be registered in the remote control
within the next 10 minutes.
VELUX 9
Menu
Locate
Register Back
P1 P2
P1 P2

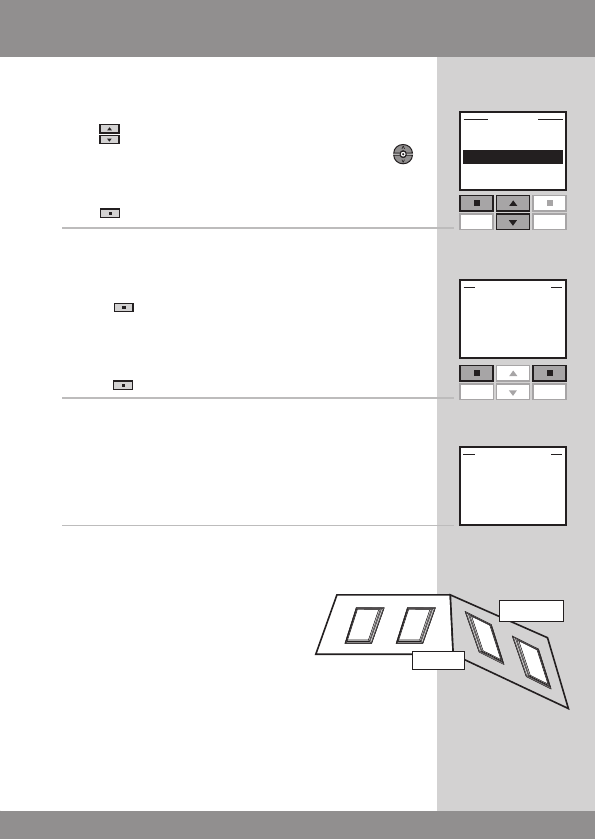

5 Press "Register" to start registration.

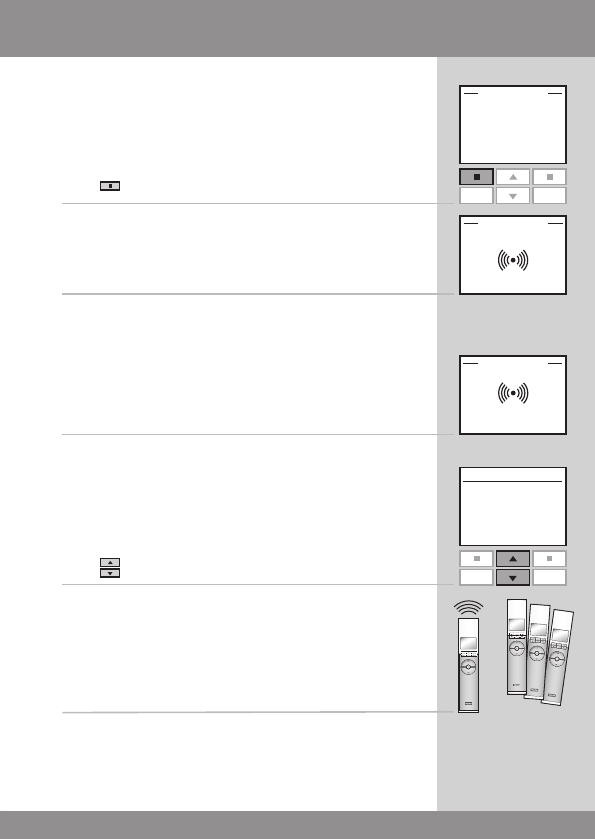

6 Registration is running. This can take up to two minutes.
7 The display shows "Completed" when all products have
been registered.
Note: If the display shows "Failed", remove the batteries
from the remote control. Prepare the products for registra-
tion, see section Resetting and preparing for registration.
Repeat the initial set-up.
8 The display shows one of the registered products.
Press to see the other registered products.

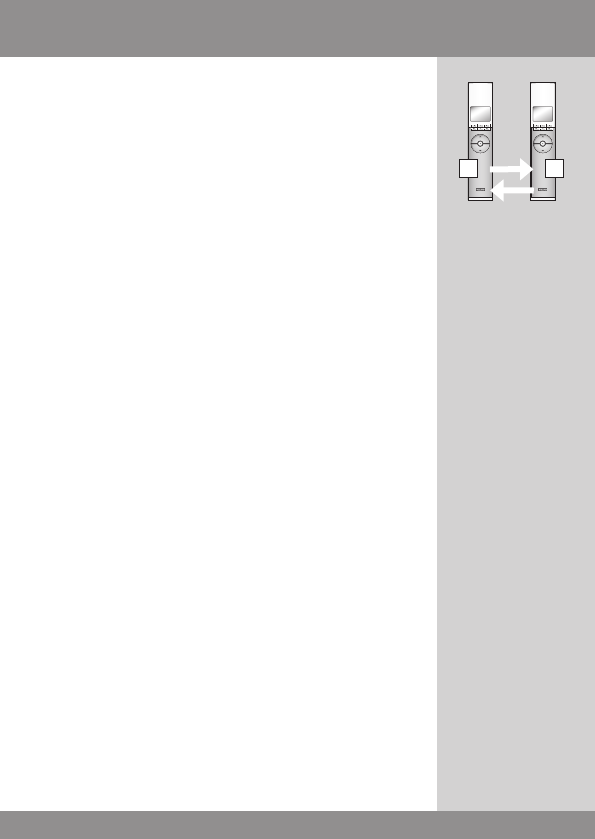

For use of more than one remote control, all products must
be registered in one of the remote controls, see above.
Then the information must be copied from this remote
control to the other remote controls, see section Using
additional activation controls.
Note: The opening of the skylight operator must be
adjusted if your skylight is positioned within reach, see
section Adjusting the maximum opening.
VELUX 10
VELUX 10
Menu
Locate

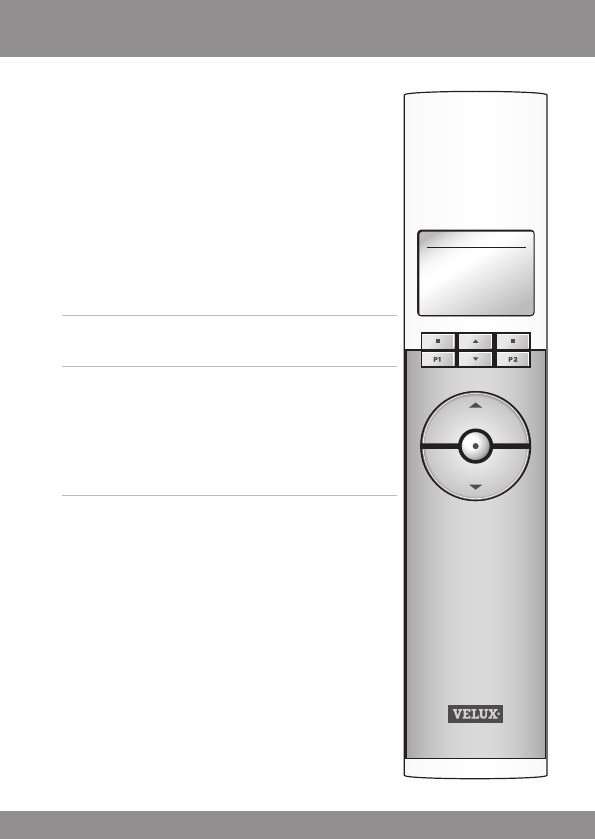

Remote control functions
The display indicates which product is being oper-
ated, which menu function is being used etc. The
top line of the display states the chosen area. Prod-
ucts are as default shown under the area House.
The bottom line of the display states the function
of the two selection keys.
Note: The display shows the last product operated.
The word "Window" is used for both windows and
skylights.
Selection, navigation and program keys
Keys for operating the product chosen
VELUX 11
P1 P2
P1
Menu
Locate
P1 P2
P2
Remote control functions

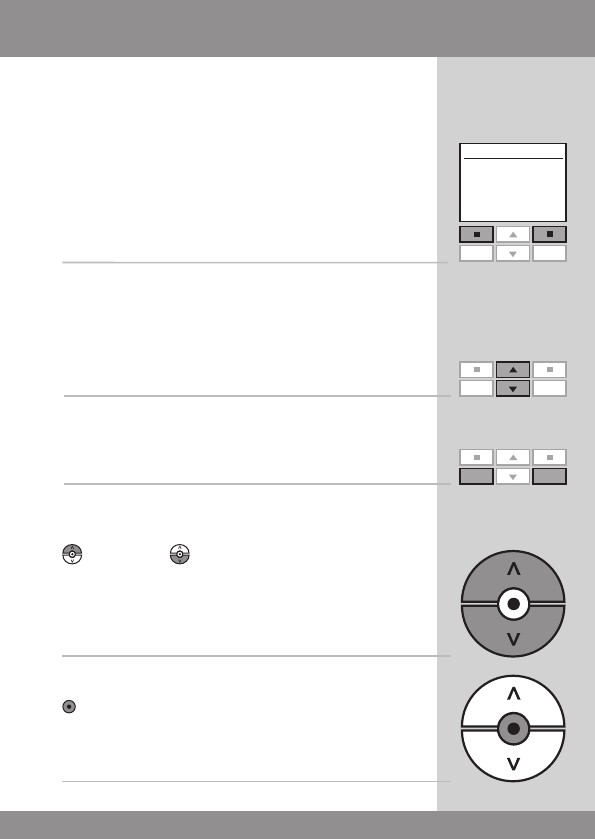

Selection keys
- for activating the menu and confirming the chosen
menu function.
- for locating the Room, the Group, the Zone or the prod-
uct to be operated.
The current function of the individual selection key is
stated directly above in the display.
Navigation keys
- for scrolling up and down in the product or menu list.
- for scrolling through the time intervals to set the
remote control to close the skylight automatically.
Shortcut keys P1/P2
- for activating a program by pressing just one key.
Keys for operating a product or a Group of products
OPEN/UP or CLOSE/DOWN
Short key pressure: Product will travel to maximum top or
bottom position.
Long key pressure: Product will travel to pre-set position.
See section Choosing positions.
Stop and status key
STOP / STATUS
Short key pressure: The product in operation stops or the
status is shown.
Long key pressure: All products in operation stop.
12 VELUX
Menu
Locate
Menu
Locate
P1 P2

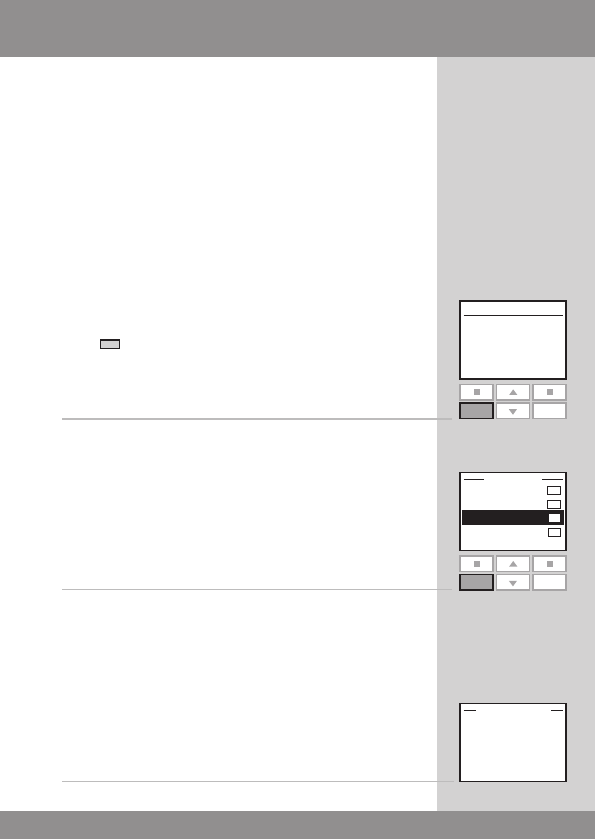

To be able to operate a product (eg a roller shade), you first
have to locate the product in question in the display.
The examples show the easiest way to find the product
you want to operate.
One skylight
With one electrical product
The skylight (indicated as "Window" in the remote display)
is equipped with a skylight operator only and therefore you
do not have to locate the product first.
Press to start operation.
With more than one electrical product
The skylight is equipped with a skylight operator and a
roller shade.
The example shows how to locate and operate the roller
shade.
Press to find the roller shade (indicated as "Blind").
Press to start operation.
Locating and operating a product
VELUX 13
Menu
Locate
P1 P2
31 2
Locating and operating a product
More than one skylight
With one electrical product
Three skylights are equipped with skylight operators only.
The example shows how to locate and open skylight No. 2.
Press to find skylight No. 2 (indicated as "Window").
Press to open the skylight.
Note: You can rearrange the order of the individual
products, Groups, Rooms and Zones displayed, see section
Rearranging order.
14 VELUX
Enter Back
Menu
Locate
Enter Back
P1 P2
P1 P2
23
1 54

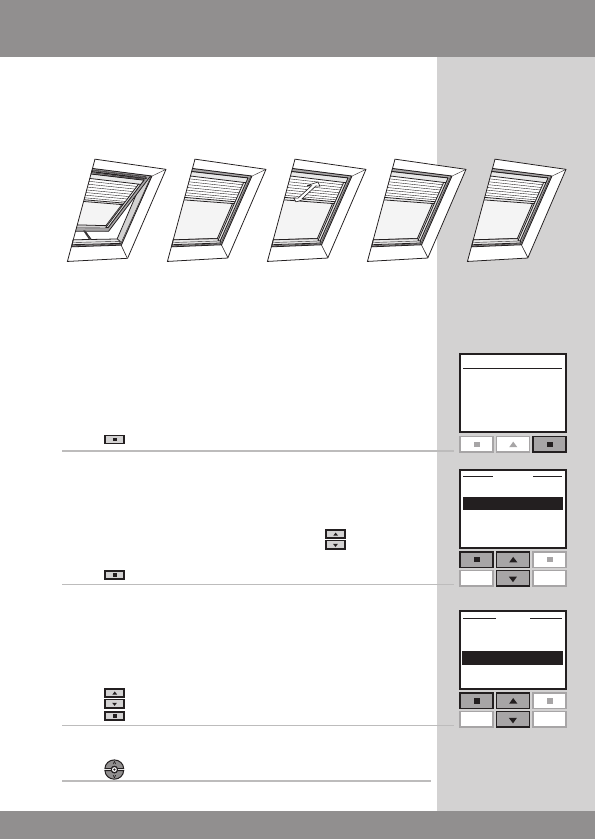

Locating and operating a product
More than one skylight
With more than one electrical product
One skylight is equipped with a skylight operator. In
addition, all five skylights are each equipped with a roller
shade.
The example shows how to locate and operate roller
shade No. 3 (indicated as "Blind").

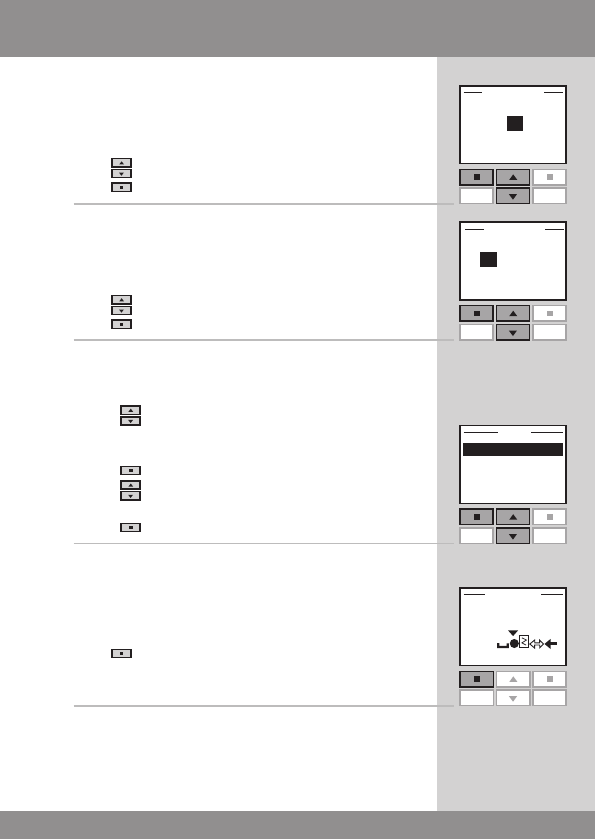

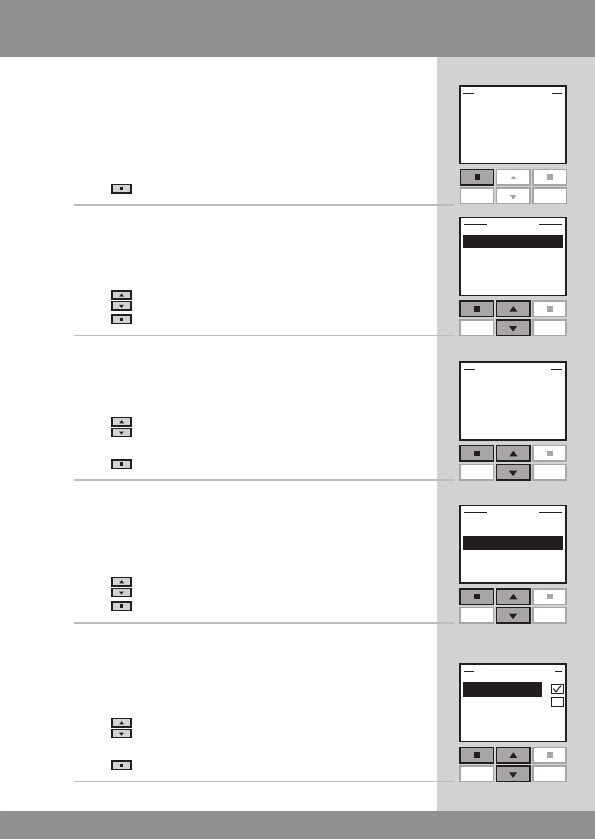

1 Press "Locate".
2 Displays the list of product types within the area House.
To operate one of the roller shades, press and high-
light "Blind".
Press "Enter".
3 Press to highlight roller shade "No. 3".
Press "Enter".
4 Press to start operation.
VELUX 15
Menu
Locate
A product or a Group of products can be set to travel to a
certain position.
The example shows how to set a roller shade to close by
50%.

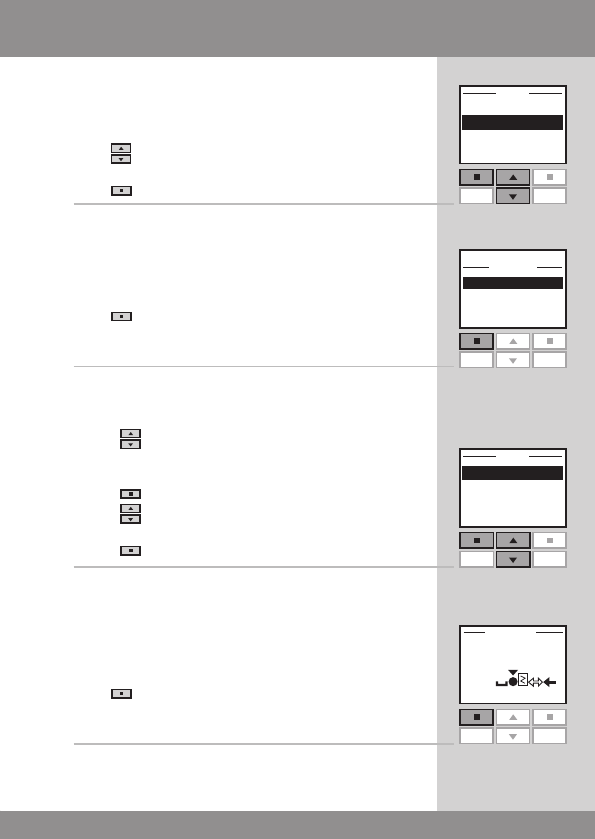

1 Locate the product in question, see section Locating and
operating a product.
2 Product chosen is displayed. The example shows roller
shade No. 2 (indicated as "Blind").

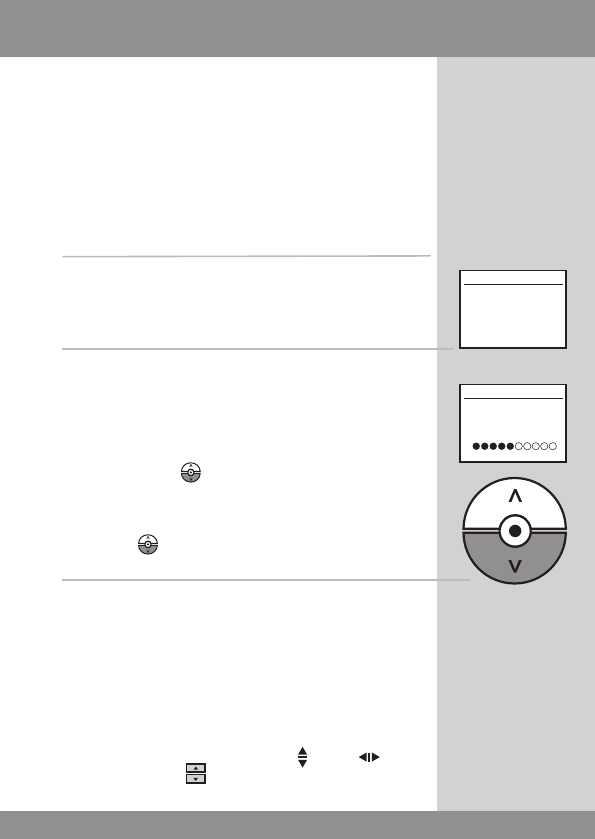

3 Press and hold key and watch the display. Each black
spot corresponds to the roller shade closing in 10% incre-
ments. Five black spots thus correspond to it closing by
50%.
Release key and the roller shade will travel to the pos-
ition chosen.
Note: A short key pressure will make the roller shade travel
to maximum top or bottom position.
Some decoration and sunscreening products can be
operated in two ways. For instance, a Venetian blind can
be drawn up and down and its slats can be tilted. Once the
product has been located, choose Tilt or Turn with
the navigation keys .
Choosing positions
16 VELUX
Menu
Locate
P1 P2
Menu
Locate
Closing the skylight automatically
When a skylight has been opened with the remote control,
you can set it to close again automatically after a certain
time. For instance you might want to air your house briefly
when returning home. The possible settings are: O, 5 min,
10 min, 15 min, 20 min, 30 min, 45 min and 60 min.

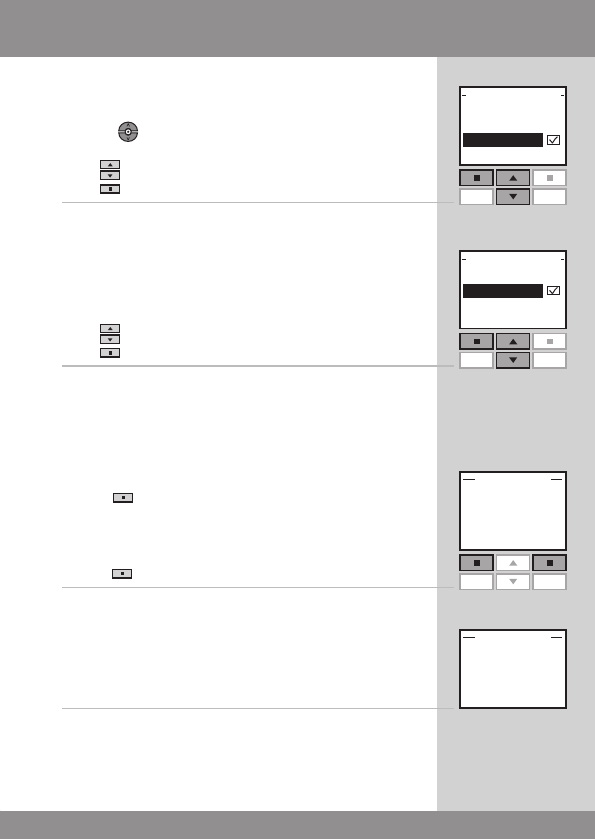

The example shows how to time skylight No. 1 (indi-
cated as "Window" in the remote display) to close after
10 minutes.
1 Locate skylight No. 1 (indicated as "Window").
Press to open the skylight.
2 The display shows the icon and the text "Auto Close".
Start item 3 within 5 seconds, otherwise the skylight will
not close automatically.
3 Scroll via through the time options and choose
"in: 10 min".
4 The display shows the icon and counts down until the
skylight is closed.
If you close the skylight earlier than chosen, the function
will be cancelled.
Note: Registered products can be set to operate automat-
ically via menu item Program settings.
VELUX 17
Menu
Locate
P1 P2
Yes No

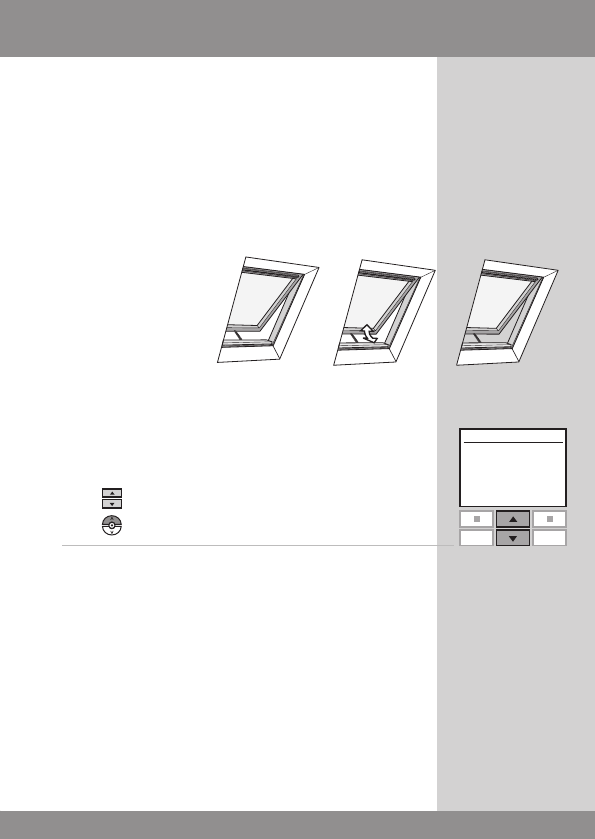

Disabling rain sensor
If the rain sensor gets wet, the skylight operator auto-
matically closes the skylight within 30 seconds.
If you want to open the skylight even if it is raining, you
must disable the rain sensor. When the rain sensor is dis-
abled, the skylight can only open up to 50% of its normal
opening distance and the rain sensor will be disabled for
60 minutes.
The example shows how to open skylight No. 1 (indicated
as "Window" in the remote display) even if it is raining.
1 Locate skylight No. 1 (indicated as "Window").
Press to open the skylight.
2 The display shows that the operation cannot be executed
because the skylight operator has been limited by the rain
sensor.
3 The display asks whether to disable the rain sensor tem-
porarily.
Press "Yes" to disable the rain sensor temporarily.
4 The skylight is opened and the rain sensor is now disabled
for the next 60 minutes.
Note: You can combine disabling the rain sensor with
"Auto-Close", see section Closing the skylight automatic-
ally, and in this way choose to disable the rain sensor for a
shorter period than 60 minutes.
VELUX 18
VELUX 18
Menu
Locate
Enter Back
Enter Back
Enter Back
Enter Back
Enter Back

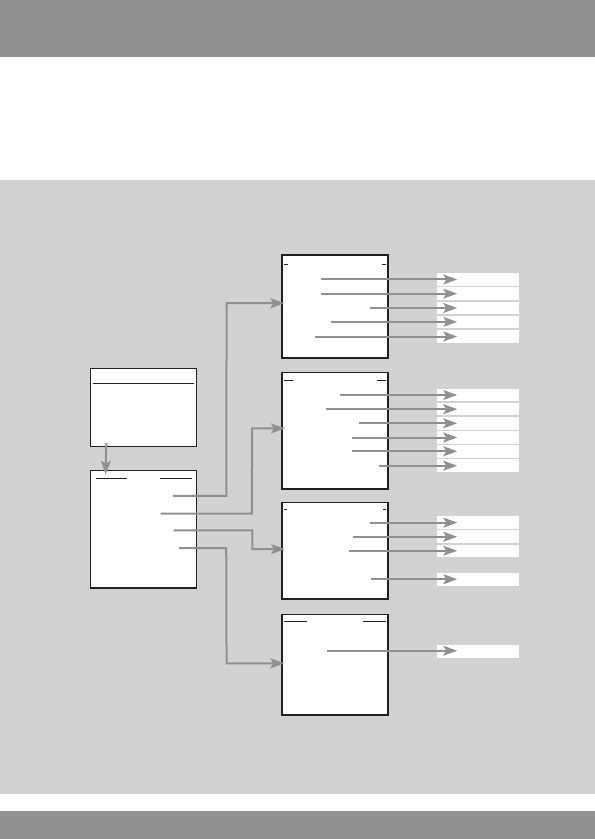

Menu guide
Guide to the menu functions of the remote control.
Additional information about the individual function is provided in the
relevant section.
p. 22
p. 52-53
p. 20-21
p. 55
p. 54
p. 32-33
p. 34-35
p. 28-29
p. 24-27
p. 57
p. 30-31
p. 58-59
p. 62-63
p. 68-69
p. 56
p. 38-49
VELUX 19
Menu
Locate
P1 P2
Enter Back
P1 P2
Menu
Locate
P1 P2
Enter Back
P1 P2

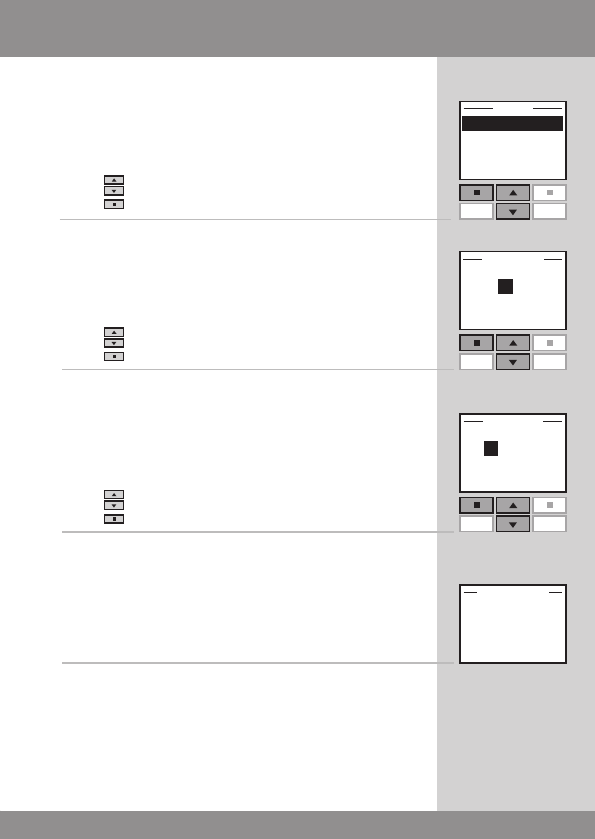

Navigating through the menus

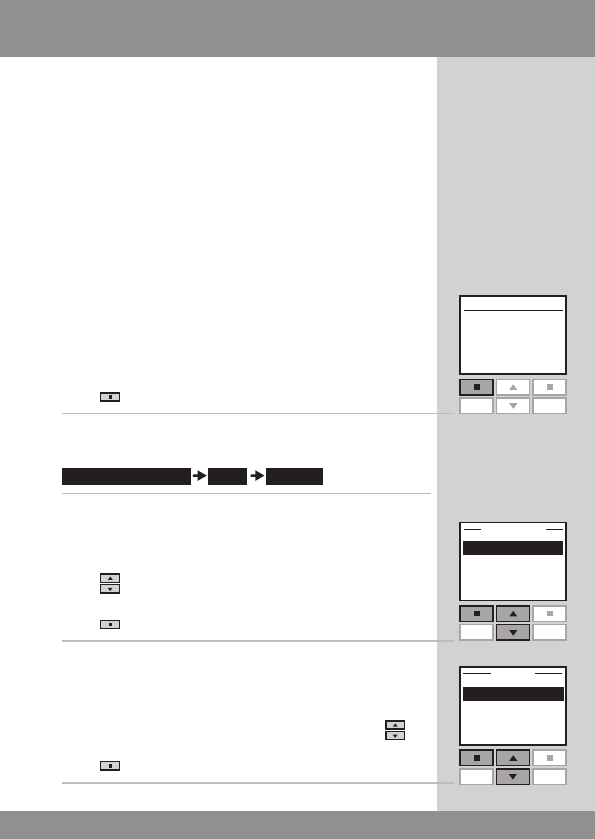

The example shows how to find the menu item Room by
means of menu choices.
1 Press "Menu".
2 Displays a list of menu items under Menu.
Press to highlight "House settings".
Press "Enter" to confirm your choice.
3 Displays a list of menu items under House settings.
Press to highlight "Room".
Press "Enter" to confirm your choice.
You can now proceed with the menu functions under menu
item Room.
This way of choosing menu items is shown as follows
in the rest of the instructions:

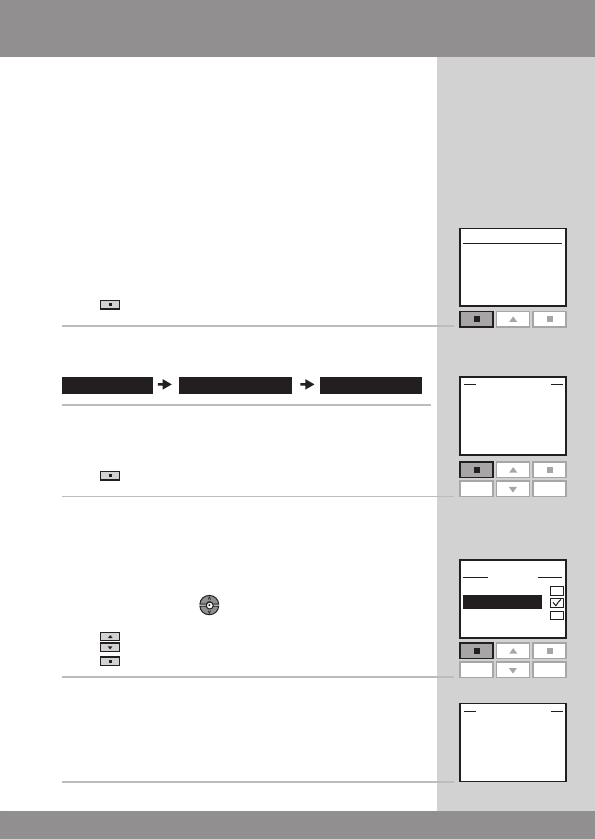

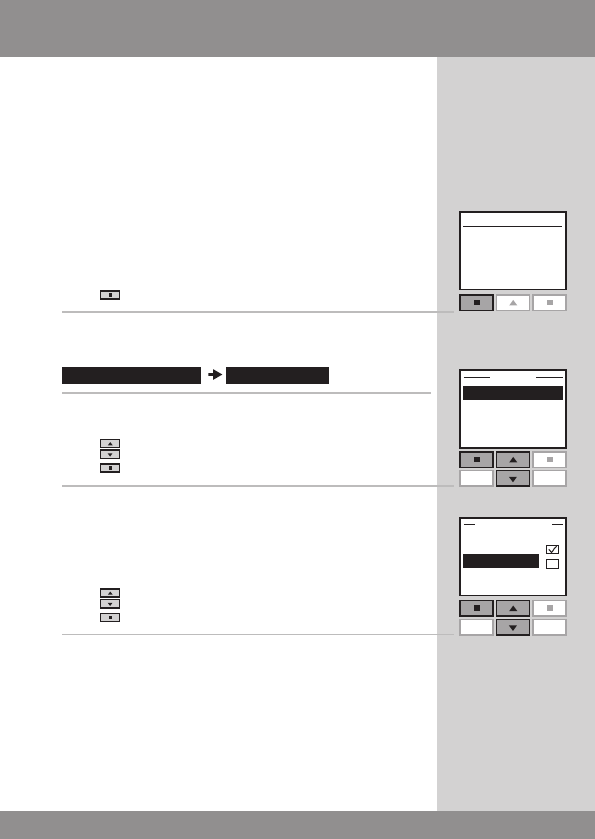

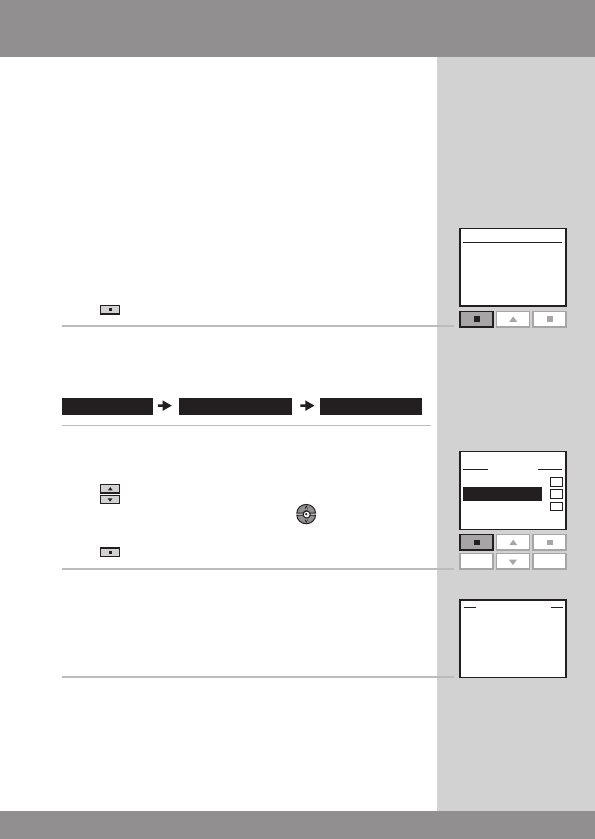

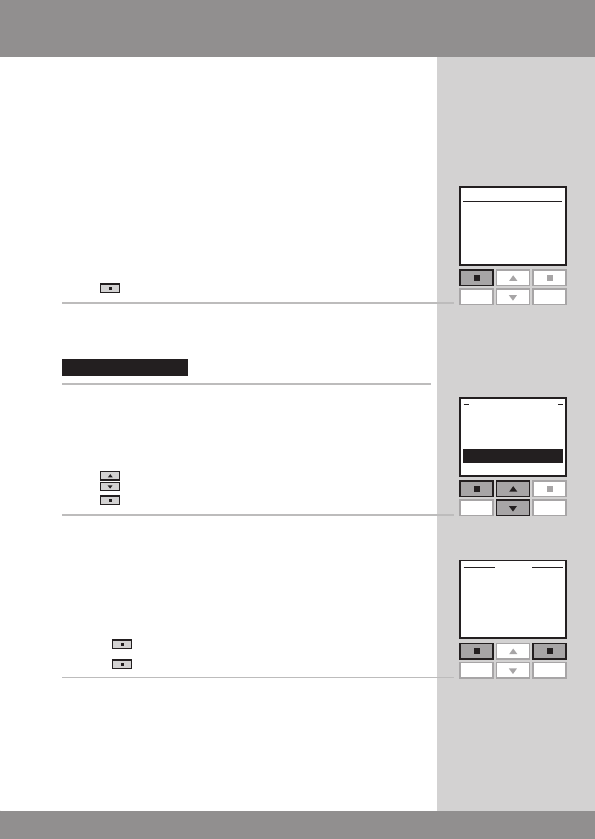

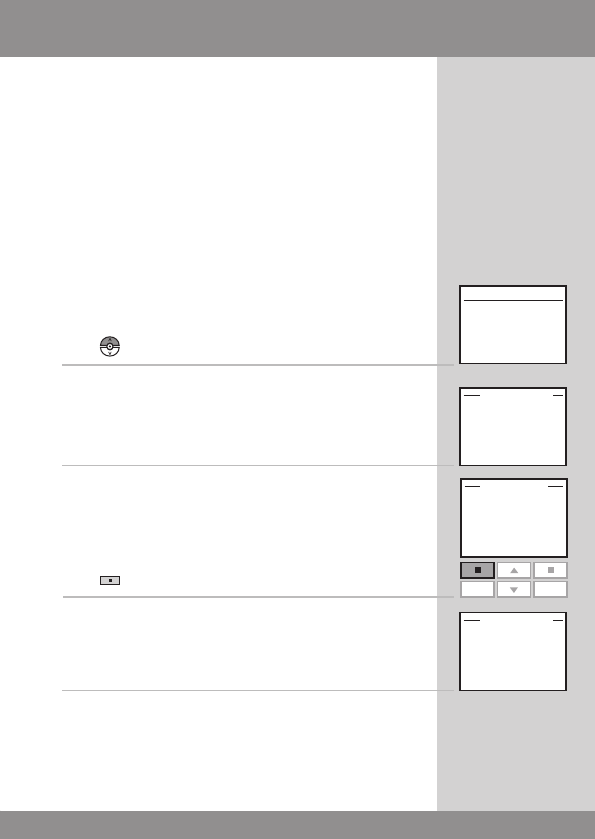

1 Press "Menu".
2 Scroll through the menus:
20 VELUX
Back
Enter
Menu
Locate
P1 P2
Keep Edit
P1 P2
Time and date
Time and date must be set the first time the remote
control is to be used as correct settings are required for
remote programming functions. Time must be changed
manually at the start and end of Daylight Saving Time.
The time and date format can be set in item 5 by choosing
"Set format".
The example shows how to set the time. The date is set
correspondingly by choosing "Date" in item 4.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows day, date and time.
• Press "Keep" to confirm the setting.
• Press "Edit" to change day, date or time.
4 Press to highlight "Clock".
Press "Enter" to confirm your choice.
VELUX 21
Enter Back
P1 P2
Enter Back
Enter Back
P1 P2
Enter Back
P1 P2
5 Press to highlight "Set clock".
Press "Enter" to confirm your choice.
6 Press to set minutes.
Press "Enter" to change to hours.
7 Press to set hours.
Press "Enter" to confirm your settings.
8 The display shows that the new time has been saved.
Time is shown automatically when the remote control is in
sleep mode. See section Display.
22 VELUX
Menu
Locate
P1 P2
P1 P2
Enter Back
P1 P2
Enter
Back
Changing language
You can change the display text language.
The example shows how to change it into French.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a list of languages. The current lan-
guage has been ticked.
4 Press to highlight a new language.
Press "Enter" to confirm your choice.
5 The display shows that the change has been saved.
VELUX 23
Room, Group and Zone
To make it easier to locate and operate the products it
is recommended to link each product to a Room and/or
a Group. Products are as default shown under the area
House.

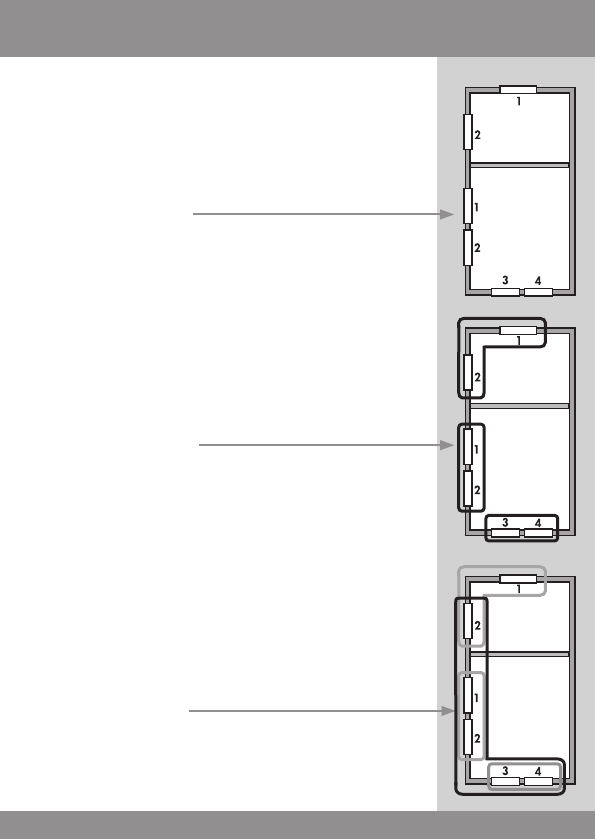

Definition of Room
A Room consists of one or more products of any type
located in the same physical room, eg bedroom or kitchen.
A product can be assigned to one Room only.
Definition of Group
A Group consists of at least two products of the same type
(eg two roller shades).
In each Room, a Group "All" with all products of the same
type is automatically created to make it easier to locate
and operate products of the same type simultaneously.
Groups created across more Rooms are called Zones.
Definition of Zone
A Group created across more Rooms.
You can create a Zone consisting of for instance all roller
shades on the skylights of the house facing west and south.
Room 1
Room 2
Room 1
Room 2
Room 1
Room 2
24 VELUX
Menu
Locate
Enter
P1 P2
Back
Enter
P1 P2
Back
Rooms are created to make it easier to locate and operate
your products.
The example shows two rooms
with two skylights (indicated as
"Window" in the remote display)
in each. Below it is shown how
to create Room 1 by moving the
relevant products from House to
Room 1.
1 Press "Menu".
2 Scroll through the menus:
3 Displays the areas, here the area House.
Press to highlight the area with the product to be as-
signed to Room 1 first.
Press "Enter" to confirm your choice.
4 Displays a list of all products in House. The product type,
in this case skylights (indicated as "Window"), appears in
the display. The individual products can be identified by
pressing for a short period of time. This will activate
the product briefly.
Press to highlight the product to be moved to Room 1.
Press "Enter" to confirm your choice.
Creating a Room
VELUX 25
Enter Back
P1 P2
Yes No
More
P1 P2
Continue
5 Displays the product chosen.
• Press "More" to move additional products to Room 1.
You will return to the list in item 4. Repeat items 4-5 until
the relevant products have been moved to Room 1.
• Press "Continue" to proceed.
6 Displays a list of options.
Press to highlight "Save Room".
Press "Enter" to confirm your choice.
Highlight one of the other options to undo your choice.
7 The display shows that a Room has been created.
8 The display asks whether to assign the remaining products
to just one new Room.
• Press "Yes" to save the remaining products in
Room 2.
• Press "No" to return automatically to the list in
item 3 and possibly create more Rooms.
Note: All products must be assigned to a Room.
9 The display shows that a new Room has been created.
Note: Numbers are assigned in
the order in which the products
are moved to the Room in ques-
tion.
26 VELUX
Enter Back
Menu
Locate
P1 P2
Enter Back
P1 P2
P1 P2
You can edit the Rooms you have created, ie one or more
products can be moved from one Room to another.
The example shows how the skylight operator in skylight
No. 1 (indicated as "Window" in the remote display) can be
moved from Room 1 to Room 2.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created.
Press to highlight the Room from which to move the
product.
Press "Enter" to confirm your choice.
4 Displays a list of product types in the Room from which to
move the product.
To choose the product type skylight operator, press
and highlight "Window".
Press "Enter" to confirm your choice.
Editing a Room
VELUX 27
Enter Back
Enter Back
P1 P2
P1 P2

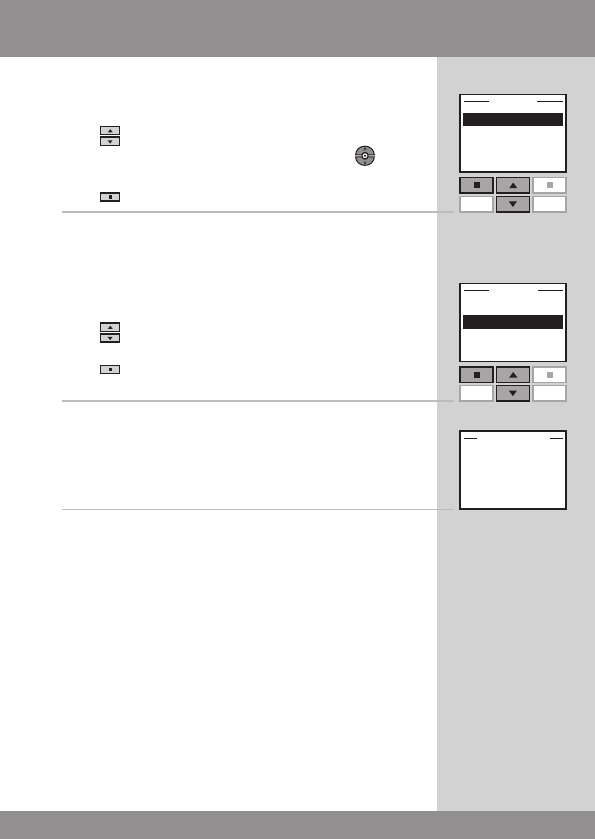

5 Displays a list of the individual products within the product
type in question.
Press to highlight the product to be moved. The in-
dividual products can be identified by pressing for a
short period of time. This will activate the product briefly.
Press "Enter" to confirm your choice.
6 Displays a list of Rooms in which the product can be
placed.
Press to highlight the Room in which to place the
product.
Press "Enter" to confirm the new location of the
product.
7 The display shows that several Rooms have been modified.
Groups are edited according to the same principle as
Rooms.
Note: Numbers are assigned in the order in which the
products are moved to the Room in question.
28 VELUX
Creating a Group
Menu
Locate
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
To make it easier to locate and operate products of the
same type simultaneously, you can create a Group.

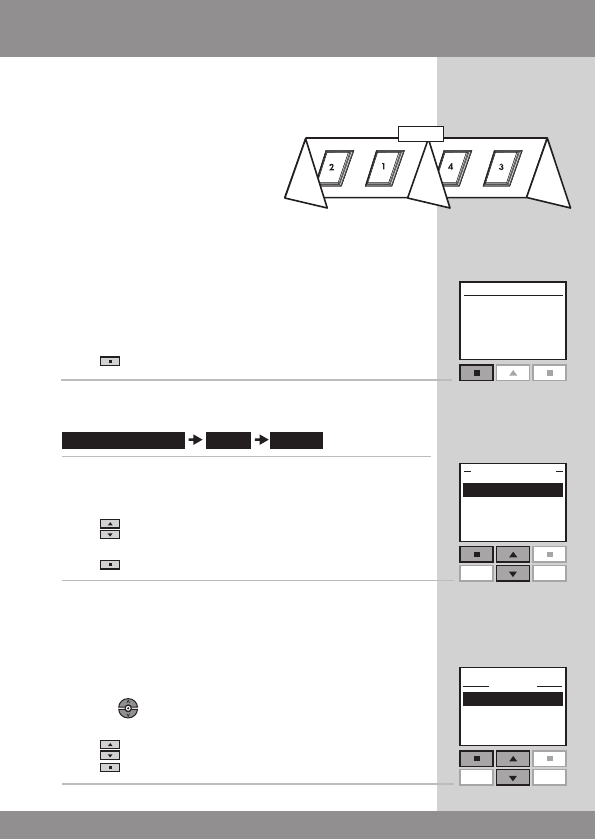

The example shows a room with four
skylights, each with a skylight operator.
It is shown how to create Group 1 consist-
ing of the skylight operators on the two
skylights No. 3 and No. 4 (indicated as
"Window" in the remote display). The
example presupposes that Room 1 has
been created.
Note: When Room 1 was created, a number of Groups "All"
was created automatically - each consisting of all products
of the same type in the Room in question, see section
Room, Group and Zone.
A Group created across more Rooms is shown in the
display as a Zone.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created.
Press to highlight the Room in which to create Group 1.
Press "Enter" to confirm your choice.
4 Displays a list of the product types in Room 1.
To choose the product type skylight operator, press to
highlight "Window".
Press "Enter" to confirm your choice.
2
1
3
4
R1
VELUX 29
Enter Back
P1 P2
More Save
P1 P2
5 Displays a list of the individual products within the product
type in question.
Press to highlight the product to be included in Group 1.
The individual products can be identified by pressing
for a short period of time. This will activate the product
briefly.
Press "Enter" to confirm your choice.
6 The display asks whether to move additional products to
Group 1.
• Press "More" to move additional products to
Group 1. You will return to the list in item 5. Repeat
items 5-6 until these products have been moved to
Group 1.
• Press "Save" to create Group 1.
7 The display shows that Group 1 has been created in
Room 1.
Groups are edited according to the same principle as
Rooms.
Note: When operating Groups, a delayed execution of
commands might occur. If you want a particular product to
respond at once, this product must be operated individu-
ally.
2
1
3
4
30 VELUX
Menu
Locate
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Naming

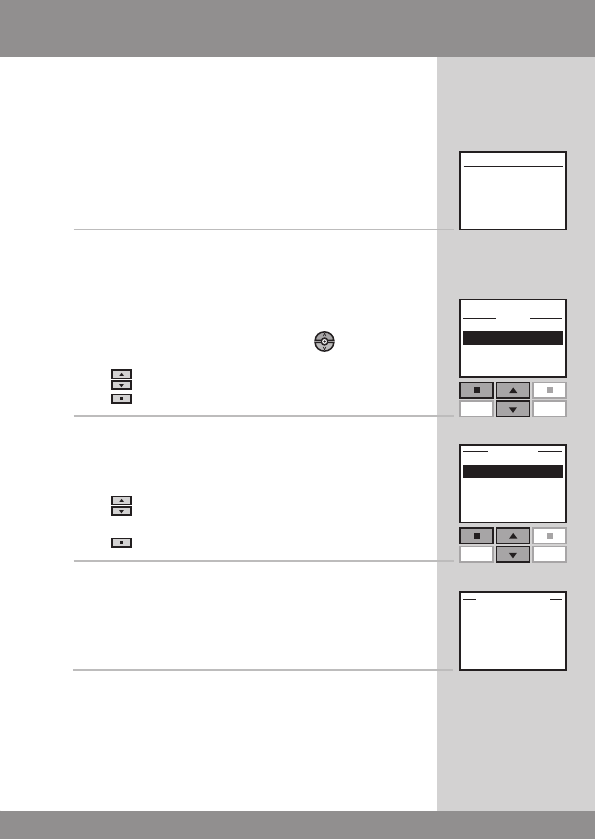

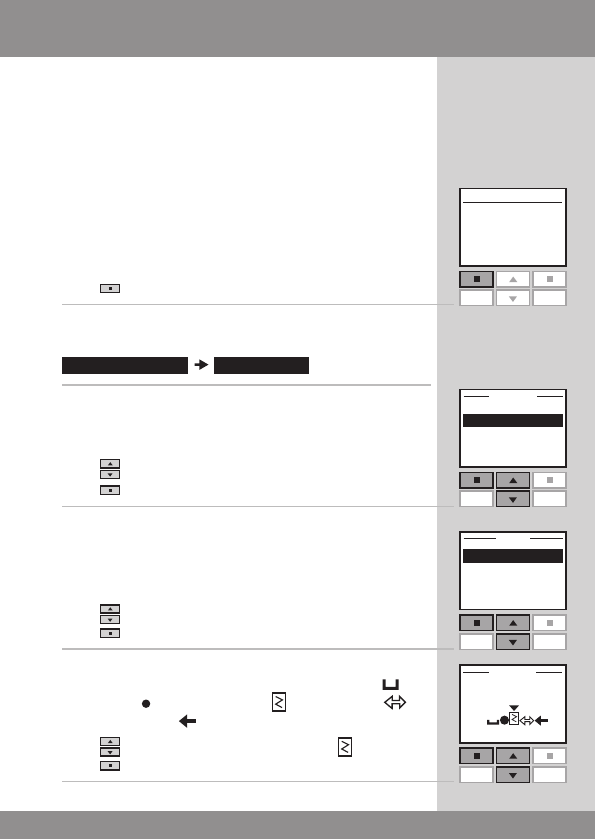

You can change the name of House and the names of the
automatically numbered Rooms, Zones, Groups, products
and Programs into more personal names.
The example shows how to change Room 1 into Kitchen.
Note: When you have used the function Rename, auto-
matic renumbering is disabled.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list with House, Room, Zone, Group and Product.
Press to highlight "Room".
Press "Enter" confirm your choice.
4 Displays a list of the names automatically given to the
Rooms.
Press to highlight "Room 1".
Press "Enter" to confirm your choice.
5 Displays a line of characters including space symbol ,
save symbol , dictionary symbol , insert symbol
and delete symbol .
Press to highlight the dictionary symbol .
Press "Enter" to open the dictionary.
VELUX 31
Enter Back
P1 P2
Enter Back
P1 P2

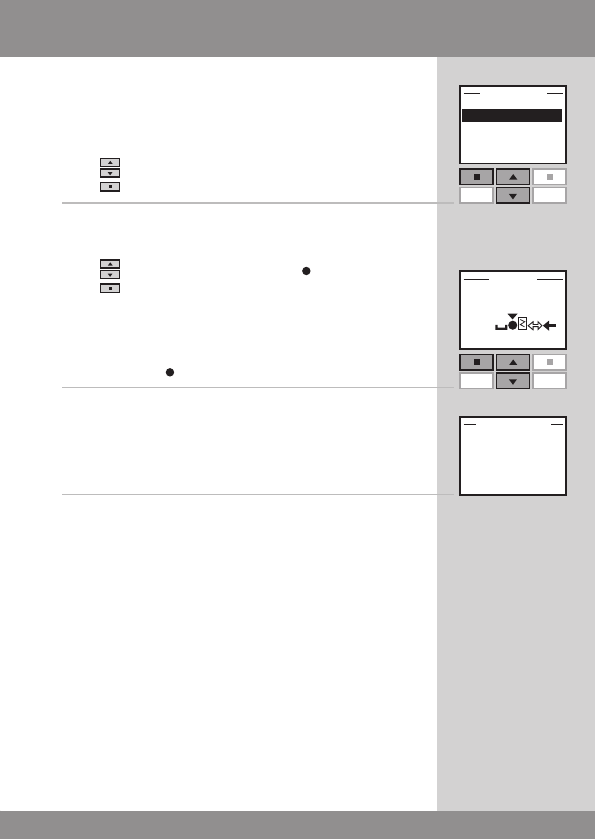

6 Displays a list of pre-defined locations.
Press to highlight the relevant location.
Press "Enter" to confirm your choice.
7 Press to highlight the save symbol .
Press "Enter".
Note: You can also create a new name by choosing and en-
tering the relevant characters, one by one. After entering
the last character, the new name is saved by highlighting
the save symbol .
8 The display shows that the new name has been saved.
32 VELUX
Select
P1 P2
Back
Menu
Locate
You can appoint an area and/or a product or a Group of
products as your favorite. Typically this will be the area
or the product that is operated most often. If you have
selected a product as your favorite, the display will as
default return to this product whenever the remote control
has been used.

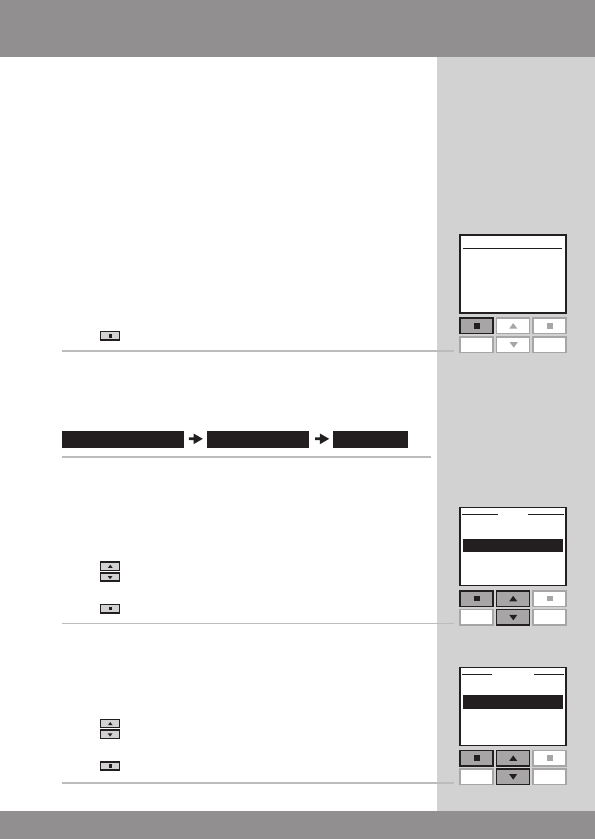

Selecting your favorite product
The example shows how to select skylight No. 2 (indicated
as "Window" in the remote display) as your favorite
product.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a list of all products and Groups in
House.
Press to highlight the favorite product. The relevant
product can be identified by pressing for a short period
of time. This will activate the product briefly.
Press "Select" to select your favorite product.
4 The display shows that your favorite product has been
selected.
Note: If a favorite area has been selected already, the
favorite product must be in this area.
Favorite settings
VELUX 33
Deselect
P1 P2
Back
Edit Back
Menu
Locate
P1 P2
Deselecting your favorite product
You can undo your choice of favorite product.
The example shows how to deselect skylight No. 2 (indi-
cated as "Window" in the remote display) as your favorite
product.
1 Press "Menu".
2 Scroll through the menus:
3 Press "Edit" to make changes.
4 The display shows a list of all products in House. The prod-
uct type, in this case skylights (indicated as "Window"),
appears in the display. The individual products can be
identified by pressing for a short period of time. This
will activate the product briefly.
Press to highlight the current favorite product.
Press "Deselect" to deselect the product.
5 The display shows that the favorite product has been
deselected.
34 VELUX
Menu
Locate
P1 P2
P1 P2
Enter Back
P1 P2
Enter Back

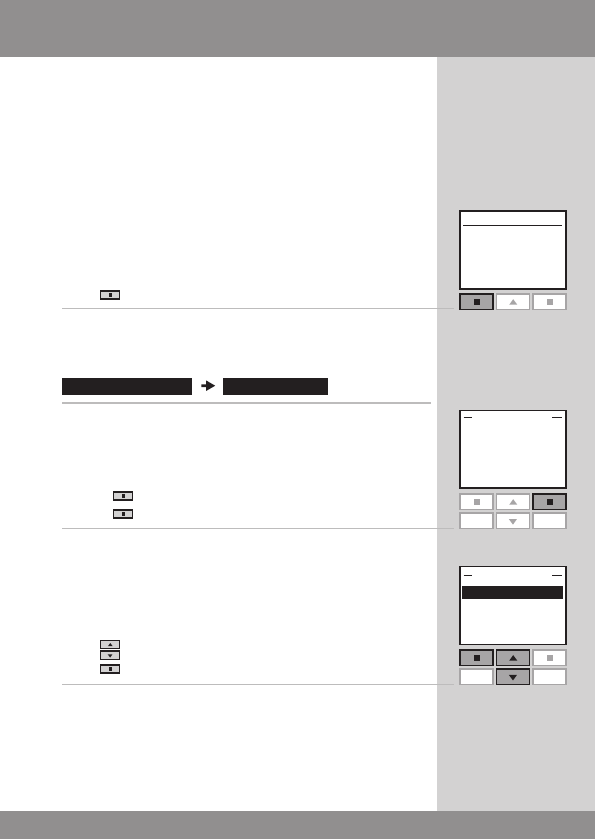

You can rearrange the order of the individual products,
Groups, Rooms and Zones displayed.
In the example, three Rooms have been created. It shows
how to rearrange the order of the roller shades (indicated
as "Blind" in the remote display) in Room 2.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created containing the prod-
ucts in question.
Press to highlight the Room in which to rearrange the
order of the individual products.
Press "Enter" to confirm your choice.
4 Displays a list of the product types in Room 2.
Press to highlight the product type where to rear-
range the order of the individual products.
Press "Enter" to confirm your choice.
Rearranging order
VELUX 35
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Save More
5 Displays a list of the individual products of the chosen
product type. The individual products can be identified by
pressing for a short period of time. This will activate
the product briefly.
Press to highlight the product in question.
Press "Enter" to confirm your choice.
6 The list of the individual products of the chosen product
type is still displayed.
Press to move the chosen product.
Press "Enter" to confirm the rearranged order.
7 The display asks whether to rearrange the order of more
products or whether to save the changes.
• Press "More" to rearrange the order of more prod-
ucts. You will return to the list in item 5. Repeat items
5-7 until the required order of products has been
obtained.
• Press "Save" to save the rearranged product order.
8 The display shows that the order has been rearranged.
36 VELUX
VELUX 37
Programs
A program contains a sequence of commands on how and
when the products are to be operated.
There are two dierent program types:
• My program
A personal program that will be activated automatically
without using the remote control.
For instance you can record a morning program to
run up the roller shades in the bedroom and open the
skylights between 7 and 7.15 am on weekdays from
October to April.
• Shortcut P1/P2
A personal program that can be activated by using the
shortcut keys.
For instance you can record and save a program under
shortcut key P1 to close all skylights in the house and
draw all blinds down by 50%.
38 VELUX
Menu
Locate
Enter
Back
P1 P2
P1 P2
BackEnter
P1 P2
Select Back
My program is an automatically activated program which
contains a sequence of operating commands for one or
more products. The sequence is automatically activated at
a pre-set time within a period defined by a starting date
and an end date.
The example shows how to program skylight No. 1 (indi-
cated as "Window" in the remote display) in Room 1 to
open at 6.30 pm and close again at 6.45 pm each Monday
for 12 months.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a list of areas.
Press to highlight "Room 1".
Press "Enter" to confirm your choice.
4 The display shows a list of the product types.
Press to highlight skylights (indicated as "Window").
Press "Enter" to confirm your choice.
5 Locate the skylight. The relevant product can be identi-
fied by pressing for a short period of time. This will
activate the product briefly.
Press "Select" to choose the product.
My program
VELUX 39
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Continue
Edit
P1 P2
Yes No
P1 P2
6 The display shows the selected product.
• Press "Continue" to proceed.
• Press "Edit" to return to item 3 in case of additions
or changes.
7 The display asks whether to save the selected product.
Press "Yes" to save the selected product.

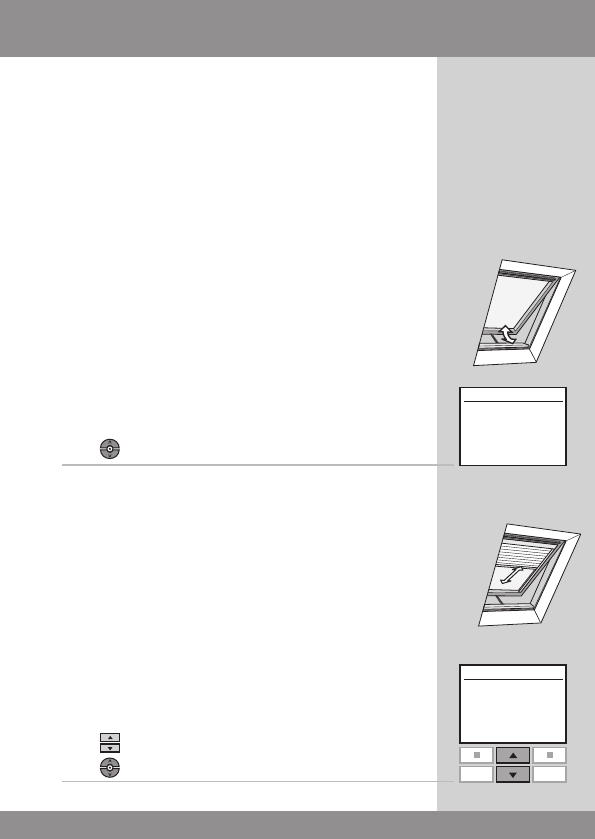

8 Press to highlight "Set position".
Press "Enter" to confirm your choice.
9 Press to set the opening position of the window.
100% corresponds to fully open.
Press "Enter" to confirm your setting.
10 Press to highlight "Save position".
Press "Enter" to confirm your choice.
40 VELUX
Continue Edit
P1 P2
Yes No
P1 P2
Select Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2

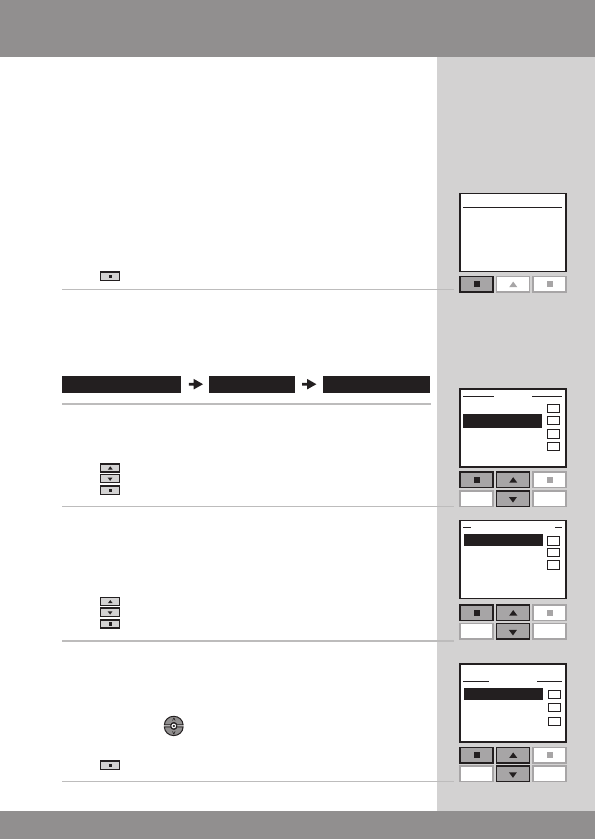

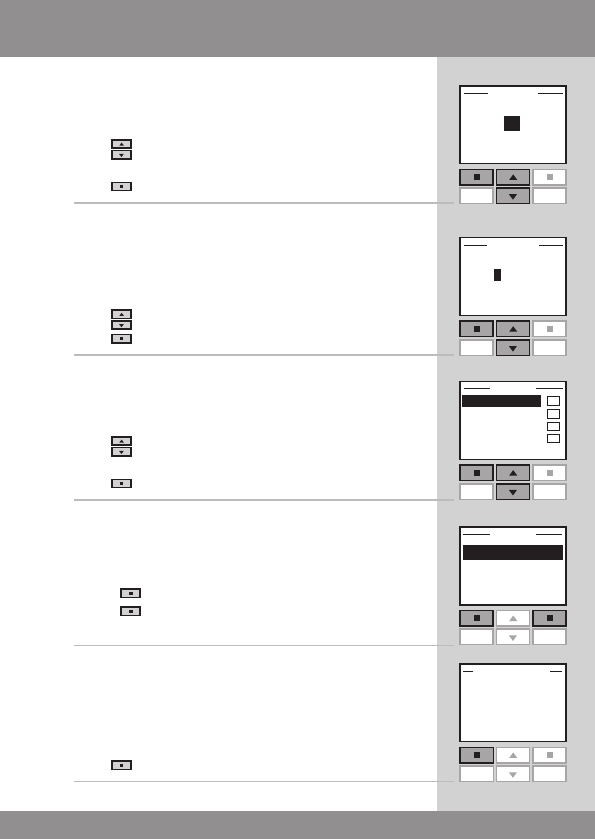

11 Press to set the time for the skylight to be opened.
First choose minutes.
Press "Enter" to change to hours.
12 Press to set hours.
Press "Enter" to confirm your setting.
13 Press to select the day of the week for the skylight
to be opened.
Press "Select".
14 The display shows the chosen day of the week.
• Press "Continue" to proceed.
• Press "Edit" to return to item 13 in case of addi-
tions or changes.
15 The display asks whether to save the selected day.
Press "Yes" to save the selected day.
My program
VELUX 41
Enter Back
P1 P2
P1 P2
Enter Back
P1 P2
Enter Edit
Enter Back
P1 P2
16 The display shows various options.
Press to highlight "Add functions" to set the closing
position of the skylight plus the day and time for closing.
Press "Enter" to confirm your choice.
17 The display shows the latest selected product.
Press "Enter" to continue.
Repeat items 8-16, only this time applied to the closing
settings.
18 The display shows various options.
• Press to highlight "Add functions" to add add-
itional operating commands for the skylight or other
products to the program.
Press "Enter" to return to item 17.
• Press to highlight "Save Program" to save the
program as it is.
Press "Enter" to save the program.
19 The display automatically suggests the name "My
program 1".
Press "Enter" to save the name.
Follow the instructions in section Naming to change this
name.
42 VELUX
Keep Edit
P1 P2
Enter Edit
P1 P2
Enter Edit
P1 P2
Select Back
P1 P2
20 The display asks whether to enable the program or to
keep it disabled.
Press to highlight "Enable".
Press "Select" to confirm your choice.
Set starting and end date to enable the program.
Starting date:
21 Press "Edit" to choose a starting date.
Press "Enter" to confirm your setting.
End date:
22 Press "Edit" to choose an end date.
Press "Enter" to confirm your setting.
23 The display shows that My program 1 is enabled in the
chosen period.
24 Check current time and date settings to ensure accurate
operation of the products. The display shows day, date
and time.
• Pres "Keep" to confirm the settings.
• Pres "Edit" to change day, date or time.
My program
VELUX 43
Choose "Enable" under menu item Program settings
to get a full list of all recorded programs that can be
activated automatically. The list comprises both enabled
and disabled programs. The enabled programs have been
ticked and the disabled programs can be enabled any
time you want.
Note: For solar products, automatically activated pro-
grams may result in a quick discharge of the battery due
to frequent operation of the products.
44 VELUX
Menu
Locate
Select
P1 P2
Back
Enter
Back
P1 P2
P1 P2
BackEnter
Shortcut P1/P2
A program under Shortcut P1/P2 contains a sequence
of operating commands for one or more products. The
sequence is activated by pressing shortcut key P1 or P2.
You can record up to eight programs, four under each of
the shortcut keys. The programs can be set to be execut-
ed immediately, with a delay or at a certain time.
The example shows how to program skylight No. 1 (indi-
cated as "Window" in the remote display) in Room 1 to
open immediately and close again after 1 hour and
30 minutes (delay) by a single pressure on shortcut key P1.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a list of areas.
Press to highlight "Room 1".
Press "Enter" to confirm your choice.
4 The display shows a list of the product types.
Press to highlight skylights (indicated as "Window").
Press "Enter" to confirm your choice.
5 Locate the skylight. The relevant product can be identi-
fied by pressing for a short period of time. This will
activate the product briefly.
Press "Select" to select the product.
VELUX 45
Enter Back
P1 P2
Back
P1 P2
Enter
Continue
P1 P2
Edit
Back
P1 P2
Enter
Yes No
P1 P2
6 The display shows the selected product.
• Press "Continue" to proceed.
• Press "Edit" to return to item 3 in case of additions
or changes.
7 The display asks whether to save the selected product.
Press "Yes" to save the selected product.
8 Press to highlight "Set position".
Press "Enter" to confirm your choice.
9 Press to set the opening position of the skylight.
100% corresponds to fully open.
Press "Enter" to confirm your setting.
10 Press to highlight "Save position".
Press "Enter" to confirm your choice.
46 VELUX
P1 P2
Continue Edit
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2

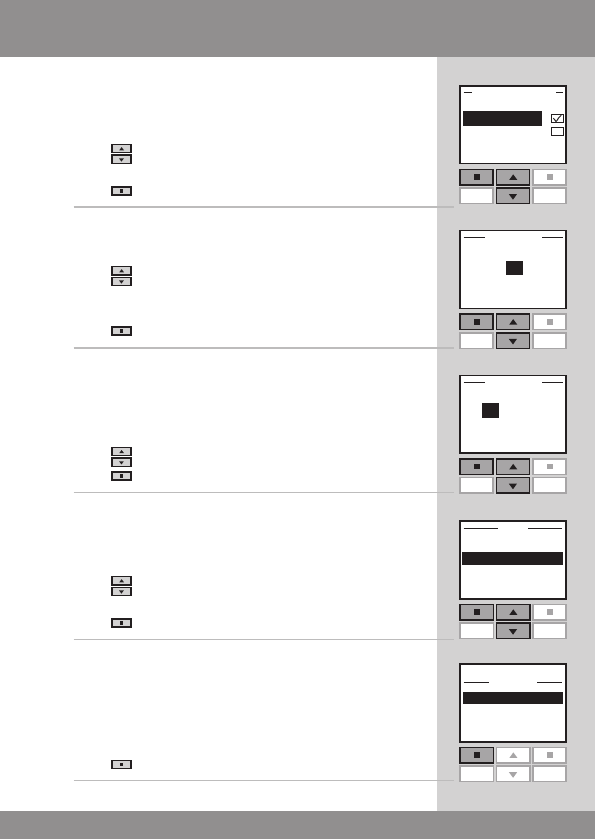

Shortcut P1/P2
11 The display shows two time setting options.
Press to highlight "Delay", ie the time that will pass
from pressing P1 till the product will be activated.
Press "Enter" to confirm your choice.
12 Press to set the relevant delay. First choose minutes.
Choose 0 minutes if you want the window to open im-
mediately.
Press "Enter" to change to hours.
13 Press to set hours.
Press "Enter" to confirm your setting.
14 The display shows various options.
Press to highlight "Add functions" to set the closing
position and time of the skylight.
Press "Enter" to confirm your choice.
15 The display shows the latest selected product.
Press "Continue" to proceed.
VELUX 47
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Yes No
P1 P2
Enter Back
P1 P2
16 The display asks whether to save the selected product.
Press "Yes" to save the selected product.
17 Press to highlight "Set position".
Press "Enter" to confirm your choice.
18 Press to set the closing position of the skylight. 0%
corresponds to fully closed.
Press "Enter" to confirm your setting.
19 Press to highlight "Save position".
Press "Enter" to confirm your choice.
20 The display shows two time setting options.
Press to highlight "Delay", ie the time that will pass
from pressing P1 till the product will be activated.
Press "Enter" to confirm your choice.
48 VELUX
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
21 Press to set the delay. First choose minutes.
Press "Enter" to change to hours.
22 Press to set hours.
Press "Enter" to confirm your setting.
23 The display shows various options.
• Press to highlight "Add functions" to add add-
itional operating commands for the skylight or other
products to the program.
Press "Enter" to return to item 15.
• Press to highlight "Save Program" to save the
program as it is.
Press "Enter" to save the program.
24 The display automatically suggests the name
"Shortcut 1".
Press "Enter" to save the name.
Follow the instructions in section Naming to change this
name.
Shortcut P1/P2
VELUX 49
Keep Edit
P1 P2
25 The display shows that Shortcut 1 has been saved.
26 Check current time and date settings to ensure accurate
operation of the products. The display shows day, date
and time.
• Press "Keep" to confirm the settings.
• Press "Edit" to change day, date or time.
50 VELUX
Menu
Locate
P1 P2
Start Back
P1 P2
Shortcut P1/P2
Activating a program under Shortcut P1/P2
You can activate any one of the personal shortcut pro-
grams by pressing the shortcut key P1 or P2. You can still
use the various functions of the remote control at the same
time as one or more programs have been activated.
Below four shortcut programs have been recorded under
shortcut key P1. The example shows how to activate the
program Shortcut 3 via shortcut key P1.
1 Press P1 three times to activate the program Shortcut 3.
Note: Max time interval between each key pressure:
2 seconds. Otherwise the shortcut program that happens
to be highlighted will be activated.
2 Shortcut 3 is highlighted in the display and the program
automatically starts.
3 The display shows that the program Shortcut 3 has been
activated.
VELUX 51
Menu
Locate
P1 P2
Stop Back
P1 P2

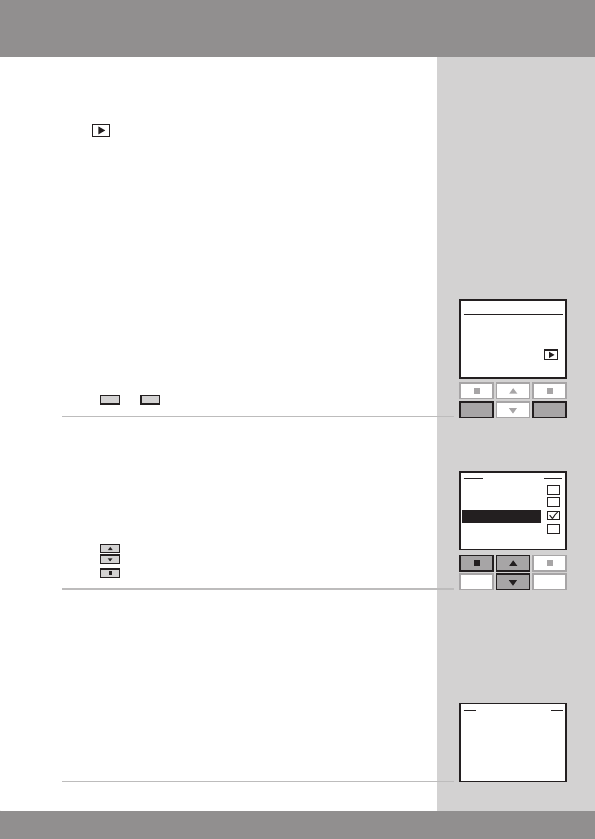

Interrupting a program under Shortcut P1/P2
Icon indicates that a program has been activated. A
shortcut program in progress can be interrupted as
follows:
1 Press P1 or P2 to find the shortcut program in progress.
2 The activated shortcut program has been ticked.
Press to highlight the program in question.
Press "Stop" to interrupt the program.
3 The display shows that the program Shortcut 3 has been
stopped.
52 VELUX
Enter Back
Menu
Locate
P1 P2
P1 P2
Enter Back
Display
Display light
In standard settings, the light in the display is turned on
when the keypad is activated and turned o again after
20 seconds. If you do not want any light in the display and
you want to prolong the battery lifetime, you can opt out
of this.
The example shows how to turn o the light in the display.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Display light".
Press "Enter" to confirm your choice.
4 Press to highlight "O".
Press "Enter" to confirm your choice.
Note: The light in the display can be turned on by choosing
"On" in item 4.
VELUX 53
Menu
Locate
Enter Back
P1 P2
Enter Back
P1 P2

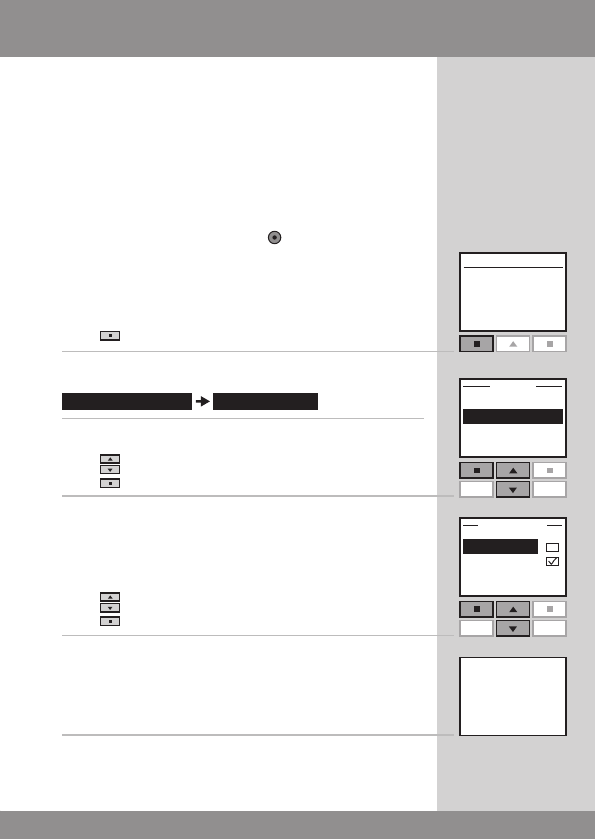

Sleep mode
The life of the batteries can be prolonged by setting the
remote control to go into sleep mode. When it has been
set to go into sleep mode, the light in the display will be
turned o 20 seconds after the latest key pressure. Time
is shown.
Press any key to activate the remote control again. How-
ever, a long press of the stop key will immediately stop
all products in operation.
The example shows how to set the remote control to go
into sleep mode.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Sleep mode".
Press "Enter" to confirm your choice.
4 Press to highlight "On".
Press "Enter" to confirm your choice.
5 When the remote control is in sleep mode, time is shown.
Note: Choose "O" in item 4 if you do not want the
remote control to go into sleep mode.
54 VELUX
Menu
Locate
P1
Enter Back
P2
P1 P2
Menu
Menu
Locate
Locate
P1 P2
Keypad lock
The keypad can be locked so that products cannot be oper-
ated without unlocking the keypad. The stop key can
still be used.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Enable".
Press "Enter" to confirm your choice.
The keypad lock is immediately activated.
Using the keypad even if it is locked:
Message as shown.
Press "Menu". Press "Locate".
The keypad has temporarily been unlocked.
The keypad will automatically be locked again 20 seconds
after it has been used.
Note: The keypad lock can be deactivated by choosing
"Disable" in item 3.
VELUX 55
Menu
Locate
Enter Back
Enter Back
Save Back
P1 P2
P1 P2
P1 P2
P1 P2

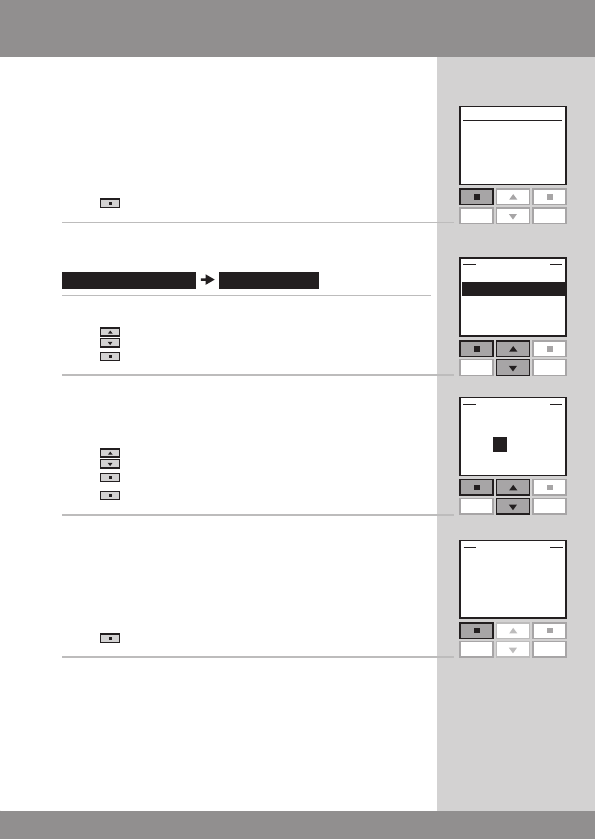

Access code
You can choose a personal access code to protect your
personal settings, for instance against unintentional dele-
tion of programs. The access code must consist of four
digits from 0 to 9.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Select/Change".
Press "Enter" to confirm your choice.
4 Press to choose the first digit.
Press "Enter" to go to the next digit.
Press "Enter" when the last digit has been chosen.
5 Press "Save" to confirm and save the code.
Every time you now choose Menu, you must enter the ac-
cess code before you can proceed.
Note: The access code can be cancelled by choosing
"Delete" in item 3.
56 VELUX
Menu
Locate
P1 P2
Back
P1 P2
Enter Back

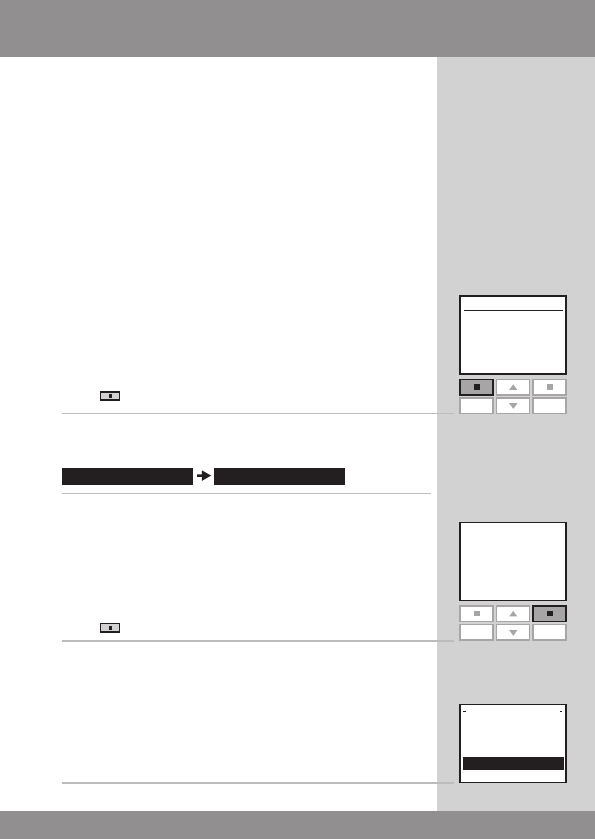

When addressing technical inquiries to your VELUX sales
company, you will be asked to provide the version number
of the software in the remote control. To find this proceed
as follows:
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a code, for instance 005.XXX.XXX.XXX.
The first three digits are the version number.
Press "Back" to return to the previous menu.
4 The display shows the previous menu.
Software version
VELUX 57
Menu
Locate
P1 P2
Yes No
P1 P2
Enter Back
P1 P2
Clearing remote control settings
When clearing the remote control settings, all personal
settings for eg Rooms, Zones, Groups and Programs and
all personal names are deleted. The products, however,
remain registered in the remote control.
1 Press "Menu".
2 Select the submenu:
3 Displays a list of menu items.
Press to highlight "Clear".
Press "Enter" to confirm your choice.
4 The display asks whether to clear all Groups, Rooms,
Zones, Programs and personal names you might have cre-
ated.
• Press "Yes" to confirm your choice.
• Press "No" to cancel your choice.
The remote control settings will be cleared if you confirm
your choice.
58 VELUX
Menu
Locate
Enter Back
P1 P2
AB

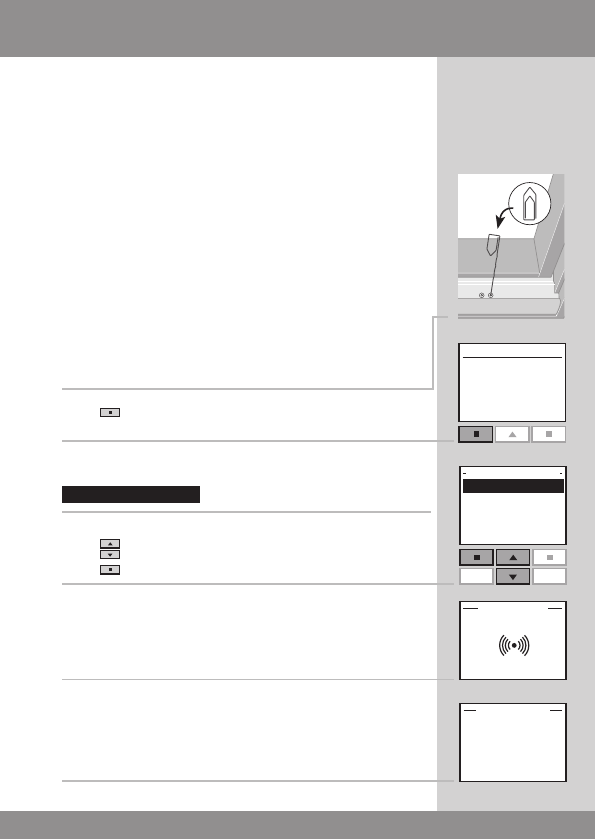

Registering new products
When a new additional product has been installed, it can
be registered in a remote control already in operation.
This new product can for instance be another skylight, a
Venetian blind or a roller shade.
The example shows how to register a new roller shade
(indicated as "Blind" in the remote display) in the remote
control and place it in Room 1.
1 Prepare products for registration in one of the two follow-
ing ways:
• Disconnect the main power supply to the products for
1 minute and then reconnect it.
• Press the button closest to the side frame of the skylight
(B) once.
The products must now be registered in the remote control
within the next 10 minutes.
2 Press "Menu" in the remote control already in oper-
ation.
3 Select the submenu:
4 Press to highlight "Register product".
Press "Enter" to confirm your choice.
5 Registration is running. This can take up to two minutes.
6 The display shows that the new product has been regis-
tered.
VELUX 59
Menu
Locate
Enter
P1 P2
Enter Back
P1 P2
Registering new products
Now the product must be placed.
7a If no Rooms have been created, the product is automat-
ically placed in House.
Operation can start.
7b If Rooms have been created, the product has to be
placed in the appropriate Room.
The display shows a list of new products. The individual
products can be identified by pressing for a short
period of time. This will activate the product briefly.
Press to highlight the product to be placed.
Press "Enter" to confirm your choice.
8 Displays a list of the Rooms created.
Press to highlight the Room in which the product is
to be placed.
Press "Enter" to confirm your choice.
9 The display shows that the Room has been modified.
Operation can start.
Where more than one remote control is used, new prod-
ucts can also be operated with these. To do this, register
the new products in each remote control by repeating
items 2-9 for each of them.
60 VELUX
VELUX 61
Using additional activation controls
Products and remote control settings can be copied from
one remote control to another. Copying depends on the
type of activation control and on whether the remote
control to be copied to is new or already in operation.
• Copying to a new remote control
How to copy the contents from one remote control to
another remote control not yet in operation.
• Copying to a remote control in operation
How to copy the contents from one remote control to
another remote control where the two remote controls
have not registered the same products.
• Adding products to a remote control in operation
How to add products from one remote control to
another remote control where the two remote controls
have not registered the same products.
• Copying products to other types of activation
controls
How to copy products in the remote control to another
type of activation control, for instance a control keypad
KLI 110.
Note: When copying between two VELUX remote con-
trols, all registered products and personal settings can
be copied, apart from personal programs that cannot be
copied.
62 VELUX
Menu
Locate
P1 P2
A B
Enter Back
Copying to a new remote control
You can copy the contents from a remote control already in
operation to a new one so that the latter can also operate
the products already registered.
The example shows how to copy the products and the
personal settings from a remote control A in operation to a
new remote control B not yet in operation.
Step 1: Prepare remote control A for copying
1 Press "Menu".
2 Select the submenu:
3 Press to highlight "Copy system".
Press "Enter" to confirm your choice.
Note: Step 2 must now be completed within the next two
minutes.
VELUX 63
Register Back
B
P1 P2
Enter

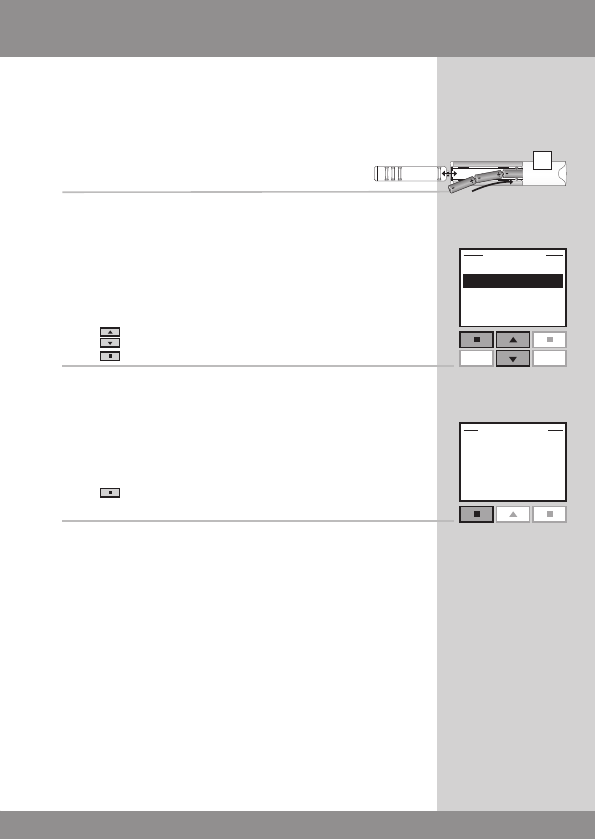

Copying to a new remote control
Step 2: Register products in remote control B
4 Insert the three batteries supplied
(type AA, 1.5 volt) into the remote
control as shown.
5 Choose language:
Press to highlight your language.
Press "Enter" to confirm your choice.
6 Press "Register" to start registration of each product.
Please disregard the information in the display.
The display now indicates that copying is in progress.
Remote control B can now operate the same products as
remote control A.
64 VELUX
A B
Copying to a remote control in operation
If you have two remote controls with dierent products
registered, you can copy the contents from one to the
other so that the latter becomes an exact copy including
all personal settings such as Names, Rooms and Groups.
Step 1: Change security key in remote controls A and B
Change the security key in both remote controls so that
they have the same key, see section Security key.
Step 2: Reset remote control B
Reset remote control B, see section Resetting the remote
control.
Step 3: Copy from remote control A
Copy the contents from remote control A as described in
section Copying to a new remote control.
Note: Before making an exact copy of remote control A,
consider adding products from remote control B to
remote control A as described in step 2 in section Adding
products to a remote control in operation.
VELUX 65
A B
If you have two remote controls with dierent products
registered, you can add the missing products in both.
Then all products can be operated with one or both
remote controls.
The example shows how to add the products from remote
control A to remote control B and at the same time
maintain the settings and the programs of both remote
controls.
Step 1: Change security key in remote controls A and B
Change the security key in both remote controls so that
they have the same key, see section Security key.
Step 2: Register the products in remote control B
Register all products in remote control B by choosing:
If in doubt, see section Registering new products.
Remote control B can now operate all the products. To
make remote control A operate all the products as well,
repeat step 2 with remote control A.
Note: With the shown procedure, only products are
added.
Adding products to a remote control in operation
66 VELUX
Menu
Locate
A
P1 P2
Enter Back
B

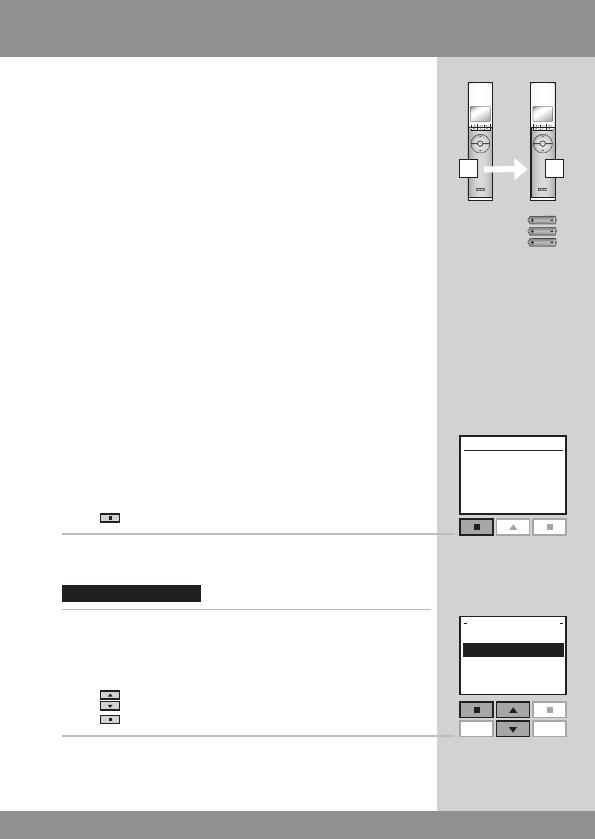

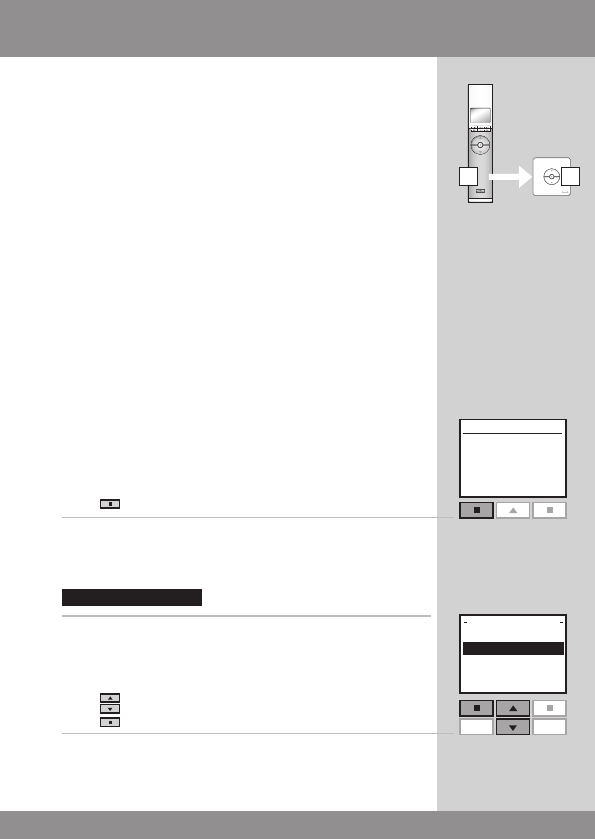

Copying products to other types of activation controls
You can copy one or more products registered in the
remote control to another type of activation control. This
other type of activation control can thus operate both its
own and the copied products.
The example shows how to copy a product from remote
control A to control keypad B so that the latter can oper-
ate the products already registered plus the product from
remote control A.
Note: A VELUX control keypad can operate products of
the same type only.
Step 1: Prepare remote control A for copying
1 Press "Menu".
2 Select the submenu:
3 Press to highlight "Copy system".
Press "Enter" to confirm your choice.
Note: Step 2 must now be completed within the next two
minutes.
VELUX 67
B
Step 2: Register the product in activation control B
To copy a product to control keypad KLI 110, please refer
to section Configuring control keypad KLI 110 in addition
to existing remote control KLR 100 in the instructions
provided with the control keypad.
The product selected can now be operated with activation
control B.
68 VELUX
Menu
Locate
Enter Back
P1 P2
Yes No
AB

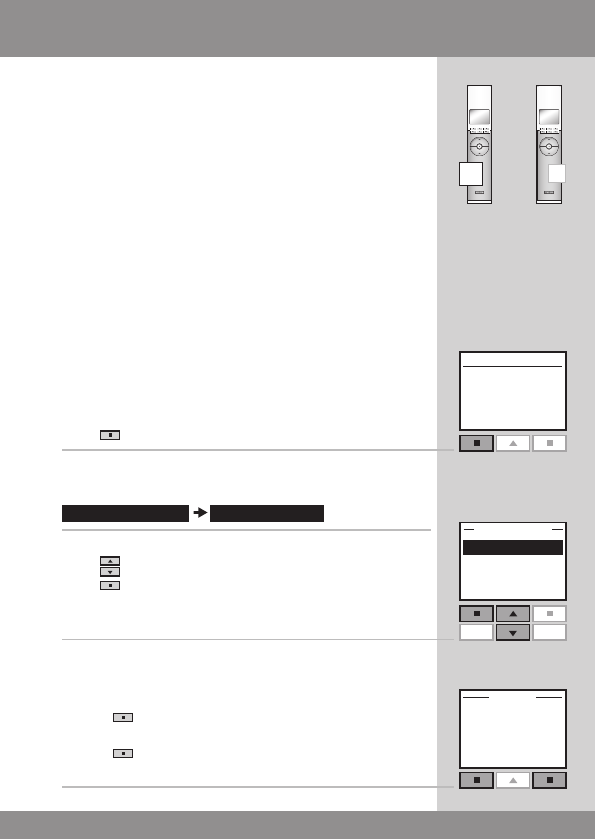

Security key
Each remote control and each product have a security key.
To allow for communication between remote control and
products, they must have the same security key. This also
ensures that external activation controls cannot communi-
cate with and thus operate the products unintentionally.
The example shows how to change the security key in
remote control A and in the products registered in A
(step 1). If you have more than one remote control, the
new security key must also be transferred to these
(step 2).
Step 1: Change security key in remote control A
(including registered products)
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Change".
Press "Enter" to confirm your choice.
The display now indicates that the security key has been
changed.
4 The display asks whether the security key of other remote
controls is to be changed.
• Press "No" to finish if this is the only remote control
being changed.
• Press "Yes" if there are other remote controls.
Execute step 2 for these.
VELUX 69
AB
Menu
Locate
Enter Back
P1 P2
Step 2: Change security key in remote control B (and
others)
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Receive".
Press "Enter" to confirm your choice.
The display indicates that the security key is being trans-
ferred from remote control A to remote control B.
70 VELUX
A
A

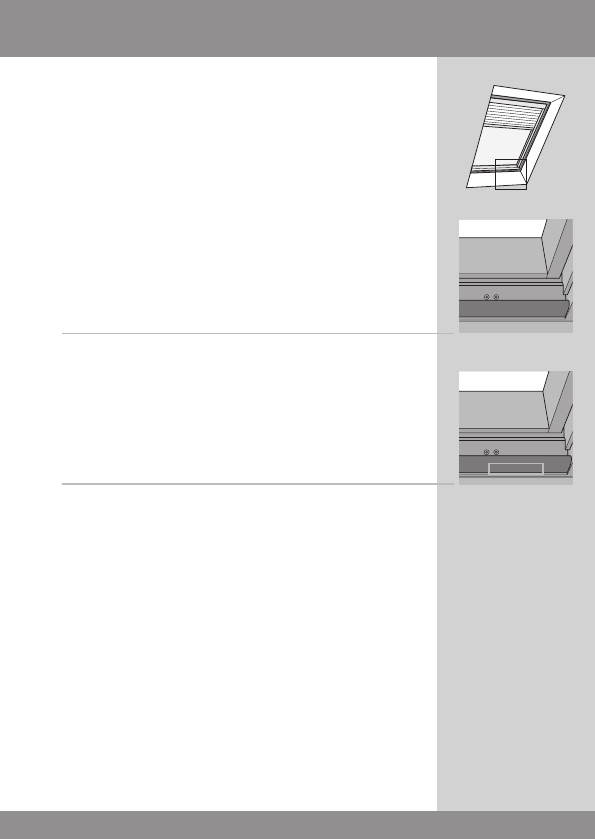

Resetting and preparing for registration
The skylight and all connected electrical products can
be reset to remove the present registration and to
prepare for a new registration.
When resetting, the button located under the skylight
operator cover hole closest to the center of the sky-
light (A) is operated by carefully inserting a pointed
object.
1 To reset the skylight operator and connected electrical
products, close the sash by pressing button closest to
the center of the skylight (A).
2 When the skylight is closed, press and hold the button
closest to the center of the skylight (A) for at least
5 seconds. The skylight operator and other electrical
products connected to the skylight will run briefly
back and forth indicating that they are ready to be
registered.
Note: To make a new registration and reinstate the
connection with the remote control, please refer to
the instructions in section Initial set-up or Registering
new products.
VELUX 71
Yes No
The remote control can be reset to its initial factory set-
tings if you want to delete all registered products and all
programming and start afresh.
1 Slide o the battery cover as shown.
2 Press the button on the right side of the remote control
with a pointed object for at least 5 seconds.
3 Replace the battery cover.
4 Press "Yes" to confirm that you want to reset the
remote control.
The remote control has now been reset. To reinstate the
connection between remote control and products, please
refer to the instructions in section Initial set-up.
Resetting the remote control
72 VELUX
AB
The skylight can be adjusted to three dierent max-
imum openings: 12" (300 mm), 8" (200 mm) and
4" (100 mm). Default is generally 12" (300 mm) but
for specific skylights the maximum default opening
may be 8" (200 mm).
Note: For in-reach applications where the skylight
is installed less than 8 ft. (2.5 m) from the floor, the
default maximum opening must be 4" (100 mm).
When changing the maximum opening, the buttons
located under the skylight operator cover holes (A and
B) are operated by carefully inserting a pointed object
through the holes in the skylight operator cover.
1 To change the opening, reset the skylight as described
in section Resetting and preparing for registration,
items 1 and 2.
2 Disconnect the main power supply and, if installed,
battery backup KLB 100 for at least 60 seconds.
Reconnect the power and, within 30 seconds, press
and hold the button closest to the side frame (B) for
10 seconds or until the skylight opens. The skylight
will open and stop at the latest set maximum opening.
3 Press the button closest to the side frame (B) to
change this opening to the next maximum opening.
When the skylight has stopped at the desired maxi-
mum opening, press the button closest to the center
of the skylight (A) to accept the new opening setting.
The skylight closes.
Adjusting the maximum opening
VELUX 73
A

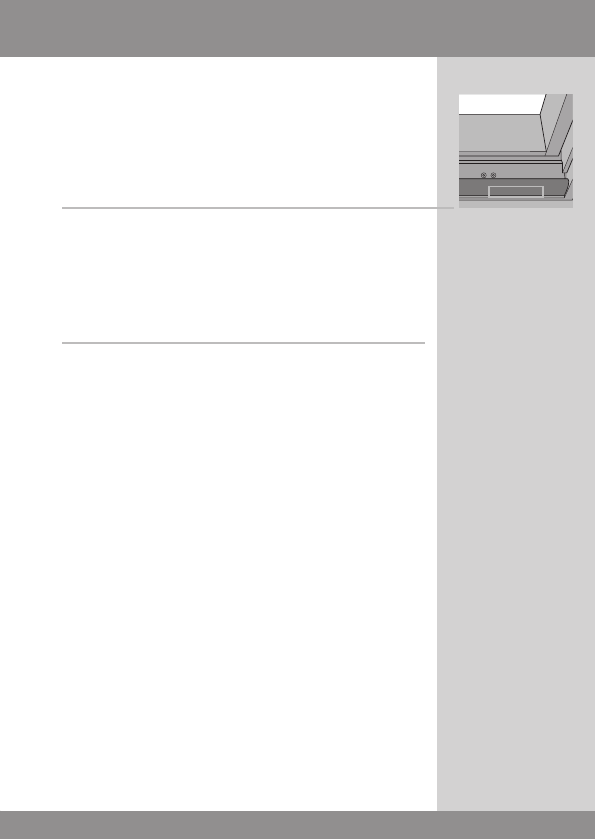

4 When the skylight is closed, press and hold the button
closest to the center of the skylight (A) for at least
5 seconds. The skylight operator and other electrical
products connected to the skylight will run briefly
back and forth indicating that they are ready to be
registered.
5 To make a new registration and reinstate the con-
nection with the remote control, please refer to the
instructions in section Initial set-up or Registering new
products.
74 VELUX

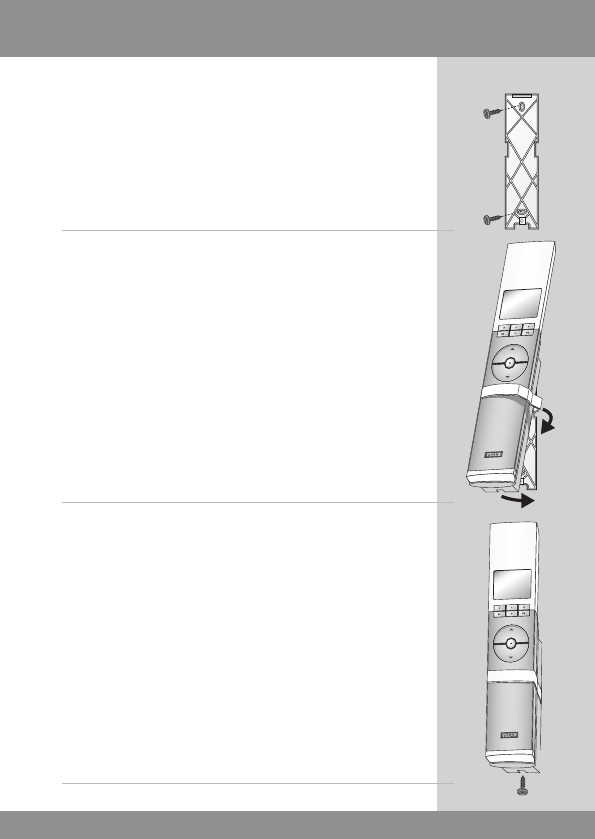

Fitting of holder for remote control
The remote control is provided with a wall-mounted
holder, which can be fitted anywhere in your home.
Note: Check that the remote control can operate the
relevant products from the proposed position before it is
fastened to the holder.
1 Fit the back section to the wall with the two screws sup-
plied.
2 Hook the front section onto the back section at the top,
click it into place at the bottom and fix it with a screw.
3 Place the remote control in the holder. It is secured by
means of built-in magnets.
VELUX 75
If required, the remote control can be fastened with
screws to the holder.
1 Fit the back section to the wall with the two screws sup-
plied.
2 Place the remote control in the front section. Clip the
white strap around the assembled unit. Hook the as-
sembled unit to the back section at the top. Ensure that
the strap fits into the openings in the sides of the back
section. Lock the unit into place at the bottom.
3 Fix the unit with screw at the bottom.
76 VELUX
A

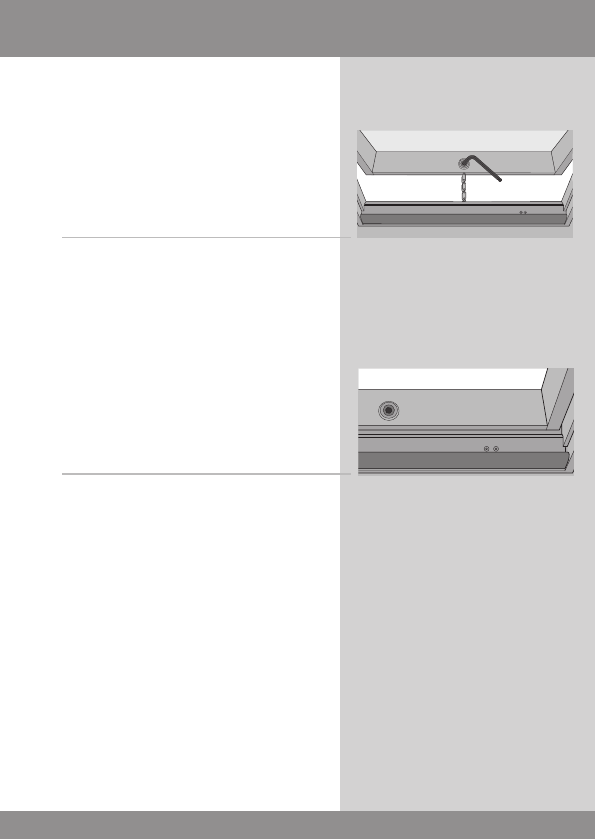

Closing skylights
In case of power failure
The chain can be disengaged by removing
the plug in the center of the bottom sash
and turning the screw, with the provided
2.5 mm hex key, counter-clockwise until it
stops.
Note: The chain can be re-engaged by
executing the above procedure in reverse
order.

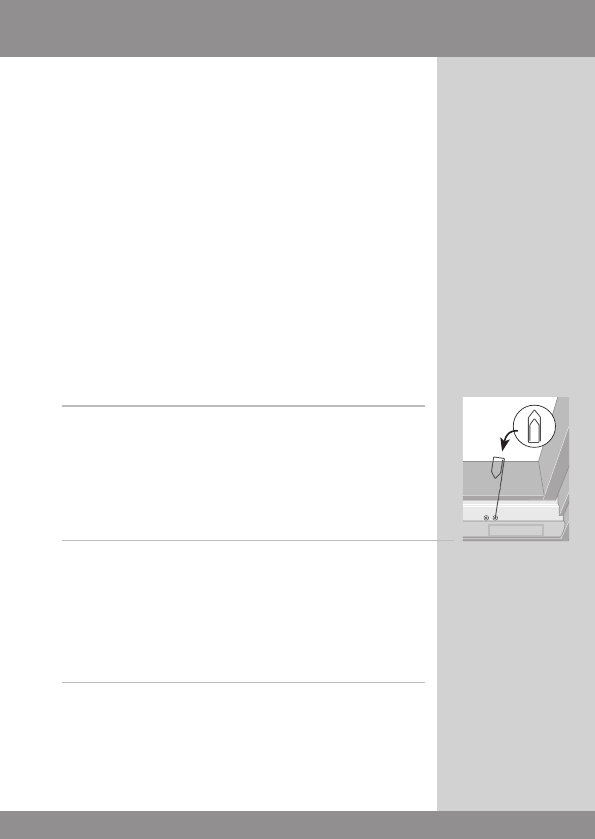

If the remote control has been mislaid
The sash can be closed by inserting a
pointed object in the skylight operator
cover hole closest to the center of the
skylight (A) and pressing briefly.
Note: Battery backup KLB 100 can be con-
nected. Please contact your VELUX sales
company for further information.
Power failure / Mislaid remote control
VELUX 77

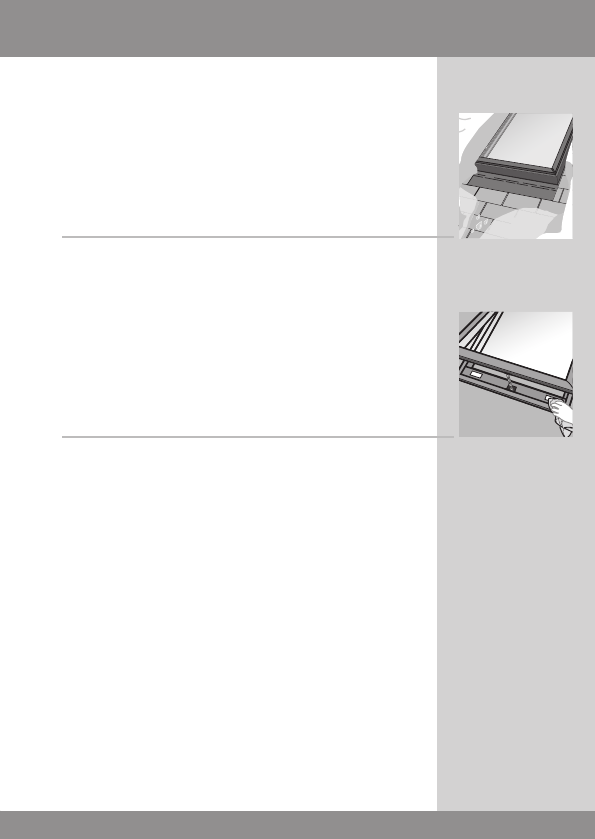

Maintenance
Switch off the main power supply before proceeding!
1 Snow and ice
Remove snow and ice to allow melted water to drain o
from and around the skylight.
2 Cleaning the rain sensor
Dirt on the rain sensor may cause operating problems.
Therefore, it is recommended to clean the rain sensor with
a soft wet cloth once or twice a year or when needed.
VELUX 78

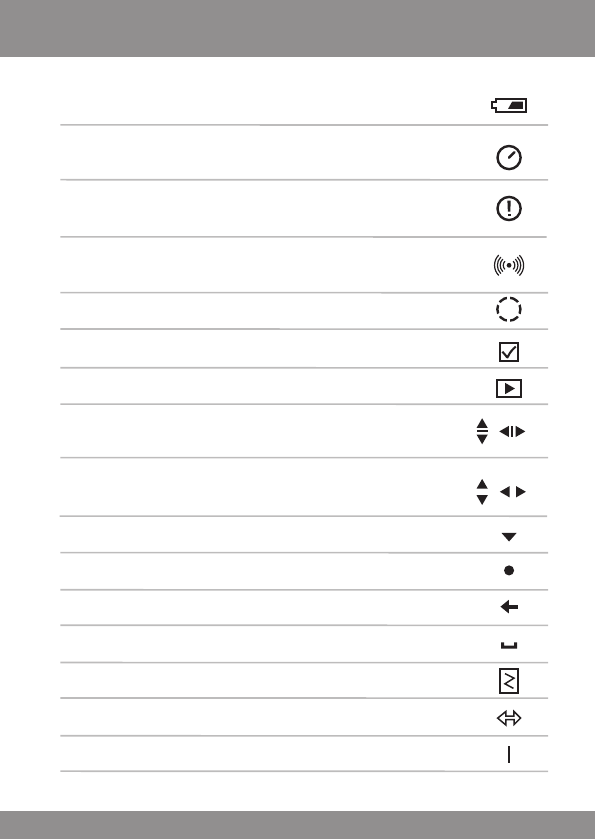

Display symbols
Batteries must be changed within 2 weeks (type AA,
1.5 volt).
Automatic closing has been activated for the product in
question.
Automatic closing has been activated for one of the other
products in the remote control.
Automatic registration of product(s) is running.
Note: In some cases, this might take up to several minutes.
Operation of a product.
The product or function requested has been ticked.
A program has been activated.
Slats/louvres of a decoration and sunscreening product can
be tilted/turned from 0 to 100%.
A decoration and sunscreening product can be drawn up/
down or opened/closed from 0 to 100%.
Pointer, see section Naming.
A name can be saved, see section Naming.
Deletion of character, see section Naming.
Space character, see section Naming.
Dictionary, see section Naming.
Insertion of a character, see section Naming.
Cursor, see section Naming.
VELUX 79
Display texts
Adjustment: VELUX electrical decoration and sunscreening products are not
adjusted to the skylight size on delivery. When operated the first time, they
will therefore run from bottom to top of the skylight or vice versa without
interruption. After adjustment the product is ready for use.
Battery level low: The batteries in the remote control are running out of power.
Blocked: Unknown object obstructs operation of product. Remove obstruc-
tion to obtain normal operation.
If this message does not disappear even if you have checked for obstruction,
please contact your VELUX sales company.
Limited by rain sensor: It is raining and the rain sensor has been activated.
You can disable the rain sensor temporarily and operate the skylight.
Manually operated: The skylight has been opened manually. Close the
skylight manually to allow for electrical operation.
Operational defect: The product has stopped during operation. Check the
product.
Glossary
Activation control: An operator device, for instance a remote control or a
control keypad, with which you can operate an electrical product by pressing
one or several buttons/keys.
Configuration: See Preparation for registration below.
Memory: The following functions occupy the memory of the remote control:
Room, Group, Rename and Programs. Use of these functions will reduce the
total memory.
Preparation for registration: A product must be registered in an activation
control before it can be operated. After connecting a new product to the
main power supply or pressing the button closest to the side frame of the
skylight (B), the product will search for an activation control for 10 minutes.
Product: A product, which can be operated with the remote control, such as
a skylight, a roller shade or a Venetian blind.
Registration: A product is registered in an activation control when the secu-
rity key of the activation control is assigned to the product.
Repeater: A unit increasing the range of the remote control.
Display texts / Glossary
USER MA NUAL FO R KLR. ©2010, 201 1, VELUX GROUP
® VELUX AND THE VELUX LOGO ARE REGISTERED TRADEMARKS USED U NDE R LIC ENCE BY THE VELUX GROUP
CA: VELUX Canada Inc.
1 800 88-VELUX (888-3589)
JP: VELUX-Japan Ltd.
0570-00-8145
US: VELUX America Inc.
1-800-88-VELUX
www.velux.com
