VSON TECHNOLOGY V188 Wireless presenter User Manual

Vson Technology Co.,Ltd. Wireless presenter

Users Manual

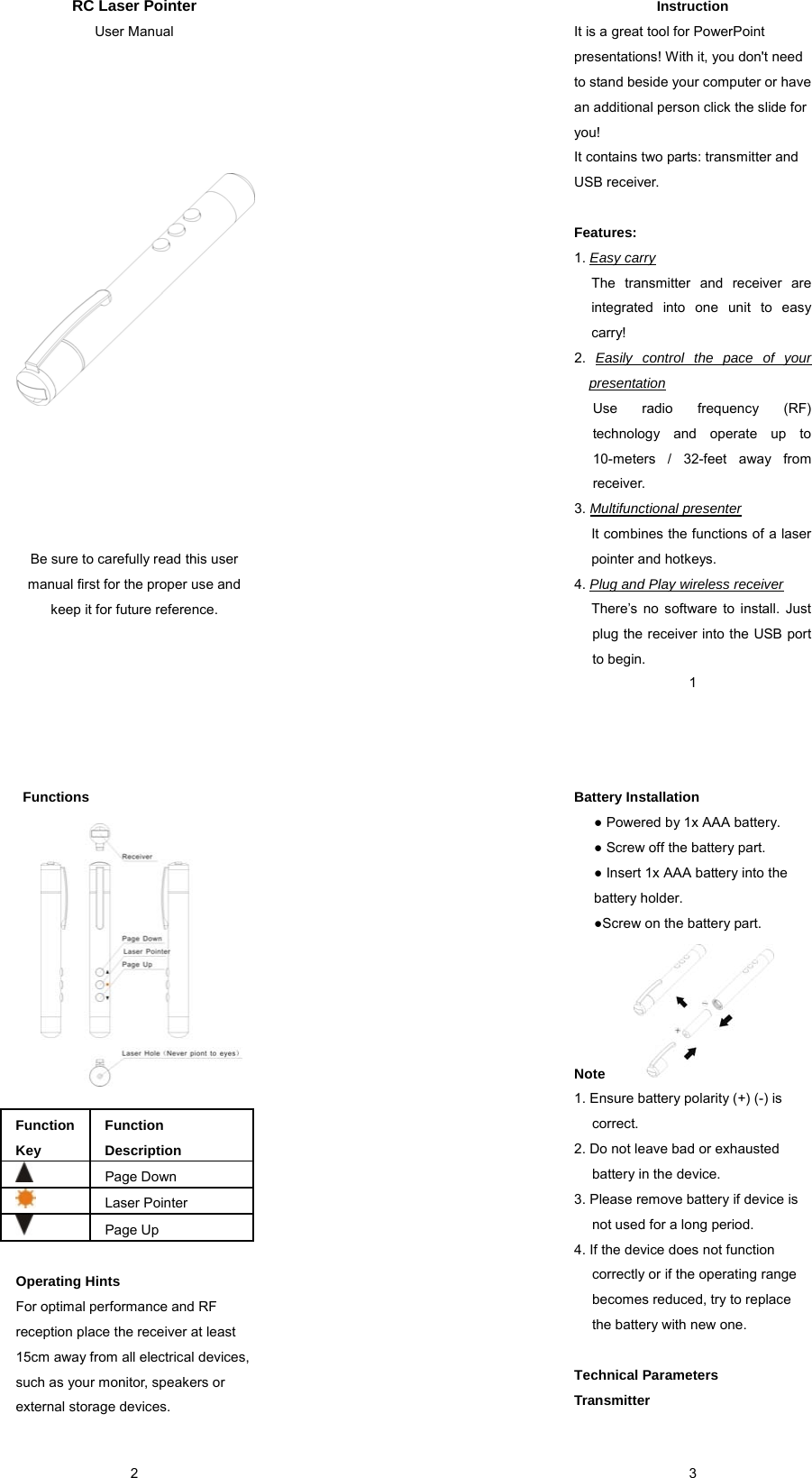

RC Laser Pointer User Manual                     Be sure to carefully read this user manual first for the proper use and keep it for future reference.    1Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you!  It contains two parts: transmitter and USB receiver.    Features:  1. Easy carry The transmitter and receiver are integrated into one unit to easy carry! 2.  Easily control the pace of your presentation Use radio frequency (RF) technology and operate up to 10-meters / 32-feet away from receiver. 3. Multifunctional presenter It combines the functions of a laser pointer and hotkeys. 4. Plug and Play wireless receiver There’s no software to install. Just plug the receiver into the USB port to begin.  2 Functions              Function Key Function Description  Page Down  Laser Pointer  Page Up  Operating Hints For optimal performance and RF reception place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices.   3Battery Installation   ● Powered by 1x AAA battery. ● Screw off the battery part. ● Insert 1x AAA battery into the battery holder. ●Screw on the battery part.      Note 1. Ensure battery polarity (+) (-) is correct.  2. Do not leave bad or exhausted battery in the device. 3. Please remove battery if device is not used for a long period. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one.  Technical Parameters Transmitter

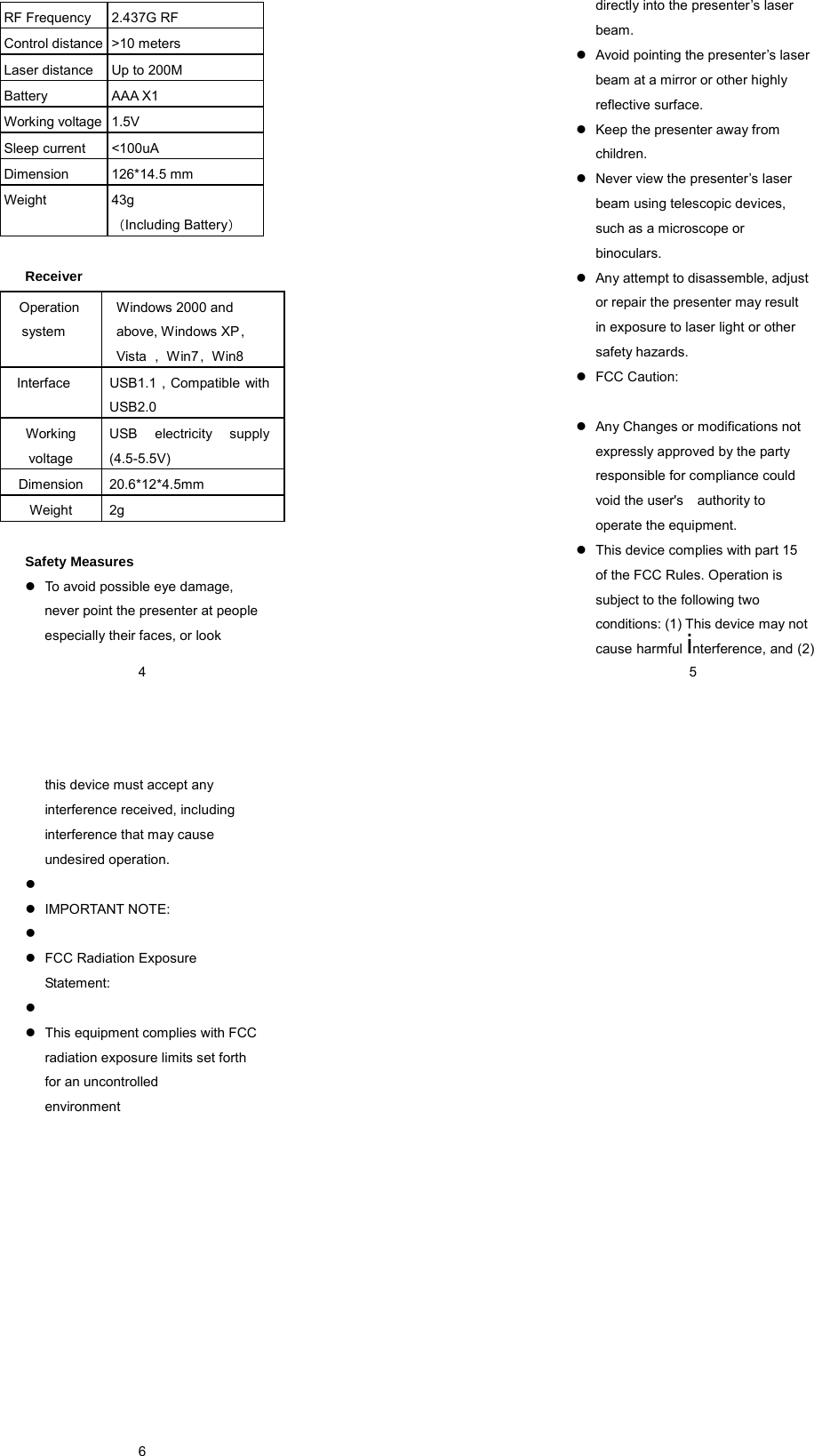

environment   4 Receiver   Safety Measures   To avoid possible eye damage, never point the presenter at people especially their faces, or look RF Frequency  2.437G RF Control distance  >10 meters Laser distance  Up to 200M Battery AAA X1 Working voltage  1.5V Sleep current  <100uA Dimension 126*14.5 mm Weight 43g (Including Battery)  Operation system Windows 2000 and above, Windows XP,Vista  ,Win7,Win8 Interface  USB1.1 , Compatible with USB2.0 Working voltage USB electricity supply (4.5-5.5V) Dimension 20.6*12*4.5mm Weight 2g  5directly into the presenter’s laser beam.   Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface.   Keep the presenter away from children.   Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars.   Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards.    FCC Caution:     Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's    authority to operate the equipment.     This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)  6this device must accept any interference received, including   interference that may cause undesired operation.      IMPORTANT NOTE:      FCC Radiation Exposure Statement:       This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
