VSON TECHNOLOGY V9 Wireless Presenter User Manual

Vson Technology Co.,Ltd. Wireless Presenter

users manual

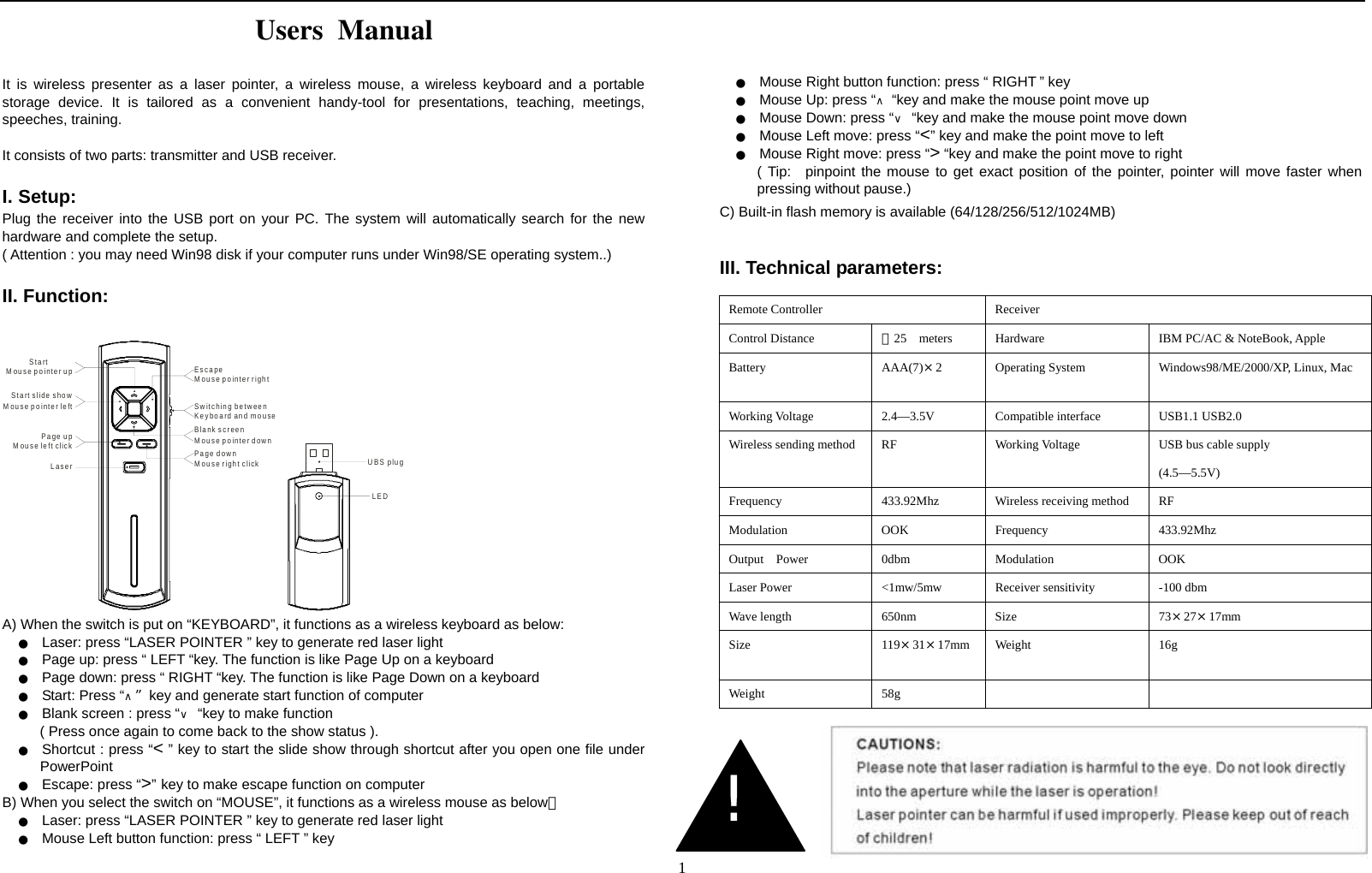

1Users Manual It is wireless presenter as a laser pointer, a wireless mouse, a wireless keyboard and a portable storage device. It is tailored as a convenient handy-tool for presentations, teaching, meetings, speeches, training. It consists of two parts: transmitter and USB receiver. I. Setup: Plug the receiver into the USB port on your PC. The system will automatically search for the new hardware and complete the setup. ( Attention : you may need Win98 disk if your computer runs under Win98/SE operating system..) II. Function: StartMouse pointer upStart slide showMouse pointer leftPage upMouse left clickLaserEscapeMouse pointer rightBlank screenMouse pointer downPage downMouse right clickSwitching betweenKeyboard and mouseUBS plugLED A) When the switch is put on “KEYBOARD”, it functions as a wireless keyboard as below: ● Laser: press “LASER POINTER ” key to generate red laser light ● Page up: press “ LEFT “key. The function is like Page Up on a keyboard ● Page down: press “ RIGHT “key. The function is like Page Down on a keyboard ● Start: Press “∧”key and generate start function of computer ● Blank screen : press “∨ “key to make function ( Press once again to come back to the show status ). ● Shortcut : press “< ” key to start the slide show through shortcut after you open one file under PowerPoint ● Escape: press “>” key to make escape function on computer B) When you select the switch on “MOUSE”, it functions as a wireless mouse as below： ● Laser: press “LASER POINTER ” key to generate red laser light ● Mouse Left button function: press “ LEFT ” key ● Mouse Right button function: press “ RIGHT ” key ● Mouse Up: press “∧ “key and make the mouse point move up ● Mouse Down: press “∨ “key and make the mouse point move down ● Mouse Left move: press “<” key and make the point move to left ● Mouse Right move: press “> “key and make the point move to right ( Tip: pinpoint the mouse to get exact position of the pointer, pointer will move faster when pressing without pause.) C) Built-in flash memory is available (64/128/256/512/1024MB) III. Technical parameters: Remote Controller Receiver Control Distance ＞25 meters Hardware IBM PC/AC & NoteBook, Apple Battery AAA(7)×2 Operating System Windows98/ME/2000/XP, Linux, Mac Working Voltage 2.4—3.5V Compatible interface USB1.1 USB2.0 Wireless sending method RF Working Voltage USB bus cable supply (4.5—5.5V) Frequency 433.92Mhz Wireless receiving method RF Modulation OOK Frequency 433.92Mhz Output Power 0dbm Modulation OOK Laser Power <1mw/5mw Receiver sensitivity -100 dbm Wave length 650nm Size 73×27×17mm Size 119×31×17mm Weight 16g Weight 58g !
