ezWAVE Cards Users’ Guide Version 1.6

Page 1 of 36

WWL-1100N&WWL-1100P

Wireless LAN Card

Users’ Guide

Corporate Headquarters

Widelink Co. Ltd.

664-25 Dongshin Bldg. 2F

Shinsa-Dong, Kangnam-gu

Seoul 135-120, Korea

http://www.widelink.co.kr

Tel: +82-2-3445-9938

Fax: +82-2-3445-8534

ezWAVE Cards Users’ Guide Version 1.6

Page 2 of 36

Contents

Chapter 1 Introduction To The Wireless LAN …………………. 4

1.1 What is Wireless LAN? …………………………………… 4

1.2 Wireless LAN Standard and Structure………………………… 5

Chapter 2 Before You Start ezWAVE………………….…………. .10

Chapter 3 Installing ezWAVE Card On The Windows Os …...11

3.1 Installing PC Card Adapter. ….………………………………… 11

3.1.1 Installing the PC Card Driver for Windows OS… … 12

3.1.2 PC Card (PCMCIA) Network Configuration ……… 17

3.1.3 Uninstalling PC Card Software ……………………. 21

3.1.4 Remove PC Card from PC card socket …………… 21

3.1.5 ezWAVE Configuration Utility ………………………. 22

3.2 PCI Card Installation …………………………………………….. 26

3.2.1 Installing PCI Card Adapter …………………………. 27

3.2.2 Installing PCI Card Driver …………………………….29

3.2.3 PCI Card Network Configuration …………………….29

3.3 Troubleshooting ………………………………………………….. 30

Appendix

Appendix A Cell Planning (Radio Range) …………………………….. 32

Appendix B Technical Specification …………………………………. 34

Appendix C Channel Allocation ……………………………..………… 36

ezWAVE Cards Users’ Guide Version 1.6

Page 3 of 36

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO

CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL

ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN

THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS

REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,

CONTACT YOUR WIDELINK REPRESENTATIVE FOR A COPY.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE

SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. WIDELINK AND THE SUPPLIERS DISCLAIM ALL

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION, THOSE OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING,

USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL WIDELINK OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL,

CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS OR LOSS

DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF WIDELINK OR ITS

SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SAFETY INFORMATION

WARNING

* Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.

* To prevent fire or shock hazard, do not expose your ezWAVE wireless LAN PC cards to rain or moisture.

NOTES:

* The Widelink supplied software may show screens slightly different from those included in this manual.

* This manual is written based on the assumption that you are familiar with basic operations of Windows operating

system.

Microsoft, Windows, Windows95, Windows98, Windows ME, Windows 2000 and Windows NT are registered trademarks

of Microsoft Corporation.

ezWave, Widellink’s logo, is registered trademark of Widelink Co., Ltd. or its affiliates in Korea, US and certain other

countries. All other trademarks mentioned in this documents are the property of their respective owners. The use of

word partner does not imply a partnership relationship between Widelink and any of its resellers.

Using the Widelink’s ezWAVE card

ⓒ

2000. Widelink Co., Ltd.

ezWAVE Cards Users’ Guide Version 1.6

Page 4 of 36

Chapter 1 Introduction To The Wireless LAN

A wireless LAN (WLAN) is a flexible data communication system implemented as an

extension to, or as an alternative for, a wired LAN within a building or campus. Using

electromagnetic waves, WLANs transmit and receive data over the air, minimizing the

need for wired connections. Thus, WLANs combine data connectivity with user mobility,

and, through simplified configuration, enable movable LANs. WLANs have gained strong

popularity in a number of vertical markets, including the health-care, retail,

manufacturing, warehousing, and academic arenas. These industries have profited from

the productivity gains of using hand-held terminals and notebook computers to transmit

real-time information to centralized hosts for processing. Today WLANs are becoming

more widely recognized as a general-purpose connectivity alternative for a broad range

of business customers.

1.1 What is Wireless LAN?

Wireless LANs use electromagnetic airwaves (radio and infrared) to communicate

information from one point to another without relying on any physical connection. Radio

waves are often referred to as radio carriers because they simply perform the function of

delivering energy to a remote receiver. The data being transmitted is superimposed on

the radio carrier so that it can be accurately extracted at the receiving end. This is

generally referred to as modulation of the carrier by the information being transmitted.

Once data is superimposed (modulated) onto the radio carrier, the radio signal occupies

more than a single frequency, since the frequency or bit rate of the modulating

information adds to the carrier.

Multiple radio carriers can exist in the same space at the same time without interfering

with each other if the radio waves are transmitted on different radio frequencies. To

extract data, a radio receiver tunes in (or selects) one radio frequency while rejecting all

other radio signals on different frequencies.

In a typical WLAN configuration, a transmitter/receiver (transceiver) device, called an

access point, connects to the wired network from a fixed location using standard

Ethernet cable. At a minimum, the access point receives, buffers, and transmits data

between the WLAN and the wired network infrastructure. A single access point can

support a small group of users and can function within a range of less than one hundred

ezWAVE Cards Users’ Guide Version 1.6

Page 5 of 36

to several hundred feet. The access point (or the antenna attached to the access point)

is usually mounted high but may be mounted essentially anywhere that is practical as

long as the desired radio coverage is obtained.

End users access the WLAN through wireless LAN adapters, which are implemented as

PC cards in notebook computers, or use PCI adapters in desktop computers. WLAN

adapters provide an interface between the client network operating system (NOS) and

the airwaves (via an antenna). The nature of the wireless connection is transparent to

the NOS.

1.2 Wireless LAN Standard and Structure

{

{{

{Wireless LAN Standard – IEEE802.11b

The widespread acceptance of WLANs depends on industry standardization to ensure

product compatibility and reliability among the various manufacturers. The Institute of

Electrical and Electronics Engineers (IEEE) ratified the original 802.11 specifications in

1997 as the standard for wireless LANs. That version of 802.11 provides for 1 Mbps and

2 Mbps data rates and a set of fundamental signaling methods and other services. The

most critical issue affecting WLAN demand has been limited throughput. The data rates

supported by the original 802.11 standard are too slow to support most general business

requirements and have slowed adoption of WLANs. Recognizing the critical need to

support higher data-transmission rates, the IEEE recently ratified the 802.11b standard

(also known as 802.11 High Rate) for transmissions of up to 11 Mbps.

With 802.11b, WLANs will be able to achieve wireless performance and throughput

comparable to wired Ethernet. Outside of the standards bodies, wireless industry leaders

have united to form the Wire-less Ethernet Compatibility Alliance (WECA).

WECA’s mission is to certify cross-vendor interoperability and compatibility of IEEE

802.11b wireless networking products and to promote that standard for the enterprise,

the small business, and the home. Members include WLAN semiconductor

manufacturers, WLAN providers, computer system vendors, and software makers.

{

{{

{Wireless LAN Network Equipment

802.11 defines two pieces of equipment, a wireless station, which is usually a PC

equipped with a wireless network interface card (NIC), and an access point (AP), which

acts as a bridge between the wireless and wired networks. An access point usually

ezWAVE Cards Users’ Guide Version 1.6

Page 6 of 36

consists of a radio, a wired network interface (e.g., 802.3), and bridging software

conforming to the 802.1d bridging standard. The access point acts as the base station

for the wireless network, aggregating access for multiple wireless stations onto the wired

network. Wireless end stations can be 802.11 PC Card, PCI.

{

{{

{Wireless LAN Network Configuration

The 802.11 standard define two modes: infrastructure mode and ad hoc mode (or

independent or peer-to-peer).

yAd Hoc Mode

Ad hoc mode (also called peer-to-peer mode or an Independent Basic

Service Set, or IBSS) is simply a set of 802.11 wireless stations that

communicate directly with one another without using an access point or any

connection to a wired network. This mode is useful for quickly and easily

setting up a wireless network anywhere that a wireless infrastructure does not

exist or is not required for services, such as a hotel room, convention center,

or airport, or where access to the wired network is barred (such as for

consultants at a client site).

Figure 1. Ad Hoc Mode

yInfrastructure Mode

In infrastructure mode, the wireless network consists of at least one access

Independent Basic

Service Set (IBSS)

ezWAVE Cards Users’ Guide Version 1.6

Page 7 of 36

point connected to the wired network infrastructure and a set of wireless end

stations. This configuration is called a Basic Service Set (BSS). An Extended

Service Set (ESS) is a set of two or more BSSs forming a single sub-network.

Since most corporate WLANs require access to the wired LAN for services

(file servers, printers, Inter-net links) they will operate in infrastructure mode.

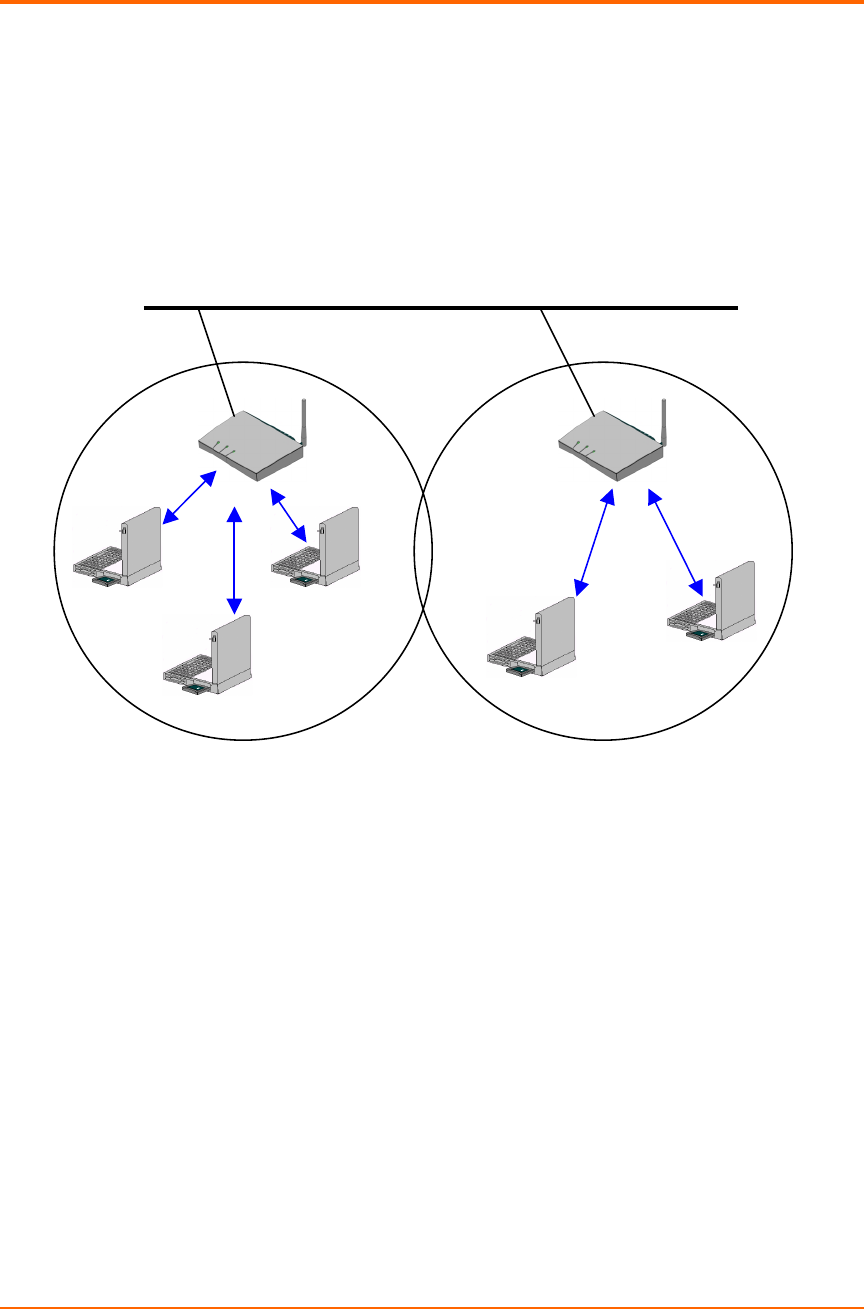

Figure 2. Infrastructure Mode

{

{{

{Roaming

Wireless communication is limited by how far signals carry for given power output.

WLANs use cells, called microcells, similar to the cellular telephone system to extend

the range of wireless connectivity. At any point in time, a mobile PC equipped with a

WLAN adapter is associated with a single access point and its microcell, or area of

coverage. Individual microcells overlap to allow continuous communication within wired

network. They handle low power signals and “hand off” users as they roam through a

given geographic area.

The 802.11 MAC layer is responsible for how a client associates with an access point.

Distribution System (DS)

Service Set (SS) – Multiple

Access Point (AP)

Ethernet (802.3)

ezWAVE Cards Users’ Guide Version 1.6

Page 8 of 36

When an 802.11 client enters the range of one or more APs, it chooses an access point

to associate with (also called joining a Basic Service Set), based on signal strength and

observed packet error rates. Once accepted by the access point, the client tunes to the

radio channel to which the access point is set. Periodically it surveys all 802.11 channels

in order to assess whether a different access point would provide it with better

performance characteristics. If it determines that this is the case, it reassociates with the

new access point, tuning to the radio channel to which that access point is set.

Reassociation usually occurs because the wireless station has physically moved away

from the original access point, causing the signal to weaken. In other cases,

Reassociation occurs due to a change in radio characteristics in the building, or due

simply to high network traffic on the original access point. In the latter case this function

is known as “load balancing,” since its primary function is to distribute the total WLAN

load most efficiently across the available wireless infrastructure. This process of

dynamically associating and reassociating with APs allows network managers to set up

WLANs with very broad coverage by creating a series of overlapping 802.11b cells

throughout a building or across a campus. To be successful, the IT manager ideally will

employ “channel reuse,” taking care to set up each access point on an 802.11 DSSS

channel that does not overlap with a channel used by a neighboring access point.

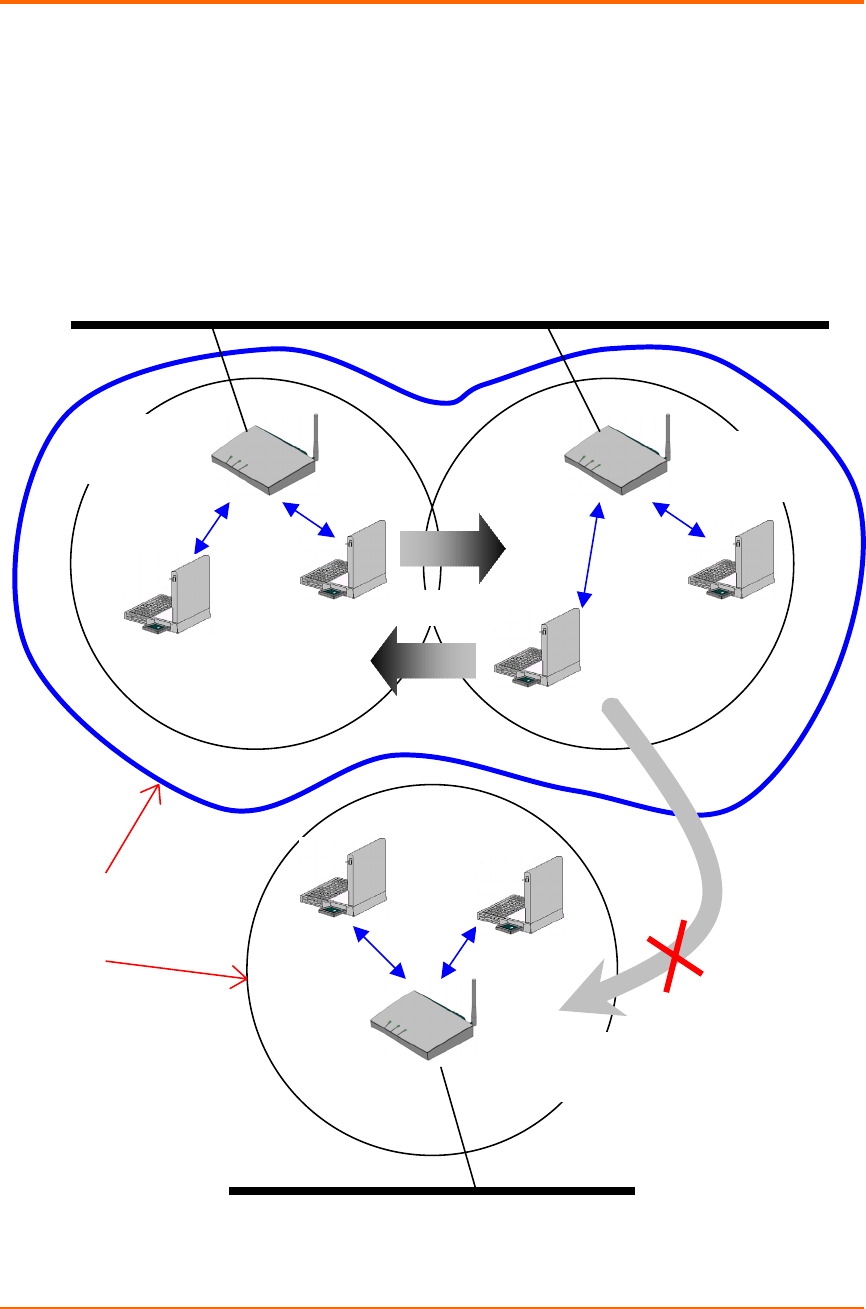

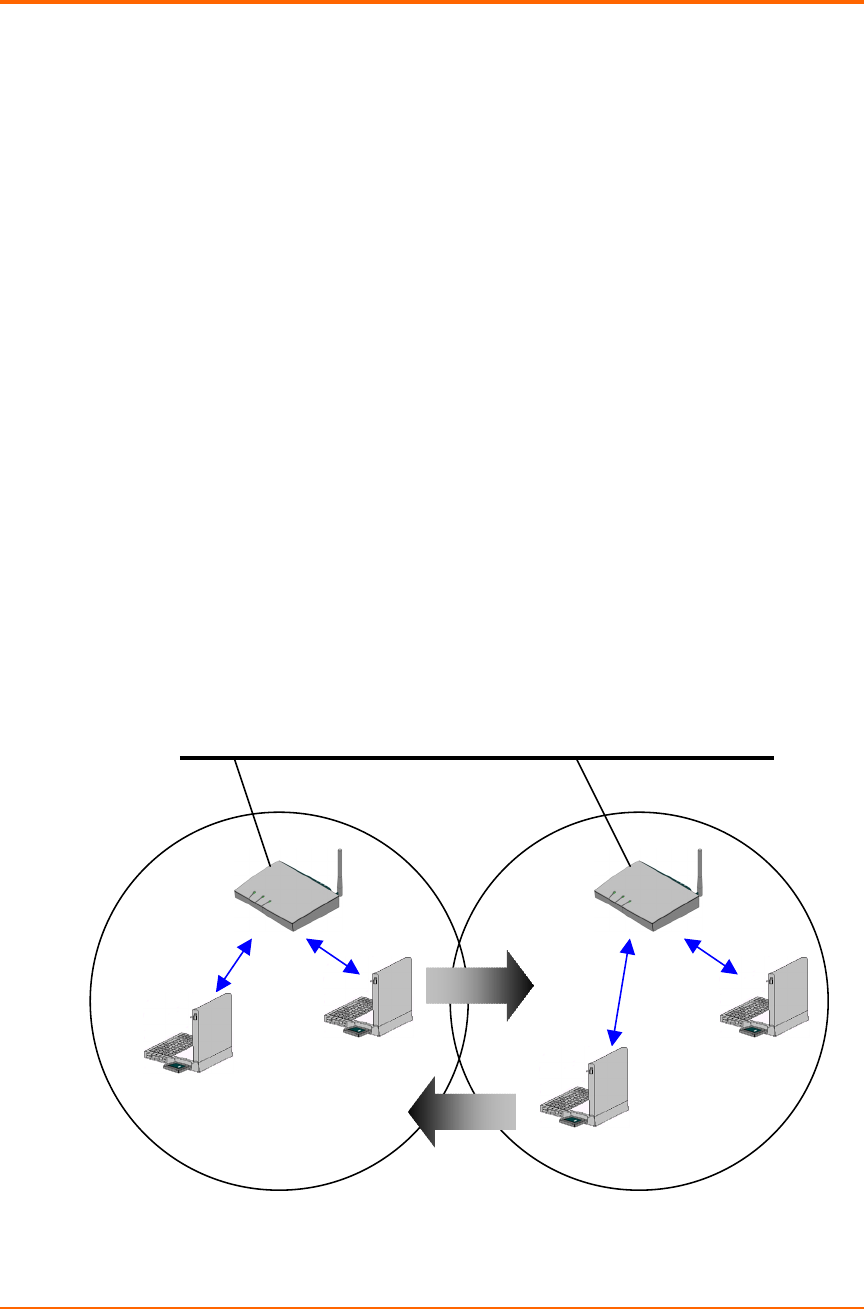

Figure 3. Roaming

Backbone Network

Access Point (AP)

Inter-Cell Roaming

ezWAVE Cards Users’ Guide Version 1.6

Page 9 of 36

{

{{

{BSS, ESS and SS ID

The basic service set (BSS) is the basic building block of WLAN network. Minimum

WLAN BSS may be consist of only two stations. Using access point (AP) and network

distribution systems (DS), WLAN service set can be extended arbitrary size – extended

service set (ESS). Each service set has its network ID (SSID). All the service sets within

an ESS network can have same service ID so that the ESS can support inter-cell

ROAMING.

Figure 4. SSID and Roaming

Backbone Network

AP #`2 SS ID

= Widelink

ROAMING

AP #`1 SS ID

= Widelink

AP #`3 SS ID

=Wide

ESS

BSS

Backbone Network

Re-Configuration

Required

ezWAVE Cards Users’ Guide Version 1.6

Page 10 of 36

Chapter 2 Before You Start ezWAVE

To use the ezWAVE adapter with a computing device (desktop personal computer,

notebook, laptop computer, portable or hand-held device), the device must be equipped

with an internal or external PC Card Type II or Type III slot. All drivers and supporting

software (card and socket services) for the client adapter slot must be loaded and

configured.

Ask your system administrator for the following information, which you may need to

provide during driver installation:

• Your Wireless Client Name

• Your Wireless SSID

• Your computer's unique client name and workgroup name

• For Windows NT, a free interrupt and I/O address.

• For your network account, your user name and password

• If you are not using a DHCP server, your will only need IP address, gateway address,

and subnet mask

After unpacking the card, make sure the following items are present and in good

condition:

• Widelink ezWAVE WAP-1100 Series PC Card Adapter

• WAP-1100 Series install software and documentation CD for Windows 98, ME and

Windows 2000.

If any item is damaged or missing, contact your PC Card adapter supplier. Save all the

shipping and packing material to repack the unit, should service be required.

Caution

Before you start, close all working windows and backup important data.

ezWAVE Cards Users’ Guide Version 1.6

Page 11 of 36

Chapter 3 Installing the PC/PCI Card Adapter on a Windows OS

This section provides instructions for installing a PC/PCI adapter on a computer using

one of the Windows operating systems.

Caution

The following procedures and physical connections apply generally to normal and

conventional client adapter slots. In the cases of custom or non-conventional equipment,

be alert to possible differences in client adapter slot configurations.

3.1 Installing PC Card Adapter

Before you begin, examine the client adapter. One end is a dual-row, 68-pin client

adapter connector. This side will be inserted into the client adapter slot with the logo on

the client adapter facing up. The card is keyed so it can be inserted only one way into

the slot.

The client adapter can be connected to a client adapter Type II slot. This includes slots

that support both Type II and Type III cards.

Caution

Do not force the client adapter into the slot. Forcing it will damage both the client adapter

and the slot. If the client adapter does not go in easily, remove the card and reinsert it.

ezWAVE Cards Users’ Guide Version 1.6

Page 12 of 36

3.1.1 Installing the PC Card Driver for Windows Operating Systems





Windows 98, ME, 2000

If the operating system on your computer is Windows, follow these steps.

If you insert the ezWAVE software and documentation CD for Windows, the Windows

automatically runs ezWAVE setup program and a dialog box appears.

If above dialog box does not appear, select CD-ROM drive, and click “setup.exe”file.

Click Next > icon. A License Agreement dialog box appears asking whether you agree

with the license or not will appear.

If you agree, click Yes icon.

STEP 1

STEP 2

ezWAVE Cards Users’ Guide Version 1.6

Page 13 of 36

Give a destination folder. To select a different folder click on Browse and then click Next.

STEP 3

ezWAVE Cards Users’ Guide Version 1.6

Page 14 of 36

Select the SSID. Default SSID is ANY. You

can change this later using the configuration utility or network configuration. Click on

Next.

Select network type and click on Next. Default is infrastructure.

STEP 4

STEP 5

ezWAVE Cards Users’ Guide Version 1.6

Page 15 of 36

Confirm the current settings; SSID, Network Mode, Utility directory and click on Next.

It takes a few seconds for copying the utility files and then click on Finish to complete

the installation.

STEP 6

STEP 7

ezWAVE Cards Users’ Guide Version 1.6

Page 16 of 36

ezWAVE Cards Users’ Guide Version 1.6

Page 17 of 36

3.1.2 PC Card (PCMCIA) Network Configuration

If you have completed PC card installation, insert the PC card. If

you PC detects the PC card, you can find glittering LED and PC

sound. Also you will see the PC card icon on the right bottom of

your screen.

When you install Widelink’s wireless LAN card, all the setup

process runs automatically. If you reinstall the install program, it asks the positions of

“ezWAVE.inf” and cw10sys. Then you should select same as the below:

File name Path

ezWAVE.inf c:\windows\inf

cw10.sys c:\windows\system

And then the install program asks whether you want to reboot your computer. At this

point you should select “No” in order to complete the installation correctly.

Click on My Computer icon. Select the Device manager and network adaptors. If you

find yellow (?) sign on the adaptor, it indicates that the installation is not successful.

Select the adaptor and click on Remove. Restart your computer after uninstalling the

driver to make the change effective.

Click on the Network Neighborhood and select properties from the pop-up menu. The

network box appears and you see three main tabs; Configuration, Identification, Access

control.

Click on the configuration tab and then click on add button. Select network component

type box appears. Click on the protocol then click the add button.

Select network protocol box. From the list of manufactures, click on Microsoft. From the

list of network protocols, select NetBEUI and click OK.

The NetBEUI protocol is now installed. After click on OK, return back to Network

Component Type box.

Repeat this protocol add procedure to add IPX/SPX protocol and TCP/IP protocol.

ezWAVE Cards Users’ Guide Version 1.6

Page 18 of 36

Caution

This Process could cause serious problem on your network if you edit wrong data. So, if you do

not know how to configure your network option, ask for help from your network administrator.

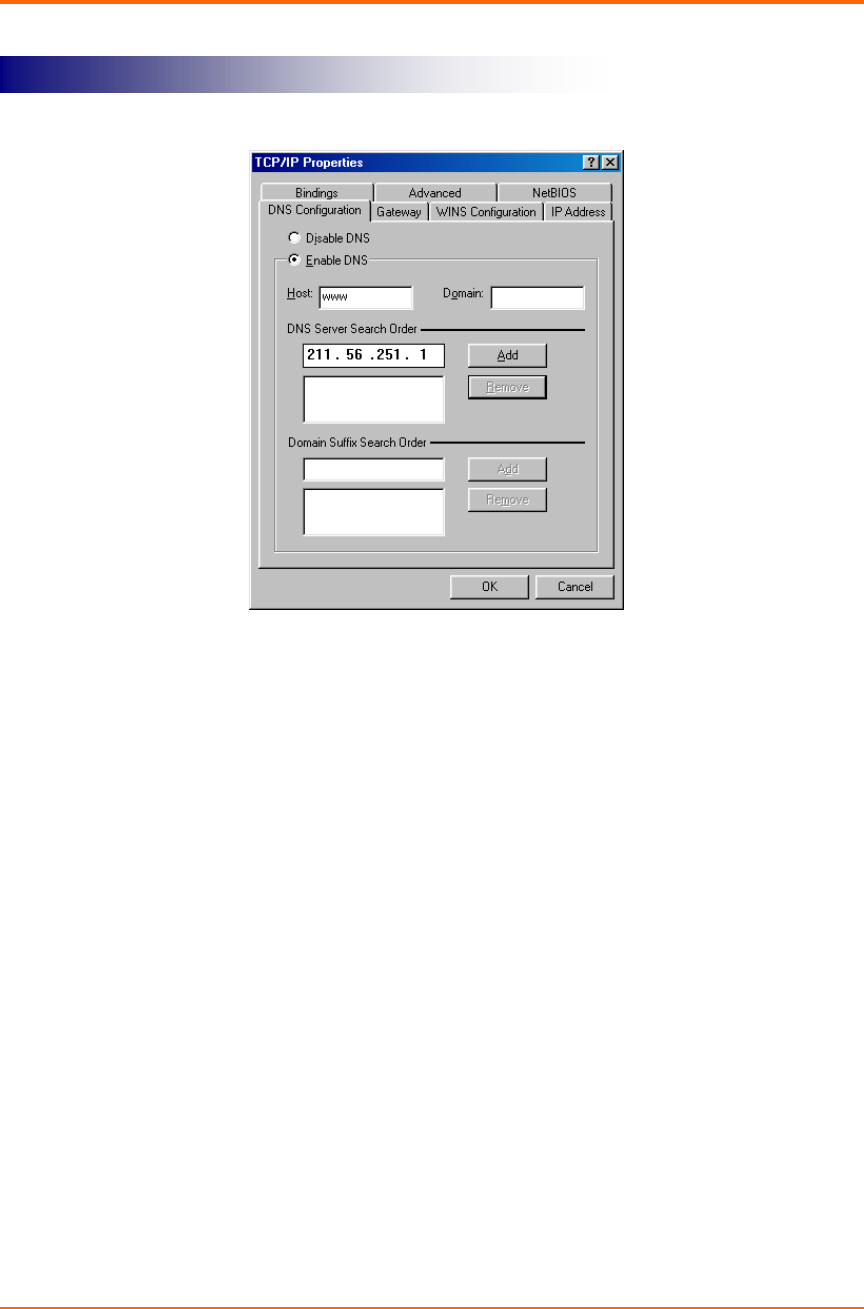

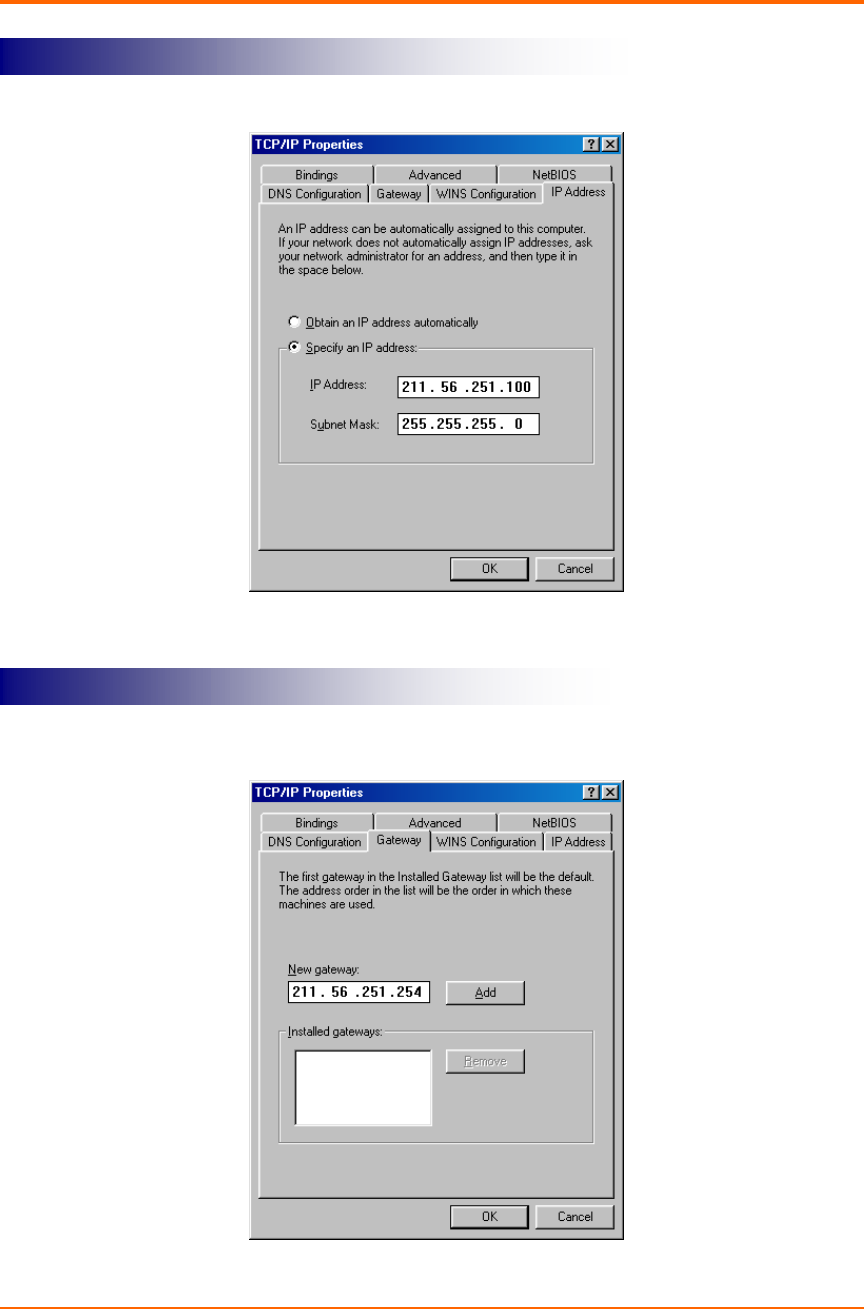

Click on the TCP/IP option for setting the IP address for your computer. You can select either

Static or DHCP setting. If you use static IP address then enter the IP value assigned for you,

Subnet masking, DNS, Domain/Workgroup name and Gateway address value.

ezWAVE Cards Users’ Guide Version 1.6

Page 19 of 36

IP Address

IP AddressIP Address

IP Address

Gateway Address

Gateway AddressGateway Address

Gateway Address

ezWAVE Cards Users’ Guide Version 1.6

Page 20 of 36

After setting these parameters appropriately, click on OK to return Network Component

Type. You can select the File and Printer Sharing options as well as the Access to

your computer by other users connected to that network by setting the computer

sharing options.

Click on OK.

Screen message “Do you want to restart your computer” will pop up. Select “Yes”. It

will shut down your computer and restart.

DNS

DNSDNS

DNS

ezWAVE Cards Users’ Guide Version 1.6

Page 21 of 36

3.1.3 Uninstalling PC Card Software

If you want to uninstall the PC card, click on the control panel. Select the Add/Remove

Programs. Click on the Widelink 11Mbps Wireless LAN and click on Add/Remove

button. Uninstall Shield removes the software successfully.

And then, click System icon in the control panel and removes the Widelink 11Mbps

Wireless PC Card adapter under the Network adapters.

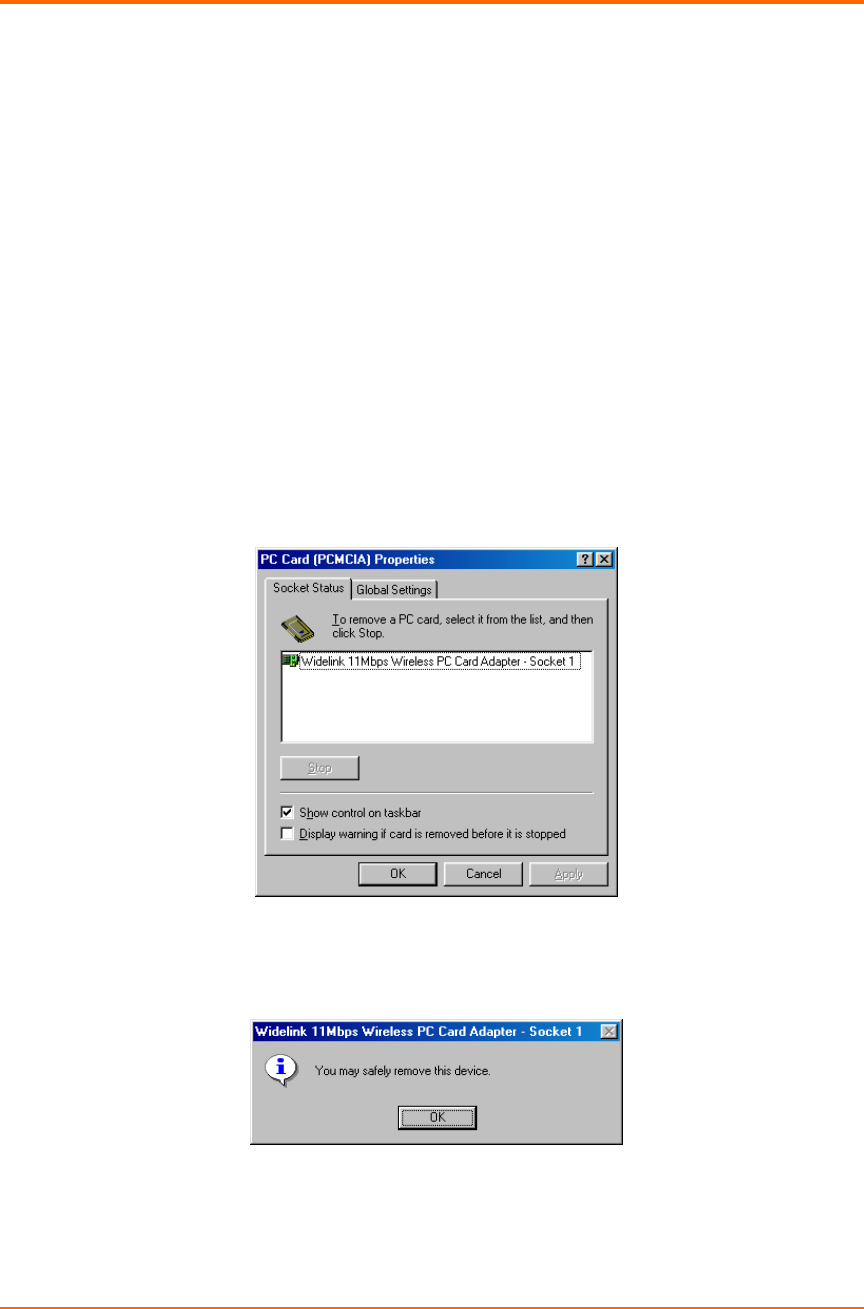

3.1.4 Remove PC Card from PC card socket

If you want to extract PC card from PC card socket, click on PC card information icon.

Click on Socket Status window and select Widelink 11Mbps Wireless PC cards adapter

and click on Stop button.

After a few second, screen message “You can remove this device safely” will pop up.

ezWAVE Cards Users’ Guide Version 1.6

Page 22 of 36

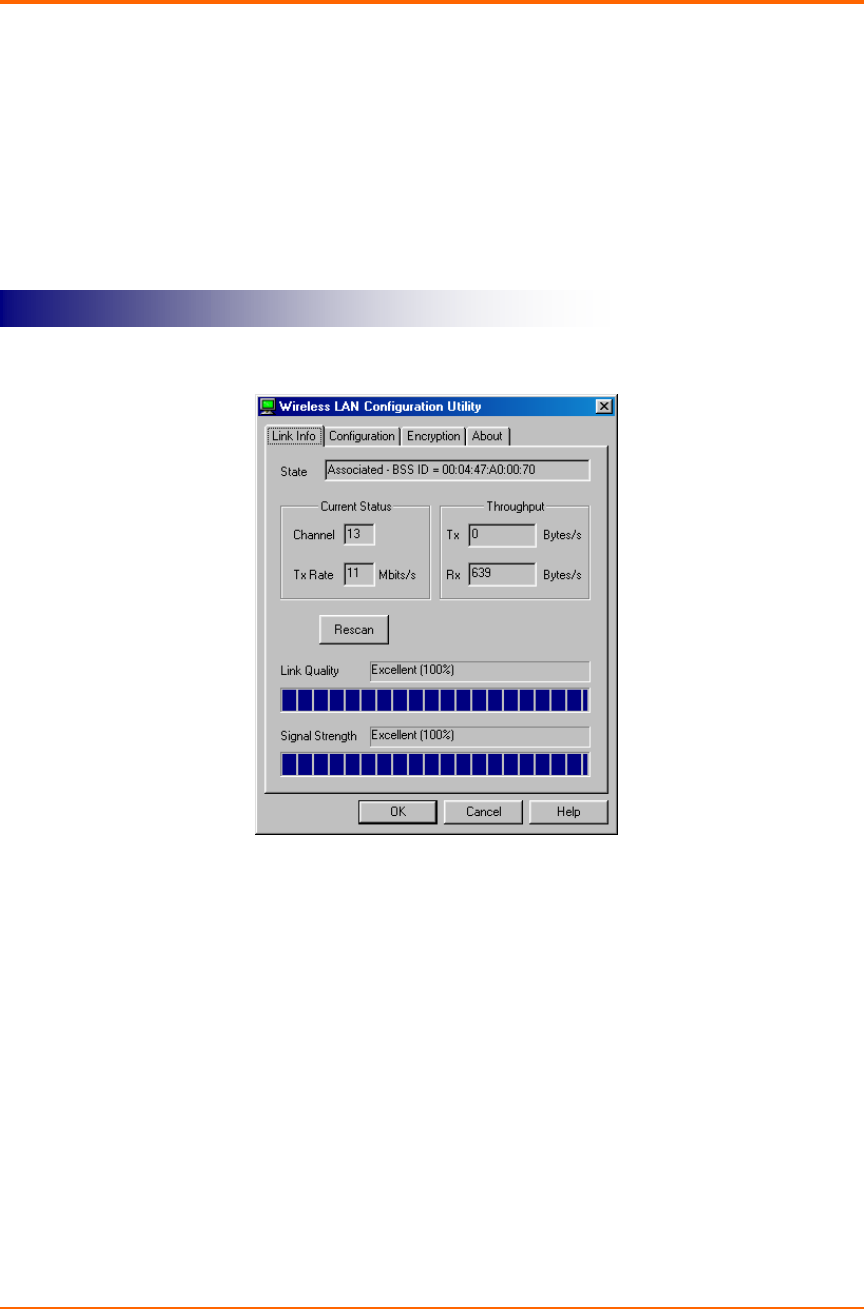

3.1.5 ezWAVE Configuration Utility

ezWAVE install shied program installs wireless LAN driver program and Configuration

Utility program. You can see the icon at the right bottom of your screen. Click on that

icon will show you the screen as show below.

Status shows wireless LAN card’s MAC address information.

Current Status shows selected channel number and transmit data rate.

Channel number is the channel available for the communications between the client

and AP or between the clients only. In case of the Infrastructure Network Mode, the

channel number scanned automatically, while in case of the Ad-hoc Network Mode, the

channel number is set by the client and can be changed by the client user.

If you click on Rescan button, LAN card program searches other new channel that

currently used one.

Wireless Link Status

Wireless Link StatusWireless Link Status

Wireless Link Status

ezWAVE Cards Users’ Guide Version 1.6

Page 23 of 36

Throughput (Byte/sec) shows transmission/receiving data rate.

Link Quality shows measured radio link quality. If the link quality is bad, your computer

may not communicate with other client computers. Otherwise (fair/good/excellent),

there will be no problems in communicating with other clients.

Signal Strength is almost similar to Link Quality information except for a slight

difference. Usually, the quality level moves simultaneous with the Link Quality level.

Mode: You can select wireless LAN network mode – Infrastructure or Ad-hoc mode

Infrastructure Mode

This mode is used to set up a connection to a wired Ethernet network. This mode

requires an ezWAVE Access Point to gain access to the wired network.

Ad Hoc Mode

This mode is used to set up a small, temporary network between two or more

computers. For example, you might set up an ad hoc network between computers in a

conference room so users can share information in a meeting.

Network Configuration

Network ConfigurationNetwork Configuration

Network Configuration

ezWAVE Cards Users’ Guide Version 1.6

Page 24 of 36

SSID:The Service Set Identifier (SSID) controls access to a given wireless network. This value

MUST match the SSID of any and all ezWAVE Access Points that you want to communicate with.

If the value does not match, access to the system is not granted. The SSID can be formed by up

to 32 case-sensitive characters.

Tx Rate: The transmission rate at which the data packets are transmitted by the client

or AP. You can set this value to 1~2Mbps, 5.5Mbps, 11Mbps or Fully Automatic.

WEP: WEP stands for Wired Equivalent Privacy. WEP is an encryption scheme that

provides the secure wireless data communications to the users. WEP uses a 64bit-key

or 128bit-key to control the network access. In order to decode the data transmission,

each wireless client on the network must use the identical 64bit-key or 128bit-key.

PS Mode: PS stands for Power Saving Mode. Currently, the PS mode is not supported.

After changing the setting in the Configuration change dialog box, click on Apply

Changes button. It takes a few seconds to set changes that you made.

Encryption

EncryptionEncryption

Encryption

- WEP

WEP WEP

WEP

ezWAVE Cards Users’ Guide Version 1.6

Page 25 of 36

In order to do secure communication over the wireless LAN network, wireless LAN

module provides encryption function - WEP. There are two ways to generate WEP key.

This key is important in protecting the illegal access to the wireless networks.

If you want to use WEP function, the AP’s WEP key value must be set exactly same as

your WEP key value. And all the users who want to communicate with you must use

the same WEP key value.

You can select WEP key Disable in Configuration dialog box, then communication

between clients and AP are not secured.

There are two ways to generate the WEP key. One is by entering any text in the

Passphrase: And click on Generate button. It will generate four WEP keys; Key 1, Key

2, Key 3, Key 4. You can select any key for the security. If you do not select any key,

Key 1 is selected in default.

The other way is by entering Key value directly from the keyboard: Select the Key

number and use that Key for accessing the AP. If the Key is not entered correctly, a

client cannot access any other client or AP. This Key value protects the illegal access to

the wireless network resources. As the wireless channel is more prone to the illegal

access, WEP provides the users safe wireless LAN network access.

Caution

If you use WEP function, your network throughput degrades (your will experience slow

transmission. This case is applied to all different brands of wireless LAN products).

ezWAVE Cards Users’ Guide Version 1.6

Page 26 of 36

3.2 PCI Card Installation

This section describes the procedures for installing the client adapter.

Before You Start

For the client adapter to be used with a computing device, the device must be equipped

with a PCI or ISA expansion slot. Check the documentation that came with your

computer for details on the differences between PCI and ISA expansion slots.

Ask your system administrator for the following information, which you may need to

provide during driver installation:

• Your Wireless Client Name

• Your Wireless SSID

• Your computer's unique client name and workgroup name

• For Windows NT, a free interrupt and I/O address.

• For your network account, your user name and password

• If you are not using a DHCP server, you will only need IP address, gateway address,

and subnet mask.

After unpacking the client adapter, make sure the following items are present and in

good condition:

• ezWAVE WWL-1100P Series PCI Client Adapter

• Standard 2 dBi dipole antenna

• WWL-1100P Series software and documentation CD for Windows 98, Windows ME,

Windows 2000 when Installing the PCI Client Adapter

If any item is damaged or missing, contact your client adapter supplier. Save all shipping

and packing material in order to repack the unit should service be required.

This section provides instructions for installing a client adapter on a computer using one

of the Windows operating systems.

Before you begin, examine the client adapter and the antenna connector. LEDs will be

ezWAVE Cards Users’ Guide Version 1.6

Page 27 of 36

faced out of your computer and be visible when you put the cover back on. The bottom

edge of the card is a connector, which you will insert into an empty expansion slot in

your computer.

3.2.1 Installing PCI Card Adapter

1. Turn off the computer and all its components.

2. Remove the computer cover.

3. Remove the screw from the top of the CPU back panel above an empty expansion

slot. This screw is used to hold the metal bracket on the back panel.

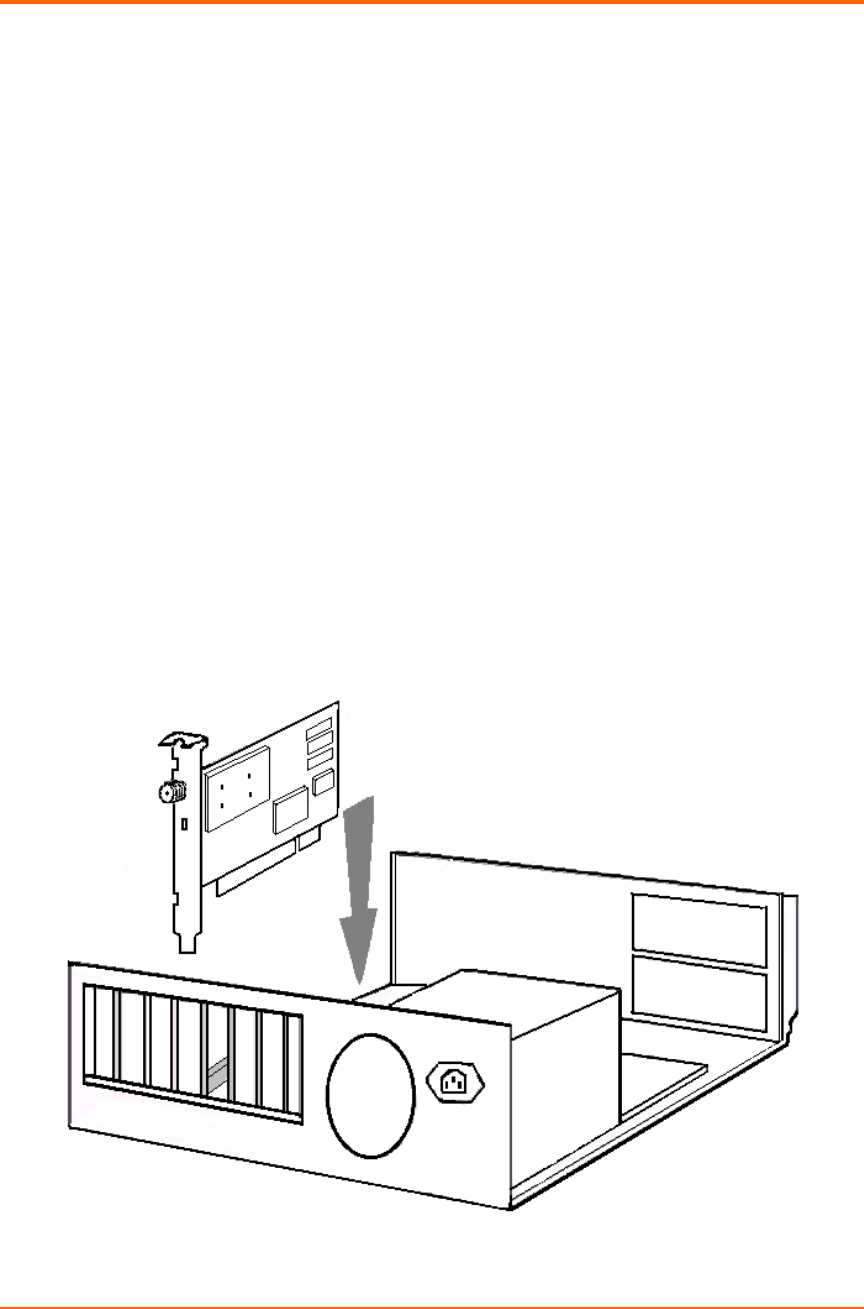

4. Tilt the client adapter to allow the antenna connector and LED lights to slip through

the opening in the CPU back panel.

5. Press the client adapter into the empty slot until it is connected firmly.

ezWAVE Cards Users’ Guide Version 1.6

Page 28 of 36

Caution

Do not force the client adapter into the slot. Forcing it will damage both the card and the

slot. If the card does not go in easily, remove the card and reinsert it.

6. Reinstall the screw to the top of the CPU back panel.

7. The client adapter comes with one 2dBi dipole antenna. With the unit powered off,

attach the antenna to the antenna connector on the client adapter.

Caution

Do not over-tighten the antenna connector; finger-tight is sufficient. Position the antenna

vertically for best omni-directional signal reception.

ezWAVE Cards Users’ Guide Version 1.6

Page 29 of 36

3.2.2 Installing PCI Card Driver

The installation process of PCI card driver program is the same as that of PC card

installation. So, you may refer above 3.1.1 Installing the PC Card Driver for Windows

Operating Systems.

3.2.3 PCI Card Network Configuration

The installation process of PCI card driver program is the same as that of PC card

installation. So you may refer to the above 3.1.2 PC Card (PCMCIA Card) Network

Configuration

ezWAVE Cards Users’ Guide Version 1.6

Page 30 of 36

3.3 Troubleshooting

In this chapter, we have listed various problems that you may encounter during the

installation. We have also listed possible solutions.

Change your location or the location of the antenna by a few feet and try again.

Make sure the client adapter card is securely inserted in the expansion slot.

Make sure the antenna is securely attached.

Make sure that your computers SSID have the same one with other clients.

Set all clients to the same channel number in case of Ad-hoc network mode.

Make sure that you are with in the range of an AP. If your computer cannot be

associated with any AP, it cannot communicate with other clients.

Make sure the antenna is securely attached.

You can communicate with other clients but air link quality is not good so data

transferred slowly. In this case, you may move your computer or wireless LAN card

antenna to higher position than current state or closer position with AP.

The system tray wireless monitor icon

The system tray wireless monitor icon The system tray wireless monitor icon

The system tray wireless monitor icon is always red

is always red is always red

is always red

ThTh

The system tray wireless monitor icon

e system tray wireless monitor icon e system tray wireless monitor icon

e system tray wireless monitor icon is always yellow

is always yellow is always yellow

is always yellow

Cannot find wireless monitor icon

Cannot find wireless monitor icon Cannot find wireless monitor icon

Cannot find wireless monitor icon in the taskbar

in the taskbarin the taskbar

in the taskbar

ezWAVE Cards Users’ Guide Version 1.6

Page 31 of 36

Make sure that the PC card is started as automatic in the device applet of the

Control panel.

 Double click on the PC card icon in the Control panel. Click on Widelink adapter

and then click on the properties button. It should state that the driver started

correctly.

 Make sure the drivers were installed correctly. If there is some warning or error,

uninstall drivers and software through Add/Remove Program. Remove the

Wireless LAN card and reinstall the drivers following the manual.

 Make sure that the client computer is within the range of an AP and uses same

SSID as you.

 Make sure that your TCP/IP is set properly and correctly.

Cannot connect to some computers

Cannot connect to some computersCannot connect to some computers

Cannot connect to some computers

ezWAVE Cards Users’ Guide Version 1.6

Page 32 of 36

Appendix

Appendix A Cell Planning (Radio Range)

This section provides general guidelines on factors that influence network performance.

Cell Site Survey

Because of differences in component configuration, placement and physical environment,

every network application is an unique installation. Before installing the system, users

should perform a site survey to determine the optimum utilization of network components

and to maximize range, coverage and network performance.

Here are some operating and environmental conditions you should consider:

•Data Rates

Radio signal sensitivity and range are inversely proportional to data bit rates. The

maximum radio range is achieved at the lowest workable data rate. There will be a

decrease in receiver threshold sensitivity as the radio data rate increases.

•Antenna Type and Placement(PCI card only)

Proper antenna configuration is a critical factor in maximizing radio range. As a general

guide, range increases in proportion to antenna height. For a detailed explanation of

antenna types and configurations along with guidelines on selecting antennas for

specific environments, see the documentation that comes with your antenna.

•Physical Environments

Clear or open areas provide better radio range than closed or filled areas. Also, the less

cluttered the work environment, the greater the range.

•Obstructions

A physical obstruction such as metal shelving or a steel pillar can hinder the

performance of the client adapter. Avoid locating the computing device in a location

where there is a metal barrier between the sending and receiving antennas.

ezWAVE Cards Users’ Guide Version 1.6

Page 33 of 36

•Building Materials

Radio penetration is greatly influenced by the building material used in construction. For

example, drywall construction allows greater range than concrete blocks. Metal or steel

construction is a barrier to radio signals.

Enhancing Coverage

The system architecture options of the wireless station and ezWAVE Access Points

provide for a variety of coverage alternatives and flexibility. The system can be designed

to provide a wide coverage area with minimal overlap or coverage with heavy overlap.

The latter improves system performance and protection against downtime in the event of

a component failure. By arranging the ezWAVE Access Points so the overlap in

coverage area is minimized, a large area can be covered with minimal system cost. The

total bandwidth available to each mobile station will depend on the amount of data each

mobile station desires to transfer and the number of stations located in each cell.

Seamless roaming is supported as mobile station moves in and out of range of each

ezWAVE Access Point, thereby maintaining a constant connection to the wired LAN.

Each device in the radio network must be configured with the same Service Set Identifier

(SSID) to provide the roaming capability. Multiple systems can operate in the same

vicinity. The architecture provides multiple channels, which can coexist in the same area

with virtually no interference to each other. In this mode, each system must be

configured with different Service Set Identifiers (SSID) and different channels, which

prevent clients from roaming to ezWAVE Access Points from a different wireless system.

ezWAVE Cards Users’ Guide Version 1.6

Page 34 of 36

Appendix B Technical Specifications

Supported Operating Systems

Windows 98, Windows ME, Windows 2000

Radio Specifications

Item Specification Description

Radio Type

Direct Sequence

Spread-Spectrum

(DSSS)

2.4 GHz ISM Band

Operating Frequency 2400-2483.5 MHz

North American, ETSI, and

Japan channel coverage, factory

configurable

FCC ID FCC approval

Channeling 5 MHz increments Programmable for IEEE 802.11b

Type of Modulation

BPSK 1 Mbit/s

QPSK 2 Mbit/s

CCK 5.5 and 11 Mbits/s

Nominal 10 MHz BW

(-6 dB)

Receiver sensitivity -84 dBm

ezWAVE Cards Users’ Guide Version 1.6

Page 35 of 36

Power Requirements

-PCCard

Specification Value

Operational Voltage 3.3V ± 0.25V

Receive Mode Current 250 mA (200 mA typically)

High Power Transmit Mode Current 400 mA (370 mA typically)

Sleep Mode Current 30 mA typically

- PCI Card

Specification Value

Operational Voltage 5.0V ± 0.25V

Receive Mode Current 250 mA (200 mA typically)

High Power Transmit Mode Current 470 mA (450 mA typically)

Sleep Mode Current 40 mA typically

Physical Specifications

PC Card

Item Description

Size 114 mm L x 54 mm W x 5 mm H

Enclosure PC Card Type II

Operating Temperature -10°C to 50°C (14°F to 122°F)

Connectors 68-pin PCMCIA card

Status Indicators Green LEDs – link association/activity

PCI Card

Item Description

Size 149 mm L x 121 mm W x 18 mm H

Operating Temperature -10°C to 50°C (14°F to 122°F)

Connectors PCI Card edge

Status Indicators Green LEDs – link association/activity

ezWAVE Cards Users’ Guide Version 1.6

Page 36 of 36

Appendix C Channel Allocation

The channel identifiers and the channel center frequencies of each 22-MHz-wide channel are

shown in the table below, as appropriate for the various areas or regulatory agencies.

Regulatory Domains

Channel

Identifier

Center

Frequency North

America ETSI Spain France Korea /

Japan

1 2412MHz √

√√

√−−√

√√

√

2 2417MHz √

√√

√−−√

√√

√

3 2422MHz √

√√

√−−√

√√

√

4 2427MHz √

√√

√−−√

√√

√

5 2432MHz √

√√

√−−√

√√

√

6 2437MHz √

√√

√−−√

√√

√

7 2442MHz √

√√

√−−√

√√

√

8 2447MHz √

√√

√−−√

√√

√

9 2452MHz √

√√

√−−√

√√

√

10 2457MHz √

√√

√

11 2462MHz √

√√

√

12 2467MHz −√

√√

√−√

√√

√

13 2472MHz −√

√√

√−√

√√

√

14 2484MHz −−−−

Japan(√

√√

√)

Widelink WWL-1100N Wireless Lan Card User Manual WWL engManual

Widelink Co., Ltd Wireless Lan Card WWL engManual

Contents

users manual

Navigation menu

Namespaces

Views

Navigation
