Wintop Electronics Co., Ltd. 2.4GHz Wireless Optical Mouse Manual
Contents
- 1. Manual
- 2. Users Manual
Manual
PID #: 111379/80/81/82/-109342
Rev. 131009

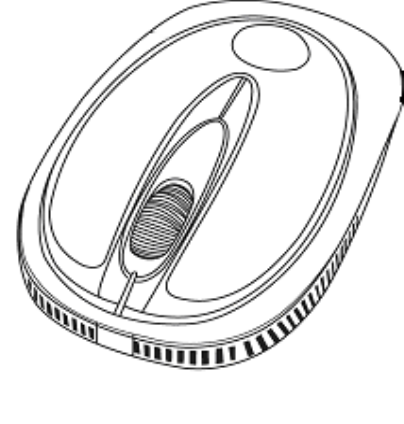

Optical 2.4GHz
Wireless Nano Mouse
Model #: WM-710
User’s Manu
3
PACKAGE CONTENTS:
Your new Wireless Optical Mouse will ship with the following items.
- Wireless Optical Nano Mouse
- Nano Receiver
- 2 AAA Batteries
- User’s Manual
- Warranty Information
SYSTEM REQUIREMENTS:
Please be sure that you meet all of the system requirements below to avoid difficulties during
installation
PC & Mac® Computer Compatible works with:
- Windows® XP, Windows® Vista , Windows® 7 and Windows® 8 operating systems
- Mac OS X® 10.3 and Above
- An Available USB Port
SPECIFICATIONS:
Your new Wireless Optical Mouse complies with the following specifications.
- USB Interface
4
INSTALLING BATTERIES:
To properly install batteries into your Mouse, please follow the instructions below:
1. Pull the Battery Compartment Release Latch at the bottom of your Mouse and remove the
Battery Compartment Cover from your Mouse.
Note: Remove the Battery Compartment Cover from your Mouse gently, otherwise the
Nano Receiver stowed inside the battery bay will pop out.
2. Install two AAA Batteries into your Mouse following the battery orientation guide in the
battery bay, make sure the guide is under the batteries so that you can remove the
batteries out of the battery bay easily, then replace the Battery Compartment Cover back
onto your Mouse until it securely locks.
Note: The LED at the bottom of your mouse will flash one time after Batteries have been
installed into your Mouse properly, the LED will remain on when the Nano Receiver is
connected to your computer.
Nano Receiver
LED
5
INSTALLATION:
For All Operating Systems
1. Make sure you have successfully installed the Batteries into your Mouse, refer to the
Installing Batteries section in this manual if necessary.

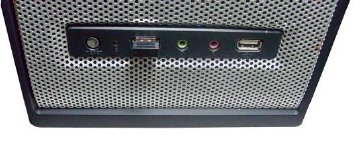

2. Turn on your computer, plug the enclosed Nano Receiver into an available USB port on
your computer. (TIP: If you are not able to find an available USB port on your computer,
please refer to the user’s manual of your computer for more detail.
3. Your wireless optical mouse is now ready to be used.
6
CHANGING THE SPEED OF YOUR MOUSE:
To adjust the speed of the cursor or the scroll button features on your computer, please follow the
instructions below:

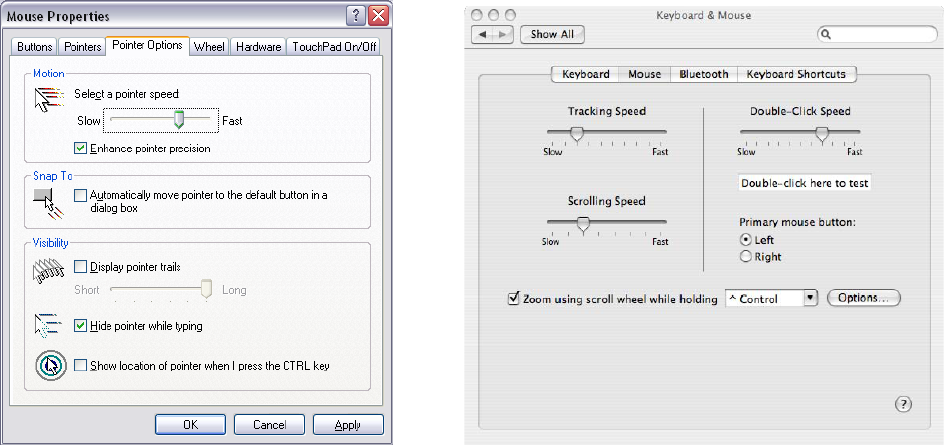

NOTE: The screenshots show in this section are for demonstration only and your screen may look
slightly different but with similar options.
For Windows® operating systems
Open the “Control Panel”, and double-click the “Mouse” icon to open the mouse properties
screen, and then select the “Pointer Options”. After you have made your changes; select “Apply”,
and then “OK”.
For Mac OS X® 10.3 and Above
Open the “System Preferences”. At the System Preferences screen, click the “Keyboard &
Mouse” icon to open the Keyboard & Mouse screen, and then select the “Mouse” tab and make
your changes.
- Windows® operating systems Mac OS X® 10.3 and Above
