Wlink Electronic Technology WLIS-04ST Audio BT module User Manual
Taiwan Wlink Electronic Technology Co., Ltd Audio BT module Users Manual
User Manual
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 1 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
Features： Bluetooth 3.0+EDR Stereo Audio module
● Bluetooth 3.0+EDR compliant
● Typical +2dBm Class 2 output power Version: 1.0
● Receiver Sensitivity: GFSK typical -91dBm, π/4 PSK typical Jan 2013
-92dBm, 8DPSK typical -84dBm
● Audio DAC: 94dB SNR
● Build in Max. 250mAH Li-ion battery charging circuit
● HSP, A2DP, AVRCP profile support
● SBC decode for Bluetooth audio streaming
● Voice prompt
● Build in Line in interface
● EQ control
● Size: 23mm x 14mm
Product Description:
The WLIS04-ST is a highly integrated Bluetooth 3.0+EDR stereo module, des igned for high data rate,
short-range wireless communication in the 2.4 GHz ISM band. With ISSC Bluetooth stack and profile,
the WLIS04-ST provides a low power and ultra-low cost Bluetooth 3.0+EDRsolution for wi reless
voice/audio applications.
Applications:
●High quality stereo speaker and HiFi
●High quality wireless stereo audio receiver
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 2 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
Outline Dimension & Pin Definition:
Pin No.
I/O
Name
Description
1
P
P30
GPIO, default pull-high input
Line-in detection, 1: no line-in detected; 0: line-in detected
2
I/O
P20
GPIO, default pull-high input
System Configuration, H: Application; L: Baseband(IBDK
Mode)
3
I/O
P00
GPIO, default , pull-low input. Slide Switch Detector
4
I/O
P04
GPIO, default pull-high input
Audio AMP Enable/NFC detect
5
AO
SPKR
R-channel analog headphone output, single-ended
application only
6
AO
AOHPM
Headphone common mode output/sense input
7
AO
SPKL
L-channel analog headphone output, single-ended
application only
8
P
VDDAO
Positive power supply dedicated to CODEC output
amplifiers
9
P
GND
Ground
10
NC
11
NC
12
NC
13
AI
AIR
Stereo analog line in, R-channel
14
AI
AIL
Stereo analog line in, L-channel
15
I/O
RST_N
System Reset Pin
16
P
GND
Ground
17
P
ADAP_IN
Power adaptor input
18
P
BAT_IN
Battery input
19
P
SYS_PW
System Power Output
20
I/O
SK1/P35
Default SAR input for battery detection
This pin can be re-defined as GPIO3_5
21
P
BK_OUT
Buck feedback sense pin
22
P
GND
Ground
23
P
MFB
Multi-Function Push Button key
Combined Play/Panse key when A2DP enabled.
24
P
LED1
LED Driver 1
25
P
LED2
LED Driver 2
26
I/O
P02
GPIO, default pull-high input
PLAY/PAUSE button
27
I/O
P27
GPIO, default pull-high input
Foward button
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 3 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
28
I/O
P05
GPIO, default pull-high input
REW button
29
O
HCI_TXD
HCI TX data
30
I
HCI_RXD
HCI RX data
31
I/O
P16
GPIO, default pull-high input
Volume down button
32
I/O
P01
GPIO, default pull-high input
Volume up button
33
I/O
P03
GPIO, default pull-high input, RX_IND
34
P
GND
Ground
Electrical Characteristics:

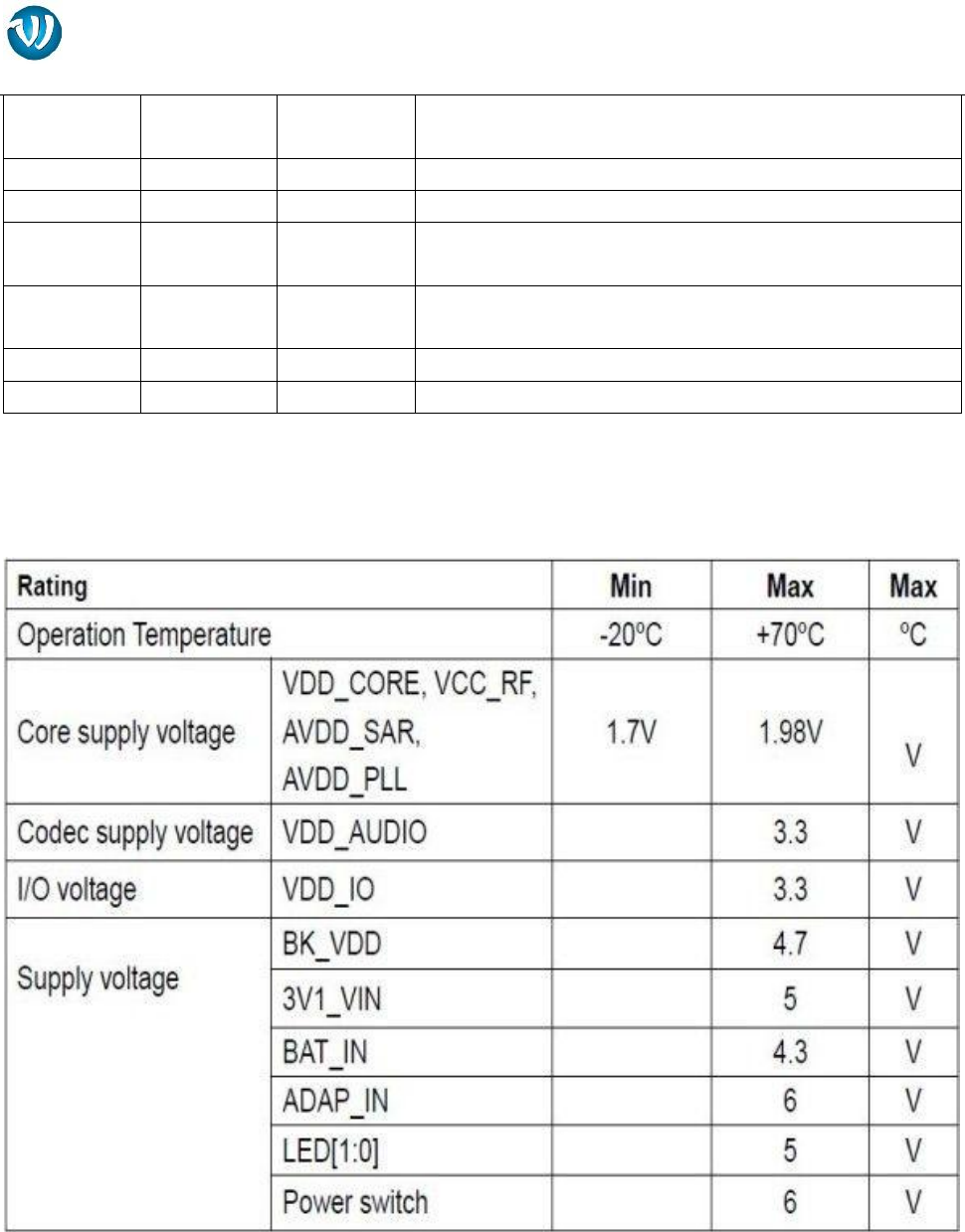

Absolute Maximum Ratings

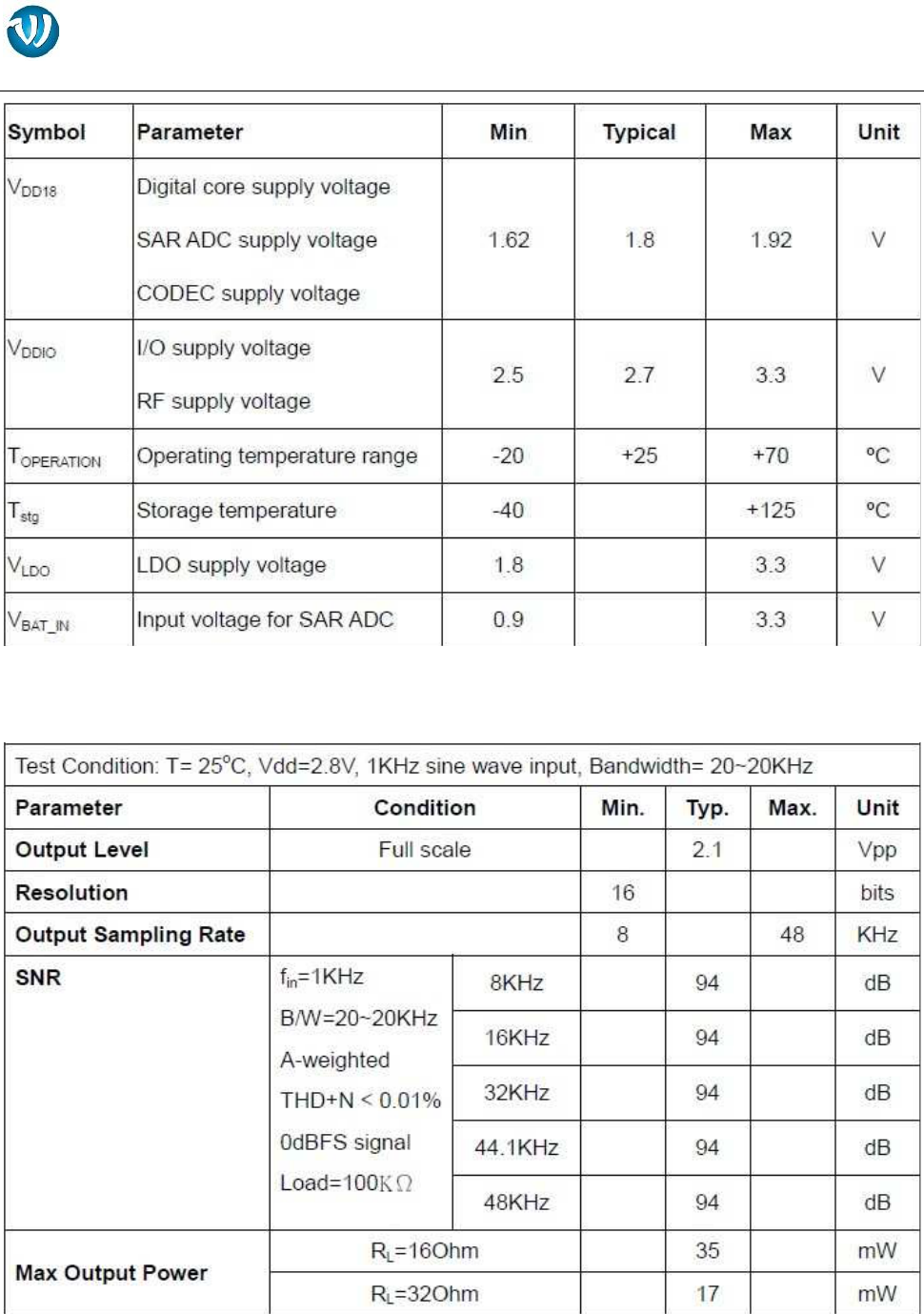

Recommended Operate Condition:
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 4 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
Audio DAC:
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 5 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534

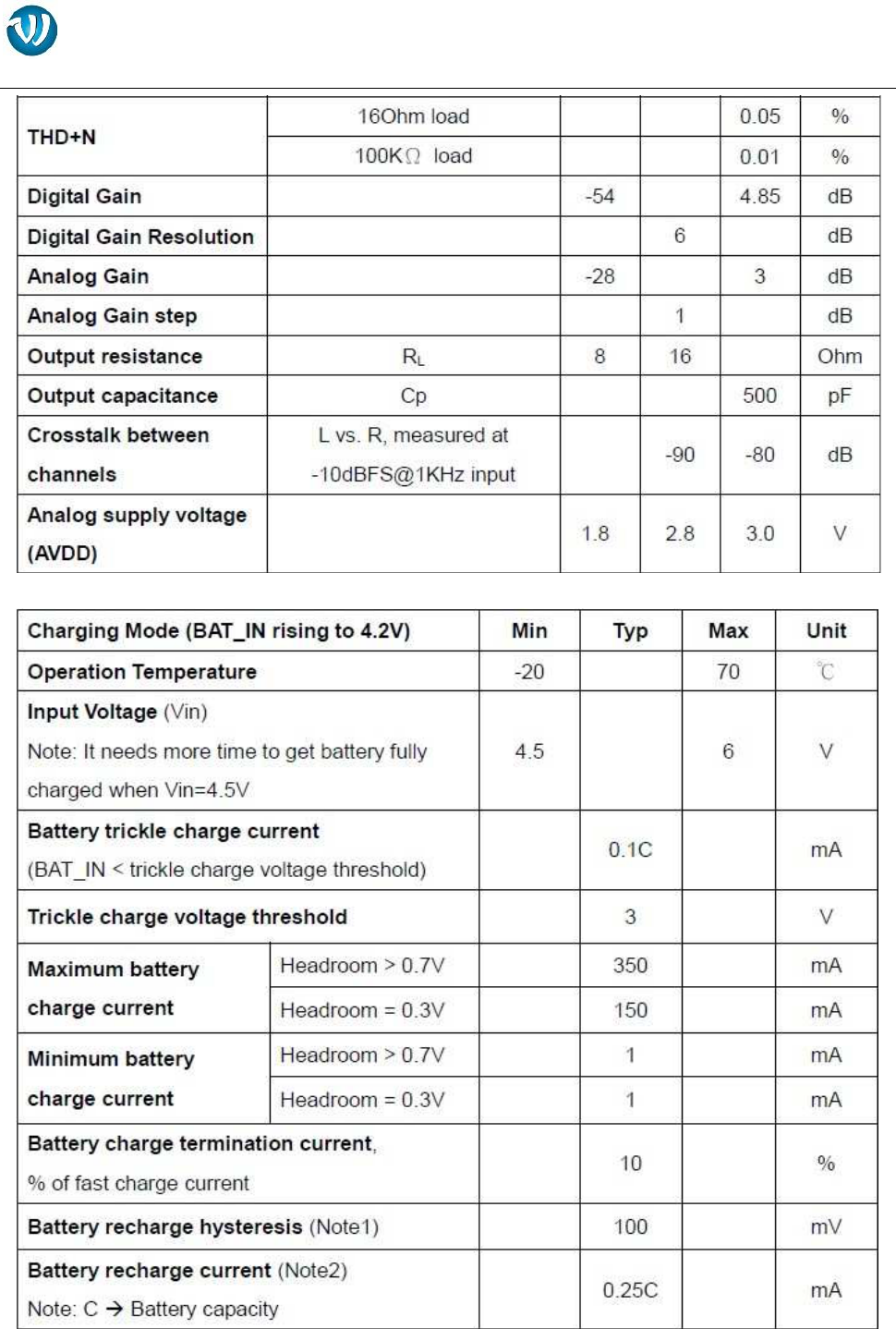

Battery Charger:
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 6 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
Note1: When charging complete and the adapter is still in, the battery voltage will slowly drop down.
when the voltage drop is larger than 100mV from the full voltage, the re-charging cycle will start.
Note2: If the battery voltage during plug in is larger than 4V, the charging current will be limited to 0.25C
to avoid the battery voltage overshoot.
FCC:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device is intended only for OEM integrators under the following conditions:
According to FCC Part 15 Subpart C Section 15.212, the radio elements of the modular transmitter must have
their own shielding. However, due to there is no shielding for this Bluetooth Module, this module is granted as a
Limited Modular Approval.
As long as above conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for example: certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid
and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization. Please notice that if the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into which the module is installed must
also display a label referring to the enclosed module. This exterior label can use wording such as the
following: “Contains FCC ID:OZJWLIS-04ST ” any similar wording that expresses the same meaning
may be used.
WLINK TECHNOLOGY LTD. Product Specification
__________________________________________________________________________________
___________________________________________________________________________________________
Page 7 of 8
Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.)
Tel: +886-3-4811534
BQB:

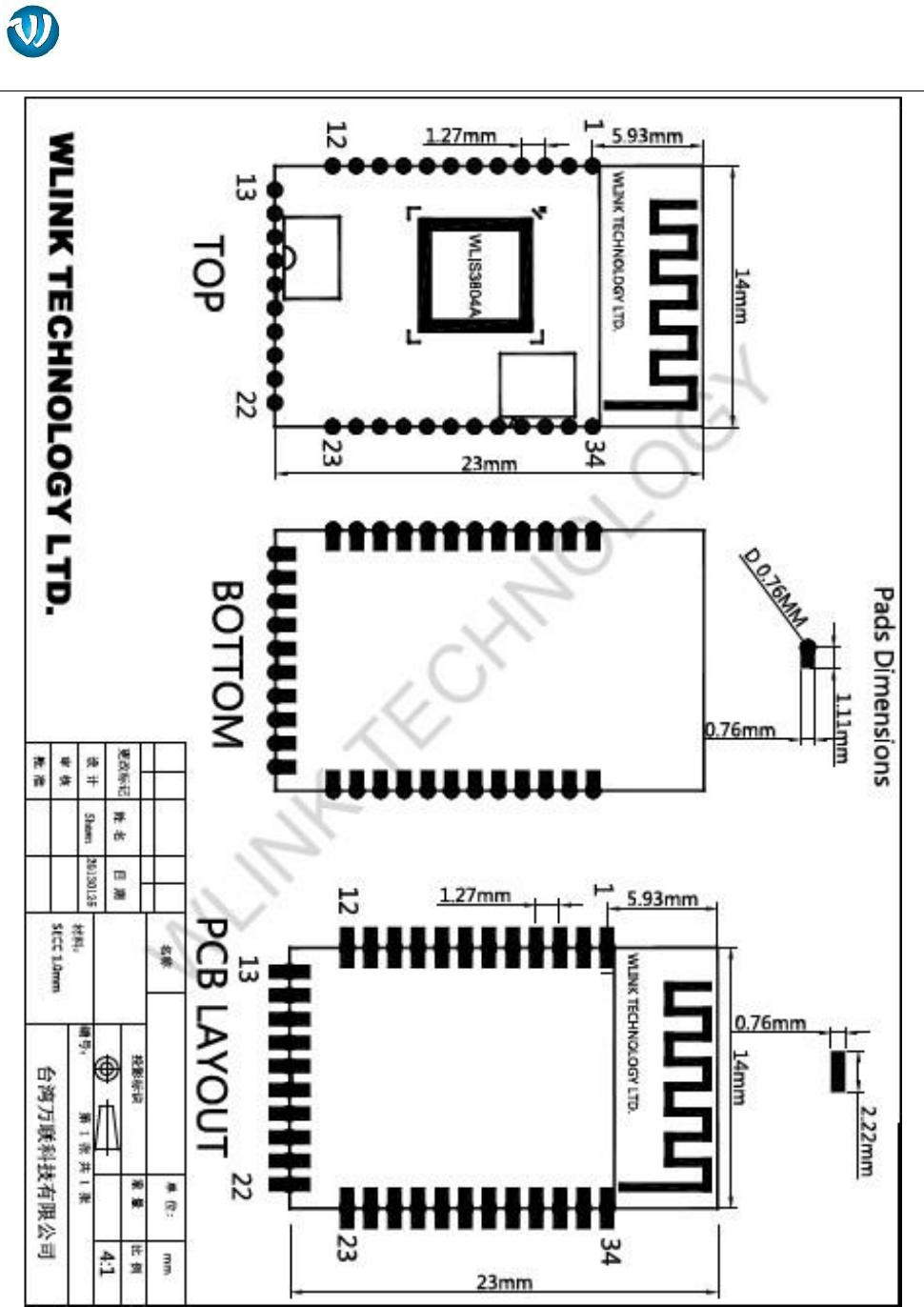

Mechanical specification:
