Xerox DocuPrint 180 Laser Printing System
Product Guide
April 1998
721P85570
Xerox Corporation
701 S. Aviation Boulevard
El Segundo, CA 90245
©1998 by Xerox Corporation. All rights reserved.
Copyright protection claimed includes all forms and matters of
copyrightable material and information now allowed by statutory or
judicial law or hereinafter granted, including without limitation,
material generated from the software programs which are displayed
on the screen, such as icons, screen displays, looks, etc.
Printed in the United States of America.
Publication number: 721P85570
Xerox® and all Xerox products mentioned in this publication are
trademarks of Xerox Corporation. Products and trademarks of other
companies are also acknowledged.
Changes are periodically made to this document. Changes, technical
inaccuracies, and typographic errors will be corrected in subsequent
editions.
This document was created on a PC using Frame software. The
typeface used is Helvetica.
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE iii
Related publications
The Xerox DocuPrint 180 Laser Printing System Product Guide is
part of the ten-manual reference set for your laser printing system.
The entire reference set is listed in the table below. Several other
related documents are also listed for your convenience. For a
complete list and description of available Xerox documentation, refer
to the Xerox Documentation Catalog (Publication number
610P17417) or call the Xerox Documentation and Software Services
(XDSS) at 1-800-327-9753.
Notice
This publication may contain descriptions of concepts and features
not currently available for your Xerox Laser Printing System. Consult
your Xerox sales representative or your operating system software
program description for additional information.
Table 1. Related Publications
Publication Number
Xerox DocuPrint 180 Laser Printing System Operator
Guide
721P85490
Xerox DocuPrint 180 Laser Printing System
Operations Reference
721P85500
Xerox DocuPrint 180 Laser Printing System
Message Guide
721P85550
Xerox DocuPrint 180 Laser Printing System PDL
Reference
721P85530
Xerox DocuPrint 180 Laser Printing System Forms
Creation Guide
721P85520
Xerox DocuPrint 180 Laser Printing System
System Generation Guide
721P85510
Xerox DocuPrint 180 Laser Printing System
Installation Planning Guide
721P85480
Xerox DocuPrint 180 Laser Printing System Operator
Command Summary Card
721P85560
Xerox DocuPrint 180 Laser Printing System PC User
Interface Reference
721P85540
Xerox DocuPrint 180 Laser Printing System Product
Guide
721P85570
Xerox Laser Printing Systems Tape Formats Manual
600P86175
X
erox Laser Printing Systems Standard Font Library
Font User Guide
600P86174
Helpful Facts About Paper
721P82492
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE iv
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE v
Table of Contents
Related publications iii
Notice iii
Introduction ix
Xerox DocuPrint 180 LPS Product Guide ix
About the reference set x
Xerox DocuPrint 180 Laser printing system document set x
Document conventions xiii
1. Xerox DocuPrint 180 LPS overview 1-1
Xerox DocuPrint 180 LPS 1-2
Software 1-3
Options 1-4
Floppy disk drive 1-4
9-track magnetic tape drive 1-4
36-track cartridge tape drive 1-4
Feeder stacker 1-4
Bypass transport 1-5
Input enablement device 1-5
Expanded system disk memory 1-5
Enhanced graphics ink and font memory (EGIFM) 1-5
Expanded bitmap memory 1-5
DocuPrint 180 LPS connection 1-6
Xerox DocuPrint 180 LPS specifications 1-7
Equipment Dimensions 1-7
Clearance requirements 1-8
Environmental requirements 1-8
Electrical requirements 1-9
Xerox DocuPrint 180 LPS features 1-10
2. Basic concepts 2-1
DocuPrint 180 LPS overview 2-1
System controller 2-2
DocuPrint 180 LPS interface 2-2
DocuPrint 180 LPS system disk storage and memory 2-2
TABLE OF CONTENTS
vi XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Printer 2-3
Imaging subsystem 2-3
Xerographic subsystem 2-3
Output subsystem 2-4
DocuPrint 180 LPS production process overview 2-4
Sources of input for the DocuPrint 180 LPS 2-4
Types of data 2-6
Special processing 2-7
Output 2-7
Job source library (JSL) files 2-8
Fonts 2-9
3. Xerox DocuPrint 180 LPS hardware components 3-1
Major components 3-1
System controller hardware components 3-2
Printer hardware components 3-5
Attention light 3-8
Attention alarm 3-9
4. Xerox DocuPrint 180 LPS software
components 4-1
DocuPrint 180 LPS operating system 4-1
Operating System Software functional description 4-2
Printer Software 4-5
User Interface Software and User Dialog Software 4-5
Software 4-5
Optional host-resident software packages 4-6
5. Product differences/user considerations 5-1
DocuPrint 180 LPS compatibility and comparison 5-1
Using your Xerox DocuPrint 180 LPS as a backup LPS 5-3
Checking paper sizes and special stocks 5-8
Comparing DocuPrint 180 LPS print job resolution 5-10
Checking JDL compatibility 5-11
Checking PDL compatibility 5-12
DocuPrint 180 LPS comparison 5-14
Xerox DocuPrint 180 LPS user considerations 5-18
Xerox DocuPrint 180 LPS edgemarking 5-18
Registration shift and skew 5-21
Paper size 5-22
System page size 5-23
Virtual page size 5-23
TABLE OF CONTENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE vii
Error messages 5-23
Deletions 5-23
Print Darkness 5-25
Interpolation and scanned images 5-25
Switching paper size and feed modes 5-26
Cleaning time between pitch mode changes 5-27
6. Xerox customer resources 6-1
Xerox support services 6-1
Xerox Customer Support Center 6-2
Customer Service Support Center 6-3
Xerox Connection 6-4
Xerox Font Center 6-4
Xerox Documentation and Software Services 6-5
Xerox Supplies Order Service 6-6
Glossary GLOSSARY-1
TABLE OF CONTENTS
viii XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE ix
Introduction
The purpose of the Xerox DocuPrint 180 LPS Product Guide is to
introduce you to the Xerox DocuPrint 180 Laser Printing System
(LPS).
Xerox DocuPrint 180 LPS Product Guide
The purpose of the Xerox DocuPrint 180 LPS Product Guide is to:
Introduce the Xerox DocuPrint 180 Laser Printing System (LPS)
hardware and software
Introduce basic concepts associated with DocuPrint 180 LPS
printing
Compare the Xerox DocuPrint 180 LPS to other LPS products
Describe some of the user considerations associated with
Xerox DocuPrint 180 LPS performance.
Since the Xerox DocuPrint 180 LPS Product Guide is a composite of
information aimed at satisfying a variety of reader requirements,
certain chapters or chapter sections may be skipped by the
experienced LPS user. For example, the basic concepts would be
desirable reading for someone with little or no LPS experience, while
an experienced LPS user need not read it. The contents of each
chapter are described below.
Overview Presents Xerox DocuPrint 180 LPS features, options, and
specifications.
Basic concepts Introduces basic concepts associated with DocuPrint 180 LPS
printing, as well as an overview of the DocuPrint 180 LPS production
process.
Hardware Introduces major standard and optional hardware components
Software Introduces DocuPrint 180 LPS software, describes the functional
operation of the software, and provides an overview of software
features.
Product difference Provides a comparison of LPS products, addresses compatibility
issues, and explains inherent user considerations.
Xerox customer resources Xerox customer resources. Provides descriptions and telephone
numbers for service, customer support, upgrades, and supplies for
Xerox customers in the United States.
A glossary and an index are provided at the back of this guide.
INTRODUCTION
x XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
About the reference set
This document is part of a reference set designed to help you receive
maximum benefit from your Xerox DocuPrint 180 laser printing
system.
To help you select the appropriate document for your needs, the
following section identifies the documents in the set and describes
the information contained in each.
Xerox DocuPrint 180 Laser printing system document set
The Xerox DocuPrint 180 laser printing document set consists of the
following.
Xerox DocuPrint 180 LPS Product
Guide The Xerox DocuPrint 180 LPS Product Guide consists of the
following:
Product overview
Hardware and software
DocuPrint 180 LPS connections
User considerations
LPS comparisons.
Xerox DocuPrint 180 LPS Operator
Guide The Xerox DocuPrint 180 LPS Operator Guide consists of the
following:
System overview
PC UI procedures
Paper facts and procedures
Operating procedures
Maintenance
Problem solving
Supplies
Meter reading and reporting.
INTRODUCTION
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE xi
Xerox DocuPrint 180 LPS PDL
Reference The Xerox DocuPrint 180 LPS PDL Reference consists of the
following:
Print Description Language components and processes
Input processing functions
Output processing functions
PDL/DJDE command summary
Page formatting guidelines
Character code assignment tables
PDL/DJDE programming information with step-by-step
instructions.
Xerox DocuPrint 180 LPS System
Generation Guide The Xerox DocuPrint 180 LPS System Generation Guide consists of
the following:
Configuration options
Commands
OSS software installation, upgrade, and modification
procedures.
Xerox DocuPrint 180 LPS Operations
Reference The Xerox DocuPrint 180 LPS Operations Reference consists of the
following:
Command syntax for operator and system administrator
procedures
DocuPrint 180 LPS defaults
DocuPrint 180 LPS resources
Command summaries
Communication and graphics on the DocuPrint 180 LPS
Command files.
Xerox DocuPrint 180 LPS Forms
Creation Guide The Xerox DocuPrint 180 LPS Forms Creation Guide consists of the
following:
Basic concepts for creating forms
Coding and compiling for DocuPrint 180 LPS Forms Description
Language
Sample form setup command sets
Tips for successful forms creation.
Xerox DocuPrint 180 PC UI Reference The Xerox DocuPrint 180 PC UI Reference consists of the following:
PC UI procedures
Hierarchy of PC UI windows.
Xerox DocuPrint 180 LPS Operator
Command Summary Card The
Xerox DocuPrint 180 LPS Operator Command Summary Card
consists of the following:
Quick reference of commonly-used operator commands.
INTRODUCTION
xii XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox DocuPrint 180 LPS Message
Guide The Xerox DocuPrint 180 LPS Message Guide consists of the
following:
OSS and other messages
Meaning and recovery procedures.
Xerox DocuPrint 180 LPS Installation
Planning Guide The Xerox DocuPrint 180 LPS Installation Planning Guide consists of
the following:
DocuPrint 180 LPS basic components and options
Tasks that must be accomplished before installation
Preinstallation requirements
Installation process
Postinstallation activities.
Xerox LPS Tape Formats Manual The Tape Formats Manual consists of the following:
Characteristics of different formats
File organization
Data formats
Carriage control conventions.
Xerox LPS Standard Font Library Font
User Guide The LPS Standard Font Library Font User Guide consists of the
following:
Font naming conventions
Listing of standard fonts
Data sheets
Glossary of typography terminology.
Helpful Facts About Paper Helpful Facts About Paper consists of the following:
Selection and guidelines
Storage and handling
Specifications for different printers.
INTRODUCTION
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE xiii
Document conventions
This guide uses the following conventions:
< > Angle brackets are used for keys on the system controller keyboard.
{ } Curly brackets are used for required characters.
... Ellipses indicate that you can repeat a parameter or list a series of
parameters.
[ ] Square brackets are used for optional command characters.
lVertical bars are used to separate parameters in a series. The
vertical bar stands for “or.
bold Bold is used for characters you enter at the command line.
italics Italics is used for variable information.
terminal font Terminal or monospace font is used to display system responses.
underline System default parameters are underlined.
UPPERCASE Uppercase letters are used for command names.
Note: You may key in entire words for each command or the first
three characters of each word. In this manual the entire word of each
command is spelled out.
Caution: Cautions alert you to an action that could damage
hardware or software.
!Warning: Warnings alert you to conditions that may affect the
safety of people.
INTRODUCTION
xiv XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-1
1. 1Xerox DocuPrint 180 LPS
overview
The Xerox DocuPrint 180 Laser Printing System (LPS) is a versatile,
high-performance printing system that processes and prints data
from a variety of sources. It enables host mainframe computers and
network-connected devices (such as workstations and graphic
scanners) to produce publications and other documents,
incorporating graphics, forms, logos, signatures, and a variety of
fonts.
With the Xerox DocuPrint 180 LPS, management information
systems (MIS) and data processing (DP) environments have a high-
performance printer in which built-in intelligence eliminates the need
for the host computer to store and manage forms, fonts, and other
document resources.
Data is printed at a rate of up to 180 pages per minute (206 with the
optional Paper Feeding Enhancement Kit installed). A variety of
fonts ranging in size from 3 points to 36 points, in all four orientations
(portrait, inverse portrait, landscape, inverse landscape), and many
publishing typefaces are available to meet your printing require-
ments. In addition to the standard set of fonts that is delivered with
the DocuPrint 180 LPS, special or customized fonts can be
developed by the Xerox Font Center. Your sales representative will
provide you with further information.
The following material is presented in this chapter:
Hardware and software components
Options
Specifications
Features list.
XEROX DOCUPRINT 180 LPS OVERVIEW
1-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox DocuPrint 180 LPS
The standard Xerox DocuPrint 180 LPS consists of two main
components:

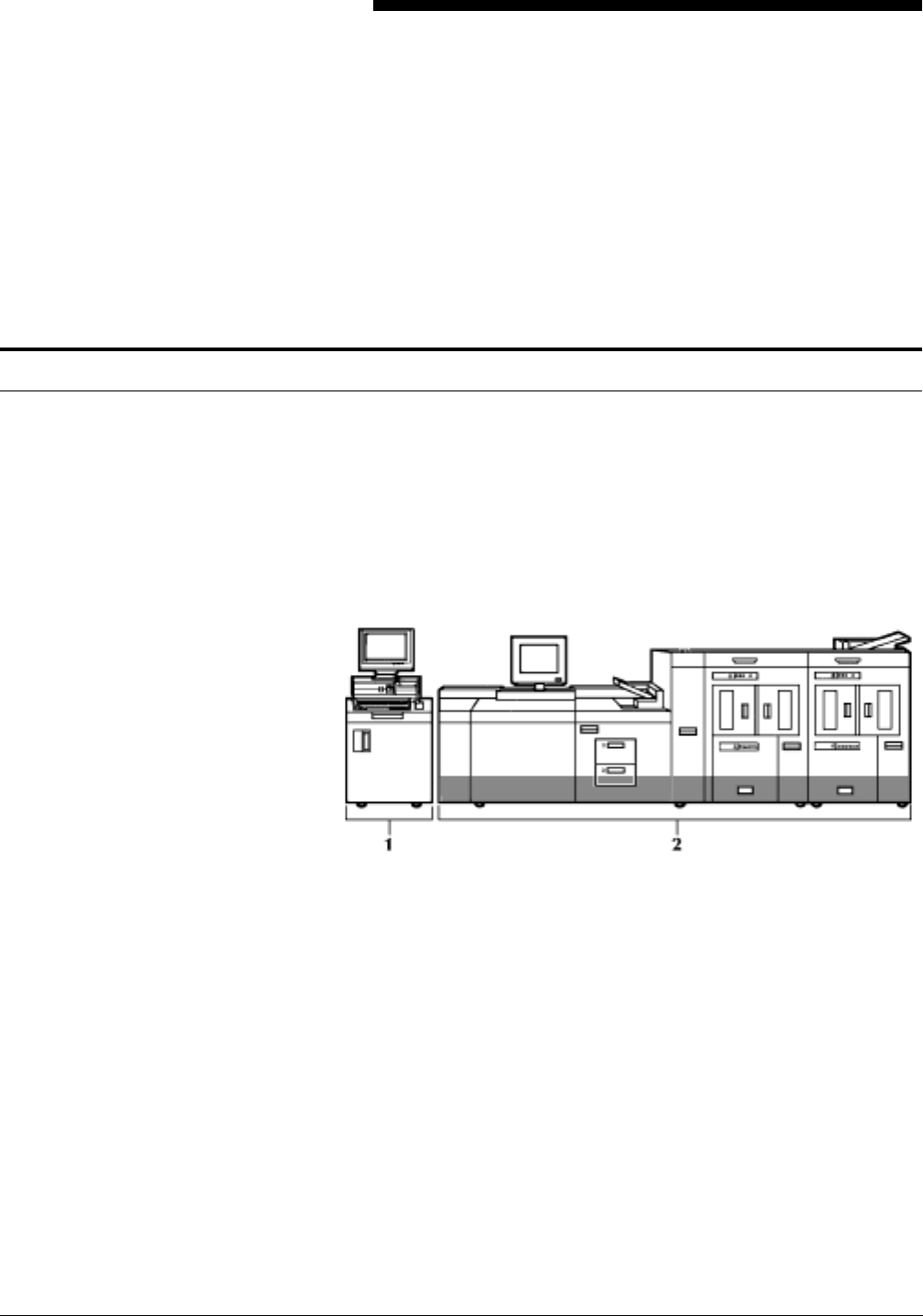

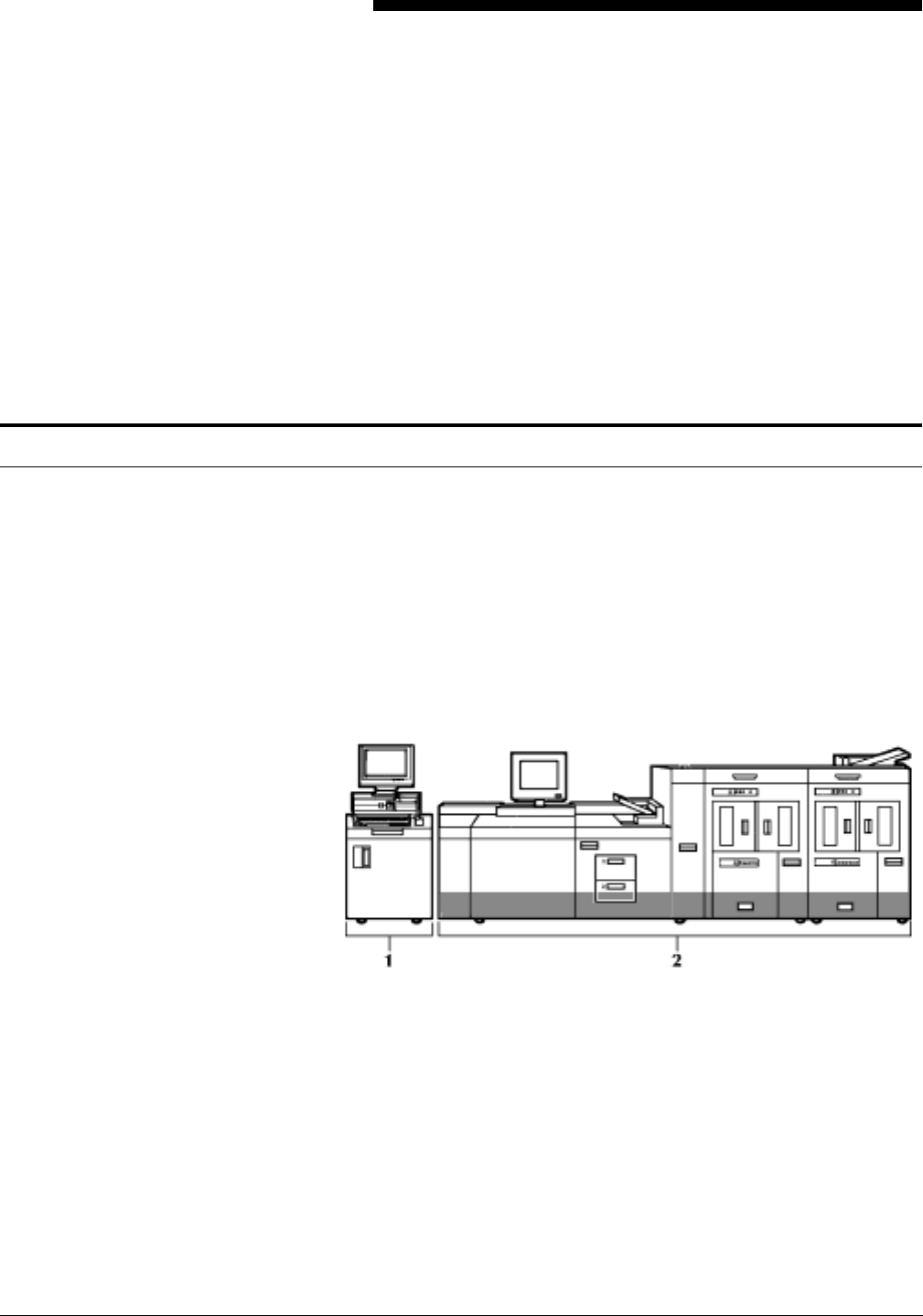

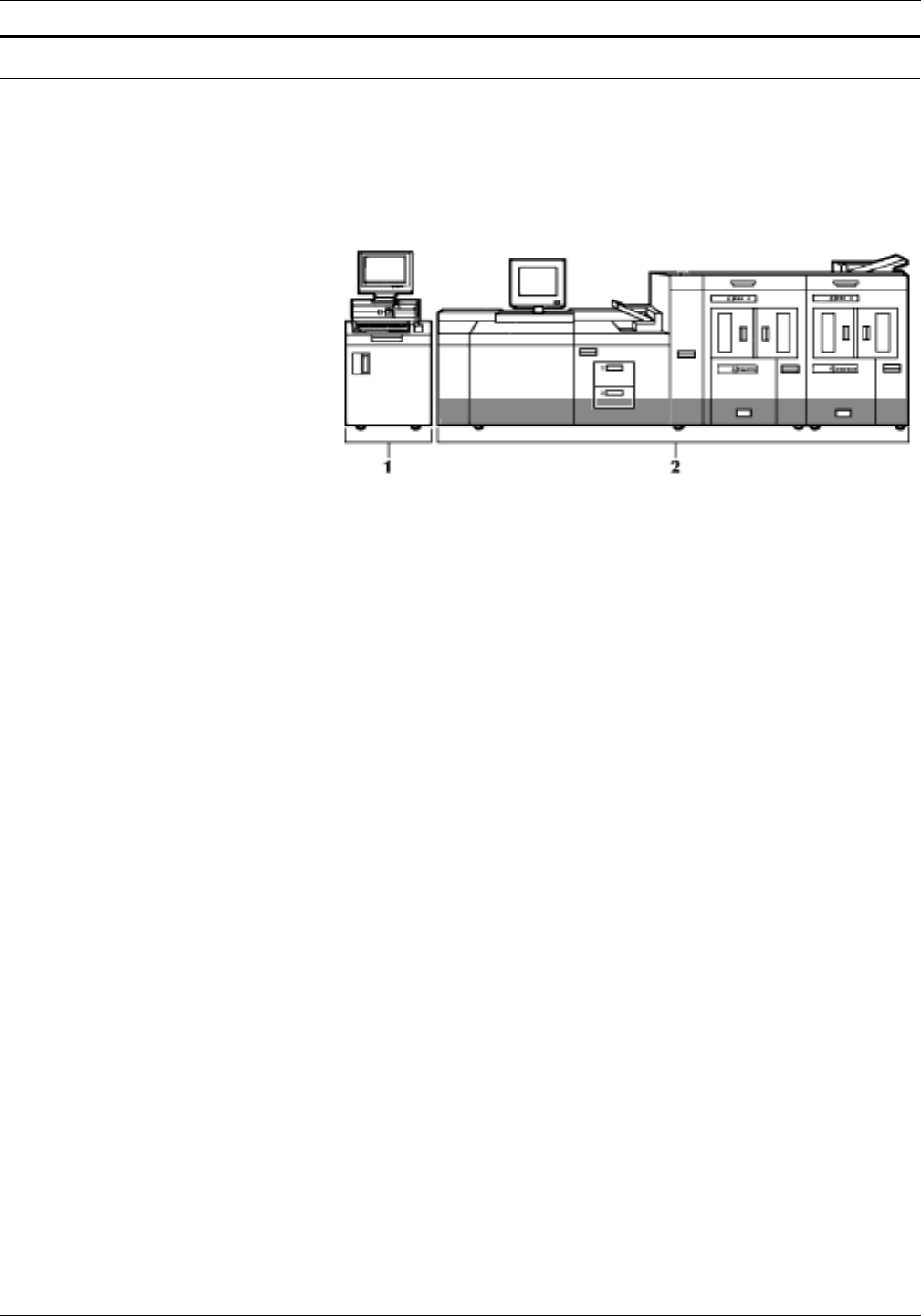

Figure 1-1 shows the Xerox DocuPrint 180 LPS.
Figure 1-1. Xerox DocuPrint 180 Laser Printing System
1 System controller
2 Printer
The system controller is a minicomputer which manages the
processing of input data; processes operator commands; provides
for the entry and compiling of form, print, and job description files;
executes job processing commands; and manages low-level control
of the printer.

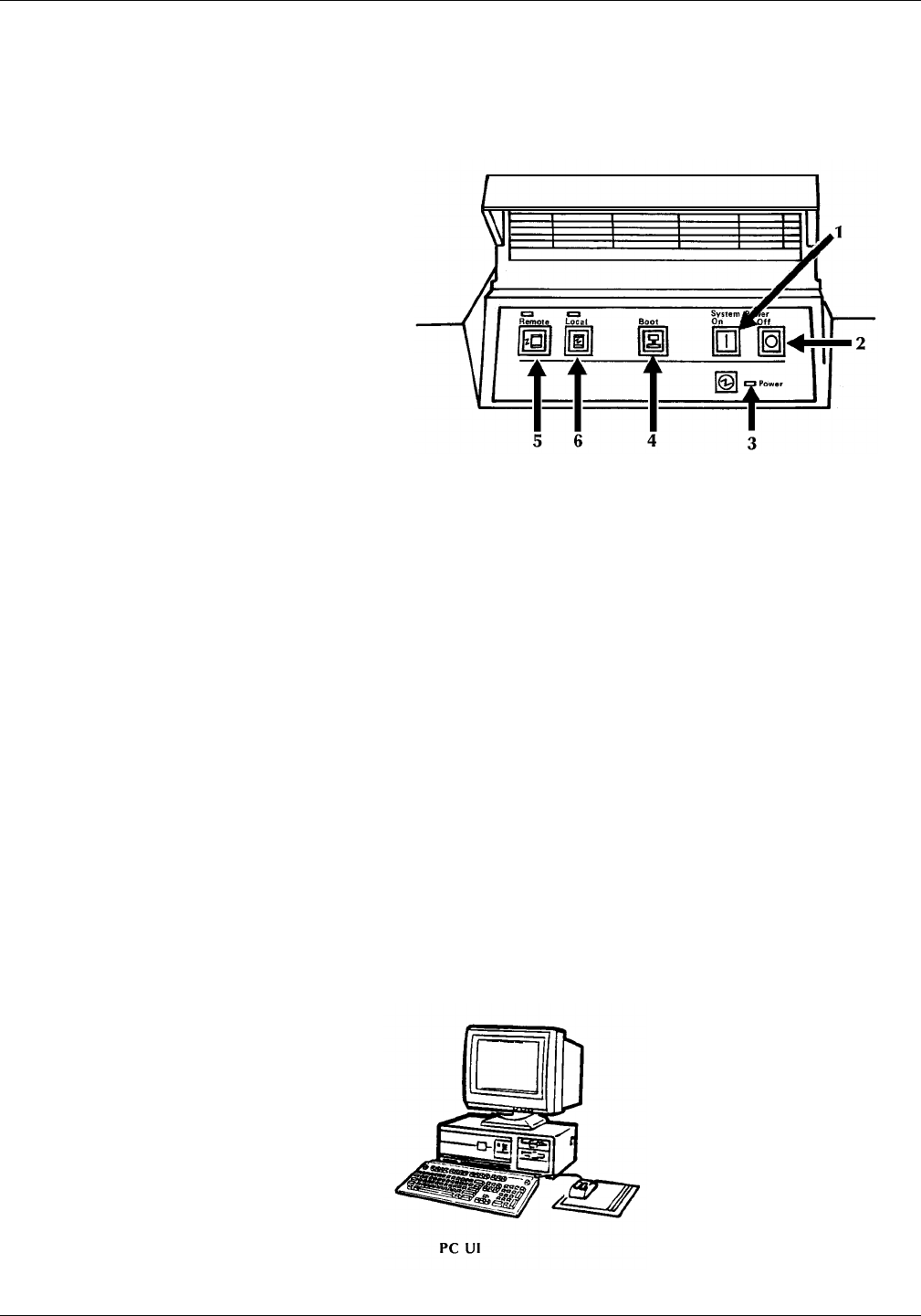

Your Xerox DocuPrint 180 LPS has a PC user interface (PC UI) that
enables you to start and monitor print jobs. In figure 1-1, the PC UI
is shown on top of the system controller.
The printer contains the mechanics and electronics involved in the

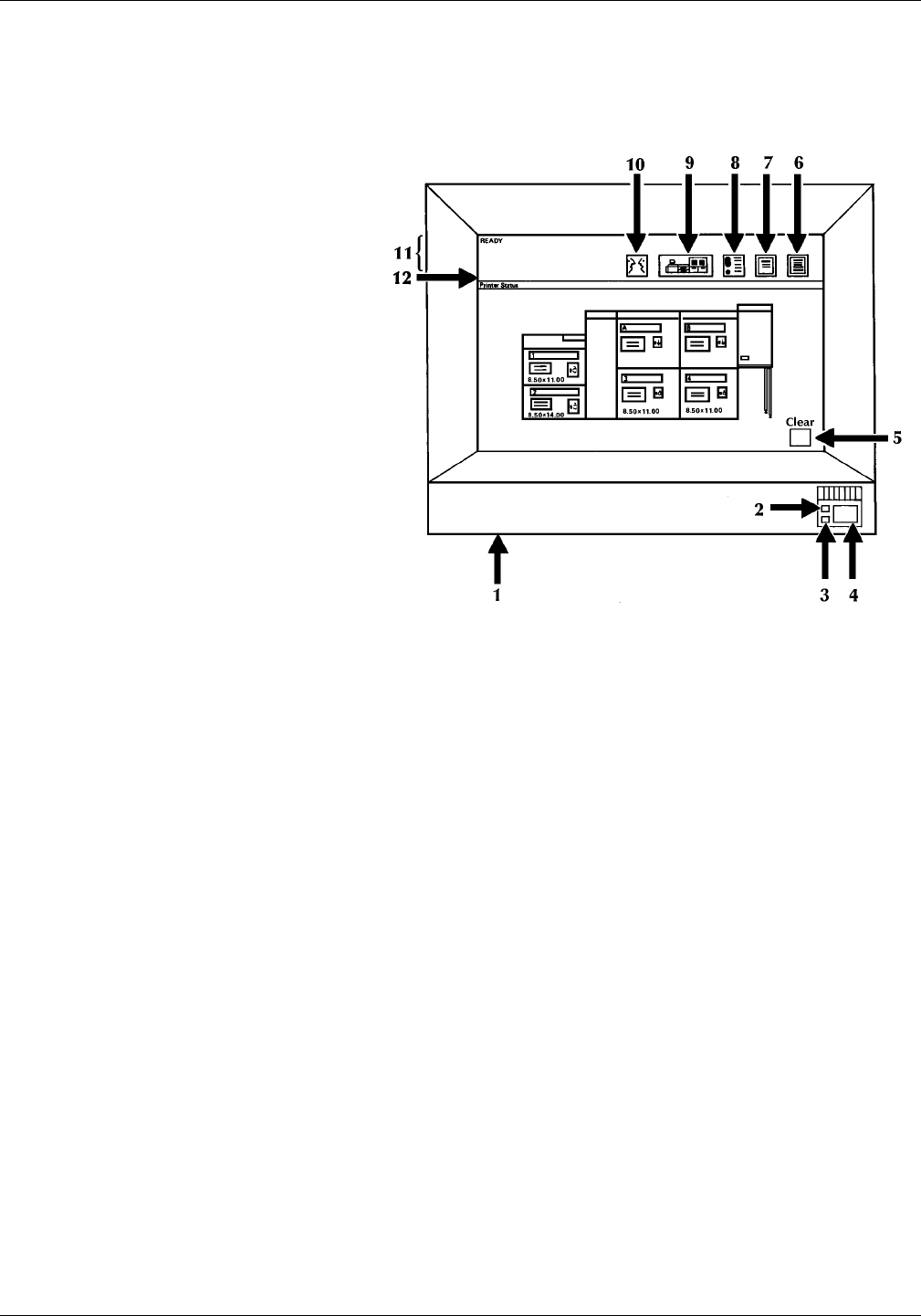

imaging and paper handling processes. Touch screen control on the
printer control console allows you to easily monitor and control printer
functions. Jam clearance areas and instructions are clearly
displayed with color graphics.
For more detailed descriptions of the Xerox DocuPrint 180 LPS
hardware components, refer to the “Xerox DocuPrint 180 LPS
hardware components” chapter.
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-3
Software
DocuPrint 180 LPS software functionally consists of several
components to manage printing system resources. Refer to the
“System software functional description” section of the “Xerox
DocuPrint 180 LPS software components” chapter for additional
information. Among these components are two DocuPrint 180 LPS-
resident languages: FDL and PDL.
Forms description language (FDL)
(standard) FDL is a laser printing system resident language for designing
electronic forms which can include logos, signatures, and shading.
Form libraries (source and object) are stored on the system disks.
Refer to
Xerox DocuPrint 180 LPS Forms Creation Guide
for more
information.
Print description language (PDL)
(standard) PDL is a laser printing system resident language used to describe the
input, logical processing, and output requirements of a print job.
Refer to
Xerox DocuPrint 180 LPS PDL Referenc
e for more
information.
XEROX DOCUPRINT 180 LPS OVERVIEW
1-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Options
The following options are available to further enhance the capabilities
of your Xerox DocuPrint 180 LPS.
Note: For detailed information regarding these options, please
contact your sales representative.
Floppy disk drive
The floppy disk drive is located in the system controller, to the right
of the 1/4 inch cartridge tape drive. It allows you to transfer files
between a floppy disk and the system controller’s hard disk.
Therefore, it provides an alternative way for backing up and restoring
system controller rigid disk files.

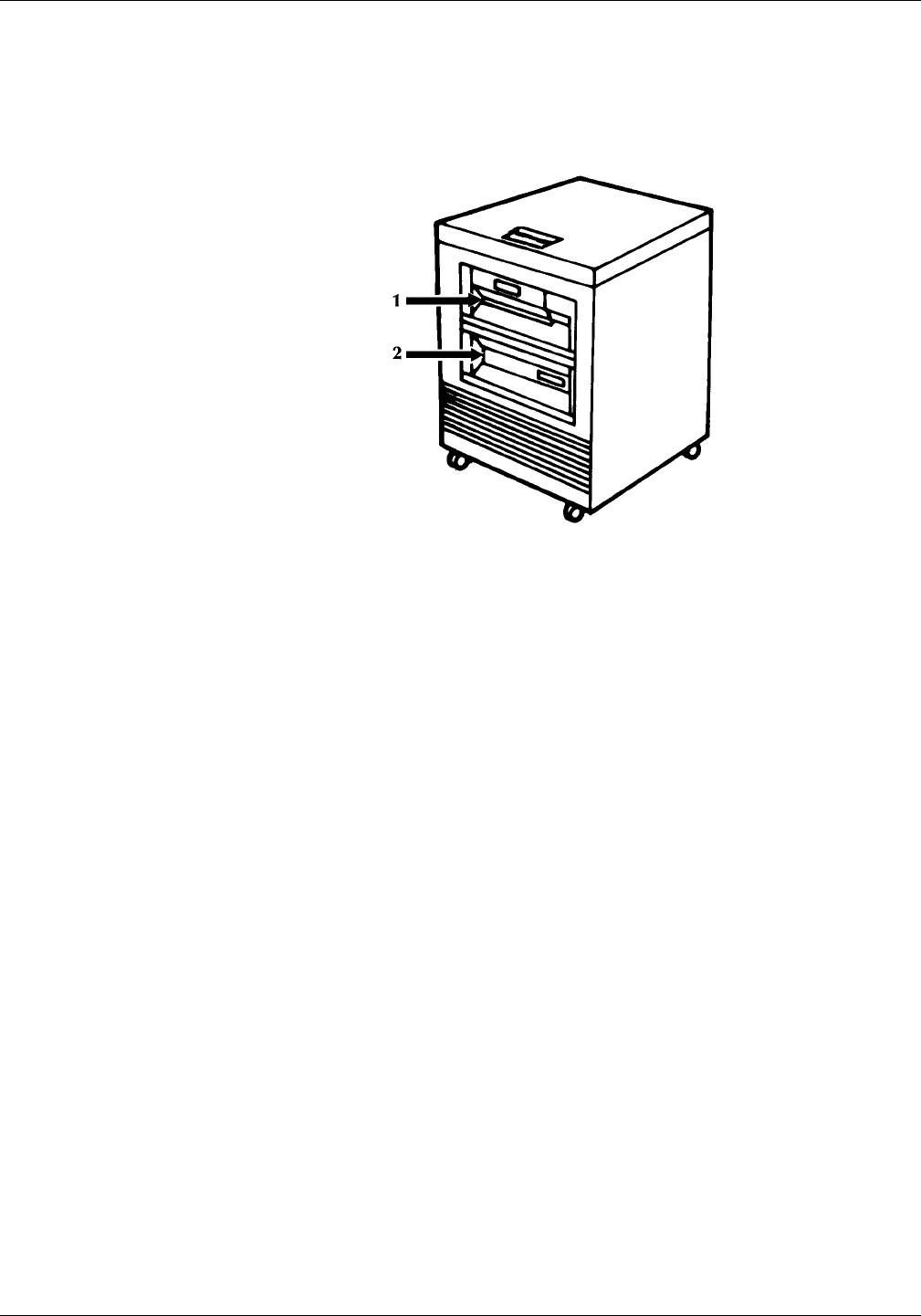

9-track magnetic tape drive
The 9-track (1600/6250) magnetic tape drive is an alternative or
additional offline capability to the 18 or 36-track cartridge tape drive
for inputting print and nonprint data to the Xerox DocuPrint 180 LPS.
(Refer to figure 3-5.)
Refer to
Xerox DocuPrint 180 LPS Operator Guide
and to the
Xerox
LPS Tape Formats Manual
for additional information
36-track cartridge tape drive
The 36-track cartridge tape drive is an alternative or additional offline
capability to the 9-track magnetic tape drive for inputting print and
nonprint data to the Xerox DocuPrint 180 LPS. It reads 18 and 36-
track and writes 36-track IBM- and ANSI-compatible half-inch tape in
the 36-track IBM 3480/3490 data format.
Refer to the
Xerox DocuPrint 180 LPS Operator Guide
and to the
Xerox LPS Tape Formats Manual
for additional information.
Feeder stacker
The DocuPrint 180 LPS has an Inverter Feeder Stacker, and up to
three optional feeder stackers.
Refer to the section “Printer components” in the “DocuPrint 180 LPS
overview” chapter for information on the feeder stackers.
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-5
Bypass transport
The bypass transport increases your production capabilities by
providing you with a means of using finishing devices with your Xerox
DocuPrint 180 LPS. Conforming to Xerox Document Feeding and
Finishing Architecture (DFA) Level 1 specifications, it allows you to
choose from a variety of finishers.
Input enablement device
The input enablement device provides the means to directly connect
bulk feeders to your Xerox DocuPrint 180 LPS.
Expanded system disk memory
The DocuPrint 180 LPS base system has three SCSI 1.2 GB
(formatted) disk drives for the system disk with optional expansion of
up to four SCSI 1.2 GB disk drives.
Enhanced graphics ink and font memory (EGIFM)
The DocuPrint 180 LPS has a standard 256 Mbits of font/graphic
memory.
Expanded bitmap memory
The Xerox DocuPrint 180 LPS has as a standard feature 32 Mbits of
bitmap memory that supports font and graphics. The bitmap memory
can be expanded to 256 Mbits.
XEROX DOCUPRINT 180 LPS OVERVIEW
1-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE

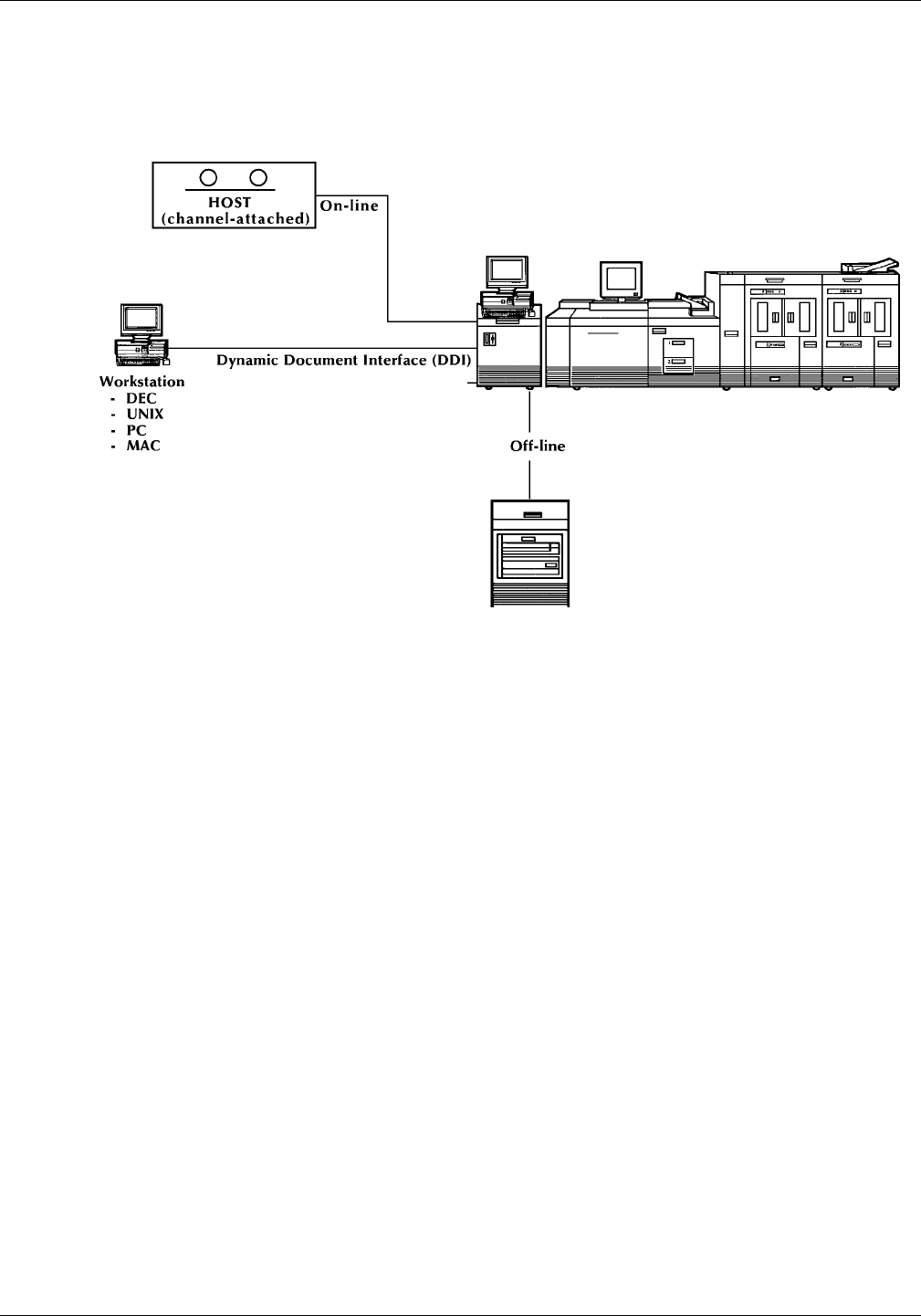

DocuPrint 180 LPS connection
The Xerox DocuPrint 180 LPS may be ordered with the following
optional connections:
Online interface The online channel interface receives input directly from the host
system. All IBM systems which support the channel-attached 3811/
3211 or 4245 interface are supported. Non-IBM systems are
supported through a variety of connections such as DDI. (Refer to
the DDI description below.)
Offline interface The offline interface is an excellent alternative or addition to an online
operation. It supports 9-track (1600/6250 bpi), 18 track (read only),
and 36-track (3480/3490 format) tapes conforming to one of the
following formats:
American National Standards Institute (ANSI)
IBM (OS/VS/370, OS/360, DOS/VS/370, DOS/360/370)
Burroughs (MCP 2500-4700, 6700)
Honeywell (OS 200/2000, OS 200/6000 series)
Sperry/Univac Series 70 (1100-OS standard files)
DEC (RSX-11)
CDC (external format)
NCR (Century-B1)
Tape input codes: EBCDIC, ASCII, BCD
Univac (SDF-formatted tapes)
ICL (2900 VME/B)
Refer to
Xerox DocuPrint 180 LPS Operator Guide
and to
Xerox
LPS
Tape Formats Manual
for additional information.
DDI interface The Dynamic Document Interface (DDI) enables communication
between a Xerox DocuPrint 180 LPS and other products via a shared
disk mechanism. The interface allows the other products (such as
DEC, PC, MAC, and UNIX local area network (LAN) workstations) to
save print files to an external hard disk. The Xerox DocuPrint 180
LPS then directly accesses the external hard disk to retrieve files for
printing. The DDI passes data over a high performance SCSI bus.
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-7
Xerox DocuPrint 180 LPS specifications
The specifications for the Xerox DocuPrint 180 LPS are described in
the following sections:
Equipment Dimensions
Table 1-1 shows the specifications for the Xerox DocuPrint 180 LPS.
Note: For more information on Xerox DocuPrint 180 LPS
installation planning and specifications, refer to
Xerox DocuPrint 180
LPS Installation Planning Guide
.
Table 1-1. Equipment dimensions
Hardware Width Depth Height Weight
System controller 24 in/610 mm 28 in/712 mm 38.2 in/970 mm 300 lbs/136 kg
with optional
peripheral cabinet
(fully loaded)
48 in/1219 mm 28 in/712 mm 38.2 in/970 mm 616 lbs/280 kg
Printer
Printer Module
including Printer
Control Console
77.3 in/1,963 mm 35.9 in/911 mm 55 in/1,037 mm 1,434 lbs/650.9 kgm
High-Capacity
Inverter Feeder/
Stacker
41.7 in/1,060 mm 28.3 in/719 mm 57.7 in/1,466 mm 663 lbs/301 kgm
High-Capacity
Feeder/Stacker
Middle Module
(optional)
32.4 in/822 mm 28.3 in/719 mm 57.7 in/1,466 mm 521 lbs/237 kgm
High-Capacity
Feeder/Stacker 32.4 in/822 mm 28.3 in/719 mm 59.6 in/1,513 mm 521 lbs/237 kgm
Bypass Transport
(optional 20.4 in/518 mm 28.3 in/719 mm 59.6 in/1,513 mm 176 lbs/80 kgm
XEROX DOCUPRINT 180 LPS OVERVIEW
1-8 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Clearance requirements
Table 1-2 describes the amount of clearance required for the various
components.
Environmental requirements
Table 1-3 lists the environmental requirements.
Table 1-2. Clearance requirements
Component Clearance required
Printer 36 inches/914 mm on each side
50 inches/1270 mm at front of printer
System controller 36 inches/914 mm on each side
Finishers and bulk
feeders(attached to your
bypass transport)
36 inches/914 mm on each side
Table 1-3. DocuPrint 180 environmental requirements
Environmental requirements
Operating temperature Recommended:
Minimum:
Maximum:
72° F ± 4° F / 22° C ± 2° C
50° F / 10° C
85° F / 29° C
Humidity Minimum:
Maximum:
Recommended:
30%
65%
45% +/- 10%
Altitude Normal:
Maximum:
Up to 6,000 feet/1830 m above sea level
9,000 feet/2743 m above sea level
Heat dissipation
System controller 3,754 Btu per hour
Peripheral cabinet (fully configured) 3,195 Btu per hour
Printer Standby:
Operating:
Energy Saver:
4,454 Btu per hour
32,770 Btu per hour
2,700 Btu per hour
Audible noise Standby:
Operating:
Continuous: 52dB (A)
Impulse: N/A
Continuous: 82dB (A)
Impulse: 82dB (A)
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-9
Electrical requirements
Table 1-4 shows the electrical requirements for the Xerox DocuPrint
180 LPS.
Note: For more information on Xerox DocuPrint 180 LPS electrical
requirements, including power cord and outlet specifications, refer to
the
Xerox DocuPrint 180 LPS Installation Planning Guide
.
Table 1-4. DocuPrint 180 electrical requirements
Electrical requirements
Printer Dual cord system (60Hz):
Cord 1: 120/208 VAC(182V to 220V) (2 phase), 50 amp dedicated service
Cord 2: 120/208 VAC(182V to 220V) (2 phase), 30 amp dedicated service
Single cord system (50Hz):
WYE: 80/400/415 VAC (3 phase, 5 wire), 20 amp dedicated service
Delta: 220/230/240 VAC (3 phase, 4 wire), 30 amp dedicated service
KVA rating: 7.3 (operating)
System Controller U.S. and Canada, 60 Hz:
208/240 VAC (1 phase) or 208/220 VAC (Line 1 to Line 2);
15 amp service
NEMA 6-15R or ANSI C73, 20R
KVA 1.1 (operating)
International, 50 Hz:
200/230 VAC (1 phase)
15 amp service;
Power connector per local codes
Optional Peripheral Cabinet U.S. and Canada, 60Hz:
208/240 VAC (1 phase) or
208/220 VAC (Line 1 to line 2);
15 amp service;
NEMA6-15R or ANSI C73, 20R
KVA .9 in both standby and operation
International, 50 Hz:
200/230 VAC (1 phase);
15 amp service;
Power connector per local codes
Optional bypass transport The power requirements for the bypass transport module are all satisfied by the
DocuPrint 180 LPS printer module.
Agency certification UL, CSA, IEC, VDE
XEROX DOCUPRINT 180 LPS OVERVIEW
1-10 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox DocuPrint 180 LPS features
Listed below are features of the Xerox DocuPrint 180 LPS.
System controller The following are features of the system controller:
PC UI (refer below)
Three 1.2 GB formatted system disks standard
1024K words of control memory
Minimum of graphic, ink, and font memory (GIFM) of 256 Mb.
3.5-inch floppy disk drive (optional Media Conversion Kit)
Quarter-inch cartridge tape drive (QIC); up to 320 MB capacity
in streaming mode; quarter-inch ANSI (standard)
Front loading 9-track (1600/6250 bpi) magnetic tape drive
(requires optional peripheral cabinet)
Xerox 36-track cartridge tape drive; reads 18-track and 36-track
tapes and has the write capability for IBM- and ANSI-
compatible half-inch tapes in the 36-track IBM 3480/3490 data
format (requires optional peripheral cabinet).
PC UI The following are features of the PC UI:
The PC User Interface (PC UI) is a Pentium-based processor
PC with at least 100-megabyte hard disk, mouse pointing
device, 3.5-inch floppy disk drive, multinational keyboard, and
14-inch color monitor..
Color graphic windows and icons
Full text editor allows you to perform complete textual editing
tasks (such as moving, searching and replacing, adding and
deleting text, and so on) on the entire file, within a window
environment
File transfer provides a two-way file transfer between the PC UI
floppy or hard disk drive and the system controller hard disk
Start command library stores often-used start commands for
easy selection with mouse; no need to key in start commands
repeatedly
Command line mode accessible from PC UI windows
Console logging allows you to print, display, or save DocuPrint
180 LPS activity record for tracking or service purposes
Multinational language and feature support.
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-11
Printer The following are features of the printer:
Xerographic engine
Laser raster scanning
Rated speed of up to 180 pages per minute (up to 13,800 lines
per minute) simplex; up to 90 pages per minute duplex (with the
optional Paper Feeding Enhancement Kit installed, the rated
speed for simplex is 206 pages per minute)
Multiple-pitch feature allows the printer to change between six
pitch modes (from 3 pitch to 8 pitch), depending on the paper
size
300 spi input data interpolated to produce 600 spi output print
resolution
Prints on front and back side (duplex) of paper under software
control
Page inversion printing that allows the system to invert the
image on a physical page by 180 degrees
Printer control console with color touch screen graphically
displays printer jam clearance information and allows control of
paper loading/unloading
Stop, continue, and print sample buttons on printer control
console
100-sheet sample print tray using 20-pound/75-gsm bond
Feeder trays:
Feeder/stacker modules:
Attention light, located on top of the inverter-feeder/stacker
module, alerts operator when printer needs attention
Attention alarm, located within the printer, alerts the operator
when the printer needs attention
Screen saver on the printer monitor.
Main tray 1 (Main) = 1100-sheet, 20 pound/75-
gsm paper
Auxiliary tray (tray 2) = 600-sheet, 20 pound/75-
gsm paper
Each high-capacity
feeder (HCF) tray (two
standard and two
optional)
= 2600-sheets of 20 pound/
75-gsm paper
Each high-capacity
stacker (HCS) bin (two
standard and two
optional)
= 2500-sheets of 20 pound/
75-gsm paper
XEROX DOCUPRINT 180 LPS OVERVIEW
1-12 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Paper handling Paper handling features include the following:
16-pound bond to 110-pound index/60-gsm to 200-gsm, cut-
sheet paper, colored, preprinted, predrilled, or preperforated
paper
Variable paper sizes such as A3 (11.69 by 16.54 inches/297 by
420 mm, 11 by 17 inches/297 by 432 mm), B4 (10.12 by 14.3
inches/257 by 363 mm), and B5 (7.17 by 10.12 inches/182 by
257 mm)
Transparencies, high-speed label stock, oversized covers, tab
stock, and other specialized application materials
Software-controlled paper stock management with four feeder
trays
Waste management and audit logging that allow more control
of sensitive paper stocks by increasing the amount of
information available with regard to how many sheets were fed
from which tray as well as the final destination of the sheets.
Forms Forms for the Xerox DocuPrint 180 LPS include the following:
Electronically created and stored at DocuPrint 180 LPS or host
Changeable on a page-to-page basis
Functionally compatible with Xerox 9790/8790/4090/4050 LPS
forms, logos, and signatures
Electronic form and variable data printed at the same time for
accurate registration
Multiple forms per page
Printed forms.
Fonts The features for fonts include the following:

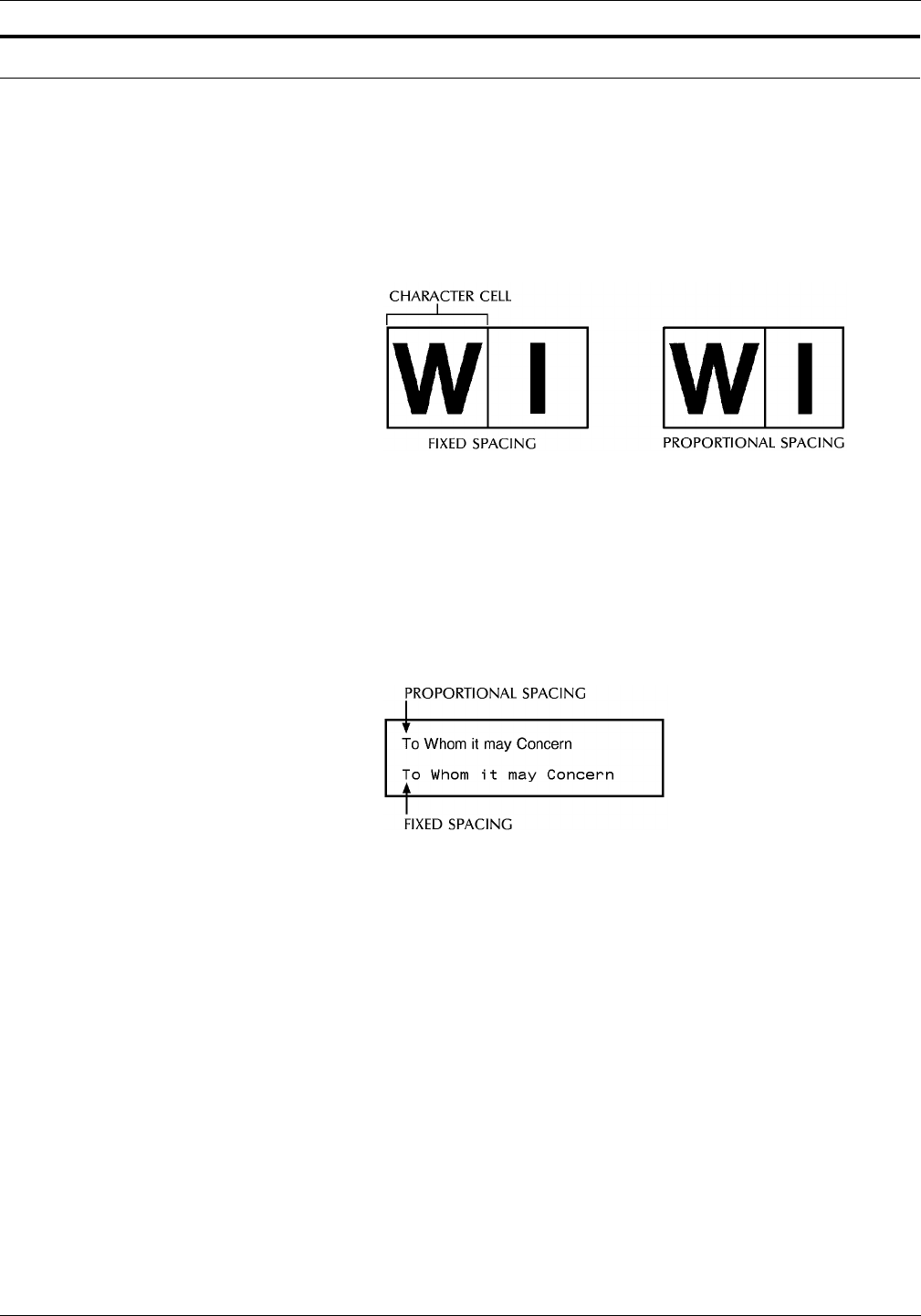

Proportional or fixed character spacing
Variable character size of 3 to 36 points
Spacing of 4 to 30 characters per inch (cpi)
Up to 128 fonts per page from extensive library of standard and
optional fonts
300 dots per inch (dpi) font data interpolated to produce 600 spi
print resolution
Logo and signature fonts
Multinational character set
Loadable from host, magnetic tape, or cartridge tape
32 Mbits font memory; expandable to 128 Mbits
Selectable on a character-to-character basis.
XEROX DOCUPRINT 180 LPS OVERVIEW
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 1-13
Printed format The features for printed formats include the following:
Variable spacing of 3 to 18 lines per inch (lpi)
Spacing of 4 to 30 characters per inch (cpi)
Landscape or portrait orientation
Up to 38K alphanumeric characters per 8.5- by 14-inch/216- by
356-mm page total variable density
252 maximum lines per 8.5- by 14-inch/216- by 356-mm portrait
page; 198 (5 points, 18 lpi) maximum lines per 8.5- by 11-inch/
216- by 279-mm landscape page
Up to 150 lines with 132 characters per line on 8.5-by 11-inch/
216- by 279-mm landscape page
Up to 16 images per page; over 16 images per page and vector
graphics capability will degrade performance.
Multiple logical pages on a physical page
Simplex or duplex printing.
Types of output Types of output include the following:
Interspersed reports
Stacked reports
Multiple sets
Offsetting
Report and job accounting
Collated or uncollated.
XEROX DOCUPRINT 180 LPS OVERVIEW
1-14 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 2-1
2. 2Basic concepts
This chapter introduces basic concepts associated with a Xerox
Laser Printing System (LPS). Major sections in this chapter cover
the following topics:
DocuPrint 180 LPS overview
DocuPrint 180 LPS production process overview
Fonts.
DocuPrint 180 LPS overview
The Xerox DocuPrint 180 LPS provides innovative solutions for a
variety of business requirements. It consists of two separate units:
System controller
Printer.
Figure 2-1 shows the Xerox DocuPrint 180 LPS. Refer to the “Xerox
DocuPrint 180 LPS hardware components” chapter for further
information on available options.
Figure 2-1. Xerox DocuPrint 180 Laser Printing System
1 System controller
2 Printer
BASIC CONCEPTS
2-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
System controller
The system controller contains the input subsystem and the control
subsystem electronics.
The input subsystem provides interfacing capability (online, offline,
and Dynamic Document Interface (for DEC, PC, MAC, and UNIX
LAN connectivity) for a variety of input sources (host, magnetic tape,
workstations, and graphic scanners).
Note: Your quarter-inch cartridge tape and floppy disk drives are
not input sources for print jobs (refer to“Xerox DocuPrint 180 LPS
hardware components”).
The control subsystem performs all data handling, formatting,
buffering, and operational control of the system. It also provides
operator control through the DocuPrint 180 LPS PC User Interface
(UI). Refer to the “Xerox DocuPrint 180 LPS hardware components”
chapter for more information on system controller components and
these subsystems.
DocuPrint 180 LPS interface
The following DocuPrint 180 LPS interfaces are available to connect
a variety of input sources to the DocuPrint 180 LPS:
Offline interface The offline interface permits input from a computer-prepared
magnetic tape which is loaded onto the magnetic tape drive. The 9-
track and 18/36-track magnetic tape drives are the optional offline
interfaces available for the Xerox DocuPrint 180 LPS. Refer to the
“Xerox DocuPrint 180 LPS hardware components” chapter for more
information.
Online interface The online interface permits input from a channel-attached host
computer.
DDI interface The Dynamic Document Interface (DDI) enables communication
between a Xerox DocuPrint 180 LPS and network via a shared disk
mechanism over a SCSI bus. Refer to the Xerox Dynamic Document
Interface Operator Guide for information regarding the DDI.
DocuPrint 180 LPS system disk storage and memory
The system disks store the operating system software (OSS) as well
as the system resources (fonts, forms, and graphics) that are to be
loaded into memory for use during input processing. Refer to the
“DocuPrint 180 LPS software components” chapter for more
information on OSS.
BASIC CONCEPTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 2-3
Printer
The printer contains the imaging, xerographic, and output
subsystems.
Imaging subsystem
The imaging subsystem accepts a formatted page of data from the
system controller (forms and graphics have already been merged) for
the xerographic process.
Xerographic subsystem
One of the important keys to DocuPrint 180 LPS print quality lies in
the xerographic process itself. The print image produced by the dry
ink is very dark to create more contrast between the printing and the
page, making images easier to read.
The following steps describe the xerographic process:
Step 1. A band full of video data (1s and 0s) is transferred from the band
buffer to the laser scanner.
Step 2. The laser beam moves across the surface of the photoreceptor belt
based on the value of the incoming bit (1 or 0), producing a latent
image.
In this step, a charge is applied to the surface of the photoreceptor
belt. The surface is discharged when it is exposed to the laser beam,
thus creating a pattern of dots corresponding to the page that is to be
printed.
Step 3. The photoreceptor belt is then exposed to dry ink. The dry ink clings
to the pattern of dots corresponding to the page that is to be printed.
Step 4. A sheet of paper traveling along the paper path is brought into
contact with the surface of the photoreceptor belt. The dry ink is then
transferred from the photoreceptor belt onto the paper.
Step 5. The paper carrying the pattern of dots passes through a fusing
mechanism that permanently affixes the dry ink to the paper.
Step 6. The finished page is deposited in the output tray or bin. The data
from that page is erased from memory. The photoreceptor belt is
then cleaned and prepared for the next page.
Resolution An DocuPrint 180 LPS imaging system converts a character from
digitized form into a printed image composed of tiny dots. These dots
are so small and close together that they appear to form solid black
areas. Image clarity is determined largely by the resolution or the
number of dots per inch printed. Within the Xerox DocuPrint 180 LPS
Reference Set, the terms spots, dots, and pixels are used
interchangeably.
The Xerox DocuPrint 180 LPS accepts 300 dots per inch (dpi) print
data and images and electronically modifies them to produce 600 dpi
print resolution. 600 dpi input print data is not accepted by the Xerox
DocuPrint 180 LPS for printing. References to 300 dpi or 600 dpi
apply to both coordinate axes (300 by 300 dpi or 600 by 600 dpi).
BASIC CONCEPTS
2-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Output subsystem
The output subsystem provides paper stacking, report collating, and
sample print capabilities.
DocuPrint 180 LPS production process overview
The process of producing a job on an DocuPrint 180 LPS can be
broken down into three distinct phases: input, special processing,
and output. Figure
2-2, illustrates these three phases below.
Figure 2-2. Basic processing flow
A description of each phase is described in the input section that
follows.
Sources of input for the DocuPrint 180 LPS
The input phase of job production begins with the collecting and
inputting of data using one of the following sources:
Several data input methods are available, as shown in figure 2-3
BASIC CONCEPTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 2-5

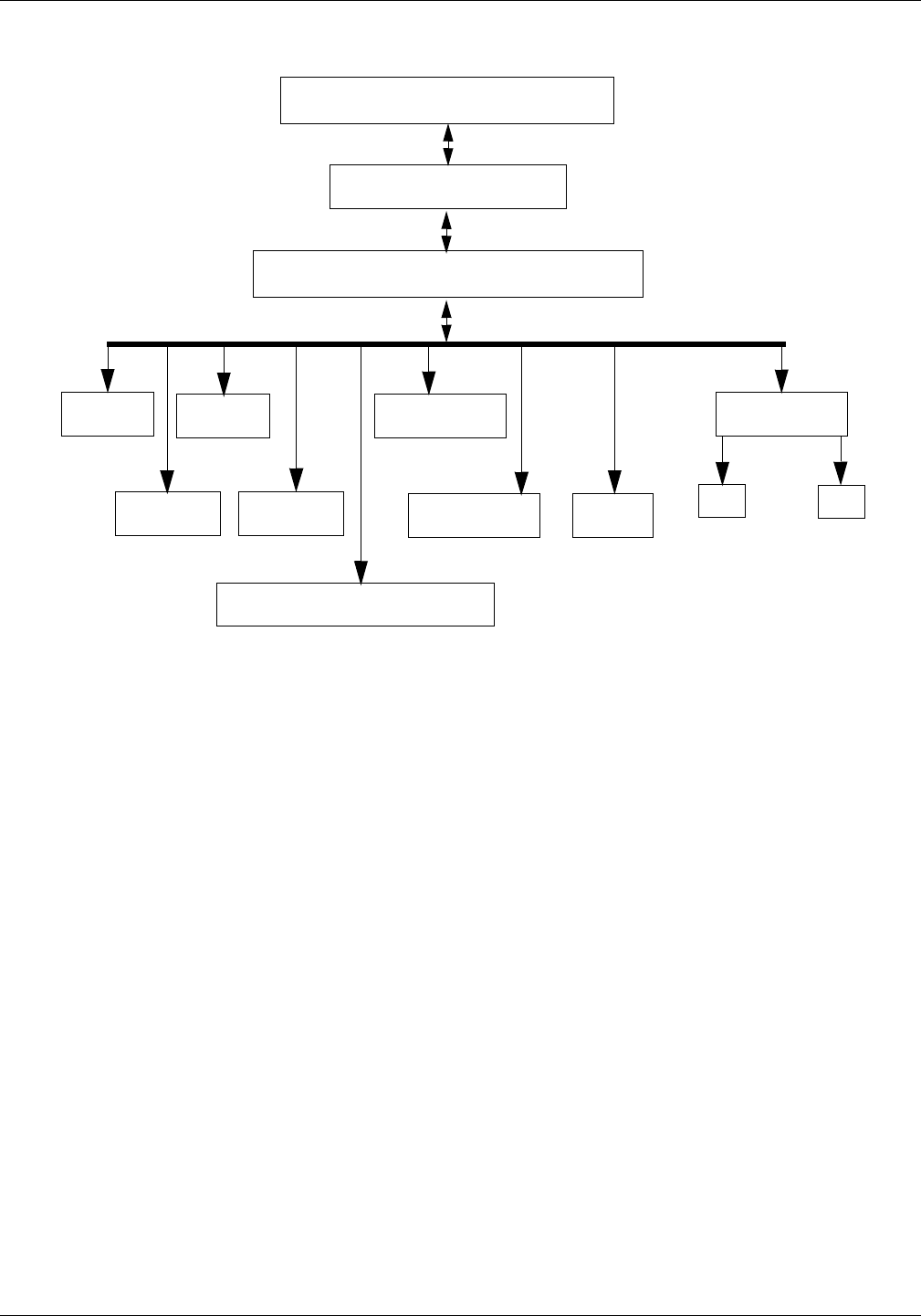

Figure 2-3. Xerox DocuPrint 180 LPS input options
Online The channel-attached host computer input is received by the
DocuPrint 180 LPS online interface. In an online environment, the
system controller is physically wired to the host computer. The host
computer “thinks” it is communicating with an IBM 3211 line printer
and an IBM 3811 printing system controller, or an IBM 4245 line
printer.
DDI interface The Dynamic Document Interface (DDI) enables communication
between a Xerox DocuPrint 180 LPS and network via a shared disk
mechanism over a SCSI bus. Refer to the
Xerox Dynamic Document
Interface Operator Guide
for information regarding the DDI.
Offline Magnetic tape input (9- or 18/36-track) is received by the offline
interface. The
LPS Tape Formats Manua
l describes the tape format
and encryption schemes which a Xerox LPS recognizes.
Peripheral Cabinet
(9-track,18/36-track
tape drives)
BASIC CONCEPTS
2-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Types of data
Data is created at one of the above sources and transmitted to the
DocuPrint 180 LPS. As mentioned previously (refer to “Xerox
DocuPrint 180 LPS overview”), the system controller receives the
incoming data using one of the interfaces for processing. If the input
is print data, a stream of data is sent to the printer for imaging. If the
input is nonprint data, it is stored on the system disks.
The following types of data can be printed by an DocuPrint 180 LPS:
Variable data
Fixed (forms) data
Graphic data (usually merged with variable data or form data).
Variable data Variable data changes from page to page; for example, the text in this
document or the numbers in a financial report.
Fixed data Fixed (forms) data (FRM file) remains constant from page to page
(for example, letterheads and column headings). Forms data usually
refers to information found on preprinted forms or overlays.
Note: A host-resident forms design software package, such as
HFDL, is required for form generation at a host.
Any form suitable for computer printout can be described and
entered into system storage. Once stored on the system, a form can
be activated by referencing the form’s name in the job source library
(JSL) file or job descriptor entry (JDE).
All Xerox laser printing systems have as a standard feature a line
editor utility for the creation and modification of program source files
(FSL and JSL extension files). Refer to
Xerox DocuPrint 180 LPS
Operations Reference
for more information on the DocuPrint 180
LPS Editor.
Forms are entered into the system as data using the DocuPrint 180
LPS Editor. They are described using forms description language
(FDL) commands to design the form for variable data. These
commands create what is referred to as a forms source library (FSL)
file which, when compiled, becomes an FRM file. Refer to
Xerox LPS
Forms Creation Guide
for more information on creating electronic
forms.
Graphic data Graphic data (IMG file) refers to digitized images (both line art and
continuous tone images) that are to be merged with variable or forms
data. Sources of graphic data include (but are not limited to): (1)
graphic data generated by XPPI/XDGI host-resident software, and
(2) scanned images from the Xerox 7650 Pro Imager (using XPIW).
BASIC CONCEPTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 2-7
Special processing
Special processing features distinguish the Xerox LPS from an
impact printer. By using commands such as RFEED, ROFFSET,
and RPAGE you can specify that certain logical functions including:
switching paper trays, offsetting certain pages or logically
repositioning a page, be performed during the printing process.
Refer to the
Xerox DocuPrint 180 LPS PDL Reference
for more
information on these command functions.
DJDE Dynamic Job Descriptor Entry (DJDE) command enables you to
modify the printing environment dynamically. These commands are
inserted into the input data stream to modify command
characteristics of the existing JDE. DJDEs can take effect on a
report-to-report, page-to-page, and record-to-record basis. Refer to
the
Xerox DocuPrint 180 LPS PDL Reference
for more information.
CME A Copy Modification Entry (CME) command enables you to replace
certain parts of a report with predefined static data on selected
copies or to specify font changes within the variable data. Refer to
the
Xerox DocuPrint 180 LPS PDL Reference
for more information.
Output
The final production phase is output. The Xerox DocuPrint 180 LPS
provides powerful finishing and disbursement features. You can
have a true cover-to-cover printing process on any job. This means
that an inventory stock report job could have:
Blue card stock front cover, with the title in a 24-point bold font
Forty-nine pages of equipment inventory, with the last page
designed to summarize totals
Thirty-seven pages of equipment description, with pricing
information removed and a shaded grid filling all page columns
A matching blue card stock back cover printed on the reverse
side with “END OF REPORT” in a 14-point bold font.
Each copy of the inventory report can be offset in a stacker bin (no
offsetting in the sample tray) for easy identification, with a routing
sheet on top of each offset stack which contains such information as
“Jones and Smith Supplies, Inc.” This particular feature is useful
when individual copies must be separated for binding or distribution
to different groups. By adding the optional bypass transport and a
third-party finisher to your Xerox DocuPrint 180 LPS, you expand
your finishing choices for your report to include options such as
making it into a booklet and shrink wrapping it.
BASIC CONCEPTS
2-8 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Job source library (JSL) files
Print description language (PDL) commands are used to describe the
data layout and provide instructions for data placement on a page
with or without an FDL-created form. The JSL file contains PDL
statements defining the format of the input, processing requirements,
and the format of printed output. When the JSL file is compiled, it is
referred to as a job descriptor library (JDL) file and is referenced for
printing a job.
Within a JDL file, there may be one or more unique definitions for
different processing features, output formats, and tape formats.
Each set of unique definitions represents a job and is called a JDE or
a job.
A JDL (compiled JSL) file containing printing instructions for the
DocuPrint 180 LPS is required to print any job on any configuration.
Many specialized functions can be accomplished with PDL statement
commands. Refer to the
Xerox DocuPrint 180 LPS PDL Reference
for specifics
Several basic JSL files are provided with the OSS; for example,
ONLINE.JSL is provided for printing online jobs, a XEROX.JSL is
provided for printing magnetic tape jobs, and so on. To meet specific
application needs, any OSS-supplied JSL can be copied and
modified. All Xerox LPS’s have as a standard feature the LPS Editor
utility for the creation and modification of program source files (FSL
and JSL extension files).
BASIC CONCEPTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 2-9
Fonts
A font is a character set which has a unique typestyle, type size, and
orientation. Both fixed and proportionally spaced fonts are available
for use on an LPS. Each font character occupies an area called a
character cell. All character cells in a fixed font are the same width,
while character cells in a proportional font vary in width, as shown in
figure 2-4.
Figure 2-4. Character spacing
Because the length of a line printed with a proportional font is
relatively unpredictable, fixed fonts are used for variable data on a
report to avoid overprinting of forms by variable data.
Proportional fonts are normally used for forms data, such as, titles,
headings, and so on. A business letter is an example of the use of
proportional fonts for variable data. The difference in line length is
illustrated in figure 2-5.
Figure 2-5. Character spacing examples
Fonts are available in various typefaces (such as, OCR and Titan),
sizes, styles (such as, serif and sans serif), and weights (such as,
medium and bold). The
LPS Standard Font Library Font User Guide
lists the standard fixed and proportional fonts.
In addition to typeface, style, and size, a font can be defined by its
orientation:
Landscape
Portrait
Inverse landscape
Inverse portrait.
Refer to the
Xerox 4850 HighLight Color and 4135 Laser Printing
Systems Font User Guide
for specific font information, the
Xerox LPS
Forms Creation Guide
for using fonts in a form, and the
Xerox
DocuPrint 180 LPS Operations Reference
for information on Font
Editor keyword commands (used to create source font files from
existing licensed and non-licensed font files).
BASIC CONCEPTS
2-10 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 3-1
3. 3Xerox DocuPrint 180 LPS
hardware components
This chapter describes the hardware components associated with
the Xerox DocuPrint 180 Laser Printing System (LPS).
Major components
The Xerox DocuPrint 180 Laser Printing System (LPS) consists of
two separate units:
System controller
Printer.
Figure 3-1 shows the Xerox DocuPrint 180 LPS.
Figure 3-1. Xerox DocuPrint 180 Laser Printing System
1 System
2 Printer
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
3-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
System controller hardware components
The system controller components are the system disks, the system
controller panel, the PC user interface (PC UI), the quarter-inch
cartridge (QIC) tape drive and optional floppy disk drive. A 9-track
magnetic tape drive and a 36-track cartridge tape drive are available
as options and are housed in the peripheral cabinet.

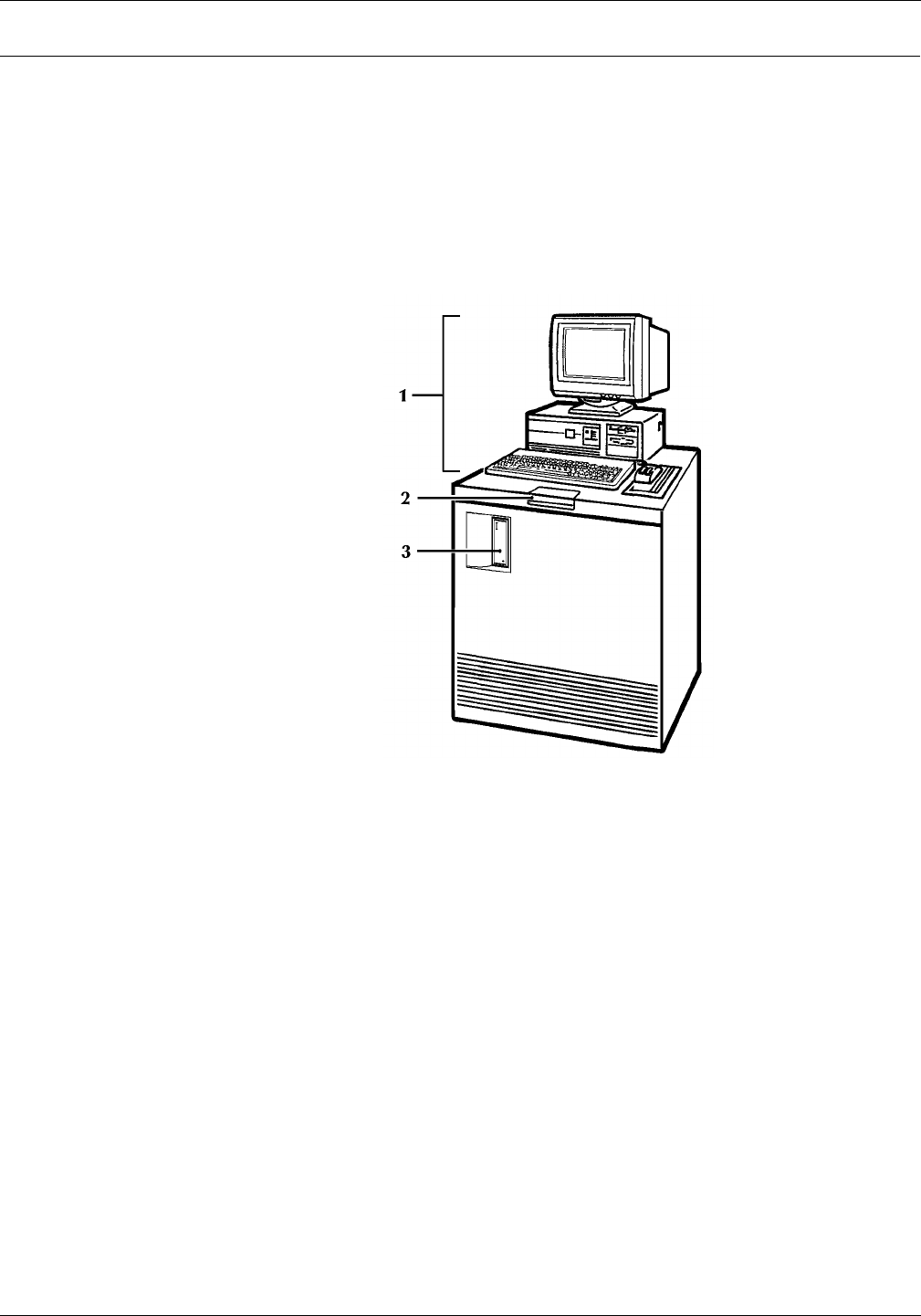

Figure 3-2 shows the Xerox DocuPrint 180 LPS system controller
with the cartridge tape drive.
Figure 3-2. Xerox DocuPrint 180 LPS system controller
1 System user interface (PC UI)
2 Operator control panel
3 QIC tape drive
Quarter-inch cartridge tape drive The standard QIC tape drive (320 or525 MB in streaming mode;
quarter-inch ANSI) provides an alternative source for the loading and
backing up of user files (extension files such as .FRM) and fonts to
and from the system disk. Disk save and restore (DSR) and system
generation (sysgen) functions can be performed from the quarter-
inch tape drive. It is not an input source for print jobs.
Floppy disk drive The optional floppy disk drive is located in the front panel of the
system controller. It provides an alternative way of backing up and
restoring system controller rigid disk files.
System disks Three 1.2 GB (formatted) SCSI system disks are provided as a
standard feature. It resides inside the system controller and stores
the operating system, fonts, forms, and general user files for the
Xerox DocuPrint 180 LPS. Optionally, one additional system disks
(each 1.2 GB formatted) can be installed, depending on storage
needs.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 3-3
System controller panel As shown in figure 3-3, the system controller is powered on or off,
booted, and switched between local and remote using the buttons on
this panel.
Figure 3-3. System controller panel
1 Power On switch
2 Power Off switch
3 Power On indicator
4 Boot switch
5 Remote switch and indicator
6 Local switch and indicator
PC UI Your Xerox DocuPrint 180 LPS has a PC UI connected to the system
controller.
The PC UI is an IBM-compatible Pentinum-based personal computer
(PC) with a 100 MB or larger hard disk, 3.5-inch floppy disk drive,
keyboard, color monitor, mouse, and a mouse pad. The PC UI allows
you to communicate with the Xerox DocuPrint 180 LPS, to start and
monitor print jobs. Tasks are performed through a dynamic set of
windows and graphic objects displayed on the PC UI screen.
Windows and options are selected with the mouse pointing device or
by pressing certain keys on the keyboard. You can also key in
commands through a command line window on the PC UI display
screen.
Figure 3-4 shows the Xerox DocuPrint 180 LPS PC UI.
Figure 3-4. PC UI
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
3-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
As shown in figure 3-5, the optional peripheral cabinet houses the 9-
track magnetic tape drive and 36-track cartridge tape drive.
Figure 3-5. Optional peripheral cabinet with 9-track and 36-
track tape drives
1 9-track magnetic tape drive
2 36-track cartridge tape drive
9-track magnetic tape drive The 9-track magnetic tape drive is optional. It provides an offline
capability for inputting data to the Xerox DocuPrint 180 LPS. The 9-
track can also be used for DSR or sysgen. Refer to
Xerox DocuPrint
180 LPS Operator Guide
for more information. The “Options section
of the “Xerox DocuPrint 180 LPS overview” describes supported tape
formats.
36-track cartridge tape The 36-track cartridge tape drive is an alternative to the 9-track
magnetic tape drive or an additional offline capability for the system.
It reads (18-track and 36-track) and writes (36-track only)IBM- and
ANSI-compatible half-inch tape in the 36-track IBM 3480/3490 data
format. Like the 9-track magnetic tape drive, the 36-track can be
used as a source for the loading and backing up of user files
(extension files such as .FRM) and fonts to and from the system disks
as well as providing an input source for print jobs. The 36-track tape
drive can also be used for DSR or sysgen. The “Options” section of
the “Xerox DocuPrint 180 LPS overview” describes supported tape
formats.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 3-5
Printer hardware components
Figure 3-6 shows the components of the Xerox DocuPrint 180 LPS
printer module.

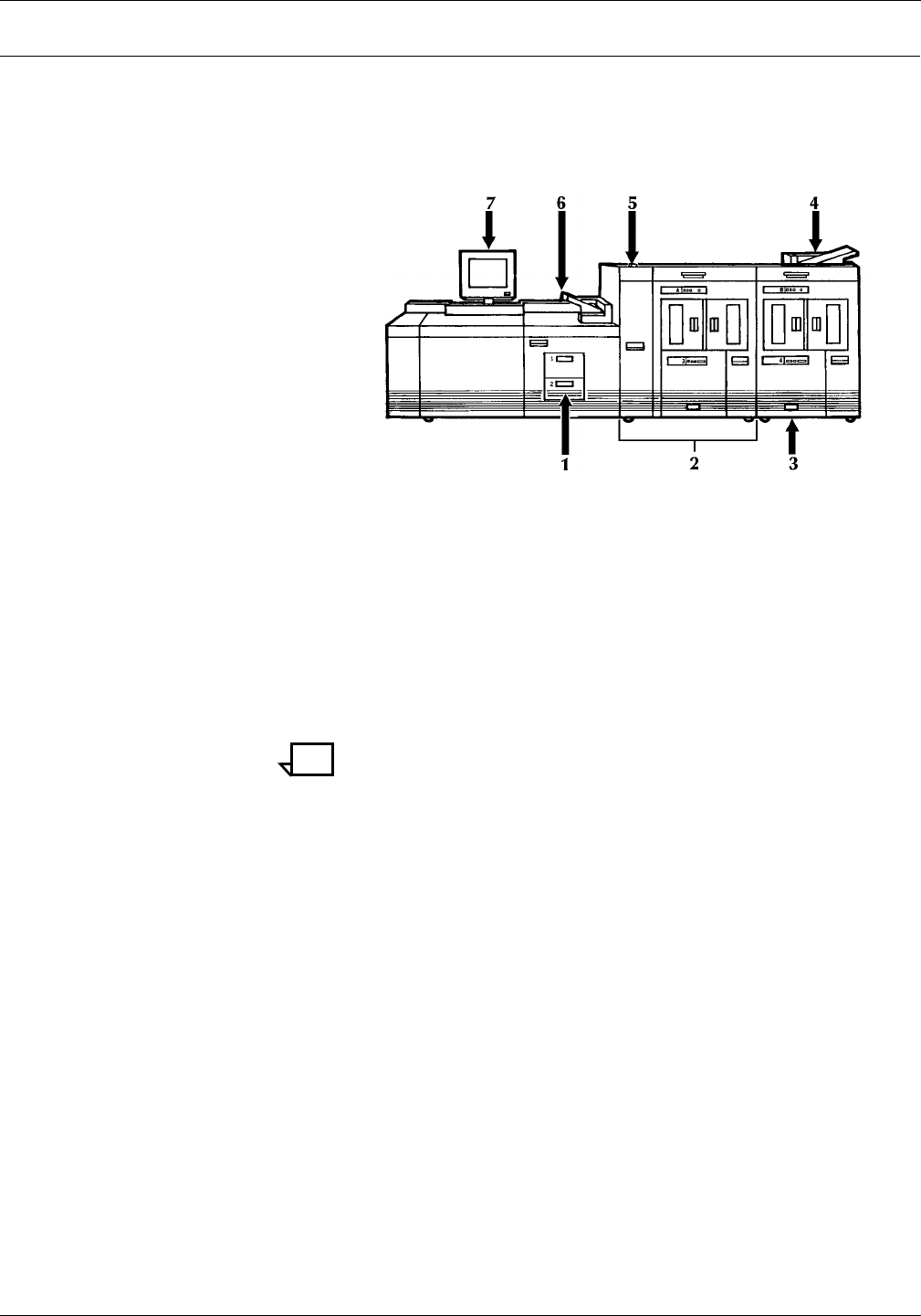

Figure 3-6. Xerox DocuPrint 180 LPS Printer
1 Processor feeder trays
2 Inverter-feeder/stacker module (containing inverter, high-
capacity feeder, and high-capacity stacker)
3 Feeder/stacker module (containing high-capacity feeder
and high-capacity stacker)
4 Purge tray
5 Attention light
6 Sample tray
7 Printer control console
Note: Configuration shown in Figure 3-6 does not depict the
optional Bypass Transport or Input Enablement feature devices.
Processor feeder tray 1 Located in the main part of the printer, the capacity of feeder tray 1 is
1,100 sheets of 20-pound/75-gsm paper.
Processor feeder tray 2 The capacity of feeder tray 2 is 600 sheets of 20-pound/75-gsm
paper.
Trays 1 and 2 can handle paper sized from 8- by 10-inch to 9- by 14-
inch/203- by 254-mm to 229- by 356-mm
High-capacity feeders (HCF)— trays 3,
4, 5, and 6
(5 and 6 optional)
Each HCF can hold up to 2,600 sheets of 20-pound/75-gsm paper as
small as 7- by 10-inch and including large paper sizes, such as
11.69- by 16.54-inch (A3), 11- by 17-inch (297- by 432-mm), and
10.12- by 14-inch (B4).
High-capacity stackers (HCS) bins— A,
B, C, and D
(C and D optional)
Each HCS can hold up to 2,500 sheets of 20-pound/75-gsm paper, if
a stacking container is not used. Printed sets can be offset in the
HCS for easier separation of reports.
Sample tray The capacity of the sample tray is 100 sheets of 20-pound/75-gsm
paper.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
3-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Purge tray The purge tray located at the top of the last feeder/stacker module is
where waste sheets are sent when cleared from the printer. The
purge tray can hold 100 sheets of paper.
Printer control console The printer control console located on top of the printer contains the
continue, stop, and sample buttons. The console has a color monitor
with a touch-sensitive screen which displays detailed graphics show-
ing jam clearance instructions and feeder/stacker status. Printer
tasks, such as lowering feeder trays and stacker bins, can be per-
formed by touching areas of the console screen.
Optional bypass transport The ability to increase your production capability by adding finishing
devices to your Xerox DocuPrint 180 LPS is made possible by the
Bypass Transport option. Finishers give you the ability to choose a
wide range of finishing options, such as shrink wrapping and
stitching. The bypass transport processes simplex and duplex jobs
and accepts any type of paper that your Xerox DocuPrint 180 LPS is
capable of handling (refer to the “Xerox DocuPrint 180 LPS overview”
chapter).
Connected to the feeder/stacker, the bypass transport allows
finishing devices to interface directly with your Xerox DocuPrint 180
LPS. It is fully integrated into your Xerox DocuPrint 180 LPS
hardware and software utilities, allowing you to select it at the UI or
within your job setup. The bypass transport meets the Xerox
Document Feeding and Finishing Architecture (DFA) Level 1
specifications.
Optional input enablement device The input enablement device is connected to the right side of the
feeder/stacker module and provides the means to add bulk feeders
to your Xerox DocuPrint 180 LPS. Fully integrated into your Xerox
DocuPrint 180 LPS hardware and software utilities, your input
enablement device is selectable at the UI or within your job setup.
Figure 3-7 shows the Xerox DocuPrint 180 LPS with the optional
bypass transport.
Figure 3-7. Xerox DocuPrint 180 LPS with optional bypass
transport
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 3-7
As shown in figure 3-8, the printer control console is where you
perform many printer adjustments and select printer functions.
Figure 3-8. Printer control console
1 Brightness control thumbwheel. Use this thumbwheel to
adjust the brightness of the printer control console display.
2 Sample button. Press this button to cause a sample sheet of
the current print job to be sent to the sample tray.
3 Stop button. Press this button to stop printing.
4 Continue button. Press this button to resume printing.
5 Clear button. Select this button to clear fault messages.
6 Guarded Tools icon. This icon is reserved for the Xerox
service representative and operators who have completed
Advanced Customer Training (ACT).
7 Tools icon. Select this icon to display call for service
information and to adjust display features of the printer control
console (for example, alarm loudness).
8 Fault icon. Select this icon to display the Fault List screen.
9 Printer icon. Select this icon to display the printer mimic. (This
is the default display on the printer control console.)
10 Language icon. Select this icon to choose the language for
the printer control console messages.
11 Message area.
12 Miscellaneous icons.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
3-8 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Appearing in the message area are the following messages:
Lines 1 and 2. These lines display the current status of the
printer, for example, READY.
Line 3. This line displays messages concerning masked
conditions, such as low dry ink. These messages are preceded
by an asterisk.
Line 4. This line displays messages concerning masked
conditions, such as low dry ink. These messages are preceded
by an asterisk.
The miscellaneous icons that appear in area 12 are as follows:
Hint icon This icon appears when a masked fault or condition exists
in the printer. (Refer to the
Xerox DocuPrint 180 LPS Operator
Guide
, “Fault masking and the printer control console” section.) The
icon also appears on the PC UI.
Fault icon This icon appears only when a fault exists in the system
that stops the printer or prevents it from printing. The icon also
appears on the PC UI.
Guarded tools icon. This icon appears when a maintenance task
requiring a Customer Productivity Workshop (CPW) trained operator
must be done. If you have successfully completed CPW, either check
the PC UI for messages concerning the maintenance task or touch
the Guarded Tools icon to display the Guarded Tools screen. If you
are not a CPW trained operator, notify your lead operator or a CPW
trained operator at your site.
Note: The bypass transport is optional and appears on the printer
control console of those systems that are configured as such.
Attention light
An attention light is mounted on top of the inverter module. (Refer to
figure 3-6.) The attention light can be enabled or disabled. (Refer to
Xerox DocuPrint 180 LPS Operator Guide
for instructions.) When
enabled, the light has three states:
Off No printer problems exist that require your attention.
Steady light A situation exists that needs your attention (such as a low dry ink
condition).
Flashing The printer has stopped and your attention is required immediately.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 3-9
Attention alarm
An attention alarm is located within the printer. Like the attention
light, the attention alarm is enabled and disabled by the operator
(refer to
Xerox DocuPrint 180 LPS Operator Guide
). When enabled,
the alarm has two states:
Off No printer problems exist that require your attention.
Beeping The printer has stopped and your attention is required immediately.
XEROX DOCUPRINT 180 LPS HARDWARE COMPONENTS
3-10 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 4-1
4. 4Xerox DocuPrint 180 LPS
software
components
This chapter describes the software components associated with the
Xerox DocuPrint 180 Laser Printing System (LPS). The major topics
are as follows:
DocuPrint 180 LPS operating system
Operating System Software (OSS) functional description
Optional host-resident software packages.
DocuPrint 180 LPS operating system
The Xerox DocuPrint 180 LPS System Software consists of the
Xerox OSS, System User Interface (UI) Software, User Interface
Dialog, and the Printer Software. The OSS is the primary software;
however, each software type working in conjunction controls and
monitors the operation of your Xerox DocuPrint 180 LPS.
The DocuPrint 180 LPS OSS, like any other operating system, is a
set of programs which allow the printing system to manage its own
resources. Xerox distributes new versions of the Xerox DocuPrint
180 LPS OSS on a quarter-inch cartridge tape. The OSS tape
contains:
New system files
A system generation processor program that is used to load the
new system files onto the system disks and configure them for
a particular system
A concatenated version of the system files and system
generation processor which is used for performing an online
system generation (wherein the processor and files are
downloaded to the printing system from a host computer)
Patch files which are used to modify the new system files for
optimal performance.
Refer to the “System software functional description” chapter for
more details on OSS contents.
The process by which the OSS is installed, upgraded, or modified is
called system generation or sysgen. There are three types of
sysgens that can be performed: mini, update, or full.
XEROX DOCUPRINT 180 LPS SOFTWARE COMPONENTS
4-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Mini sysgen In a mini sysgen, an existing operating system is modified in a way
that does not require new system file input or patching. For example,
an existing feature is deactivated or reactivated, or a specification is
changed that is independent of the operating system files.
Update sysgen In an update sysgen, an existing operating system is upgraded to
include new features or is replaced with a new version of the system.
During this process, some or all of the existing system files on the
system disks are replaced with new files; user files are not affected.
Full sysgen In a full sysgen, a new operating system is built on empty system
disks; that is, new or used disks that have been cleared and
formatted prior to sysgen.
Complete instructions for each of these sysgens are contained in the
Xerox DocuPrint 180 LPS System Generation Guide
.
The UI Software consists of two 3.5-inch floppy diskettes (one
supports the system UI Software, and one supports the UI Dialog).
The Printer Software also consists of several 3.5-inch floppy
diskettes. Refer to the “System software functional description”
chapter for further information on the System UI Software, UI Dialog,
and Printer Software.
Operating System Software functional description
The DocuPrint 180 LPS OSS, or system controller, runs both
background and foreground processing. All Xerox LPS systems are
run by basically the same software. The OSS is delivered for
installation and sysgen on quarter-inch cartridge tapes. The major
utilities or “tasks” run by the system controller are shown in their
hierarchical relationships in the chart below.
Figure 4-1 illustrates the hierarchy of the major DocuPrint 180 LPS
processing tasks. Following the figure is an overview of each task.
XEROX DOCUPRINT 180 LPS SOFTWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 4-3
Figure 4-1. Major DocuPrint 180 LPS PROCESSING TASKS
Operating system executive task The OSEXEC task is always running. It interfaces with the DocuPrint
180 LPS hardware and logs hardware errors. In addition, it queues
devices, manages resources, establishes priority for software tasks,
and schedules processing.
File control program The FCP or FMS task manages disk resources. It manages and
allocates all disk space, creates all disk files, and accesses disk files.
Operator communication subsystem The OCS task acts as an interface between the operator and
software tasks by receiving input from and displaying messages to
the operator. OCS also interfaces between system tasks.
Diagnostic tasks The OSDS runs either under the OSEXEC task or from offline
sources. It controls the processing for the PROBLEM command.
Diagnostic support is also provided to your service technician by the
stand-alone field engineering software (SAFES) task.
System utilities The DocuPrint 180 LPS has many utility programs which run under
the OSEXEC task that provide maintenance services such as:
backing up the system (DSR); tracking the unusable sectors on disks
(FCHECK); assigning a maximum size to the working print file
(REALLOCATE); eliminating wasted space on the disks
(COMPRESS); and making used space available again (PURGE).
Operating System Executive (OSEXEC)
File Control Program (FCP)
Operator Communication Subsystem (OSC))
Utilities Editor
Diagnostics Font Editor
Host Interface Processor (HIP)
FDL Processor
PDL Processor Output
Input
DJD RPT
XEROX DOCUPRINT 180 LPS SOFTWARE COMPONENTS
4-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Editor task The Editor task creates and modifies disk files. When you save a
work file, it stores the contents permanently on the disk. It sends files
to print; sends FSL and JSL files to be compiled; directs CMD files to
execute; and manipulates temporary (TMP), miscellaneous (MSC),
patch (PCH), and data (DAT) files.
Font Editor task The Font Editor task creates and modifies font files. The font files are
stored permanently on the disk when you save them.
Input task The input task reads in print job data, creates a job control block file,
and delivers job messages to the operator. Then the input task
unpacks and converts the data; selects and deletes blocks or
records; records any special processing instructions (for page
offsets, DJDE records, CMEs); and records the disk addresses of the
font, form, and image files used for the job. The result is a page
buffer, consisting of the variable data and print instructions for the
page, and the page log, consisting of tracking information used to
process the page.
Dynamic job descriptor task The DJD task compiles the Dynamic Job Descriptor Entries (DJDE’s)
in the job stream. (The DJDE’s give the printer instructions for
printing based on the result of true/false tests of the data in the job
stream).
Output task The output task uses the page logs written by the input task to load
fonts in the font memory and variable data in the AIS. It causes paper
to feed from the indicated tray and manages report integrity with
multiple checks. In addition, Output manages delivery of the printed
pages to the correct bins and performs page recovery if necessary.
Print description language compiler The PDL task loads the PDL compiler and looks in the JSL library for
the file to be compiled. Then it analyzes the JSL statements and
creates the object module (the JDL file).
Forms description language compiler The FDL task loads the FDL compiler and looks in the FSL library for
the file to be compiled. Then it analyzes the FSL statements and
creates the object module (the FRM file).
Host interface processor task The HIP task controls DocuPrint 180 LPS communications with an
online host.
Report (RPT) task Works in connection with the Input task.
XEROX DOCUPRINT 180 LPS SOFTWARE COMPONENTS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 4-5
Printer Software
The Printer Software works in conjunction with the OSS (system
controller) to print your job. The system controller interprets the user
instructions contained in JDLs, DJDEs, and operator input, as well as
the data being printed on each page. The system controller, driven
by the OSS, sends this information to the printer. Once the
information reaches the printer, it is the Printer Software that
identifies the best way to carry out the task.
User Interface Software and User Dialog Software
As with the OSS and Printer Software, the System UI Software and
the User Interface Dialog interact together to control your PC UI.
Along with establishing and managing the communication between
the PC UI and the printer, the User Interface Software displays the
objects on the UI screen and performs the actions input by the
operator, as specified within the UI Dialog.
Software
Xerox DocuPrint 180 LPS software features include:
Continuous printing even when excessive character and IG
local density stress conditions occur. Refer to
Xerox DocuPrint
180 LPS Operations Reference
for additional information.
Cluster printing (user-defined logical grouping of trays). Refer
to
Xerox DocuPrint 180 LPS Operations Reference
and to
Xerox DocuPrint 180 LPS Operator Guide
for additional
information.
Printing of over 16 images on a page. Refer to
Xerox DocuPrint
180 LPS Operations Reference
for additional information.
Variable paper sizes up to the physical capacity of the feeder
trays: 7-by 10-inches to 14- by 17-inches (178- by 254-mm to
356- by 432-mm, including A3, A4, B4, and B5). 7- by 10- inch
thruput is enabled when the optional Paper Feeding
Enhancement Kit is installed. Refer to the “Xerox DocuPrint
180 LPS edge-marking” chapter for additional information.
A two-way file transfer between the PC UI and the system
controller hard disk.
Full text editing in a window environment which supports
scrolling and text editing using the mouse and keyboard, and
allows you to print and edit concurrently.
Controlled finished sets of documents using segment
management software, and the optional bypass transport with a
finisher attached.
XEROX DOCUPRINT 180 LPS SOFTWARE COMPONENTS
4-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Optional host-resident software packages
This section describes a few of the many host-resident software
packages available for use with your Xerox DocuPrint 180 LPS. For
information on a specific program, please contact your site
representative.
Xerox Pen Plotter Interface (XPPI)/DCF
and GDDM Interface (XDGI) XPPI/XDGI is a host-resident software package (on IBM MVS or VM/
CMS) that translates computer-generated text and graphics into
high-quality images that can be printed on a Xerox DocuPrint 180
LPS. A host-independent version of XPPI/XDGI is also available for
non-IBM users. Refer to XPPI/XDGI documentation for more
information.
Host Forms Description Language
(HFDL) HFDL is a host-resident forms design software package (on IBM
MVS or VM) that allows forms to be created, changed, and merged
with data at the host for printing.
Xerox Printer Access Facility (XPAF) XPAF enhances the capabilities and use of your DocuPrint 180 LPS
in an IBM MVS/XA environment. For example, it allows you to
change printer destinations without restructuring the data stream.
XPAF accepts numerous types of data streams, transforms or
conditions them, and then sends them to the selected printer. To
users of IBM Advanced Function Printing (AFP), XPAF appears to be
an extension of the IBM product.
Note: Consult with your sales representative about the appropriate
options for your laser printing system.
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-1
5. 5Product differences/user
considerations
Your Xerox DocuPrint 180 Laser Printing System (LPS) has many
unique standard and optional features which distinguish it from other
Xerox LPS. Your Xerox DocuPrint 180 LPS is capable of running
most jobs created on other Xerox LPS, and can create jobs to print
on other LPS. The “DocuPrint 180 LPS compatibility and
comparison” section of this chapter points out the unique qualities of
your Xerox DocuPrint 180 LPS, and helps you evaluate whether your
Xerox DocuPrint 180 LPS running software version 3C2 is a suitable
backup printer for another Xerox LPS.
In order to ensure your jobs are created and produced with the
highest quality, there are many things you need to consider. The
“Xerox DocuPrint 180 LPS user considerations” section addresses
such items in the following major sections:
DocuPrint 180 LPS compatibility and comparison
Xerox DocuPrint 180 LPS user considerations.
DocuPrint 180 LPS compatibility and comparison
The tables in the sections that follow identify what you need to
consider when using your Xerox DocuPrint 180 LPS for printing jobs
created on other Xerox LPS with different software versions. They
also point out those features which are unique to your Xerox
DocuPrint 180 LPS. The tables are not designed to address
compatibility issues in an all-inclusive manner. Use them to make a
high-level check when you want to know if your Xerox DocuPrint 180
LPS will process and print a particular job.
Each table addresses a different area of consideration from PDL
commands to paper sizes and stocks. Often there is no need for any
further checking because the tables provide the answer. Other times
they show you where further investigation is needed, or suggest
specifically what you should check, either on your Xerox DocuPrint
180 LPS or in the print job. You may need to refer to another manual
in your Xerox DocuPrint 180 LPS reference set for detailed guidance
on running a particular type of job or altering a job to make it
compatible with your Xerox DocuPrint 180 LPS.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
In order to evaluate whether your Xerox DocuPrint 180 LPS running
software version 3C2 can be used as a suitable backup printer for a
print job created on another Xerox LPS running a different software
version, you must consider many factors. To help you begin the task
of determining if a job will run on your Xerox DocuPrint 180 LPS, use
this checklist for basic job compatibility:
1. Are font character sets required by the job loaded on the Xerox
DocuPrint 180 LPS?
2. Are forms required by the job loaded on the Xerox DocuPrint
180 LPS?
3. Is the allocated size of the print file on the Xerox DocuPrint 180
LPS appropriate for the print job?
4. Is the current forms default on the Xerox DocuPrint 180 LPS
appropriate for the print job?
5. Is the current graphics default on the Xerox DocuPrint 180 LPS
appropriate for the print job?
6. Is the current font default on the Xerox DocuPrint 180 LPS
appropriate for the print job?
7. Does the Xerox DocuPrint 180 LPS have sufficient memory for
the print job?
8. Does the print job require a finishing device?
9. Does the print job require a configured XPAF, HIP, or SDI
connection?
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-3
Using your Xerox DocuPrint 180 LPS as a backup LPS
Tables 5-1 through 5-6 identify particular job features to consider
when printing a job on your Xerox DocuPrint 180 LPS which was
created on another Xerox LPS running a different software version.
Each table contains specific job features which may be encountered,
the projected results when printed on your Xerox DocuPrint 180 LPS,
and where to find further information.
Table 5-1. Will this 4635 (V3A R1.7) job print on my Xerox
DocuPrint 180 LPS
Job features from 4635
(V3A2 R1.7) Results when run on DP 180 LPS
Programmable bypass
transport Job prints if DP 180 LPS has a bypass
transport and the finishing device is
required by the job. Otherwise, it does
not run.
Clusters Job prints. Operator needs to redefine
clusters if trays differ.
Edgemarking Job prints
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if substi-tutions for these fonts
are defined.
Graphics Job prints if sufficient graphic memory is
available.
Labels Job prints using only paper labels. Refer
to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Page density Job prints.
Paper sizes Job prints.
Paper stock Job prints if it does not use edge
reinforced 3-hole stock.
Stitch commands No stitcher available on DP 180 LPS,
therefore stitch commands are ignored
and job prints unstitched.
Transparencies Job prints.
MICR A message will appear stating that the
system is not configured for this feature.
Bar Code A message will appear stating that the
system is not configured for this feature.
Interpress A message will appear stating that the
system is not configured for this feature.
XNS A message will appear stating that the
system is not configured for this feature.
Ethernet A message will appear stating that the
system is not configured for this feature.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Table 5-2. Will this 4050/4090 (V3.5) job print on my Xerox
DocuPrint 180 LPS
Job features from 4050/
4090 (V3.5) Results when run on DP 180 LPS
Programmable bypass
transport Job prints if DP 180 LPS has a bypass
transport and the finishing device is
required by the job. Otherwise, it does
not run.
Clusters Job prints. Operator needs to redefine
clusters if trays differ.
Edgemarking Job prints
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if substi-tutions for these fonts
are defined.
Graphics Job prints if sufficient graphic memory is
available.
Labels Job prints using only paper labels. Refer
to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Page density Job prints.
Paper sizes Job prints.
Paper stock Job prints if it does not use edge
reinforced 3-hole stock.
Stitch commands No stitcher available on DP 180 LPS,
therefore stitch commands are ignored
and job prints unstitched.
Transparencies Job prints.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-5
Table 5-3. Will this 4650 (V3.5) job print on my DP 180 LPS?
Job features from 4650
(V3.5) Results when run on DP 180 LPS)
Clusters Job prints. Operator needs to redefine
clusters if tray differs.
Edgemarking Job prints.
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if sub-stitutions for these fonts
are defined.
Graphics Job prints if sufficient graphic memory is
available and input source is 300 dpi
resolution.
Labels Job prints using only paper-faced labels.
Refer to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Page density Job prints.
Paper sizes Job prints.
Paper stock Job prints if it does not use edge
reinforced 3-hole stock.
Stitch commands No stitcher available on DP 180 LPS,
therefore stitch commands are ignored
and job prints unstitched.
600 dpi input Job prints in 300 dpi. The 4650 LPS is
the only Xerox LPS that accepts 600 dpi
input.
300 dpi with interpolated
600 dpi output Job prints.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Table 5-4. Will this 4850 (V3.7) job print on my DP 180 LPS?
Job features from 4850
(V3.7) Results when run on DP 180 LPS
Clusters Job prints. Operator needs to redefine
clusters if trays differ.
Color Jobs will compile, process and print in
black ink and shades of gray. The
system will alert the operator if a job will
not print correctly, but the system will not
roll over. Precompiled color forms will
print in black and shades of gray,
however, the DP 180 LPS does not
compile color forms.
Edgemarking Job prints.
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if sub-stitutions for these fonts
are defined.
Graphics Job prints if sufficient graphic memory is
available.
Labels Job prints using only paper-faced labels.
Refer to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Paper density Job prints.
Paper sizes Job prints.
Paper stock Job prints.
Stitch commands No stitcher available on DP 180 LPS. As
a result, stitch commands are ignored
and job prints unstitched.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-7
Table 5-5. Will this 9790 (V2) print on my DP 180 LPS?
Job features from 9790
(V2.1) Results when run on DP 180 LPS
Edgemarking Job prints.
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if sub-stitutions for these fonts
are defined.
Graphics Job prints if graphic memory is available.
Labels Job prints using only paper labels. Refer
to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Page density Job prints.
Paper sizes Job prints with the exception of 7- by 12-
inch paper.
Paper stock Job prints with the exceptions of edge
reinforced 3-hole paper and envelopes.
Table 5-6. Will this 8790 (V2) print on my DP 180 LPS?
Job features from 8790
(V2.1) Results when run on DP 180 LPS
Edgemarking Job prints.
Fonts Job prints if the fonts and character sets
used are loaded on the DocuPrint 180
LPS or if sub-stitutions for these fonts
are defined.
Graphics Job prints if graphic memory is available.
Labels Job prints using only paper-faced labels.
Refer to the
Xerox DP 180 LPS Operator
Guide
for loading instructions.
Paper density Job prints.
Paper sizes Job prints.
Paper stock Job prints with the exceptions of edge
reinforced 3-hole paper.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-8 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Checking paper sizes and special stocks
If your job requires a particular paper size, you need to make sure
your Xerox DocuPrint 180 LPS can handle it. Table 5-7 identifies the
paper sizes that will run in your Xerox DocuPrint 180 LPS, as well as
the other Xerox LPS.
Note: Any paper size smaller than 8 inches must have the 7- by 10-
inch Paper Feeding Enhancement Kit installed.
If your job requires specialty paper, you will need to check whether
your Xerox DocuPrint 180 LPS can handle it. Table 5-8 identifies
Table 5-7. Paper sizes for the LPS
Paper size
(inches) DP180
& 4635
4050/
4650/
4090 4850/
4890 9790 8790
8.5 by 11 * * * * *
8.27 by 10.63 *
8.27 by 11.69
(A4) *******
8.27 by 13 *
8.37 by 10.78 *
5.83 by 8.27
(A5) *
7.17 by 10.12
(B5)*** *
7 by 12*** *
8 by 13 * *
8.5 by 5.5 *
8.5 by 10.75 *
8.5 by 12.4 *
8.5 by 13 * *
8.5 by 14 * * * *
8 by 10 *
8 by 10.5 * *
10.12 by 14.33
(B4) *
11 by 17 *
11.69 by 16.54
(A3) *
* With variable paper size option
** Available as standard on international version.
***Only if optional Paper Feeding Enhancement Kit is installed.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-9
which type of speciality paper and stock will run in your Xerox
DocuPrint 180 LPS, as well as the other Xerox LPS.
Note: On the Xerox DocuPrint 180 LPS, transparencies must be
loaded as a special stock in tray 1 or 2, and delivered to the sample
Table 5-8. Specialty paper and stock for the LPS
Specialty
paper/stock DP180
& 4635
4050/
4650/
4090 4850 9790 8790
Cardstock (up to
110-pound) *****
Divider stock
(65-pound) *****
Index stock (90-
pound) *****
Image series
elite (20-pound) *****
Reinforced 3-
hole ** **
Carbonless
paper ***
Antique
parchment (24-
pound)
*****
Envelopes *
Labels (self
adhesive) ****
Labels (high-
speed) *****
Perforated * $ * * *
Predrilled * * * * *
Preprinted * $ * * *
Tinted * * * * *
Transparencies * * * ** *
Zero solvent
vellum (20-
pound)
*****
Never-tear
paper *****
* With special materials feeder.
** High-speed paper-backed transparencies only.
$ Please read all special instructions for 4050/4650, and 4090 in
Operator Guide before using this stock.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-10 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
tray. Refer to the
Xerox DocuPrint 180 LPS Operator Guide
for
loading instructions.
Note: Paper sizes with differences exceeding +25 mm in either
dimension cannot stack in the same bin. Feed Auto must be used,
and manual collation of the job is required upon completion. Some
applications written for a 9700F printer using multiple sizes (e.g. 8 X
11 variable data merge with 8.5 X 11 forms) may not run on the
DocuPrint 180 LPS due to added capability for paper size checking
between feed trays and user defined paper size statements in the
JSL/FSL.
Comparing DocuPrint 180 LPS print job resolution
Since Xerox laser printing systems have different print resolution
capabilities, it is important to compare the print resolution
functionality of your Xerox DocuPrint 180 LPS and of the LPS the job
was created on. Table 5-9 illustrates the print resolution
functionalities of the Xerox LPS.
Note: 600 dpi jobs can be created and compiled on an LPS only if
600 dpi fonts are loaded. Likewise, 300 dpi jobs can be created and
compiled on an LPS only if 300 dpi fonts are loaded.
Table 5-9. Print resolution of print jobs created or printed on
LPS
Paper resolution
functionality DP180
& 4635 4050 4650 4090 4850 9790 8790
Creates and prints
300 dpi jobs * * ****
Creates 300 dpi
jobs but prints in
600 dpi
**
Creates and prints
600 dpi jobs *
Creates but does
not print 600 dpi * ****
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-11
Checking JDL compatibility
Job descriptor libraries (JDLs) are collections of compiled job
descriptions which are set up by the user. Many jobs may be
compiled on one LPS and run on another. Table 5-10 shows how
your Xerox DocuPrint 180 LPS handles JDL’s from other LPS.
Table 5-10. How the DocuPrint 180 LPS handles JDL’s from
other LPS
JDLs from the following
LPS Printed results if run on the DP180
LPS
4635 LPS (V3A) Prints the same as source LPS.
4850 LPS (300 dpi, color)
(V3.7) Prints in black ink and shades of gray
only. If job includes two-color
graphics, job aborts.
4890 LPS (300 dpi, color)
(V5.0) Prints in black ink and shades of gray
only. If job includes two-color
graphics, job aborts.
4050, 4090 LPS (300 dpi)
(V3.5) Prints the same as source LPS.
4650 LPS (300 dpi) (V3.5) Prints on DocuPrint 180 LPS. (Does
not print on 4650.)
4650 LPS (600 dpi) (V3.5) Does not print.
9790/8790 (300 dpi) (V2.1) Prints the same as source LPS.
DocuPrint 96 LPS (300 dpi)
(V3B) Prints on DocuPrint 180 LPS.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-12 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Checking PDL compatibility
Print Description Language (PDL) commands define the format of
the input media, processing requirements, and the format of the
printed output. Each command has a set of parameters that can be
used to define a print job’s characteristics. Table 5-11 shows the
PDL command parameters that your Xerox DocuPrint 180 LPS does
not process. However, your Xerox DocuPrint 180 LPS processes
other parameters associated with the command.
PDL commands which the Xerox DocuPrint 180 LPS does not
process are indicated by an asterisk.
Table 5-11. PDL parameters and commands not accepted by
the DocuPrint 180 LPS
Command Parameter
ABNORMAL IMISMATCH
ISUBSTITUTE
ac:CME INKS
*IDR ICATALOG
ILIST
PALETTE
LINE INKINDEX
OUTPUT IDFAULT
IDR
IRESULT
XMP
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-13
Table 5-12 shows the PDL command parameters that are unique to
your DocuPrint 180 LPS, and will not run on any other LPS except
the 4635 LPS.
Table 5-12. PDL command parameters unique to the DocuPrint
180 LPS
Command Parameter
MESSAGE *BTEXT
OUTPUT DESTINATION (EXPORT
options)
INVERT
OSTK
PAPERSIZE (A3 and B4
options)
SEFFNT
SF1FUNCTION
SEFMAP
SF2FUNCTION
SYSPPR
TMODE
TRANS
XSHIFT
RFEED
SEFFNT MAP
SEFMAP
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-14 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Your Xerox DocuPrint 180 LPS is capable of processing DJDEs that
other LPS cannot handle. Table 5-13 shows the DJDEs that are
unique to your Xerox DocuPrint 180 LPS.
DocuPrint 180 LPS comparison
Table 5-14 compares hardware and software features, optional
connections, and specific abilities of your Xerox DocuPrint 180 LPS
and other Xerox LPS.
Table 5-13. DJDEs unique to the DocuPrint 180 LPS
DJDEs
BTEXT
INVERT
MAP
SEFFNT
SEFMAP
SF1FUNCTION
SF2FUNCTION
TMODE
TRANS
XSHIFT
Table 5-14. DocuPrint 180 LPS product comparison table
Feature DP180 4635 4050 4090 4650 4850 8790 9790
LPS optional connections
On-line (3811/3211
interface) Yes Yes Yes Yes Yes Yes Yes Yes
On-line (4245 interface) Yes Yes No No No Yes Yes Yes
Off-line (9- and/or 18-track
tape) No Yes Yes Yes Yes Yes Yes Yes
Off-line (9- and/or 18/36-
track tape) YesNoNoNoNoNoNoNo
871-CM: SNA/SDLC and
BSC (OEM interface) No No Yes Yes Yes Yes Yes Yes
XNS (Ethernet interface) No Yes Yes Yes Yes Yes Yes Yes
DMR (DEC interface) No No Yes Yes Yes Yes No No
850/860 Communication
option No No No No No No Yes Yes
Dynamic Document
Interface Yes Yes No No No Yes No No
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-15
System controller
System disk capacity (MB):
Standard 3-1.2Gb 1-1.2Gb 2-50Mb 2-170Mb 2-170Mb 2-182Mb 2-50Mb 2-50Mb
Optional 1-1.2Gb up to 4-
1.2Gb 2-50Mb 2-
170Mb
or 2-
380Mb
2-
170Mb
or 2-
380Mb
2-
182Mb
or 2-
380Mb
2-50Mb 2-50Mb
Multinational terminal No Yes Yes Yes Yes Yes Yes Yes
PC UI graphic interface Yes Yes No No No No No No
Control memory 1024K 1024K 512K 512K 512K 512K 512K 512K
Font memory (Mbits) 2566486464328 8
Expandable to (Mbits) NA 256 16 128 128 128 16 16
Floppy drive 3.5 in
(opt) 5.25 in/
3.5 in
(opt)
5.25 in 5.25 in 5.25 in 5.25 in 5.25 in 5.25 in
Advanced Imaging System
(AIS) Yes Yes No No No No No No
GVG memory (Mbits) NoNoNo32 32 32NoNo
Expandable to Mbits No No No 256 256 256
GHO memory (Mbits) No No 8 8 No No 8 8
32-track cartridge tape drive No No Yes Yes Yes No No No
Quarter-inch cartridge (QIC)
tape drive Yes Yes No No No Yes No No
Printer
Rated speed (PPM) 180 135 50 92 50 50 72 120
Output resolution (dpi) 600 with
ERI 300 input
interpo-
lated to
600
output
300 300 600 300 300 300
Image area (inches) Up to 17
by 14
432- by
356-mm
Up to 17
by 14.33
43- by
364-mm
8.6 by
13.65 8.6 by 14 8.6 by 14 8.62 by
14 8.66 by
12 8.66 by
12
Duplex printing Standard Standard Standard Standard Standard Standard Standard Standard
Sample tray capacity
(sheets) 100 100 100 100 100 100 25 25
Stacker options:
Dual stacker (capacity per
tray) No No 750 750 750 750 500 1500
Table 5-14. DocuPrint 180 LPS product comparison table
Feature DP180 4635 4050 4090 4650 4850 8790 9790
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-16 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Stitcher/stacker (unstitched
sheets) No No 2000 2000 2000 2000 No No
High-capacity stacker
(HCS)
Bin A 2500 2500 No No No No No No
Bin B 2500 2500 No No No No No No
Bin C 2500
(opt) 2500 No No No No No No
Bin D 2500
(opt) 2500 No No No No No No
Feeder options:
Dual feeder trays
Tray 1 (Main) capacity
(sheets) 1100 1100 1000 1000 1000 1000 2500 2500
Tray 2 (Aux) capacity
(sheets) 600 600 500 500 500 500 500 500
Expanded aux tray No No No No No No 2500 2500
High-capacity feeder
(HCF)
Tray 3 capacity (sheets) 2600 2600 1000 1000 1000 1000 No No
Tray 4 capacity (sheets) 2600 2600 1000 1000 1000 1000 No No
Tray 5 capacity (sheets) 2600
(opt) 2600 No No No No No No
Tray 6 capacity (sheets) 2600
(opt) 2600 No No No No No No
Forms
Electronically created/
stored Yes Yes Yes Yes Yes Yes Yes Yes
Page-to-page changeability Yes Yes Yes Yes Yes Yes Yes Yes
Preprinted forms Yes Yes Yes Yes Yes Yes Yes Yes
Fonts
Proportional or fixed space Yes Yes Yes Yes Yes Yes Yes Yes
Multinational character set Yes Yes Yes Yes Yes Yes Yes Yes
Standard character sizes
(pt) 3-36 3-36 4-24 4-24 6-36 4-36 4-24 4-24
Max. no of fonts per page 128 128 128 128 128 128 95 95
Downloadable from host Yes Yes Yes Yes Yes Yes Yes Yes
Table 5-14. DocuPrint 180 LPS product comparison table
Feature DP180 4635 4050 4090 4650 4850 8790 9790
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-17
Note: Within the DocuPrint 180 LPS Reference set, spots, dots,
and pixels are used interchangeably.
Resolution (300 spi or 600 spi) applies to both coordinate axes.
Floppy disk loadable Yes (opt) Yes (opt) Yes Yes Yes Yes Yes Yes
Magnetic tape loadable Yes (opt) Yes (opt) Yes Yes Yes Yes Yes Yes
Resolution (dpi) 600 with
ERI 300 input
interpo-
lated to
600
output
300 300 600
300 300 300 300
Logo and signature fonts Yes Yes Yes Yes Yes Yes Yes Yes
Character-to-character
selectable Yes Yes Yes Yes Yes Yes Yes Yes
Paper
Variable paper sizes**
(inches) 7 by 10
to 14 by
17 (178
by 254
mm to
356 by
432 mm,
incl. A4,
A3, B4,
B5)
7 by 10
to 14.33
by 17
(178 by
254 mm
to 365 by
432 mm,
incl. A4,
A3, B4,
B5)
8 by 10
to 8.5 by
14 (incl.
A4)
8 by 10
to 8.5 by
14 (incl.
A4)
8 by 10
to 8.5 by
14 (incl.
A4)
8 by 10
to 8.5 by
14 (incl.
A4)
8.5 by 11
or 8.5 by
14 or A4
8.5 by 11
or 8.5 by
14 or A4
Weight: index, cut-sheet,
colored, preprinted,
predrilled or perforated
paper
16-110
lb. (60-
200 gsm)
16-110
lb. (60-
200 gsm)
20-110
lb. (80-
200 gsm)
20-110
lb. (80-
200 gsm)
20-110
lb. (80-
200 gsm)
20-110
lb. (80-
200 gsm)
16-110
lb. (60-
200 gsm)
16-110
lb. (60-
200 gsm)
Transparencies Yes Yes Yes Yes No Yes No No
* Use high-speed transparencies only in the 4635 LPS and DP180 LPS, and they must be output to the sample tray.
**7- by 10-inch thruput on the 4635 and DP180 LPS is enabled when the optional Paper Feeding Enhancement Kit
is installed.
Table 5-14. DocuPrint 180 LPS product comparison table
Feature DP180 4635 4050 4090 4650 4850 8790 9790
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-18 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox DocuPrint 180 LPS user considerations
This section describes Xerox DocuPrint 180 LPS user
considerations.
Xerox DocuPrint 180 LPS edgemarking
To ensure consistency across all Xerox LPS printers, the coordinate
system used by all printers is identical. However, the area upon
which an actual image may appear is limited. Because of this, data
which starts near the edge of or off of the physical page may be lost.
Edgemarking is the placement of marks at or near the edge of the
physical page. To accommodate edgemarking, the system page
must be larger than the physical page.
The Xerox DocuPrint 180 LPS edgemarking capability could be
limited if the system page boundaries correspond to the sides of the
physical page of paper.
If any part of a form element or variable data line is positioned off the
leading edge of the system page (that is, the top edge of a
landscape-oriented page or the left edge of a portrait-oriented page),
the entire data element is not imaged. Refer to figure 5-1.
If a line of variable text begins off the leading edge of the
system page, the entire line of text is not printed.
If a ruled line begins off the leading edge of the system page,
the entire ruled line is not printed.
A line running parallel to the leading edge needs to be
positioned at least half the line thickness inside the leading
edge of the system page in order to be printed. For example, a
bold line is 8 dots thick and it must, therefore, be positioned at
least 4 dots inside the leading edge of the system page.
If any part of a signature or logo begins off the leading edge of
the system page, the entire signature or logo is not printed.
One common cause of print elements accidentally beginning off
the system page is the improper use of the OUTPUT SHIFT
command. This command is used to shift the entire contents of
a page relative to the boundaries of the system page. When a
negative shift value is entered (as is often the case for the back
side of duplex pages), and that value exceeds the left margin,
no text elements will print. When using a negative value for the
OUTPUT SHIFT command, be sure that it is less than the value
of the left margin.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-19
Figure 5-1 illustrates the edgemarking considerations for a portrait
page.
Figure 5-1. Edgemarking a portrait page
1 System page leading edge
2 Physical page leading edge
3 Within system page, data will edgemark
4 Off system page, data will not print.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-20 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE

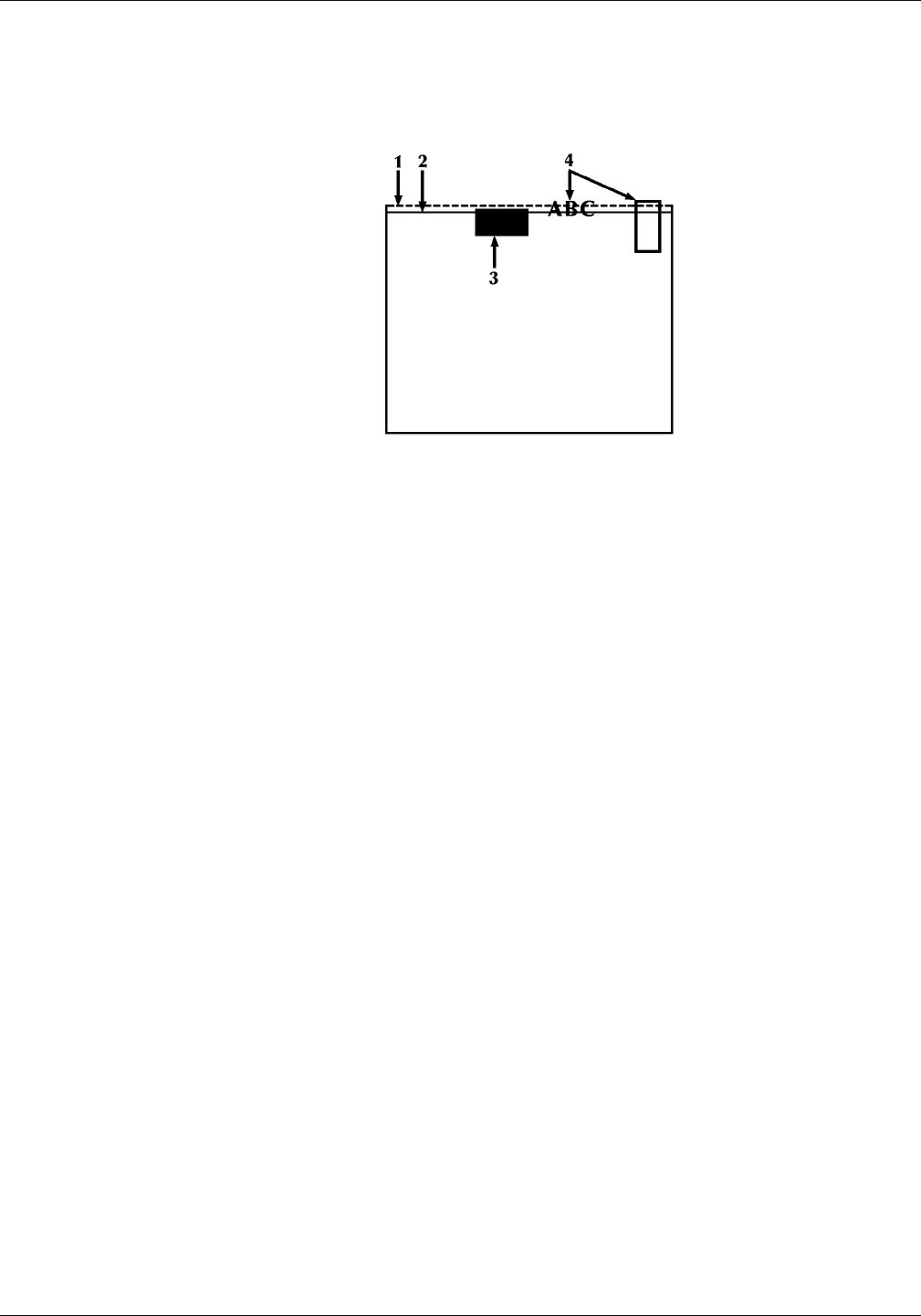

Figure 5-2 illustrates the edgemarking considerations for a
landscape page.
Figure 5-2. Edgemarking a landscape page
1 System page leading edge
2 Physical page leading edge
3 Within system page, data will edgemark
4 Off system page, data will not print.
To determine whether or not an item has fallen off the system page,
the following formulas may be used in determining the number of
dots (1/300 of an inch) which make up the area between the leading
edge of the system page and the leading edge of the physical page.
For 8.5- by 11 or 8.5- by 14-inch paper, the formula is:
Printer alignment in scan direction -1
For A4 paper, the formula is:
Printer alignment in scan direction +69
If any part of an item begins more than this number of dots before the
leading edge of the physical page, the item falls off the system page
and does not print.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-21
Registration shift and skew
The registration of a printed image can appear shifted or skewed on
a page if the sheet of paper is misaligned as it enters the printer.
Because of the design of the DocuPrint 180 LPS feeder, the image
registration on each page can vary slightly both horizontally and
vertically by up to 0.65 mm. The image can also be slanted or
skewed slightly by 3.97 milliradians. (Figures 5-3 and 5-4 illustrate
landscape and portrait shift and skew.) Note that the following figures
are the same specifications merely rotated to show portrait and
landscape orientations. The shift and skew variances described here
are within allowable specifications, but as this can affect the
registration of variable data in preprinted forms and the placement of
images close to the edge of the page, it is important to make
allowance for this condition.
Figure 5-3 illustrates the landscape orientation shift and skew.
Figure 5-3. Landscape orientation shift and skew (8.5- by 11-
inches)
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-22 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Figure 5-4 illustrates the portrait orientation shift and skew.
Figure 5-4. Portrait orientation shift and skew (8.5- by 11-
inches)
Paper size
The following sections describe paper sizes.
Variable paper size Page dimensions up to the physical capacity of the feeder trays may
be selected. (The largest feeder tray physical capacity is 14 by 17
inch; the smallest is 7 by 10 inch with the optional Paper Feeding
Enhancement Kit installed). At system generation (sysgen), you can
select USLETTER, USLEGAL, or A4; or you can select “other” and
specify any paper size between the smallest and largest allowed (x
by y) in millimeters. 11- by 17-inch/297- by 432-mm jobs are not
supported, however, your Xerox DocuPrint 180 LPS handles 11- by
17-inch/297- by 432-mm IMG jobs.
The use of the PAPERSIZE command in PDL and the PAPER
command in FDL permits form compilation and job printing on a size
of paper other than the sysgened paper size and allows the
specification of nonstandard paper sizes for those jobs requiring
nonstandard paper
It is recommended that you sysgen to the largest size paper that you
commonly use. Smaller and less-used paper sizes should be
specified using PDL and FDL commands.
Refer to
Xerox DocuPrint 180 LPS PDL Reference
and
Xerox
DocuPrint 180 LPS Forms Creation Guide
for more information on
commands.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-23
System page size
The Xerox DocuPrint 180 maximum imaging area (that is, the system
page) measures 14- by 17-inches.
Virtual page size
The default virtual page size is identical to the physical page size. If
a virtual page size is user-defined, the virtual page is centered
relative to the physical page. A user-defined virtual page may not be
larger than the paper size value; larger dimensions are truncated.
Error messages
If any part of a print line originates off the system page, the following
message is displayed:
OS6905 DATA ORIGIN OFF PAGE -- CHECK OUTPUT.
This message appears only once during a print job. It indicates a
print line origin problem within the form description or an excessive
SHIFT value. Refer to
Xerox LPS Forms Creation Guide
and
Xerox
DocuPrint 180 LPS Message Guide
for more information.
Deletions
The Xerox DocuPrint 180 printer utilizes the newest xerographic
advancements, providing good solid black print quality and spot
control. However, in certain circumstances, there is a possibility that
toner from the photoreceptor may not completely transfer to a sheet
of paper before it is fused and sent to the output bin. This occurrence
is known as a deletion. Generally, deletions will result in a small area
of the printed page appearing lighter than the rest of the page. For
example, a few letters of a word may appear lighter than the rest of
the word.
To help reduce the occurrence of deletion, the Xerox DocuPrint 180
printer has been fitted with a four-segment transfer blade which
presses the paper onto the photoreceptor during toner transfer. This
blade is automatically activated based on the paper size setting in the
job descriptor and does not involve any operator interaction or loss of
productivity.
There are two different transfer blades: one for 60Hz systems and
one for 50Hz systems. Each blade can adjust to four paper size
lengths as follows:
60 Hz blade: 11-, 11.69-, 13-, and 14-inch (279-, 297-, 330-,
356-mm)
50 Hz blade: 10-, 11-, 11.69-, and 13-inch (254-, 279-, 297-,
330-mm).
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-24 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Thus, if you switch from 8.5- by 11-inch/216- by 279-mm to U.S. legal
(8.5- by 14-inch/216- by 356-mm), the 11-inch/279-mm segment is
utilized first, then the additional blade extension to 14-inch/356-mm
is activated automatically when the legal size paper is encountered.
Two points to note:
For page lengths in between the preset blade lengths, there
may be some deletion on paper that extends past the blade.
The rate of occurrence of deletions varies widely, depending on
paper stock, and should be tested. Also, note that no deletion
will be noticed if no data is printed on the portion of paper that
extends past the blade.
If you frequently use non-standard size paper, a custom
transfer blade kit is available for installation on your printer. For
more information on the custom transfer assist blade, refer to
the
Xerox DocuPrint 180 LPS Operator Guide
.
The activation of the blade is timed to place it on the lead edge
of the sheet of paper as it moves through the system. The
placement of the activation can vary with the actual speed of
paper. Therefore, performance may demonstrate some
deletions on the lead 0.25-inches/6-mm of the page. In
particular, solid black lines on the lead edge of the page should
be avoided if this is a major concern to you.
A consideration resulting from the very solid black characters that the
DocuPrint 180 LPS can print is that toner on the lead edge of the
paper may cause the sheet to stick to the fuser, due to the
consistency and solidness of the toner. In order to eliminate fuser
jams caused by this condition, the system uses a digital screen to
lighten automatically any solid areas printed in the first 0.25 inches/
6mm of the lead edge. If the solid areas are small, the amount of
screen is barely noticeable, if at all. However, with very large solid
black areas, the effect may not be acceptable. The system does
provide an override using the Lead Edge Screen window at the PC
UI, or the EDGE command entered at the command line. This
window or command allows you to enable or disable the lead edge
screen; however, overriding the screen in this manner is likely to
increase fuser jams.
For particular applications, it is recommended that you run test prints
both with and without the screen to ascertain which mode is most
appropriate for you.
For more information on the Lead Edge Screen window, refer to the
Xerox DocuPrint 180 LPS Operator Guide
or the
Xerox DocuPrint
180 LPS PC User Interface Reference
. For more information on
entering the EDGE command at the command line, refer to the
Xerox
DocuPrint 180 LPS Operator Guide
or the
Xerox DocuPrint 180 LPS
Operations Reference
.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-25
Print Darkness
The Xerox DocuPrint 180 LPS provides you with capabilities for
tuning your output print quality to meet the particular needs of your
application. The Print Darkness window at the PC UI is a feature
which allows you to adjust darkness of printed characters and
images. Print darkness is a scale from 1 to 9, which either darkens
or lightens the image, as well as broadening or thinning the look of
various characters. The nominal setting is 5, which provides the
optimal mix of darkness and line thickness.
It is recommended that you test the Print Darkness feature to
determine the best setting for your site or application. For more
information on the Print Darkness window, re
fer to the Xerox
DocuPrint 180 LPS Operator Guide or to the Xerox DocuPrint 180
LPS PC User Interface Reference
. For more information on entering
the DARKNESS command at the command line, refer to the
Xerox
DocuPrint 180 LPS Operator Guide
or the
Xerox DocuPrint 180 LPS
Operations Reference
.
Interpolation and scanned images
The Xerox DocuPrint 180 LPS accepts 300 spi data and prints it
using a 600 spi dual beam raster output scanner (ROS). To convert
300 spi input data to 600 spi print output, the system uses an
interpolation algorithm to smooth lines and improve the quality of 300
spi fonts and line art.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-26 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Switching paper size and feed modes
The Xerox DocuPrint 180 LPS system operates in a multiple-pitch
print mode: 8 pitch to 3 pitch.
The multi-pitch feature allows your Xerox DocuPrint 180 LPS to
adjust the pitch mode according to the width of the paper you are
using. Table 5-15 shows the relation between the pitch mode, the
maximum width of the paper being fed in a long edge feed mode, and
the page per minute (PPM) rate. Long edge feed mode means the
sheet is fed into the paper path with its long edge first.
For papers whose widths range from 8.66 to 9 inches, the Xerox
DocuPrint 180 prints with slightly reduced productivity at 180 pages
per minute, with seven-page images per photoreceptor revolution.
Productivity is slightly reduced because in order to maintain print
speed for papers of this size, the system must temporarily suspend
xerographic print quality checks. The Xerox DocuPrint 180 maintains
the highest print quality by periodically reducing printer output to
perform xerographic print quality checks. After a print quality check,
the system automatically resumes printing at full productivity.
Table 5-15. Pitch codes
Pitch mode Maximum paper
width PPM rate
3 pitch 17 inches/431 mm 77 PPM
4 pitch 15.3 inches/389
mm 103 PPM
5 pitch 12.1 inches/308
mm 128 PPM
6 pitch 10.2 inches/259
mm 154 PPM
7 pitch 9 inches/229 mm 180 PPM
8 pitch* 7.4 inches/188 mm 206 PPM
*8 pitch is enabled only with the optional Paper Feeding
Enhancement Kit installed.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 5-27
Cleaning time between pitch mode changes
Because the xerographic process places toner images on the
photoreceptor belt, it is necessary for the printer to clean the system
completely when switching to different modes. This cleaning process
ensures that unprinted toner from one pitch mode is not deposited on
sheets running in the other mode. This cleaning process requires
approximately 25-30 seconds, during which time the system “dead
cycles” before printing again. During this time, areas of the printer
are running, but paper is not fed through the system.
Specialized papers The Xerox DocuPrint 180 printer handles paper differently from the
9790 and other Xerox LPS. Paper sensors and the paper path are
not the same from one printing product to another. An application
running special papers on a 9790, for example, may yield slightly
different results when printed on the Xerox DocuPrint 180 LPS.
Therefore, it is recommended that you test applications that use
specialized papers to ensure that output is satisfactory.
Pay special attention to the following materials:
Die cut paper (paper with windows or areas cut out) must be
tested to ensure that the sheet registers properly with paper
sensors.
Multiple-thickness materials may cause stacking problems.
Such problems may be alleviated by using the Bin Limits
window or command to limit the number of sheets that can be
stacked in a bin.
For information on the Bin Limits window and command, refer
to the
Xerox DocuPrint 180 LPS Operator Guide
or the
DocuPrint 180 LPS PC User Interface Reference
.
Refer to Helpful Facts About Paper for more information on the
selection, storage, and handling of papers for your DocuPrint 180
LPS.
PRODUCT DIFFERENCES/USER CONSIDERATIONS
5-28 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 6-1
6. 6Xerox customer resources
This chapter references the many resources available to Xerox
customers in the U.S. If the resource you need is not listed in this
chapter, contact your site representative.
Xerox support services
Xerox provides many services in support of your laser printing
system (LPS). These services include the following:
Xerox Customer Support Center
Customer Service Support Center
Xerox Font Center
Xerox Customer Documentation Catalog
Xerox Documentation and Software Services (XDSS)
Xerox Supplies Order Service.
Detailed information about these services follows.
Prior to installation, your Xerox site representative is available to
answer your questions about the products, services, or billing.
However, if you need assistance in resolving application-related
problems or questions, contact your local Xerox systems analyst or
call the Xerox Customer Support Center (XCSC).
XEROX CUSTOMER RESOURCES
6-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox Customer Support Center
The XCSC is available to address your software and applications
problems or to direct you to the appropriate documentation.
The key to effective use of the XCSC is correct identification of the
problem. Before calling the center, it is helpful to have the following
information available:
A list of any error messages
An explanation of how output is different from what was
expected
Whether the symptoms follow a consistent pattern or occur
randomly
A list of special conditions that may have an effect on the
system, such as:
New applications
Changes made to the host system (that is, system
software)
Recent service performed on the LPS
Whether the application printed properly on the LPS prior
to the problem.
The XCSC telephone number is:
1-800-821-2797 (nationwide), 5 a.m. to 5 p.m. Pacific time.
XEROX CUSTOMER RESOURCES
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 6-3
Customer Service Support Center
If you encounter software- or hardware-related problems, such as
system failures, continuous paper jams, or poor print quality, first try
the corrective actions described in your LPS operator guide. If the
problem persists, call 1-800-821-2797.
Before contacting Xerox service, please make note of the following:
Status code numbers and messages which appear on the PC
User Interface (UI) or terminal, including the 6-digit San Code
that resulted from running the PROBLEM command
Status messages which appear on the printer control console
Indicator lights which may be lit
Status codes which appear in the display window of the
operator control panel if there is a tape drive problem.
Your call will be answered by a Xerox representative who will ask you
for the following information:
Your LPS model number: Xerox DocuPrint 180
Your LPS serial number
Your name
Your company name
Your work address
Your company’s work hours
A contact’s name and telephone number within your company
The condition or status of your system.
This information is given to a Xerox representative who will call you
back to discuss the information and give you an estimated time of
arrival of a service representative, or assist you over the phone to
resolve the problem.
XEROX CUSTOMER RESOURCES
6-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox Connection
For information on interfaces and connections available for on-line
and off-line operation with the Xerox DocuPrint 180 LPS, contact
Xerox Connection at:
1-800-451-9312 (continental U.S.)
7:00 a.m. to 4:00 p.m. Pacific time.
Xerox Font Center
The Xerox Font Center can send you samples and catalogs of the
fonts available for your LPS.
To receive font samples, obtain price information, or to order licensed
or custom fonts, call the font support center for your area. Their
business hours are 8:00 a.m. to 5:00 p.m. Pacific time.
Call the Xerox Font Center for information or to place an order at:
1-800-445-FONT
If you prefer, you may write to the following address to request font
information:
Xerox Corporation
Xerox Font Center ESCP-126
701 South Aviation Boulevard
El Segundo, CA 90245
For locations outside the United States, please contact your Xerox
site representative or local Xerox office.
For technical support regarding fonts (such as, installing fonts or
solving problems encountered using fonts), call the Xerox Font
Center at:
1-800-521-8324.
XEROX CUSTOMER RESOURCES
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE 6-5
Xerox Documentation and Software Services
XDSS offers a variety of services that can be customized to meet
your documentation needs.
XDSS distributes the documents you need to facilitate the installation
and use of Xerox printers, workstations, and host-software
packages. Site subscription is a free service that will keep these
documents up to date by automatically sending you updates and
revisions as they become available.
XDSS will also send you a Customer Documentation Catalog free of
charge upon request. Forms for ordering documents, requesting a
Customer Documentation Catalog, and registering for the site
subscription service are provided at the back of this manual.
Complete the forms or call:
1-800-327-9753, 6:00 a.m. to 5:00 p.m. Pacific time.
XDSS representatives will explain the services available, answer
your questions, and take orders for documentation.
XEROX CUSTOMER RESOURCES
6-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
Xerox Supplies Order Service
To avoid downtime, be sure always to have an adequate amount of
the necessary supplies available. To do this, you need to establish
a procedure for checking and ordering supplies. A supplies checklist
is provided in the
Xerox DocuPrint 180 LPS Installation Planning
Guide
to help you with this task.
It is important that you check your supplies regularly and order before
you run out. Please plan on approximately five working days for
delivery after the order has been placed. (Arrangements can be
made to provide them sooner in emergency situations.)
Your Xerox site representative can help you submit the initial order of
supplies needed for installation. These items include paper, dry ink,
fuser agent, and developer.
Once your printer’s volume is established, planning ahead and
buying Xerox supplies in quantity can save you money. Your Xerox
supply specialists can help you.
There are two centers available to assist you:
To order Xerox paper, transparencies, labels, dry ink, fuser
agent, and magnetic tape, call the following toll-free number
weekdays between 7:30 a.m. and 6:00 p.m. Pacific time, at:
1-800-822-2200 (U.S. only).
If you prefer, you may mail orders to:
Xerox Corporation
P.O. Box 25075
Santa Ana, CA 92799-5075.
To order cleaning supplies, call the Xerox Parts Marketing
Center weekdays between 5:00 a.m. and 5:00 p.m. Pacific
time, at:
1-800-828-5881 (U.S. only).
You may also mail cleaning supply orders to:
Xerox Corporation
Parts Marketing Center
Building 214-07S
P.O. Box 1020
Webster, NY 14580
Please provide the following information when placing orders:
Your customer number (provided by your Xerox site
representative)
Your LPS model: Xerox DocuPrint 180
Your supply order, including:
Item name
Part number
Quantity desired
If your company requires a purchase order for payment of an
invoice, you need to provide the purchase order number to
Xerox at the time you place the order.
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-1
Glossary
A3 Paper size measuring 297 by 420 mm.
A4 Paper size measuring 210 by 297 mm.
abort To terminate the printing of a job or execution of a program before it
completes.
algorithm Computational procedure that can be repeated any number of times.
alignment Positioning of an image on a page for printing.
alphanumeric Set of characters including the letters A through Z, numerals 0
through 9, and all printable special symbols.
AIM Ancillary IOT message processor. System task that initializes the
client layer between the printer and the system controller. It also
displays the Fault, Hint, and information messages.
ASCII American Standard Code for Information Interchange. Standard 7-bit
code that represents alphanumeric information. Each alphanumeric
character and several nonprinting characters are assigned a binary
number, covering 128 possible characters. It is used for information
interchange among data processing systems, data communication
systems, and associated equipment.
application Use to which a computer program or system is put, for example,
sorting employee records.
applications software Host- or LPS-resident software that directs the computer to perform
specific tasks or functions as opposed to the software used to
operate the computer. Common business applications include
payroll, accounting, and inventory.
ascender Portion of alphabetic character that rises above the body of the
character (its x-height portion). See also descender; x height.
asynchronous Transmission in data communications controlled by start and stop
elements at the beginning and end of each character. Thus, time
intervals between transmitted characters may be unequal in length.
audit log Captures the sheet delivery information for every page in an audited
report, certain details about each sheet, the planned and actual
report control totals, and waste management.
GLOSSARY
GLOSSARY-2 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
auxiliary menu Menu that contains options not displayed in a window. The symbol
for an auxiliary menu is a box containing three horizontal lines.
B4 Paper size measuring 250 by 353 mm.
background job Low-priority job, usually batched, that is executed automatically as
system resources become available.
backup file File copied to a storage medium for safekeeping in case the original
is damaged or lost.
band Rectangular area in printer memory into which an image sent to the
printer from a computer is divided.
batch processing Allows for repetitive operations to be performed sequentially on
batched data without much involvement of the computer operator.
baud Measurement of data rate in bits per second. This term is used to
describe information flow between two devices. Unit of data
transmitting and receiving speed is roughly equal to a single bit per
second. Common baud rates are 110, 300, 1200, 2400, 4800, and
9600.
binary Numbering system based on 2 that uses only the symbols 0 and 1.
Binary is used in computers and related devices since information
can be represented with electric pulses (0=off, 1=on). Most computer
calculations are binary.
binary digit (bit) In the binary numbering system, either of the characters 0 or 1. The
“bit” is the base unit of information used by computers. It can take the
form of a magnetized spot, an electric pulse, or a positive or negative
charge. A sequentially stored set of bits represents a character on a
computer.
Multipliers are:
1 or 0 byte = 8,192 bits
kilobyte (KB) or 1,024 bytes = 8,388,608 bits.
Computer space equivalents are:
1.5 KB = about 1 single-spaced typed page
30 KB = about 20 typed pages
150 KB = about 100 typed pages
binary synchronous transmission Data transmission in which synchronization of characters is
controlled by timing signals generated at the sending and receiving
stations.
bit Abbreviation for binary digit, the smallest unit of information
recognized by a computer. See also binary digit.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-3
bit map Visual representation of graphic images in which a bit defines a
picture element (pixel); for example, if a bit is 1, the corresponding
pixel is printed.
bit mapped Display image generated bit by bit for each point or dot. A software-
driven scanner is used to create characters or graphics.
blocking Process of combining two or more records into a single block of data
which can then be moved, operated upon, or stored, as a single unit
by the computer.
block length Number of characters or bytes contained in a block of data (the block
is treated as a unit within the computer). Block length is usually
invariable within a system and may be specified in units such as
records, words, computer words, or characters.
boot To load the initial instructions of a program into computer memory;
these instructions then direct the loading of the rest of the program.
Booting may require entry of a few commands at the keyboard or the
flip of a switch to begin the process.
bps bits per second. In serial communication, the instantaneous bit speed
with which a device or channel transmits a character.
BSC binary synchronous communication. 1. Communication using binary
synchronous line discipline. 2. Uniform procedure using a
standardized set of control characters and control character
sequences for synchronous transmission of binary-coded data
between stations.
buffer Compartment of memory in which this data is stored during transfer
from one device to another. This is useful for accumulating data into
blocks before storage or processing and for adjusting differences of
speed between devices, or between a device and a communicating
facility.
Bypass Transport Optional module that moves paper from the last stacker bin to a
finishing device.
byte Fixed number of bits (in data processing, usually 8) operated upon as
a unit. A byte may represent a character, a machine instruction, or
some other logical unit of information.
carriage return Control character that causes the printing system to start printing at
the left margin of the current line unless set to be interpreted as a line
end.
channel 1. In data communications, a path or line that enables two or more
devices to communicate (sometimes called a circuit, facility, or link).
2. In computers, a path for communication between the central
processing unit (CPU) and input/output units, or between the CPU
and peripheral devices.
GLOSSARY
GLOSSARY-4 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
character Single printable letter (A-Z), numeral (0-9), symbol (& % #), or
punctuation mark (, . ! ?) used to represent data. Characters can also
be nonprinting, such as space, tab, or carriage return.
character cell Digitized space containing a single character within a font set.
character code Code representing alphanumeric information, for example, ASCII.
character code identifier Code associated with the universal identifier “Xerox” to indicate the
version of the Xerox character code standard used to code Interpress
strings.
character set Number of different characters used by a particular device, including
alphabetic, numeric, and special characters such as symbols.
client layer The software interface used by the AIM task and the Output task to
communicate with the printer, allowing printing commands and fault
and status information to be exchanged.
clocking A method of synchronizing the sending and receiving of data
communications devices. Clocking allows synchronous transmission
at high speeds.
cluster Group of paper feeder trays, usually containing the same size and
type of paper (stock). Each cluster has a name, consisting of one to
six alphanumeric characters. See also stock; stockset.
CME copy modification entry. Entry modifying the output printing
characteristics of a report on a copy-to-copy basis.
code 1. Set of symbols representing data or instructions to a computer. 2.
To write a list of instructions (software) to cause the product/system
to perform specified operations.
code conversion Translation of one type of character or symbol code to another.
collate To arrange or assemble into ordered sets.
column Vertical arrangement of characters.
command User instruction to a computer, using the system controller keyboard
or the PC UI. Commands are words, mnemonics, or characters that
cause a computer to perform predefined operations. Coded
instruction to a computer or computer-based system.
command language Set of commands that can be used for a system, such as how the
system can be instructed to perform a task.
comment Explanations written with program instructions. They are ignored by
the computer.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-5
communication line Telecommunication line connecting devices at one location with
devices at other locations in order to transmit and receive
information.
communication link Physical means, such as data link, connecting one location to
another to transmit and receive information.
communications Ability of two devices to transmit information to each other.
compatibility Characteristic of computer equipment permitting one device to use
the same information or programs as another device without
conversion or code modification.
compiler Software that translates instructions written in high-level language
into machine language for execution by a system.
computer Functional unit capable of performing substantial computations,
including numerous arithmetic or logic operations without human
intervention during a run.
computer language Computer-oriented language consisting solely of computer
instructions. See also machine language.
computer system Central processing unit (CPU) with main storage, input/output
channels and devices, control units, and external storage devices
connected to it.
concatenate To connect or link in a series, as when files are grouped together for
faster processing. See also job concatenation mode.
console Functional unit containing devices used by an operator to
communicate with an operating system. It may consist of a display,
keyboard, and certain switches or other controls.
consumable supplies Supplies such as paper and dry ink that are depleted (used up)
during the course of normal printer operation.
continuous printing Refers to Interpress job integrity under any of the following
conditions: excessive graphics, forms, or font use problems.
control program Program that supports the operating system by monitoring the flow of
jobs, tasks, processing, and so on, within the system; for example, a
data communication program.
coordinate Point on the x and y axis that determines a grid position.
copy To duplicate data in a new location or on an additional storage
medium, for example, to copy files from disk to tape.
GLOSSARY
GLOSSARY-6 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
copy-sensitive Term used to indicate jobs in which multiple copies of a report will
contain different data, as with paychecks and banking statements.
cpi characters per inch. Designates the number of characters per inch
for a particular typeface. See also pitch.
CPU central processing unit. Interprets and executes instructions,
performs all operations and calculations, and controls input and
output units and auxiliary attachments.
data 1. In general, facts, numbers, letters, symbols, and so on, which can
be processed or produced by a computer. 2. In data processing, the
source data or raw data entered for processing, as opposed to the
results obtained by processing.
database Information to meet specific processing and retrieval needs.
Generally applies to integrated file of data, arranged for access by
many subsystems.
data communications Transmission and reception of encoded information over
telecommunication lines.
data file Collection of related data records organized in a specific manner so
that each record is similarly structured, for example, a payroll file set
up with one record for each employee, last name first, indicating the
rate of pay and all deductions.
data processing Operations carried out on data by means of algorithms and programs
to produce information or a specific result. The rearrangement of
data into a suitable form for further use.
data rate In data communications, the rate at which a channel carries data,
measured in bits per second (bps).
data storage Preservation of data on various media, for example, tape, disks,
magnetic bubble memory, and so on.
data transmission Transmission of coded data over telephone or other
telecommunication lines.
debug To detect and correct errors in a program.
decompose To break down into component parts, such as when Interpress
breaks down a Font Interchange Standard (FIS) master to compile
font information.
default Value assigned to a field by the system. Default fields may be used
for such items as document formats, menu selections, input fields,
font selection, and paper or image size. The default value of a field
may be changed.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-7
descender Portion of alphabetic character that extends below the baseline. See
also ascender, x height.
desktop Basic display screen of the PC UI.
device Any piece of hardware other than the central processing unit (CPU).
digitize To express or represent data in digital (binary) form so that it can be
processed electronically.
disk drive Device that can read or write magnetic media.
display Viewing device (monitor) that visually communicates system
warnings, status, and error messages and reflects operator
interaction with the system on a display.
DJDE Dynamic Job Descriptor Entry. Command within an input data stream
used to modify the printing environment dynamically.
DMR Command parameter that designates a Digital Equipment
Corporation host system.
document 1. Data medium and the data recorded on it, usually permanent,
which can be read by you or a computer. 2. Collection of information
pertaining to a specific subject or related subjects.
dot Unit of measurement representing a fraction of an inch, for example,
300 dots per inch (dpi). It may also be referred to as a picture element
(pixel) or spot.
download To copy files using communication lines from the host onto LPS
system disks.
dry ink Minute dry particles of resin and carbon black used to create images.
Dry ink can accept an electrical charge.
duplex printing Printing on both sides (front and back) of a page. See also simplex
printing.
EBCDIC Extended Binary Coded Decimal Interchange Code. Coded
character set consisting of 8-bit coded characters. It can
accommodate 256 characters.
edgemarking Use of graphic objects, usually lines or boxes, that bleed off the edge
of the physical page. See also physical page.
electronic publishing Integrated production of documents on demand, using digitally
stored documents, computerized composition, and electronic
printing systems.
GLOSSARY
GLOSSARY-8 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
elite Smallest size standard typewriter type: 12 characters per horizontal
inch. See also pica.
embedded blanks Blank spaces within a command line.
extended metrics Measurements used in Interpress to alter the size of fonts, allowing
more precision with character escapement. Used for rendered
characters.
FCB forms control buffer. Buffer for controlling the vertical format of
printed output.
FDL forms description language. LPS-resident source language used for
designing electronic forms. See also FSL; form.
field 1. Part of a record that serves a similar function in all records of that
group, such as name and address field. 2. Area or setting of practical
activity or application.
file Set of records or text that can be stored and retrieved. An organized,
named collection of records treated as a unit. For offline, it is the data
between the two tape marks. For online, it is the data between
banner pages.
file protection To prevent the contents on a disk or tape from being erased or written
over by disabling the write head of a unit.
firmware Permanent programs stored in read-only memory (ROM).
FIS Font Interchange Standard. Standard that defines the digital
representation of fonts and character metrics for the generation of an
entire series of Interpress fonts.
fixed font Font containing characters with fixed spacing. See also proportional
font.
fixed pitch Font set in which every character cell has the same width. In
reference to character sets, this term describes typefaces in which all
character cells are of equal width. Monospaced as opposed to
proportional spaced.
fixed spacing Arrangement of characters on a line so that all characters occupy the
same amount of horizontal space.
floating accent Nonspacing accent characters that can be combined with characters
and printed as a composite.
font Set of images, usually characters and symbols, having common
characteristics such as style, width, height, and weight.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-9
form 1. Compiled forms source library (.FSL) file. 2. Printed or typed
document with blank spaces for inserting information. Specific
arrangement of lines, text, and graphics stored in a computer under
an identifying name. Page of data that, when preceded by proper
commands, is stored on the system disk as a permanent file. It may
be merged with variable data by a form start command. See also
FDL; FSL.
format 1. Layout of a document, including margins, page length, line
spacing, typeface, and so on. 2. In data storage, the way the surface
of a disk is organized to store data. 3. To prepare the surface of a disk
for acceptance of data.
form feed Keyboard or printer control character that causes the printer to skip
the top of the next page.
FSL forms source library. Uncompiled collection of user-created files
containing FDL commands. Refer to FDL; form.
function keys Keyboard keys that produce no character but initiate a particular
machine function, such as delete.
fuse To affix dry ink to paper by heat or pressure or a combination of both.
GCR group code recording mode. Refers to the specific density of data
(such as 6250 bpi) as it is recorded on tape, which is measured in bits
per inch (bpi).
graphics Use of lines and figures to display data, as opposed to using text.
grid Imaginary pattern of evenly spaced horizontal and vertical lines on a
page.
grid unit Smallest rectangle enclosed by horizontal and vertical lines on a grid.
The size of a grid unit is expressed as the length of one side of a
rectangle.
halftone screen A tool used in offset printing, typesetting, and laser printing to convert
a continuous tone (such as photographic) image to dots, which
allows the image to be rendered accurately in these printing
processes.
hardcopy Machine output in permanent form, such as printed reports, listings,
and so on. Output in a permanent form (usually on paper or paper
tape) rather than in temporary form, as on a display. Contains
readable printed copy of machine (for example, computer) output.
hard values Nonoptimal adjustment of particular FIS fonts in terms of point size
and orientation.
hardware Physical components, such as mechanical, magnetic, and electronic
elements of a system, as opposed to programs, procedures, rules,
GLOSSARY
GLOSSARY-10 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
and associated documentation. Hardware is operated by software
and firmware.
HCF high-capacity feeder. Feeder tray capable of holding 2500 sheets of
20 pound/75 gsm paper. The high-capacity feeder trays are the
primary paper supply for the DP180 LPS. They are located in the
bottom half of the feeder/stacker modules.
HCS high-capacity stacker. Stacker bin capable of holding 2500 sheets of
20 pound/75 gsm paper. In the LPS, the high-capacity stacker bins
are located in the top half of the feeder/stacker modules.
hexadecimal Numbering system with a base of 16. In this system, 10 through 15
are represented by A through F, respectively.
hierarchy Relative priority assigned to arithmetic or logical operations that must
be performed.
high-level language Language consisting of words and symbols that are close to normal
English and, therefore, readily understandable by the user. High-
level languages are oriented to problems or commercial procedures
and are the source languages for most programs.
host Computer accessed by users which serves as a source of high-
speed data processing for workstations with less computer power.
See also mainframe.
host interface Connection between network and host computer.
icon Symbol appearing on the PC UI or printer control console that can be
opened to display a window or screen options.
id identifier. Character used to identify or name data and possibly to
indicate certain properties of that data.
image area Area on a physical page that may contain text or graphics.
information processing Generic term encompassing both word and data processing, used to
describe the entire scope of operations performed by a computer.
initialize 1. To prepare the magnetic surface of a blank diskette so that it can
accept data. 2. To set all information in a computer system to its
starting values (usually the first step is accomplished when a
program is booted).
input Data or text introduced into a computer-based system.
input/output General term encompassing the flow of data into and out of a system.
input processing Formatting control for the pages of a report.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-11
insert To add text or graphics to a document.
interface Device by which two systems connect and communicate with each
other.
interpolation Series of logical rules implemented in the printer to convert a 300 spi
input video stream to a 600 spi output video stream. Interpolation is
functionally analogous to bit doubling (2x scaling), except the logical
rules result in superior output.
Interpress Xerox standard that defines digital representation of lines for printing.
Interpress documents can be printed on any sufficiently powerful
printer equipped with Interpress print software.
Interpress font utility (IFU) program Program used to convert FIS fonts to LPS fonts.
Interpress master File written according to the Interpress standard.
IPL initial program load. For the optional open-reel tape drive, the internal
initialization sequence whereby certain functions are loaded into
random access memory (RAM).
JDE job descriptor entry. Collection of job descriptions. See also job; JSL.
JDL job descriptor library. Collection of compiled job descriptions. See
also JSL.
job 1. Set of instructions (JDEs) defining a unit of work for the system. 2.
In setting a separation boundary through the Bin Full Criteria task, job
refers to everything printed as the result of a single start command.
See also JDE.
job concatenation mode In HIP, a mode in which multiple print jobs are processed as reports
in one print job. See also concatenate.
job control Program called into storage to prepare each job or job step to be run.
job management Collective functions of job scheduling and command processing.
JSL job source library. Collection of uncompiled job descriptions. See
also job; JDE; and JDL.
keyboard Group of alphabetic, numeric, and/or function keys used to enter
information into a system.
keyword Required part of a command. See also operator command.
label 1. In data storage, a reference to a file saved on tape or disk, a record
indicating the file name or date created, or other control information.
GLOSSARY
GLOSSARY-12 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
2. In programming, a name assigned to a particular instruction or
portion of a program as a locational reference (the computer
translates the label into an address).
landscape page orientation Orientation of print lines or top of an illustration parallel to the long
edge of the paper if the sheet is within the standard size range.
(Sheets larger than standard have the reverse print orientation.)
language Defined set of characters and symbols combined together by specific
rules. See also high-level language; low-level language.
laser printing Technology that uses a laser to transfer character forms to a page by
direct or indirect means.
latent image Static charge present on the photoconductor before contact with dry
ink particles.
leading 1. Vertical distance between lines (also called line space), measured
from a baseline of one line to the baseline of the next. 2. Extra
spacing between lines of type. 3. In typography, spacing between
lines and paragraphs.
LED light emitting diode. Solid substance that glows when a current is
passed through it. Often used for indicator lights on disk drives or
modems, as well as for displays on other electronic equipment.
LEF long-edge feed. The movement of paper through the printer in the
direction of the paper length (the longer side of a sheet of paper).
legal size Sheet the standard size of legal briefs, 8.5 by 14 inches.
letter size Paper sized 8.5 by 11 inches/216 by 279 mm.
library In data storage, a collection of related files or programs.
line One horizontal flow of characters.
line feed Control character that, unless set to be interpreted as a line end,
causes the printing system to begin printing in the current character
position of the next line.
line tables Internal data structures providing a record in memory of lines to be
drawn on a page.
listing Printout or display of the statements in a program, usually used as a
convenience in examining or editing programs.
literal Alphanumeric beginning with a letter, optionally including an asterisk,
period, colon, or slash, and not enclosed in single quotes.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-13
load To enter data into storage or working registers.
location Place in which data can be stored.
log Collection of messages or message segments placed on an auxiliary
storage device for accounting or data collection purposes.
logical page In the Xerox printing systems environment, a formatted page that is
smaller than the physical page. A logical page is defined by an origin,
thus allowing more than one logical page to be placed on a physical
page.
logo Small illustration or design, usually simple, typically used to identify
a company.
log off Procedure by which a user ends a session.
log on Procedure by which a user begins a session between an application
program and a logical unit.
magnetic media Term for all storage devices, such as disks, diskettes, and tape, on
which data is stored in the form of magnetized spots on surface of the
media.
magnetic storage Use of magnetic media to store data, programs, and so on.
magnetic tape Flexible plastic tape, with one side offering a magnetic surface
suitable for storing computer data in the form of magnetized spots.
Magnetic tape is often used for long-term storage since it can
accommodate large volumes of information.
mainframe Central processing unit (CPU) and memory of a large computer.
More often used to denote any large computer of the type that might
be used to control a group of smaller computers, terminals, or other
devices. See also host.
margins White space on each side of printed text.
mask 1. Selection of bits from a storage unit by using an instruction that
eliminates the other bits in the unit. 2. In accessing files, a file name
mask is used to reference one or more files with similar file-id
(identifier) syntax. 3. In Interpress, a mask serves as a template,
indicating the shape and position of an object on a page.
MB megabyte. Unit of one million bytes.
media Vehicles or devices by which information is stored or transmitted.
Classifications include source, input, and output.
GLOSSARY
GLOSSARY-14 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
medium Object or material on which data is stored, for example, magnetic
tape or floppy disk.
memory Space in a device where information is kept, or the ability of a device
to keep information until needed.
menu List of available functions, commands, and options.
message Unit of information transmitted by one facility to another in a form that
the receiving facility can understand and act upon. The standard
message format consists of a header (containing identifying and
control information), followed by the actual message content,
followed by a trailer (indicating that the message is completed).
metacode Same as “native mode.” The method of speaking to and controlling
the image generator. These controls are used by the character
dispatcher to generate scan line information. This information is sent
in the form of character specifications to the image generator, which
uses it to compose the bit stream that modulates the laser.
MHz megahertz. 1. Unit of cycling speed (one million cycles per second)
for an electromagnetic wave (in particular, a radio wave). 2. Sending
and receiving stations of a radio wave transmission must be tuned in
to the same unit of megahertz.
mode Manner in which an activity or process is carried out.
modem Device that converts digital information into an analog signal suitable
for sending over analog telecommunication lines. Also converts an
analog signal from telecommunication lines into digital information.
module Cohesive unit within a program. It is consistent in its level and
identifiable in terms of loading or with other units.
mouse Electronic device used with the PC UI to select options and enter
data.
mouse pad Base that provides friction and direction information to the electronic
mouse.
mouse tray Optional extension module attached to the system controller to
accommodate the mouse pad and provide ample working space.
network 1. System of geographically separate computers, linked to one
another over transmission lines. 2. Communication lines connecting
a computer to its remote terminals.
nonimpact printer Printer that forms characters without any strikes of a key or element
against the paper.
object file Source file converted into machine language (binary code).
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-15
offline Devices not under the active control of a central processing unit. For
example, a computer makes output to a magnetic tape. The tape is
then used by an offline printing system to produce printed data.
Offline operations are much slower than online operations. See also
online.
offset To place pages currently being printed in slightly different positions
from previous pages.
offset printing Widely-used method of commercial and corporate printing, where ink
is picked up by a metal or paper plate, passed to an offset drum, and
then passed to the paper.
online Devices under the direct control of a central processing unit, for
example a printing system in interactive communication with a
mainframe. See also offline.
operating system Basic host- or LPS-resident controlling program that governs the
operations of a computer, such as job entry, input/output, and data
management. The operating system is always running when the
computer is active. Unlike other types of programs, it does not run to
an end point and stop. The operating system of a Xerox LPS is
referred to as the operating system software (OSS).
operation Well-defined action that, when applied to any permissible
combination of known entities, produces a new entity.
operator area The 24-inch exclusive clearance that must be available directly in
front of each component of an LPS for operator activities.
operator command Statement to control a program, issued through a console device, PC
UI, or terminal, causing a control program to provide requested
information, alter normal operations, initiate new operations, or
terminate existing operations.
orientation 1. In reference to image area, orientation describes whether the
printed lines are parallel to the long edge of the paper or the short
edge of the paper. 2. Choice of printing portrait (vertically) or
landscape (horizontally).
origin In reference to image area, this is the upper left corner of a sheet.
output 1. Material produced by a peripheral device of a computer, such as a
printout or a magnetic tape. 2. Result of completed operations.
overprinting Printing more than one character at the same position.
overprint lines Print lines whose carriage control specifies printing with no line
spacing after the last printed line.
overprint ratio Maximum number of variable data and form characters that may be
intersected by a single scan line.
GLOSSARY
GLOSSARY-16 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
override To take precedence or priority over, to overrule.
overstrike To print characters over each other.
page 1. In computer programming, a block of instruction, data, or both that
can be located in main or auxiliary storage. 2. In word processing, a
defined section of a document.
page orientation Direction in which data is printed on a report. See also landscape
page orientation; portrait page orientation.
parameter Part of a command, other than the keyword. See also keyword;
operator command.
pass-through job On systems with XPAF, a job that is sent directly from a host to a
Xerox printer using XPAF, without undergoing XPAF processing.
password Unique word or set of characters that an operator or user must supply
to log on to a system.
patch In programming, to modify a portion of the program at the machine
language level, as opposed to modifying at the source program level.
PC UI PC user interface. The PC hardware and Xerox-supplied software
which allows the operator to control the LPS by means of a mouse,
windows, and icons. See also object mode; TEM.
PDL print description language. Language used to describe printing jobs
to an LPS. PDL describes the input (type, format, characteristics),
performs the processing functions (logical processing), and
describes the output (type, format, font selection, accounting
options).
physical page Sheet of paper on which printing is done. See also edgemarking.
pitch 1. Horizontal character spacing; 10-pitch (10 characters per inch)
spacing is called pica, and 12-pitch (12 characters per inch) spacing
is called elite. 2. The number of page images placed on the
xerographic belt during one revolution. The DocuPrint 180 LPS
supports two pitch modes: 7 pitch when paper 9 inches/229 mm long
or less is used to print a job, and 3 pitch when paper 9 to 17 inches/
229 to 432 mm long is used to print a job.
pixel Acronym for picture element. Smallest addressable point of a bit-
mapped screen that can be independently assigned color and
intensity. Pixels are definable locations on a display used to form
images. For graphic displays, more pixels generally provide higher
resolution. Spots, dots, and pixels are used interchangeably.
point Unit of measurement equal to 0.0139 inch. Points are always used to
express type size and leading. There are 12 points to a pica and
about 72 points to every inch. See also pica.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-17
point size Height of character set from the top of its ascenders to the bottom of
its descenders in units (points). Point size does not always include
leading.
portrait page orientation Orientation of print lines or the top of an illustration parallel to the
short edge of the paper if the sheet is within the standard size range.
Sheets larger than standard have the reverse print orientation.
printer Output device that produces hardcopy printouts. Also referred to as
the IOT.
print file Position of the system disk memory (up to 4 MB) received for
temporary storage of formatted pages for printing. Pages are
retained until they are delivered to the output tray.
printout Informal expression referring to almost anything printed by a
computer peripheral device.
process 1. To perform a systematic sequence of operations, such as add,
edit, delete. 2. To produce a specific result by manipulating data.
program Complete set of instructions in language compatible with the device
to be used. A program directs a system to perform each operation at
the right time in the proper sequence.
programmer Person involved in designing, writing, and testing computer
programs.
prompt Message or symbol displayed on a system console requiring the
operator to take action.
proportional font Font containing characters that vary in width. See also fixed font.
proportional spacing Text in which each alphanumeric character is given a weighted
amount of space. Such output has print-like appearance.
Proportional spacing allows more space for wide characters and less
space for narrow characters
proportional type Characters that vary in width.
protocol Formal set of conventions governing the format of data and the
control of information exchange between two communication
devices.
purge To delete data from a system.
queue List of documents waiting to be processed.
GLOSSARY
GLOSSARY-18 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
RAM random access memory. Storage that allows data, such as
documents, to be stored and retrieved directly by address location
without reading through any other data.
raster data Binary data, usually consisting of dots arranged in scan lines,
according to the print order.
rasterization Creation of a page’s bit map image for printing.
read/write head Input/output device that reads and writes data in the form of magnetic
dots on the surface of an external storage medium, such as a
magnetic disk.
record Collection of data or words treated as a unit.
recovery Act of overcoming a problem or error during processing. Typically, a
specialized software recovery routine gains control and attempts to
resolve the error without crashing the system.
remote access Access to a central computer by terminals or devices geographically
separated from that computer.
replace Process of exchanging one portion of text for another. This process
encompasses two functions: deleting old text and inserting new.
report In setting a separation boundary through the Bin Full Criteria task,
report refers to a subset of a job (a job may consist of one or more
reports).
resolution Number of dots per unit. The LPS imaging system converts a
character from digitized data into a printed image composed of these
tiny dots. The greater the number of dots per inch, that is, the
resolution, the clearer the image that is produced.
ROM read-only memory. Solid-state memory for programs. It cannot be
rewritten.
save To store programs, data, or text for retrieval at a later time.
scale To adjust font or image size according to given proportions.
scroll Manipulation of a display to bring upper or lower portions of a
document page into view when no space is available for the entire
document at once.
scroll bar Part of a window that allows you to view information extending
beyond the window display.
SCSI small computer system interface. Accepted standard for connecting
peripheral devices to computers.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-19
secondary storage Form of storage external to a system, such as magnetic tapes or
floppy disks.
security 1. Procedure for limiting access to the system resources, programs,
or files, to authorized personnel. 2. Protecting programs and files
from unintentional or undesired modification.
SEF short-edge feed. The movement of paper through the printer in the
direction of the paper width (the shorter side of a sheet of paper). For
the DocuPrint 180 LPS, short-edge feed allows larger sizes of paper
(up to 11 by 17 inches/279 by 432 mm) to be printed.
sequential In numeric sequence, usually in ascending order. As applied to a file
organization, describes files in which records are written one after
another and cannot be randomly accessed. For example, the first 99
records in a sequential file-access file have to be read before the
100th record is accessible.
set In setting a separation boundary through the Bin Full Criteria task, set
refers to multiple copies of the same report.
simplex printing Printing on one side of the page. See also duplex printing.
software Programs, including operating systems, procedures, utilities, and
applications programs, written for a system. Software can be
supplied by the hardware manufacturer or other firms but does not
include programs written by the user.
sort To rearrange data records according to a particular item (field) which
they all contain, using a predetermined ordering scheme.
source Terminal node at which data enters a network. For example, a
computer transmitting data through telecommunication lines to
several other computers or receiving terminals.
source file File containing source language statements or commands.
source language Language, high-level or low-level, used by a programmer. A source
language must be converted by a compiler to machine language for
the instructions to be executed.
source program Program written in source language
space Blank area between words, recognized as a character by word and
data processing systems.
special processing Commands allowing the user to process special reports, such as
printing certain records, or printing on special paper.
GLOSSARY
GLOSSARY-20 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
spooling Process of releasing data from main memory and storing it
temporarily until a peripheral device is ready to accept it, for example
storing text before sending it to a printer.
spot Unit of measurement representing a fraction of an inch, for example,
300 spots per inch (spi). May also be referred to as a picture element
(pixel) or dot.
statement Detailed written instructions in a program step. A statement is written
according to specific rules called syntax.
static data Information usually found on preprinted forms or overlays.
stock User-defined name in the JSL that specifies a certain type of paper
for printing a job. See also cluster.
stockset Collection of stocks to be used on a print job. See also stock; cluster.
storage Retention of information. Primary storage refers to internal storage
where data and program instructions pertinent to current operations/
jobs are held. Auxiliary storage refers to external media, such as
disks or tapes, for use at a later time.
string Connected sequence of alphanumeric characters treated as one unit
of data by a program.
symbol Character used in a computer language to specify a particular
function.
synchronous Efficient encoding of data suitable for high-speed, block-oriented
data transmission by using equal time elements.
syntax Rules governing the structure of expressions in a programming
language.
syntax error System response to a mistake in a command entry.
system 1. In data processing, a collection of parts and procedures organized
to accomplish a set of specific functions. 2. Assembly of components
united by some form of regulated interaction to form an organized
whole. 3. Operations or procedures through which a business activity
is accomplished.
system controller Part of the LPS that provides interfacing capability, data handling,
formatting, buffering, and operator control for the system. Also
referred to as the “ESS”.
system disk Magnetic disk storage medium, usually of large capacity, that is not
removable as opposed to floppy disk or disk packs.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-21
system file Master software program that keeps all components working
together.
system generation Process whereby the system is made ready to operate. Typically
involves selecting the operative parameters and activating the
relevant software.
system page Maximum area in which text and graphics can be imaged on a
printing system.
system software Software programs that support and/or control system functions by
governing hardware operation and input/output processes,
interpreting source programs and breaking them down into machine
language, distributing tasks among various processors, and so on.
tab To move the cursor on a display or printer to a prespecified column
on the display or paper, most often by using the <TAB> key on a
keyboard.
tape Recording media for data or computer programs. Tape can be in
permanent form, such as perforated paper tape. Generally, tape is
used as a mass storage medium in magnetic form and has a far
higher storage capacity than disk storage, but it takes longer to write
or recover data from tape than from disk.
tape density The number of characters that can be stored on magnetic media,
such as how close together data can be recorded. The Xerox LPS
may use either 1600 bpi or 6250 bpi density magnetic media.
tape drive Input/output device that controls the movement of magnetic storage
tape past the read/write head while data is accessed or stored.
task 1. Any major job performed by a computer. 2. One of several
programs being executed by a system.
telecommunications Voice or data communications transmitted and received through
telephone lines.
teleprocessing Sending and receiving data through telecommunication lines for
processing among various remote terminals and the central
processing unit (CPU).
TEM terminal emulation mode. The processing method of the PC UI which
features a character display and the operator’s use of the keyboard.
The mouse, windows, and icons are inactive in this mode. The PC UI
operates in either the TEM mode or in the object mode. See also
object mode.
terminal Device equipped with a keyboard and connected to a computer or a
network
GLOSSARY
GLOSSARY-22 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
testing 1. Process of running a program for the express purpose of
discovering any errors it may contain. 2. For computer-oriented
systems, the process of verifying a system’s ability to meet
performance objectives in a simulated environment or validating its
actual performance in a live environment.
text In communications, the content portion of a transmitted message.
text string Consecutive series of characters to be printed exactly as specified in
a command.
throughput In data processing systems, the amount of data that can be
processed, transmitted, printed, and so on, per a specified unit of
time.
toggle To switch (alternate) from one tray to another. The system switches
from an active feeder or stacker tray to an inactive one to allow
continuous printing when the proper commands are invoked.
trailer In data communications, the last portion of a message that signals
the end.
transaction processing Method of data processing in which files are updated and results are
generated immediately after data entry.
translation 1. In data communications, the conversion of one code to another on
a character-by-character basis. 2. In programming, the function of a
language processor which converts a source program from one
programming language to another.
transmission speed In data communications, the rate at which data is passed through
communication lines, usually measured in bits per inch (bpi).
transmit To send data from one place to another.
truncated Cut off before completion, as when data transfer from a host to a
printer is cut off before all data has been transmitted.
two-up Application that prints two logical pages on one side of a physical
page.
typeface 1. All type of a single design. 2. Set of characters with design features
that make them similar to one another.
type size Height of a typeface, measured from the bottom of its descenders to
the top of its ascenders, expressed in points.
type style Italic, condensed, bold, and other variations of typeface that form a
type family.
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-23
UCS Universal Character Set. Printer feature that permits the use of a
variety of character
upload To copy files from a remote peripheral device to a host. LPS files are
not copied to the host because one of the LPS functions is to store
files for the host.
utility program General-purpose program that performs activities, such as initializing
a disk or sorting, which are not specific to any application.
validation Process of testing a system’s ability to meet performance objectives
by measuring and monitoring its performance in a live environment.
variable Information of a changeable nature which is merged with a standard
or a repetitive document to create specialized or personalized
versions of that document.
variable data Variable data is not a part of a form design. It varies from page to
page.
variable text Text of changing nature, such as various names and addresses
combined with a form letter to make a complete document.
virtual page Page area selected by a forms designer for printing.
warning message System-issued message indicating that an error has been
encountered even though the program has not failed.
weight Characteristic of type determined by how light or dark it appears.
wildcard Part of a command (* symbol, / symbol, ? symbol) that represents a
category for which the possible options are requested.
wildcarding In a command, calling out a general category rather than a specific
item within that category. The purpose of wildcarding is to generate
the options within the given category.
window In the PC UI, the graphic display object that allows you to select
options and enter information.
write To record data in memory or an external storage medium.
write protection Data protection feature implemented on magnetic media (for
example floppy disk, 9-track tape) to prevent stored data from being
modified, written over, or erased.
x axis Horizontal axis on a forms grid.
GLOSSARY
GLOSSARY-24 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
xdot Unit of measurement representing a fraction of an inch. It may also
be referred to as a picture element (pixel) or spot, for example, 1/600
spots per inch (spi).
xerographic engine Component of a printer that develops an image, transfers it to paper,
and fuses it for output as hardcopy.
x height Height of lowercase letters without their ascenders or descenders
(height of letter “x”). See also ascender; descender.
y axis Vertical axis on a forms grid
ACT Advanced Customer Training
AFP Advanced Function Printing
ANSI American National Standards Institute
ASCII American Standard Code for Information Interchange
BCD binary coded decimal
BOF bottom of form
BOT beginning of tape
bpi bits per inch
bps bits per second
BSC binary synchronous communications
CD character dispatcher
CDC control data communications
CD/IG character dispatcher/image generator
CM control module
CME copy modification entry
cpi characters per inch
CPU central processing unit
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-25
CR carriage return
DCE data communications equipment
DDCMP Digital Data Communication Message Protocol
DEC Digital Equipment Corporation
DFA Document Feeding and Finishing Architecture
DJDE dynamic job descriptor entry
DMR data mode ready (DEC interface for LPS)
DOS disk operating system
dpi dots per inch
DSDD double sided double density
DSU digital signal unit
DSR disk save and restore
DSSD double sided single density
DTE data terminal equipment
EBCDIC Extended Binary Coded Decimal Interchange Code
ENET Ethernet network
EOT end of tape
EP electronic publishing
ESS electronic subsystem, also referred to as the system controller
FCB forms control buffer
FCG finishing configuration utility
FCP file control parameter
FDL forms description language
GLOSSARY
GLOSSARY-26 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
FDR file directory
FFM font file management
FIS Font Interchange Standard
FMS file management subsystem
FPS formatting print service
FSL forms source library
FST font specification table
GCR group code recording
gsm grams per square meter
HCF high-capacity feeder
HCS high-capacity stacker
HFDL host forms description language
HIP Host Interface Processor
hpos horizontal positioning
IBM International Business Machines Corporation
IFU Interpress font utility
IG image generator
IGM image generator module
I/O input/output
IOM image output module
IOT input output terminal, also referred to as “printer”
IPD Interpress decomposer
IPFONTS Interpress fonts
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-27
IPL initial program load
IPM Interpress mapping
ips inches per second
JCB job control block
JCL job control language
JDE job descriptor entry
JDL job descriptor library
JID job identifier
JSL job source library
LAN local area network
laser light amplification by stimulated emission of radiation
LED light-emitting diode
LEF long-edge feed
LF long-edge feed
lpi lines per inch
LPS Laser Printing System
MTU magnetic tape unit (refers to the 9-track magnetic tape drive; also
referred to as “magnetic tape drive”)
OCR optical character recognition
OCS operator communications subsystem
OLI online interface
OS operating system
OSDS operating system diagnostic software
GLOSSARY
GLOSSARY-28 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
OSEXEC operating system executive
OSS operating system software
PC personal computer
PCC printer carriage control
PC UI personal computer user interface
PDL print description language
PE phase encoded
ppm pages per minute
PQA print quality adjustment
PROM programmable read-only memory
PSC printer subsystem controller
pt point
PWBA printed wiring board assembly
QIC 1/4 inch cartridge
RAM random access memory
ROS raster output scanner
SAFES stand-alone field engineering software
SAN software analysis number
sci START command index
SCSI small computer system interface
SDLC synchronous data link control
SEF short-edge feed
SFS status file services
GLOSSARY
XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE GLOSSARY-29
SIF sequence insert file
SNA system network architecture
spi spots per inch
SST system software tape
sysgen system generation
TL/DL text line/display list
TOF top of form
tpi tracks per inch
TPJ test pattern job
TXC total xerographic convergence
UCS Universal Character Set
UCSB Universal Character Set Buffer
UI user interface
VM virtual memory
vpos vertical positioning
VS virtual storage
WAN wide area network
XCSC Xerox Customer Support Center
XDGI Xerox DCF and GDDM Interface
XDSS Xerox Documentation and Software Services
XICS Xerox Integrated Composition System
XJCF Xerox Job Control Facility
XMP xerographic mode persistence
GLOSSARY
GLOSSARY-30 XEROX DOCUPRINT 180 LASER PRINTING SYSTEM PRODUCT GUIDE
XMS xerographic mode switching
XPAF, XPF Xerox Printer Access Facility
XPMF-VMS Xerox Print Management Facility - VMS Version
XPPI Xerox Pen Plotter Interface
XPS Xerox Publishing System
