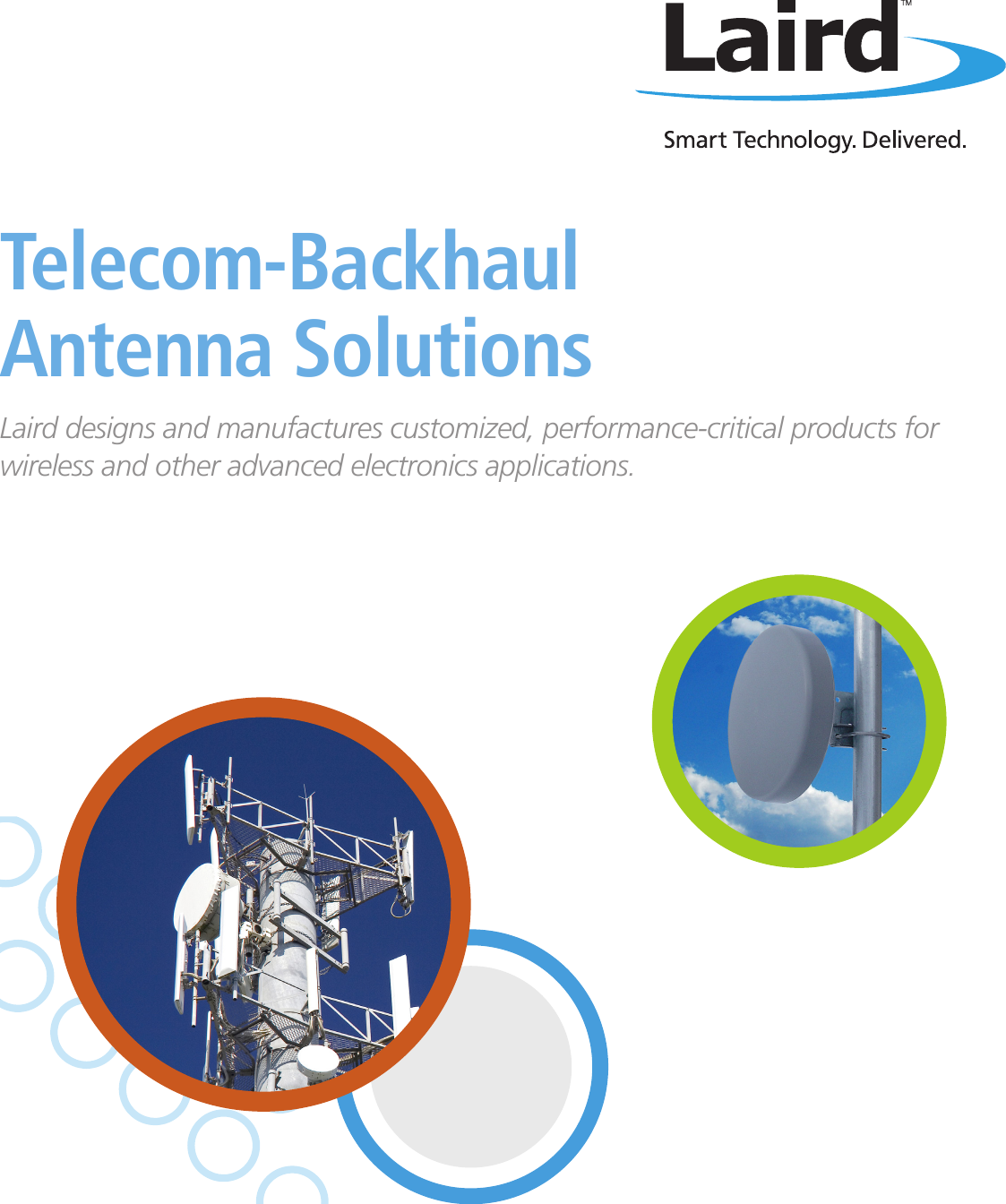

Telecom-Backhaul Antenna SolutionsLaird designs and manufactures customized, performance-critical products for wireless and other advanced electronics applications.

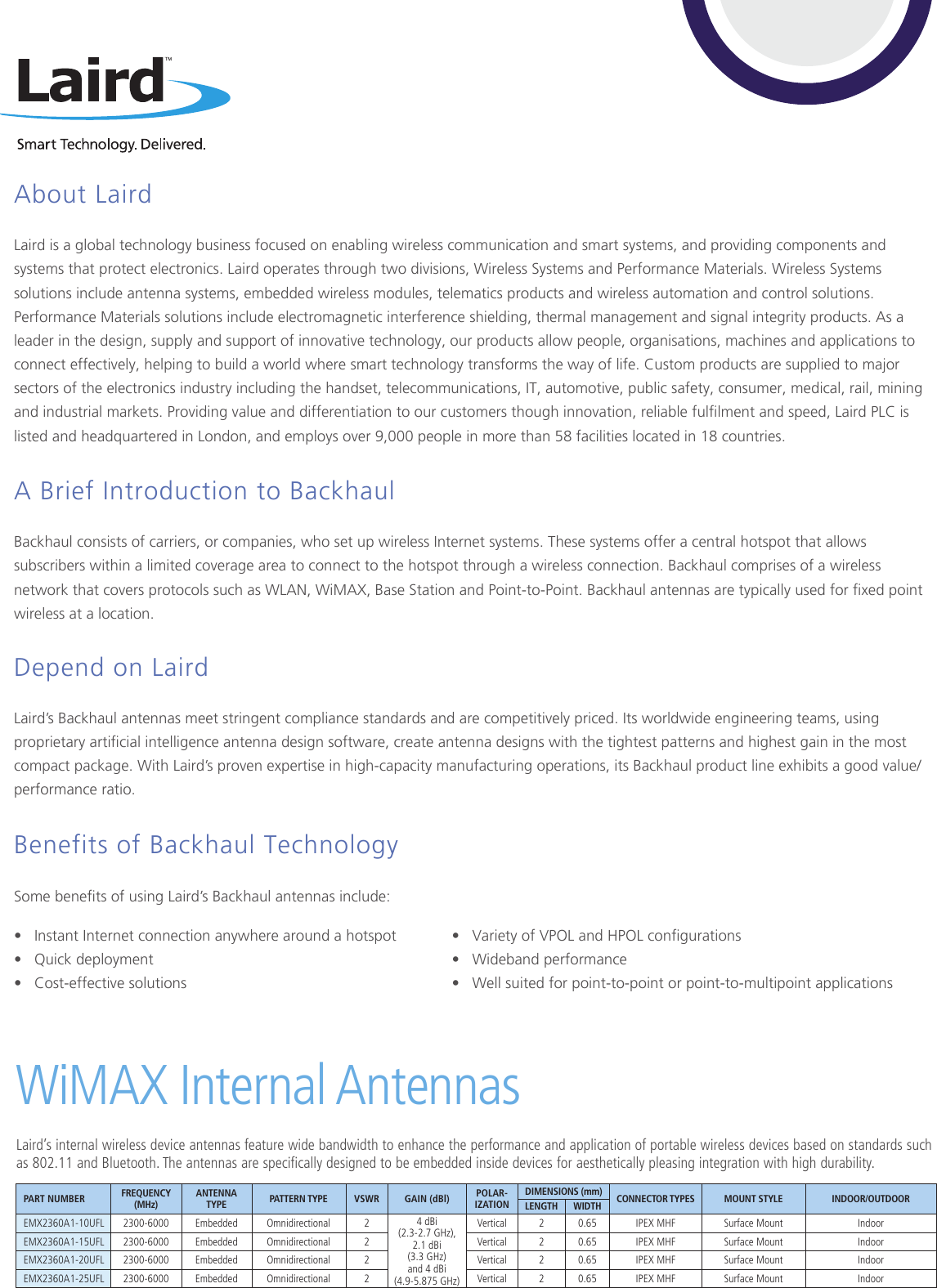

About Laird Laird is a global technology business focused on enabling wireless communication and smart systems, and providing components and systems that protect electronics. Laird operates through two divisions, Wireless Systems and Performance Materials. Wireless Systems solutions include antenna systems, embedded wireless modules, telematics products and wireless automation and control solutions. Performance Materials solutions include electromagnetic interference shielding, thermal management and signal integrity products. As a leader in the design, supply and support of innovative technology, our products allow people, organisations, machines and applications to connect effectively, helping to build a world where smart technology transforms the way of life. Custom products are supplied to major sectors of the electronics industry including the handset, telecommunications, IT, automotive, public safety, consumer, medical, rail, mining and industrial markets. Providing value and differentiation to our customers though innovation, reliable fullment and speed, Laird PLC is listed and headquartered in London, and employs over 9,000 people in more than 58 facilities located in 18 countries. A Brief Introduction to Backhaul Backhaul consists of carriers, or companies, who set up wireless Internet systems. These systems offer a central hotspot that allows subscribers within a limited coverage area to connect to the hotspot through a wireless connection. Backhaul comprises of a wireless network that covers protocols such as WLAN, WiMAX, Base Station and Point-to-Point. Backhaul antennas are typically used for xed point wireless at a location. Depend on Laird Laird’s Backhaul antennas meet stringent compliance standards and are competitively priced. Its worldwide engineering teams, using proprietary articial intelligence antenna design software, create antenna designs with the tightest patterns and highest gain in the most compact package. With Laird’s proven expertise in high-capacity manufacturing operations, its Backhaul product line exhibits a good value/performance ratio. Benefits of Backhaul TechnologySome benets of using Laird’s Backhaul antennas include: • Instant Internet connection anywhere around a hotspot • Quick deployment • Cost-effective solutions • Variety of VPOL and HPOL congurations • Wideband performance • Well suited for point-to-point or point-to-multipoint applicationsPART NUMBER FREQUENCY (MHz)ANTENNA TYPE PATTERN TYPE VSWR GAIN (dBl) POLAR-IZATIONDIMENSIONS (mm) CONNECTOR TYPES MOUNT STYLE INDOOR/OUTDOORLENGTH WIDTHEMX2360A1-10UFL 2300-6000 Embedded Omnidirectional 2 4 dBi (2.3-2.7 GHz), 2.1 dBi (3.3 GHz) and 4 dBi (4.9-5.875 GHz)Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-15UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-20UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-25UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorLaird’s internal wireless device antennas feature wide bandwidth to enhance the performance and application of portable wireless devices based on standards such as 802.11 and Bluetooth. The antennas are specically designed to be embedded inside devices for aesthetically pleasing integration with high durability.WiMAX Internal Antennas

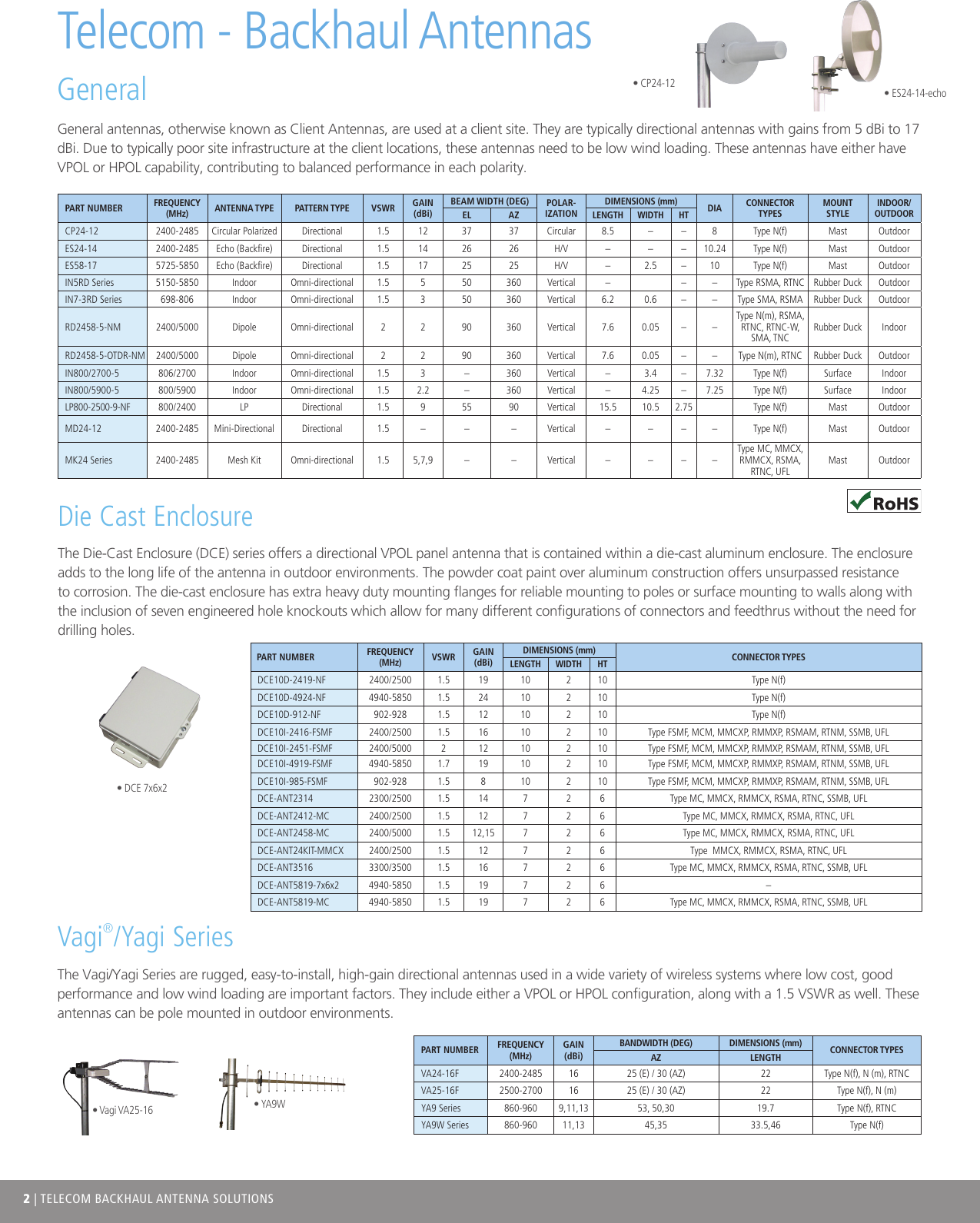

Telecom - Backhaul AntennasGeneralGeneral antennas, otherwise known as Client Antennas, are used at a client site. They are typically directional antennas with gains from 5 dBi to 17 dBi. Due to typically poor site infrastructure at the client locations, these antennas need to be low wind loading. These antennas have either have VPOL or HPOL capability, contributing to balanced performance in each polarity.2 | TELECOM BACKHAUL ANTENNA SOLUTIONSPART NUMBER FREQUENCY (MHz) ANTENNA TYPE PATTERN TYPE VSWR GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) DIA CONNECTOR TYPESMOUNT STYLEINDOOR/ OUTDOOREL AZ LENGTH WIDTH HTCP24-12 2400-2485 Circular Polarized Directional 1.5 12 37 37 Circular 8.5 – – 8 Type N(f) Mast OutdoorES24-14 2400-2485 Echo (Backfire) Directional 1.5 14 26 26 H/V – – – 10.24 Type N(f) Mast OutdoorES58-17 5725-5850 Echo (Backfire) Directional 1.5 17 25 25 H/V – 2.5 – 10 Type N(f) Mast OutdoorIN5RD Series 5150-5850 Indoor Omni-directional 1.5 5 50 360 Vertical – – – Type RSMA, RTNC Rubber Duck OutdoorIN7-3RD Series 698-806 Indoor Omni-directional 1.5 3 50 360 Vertical 6.2 0.6 – – Type SMA, RSMA Rubber Duck OutdoorRD2458-5-NM 2400/5000 Dipole Omni-directional 2 2 90 360 Vertical 7.6 0.05 – –Type N(m), RSMA, RTNC, RTNC-W, SMA, TNCRubber Duck IndoorRD2458-5-OTDR-NM 2400/5000 Dipole Omni-directional 2 2 90 360 Vertical 7.6 0.05 – – Type N(m), RTNC Rubber Duck OutdoorIN800/2700-5 806/2700 Indoor Omni-directional 1.5 3 – 360 Vertical – 3.4 – 7.32 Type N(f) Surface IndoorIN800/5900-5 800/5900 Indoor Omni-directional 1.5 2.2 – 360 Vertical – 4.25 – 7.25 Type N(f) Surface IndoorLP800-2500-9-NF 800/2400 LP Directional 1.5 9 55 90 Vertical 15.5 10.5 2.75 Type N(f) Mast OutdoorMD24-12 2400-2485 Mini-Directional Directional 1.5 – – – Vertical – – – – Type N(f) Mast OutdoorMK24 Series 2400-2485 Mesh Kit Omni-directional 1.5 5,7,9 – – Vertical – – – –Type MC, MMCX, RMMCX, RSMA, RTNC, UFLMast OutdoorDie Cast EnclosureThe Die-Cast Enclosure (DCE) series offers a directional VPOL panel antenna that is contained within a die-cast aluminum enclosure. The enclosure adds to the long life of the antenna in outdoor environments. The powder coat paint over aluminum construction offers unsurpassed resistance to corrosion. The die-cast enclosure has extra heavy duty mounting anges for reliable mounting to poles or surface mounting to walls along with the inclusion of seven engineered hole knockouts which allow for many different congurations of connectors and feedthrus without the need for drilling holes.PART NUMBER FREQUENCY (MHz) VSWR GAIN(dBi)DIMENSIONS (mm) CONNECTOR TYPESLENGTH WIDTH HTDCE10D-2419-NF 2400/2500 1.5 19 10 2 10 Type N(f)DCE10D-4924-NF 4940-5850 1.5 24 10 2 10 Type N(f)DCE10D-912-NF 902-928 1.5 12 10 2 10 Type N(f)DCE10I-2416-FSMF 2400/2500 1.5 16 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-2451-FSMF 2400/5000 2 12 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-4919-FSMF 4940-5850 1.7 19 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-985-FSMF 902-928 1.5 8 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE-ANT2314 2300/2500 1.5 14 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLDCE-ANT2412-MC 2400/2500 1.5 12 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT2458-MC 2400/5000 1.5 12,15 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT24KIT-MMCX 2400/2500 1.5 12 7 2 6 Type MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT3516 3300/3500 1.5 16 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLDCE-ANT5819-7x6x2 4940-5850 1.5 19 7 2 6 –DCE-ANT5819-MC 4940-5850 1.5 19 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLVagi®/Yagi SeriesThe Vagi/Yagi Series are rugged, easy-to-install, high-gain directional antennas used in a wide variety of wireless systems where low cost, good performance and low wind loading are important factors. They include either a VPOL or HPOL conguration, along with a 1.5 VSWR as well. These antennas can be pole mounted in outdoor environments.PART NUMBER FREQUENCY (MHz)GAIN(dBi)BANDWIDTH (DEG) DIMENSIONS (mm) CONNECTOR TYPESAZ LENGTHVA24-16F 2400-2485 16 25 (E) / 30 (AZ) 22 Type N(f), N (m), RTNCVA25-16F 2500-2700 16 25 (E) / 30 (AZ) 22 Type N(f), N (m)YA9 Series 860-960 9,11,13 53, 50,30 19.7 Type N(f), RTNCYA9W Series 860-960 11,13 45,35 33.5,46 Type N(f)• Vagi VA25-16 • YA9W• CP24-12 • ES24-14-echo• DCE 7x6x2

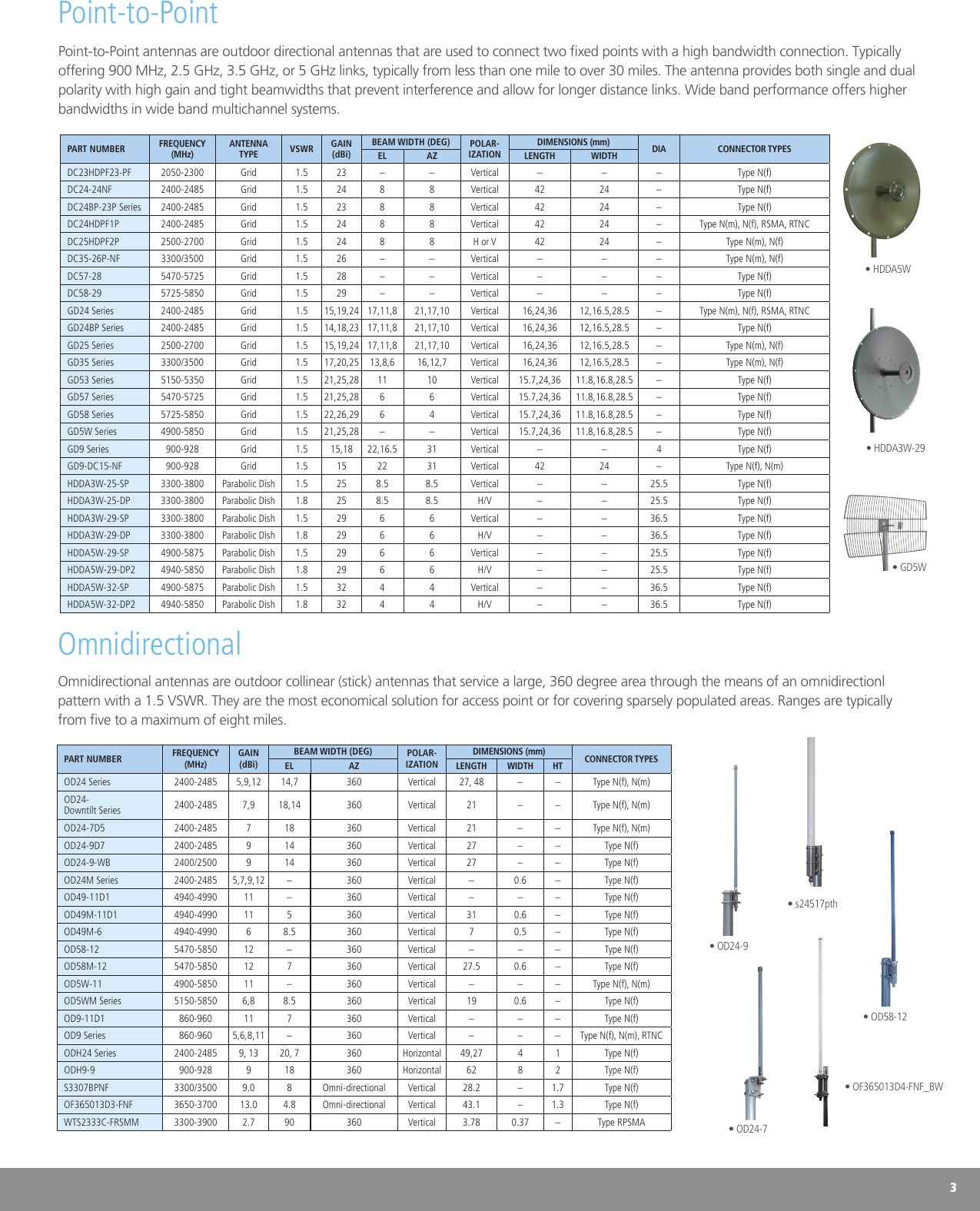

3Point-to-PointPoint-to-Point antennas are outdoor directional antennas that are used to connect two xed points with a high bandwidth connection. Typically offering 900 MHz, 2.5 GHz, 3.5 GHz, or 5 GHz links, typically from less than one mile to over 30 miles. The antenna provides both single and dual polarity with high gain and tight beamwidths that prevent interference and allow for longer distance links. Wide band performance offers higher bandwidths in wide band multichannel systems.PART NUMBER FREQUENCY (MHz)ANTENNA TYPE VSWR GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) DIA CONNECTOR TYPESEL AZ LENGTH WIDTHDC23HDPF23-PF 2050-2300 Grid 1.5 23 – – Vertical – – – Type N(f)DC24-24NF 2400-2485 Grid 1.5 24 8 8 Vertical 42 24 – Type N(f)DC24BP-23P Series 2400-2485 Grid 1.5 23 8 8 Vertical 42 24 – Type N(f)DC24HDPF1P 2400-2485 Grid 1.5 24 8 8 Vertical 42 24 – Type N(m), N(f), RSMA, RTNCDC25HDPF2P 2500-2700 Grid 1.5 24 8 8 H or V 42 24 – Type N(m), N(f)DC35-26P-NF 3300/3500 Grid 1.5 26 – – Vertical – – – Type N(m), N(f)DC57-28 5470-5725 Grid 1.5 28 – – Vertical – – – Type N(f)DC58-29 5725-5850 Grid 1.5 29 – – Vertical – – – Type N(f)GD24 Series 2400-2485 Grid 1.5 15,19,24 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f), RSMA, RTNCGD24BP Series 2400-2485 Grid 1.5 14,18,23 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(f)GD25 Series 2500-2700 Grid 1.5 15,19,24 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f)GD35 Series 3300/3500 Grid 1.5 17,20,25 13,8,6 16,12,7 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f)GD53 Series 5150-5350 Grid 1.5 21,25,28 11 10 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD57 Series 5470-5725 Grid 1.5 21,25,28 6 6 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD58 Series 5725-5850 Grid 1.5 22,26,29 6 4 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD5W Series 4900-5850 Grid 1.5 21,25,28 – – Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD9 Series 900-928 Grid 1.5 15,18 22,16.5 31 Vertical – – 4 Type N(f)GD9-DC15-NF 900-928 Grid 1.5 15 22 31 Vertical 42 24 – Type N(f), N(m)HDDA3W-25-SP 3300-3800 Parabolic Dish 1.5 25 8.5 8.5 Vertical – – 25.5 Type N(f)HDDA3W-25-DP 3300-3800 Parabolic Dish 1.8 25 8.5 8.5 H/V – – 25.5 Type N(f)HDDA3W-29-SP 3300-3800 Parabolic Dish 1.5 29 6 6 Vertical – – 36.5 Type N(f)HDDA3W-29-DP 3300-3800 Parabolic Dish 1.8 29 6 6 H/V – – 36.5 Type N(f)HDDA5W-29-SP 4900-5875 Parabolic Dish 1.5 29 6 6 Vertical – – 25.5 Type N(f)HDDA5W-29-DP2 4940-5850 Parabolic Dish 1.8 29 6 6 H/V – – 25.5 Type N(f)HDDA5W-32-SP 4900-5875 Parabolic Dish 1.5 32 4 4 Vertical – – 36.5 Type N(f)HDDA5W-32-DP2 4940-5850 Parabolic Dish 1.8 32 4 4 H/V – – 36.5 Type N(f)PART NUMBER FREQUENCY (MHz)GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) CONNECTOR TYPESEL AZ LENGTH WIDTH HTOD24 Series 2400-2485 5,9,12 14,7 360 Vertical 27, 48 – – Type N(f), N(m)OD24- Downtilt Series 2400-2485 7,9 18,14 360 Vertical 21 – – Type N(f), N(m)OD24-7D5 2400-2485 7 18 360 Vertical 21 – – Type N(f), N(m)OD24-9D7 2400-2485 9 14 360 Vertical 27 – – Type N(f)OD24-9-WB 2400/2500 9 14 360 Vertical 27 – – Type N(f)OD24M Series 2400-2485 5,7,9,12 – 360 Vertical – 0.6 – Type N(f)OD49-11D1 4940-4990 11 – 360 Vertical – – – Type N(f)OD49M-11D1 4940-4990 11 5 360 Vertical 31 0.6 – Type N(f)OD49M-6 4940-4990 6 8.5 360 Vertical 7 0.5 – Type N(f)OD58-12 5470-5850 12 – 360 Vertical – – – Type N(f)OD58M-12 5470-5850 12 7 360 Vertical 27.5 0.6 – Type N(f)OD5W-11 4900-5850 11 – 360 Vertical – – – Type N(f), N(m)OD5WM Series 5150-5850 6,8 8.5 360 Vertical 19 0.6 – Type N(f)OD9-11D1 860-960 11 7 360 Vertical – – – Type N(f)OD9 Series 860-960 5,6,8,11 – 360 Vertical – – – Type N(f), N(m), RTNCODH24 Series 2400-2485 9, 13 20, 7 360 Horizontal 49,27 4 1 Type N(f)ODH9-9 900-928 9 18 360 Horizontal 62 8 2 Type N(f)S3307BPNF 3300/3500 9.0 8 Omni-directional Vertical 28.2 – 1.7 Type N(f)OF365013D3-FNF 3650-3700 13.0 4.8 Omni-directional Vertical 43.1 – 1.3 Type N(f)WTS2333C-FRSMM 3300-3900 2.7 90 360 Vertical 3.78 0.37 – Type RPSMAOmnidirectionalOmnidirectional antennas are outdoor collinear (stick) antennas that service a large, 360 degree area through the means of an omnidirectionl pattern with a 1.5 VSWR. They are the most economical solution for access point or for covering sparsely populated areas. Ranges are typically from ve to a maximum of eight miles.• HDDA3W-29• HDDA5W• OD24-7• OD24-9• OD58-12• OF365013D4-FNF_BW• s24517pth• GD5W

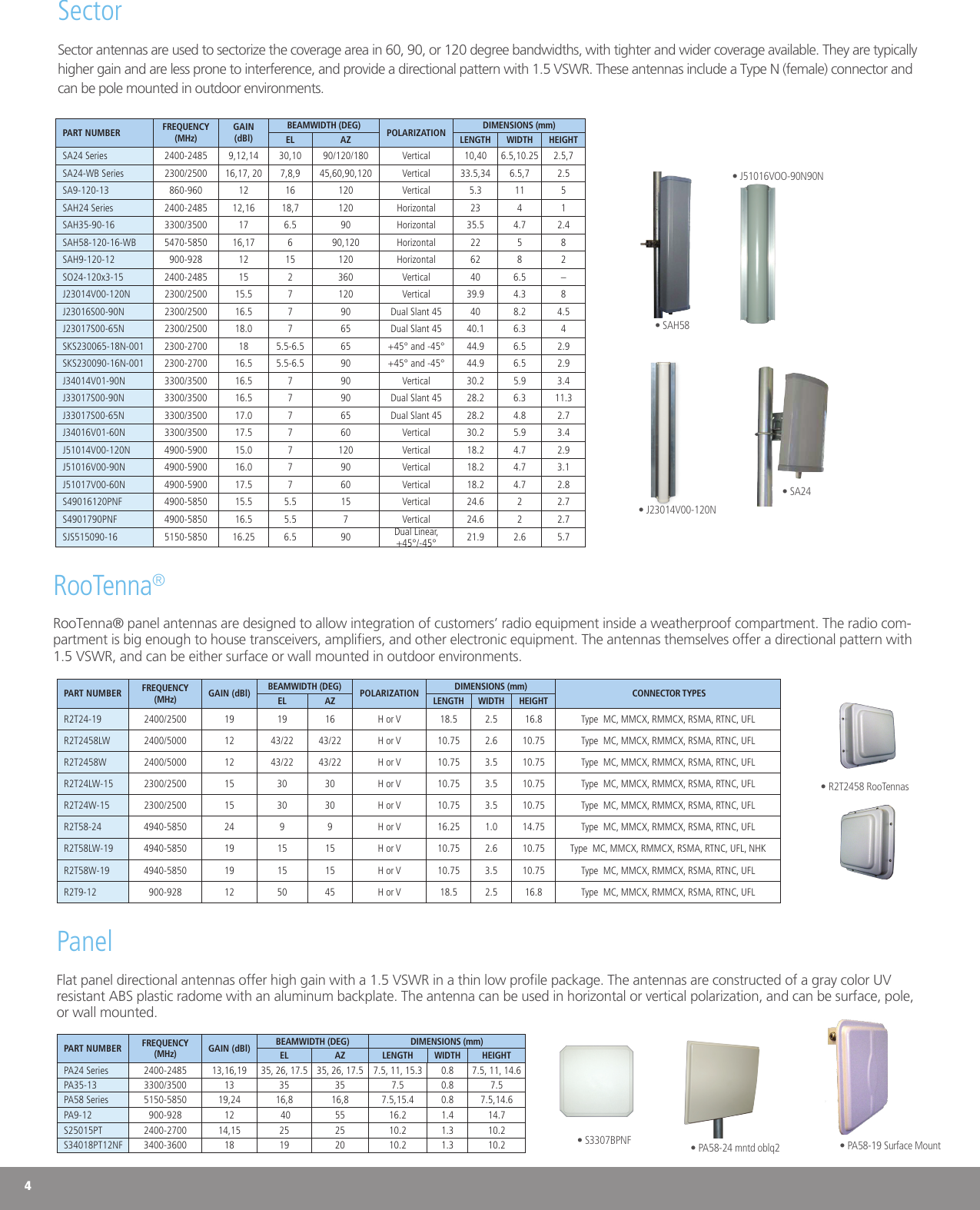

4SectorSector antennas are used to sectorize the coverage area in 60, 90, or 120 degree bandwidths, with tighter and wider coverage available. They are typically higher gain and are less prone to interference, and provide a directional pattern with 1.5 VSWR. These antennas include a Type N (female) connector and can be pole mounted in outdoor environments.PART NUMBER FREQUENCY (MHz)GAIN (dBl)BEAMWIDTH (DEG) POLARIZATION DIMENSIONS (mm)EL AZ LENGTH WIDTH HEIGHTSA24 Series 2400-2485 9,12,14 30,10 90/120/180 Vertical 10,40 6.5,10.25 2.5,7SA24-WB Series 2300/2500 16,17, 20 7,8,9 45,60,90,120 Vertical 33.5,34 6.5,7 2.5SA9-120-13 860-960 12 16 120 Vertical 5.3 11 5SAH24 Series 2400-2485 12,16 18,7 120 Horizontal 23 4 1SAH35-90-16 3300/3500 17 6.5 90 Horizontal 35.5 4.7 2.4SAH58-120-16-WB 5470-5850 16,17 6 90,120 Horizontal 22 5 8SAH9-120-12 900-928 12 15 120 Horizontal 62 8 2SO24-120x3-15 2400-2485 15 2 360 Vertical 40 6.5 –J23014V00-120N 2300/2500 15.5 7 120 Vertical 39.9 4.3 8J23016S00-90N 2300/2500 16.5 7 90 Dual Slant 45 40 8.2 4.5J23017S00-65N 2300/2500 18.0 7 65 Dual Slant 45 40.1 6.3 4SKS230065-18N-001 2300-2700 18 5.5-6.5 65 +45° and -45° 44.9 6.5 2.9SKS230090-16N-001 2300-2700 16.5 5.5-6.5 90 +45° and -45° 44.9 6.5 2.9J34014V01-90N 3300/3500 16.5 7 90 Vertical 30.2 5.9 3.4J33017S00-90N 3300/3500 16.5 7 90 Dual Slant 45 28.2 6.3 11.3J33017S00-65N 3300/3500 17.0 7 65 Dual Slant 45 28.2 4.8 2.7J34016V01-60N 3300/3500 17.5 7 60 Vertical 30.2 5.9 3.4J51014V00-120N 4900-5900 15.0 7 120 Vertical 18.2 4.7 2.9J51016V00-90N 4900-5900 16.0 7 90 Vertical 18.2 4.7 3.1J51017V00-60N 4900-5900 17.5 7 60 Vertical 18.2 4.7 2.8S49016120PNF 4900-5850 15.5 5.5 15 Vertical 24.6 2 2.7S4901790PNF 4900-5850 16.5 5.5 7 Vertical 24.6 2 2.7SJS515090-16 5150-5850 16.25 6.5 90 Dual Linear, +45°/-45° 21.9 2.6 5.7RooTenna®RooTenna® panel antennas are designed to allow integration of customers’ radio equipment inside a weatherproof compartment. The radio com-partment is big enough to house transceivers, ampliers, and other electronic equipment. The antennas themselves offer a directional pattern with 1.5 VSWR, and can be either surface or wall mounted in outdoor environments.PART NUMBER FREQUENCY (MHz) GAIN (dBl) BEAMWIDTH (DEG) POLARIZATION DIMENSIONS (mm) CONNECTOR TYPESEL AZ LENGTH WIDTH HEIGHTR2T24-19 2400/2500 19 19 16 H or V 18.5 2.5 16.8 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T2458LW 2400/5000 12 43/22 43/22 H or V 10.75 2.6 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T2458W 2400/5000 12 43/22 43/22 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T24LW-15 2300/2500 15 30 30 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T24W-15 2300/2500 15 30 30 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T58-24 4940-5850 24 9 9 H or V 16.25 1.0 14.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T58LW-19 4940-5850 19 15 15 H or V 10.75 2.6 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFL, NHKR2T58W-19 4940-5850 19 15 15 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T9-12 900-928 12 50 45 H or V 18.5 2.5 16.8 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLPanelFlat panel directional antennas offer high gain with a 1.5 VSWR in a thin low prole package. The antennas are constructed of a gray color UV resistant ABS plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization, and can be surface, pole, or wall mounted.PART NUMBER FREQUENCY (MHz) GAIN (dBl) BEAMWIDTH (DEG) DIMENSIONS (mm)EL AZ LENGTH WIDTH HEIGHTPA24 Series 2400-2485 13,16,19 35, 26, 17.5 35, 26, 17.5 7.5, 11, 15.3 0.8 7.5, 11, 14.6PA35-13 3300/3500 13 35 35 7.5 0.8 7.5PA58 Series 5150-5850 19,24 16,8 16,8 7.5,15.4 0.8 7.5,14.6PA9-12 900-928 12 40 55 16.2 1.4 14.7S25015PT 2400-2700 14,15 25 25 10.2 1.3 10.2S34018PT12NF 3400-3600 18 19 20 10.2 1.3 10.2• R2T2458 RooTennas• S3307BPNF• J23014V00-120N• J51016VOO-90N90N• SA24• SAH58• PA58-19 Surface Mount• PA58-24 mntd oblq2

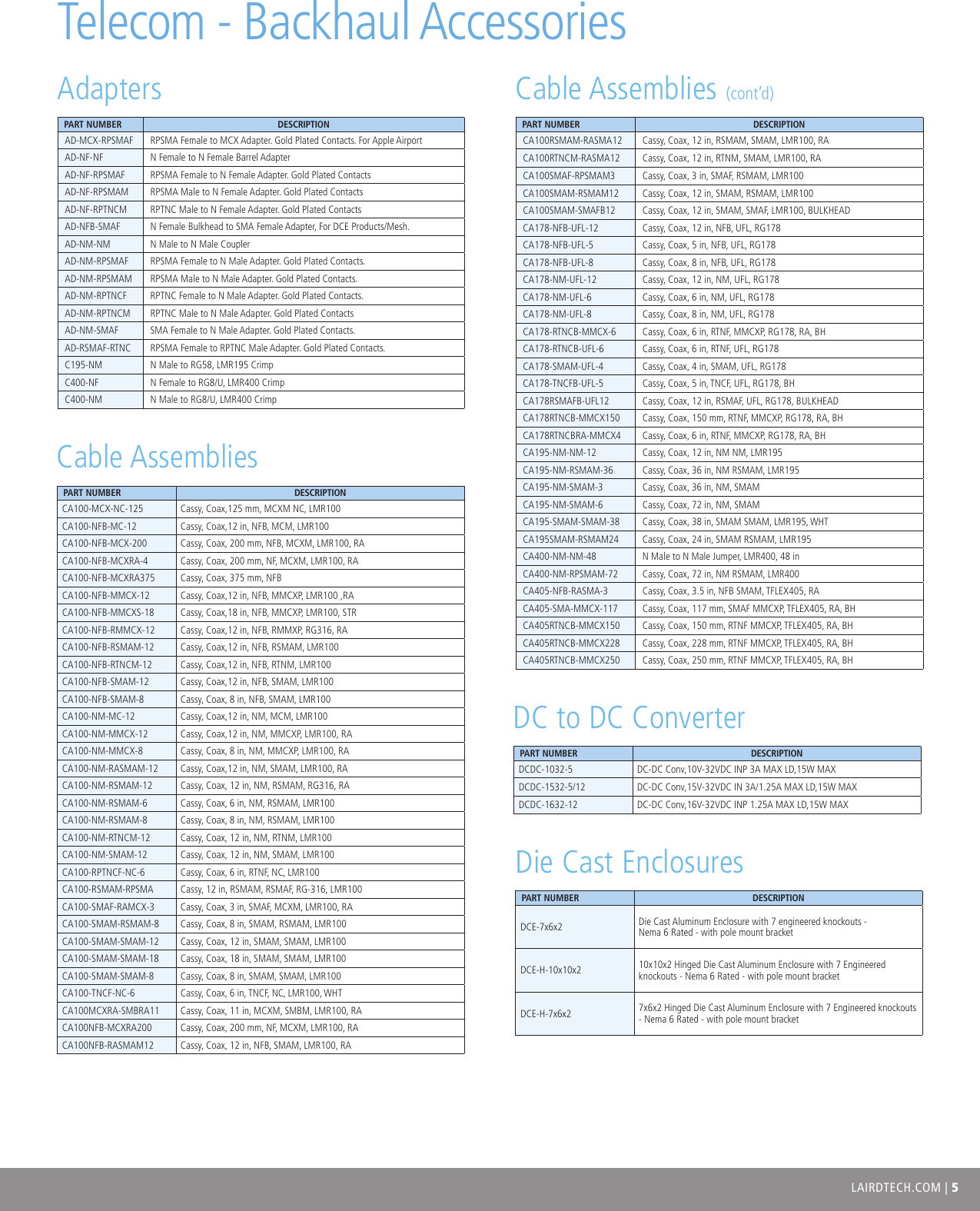

LAIRDTECH.COM | 5Telecom - Backhaul AccessoriesPART NUMBER DESCRIPTIONAD-MCX-RPSMAF RPSMA Female to MCX Adapter. Gold Plated Contacts. For Apple AirportAD-NF-NF N Female to N Female Barrel AdapterAD-NF-RPSMAF RPSMA Female to N Female Adapter. Gold Plated ContactsAD-NF-RPSMAM RPSMA Male to N Female Adapter. Gold Plated ContactsAD-NF-RPTNCM RPTNC Male to N Female Adapter. Gold Plated ContactsAD-NFB-SMAF N Female Bulkhead to SMA Female Adapter, For DCE Products/Mesh.AD-NM-NM N Male to N Male CouplerAD-NM-RPSMAF RPSMA Female to N Male Adapter. Gold Plated Contacts.AD-NM-RPSMAM RPSMA Male to N Male Adapter. Gold Plated Contacts.AD-NM-RPTNCF RPTNC Female to N Male Adapter. Gold Plated Contacts.AD-NM-RPTNCM RPTNC Male to N Male Adapter. Gold Plated ContactsAD-NM-SMAF SMA Female to N Male Adapter. Gold Plated Contacts.AD-RSMAF-RTNC RPSMA Female to RPTNC Male Adapter. Gold Plated Contacts.C195-NM N Male to RG58, LMR195 CrimpC400-NF N Female to RG8/U, LMR400 CrimpC400-NM N Male to RG8/U, LMR400 CrimpAdaptersPART NUMBER DESCRIPTIONCA100-MCX-NC-125 Cassy, Coax,125 mm, MCXM NC, LMR100CA100-NFB-MC-12 Cassy, Coax,12 in, NFB, MCM, LMR100CA100-NFB-MCX-200 Cassy, Coax, 200 mm, NFB, MCXM, LMR100, RACA100-NFB-MCXRA-4 Cassy, Coax, 200 mm, NF, MCXM, LMR100, RACA100-NFB-MCXRA375 Cassy, Coax, 375 mm, NFBCA100-NFB-MMCX-12 Cassy, Coax,12 in, NFB, MMCXP, LMR100 ,RACA100-NFB-MMCXS-18 Cassy, Coax,18 in, NFB, MMCXP, LMR100, STRCA100-NFB-RMMCX-12 Cassy, Coax,12 in, NFB, RMMXP, RG316, RACA100-NFB-RSMAM-12 Cassy, Coax,12 in, NFB, RSMAM, LMR100CA100-NFB-RTNCM-12 Cassy, Coax,12 in, NFB, RTNM, LMR100CA100-NFB-SMAM-12 Cassy, Coax,12 in, NFB, SMAM, LMR100CA100-NFB-SMAM-8 Cassy, Coax, 8 in, NFB, SMAM, LMR100CA100-NM-MC-12 Cassy, Coax,12 in, NM, MCM, LMR100CA100-NM-MMCX-12 Cassy, Coax,12 in, NM, MMCXP, LMR100, RACA100-NM-MMCX-8 Cassy, Coax, 8 in, NM, MMCXP, LMR100, RACA100-NM-RASMAM-12 Cassy, Coax,12 in, NM, SMAM, LMR100, RACA100-NM-RSMAM-12 Cassy, Coax, 12 in, NM, RSMAM, RG316, RACA100-NM-RSMAM-6 Cassy, Coax, 6 in, NM, RSMAM, LMR100CA100-NM-RSMAM-8 Cassy, Coax, 8 in, NM, RSMAM, LMR100CA100-NM-RTNCM-12 Cassy, Coax, 12 in, NM, RTNM, LMR100CA100-NM-SMAM-12 Cassy, Coax, 12 in, NM, SMAM, LMR100CA100-RPTNCF-NC-6 Cassy, Coax, 6 in, RTNF, NC, LMR100CA100-RSMAM-RPSMA Cassy, 12 in, RSMAM, RSMAF, RG-316, LMR100CA100-SMAF-RAMCX-3 Cassy, Coax, 3 in, SMAF, MCXM, LMR100, RACA100-SMAM-RSMAM-8 Cassy, Coax, 8 in, SMAM, RSMAM, LMR100CA100-SMAM-SMAM-12 Cassy, Coax, 12 in, SMAM, SMAM, LMR100CA100-SMAM-SMAM-18 Cassy, Coax, 18 in, SMAM, SMAM, LMR100CA100-SMAM-SMAM-8 Cassy, Coax, 8 in, SMAM, SMAM, LMR100CA100-TNCF-NC-6 Cassy, Coax, 6 in, TNCF, NC, LMR100, WHTCA100MCXRA-SMBRA11 Cassy, Coax, 11 in, MCXM, SMBM, LMR100, RACA100NFB-MCXRA200 Cassy, Coax, 200 mm, NF, MCXM, LMR100, RACA100NFB-RASMAM12 Cassy, Coax, 12 in, NFB, SMAM, LMR100, RACable AssembliesPART NUMBER DESCRIPTIONCA100RSMAM-RASMA12 Cassy, Coax, 12 in, RSMAM, SMAM, LMR100, RACA100RTNCM-RASMA12 Cassy, Coax, 12 in, RTNM, SMAM, LMR100, RACA100SMAF-RPSMAM3 Cassy, Coax, 3 in, SMAF, RSMAM, LMR100CA100SMAM-RSMAM12 Cassy, Coax, 12 in, SMAM, RSMAM, LMR100CA100SMAM-SMAFB12 Cassy, Coax, 12 in, SMAM, SMAF, LMR100, BULKHEADCA178-NFB-UFL-12 Cassy, Coax, 12 in, NFB, UFL, RG178CA178-NFB-UFL-5 Cassy, Coax, 5 in, NFB, UFL, RG178CA178-NFB-UFL-8 Cassy, Coax, 8 in, NFB, UFL, RG178CA178-NM-UFL-12 Cassy, Coax, 12 in, NM, UFL, RG178CA178-NM-UFL-6 Cassy, Coax, 6 in, NM, UFL, RG178CA178-NM-UFL-8 Cassy, Coax, 8 in, NM, UFL, RG178CA178-RTNCB-MMCX-6 Cassy, Coax, 6 in, RTNF, MMCXP, RG178, RA, BHCA178-RTNCB-UFL-6 Cassy, Coax, 6 in, RTNF, UFL, RG178CA178-SMAM-UFL-4 Cassy, Coax, 4 in, SMAM, UFL, RG178CA178-TNCFB-UFL-5 Cassy, Coax, 5 in, TNCF, UFL, RG178, BHCA178RSMAFB-UFL12 Cassy, Coax, 12 in, RSMAF, UFL, RG178, BULKHEADCA178RTNCB-MMCX150 Cassy, Coax, 150 mm, RTNF, MMCXP, RG178, RA, BHCA178RTNCBRA-MMCX4 Cassy, Coax, 6 in, RTNF, MMCXP, RG178, RA, BHCA195-NM-NM-12 Cassy, Coax, 12 in, NM NM, LMR195CA195-NM-RSMAM-36 Cassy, Coax, 36 in, NM RSMAM, LMR195CA195-NM-SMAM-3 Cassy, Coax, 36 in, NM, SMAMCA195-NM-SMAM-6 Cassy, Coax, 72 in, NM, SMAMCA195-SMAM-SMAM-38 Cassy, Coax, 38 in, SMAM SMAM, LMR195, WHTCA195SMAM-RSMAM24 Cassy, Coax, 24 in, SMAM RSMAM, LMR195CA400-NM-NM-48 N Male to N Male Jumper, LMR400, 48 inCA400-NM-RPSMAM-72 Cassy, Coax, 72 in, NM RSMAM, LMR400CA405-NFB-RASMA-3 Cassy, Coax, 3.5 in, NFB SMAM, TFLEX405, RACA405-SMA-MMCX-117 Cassy, Coax, 117 mm, SMAF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX150 Cassy, Coax, 150 mm, RTNF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX228 Cassy, Coax, 228 mm, RTNF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX250 Cassy, Coax, 250 mm, RTNF MMCXP, TFLEX405, RA, BHCable Assemblies (cont’d)PART NUMBER DESCRIPTIONDCDC-1032-5 DC-DC Conv,10V-32VDC INP 3A MAX LD,15W MAXDCDC-1532-5/12 DC-DC Conv,15V-32VDC IN 3A/1.25A MAX LD,15W MAXDCDC-1632-12 DC-DC Conv,16V-32VDC INP 1.25A MAX LD,15W MAXDC to DC ConverterPART NUMBER DESCRIPTIONDCE-7x6x2 Die Cast Aluminum Enclosure with 7 engineered knockouts - Nema 6 Rated - with pole mount bracketDCE-H-10x10x2 10x10x2 Hinged Die Cast Aluminum Enclosure with 7 Engineered knockouts - Nema 6 Rated - with pole mount bracketDCE-H-7x6x2 7x6x2 Hinged Die Cast Aluminum Enclosure with 7 Engineered knockouts - Nema 6 Rated - with pole mount bracketDie Cast Enclosures

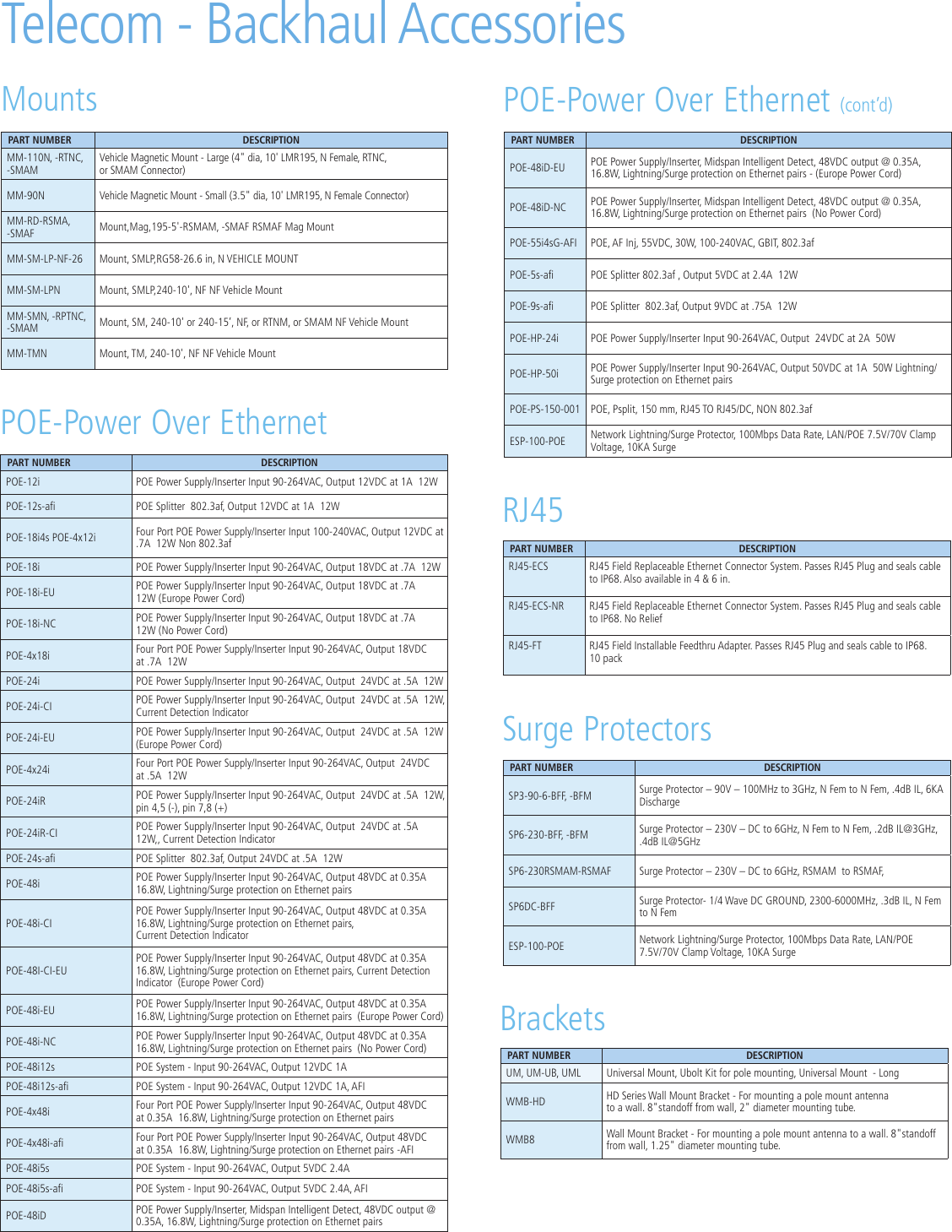

Telecom - Backhaul AccessoriesPART NUMBER DESCRIPTIONMM-110N, -RTNC, -SMAMVehicle Magnetic Mount - Large (4" dia, 10' LMR195, N Female, RTNC, or SMAM Connector)MM-90N Vehicle Magnetic Mount - Small (3.5" dia, 10' LMR195, N Female Connector)MM-RD-RSMA, -SMAF Mount,Mag,195-5'-RSMAM, -SMAF RSMAF Mag MountMM-SM-LP-NF-26 Mount, SMLP,RG58-26.6 in, N VEHICLE MOUNTMM-SM-LPN Mount, SMLP,240-10', NF NF Vehicle MountMM-SMN, -RPTNC, -SMAM Mount, SM, 240-10' or 240-15’, NF, or RTNM, or SMAM NF Vehicle MountMM-TMN Mount, TM, 240-10', NF NF Vehicle MountMountsPART NUMBER DESCRIPTIONPOE-12i POE Power Supply/Inserter Input 90-264VAC, Output 12VDC at 1A 12WPOE-12s-a POE Splitter 802.3af, Output 12VDC at 1A 12WPOE-18i4s POE-4x12i Four Port POE Power Supply/Inserter Input 100-240VAC, Output 12VDC at .7A 12W Non 802.3afPOE-18i POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12WPOE-18i-EU POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12W (Europe Power Cord)POE-18i-NC POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12W (No Power Cord)POE-4x18i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12WPOE-24i POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12WPOE-24i-CI POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W, Current Detection IndicatorPOE-24i-EU POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W (Europe Power Cord)POE-4x24i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12WPOE-24iR POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W, pin 4,5 (-), pin 7,8 (+)POE-24iR-CI POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W,, Current Detection IndicatorPOE-24s-a POE Splitter 802.3af, Output 24VDC at .5A 12WPOE-48i POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs POE-48i-CIPOE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs, Current Detection Indicator POE-48I-CI-EUPOE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs, Current Detection Indicator (Europe Power Cord)POE-48i-EU POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs (Europe Power Cord)POE-48i-NC POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs (No Power Cord)POE-48i12s POE System - Input 90-264VAC, Output 12VDC 1APOE-48i12s-a POE System - Input 90-264VAC, Output 12VDC 1A, AFIPOE-4x48i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs POE-4x48i-a Four Port POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs -AFIPOE-48i5s POE System - Input 90-264VAC, Output 5VDC 2.4APOE-48i5s-a POE System - Input 90-264VAC, Output 5VDC 2.4A, AFIPOE-48iD POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs POE-Power Over EthernetPART NUMBER DESCRIPTIONPOE-48iD-EU POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs - (Europe Power Cord) POE-48iD-NC POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs (No Power Cord)POE-55i4sG-AFI POE, AF Inj, 55VDC, 30W, 100-240VAC, GBIT, 802.3afPOE-5s-a POE Splitter 802.3af , Output 5VDC at 2.4A 12WPOE-9s-a POE Splitter 802.3af, Output 9VDC at .75A 12WPOE-HP-24i POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at 2A 50WPOE-HP-50i POE Power Supply/Inserter Input 90-264VAC, Output 50VDC at 1A 50W Lightning/Surge protection on Ethernet pairs POE-PS-150-001 POE, Psplit, 150 mm, RJ45 TO RJ45/DC, NON 802.3afESP-100-POE Network Lightning/Surge Protector, 100Mbps Data Rate, LAN/POE 7.5V/70V Clamp Voltage, 10KA SurgePOE-Power Over Ethernet (cont’d)PART NUMBER DESCRIPTIONRJ45-ECS RJ45 Field Replaceable Ethernet Connector System. Passes RJ45 Plug and seals cable to IP68. Also available in 4 & 6 in.RJ45-ECS-NR RJ45 Field Replaceable Ethernet Connector System. Passes RJ45 Plug and seals cable to IP68. No ReliefRJ45-FT RJ45 Field Installable Feedthru Adapter. Passes RJ45 Plug and seals cable to IP68. 10 packRJ45PART NUMBER DESCRIPTIONSP3-90-6-BFF, -BFM Surge Protector – 90V – 100MHz to 3GHz, N Fem to N Fem, .4dB IL, 6KA DischargeSP6-230-BFF, -BFM Surge Protector – 230V – DC to 6GHz, N Fem to N Fem, .2dB IL@3GHz, .4dB IL@5GHzSP6-230RSMAM-RSMAF Surge Protector – 230V – DC to 6GHz, RSMAM to RSMAF,SP6DC-BFF Surge Protector- 1/4 Wave DC GROUND, 2300-6000MHz, .3dB IL, N Fem to N FemESP-100-POE Network Lightning/Surge Protector, 100Mbps Data Rate, LAN/POE 7.5V/70V Clamp Voltage, 10KA SurgeSurge ProtectorsPART NUMBER DESCRIPTIONUM, UM-UB, UML Universal Mount, Ubolt Kit for pole mounting, Universal Mount - Long WMB-HD HD Series Wall Mount Bracket - For mounting a pole mount antenna to a wall. 8"standoff from wall, 2" diameter mounting tube.WMB8 Wall Mount Bracket - For mounting a pole mount antenna to a wall. 8"standoff from wall, 1.25" diameter mounting tube.Brackets

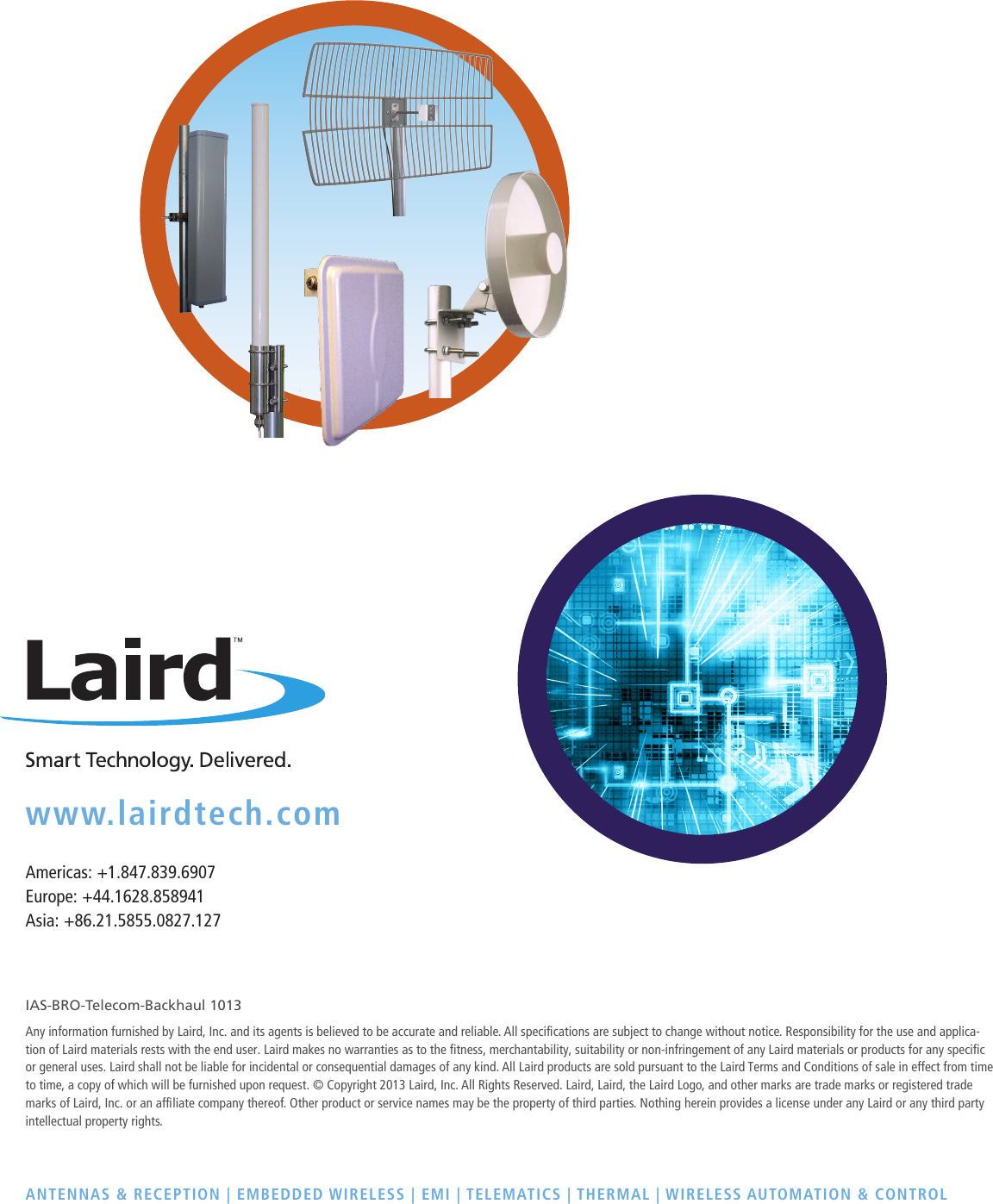

www.lairdtech.comAmericas: +1.847.839.6907Europe: +44.1628.858941Asia: +86.21.5855.0827.127IAS-BRO-Telecom-Backhaul 1013Any information furnished by Laird, Inc. and its agents is believed to be accurate and reliable. All specications are subject to change without notice. Responsibility for the use and applica-tion of Laird materials rests with the end user. Laird makes no warranties as to the fitness, merchantability, suitability or non-infringement of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2013 Laird, Inc. All Rights Reserved. Laird, Laird, the Laird Logo, and other marks are trade marks or registered trade marks of Laird, Inc. or an afliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.ANTENNAS & RECEPTION | EMBEDDED WIRELESS | EMI | TELEMATICS | THERMAL | WIRELESS AUTOMATION & CONTROL

antenna 1

Telecom-Backhaul Antenna SolutionsLaird designs and manufactures customized, performance-critical products for wireless and other advanced electronics applications.
About Laird Laird is a global technology business focused on enabling wireless communication and smart systems, and providing components and systems that protect electronics. Laird operates through two divisions, Wireless Systems and Performance Materials. Wireless Systems solutions include antenna systems, embedded wireless modules, telematics products and wireless automation and control solutions. Performance Materials solutions include electromagnetic interference shielding, thermal management and signal integrity products. As a leader in the design, supply and support of innovative technology, our products allow people, organisations, machines and applications to connect effectively, helping to build a world where smart technology transforms the way of life. Custom products are supplied to major sectors of the electronics industry including the handset, telecommunications, IT, automotive, public safety, consumer, medical, rail, mining and industrial markets. Providing value and differentiation to our customers though innovation, reliable fullment and speed, Laird PLC is listed and headquartered in London, and employs over 9,000 people in more than 58 facilities located in 18 countries. A Brief Introduction to Backhaul Backhaul consists of carriers, or companies, who set up wireless Internet systems. These systems offer a central hotspot that allows subscribers within a limited coverage area to connect to the hotspot through a wireless connection. Backhaul comprises of a wireless network that covers protocols such as WLAN, WiMAX, Base Station and Point-to-Point. Backhaul antennas are typically used for xed point wireless at a location. Depend on Laird Laird’s Backhaul antennas meet stringent compliance standards and are competitively priced. Its worldwide engineering teams, using proprietary articial intelligence antenna design software, create antenna designs with the tightest patterns and highest gain in the most compact package. With Laird’s proven expertise in high-capacity manufacturing operations, its Backhaul product line exhibits a good value/performance ratio. Benefits of Backhaul TechnologySome benets of using Laird’s Backhaul antennas include: • Instant Internet connection anywhere around a hotspot • Quick deployment • Cost-effective solutions • Variety of VPOL and HPOL congurations • Wideband performance • Well suited for point-to-point or point-to-multipoint applicationsPART NUMBER FREQUENCY (MHz)ANTENNA TYPE PATTERN TYPE VSWR GAIN (dBl) POLAR-IZATIONDIMENSIONS (mm) CONNECTOR TYPES MOUNT STYLE INDOOR/OUTDOORLENGTH WIDTHEMX2360A1-10UFL 2300-6000 Embedded Omnidirectional 2 4 dBi (2.3-2.7 GHz), 2.1 dBi (3.3 GHz) and 4 dBi (4.9-5.875 GHz)Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-15UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-20UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorEMX2360A1-25UFL 2300-6000 Embedded Omnidirectional 2 Vertical 2 0.65 IPEX MHF Surface Mount IndoorLaird’s internal wireless device antennas feature wide bandwidth to enhance the performance and application of portable wireless devices based on standards such as 802.11 and Bluetooth. The antennas are specically designed to be embedded inside devices for aesthetically pleasing integration with high durability.WiMAX Internal Antennas
Telecom - Backhaul AntennasGeneralGeneral antennas, otherwise known as Client Antennas, are used at a client site. They are typically directional antennas with gains from 5 dBi to 17 dBi. Due to typically poor site infrastructure at the client locations, these antennas need to be low wind loading. These antennas have either have VPOL or HPOL capability, contributing to balanced performance in each polarity.2 | TELECOM BACKHAUL ANTENNA SOLUTIONSPART NUMBER FREQUENCY (MHz) ANTENNA TYPE PATTERN TYPE VSWR GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) DIA CONNECTOR TYPESMOUNT STYLEINDOOR/ OUTDOOREL AZ LENGTH WIDTH HTCP24-12 2400-2485 Circular Polarized Directional 1.5 12 37 37 Circular 8.5 – – 8 Type N(f) Mast OutdoorES24-14 2400-2485 Echo (Backfire) Directional 1.5 14 26 26 H/V – – – 10.24 Type N(f) Mast OutdoorES58-17 5725-5850 Echo (Backfire) Directional 1.5 17 25 25 H/V – 2.5 – 10 Type N(f) Mast OutdoorIN5RD Series 5150-5850 Indoor Omni-directional 1.5 5 50 360 Vertical – – – Type RSMA, RTNC Rubber Duck OutdoorIN7-3RD Series 698-806 Indoor Omni-directional 1.5 3 50 360 Vertical 6.2 0.6 – – Type SMA, RSMA Rubber Duck OutdoorRD2458-5-NM 2400/5000 Dipole Omni-directional 2 2 90 360 Vertical 7.6 0.05 – –Type N(m), RSMA, RTNC, RTNC-W, SMA, TNCRubber Duck IndoorRD2458-5-OTDR-NM 2400/5000 Dipole Omni-directional 2 2 90 360 Vertical 7.6 0.05 – – Type N(m), RTNC Rubber Duck OutdoorIN800/2700-5 806/2700 Indoor Omni-directional 1.5 3 – 360 Vertical – 3.4 – 7.32 Type N(f) Surface IndoorIN800/5900-5 800/5900 Indoor Omni-directional 1.5 2.2 – 360 Vertical – 4.25 – 7.25 Type N(f) Surface IndoorLP800-2500-9-NF 800/2400 LP Directional 1.5 9 55 90 Vertical 15.5 10.5 2.75 Type N(f) Mast OutdoorMD24-12 2400-2485 Mini-Directional Directional 1.5 – – – Vertical – – – – Type N(f) Mast OutdoorMK24 Series 2400-2485 Mesh Kit Omni-directional 1.5 5,7,9 – – Vertical – – – –Type MC, MMCX, RMMCX, RSMA, RTNC, UFLMast OutdoorDie Cast EnclosureThe Die-Cast Enclosure (DCE) series offers a directional VPOL panel antenna that is contained within a die-cast aluminum enclosure. The enclosure adds to the long life of the antenna in outdoor environments. The powder coat paint over aluminum construction offers unsurpassed resistance to corrosion. The die-cast enclosure has extra heavy duty mounting anges for reliable mounting to poles or surface mounting to walls along with the inclusion of seven engineered hole knockouts which allow for many different congurations of connectors and feedthrus without the need for drilling holes.PART NUMBER FREQUENCY (MHz) VSWR GAIN(dBi)DIMENSIONS (mm) CONNECTOR TYPESLENGTH WIDTH HTDCE10D-2419-NF 2400/2500 1.5 19 10 2 10 Type N(f)DCE10D-4924-NF 4940-5850 1.5 24 10 2 10 Type N(f)DCE10D-912-NF 902-928 1.5 12 10 2 10 Type N(f)DCE10I-2416-FSMF 2400/2500 1.5 16 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-2451-FSMF 2400/5000 2 12 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-4919-FSMF 4940-5850 1.7 19 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE10I-985-FSMF 902-928 1.5 8 10 2 10 Type FSMF, MCM, MMCXP, RMMXP, RSMAM, RTNM, SSMB, UFLDCE-ANT2314 2300/2500 1.5 14 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLDCE-ANT2412-MC 2400/2500 1.5 12 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT2458-MC 2400/5000 1.5 12,15 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT24KIT-MMCX 2400/2500 1.5 12 7 2 6 Type MMCX, RMMCX, RSMA, RTNC, UFLDCE-ANT3516 3300/3500 1.5 16 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLDCE-ANT5819-7x6x2 4940-5850 1.5 19 7 2 6 –DCE-ANT5819-MC 4940-5850 1.5 19 7 2 6 Type MC, MMCX, RMMCX, RSMA, RTNC, SSMB, UFLVagi®/Yagi SeriesThe Vagi/Yagi Series are rugged, easy-to-install, high-gain directional antennas used in a wide variety of wireless systems where low cost, good performance and low wind loading are important factors. They include either a VPOL or HPOL conguration, along with a 1.5 VSWR as well. These antennas can be pole mounted in outdoor environments.PART NUMBER FREQUENCY (MHz)GAIN(dBi)BANDWIDTH (DEG) DIMENSIONS (mm) CONNECTOR TYPESAZ LENGTHVA24-16F 2400-2485 16 25 (E) / 30 (AZ) 22 Type N(f), N (m), RTNCVA25-16F 2500-2700 16 25 (E) / 30 (AZ) 22 Type N(f), N (m)YA9 Series 860-960 9,11,13 53, 50,30 19.7 Type N(f), RTNCYA9W Series 860-960 11,13 45,35 33.5,46 Type N(f)• Vagi VA25-16 • YA9W• CP24-12 • ES24-14-echo• DCE 7x6x2
3Point-to-PointPoint-to-Point antennas are outdoor directional antennas that are used to connect two xed points with a high bandwidth connection. Typically offering 900 MHz, 2.5 GHz, 3.5 GHz, or 5 GHz links, typically from less than one mile to over 30 miles. The antenna provides both single and dual polarity with high gain and tight beamwidths that prevent interference and allow for longer distance links. Wide band performance offers higher bandwidths in wide band multichannel systems.PART NUMBER FREQUENCY (MHz)ANTENNA TYPE VSWR GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) DIA CONNECTOR TYPESEL AZ LENGTH WIDTHDC23HDPF23-PF 2050-2300 Grid 1.5 23 – – Vertical – – – Type N(f)DC24-24NF 2400-2485 Grid 1.5 24 8 8 Vertical 42 24 – Type N(f)DC24BP-23P Series 2400-2485 Grid 1.5 23 8 8 Vertical 42 24 – Type N(f)DC24HDPF1P 2400-2485 Grid 1.5 24 8 8 Vertical 42 24 – Type N(m), N(f), RSMA, RTNCDC25HDPF2P 2500-2700 Grid 1.5 24 8 8 H or V 42 24 – Type N(m), N(f)DC35-26P-NF 3300/3500 Grid 1.5 26 – – Vertical – – – Type N(m), N(f)DC57-28 5470-5725 Grid 1.5 28 – – Vertical – – – Type N(f)DC58-29 5725-5850 Grid 1.5 29 – – Vertical – – – Type N(f)GD24 Series 2400-2485 Grid 1.5 15,19,24 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f), RSMA, RTNCGD24BP Series 2400-2485 Grid 1.5 14,18,23 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(f)GD25 Series 2500-2700 Grid 1.5 15,19,24 17,11,8 21,17,10 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f)GD35 Series 3300/3500 Grid 1.5 17,20,25 13,8,6 16,12,7 Vertical 16,24,36 12,16.5,28.5 – Type N(m), N(f)GD53 Series 5150-5350 Grid 1.5 21,25,28 11 10 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD57 Series 5470-5725 Grid 1.5 21,25,28 6 6 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD58 Series 5725-5850 Grid 1.5 22,26,29 6 4 Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD5W Series 4900-5850 Grid 1.5 21,25,28 – – Vertical 15.7,24,36 11.8,16.8,28.5 – Type N(f)GD9 Series 900-928 Grid 1.5 15,18 22,16.5 31 Vertical – – 4 Type N(f)GD9-DC15-NF 900-928 Grid 1.5 15 22 31 Vertical 42 24 – Type N(f), N(m)HDDA3W-25-SP 3300-3800 Parabolic Dish 1.5 25 8.5 8.5 Vertical – – 25.5 Type N(f)HDDA3W-25-DP 3300-3800 Parabolic Dish 1.8 25 8.5 8.5 H/V – – 25.5 Type N(f)HDDA3W-29-SP 3300-3800 Parabolic Dish 1.5 29 6 6 Vertical – – 36.5 Type N(f)HDDA3W-29-DP 3300-3800 Parabolic Dish 1.8 29 6 6 H/V – – 36.5 Type N(f)HDDA5W-29-SP 4900-5875 Parabolic Dish 1.5 29 6 6 Vertical – – 25.5 Type N(f)HDDA5W-29-DP2 4940-5850 Parabolic Dish 1.8 29 6 6 H/V – – 25.5 Type N(f)HDDA5W-32-SP 4900-5875 Parabolic Dish 1.5 32 4 4 Vertical – – 36.5 Type N(f)HDDA5W-32-DP2 4940-5850 Parabolic Dish 1.8 32 4 4 H/V – – 36.5 Type N(f)PART NUMBER FREQUENCY (MHz)GAIN(dBi)BEAM WIDTH (DEG) POLAR-IZATIONDIMENSIONS (mm) CONNECTOR TYPESEL AZ LENGTH WIDTH HTOD24 Series 2400-2485 5,9,12 14,7 360 Vertical 27, 48 – – Type N(f), N(m)OD24- Downtilt Series 2400-2485 7,9 18,14 360 Vertical 21 – – Type N(f), N(m)OD24-7D5 2400-2485 7 18 360 Vertical 21 – – Type N(f), N(m)OD24-9D7 2400-2485 9 14 360 Vertical 27 – – Type N(f)OD24-9-WB 2400/2500 9 14 360 Vertical 27 – – Type N(f)OD24M Series 2400-2485 5,7,9,12 – 360 Vertical – 0.6 – Type N(f)OD49-11D1 4940-4990 11 – 360 Vertical – – – Type N(f)OD49M-11D1 4940-4990 11 5 360 Vertical 31 0.6 – Type N(f)OD49M-6 4940-4990 6 8.5 360 Vertical 7 0.5 – Type N(f)OD58-12 5470-5850 12 – 360 Vertical – – – Type N(f)OD58M-12 5470-5850 12 7 360 Vertical 27.5 0.6 – Type N(f)OD5W-11 4900-5850 11 – 360 Vertical – – – Type N(f), N(m)OD5WM Series 5150-5850 6,8 8.5 360 Vertical 19 0.6 – Type N(f)OD9-11D1 860-960 11 7 360 Vertical – – – Type N(f)OD9 Series 860-960 5,6,8,11 – 360 Vertical – – – Type N(f), N(m), RTNCODH24 Series 2400-2485 9, 13 20, 7 360 Horizontal 49,27 4 1 Type N(f)ODH9-9 900-928 9 18 360 Horizontal 62 8 2 Type N(f)S3307BPNF 3300/3500 9.0 8 Omni-directional Vertical 28.2 – 1.7 Type N(f)OF365013D3-FNF 3650-3700 13.0 4.8 Omni-directional Vertical 43.1 – 1.3 Type N(f)WTS2333C-FRSMM 3300-3900 2.7 90 360 Vertical 3.78 0.37 – Type RPSMAOmnidirectionalOmnidirectional antennas are outdoor collinear (stick) antennas that service a large, 360 degree area through the means of an omnidirectionl pattern with a 1.5 VSWR. They are the most economical solution for access point or for covering sparsely populated areas. Ranges are typically from ve to a maximum of eight miles.• HDDA3W-29• HDDA5W• OD24-7• OD24-9• OD58-12• OF365013D4-FNF_BW• s24517pth• GD5W
4SectorSector antennas are used to sectorize the coverage area in 60, 90, or 120 degree bandwidths, with tighter and wider coverage available. They are typically higher gain and are less prone to interference, and provide a directional pattern with 1.5 VSWR. These antennas include a Type N (female) connector and can be pole mounted in outdoor environments.PART NUMBER FREQUENCY (MHz)GAIN (dBl)BEAMWIDTH (DEG) POLARIZATION DIMENSIONS (mm)EL AZ LENGTH WIDTH HEIGHTSA24 Series 2400-2485 9,12,14 30,10 90/120/180 Vertical 10,40 6.5,10.25 2.5,7SA24-WB Series 2300/2500 16,17, 20 7,8,9 45,60,90,120 Vertical 33.5,34 6.5,7 2.5SA9-120-13 860-960 12 16 120 Vertical 5.3 11 5SAH24 Series 2400-2485 12,16 18,7 120 Horizontal 23 4 1SAH35-90-16 3300/3500 17 6.5 90 Horizontal 35.5 4.7 2.4SAH58-120-16-WB 5470-5850 16,17 6 90,120 Horizontal 22 5 8SAH9-120-12 900-928 12 15 120 Horizontal 62 8 2SO24-120x3-15 2400-2485 15 2 360 Vertical 40 6.5 –J23014V00-120N 2300/2500 15.5 7 120 Vertical 39.9 4.3 8J23016S00-90N 2300/2500 16.5 7 90 Dual Slant 45 40 8.2 4.5J23017S00-65N 2300/2500 18.0 7 65 Dual Slant 45 40.1 6.3 4SKS230065-18N-001 2300-2700 18 5.5-6.5 65 +45° and -45° 44.9 6.5 2.9SKS230090-16N-001 2300-2700 16.5 5.5-6.5 90 +45° and -45° 44.9 6.5 2.9J34014V01-90N 3300/3500 16.5 7 90 Vertical 30.2 5.9 3.4J33017S00-90N 3300/3500 16.5 7 90 Dual Slant 45 28.2 6.3 11.3J33017S00-65N 3300/3500 17.0 7 65 Dual Slant 45 28.2 4.8 2.7J34016V01-60N 3300/3500 17.5 7 60 Vertical 30.2 5.9 3.4J51014V00-120N 4900-5900 15.0 7 120 Vertical 18.2 4.7 2.9J51016V00-90N 4900-5900 16.0 7 90 Vertical 18.2 4.7 3.1J51017V00-60N 4900-5900 17.5 7 60 Vertical 18.2 4.7 2.8S49016120PNF 4900-5850 15.5 5.5 15 Vertical 24.6 2 2.7S4901790PNF 4900-5850 16.5 5.5 7 Vertical 24.6 2 2.7SJS515090-16 5150-5850 16.25 6.5 90 Dual Linear, +45°/-45° 21.9 2.6 5.7RooTenna®RooTenna® panel antennas are designed to allow integration of customers’ radio equipment inside a weatherproof compartment. The radio com-partment is big enough to house transceivers, ampliers, and other electronic equipment. The antennas themselves offer a directional pattern with 1.5 VSWR, and can be either surface or wall mounted in outdoor environments.PART NUMBER FREQUENCY (MHz) GAIN (dBl) BEAMWIDTH (DEG) POLARIZATION DIMENSIONS (mm) CONNECTOR TYPESEL AZ LENGTH WIDTH HEIGHTR2T24-19 2400/2500 19 19 16 H or V 18.5 2.5 16.8 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T2458LW 2400/5000 12 43/22 43/22 H or V 10.75 2.6 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T2458W 2400/5000 12 43/22 43/22 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T24LW-15 2300/2500 15 30 30 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T24W-15 2300/2500 15 30 30 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T58-24 4940-5850 24 9 9 H or V 16.25 1.0 14.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T58LW-19 4940-5850 19 15 15 H or V 10.75 2.6 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFL, NHKR2T58W-19 4940-5850 19 15 15 H or V 10.75 3.5 10.75 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLR2T9-12 900-928 12 50 45 H or V 18.5 2.5 16.8 Type MC, MMCX, RMMCX, RSMA, RTNC, UFLPanelFlat panel directional antennas offer high gain with a 1.5 VSWR in a thin low prole package. The antennas are constructed of a gray color UV resistant ABS plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization, and can be surface, pole, or wall mounted.PART NUMBER FREQUENCY (MHz) GAIN (dBl) BEAMWIDTH (DEG) DIMENSIONS (mm)EL AZ LENGTH WIDTH HEIGHTPA24 Series 2400-2485 13,16,19 35, 26, 17.5 35, 26, 17.5 7.5, 11, 15.3 0.8 7.5, 11, 14.6PA35-13 3300/3500 13 35 35 7.5 0.8 7.5PA58 Series 5150-5850 19,24 16,8 16,8 7.5,15.4 0.8 7.5,14.6PA9-12 900-928 12 40 55 16.2 1.4 14.7S25015PT 2400-2700 14,15 25 25 10.2 1.3 10.2S34018PT12NF 3400-3600 18 19 20 10.2 1.3 10.2• R2T2458 RooTennas• S3307BPNF• J23014V00-120N• J51016VOO-90N90N• SA24• SAH58• PA58-19 Surface Mount• PA58-24 mntd oblq2
LAIRDTECH.COM | 5Telecom - Backhaul AccessoriesPART NUMBER DESCRIPTIONAD-MCX-RPSMAF RPSMA Female to MCX Adapter. Gold Plated Contacts. For Apple AirportAD-NF-NF N Female to N Female Barrel AdapterAD-NF-RPSMAF RPSMA Female to N Female Adapter. Gold Plated ContactsAD-NF-RPSMAM RPSMA Male to N Female Adapter. Gold Plated ContactsAD-NF-RPTNCM RPTNC Male to N Female Adapter. Gold Plated ContactsAD-NFB-SMAF N Female Bulkhead to SMA Female Adapter, For DCE Products/Mesh.AD-NM-NM N Male to N Male CouplerAD-NM-RPSMAF RPSMA Female to N Male Adapter. Gold Plated Contacts.AD-NM-RPSMAM RPSMA Male to N Male Adapter. Gold Plated Contacts.AD-NM-RPTNCF RPTNC Female to N Male Adapter. Gold Plated Contacts.AD-NM-RPTNCM RPTNC Male to N Male Adapter. Gold Plated ContactsAD-NM-SMAF SMA Female to N Male Adapter. Gold Plated Contacts.AD-RSMAF-RTNC RPSMA Female to RPTNC Male Adapter. Gold Plated Contacts.C195-NM N Male to RG58, LMR195 CrimpC400-NF N Female to RG8/U, LMR400 CrimpC400-NM N Male to RG8/U, LMR400 CrimpAdaptersPART NUMBER DESCRIPTIONCA100-MCX-NC-125 Cassy, Coax,125 mm, MCXM NC, LMR100CA100-NFB-MC-12 Cassy, Coax,12 in, NFB, MCM, LMR100CA100-NFB-MCX-200 Cassy, Coax, 200 mm, NFB, MCXM, LMR100, RACA100-NFB-MCXRA-4 Cassy, Coax, 200 mm, NF, MCXM, LMR100, RACA100-NFB-MCXRA375 Cassy, Coax, 375 mm, NFBCA100-NFB-MMCX-12 Cassy, Coax,12 in, NFB, MMCXP, LMR100 ,RACA100-NFB-MMCXS-18 Cassy, Coax,18 in, NFB, MMCXP, LMR100, STRCA100-NFB-RMMCX-12 Cassy, Coax,12 in, NFB, RMMXP, RG316, RACA100-NFB-RSMAM-12 Cassy, Coax,12 in, NFB, RSMAM, LMR100CA100-NFB-RTNCM-12 Cassy, Coax,12 in, NFB, RTNM, LMR100CA100-NFB-SMAM-12 Cassy, Coax,12 in, NFB, SMAM, LMR100CA100-NFB-SMAM-8 Cassy, Coax, 8 in, NFB, SMAM, LMR100CA100-NM-MC-12 Cassy, Coax,12 in, NM, MCM, LMR100CA100-NM-MMCX-12 Cassy, Coax,12 in, NM, MMCXP, LMR100, RACA100-NM-MMCX-8 Cassy, Coax, 8 in, NM, MMCXP, LMR100, RACA100-NM-RASMAM-12 Cassy, Coax,12 in, NM, SMAM, LMR100, RACA100-NM-RSMAM-12 Cassy, Coax, 12 in, NM, RSMAM, RG316, RACA100-NM-RSMAM-6 Cassy, Coax, 6 in, NM, RSMAM, LMR100CA100-NM-RSMAM-8 Cassy, Coax, 8 in, NM, RSMAM, LMR100CA100-NM-RTNCM-12 Cassy, Coax, 12 in, NM, RTNM, LMR100CA100-NM-SMAM-12 Cassy, Coax, 12 in, NM, SMAM, LMR100CA100-RPTNCF-NC-6 Cassy, Coax, 6 in, RTNF, NC, LMR100CA100-RSMAM-RPSMA Cassy, 12 in, RSMAM, RSMAF, RG-316, LMR100CA100-SMAF-RAMCX-3 Cassy, Coax, 3 in, SMAF, MCXM, LMR100, RACA100-SMAM-RSMAM-8 Cassy, Coax, 8 in, SMAM, RSMAM, LMR100CA100-SMAM-SMAM-12 Cassy, Coax, 12 in, SMAM, SMAM, LMR100CA100-SMAM-SMAM-18 Cassy, Coax, 18 in, SMAM, SMAM, LMR100CA100-SMAM-SMAM-8 Cassy, Coax, 8 in, SMAM, SMAM, LMR100CA100-TNCF-NC-6 Cassy, Coax, 6 in, TNCF, NC, LMR100, WHTCA100MCXRA-SMBRA11 Cassy, Coax, 11 in, MCXM, SMBM, LMR100, RACA100NFB-MCXRA200 Cassy, Coax, 200 mm, NF, MCXM, LMR100, RACA100NFB-RASMAM12 Cassy, Coax, 12 in, NFB, SMAM, LMR100, RACable AssembliesPART NUMBER DESCRIPTIONCA100RSMAM-RASMA12 Cassy, Coax, 12 in, RSMAM, SMAM, LMR100, RACA100RTNCM-RASMA12 Cassy, Coax, 12 in, RTNM, SMAM, LMR100, RACA100SMAF-RPSMAM3 Cassy, Coax, 3 in, SMAF, RSMAM, LMR100CA100SMAM-RSMAM12 Cassy, Coax, 12 in, SMAM, RSMAM, LMR100CA100SMAM-SMAFB12 Cassy, Coax, 12 in, SMAM, SMAF, LMR100, BULKHEADCA178-NFB-UFL-12 Cassy, Coax, 12 in, NFB, UFL, RG178CA178-NFB-UFL-5 Cassy, Coax, 5 in, NFB, UFL, RG178CA178-NFB-UFL-8 Cassy, Coax, 8 in, NFB, UFL, RG178CA178-NM-UFL-12 Cassy, Coax, 12 in, NM, UFL, RG178CA178-NM-UFL-6 Cassy, Coax, 6 in, NM, UFL, RG178CA178-NM-UFL-8 Cassy, Coax, 8 in, NM, UFL, RG178CA178-RTNCB-MMCX-6 Cassy, Coax, 6 in, RTNF, MMCXP, RG178, RA, BHCA178-RTNCB-UFL-6 Cassy, Coax, 6 in, RTNF, UFL, RG178CA178-SMAM-UFL-4 Cassy, Coax, 4 in, SMAM, UFL, RG178CA178-TNCFB-UFL-5 Cassy, Coax, 5 in, TNCF, UFL, RG178, BHCA178RSMAFB-UFL12 Cassy, Coax, 12 in, RSMAF, UFL, RG178, BULKHEADCA178RTNCB-MMCX150 Cassy, Coax, 150 mm, RTNF, MMCXP, RG178, RA, BHCA178RTNCBRA-MMCX4 Cassy, Coax, 6 in, RTNF, MMCXP, RG178, RA, BHCA195-NM-NM-12 Cassy, Coax, 12 in, NM NM, LMR195CA195-NM-RSMAM-36 Cassy, Coax, 36 in, NM RSMAM, LMR195CA195-NM-SMAM-3 Cassy, Coax, 36 in, NM, SMAMCA195-NM-SMAM-6 Cassy, Coax, 72 in, NM, SMAMCA195-SMAM-SMAM-38 Cassy, Coax, 38 in, SMAM SMAM, LMR195, WHTCA195SMAM-RSMAM24 Cassy, Coax, 24 in, SMAM RSMAM, LMR195CA400-NM-NM-48 N Male to N Male Jumper, LMR400, 48 inCA400-NM-RPSMAM-72 Cassy, Coax, 72 in, NM RSMAM, LMR400CA405-NFB-RASMA-3 Cassy, Coax, 3.5 in, NFB SMAM, TFLEX405, RACA405-SMA-MMCX-117 Cassy, Coax, 117 mm, SMAF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX150 Cassy, Coax, 150 mm, RTNF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX228 Cassy, Coax, 228 mm, RTNF MMCXP, TFLEX405, RA, BHCA405RTNCB-MMCX250 Cassy, Coax, 250 mm, RTNF MMCXP, TFLEX405, RA, BHCable Assemblies (cont’d)PART NUMBER DESCRIPTIONDCDC-1032-5 DC-DC Conv,10V-32VDC INP 3A MAX LD,15W MAXDCDC-1532-5/12 DC-DC Conv,15V-32VDC IN 3A/1.25A MAX LD,15W MAXDCDC-1632-12 DC-DC Conv,16V-32VDC INP 1.25A MAX LD,15W MAXDC to DC ConverterPART NUMBER DESCRIPTIONDCE-7x6x2 Die Cast Aluminum Enclosure with 7 engineered knockouts - Nema 6 Rated - with pole mount bracketDCE-H-10x10x2 10x10x2 Hinged Die Cast Aluminum Enclosure with 7 Engineered knockouts - Nema 6 Rated - with pole mount bracketDCE-H-7x6x2 7x6x2 Hinged Die Cast Aluminum Enclosure with 7 Engineered knockouts - Nema 6 Rated - with pole mount bracketDie Cast Enclosures
Telecom - Backhaul AccessoriesPART NUMBER DESCRIPTIONMM-110N, -RTNC, -SMAMVehicle Magnetic Mount - Large (4" dia, 10' LMR195, N Female, RTNC, or SMAM Connector)MM-90N Vehicle Magnetic Mount - Small (3.5" dia, 10' LMR195, N Female Connector)MM-RD-RSMA, -SMAF Mount,Mag,195-5'-RSMAM, -SMAF RSMAF Mag MountMM-SM-LP-NF-26 Mount, SMLP,RG58-26.6 in, N VEHICLE MOUNTMM-SM-LPN Mount, SMLP,240-10', NF NF Vehicle MountMM-SMN, -RPTNC, -SMAM Mount, SM, 240-10' or 240-15’, NF, or RTNM, or SMAM NF Vehicle MountMM-TMN Mount, TM, 240-10', NF NF Vehicle MountMountsPART NUMBER DESCRIPTIONPOE-12i POE Power Supply/Inserter Input 90-264VAC, Output 12VDC at 1A 12WPOE-12s-a POE Splitter 802.3af, Output 12VDC at 1A 12WPOE-18i4s POE-4x12i Four Port POE Power Supply/Inserter Input 100-240VAC, Output 12VDC at .7A 12W Non 802.3afPOE-18i POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12WPOE-18i-EU POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12W (Europe Power Cord)POE-18i-NC POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12W (No Power Cord)POE-4x18i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 18VDC at .7A 12WPOE-24i POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12WPOE-24i-CI POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W, Current Detection IndicatorPOE-24i-EU POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W (Europe Power Cord)POE-4x24i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12WPOE-24iR POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W, pin 4,5 (-), pin 7,8 (+)POE-24iR-CI POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at .5A 12W,, Current Detection IndicatorPOE-24s-a POE Splitter 802.3af, Output 24VDC at .5A 12WPOE-48i POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs POE-48i-CIPOE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs, Current Detection Indicator POE-48I-CI-EUPOE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs, Current Detection Indicator (Europe Power Cord)POE-48i-EU POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs (Europe Power Cord)POE-48i-NC POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs (No Power Cord)POE-48i12s POE System - Input 90-264VAC, Output 12VDC 1APOE-48i12s-a POE System - Input 90-264VAC, Output 12VDC 1A, AFIPOE-4x48i Four Port POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs POE-4x48i-a Four Port POE Power Supply/Inserter Input 90-264VAC, Output 48VDC at 0.35A 16.8W, Lightning/Surge protection on Ethernet pairs -AFIPOE-48i5s POE System - Input 90-264VAC, Output 5VDC 2.4APOE-48i5s-a POE System - Input 90-264VAC, Output 5VDC 2.4A, AFIPOE-48iD POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs POE-Power Over EthernetPART NUMBER DESCRIPTIONPOE-48iD-EU POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs - (Europe Power Cord) POE-48iD-NC POE Power Supply/Inserter, Midspan Intelligent Detect, 48VDC output @ 0.35A, 16.8W, Lightning/Surge protection on Ethernet pairs (No Power Cord)POE-55i4sG-AFI POE, AF Inj, 55VDC, 30W, 100-240VAC, GBIT, 802.3afPOE-5s-a POE Splitter 802.3af , Output 5VDC at 2.4A 12WPOE-9s-a POE Splitter 802.3af, Output 9VDC at .75A 12WPOE-HP-24i POE Power Supply/Inserter Input 90-264VAC, Output 24VDC at 2A 50WPOE-HP-50i POE Power Supply/Inserter Input 90-264VAC, Output 50VDC at 1A 50W Lightning/Surge protection on Ethernet pairs POE-PS-150-001 POE, Psplit, 150 mm, RJ45 TO RJ45/DC, NON 802.3afESP-100-POE Network Lightning/Surge Protector, 100Mbps Data Rate, LAN/POE 7.5V/70V Clamp Voltage, 10KA SurgePOE-Power Over Ethernet (cont’d)PART NUMBER DESCRIPTIONRJ45-ECS RJ45 Field Replaceable Ethernet Connector System. Passes RJ45 Plug and seals cable to IP68. Also available in 4 & 6 in.RJ45-ECS-NR RJ45 Field Replaceable Ethernet Connector System. Passes RJ45 Plug and seals cable to IP68. No ReliefRJ45-FT RJ45 Field Installable Feedthru Adapter. Passes RJ45 Plug and seals cable to IP68. 10 packRJ45PART NUMBER DESCRIPTIONSP3-90-6-BFF, -BFM Surge Protector – 90V – 100MHz to 3GHz, N Fem to N Fem, .4dB IL, 6KA DischargeSP6-230-BFF, -BFM Surge Protector – 230V – DC to 6GHz, N Fem to N Fem, .2dB IL@3GHz, .4dB IL@5GHzSP6-230RSMAM-RSMAF Surge Protector – 230V – DC to 6GHz, RSMAM to RSMAF,SP6DC-BFF Surge Protector- 1/4 Wave DC GROUND, 2300-6000MHz, .3dB IL, N Fem to N FemESP-100-POE Network Lightning/Surge Protector, 100Mbps Data Rate, LAN/POE 7.5V/70V Clamp Voltage, 10KA SurgeSurge ProtectorsPART NUMBER DESCRIPTIONUM, UM-UB, UML Universal Mount, Ubolt Kit for pole mounting, Universal Mount - Long WMB-HD HD Series Wall Mount Bracket - For mounting a pole mount antenna to a wall. 8"standoff from wall, 2" diameter mounting tube.WMB8 Wall Mount Bracket - For mounting a pole mount antenna to a wall. 8"standoff from wall, 1.25" diameter mounting tube.Brackets
www.lairdtech.comAmericas: +1.847.839.6907Europe: +44.1628.858941Asia: +86.21.5855.0827.127IAS-BRO-Telecom-Backhaul 1013Any information furnished by Laird, Inc. and its agents is believed to be accurate and reliable. All specications are subject to change without notice. Responsibility for the use and applica-tion of Laird materials rests with the end user. Laird makes no warranties as to the fitness, merchantability, suitability or non-infringement of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2013 Laird, Inc. All Rights Reserved. Laird, Laird, the Laird Logo, and other marks are trade marks or registered trade marks of Laird, Inc. or an afliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.ANTENNAS & RECEPTION | EMBEDDED WIRELESS | EMI | TELEMATICS | THERMAL | WIRELESS AUTOMATION & CONTROL
