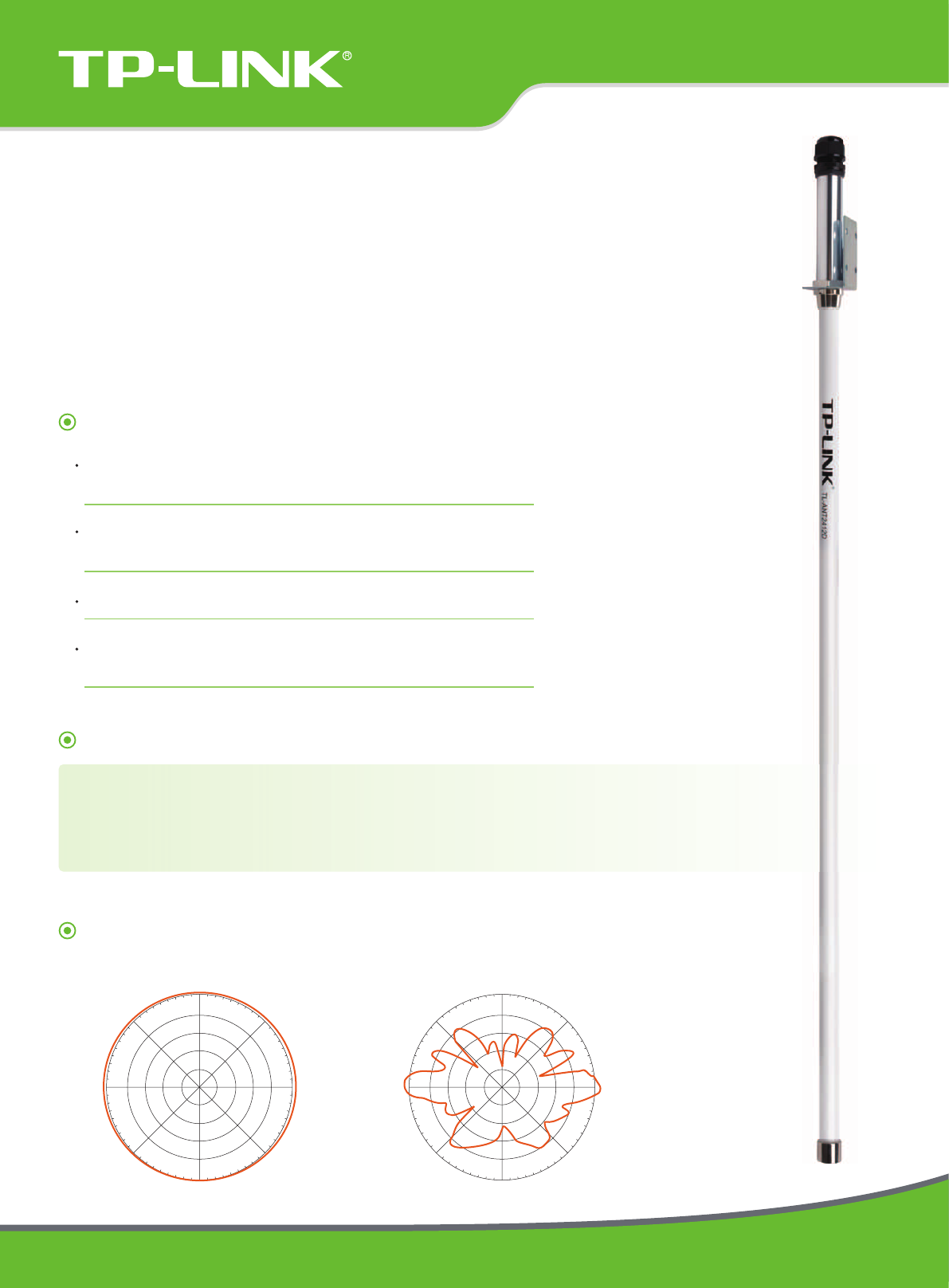

TL-ANT2412D
2.4Hz 12dBi Outdoor
Omni-directional Antenna
90
270
180 0
135
225 315
45
TL-ANT2412D operates in the 2.4-2.5 GHz band and provides 12dBi Omni-directional operation, which largely
extends the wireless range and delivers much better wireless performance. The antenna oers the N female
connector guaranteeing wider compatibility with most of the wireless equipments. Also, the weather proof
design ensures that it can work normally for various demanding outdoor solutions.
12dBi Omni-directional operation highly enlarges the
wireless coverage
N female connector, compatible with most of the
wireless equipments
Weather proof design, suitable for all weather condition
Provided mounting kits enable easy installation for
various environments
2450MHz
-30 -20 -10 0
0
-10
-20
-30
-40
90
270
180 0
135
225 315
45
2450MHz
-30 -20 -10 0
0
-10
-20
-30
-40
www.tp-link.com
Copyright © 2011 TP-LINK Technologies Co., Ltd. All rights reserved.
Specifications：
Package:
Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are
trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.
Diagram:
Related Products:
2.4Hz 12dBi Outdoor Omni-directional Antenna
TL-ANT2412D
- 54Mbps High Power Wireless Access Point
TL-WA5110G
- 150Mbps Wireless N Access Point
TL-WA701ND
- 12Bi Outdoor Omni-directional Antenna
- Installation mounting kits
- User Guide
Antenna
TL-ANT2412D1
Extension Cable
TL-ANT24EC6N2
Pigtail Cable
TL-ANT24PT3
Building 2
Access Point
Switch
PC
+RP-SMA
Female
RP-SMA
Male
N-type
Male
N-type
Female
+2
3
1
Building 1

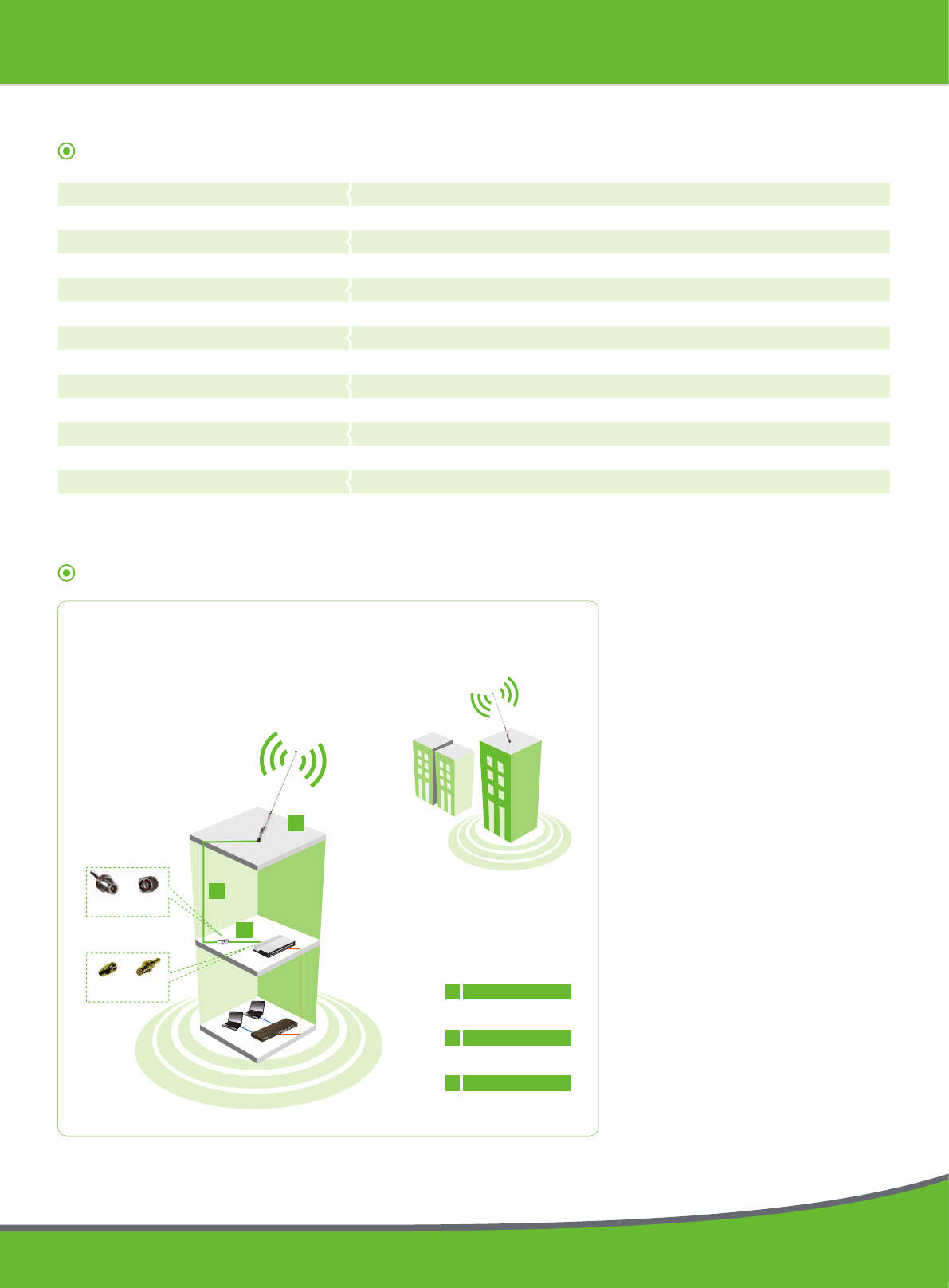

Outdoor Point to Point Application
Frequency
S.W.R.
Antenna Gain
Polarization
Impedance
Application
HBBW @ H-Plane
HPBW @ E-Plane
Material of Radiator
Material of Plastic Body
Connector Type
Operation Temperature
Standards
Simple and Convenient Installation with
Excellent Transmission Range
2.4 ~ 2.5 GHz
<= 2.0
12 dBi
Linear
50 Ohm
Outdoor
360 Degree Omni-Directional
<= 12 Degree
Cu & Zn-Alloy
Glass Fiber
N Jack
- 40 ˚C ~ + 65 ˚C
RoHS, WEEE
