User’s Manual of Gun-type Remote Controller
T3GMN-2400 aeromodelling remote controller (RC) is
a Gun-type Remote Controller specially designed for
small vehicle models. It can be used as remote
controller of electric vehicle models. The RC has two
rate channels, i.e.: ST (rudder) and TH (throttle) plus
a switch channel (CH3), the auxiliary channel.
Besides, the RC has an additional throttle rate switch.
T3GMN-2400 remote controller can be used to
multiple device concurrently without interference with
each other.
Specifications of transmitter:
Working power supply: 4 ni-mh rechargeable batteries
or alkaline cells
Working current: <35 mA
Transmitting frequency: 2402-2480MHz (FHSS)
Specifications of receiver:
Working power supply: 4.8 V ~ 6 V
Receiving frequency: 2402-2480 MHz

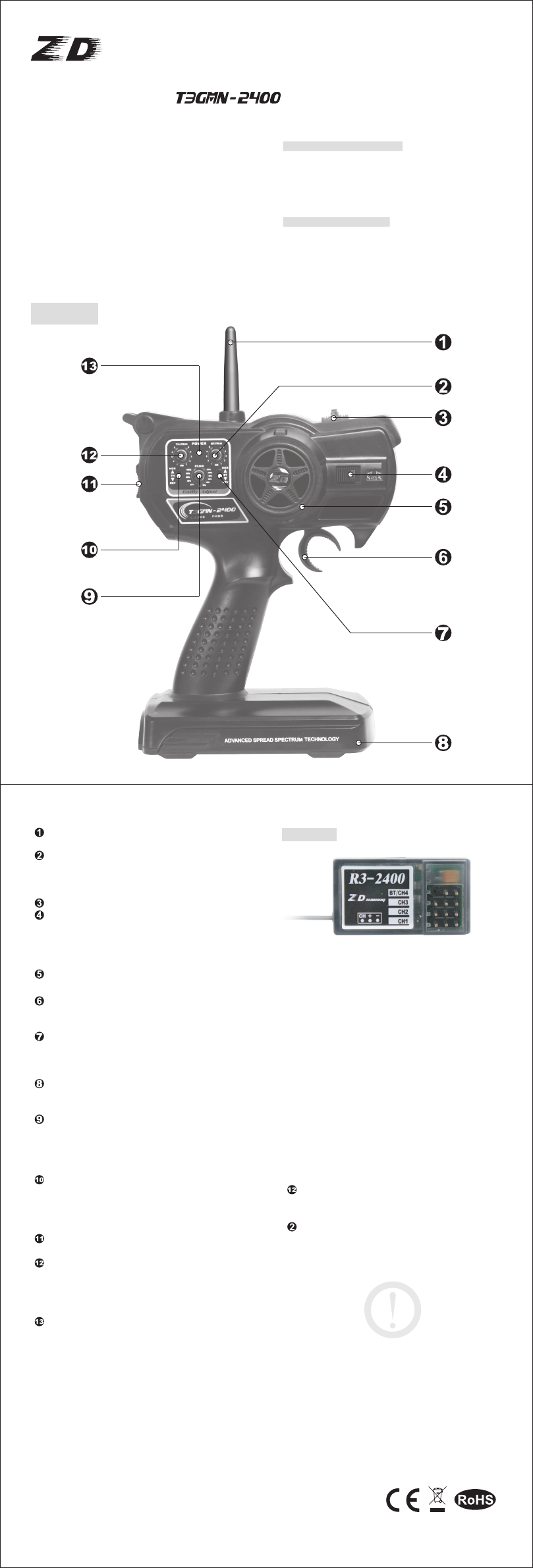

Transmitter
Antenna: hold up the antenna before using
antenna to operate the machine.
ST (rudder) Neutral: without turning ST
(rudder) wheel, adjust ST (rudder) Neutral
button to make the model keep running at
linear direction.
Switch of channel .
Throttle rate switch: while in normal using
mode, this switch can be pushed to 5/5
position. If you wish the model to accelerate
more slowly, you can push the switch to 3/7
position.
ST (rudder) wheel: it is used to control
steering of the model.
TH (throttle) trigger: push or pull the throttle
trigger to control forward, reverse and brake
actions of the model.
ST (rudder) steering switch: while you turn ST
(rudder) wheel along the same direction, push
this switch to different position, the model will
turn to corresponding direction accordingly.
Battery cartridge: push the cover of battery
cartridge, then you can take out the battery
and replace it.
ST (rudder) rudder angle +/- knob: while you
turn ST (rudder) wheel along the same
direction, turn this knob to different positions,
the model will turn by different angles
accordingly.
TH (throttle) reversal switch: push TH
(throttle) trigger backward, when TH (throttle)
forward/ reversal switch is pushed to different
positions, the model will run forward or
backward accordingly.
Power ON/OFF: it is used to power ON/OFF
transmitter.
TH (throttle) neutral: adjust TH (throttle) knob
without pulling TH (throttle) trigger to make
the model stand still. (TH (throttle) neutral
knob is to be pushed to middle position before
powering on transmitter).
Power indicator: LED indicator will illuminate
when the transmitter is powered on.
Receiver
Code matching between transmitter and receiver:
Power on transmitter and receiver, press and hold
Match Code switch on receiver till the indicator on
receiver stops blinking and keeps ON, it means that
the code matching between transmitter and receiver is
successful.
Please note that no other similar transmitters are
powered on within the signal receiving scope of the
receiver matching codes while in process of code
matching, otherwise the code matching will fail.
The code matching between transmitter and receiver
has been done in the factory before delivery, and both
throttle and rudder have been pushed in middle
position. If you find the model goes forward or
backward itself before throttle trigger is operated,
please adjust the throttle neutral knob
appropriately to stop the model. If model vehicle
can’t run at linear direction without turning rudder,
please adjust the rudder neutral knob
appropriately to make the model run at linear
direction.
Precautions: if the device doesn’t respond to your
operations, it indicates the transmitter’s battery is to
run out, please replace the battery, then the device
will work well again. The voltage of working power
supply of receiver shall be at least 4V.
MADE IN CHINA
SHENZHEN XINGYAOHUA INDUSTRIAL CO.,LTD
Website: www.xingyaohua.com
Tel: +86 (755) 25469375 +86 (755) 84008148
Fax: +86 (755) 84673903
E-Mail: electricmodelpower@vip.163.com
mailxingyaohua@vip.163.com
FCC warning:
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
