Yamaha 170602_mtx_mrx_xmv_ex_rcps_v310_rev10_en MTX3, MTX5 D, MRX7 XMV Series, EXi8, EXo8 Remote Control Protocol Specifications V3.1.0 Mtx Mrx Ex Spec V310 En

User Manual: Yamaha MTX3, MTX5-D, MRX7-D, XMV Series, EXi8, EXo8 Remote Control Protocol Specifications V3.1.0

Open the PDF directly: View PDF .
Page Count: 124 [warning: Documents this large are best viewed by clicking the View PDF Link!]

0. Revision History
1. Setup
2. Command List
3. Command Specifications
4. Command Sequence
5. Meter Value
6. Parameter Value Details
7. Parameter List
8. Meter List

MTX3, MTX5-D, MRX7-D,

XMV Series, EXi8, EXo8

Remote Control Protocol Specications

Version 3.1.0 rev10

Release Jun 19th, 2017

This specication document applies to MTX3, MTX5-D, MRX7-D, XMV, EXi8, and EXo8 V3.10 and later.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 2

Table of contents

0. Revision History ..............................................................................................................................4

1. Setup ................................................................................................................................................8

1.1. Connection Procedure ................................................................................................................................................... 8

1.2. Conguring the Remote Controller ................................................................................................................................ 9

1.3. Device Conguration.................................................................................................................................................... 10

1.3.1. MTX3, MTX5-D and MRX7-D ......................................................................................................................... 10

1.3.2. XMV, EXi8 and EXo8 ...................................................................................................................................... 10

1.3.3. MRX7-D and Remote Control Setup List ........................................................................................................ 10

2. Command List ...............................................................................................................................11

2.1. Commands from a device sent to a remote controller ................................................................................................. 11

2.2. Commands for controlling a device.............................................................................................................................. 11

2.3. Extended commands ................................................................................................................................................... 12

3. Command Specications .............................................................................................................13

3.1. Basic Command Specications ................................................................................................................................... 13

3.2. Commands a Device Sends to a Remote Controller ................................................................................................... 14

3.2.1. Device status change notication .................................................................................................................... 14

3.2.2. Parameter change notication ........................................................................................................................ 15

3.2.3. Meter information notication .......................................................................................................................... 16

3.2.4. Preset change notication ............................................................................................................................... 16

3.2.5. Snapshot change notication .......................................................................................................................... 17

3.2.6. Event processing change notication .............................................................................................................. 17

3.3. Commands for controlling a device.............................................................................................................................. 20

3.3.1. Device status query ......................................................................................................................................... 20

3.3.2. Device run mode change ................................................................................................................................ 21

3.3.3. MTX external control protocol run mode setting ............................................................................................. 22

3.3.4. Parameter query ............................................................................................................................................. 24

3.3.5. Parameter setting ............................................................................................................................................ 26

3.3.6. Meter control ................................................................................................................................................... 30

3.3.7. Preset processing ........................................................................................................................................... 32

3.3.8. Snapshot Recall processing ............................................................................................................................ 32

3.4. Extended commands ................................................................................................................................................... 33

3.4.1. Product information query request .................................................................................................................. 33

3.4.2. Preset processing request .............................................................................................................................. 35

3.4.3. Event processing request ................................................................................................................................ 36

3.5. Command Errors.......................................................................................................................................................... 50

3.5.1. Command Error Notications .......................................................................................................................... 50

4. Command Sequence .....................................................................................................................51

4.1. Communication start sequence ................................................................................................................................... 52

4.2. Parameter sync sequence ........................................................................................................................................... 54

4.3. Parameter query sequence at any given time ............................................................................................................. 55

4.4. Meter data request/query sequence ............................................................................................................................ 56

4.5. Preset recall request sequence ................................................................................................................................... 56

4.6. Sequence when parameters are changed by another controller ................................................................................. 57

5. Meter Value ....................................................................................................................................58

6. Parameter Value Details ...............................................................................................................59

6.1. Fader parameter .......................................................................................................................................................... 59

6.1.1. Fader with "-Innity to 0dB" range ................................................................................................................... 59

6.1.2. Fader with "-Innity to 10dB" range ................................................................................................................. 61

6.2. Other parameters (MTX3, MTX5-D) ............................................................................................................................ 63

6.2.1. INPUT PATCH ................................................................................................................................................ 63

6.2.2. INPUT CHANNEL ........................................................................................................................................... 64

6.2.2.1. 3BAND EQ ...................................................................................................................................... 64

6.2.2.2. GATE .............................................................................................................................................. 65

6.2.2.3. COMPRESSOR .............................................................................................................................. 67

6.2.2.4. AGC ................................................................................................................................................ 68

6.2.2.5. DUGAN AUTOMIXER ..................................................................................................................... 69

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 3

Table of contents

6.2.3. EFFECT .......................................................................................................................................................... 70

6.2.4. ZONE .............................................................................................................................................................. 71

6.2.4.1. PAGING (MTX5-D only) .................................................................................................................. 71

6.2.4.2. 1st/2nd PRIORITY .......................................................................................................................... 72

6.2.4.3. ANC ................................................................................................................................................. 73

6.2.5. ROUTER ......................................................................................................................................................... 73

6.2.5.1. ROUTER ......................................................................................................................................... 73

6.2.5.2. OSCILLATOR ................................................................................................................................. 74

6.2.6. OUTPUT CHANNEL ....................................................................................................................................... 74

6.2.6.1. 4BAND EQ ...................................................................................................................................... 74

6.2.6.2. SPEAKER PROCESSOR ............................................................................................................... 75

6.2.7. OUTPUT PATCH ............................................................................................................................................ 75

6.2.7.1. OUTPUT PATCH ............................................................................................................................ 75

6.2.7.2. YDIF PATCH ................................................................................................................................... 76

6.2.8. MY4-AEC ........................................................................................................................................................ 77

6.2.8.1. MY4-AEC Input Patch ..................................................................................................................... 77

6.2.8.2. MY4-AEC FBS ................................................................................................................................ 77

6.3. Other parameters (MRX7-D)........................................................................................................................................ 78

6.3.1. Ambient Noise Compensator .......................................................................................................................... 78

6.3.2. Auto Gain Control ............................................................................................................................................ 78

6.3.3. Combiner ......................................................................................................................................................... 78

6.3.3.1. Room Combiner .............................................................................................................................. 78

6.3.3.2. Room Combiner plus Automixer ..................................................................................................... 78

6.3.4. Dynamics ........................................................................................................................................................ 78

6.3.4.1. Compressor ..................................................................................................................................... 78

6.3.4.2. Gate/Ducking .................................................................................................................................. 79

6.3.4.3. Limiter ............................................................................................................................................. 79

6.3.4.4. Paging Ducker ................................................................................................................................. 79

6.3.5. Effect ............................................................................................................................................................... 80

6.3.6. EQ ................................................................................................................................................................... 81

6.3.6.1. GEQ ................................................................................................................................................ 81

6.3.6.2. PEQ ................................................................................................................................................. 81

6.3.7. Filter ................................................................................................................................................................ 81

6.3.7.1. HPF/LPF/BPF ................................................................................................................................. 81

6.3.8. Mixer ............................................................................................................................................................... 81

6.3.8.1. Dugan Automixer ............................................................................................................................ 81

6.3.9. Oscillator ......................................................................................................................................................... 82

6.3.10. Paging ............................................................................................................................................................. 82

6.3.11. Speech Privacy ............................................................................................................................................... 82

6.3.12. Speaker Processor .......................................................................................................................................... 82

6.3.13. MY4-AEC (MTX5-D only) ................................................................................................................................ 82

6.3.13.1. MY4-AEC FBS ................................................................................................................................ 82

7. Parameter List ...............................................................................................................................83

7.1. MTX3/MTX5-D ............................................................................................................................................................. 83

7.2. MRX7-D ..................................................................................................................................................................... 101

7.3. XMV Series ................................................................................................................................................................ 107

7.4. EXi8 ........................................................................................................................................................................... 108

7.5. EXo8 .......................................................................................................................................................................... 109

7.6. MY4-AEC ................................................................................................................................................................... 110

7.6.1. MTX3, MTX5-D ............................................................................................................................................. 110

7.6.2. MRX7-D ........................................................................................................................................................ 110

8. Meter List .....................................................................................................................................111

8.1. MTX3/MTX5-D ........................................................................................................................................................... 111

8.2. MRX7-D ..................................................................................................................................................................... 114

8.3. XMV Series ................................................................................................................................................................ 122

8.4. EXi8 ........................................................................................................................................................................... 123

8.5. EXo8 .......................................................................................................................................................................... 124

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 4

0. Revision History

Version Date Section Description

V1.0.0 Sep. 1, 2013 - Initial version

V1.0.1 Sep. 25, 2013 7 Added note (*1) to XMV "InputSelect" parameter

7 Added *2 to XMV "ATT" and "DigitalATT"

8 Separated Meter List of EXi8 and EXo8

V1.0.2 Jan.14, 2014 3.1 Added Heart beat command

3.1 Added explanation for escape character

3.2.4 Added note for "1-10) Time synchronization notication <Old format>"

3.2.4, 3.4.3 Added time set and get commands

3.2.4, 3.4.3 Added DST related commands

3.3.1 Added note for "2-1) Device run mode query"

3.3.3 Modied description text and added note for "2-9) Keepalive activation setting"

3.4.3 Added alert event log related commands

4 Fixed text "devstatus devmode" to "devstatus runmode" in communication start process explanation

4 Fixed communication start process ow diagram

6 Added parameter value detail for MY4-AEC (table 12, 13, 14)

7 Added parameter "MYInsert 16 Channel" to Parameter List

7 Added MY4-AEC parameters to Parameter List

7 Amend description for parameter "Power" in XMV Parameter List

8 Added MY4-AEC address to Meter List

V1.0.3 May 23, 2014 3.3.1, 4 Added clarication of [devstatus runmode] command, which is necessary to establish remote control

communication.

V1.3.0 Nov. 1, 2014 1.3.1, 1.3.2 Increased total number of remote controller devices which can simultaneously access the MTX

system.

3.1 Fixed some incorrect values in the "Normalized Value" column of the table, and in the note below the

table.

3.3.5 Added "setr" command, which allows relative inc/dec level control.

6 Added "value to data" tables for fader parameters.

7 Added comments in remarks column for when "setr" command is available.

7 Added "DigitalInputSensitivity" parameter for XMV

V2.0.3 Aug. 25, 2015 1, 3.2.2, 3.3.4

3.3.5, 3.3.6, 6.

7, 8

Added MRX7-D

1.3.3 Added "MRX7-D and Remote Control Setup List"

2, 3.2.3. Added "NOTIFY ssrecall" command

2, 3.2.4. Added "NOTIFY sscurrent_ex"command

2, 3.2.4. Added "NOTIFY ssrecall_ex" command

2, 3.3.8. Added "ssrecall_ex"command

3.1. Amended raw value examples for 400Hz and 2kHz

3.2.2. 1-5)

3.3.4. 2-10)

3.3.4. 2-11)

3.3.5 2-13)

3.3.5 2-14)

3.3.5 2-15)

Amended "Detail"

6 Fixed MTX5 parameter in "1.Input Patch"

7 Fixed Category of "INPUT CHANNEL"

7 Amended to clarify Analog Gain to "Gain"and Digital Gain to "D.Gain"

7 Fixed "Xpos" in "MATRIX"

7 Fixed "UniqueId" in "OUTPUT CHANNEL" of "SPEAKER PROCESSOR"

7 Fixed "Xpos" in "OUTPUT PORT" of "OUTPUT PORT"

7 Amended "Remarks" in "MY4-AEC"

V2.1.0 Dec. 22, 2015 3.2.2 Added new 'Important' comment regarding Parameter change notication raw/normalised values in

MRX7-D part

7 Fixed Remark for "Channel Name" parameter in MTX3/MTX5-D part

7 Fixed ElmNo for "ROUTER" parameter in MTX3/MTX5-D part

7 Fixed "INPUT CHANNEL LEVEL" & "INPUT CHANNEL MUTE" parameters in MTX3/MTX5-D part

7 Fixed "INPUT CHANNEL DCA" parameters in MTX3/MTX5-D part

7 Fixed "MATRIX OUTPUT MASTER" parameters in MTX3/MTX5-D part

7 Added "ZONE DCA/MUTE" parameters in MTX3/MTX5-D part

7 Fixed Remark for "EQ/GEQ Gain" parameter in MRX7-D

7 Added "Acoustic Echo Canceller" parameters in MRX7-D

7 Added "Revolabs Control" parameters in MRX7-D

7 Fixed Remark for "ChannelName" parameters in XMV series

8 Fixed Meter Name for "OUTPUT PORT OUTPUT(SLOT)" in MTX3/MTX5-D part

8 Fixed Meter Name for "Matrix Mixer" in MRX7-D part

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 5

0. Revision History

Version Date Section Description

V2.2.0 Jun. 21, 2016 6 Added "B/W(Q)" parameter for PEQ in MRX7-D part

6 Added "Paging Ducker", "Effect" and "Pitch Shift FBS" parameters in MRX7-D part

6 Added "B/W(Q)" parameter for Speaker Processor PEQ in MRX7-D part

7 Fixed Remarks for "GAIN/HPF" of "MIC/LINE INPUT MONO CH STRIP 1-8(16)" in "INPUT

CHANNEL" category in MTX3/MTX5-D part

7 Changed parameter name "DCA Fader 8(16) Channel" to "Fader 8(16) Channel" for "INPUT

CHANNEL LEVEL" in MTX3/MTX5-D part

7 Changed parameter name "DCA Fader 6 Channel" to "Fader 6 Channel" for "INPUT CHANNEL

LEVEL" in MTX3/MTX5-D part

7 Changed parameter name "DCA Mute 6 Channel" to "Mute 6 Channel" for "INPUT CHANNEL

MUTE" in MTX3/MTX5-D part

7 Changed parameter name "DCA Fader 8 Channel" to "Fader 8 Channel" for "INPUT CHANNEL

LEVEL" in MTX3/MTX5-D part

7 Changed parameter name "DCA Mute 8 Channel" to "Mute 8 Channel" for "INPUT CHANNEL

MUTE" in MTX3/MTX5-D part

7 Added "INPUT CHANNEL DCA" and "INPUT CHANNEL MUTE" categories in MTX3/MTX5-D part

7 Deleted duplicated "INPUT CHANNEL DCA / MUTE" parameters between "MIC/LINE INPUT MONO

CH STRIP 1-8(16)" and "LINE INPUT ST/MONO CH STRIP 1L-3R" in MTX3/MTX5-D part

7 Merged "ZONE DCA/MUTE" parameters into "ZONE" category in MTX3/MTX5-D part

7 Added "DCA Mute 8(16) Channel" for Zone in MTX3/MTX5-D part

7 Changed parameter name "DCA Fader 8(16) Channel" to "Fader 8(16) Channel" for "MATRIX

OUTPUT MASTER" in MTX3/MTX5-D part

7 Added "Paging Ducker" parameters for Dynamics in MRX7-D part

7 Added "Effect" parameters in MRX7-D part

7 Added "Notch FBS" parameters and "Pitch Shift FBS" parameters in MRX7-D part

7 Added "Delay Matrix" parameters for Mixer in MRX7-D part

8 Added "Paging Ducker" parameters for Dynamics in MRX7-D part

8 Added "Delay Matrix" parameters for Mixer in MRX7-D part

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 6

0. Revision History

Version Date Section Description

V3.0.0 Feb. 24, 2017 2 Changed command category name "Preset recall processing" to "Preset processing request" in 2.

Command List

3.3.5 Added Notes in "Parameter setting" for "2-14) Normalized value parameter setting".

3.4.2 Unied term "Snapshot (preset) list" to "Preset list".

3.4.3 3-27)

3.4.3 3-28)

Simplied command names deleting "(for list)".

4 Ameneded detail of "Normal procedure"

"snapshot (preset) control" to "Snapshot or Preset"

"snapshot (preset) display" to "Preset list display"

4 Unied term "Snapshot (preset)" to "Preset".

5 Amended "1.Level Meter, Hold Meter" to "1.Level Meter, Hold Meter, GR Meter".

6 Changed the command number 22 and bigger number due to modication above "21.Pitch Shift

FBS"

6 Amended "Group(9 - 16 Channnel) " to "Group(9 - 24 Channnel)" in "23.Dugan Automixer"

7 Improved parameter name in MTX3/MTX5-D part :

"MIC/LINE INPUT MONO CH STRIP 1-8(16)" to "INPUT CH STRIP 1-8(16)"

"LINE INPUT ST/MONO CH STRIP 1L-3R" to "STEREO INPUT CHANNEL STIN 1L-3R"

"DIRECT INPUT MONO CH STRIP 1-8" to "DIRECT INPUT CHANNEL CH 9 - 16 ( 17 - 24 )"

"Ducking 8 Channel" to "PRIORITY DUCKER"

"Router 40(48) Input 1 Output" to "PRIORITY SOURCE"

"Router 40(48) Input 1 Output" to "ANC SOURCE"

7 Marged two lines for MTX3 and MTX5-D parameters into one line for simplication in MTX3/MTX5-D

part :

"STIN 1L-3R 3BAND EQ"

"GroupMaster" in "INPUT CHANNEL DCA"

"GroupMaster" in "INPUT CHANNEL DCA MUTE"

"ZONE OUT GroupMaster"

"ZONE OUT MUTE GroupMaster"

7 Moved "EFFECT" for siplication within MTX3/MTX5-D part.

7 Added "Dugan Auto Mixer" in MTX3/MTX5-D part.

7 Amended parameter name in MTX3/MTX5-D part :

"MixBus 26(34) Input x 8(16) Output(STEREO) -> (MONO)" to "MATRIX (ZONE OUT MONO) 26(34)

Input x 8(16) Output" for "MATRIX"

"MixBus 26(34) Input x 8(16) Output (MONO) -> (STEREO)" -> "MATRIX (ZONE OUT STEREO)

26(34) Input x 8(16) Output" for "MATRIX"

7 Added notes about parameters in MTX3/MTX5-D part :

"MATRIX(MONO) 26(34) Input x 8(16) Output" in "MATRIX"

"MATRIX(STEREO) 26(34) Input x 8(16) Output" in "MATRIX"

7 Amended parameter name "Matrix Mixer 22(30) Input 2 Output" to "Matrix Mixer 22(30) Input 4

Output" in MTX3/MTX5-D part.

7 Combined "2nd PRIORITY DUCKER", "1st PRIORITY DUCKER", "ANC" and "SOURCE SELECT"

for simplication in MTX3/MTX5-D part.

7 Added remarks for "Dugan Auto Mixer" in MRX7-D part.

7 Fixed remarks for "DigitalInputSensitivity" in XMV part.

8 Amended remarks in MTX3/MTX5-D part.

8 Fixed UniqueId "20004" to "20024" for "INPUT(YDIF)" in MTX3/MTX5-D part.

8 Added "Dugan Auto Mixer" in MTX3/MTX5-D part.

8 Added variation "40 OUT" , "48 OUT" and "56 OUT" for "Matrix Mixer" in MRX7-D part.

8 Fixed Meter Name for "Speaker Processor" in MRX7-D part.

8 Added meter Type "gr" for "Speaker Processor" in MRX7-D part.

8 Added channel number in MRX7-D part :

"Room Combiner plus Auto Mixer ( Mic 17 - 24 Channel )"

"Dugan Automixer 17 - 24 Channel"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 7

0. Revision History

Version Date Section Description

V3.1.0 Jun.19, 2017 Added Table of contents.

2,3,4,6,7,8 Rearranged format of section number and renumbering.

2.1. 1-7)

1-8)

1-10)

2.2. 2-5)

2-19)

2.3. 3-10)

3-11)

3-27)

3-28)

3-31)

Modied "Notication detail" and "Request details".

2.3. 3-31)

3-32)

Added description in Remarks.

3.2.3

3.2.4

3.2.5

3.2.5 1-10)

3.2.6

3.3.2

3.3.2 2-5)

3.3.5 2-16)

3.3.7

3.3.8 2-21)

3.4.3 3-10)

3-11)

Unied titles in command list of "2. Command List" and section names in command detail of

"3. Command Specications"

3.3.6 2-17)

2-18)

Corrected references information in "Details:".

3.4.3 3-16)

3-18)

3-20)

3-22)

3-24)

Added "Details:" for command options.

3.4.3 3-28)

3-32)

3-38)

3-41)

3-42)

Added "Notes:" for command option and detail.

3.4.3 3-16)

3-31)

3-32)

"Added commands "Details:".

3.4.3 3-28) Added command "option2" example.

3.4.3 3-27)

3-28)

3-31)

3-32)

3-37)

3-38)

Amended description in "Details:" and "Example".

6 Deleted "14. MY4-AEC Digtal I/O SRC" parameters in MTX3/MTX5-D part.

6 Rearranged tables according to the order of "7.Parameter List".

7 Added "PAGING","OSCILLATOR" and "PILOT TONE" parameters in MTX3/MTX5-D part.

7 Added "Paging" parameters in MRX7-D part.

7 Changed maximum value of "Utility/InputSelect" parameter in XMV part.

7 Added "ChUtility/InputSelect" parameter in XMV part.

7 Added "Note(*3)" for "Utility/InputSelect","ChUtility/InputSelect" parameters in XMV part.

7 Amended Block Diagram in XMV part.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 8

1. Setup

1.1. Connection Procedure

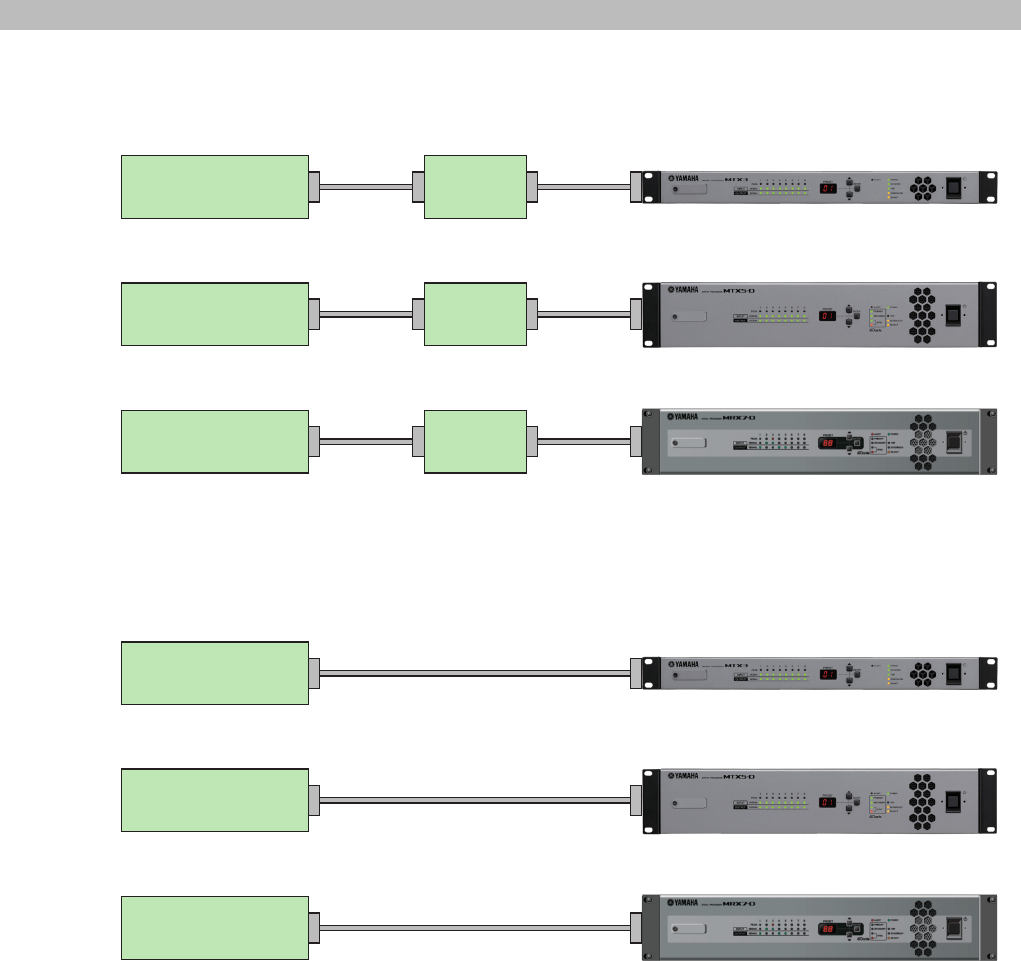

Connection when using the NETWORK connector to perform remote control using this protocol

MTX3

Remote Controller Network

Switch

Ethernet Ethernet

MTX5-D

Remote Controller Network

Switch

Ethernet Ethernet

MRX7-D

Remote Controller Network

Switch

Ethernet Ethernet

* Also for XMV, EXi8 and EXo8.

XMV can be controlled with the protocol in this document without MTX3, MTX5-D or MRX7-D.

Connection when using the REMOTE connector to perform remote control using this protocol

MTX3

Remote Controller RS-232C (Crossover cable)

MTX5-D

Remote Controller RS-232C (Crossover cable)

MRX7-D

Remote Controller RS-232C (Cross cable)

* XMV, EXi8 and EXo8 do not have REMOTE connectors

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 9

1. Setup

1.2. Conguring the Remote Controller

MTX3, MTX5-D and MRX7-D can be controlled from an external controller through the Ethernet (NETWORK) connector and RS-232C

(REMOTE) connector.

XMV, EXi8 and EXo8 can be controlled from an external controller through the Ethernet (NETWORK) connector.

The conguration on the remote controller side for each type of connection is shown below.

Ethernet (NETWORK connector) control

IP Address: Specify the IP address of the device you want to control.

IP Port No.: 49280

RS-232C (REMOTE connector) control

Bit Rate: The specied bit rate.

Data: 8 bits

Parity: none

Stop bit: 1 bit

Flow Control : none

RS-232C port pin assignment

Pin Name In/Out Pin Name In/Out

1 NC - 6 DSR In

2 RxD In 7 RTS Out

3 TxD Out 8 CTS In

4 DTR Out 9NC -

5 GND -

* Pin 4 and Pin 6 are connected internally.

* Pin 7 and Pin 8 are connected internally.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 10

1. Setup

1.3. Device Conguration

1.3.1. MTX3, MTX5-D and MRX7-D

MTX3, MTX5-D and MRX7-D can be controlled from an external controller through a NETWORK and RS-232C connector.

Up to nine remote controller devices can connect simultaneously to one MTX or MRX device, eight via the NETWORK

connector and one via the RS232 connector.

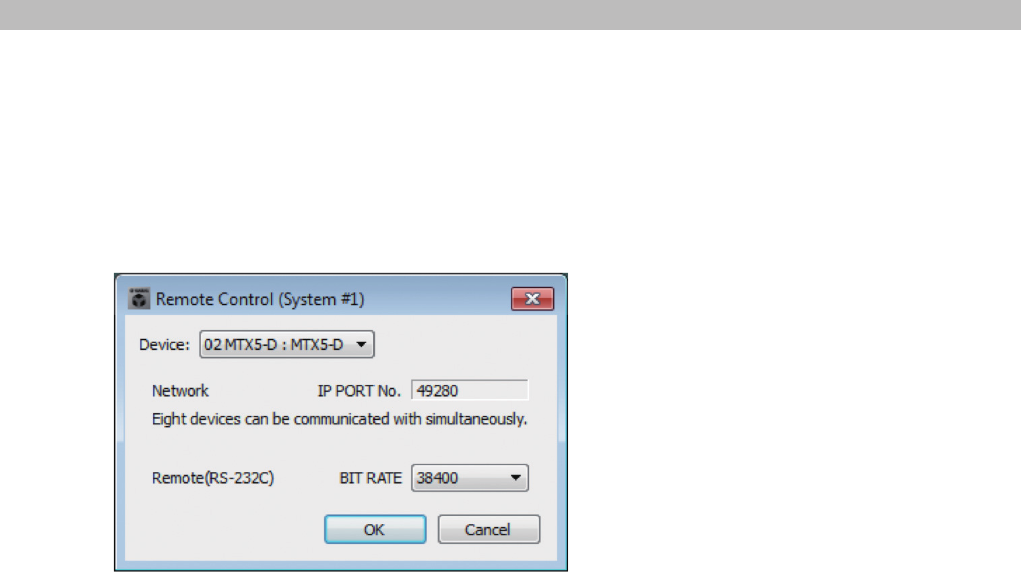

The procedure to congure the second control port of MTX3, MTX5-D and MRX7-D is shown below, this is found in MTX-MRX

Editor - System Menu- > Remote control.

(1)

(2)

(1) Select an MTX or MRX within the MTX/MRX system.

(2) Select BIT RATE of 38400 or 115200 for RS-232C control.

After selecting all the parameters, click OK to complete the procedure.

* In the case of the MTX5-D NETWORK remote control connection, either network connector (Primary or Secondary) can be

used when DANTE Daisy Chain mode is selected.

If using DANTE Redundant mode, only the Primary network connection and/or RS-232C connection can be used for remote

control.

1.3.2. XMV, EXi8 and EXo8

XMV, EXi8 and EXo8 can be controlled via an external device through a NETWORK connector.

Up to eight remote controller devices can connect simultaneously.

As remote control of XMV, EXi8 and EXo8 is performed via the NETWORK connector only, there is no requirement to congure

the port using MTX-MRX Editor for remote control.

When XMV, Exi8 and EXo8 are connected and controlled from MTX3, MTX5-D or MRX7-D, up to seven remote controller

devices can be used for these devices.

1.3.3. MRX7-D and Remote Control Setup List

Remote Parameter control for MRX7-D is managed via the Remote Control Setup List. This list must rst be created in MTX-

MRX Editor in order to specify which Parameters can be controlled from an external remote controller. This list will be upoaded

to MRX7-D during Synchronisation.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 11

2. Command List

2.1. Commands from a device sent to a remote controller

No. Notication details Reply from device Remarks

1-1 Device status change

notication

Device run mode notication NOTIFY devstatus runmode ... "emergency" is invalid on the XMV, EXi8

and EXo8.

1-2 Device error status notication NOTIFY devstatus error ...

1-3 Current Fs (sampling frequency) setting

notication

NOTIFY devstatus fs ...

1-4 Current word clock status notication NOTIFY devstatus lockstatus ...

1-5 Parameter change

notication

Parameter change notication raw value NOTIFY set ...

Parameter change notication normalized value NOTIFY setn ...

1-6 Scheduler on/off change notication NOTIFY set(setn) MTX:EvntScd_On ...

1-7 Meter information

notication

Meter information notication NOTIFY mtr ...

1-8 Preset change notication Current Preset number change notication NOTIFY sscurrent ...

1-9 Preset recall start notication NOTIFY ssrecall ...

1-10 Snapshot change

notication

Current Snapshot number change notication NOTIFY sscurrent_ex ... This command is available only for MRX7-D

1-11 Snapshot recall start notication NOTIFY ssrecall_ex ... This command is available only for MRX7-D

1-12 Event processing change

notication

Media insertion notication NOTIFY event MTX:Media ... This command is invalid on the XMV, EXi8

and EXo8.

1-13 Time synchronization notication <old format> NOTIFY event MTX:AbsoluteTime ... This command is invalid on the EXi8 and

EXo8.

1-14 Time synchronization notication <new format> NOTIFY event MTX:SetAbsoluteTime… This command is invalid on the EXi8 and

EXo8.

1-15 DST enable change notication NOTIFY event MTX:DSTSetEnable… This command is invalid on the XMV, EXi8

and EXo8.

1-16 DST offset time change notication NOTIFY event MTX:DSTSetOffset… This command is invalid on the XMV, EXi8

and EXo8.

1-17 DST start time change notication NOTIFY event MTX:DSTSetStartTime… This command is invalid on the XMV, EXi8

and EXo8.

1-18 DST end time change notication NOTIFY event MTX:DSTSetEndTime… This command is invalid on the XMV, EXi8

and EXo8.

1-19 DST start/end day change notication (day/week) NOTIFY event MTX:DSTSetDayWeek… This command is invalid on the XMV, EXi8

and EXo8.

1-20 DST start/end day change notication (day) NOTIFY event MTX:DSTSetDay… This command is invalid on the XMV, EXi8

and EXo8.

1-21 Song play mode notication NOTIFY event MTX:

AudioPlayerSetPlayMode ...

This command is invalid on the XMV, EXi8

and EXo8.

1-22 Play, stop, and other transport operation

notication

NOTIFY event MTX:

AudioPlayerTransport ...

This command is invalid on the XMV, EXi8

and EXo8.

1-23 Playback song notication NOTIFY event MTX:

AudioPlayerSetCurrentSong ...

This command is invalid on the XMV, EXi8

and EXo8.

1-24 MTX Editor synchronization processing

notication

NOTIFY event MTX:

SynchronizationSetStatus ...

This command is invalid on the XMV, EXi8

and EXo8.

2.2. Commands for controlling a device

No. Request details Command string Remarks

2-1 Device status query Device run mode query devstatus runmode "emergency" is invalid on the XMV, EXi8

and EXo8.

2-2 Device error status query devstatus error

2-3 Current Fs (sampling frequency) status query devstatus fs

2-4 Current word clock status query devstatus lockstatus

2-5 Device run mode change Device run mode change devmode normal

devmode emergency

"emergency" is invalid on the XMV, EXi8

and EXo8.

2-6 MTX external control

protocol run mode setting

Result and change notication character

encoding setting

scpmode encoding ...

2-7 Value notication mode setting scpmode valuetype ...

2-8 Normalization resolution setting scpmode resolution ...

2-9 Keepalive activation setting scpmode keepalive ...

2-10 Parameter query Raw value parameter query get ...

2-11 Normalized value parameter query getn ...

2-12 Scheduler status notication get(getn,gett) MTX:EvntScd_On ... This command is invalid on the XMV, EXi8

and EXo8.

2-13 Parameter setting Raw value parameter setting set ...

2-14 Normalized value parameter setting (*) setn ...

2-15 Relative value parameter setting

(INC/DEC level control)

setr…

2-16 Scheduler setting set(setn,sett) MTX:EvntScd_On ... This command is invalid on the XMV, EXi8

and EXo8.

2-17 Meter control Transmission request mtrstart ...

2-18 Stop request mtrstop ...

2-19 Preset processing Preset current number query processing sscurrent ... This command is invalid on the XMV, EXi8

and EXo8.

2-20 Preset recall processing ssrecall ... This command is invalid on the XMV, EXi8

and EXo8.

2-21 Snapshot processing Snapshot recall processing ssrecall_ex ... This command is available only for MRX7-D

* When value is set "1023" (default:1000), control resolution becomes same as "Raw value" command.

See "6.1. Fader parameter" for the "Nomalised value" vs "Raw value" when the value is set "1023"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 12

2. Command List

2.3. Extended commands

No. Request details Command string Remarks

3-1 Product information

query request

MTX external control protocol version query devinfo protocolver ...

3-2 Parameter set version query devinfo paramsetver ...

3-3 Firmware version query devinfo version ...

3-4 Product name query devinfo productname ...

3-5 Serial number query devinfo serialno ...

3-6 Device ID query devinfo deviceid ...

3-7 Device name query devinfo devicename ...

3-8 Preset processing

request

Number of Preset lists ssnum ... This command is invalid on the XMV, EXi8

and EXo8.

3-9 Nth preset information ssinfo ... This command is invalid on the XMV, EXi8

and EXo8.

3-10 Event processing

request

Time synchronization <Old format> event MTX:AbsoluteTime ... This command is invalid on the EXi8 and

EXo8.

3-11 Time synchronization <New format> event MTX:SetAbsoluteTime ... This command is invalid on the EXi8 and

EXo8.

3-12 Time query event MTX:GetAbsoluteTime ... This command is invalid on the EXi8 and

EXo8.

3-13 DST enable/disable setting event MTX:DSTSetEnable… This command is invalid on the XMV, EXi8

and EXo8.

3-14 DST enable/disable query event MTX:DSTGetEnable… This command is invalid on the XMV, EXi8

and EXo8.

3-15 DST status query event MTX:DSTGetStatus… This command is invalid on the XMV, EXi8

and EXo8.

3-16 DST offset time setting event MTX:DSTSetOffset… This command is invalid on the XMV, EXi8

and EXo8.

3-17 DST offset time query event MTX:DSTGetOffset… This command is invalid on the XMV, EXi8

and EXo8.

3-18 DST start time setting event MTX:DSTSetStartTime… This command is invalid on the XMV, EXi8

and EXo8.

3-19 DST start time query event MTX:DSTGetStartTime… This command is invalid on the XMV, EXi8

and EXo8.

3-20 DST end time setting event MTX:DSTSetEndTime… This command is invalid on the XMV, EXi8

and EXo8.

3-21 DST end time query event MTX:DSTGetEndTime… This command is invalid on the XMV, EXi8

and EXo8.

3-22 DST start/end day setting (day/week) event MTX:DSTSetDayWeek… This command is invalid on the XMV, EXi8

and EXo8.

3-23 DST start/end day query (day/week) event MTX:DSTGetDayWeek… This command is invalid on the XMV, EXi8

and EXo8.

3-24 DST start/end day setting (day) event MTX:DSTSetDay… This command is invalid on the XMV, EXi8

and EXo8.

3-25 DST start/end day query (day) event MTX:DSTGetDay… This command is invalid on the XMV, EXi8

and EXo8.

3-26 DST start/end day setting query event MTX:DSTGetDaySetting… This command is invalid on the XMV, EXi8

and EXo8.

3-27 Current folder information query event MTX:AudioPlayerGetCurrentDir ... This command is invalid on the XMV, EXi8

and EXo8.

3-28 Current folder move query event MTX:AudioPlayerSetCurrentDir ... This command is invalid on the XMV, EXi8

and EXo8.

3-29 Folder name query event MTX:AudioPlayerGetDirName ... This command is invalid on the XMV, EXi8

and EXo8.

3-30 File name query event MTX:AudioPlayerGetFileName ... This command is invalid on the XMV, EXi8

and EXo8.

3-31 Folder name list query event MTX:AudioPlayerGetDirNameList ... This command is invalid on the XMV, EXi8

and EXo8.

3-32 File name list query event MTX:AudioPlayerGetFileNameList ... This command is invalid on the XMV, EXi8

and EXo8.

3-33 Song play mode query event MTX:AudioPlayerGetPlayMode ... This command is invalid on the XMV, EXi8

and EXo8.

3-34 Song play mode setting event MTX:AudioPlayerSetPlayMode ... This command is invalid on the XMV, EXi8

and EXo8.

3-35 Song playback status query event MTX:AudioPlayerGetStatus ... This command is invalid on the XMV, EXi8

and EXo8.

3-36 Play, stop, and other transport operation event MTX:AudioPlayerTransport ... This command is invalid on the XMV, EXi8

and EXo8.

3-37 Currently playing or selected song

information query

event MTX:AudioPlayerGetCurrentSong ... This command is invalid on the XMV, EXi8

and EXo8.

3-38 Playback song designation event MTX:AudioPlayerSetCurrentSong ... This command is invalid on the XMV, EXi8

and EXo8.

3-39 MTX Editor synchronization processing query event MTX:SynchronizationGetStatus ... This command is invalid on the XMV, EXi8

and EXo8.

3-40 Number of alert event log query event MTX:EventLogGetLogNumber…

3-41 Alert event log query event MTX:EventLogGetLog…

3-42 Query for alert event log as list event MTX:EventLogGetLogList…

3-43 Clear alert event log event MTX:EventLogClear…

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 13

3. Command Specications

3.1. Basic Command Specications

Below is the syntax of commands exchanged between a device and remote controller.

- Each command must end with LF (0x0A).

- LF (0x0A) code can be sent as heart-beat command.

Refer to section 3.3.3: "2-9) Keepalive activation setting" for description of run mode setting, which describes the use of this heart-beat

command.

- Character type letter(s) in command line must be bracketed by double quotations.

When double quotation itself needs to be included in command line, use "escape character" as shown below.

Backslash works as an escape character to express following one character for double quotation and backslash.

Syntax Meaning Description

\\ \ backslash

\" " double quotation

- At least one space is necessary between a command name and an option and between options.

- Commands must be expressed using ASCII characters. Other characters are not allowed.

- Option strings that express parameter values are shown below.

Value Displayed string Raw value Normalized value

-Innity "-INFINITY" -13801 0

-18dB "-18.00" -1800 453

-6.5dB "-6.50" -650 677

0dB "0.00" 0804

10dB "10.00" 1000 1000

2kHz "2.00k" 2000000 667

400Hz "400" 400000 435

Pan L 63 "L63" -63 0

Pan Center "C" 0500

Pan R 63 "R63" +63 1000

ON "ON" 0500

11000

OFF "OFF" 00

11000

INVERTED "INVERTED" 11000

NORMAL "NORMAL" 00

* For other parameters, see section 6, "Parameter Value Details," provided later.

* Normalized value is a converted value when minimum value of the parameter is as 0 and maximum value of the parameter is as 1000*1.

Example: -inf as minimum mapped 0, 10dB as maximum mapped 1000, 0dB mapped 804 for level parameter.

*1: This value is set by 2-8) Normalization resolution setting, default resolution is 1000.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 14

3. Command Specications

3.2. Commands a Device Sends to a Remote Controller

3.2.1. Device status change notication

1-1) Device run mode notication

Command Option 1 Option 2 Description

NOTIFY devstatus runmode "emergency" Emergency run mode

"update" Update mode

"normal" Normal run mode

Example: Notication: NOTIFY devstatus runmode "normal"

Meaning: The run mode was changed to normal mode.

1-2) Device error status notication

Command Option 1 Option 2 Description

NOTIFY devstatus error "t/xxxx" Alert fault information

"err/xxxx" Alert error information

"wrn/xxxx" Alert warning information

Details: "t/xxxx" = "t/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

"err/xxxx" = "err/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

"wrn/xxxx" = "wrn/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

The rst three characters indicate the alert type.

message = Alert message (The section from "/" to "//" after the alert type is the message data.)

. . . up to 32 characters (ascii characters)

nnn = Alert number (panel display number)

. . . 2 or 3 digit hexadecimal notation (The x at the front indicates hexadecimal notation.)

onf = Alert on/off

. . . Persistent alerts turn on when an alert condition occurs and turn off when they are cleared.

Single-shot alerts turn on while an alert condition is true.

sssss = Identical alert count (a counter that indicates the number of identical alerts, normally set to 1)

. . . Decimal notation

xxx = UNIT ID number . . . 3-digit hexadecimal

Date

Time

Example: Notication: NOTIFY devstatus error "err/DCP[0] communication error// x53 on (1) ID-001 2013/1/22 11:38:23"

Meaning: Error alert 53 occurred.

1-3) Current Fs (sampling frequency) setting notication

Command Option 1 Option 2 Description

NOTIFY devstatus fs "unknown" Fs undened

44.1kHz 44.1kHz

"48kHz" 48kHz

Example: Notication: NOTIFY devstatus fs "44.1kHz"

Meaning: Fs was changed to 44.1 kHz.

1-4) Current word clock status notication

Command Option 1 Option 2 Description

NOTIFY devstatus lockstatus "unlock" Unlock

"lock" Lock

Example: Notication: NOTIFY devstatus lockstatus "lock"

Meaning: Word clock was locked.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 15

3. Command Specications

3.2.2. Parameter change notication

1-5) Parameter change notication raw value

Parameter change notication normalized value

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Option 4 Option 5 Description

NOTIFY set MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo

0 0 "(value)" "(string)" Parameter change

raw value

NOTIFY setn MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo

0 0 "(value)" "(string)" Parameter change

normalized value

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

"(value)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Notication: NOTIFY set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760 "-77.60"

Meaning: DCA Fader 1ch level was changed to "-77.60."

MRX7-D

Command Option 1 Option 2 Option 3 Option 4 Option 5 Description

NOTIFY set MTX:Index_IndexNo 0 0 "(value)" "(string)" Parameter change raw value

NOTIFY setn MTX:Index_IndexNo 0 0 "(value)" "(string)" Parameter change normalized value

Details: IndexNo = Index number assigned in Remote Control Setup List

"(value)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Notication: NOTIFY set MTX:Index_1 0 0 -7760 "-77.60"

(V2.02 or earlier NOTIFY set MTX:Index_001 0 0 -7760 "-77.60")

Meaning: Level of the parameter assigned to Index 1 in Remote Control List was changed to "-77.60".

Important: If a parameter is assigned to multiple Index numbers in the Remote Control Setup List, Notication is only

provided to the lowest assigned Index number.

1-6) Scheduler on/off change notication

Command Option 1 Option 2 Option 3 Option 4 Option 5 Description

NOTIFY set(setn) MTX:EvntScd_On 0 0 1 "1" Scheduler on

0 "0" Scheduler off

* For setn, option 4 is expressed using a normalized value.

Example: Notication: NOTIFY set MTX:EvntScd_On 0 0 1 "1"

Meaning: The scheduler was turned on.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 16

3. Command Specications

3.2.3. Meter information notication

1-7) Meter information notication

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Description

NOTIFY mtr MTX:mtr_MemNo/UniqueId/meter level (meter) Level meter value

gr gr meter value

Details: MemNo = See section 8, "Meters."

UniqueId = See section 8, "Meters."

(meter) = See section 5, "Meter Values."

Example: Notication: NOTIFY mtr MTX:mtr_512/20020/meter level 71 71 71 71 71 71 69 68

* The meter value is expressed using a 2-digit hexadecimal.

Meaning: Output levels for ch1 to 8 Level are sent.

MRX7-D

Command Option 1 Option 2 Option 3 Description

NOTIFY mtr MTX:Index_IndexNo level (meter) Level meter value

gr gr meter value

hold Hold meter value

Details: IndexNo = Index number assigned in Remote Control Setup List

(meter) = See section 5, "Meter Values."

Example: Notication: NOTIFY mtr MTX:Index_2 level 71 71 71 71 71 71 69 68

(V2.02 or earlier NOTIFY mtr MTX:Index_002 level 71 71 71 71 71 71 69 68)

* The meter value is expressed using a 2-digit hexadecimal.

Meaning: Output levels for Ch1 to 8 which are assigned to Index 2 in Remote Control list are sent.

3.2.4. Preset change notication

1-8) Current Preset number change notication

Command Option 1 Description

NOTIFY sscurrent (index) Current preset number change notication

Details: (index) = Current preset index number

Example: Notication: NOTIFY sscurrent 10

Meaning: Current preset was changed to index 10 (preset 10).

1-9) Preset recall start notication

Command Option 1 Description

NOTIFY ssrecall (index) Preset recall process started

Details: (index) = Preset index number

Example: Notication: NOTIFY ssrecall 10

Meaning: Preset recall process for Index 10 preset started.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 17

3. Command Specications

3.2.5. Snapshot change notication

1-10) Current Snapshot number change notication

Command Option 1 Option 2 Description

NOTIFY sscurrent_ex list (index) Current preset number change notication

Details: (index) = Index number for Snapshot assiged in Remote Control Setup List

Example: Notication: NOTIFY sscurrent_ex list 5

Meaning: Snapshot recall occurred for the Snapshot assigned to index 5 in Remote Control Setup List

1-11) Snapshot recall start notication

Command Option 1 Option 2 Description

NOTIFY ssrecall_ex list (index) Snapshot recall start notication

Details: (index) = Index number for Snapshot assiged in Remote Control Setup List

Example: Notication: NOTIFY ssrecall_ex list 5

Meaning: Snapshot recall process for Index 5 started.

3.2.6. Event processing change notication

1-12) Media insertion notication

Command Option 1 Option 2 Description

NOTIFY event MTX:Media "sdcard=inserted" An SD memory card was inserted.

"sdcard=extracted" An SD memory card was removed.

Example: Notication: NOTIFY event MTX:Media "sdcard=inserted"

Meaning: An SD memory card was inserted into an SD memory card slot and was detected normally.

* SD Card should not be removed when the MTX is powered on.

1-13) Time synchronization notication <Old format>

Command Option 1 Option 2 Description

NOTIFY event MTX:AbsoluteTime "yyyy/mm/dd hh:mm:ss" Time synchronization notication

Details: yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

* DST (Daylight Saving Time) is not accounted for.

Example: Notication: NOTIFY event MTX:AbsoluteTime "2013/1/25 10:58:19"

Meaning: The time was set to January 25, 2013, 10 hours 58 minutes 19 seconds.

Note: This command’s option1 string "MTX:AbsoluteTime" is retained to keep compatibility with previous programming using

the previous protocol. The command’s function is identical to the new format shown below.

Device sends both format commands when time is set in order to keep compatibility with program which done for old

format in past.

Ignore this command and process new format command in new program.

1-14) Time synchronization notication <New format>

Command Option 1 Option 2 Description

NOTIFY event MTX:SetAbsoluteTime "yyyy/mm/dd hh:mm:ss" Time synchronization notication

Details: yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

* DST (Daylight Saving Time) is not accounted for.

Example: Notication: NOTIFY event MTX:SetAbsoluteTime "2013/1/25 10:58:19"

Meaning: The time was set to January 25, 2013, 10 hours 58 minutes 19 seconds

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 18

3. Command Specications

1-15) DST enable change notication

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetEnable "enable" DST enable

"disable" DST disable

Example: Notication: NOTIFY event MTX:DSTSetEnable "enable"

Meaning: DST was enabled

1-16) DST offset time change notication

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetOffset "offset=hh:mm" DST offset time change notication

Details: hh = Hour (0 to 2)

mm = Minute (0 to 59)

Example: Notication: NOTIFY event MTX:DSTSetOffset "01:00"

Meaning: DST offset was set one hour

1-17) DST start time change notication

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetStartTime "time=hh:mm" DST start time change notication

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Notication: NOTIFY event MTX:DSTSetStartTime "time=12:00"

Meaning: DST start time was set to 12:00

1-18) DST end time change notication

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetEndTime "time=hh:mm" DST end time change notication

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Notication: NOTIFY event MTX:DSTSetEndTime "time=12:00"

Meaning: DST end time was set to 12:00

1-19) DST start/end day change notication (day/week)

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetDayWeek "s_weekindex=xxxx|s_day=yyyy|s_month=zzzz|

e_weekindex=uuuu|e_day=vvvv|e_month=wwww"

DST start/end day change

notication (day/week)

Details: xxxx = Start week (First, Second, Third, Fourth, Fifth, Last)

yyyy = Start day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

zzzz = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

uuuu = End week (First, Second, Third, Fourth, Fifth, Last)

vvvv = End day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

wwww = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

Example: Notication: NOTIFY event MTX:DSTSetDayWeek "s_weekindex=Last|s_day=Sun|s_month=Mar|

e_weekindex=Last|e_day=Sun|e_month=Oct"

Meaning: DST start/end days were set as from last Sunday in March to last Sunday in October

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 19

3. Command Specications

1-20) DST start/end day change notication (day)

Command Option 1 Option 2 Description

NOTIFY event MTX:DSTSetDay "s_month=xxxx|s_date=yyyy|e_month=zzzz|

e_date=wwww"

DST start/end day change

notication (day)

Details: xxxx = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

yyyy = Start day (1 ~ 31)

zzzz = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

wwww = End day (1 ~ 31)

Example: Notication: NOTIFY event MTX:DSTSetDay "s_month=Mar|s_date=10|e_month=Nov|e_day=3"

Meaning: DST start day was set to March 10th and DST end day was set to Novenber 3rd

1-21) Song play mode notication

Command Option 1 Option 2 Description

NOTIFY event MTX:AudioPlayerSetPlayMode "playmode=one" One song play mode

"playmode=repeat one" One song repeat

"playmode=all" All song play

"playmode=repeat all" All songs repeat

"playmode=shufe" Shufe repeat

Example: Notication: NOTIFY event MTX:AudioPlayerSetPlayMode "playmode=repeat one"

Meaning: The play mode was changed to one song repeat.

1-22) Play, stop, and other transport operation notication

Command Option 1 Option 2 Description

NOTIFY event MTX:AudioPlayerTransport "operation=stop" Stop

"operation=play" Play

"operation=pause" Pause

Example: Notication: NOTIFY event MTX:AudioPlayerTransport "operation=stop"

Meaning: Playback was paused.

1-23) Playback song notication

Command Option 1 Option 2 Description

NOTIFY event MTX:AudioPlayerSetCurrentSong "dirpath=xxxx|dirname=yyyy|leindex=

zzzz|lename=wwww"

Playback song designation

Details: xxxx = Directory path (index expression)

yyyy = Directory name (name of the folder)

zzzz = File index

wwww = File name

Example: Notication: NOTIFY event MTX:AudioPlayerSetCurrentSong

"dirpath=0/1|dirname=Folder #1|leindex=2|lename=xxxx.mp3"

Meaning: The playback song was set to index number 1 "xxxx.mp3" in the "Folder #1" folder of 0/1

(index expression).

* "0/1" expresses the root folder number/sub folder number (the root folder number is always xed at 0).

Note: The character encoding for directory and le names conforms to the setting specied by the scpmode encoding

command.

1-24) MTX Editor synchronization processing notication

Command Option 1 Option 2 Description

NOTIFY event MTX:SynchronizationSetStatus "active" Synchronization start

"inactive" Synchronization end

Example: Notication: NOTIFY event MTX:SynchronizationSetStatus "active"

Meaning: Synchronization processing was started between MTX and MTX Editor.

Note: When this notication is received, because the internal MTX settings may have changed signicantly, we recommend

that you verify the connection by querying relevant parameters.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 20

3. Command Specications

3.3. Commands for controlling a device

3.3.1. Device status query

2-1) Device run mode query

Command Option 1 Description

devstatus runmode Queries the run mode

Response

Response string Description

OK devstatus runmode "emergency" Emergency run mode

OK devstatus runmode "update" Update mode

OK devstatus runmode "normal" Normal run mode

Example: Command: devstatus runmode

Response: OK devstatus runmode "normal"

Meaning: Query the run mode.

The device is currently in normal run mode.

Note: After device responds with -OK devstatus runmode "normal"-, device starts to send commands.

In order to establish remote control communication, the external controller must send [devstatus runmode] command

to the device and await response. When the device responds as [OK devstatus runmode "normal"], the device is ready

to receive commands.

2-2) Device error status query

Command Option 1 Description

devstatus error Queries the error status

Response

Response string Description

OK devstatus error "none" No alerts

OK devstatus error "t/xxxx" fault alert

OK devstatus error "err/xxxx" error alert

OK devstatus error "wrn/xxxx" warning alert

Details: "t/ xxxx" = "t/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

"err/ xxxx" = "err/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

"wrn/ xxxx" = "wrn/message// xnnn onf (sssss) ID-xxx 2012/12/31 23:59:59"

The rst three characters indicate the alert type.

message = Alert message (The section from "/" to "//" after the alert type is the message data.)

. . . up to 32 characters (ascii characters)

nnn = Alert number (panel display number)

. . . 2 or 3 digit hexadecimal notation (The x at the front indicates hexadecimal notation.)

onf = Alert on/off

. . . Persistent alerts turn on when an alert condition occurs and turn off when they are cleared.

Single-shot alerts turn on while an alert condition is true.

sssss = Identical alert count (a counter that indicates the number of identical alerts, normally set to 1)

. . . Decimal notation

xxx = UNIT ID number . . . 3- digit hexadecimal

Date

Time

Example: Command: devstatus error

Response: OK devstatus error "err/DCP[0] communication error// x53 on (1) ID-001 2013/1/22 11:38:23"

Meaning: Query the alert status.

Error alert 53 is occurring.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 21

3. Command Specications

2-3) Current Fs (sampling frequency) status query

Command Option 1 Description

devstatus fs Queries Fs

Response

Response string Description

OK devstatus fs "unknown" Fs undened

OK devstatus fs "44.1kHz" 44.1kHz

OK devstatus fs "48kHz" 48kHz

Example: Command: devstatus fs

Response: OK devstatus fs "44.1kHz"

Meaning: Query Fs.

The current Fs is 44.1 kHz.

2-4) Current word clock status query

Command Option 1 Description

devstatus lockstatus Queries the word clock lock status

Response

Response string Description

OK devstatus lockstatus "unlock" Unlock

OK devstatus lockstatus "lock" Lock

Example: Command: devstatus lockstatus

Response: OK devstatus lockstatus "lock"

Meaning: Query the word clock lock status.

Locked

3.3.2. Device run mode change

2-5) Device run mode change

Command Option 1 Description

devmode normal Sets the run mode to normal

emergency Sets the run mode to emergency

Response

Response string Description

OK devmode normal Normal run mode change complete

OK devmode emergency Emergency run mode change complete

Example: Command: devmode emergency

Response: OK devmode emergency

Meaning: Change to emergency mode.

Run mode was changed to emergency.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 22

3. Command Specications

3.3.3. MTX external control protocol run mode setting

2-6) Result and change notication character encoding setting

Command Option 1 Option 2 Description

scpmode encoding ascii ASCII encoding mode (default setting)

utf8 UTF-8 encoding mode

Response

Response string Description

OK scpmode encoding ascii ASCII encoding mode change complete

OK scpmode encoding utf8 UTF-8 encoding mode change complete

Example: Command: scpmode encoding utf8

Response: OK scpmode encoding utf8

Meaning: Change the result and change notication encoding code to UTF-8.

The encoding mode was changed to UTF-8.

2-7) Value notication mode setting

Command Option 1 Option 2 Description

scpmode valuetype raw Raw value mode (default setting)

normalized Normalized value mode

Response

Response string Description

OK scpmode valuetype raw Raw value mode change complete

OK scpmode valuetype normalized Normalized value mode change complete

Example: Command: scpmode valuetype normalized

Response: OK scpmode valuetype normalized

Meaning: Change parameter change notications to normalized value mode.

Parameter change notications were changed to normalized value mode.

2-8) Normalization resolution setting

Command Option 1 Option 2 Description

scpmode resolution (res) Resolution for normalized value notications

(default setting = 1000)

Details: (res) = Resolution for normalized values

Response

Response string Description

OK scpmode resolution xxxx The resolution for normalized value notications

Details: xxxx = Specied resolution * Specied resolution should be more than 100.

Example: Command: scpmode resolution 128

Response: OK scpmode resolution 128

Meaning: Set the resolution of normalized values for setn commands to 128.

The resolution of normalized values for setn commands was set to 128.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 23

3. Command Specications

2-9) Keepalive activation setting

Command Option 1 Option 2 Description

scpmode keepalive (interval) Maximum interval for a client to send some kind of message,

including heart beats (default setting = disabled)

Details: (interval) = Timeout value (msec) * Timeout value should be more than 1000.

* The actual timeout value will be increased by 1 second.

Response

Response string Description

OK scpmode keepalive xxxx Keepalive activated notication

Details: xxxx = The specied timeout value (msec)

Example: Command: scpmode keepalive 2000

Response: OK scpmode keepalive 2000

Meaning: Set the timeout value to 2000 msec (2 seconds).

The timeout value was set to 2000 msec (2 seconds).

Note: When unexpected disconnection happens, remote controller can’t nish communication with closing process.

In such case, device has to keep status "connected" and remote controller can’t establish new connection after that.

In order to prevent the situation above, device watches keepalive command if connection with remote controller is still

alive.

If device doesn’t receive keepalive command within timeout value which is set by this command, device terminates

connection by itself.

After the Keepalive activation command has been activated, the Remote controller must send any command or

LF(0x0A) code as a heart beat to the device within the timeout value.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 24

3. Command Specications

3.3.4. Parameter query

2-10) Raw value parameter query

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Description

get MTX:mem_MemNo/UniqueId/ElmNo/Xpos/

Ypos/PrmNo/IndexNo

0 0 Raw value parameter query

request

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

Response

Response string Description

OK get MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value)

Raw value parameter query response

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: get MTX:mem_512/60000/0/0/0/0/0 0 0

Response: OK get MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

Meaning: Query the 1ch level of the DCA fader with raw values.

The 1ch level of the DCA fader is -77.60.

MRX7-D

Command Option 1 Option 2 Option 3 Description

get MTX:Index_IndexNo 0 0 Raw value parameter query request

Details: IndexNo = Index number assigned in Remote Control Setup List

Response

Response string Description

OK get MTX:Index_IndexNo 0 0 (value) Raw value parameter query response

Details: IndexNo = Index number assigned in Remote Control Setup List

"(value)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: get MTX:Index_1 0 0

Response: OK get MTX:Index_1 0 0 -7760

(V2.02 or earlier OK get MTX:Index_001 0 0 -7760)

Meaning: Query level of the parameter assigned to Index 1 in Remote Control Setup List using raw values.

Level of the Parameter that is assigned to Index 1 in Remote Control Setup List is -77.60.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 25

3. Command Specications

2-11) Normalized value parameter query

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Description

getn MTX:mem_MemNo/UniqueId/ElmNo/Xpos/

Ypos/PrmNo/IndexNo

0 0 Normalized value parameter

query request

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

Response

Response string Description

OK getn MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value)

Normalized value parameter query response

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: getn MTX:mem_512/60000/0/0/0/0/0 0 0

Response: OK getn MTX:mem_512/60000/0/0/0/0/0 0 0 408

Meaning: Query the 1ch level of the DCA fader with normalized values.

The 1ch level of the DCA fader is 408.

MRX7-D

Command Option 1 Option 2 Option 3 Description

getn MTX:Index_IndexNo 0 0 Normalized value parameter query request

Details: IndexNo = Index number assigned in Remote Control Setup List

Response

Response string Description

OK getn MTX:Index_IndexNo 0 0 (value) Normalized value parameter query response

Details: IndexNo = Index number assigned in Remote Control Setup List

"(value)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: getn MTX:Index_1 0 0

Response: OK getn MTX:Index_1 0 0 408

(V2.02 or earlier OK getn MTX:Index_001 0 0 408)

Meaning: Query level of a parameter assigned to Index 1 in Remote Control Setup List using normalized

values. Level of the parameter which is assigned to Index 1 in Remote Control Setup List is 408.

2-12) Scheduler status query

Command Option 1 Option 2 Option 3 Description

get(getn,gett) MTX:EvntScd_On 0 0 Queries the scheduler status

* For getn, the response will contain a normalized value; for gett, the response will contain a text string.

Response

Response string Description

OK get MTX:EvntScd_On 0 0 1 Scheduler on

OK get MTX:EvntScd_On 0 0 0 Scheduler off

Example: Command: get MTX:EvntScd_On 0 0

Response: OK get MTX:EvntScd_On 0 0 1

Meaning: Query the scheduler status.

Enabled

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 26

3. Command Specications

3.3.5. Parameter setting

2-13) Raw value parameter setting

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Option 4 Description

set MTX:mem_MemNo/UniqueId/ElmNo/

Xpos/Ypos/PrmNo/IndexNo

0 0 (value) Raw value parameter

setting

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Response

Response string Description

OK set MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value) "(string)"

Raw value parameter setting response

OKm set MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value) "(string)"

* If the requested parameter value is outside the range, the value is adjusted within the range and set.

If this occurs, the result notication will be OKm instead of OK.

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

Response: OK set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760 "-77.60"

Meaning: Set the 1ch level of the DCA fader to a raw value of -77.60.

The 1ch level of the DCA fader was set to "-77.60".

MRX7-D

Command Option 1 Option 2 Option 3 Option 4 Description

set MTX:Index_IndexNo 0 0 (value) Raw value parameter

setting

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Response

Response string Description

OK set MTX:Index_IndexNo 0 0 (value) "(string)" Raw value parameter setting response

OKm set MTX:Index_IndexNo 0 0 (value) "(string)"

* If the requested parameter value is outside the range, the value is adjusted within the range and set.

If this occurs, the resulting notication will be Okm instead of OK.

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: set MTX:Index_1 0 0 -7760

Response: OK set MTX:Index_1 0 0 -7760 "-77.60"

(V2.02 or earlier OK set MTX:Index_001 0 0 -7760 "-77.60")

Meaning: Set the parameter assigned to Index 1 in Remote Control Setup List to -77.60 using raw values.

Level of a parameter which is assigned to Index 1 in Remote Control Setup List was set to "-77.60".

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 27

3. Command Specications

2-14) Normalized value parameter setting

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Option 4 Description

setn MTX:mem_MemNo/UniqueId/ElmNo/

Xpos/Ypos/PrmNo/IndexNo

0 0 (value) Normalized value

parameter setting

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List." (*)

* When value is set "1023" (default:1000), control resolution becomes same as "Raw value" command.

See "6.1 Fader parameter " for the "Nomalised value" vs "Raw value" when the value is set "1023"

Response

Response string Description

OK setn MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value) "(string)"

Normalized value parameter setting response

OKm setn MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value) "(string)"

* If the requested parameter value is outside the range, the value is adjusted within the range and set.

If this occurs, the result notication will be OKm instead of OK.

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: setn MTX:mem_512/60000/0/0/0/0/0 0 0 408

Response: OKm setn MTX:mem_512/60000/0/0/0/0/0 0 0 408 "-20.56"

Meaning: Set the 1ch level of the DCA fader to a normalized value of 408.

The 1ch level of the DCA fader was set to "-20.56".

MRX7-D

Command Option 1 Option 2 Option 3 Option 4 Description

setn MTX:Index_IndexNo 0 0 (value) Normalized value

parameter setting

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."(*)

* When value is set "1023" (default:1000), control resolution becomes same as "Raw value" command.

See "6.1 Fader parameter " for the "Nomalised value" vs "Raw value" when the value is set "1023"

Response

Response string Description

OK setn MTX:Index_IndexNo 0 0 (value) "(string)" Normalized value parameter setting response

OKm setn MTX:Index_IndexNo 0 0 (value) "(string)"

* If the requested parameter value is outside the range, the value is adjusted within the range and set.

If this occurs, the result notication will be OKm instead of OK.

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

"(string)" = See section 3.1, "Basic Command Specications," or section 7, "Parameter List."

Example: Command: setn MTX:Index_1 0 0 408

Response: OK setn MTX:Index_1 0 0 408 "-21.50"

(V2.02 or earlier OK setn MTX:Index_001 0 0 408 "-21.50")

Meaning: Set a parameter assigned to Index 1 in Remote Control Setup List to 408 using normalized values.

Level of a parameter which is assigned to index 1 in Remote Control Setup List was set to 408 "-21.50".

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 28

3. Command Specications

2-15) Relative value parameter setting

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 2 Option 3 Option 4 Description

setr MTX:mem_MemNo/UniqueId/ElmNo/

Xpos/Ypos/PrmNo/IndexNo

0 0 "(value)" Relative value set

command.

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

"(value)" = relative value to increase or decrease.

(See "Fader Parameter" table in section 6 Parameter Value Details )

Note: This command is available only for fader type parameters. See "Remarks" column in section 7 Parameter List for

information regarding which parameters support this command.

The Parameter will be set to a new value which equals the sum of the parameter's original value and the relative value

given by this command.

The parameter value range is 0 - 1023 as shown in the "Fader Parameter" table in section 6 Parameter Value Details.

For example, when the relative value is set to 64, 16 level steps can be achieved from the remote controller.

(1024/64 = 16)

Response

Response string Description

OK setr MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value)

Relative value set command response.

OKm setr MTX:mem_MemNo/UniqueId/ElmNo/Xpos/Ypos/

PrmNo/IndexNo 0 0 (value)

* When the sum of current value and relative value is outside of parameter value range (0-1023), a limiting process is

automatically applied.

In such case, "OKm" response will be sent back, instead of normal "OK" response.

Details: MemNo = See section 7, "Parameter List."

UniqueId = See section 7, "Parameter List."

ElmNo = See section 7, "Parameter List."

Xpos = See section 7, "Parameter List."

Ypos = See section 7, "Parameter List."

PrmNo = See section 7, "Parameter List."

IndexNo = See section 7, "Parameter List."

"(value)" = relative value to increase or decrease.

(See "Fader Parameter" table in section 6 Parameter Value Details )

Example: Command: setr MTX:mem_512/60000/0/0/0/0/0 0 0 100

Response: OK setr MTX:mem_512/60000/0/0/0/0/0 0 0 -1900

Meaning: Set DCA-A Fader to+100 step increase.

The level of the DCA-A fader was set to "-19.00"dB.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 29

3. Command Specications

MRX7-D

Command Option 1 Option 2 Option 3 Option 4 Description

setr MTX:Index_IndexNo 0 0 "(value)" Relative value set

command.

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = relative value to increase or decrease.

(See "Fader Parameter" table in section 6 Parameter Value Details )

Note: This command is available only for fader type parameters. See "Remarks" column in section 7 Parameter List for

information regarding which parameters support this command.

The Parameter will be set to a new value which equals the sum of the parameter's original value and the relative value

given by this command.

The parameter value range is 0 - 1023 as shown in the "Fader Parameter" table in section 6 Parameter Value Details.

For example, when the relative value is set to 64, 16 level steps can be achieved from the remote controller.

(1024/64 = 16)

Response

Response string Description

OK setr MTX:Index_IndexNo 0 0 (value) Normalized value parameter setting response

OKm setr MTX:Index_IndexNo 0 0 (value)

* If the requested parameter value is outside the range, the value is adjusted within the range and set.

If this occurs, the result notication will be OKm instead of OK.

Details: IndexNo = Index number assigned in Remote Control Setup List

(value) = relative value to increase or decrease.

(See "Fader Parameter" table in section 6 Parameter Value Details )

Example: Command: setr MTX:Index_1 0 0 100

Response: OK setr MTX:Index_1 0 0 -1900

(V2.02 or earlier OK setr MTX:Index_001 0 0 -1900)

Meaning: Set the parameter assigned to index 1 in Remote Control Setup List to 100 step increase.

Level of the parameter which is assigned to index 1 in Remote Control Setup List was set to "-19.00".

2-16) Scheduler setting

Command Option 1 Option 2 Option 3 Option 4 Description

set(setn,sett) MTX:EvntScd_On 0 0 1 Scheduler on

0 Scheduler off

* For setn, specify a normalized value; for sett, specify option 4 with a character string.

Response

Response string Description

OK set MTX:EvntScd_On 0 0 1 "1" Scheduler enabled response

OK set MTX:EvntScd_On 0 0 0 "0" Scheduler disabled response

Example: Command: set MTX:EvntScd_On 0 0 1

Response: OK set MTX:EvntScd_On 0 0 1 "1"

Meaning: Enable the scheduler.

The scheduler was enabled.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 30

3. Command Specications

3.3.6. Meter control

2-17) Transmission request

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Option 3 Description

mtrstart MTX:mtr_MemNo/UniqueId/meter (interval) Requests that the specied meter data be transmitted.

Details: MemNo = See section 8, "Meter List."

UniqueId = See section 8, "Meter List."

(interval) = Minimum transmission interval (msec)

Response

Response string Description

OK mtrstart MTX:mtr_MemNo/UniqueId/meter Meter data transmission setting complete

Details: MemNo = See section 8, "Meter List."

UniqueId = See section 8, "Meter List."

Example: Command: mtrstart MTX:mtr_512/20020/meter 1000

Notication: OK mtrstart MTX:mtr_512/20020/meter

NOTIFY mtr MTX:mtr_512/20020/meter level 71 71 71 71 71 71 69 68

* The meter value is expressed using a 2-digit hexadecimal.

Meaning: Send the meter data of ch1 to 8 output levels at 1000 msec intervals.

A request for the ch1 to 8 output levels was received, so the data will be transmitted.

MRX7-D

Command Option 1 Option 2 Option 3 Description

mtrstart MTX:Index_IndexNo level (interval) Requests specied level meter data be

transmitted.

gr Requests specied Gain Reduction meter

data be transmitted.

hold Requests specied Hold meter data be

transmitted.

Details: IndexNo = Index number assigned in Remote Control Setup List

(interval) = Minimum transmission interval (msec)

Response

Response string Description

OK mtrstart MTX:Index_IndexNo level Level meter data transmission setting complete

OK mtrstart MTX:Index_IndexNo gr Gain Reduction meter data transmission setting complete

OK mtrstart MTX:Index_IndexNo hold Hold meter data transmission setting complete

Details: IndexNo = Index number assigned in Remote Control Setup List

Example: Command: mtrstart MTX:Index_2 level 1000

Notication: OK mtrstart MTX:Index_2 level

NOTIFY mtr MTX:Index_2 level 71 71 71 71 71 71 69 68

(V2.02 or earlier OK mtrstart MTX:Index_002 level

NOTIFY mtr MTX:Index_002 level 71 71 71 71 71 71 69 68

NOTIFY mtr MTX:Index_002 level 71 71 71 71 71 71 69 68)

* The meter value is expressed using a 2-digit hexadecimal.

Meaning: Send the meter data of ch1 to 8 which are assigned to Index 1 in Remote Control Setup List using

1000 msec intervals.

A request for Ch1 to 8 which are assigned to Index 1 in Remote control Setup List was received,

data will be transmitted.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 31

3. Command Specications

2-18) Stop request

MTX3,MTX5-D,XMV,EXi8,EXo8

Command Option 1 Description

mtrstop MTX:mtr_MemNo/UniqueId/meter Requests that the specied meter data be stopped.

Details: MemNo = See section 8, "Meter List."

UniqueId = See section 8, "Meter List."

Response

Response string Description

OK mtrstop MTX:mtr_MemNo/UniqueId/meter Meter data stop setting complete

Details: MemNo = See section 8, "Meter List."

UniqueId = See section 8, "Meter List."

Example: Command: mtrstop MTX:mtr_512/20020/meter

Notication: OK mtrstop MTX:mtr_512/20020/meter

Meaning: Stop the meter data of ch1 to 8 output levels.

The request to stop the meter data of ch1 to 8 output levels was received.

MRX7-D

Command Option 1 Option 3 Description

mtrstop MTX:Index_IndexNo level Requests that the specied level meter data be stopped

gr Requests that the specied Gain Reduction meter data be

stopped

hold Requests that the specied hold meter data be stopped

Details: IndexNo = Index number assigned in Remote Control Setup List

Response

Response string Description

OK mtrstop MTX:Index_IndexNo level Level meter data stop setting complete

OK mtrstop MTX:Index_IndexNo gr Gain Reduction meter data stop setting complete

OK mtrstop MTX:Index_IndexNo hold Hold meter data stop setting complete

Details: IndexNo = Index number assigned in Remote Control Setup List

Example: Command: mtrstop MTX:Index_2 level

Notication: OK mtrstop MTX:Index_2 level

(V2.02 or earlier OK mtrstop MTX:Index_002 level)

Meaning: Stop the meter data of ch1 to 8 which are assigned to Index 2 in Remote Control Setup List.

The request to stop the meter data of ch1 to 8 which are assigned to Index 2 in Remote Control

Setup List was received.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 32

3. Command Specications

3.3.7. Preset processing

2-19) Preset current number query processing

Command Description

sscurrent Queries the current preset number (index)

Response

Response string Description

OK sscurrent (index) unmodied Current preset number queried

(There is no parameter change after recalling.)

OK sscurrent (index) modied Current preset number queried

(There is a parameter change after recalling.)

Details: (index) = Current preset number

Example: Command: sscurrent

Notication: OK sscurrent 10 unmodied

Meaning: Query the last index number (preset number) that was recalled.

The index number (preset number) is index 10 (preset 10), and no parameter has changed after

recalling.

2-20) Preset recall processing

Command Option 1 Description

ssrecall (index) Recalls the preset at the specied index from the preset list.

Details: (index) = Snapshot (preset) number

Response

Response string Description

OK ssrecall (index) Requested index

Details: (index) = Snapshot (preset) number

Example: Command: ssrecall 1

Notication: OK ssrecall 1

Meaning: Recall the preset at index 1 (preset 1).

The preset at index 1 (preset 1) was recalled.

3.3.8. Snapshot Recall processing

2-21) Snapshot recall processing

Command Option 1 Option 2 Description

ssrecall_ex list (index) Recall Snapshot or SnapshotGroup assigned in Remote

Control Setup List.

Details: Index = Index number assigned in Remote Control Setup List

Response

Response string Description

OK ssrecall_ex list (index) Index number assigned in Remote Control Setup List

Details: Index = Index number assigned in Remote Control Setup List

Example: Command: ssrecall_ex list 3

Notication: OK ssrecall_ex list 3

Meaning: Recall the Snapshot assigned to index 3 in Remote Control Setup List.

The Snapshot assigned to Index 2 in Remote Control Setup List was recalled.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 33

3. Command Specications

3.4. Extended commands

3.4.1. Product information query request

3-1) MTX external control protocol version query

Command Option 1 Description

devinfo protocolver Queries the MTX external control protocol version

Response

Response string Description

OK devinfo protocolver "xxxx" MTX external control protocol version

Details: xxxx = Version

Example: Command: devinfo protocolver

Notication: OK devinfo protocolver "1.0.0"

Meaning: Query the protocol version.

Protocol version = V1.0.0

3-2) Parameter set version query

Command Option 1 Description

devinfo paramsetver Queries the parameter set version

Response

Response string Description

OK devinfo paramsetver "xxxx" Parameter set version

Details: xxxx = Version

Example: Command: devinfo paramsetver

Notication: OK devinfo paramsetver "MTX:1.2.0"

Meaning: Query the parameter set version.

Parameter set version = V1.2.0

3-3) Firmware version query

Command Option 1 Description

devinfo version Queries the rmware version

Response

Response string Description

OK devinfo version "xxxx" Firmware version

Details: xxxx = Version

Example: Command: devinfo version

Notication: OK devinfo version "1.0.0"

Meaning: Query the rmware version.

Firmware version = V1.00

3-4) Product name query

Command Option 1 Description

devinfo productname Queries the product name

Response

Response string Description

OK devinfo productname "xxxx" Product name

Details: xxxx = Product name

Example: Command: devinfo productname

Notication: OK devinfo productname "MTX3"

Meaning: Query the product name.

Product name = "MTX3"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 34

3. Command Specications

3-5) Serial number query

Command Option 1 Description

devinfo serialno Queries the serial number

Response

Response string Description

OK devinfo serialno "xxxx" Serial number

Details: xxxx = Serial number

Example: Command: devinfo serialno

Notication: OK devinfo serialno "ZA37640CHNET101001"

Meaning: Query the serial number.

Serial number = "ZA37640CHNET101001"

3-6) Device ID query

Command Option 1 Description

devinfo deviceid Queries the device ID

Response

Response string Description

OK devinfo deviceid "xxxx" Device ID

Details: xxxx = Device ID

* 3-digit hexadecimal

Example: Command: devinfo deviceid

Notication: OK devinfo deviceid "001"

Meaning: Query the device ID.

Device ID = "001"

Note: The device ID corresponds to the UNIT ID.

3-7) Device name query

Command Option 1 Description

devinfo devicename Queries the device name assigned by the user

Response

Response string Description

OK devinfo devicename "xxxx" Device name assigned by the user

Details: xxxx = Device name

Example: Command: devinfo devicename

Notication: OK devinfo devicename "MTX3"

Meaning: Query the device name.

Device name = "MTX3"

Note: The character encoding for the device name conforms to the setting specied by the scpmode encoding command.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 35

3. Command Specications

3.4.2. Preset processing request

3-8) Number of Preset lists

Command Description

ssnum Queries the number of preset lists

Response

Response string Description

OK ssnum (num) The number of preset lists

Details: (num) = Quantity

Example: Command: ssnum

Notication: OK ssnum 51

Meaning: Query the number of presets.

The number of presets is 51.

3-9) Nth preset information

Command Option 1 Description

ssinfo (index) Queries the preset information at the specied index in the

preset list.

Response

Response string Description

OK ssinfo (index) "xxxxxx" (attrib) "yyyyyy" "zzzzzz" Preset information at the specied index in the preset list.

Details: (index) = Requested index number

"xxxxxxx" = Text expressing the relevant preset number

(attrib) = Relevant preset attribute

preinst = preinstalled preset

reserve = reserved area

user = user preset available

empty = empty

"yyyyyyy" = = title text of the relevant preset

"zzzzzz" = comment text of the relevant preset.

(reserved for future use. MTX does not currently use comments. "" will be returned.)

Example: Command: ssinfo 10

Notication: OK ssinfo 10 "10" user "Preset 10" ""

Meaning: Query the contents of the preset at index 10 (preset 10).

The preset at index 10 contains

display number = "10"

title = "Preset 10"

comment = ""

and is a stored preset.

Note: The character encoding for preset titles and comments conforms to the setting specied by the scpmode encoding

command.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 36

3. Command Specications

3.4.3. Event processing request

3-10) Time synchronization <Old format>

Command Option 1 Option 2 Description

event MTX:AbsoluteTime "yyyy/mm/dd hh:mm:ss" Changes the time

Details: yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

* DST (Daylight Saving Time) is not accounted for.

Response

Response string Description

OK event MTX:AbsoluteTime "caught" Time change complete

Example: Command: event MTX:AbsoluteTime "2013/1/25 11:56:14"

Notication: OK event MTX:AbsoluteTime "caught"

Meaning: Set the time to January 25, 2013, 11 hours 56 minutes 14 seconds.

The time was set.

3-11) Time synchronization <New format>

Command Option 1 Option 2 Description

event MTX:SetAbsoluteTime "yyyy/mm/dd hh:mm:ss" Changes the time

Details: yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

* DST (Daylight Saving Time) is not accounted for.

Response

Response string Description

OK event MTX:SetAbsoluteTime "caught" Time change complete

Example: Command: event MTX:SetAbsoluteTime "2013/1/25 11:56:14"

Notication: OK event MTX:SetAbsoluteTime "caught"

Meaning: Set the time to January 25, 2013, 11 hours 56 minutes 14 seconds.

The time was set.

3-12) Time query

Command Option 1 Option 2 Description

event MTX:GetAbsoluteTime "" Time query with absolute time

Response

Response string Description

OK event MTX:GetAbsoluteTime "yyyy/mm/dd hh:mm:ss" Current time info with absolute time

Details: yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

* DST (Daylight Saving Time) is not accounted for.

Example: Command: event MTX:GetAbsoluteTime ""

Notication: OK event MTX:GetAbsoluteTime "2014/1/25 11:56:14"

Meaning: Get current time with absolute time

Current time is January 25 2014, 11 hours 56 minutes 14 seconds

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 37

3. Command Specications

3-13) DST enable/disable setting

Command Option 1 Option 2 Description

event MTX:DSTSetEnable "enable" Set DST enable

"disable" Set DST disable

Response

Response string Description

OK event MTX:DSTSetEnable "enable" DST was enabled

OK event MTX:DSTSetEnable "disable" DST was disabled

Example: Command: event MTX:DSTSetEnable "enable"

Notication: OK event MTX:DSTSetEnable "enable"

Meaning: Set DST enable

DST was enabled

3-14) DST enable/disable query

Command Option 1 Option 2 Description

event MTX:DSTGetEnable "" DST enable/disable query

Response

Response string Description

OK event MTX:DSTGetEnable "enable" DST is enable

OK event MTX:DSTGetEnable "disable" DST is disable

Example: Command: event MTX:DSTGetEnable ""

Notication: OK event MTX:DSTGetEnable "enable"

Meaning: Get DST setting

DST is enable

3-15) DST status query

Command Option 1 Option 2 Description

event MTX:DSTGetStatus "" DST status query

Response

Response string Description

OK event MTX:DSTGetStatus "on" Working with DST

OK event MTX:DSTGetStatus "off" Not working with DST

Example: Command: event MTX:DSTGetStatus ""

Notication: OK event MTX:DSTGetStatus "on"

Meaning: Get DST working status

Working with DST

3-16) DST offset time setting

Command Option 1 Option 2 Description

event MTX:DSTSetOffset "offset=hh:mm" Set DST offset

Details: hh = Hour (0 to 2)

mm = Minute (0 to 59)

(Up to 2 hours can be set)

Response

Response string Description

OK event MTX:DSTSetOffset "offset=hh:mm" DST offset was set

Details: hh = Hour (0 to 2)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTSetOffset "offset=1:00"

Notication: OK event MTX:DSTSetOffset "offset=1:00"

Meaning: Set DST offset to 1 hour

DST offset was set to 1 hour

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 38

3. Command Specications

3-17) DST offset time query

Command Option 1 Option 2 Description

event MTX:DSTGetOffset "" Get DST offset

Response

Response string Description

OK event MTX:DSTGetOffset "offset=hh:mm" DST offset

Details: hh = Hour (0 to 2)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTGetOffset ""

Notication: OK event MTX:DSTGetOffset "offset=01:00"

Meaning: Get DST offset

DST offset was set to 1 hour

3-18) DST start time setting

Command Option 1 Option 2 Description

event MTX:DSTSetStartTime "time=hh:mm" Set DST start time

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Response

Response string Description

OK event MTX:DSTSetStartTime "time=hh:mm" DST start time was set

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTSetStartTime "time=12:00"

Notication: OK event MTX:DSTSetStartTime "time=12:00"

Meaning: Set DST start time to 12:00

DST start time was set to 12:00

3-19) DST start time query

Command Option 1 Option 2 Description

event MTX:DSTGetStartTime "" Get DST start time

Response

Response string Description

OK event MTX:DSTGetStartTime "time=hh:mm" DST start time

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTGetStartTime ""

Notication: OK event MTX:DSTGetStartTime "time=12:00"

Meaning: Get DST start time

DST start time is 12:00

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 39

3. Command Specications

3-20) DST end time setting

Command Option 1 Option 2 Description

event MTX:DSTSetEndTime "time=hh:mm" Set DST end time

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Response

Response string Description

OK event MTX:DSTSetEndTime "time=hh:mm" DST end time was set

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTSetEndTime "time=12:00"

Notication: OK event MTX:DSTSetEndTime "time=12:00"

Meaning: Set DST end time to 12:00

DST end time was set to 12:00

3-21) DST end time query

Command Option 1 Option 2 Description

event MTX:DSTGetEndTime "" Get DST end time

Response

Response string Description

OK eventMTX:DSTGetEndTime "time=hh:mm" DST end time

Details: hh = Hour (0 to 23)

mm = Minute (0 to 59)

Example: Command: event MTX:DSTGetEndTime ""

Notication: OK event MTX:DSTGetEndTime "time=12:00"

Meaning: Get DST end time

DST end time is 12:00

3-22) DST start/end days setting (day/week)

Command Option 1 Option 2 Description

event MTX:DSTSetDayWeek "s_weekindex=xxxx|s_day=yyyy|s_month=zzzz|

e_weekindex=uuuu|e_day=vvvv|e_month=wwww"

Set DST start/end days by day

and week

Details: xxxx = Start week (First, Second, Third, Fourth, Fifth, Last)

yyyy = Start day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

zzzz = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

uuuu = End week (First, Second, Third, Fourth, Fifth, Last)

vvvv = End day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

wwww = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

Response

Response string Description

OK event MTX:DSTSetDayWeek "s_weekindex=xxxx|s_day=yyyy|

s_month=zzzz|e_weekindex=uuuu|e_day=vvvv|e_month=wwww"

DST start/end days by day and week was set

Details: xxxx = Start week (First, Second, Third, Fourth, Fifth, Last)

yyyy = Start day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

zzzz = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

uuuu = End week (First, Second, Third, Fourth, Fifth, Last)

vvvv = End day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

wwww = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

Example: Command: event MTX:DSTSetDayWeek "s_weekindex=Last|s_day=Sun|s_month=Mar|e_weekindex=Last|

e_day=Sun|e_month=Oct"

Notication: OK event MTX:DSTSetDayWeek "s_weekindex=Last|s_day=Sun|s_month=Mar|

e_weekindex=Last|e_day=Sun|e_month=Oct"

Meaning: Set DST start/end days as from last Sunday in March to last Sunday in October

DST start/end days was set as from last Sunday in March to last Sunday in October

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 40

3. Command Specications

3-23) DST start/end days query (day/week)

Command Option 1 Option 2 Description

event MTX:DSTGetDayWeek "" Get DST start/end days by day and week

Response

Response string Description

OK event MTX:DSTGetDayWeek "s_weekindex=xxxx|s_day=yyyy|

s_month=zzzz|e_weekindex=uuuu|e_day=vvvv|e_month=wwww"

DST start/end days by day and week

Details: xxxx = Start week (First, Second, Third, Fourth, Fifth, Last)

yyyy = Start day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

zzzz = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

uuuu = End week (First, Second, Third, Fourth, Fifth, Last)

vvvv = End day (Sun, Mon, Tue, Wed, Thu, Fri, Sat)

wwww = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

Example: Command: event MTX:DSTGetDayWeek ""

Notication: OK event MTX:DSTGetDayWeek "s_weekindex=Last|s_day=Sun|s_month=Mar|

e_weekindex=Last|e_day=Sun|e_month=Oct"

Meaning: Get DST start/end days by day and week

DST start/end days is set as from last Sunday in March to last Sunday in October

Note: When DST is set not by "day and week" but by "day", error returns.

3-24) DST start/end days setting (day)

Command Option 1 Option 2 Description

event MTX:DSTSetDay "s_month=xxxx|s_date=yyyy|e_month=zzzz|

e_date=wwww"

Set DST start/end days by day

Details: xxxx = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

yyyy = Start day (1 ~ 31)

zzzz = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

wwww = End day (1 ~ 31)

Response

Response string Description

OK event MTX:DSTSetDay "s_month=xxxx|s_date=yyyy|

e_month=zzzz|e_date=wwww"

DST start/end days by day was set

Details: xxxx = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

yyyy = Start day (1 ~ 31)

zzzz = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

wwww = End day (1 ~ 31)

Example: Command: event MTX:DSTSetDay "s_month=Mar|s_date=10|e_month=Nov|e_day=3"

Notication: OK event MTX:DSTSetDay "s_month=Mar|s_date=10|e_month=Nov|e_day=3"

Meaning: Set DST start/end days as from March 10 to November 3

DST start/end days was set as from March 10 to November 3

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 41

3. Command Specications

3-25) DST start/end days query (day)

Command Option 1 Option 2 Description

event MTX:DSTGetDay "" Set DST start/end days by day

Response

Response string Description

OK event MTX:DSTGetDay "s_month=xxxx|s_date=yyyy|e_month=zzzz|e_date=wwww" DST start/end days by day

Details: xxxx = Start month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

yyyy = Start day (1 ~ 31)

zzzz = End month (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec)

wwww = End day (1 ~ 31)

Example: Command: event MTX:DSTGetDay ""

Notication: OK event MTX:DSTGetDay "s_month=Mar|s_date=10|e_month=Nov|e_day=3"

Meaning: Get DST start/end days by date

DST start/end days is from March 10 to November 3

Note: When DST is set not by "day" but by "day and week", error returns.

3-26) DST start/end days setting query

Command Option 1 Option 2 Description

event MTX:DSTGetDaySetting "" Get DST start/end days format, "day

and week" or "day"

Response

Response string Description

OK event MTX:DSTGetDaySetting "setting=dayweek" DST start/end days are set by "day and week"

OK event MTX:DSTGetDaySetting "setting=day" DST start/end days are set by "day"

Example: Command: event MTX:DSTGetDaySetting ""

Notication: OK event MTX:DSTGetDaySetting "setting=dayweek"

Meaning: Get DST start/end days format, "day and week" or "day"

DST start/end days were set by "day and week"

3-27) Current folder information query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetCurrentDir "" Queries the current folder information.

Response

Response string Description

OK event MTX:AudioPlayerGetCurrentDir "dirpath=xxxx|dirname=yyyy|

subdirnum=zzzz|lenum=wwww"

Current folder information

OKm event MTX:AudioPlayerGetCurrentDir "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: xxxx = Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

yyyy = Directory name (name of the folder)

zzzz = The number of sub folders in the current directory

wwww = The number of les in the current directory

Example: Command: event MTX:AudioPlayerGetCurrentDir ""

Notication: OK event MTX:AudioPlayerGetCurrentDir "dirpath=0|dirname=|subdirnum=4|lenum=2"

Meaning: Query the current folder information.

The current folder contains four directories and two les.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 42

3. Command Specications

3-28) Current folder move query

Command Option 1 Option 2 Description

event MTX:AudioPlayerSetCurrentDir "dirpath=0" Moves the current folder(To root folder)

"dirpath=0/nnnn" Moves the current folder(To sub folder)

Details: Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

Note: The range of sub folder is "0" to "total number of sub folders -1".

Use "3-27) Current folder information query" to get total number of sub folders

Song les in root folder of SD card and song les in sub folders of root folder are supported. Files placed in "deeper"

folders are not supported.

Response

Response string Description

OK event MTX:AudioPlayerSetCurrentDir "dirpath=xxxx|dirname=yyyy|

subdirnum=zzzz|lenum=wwww"

Current folder information

OKm event MTX:AudioPlayerSetCurrentDir "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: xxxx = Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

yyyy = Directory name (name of the folder)

zzzz = The number of sub folders in the current directory

wwww = The number of les in the current directory

Example: Command: event MTX:AudioPlayerSetCurrentDir "dirpath=0/1"

Notication: OK event MTX:AudioPlayerSetCurrentDir "dirpath=0/1|dirname=songs|subdirnum=0|lenum=3"

Meaning: Make the 0/1 (index expression) directory the current directory.

The 0/1 (index expression) directory was made the current directory. This folder contains no sub

directories and three les.

* "0/1" expresses the root folder number/sub folder number (the root folder number is always xed at 0).

3-29) Folder name query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetDirName "dirindex=xxxx" Folder name query

Details: xxxx = Folder index number

Note: The range of index numbers is "0" to "total number of sub folders - 1".

Use "3-27) Current folder information query" or "3-28) Current folder move query" to get total number of sub folders.

This command is valid only when current folder is “route”, otherwise (when current folder is sub folder) error will return.

Response

Response string Description

OK event MTX:AudioPlayerGetDirName "dirname=xxxx" Folder name

OKm event MTX:AudioPlayerGetDirName "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: xxxx = Folder name

Example: Command: event MTX:AudioPlayerGetDirName "dirindex=1"

Notication: OK event MTX:AudioPlayerGetDirName "dirname=songs"

Meaning: Query the directory name of folder index number 1 (index expression).

The directory name is "songs".

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 43

3. Command Specications

3-30) File name query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetFileName "leindex=xxxx" File name query

Details: xxxx = File index number

Note: The range of index numbers is "0" to "total number of les - 1".

Use "3-27) Current folder information query" or "3-28) Current folder move query" to get total number of les.

Response

Response string Description

OK event MTX:AudioPlayerGetFileName "lename=xxxx" File name

OKm event MTX:AudioPlayerGetFileName "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: xxxx = File name

Example: Command: event MTX:AudioPlayerGetFileName "leindex=1"

Notication: OK event MTX:AudioPlayerGetFileName "lename=xxxx.mp3"

Meaning: Query the le name of le index number 1 (index expression).

The le name is "xxxx.mp3".

3-31) Folder name list query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetDirNameList "dirindex=XXXX-xxxx" Folder name list: Multiple folder name

query

Details: XXXX = the rst index number of desired range for list (index expression)

xxxx = the last index number of desired range for list (index expression)

→ Cannot be set to a value greater than the number of folders.

→ The rst number cannot be greater than the last number.

→ By changing the rst and last numbers, you can query the list of folder names in that range.

Note: "XXXX" should be 0 or greater.

"xxxx" should be smaller total number of sub folders - 1 or smaller.

Use "3-27) Current folder information query" or "3-28) Current folder move query" to get total number of sub folders.

Response

Response string Description

OK event MTX:AudioPlayerGetDirNameList "dirindex=XXXX-xxxx|dirname0=yyyy| ... " Folder name list

OKm event MTX:AudioPlayerGetDirNameList "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: XXXX = the rst index number of desired range for list (index expression)

xxxx = the last index number of desired range for list (index expression)

yyyy = Directory names

Example: Command: event MTX:AudioPlayerGetDirNameList "dirindex=0-1"

Notication: OK event MTX:AudioPlayerGetDirNameList "dirindex=0-1|dirname0=Folder #1|dirname1=Folder #2"

Meaning: Query the directory names of folder list number 0 and 1 (index expression).

The directory name of folder list number 0 is "Folder #1", and that of folder list number 1 is "Folder #2".

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 44

3. Command Specications

3-32) File name list query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetFileNameList "leindex=XXXX-xxxx" Folder name list: Multiple le name

query

Details: XXXX = the rst index number of desired range for list (index expression)

xxxx = the last index number of desired range for list (index expression)

→ Cannot be set to a value greater than the number of les.

→ The rst number cannot be greater than the last number.

→ By changing the rst and last numbers, you can query the list of le names in that range.

Note: "XXXX" should be 0 or greater.

"xxxx" should be smaller total number of sub folders - 1 or smaller.

Use "3-27) Current folder information query" or "3-28) Current folder move query" to get total number of les.

Response

Response string Description

OK event MTX:AudioPlayerGetFileNameList "leindex=XXXX-xxxx|lename0=yyyy| ... " File name list

OKm event MTX:AudioPlayerGetFileNameList "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: XXXX = the rst index number of desired range for list (index expression)

xxxx = the last index number of desired range for list (index expression)

yyyy= File names

Example: Command: event MTX:AudioPlayerGetFileNameList "leindex=0-1"

Notication: OK event MTX:AudioPlayerGetFileNameList "leindex=0-1|lename0=xxxx.mp3|lename1=xxxx2.mp3"

Meaning: Query the le names of le list number 0 and 1 (index expression).

The le name of le list number 0 is "xxxx.mp3", and that of le list number 1 is "xxxx2.mp3".

3-33) Song play mode query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetPlayMode "" Queries the play mode

Response

Response string Description

OK event MTX:AudioPlayerGetPlayMode "playmode=one" One song play mode

OK event MTX:AudioPlayerGetPlayMode "playmode=repeat one" One song repeat

OK event MTX:AudioPlayerGetPlayMode "playmode=all" All song play

OK event MTX:AudioPlayerGetPlayMode "playmode=repeat all" All songs repeat

OK event MTX:AudioPlayerGetPlayMode "playmode=shufe" Shufe repeat

OKm event MTX:AudioPlayerGetPlayMode "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Example: Command: event MTX:AudioPlayerGetPlayMode ""

Notication: OK event MTX:AudioPlayerGetPlayMode "playmode=one"

Meaning: Query the play mode.

The play mode is set to one song play mode.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 45

3. Command Specications

3-34) Song play mode setting

Command Option 1 Option 2 Description

event MTX:AudioPlayerSetPlayMode "playmode=one" One song play mode

"playmode=repeat one" One song repeat

"playmode=all" All song play

"playmode=repeat all" All songs repeat

"playmode=shufe" Shufe repeat

Response

Response string Description

OK event MTX:AudioPlayerSetPlayMode "playmode=one" One song play mode

OK event MTX:AudioPlayerSetPlayMode "playmode=repeat one" One song repeat

OK event MTX:AudioPlayerSetPlayMode "playmode=all" All song play

OK event MTX:AudioPlayerSetPlayMode "playmode=repeat all" All songs repeat

OK event MTX:AudioPlayerSetPlayMode "playmode=shufe" Shufe repeat

OKm event MTX:AudioPlayerSetPlayMode "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Example: Command: event MTX:AudioPlayerSetPlayMode "playmode=one"

Notication: OK event MTX:AudioPlayerSetPlayMode "playmode=one"

Meaning: Set the play mode to one song play mode.

The play mode was set to one song play mode.

3-35) Song playback status query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetStatus "" Song playback status query

Response

Response string Description

OK event MTX:AudioPlayerGetStatus "status=stop" Stop

OK event MTX:AudioPlayerGetStatus "status=play" Play

OK event MTX:AudioPlayerGetStatus "status=pause" Pause

OKm event OK event MTX:AudioPlayerGetStatus "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Example: Command: event MTX:AudioPlayerGetStatus ""

Notication: OK event MTX:AudioPlayerGetStatus "status=stop"

Meaning: Query the song playback status.

Stopped

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 46

3. Command Specications

3-36) Play, stop, and other transport operation

Command Option 1 Option 2 Description

event MTX:AudioPlayerTransport "operation=stop" Stop

"operation=play" Play

"operation=pause" Pause

"operation=prev" Beginning of the previous song

"operation=next" Next song

Response

Response string Description

OK event MTX:AudioPlayerTransport "operation=stop" Stop

OK event MTX:AudioPlayerTransport "operation=play" Play

OK event MTX:AudioPlayerTransport "operation=pause" Pause

OK event MTX:AudioPlayerTransport "operation=prev" Beginning of the previous song

OK event MTX:AudioPlayerTransport "operation=next" Next song

OKm event MTX:AudioPlayerTransport "sdcard is not inserted" There is no SD memory card inserted.

OKm event MTX:AudioPlayerTransport "song is not set up" The playback song is not specied.

* OKm is returned if there is no SD memory card inserted or the playback song is not specied.

Example: Command: event MTX:AudioPlayerTransport "operation=stop"

Notication: OK event MTX:AudioPlayerTransport "operation=stop"

Meaning: Stop playback.

Playback was stopped.

3-37) Currently playing or selected song information query

Command Option 1 Option 2 Description

event MTX:AudioPlayerGetCurrentSong "" Queries the currently playing or

selected song information

Response

Response string Description

OK event MTX:AudioPlayerGetCurrentSong "dirpath=xxxx|dirname=yyyy|

leindex=zzzz|lename=wwww"

Currently playing or selected song

information

OKm event MTX:AudioPlayerGetCurrentSong "sdcard is not inserted" There is no SD memory card inserted.

OKm event MTX:AudioPlayerGetCurrentSong "song is not set up" The playback song is not specied.

* OKm is returned if there is no SD memory card inserted or the playback song is not specied.

Details: xxxx = Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

yyyy = Directory name (name of the folder)

zzzz = File index number

wwww = File name

Example: Command: event MTX:AudioPlayerGetCurrentSong ""

Notication: OK event MTX:AudioPlayerSetCurrentSong "dirpath=0/1|dirname=Folder #1|leindex=2|

lename=xxxx.mp3"

Meaning: Query the information of the song currently being played.

The song that is being played is index number 2 "xxxx.mp3" in the "Folder #1" folder of directory

path 0/1 (index expression).

* "0/1" expresses the root folder number/sub folder number (the root folder number is always xed at 0).

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 47

3. Command Specications

3-38) Playback song designation

Command Option 1 Option 2 Description

event MTX:AudioPlayerSetCurrentSong "dirpath=xxxx|leindex=yyyy" Playback song designation

Details: xxxx= Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

yyyy= File index number

Note: The range of sub folder numbers is "0" to "total number of sub folders - 1".

The range of le numbers is "0" to "total number of les - 1".

Use "3-27) Current folder information query" or "3-28) Current folder move query" to get total number of sub folders

and les.

Song les in root folder of SD card and song les in sub folders in root folder are supported. Files placed in "deeper"

folder can't be supported.

Response

Response string Description

OK event MTX:AudioPlayerSetCurrentSong "dirpath=xxxx|dirname=yyyy|

leindex=zzzz|lename=wwww"

The specied song that will be played

OKm event MTX:AudioPlayerSetCurrentSong "sdcard is not inserted" There is no SD memory card inserted.

* OKm is returned if there is no SD memory card inserted.

Details: xxxx = Directory path (index expression)

0 : Root Folder Number(the root folder number is always xed at 0)

0/nnnn : Root Folder Number/Sub Folder Number

yyyy = Directory name (name of the folder)

zzzz = File index number

wwww = File name

Example: Command: event MTX:AudioPlayerSetCurrentSong "dirpath=0/1|leindex=2"

Notication: OK event MTX:AudioPlayerSetCurrentSong "dirpath=0/1|dirname=Folder #1|leindex=2|

lename=xxxx.mp3"

Meaning: Play the le at le index number 2 in the directory path 0/1 folder (index expression).

The playback song was set to le index number 2 "xxxx.mp3" in "Folder #1" folder of directry path

0/1 (index expression).

* "0/1" expresses the root folder number/sub folder number (the root folder number is always xed at 0).

3-39) MTX Editor synchronization processing query

Command Option 1 Option 2 Description

event MTX:SynchronizationGetStatus "" MTX Editor synchronization

processing query

Response

Response string Description

OK event MTX:SynchronizationGetStatus "active" In the process of synchronizing

OK event MTX:SynchronizationGetStatus "inactive" Not in the process of synchronizing

Example: Command: event MTX:SynchronizationGetStatus ""

Notication: OK event MTX:SynchronizationGetStatus "inactive"

Meaning: Query the synchronization status between the MTX and MTX Editor.

Not in the process of synchronizing

Note: The character encoding for directory and le names conforms to the setting specied by the scpmode encoding

command.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 48

3. Command Specications

3-40) Number of alert event log query

Command Option 1 Option 2 Description

event MTX:EventLogGetLogNumber "" Number of event log query

Response

Response string Description

OK event MTX:EventLogGetLogNumber "lognum=xxxx" Number of event log

Details: xxxx= number of event log

Example: Command: event MTX:EventLogGetLogNumber ""

Notication: OK event MTX:EventLogGetLogNumber "lognum=6"

Meaning: Query the number of event logs

Number of event log is 6

3-41) Alert event log query

Command Option 1 Option 2 Description

event MTX:EventLogGetLog "logindex=xxxx" Event log query

Details: xxxx= Index number of event log

Note: The range of index numbers is "0" to "total number of event logs - 1".

Use "3-40) Number of alert event log query" to get total number of event logs.

Response

Response string Description

OK event MTX:EventLogGetLog "logxxxx=(AlertData)" Event log

Details: xxxx= Index number of event log

(AlertData)= "t/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

"err/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

"wrn/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

First 3 letter describes type of event ( i.e. t = fault, err = error, wrn = warning)

message = Alert message string - Maximum 32 letter (ascii character)

nnn = Alert number (same as number displayed on front panel of device)

- 2 or 3 digit hexadecimal.

onf = alert ON/OFF

Event of status change (e.g. wordclock unlock) sends ON when the remarkable

event starts, sends OFF when the event ends.

Momentary event (e.g. SD card player error) sends only ON when it happens.

sssss = counter of alarm ( Count up same Alert, normally as 1) as decimal counter.

xxx = UNIT ID as 3 degit hexadecimal.

yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

Example: Command: event MTX:EventLogGetLog "logindex=2"

Notication: OK event MTX:EventLogGetLog "log2=err/DCP[0] communication error// x53 on (1) ID-001

2013/1/22 11:38:23"

Meaning: Query of event log at index number 2.

Event log of index no.2 is error alert no. 53.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 49

3. Command Specications

3-42) Query for alert event log as list

Command Option 1 Option 2 Description

event MTX:EventLogGetLogList "logindex=xxxx-xxxx" Query for event log list

Details: xxxx-xxxx= First index number - Last index number

Note: The range of index numbers is "0" to "total number of event logs - 1".

Use "3-40) Number of alert event log query" to get total number of event logs.

Remark: Do not allow exceed number of event log.

First index number should be less than Last index number.

One message can query up to 10 logs.

Response

Response string Description

OK event MTX:EventLogGetLogList "logindex=x-x|log0=(AlertData)|log1=(AlertData)|…" Query for event log as list

Details: xxxx-xxxx= First index number - Last index number

(AlertData)= "t/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

"err/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

"wrn/message// xnnn onf (sssss) ID-xxx yyyy/mm/dd hh:mm:ss"

First 3 letter describes type of event

message = Alert message string - Maximum 32 letter (ascii character)

nnn = Alert number (same as number displayed on front panel of device)

- 2 or 3 digit hexadecimal.

onf = alert ON/OFF

Event of status change (e.g. wordclock unlock) sends ON when the remarkable

event starts, sends OFF when the event ends.

Momentary event (e.g. SD card player error) sends only ON when it happens.

sssss = counter of alarm ( Count up same Alert, normally as 1) as decimal counter.

xxx = UNIT ID as 3 degit hexadecimal.

yyyy = Year (Gregorian)

mm = Month (1 to 12)

dd = Day (1 to 31)

hh = Hour (0 to 23)

mm = Minute (0 to 59)

ss = Second (0 to 59)

Example: command: event MTX:EventLogGetLogList "logindex=0-5"

Notication: OK event MTX:EventLogGetLogList logindex=0-5|log0=err/DCP[0] communication error// x53 on (1)

ID-001 2013/1/22 11:38:23|log1=t/System error// x01 on ….

Meanings: Query for list of event log of index number 0 to 5.

Alert of index number 0 to 5 is, index number 0, error alert no.53/ index number 1, error alert ….

3-43) Clear alert event log

Command Option 1 Option 2 Description

event MTX:EventLogClear "" Clear event log

Response

Response string Description

OK event MTX:EventLogClear "lognum=0" Number of cleared event log

Example: Command: event MTX:EventLogClear ""

Notication: OK event MTX:EventLogClear "lognum=0"

Meaning: Clear event log

Cleared event log

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 50

3. Command Specications

3.5. Command Errors

3.5.1. Command Error Notications

Error notication that indicates errors in commands.

If an error is found when the command is sent, this notication is returned instead of the normal successful notication.

[Notication syntax] ERROR <command name> <error code>

Command name Alphanumeric Name of the command that caused the error

Error code Alphanumeric Error description

* See the error codes below.

Error code

Error code Description

UnknownCommand Ignored because it was an unknown command.

WrongFormat Ignored because the command parameter format was wrong and could not be interpreted.

Examples: The number of parameters is wrong.

The parameter syntax is wrong.

InvalidArgument Ignored because the command parameter content was outside the appropriate range and

could not be interpreted.

Examples: The parameter value is outside the range.

The parameter syntax does not comply with the specications.

The letter case of the parameter is wrong.

UnknownAddress Ignored because the specied address does not exist.

UnknownEventID Ignored because the specied event ID does not exist.

TooLongCommand Could not be interpreted because the command was too long.

AccessDenied Procedure rejected because the peer device is not in an normal running state.

Examples: Rejected because an ssrecall command was received in emergency run

mode.

Busy The device is busy processing; it can’t receive commands.

ReadOnly Ignored because an attempt was made to set a parameter at a read-only address.

NoPermission Ignored because you do not have access permission.

InternalError An internal error may have occurred.

Examples: Failed to process the command.

Attempted to query or change the value of a parameter that does not exist

in the device.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 51

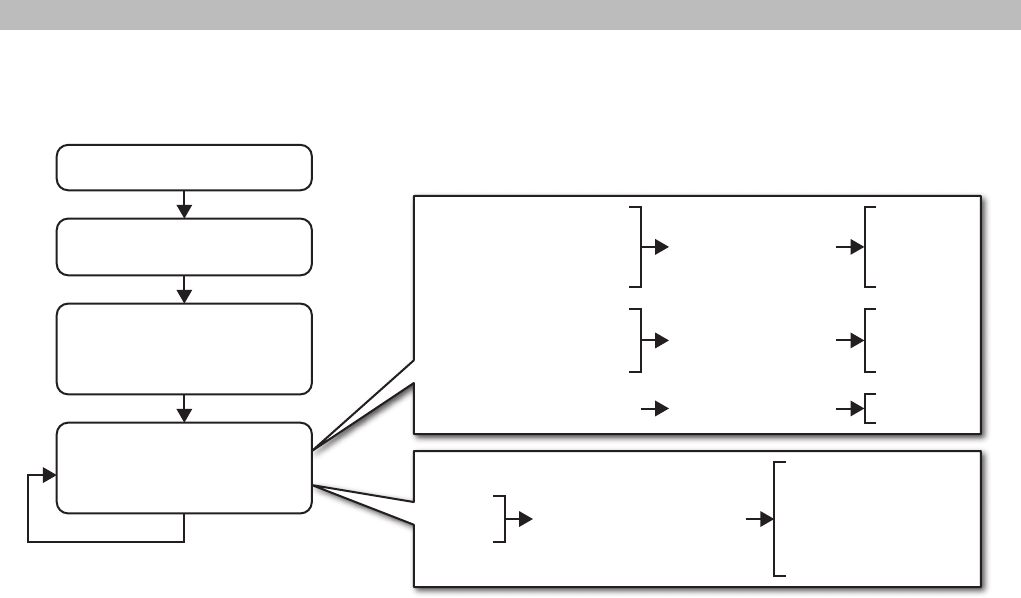

4. Command Sequence

Below are examples of how to process remote control.

When viewed from the controller, the following major phases exist in order to perform remote control.

Start procedure

Communication start

• Wait for the device to start (devstatus)

Detects the operation

of controls by the user.

• Operation of a parameter control

• Operation of a Snapshot or Preset

• set

• setn

• sett

• setr

• ssrecall, etc.

Send request commands

depending on the

operation.

Initial setting

• MTX external control protocol setting

(scpmode)

• Parameter syncing (get, set, etc.)

Normal procedure

• Detect operation of controls.

• Receive communication from the

device.

Information query trigger

caused by user operation

• Preset list display

• device information display

• sscurrent

• ssnum

• ssinfo

• devinfo, etc.

Send request commands

depending on the

necessary information.

Meter display is necessary. • mtrstart

Request periodically.

• OK

• OKm

• NOTIFY

Control or display

• Position change

• Display change

For various events

• Parameter syncing

• Event processing

Apply changes depending on the

notification.

Normal procedure details

The controller designer needs to design and implement the blue items in the above gure.

The detailed sequences of various procedures are provided below.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 52

4. Command Sequence

4.1. Communication start sequence

The amount of time for the controller and the controlled device to start is different.

Remote control is an act of controlling the controlled device from the controller, so the controller must wait for the controlled device to

become ready.

The controller needs to wait using the sequence below.

1. If an Ethernet connection is required, the remote controller needs to establish a logical session, with the MTX device(s) based

on IP address(es) and port number.

(This is not necessary for a connection that only needs to be connected physically, as in RS-232C.)

2. After the session is established, the controller sends devstatus commands at 1 second or longer intervals.

3. If "OK devstatus runmode" is returned, the controller should check the information.

4. If the controller determines that the controlled device is in normal running mode, the controller can start sending command

strings to change parameter value and preset etc. If the controlled device is not in normal running mode, the controller continues

trying.

Note: In order to establish remote control communication, the external controller must send [devstatus runmode] command to the

device and await response. When the device responds as [OK devstatus runmode "normal"], the device is ready to receive

commands.

Remote controller

Establish communication path to

controlled device.

* If the communication path is

already established, the

controller sends devstatus

runmode at 1 second or longer

intervals until a result

notification is returned.

The controller checks the run

mode included in the result

notifications to see if the

device is ready to start remote

control communication.

The device may also actively

send change notifications, so

the controller must monitor

both result and change

notifications.

Controlled device

Connection detected.

Time

devstatus runmode

OK devstatus runmode "normal"

devstatus runmode

........

1 second or longer intervals

The reason for using such a sequence is provided below.

Example when the controller starts earlier than the controlled device

devstatus runmode

Remote controller

Normally running

Connection unknown

Waiting to start

Controlled device

Connection detection

Connected physically

........

OK devstatus runmode "normal"

Device starting

Device normal running

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 53

4. Command Sequence

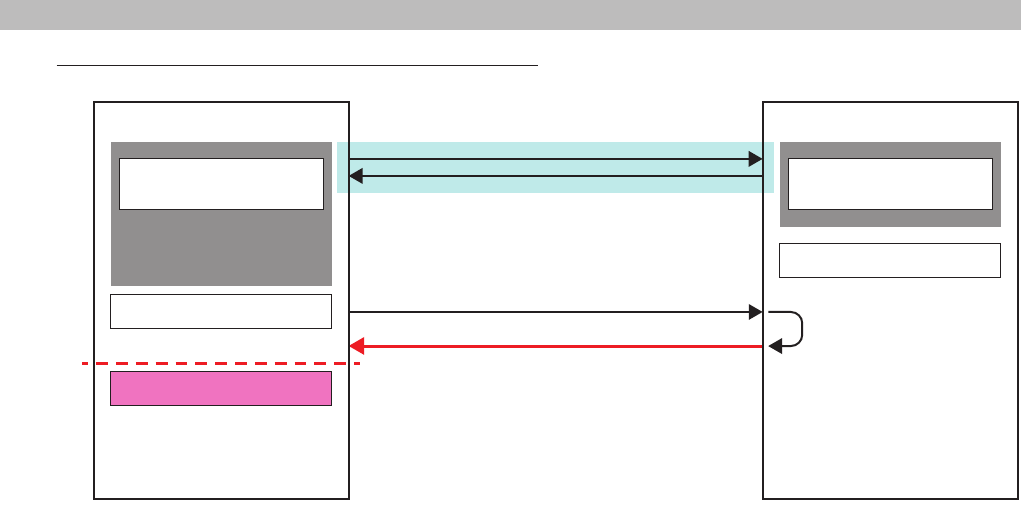

Example when the controlled device starts earlier than the controller

OK devstatus runmode "normal"

Remote controller

Starting Device starting

Connection unknown

* With the first devstatus runmode

request, a result notification is

returned.

Controlled device

Connection detection

Connected physically

Device normal running

devstatus runmode

Controller can recognize that Controlled device is ready to receive commands when there is response for "devstatus runmode" command.

In case of Ethernet connection, Ethernet logical session (e.g. port open) should be established before sending "devstatus runmode".

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 54

4. Command Sequence

4.2. Parameter sync sequence

Immediately after communication starts, the controller does not know anything about the most recent status of the controlled device.

Therefore, the controller must query all parameters that it plans to handle.

This also applies for when preset recall is executed, because the controller does not know how the device has changed.

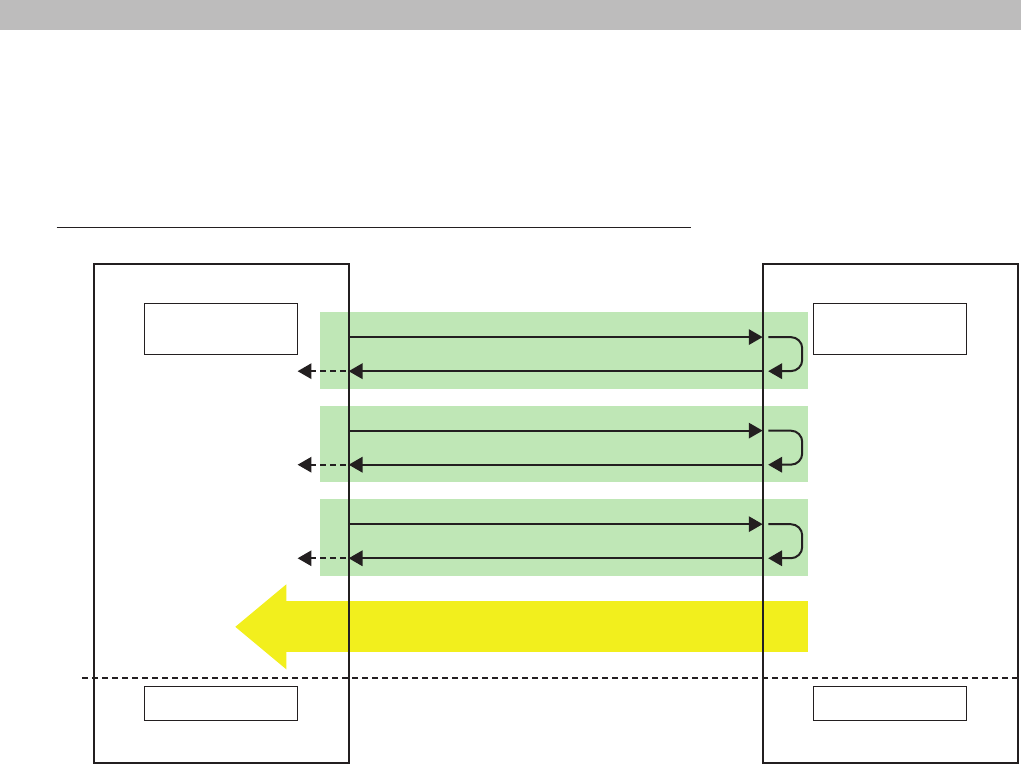

Querying the most recent status of the controlled device or when a snapshot recall occurs

Remote controller Controlled device

Synced Synced

OK get MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

get MTX:mem_512/60000/0/0/0/0/0 0 0

Normally running

Connection detection

Normally running

Communication possible

Apply

OK get MTX:mem_XXX/XXXXX/X/X/X/X/X X X

get MTX:mem_XXX/XXXXX/X/X/X/X/X X X

Apply

OK get MTX:mem_XXX/XXXXX/X/X/X/X/X X X

* Repeat get for all the necessary parameters.

get MTX:mem_XXX/XXXXX/X/X/X/X/X X X

Apply

......

Example 1: Query the DCA fader value.

get MTX:mem_512/60000/0/0/0/0/0 0 0

Query the 1ch level of the DCA fader with raw values.

OK get MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

The 1ch level of the DCA fader is -77.60.

Example 2: Set the DCA fader value.

set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

Set the 1ch level of the DCA fader to a raw value of -77.60.

OK set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760 "-77.60"

The 1ch level of the DCA fader was set to "-77.60".

Executing this sequence synchronizes the status with the controlled device.

However, if the controller receives a change notication from the controlled device during this query sequence, the controller needs to

query again.

Note that, as with a GPI controller made by user, if you want to apply the physical positions of the controller to the device, there is no

need to execute the above sequence.

If you want to apply the physical positions of the controller to the device immediately after a connection is established, without any user

interaction, simply use set commands to do so.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 55

4. Command Sequence

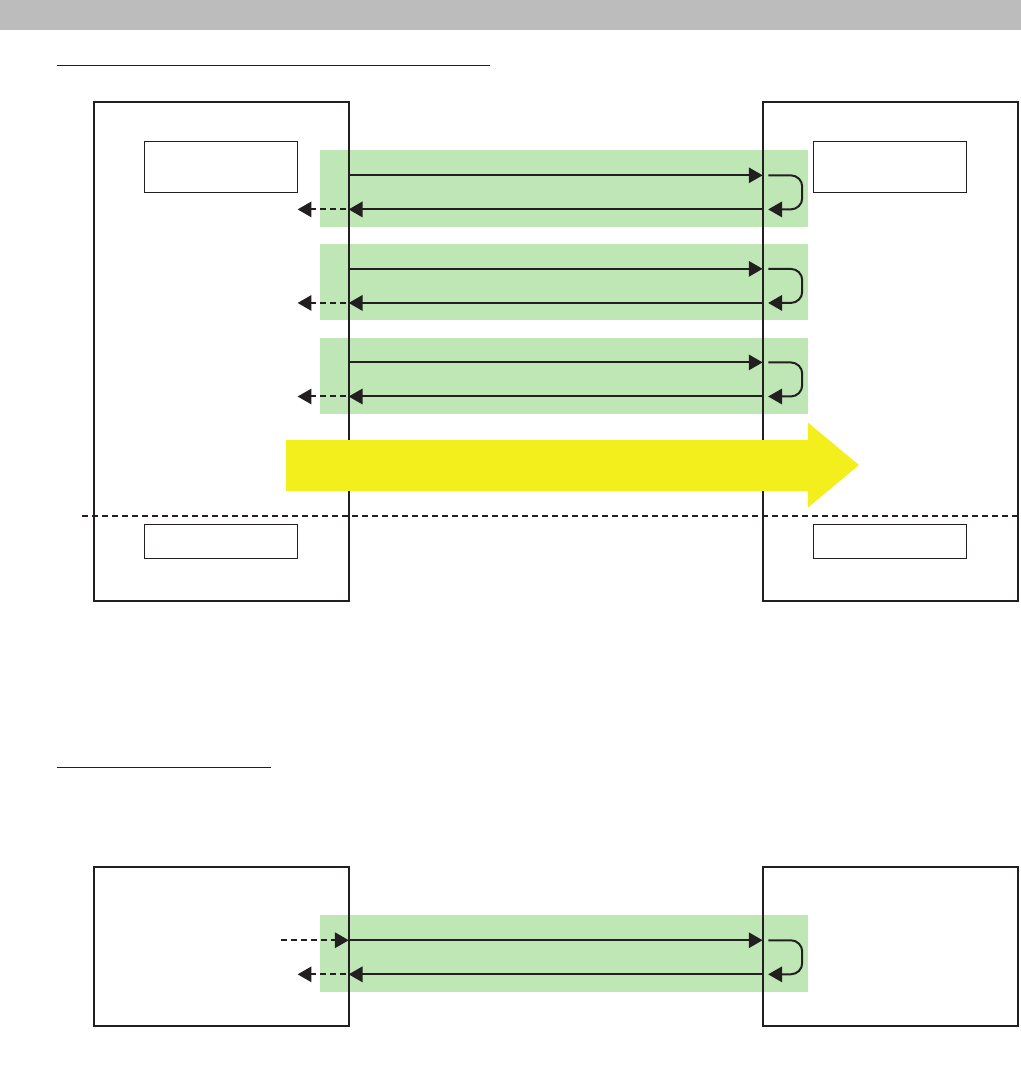

Applying the most recent status of the controller to the device

Remote controller Controlled device

Synced Synced

OK set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760 "-77.60"

set MTX:mem_512/60000/0/0/0/0/0 0 0 -7760

Normally running

Connection detection

Normally running

Communication possible

Apply

OK set MTX:mem_XXX/XXXXX/X/X/X/X/X X X XXXX "XXXX"

OK set MTX:mem_XXX/XXXXX/X/X/X/X/X X X XXXX

Apply

OK set MTX:mem_XXX/XXXXX/X/X/X/X/X X X XXXX "XXXX"

* Repeat get for all the necessary parameters.

OK set MTX:mem_XXX/XXXXX/X/X/X/X/X X X XXXX

Apply

......

Depending on the controller specications, the above two sequences may be used in combination.

Example: The GPI fader uses the status of the controller, but other parameters use the status of the controlled device.

4.3. Parameter query sequence at any given time

LEDs and displays on the GUI

Indications are updated on the basis of the result notications returned after the processing of the set commands.

Alternatively, send an explicit get request and apply the result to the indications, as shown below.

Remote controller Controlled device

OK get MTX:mem_512/XXXXX/X/X/X/X/X X X

get MTX:mem_512/XXXXX/X/X/X/X/X X X

An event occurs that

calls for a value to be queried

One example of using this sequence would

be for refreshing the UI after boot-up or after

changing tabs.

Apply

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 56

4. Command Sequence

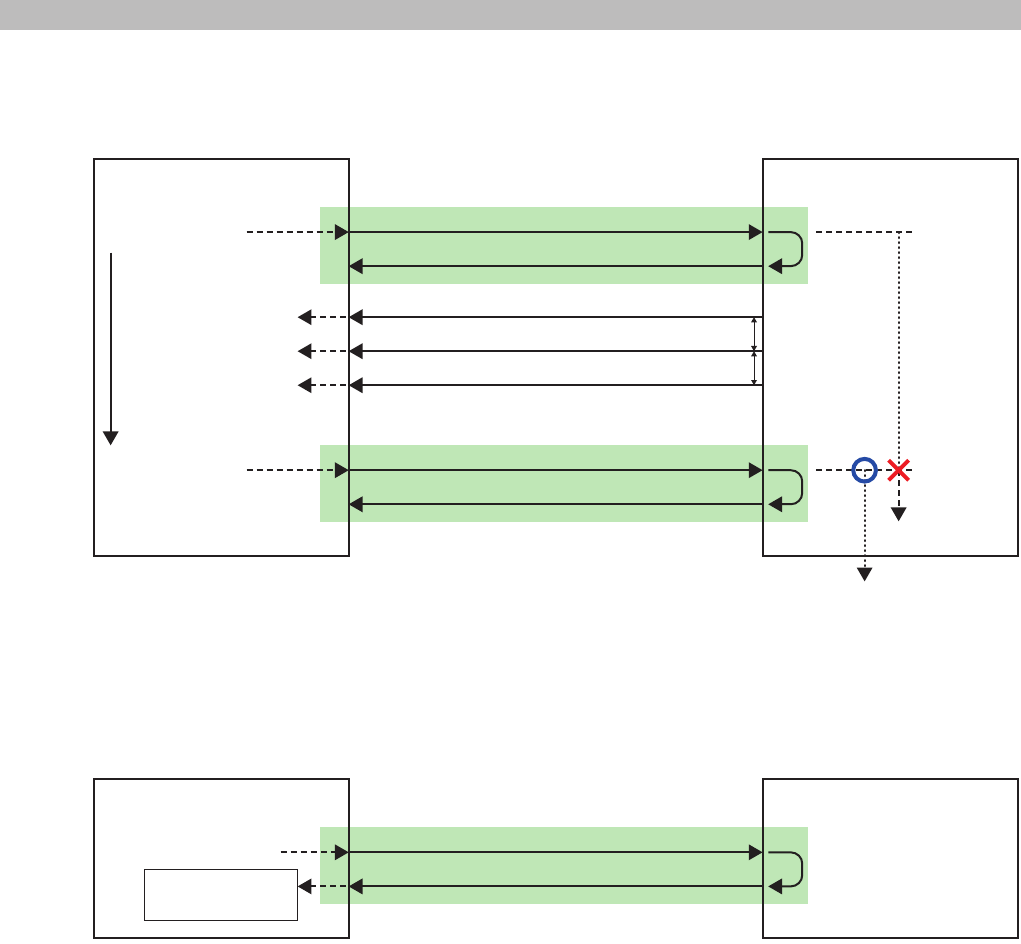

4.4. Meter data request/query sequence

The controller requests meter data by specifying the meter data address and the minimum transmission interval.

The meter transmission stops after 10 seconds. To continue receiving data, make another request before the 10 seconds pass.

Remote controller Controlled device

OK mtrstart MTX:mtr_512/20020/level

mtrstart MTX:mtr_512/20020/level 1000

OutputLevelMeter

request

Request periodically

at 10 seconds or

shorter intervals

OK mtrstart MTX:mtr_512/20020/level

mtrstart MTX:mtr_512/20020/level 1000

OutputLevelMeter

request

NOTIFY mtr MTX:mtr_512/20020/level level 71 71 ...

Apply

NOTIFY mtr MTX:mtr_512/20020/level level 70 70 ...

Apply

NOTIFY mtr MTX:mtr_512/20020/level level 69 69 ...

Apply

Start measuring

10 seconds

Start measuring

10 seconds

1000 ms or longer

intervals

1000 ms or longer

intervals

............

* Transmission for 10 seconds after a request

If another request is received, restart measuring the time.

4.5. Preset recall request sequence

Upon receiving a result notication in response to a Preset Recall request, you need to execute the parameter sync sequence.

Remote controller Controlled device

OK ssrecall 10

ssrecall 10

Remote control

To the parameter

sync sequence

In addition, if a Preset recall occurs internally in the controlled device (e.g. by front panel button press) or when such a request is

received from another controller, the controller receives a change notication that indicates that all parameters have changed (see the

next section). If this occurs, the controller needs to execute the parameter sync sequence.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 57

4. Command Sequence

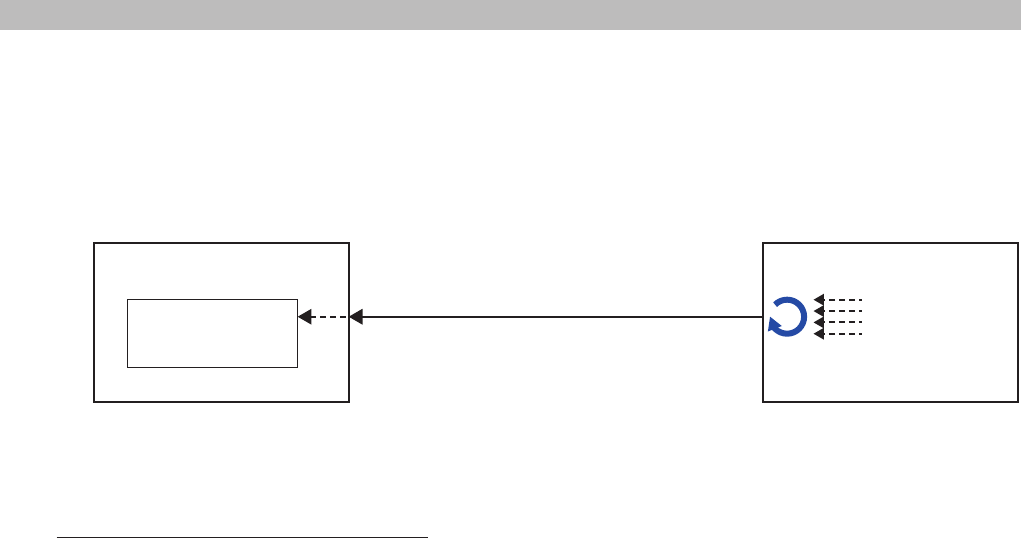

4.6. Sequence when parameters are changed by another controller

If the controller sends a parameter set request, a change notication is returned immediately.

However, if parameters change internally in the controlled device (this includes changes in parameters that occur as a result of a

controller operation on another parameter) or due to a request from another controller, a parameter change notication is received, as

shown below.

The controller receiving a parameter change notication updates its own status if necessary.

Remote controller Controlled device

NOTIFY ...

Apply parameter changes

or proceed to the

parameter sync sequence

Recall operation or

parameter change

by the controlled device

or another controller

Sampled

parameter

changes

The way in which parameter change notications are sent varies depending on the value notication mode specied in the MTX external

control protocol mode.

Advice for choosing normalized/raw value mode.

If you want to handle a value with a given range, such as in an MIDI controller,

• Set the value notication mode to normalized value notication mode, and specify the required resolution.

• Use setn/getn to perform processing from the controller.

• Apply changes to the controller according to NOTIFY setn.

Conversely, for a highly functional PC application where you want to use all the internal parameters,

• Set the MTX external control protocol mode to raw value mode.

• Use set/get to perform processing from the controller.

• Apply changes to the controller according to NOTIFY set.

• Use setn/getn for certain parameters when necessary.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 58

5. Meter Value

Level Meter, Hold Meter, GR Meter

Value Data Value Data Value Data Value Data

00 -126dBFS or less 20 -94dBFS 40 -62dBFS 60 -30dBFS

01 -125dBFS 21 -93dBFS 41 -61dBFS 61 -29dBFS

02 -124dBFS 22 -92dBFS 42 -60dBFS 62 -28dBFS

03 -123dBFS 23 -91dBFS 43 -59dBFS 63 -27dBFS

04 -122dBFS 24 -90dBFS 44 -58dBFS 66 -26dBFS

05 -121dBFS 25 -89dBFS 45 -57dBFS 65 -25dBFS

06 -120dBFS 26 -88dBFS 46 -56dBFS 66 -24dBFS

07 -119dBFS 27 -87dBFS 47 -55dBFS 67 -23dBFS

08 -118dBFS 28 -86dBFS 48 -54dBFS 68 -22dBFS

09 -117dBFS 29 -85dBFS 49 -53dBFS 69 -21dBFS

0A -116dBFS 2A -84dBFS 4A -52dBFS 6A -20dBFS

0B -115dBFS 2B -83dBFS 4B -51dBFS 6B -19dBFS

0C -114dBFS 2C -82dBFS 4C -50dBFS 6C -18dBFS

0D -113dBFS 2D -81dBFS 4D -49dBFS 6D -17dBFS

0E -112dBFS 2E -80dBFS 4E -48dBFS 6E -16dBFS

0F -111dBFS 2F -79dBFS 4F -47dBFS 6F -15dBFS

10 -110dBFS 30 -78dBFS 50 -46dBFS 70 -14dBFS

11 -109dBFS 31 -77dBFS 51 -45dBFS 71 -13dBFS

12 -108dBFS 32 -76dBFS 52 -44dBFS 72 -12dBFS

13 -107dBFS 33 -75dBFS 55 -43dBFS 77 -11dBFS

14 -106dBFS 34 -74dBFS 54 -42dBFS 74 -10dBFS

15 -105dBFS 35 -73dBFS 55 -41dBFS 77 -9dBFS

16 -104dBFS 36 -72dBFS 56 -40dBFS 76 -8dBFS

17 -103dBFS 37 -71dBFS 57 -39dBFS 77 -7dBFS

18 -102dBFS 38 -70dBFS 58 -38dBFS 78 -6dBFS

19 -101dBFS 39 -69dBFS 59 -37dBFS 79 -5dBFS

1A -100dBFS 3A -68dBFS 5A -36dBFS 7A -4dBFS

1B -99dBFS 3B -67dBFS 5B -35dBFS 7B -3dBFS

1C -98dBFS 3C -66dBFS 5C -34dBFS 7C -2dBFS

1D -97dBFS 3D -65dBFS 5D -33dBFS 7D -1dBFS

1E -96dBFS 3E -64dBFS 5E -32dBFS 7E 0dBFS

1F -95dBFS 3F -63dBFS 5F -31dBFS 7F OVER

NOTE: A device may not be able to send all the values depending on how precise the device processes values internally.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 59

6. Parameter Value Details

6.1. Fader parameter

6.1.1. Fader with "-Innity to 0dB" range

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

0 -InfdB 64 -87.50dB 128 -69.00dB 192 -56.20dB 256 -46.70dB 320 -40.30dB 384 -33.90dB 448 -28.75dB

1 -138.00dB 65 -87.00dB 129 -68.80dB 193 -56.00dB 257 -46.60dB 321 -40.20dB 385 -33.80dB 449 -28.70dB

2 -136.00dB 66 -86.50dB 130 -68.60dB 194 -55.80dB 258 -46.50dB 322 -40.10dB 386 -33.70dB 450 -28.65dB

3 -134.00dB 67 -86.00dB 131 -68.40dB 195 -55.60dB 259 -46.40dB 323 -40.00dB 387 -33.60dB 451 -28.60dB

4 -133.00dB 68 -85.50dB 132 -68.20dB 196 -55.40dB 260 -46.30dB 324 -39.90dB 388 -33.50dB 452 -28.55dB

5 -132.00dB 69 -85.00dB 133 -68.00dB 197 -55.20dB 261 -46.20dB 325 -39.80dB 389 -33.40dB 453 -28.50dB

6 -131.00dB 70 -84.50dB 134 -67.80dB 198 -55.00dB 262 -46.10dB 326 -39.70dB 390 -33.30dB 454 -28.45dB

7 -130.00dB 71 -84.00dB 135 -67.60dB 199 -54.80dB 263 -46.00dB 327 -39.60dB 391 -33.20dB 455 -28.40dB

8 -129.00dB 72 -83.50dB 136 -67.40dB 200 -54.60dB 264 -45.90dB 328 -39.50dB 392 -33.10dB 456 -28.35dB

9-128.00dB 73 -83.00dB 137 -67.20dB 201 -54.40dB 265 -45.80dB 329 -39.40dB 393 -33.00dB 457 -28.30dB

10 -127.00dB 74 -82.50dB 138 -67.00dB 202 -54.20dB 266 -45.70dB 330 -39.30dB 394 -32.90dB 458 -28.25dB

11 -126.00dB 75 -82.00dB 139 -66.80dB 203 -54.00dB 267 -45.60dB 331 -39.20dB 395 -32.80dB 459 -28.20dB

12 -125.00dB 76 -81.50dB 140 -66.60dB 204 -53.80dB 268 -45.50dB 332 -39.10dB 396 -32.70dB 460 -28.15dB

13 -124.00dB 77 -81.00dB 141 -66.40dB 205 -53.60dB 269 -45.40dB 333 -39.00dB 397 -32.60dB 461 -28.10dB

14 -123.00dB 78 -80.50dB 142 -66.20dB 206 -53.40dB 270 -45.30dB 334 -38.90dB 398 -32.50dB 462 -28.05dB

15 -122.00dB 79 -80.00dB 143 -66.00dB 207 -53.20dB 271 -45.20dB 335 -38.80dB 399 -32.40dB 463 -28.00dB

16 -121.00dB 80 -79.50dB 144 -65.80dB 208 -53.00dB 272 -45.10dB 336 -38.70dB 400 -32.30dB 464 -27.95dB

17 -120.00dB 81 -79.00dB 145 -65.60dB 209 -52.80dB 273 -45.00dB 337 -38.60dB 401 -32.20dB 465 -27.90dB

18 -119.00dB 82 -78.50dB 146 -65.40dB 210 -52.60dB 274 -44.90dB 338 -38.50dB 402 -32.10dB 466 -27.85dB

19 -118.00dB 83 -78.00dB 147 -65.20dB 211 -52.40dB 275 -44.80dB 339 -38.40dB 403 -32.00dB 467 -27.80dB

20 -117.00dB 84 -77.80dB 148 -65.00dB 212 -52.20dB 276 -44.70dB 340 -38.30dB 404 -31.90dB 468 -27.75dB

21 -116.00dB 85 -77.60dB 149 -64.80dB 213 -52.00dB 277 -44.60dB 341 -38.20dB 405 -31.80dB 469 -27.70dB

22 -115.00dB 86 -77.40dB 150 -64.60dB 214 -51.80dB 278 -44.50dB 342 -38.10dB 406 -31.70dB 470 -27.65dB

23 -114.00dB 87 -77.20dB 151 -64.40dB 215 -51.60dB 279 -44.40dB 343 -38.00dB 407 -31.60dB 471 -27.60dB

24 -113.00dB 88 -77.00dB 152 -64.20dB 216 -51.40dB 280 -44.30dB 344 -37.90dB 408 -31.50dB 472 -27.55dB

25 -112.00dB 89 -76.80dB 153 -64.00dB 217 -51.20dB 281 -44.20dB 345 -37.80dB 409 -31.40dB 473 -27.50dB

26 -111.00dB 90 -76.60dB 154 -63.80dB 218 -51.00dB 282 -44.10dB 346 -37.70dB 410 -31.30dB 474 -27.45dB

27 -110.00dB 91 -76.40dB 155 -63.60dB 219 -50.80dB 283 -44.00dB 347 -37.60dB 411 -31.20dB 475 -27.40dB

28 -109.00dB 92 -76.20dB 156 -63.40dB 220 -50.60dB 284 -43.90dB 348 -37.50dB 412 -31.10dB 476 -27.35dB

29 -108.00dB 93 -76.00dB 157 -63.20dB 221 -50.40dB 285 -43.80dB 349 -37.40dB 413 -31.00dB 477 -27.30dB

30 -107.00dB 94 -75.80dB 158 -63.00dB 222 -50.20dB 286 -43.70dB 350 -37.30dB 414 -30.90dB 478 -27.25dB

31 -106.00dB 95 -75.60dB 159 -62.80dB 223 -50.00dB 287 -43.60dB 351 -37.20dB 415 -30.80dB 479 -27.20dB

32 -105.00dB 96 -75.40dB 160 -62.60dB 224 -49.90dB 288 -43.50dB 352 -37.10dB 416 -30.70dB 480 -27.15dB

33 -104.00dB 97 -75.20dB 161 -62.40dB 225 -49.80dB 289 -43.40dB 353 -37.00dB 417 -30.60dB 481 -27.10dB

34 -103.00dB 98 -75.00dB 162 -62.20dB 226 -49.70dB 290 -43.30dB 354 -36.90dB 418 -30.50dB 482 -27.05dB

35 -102.00dB 99 -74.80dB 163 -62.00dB 227 -49.60dB 291 -43.20dB 355 -36.80dB 419 -30.40dB 483 -27.00dB

36 -101.50dB 100 -74.60dB 164 -61.80dB 228 -49.50dB 292 -43.10dB 356 -36.70dB 420 -30.30dB 484 -26.95dB

37 -101.00dB 101 -74.40dB 165 -61.60dB 229 -49.40dB 293 -43.00dB 357 -36.60dB 421 -30.20dB 485 -26.90dB

38 -100.50dB 102 -74.20dB 166 -61.40dB 230 -49.30dB 294 -42.90dB 358 -36.50dB 422 -30.10dB 486 -26.85dB

39 -100.00dB 103 -74.00dB 167 -61.20dB 231 -49.20dB 295 -42.80dB 359 -36.40dB 423 -30.00dB 487 -26.80dB

40 -99.50dB 104 -73.80dB 168 -61.00dB 232 -49.10dB 296 -42.70dB 360 -36.30dB 424 -29.95dB 488 -26.75dB

41 -99.00dB 105 -73.60dB 169 -60.80dB 233 -49.00dB 297 -42.60dB 361 -36.20dB 425 -29.90dB 489 -26.70dB

42 -98.50dB 106 -73.40dB 170 -60.60dB 234 -48.90dB 298 -42.50dB 362 -36.10dB 426 -29.85dB 490 -26.65dB

43 -98.00dB 107 -73.20dB 171 -60.40dB 235 -48.80dB 299 -42.40dB 363 -36.00dB 427 -29.80dB 491 -26.60dB

44 -97.50dB 108 -73.00dB 172 -60.20dB 236 -48.70dB 300 -42.30dB 364 -35.90dB 428 -29.75dB 492 -26.55dB

45 -97.00dB 109 -72.80dB 173 -60.00dB 237 -48.60dB 301 -42.20dB 365 -35.80dB 429 -29.70dB 493 -26.50dB

46 -96.50dB 110 -72.60dB 174 -59.80dB 238 -48.50dB 302 -42.10dB 366 -35.70dB 430 -29.65dB 494 -26.45dB

47 -96.00dB 111 -72.40dB 175 -59.60dB 239 -48.40dB 303 -42.00dB 367 -35.60dB 431 -29.60dB 495 -26.40dB

48 -95.50dB 112 -72.20dB 176 -59.40dB 240 -48.30dB 304 -41.90dB 368 -35.50dB 432 -29.55dB 496 -26.35dB

49 -95.00dB 113 -72.00dB 177 -59.20dB 241 -48.20dB 305 -41.80dB 369 -35.40dB 433 -29.50dB 497 -26.30dB

50 -94.50dB 114 -71.80dB 178 -59.00dB 242 -48.10dB 306 -41.70dB 370 -35.30dB 434 -29.45dB 498 -26.25dB

51 -94.00dB 115 -71.60dB 179 -58.80dB 243 -48.00dB 307 -41.60dB 371 -35.20dB 435 -29.40dB 499 -26.20dB

52 -93.50dB 116 -71.40dB 180 -58.60dB 244 -47.90dB 308 -41.50dB 372 -35.10dB 436 -29.35dB 500 -26.15dB

53 -93.00dB 117 -71.20dB 181 -58.40dB 245 -47.80dB 309 -41.40dB 373 -35.00dB 437 -29.30dB 501 -26.10dB

54 -92.50dB 118 -71.00dB 182 -58.20dB 246 -47.70dB 310 -41.30dB 374 -34.90dB 438 -29.25dB 502 -26.05dB

55 -92.00dB 119 -70.80dB 183 -58.00dB 247 -47.60dB 311 -41.20dB 375 -34.80dB 439 -29.20dB 503 -26.00dB

56 -91.50dB 120 -70.60dB 184 -57.80dB 248 -47.50dB 312 -41.10dB 376 -34.70dB 440 -29.15dB 504 -25.95dB

57 -91.00dB 121 -70.40dB 185 -57.60dB 249 -47.40dB 313 -41.00dB 377 -34.60dB 441 -29.10dB 505 -25.90dB

58 -90.50dB 122 -70.20dB 186 -57.40dB 250 -47.30dB 314 -40.90dB 378 -34.50dB 442 -29.05dB 506 -25.85dB

59 -90.00dB 123 -70.00dB 187 -57.20dB 251 -47.20dB 315 -40.80dB 379 -34.40dB 443 -29.00dB 507 -25.80dB

60 -89.50dB 124 -69.80dB 188 -57.00dB 252 -47.10dB 316 -40.70dB 380 -34.30dB 444 -28.95dB 508 -25.75dB

61 -89.00dB 125 -69.60dB 189 -56.80dB 253 -47.00dB 317 -40.60dB 381 -34.20dB 445 -28.90dB 509 -25.70dB

62 -88.50dB 126 -69.40dB 190 -56.60dB 254 -46.90dB 318 -40.50dB 382 -34.10dB 446 -28.85dB 510 -25.65dB

63 -88.00dB 127 -69.20dB 191 -56.40dB 255 -46.80dB 319 -40.40dB 383 -34.00dB 447 -28.80dB 511 -25.60dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 60

6. Parameter Value Details

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

512 -25.55dB 576 -22.35dB 640 -19.15dB 704 -15.95dB 768 -12.75dB 832 -9.55dB 896 -6.35dB 960 -3.15dB

513 -25.50dB 577 -22.30dB 641 -19.10dB 705 -15.90dB 769 -12.70dB 833 -9.50dB 897 -6.30dB 961 -3.10dB

514 -25.45dB 578 -22.25dB 642 -19.05dB 706 -15.85dB 770 -12.65dB 834 -9.45dB 898 -6.25dB 962 -3.05dB

515 -25.40dB 579 -22.20dB 643 -19.00dB 707 -15.80dB 771 -12.60dB 835 -9.40dB 899 -6.20dB 963 -3.00dB

516 -25.35dB 580 -22.15dB 644 -18.95dB 708 -15.75dB 772 -12.55dB 836 -9.35dB 900 -6.15dB 964 -2.95dB

517 -25.30dB 581 -22.10dB 645 -18.90dB 709 -15.70dB 773 -12.50dB 837 -9.30dB 901 -6.10dB 965 -2.90dB

518 -25.25dB 582 -22.05dB 646 -18.85dB 710 -15.65dB 774 -12.45dB 838 -9.25dB 902 -6.05dB 966 -2.85dB

519 -25.20dB 583 -22.00dB 647 -18.80dB 711 -15.60dB 775 -12.40dB 839 -9.20dB 903 -6.00dB 967 -2.80dB

520 -25.15dB 584 -21.95dB 648 -18.75dB 712 -15.55dB 776 -12.35dB 840 -9.15dB 904 -5.95dB 968 -2.75dB

521 -25.10dB 585 -21.90dB 649 -18.70dB 713 -15.50dB 777 -12.30dB 841 -9.10dB 905 -5.90dB 969 -2.70dB

522 -25.05dB 586 -21.85dB 650 -18.65dB 714 -15.45dB 778 -12.25dB 842 -9.05dB 906 -5.85dB 970 -2.65dB

523 -25.00dB 587 -21.80dB 651 -18.60dB 715 -15.40dB 779 -12.20dB 843 -9.00dB 907 -5.80dB 971 -2.60dB

524 -24.95dB 588 -21.75dB 652 -18.55dB 716 -15.35dB 780 -12.15dB 844 -8.95dB 908 -5.75dB 972 -2.55dB

525 -24.90dB 589 -21.70dB 653 -18.50dB 717 -15.30dB 781 -12.10dB 845 -8.90dB 909 -5.70dB 973 -2.50dB

526 -24.85dB 590 -21.65dB 654 -18.45dB 718 -15.25dB 782 -12.05dB 846 -8.85dB 910 -5.65dB 974 -2.45dB

527 -24.80dB 591 -21.60dB 655 -18.40dB 719 -15.20dB 783 -12.00dB 847 -8.80dB 911 -5.60dB 975 -2.40dB

528 -24.75dB 592 -21.55dB 656 -18.35dB 720 -15.15dB 784 -11.95dB 848 -8.75dB 912 -5.55dB 976 -2.35dB

529 -24.70dB 593 -21.50dB 657 -18.30dB 721 -15.10dB 785 -11.90dB 849 -8.70dB 913 -5.50dB 977 -2.30dB

530 -24.65dB 594 -21.45dB 658 -18.25dB 722 -15.05dB 786 -11.85dB 850 -8.65dB 914 -5.45dB 978 -2.25dB

531 -24.60dB 595 -21.40dB 659 -18.20dB 723 -15.00dB 787 -11.80dB 851 -8.60dB 915 -5.40dB 979 -2.20dB

532 -24.55dB 596 -21.35dB 660 -18.15dB 724 -14.95dB 788 -11.75dB 852 -8.55dB 916 -5.35dB 980 -2.15dB

533 -24.50dB 597 -21.30dB 661 -18.10dB 725 -14.90dB 789 -11.70dB 853 -8.50dB 917 -5.30dB 981 -2.10dB

534 -24.45dB 598 -21.25dB 662 -18.05dB 726 -14.85dB 790 -11.65dB 854 -8.45dB 918 -5.25dB 982 -2.05dB

535 -24.40dB 599 -21.20dB 663 -18.00dB 727 -14.80dB 791 -11.60dB 855 -8.40dB 919 -5.20dB 983 -2.00dB

536 -24.35dB 600 -21.15dB 664 -17.95dB 728 -14.75dB 792 -11.55dB 856 -8.35dB 920 -5.15dB 984 -1.95dB

537 -24.30dB 601 -21.10dB 665 -17.90dB 729 -14.70dB 793 -11.50dB 857 -8.30dB 921 -5.10dB 985 -1.90dB

538 -24.25dB 602 -21.05dB 666 -17.85dB 730 -14.65dB 794 -11.45dB 858 -8.25dB 922 -5.05dB 986 -1.85dB

539 -24.20dB 603 -21.00dB 667 -17.80dB 731 -14.60dB 795 -11.40dB 859 -8.20dB 923 -5.00dB 987 -1.80dB

540 -24.15dB 604 -20.95dB 668 -17.75dB 732 -14.55dB 796 -11.35dB 860 -8.15dB 924 -4.95dB 988 -1.75dB

541 -24.10dB 605 -20.90dB 669 -17.70dB 733 -14.50dB 797 -11.30dB 861 -8.10dB 925 -4.90dB 989 -1.70dB

542 -24.05dB 606 -20.85dB 670 -17.65dB 734 -14.45dB 798 -11.25dB 862 -8.05dB 926 -4.85dB 990 -1.65dB

543 -24.00dB 607 -20.80dB 671 -17.60dB 735 -14.40dB 799 -11.20dB 863 -8.00dB 927 -4.80dB 991 -1.60dB

544 -23.95dB 608 -20.75dB 672 -17.55dB 736 -14.35dB 800 -11.15dB 864 -7.95dB 928 -4.75dB 992 -1.55dB

545 -23.90dB 609 -20.70dB 673 -17.50dB 737 -14.30dB 801 -11.10dB 865 -7.90dB 929 -4.70dB 993 -1.50dB

546 -23.85dB 610 -20.65dB 674 -17.45dB 738 -14.25dB 802 -11.05dB 866 -7.85dB 930 -4.65dB 994 -1.45dB

547 -23.80dB 611 -20.60dB 675 -17.40dB 739 -14.20dB 803 -11.00dB 867 -7.80dB 931 -4.60dB 995 -1.40dB

548 -23.75dB 612 -20.55dB 676 -17.35dB 740 -14.15dB 804 -10.95dB 868 -7.75dB 932 -4.55dB 996 -1.35dB

549 -23.70dB 613 -20.50dB 677 -17.30dB 741 -14.10dB 805 -10.90dB 869 -7.70dB 933 -4.50dB 997 -1.30dB

550 -23.65dB 614 -20.45dB 678 -17.25dB 742 -14.05dB 806 -10.85dB 870 -7.65dB 934 -4.45dB 998 -1.25dB

551 -23.60dB 615 -20.40dB 679 -17.20dB 743 -14.00dB 807 -10.80dB 871 -7.60dB 935 -4.40dB 999 -1.20dB

552 -23.55dB 616 -20.35dB 680 -17.15dB 744 -13.95dB 808 -10.75dB 872 -7.55dB 936 -4.35dB 1000 -1.15dB

553 -23.50dB 617 -20.30dB 681 -17.10dB 745 -13.90dB 809 -10.70dB 873 -7.50dB 937 -4.30dB 1001 -1.10dB

554 -23.45dB 618 -20.25dB 682 -17.05dB 746 -13.85dB 810 -10.65dB 874 -7.45dB 938 -4.25dB 1002 -1.05dB

555 -23.40dB 619 -20.20dB 683 -17.00dB 747 -13.80dB 811 -10.60dB 875 -7.40dB 939 -4.20dB 1003 -1.00dB

556 -23.35dB 620 -20.15dB 684 -16.95dB 748 -13.75dB 812 -10.55dB 876 -7.35dB 940 -4.15dB 1004 -0.95dB

557 -23.30dB 621 -20.10dB 685 -16.90dB 749 -13.70dB 813 -10.50dB 877 -7.30dB 941 -4.10dB 1005 -0.90dB

558 -23.25dB 622 -20.05dB 686 -16.85dB 750 -13.65dB 814 -10.45dB 878 -7.25dB 942 -4.05dB 1006 -0.85dB

559 -23.20dB 623 -20.00dB 687 -16.80dB 751 -13.60dB 815 -10.40dB 879 -7.20dB 943 -4.00dB 1007 -0.80dB

560 -23.15dB 624 -19.95dB 688 -16.75dB 752 -13.55dB 816 -10.35dB 880 -7.15dB 944 -3.95dB 1008 -0.75dB

561 -23.10dB 625 -19.90dB 689 -16.70dB 753 -13.50dB 817 -10.30dB 881 -7.10dB 945 -3.90dB 1009 -0.70dB

562 -23.05dB 626 -19.85dB 690 -16.65dB 754 -13.45dB 818 -10.25dB 882 -7.05dB 946 -3.85dB 1010 -0.65dB

563 -23.00dB 627 -19.80dB 691 -16.60dB 755 -13.40dB 819 -10.20dB 883 -7.00dB 947 -3.80dB 1011 -0.60dB

564 -22.95dB 628 -19.75dB 692 -16.55dB 756 -13.35dB 820 -10.15dB 884 -6.95dB 948 -3.75dB 1012 -0.55dB

565 -22.90dB 629 -19.70dB 693 -16.50dB 757 -13.30dB 821 -10.10dB 885 -6.90dB 949 -3.70dB 1013 -0.50dB

566 -22.85dB 630 -19.65dB 694 -16.45dB 758 -13.25dB 822 -10.05dB 886 -6.85dB 950 -3.65dB 1014 -0.45dB

567 -22.80dB 631 -19.60dB 695 -16.40dB 759 -13.20dB 823 -10.00dB 887 -6.80dB 951 -3.60dB 1015 -0.40dB

568 -22.75dB 632 -19.55dB 696 -16.35dB 760 -13.15dB 824 -9.95dB 888 -6.75dB 952 -3.55dB 1016 -0.35dB

569 -22.70dB 633 -19.50dB 697 -16.30dB 761 -13.10dB 825 -9.90dB 889 -6.70dB 953 -3.50dB 1017 -0.30dB

570 -22.65dB 634 -19.45dB 698 -16.25dB 762 -13.05dB 826 -9.85dB 890 -6.65dB 954 -3.45dB 1018 -0.25dB

571 -22.60dB 635 -19.40dB 699 -16.20dB 763 -13.00dB 827 -9.80dB 891 -6.60dB 955 -3.40dB 1019 -0.20dB

572 -22.55dB 636 -19.35dB 700 -16.15dB 764 -12.95dB 828 -9.75dB 892 -6.55dB 956 -3.35dB 1020 -0.15dB

573 -22.50dB 637 -19.30dB 701 -16.10dB 765 -12.90dB 829 -9.70dB 893 -6.50dB 957 -3.30dB 1021 -0.10dB

574 -22.45dB 638 -19.25dB 702 -16.05dB 766 -12.85dB 830 -9.65dB 894 -6.45dB 958 -3.25dB 1022 -0.05dB

575 -22.40dB 639 -19.20dB 703 -16.00dB 767 -12.80dB 831 -9.60dB 895 -6.40dB 959 -3.20dB 1023 0.00dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 61

6. Parameter Value Details

6.1.2. Fader with "-Innity to 10dB" range

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

0 -InfdB 64 -71.80dB 128 -59.00dB 192 -46.20dB 256 -36.70dB 320 -30.30dB 384 -23.90dB 448 -18.75dB

1 -138.00dB 65 -71.60dB 129 -58.80dB 193 -46.00dB 257 -36.60dB 321 -30.20dB 385 -23.80dB 449 -18.70dB

2 -135.00dB 66 -71.40dB 130 -58.60dB 194 -45.80dB 258 -36.50dB 322 -30.10dB 386 -23.70dB 450 -18.65dB

3 -132.00dB 67 -71.20dB 131 -58.40dB 195 -45.60dB 259 -36.40dB 323 -30.00dB 387 -23.60dB 451 -18.60dB

4 -129.00dB 68 -71.00dB 132 -58.20dB 196 -45.40dB 260 -36.30dB 324 -29.90dB 388 -23.50dB 452 -18.55dB

5 -126.00dB 69 -70.80dB 133 -58.00dB 197 -45.20dB 261 -36.20dB 325 -29.80dB 389 -23.40dB 453 -18.50dB

6 -123.00dB 70 -70.60dB 134 -57.80dB 198 -45.00dB 262 -36.10dB 326 -29.70dB 390 -23.30dB 454 -18.45dB

7 -120.00dB 71 -70.40dB 135 -57.60dB 199 -44.80dB 263 -36.00dB 327 -29.60dB 391 -23.20dB 455 -18.40dB

8 -117.00dB 72 -70.20dB 136 -57.40dB 200 -44.60dB 264 -35.90dB 328 -29.50dB 392 -23.10dB 456 -18.35dB

9-114.00dB 73 -70.00dB 137 -57.20dB 201 -44.40dB 265 -35.80dB 329 -29.40dB 393 -23.00dB 457 -18.30dB

10 -111.00dB 74 -69.80dB 138 -57.00dB 202 -44.20dB 266 -35.70dB 330 -29.30dB 394 -22.90dB 458 -18.25dB

11 -108.00dB 75 -69.60dB 139 -56.80dB 203 -44.00dB 267 -35.60dB 331 -29.20dB 395 -22.80dB 459 -18.20dB

12 -105.00dB 76 -69.40dB 140 -56.60dB 204 -43.80dB 268 -35.50dB 332 -29.10dB 396 -22.70dB 460 -18.15dB

13 -102.00dB 77 -69.20dB 141 -56.40dB 205 -43.60dB 269 -35.40dB 333 -29.00dB 397 -22.60dB 461 -18.10dB

14 -99.00dB 78 -69.00dB 142 -56.20dB 206 -43.40dB 270 -35.30dB 334 -28.90dB 398 -22.50dB 462 -18.05dB

15 -96.00dB 79 -68.80dB 143 -56.00dB 207 -43.20dB 271 -35.20dB 335 -28.80dB 399 -22.40dB 463 -18.00dB

16 -95.00dB 80 -68.60dB 144 -55.80dB 208 -43.00dB 272 -35.10dB 336 -28.70dB 400 -22.30dB 464 -17.95dB

17 -94.00dB 81 -68.40dB 145 -55.60dB 209 -42.80dB 273 -35.00dB 337 -28.60dB 401 -22.20dB 465 -17.90dB

18 -93.00dB 82 -68.20dB 146 -55.40dB 210 -42.60dB 274 -34.90dB 338 -28.50dB 402 -22.10dB 466 -17.85dB

19 -92.00dB 83 -68.00dB 147 -55.20dB 211 -42.40dB 275 -34.80dB 339 -28.40dB 403 -22.00dB 467 -17.80dB

20 -91.00dB 84 -67.80dB 148 -55.00dB 212 -42.20dB 276 -34.70dB 340 -28.30dB 404 -21.90dB 468 -17.75dB

21 -90.00dB 85 -67.60dB 149 -54.80dB 213 -42.00dB 277 -34.60dB 341 -28.20dB 405 -21.80dB 469 -17.70dB

22 -89.00dB 86 -67.40dB 150 -54.60dB 214 -41.80dB 278 -34.50dB 342 -28.10dB 406 -21.70dB 470 -17.65dB

23 -88.00dB 87 -67.20dB 151 -54.40dB 215 -41.60dB 279 -34.40dB 343 -28.00dB 407 -21.60dB 471 -17.60dB

24 -87.00dB 88 -67.00dB 152 -54.20dB 216 -41.40dB 280 -34.30dB 344 -27.90dB 408 -21.50dB 472 -17.55dB

25 -86.00dB 89 -66.80dB 153 -54.00dB 217 -41.20dB 281 -34.20dB 345 -27.80dB 409 -21.40dB 473 -17.50dB

26 -85.00dB 90 -66.60dB 154 -53.80dB 218 -41.00dB 282 -34.10dB 346 -27.70dB 410 -21.30dB 474 -17.45dB

27 -84.00dB 91 -66.40dB 155 -53.60dB 219 -40.80dB 283 -34.00dB 347 -27.60dB 411 -21.20dB 475 -17.40dB

28 -83.00dB 92 -66.20dB 156 -53.40dB 220 -40.60dB 284 -33.90dB 348 -27.50dB 412 -21.10dB 476 -17.35dB

29 -82.00dB 93 -66.00dB 157 -53.20dB 221 -40.40dB 285 -33.80dB 349 -27.40dB 413 -21.00dB 477 -17.30dB

30 -81.00dB 94 -65.80dB 158 -53.00dB 222 -40.20dB 286 -33.70dB 350 -27.30dB 414 -20.90dB 478 -17.25dB

31 -80.00dB 95 -65.60dB 159 -52.80dB 223 -40.00dB 287 -33.60dB 351 -27.20dB 415 -20.80dB 479 -17.20dB

32 -79.00dB 96 -65.40dB 160 -52.60dB 224 -39.90dB 288 -33.50dB 352 -27.10dB 416 -20.70dB 480 -17.15dB

33 -78.00dB 97 -65.20dB 161 -52.40dB 225 -39.80dB 289 -33.40dB 353 -27.00dB 417 -20.60dB 481 -17.10dB

34 -77.80dB 98 -65.00dB 162 -52.20dB 226 -39.70dB 290 -33.30dB 354 -26.90dB 418 -20.50dB 482 -17.05dB

35 -77.60dB 99 -64.80dB 163 -52.00dB 227 -39.60dB 291 -33.20dB 355 -26.80dB 419 -20.40dB 483 -17.00dB

36 -77.40dB 100 -64.60dB 164 -51.80dB 228 -39.50dB 292 -33.10dB 356 -26.70dB 420 -20.30dB 484 -16.95dB

37 -77.20dB 101 -64.40dB 165 -51.60dB 229 -39.40dB 293 -33.00dB 357 -26.60dB 421 -20.20dB 485 -16.90dB

38 -77.00dB 102 -64.20dB 166 -51.40dB 230 -39.30dB 294 -32.90dB 358 -26.50dB 422 -20.10dB 486 -16.85dB

39 -76.80dB 103 -64.00dB 167 -51.20dB 231 -39.20dB 295 -32.80dB 359 -26.40dB 423 -20.00dB 487 -16.80dB

40 -76.60dB 104 -63.80dB 168 -51.00dB 232 -39.10dB 296 -32.70dB 360 -26.30dB 424 -19.95dB 488 -16.75dB

41 -76.40dB 105 -63.60dB 169 -50.80dB 233 -39.00dB 297 -32.60dB 361 -26.20dB 425 -19.90dB 489 -16.70dB

42 -76.20dB 106 -63.40dB 170 -50.60dB 234 -38.90dB 298 -32.50dB 362 -26.10dB 426 -19.85dB 490 -16.65dB

43 -76.00dB 107 -63.20dB 171 -50.40dB 235 -38.80dB 299 -32.40dB 363 -26.00dB 427 -19.80dB 491 -16.60dB

44 -75.80dB 108 -63.00dB 172 -50.20dB 236 -38.70dB 300 -32.30dB 364 -25.90dB 428 -19.75dB 492 -16.55dB

45 -75.60dB 109 -62.80dB 173 -50.00dB 237 -38.60dB 301 -32.20dB 365 -25.80dB 429 -19.70dB 493 -16.50dB

46 -75.40dB 110 -62.60dB 174 -49.80dB 238 -38.50dB 302 -32.10dB 366 -25.70dB 430 -19.65dB 494 -16.45dB

47 -75.20dB 111 -62.40dB 175 -49.60dB 239 -38.40dB 303 -32.00dB 367 -25.60dB 431 -19.60dB 495 -16.40dB

48 -75.00dB 112 -62.20dB 176 -49.40dB 240 -38.30dB 304 -31.90dB 368 -25.50dB 432 -19.55dB 496 -16.35dB

49 -74.80dB 113 -62.00dB 177 -49.20dB 241 -38.20dB 305 -31.80dB 369 -25.40dB 433 -19.50dB 497 -16.30dB

50 -74.60dB 114 -61.80dB 178 -49.00dB 242 -38.10dB 306 -31.70dB 370 -25.30dB 434 -19.45dB 498 -16.25dB

51 -74.40dB 115 -61.60dB 179 -48.80dB 243 -38.00dB 307 -31.60dB 371 -25.20dB 435 -19.40dB 499 -16.20dB

52 -74.20dB 116 -61.40dB 180 -48.60dB 244 -37.90dB 308 -31.50dB 372 -25.10dB 436 -19.35dB 500 -16.15dB

53 -74.00dB 117 -61.20dB 181 -48.40dB 245 -37.80dB 309 -31.40dB 373 -25.00dB 437 -19.30dB 501 -16.10dB

54 -73.80dB 118 -61.00dB 182 -48.20dB 246 -37.70dB 310 -31.30dB 374 -24.90dB 438 -19.25dB 502 -16.05dB

55 -73.60dB 119 -60.80dB 183 -48.00dB 247 -37.60dB 311 -31.20dB 375 -24.80dB 439 -19.20dB 503 -16.00dB

56 -73.40dB 120 -60.60dB 184 -47.80dB 248 -37.50dB 312 -31.10dB 376 -24.70dB 440 -19.15dB 504 -15.95dB

57 -73.20dB 121 -60.40dB 185 -47.60dB 249 -37.40dB 313 -31.00dB 377 -24.60dB 441 -19.10dB 505 -15.90dB

58 -73.00dB 122 -60.20dB 186 -47.40dB 250 -37.30dB 314 -30.90dB 378 -24.50dB 442 -19.05dB 506 -15.85dB

59 -72.80dB 123 -60.00dB 187 -47.20dB 251 -37.20dB 315 -30.80dB 379 -24.40dB 443 -19.00dB 507 -15.80dB

60 -72.60dB 124 -59.80dB 188 -47.00dB 252 -37.10dB 316 -30.70dB 380 -24.30dB 444 -18.95dB 508 -15.75dB

61 -72.40dB 125 -59.60dB 189 -46.80dB 253 -37.00dB 317 -30.60dB 381 -24.20dB 445 -18.90dB 509 -15.70dB

62 -72.20dB 126 -59.40dB 190 -46.60dB 254 -36.90dB 318 -30.50dB 382 -24.10dB 446 -18.85dB 510 -15.65dB

63 -72.00dB 127 -59.20dB 191 -46.40dB 255 -36.80dB 319 -30.40dB 383 -24.00dB 447 -18.80dB 511 -15.60dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 62

6. Parameter Value Details

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

Value

Data

512 -15.55dB 576 -12.35dB 640 -9.15dB 704 -5.95dB 768 -2.75dB 832 0.45dB 896 3.65dB 960 6.85dB

513 -15.50dB 577 -12.30dB 641 -9.10dB 705 -5.90dB 769 -2.70dB 833 0.50dB 897 3.70dB 961 6.90dB

514 -15.45dB 578 -12.25dB 642 -9.05dB 706 -5.85dB 770 -2.65dB 834 0.55dB 898 3.75dB 962 6.95dB

515 -15.40dB 579 -12.20dB 643 -9.00dB 707 -5.80dB 771 -2.60dB 835 0.60dB 899 3.80dB 963 7.00dB

516 -15.35dB 580 -12.15dB 644 -8.95dB 708 -5.75dB 772 -2.55dB 836 0.65dB 900 3.85dB 964 7.05dB

517 -15.30dB 581 -12.10dB 645 -8.90dB 709 -5.70dB 773 -2.50dB 837 0.70dB 901 3.90dB 965 7.10dB

518 -15.25dB 582 -12.05dB 646 -8.85dB 710 -5.65dB 774 -2.45dB 838 0.75dB 902 3.95dB 966 7.15dB

519 -15.20dB 583 -12.00dB 647 -8.80dB 711 -5.60dB 775 -2.40dB 839 0.80dB 903 4.00dB 967 7.20dB

520 -15.15dB 584 -11.95dB 648 -8.75dB 712 -5.55dB 776 -2.35dB 840 0.85dB 904 4.05dB 968 7.25dB

521 -15.10dB 585 -11.90dB 649 -8.70dB 713 -5.50dB 777 -2.30dB 841 0.90dB 905 4.10dB 969 7.30dB

522 -15.05dB 586 -11.85dB 650 -8.65dB 714 -5.45dB 778 -2.25dB 842 0.95dB 906 4.15dB 970 7.35dB

523 -15.00dB 587 -11.80dB 651 -8.60dB 715 -5.40dB 779 -2.20dB 843 1.00dB 907 4.20dB 971 7.40dB

524 -14.95dB 588 -11.75dB 652 -8.55dB 716 -5.35dB 780 -2.15dB 844 1.05dB 908 4.25dB 972 7.45dB

525 -14.90dB 589 -11.70dB 653 -8.50dB 717 -5.30dB 781 -2.10dB 845 1.10dB 909 4.30dB 973 7.50dB

526 -14.85dB 590 -11.65dB 654 -8.45dB 718 -5.25dB 782 -2.05dB 846 1.15dB 910 4.35dB 974 7.55dB

527 -14.80dB 591 -11.60dB 655 -8.40dB 719 -5.20dB 783 -2.00dB 847 1.20dB 911 4.40dB 975 7.60dB

528 -14.75dB 592 -11.55dB 656 -8.35dB 720 -5.15dB 784 -1.95dB 848 1.25dB 912 4.45dB 976 7.65dB

529 -14.70dB 593 -11.50dB 657 -8.30dB 721 -5.10dB 785 -1.90dB 849 1.30dB 913 4.50dB 977 7.70dB

530 -14.65dB 594 -11.45dB 658 -8.25dB 722 -5.05dB 786 -1.85dB 850 1.35dB 914 4.55dB 978 7.75dB

531 -14.60dB 595 -11.40dB 659 -8.20dB 723 -5.00dB 787 -1.80dB 851 1.40dB 915 4.60dB 979 7.80dB

532 -14.55dB 596 -11.35dB 660 -8.15dB 724 -4.95dB 788 -1.75dB 852 1.45dB 916 4.65dB 980 7.85dB

533 -14.50dB 597 -11.30dB 661 -8.10dB 725 -4.90dB 789 -1.70dB 853 1.50dB 917 4.70dB 981 7.90dB

534 -14.45dB 598 -11.25dB 662 -8.05dB 726 -4.85dB 790 -1.65dB 854 1.55dB 918 4.75dB 982 7.95dB

535 -14.40dB 599 -11.20dB 663 -8.00dB 727 -4.80dB 791 -1.60dB 855 1.60dB 919 4.80dB 983 8.00dB

536 -14.35dB 600 -11.15dB 664 -7.95dB 728 -4.75dB 792 -1.55dB 856 1.65dB 920 4.85dB 984 8.05dB

537 -14.30dB 601 -11.10dB 665 -7.90dB 729 -4.70dB 793 -1.50dB 857 1.70dB 921 4.90dB 985 8.10dB

538 -14.25dB 602 -11.05dB 666 -7.85dB 730 -4.65dB 794 -1.45dB 858 1.75dB 922 4.95dB 986 8.15dB

539 -14.20dB 603 -11.00dB 667 -7.80dB 731 -4.60dB 795 -1.40dB 859 1.80dB 923 5.00dB 987 8.20dB

540 -14.15dB 604 -10.95dB 668 -7.75dB 732 -4.55dB 796 -1.35dB 860 1.85dB 924 5.05dB 988 8.25dB

541 -14.10dB 605 -10.90dB 669 -7.70dB 733 -4.50dB 797 -1.30dB 861 1.90dB 925 5.10dB 989 8.30dB

542 -14.05dB 606 -10.85dB 670 -7.65dB 734 -4.45dB 798 -1.25dB 862 1.95dB 926 5.15dB 990 8.35dB

543 -14.00dB 607 -10.80dB 671 -7.60dB 735 -4.40dB 799 -1.20dB 863 2.00dB 927 5.20dB 991 8.40dB

544 -13.95dB 608 -10.75dB 672 -7.55dB 736 -4.35dB 800 -1.15dB 864 2.05dB 928 5.25dB 992 8.45dB

545 -13.90dB 609 -10.70dB 673 -7.50dB 737 -4.30dB 801 -1.10dB 865 2.10dB 929 5.30dB 993 8.50dB

546 -13.85dB 610 -10.65dB 674 -7.45dB 738 -4.25dB 802 -1.05dB 866 2.15dB 930 5.35dB 994 8.55dB

547 -13.80dB 611 -10.60dB 675 -7.40dB 739 -4.20dB 803 -1.00dB 867 2.20dB 931 5.40dB 995 8.60dB

548 -13.75dB 612 -10.55dB 676 -7.35dB 740 -4.15dB 804 -0.95dB 868 2.25dB 932 5.45dB 996 8.65dB

549 -13.70dB 613 -10.50dB 677 -7.30dB 741 -4.10dB 805 -0.90dB 869 2.30dB 933 5.50dB 997 8.70dB

550 -13.65dB 614 -10.45dB 678 -7.25dB 742 -4.05dB 806 -0.85dB 870 2.35dB 934 5.55dB 998 8.75dB

551 -13.60dB 615 -10.40dB 679 -7.20dB 743 -4.00dB 807 -0.80dB 871 2.40dB 935 5.60dB 999 8.80dB

552 -13.55dB 616 -10.35dB 680 -7.15dB 744 -3.95dB 808 -0.75dB 872 2.45dB 936 5.65dB 1000 8.85dB

553 -13.50dB 617 -10.30dB 681 -7.10dB 745 -3.90dB 809 -0.70dB 873 2.50dB 937 5.70dB 1001 8.90dB

554 -13.45dB 618 -10.25dB 682 -7.05dB 746 -3.85dB 810 -0.65dB 874 2.55dB 938 5.75dB 1002 8.95dB

555 -13.40dB 619 -10.20dB 683 -7.00dB 747 -3.80dB 811 -0.60dB 875 2.60dB 939 5.80dB 1003 9.00dB

556 -13.35dB 620 -10.15dB 684 -6.95dB 748 -3.75dB 812 -0.55dB 876 2.65dB 940 5.85dB 1004 9.05dB

557 -13.30dB 621 -10.10dB 685 -6.90dB 749 -3.70dB 813 -0.50dB 877 2.70dB 941 5.90dB 1005 9.10dB

558 -13.25dB 622 -10.05dB 686 -6.85dB 750 -3.65dB 814 -0.45dB 878 2.75dB 942 5.95dB 1006 9.15dB

559 -13.20dB 623 -10.00dB 687 -6.80dB 751 -3.60dB 815 -0.40dB 879 2.80dB 943 6.00dB 1007 9.20dB

560 -13.15dB 624 -9.95dB 688 -6.75dB 752 -3.55dB 816 -0.35dB 880 2.85dB 944 6.05dB 1008 9.25dB

561 -13.10dB 625 -9.90dB 689 -6.70dB 753 -3.50dB 817 -0.30dB 881 2.90dB 945 6.10dB 1009 9.30dB

562 -13.05dB 626 -9.85dB 690 -6.65dB 754 -3.45dB 818 -0.25dB 882 2.95dB 946 6.15dB 1010 9.35dB

563 -13.00dB 627 -9.80dB 691 -6.60dB 755 -3.40dB 819 -0.20dB 883 3.00dB 947 6.20dB 1011 9.40dB

564 -12.95dB 628 -9.75dB 692 -6.55dB 756 -3.35dB 820 -0.15dB 884 3.05dB 948 6.25dB 1012 9.45dB

565 -12.90dB 629 -9.70dB 693 -6.50dB 757 -3.30dB 821 -0.10dB 885 3.10dB 949 6.30dB 1013 9.50dB

566 -12.85dB 630 -9.65dB 694 -6.45dB 758 -3.25dB 822 -0.05dB 886 3.15dB 950 6.35dB 1014 9.55dB

567 -12.80dB 631 -9.60dB 695 -6.40dB 759 -3.20dB 823 0.00dB 887 3.20dB 951 6.40dB 1015 9.60dB

568 -12.75dB 632 -9.55dB 696 -6.35dB 760 -3.15dB 824 0.05dB 888 3.25dB 952 6.45dB 1016 9.65dB

569 -12.70dB 633 -9.50dB 697 -6.30dB 761 -3.10dB 825 0.10dB 889 3.30dB 953 6.50dB 1017 9.70dB

570 -12.65dB 634 -9.45dB 698 -6.25dB 762 -3.05dB 826 0.15dB 890 3.35dB 954 6.55dB 1018 9.75dB

571 -12.60dB 635 -9.40dB 699 -6.20dB 763 -3.00dB 827 0.20dB 891 3.40dB 955 6.60dB 1019 9.80dB

572 -12.55dB 636 -9.35dB 700 -6.15dB 764 -2.95dB 828 0.25dB 892 3.45dB 956 6.65dB 1020 9.85dB

573 -12.50dB 637 -9.30dB 701 -6.10dB 765 -2.90dB 829 0.30dB 893 3.50dB 957 6.70dB 1021 9.90dB

574 -12.45dB 638 -9.25dB 702 -6.05dB 766 -2.85dB 830 0.35dB 894 3.55dB 958 6.75dB 1022 9.95dB

575 -12.40dB 639 -9.20dB 703 -6.00dB 767 -2.80dB 831 0.40dB 895 3.60dB 959 6.80dB 1023 10.00dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 63

6. Parameter Value Details

MTX3

Value Displayed value

0 NONE

1 Input 1

2 2

3 3

4 4

5 5

6 6

7 7

8 8

9ST IN 1L

10 1R

11 2L

12 2R

13 SD IN L

14 R

15 YDIF 1

16 2

17 3

18 4

19 5

20 6

21 7

22 8

23 9

24 10

25 11

26 12

27 13

28 14

29 15

30 16

MTX5-D

Value Displayed value Value Displayed value

0 NONE 31 Dante 1

1 Input 1 32 2

2 2 33 3

3 3 34 4

4 4 35 5

5 5 36 6

6 6 37 7

7 7 38 8

8 8 39 9

9ST IN 1L 40 10

10 1R 41 11

11 2L 42 12

12 2R 43 13

13 SD IN L 44 14

14 R 45 15

15 YDIF 1 46 16

16 2 47 SLOT 1

17 3 48 2

18 4 49 3

19 5 50 4

20 6 51 5

21 7 52 6

22 8 53 7

23 954 8

24 10 55 9

25 11 56 10

26 12 57 11

27 13 58 12

28 14 59 13

29 15 60 14

30 16 61 15

62 16

6.2. Other parameters (MTX3, MTX5-D)

6.2.1. INPUT PATCH

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 64

6. Parameter Value Details

6.2.2. INPUT CHANNEL

6.2.2.1. 3BAND EQ

Value

Displayed value

Value

Displayed value

Value

Displayed value

Value

Displayed value

0 0.1 29 0.53 58 2.8 87 15.0

1 0.105 30 0.56 59 3.0 88 16.0

2 0.11 31 0.6 60 3.2 89 17.0

3 0.12 32 0.63 61 3.3 90 18.0

4 0.125 33 0.67 62 3.5 91 19.0

5 0.13 34 0.7 63 3.8 92 20.0

6 0.14 35 0.75 64 4.0 93 21.0

7 0.15 36 0.8 65 4.2 94 22.0

8 0.16 37 0.85 66 4.5 95 24.0

90.17 38 0.9 67 4.7 96 25.0

10 0.18 39 0.95 68 5.0 97 27.0

11 0.19 40 1.0 69 5.3 98 28.0

12 0.2 41 1.05 70 5.6 99 30.0

13 0.21 42 1.1 71 6.0 100 32.0

14 0.22 43 1.2 72 6.3 101 34.0

15 0.24 44 1.25 73 6.7 102 35.0

16 0.25 45 1.3 74 7.0 103 38.0

17 0.27 46 1.4 75 7.5 104 40.0

18 0.28 47 1.5 76 8 105 42.0

19 0.3 48 1.6 77 8.4 106 45.0

20 0.32 49 1.7 78 9.0 107 47.0

21 0.33 50 1.8 79 9.5 108 50.0

22 0.35 51 1.9 80 10.0 109 53.0

23 0.38 52 2.0 81 10.5 110 56.0

24 0.4 53 2.1 82 11.0 111 60.0

25 0.42 54 2.2 83 12.0 112 63.0

26 0.45 55 2.4 84 12.5

27 0.47 56 2.5 85 13.0

28 0.5 57 2.7 86 14.0

Type

Value

Displayed value

0 PEQ

1 L.SHELF 6dB/Oct

2 L.SHELF 12dB/Oct

3 H.SHELF 6dB/Oct

4 H.SHELF 12dB/Oct

5 HPF

6 LPF

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 65

6. Parameter Value Details

6.2.2.2. GATE

Decay

Value Displayed value Value Displayed value Value Displayed value Value Displayed value

0 3msec 43 189msec 86 1.23sec 129 7.68sec

1 7msec 44 196msec 87 1.28sec 130 8.11sec

2 10msec 45 203msec 88 1.34sec 131 8.54sec

3 13msec 46 209msec 89 1.39sec 132 8.97sec

4 17msec 47 219msec 90 1.44sec 133 9.39sec

5 22msec 48 229msec 91 1.50sec 134 9.82sec

6 25msec 49 243msec 92 1.55sec 135 10.2sec

7 28msec 50 256msec 93 1.60sec 136 10.7sec

8 32msec 51 269msec 94 1.66sec 137 11.1sec

935msec 52 283msec 95 1.74sec 138 11.5sec

10 38msec 53 296msec 96 1.82sec 139 12.0sec

11 42msec 54 309msec 97 1.92sec 140 12.4sec

12 45msec 55 323msec 98 2.03sec 141 12.8sec

13 48msec 56 336msec 99 2.14sec 142 13.2sec

14 52msec 57 349msec 100 2.24sec 143 13.9sec

15 55msec 58 363msec 101 2.35sec 144 14.5sec

16 59msec 59 376msec 102 2.46sec 145 15.4sec

17 63msec 60 390msec 103 2.56sec 146 16.2sec

18 66msec 61 403msec 104 2.67sec 147 17.1sec

19 69msec 62 416msec 105 2.78sec 148 17.9sec

20 73msec 63 436msec 106 2.89sec 149 18.8sec

21 76msec 64 456msec 107 2.99sec 150 19.6sec

22 79msec 65 483msec 108 3.10sec 151 20.5sec

23 83msec 66 509msec 109 3.21sec 152 21.4sec

24 86msec 67 536msec 110 3.31sec 153 22.2sec

25 89msec 68 563msec 111 3.47sec 154 23.1sec

26 93msec 69 589msec 112 3.63sec 155 23.9sec

27 96msec 70 616msec 113 3.84sec 156 24.8sec

28 99msec 71 643msec 114 4.06sec 157 25.6sec

29 103msec 72 670msec 115 4.27sec 158 26.5sec

30 106msec 73 696msec 116 4.48sec 159 27.7sec

31 111msec 74 723msec 117 4.70sec 160 29.0sec

32 116msec 75 750msec 118 4.91sec 161 30.7sec

33 123msec 76 777msec 119 5.13sec 162 32.4sec

34 129msec 77 803msec 120 5.34sec 163 34.1sec

35 136msec 78 830msec 121 5.55sec 164 35.9sec

36 143msec 79 870msec 122 5.77sec 165 37.6sec

37 149msec 80 909msec 123 5.98sec 166 39.3sec

38 156msec 81 963msec 124 6.20sec 167 41.0sec

39 163msec 82 1.02sec 125 6.41sec 168 42.7sec

40 169msec 83 1.07sec 126 6.62sec

41 176msec 84 1.12sec 127 6.94sec

42 183msec 85 1.18sec 128 7.26sec

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 66

6. Parameter Value Details

Hold

Value Displayed value Value Displayed value Value Displayed value Value Displayed value

0 0.02msec 54 2.01msec 108 20.2msec 162 211msec

1 0.04msec 55 2.10msec 109 20.9msec 163 222msec

2 0.07msec 56 2.19msec 110 21.6msec 164 233msec

3 0.09msec 57 2.28msec 111 22.6msec 165 245msec

4 0.11msec 58 2.36msec 112 23.6msec 166 256msec

5 0.14msec 59 2.45msec 113 25.0msec 167 267msec

6 0.16msec 60 2.54msec 114 26.4msec 168 278msec

7 0.18msec 61 2.62msec 115 27.8msec 169 289msec

8 0.21msec 62 2.71msec 116 29.2msec 170 300msec

90.23msec 63 2.84msec 117 30.6msec 171 311msec

10 0.25msec 64 2.97msec 118 32.0msec 172 323msec

11 0.27msec 65 3.14msec 119 33.4msec 173 334msec

12 0.29msec 66 3.32msec 120 34.8msec 174 345msec

13 0.31msec 67 3.49msec 121 36.2msec 175 361msec

17 0.41msec 71 4.19msec 125 41.7msec 179 445msec

18 0.43msec 72 4.36msec 126 43.1msec 180 467msec

19 0.45msec 73 4.53msec 127 45.2msec 181 489msec

20 0.47msec 74 4.71msec 128 47.2msec 182 511msec

21 0.49msec 75 4.88msec 129 50.0msec 183 534msec

22 0.52msec 76 5.06msec 130 52.8msec 184 556msec

23 0.54msec 77 5.23msec 131 55.6msec 185 578msec

24 0.56msec 78 5.40msec 132 58.4msec 186 601msec

25 0.58msec 79 5.66msec 133 61.2msec 187 623msec

26 0.60msec 80 5.92msec 134 63.9msec 188 645msec

27 0.62msec 81 6.27msec 135 66.7msec 189 667msec

28 0.65msec 82 6.61msec 136 69.5msec 190 690msec

29 0.67msec 83 6.96msec 137 72.3msec 191 723msec

30 0.69msec 84 7.31msec 138 75.1msec 192 756msec

31 0.72msec 85 7.66msec 139 77.9msec 193 800msec

32 0.75msec 86 8.01msec 140 80.7msec 194 845msec

33 0.80msec 87 8.36msec 141 83.4msec 195 889msec

34 0.84msec 88 8.70msec 142 86.2msec 196 934msec

35 0.88msec 89 9.05msec 143 90.3msec 197 978msec

36 0.93msec 90 9.40msec 144 94.5msec 198 1.02sec

37 0.97msec 91 9.75msec 145 100msec 199 1.07sec

38 1.02msec 92 10.1msec 146 106msec 200 1.11sec

39 1.06msec 93 10.4msec 147 111msec 201 1.16sec

40 1.10msec 94 10.8msec 148 117msec 202 1.20sec

41 1.15msec 95 11.3msec 149 122msec 203 1.25sec

42 1.19msec 96 11.8msec 150 128msec 204 1.29sec

43 1.23msec 97 12.5msec 151 133msec 205 1.33sec

44 1.28msec 98 13.2msec 152 139msec 206 1.38sec

45 1.32msec 99 13.9msec 153 145msec 207 1.45sec

46 1.36msec 100 14.6msec 154 150msec 208 1.51sec

47 1.43msec 101 15.3msec 155 156msec 209 1.60sec

48 1.49msec 102 16.0msec 156 161msec 210 1.69sec

49 1.58msec 103 16.7msec 157 167msec 211 1.78sec

50 1.67msec 104 17.4msec 158 172msec 212 1.87sec

51 1.75msec 105 18.1msec 159 181msec 213 1.96sec

52 1.84msec 106 18.8msec 160 189msec

53 1.93msec 107 19.5msec 161 200msec

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 67

6. Parameter Value Details

6.2.2.3. COMPRESSOR

Ratio

Value Displayed value Value Displayed value Value Displayed value Value Displayed value

10 1.0:1 58 5.8:1 106 10.6:1 154 15.4:1

11 1.1:1 59 5.9:1 107 10.7:1 155 15.5:1

12 1.2:1 60 6.0:1 108 10.8:1 156 15.6:1

13 1.3:1 61 6.1:1 109 10.9:1 157 15.7:1

14 1.4:1 62 6.2:1 110 11.0:1 158 15.8:1

15 1.5:1 63 6.3:1 111 11.1:1 159 15.9:1

16 1.6:1 64 6.4:1 112 11.2:1 160 16.0:1

17 1.7:1 65 6.5:1 113 11.3:1 161 16.1:1

18 1.8:1 66 6.6:1 114 11.4:1 162 16.2:1

19 1.9:1 67 6.7:1 115 11.5:1 163 16.3:1

20 2.0:1 68 6.8:1 116 11.6:1 164 16.4:1

21 2.1:1 69 6.9:1 117 11.7:1 165 16.5:1

22 2.2:1 70 7.0:1 118 11.8:1 166 16.6:1

23 2.3:1 71 7.1:1 119 11.9:1 167 16.7:1

24 2.4:1 72 7.2:1 120 12.0:1 168 16.8:1

25 2.5:1 73 7.3:1 121 12.1:1 169 16.9:1

26 2.6:1 74 7.4:1 122 12.2:1 170 17.0:1

27 2.7:1 75 7.5:1 123 12.3:1 171 17.1:1

28 2.8:1 76 7.6:1 124 12.4:1 172 17.2:1

29 2.9:1 77 7.7:1 125 12.5:1 173 17.3:1

30 3.0:1 78 7.8:1 126 12.6:1 174 17.4:1

31 3.1:1 79 7.9:1 127 12.7:1 175 17.5:1

32 3.2:1 80 8.0:1 128 12.8:1 176 17.6:1

33 3.3:1 81 8.1:1 129 12.9:1 177 17.7:1

34 3.4:1 82 8.2:1 130 13.0:1 178 17.8:1

35 3.5:1 83 8.3:1 131 13.1:1 179 17.9:1

36 3.6:1 84 8.4:1 132 13.2:1 180 18.0:1

37 3.7:1 85 8.5:1 133 13.3:1 181 18.1:1

38 3.8:1 86 8.6:1 134 13.4:1 182 18.2:1

39 3.9:1 87 8.7:1 135 13.5:1 183 18.3:1

40 4.0:1 88 8.8:1 136 13.6:1 184 18.4:1

41 4.1:1 89 8.9:1 137 13.7:1 185 18.5:1

42 4.2:1 90 9.0:1 138 13.8:1 186 18.6:1

43 4.3:1 91 9.1:1 139 13.9:1 187 18.7:1

44 4.4:1 92 9.2:1 140 14.0:1 188 18.8:1

45 4.5:1 93 9.3:1 141 14.1:1 189 18.9:1

46 4.6:1 94 9.4:1 142 14.2:1 190 19.0:1

47 4.7:1 95 9.5:1 143 14.3:1 191 19.1:1

48 4.8:1 96 9.6:1 144 14.4:1 192 19.2:1

49 4.9:1 97 9.7:1 145 14.5:1 193 19.3:1

50 5.0:1 98 9.8:1 146 14.6:1 194 19.4:1

51 5.1:1 99 9.9:1 147 14.7:1 195 19.5:1

52 5.2:1 100 10.0:1 148 14.8:1 196 19.6:1

53 5.3:1 101 10.1:1 149 14.9:1 197 19.7:1

54 5.4:1 102 10.2:1 150 15.0:1 198 19.8:1

55 5.5:1 103 10.3:1 151 15.1:1 199 19.9:1

56 5.6:1 104 10.4:1 152 15.2:1 200 20.0:1

57 5.7:1 105 10.5:1 153 15.3:1 201 ∞:1

Knee

Value Displayed value

0 HARD

1 1

2 2

3 3

4 4

5 5

Release

Same as 6.2.2.2. Gate

/ Decay

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 68

6. Parameter Value Details

6.2.2.4. AGC

Response Time

Value Displayed value Value Displayed value

0 100msec 30 2.20sec

1 150msec 31 2.30sec

2 200msec 32 2.40sec

3 250msec 33 2.50sec

4 300msec 34 2.60sec

5 350msec 35 2.70sec

6 400msec 36 2.80sec

7 450msec 37 2.90sec

8 500msec 38 3.00sec

9550msec 39 3.10sec

10 600msec 40 3.20sec

12 700msec 42 3.40sec

13 750msec 43 3.50sec

14 800msec 44 3.60sec

15 850msec 45 3.70sec

16 900msec 46 3.80sec

17 950msec 47 3.90sec

18 1.00sec 48 4.00sec

19 1.10sec 49 4.10sec

20 1.20sec 50 4.20sec

21 1.30sec 51 4.30sec

22 1.40sec 52 4.40sec

23 1.50sec 53 4.50sec

24 1.60sec 54 4.60sec

25 1.70sec 55 4.70sec

26 1.80sec 56 4.80sec

27 1.90sec 57 4.90sec

28 2.00sec 58 5.00sec

29 2.10sec

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 69

6. Parameter Value Details

6.2.2.5. DUGAN AUTOMIXER

Mode

Value Displayed value

0 Mute

1 Man

2 Auto

Weight

Value Displayed value

-3000 -100.0

-2950 -29.5

-2900 -29.0

-2850 -28.5

: :

-100 -1.0

-50 -0.5

0 0.0

50 0.5

100 1.0

: :

1350 13.5

1400 14.0

1450 14.5

1500 15.0

Group

MTX3

Value Displayed value

0 a

1 b

MTX5-D

Value Displayed value

0 a

1 b

3 d

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 70

6. Parameter Value Details

6.2.3. EFFECT

Type

Value Displayed value

0 Reverb Hall

1 Reverb Stage1

2 Karaoke Echo

3 Vocal Echo

RevHallTime/RevStageTime

Value Time(sec) Value Time(sec)

0 0.3 29 3.2

1 0.4 30 3.3

2 0.5 31 3.4

3 0.6 32 3.5

4 0.7 33 3.6

5 0.8 34 3.7

6 0.9 35 3.8

7 1.0 36 3.9

8 1.1 37 4.0

91.2 38 4.1

10 1.3 39 4.2

11 1.4 40 4.3

12 1.5 41 4.4

13 1.6 42 4.5

14 1.7 43 4.6

15 1.8 44 4.7

16 1.9 45 4.8

17 2.0 46 4.9

18 2.1 47 5.0

19 2.2 48 5.5

20 2.3 49 6.0

21 2.4 50 6.5

22 2.5 51 7.0

23 2.6 52 7.5

24 2.7 53 8.0

25 2.8 54 8.5

26 2.9 55 9.0

27 3.0 56 9.5

28 3.1 57 10.0

KaraokeTime/VocalTime

Value Time (msec) Value Time (msec) Value Time (msec)

0 0.4 43 135.5 86 270.9

1 3.2 44 138.6 87 274.0

2 6.4 45 141.8 88 277.2

3 9.5 46 144.9 89 280.3

4 12.7 47 148.1 90 283.5

5 15.8 48 151.2 91 286.6

6 19.0 49 154.4 92 289.8

7 22.1 50 157.5 93 292.9

8 25.3 51 160.7 94 296.1

928.4 52 163.8 95 299.2

10 31.6 53 167.0 96 302.4

11 34.7 54 170.1 97 305.5

12 37.9 55 173.3 98 308.7

13 41.0 56 176.4 99 311.8

14 44.2 57 179.6 100 315.0

15 47.3 58 182.7 101 318.1

16 50.5 59 185.9 102 321.3

17 53.6 60 189.0 103 324.4

18 56.8 61 192.2 104 327.6

19 59.9 62 195.3 105 330.7

20 63.1 63 198.5 106 333.9

21 66.2 64 201.6 107 337.0

22 69.4 65 204.8 108 340.2

23 72.5 66 207.9 109 343.3

24 75.7 67 211.1 110 346.5

25 78.8 68 214.2 111 349.6

26 82.0 69 217.4 112 352.8

27 85.1 70 220.5 113 355.9

28 88.3 71 223.7 114 359.1

29 91.4 72 226.8 115 362.2

30 94.6 73 230.0 116 365.4

31 97.7 74 233.1 117 368.5

32 100.9 75 236.3 118 371.7

33 104.0 76 239.4 119 374.8

34 107.2 77 242.6 120 378.0

35 110.3 78 245.7 121 381.1

36 113.5 79 248.9 122 384.3

37 116.6 80 252.0 123 387.4

38 119.8 81 255.2 124 390.6

39 122.9 82 258.3 125 393.7

40 126.1 83 261.5 126 396.9

41 129.2 84 264.6 127 400.0

42 132.4 85 267.7

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 71

6. Parameter Value Details

6.2.4. ZONE

6.2.4.1. PAGING (MTX5-D only)

Paging Source

MTX5-D

Value Displayed value Value Displayed value

0 NONE 31 YDIF IN 1

1 CH1 32 YDIF IN 2

2 CH2 33 YDIF IN 3

3 CH3 34 YDIF IN 4

4 CH4 35 YDIF IN 5

5 CH5 36 YDIF IN 6

6 CH6 37 YDIF IN 7

7 CH7 38 YDIF IN 8

8 CH8 39 YDIF IN 9

9CH9 40 YDIF IN 10

10 CH10 41 YDIF IN 11

11 CH11 42 YDIF IN 12

12 CH12 43 YDIF IN 13

13 CH13 44 YDIF IN 14

14 CH14 45 YDIF IN 15

15 CH15 46 YDIF IN 16

16 CH16 47 ANC BUS1

17 STIN1L 48 ANC BUS2

18 STIN1R

19 STIN2L

20 STIN2R

21 STIN3L

22 STIN3R

23 CH17

24 CH18

25 CH19

26 CH20

27 CH21

28 CH22

29 CH23

30 CH24

Range

MTX5-D

Value Displayed value

-601 -∞

-600 -60.0dB

-599 -59.9dB

: :

-2 -0.2dB

-1 -0.1dB

0 -0.0dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 72

6. Parameter Value Details

6.2.4.2. 1st/2nd PRIORITY

1st/2nd Priority Ducker Priority Source

MTX3

Value Displayed value

0 NONE

1 CH1

2 CH2

3 CH3

4 CH4

5 CH5

6 CH6

7 CH7

8 CH8

9STIN1L

10 STIN1R

11 STIN2L

12 STIN2R

13 STIN3L

14 STIN3R

15 CH9

16 CH10

17 CH11

18 CH12

19 CH13

20 CH14

21 CH15

22 CH16

23 YDIF IN 1

24 YDIF IN 2

25 YDIF IN 3

26 YDIF IN 4

27 YDIF IN 5

28 YDIF IN 6

29 YDIF IN 7

30 YDIF IN 8

31 YDIF IN 9

32 YDIF IN 10

33 YDIF IN 11

34 YDIF IN 12

35 YDIF IN 13

36 YDIF IN 14

37 YDIF IN 15

38 YDIF IN 16

39 ANC BUS1

40 ANC BUS2

MTX5-D

Value Displayed value Value Displayed value

0 NONE 31 YDIF IN 1

1 CH1 32 YDIF IN 2

2 CH2 33 YDIF IN 3

3 CH3 34 YDIF IN 4

4 CH4 35 YDIF IN 5

5 CH5 36 YDIF IN 6

6 CH6 37 YDIF IN 7

7 CH7 38 YDIF IN 8

8 CH8 39 YDIF IN 9

9CH9 40 YDIF IN 10

10 CH10 41 YDIF IN 11

11 CH11 42 YDIF IN 12

12 CH12 43 YDIF IN 13

13 CH13 44 YDIF IN 14

14 CH14 45 YDIF IN 15

15 CH15 46 YDIF IN 16

16 CH16 47 ANC BUS1

17 STIN1L 48 ANC BUS2

18 STIN1R

19 STIN2L

20 STIN2R

21 STIN3L

22 STIN3R

23 CH17

24 CH18

25 CH19

26 CH20

27 CH21

28 CH22

29 CH23

30 CH24

Release

Same as 6.2.2.2. Gate / Decay

Hold

Same as 6.2.2.2. Gate / Hold

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 73

6. Parameter Value Details

6.2.4.3. ANC

ANC Source

Same as 6.2.4.2. 1st/2nd PRIORITY / 1st/2nd Priority Ducker Priority Source

ANC Ratio

Value Displayed value

5 0.5:1

6 0.6:1

7 0.7:1

8 0.8:1

90.9:1

10 1.0:1

11 1.1:1

12 1.2:1

13 1.3:1

14 1.4:1

15 1.5:1

16 1.6:1

17 1.7:1

18 1.8:1

19 1.9:1

20 2.0:1

6.2.5. ROUTER

6.2.5.1. ROUTER

MTX3

Value Displayed value

0 NONE

1 ZONE 1

2 ZONE 2

3 ZONE 3

4 ZONE 4

5 ZONE 5

6 ZONE 6

7 ZONE 7

8 ZONE 8

9YDIF IN 1

10 YDIF IN 2

11 YDIF IN 3

12 YDIF IN 4

13 YDIF IN 5

14 YDIF IN 6

15 YDIF IN 7

16 YDIF IN 8

17 YDIF IN 9

18 YDIF IN 10

19 YDIF IN 11

20 YDIF IN 12

21 YDIF IN 13

22 YDIF IN 14

23 YDIF IN 15

24 YDIF IN 16

MTX5-D

Value Displayed value Value Displayed value

0 NONE 17 YDIF IN 1

1 ZONE 1 18 YDIF IN 2

2 ZONE 2 19 YDIF IN 3

3 ZONE 3 20 YDIF IN 4

4 ZONE 4 21 YDIF IN 5

5 ZONE 5 22 YDIF IN 6

6 ZONE 6 23 YDIF IN 7

7 ZONE 7 24 YDIF IN 8

8 ZONE 8 25 YDIF IN 9

9ZONE 9 26 YDIF IN 10

10 ZONE 10 27 YDIF IN 11

11 ZONE 11 28 YDIF IN 12

12 ZONE 12 29 YDIF IN 13

13 ZONE 13 30 YDIF IN 14

14 ZONE 14 31 YDIF IN 15

15 ZONE 15 32 YDIF IN 16

16 ZONE 16

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 74

6. Parameter Value Details

6.2.5.2. OSCILLATOR

Waveform

Value Displayed value

0 SINE 100Hz

1 SINE 1kHz

2 SINE 10kHz

3 Pink

4 Burst

5 VARI

6.2.6. OUTPUT CHANNEL

6.2.6.1. 4BAND EQ

Same as 6.2.2.1. 3BAND EQ / Q

Type

Same as 6.2.2.1. 3BAND EQ / Type

B/W(Q)

Value Oct. Value Oct. Value Oct. Value Oct.

0 6.672 29 2.426 58 0.513 87 0.096

1 6.534 30 2.319 59 0.479 88 0.090

2 6.403 31 2.189 60 0.449 89 0.085

3 6.158 32 2.100 61 0.436 90 0.080

4 6.044 33 1.991 62 0.411 91 0.076

5 5.934 34 1.917 63 0.379 92 0.072

6 5.728 35 1.804 64 0.360 93 0.069

7 5.537 36 1.703 65 0.343 94 0.066

8 5.359 37 1.612 66 0.320 95 0.060

95.193 38 1.530 67 0.306 96 0.058

10 5.037 39 1.456 68 0.288 97 0.053

11 4.891 40 1.388 69 0.272 98 0.052

12 4.753 41 1.327 70 0.257 99 0.048

13 4.623 42 1.270 71 0.240 100 0.045

14 4.499 43 1.170 72 0.229 101 0.042

15 4.271 44 1.125 73 0.215 102 0.041

16 4.165 45 1.084 74 0.206 103 0.038

17 3.968 46 1.010 75 0.192 104 0.036

18 3.876 47 0.945 76 0.180 105 0.034

19 3.704 48 0.888 77 0.172 106 0.032

20 3.546 49 0.837 78 0.160 107 0.031

21 3.472 50 0.792 79 0.152 108 0.029

22 3.331 51 0.751 80 0.144 109 0.027

23 3.139 52 0.714 81 0.137 110 0.026

24 3.023 53 0.681 82 0.131 111 0.024

25 2.914 54 0.650 83 0.120 112 0.023

26 2.764 55 0.597 84 0.115

27 2.671 56 0.573 85 0.111

28 2.543 57 0.531 86 0.103

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 75

6. Parameter Value Details

6.2.6.2. SPEAKER PROCESSOR

HPF/LPF Type

Value Displayed value

0 Thru

1 6dB/Oct

2 12dB/Oct AdjustGc

3 12dB/Oct Butrwrth

4 12dB/Oct Bessel

5 12dB/Oct Linkwitz

6 18dB/Oct AdjustGc

7 18dB/Oct Butrwrth

8 18dB/Oct Bessel

924dB/Oct AdjustGc

10 24dB/Oct Butrwrth

11 24dB/Oct Bessel

12 24dB/Oct Linkwitz

13 32dB/Oct AdjustGc

14 32dB/Oct Butrwrth

15 32dB/Oct Bessel

16 48dB/Oct AdjustGc

17 48dB/Oct Butrwrth

18 48dB/Oct Bessel

19 48dB/Oct Linkwitz

PEQ Type

Value Displayed value

0 PEQ

1 L.SHELF 6dB/Oct

2 L.SHELF 12dB/Oct

3 H.SHELF 6dB/Oct

4 H.SHELF 12dB/Oct

5 HPF

6 LPF

7 APF 1st

8 APF 2nd

9Horn EQ

PEQ Q

Same as 6.2.2.1. 3BAND EQ / Q

B/W(Q)

Same as 6.2.6.1. 4BAND EQ / B/W(Q)

Limiter Release

Same as 6.2.2.2. GATE / Decay

Limiter Attack/Release Mode

Value Displayed value

0 Fast

1 Mid

2 Slow

3 Manual

6.2.7. OUTPUT PATCH

6.2.7.1. OUTPUT PATCH

MTX3

Value Displayed value

0 NONE

1 OUTPUT CH1

2 OUTPUT CH2

3 OUTPUT CH3

4 OUTPUT CH4

5 OUTPUT CH5

6 OUTPUT CH6

7 OUTPUT CH7

8 OUTPUT CH8

MTX5-D

Value Displayed value

0 NONE

1 OUTPUT CH1

2 OUTPUT CH2

3 OUTPUT CH3

4 OUTPUT CH4

5 OUTPUT CH5

6 OUTPUT CH6

7 OUTPUT CH7

8 OUTPUT CH8

9OUTPUT CH9

10 OUTPUT CH10

11 OUTPUT CH11

12 OUTPUT CH12

13 OUTPUT CH13

14 OUTPUT CH14

15 OUTPUT CH15

16 OUTPUT CH16

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 76

6. Parameter Value Details

6.2.7.2. YDIF PATCH

MTX3

Value Displayed value

0 NONE

1 CH1

2 CH2

3 CH3

4 CH4

5 CH5

6 CH6

7 CH7

8 CH8

9STIN1L

10 STIN1R

11 STIN2L

12 STIN2R

13 STIN3L

14 STIN3R

15 ZONE 1

16 ZONE 2

17 ZONE 3

18 ZONE 4

19 ZONE 5

20 ZONE 6

21 ZONE 7

22 ZONE 8

23 THRU 1

24 THRU 2

25 THRU 3

26 THRU 4

27 THRU 5

28 THRU 6

29 THRU 7

30 THRU 8

31 THRU 9

32 THRU 10

33 THRU 11

34 THRU 12

35 THRU 13

36 THRU 14

37 THRU 15

38 THRU 16

39 OUTPUT CH1

40 OUTPUT CH2

41 OUTPUT CH3

42 OUTPUT CH4

43 OUTPUT CH5

44 OUTPUT CH6

45 OUTPUT CH7

46 OUTPUT CH8

MTX5-D

Value Displayed value Value Displayed value

0 NONE 39 THRU 1

1 CH1 40 THRU 2

2 CH2 41 THRU 3

3 CH3 42 THRU 4

4 CH4 43 THRU 5

5 CH5 44 THRU 6

6 CH6 45 THRU 7

7 CH7 46 THRU 8

8 CH8 47 THRU 9

9CH9 48 THRU 10

10 CH10 49 THRU 11

11 CH11 50 THRU 12

12 CH12 51 THRU 13

13 CH13 52 THRU 14

14 CH14 53 THRU 15

15 CH15 54 THRU 16

16 CH16 55 OUTPUT CH1

17 STIN1L 56 OUTPUT CH2

18 STIN1R 57 OUTPUT CH3

19 STIN2L 58 OUTPUT CH4

20 STIN2R 59 OUTPUT CH5

21 STIN3L 60 OUTPUT CH6

22 STIN3R 61 OUTPUT CH7

23 ZONE 1 62 OUTPUT CH8

24 ZONE 2 63 OUTPUT CH9

25 ZONE 3 64 OUTPUT CH10

26 ZONE 4 65 OUTPUT CH11

27 ZONE 5 66 OUTPUT CH12

28 ZONE 6 67 OUTPUT CH13

29 ZONE 7 68 OUTPUT CH14

30 ZONE 8 69 OUTPUT CH15

31 ZONE 9 70 OUTPUT CH16

32 ZONE 10

33 ZONE 11

34 ZONE 12

35 ZONE 13

36 ZONE 14

37 ZONE 15

38 ZONE 16

* About MTX3 23 to 38 (THRU1 to 16), MTX5-D 39 to 54 (THRU1 to 16)

Note the difference in behavior between the MTX Editor and MTX external control protocol. On the MTX editor, when you

press THRU, one of the 16 YDIF channels is selected automatically.

However, with the MTX external control protocol, you can select the channel freely.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 77

6. Parameter Value Details

6.2.8. MY4-AEC

6.2.8.1. MY4-AEC Input Patch

Near-end Mic / From Far-end

Value PORT Value PORT

0 NONE 47 SLOT 1

1 Input 1 48 2

2 2 49 3

3 3 50 4

4 4 51 Output 1

5 5 52 2

6 6 53 3

7 7 54 4

8 8 55 5

9ST IN 1L 56 6

10 1R 57 7

11 2L 58 8

12 2R 59 9

13 SD IN L 60 10

14 R 61 11

15 YDIF 1 62 12

16 2 63 13

17 3 64 14

18 4 65 15

19 5 66 16

20 6

21 7

22 8

23 9

24 10

25 11

26 12

27 13

28 14

29 15

30 16

31 DANTE 1

32 2

33 3

34 4

35 5

36 6

37 7

38 8

39 9

40 10

41 11

42 12

43 13

44 14

45 15

46 16

6.2.8.2. MY4-AEC FBS

Width

Value Displayed value

0 1/10oct

1 1/60oct

2 1/93oct

Depth

Value Displayed value

0 -6dB

1 -12dB

2 -18dB

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 78

6. Parameter Value Details

6.3. Other parameters (MRX7-D)

6.3.1. Ambient Noise Compensator

Ratio

Same as 6.2.4.3. ANC ANC Ratio in "Other Parameters (MTX3,MTX5-D)"

6.3.2. Auto Gain Control

Response Type

Same as 6.2.2.4. AGC Response Time in "Other Parameters (MTX3,MTX5-D)"

6.3.3. Combiner

6.3.3.1. Room Combiner

Source

Value Displayed value

0 BGM1

1 BGM2

2 BGM3

3 BGM4

6.3.3.2. Room Combiner plus Automixer

Source

Same as 6.3.3.1. Room Combiner Source in "Other Parameters (MTX3,MTX5-D)"

Mode

Same as 6.2.2.5. DUGAN AUTOMIXER Mode in "Other Parameters (MTX3,MTX5-D)"

Weight

Same as 6.2.2.5. DUGAN AUTOMIXER Weight in "Other Parameters (MTX3,MTX5-D)"

6.3.4. Dynamics

6.3.4.1. Compressor

Ratio

Same as 6.2.2.3. COMPRESSOR Ratio in "Other Parameters (MTX3,MTX5-D)"

Knee

Same as 6.2.2.3. COMPRESSOR Knee in "Other Parameters (MTX3,MTX5-D)"

Release

Same as 6.2.2.3. GATE Decay in "Other Parameters (MTX3,MTX5-D)"

Keyin(Mono)

Value Displayed value

0 SELF

1 KEYIN

Keyin(Stereo)

Value Displayed value

2 L

3 R

4 LR BOTH

5 KEYIN

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 79

6. Parameter Value Details

6.3.4.2. Gate/Ducking

Release

Same as 6.2.2.3. GATE Decay in "Other Parameters (MTX3,MTX5-D)"

Decay

Same as 6.2.2.3. GATE Decay in "Other Parameters (MTX3,MTX5-D)"

Hold

Same as 6.2.2.3. GATE Hold in "Other Parameters (MTX3,MTX5-D)"

Keyin(Mono)

Same as 6.3.4.1. Compressor Keyin(Mono)

Keyin(Stereo)

Same as 6.3.4.1. Compressor Keyin(Stereo)

6.3.4.3. Limiter

Release

Same as 6.2.2.3. GATE Decay in "Other Parameters (MTX3,MTX5-D)"

Keyin(Mono)

Same as 6.3.4.1. Compressor Keyin(Mono)

Keyin(Stereo)

Same as 6.3.4.1. Compressor Keyin(Stereo)

6.3.4.4. Paging Ducker

Range

Same as 6.2.4.1. PAGING Range in "Other Parameters (MTX3,MTX5-D)"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 80

6. Parameter Value Details

6.3.5. Effect

Type

Same as 6.2.3. EFFECT Type in "Other Parameters (MTX3,MTX5-D)"

RevHallTime/RevStageTime

Same as 6.2.3. EFFECT RevHallTime/RevStageTime in "Other Parameters (MTX3,MTX5-D)"

KaraokeTime/VocalTime

Value Time(msec) Value Time(msec) Value Time(msec) Value Time(msec) Value Time(msec)

0 0.4 52 163.8 104 327.6 156 535.9 208 779.7

1 3.2 53 167.0 105 330.7 157 540.6 209 784.4

2 6.4 54 170.1 106 333.9 158 545.3 210 789.1

3 9.5 55 173.3 107 337.0 159 550.0 211 793.8

4 12.7 56 176.4 108 340.2 160 554.7 212 798.4

5 15.8 57 179.6 109 343.3 161 559.4 213 803.1

6 19.0 58 182.7 110 346.5 162 564.1 214 807.8

7 22.1 59 185.9 111 349.6 163 568.8 215 812.5

8 25.3 60 189.0 112 352.8 164 573.4 216 817.2

928.4 61 192.2 113 355.9 165 578.1 217 821.9

10 31.6 62 195.3 114 359.1 166 582.8 218 826.6

11 34.7 63 198.5 115 362.2 167 587.5 219 831.3

12 37.9 64 201.6 116 365.4 168 592.2 220 835.9

13 41.0 65 204.8 117 368.5 169 596.9 221 840.6

14 44.2 66 207.9 118 371.7 170 601.6 222 845.3

15 47.3 67 211.1 119 374.8 171 606.3 223 850.0

16 50.5 68 214.2 120 378.0 172 610.9 224 854.7

17 53.6 69 217.4 121 381.1 173 615.6 225 859.4

18 56.8 70 220.5 122 384.3 174 620.3 226 864.1

19 59.9 71 223.7 123 387.4 175 625.0 227 868.8

20 63.1 72 226.8 124 390.6 176 629.7 228 873.4

21 66.2 73 230.0 125 393.7 177 634.4 229 878.1

22 69.4 74 233.1 126 396.9 178 639.1 230 882.8

23 72.5 75 236.3 127 400.0 179 643.8 231 887.5

24 75.7 76 239.4 128 404.7 180 648.4 232 892.2

25 78.8 77 242.6 129 409.4 181 653.1 233 896.9

26 82.0 78 245.7 130 414.1 182 657.8 234 901.6

27 85.1 79 248.9 131 418.8 183 662.5 235 906.3

28 88.3 80 252.0 132 423.4 184 667.2 236 910.9

29 91.4 81 255.2 133 428.1 185 671.9 237 915.6

30 94.6 82 258.3 134 432.8 186 676.6 238 920.3

31 97.7 83 261.5 135 437.5 187 681.3 239 925.0

32 100.9 84 264.6 136 442.2 188 685.9 240 929.7

33 104.0 85 267.7 137 446.9 189 690.6 241 934.4

34 107.2 86 270.9 138 451.6 190 695.3 242 939.1

35 110.3 87 274.0 139 456.3 191 700.0 243 943.8

36 113.5 88 277.2 140 460.9 192 704.7 244 948.4

37 116.6 89 280.3 141 465.6 193 709.4 245 953.1

38 119.8 90 283.5 142 470.3 194 714.1 246 957.8

39 122.9 91 286.6 143 475.0 195 718.8 247 962.5

40 126.1 92 289.8 144 479.7 196 723.4 248 967.2

41 129.2 93 292.9 145 484.4 197 728.1 249 971.9

42 132.4 94 296.1 146 489.1 198 732.8 250 976.6

43 135.5 95 299.2 147 493.8 199 737.5 251 981.3

44 138.6 96 302.4 148 498.4 200 742.2 252 985.9

45 141.8 97 305.5 149 503.1 201 746.9 253 990.6

46 144.9 98 308.7 150 507.8 202 751.6 254 995.3

47 148.1 99 311.8 151 512.5 203 756.3 255 1000.0

48 151.2 100 315.0 152 517.2 204 760.9

49 154.4 101 318.1 153 521.9 205 765.6

50 157.5 102 321.3 154 526.6 206 770.3

51 160.7 103 324.4 155 531.3 207 775.0

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 81

6. Parameter Value Details

6.3.6. EQ

6.3.6.1. GEQ

Same as 6.2.2.1. 3BAND EQ Q in "Other Parameters (MTX3,MTX5-D)"

6.3.6.2. PEQ

Same as 6.2.2.1. 3BAND EQ Q in "Other Parameters (MTX3,MTX5-D)"

B/W(Q)

Same as 6.2.6.1. 4BAND EQ B/W(Q) in "Other Parameters (MTX3,MTX5-D)"

Type

Same as 6.2.2.1. 3BAND EQ Type in "Other Parameters (MTX3,MTX5-D)"

6.3.7. Filter

6.3.7.1. HPF/LPF/BPF

Filter Type

Same as 6.2.6.2. SPEAKER PROCESSOR HPF/LPF Type in "Other Parameters (MTX3,MTX5-D)"

6.3.8. Mixer

6.3.8.1. Dugan Automixer

Mode

Same as 6.2.2.5. DUGAN AUTOMIXER Mode in "Other Parameters (MTX3,MTX5-D)"

Weight

Same as 6.2.2.5. DUGAN AUTOMIXER Weight in "Other Parameters (MTX3,MTX5-D)"

Group(2 - 4 Channel)

Value Displayed value

0 a

1 b

Group(5 - 8 Channel)

Value Displayed value

0 a

1 b

3 d

Group(9 - 24 Channnel)

Value Displayed value

0 a

1 b

3 d

5 f

6 g

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 82

6. Parameter Value Details

6.3.9. Oscillator

Waveform

Same as 6.2.5.2. OSCILLATOR Waveform in "Other Parameters (MTX3,MTX5-D)"

6.3.10. Paging

Range

Same as 6.2.4.1. PAGING Range in "Other Parameters (MTX3,MTX5-D)"

6.3.11. Speech Privacy

Select Type

Value Displayed value

0 Forest

1 Seashore

2 Street

3 Building

6.3.12. Speaker Processor

HPF/LPF Type

Same as 6.2.6.2. SPEAKER PROCESSOR HPF/LPF Type in "Other Parameters (MTX3,MTX5-D)"

PEQ Q

Same as 6.2.2.1. 3BAND EQ Q in "Other Parameters (MTX3,MTX5-D)"

PEQ B/WQ

Same as 6.2.6.1. 4BAND EQ B/W(Q) in "Other Parameters (MRX7-D)"

PEQ Type

Same as 6.2.6.2. SPEAKER PROCESSOR PEQ Type in "Other Parameters (MTX3,MTX5-D)"

Limiter Release

Same as 6.2.2.2. GATE Decay in "Other Parameters (MTX3,MTX5-D)"

Limiter Attack/Release Mode

Same as 6.2.6.2. SPEAKER PROCESSOR Limiter Attack/Release Mode in "Other Parameters (MTX3,MTX5-D)"

6.3.13. MY4-AEC (MTX5-D only)

6.3.13.1. MY4-AEC FBS

Width

Same as 6.2.8.2. MY4-AEC FBS Width in "Other Parameters (MTX3,MTX5-D)"

Depth

Same as 6.2.8.2. MY4-AEC FBS Depth in "Other Parameters (MTX3,MTX5-D)"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 83

7. Parameter List

7.1. MTX3/MTX5-D

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o o 512 50000 0 0-7

(1-8ch)

0 0 0 INPUT PORT

INTERNAL

Internal

Head Amp

8ch AD

Ch Gain -6 66 dB

o o 1 +48V OFF ON - 0:OFF

1:ON

o o

50001 0 0-2 0 0 0 INPUT

PORT

SETUP

Internal

ST input

3ch AD

Port

Summing

STEREO

SUM - 0:STEREO

1:SUM

* Not saved to

presets

20001 0 0 0-21

(0-7:1-8ch

8-13:STIN1L-3R

14-21:9-16Ch

"DIRECT INPUT

CH")

0 0 INPUT PATCH INPUT

PATCH

InputPatch

30(62)

Input x

22(30)

Output

In Patch NONE YDIF

IN 16

(SLOT

16)

- * See "6.2.1.

INPUT

PATCH" in

"6. Parameter

Values"

o20003 0-7

(1-8ch)

20004 0-21

(0-7:9-16ch

8-13:STIN1L-3R

14-21:17-24Ch

"DIRECT INPUT

CH")

o 20002 0 0-7

(1-8ch)

0 0 0

INPUT

CHANNEL

INPUT

CHANNEL

1-8(16)

GAIN/

HPF

PreInput

Section

In Phase OFF ON - 0:OFF

1:ON

o 20005

o20006 0-7

(9-16ch)

o 20002 0 0-7

(1-8ch)

0 1 0

D.Gain

-96.0 24.0 dB dB x 10

ex. -14.5dB x

10 = -145

o 20005

o20006 0-7

(9-16ch)

o 20002 1 0-7

(1-8ch)

0 0 0 HPF

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

o 20005

o20006 0-7

(9-16ch)

o 20002 1 0-7

(1-8ch)

0 1 0 On OFF ON - 0:OFF

1:ON

o 20005

o20006 0-7

(9-16ch)

o 20004 0 0-7

(1-8ch)

0-2

(0:Band A

1:Band B

2:Band C)

0 0 3BAND

PEQ

8(16)

Channel 3

Band

PEQ Q(*) 63.0 0.1 - * Valid only for

PEQ

* See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o 20007

20008 0-7

(9-16ch)

o20004 0 0-7

(1-8ch)

1 0

Frequency

20.0(*) 20.0k Hz

* (100 : Other

than Band A)

Hz x 1000

ex. 1000Hz x

1000 = 1000000

o20007

o20008 0-7

(9-16ch)

o20004 0 0-7

(1-8ch)

2 0

Gain(*)

-18.0 18.0 dB

* Not adjustable

for HPF/LPF

dB x 10

ex. -14.5dB x 10

= -145

o20007

o20008 0-7

(9-16ch)

o 20004 0 0-7

(1-8ch)

3 0

Bypass

OFF ON - 0:OFF

1:ON

o 20007

o20008 0-7

(9-16ch)

o 20004 0 0-7

(1-8ch)

0, 2

(0:Band A

2:Band C)

4 0 Type PEQ LPF - * See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o 20007

o20008 0-7

(9-16ch)

o 20004 1 0-7

(1-8ch)

0 0 0

Property

PEQOn

OFF ON - 0:ON

1:OFF

o 20007

o20008 0-7

(9-16ch)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 84

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o 512 40002 0 0-7

(1-8ch)

0 0 0

INPUT

CHANNEL

INPUT

CHANNEL

1-8(16)

GATE Gate

8(16)

Channel

Dyn

Threshold

-72 0 dB

o 40000

o40001 0-7

(9-16ch)

o 40002 0 0-7

(1-8ch)

0 1 0 Range -70 0 dB

o 40000

o40001 0-7

(9-16ch)

o 40002 0 0-7

(1-8ch)

0 2 0 Attack 0 120 ms

o 40000

o40001 0-7

(9-16ch)

o 40002 0 0-7

(1-8ch)

0 3 0 Decay 3.2m

42.600

s* See "6.2.2.2.

GATE" in "6.

Parameter

Values"

o 40000

o40001 0-7

(9-16ch)

o 40002 0 0-7

(1-8ch)

0 4 0 Hold 0.02m 1.96 s* See "6.2.2.2.

GATE" in "6.

Parameter

Values"

o 40000

o40001 0-7

(9-16ch)

o 40002 1 0-7

(1-8ch)

0 0 0 ON On OFF ON - 0:OFF

1:ON

o 40000

o40001 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 0 0

COMPRESSOR

Compressor

8(16)

Channel

Dyn

Threshold

-54 0 dB

o 40002

o40003 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 1 0 Ratio 1.0:1 ∞:1 -

* See "6.2.2.3.

COMPRESSOR"

in "6. Parameter

Values"

o 40002

o40003 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 2 0 Knee HARD 5 -

* See "6.2.2.3.

COMPRESSOR"

in "6. Parameter

Values"

o 40002

o40003 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 3 0 Attack 0 120 ms

o 40002

o40003 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 4 0

Release

3.2m

42.600

* See "6.2.2.2.

GATE" / Decay

in "6. Parameter

Values"

o 40002

o40003 0-7

(9-16ch)

o 40000 0 0-7

(1-8ch)

0 5 0 Gain 0.0 18.0 dB dB x 10

ex. 5.2dB x 10

= 52

o 40002

o40003 0-7

(9-16ch)

o 40000 1 0-7

(1-8ch)

0 0 0 ON On OFF ON - 0:OFF

1:ON

o 40002

o40003 0-7

(9-16ch)

o40005 0 0-3

(1-4ch)

0 0 0 FBS

Feedback

Suppressor

4(8)

Channel

Dynamic

Auto

Detect

OFF ON - 0:OFF

1:ON

o40004 0-7

(1-8ch)

40005 0 0-3

(1-4ch)

0 1 0 Clear OFF ON -

Write 1 to start

the clear process.

When the process

nishes, the value

automatically

returns to 0.

40004 0-7

(1-8ch)

o40005 1 0-3

(1-4ch)

0-6

(Freq1-7)

0 0

DynFilter

Frequency

20.0 20.0k Hz read-only

parameter

o40004 0-7

(1-8ch)

o40005 2 0-3

(1-4ch)

0 0 0 Fixed On OFF ON - 0:OFF

1:ON

o40004 0-7

(1-8ch)

o40005 2 0-3

(1-4ch)

0 1 0 Detect OFF ON - 0:OFF

1:ON

o40004 0-7

(1-8ch)

40005 2 0-3

(1-4ch)

0 2 0 Clear OFF ON -

Write 1 to start

the clear process.

When the process

nishes, the value

automatically

returns to 0.

40004 0-7

(1-8ch)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 85

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o512 40005 3 0-3

(1-4ch)

0-6

(Freq1-7)

0 0

INPUT

CHANNEL

INPUT

CHANNEL

1-8(16)

FBS

Feedback

Suppressor

4(8)

Channel

Fixed

Filter

Frequency

20.0 20.0k Hz Readable.

Writing is also

possible.

o40004 0-7

(1-8ch)

o40004 0 0-3

(1-4ch)

0 0 0 AGC AutoGain

Control

4(8)

Channel

Compensator

Response

Time

100m 5.0 s* See "6.2.2.4.

AGC" in "6.

Parameter

Values"

o40005 0-7

(1-8ch)

o40004 0-3

(1-4ch)

1 Level 1 5 -

o40005 0-7

(1-8ch)

o40004 0-3

(1-4ch)

2 Noise

Gate

OFF ON - 0:OFF

1:ON

o40005 0-7

(1-8ch)

o40004 1 0-3

(1-4ch)

0 0 0 On On OFF ON - 0:OFF

1:ON

o40005 0-7

(1-8ch)

60000 0 0-7

(1-8ch)

0 0 0

INPUT

CHANNEL

LEVEL

Fader

8(16)

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

0-15

(1-16ch)

o60001 0 0-7

(1-8ch)

0 0 0 On On OFF ON - 0:OFF

1:ON

o0-15

(1-16ch)

o70000 0 0-7

(1-8ch)

0 0 0 Channel

Name

Channel

Name

8(16)

Channel

ChName

Name Charactor

(UTF-8)

48byte

- Notication

only

o0-15

(1-16ch)

20033 0 0-15

(1-16ch)

0 0 0 Insert Insert

with MY

card 16

Channel

Insert Insert OFF ON -CH * Ins.Out

->SLOT OUT *

CH * Ins.In ->

SLOT In *

o o

30000 0 0-5

(STIN1L-

3R)

0 0 0 STEREO

INPUT

CHANNEL

STIN

1L-3R

GAIN/

HPF

Digital

Gain 6

Channel

D.Gain

-96.0 24.0 dB dB x 10

ex. -14.5dB x

10 = -145

o o

30001 0 0-5

(STIN1L-

3R)

0-2

(0:Band A

1:Band B

2:Band C)

0 0 3BAND

PEQ 6

Channel 3

Band

PEQ Q(*) 63.0 0.1 - * See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o o

0 1 0

Frequency

20.0(*) 20.0k Hz

*(100 : Other

than Band A)

Hz x 1000

ex. 1000Hz x

1000 = 1000000

o o

0 2 0

Gain(*)

-18.0 18.0 dB * Not adjustable

for HPF/LPF

dB x 10

ex. -14.5dB x

10 = -145

o o 0 3 0

Bypass

OFF ON - 0:OFF

1:ON

o o

0 0, 2

(0:Band A

2:Band C)

4 0 Type PEQ LPF - * See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o o 1 0 0 0

Property

PEQOn

OFF ON - 0:ON

1:OFF

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 86

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o 512 40001 0 0-3

(STIN1L-

2R)

0 0 0

INPUT

CHANNEL

STEREO

INPUT

CHANNEL

STIN

1L-3R

COMPRESSOR

Compressor

4 Channel

Dyn

Threshold

-54 0 dB

o 40006

o40001 0 0 1 0 Ratio 1.0:1 ∞:1 -

* See "6.2.2.3.

COMPRESSOR"

in "6. Parameter

Values"

o40006

o40001 0 0 2 0 Knee HARD 5 -

* See "6.2.2.3.

COMPRESSOR"

in "6. Parameter

Values"

o40006

o 40001 0 0 3 0 Attack 0 120 ms

o 40006

o40001 0 0 4 0

Release

3.2m

42.600

* See "6.2.2.2.

GATE" / Decay

in "6. Parameter

Values"

o40006

o40001 0 0 5 0 Gain 0.0 18.0 dB dB x 10

ex. 5.2dB x 10

= 52

o40006

o 40001 1 0 0 0 On On OFF ON - 0:OFF

1:ON

o 40006

o40003 0 0-3

(STIN1L-

2R)

0 0 0 AGC AutoGain

Control

4 Channel

Compensator

Response

Time

100m 5.0 s

* See "6.2.2.4.

AGC" in "6.

Parameter Values"

o40007

o 40003 0 0 1 0 Level 1 5 -

o 40007

o 40003 0 0 2 0

Noise

GateOn

OFF ON - 0:OFF

1:ON

o 40007

o 40003 1 0 0 0 On On OFF ON - 0:OFF

1:ON

o 40007

60000 0 8-13

(ST IN

1L-ST

IN 3R)

0 0 0

INPUT

CHANNEL

LEVEL

Fader 6

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

16-21

(ST1L-

ST3R)

60001 0 8-13

(ST1L-

ST3R)

0 0 0 On On OFF ON - 0:OFF

1:ON

16-21

(ST1L-

ST3R)

o o

70004 0 0-5

(ST1L-

ST3R)

0 0 0 Channel

Name

Channel

Name 3

Channel

ChName

Name Charactor

(UTF-8)

48byte

- Notication

only

60000 0 14-21

(9-16Ch

"DIRECT

INPUT

CH")

0 0 0 DIRECT

INPUT

CHANNEL

CH 9 - 16

(17 - 24)

INPUT

CHANNEL

LEVEL

Fader 8

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

22-29

(17-24Ch

"DIRECT

INPUT

CH")

60001 0 14-21

(9-16Ch

"DIRECT

INPUT

CH")

0 0 0 On On OFF ON - 0:OFF

1:ON

22-29

(17-24Ch

"DIRECT

INPUT

CH")

o70000 0 8-15

(9-16ch)

0 0 0 Channel

Name

Channel

Name 8

Channel

ChName

Name Charactor

(UTF-8)

48byte

- Notication

Only

o70003 0-7

(17-24ch)

0 0 0

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 87

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o512 20008 0 0-3

(Fx.RTN1L

- 2R)

0 0 0

INPUT

CHANNEL

EFFECT

RETURN

1L-2R

EFFECT

RETURN

Fader 4

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

o20014

o 20008 1 On On OFF ON - 0:OFF

1:ON

o 20014

o o

70004 0 6-7

(FxRtn1,

FxRtn2)

0 0 0 Channel

Name

Channel

Name 2

Channel

ChName

Name Charactor

(UTF-8)

48byte

60000 1 0-21

(0-7:1-8ch

8-13:ST1L-ST3R

14-21:9-16Ch

"DIRECT INPUT

CH")

0-7

(A-H)

0 0 INPUT

CHANNEL

DCA

INPUT

CHANNEL

DCA

INPUT

CHANNEL

DCA

Assign

OFF ON - 0:OFF

1:ON

0-29

(0-15:1-16ch

16-21:ST1L-ST3R

22-29:17-24Ch

"DIRECT INPUT

CH")

o o

2 0

Group

Master

Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

60001 1 0-21

(0-7:1-8ch

8-13:ST1L-ST3R

14-21:9-16Ch

"DIRECT INPUT

CH")

0-7

(A-H)

0 0 INPUT

CHANNEL

MUTE

INPUT

CHANNEL

MUTE

DCA Mute DCA

Assign

OFF ON - 0:OFF

1:ON

0-29

(0-15:1-16ch

16-21:ST1L-ST3R

22-29:17-24Ch

"DIRECT INPUT

CH")

o o 2 0

Group

Master

MuteOn

OFF ON - 0:OFF

1:ON

50011 0 0 0-1

(0:a

1:b)

0 0 Dugan

Auto Mixer

Dugan

AUTO

MIXER

Auto Mixer

4 (8)

Channel

Master

Override

OFF ON - 0:OFF

1:ON

0-3

(0:a

1:b

2:c

3:d)

0-1

(0:a

1:b)

1 Mute OFF ON - 0:OFF

1:ON

0-3

(0:a

1:b

2:c

3:d)

o1 0-3

(0-3:CH1-4)

0 0 Ch Mode* Mute Auto -

* See "6.2.2.5.

DUGAN

AUTOMIXER" in

"6. Parameter

Values"

o0-7

(0-7:CH1-8)

o0-3

(0-3:CH1-4)

Weight

-100.0 15.0 dB

* See "6.2.2.5.

DUGAN

AUTOMIXER" in

"6. Parameter

Values"

o0-7

(0-7:CH1-8)

o0-3

(0-3:CH1-4)

Group*

a b -

* See "6.2.2.5.

DUGAN

AUTOMIXER" in

"6. Parameter

Values"

o0-7

(0-7:CH1-8)

o0-3

(0-3:CH1-4)

Override

OFF ON - 0:OFF

1:ON

o0-7

(0-7:CH1-8)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 88

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o512 20006 0 0-1

(Effect1-2)

0 1 0 EFFECT EFFECT Effect Effect Type

Reverb

Hall

Vocal

Echo

* See "6.2.3.

EFFECT" in "6.

Parameter Values"

o20013

o20006 1 0

Simple

Effect

RevHall

Time

0.3 10.0 s

* See "6.2.3.

EFFECT" in "6.

Parameter Values"

o20013

o20006 1

RevStage

Time

0.3 10.0 s

* See "6.2.3.

EFFECT" in "6.

Parameter Values"

o20013

o20006 2

Karaoke

Time

0.4 400 ms

* See "6.2.3.

EFFECT" in "6.

Parameter Values"

o20013

o20006 3 Vocal

Time

0.4 400 ms

* See "6.2.3.

EFFECT" in "6.

Parameter Values"

o20013

30002 1 0-25

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16

22-25:FxRt1L-2R)

0-7

(MATRIX1-8

SEND)

0 0 MATRIX MATRIX

SEND

MATRIX

(ZONE

OUT

MONO)

26(34)

Input x

8(16)

Output

Ch Level -∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

When Input

channels are

set as Stereo,

Send to Matrix

parameters for

Stereo Input

channels are

linked.

1 0-33

(0-15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24

30-33:FxRt1L-2R)

0-15

(MATRIX1-16

SEND)

0 0

1 0-25

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16

22-25:FxRt1L-2R)

0-7

(MATRIX1-8

SEND)

1 0 On OFF ON - 0:OFF

1:ON

When Input

channels are

set as Stereo,

Send to Matrix

parameters for

Stereo Input

channels are

linked.

1 0-33

(0-15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24

30-33:FxRt1L-2R)

0-15

(MATRIX1-16

SEND)

1 0

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 89

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 30002 1 0-25

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16

22-25:FxRt1L-2R)

0-7

(MATRIX1-8

SEND)

0 0 MATRIX MATRIX

SEND

MATRIX

(ZONE

OUT

STEREO)

26(34)

Input x

8(16)

Output

Ch Level -∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

When Input

channels are

set as Mono,

Send to

Stereo Matrix

parameters

for Mono Input

channels (i.e.

two parameters

in total) are

linked.

When Input

channels are

set as Stereo,

Send to

Stereo Matrix

parameters for

Stereo Input

channels (i.e.

four parameters

in total) are

linked.

1 0-33

(0-15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24

30-33:FxRt1L-2R)

0-15

(MATRIX1-16

SEND)

0 0

1 0-25

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16

22-25:FxRt1L-2R)

0-7

(MATRIX1-8

SEND)

1 0 On OFF ON - 0:OFF

1:ON

When Input

channels are

set as Mono,

Send to

Stereo Matrix

parameters

for Mono Input

channels (i.e.

two parameters

in total) are

linked.

When Input

channels are

set as Stereo,

Send to

Stereo Matrix

parameters for

Stereo Input

channels (i.e.

four parameters

in total) are

linked.

1 0-33

(0-15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24

30-33:FxRt1L-2R)

0-15

(MATRIX1-16

SEND)

1 0

1 0-25

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16

22-25:FxRt1L-2R)

0-7

(MATRIX1-8

SEND)

2 0 Pan L63 R63 - -63 :L63

0:C

63:R63

e.g. L31 = -31

Valid only for

odd channels

and available

only when

destination

Matrix channels

are paired.

1 0-33

(0-15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24

30-33:FxRt1L-2R)

0-15

(MATRIX1-16

SEND)

2 0

20010 0 0-21

(0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16)

0-3

(0:FX 1 SEND

1:FX 2 SEND

2:ANC 1 SEND

3:ANC 2 SEND)

0 0 FX/ANC

SEND

Matrix

Mixer

22(30)

Input 4

Output

Ch Level -∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20017 0 0-29

(0- 15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24)

20010 0 0-21

( 0- 7:CH1-8

8-13:STIN1L-3R

14-21:CH9-16 )

1 0 On OFF ON - 0:OFF

1:ON

20017 0 0-29

(0- 15:CH1-16

16-21:STIN1L-3R

22-29:CH17-24)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 90

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 50013 0 0 0-4

(0:1st MIC

1:MIC 2

2:MIC 3

3:MIC 4

4:SD)

0 0 ZONE ZONE

OUT

1-8(16)

PAGING Router 48

Input 6

Output

In Patch None ANC

BUS 2

- * See "6.2.4.1.

PAGING" in

"6. Parameter

Values"

o 50012 0 0 0 0 0 PAGING

16ch

On On OFF ON -

2 0 0 0 Gain Range -∞ 0.0 dB * See "6.2.4.1.

PAGING" in

"6. Parameter

Values"

1 Attack 0.0 10.0 ss x 10

ex. 5.3s x 10

= 53

Release

0.0 10.0 ss x 10

ex. 5.3s x 10

= 53

90-15

(ZONE1-16)

0-23

(ZONE

GROUP1-24)

0 Zone

Group

ZoneOn

OFF ON -

20011 0 0 0-7

(0:ZONE1

2nd

PRIORITY

SOURCE

7:ZONE8

2nd

PRIORITY

SOURCE)

0 0

2nd

PRIORITY

SOURCE

In Patch None ANC

BUS 2

* See "6.2.4.2.

1st/2nd

PRIORITY" in

"6. Parameter

Values"

20018

o 20012 0 0-7

(ZONE1-8)

0 0 0 PRIORITY

DUCKER

Dyn

Threshold

-54 0 dB

o 20019

o 20012 1 Range -70 0 dB

o 20019

o 20012 2 Attack 0 240 ms

o 20019

o20012 3

Release

3.2m

42.600

s* See "6.2.2.2.

GATE" /

Decay in "6.

Parameter

Values"

o20019

o20012 4 Hold 0.02m 1.96 s* See "6.2.2.2.

GATE" in "6.

Parameter

Values"

o20019

20012 1 0

Source

Level -∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20019

o 20012 1 On OFF ON - 0:OFF

1:ON

o 20019

20011 0 0 8-15

(8:ZONE1

1st

PRIORITY

SOURCE

15:ZONE8

1st

PRIORITY

SOURCE)

0 0

1st

PRIORITY

SOURCE

In Patch None ANC

BUS 2

- * See "6.2.4.2.

1st/2nd

PRIORITY" in

"6. Parameter

Values"

20018

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 91

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o 512 20013 0 0-7

(ZONE1-8)

0 0 0 ZONE ZONE

OUT

1-8(16)

1st

PRIORITY

DUCKER

Dyn

Threshold

-54 0 dB

o 20020

o 20013 1 Range -70 0 dB

o 20020

o 20013 2 Attack 0 240 ms

o 20020

o20013 3

Release

3.2m

42.600

s* See "6.2.2.2.

GATE" /

Decay in "6.

Parameter

Values"

o20020

o20013 4 Hold 0.02m 1.96 s* See "6.2.2.2.

GATE" in "6.

Parameter

Values"

o20020

20013 1 0

Source

Level -∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20020

o 20013 1 On OFF ON - 0:OFF

1:ON

o 20020

20011 0 0 16-23

(16:ZONE1

ANC

AMBIENT

SOURCE

23:ZONE8

ANC

AMBIENT

SOURCE)

0 0 ANC ANC

SOURCE

In Patch None ANC

BUS 2

- * See "6.2.4.2.

1st/2nd

PRIORITY" in

"6. Parameter

Values"

20018

20014 0 0-7

(ZONE1-8)

0 0 0

Ambient

Noise

Compensator

8 Channel

Ambient

Threshold

-∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20021

20014 1 0 Gap

Threshold

-∞ 0.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20021

o20014 1 Time 0.1 5.0 ssec x 10

ex. 3.8sec x 10

= 38

o20021

o20014 2 0

Program

Max

Gain

0.0 18.0 dB dB x 10

ex. 5.2dB x 10

= 52

o20021

o20014 1 Min

Gain

-18.0 0.0 dB dB x 10

ex. -14.5dB x

10 = -145

o20021

o20014 2 Ratio 0.5:1 2.0:1 - * See "6.2.4.3.

ANC" in "6.

Parameter

Values"

o20021

o 20014 3

Response

Time

1 60 s

o 20021

o 20014 3 0 On On OFF ON - 0:OFF

1:ON

o 20021

60002 0 0-7

(ZONE1-8)

0 0 0

MATRIX

OUTPUT

MASTER

Fader

8(16)

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

0-15

(ZONE1-16)

o60003 0 0-7

(ZONE1-8)

0 0 0 On On OFF ON - 0:OFF

1:ON

o0-15

(ZONE1-16)

o o 70001 0 0-7

(ZONE1-8)

0 0 0 Channel

Name

Channel

Name

8(16)

Channel

ChName

Name Charactor

(UTF-8)

48byte

- Notication

Only

o70005 0-7

(ZONE9-16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 92

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o512 60002 1 0-7

(ZONE1-8)

0-7

(A-H)

0 0 ZONE ZONE

DCA/

MUTE

1-8(16)

ZONE

OUT

DCA

Fader

8(16)

Channel

DCA

Assign

OFF ON - 0:OFF

1:ON

o0-15

(ZONE1-16)

o o

2 0 0-7

(A-H)

Group

Master

Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

o60003 1 0-7

(ZONE1-8)

0-7

(A-H)

0 0 ZONE

OUT

MUTE

DCA Mute

8(16)

Channel

DCA

Assign

OFF ON - 0:OFF

1:ON

o0-15

(ZONE1-16)

o o 2 0 0-7

(A-H)

Group

Master

MuteOn

OFF ON - 0:OFF

1:ON

o20016 1 0 0-7

(OUT1-8)

0 0 ROUTER

ROUTOR

Bus Out

Router

24(32)

Input x

8(16)

Output

In Patch NONE YDIF

OUT

- * See "6.2.5.1.

ROUTER" in

"6. Parameter

Values"

o20023 0-15

(OUT1-16)

o20016 1 0 0-7

(OUT1-8)

OSCILLATOR

OSC

Patch

On OFF ON - 0:OFF

1:ON

o20023 0-15

(OUT1-16)

o o

50002 0 0

0 0

OSCILLATOR

Oscillator

Mono

Oscillator

Level -∞ 0 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

o o 1 On OFF ON - 0:OFF

1:ON

o o

Vari

Frequency

20.0(*) 20.0k Hz

1000

ex. 1000Hz

1000 = 1000000

o o

Wave

form(*)

* See "6.2.5.2.

OSCILLATOR"

in "6. Parameter

Values"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 93

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 20017 0 0-7

(OUT1-8)

0 0 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

OUTPUT

CHANNEL

LEVEL

Fader

8(16)

Channel

Fader Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

20024 0-15

(OUT1-16)

o20017 1 0-7

(OUT1-8)

On On OFF ON - 0:OFF

1:ON

o20024 0-15

(OUT1-16)

o o 70002 0 0-7

(OUT1-8)

0 0 0 Channel

Name

Channel

Name

8(16)

Channel

ChName

Name Charactor

(UTF-8)

48byte

- Notication

Only

o70006 0-7

(OUT9-16)

o20018 0 0-7

(OUT1-8)

0 0 0 DELAY Delay

8(16)

Channel

Delay On OFF ON - 0:OFF

1:ON

o20025 0-15

(OUT1-16)

o20018 0 0-7

(OUT1-8)

1 Delay

Time

0.00

1000.00

ms ms x 100

ex. 102.80ms x

100 = 10280

o20025 0-15

(OUT1-16)

o20019 0 0-7

(OUT1-8)

0-3

(0:Band A

1:Band B

2:Band C

3:Band D)

0 0 4BAND

PEQ

8(16)

Channel 4

Band

PEQ Q(*) 63.0 0.1 - * See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o20026 0-15

(OUT1-16)

o20019 0 0-7

(OUT1-8)

1 0

Frequency

20.0(*) 20.0k Hz

*(100 : Other

than Band A)

Hz x 1000

ex. 1000Hz x

1000 = 1000000

o20026 0-15

(OUT1-16)

o20019 0 0-7

(OUT1-8)

2 0

Gain(*)

-18.0 18.0 dB * Not adjustable

for HPF/LPF

dB x 10

ex. -14.5dB x

10 = -145

o20026 0-15

(OUT1-16)

o20019 0 0-7

(OUT1-8)

3 0

Bypass

OFF ON - 0:OFF

1:ON

o20026 0-15

(OUT1-16)

o20019 0 0-7

(OUT1-8)

0, 3

(0:Band A

3:Band D)

4 0 Type PEQ LPF - * See "6.2.2.1.

3BAND EQ" in

"6. Parameter

Values"

o20026 0-15

(OUT1-16)

o20019 1 0-7

(OUT1-8)

0 0 0

Property

PEQOn

OFF ON - 0:ON

1:OFF

o20026 0-15

(OUT1-16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

1 0 0 0 0

SPEAKER

PROCESSOR

Speaker

Processor

1 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Delay On OFF ON - 0:OFF

1:ON

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

1 0 0 1 0 Delay

Time

0.00

500.00

ms ms x 100

ex. 102.80ms x

100 = 10280

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 94

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 2 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

1 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Band

LPF

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 3 0

HPF

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 4 0

LPFType

Thru

48dB/

Oct

Linkwitz

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 5 0

HPFType

Thru

48dB/

Oct

Linkwitz

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 6 0

LPFGc(*)

-6 6 dB *Valid only for

AdjustGc

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 7 0

HPFGc(*)

-6 6 dB *Valid only for

AdjustGc

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

2 0 0 8 0

Polarity

NORMAL

INVERTED

- 0:NORMAL

1:INVERTED

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 95

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

4 0 0-5

(0:Band A

1:Band B

2:Band C

3:Band D

4:Band E

5:Band F)

0 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

1 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

PEQ Q(*) 63.0 0.1 - * See "6.2.2.1.

3BAND EQ" in

"7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

4 0 1 0

Frequency

20.0(*) 20.0k Hz

*(For 500 : HORN EQ

100 : Other than

Band A)

Hz x 1000

ex. 1000Hz x 1000 =

1000000

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

4 0 2 0

Gain(*)

-18.0 18.0 dB * Not

adjustable for

HPF/LPF/APF

1st/APF 2nd

dB x 10

ex. -14.5dB x

10 = -145

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

4 0 3 0

Bypass

OFF ON - 0:OFF

1:ON

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

4 0 4 0 Type PEQ Horn

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 0 0 Limiter

Threshold

-54 0 dB

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 1 0 Attack 0.0 120.0 ms ms x 10

ex. 24.5ms x

10 = 245

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 2 0

Release

3.2m

42.600

* See "6.2.2.2.

GATE" / Decay

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 96

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 3 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

1 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Limiter On OFF ON - 0:OFF

1:ON

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 4 0 Attack

Mode

Fast

Manual

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

5 0 0 5 0

Release

Mode

Fast

Manual

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

6 0 0 0 0 Out Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

6 0 0 1 0 Mute

UNMUTED

MUTED

- 0:UNMUTED

1:MUTED

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

40006-40013

(40006:OUT1

40007:OUT2

: :

40013:OUT8)

6 0 0 2 0

PEQOn

OFF ON - 0:ON

1:OFF

40008-40023

(40008:OUT1

40009:OUT2

: :

40023:OUT16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 97

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

1 0-1

(0:LOW

1:HIGH)

0 0 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

2 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Delay On OFF ON - 0:ON

1:OFF

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

1 0 1 0 Delay 0.00

500.00

ms ms x 100

ex. 102.80ms x

100 = 10280

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0

(0:LOW)

0 2 0 Band

LPF

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0-1

(0:LOW

1:HIGH)

0 3 0

HPF

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0

(0:LOW)

0 4 0

LPFType

Thru

48dB/

Oct

Linkwitz

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0-1

(0:LOW

1:HIGH)

0 5 0

HPFType

Thru

48dB/

Oct

Linkwitz

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0

(0:LOW)

0 6 0

LPFGc(*)

-6 6 dB *Valid only for

AdjustGc

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0-1

(0:LOW

1:HIGH)

0 7 0

HPFGc(*)

-6 6 dB *Valid only for

AdjustGc

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 98

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

2 0-1

(0:LOW

1:HIGH)

0 8 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

2 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Band

Polarity

NORMAL

INVERTED

- 0:NORMAL

1:INVERTED

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

3 0 0 0 0 Center

Frequency

20.0 20.0k Hz Hz x 1000

ex. 1000Hz

x 1000 =

1000000

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

4 0-1

(0:LOW

1:HIGH)

0-5

(0:Band A

1:Band B

2:Band C

3:Band D

4:Band E

5:Band F)

0 0 PEQ Q(*) 63.0 0.1 - * See "6.2.2.1.

3BAND EQ" in

"7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

4 1 0

Frequency

20.0(*) 20.0k Hz

*(For 500 : HORN EQ

100 : Other than

Band A)

Hz x 1000

ex. 1000Hz x 1000 =

1000000

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

4 2 0

Gain(*)

-18.0 18.0 dB *Not adjustable

for HPF/LPF/

APF 1st/APF

2nd

dB x 10

ex. -14.5dB x

10 = -145

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

4 3 0

Bypass

OFF ON - 0:ON

1:OFF

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

4 4 0 Type PEQ Horn

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 99

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0-1

(0:LOW

1:HIGH)

0 0 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

2 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Limiter

Threshold

-54 0 dB

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0 1 0 Attack 0.0 120.0 ms ms x 10

ex. 24.5ms x

10 = 245

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0 2 0

Release

3.2m

42.600

* See "6.2.2.2.

GATE" / Decay

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0 3 0 On OFF ON - 0:ON

1:OFF

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0 4 0 Attack

Mode

Fast

Manual

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

5 0 5 0

Release

Mode

Fast

Manual

* See "6.2.6.2.

SPEAKER

PROCESSOR"

in "7. Parameter

Values"

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 100

7. Parameter List

Model Access ID

Category Parameter Name MIN MAX unit Remarks

MTX3

MTX5-D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

6 0-1

(0:LOW

1:HIGH)

0 0 0

OUTPUT

CHANNEL

OUTPUT

CH STRIP

1-8(16)

(1way/2way)

SPEAKER

PROCESSOR

Speaker

Processor

2 Way

*Speaker

Processor

type (1 Way

or 2 Way) is

congurable

through

MTX Editor

software.

Out Level -∞ 10.00 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

6 0 1 0 Mute

UNMUTED

MUTED

- 0:UNMUTED

1:MUTED

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

40014-40017

(40014:OUT1

40015:OUT3

: :

40017:OUT7)

6 0 2 0

PEQOn

OFF ON - 0:ON

1:OFF

40024-40031

(40024:OUT1

40025:OUT3

: :

40031:OUT15)

o20021 0 0 0-7

(OUT1-8)

0 0 OUTPUT PORT

OUTPUT

PATCH

OutputPatch

8(16) Input

x 8(40)

Output

In Patch NONE

OUTPUT

CH8

(SLOT

OUT 16)

* See "6.2.7.1.

OUTPUT PATCH"

in "6. Parameter

Values"

o20028 0-15

(OUT1-16)

o20022 0 0 0-15

(1-16ch)

0 0 YDIF

OUT

PATCH

Router

46(70)

Input x 16

Output

In Patch NONE

OUTPUT

CH8

(OUTPUT

CH16)

* See "6.2.7.2.

YDIF PATCH"

in "6. Parameter

Values"

o20029

o20023 0 0-7

(OUTPUT1-8)

0 0 0

OUTPUT

PORT

OutputPort

8(40)

Channel

Out

Polarity

NORMAL

INVERTED

- 0:NORMAL

1:INVERTED

20030 0-39

(0- 7:OUTPUT1-8

8-23:DANTE1-16

24-39:SLOT1-16)

o20023 0-7

(OUTPUT1-8)

1 Gain -96.0 24.0 dB dB x 10

ex. -14.5dB x

10 = -145

20030 0-39

(0- 7:OUTPUT1-8

8-23:DANTE1-16

24-39:SLOT1-16)

o o

50010 0 0 0 0 0 I/O PILOT

TONE

PilotTone

16(48)ch

Oscillator

Level -∞ 0.0 dB dB x 100

ex.-73.60dB x

100 = -7360

"setr" command

is available for

this parameter

o o 1 On OFF ON - 0:OFF

1:ON

1 0-15

(YDIF OUT

1-16)

ChSum

On OFF ON - 0:OFF

1:ON

0-31

(0-15:YDIF

OUT 1-16

16-32:Dante

OUT 1-16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 101

7. Parameter List

7.2. MRX7-D

Parameter Name MIN MAX unit Remarks

ANALOG IN Ch Gain -6 66 dB

+48V OFF ON - 0:OFF

1:ON

ANALOG OUT Ch Polarity NORMAL INVERTED - 0:NORMAL

1:INVERTED

Gain -96.0 24.0 dB dB x 10

e.g. -14.5dB x 10 = -145

SLOT OUT Ch Polarity NORMAL INVERTED - 0:NORMAL

1:INVERTED

Gain -96.0 24.0 dB dB x 10

e.g. -14.5dB x 10 = -145

DANTE OUT Ch Polarity NORMAL INVERTED - 0:NORMAL

1:INVERTED

Gain -96.0 24.0 dB dB x 10

e.g. -14.5dB x 10 = -145

Acoustic Echo Canceller AEC ON OFF ON - 0:OFF

1:ON

NR ON OFF ON - 0:OFF

1:ON

Threshold -72 -25 dB

Ambient Noise Compensator Ambient Threshold -∞ 0.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

Gap Threshold -∞ 0.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

Time 0.1 5.0 ssec x 10

e.g. 3.8sec x 10 = 38

Program MaxGain 0.0 18.0 dB dB x 10

e.g. 5.2dB x 10 = 52

MinGain -18.0 0.0 dB dB x 10

e.g. -14.5dB x 10 = -145

Ratio* 0.5:1 2.0:1 - * See "6.2.4.3. ANC" in "6. Parameter Values"

ResponseTime 1 60 s

On ON OFF ON - 0:OFF

1:ON

Auto Gain Control Compensator

ResponseTime*

100m 5.0 s* See "6.2.2.4. AGC" in "6. Parameter Values"

Level 1 5 -

NoiseGateOn OFF ON - 0:OFF

1:ON

On ON OFF ON - 0:OFF

1:ON

Combiner Room Combiner BGM Source* BGM1 BGM4 - * See "6.3.3.1. Room Combiner" in "6.

Parameter Values"

ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Paging ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

RoomIn ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

RoomOut ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Combine ON OFF ON - 0:OFF

1:ON

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 102

7. Parameter List

Parameter Name MIN MAX unit Remarks

Combiner Room Combiner plus

Automixer

Master Override OFF ON - 0:OFF

1:ON

Mute OFF ON - 0:OFF

1:ON

MicsIn ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

BGM Source* BGM1 BGM4 - * See "6.3.3.1. Room Combine" in "6.

Parameter Values"

ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Paging ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

RoomIn ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

RoomOut ON OFF ON - 0:OFF

1:ON

Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Combine ON OFF ON - 0:OFF

1:ON

MicCh Mode* Mute Auto - * See "6.2.2.5. DUGAN AUTOMIXER" in "6.

Parameter Values"

Weight -100.0 15.0 - * See "6.2.2.5. DUGAN AUTOMIXER" in "6.

Parameter Values"

Override OFF ON - 0:OFF

1:ON

Master Override OFF ON - 0:OFF

1:ON

Mute OFF ON - 0:OFF

1:ON

Delay Delay 50mSec ON OFF ON - 0:OFF

1:ON

DelayTime 0.00 50.00 ms ms x 100

e.g. 22.00ms x 100 = 2200

Delay

250mSec

ON OFF ON - 0:OFF

1:ON

DelayTime 0.00 250.00 ms ms x 100

e.g. 102.80ms x 100 = 10280

Delay

500mSec

ON OFF ON - 0:OFF

1:ON

DelayTime 0.00 500.00 ms ms x 100

e.g. 102.80ms x 100 = 10280

Delay

1000mSec

ON OFF ON - 0:OFF

1:ON

DelayTime 0.00 1000.00 ms ms x 100

e.g. 102.80ms x 100 = 10280

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 103

7. Parameter List

Parameter Name MIN MAX unit Remarks

Dynamics Compressor Dyn Threshold -54 0dB

Ratio* 1.0:1 ∞:1 -* See "6.2.2.3. COMPRESSOR" in "6.

Parameter Values"

Knee* HARD 5 - * See "6.2.2.3. COMPRESSOR" in "6.

Parameter Values"

Attack 0 120 ms

Release* 3m 42.7 s* See "6.2.2.2. GATE" / Decay in "6.

Parameter Values"

Gain 0.0 18.0 dB dB x 10

e.g. 5.2dB x 10 = 52

KeyIn KeyIn* SELF KEYIN -* See "6.3.4.1. Compressor" in "6. Parameter

Values"

On ON OFF ON -0:OFF

1:ON

Ducking Dyn Threshold -54 0dB

Range -70 0 -

Attack 0 240 -

Release* 3m 42.7 s* See "6.2.2.2. GATE" / Decay in "6.

Parameter Values"

Hold* 0.02m 1.96 s* See "6.2.2.2. GATE" in "6. Parameter

Values"

KeyIn KeyIn* SELF KEYIN -* See "6.3.4.1. Compressor" in "6. Parameter

Values"

On ON OFF ON -0:OFF

1:ON

Gate Dyn Threshold -72 0 dB

Range -70 0 -

Attack 0 120 -

Decay* 3m 42.7 s* See "6.2.2.2. GATE" in "6. Parameter

Values"

Hold* 0.02m 1.96 s* See "6.2.2.2. GATE" in "6. Parameter

Values"

KeyIn KeyIn* SELF KEYIN -* See "6.3.4.1. Compressor" in "6. Parameter

Values"

On ON OFF ON -0:OFF

1:ON

Limiter Dyn Threshold -54 0dB

Attack 0.0 120.0 ms ms x 10

e.g. 24.5ms x 10 = 245

Release* 3m 42.7 s* See "6.2.2.2. GATE" / Decay in "6.

Parameter Values"

KeyIn KeyIn* SELF KEYIN -* See "6.3.4.1. Compressor" in "6. Parameter

Values"

On ON OFF ON -0:OFF

1:ON

Paging Ducker Dyn Range* -∞ 0.0 dB * See "6.2.4.1. PAGING" in "6. Parameter

Values"

Attack 0.0 10.0 ss x 10

e.g. 5.3s x 10 = 53

Release 0.0 10.0 ss x 10

e.g. 5.3s x 10 = 53

Hold 0.0 10.0 ss x 10

e.g. 5.3s x 10 = 53

Trigger OFF ON -0:OFF

1:ON

On On OFF ON -0:OFF

1:ON

Status Range

Indicator

OFF ON -0:OFF

1:ON

Effect Effect Type* Revaerb Hall Vocal Echo -* See "6.2.3. EFFECT" in "6. Parameter

Values"

On OFF ON -0:OFF

1:ON

SimpleEffect RevHallTime* 0.3 10.0 s* See "6.2.3. EFFECT" in "6. Parameter

Values"

RevStageTime* 0.3 10.0 s* See "6.2.3. EFFECT" in "6. Parameter

Values"

KaraokeTime* 0.4 1000.0 ms * See "6.3.5. Effect" in "6. Parameter Values"

VocalTime* 0.4 1000.0 ms * See "6.3.5. Effect" in "6. Parameter Values"

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 104

7. Parameter List

Parameter Name MIN MAX unit Remarks

EQ GEQ Property Limit ±15 -24 dB 0:±15

1:±12

2:±6

3:-24

GEQOn OFF ON - 0:OFF

1:ON

HPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

Bypass OFF ON - 0:OFF

1:ON

LPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

Bypass OFF ON - 0:OFF

1:ON

Notch Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

Bypass OFF ON - 0:OFF

1:ON

Q* 63.0 0.1 - * See "6.3.6.1. GEQ" in "6. Parameter Values"

GEQ Gain -24.0 15.0 dB Value range varies with Limit

Bypass OFF ON - 0:OFF

1:ON

PEQ PEQ Q* 63.0 0.1 - * Available when PEQ type chosen

* See "6.2.2.1. 3BAND EQ" in "6. Parameter

Values"

Frequency 20.0* 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

*100 : Other than Band A / B

Gain* -18.0 18.0 dB * Not available when HPF/LPF type chosen

Bypass OFF ON - 0:OFF

1:ON

Type PEQ LPF - * See "6.2.2.1. 3BAND EQ" in "6. Parameter

Values"

Property PEQOn OFF ON - 0:OFF

1:ON

Fader Fader Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

ON OFF ON - 0:OFF

1:ON

Polarity OFF ON - 0:OFF

1:ON

Feedback

Suppressor

Notch FBS Dynamic AutoDetect OFF ON - 0:OFF

1:ON

FixedOn ON OFF ON - 0:OFF

1:ON

Pitch Shift FBS Suppressor Mode Speech Music -

Suppression 0 9-

On On OFF ON - 0:OFF

1:ON

Filter LPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

FilterType(*) Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

Gc* -6 6 dB *Available only when lter type is AdjustGc

ON OFF ON - 0:OFF

1:ON

HPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

FilterType* Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

Gc* -6 6 dB *Available only when lter type is AdjustGc

ON OFF ON - 0:OFF

1:ON

BPF LPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

FilterType* Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

Gc* -6 6 dB *Available only when lter type is AdjustGc

Bypass OFF ON - 0:OFF

1:ON

HPF Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

FilterType* Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

Gc* -6 6 dB *Available only when lter type is AdjustGc

Bypass OFF ON - 0:OFF

1:ON

On ON OFF ON - 0:OFF

1:ON

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 105

7. Parameter List

Parameter Name MIN MAX unit Remarks

Mixer Dugan Automixer Master Override OFF ON - 0:OFF

1:ON

Mute OFF ON - 0:OFF

1:ON

Ch Mode* Mute Auto - * See "6.2.2.5. DUGAN AUTOMIXER" in "6.

Parameter Values"

Weight* -100.0 15.0 dB * See "6.2.2.5. DUGAN AUTOMIXER" in "6.

Parameter Values"

Group* a

b (2 - 4 Channel)

d (5 - 8 Channel)

h (9 - 16 Channel)

- * See "6.3.8.1. Dugan Automixer" in "6.

Parameter Values"

Override OFF ON - 0:OFF

1:ON

Delay Matrix Ch Level -∞ 0.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

On OFF ON - 0:OFF

1:ON

DelayTime 0.00 250.00

500.00

ms ms x 100

e.g. 102.80ms x 100 = 10280

ms x 100

e.g. 102.80ms x 100 = 10280

Matrix Mixer Ch Level -∞ 0.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

ON OFF ON - 0:OFF

1:ON

Oscillator Mono Oscillator Level -∞ 0.0 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

ON OFF ON - 0:OFF

1:ON

VariFrequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

Waveform* SINE 100Hz VARI - * See "6.2.5.2. OSCILLATOR" in "6.

Parameter Values"

Paging On On OFF ON -

Gain Range -∞ 0.0 dB * See "19. Paging Ducker" in "6. Parameter

Values"

Attack 0.0 10.0 ss x 10

ex. 5.3s x 10 = 53

Release 0.0 10.0 ss x 10

ex. 5.3s x 10 = 53

ZoneGroup ZoneOn OFF ON -

Polarity Polarity NORMAL INVERTED - 0:NORMAL

1:INVERTED

Revolabs control Ch ON OFF ON - 0:OFF

1:ON

Router in Patch NONE 2(2 Input)

4(4 Input)

8(8 Input)

16(16 Input)

24(24 Input)

32(32 Input)

64(64 Input)

Source Selector Position Position 1 4(4 position)

8(8 position)

16(16 position)

Speech Privacy Source SelectType* Forest Building - * See "6.3.11. Speech Privacy" in "6.

Parameter Values"

ON OFF ON - 0:OFF

1:ON

Level -∞ 0.0 dB dB x 100

ex. -73.60dB x 100 = -7360

"setr" command is available for this parameter

MixRatio 10 70 -

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 106

7. Parameter List

Parameter Name MIN MAX unit Remarks

Speaker Processor In Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Delay ON OFF ON - 0:OFF

1:ON

Delay 0.00 500.00 ms ms x 100

e.g. 102.80ms x 100 = 10280

Band LPFFrequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

HPFFrequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

LPFType Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

HPFType Thru 48dB/Oct

Linkwitz

- * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

LPFGc* -6 6 dB *Available only when lter type is AdjustGc

HPFGc* -6 6 dB *Available only when lter type is AdjustGc

Polarity NORMAL INVERTED - 0:NORMAL

1:INVERTED

Center Frequency 20.0 20.0k Hz Hz x 1000

e.g. 1000Hz x 1000 = 1000000

PEQ Q* 63.0 0.1 - * Available only when PEQ is APF 2nd

* See "6.2.2.1. 3BAND EQ" in "6. Parameter

Values"

Frequency 20.0* 20.0k Hz *500 : When HORN EQ is chosen

100 : Other than Band A / B

Hz x 1000

e.g. 1000Hz x 1000 = 1000000

Gain* -18.0 18.0 dB * Not available for HPF/LPF/APF or PEQ is

APF 2nd

dB x 10

e.g. -14.5dB x 10 = -145

Bypass OFF ON - 0:OFF

1:ON

Type PEQ Horn EQ - * See "6.2.6.2. SPEAKER PROCESSOR" in

"6. Parameter Values"

Limiter Threshold -54 0 dB

Attack 0.0 120.0 ms ms x 10

e.g. 24.5ms x 10 = 245

Release 3m 42.7 s* See "6.2.2.2. GATE" / Decay in "6.

Parameter Values"

ON OFF ON - 0:OFF

1:ON

AttackMode Fast Manual -

ReleaseMode Fast Manual -

Out Level -∞ 10.00 dB dB x 100

e.g. -73.60dB x 100 = -7360

"setr" command is available for this parameter

Mute UNMUTED MUTED - 0:UNMUTED

1:MUTED

PEQOn ON* OFF* - *0:ON

1:OFF

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 107

7. Parameter List

7.3. XMV Series

Model Access ID

Parameter Name MIN MAX unit Remarks

4ch 8ch

4ch D 8ch D

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

o o 512 1 4 0 to 3 0 0 0

Signal

Processing

ATT *2 -99 0 dB Synchronized

with DigitalATT

o o 0 to 7

o o 0 to 3 0 1 0 Digital

ATT *2

-99 0 dB Synchronized

with ATT

o o 0 to 7

o o 0 to 3 0 2 0 Mute OFF ON - 0:OFF

1:ON

o o 0 to 7

o o 0 to 3 0 3 0 Polarity Normal Inverse - 0:Normal

1:Inverse

o o 0 to 7

o o o o 6 0 0 0 0 Power Standby Standby ON - 0:ON

1:Standby

o o o o

7 0 0 0 0 Utility

InputSelect

*1 *3

Analog Multiple - Switching input

source of all

channel.

0:Analog

1:Digital

2.Multiple

o o o o 10 0 0 0 0

DigitalInput

Sensitivity

Type

0dB +17dB - 0: -20dBFS

1: -3dBFS

o o 11 0 to 3 0 0 0 ChUtility

Input

Select *3

Analog Digital - Switching input

source of by

channel.

0:Analog

1:Digital

o o 0 to 7 0 0 0

o o

2 0 0 to 3 0 0 0 Channel

Name

Channel

Name 4

Channel

ChName

Name Character (UTF-8)

48byte

- Notication only

o o

0 to 7 0 0 0 Channel

Name 8

Channel

*1 : Note

The XMV’s input sensitivity is -3dBFS (rated output at -3dBFS) when connected via digital (YDIF or Dante) and +4dBu (rated output

at +4dBu) when connected via analog.

Please set an appropriate level before switching input.

*2 : The ATT and DigitalATT parameters are always synchronized internally within an XMV amplier.

Controlling either one will provide the same result.

*3 : When "Utility/InputSelect" is changed to "Analog (or Digital)", "ChUtility/InputSelect" for all channels will be forcibly changed to

Analog (or Digital).

When "ChUtility/InputSelect" for all channels are set as "Analog (or Digital)" and a channel is changed to “Digital (or Analog)”,

"Utility/InputSelect" will be forcibly changed to "Multiple".

< XMV Block Diagram > e.g. XMV4280/XMV4140/XMV4280-D/XMV4140-D

Dante

Dante model only

PRIMARY

Out

ATT

INPUT

REDUNDANCY

YDIF

YDIF model only

DIGITAL INPUT

SENSITIVITY

Dante

Redundancy

INPUT

SOURCE

SELECT

CH A, B, C, D

(E, F, G, H for XMV8xxx)

-3dBFS

-20dBFS

SECONDARY

ATT

DigitalATT

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 108

7. Parameter List

7.4. EXi8

Access ID

Parameter Name MIN MAX unit Remarks

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 1 3 0 to 7 0 0 0

Signal

Processing

GAIN -6 66 dB

1 +48V OFF ON - 0:OFF

1:ON

2 Phase OFF ON - 0:OFF

1:ON

3 On OFF ON - 0:OFF

1:ON

4 HPFOn OFF ON - 0:OFF

1:ON

HPFFrequency

20 20000 Hz Hz x 1000

ex. 1000Hz x

1000000

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 109

7. Parameter List

7.5. EXo8

Access ID

Parameter Name MIN MAX unit Remarks

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 1 3 0 to 7 0 0 0

Signal

Processing

Polarity Normal Inverse - 0:Normal

1:Inverse

1 On OFF ON - 0:OFF

1:ON

2 Gain -96 24 dB dB x 10

ex. -14.5dB x

10 = -145

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 110

7. Parameter List

7.6. MY4-AEC

7.6.1. MTX3, MTX5-D

Access ID

Parameter Name MIN MAX unit Remarks

MemNo

(Memory

Number)

UniqueId

ElmNo

(Element

Number)

Xpos

(X Position)

Ypos

(Y Position)

PrmNo

(Parameter

Number)

IndexNo

(Index

Number)

512 20034 0 0 1 0 0 MY4-

AEC

INPUT

PATCH

MY4AEC

InputPatch

NearEndMic

Patch NONE OUTPUT

CH16

- * See "12.

MY4-AEC

Input Patch" in

"6. Parameter

Values"

1 0 1 1

FromFarEnd

NONE OUTPUT

CH16

- * See "12.

MY4-AEC

Input Patch" in

"6. Parameter

Values"

90000 0 0-3

(AEC1-4)

0 0 0 MY4-

AEC

Acoustic

Echo

Canceller 4

Channel

AEC On OFF ON - 0:OFF

1:ON

1 Effect 1 4 -

2 PttOn OFF ON - 0:OFF

1:ON

PttThreshold

-80 -20 dB

4 MicType Fixed Moving - 0:Fixed

1:Moving

5 Distance 2 40 meter

1 0-3

(AEC1-4)

0 0 FBS On OFF ON - 0:OFF

1:ON

1 Width 1/10 1/93 oct * See "6.2.8.2.

MY4-AEC FBS"

in "6. Parameter

Values"

2 Depth -6 -18 dB * See "6.2.8.2.

MY4-AEC FBS"

in "6. Parameter

Values"

2 0-3

(AEC1-4)

0 0 MicNR On OFF ON - 0:OFF

1:ON

3 0 0-3

(0:Far-end A

1:Far-end B

2:Far-end C

3:Far-end D)

0 FarEndNR On OFF ON - 0:OFF

1:ON

4 0-3

(AEC1-4)

0-3

(0:Far-end A

1:Far-end B

2:Far-end C

3:Far-end D)

0 Reference On OFF ON - 0:OFF

1:ON

7.6.2. MRX7-D

Parameter Name MIN MAX unit Remarks

AEC AEC On OFF ON -

Effect 1 4 -

PttOn OFF ON -

PttThreshold -80 -20 dB

MicType Fixed Moving - 0:Fixed

1:Moving

Distance 2 40 meter

FBS On OFF ON -

Width 1/10 1/93 oct * See "6.2.8.2. MY4-AEC FBS" in "6.

Parameter Values"

Depth -6 -18 dB * See "6.2.8.2. MY4-AEC FBS" in "6.

Parameter Values"

MicNR On OFF ON -

FarEndNR On OFF ON -

Reference

(FarEndMix)

On OFF ON -

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 111

8. Meter List

8.1. MTX3/MTX5-D

Model Access ID

Category Meter Name Type (*) Remarks

MTX3 MTX5-D

MemNo

(Memory

Number)

UniqueId

o o 512 20000 INPUT PORT INPUT(ANALOG) Meter 12 Channel

(INPUT1-8, STIN1L-STIN2R)

level * Type is for "1-7)

Parameter change

notication" command

option2.

o 20024 INPUT(YDIF) Meter 16 Channel

(YDIF IN 1-16)

level

o 20001

o20002 INPUT(SLOT) Meter 16 Channel

(SLOT IN 1-16)

level

o20003 INPUT CHANNEL EQ OUT Meter 22 Channel

(CH1-8, STIN1L-STIN3R, CH9-16)

level

o20009 Meter 8 Channel

(CH1-8)

level

o20010 Meter 22 Channel

(CH9-16, STIN1L-STIN3R, CH17-24)

level

o40002 GATE Gate 8 Channel

(CH1-8)

o40000 Gate 8 Channel

(CH1-8)

o40001 Gate 8 Channel

(CH9-16)

o40000 COMP Compressor 8 Channel

(CH1-8)

o40001 Compressor 4 Channel

(STIN1L-STIN2R)

o40002 Compressor 8 Channel

(CH1-8)

o40003 Compressor 8 Channel

(CH9-16)

o40006 Compressor 4 Channel

(STIN1L-STIN2R)

50011 Dugan AUTO MIXER Auto Mixer 4 Channel

(CH1-4)

level

(See the

spread sheet

"Dugan

Automixer 2

- 4 Channel"

in MRX7-D

Meter List)

Auto Mixer 8 Channel

(CH1-8)

level

(See the

spread sheet

"Dugan

Automixer 5

- 8 Channel"

in MRX7-D

Meter List)

o20005 POST ON Meter 22 Channel

(CH1-8, STIN1L-STIN3R, CH9-16)

level

o20011 Meter 8 Channel

(CH1-8)

level

o20012 Meter 22 Channel

(CH9-16, STIN1L-STIN3R, CH17-24)

level

o20009 EFFECT RETURN Meter 4 Channel

(Fx RTN1 L-Fx RTN2 R)

level

o20015 Meter 4 Channel

(Fx RTN1 L-Fx RTN2 R)

level

o20012 ZONE 2nd PRIORITY PRIORITY

DUCKER

Ducking 8 Channel

(ZONE1-8)

o20019 Ducking 8 Channel

(ZONE1-8)

o20013 1st PRIORITY PRIORITY

DUCKER

Ducking 8 Channel

(ZONE1-8)

o20020 Ducking 8 Channel

(ZONE1-8)

20014 ANC AMBIENT SOURCE Ambient Noise Compensator 8

Channel

ZONE 1-8(AMBIENT SOURCE)

level

20021 Ambient Noise Compensator 8

Channel

ZONE 1-8(AMBIENT SOURCE)

level

o20015 ZONE OUT Meter 8 Channel

ZONE 1-8

level

o20022 Meter 16 Channel

ZONE 1-16

level

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 112

8. Meter List

Model Access ID

Category Meter Name Type (*) Remarks

MTX3 MTX5-D

MemNo

(Memory

Number)

UniqueId

o512 40006 OUTPUT CHANNEL OUTPUT CHANNEL(1way)

SPEAKER PROCESSOR

LIMITER

Speaker Processor 1 Way

(OUTPUT CH1)

gr * Type is for "1-7)

Parameter change

notication" command

option2.

o40007 Speaker Processor 1 Way

(OUTPUT CH2)

o40008 Speaker Processor 1 Way

(OUTPUT CH3)

o40009 Speaker Processor 1 Way

(OUTPUT CH4)

o40010 Speaker Processor 1 Way

(OUTPUT CH5)

o40011 Speaker Processor 1 Way

(OUTPUT CH6)

o40012 Speaker Processor 1 Way

(OUTPUT CH7)

o40013 Speaker Processor 1 Way

(OUTPUT CH8)

o40008 Speaker Processor 1 Way

(OUTPUT CH1)

o40009 Speaker Processor 1 Way

(OUTPUT CH2)

o40010 Speaker Processor 1 Way

(OUTPUT CH3)

o40011 Speaker Processor 1 Way

(OUTPUT CH4)

o40012 Speaker Processor 1 Way

(OUTPUT CH5)

o40013 Speaker Processor 1 Way

(OUTPUT CH6)

o40014 Speaker Processor 1 Way

(OUTPUT CH7)

o40015 Speaker Processor 1 Way

(OUTPUT CH8)

o40016 Speaker Processor 1 Way

(OUTPUT CH9)

o40017 Speaker Processor 1 Way

(OUTPUT CH10)

o40018 Speaker Processor 1 Way

(OUTPUT CH11)

o40019 Speaker Processor 1 Way

(OUTPUT CH12)

o40020 Speaker Processor 1 Way

(OUTPUT CH13)

o40021 Speaker Processor 1 Way

(OUTPUT CH14)

o40022 Speaker Processor 1 Way

(OUTPUT CH15)

o40023 Speaker Processor 1 Way

(OUTPUT CH16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 113

8. Meter List

Model Access ID

Category Meter Name Type (*) Remarks

MTX3 MTX5-D

MemNo

(Memory

Number)

UniqueId

o512 40006 OUTPUT CHANNEL OUTPUT CHANNEL(2way)

SPEAKER PROCESSOR

LIMITER

Speaker Processor 2 Way

(OUTPUT CH1 (Low))

gr * Type is for "1-7)

Parameter change

notication" command

option2.

o40007 Speaker Processor 2 Way

(OUTPUT CH1 (High))

o40008 Speaker Processor 2 Way

(OUTPUT CH3 (Low))

o40009 Speaker Processor 2 Way

(OUTPUT CH3 (High))

o40010 Speaker Processor 2 Way

(OUTPUT CH5 (Low))

o40011 Speaker Processor 2 Way

(OUTPUT CH5 (High))

o40012 Speaker Processor 2 Way

(OUTPUT CH7 (Low))

o40013 Speaker Processor 2 Way

(OUTPUT CH7 (High))

o40008 Speaker Processor 2 Way

(OUTPUT CH1 (Low))

o40009 Speaker Processor 2 Way

(OUTPUT CH1 (High))

o40010 Speaker Processor 2 Way

(OUTPUT CH3 (Low))

o40011 Speaker Processor 2 Way

(OUTPUT CH3 (High))

o40012 Speaker Processor 2 Way

(OUTPUT CH5 (Low))

o40013 Speaker Processor 2 Way

(OUTPUT CH5 (High))

o40014 Speaker Processor 2 Way

(OUTPUT CH7 (Low))

o40015 Speaker Processor 2 Way

(OUTPUT CH7 (High))

o40016 Speaker Processor 2 Way

(OUTPUT CH9 (Low))

o40017 Speaker Processor 2 Way

(OUTPUT CH9 (High))

o40018 Speaker Processor 2 Way

(OUTPUT CH11 (Low))

o40019 Speaker Processor 2 Way

(OUTPUT CH11 (High))

o40020 Speaker Processor 2 Way

(OUTPUT CH13 (Low))

o40021 Speaker Processor 2 Way

(OUTPUT CH13 (High))

o40022 Speaker Processor 2 Way

(OUTPUT CH15 (Low))

o40023 Speaker Processor 2 Way

(OUTPUT CH15 (High))

o20020 OUTPUT CHANNEL Meter 8 Channel

(OUTPUT CH1-8)

level

o20027 Meter 16 Channel

(OUTPUT CH1-16)

level

o20025 OUTPUT PORT OUTPUT (ANALOG) Meter 8 Channel

(OUTPUT CH1-8)

level

o20031 Meter 8 Channel

(OUTPUT CH1-8)

level

o20032 OUTPUT (SLOT) Meter 16 Channel

(SLOT OUT 1-16)

level

90000 MY4-AEC MY4-AEC

(Mic In. 1-4

Ref In. 1-4

Echo Attn. 1-4

ERL 1-4

PTT Thesh. 1-4)

level

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 114

8. Meter List

8.2. MRX7-D

Category Meter Name Type Remarks

- ANALOG IN 8 Channel

(INPUT1-8)

level

- ANALOG OUT 8 Channel

(OUTPUT1-8)

level

- YDIF IN 16 Channel

(YDIF IN 1-16)

level

- SLOT IN 16 Channel

(SLOT IN 1-16)

level

- SLOT OUT 16 Channel

(SLOT OUT 1-16)

level

- STEREO IN 4 Channel

(INPUT 1L-INPUT 2R)

level

- MY4-AEC 16 Channel

(MicIn.1-4

RefIn.1-4

EchoAttn.1-4

ERL.1-4)

level

- Ambient Noise Compensator Mono

(AMBIENT SOURCE, OUTPUT)

level

Stereo

(AMBIENT SOURCE, OUTPUT L, OUTPUT R)

- Auto Gain Control Mono

(INPUT,OUTPUT)

level

Stereo

(INPUT L-OUTPUT R)

- Dynamics Compressor / Ducking / Gate /

Limiter

Mono

(OUTPUT)

level

Stereo

(OUTPUT L, OUTPUT R)

Mono

(GR)

Stereo

(GR L, GR R)

Paging Ducker Mono

(OUTPUT)

level

Stereo

(OUTPUT L, OUTPUT R)

- EQ GEQ Mono

(INPUT,OUTPUT)

level

Stereo

(INPUT L-OUTPUT R)

- Fader 1 Channel

(CH1)

level

2 Channel

(CH1-2)

4 Channel

(CH1-4)

8 Channel

(CH1-8)

16 Channel

(CH1-16)

32 Channel

(CH1-32)

- Meter 1 Channel

(CH1)

level

2 Channel

(CH1-2)

4 Channel

(CH1-4)

8 Channel

(CH1-8)

16 Channel

(CH1-16)

32 Channel

(CH1-32)

- Delay Matrix 4 OUT

(OUTPUT1-4)

level

8 OUT

(OUTPUT1-8)

16 OUT

(OUTPUT1-16)

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 115

8. Meter List

Category Meter Name Type Remarks

- Matrix Mixer 2 OUT

(OUTPUT1-2)

level

4 OUT

(OUTPUT1-4)

8 OUT

(OUTPUT1-8)

16 OUT

(OUTPUT1-16)

24 OUT

(OUTPUT1-24)

32 OUT

(OUTPUT1-32)

40 OUT

(OUTPUT1-40)

48 OUT

(OUTPUT1-48)

56 OUT

(OUTPUT1-56)

64 OUT

(OUTPUT1-64)

- Oscillator Meter 1 Channel

(OUTPUT)

level

- Speaker Processor 1 Way

(INPUT

LIMITER OUT

OUTPUT)

level

2 Way

(INPUT

LIMITER OUT(HIGH)

LIMITER OUT(LOW)

OUTPUT(HIGH)

OUTPUT(LOW))

3 Way

(INPUT

LIMITER OUT(HIGH)

LIMITER OUT(MID)

LIMITER OUT(LOW)

OUTPUT(HIGH)

OUTPUT(MID)

OUTPUT(LOW))

4 Way

(INPUT

LIMITER OUT(HIGH)

LIMITER OUT(HIGH-MID)

LIMITER OUT(LOW-MID)

LIMITER OUT(LOW)

OUTPUT(HIGH)

OUTPUT(HIGH-MID)

OUTPUT(LOW-MID)

OUTPUT(LOW))

1 Way

(LIMITER GR)

2 Way

(LIMITER GR(HIGH)

LIMITER GR(LOW))

3 Way

(LIMITER GR(HIGH)

LIMITER GR(MID)

LIMITER GR(LOW))

4 Way

(LIMITER GR(HIGH)

LIMITER GR(HIGH-MID)

LIMITER GR(LOW-MID)

LIMITER GR(LOW))

- Room Combiner plus Auto Mixer

( Mic 1 - 16 Channel )

*1 *1

- Room Combiner plus Auto Mixer

( Mic 17 - 24 Channel )

*2 *2

- Dugan Automixer 2 - 4 Channel *3 *3

- Dugan Automixer 5 - 8 Channel *4 *4

- Dugan Automixer 9 - 16 Channel *5 *5

- Dugan Automixer 17 - 24 Channel *6 *6

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 116

8. Meter List

*1 Room Combiner plus Auto Mixer

No. Mic Input Channel Type

1 2 3 ·· 15 16

1 Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

·· Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 - Level (*)

(Ch02)

Level (*)

(Ch02)

·· Level (*)

(Ch02)

Level (*)

(Ch02)

3 - - Level (*)

(Ch03)

·· Level (*)

(Ch03)

Level (*)

(Ch03)

: : : : ·· : :

15 - - - ·· Level (*)

(Ch15)

Level (*)

(Ch15)

16 - - - ·· - Level (*)

(Ch16)

17 AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

·· AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

18 - AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

·· AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

19 - - AutoMixGain

(Ch03)

·· AutoMixGain

(Ch03)

AutoMixGain

(Ch03)

: : : : ·· : :

31 - - - ·· AutoMixGain

(Ch15)

AutoMixGain

(Ch15)

32 - - - ·· - AutoMixGain

(Ch16)

33 Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

·· Input

(Ch01)

Input

(Ch01)

34 - Input

(Ch02)

Input

(Ch02)

·· Input

(Ch02)

Input

(Ch02)

35 - - Input

(Ch03)

·· Input

(Ch03)

Input

(Ch03)

: : : : ·· : :

47 - - - ·· Input

(Ch15)

Input

(Ch15)

48 - - - ·· - Input

(Ch16)

49 Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

·· Output

(Ch01)

Output

(Ch01)

50 - Output

(Ch02)

Output

(Ch02)

·· Output

(Ch02)

Output

(Ch02)

51 - - Output

(Ch03)

·· Output

(Ch03)

Output

(Ch03)

: : : : ·· : :

63 - - - ·· Output

(Ch15)

Output

(Ch15)

64 - - - ·· - Output

(Ch16)

- : 00 (unused data)

* : Input level which applied Weight parameter

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 117

8. Meter List

*2 Room Combiner plus Auto Mixer

No. Mic Input Channel Type

17 18 19 ·· 23 24

1 Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

·· Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

·· Level (*)

(Ch02)

Level (*)

(Ch02)

: : : : ·· : :

17 Level (*)

(Ch17)

Level (*)

(Ch17)

Level (*)

(Ch17)

·· Level (*)

(Ch17)

Level (*)

(Ch17)

18 - Level (*)

(Ch18)

Level (*)

(Ch18)

·· Level (*)

(Ch18)

Level (*)

(Ch18)

19 - - Level (*)

(Ch19)

·· Level (*)

(Ch19)

Level (*)

(Ch19)

: : : : ·· : :

23 - - - ·· Level (*)

(Ch23)

Level (*)

(Ch23)

24 - - - ·· - Level (*)

(Ch24)

25 AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

·· AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

26 AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

·· AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

: : : : ·· : :

41 AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

·· AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

42 - AutoMIxGain

(Ch18)

AutoMIxGain

(Ch18)

·· AutoMIxGain

(Ch18)

AutoMIxGain

(Ch18)

43 - - AutoMIxGain

(Ch19)

·· AutoMIxGain

(Ch19)

AutoMIxGain

(Ch19)

: : : : ·· : :

47 - - - ·· AutoMIxGain

(Ch23)

AutoMIxGain

(Ch23)

48 - - - ·· - AutoMIxGain

(Ch24)

49 Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

·· Input

(Ch01)

Input

(Ch01)

50 Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

·· Input

(Ch02)

Input

(Ch02)

: : : : ·· : :

65 Input

(Ch17)

Input

(Ch17)

Input

(Ch17)

·· Input

(Ch17)

Input

(Ch17)

66 - Input

(Ch18)

Input

(Ch18)

·· Input

(Ch18)

Input

(Ch18)

67 - - Input

(Ch19)

·· Input

(Ch19)

Input

(Ch19)

: : : : ·· : :

71 - - - ·· Input

(Ch23)

Input

(Ch23)

72 - - - ·· - Input

(Ch24)

73 Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

·· Output

(Ch01)

Output

(Ch01)

74 Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

·· Output

(Ch02)

Output

(Ch02)

: : : : ·· : :

89 Output

(Ch17)

Output

(Ch17)

Output

(Ch17)

·· Output

(Ch17)

Output

(Ch17)

90 - Output

(Ch08)

Output

(Ch08)

·· Output

(Ch08)

Output

(Ch08)

91 - - Output

(Ch19)

·· Output

(Ch19)

Output

(Ch19)

: : : : ·· : :

95 - - - ·· Output

(Ch23)

Output

(Ch23)

96 - - - ·· - Output

(Ch24)

- : 00 (unused data)

* : Input level which applied Weight parameter

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 118

8. Meter List

*3 Dugan Automixer 2 - 4 Channel

No. Channel Type

234

1 Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

3 - Level (*)

(Ch03)

Level (*)

(Ch03)

4 - - Level (*)

(Ch04)

5 AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

6 AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

7 - AutoMixGain

(Ch03)

AutoMixGain

(Ch03)

8 - - AutoMixGain

(Ch04)

9Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

10 Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

11 - Input

(Ch03)

Input

(Ch03)

12 - - Input

(Ch04)

13 Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

14 Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

15 - Output

(Ch03)

Output

(Ch03)

16 - - Output

(Ch04)

- : 00 (unused data)

* : Input level which applied Weight parameter

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 119

8. Meter List

*4 Dugan Automixer 5 - 8 Channel

No. Channel Type

5 6 7 8

1 Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

:::::

5 -Level (*)

(Ch05)

Level (*)

(Ch05)

Level (*)

(Ch05)

Level (*)

(Ch05)

6 - Level (*)

(Ch06)

Level (*)

(Ch06)

Level (*)

(Ch06)

7 - - Level (*)

(Ch07)

Level (*)

(Ch07)

8 - - - Level (*)

(Ch08)

9AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

10 AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

:::::

13 AutoMixGain

(Ch05)

AutoMixGain

(Ch05)

AutoMixGain

(Ch05)

AutoMixGain

(Ch05)

14 - AutoMixGain

(Ch06)

AutoMixGain

(Ch06)

AutoMixGain

(Ch06)

15 - - AutoMixGain

(Ch07)

AutoMixGain

(Ch07)

16 - - - AutoMixGain

(Ch08)

17 Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

18 Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

:::::

21 Input

(Ch05)

Input

(Ch05)

Input

(Ch05)

Input

(Ch05)

22 - Input

(Ch06)

Input

(Ch06)

Input

(Ch06)

23 - - Input

(Ch07)

Input

(Ch07)

24 - - - Input

(Ch08)

25 Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

26 Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

:::::

27 Output

(Ch05)

Output

(Ch05)

Output

(Ch05)

Output

(Ch05)

31 - Output

(Ch06)

Output

(Ch06)

Output

(Ch06)

31 - - Output

(Ch07)

Output

(Ch07)

32 - - - Output

(Ch08)

- : 00 (unused data)

* : Input level which applied Weight parameter

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 120

8. Meter List

*5 Dugan Automixer 9 - 16 Channel

No. Mic Input Channel Type

910 ·· 13 14 15 16

1 Level (*)

(Ch01)

Level (*)

(Ch01)

·· Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 Level (*)

(Ch02)

Level (*)

(Ch02)

·· Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

: : : ·· : : : :

9Level (*)

(Ch09)

Level (*)

(Ch09)

·· Level (*)

(Ch09)

Level (*)

(Ch09)

Level (*)

(Ch09)

Level (*)

(Ch09)

10 - Level (*)

(Ch10)

·· Level (*)

(Ch10)

Level (*)

(Ch10)

Level (*)

(Ch10)

Level (*)

(Ch10)

: : : ·· : : : :

13 - - ·· Level (*)

(Ch13)

Level (*)

(Ch13)

Level (*)

(Ch13)

Level (*)

(Ch13)

14 - - ·· - Level (*)

(Ch14)

Level (*)

(Ch14)

Level (*)

(Ch14)

15 - - ·· - - Level (*)

(Ch15)

Level (*)

(Ch15)

16 - - ·· - - - Level (*)

(Ch16)

17 AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

·· AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

AutoMixGain

(Ch01)

18 AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

·· AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

AutoMixGain

(Ch02)

: : : ·· : : : :

25 AutoMixGain

(Ch09)

AutoMixGain

(Ch09)

·· AutoMixGain

(Ch09)

AutoMixGain

(Ch09)

AutoMixGain

(Ch09)

AutoMixGain

(Ch09)

26 - AutoMixGain

(Ch10)

·· AutoMixGain

(Ch10)

AutoMixGain

(Ch10)

AutoMixGain

(Ch10)

AutoMixGain

(Ch10)

: : : ·· : : : :

29 - - ·· AutoMixGain

(Ch13)

AutoMixGain

(Ch13)

AutoMixGain

(Ch13)

AutoMixGain

(Ch13)

30 - - ·· - AutoMixGain

(Ch14)

AutoMixGain

(Ch14)

AutoMixGain

(Ch14)

31 - - ·· - - AutoMixGain

(Ch15)

AutoMixGain

(Ch15)

32 - - ·· - - - AutoMixGain

(Ch16)

33 Input

(Ch01)

Input

(Ch01)

·· Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

34 Input

(Ch02)

Input

(Ch02)

·· Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

: : : ·· : : : :

41 Input

(Ch09)

Input

(Ch09)

·· Input

(Ch09)

Input

(Ch09)

Input

(Ch09)

Input

(Ch09)

42 - Input

(Ch10)

·· Input

(Ch10)

Input

(Ch10)

Input

(Ch10)

Input

(Ch10)

: : : ·· : : : :

45 - - ·· Input

(Ch13)

Input

(Ch13)

Input

(Ch13)

Input

(Ch13)

46 - - ·· - Input

(Ch14)

Input

(Ch14)

Input

(Ch14)

47 - - ·· - - Input

(Ch15)

Input

(Ch15)

48 - - ·· - - - Input

(Ch16)

49 Output

(Ch01)

Output

(Ch01)

·· Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

50 Output

(Ch02)

Output

(Ch02)

·· Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

: : : ·· : : : :

57 Output

(Ch09)

Output

(Ch09)

·· Output

(Ch09)

Output

(Ch09)

Output

(Ch09)

Output

(Ch09)

58 - Output

(Ch10)

·· Output

(Ch10)

Output

(Ch10)

Output

(Ch10)

Output

(Ch10)

: : : ·· : : : :

62 - - ·· Output

(Ch13)

Output

(Ch13)

Output

(Ch13)

Output

(Ch13)

63 - - ·· - Output

(Ch14)

Output

(Ch14)

Output

(Ch14)

63 - - ·· - - Output

(Ch15)

Output

(Ch15)

64 - - ·· - - - Output

(Ch16)

- : 00 (unused data)

* : Input level with Weight parameter applied

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 121

8. Meter List

*6 Dugan Automixer 17 - 24 Channel

No. Channel Type

17 18 ·· 21 22 23 24

1 Level (*)

(Ch01)

Level (*)

(Ch01)

·· Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

Level (*)

(Ch01)

level

2 Level (*)

(Ch02)

Level (*)

(Ch02)

·· Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

Level (*)

(Ch02)

: : : ·· : : : :

17 Level (*)

(Ch17)

Level (*)

(Ch17)

·· Level (*)

(Ch17)

Level (*)

(Ch17)

Level (*)

(Ch17)

Level (*)

(Ch17)

18 - Level (*)

(Ch18)

·· Level (*)

(Ch18)

Level (*)

(Ch18)

Level (*)

(Ch18)

Level (*)

(Ch18)

: : : ·· : : : :

21 - - ·· Level (*)

(Ch21)

Level (*)

(Ch21)

Level (*)

(Ch21)

Level (*)

(Ch21)

22 - - ·· - Level (*)

(Ch22)

Level (*)

(Ch22)

Level (*)

(Ch22)

23 - - ·· - - Level (*)

(Ch23)

Level (*)

(Ch23)

24 - - ·· - - - Level (*)

(Ch24)

25 AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

·· AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

AutoMIxGain

(Ch01)

26 AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

·· AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

AutoMIxGain

(Ch02)

: : : ·· : : : :

41 AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

·· AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

AutoMIxGain

(Ch17)

42 - AutoMIxGain

(Ch18)

·· AutoMIxGain

(Ch18)

AutoMIxGain

(Ch18)

AutoMIxGain

(Ch18)

AutoMIxGain

(Ch18)

: : : ·· : : : :

45 - - ·· AutoMIxGain

(Ch21)

AutoMIxGain

(Ch21)

AutoMIxGain

(Ch21)

AutoMIxGain

(Ch21)

46 - - ·· - AutoMIxGain

(Ch22)

AutoMIxGain

(Ch22)

AutoMIxGain

(Ch22)

47 - - ·· - - AutoMIxGain

(Ch23)

AutoMIxGain

(Ch23)

48 - - ·· - - - AutoMIxGain

(Ch24)

49 Input

(Ch01)

Input

(Ch01)

·· Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

Input

(Ch01)

50 Input

(Ch02)

Input

(Ch02)

·· Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

Input

(Ch02)

: : : ·· : : : :

65 Input

(Ch17)

Input

(Ch17)

·· Input

(Ch17)

Input

(Ch17)

Input

(Ch17)

Input

(Ch17)

66 - Input

(Ch18)

·· Input

(Ch18)

Input

(Ch18)

Input

(Ch18)

Input

(Ch18)

: : : ·· : : : :

69 - - ·· Input

(Ch21)

Input

(Ch21)

Input

(Ch21)

Input

(Ch21)

70 - - ·· - Input

(Ch22)

Input

(Ch22)

Input

(Ch22)

71 - - ·· - - Input

(Ch23)

Input

(Ch23)

72 - - ·· - - - Input

(Ch24)

73 Output

(Ch01)

Output

(Ch01)

·· Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

Output

(Ch01)

74 Output

(Ch02)

Output

(Ch02)

·· Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

Output

(Ch02)

: : : ·· : : : :

89 Output

(Ch17)

Output

(Ch17)

·· Output

(Ch17)

Output

(Ch17)

Output

(Ch17)

Output

(Ch17)

90 - Output

(Ch18)

·· Output

(Ch18)

Output

(Ch18)

Output

(Ch18)

Output

(Ch18)

: : : ·· : : : :

93 - - ·· Output

(Ch21)

Output

(Ch21)

Output

(Ch21)

Output

(Ch21)

94 - - ·· - Output

(Ch22)

Output

(Ch22)

Output

(Ch22)

95 - - ·· - - Output

(Ch23)

Output

(Ch23)

96 - - ·· - - - Output

(Ch24)

- : 00 (unused data)

* : Input level with Weight parameter applied

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 122

8. Meter List

8.3. XMV Series

Model Access ID

Category Meter Name Type Remarks

4ch 8ch 4ch D 8ch D

MemNo

(Memory

Number)

UniqueId

o o

512 20000 - INPUT Meter 4 Channel

(ANALOG INPUT A-D,

DIGITAL INPUT A-D)

level See 6. Parameter

Value Details.

o o

Meter 8 Channel

(ANALOG INPUT A-H,

DIGITAL INPUT A-H)

level

o o 20001 - OUTPUT Meter 4 Channel

(OUTPUT A-D)

level

o o Meter 8 Channel

(OUTPUT A-H)

level

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 123

8. Meter List

8.4. EXi8

Access ID

Category Meter Name Type Remarks

MemNo

(Memory Number) UniqueId

512 20000 - INPUT Meter 8 Channel

(INPUT1-8)

level See Parameter Value Details.

MTX3/MTX5-D/MRX7-D/XMV Series/EXi8/EXo8 Remote Control Protocol Specications V3.1.0 rev10 124

8. Meter List

8.5. EXo8

Access ID

Category Meter Name Type Remarks

MemNo

(Memory Number) UniqueId

512 20001 - OUTPUT Meter 8 Channel

(OUTPUT1-8)

level See Parameter Value Details.

Yamaha 170602_mtx_mrx_xmv_ex_rcps_v310_rev10_en MTX3, MTX5 D, MRX7 XMV Series, EXi8, EXo8 Remote Control Protocol Specifications V3.1.0 Mtx Mrx Ex Spec V310 En

Navigation menu

Versions of this User Manual:

Views

Navigation
