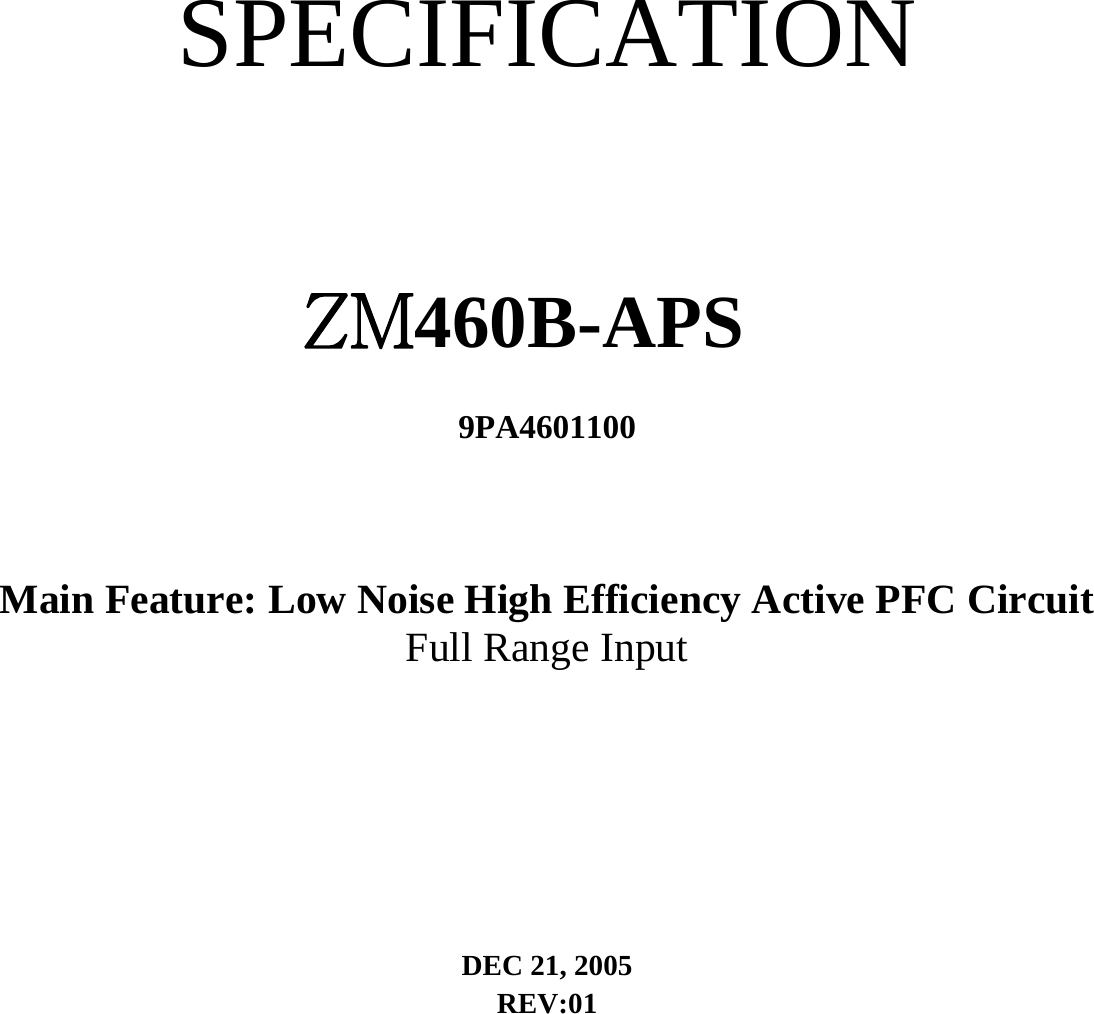

SPECIFICATION ZM460B-APS 9PA4601100 Main Feature: Low Noise High Efficiency Active PFC Circuit Full Range Input DEC 21, 2005 REV:01

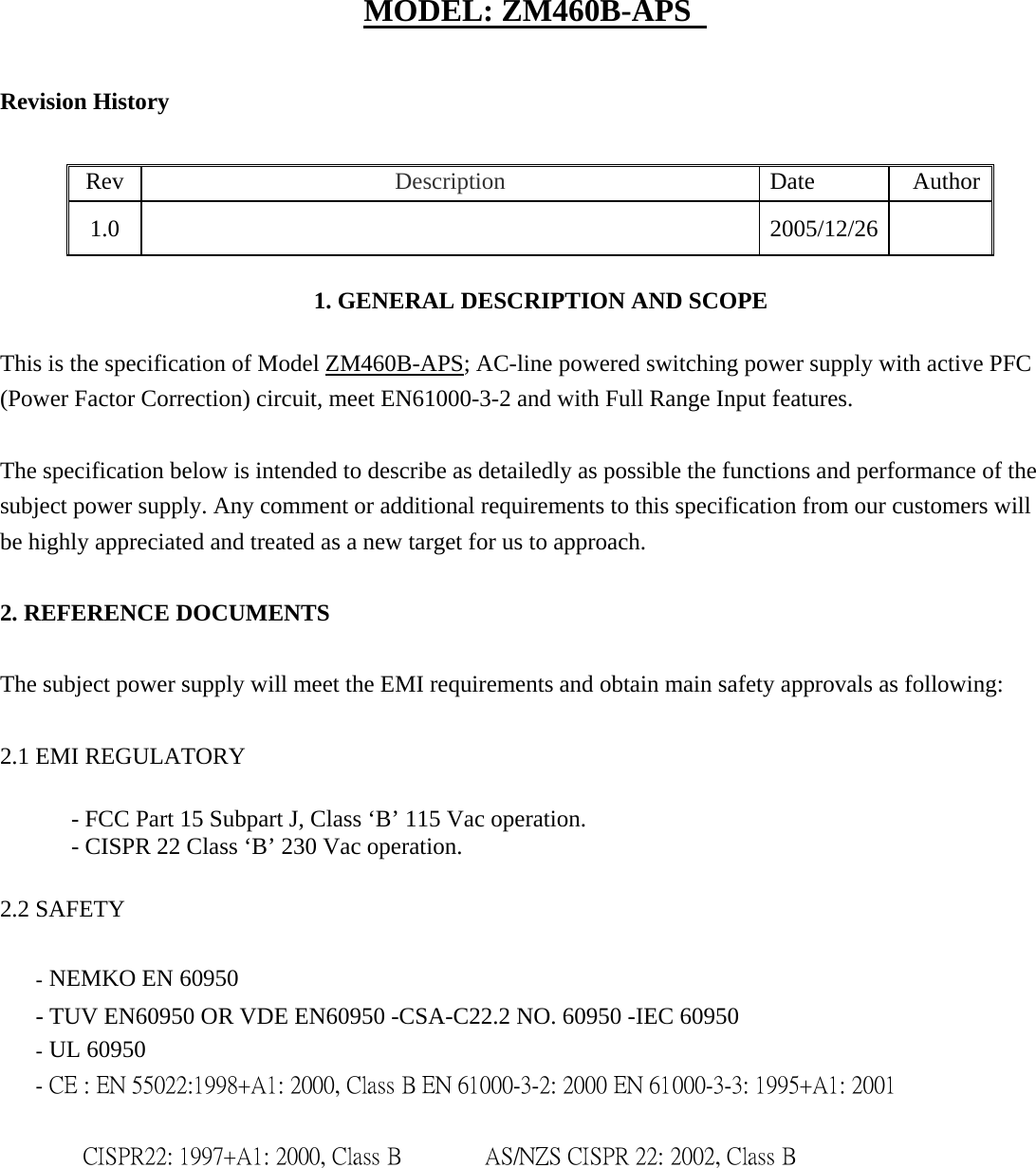

MODEL: ZM460B-APS Revision History Rev Description Date Author 1.0 2005/12/26 1. GENERAL DESCRIPTION AND SCOPE This is the specification of Model ZM460B-APS; AC-line powered switching power supply with active PFC (Power Factor Correction) circuit, meet EN61000-3-2 and with Full Range Input features. The specification below is intended to describe as detailedly as possible the functions and performance of the subject power supply. Any comment or additional requirements to this specification from our customers will be highly appreciated and treated as a new target for us to approach. 2. REFERENCE DOCUMENTS The subject power supply will meet the EMI requirements and obtain main safety approvals as following: 2.1 EMI REGULATORY - FCC Part 15 Subpart J, Class ‘B’ 115 Vac operation. - CISPR 22 Class ‘B’ 230 Vac operation. 2.2 SAFETY - NEMKO EN 60950 - TUV EN60950 OR VDE EN60950 -CSA-C22.2 NO. 60950 -IEC 60950 - UL 60950 - CE : EN 55022:1998+A1: 2000, Class B EN 61000-3-2: 2000 EN 61000-3-3: 1995+A1: 2001 CISPR22: 1997+A1: 2000, Class B AS/NZS CISPR 22: 2002, Class B

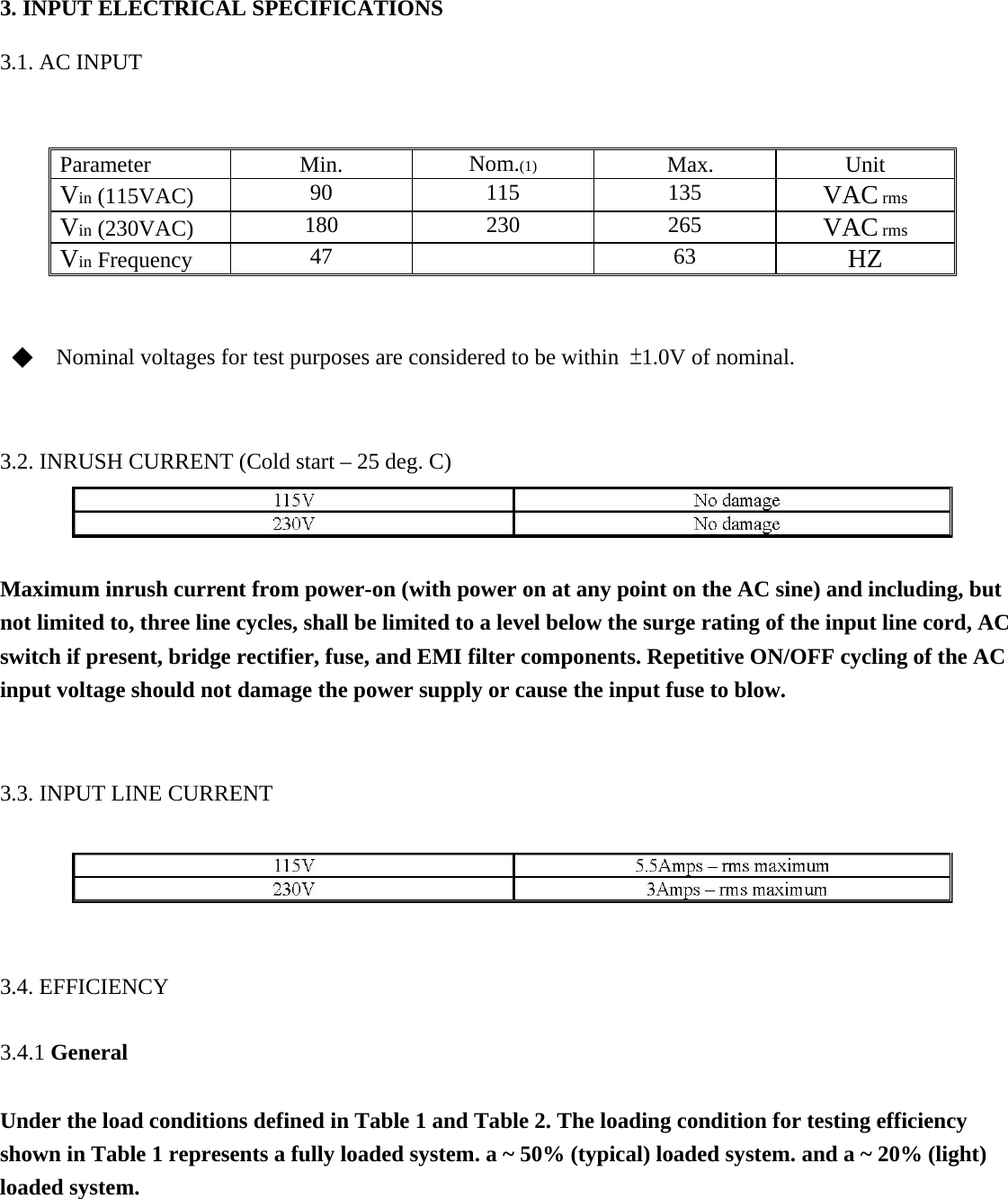

3. INPUT ELECTRICAL SPECIFICATIONS 3.1. AC INPUT Parameter Min. Nom.(1) Max. Unit Vin (115VAC) 90 115 135 VAC rms Vin (230VAC) 180 230 265 VAC rms Vin Frequency 47 63 HZ ◆ Nominal voltages for test purposes are considered to be within ±1.0V of nominal. 3.2. INRUSH CURRENT (Cold start – 25 deg. C) Maximum inrush current from power-on (with power on at any point on the AC sine) and including, but not limited to, three line cycles, shall be limited to a level below the surge rating of the input line cord, AC switch if present, bridge rectifier, fuse, and EMI filter components. Repetitive ON/OFF cycling of the AC input voltage should not damage the power supply or cause the input fuse to blow. 3.3. INPUT LINE CURRENT 3.4. EFFICIENCY 3.4.1 General Under the load conditions defined in Table 1 and Table 2. The loading condition for testing efficiency shown in Table 1 represents a fully loaded system. a ~ 50% (typical) loaded system. and a ~ 20% (light) loaded system.

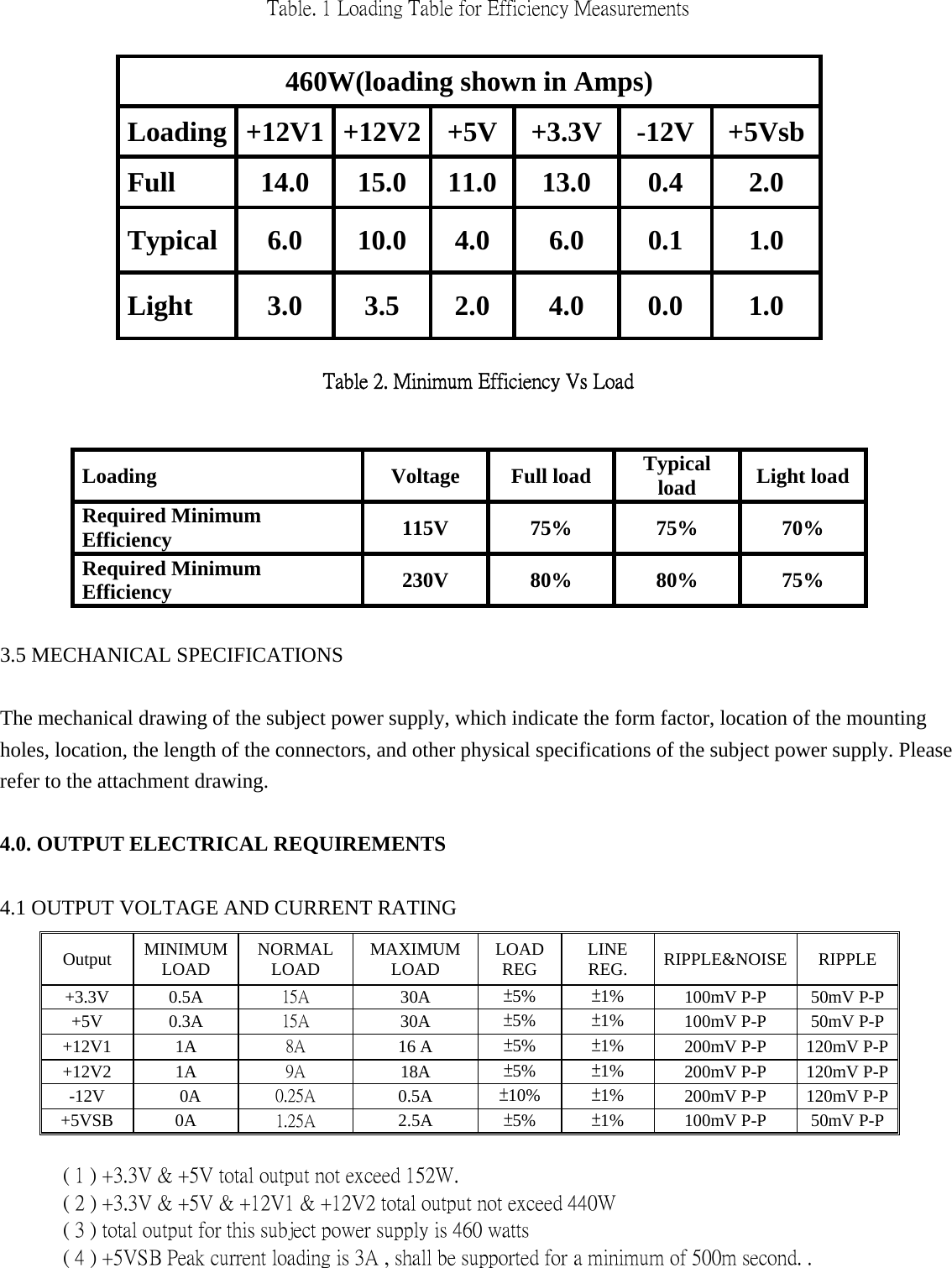

Table. 1 Loading Table for Efficiency Measurements 460W(loading shown in Amps) Loading +12V1 +12V2 +5V +3.3V -12V +5Vsb Full 14.0 15.0 11.0 13.0 0.4 2.0 Typical 6.0 10.0 4.0 6.0 0.1 1.0 Light 3.0 3.5 2.0 4.0 0.0 1.0 Table 2. Minimum Efficiency Vs Load Loading Voltage Full load Typical load Light load Required Minimum Efficiency 115V 75% 75% 70% Required Minimum Efficiency 230V 80% 80% 75% 3.5 MECHANICAL SPECIFICATIONS The mechanical drawing of the subject power supply, which indicate the form factor, location of the mounting holes, location, the length of the connectors, and other physical specifications of the subject power supply. Please refer to the attachment drawing. 4.0. OUTPUT ELECTRICAL REQUIREMENTS 4.1 OUTPUT VOLTAGE AND CURRENT RATING Output MINIMUM LOAD NORMAL LOAD MAXIMUM LOAD LOAD REG LINE REG. RIPPLE&NOISE RIPPLE +3.3V 0.5A 15A 30A ±5% ±1% 100mV P-P 50mV P-P +5V 0.3A 15A 30A ±5% ±1% 100mV P-P 50mV P-P +12V1 1A 8A 16 A ±5% ±1% 200mV P-P 120mV P-P +12V2 1A 9A 18A ±5% ±1% 200mV P-P 120mV P-P -12V 0A 0.25A 0.5A ±10% ±1% 200mV P-P 120mV P-P +5VSB 0A 1.25A 2.5A ±5% ±1% 100mV P-P 50mV P-P ( 1 ) +3.3V & +5V total output not exceed 152W. ( 2 ) +3.3V & +5V & +12V1 & +12V2 total output not exceed 440W ( 3 ) total output for this subject power supply is 460 watts ( 4 ) +5VSB Peak current loading is 3A , shall be supported for a minimum of 500m second. .

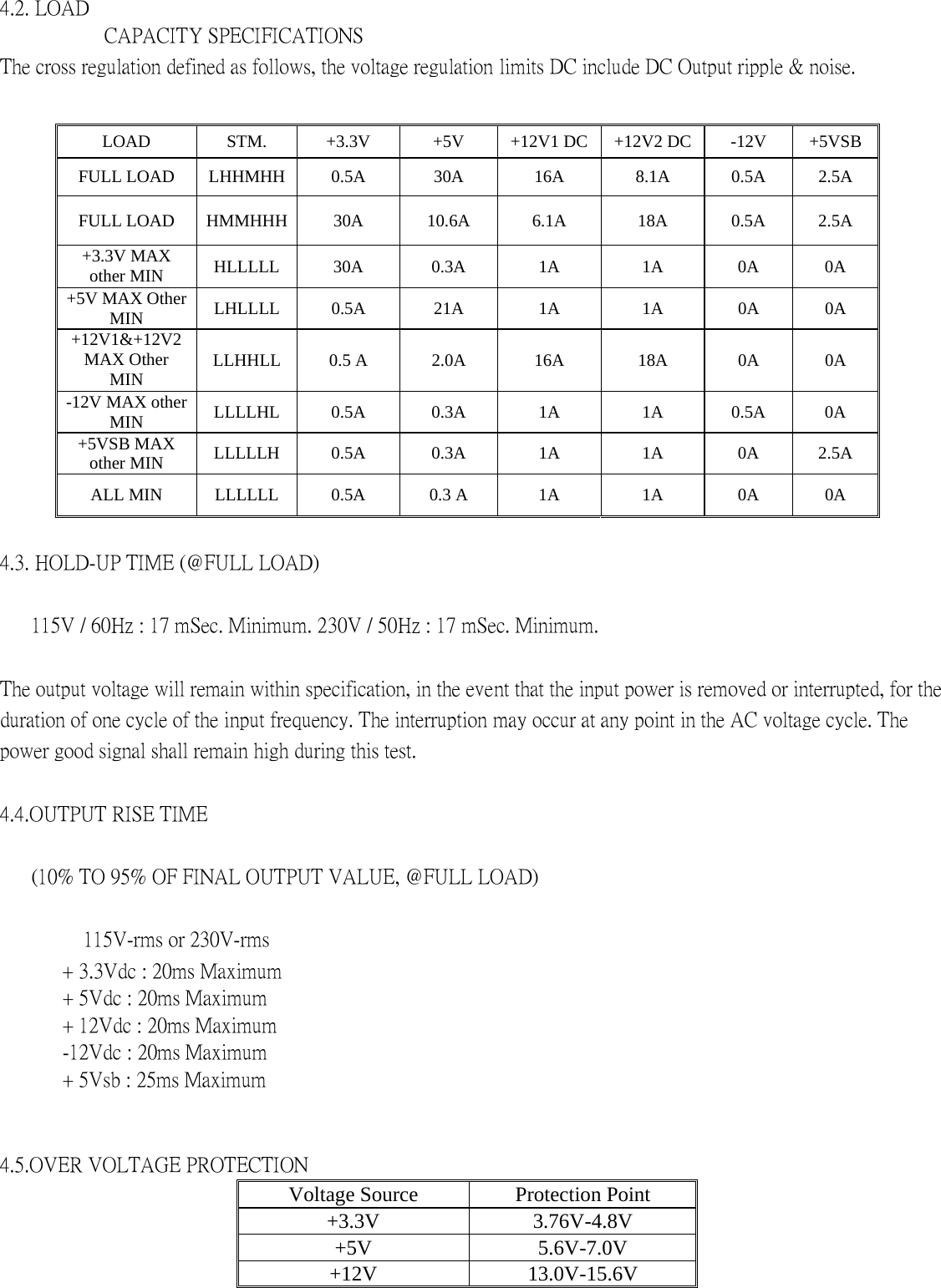

4.2. LOAD CAPACITY SPECIFICATIONS The cross regulation defined as follows, the voltage regulation limits DC include DC Output ripple & noise. LOAD STM. +3.3V +5V +12V1 DC +12V2 DC -12V +5VSB FULL LOAD LHHMHH 0.5A 30A 16A 8.1A 0.5A 2.5A FULL LOAD HMMHHH 30A 10.6A 6.1A 18A 0.5A 2.5A +3.3V MAX other MIN HLLLLL 30A 0.3A 1A 1A 0A 0A +5V MAX Other MIN LHLLLL 0.5A 21A 1A 1A 0A 0A +12V1&+12V2 MAX Other MIN LLHHLL 0.5 A 2.0A 16A 18A 0A 0A -12V MAX other MIN LLLLHL 0.5A 0.3A 1A 1A 0.5A 0A +5VSB MAX other MIN LLLLLH 0.5A 0.3A 1A 1A 0A 2.5A ALL MIN LLLLLL 0.5A 0.3 A 1A 1A 0A 0A 4.3. HOLD-UP TIME (@FULL LOAD) 115V / 60Hz : 17 mSec. Minimum. 230V / 50Hz : 17 mSec. Minimum. The output voltage will remain within specification, in the event that the input power is removed or interrupted, for the duration of one cycle of the input frequency. The interruption may occur at any point in the AC voltage cycle. The power good signal shall remain high during this test. 4.4.OUTPUT RISE TIME (10% TO 95% OF FINAL OUTPUT VALUE, @FULL LOAD) 115V-rms or 230V-rms + 3.3Vdc : 20ms Maximum + 5Vdc : 20ms Maximum + 12Vdc : 20ms Maximum -12Vdc : 20ms Maximum + 5Vsb : 25ms Maximum 4.5.OVER VOLTAGE PROTECTION Voltage Source Protection Point +3.3V 3.76V-4.8V +5V 5.6V-7.0V +12V 13.0V-15.6V

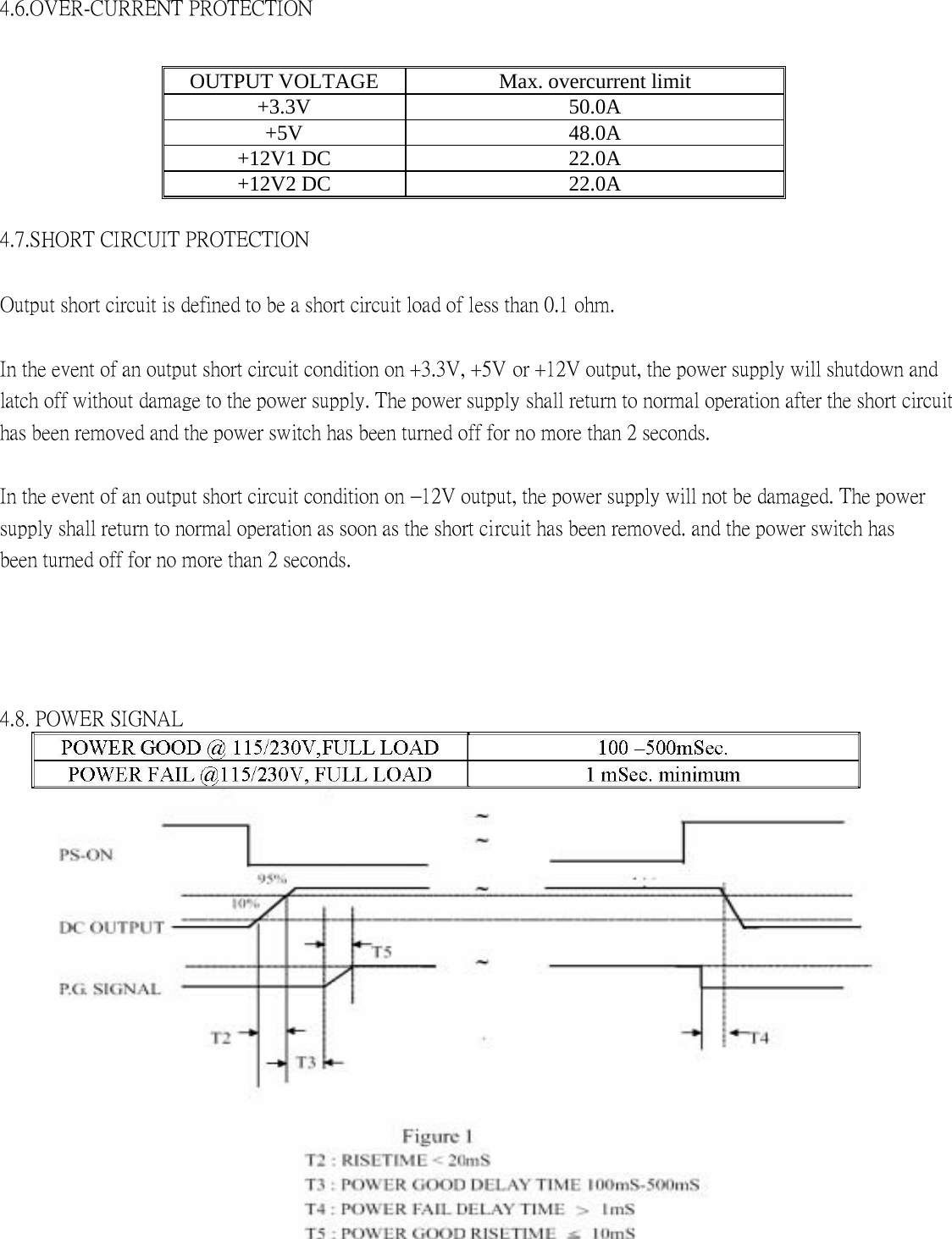

4.6.OVER-CURRENT PROTECTION OUTPUT VOLTAGE Max. overcurrent limit +3.3V 50.0A +5V 48.0A +12V1 DC 22.0A +12V2 DC 22.0A 4.7.SHORT CIRCUIT PROTECTION Output short circuit is defined to be a short circuit load of less than 0.1 ohm. In the event of an output short circuit condition on +3.3V, +5V or +12V output, the power supply will shutdown and latch off without damage to the power supply. The power supply shall return to normal operation after the short circuit has been removed and the power switch has been turned off for no more than 2 seconds. In the event of an output short circuit condition on –12V output, the power supply will not be damaged. The power supply shall return to normal operation as soon as the short circuit has been removed. and the power switch has been turned off for no more than 2 seconds. 4.8. POWER SIGNAL

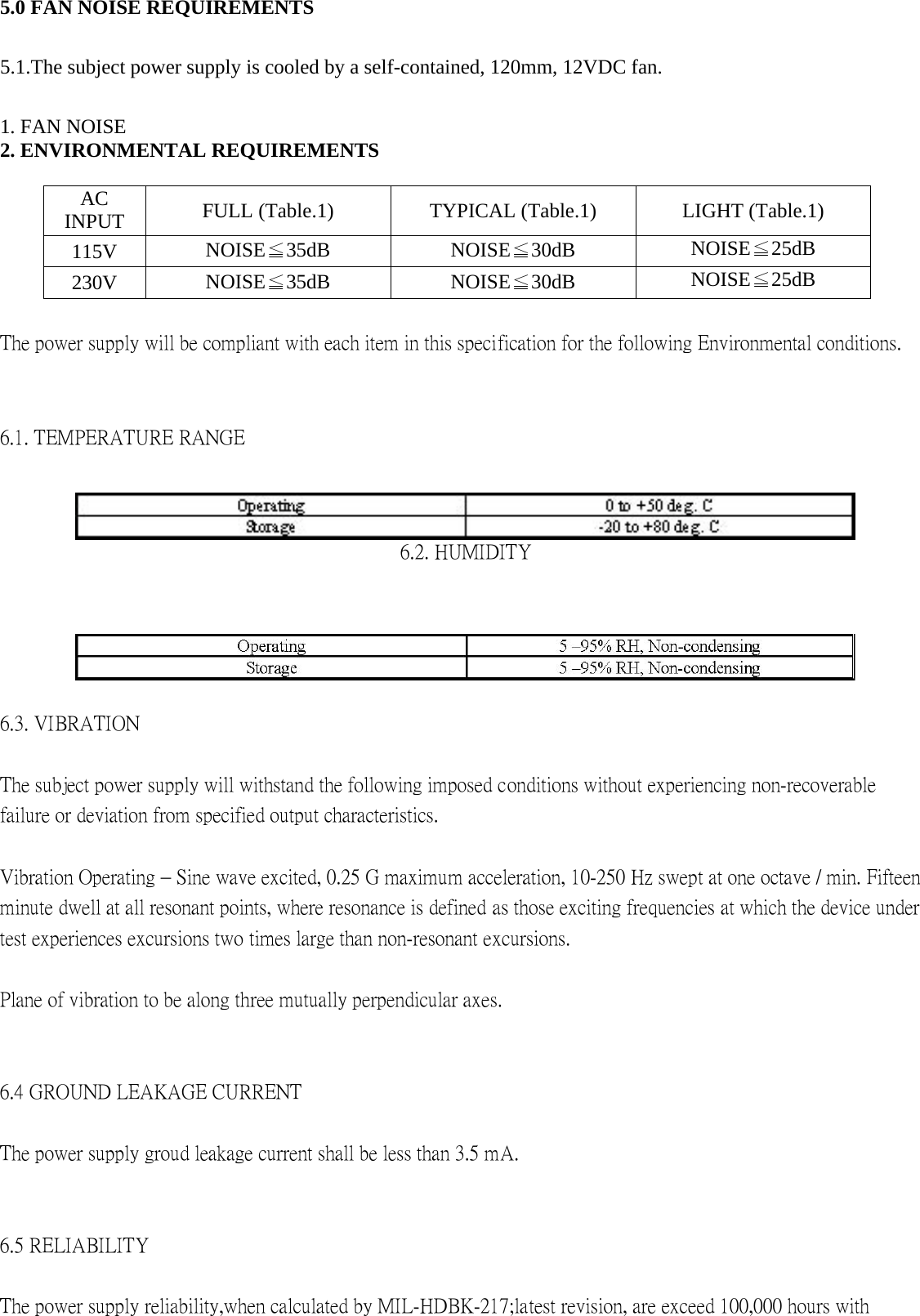

5.0 FAN NOISE REQUIREMENTS 5.1.The subject power supply is cooled by a self-contained, 120mm, 12VDC fan. 1. FAN NOISE 2. ENVIRONMENTAL REQUIREMENTS AC INPUT FULL (Table.1) TYPICAL (Table.1) LIGHT (Table.1) 115V NOISE≦35dB NOISE≦30dB NOISE≦25dB 230V NOISE≦35dB NOISE≦30dB NOISE≦25dB The power supply will be compliant with each item in this specification for the following Environmental conditions. 6.1. TEMPERATURE RANGE 6.2. HUMIDITY 6.3. VIBRATION The subject power supply will withstand the following imposed conditions without experiencing non-recoverable failure or deviation from specified output characteristics. Vibration Operating – Sine wave excited, 0.25 G maximum acceleration, 10-250 Hz swept at one octave / min. Fifteen minute dwell at all resonant points, where resonance is defined as those exciting frequencies at which the device under test experiences excursions two times large than non-resonant excursions. Plane of vibration to be along three mutually perpendicular axes. 6.4 GROUND LEAKAGE CURRENT The power supply groud leakage current shall be less than 3.5 mA. 6.5 RELIABILITY The power supply reliability,when calculated by MIL-HDBK-217;latest revision, are exceed 100,000 hours with

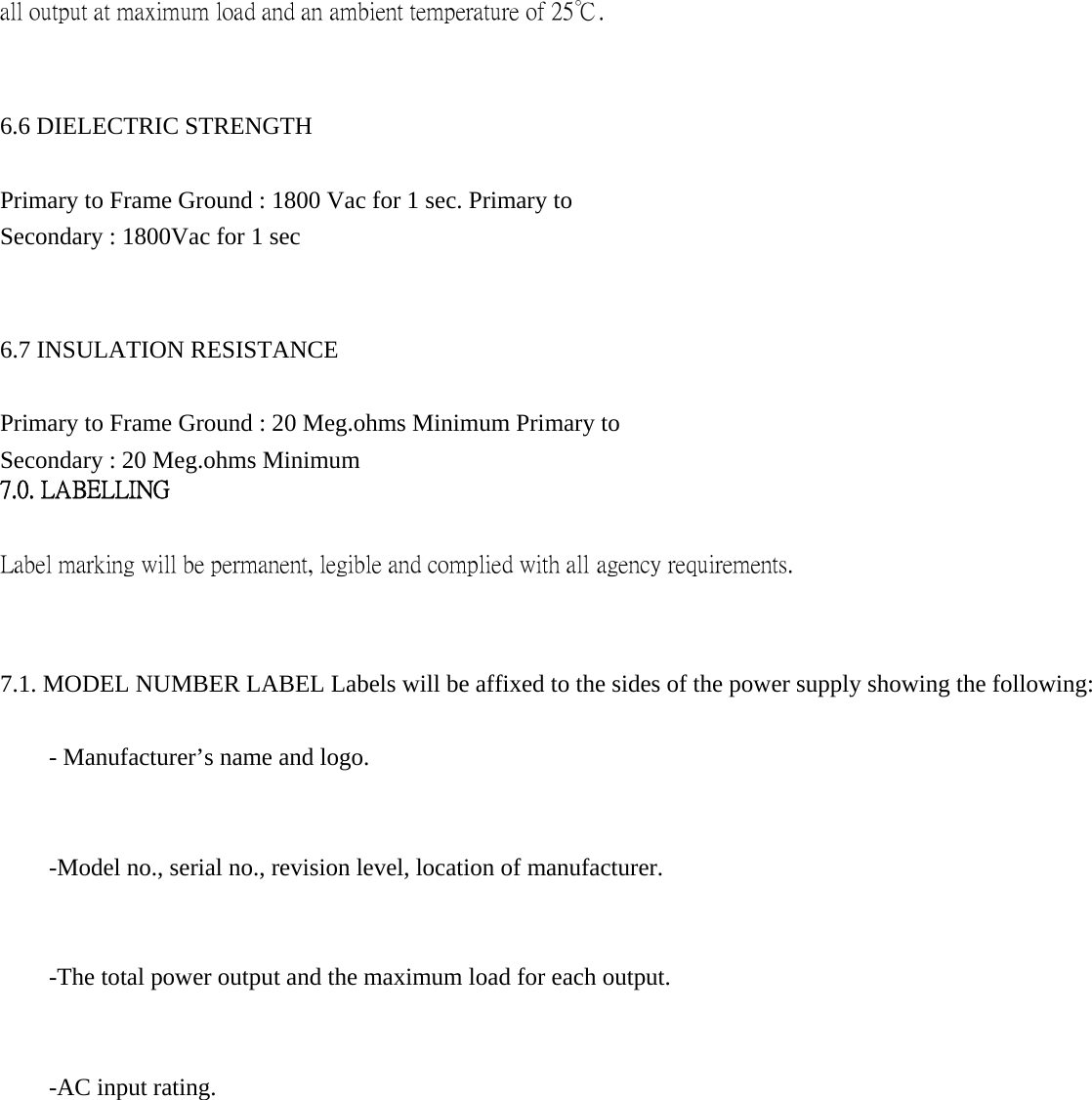

all output at maximum load and an ambient temperature of 25℃. 6.6 DIELECTRIC STRENGTH Primary to Frame Ground : 1800 Vac for 1 sec. Primary to Secondary : 1800Vac for 1 sec 6.7 INSULATION RESISTANCE Primary to Frame Ground : 20 Meg.ohms Minimum Primary to Secondary : 20 Meg.ohms Minimum 7.0. LABELLING Label marking will be permanent, legible and complied with all agency requirements. 7.1. MODEL NUMBER LABEL Labels will be affixed to the sides of the power supply showing the following: - Manufacturer’s name and logo. -Model no., serial no., revision level, location of manufacturer. -The total power output and the maximum load for each output. -AC input rating.

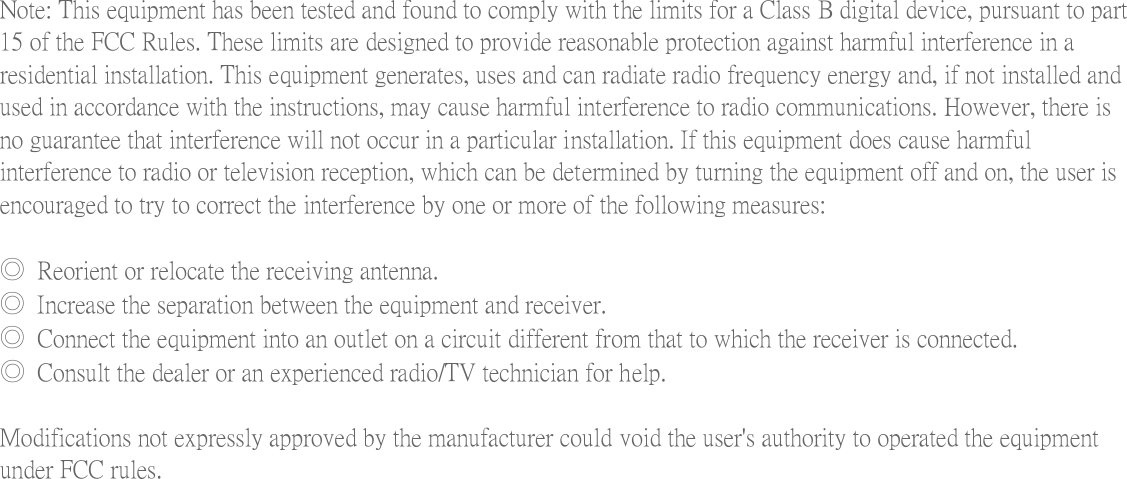

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◎ Reorient or relocate the receiving antenna. ◎ Increase the separation between the equipment and receiver. ◎ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ◎ Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.
