User Manual Part 1
About This User's Guide
MAX208M2W Series User s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the ZyXEL MAX208M2W
Series using the ZyXEL Web Configurator. You should have at least a basic
knowledge of TCP/IP networking concepts and topology.
Related Documentation
!Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It
contains information on setting up your network and configuring for Internet
access.
!Support Disc
Refer to the included CD for support documents.
!ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and
product certifications.
Documentation Feedback
Send your comments, questions or suggestions to: techwriters@zyxel.com.tw
Thank you!
The Technical Writing Team, ZyXEL Communications Corp.
Need More Help?
More help is available at www.zyxel.com.
About This User's Guide
MAX208M2W Series User s Guide
4
!Download Library
Search for the latest product updates and documentation from this link. Read
the Tech Doc Overview to find out how to efficiently use the documentation in
order to better understand how to use your product.
!Knowledge Base
If you have a specific question about your product, the answer may be here.
This is a collection of answers to previously asked questions about ZyXEL
products.
!Forum
This contains discussions on ZyXEL products. Learn from others who use ZyXEL
products and share your experiences as well.
Customer Support
Should problems arise that cannot be solved by the methods listed above, you
should contact your vendor. If you cannot contact your vendor, then contact a
ZyXEL office for the region in which you bought the device.
See http://www.zyxel.com/web/contact_us.php for contact information. Please
have the following information ready when you contact an office.
!Product model and serial number.
!Warranty Information.
!Date that you received your device.
!Brief description of the problem and the steps you took to solve it.
Document Conventions
MAX208M2W Series User s Guide 5
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User s Guide.
Warnings tell you about things that could harm you or your
MAX208M2W Series.
Note: Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
!The product(s) described in this book may be referred to as the "MAX208M2W
Series#, the "device#, the "system# or the "product# in this User s Guide.
!Product labels, screen names, field labels and field choices are all in bold font.
!A key stroke is denoted by square brackets and uppercase text, for example,
[ENTER] means the "enter# or "return# key on your keyboard.
!"Enter# means for you to type one or more characters and then press the
[ENTER] key. "Select# or "choose# means for you to use one of the predefined
choices.
!A right angle bracket ( > ) within a screen name denotes a mouse click. For
example, TOOLS > Logs > Log Settings means you first click Tools in the
navigation panel, then the Logs sub menu and finally the Log Settings tab to
get to that screen.
!Units of measurement may denote the "metric# value or the "scientific# value.
For example, "k# for kilo may denote "1000# or "1024#, "M# for mega may
denote "1000000# or "1048576# and so on.
!"e.g.,# is a shorthand for "for instance#, and "i.e.,# means "that is# or "in other
words#.
Document Conventions
MAX208M2W Series User s Guide
6
Icons Used in Figures
Figures in this User s Guide may use the following generic icons. The MAX208M2W
Series icon is not an exact representation of your product.
Table 1 Common Icons
MAX208M2W Series ComputerWireless Signal
NotebookServerBase Station
TelephoneSwitchRouter
Internet CloudNetwork Cloud
Safety Warnings
MAX208M2W Series User s Guide 7
Safety Warnings
For your safety, be sure to read and follow all warning notices and
instructions.
!Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
!Do NOT expose your device to dampness, dust or corrosive liquids.
!Do NOT store things on the device.
!Do NOT install, use, or service this device during a thunderstorm. There is a
remote risk of electric shock from lightning.
!Connect ONLY suitable accessories to the device.
!Do NOT open the device or unit. Opening or removing covers can expose you to
dangerous high voltage points or other risks. ONLY qualified service personnel
should service or disassemble this device. Please contact your vendor for further
information.
!Make sure to connect the cables to the correct ports.
!Place connecting cables carefully so that no one will step on them or stumble
over them.
!Always disconnect all cables from this device before servicing or disassembling.
!Use ONLY an appropriate power adaptor or cord for your device. Connect it to
the right supply voltage (for example, 110V AC in North America or 230V AC in
Europe).
!Do NOT remove the plug and connect it to a power outlet by itself; always
attach the plug to the power adaptor first before connecting it to a power outlet.
!Do NOT allow anything to rest on the power adaptor or cord and do NOT place
the product where anyone can walk on the power adaptor or cord.
!Do NOT use the device if the power adaptor or cord is damaged as it might
cause electrocution.
!If the power adaptor or cord is damaged, remove it from the device and the
power source.
!Do NOT attempt to repair the power adaptor or cord. Contact your local vendor
to order a new one.Do not use the device outside, and make sure all the
connections are indoors. There is a remote risk of electric shock from lightning.
!Do NOT obstruct the device ventilation slots, as insufficient airflow may harm
your device.Use only No. 26 AWG (American Wire Gauge) or larger
telecommunication line cord.
!Antenna Warning! This device meets ETSI and FCC certification requirements
when using the included antenna(s). Only use the included antenna(s).
!If you wall mount your device, make sure that no electrical lines, gas or water
pipes will be damaged.
Safety Warnings
MAX208M2W Series User s Guide
8
!Make sure that the cable system is grounded so as to provide some protection
against voltage surges.
Your product is marked with this symbol, which is known as the WEEE mark.
WEEE stands for Waste Electronics and Electrical Equipment. It means that
used electrical and electronic products should not be mixed with general
waste. Used electrical and electronic equipment should be treated
separately.
Contents Overview
MAX208M2W Series User s Guide 9
Contents Overview
User!s Guide ...........................................................................................................................17
Getting Started ...........................................................................................................................19
Introducing the Web Configurator ..............................................................................................25
Setup Wizard............................................................................................................................. 31
Tutorials .....................................................................................................................................43
Technical Reference ..............................................................................................................63
System Status ............................................................................................................................65
WiMAX .......................................................................................................................................69
Network Setting .........................................................................................................................89
Security ....................................................................................................................................127
The VoIP General Screens ......................................................................................................133
The VoIP Account Screens ......................................................................................................139
The VoIP Line Screens ............................................................................................................157
Maintenance ............................................................................................................................161
Troubleshooting .......................................................................................................................187
Product Specifications .............................................................................................................193
Contents Overview
MAX208M2W Series User s Guide
10
Table of Contents
MAX208M2W Series User s Guide 11
Table of Contents
About This User's Guide..........................................................................................................3
Document Conventions............................................................................................................5
Safety Warnings........................................................................................................................7
Contents Overview...................................................................................................................9
Table of Contents....................................................................................................................11
Part I: User!s Guide................................................................................17
Chapter 1
Getting Started........................................................................................................................19
1.1 About Your MAX208M2W Series .........................................................................................19
1.1.1 WiMAX Internet Access .............................................................................................19
1.1.2 Make Calls via Internet Telephony Service Provider ..................................................20
1.2 MAX208M2W Series Hardware ...........................................................................................21
1.2.1 LEDs ..........................................................................................................................21
1.3 Good Habits for Managing the MAX208M2W Series ..........................................................22
Chapter 2
Introducing the Web Configurator........................................................................................25
2.1 Overview ..............................................................................................................................25
2.1.1 Accessing the Web Configurator ................................................................................25
2.1.2 The Reset Button .......................................................................................................26
2.1.3 Saving and Canceling Changes .................................................................................27
2.1.4 Working with Tables ...................................................................................................27
2.2 The Main Screen .................................................................................................................28
Chapter 3
Setup Wizard...........................................................................................................................31
3.1 Overview ..............................................................................................................................31
3.1.1 Welcome to the Setup Wizard ....................................................................................31
3.1.2 LAN Settings ..............................................................................................................33
3.1.3 WiMAX Frequency Settings .......................................................................................34
3.1.4 WiMAX Authentication Settings .................................................................................36
3.1.5 VoIP Settings ..............................................................................................................38
Table of Contents
MAX208M2W Series User s Guide
12
3.1.6 WLAN Settings ...........................................................................................................39
3.1.7 Setup Complete .........................................................................................................41
Chapter 4
Tutorials...................................................................................................................................43
4.1 Overview ..............................................................................................................................43
4.2 WiMAX Connection Settings ...............................................................................................43
4.3 Configuring LAN DHCP .......................................................................................................44
4.4 Changing Certificate ............................................................................................................46
4.5 Blocking Web Access ..........................................................................................................47
4.6 Configuring the MAC Address Filter ....................................................................................48
4.7 Setting Up NAT Port Forwarding .........................................................................................50
4.8 Access the MAX208M2W Series Using DDNS ...................................................................53
4.8.1 Registering a DDNS Account on www.dyndns.org ....................................................53
4.8.2 Configuring DDNS on Your MAX208M2W Series ......................................................54
4.8.3 Testing the DDNS Setting ..........................................................................................54
4.9 Configuring Static Route for Routing to Another Network ...................................................54
4.10 Remotely Managing Your MAX208M2W Series ................................................................57
4.11 VLAN Configuration Example ............................................................................................58
Part II: Technical Reference..................................................................63
Chapter 5
System Status.........................................................................................................................65
5.1 Overview ..............................................................................................................................65

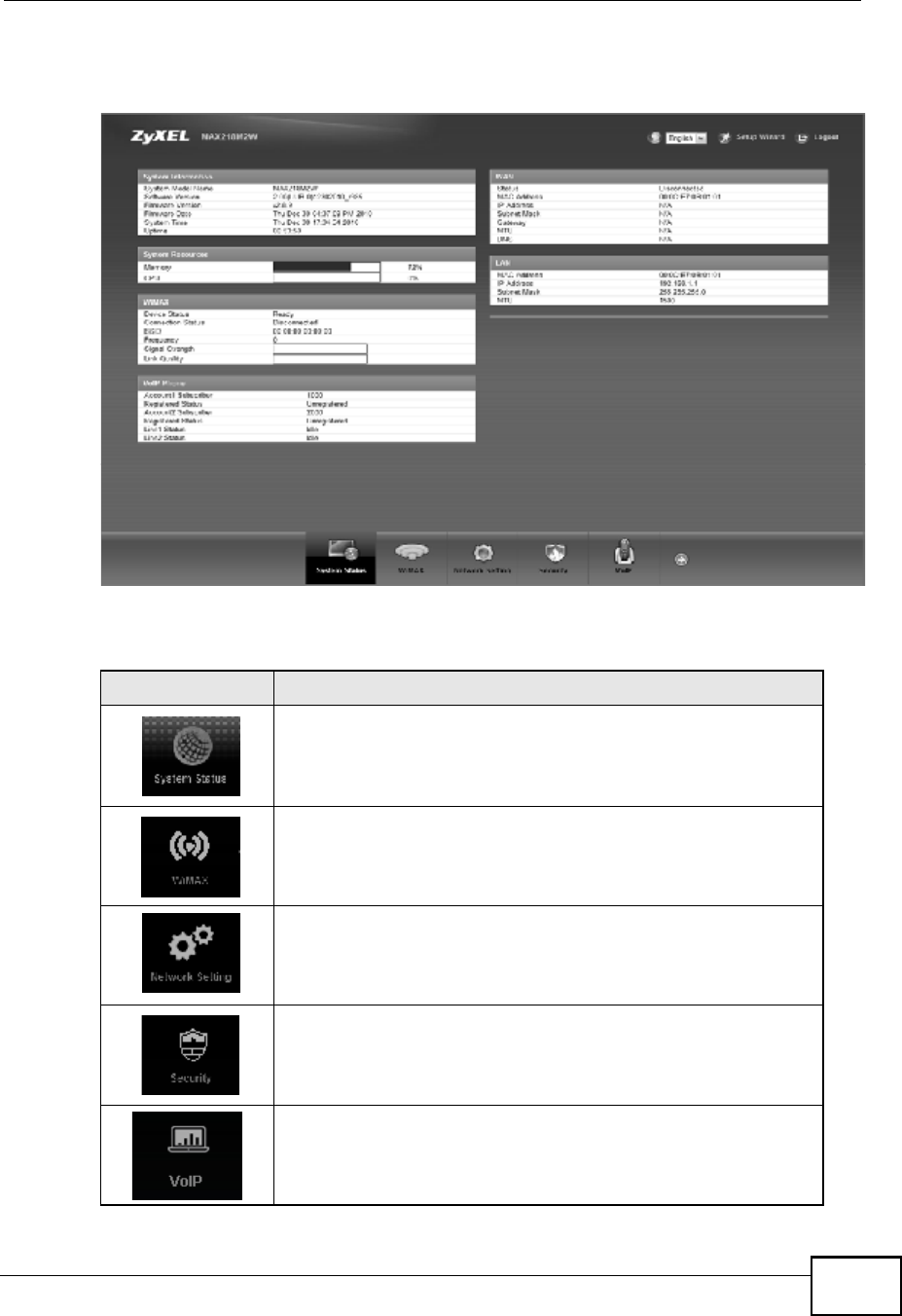

5.2 System Status ......................................................................................................................65
Chapter 6
WiMAX......................................................................................................................................69
6.1 Overview ..............................................................................................................................69
6.1.1 What You Need to Know ............................................................................................69
6.2 Connection Settings ............................................................................................................73

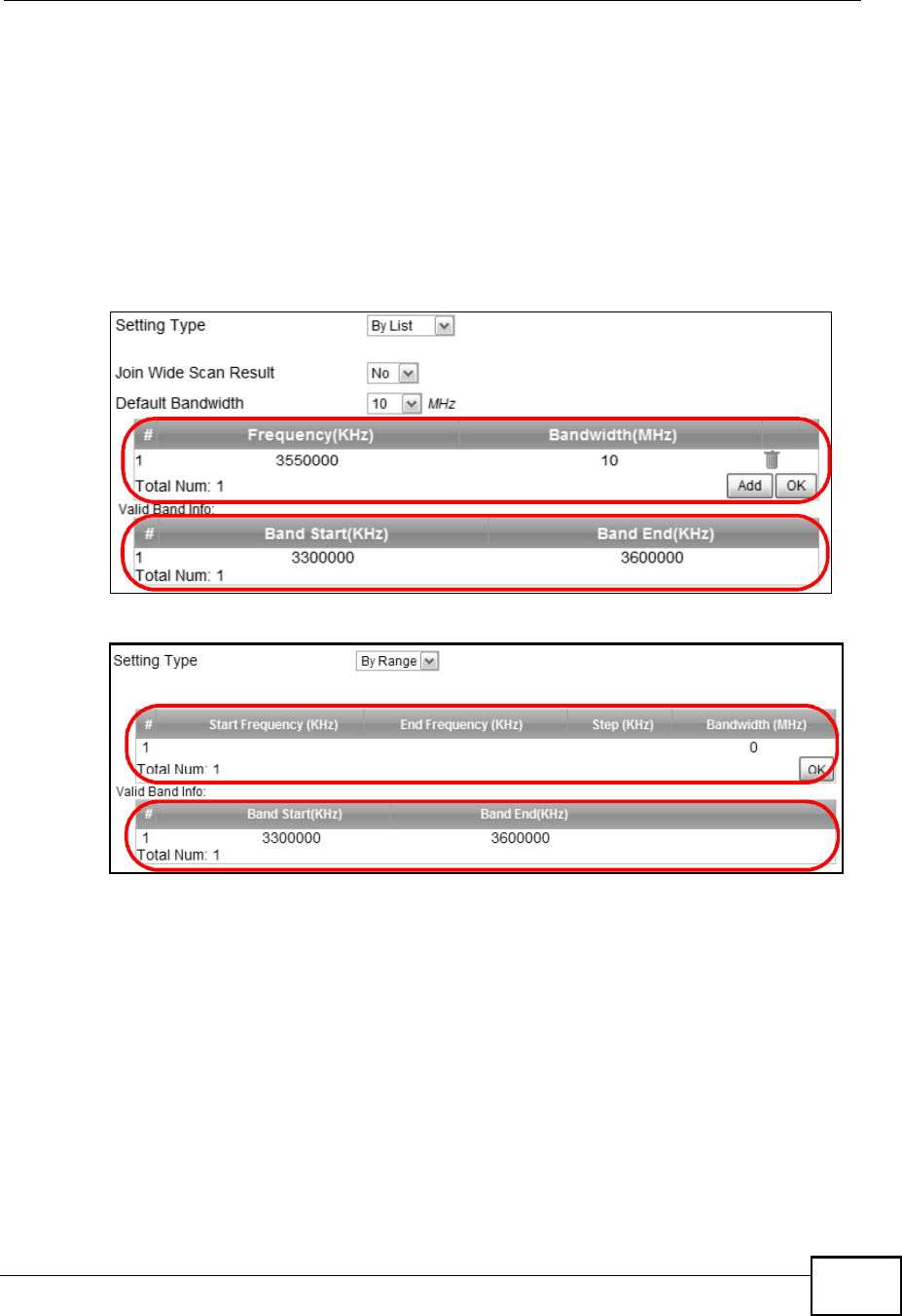

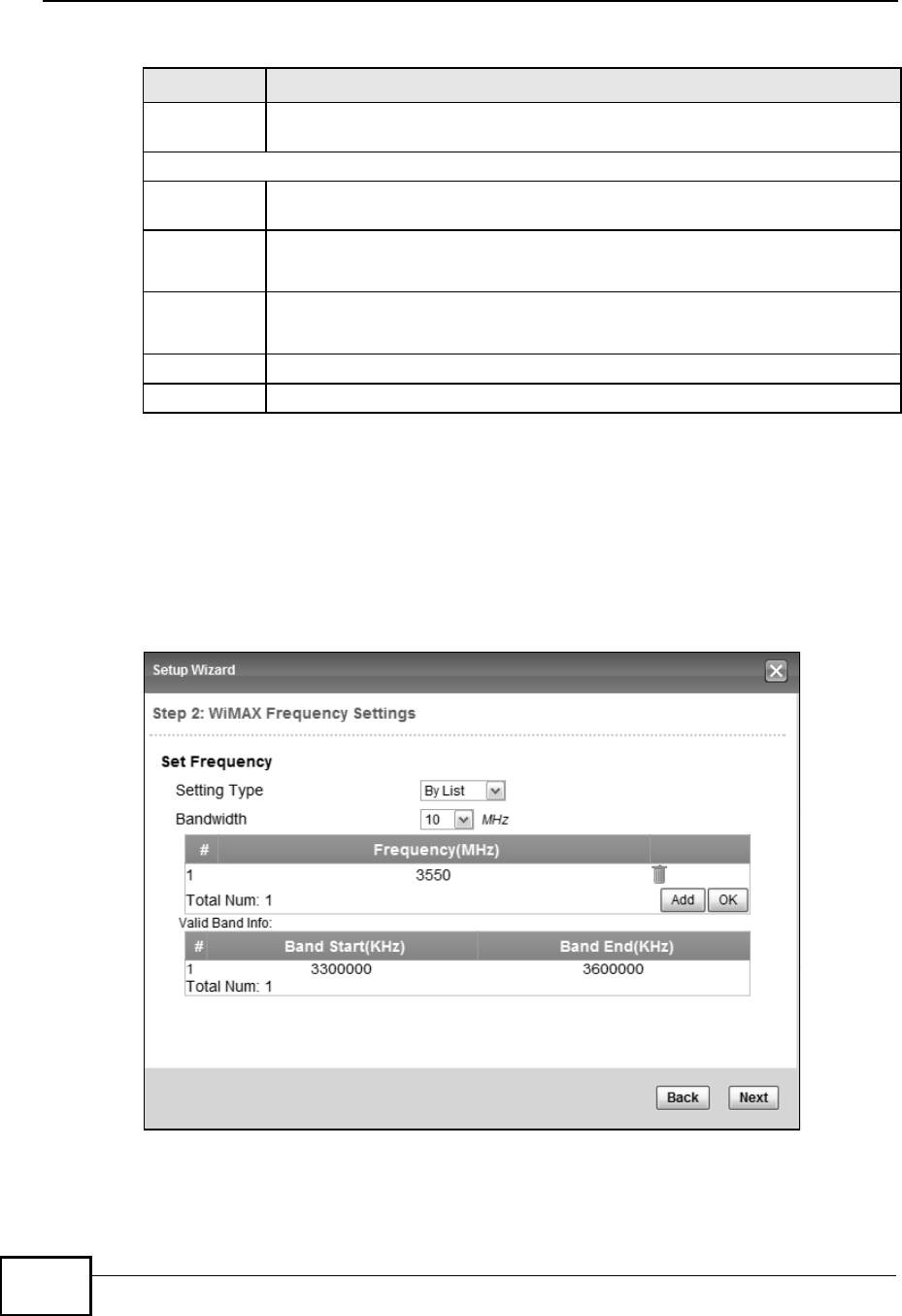

6.3 Frequency Settings ..............................................................................................................75

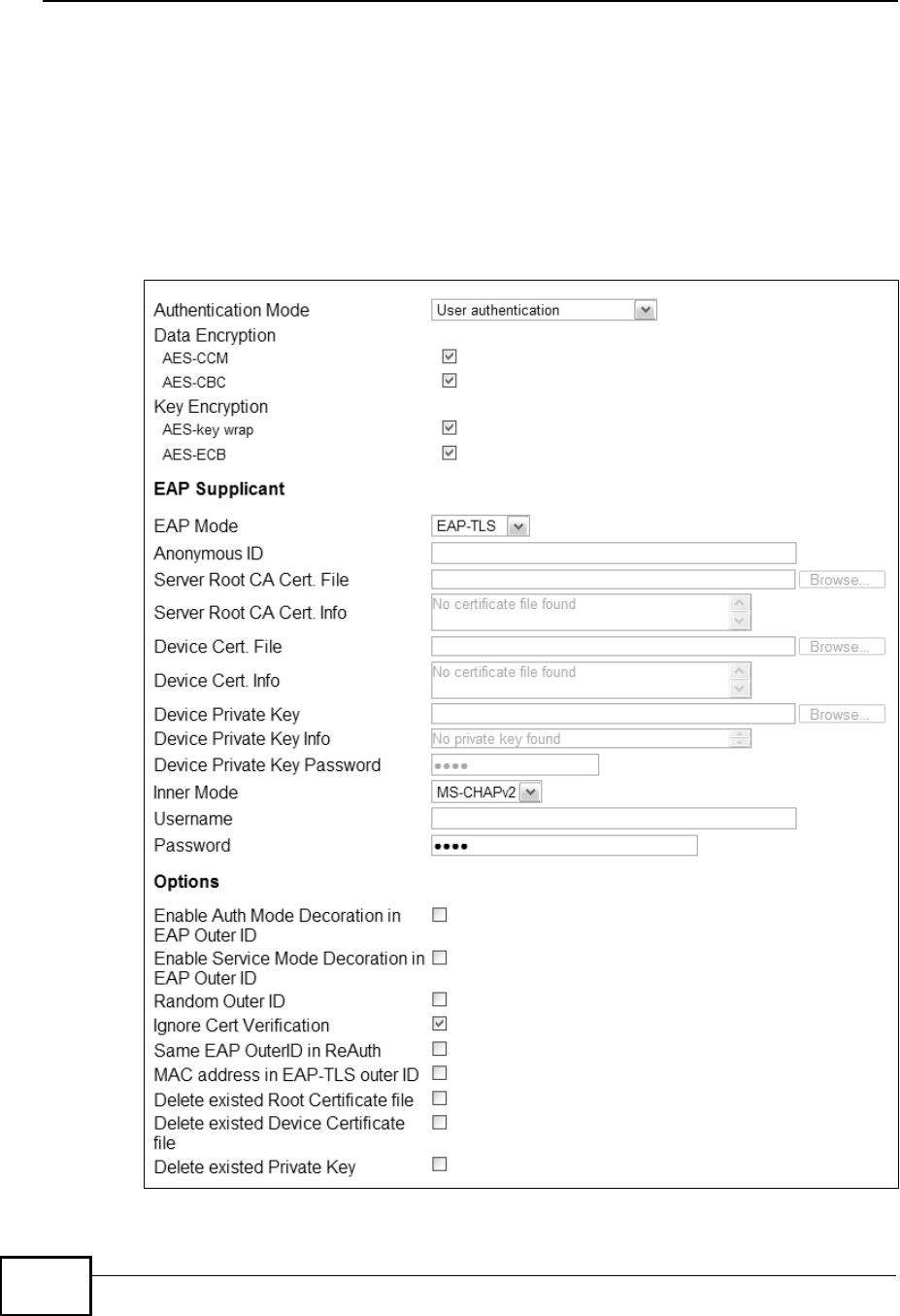

6.4 Authentication Settings ........................................................................................................78
6.5 Connect ...............................................................................................................................81

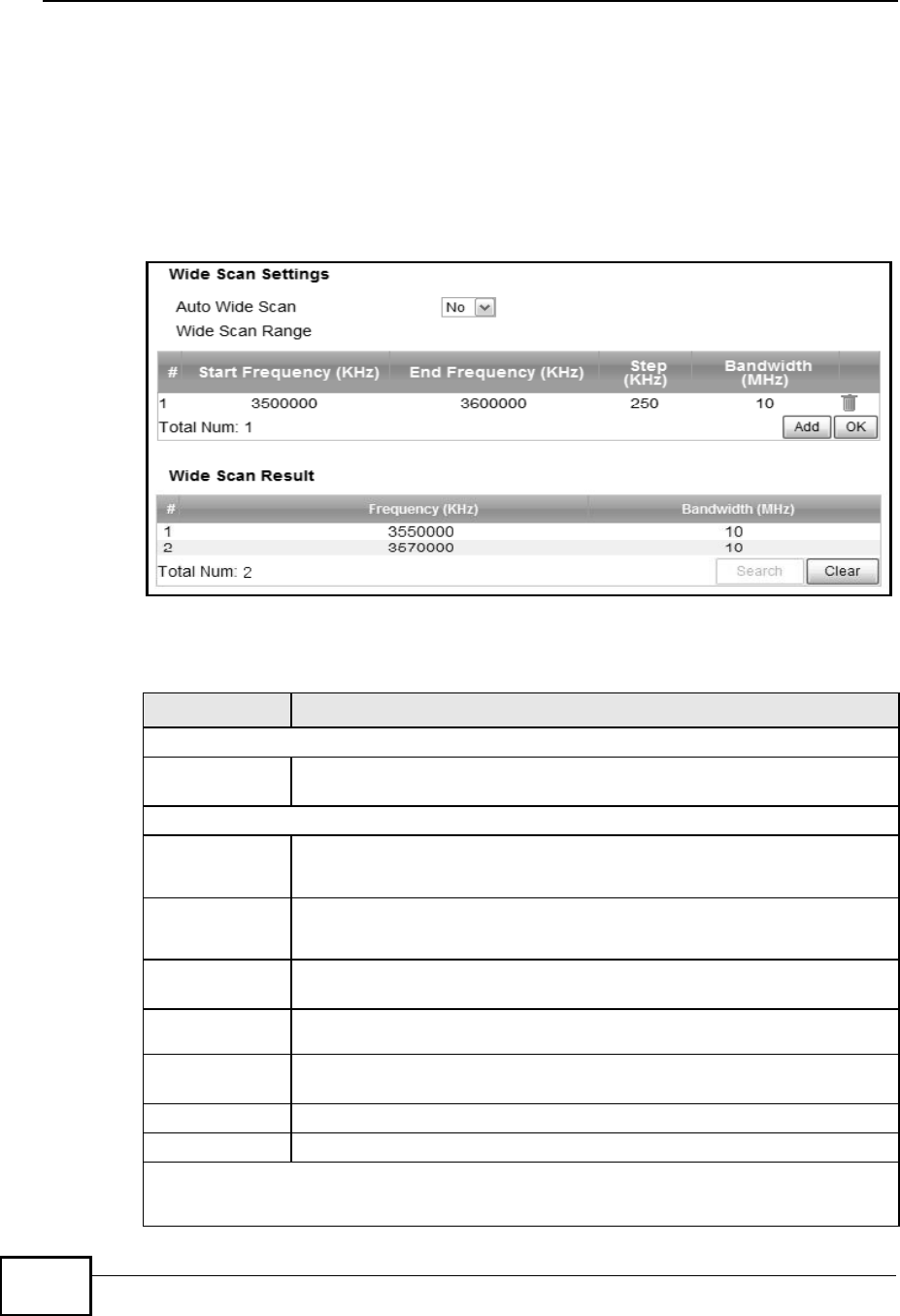

6.6 Wide Scan ...........................................................................................................................84
6.7 Link Status ...........................................................................................................................85
6.8 Link Statistics .......................................................................................................................87

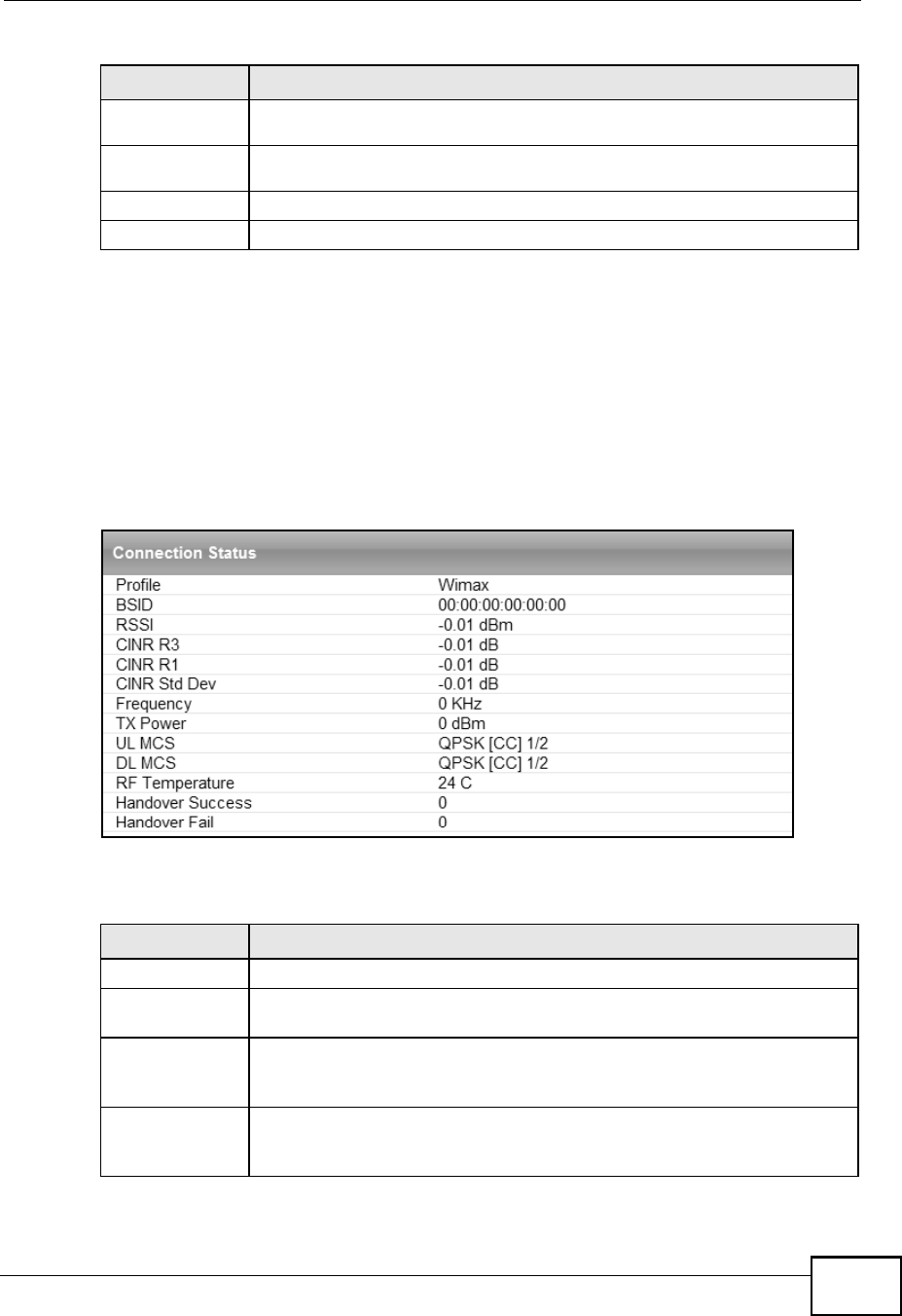

6.9 Connection Info ...................................................................................................................88
6.10 Service Flow ......................................................................................................................88
Table of Contents
MAX208M2W Series User s Guide 13
Chapter 7
Network Setting.......................................................................................................................89
7.1 Overview ..............................................................................................................................89
7.1.1 What You Need to Know ............................................................................................89

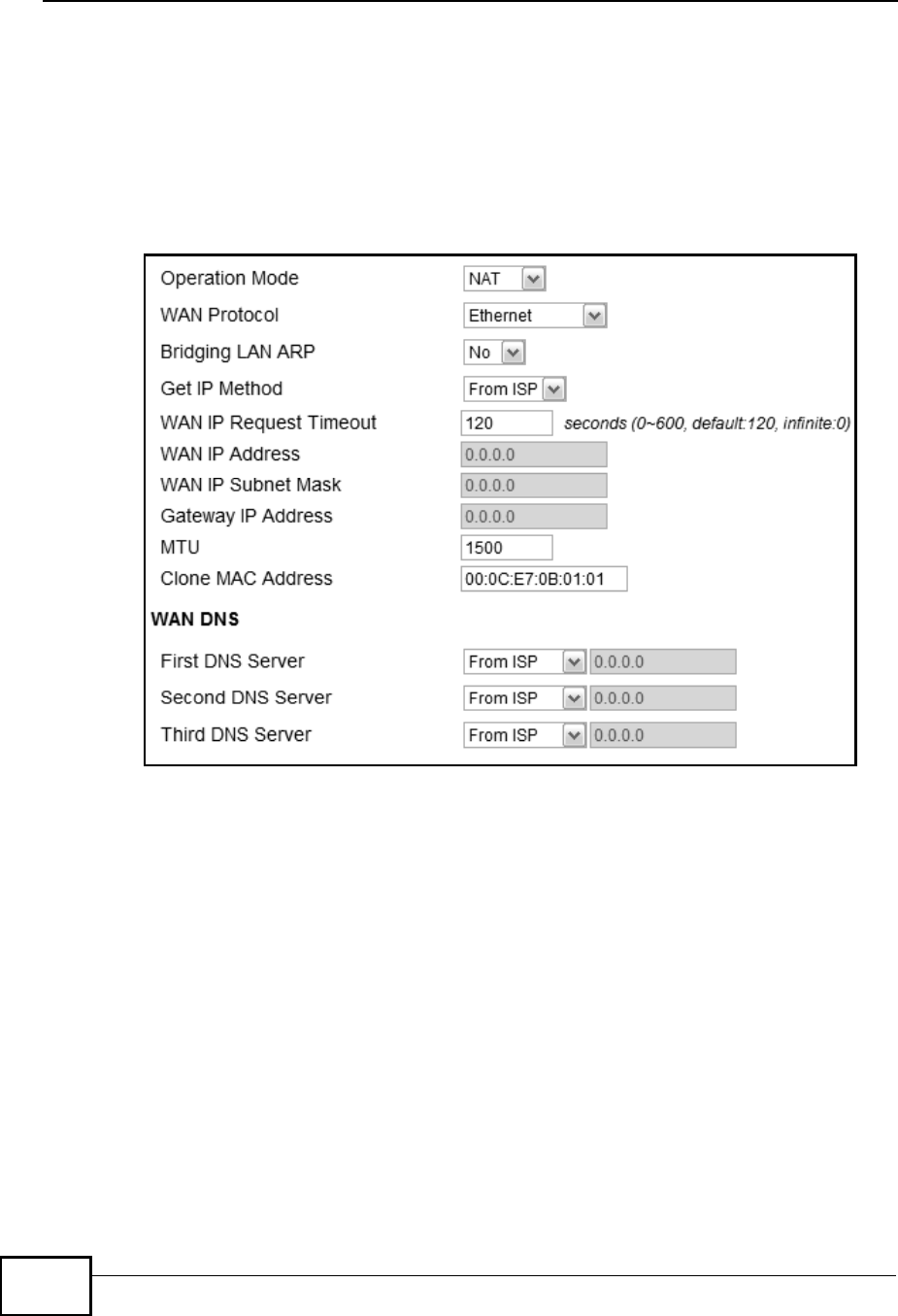

7.2 WAN ....................................................................................................................................94

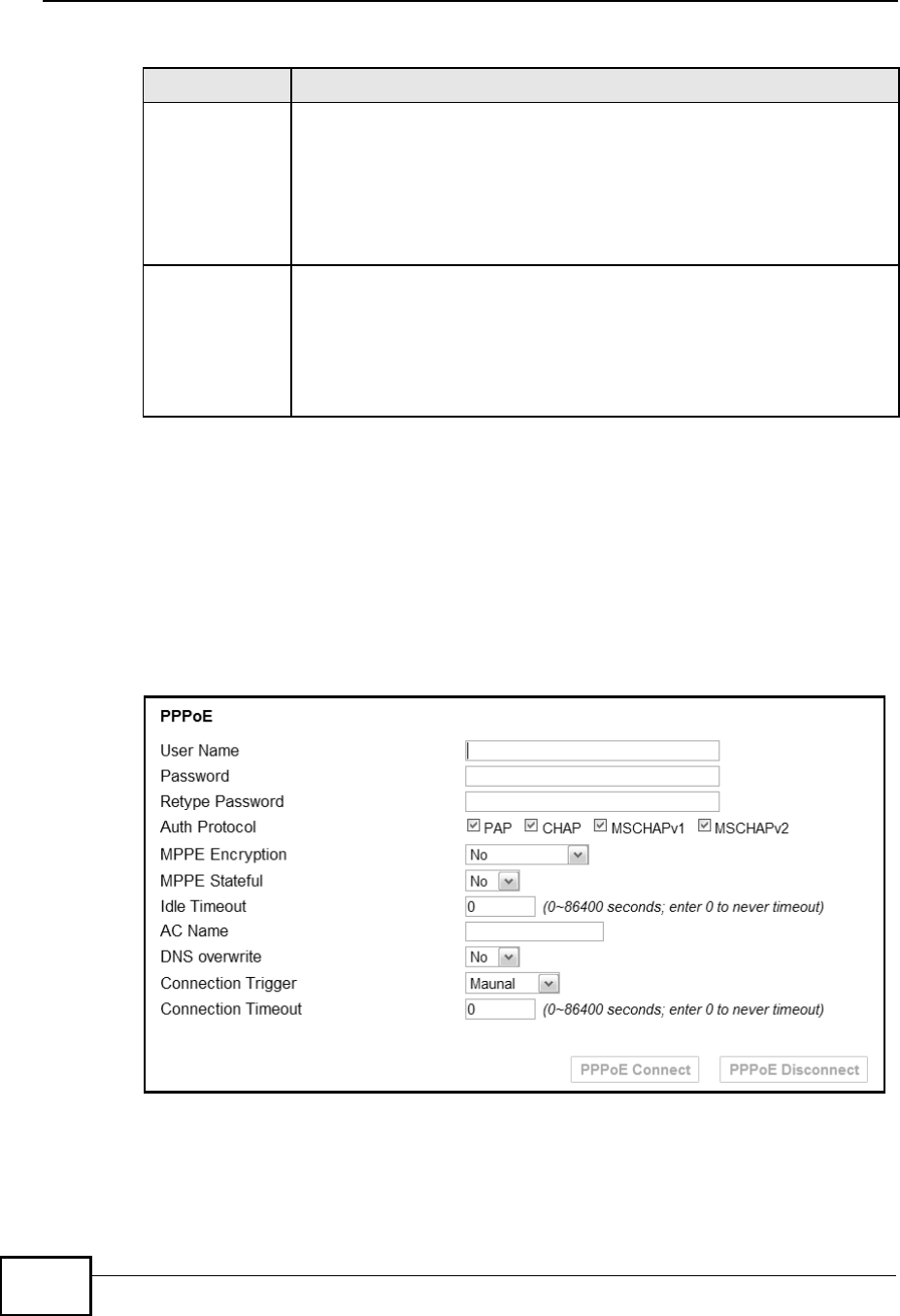

7.3 PPPoE .................................................................................................................................96

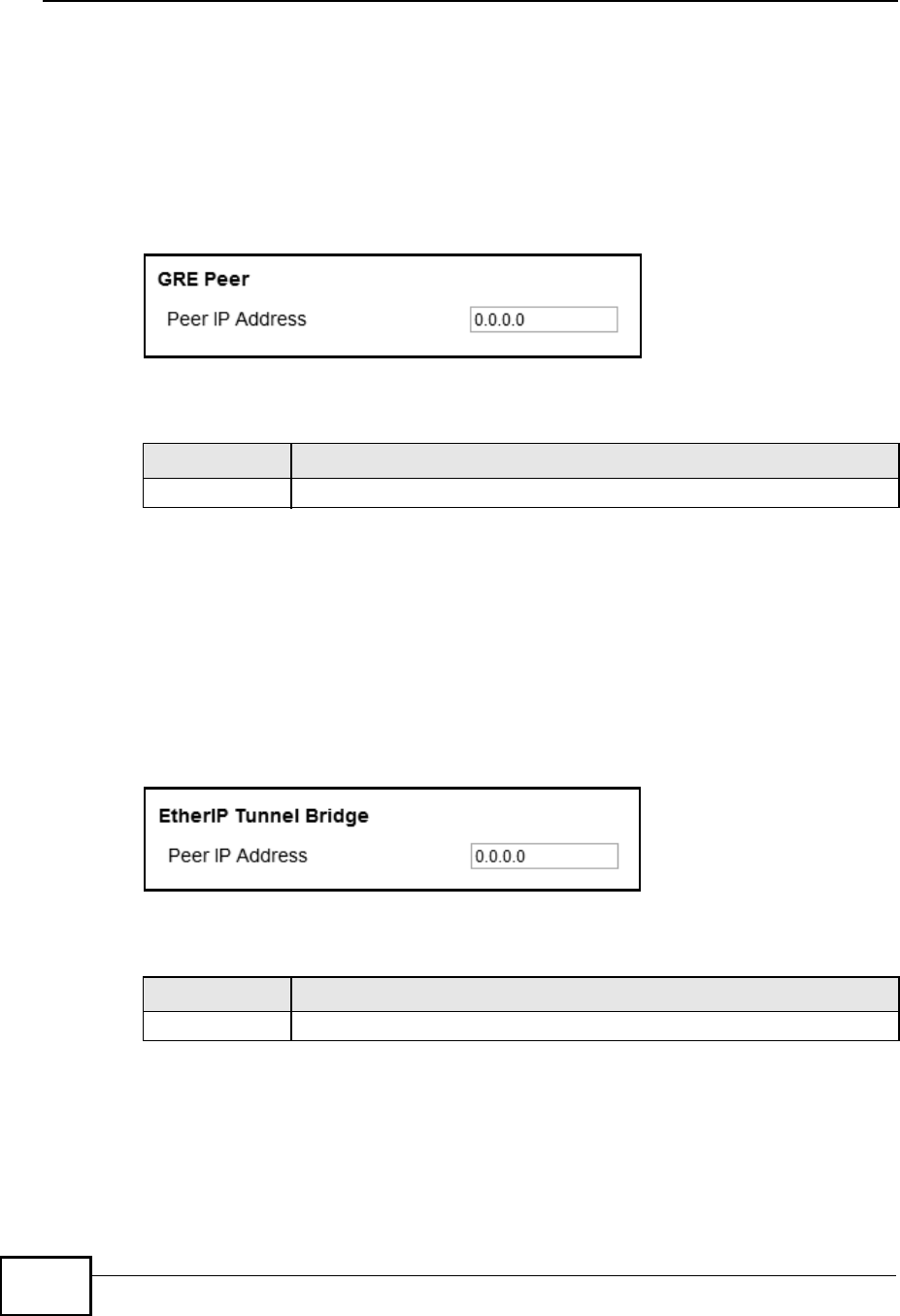

7.4 GRE .....................................................................................................................................98
7.5 EtherIP .................................................................................................................................98

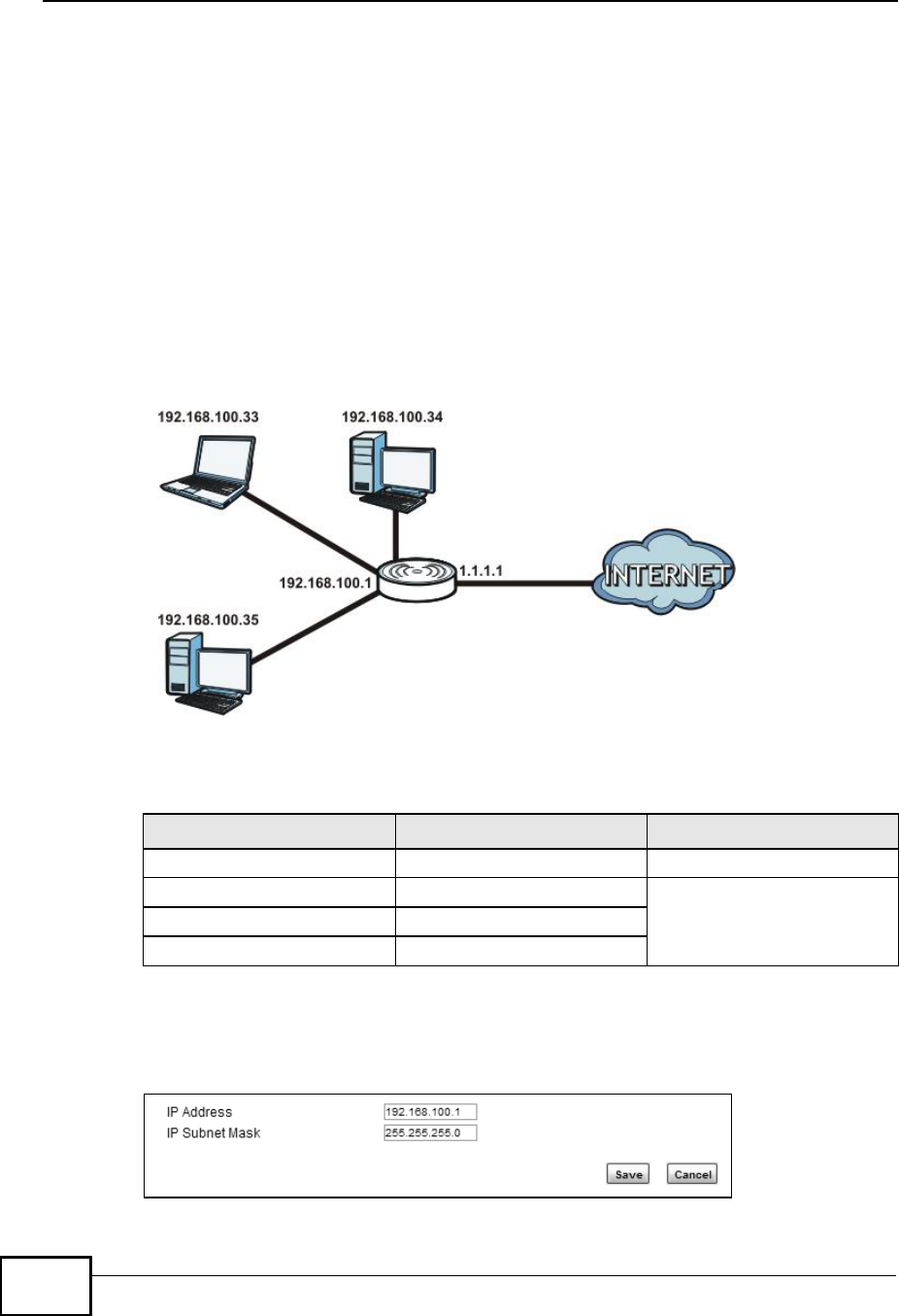

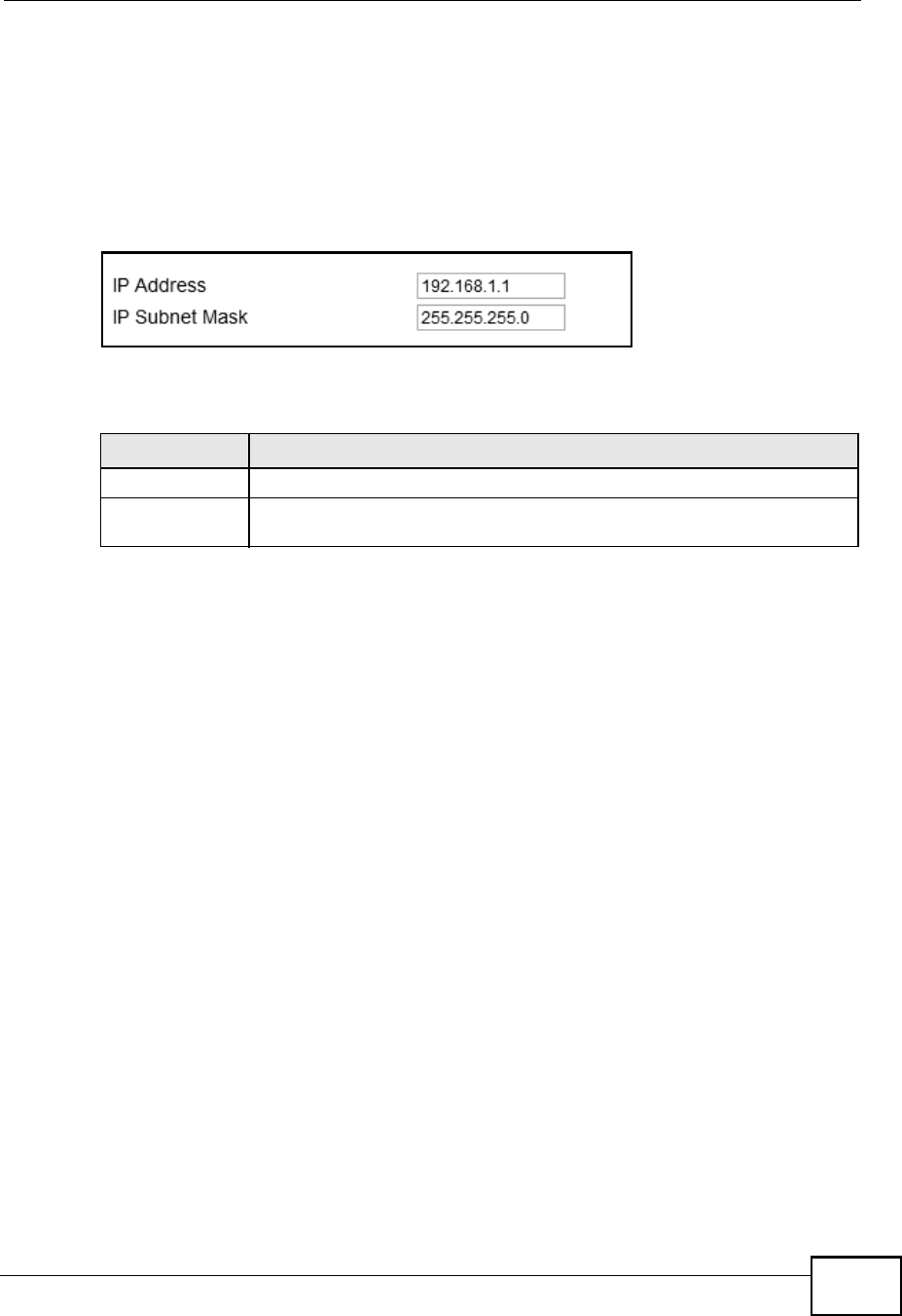

7.6 IP .........................................................................................................................................99
7.7 DHCP ................................................................................................................................100

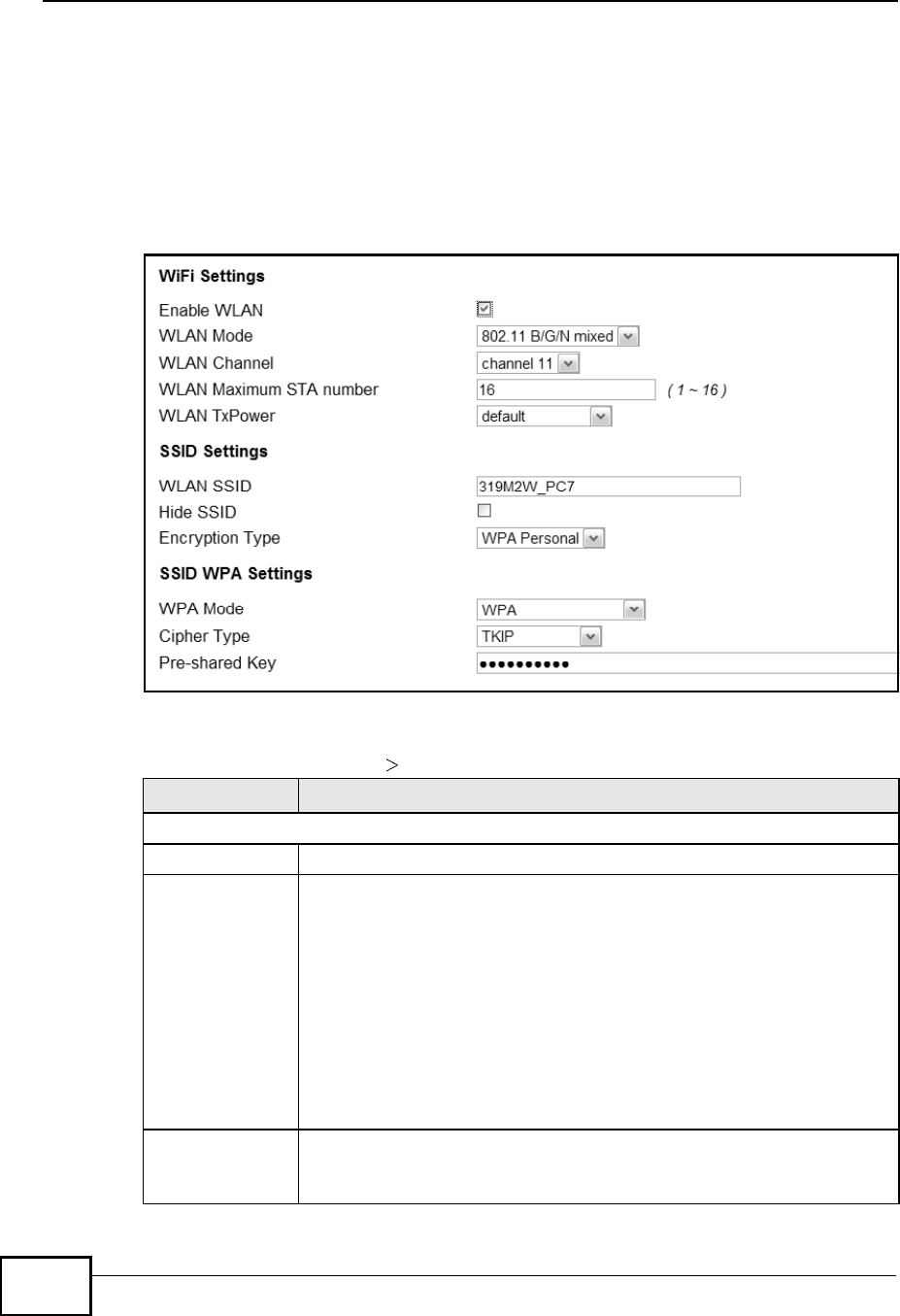

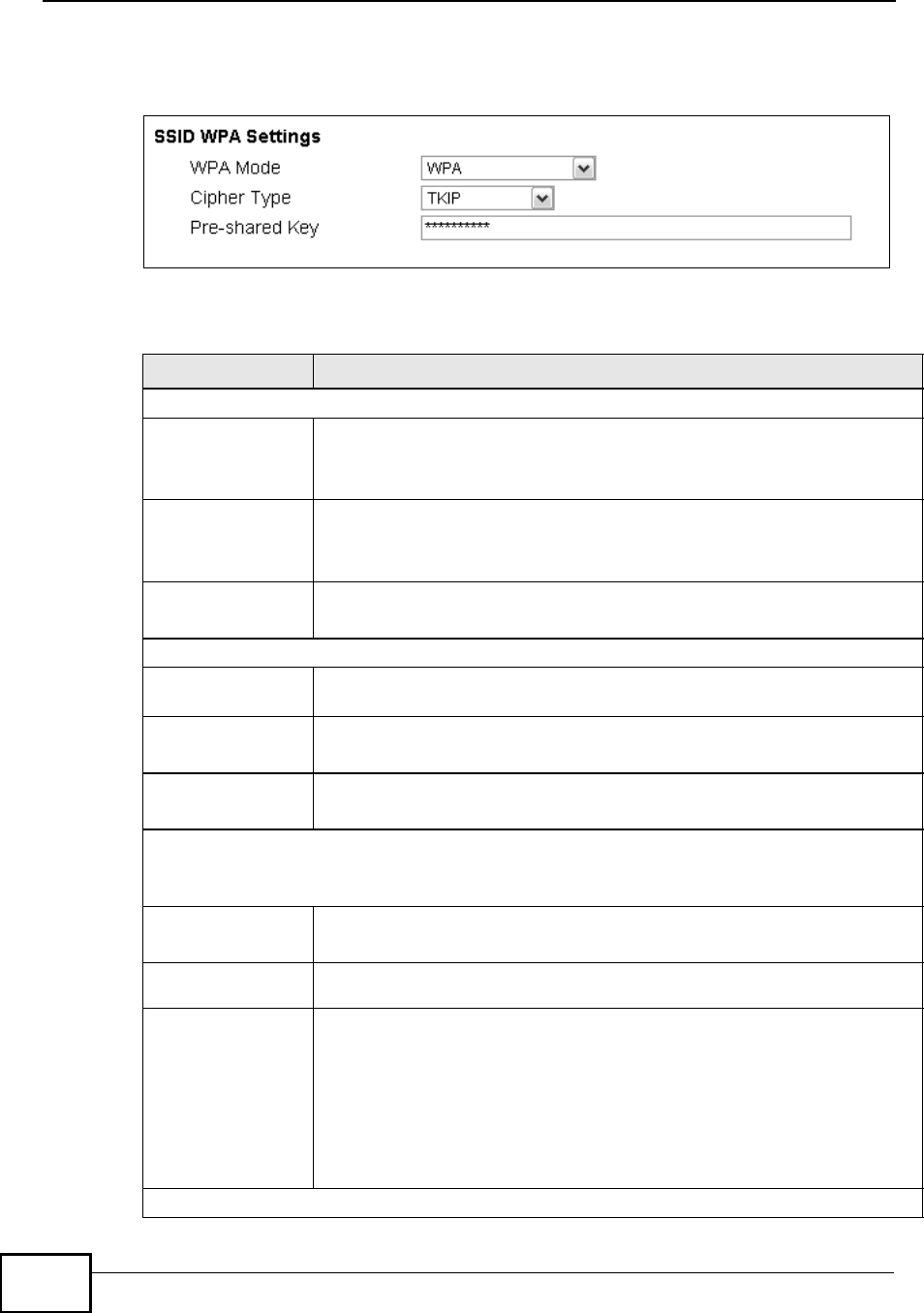

7.8 WLAN ................................................................................................................................102
7.9 WPS ..................................................................................................................................104

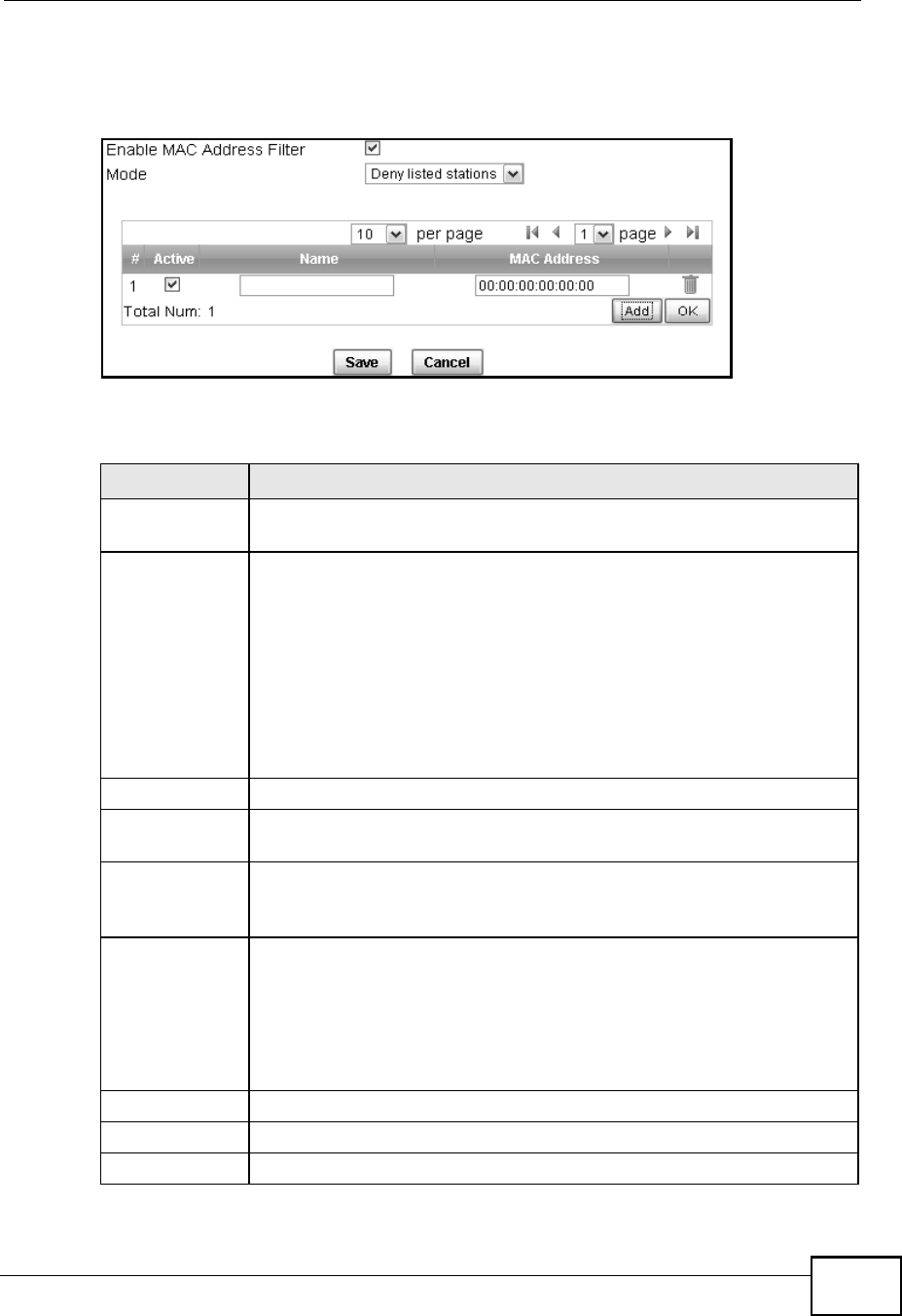

7.10 MAC Address Filter .........................................................................................................104

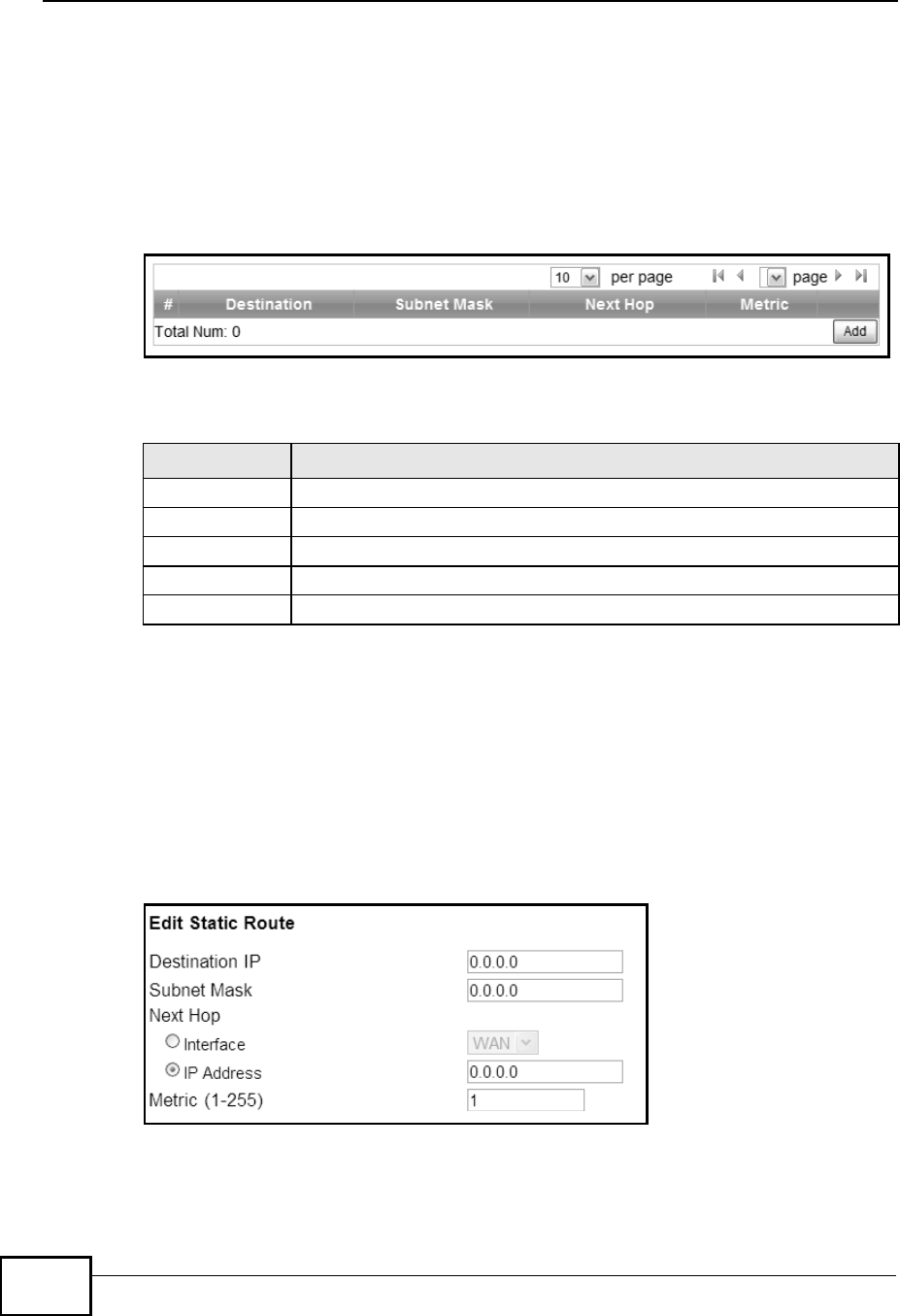

7.11 Static Route ......................................................................................................................106
7.12 Static Route Add ..............................................................................................................106
7.13 RIP ...................................................................................................................................107

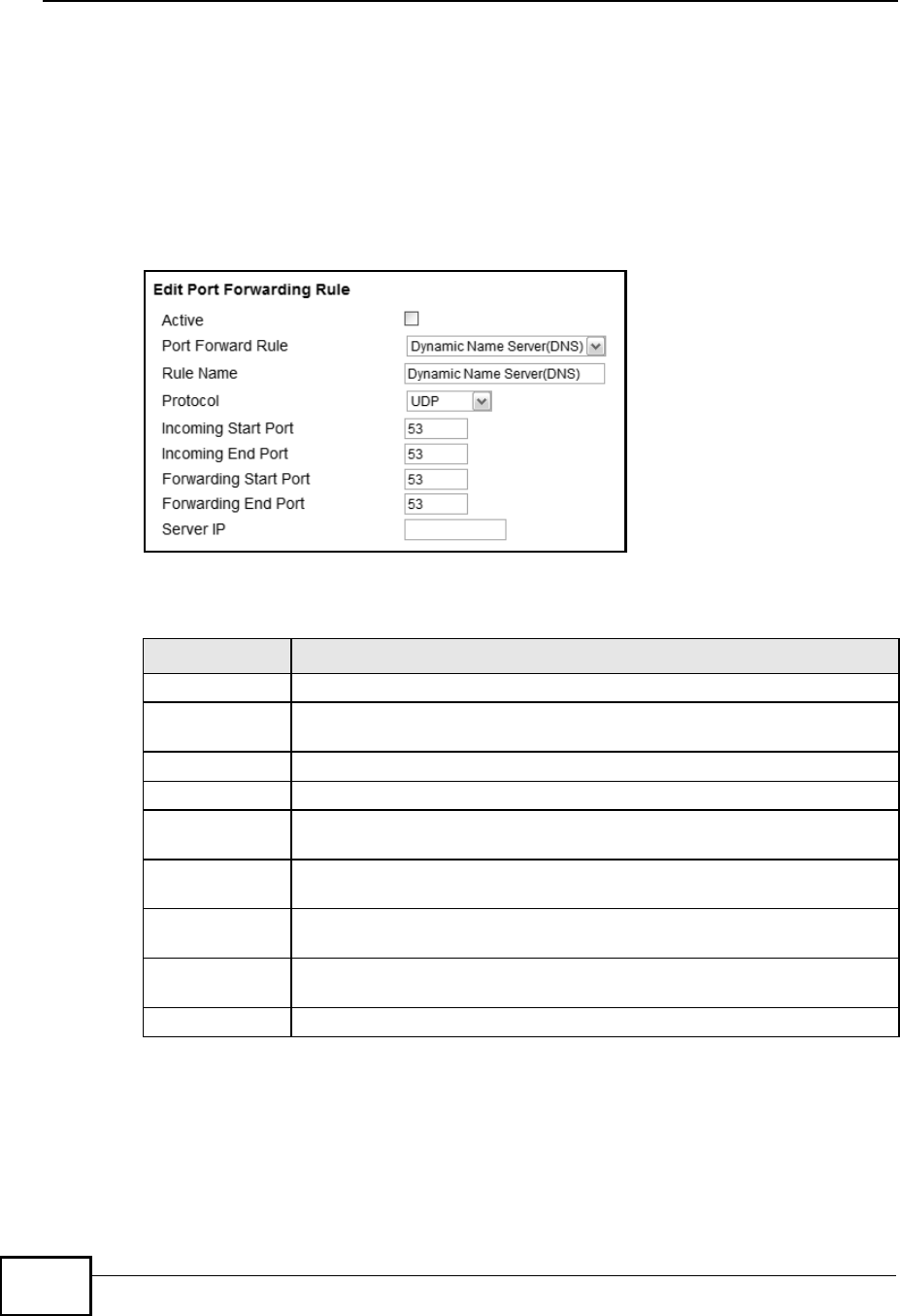

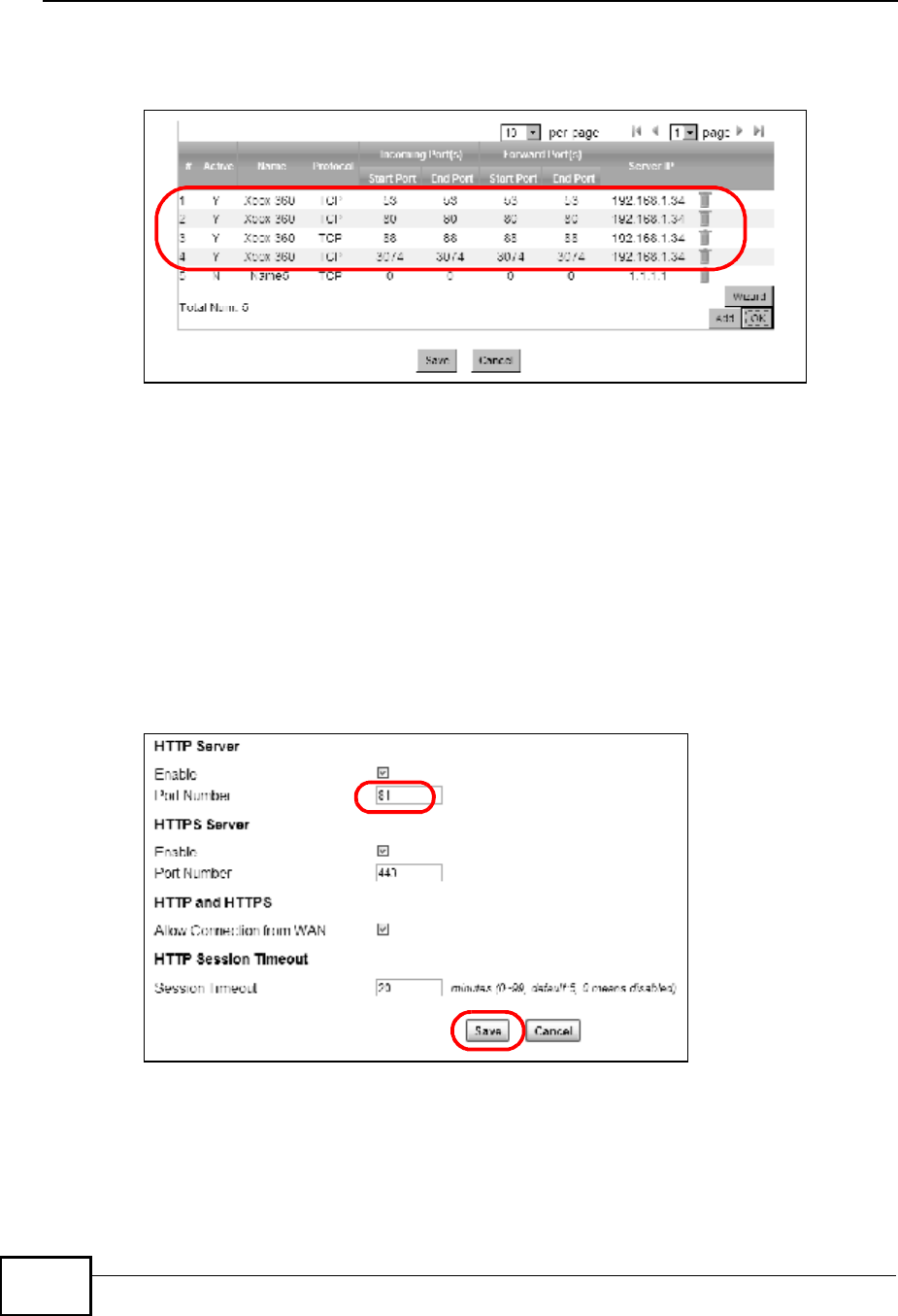

7.14 Port Forwarding ...............................................................................................................108
7.14.1 Port Forwarding Wizard ..........................................................................................110

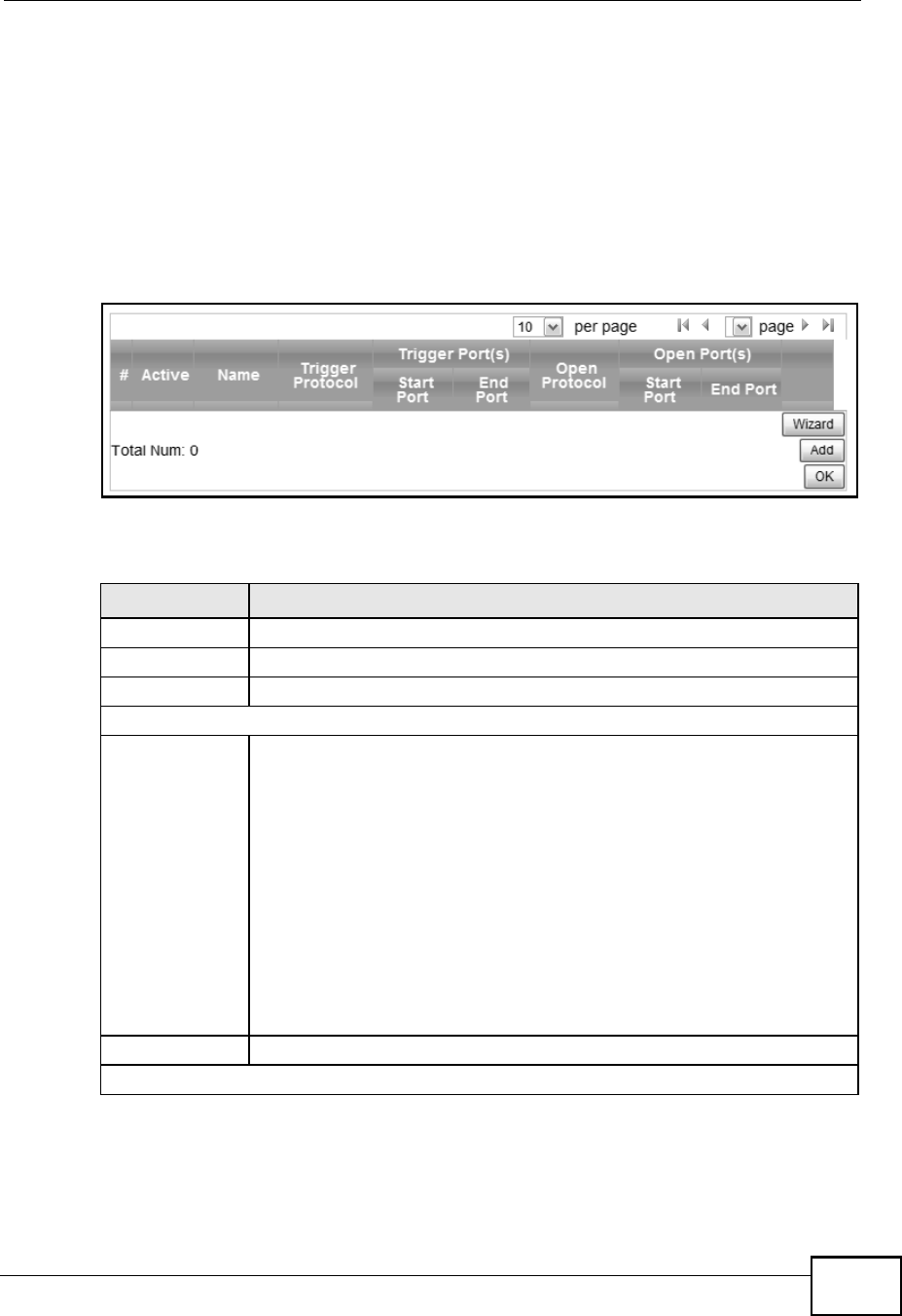

7.15 Port Trigger .......................................................................................................................111
7.15.1 Port Trigger Wizard .................................................................................................112
7.15.2 Trigger Port Forwarding Example ...........................................................................113

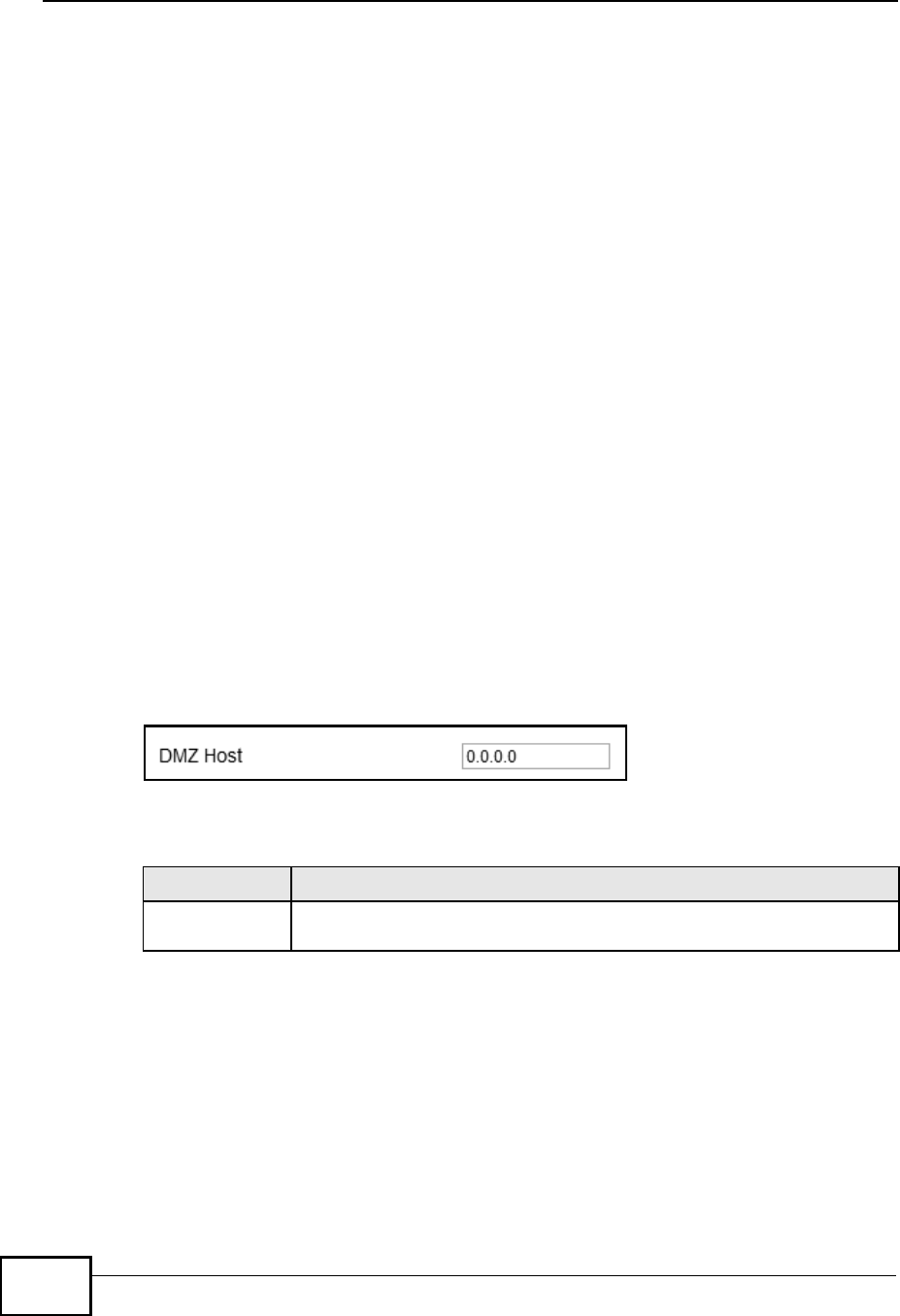

7.16 DMZ ..................................................................................................................................114
7.17 ALG ..................................................................................................................................115
7.18 UPnP ................................................................................................................................116

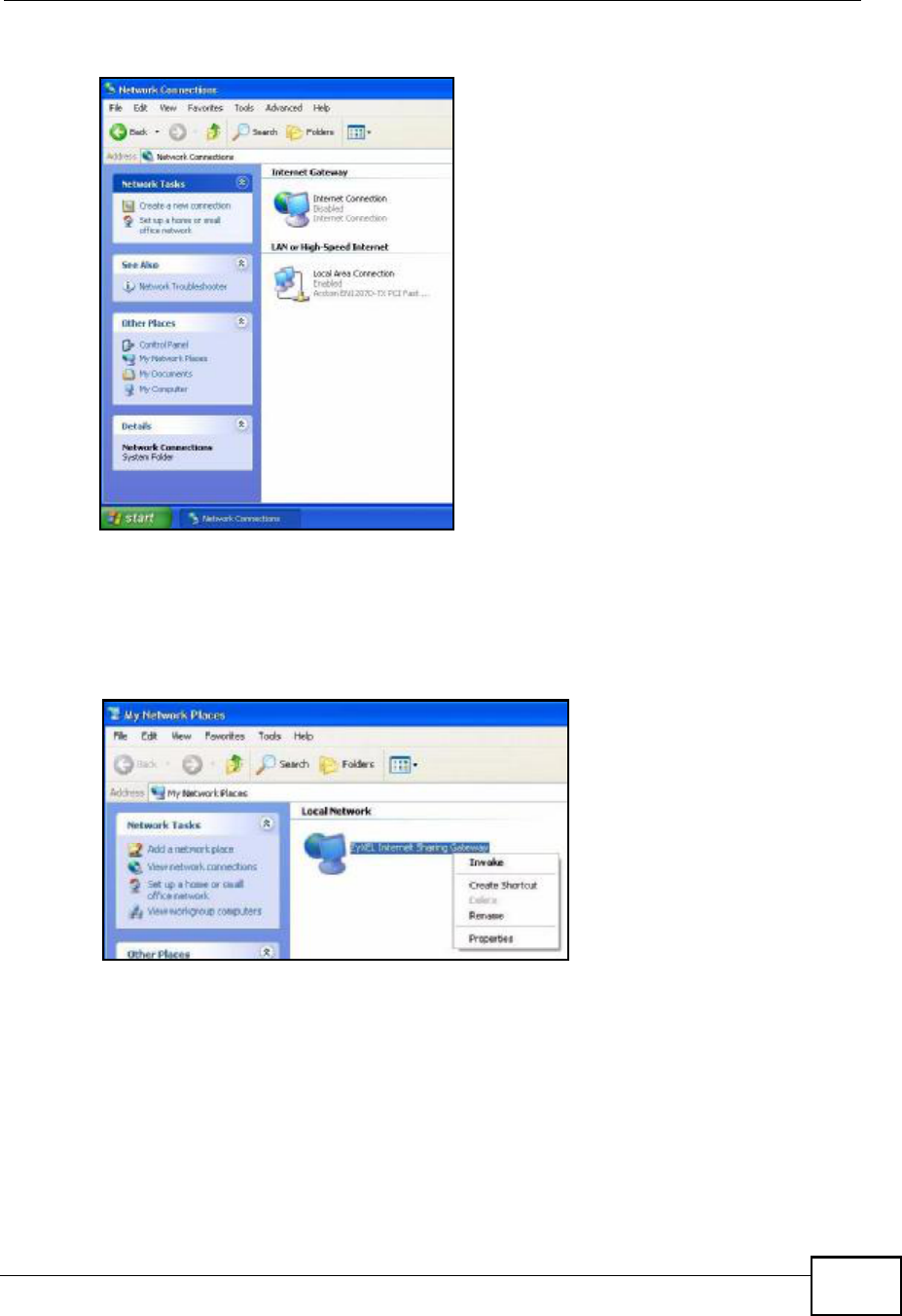

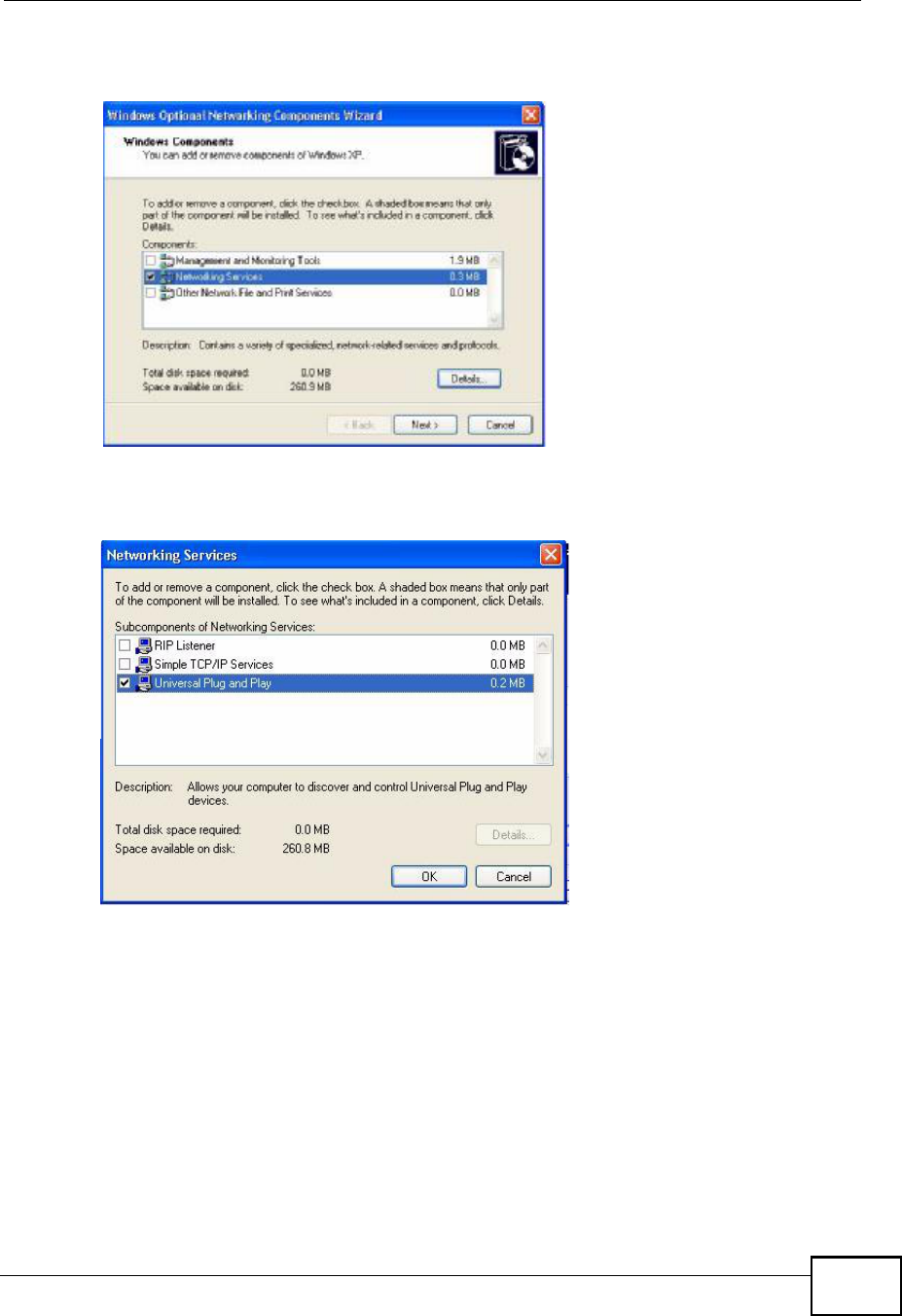

7.18.1 Installing UPnP in Windows XP ..............................................................................116
7.18.2 Web Configurator Easy Access .............................................................................120

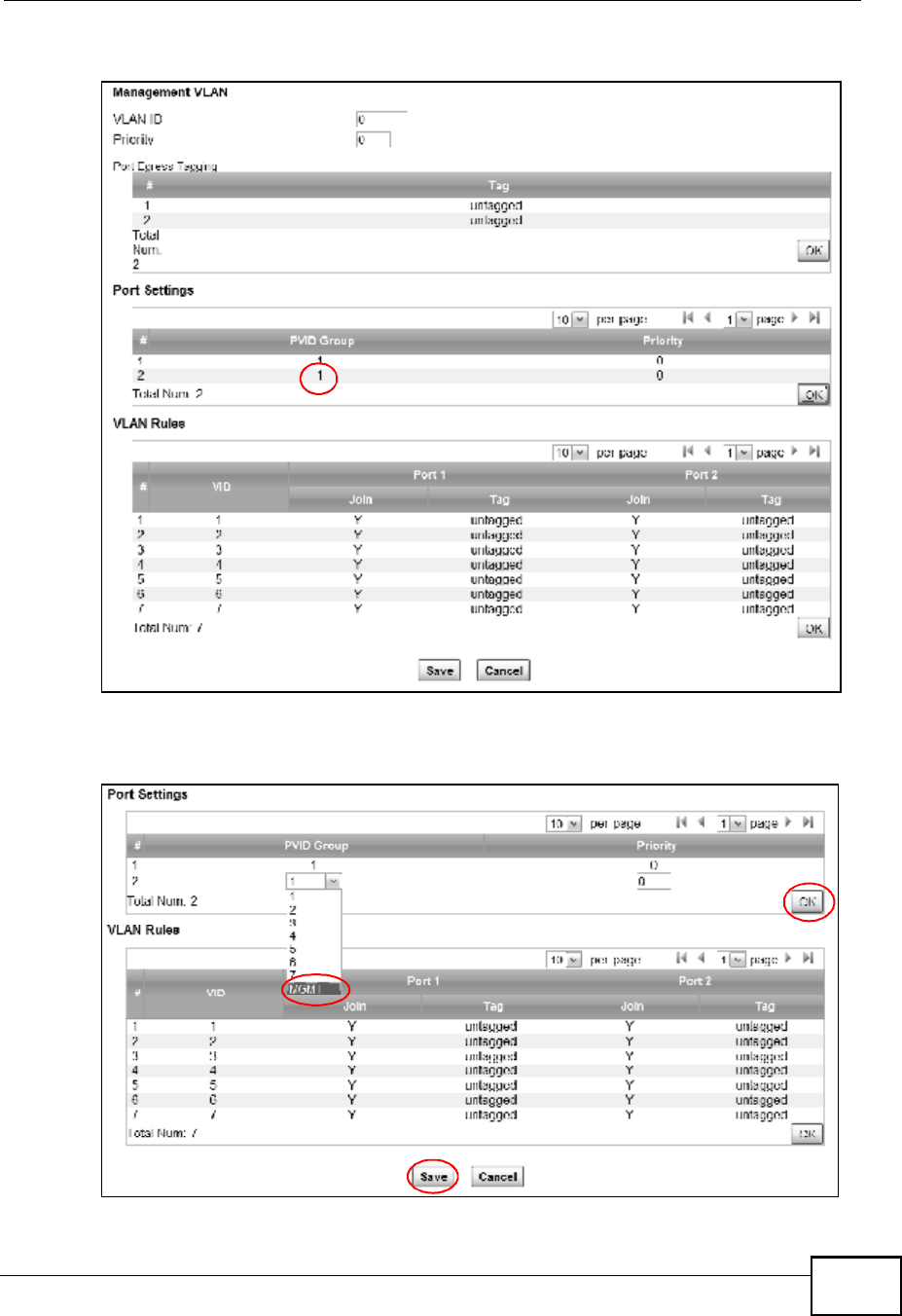

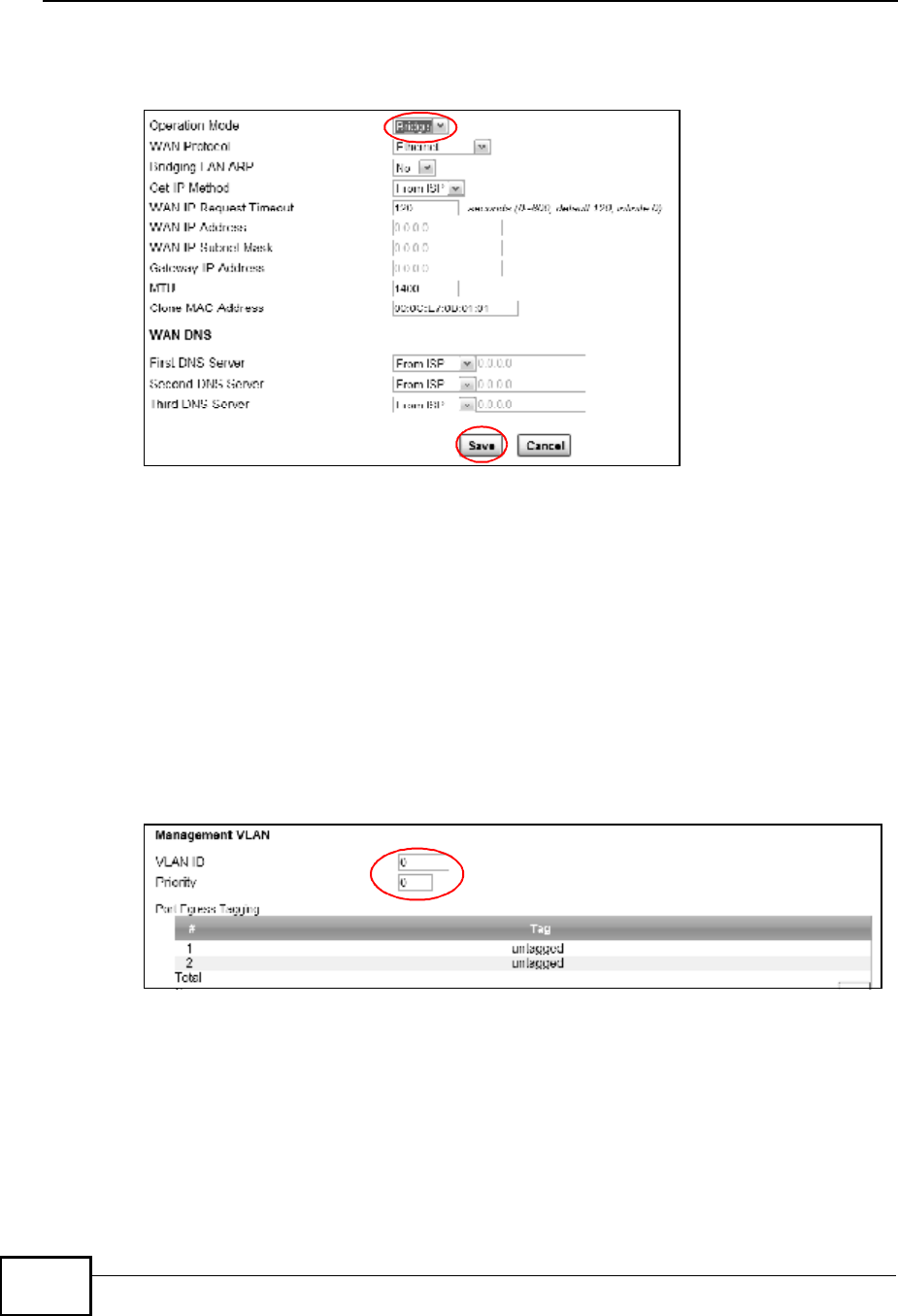

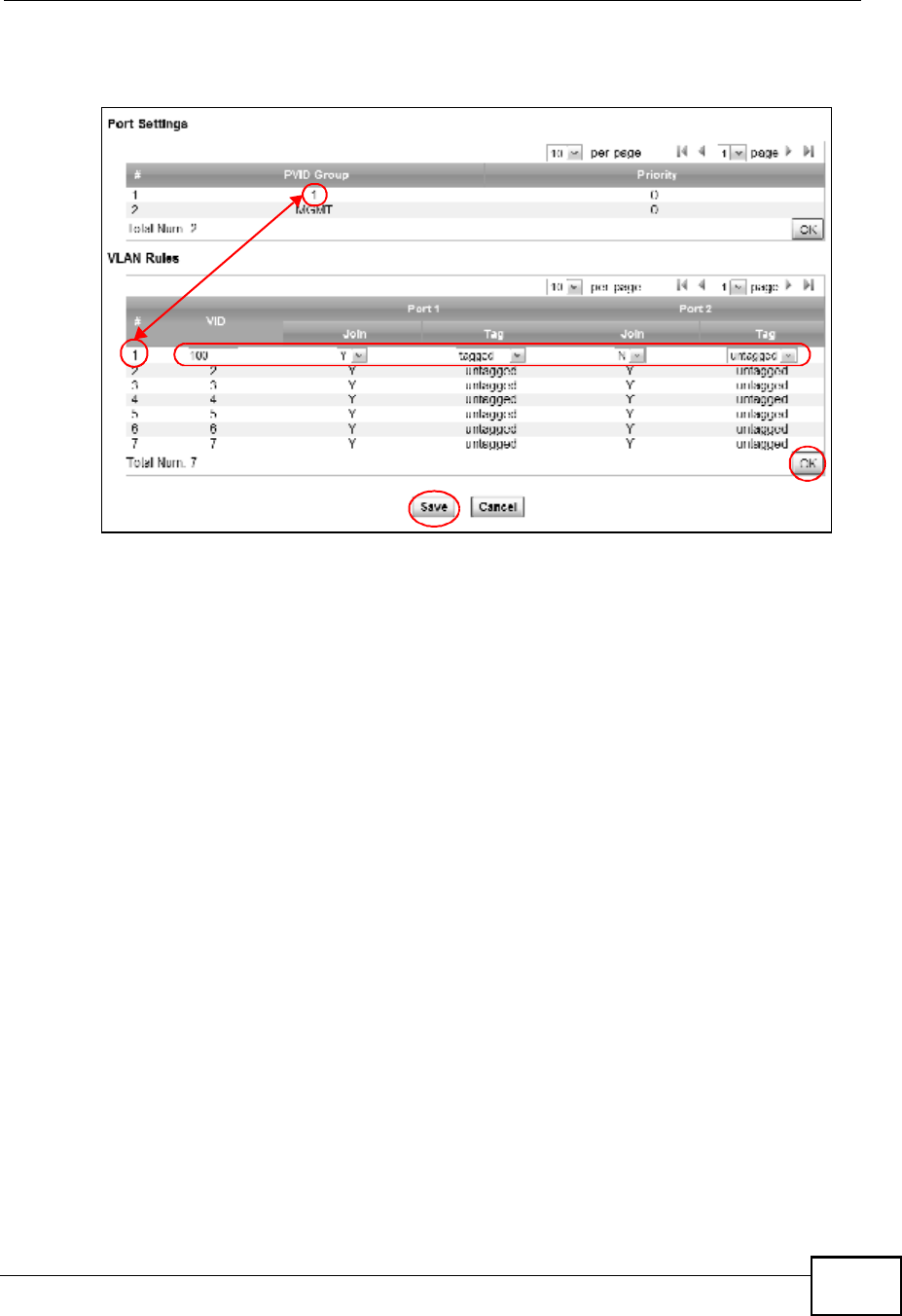

7.19 VLAN ...............................................................................................................................122
7.20 DDNS ..............................................................................................................................125

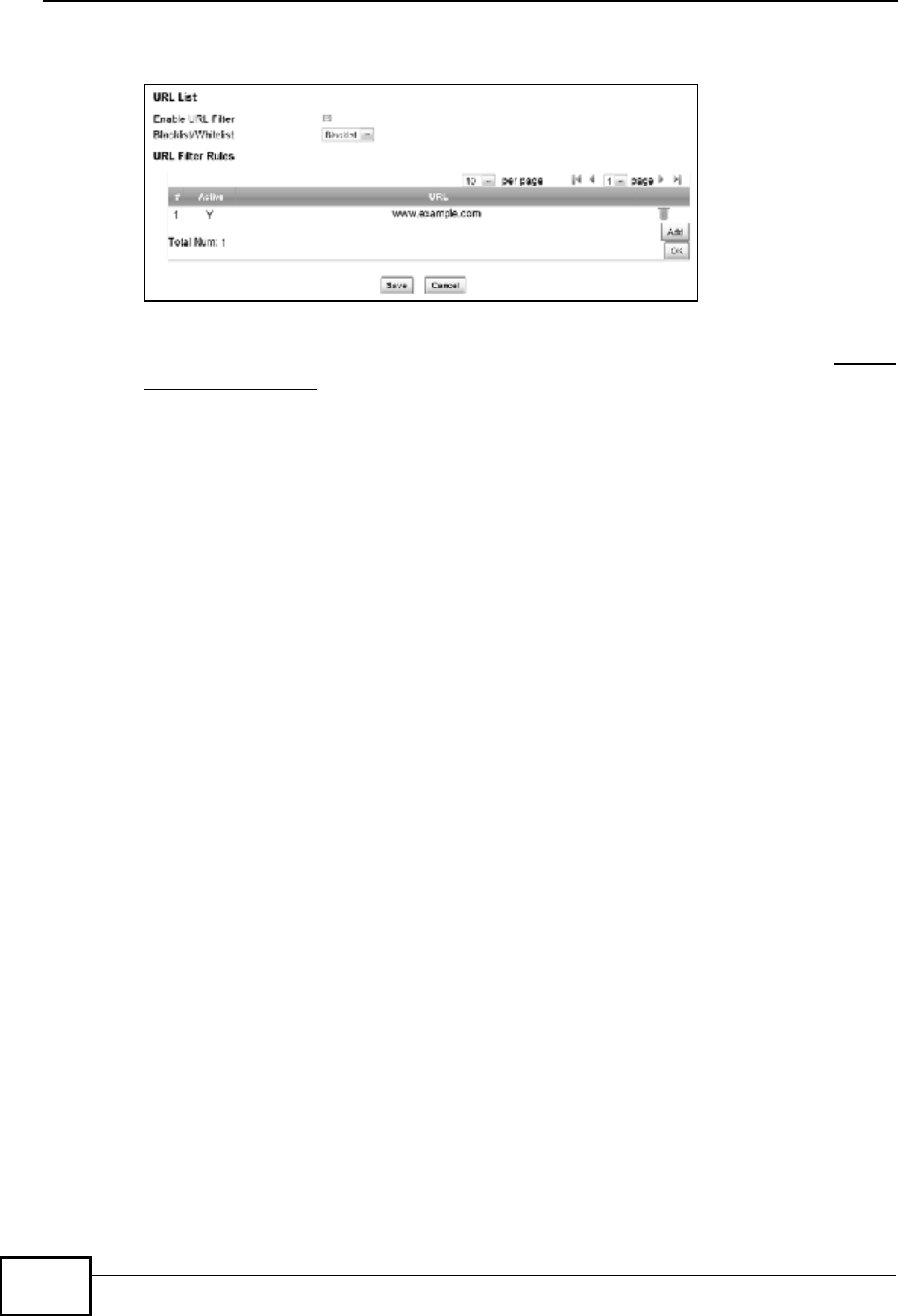

7.21 Content Filter ...................................................................................................................126
Chapter 8
Security..................................................................................................................................127
8.1 Overview ............................................................................................................................127
8.1.1 What You Need to Know ..........................................................................................127
8.2 IP Filter ..............................................................................................................................128

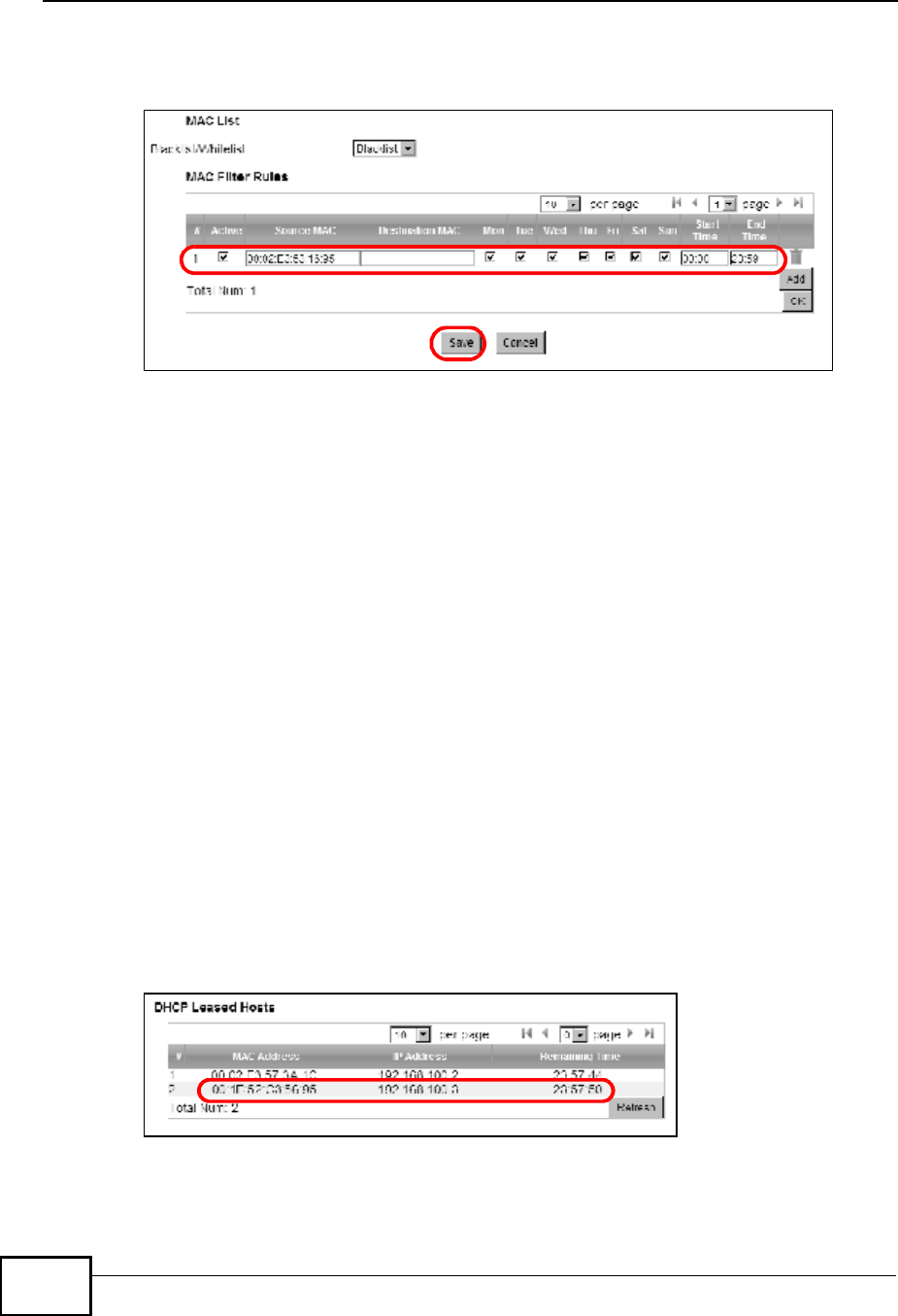

8.3 MAC Filter ..........................................................................................................................129

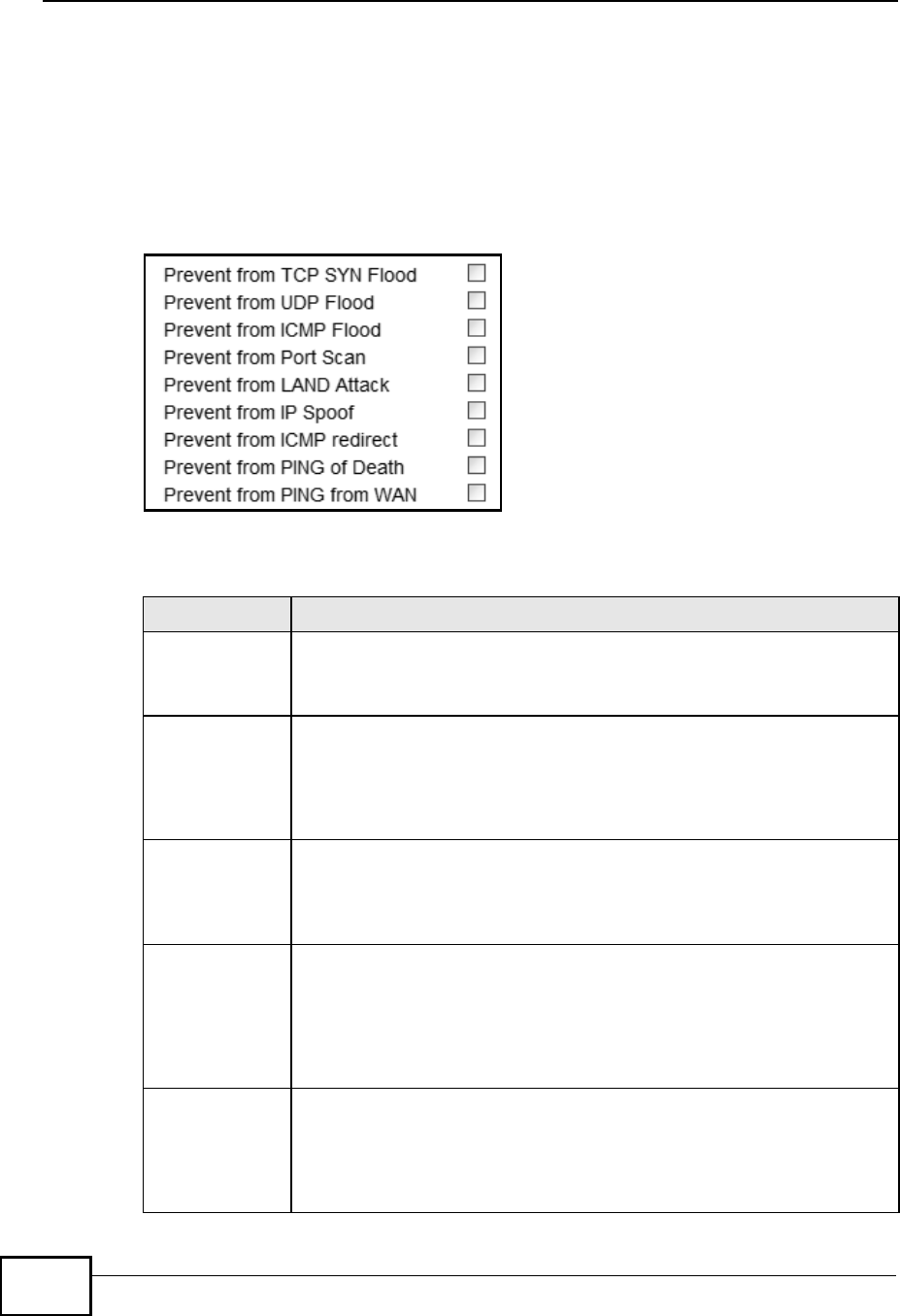

8.4 DDOS ................................................................................................................................130
Chapter 9
The VoIP General Screens...................................................................................................133
9.1 VoIP Overview ...................................................................................................................133
9.1.1 What You Can Do in This Chapter ...........................................................................133
9.1.2 What You Need to Know ..........................................................................................133
Table of Contents
MAX208M2W Series User s Guide
14
9.1.3 Before you Begin ......................................................................................................135
9.2 Media .................................................................................................................................135

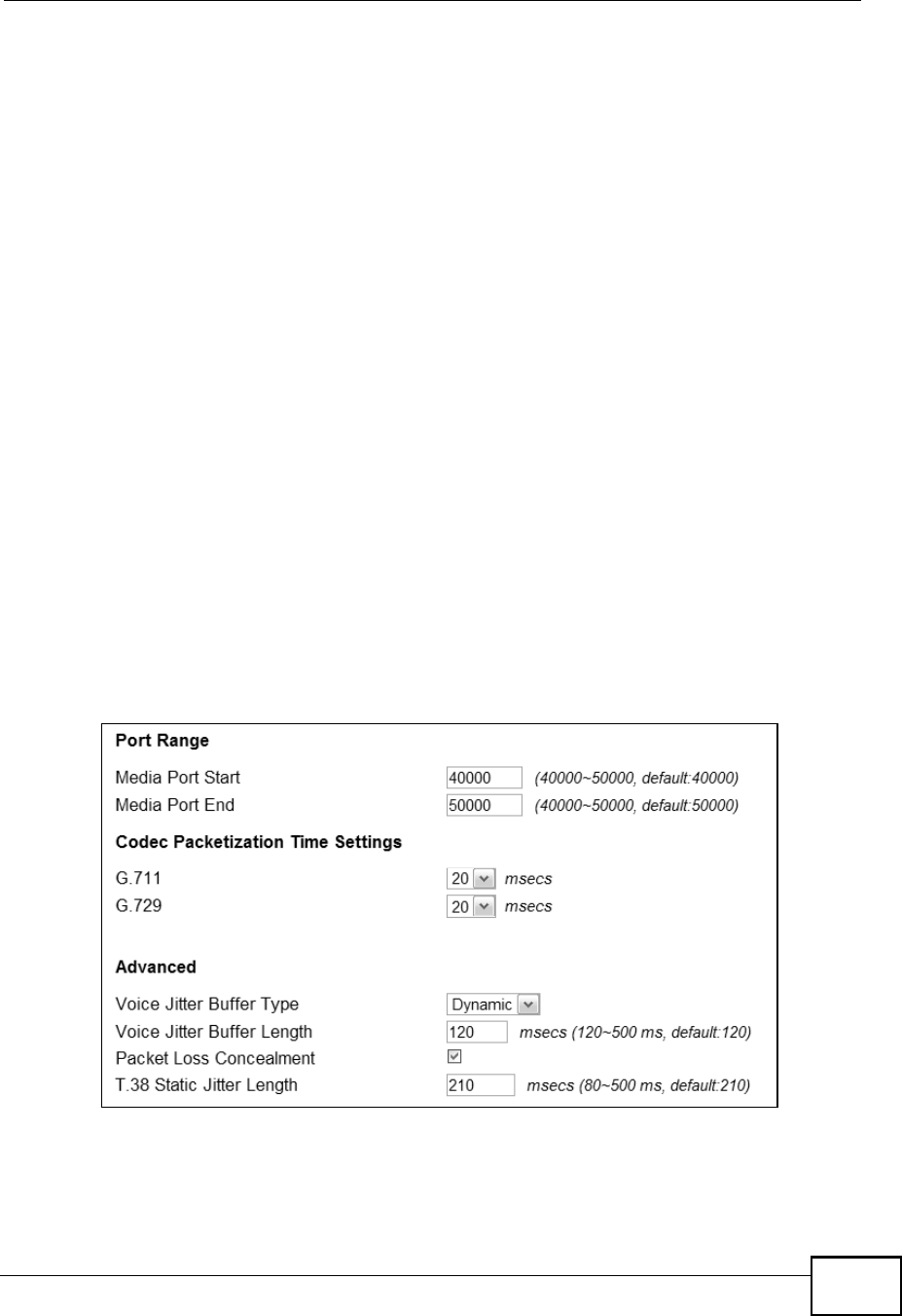

9.2.1 QoS ..........................................................................................................................136
9.2.2 QoS Settings ............................................................................................................137
9.3 Technical Reference ..........................................................................................................137
9.3.1 DSCP and Per-Hop Behavior ...................................................................................137
Chapter 10
The VoIP Account Screens..................................................................................................139
10.1 Overview ..........................................................................................................................139
10.1.1 What You Can Do in This Chapter .........................................................................139
10.1.2 What You Need to Know ........................................................................................139
10.1.3 SIP User Agent ......................................................................................................140
10.2 Status ...............................................................................................................................144

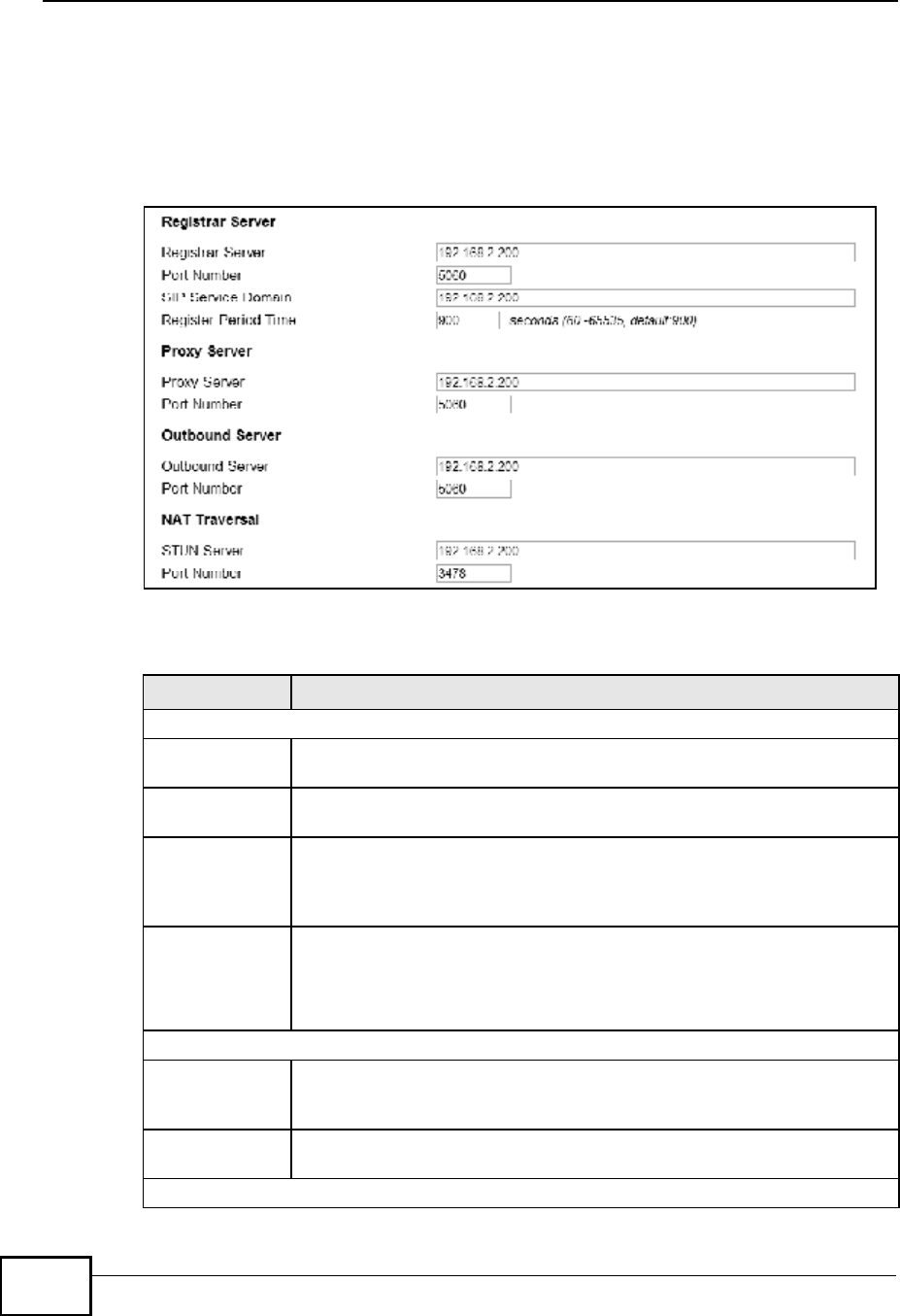

10.3 Server ..............................................................................................................................146
10.4 Feature ............................................................................................................................147
10.5 User .................................................................................................................................150
10.6 Dialing ..............................................................................................................................152

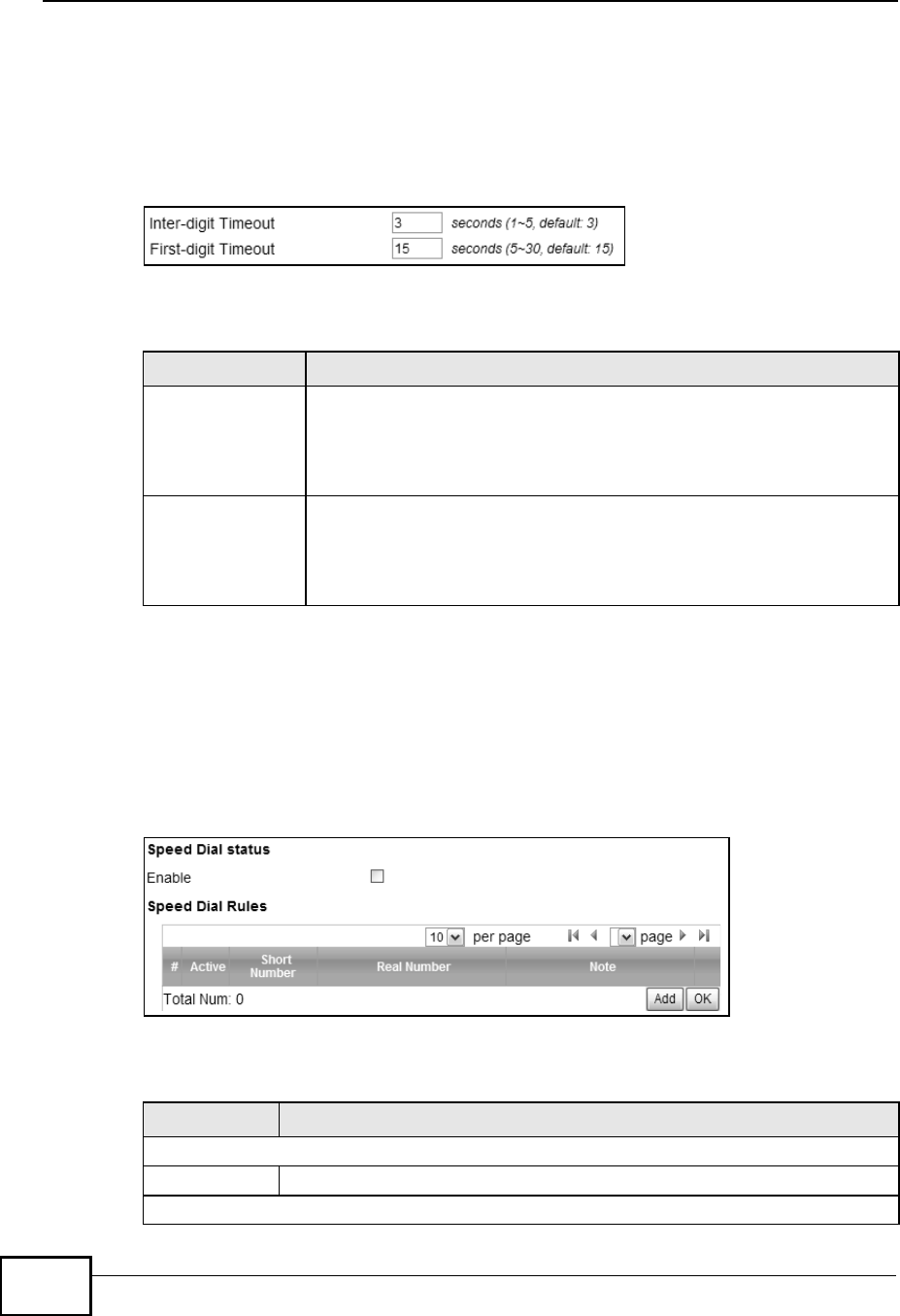

10.7 Speed Dial .......................................................................................................................152
10.8 FAX ..................................................................................................................................153
10.9 Technical Reference ........................................................................................................154
10.9.1 SIP Call Progression ..............................................................................................154
10.9.2 SIP Client Server ....................................................................................................155
Chapter 11
The VoIP Line Screens.........................................................................................................157
11.1 Overview ..........................................................................................................................157
11.1.1 What You Can Do in This Chapter .........................................................................157
11.1.2 What You Need to Know ........................................................................................157
11.2 Phone ..............................................................................................................................158
11.3 Voice ................................................................................................................................159
11.4 Profile ...............................................................................................................................159
Chapter 12
Maintenance..........................................................................................................................161
12.1 Overview ..........................................................................................................................161
12.1.1 What You Need to Know ........................................................................................161
12.2 Password .........................................................................................................................168

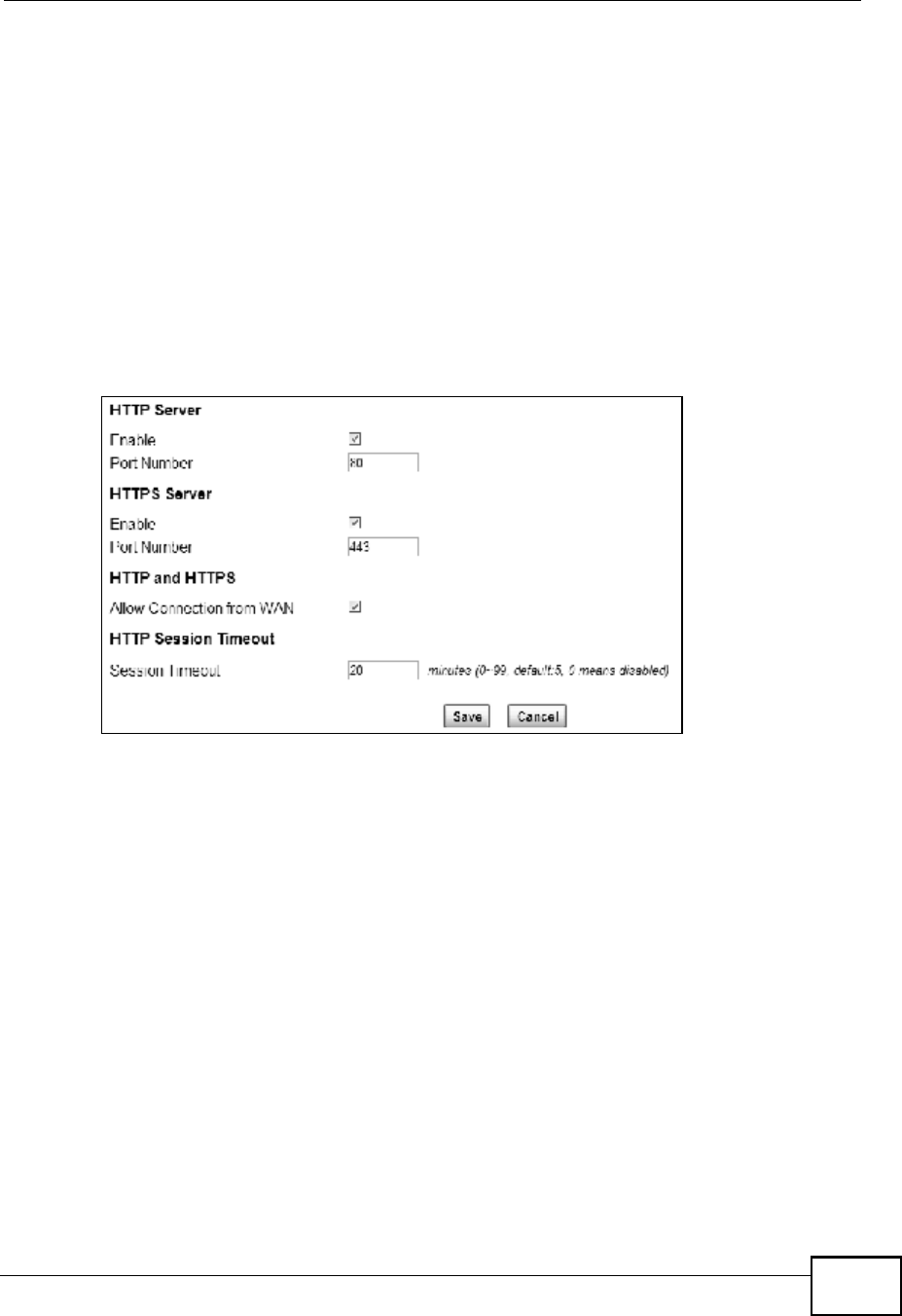

12.3 HTTP ...............................................................................................................................169
12.4 Telnet ...............................................................................................................................170
12.5 SSH .................................................................................................................................170

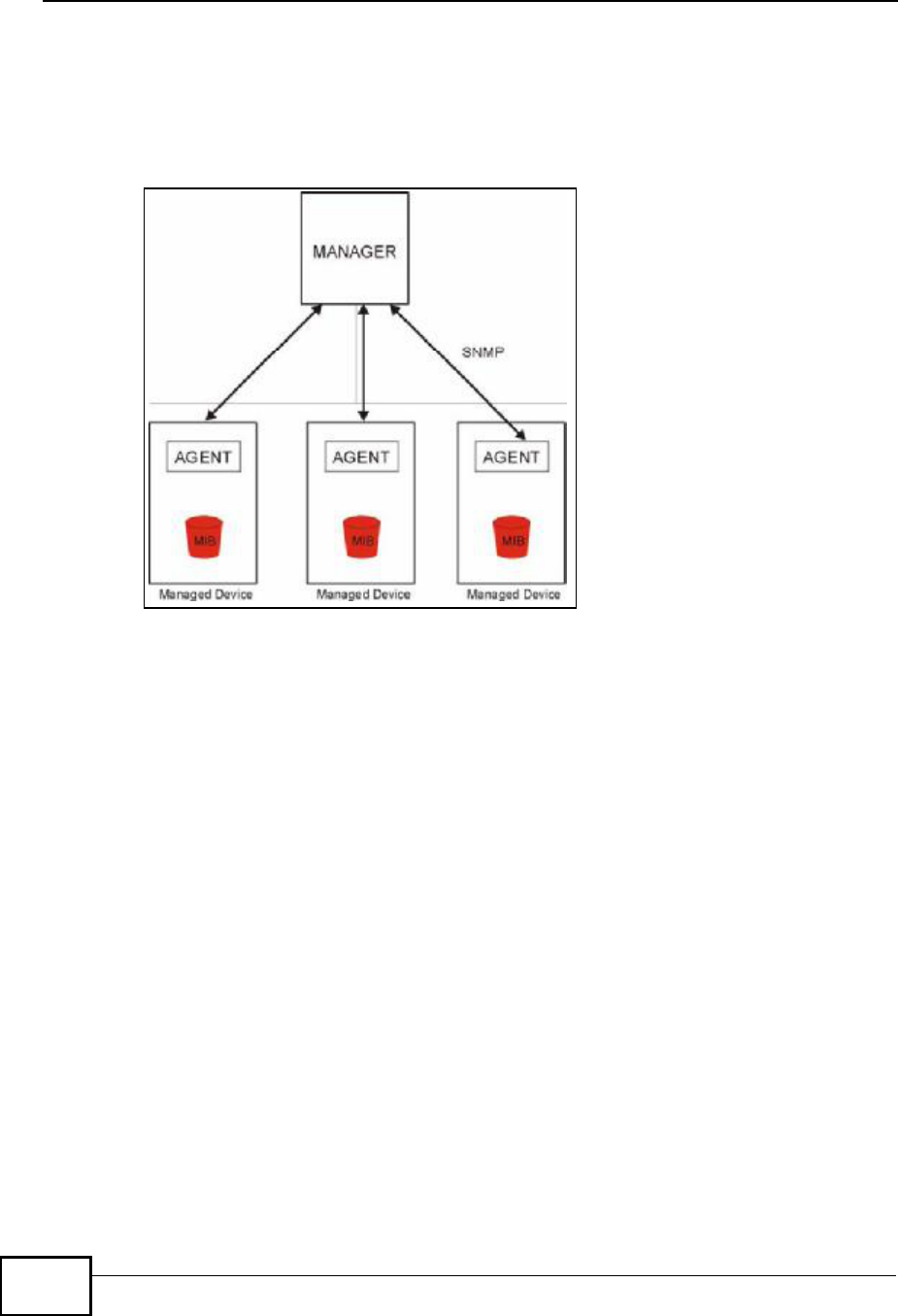

12.6 SNMP ..............................................................................................................................171
12.7 CWMP .............................................................................................................................172
Table of Contents
MAX208M2W Series User s Guide 15
12.8 OMA-DM ..........................................................................................................................174

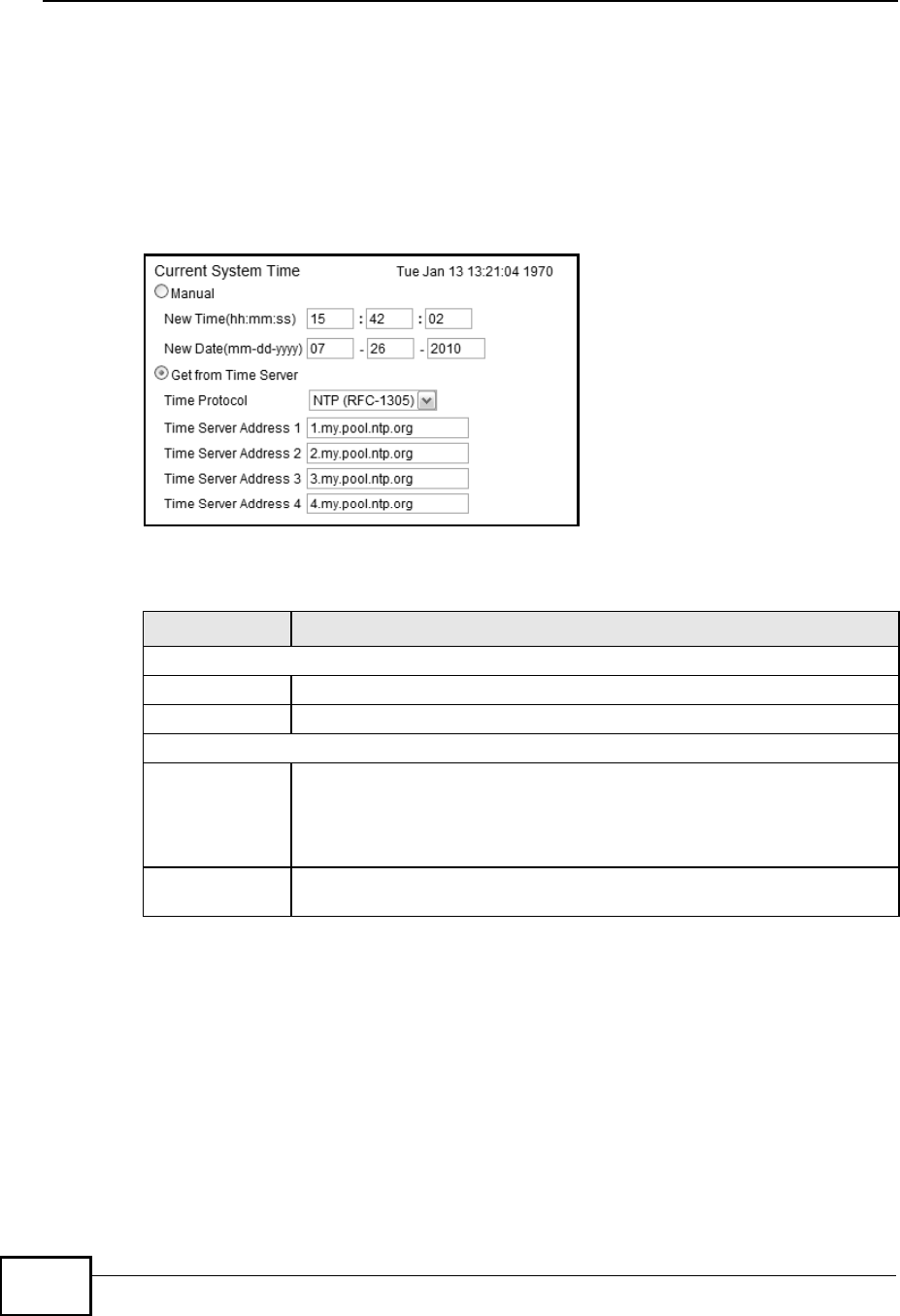

12.9 Date .................................................................................................................................176
12.10 Time Zone ......................................................................................................................177
12.11 Upgrade File ..................................................................................................................177
12.11.1 The Firmware Upload Process .............................................................................178

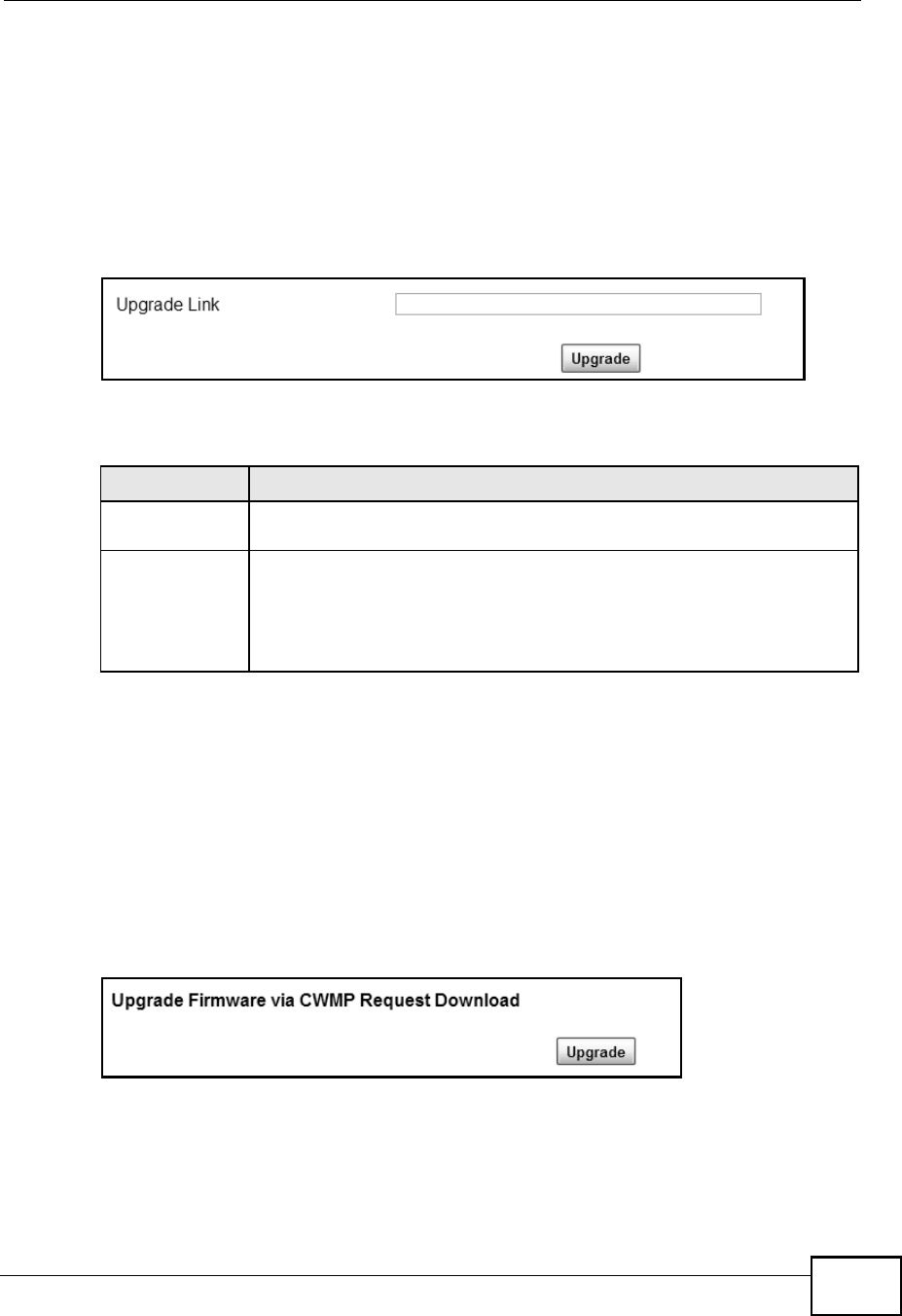

12.12 Upgrade Link .................................................................................................................179
12.13 CWMP Upgrade ............................................................................................................179

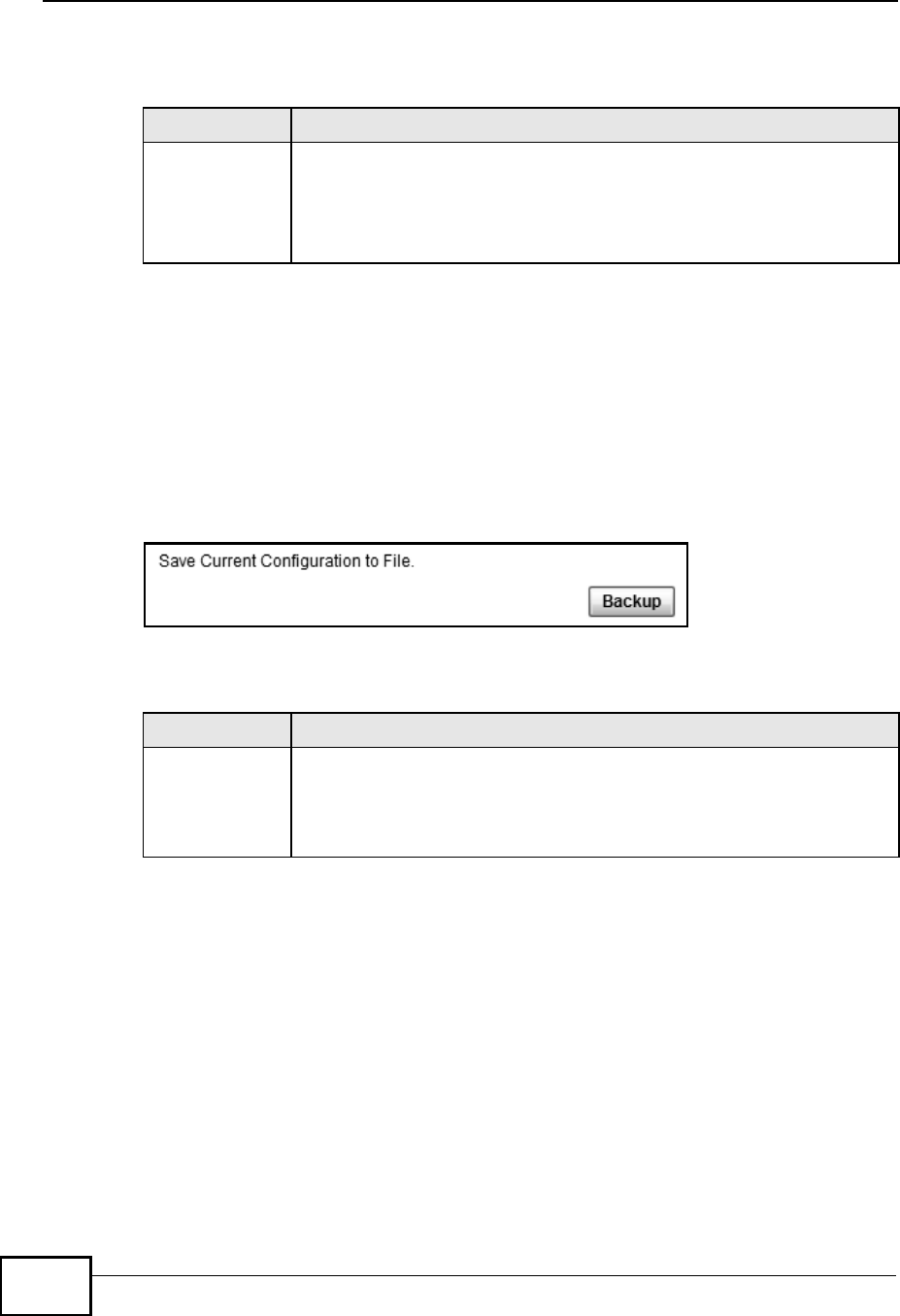

12.14 Backup ...........................................................................................................................180
12.15 Restore ..........................................................................................................................181
12.15.1 The Restore Configuration Process .....................................................................181

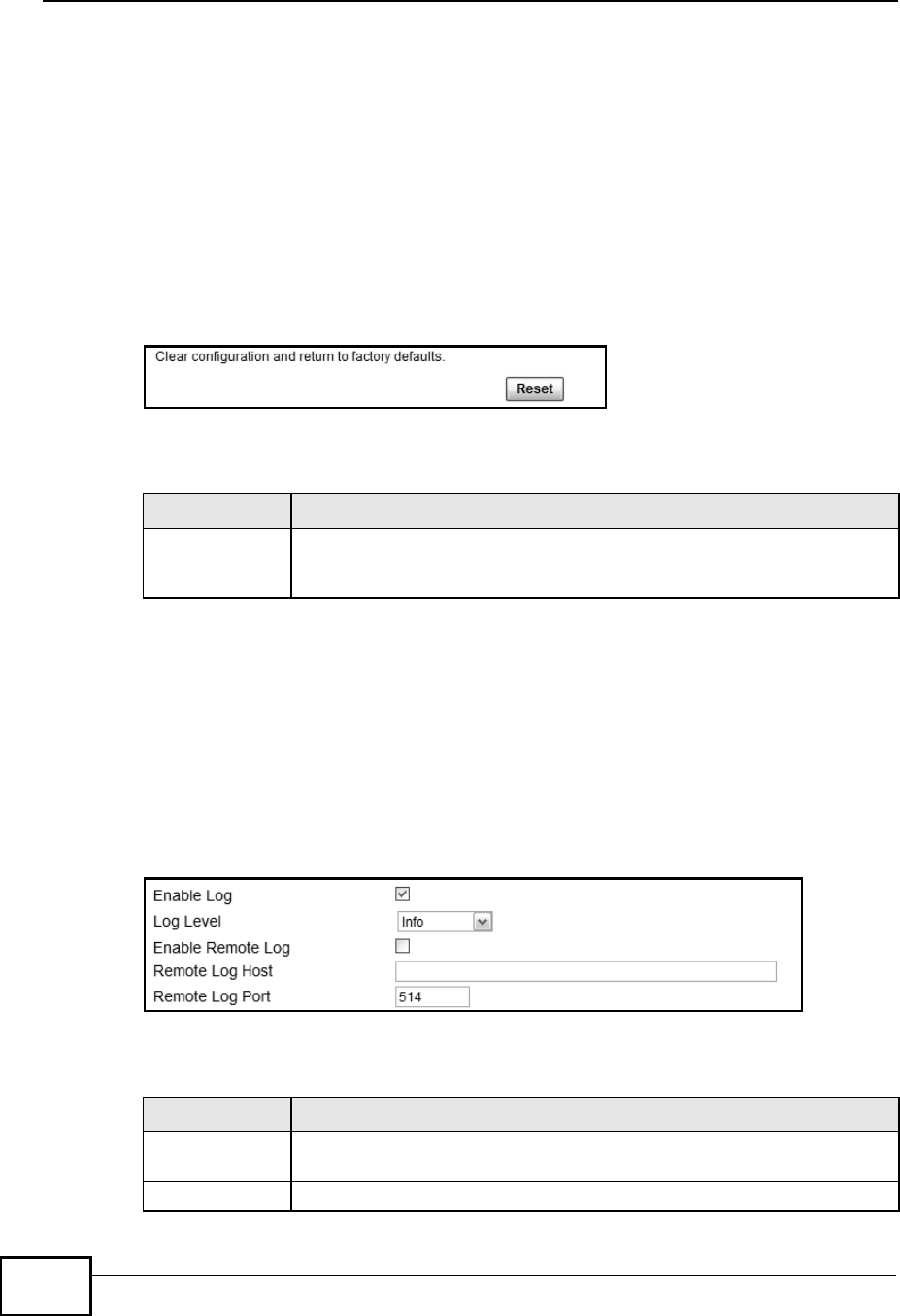

12.16 Factory Defaults ............................................................................................................182
12.17 Log Setting ....................................................................................................................182
12.18 Log Display ....................................................................................................................183
12.19 Ping Test ........................................................................................................................184
12.20 Traceroute Test ..............................................................................................................184

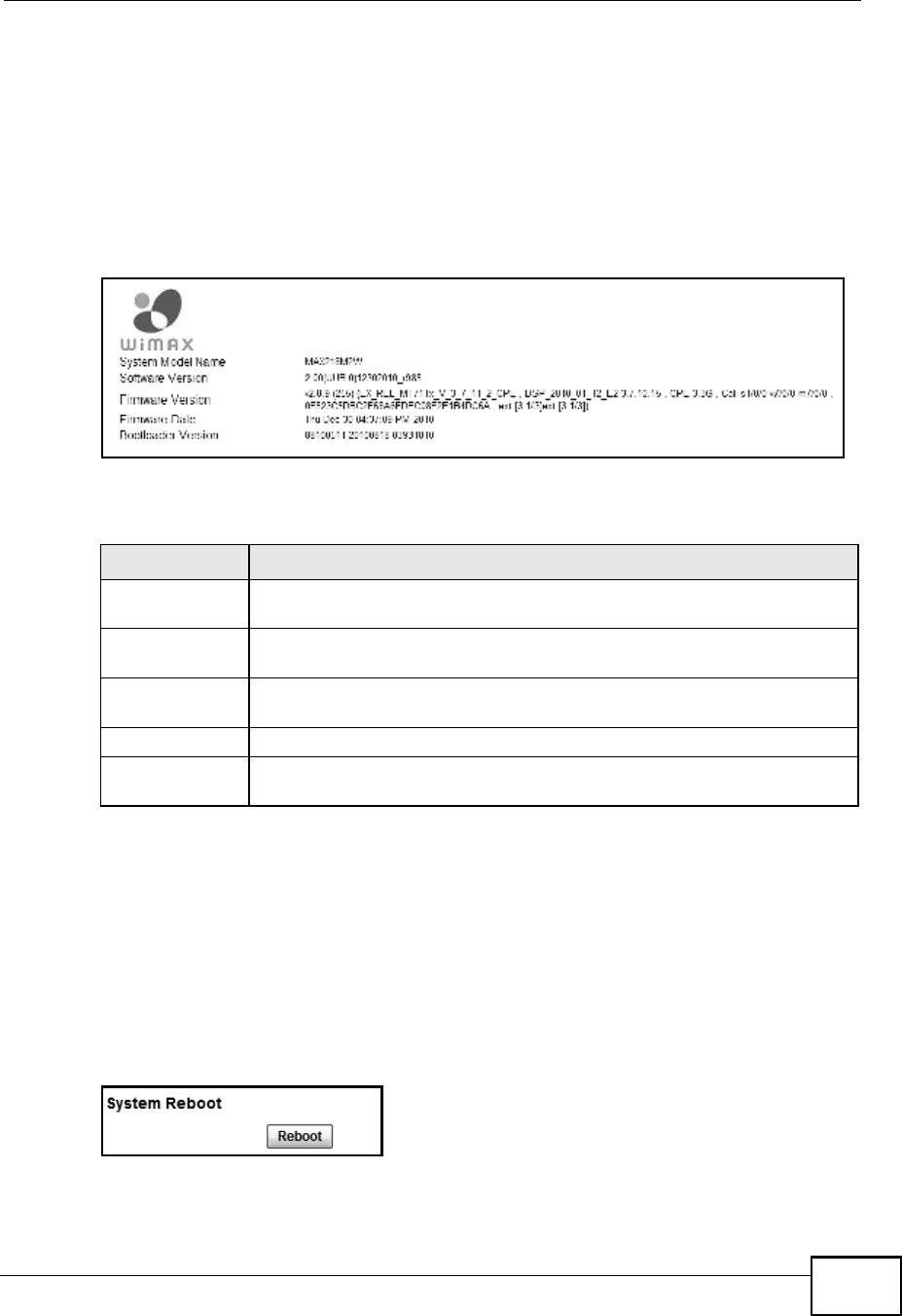

12.21 About .............................................................................................................................185
12.22 Reboot ...........................................................................................................................185
Chapter 13
Troubleshooting....................................................................................................................187
13.1 Power, Hardware Connections, and LEDs ......................................................................187
13.2 MAX208M2W Series Access and Login ..........................................................................188
13.3 Internet Access ................................................................................................................190
13.4 Reset the MAX208M2W Series to Its Factory Defaults ...................................................191
13.4.1 Pop-up Windows, JavaScript and Java Permissions .............................................192
Chapter 14
Product Specifications.........................................................................................................193
14.1 Wall-Mounting ..................................................................................................................201
14.1.1 The Wall-Mounting Kit ............................................................................................201
14.1.2 Instructions .............................................................................................................201
Appendix A WiMAX Security................................................................................................205
Appendix B Setting Up Your Computer s IP Address...........................................................209
Appendix C Pop-up Windows, JavaScript and Java Permissions........................................237
Appendix D IP Addresses and Subnetting...........................................................................247
Appendix E Importing Certificates........................................................................................259
Appendix F Common Services.............................................................................................291
Appendix G Legal Information..............................................................................................295
Table of Contents
MAX208M2W Series User s Guide
16
Index.......................................................................................................................................299
17
PART I
User!s Guide
18
MAX208M2W Series User s Guide 19
CHAPTER 1
Getting Started
1.1 About Your MAX208M2W Series
The MAX208M2W Series includes MAX208M2W and MAX218M2W.
The MAX208M2W Series has a built-in switch and two phone ports. It allows you
to access the Internet by connecting to a WiMAX wireless network. You can use a
traditional analog telephone to make Internet calls using the MAX208M2W Series s
Voice over IP (VoIP) communication capabilities.
Additionally, The web browser-based Graphical User Interface (GUI), also known
as the web configurator, provides easy management of the device and its features.
See Chapter 14 on page 193 for a complete list of features for your model.
1.1.1 WiMAX Internet Access
Connect your computer or network to the MAX208M2W Series for WiMAX Internet
access. See the Quick Start Guide for instructions on hardware connection.
In a wireless metropolitan area network (MAN), the MAX208M2W Series connects
to a WiMAX base station (BS) for Internet access.

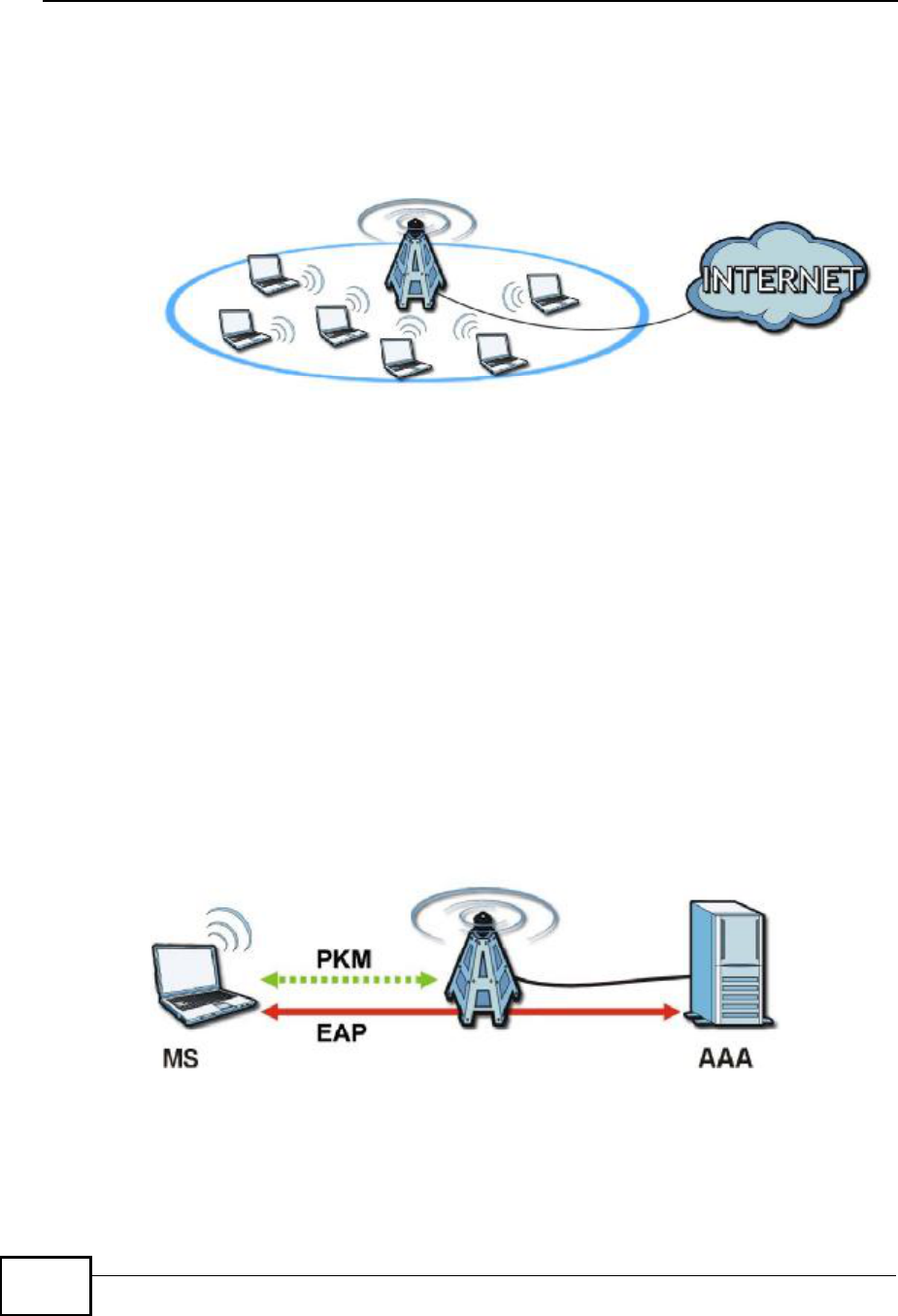

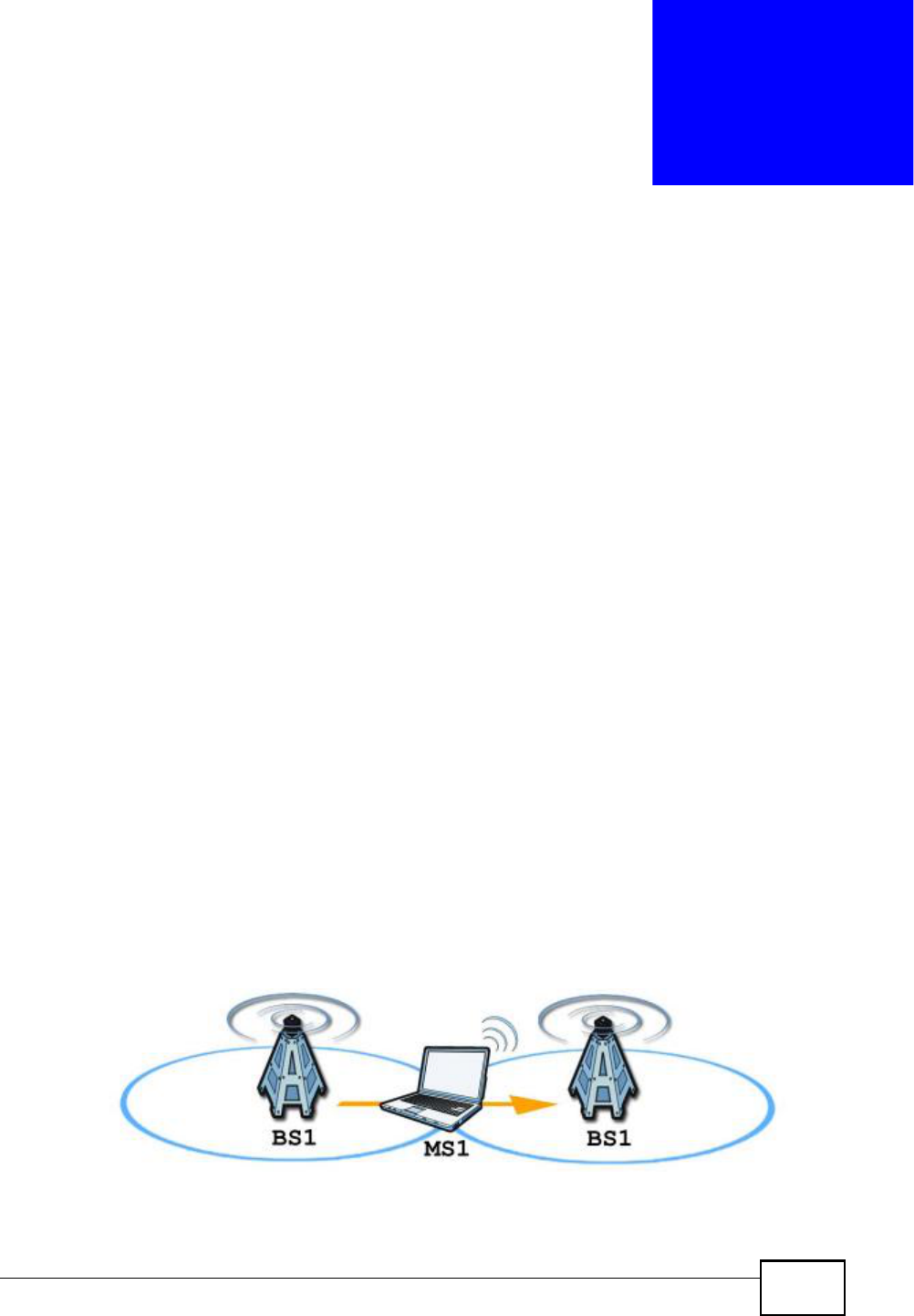

The following diagram shows a notebook computer equipped with the
MAX208M2W Series connecting to the Internet through a WiMAX base station
(marked BS).

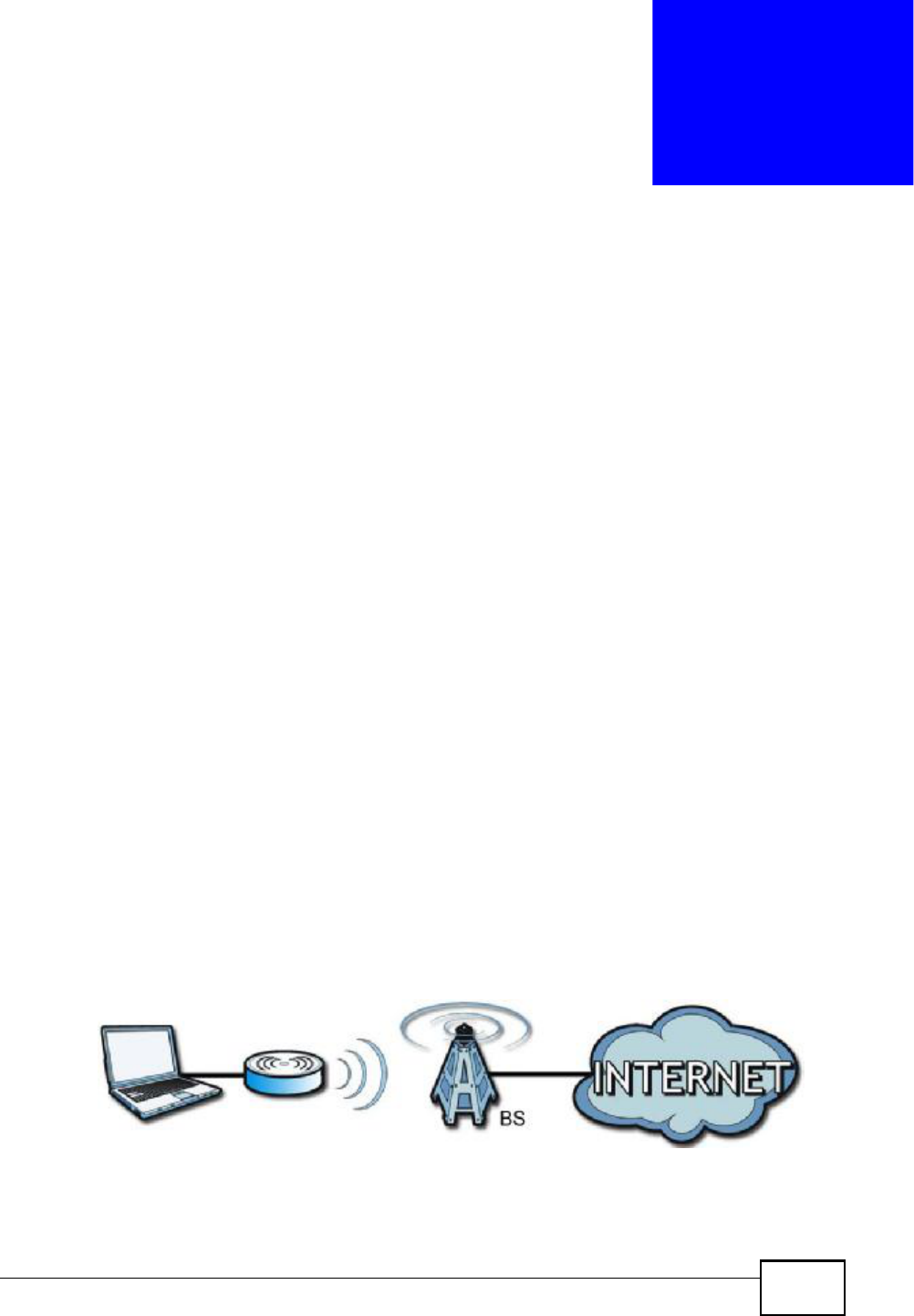

Figure 1 Mobile Station and Base Station
When the firewall is on, all incoming traffic from the Internet to your network is
blocked unless it is initiated from your network.
Chapter 1Getting Started
MAX208M2W Series User s Guide
20
Use content filtering to block access to web sites with URLs containing keywords
that you specify. You can define time periods and days during which content
filtering is enabled and include or exclude particular computers on your network
from content filtering. For example, you could block access to certain web sites for
the kids.
1.1.2 Make Calls via Internet Telephony Service Provider
In a home or small office environment, you can use the MAX208M2W Series to
make and receive the following types of VoIP telephone calls:
!Peer-to-Peer calls - Use the MAX208M2W Series to make a call directly to the
recipient s IP address without using a SIP proxy server.

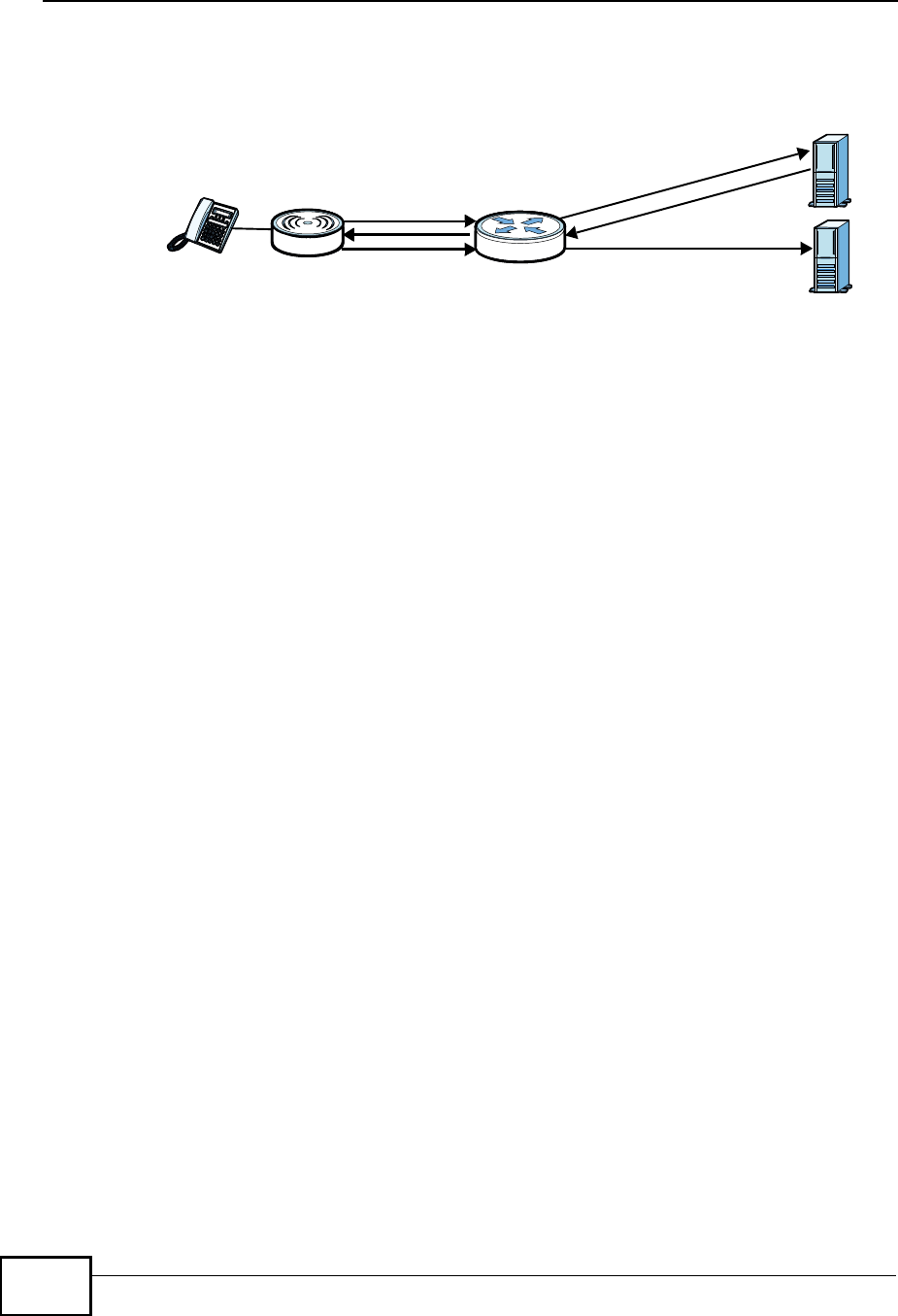

Figure 2 VoIP Features - Peer-to-Peer Calls
!Calls via a VoIP service provider - The MAX208M2W Series sends your call to a
VoIP service provider s SIP server which forwards your calls to either VoIP or
PSTN phones.
Figure 3 Calls via VoIP Service Provider
Chapter 1Getting Started
MAX208M2W Series User s Guide 21
1.2 MAX208M2W Series Hardware
Follow the instructions in the Quick Start Guide to make hardware connections.
1.2.1 LEDs
The following figure shows the LEDs (lights) on the MAX208M2W Series.
Figure 4 The MAX208M2W Series s LEDs
The following table describes your MAX208M2W Series s LEDs (from top to
bottom).
Table 2 The MAX208M2W Series LEDs behavior
LED STATE DESCRIPTION
PowerOffThe MAX208M2W Series is not receiving power.
RedThe MAX208M2W Series is receiving power but has
been unable to start up correctly or is not receiving
enough power. See the Troubleshooting section for
more information.
Green Solid: The MAX208M2W Series is receiving power and
functioning correctly.
Flashing: the device is self-testing (startup)
WLAN
LED
STRENGTH
INDICATORS
VOICE
LEDS
POWER
LED
1 & 2
SIGNAL
WIMAX
LINK
Chapter 1Getting Started
MAX208M2W Series User s Guide
22
1.3 Good Habits for Managing the MAX208M2W
Series
Do the following things regularly to make the MAX208M2W Series more secure
and to manage the MAX208M2W Series more effectively.
!Change the password. Use a password that s not easy to guess and that consists
of different types of characters, such as numbers and letters.
!Write down the password and put it in a safe place.
WiMAX LinkOffThe MAX208M2W Series is not connected to a wireless
(WiMAX) network.
GreenThe MAX208M2W Series is successfully connected to a
wireless (WiMAX) network.
Green (Blinking
Slowly)
The MAX208M2W Series is searching for a wireless
(WiMAX) network.
Green (Blinking
Quickly)
The MAX208M2W Series has found a wireless (WiMAX)
network and is connecting.
Signal
Strength
Indicator
The Strength Indicator LEDs display the Interference-plus-Noise Ratio
(CINR) of the wireless (WiMAX) connection.
Signal 1 OnThe signal strength is in the range between 5 and 15.
Signal 2 OnThe signal strength is in the range between 16 and 24.
Signal 3 OnThe signal strength is greater than or equal to 25 dBm
Voice 1 & 2OffNo SIP account is registered, or the MAX208M2W
Series is not receiving power.
GreenA SIP account is registered.
Green (Blinking)A SIP account is registered, and the phone attached to
the VoIP port is in use (off the hook).
YellowA SIP account is registered and has a voice message
on the SIP server.
Yellow (Blinking)A SIP account is registered and has a voice message
on the SIP server, and the phone attached to the VoIP
port is in use (off the hook).
WLANOffThe Wi-Fi network is not operational.
GreenThe Wi-Fi network is operational.
Blinking GreenThe WiMAX Device is sending and receiving data
across the Wi-Fi network.
Table 2 The MAX208M2W Series LEDs behavior
LED STATE DESCRIPTION
Chapter 1Getting Started
MAX208M2W Series User s Guide 23
!Back up the configuration (and make sure you know how to restore it).
Restoring an earlier working configuration may be useful if the MAX208M2W
Series becomes unstable or even crashes. If you forget your password, you will
have to reset the MAX208M2W Series to its factory default settings. If you
backed up an earlier configuration file, you would not have to totally re-
configure the MAX208M2W Series. You could simply restore your last
configuration.
Chapter 1Getting Started
MAX208M2W Series User s Guide
24
MAX208M2W Series User s Guide 25
CHAPTER 2
Introducing the Web
Configurator
2.1 Overview
The Web Configurator is an HTML-based management interface that allows easy
device set up and management via any web browser that supports: HTML 4.0,
CSS 2.0, and JavaScript 1.5, and higher. The recommended screen resolution for
using the web configurator is 1024 by 768 pixels and 16-bit color, or higher.
In order to use the Web Configurator you need to allow:
!Web browser pop-up windows from your device. Web pop-up blocking is enabled
by default in many operating systems and web browsers.
!JavaScript (enabled by default in most web browsers).
!Java permissions (enabled by default in most web browsers).
See the Appendix C on page 237 for more information on configuring your web
browser.
2.1.1 Accessing the Web Configurator
1Make sure your MAX208M2W Series hardware is properly connected (refer to the
Quick Start Guide for more information).
2Launch your web browser.
3Enter 192.168.1.1" as the URL.
Chapter 2Introducing the Web Configurator
MAX208M2W Series User s Guide
26
4A login screen displays. Enter the default Username (admin) and Password
(1234), then click Login.

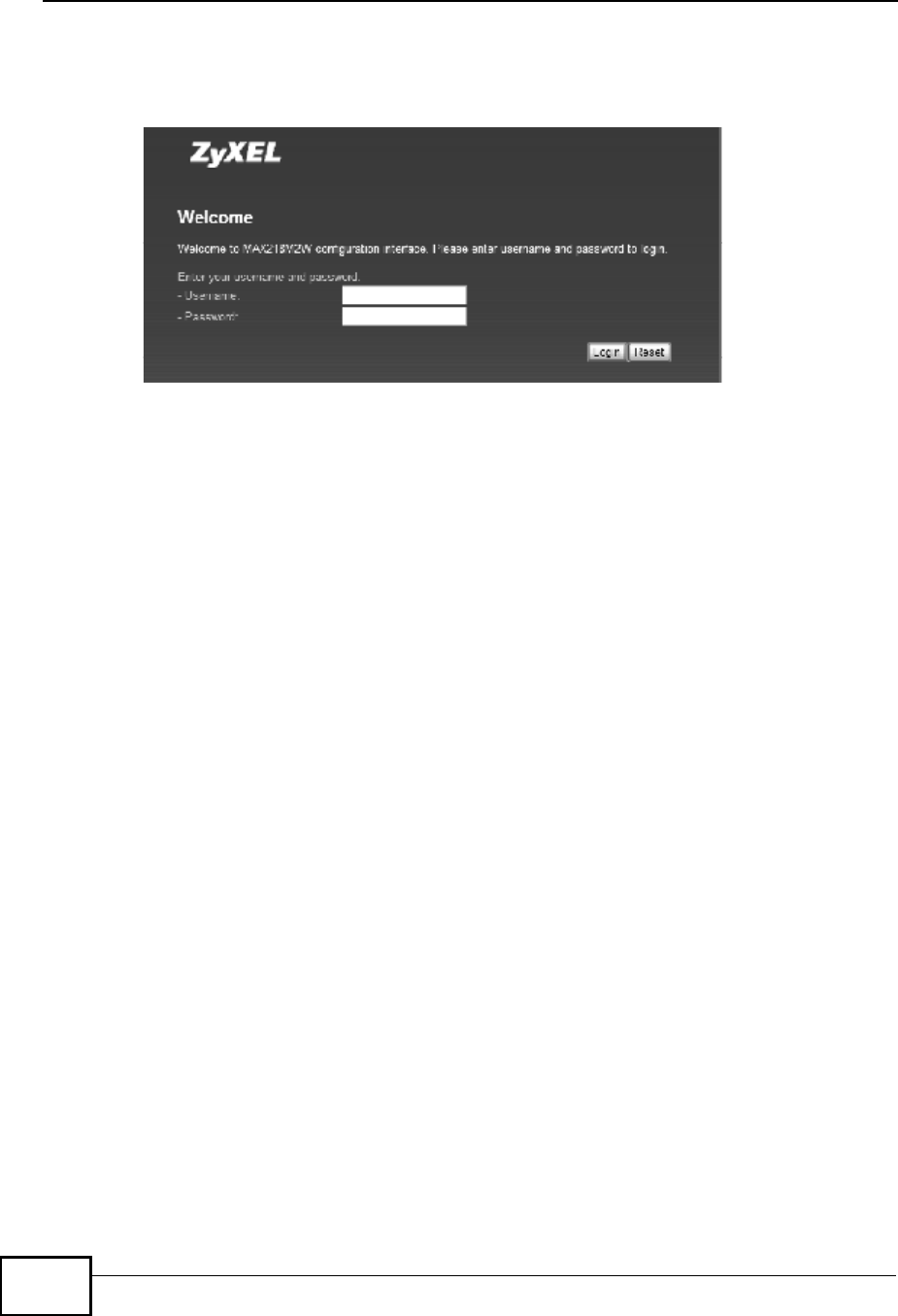

Figure 5 Login screen
Note: For security reasons, the MAX208M2W Series automatically logs you out if you
do not use the Web Configurator for five minutes. If this happens, log in again.
2.1.2 The Reset Button
If you forget your password or cannot access the Web Configurator, you will need
to use the Reset button to reload the factory-default configuration file. This
means that you will lose all configurations that you had previously and the
password will be reset to "1234#.
2.1.2.1 Using The Reset Button
1Make sure the Power light is on (not blinking).
2To set the device back to the factory default settings, press the Reset button for
five seconds or until all LED lights blink one time, then release it. The device
restarts when the defaults have been restored.
3Reconfigure the MAX208M2W Series following the steps in your Quick Start Guide.
Chapter 2Introducing the Web Configurator
MAX208M2W Series User s Guide 27
2.1.3 Saving and Canceling Changes
All screens to which you can make configuration changes must be saved before
those changes can go into effect. If you make a mistake while configuring the
MAX208M2W Series, you can cancel those changes and start over.
Figure 6 Saving and Canceling Changes
This screen contains the following fields:
Note: If you make changes to a page but do not save before switching to another
page or exiting the Web Configurator, those changes are disgarded.
2.1.4 Working with Tables
Many screens in the MAX208M2W Series contain tables to provide information or
additional configuration options.
Figure 7 Tables Example
This screen contains the following fields:
Table 3 Saving and Canceling Changes
LABEL DESCRIPTION
SaveClick this to save your changes.
CancelClick this to restore the settings on this page to their last saved values.
Table 4 Saving and Canceling Changes
LABEL DESCRIPTION
Items per Page
This displays the number of items displayed per table page.
Use the menu to change this value.
First Page
Click this to go to the first page in the table.
Chapter 2Introducing the Web Configurator
MAX208M2W Series User s Guide
28
2.2 The Main Screen
When you first log into the Web Configurator, the Main screen appears. Here you
can view a summary of your MAX208M2W Series s connection status. This is also
the default "home# page for the Web Configurator and it contains conveniently-
placed shortcuts to all of the other screens.
Note: Some features in the Web Configurator may not be available depending on your
firmware version and/or configuration.
Note: The available menus and screens vary depending on the user account you use
for login.
Previous Page
Click this to go to the previous page in the table.
Page Indicator / Jump to Page
This indicates which page is currently displayed in the
table. Use the menu to jump to another page. You can only
jump to other pages if those pages exist.
Next Page
Click this to go to the previous page in the table.
Last Page
Click this to go to the last page in the table.
#This indicates an item s position in the table. It has no
bearing on that item s importance or lack there of.
Total NumThis indicates the total number of items in the table,
including items on pages that are not visible.
Table 4 Saving and Canceling Changes (continued)
LABEL DESCRIPTION
Chapter 2Introducing the Web Configurator
MAX208M2W Series User s Guide 29
Figure 8 Main Screen
The following table describes the icons in this screen.
Table 5 Main > Icons
ICON DESCRIPTION
System Status
Click this to open the Main screen, which shows your
MAX208M2W Series status and other information.
WiMAX
Click this to open the WiMAX menu, which gives you options for
configuring your WiMAX settings.
Network Setting
Click this to open the Network menu, which gives you options for
configuring your network settings.
Security
Click this to open the Security menu, which gives you options for
configuring your firewall and security settings.
VoIP
Click this icon to open the VoIP menu, which gives you options
on how to use the device to make phone calls.
Chapter 2Introducing the Web Configurator
MAX208M2W Series User s Guide
30

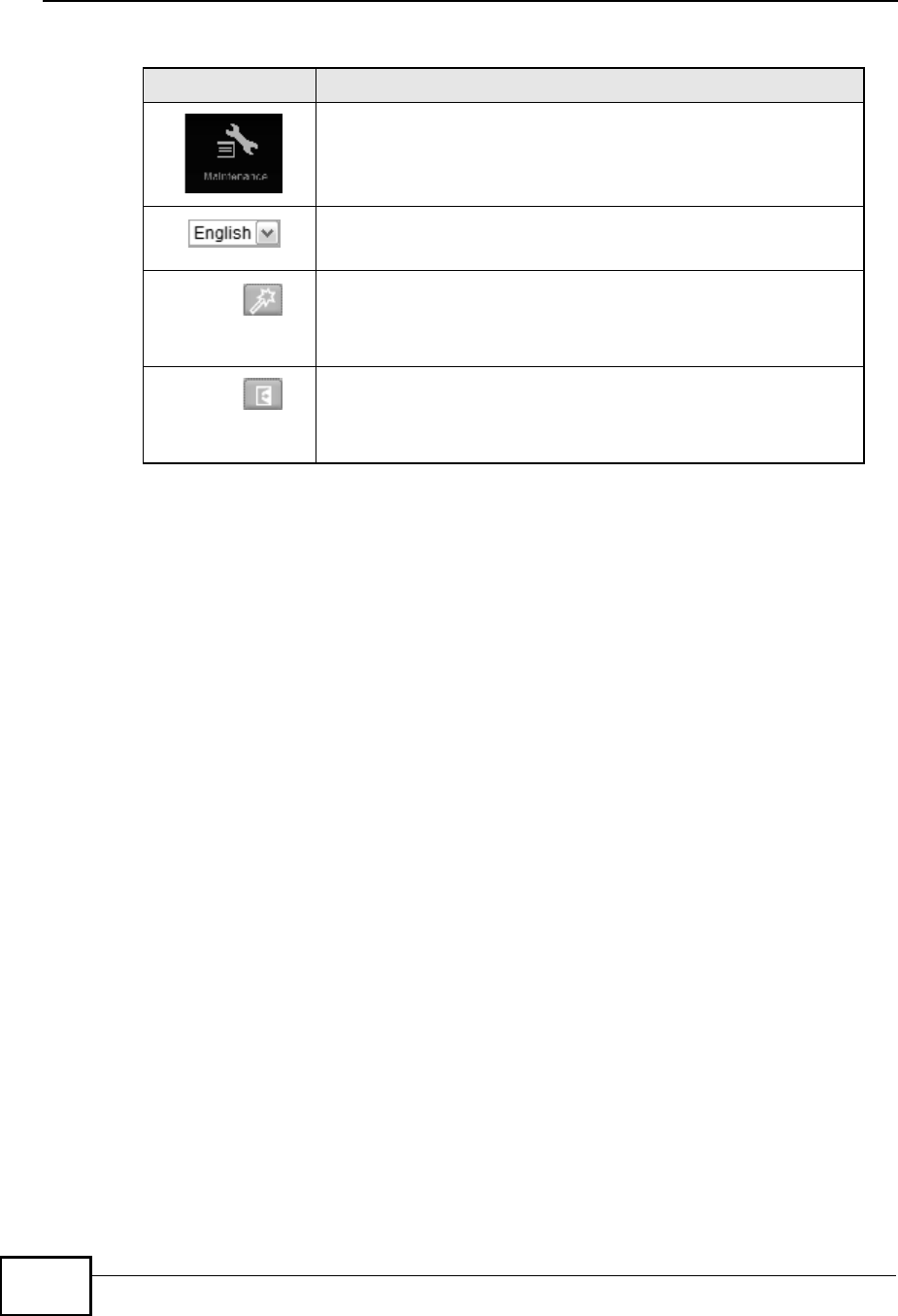

Maintenance
Click this to open the Maintenance menu, which gives you
options for maintaining your MAX208M2W Series and performing
basic network connectivity tests.
Language
Use this menu to select the Web Configurator s language.
Setup Wizard
Click this to open the Setup Wizard, where you can configure the
most essential settings for your MAX208M2W Series to work.
Logout
Click this to log out of the Web Configurator.
Table 5 Main > Icons (continued)
ICON DESCRIPTION
MAX208M2W Series User s Guide 31
CHAPTER 3
Setup Wizard
3.1 Overview
This chapter provides information on the ZyXEL Setup Wizard. The wizard guides
you through several steps for onfiguring your network settings.
3.1.1 Welcome to the Setup Wizard
This screen provides a quick summary of the configuration tasks the wizard helps
you to perform. They are:
1Set up your Local Area Network (LAN) options, which determine how the devices
in your home or office connect to the MAX208M2W Series.
2Set up your MAX208M2W Series s broadcast frequency, which is the radio channel
it uses to communicate with the ISP s base station.
3Set up your MAX208M2W Series s login options, which are used to connect your
LAN to the ISP s network and verify your account.
4Set up your MAX208M2W Series s VoIP Settings, which will allow you to make calls
over the nternet.
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
32
5Set up your MAX208M2W Series s WLAN so that other devices, such as a laptop or
a smartphone, can connect wirelessly to the nternet using the MAX208M2W
Series.
Figure 9 Setup Wizard > Welcome
Chapter 3Setup Wizard
MAX208M2W Series User s Guide 33
3.1.2 LAN Settings
The LAN Settings screen allows you to configure your local network options.

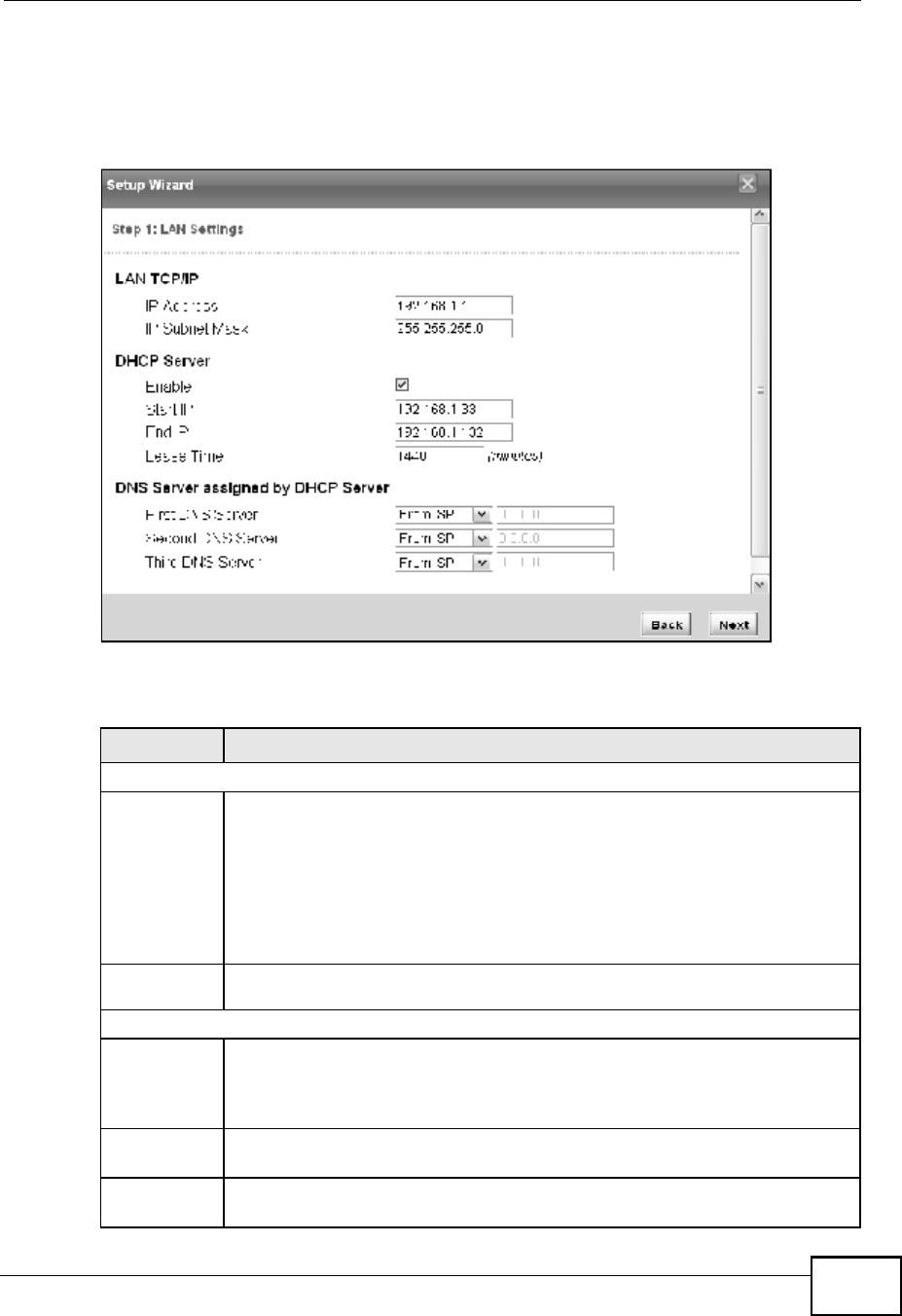

Figure 10 Setup Wizard > LAN Settings
The following table describes the labels in this screen.
Table 6 Setup Wizard > LAN Settings
LABEL DESCRIPTION
LAN TCP/IP
IP
Address
Enter the IP address of the MAX208M2W Series on the LAN.
Note: This field is the IP address you use to access the MAX208M2W
Series on the LAN. If the web configurator is running on a
computer on the LAN, you lose access to it as soon as you
change this field. You can access the web configurator again by
typing the new IP address in the browser.
IP Subnet
Mask
Enter the subnet mask of the LAN.
DHCP Server
Enable Select this if you want the MAX208M2W Series to be the DHCP server on
the LAN. As a DHCP server, the MAX208M2W Series assigns IP addresses
to DHCP clients on the LAN and provides the subnet mask and DNS server
information.
Start IP Enter the IP address from which the MAX208M2W Series begins allocating
IP addresses.
End IP Enter the IP address at which the MAX208M2W Series stops allocating IP
addresses.
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
34
3.1.3 WiMAX Frequency Settings
The WiMAX Frequency Settings screen allows you to configure the broadcast radio
frequency used by the MAX208M2W Series.
Note: These settings should be provided by your ISP.
Figure 11 Setup Wizard > WiMAX Frequency Settings
Lease
Time
Enter the duration in minutes before the device requests a new IP address
from the DHCP server.

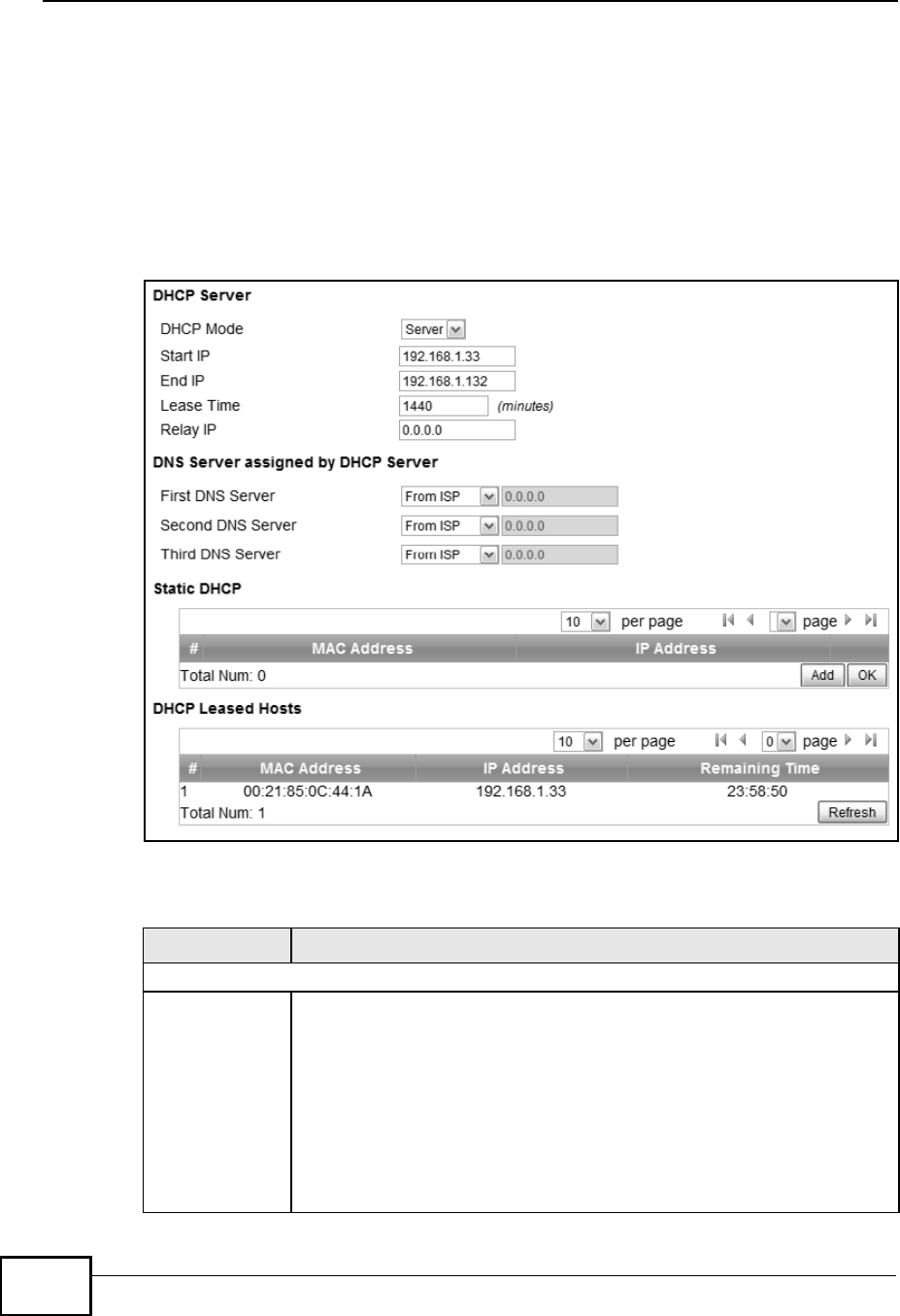

DNS Server assigned by DHCP Server
First DNS
Server
Specify the first IP address of three DNS servers that the network can use.
The MAX208M2W Series provides these IP addresses to DHCP clients.
Second
DNS
Server
Specify the second IP address of three DNS servers that the network can
use. The MAX208M2W Series provides these IP addresses to DHCP clients.
Third
DNS
Server
Specify the third IP address of three DNS servers that the network can use.
The MAX208M2W Series provides these IP addresses to DHCP clients.
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Table 6 Setup Wizard > LAN Settings (continued)
LABEL DESCRIPTION
Chapter 3Setup Wizard
MAX208M2W Series User s Guide 35
The following table describes the labels in this screen.
Table 7 Setup Wizard > WiMAX Frequency Settings
LABEL DESCRIPTION
Setting TypeSelect the WiMAX frequency setting type from the list.
!By Range - Select this to set up the frequency based on a range
of MHz.
!By List - Select this to set up the frequency on an individual
MHz basis. You can add multiple MHz values to the list.
StepEnter the increments in MHz by which to increase the frequency
range.
Note: This field only appears when you select By Range under
Setting Type.
Start FrequencyEnter the frequency value at the beginning of the frequency range
to use. The frequency is increased in increments equal to the Step
value until the End Frequency is reached, at which time the cycle
starts over with the Start Frequency.
Note: This field only appears when you select By Range under
Setting Type.
End FrequencyEnter the frequency value at the end of the frequency range to use.
Note: This field only appears when you select By Range under
Setting Type.
BandwidthSet the frequency bandwidth in MHz that this MAX208M2W Series
uses.
#This is an index number for enumeration purposes only.
Frequency (MHz)Displays the frequency MHz for the item in the list.
Total NumDisplays the total number of items in the list.
DeleteClick this to remove an item from the list.
AddClick this to add an item to the list.
OKClick this to save an newly added item to the list.
#This is an index number for enumeration purposes only.
Band Start (KHz)Indicates the beginning of the frequency band in KHz.
Band End (KHz)Indicates the end of the frequency band in KHz.
Total NumDisplays the total number of items in the list.
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
36
3.1.4 WiMAX Authentication Settings
The WiMAX Authentication Settings screen allows you to configure how your
MAX208M2W Series logs into the service provider s network.
Note: These settings should be provided by your ISP.
Note: The EAP supplicant settings on this screen vary depending on the
authentication mode your select.

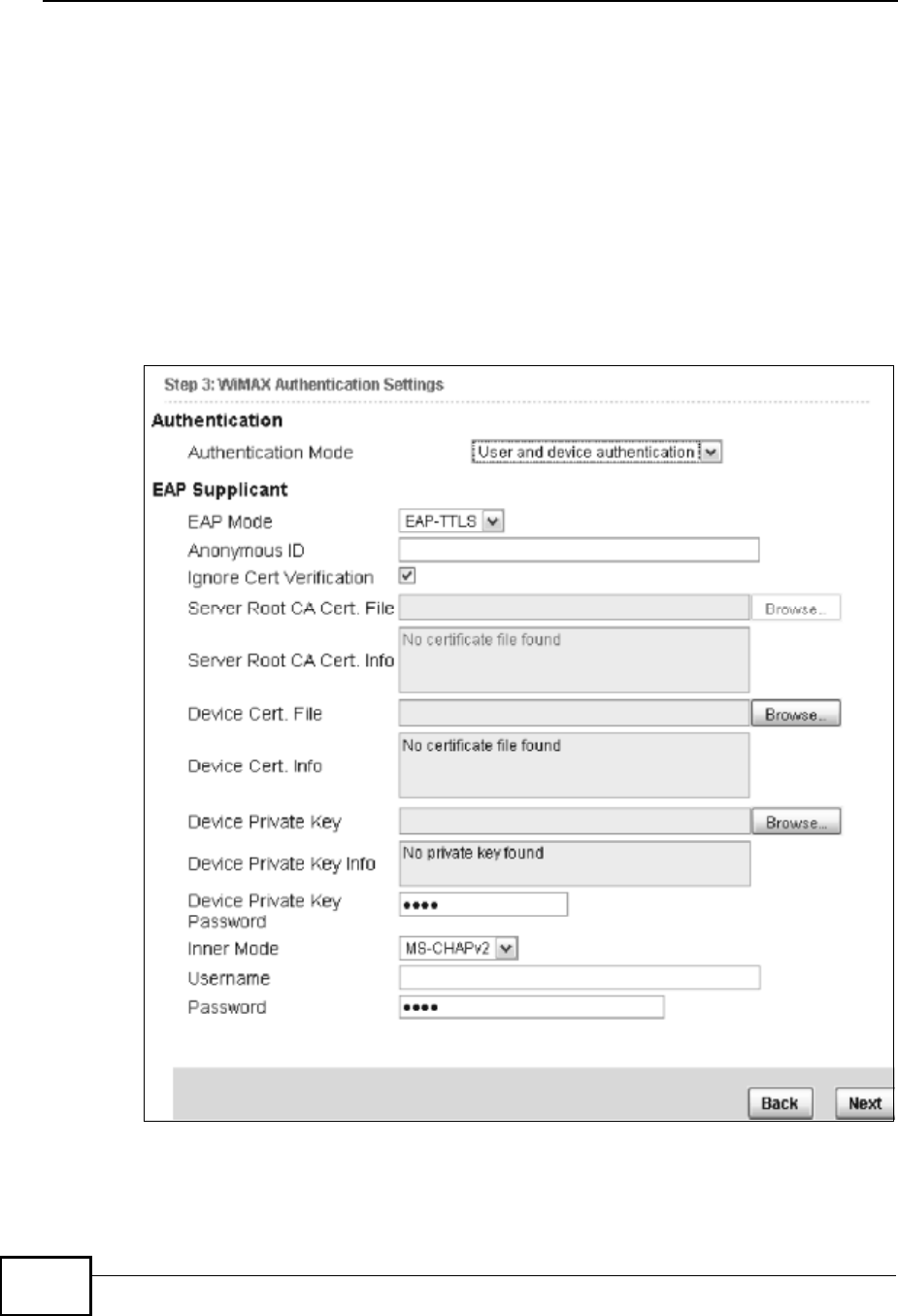

Figure 12 Setup Wizard > WiMAX Authentication Settings
Chapter 3Setup Wizard
MAX208M2W Series User s Guide 37
The following table describes the labels in this screen.
Table 8 Setup Wizard > WiMAX Authentication Settings
LABEL DESCRIPTION
Authentication
Authenticati
on Mode
Select a WiMAX authentication mode for authentication network
sessions with the ISP. Options are:
!No authentication
!User authentication
!Device authentication
!User and Device authentication
EAP Supplication
EAP Mode Select an EAP autentication mode. See Table 15 on page 79 if you need
more inforamtion.
Anonymous
Id
Enter your anonymous ID.
Note: Some modes may not require this.
Ignore Cert
Verification
Select this to ignore base station certification verification when a
certificate is received during EAP-TLS or EAP-TTLS.
Server Root
CA Cert.
File
Browse for and choose a server root certificate file, if required.
Server Root
CA Cert.
Info
This field displays information about the assigned server root certificate.
Device
Cert. File
Browse for and choose a device certificate file, if required.
Device
Cert. Info.
This field displays information about the assigned device certificate.
Device
Private Key
Browse for and choose a device private key, if required.
Device
Private Key
Info
This field displays information about the assigned device private key.
Device
Private Key
Password
Enter the device private key, if required.
Inner Mode Select an inner authentication mode (MS-CHAP, MS-CHAPV2, CHAP,
MD5, PAP. See Table 15 on page 79 if you need more inforamtion.
Username Enter your authentication username.
Password Enter your authentication password.
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
38
3.1.5 VoIP Settings
The VoIP Settings screen allows you to configure how your MAX208M2W Series
connects to up to two VoIP service providers network and makes calls over the
Internet.
Note: This settings should be provided by your VoIP service provider.
Figure 13 Setup Wizard > VoIP Settings
The following table describes the labels in this screen.
Table 9 Setup Wizard > VoIP Settings
LABEL DESCRIPTION
Line 1 SIP Account - Configure this section to use the PHONE 1 port.
Enable Select this to activate the SIP account.
SIP ServerEnter the IP address or domain name of the SIP server.
Port NumberEnter the SIP server s listening port number.
Chapter 3Setup Wizard
MAX208M2W Series User s Guide 39
3.1.6 WLAN Settings
The WLAN Settings screen lets you set up how other devices connect to the
Internet wirelessly using the MAX208M2W Series.
Figure 14 Setup Wizard > WLAN Settings
Subscriber
Number
Enter your SIP number. In the full SIP URI, this is the part before the @
symbol.
Display NameEnter the name that appears on the other party s device if they have
Caller ID enabled.
Authentication
Name
Type the SIP user name associated with this account for authentication
to the SIP server.
PasswordType the SIP password associated with this account.
Line 2 SIP Account - Configure this section to use the PHONE 2 port. See the fields above
for similar description.
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Table 9 Setup Wizard > VoIP Settings (continued)
LABEL DESCRIPTION
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
40
Figure 15 Steup Wizard > WLAN Settings > Encryption Type: WPA Personall
The following table describes the labels in this screen.
Table 10 Setup Wizard > WLAN Settings
LABEL DESCRIPTION
Wifi Settings
Enable WLAN Select this box to enable the wireless service and allow other
wireless clients to connect to the Internet using the MAX208M2W
Series.
WLAN Mode Select the mode that the MAX208M2W Series will be using to
communicate: 802.11 B/G/N mixed, 802.11 B/G mixed, 802.11
B only, 802.11 G only, or 802.11 N only.
WLAN Channel Select one channel from 1 to 13 for wireless communications
with the wireless stations.
SSID Settings
WLAN SSID This field dilsplays the name of the wireless network associated with the
MAX208M2W Series.
Hide SSID Select this option if you wish to keep the name of the wireless
network hidden.
Encryption
Type Select the type of encryption that the network will be using:
None, WEP, or WPA Personal.
SSID WEP Settings
Note: You will only see this options if you selected WEP as the Encryption Type.
Authentication
Method Select the type of authentication used to join the network:
Openn System or Shared Key.
WEP Encryption
Length Select the length of the encryption key: 64-bit or 128-bit.
Key 1 - 4 Pick one of four available keys. The key can be in either
Hexagecimal (HEX) or ASCII format.
Type the key using any letters and numbers. The field is case
sensitive and the lenght must match the length picked in the
step above (64-bit or 128-bit). A warning mesage will appear if
you fail to do this.
SSID WPA Settings
Chapter 3Setup Wizard
MAX208M2W Series User s Guide 41
3.1.7 Setup Complete
Click Save to save the Setup Wizard settings and close it.

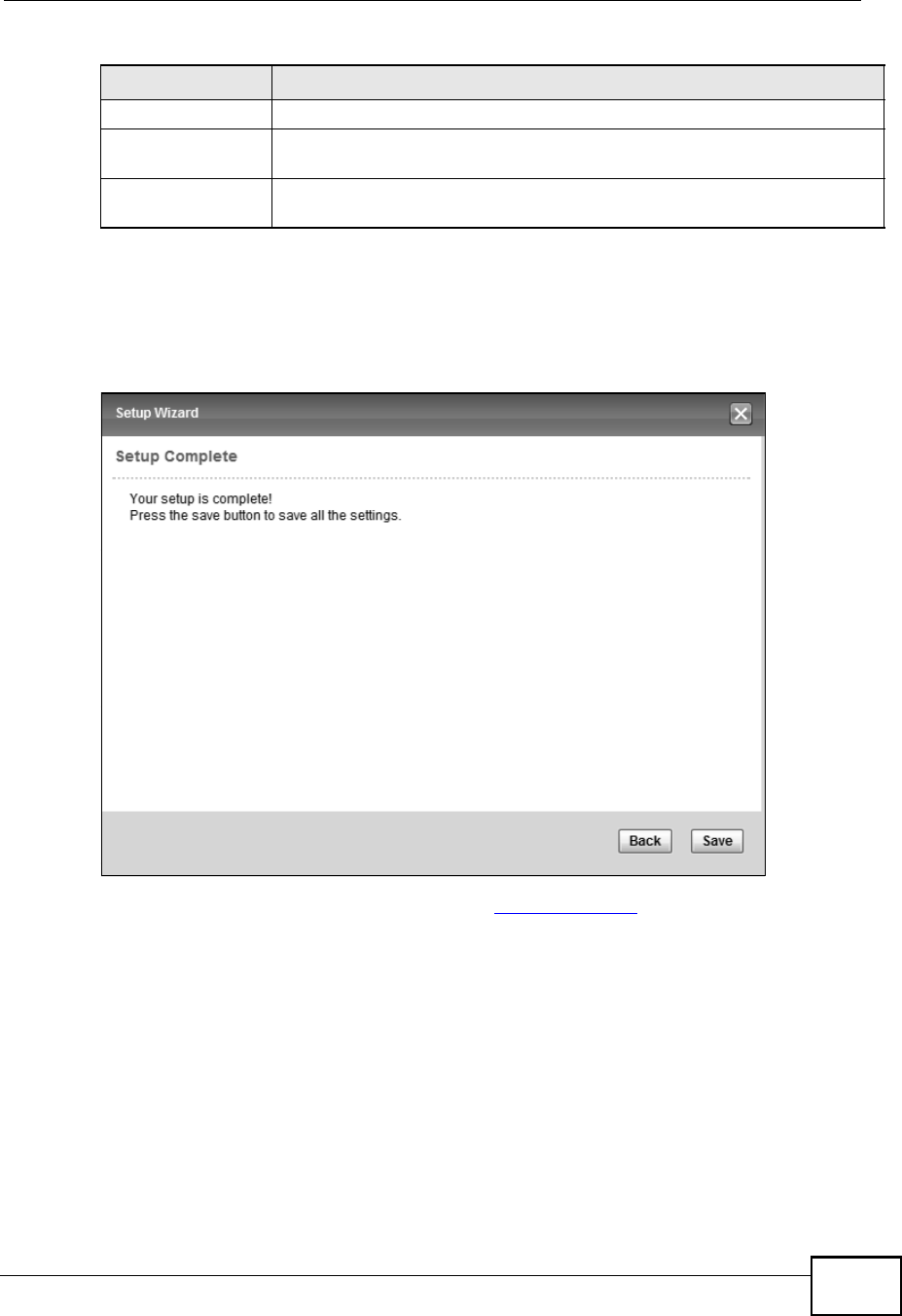

Figure 16 Setup Wizard > Setup Complete
Launch your web browser and navigate to www.zyxel.com. If everything was
configured properly, the web page should display. You can now surf the Internet!
Refer to the rest of this guide for more detailed information on the complete range
of MAX208M2W Series features available in the more advanced web configurator.
Note: If you cannot access the Internet, open the web configurator again to confirm
that the Internet settings you configured in the wizard setup are correct.
WPA ModeSelect either WPA, WPA2 or Auto (WPA or WPA2).
Cipher TypeSelect the type of authentication that you wish to use for your network:
TKIP, AES or both. AES is more secure.
Pre Shared KeyType the pre-shared key or PSK previously shared between the two
parties.
Table 10 Setup Wizard > WLAN Settings (continued)
LABEL DESCRIPTION
Chapter 3Setup Wizard
MAX208M2W Series User s Guide
42
MAX208M2W Series User s Guide 43
CHAPTER 4
Tutorials
4.1 Overview
This chapter shows you how to configure some of the MAX208M2W Series s
features.
Note: Be sure to read Introducing the Web Configurator on page 25 before working
through the tutorials presented here. For field descriptions for individual
screens, see the related technical reference in this User's Guide.
This chapter includes the following configuration examples:
!WiMAX Connection Settings on page 43
!Configuring LAN DHCP on page 44
!Changing Certificate on page 46
!Blocking Web Access on page 47
!Configuring the MAC Address Filter, see page48
!Setting Up NAT Port Forwarding, see page 50

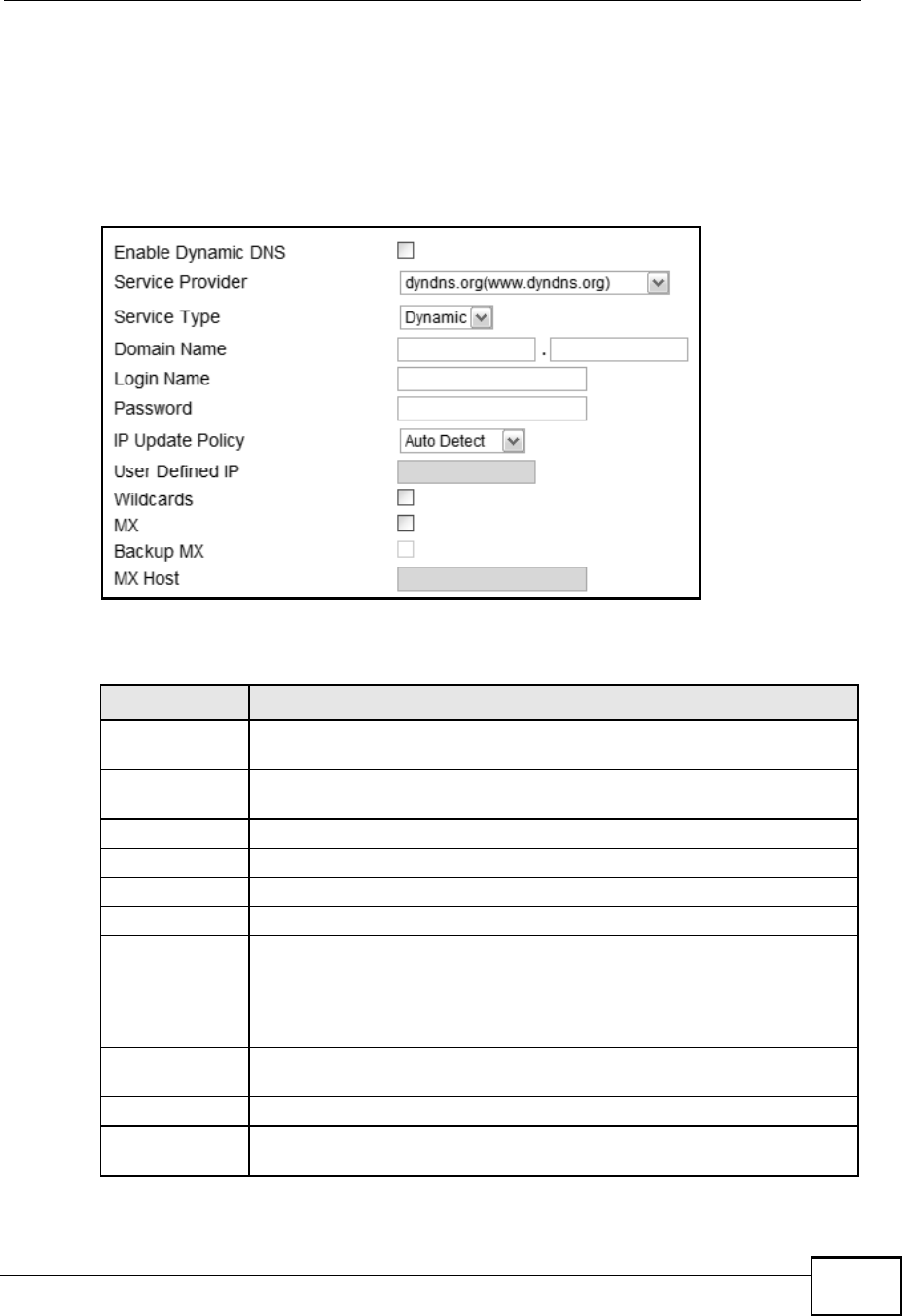

!Access the MAX208M2W Series Using DDNS, see page 53
!Configuring Static Route for Routing to Another Network, see page 54
!Remotely Managing Your MAX208M2W Series on page 57
!VLAN Configuration Example on page 58
4.2 WiMAX Connection Settings
This tutorial provides you with pointers for configuring the MAX208M2W Series to
connect to an ISP.
1Connect the MAX208M2W Series to the ISP s nearest base station. See Section 6.2
on page 73.
2Configure the MAX208M2W Series s broadcast frequency. Section 6.3 on page 75.
Chapter 4Tutorials
MAX208M2W Series User s Guide
44
3Configure the MAX208M2W Series to connect securely to the ISP s authentication
servers. See Section 6.4 on page 78.
4Check the MAX208M2W Series s connection status to ensure everything is working
properly. See Section 6.7 on page 85.

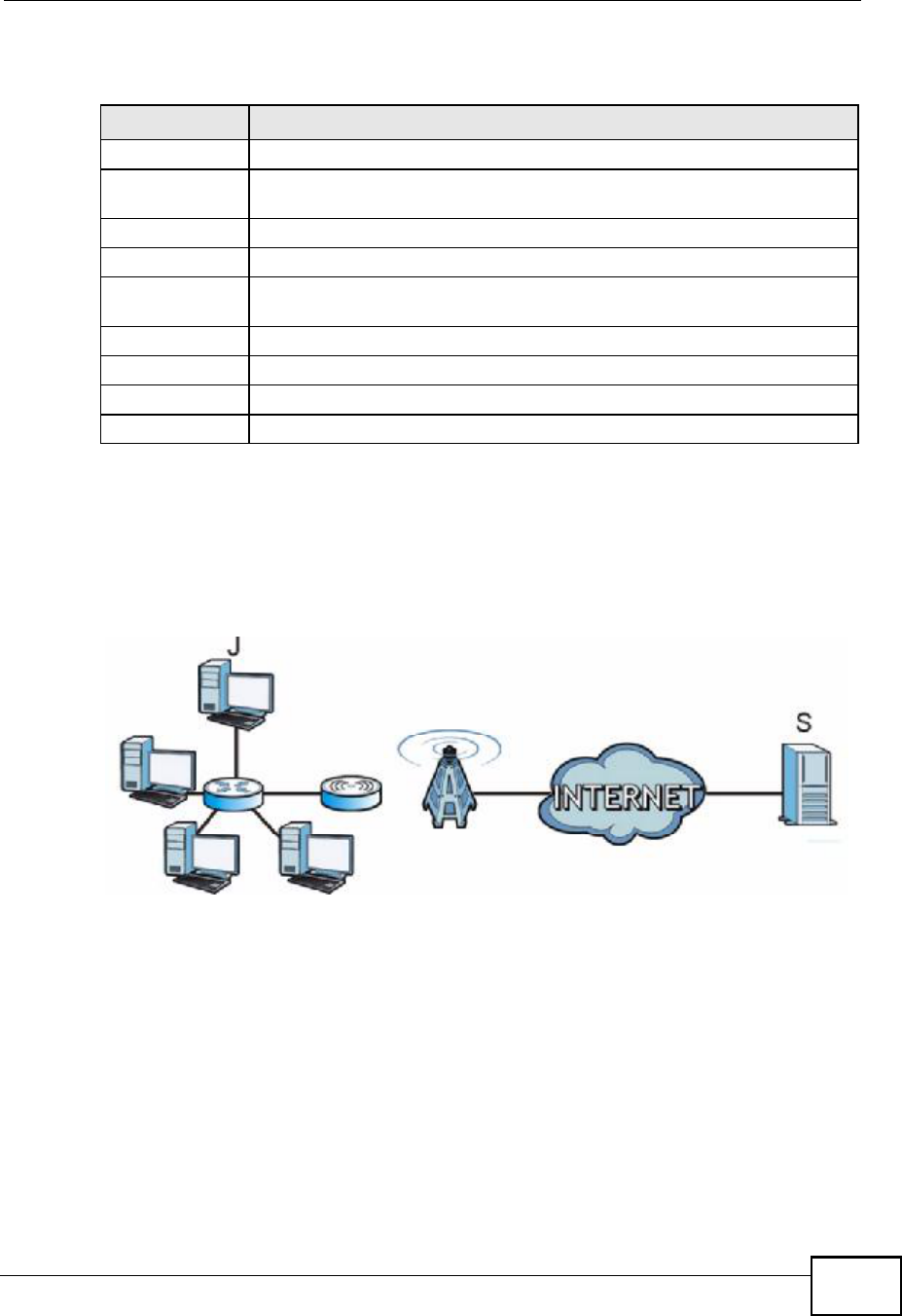

4.3 Configuring LAN DHCP
This tutorial shows you how to set up a small network in your office or home.
Goal: Connect three computers to your MAX208M2W Series to form a small
network.
Required: The following table provides a summary of the information you will
need to complete the tasks in this tutorial.
1In the Web Configurator, open the Networking Setting > LAN screen and set
the IP Address to 192.168.100.1. Use the default IP Subnet Mask of
255.255.255.0. Click Save.
INFORMATION VALUE SEE ALSO
LAN IP Address192.168.100.1 Chapter 7 on page 99
Starting IP Address192.168.100.10 Chapter 7 on page 100
Ending IP Address192.168.100.30
DNS ServersFrom ISP
Chapter 4Tutorials
MAX208M2W Series User s Guide 45
2Manually change the IP address of your computer that your are using to
192.168.100.x (for example, 192.168.100.5) and keep the subnet set to
255.255.255.0.
3Type http://192.168.100.1 in your browser after the MAX208M2W Series finishes
starting up completely.
4Log into the Web Configurator and open the Networking Setting > LAN >
DHCP screen.
5Select Server for the DHCP mode, then enter 192.168.100.10 and
192.168.100.30 as your DHCP starting and ending IP addresses.
6Leave the other settings as their defaults and click Save.
7Next, go to the Networking Setting > WAN screen and select NAT in the
Operation Mode field. Click Save.
Chapter 4Tutorials
MAX208M2W Series User s Guide
46
8Connect your computers to the MAX208M2W Series s Ethernet ports and you re all
set!
Note: You may need to configure the computers on your LAN to automatically obtain
IP addresses. For information on how to do this, see Appendix B on page 209.
Once your network is configured and hooked up, you will want to connect it to the
Internet next. To do this, just run the Internet Connection Wizard (Chapter 3
on page 31), which walks you through the process.
4.4 Changing Certificate
This tutorial shows you how to import a new security certificate, which allows your
device to communicate with another network servers.
Goal: Import a new security certificate into the MAX208M2W Series.
See Also: Appendix E on page 259.
1Go to the WiMAX > Profile > Authentication Settings screen. In the EAP
Supplicant section, click each Browse button and locate the security certificates
that were provided by your new ISP.
s
2Configure your new Internet access settings based on the information provided by
the ISP.
Note: You can also use the Internet Connection Wizard to configure the Internet
access settings.
Chapter 4Tutorials
MAX208M2W Series User s Guide 47

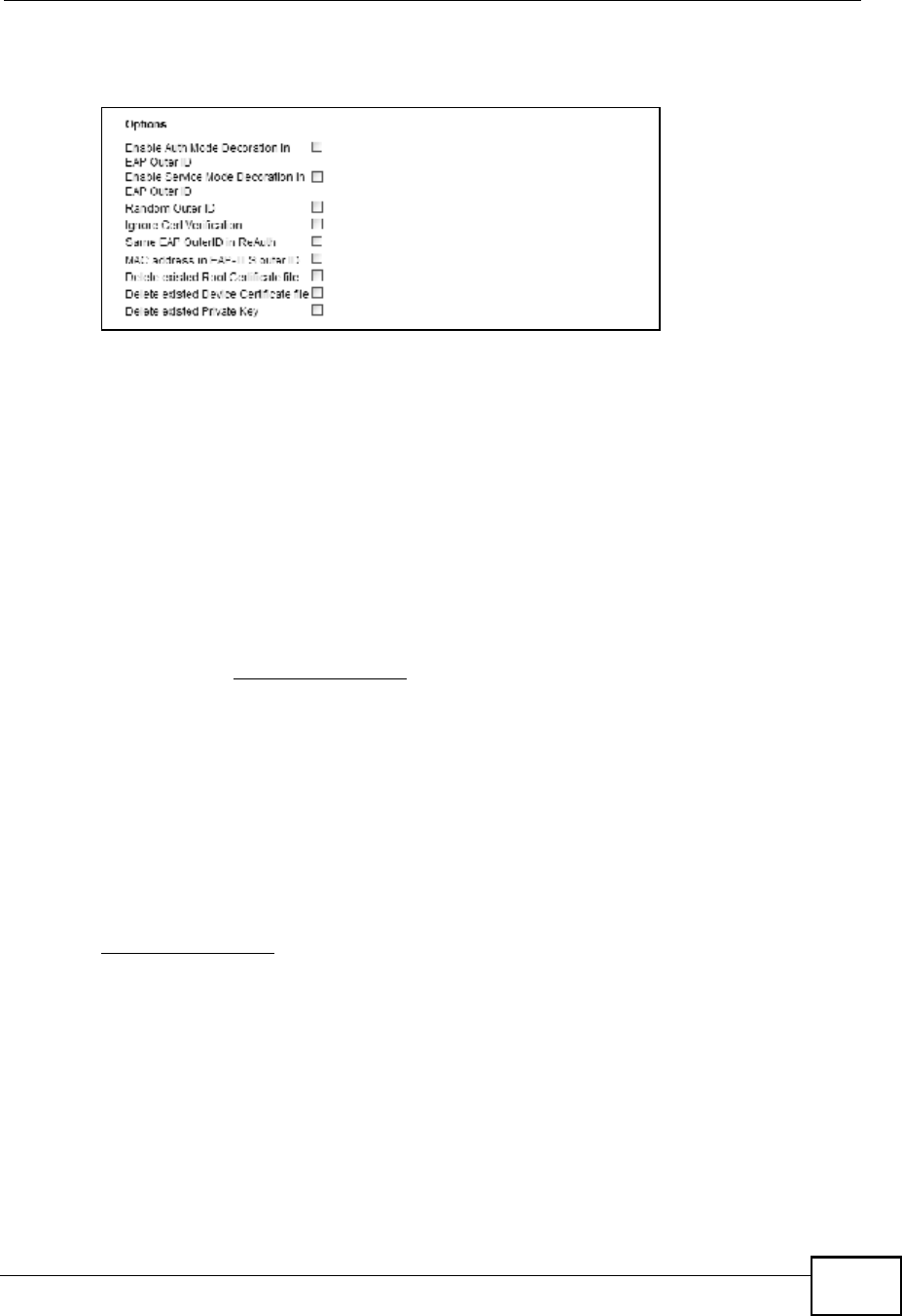

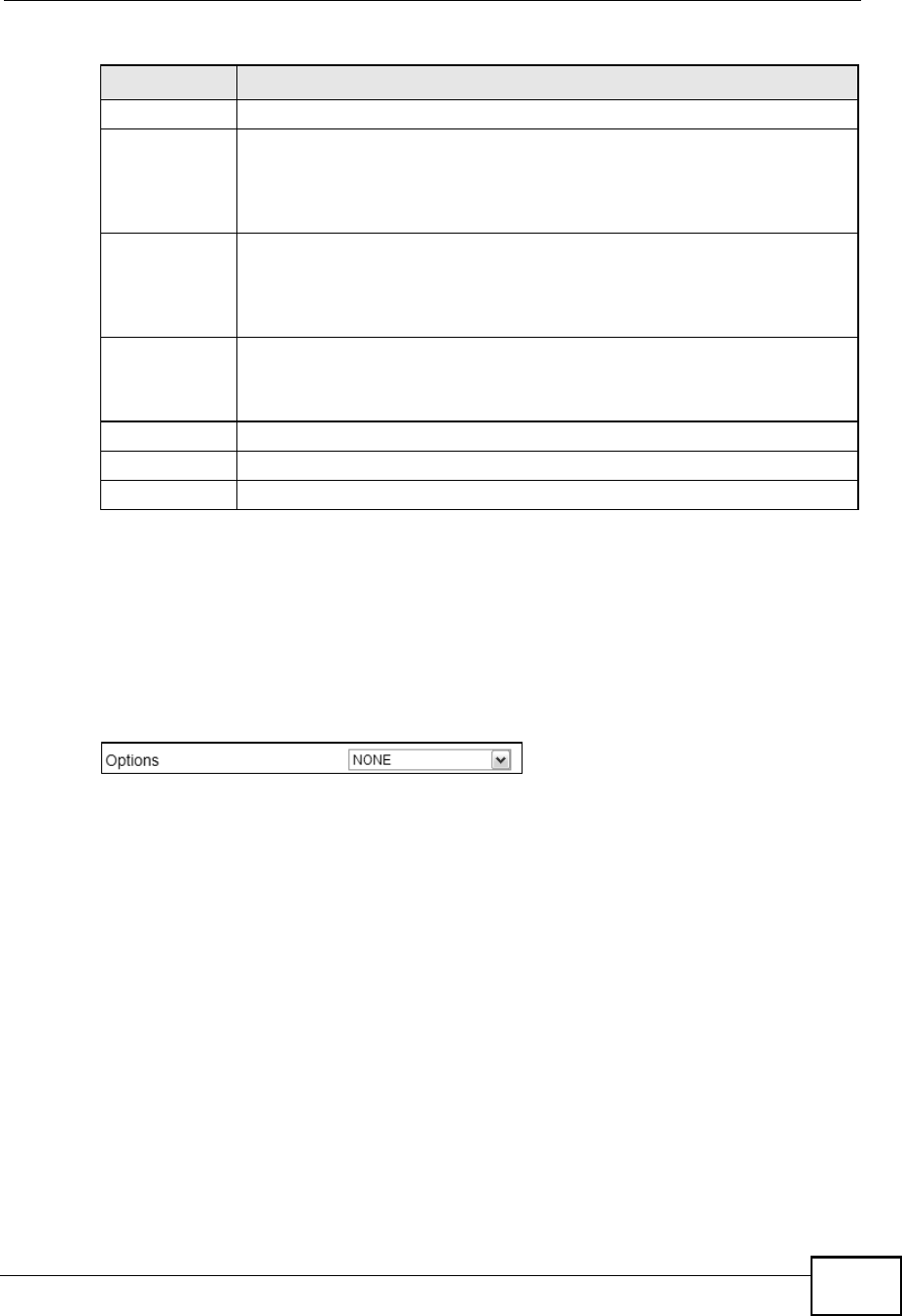

3You may need to configure the Options section according to the information
provided by the ISP.
4Click Save. You should now be able to connect to the Internet through your new
service provider!
4.5 Blocking Web Access
If your MAX208M2W Series is in a home or office environment you may decide
that you want to block an Internet website access. You may need to block both the
website s IP address and domain name.
Goal: Configure the MAX208M2W Series s content filter to block a website with a
domain name www.example.com.
See Also: Section 7.21 on page 126.

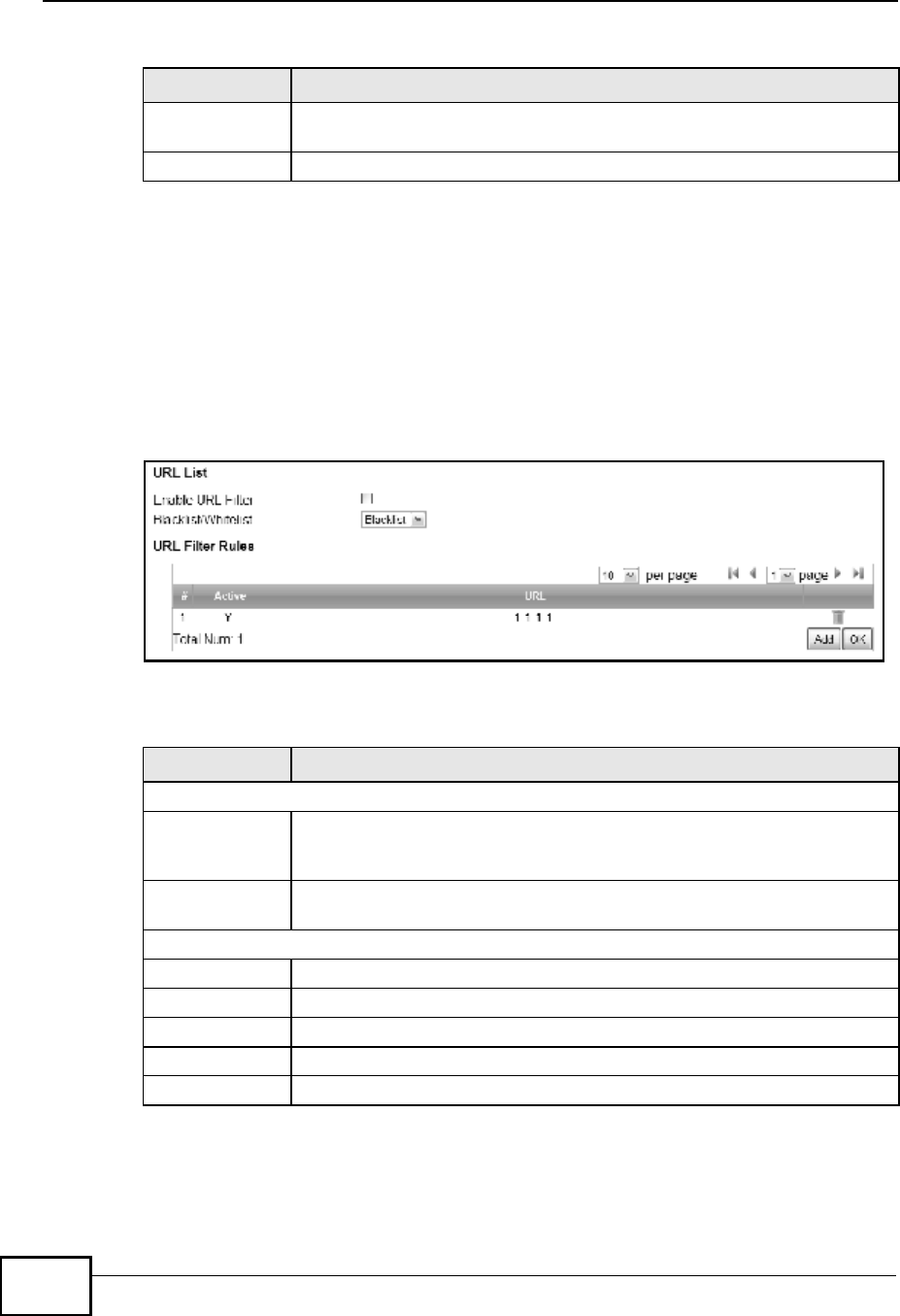

1Open the Networking Setting > Content Filter.
2Select Enable URL Filter.
3Select Blacklist.
4Click Add and configure a URL filter rule by selecting Active and entering
www.example.com as the URL.
5Click OK.
Chapter 4Tutorials
MAX208M2W Series User s Guide
48
6Click Save.
Open a browser from your computer in the MAX208M2W Series s LAN network,
you should get an "Access Violation# message when you try to access to http://
www.example.com. You may also need to block the IP address of the website if
you do not want users to access to the website through its IP address.
4.6 Configuring the MAC Address Filter
This tutorial shows you how to use the MAC filter to block a DHCP client s access to
hosts and to the WiMAX network.
Chapter 4Tutorials
MAX208M2W Series User s Guide 49
1First of all, you have to know the MAC address of the computer. If not, you can
look for the MAC address in the Network Setting > LAN > DHCP screen.
(192.168.100.3 mapping to 00:02:E3:53:16:95 in this example).
2Click Security > Firewall > MAC Filter. Select Blacklist and click the Add
button in the MAC Filter Rules table.
Chapter 4Tutorials
MAX208M2W Series User s Guide
50
3An empty entry appears. Enter the computer s MAC address in the Source MAC
field and leave the other fields set to their defaults. Click Save.
The computer will no longer be able to access any host on the WiMAX network
through the MAX208M2W Series.
4.7 Setting Up NAT Port Forwarding
Thomas recently received an Xbox 360 as his birthday gift. His friends invited him
to play online games with them on Xbox LIVE. In order to communicate and play
with other gamers on Xbox LIVE, Thomas needs to configure the port settings on
his MAX208M2W Series.
Xbox 360 requires the following ports to be available in order to operate Xbox
LIVE correctly:
TCP: 53, 80, 3074
UDP: 53, 88, 3074
1You have to know the Xbox 360 s IP address first. You can check it through the
Xbox 360 console. You may be able to check the IP address on the MAX208M2W
Series if the MAX208M2W Series has assigned a DHCP IP address to the Xbox 360.
Check the DHCP Leased Hosts table in the Network > LAN > DHCP screen.
Look for the IP address for the Xbox 360.
Chapter 4Tutorials
MAX208M2W Series User s Guide 51
2NAT mode is required to use port forwarding. Click Network Setting > WAN and
make sure NAT is selected in the Operation Mode field. Click Save.
3Click Network Setting > NAT > Port Forwarding and then click the first entry
to edit the rule.
4Configure the screen as follows to open TCP/UDP port 53 for the Xbox 360. Click
OK.
Chapter 4Tutorials
MAX208M2W Series User s Guide
52
5Repeat steps 2 and 3 to open the rest of the ports for the Xbox 360. The port
forwarding settings you configured are listed in the Port Forwarding screen.
6Click Save.
Thomas can then connect his Xbox 360 to the Internet and play online games with
his friends.
In this tutorial, all port 80 traffic is forwarded to the Xbox 360, but port 80 is also
the default listening port for remote management via WWW. If Thomas also wants
to manage the MAX208M2W Series from the Internet, he has to assign an unused
port to WWW remote access.
Click Advanced > Remote MGMT. Enter an unused port in the Port field (81 in
this example). Click Save.
Chapter 4Tutorials
MAX208M2W Series User s Guide 53

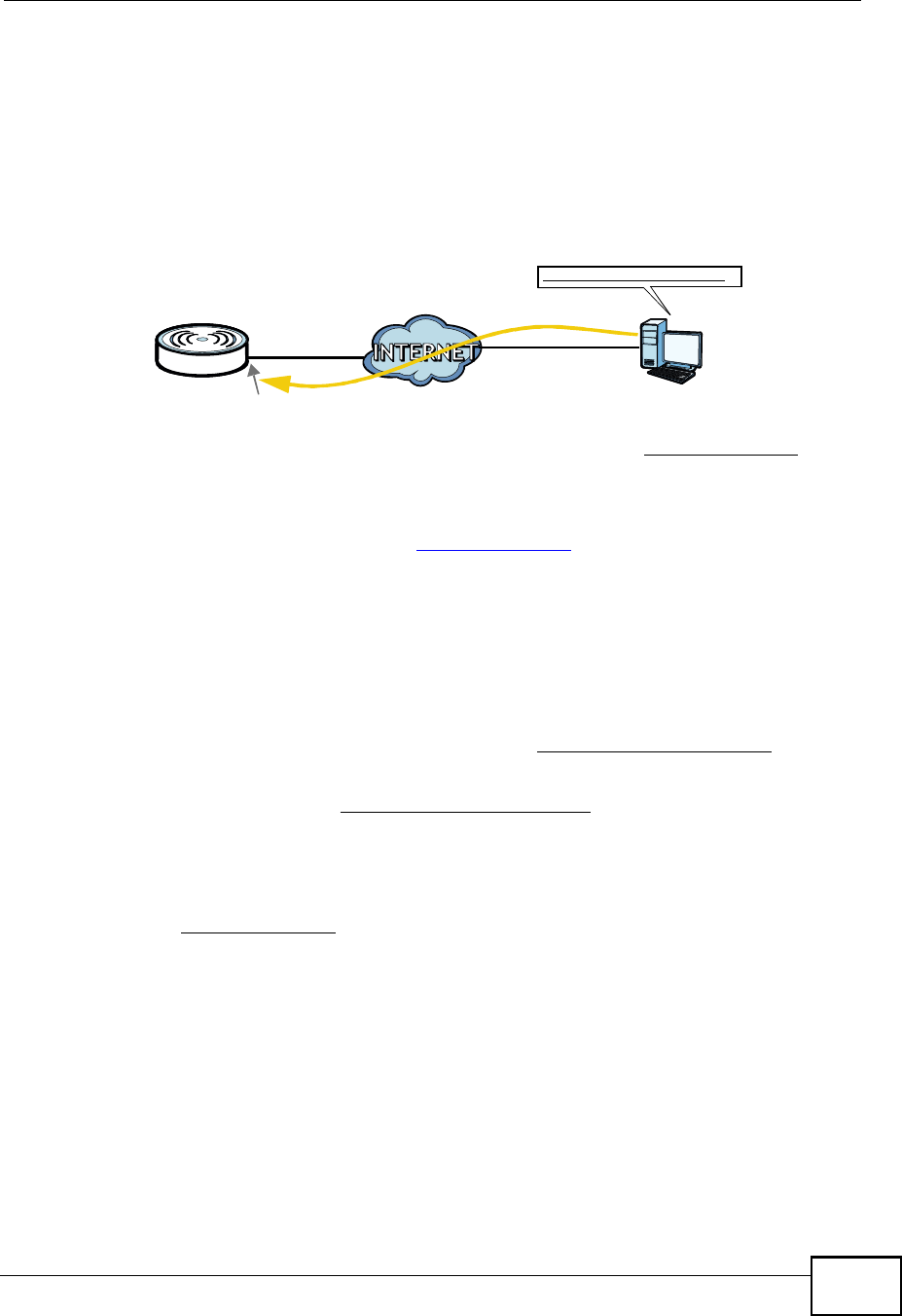

4.8 Access the MAX208M2W Series Using DDNS
If you connect your MAX208M2W Series to the Internet and it uses a dynamic
WAN IP address, it is inconvenient for you to manage the device from the
Internet. The MAX208M2W Series s WAN IP address changes dynamically.
Dynamic DNS (DDNS) allows you to access the MAX208M2W Series using a
domain name.
To use this feature, you have to apply for DDNS service at www.dyndns.org.
This tutorial covers:
!Registering a DDNS Account on www.dyndns.org
!Configuring DDNS on Your MAX208M2W Series
!Testing the DDNS Setting
Note: If you have a private WAN IP address (see Private IP Addresses on page 256),
then you cannot use DDNS.
4.8.1 Registering a DDNS Account on www.dyndns.org
1Open a browser and type http://www.dyndns.org.
2Apply for a user account. This tutorial uses UserName1 and 12345 as the
username and password.
3Log into www.dyndns.org using your account.
4Add a new DDNS host name. This tutorial uses the following settings as an
example.
!Hostname: mywimax.dyndns.org
!Service Type: Host with IP address
!IP Address: Enter the WAN IP address that your MAX208M2W Series is currently
using. You can find the IP address on the MAX208M2W Series s Web
Configurator Status page.
Then you will need to configure the same account and host name on the
MAX208M2W Series later.
w.x.y.z a.b.c.d
http://mywimax.dyndns.org
A
Chapter 4Tutorials
MAX208M2W Series User s Guide
54

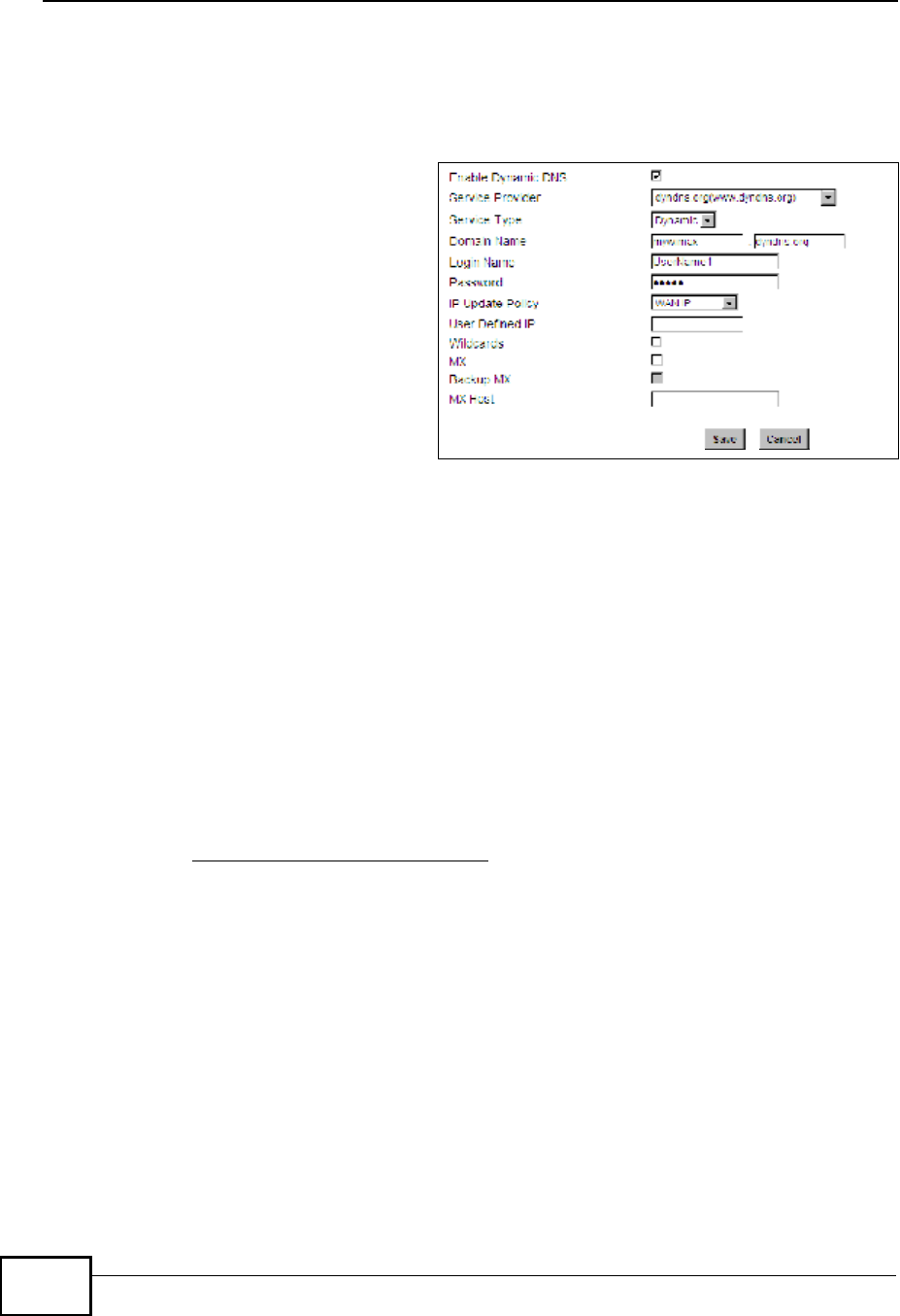

4.8.2 Configuring DDNS on Your MAX208M2W Series
Configure the following settings in the Network Setting > DDNS screen.
1Select Enable Dynamic DNS.
2Select dyndns.org for the
service provider.
3Select Dynamic for the
service type.
4Type mywimax.dyndns.org
in the Domain Name field.
5Enter the user name
(UserName1) and password
(12345).
6Select WAN IP for the IP update policy.
7Click Save.
4.8.3 Testing the DDNS Setting
Now you should be able to access the MAX208M2W Series from the Internet. To
test this:
1Open a web browser on the computer (using the IP address a.b.c.d) that is
connected to the Internet.
2Type http://mywimax.dyndns.org and press [Enter].
3The MAX208M2W Series s login page should appear. You can then log into the
MAX208M2W Series and manage it.
4.9 Configuring Static Route for Routing to
Another Network
In order to extend your Intranet and control traffic flowing directions, you may
connect a router to the MAX208M2W Series s LAN. The router may be used to
separate two department networks. This tutorial shows how to configure a static
routing rule for two network routings.
Chapter 4Tutorials
MAX208M2W Series User s Guide 55

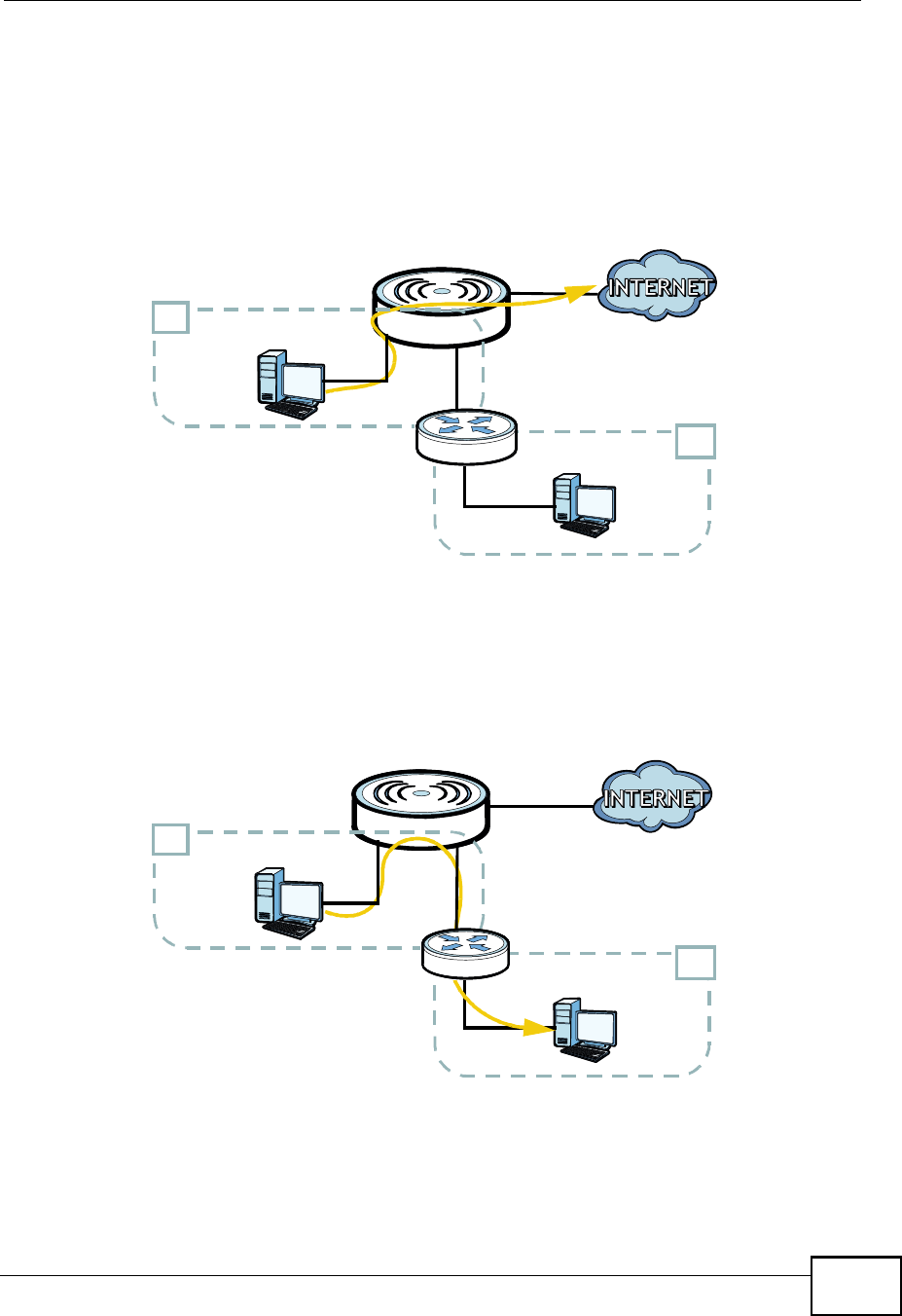

In the following figure, router R is connected to the MAX208M2W Series s LAN. R
connects to two networks, N1 (192.168.1.x/24) and N2 (192.168.10.x/24). If
you want to send traffic from computer A (in N1 network) to computer B (in N2
network), the traffic is sent to the MAX208M2W Series s WAN default gateway by
default. In this case, computer B will never receive the traffic.
You need to specify a static routing rule on the MAX208M2W Series to specify R as
the router in charge of forwarding traffic to N2. In this case, the MAX208M2W
Series routes traffic from computer A to R and then R routes the traffic to
computer B.
N2
B
A
R
N1
N2
B
N1
A
R
Chapter 4Tutorials
MAX208M2W Series User s Guide
56
This tutorial uses the following example IP settings:
To configure a static route to route traffic from N1 to N2:
1Click Network Setting > Route > Static Route.
2Click Add to create a new route.
3Configure the Edit Static Route screen using the following settings:
3a Enter 192.168.10.0 and subnet mask 255.255.255.0 for the destination,
N2.
3b Enter 192.168.1.253 (R s IP address on N1) in the IP Address field under
Next Hop.
3a Click Save.
Now computer B should be able to receive traffic from computer A. You may need
to additionally configure R s firewall settings to accept specific traffic to pass
through.
Table 11 IP Settings in this Tutorial
DEVICE / COMPUTER IP ADDRESS
The MAX208M2W Series s
WAN
172.16.1.1
The MAX208M2W Series s LAN192.168.1.1
A192.168.1.34
R s IP address on N1 192.168.1.253
R s IP address on N2 192.168.10.2
B192.168.10.33
Chapter 4Tutorials
MAX208M2W Series User s Guide 57
4.10 Remotely Managing Your MAX208M2W
Series
The remote management feature allows you to log into the device through the
Internet.
Goal: Set up the MAX208M2W Series to allow management requests from the
WAN (Internet).
See Also: Section 12.3 on page 169.
1Open the Maintenance > Remote MGMT > HTTP screen.
2Select Enable in both HTTP Server and HTTPS Server sections and leave the
Port Number settings as "80# and "443#.
3Select Allow Connection from WAN. This allows remote management
connections not only from the local network but also the WAN network (Internet).
4Click Save.
Chapter 4Tutorials
MAX208M2W Series User s Guide
58
4.11 VLAN Configuration Example
This example assumes that you want port 1 to recognize VLAN 100 and VLAN 200
traffic sent from/to computers A and B. Port 2 is dedicated for transmitting and
receiving VLAN-untagged and management traffic.
Figure 17 VLAN Configuration Example
1Connect your computer (C in the example) to the MAX208M2W Series s LAN port 2
and access the Web Configurator.
2Log into the MAX208M2W Series.
VLAN 100
VLAN 200
A
B
port 1
port 2
C
Chapter 4Tutorials
MAX208M2W Series User s Guide 59
3Click Network Setting > VLAN and then click the PVID Group for port 2.
4Select MGMT from the drop-down list, click OK in the section, and then click Save
at the bottom of the screen.
Chapter 4Tutorials
MAX208M2W Series User s Guide
60
5Click Network Setting > WAN. Change the MAX208M2W Series to bridge mode
and then click Save.
6The MAX208M2W Series will restart. Wait until it completely restarts.
7Configure the IP address of your computer to be in the same network as the
MAX208M2W Series s LAN. The default is 192.168.1.x where x can be 2 to 254.
8Open a browser and type the MAX208M2W Series s LAN IP address (for example,
192.168.1.1).
9Log into the MAX208M2W Series and then click Network Setting > VLAN.
10 Enable VLAN and create VLAN 100 by entering VLAN 100 and the priority (7 in this
example) in the Management VLAN section. The MAX208M2W Series requires to
reboot again.
11 After it completely restarts, log into the MAX208M2W Series. Click Network
Setting > VLAN.
Chapter 4Tutorials
MAX208M2W Series User s Guide 61
12 Since by default port 1 is associated with VLAN rule 1. Click the VID field to
configure the settings as shown next. Click OK and then Save.
Finally, you complete the settings. See Section 7.19 on page 122 if you need more
information about VLAN.
Chapter 4Tutorials
MAX208M2W Series User s Guide
62
63
PART II
Technical Reference
64
MAX208M2W Series User s Guide 65
CHAPTER 5
System Status
5.1 Overview
Use this screen to view a summary of your MAX208M2W Series connection status.
5.2 System Status
This screen allows you to view the current status of the device, system resources,
and interfaces (LAN and WAN).
Click System Status to open this screen as shown next.
Figure 18 System Status
Chapter 5System Status
MAX208M2W Series User s Guide
66
The following tables describe the labels in this screen.
Table 12 Status
LABEL DESCRIPTION
System Information
System Model
Name
This field displays the MAX208M2W Series system model name. It is
used for identification.
Software
Version
This field displays the Web Configurator version number.
Firmware
Version
This field displays the current version of the firmware inside the
device.
Firmware
Build Time
This field shows the date the firmware version was created.
TimeThis field displays the current system time.
UptimeThis field displays how long the MAX208M2W Series has been running
since it last started up.
System Resources
MemoryThis field displays what percentage of the MAX208M2W Series s
memory is currently used. The higher the memory usage, the more
likely the MAX208M2W Series is to slow down. Some memory is
required just to start the MAX208M2W Series and to run the web
configurator. You can reduce the memory usage by disabling some
services; by reducing the amount of memory allocated to NAT and
firewall rules (you may have to reduce the number of NAT rules or
firewall rules to do so); or by deleting rules in functions such as
incoming call policies, speed dial entries, and static routes.
CPUThis field displays what percentage of the MAX208M2W Series s CPU is
currently used. The higher the CPU usage, the more likely the
MAX208M2W Series is to slow down.
WiMAX
Device StatusThis field displays the MAX208M2W Series current status for
connecting to the selected base station.
Scanning - The MAX208M2W Series is scanning for available base
stations.
Ready - The MAX208M2W Series has finished a scanning and you can
connect to a base station.
Connecting - The MAX208M2W Series attempts to connect to the
selected base station.
Connected - The MAX208M2W Series has successfully connected to
the selected base station.
Chapter 5System Status
MAX208M2W Series User s Guide 67
Connection
Status
This field displays the status of the WiMAXconnection between the
MAX208M2W Series and the base station.
Network Search - The MAX208M2W Series is scanning for any
available WiMAX connections.
Disconnected - No WiMAX connection is available.
Network Entry - A WiMAX connection is initializing.
Normal - The WiMAX connection has successfully established.
BSIDThis field displays the MAC address of the base station to which the
device is connected.
FrequencyThis field indicates the frequency the MAX208M2W Series is using.
Signal
Strength
This field indicates the strength of the connection that the
MAX208M2W Series has with the base station.
Link QualityThis field indicates the relative quality of the link the MAX208M2W
Series has with the base station.
WAN
StatusThis field indicates the status of the WAN connection to the
MAX208M2W Series.
MAC AddressThis field indicates the MAC address of the port making the WAN
connection on the MAX208M2W Series.
IP AddressThis field indicates the current IP address of the MAX208M2W Series in
the WAN.
Subnet MaskThis field indicates the current subnet mask on the WAN.
GatewayThis field indicates the IP address of the gateway to which the
MAX208M2W Series is connected.
MTUThis field indicates the Maximum Transmission Unit (MTU) between the
MAX208M2W Series and the ISP servers to which it is connected.
DNSThis field indicates the Domain Name Server (DNS) to which your
MAX208M2W Series is connected.
LAN
MAC AddressThis field indicates the MAC address of the port making the LAN
connection on the MAX208M2W Series.
IP AddressThis field displays the current IP address of the MAX208M2W Series in
the LAN.
Subnet MaskThis field displays the current subnet mask in the LAN.
MTUThis field indicates the Maximum Transmission Unit (MTU) between the
MAX208M2W Series and the client devices to which it is connected.
VOIP Phone
Account1
Subscriber
This field displays the SIP number for SIP account 1.
Registered
Status
This field displays whether SIP account 1 is already registered with a
SIP server (Registered or Unregistered).
Account2
Subscriber
This field displays the SIP number for SIP account 2.
Table 12 Status (continued)
LABEL DESCRIPTION
Chapter 5System Status
MAX208M2W Series User s Guide
68
Registered
Status
This field displays whether SIP account 2 is already registered with a
SIP server (Registered or Unregistered).
Line1 StatusThis field displays whether phone line 1 (mapping to the VoIP1 port)
is in use or not (idle).
Line 2 StatusThis field displays whether phone line 2 (mapping to the VoIP2 port)
is in use or not (idle).
Table 12 Status (continued)
LABEL DESCRIPTION
MAX208M2W Series User s Guide 69
CHAPTER 6
WiMAX
6.1 Overview
This chapter shows you how to set up and manage the connection between the
MAX208M2W Series and your ISP s base stations.
6.1.1 What You Need to Know
The following terms and concepts may help as you read through this chapter.
WiMAX
WiMAX (Worldwide Interoperability for Microwave Access) is the IEEE 802.16
wireless networking standard, which provides high-bandwidth, wide-range
wireless service across wireless Metropolitan Area Networks (MANs). ZyXEL is a
member of the WiMAX Forum, the industry group dedicated to promoting and
certifying interoperability of wireless broadband products.
In a wireless MAN, a wireless-equipped computer is known either as a mobile
station (MS) or a subscriber station (SS). Mobile stations use the IEEE 802.16e
standard and are able to maintain connectivity while switching their connection
from one base station to another base station (handover) while subscriber stations
use other standards that do not have this capability (IEEE 802.16-2004, for
example). The following figure shows an MS-equipped notebook computer MS1
moving from base station BS1 s coverage area and connecting to BS2.
Figure 19 WiMax: Mobile Station
Chapter 6WiMAX
MAX208M2W Series User s Guide
70
WiMAX technology uses radio signals (around 2 to 10 GHz) to connect subscriber
stations and mobile stations to local base stations. Numerous subscriber stations
and mobile stations connect to the network through a single base station (BS), as
in the following figure.
Figure 20 WiMAX: Multiple Mobile Stations
A base station s coverage area can extend over many hundreds of meters, even
under poor conditions. A base station provides network access to subscriber
stations and mobile stations, and communicates with other base stations.
The radio frequency and bandwidth of the link between the MAX208M2W Series
and the base station are controlled by the base station. The MAX208M2W Series
follows the base station s configuration.
Authentication
When authenticating a user, the base station uses a third-party RADIUS or
Diameter server known as an AAA (Authentication, Authorization and Accounting)
server to authenticate the mobile or subscriber stations.

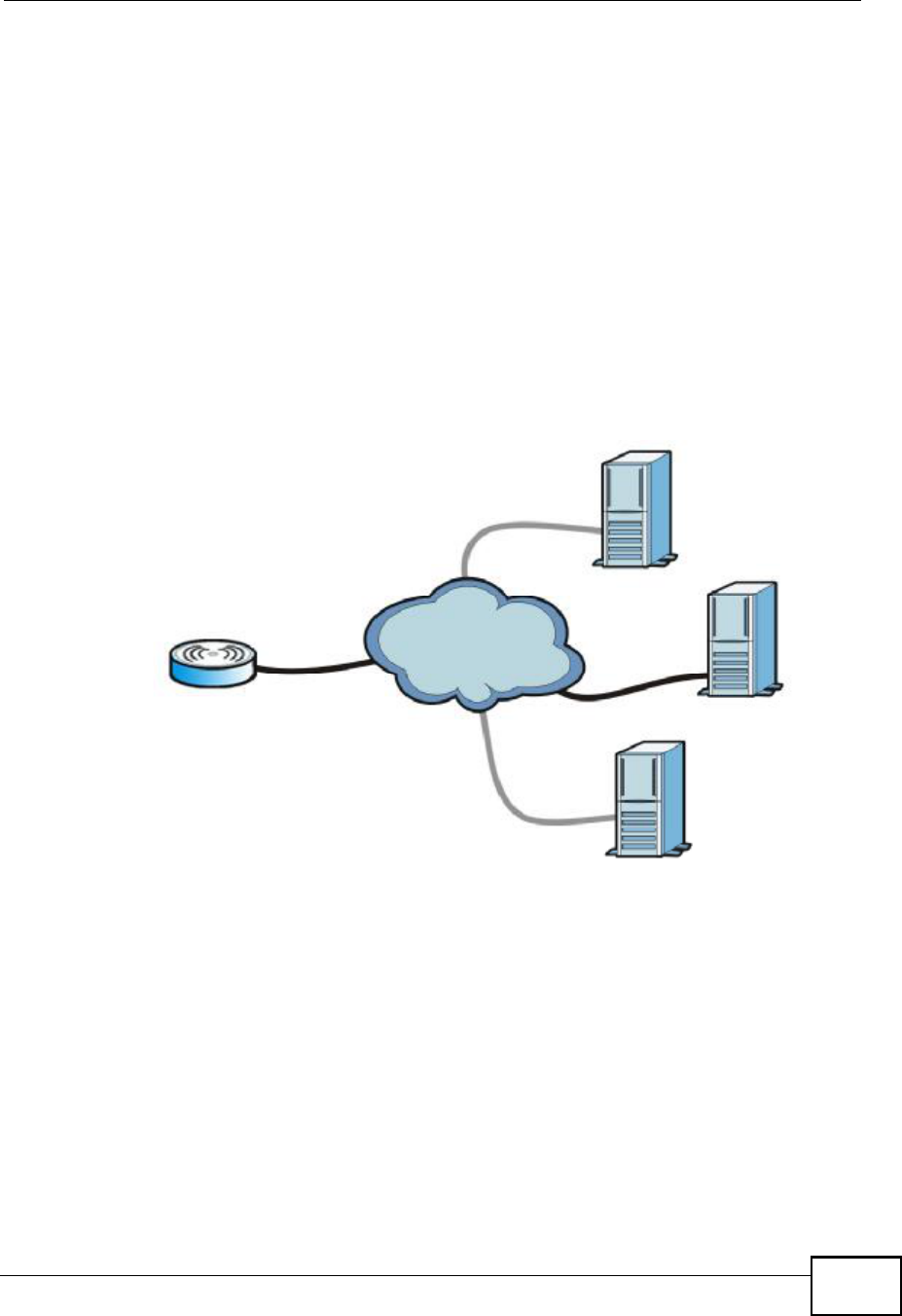

The following figure shows a base station using an AAA server to authenticate
mobile station MS, allowing it to access the Internet.
Figure 21 Using an AAA Server
In this figure, the dashed arrow shows the PKM (Privacy Key Management)
secured connection between the mobile station and the base station, and the solid
arrow shows the EAP secured connection between the mobile station, the base
station and the AAA server. See the WiMAX security appendix for more details.
Chapter 6WiMAX
MAX208M2W Series User s Guide 71
Frequency Ranges

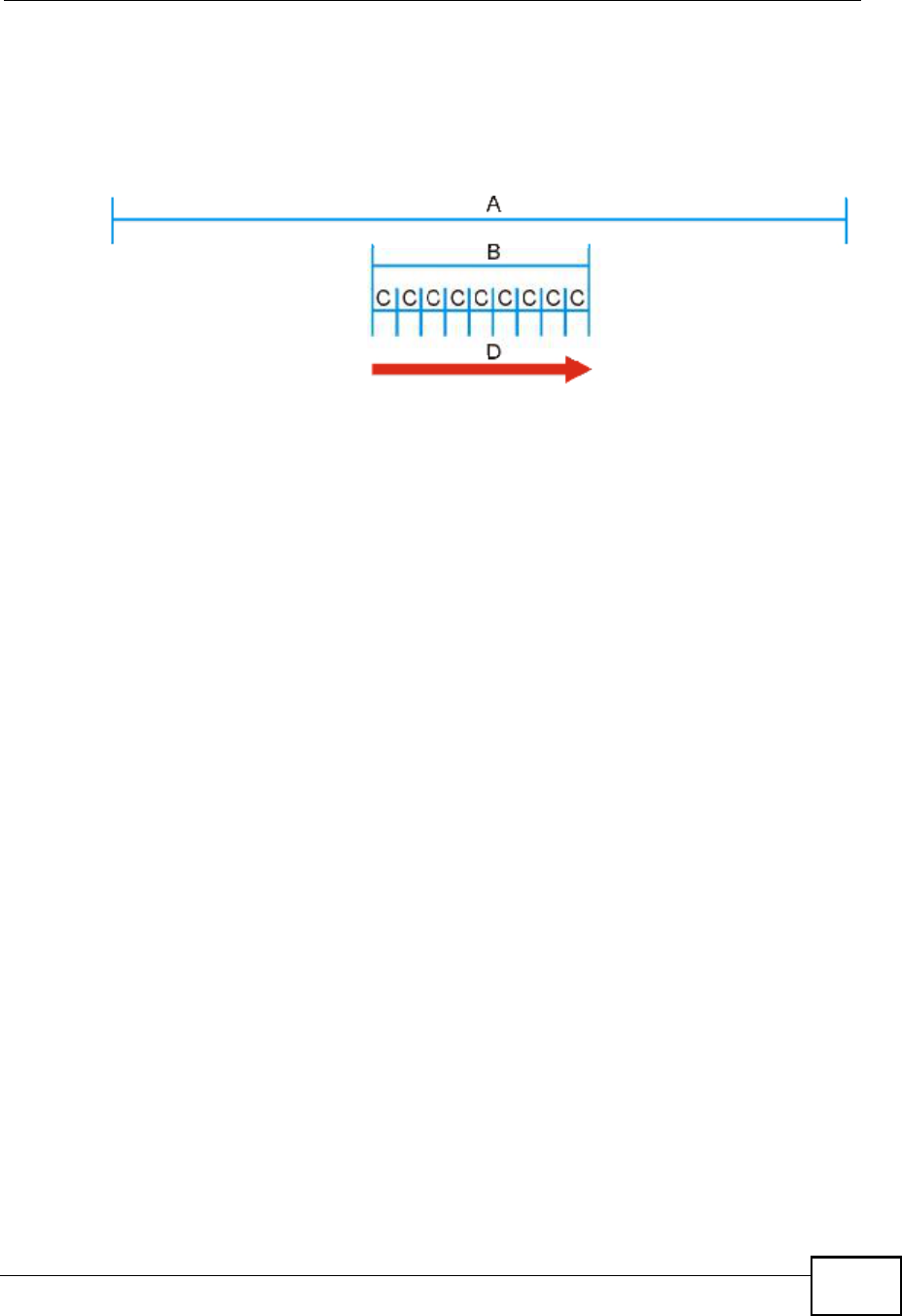

The following figure shows the MAX208M2W Series searching a range of
frequencies to find a connection to a base station.
Figure 22 Frequency Ranges
In this figure, A is the WiMAX frequency range. "WiMAX frequency range# refers to
the entire range of frequencies the MAX208M2W Series is capable of using to
transmit and receive (see the Product Specifications appendix for details).
In the figure, B shows the operator frequency range. This is the range of
frequencies within the WiMAX frequency range supported by your operator
(service provider).
The operator range is subdivided into bandwidth steps. In the figure, each C is a
bandwidth step.
The arrow D shows the MAX208M2W Series searching for a connection.
Have the MAX208M2W Series search only certain frequencies by configuring the
downlink frequencies. Your operator can give you information on the supported
frequencies.
The downlink frequencies are points of the frequency range your MAX208M2W
Series searches for an available connection. Use the Site Survey screen to set
these bands. You can set the downlink frequencies anywhere within the WiMAX
frequency range. In this example, the downlink frequencies have been set to
search all of the operator range for a connection.
Certification Authority
A Certification Authority (CA) issues certificates and guarantees the identity of
each certificate owner. There are commercial certification authorities like
CyberTrust or VeriSign and government certification authorities. You can use the
MAX208M2W Series to generate certification requests that contain identifying
information and public keys and then send the certification requests to a
certification authority.
Chapter 6WiMAX
MAX208M2W Series User s Guide
72
Certificate File Formats
The certification authority certificate that you want to import has to be in one of
these file formats:
!Binary X.509: This is an ITU-T recommendation that defines the formats for
X.509 certificates.
!PEM (Base-64) encoded X.509: This Privacy Enhanced Mail format uses
lowercase letters, uppercase letters and numerals to convert a binary X.509
certificate into a printable form.
!Binary PKCS#7: This is a standard that defines the general syntax for data
(including digital signatures) that may be encrypted. The MAX208M2W Series
currently allows the importation of a PKS#7 file that contains a single
certificate.
!PEM (Base-64) encoded PKCS#7: This Privacy Enhanced Mail (PEM) format uses
64 ASCII characters to convert a binary PKCS#7 certificate into a printable
form.
CINR
Carrier to Interference-plus-Noise Ratio (CINR) measures the effectiveness of a
wireless signal and plays an important role in allowing the MAX208M2W Series to
decode signal burts. If a burst has a high signal strength and a high interference-
plus-noise ratio, it can use Digital Signal Processing (DSP) to decode it; if the
signal strength is lower, it can switch to an alternate burst profile.
RSSI
Received Signal Strength Indicator (RSSI) measures the relative strength of a
given wireless signal. This is important in determining if a signal is below the
Clear-To-Send (CTS) threshold. If it is below the arbitrarily specified threshold,
then MAX208M2W Series is free to transmit any data packets.
EAP Authentication
EAP (Extensible Authentication Protocol) is an authentication protocol that runs on
top of the IEEE 802.1x transport mechanism in order to support multiple types of
user authentication. By using EAP to interact with an EAP-compatible RADIUS
server, an access point helps a wireless station and a RADIUS server perform
authentication.
The MAX208M2W Series supports EAP-TLS and EAP-TTLS (at the time of writing,
TTLS is not available in Windows Vista) . For EAP-TLS authentication type, you
must first have a wired connection to the network and obtain the certificate(s)
from a certificate authority (CA). Certificates (also called digital IDs) can be used
to authenticate users and a CA issues certificates and guarantees the identity of
each certificate owner.
Chapter 6WiMAX
MAX208M2W Series User s Guide 73
6.2 Connection Settings
This screen allows you to configure how the MAX208M2W Series connects to the
base stations on the WiMAX network.
Click WiMAX > Profile > Connection Settings to open this screen as shown
next.

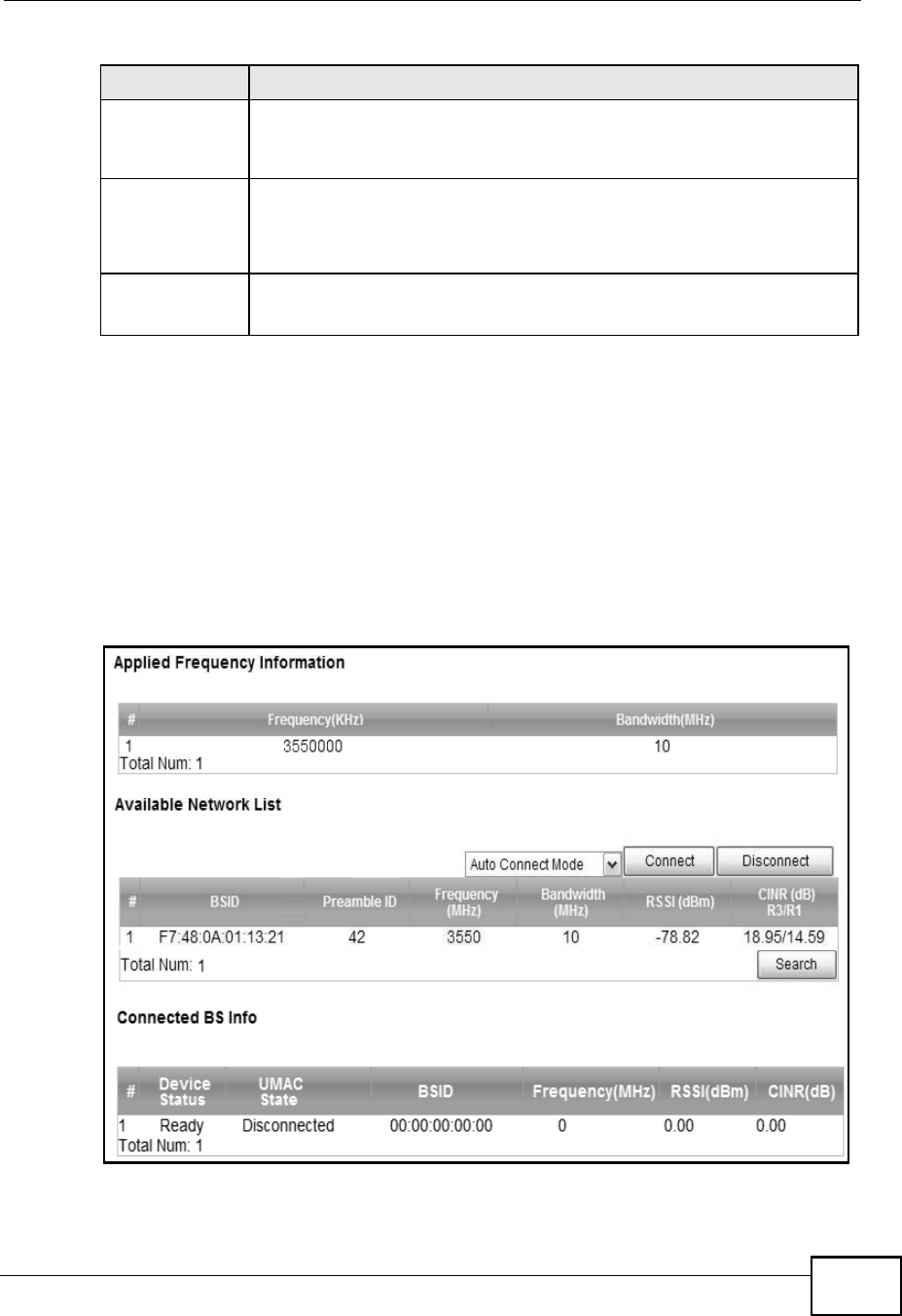

Figure 23 Connection Settings Screen
This screen contains the following fields:
Table 13 Connection Settings
LABEL DESCRIPTION
Connection Option Settings
Auto
Reconnect
Select the interval in seconds that the MAX208M2W Series waits after
getting disconnected from the base station before attempting to
reconnect.
Auto
Connect
Mode
Select the auto connect mode.
!By channel power - Auto connects to the base station if the signal
strength of the channel is sufficient for the MAX208M2W Series.
!By CINR - Auto connects to the base station if the signal-to-noise
ratio is sufficient for the MAX208M2W Series.
Enable
Handover
Select this to maintain connectivity while the MAX208M2W Series
switches its connection from one base station to another base station.
Enable Idle
Mode
Select this to have the MAX208M2W Series enter the idle mode after it
has no traffic passing through for a pre-defined period. Make sure your
base station also supports this before selecting this.
Chapter 6WiMAX
MAX208M2W Series User s Guide
74
Idle Mode
Interval
Set the idle duration in minutes. This is how long the MAX208M2W
Series waits during periods of no activity before going into idle mode.
CINR & RSSI
Refresh
Interval
Set the refresh interval in milliseconds for calculating the signal-to-
noise measurement (CINR) and signal strength measurement (RSSI) of
the MAX208M2W Series.
LDRP (Low
Data Rate
Protection)
Enter the Low Data Rate Protection (LDRP) time in milliseconds. If the
uplink/downlink data rate is smaller than the LDRP time, the
MAX208M2W Series sends a disconnect request to the base station.
LDRP TX
Rate
Enter the outgoing data rates for LDRP in bytes per second.
LDRP RX
Rate
Enter the incoming data rates for LDRP in bytes per second.
Connection Type Settings
Mode SelectSelect how the MAX208M2W Series connects to the base station.
!Auto Connect Mode - The device connects automatically to the
first base station in range.
!Network Search Mode - The device scans for available base
stations then connects to the best one it can.
BSIDThis displays the MAC address of a base station within range of the
MAX208M2W Series.
Preamble IDThe preamble ID is the index identifier in the header of the base
station s broadcast messages. In the beginning of a mobile stations s
network entry process, it searches for the preamble and uses it to
additional channel information.
The preamble ID is used to synchronize the upstream and downstream
transmission timing with the base station.
Frequency
(MHz)
This field displays the radio frequency of the MAX208M2W Series s
connection to the base station.
Bandwidth
(MHz)
This field displays the bandwidth of the base station in megahertz
(MHz).
RSSI (dBm)This field displays the Received Signal Strength Indication (RSSI),
which is an overal measurement of radio signal strength. A higher RSSI
level indicates a stronger signal.
CINR (dB)
R3/R1
This field displays the average Carrier to Interference plus Noise Ratio
for the current connection. This value is an indication of overal radio
signal quality, where a higher value means a better quality signal.
SearchClick this to have the MAX208M2W Series scan for base stations.
Table 13 Connection Settings (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide 75
6.3 Frequency Settings
Use this screen to have the WiMAX Device to scan one or more specific radio
frequencies (given by your WiMAX service provider) to find available connections
to base stations.
Click WiMAX > Profile > Frequency Settings to open this screen as shown
next.
Figure 24 Frequency Settings Screen (By List)
Figure 25 Frequency Settings Screen (By Range)
A
B
A
B
Chapter 6WiMAX
MAX208M2W Series User s Guide
76
This screen contains the following fields:
Table 14 Frequency Settings
LABEL DESCRIPTION
Setting TypeSelect whether to scan base stations by entering specific frequency(-
ies) (By List) or a range of frequencies (By Range).
Note: When you select By Range, you can only configure one
range of frequencies in this screen. To configure multiple
frequency ranges, use the WiMAX > Wide Scan screen.
Note: Some settings in this screen are only available depending on
the Setting Type selected.
Join Wide Scan
Result
The scanning result of the frequency to scan you configured in this
screen will be shown in the WiMAX > Connect screen. Select this
option to determine whether to also append the wide scanning result
(configured in the WiMAX > Wide Scan screen) to the same table.
Default
Bandwidth
Select the default bandwidth (size) per frequency band you specify in
table A.
A (When By List is selected in the Setting Type field)
Frequency
(KHz)
This displays the center frequency of an frequency band in kilohertz
(KHz).
Click the number to modify it.
Enter the center frequency in this field when you are adding an entry.
Bandwidth
(MHz)
This displays the bandwidth of the frequency band in megahertz (MHz).
If you set a center frequency to 3400000 KHz with the bandwidth of 10
MHz, then the frequency band is from 3399500 to 3400500 KHz.
Click the number to modify it.
Enter the bandwidth of the frequency band in this field when you are
adding an entry.
DeleteClick this button to remove an item from the list.
AddClick this button to add an item to the list.
OKClick this button to save any changes made to the list.
A (When By Range is selected in the Setting Type field)
Start
Frequency
(KHz)
This indicates the beginning of a frequency band in kilohertz (KHz).
Click this field to modify it.
Enter the beginning frequency when you are adding an entry.
End
Frequency
(KHz)
This indicates the end of the frequency band in kilohertz (KHz).
Click this field to modify it.
Step (KHz)This indicates the frequency step within each band in kilohertz (KHz).
Click this field to modify it.
Bandwidth
(MHz)
This indicates the bandwidth in megahertz (MHz).
Click this field to modify it.
Chapter 6WiMAX
MAX208M2W Series User s Guide 77
OKClick this button to save any changes made to the list.
Valid Band Info (B)
This table displays the entire frequency band the MAX208M2W Series supports. The
frequenc(ies) to scan that you configured in table A must be within this range.
Band Start
(KHz)
This indicates the beginning of the frequency band in kilohertz (KHz).
Band End
(KHz)
This indicates the end of the frequency band in kilohertz (KHz).
Table 14 Frequency Settings (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide
78
6.4 Authentication Settings
These settings allow the WiMAX Device to establish a secure (authenticated)
connection with the service provider.
Click WiMAX > Profile > Authentication Settings to open this screen as shown
next.
Figure 26 Authentication Settings Screen
Chapter 6WiMAX
MAX208M2W Series User s Guide 79
This screen contains the following fields:
Table 15 Authentication Settings
LABEL DESCRIPTION
Authentication
Mode
Select the authentication mode from the list.
The MAX208M2W Series supports the following authentication modes:
!No authentication
!User authentication
!Device authentication
!User and device authentication
Data Encryption
AES-CCMSelect this to enable AES-CCM encryption. CCM combines counter-mode
encryption with CBC-MAC authentication.
AES-CBCSelect this to enable AES-CBC encryption. CBC creates message
authentication code from a block cipher.
Key Encryption
AES-key
wrap
Select this encapsulate cryptographic keys in a symmetric encryption
algorithm.
AES-ECBSelect this to divide cryptographic keys into blocks and encrypt them
separately.
EAP Supplicant
EAP ModeSelect an Extensible Authentication Protocol (EAP) mode.
The MAX208M2W Series supports the following:
!EAP-TLS - In this protocol, digital certifications are needed by both
the server and the wireless clients for mutual authentication. The
server presents a certificate to the client. After validating the
identity of the server, the client sends a different certificate to the
server. The exchange of certificates is done in the open before a
secured tunnel is created. This makes user identity vulnerable to
passive attacks. A digital certificate is an electronic ID card that
authenticates the sender s identity. However, to implement EAP-TLS,
you need a Certificate Authority (CA) to handle certificates, which
imposes a management overhead.
!EAP-TTLS - This protocol is an extension of the EAP-TLS
authentication that uses certificates for only the server-side
authentications to establish a secure connection. Client
authentication is then done by sending username and password
through the secure connection, thus client identity is protected. For
client authentication, EAP-TTLS supports EAP methods and legacy
authentication methods such as PAP, CHAP, MS-CHAP and MS-CHAP
v2.
Anonymous
ID
Enter the anonymous ID used for EAP supplicant authentication.
Server Root
CA Cert File
Browse for and choose a server root certificate file, if required.
Server Root
CA Info
This field displays information about the assigned server root
certificate.
Device Cert
File
Browse for and choose a device certificate file, if required.
Device Cert
Info
This field displays information about the assigned device certificate.
Chapter 6WiMAX
MAX208M2W Series User s Guide
80
Device
Private Key
Browse for and choose a device private key, if required.
Device
Private Key
Info
This field displays information about the assigned device private key.
Device
Private Key
Password
Enter the device private key, if required.
Inner ModeSets the EAP-TTLS inner mode.
The MAX208M2W Series supports the following:
!MS-CHAP v2 - This is version 2 of Microsoft s variant of Challenge
Handshake Authentication Protocol (CHAP). It allows for mutual
authentication between devices.
!MS-CHAP - This is Microsoft s variant of Challenge Handshake
Authentication Protocol (CHAP). It allows for mutual authentication
between devices.
!CHAP - The Challenge Handshake Authentication Protocol (CHAP)
uses PPP to authenticate remote devices using a three-way
handshake and shared secret verification.
!MD5 - Message-Digest, algorithm 5, (MD5) encryption is typically
used for checking file integrity. Because this encryption protocol
contains a number of serious security flaws it is generally not
recommended that you use it for authentication security.
!PAP - Password Authentication Protocol uses unencrypted plaintext
to send a passwords for authentication over the network. It s
probably not a good idea to rely on this for security.
UsernameEnter the username required for the EAP-TTLS inner method.
PasswordEnter the password required for the EAP-TTLS inner method.
Options
Enable Auth
Mode
Decoration
in EAP Outer
ID
Select this to enable authentication mode.
Enable
Service
Mode
Decoration
in EAP Outer
ID
Select this to enable service mode.
Random
Outer ID
Select this to allow the MAX208M2W Series to generate a 16-byte
random number as a username for the EAP Identity Response message.
Ignore Cert
Verification
Select this to ignore base station certification verification when a
certificate is received during EAP-TLS or EAP-TTLS.
Same EAP
OuterID in
ReAuth
Select this to use the same EAP to the outer ID when reauthenticating.
MAC address
in EAP-TLS
outer Id
Adds the MAC address of the MAX208M2W Series to the outer ID while
the EAP mode is set to EAP-TLS.
Table 15 Authentication Settings (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide 81
6.5 Connect
This screen allows you to view the available WiMAX frequency band(s) and base
station(s) the MAX208M2W Series found through scanning and choose a base
station to which to connect.
Click WiMAX > Connect to open this screen as shown next.
Figure 27 Connect Screen
Delete
existed Root
Certificate
file
Select this to delete an existing root certificate file from the
MAX208M2W Series.
Delete
existed
Device
Certificate
file
Select this to delete an existing device certificate file from the
MAX208M2W Series.
Delete
existed
Private Key
Select this to delete an existing private key from the MAX208M2W
Series.
Table 15 Authentication Settings (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide
82
This screen contains the following fields:
Table 16 Connect
LABEL DESCRIPTION
Applied Frequency Information
This table shows the scanning result you made in the WiMAX > Profile > Frequency
Settings and WiMAX > Wide Scan screens.
Note: You cannot see the wide scanning result that you made in WiMAX > Wide
Scan screen if the Join Wide Scan Result is set to No in the WiMAX >
Profile > Frequency Settings screen.
Frequency
(KHz)
This field displays the available center frequency of a frequency band in
kilohertz (KHz).
Bandwidth
(MHz)
This field displays the bandwidth of the frequency band in megahertz
(MHz).
Available Network List
Connected
Mode
Select a connect mode:
!Auto Connect Mode - This allows the MAX208M2W Series to
connect to any of the base stations on the list automatically.
!Network Search Mode - This allows the MAX208M2W Series to
connect to a user-specified base station. Select this option, choose
a base station, click Connect.
ConnectClick this to connect to the selected base station.
DisconnectClick this to disconnect from the selected base station.
BSIDThis field displays the base station MAC address.
Preamble IDThis field displays the preamble ID.
The preamble ID is the index identifier in the header of the base
station s broadcast messages. In the beginning of a mobile stations s
network entry process, it searches for the preamble and uses it to
additional channel information.
The preamble ID is used to synchronize the upstream and downstream
transmission timing with the base station.
Frequency
(MHz)
This field displays the center frequency the base station uses in
kilohertz (KHz).
Bandwidth
(MHz)
This field displays the frequency band bandwidth the base station uses
in megahertz (MHz).
RSSI (dBm)This field displays the Received Signal Strength Indication (RSSI),
which is an overal measurement of radio signal strength. A higher RSSI
level indicates a stronger signal.
CINR (dB)
R3/R1
This field displays the average Carrier to Interference plus Noise Ratio
for the current connection. This value is an indication of overal radio
signal quality, where a higher value means a better quality signal.
SearchClick this to have the MAX208M2W Series scan for base stations in the
frequency band(s) listed in the Applied Frequency Information
table.
Connected BS Info
Chapter 6WiMAX
MAX208M2W Series User s Guide 83
Device
Status
This field displays the MAX208M2W Series current status for connecting
to the selected base station.
Scanning - The MAX208M2W Series is scanning for available base
stations.
Ready - The MAX208M2W Series has finished scanning and you can
connect to a base station.
Connecting - The MAX208M2W Series attempts to connect to the
selected base station.
Connected - The MAX208M2W Series has successfully connected to
the selected base station.
UMAC StateThis field displays the status of the WiMAXconnection between the
MAX208M2W Series and the base station.
Network Search - The MAX208M2W Series is scanning for any
available WiMAX connections.
Disconnected - No WiMAX connection is available.
Network Entry - A WiMAX connection is initializing.
Normal - The WiMAX connection has been successfully established.
BSIDThis field displays the MAC address of the base station to which the
MAX208M2W Series is connected.
Frequency
(MHz)
This field displays the frequency the base station uses in megahertz
(MHz).
RSSI (dBm)This field displays the Received Signal Strength Indication (RSSI),
which is an overal measurement of radio signal strength. A higher RSSI
level indicates a stronger signal.
CINR (dB)This field displays the average Carrier to Interference plus Noise Ratio
for the current connection. This value is an indication of overal radio
signal quality, where a higher value means a better quality signal.
Table 16 Connect (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide
84
6.6 Wide Scan
This screen allows you to discover base stations by entering one or more
frequency ranges and bandwidth on which to scan.
Click WiMAX > Wide Scan to open this screen as shown next.
Figure 28 Wide Scan Screen
This screen contains the following fields:
Table 17 Wide Scan
LABEL DESCRIPTION
Wide Scan Settings
Auto Wide
Scan
Use this to enable (Yes) or disable (No) automatically scanning for
base stations.
Wide Scan Range
Start
Frequency
(KHz)
Enter the start frequency in kilohertz (KHz) for a wide scan range.
End
Frequency
(KHz)
Enter the end frequency in kilohertz (KHz) for a wide scan range.
Step (KHz)Enter the step increment in kilohertz (KHz) that the wide scan jumps
each time it scans between the start and end frequencies.
Bandwidth
(MHz)
Enter the frequency bandwidth to be scanned.
DeleteClick this to remove a range of frequencies from the wide scan range
list.
AddClick this to add a range of frequencies to the wide scan range list.
OKClick this so save any changes to the wide scan range list.
Wide Scan Result
This table displays the available frequency band(s) found through the wide scan.
Chapter 6WiMAX
MAX208M2W Series User s Guide 85
6.7 Link Status
This screen provides a general overview of the current WiMAX connection with the
service provider.
Click WiMAX > Link Status to open this screen as shown next.
Figure 29 Link Status Screen
This screen contains the following fields:
Frequency
(KHz)
This field displays the frequency in kilohertz (KHz).
Bandwidth
(MHz)
This field displays the bandwidth in megahertz (MHz).
SearchClick this to initiate a wide scan.
ClearClick this to clear the wide scan results.
Table 17 Wide Scan (continued)
LABEL DESCRIPTION
Table 18 Link Status
LABEL DESCRIPTION
ProfileThis field displays the profile name.
BSIDThis field displays the MAC address of the base station to which the
MAX208M2W Series is currently connected.
RSSIThis field displays the Received Signal Strength Indication (RSSI),
which is an overal measurement of radio signal strength. A higher RSSI
level indicates a stronger signal.
CINR R3This field displays the average Carrier to Interference plus Noise Ratio
(R3) for the current connection. This value is an indication of overal
radio signal quality, where a higher value means a better quality signal.
Chapter 6WiMAX
MAX208M2W Series User s Guide
86
CINR R1This field displays the average Carrier to Interference plus Noise Ratio
(R1) for the current connection. This value is an indication of overal
radio signal quality, where a higher value means a better quality signal.
CINR Std DevThis field displays the average Carrier to Interference plus Noise Ratio
(Std Dev) for the current connection. This value is an indication of
overal radio signal quality, where a higher value means a better quality
signal.
FrequencyThis field displays the frequency in kilohertz (KHz).
TX PowerThis field displays the transmission power of the MAX208M2W Series in
dBm.
UL MCSThis field displays the Uplink Modulation and Coding Sequence (UL
MCS).
DL MCSThis field displays the Downlink Modulation and Coding Sequence (DL
MCS).
RF TemperatureThis field displays the temperature in centigrade of the MAX208M2W
Series s RF circuit.
Handover
Success
This field displays how many times the MAX208M2W Series had ever
successfully switched its connection from one base station to another
base station, since the MAX208M2W Series last restarted.
Handover FailThis field displays how many times the MAX208M2W Series had been
failed to switch its connection from one base station to another base
station, since the MAX208M2W Series last restarted.
Table 18 Link Status (continued)
LABEL DESCRIPTION
Chapter 6WiMAX
MAX208M2W Series User s Guide 87
6.8 Link Statistics
This screen provides a detailed overview of the current WiMAX connection with the
service provider..
Click WiMAX > Link Statistics to open this screen as shown next.
Figure 30 Link Statistics Screen
This screen contains the following sections:
Table 19 Link Statistics
LABEL DESCRIPTION
LinkThis section provides a detailed overview of link statistics.
HARQThis section provides a detailed overview of Hybrid Automatic Repeat
Request link statistics.
TX/RXThis section provides a detailed overview of transmission and receiving
link statistics.
MCSThis section provides a detailed overview of Modulation and Coding
Sequence (MCS) link statistics
Chapter 6WiMAX
MAX208M2W Series User s Guide
88
6.9 Connection Info
This screen displays all of the connections made through the WiMAX device since
its last reboot.
Click WiMAX > Connection Info to open this screen as shown next.
Figure 31 Connection Info Screen
This screen contains the following fields:
6.10 Service Flow
This screen displays data priority information for all of the connections made
through the WiMAX device since its last reboot.
Click WiMAX > Service Flow to open this screen as shown next.
Figure 32 Service Flow Screen
This screen contains the following fields:
Table 20 Connection Info
LABEL DESCRIPTION
Active
Connection CID
This displays the unique, unidirectional 16-bit Connection Identifier
(CID) for an active connection.
Connection
Type
This displays the type of connection.
Table 21 Service Flow
LABEL DESCRIPTION
SFIDThis displays a 32-bit service flow identifier.
SF StatusThis display the service flow status.
SF DirectionThis displays the service flow direction.
MAX208M2W Series User s Guide 89
CHAPTER 7
Network Setting
7.1 Overview
This chapter shows you how to configure the MAX208M2W Series s network
setting.
7.1.1 What You Need to Know
The following terms and concepts may help as you read through this chapter.
IP Address
IP addresses identify individual devices on a network. Every networking device
(including computers, servers, routers, printers, etc.) needs an IP address to
communicate across the network. These networking devices are also known as
hosts.
Subnet Masks
Subnet masks determine the maximum number of possible hosts on a network.
You can also use subnet masks to divide one network into multiple sub-networks.
DHCP
A DHCP (Dynamic Host Configuration Protocol) server can assign your
MAX208M2W Series an IP address, subnet mask, DNS and other routing
information when it s turned on.
Chapter 7Network Setting
MAX208M2W Series User s Guide
90
DNS Server Address
DNS (Domain Name System) is for mapping a domain name to its corresponding
IP address and vice versa. The DNS server is extremely important because
without it, you must know the IP address of a machine before you can access it.
The DNS server addresses that you enter in the DHCP setup are passed to the
client machines along with the assigned IP address and subnet mask.
There are two ways that an ISP disseminates the DNS server addresses. The first
is for an ISP to tell a customer the DNS server addresses, usually in the form of an
information sheet, when s/he signs up. If your ISP gives you the DNS server
addresses, enter them in the DNS Server fields; otherwise, leave them blank.
Some ISPs choose to pass the DNS servers using the DNS server extensions of
PPP IPCP (IP Control Protocol) after the connection is up. If your ISP did not give
you explicit DNS servers, chances are the DNS servers are conveyed through IPCP
negotiation. The MAX208M2W Series supports the IPCP DNS server extensions
through the DNS proxy feature.
If the Primary and Secondary DNS Server fields are not specified, for instance,
left as 0.0.0.0, the MAX208M2W Series tells the DHCP clients that it itself is the
DNS server. When a computer sends a DNS query to the MAX208M2W Series, the
MAX208M2W Series forwards the query to the real DNS server learned through
IPCP and relays the response back to the computer.
Please note that DNS proxy works only when the ISP uses the IPCP DNS server
extensions. It does not mean you can leave the DNS servers out of the DHCP
setup under all circumstances. If your ISP gives you explicit DNS servers, make
sure that you enter their IP addresses. This way, the MAX208M2W Series can pass
the DNS servers to the computers and the computers can query the DNS server
directly without the MAX208M2W Series s intervention.
RIP Setup
RIP (Routing Information Protocol) allows a router to exchange routing
information with other routers. The RIP Direction field controls the sending and
receiving of RIP packets. When set to:
!RX/TX - the MAX208M2W Series will broadcast its routing table periodically and
incorporate the RIP information that it receives.
!RX Only - the MAX208M2W Series will not send any RIP packets but will accept
all RIP packets received.
!TX Only - the MAX208M2W Series will send out RIP packets but will not accept
any RIP packets received.
!None - the MAX208M2W Series will not send any RIP packets and will ignore
any RIP packets received.
Chapter 7Network Setting
MAX208M2W Series User s Guide 91
The Version field controls the format and the broadcasting method of the RIP
packets that the MAX208M2W Series sends (it recognizes both formats when
receiving). RIP-1 is universally supported; but RIP-2 carries more information.
RIP-1 is probably adequate for most networks, unless you have an unusual
network topology.
Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference
being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.
Port Forwarding
A NAT server set is a list of inside (behind NAT on the LAN) servers, for example,
web or FTP, that you can make accessible to the outside world even though NAT
makes your whole inside network appear as a single machine to the outside world.
With port forwarding, you can forward incoming service requests to the server(s)
on your local network. You may enter a single port number or a range of port
numbers to be forwarded, and the local IP address of the desired server. The port
number identifies a service; for example, web service is on port 80 and FTP on
port 21. In some cases, such as for unknown services or where one server can
support more than one service (for example both FTP and web service), it might
be better to specify a range of port numbers.
In addition to the servers for specified services, NAT supports a default server. A
service request that does not have a server explicitly designated for it is forwarded
to the default server. If the default is not defined, the service request is simply
discarded.
For example, let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP
server (A in the example), port 80 to another (B in the example) and assign a
default server IP address of 192.168.1.35 to a third (C in the example). You
assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT
network appears as a single host on the Internet.

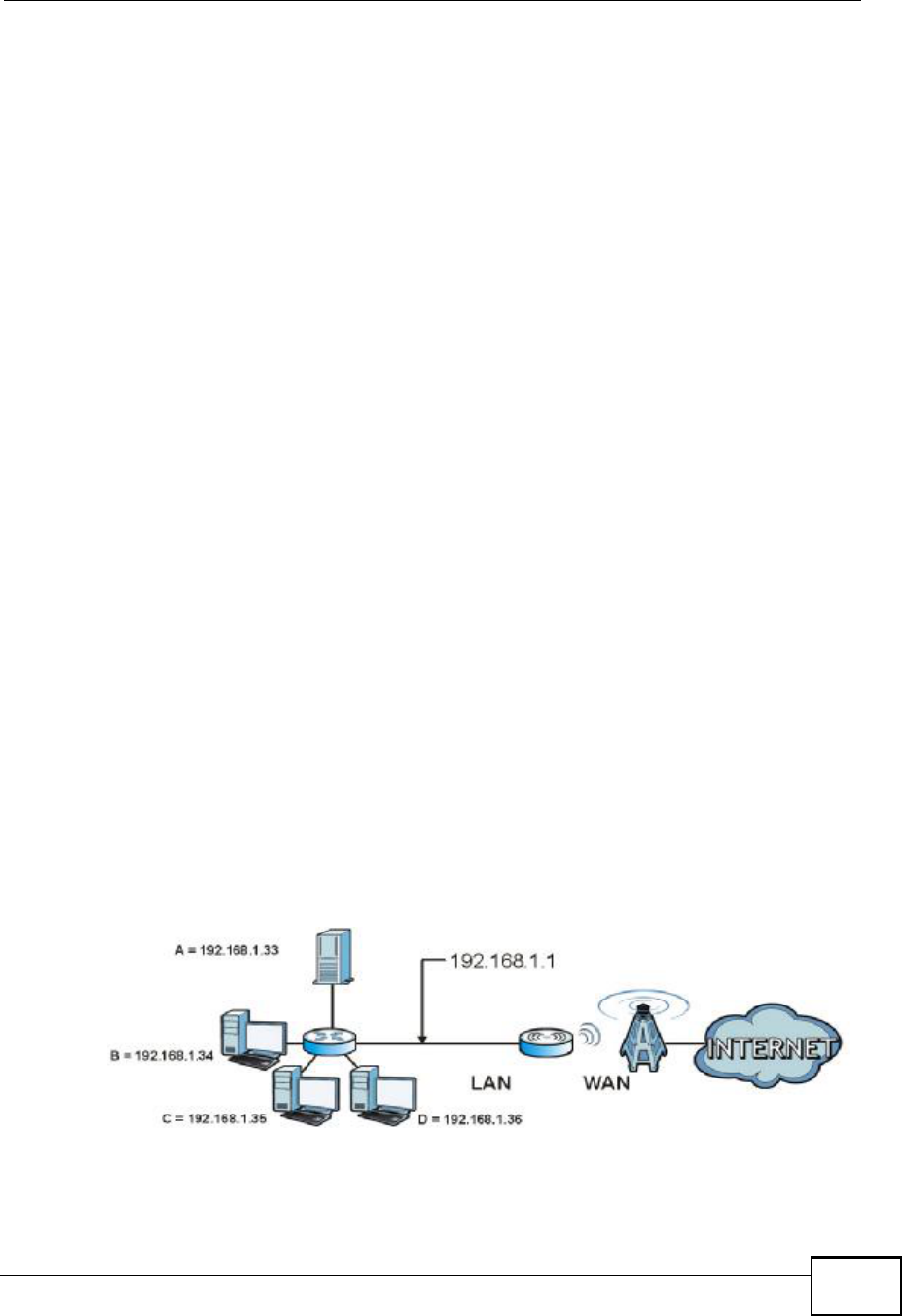

Figure 33 Multiple Servers Behind NAT Example
Chapter 7Network Setting
MAX208M2W Series User s Guide
92

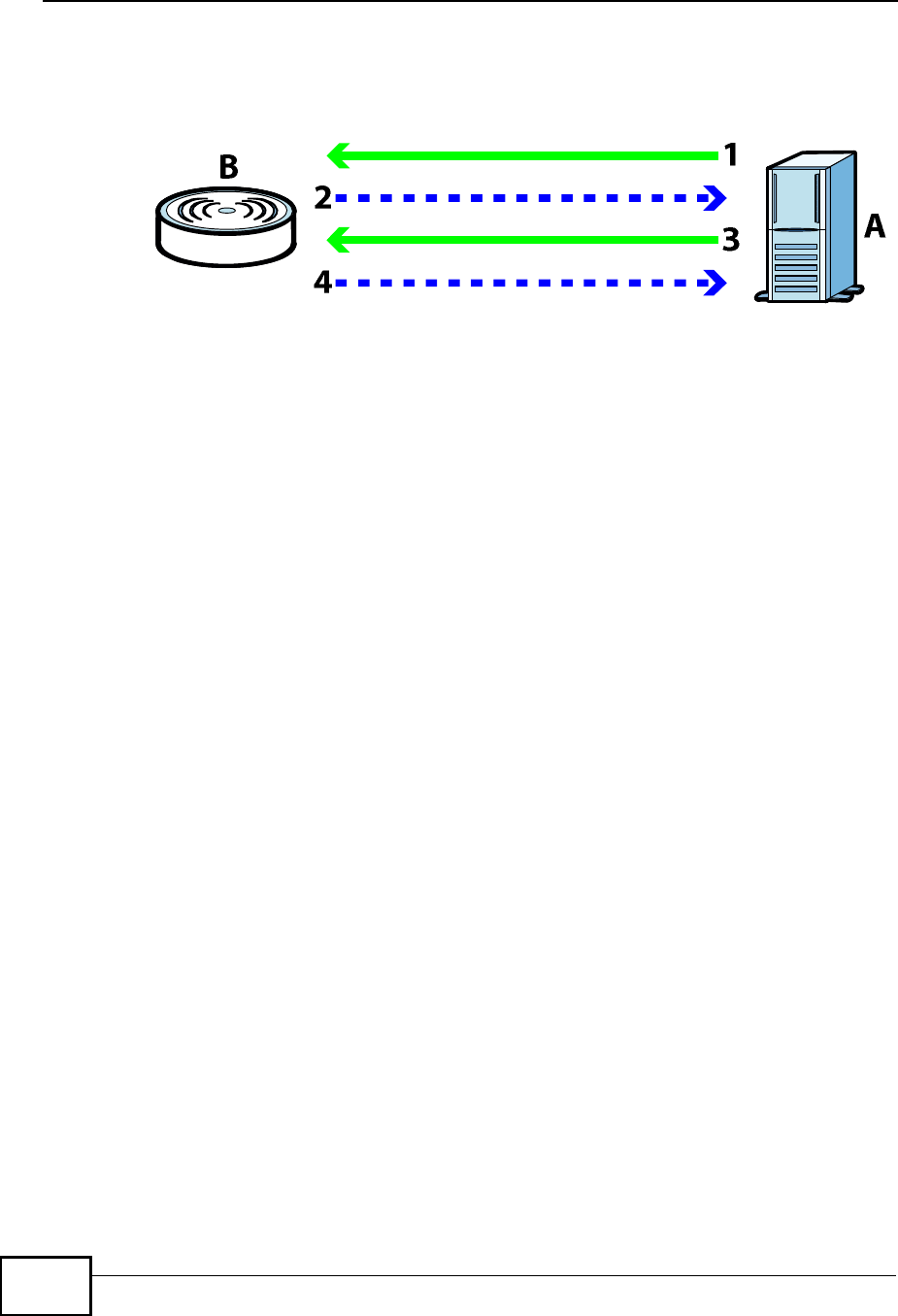

Trigger Ports
Some services use a dedicated range of ports on the client side and a dedicated
range of ports on the server side. With regular port forwarding you set a
forwarding port in NAT to forward a service (coming in from the server on the
WAN) to the IP address of a computer on the client side (LAN). The problem is
that port forwarding only forwards a service to a single LAN IP address. In order to
use the same service on a different LAN computer, you have to manually replace
the LAN computer's IP address in the forwarding port with another LAN
computer's IP address,
Trigger port forwarding solves this problem by allowing computers on the LAN to
dynamically take turns using the service. The MAX208M2W Series records the IP
address of a LAN computer that sends traffic to the WAN to request a service with
a specific port number and protocol (a "trigger" port). When the MAX208M2W
Series's WAN port receives a response with a specific port number and protocol
("incoming" port), the MAX208M2W Series forwards the traffic to the LAN IP
address of the computer that sent the request. After that computer s connection
for that service closes, another computer on the LAN can use the service in the
same manner. This way you do not need to configure a new IP address each time
you want a different LAN computer to use the application.
ALG
Some applications, such as SIP, cannot operate through NAT (are NAT un-friendly)
because they embed IP addresses and port numbers in their packets data
payload. Some NAT routers may include a SIP Application Layer Gateway (ALG).
An Application Layer Gateway (ALG) manages a specific protocol (such as SIP,
H.323 or FTP) at the application layer.
A SIP ALG allows SIP calls to pass through NAT by examining and translating IP
addresses embedded in the data stream.
UPnP
Universal Plug and Play (UPnP) is a distributed, open networking standard that
uses TCP/IP for simple peer-to-peer network connectivity between devices. A
UPnP device can dynamically join a network, obtain an IP address, convey its
capabilities and learn about other devices on the network. In turn, a device can
leave a network smoothly and automatically when it is no longer in use.

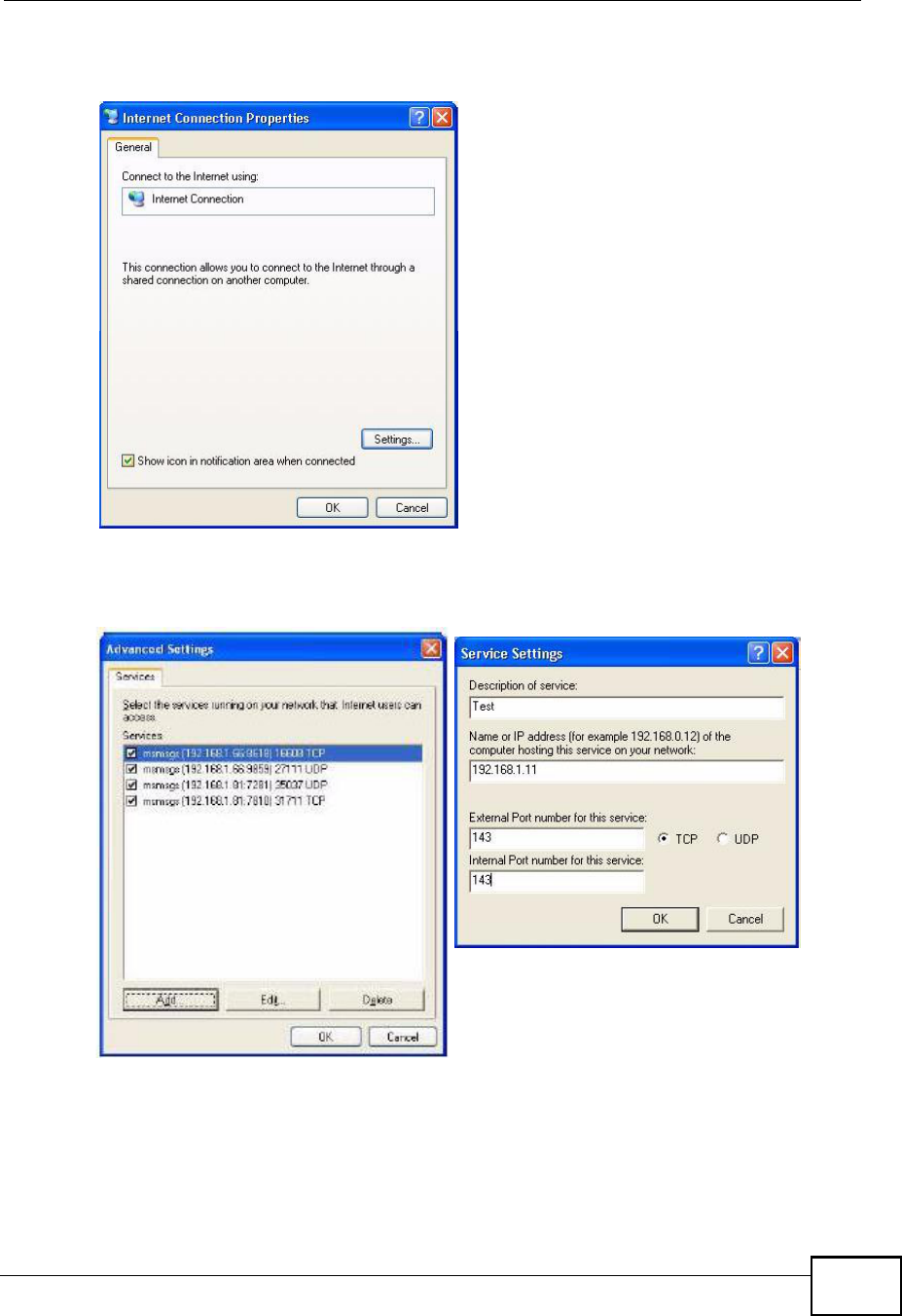

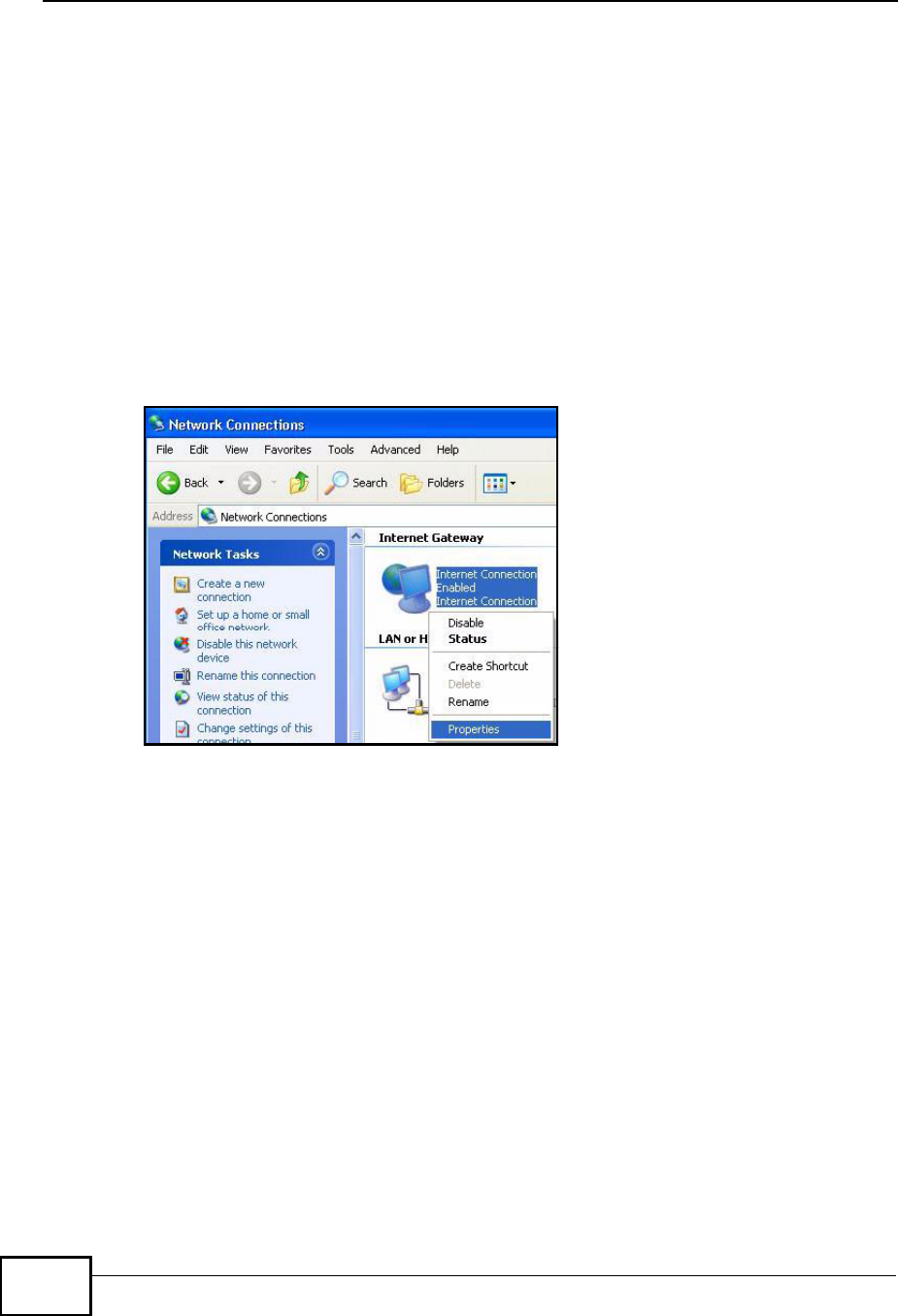

How do I know if I'm using UPnP?
UPnP hardware is identified as an icon in the Network Connections folder
(Windows XP). Each UPnP compatible device installed on your network will appear
as a separate icon. Selecting the icon of a UPnP device will allow you to access the
information and properties of that device.
Chapter 7Network Setting
MAX208M2W Series User s Guide 93
NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate
through NAT. UPnP network devices can automatically configure network
addressing, announce their presence in the network to other UPnP devices and
enable exchange of simple product and service descriptions. NAT traversal allows
the following:
!Dynamic port mapping
!Learning public IP addresses
!Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal
and UPnP.
Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own
services and opening firewall ports may present network security issues. Network
information and configuration may also be obtained and modified by users in some
network environments.
All UPnP-enabled devices may communicate freely with each other without
additional configuration. Disable UPnP if this is not your intention.
UPnP and ZyXEL
ZyXEL has received UPnP certification from the official UPnP Forum (http://
www.upnp.org). ZyXEL's UPnP implementation supports IGD 1.0 (Internet
Gateway Device).
The MAX208M2W Series only sends UPnP multicasts to the LAN.
Content Filter
Internet content filtering allows you to create and enforce Internet access policies
tailored to their needs. Content filtering is the ability to block certain specific URL
keywords.
Chapter 7Network Setting
MAX208M2W Series User s Guide
94
7.2 WAN
Use these settings to configure the WAN connection between the WiMAX Device
and the service provider.
Click Network Setting > WAN to open this screen as shown next.
Figure 34 WAN Screen
Chapter 7Network Setting
MAX208M2W Series User s Guide 95
This screen contains the following fields:
Table 22 WAN
LABEL DESCRIPTION
Operation
Mode
Select the MAX208M2W Series s operational mode.
!Bridge - This puts the MAX208M2W Series in bridge mode,
acting as a transparent middle man between devices on the
LAN and the devices on the WAN.
!NAT - This allows the MAX208M2W Series to tag frames for
NAT, allowing devices on the LAN to use their own internal IP
addresses while communicating with devices on the WAN.
WAN ProtocolSelect the protocol the MAX208M2W Series uses to connect to
the WAN.
The options are:
!Ethernet - Select this if you have a persistent connection to the
network.
!PPPoE - Select this if must log into the network before initiating a
persistent connection.
!GRE Tunnel - Select this if you connect to the network using Point-
to-Point Protocol to create VPNs.
!EtherIP - Select this if you need to tunnel Ethernet and IEEE 802.3
MAC frames across an IP Internet.
Bridging LAN
ARP
This option enables or disables allow ARP requests to cross the
MAX208M2W Series.
Get IP MethodSelect how the MAX208M2W Series receives its IP address.
!User - Select this to manually enter the IP address the
MAX208M2W Series uses.
!From ISP - Select to automatically get the IP address the
MAX208M2W Series uses from the ISP.
WAN IP
Request
Timeout
Enter the number of seconds the MAX208M2W Series waits for
an IP from the ISP before it times out.
WAN IP
Address
If the MAX208M2W Series gets its IP from the user, enter the IP
address it is to use.
WAN IP
Subnet Mask
If the MAX208M2W Series gets its IP from the ISP, enter the IP
address it is to use.
Gateway IP
Address
If the MAX208M2W Series gets its gateway IP address from the
user, enter the IP address it is to use.
MTUEnter the Maximum Transmission Unit (MTU) for the
MAX208M2W Series. This is the largest protocol unit that the
MAX208M2W Series allows to pass through it.
Chapter 7Network Setting
MAX208M2W Series User s Guide
96
7.3 PPPoE
Use these settings to configure the PPPoE connection between the WiMAX Device
and the service provider.
Click Network Setting > WAN > PPPoE.
Figure 35 PPPoE Screen
Clone MAC
Address
Enter a MAC address here for registering bridged devices on the
network if their current MAC addresses are causing problems.
For example, this can happen when a desktop computer swaps
network interface cards; the original NIC may have used its MAC
address to register itself on the network and now the new NIC is
unrecognized. Using a MAC address that you know is valid, i.e. a
"clone#, allows that device to stay registered.
First~Third
DNS Server
Select how the MAX208M2W Series acquires its DNS server
address.
!From ISP - Select this to have the MAX208M2W Series
acquire its DNS server address from the ISP.
!User Define - Select this to manually enter the DNS server
used by the MAX208M2W Series.
Table 22 WAN (continued)
LABEL DESCRIPTION
Chapter 7Network Setting
MAX208M2W Series User s Guide 97
This screen contains the following fields:
Table 23 PPPoE
LABEL DESCRIPTION
User NameEnter the username for PPPoE login into the WAN network.
PasswordEnter the password for PPPoE login into the WAN network.
Retype
Password
Retype the password to confirm it.
Auth ProtocolSelect a PPPoE authentication protocol. The MAX208M2W Series
supports the following:
!CHAP - The Challenge Handshake Authentication Protocol (CHAP)
uses PPP to authenticate remote devices using a three-way
handshake and shared secret verification.
!PAP - Password Authentication Protocol uses unencrypted plaintext
to send a passwords for authentication over the network. It s
probably not a good idea to rely on this for security.
!MS-CHAP v1/2 -This is Microsoft s variant of Challenge Handshake
Authentication Protocol (CHAP). It allows for mutual authentication
between devices.
MPPE
Encryption
Use this option to enable or disable authentication through Microsoft
Point-To-Point Encryption (MPPE) protocol.through Microsoft Point-To-
Point Encryption (MPPE) protocol.
MPPE StatefulUse this option to allow or disallow the MAX208M2W Series to use the
Microsoft Point-To-Point Encryption (MPPE) protocol for stateful peer
negotiation.
Idle TimeoutEnter the number of second the MAX208M2W Series waits during
authentication before timing out.
AC NameEnter the access concentrator name for the PPPoE interface if your ISP
uses an AC PPPoE service.
DNS OverwriteUse this option to allow or disallow the MAX208M2W Series to overwrite
DNS static DNS entries on client devices.
Connection
Trigger
Set whether the MAX208M2W Series is persistently connected to the
WAN (AlwaysOn) or you must click the PPPoE Connect button each
time you want to get on the WAN (Manual).
Connection
Timeout
Enter in seconds the duration the MAX208M2W Series waits for idle
activity before disconnecting from the WAN.
PPPoE ConnectClick this to connect to the WAN using PPPoE.
PPPoE
Disconnect
Click this to disconnect from the WAN.
Chapter 7Network Setting
MAX208M2W Series User s Guide
98
7.4 GRE
Use these settings to configure the peer setting of the Generic Routing
Encapsulation (GRE) tunnel between the WiMAX Device and another GRE peer.
Click Network Setting > WAN > GRE to open this screen as shown next.
Figure 36 GRE Screen
This screen contains the following fields:
7.5 EtherIP
Use these settings to configure the peer setting of the EtherIP tunnel between the
WiMAX Device and another EtherIP peer.
Click Network Setting > WAN > EtherIP to open this screen as shown next.
Figure 37 EtherIP Screen
This screen contains the following fields:
Table 24 GRE
LABEL DESCRIPTION
Peer IP AddressEnter the IP address of the GRE peer.
Table 25 EtherIP
LABEL DESCRIPTION
Peer IP AddressEnter the IP address of the EtherIP peer.
Chapter 7Network Setting
MAX208M2W Series User s Guide 99
7.6 IP
Use these settings to configure the LAN connection between the WiMAX Device
and your local network.
Click Network Setting > LAN > IP to open this screen as shown next.
Figure 38 IP Screen
This screen contains the following fields:
Table 26 IP
LABEL DESCRIPTION
IP addressEnter the IP address of the LAN interface for the MAX208M2W Series.
IP Subnet MaskEnter the IP subnet maks of the LAN interface for the MAX208M2W
Series.
Chapter 7Network Setting
MAX208M2W Series User s Guide
100
7.7 DHCP
Use these settings to configure whether the WiMAX Device functions as a DHCP
server for your local network, or a DHCP relay between the local network and the
service provider. You can also disable the DHCP functions.
Click Network Setting > LAN > DHCP to open this screen as shown next.
Figure 39 DHCP Screen
This screen contains the following fields:
Table 27 DHCP
LABEL DESCRIPTION
DHCP Server
DHCP ModeSelect this if you want the MAX208M2W Series to be the DHCP server
on the LAN. As a DHCP server, the MAX208M2W Series assigns IP
addresses to DHCP clients on the LAN and provides the subnet mask
and DNS server information.
!None - This disables DHCP mode for the MAX208M2W Series.
!Server - This sets the MAX208M2W Series as a DHCP server for the
LAN.
!Relay - This sets the MAX208M2W Series as a DHCP relay for the
LAN, allowing it to pass-through IP addresses assigned to LAN
devices from the ISP servers.
Chapter 7Network Setting
MAX208M2W Series User s Guide 101
Start IPEnter the start IP address from which the MAX208M2W Series begins
allocating IP addresses.
End IPEnter the end IP address at which the MAX208M2W Series ceases
allocating IP addresses.
Lease TimeEnter the duration in minutes that devices on the LAN retain their
DHCP-issued IP addresses. At the end of the lease time, they poll the
MAX208M2W Series for a renewed or replacement IP.
Relay IPEnter the name of the IP address to be used.
DNS Server Assigned by the DHCP Server
First~Third
DNS Server
Select how the MAX208M2W Series acquires its DNS server address.
!None - Select this to not use a DNS server.
!From ISP - Select this to have the MAX208M2W Series acquire its
DNS server address from the ISP.
!User Define - Select this to manually enter the DNS server used by
the MAX208M2W Series.
Static DHCP
MAC
Address
This field displays the MAC address of the static DHCP client connected
to the MAX208M2W Series.
IP AddressThis field displays the IP address of the static DHCP client connected to
the MAX208M2W Series.
AddClick this to add a new static DHCP entry.
OKClick this to save any changes made to this list.
DHCP Leased Hosts
MAC
Address
This displays the MAC address of the DHCP leased host.
IP AddressThis displays the IP address of the DHCP leased host.
Remaining
Time
This displays the how much time is left on the host s lease.
RefreshClick this to refresh the list.
Table 27 DHCP (continued)
LABEL DESCRIPTION
Chapter 7Network Setting
MAX208M2W Series User s Guide
102
7.8 WLAN
Use this screen to configure the connections between the MAX208M2W Series and
the wireless clients that want to access the Internet.
Click Network Setting > WLAN to open this screen as shown next.
Figure 40 WLAN Screen
This screen contains the following fields:
Table 28 Network Setting WLAN
LABEL DESCRIPTION
WiFi Settings
Enable WLANSelect this to activate the wireless LAN.
WLAN Mode Select 802.11B/G mixed to allow both IEEE802.11b and
IEEE802.11g compliant WLAN devices to associate with the
HES-219M2W.
Select 802.11B only to allow only IEEE 802.11b compliant
WLAN devices to associate with the HES-219M2W.
Select 802.11A only to allow only IEEE 802.11a compliant
WLAN devices to associate with the HES-219M2W.
Select 802.11G only to allow only IEEE 802.11g compliant
WLAN devices to associate with the HES-219M2W.
WLAN ChannelSelect this option and set the operating fequency/channel
depending on your particular region. Select Auto to have the
MAX208M2W Series scan and find an available channel.
Chapter 7Network Setting
MAX208M2W Series User s Guide 103
WLAN Maximum
STA number
Enter the maximum number of wireless stations that is allowed to
associate with the MAX208M2W Series.
WLAN TxPowerSelect a number between 1 and 24 dB in the drop down box to
control the strength of the connection signal, or leave it as
default to let the MAX208M2W Series control this feature.
SSID Settings
WLAN SSIDThis field displays the name of the wireless network and it will
appear to other computers that wish to connect wirelessly to
the Internet.
Hide SSIDSelect this to make the name of the network invisible to others.
Encryption
Type
Select the type of encryption that the network will use: None,
WEP or WPA Personal.
SSID WEP Settings
Note: You will only see these options if you selected WEP as the Encryption Type
Authentication
Method
Select the type of authentication used to join the network:
OPEN SYSTEM or SHARED KEY.
WEP
Encryption
Length
Select the length of the encryption key: 64-bit or 128-bit.
Key 1 - 4 Pick one of four available keys. The key can be in either
HexaDecimal (HEX) or ASCII format.
Type the key using any letters and numbers. The field is case
sensitive and the lenght must match the length picked in the
step above (64-bit or 128-bit). A warning mesage will appear if
you fail to do this.
SSID WPA Settings
Note: You will only see these options if you selected WPA Personal as the
Encryption Type.
WPA Mode Select either WPA, WPA2 or Auto (WPA or WPA2).
Cipher Type Select the type of authentication that you wish to use for your
network: TKIP, AES or TKIP and AES. AES is more secure.
Pre-shared Key Type a pre-shared key from 8 to 63 case-sensitive ASCII char-
acters (including spaces and symbols).
Table 28 Network Setting WLAN
LABEL DESCRIPTION
Chapter 7Network Setting
MAX208M2W Series User s Guide
104
7.9 WPS
Use this screen to configure WiFi Protected Setup (WPS) on your MAX208M2W
Series.
WPS allows you to quickly set up a wireless network with strong security without
having to configure security settings manually. Set up each WPS connection
between two devices. Both devices have to support WPS.
Click Network Setting > WLAN > WPS to open this screen as shown next.
Figure 41 WPS Screen
This screen contains the following fields:
7.10 MAC Address Filter
Use these screens to configure a MAC (Media Access Control) address filter to
restrict access to the network.
Table 29 WPS
LABEL DESCRIPTION
Enable WPSSelect Enable and click Apply to activate WPS on the MAX208M2W
Series. Select Disable and click Apply to deactivate WPS.
Start WPS PBCThis field is available after you select Enable in the Enable WPS field
and click Apply.
Click this to activate the Push Button Configuration. After clicking this
you will be able to use the WPS button at the back of the device to add
new wireless clients.
Note: You must press the WPS buttons within two minutes of each
other.
Chapter 7Network Setting
MAX208M2W Series User s Guide 105
Click on Network Setting > WLAN > MAC Address Filter. The screen appears
as shown.
Figure 42 MAC Address Filter Screen
This screen contains the following fields:
Table 30 MAC Address Filter
LABEL DESCRIPTION
Enable MAC
Address Filter
Select the check box to enable MAC address filtering. Then, the
following fields display.
Mode Define the filter action for the list of MAC addresses in the MAC
address table.
Select Allow listed stations to permit access to the
MAX208M2W Series only to addresses listed. MAC addresses not
listed will be denied access to the MAX208M2W Series.
Select Deny listed stations to block access to the MAX208M2W
Series to the computers or devices listed in this list.
#This is the index number of the MAC address.
ActiveSelect this box to make the policy effective or ineffective for a
particular device.
NameType the name of the device. The name can be up to 20
characters long, and any combination of letters, numbers or
symbols.
MAC Address Enter the MAC addresses of the wireless devices that are allowed
or denied access to the MAX208M2W Series in these address
fields. Enter the MAC addresses in a valid MAC address format,
that is, six hexadecimal character pairs, for example,
12:34:56:78:9a:bc.
DeleteClick to delete a specific MAC address from the list.
AddClick to add a MAC address to the list.
OKClick this button when you are done adding a MAC Address.
Chapter 7Network Setting
MAX208M2W Series User s Guide
106
7.11 Static Route
Use these settings to create fixed paths through the network.
Click Network Setting > Route > Static Route to open this screen as shown
next.
Figure 43 Static Route Screen
This screen contains the following fields:
7.12 Static Route Add
Use these settings to configure a static route.
Click Add in the Network Setting > Route > Static Route screen to open this
screen as shown next.
Figure 44 Static Route Screen
Table 31 Static Route
LABEL DESCRIPTION
DestinationThis field displays the destination IP address of the static route.
Subnet MaskThis field displays the subnet mask of the static route.
Next HopThis field displays next hop information of the static route.
MetricThis field displays the static route metric.
AddClick this to add a new static route to the list.
Chapter 7Network Setting
MAX208M2W Series User s Guide 107
This screen contains the following fields:
7.13 RIP
Use these settings to configure how the WiMAX Device exchanges information with
other routers.
Click Network Setting > Route > RIP to open this screen as shown next.
Figure 45 RIP Screen
Table 32 Static Route
LABEL DESCRIPTION
Destination IPEnter the destination IP address of the static route.
Subnet MaskEnter the subnet mask of the static route.
Next HopSelect Interface and then select WAN or LAN for the next hop of the
static route.
If the next hop is an IP address rather than an interface on the
MAX208M2W Series, select IP Address and enter the IP address.
MetricEnter the static route metric.
Chapter 7Network Setting
MAX208M2W Series User s Guide
108
This screen contains the following fields:
7.14 Port Forwarding
Use these settings to forward incoming service requests to the ports on your local
network.
Note: Make sure you did not configure a DMZ host in the Network Setting > NAT >
DMZ screen if you want to make the settings of this screen work.
Table 33 RIP
LABEL DESCRIPTION
General Setup
EnableSelect this to enable RIP on the MAX208M2W Series.
Redistribute
ActiveThis indicates whether a route is being redistributed.
TypeThis indicates what type of route is being redistributed.
MetricThis indicates the metric that is being used for redistribution.
EditClick this to edit a selected route.
OKClick this to save any changes to the redistribution table.
LAN
DirectionSet the LAN network direction to use with RIP.
VersionSet the RIP version to use.
AuthenticationUse this option to enable or disable RIP authentication.
Authentication
ID
Enter the authentication ID to use for RIP authentication.
Authentication
Key
Enter the authentication key to use for RIP authentication.
WAN
DirectionSet the WAN network direction to use with RIP.
VersionSet the RIP version to use.
AuthenticationUse this option to enable or disable RIP authentication.
Authentication
ID
Enter the authentication ID to use for RIP authentication.
Authentication
Key
Enter the authentication key to use for RIP authentication.
Chapter 7Network Setting
MAX208M2W Series User s Guide 109
Click Network Setting > NAT > Port Forwarding to open this screen as shown
next.
Figure 46 Port Forwarding Screen
This screen contains the following fields:
Table 34 Port Forwarding
LABEL DESCRIPTION
ActiveThis indicates whether the port forwarding rule is active or not.
NameThe displays the name of the port forwarding rule.
ProtocolThis displays the protocol to which the port forwarding rule applies.
Incoming Port(s)
Start PortThis displays the starting port number for incoming traffic for the port
forwarding rule.
End PortThis displays the ending port number for incoming traffic for the port
forwarding rule.
Forward Port(s)
Start Port This field displays the beginning of the range of port numbers forwarded
by this rule.
End Port This field displays the end of the range of port numbers forwarded by
this rule. If it is the same as the Start Port, only one port number is
forwarded.
Server IPThis displays the IP address of the server to which packet for the
selected port(s) are forwarded.
DeleteClick this to delete a specified rule.
WizardClick this to open the port forwarding "wizard#.
AddClick this to add a new port forwarding rule.
OKClick this to save any changes made to the port forwarding list.
Chapter 7Network Setting
MAX208M2W Series User s Guide
110
7.14.1 Port Forwarding Wizard
Use this wizard to set up a port forwarding rule for incoming service requests to
the ports on your local network.
Click Network Setting > NAT > Port Forwarding > Wizard to open this
screen as shown next.
Figure 47 Port Forwarding Wizard Screen
This screen contains the following fields:
Table 35 Port Forwarding Wizard
LABEL DESCRIPTION
ActiveSelect this to make this port forwarding rule active.
Port Forward
Rule
Select the type of port forwarding rule.
Rule NameEnter a name for the port forwarding rule.
ProtocolSelect the port forwarding protocol.
Incoming Start
Port
Enter the starting port number for incoming traffic for the port
forwarding rule.
Incoming End
Port
Enter the ending port number for incoming traffic for the port
forwarding rule.
Forwarding
Start Port
Enter the starting port number for forwarded traffic for the port
forwarding rule.
Forwarding End
Port
Enter the ending port number for forwarded traffic for the port
forwarding rule.
Server IPEnter the port forwarding server IP address.
Chapter 7Network Setting
MAX208M2W Series User s Guide 111
7.15 Port Trigger
Use these settings to automate port forwarding and allow computers on local
network to provide services that would normally require a fixed address on the
local network.
Click Network Setting > NAT > Port Trigger to open this screen as shown
next.
Figure 48 Port Trigger Screen
This screen contains the following fields:
Table 36 Port Trigger
LABEL DESCRIPTION
ActiveThis indicates whether the port trigger rule is active or not.
NameThe displays the name of the port trigger rule.
Trigger ProtocolThis displays the protocol to which the port trigger rule applies.
Trigger Port(s)
Start / End
Port
This displays the start / end trigger port for the port trigger rule.
Click Add to create a new, empty rule, then enter the incoming port
number or range of port numbers you want to forward to the IP address
the MAX208M2W Series records.
To forward one port number, enter the port number in the Start Port
and End Port fields.
To forward a range of ports,
!enter the port number at the beginning of the range in the Start
Port field
!enter the port number at the end of the range in the End Port field.
If you want to delete this rule, click the Delete icon.
Open ProtocolThis indicates which protocol is used to open the port trigger ports.
Open Port(s)
Chapter 7Network Setting
MAX208M2W Series User s Guide
112
7.15.1 Port Trigger Wizard
Use the wizard to create a port trigger rules that will allow the MAX208M2W Series
to to automate port forwarding and allow computers on local network to provide
services that would normally require a fixed address on the local network.
Click Network Setting > NAT > Port Trigger > Wizard
Figure 49 Port Trigger Wizard Screen
Start / End
Port
This displays the start / end open port for the port trigger rule.
Click Add to create a new, empty rule, then enter the outgoing port
number or range of port numbers that makes the MAX208M2W Series
record the source IP address and assign it to the selected incoming port
number(s).
To select one port number, enter the port number in the Start Port and
End Port fields.
To select a range of ports,
!enter the port number at the beginning of the range in the Start
Port field
!enter the port number at the end of the range in the End Port field.
If you want to delete this rule, click the Delete icon.
DeleteClick this to delete a specified rule.
WizardClick this to open the port trigger "wizard#.
AddClick this to add a new port trigger rule.
OKClick this to save any changes made to the port trigger list.
Table 36 Port Trigger (continued)
LABEL DESCRIPTION
Chapter 7Network Setting
MAX208M2W Series User s Guide 113
This screen contains the following fields:
7.15.2 Trigger Port Forwarding Example
The following is an example of trigger port forwarding. In this example, J is Jane s
computer and S is the Real Audio server.

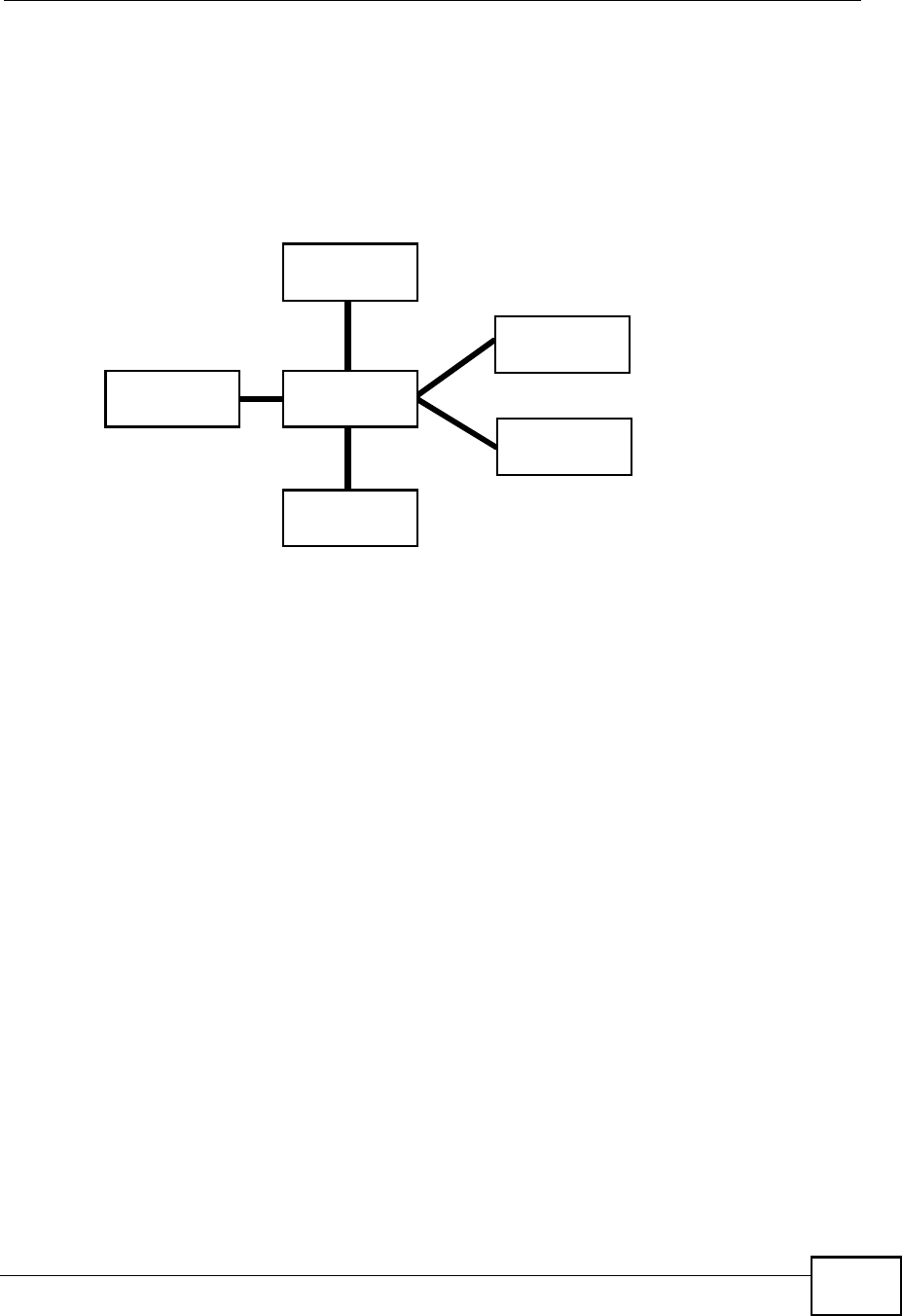

Figure 50 Trigger Port Forwarding Example
1Jane requests a file from the Real Audio server (port 7070).
2Port 7070 is a "trigger# port and causes the MAX208M2W Series to record Jane s
computer IP address. The MAX208M2W Series associates Jane's computer IP
address with the "incoming" port range of 6970-7170.
3The Real Audio server responds using a port number ranging between 6970-7170.
4The MAX208M2W Series forwards the traffic to Jane s computer IP address.
Table 37 Port Trigger Wizard
LABEL DESCRIPTION
ActiveSelect this to make this port trigger rule active.
Port Trigger
Rule
Select the type of port trigger rule.
Rule NameEnter a name for the port trigger rule.
Trigger ProtocolSelect the type of port trigger protocol.
Trigger Start
Port
Enter the port trigger start port.
Trigger End PortEnter the port trigger end port.
Open ProtocolSelect the type of open protocol for the port trigger rule.
Open Start PortSelect the starting open port for the port trigger rule.
Open End PortSelect the ending open port number for the port trigger rule.
Chapter 7Network Setting
MAX208M2W Series User s Guide
114
5Only Jane can connect to the Real Audio server until the connection is closed or
times out. The MAX208M2W Series times out in three minutes with UDP (User
Datagram Protocol), or two hours with TCP/IP (Transfer Control Protocol/Internet
Protocol).
Two points to remember about trigger ports:
1Trigger events only happen on data that is coming from inside the MAX208M2W
Series and going to the outside.
2If an application needs a continuous data stream, that port (range) will be tied up
so that another computer on the LAN can t trigger it.
7.16 DMZ
Use this page to set the IP address of your network DMZ (if you have one) for the
WiMAX Device. All incoming packets received by this MAX208M2W Series s WAN
interface will be forwarded to the DMZ host you set.
Click Network Setting > NAT > DMZ to open this screen as shown next.
Note: The configuration you set in this screen takes priority than the Network Setting
> NAT > Port Forwarding screen.
Figure 51 DMZ Screen
This screen contains the following fields:
Table 38 DMZ
LABEL DESCRIPTION
DMZ HostEnter the IP address of your network DMZ host, if you have one.
0.0.0.0 means this feature is disabled.
Chapter 7Network Setting
MAX208M2W Series User s Guide 115
7.17 ALG
Use these settings to bypass NAT on your WiMAX Device for those applications
that are "NAT un-friendly".
Click Network Setting > NAT > ALG to open this screen as shown next.
Figure 52 ALG Screen
This screen contains the following fields:
Table 39 Network Setting > NAT > ALG
LABEL DESCRIPTION
Enable FTP ALGTurns on the FTP ALG to detect FTP (File Transfer Program) traffic and
helps build FTP sessions through the MAX208M2W Series s NAT.
Enable H.323
ALG
Turns on the H.323 ALG to detect H.323 traffic (used for audio
communications) and helps build H.323 sessions through the
MAX208M2W Series s NAT.
Enable IPsec
ALG
Turns on the IPsec ALG to detect IPsec traffic and helps build IPsec
sessions through the MAX208M2W Series s NAT.
Enable L2TP
ALG
Turns on the L2TP ALG to detect L2TP traffic and helps build L2TP
sessions through the MAX208M2W Series s NAT.
Enable PPTP
ALG
Turns on the PPTP ALG to detect PPTP traffic and helps build PPTP
sessions through the MAX208M2W Series s NAT.
Enable RTSP
ALG
Turns on the RTSP ALG to detect RTSP traffic and helps build RTSP
sessions through the MAX208M2W Series s NAT.
Enable SIP ALGTurns on the SIP ALG to detect SIP traffic and helps build SIP sessions
through the MAX208M2W Series s NAT.
SIP PortIf you are using a custom UDP port number (not 5060) for SIP traffic,
enter it here.
Enable SIP ALG
Set BSID
Check this box to add the base station ID to the outgoing SIP
messages. Select this option only if the media server forwarding calls
requires this information.
Chapter 7Network Setting
MAX208M2W Series User s Guide
116
7.18 UPnP
Use this page to enable the UPnP networking protocol on your WiMAX Device and
allow easy network connectivity with other UPnP-compatible devices.
Click Network Setting > UPnP to open this screen as shown next.
Figure 53 UPnP Screen
This screen contains the following fields:
7.18.1 Installing UPnP in Windows XP
Follow the steps below to install the UPnP in Windows XP.
1Click Start > Control Panel.
2Double-click Network Connections.
3In the Network Connections window, click Advanced in the main menu and
select Optional Networking Components .
Table 40 UPnP
LABEL DESCRIPTION
Enable UPnPSelect this to enable UPnP on the MAX208M2W Series.
Enable NAT-PMPSelect this to enable NAT Port Mapping Protocol on the MAX208M2W
Series.
Chapter 7Network Setting
MAX208M2W Series User s Guide 117
4The Windows Optional Networking Components Wizard window displays.
Select Networking Service in the Components selection box and click Details.
5In the Networking Services window, select the Universal Plug and Play check
box.
6Click OK to go back to the Windows Optional Networking Component Wizard
window and click Next.
Chapter 7Network Setting
MAX208M2W Series User s Guide
118
7.18.1.1 Auto-discover Your UPnP-enabled Network Device in
Windows XP
This section shows you how to use the UPnP feature in Windows XP. You must
already have UPnP installed in Windows XP and UPnP activated on the
MAX208M2W Series.
Make sure the computer is connected to a LAN port of the MAX208M2W Series.
Turn on your computer and the MAX208M2W Series.
1Click Start and Control Panel. Double-click Network Connections. An icon
displays under Internet Gateway.
2Right-click the icon and select Properties.
Chapter 7Network Setting
MAX208M2W Series User s Guide 119
3In the Internet Connection Properties window, click Settings to see the port
mappings there were automatically created.
4You may edit or delete the port mappings or click Add to manually add port
mappings.
5When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
Chapter 7Network Setting
MAX208M2W Series User s Guide
120
6Select Show icon in notification area when connected option and click OK.
An icon displays in the system tray.
7Double-click on the icon to display your current Internet connection status.
7.18.2 Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the MAX208M2W Series
without finding out the IP address of the MAX208M2W Series first. This becomes
helpful if you do not know the IP address of the MAX208M2W Series.
Follow the steps below to access the web configurator:
1Click Start and then Control Panel.
2Double-click Network Connections.
Chapter 7Network Setting
MAX208M2W Series User s Guide 121
3Select My Network Places under Other Places.
4An icon with the description for each UPnP-enabled device displays under Local
Network.
5Right-click on the icon for your MAX208M2W Series and select Invoke. The web
configurator login screen displays.
Chapter 7Network Setting
MAX208M2W Series User s Guide
122
6Right-click on the icon for your MAX208M2W Series and select Properties. A
properties window displays with basic information about the MAX208M2W Series.
7.19 VLAN
Use this screen to configure port-based VLAN settings on the MAX208M2W Series.
This screen allows you to assign port(s) to specific virtual LAN(s) in order to
isolate traffic from different VLAN groups.
Chapter 7Network Setting
MAX208M2W Series User s Guide 123
Click Network Setting > VLAN to open the screen as shown next.
Figure 54 VLAN Screen
This screen contains the following fields:
Table 41 VLAN
LABEL DESCRIPTION
Management VLAN
VLAN IDEnter an ID number (1~4094) to create a new VLAN. Enter 0 to disable
VLAN on the MAX208M2W Series.
Note: To use VLAN on the MAX208M2W Series, you must switch
the operation mode to !bridge" on the Network Setting >
WAN screen. It will then require system restart to take effect.
PriorityEnter a priority level (1~7) that the MAX208M2W Series assigns to
frames belonging to this VLAN. Enter "0# for no priority assigned.
Port Egress Tagging
#This is the index number of a port (1 or 2).
Chapter 7Network Setting
MAX208M2W Series User s Guide
124
TagThis field displays whether to prioritize traffic transmitted by the port,
tagged or untagged. Click this field to change the setting. Set this to
untagged if you do not want to prioritize outgoing traffic through the
port.
OKClick this to save the changes in the Port Egress Tagging section.
Port Settings
#This is the index number of a port (1 or 2).
PVID GroupThis field displays the index number of a VLAN rule with which the port
is associated. Click this field to change the setting. Select MGMT to
allow the computer(s) connected to the port to access the MAX208M2W
Series using the LAN IP address (see the Network Setting > LAN
> IP screen).
Note: Set one port to MGMT so that you can still manage the
MAX208M2W Series through the port. Set both ports to
tagged if you do not need to manage the MAX208M2W
Series any more.
PriorityEnter a priority level (1~7) that the MAX208M2W Series assigns to
frames belonging to this VLAN. Enter "0# for no priority assigned.
OKClick this to save the changes in the Port Settings section.
VLAN Rules - You can configure up to 7 VLANs on the MAX208M2W Series. By default,
VLANs 1 to 7 are configured.
#This is the index number of a VLAN rule.
VIDThis field displays the VLAN ID of the VLAN rule. Click this field to
change the VLAN ID. When you make the change, make sure you
configure the same VLAN ID in the Management VLAN section..
Port1 / Port 2This is an indicator of which port is being configured.
JoinSelect Y to add the port into the VLAN group. Otherwise, select N.
TagThis field displays the allowed traffic for the port, VLAN-tagged or
VLAN-untagged. Click this field to change the setting.
OKClick this to save the changes in the VLAN Rules section.
Table 41 VLAN
LABEL DESCRIPTION
Chapter 7Network Setting
MAX208M2W Series User s Guide 125
7.20 DDNS
Use this page to configure the WiMAX Device as a dynamic DNS client.
Click Network Setting > DDNS
Figure 55 DDNS Screen
This screen contains the following fields:
Table 42 DDNS
LABEL DESCRIPTION
Enable Dynamic
DNS
Select this to enable dynamic DNS on the MAX208M2W Series.
Service
Provider
Select the dynamice DNS service provider for the MAX208M2W Series.
Service TypeSelect the dynamic DNS service type.
Domain NameEnter the domain name.
Login NameEnter the user name.
PasswordEnter the password.
IP Update PolicySelect the policy used by the MAX208M2W Series. Options are:
!Auto Detect
!WAN
!User Defined
User Defined IPIf chose "User Defined# for the IP Update Policy, enter the user
defined IP address.
WildcardsSelect this to allow a hostname to use wildcards such as "*#.
MXSelect this to enable mail routing, if supported by the specified DYNDNS
service provider.
Chapter 7Network Setting
MAX208M2W Series User s Guide
126
7.21 Content Filter
Use these settings to allow ("whitelist") or block ("blacklist") connections to and
from specific web sites through the WiMAX Device.
Click Network Setting > Content Filter to open this screen as shown next.
Figure 56 Content Filter Screen
This screen contains the following fields:
Backup MXSelect this to enable a secondary mail routing, if supported by the
specified DYNDNS service provider.
MX HostEnter the host to which mail is routed when the MX option is selected.
Table 42 DDNS (continued)
LABEL DESCRIPTION
Table 43 Content Filter
LABEL DESCRIPTION
URL List
Enable URL
Filter
Select this employ the content filter to allow ("whitelist#) or block
("blacklist#) specific URL connections made through the MAX208M2W
Series.
Blacklist/
Whitelist
Select whether the current filtering applies to the blacklist (sites that
are blocked) or the whitelist (sites that are allowed).
URL Filter Rule
ActiveIndicates whether the current URL filter is active or not.
URLIndicates the URL to be filtered according to blacklist or whitelist rules.
DeleteClick this to delete a specified rule.
AddClick this to add a new filter rule.
OKClick this to save any changes made to the list.
MAX208M2W Series User s Guide 127
CHAPTER 8
Security
8.1 Overview
This chapter shows you how to configure the MAX208M2W Series s network
settings.
8.1.1 What You Need to Know
The following terms and concepts may help as you read through this chapter.
About the MAX208M2W Series!s Security Features
The MAX208M2W Series security features are designed to protect against Denial
of Service attacks when activated as well as block access to and from specific
URLs and MAC addresses. Its purpose is to allow a private Local Area Network
(LAN) to be securely connected to the Internet. The MAX208M2W Series can be
used to prevent theft, destruction and modification of data.
The MAX208M2W Series is installed between the LAN and a WiMAX base station
connecting to the Internet. This allows it to act as a secure gateway for all data
passing between the Internet and the LAN.
The MAX208M2W Series has one Ethernet (LAN) port. The LAN (Local Area
Network) port attaches to a network of computers, which needs security from the
outside world. These computers will have access to Internet services such as e-
mail, FTP and the World Wide Web. However, "inbound access# is not allowed (by
default) unless the remote host is authorized to use a specific service.
Chapter 8Security
MAX208M2W Series User s Guide
128
8.2 IP Filter
Use this screen to block incoming connections from specific IP addresses.
Click Security > Firewall > IP Filter to open this screen as shown next.
Figure 57 IP Filter Screen
This screen contains the following fields:
Table 44 IP Filter
LABEL DESCRIPTION
ActiveIndicates whether the current IP filter is active or not.
Source IPThis displays the source IP address for the IP filter rule.
Click Add to create a new, empty rule, then enter the incoming IP
address for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
Source PortThis displays the source port number for the IP filter rule.
Click Add to create a new, empty rule, then enter the incoming port
number for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
Destination IPThis displays the destination IP address for the IP filter rule.
Click Add to create a new, empty rule, then enter the outgoing IP
address for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
Destination PortThis displays the destination port number for the IP filter rule.
Click Add to create a new, empty rule, then enter the outgoing port
number for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
ProtocolThis displays the protocol blocked by the IP filter rule.
Click Add to create a new, empty rule, then select the protocol type for
the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
DeleteClick this to delete a specified rule.
AddClick this to add a new filter rule.
OKClick this to save any changes made to the list.
Chapter 8Security
MAX208M2W Series User s Guide 129
8.3 MAC Filter
Use this screen to allow ("whitelist") or block ("blacklist") connections to and from
specific devices on the network based on their unique MAC addresses.
Note: This feature only works when the MAX208M2W Series is in bridge mode.
Click Security > Firewall > MAC Filter to open this screen as shown next.
Figure 58 MAC Filter Screen
This screen contains the following fields:
Table 45 MAC Filter
LABEL DESCRIPTION
Blacklist/
Whitelist
Select either whitelist or blacklist for viewing and editing.
Source MACThis displays the source MAC for the MAC filter rule.
Click Add to create a new, empty rule, then enter the incoming MAC
address for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
Destination
MAC
This displays the destination MAC for the MAC filter rule.
Click Add to create a new, empty rule, then enter the outgoing MAC
address for the MAX208M2W Series to block.
If you want to delete this rule, click the Delete icon.
Mon ~ Sun Select which days of the week you want the filter rule to be effective.
Start / End
Time
Select what time each day you want the filter rule to be effective. Enter
times in 24-hour format; for example, 3:00pm should be entered as
15:00.
AddClick this to add a new filter rule.
OKClick this to save any changes made to the list.
Chapter 8Security
MAX208M2W Series User s Guide
130
8.4 DDOS
Use these settings to potentially block specific types of Denial of Service attacks
directed at your WiMAX Device.
Click Security > Firewall > DDOS to open this screen as shown next.
Figure 59 DDOS Screen
This screen contains the following fields:
Table 46 DDOS
LABEL DESCRIPTION
Prevent from
TCP SYN Flood
Select this to monitor for and block TCP SYN flood attacks.
A SYN flood is one type of denial of service attack where an
overwhelming number of SYN requests assault a client device.
Prevent from
UDP Flood
Select this to monitor for and block UDP flood attacks.
An UDP flood is a type of denial of service attack where an
overwhelming number of UDP packets assault random ports on a client
device. Because the device is forced to analyze and respond to each
packet, it quickly becomes unreachable to other devices.
Prevent from
ICMP Flood
Select this to monitor for and block ICMP flood attacks.
An ICMP flood is a type of denial of service attack where an
overwhelming number of ICMP ping assault a client device, locking it
down and preventing it from responding to requests from other servers.
Prevent from
Port Scan
Select this to monitor for and block port scan attacks.
A port scan attack is typicall the precursor to a full-blown denial of
service attack wherein each port on a device is probed for security holes
that can be exploited. Once a security flaw is discovered, an attacker
can initiate the appropriate denial of service attack or intrusion attack
against the client device.
Prevent from
LAND Attack
Select this to monitor for and block LAND attacks.
A Local Area Network Denial (LAND) attack is a type of denial of service
attack where a spoofed TCP SYN packet targets a client device s IP
address and forces it into an infinite recursive loop of querying itself and
then replying, effectively locking it down.
Chapter 8Security
MAX208M2W Series User s Guide 131
Prevent from IP
Spoof
Select this to monitor for and block IP address spoof attacks.
An IP address spoof is an attack whereby the source IP address in the
incoming IP packets allows a malicious party to masquerade as a
legitimate user and gain access to the client device.
Prevent from
ICMP redirect
Select this to monitor for and block ICMP redirect attacks.
An ICMP redirect attack is one where forged ICMP redirect messages
can force the client device to route packets for certain connections
through an attacker s host.
Prevent from
PING of Death
Select this to monitor for and block ping of death attacks.
A Ping of Death (POD) attack is one where larger-than-allowed ping
packets are fragmented then sent against a client device. This results in
the client device suffering from a buffer overflow and subsequent
system crash.
Prevent from
PING from WAN
Select this to ignore ping requests from the WAN.
Table 46 DDOS (continued)
LABEL DESCRIPTION
Chapter 8Security
MAX208M2W Series User s Guide
132
MAX208M2W Series User s Guide 133
CHAPTER 9
The VoIP General Screens
9.1 VoIP Overview
The VOICE > General screens allow you to set up global SIP and Quality of
Service (QoS) settings.
VoIP (Voice over IP) is the sending of voice signals over the Internet Protocol. This
allows you to make phone calls and send faxes over the Internet at a fraction of
the cost of using the traditional circuit-switched telephone network. You can also
use servers to run telephone service applications like PBX services and voice mail.
Internet Telephony Service Provider (ITSP) companies provide VoIP service. A
company could alternatively set up an IP-PBX and provide it s own VoIP service.
Circuit-switched telephone networks require 64 kilobits per second (kbps) in each
direction to handle a telephone call. VoIP can use advanced voice coding
techniques with compression to reduce the required bandwidth.
9.1.1 What You Can Do in This Chapter
!The Media screen (Section 9.2 on page 135) lets you set up and maintain
global VoIP settings on the MAX208M2W Series.
!The QoS screen (Section 9.2 on page 135) lets you set up and maintain QoS
settings for voice traffic flowing through the MAX208M2W Series.
9.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
Voice Coding
A codec (coder/decoder) codes analog voice signals into digital signals and
decodes the digital signals back into voice signals. The MAX208M2W Series
supports the following codecs.
Chapter 9The VoIP General Screens
MAX208M2W Series User s Guide
134
!G.711 is a Pulse Code Modulation (PCM) waveform codec. PCM measures
analog signal amplitudes at regular time intervals (sampling) and converts them
into digital bits (quantization). Quantization "reads# the analog signal and then
"writes# it to the nearest digital value. For this reason, a digital sample is usually
slightly different from its analog original (this difference is known as
"quantization noise#). G.711 provides excellent sound quality but requires
64kbps of bandwidth.
!G.729 is an Analysis-by-Synthesis (AbS) hybrid waveform codec. It uses a filter
based on information about how the human vocal tract produces sounds. The
codec analyzes the incoming voice signal and attempts to synthesize it using its
list of voice elements. It tests the synthesized signal against the original and, if
it is acceptable, transmits details of the voice elements it used to make the
synthesis. Because the codec at the receiving end has the same list, it can
exactly recreate the synthesized audio signal.G.729 provides good sound quality
and reduces the required bandwidth to 8kbps.
Quality of Service (QoS)
Quality of Service (QoS) refers to both a network's ability to deliver data with
minimum delay and the networking methods used to provide bandwidth for real-
time multimedia applications.
Type Of Service (ToS)
Network traffic can be classified by setting the ToS (Type Of Service) values at the
data source (for example, at the MAX208M2W Series) so a server can decide the
best method of delivery, that is the least cost, fastest route and so on. The ToS
field is consist of 8 bits. The first 3 bits indicate the priority of the packet.
DiffServ
DiffServ is a class of service (CoS) model that marks packets so that they receive
specific per-hop treatment at DiffServ-compliant network devices along the route
based on the application types and traffic flow. Packets are marked with DiffServ
Code Points (DSCPs) indicating the level of service desired. This allows the
intermediary DiffServ-compliant network devices to handle the packets differently
depending on the code points without the need to negotiate paths or remember
state information for every flow. In addition, applications do not have to request a
particular service or give advanced notice of where the traffic is going.
DiffServ uses the first 6 bits of the 8-bit ToS value so that it can backward
compatible with non-DiffServ compliant but ToS-enabled network device. See
Section 9.3.1 on page 137 for more information.
SIP
The Session Initiation Protocol (SIP) is an application-layer control (signaling)
protocol that handles the setting up, altering and tearing down of voice and
Chapter 9The VoIP General Screens
MAX208M2W Series User s Guide 135
multimedia sessions over the Internet. SIP signaling is separate from the media
for which it handles sessions. The media that is exchanged during the session can
use a different path from that of the signaling. SIP handles telephone calls and can
interface with traditional circuit-switched telephone networks.
RTP
When you make a VoIP call using SIP, the RTP (Real time Transport Protocol) is
used to handle voice data transfer. See RFC 1889 for details on RTP.
9.1.3 Before you Begin
!Ensure that you have all of your voice account information on hand. If not,
contact your voice account service provider to find out which settings in this
chapter you should configure in order to use your telephone with the
MAX208M2W Series.
!Connect your MAX208M2W Series to the Internet, as described in the Quick
Start Guide. If you have not already done so, then you will not be able to test
your VoIP settings.
9.2 Media
Click VoIP > General > Media to set up and maintain global VoIP settings.
Figure 60 VoIP > General > Media
Chapter 9The VoIP General Screens
MAX208M2W Series User s Guide
136
The following table describes the labels in this screen.
9.2.1 QoS
This section describes the features of the Quality of Service (QoS) screen.
Table 47 VoIP > General > Media
LABEL DESCRIPTION
Port Range
Media Port Start
Media Port End
Enter the listening port number(s) for RTP traffic on the MAX208M2W
Series, if your VoIP service provider gave you this information.
Otherwise, keep the default values.
To enter one port number, enter the port number in the both Media
Port Start and Media Port End fields.
To enter a range of ports, enter the beginning port number of the range
in the Media Port Start field and the ending port number in the Media
Port End field.
Codec Packetization Time Settings
G.711, G.729 Select the type of voice coder/decoder (codec) that you want the
MAX208M2W Series to use. G.711 provides high voice quality but
requires more bandwidth (64 kbps). G.729 requires only 8 kbps.
Advanced
Voice Jitter
Buffer Type
Voice jitter is a variation in delay of RTP packets delivery. This could
cause strange sound effects. The MAX208M2W Series can utilize the
following types of jitter buffer to minimize the effects of jitter.
Dynamic - Jitter buffer size is dynamically changed by RTP packets
delivery status.
Static - Jitter buffer size is fixed.
Voice Jitter
Buffer Length
Select the maximum number of milliseconds of voice traffic the
MAX208M2W Series can help to smooth out the jitter in order to ensure
good voice quality for your conversations.
Packet Loss
Concealment
Packets may be dropped due to an overwhelming amount of traffic on
the network. Some degree of packet loss will not be noticeable to the
end user, but as packet loss increases the quality of sound degrades.
Select this to have the MAX208M2W Series to improve the voice quality
when packet loss occurrs.
T.38 Static
Jitter Length
T.38 is an ITU-T standard that VoIP devices use to send fax messages
over the Internet.
Select the number of milliseconds for the jitter buffer size used for
transmitting T.38 fax messages.
Chapter 9The VoIP General Screens
MAX208M2W Series User s Guide 137
9.2.2 QoS Settings
Click VoIP > General > QoS to set up Type of Service (ToS) and Differentiated
Services (Diffserv) settings for voice traffic transmission through the MAX208M2W
Series.
Figure 61 VoIP > General > QoS
The following table describes the labels in this screen.
9.3 Technical Reference
The following section contains additional technical information about the
MAX208M2W Series features described in this chapter.
9.3.1 DSCP and Per-Hop Behavior
DiffServ defines a new DS (Differentiated Services) field to replace the Type of
Service (TOS) field in the IP header. The DS field contains a 2-bit unused field and
a 6-bit DSCP field which can define up to 64 service levels. The following figure
illustrates the DS field.
Figure 62 DiffServ: Differentiated Service Field
DSCP is backward compatible with the three precedence bits in the ToS octet so
that non-DiffServ compliant, ToS-enabled network device will not conflict with the
DSCP mapping.
Table 48 VoIP > General > QoS
LABEL DESCRIPTION
SIP ToS/
DiffServ
Enter the first 6 bits of the ToS field in hexadecimal (in a format of
0x00), which you want to mark on all outgoing SIP packets flowing
through the MAX208M2W Series. The MAX208M2W Series automatically
converts this number to another in order to compatible with DiffServ-
enabled network. For example, if you enter 0x2E, it is 101110 in binary
for ToS service. The MAX208M2W Series converts it to 10111000 in
binary for DiffServ-enabled network.
RTP ToS/
DiffServ
Select the ToS value in hexadecimal (in a format of 0x00) to mark all
outgoing RTP packets flowing through the MAX208M2W Series.
DSCP
(6-bit)
Unused
(2-bit)
Chapter 9The VoIP General Screens
MAX208M2W Series User s Guide
138
The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior),
that each packet gets across the DiffServ network. Based on the marking rule,
different kinds of traffic can be marked for different priorities of forwarding.
Resources can then be allocated according to the DSCP values and the configured
policies.
MAX208M2W Series User s Guide 139
CHAPTER 10
The VoIP Account Screens
10.1 Overview
Use the VoIP > Account 1 and VoIP > Account 2 screens to configure SIP
servers, authentication, additional VoIP features, dialing timeout values, speed-
dial rules and how to handle fax messages for two accounts on the MAX208M2W
Series. Account 1 maps to phone port 1 and account 2 maps to phone port 2.
Since both the Account 1 and Account 2 screens are quite similar, this section
uses the VoIP > Account 1 screens to describe the fields.
10.1.1 What You Can Do in This Chapter
!The Status screen (Section 10.2 on page 144) lets you view the current status
of the SIP server, STUN server, selected phone line and call history. You can also
manually disconnect the VoIP connection or request the SIP server for a new
connection.
!The Server screen (Section 10.3 on page 146) lets you configure the SIP
server, proxy server, outbound server and STUN server settings for the phone
line.
!The Feature screen (Section 10.4 on page 147) lets you configure the SIP
additional functions such as DTMF, call forward, call waiting and hotline settings
for the phone line.
!The User screen (Section 10.5 on page 150) lets you configure the SIP account,
codec and SIP settings for the phone line.
!The Dialing screen (Section 10.6 on page 152) lets you configure some timeout
setting for the phone line.
!The Speed Dial screen (Section 10.7 on page 152) lets you add, edit, or
remove speed-dial entries for the phone line.
!The FAX screen (Section 10.8 on page 153) lets you configure which standard
the phone line uses for sending FAXes.
10.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
140
SIP Identities
A SIP account uses an identity (sometimes referred to as a SIP address). A
complete SIP identity is called a SIP URI (Uniform Resource Identifier). A SIP
account's URI identifies the SIP account in a way similar to the way an e-mail
address identifies an e-mail account. The format of a SIP identity is SIP-
Number@SIP-Service-Domain.
SIP Number
The SIP number is the part of the SIP URI that comes before the "@# symbol. A
SIP number can use letters like in an e-mail address (johndoe@your-ITSP.com for
example) or numbers like a telephone number (1122334455@VoIP-provider.com
for example).
SIP Service Domain
The SIP service domain of the VoIP service provider (the company that lets you
make phone calls over the Internet) is the domain name in a SIP URI. For
example, if the SIP address is 1122334455@VoIP-provider.com, then "VoIP-
provider.com# is the SIP service domain.
SIP Register Server
A SIP register server maintains a database of SIP identity-to-IP address (or
domain name) mapping. The register server checks your user name and password
when you register.
10.1.3 SIP User Agent
A SIP user agent can make and receive VoIP telephone calls. This means that SIP
can be used for peer-to-peer communications even though it is a client-server
protocol. In the following figure, either A or B can act as a SIP user agent client to
initiate a call. A and B can also both act as a SIP user agent to receive the call.
Figure 63 SIP User Agent
SIP Proxy Server
A SIP proxy server receives requests from clients and forwards them to another
server.
AB
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 141
In the following example, you want to use client device A to call someone who is
using client device C.
1The client device (A in the figure) sends a call invitation to the SIP proxy server
(B).
2The SIP proxy server forwards the call invitation to C.
Figure 64 SIP Proxy Server
STUN
STUN (Simple Traversal of User Datagram Protocol (UDP) through Network
Address Translators) allows the MAX208M2W Series to find the presence and
types of NAT routers and/or firewalls between it and the public Internet. STUN
also allows the MAX208M2W Series to find the public IP address that NAT
assigned, so the MAX208M2W Series can embed it in the SIP data stream. STUN
does not work with symmetric NAT routers or firewalls. See RFC 3489 for details
on STUN.
The following figure shows how STUN works.
1The MAX208M2W Series (A) sends SIP packets to the STUN server (B).
2The STUN server (B) finds the public IP address and port number that the NAT
router used on the MAX208M2W Series s SIP packets and sends them to the
MAX208M2W Series.
AC
B
12
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
142
3The MAX208M2W Series uses the public IP address and port number in the SIP
packets that it sends to the SIP server (C).
Figure 65 STUN
Outbound Proxy
Your VoIP service provider may host a SIP outbound proxy server to handle all of
the MAX208M2W Series s VoIP traffic. This allows the MAX208M2W Series to work
with any type of NAT router and eliminates the need for STUN or a SIP ALG. Turn
off a SIP ALG on a NAT router in front of the MAX208M2W Series to keep it from
retranslating the IP address (since this is already handled by the outbound proxy
server).
NAT and SIP
The MAX208M2W Series must register its public IP address with a SIP register
server. If there is a NAT router between the MAX208M2W Series and the SIP
register server, the MAX208M2W Series probably has a private IP address. The
MAX208M2W Series lists its IP address in the SIP message that it sends to the SIP
register server. NAT does not translate this IP address in the SIP message. The SIP
register server gets the MAX208M2W Series s IP address from inside the SIP
message and maps it to your SIP identity. If the MAX208M2W Series has a private
IP address listed in the SIP message, the SIP server cannot map it to your SIP
identity.
Use a SIP ALG (Application Layer Gateway), STUN, or outbound proxy to allow the
MAX208M2W Series to list its public IP address in the SIP messages.
Speed Dial and Peer-to-Peer Calling
Speed dial provides shortcuts for dialing frequently used phone numbers. You can
map a phone number to an alphanumeric keypad key (1 to 9) and then use that
keypad key to call the phone number (press and hold the key for one second or
longer). Use this screen to add, edit, or remove speed-dial numbers for outgoing
calls.
You also have to create speed-dial entries if you want to make peer-to-peer calls
or call SIP numbers that use letters.
A
12
3
NAT
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 143
In peer-to-peer calls, you call another VoIP device directly without going through a
SIP server. Enter the callee s IP address or domain name. The MAX208M2W Series
sends SIP INVITE requests to the peer VoIP device when you use the speed dial
entry.
You do not need to configure a SIP account in order to make a peer-to-peer VoIP
call.
DTMF
Dual-Tone Multi-Frequency (DTMF) telephone call signaling uses pairs of
frequencies (one lower frequency and one higher frequency) to set up calls. It is
also known as Touch Tone. Each of the keys on a DTMF telephone corresponds to a
different pair of frequencies.
Supplementary Phone Services Overview
Supplementary services such as call hold, call waiting, call transfer, etc. are
generally available from your VoIP service provider. The MAX208M2W Series
supports the following services:
!Call Waiting
!Call Forwarding
!Caller ID
!Hotline
Note: To take full advantage of the supplementary phone services available though
the MAX208M2W Series's phone port, you may need to subscribe to the
services from your VoIP service provider.
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
144
10.2 Status
Click VoIP > Account 1 (or Account 2) > Status to view VoIP settings and
current status.

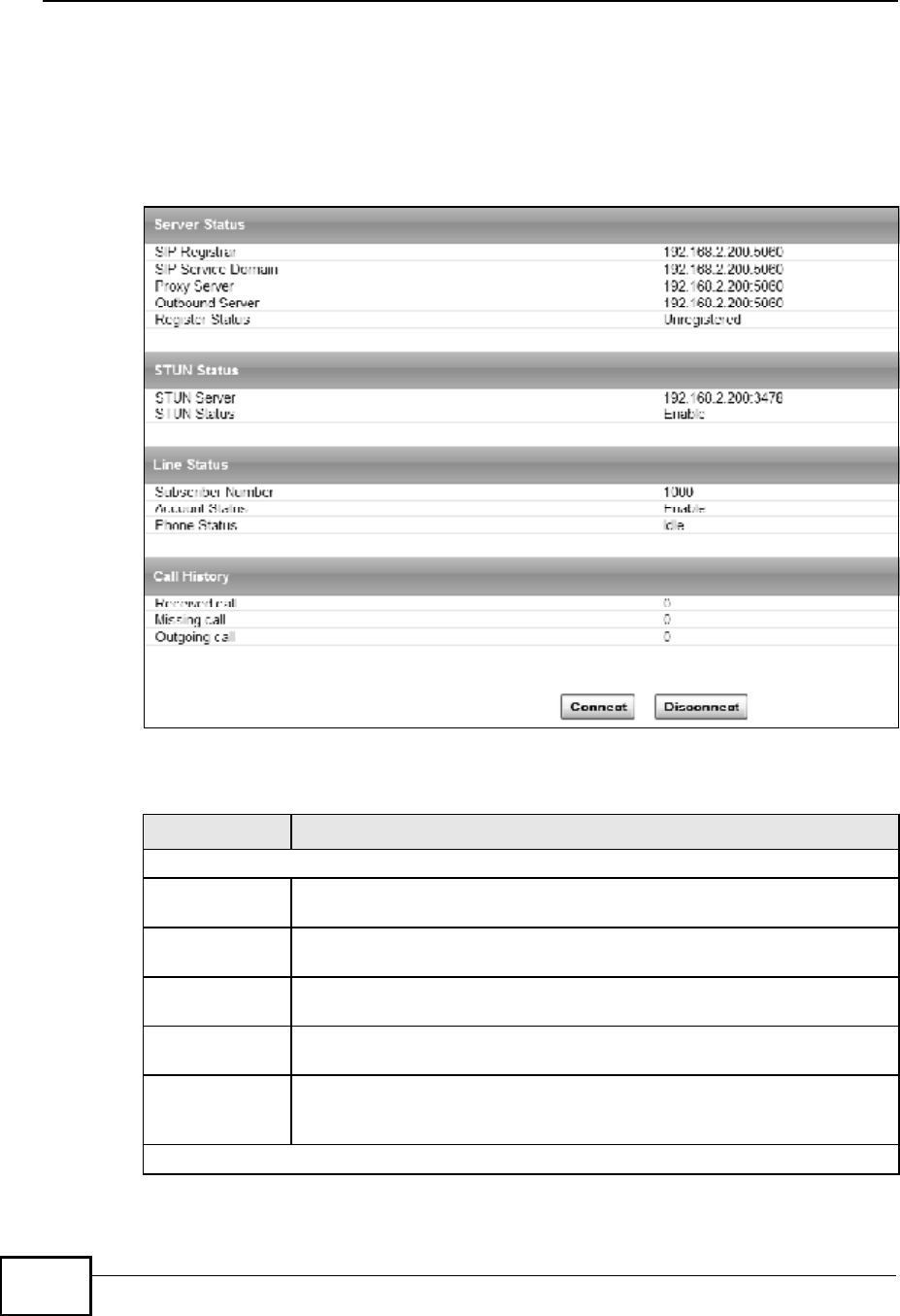

Figure 66 VoIP > Account 1 (or Account 2) > Status
The following table describes the labels in this screen.
Table 49 VoIP > Account 1 (or Account 2) > Status
LABEL DESCRIPTION
Server Status
SIP Register This field displays the IP address and service port number of the SIP
register server, if you have configured one.
SIP Service
Domain
This field displays the IP address and service port number of the second
SIP register server, if you have configured one.
Proxy ServerThis field displays the IP address and service port number of the SIP
proxy server, if you have configured one.
Outbound
Server
This field displays the IP address and service port number of the
outbound proxy server, if you have configured one.
Register
Status
This field displays Registered, if the connected phone is registered
with the register server. It displays Unregistered if the phone has not
registered successfully to the register server yet.
STUN Status - see STUN on page 141
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 145
STUN ServerThis field displays the IP address and service port number of the STUN
(Simple Traversal of UDP through NATs (Network Address Translation))
server, if you have configured one.
STUN Status This field displays whether you have enabled STUN server support on
the MAX208M2W Series.
Line Status
Subscriber
Number
This field displays the SIP phone number for the phone line.
Account
Status
This indicates whether the SIP account is activated or not, or if it is
unspecified for the phone line.
Phone
Status
This field displays busy if the SIP phone number is currently engaged,
otherwise it displays idle.
Call History
Received call This field displays the number of calls you have received through the
connected phone since the MAX208M2W Series last restarted or was
turned on.
Missing call This field displays the number of calls you have missed since the
MAX208M2W Series last restarted or was turned on.
Outgoing
call
This field displays the number of calls you have made through the
connected phone since the MAX208M2W Series last restarted or was
turned on.
Connect Click this to register the MAX208M2W Series to the specified register
server.
Disconnect Click this to disconnect the connected phone with the register server.
Table 49 VoIP > Account 1 (or Account 2) > Status
LABEL DESCRIPTION
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
146
10.3 Server
Click VoIP > Account 1 (or Account 2) > Server to configure the register
server, proxy server, outbound proxy server and NAT settings for this SIP account.
Figure 67 VoIP > Account 1 (or Account 2) > Server
The following table describes the labels in this screen.
Table 50 VoIP > Account 1 (or Account 2) > Server
LABEL DESCRIPTION
Registrar Server
Registrar
Server
Enter the IP address or domain name of a SIP server. You can use up to
127 printable ASCII characters.
Port NumberEnter the SIP server s listening port number. Keep the default value, if
you are not sure of this value.
SIP Service
Domain
Enter the IP address or domain name of another SIP server, if your VoIP
service provider gave you one. Otherwise, enter the same address that
you have entered in the Registrar Server field. You can use up to 64
printable ASCII characters.
Registrar
Period Time
Enter the session expiry time in seconds for the phone connections
using this account. The allowable range is 60~65535 seconds.
This allows the MAX208M2W Series to automatically disconnect any
phone calls using this account after a certain period of inactivity.
Proxy Server
Proxy ServerEnter the IP address or domain name of the SIP proxy server provided
by your VoIP service provider. You can use up to 64 printable ASCII
characters.
Port Number Enter the SIP proxy server s listening port number, if your VoIP service
provider gave you one. Otherwise, keep the default value.
Outbound Server
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 147
10.4 Feature
Click VoIP > Account 1 (or Account 2) > Feature to configure advanced VoIP
features such as DTMF, Call Forwarding, Call Waiting and hotline settings.
Figure 68 VoIP > Account 1 (or Account 2) > Feature
Outbound
Server
Enter the IP address or domain name of the outbound proxy server
provided by your VoIP service provider. You can use up to 127 printable
ASCII characters. If you choose not to use an outbound proxy server,
set this to 0.0.0.0.
Port Number Enter the outbound proxy s listening port number, if your VoIP service
provider gave you one. Otherwise, leave it as the default $5060 .
If the outbound proxy is disabled (set to 0.0.0.0), then this port will be
ignored.
NAT Traversal
STUN Server Enter the IP address or domain name of the STUN server, if your VoIP
service provider gave you one. Otherwise, keep the default value.
Port Number Enter the STUN server s listening port, if your VoIP service provider
gave you one. Otherwise, keep the default value.
Table 50 VoIP > Account 1 (or Account 2) > Server
LABEL DESCRIPTION
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
148
The following table describes the labels in this screen.
Table 51 VoIP > Account 1 (or Account 2) > Feature
LABEL DESCRIPTION
Feature Settings
Block
Anonymous
Call
Select this to have the MAX208M2W Series block all incoming calls
from phone that do not send caller ID.
Do Not Disturb
(DND)
Select this to have the MAX208M2W Series not forward calls to the
phone line.
Hide User IDSelect this to not have your calling number display on the callee s
caller ID.
MWISelect this to enable Message Waiting Indicator (MWI) mode for this
phone line. The MAX208M2W Series sends a beeping tone to the
phone when there is at least one voicemail for the number.
Hold MethodSelect the method to use when a call is put on hold.
sendonly/recvonly - Select this to allow the MAX208M2W Series to
send voice packets only but disallow to receive any voice packets. The
peer end should change to a state which allows to receive voice
packets from the MAX208M2W Series only but disallow to send any
voice packets.
inactive - Select this to disallow the MAX208M2W Series send or
receive any voice packets.
DTMF
DTMFControl how the MAX208M2W Series handles the tones that the phone
using this extension makes when you push its buttons. One use of the
tones is to distinguish between numbers when trying to dial a PSTN
phone number.
You should use the same mode as your VoIP service provider. The
choices are:
! Out-of-band(RFC 2833) - Follow the RFC 2833 standard and send
the DTMF tones in RTP packets.
! In Band - Send the DTMF tones in the voice data stream. This
works best when you are using a codec that does not use compression
(like G.711). Codecs that use compression (like G.729) can distort the
tones.
SIP INFO Select this to have the MAX208M2W Series send the DTMF tones in
SIP messages.
Call Forward Setting
Enable call
Forwarding
Select this check box to enable call forward.
Unconditional
CF,
Unconditional
CF Target
Select this if you want the MAX208M2W Series to forward all incoming
calls to the specified phone number, regardless of other rules in this
Call Forward Setting section. Specify the phone number in the
Unconditional CF Target field.
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 149
Busy CF,
Busy CF
Target
Select this if you want the MAX208M2W Series to forward incoming
calls to the specified phone number if the phone port is busy. Specify
the phone number in the Busy CF Target field. If you have call
waiting, the incoming call is forwarded to the specified phone number
if you reject or ignore the second incoming call.
No Answer CF,
No Answer CF
Target
Select this if you want the MAX208M2W Series to forward incoming
calls to the specified phone number if the call is unanswered. Specify
the phone number in the No Answer CF Target field on the right.
Call Waiting Setting
Call waiting Select this to enable call waiting for this SIP account on the
MAX208M2W Series.
Hotline Setting
Configure this section to have the MAX208M2W Series automatically dial the hotline
target number after the line is off the hook for the duration specified in the Hotline
Period Time field. This is especially useful for dialing emergency numbers.
Hotline,
Hotline Target
Enter the number to be dialed once the MAX208M2W Series has
surpassed the delay period.
Hotline Period
Time
Enter the duration the phone can remain off the hook before
automatically dialing the hotline number. You can set the delay from 5
to 10 seconds.
Table 51 VoIP > Account 1 (or Account 2) > Feature
LABEL DESCRIPTION
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
150
10.5 User
Click VoIP > Account 1 (or Account 2) > User to configure advanced VoIP
settings such as DTMF, call forwarding, call waiting and hotline settings.
Figure 69 VoIP > Account 1 (or Account 2) > User
The following table describes the labels in this screen.
Table 52 VoIP > Account 1 (or Account 2) > User
LABEL DESCRIPTION
SIP Account
Enable Select this if you want the MAX208M2W Series to use this account.
Clear it if you do not want the MAX208M2W Series to use this
account.
Subscriber
Number
Enter your SIP number. In the full SIP URI, this is the part before the
@ symbol. You can use up to 127 printable ASCII characters.
Display NameEnter the name that appears on the other party s device if they have
Caller ID enabled. You can use up to 127 printable ASCII characters.
Authentication
Name
Type the SIP user name associated with this account for
authentication to the SIP register server.
This field can be 1-31 printable characters (A-Z, a-z, 0-9).
PasswordType the SIP password associated with this account. This field can be
0-31 printable characters (A-Z, a-z, 0-9), underscores (_), pluses (+),
periods (.), and "at# symbols (@).
Codec Settings
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 151
1st Codec,
2nd Codec,
3rd Codec
Select the MAX208M2W Series s first, second, and third choices of the
type of voice coder/decoder (codec) that you want the phone line to
use when communicating with the SIP server. The following codecs
(shown in highest quality to lowest quality order) are supported by
the MAX208M2W Series:
! G.711 aLaw (typically used in Europe)
! G.711 muLaw (typically used in North America and Japan)
! G.729
You can also select NONE for the 2nd and 3rd codecs if your VoIP
service provider only gave you one or two codec settings.
See Voice Codecs on page 227 for more information on voice codecs.
When two SIP devices start a SIP session, they must agree on a
codec.
Media
SIP User
Agent Name
Enter the name you want to show in the "User-Agent" header of SIP
packets sent by this account.
SIP Local Port Enter the MAX208M2W Series s listening port number, if your VoIP
service provider gave you one. Otherwise, keep the default value.
Session Timer
Flag Enable
Select this activate the MAX208M2W Series s session timer. If you
encounter connectivity issues with your network or Internet, then it is
suggested that you use the session timer.
Session Timer Enter the session expiry time in seconds for all phone connections on
this trunk The allowable range is 120~65535 seconds. This value
cannot be lower than the Min Session Timer.
This allows the MAX208M2W Series to automatically disconnect any
phone calls on this trunk after a certain period of inactivity.
Min Session
Timer
Enter the minimum session expiry time in seconds. The allowable
range is 90~65535 seconds.
When an incoming call requests a session expiry time that is lower
than this, the MAX208M2W Series uses this value instead.
Timeout for
Ring back
Enter the maximum number of seconds the MAX208M2W Series has
the associated phone ring for an incoming call. After this time period
is expired, the MAX208M2W Series has the phone stop ringing. The
caller will hear a busy tone then.
Table 52 VoIP > Account 1 (or Account 2) > User
LABEL DESCRIPTION
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
152
10.6 Dialing
Click VoIP > Account 1 (or Account 2) > Dialing to configure dialing timeout
values.
Figure 70 VoIP > Account 1 (or Account 2) > Dialing
The following table describes the labels in this screen.
10.7 Speed Dial
Click VoIP > Account 1 (or Account 2) > Speed Dial to add, edit, or remove
speed-dial rules.
Figure 71 VoIP > Account 1 (or Account 2) > Speed Dial
The following table describes the labels in this screen.
Table 53 VoIP > Account 1 (or Account 2) > Dialing
LABEL DESCRIPTION
Inter-digit
Timeout
Enter the maximum number of seconds (1~5) the MAX208M2W
Series waits for each digit input of a complete callee number after you
press the flash key on the phone. If the MAX208M2W Series cannot
receive the next digit entered within this time period, the
MAX208M2W Series processes digits you have dialed.
First-digit
Timeout
Set the number of seconds (5~30) for the MAX208M2W Series to wait
for you to start dialing a number after you pick up the telephone
receiver. If you do not dial any number within that time period, the
dial tone becomes a busy signal. Put back the receiver and pick it up
again if you want to make a new call.
Table 54 VoIP > Account 1 (or Account 2) > Speed Dial
LABEL DESCRIPTION
Speed Dial Status
EnableSelect this to enable speed dial on the MAX208M2W Series.
Speed Dial Rules - This is a list of speed dial numbers.
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 153
10.8 FAX
Click VoIP > Account 1 (or Account 2) > FAX to configure which standard the
account uses for fax services.
Figure 72 VoIP > Account 1 (or Account 2) > FAX
ActiveThis field displays whether the rule is activated or not.
Short NumberThis field displays the speed-dial number you want to use for this phone
number.
Select the the speed-dial number you want to use for this phone number
if you are editing the entry.
Real NumberThis field displays the phone number you want the MAX208M2W Series to
call when you use the specified short number.
Enter the phone number you want the MAX208M2W Series to call when
you use the specified short number if you are editing the entry.
NotesThis field displays additional information for the speed-dial number.
Enter additional information for the speed-dial number if your are editing
the entry.
RemoveClick this to remove the rule.
AddClick this to add a new speed-dial rule.
OK Click this to save the changes you made in this table.
Table 54 VoIP > Account 1 (or Account 2) > Speed Dial
LABEL DESCRIPTION
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
154
The following table describes the labels in this screen.
10.9 Technical Reference
The following section contains additional technical information about the
MAX208M2W Series features described in this chapter.
10.9.1 SIP Call Progression
The following figure displays the basic steps in the setup and tear down of a SIP
call. A calls B.
Table 55 VoIP > Account 1 (or Account 2) > FAX
LABEL DESCRIPTION
Options Select which standard the MAX208M2W Series uses to handle faxes. The peer
devices must also use standard.
NONE - Disable the fax function.
G.711A Pass Through - Select this option to send and receive fax messages
over the network or Internet using VoIP (G.711a). By encoding fax data as
audio data, faxes may be susceptible to packet loss and other errors.
However, as this standard is considerably older than T.38, it is more
compatible with older orobsolete systems.
G.711U Pass Through - Select this option to send and receive fax messages
over the network or Internet using VoIP (G.711u). By encoding fax data as
audio data, faxes may be susceptible to packet loss and other errors.
However, as this standard is considerably older than T.38, it is more
compatible with older orobsolete systems.
T.38 FAX Relay - Select this if the MAX208M2W Series should send fax
messages as UDP or TCP/IP packets through IP networks. This provides
better quality, but it may have interoperability problems.
Table 56 SIP Call Progression
A B
1. INVITE
2. Ringing
3. OK
4. ACK
5.Dialogue (voice
traffic)
6. BYE
7. OK
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide 155
1A sends a SIP INVITE request to B. This message is an invitation for B to
participate in a SIP telephone call.
2B sends a response indicating that the telephone is ringing.
3B sends an OK response after the call is answered.
4A then sends an ACK message to acknowledge that B has answered the call.
5Now A and B exchange voice media (talk).
6After talking, A hangs up and sends a BYE request.
7B replies with an OK response confirming receipt of the BYE request and the call is
terminated.
10.9.2 SIP Client Server
SIP is a client-server protocol. A SIP client is an application program or device that
sends SIP requests. A SIP server responds to the SIP requests.
When you use SIP to make a VoIP call, it originates at a client and terminates at a
server. A SIP client could be a computer or a SIP phone. One device can act as
both a SIP client and a SIP server.
Chapter 10The VoIP Account Screens
MAX208M2W Series User s Guide
156
MAX208M2W Series User s Guide 157
CHAPTER 11
The VoIP Line Screens
11.1 Overview
The VoIP > Line 1 and VoIP > Line 2 screens allow you to configure the
volume, echo cancellation, VAD settings and custom tones for phone ports 1 and 2
which map to SIP accounts 1 and 2 (see Chapter 10 on page 139). Since both the
Line 1 and Line 2 screens are quite similar, this section uses the VoIP > Line 1
screens to describe the fields.
11.1.1 What You Can Do in This Chapter
!The Phone screen (Section 11.2 on page 158) lets you configure phone
settings.
!The Voice screen (Section 11.3 on page 159) lets you configure voice settings.
!The Profile screen (Section 11.4 on page 159) lets you configure which country
of the world the MAX208M2W Series is in.
11.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
Voice Activity Detection/Silence Suppression/Comfort Noise
Voice Activity Detection (VAD) detects whether or not speech is present. This lets
the MAX208M2W Series reduce the bandwidth that a call uses by not transmitting
"silent packets# when you are not speaking.
When using VAD, the MAX208M2W Series generates comfort noise when the other
party is not speaking. The comfort noise lets you know that the line is still
connected as total silence could easily be mistaken for a lost connection.
Echo Cancellation
G.168 is an ITU-T standard for eliminating the echo caused by the sound of your
voice reverberating in the telephone receiver while you talk.
Chapter 11The VoIP Line Screens
MAX208M2W Series User s Guide
158
11.2 Phone
Click VoIP > Line 1 (or Line 2) > Phone to configure phone and caller ID
settings.
Figure 73 VoIP > Line 1 (or Line 2) > Phone
The following table describes the labels in this screen.
Table 57 VoIP > Line 1 (or Line 2) > Phone
LABEL DESCRIPTION
Phone
Hook Flash
Detect Upper
Bound
Enter the number of milliseconds for the upper bound of a quick on-
hook and off-hook cycle in order to recognize a hook flash event.
Hook Flash
Detect Lower
Bound
Enter the number of milliseconds for the lower bound of a quick on-
hook and off-hook cycle in order to recognize a hook flash event.
Voice Tx Level Select the volume level transmitted by the MAX208M2W Series. -9 is
the quietest, and 9 is the loudest.
Voice Rx Level Select the volume level transmitted to the MAX208M2W Series. -9 is the
quietest, and 9 is the loudest.
Caller ID
Caller ID Type Select the caller ID type (FSK Bellcore, Japan CLIP, or FSK ETSI) for
the region in which the MAX208M2W Series is located. You can also
Disable caller ID (means to not display the remote caller ID on the
phone).
Caller ID
Display
Select when to display the caller ID of incoming calls on the associated
phone, before or after it rings (Before Ring or After Ring).
Caller ID Power
Level
Enter the transmitting power level (0~3) the MAX208M2W Series uses
to display caller ID on the associated phone.The corresponding power
for each number:
!0: -13.5 dBm
!1: -13 dBm
!2: -12 dBm
!3: -11 dBm
Chapter 11The VoIP Line Screens
MAX208M2W Series User s Guide 159
11.3 Voice
Click VoIP > Line 1 (or Line 2) > Voice to configure voice settings.
Figure 74 VoIP > Line 1 (or Line 2) > Voice
The following table describes the labels in this screen.
11.4 Profile
Click VoIP > Line 1 (or Line 2) > Profile to maintain settings that depend on
which region of the world the MAX208M2W Series is in.
Figure 75 VoIP > Line 1 (or Line 2) > Profile
Table 58 VoIP > Line 1 (or Line 2) > Voice
LABEL DESCRIPTION
VAD - Voice Activity Detection
Voice Active
Detector
Select one of the following Silence Suppression option to have the
MAX208M2W Series stop transmitting voice traffic when you are not
speaking using the detection method. This reduces the bandwidth the
MAX208M2W Series uses.
!Silence Suppression - NO CNG
!Silence Suppression - Only G.711 Annexll Type
!Silence Suppression - Codec Specific CN
Select Disable to turn this feature off.
LEC - Line Echo Cancellation
Line Echo
Canceller
Tail Length
Select the maximum number of milliseconds of an echo length (16 ms,
32 ms or 48 ms) the MAX208M2W Series can handle and eliminate the
effect. An echo is normally caused by the sound of your voice
reverberating in the telephone receiver while you talk. Select Disable
Question: How if an echo s length is longer than the set value?
Chapter 11The VoIP Line Screens
MAX208M2W Series User s Guide
160
The following table describes the labels in this screen.
Table 59 VoIP > Line 1 (or Line 2) > Profile
LABEL DESCRIPTION
Country ProfileSelect the place in which the MAX208M2W Series is located, USA or any
other country (Default).
MAX208M2W Series User s Guide 161
CHAPTER 12
Maintenance
12.1 Overview
Use these screens to manage and maintain your MAX208M2W Series.
12.1.1 What You Need to Know
The following terms and concepts may help as you read through this chapter.
Remote Management Limitations
Remote management over LAN or WAN will not work when:
1You have disabled that service in one of the remote management screens.
2The IP address in the Secured Client IP field does not match the client IP
address. If it does not match, the MAX208M2W Series will disconnect the session
immediately.
3There is already another remote management session with an equal or higher
priority running. You may only have one remote management session running at
one time.
Chapter 12Maintenance
MAX208M2W Series User s Guide
162
Remote Management and NAT
When NAT is enabled:
!Use the MAX208M2W Series s WAN IP address when configuring from the WAN.
!Use the MAX208M2W Series s LAN IP address when configuring from the LAN.
System Timeout
There is a default system management idle timeout of five minutes. The
MAX208M2W Series automatically logs you out if the management session
remains idle for longer than this timeout period. The management session does
not time out when a statistics screen is polling.
SNMP
Simple Network Management Protocol (SNMP) is a protocol used for exchanging
management information between network devices. SNMP is a member of the
TCP/IP protocol suite. Your MAX208M2W Series supports SNMP agent
functionality, which allows a manager station to manage and monitor the
MAX208M2W Series through the network. The MAX208M2W Series supports SNMP
version one (SNMPv1) and version two (SNMPv2). The next figure illustrates an
SNMP management operation.
Note: SNMP is only available if TCP/IP is configured.
Chapter 12Maintenance
MAX208M2W Series User s Guide 163
TR-069
TR-069 is an abbreviation of "Technical Reference 069#, a protocol designed to
facilitate the remote management of Customer Premise Equipement (CPE), such
as the MAX208M2W Series. It can be managed over a WAN by means of an Auto
Configuration Server (ACS). TR-069 is based on sending Remote Procedure Calls
(RPCs) between the ACS and the client device. RPCs are sent in Extensible Markup
Language (XML) format over HTTP or HTTPS.
An administrator can use an ACS to remotely set up the MAX208M2W Series,
modify its settings, perform firmware upgrades, and monitor and diagnose it. In
order to do so, you must enable the TR-069 feature on your MAX208M2W Series
and then configure it appropriately. (The ACS server which it will use must also be
configured by its administrator.)
Figure 76 TR-069 Example
In this example, the MAX208M2W Series receives data from at least 3 sources: A
SIP server for handling voice calls, an HTTP server for handling web services, and
an ACS, for configuring the MAX208M2W Series remotely. All three servers are
owned and operated by the client s Internet Service Provider. However, without
the configuration settings from the ACS, the MAX208M2W Series cannot access
the other two servers. Once the MAX208M2W Series receives its configuration
settings and implements them, it can connect to the other servers. If the settings
change, it will once again be unable to connect until it receives its updates from
the ACS.
The MAX208M2W Series can be configured to periodically check for updates from
the auto-configuration server so that the end user need not be worried about it.
SIP
ACS
HTTP
Chapter 12Maintenance
MAX208M2W Series User s Guide
164
SNMP
An SNMP managed network consists of two main types of component: agents and
a manager.
Figure 77 SNMP Management Model
An agent is a management software module that resides in a managed device (the
MAX208M2W Series). An agent translates the local management information from
the managed device into a form compatible with SNMP. The manager is the
console through which network administrators perform network management
functions. It executes applications that control and monitor managed devices.
The managed devices contain object variables/managed objects that define each
piece of information to be collected about a device. Examples of variables include
such as number of packets received, node port status etc. A Management
Information Base (MIB) is a collection of managed objects. SNMP allows a
manager and agents to communicate for the purpose of accessing these objects.
The MAX208M2W Series supports MIB II that is defined in RFC-1213 and RFC-
1215. The focus of the MIBs is to let administrators collect statistical data and
monitor status and performance.
SNMP itself is a simple request/response protocol based on the manager/agent
model. The manager issues a request and the agent returns responses using the
following protocol operations:
!Get - Allows the manager to retrieve an object variable from the agent.
!GetNext - Allows the manager to retrieve the next object variable from a table
or list within an agent. In SNMPv1, when a manager wants to retrieve all
elements of a table from an agent, it initiates a Get operation, followed by a
series of GetNext operations.
Chapter 12Maintenance
MAX208M2W Series User s Guide 165
!Set - Allows the manager to set values for object variables within an agent.
!Trap - Used by the agent to inform the manager of some events.
The MAX208M2W Series sends traps to the SNMP manager when any of the
following events occurs:
OMA-DM
When the MAX208M2W Series initiates communication with the server (often
times at start up or after the first time you turn it on), the server uploads
commands, new files (if any), and other information used by a service provider to
customize the MAX208M2W Series s features.
Device management works as follows:
1The server (A) sends out the query (1) to the MAX208M2W Series (B).
2The MAX208M2W Series responds by sending back its credentials (2), to which
the server responds with its credentials along with a string of management
operations (3).
3The client responds to the management operations (4), perhaps confirming file
alterations or confirming receipt of file uploads and so on.
Table 60 SNMP Traps
TRAP # TRAP NAME DESCRIPTION
0coldStart (defined in RFC-
1215)
A trap is sent after booting (power on).
1warmStart (defined in RFC-
1215)
A trap is sent after booting (software reboot).
4authenticationFailure (defined
in RFC-1215)
A trap is sent to the manager when receiving
any SNMP get or set requirements with the
wrong community (password).
6whyReboot (defined in ZYXEL-
MIB)
A trap is sent with the reason of restart before
rebooting when the system is going to restart
(warm start).
6a For intentional reboot: A trap is sent with the message "System reboot
by user!" if reboot is done intentionally, (for
example, download new files, CI command "sys
reboot", etc.).
6b For fatal error: A trap is sent with the message of the fatal
code if the system reboots because of fatal
errors.
Chapter 12Maintenance
MAX208M2W Series User s Guide
166
4The server disconnects from the MAX208M2W Series once all of its management
operations have been carried out.
Figure 78 OMA-DM Data Management
OMA-DM Authentication
In order to ensure the integrity of the connection between an OMA-DM server and
the MAX208M2W Series, communication between the two is encoded using one of
three common algorithms. They are not intended to be used in lieu of proper
digital security, but instead as a means of transmitting multiple disparate types of
data over HTTP. Security encryption for communication is handled by different
processes configured elsewhere in the MAX208M2W Series s web configurator
Basic Access Authentication % Sends a person s user name and password in
Base64. This auhentication protocol is supported by all browsers that are HTTP
1.0/1.1 compliant. Although converted to Base64 for the sake of cross-
compatibility, credentials are nonetheless passed between the web browser and
the server in plaintext, making it extremely easy to intercept and read. As such, it
is rarely used anymore.
Digest Access Authentication % This protocol was designed to replace basic
access authentication. Instead of encoding a user name and password in plaintext,
this protocol uses what is known as an MD5 message authentication code. It
allows the server to issue a single-use, randomly generated number (known as a
$nonce ) to the client (in this case, the web browser), which then uses the number
as the $public key for encrypting its data. When the server receives the encrypted
data, it unlocks it using the $key that was just provided. While stronger than basic
access authentication, this protocol is not as strong as, say, HMAC, or as secure as
the client using a client-side private key encryption scheme.
Hash Message Authentication Code % Also known as HMAC, this code relies on
cryptographic hash functions to bolster an existing protocol, such as MD5. It is a
method for generating a stronger, significantly higher encryption key.
Chapter 12Maintenance
MAX208M2W Series User s Guide 167
OMA-DM Data Model
Each device that conforms to the current OMA-DM standard has an identical data
structure embedded in its controlling firmware. This allows a similarly conforming
OMA-DM server to navigate the folder structure and to make file alterations where
appropriate or required.
Figure 79 OMA-DM Data Model
In the example data model shown here, the parent folders must conform to the
OMA-DM standard. The child folders, on the other hand, can be customized on an
individual basis. This allows the parent folders to all maintain a consistent URI
(Uniform Resource Indentifier) across all devices that meet the OMA-DM
standard s requirements.
For example, in the preceding figure the URI for the "Games# folder is "./Vendor/
Games/#. The "./Vendor/# portion of the URI exists on all devices that conform to
the OMA-DM standard. The "Games# folder, however, may or may not exist
depending on the services provided by the company managing the device.
Daytime
A network protocol used by devices for debugging and time measurement. A
computer can use this protocol to set its internal clock but only if it knows in which
order the year, month, and day are returned by the server. Not all servers use the
same format.
Time
A network protocol for retrieving the current time from a server. The computer
issuing the command compares the time on its clock to the information returned
by the server, adjusts itself automatically for time zone differences, then
calculates the difference and corrects itself if there has been any temporal drift.
Root Folder
./
DMAcc
Vendor
Operator
MP3s
Games
Chapter 12Maintenance
MAX208M2W Series User s Guide
168
NTP
NTP stands for Network Time Protocol. It is employed by devices connected to the
Internet in order to obtain a precise time setting from an official time server.
These time servers are accurate to within 200 microseconds.
12.2 Password
Use this screen to set up admin and guest accounts for logging into and managing
the WiMAX Device. The "admin# user can access and configure all screens. The
"guest# user can only perform some basic settings such as viewing the system
status information, configuring LAN, NAT, DDNS, and Firewall settings and reset
the MAX208M2W Series to factory defaults and restart the MAX208M2W Series.
Click Maintenance > Password to open this screen as shown next.
Figure 80 Password Screen
This screen contains the following fields:
Table 61 Password
LABEL DESCRIPTION
GroupSelect the group for which you want to change the login password.
Old
Password
Enter the old password for the login group.
New
Password
Enter the new password for the login group.
RetypeRetype the new password for the login group.
Chapter 12Maintenance
MAX208M2W Series User s Guide 169
12.3 HTTP
Use this screen to allow remote access to the WiMAX Device from a network
connection over HTTP.
Click Maintenance > Remote MGMT > HTTP to open this screen as shown
next.
Figure 81 HTTP Screen
This screen contains the following fields:
Table 62 HTTP
LABEL DESCRIPTION
HTTP Server
EnableSelect this to enable remote management using this service.
Port NumberEnter the port number this service can use to access the MAX208M2W
Series. The computer must use the same port number.
HTTPS Server
EnableSelect this to enable remote management using this service.
Port NumberEnter the port number this service can use to access the MAX208M2W
Series. The computer must use the same port number.
HTTP and HTTPS
Allow
Connection
from WAN
Select this to allow incoming connections from the WAN over either
HTTP or HTTPS.
HTTP Session Timeout
Session
Timeout
Enter the number of minutes (0-99) the MAX208M2W Series waits to
delete an inactive web connection (HTTP or HTTPS).
Chapter 12Maintenance
MAX208M2W Series User s Guide
170

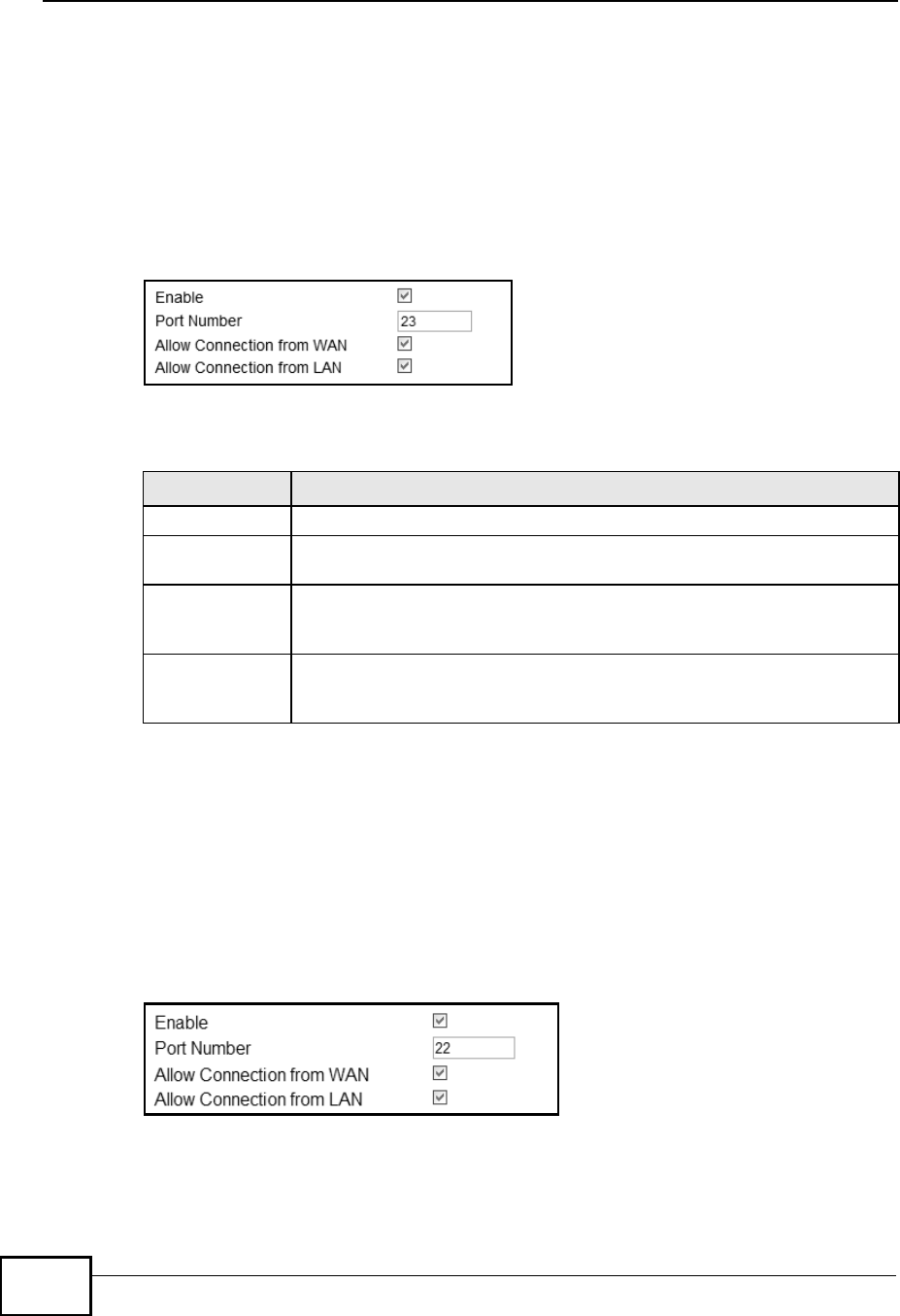

12.4 Telnet
Use this screen to allow remote access to the WiMAX Device from a network
connection over Telnet.
Click Maintenance > Remote MGMT > Telnet to open this screen as shown
next.
Figure 82 Telnet Screen
This screen contains the following fields:
12.5 SSH
Use this screen to allow remote access to the WiMAX Device from a network
connection over SSH.
Click Maintenance > Remote MGMT > SSH to open this screen as shown next.
Figure 83 SSH Screen
Table 63 Telnet
LABEL DESCRIPTION
EnableSelect this to enable remote management using this service.
Port NumberEnter the port number this service can use to access the MAX208M2W
Series. The computer must use the same port number.
Allow
Connection
from WAN
Select this to allow connections using this service that originate on the
WAN.
Allow
Connection
from LAN
Select this to allow connection using this service that originate on the
LAN.
Chapter 12Maintenance
MAX208M2W Series User s Guide 171
This screen contains the following fields:
12.6 SNMP
Use this screen to allow remote access to the WiMAX Device from a network
connection over SNMP.
Click Maintenance > Remote MGMT > SNMP to open this screen as shown
next.
Figure 84 SNMP Screen
This screen contains the following fields:
Table 64 SSH
LABEL DESCRIPTION
EnableSelect this to enable remote management using this service.
Port NumberEnter the port number this service can use to access the MAX208M2W
Series. The computer must use the same port number.
Allow
Connection
from WAN
Select this to allow connections using this service that originate on the
WAN.
Allow
Connection
from LAN
Select this to allow connection using this service that originate on the
LAN.
Table 65 SNMP
LABEL DESCRIPTION
EnableSelect this to enable remote management using this service.
LocationEnter the location of the SNMP server (for example, "Engineering Dept.,
Floor 6, Building A, New York City#).
ContactEnter contact information for the administrator managing the SNMP
server (for example, "Bill Smith, IT Dept., (555) 555-5454#).
Read
Community
Enter the password for the incoming Get and GetNext requests from the
management station. The default is public and allows all requests.
Write
Community
Enter the password for incoming Set requests from the management
station. The default is public and allows all requests.
Chapter 12Maintenance
MAX208M2W Series User s Guide
172
12.7 CWMP
Use this screen to allow CWMP connections for remote management, firmware
upgrades and troubleshooting.
Click Maintenance > Remote MGMT > CWMP to open this screen as shown
next.
Figure 85 CWMP Screen
This screen contains the following fields:
Trap Server Enter the IP address of the station to send your SNMP traps to.
Trap
Community
Enter the trap community, which is the password sent with each trap to
the SNMP manager. The default is public and allows all requests.
Table 65 SNMP (continued)
LABEL DESCRIPTION
Table 66 CWMP
LABEL DESCRIPTION
EnableSelect this to enable remote management using this service.
ACS Server URLEnter the URL or IP address of the auto-configuration server.
Bootstrap
Enable
Select this to enable bootstrap events.
ACS Username Enter the user name sent when the MAX208M2W Series connects to the
ACS and which is used for authentication.
You can enter up to 31 alphanumeric characters (a-z, A-Z, 0-9) and
underscores but spaces are not allowed.
Chapter 12Maintenance
MAX208M2W Series User s Guide 173
ACS Password Enter the password sent when the MAX208M2W Series connects to an
ACS and which is used for authentication.
You can enter up to 31 alphanumeric characters (a-z, A-Z, 0-9) and
underscores but spaces are not allowed.
Perodical
Inform Enable
Select this to allow the MAX208M2W Series to periodically connect to
the ACS and check for configuration updates.
If you do not enable this feature then the MAX208M2W Series can only
be updated automatically when the ACS initiates contact with it and if
you selected the checkbox on this screen.
Periodical
Inform Interval
Enter the time interval (in seconds) at which the MAX208M2W Series
connects to the auto-configuration server.
Connection
Request
Username
Enter the connection request user name that the ACS must send to the
MAX208M2W Series when it requests a connection.
You can enter up to 31 alphanumeric characters (a-z, A-Z, 0-9) and
underscores but spaces are not allowed.
Note: This must be provided by the ACS administrator.
Connection
Request
Password
Enter the connection request password that the ACS must send to the
MAX208M2W Series when it requests a connection.
You can enter up to 31 alphanumeric characters (a-z, A-Z, 0-9) and
underscores but spaces are not allowed.
Note: This must be provided by the ACS administrator.
CA Certificate
File
Click Browse to upload a Certificate Authority (CA) certificate to the
MAX208M2W Series.
CA Certificate
Info
This displays information about the currently active CA certificate.
Client
Certificate File
Click Browse to upload a client certificate to the MAX208M2W Series.
Client
Certificate Info
This displays information about the currently active client certificate.
Table 66 CWMP (continued)
LABEL DESCRIPTION
Chapter 12Maintenance
MAX208M2W Series User s Guide
174
12.8 OMA-DM
Use this screen to allow remote access to the WiMAX Device from a network
connection over OMA-DM.
Click Maintenance > Remote MGMT > OMA-DM to open this screen as shown
next.
Figure 86 OMA-DM Screen
This screen contains the following fields:
Table 67 OMA-DM
LABEL DESCRIPTION
EnableSelect this to enable remote management using this service.
Server URL Enter the IP address or URL of the OMA-DM server that you intend to
use to manage this device.
Server PortEnter the port number for the IP address of the OMA-DM server set up
in the preceding field.
Server Auth
Type
Select the encryption algorithm scheme used by the OMA-DM server to
communicate with client devices. If the scheme selected here does not
match the actual scheme used by the server, then server will challenge
the MAX208M2W Series to automatically update its settings.
!None - No authentication.
!Basic - Server ID and Password are encoded using a Basic Access
Authentication Code.
!Digest (MD5) - Server ID and Password are encoded using a Digest
Access Authentication Code.
!HMAC - Server ID and Password are encoded using a keyed Hash
Message Authentication Code.
Server ID Enter the identification code for the server. This is used by the
MAX208M2W Series during the communication handshake process to
identify the server.
Chapter 12Maintenance
MAX208M2W Series User s Guide 175
Server
Password
Enter the password for the server s identification code. This shared
public key is used by the MAX208M2W Series during the communication
handshake process to identify the server.
Server Nonce The MAX208M2W Series and the OMA-DM server use nonces to
authenticate each other if you select MD5 as the authentication
algorithm in the Server Auth Type field. Nonce is an abbreviation of
'number used once'. It is normally a random or pseudo-random number
applied in an authentication protocol to protect existing
communications from being reused in $replay attacks .
Type up to 20 digits for the OMA-DM server nonce.
Client Auth
Type
Select the encryption algorithm scheme used by the OMA-DM server to
communicate with client devices. If the scheme selected here does not
match the actual scheme used by the server, then server will challenge
the MAX208M2W Series to automatically update its settings.
!None - No authentication.
!Basic - Server ID and Password are encoded using a Basic Access
Authentication Code.
!Digest (MD5) - Server ID and Password are encoded using a Digest
Access Authentication Code.
!HMAC - Server ID and Password are encoded using a keyed Hash
Message Authentication Code.
Note: Make sure that the scheme selected here matches the the
Server Auth Type.
Client ID Enter the client name for the MAX208M2W Series.
Client Password Enter the password for the MAX208M2W Series s client name.
Client Nonce The MAX208M2W Series and the OMA-DM server use nonces to
authenticate each other if you select MD5 as the authentication
algorithm in the Client Auth Type field.
Type up to 20 digits for the OMA-DM client nonce.
Perodical Client-
Initiated Enable
Select this to allow the MAX208M2W Series to periodically connect to
the OMA-DM server and check for configuration updates.
If you do not enable this feature then the MAX208M2W Series can only
be updated automatically when the OM-DM server initiates contact with
it and if you selected the checkbox on this screen.
Periodical
Client-Initiated
Interval
Enter the time interval (in seconds) at which the MAX208M2W Series
connects to the OMA-DM server.
Table 67 OMA-DM (continued)
LABEL DESCRIPTION
Chapter 12Maintenance
MAX208M2W Series User s Guide
176
12.9 Date
Use these settings to set the system time or configure an NTP server for automatic
time synchronization.
Click Maintenance > Date/Time > Date to open this screen as shown next.
Figure 87 Date Screen
This screen contains the following fields:
Table 68 Date
LABEL DESCRIPTION
Manual
New Time Enter the new time in this field.
New Date Enter the new date in this field.
Get from Time Server
Time
Protocol
Select the time service protocol that your time server uses.Check with
your ISP or network administrator, or use trial-and-error to find a
protocol that works.
!NTP (RFC 1305) - This format is similar to Time (RFC 868).
Time Server
Address 1~4
Enter the IP address or URL of your time server. Check with your ISP or
network administrator if you are unsure of this information.
Chapter 12Maintenance
MAX208M2W Series User s Guide 177
12.10 Time Zone
Use this screen to set the time zone in which the WiMAX device is physically
located.
Click Maintenance > Date/Time > Time Zone to open this screen as shown
next.
Figure 88 Time Zone Screen
This screen contains the following fields:
12.11 Upgrade File
Use this screen to browse to a firmware file on a local computer and upload it to
the WiMAX Device. Firmware files usually use the system model name with a
"*.bin" extension, such as "MAX208M2W Series.bin". The upload process uses
HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a
successful upload, the system restarts.
Contact your service provider for information on available firmware upgrades.
Note: Only use firmware for your MAX208M2W Series s specific model.
Table 69 Time Zone
LABEL DESCRIPTION
Time ZoneSelect the time zone at your location.
Enable Daylight
Savings Time
Select this if your location uses daylight savings time. Daylight savings
is a period from late spring to early fall when many places set their
clocks ahead of normal local time by one hour to give more daytime
light in the evening.
Start DateEnter which hour on which day of which week of which month daylight-
savings time starts.
End DateEnter which hour on the which day of which week of which month
daylight-savings time ends.
Chapter 12Maintenance
MAX208M2W Series User s Guide
178
Click Maintenance > Firmware Upgrade > Upgrade File to open this screen
as shown next.
Figure 89 Upgrade File Screen
This screen contains the following fields:
12.11.1 The Firmware Upload Process
When the MAX208M2W Series uploads new firmware, the process usually takes
about two minutes. The device also automatically restarts in this time. This causes
a temporary network disconnect.
Note: Do not turn off the device while firmware upload is in progress!
After two minutes, log in again, and check your new firmware version in the
Status screen. You might have to open a new browser window to log in.
If the upload is not successful, you will be notified by error message.
Table 70 Upgrade File
LABEL DESCRIPTION
Upgrade FileClick Browse then browse to the location of a firmware upgrade file
and select it.
Upgrade Click this to begin uploading the selected file. This may take up to two
minutes.
Note: Do not turn off the device while firmware upload is in
progress!
Chapter 12Maintenance
MAX208M2W Series User s Guide 179
12.12 Upgrade Link
Use this screen to set the URL of a firmware file on a remote computer and upload
it to the WiMAX Device.
Click Maintenance > Firmware Upgrade > Upgrade Link to open this screen
as shown next.
Figure 90 Upgrade Link Screen
This screen contains the following fields:
12.13 CWMP Upgrade
Use this screen to upgrade the firmware on the WiMAX Device using CWMP
Request Download.
Click Maintenance > Firmware Upgrade > CWMP Upgrade to open this
screen as shown next.
Figure 91 CWMP Upgrade Screen
Table 71 Upgrade Link
LABEL DESCRIPTION
Upgrade LinkEnter the URL or IP address of the firmware s upgrade location on the
network.
Upgrade Click this to begin uploading the selected file. This may take up to two
minutes.
Note: Do not turn off the device while firmware upload is in
progress!
Chapter 12Maintenance
MAX208M2W Series User s Guide
180
This screen contains the following fields:
12.14 Backup
Use this screen to backup your current WiMAX Device settings to a local computer.
Click Maintenance > Backup/Restore > Backup to open this screen as shown
next.
Figure 92 Backup/Restore Screen
This screen contains the following fields:
Table 72 CWMP Upgrade
LABEL DESCRIPTION
Upgrade Click this to begin upgrading firmware using CWMP Request. This may
take up to two minutes.
Note: Do not turn off the device while firmware upload is in
progress!
Table 73 Backup/Restore
LABEL DESCRIPTION
BackupClick this to save the MAX208M2W Series s current configuration to a
file on your computer. Once your device is configured and functioning
properly, it is highly recommended that you back up your configuration
file before making configuration changes. The backup configuration file
is useful if you need to return to your previous settings.
Chapter 12Maintenance
MAX208M2W Series User s Guide 181
12.15 Restore
Use this screen to restore your WiMAX Device settings from a backup file on a
local computer.
Click Maintenance > Backup/Restore > Restore to open this screen as shown
next.
Figure 93 Restore Screen
This screen contains the following fields:
12.15.1 The Restore Configuration Process
When the MAX208M2W Series restores a configuration file, the device
automatically restarts. This causes a temporary network disconnect.
Note: Do not turn off the device while configuration file upload is in progress.
If the MAX208M2W Series s IP address is different in the configuration file you
selected, you may need to change the IP address of your computer to be in the
same subnet as that of the default management IP address (192.168.5.1). See
the Quick Start Guide or the appendices for details on how to set up your
computer s IP address.
You might have to open a new browser to log in again.
Table 74 Restore
LABEL DESCRIPTION
Configuration
File
Click Choose File then browse to the location of a firmware upgrade
file and select it.
Click File Restore to upload the specified configuration to the
MAX208M2W Series and replace the current settings.
Backup
Configuration
File URL
Enter the URL or IP address of the backup configuration file s location
on the network.
Click URL Restore to upload the specified configuration to the
MAX208M2W Series and replace the current settings.
Chapter 12Maintenance
MAX208M2W Series User s Guide
182
If the upload was not successful, you are notified with an error message.
12.16 Factory Defaults
Use this screen to restore the WiMAX Device to its factory default settings.
Click Maintenance > Backup/Restore > Factory Defaults to open this screen
as shown next.
Figure 94 Factory Defaults Screen
This screen contains the following fields:
12.17 Log Setting
Use this screen to configure which type of events on the WiMAX Device are
logged.
Click Maintenance > LOG > Log Setting to open this screen as shown next.
Figure 95 Log Setting Screen
This screen contains the following fields:
Table 75 Factory Defaults
LABEL DESCRIPTION
Reset Click this to clear all user-entered configuration information and return
the MAX208M2W Series to its factory defaults. There is no warning
screen.
Table 76 Log Setting
LABEL DESCRIPTION
Enable LogSelect this to have the MAX208M2W Series log network activity
according to the selected Log Level.
Log LevelSelect the type of logs to record.
Chapter 12Maintenance
MAX208M2W Series User s Guide 183
12.18 Log Display
Use this screen to view the log messages of the WiMAX Device.
Click Maintenance > LOG > Log Display to open this screen as shown next.
Figure 96 Log Display Screen
This screen contains the following fields:
Enable Remote
Log
Select this to allow logs to be recorded and stored on a remote logs
server.
Remote Log
Host
Enter the remote log host IP address if Enable Remote Log is
selected.
Remote Log
Port
Enter the remote log host port if Enable Remote Log is selected.
Table 76 Log Setting (continued)
LABEL DESCRIPTION
Table 77 Log Display
LABEL DESCRIPTION
Display LevelSelect the type of logs to display from this menu.
RefreshClick this to refresh the logs in the display window.
Chapter 12Maintenance
MAX208M2W Series User s Guide
184
12.19 Ping Test
Use this screen to test network connectivity using ping.
Click Maintenance > Network Test > Ping to open this screen as shown next.
Figure 97 Ping Screen
This screen contains the following fields:
12.20 Traceroute Test
Use this screen to test network connectivity using traceroute.
Click Maintenance > Network Test > Traceroute to open this screen as shown
next.
Figure 98 Traceroute Screen
This screen contains the following fields:
Table 78 Ping
LABEL DESCRIPTION
IP AddressEnter the IP address or domain name of a target device to which this
test will send.
PingClick this to start the test. The result will show at the bottom of the
screen.
Table 79 Traceroute
LABEL DESCRIPTION
IP AddressEnter the IP address or domain name of a target device to which this
test will send.
TracerouteClick this to start the test. The result will show at the bottom of the
screen.
Chapter 12Maintenance
MAX208M2W Series User s Guide 185
12.21 About
This screen displays information about the MAX208M2W Series that can be useful
when upgrading firmware, considering deployment options, and working with
technical support if the device encounters difficulties.
Click Maintenance > About to open this screen as shown next.
Figure 99 About Screen
This screen contains the following fields:
12.22 Reboot
Use this screen to perform a software restart of the WiMAX Device. You may log in
again within a few minutes of using the reboot button.
Click Maintenance > Reboot to open this screen as shown next.
Figure 100 Reboot Screen
Table 80 About
LABEL DESCRIPTION
System Model
Name
This field displays the MAX208M2W Series system name. It is used for
identification.
Software
Version
This field displays the Web Configurator software version that the
MAX208M2W Series is currently running.
Firmware
Version
This field displays the current version of the firmware inside the device.
Firmware DateThis field displays the date the firmware version was created.
Bootloader
Version
This field displays the bootloader version.
Chapter 12Maintenance
MAX208M2W Series User s Guide
186
This screen contains the following fields:
Table 81 Reboot
LABEL DESCRIPTION
RebootClick this button to have the device perform a software restart. The
Power LED blinks as it restarts and the shines steadily if the restart is
successful.
Note: Wait one minute before logging back into the MAX208M2W
Series after a restart.
MAX208M2W Series User s Guide 187
CHAPTER 13
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter. The
potential problems are divided into the following categories:
!Power, Hardware Connections, and LEDs
!MAX208M2W Series Access and Login
!Internet Access
!Reset the MAX208M2W Series to Its Factory Defaults
13.1 Power, Hardware Connections, and LEDs
The MAX208M2W Series does not turn on. None of the LEDs turn on.
1Make sure you are using the power adapter or cord included with the MAX208M2W
Series.
2Make sure the power adapter or cord is connected to the MAX208M2W Series and
plugged in to an appropriate power source. Make sure the power source is turned
on.
3Disconnect and re-connect the power adapter or cord to the MAX208M2W Series.
4If the problem continues, contact the vendor.
One of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.2.1 on
page 21 for more information.
2Check the hardware connections. See the Quick Start Guide.
Chapter 13Troubleshooting
MAX208M2W Series User s Guide
188
3Inspect your cables for damage. Contact the vendor to replace any damaged
cables.
4Disconnect and re-connect the power adapter to the MAX208M2W Series.
5If the problem continues, contact the vendor.
13.2 MAX208M2W Series Access and Login
I forgot the IP address for the MAX208M2W Series.
1The default IP address is .
2If you changed the IP address and have forgotten it, you might get the IP address
of the MAX208M2W Series by looking up the IP address of the default gateway for
your computer. To do this in most Windows computers, click Start > Run, enter
cmd, and then enter ipconfig. The IP address of the Default Gateway might be
the IP address of the MAX208M2W Series (it depends on the network), so enter
this IP address in your Internet browser.
3If this does not work, you have to reset the MAX208M2W Series to its factory
defaults. See Section 12.16 on page 182.
I forgot the password.
1The default password is 1234.
2If this does not work, you have to reset the MAX208M2W Series to its factory
defaults. See Section 12.16 on page 182.
I cannot see or access the Login screen in the web configurator.
1Make sure you are using the correct IP address.
!The default IP address is .
!If you changed the IP address (Section 7.6 on page 99), use the new IP
address.
Chapter 13Troubleshooting
MAX208M2W Series User s Guide 189
!If you changed the IP address and have forgotten it, see the troubleshooting
suggestions for I forgot the IP address for the MAX208M2W Series.
2Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide and Section 1.2.1 on page 21.
3Make sure your Internet browser does not block pop-up windows and has
JavaScript and Java enabled. See Appendix C on page 237.
4If there is a DHCP server on your network, make sure your computer is using a
dynamic IP address. Your MAX208M2W Series is a DHCP server by default.
If there is no DHCP server on your network, make sure your computer s IP
address is in the same subnet as the MAX208M2W Series. See Appendix D on
page 247.
5Reset the MAX208M2W Series to its factory defaults, and try to access the
MAX208M2W Series with the default IP address. See Chapter 2 on page 25.
6If the problem continues, contact the network administrator or vendor, or try one
of the advanced suggestions.
Advanced Suggestions
!Try to access the MAX208M2W Series using another service, such as Telnet. If
you can access the MAX208M2W Series, check the remote management
settings and firewall rules to find out why the MAX208M2W Series does not
respond to HTTP.
!If your computer is connected wirelessly, use a computer that is connected to a
LAN/ETHERNET port.
I can see the Login screen, but I cannot log in to the MAX208M2W Series.
1Make sure you have entered the user name and password correctly. The default
user name is admin, and the default password is 1234. These fields are case-
sensitive, so make sure [Caps Lock] is not on.
2You cannot log in to the web configurator while someone is using Telnet to access
the MAX208M2W Series. Log out of the MAX208M2W Series in the other session,
or ask the person who is logged in to log out.
3Disconnect and re-connect the power adapter or cord to the MAX208M2W Series.
4If this does not work, you have to reset the MAX208M2W Series to its factory
defaults. See Section 12.16 on page 182.
Chapter 13Troubleshooting
MAX208M2W Series User s Guide
190
I cannot Telnet to the MAX208M2W Series.
See the troubleshooting suggestions for I cannot see or access the Login screen in
the web configurator. Ignore the suggestions about your browser.
13.3 Internet Access
I cannot access the Internet.
1Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide and Section 1.2.1 on page 21.
2Make sure you entered your ISP account information correctly in the wizard. These
fields are case-sensitive, so make sure [Caps Lock] is not on.
3Check your security settings. See Chapter 8 on page 127.
4Check your WiMAX settings. The MAX208M2W Series may have been set to search
the wrong frequencies for a wireless connection. See Chapter 6 on page 69. If you
are unsure of the correct values, contact your service provider.
5If you are trying to access the Internet wirelessly, make sure the wireless settings
in the wireless client are the same as the settings in the AP.
6Disconnect all the cables from your MAX208M2W Series, and follow the directions
in the Quick Start Guide again.
7If the problem continues, contact your ISP.
I cannot access the Internet any more. I had access to the Internet (with the
MAX208M2W Series), but my Internet connection is not available any more.
1Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide and Section 1.2.1 on page 21.
2Disconnect and re-connect the power adapter to the MAX208M2W Series.
Chapter 13Troubleshooting
MAX208M2W Series User s Guide 191
3If the problem continues, contact your ISP.
The Internet connection is slow or intermittent.
1The quality of the MAX208M2W Series s wireless connection to the base station
may be poor. Poor signal reception may be improved by moving the MAX208M2W
Series away from thick walls and other obstructions, or to a higher floor in your
building.
2There may be radio interference caused by nearby electrical devices such as
microwave ovens and radio transmitters. Move the MAX208M2W Series away or
switch the other devices off. Weather conditions may also affect signal quality.
3There might be a lot of traffic on the network. Look at the LEDs, and check Section
1.2.1 on page 21. If the MAX208M2W Series is sending or receiving a lot of
information, try closing some programs that use the Internet, especially peer-to-
peer applications.
4Disconnect and re-connect the power adapter to the MAX208M2W Series.
5If the problem continues, contact the network administrator or vendor, or try one
of the advanced suggestions.
The Internet connection disconnects.
1Check your WiMAX link and signal strength using the Strength Indicator LEDs
on the device.
2Contact your ISP if the problem persists.
13.4 Reset the MAX208M2W Series to Its Factory
Defaults
If you reset the MAX208M2W Series, you lose all of the changes you have made.
The MAX208M2W Series re-loads its default settings, and the password resets to
1234. You have to make all of your changes again.
Chapter 13Troubleshooting
MAX208M2W Series User s Guide
192
You will lose all of your changes when you push the Reset button.
To reset the MAX208M2W Series,
1Make sure the Power LED is on and not blinking.
2Press and hold the Reset button for five to ten seconds. Release the Reset button
when the Power LED begins to blink. The default settings have been restored.
If the MAX208M2W Series restarts automatically, wait for the MAX208M2W Series
to finish restarting, and log in to the web configurator. The password is "1234#.
If the MAX208M2W Series does not restart automatically, disconnect and
reconnect the MAX208M2W Series s power. Then, follow the directions above
again.
13.4.1 Pop-up Windows, JavaScript and Java Permissions
Please see Appendix C on page 237.
MAX208M2W Series User s Guide 193
CHAPTER 14
Product Specifications
This chapter gives details about your MAX208M2W Series s hardware and
firmware features.
Table 82 Environmental and Hardware Specifications
FEATUREDESCRIPTION
Operating Temperature0°C to 45°C
Storage Temperature-25°C to 55°C
Operating Humidity10% ~ 95% (non-condensing)
Storage Humidity 10% to 95% (non-condensing)
Power Supply12V DC, 2A
Power consumption24 Watts maximum
Ethernet InterfaceTwo auto-negotiating, auto-MDI/MDI-X NWay 10/100 Mbps
RJ-45 Ethernet ports
Telephony InterfaceTwo analog ATA interfaces for standard telephones through
RJ-11 FXS (Foreign Exchange Subscriber) analog connector
AntennasTwo 6 +/- 0.5dBi Omni directional antennas
Weight493g
Dimensions259 mm (W) x 93 mm (D) x 164 mm (H)
Certification !FCC - MAX208M2W; CE - MAX218M2W
!Comply with WiMAX Forum Wave II standard.
!WEEE Eco directive 2002/95/EC. Full RoHS (6/6)
!2002/96/EC (WEEE) (WEEE) Waste Electrical and
Electronic Equipment Directive
!EEE (Proposal for Directive on Environmental
Impacts of Electrical and Electronic Equipment).
!Reach Compliance
!EMC
o EN 301 489-1 and EN 301 489-17. Emission class B.
!RF ETSI
o EN 302 326
!Safety
o IEC 60950-1 and EN 60950-1.
Chapter 14Product Specifications
MAX208M2W Series User s Guide
194
Table 83 Radio Specifications
FEATUREDESCRIPTION
Media Access ProtocolIEEE 802.16e
WiMAX Bandwidth3.4 GHz ~ 3.6 GHz (MAX218M2W)
2.496 GHz~2.690 GHz (MAX208M2W)
Data RateAggregate throughput: up to 20 mbps
Upload: 7 mbps
ModulationQPSK (uplink and downlink)
16-QAM (uplink and downlink)
64-QAM (downlink only)
Output PowerTypically 26.5 dBm with internal antennas
Duplex modeTime Division Duplex (TDD)
SecurityPKMv2
EAP-TTLS/CHAP/PAP/MSCHAP/MSCHAPv2
CMAC message autentication
CCM mode 128-bit AES data ciphering
Device authentication
WiMAX Forum X.509 certificates
Table 84 Firmware Specifications
FEATUREDESCRIPTION
Web-based Configuration
and Management Tool
Also known as "the web configurator#, this is a firmware-
based management solution for the MAX208M2W Series. You
must connect using a compatible web browser in order to use
it.
High Speed Wireless
Internet Access
The MAX208M2W Series is ideal for high-speed wireless
Internet browsing.
WiMAX (Worldwide Interoperability for Microwave Access) is a
wireless networking standard providing high-bandwidth,
wide-range secured wireless service. The MAX208M2W Series
is a WiMAX mobile station (MS) compatible with the IEEE
802.16e standard.
FirewallThe MAX208M2W Series is a stateful inspection firewall with
DoS (Denial of Service) protection. By default, when the
firewall is activated, all incoming traffic from the WAN to the
LAN is blocked unless it is initiated from the LAN. The
MAX208M2W Series s firewall supports TCP/UDP inspection,
DoS detection and prevention, real time alerts, reports and
logs.
Content FilteringThe MAX208M2W Series can block access to web sites
containing specified keywords. You can define time periods
and days during which content filtering is enabled and include
or exclude a range of users on the LAN from content filtering.
Chapter 14Product Specifications
MAX208M2W Series User s Guide 195
Network Address
Translation (NAT)
Network Address Translation (NAT) allows the translation of
an Internet protocoladdress used within one network (for
example a private IP address used in a local network) to a
different IP address known withinanother network (for
example a public IP address used on the Internet).
Universal Plug and Play
(UPnP)
Your device and other UPnP enabled devices can use the
standard TCP/IP protocol to dynamically join a network,
obtain an IP address and convey their capabilities to each
other.
Dynamic DNS SupportWith Dynamic DNS support, you can have a static hostname
alias for a dynamic IP address, allowing the host to be more
easily accessible from various locations on the Internet. You
must register for this service with a Dynamic DNS service
provider.
DHCPDHCP (Dynamic Host Configuration Protocol) allows the
individual clients (computers) to obtain the TCP/IP
configuration at start-up from a centralized DHCP server. Your
device has built-in DHCP server capability enabled by default.
It can assign IP addresses, an IP default gateway and DNS
servers to DHCP clients. Your device can also act as a
surrogate DHCP server (DHCP Relay) where it relays IP
address assignment from the actual real DHCP server to the
clients.
IP AliasIP alias allows you to partition a physical network into logical
networks over the same Ethernet interface. Your device
supports three logical LAN interfaces via its single physical
Ethernet interface with the your device itself as the gateway
for each LAN network.
Multiple SIP AccountsYou can configure multiple voice (SIP) accounts.
SIP ALGYour device is a SIP Application Layer Gateway (ALG). It
allows VoIP calls to pass through NAT for devices behind it
(such as a SIP-based VoIP software application on a
computer).
Dynamic Jitter BufferThe built-in adaptive buffer helps to smooth out the
variations in delay (jitter) for voice traffic (up to 60 ms). This
helps ensure good voice quality for your conversations.
Voice Activity Detection/
Silence Suppression
Voice Activity Detection (VAD) reduces the bandwidth that a
call uses by not transmitting when you are not speaking.
Comfort Noise GenerationYour device generates background noise to fill moments of
silence when the other device in a call stops transmitting
because the other party is not speaking (as total silence
could easily be mistaken for a lost connection).
Echo Cancellation You device supports G.168 of at least 24 ms.
This an ITU-T standard for eliminating the echo caused by the
sound of your voice reverberating in the telephone receiver
while you talk.
Time and DateGet the current time and date from an external server when
you turn on your MAX208M2W Series. You can also set the
time manually.
Table 84 Firmware Specifications (continued)
FEATUREDESCRIPTION
Chapter 14Product Specifications
MAX208M2W Series User s Guide
196
LoggingUse the MAX208M2W Series s logging feature to view
connection history, surveillance logs, and error messages.
CodecsG.711 (PCM µ-law and a-law), G729, G.729a
Fax SupportT.38 FAX relay (FAX over UDP).
G.711 fax relay for fax calls and be able to renegotiate codec
to G.711 if a fax call is detected.
Ring TonesSupports different distinctive ring tones on each line.
Call PrioritizationPrioritize VoIP traffic originating from the RJ-11 ports over
any other traffic.
Table 85 Standards Supported
STANDARD DESCRIPTION
RFC 768User Datagram Protocol
RFC 791Internet Protocol v4
RFC 792Internet Control Message Protocol
RFC 792Transmission Control Protocol
RFC 826Address Resolution Protocol
RFC 854Telnet Protocol
RFC 1112IGMPv2
RFC 1349Type of Service Protocol
RFC 1706DNS NSAP Resource Records
RFC 1889Real-time Transport Protocol (RTP)
RFC 1890Real-time Transport Control Protocol (RTCP)
RFC 2030Simple Network Time Protocol
RFC 2104HMAC: Keyed-Hashing for Message Authentication
RFC 2236IGMPv2
RFC 2131Dynamic Host Configuration Protocol
RFC 2401Security Architecture for the Internet Protocol
RFC 2409Internet Key Exchange
RFC 2475Architecture for Differentiated Services (Diffserv)
RFC 2543SIP Protocol
RFC 2617Hypertext Transfer Protocol (HTTP) Authentication: Basic and
Digest Access Authentication
RFC 2782A DNS RR for specifying the location of services (DNS SRV)
RFC 2833Real-time Transport Protocol Payload for DTMF Digits, Telephony
Tones and Telephony Signals
RFC 2976The SIP INFO Method
RFC 3261Session Initiation Protocol (SIP version 2)
RFC 3262Reliability of Provisional Responses in the Session Initiation
Protocol (SIP).
Table 84 Firmware Specifications (continued)
FEATUREDESCRIPTION
Chapter 14Product Specifications
MAX208M2W Series User s Guide 197
RFC 3263Session Initiation Protocol (SIP): Locating SIP Servers
RFC 3264An Offer/Answer Model with the Session Description Protocol
(SDP)
RFC 3265Session Initiation Protocol (SIP)-Specific Event Notification
RFC 3323A Privacy Mechanism for SIP
RFC 3325Private Extensions to the Session Initiation Protocol (SIP) for
Asserted Identity within Trusted Networks
RFC 3489NAT Traversal - STUN
RFC 3550RTP - A Real Time Protocol for Real-Time Applications
RFC 3581An Extension to the Session Initiation Protocol (SIP) for
Symmetric Response Routing
RFC 3611RTP Control Protocol Extended Reports (RTCP XR)-XR
RFC 3715IP Sec/NAT Compatibility
RFC 3842A Message Summary and Message Waiting Indication Event
Package for the Session Initiation Protocol (SIP)
IEEE 802.310BASE5 10 Mbit/s (1.25 MB/s)
IEEE 802.3u100BASE-TX, 100BASE-T4, 100BASE-FX Fast Ethernet at 100
Mbit/s (12.5 MB/s) with auto-negotiation
Table 86 Voice Features
Call Park and
Pickup
Call park and pickup lets you put a call on hold (park) and then
continue the call (pickup). The caller must still pay while the call is
parked.
When you park the call, you enter a number of your choice (up to
eight digits), which you must enter again when you pick up the call. If
you do not enter the correct number, you cannot pickup the call. This
means that only someone who knows the number you have chosen
can pick up the call.
You can have more than one call on hold at the same time, but you
must give each call a different number.
Call ReturnWith call return, you can place a call to the last number that called
you (either answered or missed). The last incoming call can be
through either SIP or PSTN.
Country CodePhone standards and settings differ from one country to another, so
the settings on your MAX208M2W Series must be configured to match
those of the country you are in. The country code feature allows you
to do this by selecting the country from a list rather than changing
each setting manually. Configure the country code feature when you
move the MAX208M2W Series from one country to another.
Do not Disturb
(DnD)
This feature allows you to set your phone not to ring when someone
calls you. You can set each phone independently using its keypad, or
configure global settings for all phones using the command line
interpreter.
Table 85 Standards Supported (continued)
STANDARD DESCRIPTION
Chapter 14Product Specifications
MAX208M2W Series User s Guide
198
Auto DialYou can set the MAX208M2W Series to automatically dial a specified
number immediately whenever you lift a phone off the hook. Use the
Web Configurator to set the specified number. Use the command line
interpreter to have the MAX208M2W Series wait a specified length of
time before dialing the number.
Phone configThe phone configuration table allows you to customize the phone
keypad combinations you use to access certain features on the
MAX208M2W Series, such as call waiting, call return, call forward,
etc. The phone configuration table is configurable in command
interpreter mode.
Firmware update
enable / disable
If your service provider uses this feature, you hear a recorded
message when you pick up the phone when new firmware is available
for your MAX208M2W Series. Enter *99# in your phone s keypad to
have the MAX208M2W Series upgrade the firmware, or enter #99# to
not upgrade. If your service provider gave you different numbers to
use, enter them instead. If you enter the code to not upgrade, you
can make a call as normal. You will hear the recording again each
time you pick up the phone, until you upgrade.
Call waitingThis feature allows you to hear an alert when you are already using
the phone and another person calls you. You can then either reject
the new incoming call, put your current call on hold and receive the
new incoming call, or end the current call and receive the new
incoming call.
Call forwardingWith this feature, you can set the MAX208M2W Series to forward calls
to a specified number, either unconditionally (always), when your
number is busy, or when you do not answer. You can also forward
incoming calls from one specified number to another.
Caller IDThe MAX208M2W Series supports caller ID, which allows you to see
the originating number of an incoming call (on a phone with a
suitable display).
RENA Ringer Equivalence Number (REN) is used to determine the number
of devices (like telephones or fax machines) that may be connected
to the telephone line. Your device has a REN of three, so it can
support three devices per telephone port.
QoS (Quality of
Service)
Quality of Service (QoS) mechanisms help to provide better service
on a per-flow basis. Your device supports Type of Service (ToS)
tagging and Differentiated Services (DiffServ) tagging. This allows
the device to tag voice frames so they can be prioritized over the
network.
Table 86 Voice Features
Chapter 14Product Specifications
MAX208M2W Series User s Guide 199
SIP ALGYour device is a SIP Application Layer Gateway (ALG). It allows VoIP
calls to pass through NAT for devices behind it (such as a SIP-based
VoIP software application on a computer).
Other Voice
Features
SIP version 2 (Session Initiating Protocol RFC 3261)
SDP (Session Description Protocol RFC 2327)
RTP (RFC 1889)
RTCP (RFC 1890)
Voice codecs (coder/decoders) G.711, G.726, G.729
Fax and data modem discrimination
DTMF Detection and Generation
DTMF: In-band and Out-band traffic (RFC 2833),(PCM), (SIP INFO)
Point-to-point call establishment between two IADs
Quick dialing through predefined phone book, which maps the phone
dialing number and destination URL.
Flexible Dial Plan (RFC3525 section 7.1.14)
Table 87 Star (*) and Pound (#) Code Support
*0Wireless Operator Services
*2Customer Care Access
*66Repeat Dialing
*67Plus the 10 digit phone number to block Caller ID on a single call
basis
*69Return last call received
*70Followed by the 10 digit phone number to cancel Call Waiting on a
single call basis
*72Activate Call Forwarding (*72 followed by the 10 digit phone number
that is requesting call forwarding service)
*720Activate Call Forwarding (*720 followed by the 10 digit phone number
that is requesting deactivation of call forwarding service)
*73Plus the forward to phone number to activate Call Forwarding No
Answer (no VM service plan)
*730Deactivate Call Forwarding No Answer
*740Plus the forward to phone number to activate Call Forwarding Busy
(no VM service plan)
*911/911Emergency phone number (same as dialing 911)
*411/411Wireless Information Services
Table 86 Voice Features
Chapter 14Product Specifications
MAX208M2W Series User s Guide
200
Note: To take full advantage of the supplementary phone services available through
the MAX208M2W Series's phone port, you may need to subscribe to the
services from your voice account service provider.
Not all features are supported by all service providers. Consult your service
provider for more information.
