System
Operating manual
FUJITSU Tablet STYLISTIC Q736
Congratulations on your purchase of an innovative
product from Fujitsu.
The latest information about our products, tips, updates etc. can be found
on the Internet at: "http://www.fujitsu.com/fts/"
You can find driver updates at: "http://support.ts.fujitsu.com/download"
Should you have any technical questions, please contact:
• our Hotline/Service Desk (see the Service Desk list or visit:
"http://support.ts.fujitsu.com/contact/servicedesk")
• Your sales partner
• Your sales office
We hope you enjoy working with your new Fujitsu system!
Published by / Contact address in the EU
Fujitsu Technology Solutions GmbH
Mies-van-der-Rohe-Straße 8
80807 Munich, Germany
"http://www.fujitsu.com/fts/"
Copyright
©Fujits
u Technology Solutions GmbH 2016. All rights reserved.
Publication Date
03/2016
Order No.: A26391-K448-Z320-1-7619, edition 1
FUJITSU Tablet STYLISTIC Q736
Operating manual
Innovative technology 7

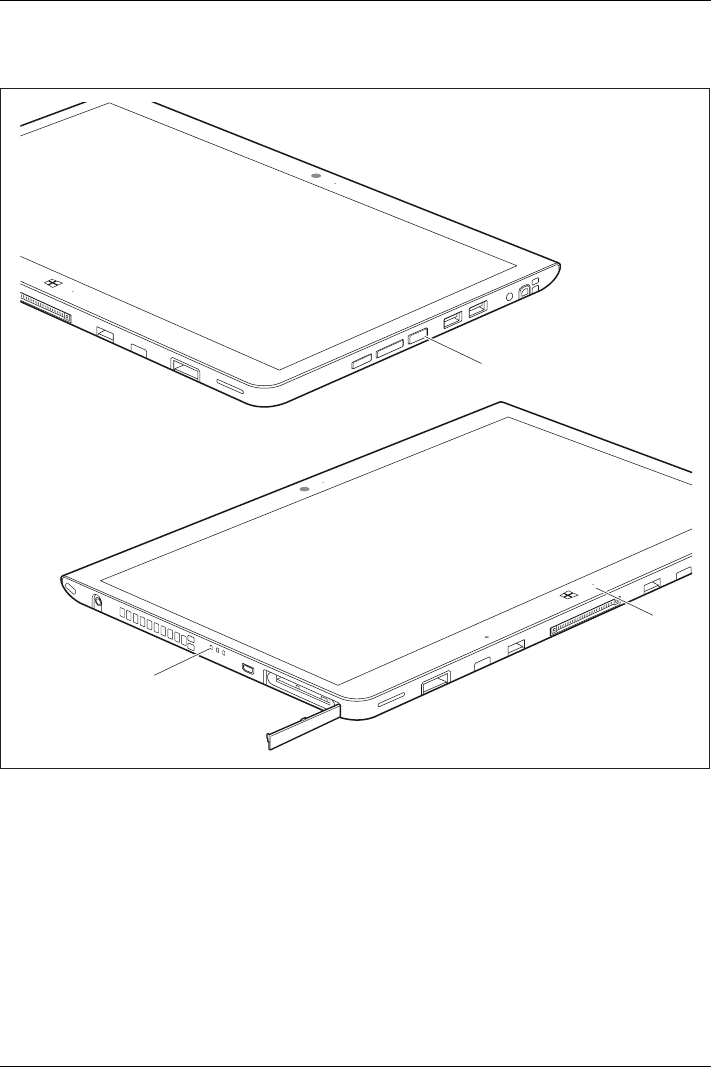

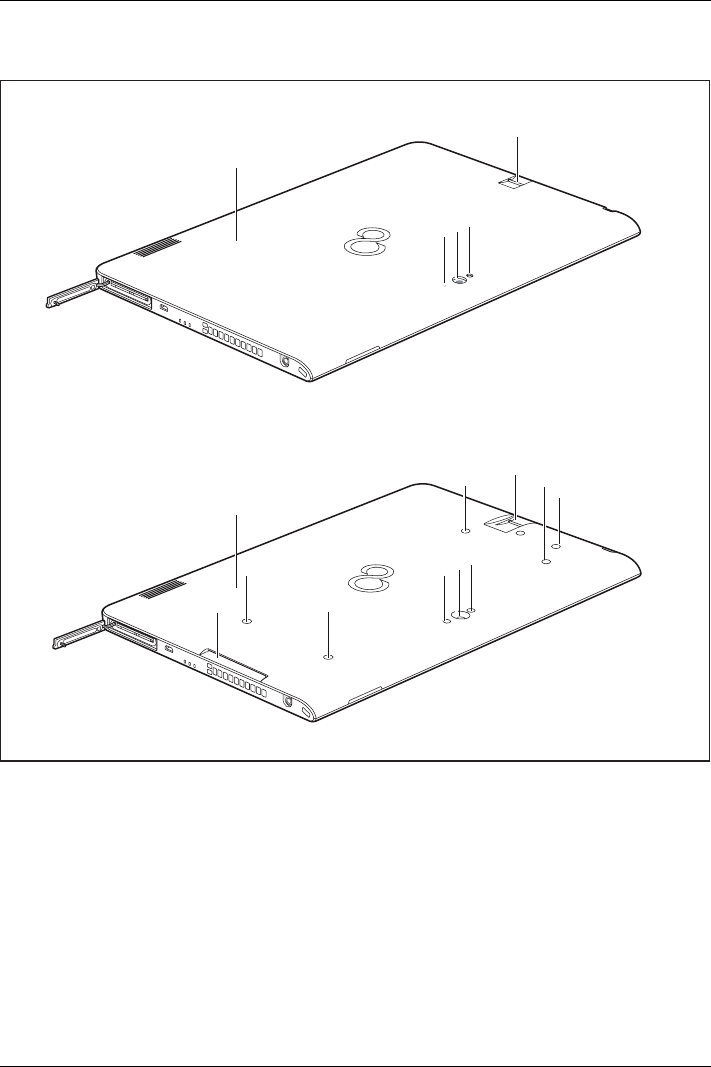

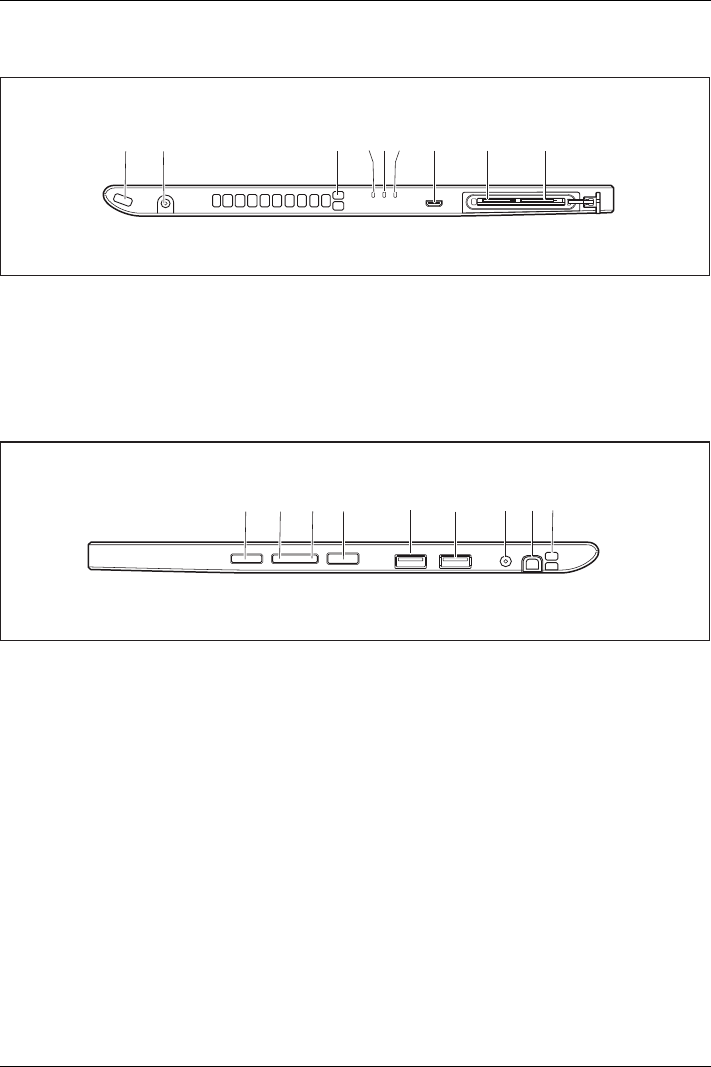

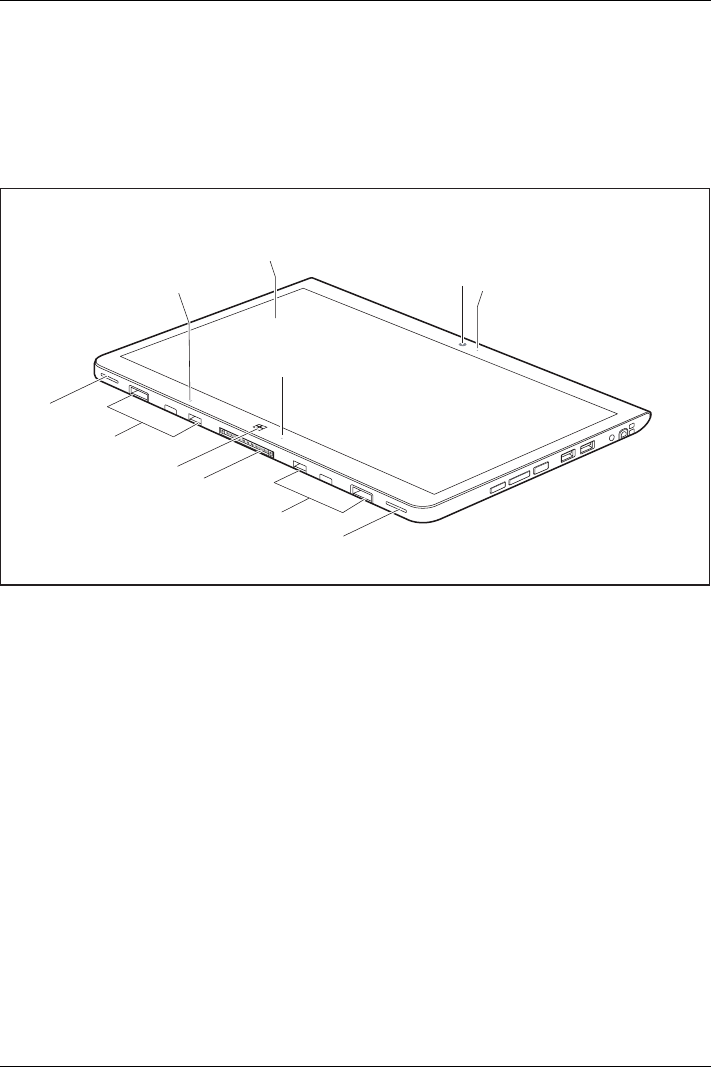

Ports and controls 9
Important notes 12
First-time setup of your device 16
WorkingwiththeTabletPC 20
Accessories for your Tablet PC
(optional) 36
Security functions 57
Connecting external devices 67
Settings in BIOS Setup Utility 72
Troubleshooting and tips 75
Technical data 85
Manufacturer’s notes 91
Index 99
Remarks
Information on the product description meets the design specifications of Fujitsu and
is provided for comparison purposes. Several factors may cause the actual results to
differ. Technical data is subject to change without prior notification. Fujitsu rejects any
responsibility with regard to technical or editorial mistakes or omissions.
Trademarks
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the USA and other countries.
Microsoft and Windows are trademarks or registered trademarks of Microsoft
Corporation in the USA and/or other countries.
Adobe Reader is a trademark of Adobe Systems Incorporated.
All other trademarks specified here are the property of their respective owners.
Copyright
No part of this publication may be copied, reproduced or translated without
the prior written consent of Fujitsu.
No part of this publication may be saved or transferred by any electronic means
without the written approval of Fujitsu.
Contents
Contents
Innovative technology ................................................................. 7
Furtherinformation ...................................................................... 7
Notational conventions .................................................................. 8
Ports and controls ..................................................................... 9
Importantnotes ........................................................................ 12
Safetynotes ............................................................................ 12
Additional safety notes for devices with wireless components . . ............................. 12
Protecting thedisplay screen ............................................................ 13
Energysaving .......................................................................... 13
Energy saving under Windows ....................................................... 13
Travelling withyourTablet PC ............................................................ 14
Beforeyoutravel ................................................................... 14
TransportingtheTablet PC ........................................................... 14
CleaningtheTablet PC .................................................................. 15
First-time setup of yourdevice ......................................................... 16
Unpacking and checking the device ...................................................... 16
Selectingalocat
ion ..................................................................... 17

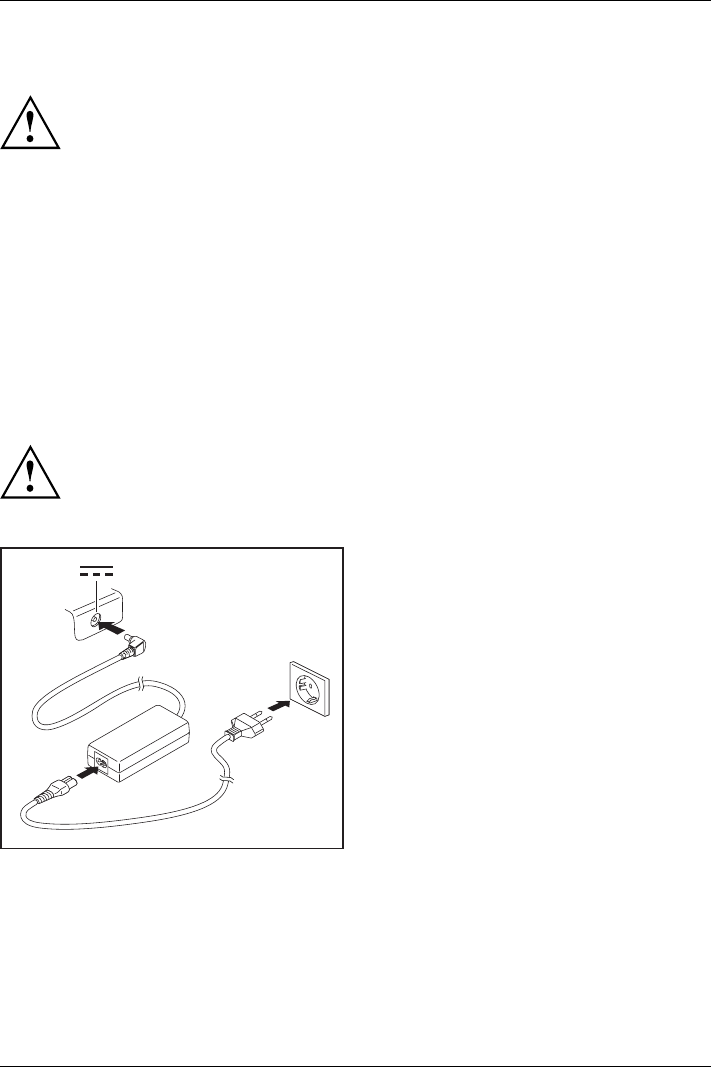

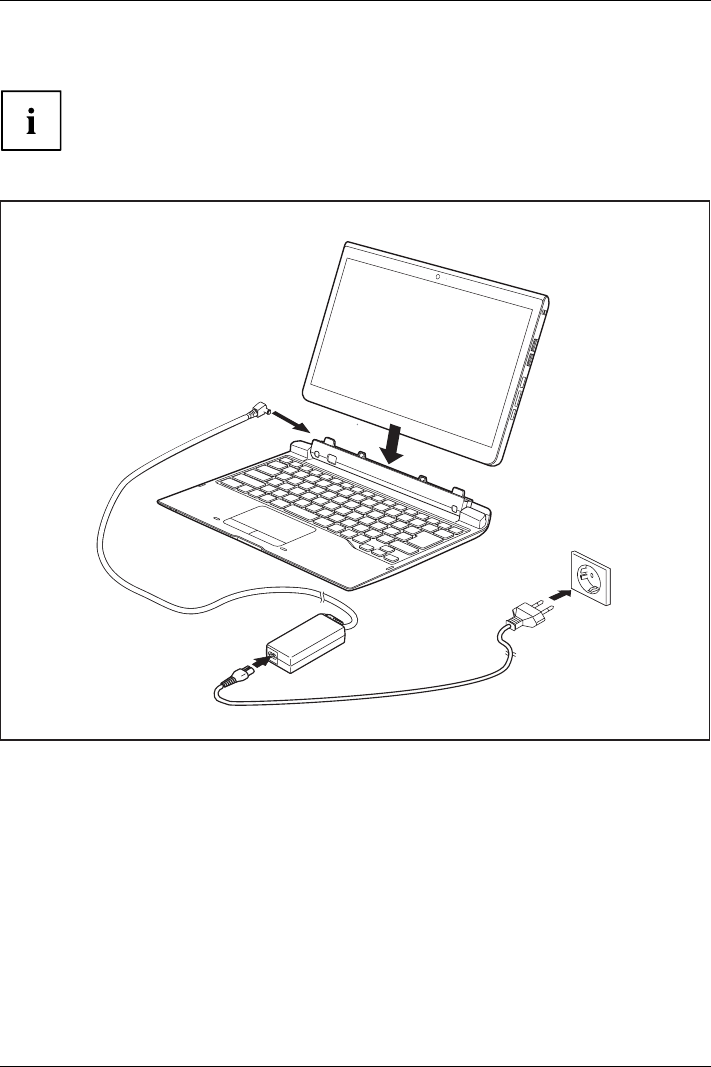

Mains adapter connecting . . . . ........................................................... 17
Switchingonthedevice for the firsttime .................................................. 18
Working with the TabletPC ............................................................ 20

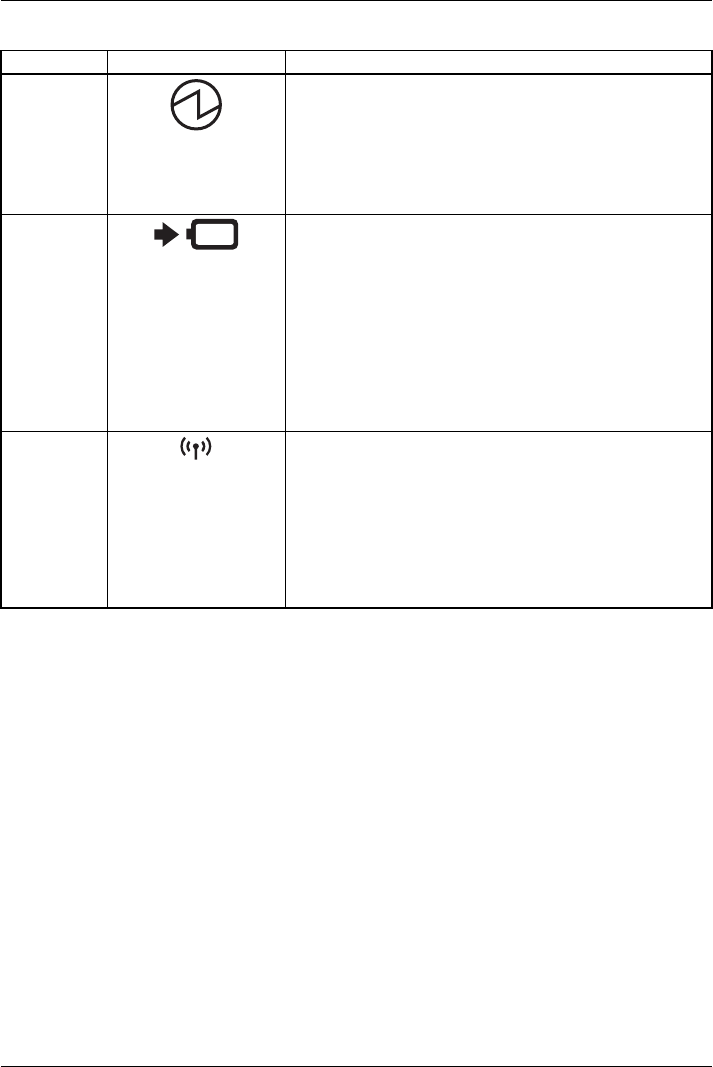

Statusindicators ........................................................................ 20
Switching on the TabletPC .............................................................. 22
Programming theON/OFFbutton ..................................................... 23
Switching the TabletPC off .............................................................. 23
Handwriting recognition .................................................................. 23
Touch screen ........................................................................... 23
Selectdisplay orientation(portraitorlandscapeorientation) ................................. 25
Using fingers . .......................................................................... 25
Calibrate the Dual Digitizer for finger-based operation of the device ..................... 25

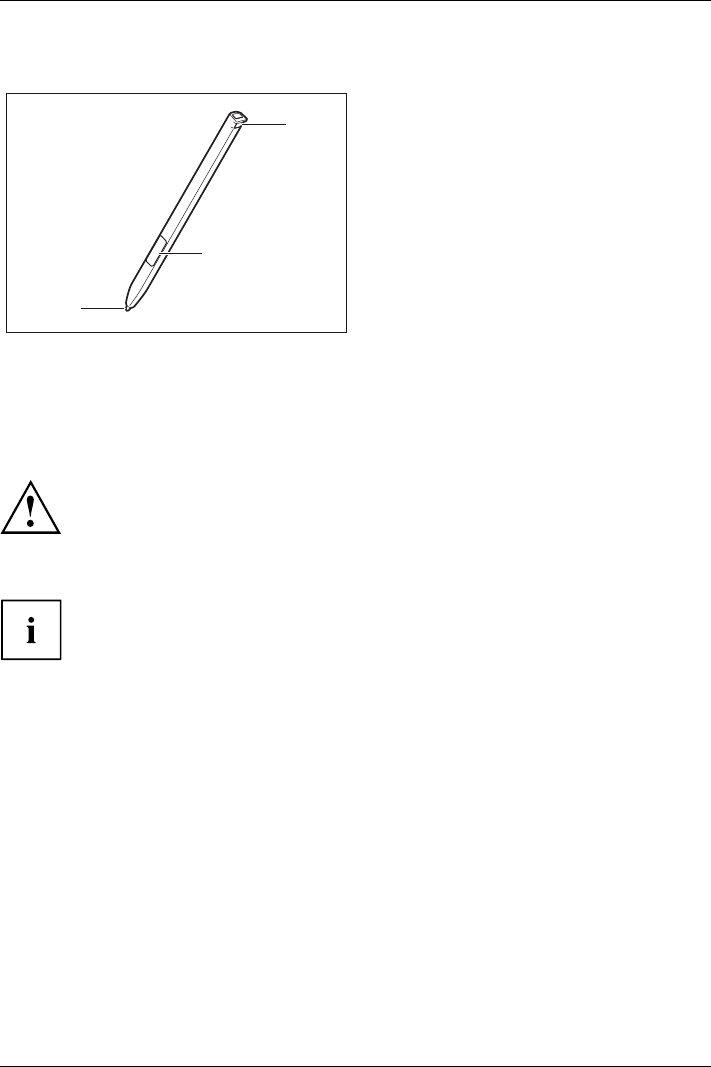

Usingthe pen .......................................................................... 26
Pen position ........................................................................ 27
Settingthepen ...................................................................... 27
Calibratingthepen .................................................................. 28

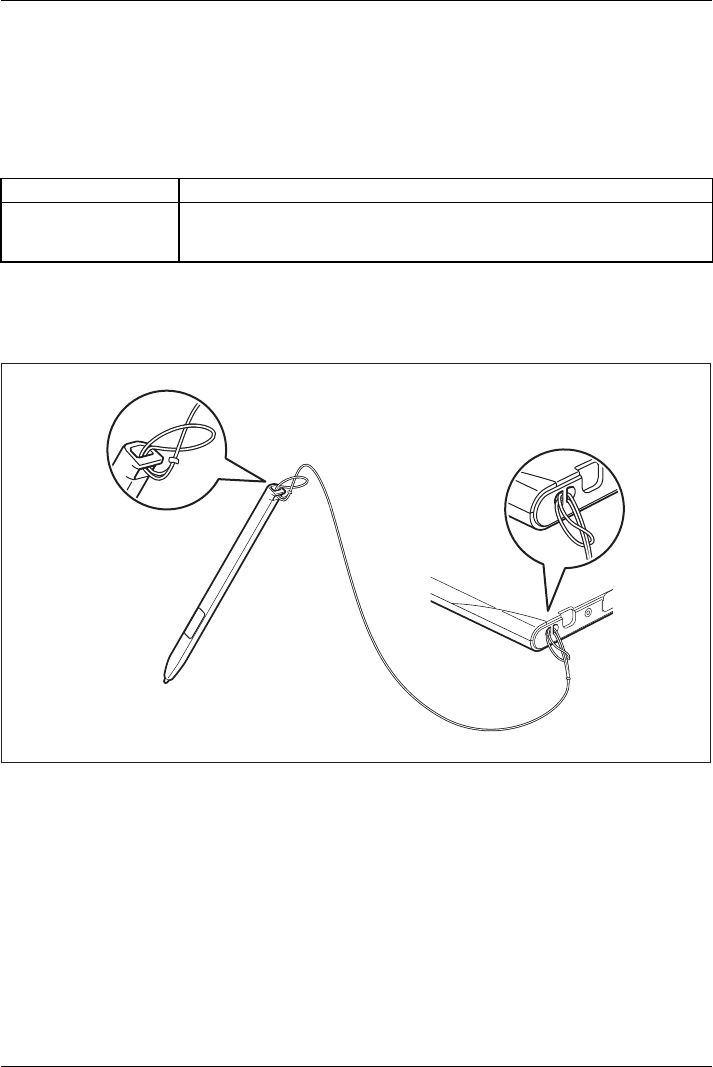

Securing the pen tether (optional) . . ................................................... 28

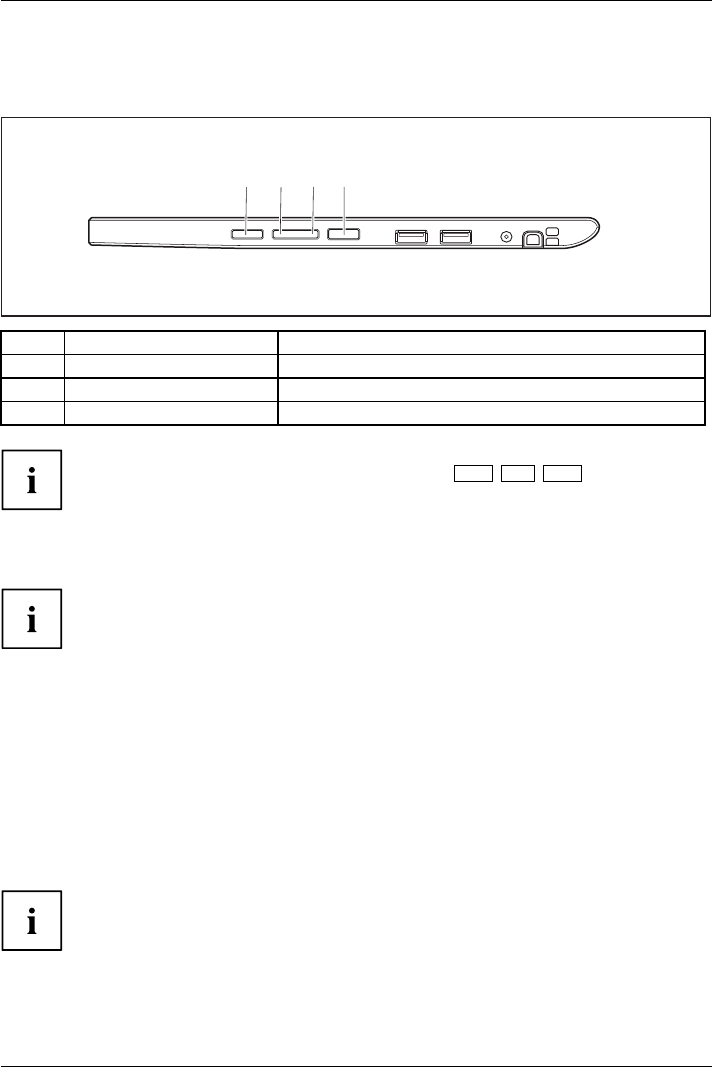

Tablet buttons .......................................................................... 29
Camera ................................................................................ 29
Rechargeablebattery ................................................................... 30
Charging and maintainingthebattery ................................................. 30
Usingthe power-management features ................................................... 31
Memory cards .......................................................................... 31
Supported formats .................................................................. 31

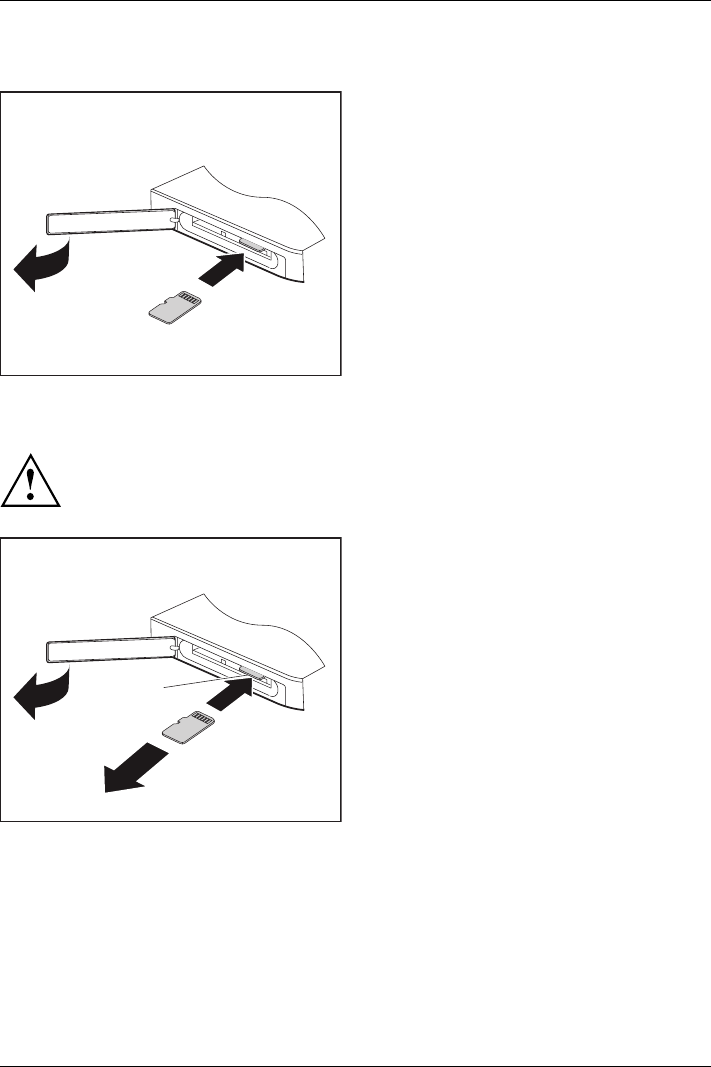

Inserting thememorycard ........................................................... 32
Removingthememorycard .......................................................... 32
SIM card ............................................................................... 33

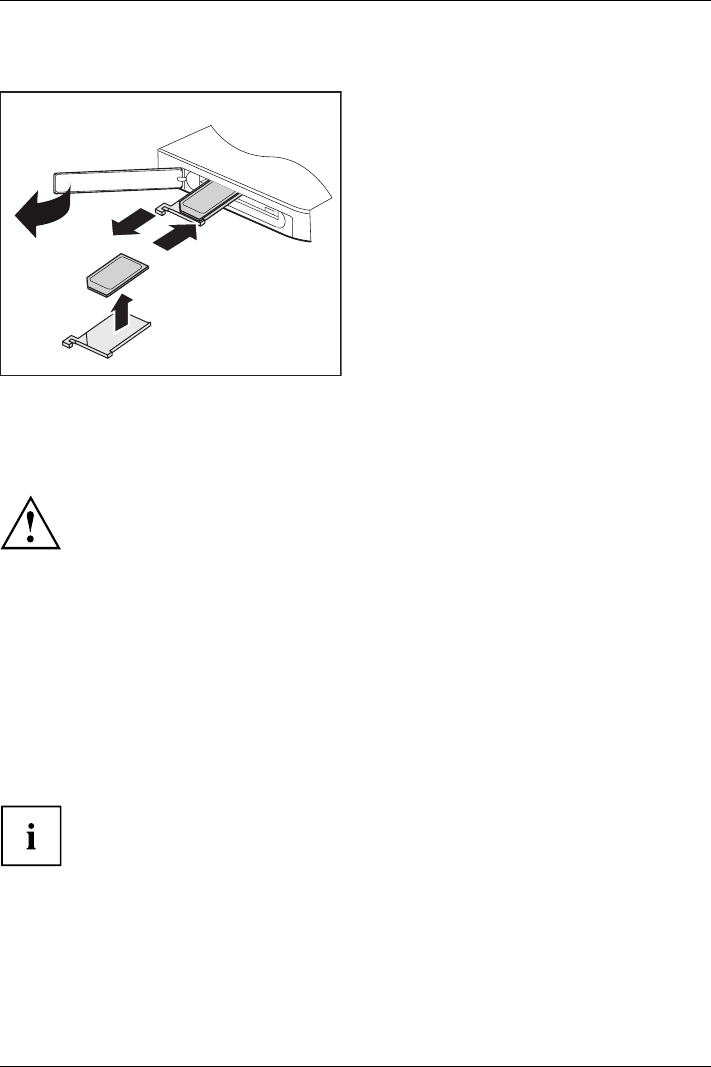

Inserting theSIM card ............................................................... 33
RemovingtheSIMcard .............................................................. 34
Wireless LAN / Bluetooth / UMTS / LTE / NFC wireless components (dependent on
configuration) ........................................................................... 34
Fujitsu 3
Contents
Switching the wireless components on and off ......................................... 34
SettingupWLAN access ............................................................ 34
NFC (Near Field Communication, dependent on configuration) .......................... 34
AccessviaUMTS /LTE .............................................................. 35

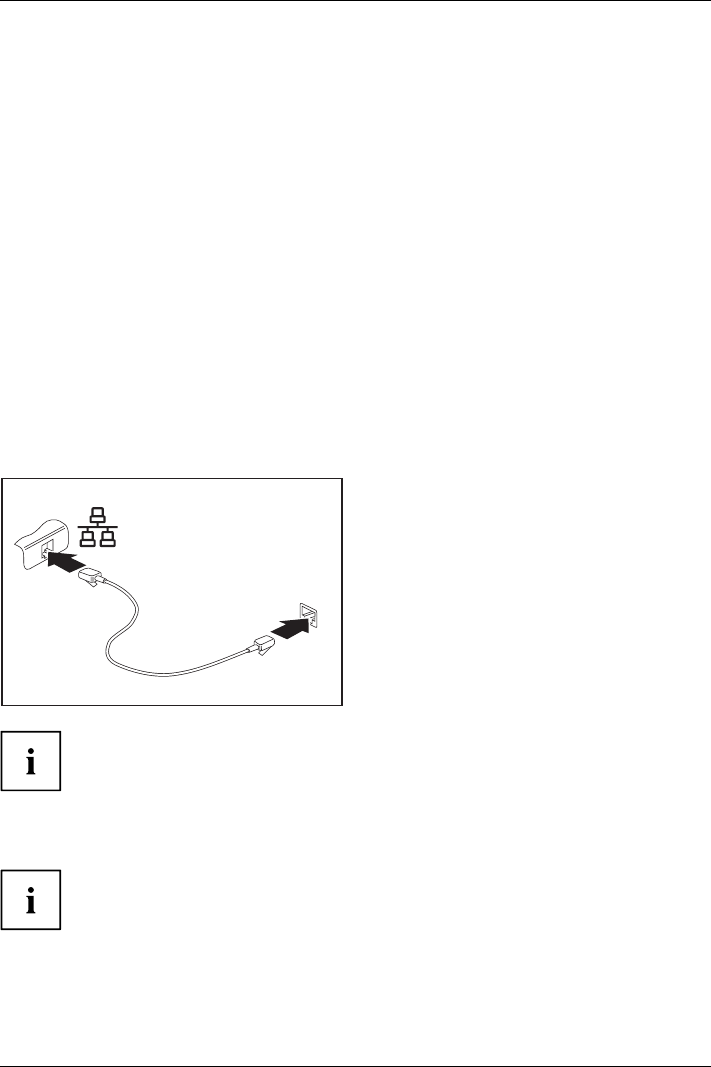

Ethernet and LAN (only cradle or keyboard dock) . ......................................... 35
GPS ................................................................................... 35
Accessories for your Tablet PC (optional) . ............................................. 36
Your cradle (optional) . . . . ................................................................ 37

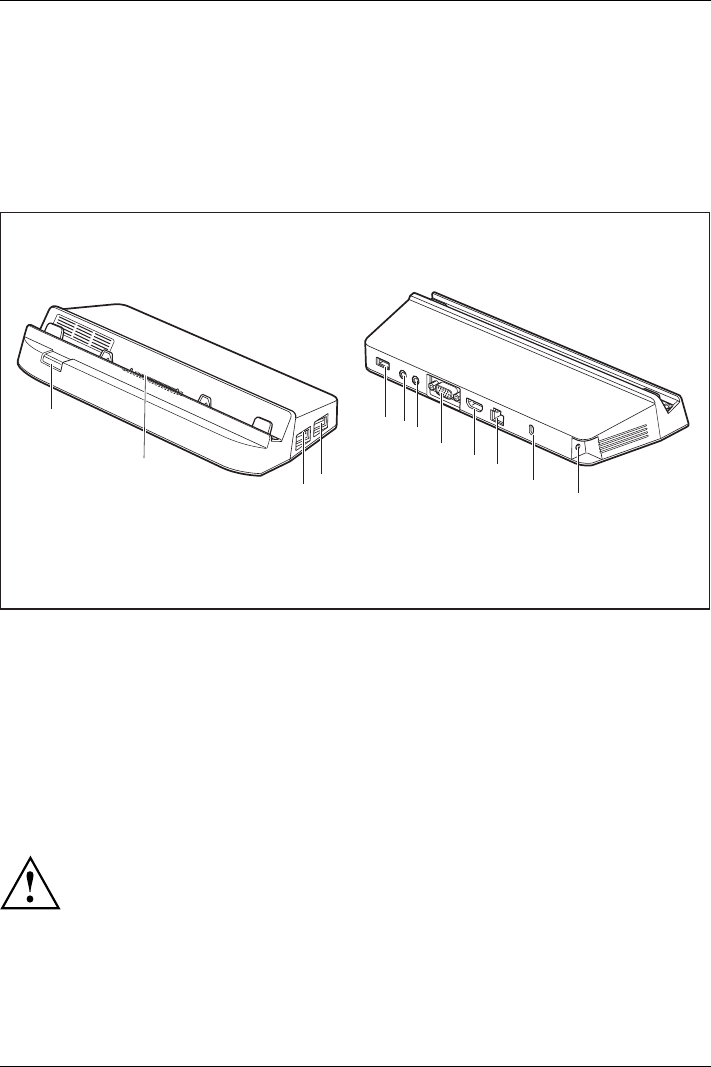

Cradle components . . ................................................................ 37
Settingupthecradle ................................................................ 37

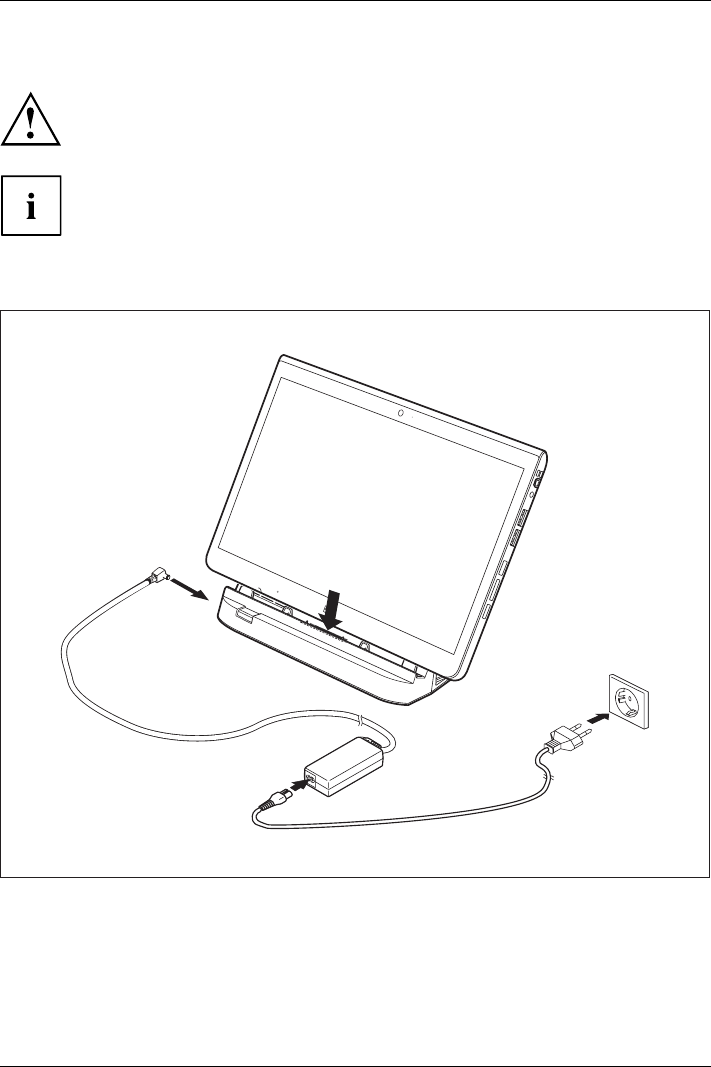

Connecting the Tablet PC to the cradle . . . ............................................. 38

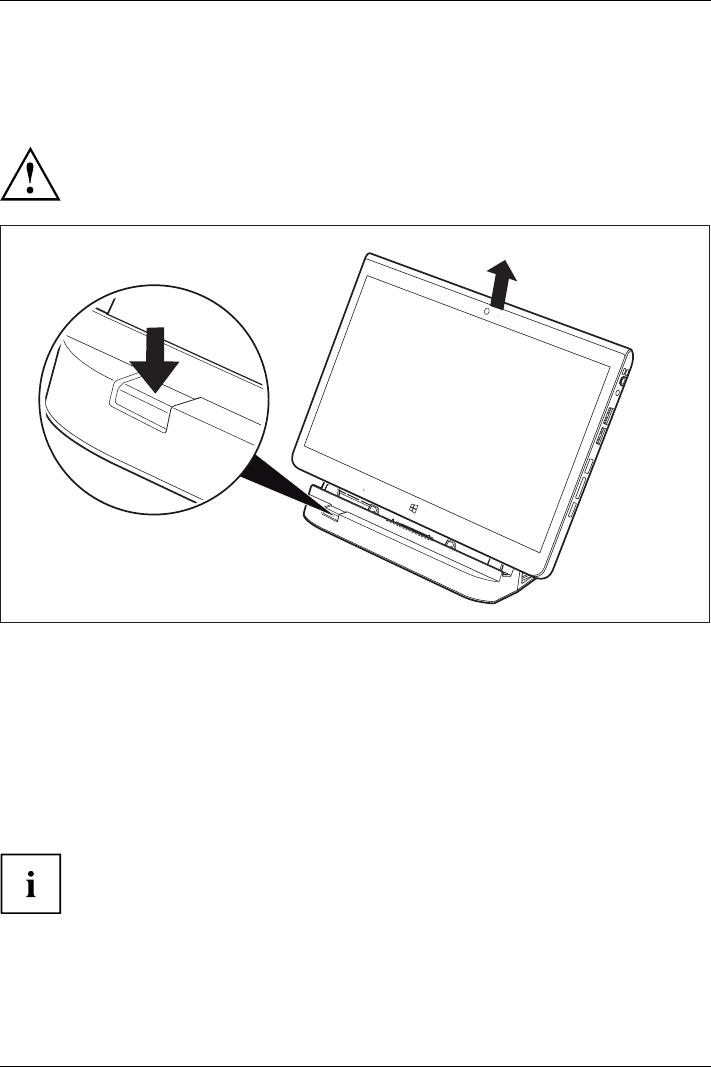

Disconnecting the Tablet PC from the cradle . . ......................................... 39
Keyboard dock (optional) ................................................................ 39
Connections on the keyboard dock . . ................................................. 40
Connecting the Tablet PC to the keyboard dock . . . . . . .................................. 42
Disconnecting the Tablet PC from the keyboard dock . .................................. 43
Removable battery of the keyboard dock (optional) . . . .................................. 44
VESA mount (optional) . . ................................................................ 47

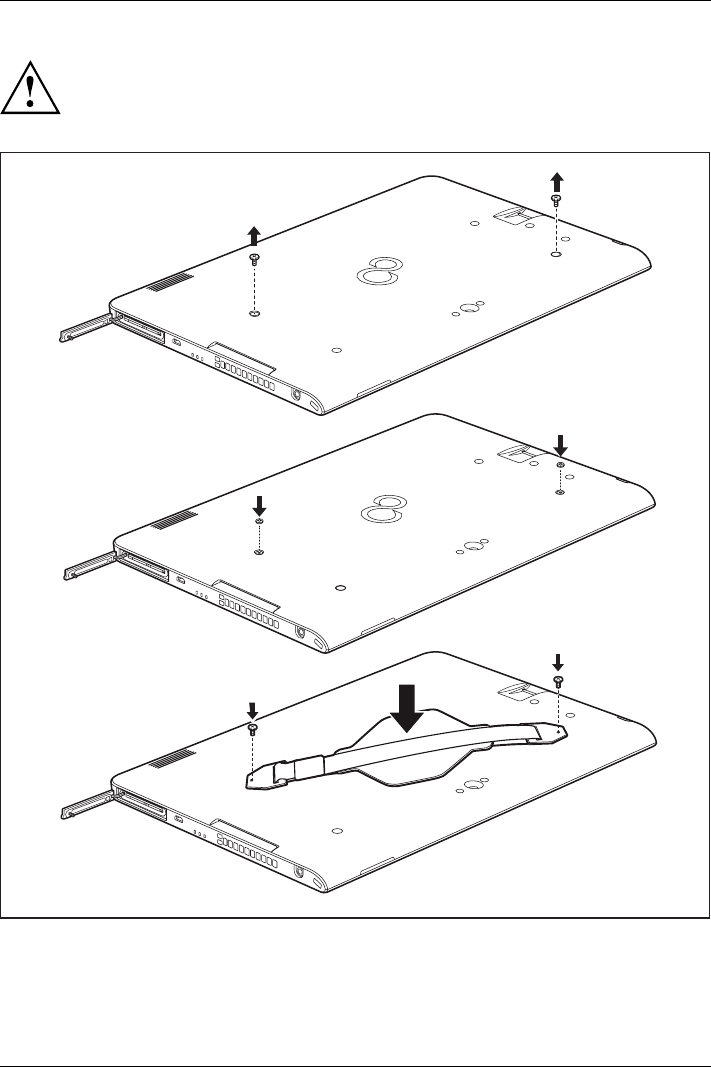

Hand strap (optional) . . . . ................................................................ 50

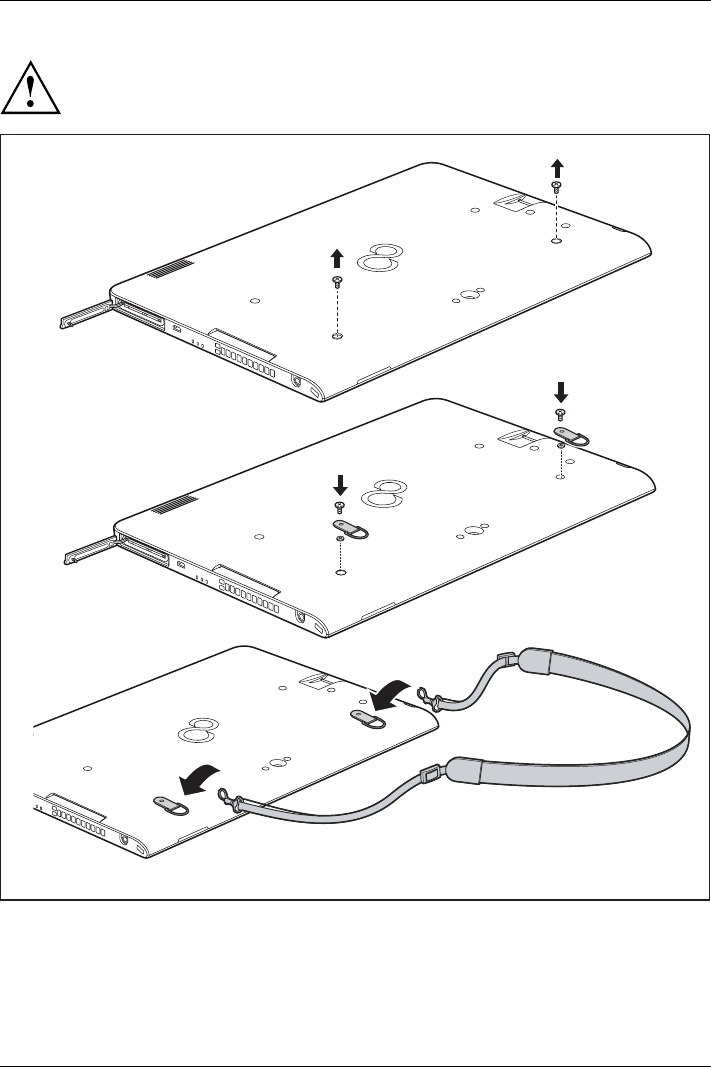

Shoulder strap (optional) ................................................................ 53

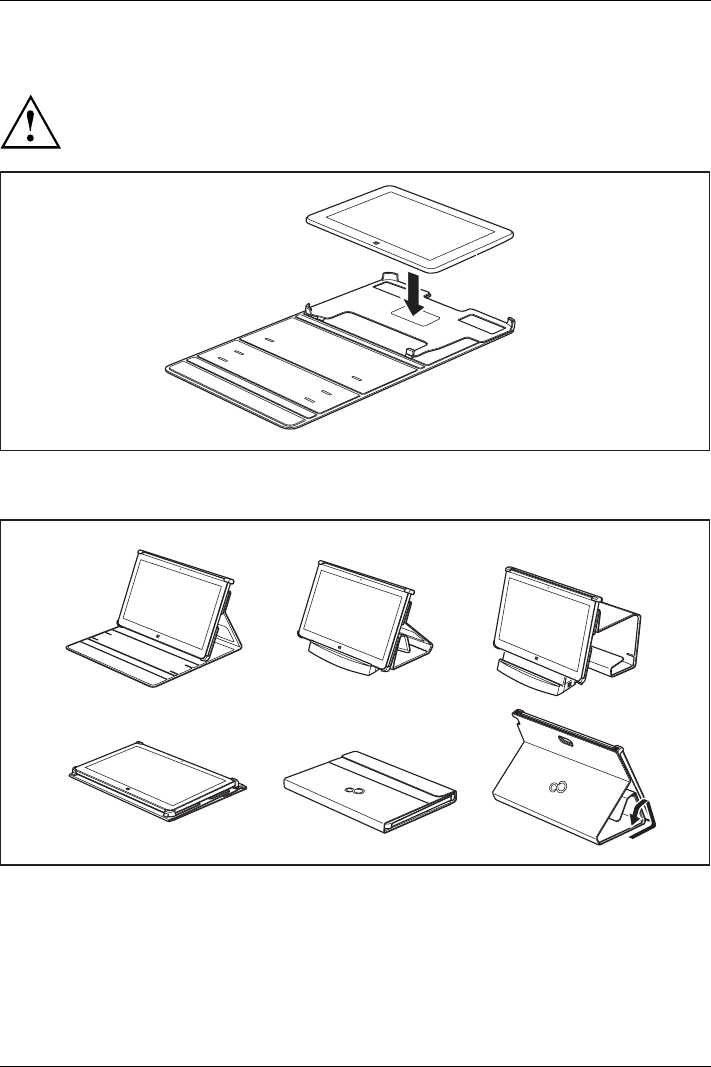

Cover (optional) . . ....................................................................... 56
Securityfunctions ..................................................................... 57
Setting up the fingerprint sensor (dependent on configuration) .............................. 58
UsingtheSecurity Lock ................................................................. 59
Configuringpassword protection in BIOSSetupUtility ...................................... 59
Protecting BIOS Setup Utility (supervisor and user password) . .......................... 60
Password protection for booting of the operating system . .............................. 61
Passwordprotectionfortheharddisk ................................................. 62
SmartCard reader (dependent on configuration) ........................................... 63

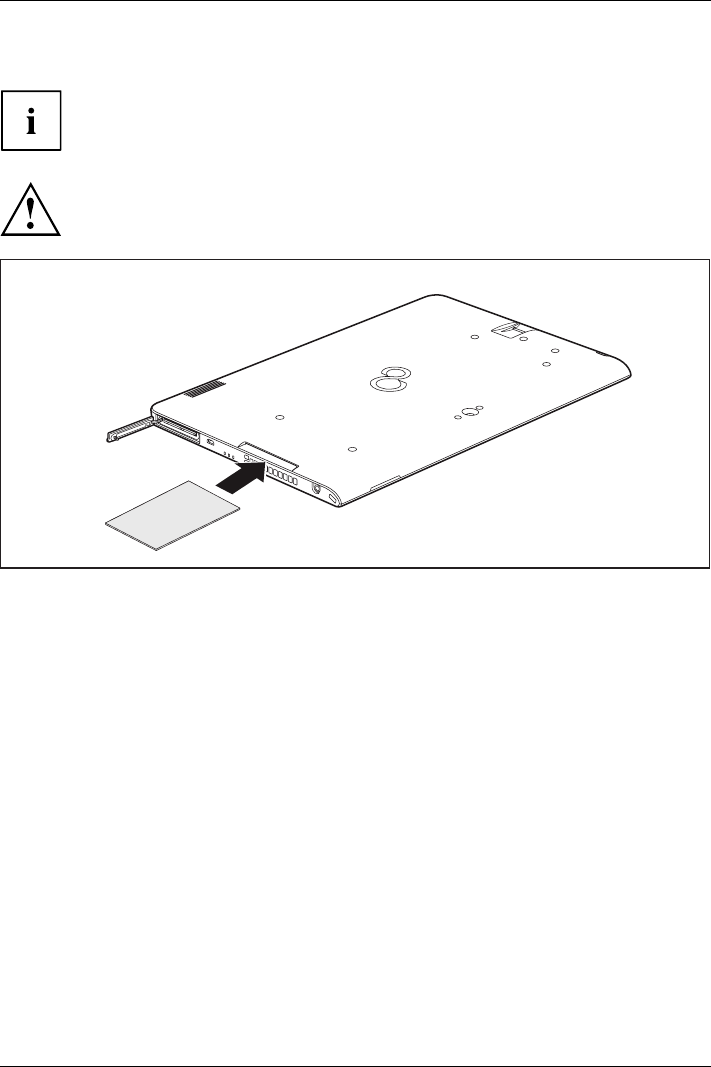

Inserting the SmartCard ............................................................. 64
Trusted Platform Module - TPM (dependent on configuration) ............................... 65
EnablingTPM ....................................................................... 65
Disabling TPM ...................................................................... 65

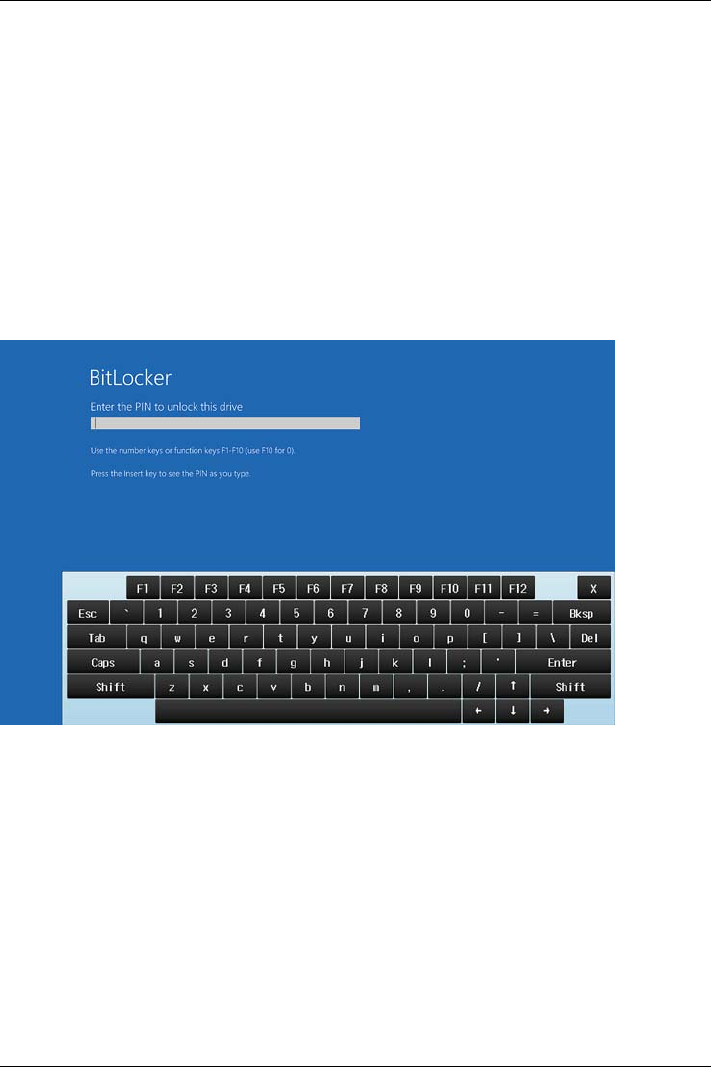

Enable password entry using the on-screen keyboard (on-screen keyboard for BitLocker
password) .......................................................................... 66
Connecting externaldevices ........................................................... 67
Connecting an external monitor . . ........................................................ 67

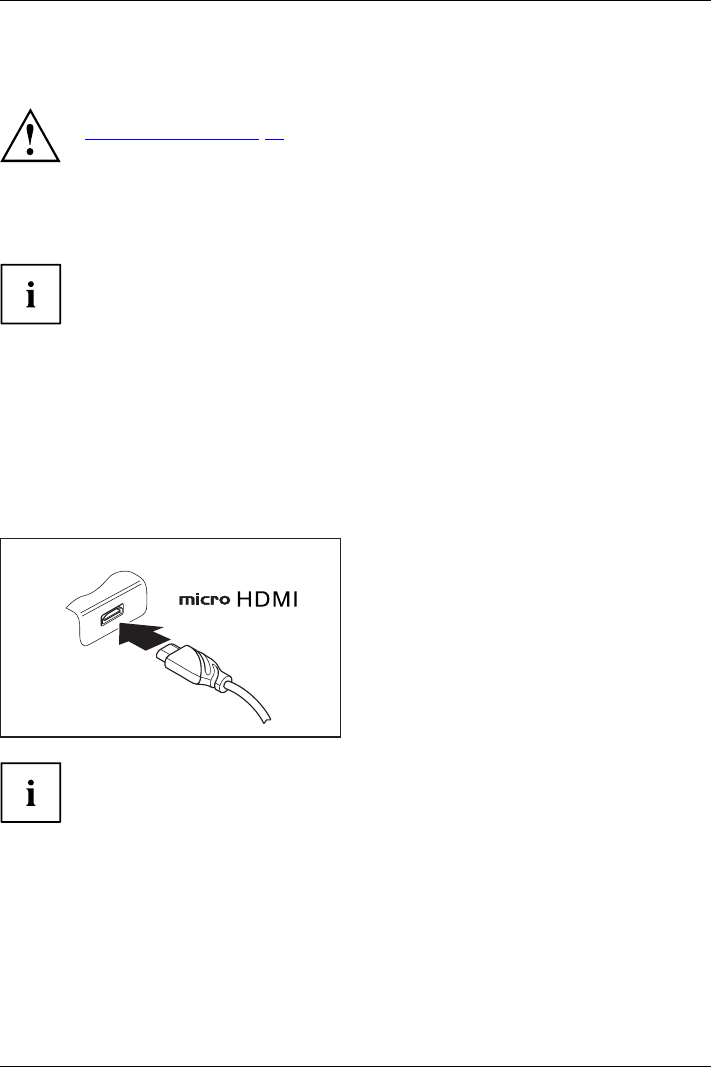

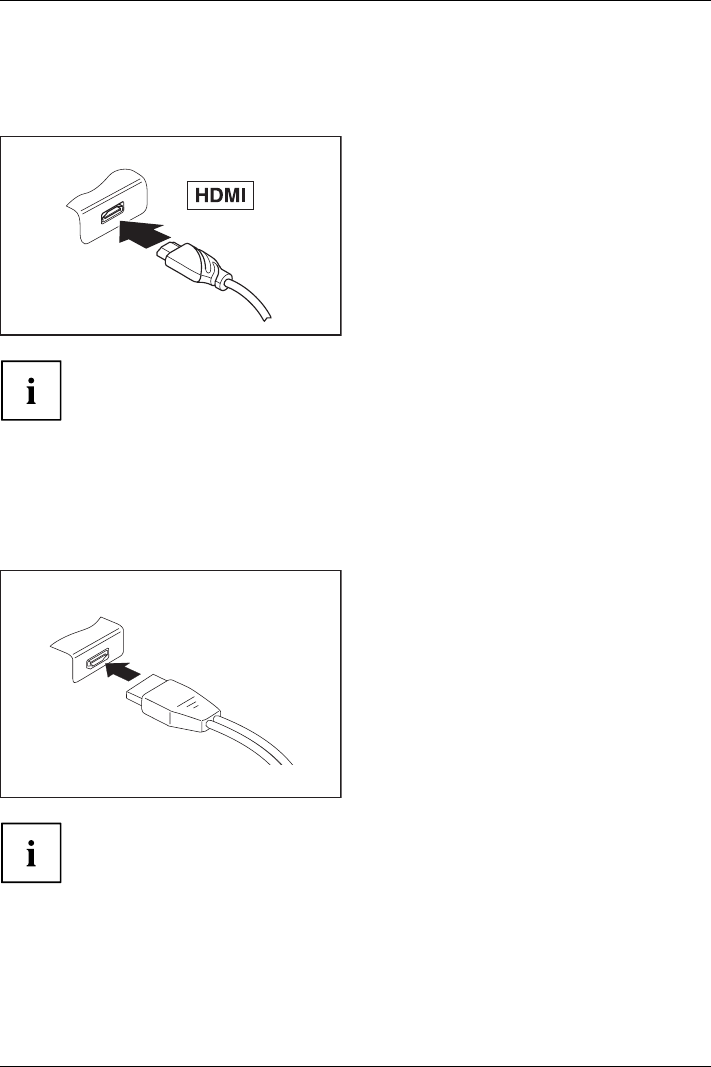

MicroHDMI port .................................................................... 67
HDMI port (keyboard dock only) . . . . . ................................................. 68
DisplayPort (cradle only) ............................................................. 68
VGA monitor port (only cradle and keyboard dock) . . . .................................. 69
Connecting USB devices ................................................................ 70
HowtoremoveUSBdevices correctly ................................................ 70
Connecting external audio devices . . . . . . ................................................. 71
Connecting headphones or other audio output devices . . . .............................. 71
Connecting a microphone or other audio input devices . . . .............................. 71
Settings in BIOS Setup Utility . . ........................................................ 72
Starting the BIOS SetupUtility ........................................................... 72
Operating BIOS SetupUtility ............................................................. 73
ExitingBIOSSetup Utility ................................................................ 74
4Fujitsu
Contents
Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 74
Exit Discarding Changes – Discard changes and exit BIOS Setup Utility . . . .............. 74
Load Setup Defaults – Copy Standard Entries . ........................................ 74
Discard Changes – Discard changes without exiting the BIOS Setup Utility . .............. 74
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 74
Save Changes and Power Off . ....................................................... 74
Troubleshootingandtips .............................................................. 75
Executingareset ....................................................................... 76
Forcedshutdown ................................................................... 76
Carryouta batteryreset ............................................................. 76
Help ifproblemsoccur ................................................................... 76
The Tablet PC’sdate or timeis incorrect .................................................. 76
Batterychargingindicatornotlit .......................................................... 77
The Tablet PC’stouchscreen remainsdark ................................................ 77
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 77
The externalmonitorremains blank ...................................................... 78
The externalmonitorisblankorthe imageisunstable ..................................... 78
The cursor does not correctly follow the pen movements . . . . . . ............................. 78
Peninput notworking ................................................................... 79
The Tablet PC doesnot startafter switchon ............................................... 79
The Tablet PC stopsworking ............................................................. 79
The printer does not print . . . . . ........................................................... 80
The wireless connection to a network does not work . . . .................................... 80
The batterydischargestooquickly ........................................................ 80
SmartCard reader is not recognised. . . . ................................................... 81
SmartCardPINforgotten ................................................................ 81
User and/or supervisor SmartCard lost ................................................... 81
SmartCardlost ......................................................................... 81
Acousticwarnings ....................................................................... 82
Errormessagesonthescreen ........................................................... 83
Restoring the system under Windows 10 . . . . . . ............................................ 84
Technicaldata ......................................................................... 85
Tablet PC .............................................................................. 85
Screenresolutionsforintegratedscreen and external screens .............................. 87
Rechargeablebattery ................................................................... 88
65W mainsadapter for thetabletPC ..................................................... 88
Cradle(optional) ........................................................................ 88
Keyboard dock (optional) . . . . . ........................................................... 89
Battery for keyboard dock (device-dependent) . ........................................ 89
VESA mount (optional) .................................................................. 89
Hand strap (optional) . . .................................................................. 89
Shoulder strap (optional) . . . . . ........................................................... 90
Cover (optional) ......................................................................... 90
Manufacturer’snotes .................................................................. 91
Disposalandrecycling .................................................................. 91
Declarationsof Conformity ............................................................... 91
Electrical safety including ergonomic requirements (GS, depending on the device) . .......... 91
CEmarking ............................................................................ 92
Radio frequencies used . . . ........................................................... 93
Other certification markings .............................................................. 93
Regulatory notices ...................................................................... 93
Fujitsu 5
Contents
Regulatory information for Tablet PCs without wireless device . .......................... 93
DOC (Industry CANADA) notices . . . . ................................................. 95
FCC Regulatory information for Tablet PCs with radio device . . .......................... 97
Index .................................................................................. 99
6Fujitsu
Innovative technology
Innovative technology
... and ergonomic design make your device a reliable and convenient companion.
The device boots very quickly, is ready for immediate use and offers a particularly
long operating time because of its high capacity battery.
The user-friendly "BIOS Setup Utility" offers powerful password protection functions which can be
used to control your Tablet PC’s hardware and protect your system better against unauthorised use.
Information on the connections and controls for your Tablet PC can be
found in chapter "Ports and controls", Page 9.
Further information
The Windows drivers for your device can be found on our Internet site.
The factory installation of your device does not support any other operating
system. Fujitsu Technology Solutions accepts no liability whatsoever
if any other operating system is used.
Software oriented components of these instructions refer to Microsoft products,
if they come within the scope of the delivery.
If you install other software products, pay attention to the operating
instructions of the manufacturer.
Fujitsu 7
Innovative technology
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device.
►Indicates an activity that must be performed
Indicates a result
This font indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123) or a command used to
start a program (start.exe)
This font indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This font indicates
• terms and texts used in a software interface, e.g.: Click on Save
• names of programs or files, e.g. Windows or setup.exe.
"This font" indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "http://www.fujitsu.com/fts/"
• Names of CDs, DVDs and titles or designations for other materials,
e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key indicates a key on the keyboard, e.g: F10
This font indicates terms and texts that are emphasised or highlighted, e.g.: Do
not switch off the device
8Fujitsu
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives you
an overview of the device’s indicators and connections. Please familiarise yourself with
these components before you start to work with the device.
Front
1
23
4
5
5
4
7
9
8
6
1 = Touchscreen
2=Camera
3=CameraLED
4 = Loudspeaker
5=Mechanicalfixture for keyboard
dock/cradle
6 = Power-on indicator
7 = Docking port
8 = Windows button
9 = Ambient light sensor
Fujitsu 9
Ports and controls
Left side
1 2 3 9
7 84 56
1 = Security Lock device
2 = DC input connector (DC IN)
3 = Eyelet for optional pen tether
4 = Power-on indicator
5 = Battery charging indicator
6 = Wireless components indicator
7 = Micro HDMI port
8 = Memory card slot (protected by cover)
9 = SIM card slot (protected by cover)
Right side
1 2 6
4589
7
3
1 = Shortcut button
2=Vol
umedownbutton
3 = Volume up button
4=ON/
OFF button
5 = USB port (USB 2.0)
6 = USB port (USB 3.0)
7=Com
bined headphone and
microphone port
8=Penslot
9=Ey
elet for optional pen tether
10 Fujitsu
Ports and controls

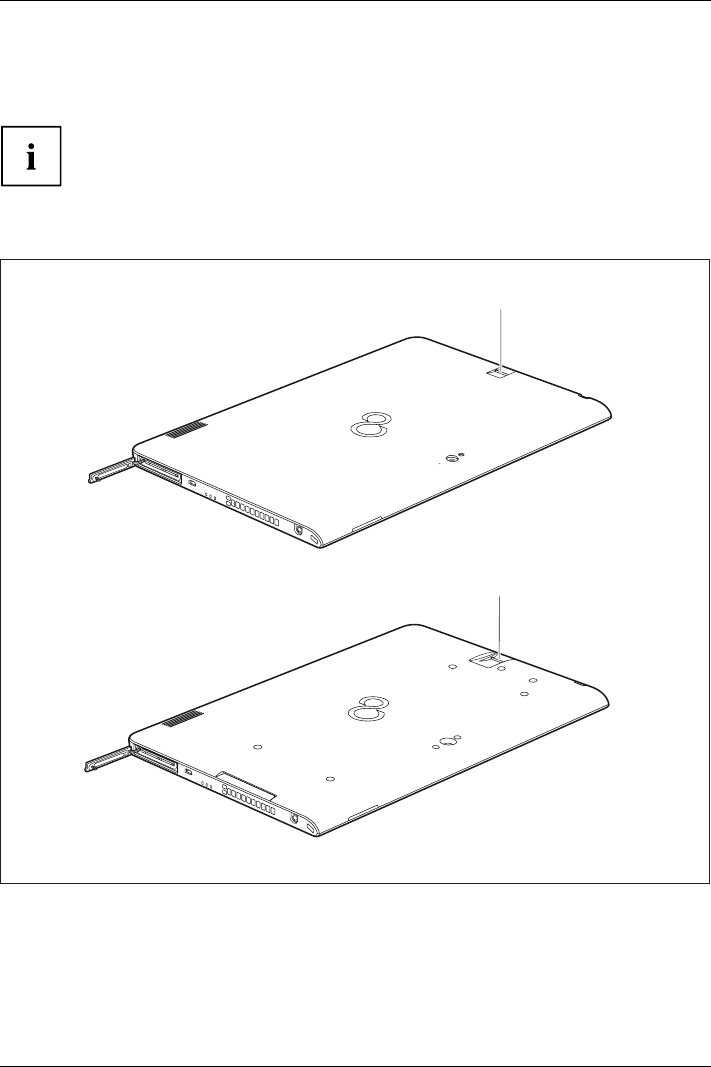

Rear (2 variants: without screw holes or with screw holes and SmartCard reader)
432
1
6
432
1
5
5
5
5
5
7
7
1 = Fingerprint sensor
(dependent on configuration)
2 = Camera light
3=Camera
4=CameraLED
5 = Screw holes (dependent on configuration)
for securing accessories
6 = SmartCard reader (dependent on
configuration)
7 = NFC (Near Field Communication)
(dependent on configuration)
Fujitsu 11
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information on your Tablet PC.
Safety notes
SafetynotesNotes
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data", Page 85
chapter and the information in the "First-time setup of your device", Page 16 chapter
before preparing your Tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the
section "Cleaning the Tablet PC", Page 15.
Pay attention to the additional safety notes for devices with wireless components
provided in the "Safety/Regulations" manual.
This Tablet PC complies with the relevant safety regulations for data processing equipment.
If you have questions as to whether you can set up the Tablet PC in the intended
environment, please contact your sales point or our hotline/help desk.
Additional safety notes for devices with
wireless components
Wirelesscom ponent :WirelessLAN:Bluetooth,safetynotes
If a wireless component (Wireless LAN/ Bluetooth, UMTS/LTE) is integrated in your Tablet PC, you
must be sure to observe the following safety precautions when using your Tablet PC:
• Switch off the wireless components when you are in an aircraft or driving in a car.
• Switch off the wireless components when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves
can impair the operation of medical devices.
• Switch off the wireless components when you let the device get near flammable
gases or into hazardous environments (e.g. petrol station, paintshops), as the
transmitted radio waves can cause an explosion or a fire.
For information on how to switch wireless components on and off, see chapter
"Switching the wireless components on and off", Page 34.
12 Fujitsu
Important notes
Protecting the display screen
Do not pour liquids on the device or wash it with a heavily soaked cloth. Do not
place items on the top of the screen, or damage may occur.
During normal use of the device, small particles from the environment
can become embedded in the pen tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyEnergysaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices
when they are not in use. If you use the energy saving functions, the Tablet PC uses less
power. You will then be able to work for longer before having to recharge the battery.
Power efficiency is increased and environmental pollution reduced. You
save money and help protect the environment.
Energy saving under Windows
►Make use of the power management features (see ""Using the power-management features",
Page 31").
Fujitsu 13
Important notes
Travelling with your Tablet PC
MobileoperationNotesTrans porta tionTabletPC
Please observe the points listed below when travelling with your Tablet PC.
Before you travel
►Back up important data stored on your hard disk.
Beforeyou travelTravel
►Switch off the wireless component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorised third parties to receive data.
Information on activating data encryption is provided in the documentation
for your wireless component.
►If you wish to use your Tablet PC during a flight, check with the airline whether this is allowed.
When travelling in other countries
►If you are travelling abroad, check that the mains adapter can be operated with the
local mains voltage. If this is not the case, obtain the appropriate mains adapter
for your Tablet PC. Do not use any other voltage converter!
►Check whether the local mains voltage and the power cable are compatible. If this is
not the case, buy a power cable that matches the local conditions.
►Enquire with the corresponding government office of the country you will be
travelling in as to whether you may operate the wireless component integrated in
your Tablet PC there (also see "CE marking", Page 92).
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g., direct sunlight in a car).
►Switch off the Tablet PC.
►Unplug the mains adapter and all external devices from the power socket.
►Disconnect the mains adapter cable and the data cables for all external devices.
►To protect against damaging jolts and bumps, use a Tablet PC carrying
case to transport your Tablet PC.
14 Fujitsu
Important notes
Cleaning the Tablet PC
Do not clean any interior parts yourself; leave this job to a service technician.
Only use cleaning products designed for computers. Normal household
cleaners and polishes can damage the markings on the keyboard and the
Tablet, the paintwork or the Tablet PC itself.
Please ensure that no liquid enters the Tablet PC.
The touchscreen is very sensitive to scratches! Only clean the display
surface with a very soft, slightly damp cloth.
►Switch the Tablet PC off.
CleaningNotesTa bl et P CKey boardTouchpadTouchscr een
The casing surfaces may be cleaned with a dry cloth. If particularly dirty, use a damp cloth that
has been dipped in water mixed with mild domestic detergent and then carefully wrung out.
Fujitsu 15
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 12.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Before you switch on the device for the first time, connect it to the mains voltage
using the mains adapter, see "Mains adapter connecting", Page 17.Themains
adapter must be connected during the entire installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
Should you discover any damage that occurred during transportation,
notify your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need the packaging in the future, if you need to transport your device.
16 Fujitsu
First-time setup of your device
Selecting a location
SelectingalocationDeviceMains adapter
Select a suitable location for the device before setting it up. Follow
the instructions below when doing so:
• Never place the device or the mains adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The underside of the device heats up during normal operation. Prolonged contact
with the skin may become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 3.97" away from the device and
its mains adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, moisture and heat.
Mains adapter connecting
Preparingforo perationMainsadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
The supplied power cable conforms to the requirements of the country in
which you purchased your device. Make sure that the power cable is approved
for use in the country in which you intend to use it.
3
1
2
►Connect the power cable (1) to the
mains adapter.
►Plug the mains cable (2) into a mains outlet.
►Connect the mains adapter cable (3) to
the DC jack (DC IN) of the device.
Fujitsu 17
First-time setup of your device
Switching on the device for the first time
Switchingonforthefirstt ime
When you switch on the device for the first time, the supplied software is
installed and configured. Because this procedure must not be interrupted,
you should set aside enough time for it to be fully completed and connect
the device to the mains using the mains adapter.
During the installation process, DO NOT restart the device unless
you are requested to do so!
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
2
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
18 Fujitsu
First-time setup of your device
►During installation, follow the instructions on screen.
If a Windows operating system is installed on your device, you will find more information
on the system and drivers, help programmes, updates, manuals etc. on the device. This
information can also be found on the Internet at "http://www.fujitsu.com/fts/support/".
You can find information and help on the Windows operating system functions
on the Internet at "http://windows.microsoft.com".
Fujitsu 19
Working with the Tablet PC
Working with the Tablet PC
TabletPC,operationTabletPC
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash memory) to the Tablet PC
in the chapter "Connecting external devices", Page 67.
Please refer to the notes in "Important notes", Page 12.

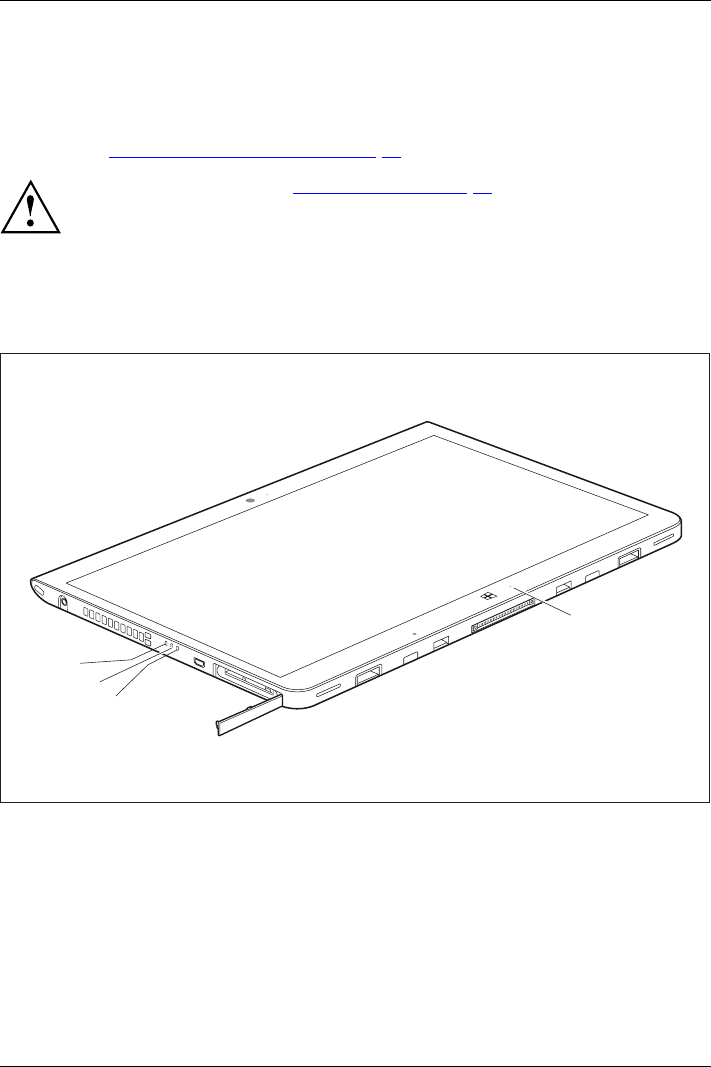

Status indicators
StatusindicatorsSymbols
The status indicators (1, 2, 3) provide information about the condition of the power
supply, the rechargeable battery and the wireless components.
2
1
1
3
20 Fujitsu
Working with the Tablet PC
No. Status displays Description
1Power-on indicator
• The indicator lights up white: The tablet PC is switched
on.
• The indicator flashes: The Tablet PC is in sleep mode
(Save-to-RAM).
• The indicator is not lit: The Tablet PC is switched off
or in Save-to-Disk mode.
2Battery charging indicator
Please note: If the mains adapter is connected when the
state of charge of the battery is more than 90%, charging
will not be started. When the state of charge of the battery
is less than 90%, the battery will be charged to 100% as
soon as the mains adapter is connected.
• The indicator light is orange: The battery is being
charged.
• The indicator is not illuminated: The battery is not
being charged (the battery is already fully charged or
the mains adapter is not connected).
3Wireless components indicator
• The indicator is lit white: The wireless components are
switched on while the tablet PC is switched on.
• The indicator flashes: The wireless components are
switched on and Wake On Wireless LAN is enabled
while the tablet PC is in sleep mode or in save-to-disk
mode, or is switched off.
• The indicator is not illuminated: The wireless
components are switched off.
Fujitsu 21
Working with the Tablet PC
Switching on the Tablet PC
TabletPC:switchingonPower-onindicator
2
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
22 Fujitsu
Working with the Tablet PC
Programming the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 10 Control Panel - Hardware and Sound - Power
Options
If you have assigned a password, you must enter this when requested to
do so, in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 57.
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
Switchingoff
►If the Tablet PC does not switch off automatically, press the ON/OFF button for about five seconds.
Handwriting recognition
For detailed information on handwriting recognition, see the documentation on your operating system.
At present, handwriting recognition under Windows supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
Under Windows you can set the required language under Control Panel –
Time, Language and Region – Language.
Touch screen
Tou ch s c reen
Notes
Information on screen resolution can be found in the section "Screen resolutions
for integrated screen and external screens", Page 87.
High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons,
these screens are manufactured for a certain resolution. An optimum and sharp image can
only be ensured with the resolution intended for the particular screen. A screen resolution
which differs from the specification can result in an unclear image.
The screen resolution of your Tablet PC’s touchscreen is optimally set at the factory.
With the present standards of production technology, absolutely flawless screen images
cannot be guaranteed. There may be a few constantly light or dark pixels (picture
Fujitsu 23
Working with the Tablet PC
elements) on the screen. The maximum permitted number of such faulty pixels is
specified in the international standard ISO 9241-307 (Class II).
Example:
A monitor with an HD resolution of 1280 x 1024 has 1,310,720 pixels. Each pixel consists of three
subpixels (red, green and blue), so there are almost 3.9 million subpixels in total. According to ISO
9241-307 (class II), a maximum of 3 light and 3 dark pixels and in addition 7 light or 13 dark subpixels
or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.
Pixel A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionalityofthedisplay.
Subpixel A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
Cluster A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
LCD screens are operated with background lighting. The luminosity of the background
lighting can decrease over the period of use of the Tablet PC. However, you can
set the brightness of your screen individually.
Ambient light sensor
If your Tablet PC was shipped with the Windows operating system, the screen brightness
is regulated by the ambient light sensor according to the particular light conditions. This
results in optimum readability and longer battery life at the same time.
If your Tablet PC was shipped with Windows 10, the adaptive brightness setting is enabled. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options -
Change plan settings - Change advanced power options - Display - Activate adaptive brightness setting.
Synchronising the display on the touchscreen and an external monitor
In Windows 10 you can proceed as follows to set the output type:
►Wipe your finger over the screen starting from the right-hand edge.
►Select All settings.
►Look for the keyword "project".
►Select the required function.
24 Fujitsu
Working with the Tablet PC
Select display orientation (portrait or
landscape orientation)
Landscapeorientat ionPortraitorientationDisplayorientation
You can choose to use either portrait or landscape orientation for the display, or whether the
display orientation should automatically adapt to the orientation of the Tablet PC.
You can change these settings under Control Panel - Hardware and Sound
- Windows Mobility Center / Rotate screen.
In the settings there are profiles saved for operation with different screen orientations.
These profiles have preset standard configurations that can be modified as desired.
These settings do not just affect the monitor settings on the tablet PC, but
also on any external monitors that may be connected.
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Everything which you can select or activate using your finger tip can
also be selected or activated using the pen.
Calibrate the Dual Digitizer for finger-based
operation of the device
Via the operating system, you must calibrate your tablet PC before first use with
your fingers, so that it detects your finger tips as accurately as possible.
As soon as you ascertain that the accuracy is deteriorating, you
must recalibrate the device.
Please note: There are separate calibration programs available for calibrating
the pen and for calibrating finger-based operation. Do not use the calibration
tool for the pen to calibrate finger-based operation.
Operating system Menu
Windows 10 To calibrate, call up the Hardware and Sound / Tablet PC Settings function
in the Control Panel. You need to calibrate both portrait and landscape
formats.
Fujitsu 25
Working with the Tablet PC
Using the pen
Pen
1
2
3
1 = pen tip
2 = pen button (= right mouse button)
3 = eyelet for optional pen tether
You can use the pen on your Tablet PC as an electronic writing implement to select items, and to
navigate through programs on it. Programs that support handwriting recognition also allow you to
write characters directly on the screen with the pen. You can also use the pen as a drawing tool.
A pen tether is available as an optional extra, which you can tie to the eyelet
on the pen and to the eyelet on the tablet PC.
Use only the pen provided with your Tablet PC. Do not use substitutes that
were not designed for your Tablet PC. Replace the pen tip if it is worn.
The warranty does not cover a scratched screen.
While writing, you should take care not to scratch the surface of the
display (e.g. with a wristwatch or bracelet).
The Tablet PC’s pen is an electronic instrument that can be damaged if
used improperly. Handle the pen with care.
The following list contains guidelines for proper pen handling:
• Do not gesture with the pen.
• Do not use the pen as a pointer.
• Do not use the pen on surfaces other than the screen of the Tablet PC.
• Do not try to twist the thumb grip on the pen. The grip is used to place
the pen in its slot or to remove it from its slot.
• Never store the pen with the tip bearing the weight of the pen (e.g. with the tip
down in a pen slot). If the pen is stored with the tip pointing down, this may have
an adverse effect on the pen mechanism (particularly under high temperatures).
In this case the pen tip may react as though it is constantly being pressed down.
To a v o i d damage, the pen should be stored in the pen slot when not in use.
Thepencanbeinfluenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the pen down firmly.
The screen responds to entries made with the tip of the finger or the pen when the tip
of the finger or the pen is in direct contact with the screen.
You can use the pen to run all functions for which you would otherwise use a mouse.
26 Fujitsu
Working with the Tablet PC
The pen does not support erasing functions.
Handling Mouse Pen
Selecting menu
items
Click with the left-hand mouse button. Touch the menu entry with the pen tip.
Starting programs Double click with the left-hand mouse
button.
Briefly touch the program icon twice
with the pen tip.
Moving an
object/window
Drag with the left-hand mouse button
held pressed.
Place the pen tip directly on the
object/window. Hold the pen tip
pressed against the screen. Move the
desired object/window.
Opening a context
menu
Click with the right-hand mouse
button.
Place the pen directly on the required
element and hold the pen pressed
against the screen.
Moving the cursor -Place the pen tip directly on the
screen.
Pen position
To prevent the pen from getting stuck in its slot, always ensure that you insert the pen it
its slot the right way round (flat part of the pen points towards the bottom of the tablet PC).
At delivery, the pen (1) is located in its slot:
1
Setting the pen
Operating system Menu
Windows 10 You can make various settings for the pen under System Control -
Hardware and Sound - Pen and Touch.
Fujitsu 27
Working with the Tablet PC
Calibrating the pen
Via the operating system, you must calibrate your tablet PC before first use with the
pen, so that it recognises the pen as accurately as possible.
You should also always repeat the calibration if the co-ordination between the
pen and cursor movement deteriorates.
Operating system Menu
Windows 10 To calibrate, call up the Hardware and Sound / Tablet PC Settings function
in the Control Panel. You need to calibrate both portrait and landscape
formats.
Securing the pen tether (optional)
You can attach the pen with an optional pen tether to prevent accidentally dropping it or losing it.
►Secure one end of the pen tether to the pen and the other end to the Tablet PC.
28 Fujitsu
Working with the Tablet PC
Tablet buttons
In addition to the ON/OFF button (4), your tablet PC is also equipped with three tablet buttons.
1 2 4
3
No. Description Functions
1Shortcut button Start function manager or screen shot function
2 Volume down button Decrease the volume
3 Volume up button Increase the volume
If the Windows button of the tablet PC is pressed in combination with the ON/OFF
button (4), this corresponds to the key combination Ctrl +Alt +Del on a keyboard.
Camera
Camera
Your device has two cameras: one on the front of the device and one on the back.
Each camera has its own status indicator. The status indicator lights up when the camera is active.
Depending on the software used, you can use your camera to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only use the camera with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a camera).
• When using the camera, the Tablet PC support must not shake.
• The camera automatically adjusts itself to the current light level. For this reason the
touchscreen may flicker while the light level is adjusted.
Further information on use of the camera and additional settings can be found
in the Help function of the program which uses the camera.
Fujitsu 29
Working with the Tablet PC
Rechargeable battery
RechargeablebatteryBatteryLife,batteryRechargeablebatteryRechargeablebattery
For mobile use, the built-in battery provides the Tablet PC with the necessary power.
You can increase the life of the battery by caring for the battery properly. The average
battery life is around 500 charge/discharge cycles.
You can extend the battery life by taking advantage of the available energy saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the mains adapter
(see "Mains adapter connecting", Page 17).
If the mains adapter is connected when the state of charge of the battery is more than 90%,
charging will not be started. When the state of charge of the battery is less than 90%, the
battery will be charged to 100% as soon as the mains adapter is connected.
If the battery is running low you will hear a warning alarm. If you do not connect the mains adapter
within five minutes of the warning alarm described above, your Tablet PC will switch off automatically.
monitoring the battery charging level
BatteryBatterystatusmeter
In the system bar / status display there is a battery symbol shown for monitoring the
battery capacity. The battery symbol shows you the battery charge.
30 Fujitsu
Working with the Tablet PC
Using the power-management features
PowerPowerBattery
The Tablet PC uses less power when the power management features are enabled. You will
then be able to work longer when using the battery before having to recharge it.
Power efficiency is increased and environmental pollution reduced. By
choosing the best power options, you can make significant savings and
at the same time help protect the environment.
►Select the power management functions in your Control Panel.
The recommended settings for the Windows energy saving functions are predefined as "Fujitsu
EcoSettings" in the Power Options of the Control Panel and can be displayed there.
When the Tablet PC is in power saving mode, you must remember the following:
During power saving mode, open files are held in the main memory
orinaswapfile on the hard disk.
Never switch off the Tablet PC while it is in a power saving mode. If the built-in battery is
nearly flat, close the open files and do not go into power saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the power saving mode if necessary via touching the screen or by switching on the
Tablet PC.
►Close all opened programs and completely shut down the Tablet PC.
Memory cards
Slot
Your Tablet PC is equipped with an integrated memory card reader. You can use
memory cards to increase the storage of your Tablet PC.
Observe the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
It supports the following formats:
• Micro Secure Digital (microSDTM Card)
•microSDHC
•microSDXC
Fujitsu 31
Working with the Tablet PC
Inserting the memory card
1
3
2
►Open the slot cover (1).
►Carefully push the memory card into
the slot (2). The label area must be
facing downwards. Do not apply any
force, otherwise the delicate contact
surfaces could be damaged.
Memorycard
►Close the slot cover.
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
1a
3
2
►Open the slot cover (1).
►Press the edge of the memory card
so that the memory card jumps (2)
slightly out of the slot (a).
►Pull the memory card out of the slot (a)
in the direction of the arrow (3).
►Close the slot cover.
32 Fujitsu
Working with the Tablet PC
SIM card
A SIM card (Subscriber Identity Module) is a chip card which is inserted in a mobile telephone or
Tablet PC and, together with an integrated UMTS/LTE module, enables access to a mobile network.
Please follow the instructions supplied by the provider when handling
the SIM card. If you do not feel the SIM card engage as you insert it,
use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF)
do not fit in the SIM card slot of your tablet PC.
Please do not insert any other format of SIM card as they could
twist or even damage the system.
Inserting the SIM card
124
3
►Open the slot cover (1).
►Pull the SIM card holder out of the slot (2).
►Insert the SIM card(3)intheSIM
card holder as shown.
►Push the SIM card holder back
into the slot (4).
►Close the slot cover.
Fujitsu 33
Working with the Tablet PC
Removing the SIM card
124
3
►Open the slot cover (1).
►Pull the SIM card holder out of the slot (2).
►Remove the SIM card from the SIM
card holder (3).
►Push the SIM card holder back
into the slot (4).
►Close the slot cover.
Wireless LAN / Bluetooth / UMTS / LTE / NFC wireless
components (dependent on configuration)
The installation of wireless components not approved by Fujitsu will
invalidate the certifications issued for this device.
Switching the wireless components on and off
wireless components are switched on and off via the corresponding functions of the operating system.
►To switch wireless components on and off individually, select Settings – Change
PC settings – Network – Airplane mode.
Setting up WLAN access
• Requirement: A WLAN must be available and you must have the
corresponding access information.
Information on configuring the WLAN access can be found in the
documentation for your operating system.
NFC (Near Field Communication, dependent on configuration)
Depending on the configuration chosen, your Tablet PC may be equipped with an
integrated NFC chip. Near field communication is used for contact-free data exchange by
wireless transmission over short distances (a few centimetres).
34 Fujitsu
Working with the Tablet PC
Access via UMTS / LTE
If you ordered an integrated UMTS/LTE module with your system, you can enjoy optimum
reception and maximum energy efficiency without any awkward cables or antennas.
An installed UMTS/LTE module is ready for immediate use.
If you did not order a UMTS / LTE module, you can purchase the accessories for UMTS /
LTE reception from your retailer or your Fujitsu Technology Solutions dealer.
You will find information on establishing the connection with the UMTS / LTE network
in the documentation for the hardware used.
Your device can connect to the Internet via UMTS / LTE. To do this, use one
of the following types of connection:
• Integrated UMTS / LTE module (availability dependent on your model variant)
• a USB dongle (a USB stick with your mobile phone provider’s SIM card)
• a mobile end-device (e.g. mobile phone with Bluetooth or cable connection)
Ethernet and LAN (only cradle or keyboard dock)
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN
port of the cradle (1).
or
►Connect the network cable to the LAN
port of the keyboard dock (1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
GPS
GPS
Whether your device has this function depends on the chosen device
configuration with UMTS / LTE.
Fujitsu 35
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Cradle for charging the tablet PC and with additional ports
• Keyboard dock with additional ports (with or without battery)
• VESA mount
• Hand strap
• Shoulder strap
•Cover
The following sections provide more information on handling the accessories.
36 Fujitsu
Accessories for your Tablet PC (optional)
Your cradle (optional)
As well as providing rapid charging, your cradle is a device which helps you to quickly connect
your tablet PC to your peripheral devices, such as a display, keyboard, mouse, etc. You only
need to dock the tablet PC in order to work with your peripheral devices.
Cradle components
PortsPortsCradle
1
2
34
56
12
7
8
910
11
1 = Release button
2 = Connector on the cradle for the docking
port of the Tablet PC
3=USBport3.0
4=USBport3.0
5=USBport3.0
6 = Microphone port
7 = Headphone port
8 = VGA monitor port
9 = DisplayPort
10 = LAN port
11 = Security Lock device
12 = DC input connector (DC IN)
Settingupthecradle
Select a suitable location for the cradle before setting it up. Follow
the instructions below when doing so:
• Placethecradleonaflat, stable, nonslippery surface.
• Never place the cradle and the mains adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
• Protect the cradle from dust, humidity and heat.
Fujitsu 37
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the cradle
It is possible to connect the Tablet PC to the cradle while it is operating.
Disconnect the mains adapter from the Tablet PC before connecting
the Tablet PC to the cradle.
If the tablet PC is connected to the cradle, you must connect the mains adapter
to the cradle in order to be able to use all of the cradle’s functions.
cradle
►Remove the power plug of the mains adapter from the mains socket.
►Pull the mains adapter cable out of the DC jack (DC IN) of the Tablet PC.
1
2
4
3
►Position the Tablet PC so that it lies on the surface of the tray on the cradle.
►Push the tablet PC onto the cradle in the direction of the arrow (1) until you feel it engage
in the connector and until the release button has returned to its original position.
►Plug the DC output connector on the mains adapter into the DC input
connector (DC IN) on the cradle (2).
►Connect the power cable to the mains adapter (3).
38 Fujitsu
Accessories for your Tablet PC (optional)
►Plug the power cable into the mains socket (4).
Disconnecting the Tablet PC from the cradle
It is possible to separate the Tablet PC from the cradle during operation.
2
1
►Push the release button in the direction of the arrow (1) until it remains in the
pressed position (red marking becomes visible).
►Lift the Tablet PC from the cradle in the direction of the arrow (2), while
supporting the underneath of the cradle.
Keyboard dock (optional)
The keyboard dock is a device which has been optimised for convenient input of texts and
allows external devices to be connected. You only need to dock the Tablet PC.
The keyboard dock is available in 2 variants, with or without additional built-in battery.
Fujitsu 39
Accessories for your Tablet PC (optional)
Connections on the keyboard dock
Keyboarddo ckPorts
7
1
5
6
10
12
11
13
8
9
234
1 = Release button
2 = Num Lock indicator (switch virtual
keypad on and off)
3 = Caps Lock indicator (switch upper case
writing function on and off)
4 = Scroll indicator (Scroll Lock, function
depends on application program)
5 = Battery indicator of the battery in the
keyboard dock (optional)
6 = Battery charging indicator of the battery
in the keyboard dock (optional)
7 = Docking port for the Tablet PC
8 = DC input connector (DC IN)
9 = Security Lock device
10 = LAN port
11 = HDMI port
12 = Monitor port (VGA)
13 = USB ports (3 x USB 3.0)
40 Fujitsu
Accessories for your Tablet PC (optional)
Status indicators of the keyboard dock with additional battery
Status indicators Description
Battery indicator The battery indicator shows the state of charge of the battery.
• The indicator lights up white: The battery is between 50% and
100% charged.
• The indicator lights up orange: The battery is between 13 %
and 49 % charged.
• The indicator light is red: The battery is between 0% and 12%
charged.
Battery charging indicator The battery charging indicator shows whether the battery is being
charged.
• The indicator light is orange: The mains adapter is connected
and the battery is being charged.
• The indicator lights up white: The AC adapter is connected and
the battery is fully charged / is not being charged.
• The indicator is not lit up: The AC adapter is not connected.
Fujitsu 41
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the keyboard dock
If the Tablet PC is connected to the keyboard dock, you can connect the mains
adapter to either the keyboard dock or the Tablet PC.
Keyboarddo ck
►Position the keyboard dock as shown.
1
2
4
3
►Press the tablet PC onto the keyboard dock in the direction of the arrow (1),
until you feel it engage on the connector.
►Plug the mains adapter cable into the DC input connector (DC IN) on the keyboard dock (2).
►Connect the power cable to the mains adapter (3).
►Plug the power cable into the mains socket (4).
42 Fujitsu
Accessories for your Tablet PC (optional)
Disconnecting the Tablet PC from the keyboard dock
It is possible to separate the tablet PC from the keyboard dock during
operation. To prevent problems, we recommend that you execute the appropriate
undocking function provided by the operating system.
2
1
►Press and hold the release button (1) until it remains in the pressed
position (red marking becomes visible).
►Lift the tablet PC away from the keyboard dock in the direction of the arrow (2).
Fujitsu 43
Accessories for your Tablet PC (optional)
Removable battery of the keyboard dock (optional)
RechargeablebatteryBatteryLife,batteryRechargeablebatteryRechargeablebattery
Removing and installing the battery
Only use batteries approved by Fujitsu for your tablet PC.
Never use force when fitting or removing a battery.
Make sure that no foreign bodies get into the battery connections.
Never store a battery for longer periods in the discharged state. This
can make it impossible to recharge.
Removing the battery
Please observe the safety information in chapter "Important notes", Page 12.
Remove the power plug from the mains outlet!
►Switch off the tablet PC.
The device must not be in energy-saving mode.
►Disconnect all cables from the keyboard dock.
►Turn the keyboard dock over and place it on a stable, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the keyboard dock from being scratched.
44 Fujitsu
Accessories for your Tablet PC (optional)
1
1
2

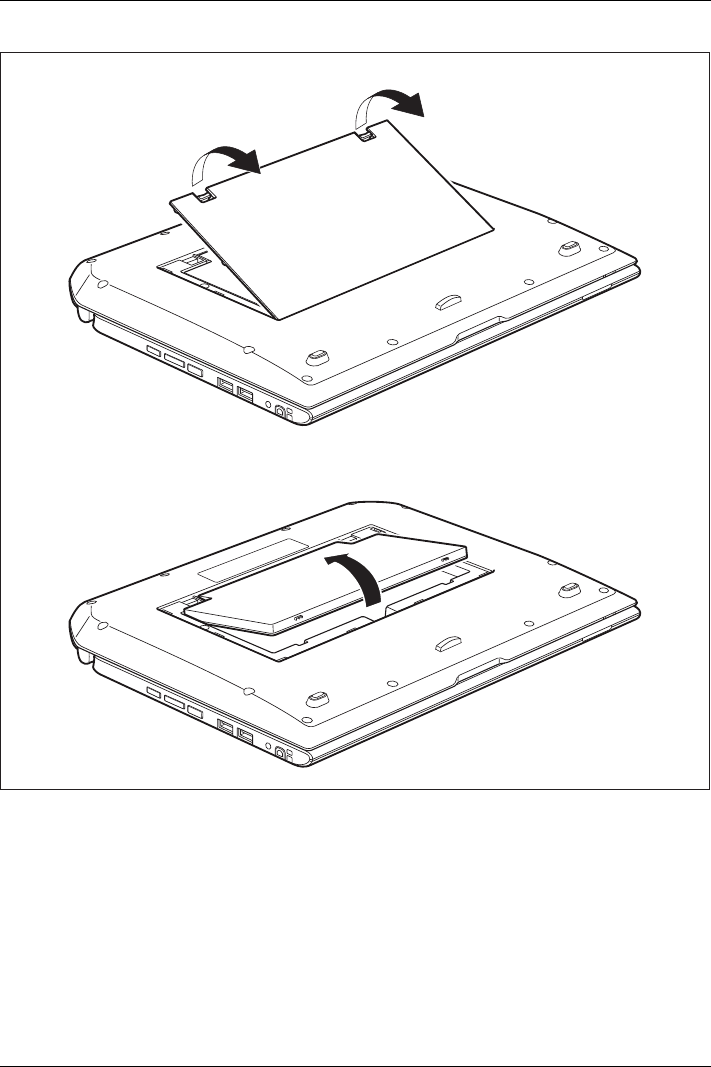

►Undo the catches of the battery cover and open the battery cover (1).
►Lift the battery towards the recess in the centre of the battery compartment and
remove the battery from the battery compartment (2).
Fujitsu 45
Accessories for your Tablet PC (optional)

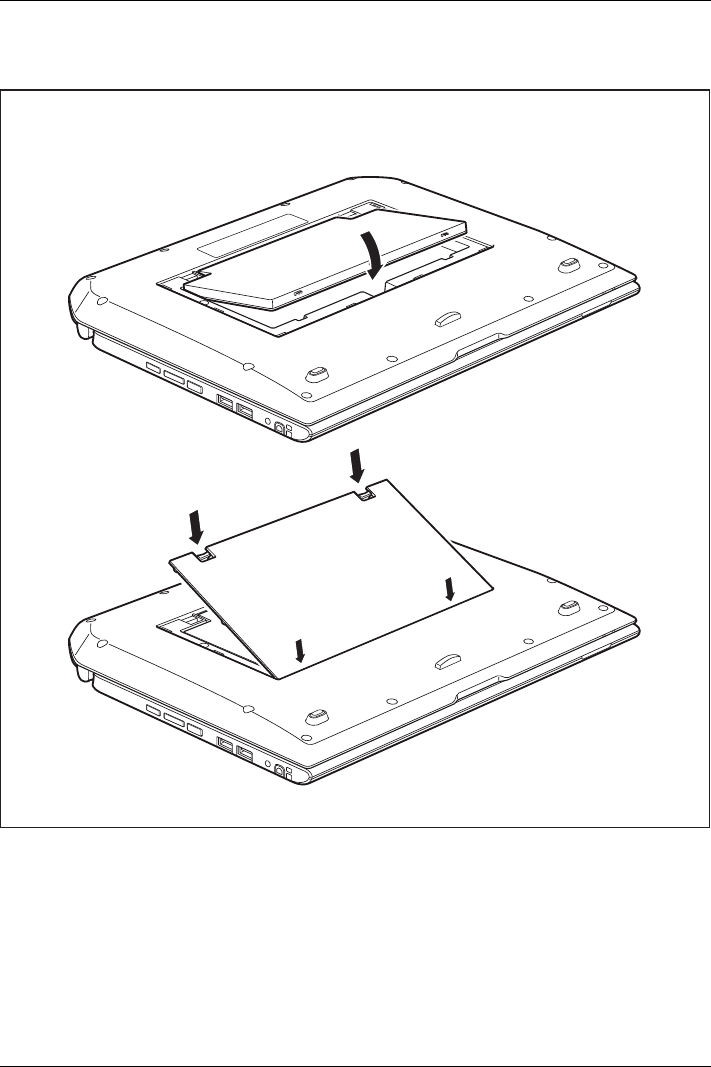

Installing the battery
1
3
3
2
2
►Position the battery at the edge of the battery compartment and insert the
battery in the battery compartment (1).
►Insert the catches of the battery cover into the openings on the device (2).
►Close the battery compartment cover (3).
46 Fujitsu
Accessories for your Tablet PC (optional)
VESA mount (optional)
For models with screw holes and SmartCard readers on the back, you can
attach an optional VESA mount.
Use the VESA mount to secure the tablet PC, e.g. to a monitor with corresponding screw holes.
The VESA mount kit includes the following components: VESA mount,
two M2x8 screws and two spacers.
Fujitsu 47
Accessories for your Tablet PC (optional)
• Use a suitable tool of the correct size when fitting the screws.
• Keep the screws out of the reach of children.
4
4
4
4
3
1
1
1
1
2
2
2
2
►Remove the covers from the screw holes on the rear of the tablet PC (1).
►Position the spacers between the tablet PC and the VESA mount (2).
48 Fujitsu
Accessories for your Tablet PC (optional)
►Position the VESA mount on the tablet PC (3). Make sure that the screw holes of the
VESA mount and of the tablet PC line up exactly above one another.
►Secure the VESA mount with the screws (4).
Fujitsu 49
Accessories for your Tablet PC (optional)
Hand strap (optional)
For models with screw holes and SmartCard readers on the back, you can
attach an optional wrist strap.
The hand strap kit includes the following components: Hand strap, two
M2x6 screws, two M2x8 screws and two spacers.
50 Fujitsu
Accessories for your Tablet PC (optional)
• Use a suitable tool of the correct size when fitting the screws.
• Keep the screws out of the reach of children.
• Do not shake the device too much when you hold it by the hand
strap, otherwise it could fall down.
1
1
2
2
4
4
3
►Remove the covers from the screw holes on the rear of the tablet PC (1).
►Position the spacers between the tablet PC and the hand strap (2).
►Put the hand strap in position on the tablet PC (3). Make sure that the screw holes of
the hand strap and the tablet PC line up exactly above one another.
Fujitsu 51
Accessories for your Tablet PC (optional)
Only use the M2x8 screws to secure the hand strap.
►Secure the hand strap with the screws (4).
52 Fujitsu
Accessories for your Tablet PC (optional)
Shoulder strap (optional)
For models with screw holes and SmartCard readers on the back, you can
attach an optional shoulder strap.
The shoulder strap kit includes the following components: Shoulder strap, two
mountings, two M2x6 screws, two M2x8 screws and two spacers.
Fujitsu 53
Accessories for your Tablet PC (optional)
• Use a suitable tool of the correct size when fitting the screws.
• Keep screws and mountings out of the reach of children.
• To avoid damaging the screws, do not use an electric screwdriver.
1
1
2
3
3
2
►Remove the covers from the screw holes on the rear of the tablet PC (1).
54 Fujitsu
Accessories for your Tablet PC (optional)
Only use the M2x8 screws to secure the mountings.
►Position spacers under the mountings, position the mountings on the rear of the
tablet PC and secure the mountings with the screws (2).
►Secure the shoulder strap on the mountings (3).
Fujitsu 55
Accessories for your Tablet PC (optional)
Cover (optional)
If you are using the cover, never connect the tablet PC to the keyboard dock.
►Place the Tablet PC on the cover as shown.
The following illustration shows you the many ways in which the cover can be used:
56 Fujitsu
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your
system from unauthorised access.
This chapter explains how to use each function, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out and unable to access your data. Therefore,
please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keeptheminasafeplace.
If you forget your passwords you will need to contact the our Service
Desk. Deletion or resetting of passwords is not covered by your warranty
and a charge will be made for assistance.
Fujitsu 57
Security functions
Setting up the fingerprint sensor (dependent
on configuration)
Fingerprintsens orFingerprin tsensor
Whether or not your device has a fingerprint sensor depends on the
device configuration you have ordered.
The fingerprint sensor can record an image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►You must install the fingerprint software in order to be able to use the fingerprint sensor (1).
58 Fujitsu
Security functions
Using the Security Lock
SecurityLockAnti-theftprotectionSecurityLock
Your device comes with a Security Lock mechanism for the Kensington Lock Cable. With
the Kensington Lock Cable, a sturdy steel cable, you can protect your device and your Port
Replicator from theft. The Kensington Lock Cable is available as an accessory.
►Fit the Kensington Lock Cable to the
corresponding device on your equipment.
Attach another Kensington Lock Cable to your cradle or keyboard dock
to protect these devices from theft as well.
Configuring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup utility
to increase data security, please observe the following:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your Tablet PC. Deletion of the
password is not covered by your warranty and a charge will be made for assistance.
Password prote ction
Your password can be up to 32 characters long and can contain letters, numbers and
special characters. A distinction is made between upper and lower case.
When using special characters, please remember that they depend on the
country version of the keyboard being used.
Fujitsu 59
Security functions
Protecting BIOS Setup Utility (supervisor and user password)
If you have opened these operating instructions on the screen, we
recommend that you print them out. You cannot call the instructions onto
the screen while you are setting up the password.
BIOSSetupUtility
The supervisor password and the user password both prevent unauthorised use of the BIOS Setup
Utility. With the aid of the supervisor password you can access all of the functions of the BIOS
Setup Utility, while the user password will only give you access to some of the functions. You
can only set up a user password if a supervisor password has already been assigned.
Please refer to section "Settings in BIOS Setup Utility", Page 72 for a description
of how to call up and operate the BIOS-Setup-Utility.
Setting supervisor and user password
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
Ifyoudonotwa
nt to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
PasswordSupervisor passwordUserpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Changing the supervisor or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
Password
Supervisorpassword
Userpassword
►Call the BIOS Setup Utility andgototheSecurity menu.
►When changing the password, proceed exactly as for password assignment.
60 Fujitsu
Security functions
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
You will be requested to enter a new password by the Enter New Password prompt.
►Press the Enter key twice.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is cancelled.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting of the operating system
With the supervisor password you have set in the BIOS Setup Utility (see
section "Setting supervisor and user password", Page 60), you can also
prevent starting of the operating system.
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the PasswordonBootoption and press the Enter key.
►Select the desired option (First Boot or Every Boot) and press Enter
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the PasswordonBootoption and press the Enter key.
►Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password-protected.
Fujitsu 61
Security functions
Password protection for the hard disk
Passwordprotect ion:
The hard disk password prevents unauthorised access to the hard disk drives
and is checked internally each time the system is booted. The prerequisite for
this is that you have assigned at least the supervisor password.
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "Security functions", Page 57).
►Mark the Hard Disk Security field and press the Enter key.
►In the Drive0 area mark the Set Master Password field and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Setup Notice: Changes have been saved is displayed to confirm that the
new password has been saved.
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Table PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password without setting a new one, proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the Drive0 area mark the Set Master Password field and press the Enter key.
You will be initially requested to enter the old password by the Enter current Password prompt.
You will then be requested to enter a new password by the Enter new Password prompt.
►After providing the input, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
62 Fujitsu
Security functions
SmartCard reader (dependent on configuration)
Depending on the selected model, your device may be equipped with a SmartCard
reader (only available on models with screw holes and a SmartCard reader).
Securityfunctions,Securityfunctions
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards
in a safe place if you are carrying the other SmartCard with you.
In order to be able to take advantage of all the security features of your Tablet
PC, you will need a CardOS SmartCard from Fujitsu.
The SmartCard can only be used with a PIN, offering maximum protection even if
you lose the SmartCard. In order to maximise your security, the CardOS SmartCard
is disabled if three incorrect attempts are made to enter the PIN.
When you use the CardOS SmartCard for the first time, you will either need to enter the
preset PIN "12345678" or the PIN given to you by your systems administrator.
Fujitsu 63
Security functions
Inserting the SmartCard
Depending on the selected model, your device may be equipped with a SmartCard
reader (only available on models with screw holes and a SmartCard reader).
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard reader.
1
►Push the SmartCard into the SmartCard reader with the chip facing the rear of the Tablet PC.
64 Fujitsu
Security functions
Trusted Platform Module - TPM (dependent
on configuration)
TPMTrustedP latform Module
To use the TPM, you must activate the TPM in the BIOS Setup before the software
is installed. The condition for this is that you have assigned at least the supervisor
password (see "Security functions", Page 57).
Enabling TPM
• Requirement: You have set a supervisor password, see "Security functions", Page 57.
►Call up the BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select Enabled to activate the TPM.
Once you have activated the TPM the Clear Security Chip option appears.
Select Clear Security Chip to delete the holder in the TPM. By clicking on Enabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Please note that you will then no longer be able to access the data you have
encrypted with the keys based on that holder.
►In the Exit menu, choose the option Exit Saving Changes.
►Press the enter key and select Yes.
The tablet PC restarts and the TPM is switched on after the reboot.
Disabling TPM
• Requirement: You have set a supervisor password, see "Security functions", Page 57.
►Call up the BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select Disabled to deactivate the TPM.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The tablet PC is rebooted and the TPM is disabled.
Fujitsu 65
Security functions
Enable password entry using the on-screen keyboard
(on-screen keyboard for BitLocker password)
If TPM is enabled, you can enable an OnScreen keyboard for the internal
touchscreen in the BIOS Setup.
►Call BIOS Setup and select the Advanced menu.
►Mark Boot Configurations and press the enter key.
►From the UEFI Boot On-Screen Keyboard Location selection, choose the
option Lower Right or Upper Right.
►In the Exit menu, choose the option Exit Saving Changes.
►Press the enter key and select Yes.
The tablet PC is rebooted and the password dialogue is displayed.
Tap on the password field to enable the on-screen keyboard.
66 Fujitsu
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 12 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with the external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting an external monitor
Micro HDMI port
HDMIport
The micro HDMI port of your device can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the micro
HDMI port.
Some LCD televisions have only two loudspeaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
Fujitsu 67
Connecting external devices
HDMI port (keyboard dock only)
HDMIport
The HDMI port can be used to connect an external amplifier, LCD TV or a
plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI port.
Some LCD televisions have only two loudspeaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
DisplayPort (cradle only)
DisplayPort
The DisplayPort of the cradle can be used to connect a display, LCD TV or
a plasma TV with an appropriate port.
►Connect the data cable to the
external device.
►Connect the data cable to the DisplayPort
of the cradle.
Some LCD televisions have only two loudspeaker connections and therefore
cannot reproduce Dolby Digital or DTS. In order to reproduce the sound, you
must go into Windows and adjust the sound settings.
►To do this, deactivate the DTS Audio and Dolby Digital settings in the control
panel for the Realtek HDMI Output.
68 Fujitsu
Connecting external devices
VGA monitor port (only cradle and keyboard dock)
An analogue monitor is connected to the analogue VGA monitor port. The display output
is limited to a maximum of two screens at the same time.
MonitorVG Acon nection socketScreenportMonitorport
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on external monitor and
then the Tablet PC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touch screen", Page 23.
You can display the same picture on the external monitor and the LCD
screen of the Tablet PC simultaneously.
Fujitsu 69
Connecting external devices
Connecting USB devices
USBports
On the USB ports, you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect
devices while your operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbit/s.
USB 2.0 has a data transfer rate of up to 480 Mbit/s.
USB 3.0 has a data transferrateofupto5Gbit/s.
Additional information can be found in the documentation for the USB devices.
►Connect the data cable to the
external device.
►Connect the data cable to the USB
port on the Tablet PC.
or
►Connect the data cable to a USB
port of the cradle.
or
►Connect the data cable to a USB
port of the keyboard dock.
Device drivers
USB devices will be automatically recognised and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap t he s ymbol for safe removal of the hardware.
►Select the device which you want to shut down and remove.
►Tap OK.
Wait for the dialogue box which tells you that it is now safe to remove the device.
70 Fujitsu
Connecting external devices

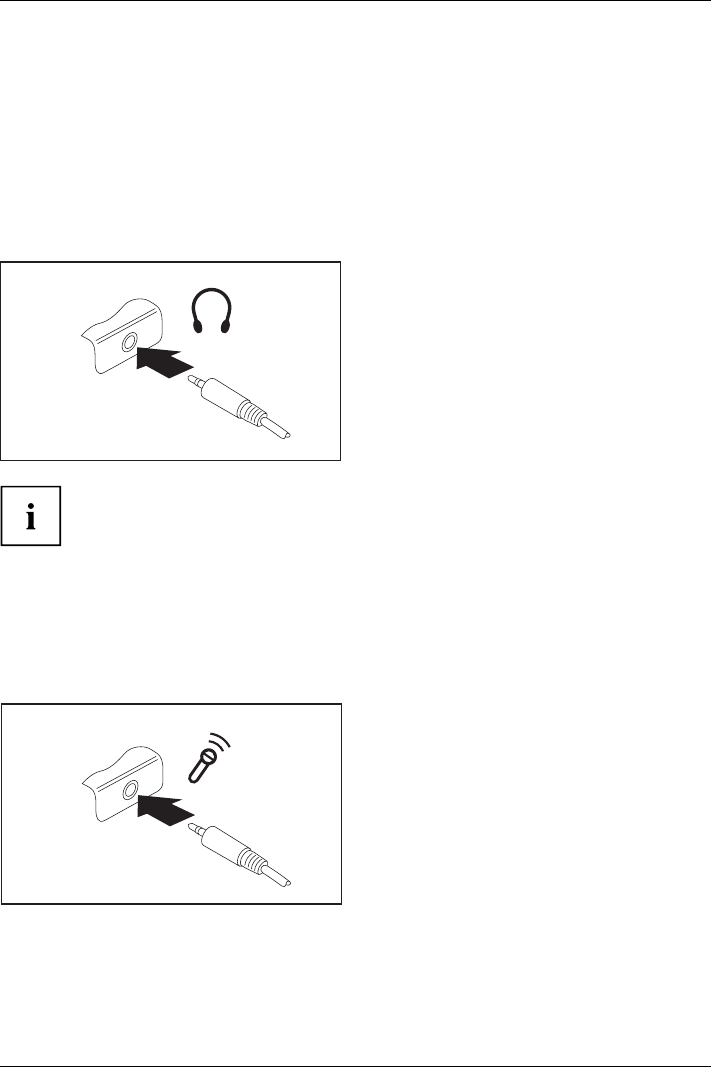

Connecting external audio devices
Your Tablet PC has a combined headphone and microphone port, your (optional) cradle
has separate ports for headphones and a microphone.
Connecting headphones or other audio output devices
Connectingaudio dev icesAudioportsConnectingheadph ones
The combined headphone and microphone port of the tablet PC or the headphone
port of the cradle (optional) allows you to connect output devices such as headphones,
external speakers, etc. to your tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphone and microphone port of the
tablet PC or to the headphone port
of the cradle (optional).
The internal loudspeakers are disabled.
If you buy a cable from a retailer, please note the following information:
The combined headphone and microphone port on your tablet PC
isa"3.5mmjacksocket".
If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".
Connecting a microphone or other audio input devices
Audiodevices, connectingAudioportsMicrophone, connecting
The combined headphone and microphone port of the tablet PC or the microphone port
of the cradle (optional) allows you to connect an external microphone, MiniDisc player,
MP3 player, CD player or a tape deck to your tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphone and microphone port of the
tablet PC or to the microphone port
of the cradle (optional).
Fujitsu 71
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSSetupUtilitySetupSystem configurationHardwareconfiguration
To navigate more easily in the BIOS Setup Utility, you can use an external USB keyboard.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When it is delivered, the Tablet PC is set to factory default settings. You can
change these settings in BIOS Setup Utility. Any changes you make take effect as
soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Press and hold the volume down button and switch the tablet PC on.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service centre.
The BIOS Setup Utility starts.
72 Fujitsu
Settings in BIOS Setup Utility
Operating BIOS Setup Utility
BIOSSetupUtility
Press the F1 key to display help on the operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the Enter key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made (for example, in this manual).
Fujitsu 73
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes – Discard changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective. The BIOS
Setup Utility is terminated and the Tablet PC is rebooted.
Load Setup Defaults – Copy Standard Entries
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
Discard Changes – Discard changes without exiting
the BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►IfyouwanttoexitBIOS Setup Utilitywith these settings, select Exit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save Changes and Power Off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
74 Fujitsu
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTi psFaultTroubleshooting
Follow the safety notes in the "Safety/Regulations" manual when
connecting or disconnecting cables.
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the Tablet PC off.
►Please contact the Hotline/Service Desk.
You can find the telephone numbers in the service desk list. Please have
the following information ready when you call:
• The model name and serial number of the Tablet PC. The serial number
is located on a sticker on the underside of the Tablet PC.
• Notes of any messages that appear on the screen and information on acoustic signals.
• Any changes you have made to the hardware or software after
receiving the Tablet PC.
• Any changes you have made to the BIOS Setup settings after receiving the Tablet PC.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our Tablet PCs have been designed primarily with mobile applications in mind. This
means that considerable effort has been made to optimise components and equipment
in terms of weight, space and energy requirements. Depending on the particular
configuration you have purchased, it is possible that functionality may be slightly reduced
compared to a desktop PC if you are running processor-intensive gaming software, e.g.
games with intensive 3D graphics. Updating your hardware with drivers which have not
been approved by Fujitsu Technology Solutions may result in performance losses, data
losses or malfunction of the equipment. A list of approved drivers and current BIOS
versions can be downloaded from: "http://support.ts.fujitsu.com/Download/Index.asp"
Fujitsu 75
Troubleshooting and tips
Executing a reset
If the device no longer responds to your inputs, select one of the following options:
Forced shut down
►Keep the ON/OFF button pressed for at least 4 seconds.
The device will shut down. You can then restart it.
Carry out a battery reset
►Shut down the device.
If the device does not respond, you may have to force the shutdown,
as described in the previous section.
►Disconnect the mains adapter from the device.
►Press the volume up button and the shortcut button at the same time.
The device performs a reset, comparable to removing the battery. You can then restart it.
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Service Desk for your country (see the
Service Desk list or visit the Internet at
"http://support.ts.fujitsu.com/contact/servicedesk/ServiceDeskNumber_Int.asp"). When you
do this, please have ready the ID number and serial number of your system.
TheTabletPC’sdateortimeisincorrect
Summertime
Time, d aylightsavings
Time not correct
Time not correct
Incorrectdate/time
Dateisincorrect
Cause Troubleshooting
Time and date are incorrect. ►With the BIOS-Setup-Utility, you can set the
date and time in the main menu.
Date and time are still set incorrectly after
switching on the Tablet PC.
►Please contact your sales outlet or our
Hotline/Service Desk.
76 Fujitsu
Troubleshooting and tips
Battery charging indicator not lit
Cause Fault elimination
The battery is not being charged. ►Connect the Tablet PC to a mains outlet
using the mains adapter.
Note: The battery will only be charged again
when the battery capacity is less than 90%.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ntouchscreenis too dark
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The display on the Tablet PC’s touchscreen
is difficult to read.
Tou ch s c re e nTou c hs c r e en
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
Fujitsu 77
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Power saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set on the Tablet PC’s
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The external monitor’s power cable or data
cable is not connected properly.
►Switch off the Tablet PC and the external
monitor.
►Check whether the power cable is plugged
properly into the external monitor and into
the power socket.
►Check whether the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the Tablet PC and the external
monitor.
The external monitor is blank or the image is unstable
ScreenMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Terminate the application program in
Windows. If the error persists after
terminating the program, use the key
combination for switching the screen output
in order to switch to the touchscreen of the
tablet PC. Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
foryouroperatingsystem.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operatingsystem.
The cursor does not correctly follow the
pen movements
Cause Fault elimination
Pen incorrectly calibrated ►Calibrate the pen as described in chapters
"Setting the pen", Page 27 and "Calibrating
the pen", Page 28.
78 Fujitsu
Troubleshooting and tips
Pen input not working
Cause Troubleshooting
Incorrect driver installed. ►If your device is one which can only be
operated using the pen, install the driver for
the standard model.
or
►If your device is one which can be
operated using the pen and by finger,
install the driver for the "Dual Digitizer"
model.
The Tablet PC does not start after switch on
TheTabletPC
Cause Troubleshooting
The battery is dead. ►Charge the battery.
or
►Connect the mains adapter to the Tablet
PC.
The power adapter is not connected correctly. ►Check whether the mains adapter is
connected correctly to the Tablet PC.
►Switch on the Tablet PC.
The Tablet PC stops working
TheTabletPCEnergysavingmode
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►Leave energy saving mode.
An application programme has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is dead. ►Charge the battery.
or
►Connect the mains adapter to the Tablet
PC.
Fujitsu 79
Troubleshooting and tips
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable connecting
the Table PC to the printer is properly
connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable connecting
the Tablet PC to the printer is properly
connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
The wireless connectiontoanetworkdoesnotwork
Thewireless connectiontoa networkdoes notwork
Cause Troubleshooting
The wireless component is disabled. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 34).
The wireless component is enabled. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
switched on via the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery:
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery indicator flashes.
►Bring the Tablet PC up/down to a normal
temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the mains adapter as frequently as
possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
80 Fujitsu
Troubleshooting and tips
SmartCard reader is not recognised.
Cause Troubleshooting
Chip card inserted incorrectly. ►Make sure you have inserted your
SmartCard into the SmartCard reader
with the chip facing upwards/downwards
(device-dependent).
►Check whether the SmartCard you are using
is supported. Your SmartCard must comply
with the ISO standard 7816-1, -2, -3 and -4.
SmartCard PIN forgotten
Cause Troubleshooting
PIN forgotten ►Ifyouworkinanetwo
rk, contact your
system administrator, who can unlock your
Tablet PC with a supervisor PIN.
User and/or supervisor SmartCard lost
Cause Troubleshooting
User and/or supervisor SmartCard lost ►If you have lost your User SmartCard, you
can continue working with the Supervisor
SmartCard and initialise a new User
SmartCard or deactivate the SystemLock
function.
►If you have lost the Supervisor SmartCard,
you can continue working, but you no longer
have all your rights and can no longer
initialise a Supervisor SmartCard.
►IfyouhavelostbothSmartCards,youcan
no longer boot your system. Please contact
our Service Desk. You must provide proof of
ownership for the device. Then the Service
Desk will refer you to our service partner,
who will unlock your device (for a charge).
SmartCard lost
Cause Troubleshooting
SmartCard lost ►If you work in a network, contact your
system administrator, who can boot your
Tablet PC with a Supervisor SmartCard.
Fujitsu 81
Troubleshooting and tips
Acoustic warnings
Acousticerror messagesErrors
Cause Troubleshooting
A beep sounds every few seconds.
The battery is almost flat.
►Charge the battery.
82 Fujitsu
Troubleshooting and tips
Error messages on the screen
Errormessages onthescr eenErrormessage:
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programmes are described in the relevant documentation.
If the error message appears repeatedly, despite troubleshooting measures, please
contact the place of purchase or our customer service centre.
Error message/cause Resolution
CMOS battery bad
If the error message occurs repeatedly, the
buffer battery in the Tablet PC is flat.
►Contact your sales outlet or our customer
service centre.
System CMOS checksum bad - default configuration
used
The system configuration information is
incorrect.
►Switch off the Tablet PC.
►Switch on the Tablet PC.
►In the BIOS Setup,se
lect the Exit menu.
►Select the entry Load Setup Defaults.
►Select OK and press the Enter key.
Extended memory failed at offset: xxxx Failing Bits:
zzzz zzzz
When testing the extended memory an error has
resulted at the address xxxx.
►Contact your sales outlet or our customer
service centre.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
►Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
Keyboard controller error ►Switch off your Tablet PC using the ON/OFF
button.
►Wait 3 - 5 seconds and switch on the Tablet
PC again.
Keyboard error If you are using an external keyboard:
►Check the connection and reboot the Tablet
PC.
nn Stuck key ►Make sure that no key is pressed.
Operating system not found ►Check in the BIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►Press the volume down button to start BIOS
Setup.
or
►If you are working with an external
keyboard, press the F1 or F2 key on
the keyboard.
Fujitsu 83
Troubleshooting and tips
Error message/cause Resolution
Real time clock error ►Contact your sales outlet or our customer
service centre.
nnnnK Shadow RAM failed at offset: xxxx Failing
Bits: zzzz
►Contact your sales outlet or our customer
service centre.
System battery is dead - Replace and run SETUP ►Contact your sales outlet or our customer
service centre.
System cache error - Cache disabled ►Contact your sales outlet or our customer
service centre.
System timer error ►Contact your sales outlet or our customer
service centre.
Restoring the system under Windows 10
If necessary, you can reset your system to the original state of the hard disk.
►Beginning at the right edge of the Windows Start screen or the desktop, use a
finger to sweep over the screen to open the Action Centre.
►Select All settings.
►Select Update & security.
►Select Recovery.
►Select according to your requirements from the options given.
84 Fujitsu
Technical data
Technical data
Tablet PC
General
Processor 6. Generation Intel® Core™ with vPro™
technology (vPro, dependent on configuration)
Main memory (SO DIMM) 4 Gbyte/ 8 Gbyte DIMM onboard
Electrical data
Safety regulations complied with CE
Protection class II
Maximum power consumption (when the tablet
PC is switched on, is connected to the keyboard
dock with battery, and the battery is charged):
65 W
Touchscreen
Size 13.3" Full HD Wide View
Resolution 1920 x 1080 / 16 million colours
Pixel class II
Brightness control 11 levels
Technology Wide-View High-Bright display with LED
background lighting
Digitizer and glass panel Dual Digitizer with Anti-Glare Touchscreen
Cameras • Front: HD camera
• Rear: 5 megapixels, autofocus, mobile light
Graphics card
Chip Intel (c) HD Graphics 520
Maximum resolution on external display: 4096 x 2160
Dimensions
Width x depth x height 317.0 mm x 208.0 mm x 12.7 mm
12.48 inches x 8.19 inches x 0.5 inches
(depending on the back variant)
Weight dependent on configuration from 990 g / 2.18 lbs
Input devices
Tablet buttons 3keys
Pen Pen with one push-button
Slots
Memory card slot 1xmicroSD
SIM card slot 1 x Micro-SIM
SmartCard reader (dependent on configuration) 1x
Ports
Combined headphone and microphone port 3.5mmstereominijack
Fujitsu 85
Technical data
Docking port 1 x
Micro HDMI port 1 x
USB (Universal Serial Bus) 1 x USB 2.0, 1 x USB 3.0
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature5 °C .... 35 °C / 41 °F ....95°F
Transport temperature (2K2) –15 °C .... 60 °C / 5 °F .... 140 °F
86 Fujitsu
Technical data
Screen resolutions for integrated screen
and external screens
System
interface
Ports on the cradle / keyboard
dock
Max.
number
of
screens
Number
of
external
screens
Inte-
grated
screen
Micro
HDMI
port HDMI
Display
Port VGA
Only
Tablet PC 21
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
---
-
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
--
--
3840x2160
@30Hz
2560x1600
@60Hz
-
21
---
1920x1200
@60Hz
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
--
-
3840x2160
@30Hz
2560x1600
@60Hz
-
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
--
1920x1080
@60Hz
-1920x1080
@60Hz -1920x1080
@60Hz
with
cradle /
keyboard
dock
32
1920x1080
@60Hz
--
1920x1080
@60Hz
1920x1080
@60Hz
Fujitsu 87
Technical data
Rechargeable battery
You can find information on the batteries used in your device on the
Internet at "http://www.fujitsu.com/fts/support/".
3-cell lithium polymer battery 4250 mAh
Rated voltage 10.8 V
Rated capacity 46 Wh
65 W mains adapter for the tablet PC
Technicaldata
Rated voltage 19 V
Max. rated current 3.42 A
An additional mains adapter or power cable can be ordered at any time.
Cradle (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Ports
Headphone port 3.5 mm stereo mini jack
Microphone port 3.5 mm stereo mini jack
Docking port 40-pin
DisplayPort 1 x
VGA monitor port 1x
Maximum resolution on an external monitor VGA:
• 1920x1200@60Hz
DisplayPort:
• 3840x2160@30Hz
• 2560x1600@60Hz
USB (Universal Serial Bus) 3 x USB 3.0
LAN port 1 x
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C /41 °F .... 95 °F
Transport temperature –15 °C .... 60 °C /5 °F .... 140 °F
88 Fujitsu
Technical data
Keyboard dock (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Ports
Docking port 16-pin
USB (Universal Serial Bus) 3 x USB 3.0
VGA monitor port 1x
LAN port 1 x
HDMI port 1 x
Environmental conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41°F....95°F
Temperature during transportation –15 °C .... 60 °C / 5 °F .... 140 °F
Battery for keyboard dock (device-dependent)
You can find information on the batteries used in your device on the
Internet at "http://fujitsu.com/fts/support".
4-cell lithium-ion rechargeable battery 4170 mAh
Rated voltage 10.8 V
Rated capacity 45 Wh
VESA mount (optional)
Dimensions
Width x Depth x Height 222 mm x 91 mm x 12.2 mm /
8.74 in. x 3.58 in. x 0.48 in.
Weight 130 g / 0.29 lbs
Hand strap (optional)
Dimensions
Width x Depth x Height 478 mm x 77 mm x 13 mm /
18.8 in. x 3.03 in. x 0.51 in.
Weight approx. 24 g / 0.053 lbs.
Fujitsu 89
Technical data
Shoulder strap (optional)
Dimensions
Width x Depth x Height 1,265 mm x 25 mm x 4.8 mm /
49.80 in. x 0.98 in. x 0.189 in.
Weight approx. 33.4 g / 0.074 lbs.
Cover (optional)
Dimensions
Width x Depth x Height 460 mm x 273 mm x 16 mm /
18.11 in. x 10.75 in. x 0.63 in.
Weight approx. 390 g / 0.86 lbs.
90 Fujitsu
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your Tablet PC or on our website
("http://www.fujitsu.com/fts/about/fts/environment-care/").
Declarations of Conformity
Declarationof conformity
The "Declarations of Conformity" for the device can be found on the Internet at:
"http://globalsp.ts.fujitsu.com/sites/certificates/default.aspx".
Fujitsu Technology Solutions hereby declares that your device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Electrical safety including ergonomic requirements
(GS, depending on the device)
Please refer to the associated data sheet to establish whether the model variant of
your device has GS certification. You can find further information on the Internet at
"http://www.fujitsu.com/fts/products/computing/pc/tablets/datasheets".
Intended viewing distance 300 mm as a hand-held
product.
A monitor and a keyboard
should be connected externally
for use in an office.
Fujitsu 91
Manufacturer’s notes
CE marking
CEmarkingCEmarkingNotesElectromagneticco mpatibilityLowvoltagedirective
The shipped version of this device complies with the requirements of EC directives 2004/108/EC
"Electromagnetic compatibility", 2006/95/EC "Low voltage directive", 2011/65/EU "RoHS directive"
and 2009/125/EC "ecodesign directive" (from 20/04/2016: 2014/30/EC "Electromagnetic
Compatibility" and 2014/35/EC "Low Voltage Directive").
CE marking for devices with wireless component
This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament
and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment
and mutual recognition of conformity.
CE nnnn (!) ; nnnn: For digits and exclamation mark (!), see label on the product.
You can find more information and declarations of conformity on the Internet at:
"http://globalsp.ts.fujitsu.com/sites/certificates".
This equipment can be used in the following countries:
Belgium Bulgaria Denmark Germany
Estonia Finland France Greece
UK Ireland Iceland Italy
Latvia Liechtenstein Lithuania Luxembourg
Malta Netherlands Norway Austria
Poland Portugal Rumania Sweden
Switzerland Slovakia Slovenia Spain
Czech Republic Hungary Cyprus Croatia
Turkey
Limitation in France: The use of WLAN in the 5 GHz band is not permitted outdoors.
Contact the corresponding government office in the respective country for current information on
possible operating restrictions. If your country is not included in the list, then please contact
the corresponding supervisory authority as to whether the use of this product is permitted in
your country.
The CE conformity declaration covers accessories (e.g. mains adapters, rechargeable batteries,
cable adapters) and software (e.g. module drivers, module firmware and operating system).
The software used and affecting compliance is purchased by the module vendors and is under
their sole control.
92 Fujitsu
Manufacturer’s notes
Radio frequencies used
RF module Frequency band Max. transmission power
1BT 2400-2480 MHz 100 mW
2NFC 13.56 MHz 20 mW
3WLAN 2410-2480 MHz 100 mW
4WLAN 5150-5350 MHz class 2 200 mW
5WLAN 5470-5725 MHz class 1 1 W
6GSM 850 MHz, 900 MHz 2 W
7UMTS 1900 MHz, 1800 MHz 500 mW
8LTE 2100 MHz, 2600 MHz 500 mW
9LTE 850 MHz, 900 MHz 2 W
Other certification markings
Certificationmarkings
Any other certification markings are listed in the "Manual Appendix -
Additional Certifications" supplement.
If such markings are available, you can find the supplement on the Internet at
"http://support.ts.fujitsu.com/Manuals/" with the Operating Manual for your device.
Regulatory notices
If there is no FCC logo and also no FCC ID on the device then this device is
not approved by the Federal Communications Commission (FCC) of the USA.
Although it is not explicitly forbidden to travel in the US trading area carrying this
device, to avoid trouble at customs clearance, Fujitsu Technology Solutions GmbH
recommends not to bring this device into the US trading area.
Regulatory information for Tablet PCs without wireless device
Regulatoryinformation
NOTICE:
Changes or modifications not expressly approved by Fujitsu Technology Solutions
could void this user’s authority to operate the equipment.
Notice to Users of Radios and Television
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate wireless frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to wireless communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to wireless or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Fujitsu 93
Manufacturer’s notes
• Connect the equipment into an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Notice to Users of the US Telephone Network
Your Tablet PC may be supplied with an internal modem which complies with Part 68 of the
FCC rules. On this Tablet PC is a label that contains the FCC Registration Number and the
Ringer Equivalence Number (REN) for this equipment among other information. If requested,
the user must provide their telephone company with the following information:
1. The telephone number to which the Tablet PC is connected.
2. The Ringer Equivalence Number (REN) for this equipment.
3. The equipment requires a standard modular jack type USOC RJ-11C
which is FCC Part 68 compliant.
4. The FCC Registration Number.
This equipment is designed to be connected to the telephone network or premises wiring using
a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord
between the modem and the telephone network with a minimum of 26AWG.
The REN is used to determine the number of devices that you may connect to your telephone
line and still have all of those devices ring when your number is called. Too many devices
on one line may result in failure to ring in response to an incoming call. In most, but not all,
areas the sum of the RENs of all of the devices should not exceed five (5). To be certain
of the number of devices you may connect to your line, as determined by the RENs, contact
your local telephone company. If this equipment causes harm to the telephone network, your
telephone company may discontinue your service temporarily. If possible, they will notify you
in advance. If advance notice is not practical they will notify you as soon as possible. You
will also be advised of your right to file a complaint with the FCC.
This fax modem also complies with fax branding requirements per FCC Part 68.
Your telephone company will probably ask you to disconnect this equipment from the telephone
network until the problem is corrected and you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin-operated telephones provided by your telephone
company. Connection to party lines is subject to state tariffs. Contact your state’s public utility
commission, public service commission or corporation commission for more information.
This equipment includes automatic dialing capability. When programming and/or
making test calls to emergency numbers:
• Remain on the line and briefly explain to the dispatcher the reason for the call.
• Perform such activities in off-peak hours, such as early morning or late evening.
FCC rules prohibit the use of non-hearing aid compatible telephones in the
following locations or applications:
• All public or semi-public coin-operated or credit card telephones.
• Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a
person with impaired hearing might be isolated in an emergency.
• Places where telephones are specifically installed to alert emergency authorities
such as fire, police or medical assistance personnel.
• Hospital rooms, residential health care facilities, convalescent homes and prisons.
• Hotel, motel or apartment lobbies.
• Stores where telephones are used by patrons to order merchandise.
94 Fujitsu
Manufacturer’s notes
• Public transportation terminals where telephones are used to call taxis or
to reserve lodging or rental cars.
• In hotel and motel rooms as at least ten percent of the rooms must contain hearing
aid-compatible telephones or jacks for plug-in hearing aid compatible telephones which
will be provided to hearing impaired customers on request.
DOC (Industry CANADA) notices
DOC(INDUSTRYCANADA)NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
NOTICE:
This equipment meets the applicable Industry Canada Terminal Equipment Technical
Specifications. This is confirmed by the registration number. The abbreviation, IC, before
the registration number signifies that registration was performed based on a Declaration of
Conformity indicating that Industry Canada technical specifications were met. It does not
imply that Industry Canada approved the equipment. Before connecting this equipment to
a telephone line the user should ensure that it is permissible to connect this equipment to
the local telecommunication facilities. The user should be aware that compliance with the
certification standards does not prevent service degradation in some situations.
Repairs to telecommunication equipment should be made by a Canadian authorised
maintenance facility. Any repairs or alterations not expressly approved by Fujitsu or
any equipment failures may give the telecommunication company cause to request the
user to disconnect the equipment from the telephone line.
NOTICE:
The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned
to each terminal equipment provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed five.
CAUTION:
For safety, users should ensure that the electrical ground of the power utility, the
telephone lines and the metallic water pipes are connected together. Users should NOT
attempt to make such connections themselves but should contact the appropriate electric
inspection authority or electrician. This may be particularly important in rural areas.
Avis Aux Utilisateurs Du Réseau Téléphonique Canadien
AVIS : Le présent matériel est conforme aux spécifications techniques d’Industrie Canada
applicables au matériel terminal. Cette conformité est confirmée par le numéro d’enregistrement.
Le sigle IC, placé devant le numéro d’enregistrement, signifie que l’enregistrement s’est effectué
conformément à une déclaration de conformité et indique que les spécifications techniques
d’Industrie Canada ont été respectées. Il n’implique pas qu’Industrie Canada a approuvé le matériel.
Fujitsu 95
Manufacturer’s notes
Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier
s’il est permis de connecter cet équipement aux installations de télécommunications
locales. L’utilisateur est averti que même la conformité aux normes de certification ne
peut dans certains cas empêcher la dégradation du service.
Les réparations de l’équipement de télécommunications doivent être effectuées par un service de
maintenance agréé au Canada. Toute réparation ou modification, qui n’est pas expressément
approuvée par Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de
télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.
AVIS : L’indice d’équivalence de la sonnerie (IES) du présent matériel est de 0.0. L’IES
assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent
être raccordés à une interface téléphonique. La terminaison d’une interface peut consister
en une combinaison quelconque de dispositifs, à la seule condition que la somme d’indices
d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5.
AVERTISSEMENT:
Pour assurer la sécurité, les utilisateurs doivent vérifier que la prise de terre du service
d’électricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées
ensemble. Les utilisateurs NE doivent PAS tenter d’établir ces connexions eux-mêmes,
mais doivent contacter les services d’inspection d’installations électriques appropriés
ou un électricien. Ceci peut être particulièrement important en régions rurales.
UL Notice
This unit requires an AC adapter to operate. Only use a UL Listed Class 2 adapter.

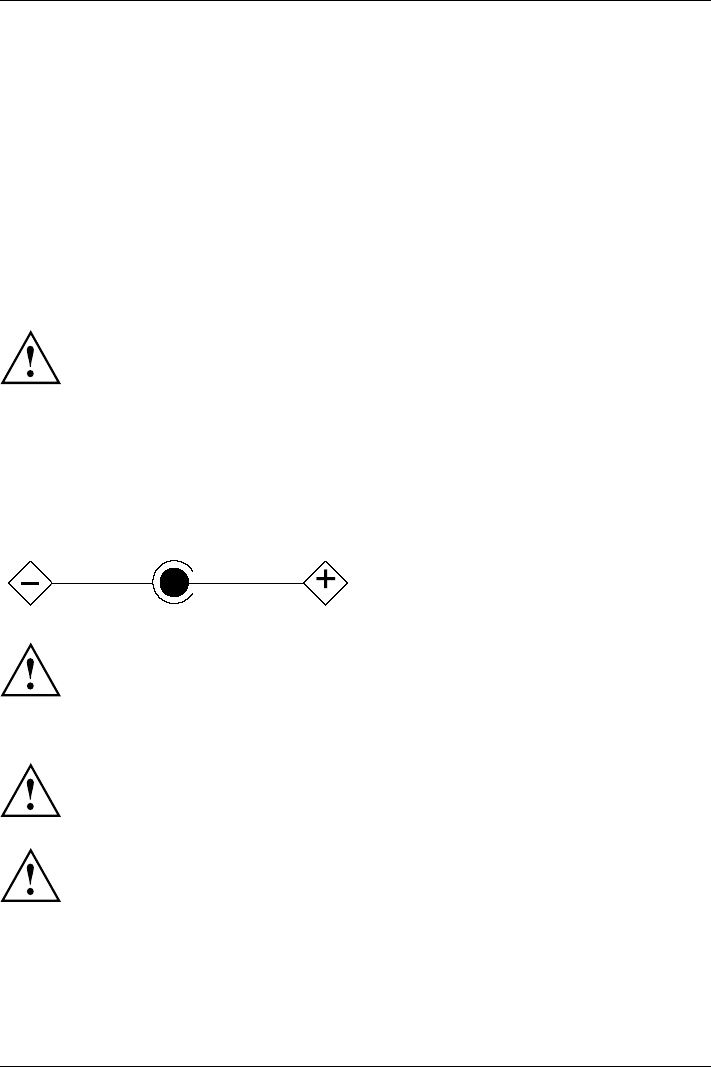

The correct output rating is indicated on the AC adapter label. Refer to the illustration
below for the correct AC Adapter output polarity:
CAUTION:
To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
96 Fujitsu
Manufacturer’s notes
FCC Regulatory information for Tablet PCs with radio device
Regulatoryinformation
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Please note the following regulatory information related to the optional radio device.
FCC Radio Frequency Exposure statement
This radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the
requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this radio device is far below
the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized. When using this device, a
certain separation distance between antenna and nearby persons must be maintained to ensure RF
exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1
standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).
Regulatory Notes and Statements
Radio device, health and authorisation for use
Radio-frequency electromagnetic energy is emitted from the wireless devices. The energy levels
of these emissions, however, are far much less than the electromagnetic energy emissions from
wireless devices such as mobile phones. Radio devices are safe for use by consumers because
they operate within the guidelines found in radio frequency safety standards and recommendations.
The use of the radio devices may be restricted in some situations or environments, such as:
• on board an airplane, or
• in an explosive environment, or
• in situations where the interference risk to other devices or services is
perceived or identified as harmful.
In cases in which the policy regarding use of radio devices in specific environments is not
clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain
authorization to use these devices prior to operating the equipment.
Fujitsu 97
Manufacturer’s notes
Regulatory Information/Disclaimers
Installation and use of this radio device must be in strict accordance with the instructions included
in the user documentation provided with the product. Any changes or modifications made to this
device that are not expressly approved by the manufacturer may void the user’s authority to operate
the equipment. The manufacturer is not responsible for any radio or television interference caused
by unauthorized modification of this device, or the substitution or attachment of connecting cables
and equipment other than those specified by the manufacturer. It is the responsibility of the user
to correct any interference caused by such unauthorized modification, substitution or attachment.
The manufacturer and its authorized resellers or distributors will assume no liability for any damage
or violation of government regulations arising from failure to comply with these guidelines.
Export restrictions
This product or software contains encryption code which may not be exported or
transferred from the US or Canada without an approved US Department of Commerce
export license. This device complies with Part 15 of FCC Rules, as well as ICES 003 B
/ NMB 003 B. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesirable operation.
Modifications not expressly authorised by Fujitsu Technology Solutions may
invalidate the user’s right to operate this equipment.
98 Fujitsu
Index
Index
A
Acoustic error messages 82
Anti-theft protection 59
Audio devices, connecting 71
Audio ports 71
B
Battery
battery life 30, 44
caring for and maintaining 30
charge level 30–31
charging 30
Battery status meter 30
Battery:
discharges too quickly 80
Before you travel 14
BIOS Setup Utility
calling 72
exiting 74
operating 73
protecting with password 60
settings 72
Bluetooth, safety notes 12
C
Camera 29
CE marking 92
Certification markings 93
Cleaning 15
Configuration, BIOS Setup Utility 72
Connecting audio devices 71
Connecting headphones 71
cradle
Connecting a Tablet PC 38
Cradle 37
D
Date is incorrect 76
Declaration of conformity 91
Device
setting up 17
Display orientation
selecting 25
DisplayPort 68
DOC (INDUSTRY CANADA) NOTICES 95
E
Electromagnetic compatibility 92
Energy
energy saving 13
Energy saving 13
Energy saving mode
leaving 79
Error message:
on the screen 83
Error messages on the screen 83
Errors
Acoustic warnings 82
Ethernet LAN 35
F
Fault
correction 75
Fingerprint sensor 58
configure 58
First-time setup 16
G
Getting started 16
GPS 35
H
Hardware configuration 72
HDMI port 67–68
I
Important notes 12
Incorrect date/time 76
K
Keyboard
cleaning 15
Keyboard dock
connecting the Tablet PC 42
Ports 40
L
Landscape orientation
screen 25
Life, battery 30, 44
Low voltage directive 92
M
Mains adapter
connecting 17
setting up 17
Fujitsu 99
Index
Memory card
handling 31
inserting 32
removing 32
Microphone, connecting 71
Mobile operation 14
Monitor
connecting 69
drifting display 78
remains blank 78
Monitor port
see VGA connection socket 69
N
Notes 12
CE marking 92
cleaning 15
disposal / recycling 91
energy saving 13
Safety 12
touchscreen 23
transport 14
O
Operating system
activating system protection 61
cancel system protection 61
protecting with password 61
P
Packaging 16
Password
changing 60
entering 60
removing 61
Password protection 59
Password protection:
hard disk 62
Pen 26
Portrait orientation
screen 25
Ports 37
Keyboard dock 40
Power
power consumption 31
power-management features 31
Power-on indicator 22
Preparing for operation 17
Printer does not print 80
R
Rechargeable battery 30, 44
see Battery 30, 44
Regulatory information
Tablet PCs with radio device 97
Tablet PCs without wireless device 93
S
Safety notes 12
Screen
no screen display 78
Screen port
see VGA connection socket 69
Security functions 57
SystemLock 63
Security functions,
SmartCard 63
Security Lock
anti-theft protection 59
Using 59
Selecting a location 17
Setup
see BIOS Setup Utility 72
Slot
Memory cards 31
Status indicators 20
Summer time 76
Supervisor password
changing 60
entering 60
removing 61
Switching off
Tablet PC 23
Switchingonforthefirst time 18
Symbols
indicators 20
System configuration 72
System settings, BIOS Setup Utility 72
T
Tablet PC
cleaning 15
transporting 14
using 20
Tablet PC, operation 20
Tablet PC: switching on 22
Technical data
Mains adapter 88
The Tablet PC
cannot be started 79
doesn’t work. 79
100 Fujitsu
Index
The wireless connection to a network
does not work 80
Time not correct 76
Time, daylight savings 76
Tips 75
Touchpad
cleaning 15
Touchscreen
cleaning 15
difficult to read 77
notes 23
reflected glare 77
remains blank 77
touchscreen is too dark 77
TPM 65
Transport
Transport damage 16
Transportation 14
Travel 14
Troubleshooting 75
Trusted Platform Module 65
U
USB ports 70
User password
changing 60
entering 60
removing 61
V
VGA connection socket 69
W
Wireless component:
safety notes 12
Wireless LAN:
safety notes 12
Fujitsu 101
