i MOBIL de C V 05F-1 TRI-BAND GSM 900/1800/1900 MHZ MOBILE PHONE User Manual i MOBIL F 1 en

i-MOBIL S.A. DE C.V. TRI-BAND GSM 900/1800/1900 MHZ MOBILE PHONE i MOBIL F 1 en

Users Manual

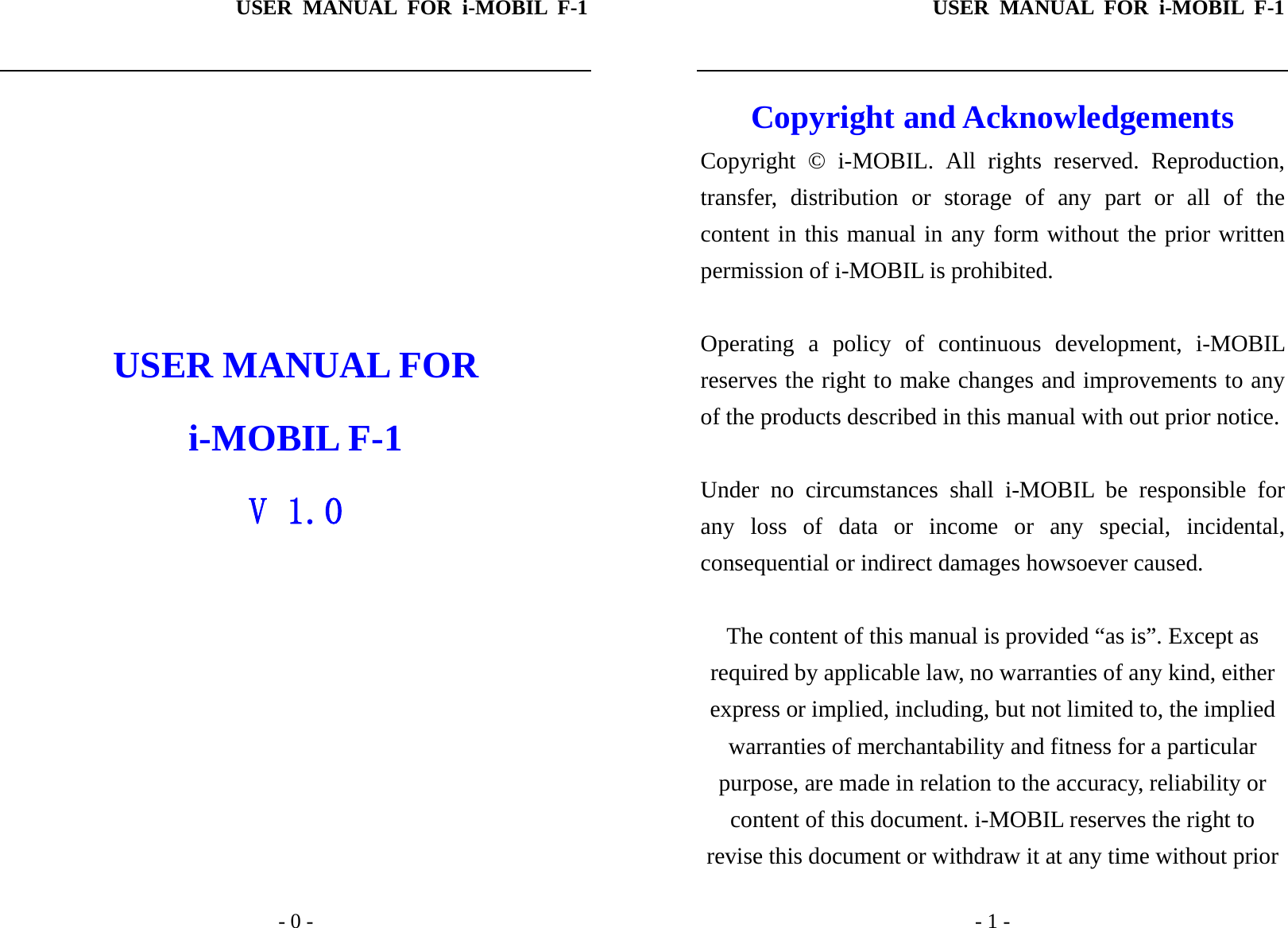

USER MANUAL FOR i-MOBIL F-1   - 0 -        USER MANUAL FOR i-MOBIL F-1 V 1.0 USER MANUAL FOR i-MOBIL F-1   - 1 - Copyright and Acknowledgements Copyright © i-MOBIL. All rights reserved. Reproduction, transfer, distribution or storage of any part or all of the content in this manual in any form without the prior written permission of i-MOBIL is prohibited.  Operating a policy of continuous development, i-MOBIL reserves the right to make changes and improvements to any of the products described in this manual with out prior notice.  Under no circumstances shall i-MOBIL be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.  The content of this manual is provided “as is”. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or content of this document. i-MOBIL reserves the right to revise this document or withdraw it at any time without prior
USER MANUAL FOR i-MOBIL F-1   - 2 - notice.USER MANUAL FOR i-MOBIL F-1   - 3 - Table Contents FOR YOUR SAFETY............................................. 7 FRONT / SIDE VIEW OF THE PHONE.............10 SIMPLIFIED MANUAL.................................. 13  BEFORE USING .........................................................13  SLIDING AND LOCKING KEYPADS.13  SIM LOCK.....................................................................14  CALL FUNCTION ......................................................15  NAMES........................................................................15  QUICK ACCESS TO MENU.......................................16  ONE KEYPRESS TO WAP..........................................17  ONE KEYPRESS TO V-MEMO..................................17  QUICK ACCESS TO CAMERA..................................17 GETTING START.................................................... 19  INSTALLING/CHANGING BATTERY......................19  INSERT/CHANGE SIM CARD ..................................20  CHARGING THE BATTERY .....................................20  SWITCH ON / OFF .....................................................22 MAKING AND ANSWRING CALLS...........................................................................................................23

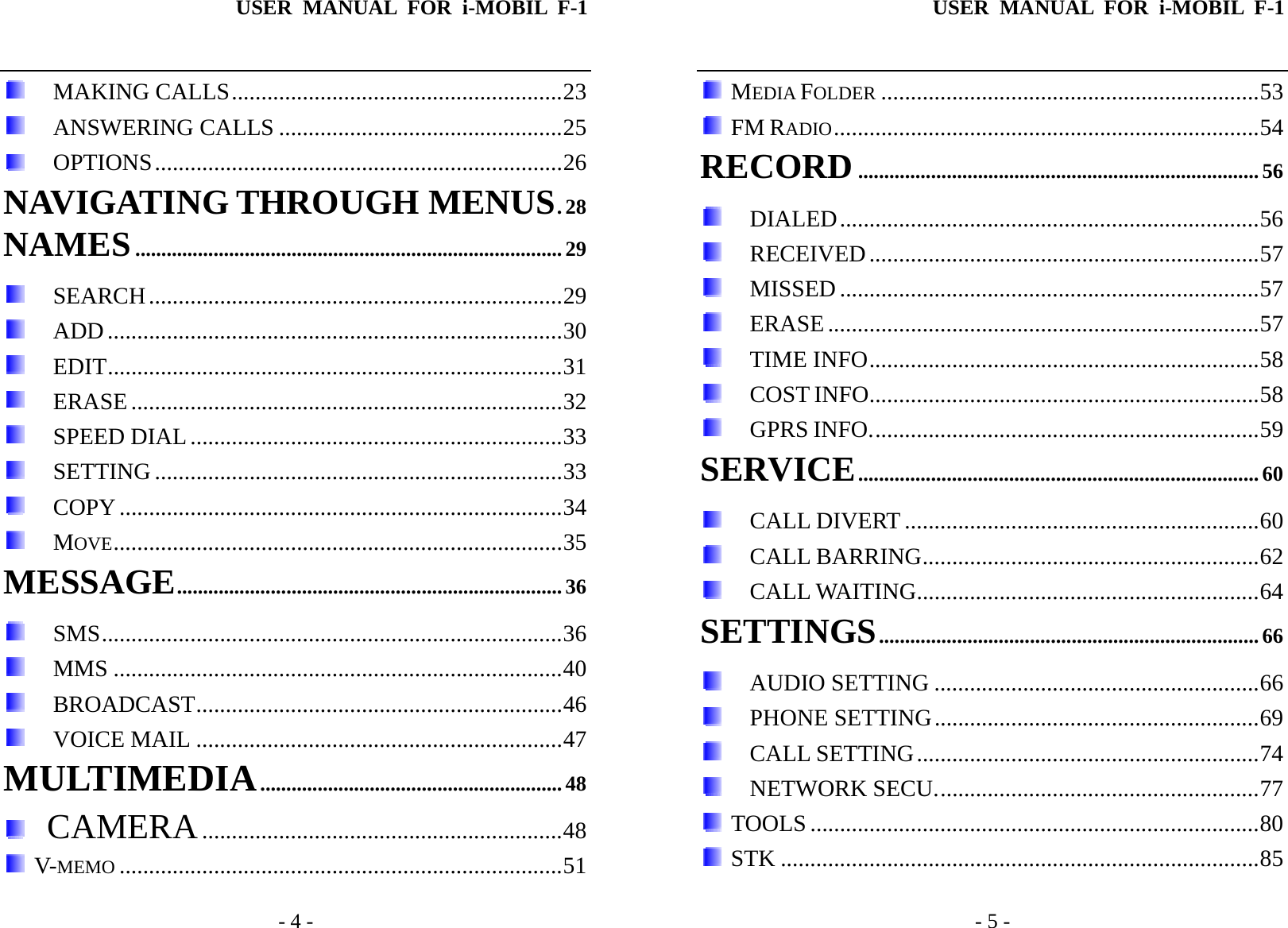

USER MANUAL FOR i-MOBIL F-1   - 4 -  MAKING CALLS........................................................23  ANSWERING CALLS ................................................25  OPTIONS.....................................................................26 NAVIGATING THROUGH MENUS.28 NAMES..................................................................................29  SEARCH......................................................................29  ADD.............................................................................30  EDIT.............................................................................31  ERASE.........................................................................32  SPEED DIAL...............................................................33  SETTING .....................................................................33  COPY...........................................................................34  MOVE............................................................................35 MESSAGE..........................................................................36  SMS..............................................................................36  MMS ............................................................................40  BROADCAST..............................................................46  VOICE MAIL ..............................................................47 MULTIMEDIA..........................................................48   CAMERA.............................................................48  V-MEMO ...........................................................................51 USER MANUAL FOR i-MOBIL F-1   - 5 -  MEDIA FOLDER ................................................................53  FM RADIO........................................................................54 RECORD............................................................................. 56  DIALED.......................................................................56  RECEIVED..................................................................57  MISSED.......................................................................57  ERASE.........................................................................57  TIME INFO..................................................................58  COST INFO..................................................................58  GPRS INFO..................................................................59 SERVICE............................................................................. 60  CALL DIVERT ............................................................60  CALL BARRING.........................................................62  CALL WAITING..........................................................64 SETTINGS......................................................................... 66  AUDIO SETTING .......................................................66  PHONE SETTING.......................................................69  CALL SETTING..........................................................74  NETWORK SECU.......................................................77  TOOLS ............................................................................80  STK .................................................................................85

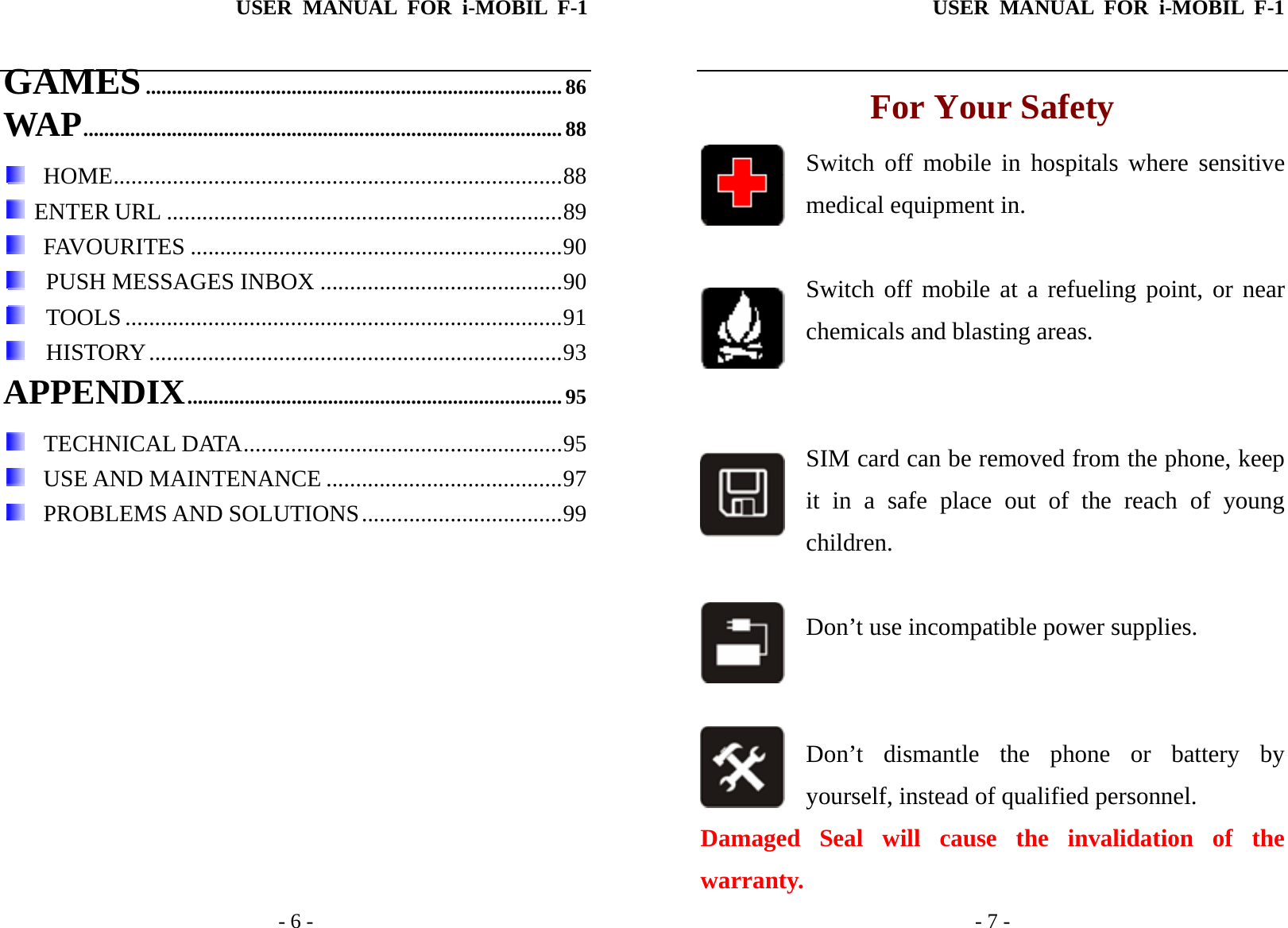

USER MANUAL FOR i-MOBIL F-1   - 6 - GAMES................................................................................86 WAP............................................................................................ 88   HOME............................................................................88  ENTER URL ...................................................................89   FAVOURITES ...............................................................90    PUSH MESSAGES INBOX .........................................90   TOOLS ..........................................................................91   HISTORY......................................................................93 APPENDIX........................................................................95   TECHNICAL DATA......................................................95   USE AND MAINTENANCE ........................................97   PROBLEMS AND SOLUTIONS..................................99  USER MANUAL FOR i-MOBIL F-1   - 7 - For Your Safety Switch off mobile in hospitals where sensitive medical equipment in.   Switch off mobile at a refueling point, or near chemicals and blasting areas.    SIM card can be removed from the phone, keep it in a safe place out of the reach of young     children.  Don’t use incompatible power supplies.   Don’t dismantle the phone or battery by yourself, instead of qualified personnel.   Damaged Seal will cause the invalidation of the warranty.

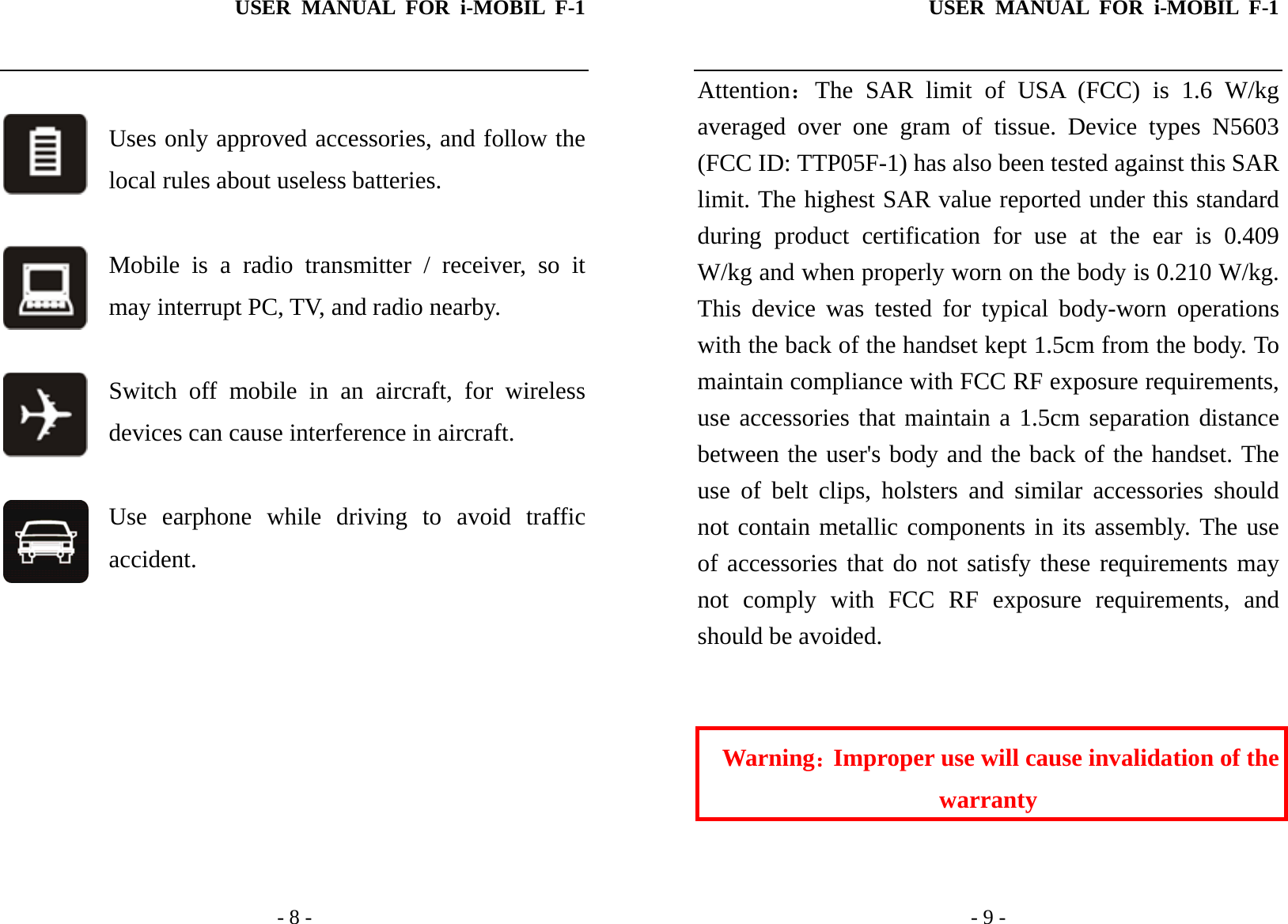

USER MANUAL FOR i-MOBIL F-1   - 8 -  Uses only approved accessories, and follow the local rules about useless batteries.  Mobile is a radio transmitter / receiver, so it may interrupt PC, TV, and radio nearby.  Switch off mobile in an aircraft, for wireless devices can cause interference in aircraft.  Use earphone while driving to avoid traffic accident.        USER MANUAL FOR i-MOBIL F-1   - 9 - Attention:The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types N5603 (FCC ID: TTP05F-1) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.409 W/kg and when properly worn on the body is 0.210 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.   Warning:Improper use will cause invalidation of the warranty

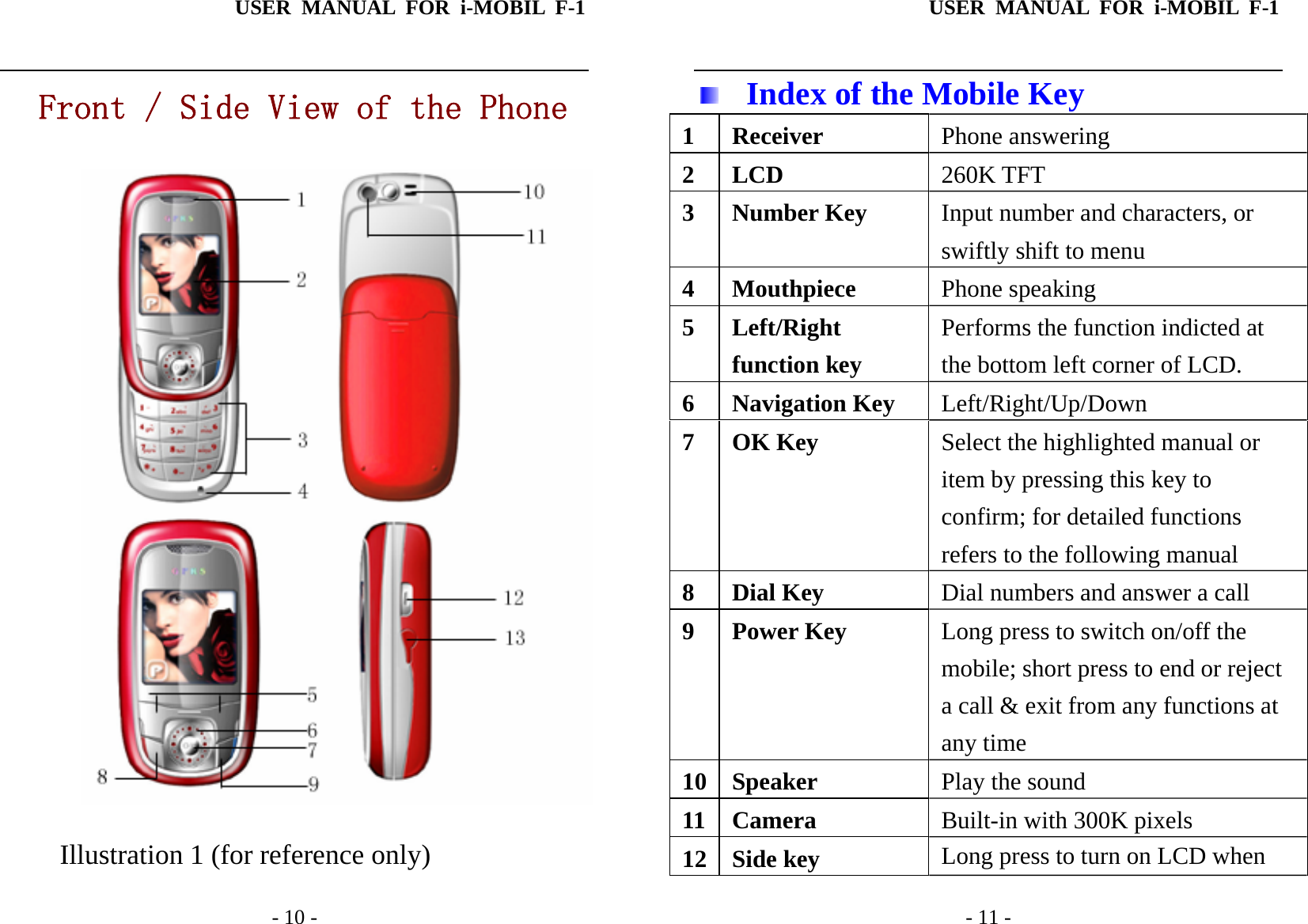

USER MANUAL FOR i-MOBIL F-1   - 10 -  Front / Side View of the Phone                   Illustration 1 (for reference only)USER MANUAL FOR i-MOBIL F-1   - 11 -  Index of the Mobile Key 1 Receiver  Phone answering 2 LCD  260K TFT   3 Number Key  Input number and characters, or swiftly shift to menu   4 Mouthpiece  Phone speaking 5 Left/Right function key Performs the function indicted at the bottom left corner of LCD. 6 Navigation Key  Left/Right/Up/Down 7 OK Key  Select the highlighted manual or item by pressing this key to confirm; for detailed functions refers to the following manual  8 Dial Key  Dial numbers and answer a call 9 Power Key   Long press to switch on/off the mobile; short press to end or reject a call & exit from any functions at any time 10 Speaker  Play the sound   11 Camera  Built-in with 300K pixels 12 Side key  Long press to turn on LCD when

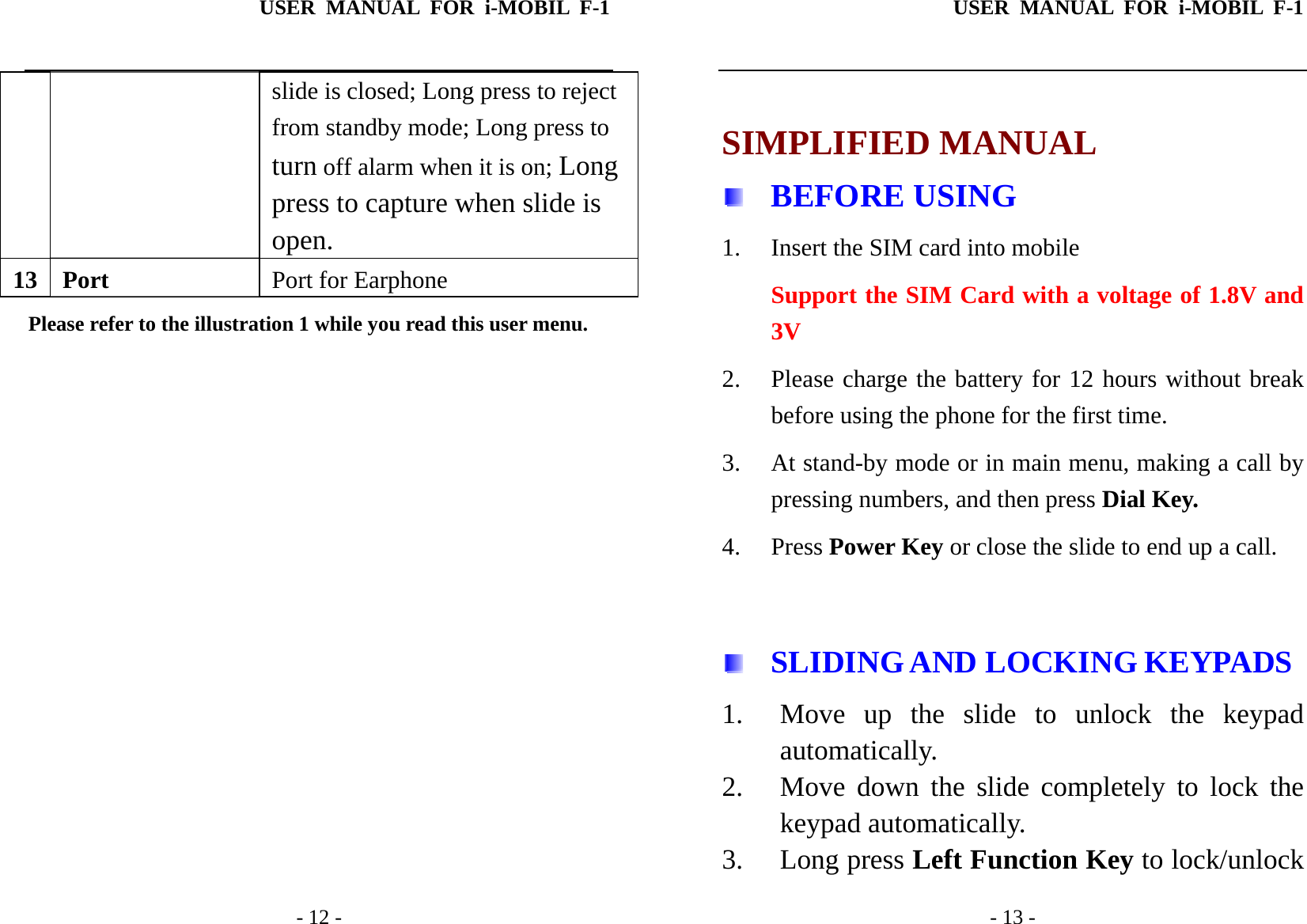

USER MANUAL FOR i-MOBIL F-1   - 12 - slide is closed; Long press to reject from standby mode; Long press to turn off alarm when it is on; Longpress to capture when slide is   open. 13 Port  Port for Earphone Please refer to the illustration 1 while you read this user menu.               USER MANUAL FOR i-MOBIL F-1   - 13 -  SIMPLIFIED MANUAL  BEFORE USING 1. Insert the SIM card into mobile Support the SIM Card with a voltage of 1.8V and 3V 2. Please charge the battery for 12 hours without break before using the phone for the first time. 3. At stand-by mode or in main menu, making a call by pressing numbers, and then press Dial Key. 4. Press Power Key or close the slide to end up a call.    SLIDING AND LOCKING KEYPADS 1. Move up the slide to unlock the keypad automatically.  2. Move down the slide completely to lock the keypad automatically.   3. Long press Left Function Key to lock/unlock

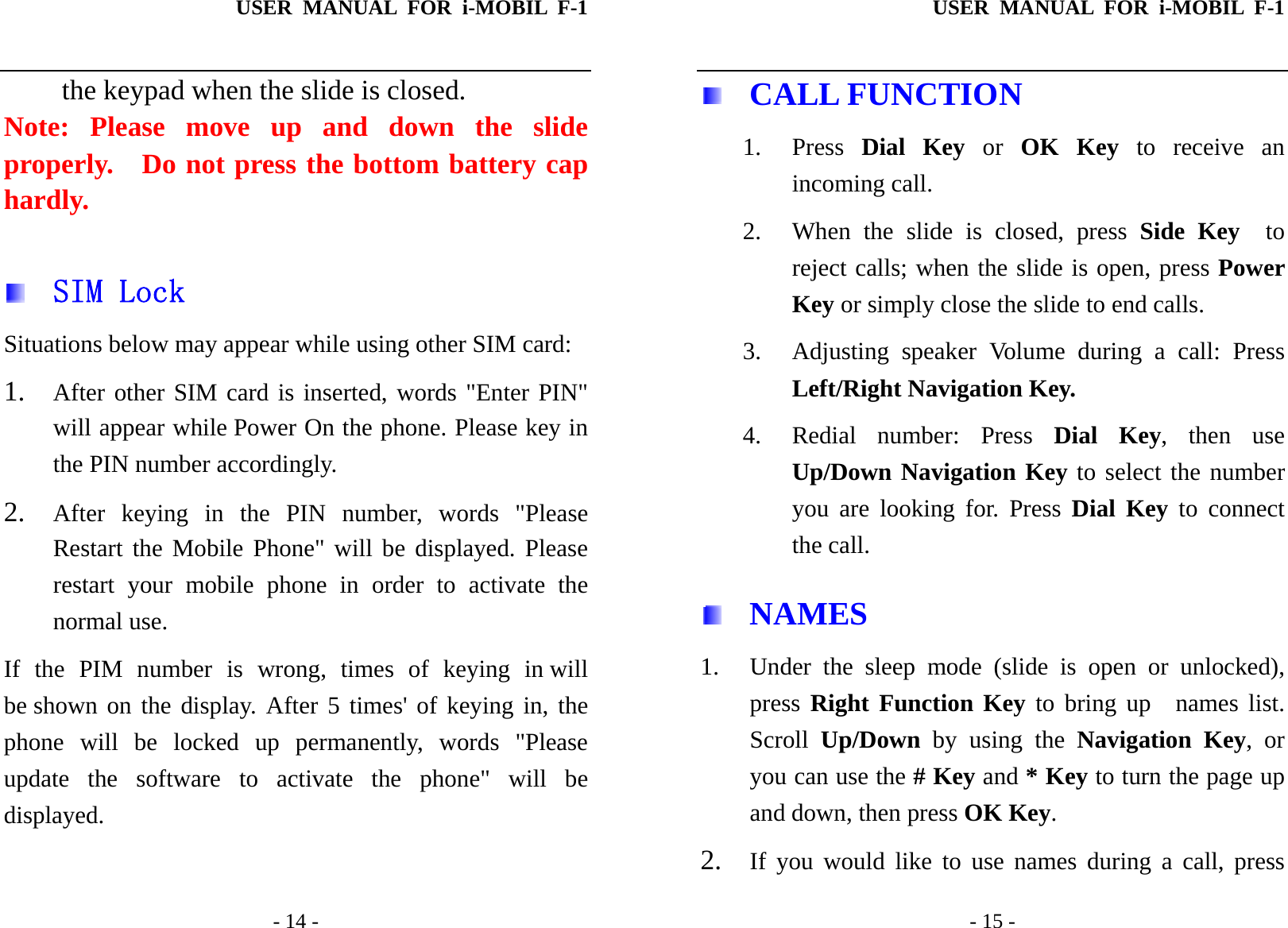

USER MANUAL FOR i-MOBIL F-1   - 14 - the keypad when the slide is closed.   Note: Please move up and down the slide properly.  Do not press the bottom battery cap hardly.    SIM Lock Situations below may appear while using other SIM card: 1. After other SIM card is inserted, words "Enter PIN" will appear while Power On the phone. Please key in the PIN number accordingly.  2. After keying in the PIN number, words "Please Restart the Mobile Phone" will be displayed. Please restart your mobile phone in order to activate the normal use. If the PIM number is wrong, times of keying in will be shown on the display. After 5 times' of keying in, the phone will be locked up permanently, words "Please update the software to activate the phone" will be displayed. USER MANUAL FOR i-MOBIL F-1   - 15 -  CALL FUNCTION 1. Press  Dial Key or OK Key to receive an incoming call. 2. When the slide is closed, press Side Key  to reject calls; when the slide is open, press Power Key or simply close the slide to end calls. 3.  Adjusting speaker Volume during a call: Press Left/Right Navigation Key.   4. Redial number: Press Dial Key, then use Up/Down Navigation Key to select the number you are looking for. Press Dial Key to connect the call.  NAMES 1. Under the sleep mode (slide is open or unlocked), press Right Function Key to bring up  names list. Scroll  Up/Down by using the Navigation Key, or you can use the # Key and * Key to turn the page up and down, then press OK Key. 2. If you would like to use names during a call, press

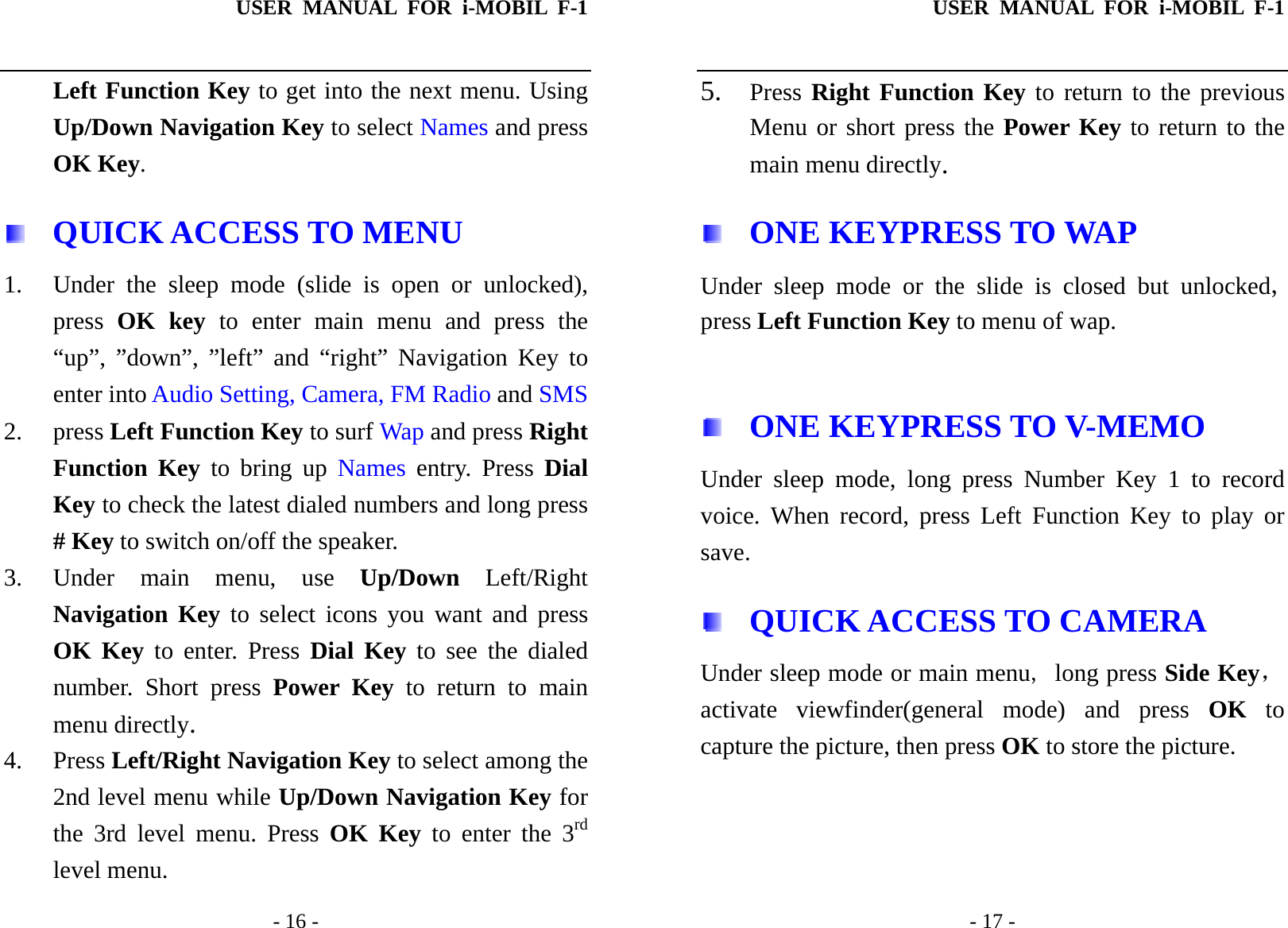

USER MANUAL FOR i-MOBIL F-1   - 16 - Left Function Key to get into the next menu. Using Up/Down Navigation Key to select Names and press OK Key.    QUICK ACCESS TO MENU 1. Under the sleep mode (slide is open or unlocked), press  OK key to enter main menu and press the “up”, ”down”, ”left” and “right” Navigation Key to enter into Audio Setting, Camera, FM Radio and SMS  2. press Left Function Key to surf Wap and press Right Function Key to bring up Names entry. Press Dial Key to check the latest dialed numbers and long press # Key to switch on/off the speaker. 3. Under main menu, use Up/Down Left/Right Navigation Key to select icons you want and press OK Key to enter. Press Dial Key to see the dialed number. Short press Power Key to return to main menu directly. 4. Press Left/Right Navigation Key to select among the 2nd level menu while Up/Down Navigation Key for the 3rd level menu. Press OK Key to enter the 3rd level menu. USER MANUAL FOR i-MOBIL F-1   - 17 - 5. Press Right Function Key to return to the previous Menu or short press the Power Key to return to the main menu directly.   ONE KEYPRESS TO WAP Under sleep mode or the slide is closed but unlocked, press Left Function Key to menu of wap.    ONE KEYPRESS TO V-MEMO Under sleep mode, long press Number Key 1 to record voice. When record, press Left Function Key to play or save.  QUICK ACCESS TO CAMERA Under sleep mode or main menu, long press Side Key,activate viewfinder(general mode) and press OK to capture the picture, then press OK to store the picture.

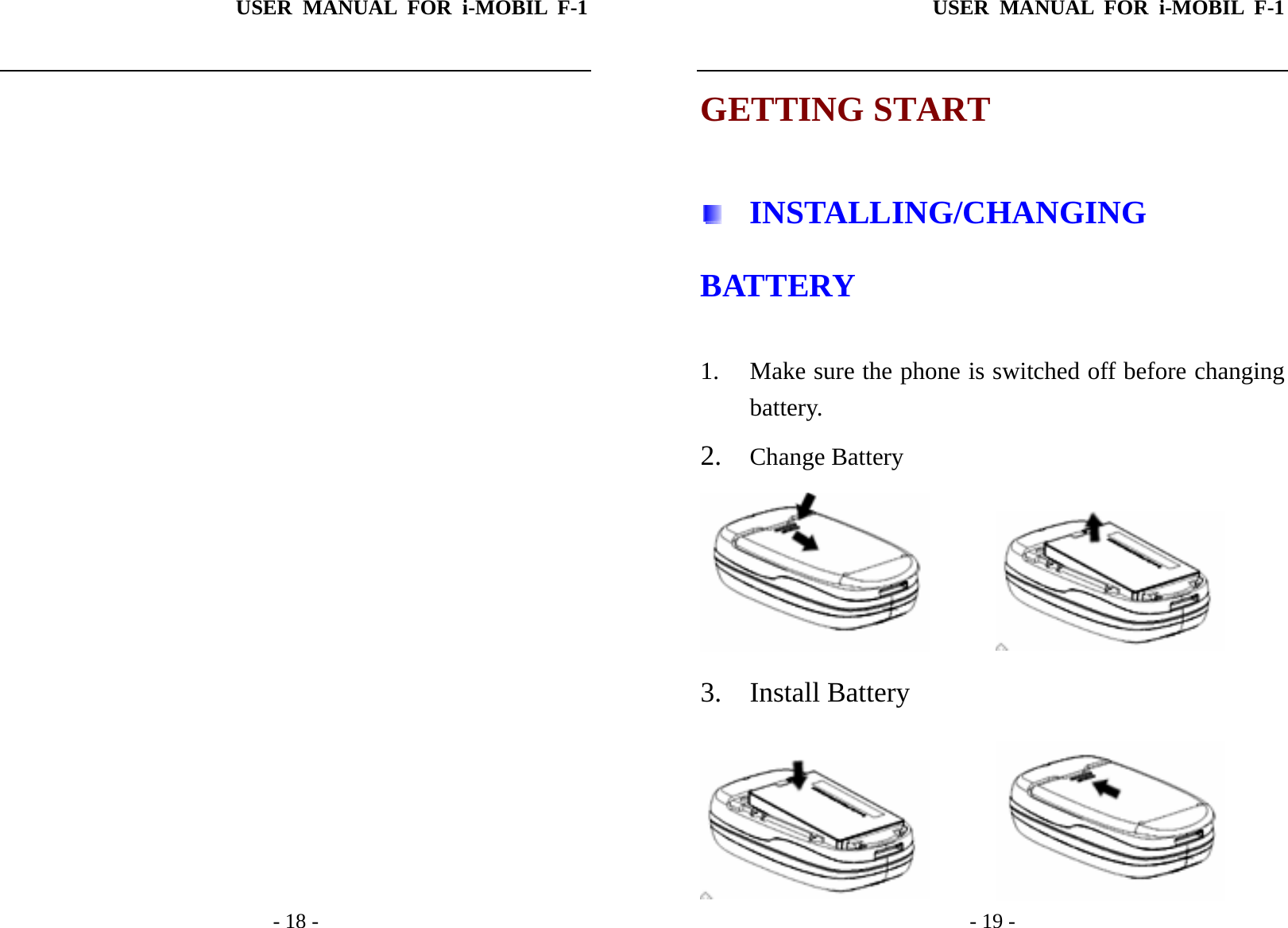

USER MANUAL FOR i-MOBIL F-1   - 18 -                  USER MANUAL FOR i-MOBIL F-1   - 19 - GETTING START  INSTALLING/CHANGING BATTERY 1. Make sure the phone is switched off before changing battery. 2. Change Battery          3. Install Battery

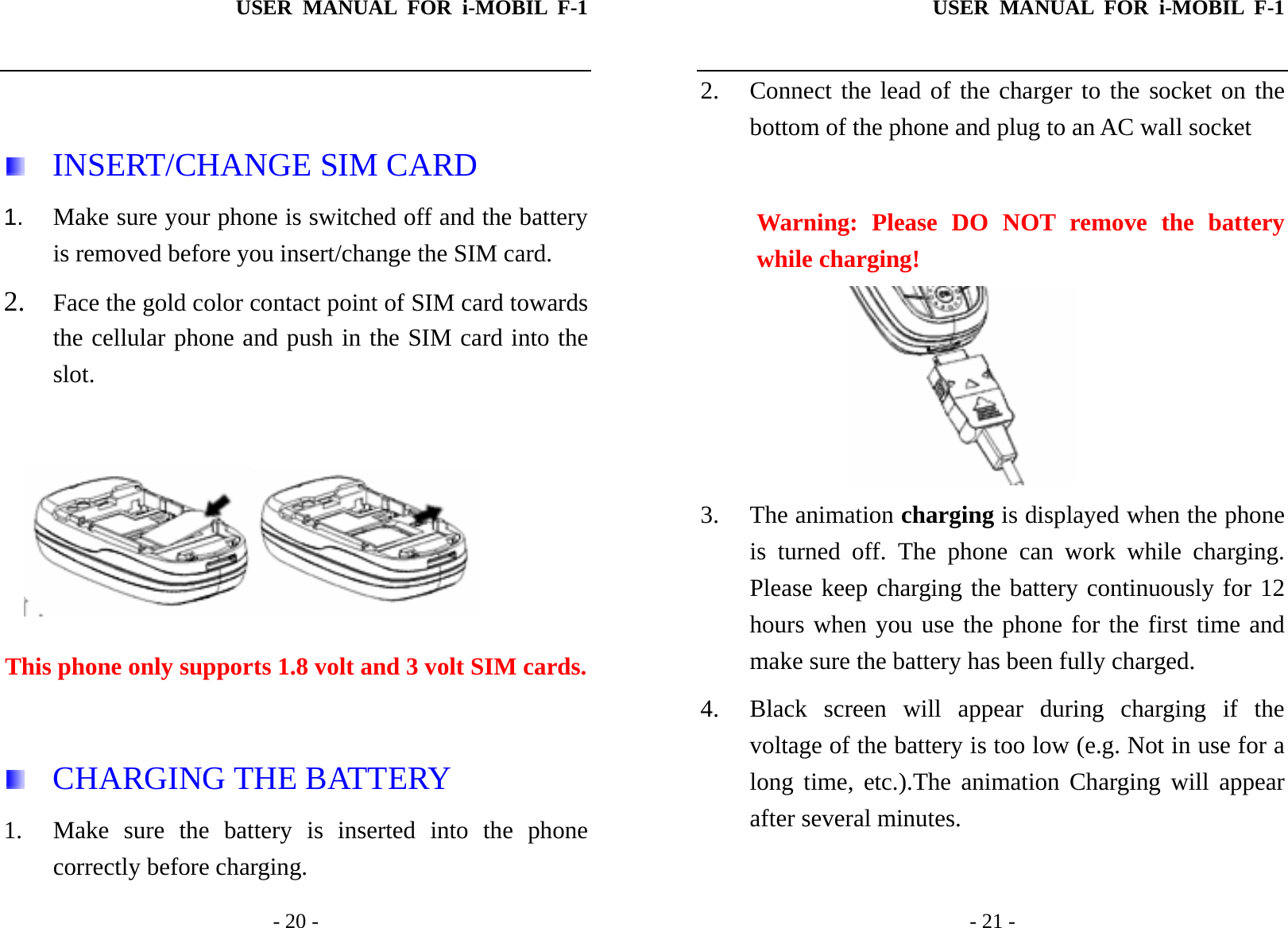

USER MANUAL FOR i-MOBIL F-1   - 20 -   INSERT/CHANGE SIM CARD 1.  Make sure your phone is switched off and the battery is removed before you insert/change the SIM card. 2. Face the gold color contact point of SIM card towards the cellular phone and push in the SIM card into the slot.   This phone only supports 1.8 volt and 3 volt SIM cards.   CHARGING THE BATTERY 1. Make sure the battery is inserted into the phone correctly before charging. USER MANUAL FOR i-MOBIL F-1   - 21 - 2. Connect the lead of the charger to the socket on the bottom of the phone and plug to an AC wall socket    Warning: Please DO NOT remove the battery while charging!  3. The animation charging is displayed when the phone is turned off. The phone can work while charging. Please keep charging the battery continuously for 12 hours when you use the phone for the first time and make sure the battery has been fully charged. 4. Black screen will appear during charging if the voltage of the battery is too low (e.g. Not in use for a long time, etc.).The animation Charging will appear after several minutes.

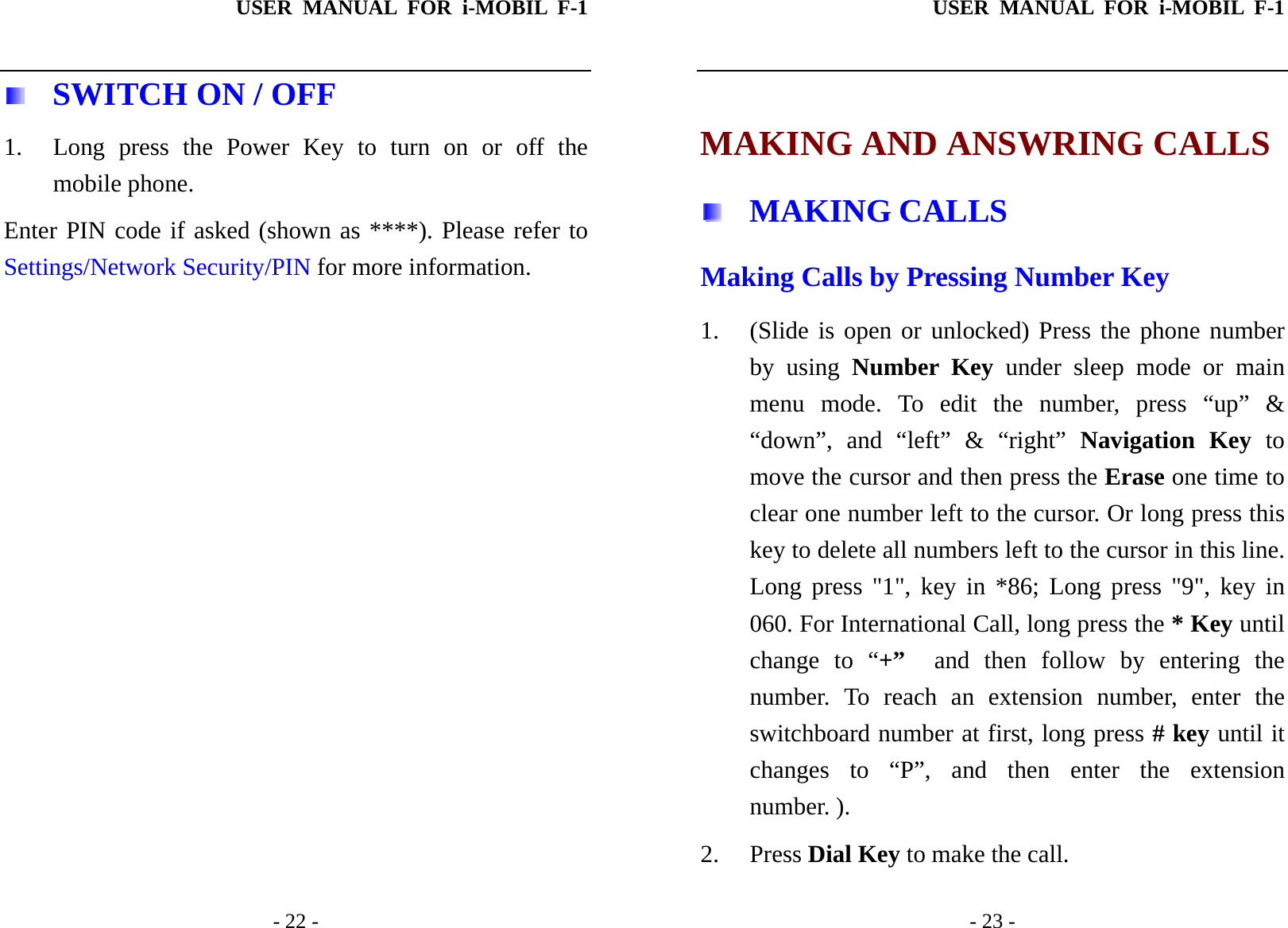

USER MANUAL FOR i-MOBIL F-1   - 22 -   SWITCH ON / OFF 1. Long press the Power Key to turn on or off the mobile phone. Enter PIN code if asked (shown as ****). Please refer to Settings/Network Security/PIN for more information.USER MANUAL FOR i-MOBIL F-1   - 23 -  MAKING AND ANSWRING CALLS  MAKING CALLS Making Calls by Pressing Number Key 1. (Slide is open or unlocked) Press the phone number by using Number Key under sleep mode or main menu mode. To edit the number, press “up” & “down”, and “left” & “right” Navigation Key to move the cursor and then press the Erase one time to clear one number left to the cursor. Or long press this key to delete all numbers left to the cursor in this line. Long press "1", key in *86; Long press "9", key in 060. For International Call, long press the * Key until change to “+”  and then follow by entering the number. To reach an extension number, enter the switchboard number at first, long press # key until it changes to “P”, and then enter the extension number. ).   2. Press Dial Key to make the call.

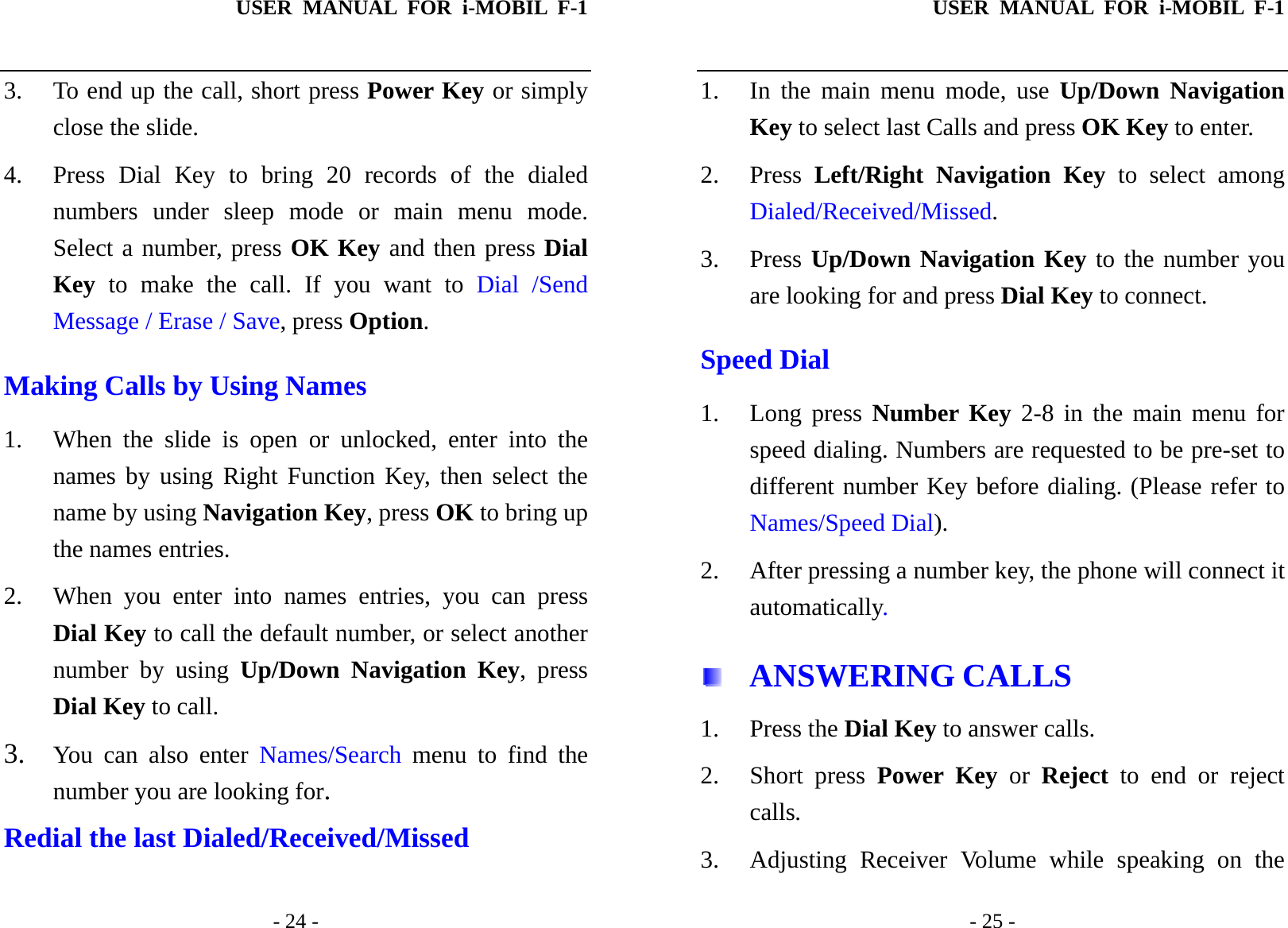

USER MANUAL FOR i-MOBIL F-1   - 24 - 3. To end up the call, short press Power Key or simply close the slide. 4. Press Dial Key to bring 20 records of the dialed numbers under sleep mode or main menu mode. Select a number, press OK Key and then press Dial Key to make the call. If you want to Dial /Send Message / Erase / Save, press Option. Making Calls by Using Names 1. When the slide is open or unlocked, enter into the names by using Right Function Key, then select the name by using Navigation Key, press OK to bring up the names entries. 2. When you enter into names entries, you can press Dial Key to call the default number, or select another number by using Up/Down Navigation Key, press Dial Key to call. 3. You can also enter Names/Search menu to find the number you are looking for. Redial the last Dialed/Received/Missed  USER MANUAL FOR i-MOBIL F-1   - 25 - 1. In the main menu mode, use Up/Down Navigation Key to select last Calls and press OK Key to enter.   2. Press  Left/Right Navigation Key to select among Dialed/Received/Missed. 3. Press Up/Down Navigation Key to the number you are looking for and press Dial Key to connect. Speed Dial 1. Long press Number Key 2-8 in the main menu for speed dialing. Numbers are requested to be pre-set to different number Key before dialing. (Please refer to Names/Speed Dial). 2. After pressing a number key, the phone will connect it automatically.  ANSWERING CALLS 1. Press the Dial Key to answer calls. 2. Short press Power Key or Reject to end or reject calls. 3. Adjusting Receiver Volume while speaking on the

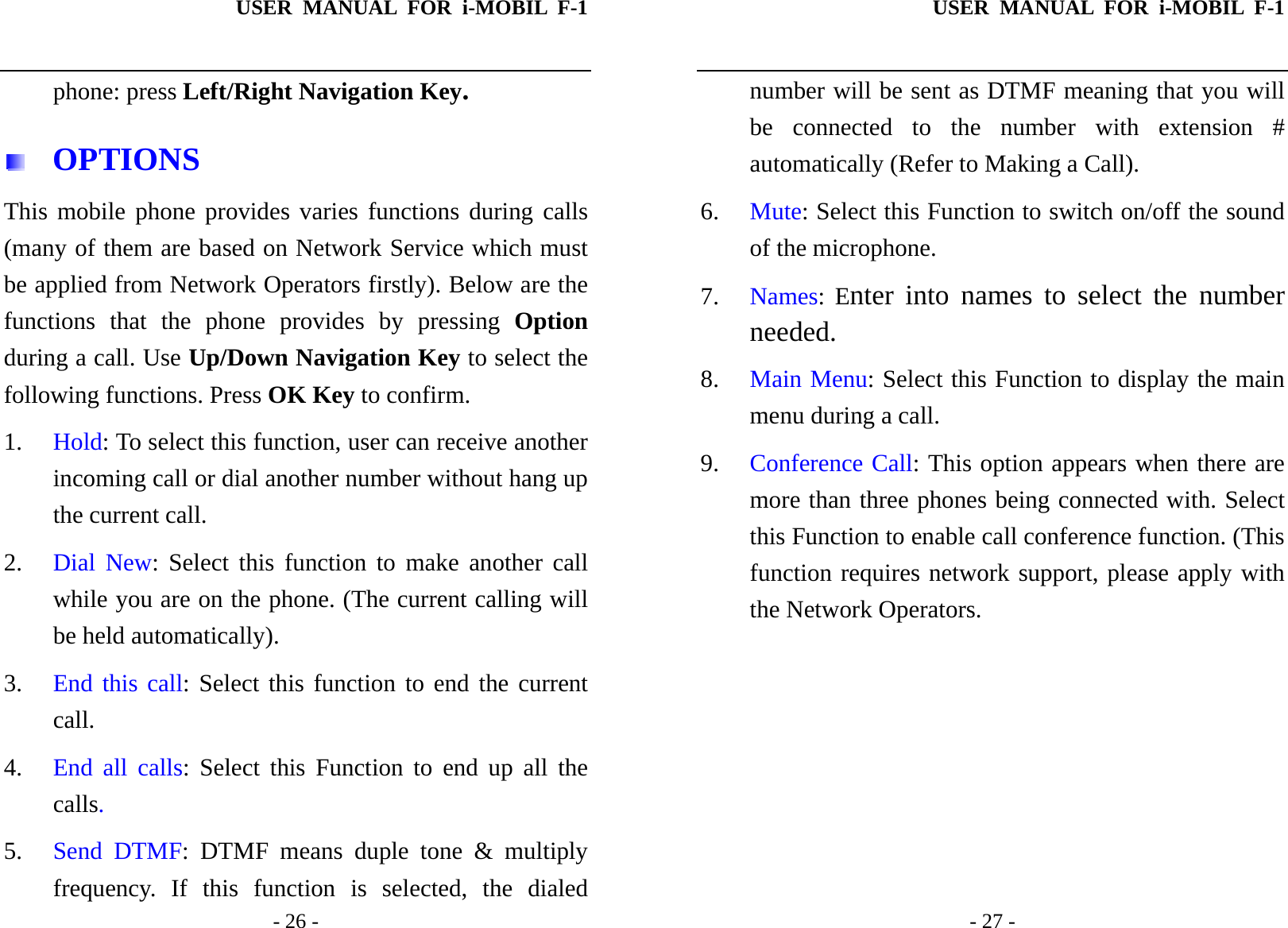

USER MANUAL FOR i-MOBIL F-1   - 26 - phone: press Left/Right Navigation Key.  OPTIONS This mobile phone provides varies functions during calls (many of them are based on Network Service which must be applied from Network Operators firstly). Below are the functions that the phone provides by pressing Option during a call. Use Up/Down Navigation Key to select the following functions. Press OK Key to confirm. 1. Hold: To select this function, user can receive another incoming call or dial another number without hang up the current call. 2. Dial New: Select this function to make another call while you are on the phone. (The current calling will be held automatically). 3. End this call: Select this function to end the current call. 4. End all calls: Select this Function to end up all the calls. 5. Send DTMF: DTMF means duple tone & multiply frequency. If this function is selected, the dialed USER MANUAL FOR i-MOBIL F-1   - 27 - number will be sent as DTMF meaning that you will be connected to the number with extension # automatically (Refer to Making a Call). 6. Mute: Select this Function to switch on/off the sound of the microphone. 7. Names: Enter into names to select the number needed. 8. Main Menu: Select this Function to display the main menu during a call. 9. Conference Call: This option appears when there are more than three phones being connected with. Select this Function to enable call conference function. (This function requires network support, please apply with the Network Operators.

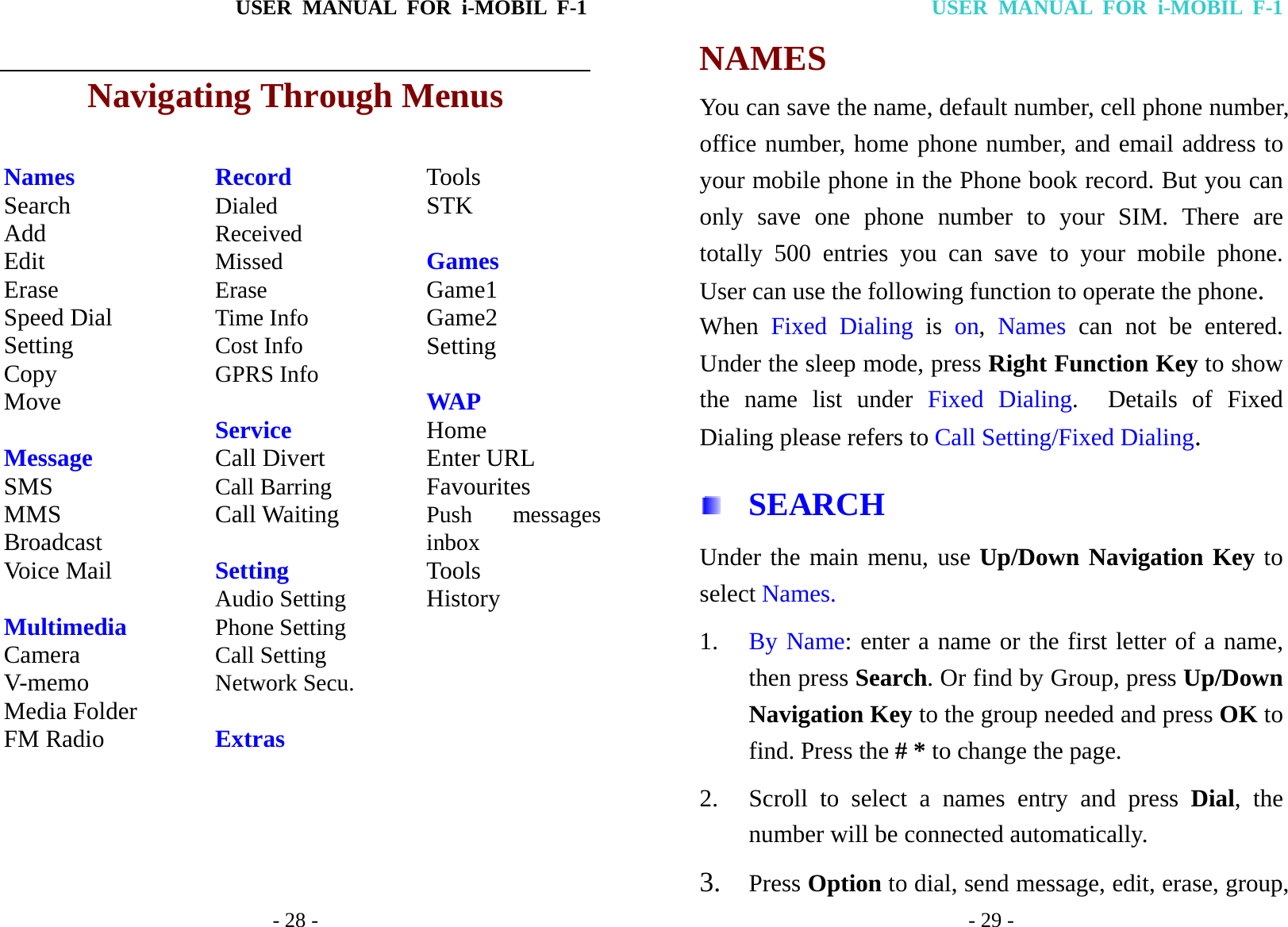

USER MANUAL FOR i-MOBIL F-1   - 28 - Navigating Through Menus  Names Search Add Edit Erase Speed Dial Setting Copy Move  Message SMS MMS Broadcast Voice Mail  Multimedia Camera V-memo Media Folder FM Radio Record Dialed Received Missed Erase Time Info Cost Info GPRS Info  Service Call Divert Call Barring Call Waiting  Setting Audio Setting Phone Setting Call Setting Network Secu.  Extras Tools STK  Games Game1 Game2 Setting  WAP Home Enter URL Favourites Push messages inbox Tools History    USER MANUAL FOR i-MOBIL F-1 - 29 - NAMES You can save the name, default number, cell phone number, office number, home phone number, and email address to your mobile phone in the Phone book record. But you can only save one phone number to your SIM. There are totally 500 entries you can save to your mobile phone. User can use the following function to operate the phone. When  Fixed Dialing is on,  Names can not be entered.  Under the sleep mode, press Right Function Key to show the name list under Fixed Dialing.  Details of Fixed Dialing please refers to Call Setting/Fixed Dialing.  SEARCH Under the main menu, use Up/Down Navigation Key to select Names. 1. By Name: enter a name or the first letter of a name, then press Search. Or find by Group, press Up/Down Navigation Key to the group needed and press OK to find. Press the # * to change the page. 2. Scroll to select a names entry and press Dial, the number will be connected automatically. 3. Press Option to dial, send message, edit, erase, group,
USER MANUAL FOR i-MOBIL F-1 - 30 - and etc. 4. Press Exit to return to the above menu or short press Power Key to return to the main menu. 5. Press Ok to select the phone number under Fixed Dialing, which you can make a call or send SMS only.  ADD Under main menu mode, scroll Up、Down、Left、Right to select Names, press Right Navigation Key once to see the menu Add containing following choices: 1. Use  Up/Down Navigation Key to select To -> Phone To ->SIM Card. Press OK Key or Left Function Key to bring up the new record that you can input the following info. Please also input the area code when you entry the numbers by using the Number Key. To save in the phone: 1st Line:  To enter a name. 2nd Lind:  To enter default number (This number will be recognized by the mobile when you select USER MANUAL FOR i-MOBIL F-1 - 31 - the record and press Dial Key 3rd Line: To enter a mobile number. 4th Line:  To enter an office number. 5th Line: To enter a home number. 6th Line: To enter an email address. To save in the SIM card 1st Line:  To enter a name. 2nd Lind:  To enter default number 2. When finishing the entry, press Save or OK to store the record. 3. Press Exit to return to the previous menu or short press the Power Key to the main menu.  EDIT You can edit your entry by pressing the Right/Left Navigation Key under the menu of names. 1. All the records will be listed under the screen of Edit. Use  Up/Down Navigation Key to select the record you want to edit. You can use the “#” Key and “*” Key to turn page down and up to select the records.

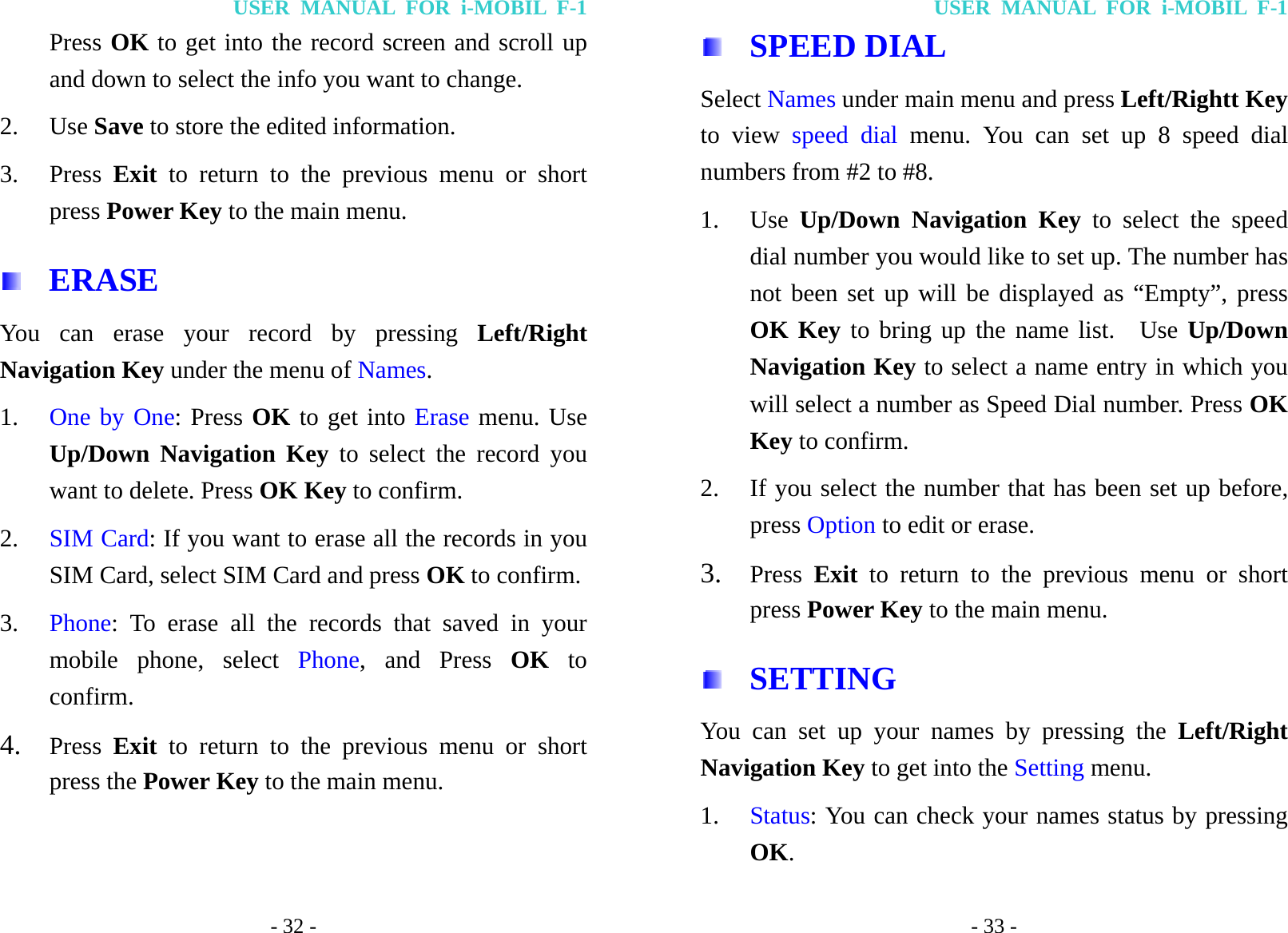

USER MANUAL FOR i-MOBIL F-1 - 32 - Press OK to get into the record screen and scroll up and down to select the info you want to change. 2. Use Save to store the edited information. 3. Press  Exit to return to the previous menu or short press Power Key to the main menu.  ERASE You can erase your record by pressing Left/Right Navigation Key under the menu of Names. 1. One by One: Press OK to get into Erase menu. Use Up/Down Navigation Key to select the record you want to delete. Press OK Key to confirm. 2. SIM Card: If you want to erase all the records in you SIM Card, select SIM Card and press OK to confirm. 3. Phone: To erase all the records that saved in your mobile phone, select Phone, and Press OK to confirm. 4. Press  Exit to return to the previous menu or short press the Power Key to the main menu. USER MANUAL FOR i-MOBIL F-1 - 33 -  SPEED DIAL   Select Names under main menu and press Left/Rightt Key to view speed dial menu. You can set up 8 speed dial numbers from #2 to #8. 1. Use  Up/Down Navigation Key to select the speed dial number you would like to set up. The number has not been set up will be displayed as “Empty”, press OK Key to bring up the name list.  Use Up/Down Navigation Key to select a name entry in which you will select a number as Speed Dial number. Press OK Key to confirm.   2. If you select the number that has been set up before, press Option to edit or erase. 3. Press  Exit to return to the previous menu or short press Power Key to the main menu.  SETTING You can set up your names by pressing the Left/Right Navigation Key to get into the Setting menu. 1. Status: You can check your names status by pressing OK.
USER MANUAL FOR i-MOBIL F-1 - 34 - 2. Own Number: You can find out your own number by pressing OK. 3. Group Tone: You can set up 4 group Ring tone by pressing OK. After you get into the Group Tone menu, use  Up/Down Navigation Key to select the group name, press OK to bring you to the next menu, select the incoming tone by use Up/Down Navigation Key. Press OK to confirm.    COPY Select  Names  under main menu and press Left/Right Navigation Key to view Copy menu. 1. Choose SIM → Phone or Phone → SIM, press Ok to enter   2. You can choose One By One or All from SIM card to Phone, or from Phone to SIM Card. 3. Press Ok to enter One By One, all names will be shown.   Choose the one you want to copy and press Ok. 4.  Press Ok Key to enter All, all default numbers can be copied from SIM card to Phone or from Phone to SIM card. USER MANUAL FOR i-MOBIL F-1 - 35 -  Move Choose Name under the main menu, press Left / Right Navigation Key to see the menu of Move.  Press Up/Down Key to select:   1. Choose SIM → Phone or Phone → SIM, press Ok to enter   2. You can choose One By One or All from SIM card to Phone, or from Phone to SIM Card. 3. Press Ok to enter One By One, all names will be shown.    Choose the one you want to move and press Ok. 4. Press Ok Key to enter All, all default numbers can be moved from SIM card to Phone or from Phone to SIM card.

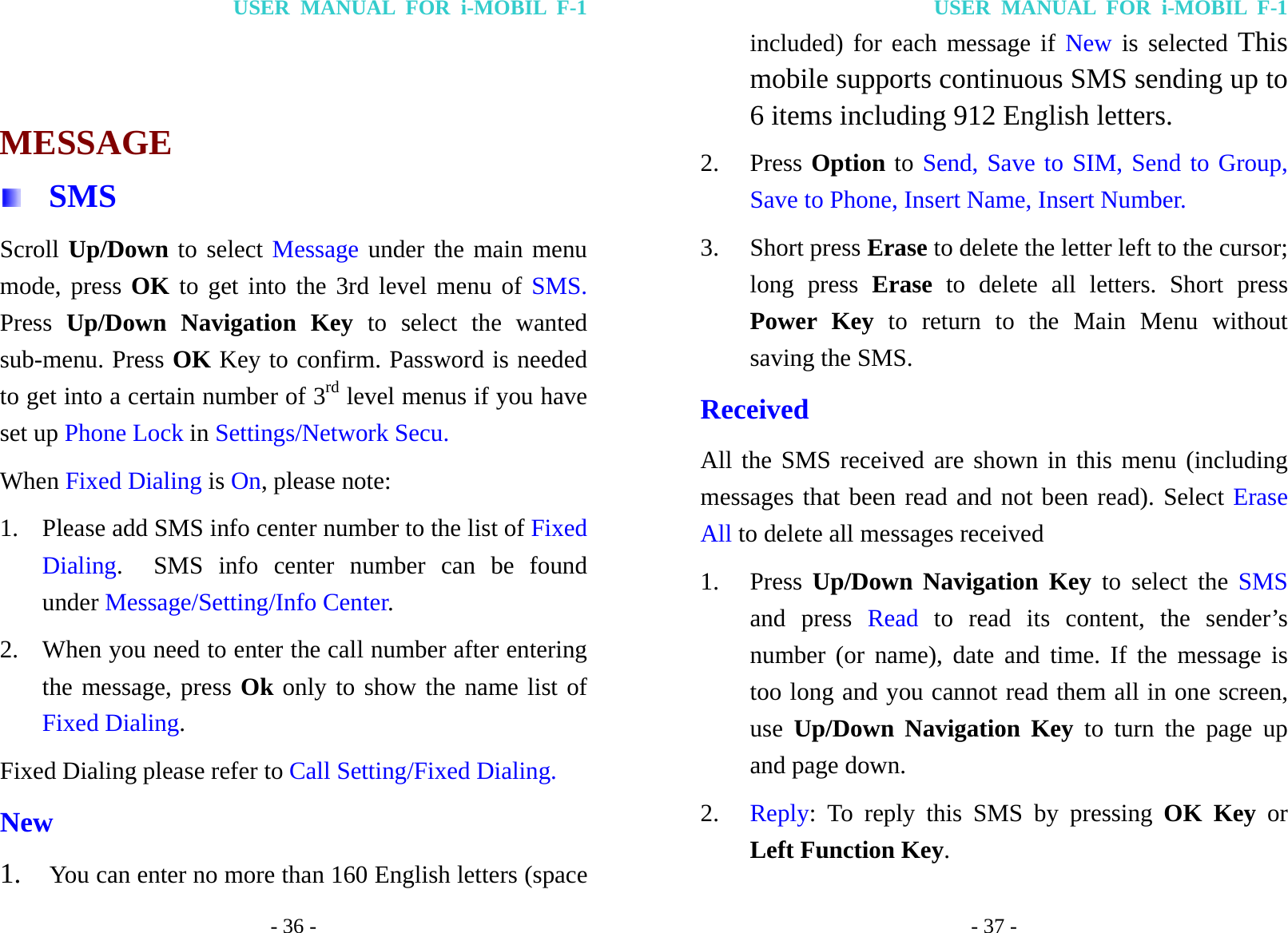

USER MANUAL FOR i-MOBIL F-1 - 36 -   MESSAGE  SMS Scroll Up/Down to select Message under the main menu mode, press OK to get into the 3rd level menu of SMS. Press  Up/Down Navigation Key to select the wanted sub-menu. Press OK Key to confirm. Password is needed to get into a certain number of 3rd level menus if you have set up Phone Lock in Settings/Network Secu. When Fixed Dialing is On, please note: 1. Please add SMS info center number to the list of Fixed Dialing.  SMS info center number can be found under Message/Setting/Info Center. 2. When you need to enter the call number after entering the message, press Ok only to show the name list of Fixed Dialing. Fixed Dialing please refer to Call Setting/Fixed Dialing. New 1. You can enter no more than 160 English letters (space USER MANUAL FOR i-MOBIL F-1 - 37 - included) for each message if New is selected This mobile supports continuous SMS sending up to 6 items including 912 English letters. 2. Press Option to Send, Save to SIM, Send to Group, Save to Phone, Insert Name, Insert Number.   3. Short press Erase to delete the letter left to the cursor; long press Erase to delete all letters. Short press Power Key to return to the Main Menu without saving the SMS. Received All the SMS received are shown in this menu (including messages that been read and not been read). Select Erase All to delete all messages received 1. Press  Up/Down Navigation Key to select the SMS and press Read to read its content, the sender’s number (or name), date and time. If the message is too long and you cannot read them all in one screen, use  Up/Down Navigation Key to turn the page up and page down.   2. Reply: To reply this SMS by pressing OK Key or Left Function Key.

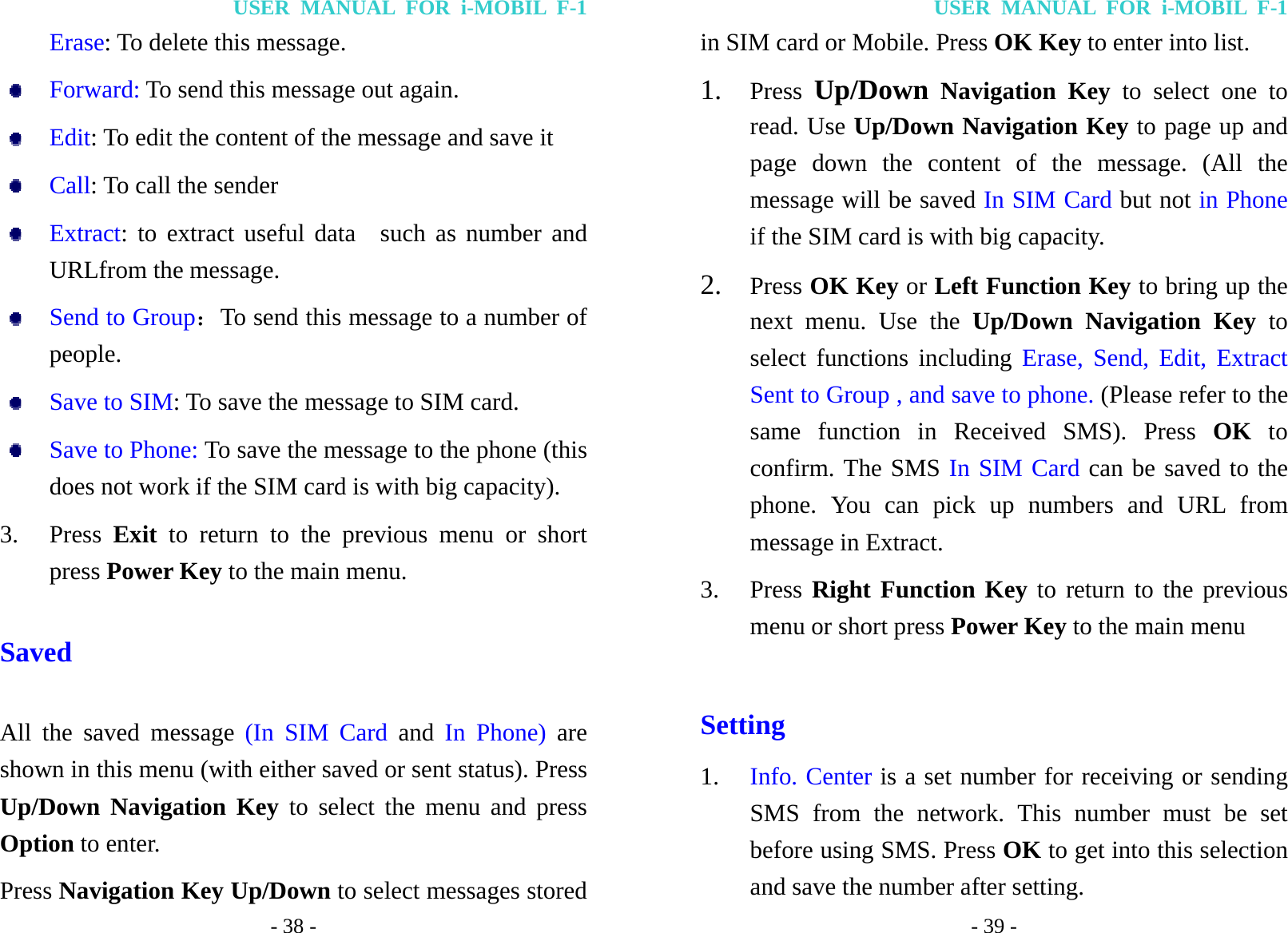

USER MANUAL FOR i-MOBIL F-1 - 38 - Erase: To delete this message.  Forward: To send this message out again.  Edit: To edit the content of the message and save it  Call: To call the sender  Extract: to extract useful data  such as number and URLfrom the message.  Send to Group:To send this message to a number of   people.  Save to SIM: To save the message to SIM card.  Save to Phone: To save the message to the phone (this does not work if the SIM card is with big capacity). 3. Press  Exit  to return to the previous menu or short press Power Key to the main menu. Saved All the saved message (In SIM Card and  In Phone) are shown in this menu (with either saved or sent status). Press Up/Down Navigation Key to select the menu and press Option to enter. Press Navigation Key Up/Down to select messages stored USER MANUAL FOR i-MOBIL F-1 - 39 - in SIM card or Mobile. Press OK Key to enter into list. 1. Press  Up/Down Navigation Key to select one to read. Use Up/Down Navigation Key to page up and page down the content of the message. (All the message will be saved In SIM Card but not in Phone if the SIM card is with big capacity. 2. Press OK Key or Left Function Key to bring up the next menu. Use the Up/Down Navigation Key to select functions including Erase, Send, Edit, Extract Sent to Group , and save to phone. (Please refer to the same function in Received SMS). Press OK to confirm. The SMS In SIM Card can be saved to the phone. You can pick up numbers and URL from message in Extract. 3. Press Right Function Key to return to the previous menu or short press Power Key to the main menu  Setting 1. Info. Center is a set number for receiving or sending SMS from the network. This number must be set before using SMS. Press OK to get into this selection and save the number after setting.

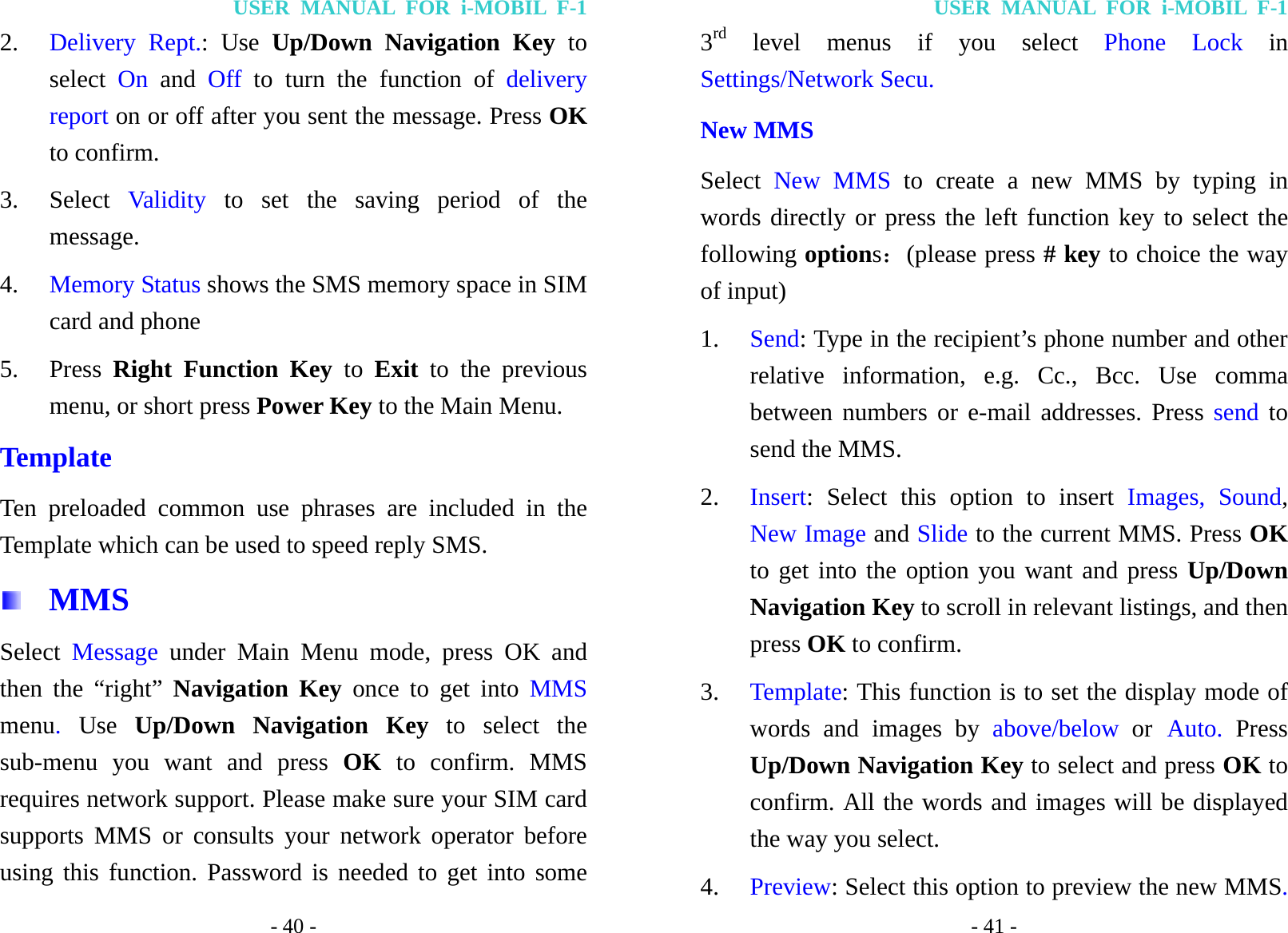

USER MANUAL FOR i-MOBIL F-1 - 40 - 2. Delivery Rept.: Use Up/Down Navigation Key to select  On and Off  to turn the function of delivery report on or off after you sent the message. Press OK to confirm. 3. Select  Validity  to set the saving period of the message. 4. Memory Status shows the SMS memory space in SIM card and phone 5. Press  Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Template Ten preloaded common use phrases are included in the Template which can be used to speed reply SMS.  MMS Select  Message under Main Menu mode, press OK and then the “right” Navigation Key once to get into MMS menu.  Use Up/Down Navigation Key to select the sub-menu you want and press OK to confirm. MMS requires network support. Please make sure your SIM card supports MMS or consults your network operator before using this function. Password is needed to get into some USER MANUAL FOR i-MOBIL F-1 - 41 - 3rd level menus if you select Phone Lock in Settings/Network Secu. New MMS Select  New MMS to create a new MMS by typing in words directly or press the left function key to select the following options:(please press # key to choice the way of input) 1. Send: Type in the recipient’s phone number and other relative information, e.g. Cc., Bcc. Use comma between numbers or e-mail addresses. Press send to send the MMS. 2. Insert: Select this option to insert Images, Sound, New Image and Slide to the current MMS. Press OK to get into the option you want and press Up/Down Navigation Key to scroll in relevant listings, and then press OK to confirm. 3. Template: This function is to set the display mode of words and images by above/below or Auto. Press Up/Down Navigation Key to select and press OK to confirm. All the words and images will be displayed the way you select. 4. Preview: Select this option to preview the new MMS.

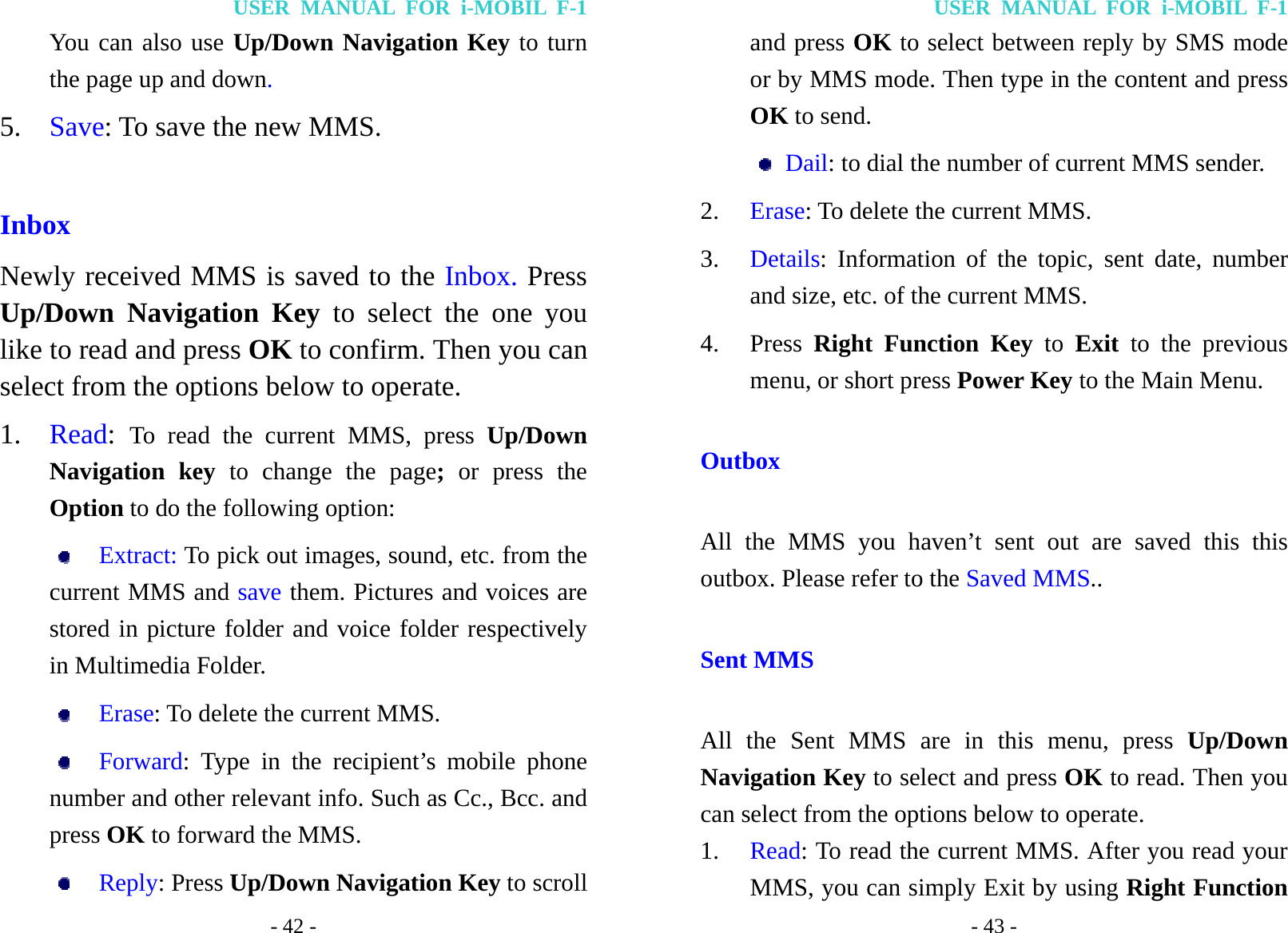

USER MANUAL FOR i-MOBIL F-1 - 42 - You can also use Up/Down Navigation Key to turn the page up and down. 5. Save: To save the new MMS.  Inbox Newly received MMS is saved to the Inbox. Press Up/Down Navigation Key to select the one you like to read and press OK to confirm. Then you can select from the options below to operate. 1. Read:  To read the current MMS, press Up/Down Navigation key to change the page; or press the Option to do the following option:  Extract: To pick out images, sound, etc. from the current MMS and save them. Pictures and voices are stored in picture folder and voice folder respectively in Multimedia Folder.  Erase: To delete the current MMS.  Forward: Type in the recipient’s mobile phone number and other relevant info. Such as Cc., Bcc. and press OK to forward the MMS.  Reply: Press Up/Down Navigation Key to scroll USER MANUAL FOR i-MOBIL F-1 - 43 - and press OK to select between reply by SMS mode or by MMS mode. Then type in the content and press OK to send.  Dail: to dial the number of current MMS sender. 2. Erase: To delete the current MMS. 3. Details: Information of the topic, sent date, number and size, etc. of the current MMS. 4. Press  Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Outbox All the MMS you haven’t sent out are saved this this outbox. Please refer to the Saved MMS.. Sent MMS All the Sent MMS are in this menu, press Up/Down Navigation Key to select and press OK to read. Then you can select from the options below to operate. 1. Read: To read the current MMS. After you read your MMS, you can simply Exit by using Right Function

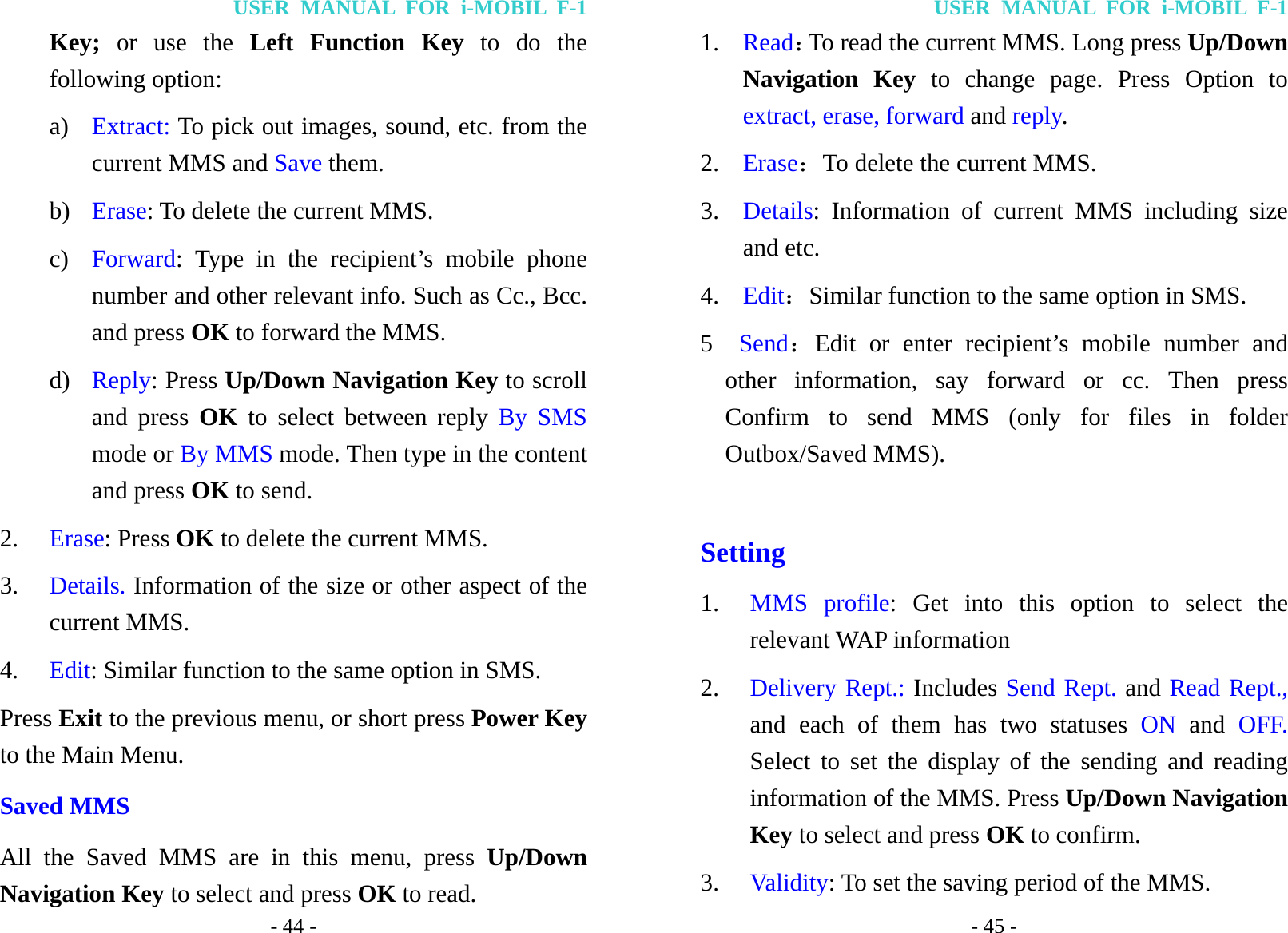

USER MANUAL FOR i-MOBIL F-1 - 44 - Key; or use the Left Function Key to do the following option: a) Extract: To pick out images, sound, etc. from the current MMS and Save them. b) Erase: To delete the current MMS. c) Forward: Type in the recipient’s mobile phone number and other relevant info. Such as Cc., Bcc. and press OK to forward the MMS. d) Reply: Press Up/Down Navigation Key to scroll and press OK to select between reply By SMS mode or By MMS mode. Then type in the content and press OK to send. 2. Erase: Press OK to delete the current MMS. 3. Details. Information of the size or other aspect of the current MMS. 4. Edit: Similar function to the same option in SMS. Press Exit to the previous menu, or short press Power Key to the Main Menu. Saved MMS All the Saved MMS are in this menu, press Up/Down Navigation Key to select and press OK to read. USER MANUAL FOR i-MOBIL F-1 - 45 - 1. Read:To read the current MMS. Long press Up/Down Navigation Key to change page. Press Option to extract, erase, forward and reply. 2. Erase:To delete the current MMS. 3. Details: Information of current MMS including size and etc. 4. Edit:Similar function to the same option in SMS. 5  Send:Edit or enter recipient’s mobile number and other information, say forward or cc. Then press Confirm to send MMS (only for files in folder Outbox/Saved MMS).  Setting 1. MMS profile: Get into this option to select the relevant WAP information 2. Delivery Rept.: Includes Send Rept. and Read Rept., and each of them has two statuses ON and OFF. Select to set the display of the sending and reading information of the MMS. Press Up/Down Navigation Key to select and press OK to confirm. 3. Validity: To set the saving period of the MMS.

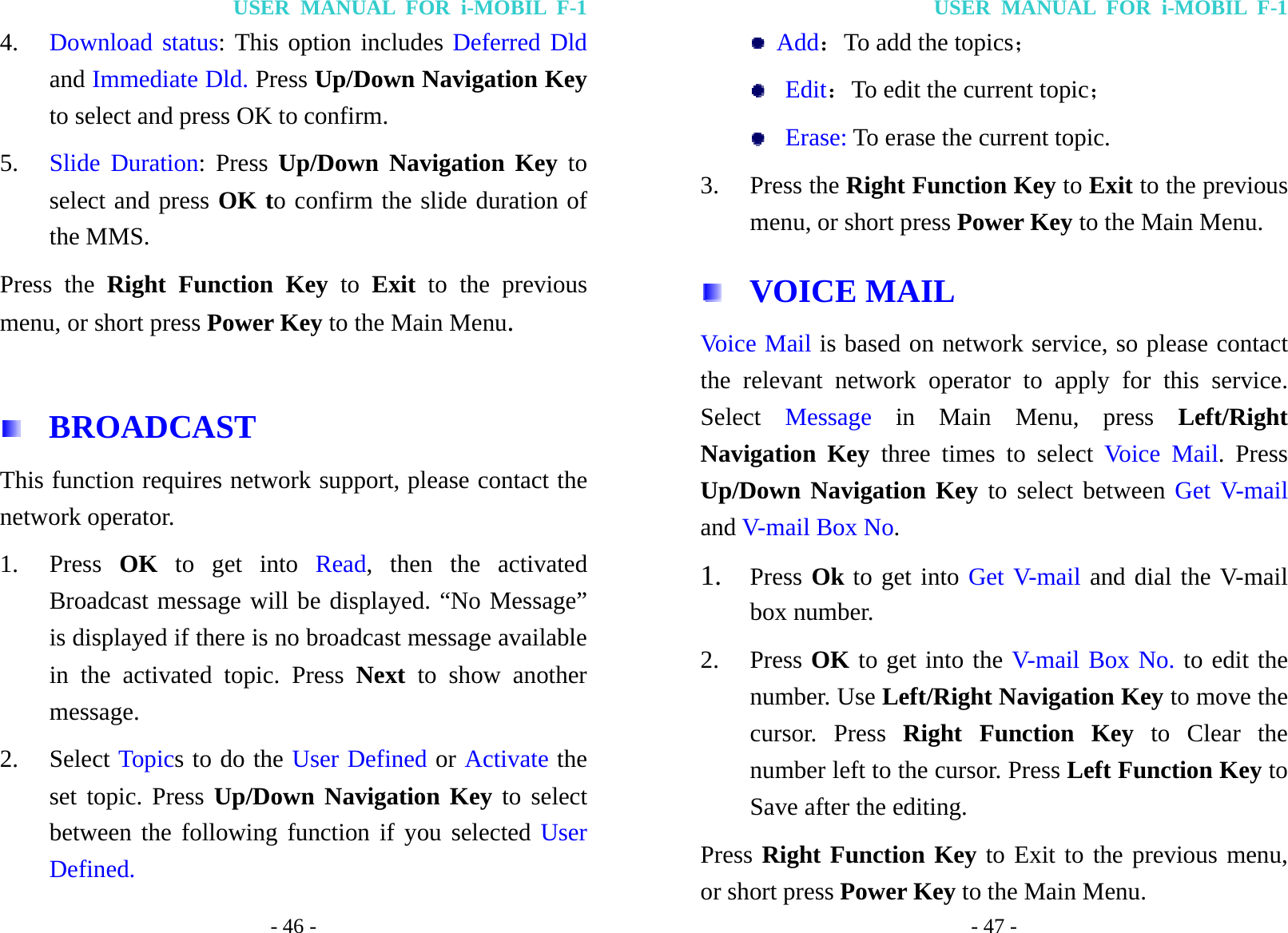

USER MANUAL FOR i-MOBIL F-1 - 46 - 4. Download status: This option includes Deferred Dld and Immediate Dld. Press Up/Down Navigation Key to select and press OK to confirm. 5. Slide Duration: Press Up/Down Navigation Key to select and press OK to confirm the slide duration of the MMS. Press the Right Function Key to  Exit to the previous menu, or short press Power Key to the Main Menu.   BROADCAST This function requires network support, please contact the network operator. 1. Press  OK to get into Read, then the activated Broadcast message will be displayed. “No Message” is displayed if there is no broadcast message available in the activated topic. Press Next to show another message. 2. Select Topics to do the User Defined or Activate the set topic. Press Up/Down Navigation Key to select between the following function if you selected User Defined. USER MANUAL FOR i-MOBIL F-1 - 47 -  Add:To add the topics;  Edit:To edit the current topic;  Erase: To erase the current topic. 3. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu.  VOICE MAIL Voice Mail is based on network service, so please contact the relevant network operator to apply for this service. Select  Message in Main Menu, press Left/Right Navigation Key three times to select Voice Mail. Press Up/Down Navigation Key to select between Get V-mail and V-mail Box No.  1. Press Ok to get into Get V-mail and dial the V-mail box number. 2. Press OK to get into the V-mail Box No. to edit the number. Use Left/Right Navigation Key to move the cursor. Press Right Function Key to Clear the number left to the cursor. Press Left Function Key to Save after the editing. Press Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu.

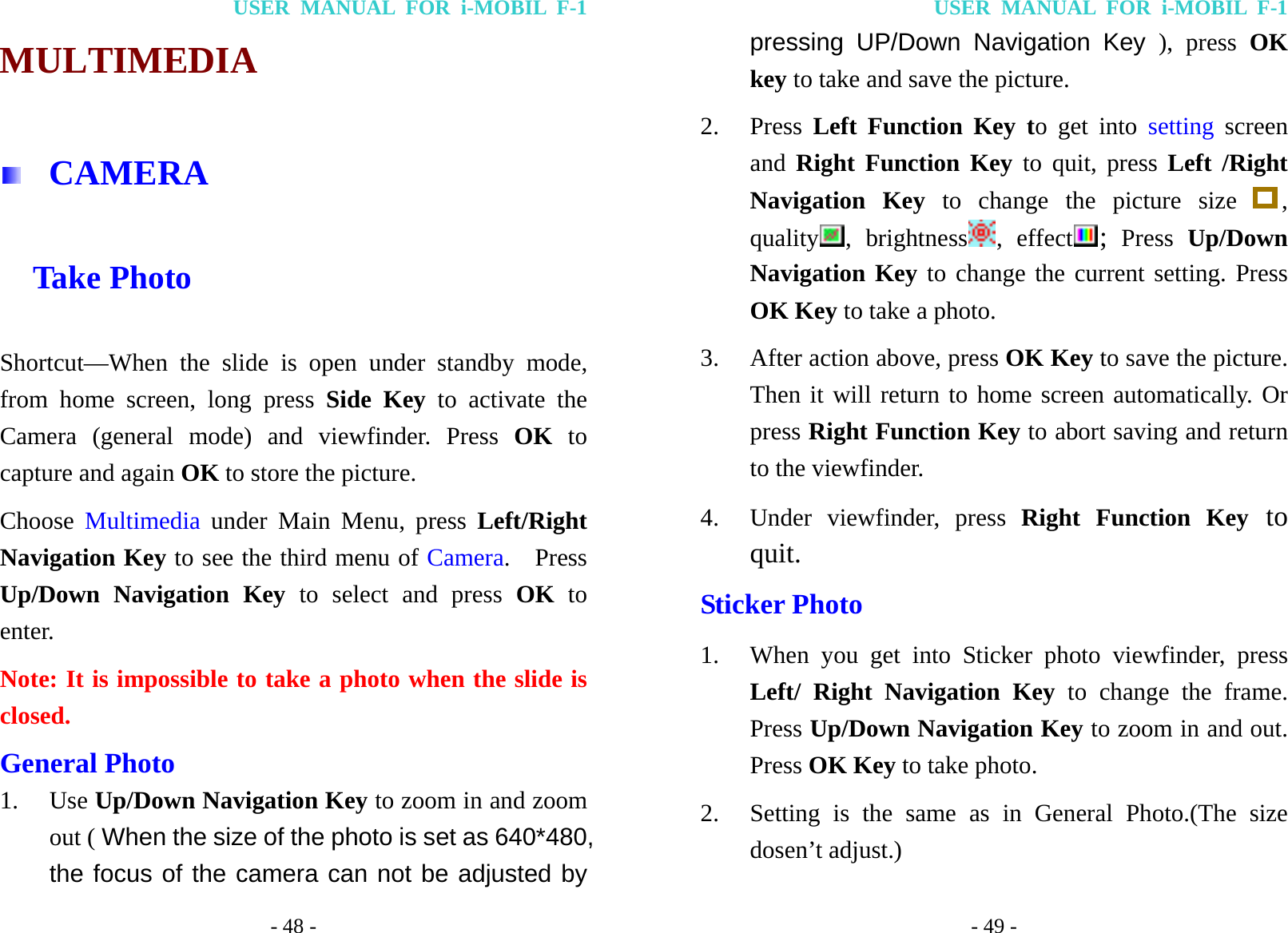

USER MANUAL FOR i-MOBIL F-1 - 48 - MULTIMEDIA   CAMERA   Take Photo Shortcut—When the slide is open under standby mode, from home screen, long press Side Key to activate the Camera (general mode) and viewfinder. Press OK to capture and again OK to store the picture. Choose  Multimedia  under Main Menu, press Left/Right Navigation Key to see the third menu of Camera.  Press Up/Down Navigation Key to select and press OK to enter. Note: It is impossible to take a photo when the slide is closed. General Photo 1. Use Up/Down Navigation Key to zoom in and zoom out ( When the size of the photo is set as 640*480, the focus of the camera can not be adjusted by USER MANUAL FOR i-MOBIL F-1 - 49 - pressing UP/Down Navigation Key ), press OK key to take and save the picture. 2. Press  Left Function Key to get into setting screen and Right Function Key to quit, press Left /Right Navigation Key to change the picture size  , quality , brightness , effect ; Press Up/Down Navigation Key to change the current setting. Press OK Key to take a photo. 3. After action above, press OK Key to save the picture. Then it will return to home screen automatically. Or press Right Function Key to abort saving and return to the viewfinder. 4. Under viewfinder, press Right Function Key to quit. Sticker Photo 1. When you get into Sticker photo viewfinder, press Left/ Right Navigation Key to change the frame. Press Up/Down Navigation Key to zoom in and out. Press OK Key to take photo. 2. Setting is the same as in General Photo.(The size dosen’t adjust.)

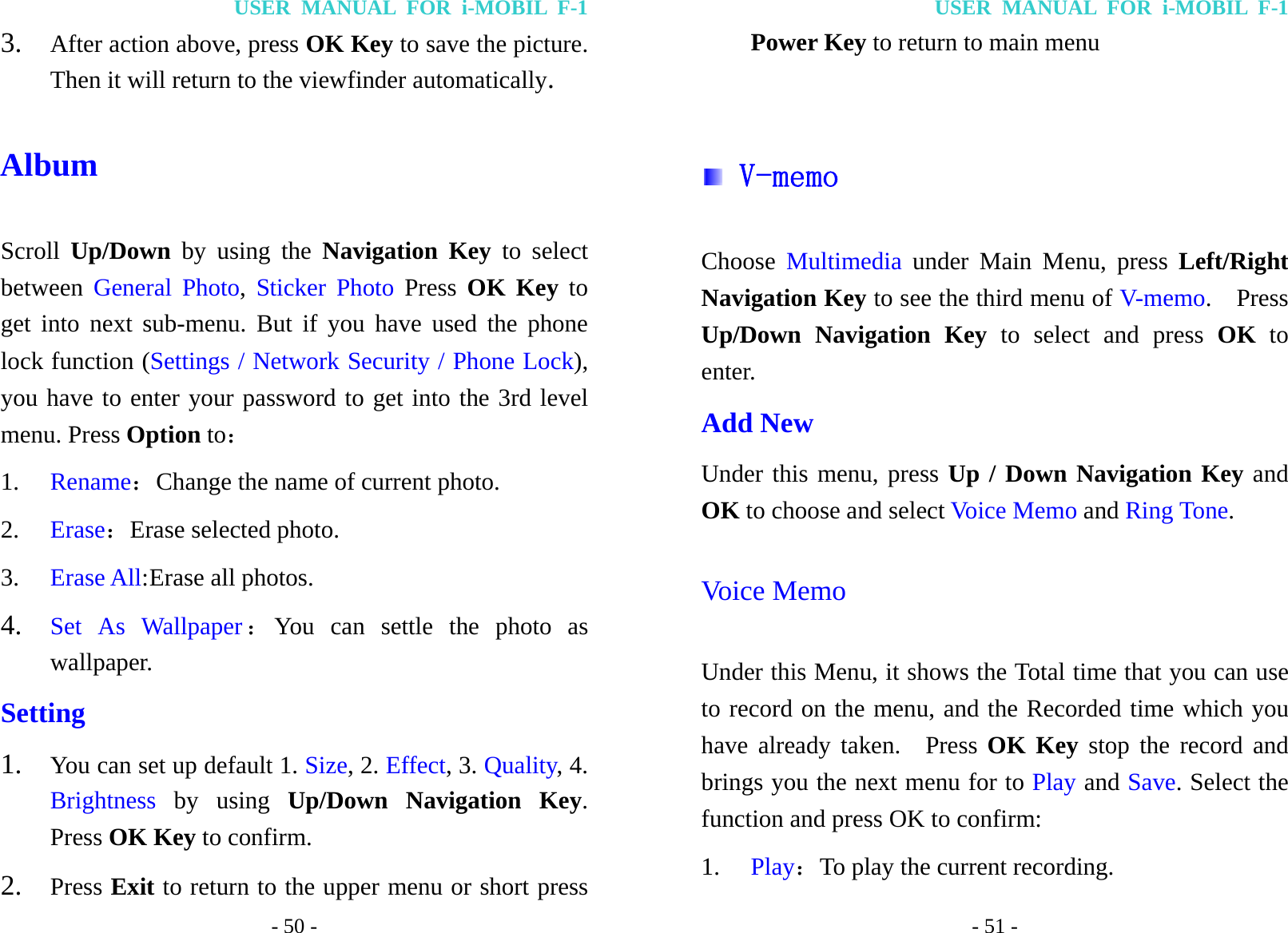

USER MANUAL FOR i-MOBIL F-1 - 50 - 3. After action above, press OK Key to save the picture. Then it will return to the viewfinder automatically. Album Scroll  Up/Down by using the Navigation Key to select between  General Photo,  Sticker Photo Press  OK Key to get into next sub-menu. But if you have used the phone lock function (Settings / Network Security / Phone Lock), you have to enter your password to get into the 3rd level menu. Press Option to: 1. Rename:Change the name of current photo. 2. Erase:Erase selected photo. 3. Erase All: Erase  all  photos. 4. Set As Wallpaper:You can settle the photo as wallpaper.   Setting 1. You can set up default 1. Size, 2. Effect, 3. Quality, 4. Brightness by using Up/Down Navigation Key. Press OK Key to confirm. 2. Press Exit to return to the upper menu or short press USER MANUAL FOR i-MOBIL F-1 - 51 - Power Key to return to main menu   V-memo Choose  Multimedia under Main Menu, press Left/Right Navigation Key to see the third menu of V-memo.  Press Up/Down Navigation Key to select and press OK to enter. Add New Under this menu, press Up / Down Navigation Key and OK to choose and select Voice Memo and Ring Tone. Voice Memo Under this Menu, it shows the Total time that you can use to record on the menu, and the Recorded time which you have already taken.  Press OK Key stop the record and brings you the next menu for to Play and Save. Select the function and press OK to confirm: 1. Play:To play the current recording.

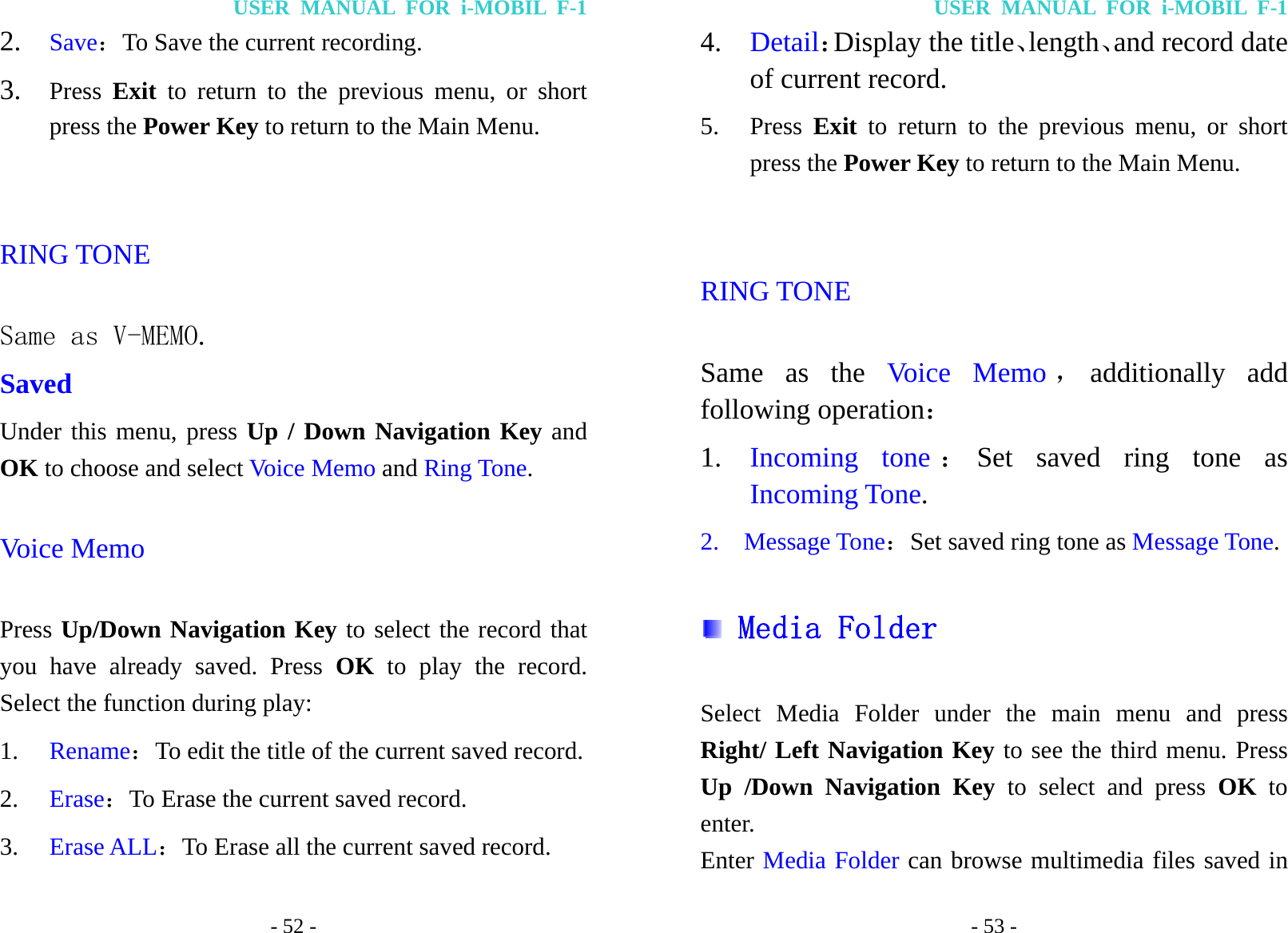

USER MANUAL FOR i-MOBIL F-1 - 52 - 2. Save:To Save the current recording. 3. Press  Exit to return to the previous menu, or short press the Power Key to return to the Main Menu.  RING TONE Same as V-MEMO. Saved Under this menu, press Up / Down Navigation Key and OK to choose and select Voice Memo and Ring Tone. Voice Memo Press Up/Down Navigation Key to select the record that you have already saved. Press OK to play the record. Select the function during play: 1. Rename:To edit the title of the current saved record. 2. Erase:To Erase the current saved record. 3. Erase ALL:To Erase all the current saved record. USER MANUAL FOR i-MOBIL F-1 - 53 - 4. Detail:Display the title、length、and record date of current record. 5. Press Exit to return to the previous menu, or short press the Power Key to return to the Main Menu.  RING TONE Same as the Voice Memo ,additionally add following operation: 1. Incoming tone :Set saved ring tone as Incoming Tone.  2.  Message Tone:Set saved ring tone as Message Tone.  Media Folder  Select Media Folder under the main menu and press Right/ Left Navigation Key to see the third menu. Press Up /Down Navigation Key to select and press OK to enter.  Enter Media Folder can browse multimedia files saved in
USER MANUAL FOR i-MOBIL F-1 - 54 - the phone, such as: Album, Download Image, Download Midi, PC Image, PC Midi, Voice Memo. Also, you can erase them. Because the memory of the phone for the files are shared, the space of file in every folder will be changed according to the arrangement Password is needed to get into some 3rd level menus if you select Phone Lock in Settings/Network Secu.  FM Radio Select Multimedia under the main menu and press Left / Right Key to choose “FM Radio” and OK key to enter the third menu. You can listen to the channel of last time.  Press Left/Right Key or earphone key for selecting channels;  Press  Up/Down Key for adjusting volume; Press Right Function Key to exit FM; Short press Power key or close the slide off to the mode of background play directly.   Press Option on the interface of FM player ,then you can select:   1.  Background Play: to play FM radio under the mode of background. USER MANUAL FOR i-MOBIL F-1 - 55 - 2.  Name Channel: to name the present channel. 3.  Delete Channel: to delete the present channel. 4.  Manual Tuning: to tune the channel manually by increase or decrease 0.1MHz. 5.  Auto Tuning: to search channels automatically. 6.   Input Frequency: to set the frequency number yourself. 7.  Search All: to search all channels from 87.5MHz ~108MHz and save the channels automatically.  Note: When listen to the radio, the earphone must be connected with the phone always, acting as the antenna for tuning the channel.  It can save 40 channels altogether.

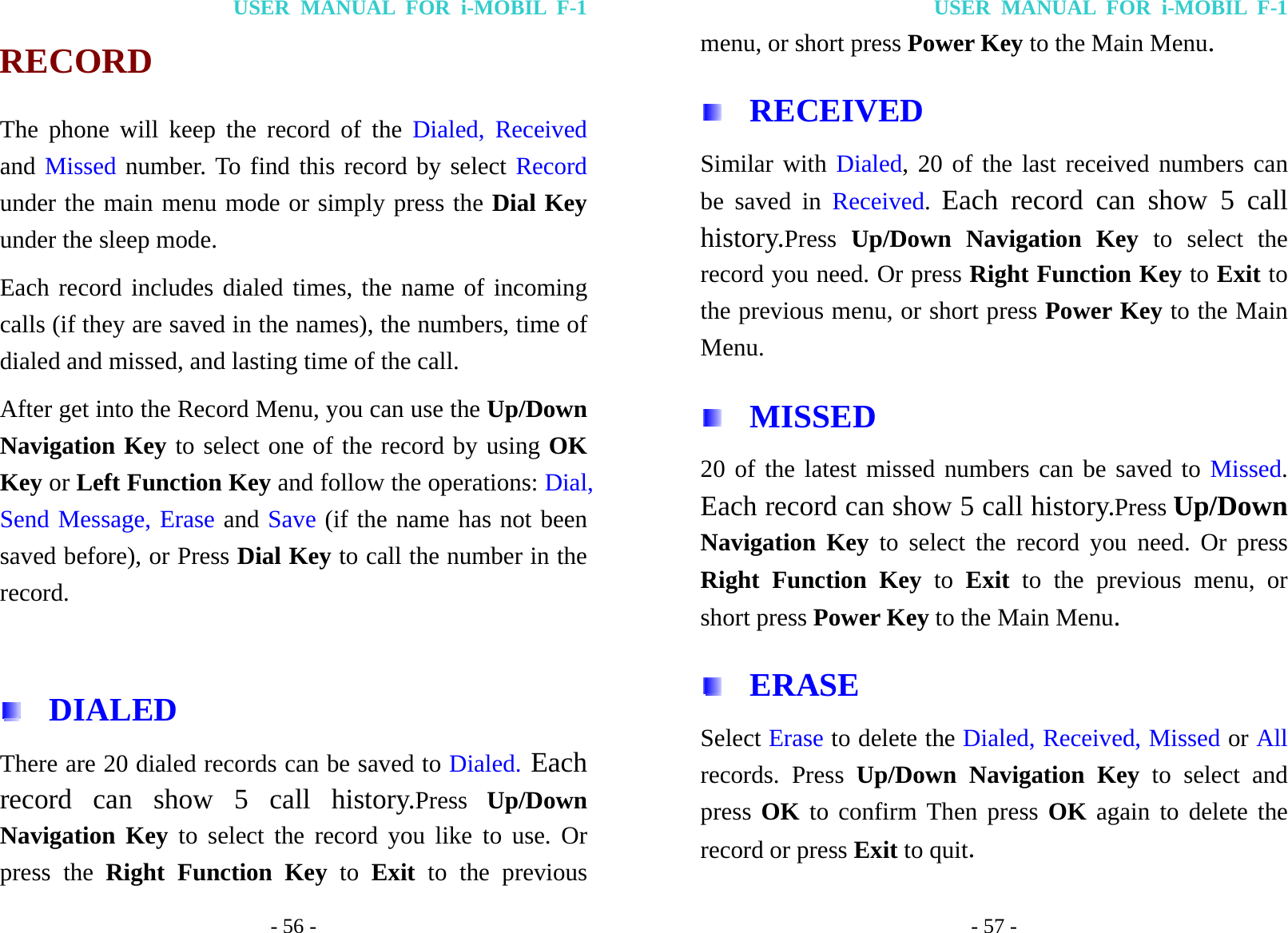

USER MANUAL FOR i-MOBIL F-1 - 56 - RECORD The phone will keep the record of the Dialed, Received and Missed number. To find this record by select Record under the main menu mode or simply press the Dial Key under the sleep mode.   Each record includes dialed times, the name of incoming calls (if they are saved in the names), the numbers, time of dialed and missed, and lasting time of the call. After get into the Record Menu, you can use the Up/Down Navigation Key to select one of the record by using OK Key or Left Function Key and follow the operations: Dial, Send Message, Erase and Save (if the name has not been saved before), or Press Dial Key to call the number in the record.   DIALED  There are 20 dialed records can be saved to Dialed. Each record can show 5 call history.Press Up/Down Navigation Key to select the record you like to use. Or press the Right Function Key to Exit to the previous USER MANUAL FOR i-MOBIL F-1 - 57 - menu, or short press Power Key to the Main Menu.  RECEIVED Similar with Dialed, 20 of the last received numbers can be saved in Received.  Each record can show 5 call history.Press Up/Down Navigation Key to select the record you need. Or press Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu.  MISSED 20 of the latest missed numbers can be saved to Missed. Each record can show 5 call history.Press Up/Down Navigation Key to select the record you need. Or press Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu.  ERASE Select Erase to delete the Dialed, Received, Missed or All records. Press Up/Down Navigation Key to select and press OK to confirm Then press OK again to delete the record or press Exit to quit.

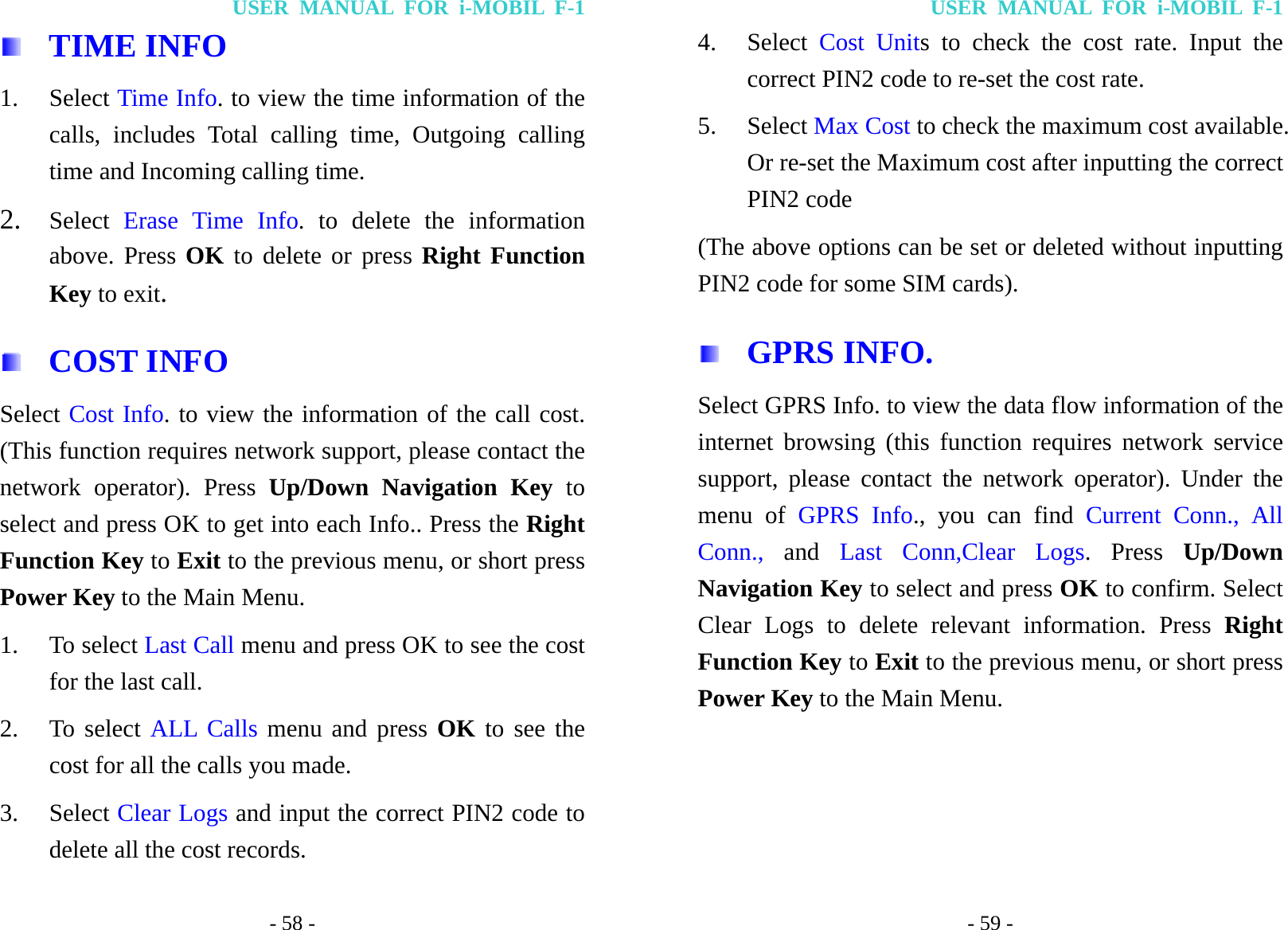

USER MANUAL FOR i-MOBIL F-1 - 58 -  TIME INFO 1. Select Time Info. to view the time information of the calls, includes Total calling time, Outgoing calling time and Incoming calling time. 2. Select  Erase Time Info. to delete the information above. Press OK to delete or press Right Function Key to exit.  COST INFO Select Cost Info. to view the information of the call cost. (This function requires network support, please contact the network operator). Press Up/Down Navigation Key to select and press OK to get into each Info.. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. 1. To select Last Call menu and press OK to see the cost for the last call. 2. To select ALL Calls menu and press OK to see the cost for all the calls you made. 3. Select Clear Logs and input the correct PIN2 code to delete all the cost records. USER MANUAL FOR i-MOBIL F-1 - 59 - 4. Select  Cost Units to check the cost rate. Input the correct PIN2 code to re-set the cost rate. 5. Select Max Cost to check the maximum cost available. Or re-set the Maximum cost after inputting the correct PIN2 code (The above options can be set or deleted without inputting PIN2 code for some SIM cards).  GPRS INFO.  Select GPRS Info. to view the data flow information of the internet browsing (this function requires network service support, please contact the network operator). Under the menu of GPRS Info., you can find Current Conn., All Conn.,  and Last Conn,Clear Logs. Press Up/Down Navigation Key to select and press OK to confirm. Select Clear Logs to delete relevant information. Press Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu.

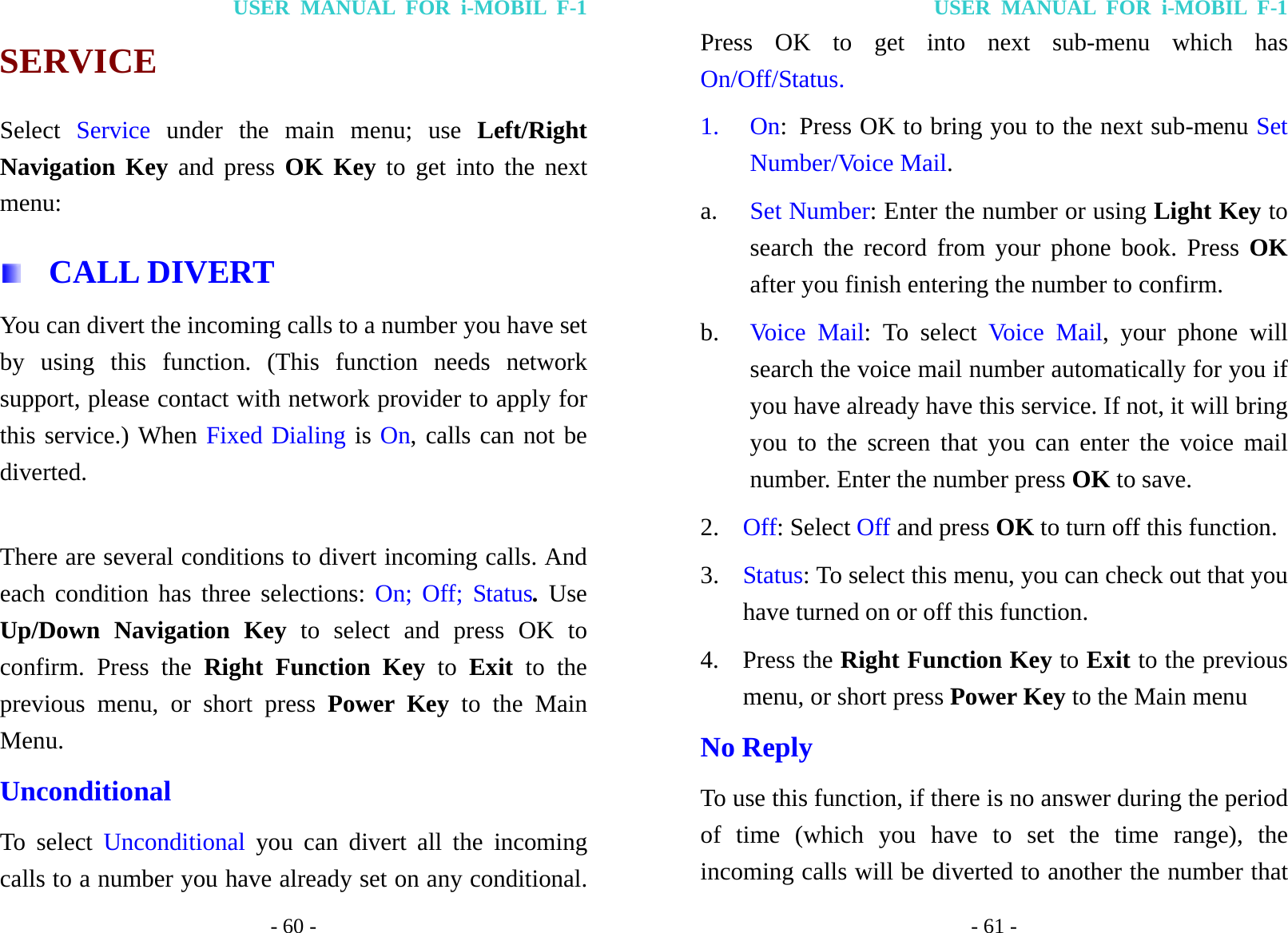

USER MANUAL FOR i-MOBIL F-1 - 60 - SERVICE Select  Service under the main menu; use Left/Right Navigation Key and press OK Key to get into the next menu:  CALL DIVERT You can divert the incoming calls to a number you have set by using this function. (This function needs network support, please contact with network provider to apply for this service.) When Fixed Dialing is On, calls can not be diverted.   There are several conditions to divert incoming calls. And each condition has three selections: On; Off; Status. Use Up/Down Navigation Key to select and press OK to confirm. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Unconditional To select Unconditional  you can divert all the incoming calls to a number you have already set on any conditional. USER MANUAL FOR i-MOBIL F-1 - 61 - Press OK to get into next sub-menu which has On/Off/Status. 1. On:  Press OK to bring you to the next sub-menu Set Number/Voice Mail. a.  Set Number: Enter the number or using Light Key to search the record from your phone book. Press OK after you finish entering the number to confirm. b.  Voice Mail: To select Voice Mail, your phone will search the voice mail number automatically for you if you have already have this service. If not, it will bring you to the screen that you can enter the voice mail number. Enter the number press OK to save. 2.  Off: Select Off and press OK to turn off this function.   3.  Status: To select this menu, you can check out that you have turned on or off this function. 4. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main menu No Reply To use this function, if there is no answer during the period of time (which you have to set the time range), the incoming calls will be diverted to another the number that

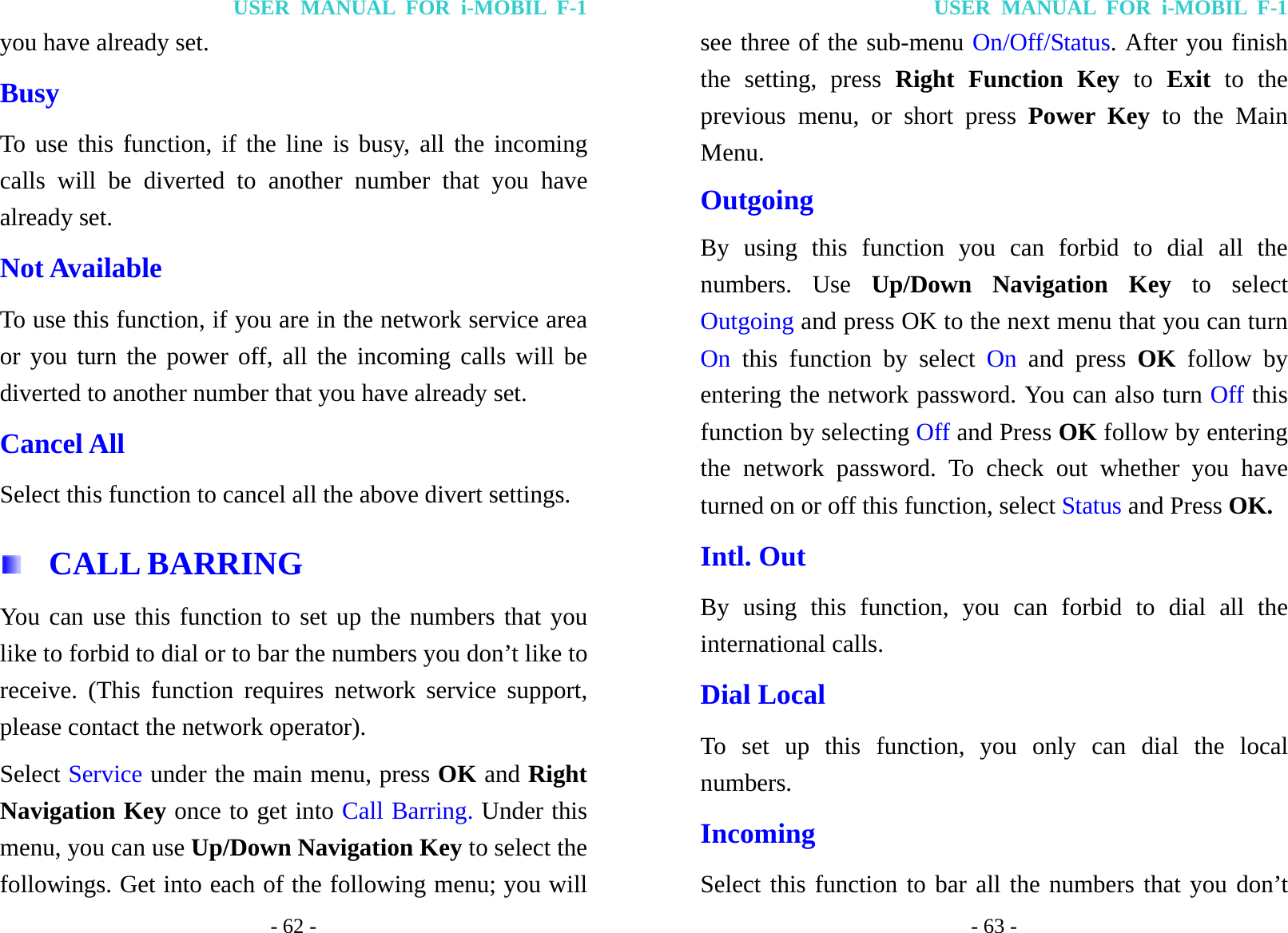

USER MANUAL FOR i-MOBIL F-1 - 62 - you have already set. Busy To use this function, if the line is busy, all the incoming calls will be diverted to another number that you have already set. Not Available To use this function, if you are in the network service area or you turn the power off, all the incoming calls will be diverted to another number that you have already set. Cancel All Select this function to cancel all the above divert settings.  CALL BARRING You can use this function to set up the numbers that you like to forbid to dial or to bar the numbers you don’t like to receive. (This function requires network service support, please contact the network operator). Select Service under the main menu, press OK and Right Navigation Key once to get into Call Barring. Under this menu, you can use Up/Down Navigation Key to select the followings. Get into each of the following menu; you will USER MANUAL FOR i-MOBIL F-1 - 63 - see three of the sub-menu On/Off/Status. After you finish the setting, press Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Outgoing By using this function you can forbid to dial all the numbers. Use Up/Down Navigation Key to select Outgoing and press OK to the next menu that you can turn On this function by select On and press OK follow by entering the network password. You can also turn Off this function by selecting Off and Press OK follow by entering the network password. To check out whether you have turned on or off this function, select Status and Press OK. Intl. Out By using this function, you can forbid to dial all the international calls. Dial Local To set up this function, you only can dial the local numbers. Incoming Select this function to bar all the numbers that you don’t

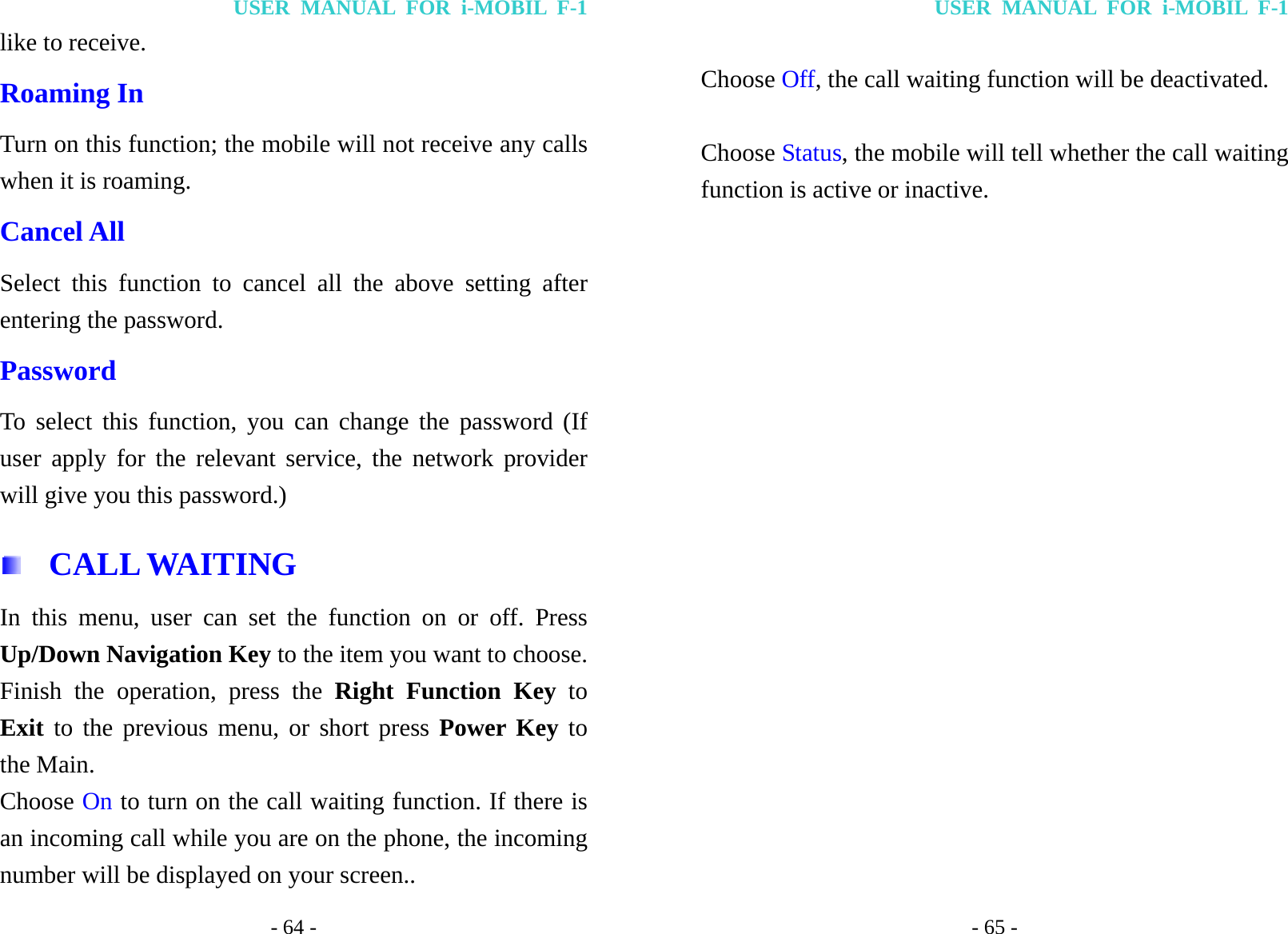

USER MANUAL FOR i-MOBIL F-1 - 64 - like to receive. Roaming In Turn on this function; the mobile will not receive any calls when it is roaming. Cancel All Select this function to cancel all the above setting after entering the password. Password To select this function, you can change the password (If user apply for the relevant service, the network provider will give you this password.)  CALL WAITING In this menu, user can set the function on or off. Press Up/Down Navigation Key to the item you want to choose. Finish the operation, press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Choose On to turn on the call waiting function. If there is an incoming call while you are on the phone, the incoming number will be displayed on your screen.. USER MANUAL FOR i-MOBIL F-1 - 65 -  Choose Off, the call waiting function will be deactivated.  Choose Status, the mobile will tell whether the call waiting function is active or inactive.

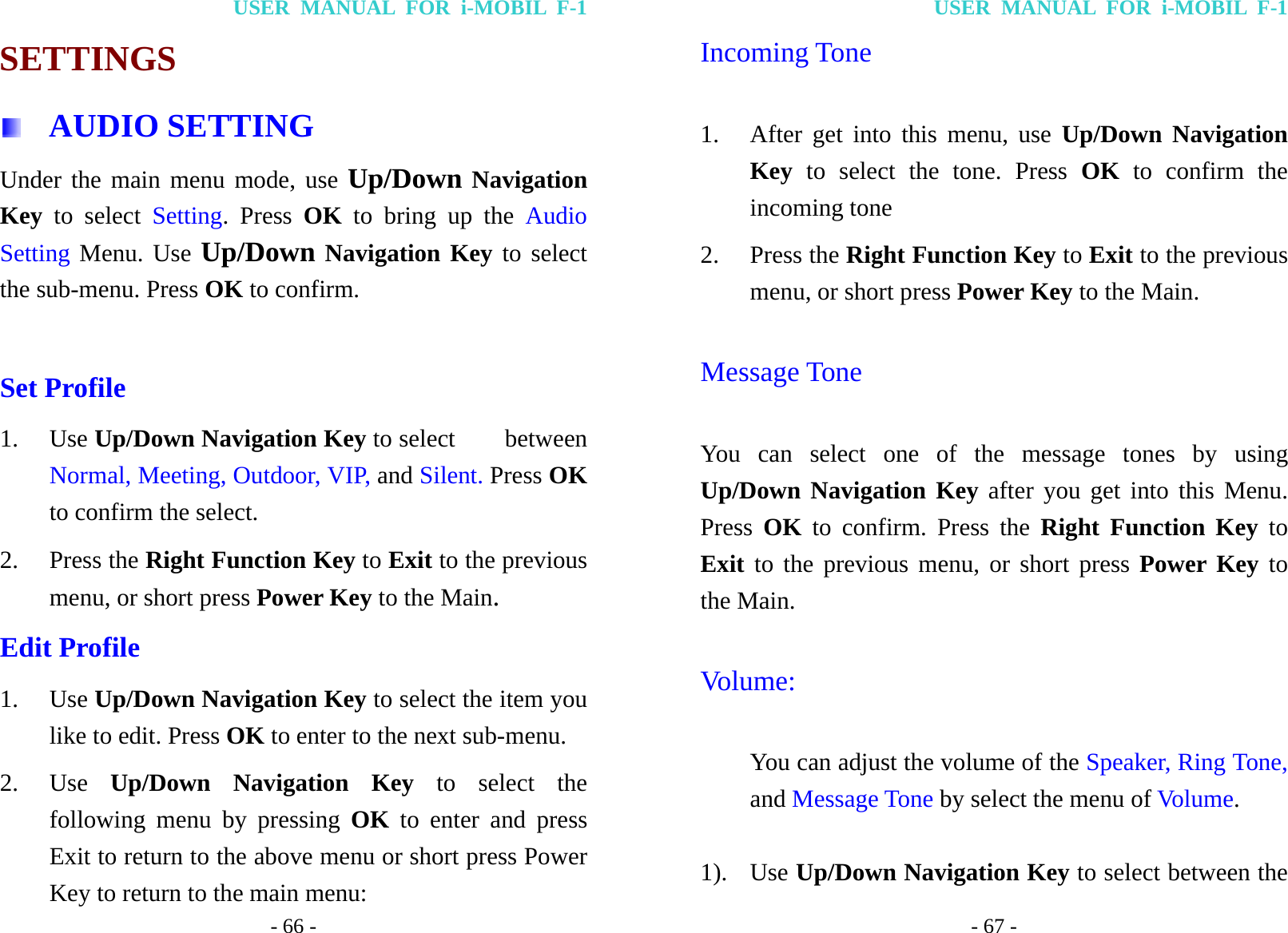

USER MANUAL FOR i-MOBIL F-1 - 66 - SETTINGS  AUDIO SETTING Under the main menu mode, use Up/Down Navigation Key  to select Setting. Press OK to bring up the Audio Setting Menu. Use Up/Down Navigation Key to select the sub-menu. Press OK to confirm.  Set Profile 1. Use Up/Down Navigation Key to select    between Normal, Meeting, Outdoor, VIP, and Silent. Press OK to confirm the select. 2. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Edit Profile   1. Use Up/Down Navigation Key to select the item you like to edit. Press OK to enter to the next sub-menu. 2. Use  Up/Down Navigation Key to select the following menu by pressing OK to enter and press Exit to return to the above menu or short press Power Key to return to the main menu: USER MANUAL FOR i-MOBIL F-1 - 67 - Incoming Tone 1. After get into this menu, use Up/Down Navigation Key to select the tone. Press OK to confirm the incoming tone 2. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Message Tone You can select one of the message tones by using Up/Down Navigation Key after you get into this Menu. Press  OK to confirm. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Volume:  You can adjust the volume of the Speaker, Ring Tone, and Message Tone by select the menu of Volume.  1). Use Up/Down Navigation Key to select between the

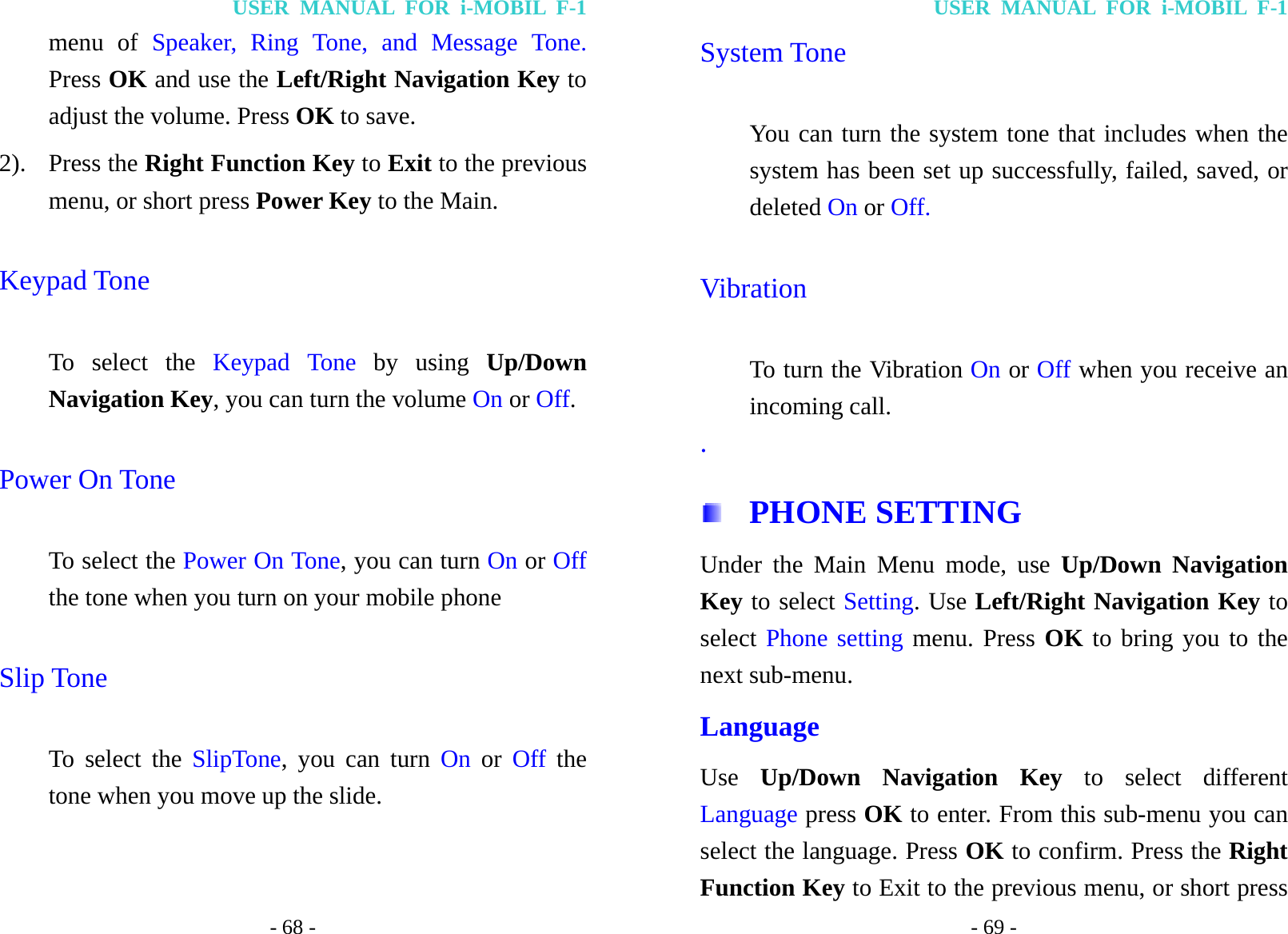

USER MANUAL FOR i-MOBIL F-1 - 68 - menu of Speaker, Ring Tone, and Message Tone. Press OK and use the Left/Right Navigation Key to adjust the volume. Press OK to save. 2). Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Keypad Tone To select the Keypad Tone by using Up/Down Navigation Key, you can turn the volume On or Off.  Power On Tone To select the Power On Tone, you can turn On or Off the tone when you turn on your mobile phone Slip Tone To select the SlipTone, you can turn On or Off the tone when you move up the slide. USER MANUAL FOR i-MOBIL F-1 - 69 - System Tone You can turn the system tone that includes when the system has been set up successfully, failed, saved, or deleted On or Off. Vibration To turn the Vibration On or Off when you receive an incoming call. .  PHONE SETTING Under the Main Menu mode, use Up/Down Navigation Key to select Setting. Use Left/Right Navigation Key to select Phone setting menu. Press OK to bring you to the next sub-menu. Language Use  Up/Down Navigation Key to select different Language press OK to enter. From this sub-menu you can select the language. Press OK to confirm. Press the Right Function Key to Exit to the previous menu, or short press

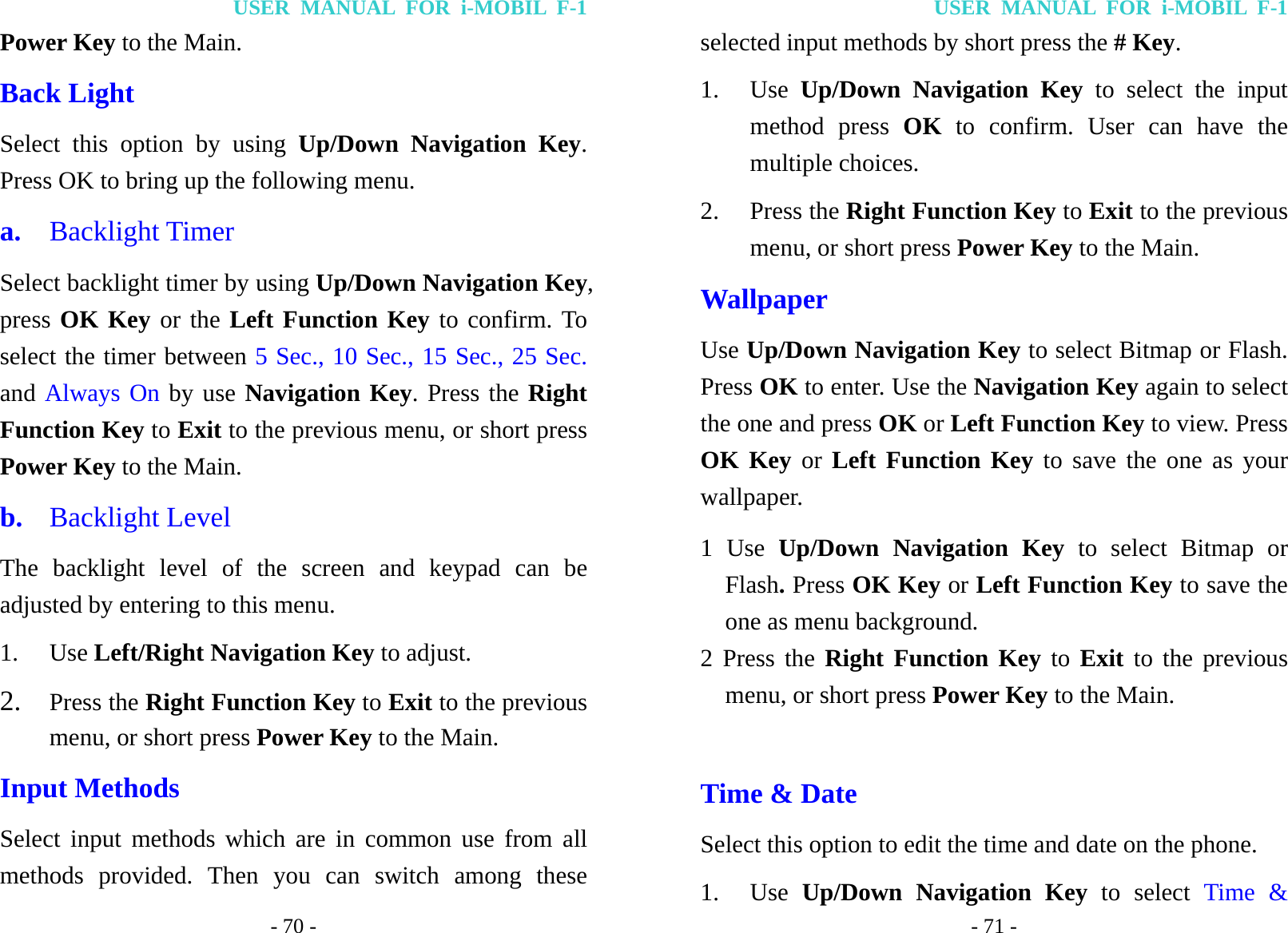

USER MANUAL FOR i-MOBIL F-1 - 70 - Power Key to the Main. Back Light Select this option by using Up/Down Navigation Key. Press OK to bring up the following menu.   a.  Backlight Timer Select backlight timer by using Up/Down Navigation Key, press OK Key or the Left Function Key to confirm. To select the timer between 5 Sec., 10 Sec., 15 Sec., 25 Sec. and Always On by use Navigation Key. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. b.  Backlight Level The backlight level of the screen and keypad can be adjusted by entering to this menu. 1. Use Left/Right Navigation Key to adjust. 2. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Input Methods Select input methods which are in common use from all methods provided. Then you can switch among these USER MANUAL FOR i-MOBIL F-1 - 71 - selected input methods by short press the # Key. 1. Use  Up/Down Navigation Key to select the input method press OK to confirm. User can have the multiple choices. 2. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main. Wallpaper Use Up/Down Navigation Key to select Bitmap or Flash. Press OK to enter. Use the Navigation Key again to select the one and press OK or Left Function Key to view. Press OK Key or Left Function Key to save the one as your wallpaper. 1 Use Up/Down Navigation Key to select Bitmap or Flash. Press OK Key or Left Function Key to save the one as menu background. 2 Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main.  Time & Date Select this option to edit the time and date on the phone. 1. Use  Up/Down Navigation Key to select Time &

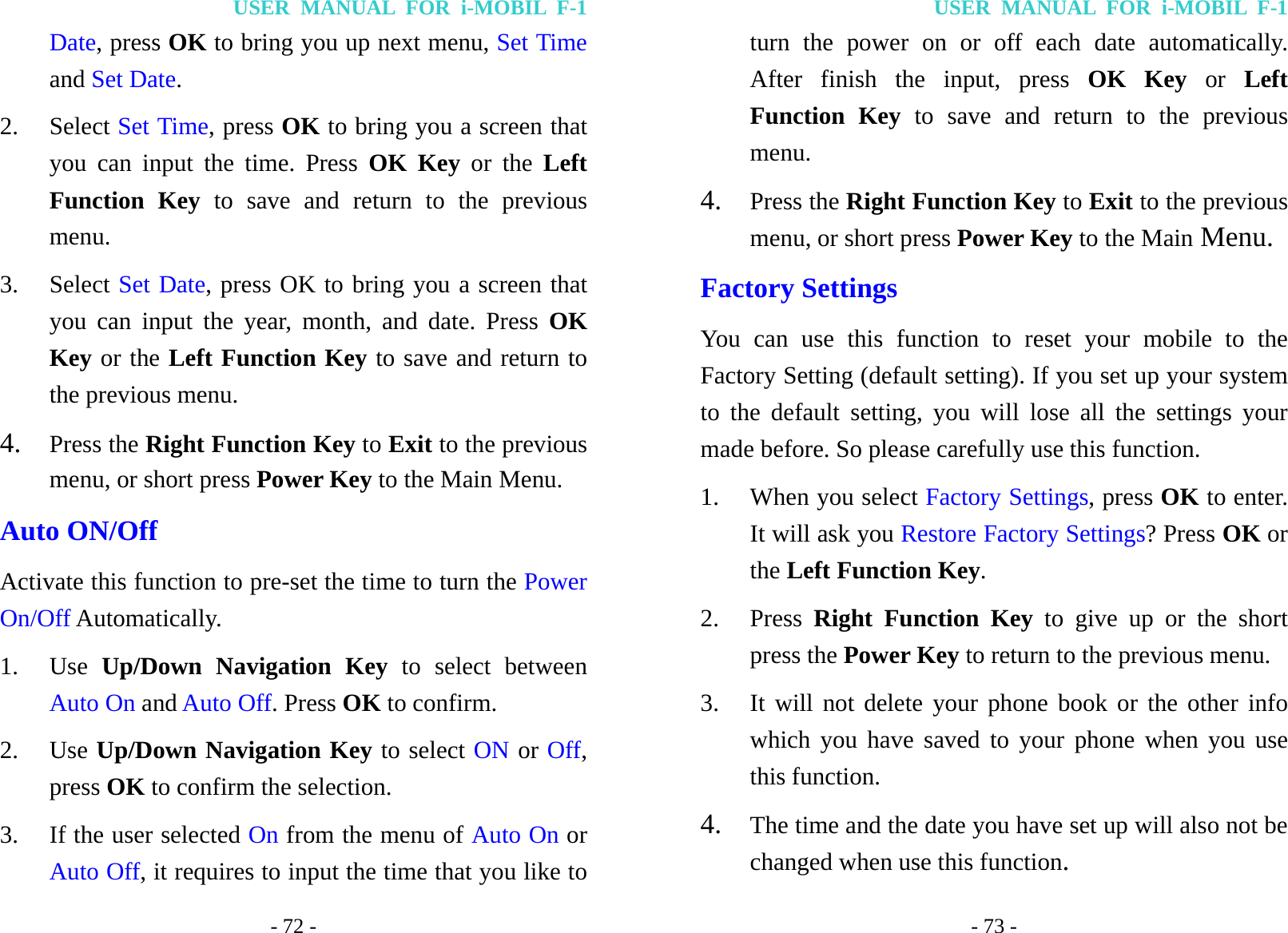

USER MANUAL FOR i-MOBIL F-1 - 72 - Date, press OK to bring you up next menu, Set Time and Set Date. 2. Select Set Time, press OK to bring you a screen that you can input the time. Press OK Key or the Left Function Key to save and return to the previous menu. 3. Select Set Date, press OK to bring you a screen that you can input the year, month, and date. Press OK Key or the Left Function Key to save and return to the previous menu. 4. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Auto ON/Off Activate this function to pre-set the time to turn the Power On/Off Automatically. 1. Use  Up/Down Navigation Key to select between Auto On and Auto Off. Press OK to confirm. 2. Use Up/Down Navigation Key to select ON or Off, press OK to confirm the selection. 3. If the user selected On from the menu of Auto On or Auto Off, it requires to input the time that you like to USER MANUAL FOR i-MOBIL F-1 - 73 - turn the power on or off each date automatically. After finish the input, press OK Key or Left Function Key to save and return to the previous menu. 4. Press the Right Function Key to Exit to the previous menu, or short press Power Key to the Main Menu. Factory Settings You can use this function to reset your mobile to the Factory Setting (default setting). If you set up your system to the default setting, you will lose all the settings your made before. So please carefully use this function. 1. When you select Factory Settings, press OK to enter. It will ask you Restore Factory Settings? Press OK or the Left Function Key. 2. Press  Right Function Key to give up or the short press the Power Key to return to the previous menu. 3. It will not delete your phone book or the other info which you have saved to your phone when you use this function. 4. The time and the date you have set up will also not be changed when use this function.

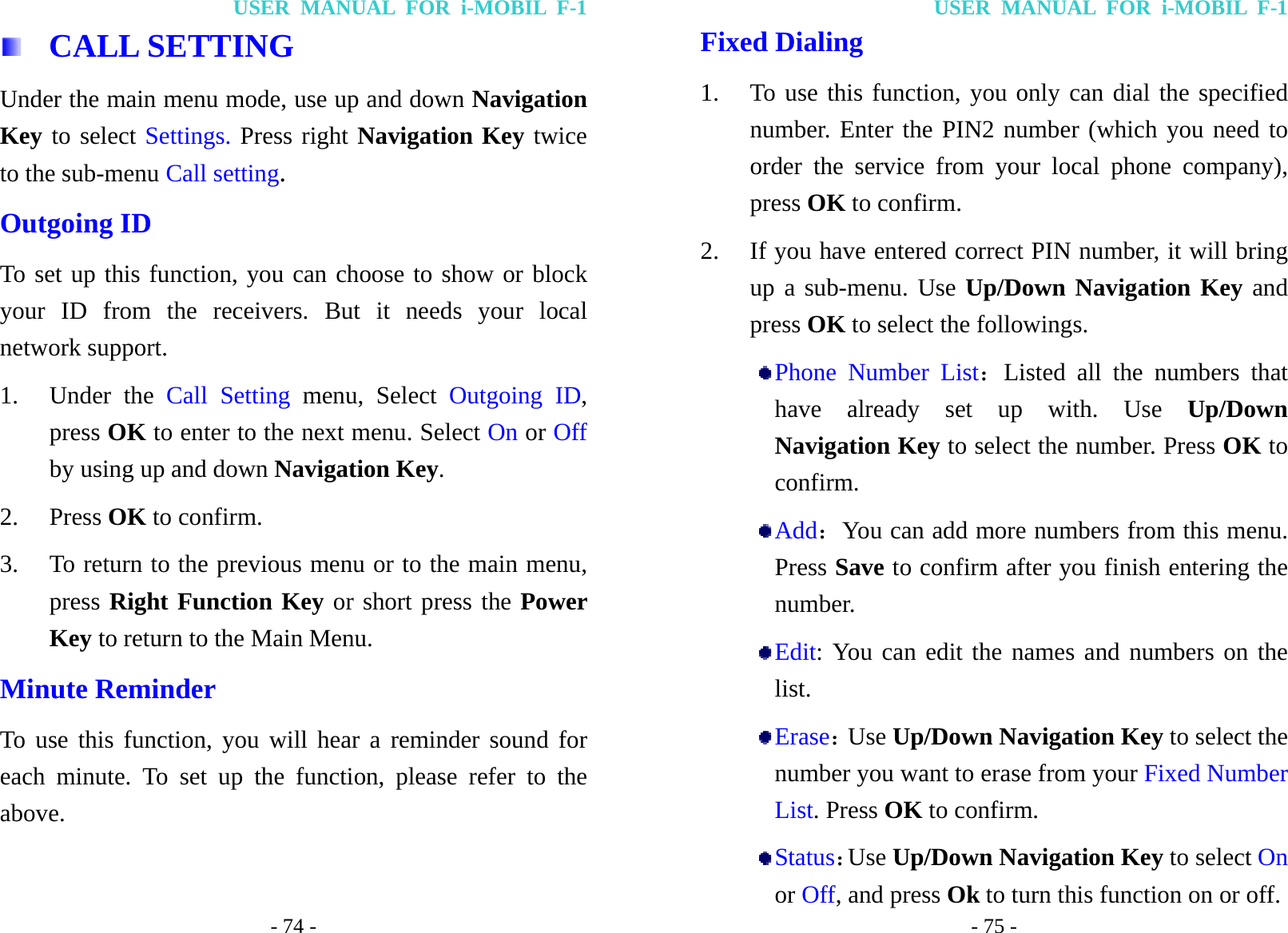

USER MANUAL FOR i-MOBIL F-1 - 74 -  CALL SETTING Under the main menu mode, use up and down Navigation Key to select Settings. Press right Navigation Key twice to the sub-menu Call setting. Outgoing ID To set up this function, you can choose to show or block your ID from the receivers. But it needs your local network support. 1. Under the Call Setting menu, Select Outgoing ID, press OK to enter to the next menu. Select On or Off by using up and down Navigation Key. 2. Press OK to confirm. 3. To return to the previous menu or to the main menu, press Right Function Key or short press the Power Key to return to the Main Menu. Minute Reminder To use this function, you will hear a reminder sound for each minute. To set up the function, please refer to the above. USER MANUAL FOR i-MOBIL F-1 - 75 - Fixed Dialing 1. To use this function, you only can dial the specified number. Enter the PIN2 number (which you need to order the service from your local phone company), press OK to confirm. 2. If you have entered correct PIN number, it will bring up a sub-menu. Use Up/Down Navigation Key and press OK to select the followings.  Phone Number List:Listed all the numbers that have already set up with. Use Up/Down Navigation Key to select the number. Press OK to confirm.  Add:You can add more numbers from this menu. Press Save to confirm after you finish entering the number.  Edit: You can edit the names and numbers on the list.  Erase:Use Up/Down Navigation Key to select the number you want to erase from your Fixed Number List. Press OK to confirm.  Status:Use Up/Down Navigation Key to select On or Off, and press Ok to turn this function on or off.

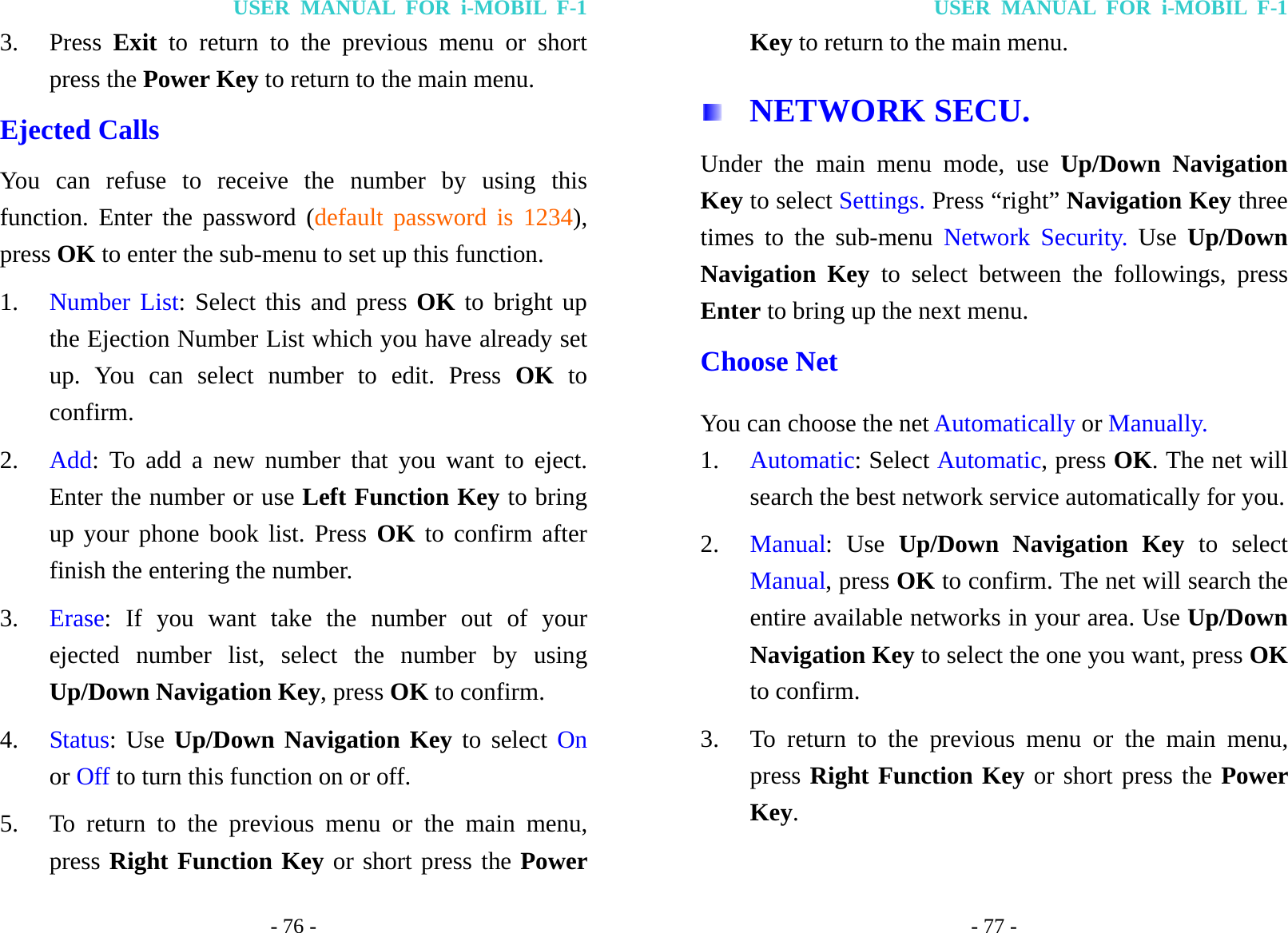

USER MANUAL FOR i-MOBIL F-1 - 76 - 3. Press  Exit to return to the previous menu or short press the Power Key to return to the main menu. Ejected Calls You can refuse to receive the number by using this function. Enter the password (default password is 1234), press OK to enter the sub-menu to set up this function. 1. Number List: Select this and press OK to bright up the Ejection Number List which you have already set up. You can select number to edit. Press OK to confirm. 2. Add: To add a new number that you want to eject. Enter the number or use Left Function Key to bring up your phone book list. Press OK to confirm after finish the entering the number. 3. Erase: If you want take the number out of your ejected number list, select the number by using Up/Down Navigation Key, press OK to confirm. 4. Status: Use Up/Down Navigation Key to select On or Off to turn this function on or off. 5. To return to the previous menu or the main menu, press Right Function Key or short press the Power USER MANUAL FOR i-MOBIL F-1 - 77 - Key to return to the main menu.  NETWORK SECU. Under the main menu mode, use Up/Down Navigation Key to select Settings. Press “right” Navigation Key three times to the sub-menu Network Security. Use  Up/Down Navigation Key to select between the followings, press Enter to bring up the next menu. Choose Net You can choose the net Automatically or Manually. 1. Automatic: Select Automatic, press OK. The net will search the best network service automatically for you.   2. Manual: Use Up/Down Navigation Key to select Manual, press OK to confirm. The net will search the entire available networks in your area. Use Up/Down Navigation Key to select the one you want, press OK to confirm. 3. To return to the previous menu or the main menu, press Right Function Key or short press the Power Key.

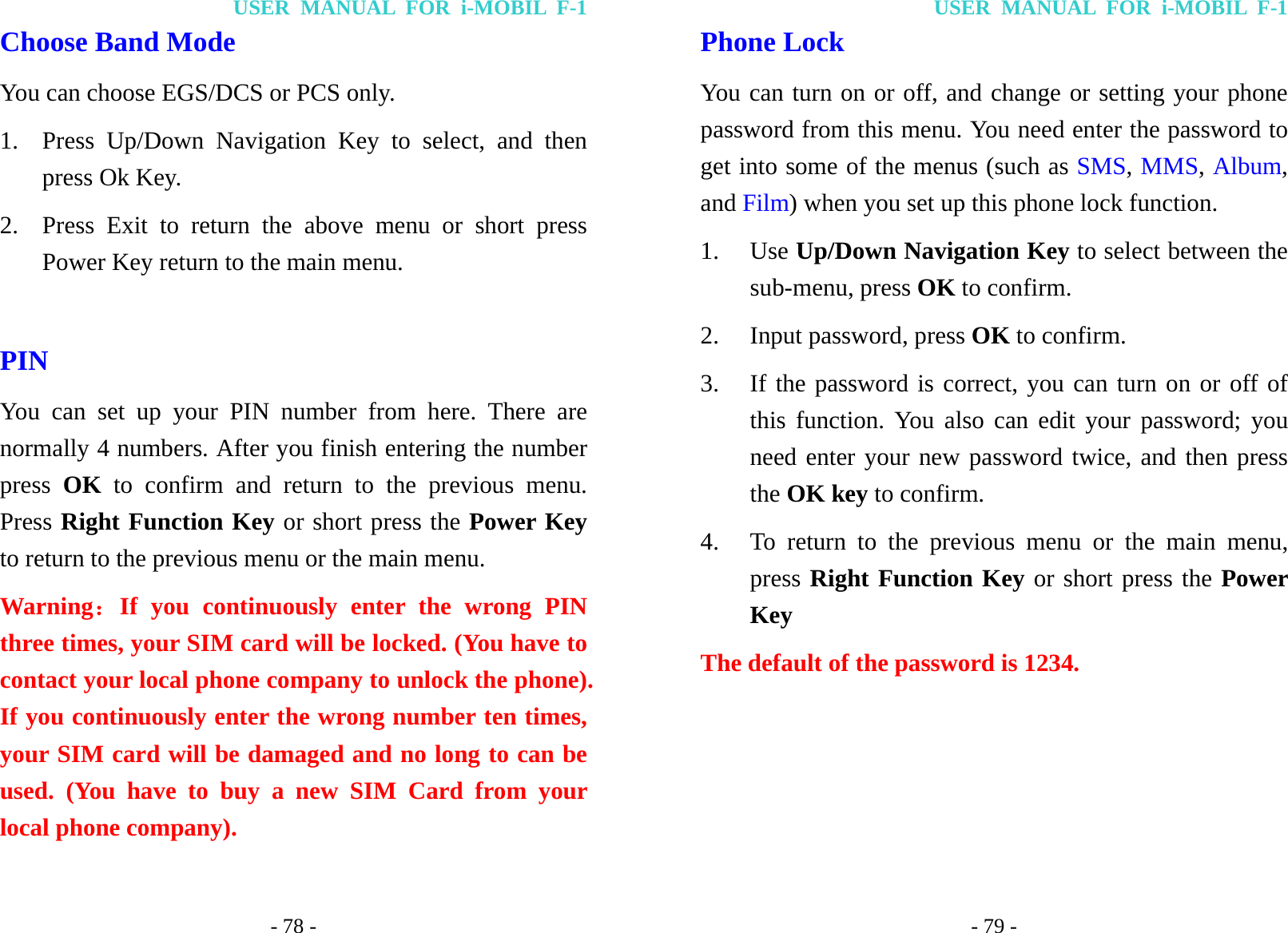

USER MANUAL FOR i-MOBIL F-1 - 78 - Choose Band Mode You can choose EGS/DCS or PCS only. 1. Press Up/Down Navigation Key to select, and then press Ok Key. 2. Press Exit to return the above menu or short press Power Key return to the main menu.  PIN   You can set up your PIN number from here. There are normally 4 numbers. After you finish entering the number press  OK to confirm and return to the previous menu. Press Right Function Key or short press the Power Key to return to the previous menu or the main menu. Warning:If you continuously enter the wrong PIN three times, your SIM card will be locked. (You have to contact your local phone company to unlock the phone). If you continuously enter the wrong number ten times, your SIM card will be damaged and no long to can be used. (You have to buy a new SIM Card from your local phone company). USER MANUAL FOR i-MOBIL F-1 - 79 - Phone Lock You can turn on or off, and change or setting your phone password from this menu. You need enter the password to get into some of the menus (such as SMS, MMS, Album, and Film) when you set up this phone lock function. 1. Use Up/Down Navigation Key to select between the sub-menu, press OK to confirm. 2. Input password, press OK to confirm. 3. If the password is correct, you can turn on or off of this function. You also can edit your password; you need enter your new password twice, and then press the OK key to confirm. 4. To return to the previous menu or the main menu, press Right Function Key or short press the Power Key The default of the password is 1234.

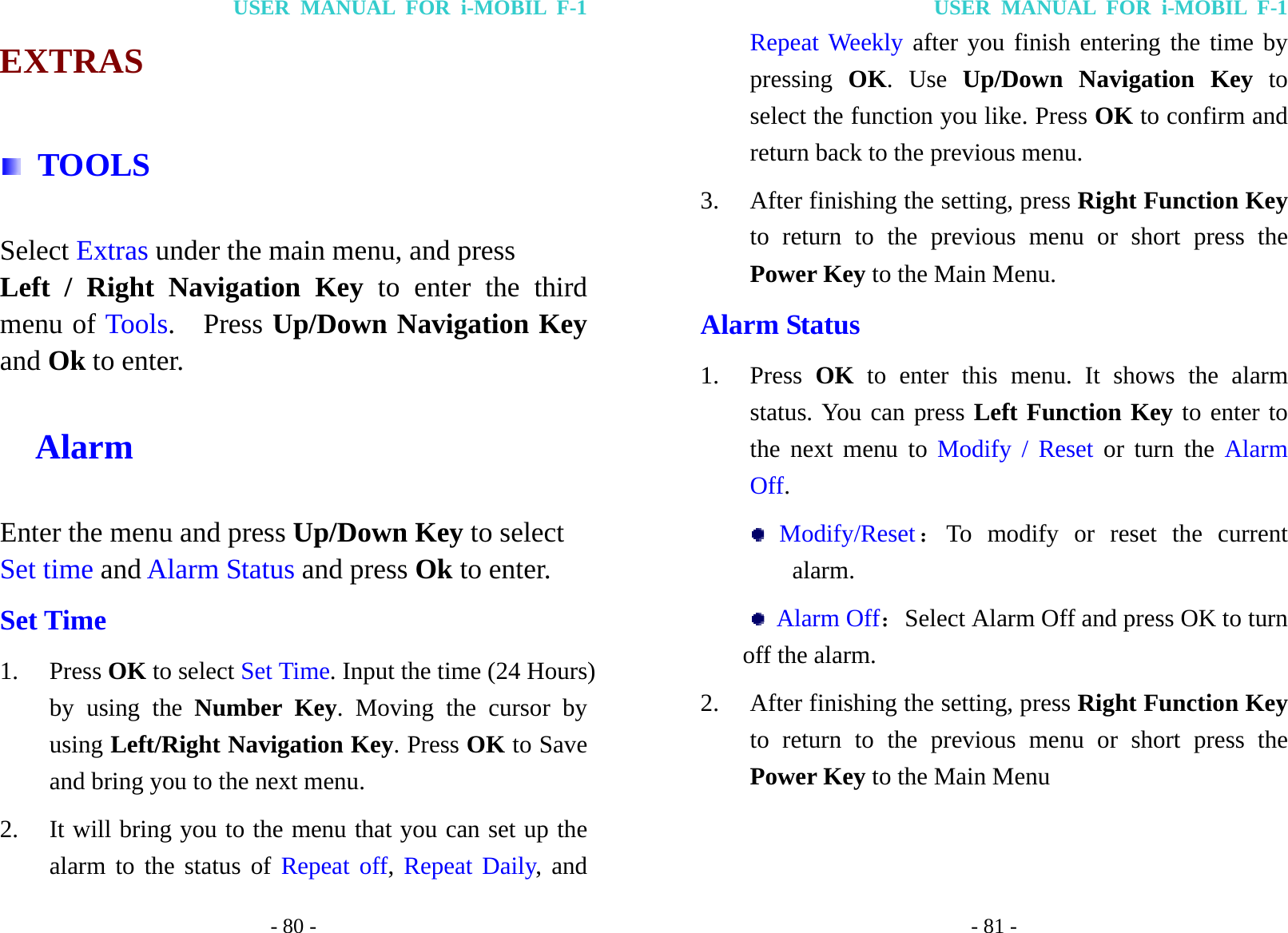

USER MANUAL FOR i-MOBIL F-1 - 80 - EXTRAS  TOOLS Select Extras under the main menu, and press Left / Right Navigation Key to enter the third menu of Tools.  Press Up/Down Navigation Key and Ok to enter.   Alarm Enter the menu and press Up/Down Key to select Set time and Alarm Status and press Ok to enter. Set Time 1. Press OK to select Set Time. Input the time (24 Hours) by using the Number Key. Moving the cursor by using Left/Right Navigation Key. Press OK to Save and bring you to the next menu.   2. It will bring you to the menu that you can set up the alarm to the status of Repeat off, Repeat Daily, and USER MANUAL FOR i-MOBIL F-1 - 81 - Repeat Weekly after you finish entering the time by pressing  OK. Use Up/Down Navigation Key to select the function you like. Press OK to confirm and return back to the previous menu. 3. After finishing the setting, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu. Alarm Status 1. Press  OK to enter this menu. It shows the alarm status. You can press Left Function Key to enter to the next menu to Modify / Reset or turn the Alarm Off.  Modify/Reset:To modify or reset the current alarm.  Alarm Off:Select Alarm Off and press OK to turn off the alarm. 2. After finishing the setting, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu

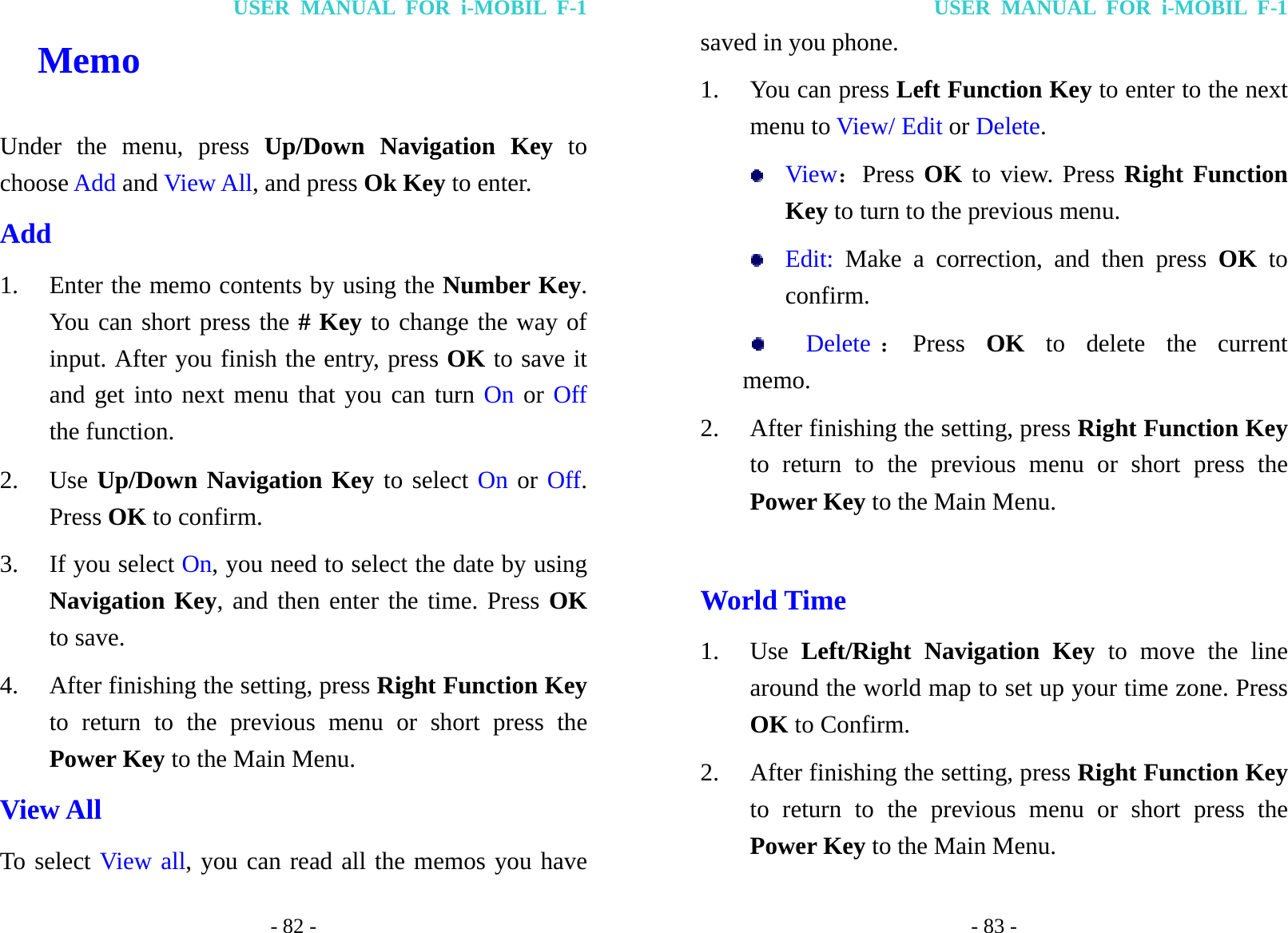

USER MANUAL FOR i-MOBIL F-1 - 82 -   Memo Under the menu, press Up/Down Navigation Key to choose Add and View All, and press Ok Key to enter. Add 1. Enter the memo contents by using the Number Key. You can short press the # Key to change the way of input. After you finish the entry, press OK to save it and get into next menu that you can turn On or Off the function. 2. Use Up/Down Navigation Key to select On or Off. Press OK to confirm. 3. If you select On, you need to select the date by using Navigation Key, and then enter the time. Press OK to save. 4. After finishing the setting, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu. View All To select View all, you can read all the memos you have USER MANUAL FOR i-MOBIL F-1 - 83 - saved in you phone. 1. You can press Left Function Key to enter to the next menu to View/ Edit or Delete.  View:Press OK to view. Press Right Function Key to turn to the previous menu.  Edit: Make a correction, and then press OK to confirm.    Delete :Press  OK to delete the current     memo. 2. After finishing the setting, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu.  World Time 1. Use  Left/Right Navigation Key to move the line around the world map to set up your time zone. Press OK to Confirm. 2. After finishing the setting, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu.

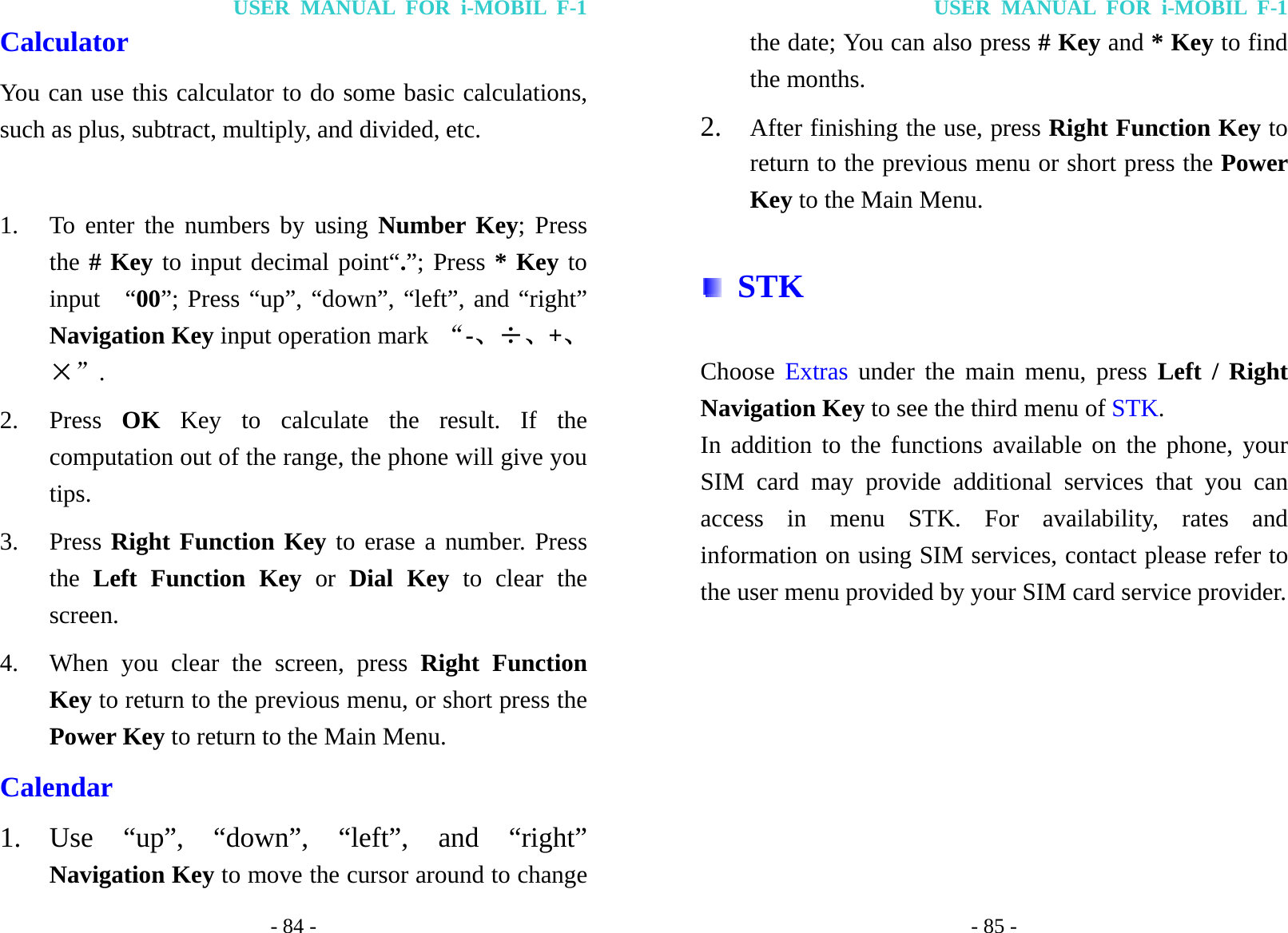

USER MANUAL FOR i-MOBIL F-1 - 84 - Calculator You can use this calculator to do some basic calculations, such as plus, subtract, multiply, and divided, etc.  1. To enter the numbers by using Number Key; Press the # Key to input decimal point“.”; Press * Key to input  “00”; Press “up”, “down”, “left”, and “right” Navigation Key input operation mark  “-、÷、+、×”. 2. Press  OK Key to calculate the result. If the computation out of the range, the phone will give you tips. 3. Press Right Function Key to erase a number. Press the  Left Function Key or Dial Key to clear the screen. 4. When you clear the screen, press Right Function Key to return to the previous menu, or short press the Power Key to return to the Main Menu. Calendar 1. Use “up”, “down”, “left”, and “right” Navigation Key to move the cursor around to change USER MANUAL FOR i-MOBIL F-1 - 85 - the date; You can also press # Key and * Key to find the months. 2. After finishing the use, press Right Function Key to return to the previous menu or short press the Power Key to the Main Menu.  STK Choose Extras under the main menu, press Left / Right Navigation Key to see the third menu of STK. In addition to the functions available on the phone, your SIM card may provide additional services that you can access in menu STK. For availability, rates and information on using SIM services, contact please refer to the user menu provided by your SIM card service provider.

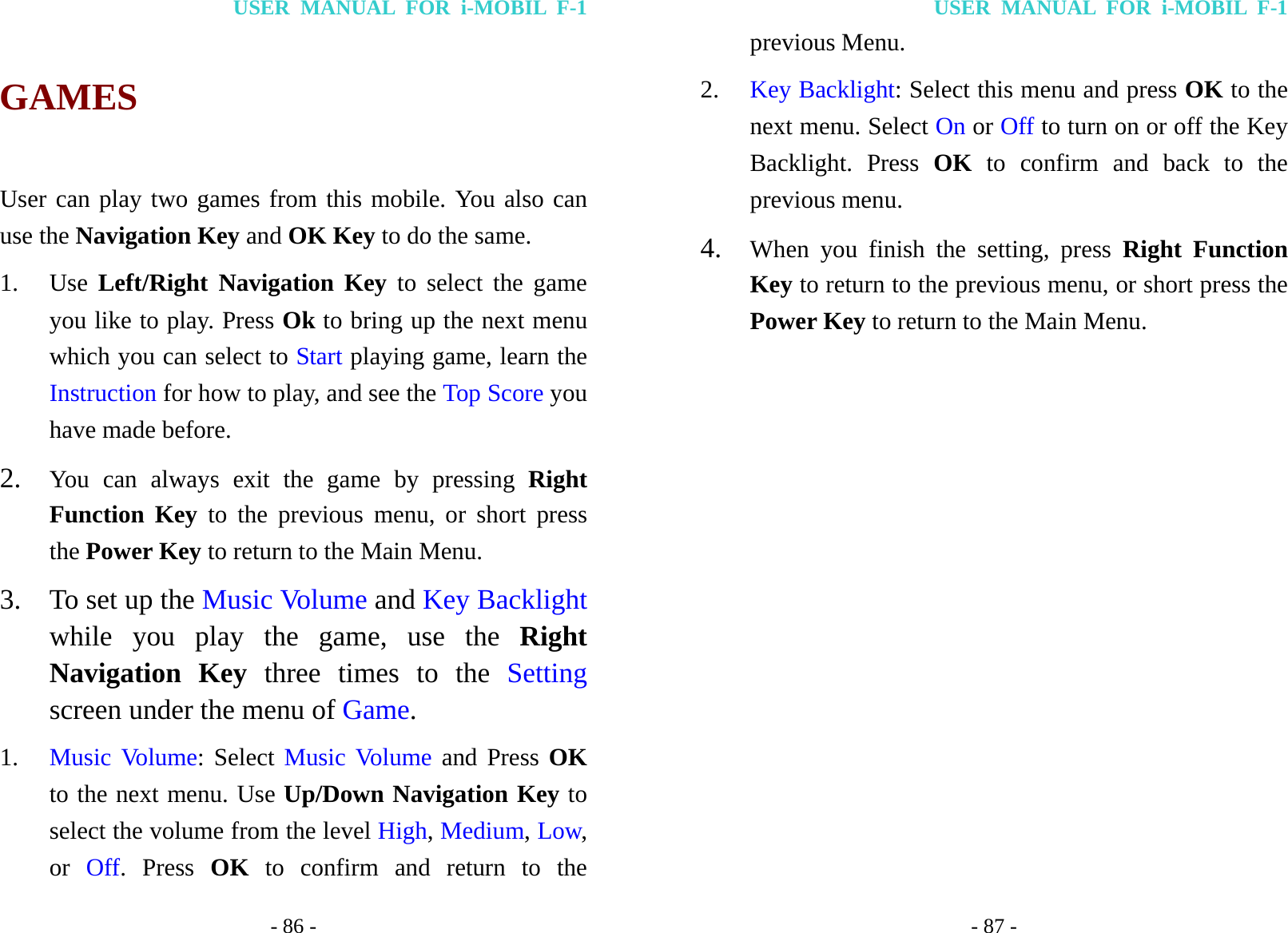

USER MANUAL FOR i-MOBIL F-1 - 86 - GAMES User can play two games from this mobile. You also can use the Navigation Key and OK Key to do the same. 1. Use Left/Right Navigation Key to select the game you like to play. Press Ok to bring up the next menu which you can select to Start playing game, learn the Instruction for how to play, and see the Top Score you have made before. 2. You can always exit the game by pressing Right Function Key to the previous menu, or short press the Power Key to return to the Main Menu. 3. To set up the Music Volume and Key Backlight while you play the game, use the Right Navigation Key three times to the Setting screen under the menu of Game. 1. Music Volume: Select Music Volume and Press OK to the next menu. Use Up/Down Navigation Key to select the volume from the level High, Medium, Low, or  Off. Press OK to confirm and return to the USER MANUAL FOR i-MOBIL F-1 - 87 - previous Menu. 2. Key Backlight: Select this menu and press OK to the next menu. Select On or Off to turn on or off the Key Backlight. Press OK to confirm and back to the previous menu. 4. When you finish the setting, press Right Function Key to return to the previous menu, or short press the Power Key to return to the Main Menu.

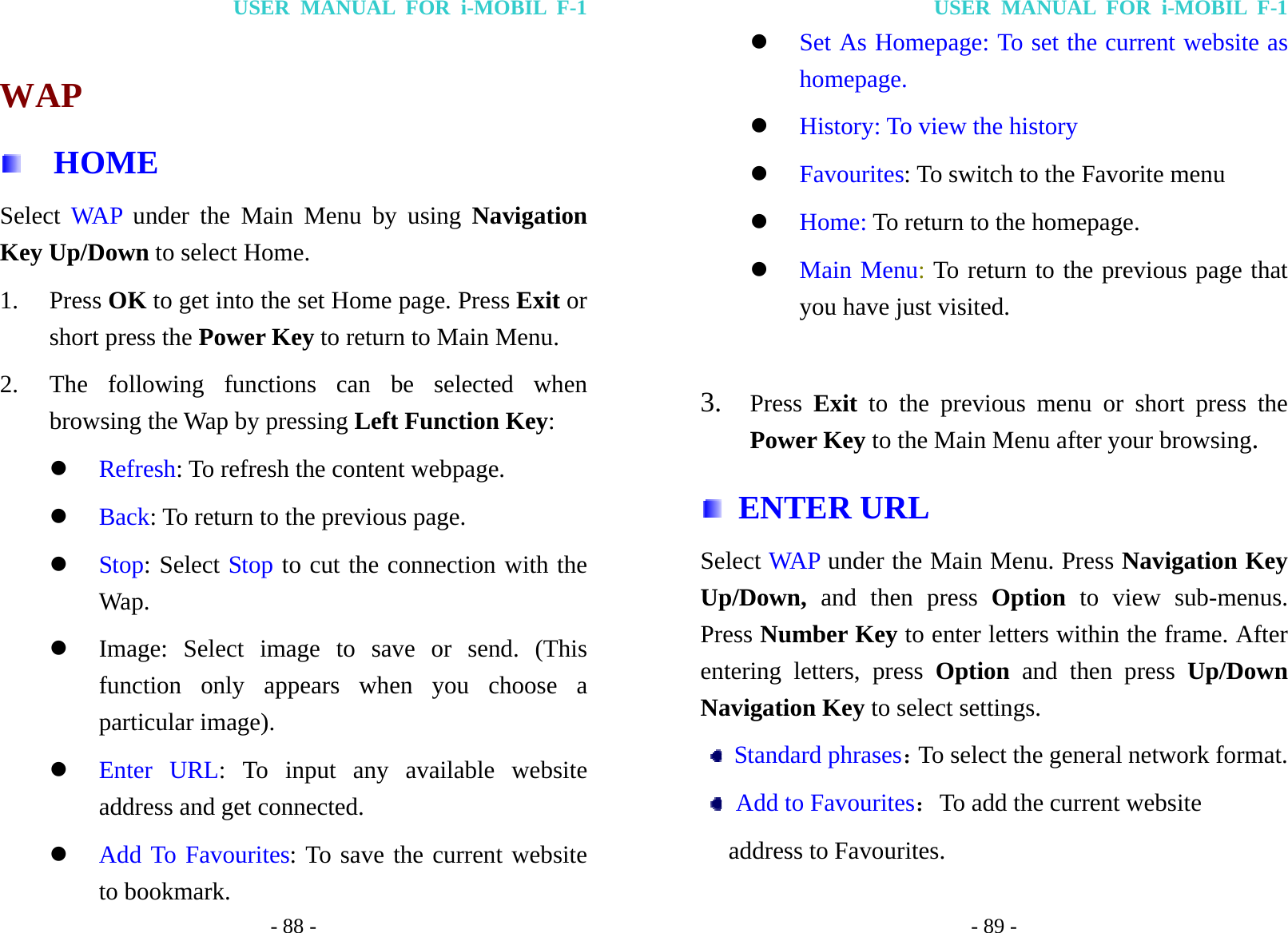

USER MANUAL FOR i-MOBIL F-1 - 88 -  WAP   HOME Select WAP under the Main Menu by using Navigation Key Up/Down to select Home. 1. Press OK to get into the set Home page. Press Exit or short press the Power Key to return to Main Menu. 2. The following functions can be selected when browsing the Wap by pressing Left Function Key: z Refresh: To refresh the content webpage. z Back: To return to the previous page. z Stop: Select Stop to cut the connection with the Wap. z Image: Select image to save or send. (This function only appears when you choose a particular image). z Enter URL: To input any available website address and get connected. z Add To Favourites: To save the current website to bookmark. USER MANUAL FOR i-MOBIL F-1 - 89 - z Set As Homepage: To set the current website as homepage. z History: To view the history   z Favourites: To switch to the Favorite menu z Home: To return to the homepage. z Main Menu: To return to the previous page that you have just visited.  3. Press  Exit  to the previous menu or short press the Power Key to the Main Menu after your browsing.  ENTER URL Select WAP  under the Main Menu. Press Navigation Key Up/Down, and then press Option  to view sub-menus. Press Number Key to enter letters within the frame. After entering letters, press Option and then press Up/Down Navigation Key to select settings.  Standard phrases:To select the general network format.  Add to Favourites:To add the current website   address to Favourites.

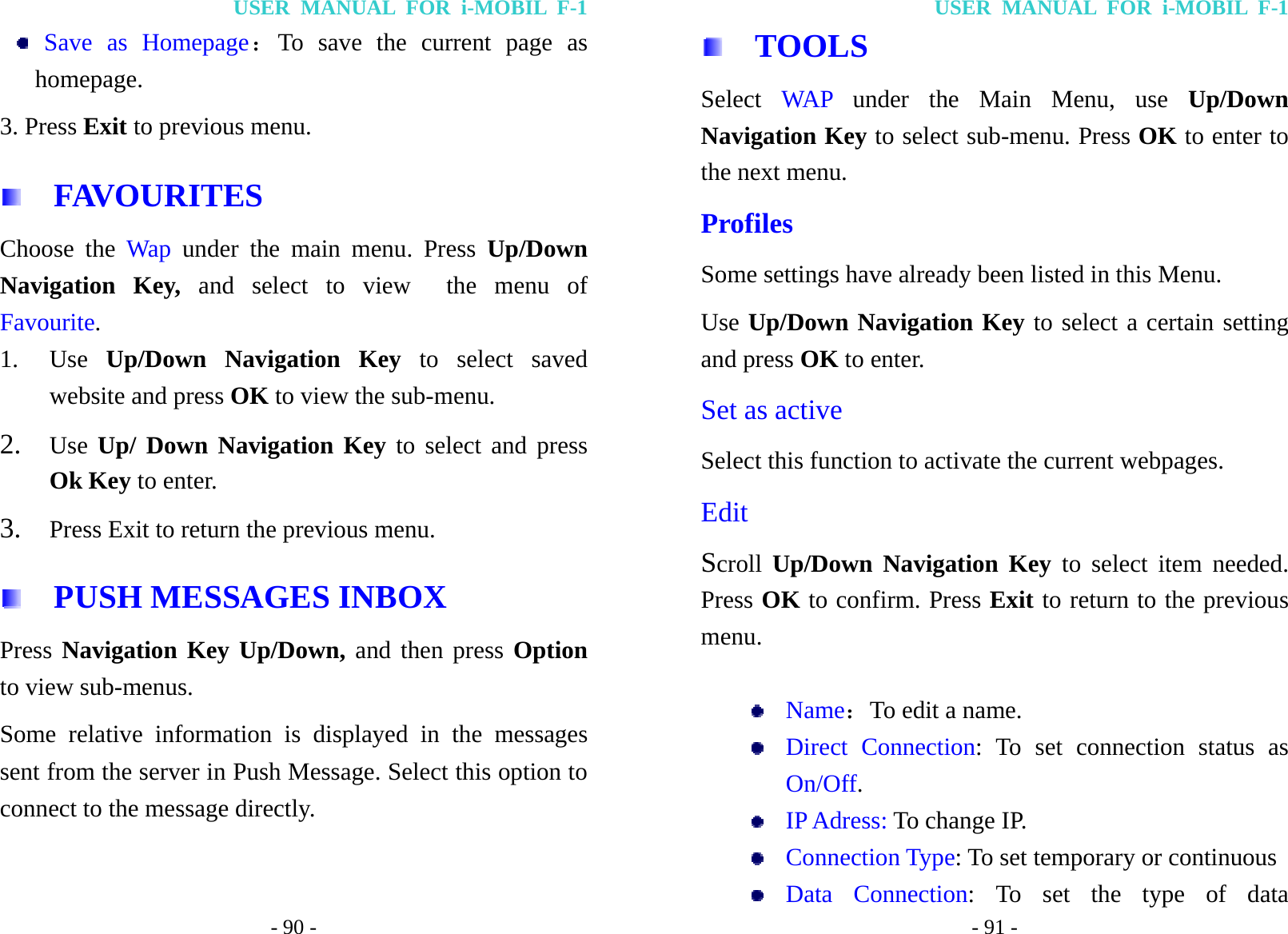

USER MANUAL FOR i-MOBIL F-1 - 90 -  Save as Homepage:To save the current page as homepage. 3. Press Exit to previous menu.   FAVOURITES Choose the Wap under the main menu. Press Up/Down Navigation Key, and select to view  the menu of Favourite. 1. Use  Up/Down Navigation Key to select saved website and press OK to view the sub-menu. 2. Use Up/ Down Navigation Key to select and press Ok Key to enter. 3. Press Exit to return the previous menu.     PUSH MESSAGES INBOX Press Navigation Key Up/Down, and then press Option to view sub-menus. Some relative information is displayed in the messages sent from the server in Push Message. Select this option to connect to the message directly.   USER MANUAL FOR i-MOBIL F-1 - 91 -   TOOLS Select  WAP  under the Main Menu, use Up/Down Navigation Key to select sub-menu. Press OK to enter to the next menu. Profiles Some settings have already been listed in this Menu. Use Up/Down Navigation Key to select a certain setting and press OK to enter. Set as active Select this function to activate the current webpages. Edit Scroll Up/Down Navigation Key to select item needed. Press OK to confirm. Press Exit to return to the previous menu.    Name:To edit a name.  Direct Connection: To set connection status as On/Off.  IP Adress: To change IP.  Connection Type: To set temporary or continuous  Data Connection: To set the type of data

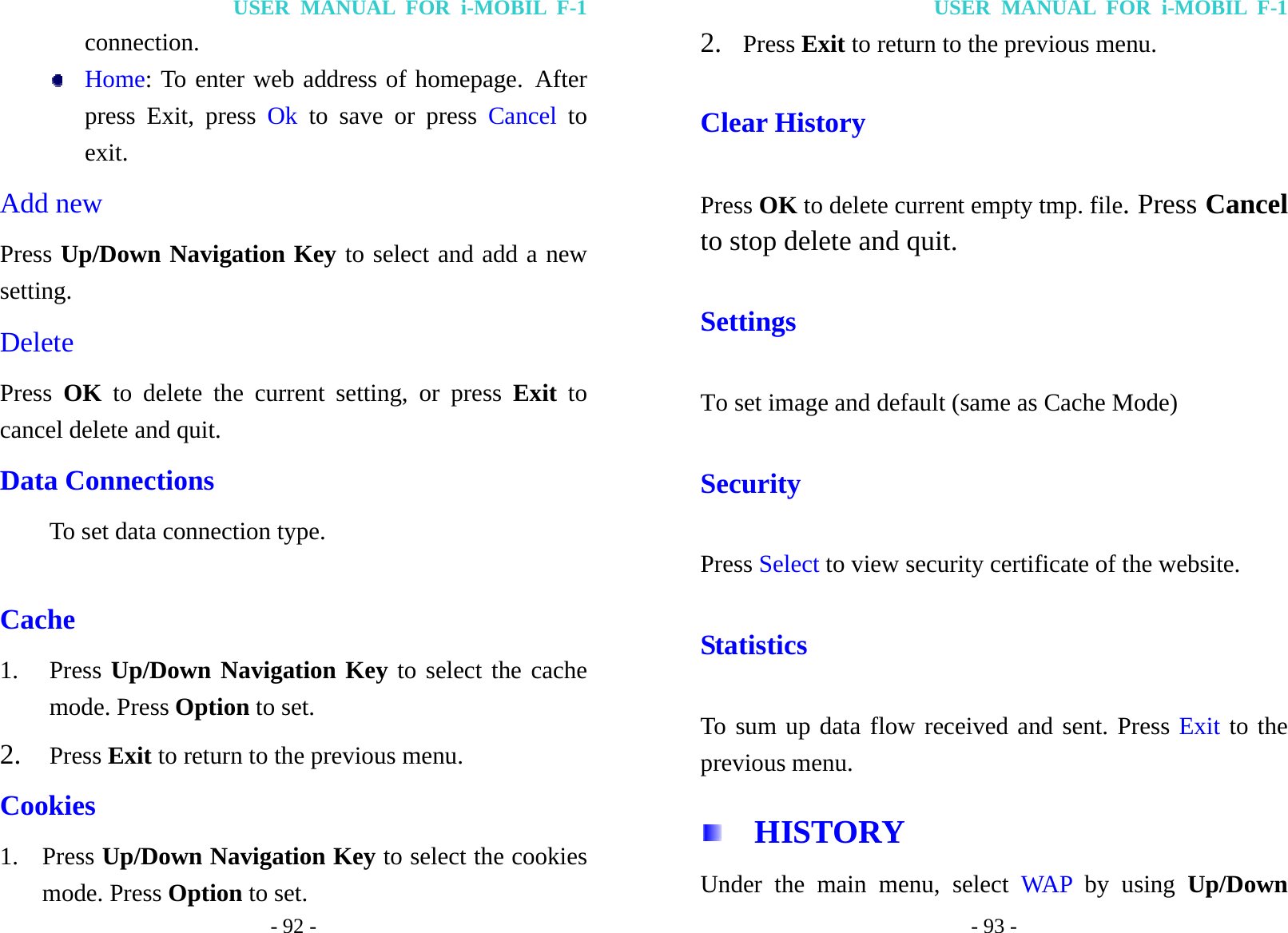

USER MANUAL FOR i-MOBIL F-1 - 92 - connection.  Home: To enter web address of homepage. After press Exit, press Ok to save or press Cancel to exit. Add new   Press Up/Down Navigation Key to select and add a new setting. Delete   Press  OK to delete the current setting, or press Exit  to cancel delete and quit. Data Connections To set data connection type.  Cache   1. Press Up/Down Navigation Key to select the cache mode. Press Option to set. 2. Press Exit to return to the previous menu. Cookies 1. Press Up/Down Navigation Key to select the cookies mode. Press Option to set. USER MANUAL FOR i-MOBIL F-1 - 93 - 2. Press Exit to return to the previous menu. Clear History Press OK to delete current empty tmp. file. Press Cancel to stop delete and quit. Settings To set image and default (same as Cache Mode) Security Press Select to view security certificate of the website. Statistics To sum up data flow received and sent. Press Exit to the previous menu.   HISTORY Under the main menu, select WAP by using Up/Down

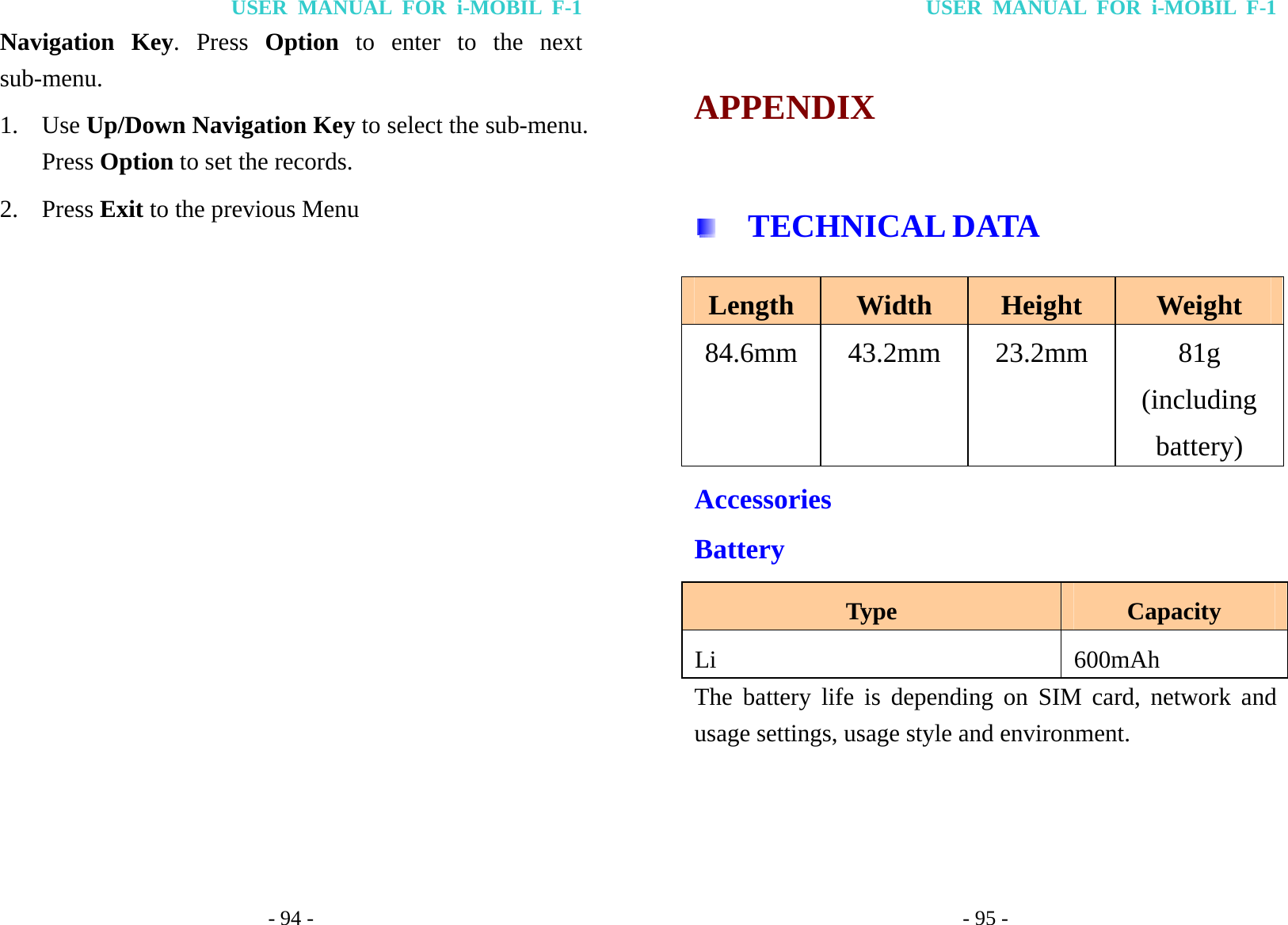

USER MANUAL FOR i-MOBIL F-1 - 94 - Navigation Key. Press Option to enter to the next sub-menu.  1. Use Up/Down Navigation Key to select the sub-menu. Press Option to set the records. 2. Press Exit to the previous Menu  USER MANUAL FOR i-MOBIL F-1 - 95 - APPENDIX   TECHNICAL DATA Length  Width  Height  Weight 84.6mm 43.2mm 23.2mm  81g (including battery) Accessories Battery Type  Capacity Li    600mAh  The battery life is depending on SIM card, network and usage settings, usage style and environment.

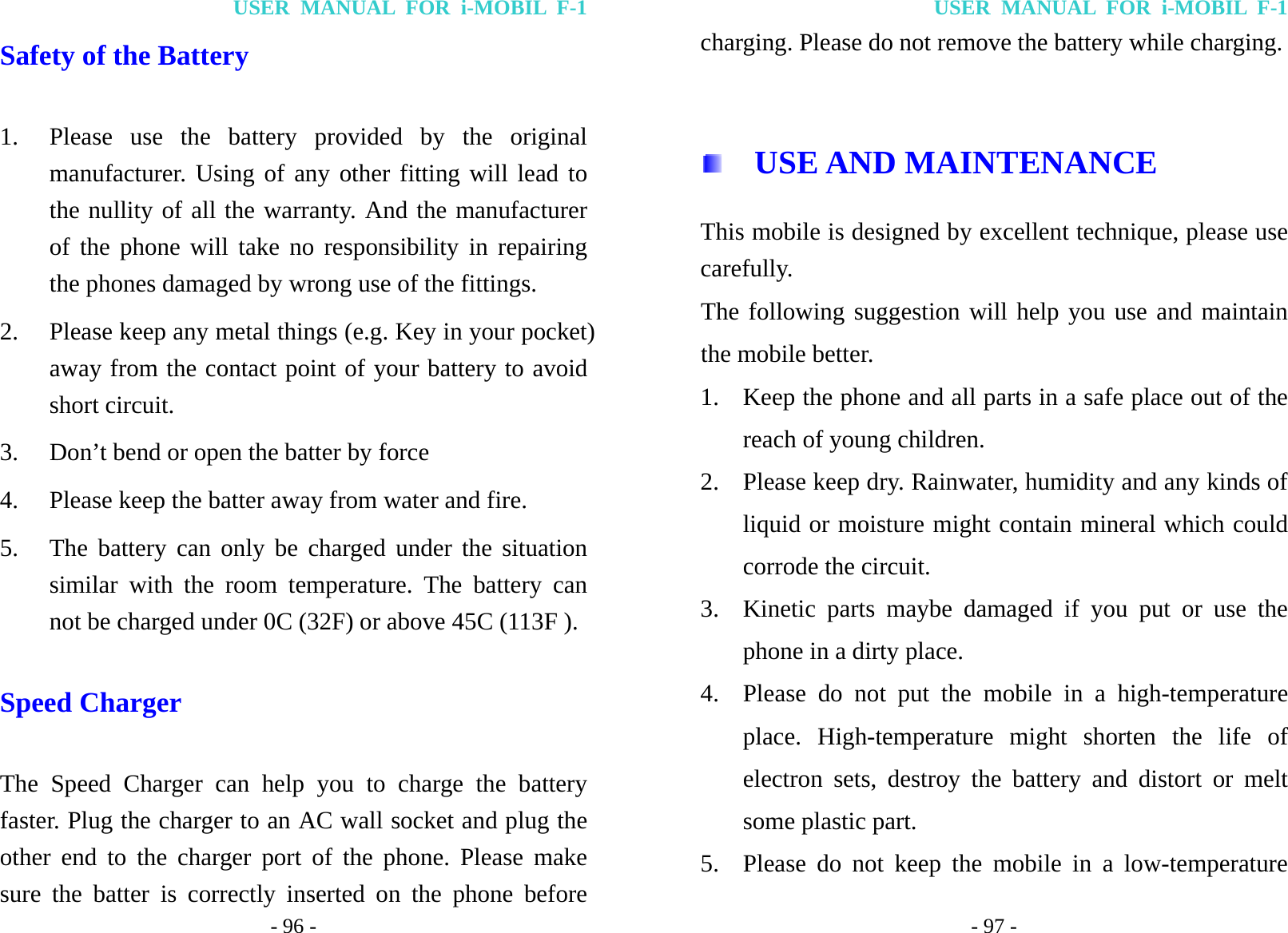

USER MANUAL FOR i-MOBIL F-1 - 96 - Safety of the Battery 1. Please use the battery provided by the original manufacturer. Using of any other fitting will lead to the nullity of all the warranty. And the manufacturer of the phone will take no responsibility in repairing the phones damaged by wrong use of the fittings. 2. Please keep any metal things (e.g. Key in your pocket) away from the contact point of your battery to avoid short circuit. 3. Don’t bend or open the batter by force 4. Please keep the batter away from water and fire. 5. The battery can only be charged under the situation similar with the room temperature. The battery can not be charged under 0C (32F) or above 45C (113F ). Speed Charger   The Speed Charger can help you to charge the battery faster. Plug the charger to an AC wall socket and plug the other end to the charger port of the phone. Please make sure the batter is correctly inserted on the phone before USER MANUAL FOR i-MOBIL F-1 - 97 - charging. Please do not remove the battery while charging.    USE AND MAINTENANCE This mobile is designed by excellent technique, please use carefully. The following suggestion will help you use and maintain the mobile better. 1. Keep the phone and all parts in a safe place out of the reach of young children. 2. Please keep dry. Rainwater, humidity and any kinds of liquid or moisture might contain mineral which could corrode the circuit. 3. Kinetic parts maybe damaged if you put or use the phone in a dirty place.   4. Please do not put the mobile in a high-temperature place. High-temperature might shorten the life of electron sets, destroy the battery and distort or melt some plastic part. 5. Please do not keep the mobile in a low-temperature

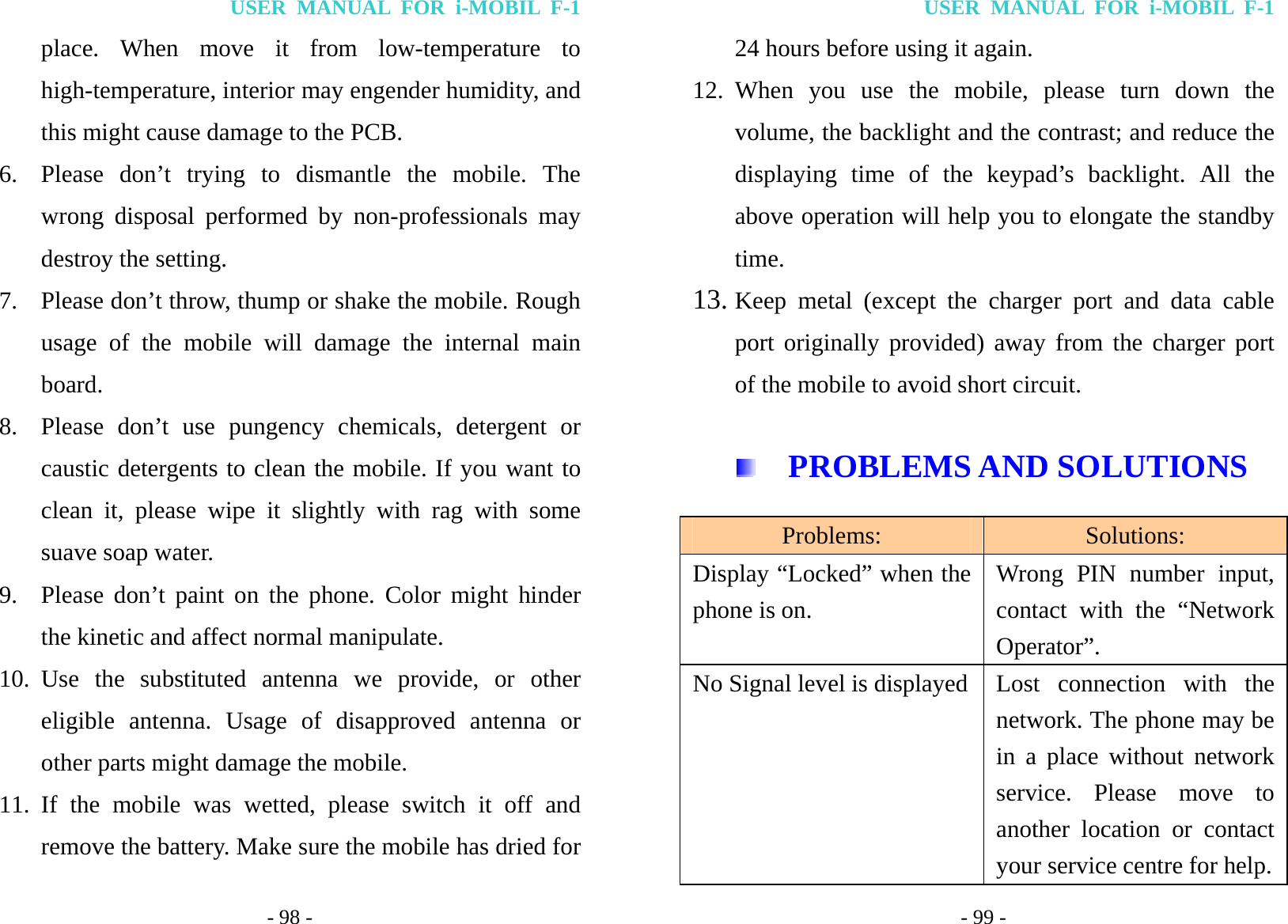

USER MANUAL FOR i-MOBIL F-1 - 98 - place. When move it from low-temperature to high-temperature, interior may engender humidity, and this might cause damage to the PCB. 6. Please don’t trying to dismantle the mobile. The wrong disposal performed by non-professionals may destroy the setting. 7. Please don’t throw, thump or shake the mobile. Rough usage of the mobile will damage the internal main board. 8. Please don’t use pungency chemicals, detergent or caustic detergents to clean the mobile. If you want to clean it, please wipe it slightly with rag with some suave soap water. 9. Please don’t paint on the phone. Color might hinder the kinetic and affect normal manipulate. 10. Use the substituted antenna we provide, or other eligible antenna. Usage of disapproved antenna or other parts might damage the mobile. 11. If the mobile was wetted, please switch it off and remove the battery. Make sure the mobile has dried for USER MANUAL FOR i-MOBIL F-1 - 99 - 24 hours before using it again. 12. When you use the mobile, please turn down the volume, the backlight and the contrast; and reduce the displaying time of the keypad’s backlight. All the above operation will help you to elongate the standby time. 13. Keep metal (except the charger port and data cable port originally provided) away from the charger port of the mobile to avoid short circuit.   PROBLEMS AND SOLUTIONS Problems: Solutions: Display “Locked” when the phone is on. Wrong PIN number input, contact with the “Network Operator”. No Signal level is displayed Lost connection with the network. The phone may be in a place without network service. Please move to another location or contact your service centre for help.

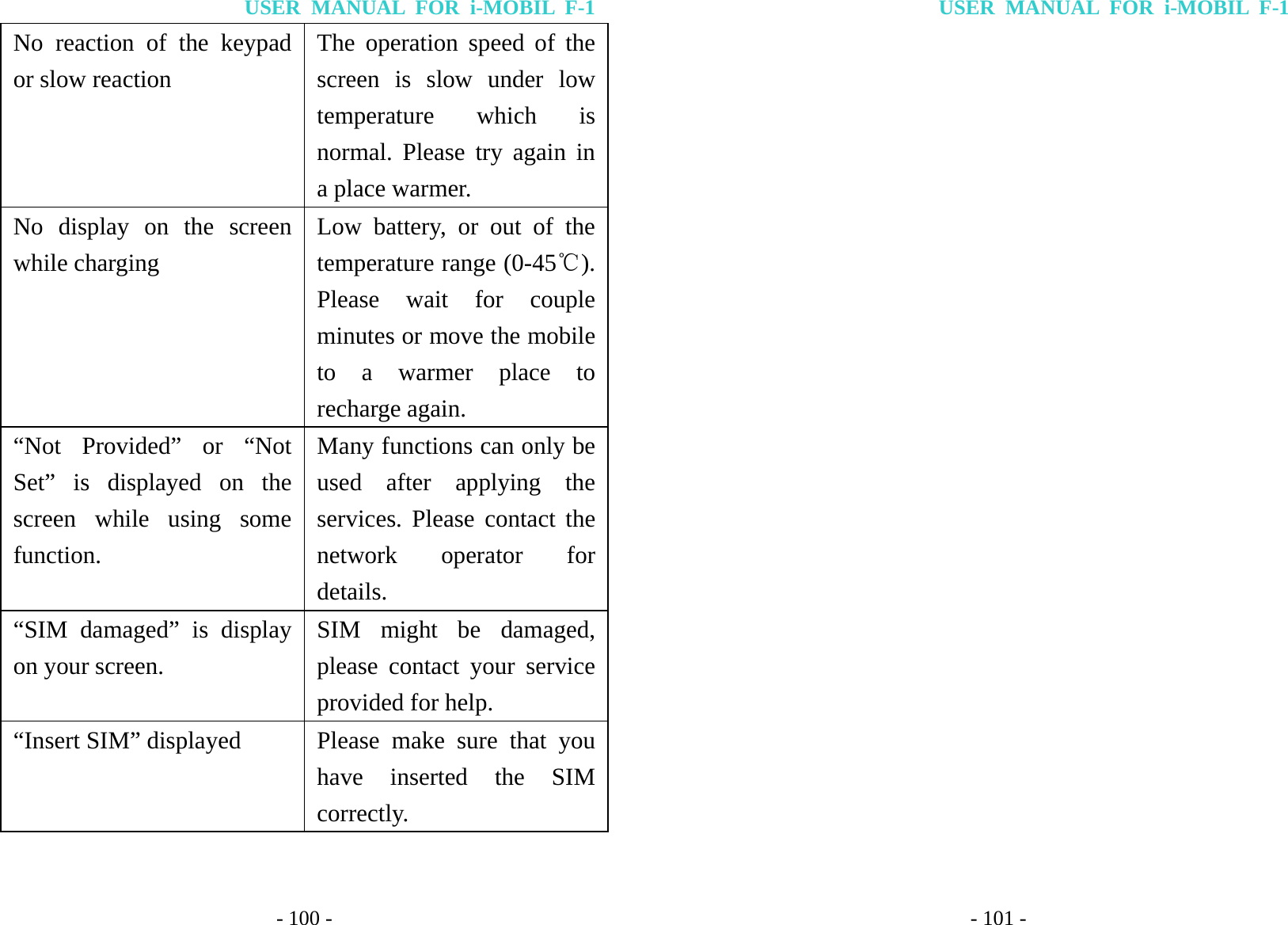

USER MANUAL FOR i-MOBIL F-1 - 100 - No reaction of the keypad or slow reaction The operation speed of the screen is slow under low temperature which is normal. Please try again in a place warmer. No display on the screen while charging Low battery, or out of the temperature range (0-45 ). ℃Please wait for couple minutes or move the mobile to a warmer place to recharge again. “Not Provided” or “Not Set” is displayed on the screen while using some function. Many functions can only be used after applying the services. Please contact the network operator for details. “SIM damaged” is display on your screen. SIM might be damaged, please contact your service provided for help. “Insert SIM” displayed  Please make sure that you have inserted the SIM correctly. USER MANUAL FOR i-MOBIL F-1 - 101 -

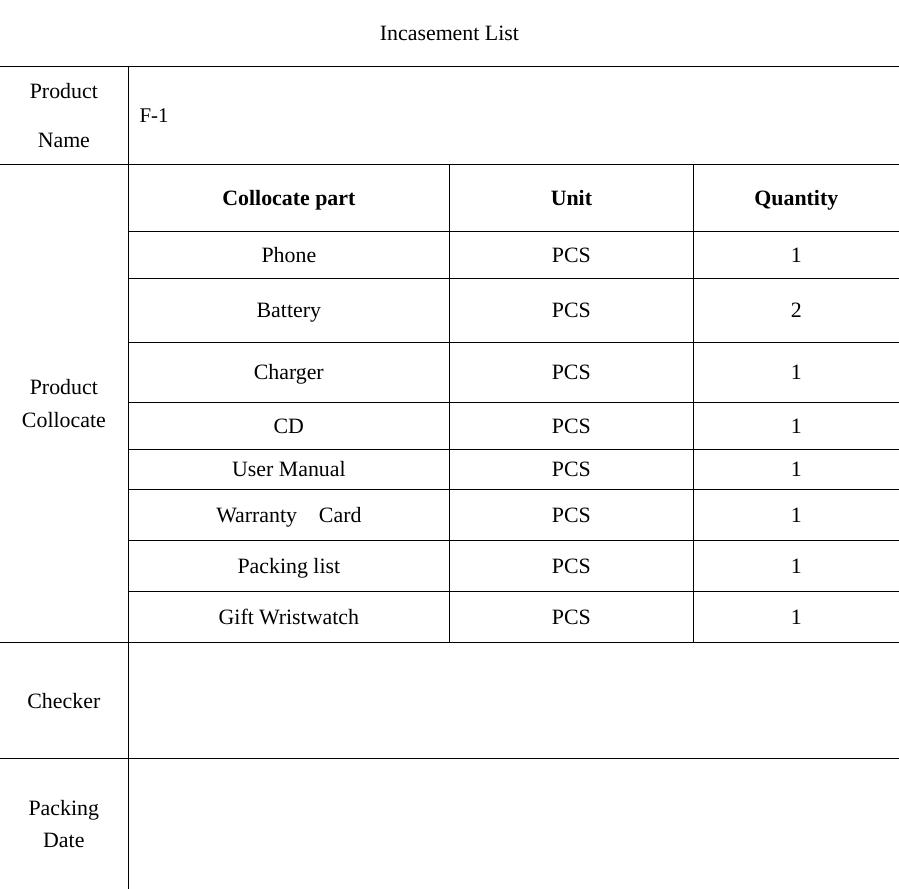

Incasement List Product Name  F-1 Collocate part  Unit  Quantity Phone PCS 1 Battery PCS 2 Charger PCS 1 CD PCS 1 User Manual  PCS  1 Warranty  Card  PCS  1 Packing list  PCS  1 Product Collocate Gift Wristwatch  PCS  1 Checker  Packing Date
Incasement List Product Name  F-1 Collocate part  Unit  Quantity Phone PCS 1 Battery PCS 2 Charger PCS 1 CD PCS 1 User Manual  PCS  1 Warranty  Card  PCS  1 Packing list  PCS  1 Product Collocate Gift Wristwatch  PCS  1 Checker  Packing Date
