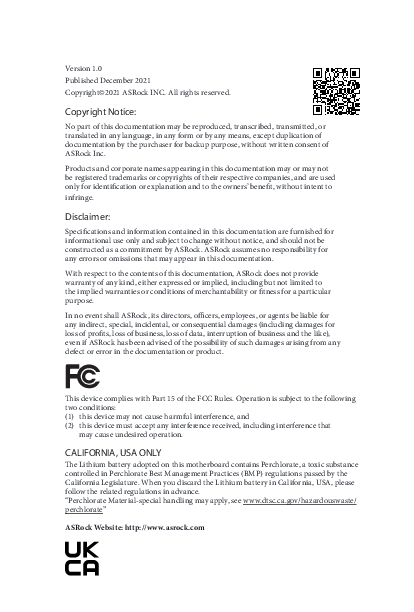

Version 1.0 Published December 2021 Copyright�2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate"
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI� and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.
DISCLAIMER OF WARRANTY. The Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG
ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.
Licensee's specific rights may vary from country to country.
B660M-HDV
VGA1
Motherboard Layout
1
DP_1
HDMI1
ATX12V1
CMOS Battery
23
4
CPU_FAN1
CHA_FAN1/WP
5
ATXPWR1
B660M-HDV
DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module)
PS2 Keyboard
/Mouse
USB 3.2 Gen1 T: USB3_1 B: USB3_2
F_USB3_1_2
1
USB 3.2 Gen1 T: USB3_TA_1 B: USB3_TC_1
19
6
USB 2.0
Top: RJ-45
T: USB_1
B: USB_2
LAN
CPU_FAN2/WP
7
M2_1
8
SATA3_1 SATA3_0
Top: LINE IN
Center: FRONT
Bottom: MIC IN
SATA3_2 SATA3_3
PCIE1 9
PCIE2
M2_WIFI
Intel B660
RoHS
M2_2
AUDIO CODEC
HD_AUDIO1
1
PCIE3
COM1 1
USB3_4 1
USB5 1
CHA_FAN2/WP
SPK_CI1
1
BIOS ROM
SPI_TPM_J1
1
CLRMOS1 1
PANEL1 PLED PWRBTN
1 HDLED RESET
10
18
17
16
15
14 13
12 11
English
1
No. Description 1 ATX 12V Power Connector (ATX12V1) 2 CPU Fan Connector (CPU_FAN1) 3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 4 Chassis/Water Pump Fan Connector (CHA_FAN1/WP) 5 ATX Power Connector (ATXPWR1) 6 USB 3.2 Gen1 Header (F_USB3_1_2) 7 SATA3 Connector (SATA3_1) 8 SATA3 Connector (SATA3_0) 9 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower) 10 SPI TPM Header (SPI_TPM_J1) 11 System Panel Header (PANEL1) 12 Clear CMOS Jumper (CLRMOS1) 13 Chassis Intrusion and Speaker Header (SPK_CI1) 14 Chassis/Water Pump Fan Connector (CHA_FAN2/WP) 15 USB 2.0 Header (USB5) 16 USB 2.0 Header (USB3_4) 17 COM Port Header (COM1) 18 Front Panel Audio Header (HD_AUDIO1) 19 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
2
English
I/O Panel
B660M-HDV
4
1
2
3
5
12
11
10
No. Description 1 PS/2 Mouse/Keyboard Port
2
USB 3.2 Gen1 Type-A Port (USB3_TA_1)
3 LAN RJ-45 Port*
4 Line In (Light Blue)** 5 Front Speaker (Lime)** 6 Microphone (Pink)**
9
8
7
6
No. Description 7 USB 2.0 Ports (USB_1_2)
8
USB 3.2 Gen1 Type-C Port (USB3_TC_1)
9 USB 3.2 Gen1 Ports (USB3_1_2)
10 D-Sub Port 11 HDMI Port 12 DisplayPort 1.4
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED SPEED LED
LAN Port
Activity / Link LED
Status
Off Blinking On
Description
No Link Data Activity Link
Speed LED
Status Off Orange Green
Description
10Mbps connection 100Mbps connection 1Gbps connection
3
English
** Function of the Audio Ports in 7.1-channel Configuration:
Port
Light Blue (Rear panel) Lime (Rear panel) Pink (Rear panel) Lime (Front panel)
Function
Rear Speaker Out Front Speaker Out Central /Subwoofer Speaker Out Side Speaker Out
English
4
B660M-HDV
Chapter 1 Introduction
Thank you for purchasing ASRock B660M-HDV motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
� ASRock B660M-HDV Motherboard (Micro ATX Form Factor) � ASRock B660M-HDV Quick Installation Guide � ASRock B660M-HDV Support CD � 2 x Serial ATA (SATA) Data Cables (Optional) � 3 x Screws for M.2 Sockets (Optional) � 1 x I/O Panel Shield
5
English
1.2 Specifications
Platform
� Micro ATX Form Factor � Solid Capacitor design
CPU
� Supports 12th Gen Intel� CoreTM Processors (LGA1700) � Digi Power design � 6 Power Phase design � Supports Intel� Hybrid Technology � Supports Intel� Turbo Boost Max 3.0 Technology
Chipset
� Intel� B660
Memory
� Dual Channel DDR4 Memory Technology � 2 x DDR4 DIMM Slots � Supports DDR4 non-ECC, un-buffered memory up to
5066+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) � Supports ECC UDIMM memory modules (operate in non-
ECC mode) � Max. capacity of system memory: 64GB � Supports Intel� Extreme Memory Profile (XMP) 2.0
Expansion Slot
� 1 x PCIe Gen4x16 Slot* * Supports NVMe SSD as boot disks � 2 x PCIe Gen3x1 Slots � 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
English
Graphics
* Intel� UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. � Intel� Xe Graphics Architecture (Gen 12) � Three graphics output options: D-Sub, HDMI and
DisplayPort 1.4 � Supports HDMI 2.1 TMDS Compatible with max. resolution
up to 4K x 2K (4096x2160) @ 60Hz
6
B660M-HDV
� Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
� Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio
� 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) � Supports Surge Protection
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supports Wake-On-LAN � Supports Lightning/ESD Protection � Supports Energy Efficient Ethernet 802.3az � Supports UEFI PXE
Rear Panel I/O
� 2 x Antenna Mounting Points � 1 x PS/2 Mouse/Keyboard Port � 1 x D-Sub Port � 1 x HDMI Port � 1 x DisplayPort 1.4 � 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) � 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) � 2 x USB 2.0 Ports (Supports ESD Protection) � 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) � HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
� 4 x SATA3 6.0 Gb/s Connectors* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. � 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode** � 1 x Ultra M.2 Socket (M2_2, Key M), supports type
2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
7
English
** Supports Intel� OptaneTM Technology (M2_2 only) ** Supports Intel� Volume Management Device (VMD) ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
RAID
� Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector
� 1 x COM Port Header � 1 x SPI TPM Header � 1 x Chassis Intrusion and Speaker Header � 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. � 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. � 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. � 1 x 24 pin ATX Power Connector � 1 x 8 pin 12V Power Connector � 1 x Front Panel Audio Connector � 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports
ESD Protection) � 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection)
BIOS Feature
� AMI UEFI Legal BIOS with multilingual GUI support � ACPI 6.0 Compliant wake up events � SMBIOS 2.7 Support � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V
PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
English
8
B660M-HDV
Hardware Monitor
OS
� Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/ Water Pump Fans
� CASE OPEN detection � Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VC-
CIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
� Microsoft� Windows� 10 64-bit / 11 64-bit
Certifications
� FCC, CE � ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
English
9
Chapter 2 Installation
This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings. � Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard components. � In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. � Hold components by the edges and do not touch the ICs. � Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components. � When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
10
English
B660M-HDV
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A B
2
3
English
11
4
5
6
7
English
Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
12
2.2 Installing the CPU Fan and Heatsink
B660M-HDV
1
2
CPU_FAN
13
English
2.3 Installing Memory Modules (DIMM)
This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
14
English
B660M-HDV 1 2
3 15
English
2.4 Expansion Slots (PCI Express Slots)
There are 3 PCI Express slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCIe slots: PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
16
English
B660M-HDV
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".
Clear CMOS Jumper (CLRMOS1) (see p.1, No. 12)
2-pin Jumper
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap after clearing the CMOS.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.
English
17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1) (see p.1, No. 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
English
18
B660M-HDV
Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 13)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Please connect the chassis intrusion and the chassis speaker to this header.
Serial ATA3 Connectors Vertical: (SATA3_0: see p.1, No. 8) (SATA3_1: see p.1, No. 7) Right Angle: (SATA3_2: see p.1, No. 9)(Upper) (SATA3_3: see p.1, No. 9)(Lower)
USB 2.0 Headers (9-pin USB3_4) (see p.1, No. 16)
(4-pin USB5) (see p.1, No. 15)
SATA3_1 SATA3_0
These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. * If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
SATA3_2 SATA3_3
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
There are two USB 2.0 headers on this motherboard.
1
GND P+0 P-0 USB_PWR
USB 3.2 Gen1 Header (19-pin F_USB3_1_2) (see p.1, No. 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
There is one header on this motherboard. This USB 3.2 Gen1 header can support two ports.
19
English
Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
This header is for connecting audio devices to the front audio panel.
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel. E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.1, No. 4)
(4-pin CHA_FAN2/WP) (see p.1, No. 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides two 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
1 2 3 4
CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
English
20
B660M-HDV
CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 19)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
This motherboard
4 3
provides a 4-Pin water
2 cooling CPU fan
1 connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 5)
12
24
1
13
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)
8
5
This motherboard pro-
vides a 8-pin ATX 12V
4
1
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
*Warning: Please make sure that the power cable connected is for the CPU and not the graphics card. Do not plug the PCIe power cable to this connector.
SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 10)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
21
English
Serial Port Header (9-pin COM1) (see p.1, No. 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
This COM1 header supports a serial port module.
English
22
B660M-HDV
2.7 M.2 WiFi/BT PCIe WiFi Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module. * The M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module
Step 1
Prepare a type 2230 WiFi/BT PCIe WiFi module and the screw.
PCB Length: 3cm Module Type: Type2230
Step 2 Find the nut location to be used.
A
English
23
A
A
20o
A
Step 3 Gently insert the WiFi/BT module into the M.2 slot. Please be aware that the module only fits in one orientation.
Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
English
24
B660M-HDV
2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
2
Step 2
1
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
B
A
No. Nut Location PCB Length Module Type
1 A 6cm Type 2260
2 B 8cm Type 2280
English
25
B
A
B
A
B
A
Step 3
Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4
Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5
Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
English
B
A
20o
B
NUT2
NUT1
26
Step 6
Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
B660M-HDV
M.2_SSD (NGFF) Module Support List
Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD
Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4
P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
27
2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_2, Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes. * If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
2
Step 2
1
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
B
A
No. Nut Location PCB Length Module Type
1 A 6cm Type 2260
2 B 8cm Type 2280
English
28
B
A
B
A
B
A
B660M-HDV
Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4 Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
English
B
A
20o
B
NUT2
NUT1
Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
29
M.2_SSD (NGFF) Module Support List
Vendor ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA Apacer Corsair Crucial Crucial Intel Intel Intel Kingston Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk Team Team Team Team
Interface SATA3 SATA3 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4 SATA3 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe SATA3 SATA3 SATA3 SATA3
P/N AXNS330E-32GM-B AXNS381E-128GM-B AXNS381E-256GM-B ASU800NS38-256GT-C ASU800NS38-512GT-C ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 CT120M500SSD4 CT240M500SSD4 Intel SSDSCKGW080A401/80G SSDPEKKF256G7 SSDPEKKF512G7 SM2280S3 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM4PS4128GMC105 TM4PS4256GMC105 TM8PS4128GMC105 TM8PS4256GMC105
English
30
B660M-HDV
TEAM TEAM Transcend Transcend Transcend V-Color V-Color V-Color V-Color WD WD WD WD
PCIe3 x4 PCIe3 x4 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4
TM8FP2240G0C101 TM8FP2480GC110 TS256GMTS400 TS512GMTS600 TS512GMTS800 VLM100-120G-2280B-RD VLM100-240G-2280RGB VSM100-240G-2280 VLM100-240G-2280B-RD WDS100T1B0B-00AS40 WDS240G1G0B-00RC30 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
31
1 Einleitung
Vielen Dank, dass Sie sich f�r das B660M-HDV von ASRock entschieden haben � ein zuverl�ssiges Motherboard, das konsequent unter der strengen Qualit�tskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualit�t und Best�ndigkeit erf�llt.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden k�nnen, kann der Inhalt dieser Dokumentation ohne Ank�ndigung ge�ndert werden. Falls diese Dokumentation irgendwelchen �nderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verf�gung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard ben�tigen, erhalten Sie auf unserer Webseite spezifischen Informationen �ber das von Ihnen verwendete Modell. Auch finden Sie eine aktuelle Liste unterst�tzter VGA-Karten und Prozessoren auf der ASRockWebseite. ASRock-Webseite http://www.asrock.com.
1.1 Lieferumfang
� ASRock B660M-HDV-Motherboard (Micro-ATX-Formfaktor) � ASRock B660M-HDV-Schnellinstallationsanleitung � ASRock B660M-HDV-Support-CD � 2 x Serial-ATA- (SATA) Datenkabel (optional) � 3 x Schrauben f�r M.2-Sockel (optional) � 1 x E/A-Blendenabschirmung
32
Deutsch
B660M-HDV
1.2 Technische Daten
Plattform
� Micro-ATX-Formfaktor � Feststoffkondensator-Design
Prozessor
� Unterst�tzt Intel� CoreTM-Prozessoren der 12. Gen. (LGA1700) � Digi Power design � 6-Leistungsphasendesign � Unterst�tzt Intel� Hybrid-Technologie � Unterst�tzt Intel� Turbo Boost Max Technology 3.0
Chipsatz
� Intel� B660
Speicher
� Dualkanal-DDR4-Speichertechnologie � 2 x DDR4-DIMM-Steckpl�tze � Unterst�tzt ungepufferten DDR4-Non-ECC-Speicher bis
5066+(OC)* * Unterst�tzt nativ DDR4 3200. * Weitere Informationen finden Sie in der Speicherkompatibilit�tsliste auf der ASRock-Webseite. (http://www. asrock.com/) � Unterst�tzt ECC-UDIMM-Speichermodule (Betrieb im non-
ECC-Modus) � Systemspeicher, max. Kapazit�t: 64 GB � Unterst�tzt Intel� Extreme Memory Profile (XMP) 2.0
Erweiterungssteckplatz
� 1 x PCIe-Gen4x16-Steckpl�tze* * Unterst�tzt NVMe-SSD als Bootplatte � 2 x PCIe-Gen3x1-Steckpl�tze � 1 x M.2-Sockel (Key E), unterst�tzt Typ 2230-WLAN/BT-PCIe-
WLAN-Modul
Grafikkarte
* Integrierte Intel� UHD Graphics-Visualisierung und VGAAusg�nge k�nnen nur mit Prozessoren unterst�tzt werden, die GPU-integriert sind. � Intel� Xe-Grafikarchitektur (12. Gen.) � Drei Grafikkarten-Ausgangsoptionen: D-Sub, HDMI und
DisplayPort 1.4 � Unterst�tzt HDMI 2.1 TMDS (komprimiert) mit max.
Aufl�sung bis 4K x 2K (4096 x 2160) bei 60 Hz
33
Deutsch
Audio
� Unterst�tzt DisplayPort 1.4 mit DSC (komprimiert) max. Aufl�sung bis 8K (7680 x 4320) bei 60 Hz / 5K (5120 x 3200) bei 120 Hz
� Unterst�tzt D-Sub mit maximaler Aufl�sung von 1920 x 1200 bei 60 Hz
� Unterst�tzt HDCP 2.3 mit TMDS-kompatiblen HDMI-2.1- und DisplayPort-1.4-Ports
� 7.1-Kanal-HD-Audio (Realtek ALC897/887-Audiocodec) � Unterst�tzt �berspannungsschutz
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219 V � Unterst�tzt Wake-On-LAN � Unterst�tzt Schutz gegen Blitzschlag/elektrostatische Entladung � Unterst�tzt energieeffizientes Ethernet 802.3az � Unterst�tzt UEFI PXE
R�ckblende, E/A
� 2 x Antennenmontagepunkte � 1 x PS/2-Maus-/Tastaturanschluss � 1 x D-Sub-Port � 1 x HDMI-Port � 1 x DisplayPort 1.4 � 3 x USB-3.2 Gen1-Typ-A-Ports (unterst�tzt Schutz gegen
elektrostatische Entladung) � 1 x USB-3.2 Gen1-Typ-C-Port (unterst�tzt Schutz gegen
elektrostatische Entladung) � 2 x USB-2.0-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) � 1 x RJ-45-LAN-Port mit LED (Aktivit�t/Verbindung-LED und
Geschwindigkeit-LED) � HD-Audioanschl�sse: Line-in / Vorderer Lautsprecher /
Mikrofon
Speicher 34
� 4 x SATA-III-6,0-Gb/s-Anschl�sse* * Wenn M2_2 durch ein SATA-Typ-M.2-Ger�t belegt ist, wird SATA3_3 deaktiviert. � 1 x Hyper-M.2-Sockel (M2_1, Key M), unterst�tzt
Typ-2260/2280-PCIe-Gen4x4-Modus (64 Gb/s)** � 1 x Ultra-M.2-Sockel (M2_2, Key M), unterst�tzt Typ-
2260/2280-SATA-III-6,0-Gb/s- und PCIe-Gen3x4- (32 Gb/s) Modi**
Deutsch
B660M-HDV
RAID Anschluss
** Unterst�tzt Intel� OptaneTM-Technologie (nur M2_2) ** Unterst�tzt Intel� Volume Management Device (VMD) ** Unterst�tzt NVMe-SSD als Bootplatte ** Unterst�tzt ASRock U.2-Kit
� Unterst�tzt RAID 0, RAID 1, RAID 5 und RAID 10 f�r SATASpeicherger�te
� 1 x COM-Anschluss-Stiftleiste � 1 x SPI-TPM-Stiftleiste � 1 x Geh�useeingriff- und Lautsprecher-Stiftleiste � 1 x CPU-L�fteranschluss (4-polig) * Der CPU-L�fteranschluss unterst�tzt einen CPU-L�fter mit einer maximalen L�fterleistung von 1 A (12 W). � 1 x Anschluss f�r CPU-/Wasserpumpenl�fter (4-polig) (intelli-
gente L�ftergeschwindigkeitssteuerung) * Der CPU-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). � 2 x Anschlusse f�r Geh�use-/Wasserpumpenl�fter (4-polig)
(intelligente L�ftergeschwindigkeitssteuerung) * Der Geh�use-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). * CPU_FAN2/WP und CHA_FAN1~2/WP k�nnen automatisch erkennen, ob ein 3- oder 4-poliger L�fter verwendet wird. � 1 x 24-poliger ATX-Netzanschluss � 1 x 8-poliger 12-V-Netzanschluss � 1 x Audioanschluss an Frontblende � 2 x USB 2.0-Stiftleisten (unterst�tzt 3 USB 2.0-Ports) (unterst�tzt
Schutz gegen elektrostatische Entladung) � 1 x USB 3.2 Gen1-Stiftleiste (unterst�tzt zwei USB 3.2 Gen1-
Ports) (unterst�tzt Schutz gegen elektrostatische Entladung)
BIOS-Funktion
� AMI-UEFI-Legal-BIOS mit Unterst�tzung mehrsprachiger grafischer Benutzerschnittstellen
� ACPI 6.0-konforme Aufweckereignisse � SMBIOS 2.7-Unterst�tzung � CPU-Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05 V
PROC, +0,82 V PCH, +1,05 V PCH / Mehrfachspannungsanpassung
Deutsch
35
Hardware-�berwachung
� L�ftertachometer: CPU-, CPU-/Wasserpumpen-, Geh�use-/ Wasserpumpenl�fter
� Lautloser L�fter (automatische Anpassung der Geh�usel�ftergeschwindigkeit durch CPU-Temperatur): CPU-, CPU-/Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Mehrfachgeschwindigkeitssteuerung: CPU-, CPU-/Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Geh�use-offen-Erkennung � Spannungs�berwachung: CPU Vcore, +1,05 V PCH, DRAM,
VCCIN AUX, +1,05 V PROC, +0,82 V PCH, +12 V, +5 V, +3,3 V
Betriebssystem � Microsoft� Windows� 10 64 Bit / 11 64 Bit
Zertifizierungen � FCC, CE � ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com
Bitte beachten Sie, dass mit einer �bertaktung, zu der die Anpassung von BIOSEinstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von �bertaktungswerkzeugen von Drittanbietern z�hlen, bestimmte Risiken verbunden sind. Eine �bertaktung kann sich auf die Stabilit�t Ihres Systems auswirken und sogar Komponenten und Ger�te Ihres Systems besch�digen. Sie sollte auf eigene Gefahr und eigene Kosten durchgef�hrt werden. Wir �bernehmen keine Verantwortung f�r m�gliche Sch�den, die durch eine �bertaktung verursacht wurden.
Deutsch
36
B660M-HDV
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,kurzgeschlossen". Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,offen".
CMOS-l�schen-Jumper (CLRMOS1) (siehe S. 1, Nr. 12)
2-poliger Jumper
CLRMOS1 erm�glicht Ihnen die L�schung der Daten im CMOS. Zum L�schen und R�cksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schlie�en Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. L�schen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung l�schen m�ssen, starten Sie das System zun�chst; fahren Sie es dann vor der CMOS-L�schung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprofil nur gel�scht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOSL�schung zu entfernen.
Falls Sie den CMOS l�schen, wird m�glicherweise ein Geh�useeingriff erkannt. Bitte passen Sie die BIOS-Option ,,Status l�schen" zur L�schung der Aufzeichnung des vorherigen Geh�useeingriffstatus an.
Deutsch
37
1.4 Integrierte Stiftleisten und Anschl�sse
Integrierte Stiftleisten und Anschl�sse sind KEINE Jumper. Bringen Sie KEINE JumperKappen an diesen Stiftleisten und Anschl�ssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschl�ssen k�nnen Sie das Motherboard dauerhaft besch�digen.
Systemblende-Stiftleiste (9-polig, PANEL1) (siehe S. 1, Nr. 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Verbinden Sie Netzschalter, ResetTaste und Systemstatusanzeige am Geh�use entsprechend der nachstehenden Pinbelegung mit dieser Stiftleiste. Beachten Sie vor Anschlie�en der Kabel die positiven und negativen Kontakte.
PWRBTN (Ein-/Austaste): Mit der Ein-/Austaste an der Frontblende des Geh�uses verbinden. Sie k�nnen die Abschaltung Ihres Systems �ber die Ein-/Austaste konfigurieren.
RESET (Reset-Taste): Mit der Reset-Taste an der Frontblende des Geh�uses verbinden. Starten Sie den Computer �ber die Reset-Taste neu, wenn er abst�rzt oder sich nicht normal neu starten l�sst.
PLED (Systembetriebs-LED): Mit der Betriebsstatusanzeige an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn das System l�uft. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivit�ts-LED): Mit der Festplattenaktivit�ts-LED an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Geh�use variieren. Ein Frontblendenmodul besteht haupts�chlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivit�tLED, Lautsprecher etc. Stellen Sie beim Anschlie�en Ihres Frontblendenmoduls an diese Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
Deutsch
38
B660M-HDV
Geh�useeingriffs- und Lautsprecher-Stiftleiste (7-polig, SPK_CI1) (siehe S. 1, Nr. 13)
Serial-ATA-III-Anschl�sse Vertikal: (SATA3_0: siehe S. 1, Nr. 8) (SATA3_1: siehe S. 1, Nr. 7) Winkel rechts: (SATA3_2: siehe S. 1, Nr. 9) (obere) (SATA3_3: siehe S. 1, Nr. 9) (untere)
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_3
SATA3_0
Bitte verbinden Sie Geh�useeingriffsvorrichtung und den Geh�uselautsprecher mit dieser Stiftleiste.
Diese vier SATA-III-Anschl�sse unterst�tzen SATA-Datenkabel f�r interne Speicherger�te mit einer Daten�bertragungsgeschwindigkeit bis 6,0 Gb/s. * Wenn M2_2 durch ein SATATyp-M.2-Ger�t belegt ist, wird SATA3_3 deaktiviert.
USB 2.0-Stiftleisten (9-polig, USB3_4) (siehe S. 1, Nr. 16)
(4-polig, USB5) (siehe S. 1, Nr. 15)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Es gibt zwei USB-2.0-Stiftleisten an diesem Motherboard.
1
GND P+0 P-0 USB_PWR
USB 3.2 Gen1-Stiftleiste (19-polig, F_USB3_1_2) (siehe S. 1, Nr. 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Es gibt eine Stiftleiste an diesem Motherboard. Diese USB-3.2Gen1-Stiftleiste kann zwei Ports unterst�tzen.
Deutsch
39
Audiostiftleiste Frontblende (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Diese Stiftleiste dient dem Anschlie�en von Audioger�ten an der Frontblende.
1. High Definition Audio unterst�tzt Anschlusserkennung, der Draht am Geh�use muss dazu jedoch HDA unterst�tzt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Geh�use.
2. Bei Nutzung eines AC'97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur f�r das HD-Audiopanel vorgesehen. Sie m�ssen sie nicht f�r das AC'97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das ,,FrontMic (Vorderes Mikrofon)"-Register in der Realtek-Systemsteuerung auf und passen ,,Recording Volume (Aufnahmelautst�rke)" an.
Geh�use-/WasserpumpenL�fteranschlusse (4-polig, CHA_FAN1/ WP) (siehe S. 1, Nr. 4)
(4-polig, CHA_FAN2/ WP) (siehe S. 1, Nr. 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Dieses Motherboard bietet zwei 4-poligen Wasserk�hlungGeh�usel�fteranschluss. Falls Sie einen 3-poligen Geh�useWasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
1 2 3 4
CPU-L�fteranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Dieses Motherboard bietet einen 4-poligen CPU-L�fteranschluss (lautloser L�fter). Falls Sie einen 3-poligen CPU-L�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
40
B660M-HDV
CPU-/WasserpumpenL�fteranschluss
FAN_SPEED_CONTROL CPU_FAN_SPEED
(4-polig, CPU_FAN2/WP)
FAN_VOLTAGE GND
(siehe S. 1, Nr. 19)
ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 5)
12
24
1
13
Dieses Motherboard bietet einen
4
3 4-poligen Wasserk�hlung-CPU2 L�fteranschluss. Falls Sie einen
1
3-poligen CPU-Wasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schlie�en Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 13 an.
ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)
SPI-TPM-Stiftleiste (13-polig, SPI_TPM_J1) (siehe S. 1, Nr. 10)
Dieses Motherboard bietet einen
8
5
8-poligen ATX-12-V-Netzan-
schluss. Bitte schlie�en Sie es zur
4
1
Nutzung eines 4-poligen ATX-
Netzteils entlang Kontakt 1 und
Kontakt 5 an.
*Warnung: Bitte stellen Sie sicher, dass das Stromkabel der CPU und nicht das der Grafikkarte angeschlossen ist. Schlie�en Sie das PCIe-Stromkabel nicht an diesen Anschluss an.
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Dieser Anschluss unterst�tzt das SPI Trusted Platform Module- (TPM) System, das Schl�ssel, digitale Zertifikate, Kennw�rter und Daten sicher aufbewahren kann. Ein TPMSystem hilft zudem bei der St�rkung der Netzwerksicherheit, sch�tzt digitale Identit�ten und gew�hrleistet die Plattformintegrit�t.
41
Deutsch
Serieller-Port-Stiftleiste (9-polig, COM1) (siehe S. 1, Nr. 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Diese COM1-Stiftleiste unterst�tzt ein Modul f�r serielle Ports.
Deutsch
42
B660M-HDV
1 Introduction
Nous vous remercions d'avoir achet� cette carte m�re ASRock B660M-HDV, une carte m�re fiable fabriqu�e conform�ment au contr�le de qualit� rigoureux et constant appliqu� par ASRock. Fid�le � son engagement de qualit� et de durabilit�, ASRock vous garantit une carte m�re de conception robuste aux performances �lev�es.
Les sp�cifications de la carte m�re et du logiciel BIOS pouvant �tre mises � jour, le contenu de ce document est soumis � modification sans pr�avis. En cas de modifications du pr�sent document, la version mise � jour sera disponible sur le site Internet ASRock sans notification pr�alable. Si vous avez besoin d'une assistance technique pour votre carte m�re, veuillez visiter notre site Internet pour plus de d�tails sur le mod�le que vous utilisez. La liste la plus r�cente des cartes VGA et des processeurs pris en charge est �galement disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock. com.
1.1 Contenu de l'emballage
� Carte m�re ASRock B660M-HDV (facteur de forme Micro ATX) � Guide d'installation rapide ASRock B660M-HDV � CD d'assistance ASRock B660M-HDV � 2 x c�bles de donn�es Serial ATA (SATA) (Optionnel) � 3 x vis pour sockets M.2 (Optionnel) � 1 x panneau de protection E/S
43
Fran�ais
1.2 Sp�cifications
Plateforme
� Facteur de forme Micro ATX � Conception � condensateurs solides
Processeur Chipset
� Prend en charge les processeurs 12�me g�n�ration Intel� CoreTM (LGA1700)
� Digi Power design � Alimentation � 6 phases � Prend en charge Intel� Hybrid Technology � Prend en charge la technologie Intel� Turbo Boost Max 3.0
� Intel� B660
M�moire
Fented'expansion
� Technologie m�moire double canal DDR4 � 2 x fentes DIMM DDR4 � Prend en charge les m�moires sans tampon non ECC DDR4 jusqu'�
5066+(OC)* * Prend en charge la DDR4 3200 de fa�on native. * Veuillez consulter la liste de prise en charge des m�moires sur le site Web d'ASRock pour de plus amples informations. (http://www.asrock. com/) � Prend en charge les modules m�moire UDIMM ECC (fonctionne
en mode non-ECC) � Capacit� max. de la m�moire syst�me : 64GB � Prend en charge Intel� Extreme Memory Profile (XMP) 2.0
� 1 x fente PCIe Gen4x16* * Prend en charge les SSD NVMe comme disques de d�marrage � 2 x fentes PCIe Gen3x1 � 1 x socket M.2 (cl� E), prend en charge les modules Wi-Fi/BT PCIe
type 2230
Graphiques
* La technologie Intel� UHD Graphics Built-in Visuals et les sorties VGA sont uniquement prises en charge par les processeurs int�grant un contr�leur graphique. � Architecture graphique Intel� Xe (Gen 12) � Trois options de sortie graphique : D-Sub, HDMI et DisplayPort 1.4 � Prend en charge la technologie HDMI 2.1 TMDS Compatible avec
r�solution maximale de 4K x 2K (4096x2160) @ 60Hz
Fran�ais
44
B660M-HDV
Audio
� Prend en charge DisplayPort 1.4 avec r�solution max. DSC (compress�e) jusqu'� 8K (7680x4320) @ 60 Hz / 5K (5120x3200) @ 120 Hz
� Prend en charge le mode D-Sub avec une r�solution maximale de 1920x1200 @ 60Hz
� Prend en charge HDCP 2.3 avec ports HDMI 2.1 compatibles TMDS et DisplayPort 1.4
� Audio 7.1 CH HD (Codec audio Realtek ALC897/887) � Prend en charge la protection contre les surtensions
R�seau
� Gigabit LAN 10/100/1000 Mo/s � Giga PHY Intel� I219V � Prend en charge la fonction Wake-On-LAN � Prend en charge la protection contre la foudre/les d�charges �lec-
trostatiques � Prend en charge la fonction d'�conomie d'�nergie Ethernet 802.3az � Prend en charge UEFI PXE
Connectique du panneau arri�re
� 2 x points de montage d'antenne � 1 x port souris/clavier PS/2 � 1 x port D-Sub � 1 x port HDMI � 1 x DisplayPort 1.4 � 3 x port USB 3.2 Gen1 type A (Protection contre les d�charges
�lectrostatiques) � 1 x port USB 3.2 Gen1 type C (Protection contre les d�charges
�lectrostatiques) � 2 x ports USB 2.0 (Protection contre les d�charges �lectrostatiques) � 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED VITESSE) � Connecteurs jack audio HD : Entr�e ligne / haut-parleur avant /
microphone
Stockage
� 4 x connecteurs SATA3 6,0 Go/s* * Si M2_2 est occup� par un p�riph�rique M.2 type SATA, SATA3_3 est d�sactiv�. � 1 x Socket Hyper M.2 (M2_1, Key M), supporte le mode PCIe
Gen4x4 (64 Go/s) de type 2260/2280** � 1 x Socket Ultra M.2 (M2_2, Key M), supporte les modes SATA3 6,0
Go/s et PCIe Gen3x4 (32 Go/s) de type 2260/2280**
45
Fran�ais
** Prend en charge Intel� OptaneTM Technology (M2_2 uniquement) ** Prend en charge Intel� Volume Management Device (VMD) ** Prend en charge les SSD NVMe comme disques de d�marrage ** Prend en charge le kit ASRock U.2
RAID
� Prend en charge RAID 0, RAID 1, RAID 5 et RAID 10 pour les p�riph�riques de stockage SATA
Connecteur
� 1 x embase pour port COM � 1 x embase SPI TPM � 1 x prise LED d'alimentation et emplacement sur ch�ssis � 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W). � 1 x connecteur pour ventilateur de processeur /pompe � eau (4
broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de processeur /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). � 2 x connecteurs pour ventilateur de ch�ssis /pompe � eau (4
broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de ch�ssis /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). * CPU_FAN2/WP et CHA_FAN1~2/WP peuvent d�tecter automatiquement si un ventilateur 3 broches ou 4 broches est utilis�. � 1 x connecteur d'alimentation ATX 24 broches � 1 x connecteur d'alimentation 12V 8 broches � 1 x connecteur audio panneau frontal � 2 x embases USB 2.0 (3 ports USB 2.0 pris en charge) (Protection
contre les d�charges �lectrostatiques) � 1 x embase USB 3.2 Gen1 (2 ports USB 3.2 Gen1 pris en charge)
(Protection contre les d�charges �lectrostatiques)
Caract�ristiques duBIOS
� BIOS UEFI AMI avec prise en charge d'interface graphique multilingue
� Compatible ACPI 6.0 Wake Up Events � Compatible SMBIOS 2.7 � R�glage de la tension CPU Core/Cache, CPU GT, DRAM, VCCIN
AUX, +1,05V PROC, +0,82V PCH, +1,05V PCH
Fran�ais
46
B660M-HDV
Surveillancedu mat�riel
� Tachym�tre de ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Ventilateur silencieux (r�glage automatique de la vitesse du ventilateur du ch�ssis d'apr�s la temp�rature du CPU) : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Contr�le simultan� des vitesses du ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� D�tection CH�SSIS OUVERT � Surveillance de la tension d'alimentation : CPU Vcore, +1,05V PCH,
DRAM, VCCIN AUX, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
Syst�me
� Microsoft� Windows� 10 64-bits / 11 64-bits
d'exploitation
Certifications � FCC, CE � ErP/EuP Ready (alimentation ErP/EuP ready requise)
* pour des informations d�taill�es de nos produits, veuillez visiter notre site : http://www.asrock.com
Il est important de signaler que l'overclocking pr�sente certains risques, incluant des modifications du BIOS, l'application d'une technologie d'overclocking d�li�e et l'utilisation d'outils d'overclocking d�velopp�s par des tiers. La stabilit� de votre syst�me peut �tre affect�e par ces pratiques, voire provoquer des dommages aux composants et aux p�riph�riques du syst�me. L'overclocking se fait � vos risques et p�rils. Nous ne pourrons en aucun cas �tre tenus pour responsables des dommages �ventuels provoqu�s par l'overclocking.
Fran�ais
47
1.3 Configuration des cavaliers (jumpers)
L'illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est install� sur les broches, le cavalier est � court-circuit� �. Si le capuchon du cavalier n'est pas install� sur les broches, le cavalier est � ouvert �.
Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 12)
Cavalier (jumper) � 2 broches
CLRMOS1 vous permet d'effacer les donn�s de la CMOS. Pour effacer les param�tres du syst�me et r�tablir les valeurs par d�faut, veuillez �teindre votre ordinateur et d�brancher son cordon d'alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRMOS1 pendant 5 secondes. Toutefois, n'effacez pas la CMOS imm�diatement apr�s avoir mis � jour le BIOS. Si vous avez besoin d'effacer les donn�es CMOS apr�s une mise � jour du BIOS, vous devez tout d'abord red�marrer le syst�me, puis l'�teindre avant de proc�der � l'effacement de la CMOS. Veuillez noter que les param�tres mot de passe, date, heure et profil de l'utilisateur seront uniquement effac�s en cas de retrait de la pile de la CMOS. N'oubliez pas de retirer le capuchon du cavalier une fois les donn�es CMOS effac�es.
Si vous effacez la CMOS, l'alerte de ch�ssis ouvert peut se d�clencher. Veuillez r�gler l'option du BIOS sur � Effacer � pour supprimer l'historique des intrusions de ch�ssis pr�c�dentes.
Fran�ais
48
B660M-HDV
1.4 Embases et connecteurs de la carte m�re
Les embases et connecteurs situ�s sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irr�m�diablement votre carte m�re.
Embase du panneau syst�me (PANNEAU1 � 9 broches) (voir p.1, No. 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Branchez le bouton de mise en marche, le bouton de r�initialisation et le t�moin d'�tat du syst�me pr�sents sur le ch�ssis sur cette embase en respectant la configuration des broches illustr�e ci-dessous. Rep�rez les broches positive et n�gative avant de brancher les c�bles.
PWRBTN (bouton d'alimentation): pour brancher le bouton d'alimentation du panneau frontal du ch�ssis. Vous pouvez configurer la fa�on dont votre syst�me doit s'arr�ter � l'aide du bouton de mise en marche.
RESET (bouton de r�initialisation): pour brancher le bouton de r�initialisation du panneau frontal du ch�ssis. Appuyez sur le bouton de r�initialisation pour red�marrer l'ordinateur en cas de plantage ou de dysfonctionnement au d�marrage.
PLED (LED d'alimentation du syst�me) : pour brancher le t�moin d'�tat de l'alimentation du panneau frontal du ch�ssis. Le LED est allum� lorsque le syst�me fonctionne. Le LED clignote lorsque le syst�me se trouve en mode veille S1/S3. Le LED est �teint lorsque le syst�me se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d'activit� du disque dur) : pour brancher le t�moin LED d'activit� du disque dur du panneau frontal du ch�ssis. Le LED est allum� lorsque le disque dur lit ou �crit des donn�es.
La conception du panneau frontal peut varier en fonction du ch�ssis. Un module de panneau frontal est principalement compos� d'un bouton de mise en marche, bouton de r�initialisation, LED d'alimentation, LED d'activit� du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre ch�ssis sur cette embase, veillez � parfaitement faire correspondre les fils et les broches.
Fran�ais
49
Prise LED d'alimentation et emplacement sur ch�ssis (SPK_CI1 � 7 broches) (voir p.1, No. 13)
Connecteurs Serial ATA3 Vertical: (SATA3_0: voir p.1, No. 8) (SATA3_1: voir p.1, No. 7) Angle droit: (SATA3_2: voir p.1, No. 9) (Sup�rieur) (SATA3_3: voir p.1, No. 9)(Inf�rieur)
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_3
SATA3_0
Veuillez brancher l'emplacement sur le ch�ssis et le haut-parleur du ch�ssis sur ce connecteur.
Ces quatre connecteurs SATA3 sont compatibles avec les c�bles de donn�es SATA pour les appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s. * Si M2_2 est occup� par un p�riph�rique M.2 type SATA, SATA3_3 est d�sactiv�.
Embases USB 2.0 (USB3_4 � 9 broches) (voir p.1, No. 16)
(USB5 � 4 broches) (voir p.1, No. 15)
Embase USB 3.2 Gen1 (F_USB3_1_2 � 19 broches) (voir p.1, No. 6)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Cette carte m�re comprend deux embases USB 2.0.
1
GND P+0 P-0 USB_PWR
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Cette carte m�re comprend un connecteur. Cette embase USB 3.2 Gen1 peut prendre en charge deux ports.
Fran�ais
50
B660M-HDV
Embase audio du panneau frontal (HD_AUDIO1 � 9 broches) (voir p.1, No. 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Cette embase sert au branchement des appareils audio au panneau audio frontal.
1. L'audio haute d�finition prend en charge la technologie Jack Sensing (d�tection de la fiche), mais le panneau grillag� du ch�ssis doit �tre compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et dans le manuel du ch�ssis pour installer votre syst�me.
2. Si vous utilisez un panneau audio AC'97, veuillez le brancher sur l'embase audio du panneau frontal en proc�dant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise � terre (GND) sur mise � terre (GND). D. MIC_RET et OUT_RET sont exclusivement r�serv�s au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC'97. E. Pour activer le micro frontal, s�lectionnez l'onglet � FrontMic � du panneau de contr�le Realtek et r�glez le param�tre � Volume d'enregistrement �.
Connecteurs du ventilateur de ch�ssis/pompe � eau (CHA_FAN1/WP � 4 broches) (voir p.1, No. 4)
(CHA_FAN2/WP � 4 broches) (voir p.1, No. 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
Cette carte m�re est dot�e de deux connecteurs pour ventilateur de ch�ssis � refroidissement par eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour ch�ssis � 3 broches, veuillez le brancher sur la Broche 1-3.
Connecteur du ventilateur du processeur (CPU_FAN1 � 4 broches) (voir p.1, No. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur (Quiet Fan) � 4 broches. Si vous envisagez de connecter un ventilateur de processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
Fran�ais
51
Connecteur pour ventilateur de processeur /pompe � eau (CPU_FAN2/WP � 4
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
broches)
(voir p.1, No. 19)
Connecteur d'alimentation ATX (ATXPWR1 � 24 broches) (voir p.1, No. 5)
12
24
1
13
Cette carte m�re est dot�e d'un
4
3 connecteur pour ventilateur de 2 processeur � refroidissement par
1
eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX � 24 broches. Pour utiliser une alimentation ATX � 20 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 13.
Connecteur d'alimentation
Cette carte m�re est dot�e d'un
ATX 12 V
8
5
connecteur d'alimentation ATX
(ATX12V1 � 8 broches)
12 V � 8 broches. Pour utiliser une
(voir p.1, No. 1)
alimentation ATX � 4 broches,
4
1
veuillez effectuer les branchements
sur la Broche 1 et la Broche 5.
Fran�ais
Embase SPI TPM (SPI_TPM_J1 � 13 broches) (voir p.1, No. 10)
52
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
*Avertissement : Veuillez v�rifier que le c�ble d'alimentation connect� est pour l'unit� centrale et non pour la carte graphique. Ne branchez pas le c�ble d'alimentation PCIe sur ce connecteur.
Ce connecteur prend en charge un module SPI TPM (Trusted Platform Module � Module de plateforme s�curis�e), qui permet de sauvegarder cl�s, certificats num�riques, mots de passe et donn�es en toute s�curit�. Le syst�me TPM permet �galement de renforcer la s�curit� du r�seau, de prot�ger les identit�s num�riques et de pr�server l'int�grit� de la plateforme.
B660M-HDV
Embase pour port s�rie (COM1 � 9 broches) (voir p.1, No. 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Cette embase COM1 prend en charge un module de port s�rie.
Fran�ais
53
1 Introduzione
Congratulazioni per l'acquisto della scheda madre ASRock B660M-HDV, una scheda madre affidabile prodotta secondo i severissimi controlli di qualit� ASRock. La scheda madre offre eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di offrire sempre qualit� e durata.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate, il contenuto di questa documentazione sar� soggetto a variazioni senza preavviso. Nel caso di eventuali modifiche della presente documentazione, la versione aggiornata sar� disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche relative al modello attualmente in uso. � possibile trovare l'elenco di schede VGA pi� recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http:// www.asrock.com.
1.1 Contenuto della confezione
� Scheda madre B660M-HDV ASRock (fattore di forma Micro ATX) � Guida rapida di installazione B660M-HDV ASRock � CD di supporto ASRock B660M-HDV � 2 x cavi dati Serial ATA (SATA) (opzionali) � 3 x viti per Socket M.2 (opzionali) � 1 x mascherina metallica posteriore I/O
54
Italiano
B660M-HDV
1.2 Specifiche
Piattaforma
� Fattore di forma Micro ATX � Design condensatore solido
CPU
� Supporta processori 12th Generation Intel� CoreTM (LGA1700) � Digi Power design � Potenza a 6 fasi � Supporta la tecnologia Intel� Hybrid � Supporta la tecnologia Intel� Turbo Boost Max 3.0
Chipset Memoria
� Intel� B660
� Tecnologia memoria DDR4 Dual Channel � 2 x alloggi DIMM DDR4 � Supporta DDR4 non ECC, memoria senza buffer fino a 5066+ (OC)* * Supporta DDR4 3200 in modo nativo. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) � Supporta moduli di memoria ECC UDIMM (funziona in modalit�
non ECC) � Capacit� max. della memoria di sistema: 64GB � Supporto di XMP (Extreme Memory Profile) Intel� 2.0
Alloggio diespansione
� 1 alloggi PCIe Gen4x16* * Supporto di SSD NVMe come disco d'avvio � 2 alloggi PCIe Gen3x1 � 1 x Soket M.2 (Kunci E), mendukung modul WiFi tipe 2230 WiFi/
BT PCIe
Grafica
* La videografica integrata della scheda video UHD Intel� e le uscite VGA possono essere supportate soltanto con processori con GPU integrata. � Architettura grafica Intel� Xe (Gen 12) � Tre opzioni di output grafico: D-Sub, HDMI e DisplayPort 1.4 � Supporta HDMI 2.1 compatibile TMDS con risoluzione massima
fino a 4K x 2K (4096 x 2160) a 60Hz � Supporta DisplayPort 1.4 con DSC (compresso) risoluzione max.
fino a 8K (7680 x 4320) a 60 Hz / 5K (5120 x 3200) a 12 0Hz
Italiano
55
� Supporta D-Sub con una risoluzione max. fino a 1920 x 1200 a 60 Hz
� Supporta HDCP 2.3 con HDMI 2.1 compatibile TMDS e porte DisplayPort 1.4
Audio
� Audio HD 7.1 CH (codec audio Realtek ALC897/887) � Supporta protezione da sovratensione
LAN
� LAN Gigabit 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supporto WOL (Wake-On-LAN) � Supporta protezione da fulmini/scariche elettrostatiche � Supporto Energy Efficient Ethernet 802.3az � Supporto UFEI PXE
I/O pannello posteriore
� 2 punti di montaggio antenna � 1 x porta mouse/tastiera PS/2 � 1 x porta D-Sub � 1 x porta HDMI � 1 x DisplayPort 1.4 � 3 x porte USB 3.2 Gen1 di tipo A (supporta protezione da scariche
elettrostatiche) � 1 x porta USB 3.2 Gen1 di tipo C (supporta protezione da scariche
elettrostatiche) � 2 x porte USB 2.0 (supporto protezione da scariche elettrostatiche) � 1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED) � Connettori audio HD: Ingresso linea / altoparlante frontale /
microfono
Italiano
Archiviazione
� 4 x Connettori SATA3 6,0 Gb/s* * Se M2_2 � occupato da un dispositivo M.2 di tipo SATA, SATA3_3 sar� disabilitato. � 1 x socket Hyper M.2 (M2_1, key M), supporta la modalit� di tipo
2260/2280 PCIe Gen4x4 (64 Gb/s)** � 1 x socket Ultra M.2 (M2_2, key M), supporta le modalit� di tipo
2260/2280 SATA3 6,0 Gb/s e PCIe Gen3x4 (32 Gb/s)** ** Supporta la tecnologia Intel� OptaneTM (solo M2_2) ** Supporta il dispositivo di gestione del volume Intel� (VMD) ** Supporta di SSD NVMe come disco d'avvio ** Supporta kit ASRock U.2
RAID 56
� Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
B660M-HDV
Connettore
� 1 x connettore porta COM � 1 x connettore SPI TPM � 1 x collegamento altoparlante e intrusione telaio � 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W). � 1 x connettore ventola CPU/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola CPU/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2A (24W). � 2 x connettori ventola telaio/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola Chassis/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2 A (24W). * CPU_FAN2/WP e CHA_FAN1~2/WP sono in grado di rilevare se � in uso una ventola a 3 pin o 4 a pin. � 1 x connettore alimentazione ATX 24-pin � 1 x connettore alimentazione 12 V 8-pin � 1 x connettore audio pannello frontale � 2 x connettori USB 2.0 (supporto di 3 porte USB 2.0) (supporta
protezione da scariche elettrostatiche) � 1 x connettore USB 3.2 Gen1 (supporto di 2 porte USB 3.2 Gen1)
(supporto protezione da scariche elettrostatiche)
BIOSCaratteristiche
� AMI UEFI Legal BIOS con interfaccia di supporto multilingue � Eventi di riattivazione conformi a ACPI 6.0 � Supporto di SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05 V PROC,
+ 0,82 V PCH, Regolazione multipla della tensione +1,05 V PCH
Hardware Monitor
� Tachimetro ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/ pompa dell'acqua
� Ventola silenziosa (regolazione automatica velocit� in base alla temperatura della CPU): Ventole CPU, CPU/pompa dell'acqua, telaio/ pompa dell'acqua
� Controllo velocit� ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
� Rilevamento CASE OPEN � Monitoraggio tensione: CPU Vcore, +1,05 PCH, DRAM, VCCIN
AUX, +1,05 V PROC, + 0,82 V PCH, +12 V, + 5 V, + 3,3 V
57
Italiano
SO
� Microsoft� Windows� 10 64 bit / 11 64 bit
Certificazioni � FCC, CE � ErP/EuP Ready (� necessaria alimentazione ErP/EuP ready)
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com
Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking pu� influenzare la stabilit� del sistema o perfino provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.
Italiano
58
B660M-HDV
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper � posizionato sui pin, il jumper � "cortocircuitato". Se sui pin non � posizionato alcun cappuccio del jumper, il jumper � "aperto".
Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 12)
Jumper a 2 pin
CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla configurazione predefinita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se � necessario azzerare la CMOS dopo l'aggiornamento del BIOS, � necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.
Se si azzera la CMOS, pu� essere rilevato il case aperto. Regolare l'opzione del BIOS "Azzerare stato" per azzerare il registro del precedente stato di intrusione nello chassis.
Italiano
59
1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocher� danni permanenti alla scheda madre.
Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.
PWRBTN (interruttore di alimentazione): collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. � possibile configurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset): collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale riavvio.
PLED (LED alimentazione del sistema): collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED � acceso quando il sistema � in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S1/S3. Il LED � spento quando il sistema si trova nello stato di sospensione S4 o quando � spento (S5).
HDLED (LED di attivit� disco rigido): collegare al LED di attivit� disco rigido sul pannello anteriore dello chassis. Il LED � acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore pu� cambiare a seconda dello chassis. Un modulo di pannello anteriore � composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attivit� disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del filo e le assegnazioni del pin corrispondano correttamente.
Italiano
60
B660M-HDV
Collegamento altoparlante e intrusione telaio (SPK_CI1 a 7 pin) (vedere pag. 1, n. 13)
Connettori Serial ATA3 Verticale: (SATA3_0: vedere pag. 1, n. 8) (SATA3_1: vedere pag. 1, n. 7) Angolo destroy: (SATA3_2: vedere pag.1, n. 9) (Superiore) (SATA3_3: vedere pag.1, n. 9) (Inferiore)
Header USB 2.0 (USB3_4 a 9 pin) (vedere pag. 1, n. 16)
(USB5 a 4 pin) (vedere pag. 1, n. 15)
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_0
Collegare l'intrusione telaio e l'altoparlante a questo collegamento.
Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione interna, con una velocit� di trasferimento dati fino a 6,0 Gb/s. * Se M2_2 � occupato da un dispositivo M.2 di tipo SATA, SATA3_3 sar� disabilitato.
SATA3_3
SATA3_2
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Ci sono due connettori USB 2.0 su questa scheda madre.
1
GND P+0 P-0 USB_PWR
Header USB 3.2 Gen1 (F_USB3_1_2 a 19 pin) (vedere pag. 1, n. 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Su questa scheda madre c'� un connettore. Questa basetta USB 3.2 Gen1 pu� supportare due porte.
61
Italiano
Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Questo header serve a collegare i dispositivi audio al pannello audio anteriore.
1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC'97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non � necessario collegarli per il pannello audio AC'97. E. Per attivare il microfono anteriore, andare alla scheda "FrontMic" nel pannello di controllo Realtek e regolare il "Volume di registrazione".
Connettori ventola chassis / pompa dell'acqua (CHA_FAN1/WP a 4 pin) (vedere pag. 1, n. 4)
(CHA_FAN2/WP a 4 pin) (vedere pag. 1, n. 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Questa scheda madre fornisce due connettori ventola telaio con raffreddamento ad acqua a 4 pin. Se si decide di collegare una ventola telaio con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
1 2 3 4
Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Questa scheda madre � dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Italiano
62
B660M-HDV
Connettore ventola CPU / pompa dell'acqua (CPU_FAN2/WP a 4 pin) (vedere pag. 1, n. 19)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 5)
Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
12
24
1
13
8
5
4
1
Questa scheda madre � dotata
4
3 di un connettore per la ventola 2 della CPU con raffreddamento ad
1
acqua a 4 pin. Se si decide di collegare una ventola della CPU con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
Questa scheda madre � dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1 e il pin 13.
Questa scheda madre � dotata di un connettore di alimentazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5.
*Attenzione: Assicurarsi che il cavo di alimentazione collegato sia per la CPU e non la scheda grafica. Non inserire il cavo di alimentazione PCIe in questo connettore.
Connettore SPI TPM (SPI_TPM_J1 a 13 pin) (vedere pag. 1, n. 10)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Questo connettore supporta il sistema SPI Trusted Platform Module (TPM), che pu� archiviare in modo sicuro chiavi, certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della rete, di proteggere identit� digitali e di garantire l'integrit� della piattaforma.
Italiano
63
Header porta seriale (COM1 a 9 pin) (vedere pag. 1, n. 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Questo header COM1 supporta un modulo di porta seriale.
Italiano
64
B660M-HDV
1 Introducci�n
Gracias por comprar la placa base ASRock B660M-HDV, una placa base fiable fabricada seg�n el riguros�simo control de calidad de ASRock. Ofrece un rendimiento excelente con un dise�o resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especificaciones de la placa base y el software de la BIOS podr�n ser actualizados, el contenido que aparece en esta documentaci�n estar� sujeto a modificaciones sin previo aviso. Si esta documentaci�n sufre alguna modificaci�n, la versi�n actualizada estar� disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia t�cnica relacionada con esta placa base, visite nuestro sitio web para obtener informaci�n espec�fica sobre el modelo que est� utilizando. Podr� encontrar las �ltimas tarjetas VGA, as� como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
� Placa base ASRock B660M-HDV (Factor de forma Micro ATX) � Gu�a de instalaci�n r�pida de ASRock B660M-HDV � CD de soporte de ASRock B660M-HDV � 2 x Cables de datos Serie ATA (SATA) (Opcional) � 3 x Tornillos para sockets M.2 (Opcional) � 1 x escudo panel E/S
65
Espa�ol
1.2 Especificaciones
Plataforma
� Factor de forma Micro ATX � Dise�o de condensador s�lido
CPU
� Compatible con la 12a generaci�n de procesadores Intel� CoreTM
(LGA1700)
� Digi Power design
� Dise�o de 6 fases de alimentaci�n
� Compatible con la Tecnolog�a H�brido de Intel�
� Admite Intel� Turbo Boost Technology 3.0
Conjunto de chips
� Intel� B660
Memoria
� Tecnolog�a de memoria DDR4 de doble canal � 2 x ranuras DIMM DDR4 � Admite memoria DDR4 no ECC, sin b�fer de hasta 5066+(OC)* * Admite DDR4 3200 de forma nativa. * Para obtener m�s informaci�n, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) � Admite m�dulos de memoria UDIMM ECC (funcionamiento en
modo no ECC) � Capacidad m�xima de memoria del sistema: 64GB � Admite Perfil de memoria extremo de Intel� (XMP) 2.0
Expansi�nRa- � 1 ranura PCIe Gen4x16*
nura
* Admite unidad de estado s�lido de NVMe como disco de arranque
� 2 ranuras PCIe Gen3x1
� 1 x Z�calo M.2 (clave E), admite el tipo de m�dulo 2230 Wi-Fi/BT
PCIe Wi-Fi
Gr�ficos
* Intel� UHD Graphics Built-in Visuals y las salidas de VGA son compatibles �nicamente con procesadores con GPU integrado. � Arquitectura de gr�ficos Intel� Xe (Generaci�n 12) � Tres opciones de salida de gr�ficos: D-Sub, HDMI y DisplayPort 1.4 � Compatible con HDMI 2.1 TMDS con una resoluci�n m�xima de
4K x 2K (4096x2160) a 60Hz
Espa�ol
66
B660M-HDV
� Admite DisplayPort 1.4 con DSC (comprimido), resoluci�n m�xima hasta 8K (7680x4320) a 60Hz o 5K (5120x3200) a 120 Hz
� Admite D-Sub con una resoluci�n m�xima de 1920x1200 a 60 Hz � Admite HDCP 2.3 con HDMI 2.1 compatible con TMDS y puertos
DisplayPort 1.4
Audio LAN
� 7.1 Audio CH HD (C�dec de audio Realtek ALC897/887) � Admite protecci�n contra sobretensiones
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Admite la funci�n Reactivaci�n de LAN � Admite protecci�n contra rayos y descargas electrost�ticas (ESD) � Admite Ethernet 802.3az de eficiencia energ�tica � Admite UEFI PXE
E/S en panel posterior
� 2 x Puntos de instalaci�n para la antena � 1 x puerto de rat�n/teclado PS/2 � 1 x Puerto D-Sub � 1 x puerto HDMI � 1 x DisplayPort 1.4 � 3 x Puertos USB 3.2 Gen1 de tipo A (admite protecci�n contra
descargas electrost�ticas) � 1 x Puerto USB 3.2 Gen1 de tipo C (admite protecci�n contra
descargas electrost�ticas) � 2 x Puertos USB 2.0 (admite protecci�n contra descargas
electrost�ticas) � 1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/ENLACE y
LED DE VELOCIDAD) � Conector de audio HD: Entrada de l�nea / Altavoz frontal /
Micr�fono
Almacenamiento
� 4 x Conectores SATA3 de 6,0 Gb/s* * Si M2_2 se ocupa con un dispositivo M.2 de tipo SATA, SATA3_3 se deshabilitar�. � 1 x Z�calo Hyper M.2 (M2_1, Clave M), compatible con el modo de
tipo 2260/2280 PCIe Gen4x4 (64 Gb/s)** � 1 x Z�calo Ultra M.2 (M2_2, Clave M), compatible con los modos
de tipo 2260/2280 SATA3 6,0 Gb/s y PCIe Gen3x4 (32 Gb/s)**
Espa�ol
67
RAID Conector
** Compatible con la tecnolog�a OptaneTM de Intel� (Solo M2_2) ** Admite el Dispositivo de Administraci�n de Volumen (VMD, seg�n sus siglas en ingles) de Intel� ** Admite unidad de estado s�lido de NVMe como disco de arranque ** Admite el kit U.2 de ASRock
� Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA
� 1 x Base de conexiones de puerto COM � 1 x Conector SPI TPM � 1 x cabezal de intrusi�n de chasis y de altavoces � 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) m�xima. � 1 x Conector (4 contactos) para el ventilador de la bomba de agua/
CPU (control de velocidad de ventilador inteligente) * El ventilador de la CPU/bomba de agua admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). � 2 x Conectores (4 contactos) para el ventilador de la bomba de
agua/chasis (control de velocidad de ventilador inteligente) * El ventilador de la bomba de agua/Chasis admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). * CPU_FAN2/WP y CHA_FAN1~2/WP se pueden detectar autom�ticamente si se usa el ventilador de 3 o 4 contactos. � 1 x Conector de alimentaci�n ATX de 24 contactos � 1 x Conector de alimentaci�n de 12V de 8 contactos � 1 x Conector de audio en el panel frontal � 2 x Bases de conexiones USB 2.0 (Admite 3 puertos USB 2.0) (Ad-
mite protecci�n contra descargas electrost�ticas) � 1 x Bases de conexiones USB 3.2 Gen1 (Admite 2 puertos USB 3.2
Gen1) (Admite protecci�n contra descargas electrost�ticas)
BIOSCaracter�stica
� BIOS legal UEFI AMI compatible con interfaz gr�fica de usuario multiling�e
� Eventos de reactivaci�n compatibles con ACPI 6.0 � Admite SMBIOS 2.7 � Varios ajustes de voltaje de n�cleo y cach� de CPU, GT de CPU,
DRAM, VCCIN AUX, +1,05V PROC, +0,82V PCH , +1,05V PCH
Espa�ol
68
B660M-HDV
Monitor delhardware
� Tac�metro del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Ventilador silencioso (ajuste autom�tico de la velocidad del ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Control de varias velocidades del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Detecci�n de CARCASA ABIERTA � Supervisi�n del voltaje: CPU Vcore, +1,05V PCH, DRAM, VCCIN
AUX, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
SO
� Microsoft� Windows� 10 64 bits/11 64 bits
Certificaciones
� FCC y CE � Preparado para ErP/EuP (se necesita una fuente de alimentaci�n
preparada para ErP/EuP)
* Para obtener informaci�n detallada del producto, visite nuestro sitio Web: http://www.asrock.com
Tenga en cuenta que hay un cierto riesgo impl�cito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnolog�a de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, da�ar los componentes y dispositivos del sistema. Esta operaci�n se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles da�os causados por el overclocking.
Espa�ol
69
1.3 Instalaci�n de los puentes
La instalaci�n muestra c�mo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda "Corto". Si no coloca la tapa de puente en los contactos, el puente queda "Abierto".
Puente de borrado de CMOS (CLRMOS1) (consulte la p�g. 1, n� 12)
Puente de 2 contactos
CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los par�metros del sistema a los valores predeterminados de instalaci�n, apague el ordenador y desenchufe el cable de alimentaci�n de la toma de alimentaci�n. Despu�s de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo despu�s de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deber� arrancar el sistema primero y, a continuaci�n, deber� apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contrase�a, la fecha, la hora y el perfil de usuario predeterminado ser�n eliminados �nicamente si se retira la pila del CMOS. Acu�rdese de retirar la tapa de puente despu�s de borrar el CMOS.
Si borra el CMOS, podr� detectarse la cubierta abierta. Ajuste la opci�n del BIOS "Clear Status" (Borrar estado) para borrar el registro del estado de intrusi�n anterior del chasis.
Espa�ol
70
B660M-HDV
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores da�ar� de forma permanente la placa base.
Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la p�g. 1, n� 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Conecte el interruptor de alimentaci�n, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, seg�n los valores asignados a los contactos como se indica a continuaci�n. Cerci�rese de cu�les son los contactos positivos y los negativos antes de conectar los cables.
PWRBTN (Interruptor de alimentaci�n): Con�ctelo al interruptor de alimentaci�n del panel frontal del chasis. Deber� configurar la forma en la que su sistema se apagar� mediante el interruptor de alimentaci�n.
RESET (Interruptor de reseteo): Con�ctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si �ste est� bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentaci�n del sistema): Con�ctelo al indicador de estado de la alimentaci�n del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema est� funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensi�n S1/S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensi�n S4 o est� apagado (S5).
HDLED (Indicador LED de actividad en el disco duro): Con�ctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro est� leyendo o escribiendo datos.
El dise�o del panel frontal puede ser diferente dependiendo del chasis. Un m�dulo de panel frontal consta principalmente de: interruptor de alimentaci�n, interruptor de reseteo, indicador LED de alimentaci�n, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su m�dulo del panel frontal del chasis a este cabezal, aseg�rese de que las asignaciones de los cables y los contactos coinciden correctamente.
Espa�ol
71
Cabezal de intrusi�n de chasis y de altavoces (SPK_CI1 de 7 contactos) (consulte la p�g. 1, n� 13)
Conectores Serie ATA3 Vertical: (SATA3_0: consulte la p�g. 1, n� 8) (SATA3_1: consulte la p�g. 1, n� 7) �ngulo recto: (SATA3_2: consulte la p�g. 1, n� 9) (Superior) (SATA3_3: consulte la p�g. 1, n� 9) (Inferior)
Cabezales USB 2.0 (USB3_4 de 9 contactos) (consulte la p�g. 1, n� 16)
(USB5 de 4 contactos) (consulte la p�g. 1, n� 15)
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_0
Conecte la intrusi�n de chasis y el altavoz del chasis a este cabezal.
Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s. * Si M2_2 se ocupa con un dispositivo M.2 de tipo SATA, SATA3_3 se deshabilitar�.
SATA3_3
SATA3_2
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Hay dos bases de conexiones USB 2.0 en esta placa base.
1
GND P+0 P-0 USB_PWR
Cabezal USB 3.2 Gen1 (F_USB3_1_2 de 19 contactos) (consulte la p�g. 1, n� 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Esta placa base tiene otra base de conexiones. Esta base de conexiones USB 3.2 Gen1 admite dos puertos.
Espa�ol
72
B660M-HDV
Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la p�g. 1, n� 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.
1. El Audio de Alta Definici�n (HDA, en ingl�s) es compatible con el m�todo de sensor de conectores, sin embargo, el cable del panel del chasis deber� ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC'97, col�quelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuaci�n: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexi�n a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan �nicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC'97. E. Para activar el micr�fono frontal, vaya a la ficha "micr�fono frontal" (Front Mic) en el panel de control de Realtek y ajuste el "Volumen de grabaci�n" (Recording Volume).
Conectores del ventilador de la bomba de agua/chasis (CHA_FAN1/WP de 4 contactos) (consulte la p�g. 1, n� 4)
(CHA_FAN2/WP de 4 contactos) (consulte la p�g. 1, n� 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Esta placa base proporciona dos conectores para el ventilador del chasis para refrigeraci�n por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua del chasis de 3 contactos, con�ctelo al contacto 1-3.
1 2 3 4
Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la p�g. 1, n� 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, con�ctelo al contacto 1-3.
Espa�ol
73
Conector del ventilador de la bomba de agua/CPU (CPU_FAN2/WP de 4 contactos)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
(consulte la p�g. 1, n� 19)
Conector de alimentaci�n ATX (ATXPWR1 de 24 contactos) (consulte la p�g. 1, n� 5)
12
24
1
13
Esta placa base proporciona un
4
3 conector de ventilador de CPU 2 de refrigeraci�n por agua de 4
1
contactos. Si tiene pensando conectar un ventilador de disipador por agua de CPU de 3 contactos, con�ctelo al contacto 1-3.
Esta placa base contiene un conector de alimentaci�n ATX de 24 contactos. Para utilizar una toma de alimentaci�n ATX de 20 contactos, con�ctela en los contactos del 1 al 13.
Conector de alimentaci�n
Esta placa base contiene un
ATX de 12 V
8
5
conector de alimentaci�n ATX de
(ATX12V1 de 8 contactos)
12 V y 8 contactos. Para utilizar
(consulte la p�g. 1, n� 1)
4
1
una toma de alimentaci�n ATX
de 4 contactos, con�ctela en los
contactos del 1 al 5.
Conector SPI TPM (SPI_TPM_J1 de 13 contactos) (consulte la p�g. 1, n� 10)
*Advertencia: Aseg�rese de que el cable de alimentaci�n conectado corresponda a este CPU y no a la tarjeta gr�fica. No conecte el cable de alimentaci�n PCIe a este conector.
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Este conector es compatible con el sistema SPI M�dulo de Plataforma Segura (TPM, en ingl�s), que puede almacenar de forma segura claves, certificados digitales, contrase�as y datos. Un sistema TPM tambi�n ayuda a aumentar la seguridad en la red, protege las identidades digitales y garantiza la integridad de la plataforma.
Espa�ol
74
B660M-HDV
Cabezal de puerto serie (COM1 de 9 contactos) (consulte la p�g. 1, n� 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Este cabezal COM1 admite un m�dulo de puerto serie.
Espa�ol
75
1
ASRock B660M-HDV, ASRock. ASRock .
BIOS . - ASRock . , , - . - ASRock VGA- . - ASRock http://www.asrock.com.
1.1
� ASRock B660M-HDV (- Micro ATX) � ASRock B660M-HDV � ASRock B660M-HDV � 2 Serial ATA (SATA) ( ) � 3 M.2 ( ) � 1 -
76
B660M-HDV
1.2
� - Micro ATX �
� 12- Intel� CoreTM (LGA 1700)
� Digi Power design � 6 � Intel� Hybrid � Intel� Turbo Boost Max 3.0
� Intel� B660
� DDR4 � 2 x DDR4 DIMM � DDR4 -ECC
5066+(OC)* * DDR4 3200 . * (Memory Support List ) - ASRock. (http://www.asrock.com/) � ECC UDIMM ( ,
) � : 64 � Intel� Extreme Memory Profile (XMP) 2.0
� 1 x PCIe Gen4x16 * * SSD- NVMe � 2 x PCIe Gen3x1 � 1 M.2 ( ) 2230 WiFi/BT PCIe
WiFi
* Intel� UHD Graphics VGA
. � Intel� Xe (12 ) � : D-Sub, HDMI DisplayPort 1.4 � HDMI 2.1 TMDS
4K � 2K (4096x2160) 60
77
� DisplayPort 1.4 DSC ( ), . 8 (7680x4320), 60 / 5K (5120x3200), 120
� D-Sub 1920x1200 60
� HDCP 2.3 , HDMI 2.1 TMDS, DisplayPort 1.4
� 7.1- ( Realtek ALC897/887)
�
LAN
� Gigabit Ethernet 10/100/1000 / � Giga PHY Intel� I219V � � � Energy Efficient Ethernet 802.3az � UEFI PXE
� , 2 . � 1 x PS/2 / � 1 D-Sub � 1 x HDMI � 1 DisplayPort 1.4 � 3 USB 3.2 Gen1 (
) � 1 x USB 3.2 Gen1 C (
) � 2 x USB 2.0 ( ) � 1 x RJ-45 (/
) � HD Audio: / /
� SATA3 6,0 / x 4 .* * M2_2 .2 SATA, SATA3_3 . � Hyper M.2 (M2_1, M)
2260/2280 PCIe Gen4x4 (64 /) 1 .** � Ultra M.2 (M2_2, Key M), 2260/2280
SATA3 6,0 / PCIe Gen3x4 (32 /) x 1 .** ** Intel� OptaneTM ( M2_2)
78
B660M-HDV
** Intel� Volume Management Device (VMD) ** SSD- NVMe ** ASRock U.2
RAID
� RAID 0, RAID 1, RAID 5 RAID 10 SATA
� 1 - � 1 x SPI � 1 � 1 x (4-) * 1 (12 ). � 1 x
(4-) (- ) * 2 (24 ). � 2 x (4-) (- ) * 2 (24 ). * CPU_FAN2/WP CHA_FAN1~2/WP : 3- 4-. � 1 , 24- � 1 12 , 8- � 1 � 2 USB 2.0 (3 USB 2.0) ( ) � 1 USB 3.2 Gen1 (2 USB 3.2 Gen1) ( )
BIOS
� AMI UEFI Legal BIOS
� ACPI 6.0 � SMBIOS 2.7 � / , CPU GT, DRAM,
VCCIN AUX, +1,05 PROC, +0,82 PCH, +1,05 PCH
79
� : ; ;
� ( ): ; ;
� : ; ;
� � : CPU Vcore, +1,05 PCH, DRAM,
VCCIN AUX, +1,05 PROC, +0,82 PCH, +12 , +5 , +3,3
- � Microsoft� Windows� 10 (64-) / 11 (64-)
� FCC, CE � ErP/EuP ( , -
ErP/EuP)
* -: http://www.asrock.com
, , BIOS, Untied Overclocking , . . . , .
80
B660M-HDV
1.3
. - ��. - , ��.
CMOS (CLRMOS1) (. . 1, 12)
2-
CLRMOS1 CMOS. , . 15 CLRMOS1 5 . CMOS BIOS. CMOS BIOS , CMOS. , , , , CMOS. CMOS .
CMOS . , Clear Status ( ) BIOS.
81
1.4 ,
. -. - .
(9-, PANEL1) (. . 1, 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN ( ): , . .
RESET ( ): , . , , .
PLED ( ): , . , . S1/S3, . S4 (S5), .
HDLED ( ): , . , .
. , , , , . . .
82
B660M-HDV
(7-, SPK_ CI1) (. . 1, 13)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
.
Serial ATA3 : (SATA3_0: . . 1, 8) (SATA3_1: . . 1, 7) : (SATA3_2: . .1, 9)() (SATA3_3: . .1, 9)()
USB 2.0 (9-, USB3_4) (. . 1, 16)
(4-, USB5) (. . 1, 15)
SATA3_0
SATA3_1
SATA3 SATA 6,0 /.
* M2_2 .2 SATA, SATA3_3 .
SATA3_3
SATA3_2
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0.
1
GND P+0 P-0 USB_PWR
USB 3.2 Gen1 (19 , F_ USB3_1_2) (. . 1, 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
. USB 3.2 Gen1 .
83
(9-, HD_ AUDIO1) (. . 1, 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. , , HDA. . .
2. AC'97 , : A. Mic_IN (MIC) MIC2_L. B. Audio_R (RIN) OUT2_R, Audio_L (LIN) OUT2_L. C. (GND) (GND). D. MIC_RET OUT_RET . AC'97 . E. , FrontMic Realtek Recording Volume ( ).
(4- CHA_ FAN1/WP) (. . 1, 4)
(4- CHA_ FAN2/WP) (. . 1, 14)
(4-, CPU_FAN1) (. . 1, 2)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
4- . 3- 1�3.
1 2 3 4
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
4- . 3- , 1-3.
84
B660M-HDV
(4- CPU_ FAN2/WP) (. . 1, 19)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
(24-, ATXPWR1) (. . 1, 5)
12
24
1
13
4
3 4- 2
1
. 3- 1-3.
24- . 20- ATX, 1 13.
12
8
(8-, ATX12V1)
(. . 1, 1)
4
5
8- -
12 . -
1
4-
ATX,
1 5.
SPI (13-, SPI_ TPM_J1) (. . 1, 10)
*! , , . PCIe .
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform Module (TPM), , , . , .
85
(9-, COM1) (. . 1, 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1 .
86
B660M-HDV
1 Introdu��o
Obrigado por adquirir a placa m�e ASRock B660M-HDV, uma confi�vel placa m�e ASRock produzida sob rigoroso controle de qualidade consistente. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
Como as especifica�es da placa-m�e e do software do BIOS podem ser atualizadas, o conte�do desta documenta��o estar� sujeito a altera�es sem aviso pr�vio. Caso ocorram modifica�es a esta documenta��o, a vers�o atualizada estar� dispon�vel no site da ASRock sem aviso pr�vio. Se precisar de assist�ncia t�cnica relacionada a esta placa principal, visite o nosso site para obter informa�es espec�ficas sobre o modelo que estiver utilizando. Voc� tamb�m poder� encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.
1.1 Conte�do da embalagem
� Placa-m�e ASRock B660M-HDV (Micro ATX Form Factor) � Guia de Instala��o R�pida ASRock B660M-HDV � CD de Suporte do ASRock B660M-HDV � 2 x Cabos de dados Serial ATA (SATA) (Opcional) � 3 x Parafusos para Soquetes M.2 (Opcional) � 1 x Painel de E/S
87
Portugu�s
1.2 Especifica�es
Plataforma CPU
Chipset Mem�ria
� Micro ATX Form Factor � Design de condensador s�lido
� Suportas Processadores 12th Gen Intel� CoreTM (LGA1700) � Digi Power design � Design com 6 fases de alimenta��o � Suporta Tecnologia H�brida Intel� � Suporta Tecnologia Intel� Turbo Boost Max 3.0
� Intel� B660
� Tecnologia de mem�ria DDR4 de dois canais � 2 x Slots DIMM DDR4 � Suporta DDR4 n�o-ECC, mem�ria sem buffer at� 5066+(OC)* * Suporta DDR4 3200 nativamente. * Por favor, consulte a Lista de Suporte de Mem�ria no site da ASRock para obter mais informa��o. (http://www.asrock.com/) � Suporta m�dulos de mem�ria ECC UDIMM (opera em modo n�o-
ECC) � Capacidade m�xima da mem�ria do sistema: 64GB � Suporta Extreme Memory Profile (XMP) 2.0 da Intel�
Slotde expan- � 1 x Slot PCIe Gen4x16*
s�o
* Suporta NVMe SSD nos discos de inicializa��o
� 2 x Slots PCIe Gen3x1
� 1 soquete M.2 (Chave E), suporta m�dulo WiFi tipo 2230/WiFi BT
PCIe
Gr�ficos
* Os gr�ficos incorporados Intel� UHD e as sa�das VGA s� podem ser suportados com processadores com GPU integrada. � Arquitetura Gr�fica Intel� Xe (Gen 12) � Tr�s op�es de sa�da de gr�ficos: D-Sub, HDMI e DisplayPort 1.4 � Suporta HDMI 2.1 TMDS Compat�vel com resolu��o m�x. at� 4K x
2K (4096x2160) @ 60Hz � Obsluga DisplayPort 1.4 z DSC (skompresowany) maks.
rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz � Suporta D-Sub com resolu��o m�xima de at� 1920x1200 @ 60Hz � Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty DisplayPort 1.4
Portugu�s
88
B660M-HDV
�udio
� �udio 7.1 CH HD com prote��o de conte�do (Codec de �udio Realtek ALC897/887)
� Suporta Prote��o de Sobretens�o
LAN
� LAN Gigabit a 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Suporta Wake-On-LAN
� Oferece Suporte � Prote��o de Rel�mpago/ESD
� Suporta Energy Efficient Ethernet 802.3az
� Suporta UEFI PXE
E/S do painel posterior
� 2 Pontos de Montagem da Antena � 1 x Porta PS/2 para mouse/teclado � 1 x Porta D-Sub � 1 x Porta HDMI � 1 x DisplayPort 1.4 � 3 x Portas USB 3.2 Gen1 Tipo A (Suporta Prote��o ESD) � 1 x Porta USB 3.2 Gen1 Tipo C (Suporta Prote��o ESD) � 2 x Portas USB 2.0 (Suporta Prote��o ESD) � 1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE
VELOCIDADE) � Fichas de �udio HD: Entrada de Linha / Autofalante Frontal /
Microfone
Armazenamento
� 4 x Conectores SATA3 6,0 Gb/s* * Se M2_2 estiver ocupado por um dispositivo tipo M.2 SATA, SATA3_3 ser� desativado. � 1 x Hiper Soquete M.2 (M2_1, Chave M), suporta modo Gen4x4
tipo 2260/2280 PCIe(64 Gb/s)** � 1 x Soquete Ultra M.2 (M2_2, Chave M), suporta modos tipo
2260/2280 SATA3 6,0 Gb/s & PCIe Gen3x4 (32 Gb/s)** ** Suporta a tecnologia Intel� OptaneTM (M2_2 apenas) ** Suporta o Dispositivo de Gerenciamento de Volume Intel� (VMD) ** Suporta NVMe SSD como discos de inicializa��o ** Suporta Kit ASRock U.2
RAID
� Suporta RAID 0, RAID 1, RAID 5 e RAID 10 para dispositivos de armazenagem SATA
Portugu�s
89
Conector
� 1 x Suporte porta COM � 1 x Suporte SPI TPM � 1 x Intrus�o do Chassi e Cabe�ote de Autofalante � 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimenta��o m�xima 1A do ventilador (12W). � 1 x Conector de Ventilador de CPU/Ventilador da Bomba de �gua
(4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de CPU/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. � 2 x Conectores de Ventilador de Chassi/Ventilador da Bomba de
�gua (4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de Chassi/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. * CPU_FAN2/WP e CHA_FAN1~2/WP podem autodetectar se o ventilador de 3-pin ou 4-pin est� em uso. � 1 x Conector alimenta��o ATX 24-pinos � 1 x Conector de energia 8-pinos 12V � 1 x Conector de �udio do painel frontal � 2 x Plataformas USB 2.0 (Suporta 3 portas USB 2.0) (Suporta Prote-
��o ESD) � 1 x Plataforma USB 3.2 Gen1 (Suporta 2 portas USB 3.2 Gen1)
(Suporta Prote��o ESD)
Portugu�s
BIOSRecurso
� AMI Legal UEFI BIOS com suporte multilingue GUI � ACPI 6.0 compat�vel com eventos de despertar � Suporte SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05V PROC,
+0,82V PCH , +1,05V PCH de Tens�o de Multi-ajuste
HardwareMonitor
� Tac�metro da ventoinha: CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Ventoinha Silenciosa (Auto ajusta velocidade da ventoinha do chassi pela temperatura da CPU): CPU, CPU/Bomba de �gua, Chassis/ Ventoinhas da bomba de �gua
� Controle multi-velocidade da ventoinha: CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Detec��o de ABERTURA da CAIXA � Monitoramento da tens�o: CPU Vcore, +1,05V PCH, DRAM, VC-
CIN AUX, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
90
B660M-HDV
SO
� Microsoft� Windows� 10 64-bit / 11 64-bit
Certifica�es
� FCC, CE � Preparada para ErP/EuP (� necess�ria uma fonte de alimenta��o
preparada para ErP/EuP)
* Para obter informa�es detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com
Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das defini�es na BIOS, a aplica��o de tecnologia Untied Overclocking ou a utiliza��o de ferramentas de overclocking de terceiros. O overclocking poder� afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. N�o nos responsabilizamos por poss�veis danos causados pelo overclocking.
Portugu�s
91
1.3 Configura��o dos jumpers
A imagem abaixo mostra como os jumpers s�o configurados. Quando a tampa do jumper � colocada nos pinos, o jumper � "Curto". Se n�o for colocada uma tampa de jumper nos pinos, o jumper � "Aberto".
Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.� 12)
Jumper de 2 pinos
CLRMOS1 permite que voc� limpe os dados do CMOS. Para apagar e reinicializar os par�metros do sistema nos valores predefinidos, desligue o computador e desplugue a tomada da alimenta��o. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto dos pinos no CLRMOS1 por 5 segundos. No entanto, n�o apague o CMOS logo ap�s ter realizado a atualiza��o da BIOS. Se voc� precisar apagar o CMOS logo ap�s ter terminado uma atualiza��o da BIOS, dever� primeiro iniciar o sistema e voltar a encerr�lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perfil padr�o do usu�rio ser�o apagados s� se a bateria CMOS for removida. Por favor, n�o se esque�a de retirar a tampa do jumper depois de apagar o CMOS.
Se voc� apagar o CMOS, poder� ser detectada a abertura da caixa. Ajuste a op��o do BIOS "Limpar estado" para limpar o registo anterior de estado de intrus�o no chassis.
Portugu�s
92
B660M-HDV
1.4 Suportes e conectores onboard
Os conectores e suportes onboard N�O s�o jumpers. N�O coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conectores ir� causar danos permanentes � placa-m�e.
Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.� 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Ligue o bot�o de alimenta��o, o bot�o de reinicializa��o e o indicador do estado do sistema no chassi deste suporte, de acordo com a descri��o abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.
PWRBTN (Bot�o de alimenta��o): Conecte o bot�o de alimenta��o no painel frontal do chassi. Voc� pode configurar a forma para desligar o seu sistema atrav�s do bot�o de alimenta��o.
RESET (Bot�o de reinicializa��o): Conecte o bot�o de reinicializa��o no painel frontal do chassi. Pressione o bot�o de reinicializa��o para reiniciar o computador, se ele congela e falha ao realizar um rein�cio normal.
PLED (LED de alimenta��o do sistema): Conecte o indicador do estado da alimenta��o no painel frontal do chassi. O LED ficar� aceso quando o sistema estiver em funcionamento. O LED ficar� piscando quando o sistema estiver nos estados de suspens�o S1/S3. O LED ficar� desligado quando o sistema estiver no estado de suspens�o S4 ou desligado (S5).
HDLED (LED de atividade do disco r�gido): Conecte o LED de atividade do disco r�gido no painel frontal do chassi. O LED ficar� aceso quando o disco r�gido estiver lendo ou registrando dados.
O design do painel frontal poder� variar dependendo do chassi. Um m�dulo de painel frontal consiste principalmente em um bot�o de alimenta��o, um bot�o de reinicializa��o, um LED de alimenta��o, um LED de atividade do disco r�gido, um alto-falante, etc. Ao conectar seu m�dulo de painel frontal do chassi a este conector, certifique-se de que os fios e os pinos correspondem de forma correta.
Portugu�s
93
Intrus�o do Chassi e Cabe�ote de Autofalante (SPK_CI1 de 7 pinos) (ver p.1, N.� 13)
Conectores s�rie ATA3 Vertical: (SATA3_0: ver p.1, N.� 8) (SATA3_1: ver p.1, N.� 7) �ngulo reto: (SATA3_2: ver p.1, N.� 9) (superior) (SATA3_3: ver p.1, N.� 9)(inferior)
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_3
SATA3_0
Conecte a instrus�o do chassi e autofalante do chassi a este cabe�ote.
Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de armazenamento interno com uma taxa de transfer�ncia de dados de at� 6,0 Gb/s. * Se M2_2 estiver ocupado por um dispositivo tipo M.2 SATA, SATA3_3 ser� desativado.
Plataformas USB 2.0 (USB3_4 de 9 pinos) (ver p.1, N.� 16)
(USB5 de 4 pinos) (ver p.1, N.� 15)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
H� dois cabe�otes USB 2.0 nesta placa-m�e.
1
GND P+0 P-0 USB_PWR
Plataforma USB 3.2 Gen1 (F_USB3_1_2 de 19 pinos) (ver p.1, N.� 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
H� um cabe�ote nesta placa-m�e. Este suporte USB 3.2 Gen1 pode suportar duas portas.
Portugu�s
94
B660M-HDV
Suporte de �udio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.� 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este suporte destina-se � conex�o dos dispositivos de �udio no painel de �udio frontal.
1. O �udio de alta defini��o suporta Sensor de Adaptador, mas o fio do painel no chassi dever� suportar HDA para funcionar corretamente. Por favor, siga as instru�es no nosso manual e no manual do chassi para instalar o seu sistema.
2. Se utilizar um painel de �udio AC'97, instale-o no terminal de �udio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a liga��o Terra (GND) � Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de �udio HD. Voc� n�o precisa lig�-los ao painel de �udio AC'97. E. Para ativar o microfone frontal, v� � guia "Microfone Frontal" no painel de controle Realtek e ajuste o "Volume de grava��o".
Chassis / Conectores da ventoinha de bomba de �gua (CHA_FAN1/WP de 4 pinos) (ver p.1, N.� 4)
(CHA_FAN2/WP de 4 pinos) (ver p.1, N.� 14)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Esta placa m�e fornece dois conectores de ventilador do chassis de refrigera��o a �gua de 4 pinos. Se voc� pretende conectar um ventilador de refrigera��o a �gua de chassis de 3 pinos, por favor, conecte-o ao Pino 1-3.
1 2 3 4
Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.� 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Esta placa m�e inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se voc� pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Portugu�s
95
Conector da ventoinha de bomba de �gua/CPU (CPU_FAN2/WP de 4 pinos) (ver p.1, N.� 19)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
Conector de alimenta��o ATX (ATXPWR1 de 24 pinos) (ver p.1, N.� 5)
12
24
1
13
Esta placa m�e inclui um conector
4
3 de ventilador da CPU de refrige2 ra��o a �gua de 4 pinos. Se voc�
1
pretende conectar um ventilador de refrigera��o a �gua da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Esta placa-m�e inclui um conector de alimenta��o ATX de 24 pinos. Para utilizar uma fonte de alimenta��o ATX de 20 pinos, introduza-a no Pino 1 e Pino 13.
Conector de alimenta��o
8
5
Esta placa-m�e inclui um conector
de 12V ATX
de alimenta��o de 12V ATX de
(ATX12V1 de 8 pinos)
8 pinos. Para utilizar uma fonte
(ver p.1, N.� 1)
4
1
de alimenta��o ATX de 4 pinos,
introduza-a no Pino 1 e Pino 5.
*Aviso: Certifique-se que o cabo de for�a conectado � para o CPU e n�o para a placa gr�fica. N�o ligue o cabo de for�a PCIe a este conector.
Plataforma SPI TPM (SPI_TPM_J1 de 13 pinos) (ver p.1, N.� 10)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Este conector suporta um sistema com SPI M�dulo de Plataforma Confi�vel (TPM), que pode armazenar com seguran�a chaves, certificados digitais, senhas e dados. Um sistema TPM tamb�m ajuda a melhorar a seguran�a de rede, a proteger identidades digitais e a garantir a integridade da plataforma.
Portugu�s
96
B660M-HDV
Suporte da porta serial (COM1 de 9 pinos) (ver p.1, N.� 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Este suporte COM1 recebe um m�dulo da porta serial.
Portugu�s
97
Polski
1 Wprowadzenie
Dzikujemy za zakupienie plyty gl�wnej ASRock B660M-HDV, niezawodnej plyty gl�wnej produkowanej z konsekwentnie wykonywan przez firm ASRock, rygorystyczn kontrol jakoci. Plyta ta zapewnia doskonal jako dzialania i solidn konstrukcj, spelniajc zobowizanie firmy ASRock do dostarczania produkt�w o wysokiej jakoci i wytrzymaloci.
Poniewa specyfikacje plyty gl�wnej i oprogramowanie BIOS mog zosta zaktualizowane, zawarto tej dokumentacji moe zosta zmieniona bez powiadomienia. W przypadku jakichkolwiek modyfikacji tej dokumentacji, zaktualizowana wersja bdzie dostpna na stronie internetowej ASRock, bez dalszego powiadomienia. Jeli wymagana jest pomoc techniczna w odniesieniu do tej plyty gl�wnej, naley odwiedzi stron internetow w celu uzyskania specyficznych informacji o uywanym modelu. Na stronie internetowej ASRock, mona take pobra list najnowszych kart VGA i obslugiwanych CPU. Strona internetowa ASRock http://www.asrock.com.
1.1 Zawarto opakowania
� Plyta gl�wna ASRock B660M-HDV (Wsp�lczynnik ksztaltu Micro ATX) � Skr�cona instrukcja instalacji ASRock B660M-HDV � Pomocnicza plyta CD ASRock B660M-HDV � 2 x kable danych Serial ATA (SATA) (Opcjonalne) � 3 x ruby do gniazda M.2 (Opcjonalne) � 1 x oslona panelu Wejcia/Wyjcia
98
B660M-HDV
Polski
1.2 Specyfikacje
Platforma
� Wsp�lczynnik ksztaltu Micro ATX � Konstrukcja kondensatorami stalymi
CPU
� Obsluga 12-tej generacji procesor�w Intel� CoreTM (LGA1700) � Digi Power design � Sekcja zasilania 6 Power Phase Design � Obsluga technologii Intel� Hybrid � Obsluga technologii Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
Pami
� Technologia pamici Dual Channel DDR4 � 2 x gniazda DDR4 DIMM � Obsluga niebuforowanej pamici DDR4 non-ECC, do 5066+(OC)* * Natywna obsluga pamici DDR4 3200. * Sprawd list obslugiwanej pamici na stronie internetowej ASRock w celu uzyskania dalszych informacji. (http://www.asrock.com/) � Obsluga modul�w pamici ECC UDIMM (dzialanie w trybie non-
ECC) � Maks. wielko pamici systemowej: 64GB � Obsluga Intel� Extreme Memory Profile (XMP) 2.0
Gniazdo rozszerzenia
� 1 x gniazda PCIe Gen4x16* * Obsluga SSD NVMe, jako dysk�w rozruchowych � 2 x gniazda PCIe Gen3x1 � 1 x M.2 Socket (Key E), obsluga modulu WiFi typ 2230 WiFi/BT
PCIe
Grafika
* Wbudowana grafika Intel� UHD i wyjcia VGA s obslugiwane wylcznie z procesorami, kt�re maj zintegrowane GPU. � Architektura grafiki Intel� Xe (Generacja 12) � Opcje trzech wyj graficznych: D-Sub, HDMI i DisplayPort 1.4 � Obsluga HDMI 2.1 TMDS zgodnoci z maks. rozdzielczoci do 4K
x 2K (4096x2160) przy 60Hz � Obsluga DisplayPort 1.4 z DSC (skompresowany) maks.
rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz
99
Polski
Audio
� Obsluga D-Sub z maks. rozdzielczoci do 1920x1200 przy 60Hz � Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty
DisplayPort 1.4
� Dwik HD 7.1 CH (kodek audio Realtek ALC897/887) � Obsluga zabezpieczenia przed przepiciami
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Obsluga Wake-On-LAN � Obsluga zabezpieczenia przed wyladowaniami atmosferycznymi/
ESD � Obsluga Energy Efficient Ethernet 802.3az � Obsluga UEFI PXE
Tylny panel Wejcia/Wyjcia
� 2 x punkty montau anteny � 1 x port myszy/klawiatury PS/2 � 1 x port D-Sub � 1 x port HDMI � 1 x DisplayPort 1.4 � 3 x port USB 3.2 Gen1 typu A (obsluguje zabezpieczenia ESD) � 1 x port USB 3.2 Gen1 typu C (obsluguje zabezpieczenia ESD) � 2 x porty USB 2.0 (Obsluga zabezpieczenia ESD) � 1 x port LAN RJ-45 z LED (LED ACT/LINK i LED SPEED) � Gniazda audio HD: Wejcie liniowe / Glonik przedni / Mikrofon
Przechowywanie
� 4 x zlcza SATA3 6,0 Gb/s* * Jeli gniazdo M2_2 jest zajte przez urzdzenie M.2 typu SATA, zostanie wylczone SATA3_3. � 1 x Hyper M.2 Socket (M2_1, Key M), z obslug trybu 2260/2280
PCIe Gen4x4 (64 Gb/s)** � 1 x Ultra M.2 Socket (M2_2, Key M), z obslug typu 2260/2280
SATA3 6,0 Gb/s i tryb�w PCIe Gen3x4 (32 Gb/s)** ** Obsluga technologii Intel� OptaneTM (tylko M2_2) ** Obsluga Intel� Volume Management Device (VMD) ** Obsluga SSD NVMe, jako dysk�w rozruchowych ** Obsluga ASRock U.2 Kit
RAID
� Obsluga RAID 0, RAID 1, RAID 5 i RAID 10 dla urzdze pamici masowej SATA
100
B660M-HDV
Polski
Zlcze
� 1 x zlcze gl�wkowe portu COM � 1 x zlcze gl�wkowe SPI TPM � 1 x zlcze gl�wkowe naruszenia obudowy i glonika � 1 x zlcze wentylatora CPU (4-pinowe) * Zlcze wentylatora CPU obsluguje wentylator CPU maksymalnym prdem zasilania wentylatora 1A (12W). � 1 x zlcze wentylatora CPU/pompy wodnej (4-pinowe) (Inteligentne
sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora CPU/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). � 2 x zlcza wentylatora obudowy/pompy wodnej (4-pinowe) (Inteli-
gentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora obudowy/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). * CPU_FAN2/WP i CHA_FAN1~2/WP moe automatycznie wykrywa, jeli uywany jest wentylator 3-pinowy lub 4-pinowy. � 1 x 24 pinowe zlcze zasilania ATX � 1 x 8 pinowe zlcze zasilania 12 V � 1 x zlcze audio na panelu przednim � 2 x zlcza gl�wkowe USB 2.0 (Obsluga 3 port�w USB 2.0) (Obsluga
zabezpieczenia ESD) � 1 x porty gl�wkowe USB 3.2 Gen1 (obsluga 2 port�w USB 3.2
Gen1) (obsluga zabezpieczenia ESD)
Funkcja BIOS
� Obsluga starszych wersji BIOS AMI UEFI z wielojzycznym GUI � Zgodno zdarze wybudzania z ACPI 6.0 � Obsluga SMBIOS 2.7 � Wiele regulacji napicia CPU Core/Cache, CPU GT, DRAM,
VCCIN AUX, +1,05V PROC, +0,82V PCH , +1,05V PCH
Monitor sprztu
� Obrotomierz wentylatora: CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Cichy wentylator (Automatyczna regulacja prdkoci obrotowej wentylatora obudowy przez temperatur CPU): CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Kontrola wielu prdkoci obrotowych wentylatora: CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej
� Wykrywanie OTWARCIA OBUDOWY � Monitorowanie napicia: CPU Vcore, +1,05 PCH, DRAM, VCCIN
AUX, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
101
System operacyjny
� Microsoft� Windows� 10 64-bitowy / 11 64-bitowy
Certyfikaty
� FCC, CE � Gotowo do obslugi ErP/EuP (Wymagane zasilanie z gotowoci
obslugi ErP/EuP)
* Dla uzyskania szczeg�lowej informacji o produkcie, naley odwiedzi nasz stron internetow: http://www.asrock.com
Naley pamita, e przetaktowywanie jest zwizane z pewnym ryzykiem, wlcznie z regulacj ustawie w BIOS, zastosowaniem Untied Overclocking Technology lub uywaniem narzdzi przetaktowywania innych firm. Przetaktowywanie moe wplywa na stabilno systemu lub nawet powodowa uszkodzenie komponent�w i urzdze systemu. Powinno to zosta zrobione na wlasne ryzyko i koszt. Nie odpowiadamy za moliwe uszkodzenia spowodowane przetaktowywaniem.
Polski
102
B660M-HDV
1.3 Ustawienia zworek
Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest "Zwarta". Jeli nasadka zworki nie jest umieszczona na pinach, zworka jest "Otwarta".
Zworka usuwania danych z pamici CMOS (CLRMOS1) (sprawd s.1, Nr 12)
2-pinowa zworka
CLRMOS1 umoliwia usunicie wszystkich danych z pamici CMOS. Aby usun i zresetowa parametry systemu do ustawie domylnych, wylcz komputer i odlcz przew�d zasilajcy od zasilania. Po odczekaniu 15 sekund, uyj nasadk zworki do zwarcia pin�w CLRMOS1 na 5 sekund. Jednak, nie naley usuwa danych z pamici CMOS zaraz po wykonaniu aktualizacji BIOS. Jeli wymagane jest usunicie danych z pamici CMOS po zakoczeniu aktualizacji BIOS, przed rozpoczciem usuwania danych z pamici CMOS naley najpierw uruchomi system, a nastpnie wylczy go. Naley pamita, e haslo, data, czas i domylny profil uytkownika zostan usunite tylko po wyjciu baterii CMOS. Naley pamita, aby po usuniciu danych z pamici CMOS, usun nasadk zworki.
Po usuniciu danych z pamici CMOS, moe by wykrywane otwarcie obudowy. Wyreguluj opcj BIOS "Clear Status (Stan usuwania)", aby usun zapis poprzedniego stanu naruszenia obudowy.
Polski
103
1.4 Wbudowane zlcza gl�wkowe i inne zlcza
Wbudowane zlcza gl�wkowe i inne zlcza s bezzworkowe. NIE naley umieszcza zworek nad tymi zlczami gl�wkowymi i zlczami. Umieszczanie zworek nad zlczami gl�wkowymi i zlczami spowoduje trwale uszkodzenie plyty gl�wnej.
Zlcze gl�wkowe na panelu systemu (9-pinowe PANEL1) (sprawd s.1, Nr 11)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Podlcz do tego zlcza gl�wkowego przelcznik zasilania, przelcznik resetowania i wskanik stanu systemu na obudowie, zgodnie z pokazanym poniej przydzialem pin�w. Przed podlczeniem kabli naley zapisa pozycj pin�w plus i minus.
PWRBTN (Przelcznik zasilania): Podlcz do przelcznika zasilania na panelu przednim obudowy. Mona skonfigurowa spos�b wylczania systemu z uyciem przelcznika zasilania.
RESET (Przelcznik resetowania): Podlcz do przelcznika resetowania na panelu przednim obudowy. Nacinij przelcznik resetowania w celu ponownego uruchomienia komputera, jeli komputer zawiesi si i nie wykona normalnego ponownego uruchomienia.
PLED (Dioda LED zasilania systemu): Podlczenie do wskanika stanu zasilania na panelu przednim obudowy. Ta dioda LED jest wlczona podczas dzialania systemu. Ta dioda LED miga, gdy system znajduje si w stanie upienia S1/S3. Ta dioda LED jest wylczona, gdy system znajduje si w stanie upienia S4 lub wylczenia zasilania (S5).
HDLED (Dioda LED aktywnoci dysku twardego): Podlczenie do diody LED aktywnoci dysku twardego na panelu przednim obudowy. Dioda LED jest wlczona, podczas odczytu lub zapisu danych przez dysk twardy.
Konstrukcja panelu przedniego zaley od obudowy. Modul panelu przedniego zawiera przede wszystkim przelcznik zasilania, przelcznik resetowania, diod LED zasilania, diod LED aktywnoci dysku twardego, glonik, itd. Po podlczeniu modulu panelu przedniego obudowy do tego zlcza gl�wkowego upewnij si, e jest prawidlowo dopasowany przydzial przewod�w i przydzial pin�w.
Polski
104
B660M-HDV
Zlcze gl�wkowe naruszenia obudowy i glonika (7-pinowe SPK_CI1) (sprawd s.1, Nr 13)
Zlcza Serial ATA3 Pionowy: (SATA3_0: sprawd s.1, Nr 8) (SATA3_1: sprawd s.1, Nr 7) Kt prosty: (SATA3_2: sprawd s.1, Nr 9)(G�rny) (SATA3_3: sprawd s.1, Nr 9)(Dolny)
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_3
SATA3_0
Podlcz to tego zlcza gl�wkowego naruszenie obudowy i glonik obudowy.
Te cztery zlcza SATA3 obsluguj kable danych SATA dla wewntrznych urzdze pamici z szybkoci transferu danych do 6,0 Gb/s. * Jeli gniazdo M2_2 jest zajte przez urzdzenie M.2 typu SATA, zostanie wylczone SATA3_3.
Zlcza gl�wkowe USB 2.0 (9-pinowe USB3_4) (sprawd s.1, Nr 16)
(4-pinowe USB5) (sprawd s.1, Nr 15)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Na tej plycie gl�wnej znajduj si dwa zlcza gl�wkowe USB 2.0.
1
GND P+0 P-0 USB_PWR
Zlcza gl�wkowe USB 3.2 Gen1 (19-pinowe F_USB3_1_2) (sprawd s.1, Nr 6)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Na tej plycie gl�wnej znajduje si jedno zlcze gl�wkowe. To zlcze gl�wkowe USB 3.2 Gen1 moe obslugiwa dwa porty.
Polski
105
Zlcze gl�wkowe audio panelu przedniego (9-pinowe HD_AUDIO1) (sprawd s.1, Nr 18)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
To zlcze gl�wkowe sluy do podlczania urzdze audio do przedniego panelu audio.
1. High Definition Audio obsluguje wykrywanie gniazda, ale aby dziala prawidlowo przew�d panelu na obudowie musi obslugiwa HDA. W celu instalacji systemu naley wykona instrukcje z naszego podrcznika i podrcznika obudowy.
2. Jeli uywany jest panel audio AC'97, naley go zainstalowa w zlczu gl�wkowym audio panelu przedniego, poprzez wykonanie wymienionych poniej czynnoci: A. Podlcz Mic_IN (MIC) do MIC2_L. B. Podlcz Audio_R (RIN) do OUT2_R i Audio_L (LIN) do OUT2_L. C. Podlcz uziemienie (GND) do uziemienia (GND). D. MIC_RET i OUT_RET slu wylcznie dla panelu audio HD. Nie naley ich podlcza dla panelu audio AC'97. E. Aby uaktywni mikrofon przedni, przejd do zakladki "FrontMic" w panelu Realtek Control i wyreguluj "Glono nagrywania".
Zlcza /wentylatora pompy wodnej obudowy (4-pinowe CHA_FAN1/ WP) (sprawd s.1, Nr 4)
(4-pinowe CHA_FAN2/ WP) (sprawd s.1, Nr 14)
Zlcze wentylatora CPU (4-pinowe CPU_FAN1) (sprawd s.1, Nr 2)
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Ta plyta gl�wna udostpnia dwa 4-pinowe zlcza obudowy wentylatora chlodzenia wodnego. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego obudowy, naley go podlczy do pin�w 1-3.
1 2 3 4
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
Ta plyta gl�wna udostpnia 4-pinowe zlcze wentylatora CPU (Cichy wentylator). Jeli planowane jest podlczenie 3-pinowego wentylatora CPU, naley je podlczy do pin�w 1-3.
Polski
106
B660M-HDV
Polski
Zlcze wentylatora pompy wodnej /CPU (4-pinowe CPU_FAN2/ WP) (sprawd s.1, Nr 19)
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
Zlcze zasilania ATX (24-pinowe ATXPWR1) (sprawd s.1, Nr 5)
12
24
1
13
Ta plyta gl�wna udostpnia 4-pi-
4
3 nowe zlcze obudowy wentylatora 2 chlodzenia wodnego CPU. Jeli
1
planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego CPU, naley je podlczy do pin�w 1-3.
Ta plyta gl�wna udostpnia 24-pinowe zlcze zasilania ATX. W celu uycia 20-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 13.
Zlcze zasilania ATX 12V
(8-pinowe ATX12V1)
8
(sprawd s.1, Nr 1)
4
Ta plyta gl�wna udostpnia
5
8-pinowe zlcze zasilania ATX
12 V. W celu uycia 4-pinowego
1
zasilacza ATX, naley podlczy je
wzdlu pinu 1 i pinu 5.
*Ostrzeenie: Upewnij si, e podlczony kabel zasilajcy jest przeznaczony do CPU, a nie do karty graficznej. Nie podlczaj do tego zlcza kabla zasilajcego PCIe.
zlcze gl�wkowe SPI TPM (13-pinowe SPI_TPM_J1) (sprawd s.1, Nr 10)
SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
To zlcze obsluguje system SPI Trusted Platform Module (TPM), kt�ry moe bezpiecznie przechowywa klucze, certyfikaty cyfrowe, hasla i dane. System TPM pomaga take w zwikszeniu zabezpieczenia sieci, ochronie cyfrowych danych osobowych i zapewnieniu integralnoci platformy.
107
Zlcze gl�wkowe portu szeregowego (9-pinowe COM1) (sprawd s.1, Nr 17)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
To zlcze gl�wkowe COM1 obsluguje modul portu szeregowego.
Polski
108
B660M-HDV
1
ASRock B660M-HDV . ASRock . ASRock .
BIOS , . , ASRock . , . ASRock VGA CPU . ASRock http://www.asrock.com.
1.1
� ASRock B660M-HDV (Micro ATX ) � ASRock B660M-HDV � ASRock B660M-HDV CD � ATA (SATA) 2 ( ) � M.2 3 ( ) � I/O 1
109
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 6 � Intel� Hybrid � Intel� Turbo Boost Max Technology 3.0
� Intel� B660
� DDR4 � DDR4 DIMM 2 � DDR4 ECC, 5066+(OC) * * DDR4 3200 . * ASRock . (http://www.asrock.com/) � ECC UDIMM ( -ECC ) � : 64GB � Intel� Extreme Memory Profile (XMP) 2.0
� PCIe Gen4x16 1 * * NVMe SSD � PCIe Gen3x1 2 � M.2 ( E) 1 , 2230 WiFi/BT PCIe WiFi
* Intel� UHD - VGA GPU . � Intel� Xe (Gen 12) � : D-Sub, HDMI DisplayPort 1.4 � HDMI 2.1 TMDS ( 4K x 2K (4096x2160) @
60Hz) � 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
DSC( ) DisplayPort 1.4 . � D-Sub ( 1920x1200 @ 60Hz) � HDMI 2.1 TMDS HDCP 2.3 DisplayPort 1.4
110
B660M-HDV
� 7.1 CH HD (Realtek ALC897/887 ) �
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Wake-On-LAN
� /ESD
� 802.3az
� UEFI PXE
I/O
� 2 � PS/2 / 1 � D-Sub 1 � HDMI 1 � DisplayPort 1.4 1 � USB 3.2 Gen1 A 3 (ESD ) � USB 3.2 Gen1 C 1 (ESD ) � USB 2.0 2 (ESD ) � LED RJ-45 LAN 1 (ACT/LINK LED SPEED LED) � HD : / /
� SATA3 6.0 Gb/s 4 * * SATA- M.2 M2_2 , SATA3_3 . � M.2 1 (M2_1, Key M), 2260/2280 PCIe
Gen4x4(64Gb/s) ** � Ultra M.2 1 (M2_2, Key M), 2260/2280 SATA3 6.0
Gb/s & PCIe Gen3x4(32 Gb/s) ** ** Intel� OptaneTM (M2_2 ) ** Intel� Volume Management Device(VMD) ** NVMe SSD ** ASRock U.2
RAID
� SATA RAID 0, RAID 1, RAID 5 RAID 10
� COM 1 � SPI TPM 1 � 1 � CPU (4 ) 1
111
BIOS
* CPU 1A(12W) CPU
. � CPU/ (4 ) 1 ( ) * CPU/ 2A(24W)
. � / (4 ) 2 ( ) * / 2A(24W)
.
* 3 4 , CPU_FAN2/WP CHA_
FAN1~2/WP . � 24 ATX 1 � 8 12V 1 � 1 � USB 2.0 2 (USB 2.0 3 ) (ESD ) � USB 3.2 Gen1 1 (USB 3.2 Gen1 2 ) (ESD
)
� GUI AMI UEFI BIOS � ACPI 6.0 � SMBIOS 2.7 � CPU / , CPU GT, DRAM, VCCIN AUX, +1.05V PROC,
+0.82V PCH , +1.05V PCH
� : CPU, CPU/ , / � (CPU ): CPU,
CPU/ , / � : CPU, CPU/ , / � � : CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX,
+1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
OS
� Microsoft� Windows� 10 64 / 11 64
� FCC, CE � ErP/EuP (ErP/EuP )
* : http://www.asrock.com
112
B660M-HDV
BIOS Untied Overclocking Technology . . . .
113
1.3
. "" . "" .
Clear CMOS (CLRMOS1) (1 , 12 )
2
CLRMOS1 CMOS . . 15 CLRMOS1 5 . BIOS CMOS . BIOS CMOS , CMOS . CMOS , , , . CMOS .
CMOS . BIOS "Clear Status( )" .
114
B660M-HDV
1.4
. . .
(9 PANEL1) (1 , 11 )
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN( ): . .
RESET( ): . .
PLED( LED): . LED . S1/S3 LED . S4 (S5) LED .
HDLED( LED): LED . LED .
. , , LED, LED, . .
115
(7 SPK_CI1) (1 , 13 )
ATA3 : (SATA3_0: 1 , 8 ) (SATA3_1: 1 , 7 ) : (SATA3_2: 1 , 9 ) ( ) (SATA3_3: 1 , 9 ) ( )
USB 2.0 (9 USB3_4) (1 , 16 )
(4 USB5) (1 , 15 )
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V 1 SIGNAL
GND DUMMY
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
1 GND
P+0 P-0 USB_PWR
SATA3_3
SATA3_0
.
SATA3 6.0 Gb/s SATA . * SATA- M.2 M2_2 , SATA3_3 .
USB 2.0 .
USB 3.2 Gen1 (19 F_USB3_1_2) (1 , 6 )
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
. USB 3.2 Gen1 2 .
116
B660M-HDV
(9 HD_AUDIO1) (1 , 18 )
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. HDA . .
2. AC'97 : A. Mic_IN (MIC) MIC2_L . B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L . C. (GND) (GND) . D. MIC_RET OUT_RET HD . AC'97 . E. Realtek "FrontMic" "Recording Volume( )" .
/ (4 CHA_FAN1/WP) (1 , 4 )
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
4 2 . 3 1-3 .
(4 CHA_FAN2/WP) (1 , 14 )
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
CPU (4 CPU_FAN1) (1 , 2 )
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
4 CPU ( ) . 3 CPU 1-3 .
117
CPU/ (4 CPU_FAN2/WP) (1 , 19 )
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
4
4
3 CPU
2 1
. 3 CPU
1-3
.
ATX (24 ATXPWR1) (1 , 5 )
12
24
1
13
24 ATX . 20 ATX 1 13 .
ATX 12V
8 ATX 12V
8
5
(8 ATX12V1)
(1 , 1
. 4 ATX
)
4
1
1 5
.
* : CPU . PCIe .
SPI TPM (13 SPI_TPM_J1) (1 , 10 )
SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
, , SPI TPM(Trusted Platform Module) . TPM , .
118
B660M-HDV
(9 COM1) (1 , 17 )
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1 .
119
1
ASRock B660M-HDV ASRock
BIOS ASRock ASRock VGA CPU ASRock http://www.asrock.com.
1.1
� ASRock B660M-HDV ATX � ASRock B660M-HDV � ASRock B660M-HDV CD � 2 x ATASATA � 3 x M.2 � 1 x I/O
120
B660M-HDV
1.2
� ATX �
CPU
� 12 Intel� CoreTM (LGA1700)
�
� 6
� Intel� Hybrid
� Intel� Max 3.0
� Intel� B660
� DDR4 � 2 x DDR4 DIMM � 5066+(OC)* DDR4 ECC
* DDR4 3200 * ASRock (http://www.asrock.com/) � ECC UDIMM non-ECC
� 64GB � Intel� XMP2.0
� 1 x PCIe Gen4x16 * * NVMe SSD � 2 x PCIe Gen3x1 � 1 x M.2 Key E 2230 Wi-Fi/BT PCIe Wi-Fi
* Intel UHD VGA
GPU � Intel� Xe (Gen 12) � 3 : D-SubHDMI
DisplayPort 1.4 � HDMI 2.1 TMDS 4K x 2K (4096x2160)
@ 60Hz
121
� DSC 8K7680x4320@60Hz/5K5120x3200 @120Hz DisplayPort 1.4
� D-Sub 1920x1200 @60Hz � HDMI 2.1 TMDS DisplayPort 1.4 HDCP
2.3
LAN
I/O
� 7.1 CH HD (Realtek ALC897/887 Audio Codec) �
� LAN 10/100/1000 Mb/s � PHY Intel� I219V � Wake-On-LAN � / (ESD) � 802.3az � UEFI PXE
� 2 x � 1 x PS/2 / � 1 x D-Sub � 1 x HDMI � 1 x DisplayPort 1.4 � 3 x USB 3.2 Gen1 Type-A ESD � 1 x USB 3.2 Gen1 Type-C ESD � 2 x USB 2.0 (ESD) � LED 1 x RJ-45 LAN ACT/LINK LED SPEED
LED � HD : / /
� 4 x SATA3 6.0 Gb/ * * SATA M.2 M2_2 SATA3_3 � 1 x Hyper M.2 (M2_1 M) 2260/2280 PCIe
Gen4x4 (64 Gb/ ) ** � 1 x Ultra M.2 (M2_2 M) 2260/2280
SATA3 6.0 Gb/ & PCIe Gen3x4 (32 Gb/ ) ** ** Intel� OptaneTM (M2_2 ) ** Intel� (VMD) ** NVMe SSD ** ASRock U.2
122
B660M-HDV
RAID
� SATA RAID 0RAID 1RAID 5 RAID 10
� 1 x COM � 1 x SPI TPM � 1 x � 1 x CPU 4 * CPU 1A (12W) CPU
� 1 x CPU/ 4
* CPU/ 2A (24W)
� 2 x / 4
* / 2A (24W)
* CPU_FAN2/WP CHA_FAN1~2/WP 3 4
� 1 x 24 ATX � 1 x 8 12V � 1 x � 2 x USB 2.0 3 USB 2.0
(ESD) � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
(ESD)
BIOS
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVCCIN AUX+1.05V
PROC+0.82V PCH +1.05V PCH
� : CPUCPU/ /
� CPU : CPUCPU/ /
123
OS
� : CPUCPU/ /
� � : CPU Vcore+1.05 PCHDRAMVCCIN AUX
+1.05V PROC+0.82V PCH+12V+5V+3.3V
� Microsoft� Windows� 10 64 /11 64
� FCCCE � ErP/EuP Ready ErP/EuP
* http://www.asrock.com
BIOS
124
B660M-HDV
1.3
CMOS (CLRMOS1) p.1No. 12
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS Clear Status
125
1.4
9 PANEL1 p.1No. 11
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 S5 LED
HDLED LED LED LED
LED LED
126
B660M-HDV
7 SPK_CI1 p.1No. 13
ATA3 : (SATA3_0: p.1No. 8 (SATA3_1: p.1No. 7 : (SATA3_2: p.1No. 9 (SATA3_3: p.1No. 9
SATA3_2
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_3
SATA3_0
4 SATA3 6.0 Gb/s SATA * SATA M.2 M2_2 SATA3_3
USB 2.0 9 USB3_4 p.1No. 16
4 USB5 p.1No. 15
USB 3.2 Gen1 (19 F_USB3_1_2) p.1No. 6
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
2 USB 2.0
1
GND P+0 P-0 USB_PWR
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
1 USB 3.2 Gen1 2
127
9 HD_AUDIO1 p.1No. 18
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC`97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC`97 E. Realtek FrontMic
/ 4 CHA_FAN1/WP p.1No. 4
4 CHA_FAN2/WP p.1No. 14
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
2 4 3 1-3
CPU 4 CPU_FAN1 p.1No. 2
1 2 3 4
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
4 CPU 3 CPU 1-3
128
B660M-HDV
CPU/
FAN_SPEED_CONTROL
CPU_FAN_SPEED
4 CPU_FAN2/WP
FAN_VOLTAGE GND
p.1No. 19
4 4
3 CPU
2 1
3 CPU
1-3
ATX 24 ATXPWR1 p.1No. 5
12
24
ATX 12V 8 ATX12V1 p.1No. 1
1
13
8
5
4
1
24 ATX 20 ATX 1 13
8 ATX12V 4 ATX 1 5
* : CPU PCIe
SPI TPM 13 SPI_TPM_J1 p.1No. 10
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI TPM TPM
129
9 COM1 p.1No. 17
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1
130
B660M-HDV
1
B660M-HDV
BIOS VGA CPU http://www.asrock.com
1.1
� B660M-HDV Micro ATX � B660M-HDV � B660M-HDV � 2 x ATA (SATA) � 3 x M.2 � 1 x I/O
131
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 6 � Intel� Hybrid Technology � Intel� Turbo Boost Max Technology 3.0
� Intel� B660
� DDR4 � 2 x DDR4 DIMM � DDR4 ECC 5066+(OC)* * DDR4 3200 * Memory Support List (http://www.asrock.com/) � ECC UDIMM ECC � 64GB � Intel� Extreme Memory Profile (XMP) 2.0
� 1 x PCIe Gen4x16 * * NVMe SSD � 2 x PCIe Gen3x1 � 1 x M.2 E 2230 WiFi/BT PCIe WiFi
* GPU Intel� UHD Graphics VGA � Intel� Xe (Gen 12) � 3 D-SubHDMI DisplayPort 1.4 � TMDS HDMI 2.160Hz 4K x 2K
(4096x2160) � DisplayPort 1.4DSC 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz � D-Sub60Hz 1920x1200 � HDCP 2.3 TMDS HDMI 2.1 DisplayPort 1.4
132
B660M-HDV
LAN I/O
RAID
� 7.1 CH Realtek ALC897/887 �
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Wake-On-LAN � /ESD � 802.3az � UEFI PXE
� 2 x � 1 x PS/2 / � 1 x D-Sub � 1 x HDMI � 1 x DisplayPort 1.4 � 3 x USB 3.2 Gen1 A ( ESD ) � 1 x USB 3.2 Gen1 Type-C ( ESD ) � 2 x USB 2.0 ESD � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED � : / /
� 4 x SATA3 6.0 Gb/s * * M2_2 SATA M.2 SATA3_3 � 1 x M.2 M2_1Key M, 2260/2280 PCIe
Gen4x4 (64 Gb/s) ** � 1 x M.2 M2_2Key M, 2260/2280 SATA3 6.0
Gb/s PCIe Gen3x4 (32 Gb/s) ** ** Intel� OptaneTM Technology ( M2_2) ** Intel� (VMD) ** NVMe SSD ** U.2
� RAID 0RAID 1RAID 5 RAID 10 SATA
133
� 1 x COM � 1 x SPI TPM � 1 x � 1 x CPU 4 * CPU 1A (12W) CPU � 1 x CPU/ 4 * CPU/ 2A (24W) � 2 x / 4 * / 2A (24W)
* CPU_FAN2/WP CHA_FAN1~2/WP 3 4
� 1 x 24 ATX � 1 x 8 12V � 1 x � 2 x USB 2.0 3 USB 2.0 ESD � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
ESD
BIOS
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVCCIN AUX+1.05V
PROC+0.82V PCH+1.05V PCH
� CPUCPU/ / � CPU CPU
CPU/ / � CPUCPU/ / � CASE OPEN � CPU Vcore+1.05V PCHDRAMVCCIN AUX
+1.05V PROC+0.82V PCH+12V+5V+3.3V
� Microsoft� Windows� 10 64 /11 64
� FCCCE � ErP/EuP ErP/EuP
* http://www.asrock.com
134
B660M-HDV
BIOS ""
135
1.3
"" ""
CMOS (CLRMOS1) 1 12
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS "Clear Status"
136
B660M-HDV
1.4
(9 PANEL1) 1 11
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN:
RESET:
PLED LED: LED S1/S3 LED S4 (S5) LED
HDLED LED: LED LED
LED LED
137
(7 SPK_CI1) 1 13
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_1
ATA3
(SATA3_0: 1 8 (SATA3_1: 1 7 : (SATA3_2: 1 9 (SATA3_3: 1 9
SATA3_2
SATA3_3
SATA3_0
SATA3 6.0 Gb/s SATA * M2_2 SATA M.2 SATA3_3
USB 2.0 9- USB3_4 1 16
4- USB5 1 15
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
2 USB 2.0
1
GND P+0 P-0 USB_PWR
USB 3.2 Gen1 (19 F_USB3_1_2) 1 6
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1
138
B660M-HDV
(9 HD_AUDIO1) 1 18
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET AC'97
E. Realtek "FrontMic" "Recording Volume"
/ 4 CHA_FAN1/WP 1 4
4 CHA_FAN2/WP 1 14
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
4 3 1-3
CPU (4 CPU_FAN1) 1 2
1 2 3 4
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
4 CPU 3 CPU 1-3
139
CPU/ (4 CPU_FAN2/WP) 1 19
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
4
4
3 3 CPU
2 1
1-3
ATX (24 ATXPWR1) 1 5
12
24
24 ATX 20 ATX 1 13
ATX 12V (8 ATX12V1) 1 1
1
13
8
5
4
1
8 ATX 12V 4 ATX 1 5
* : CPU PCIe
SPI TPM 13 SPI_TPM_J1 1 10
SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform Module TPM TPM
(9 COM1) 1 17
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1
140
B660M-HDV
SJ/T 11364-2006 10
(Pb) (Cd) (Hg) (Cr(VI)) (PBB) (PBDE)
XO O
O
O
O
X
O
O
O
O
O
O: SJ/T 11363-2006
X: SJ/T 11363-2006 2002/95/EC :
141
1
B660M-HDV
BIOS VGA CPU http://www.asrock.com
1.1
� B660M-HDV Micro ATX � B660M-HDV � B660M-HDV � 2 x Serial ATA (SATA) � 3 x M.2 � 1 x I/O
142
B660M-HDV
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 6 � Intel� � Intel� Turbo Boost Max 3.0
� Intel� B660
� DDR4 � 2 x DDR4 DIMM � DDR4 ECC 5066+(OC)* * DDR4 3200 * (http:// www.asrock.com/) � ECC UDIMM ( ECC ) � 64GB � Intel� Extreme Memory Profile (XMP) 2.0
� 1 x PCIe Gen4x16 * * NVMe SSD � 2 x PCIe Gen3x1 � 1 x M.2 (Key E) 2230 WiFi/BT PCIe WiFi
* GPU Intel� UHD Graphics Built-in Visuals VGA � Intel� Xe 12 � D-SubHDMI DisplayPort 1.4 � 4K x 2K (4096x2160) @ 60Hz HDMI 2.1
TMDS � DisplayPort 1.4DSC ( ) 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz � 1920x1200 @ 60Hz D-Sub � HDCP 2.3 HDMI 2.1 TMDS DisplayPort 1.4
143
� 7.1 CH HD Realtek ALC897/887 �
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � � � 802.3az EEE � UEFI PXE
I/O
� 2 x � 1 x PS/2 � 1 x D-Sub � 1 x HDMI � 1 x DisplayPort 1.4 � 3 x USB 3.2 Gen1 A � 1 x USB 3.2 Gen1 Type-C � 2 x USB 2.0 � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED
� HD
RAID
� 4 x SATA3 6.0 Gb/s * * M2_2 SATA M.2 SATA3_3 � 1 x Hyper M.2 M2_1Key M 2260/2280 PCIe
Gen4x4 (64 Gb/s) ** � 1 x Ultra M.2 (M2_2Key M) 2260/2280 SATA3
6.0 Gb/s PCIe Gen3x4 (32 Gb/s) ** ** Intel� OptaneTM ( M2_2 ) ** Intel� (VMD) ** NVMe SSD ** U.2
� SATA RAID 0RAID 1RAID 5 RAID 10
144
B660M-HDV
BIOS
� 1 x COM � 1 x SPI TPM � 1 x � 1 x CPU (4-pin) * CPU 1A (12W) CPU � 1 x CPU (4-pin) * CPU 2A (24W) � 2 x (4-pin) * 2A (24W) * CPU_FAN2/WP CHA_FAN1~2/WP 3-pin 4-pin � 1 x 24 pin ATX � 1 x 8 pin 12V � 1 x � 2 x USB 2.0 3 USB 2.0 � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU CPU GTDRAMVCCIN AUX+1.05V
PROC+0.82V PCH+1.05V PCH
� CPUCPU / / � CPU CPU
CPU / / � CPUCPU / /
� � CPU Vcore+1.05V PCHDRAMVCCIN AUX
+1.05V PROC+0.82V PCH+12V+5V+3.3V
� Microsoft� Windows� 10 64 / 11 64
� FCCCE � ErP/EuP Ready ErP/EuP ready
145
* http://www.asrock.com BIOS
146
B660M-HDV
1.3
CMOS (CLRMOS1) 1 12
2-pin
CLRMOS1 CMOS 15 CLRMOS1 pin 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS
147
1.4
(9-pin PANEL1) 1 11
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN ( )
RESET ( )
PLED ( LED) LED S1/S3 LED S4 (S5) LED
HDLED ( LED) LEDLED
LED LED
148
B660M-HDV
(7-pin SPK_CI1) 1 13
Serial ATA3 : (SATA3_0: 1 8 (SATA3_1: 1 7 : (SATA3_2: 1 9 (SATA3_3: 1 9
USB 2.0 (9-pin USB3_4) 1 16
SATA3_1
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
SATA3_0
SATA3 SATA 6.0 Gb/s * M2_2 SATA M.2 SATA3_3
SATA3_3
SATA3_2
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0
(4-pin USB5) 1 15
1
GND P+0 P-0 USB_PWR
USB 3.2 Gen1 (19-pin F_USB3_1_2) 1 6
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1
149
(9-pin HD_AUDIO1) 1 18
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. (Jack Sensing) HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97
E. Realtek FrontMic
(4-pin CHA_FAN1/WP) 1 4
(4-pin CHA_FAN2/WP) 1 14
43 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
4-Pin 3-Pin CPU Pin 1-3
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
CPU (4-pin CPU_FAN1) 1 2
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 234
4-Pin CPU ( ) 3-Pin CPU Pin 1-3
CPU
(4-pin CPU_FAN2/WP) 1 19
FAN_SPEED_CONTROL CPU_FAN_SPEED
FAN_VOLTAGE GND
4-Pin CPU
4
3 3-Pin
2 1
CPU Pin
1-3
150
B660M-HDV
ATX (24-pin ATXPWR1) 1 5
ATX 12V (8-pin ATX12V1) 1 1
12
24
1
13
8
5
4
1
24-pin ATX 20-pin ATX Pin 1 Pin 13
8-pin ATX 12V 4-pin ATX Pin 1 Pin 5
* CPU PCIe
SPI TPM (13-pin SPI_TPM_J1) 1 10
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI (TPM) TPM
(9-pin COM1) 1 17
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1
151
Bahasa Indonesia
Spesifikasi
Platform
� Bentuk dan Ukuran Micro ATX � Desain Kapasitor Solid
CPU
� Mendukung Prosesor Intel� CoreTM Gen ke-12 (LGA1700)
� Desain Digi Power
� Desain 6 Fase Daya
� Mendukung Teknologi Intel� Hybrid
� Mendukung Teknologi Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
Memori
� Teknologi Memori DDR4 Dua Saluran � 2 x Slot DIMM DDR4 � Mendukung memori DDR4 non-ECC, tanpa buffer hingga
5066+(OC)* * Mendukung DDR4 3200 secara native. * Lihat Daftar Dukungan Memori pada situs web ASRock untuk informasi selengkapnya. (http://www.asrock.com/) � Mendukung modul memori ECC UDIMM (berjalan dalam mode
non-ECC) � Kapasitas maksimum memori sistem: 64GB � Mendukung Intel� Extreme Memory Profile (XMP) 2.0
SlotEkspansi
� 1 x slot PCIe Gen4x16* * Mendukung SSD NVMe sebagai disk boot � 2 x slot PCIe Gen3x1 � 1 x Soket M.2 (Kunci E), mendukung modul WiFi tipe 2230 WiFi/
BT PCIe
Grafis
* Intel� UHD Graphics Built-in Visuals dan output VGA hanya didukung dengan prosesor yang terintegrasi GPU. � Arsitektur Grafis Intel� Xe (Gen 12) � Tiga pilihan output grafis: D-Sub, HDMI, dan DisplayPort 1.4 � Mendukung HDMI 2.1 TMDS Kompatibel dengan maks. resolusi
hingga 4K x 2K (4096x2160) @ 60Hz
152
B660M-HDV
Bahasa Indonesia
� Mendukung DisplayPort 1.4 dengan resolusi maks, DSC (terkompresi) hingga 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Mendukung D-Sub dengan resolusi maksimum hingga 1920x1200 @ 60Hz
� Mendukung HDCP 2.3 dengan Port HDMI 2.1 yang Kompatibel dengan TMDS dan DisplayPort 1.4
Audio
� Audio HD 7.1 CH (Realtek ALC897/887 Audio Codec) � Mendukung Perlindungan dari Lonjakan Arus
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Mendukung Wake-On-LAN
� Mendukung Perlindungan dari Petir/ESD
� Mendukung Ethernet 802.3az Hemat Energi
� Mendukung UEFI PXE
I/O Panel Belakang
� 2 x Titik Pemasangan Antena � 1 x Port Mouse/Keyboard PS/2 � 1 x Port D-Sub � 1 x Port HDMI � 1 x DisplayPort 1.4 � 3 x USB 3.2 Gen1 Port Tipe A (Mendukung Perlindungan dari
ESD) � 1 x USB 3.2 Gen1 Port Tipe C (Mendukung Perlindungan dari
ESD) � 2 x Port USB 2.0 (Mendukung Perlindungan dari ESD) � 1 x Port LAN RJ-45 dengan LED (LED ACT/LINK dan LED
SPEED) � Soket Audio HD: Saluran Masuk/Speaker Depan/Mikrofon
Penyimpanan � 4 x Konektor SATA3 6,0 Gb/s* * Jika M2_2 digunakan oleh perangkat SATA tipe M.2, maka SATA3_3 akan dinonaktifkan. � 1 x Soket Hyper M.2 (M2_1, Key M), mendukung PCIe tipe 2260/2280 mode Gen4x4 (64 Gb/s)** � 1 x Soket Ultra M.2 (M2_2, Key M), mendukung SATA3 tipe 2260/2280 6,0 Gb/s & PCIe mode Gen3x4 (32 Gb/s)**
153
Bahasa Indonesia
RAID Konektor
FiturBIOS
** Mendukung Intel� OptaneTM Technology (hanya M2_2) ** Mendukung Intel� Volume Management Device (VMD) ** Mendukung SSD NVMe sebagai disk boot ** Mendukung Kit ASRock U.2
� Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA
� 1 x Header Port COM � 1 x Header SPI TPM � 1 x Intrusi Chassis dan Header Speaker � 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W). � 1 x Konektor Kipas CPU/Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * CPU/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). � 2 x Konektor Sasis/Kipas Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * Chassis/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). * CPU_FAN2/WP dan CHA_FAN1~2/WP dapat mendeteksi otomatis jika kipas 3-pin atau 4-pin sedang digunakan. � 1 x Konektor Daya ATX 24 pin � 1 x Konektor Daya 8 pin 12V � 1 x Konektor Audio Panel Depan � 2 x Header USB 2.0 (Mendukung 3 port USB 2.0) (Mendukung
Perlindungan dari ESD) � 1 x Header USB 3.2 Gen1 (Mendukung 2 port USB 3.2 Gen1)
(Mendukung Perlindungan dari ESD)
� AMI UEFI Legal BIOS dengan dukungan GUI multibahasa � ACPI 6.0 Kompatibel dengan aktivitas pengaktifan � Dukungan SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05V PROC,
+0,82V PCH, Multi penyesuaian Tegangan +1,05V PCH
154
Bahasa Indonesia
B660M-HDV
Perangkat KerasMonitor
� Takometer Kipas: Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kipas Hening (Penyesuaian otomatis kecepatan kipas sasis
berdasarkan suhu CPU): Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kontrol Multikecepatan Kipas: Kipas CPU, CPU/Pompa Air, Sasis/ Pompa Air � Deteksi CASE OPEN � Pemantauan tegangan: CPU Vcore, +1,05V PCH, DRAM, VCCIN AUX, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
OS
� Microsoft� Windows� 10 64-bit / 11 64-bit
Sertifikasi
� FCC, CE � Mendukung ErP/EuP (Memerlukan catu daya untuk ErP/EuP)
* Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com
Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga. Overclocking dapat mempengaruhi stabilitas sistem, atau bahkan mengakibatkan kerusakan komponen dan perangkat sistem. Risiko dan biaya apa pun menjadi tanggungan Anda. Kami tidak bertanggung jawab atas kemungkinan kerusakan karena overclocking.
155
Contact Information
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands Phone: +31-24-345-44-33 Fax: +31-24-345-44-38
ASRock America, Inc. 13848 Magnolia Ave, Chino, CA91710 U.S.A. Phone: +1-909-590-8308 Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product
Product Name : Motherboard Model Number : B660M-HDV Conforms to the following specifications:
FCC Part15, SubpartB,Unintentional Radiators Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name: James
Signature : Date : May 12, 2017
EU Declaration of Conformity
For the following equipment: Motherboard (Product Name)
B660M-HDV / ASRock (Model Designation / Trade Name)
ASRock Incorporation (Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address)
EMC Directive - 2014/30/EU
�EN 55032:2015/A11:2020 �EN 61000-3-2:2014 �EN 61000-3-3:2013
�EN 55024:2010/A1:2015 �EN 55035:2017/A11:2020 �EN 61000-4-2:2009 �EN 61000-4-3:2006/A1:2008/A2:2010 �EN 61000-4-4:2012 �EN 61000-4-5:2014/A1:2017 �EN 61000-4-6:2014/AC:2015 �EN 61000-4-8:2010 �EN 61000-4-11:2004/A1:2017
Low Voltage Directive - 2014/35/EU
�EN 62368-1:2014 �EN 62368-1:2014/A11:2017
RoHS Directive - 2011/65/EU
�(EU) 2015/863�EN 50581:2012
CE marking
(EU conformity marking)
ASRock EUROPE B.V. (Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands (Company Address)
Person responsible for making this declaration:
(Name, Surname) A.V.P (Position / Title) December 3, 2021 (Date)
P/N: 15G062331000AK V1.0
