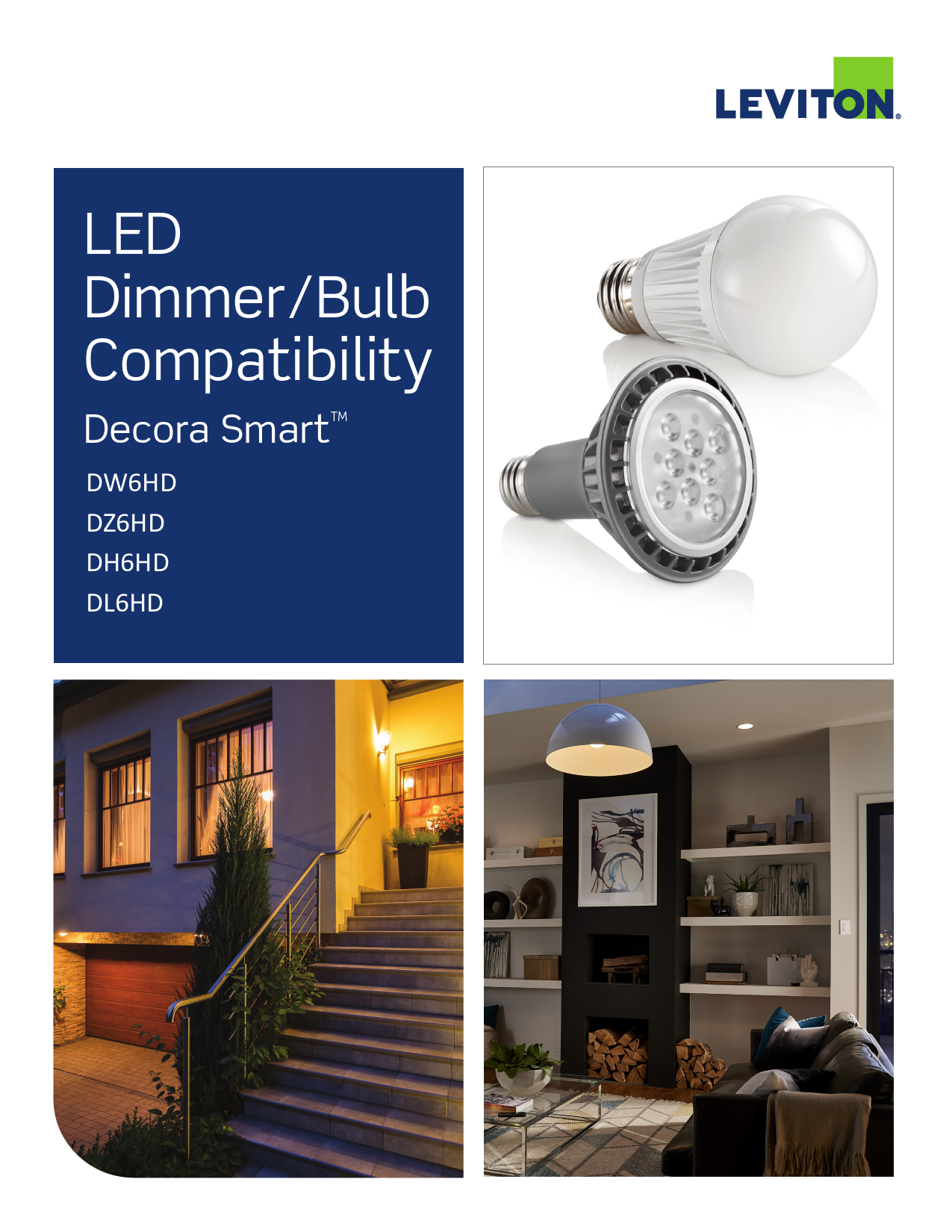

LED Dimmer/Bulb Compatibility
LED Bulb Compatibility Decora Smart™ Dimmers with Wi‐Fi Technology DW6HD, DZ6HD, DH6HD, DL6HD. EcoSmart Halo Cree ConTech Cree ConTech A15 6 in Retrofit 4 in Retrofit Cree A19. B7A19A60WESD14* 9.5 60 Soft White (2400‐29…
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
LED Dimmer/Bulb Compatibility Decora SmartTM DW6HD DZ6HD DH6HD DL6HD Leviton is proud to be a leader in the electrical industry by using the latest technology to develop products that enhance daily living and help save energy. Sharing our knowledge and experience with you is an important part of our brand promise to put our customers at the center of everything we do. This report was developed to help you understand how to best pair today's LED bulbs with Leviton dimmers so you can locate the best combination to meet your lighting needs. LED vs Incandescent Bulbs Incandescent bulbs are rapidly being phased out in favor of longer-lasting, more energy efficient LED bulbs. Because their circuitry is more complex, not all LED bulbs will dim smoothly, and some may present other inconsistencies such as flickering, slow start-up, limited dimming range or inconsistent illumination. Compatibility is Key In order to achieve the best performance, it is important to ensure that the LED bulb and dimmer you select are compatible when used together. Existing dimmers in older homes are likely "Incandescent only" dimmers � installed before LED bulbs became mainstream. Incandescent dimmers are not rated for use with LED bulbs. Leviton recommends only using LED bulbs with dimmers that are rated to control an LED load. Testing for Compatibility Leviton is dedicated to providing our customers with the best experience when using Leviton dimmers. We work closely with LED bulb manufacturers and have a dedicated team in our in-house lab that conducts ongoing testing of the latest LED bulbs/fixtures with our LED dimmers to determine the best combinations. This test program is designed to meet or exceed the latest testing criteria for evaluating performance of LED bulbs with Leviton dimmers. We measure a number of factors including dimming range and irregular functionality such as flickering or shimmering, slow start up, noise (humming/buzzing) levels and inconsistent illumination. The testing is ongoing and results are updated regularly in our user friendly LED Compatibility Selector Tool available at Leviton.com/led. Understanding the Rating System Our ratings will help you determine which bulbs/fixtures have been tested and approved as compatible with Leviton LED dimmers. All results listed within this report are deemed compatible. The bulbs that display an asterisk (*) after the model# are those that had exceptional performance and compatibility beyond our criteria. LED Bulb Compatibility Decora SmartTM Dimmers with Wi-Fi Technology DW6HD, DZ6HD, DH6HD, DL6HD Bulb Type Bulb Manufacturer Model # 4 in Retrofit 6 in Retrofit A15 A19 ConTech Cree ConTech Cree EcoSmart Halo Lithonia EcoSmart Amazon Basic Cree RF4L130KCG-WHT* RF4L127KCG-PL* RF4L127KCG-WHT* RF4L130KCE-PL* RF4L130KCE-WHT* RF4L130KCG-PL* SRDL4-0572700FH-12DE26-1-11* SRDL4-0575000FH-12DE26-1* TRDL4-0782700FH50-12DE26-1-11* TRDL4-0784000FH50-12DE26-1-11004S-D* RF6L127KCE-WHT RF6L127KCE-PL RF6L127KCG-PL RF6L127KCG-WHT SRDL6-0652700FH-12DE26-1-11* SRDL6-0655000FH-12DE26-1-11* TRDL6-0802700FH50-12DE26-1-11004S-D* TRDL6-1102700FH50-12DE26-1-11* TRDL6-1602700FH50-12DE26-1-11* TRDL6-0804000FH50-12DE26-1-11004S-D* TRDL6-1104000FH50-12DE26-1-11004S-D* TRDL6-1604000FH50-12DE26-1-11004S-D* DL-N34A9ER1-27 LT560WH6930 LT560WH6927 LT560WH6935* LT560WH6940* LT560WH6950* 65BEMW* ECS A15 40WE W27 120 G1 A15 6.5W E26 DIM 2700K* B01MTO11GI* SA19-04627MDFD-12DE26-1-14* SA19-04650MDFD-12DE26-1-14* SA19-08127MDFD-12DE26-1-14* SA19-08150MDFD-12DE26-1-14* SA19-11027MDFD-12DE26-1-11* SA19-11050MDFD12DE26-1-11* TA19-04527MDFH25- 12DE26-1-12* TA19-04550MDFH25-12DE26-1-12* TA19-08027MDFH25-12DE26-1-12014S-D* TA19-08050MDFH25-12DE26-1-12* TA19-11027MDFH25-12DE26-1-11007S-D* TA19-11050MDFH25-12DE26-1-11* TA19-11030MDFH25-12DE26-1-11007S-D* A19-75W-P1-27K-E26-U1* A19-75W-P1-30K-E26-U1* A19-75W-P1-50K-E26-U1* TA19-04530MDFH25-12DE26-1-12014S-D* A19-40W-P1-27K-E26-U1* A19-40W-P1-30K-E26-U1* A19-40W-P1-50K-E26-U1* TA19-08030MDFH25-12DE26-1-12014S-D* A19-60W-P1-27K-E26-U1* A19-60W-P1-30K-E26-U1* A19-60W-P1-40K-E26-U1* A19-60W-P1-50K-E26-U1* Wattage 12 12 12 12 12 12 8 8 10.5 10.5 15 15 15 15 10 10 11 14.5 21 11 14.5 21 9 10 9.5 9.6 10.3 9.5 12.1 4 6.5 6 5.5 5.3 9.5 8.5 10.2 10.2 5.5 5.5 10 10 12 12 12 12 12 12 5.5 5.5 5.5 5.5 10 10 10 10 10 Equivalent Wattage 60 60 60 60 60 60 55 55 75 75 75 75 75 75 65 65 75 100 150 75 100 150 65 65 65 65 65 65 65 40 60 40 40 40 60 60 75 75 40 40 60 60 75 75 75 75 75 75 40 40 40 40 60 60 60 60 60 Color/Temperature (K) Bright White (3000-3499K) Soft White (2400-2999K) Soft White (2400-2999K) Bright White (3000-3499K) Bright White (3000-3499K) Bright White (3000-3499K) Daylight (4500-6500K) Daylight (4500-6500K) Soft White (2400-2999K) Cool White (3500-4499K) Soft White (2400-2999K) Soft White (2400-2999K) Soft White (2400-2999K) Bright White (3000-3499K) Soft White (2400-2999K) Daylight (4500-6500K) Soft White (2400-2999K) Soft White (2400-2999K) Soft White (2400-2999K) Cool White (3500-4499K) Cool White (3500-4499K) Cool White (3500-4499K) Warm White (2000-2399K) Bright White (3000-3499K) Soft White (2400-2999K) Cool White (3500-4499K) Cool White (3500-4499K) Daylight (4500-6500K) Warm White (2000-2399K) Soft White (2400-2999K) Warm White (2000-2399K) Daylight (4500-6500K) Soft White (2400-2999K) Soft White (2400-2999K) Soft White (2400-2999K) Daylight (4500-6500K) Daylight (4500-6500K) Daylight (4500-6500K) Soft White (2400-2999K) Daylight (4500-6500K) Soft White (2400-2999K) Daylight (4500-6500K) Soft White (2400-2999K) Daylight (4500-6500K) Soft White (2400-2999K) Soft White (2400-2999K) Bright White (3000-3499K) Daylight (4500-6500K) Bright White (3000-3499K) Soft White (2400-2999K) Bright White (3000-3499K) Daylight (4500-6500K) Bright White (3000-3499K) Soft White (2400-2999K) Bright White (3000-3499K) Cool White (3500-4499K) Daylight (4500-6500K) A19 A21 B11 BR20 BR30 EcoSmart Satco Amazon Basic EcoSmart Cree EcoSmart EcoSmart Cree EcoSmart B7A19A60WESD14* ECS A19 40WE W27 FIL 120 3PK* A7A19A60WESQD01* B6A19100WESD03 C5A19A75WESD04* A19G 5.5W E26 DIM 2200K A19 6.5 E26 DIM 2700K A6A1960WESD81* B6A19100WESD01* A7A19A75WESD09 A8A19A60WESGD03 A8A19A60WESD01* A7A19A75WESD08 B7A19A60WESD11 B7A19A60WESD02 B7A19A60WESD34 A7A19A75WESD07 S29842* S29804* S29810* S29811* S29812* S29813* S29814* S29815* S29816* S29817* S29818* s29831* S29830* S29832* S29834* B01MXLSK5W* A21 11W E26 DIM 2700K* TB11-01827MDCH15-12DE12-1-12 TB11-01850MDCH15-12DE12-1-12 TB11-03527MDCH15-12DE12-1-12 TB11-03550MDCH15-12DE12-1-12 TB11-05027MDCH15-12DE12-1-12 TB11-05050MDCH15-12DE12-1-12 B11-25W-P1-27K-E12-U1 B11-25W-P1-50K-E12-U1 B11-40W-P1-27K-E12-U1 B11-40W-P1-50K-E12-U1 B11-60W-P1-27K-E12-U1 B11-60W-P1-50K-E12-U1 ECS B11 CA 40WE W27 LP E12 120 3PK B1160WDLE123P ECS B1160WE850DIME12FR3PKBL ECS B1160WE827DIME12FR3PKBL 1003020502 1003020802 1003020602 D-BR30-65WE-2700K* SBR30-06527FLFD-12DE26-1-13 SBR30-06550FLFD-12DE26-1* SBR30-06550FLFD-12DE26-1-13* 1003024203 1003025902* 1003024702* 1003024102* 1003024802 A7BR3065WESD05 1002878652 1002878703* 1003028503 1003028602 9.5 60 Soft White (2400-2999K) 4.5 40 Soft White (2400-2999K) 7.5 60 Soft White (2400-2999K) 15 100 Bright White (3000-3499K) 12.5 75 Soft White (2400-2999K) 5.5 60 Warm White (2000-2399K) 6.5 60 Warm White (2000-2399K) 9 60 Warm White (2000-2399K) 15 100 Warm White (2000-2399K) 13 75 Warm White (2000-2399K) 7.5 60 Warm White (2000-2399K) 8 60 Warm White (2000-2399K) 13 75 Warm White (2000-2399K) 9.5 60 Soft White (2400-2999K) 9.5 60 Bright White (3000-3499K) 9.5 60 Daylight (4500-6500K) 13 75 Warm White (2000-2399K) 9.8 60 Cool White (3500-4499K) 11 75 Cool White (3500-4499K) 11 75 Soft White (2400-2999K) 11 75 Bright White (3000-3499K) 11 75 Cool White (3500-4499K) 11 75 Daylight (4500-6500K) 11 75 Soft White (2400-2999K) 15 100 Soft White (2400-2999K) 15 100 Bright White (3000-3499K) 15 100 Cool White (3500-4499K) 15 100 Daylight (4500-6500K) 6 40 Bright White (3000-3499K) 6 40 Soft White (2400-2999K) 6 40 Cool White (3500-4499K) 6 40 Daylight (4500-6500K) 15 100 Soft White (2400-2999K) 11 90 Warm White (2000-2399K) 2.6 25 Soft White (2400-2999K) 2.6 25 Daylight (4500-6500K) 4 40 Soft White (2400-2999K) 4 40 Daylight (4500-6500K) 5.3 60 Soft White (2400-2999K) 5.3 60 Daylight (4500-6500K) 2.6 25 Soft White (2400-2999K) 2.6 25 Daylight (4500-6500K) 4 40 Soft White (2400-2999K) 4 40 Daylight (4500-6500K) 5.3 60 Soft White (2400-2999K) 5.3 60 Daylight (4500-6500K) 4 40 Soft White (2400-2999K) 6 60 Daylight (4500-6500K) 5.5 60 Warm White (2000-2399K) 5.5 60 Warm White (2000-2399K) 12 75 Warm White (2000-2399K) 12 75 Warm White (2000-2399K) 12 75 Warm White (2000-2399K) 8.5 65 Soft White (2400-2999K) 8 65 Soft White (2400-2999K) 7 65 Daylight (4500-6500K) 7 65 Daylight (4500-6500K) 10.5 65 Warm White (2000-2399K) 12.5 75 Warm White (2000-2399K) 12.5 75 Warm White (2000-2399K) 12.5 75 Warm White (2000-2399K) 12.5 75 Warm White (2000-2399K) 8 65 Warm White (2000-2399K) 9 65 Soft White (2400-2999K) 9 65 Daylight (4500-6500K) 9 65 Soft White (2400-2999K) 9 65 Bright White (3000-3499K) BR30 BR40 C35 Downlight G16.5 G25 PAR16 PAR20 PAR30 EcoSmart GE Satco EcoSmart Satco EcoSmart Cree EcoSmart EcoSmart EcoSmart EcoSmart GE EcoSmart GE 1003028703* 1001655218 1001654525* 1001654247* LED9DR30/7-5KLT6* LED9DR30/15-LT6* LED9DR30/155KL12* LED9DR30/15-5KL6* LED9DR30/15-LT12 S9620* S9621* S9622* S9623* 1003028802 1003028902 1003029002 S9640 S9639* S9638 S9641 S9615* CL35G 4.5W E26 L DIM 2200K* C35C 4.5W E12 L DIM* C35C 4.5W E26 L DIM C35C 4.5W E12 DIM C35C 4.5W E26 DIM* CR6T-825L-27K-12-E26GU24* CR6T-825L-30K-12-E26GU24* CR6T-825L-35K-12-E26GU24* CR6T-825L-40K-12-E26GU24* CR4T-790L-27K-12-E26GU24* CR4T-790L-30K-12-E26GU24* CR4T-790L-35K-12-E26GU24* CR4T-790L-40K-12-E26GU24* CR6T-1100L-27K-12-E26GU24* CR6T-1100L-30K-12-E26GU24* CR6T-1100L-35K-12-E26GU24* CR6T-1100L-40K-12-E26GU24* CR6T-1600L-27K-12-E26GU24* CR6T-1600L-30K-12-E26GU24* CR6T-1600L-35K-12-E26GU24* CR6T-1600L-40K-12-E26GU24* ECS G16.560WE827DIME12FR3PKBL G25 7W L E26 DIM FG-03147 FG-03146 A6GU10M50WESD02 A6PR16M50WESD02 A6PR20P50WESD03* A6PR20P50WESD02* LED7DP20GFL-LT2* LED7DP20GFL5KLT2 LED7DP20GFLRVLT2 LED7DP20GSP-LT2 LED7DP20SP3K7LT2 A7PR30S75WESD02* A6PR30P75WESD03 B7PR38P100ESD12* LED12DP3LGFLRVL2* LED12DP30GFLRVL2* LED10DP3LGFL-LT2 LED10DP30GFL5KL2 LED10DP30GFL-LT2* LED10DP3LGFL5KL2* LED11DP3LGSP-LT2 LED11DP30GSP-LT2 9 65 Daylight (4500-6500K) 9 65 Soft White (2400-2999K) 9 65 Bright White (3000-3499K) 9 65 Daylight (4500-6500K) 8.5 65 Soft White (2400-2999K) 8.5 65 Daylight (4500-6500K) 8.5 65 Daylight (4500-6500K) 8.5 65 Soft White (2400-2999K) 8.5 65 Soft White (2400-2999K) 9.5 65 Soft White (2400-2999K) 9.5 65 Bright White (3000-3499K) 9.5 65 Cool White (3500-4499K) 9.5 65 Daylight (4500-6500K) 13 75 Soft White (2400-2999K) 13 75 Bright White (3000-3499K) 13 75 Daylight (4500-6500K) 16.5 85 Cool White (3500-4499K) 16.5 85 Bright White (3000-3499K) 16.5 85 Soft White (2400-2999K) 16.5 85 Daylight (4500-6500K) 16.5 85 Soft White (2400-2999K) 4.5 40 Warm White (2000-2399K) 4.5 60 Warm White (2000-2399K) 4.5 60 Warm White (2000-2399K) 4.5 40 Warm White (2000-2399K) 4.5 40 Warm White (2000-2399K) 11 75 Soft White (2400-2999K) 11 75 Bright White (3000-3499K) 11 75 Cool White (3500-4499K) 11 75 Cool White (3500-4499K) 10.5 75 Soft White (2400-2999K) 10.5 75 Bright White (3000-3499K) 10.5 75 Cool White (3500-4499K) 10.5 75 Cool White (3500-4499K) 14.5 100 Soft White (2400-2999K) 14.5 100 Bright White (3000-3499K) 14.5 100 Cool White (3500-4499K) 14.5 100 Cool White (3500-4499K) 21 150 Soft White (2400-2999K) 21 150 Bright White (3000-3499K) 21 150 Cool White (3500-4499K) 21 150 Cool White (3500-4499K) 5.5 60 Warm White (2000-2399K) 7 100 Warm White (2000-2399K) 4 40 Warm White (2000-2399K) 4 40 Warm White (2000-2399K) 5.3 50 Warm White (2000-2399K) 5.3 50 Warm White (2000-2399K) 6.5 50 Daylight (4500-6500K) 6.5 50 Warm White (2000-2399K) 7 50 Bright White (3000-3499K) 7 50 Daylight (4500-6500K) 7 50 Bright White (3000-3499K) 7 50 Soft White (2400-2999K) 7 50 Bright White (3000-3499K) 8 75 Warm White (2000-2399K) 8 75 Warm White (2000-2399K) 13 90 Warm White (2000-2399K) 12 75 Soft White (2400-2999K) 12 75 Soft White (2400-2999K) 10 75 Bright White (3000-3499K) 10 75 Daylight (4500-6500K) 10 75 Bright White (3000-3499K) 10 75 Daylight (4500-6500K) 11 75 Bright White (3000-3499K) 11 75 Bright White (3000-3499K) PAR30 PAR38 R20 R30 ST19 Megaman Satco Amazon Basic Cree EcoSmart GE Megaman Satco EcoSmart Satco GE EcoSmart LR5210.5DDG-WFL-E26-27K LR5210.5DDG-WFL-E26-40K LR5510.5DDG-WFL-E26-30K LR5510.5DDG-WFL-E26-35K* LR5510.5DDG-WFL-E26-27K LR5210.5DDG-WFL-E26-30K* LR5210.5DDG-WFL-E26-35K* S9415* S9416* S9417* S9418* S9419* B079VMHM76* B079VP1G43* TPAR38-1503025FH25-12DE26-1-11* TPAR38-1503040FH25-12DE26-1-11003S-T* TPAR38-1803040FH25-12DE26-1-11* TPAR38-1504040FH25-12DE26-1-11003S-T* A6PR38P90WESD02 B7PR38P100ESD11 B7PR38P100ESD21* LED13DP38GFL-LT4 LED15DP38GSP-LT2 LR3218D-250H45D-E26-35K* LR3218D-250H45D-E26-30K* LR3218D-250H25D-E26-27K* S9442* 1003017802 1003028202 1003028402 S9614* S9630* S9631* S9632* S9633* LED10DR30EG9SWL2* LED10DR30EG9DLL2* LED10DR30EG9DLL6* LED10DR30EG9SWL6 ST19G 5.5W L E26 DIM 2200K* FG-03120 FG-03121 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 10.5 75 Soft White (2400-2999K) 13 50 Soft White (2400-2999K) 13 50 Bright White (3000-3499K) 13 50 Cool White (3500-4499K) 13 50 Cool White (3500-4499K) 13 50 Daylight (4500-6500K) 14 90 Bright White (3000-3499K) 16 120 Bright White (3000-3499K) 19 120 Bright White (3000-3499K) 19 120 Bright White (3000-3499K) 19 150 Bright White (3000-3499K) 19 120 Cool White (3500-4499K) 11 90 Warm White (2000-2399K) 13 90 Warm White (2000-2399K) 13 90 Warm White (2000-2399K) 13 90 Bright White (3000-3499K) 15 90 Bright White (3000-3499K) 18 250 Cool White (3500-4499K) 18 250 Bright White (3000-3499K) 18 250 Soft White (2400-2999K) 15 90 Cool White (3500-4499K) 8 50 Daylight (4500-6500K) 7 50 Soft White (2400-2999K) 7 50 Daylight (4500-6500K) 6.5 50 Soft White (2400-2999K) 6.5 50 Soft White (2400-2999K) 6.5 50 Bright White (3000-3499K) 6.5 50 Cool White (3500-4499K) 6.5 50 Daylight (4500-6500K) 10 65 Soft White (2400-2999K) 10 65 Daylight (4500-6500K) 10 65 Daylight (4500-6500K) 10 65 Soft White (2400-2999K) 5.5 60 Warm White (2000-2399K) 3.2 40 Warm White (2000-2399K) 3.2 40 Warm White (2000-2399K) * The bulbs that display an asterisk (*) after the model# have exceptional performance and compatibility beyond our criteria.
