ACA-35-1000
Rev: 062917 Blonder Tongue is ISO 9001:2015 Certified Features • One-Way Operation 40 to 1000 MHz • Discrete Push-Pull Amplifier Stages • Built-in Variable Gain Control
ACA-35-1000 - Blonder Tongue
2021-06-10 — The ACA-35-1000 is an economical 1 GHz indoor broadband distribution amplifier, designed for RF distribution systems, such as apartment complexes, ...
See Blonder Tongue 5470 Manual/Specs (PDF)
Blonder Tongue ACA-35-1000 35dB Apartment Complex Push-Pull RF Distribution Amplifier
Extracted Text

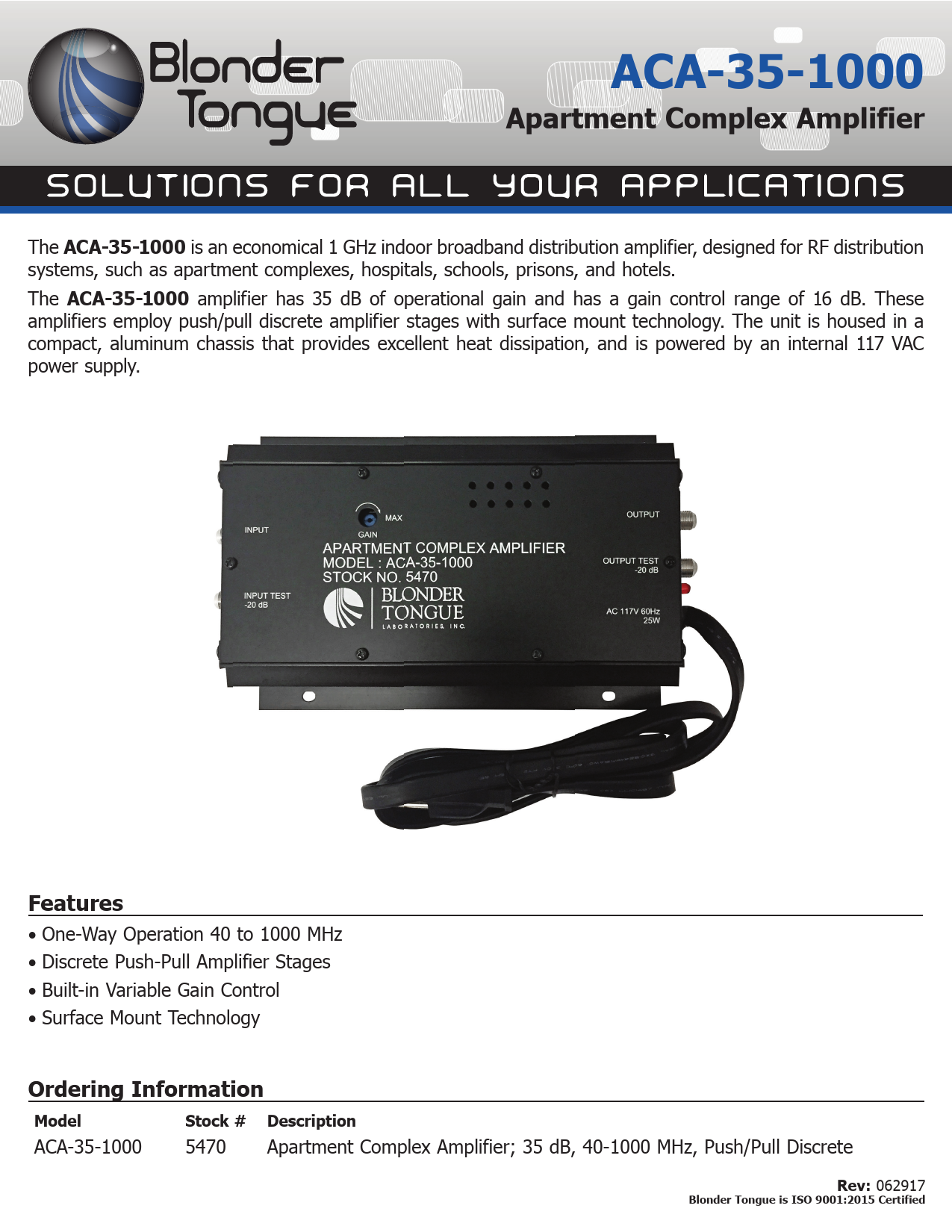

ACA-35-1000 Apartment Complex Amplifier The ACA-35-1000 is an economical 1 GHz indoor broadband distribution amplifier, designed for RF distribution systems, such as apartment complexes, hospitals, schools, prisons, and hotels. The ACA-35-1000 amplifier has 35 dB of operational gain and has a gain control range of 16 dB. These amplifiers employ push/pull discrete amplifier stages with surface mount technology. The unit is housed in a compact, aluminum chassis that provides excellent heat dissipation, and is powered by an internal 117 VAC power supply. Features � One-Way Operation 40 to 1000 MHz � Discrete Push-Pull Amplifier Stages � Built-in Variable Gain Control � Surface Mount Technology Ordering Information Model ACA-35-1000 Stock # Description 5470 Apartment Complex Amplifier; 35 dB, 40-1000 MHz, Push/Pull Discrete Rev: 062917 Blonder Tongue is ISO 9001:2015 Certified Specifications RF Frequency Range: Channel Loading: Flatness: Gain: Noise Figure (a): Output Level: Input Test Port Level: Output Test Port Level: Gain Control Range: Composite Triple Beat - CTB (b): Cross Modulation - XMOD (b): Second Order (b): Hum Modulation: Impedance - All Ports: Return Loss Input: Output: 40-1000 MHz 70 �1.00 dB 35 dB 11 dB +30/+40 dBmV -20, �2 dB -20, �2 dB 18 dB -66 dB -65 dB -66 dB -65 dB 75 Ohm 12 dB 10 dB (a) Measured at full gain with 0 dB slope. (b) At rated output capability and channel loading. Indicators/Controls (Top Panel) Power ON: Red LED Gain: Control Power Requirements Voltage: 117, �10% VAC 16 VAC Frequency: 60 Hz Power: 15 W Connectors RF Input: "F", Female RF Output: "F", Female Output Test Port: "F", Female General Dimensions (W x D x H): Weight: Operating Temperature: Storage Temperature: Operating Humidity: Storage Humidity: 7.25 x 6.00 x 1.75 inches (184 x 152 x 44 mm) 3.63 lbs (1.65 kg) 32 to 122 �F (0 to 50 �C) -13 to 158 �F (-25 to 70 �C) 0 to 95% RH @ 35 �C max, non-condensing 0 to 95% RH @ 35 �C max, non-condensing Related Products Model Stock # ACA-30-550 ACA-30-55R ACA-30-75R 5450 5750 5770 Description Apartment Complex Amplifier; 30 dB, 47-550 MHz Apartment Complex Amplifier; 30 dB, 47-550 MHz, Passive Return, Single Hybrid Apartment Complex Amplifier; 30 dB, 47-750 MHz, Passive Return, Dual Hybrid Blonder Tongue Laboratories, Inc. � One Jake Brown Road, Old Bridge, NJ 08857 � USA � 800-523-6049 � www.blondertongue.com �2017 Blonder Tongue Laboratories, Inc. All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
