AXISM5525–EPTZNetworkCamera Camera Imagesensor 1/2.8”progressivescanCMOS Lens 4.7–47mm,F1.6–3.0 Horizontalfieldofview:61.8°–6.7° Verticalfieldofview:37.2°–3.8° Autofocus,auto-iris Dayandnight Automaticallyremovableinfrared-cutfilter Minimum

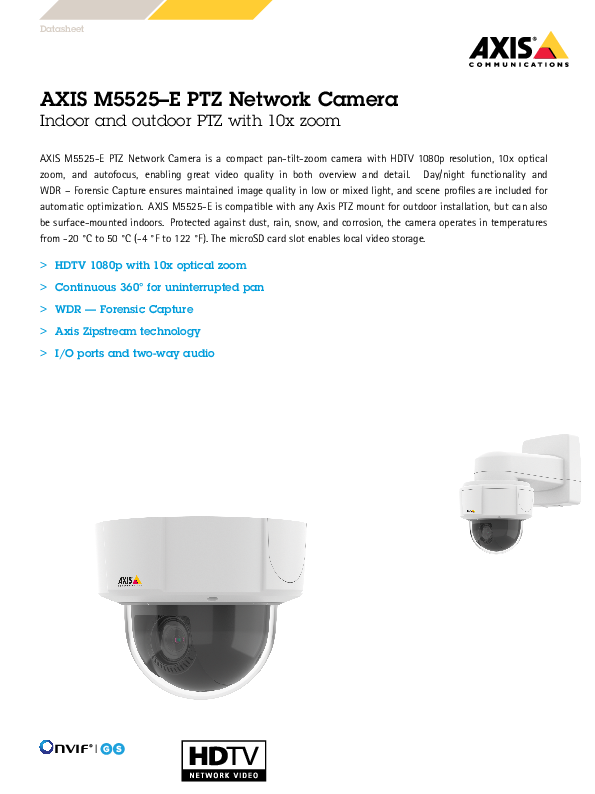

Datasheet AXIS M5525E PTZ Network Camera Indoor and outdoor PTZ with 10x zoom AXIS M5525-E PTZ Network Camera is a compact pan-tilt-zoom camera with HDTV 1080p resolution, 10x optical zoom, and autofocus, enabling great video quality in both overview and detail. Day/night functionality and WDR Forensic Capture ensures maintained image quality in low or mixed light, and scene profiles are included for automatic optimization. AXIS M5525-E is compatible with any Axis PTZ mount for outdoor installation, but can also be surface-mounted indoors. Protected against dust, rain, snow, and corrosion, the camera operates in temperatures from -20 °C to 50 °C (-4 °F to 122 °F). The microSD card slot enables local video storage. > HDTV 1080p with 10x optical zoom > Continuous 360° for uninterrupted pan > WDR -- Forensic Capture > Axis Zipstream technology > I/O ports and two-way audio www.axis.com AXIS M5525E PTZ Network Camera T10104238/EN/M4.2/1902 Camera Image sensor 1/2.8" progressive scan CMOS Lens 4.747 mm, F1.63.0 Horizontal field of view: 61.8°6.7° Vertical field of view: 37.2°3.8° Autofocus, auto-iris Day and night Automatically removable infrared-cut filter Minimum illumination Color: 0.45 lux at 30 IRE F1.6 B/W: 0.01 lux at 30 IRE F1.6 Color: 0.55 lux at 50 IRE F1.6 B/W: 0.01 lux at 50 IRE F1.6 Shutter time 1/66500 s to 2 s Pan/Tilt/Zoom Pan: 360° endless, 1.8°150°/s Tilt: 90°,1.8°150°/s 10x optical zoom, 12x digital zoom, total 120x zoom Nadir flip, 100 preset positions, limited guard tour, control queue, on-screen directional indicator Video Video compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG Resolution 1920x1080 to 320x180 Frame rate Up to 25/30 fps with power line frequency 50/60 Hz Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 Image settings Saturation, brightness, sharpness, WDR forensic capture, white balance, exposure mode, exposure zones, compression, text and image overlay, 20 individual 3D privacy masks, contrast, scene profiles, image freeze on PTZ, local contrast, max shutter, max gain, noise/motion priority, aperture lock, exposure level, rotation: 0°, 180° Audio Audio streaming Two-way, full duplex Audio compression AAC-LC 8/16/32 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate Audio input/output External microphone input or line input, line output Network Security Supported protocols Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management, Brute force delay protection IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP System integration Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org Analytics Included AXIS Video Motion Detection, audio detection, advanced gatekeeper Supported AXIS Cross Line Detection, AXIS Guard Suite including AXIS Fence Guard, AXIS Motion Guard and AXIS Loitering Guard Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap Event triggers Analytics, edge storage events Detectors: day/night mode, live stream accessed, audio detection Hardware: network, temperature Input Signal: digital input port, manual trigger, virtual inputs PTZ: error, moving, preset reached, ready Storage: disruption, recording System: system ready Event actions Data streaming Built-in installation aids General Casing Sustainability Memory Power Connectors Storage Operating conditions Storage conditions Approvals Dimensions Weight Included accessories Optional accessories Video management software Languages Warranty Time: recurrence, use schedule Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP, and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, play audio clip, external output activation, WDR mode Event data Pixel counter IP66-, NEMA 4X- and IK09-rated Repaintable plastic casing, polycarbonate (PC) dome PVC free 512 MB RAM, 256 MB Flash Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 6.6 W, max 12.95 W 2028 V DC, typical 6.3 W, max 13 W (PoE midspan and power supply not included) RJ45 10BASE-T/100BASE-TX PoE DC input terminal block I/O: 6pin terminal block with push-in spring connection for four configurable inputs/outputs Audio: mic/line in, line out terminal block with push-in spring connection Support for microSD/SDHC/SDXC card (not included) Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com -20 °C to 50 °C (-4 °F to 122 °F) Humidity 15100% RH (condensing) -40 °C to 65 °C (-40 °F to 149 °F) EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 6100062, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35 Safety IEC/EN/UL 623681, IEC/EN/UL 60950-22, IS 13252 Environment IEC 60068-227, IEC 6006826, IEC/EN 60529 IP66, IEC/EN 62262 IK09 Network NIST SP500267 Height: 132 mm (5.2 in), ø 165 mm (6.5 in) 1.1 kg (2.4 lb) Recessed mount (plenum rated): 1.0 kg (2.2 lb) Conduit adapter 3/4", smoked dome, adapter bayonette Installation Guide, Windows® decoder 1-user license AXIS T91 Mounting Accessories, AXIS T94P01L Recessed Mount Kit AXIS Companion, AXIS Camera Station, video management software from Axis' Application Development Partners available at axis.com/vms English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese Axis 3-year warranty and AXIS Extended Warranty option, see axis.com/warranty a. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com). Environmental responsibility: axis.com/environmental-responsibility ©2017 - 2019 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, and VAPIX are registered trademarks or trademark applications of Axis AB in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right to introduce modifications without notice.Arbortext Publishing Engine PDFlib PDI 9.0.3p4 (Win32)
