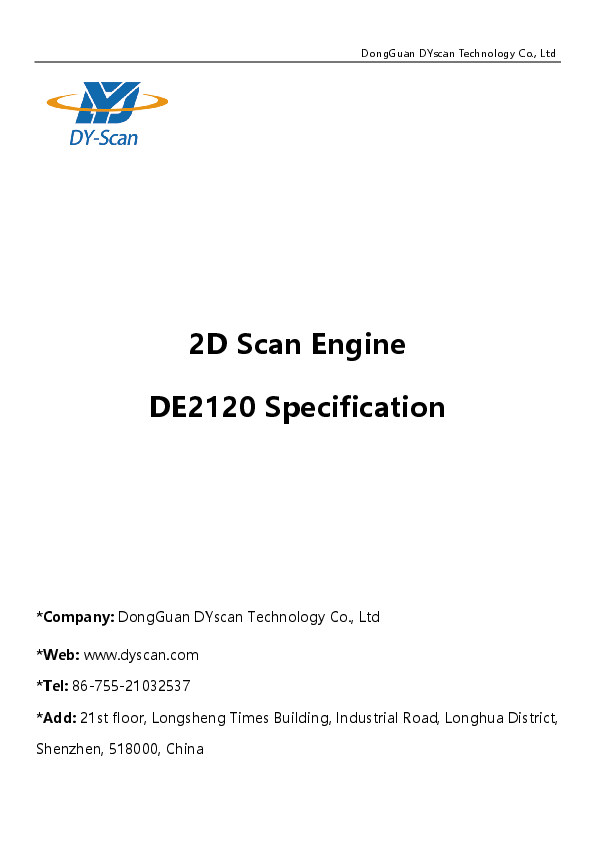

2D Scan Engine DE2120 Specification
Manual ,Continuous, Auto Sense, command control. Scan angle. Test
Depth of field. 25mm-400mm. Scan Mode. Manual ,Continuous, Auto Sense, command control. Scan angle. Test Conditions：CODE39,10mil/0.25mm,PCS90 %.
DE2120 Specification
Manual ,Continuous, Auto Sense, command control. Scan angle. Test ConditionsCODE39,10mil/0.25mm,PCS90%.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
DongGuan DYscan Technology Co., Ltd 2D Scan Engine DE2120 Specification *Company: DongGuan DYscan Technology Co., Ltd *Web: www.dyscan.com *Tel: 86-755-21032537 *Add: 21st floor, Longsheng Times Building, Industrial Road, Longhua District, Shenzhen, 518000, China DE2110 2D Scan Engine Table of Contents Product Description ........................................................................................................................................... 3 Features ..................................................................................................................................................................... 4 Application ............................................................................................................................................................... 4 Mounting .................................................................................................................................................................. 5 Host Interface Connector..................................................................................................................................... 6 Cable Interface ........................................................................................................................................................ 7 Performance ............................................................................................................................................................ 8 Physical Parameter................................................................................................................................................. 9 Environmental ......................................................................................................................................................... 9 Accessories List ..................................................................................................................................................... 10 Depth of field......................................................................................................................................................... 10 2 / 10 www.dyscan.com DE2110 2D Scan Engine Product Description DE2120 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system. It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc. 3 / 10 www.dyscan.com DE2110 2D Scan Engine Features Mini size, widely used in wireless machine, self-service terminal. Read all mainstream 1D 2D barcodes in the market easily. (4mil) Support USB barcode information transmission. ( languages customization) High brightness, dark environment scanning, low power consumption. Interface: USB, TTL. Support multiple systems and languages, secondary development. Application Lockers Medical research Lottery machines Queuing calling equipment Microcontroller development Mobile coupons, tickets Mobile payment barcode scanning Self-service terminals Self-service vending machines 4 / 10 www.dyscan.com DE2110 2D Scan Engine Mounting The illustrations below show the mechanical mounting dimensions for the DE2120. The structural design should leave some space between components. Front Viewunitmm Top Viewunitmm 5 / 10 www.dyscan.com DE2110 2D Scan Engine Host Interface Connector The following table lists the pin functions of the ffc 12pin pitch 0.5,host interface connector on the DE2120 PIN# Signal 1 - 2 VCC 3 GND 4 RXD 5 TXD 6 D- 7 D+ 8 - 9 BUZ LED 10 11 TRIG 12 Type P P Input Output Input/Output Input/Output Output Output Input Definition N/A Power supply 3.3 Ground TTL-RS232 receive TTL-RS232 send USB D- signal USB D+ signal N/A Buzzer Output, free Low level Decoding LED input signal, low level instruction reading codes sNu/cAcessfully. Trigger pin, keep low power level can trigger decoding. 6 / 10 www.dyscan.com DE2110 2D Scan Engine Cable Interface DE2120 scanner must be connected with terminals, PC host, POS and Android host etc. USB TTL/RS232 7 / 10 www.dyscan.com DE2110 2D Scan Engine Performance Scan Type CMOS Light Source Red Light LED 625�10nmaim), 5600K LEDs Lighting) CPU 32-bit Resolution 640*480 Reading precision 4mil/0.1mm(PCS90%,Code 39) Decoding speed 25CM/S Depth of field 25mm-400mm Scan Mode Manual ,Continuous, Auto Sense, command control Scan angle Test ConditionsCODE39,10mil/0.25mm,PCS90% Pitch:�45� Roll: �360� Skew: �40� Print Contrast Signal 25% Ambient Light Dark environment, indoor natural light Symbologies 1DUPC-AUPC-EEAN-8EAN-13Code 128 GS1-128 Code 39Code 93Code 11Interleaved 2 of 5Matrix 2 of 5Industrial 2 of 5Strande 2 of 5, CodabarNW-7MSI PlesseyGS1 Databar(RSS)China Postetc. 2D: QR Code, Data MatrixPDF417Micro PDF 417, Aztec, etc. 8 / 10 www.dyscan.com DE2110 2D Scan Engine Physical Parameter Weight Dimension Communication M Intoedreface Type Power Supply <4g (L)16.0mm * (W)21.2mm *(H)12.0mm USB(USB-KBWUSB-COMTTL FFC 12PIN Pitch 0.5 DC 3.3V <190mA(Work Environmental Operating -20 to 50 tSetmorpaegreature tHeummpiedriatyture Drop Height -40 to 70 5% to 95%non-condensing 1.2m Temp. Test 30 minutes for high Temp., 30 minutes for low Temp., High Temp. 60 Low Temp. -20 Transport 10H@125RPM vibration Test 9 / 10 www.dyscan.com DE2110 2D Scan Engine Accessories List CableOptional USB Cable, used to connect the DE2120 to a host device. RS232 Cable, used to connect the DE2120 to a host device, with USB supply cable. Test boardOptional With trigger button and buzzer, it has USB or RS232 output function. Power Adaptor Output: DC5V 1A, input: AC100~240V 50~60Hzserial port optional). Depth of field Barcode Precision near far Code 39 0.1mm(4mil) 30mm 70mm Code 39 0.127mm(5mil) 25mm 100mm Code 39 0.5mm(20mil) 45mm 250mm Code 39 1mm(40mil) 110mm 400mm EAN-13 0.33mm(13mil) 50mm 200mm QR Code 20.0mil 30mm 210mm Data Matrix 10mil 45mm 75mm PDF 417 6.8mil 25mm 100mm Test ConditionT=25Illumination=200LUXPCS=0.9 10 / 10 www.dyscan.com
