FAN MANUAL STOP ALLOWED is 1. REG USERMODE HOLIDAY AIRFLOW LEVEL EAF I Holding Register (Function 03/06/16) 1144 0 3 Fan speed level for mode Holiday.0: Off(1) 1: Minimum2: Low3: Normal.(1): value Off only allowed if contents of register REG FAN MANUAL STOP ALLOWED is 1. REG USERMODE COOKERHOOD AIRFLOW LEVEL SAF I Holding Register (Function ...
12 Active User mode.0: Auto1: Manual2: Crowded3: Refresh4: Fireplace5: Away6: Holiday7: Cooker Hood8: Vacuum Cleaner9: CDI110: CDI211: CDI312: PressureGuard.
211243). For Modbus/TCP connection over TCP/IP using Internet Access Module refer to the IAM quick guide. ... user modes and Week schedule).0: Manual ... 2021. 120. 400. Minimum temperature set point for the. SATC.

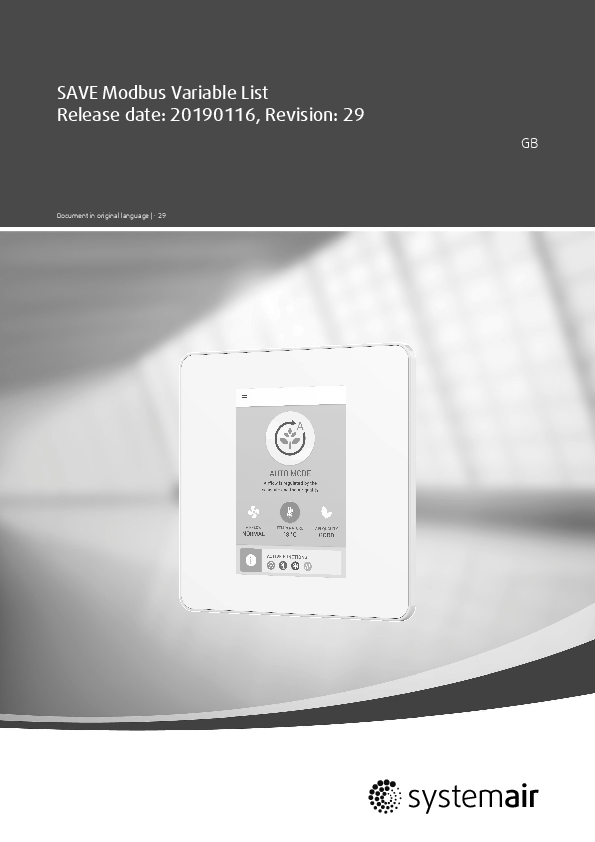

SAVE Modbus Variable List Release date: 20190116, Revision: 29 GB Document in original language | · 29 © Copyright Systemair UAB All rights reserved E&OE Systemair UAB reserves the rights to change their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service. | 29 Contents 1 Information....................................................1 1.1 Physical layer ........................................1 1.2 Transmission modes ...............................1 2 Modbus variable list .........................................1 2.1 Demand Control .....................................1 2.2 User modes ..........................................2 2.3 Airflow Control ......................................5 2.4 Outdoor Airflow Compensation .................8 2.5 Temperature Control ...............................8 2.6 Cooler..................................................9 2.7 Heater .................................................9 2.8 Extra Controller ......................................9 2.9 Change-over (Heating/Cooling)............... 10 2.10 Moisture transfer control........................ 10 2.11 Cooling recovery .................................. 10 2.12 ECO mode........................................... 10 2.13 Free Cooling ........................................ 11 2.14 Week Schedule .................................... 11 2.15 Time and Date ..................................... 14 2.16 Filter replacement ................................ 14 2.17 Analog Input values (Temperatures, CO2, RH) ............................................ 15 2.18 Digital Input functions............................ 16 2.19 Output values ...................................... 17 2.20 Alarms ............................................... 17 2.21 System settings ................................... 21 2.22 Modbus ............................................. 22 2.23 Unit Backups ....................................... 22 3 Revision table............................................... 22 | 29 Information | 1 1 Information Modbus is a serial communication protocol used for transmitting information over serial lines between electronic devices. The device requesting the information is called "Master", while devices supplying the requested information are "Slaves". When it comes to planning data communication for open, multi-vendor industrial control systems, Modbus is the first choice of end users and integrators alike. The Modbus/RTU protocol defines how a "master" device polls one or more "slave" devices to read and write data in real time by means of RS232, RS422, or RS485 serial data communication. Modbus/TCP, an extension of Modbus/RTU, defines how Modbus/RTU and Modbus/ASCII messages are encoded within and transported over TCP/IP-based networks. Modbus/TCP is just as simple to implement and flexible to apply as the original Modbus/RTU. 1.1 Physical layer New Systemair controls have standard and readily available Modbus/RTU over three-wire (A, B and GND) RS485 on the Connection Board (CB) and Modbus/TCP over TCP/IP using Internet Access Module (available as an accessory - Art. No. 211243). For Modbus/TCP connection over TCP/IP using Internet Access Module refer to the IAM quick guide. Slave address: 1 to 247 Baud rate: 9600 to 115200 Parity: None, Even, Odd Stop bits: 1 (fixed) Parameters can be changed in Modbus page (Service -> Communication -> Modbus) in the Control Panel. 1.2 Transmission modes The registers are Input registers (read-only) and Holding registers (read-write) when using Modbus/RTU and Holding registers (read-write) when using Modbus/TCP. All registers are 16 bit Integers. Table 1 Signal types used Unsigned Integers I Signed Integers I* Table 2 Register types used Input Registers Holding registers 16-bit quantity, Analog Input Register provided by an I/O system, read-only, Modbus Function 04 16-bit quantity, analog output HR alterable by an application program, read-write , Modbus function 03 / 06 / 16 2 Modbus variable list Tables below provides an extensive list of Modbus variables used in SAVE system grouped according to the functionality the variables are related to. 2.1 Demand Control Symbolic register name REG_DEMC_RH_HIGHEST REG_DEMC_CO2_HIGHEST REG_DEMC_RH_PI_SP REG_DEMC_RH_PI_FEEDBACK REG_DEMC_RH_PI_OUTPUT Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 1001 0 100 Highest value of all RH sensors (Function 04) I Read Input Register 1002 0 2000 Highest value of all CO2 sensors (Function 04) I Read Input Register 1011 0 100 Set point for RH demand control (Function 04) I Read Input Register 1012 0 100 Sensor value for RH demand control (Function 04) I Read Input Register 1019 (Function 04) Output value for RH demand control.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow | 29 2 | Modbus variable list Symbolic register name REG_DEMC_CO2_PI_SP REG_DEMC_CO2_PI_FEEDBACK REG_DEMC_CO2_PI_OUTPUT REG_DEMC_RH_SETTINGS_PBAND REG_DEMC_RH_SETTINGS_SP_SUMMER REG_DEMC_RH_SETTINGS_SP_WINTER REG_DEMC_RH_SETTINGS_ON_OFF REG_SUMMER_WINTER REG_DEMC_CO2_SETTINGS_PBAND REG_DEMC_CO2_SETTINGS_SP REG_DEMC_CO2_SETTINGS_ON_OFF REG_IAQ_SPEED_LEVEL_MIN REG_IAQ_SPEED_LEVEL_MAX REG_IAQ_LEVEL Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Read Input Register 1021 0 2000 Set point for CO2 demand control (Function 04) I Read Input Register 1022 0 2000 Sensor value for CO2 demand control (Function 04) I Read Input Register 1029 (Function 04) Output value for CO2 demand control(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow I Holding Register 1031 1 (Function 03/06/16) 100 Pband setting for RH demand control I Holding Register 1033 10 100 Set point setting for RH demand control (Function 03/06/16) during (temperature based) winter time I Holding Register 1034 10 100 Set point setting for RH demand control (Function 03/06/16) during (temperature based) summer time I Holding Register 1035 0 (Function 03/06/16) 1 Flag indicating if RH demand control is allowed I Read Input Register 1039 0 (Function 04) 1 Actual seasson for Demand Control0: Summer1: Winter I Holding Register 1041 50 2000 Pband setting for CO2 demand control (Function 03/06/16) I Holding Register 1043 100 2000 Set point setting for CO2 demand control (Function 03/06/16) I Holding Register 1044 0 (Function 03/06/16) 1 Flag indicating if CO2 demand control is allowed I Holding Register 1121 2 (Function 03/06/16) 3 Minimum level for Demand Control2: Low3: Normal I Holding Register 1122 3 (Function 03/06/16) 5 Maximum level for user Demand Control3: Normal4: High5: Maximum I Read Input Register 1123 0 (Function 04) 2 Actual IAQ level:0: Economic1: Good2: Improving 2.2 User modes Symbolic register name REG_USERMODE_HOLIDAY_TIME Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 1101 1 365 Time delay setting for user mode Holiday (Function 03/06/16) REG_USERMODE_AWAY_TIME I Holding Register 1102 1 (Function 03/06/16) 72 Time delay setting for user mode Away REG_USERMODE_FIREPLACE_TIME I Holding Register 1103 1 (Function 03/06/16) 60 Time delay setting for user mode Fire Place REG_USERMODE_REFRESH_TIME I Holding Register 1104 1 240 Time delay setting for user mode Refresh (Function 03/06/16) REG_USERMODE_CROWDED_TIME I Holding Register 1105 1 (Function 03/06/16) 8 Time delay setting for user mode Crowded REG_USERMODE_REMAINING_TIME_L I Read Input Register 1111 (Function 04) Remaining time for the state Holiday/ Away/Fire Place/Refresh/Crowded REG_USERMODE_REMAINING_TIME_H I Read Input Register 1112 (Function 04) Remaining time for the state Holiday/ Away/Fire Place/Refresh/Crowded REG_USERMODE_CROWDED_AIRFLOW_ LEVEL_SAF I Holding Register 1135 3 (Function 03/06/16) 5 Fan speed level for mode Crowded3: Normal4: High5: Maximum REG_USERMODE_CROWDED_AIRFLOW_ LEVEL_EAF I Holding Register 1136 3 (Function 03/06/16) 5 Fan speed level for mode Crowded3: Normal4: High5: Maximum REG_USERMODE_REFRESH_AIRFLOW_ LEVEL_SAF I Holding Register 1137 3 (Function 03/06/16) 5 Fan speed level for mode Refresh3: Normal4: High5: Maximum REG_USERMODE_REFRESH_AIRFLOW_ LEVEL_EAF I Holding Register 1138 3 (Function 03/06/16) 5 Fan speed level for mode Refresh3: Normal4: High5: Maximum REG_USERMODE_FIREPLACE_AIRFLOW_ I Holding Register 1139 3 LEVEL_SAF (Function 03/06/16) 5 Fan speed level for mode Fire Place3: Normal4: High5: Maximum | 29 Modbus variable list | 3 Symbolic register name REG_USERMODE_FIREPLACE_AIRFLOW_ LEVEL_EAF REG_USERMODE_AWAY_AIRFLOW_ LEVEL_SAF REG_USERMODE_AWAY_AIRFLOW_ LEVEL_EAF REG_USERMODE_HOLIDAY_AIRFLOW_ LEVEL_SAF REG_USERMODE_HOLIDAY_AIRFLOW_ LEVEL_EAF REG_USERMODE_COOKERHOOD_ AIRFLOW_LEVEL_SAF REG_USERMODE_COOKERHOOD_ AIRFLOW_LEVEL_EAF REG_USERMODE_VACUUMCLEANER_ AIRFLOW_LEVEL_SAF REG_USERMODE_VACUUMCLEANER_ AIRFLOW_LEVEL_EAF REG_USERMODE_CROWDED_T_OFFSET REG_USERMODE_MODE REG_USERMODE_HMI_CHANGE_ REQUEST REG_CDI_1_AIRFLOW_LEVEL_SAF REG_CDI_1_AIRFLOW_LEVEL_EAF REG_CDI_2_AIRFLOW_LEVEL_SAF REG_CDI_2_AIRFLOW_LEVEL_EAF REG_CDI_3_AIRFLOW_LEVEL_SAF REG_CDI_3_AIRFLOW_LEVEL_EAF REG_PRESSURE_GUARD_AIRFLOW_ LEVEL_SAF REG_PRESSURE_GUARD_AIRFLOW_ LEVEL_EAF REG_SENSOR_DI_AWAY REG_SENSOR_DI_HOLIDAY REG_SENSOR_DI_FIREPLACE Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 1140 1 (Function 03/06/16) 3 Fan speed level for mode Fire Place1: Minimum2: Low3: Normal I Holding Register 1141 0 (Function 03/06/16) 3 Fan speed level for mode Away.0: Off(1)1: Minimum2: Low3: Normal.(1): value Off only allowed if contents of register REG_ FAN_MANUAL_STOP_ALLOWED is 1. I Holding Register 1142 0 (Function 03/06/16) 3 Fan speed level for mode Away.0: Off(1)1: Minimum2: Low3: Normal.(1): value Off only allowed if contents of register REG_ FAN_MANUAL_STOP_ALLOWED is 1. I Holding Register 1143 0 (Function 03/06/16) 3 Fan speed level for mode Holiday.0: Off(1) 1: Minimum2: Low3: Normal.(1): value Off only allowed if contents of register REG_ FAN_MANUAL_STOP_ALLOWED is 1. I Holding Register 1144 0 (Function 03/06/16) 3 Fan speed level for mode Holiday.0: Off(1) 1: Minimum2: Low3: Normal.(1): value Off only allowed if contents of register REG_ FAN_MANUAL_STOP_ALLOWED is 1. I Holding Register 1145 1 (Function 03/06/16) 5 Fan speed level for mode Cooker Hood2: Low3: Normal4: High I Holding Register 1146 1 (Function 03/06/16) 5 Fan speed level for mode Cooker Hood1: Minimum2: Low3: Normal I Holding Register 1147 1 (Function 03/06/16) 5 Fan speed level for mode Vacuum Cleaner2: Low3: Normal4: High I Holding Register 1148 1 (Function 03/06/16) 5 Fan speed level for mode Vacuum Cleaner1: Minimum2: Low3: Normal I* Holding Register 1151 -100 0 Temperature setpoint offset for user mode (Function 03/06/16) Crowded I Read Input Register 1161 0 (Function 04) I Holding Register 1162 0 (Function 03/06/16) 12 Active User mode.0: Auto1: Manual2: Crowded3: Refresh4: Fireplace5: Away6: Holiday7: Cooker Hood8: Vacuum Cleaner9: CDI110: CDI211: CDI312: PressureGuard 7 New desired user mode as requested by HMI0: None1: AUTO2: Manual 3: Crowded4: Refresh5: Fireplace6: Away7: Holiday I Holding Register 1171 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 1.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1172 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 1.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1173 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 2.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1174 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 2.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1175 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 3.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1176 0 (Function 03/06/16) 5 Fan speed level for configurable digital input 3.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1177 0 (Function 03/06/16) 5 Fan speed level for configurable pressure guard function.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Holding Register 1178 0 (Function 03/06/16) 5 Fan speed level for configurable pressure guard function.0: Off1: Minimum2: Low3: Normal4: High5: Maximum I Read Input Register 12301 0 (Function 04) 1 Value of physical Digital Input of Away function I Read Input Register 12302 0 (Function 04) 1 Value of physical Digital Input of Holiday function I Read Input Register 12303 0 (Function 04) 1 Value of physical Digital Input of Fireplace function | 29 4 | Modbus variable list Symbolic register name REG_SENSOR_DI_REHRESH Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Read Input Register 12304 0 (Function 04) 1 Value of physical Digital Input of Refresh function REG_SENSOR_DI_CROWDED I Read Input Register 12305 0 (Function 04) 1 Value of physical Digital Input of Crowded function REG_SENSOR_DI_COOKERHOOD I Read Input Register 12306 0 (Function 04) 1 Value of physical Digital Input of Cookerhood function REG_SENSOR_DI_VACUUMCLEANER I Read Input Register 12307 0 (Function 04) 1 Value of physical Digital Input of Vacuum Cleaner function REG_USERMODE_HOLIDAY_DI_OFF_ DELAY I Holding Register 1181 0 365 Off delay for DI (Function 03/06/16) REG_USERMODE_AWAY_DI_OFF_DELAY I Holding Register 1182 0 (Function 03/06/16) 72 Off delay for DI REG_USERMODE_FIRPLACE_DI_OFF_ DELAY I Holding Register 1183 0 (Function 03/06/16) 60 Off delay for DI REG_USERMODE_REFRESH_DI_OFF_ DELAY I Holding Register 1184 0 240 Off delay for DI (Function 03/06/16) REG_USERMODE_CROWDED_DI_OFF_ DELAY I Holding Register 1185 0 (Function 03/06/16) 8 Off delay for DI REG_CDI1_OFF_DELAY I Holding Register 1188 0 240 Off delay for DI (Function 03/06/16) REG_CDI2_OFF_DELAY I Holding Register 1189 0 240 Off delay for DI (Function 03/06/16) REG_CDI3_OFF_DELAY I Holding Register 1190 0 240 Off delay for DI (Function 03/06/16) REG_SPEED_CDI1_SAF I Read Input Register 1221 (Function 04) SAF speed value for user mode Holiday.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_CDI1_EAF I Read Input Register 1222 (Function 04) EAF speed value for user mode Holiday.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_CDI2_SAF I Read Input Register 1223 (Function 04) SAF speed value for mode Cooker Hood.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_CDI2_EAF I Read Input Register 1224 (Function 04) EAF speed value for mode Cooker Hood.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_CDI3_SAF I Read Input Register 1225 (Function 04) SAF speed value for mode Vacuum Cleaner. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_CDI3_EAF I Read Input Register 1226 (Function 04) EAF speed value for mode Vacuum Cleaner. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_PRESSURE_GUARD_SAF I Read Input Register 1227 (Function 04) SAF speed value for low fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_SPEED_PRESSURE_GUARD_EAF I Read Input Register 1228 (Function 04) EAF speed value for low fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow REG_USERMODE_REMAINING_TIME_ CDI1_L I Read Input Register 1621 (Function 04) Remaining time REG_USERMODE_REMAINING_TIME_ CDI1_H I Read Input Register 1622 (Function 04) REG_USERMODE_REMAINING_TIME_ CDI2_L I Read Input Register 1623 (Function 04) Remaining time REG_USERMODE_REMAINING_TIME_ CDI2_H I Read Input Register 1624 (Function 04) REG_USERMODE_REMAINING_TIME_ CDI3_L I Read Input Register 1625 (Function 04) Remaining time REG_USERMODE_REMAINING_TIME_ CDI3_H I Read Input Register 1626 (Function 04) REG_FUNCTION_ACTIVE_PRESSURE_ GUARD I Read Input Register 3114 0 (Function 04) 1 Indicates if function is active | 29 Symbolic register name REG_FUNCTION_ACTIVE_CDI_1 REG_FUNCTION_ACTIVE_CDI_2 REG_FUNCTION_ACTIVE_CDI_3 REG_SENSOR_DI_PRESSURE_GUARD REG_SENSOR_DI_CDI_1 REG_SENSOR_DI_CDI_2 REG_SENSOR_DI_CDI_3 Modbus variable list | 5 Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Read Input Register 3115 0 (Function 04) 1 Indicates if function is active I Read Input Register 3116 0 (Function 04) 1 Indicates if function is active I Read Input Register 3117 0 (Function 04) 1 Indicates if function is active I Read Input Register 12316 0 (Function 04) 1 Indicates if physical DI is active I Read Input Register 12317 0 (Function 04) 1 Indicates if physical DI is active I Read Input Register 12318 0 (Function 04) 1 Indicates if physical DI is active I Read Input Register 12319 0 (Function 04) 1 Indicates if physical DI is active 2.3 Airflow Control Symbolic register name REG_SENSOR_RPM_SAF REG_SENSOR_RPM_EAF REG_SYSTEM_UNIT_FLOW REG_SYSTEM_UNIT_PRESSURE REG_MANUAL_OVERRIDE_OUTPUT_SAF REG_MANUAL_OVERRIDE_OUTPUT_EAF REG_MANUAL_OVERRIDE_OUTPUT_ SAF_VALUE REG_MANUAL_OVERRIDE_OUTPUT_ EAF_VALUE REG_USERMODE_MANUAL_AIRFLOW_ LEVEL_SAF REG_USERMODE_MANUAL_AIRFLOW_ LEVEL_EAF REG_FAN_MANUAL_STOP_ALLOWED REG_FAN_REGULATION_UNIT REG_SPEED_FANS_RUNNING REG_SPEED_SAF_DESIRED_OFF REG_FAN_LEVEL_SAF_MIN REG_FAN_LEVEL_EAF_MIN REG_FAN_LEVEL_SAF_LOW Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 12401 0 5000 Supply Air Fan RPM indication from TACHO (Function 04) I Read Input Register 12402 0 5000 Extract Air Fan RPM indication from TACHO (Function 04) I Holding Register 9001 0 (Function 03/06/16) 2 Unit for CAV control mode.0: l/s1: m3/h2: cfm I Holding Register 9002 0 (Function 03/06/16) 1 Units for VAV control mode.0: Pa1: InH2O I Holding Register 13601 0 (Function 03/06/16) 1 SAF Override.0: Auto1: Manual I Holding Register 13602 0 (Function 03/06/16) 1 EAF Override.0: Auto1: Manual I Holding Register 13801 0 (Function 03/06/16) 100 SAF Override value in % if manual (1) selected I Holding Register 13802 0 (Function 03/06/16) 100 EAF override value in % if manual (1) selected I Holding Register 1131 1 (Function 03/06/16) 4 Fan speed level for mode Manual, supply fan.(1): value Off only allowed if contents of register 1352 is 1.(1): Off2: Low3: Normal4: High I Holding Register 1132 2 (Function 03/06/16) 4 Fan speed level for mode Manual, extract fan.2: Low3: Normal4: High I Holding Register 1353 0 (Function 03/06/16) 1 Allow manual fan stop (also as selection for user modes and Week schedule).0: Manual stop not allowed1: Manual stop allowed I Holding Register 1274 0 (Function 03/06/16) 4 Type of fan control mode.0: Manual1: RPM2: VAV (Constant Pressure)3: CAV (Constant Flow)4: DCV (External) I Read Input Register 1351 0 (Function 04) 1 Indicates that both fans are running I Read Input Register 1352 0 (Function 04) 1 Indicates that the SAF shall be turned off once the electrical reheater is cooled down. I Read Input Register 1301 (Function 04) SAF speed value for minimum fan speed. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow I Read Input Register 1302 (Function 04) EAF speed value for minimum fan speed. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow I Read Input Register 1303 (Function 04) SAF speed value for low fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow | 29 6 | Modbus variable list Symbolic register name REG_FAN_LEVEL_EAF_LOW REG_FAN_LEVEL_SAF_NORMAL REG_FAN_LEVEL_EAF_NORMAL REG_FAN_LEVEL_SAF_HIGH REG_FAN_LEVEL_EAF_HIGH REG_FAN_LEVEL_SAF_MAX REG_FAN_LEVEL_EAF_MAX REG_FAN_LEVEL_SAF_MIN_ PERCENTAGE REG_FAN_LEVEL_EAF_MIN_ PERCENTAGE REG_FAN_LEVEL_SAF_LOW_ PERCENTAGE REG_FAN_LEVEL_EAF_LOW_ PERCENTAGE REG_FAN_LEVEL_SAF_NORMAL_ PERCENTAGE REG_FAN_LEVEL_EAF_NORMAL_ PERCENTAGE REG_FAN_LEVEL_SAF_HIGH_ PERCENTAGE REG_FAN_LEVEL_EAF_HIGH_ PERCENTAGE REG_FAN_LEVEL_SAF_MAX_ PERCENTAGE REG_FAN_LEVEL_EAF_MAX_ PERCENTAGE REG_FAN_LEVEL_SAF_MIN_RPM REG_FAN_LEVEL_EAF_MIN_RPM REG_FAN_LEVEL_SAF_LOW_RPM REG_FAN_LEVEL_EAF_LOW_RPM REG_FAN_LEVEL_SAF_NORMAL_RPM REG_FAN_LEVEL_EAF_NORMAL_RPM REG_FAN_LEVEL_SAF_HIGH_RPM REG_FAN_LEVEL_EAF_HIGH_RPM REG_FAN_LEVEL_SAF_MAX_RPM REG_FAN_LEVEL_EAF_MAX_RPM Sig. Modbus Reg. type I Read Input Register (Function 04) I Read Input Register (Function 04) I Read Input Register (Function 04) I Read Input Register (Function 04) I Read Input Register (Function 04) I Read Input Register (Function 04) I Read Input Register (Function 04) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) I Holding Register (Function 03/06/16) Modbus Adr. 1304 1305 1306 1307 1308 1309 1310 1401 1402 1403 1404 1405 1406 1407 1408 1409 1410 1411 1412 1413 1414 1415 1416 1417 1418 1419 1420 Min Max Description EAF speed value for low fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow SAF speed value for normal fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow EAF speed value for normal fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow SAF speed value for high fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow EAF speed value for high fan speed.(1): Depends on regulation type. Value can be %, RPM, Pressure or Flow SAF speed value for maximum fan speed. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow EAF speed value for maximum fan speed. (1): Depends on regulation type. Value can be %, RPM, Pressure or Flow 16 100 SAF speed value for minimum fan speed 16 100 EAF speed value for minimum fan speed 16 100 SAF speed value for low fan speed 16 100 EAF speed value for low fan speed 16 100 SAF speed value for normal fan speed 16 100 EAF speed value for normal fan speed 16 100 SAF speed value for high fan speed 16 100 EAF speed value for high fan speed 16 100 SAF speed value for maximum fan speed 16 100 EAF speed value for maximum fan speed 500 5000 SAF speed value for minimum fan speed 500 5000 EAF speed value for minimum fan speed 500 5000 SAF speed value for low fan speed 500 5000 EAF speed value for low fan speed 500 5000 SAF speed value for normal fan speed 500 5000 EAF speed value for normal fan speed 500 5000 SAF speed value for high fan speed 500 5000 EAF speed value for high fan speed 500 5000 SAF speed value for maximum fan speed 500 5000 EAF speed value for maximum fan speed | 29 Modbus variable list | 7 Symbolic register name REG_FAN_LEVEL_SAF_MIN_PRESSURE REG_FAN_LEVEL_EAF_MIN_PRESSURE REG_FAN_LEVEL_SAF_LOW_PRESSURE REG_FAN_LEVEL_EAF_LOW_PRESSURE REG_FAN_LEVEL_SAF_NORMAL_ PRESSURE REG_FAN_LEVEL_EAF_NORMAL_ PRESSURE REG_FAN_LEVEL_SAF_HIGH_PRESSURE REG_FAN_LEVEL_EAF_HIGH_PRESSURE REG_FAN_LEVEL_SAF_MAX_PRESSURE REG_FAN_LEVEL_EAF_MAX_PRESSURE REG_FAN_LEVEL_SAF_MIN_FLOW REG_FAN_LEVEL_EAF_MIN_FLOW REG_FAN_LEVEL_SAF_LOW_FLOW REG_FAN_LEVEL_EAF_LOW_FLOW REG_FAN_LEVEL_SAF_NORMAL_FLOW REG_FAN_LEVEL_EAF_NORMAL_FLOW REG_FAN_LEVEL_SAF_HIGH_FLOW REG_FAN_LEVEL_EAF_HIGH_FLOW REG_FAN_LEVEL_SAF_MAX_FLOW REG_FAN_LEVEL_EAF_MAX_FLOW REG_INPUT_EXTERNAL_CTRL_SAF REG_INPUT_EXTERNAL_CTRL_EAF REG_OUTPUT_SAF REG_OUTPUT_EAF REG_OUTPUT_FAN_SPEED1 REG_OUTPUT_FAN_SPEED2 Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 1421 (Function 03/06/16) SAF speed value for minimum fan speed I Holding Register 1422 (Function 03/06/16) EAF speed value for minimum fan speed I Holding Register 1423 (Function 03/06/16) SAF speed value for low fan speed I Holding Register 1424 (Function 03/06/16) EAF speed value for low fan speed I Holding Register 1425 (Function 03/06/16) SAF speed value for normal fan speed I Holding Register 1426 (Function 03/06/16) EAF speed value for normal fan speed I Holding Register 1427 (Function 03/06/16) SAF speed value for high fan speed I Holding Register 1428 (Function 03/06/16) EAF speed value for high fan speed I Holding Register 1429 (Function 03/06/16) SAF speed value for maximum fan speed I Holding Register 1430 (Function 03/06/16) EAF speed value for maximum fan speed I Holding Register 1431 (Function 03/06/16) SAF speed value for minimum fan speed I Holding Register 1432 (Function 03/06/16) EAF speed value for minimum fan speed I Holding Register 1433 (Function 03/06/16) SAF speed value for low fan speed I Holding Register 1434 (Function 03/06/16) EAF speed value for low fan speed I Holding Register 1435 (Function 03/06/16) SAF speed value for normal fan speed I Holding Register 1436 (Function 03/06/16) EAF speed value for normal fan speed I Holding Register 1437 (Function 03/06/16) SAF speed value for high fan speed I Holding Register 1438 (Function 03/06/16) EAF speed value for high fan speed I Holding Register 1439 (Function 03/06/16) SAF speed value for maximum fan speed I Holding Register 1440 (Function 03/06/16) EAF speed value for maximum fan speed I Read Input Register 2101 0 100 Value from External Controller Input, SAF. In (Function 04) %. I Read Input Register 2102 0 100 Value from External Controller Input, EAF. In (Function 04) %. I Read Input Register 14001 0 100 SAF fan speed (Function 04) I Read Input Register 14002 0 100 EAF fan speed (Function 04) I Read Input Register 14371 0 100 Supply air fan control signal in % (Function 04) I Read Input Register 14372 0 100 Extract air fan control signal in % (Function 04) | 29 8 | Modbus variable list 2.4 Outdoor Airflow Compensation Symbolic register name Sig. REG_FAN_OUTDOOR_COMP_TYPE I REG_FAN_OUTDOOR_COMP_MAX_ I VALUE REG_FAN_OUTDOOR_COMP_STOP_T_ I* WINTER REG_FAN_OUTDOOR_COMP_MAX_TEMP I* REG_FAN_OUTDOOR_COMP_START_T_ I WINTER REG_FAN_OUTDOOR_COMP_START_T_ I SUMMER REG_FAN_OUTDOOR_COMP_STOP_T_ I SUMMER REG_FAN_OUTDOOR_COMP_VALUE_ I SUMMER Modbus Reg. type Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Holding Register (Function 03/06/16) Modbus Adr. 1251 1252 1253 1254 1256 1257 1258 1259 Min 0 0 -300 -300 -300 150 150 0 Max Description 1 Compensate only SF or both SF and EF0: SAF1: SAF/EAF 50 Compensation value at lowest temperature. 0 Temperature at which compensation reaches maximum value during the winter period. 0 Temperature at which highest compensation is applied. 0 Temperature at which compensation starts during the winter period. 300 Temperature at which compensation starts during the summer period. 400 Temperature at which compensation reaches maximum value during the summer period. 50 Compensation value during summer period 2.5 Temperature Control Symbolic register name REG_SYSTEM_UNIT_TEMPERATURE REG_TC_CONTROL_MODE REG_TC_SP REG_TC_SP_SATC REG_TC_CASCADE_SP REG_TC_ROOM_CTRL_SP_SATC REG_TC_CASCADE_SP_MIN REG_TC_CASCADE_SP_MAX REG_TC_EAT_RAT_SP REG_SATC_HEAT_DEMAND REG_SATC_PI_SP REG_SATC_PI_OUTPUT REG_ROOM_CTRL_PI_SP REG_ROOM_CTRL_PI_OUTPUT Sig. Modbus Reg. type Modbus Adr. I Holding Register 9003 (Function 03/06/16) I Holding Register 2031 (Function 03/06/16) I* Holding Register 2001 (Function 03/06/16) I* Read Input Register 2054 (Function 04) I* Holding Register 2013 (Function 03/06/16) I* Read Input Register 2053 (Function 04) I* Holding Register 2021 (Function 03/06/16) I* Holding Register 2022 (Function 03/06/16) I* Read Input Register 2051 (Function 04) I Read Input Register 2055 (Function 04) I* Read Input Register 2061 (Function 04) I* Read Input Register 2069 (Function 04) I* Read Input Register 2071 (Function 04) I* Read Input Register 2079 (Function 04) Min Max Description 0 1 0 2 120 300 120 300 120 400 120 400 120 400 120 400 120 400 0 100 Units for temperature.0: Celcius1: Fahrenheit Unit temperature control mode0: Supply1: Room2: Extract Temperature setpoint for the supply air temperature Temperature setpoint for the supply air temperature Temperature set point for SATC, as calculated by RATC/EATC during cascade control Temperature set point for SATC, as calculated by RATC/EATC during cascade control Minimum temperature set point for the SATC Maximum temperature set point for the SATC EAT or RAT value, used for room/extract air controller. Output of the SATC (0-100%) 120 300 SATC setpoint value 0 100 SATC output signal 120 300 RATC setpoint value 0 100 RATC output signal | 29 Modbus variable list | 9 2.6 Cooler Symbolic register name REG_COOLER_FROM_SATC Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 2311 0 100 Cooler signal (Function 04) REG_COOLER_OAT_INTERLOCK_T I Holding Register 2316 120 250 Temperature at which cooling is interlocked (Function 03/06/16) REG_COOLER_CIRC_PUMP_START_T I Holding Register 2314 0 200 Temperature at which the cooler circulation (Function 03/06/16) pump is started REG_COOLER_CIRC_PUMP_STOP_DELAY I Holding Register 2317 0 (Function 03/06/16) 60 Off time delay for the cooler circulation pump in minutes REG_OUTPUT_Y3_CIRC_PUMP I Read Input Register 14302 (Function 04) Cooler circulation pump output REG_OUTPUT_Y3_ANALOG I Read Input Register 14201 0 100 Cooler AO state. (Function 04) REG_OUTPUT_Y3_DIGITAL I Read Input Register 14202 0 (Function 04) 1 Cooler DO state:0: Output not active1: Output active 2.7 Heater Symbolic register name REG_HEATER_CIRC_PUMP_START_T Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I* Holding Register 2113 0 200 Temperature at which the Heater circulation (Function 03/06/16) pump is started REG_HEATER_CIRC_PUMP_STOP_DELAY I Holding Register 2122 0 (Function 03/06/16) 60 Off time delay for the heater circulation pump in minutes REG_OUTPUT_Y1_CIRC_PUMP I Read Input Register 14301 (Function 04) Heating circulation pump output REG_SPEED_ELECTRICAL_HEATER_HOT_ I Read Input Register 1357 COUNTER (Function 04) Electrical Heater hot counter. Count down from 120 sec. REG_FAN_SPEED_AFTER_HEATER_ COOLING_DOWN_SAF I Read Input Register 1358 0 100 Supply Air Fan Speed Level After Heater (Function 04) Cooling Down REG_FAN_SPEED_AFTER_HEATER_ COOLING_DOWN_EAF I Read Input Register 1359 0 100 Extract Air Fan Speed Level After Heater (Function 04) Cooling Down REG_FUNCTION_ACTIVE_HEATER_COOL_ I Read Input Register 3113 0 DOWN (Function 04) 1 Active Heater Cool Down REG_OUTPUT_TRIAC_CONFIGURED I Holding Register 13201 0 (Function 03/06/16) 1 Indicates if the TRIAC shall be used REG_PWM_TRIAC_OUTPUT I Read Input Register 2149 0 100 TRIAC after manual override (Function 04) REG_OUTPUT_TRIAC I Read Input Register 14381 0 (Function 04) 1 TRIAC control signal REG_OUTPUT_Y1_ANALOG I Read Input Register 14101 0 100 Heater AO state. (Function 04) REG_OUTPUT_Y1_DIGITAL I Read Input Register 14102 0 (Function 04) 1 Heater DO state:0: Output not active1: Output active 2.8 Extra Controller Symbolic register name REG_EXTRA_CONTROLLER_CIRC_PUMP_ START_T REG_EXTRA_CONTROLLER_CIRC_PUMP_ STOP_DELAY REG_OUTPUT_Y4_CIRC_PUMP REG_EXTRA_CONTROLLER_SET_PI_ SETPOINT Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I* Holding Register 2404 0 200 Start temperature for extra controller (Function 03/06/16) circulation pump I Holding Register 2405 0 (Function 03/06/16) 60 Off time delay for the extra controller circulation pump in minutes I Read Input Register 14304 (Function 04) Extra controller circulation pump output I* Holding Register 2403 -300 400 Set point value for the extra controller PI (Function 03/06/16) regulator | 29 10 | Modbus variable list Symbolic register name Sig. Modbus Reg. type Mod- Min Max bus Adr. Description REG_EXTRA_CONTROLLER_PREHEATER_ I Holding Register 2418 0 SETPOINT_TYPE (Function 03/06/16) 1 Temperature setpoint for the preheater.0: Auto1: Manual REG_SENSOR_DI_EXTRA_CONTROLLER_ I Read Input Register 12310 0 EMT (Function 04) 1 Extra controller EMT input value REG_OUTPUT_Y4_ANALOG I Read Input Register 14203 0 100 Extra controller AO state. (Function 04) REG_OUTPUT_Y4_DIGITAL I Read Input Register 14204 0 (Function 04) 1 Extra controller DO state:0: Output not active1: Output active 2.9 Change-over (Heating/Cooling) Symbolic register name REG_CHANGE_OVER_CIRC_PUMP_ START_T Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I* Holding Register 2451 0 200 Start temperature for the change-over (Function 03/06/16) circulation pump REG_CHANGE_OVER_CIRC_PUMP_STOP_ I Holding Register 2452 0 DELAY (Function 03/06/16) 60 Off time delay for the change-over circulation pump in minutes REG_OUTPUT_Y1_Y3_CIRC_PUMP I Read Input Register 14303 (Function 04) Change-over circulation pump output 2.10 Moisture transfer control Symbolic register name REG_HEAT_EXCHANGER_RH_ TRANSFER_CTRL_ENABLED Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 2147 (Function 04) Indicates if RH trasnfer control shall be applied REG_ROTOR_RH_TRANSFER_CTRL_ PBAND I Holding Register 2201 100- 40 Pband setting for RH transfer control (Function 03/06/16) 0 REG_ROTOR_RH_TRANSFER_CTRL_ITIME I Holding Register 2202 120 (Function 03/06/16) 0 Itime setting for RH transfer control REG_ROTOR_RH_TRANSFER_CTRL_ SETPOINT I Holding Register 2203 100 45 Set point setting for RH transfer control (Function 03/06/16) REG_ROTOR_RH_TRANSFER_CTRL_ON_ I Holding Register 2204 1 OFF (Function 03/06/16) 1 Enabling of humidity transfer control 2.11 Cooling recovery Symbolic register name REG_COOLER_RECOVERY_LIMIT_T REG_HEAT_EXCHANGER_COOLING_ RECOVERY_ON_OFF Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 2315 0 100 Temperature at which cooling recovery is (Function 03/06/16) allowed I Holding Register 2134 0 (Function 03/06/16) 1 Enabling of cooling recovery 2.12 ECO mode Symbolic register name REG_ECO_T_Y1_OFFSET REG_ECO_MODE_ON_OFF REG_ECO_FUNCTION_ACTIVE Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I* Holding Register 2504 0 100 Temperature offset for heating during Eco (Function 03/06/16) mode I Holding Register 2505 0 (Function 03/06/16) 1 Enabling of eco mode I Read Input Register 2506 0 (Function 04) 1 Indicates if conditions for ECO mode are active (low temperature) | 29 Modbus variable list | 11 2.13 Free Cooling Symbolic register name REG_FREE_COOLING_ON_OFF REG_FREE_COOLING_OUTDOOR_ DAYTIME_T REG_FREE_COOLING_OUTDOOR_ NIGHTTIME_DEACTIVATION_HIGH_T_ LIMIT REG_FREE_COOLING_OUTDOOR_ NIGHTTIME_DEACTIVATION_LOW_T_ LIMIT REG_FREE_COOLING_ROOM_CANCEL_T REG_FREE_COOLING_START_TIME_H REG_FREE_COOLING_START_TIME_M REG_FREE_COOLING_END_TIME_H REG_FREE_COOLING_END_TIME_M REG_FREE_COOLING_ACTIVE REG_FREE_COOLING_MIN_SPEED_ LEVEL_SAF REG_FREE_COOLING_MIN_SPEED_ LEVEL_EAF Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 4101 (Function 03/06/16) 1 Indicates if free cooling is enabled I* Holding Register 4102 120 300 Minimum of highest daytime temperature (Function 03/06/16) for start of free cooling. I* Holding Register 4103 70 300 Highest night temperature limit for (Function 03/06/16) termination free cooling I* Holding Register 4104 70 300 Lowest night temperature limit for (Function 03/06/16) termination free cooling I* Holding Register 4105 120 300 Lowest temperature room temperature for (Function 03/06/16) termination of free cooling I Holding Register 4106 (Function 03/06/16) I Holding Register 4107 0 (Function 03/06/16) Start time of free cooling night-period, hour. Valid range is from 0 to 8 and from 21 to 23. 59 Start time of free cooling night-period, Minute I Holding Register 4108 (Function 03/06/16) I Holding Register 4109 0 (Function 03/06/16) End time of free cooling night-period, hour. Valid range is from 0 to 8 and from 21 to 23. 59 End time of free cooling night-period, Minute I Read Input Register 4111 0 (Function 04) 1 Indicates if free cooling is being performed I Holding Register 4112 3 (Function 03/06/16) 5 Minimum speed level during free cooling, SAF.3: Normal4: High5: Maximum I Holding Register 4113 3 (Function 03/06/16) 5 Minimum speed level during free cooling, EAF.3: Normal4: High5: Maximum 2.14 Week Schedule Symbolic register name REG_FREE_COOLING_ON_OFF REG_WS_T_OFFSET_ACTIVE REG_WS_T_OFFSET_INACTIVE REG_WS_DAY1_PRD1_START_H REG_WS_DAY1_PRD1_START_M REG_WS_DAY1_PRD1_END_H REG_WS_DAY1_PRD1_END_M REG_WS_DAY1_PRD2_START_H REG_WS_DAY1_PRD2_START_M REG_WS_DAY1_PRD2_END_H REG_WS_DAY1_PRD2_END_M REG_WS_DAY2_PRD1_START_H REG_WS_DAY2_PRD1_START_M | 29 Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 4101 (Function 03/06/16) 1 Indicates if free cooling is enabled I* Holding Register 5001 -100 0 Temperature offset during active week (Function 03/06/16) schedule. I* Holding Register 5002 -100 0 Temperature offset during inactive week (Function 03/06/16) schedule. I Holding Register 5003 0 (Function 03/06/16) 23 Monday, Period 1, start I Holding Register 5004 0 59 (Function 03/06/16) I Holding Register 5005 0 (Function 03/06/16) 23 Monday, Period 1, end I Holding Register 5006 0 59 (Function 03/06/16) I Holding Register 5007 0 (Function 03/06/16) 23 Monday, Period 2, start I Holding Register 5008 0 59 (Function 03/06/16) I Holding Register 5009 0 (Function 03/06/16) 23 Monday, Period 2, end I Holding Register 5010 0 59 (Function 03/06/16) I Holding Register 5011 0 (Function 03/06/16) 23 Tuesday, Period 1, start I Holding Register 5012 0 59 (Function 03/06/16) 12 | Modbus variable list Symbolic register name REG_WS_DAY2_PRD1_END_H REG_WS_DAY2_PRD1_END_M REG_WS_DAY2_PRD2_START_H REG_WS_DAY2_PRD2_START_M REG_WS_DAY2_PRD2_END_H REG_WS_DAY2_PRD2_END_M REG_WS_DAY3_PRD1_START_H REG_WS_DAY3_PRD1_START_M REG_WS_DAY3_PRD1_END_H REG_WS_DAY3_PRD1_END_M REG_WS_DAY3_PRD2_START_H REG_WS_DAY3_PRD2_START_M REG_WS_DAY3_PRD2_END_H REG_WS_DAY3_PRD2_END_M REG_WS_DAY4_PRD1_START_H REG_WS_DAY4_PRD1_START_M REG_WS_DAY4_PRD1_END_H REG_WS_DAY4_PRD1_END_M REG_WS_DAY4_PRD2_START_H REG_WS_DAY4_PRD2_START_M REG_WS_DAY4_PRD2_END_H REG_WS_DAY4_PRD2_END_M REG_WS_DAY5_PRD1_START_H REG_WS_DAY5_PRD1_START_M REG_WS_DAY5_PRD1_END_H REG_WS_DAY5_PRD1_END_M REG_WS_DAY5_PRD2_START_H REG_WS_DAY5_PRD2_START_M REG_WS_DAY5_PRD2_END_H REG_WS_DAY5_PRD2_END_M Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 5013 0 (Function 03/06/16) 23 Tuesday, Period 1, end I Holding Register 5014 0 59 (Function 03/06/16) I Holding Register 5015 0 (Function 03/06/16) 23 Tuesday, Period 2, start I Holding Register 5016 0 59 (Function 03/06/16) I Holding Register 5017 0 (Function 03/06/16) 23 Tuesday, Period 2, end I Holding Register 5018 0 59 (Function 03/06/16) I Holding Register 5019 0 (Function 03/06/16) 23 Wednesday, Period 1, start I Holding Register 5020 0 59 (Function 03/06/16) I Holding Register 5021 0 (Function 03/06/16) 23 Wednesday, Period 1, end I Holding Register 5022 0 59 (Function 03/06/16) I Holding Register 5023 0 (Function 03/06/16) 23 Wednesday, Period 2, start I Holding Register 5024 0 59 (Function 03/06/16) I Holding Register 5025 0 (Function 03/06/16) 23 Wednesday, Period 2, end I Holding Register 5026 0 59 (Function 03/06/16) I Holding Register 5027 0 (Function 03/06/16) 23 Thursday, Period 1, start I Holding Register 5028 0 59 (Function 03/06/16) I Holding Register 5029 0 (Function 03/06/16) 23 Thursday, Period 1, end I Holding Register 5030 0 59 (Function 03/06/16) I Holding Register 5031 0 (Function 03/06/16) 23 Thursday, Period 2, start I Holding Register 5032 0 59 (Function 03/06/16) I Holding Register 5033 0 (Function 03/06/16) 23 Thursday, Period 2, end I Holding Register 5034 0 59 (Function 03/06/16) I Holding Register 5035 0 (Function 03/06/16) 23 Friday, Period 1, start I Holding Register 5036 0 59 (Function 03/06/16) I Holding Register 5037 0 (Function 03/06/16) 23 Friday, Period 1, end I Holding Register 5038 0 59 (Function 03/06/16) I Holding Register 5039 0 (Function 03/06/16) 23 Friday, Period 2, start I Holding Register 5040 0 59 (Function 03/06/16) I Holding Register 5041 0 (Function 03/06/16) 23 Friday, Period 2, end I Holding Register 5042 0 59 (Function 03/06/16) | 29 Symbolic register name REG_WS_DAY6_PRD1_START_H REG_WS_DAY6_PRD1_START_M REG_WS_DAY6_PRD1_END_H REG_WS_DAY6_PRD1_END_M REG_WS_DAY6_PRD2_START_H REG_WS_DAY6_PRD2_START_M REG_WS_DAY6_PRD2_END_H REG_WS_DAY6_PRD2_END_M REG_WS_DAY7_PRD1_START_H REG_WS_DAY7_PRD1_START_M REG_WS_DAY7_PRD1_END_H REG_WS_DAY7_PRD1_END_M REG_WS_DAY7_PRD2_START_H REG_WS_DAY7_PRD2_START_M REG_WS_DAY7_PRD2_END_H REG_WS_DAY7_PRD2_END_M REG_WS_ACTIVE REG_WS_FAN_LEVEL_SCHEDULED REG_WS_FAN_LEVEL_UNSCHEDULED REG_WS_DAY1_PRD1_ENABLED REG_WS_DAY1_PRD2_ENABLED REG_WS_DAY2_PRD1_ENABLED REG_WS_DAY2_PRD2_ENABLED REG_WS_DAY3_PRD1_ENABLED REG_WS_DAY3_PRD2_ENABLED REG_WS_DAY4_PRD1_ENABLED REG_WS_DAY4_PRD2_ENABLED Modbus variable list | 13 Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 5043 0 (Function 03/06/16) 23 Saturday, Period 1, start I Holding Register 5044 0 59 (Function 03/06/16) I Holding Register 5045 0 (Function 03/06/16) 23 Saturday, Period 1, end I Holding Register 5046 0 59 (Function 03/06/16) I Holding Register 5047 0 (Function 03/06/16) 23 Saturday, Period 2, start I Holding Register 5048 0 59 (Function 03/06/16) I Holding Register 5049 0 (Function 03/06/16) 23 Saturday, Period 2, end I Holding Register 5050 0 59 (Function 03/06/16) I Holding Register 5051 0 (Function 03/06/16) 23 Sunday, Period 1, start I Holding Register 5052 0 59 (Function 03/06/16) I Holding Register 5053 0 (Function 03/06/16) 23 Sunday, Period 1, end I Holding Register 5054 0 59 (Function 03/06/16) I Holding Register 5055 0 (Function 03/06/16) 23 Sunday, Period 2, start I Holding Register 5056 0 59 (Function 03/06/16) I Holding Register 5057 0 (Function 03/06/16) 23 Sunday, Period 2, end I Holding Register 5058 0 59 (Function 03/06/16) I Read Input Register 5059 0 (Function 04) 1 Indicates that the current time lays within the indicated intervals I Holding Register 5060 1 (Function 03/06/16) 5 Fan speed levels for SAF and EAF during active week schedule.1: Off(1)2: Low3: Normal4: High5: Demand(2)(1): Off available if Manual Fan Stop is enabled.(2): Demand available if demand control active or external fan control enabled. I Holding Register 5061 1 (Function 03/06/16) I Holding Register 5101 0 (Function 03/06/16) 5 Fan speed levels for SAF and EAF during inactive week schedule.1: Off(1)2: Low3: Normal4: High5: Demand(2)(1): Off available if Manual Fan Stop is enabled.(2): Demand available if demand control active or external fan control enabled. 1 Flag indicating if this period is enabled. I Holding Register 5102 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5103 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5104 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5105 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5106 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5107 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5108 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. | 29 14 | Modbus variable list Symbolic register name REG_WS_DAY5_PRD1_ENABLED REG_WS_DAY5_PRD2_ENABLED REG_WS_DAY6_PRD1_ENABLED REG_WS_DAY6_PRD2_ENABLED REG_WS_DAY7_PRD1_ENABLED REG_WS_DAY7_PRD2_ENABLED Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 5109 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5110 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5111 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5112 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5113 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. I Holding Register 5114 0 (Function 03/06/16) 1 Flag indicating if this period is enabled. 2.15 Time and Date Symbolic register name REG_TIME_YEAR REG_TIME_MONTH REG_TIME_DAY REG_TIME_HOUR REG_TIME_MINUTE REG_TIME_SECOND REG_TIME_AUTO_SUM_WIN REG_HOUR_FORMAT REG_DAY_OF_THE_WEEK REG_DST_PERIOD_ACTIVE REG_TIME_RTC_SECONDS_L REG_TIME_RTC_SECONDS_H REG_SYSTEM_START_UP_TIME_L REG_SYSTEM_START_UP_TIME_H REG_TIME_RTC Sig. Modbus Reg. type Modbus Adr. I Holding Register 6001 (Function 03/06/16) I Holding Register 6002 (Function 03/06/16) I Holding Register 6003 (Function 03/06/16) I Holding Register 6004 (Function 03/06/16) I Holding Register 6005 (Function 03/06/16) I Holding Register 6006 (Function 03/06/16) I Holding Register 6007 (Function 03/06/16) I Holding Register 6008 (Function 03/06/16) I Read Input Register 6009 (Function 04) I Read Input Register 6010 (Function 04) I Read Input Register 6011 (Function 04) I Read Input Register 6012 (Function 04) I Read Input Register 6021 (Function 04) I Read Input Register 6022 (Function 04) I Read Input Register 6101 (Function 04) Min Max Description 0 2999 Current time 1 12 Current time 1 31 Current time 0 23 Current time 0 59 Current time 0 59 Current time 0 1 Flag indicating if DST is enabled.0: Daylight saving time not enabled1: Daylight saving time enabled 0 1 Indicaties the presentation of time in the HMI. 24H/12H 0 6 Monday (0)...Sunday (6) 0 1 Now time in seconds. Lower 16 bits. Now time in seconds. Higher 16 bits. RTC value in seconds, highest 16 bits 2.16 Filter replacement Symbolic register name REG_FILTER_PERIOD REG_FILTER_REPLACEMENT_TIME_L Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 7001 3 (Function 03/06/16) 15 Filter replacement time in months I Holding Register 7002 (Function 03/06/16) Timestamp of latest filter replcement, lower 16 bits | 29 Symbolic register name REG_FILTER_REPLACEMENT_TIME_H REG_FILTER_PERIOD_SET REG_FILTER_REMAINING_TIME_L REG_FILTER_REMAINING_TIME_H Modbus variable list | 15 Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 7003 (Function 03/06/16) Timestamp of latest filter replcement, higher 16 bits I Read Input Register 7004 (Function 04) Indicates that the LastFilterReplacementTime shall be set Now. I Read Input Register 7005 (Function 04) Remaining filter time in seconds, lower 16 bits. I Read Input Register 7006 (Function 04) Remaining filter time in seconds, higher 16 bits. 2.17 Analog Input values (Temperatures, CO2, RH) Symbolic register name REG_SENSOR_FPT REG_SENSOR_OAT REG_SENSOR_SAT REG_SENSOR_RAT REG_SENSOR_EAT REG_SENSOR_ECT REG_SENSOR_EFT REG_SENSOR_OHT REG_SENSOR_RHS REG_SENSOR_CO2S REG_SENSOR_PDM_EAT_VALUE REG_SENSOR_RHS_PDM REG_SENSOR_CO2S_1 REG_SENSOR_CO2S_2 REG_SENSOR_CO2S_3 REG_SENSOR_CO2S_4 REG_SENSOR_CO2S_5 REG_SENSOR_RHS_1 REG_SENSOR_RHS_2 REG_SENSOR_RHS_3 REG_SENSOR_RHS_4 REG_SENSOR_RHS_5 Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I* Holding Register 12101 -400 800 Frost Protection Temperature sensor value (Function 03/06/16) (Water Heater) I* Holding Register 12102 -400 800 Outdoor Air Temperature sensor (standard) (Function 03/06/16) I* Holding Register 12103 -400 800 Supply Air Temperature sensor (standard) (Function 03/06/16) I* Holding Register 12104 -400 800 Room Air Temperature sensor (accessory) (Function 03/06/16) I* Holding Register 12105 -400 800 Extract Air Temperature sensor (accessory) (Function 03/06/16) I* Holding Register 12106 -400 800 Extra Controller Temperature sensor (Function 03/06/16) (accessory) I* Holding Register 12107 -400 800 Efficiency temperature sensor (accessory) (Function 03/06/16) I* Holding Register 12108 -400 800 Over Heat Temperature sensor (Electrical (Function 03/06/16) Heater) I Holding Register 12109 0 (Function 03/06/16) 100 Relative Humidity Sensor (Accessory) I Holding Register 12115 0 2000 CO2 value (accessory) (Function 03/06/16) I Holding Register 12544 -400 800 PDM EAT sensor value (standard) (Function 03/06/16) I Holding Register 12136 0 (Function 03/06/16) 100 PDM RHS sensor value (standard) I Holding Register 12151 0 2000 CO2 sensor value - UI1 (accessory) (Function 03/06/16) I Holding Register 12152 0 2000 CO2 sensor value - UI2 (accessory) (Function 03/06/16) I Holding Register 12153 0 2000 CO2 sensor value - UI3 (accessory) (Function 03/06/16) I Holding Register 12154 0 2000 CO2 sensor value - UI4 (accessory) (Function 03/06/16) I Holding Register 12155 0 2000 CO2 sensor value - UI5 (accessory) (Function 03/06/16) I Holding Register 12161 0 (Function 03/06/16) 100 RH sensor value - UI1 (accessory) I Holding Register 12162 0 (Function 03/06/16) 100 RH sensor value - UI2 (accessory) I Holding Register 12163 0 (Function 03/06/16) 100 RH sensor value - UI3 (accessory) I Holding Register 12164 0 (Function 03/06/16) 100 RH sensor value - UI4 (accessory) I Holding Register 12165 0 (Function 03/06/16) 100 RH sensor value - UI5 (accessory) | 29 16 | Modbus variable list Symbolic register name REG_INPUT_ANALOG_UI_1 REG_INPUT_ANALOG_UI_2 REG_INPUT_ANALOG_UI_3 REG_INPUT_ANALOG_UI_4 REG_INPUT_ANALOG_UI_5 REG_INPUT_DIGITAL_UI_1 REG_INPUT_DIGITAL_UI_2 REG_INPUT_DIGITAL_UI_3 REG_INPUT_DIGITAL_UI_4 REG_INPUT_DIGITAL_UI_5 Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 12011 mV (Function 03/06/16) I Holding Register 12012 mV (Function 03/06/16) I Holding Register 12013 mV (Function 03/06/16) I Holding Register 12014 mV (Function 03/06/16) I Holding Register 12015 mV (Function 03/06/16) I Holding Register 12021 0 (Function 03/06/16) 1 State of UI1 I Holding Register 12022 0 (Function 03/06/16) 1 State of UI2 I Holding Register 12023 0 (Function 03/06/16) 1 State of UI3 I Holding Register 12024 0 (Function 03/06/16) 1 State of UI4 I Holding Register 12025 0 (Function 03/06/16) 1 State of UI5 2.18 Digital Input functions Symbolic register name REG_SENSOR_RGS REG_SENSOR_DI_EXTERNAL_STOP REG_SENSOR_DI_LOAD_DETECTED REG_SENSOR_DI_FIRE_ALARM REG_SENSOR_DI_CHANGE_OVER_ FEEDBACK REG_DI_CONNECTION_1 REG_DI_CONNECTION_2 REG_DI_CFG_POLARITY_1 REG_DI_CFG_POLARITY_2 REG_INPUT_DIGITAL_DI_1 REG_INPUT_DIGITAL_DI_2 Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 12112 0 (Function 04) 1 Rotating guard Sensor input I Read Input Register 12308 0 (Function 04) 1 External Stop input value I Read Input Register 12309 0 (Function 04) 1 Load Detected input value I Read Input Register 12311 0 (Function 04) 1 Fire Alarm input value I Read Input Register 12312 0 (Function 04) 1 Change over feedback value I Holding Register 11401 0 (Function 03/06/16) 18 Indicates what kind of DI functionality is connected to DI1.0: None /Away/ BYP/ Vacuum Cleaner/ Cooker Hood/ Crowded/ EMT/ External Stop/ Extra Controller Alarm/ Fireplace/ Holiday/ Refresh/ RGS/ Change Over Feedback/ 14: Fire Alarm/ ConfigurableDI1 / ConfigurableDI2 / ConfigurableDI3 / 18: Pressure Guard I Holding Register 11402 0 (Function 03/06/16) 18 Indicates what kind of DI functionality is connected to DI1.0: None /Away/ BYP/ Vacuum Cleaner/ Cooker Hood/ Crowded/ EMT/ External Stop/ Extra Controller Alarm/ Fireplace/ Holiday/ Refresh/ RGS/ Change Over Feedback/ 14: Fire Alarm/ ConfigurableDI1 / ConfigurableDI2 / ConfigurableDI3 / 18: Pressure Guard I Holding Register 11421 0 (Function 03/06/16) 1 Polarity of DI1.0: NO1: NC I Holding Register 11422 0 (Function 03/06/16) 1 Polarity of DI1.0: NO1: NC I Read Input Register 12031 0 (Function 04) 1 Boolean I Read Input Register 12032 0 (Function 04) 1 Boolean | 29 2.19 Output values Symbolic register name REG_SENSOR_RGS REG_DO1_AFTER_MUX REG_DO2_AFTER_MUX REG_DO3_AFTER_MUX REG_DO4_AFTER_MUX REG_AO1_AFTER_MUX REG_AO2_AFTER_MUX REG_AO3_AFTER_MUX REG_AO4_AFTER_MUX REG_AO5_AFTER_MUX REG_OUTPUT_OUTDOOR_EXTRACT_ DAMPER REG_OUTPUT_Y2_ANALOG REG_OUTPUT_Y2_DIGITAL REG_OUTPUT_AO1 REG_OUTPUT_AO2 REG_OUTPUT_AO3 REG_OUTPUT_AO4 REG_OUTPUT_AO5 REG_OUTPUT_DO1 REG_OUTPUT_DO2 REG_OUTPUT_DO3 REG_OUTPUT_DO4 Modbus variable list | 17 Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 12112 0 (Function 04) 1 Rotating guard Sensor input I Read Input Register 13301 0 (Function 04) 1 Digital output after multiplexer I Read Input Register 13302 0 (Function 04) 1 Digital output after multiplexer I Read Input Register 13303 0 (Function 04) 1 Digital output after multiplexer I Read Input Register 13304 0 (Function 04) 1 Digital output after multiplexer I Read Input Register 13311 0 100 Analog output after multiplexer (Function 04) I Read Input Register 13312 0 100 Analog output after multiplexer (Function 04) I Read Input Register 13313 0 100 Analog output after multiplexer (Function 04) I Read Input Register 13314 0 100 Analog output after multiplexer (Function 04) I Read Input Register 13315 0 100 Analog output after multiplexer (Function 04) I Read Input Register 14004 0 (Function 04) 1 Indicates if Outdoor/Exhaust air damper signal is On/Off I Read Input Register 14103 0 100 Heat Exchanger AO state. (Function 04) I Read Input Register 14104 0 (Function 04) 1 Heat Exchanger DO state.0: Output not active1: Output active I Read Input Register 14351 (Function 04) Voltage signal from AO1 I Read Input Register 14352 (Function 04) Voltage signal from AO2 I Read Input Register 14353 (Function 04) Voltage signal from AO3 I Read Input Register 14354 (Function 04) Voltage signal from AO4 I Read Input Register 14355 (Function 04) Voltage signal from AO5 I Read Input Register 14361 0 (Function 04) 1 State of DO1 I Read Input Register 14362 0 (Function 04) 1 State of DO2 I Read Input Register 14363 0 (Function 04) 1 State of DO3 I Read Input Register 14364 0 (Function 04) 1 State of DO4 2.20 Alarms Symbolic register name REG_FILTER_ALARM_WAS_DETECTED REG_OUTPUT_ALARM Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Read Input Register 7007 (Function 04) Indicates if the filter warning alarm was generated. I Read Input Register 14003 0 (Function 04) 1 Sum Alarm DO 0: Output not active 1: Output active | 29 18 | Modbus variable list Symbolic register name Sig. Modbus Reg. type Mod- Min Max bus Adr. Description REG_ALARM_SAF_CTRL_ALARM I Read Input Register 15002 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_SAF_CTRL_CLEAR_ALARM I Holding Register 15003 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_EAF_CTRL_ALARM I Read Input Register 15009 0 (Function 04) REG_ALARM_EAF_CTRL_CLEAR_ALARM I Holding Register 15010 0 (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_FROST_PROT_ALARM I Read Input Register 15016 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_FROST_PROT_CLEAR_ ALARM I Holding Register 15017 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_DEFROSTING_ALARM I Read Input Register 15023 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_DEFROSTING_CLEAR_ ALARM I Holding Register 15024 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_SAF_RPM_ALARM I Read Input Register 15030 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_SAF_RPM_CLEAR_ALARM I Holding Register 15031 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_EAF_RPM_ALARM I Read Input Register 15037 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_EAF_RPM_CLEAR_ALARM I Holding Register 15038 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_FPT_ALARM REG_ALARM_FPT_CLEAR_ALARM I Read Input Register 15058 0 (Function 04) I Holding Register 15059 0 (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_OAT_ALARM I Read Input Register 15065 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_OAT_CLEAR_ALARM I Holding Register 15066 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_SAT_ALARM I Read Input Register 15072 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_SAT_CLEAR_ALARM I Holding Register 15073 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_RAT_ALARM I Read Input Register 15079 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active | 29 Modbus variable list | 19 Symbolic register name REG_ALARM_RAT_CLEAR_ALARM REG_ALARM_EAT_ALARM REG_ALARM_EAT_CLEAR_ALARM REG_ALARM_ECT_ALARM REG_ALARM_ECT_CLEAR_ALARM REG_ALARM_EFT_ALARM REG_ALARM_EFT_CLEAR_ALARM REG_ALARM_OHT_ALARM REG_ALARM_OHT_CLEAR_ALARM REG_ALARM_EMT_ALARM REG_ALARM_EMT_CLEAR_ALARM REG_ALARM_RGS_ALARM REG_ALARM_RGS_CLEAR_ALARM REG_ALARM_BYS_ALARM REG_ALARM_BYS_CLEAR_ALARM REG_ALARM_SECONDARY_AIR_ALARM REG_ALARM_SECONDARY_AIR_CLEAR_ ALARM REG_ALARM_FILTER_ALARM REG_ALARM_FILTER_CLEAR_ALARM Sig. Modbus Reg. type Mod- Min bus Adr. I Holding Register 15080 0 (Function 03/06/16) I Read Input Register 15086 0 (Function 04) I Holding Register 15087 0 (Function 03/06/16) I Read Input Register 15093 0 (Function 04) I Holding Register 15094 0 (Function 03/06/16) I Read Input Register 15100 0 (Function 04) I Holding Register 15101 0 (Function 03/06/16) I Read Input Register 15107 0 (Function 04) I Holding Register 15108 0 (Function 03/06/16) I Read Input Register 15114 0 (Function 04) I Holding Register 15115 0 (Function 03/06/16) I Read Input Register 15121 0 (Function 04) I Holding Register 15122 0 (Function 03/06/16) I Read Input Register 15128 0 (Function 04) I Holding Register 15129 0 (Function 03/06/16) I Read Input Register 15135 0 (Function 04) I Holding Register 15136 0 (Function 03/06/16) I Read Input Register 15142 0 (Function 04) I Holding Register 15143 0 (Function 03/06/16) Max Description 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm | 29 20 | Modbus variable list Symbolic register name Sig. Modbus Reg. type Mod- Min Max bus Adr. Description REG_ALARM_EXTRA_CONTROLLER_ ALARM I Read Input Register 15149 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_EXTRA_CONTROLLER_ CLEAR_ALARM I Holding Register 15150 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_EXTERNAL_STOP_ALARM I Read Input Register 15156 0 (Function 04) REG_ALARM_EXTERNAL_STOP_CLEAR_ ALARM I Holding Register 15157 0 (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_RH_ALARM I Read Input Register 15163 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_RH_CLEAR_ALARM I Holding Register 15164 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_CO2_ALARM I Read Input Register 15170 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_CO2_CLEAR_ALARM I Holding Register 15171 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_LOW_SAT_ALARM I Read Input Register 15177 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_LOW_SAT_CLEAR_ALARM I Holding Register 15178 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_MANUAL_OVERRIDE_ OUTPUTS_ALARM I Read Input Register 15502 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_MANUAL_OVERRIDE_ OUTPUTS_CLEAR_ALARM I Holding Register 15503 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_PDM_RHS_ALARM I Read Input Register 15509 0 (Function 04) REG_ALARM_PDM_RHS_CLEAR_ALARM I Holding Register 15510 0 (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_PDM_EAT_ALARM I Read Input Register 15516 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_PDM_EAT_CLEAR_ALARM I Holding Register 15517 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_MANUAL_FAN_STOP_ ALARM I Read Input Register 15523 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active REG_ALARM_MANUAL_FAN_STOP_ CLEAR_ALARM I Holding Register 15524 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_OVERHEAT_ TEMPERATURE_ALARM I Read Input Register 15530 0 (Function 04) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active | 29 Modbus variable list | 21 Symbolic register name REG_ALARM_OVERHEAT_ TEMPERATURE_CLEAR_ALARM Sig. Modbus Reg. type Mod- Min Max bus Adr. Description I Holding Register 15531 0 (Function 03/06/16) 1 Signal to clear the alarm REG_ALARM_FIRE_ALARM_ALARM REG_ALARM_FIRE_ALARM_CLEAR_ ALARM I Read Input Register 15537 0 (Function 04) I Holding Register 15538 0 (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_FILTER_WARNING_ALARM I Read Input Register 15544 0 (Function 04) REG_ALARM_FILTER_WARNING_CLEAR_ I Holding Register 15545 0 ALARM (Function 03/06/16) 3 Alarm active/inactive. 0: Inactive 1: Active 2: Waiting 3: Cleared Error Active 1 Signal to clear the alarm REG_ALARM_FILTER_WARNING_ ALARM_ERROR_DURATION_COUNTER I Read Input Register 15549 (Function 04) Counter for delay REG_ALARM_TYPE_A I Read Input Register 15901 0 (Function 04) 1 Indicates if an alarm Type A is active REG_ALARM_TYPE_B I Read Input Register 15902 0 (Function 04) 1 Indicates if an alarm Type B is active REG_ALARM_TYPE_C I Read Input Register 15903 0 (Function 04) 1 Indicates if an alarm Type C is active 2.21 System settings Symbolic register name REG_PASSWD_ADMIN REG_LOCKED_USER REG_LOCKED_FILTER REG_LOCKED_WEEK_SCHEDULE REG_PASSWD_USER_LEVEL_REQUIRED REG_PASSWD_FILTER_REQUIRED REG_PASSWD_WEEK_SCHEDULE_ REQUIRED REG_PASSWD_PC_SETTINGS REG_PASSWD_PC_UNLOCKED REG_SUW_REQUIRED Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 16001 (Function 03/06/16) Administrator password. Bit 12-15: digit 1 Bit 8-11: digit 2 Bit 4-7: digit 3 Bit 0-3: digit 4 I Holding Register 16002 0 1 Indicates if the User level is locked. (Function 03/06/16) 0: User menu locked 1: User menu not locked I Holding Register 16003 0 1 Indicates if the Filter menu is locked. (Function 03/06/16) 0: menu locked 1: menu not locked I Holding Register 16004 0 1 Indicates if the Week schedule menu is (Function 03/06/16) locked. 0: menu locked 1: menu not locked I Holding Register 16051 0 1 Home screen lock (Function 03/06/16) I Holding Register 16052 0 1 Filter Change menu lock (Function 03/06/16) I Holding Register 16053 0 1 Week schedule menu lock (Function 03/06/16) I Holding Register 16061 (Function 03/06/16) I Read Input Register 16062 0 1 (Function 04) I Holding Register 16101 0 1 Indicates if the start-up wizard shall be (Function 03/06/16) activated. | 29 22 | Revision table 2.22 Modbus Symbolic register name REG_COMM_MODBUS_ADDRESS REG_COMM_MODBUS_BAUD_RATE REG_COMM_MODBUS_PARITY Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 17001 0 (Function 03/06/16) 255 Modbus address of the MB. Only relevant if the MB is a modbus slave. I Holding Register 17002 0 (Function 03/06/16) 10 Baudrate of the modbus connection 0=1200 1=2400 2=4800 3=9600 4=14400 5=19200 6=28800 7=38400 8=57600 9=76800 10=115200 I Holding Register 17003 0 (Function 03/06/16) 2 Parity setting for the modbus connection. 0: None 1: Even 2: Odd 2.23 Unit Backups Symbolic register name REG_FACTORY_RESET REG_SET_USER_SAFE_CONFIG REG_ACTIVATE_USER_SAFE_CONFIG REG_USER_SAFE_CONFIG_VALID REG_SAFE_CONFIG_VALID Sig. Modbus Reg. type Mod- Min Max Description bus Adr. I Holding Register 30101 322- 3228 Activates setting of the parameters to their (Function 03/06/16) 8 default values. Only activated by writing 3228 to this register. I Holding Register 30103 0 1 (Function 03/06/16) I Holding Register 30104 0 1 (Function 03/06/16) I Read Input Register 30105 (Function 04) I Read Input Register 30106 (Function 04) 3 Revision table Main board software compatibility 1.5.0 1.6.0 Modbus Table Revision 20180927 (Rev. 25) 20190116 (Rev. 29) Change Log - Chapter 2.3. User modesRegisters:12316, ... , 12319 were added.1171, ... , 1190,1221, ... , 1228,1621, ... , 1626,3114, ... , 3117,12316, ... , 12319 were addedRegisters:1141, ... , 1144, 1161 have increase range.Changes related to Away and Holiday User modes, and 4 new user functions added - CDI 1-3 and Pressure Guard. Chapter 2.5. Outdoor Airflow Compensation.Registers 1253. 1256 ... 1259 were added. Compensation starting temperature for winter is added. Summer outdoor compensation is added. Chapter 2.18. Digital Input Functions.Registers 11401 and 11402.Max range changed from 14 to 18 adding new DI functions. Chapter 2.20. Alarms.Registers 7007, 15544, 15545 and 15549 added.Filter warning Alarm added. Chapter 2.23. Unit Backups.Registers 30103, ... , 30106 added. Registers allow to set, check and use safe user settings (store unit configuration in memory). | 29 | 29 SAVE Modbus Variable List · · · en_GB · 2019-01-16 · 29 Systemair UAB Lin st. 101 LT20174 Ukmerg, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.comPDFlib PDI 9.0.7p3 (C /Win64) Servigistics Arbortext Publishing Engine
