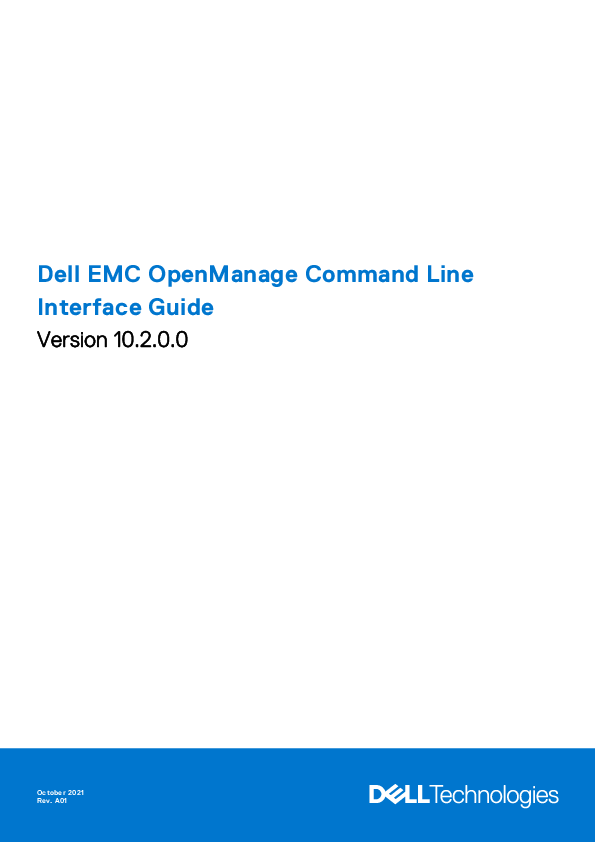

Dell EMC OpenManage Command Line Interface Guide Version 10.2.0.0
File info: application/pdf · 193 pages · 1.28MB
Dell EMC OpenManage Command Line Interface Guide Version 10.2.0.0
openmanage server administrator 10.2.0.0 command line interface, server administrator, openmanage, omsa, omss, product use feedback, Dell CLI Guide, systems management, omconfig preferences, omreport preferences
Dell EMC OpenManage Command Line Interface Guide
Update Packages for Operating Systems User's Guide or the OpenManage Server Update Utility User's Guide at dell.com/ support/manuals.
Extracted Text
Dell EMC OpenManage Command Line Interface Guide
Version 10.2.0.0
October 2021 Rev. A01
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
� 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
Contents
Chapter 1: Introduction................................................................................................................. 9 OMSA Customer Survey....................................................................................................................................................9 What is new in this release................................................................................................................................................9 Supported operating systems......................................................................................................................................... 10 Accessing the windows command prompt to run CLI commands......................................................................... 10 Primary CLI Commands.....................................................................................................................................................11 CLI error checking and error messages.........................................................................................................................11 Success Messages........................................................................................................................................................11 Failure Messages...........................................................................................................................................................11 Scripting And Comparing Using CLI.............................................................................................................................. 12 Command syntax overview..............................................................................................................................................13
Chapter 2: Using The omhelp Command....................................................................................... 14 Example Help Commands.................................................................................................................................................14
Chapter 3: omreport Viewing System Status Using The Instrumentation Service......................... 16 Conventions for parameter tables................................................................................................................................. 16 Command summary of the omreport command......................................................................................................... 17 Help With The omreport Command..............................................................................................................................20 omreport modularenclosure.............................................................................................................................................21 omreport about.................................................................................................................................................................. 22 Omreport Chassis Or Omreport Mainsystem Commands....................................................................................... 23 Chassis management.................................................................................................................................................. 23 Omreport chassis acswitch or omreport mainsystem acswitch...................................................................... 23 Omreport Chassis Batteries Or Omreport Mainsystem Batteries................................................................... 24 Omreport Chassis Bios Or Omreport Mainsystem Bios..................................................................................... 24 Omreport chassis biossetup or omreport mainsystem biossetup....................................................................25 BIOS setup groups ..................................................................................................................................................... 25 Omreport Chassis Currents Or Omreport Mainsystem Currents.................................................................... 26 Omreport chassis fans or omreport mainsystem fans....................................................................................... 26 Omreport Chassis Firmware Or Omreport Mainsystem Firmware.................................................................. 26 Omreport Chassis Frontpanel Or Omreport Mainsystem Frontpanel............................................................. 27 Omreport Chassis Fru Or Omreport Mainsystem Fru.........................................................................................27 Omreport chassis hwperformance or omreport mainsystem hwperformance............................................. 27 Omreport Chassis Info Or Omreport Mainsystem Info...................................................................................... 28 Omreport Chassis Intrusion...................................................................................................................................... 28 Omreport Chassis Leds Or Omreport Mainsystem Leds................................................................................... 29 Omreport Chassis Memory Or Omreport Mainsystem Memory...................................................................... 29 Omreport chassis nics or omreport mainsystem nics.........................................................................................32 Omreport Chassis Ports Or omreport Mainsystem Ports................................................................................. 33 Omreport Chassis Processors Or Omreport Mainsystem Processors........................................................... 33 Omreport chassis pwrmanagement or omreport mainsystem pwrmanagement......................................... 35 Omreport chassis pwrmonitoring or omreport mainsystem pwrmonitoring................................................. 36 Omreport chassis pwrsupplies or omreport mainsystem pwrsupplies............................................................38
Contents
3
Omreport Chassis Remoteaccess Or Omreport Mainsystem Remoteaccess.............................................. 38 Omreport Chassis Removableflashmedia Or Omreport Mainsystem Removableflashmedia.................... 39 Omreport Chassis Slots Or Omreport Mainsystem Slots.................................................................................. 40 Omreport chassis temps or Omreport mainsystem temps............................................................................... 40 Omreport Chassis Volts Or Omreport Mainsystem Volts...................................................................................41 Omreport Licenses.............................................................................................................................................................41 Omreport System Commands Or Omreport Servermodule Commands...............................................................41 Omreport System Or Omreport Servermodule.....................................................................................................41 Commands for viewing logs...................................................................................................................................... 42 Omreport System Alertaction Or Omreport Servermodule Alertaction......................................................... 43 Omreport System Assetinfo Or Omreport Servermodule Assetinfo...............................................................44 Omreport system events or omreport servermodule events........................................................................... 44 Omreport System Events Type Or Omreport Servermodule Events Type................................................... 45 Omreport System snmptrapdest Or Omreport Servermodule snmptrapdest.............................................. 46 Omreport System Operatingsystem Or Omreport Servermodule Operatingsystem.................................. 46 Omreport System Pedestinations Or Omreport Servermodule Pedestinations...........................................46 Omreport System Platformevents Or Omreport Servermodule Platformevents........................................ 47 Omreport System Recovery Or Omreport Servermodule Recovery.............................................................. 48 Omreport System Shutdown Or Omreport Servermodule Shutdown............................................................48 Omreport System Summary Or Omreport Servermodule Summary...............................................................48 Omreport System Thrmshutdown Or Omreport Servermodule Thrmshutdown......................................... 52 Omreport System Version Or Omreport Servermodule Version......................................................................52 Omreport Preferences Commands............................................................................................................................... 53 Omreport Preferences Messages........................................................................................................................... 53 Omreport preferences logging................................................................................................................................. 53 Omreport preferences webserver...........................................................................................................................54
Chapter 4: Omconfig Managing Components Using The Instrumentation Service........................ 55 Conventions for parameter tables................................................................................................................................ 55 omconfig Command Summary....................................................................................................................................... 56 Help With The Omconfig Command............................................................................................................................. 58 Omconfig About................................................................................................................................................................ 58 Omconfig Chassis Or Omconfig Mainsystem.............................................................................................................59 Omconfig Chassis Biossetup Or Omconfig Mainsystem Biossetup................................................................ 59 Omconfig Chassis Currents Or Omconfig Mainsystem Currents.................................................................... 74 Omconfig Chassis Fans Or Omconfig Mainsystem Fans................................................................................... 74 Omconfig chassis frontpanel or omconfig mainsystem frontpanel................................................................. 75 Omconfig Chassis Info Or Omconfig Mainsystem Info...................................................................................... 76 Omconfig Chassis Leds Or Omconfig Mainsystem Leds................................................................................... 77 Omconfig Chassis Memorymode Or Omconfig Mainsystem Memorymode..................................................78 Omconfig chassis pwrmanagement or omconfig mainsystem pwrmanagement......................................... 79 Omconfig Chassis Pwrmonitoring Or Omconfig Mainsystem Pwrmonitoring...............................................81 Omconfig chassis remoteaccess or omconfig mainsystem remoteaccess................................................... 82 Omconfig Chassis Temps Or Omconfig Mainsystem Temps............................................................................89 Omconfig Chassis Volts Or Omconfig Mainsystem Volts................................................................................. 90 Omconfig Preferences......................................................................................................................................................91 Omconfig Preferences Cdvformat...........................................................................................................................91 Omconfig Preferences Dirservice............................................................................................................................ 91 Omconfig Preferences Messages........................................................................................................................... 92 Omconfig Preferences Useraccess.........................................................................................................................92
4
Contents
Omconfig Preferences Logging............................................................................................................................... 92 Omconfig preferences webserver...........................................................................................................................93 Omconfig System Or Omconfig Servermodule........................................................................................................ 105 Omconfig System Alertaction Or Omconfig Servermodule Alertaction....................................................... 105 Commands for clearing logs....................................................................................................................................108 Omconfig system pedestinations or omconfig servermodule pedestinations.............................................109 Omconfig system platformevents or omconfig servermodule platformevents.......................................... 109 Omconfig system snmptraptest or omconfig servermodule snmptraptest.................................................. 111 Omconfig System Events Or Omconfig Servermodule Events........................................................................111 Omconfig System Webserver Or Omconfig Servermodule Webserver........................................................ 113 Omconfig System Recovery Or Omconfig Servermodule Recovery..............................................................113 Omconfig System Shutdown Or Omconfig Servermodule Shutdown...........................................................114 Omconfig System Thrmshutdown Or Omconfig Servermodule Thrmshutdown........................................ 115
Chapter 5: Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values...... 117 Adding acquisition information...................................................................................................................................... 117 Example command for adding acquisition information...................................................................................... 118 Adding depreciation information...................................................................................................................................119 Example command for adding depreciation information...................................................................................119 Adding extended warranty information......................................................................................................................120 Example command for adding extended warranty information......................................................................120 Adding lease information................................................................................................................................................120 Example command for adding lease information................................................................................................ 121 Adding maintenance information.................................................................................................................................. 121 Example command for adding maintenance information................................................................................. 122 Adding outsource information...................................................................................................................................... 122 Example command for adding outsource information...................................................................................... 123 Adding owner information............................................................................................................................................. 123 Example command for adding owner information............................................................................................. 123 Adding service contract information...........................................................................................................................124 Example command for adding service information............................................................................................124 Adding support information...........................................................................................................................................124 Example command for adding support information...........................................................................................125 Adding system information............................................................................................................................................125 Example command for adding system information............................................................................................126 Adding warranty information........................................................................................................................................ 126 Example command for adding warranty information........................................................................................ 126
Chapter 6: Using The Storage Management Service................................................................... 128 CLI command syntax.......................................................................................................................................................128 Syntax Of Command Elements.................................................................................................................................... 129 User Privileges For Omreport Storage And Omconfig Storage........................................................................... 130
Chapter 7: Omreport storage commands.................................................................................... 131 Omreport Physical Disk Status.....................................................................................................................................132 omreport Virtual Disk Status.........................................................................................................................................132 Omreport controller status............................................................................................................................................133 Omreport Enclosure Status...........................................................................................................................................133 Omreport Temperature Probe Status...................................................................................................................133
Contents
5
Omreport Fan Status................................................................................................................................................ 134 Omreport Power Supply Status............................................................................................................................. 134 Omreport EMM Status.............................................................................................................................................135 Omreport Enclosure Slot Occupancy Report..................................................................................................... 135 Omreport Battery Status...............................................................................................................................................136 Omreport Global Information........................................................................................................................................ 136 Omreport Connector Status......................................................................................................................................... 136 Omreport Cachecade Status........................................................................................................................................ 137 Omreport Storage Tape................................................................................................................................................. 137 Omreport NVMe adapter............................................................................................................................................... 138
Chapter 8: Omconfig storage commands....................................................................................139 Omconfig Physical Disk Commands............................................................................................................................ 140 Omconfig Blink Physical Disk.................................................................................................................................. 140 Omconfig Unblink Physical Disk.............................................................................................................................. 141 Omconfig Prepare To Remove Physical Disk.......................................................................................................141 Omconfig Instant Erase Secured Physical Disk.................................................................................................. 142 Omconfig Cryptographic Erase Secured Physical Disk.................................................................................... 142 Omconfig Initialize Physical Disk............................................................................................................................ 143 Omconfig Offline Physical Disk.............................................................................................................................. 143 Omconfig Online Physical Disk............................................................................................................................... 144 Omconfig Assign Global Hot Spare....................................................................................................................... 144 Omconfig Available Spare........................................................................................................................................ 145 Omconfig Rebuild Physical Disk............................................................................................................................. 145 Omconfig Cancel Rebuild Physical Disk............................................................................................................... 146 Omconfig Cancel Replace Member....................................................................................................................... 146 Omconfig Clear Physical Disk..................................................................................................................................147 Omconfig cancel clear physical disk...................................................................................................................... 147 Omconfig Enable Device Write Cache.................................................................................................................. 147 Omconfig Disable Device Write Cache................................................................................................................. 148 Omconfig Export Reliability Log............................................................................................................................. 148 Omconfig Export Telemetry Log............................................................................................................................149 Omconfig Convert RAID To Non-RAID................................................................................................................ 150 Omconfig Convert Non-RAID To RAID................................................................................................................ 150 Omconfig Set array disk cache............................................................................................................................... 151 Omconfig virtual disk commands..................................................................................................................................151 Omconfig Check Consistency.................................................................................................................................152 Omconfig Pause Check Consistency.................................................................................................................... 152 Omconfig cancel check consistency.....................................................................................................................152 Omconfig Resume Check Consistency.................................................................................................................153 Omconfig blink virtual disk.......................................................................................................................................153 Omconfig Unblink Virtual Disk................................................................................................................................ 153 Omconfig Initialize Virtual Disk............................................................................................................................... 154 Omconfig Fast Initialize Virtual Disk......................................................................................................................154 Omconfig Slow Initialize Virtualize Disk............................................................................................................... 155 Omconfig cancel initialize virtual disk................................................................................................................... 155 Omconfig cancel background initialize................................................................................................................. 155 Omconfig Assign Dedicated Hot Spare................................................................................................................ 156 Omconfig Delete Virtual Disk.................................................................................................................................. 156 Omconfig reconfiguring virtual disks.....................................................................................................................157
6
Contents
Omconfig Secure Virtual Disk................................................................................................................................. 158 Omconfig Clear Virtual Disk Bad Blocks...............................................................................................................158 Omconfig Change Virtual Disk Policy....................................................................................................................158 Omconfig Replace Member Virtual Disk...............................................................................................................159 Omconfig Rename Virtual Disk............................................................................................................................... 159 Omconfig controller commands................................................................................................................................... 159 Omconfig Rescan Controller....................................................................................................................................161 Omconfig Enable Controller Alarm......................................................................................................................... 161 Omconfig Disable Controller Alarm........................................................................................................................162 Omconfig Quiet Controller Alarm...........................................................................................................................162 omconfig Test Controller Alarm............................................................................................................................. 162 Omconfig Reset Controller Configuration........................................................................................................... 162 omconfig Create Virtual Disk.................................................................................................................................. 163 Omconfig Set Controller Rebuild Rate................................................................................................................. 169 omconfig Change Controller Properties...............................................................................................................169 Omconfig Discard Preserved Cache..................................................................................................................... 170 Omconfig Create Encryption Key.......................................................................................................................... 170 Omconfig Change Encryption Key..........................................................................................................................171 Omconfig Delete Encryption Key............................................................................................................................171 Omconfig Set Background Initialization Rate...................................................................................................... 171 Omconfig Set Reconstruct Rate.............................................................................................................................171 Omconfig Set Check Consistency Rate............................................................................................................... 172 Omconfig Export The Controller Log.................................................................................................................... 172 Omconfig Import Secure Foreign Configuration................................................................................................ 172 Omconfig Import Foreign Configuration...............................................................................................................173 Omconfig Import Or Recover Foreign Configuration........................................................................................ 173 Omconfig Clear Foreign Configuration................................................................................................................. 173 Omconfig physical disk power management....................................................................................................... 173 Omconfig set controller mode................................................................................................................................ 174 Omconfig autoconfigure RAID0..............................................................................................................................174 Omconfig Set Patrol Read Mode........................................................................................................................... 174 Omconfig Start Patrol Read....................................................................................................................................175 Omconfig Stop Patrol Read.....................................................................................................................................175 Omconfig Create Cachecade.................................................................................................................................. 175 Omconfig Enable LKM Controller.......................................................................................................................... 176 Omconfig Rekey LKM Controller........................................................................................................................... 176 Omconfig Convert Multiple RAID To Non-RAID.................................................................................................176 Omconfig Convert Multiple Non-RAID To RAID.................................................................................................176 Omconfig Enclosure Commands.................................................................................................................................. 177 Omconfig Enable Enclosure Alarm......................................................................................................................... 177 Omconfig Disable Enclosure Alarm........................................................................................................................ 177 Omconfig Set Enclosure Asset Tag.......................................................................................................................178 Omconfig Set Enclosure Asset Name................................................................................................................... 178 Omconfig Set Temperature Probe Thresholds................................................................................................... 179 Omconfig Reset Temperature Probe Thresholds...............................................................................................179 Omconfig Set All Temperature Probe Thresholds............................................................................................. 179 Omconfig Reset All Temperature Probe Thresholds.........................................................................................180 Omconfig Blink........................................................................................................................................................... 180 Omconfig Battery Commands...................................................................................................................................... 180 omconfig Start Battery Learn Cycle...................................................................................................................... 181
Contents
7
Omconfig Delay Battery Learn Cycle.....................................................................................................................181 Omconfig Global Commands......................................................................................................................................... 181
Omconfig Global Enable Smart Thermal Shutdown.......................................................................................... 182 Omconfig Global Disable Smart Thermal Shutdown......................................................................................... 182 Omconfig Global Rescan Controller...................................................................................................................... 183 Omconfig Set Hot Spare Protection Policy.........................................................................................................183 Omconfig global threshold for remaining rated write endurance...................................................................183 Omconfig Connector Commands.................................................................................................................................184 Omconfig Rescan Connector..................................................................................................................................184 Omconfig cachecade commands................................................................................................................................. 184 Omconfig Blink Cachecade......................................................................................................................................184 Omconfig Unblink Cachecade.................................................................................................................................185 Omconfig Delete Cachecade.................................................................................................................................. 185 Omconfig Resize Cachecade.................................................................................................................................. 185 Omconfig Rename Cachecade............................................................................................................................... 186 Omconfig NVMe adapter configuration commands................................................................................................186 Omconfig exporting controller log......................................................................................................................... 186 Omconfig cryptographic erase............................................................................................................................... 187
Chapter 9: Working With CLI Command Results.........................................................................188 Output Options For Command Results...................................................................................................................... 188 Controlling command output display...........................................................................................................................188 Writing Command Output To A File............................................................................................................................ 189 Saving Command Results To A File That Is Overwritten................................................................................. 189 Append command results to an existing file....................................................................................................... 190 Selecting A Format For The CLI Command Output.................................................................................................191 List..................................................................................................................................................................................191 Table..............................................................................................................................................................................192 Semicolon-Separated Values.................................................................................................................................. 192 Custom delimited format......................................................................................................................................... 192
Appendix A: Identifying the series of your Dell EMC PowerEdge servers................................... 193
8
Contents
1
Introduction
OpenManage Server Administrator (OMSA) provides a comprehensive, one-to-one systems management solution through either an integrated Web browser-based graphical user interface (GUI) or a command line interface (CLI). Server Administrator is designed for system administrators to manage systems locally and remotely on a network. It allows system administrators to manage their entire network by providing a comprehensive one-to-one systems management. In the context of Server Administrator, a system refers to a stand-alone system, a system with attached network storage units in a separate chassis, or a Blade system consisting of one or more server modules in a modular enclosure. Server Administrator provides easy-to-use management and administration of local and remote systems through a comprehensive set of integrated management services. Server Administrator is the sole installation on the system being managed and is accessible both locally and remotely from the Server Administrator home page. Server Administrator enables you to access remotely monitored systems by dial-in, LAN, or wireless connections. The configuration features enable Server Administrator to perform essential tasks described in detail in the following sections. This CLI guide documents all the commands that apply to Server Administrator and Storage Management. The reporting and viewing features enable retrieval of the overall health status for systems on the network. You can view information about voltage, temperature, fan's revolutions per minute (RPM), memory functioning, and many other critical details at the component level. You can also see a detailed account of the cost of ownership (COO) about the system, retrieve version information about the BIOS, firmware, operating system, and all installed software.
NOTE: The CLI does not use the Server Administrator Web server. For concerns on encryption, from the CLI, run the omconfig system webserver action=stop command to turn off the Web server. The Web server starts automatically after a reboot, so you must run this command each time the system is rebooted. . For more information, see omconfig system webserver or omconfig servermodule webserver.
NOTE: After installing OpenManage Server Administrator, ensure that you log out and log in to reset the path to access OpenManage CLI utilities.
NOTE: For information on terms used in this document, see the Glossary at dell.com/support/manuals.
Topics:
� OMSA Customer Survey � What is new in this release � Supported operating systems � Accessing the windows command prompt to run CLI commands � Primary CLI Commands � CLI error checking and error messages � Scripting And Comparing Using CLI � Command syntax overview
OMSA Customer Survey
Survey link: https://secure.opinionlab.com. Dell Technologies is exclusively surveying OMSA customers, collecting feedback, and implementing suggestions. As a customer, the above link is available for you to take the survey at various phases of OMSA usage such as Windows or Linux based installation, while using the OMSA GUI and CLI, and VMware ESXi.
What is new in this release
The following are the release highlights of OpenManage Server Administrator and Storage Management.
Introduction
9
New operating systems are: VMware ESXi 7.0 U3 supported on PowerEdge R250, R350, T150, T350, and T550 servers. Microsoft Windows 2022
New supported platforms are: PowerEdge R250 PowerEdge R350 PowerEdge T150 PowerEdge T350 PowerEdge T550
New in Server Administrator is: Oracle Java Runtime Environment 11.0.11 and Tomcat 9.0.46 bundled with Server Administrator. TLSv1.1 is removed and TLSv1.3 is added to the list of supported SSL Protocols. By default, Server administrator supports TLSv1.2 and TLSv1.3.
New in Storage Management is: Sanitize erase feature is supported only on Microsoft Windows 2022 operating system. NVMe Telemetry feature is supported for Direct-attached NVMe devices only on Microsoft Windows 2022 operating system.
New controllers are: PERC H750 Adapter supported only on R640, R740, R740xd, R440, R540, T440, and T640 PowerEdge servers. HBA350i Adpt and HBA355e supported only on R640, R740, R740xd, R440, R540, T440, and T640 PowerEdge servers. NOTE: For the list of supported operating systems and Dell EMC servers, see Dell EMC OpenManage Software Support Matrix in the required version of OpenManage Software at Dell.com/openmanagemanuals.
NOTE: For more information about features, see Dell EMC OpenManage Server Administrator Online Help.
NOTE: From 9.3.0, the RPM packages in Server Administrator are signed with a new Dell SHA-512 signature key. If using non interactive or silent method of installation, to verify the authenticity, you must download the key from the following location: https://linux.dell.com/repo/hardware/dsu/public_gpg3.key, and then import the key to each host with rpm --import <key file> before installing or upgrading to the current version of Server Administrator. Once the key is imported, you are not required to import the key every time while installing, or upgrading to the current version of Server Administrator.
Supported operating systems
Microsoft Windows 2016 Microsoft Windows 2019 Microsoft Windows 2022 VMware ESXi 7.0 U3
NOTE: VMware ESXi 7.0 U3 is supported only on PowerEdge R250, R350, T150, T350, and T550 servers.
Accessing the windows command prompt to run CLI commands
If you are running the Microsoft Windows operating system, use the 32-bit command prompt to run a Server Administrator CLI command. Access the 32-bit command prompt using one of the following methods: Click Start > Programs > Accessories > Command Prompt. Click Start > Run and type cmd.exe.
NOTE: Do not type command in the Run dialog box to launch a command line window; this activates the MS-DOS emulator command.com, which has environment variable limitations that can cause subtle problems with CLI.
10
Introduction
Primary CLI Commands
The commands that carry out the functions of Server Administrator are: omconfig omhelp omreport
The omconfig command writes values that you assign to an object's properties. You can specify values for warning thresholds on components or prescribe actions that the system must perform when a certain warning or failure event occurs. You can also use the omconfig command to assign specific values to the system's asset information parameters, such as the purchase price of the system, the system's asset tag, or the system's location.
The omhelp command displays short-text help for CLI commands. The shorthand equivalent of omhelp is the command for which you want help followed by -?. For example, to display help for the omreport command, type one of the following commands: omhelp omreport omreport -?
The omreport command displays reports of the management information of the system.
NOTE: For an overall summary of the CLI commands, type omhelp.
NOTE: The omupdate commands are no longer supported in Server Administrator and are replaced by Dell Update Package or the Server Update Utility commands. To update the different components, download the Dell Update Package and run the <package name> /s [/f command. For more information on the corresponding CLI syntax, see the Dell Update Packages for Operating Systems User's Guide or the OpenManage Server Update Utility User's Guide at dell.com/ support/manuals.
Related Links: Working With CLI Command Results
CLI error checking and error messages
When you type CLI commands, the CLI checks these commands for the correct syntax. If you type a command and the command is executed successfully, a message is displayed, stating that the command is successful.
Success Messages
When you type a successful omconfig command, data for that component is displayed. The following omconfig command examples displays valid CLI commands and their success messages:
Table 1. Commands And Messages
Command
omconfig chassis temps index=0 warnthresh= default
Message
Temperature probe warning threshold value(s) set successfully.
omconfig chassis biossetup attribute=numlock BIOS setup configured successfully. Change
setting=on
will take effect after the next reboot.
omconfig system assetinfo info=depreciation omconfig system assetinfo info=depreciation
duration=6
duration=6
Failure Messages
CLI failure messages provide reasons why some commands do not succeed. Some common reasons why commands fail include syntax errors and components that are not present. Many error messages provide syntax information required to execute the command successfully.
Introduction
11
If you execute a command for a component or feature that is not present in the system configuration, the error message states that the component is not present.
The following are examples of some failure messages:
Table 2. Failure messages
Command
omconfig chassis volts index=3 minwarnthresh=3.3000
Message
Error! Number with up to 3 digits after decimal point expected, read 3.3000
The value given by the command specifies more than 3 digits after the decimal point. A valid minimum warning threshold value for volts contains up to 3 digits after the decimal point.
Revised command
omconfig chassis volts index=3 minwarnthresh=3.300
When you type the revised command with three decimal points, you receive another error message:
Table 3. Error messages for commands with three decimals
Message
Error! This voltage probe min warning threshold must be between 11.400 and 12.480.
Revised command Message
omconfig chassis volts index=3 minwarnthresh=11.500
Voltage probe warning threshold(s) set successfully.
Scripting And Comparing Using CLI
The Server Administrator CLI allows administrators to write batch programs for the operating system. For an enterprise with many systems, an administrator could write a configuration script that specifies the warning thresholds for each major component of a system and also specifies a set of actions that the administrator wants each system to take in case of a warning or failure event. In most critical cases, the administrator could write a script so that the system shuts down to prevent damage. The administrator could then distribute and execute the script to many managed systems at the same time. Such a scenario facilitates configuring any number of new systems acquired by a company and makes implementation of new system administration policies easier across many existing systems that require re-configuration.
A similar scenario is used to populate a large number of newly acquired systems with detailed asset information. Much of the information are the same, such as the manufacturer or lessor of the system, whether support for the system is outsourced, name of the company providing insurance for the system, method of depreciation, and so on. Any variable that is common to all systems is scripted, sent to all managed systems, and executed. Asset information that is unique to a system is scripted as a group and sent to that managed node for execution. For example, a script could specify values for all unique variables such as the owner, primary user phone number, asset tag, and so on. Scripts to populate unique values would set all unique variables at once rather than one by one through the system's command line.
In many cases, the CLI allows a user with a very well-defined task in mind to retrieve information about the system rapidly. If a user wants to review a comprehensive summary of all system components and save that summary information to a file for comparison with later system states, the CLI is ideal.
Using CLI commands, administrators can write batch programs or scripts to execute at specific times. When these programs are executed, they can capture reports on components of interest, such as fan RPMs during periods of highest system usage compared with the same measurements at times of lowest system usage. Command results are routed to a file for later analysis. Reports can help administrators gain information that are used to adjust usage patterns, to justify purchasing new system resources, or to focus on the health of a problem component.
12
Introduction
Command syntax overview
Commands vary in complexity. The simplest command has only command level 1. The omhelp command is a simple command. When you type omhelp, a list of the main CLI commands is displayed.
The next level of complexity includes commands that contain command levels 1 and 2. All of the about commands are examples of command level 2 complexity. The omconfig about and omreport about commands display a very brief summary. The summary shows version information for the systems management software installed on the system; for example, Server Administrator 1.x.
Some commands have command level 1 and command level 2 and one name=value pair. Consider the following example command that instructs Server Administrator for more details about the environment for Server Administrator:
omreport about details=true
In this example, command level 1 is omreport, command level 2 is about, and the name= value pair is details=true.
Many commands use command level 1, command level 2, and command level 3, but do not require any parameters (name=value pairs). Most omreport commands are of this type. For example, the following command displays a list of alert actions that are configured for components on a system.
omreport system alertaction
The most complex commands have all three command levels and can have multiple name=value pairs. The following is an example of two name=value pairs:
omconfig system assetinfo info=depreciation duration=3
The following is an example of nine name=value pairs:
omconfig system assetinfo info=acquisition purchasecost=<n> waybill=<n> installdate=<mmddyy> purchasedate=<mmddyy> ponum=<n> signauth=<text> expensed=<yes>|no> costcenter=<text>
In each chapter of this document, command syntax and other information about the commands are formatted using any of the following fields as appropriate:
Table 4. Command syntax
command level 1
command level 2
command level 3
name=value pair 1
name=value pair 2
Introduction
13
2
Using The omhelp Command
The omhelp command and its equivalent, <command> -?, accesses the detailed help-text interface of Command Line Interface (CLI). You can get help at several levels of detail. Each fully-qualified CLI command may have a variable number of distinct parts: the command (command level 1), one or more subcommands (command level 2 and command level 3, if present), and one or more name= value pair(s). By appending -?(space-dash-question mark) to any command, you can get help for that command.
Topics:
� Example Help Commands
Example Help Commands
When you type omconfig -?, you get general help about the omconfig command. The help at this level lists the available subcommands for omconfig: about preferences chassis system
When you type omconfig system -?, the CLI help lists all the subcommands available for omconfig system: alertaction alertlog assetinfo cmdlog esmlog events platformevents pedestinations recovery shutdown thrmshutdown webserver
Also parse the omconfig system assetinfo command as follows:
<command level 1 command level 2 command level 3> <name=value pair 1> [name=value pair 2]
where command levels 1, 2, and 3 are represented by omconfig system assetinfo, name=value pair 1 is represented by info=depreciation , and name=value pair 2 is represented by method=straightline.
To set the depreciation method to straight line, type:
omconfig system assetinfo info=depreciation method=straightline
The CLI responds with the following message:
Asset information set successfully.
When you type omconfig system assetinfo -?, the help that displays provides information about assigning values for the name and option fields. Partial results for the request omconfig system assetinfo -? are as follows:
assetinfo
Set asset information.
14
Using The omhelp Command
For one info value, specify one or more optional parameter(s). The following table displays the optional parameters for info=acquisition:
Table 5. Optional Parameters
Info Value Info=acquisition
Optional parameters
purchasecost=<num> waybill <num>installdate =<mmddyy> purchasedate=<mmddyy> ponum=<num> signauth=<text> expensed=<yes|no> costcenter=<text> info=depreciation method=<text> duration= <num> percent=<percent> unit=<months | years | unknown>
Using The omhelp Command
15
3
omreport Viewing System Status Using The Instrumentation Service
The omreport command allows you to see detailed information about the system components. You can also retrieve summaries for many system components at one time, or get details about a specific component. This chapter shows you how to get reports with the level of detail that you want.
Commands documented in this chapter vary in whether they define the fields that appear in the results of a particular omreport command. The fields are defined only if they have a special or less familiar use.
As with all other components, use omreport to view component status, and omconfig to manage a component. For information on configuring components for management, see omconfig: Managing Components Using The Instrumentation Service.
Use the omreport commands to get information you need to execute an omconfig command. For example, to edit the minimum temperature for a warning event on a temperature probe, you must know the index of the probe you want to configure. Use omreport chassis temps to display a list of probes and their indexes.
The omreport commands available on the system depend on the system configuration. The following table lists the systems on which the omreport commands are applicable:
Table 6. System Availability For The omreport Command
Command Level Command Level 2 Applicable To 1
omreport
modularenclosure Blade systems
servermodule
Blade systems
mainsystem
Blade systems
system
Rack and Tower systems
chassis
Rack and Tower systems
preferences
Blade or Rack, and Tower systems
Topics:
� Conventions for parameter tables � Command summary of the omreport command � Help With The omreport Command � omreport modularenclosure � omreport about � Omreport Chassis Or Omreport Mainsystem Commands � Omreport Licenses � Omreport System Commands Or Omreport Servermodule Commands � Omreport Preferences Commands
Conventions for parameter tables
When listing the parameters that a command can take, the parameters are listed in alphabetical order instead of the order in which they appear in the command line interface.
The symbol |, often called pipe, is the logical exclusive or operator. For example, enable | disable means you can enable or disable the component or feature, but you cannot simultaneously enable and disable the component or feature.
16
omreport Viewing System Status Using The Instrumentation Service
Command summary of the omreport command
Depending on the system configuration, the results of the omreport command vary from one system to another. Data displays for installed components only.
NOTE: When a system includes an external chassis, the displayed results vary by operating system. On SUSE Linux Enterprise Server and Red Hat Enterprise Linux systems, the omreport commands display external chassis information in a separate section after the main chassis information. On Microsoft Windows systems, data about the external chassis does not appear in the omreport output.
The following table provides a high-level summary of the omreport command. The column titled Command level 1 displays the omreport command at its most general use. Command level 2 shows the major objects or components that you can view using omreport (about, chassis, storage, and system). Command level 3 lists the specific objects and components to view reports. User privilege required refers to the type of privilege you need to run the command, where U = User, P = Power User, and A = Administrator. Use is a very general statement about the actions performed using omreport.
The following table lists the omreport commands available for about, system, and main system chassis.
Table 7. Command Level 1, Level 2, And Level 3 For omreport
Command Level 1 omreport
CommandLevel 2 modularenclosure
Command Level 3
User Privilege Required U, P, A
Use
Displays the information for all the modular chassis.
about
U, P, A
Displays the version number and properties for Server Administrator.
details=true
U, P, A
Displays the information for all the Server Administrator programs installed.
chassis or mainsystem
U, P, A
Displays the general status of all the main components.
acswitch
U, P, A
Displays the failover settings where redundant AC power lines are supported in a system.
batteries
U, P, A
Displays the properties set for batteries.
bios
U, P, A
Displays the BIOS
information such as
manufacturer, version,
and release date.
biossetup
A
Displays the BIOS setup properties configured during system boot.
fans
U, P, A
Displays the status and
thresholds for system
fans.
firmware
U, P, A
Displays the name and version of the firmware.
frontpanel
U, P, A
Displays whether the front panel button
omreport Viewing System Status Using The Instrumentation Service
17
Table 7. Command Level 1, Level 2, And Level 3 For omreport (continued)
Command Level 1
CommandLevel 2
Command Level 3
User Privilege Required
fru hwperformance
U, P, A U, P, A
info
U, P, A
intrusion leds
U, P, A U, P, A
memory nics ports
U, P, A U, P, A U, P, A
processors
U, P, A
pwrmanagement
U, P, A
Use
settings, such as the Power button and/or Nonmasking Interrupt (NMI) button (if present on the system), are enabled or disabled. It also displays the front panel encryption access information and the front panel LCD information.
Displays the Field Replaceable Unit (FRU) information.
Displays the status and cause for the system's performance degradation.
Displays a status summary for main system chassis components.
Displays the status of the system's intrusion sensor(s).
Displays the properties you have set for lightemitting diodes to flash under various alert conditions.
Displays properties of the system's memory arrays.
Displays the NIC and Team interface properties.
Displays the properties for the system's parallel and serial ports, such as I/O address, IRQ level, connector type, and maximum speed.
Displays properties of the system's processors, including speed, manufacturer, and processor family.
Displays power inventory details such as system idle power, system maximum potential
18
omreport Viewing System Status Using The Instrumentation Service
Table 7. Command Level 1, Level 2, And Level 3 For omreport (continued)
Command Level 1
CommandLevel 2
Command Level 3
User Privilege Required
pwrmonitoring pwrsupplies remoteaccess
slots
U, P, A U, P, A U, P, A
U, P, A
temps
U, P, A
volts
U, P, A
removableflashmedia U, P, A
licenses
U, P, A
storage system or servermodule
alertaction
U, P, A U, P, A U, P, A
alertlog assetinfo cmdlog
U, P, A U, P, A U, P, A
Use
power, and power budget information.
Displays properties of power consumption.
Displays the properties of power supplies.
Displays general information on remote access.
Displays the properties of the system's expansion slots and other slot types.
Displays the status and thresholds for the system temperature sensors.
Displays the status and thresholds for the system voltage sensors.
Displays the system's virtual flash (vFlash) and secure digital (SD) card details.
Displays the digital licenses of the installed hardware devices of the system.
See Using The Storage Management Service.
Displays a high-level summary of system components.
Displays the warning and failure threshold values, as well as actions configured when an essential component detects a warning or failure state.
Allows the administrator to display the alert log.
Displays the cost of ownership information for the system.
Allows the administrator to display the command log.
omreport Viewing System Status Using The Instrumentation Service
19
Table 7. Command Level 1, Level 2, And Level 3 For omreport (continued)
Command Level 1
CommandLevel 2
Command Level 3
User Privilege Required
esmlog
U, P, A
events
U, P, A
operatingsystem pedestinations
U, P, A U, P, A
platformevents recovery
U, P, A P, A
shutdown summary
P, A U, P, A
thrmshutdown
P, A
version
U, P, A
preferences
webserver
U, P, A
messages
A
Related Links: omreport: Viewing System Status Using The Instrumentation Service
Help With The omreport Command
Use the omreport -? command to get a list of the available commands for omreport.
20
omreport Viewing System Status Using The Instrumentation Service
Use
Allows the administrator to display the hardware log.
Displays the system's Simple Network Management Protocol (SNMP) event settings.
Displays the name and version of the operating system.
Displays the destinations to send the configured alerts for platform events.
Displays the system's response for each listed platform event
Displays how the system is configured to respond to a hung operating system.
Displays how to perform the shutdown action.
Displays the key facts for all system components, including main system chassis, software, and storage.
Displays how to perform the shutdown action, if any, when a temperature warning or failure condition is detected.
Displays a summary for all updatable components on the system.
Displays the URL information of the Server Administrator Web server.
Displays the configured alert message format.
Use omreport <command level 2> -? to get help on the level 2 about, chassis, and system commands. The following information on omreport system -? also applies to get help for the omreport chassis command. To see a list of valid commands for omreport system, type:
omreport system -? | more
omreport modularenclosure
Use the omreport modularenclosure command to view details of the Blade system. Type: omreport modularenclosure
NOTE: This CLI command is available when OpenManage Server Administrator is installed on Dell Blade systems.
Server Administrator displays information related to the modular enclosure and chassis management controller CMC (if available):
NOTE: The output varies depending on the configuration of the system.
Table 8. Output Modular Chassis Information Chassis Information Attribute Value Attribute Value Attribute Value Attribute Value
: Model : Modular Server Enclosure : Lock : true : Service Tag : 8RLNB1S : Express Service Code : 18955029124
CMC Information Attribute Value Attribute Value
Attribute Value Attribute Value Attribute Value Attribute Value Attribute
: Product : Chassis Management Controller (CMC) : Description : The system component provides a complete set of remote managementfunctions for Dell systems. : Version : 3.20 : IP Address : 101.102.103.104 : IP Address Source : Dynamic Source : IP Address Type : IPv4 : Remote Connect Interface
omreport Viewing System Status Using The Instrumentation Service
21
Table 8. Output (continued) Value
: Launch CMC Web Interface
omreport about
Use the omreport about command to learn the product name and version number of the systems management application installed on the system. The following is an example output from the omreport about command:
Table 9. omreport about command
Product name Version Copyright Company Latest Version Download Link
: Dell OpenManage Systems Management Software (64-Bit) : x.x.x : Copyright (C) Dell Inc. xxxx-xxxx. All rights reserved. : Dell Inc. : x.x.x : https://www.dell.com/support/home/us/en/04/drivers/driversdetails? driversId=xxxxx
Latest OpenJDK available for download
Latest Version
: x.x.x
Download Link
https:/ /access.redhat.com/jbossnetwork/restricted/listsoftware.html? product=core.service.openjdk&downloadType=distributions
iDRAC Service Module(iSM) is a lightweight software service that better integrates operating system (os) related features with iDRAC and can be installed on DELL EMC 12 PowerEdge servers. iSM has very little impact on the host processor and smaller memory footprint than "in-band" agents such as DELL EMC OpenManage Server Administrator (OMSA) agent into supported host operating systems. Refer here for more details: https:// www.dell.com/support/article/us/en/04/sln310557/dell-emc-idrac-service-module
For details about the environment for Server Administrator, type:
omreport about details=true
Server Administrator includes a number of services, each of which has a version number of its own. The Contains field reports version numbers for the services as well as other useful details. The following output is an example, and can change depending on the system's configuration and the version of Server Administrator installed on the system:
Table 10. Contains field Contains:
Apache Tomcat webserver 9.x.x Broadcom SNMP Agent 17.x.x Common Storage Module 4.x.x Data Engine 7.x.x Hardware Application Programming Interface 9.x.x Instrumentation Service 9.x.x Instrumentation Service Integration Layer 9.x.x Inventory Collector 18.12.xxx OMACS 9.x.x Oprating System Logging 9.x.x Oracle Java Runtime Environment 10.x.x Remote Access Controller Managed Node 9.x.x Server Administrator Common Framework 9.x.x Server Administrator Core Files 9.x.x (xxxx) Server Administrator Instrumentation files 9.x.x Server Instrumentation SNMP Module 9.x.x Server Instrumentation WMI Module 9.x.x
22
omreport Viewing System Status Using The Instrumentation Service
Table 10. Contains field
Storage Management 6.x.x
Omreport Chassis Or Omreport Mainsystem Commands
Use the omreport chassis or omreport mainsystem commands to view details for the entire chassis or for a particular component. Type:
omreport chassis
or
omreport mainsystem
Server Administrator displays a general status for the main system chassis or main system components.
Table 11. General status Health Main System Chassis SEVERITY Ok Critical Ok Ok Ok Ok
: COMPONENT : Fans : Intrusion : Memory : Power Supplies : Temperatures : Voltages
Chassis management
On servers with Dell PowerEdge FX2 series chassis, when Chassis Management at Server Mode is set to Monitor or Manage and Monitor in CMC, OMSA displays Chassis Management at Server Mode as Enabled and displays the Fans, Power Supplies, and Temperature sensor details. The sensor details are read-only. When Chassis Management at Server Mode is set to None in CMC, OMSA displays Chassis Management at Server Mode as Disabled and displays only the server temperature sensors (not chassis temperature sensors). Related Links omreport chassis fans or omreport mainsystem fans omreport chassis pwrsupplies or omreport mainsystem pwrsupplies omreport chassis temps or omreport mainsystem temps
Omreport chassis acswitch or omreport mainsystem acswitch
Use the omreport chassis acswitch or omreport mainsystem acswitch command if the system has redundant AC power lines that are configured in a failover arrangement. Type:
omreport chassis acswitch
omreport Viewing System Status Using The Instrumentation Service
23
or omreport mainsystem acswitch
Server Administrator displays the following output: Table 12. Server administrator output AC Failover Switch AC Switch Redundancy
Redundancy Status Number of devices required for full redundancy Redundancy Mode Redundancy Configuration
AC Power Lines Status Location AC Present Active Source Status Location AC Present Active Source
: Full : 2
: : Input Source Line 1, upon redundancy restoration, return to Line 1
: Ok : AC Power Line 1 : Power Present : Active : Ok : AC Power Line 2 : Power Present : Not Active
Server Administrator reports values for the Redundancy Status and Redundancy Mode fields.
Omreport Chassis Batteries Or Omreport Mainsystem Batteries
Use the omreport chassis batteries or omreport mainsystem batteries command to view battery properties. Type:
omreport chassis batteries
or
omreport mainsystem batteries
Omreport Chassis Bios Or Omreport Mainsystem Bios
Use the omreport chassis bios or omreport mainsystem bios command to view the current BIOS information. Type:
omreport chassis bios or
omreport mainsystem bios Server Administrator displays the summary of the BIOS information for the system.
24
omreport Viewing System Status Using The Instrumentation Service
Omreport chassis biossetup or omreport mainsystem biossetup
Use the omreport chassis biossetup or omreport mainsystem biossetup command to view BIOS setup parameters that are normally available only during system boot. Type:
omreport chassis biossetup
or
omreport mainsystem biossetup
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable. To view the BIOS Setup parameters in short form, type:
omreport chassis biossetup display=shortnames
To view all available boot devices, alias names, and boot order sequences, type:
omreport chassis biossetup attribute=bootorder
NOTE: The bootorder attribute is applicable only on systems prior to YX2X. To list the device boot order, type omreport chassis biossetup and serach the list under BIOS Boot Settings or UEFI Boot Settings depending on the BIOS boot setting. NOTE: On Linux systems, user or user groups upgraded to administrator or administrator groups cannot view the boot order sequence. To list the device boot order, type omreport chassis biossetup and search the list under BIOS Boot Settings or UEFI Boot Settings depending on the BIOS boot setting. NOTE: On Linux systems, user or user groups upgraded to administrator or administrator groups cannot view the boot order sequence.
BIOS setup groups
The following table lists the available groups of the BIOS setup parameters on PowerEdge systems. NOTE: Based on the hardware configuration, the attributes may vary in a specific group.
Table 13. BIOS Setup Groups Group BIOS Option Settings Boot Settings Integrated Devices Memory Settings Miscellaneous Settings Network Settings
One-Time Boot NOTE: This group is not supported on YX3X systems.
Description Controls the BIOS start settings when bootmode is set to bios. Controls the system boot settings when bootmode is set to bios. Controls the devices integrated on the system board. Controls the system memory settings. Controls some miscellaneous system settings. Controls the network settings of the system.
Supports one-time boot to a specified device.
Processor Settings SATA Settings
Controls the processor settings of the system. Control the embedded SATA ports settings.
omreport Viewing System Status Using The Instrumentation Service
25
Table 13. BIOS Setup Groups (continued)
Group
Description
Serial Communication
Controls the Serial Communication options.
Slot Disablement
Controls the system slots that are present on the system.
System Information
Displays the information that uniquely identifies the system.
System Profile Settings
Controls the power management settings.
System Security
Controls the security features of the system.
UEFI Boot Settings
Controls the system boot settings when boot mode is set to uefi.
Omreport Chassis Currents Or Omreport Mainsystem Currents
This command is no longer available through Server Administrator.
Omreport chassis fans or omreport mainsystem fans
Use the omreport chassis fans or omreport mainsystem fans command to view the fan probe status and settings. Type:
omreport chassis fans index=n
or
omreport mainsystem fans index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays a summary of status, readings, and thresholds set for any fan probes that are present on the system. If you specify the index, Server Administrator displays a summary for a specific fan probe.
NOTE: On servers in the Dell PowerEdge FX2 series chassis, this command is supported only if the Chassis Management at Server Mode is set to either Monitor or Manage and Monitor in the CMC, and Server Administrator displays the Chassis Management at Server Mode as Enabled. For more details, see Chassis Management.
Omreport Chassis Firmware Or Omreport Mainsystem Firmware
Use the omreport chassis firmware or omreport mainsystem firmware command to view current firmware properties. When you type:
omreport chassis firmware
or
omreport mainsystem firmware
Server Administrator displays a summary of the system's firmware properties. NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable. NOTE: If iDRAC is installed, Server Administrator displays the Lifecycle Controller version. If BMC is installed, Server Administrator displays the Unified Server Configurator (USC) version.
26
omreport Viewing System Status Using The Instrumentation Service
Omreport Chassis Frontpanel Or Omreport Mainsystem Frontpanel
Use the omreport chassis frontpanel or omreport mainsystem frontpanel command to view if the front panel button control settings, such as the Power button and/or Nonmasking Interrupt (NMI) button (if present on the system), are enabled or disabled.
If the Power button override is present on the system, check whether the Power button override is enabled or not. If enabled, the Power button turns the power to the system On and Off.
If the NMI button is present on the system, check whether the NMI button is enabled or not. Use the NMI button to troubleshoot software and device errors when using certain operating systems.
The Front Panel LCD Security Access displays if the front panel encryption access information is set to View, Modify, or Disable.
The Front Panel LCD Information displays information such as service tag, remote indication status, and so on.
Omreport Chassis Fru Or Omreport Mainsystem Fru
Use the omreport chassis fru or omreport mainsystem fru command to view FRU information. When you type: omreport chassis fru
or omreport mainsystem fru
Server Administrator displays a summary of the system's FRU information. This information is available in the Server Administrator GUI, SNMP, and Common Information Model and is primarily used to support troubleshooting activities.
Omreport chassis hwperformance or omreport mainsystem hwperformance
Use the omreport chassis hwperformance or omreport mainsystem hwperformance command to view the status and cause for the system's performance degradation. When you type:
omreport chassis hwperformance
or
omreport chassis hwperformance
Server Administrator displays a summary of the system's hardware performance degradation information.
NOTE: This command is applicable only to selected Dell 10G systems that support PMBus.
Depending on the system's configuration, you may notice the following output:
Table 14. System configuration output Hardware Performance Index Probe Name Status Cause
: 0 : System Board Power Optimized : Normal : [N/A]
omreport Viewing System Status Using The Instrumentation Service
27
Omreport Chassis Info Or Omreport Mainsystem Info
Use the omreport chassis info or omreport mainsystem info command to see a summary of installed component versions. Type:
omreport chassis info index=n
or
omreport mainsystem info index=n
The index parameter specifies a chassis number and is optional. If you do not specify the index, Server Administrator displays summary chassis information for each chassis. If you specify the index, Server Administrator displays summary information for a specific chassis.
NOTE: If iDRAC is installed, Server Administrator displays the Lifecycle Controller version. If BMC is installed, Server Administrator displays the USC version.
Depending on the system's configuration, you may notice the following output:
Table 15. System configuration output Index Chassis Name Host Name iDRAC7 Version Chassis Model Chassis Lock Chassis Service Tag Express Service Code Chassis Asset Tag
: 0 : Main System Chassis : WIN-27C02UQFV6L : 1.00 : PowerEdge R720 : Present : 7654321 : 15608862073 : c
Omreport Chassis Intrusion
Use the omreport chassis intrusion command to find out whether the cover of the system is open or not. Server Administrator tracks chassis intrusion events because intrusions may indicate an attempt to steal a system component, or to perform unauthorized maintenance on the system. Type:
omreport chassis intrusion
A message that resembles the following is displayed:
Table 16. Output
Intrusion Information
Health
: Ok
Index
: 0
Status
: OK
Probe Name
: Intrusion
State
: Chassis is closed
Table 17. Output Intrusion Information
28
omreport Viewing System Status Using The Instrumentation Service
Table 17. Output (continued) Health Index Status Probe Name State
: Ok : 1 : OK : Drive Bay : Bay is open
Omreport Chassis Leds Or Omreport Mainsystem Leds
Use the omreport chassis leds or omreport mainsystem leds command to find out whether clear hard drive fault is supported and what severity level lights up the LED. Type:
omreport chassis leds index=n
or
omreport mainsystem leds index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays a summary of LED information for chassis 0. If you specify the index, Server Administrator displays a summary for a specific chassis.
The following is an example output:
Table 18. Output Main System Chassis Flash chassis identify LED state Flash chassis identify LED timeout value
: Off : 300
Omreport Chassis Memory Or Omreport Mainsystem Memory
Use the omreport chassis memory or omreport mainsystem memory to view details for each memory module slot in the system. If the system supports redundant memory, this command also displays the status, state, and type of memory redundancy implemented on the system. Type:
omreport chassis memory index=n
or
omreport mainsystem index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays information for all memory modules on the system as follows: The following is an example output:
Table 19. Output Memory Information
Health
: Ok
Attributes of Memory Array(s) Location Use
: System Board or Motherboard : System memory
omreport Viewing System Status Using The Instrumentation Service
29
Table 19. Output (continued) Installed Capacity Maximum Capacity Slots Available Slots Used Error Correction
: 65536 MB : 786432 MB : 24 : 8 : Multibit ECC
Total of Memory Array(s)
Total Installed Capacity
Total Installed Capacity Available to the OS
Total Maximum Capacity
: 65536 MB : 64386 MB
: 786432 MB
Details of Memory Array 1 Index Status Status Status Connector Name Type Size Index Status Connector Name Type Size
: 0 : Ok : Ok : Ok : DIMM_A1 : DDR3 - Synchronous Registered (Buffered) : 8192 MB : 1 : Ok : DIMM_A2 : DDR3 - Synchronous Registered (Buffered) : 8192 MB
Index Status Connector Name Type Size
: 2 : Ok : DIMM_A3 : DDR3 - Synchronous Registered (Buffered) : 8192 MB
Index Status Connector Name Type Size
: 3 : Ok : DIMM_A4 : DDR3 - Synchronous Registered (Buffered) : 8192 MB
If you specify the index, Server Administrator displays a summary for a specific memory module displaying the health, status, device name, type, speed, rank, and failures. A rank is a row of dynamic random access memory (DRAM) devices comprising 64 bits of data per Dual Inline Memory Module (DIMM). The possible values of rank are single, dual, quad, octal, and hexa. The rank displays the rank of the DIMM and helps in the easy service of DIMMs on the server.
The following is an example output if you specify the index:
30
omreport Viewing System Status Using The Instrumentation Service
Table 20. Index detail Memory Device Information
Health : Ok
Status Device Name Size Type Speed Rank Failures Technology Volatile Size Non-Volatile Size Cache Size Remaining Rated Write Endurance
: Ok : A2 : 16384 MB : DDR4 Synchronous Registered (Buffered) : 0.38 ns : Dual : None : DRAM : 1717989184 : N/A : N/A : 23%
Use the Omreport chassis memory index to view details of memory device properties of a particular connector using its index number. If the system supports redundant memory, this command also displays the status, device name, speed, and type of memory redundancy implemented on the system. Type:
omreport chassis memory index=n speedunit=mtps
or
omreport chassis memory index=n speedunit=ns
The speedunit parameter is optional. If you do not specify the speedunit, Server Administrator displays the speed in ns (Default output).
Table 21. Speedunit detail Memory Device Information
Health
: Ok
Status Device Name Size Type Speed Rank Failures
: Ok : A2 : 4096 MB : DDR4 Synchronous Registered (Buffered) : 0.47 ns : Single : None
If you specify the speedunit MT/s, Server Administrator displays the speed in MT/s. Table 22. Speedunit detail Memory Device Information
omreport Viewing System Status Using The Instrumentation Service
31
Table 22. Speedunit detail (continued) Health
: Ok
Status Device Name Size Type Speed Rank Failures
: Ok : A2 : 4096 MB : DDR4 Synchronous Registered (Buffered) : 2133 MT/s : Single : None
NOTE: To maintain consistency across the commands, the output format of this command and the subsequent command levels has changed. Change the user scripts as applicable.
Omreport chassis nics or omreport mainsystem nics
Use the omreport chassis nics or omreport mainsystem nics command to view NIC and Team interface details. On XenServer, the command displays all the installed NICs, regardless of driver installation.
NOTE: The order in which devices are detected is not guaranteed to match the physical port ordering of the device.
To view NIC properties, type:
omreport chassis nics index=n
or
omreport chassis nics index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays properties of all NICs on the system and the values for the following fields: Index (NIC card number), Interface Name, Vendor, Description, Connection Status, and Slot. If you specify the index, Server Administrator displays properties for a specific NIC and the values for the following fields: Physical Interface, Interface, IPv4 Addresses, IPv6 Addresses, Physical Interface Receive Statistics, Physical Interface Transmit Statistics, Interface Receive Statistics, and Interface Transmit Statistics.
NOTE: The Fibre Channel over Ethernet (FCoE) and iSCSI over Ethernet (iSCSI Offload Engine) features of Converged Network Adapter (CNA) cards are not supported on VMware ESX and VMware ESXi systems. To view Team interface properties, type:
omreport chassis nics config=team index=n
or
omreport mainsystem nics config=team index=n
NOTE: This command is applicable only if Team interface is configured in the system. Team interface is configured using NIC vendor tools, such as Broadcom.
NOTE: On systems running Linux operating systems with kernel versions earlier than 3.10, Team Interface speed is not displayed. The index parameter is optional. If you do not specify the index, Server Administrator displays details of all the Team interfaces on the system and the values for the following fields: Index (NIC card number), Interface Name, Vendor, Description, and Redundancy Status.
32
omreport Viewing System Status Using The Instrumentation Service
If you specify the index, Server Administrator displays the Team interface details for the specific NIC and the values for the following fields: Team Interface, Interface, IPv4 Addresses, IPv6 Addresses , Team Interface Receive Statistics , Team Interface Transmit Statistics , Interface Receive Statistics, and Interface Transmit Statistics.
Omreport Chassis Ports Or omreport Mainsystem Ports
Use the omreport chassis ports or omreport mainsystem ports command to view properties of the system's parallel and serial ports.
NOTE: CMC USB ports attached with blade servers are not enumerated by OMSA.
Server Administrator displays values for the following fields: Port Type, External Name, Base I/O Address, IRQ Level, Connector Type, and Maximum Speed. The following table provides the description of the fields:
Table 23. Fields and Description
Field
Description
Port Type
Detailed type of each system port, from the more general serial, parallel, and USB ports to the names of ports by device type connected to it, for example, pointing device or keyboard.
External Name
Name of the port, such as serial or parallel, USB, mouse, keyboard, and so on.
Base I/O Address
Starting I/O address expressed in hexadecimal.
IRQ Level
Hardware interrupt on a system. The hardware interrupt signals the system's CPU that an event has started or ended in a peripheral component such as a modem or printer. When communicated over a peripheral component interconnect card, the IRQ level is a standard way to identify the type of device that is sending the interrupt request.
Connector Type
Type of plug or cable and plug that connects two devices together, in this case, the type of connector that attaches an external device to a system. There are many connector types, each designed to connect a different device type to a system. Examples include DB-9 Male, AT, Access Bus, PS/2, and so on.
Maximum Speed
Port speed. Port speed refers to the data transmission rate of an input/output channel, measured in numbers of bits per second. Serial ports usually have a maximum speed of 115 Kbps and USB version 1.x ports have a maximum speed of 12 Kbps.
Omreport Chassis Processors Or Omreport Mainsystem Processors
Use the omreport chassis processors or omreport mainsystem processors command to view properties of the system's processors.
Server Administrator displays values for the following fields: Index, Status, Connector Name, Processor Brand, Processor Version, Current Speed, State, and Core Count.
The following table provides the description of the fields.
Table 24. Fields and Description
Field
Description
Index
Processor number
Status
Current status of the processor.
Connector Name Name or number of the device that occupies the processor slot in the system.
Processor Brand
Type of processor made by a manufacturer such as Intel Itanium, Intel Pentium III, Intel Xeon, or AMD Opteron.
Processor Version Model and stepping number of the processor.
Current Speed
Actual processor speed in MHz at system boot time.
omreport Viewing System Status Using The Instrumentation Service
33
Table 24. Fields and Description (continued)
Field
Description
State
Whether the processor slot is enabled or disabled.
Core Count
Number of processors integrated into one chip.
Capabilities and cache properties of a specific processor
To view the cache properties of a processor on a given connector, type:
omreport chassis processors index=n
or
omreport mainsystem processors index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays properties for all processors. If you specify the index, Server Administrator displays properties for a specific processor.
The following table lists the fields that are defined for the capabilities present on a particular microprocessor:
Table 25. Microprocessors and Fields
Microprocessor
Fields
Intel Processor
64-bit Support Hyperthreading (HT) Virtualization Technology (VT) Demand-Based Switching (DBS) Execute Disable (XD) Turbo Mode
AMD Processor
64-bit Support AMD-V AMD PowerNow! No Execute (NX)
The following fields are defined for a cache present on a particular microprocessor. If the cache is internal to the processor, the fields do not appear in the cache report: Speed Cache Device Supported Type Cache Device Current Type External Socket Name
The following table displays the fields that are displayed for each cache on a particular processor:
Table 26. Fields And Description
Field Status
Description Reports whether a specific cache on the processor is enabled or disabled.
Level
Refers to a primary or secondary cache. Primary-level cache is a memory bank built into the processor. Secondary-level cache is a staging area that feeds the primary cache. A secondary-level cache is built into the processor or resides in a memory chipset outside the processor. The internal processor cache is referred to as a Level 1 (or L1). L2 cache is the external cache in a system with an Intel Pentium processor, and it is the second level of cache that is accessed. The names L1 and L2 are not indicative of where the cache is physically located (internal or external), but describe which cache is accessed first (L1, therefore internal).
Speed
Refers to the rate at which the cache can forward data from the main memory to the processor.
34
omreport Viewing System Status Using The Instrumentation Service
Table 26. Fields And Description (continued)
Field
Description
Max Size
Maximum amount of memory that the cache can hold in kilobytes.
Installed Size
Actual size of the cache.
Type
Indicates whether the cache is primary or secondary.
Location
Location of the cache on the processor or on a chipset outside the processor.
Write Policy
Describes how the cache deals with a write cycle. In a write-back policy, the cache acts like a buffer. When the processor starts a write cycle, the cache receives the data and stops the cycle. The cache then writes the data back to the main memory when the system bus is available.
In a write-through policy, the processor writes through the cache to the main memory. The write cycle does not complete until the data is stored into the main memory.
Associativity
Refers to the way in which main memory content is stored on the cache.
A fully associative cache allows any line in main memory to store at any location in the cache.
A n-way set-associative cache directly maps n specific lines of memory to the same n lines of cache. For example, line 0 of any page in memory is stored in line 0 of cache memory.
Cache Device Supported Type
Cache Device Current Type
External Socket Name Silk Screen Name
Error Correction Type
Type of static random access memory (SRAM) that the device can support. Type of the currently installed SRAM that the cache is supporting. Name printed on the system board next to the socket.
Identifies the type of error checking and correction (ECC) that this memory can perform. Examples are correctable ECC or uncorrectable ECC.
Omreport chassis pwrmanagement or omreport mainsystem pwrmanagement
Use the omreport chassis pwrmanagement or omreport mainsystem pwrmanagement command to view the power budget cap and power management profiles of the system. The values display either in Watts or BTU/Hr based on the configuration. Type:
omreport chassis pwrmanagement
or
omreport mainsystem pwrmanagement
NOTE: To maintain consistency across the commands, the output format of this command and the subsequent command levels has changed. So, you may have to change the user scripts as applicable.
NOTE: The omreport chassis pwrmanagement or omreport mainsystem pwrmanagement command is applicable on PowerEdge 11G systems that support Power Management Bus (PMBus) and that have hot-swappable power supplies and not systems that have a fixed, non-redundant power supply installed. The output of the omreport chassis pwrmanagement or omreport mainsystem pwrmanagement command lists each of the valid parameters. The following table lists the available settings.
omreport Viewing System Status Using The Instrumentation Service
35
Table 27. Valid Parameters Of Omreport Chassis Pwrmanagement Or Omreport Mainsystem Pwrmanagement
name=value pair
Description
unit=<watt | btuphr>
Displays power in the user-specified units.
config=budget
Displays power budget information.
config=profile
Displays power profiles information.
NOTE: On PowerEdge 12G systems, profile option is SysProfile and is grouped under System Profile Settings of the BIOS setup group. For more information, see BIOS Setup Settings on PowerEdge 12G systems.
For each power management profile in the system, values display for the following fields: Maximum Performance, Active Power Controller, OS Control, and Custom. The Custom attributes are: CPU Power and Performance Management, Memory Power and Performance Management, and Fan Power and Performance Management. The following is an example output:
Table 28. Output
Power Inventory and Budget
Power Inventory
System Idle Power System Maximum Potential Power
: 92 W : 344 W
Power Budget Attribute Values
: Enable Power Cap : Enabled
Attribute Values
: Power Cap : 400 W (56%)
NOTE: Power budget requires license to report the details. If the appropriate license is not installed or has expired, the system does not display the power budget details. For more information, see the Dell License Manager Guide at dell.com/support/manuals.
Omreport chassis pwrmonitoring or omreport mainsystem pwrmonitoring
Use the omreport chassis pwrmonitoring or omreport mainsystem pwrmonitoring command to view the properties of the system's power consumption. The values display either in Watts or BTU/Hr based on the configuration. Type:
omreport chassis pwrmonitoring
or
omreport mainsystem pwrmonitoring
For each power monitoring profile in the system, values display for the following fields: Power Consumption Status
36
omreport Viewing System Status Using The Instrumentation Service
Probe Name Reading Warning Threshold Failure Threshold Amperage: Location and Reading Power Tracking Statistics Energy Consumption Measurement Start Time Measurement Finish Time Reading System Peak Power System Peak Amperage
NOTE: The omreport chassis pwrmonitoring or omreport mainsystem pwrmonitoring command is applicable from PowerEdge 10G system onwards that support PMBus and that have hot-swappable power supplies and not systems that have a fixed, non-redundant power supply installed.
NOTE: Power monitoring requires license to report the details. If the appropriate license is not installed or has expired, the system does not display the power consumption details of the system. For more information, see the Dell License Manager at Guide dell.com/openmanagemanuals.
NOTE: To maintain consistency across the commands, the output format of this command and the subsequent command levels has changed. So, you may have to change the user scripts as applicable.
An example output reporting power statistics in Watts is as follows:
Table 29. Power statistics in watts
Power Consumption Information Power Consumption
Index
: 1
Status
: Ok
Probe Name
: System Board Pwr Consumption
Reading
: 539W
Warning Threshold
: 994W
Failure Threshold
: 1400 W
Amperage
PS1 Current 1 Power Headroom
: 1.2 A
System Instantaneous Headroom
: 300 W
System Peak Headroom
: 340 W
Power Tracking Statistics
Statistic
: Energy consumption
Measurement Start Time
: Thu May 28 11:03:20 2011
Measurement Finish Time
: Fri May 28 11:05:46 2011
Reading
: 5.9 KWH
Statistics Measurement Start Time
: System Peak Power : Mon May 18 16:03:20 2011
Peak Time
: Wed May 27 00:23:46 2011
Peak Reading
: 630 W
omreport Viewing System Status Using The Instrumentation Service
37
Table 29. Power statistics in watts (continued)
Statistics
: System Peak Amperage
Measured Since
: Mon May 18 16:03:20 2011
Read Time
: Tue May 19 04:06:32 2011
Peak Reading
: 2.5 A
NOTE: Power Management features are only available for PowerEdge systems that have hot-swappable power supplies and not systems that have a fixed, non-redundant power supply installed.
Omreport chassis pwrsupplies or omreport mainsystem pwrsupplies
Use the omreport chassis pwrsupplies or omreport mainsystem pwrsupplies command to view properties of the system's power supplies. Type:
omreport chassis pwrsupplies
or
omreport mainsystem pwrsupplies
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable.
NOTE: On servers in the Dell PowerEdge FX2 series chassis, this command is supported only if the Chassis Management at Server Mode is set to either Monitor or Manage and Monitor in the CMC, and Server Administrator displays the Chassis Management at Server Mode as Enabled. For more details, see Chassis Management.
For each power supply profile in the system, the values for the following fields are displayed: Status Location Type Rated Input Wattage (in Watts) Maximum Output Wattage Online Status Power Monitoring Capable
Omreport Chassis Remoteaccess Or Omreport Mainsystem Remoteaccess
Use the omreport chassis remoteaccess or omreport mainsystem remoteaccess command to view general information on baseboard management controller or integrated Dell remote access controller (BMC/iDRAC) and remote access controller if DRAC is installed. Type:
omreport chassis remoteaccess
or
omreport mainsystem remoteaccess
NOTE: To maintain consistency across the commands, the output format of this command and the subsequent command levels has changed. So, you may have to change the user scripts as applicable. The output of the omreport chassis remoteaccess or omreport mainsystem remoteaccess command lists each of the valid parameters as displayed in the following table:
38
omreport Viewing System Status Using The Instrumentation Service
Table 30. Valid Parameters Of Omreport Chassis Remoteaccess Or Omreport Mainsystem Remoteaccess
name=value pair
Description
config=additional
Reports the current state of IPv4 and IPv6 addresses on iDRAC.
config=advsol
Reports advanced BMC/iDRAC or remote access information on a serial over local area network (LAN) connection.
config=nic
Reports BMC/iDRAC or remote access information for the LAN.
config=serial
Reports serial port information for BMC or remote access.
config=serialoverlan
Reports BMC/iDRAC or remote access information on a serial over LAN connection.
config=terminalmode Reports terminal mode settings for the serial port.
config=user
Reports information on BMC/iDRAC or remote access users.
Omreport Chassis Removableflashmedia Or Omreport Mainsystem Removableflashmedia
Use the omreport chassis removableflashmedia or omreport mainsystem removableflashmedia to view the removable flash media details on the system along with its health status. Type:
omreport chassis removableflashmedia
or
omreport mainsystem removableflashmedia
Server Administrator displays a summary of the system's removable flash media information.
NOTE: If the vFlash or SD card size is less than 1 GB, the size is displayed in MB.
Depending on the configuration of the system, you may notice the following output:
Table 31. Output status Removable Flash Media Information Health Internal Dual SD Module Redundancy Attribute Value Internal SD Modules Status Status Connector Name State
: Critical : Critical : Redundancy : Lost
: OK : System Board SD Status 1 : Present
Storage Size Status Connector Name State Storage Size VFlash Media Details Connector Name
: 512 MB : OK : System Board SD Status 2 : Present : 512 MB
: System Board SD Status 1
omreport Viewing System Status Using The Instrumentation Service
39
Table 31. Output status (continued) Type State Available Size Storage Size
: vFlash SD Card : Present : 472 MB : 512 MB
Omreport Chassis Slots Or Omreport Mainsystem Slots
Use the omreport chassis slots or omreport mainsystem slots command to view properties of the system's slots. Type:
omreport chassis slots index=n
or
omreport mainsystem slots index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays properties for all of the slots in the system. If you specify the index, Server Administrator displays properties for a specific slot.
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable.
For each slot in the system, values display for the following fields given in the following table:
Table 32. Valid Parameters Of Omreport Chassis Slots Or Omreport Mainsystem Slots
Field
Description
Index
Number of the slot in the system.
Slot ID
Silk screen name printed on the system's motherboard next to the slot. Alphanumeric text uniquely identifies each slot in the system.
Adapter
Name and/or type of the card that fits into the slot, for example, a storage array controller, SCSI adapter, iDRAC Enterprise, or HBA.
Data Bus Width
Width, in bits, of the information pathway between the components of a system. The range of the data bus width is from 16 to 64 bits.
Omreport chassis temps or Omreport mainsystem temps
Use the omreport chassis temps or omreport mainsystem temps command to view properties of the system's temperature probes. Type:
omreport chassis temps index=n
or
omreport mainsystem temps index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays a summary of status, readings, and thresholds set for any temperature probes that are present on the system. If you specify the index, Server Administrator displays the summary for a specific temperature probe.
NOTE: On servers in the Dell PowerEdge FX2 series chassis, this command is supported only if the Chassis Management at Server Mode is set to either Monitor or Manage and Monitor in the CMC, and Server Administrator displays the Chassis Management at Server Mode as Enabled. For more details, see Chassis Management.
40
omreport Viewing System Status Using The Instrumentation Service
Omreport Chassis Volts Or Omreport Mainsystem Volts
Use the omreport chassis volts or omreport mainsystem volts command to view properties of the system's voltage probes. Type:
omreport chassis volts index=n
or
omreport mainsystem volts index=n
The index parameter is optional. If you do not specify the index, Server Administrator displays a summary of status, readings, and thresholds set for any voltage probes that are present on the system. If you specify the index, Server Administrator displays a summary for a specific voltage probe.
Omreport Licenses
Use the omreport licenses command to view the digital licenses of the hardware devices installed on the system. Type:
omreport licenses
The following is an example output from the omreport licenses command:
Table 33. omreport licenses command
Device Index
: 0
Device Status
: Ok
Device
: iDRAC7
Device Description
: iDRAC
Device ID
: xxxx
License Index
: 0
Description
: iDRAC7 Enterprise Evaluation License
Status
: OK
Recommended Action
: N/A
License Type
: Evaluation
EntitlementID
: xxxx
Expiry Date
: yyyy-mm-dd hh:mm:ss
Omreport System Commands Or Omreport Servermodule Commands
Use the omreport system or omreport servermodule commands to view logs, threshold values, cost of ownership information, and information about how shutdown actions and recovery actions are configured.
Omreport System Or Omreport Servermodule
Use the omreport system or omreport servermodule command to see a general status of the components of the system. When you specify a level 3 command, such as omreport system shutdown or omreport servermodule
omreport Viewing System Status Using The Instrumentation Service
41
shutdown, you get detailed information for one system component rather than the high-level status obtained with omreport system or omreport servermodule. Type:
omreport system
or
omreport servermodule
If the system has both a main system chassis or main system and at least one direct attached storage device, Server Administrator may display a summary that resembles the following example: Table 34. System and attached storage
SEVERIT
:
COMPONENT
Y
Ok
:
Main System Chassis
Commands for viewing logs
Use the omreport system or omreport servermodule command to view the following logs: the alert log, the command log, and the hardware or ESM log.
NOTE: If the Alert log or Command log displays invalid XML data (such as when XML data generated for the selection is not well-formed), you must clear the log and resolve the issue. To clear the log, type: omconfig system alertlog action=clear or omconfig system cmdlog action=clear. If you need to retain the log information for future reference, save a copy of the log before clearing. For more information about clearing logs, see Commands For Clearing Logs. To view the contents of the alert log, type:
omreport system alertlog or
omreport servermodule alertlog To view the contents of the command log, type:
omreport system cmdlog or
omreport servermodule cmdlog To view the contents of the ESM log, type:
omreport system esmlog or
omreport servermodule esmlog
Overall Health Status Of The ESM Log
When you run the omreport system esmlog or omreport servermodule esmlog command, the ESM log is displayed. The first line of the report reflects the overall health of the system hardware. For example, Health: OK means
42
omreport Viewing System Status Using The Instrumentation Service
that less than 80 percent of the space allotted for the ESM log is occupied by messages. If 80 percent or more of the allotted space for the ESM log is occupied, the following caution is displayed:
Health: Non-Critical
If a caution is displayed, resolve all warning and critical severity conditions, and then clear the log.
Omreport System Alertaction Or Omreport Servermodule Alertaction
Use the omreport system alertaction or omreport servermodule alertaction command to view a summary of alert actions that have been configured for warning and failure events on the system components. Alert actions determine how Server Administrator responds when a component has a warning or failure event.
The omreport system alertaction or omreport servermodule alertaction command is useful for viewing which alert actions have been specified for components. To set an alert action for a component, use the omconfig system alertaction or omconfig servermodule alertaction command. For more information, see omconfig: Managing Components Using The Instrumentation Service.
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable.
Components and events having view alert actions
View alert action properties for the following components and events, if the components or events are present on the system: Battery Warning Battery Failure Chassis Intrusion Current Probe Warning Current Probe Failure Fan Warning Fan Failure Memory Pre-failure Memory Failure System Power Probe Warning System Power Probe Detects a Failure System Peak Power Power Supply Warning Power Supply Failure Degraded Redundancy Lost Redundancy Temperature Warning Temperature Failure Voltage Warning Voltage Failure Processor Warning Processor Failure Hardware Log Warning Hardware Log Full Watchdog Asr Storage System Warning Storage System Failure Storage Controller Warning Storage Controller Failure Physical Disk Warning Physical Disk Failure Virtual Disk Warning
omreport Viewing System Status Using The Instrumentation Service
43
Virtual Disk Failure Enclosure Warning Enclosure Failure Storage Controller Battery Warning Storage Controller Battery Failure Removable Flash Media Present Removable Flash Media Removed Removable Flash Media Failure
NOTE: Storage Controller Battery Warning and Storage Controller Battery Failure events are not available on blade systems.
NOTE: System Power Probe Warning is not applicable to blade systems.
Omreport System Assetinfo Or Omreport Servermodule Assetinfo
Use the omreport system assetinfo or omreport servermodule assetinfo command to see cost of ownership data for the system, such as acquisition, depreciation, and warranty information. To set any of these fields, use the omconfig system assetinfo or omconfig servermodule assetinfo command. For more information, see Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values.
Omreport system events or omreport servermodule events
Use the omreport system events or omreport servermodule events command to view the currently enabled or disabled SNMP traps. Type:
omreport system events
or
omreport servermodule events
This command displays a summary of each component in the system for which events are generated. For each component, the report shows which severities are set to report and which severities are set not to report. The following is an example output for a few components:
Current SNMP Trap Configuration ----------System ----------Settings Enable: Informational, Warning and Critical Disable: None --------------Power Supplies ---------------Settings Enable: Informational, Warning and Critical Disable: None ----------Fans ----------Settings Enable: Critical Disable: Informational, Warning, and Critical --------------------Removable Flash Media --------------------Settings Enable: Informational, Warning and Critical Disable: None
The full report lists the settings for all components in the system for which events are generated.
44
omreport Viewing System Status Using The Instrumentation Service
Omreport System Events Type Or Omreport Servermodule Events Type
To view the status for components of a specific type, use the omreport system events type=<component name> or omreport servermodule event type=<component name> command. Type:
omreport system events type=fans
or
omreport servermodule events type=fans
This command displays a summary of each component in the system for which events are generated. The following table displays the events displayed for various component types.
Table 35. Valid Parameters Of Omreport System Events Type Or Omreport Servermodule Events Type
name=value pair type=accords
Description Reports events for AC power cords
type=battery
Reports events for batteries
type=fanenclosures
Reports events for fan enclosures
type=fans
Reports events for fans
type=intrusion
Reports events for chassis intrusion
type=log
Reports events for logs
type=memory
Reports events for memory
type=powersupplies
Reports events for power supplies
type=redundancy
Reports events for redundancy
type=systempower
Reports events for system power
type=temps
Reports events for temperatures
type=removableflashmedia
Reports events for removable flash media
type=volts
Reports events for voltages
The following is an example output:
Current SNMP Trap Configuration ------System ------Settings Enable: Informational, Warning, and Critical Disable: None ----------Fans Group ---------Settings Enable: Informational, Warning, and Critical Disable: None ----------Individual Objects ----------System Board Fan1 RPM Settings Index:0 Enable: Informational, Warning, and Critical Disable: None System Board Fan2 RPM Settings Index:1
omreport Viewing System Status Using The Instrumentation Service
45
Enable: Informational, Warning, and Critical Disable: None
Omreport System snmptrapdest Or Omreport Servermodule snmptrapdest
Use the omreport system snmptrapdest or omreport servermodule snmptrapdest command to view the configured SNMP trap destinations. When the system is configured with the IP destinations, the following list of IP address is displayed:
Destination1 : <ip address1> Destination2 : <ip address2> Destination3 : <ip address3>
Omreport System Operatingsystem Or Omreport Servermodule Operatingsystem
Use the omreport system operatingsystem or omreport servermodule operatingsystem command to display information about the operating system.
Omreport System Pedestinations Or Omreport Servermodule Pedestinations
Use the omreport system pedestinations or omreport servermodule pedestinations command to view destinations where alerts are sent for platform events. Depending on the number of destinations displayed, configure a separate IP address for each destination address. Type:
omreport system pedestinations
or
omreport servermodule pedestinations
The output of the omreport system pedestinations or omreport servermodule pedestinations command lists each of the valid parameters.
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable.
Destination configuration settings for the Omreport system pedestinations or Omreport servermodule pedestinations
The actual number of destinations that you can configure on a system using omreport system pedestinations or omreport servermodule pedestinations may differ.
The following table displays the available settings.
Table 36. Settings For The Omreport System Pedestinations Or Omreport Servermodule Pedestinations
Output
Attributes
Description
Destination List
Destination Number: Destination1
destination 1: Displays the first destination. Example:
46
omreport Viewing System Status Using The Instrumentation Service
Table 36. Settings For The Omreport System Pedestinations Or Omreport Servermodule Pedestinations (continued)
Output
Attributes
Description
101.102.103.104: IPv4 address of the first destination.
Destination Number: Destination 2
destination 2: Displays the second destination. Example: 110.120.130.140: IPv4 address of the second destination.
Destination Number: Destination 3
destination 3: Displays the third destination. Example: 201:202:203:204: IPv4 address of the third destination.
Destination Number: Destination 4
destination 4: Displays the fourth destination. Example: 210.211.212.213: IPv4 address of the fourth destination.
Destination Number: Destination 5
destination 5: Displays the fifth destination.
Example:
2001:0db8:85a3:0000:0000:8a2e:0370:7334: IPv6 address of the fifth destination.
Destination Number: Destination 6
destination 6: Displays the sixth destination.
Example:
2001:0db8:85a3:0000:0000:8a2e:0370:7334: IPv6 address of the sixth destination.
Destination Number: Destination 7
destination 7: Displays the seventh destination. Example: 210.211.212.213: IP address of the seventh destination.
Destination Number: Destination 8
destination 8: Displays the eighth destination. Example: 210.211.212.213: IP address of the eighth destination.
Destination Configuration Settings
attribute=communitystring
communitystring: Displays the text string that acts as a password and is used to authenticate SNMP messages sent between the BMC and the destination management station
.
NOTE: On 12G systems with iDRAC7 specific versions, ipaddress can also be a Fully Qualified Domain Name (FQDN).
Omreport System Platformevents Or Omreport Servermodule Platformevents
Use the omreport system platformevents or omreport servermodule platformevents command to view how the system responds for each listed platform event.
NOTE: To maintain consistency across the commands, the output format of this command has changed. Change the user scripts as applicable.
omreport Viewing System Status Using The Instrumentation Service
47
Omreport System Recovery Or Omreport Servermodule Recovery
Use the omreport system recovery or omreport servermodule recovery command to see whether there is an action configured for a hung operating system. You can also view the number of seconds that must elapse before an operating system is considered hung.
Omreport System Shutdown Or Omreport Servermodule Shutdown
Use the omreport system shutdown or omreport servermodule shutdown command to view any pending shutdown actions for the system. If properties for shutdown are configured, executing this command displays these properties.
Omreport System Summary Or Omreport Servermodule Summary
Use the omreport system summary or omreport servermodule summarycommand to view a comprehensive summary of software and hardware components currently installed on the system. Type:
omreport system summary
or
omreport servermodule summary
NOTE: If the vFlash or SD card size is less than 1 GB, the size is displayed in MB.
NOTE: If iDRAC is installed, Server Administrator displays the LCC version. If BMC is installed, Server Administrator displays the USC version.
The output that is displayed in the CLI window depends on the systems management software, operating system, and hardware components and options installed on the system. The following partial command results are unique and may not resemble the hardware and software configuration of the system:
Table 37. Command results System Summary ----------------Software Profile ----------------Systems Management Name
Version Description Contains
: Dell OpenManage Systems Management Software (64�Bit)
: x.x.x
: Systems Management Software
Apache Tomcat Webserver x.x.x
: Common Storage Module x.x.x
: Data Engine x.x.x
: Hardware Application Programming Interface x.x.x
: Instrumentation Servicex.x.x
: Instrumentation Service Integration Layer x.x.x
Intel SNMP Agent x.x.x
48
omreport Viewing System Status Using The Instrumentation Service
Table 37. Command results (continued)
Operating System Name Version System Time System Bootup Time ------Server Module ------Information Host Name System Location Model Asset Tag Service Tag Express Service Code Slot Number Slot Name Form Factor Node Id Remote Access Information Remote Access Device vFlash Media
: Inventory Collector x.x.x : OMACS x.x.x : Operating System Loggingx.x.x : Oracle Java Runtime Environment x.x.x : Remote Access Controller Managed Node x.x.x : Server Administrator Common Framework x.x.x : Server Administrator Core files x.x.x : Server Administrator Instrumentation files x.x.x : Server Administrator Core files x.x.x : Server Instrumentation SNMP Module x.x.x : Server Instrumentation WMI Module x.x.x : Storage Management x.x.x
: Microsoft Windows Server 2008 R2, Enterprise x64 Edition : Version 6.1 (Build 7601 : Service Pack 1) (x64) Server Full Installation : Fri May 20 18:02:52 2XXX : Wed May 18 18:37:58 2XXX
: WIN-GSFCCED6N2D : Please set the value : PowerEdge FM120 SST,3,4,S CB2DX1S 26790524560 Slot =8 SLOT-02 1U Half Width CB2DX1Sc
: iDRAC7 Express : Absent
omreport Viewing System Status Using The Instrumentation Service
49
Table 37. Command results (continued) Processor 1 Processor Brand Processor Version Voltage
Memory Total Installed Capacity Memory Available to the OS Total Maximum Capacity Memory Array Count
Memory Array 1 Location Use Installed Capacity Maximum Capacity Slots Available Slots Used ECC Type
BIOS Information Manufacturer Version Release Date
Firmware Information Name Version
Firmware Information Name Version
--------------Remote Access Controller --------------Remote Access Controller Information Product IP Address IP Subnet IP Gateway IPv6 Address 1
: Genuine Intel (R) CPU 4000 @ 2.41GHz : Model 77 : 1000 mV
:4096 MB :4096 MB :32768 MB : 1
: System Board or Motherboard : System Memory : 4096 MB : 32768 MB : 24 : 1 : Multibit ECC
: Dell Inc. : 0.1.10 : 07/31/2013
: iDRAC7 : 1.50.50 (Build 3)
: Lifecycle Controller 2 : 1.3.0.518
: iDRAC7 Express : 10.94.146.217 : 255.255.255.0 : 10.94.146.1 : ::
50
omreport Viewing System Status Using The Instrumentation Service
Table 37. Command results (continued) IPv6 Address 2 IPv6 Gateway
--------------Network Data --------------Network Interface 0 IP Address Subnet Mask Default Gateway MAC Address
Network Interface 1 IP Address Subnet Mask Default Gateway MAC Address
: :: : ::
: xx.xx.xx.xx : xx.xx.xx.xx : xx.xx.xx.xx : : xx-xx-xx-xx-xx-xx
: xx.xx.xx.xx : xx.xx.xx.xx : xx.xx.xx.xx : : xx-xx-xx-xx-xx-xx
Hardware Information Using Omreport System Summary Or Omreport Servermodule Summary
The system summary hardware information includes data values for installed components of the following types present in the system:
System Attributes Host Name System Location Life Cycle Controller
Main System Chassis Or Main System
Chassis
Remote Access Information Processor
Memory
Chassis Model Chassis Service Tag Express Service Code Chassis Lock Chassis Asset Tag
Remote Access Device vFlash Media vFlash Media Size
The following are listed for each processor in the system: Processor Brand Processor Family Processor Version Current Speed Maximum Speed External Clock Speed Voltage
Total Installed Capacity Memory Available to the Operating System
omreport Viewing System Status Using The Instrumentation Service
51
Memory Array
Total Maximum Capacity Memory Array Count
The following details are listed for each memory board or module in the system (for example, the system board or the memory module in a given slot number): Location Use Installed Capacity Maximum Capacity Slots Available Slots Used ECC Type
BIOS Firmware
Manufacturer BIOS Version Release Date
Name Version
Network Data
The following details are listed for each NIC and Team interface, if Team interface is configured in the system: IP Address Subnet Mask Default Gateway MAC Address
Storage Enclosures
The following details are listed for each storage enclosure attached to the system: Name Service Tag
Omreport System Thrmshutdown Or Omreport Servermodule Thrmshutdown
Use the omreport system thrmshutdown or omreport servermodule thrmshutdown command to view the properties configured for a thermal shutdown action. The three properties that display for thermal shutdown are disabled, warning, or failure. If the CLI displays the following message, the thermal shutdown feature has been disabled:
Thermal protect shutdown severity: disabled
If the system is configured to shutdown when a temperature probe detects a warning or failure event, one of the following messages is displayed:
Thermal protect shutdown severity: warning Thermal protect shutdown severity: failure
Omreport System Version Or Omreport Servermodule Version
Use the omreport system version or omreport servermodule version command to list the version numbers of the BIOS, firmware, systems management software, and operating system installed on the system. Type:
omreport system version
52
omreport Viewing System Status Using The Instrumentation Service
or
omreport servermodule version
NOTE: If iDRAC is installed, Server Administrator displays the Lifecycle Controller version. If BMC is installed, Server Administrator displays the USC version.
The output that is displayed in the CLI window depends on the version of the BIOS, RAID controllers, and firmware installed on the system. The following partial command results are unique and may not resemble the results for the configuration of the system:
Version Report
---------------------
Main System Chassis
---------------------
Name
: BIOS
Version
: 0.3.5
Name Version
: iDRAC7 : 1.00
---------------------
Software
---------------------
Name
: Microsoft Windows Server 2008 R2, Enterprise x64 edition
Version
: Version 6.1 (Build 7600) (x64) Server Full Installation
Name
: Dell Server Administrator
Version
: 7.x.x
------------------------------------
Storage Controller Firmware
------------------------------------
Name
: PERC H310 Mini
Version
: 20.10.1-0025
Omreport Preferences Commands
Use the omreport preferences command to view the URL details of the Server Administrator Web server, key sign algorithm, JRE, and message format.
Omreport Preferences Messages
Use the omreport preferences messages to view the configured alert message format. The following table lists the available attributes of omreport preferences messages.
Table 38. Valid Parameters Of Omreport Preferences Messages
name=value pair attribute=format
Description Reports the currently configured alert message format.
Type:
omreport preferences messages attribute=format
The output that is displayed is as follows:
Event Message Format
: enhanced
Omreport preferences logging
Use the omreport preferences logging command to view the log details.
omreport Viewing System Status Using The Instrumentation Service
53
The following table lists the available attributes of omreport preferences logging.
Table 39. Valid Parameters Of Omreport Preferences Logging
name=value pair attribute=oslogfilter
Description Displays the settings configured for OS logging filter.
attribute=archiveesmlog
Displays the settings for Auto Archive ESM Log preference.
attribute=logallsensors
Displays the settings configured for Log All ESM Sensor events preference.
Type:
omreport preferences logging attribute=oslogfilter
The output that is displayed is as follows:
Log Critical
: false
Log Warning
: true
Log Informational : true
Omreport preferences webserver
Use the omreport preferences webserver command to view the URL details, current key-sign algorithm, and the JRE details.
The following table lists the available attributes of omreport preferences webserver.
Table 40. Valid Parameters Of Omreport Preferences Webserver
name=value pair attribute=geturl
Description
Reports the URL information of the web server. This command helps to access the Server Administrator GUI using a remote web server (management system).
attribute=getsignalgorithm
Reports the current key-sign algorithm.
attribute=getjre
Displays the version of the currently used JRE.
attribute=getjrelist
Displays the supported JRE versions installed in the system.
attribute=getciphers
Displays the current cipher values configured.
attribute=getsslprotocol
Displays the current SSL Protocol values set.
attribute=getport
Displays the information of the configured port value.
attribute=getipaddress
Reports the configured IP Address value.
attribute=getsessiontimeout
Displays the configured session time-out value.
Type:
omreport preferences webserver attribute=getjrelist
The output that is displayed is as follows:
Version: 1.7.0_05 (Bundled) Path : C:\Program Files <x86>\Dell|SysMgt\jre Version:1.7.0_03 Path:C:\Program Files <x86>\Java\jre7
54
omreport Viewing System Status Using The Instrumentation Service
4
Omconfig Managing Components Using The Instrumentation Service
The omconfig command allows you to provide values that define warning events, configure alert actions, clear logs, and configure system shutdown, as well as perform other systems management tasks.
Examples of omconfig capabilities include: Administrator privilege to clear command, alert, and hardware logs Administrator privilege to configure and execute system shutdown Power user and administrator privilege to specify values for warning events on fans, voltage probes, and temperature probes Power user and administrator privilege to set alert actions in case of a warning or failure event from intrusion, fans, voltage
probes, and temperature probes
For more information on using the omconfig command to view and manage cost of ownership information (assetinfo), see Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values.
Often, you must use the omreport commands to get the information required to execute an omconfig command. For example, to edit the minimum temperature for a warning event on a temperature probe, you must know the index of the probe. Use the omreport chassis temps or omreport mainsystem temp command to display a list of probes and their indexes. For more information on using the omreport command, see Omreport: Viewing System Status Using The Instrumentation Service.
The following table displays the system availability for the omconfig command:
Table 41. System Availability For The Omconfig Command
Command Level 1
Command Level 2
omconfig
servermodule
mainsystem
system
chassis
Applicable to Blade systems Blade systems Rack and Tower systems Rack and Tower systems
Topics:
� Conventions for parameter tables � omconfig Command Summary � Help With The Omconfig Command � Omconfig About � Omconfig Chassis Or Omconfig Mainsystem � Omconfig Preferences � Omconfig System Or Omconfig Servermodule
Conventions for parameter tables
When listing the parameters that a command can take, the parameters are listed in alphabetical order instead of the order in which they appear in the command line interface.
The symbol |, often called pipe, is the logical exclusive or operator. For example, enable | disable means you can enable or disable the component or feature, but you cannot simultaneously enable and disable the component or feature.
Omconfig Managing Components Using The Instrumentation Service
55
omconfig Command Summary
The following table provides a high-level summary of the omconfig command. The columns titled Command level 2 and Command level 3 list the major arguments that are used with omconfig. User privilege required refers to the type of privilege you need to run the command, where U = User, P = Power User, and A = Administrator. Use is a very general statement about the actions that are performed using omconfig.
NOTE: Although the following table lists all possible omconfig commands, the commands available on the system depend on the system configuration. If you try to get help or run a command for a component not installed on the system, Server Administrator displays a message that the component or feature is not found on the system.
NOTE: When CSIOR (Collect System Inventory on Restart) is disabled, omconfig does not allow to configure the BIOS settings.
Table 42. omconfig Command Level 1, Level 2, and Level 3
Command Command Level Command Level User
Use
Level 1
2
3
Privilege
Required
omconfig
about
U, P, A
Shows the version number and properties for the Server Administrator program.
details=true
U, P, A
Displays information for all Server Administrator programs that are installed.
preferences
cdvformat
A
Specifies the delimiter for separating data fields reported in custom delimited format (cdv).
dirservice
A
Configures the Microsoft Active Directory service.
messages
A
Displays the configured alert message format.
useraccess
A
Determines whether users below the administrator level are allowed to use Server Administrator or not.
webserver
A
Allows the administrator to set the encryption levels of the Web server and configure the URL launch point in the Server Administrator Web server environment.
system or servermodule
alertaction
P, A
Determines in advance the actions taken for warning or failure events on intrusion, fans, temperatures, voltages, power supplies, memory, and redundancy.
alertlog
P, A
Allows the administrator to clear the alert log.
assetinfo
P, A
Enters and edits cost of ownership information for
the system, including values for depreciation, lease,
maintenance, service, and support.
cmdlog
P, A
Allows the administrator to clear the command log.
esmlog
P, A
Allows the administrator to clear the ESM log.
events
P, A
Enables or disables SNMP traps.
pedestinations P, A
Sets IP addresses for alert destinations.
platformevents A
Determines the shutdown action, if any, taken for a specific platform event. Also, enables or disables platform events filter alert generation.
56
Omconfig Managing Components Using The Instrumentation Service
Table 42. omconfig Command Level 1, Level 2, and Level 3 (continued)
Command Command Level Command Level User
Use
Level 1
2
3
Privilege
Required
recovery
P, A
Determines in advance how the system responds to a hung
operating system.
shutdown
A
Allows the administrator to select from several options when shutting down the system.
thrmshutdown A
Sets the severity level at which a thermal event triggers a system shutdown.
webserver
A
Starts or stops the Web server.
chassis or mainsystem
biossetup
A
Configures the behavior of specific system components controlled by the BIOS.
fans
P, A
Configures fan probe warning thresholds to the default or
a specific value.
NOTE: You cannot change threshold values on embedded server management (ESM3) and Dell PowerEdge x8xx systems.
frontpanel
A
info
P, A
leds
P, A
memorymode
A
pwrmanagement P, A
pwrmonitoring P, A
remoteaccess
A
temps
P, A
Configures the Power button, Non-Masking Interrupt (NMI) button, encryption access, and LCD display of the system.
Allows you to set an initial value, or to edit the value of the asset tag or chassis name.
Specifies when to flash a chassis fault LED or chassis identification LED, and allows you to clear the LED for the system's hard drive.
Enables or disables the spare bank, mirroring, raid, and Double Device Data Correction (DDDC) memory modes, and also specify which mode to use.
Allows you to choose between maximum power, economy, and optimized performance of the system.
Configures power consumption information and thresholds.
Configures remote access information.
Sets warning threshold values to the default or a specific value.
NOTE: You cannot change threshold values on ESM3 and PowerEdge x8xx systems.
volts
P, A
Sets warning threshold values to the default or a specific
value.
NOTE: You cannot change threshold values on ESM3 and PowerEdge x8xx systems.
storage
For more information, see Using The Storage Management Service.
Omconfig Managing Components Using The Instrumentation Service
57
Help With The Omconfig Command
The following table lists the usage of omconfig commands.
Table 43. Usage Of Omconfig Commands
Command Usage omconfig -?
Description To display the list of the available commands for omconfig.
omconfig <command level To display the help for about, chassis, preferences, and system's level 2 commands. 2> -?
omconfig chassis -? omconfig system -?
To display the help for omconfig chassis command. To display the help for omconfig system command.
omconfig preferences -?
To display the available commands for omconfig preferences, such as cdvformat, which is the custom delimiter format (cdv).
omconfig preferences cdvformat -?
To display the list of delimiter values for the cdv.
omconfig system <command level 3> -?
To display the list of the parameters you must use to execute a particular omconfig system command.
omconfig system alertaction -?
To display the list of valid parameters for omconfig system alertaction.
omconfig system shutdown To display the list of valid parameters for omconfig system shutdown. -?
omconfig system alertaction -? | more
To display the list of valid parameters for omconfig system alertaction and to scroll the command output one screen at a time. Here, | more allows you to press the spacebar to see the next screen of the CLI help output.
omconfig system alertaction -? -outa alert.txt
To create a file that contains all the help for the omconfig system alertaction -? command. Here, -outa directs the output of the command to a file called alert.txt .
more alert.txt
To read the help for the alertaction command on Microsoft Windows, Red Hat Enterprise Linux, or SUSE Linux Enterprise Server operating systems.
Omconfig About
Use the omconfig about command to learn the product name and version number of the systems management application installed on the system. The following is an example output of the omconfig about command:
Table 44. Omconfig output
Product name
: Dell OpenManage Server Administrator
Version
: 7.x.x
Copyright : Copyright (C) Dell Inc. xxxx-xxxx. All rights reserved.
Company
: Dell Inc.
For more details about the environment for Server Administrator, type:
omconfig about details=true
Server Administrator includes a number of services, each having a version number of its own. The Contains field reports version numbers for the services and provides other useful details. The output may change depending on the configuration of the system and the version of Server Administrator.
58
Omconfig Managing Components Using The Instrumentation Service
Table 45. Output Contains: Broadcom SNMP Agent 10.xx.xx
Common Storage Module 3.x.x Data Engine 5.x.x Hardware Application Programming Interface 5.x.x Instrumentation Service 6.x.x Instrumentation Service Integration Layer 1.x.x Intel SNMP Agent 1.xx.x OpenManage Tools 6.x.x Remote Access Controller 4 Data Populator 4.x.x Remote Access Controller 4 Managed Node 4.6.3 Secure Port Server 1.x.x Server Administrator Framework 6.x.x Agent for Remote Access 1.x.x Storage Management 3.x.x Sun Java Runtime Environment 1.x.xx
Omconfig Chassis Or Omconfig Mainsystem
Use the omconfig chassis or omconfig mainsystem commands to: Set to default or assign specific values for fan, voltage, and temperature probes Configure BIOS behavior during system start up Clear memory error counts Enable or disable power button control features if the system configuration permits Use the omconfig chassis -? or omconfig mainsystem -? command to view a list of all omconfig chassis or omconfig mainsystem commands.
Omconfig Chassis Biossetup Or Omconfig Mainsystem Biossetup
Use the omconfig chassis biossetup or omconfig mainsystem biossetup command to configure system BIOS settings that are normally available only in the BIOS setup boot time settings of the system.
CAUTION: Changing certain BIOS setup options may disable the system or require you to reinstall the operating system.
NOTE: Reboot the system for the BIOS setup options to take effect.
NOTE: Not all BIOS setup options are available on every system.
NOTE: When CSIOR (Collect System Inventory on Restart) is disabled, you cannot configure the BIOS settings using omconfig command.
BIOS setup settings on systems prior to PowerEdge YX2X systems
The following table displays the name=value pairs that you can use with omconfig chassis biossetup or omconfig mainsystem biossetup command on systems prior to PowerEdge YX2X systems.
Omconfig Managing Components Using The Instrumentation Service
59
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems
name=value pair 1 attribute=
name=value pair 2 setting=
Description
attribute=acpwrrecovery
setting=off | last| on
off: System is turned off.
last: System returns to the previous state.
on: System is turned on.
delay=random | immediate | timedelay <value>
random: System is turned on with random delay.
immediate: System returns to previous state immediately.
timedelay <value>: System is turned on based on the user specified time delay.
attribute=bezel
setting=enabled | disabled
enabled: Enables the bezel removal intrusion check during system boot.
disabled: Disables the bezel removal intrusion check during system boot.
attribute=bootsequence
setting=diskettefirst | hdonly | devicelist | cdromfirst | opticaldrive
Instructs the BIOS which device is used to boot the system, and the order in which the boot routine checks each device.
NOTE: On Linux systems, user or user groups upgraded to administrator or administrator groups cannot configure this BIOS setup setting.
attribute=bootmode
setting=uefi | bios
uefi: Enables the system to boot to operating systems that support Unified Extensible Firmware Interface (UEFI).
bios: Enables the system to boot to operating systems that do not support UEFI.
attribute=bootorder
sequence=aliasname1, aliasname2,..... aliasnameN
Configures the boot sequence according to the set aliasnames. To view the set alias names, run the command omreport chassis biossetup attribute=bootorder
NOTE: On Linux systems, user or user groups upgraded to administrator or administrator groups cannot configure this BIOS setup setting.
attribute=hddorder
sequence=aliasname1, aliasname2,..... aliasnameN
Configures the BIOS setup hard disk sequence according to the set aliasnames. Changes takes effect after rebooting the system. To view the set alias names, run the command omreport chassis biossetup attribute=bootorder
NOTE: On Linux systems, user or user groups upgraded to
60
Omconfig Managing Components Using The Instrumentation Service
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
administrator or administrator groups cannot configure this BIOS setup setting.
attribute=cstates
setting=enabled | disabled
enabled: Enables the processor to go into a deep sleep state when the system is not utilized.
disabled: Disables the processor to go into a deep sleep state when the system is not utilized.
attribute=conredirect
setting=enabled | disabled
enabled: Redirects the BIOS screen output over serial port 1. Keyboard and text output are redirected over serial port 2.
disabled: Turns off the BIOS console redirection.
attribute=cpucle
setting=enabled | disabled
enabled: Enables processor C1-E after system reboot.
disabled: Disables processor C1-E after system reboot.
attribute=cpuht
setting=enabled | disabled
enabled: Enables logical processor hyperthreading.
disabled: Disables logical processor hyperthreading.
attribute=cpuvt
setting=enabled | disabled
enabled: Enables virtualization. disabled: Disables virtualization.
attribute=cpuxdsupport
setting=enabled | disabled
enabled: Enables Execute Disable (XD) support on the system.
disabled: Disables XD support on system.
attribute=cpucore
setting=1 | 2 | 4 | 6 | 8 | 10 | 12 |all
1: Enables one core per processor. 2: Enables two cores per processor. 4: Enables four cores per processor. 6: Enables six cores per processor. 8: Enables eight cores per processor. 10: Enables ten cores per processor. 12: Enables twelve cores per
processor. all: Enables the maximum cores per
processor.
attribute=dbs
setting=enable | disable
enable: Enables Demand Based Switching (DBS) on the system.
disable: Disables DBS on the system.
attribute=diskette
setting=off | auto | writeprotect
off: Disables the diskette drive.
auto: Auto-enables the diskette drive.
writeprotect: The diskette drive is available in read-only format only. Makes the diskette drive read-only.
Omconfig Managing Components Using The Instrumentation Service
61
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
attribute=dualnic
setting=off | on | pxeboth | nic1pxe | nic2pxe | isciboth | nic1isci | nic2isci | nic1pxenic2isci | nic1iscinic2pxe | onpxeboth | onpxenone | onpxenic1 | onpxenic2
off: Disables the Network Interface Controllers (NICs).
on: Enables the network interface (PXE or iSCSI is not enabled on either of the NICs).
pxeboth: Enables PXE on both NICs.
nic1pxe: Enables PXE on the first NIC and none (no PXE or iSCSI) on the second NIC.
nic2pxe: Enables none (no PXE or iSCSI) on first NIC and PXE on the second NIC.
isciboth: Enables iSCSI on both the NICs.
nic1isci: Enables iSCSI on the first NIC and none (no PXE or iSCSI) on the second NIC.
nic2isci: Enables none (no PXE or iSCSI) on the first NIC and iSCSI on the second NIC.
nic1pxenic2isci: Enables PXE on the first NIC and iSCSI on second NIC.
nic1iscinic2pxe: Enables iSCSI on the first NIC and PXE on second NIC.
The following options are deprecated:
onpxeboth: Enables PXE on both the NICs.
onpxenone: PXE is not enabled on either of the NICs.
onpxenic1: Enables PXE on NIC 1.
onpxenic2: Enables PXE on NIC 2.
attribute=embhypvisor
setting=enabled | disabled
enabled: Enables the embedded hypervisor.
disabled: Disables the embedded hypervisor.
attribute=embvideoctrl
setting=enabled | disabled
enabled: Enables the embedded video controller as the primary video device.
disabled: Disables the embedded video controller as the primary video device.
attribute=esataport
setting=off | auto
off: Sets the embedded SATA port value to off.
auto: Sets the embedded SATA port value to auto.
attribute=extserial
setting=com1 | com2 | rad
com1: Maps the external serial connector to COM 1.
com2: Maps the external serial connector to COM 2.
rad: Maps the external serial connector to the remote access device.
62
Omconfig Managing Components Using The Instrumentation Service
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
attribute=fbr
setting=9600 | 19200 | 57600 | 115200
9600: Sets the console redirection failsafe baud rate to 9600 bits per second.
19200: Sets the console redirection failsafe baud rate to 19200 bits per second.
57600: Sets the console redirection failsafe baud rate to 57600 bits per second.
115200: Sets the console redirection failsafe baud rate to 115200 bits per second.
attribute=htassist
setting=enabled | disabled
enabled: Enables the probe filter chipset option.
disabled: Disables the probe filter chipset option.
NOTE: Certain applications do not function fully if you enable or disable this option.
attribute=ide
setting=on | off force=true
on: Enables IDE.
off: Disables IDE.
force=true: Verification of setting change.
attribute=idepridrv
setting=off | auto
off: Disables the device.
auto: Detects and enables the device automatically.
attribute=intrusion
setting=enabled | disabled
enabled: Enables the intrusion check during system boot. If the system also has bezel intrusion checking, then the intrusion option checks for removal of the bezel of the system.
disabled: Disables the intrusion check during system boot.
attribute=mouse
setting=on | off
on: Enables the mouse. off: Disables the mouse.
attribute=nic1
setting=enabled | enabledwithpxe | disabled | enabledonly | enablednonepxe | enabledwithiscsi
enabled: Enables the first NIC during system boot.
enabledwithpxe: Enables the first NIC during system boot (with PXE on if the system has PXE).
disabled: Disables the first NIC during system boot.
enabledonly: Enables the first NIC during system boot (with PXE off if the system has PXE).
enablednonepxe: Enables the first NIC during system boot (with PXE off if the system has PXE).
enabledwithiscsi: Enables the first NIC during system boot (with iSCSI on if the system has iSCSI).
Omconfig Managing Components Using The Instrumentation Service
63
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
attribute=nic2
setting=enabled | enabledwithpxe | disabled | enabledonly | enablednonepxe | enabledwithiscsi
enabled: Enables the second NIC during system boot.
enabledwithpxe: Enables the second NIC during system boot (with PXE on if the system has PXE).
disabled: Disables the second NIC during system boot.
enabledonly: Enables the second NIC during system boot (with PXE off if the system has PXE).
enablednonepxe: Enables the second NIC during system boot (with PXE off if the system has PXE).
enabledwithiscsi: Enables the second NIC during system boot (with iSCSI on if the system has iSCSI).
attribute=nic3
setting=enabled | enabledwithpxe | disabled | enabledonly | enablednonepxe | enabledwithiscsi
enabled: Enables the third NIC during system boot.
enabledwithpxe: Enables the third NIC during system boot (with PXE on if the system has PXE).
disabled: Disables the third NIC during system boot.
enabledonly: Enables the third NIC during system boot (with PXE off if the system has PXE).
enablednonepxe: Enables the third NIC during system boot (with PXE off if the system has PXE).
enabledwithiscsi: Enables the third NIC during system boot (with iSCSI on if the system has iSCSI).
attribute=nic4
setting=enabled | enabledwithpxe | disabled | enabledonly | enablednonepxe | enabledwithiscsi
enabled: Enables the fourth NIC during system boot.
enabledwithpxe: Enables the fourth NIC during system boot (with PXE on if the system has PXE).
disabled: Disables the fourth NIC during system boot.
enabledonly: Enables the fourth NIC during system boot (with PXE off if the system has PXE).
enablednonepxe: Enables the fourth NIC during system boot (with PXE off if the system has PXE).
enabledwithiscsi: Enables the fourth NIC during system boot (with iSCSI on if the system has iSCSI).
attribute=numlock
setting=on | off
on: Uses the keypad as number keys. off: Uses the keypad as arrow keys.
attribute=NodeInterleave
setting=enabled | disabled
enabled: Enables Node Interleaving and disables Non-Uniform Memory Access.
64
Omconfig Managing Components Using The Instrumentation Service
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
NOTE: Use NodeInterleave instead of numa as numa will be deprecated in future releases.
disabled: Disables Node Interleaving and enables Non-Uniform Memory Access.
attribute=ppaddress
setting=off | lpt1 | lpt2 | lpt3
off: Disables the parallel port address.
lpt1: Locates the device on LPT1. lpt2: Locates the device on LPT2. lpt3: Locates the device on LPT3.
attribute=ppmode
setting=at | ps2 | ecp | epp
at: Sets the parallel port mode to AT.
ps2: Sets the parallel port mode to PS/2.
ecp: Sets the parallel port mode to ECP (extended capabilities port).
epp: Sets the parallel port mode to EPP (enhanced parallel port).
attribute=primaryscsi
setting=on | off force=true
CAUTION: If you modify the setting for primary scsi, romb, romba, or rombb, the system becomes inoperable until you reinstall the operating system.
on: Enables this device. off: Disables this device. force=true: Verification of setting
change.
attribute=romb
setting=raid | off | scsi force=true
raid: Instructs the BIOS to detect RAID-on-motherboard as a RAID device.
off: Disables RAID-on-motherboard during system boot.
scsi: Instructs the BIOS to detect the RAID-on-motherboard device as a SCSI device.
force=true: Verification of setting change.
attribute=romba
setting=raid | scsi force=true
raid: Instructs the BIOS to detect RAID-on-motherboard channel A as a RAID device.
scsi: Instructs the BIOS to detect the RAID-on-motherboard device as a SCSI device.
force=true: Verification of setting change.
attribute=rombb
setting=raid | scsi force=true
raid: Instructs the BIOS to detect RAID-on-motherboard channel B as a RAID device.
scsi: Instructs the BIOS to detect the RAID-on-motherboard device as a SCSI device.
force=true: Verification of setting change.
Omconfig Managing Components Using The Instrumentation Service
65
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
attribute=sata
setting=off | ata | raid
off: Disables the SATA controller.
ata: Sets the onboard SATA controller to ATA mode.
raid: Sets the onboard SATA controller to RAID mode.
attribute=sataport (0...7) or (a...h)
setting=off | auto
off: Disables the SATA port.
auto: Automatically enables the SATA port.
attribute=secondaryscsi
setting=on | off
on: Enables secondary SCSI. off: Disables this device.
attribute=serialportaddr
setting=default | alternate | com1 | com2
default: Maps to Serial device1=COM1, Serial device2=COM2.
alternate: Maps to Serial device1=COM2, Serial device2=COM1
com1: Sets serial port address to COM1.
com2: Sets serial port address to COM2.
attribute=serialcom
setting=off | on | com1 | com2 | onwithconsole
off: Disables serial communication setting.
on: Enables serial communication setting without console redirection.
com1: Enables serial communication setting with console redirection through COM1.
com2: Enables serial communication setting with console redirection through COM2.
onwithconsole: Enables serial communication with console redirection through COM1 and COM2.
NOTE: The setting onwithconsole is supported only on Dell blade systems.
attribute=serialport1
setting=off | auto | com1 | com3 | bmcserial | bmcnic | rac | com1bmc
off: Disables serial port 1.
auto: Maps serial port 1 to a COM port.
com1: Maps serial port 1 to COM port 1.
com3: Maps serial port 1 to COM port 3.
bmcserial: Maps serial port 1 to BMC Serial.
bmcnic: Maps serial port 1 to the Baseboard Management Controller (BMC) NIC.
rac: Maps serial port 1 to the Remote Access Controller (RAC.)
com1bmc: Maps serial port 1 to COM port 1 bmc.
66
Omconfig Managing Components Using The Instrumentation Service
Table 46. BIOS Setup Settings on systems prior to PowerEdge YX2X systems (continued)
name=value pair 1 attribute=
name=value pair 2 setting=
Description
NOTE: This command is applicable only on selected x8xx systems.
attribute=serialport2
setting=off | auto | com2 | com4
off: Disables serial port 2.
auto: Maps serial port 2 to a COM port.
com2: Maps serial port 2 to COM port 2.
com4: Maps serial port 2 to COM port 4.
attribute=speaker
setting=on | off
on: Enables the speaker. off: Disables the speaker.
attribute=cputurbomode
setting=enabled | disabled
CPU turbo mode can increase the CPU frequency when the system is operating below the thermal, power, or current limits.
enabled: Enables CPU Turbo Mode.
disabled: Disables CPU Turbo Mode.
attribute=uausb
setting=on | backonly | off
on: Enables the user-accessible USB port(s).
backonly: Enables only the useraccessible USB port(s) located at the back of the system.
off: Disables the user-accessible USB port(s).
attribute=usb
setting=enabled | disabled
enabled: Enables the USB port(s). disabled: Disables the USB port(s).
NOTE: Depending on the system's hardware you can configure either usb or usbb.
attribute=usbb
setting=enabled | enabledwithbios | disabled
enabled: Enables the USB port(s) during system boot, without BIOS support.
enabledwithbios: Enables the USB port(s) during system boot, with BIOS support.
disabled: Disables the USB port(s) during system boot.
NOTE: Depending on the system's hardware you can configure either usb or usbb.
attribute=cstates
setting=enabled | disabled
enabled: Enables the processor to go into a deep sleep state when the system is not utilized.
disabled: Disables the processor from going into a deep sleep state when the system is not utilized.
Omconfig Managing Components Using The Instrumentation Service
67
BIOS setup settings
The following table lists the BIOS setup attributes supported on PowerEdge systems. The attributes are grouped based on the hardware configuration. The possible attributes may vary in a specific group. The omconfig chassis biossetup command does not display the read-only attributes.
NOTE: If you have configured the setup password, then, always set the same password when you configure any BIOS settings.
Table 47. BIOS Setup Settings on PowerEdge systems
Group
name=value pair 1 attribute=
BIOS Option Settings
attribute=BootSeq
attribute=HddSeq
Boot Settings
attribute=BootMode
attribute=BootSeqRetry
attribute=HddFailover NOTE: The option is supported only on YX3X and later systems.
name=value pair 2 setting=
sequence=aliasname1, aliasname2,..... aliasnameN
sequence=aliasname1, aliasname2,..... aliasnameN
setting=Bios | Uefi
setting=Enabled | Disabled
setting=Enabled | Disabled
attribute=SetBootOrderFqdd1� SetBootOrderFqdd16
NOTE: The option is supported only
on YX3X and later systems.
setting=<string>
attribute=SetLegacyHddOrder Fqdd1� SetLegacyHddOrderFqdd16
NOTE: The option is supported only
on YX3X and later systems.
setting=<string>
Integrated Devices
attribute=EmbVideo attribute=IntegratedNetwork1 attribute=IntegratedNetwork2 attribute=IntegratedRaid attribute=IntegratedSas attribute=InternalSdCard attribute=InternalSdCardRedundancy attribute=InternalUsb attribute=IoatEngine attribute=OsWatchdogTimer attribute=SriovGlobalEnable attribute=UsbPorts attribute=Usb3Setting
NOTE: The option is supported only on YX3X and later systems.
setting=Enabled | Disabled setting=Enabled | DisabledOs setting=Enabled | DisabledOs setting=Enabled | Disabled setting=Enabled | Disabled setting=On | Off setting=Mirror | Disabled setting=On | Off setting=Enabled | Disabled setting=Enabled | Disabled setting=Enabled | Disabled setting=AllOn | OnlyBackPortsOn | AllOff setting=Auto | Enabled | Disabled
attribute=InternalSdCardPrimaryCard NOTE: The option is supported only on YX3X and later systems.
setting=SdCard1 | SdCard2
68
Omconfig Managing Components Using The Instrumentation Service
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
attribute=CurrentEmbVideoState NOTE: The option is supported only on YX3X and later systems.
name=value pair 2 setting= setting=Enabled | Disabled
Memory Settings
attribute=MemOpMode
attribute=MemTest attribute=NodeInterleave attribute=SysMemSize attribute=SysMemSpeed attribute=SysMemType attribute=SysMemVolt attribute=VideoMem attribute=ClusterOnDie
NOTE: The option is supported only on YX3X and later systems.
setting=OptimizerMode | SpareMode | MirrorMode | AdvEccMode | SpareWithAdvEccMode setting=Enabled | Disabled setting=Enabled | Disabled setting=<string> setting=<string> setting=<string> setting=<string> setting=<string> setting=Enabled | Disabled
Miscellaneous Settings
attribute=AssetTag attribute=NumLock attribute=ErrPrompt attribute=SysMgmtNVByte1 attribute=SysMgmtNVByte1 attribute=CorrEccSmi attribute=InSystemCharacterization
NOTE: The option is supported only on YX3X and later systems.
setting=<string> setting=On | Off setting=Enabled | Disabled setting=<string> setting=<string> setting=Enabled | Disabled setting=FastBoot | OptimizedBoot | Disabled
attribute=ReportKbdErr
attribute=SystemUefiShell
attribute=ForceInt10 NOTE: The option is supported only on YX3X and later systems.
setting=Report | NoReport setting=Enabled | Disabled setting=Enabled | Disabled
Network Settings NOTE: The option is supported only on YX3X and later systems.
attribute=PowerCycleRequest
setting=None | VirtualAC
attribute=PxeDev1EnDis - PxeDev4EnDis setting=Enabled | Disabled
attribute=PxeDev1Interface PxeDev4Interface
attribute=PxeDev1Protocol PxeDev4Protocol
attribute=PxeDev1VlanEnDis PxeDev4VlanEnDis
attribute=PxeDev1VlanId PxeDev4VlanId
setting=Enabled | Disabled setting=IPv4 | IPv6 setting=Enabled | Disabled setting=<integer>
Omconfig Managing Components Using The Instrumentation Service
69
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
attribute=PxeDev1VlanPriority PxeDev4VlanPriority
NOTE: Configuration of virtual LAN (VLAN) interfaces are not displayed on Server Administrator Network Settings.
name=value pair 2 setting= setting=<integer>
One-Time Boot NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
attribute=OneTimeBootMode
attribute=OneTimeBootSeqDev
attribute=OneTimeHddSeqDev
attribute=OneTimeUefiBootSeqDev
Processor Settings
attribute=ControlledTurbo attribute=DataReuse attribute=DcuIpPrefetcher attribute=DcuStreamerPrefetcher attribute=LogicalProc attribute=Proc1Brand attribute=Proc1Id attribute=Proc1L2Cache attribute=Proc1L3Cache attribute=Proc1NumCores attribute=Proc2Brand attribute=Proc2Id attribute=Proc2L2Cache attribute=Proc2L3Cache attribute=Proc2NumCores attribute=Proc64bit attribute=ProcAdjCacheLine attribute=ProcBusSpeed attribute=ProcCores
attribute=ProcCoreSpeed attribute=ProcExecuteDisable attribute=ProcHwPrefetcher attribute=ProcVirtualization attribute=QpiBandwidthPriority
setting=Disabled | OneTimeBootSeq | OneTimeHddSeq | OneTimeUefiBootSeq | OneTimeCustomBootSeqStr | OneTimeCustomHddSeqStr | OneTimeCustomUefiBootSeqStr
sequence=aliasname1, aliasname2,..... aliasnameN
sequence=aliasname1, aliasname2,..... aliasnameN
sequence=aliasname1, aliasname2,..... aliasnameN
setting=Enabled | Disabled | Custom
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=<string>
setting=<string>
setting=<string>
setting=<string>
setting=<integer>
setting=<string>
setting=<string>
setting=<string>
setting=<string>
setting=<integer>
setting=<string>
setting=Enabled | Disabled
setting=<string>
setting=Single | All | Dual | Quad | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16
setting=<string>
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=InputOutput | Compute
70
Omconfig Managing Components Using The Instrumentation Service
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
attribute=QpiSpeed
attribute=RtidSetting
attribute=Proc1ControlledTurbo � Proc4ControlledTurbo
NOTE: The option is supported only on YX3X and later systems.
name=value pair 2 setting=
setting=MaxDataRate | 8GTps | 7GTps | 6GTps
setting=Enabled | Disabled
setting=Disabled | ControlledTurboLimit | ControlledTurboLimitMinus1 | ControlledTurboLimitMinus2 | ControlledTurboLimitMinus3
attribute=ProcConfigTdp NOTE: The option is supported only on YX3X and later systems.
setting=Nominal | Level1 | Level2
attribute=ProcATS
setting=Enabled | Disabled NOTE: The option is read-only if ProcVirtualization is set to Disabled.
attribute=ProcX2Apic NOTE: The option is supported only on YX3X and later systems.
setting=Enabled | Disabled NOTE: The option is read-only if ProcVirtualization is set to Disabled.
SATA Settings Serial Communication
attribute=EmbSata
attribute=eSataPort1 attribute=eSataPort1Capacity attribute=eSataPort1DriveType attribute=eSataPort1Model attribute=SataPortA - SataPortJ attribute=SataPortACapacity SataPortJCapacity attribute=SataPortADriveType SataPortJDriveType attribute=SataPortAModel SataPortJModel attribute=SecurityFreezeLock attribute=WriteCache attribute=ConTermType attribute=ExtSerialConnector
attribute=FailSafeBaud attribute=RedirAfterBoot attribute=SerialComm
attribute=SerialPortAddress
setting=Off | AtaMode | RaidMode | AhciMode setting=Off | Auto setting=<string> setting=<string> setting=<string> setting=Off | Auto setting=<string>
setting=<string>
setting=<string>
setting=Enabled | Disabled setting=Enabled | Disabled setting=Vt100Vt220 | Ansi setting=Serial1 | Serial2 | RemoteAccDevice setting=115200 | 57600 | 19200 | 9600 setting=Enabled | Disabled setting=OnNoConRedir | OnConRedirCom1 | OnConRedirCom2 | Off setting=Serial1Com1Serial2Com2 | Serial1Com2Serial2Com1 | Com1 | Com2
Omconfig Managing Components Using The Instrumentation Service
71
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
Slot Disablement
attribute=Slotn
System Information
attribute=SysMfrContactInfo
attribute=SystemBiosVersion
attribute=SystemManufacturer
attribute=SystemModelName
attribute=SystemServiceTag
attribute=SystemMeVersion NOTE: The option is supported only on YX3X and later systems.
name=value pair 2 setting= setting=Enabled | Disabled | BootDriverDisabled setting=<string> setting=<string> setting=<string> setting=<string> setting=<string> setting=<string>
attribute=UefiComplianceVersion NOTE: The option is supported only on YX3X and later systems.
setting=<string>
System Profile Settings
attribute=SystemCpldVersion attribute=MemFrequency
attribute=MemPatrolScrub attribute=MemRefreshRate attribute=MemVolt
setting=<string>
setting=MaxPerf |1866MHz | 1600MHz | 1333MHz |1067MHz | 800MHz | MaxReliability
setting=Standard | Extended | Disabled
setting=1x | 2x
setting=AutoVolt | Volt15V | Volt135V NOTE: Volt15V represents 1.5 Volt and Volt135V represents 1.35 Volt
attribute=ProcC1E attribute=ProcCStates attribute=ProcPwrPerf
attribute=ProcTurboMode attribute=SysProfile
attribute=EnergyEfficientTurbo NOTE: The option is supported only on YX3X and later systems.
setting=Enabled | Disabled
setting=Enabled | Disabled
setting=MaxPerf | MinPwr | SysDbpm | OsDbpm
setting=Enabled | Disabled
setting=PerfPerWattOptimizedOs | PerfPerWattOptimizedDapc | PerfOptimized | Custom | DenseCfgOptimized
setting=Enabled | Disabled
attribute=EnergyPerformanceBias NOTE: The option is supported only on YX3X and later systems.
setting=MaxPower | BalancedPerformance | BalancedEfficiency | LowPower
attribute=UncoreFrequency NOTE: The option is supported only on YX3X and later systems.
setting=DynamicUFS | MaxUFS | MinUFS
attribute=ProcNTurboCoreNum (N= 0-3) , where the value of N is 0�3.
setting=All | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18
72
Omconfig Managing Components Using The Instrumentation Service
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
name=value pair 2 setting=
NOTE: The option is supported only on YX3X and later systems.
System Security
attribute=MonitorMwait attribute=CollaborativeCpuPerfCtrl attribute=AcPwrRcvry attribute=AcPwrRcvryDelay attribute=AcPwrRcvryUserDelay attribute=AesNi attribute=IntelTxt attribute=NmiButton attribute=PasswordStatus attribute=PwrButton attribute=SetupPassword attribute=SysPassword attribute=TpmActivation
NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
setting=Enabled | Disabled setting=Enabled | Disabled setting=On | Off | Last setting=Immediate | User | Random setting=<integer> setting=Enabled | Disabled setting=On | Off setting=Enabled | Disabled setting=Locked | Unlocked setting=Enabled | Disabled setting=<string> setting=<string> setting=NoChange | Activate | Deactivate
attribute=TpmClear NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
attribute=TpmSecurity
attribute=TpmInfo NOTE: The option is supported only on YX3X and later systems.
CAUTION: Clearing the TPM will cause loss of all keys in the TPM. This could affect booting of the operating system.
setting=Yes | No
setting=Off | OnPbm | OnNoPbm
setting=<string>
attribute=TpmCommand NOTE: The option is supported only on YX3X and later systems.
setting=None | Activate | Deactivate | Clear
attribute=TpmStatus
attribute=TcmActivation NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
setting=<string>
setting=NoChange | Activate | Deactivate
attribute=TcmClear NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
attribute=TcmSecurity
CAUTION: Clearing the TCM will cause loss of all keys in the TCM. This could affect booting of the operating system.
setting=Yes | No
setting=Off | OnPbm | OnNoPbm
Omconfig Managing Components Using The Instrumentation Service
73
Table 47. BIOS Setup Settings on PowerEdge systems (continued)
Group
name=value pair 1 attribute=
NOTE: The option is not supported on Dell PowerEdge YX3X and later systems.
name=value pair 2 setting=
attribute=SecureBoot NOTE: The option is supported only on YX3X and later systems.
setting=Enabled | Disabled
attribute=SecureBootPolicy NOTE: The option is supported only on YX3X and later systems.
setting=Enabled | Disabled
UEFI Boot Settings
attribute=UefiVariableAccess attribute=UefiBootSeq
setting=Standard | Controlled
sequence=aliasname1, aliasname2,..... aliasnameN
Omconfig Chassis Currents Or Omconfig Mainsystem Currents
NOTE: This command is no longer available through Server Administrator.
Omconfig Chassis Fans Or Omconfig Mainsystem Fans
Use the omconfig chassis fans or omconfig mainsystem fans command to set fan probe warning thresholds. As with other components, you can view both warning and failure threshold values, but you cannot set failure thresholds. The system manufacturer sets the minimum and maximum failure thresholds.
Valid Parameters For Fan Warning Thresholds
The following table shows the valid parameters for setting fan warning thresholds:
Table 48. omconfig chassis fans or omconfig chassis fans
name=value pair index= <n>
Description Number of the probe or probe index (must specify).
warnthresh=default
Sets minimum and maximum warning thresholds to default.
minwarnthresh=<n>
Minimum warning threshold.
maxwarnthresh=<n>
Maximum warning threshold.
Default minimum and maximum warning thresholds
NOTE: Systems that contain ESM3, ESM4, and BMC capabilities do not allow you to set warning threshold values to default values. To set both the upper and lower fan warning threshold values to the recommended default value, type: omconfig chassis fans index=0 warnthresh=default or omconfig mainsystem fans index=0 warnthresh=default
74
Omconfig Managing Components Using The Instrumentation Service
You cannot default one value and set another. In other words, if you default the minimum warning threshold value, you are also selecting the default value for the maximum warning threshold value.
Specifying a value for minimum and maximum warning thresholds
If you prefer to specify values for the fan probe warning thresholds, you must specify the number of the probe you are configuring and the minimum and/or maximum warning threshold values. In the following example, the probe that is being configured is probe 0. The first command sets only the minimum threshold; the second sets the minimum and maximum thresholds:
omconfig chassis fans index=0 minwarnthresh=4580 or
omconfig mainsystem fans index=0 minwarnthresh=4580
omconfig chassis fans index=0 minwarnthresh=4580 maxwarnthresh=9160 or
omconfig mainsystem fans index=0 minwarnthresh=4580 maxwarnthresh=9160 When you issue the command and the system sets the values you specify, the following message is displayed:
Fan probe warning threshold(s) set successfully.
Omconfig chassis frontpanel or omconfig mainsystem frontpanel
Use the omconfig chassis frontpanel or omconfig mainsystem frontpanel command to: configure the power button and the Nonmasking Interrupt (NMI) button configure the LCD to display:
No information Custom information Default system information Service tag, system name Remote access MAC addresses System power Remote access IP address Ambient temperature of the system Remote access IPv4 address Remote access IPv6 address Specify and configure the LCD line number View the encryption state report of the LCD Configure LCD to indicate an active remote session when the Kernel-based Virtual Machine (KVM) is available
NOTE: You can configure the Power and NMI buttons only if they are present on the system.
The following table displays the valid parameters for the command:
Table 49. Valid Parameters Of Omconfig Chassis Frontpanel Or Omconfig Mainsystem Frontpanel
name=value pair 1
name=value pair 2
Description
lcdindex=<index>
NA
Specifies the LCD line number.
config=none | default | custom
NA
none: Sets the LCD text to none.
default: Sets the LCD text to default.
Omconfig Managing Components Using The Instrumentation Service
75
Table 49. Valid Parameters Of Omconfig Chassis Frontpanel Or Omconfig Mainsystem Frontpanel (continued)
name=value pair 1
name=value pair 2
Description
custom: Sets the LCD text to custom.
text=<custom text>
NA
nmibutton=enable | disable
NA
Sets the custom text for LCD when config=custom.
enable: Enables the NMI button on the system.
disable: Disables the NMI button on the system.
powerbutton=enable | disable
NA
true: Enables the Power button on the system.
false: Disables the Power button on the system.
config=sysname
NA
config=syspower
NA
config=servicetag
NA
config=remoteaccessipv4
NA
config=remoteaccessipv6
NA
config=remoteaccessmac
NA
config=ipv4idrac
config=ipv6idrac
config=macidrac
NA
config=ambienttemp
NA
security=modify
NA
security=view
NA
security=disabled
NA
remoteindication=true
NA
Sets the name of the system.
Sets the system power information.
Sets the system service tag information.
Sets the remote access IPv4 information.
Sets the remote access IPv6 information.
Sets the remote access MAC address.
Sets IPv4 DRAC information.
Sets IPv6 DRAC information.
Sets the DRAC's MAC address.
Sets the system temperature in centigrade.
Allows you to modify the LCD text.
Provides read-only access to the LCD text.
Provides limited access to the LCD text.
LCD flashes when the system detects an active remote session.
NOTE: The options ipv4idrac, ipv6idrac, and macidrac are deprecated.
Omconfig Chassis Info Or Omconfig Mainsystem Info
Use the omconfig chassis info or omconfig mainsystem info command to enter an asset tag name and a chassis name for the system. For a blade systems, enter asset tag names for modular components as well. The following table displays the valid parameters for the command:
Table 50. Valid Parameters Of Omconfig Chassis Info Or Omconfig Mainsystem Info
name=value pair
Description
index=<n>
Number of the chassis whose asset tag or name you are setting.
76
Omconfig Managing Components Using The Instrumentation Service
Table 50. Valid Parameters Of Omconfig Chassis Info Or Omconfig Mainsystem Info (continued)
name=value pair
Description
tag=<text>
Asset tag in the form of alphanumeric text. Letters or numbers should not exceed 10 characters.
NOTE: The parameter is not supported on YX3X and later systems. For setting the asset tag, use omconfig chassis biossetup attribute=assetag seting=<value>.
name=<text>
Name of the chassis.
In the following example, the asset tag for the main system chassis is being set to buildsys:
omconfig chassis info index=0 tag=buildsys
or
omconfig mainsystem info index=0 tag=buildsys
Index 0 always defaults to the main system chassis. The following command omits index=n, but accomplishes the same:
omconfig chassis info tag=buildsys
or
omconfig mainsystem info tag=buildsys
An acceptable command, when executed, results in the following message:
Chassis info set successfully.
For some chassis, you can assign a different name. You cannot rename the main system chassis. In the following example, the command renames chassis 2 from storscsi1 to storscsia:
omconfig chassis info index=2 name=storscsia
or
omconfig mainsystem info index=2 name=storscsia
As with other commands, the CLI issues an error message if you do not have a chassis 2 (the main chassis=0). The CLI allows you to issue commands only for the system configuration you have.
Omconfig Chassis Leds Or Omconfig Mainsystem Leds
Use the omconfig chassis leds or omconfig mainsystem leds command to specify when to flash a chassis fault LED or chassis identification LED. This command also allows you to clear the LED of the system hard drive. The following table displays the valid parameters for the command.
Table 51. Valid Parameters Of Omconfig Chassis Leds Or Omconfig Mainsystem Leds
name=value pair 1
name=value pair 2
Description
index=<n>
NA
Number of the chassis where the LED resides (defaults to chassis 0, main system chassis).
led=fault
severity=warning | critical
Select to flash the LED either when a warning event occurs or when a critical event occurs.
led=hdfault
action=clear
Sets the number of faults for the hard drive back to zero (0).
Omconfig Managing Components Using The Instrumentation Service
77
Table 51. Valid Parameters Of Omconfig Chassis Leds Or Omconfig Mainsystem Leds (continued)
name=value pair 1
name=value pair 2
Description
led=identify
flash=off | on time-out=<n>
Sets the chassis identification LED to off or on. Set the time-out value for the LED to flash to a number of seconds.
Omconfig Chassis Memorymode Or Omconfig Mainsystem Memorymode
Use the omconfig chassis memorymode or omconfig mainsystem memorymode command to specify the redundancy mode to use for the system memory in case of memory errors.
Redundant memory enables a system to switch to other available memory modules if unacceptable errors are detected in the modules that the system is currently using. The omconfig chassis memorymode or omconfig mainsystem memorymode command allows you to disable redundancy; when you disable redundancy, you instruct the system not to switch to other available memory modules when the memory module the system is using begins to encounter errors. To enable redundancy, choose among spare, mirror, raid, and DDDC.
Spare mode disables a bank of system memory in which a correctable memory event is detected, enables the spare bank, and copies all the data from the original bank to the spare bank. Spare bank requires at least three banks of identical memory; the operating system does not recognize the spare bank.
Mirror mode switches to a redundant copy of memory when an uncorrectable memory event is detected. After switching to the mirrored memory, the system does not switch back to the original system memory until the next reboot. The operating system does not recognize half of the installed system memory in this mode.
RAID mode provides an extra level of memory checking and error recovery at the expense of some memory capacity.
The DDDC mode enables double device data correction. This ensures data availability after hard failure of x4 DRAM.
NOTE: This command is applicable only on systems prior to PowerEdge YX2X systems. On PowerEdge YX2X systems, memorymode is grouped under Memory Settings of the BIOS setup group. For more information, see BIOS Setup Groups on PowerEdge YX2X Systems.
To configure the attribute on systems prior to PowerEdge YX2X, see the following table. The table displays the valid parameters for the command.
Table 52. Valid Parameters Of Omconfig Chassis Memorymode Or Omconfig Mainsystem Memorymode
name=value pair 1 index=<n>
Description
Number of the chassis where the memory module resides (the default is chassis 0, the main system chassis).
redundancy=spare | mirror | disabled | raid5 | dddc
spare: Disables the memory module that has a correctable memory event and copies the failing module's data to a spare bank.
mirror: Switches the systems to a mirrored copy of the memory if the failing module has an uncorrectable memory event. In the mirror mode, the operating system does not switch back to the original module until the system reboot.
disabled: Indicates that the system is not to use other available memory modules if uncorrectable memory events are detected.
raid5: Method of system memory configuration. This is logically similar to the RAID-5 mode used in hard drive storage systems. This memory mode provides an extra level of memory checking and error recovery at the expense of some memory capacity. The RAID mode supported is RAID level 5 striping with rotational parity.
dddc: The dddc mode enables double device data correction. This ensures data availability after hard failure of x4 DRAM.
78
Omconfig Managing Components Using The Instrumentation Service
Table 52. Valid Parameters Of Omconfig Chassis Memorymode Or Omconfig Mainsystem Memorymode (continued)
name=value pair 1
Description
opmode=mirror | optimizer | advecc
mirror: Switches the systems to a mirrored copy of the memory if the failing module has an uncorrectable memory event. In the mirror mode, the operating system does not switch back to the original module until the system reboots.
optimizer: Enables the DRAM controllers to operate independently in 64-bit mode and provide optimized memory performance.
advanced ECC (advecc): Enables the two DRAM controllers to combine in 128-bit mode and provide optimized reliability. Memory that are not teamed by the controllers is not reported to the operating system.
Omconfig chassis pwrmanagement or omconfig mainsystem pwrmanagement
Use the omconfig chassis pwrmanagement or omconfig mainsystem pwrmanagement command to configure power cap and manage profiles that control power utilization.
NOTE: This command is valid only on systems prior to PowerEdge YX2X systems.
The following table displays the valid parameters for the command:
Table 53. Valid Parameters Of Omconfig Chassis Pwrmanagement Or Omconfig Mainsystem Pwrmanagement
name=value pair 1
name=value pair 2
Description
config=budget
cap=<value>
Sets the threshold value for power budget.
NOTE: From PowerEdge YX2X system onwards, power budget requires license to configure power cap. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/ support/manuals.
NOTE: Power budget requires license to configure power cap. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/support/manuals.
setting=enable | disable
enable: Enables powercap settings. disable: Disables powercap settings.
unit=watt | btuphr | percent
watt: Configure the unit in Watts. btuphr: Configure the unit in BTU/hr.
Omconfig Managing Components Using The Instrumentation Service
79
Table 53. Valid Parameters Of Omconfig Chassis Pwrmanagement Or Omconfig Mainsystem Pwrmanagement (continued)
name=value pair 1
name=value pair 2
Description
percent: Configure the unit in percentage.
config=profile NOTE: This option is supported on systems prior to PowerEdge YX2X systems.
profile=maxperformance | apc | osctrl | custom
maxperformance: Sets the processor to the highest supported processor state. It offers maximum performance mode with minimal power economy.
apc: Active Power Control (apc) enables the demand-based power management controlled by BIOS.
osctrl: OS Control (osctrl) enables the demand-based power management controlled by the operating system.
custom: This profile allows you to configure individual BIOS settings. It offers added control by displaying the underlying BIOS settings.
cpupowermode=min | max | systemdbpm min: Sets the CPU power consumption
| osdbpm
to minimum.
max: Sets the CPU power consumption to maximum.
systemdbpm: Sets the mode to system demand based power management.
osdbpm: Sets the mode to operating system demand based power management.
NOTE: These options are applicable only when a custom profile is selected.
memorypowermode=min | 800 | 1067 | 1333 | max
min: Sets the mode to minimum power utilization.
800 | 1067 | 1333: Set the mode to 800, 1067, or 1333 MHz.
max: Sets the mode to maximum performance.
NOTE: These options are applicable only when a custom profile is selected.
fanmode=min | max
min: Sets the fanmode to minimum power utilization.
max: Sets the fanmode to maximum power utilization.
NOTE: These options are applicable only when a custom profile is selected.
NOTE: Reboot the system for the power profiles setup options to take effect.
80
Omconfig Managing Components Using The Instrumentation Service
Omconfig Chassis Pwrmonitoring Or Omconfig Mainsystem Pwrmonitoring
Use the omconfig chassis pwrmonitoring or omconfig mainsystem pwrmonitoring command to configure power consumption information.
The following table displays the valid parameters for the command:
Table 54. Valid Parameters Of Omconfig Chassis Pwrmonitoring Or Omconfig Mainsystem Pwrmonitoring
name=value pair 1
name=value pair 2
Description
index=<n>
NA
Number of the probe or probe index (must specify).
config=probe
warnthresh=settodefault
Sets the minimum and maximum warning thresholds values to default.
warnthresh=<n >
Sets a value for the warning threshold.
unit=watt | btuphr
watt: Displays the unit in Watts.
btuphr: Displays the unit in BTU/hr.
config=resetreading
type=energy | peakpower
energy: Resets the system energy reading.
peakpower: Resets the system peak power.
NOTE: Power monitoring requires license to configure the power budget information. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/openmanagemanuals.
Default warning thresholds
NOTE: Sensor managing capabilities vary across systems. To set both the upper and lower power consumption probe warning threshold values to the recommended default value, type:
omconfig chassis pwrmonitoring config=probe index=0 warnthresh=settodefault or
omconfig mainsystem pwrmonitoring config=probe index=0 warnthresh=settodefault You cannot default one value and set another. If you default the minimum warning threshold value, you are also selecting the default value for the maximum warning threshold value.
Specify A Value For Warning Thresholds
If you prefer to specify values for the power consumption probe warning thresholds, you must specify the number of the probe you are configuring and the warning threshold value. Configure the values to display either in BTU/hr or Watts. In the following example, the probe that is being configured is probe 4:
omconfig chassis pwrmonitoring config=probe index=4 warnthresh=325 unit=watt
or
omconfig mainsystem pwrmonitoring config=probe index=4 warnthresh=325 unit=btuphr
Omconfig Managing Components Using The Instrumentation Service
81
When you issue the command and the system sets the values you specify, the following message is displayed: Power consumption probe warning threshold(s) set successfully.
Omconfig chassis remoteaccess or omconfig mainsystem remoteaccess
Use the omconfig chassis remoteaccess or omconfig mainsystem remoteaccesscommand to configure: Remote access on a local area network (LAN). The serial port for BMC or RAC, whichever is installed. The BMC or RAC on a serial over LAN connection. Terminal settings for the serial port. Advanced settings for a serial over LAN connection. Information on a BMC or RAC user. Information on IPv6 and IPv4 interfaces.
NOTE: Enter the user ID to configure user information.
Type:
omconfig chassis remoteaccess
or
omconfig mainsystem remoteaccess
The output of the omconfig chassis remoteaccess or omconfig mainsystem remoteaccess command lists each of the available configurations. The following table displays the valid parameters:
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess
name=value pair 1 config=
name=value pair 2
Description
config=additional
ipv4=enable | disable
enable: IPv4 stack to load on iDRAC.
disable: IPv4 stack to flush on iDRAC.
ipv6=enable | disable
enable: Enables IPv6 stack to load on iDRAC.
disable: Disables IPv6 stack to unload on iDRAC.
NOTE: This option requires license to enable or disable ipv6. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/openmanagemanuals.
config=advsol
characcuminterval=number
number: Sets the character accumulate interval in 5 millisecond intervals.
charsendthreshold=number
number: Sets the number of characters. BMC automatically sends a serial over LAN data packet that contains the number of characters as soon as this number of characters (or greater) has been accepted from the baseboard serial controller into the BMC.
enableipmi= true | false
true: Enables IPMI over LAN. false: Disables IPMI over LAN.
enablenic=true | false
true: Enables DRAC NIC.
82
Omconfig Managing Components Using The Instrumentation Service
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
false: Disables DRAC NIC
nicselection=sharedwithfailoveronall | nic1 |teamednic1nic2 | dracnic
sharedwithfailoveronall: Configures the new NIC selection option.
nic1: Enables NIC 1.
teamednic1nic2: Enables NIC teaming functionality.
dracnic: Enables DRAC NIC if DRAC 5 is installed.
NOTE: The nicselection option is supported only on PowerEdge 11G systems. From PowerEdge YX2X systems onwards, primarynw and failovernw replaces nicselection.
primarynw=dedicated | lom1 | lom2 | lom3 | lom4
dedicated: Configures dedicated port as primary network for remote access.
NOTE: This option requires license to configure primarynw as dedicated. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/ openmanagemanuals.
lom 1: Configures lom1 port as the primary network for remote access.
lom 2: Configures lom2 port as the primary network for remote access.
lom 3: Configures lom3 port as the primary network for remote access.
lom 4: Configures lom4 port as the primary network for remote access.
NOTE: The primarynw option is supported from PowerEdge YX2X systems onward. If the primarynw is set to dedicated, then set failovernw to none.
NOTE: If the primarynw is set to dedicated, then set failovernw to none.
failovernw=none | lom1 | lom2 | lom3 | lom4 | all
none: Configures the failover network to none.
lom 1: Configures the failover network to lom 1.
lom 2: Configures the failover network to lom 2.
lom 3: Configures the failover network to lom 3.
lom 4: Configures the failover network to lom 4.
all: Configures the failover network to all loms.
NOTE: The failovernw option is supported on PowerEdge YX2X systems onward. Configure both primarynw and failovernw to set the nicselection. The primarynw and failovernw options cannot have the same value.
Omconfig Managing Components Using The Instrumentation Service
83
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
NOTE: Configure both primarynw and failovernw to set the nicselection. The primarynw and failovernw options cannot have the same value.
NOTE: Failovernw requires license to configure the ports. If the appropriate license is not installed or has expired, the system displays an error message. For more information, see Dell License Manager at dell.com/openmanagemanuals.
ipaddress=IP
Sets the IP address if you have selected static as the IP address source for the BMC LAN interface.
subnet=Subnet gateway=Gateway
Sets a subnet mask if you have selected static as the IP address source for the BMC LAN interface.
Sets a gateway address if you have selected static as the IP address source for the BMC LAN interface.
ipsource=static | dhcp | systemsoftware
static: Static if the IP address of the BMC LAN interface is a fixed, assigned IP address.
dhcp: DHCP if the source of the IP address of the BMC LAN interface is the dynamic host configuration protocol.
systemsoftware: System software if the source of the IP address of the BMC LAN interface is from the system software.
NOTE: All commands may not be supported on the system.
ipaddressv6=<IPv6 address> prefixlength= length
gatewayv6=<value>
ipsourcev6=static | auto
Validates the IPv6 address for configuration.
Validates the IPv6 gateway. static: IPv6 address source is set to static. auto: IPv6 address source is set to auto.
altdnsserverv6 dnssourcev6=static | auto
Validates the address of the alternate DNS server for configuration.
static: DNS source is set to static. auto: DNS source is set to auto.
vlanenable=true | false
true: Enables the virtual LAN identification. false: Disables the virtual LAN identification.
vlanid=number
number: Virtual LAN identification in the range of 1 to 4094.
vlanpriority=number
number: Priority of virtual LAN identification in the range of 0 to 7.
privilegelevel=administrator | operator | administrator: Sets the maximum privilege level that is
user
accepted on a LAN channel, to Administrator.
84
Omconfig Managing Components Using The Instrumentation Service
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
operator: Sets the maximum privilege level that is accepted on a LAN channel, to Operator.
user: Sets the maximum privilege level that is accepted on a LAN channel, to User.
config=serial
encryptkey=text confirmencryptkey=text prefdnsserverv6=<value> baudrate=9600 | 19200 | 38400 | 57600 | 115200
flowcontrol=none | rtscts
mode=directbasic | directterminal | directbasicterminal | modembasic | modemterminal | modembasicterminal
text: Text used for encryption and confirmation of encryption.
Validates the preferred DNS server for configuration.
9600: Sets the connection speed to 9600 bits per second.
19200: Sets the connection speed to 19200 bits per second.
38400: Sets the volatile and non-volatile connection speed to 38400 bits per second.
57600: Sets the volatile and non-volatile connection speed to 57600 bits per second.
115200: Sets the volatile and non-volatile connection speed to 115200 bits per second.
none: No control over the flow of communication through the serial port.
rtscts: RTS is ready to send and CTS is clear to send.
directbasic: Type of messaging used for IPMI messaging over a serial connection.
directterminal: Type of messaging that uses printable ASCII characters and allows a limited number of text commands over a serial connection.
directbasicterminal: Both basic and terminal mode messaging over a serial connection.
modembasic: Type of messaging used for IPMI messaging over a modem.
modemterminal: Type of messaging that uses printable ASCII characters and allows a limited number of text commands over a modem.
modembasicterminal: Both basic and terminal messaging over a modem.
NOTE: All commands may not be supported on the system.
config=serialoverlan
privilegelevel=administrator | operator | user
administrator: Sets the maximum privilege level that are accepted on a serial connection, to Administrator.
operator: Sets the maximum privilege level that are accepted on a serial connection, to Operator.
user: Sets the maximum privilege level that are accepted on a serial connection, to User.
enable=true | false
true: Enables serial over LAN for the BMC. false: Disables serial over LAN for the BMC.
Omconfig Managing Components Using The Instrumentation Service
85
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
baudrate=9600 | 19200 | 38400 | 57600 | 115200
9600: Sets the volatile and nonvolatile connection speed to 9600 bits per second.
19200: Sets the volatile and non-volatile connection speed to 19200 bits per second.
38400: Sets the volatile and non-volatile connection speed to 38400 bits per second.
57600: Sets the volatile and non-volatile connection speed to 57600 bits per second.
115200: Sets the volatile and non-volatile connection speed to 115200 bits per second.
privilegelevel=administrator | operator | user
administrator: Sets the maximum privilege level that are accepted on a serial over LAN channel, to Administrator.
operator: Sets the maximum privilege level that are accepted on a serial over LAN channel, to Operator.
user: Sets the maximum privilege level that are accepted on a serial over LAN channel, to User.
config=settodefault config=terminalmode
deletecontrol=outputdel | outputbkspspbksp
Takes the default configuration settings.
utputdel: BMC outputs a <del> character when <bksp> or <del> is received.
outputbkspspbksp: BMC outputs a <bksp><sp><bksp> character when <bksp> or <del> is received.
handshakingcontrol=enabled | disabled
enabled: Directs the BMC to output a character sequence that indicates when its input buffer is ready to accept another command.
disabled: Does not direct the BMC to output a character sequence that indicates when its input buffer is ready to accept another command.
inputlinesequence=cr | null
cr: The console uses <CR> as a new line sequence. null: The console uses <NULL> as a new line sequence.
lineediting=enabled | disabled
enabled: Enables line editing as a line is typed. disabled: Disables line editing as a line is typed.
newlinesequence=none| crlf | null | cr | lfcr | lf
none: BMC does not use a termination sequence.
crlf: BMC uses <CR-LF> as a new line sequence when the BMC writes a new line to the console.
null: BMC uses <Null> as a new line sequence when the BMC writes a new line to the console.
cr: BMC uses <CR> as a new line sequence when the BMC writes a new line to the console.
lfcr: BMC uses <LF-CR> as a new line sequence when the BMC writes a new line to the console.
lf: BMC uses <LF> as a new line sequence when the BMC writes a new line to the console.
config=user
id=number enable=true | false
id=number: ID (in numeric format) of the user being configured.
86
Omconfig Managing Components Using The Instrumentation Service
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
enable=true: Enables the user. enable=false: Disables the user.
id=number
id=number enableserialoverlan=true | false
id=number: ID (in numeric format) of the user being configured.
enableserialoverlan=true: Enables serial over LAN.
enableserialoverlan=false: Disables serial over LAN.
id=number name=text
id=number: ID (in numeric format) of the user being configured.
name=text: Name of the user.
id=number newpw=text confirmnewpw=text
id=number: ID (in numeric format) of the user being configured.
newpw=text: New password of the user.
confirmnewpw=text: Confirm the new password.
id=number serialaccesslevel=administrator | operator | user | none
id=number: ID (in numeric format) of the user being configured.
serialaccesslevel=administrator: User with an ID has access privileges of an Administrator for the serial port channel.
serialaccesslevel=operator: User with an ID has access privileges of an Operator for the serial port channel.
serialaccesslevel=user: User with an ID has access privileges of a User for the serial port channel.
serialaccesslevel=none: User with an ID does not have access privileges for the serial port channel.
id=number lanaccesslevel=administrator | operator | user| none
id=number: ID number of the user being configured.
lanaccesslevel=administrator: User with an ID has access privileges of an Administrator for the LAN channel.
lanaccesslevel=operator: User with an ID has access privileges of an Operator for the LAN channel.
lanaccesslevel=user: User with an ID has access privileges of a user for the LAN channel.
lanaccesslevel=none: User with an ID does not have access privileges for the LAN channel.
id=user id dracusergroup=admin | poweruser | guest | custom | none
id=user id: User ID of the user being configured.
dracusergroup=admin: Enables the Administrator user privileges.
dracusergroup=poweruser: Enables the Power User privileges.
dracusergroup=guest: Enables the Guest user privileges.
dracusergroup=custom: Enables the Custom User privileges.
Omconfig Managing Components Using The Instrumentation Service
87
Table 55. Valid Parameters Of Omconfig Chassis Remoteaccess Or Omconfig Mainsystem Remoteaccess (continued)
name=value pair 1 config=
name=value pair 2
Description
NOTE: For more information on dracusergroup=custom, see Usage of Dracusergroup=custom.
dracusergroup=none: Does not enable user privileges.
id=user id extipmiusergroup=admin | operator | readonly | custom | none
id=user id: User ID of the user being configured.
extipmiusergroup=admin: Enables the Administrator user privileges.
extipmiusergroup=operator: Enables the Operator privileges.
extipmiusergroup=readonly: Enables the Read Only privileges.
extipmiusergroup=custom: Enables the Custom User privileges.
NOTE: It is recommended that you use the operator and readonly options for systems with iDRAC Enterprise. For more information, see Usage of Extipmiusergroup=custom.
extipmiusergroup=none: Does not enable user privileges.
Usage Of Dracusergroup
The following table displays the usage of dracusergroup=custom.
Table 56. Valid Parameters of omconfig chassis remoteaccess config=user id=<user id> dracusergroup=custom or omconfig mainsystem remoteaccess config=user id=<user id>
dracusergroup=custom
name=value pair 1
name=value pair 2
name=value pair 3
Description
config=user
id=user id dracusergroup=custom
logindrac=true | false
true or false: Enables or disables logging into DRAC.
configuredrac=true | false
true or false: Enables or disables configuration of DRAC.
configure users=true | false
true or false: Enables or disables configuration of users.
clearlogs=true | false
true or false: Enables or disables log clearance.
executeservercommands=true true or false: Enables or
| false
disables execution of server
commands.
accessconsoleredir=true | false
true or false: Enables or disables access to console redirection.
88
Omconfig Managing Components Using The Instrumentation Service
Table 56. Valid Parameters of omconfig chassis remoteaccess config=user id=<user id> dracusergroup=custom or omconfig mainsystem remoteaccess config=user id=<user id>
dracusergroup=custom (continued)
name=value pair 1
name=value pair 2
name=value pair 3
Description
accessvirtualmedia=true | false
true or false: Enables or disables access to virtual media.
testalerts=true | false
true or false: Enables or disables test alerts.
Usage of Extipmiusergroup
The following table displays the usage of extipmiusergroup=custom:
Table 57. Usage Of extipmiusergroup
name=value pair 1
name=value pair 2
name=value pair 3
config=user
id=user id extipmiusergroup=custom
loginidrac=true | false
NOTE: extipmiusergroup user group is available only on the Dell 10G blade systems.
id=user id
configureidrac=true | false
Description true or false: Enables or disables logging into iDRAC.
true or false: Enables or disables configuration of iDRAC.
Omconfig Chassis Temps Or Omconfig Mainsystem Temps
Use the omconfig chassis temps or omconfig mainsystem temps command to set warning thresholds for temperature probes. As with other components, you can view both warning and failure threshold values, but you cannot set failure threshold values. The system manufacturer sets the minimum and maximum failure threshold values.
NOTE: Threshold values that you can set vary from one system configuration to another.
Valid Parameters For Temperature Warning Thresholds
The following table displays the valid parameters for setting temperature warning thresholds:
Table 58. Valid Parameters For Omconfig Chassis Temps Or Omconfig Mainsystem Temps
name=value pair
Description
index=<n>
Number of the probe or probe index (specify).
warnthresh=default
Sets the minimum and maximum warning threshold values to default.
minwarnthresh=<n>
Sets the minimum warning threshold values (one decimal place).
maxwarnthresh=<n>
Sets the maximum warning threshold values (one decimal place).
Omconfig Managing Components Using The Instrumentation Service
89
Setting Minimum And Maximum Warning Threshold Values
To set both the upper and lower temperature warning threshold values to the recommended default value, type: omconfig chassis temps index=0 warnthresh=default
or omconfig mainsystem temps index=0 warnthresh=default
You cannot default one value and set another. In other words, if you set the minimum warning threshold value to the default value, you are also selecting the default value for the maximum warning threshold value.
NOTE: The capabilities for managing sensors vary by systems.
Specify a value for minimum and maximum warning thresholds
To specify values for the temperature probe warning thresholds, you must specify the number of the probe you are configuring and the minimum and/or maximum warning threshold value. In the following example, the probe that is being configured is probe 4:
omconfig chassis temps index=4 minwarnthresh=11.2 maxwarnthresh=58.7
or
omconfig mainsystem temps index=4 minwarnthresh=11.2 maxwarnthresh=58.7
When you issue the command and the system sets the values you specify, the following message is displayed:
Temperature probe warning threshold(s) set successfully.
Omconfig Chassis Volts Or Omconfig Mainsystem Volts
Use the omconfig chassis volts or omconfig mainsystem volts command to set voltage probe warning thresholds. As with other components, you can view both warning and failure threshold values, but you cannot set failure threshold values. The system manufacturer sets the minimum and maximum values for the failure thresholds.
Valid parameters for voltage warning thresholds
The following table displays the valid parameters for setting voltage warning threshold values. NOTE: Threshold values that you can set vary from one system configuration to another.
Table 59. Valid Parameters Of Omconfig Chassis Volts Or Omconfig Mainsystem Volts
name=value pair
Description
index=<n>
Probe index (specify).
warnthresh=default
Sets minimum and maximum warning threshold values to default.
minwarnthresh=<n>
Sets minimum warning threshold value (three decimal places).
maxwarnthresh=<n>
Sets maximum warning threshold value (three decimal places).
Specify A Value For Minimum And Maximum Warning Thresholds
To specify values for the voltage probe warning thresholds, you must specify the number of the probe you are configuring and the minimum and/or maximum warning threshold values.
90
Omconfig Managing Components Using The Instrumentation Service
In the following example, the probe being configured is probe 0: omconfig chassis volts index=0 minwarnthresh=1.900 maxwarnthresh=2.250
or omconfig mainsystem volts index=0 minwarnthresh=1.900 maxwarnthresh=2.250
When you issue the command and the system sets the values you specify, the following message is displayed: Voltage probe warning threshold(s) set successfully.
Omconfig Preferences
Use the omconfig preferences command to set system preferences. Use the command line to specify the user levels to access Server Administrator and to configure the Active Directory service.
Omconfig Preferences Cdvformat
Use the omconfig preferences cdvformat to specify the delimiters for separating data fields reported in the custom delimited format. The valid values for delimiters are: exclamation, semicolon, at, hash, dollar, percent, caret, asterisk, tilde, question, colon, comma, and pipe. The following example shows how to set the delimiter for separating data fields to asterisk:
omconfig preferences cdvformat delimiter=asterisk
Omconfig Preferences Dirservice
Use the omconfig preferences dirservice command to configure the Active Directory service. The <productname>oem.ini file is modified to reflect these changes. If the "adproductname" is not present in the <productname>oem.ini file then a <computername>-<computername> refers to the name of the computer running Server Administrator and <productname> refers to the name of the product defined in omprv32.ini. For Server Administrator, the product name is "omsa".
Therefore, for a computer named "myOmsa" running Server Administrator, the default name is "myOmsa�omsa". This is the name of Server Administrator defined in Active Directory by using the snap-in tool. This name must match the name for the application object in Active Directory in order to find user privileges.
NOTE: This command is applicable only on systems running the Windows operating system.
The following table displays the valid parameters for the command:
Table 60. Valid Parameters Of Omconfig Preferences Dirservice
name=value pair
Description
prodname=<text>
Specifies the product to which you want to apply the Active Directory configuration changes. prodname refers to the name of the product defined in omprv32.ini. For Server Administrator, it is "omsa".
enable=<true | false> true: Enables Active Directory service authentication support and the Active Directory Login option on the login page.
false: Disables Active Directory service authentication support and the Active Directory Login option on the login page. If the Active Directory Login option is not present, you can only login to the local machine accounts.
adprodname=<text> Specifies the name of the product as defined in the Active Directory service. This name links the product with the Active Directory privilege data for user authentication.
Omconfig Managing Components Using The Instrumentation Service
91
Omconfig Preferences Messages
Use the omconfig preferences messages command to select the format of alert messages. The default format is traditional, which is the legacy format.
The following table lists the parameters you can use with this command. For example, to set the message format to traditional use the following command:
Table 61. Valid Parameters Of Configuring Preferences Messages
name=value pair 1
name=value pair 2
Description
attribute=format
setting=traditional | enhanced
traditional: Sets the alert message to traditional format.
enhanced: Sets the alert message to Enhanced Event Messaging format. This is similar to the format available in iDRAC7.
omconfig preferences messages attribute=format setting=traditional
Omconfig Preferences Useraccess
Depending on the policies of your organization, you may want to restrict the access that some user levels have to Server Administrator. The omconfig preferences useraccess command allows you to grant or withhold the right of users and power users to access Server Administrator. The following table displays the valid parameters for the command:
Table 62. Enabling User Access For Administrators, Power Users, And Users
Command
omconfig preferences useraccess enable=user
Result
Description
Grants Server Administrator access to Least restrictive form of user access. Users, Power Users, and Administrators.
omconfig preferences useraccess enable=poweruser
Grants Server Administrator access to Power Users and Administrators.
Excludes user level access only.
omconfig preferences useraccess enable=admin
Grants Server Administrator access to Administrators only.
Most restrictive form of user access.
Omconfig Preferences Logging
Use the omconfig preferences logging command for filtering the OS logs using the attributes.
Table 63. Valid Parameters Of Omconfig Preferences Logging
name=value pair 1 attribute=oslogfilter
name=value pair 2
logcrit=true|false logwarn=true|false loginfo=true|false
Description
Specify at least one of the three attributes (critical, warning or informational), else an error message is displayed. A command log entry is created after running the omconfig command. The OS logging settings persist on Server Administrator restart and upgrade.
omconfig preferences logging attribute=oslogfilter logcrit=<true|false> logwarn=<true|false> loginfo=<true|false>
92
Omconfig Managing Components Using The Instrumentation Service
Table 63. Valid Parameters Of Omconfig Preferences Logging (continued)
name=value pair 1
name=value pair 2
Description
NOTE: The OS logging filter command is applicable when the OS logging filter component is installed.
attribute=archiveesmlog
setting=Enable|Disable
Enabling the command allows you to create an automatic backup of ESM Logs. After the backup is created, ESM logs of the Server Administrator and the SEL entries of iDRAC/BMC are cleared. The process is repeated whenever the logs are full.
The backup files are:
Windows: <Install_root>\omsa\log\omsellog.xml
Linux and ESXi: <Install_root>/var/log/ openmanage/omsellog.xml
NOTE: This command is applicable only on YX0X and YX1X generation of PowerEdge servers. On Dell's YX2X generation of PowerEdge servers and later, iDRAC provides capability of automatic clear of log entries and file backup. Only latest version of the backup XML file is available in the mentioned locations.
attribute=logallsensors attribute=produselog
setting=Enable|Disable setting=Enable|Disable
Enabling the command allows you to log all unmonitored ESM sensor events in to Alert log, OS log, and generates the SNMP traps.
Enabling the command tracks actions performed on the Server Administrator. The maximum size of the logfile is 50 MB.
An example command set only to remove the critical severities is as follows: omconfig preferences logging attribute=oslogfilter logcrit=false An example command set to enable the automatic backup of ESM logs. omconfig preferences logging attribute=archiveesmlog setting=Enable An example command set to enable the Log All ESM Sensor Events. omconfig preferences logging attribute=logallsensors setting=Enable An example command to set the Product Use Feedback. omconfig preferences logging attribute=produselog setting=Enable logsize=4
Omconfig preferences webserver
Use the omconfig preferences webserver command to set the encryption levels of the Server Administrator web server, configure the URL launch point in the Server Administrator web server environment, and to set the JRE version for the Server Administrator. The following table displays the name=value pairs you can use with this command:
Omconfig Managing Components Using The Instrumentation Service
93
Table 64. Valid Parameters Of Omconfig Preferences Webserver
name=value pair 1
name=value pair 2
attribute=sslencryption
setting=autonegotiate | 128bitorhigher
Description
autonegotiate: Sets the encryption levels automatically based on your web browser settings.
128bitorhigher: Sets the encryption levels to 128-bit or higher.
NOTE: This attribute is deprecated in the future releases, use ciphers instead.
attribute=seturl
host=<string> port=<value>
Enables you to configure the Distributed Web Server (DWS) URL launch point, for accessing the management node. This command is used when Server Administrator Instrumentation Service and Remote Enablement are installed on the same system and the Server Administrator GUI is accessed using the DWS URL.
NOTE: This command is not supported if the web server is present on the same system.
attribute=signalgorithm
setting=MD5 | SHA1 | SHA256 | SHA512
MD5: Sets the key signing algorithm to MD5.
SHA1: Sets the key signing algorithm to SHA1.
SHA256: Sets the key signing algorithm to SHA256.
SHA512: Sets the key signing algorithm to SHA512.
attribute=setjre
jreversion=bundled | value
bundled: Sets the version bundled with Server Administrator. This is the default value.
value: Sets the provided version, which is available on the system. To obtain the available versions on the system, type omreport preferences webserver attribute=getjrelist. For more details, see omreport preferences webserver.
attribute=exportcsr
N/A
Exports a Certificate Signing Request (CSR) file. The exported .csr file is saved at <Server Administrator installation directory>\apache-tomcat\temp.
attribute=gennewcert
cn=<common name> org=<organization name> ou=<organization unit name> location=<location name> state=<state name> country=<country name> san =<subject alternative name> validity=<validity> keysize=<512 | 1024 | 2048> algorithm=<MD5 | SHA1 | SHA256 | SHA512> webserverrestart=<true | false>
Creates a new self-signed certificate for the SSL communication between the server running Server Administrator and the web server.
NOTE: The country name (country name) must be of two characters, and validity (validity) must be in days. For country names, see
94
Omconfig Managing Components Using The Instrumentation Service
Table 64. Valid Parameters Of Omconfig Preferences Webserver (continued)
name=value pair 1
name=value pair 2
Description
the table, Country names and codes, provided later in this section. The validity, keysize, and algorithm parameters are optional. If you do not set any value for the optional parameters, Server Administrator assigns default values to the optional parameters. The default values of validity, keysize, and algorithm are 1095, 2048, and SHA512 respectively. Restarting Server Administrator web server is optional, but the generated certificate comes to effect only after restarting the web server.
attribute=uploadcert
certfile=<path of the certificate file> type=<pkcs12> password=<password of the certificate file> webserverrestart=true | false
Allows you to import a PKCS#12 keystore that replaces the private key and certificate used in Server Administrator web server. PKCS#12 is public keystore that contains a private key and the certificate for a web server. Server Administrator uses the Java KeyStore (JKS) format to store the SSL certificates and its private key. Importing a PKCS#12 keystore to Server Administrator deletes the keystore entries, and imports a private key and certificate entries to the Server Administrator JKS.
NOTE: If you are importing a PKCS#12 keystore, specify the type and password of the certificate. Restarting Server Administrator web server is optional, but the uploaded certificate comes to effect only after restarting the web server.
NOTE: An error message is displayed if you either type an invalid PKCS file name or an incorrect password.
attribute=<ciphers>
setting=<valid ciphers text value>
Allows you to choose the ciphers that support the web server while configuring. SSL provides a secure connection between the web server and the browser. The connection service does not start if an invalid cipher suite is set.
NOTE: If an incorrect cipher value is set and the connection service fails to start, use the CLI command prompt or manually set the valid ciphers and restart the connection service.
attribute=<sslprotocol>
setting=<valid sslprotocol values are TLSv1.1| TLSv1.2| TLSv1.1, TLSv1.2|
Allows you to set the web server SSL protocols configuration from the valid
Omconfig Managing Components Using The Instrumentation Service
95
Table 64. Valid Parameters Of Omconfig Preferences Webserver (continued)
name=value pair 1
name=value pair 2
Description
values. The changes to take effect after web server restart.
attribute=<port>
setting=<valid port value>
Sets the number of secure ports that you want Server Administrator to use. The port value range from 1024 to 65535. The default port for Server Administrator is 1311.
attribute=<ipaddress>
setting=<valid Binding IPAddress value>
Sets by default the web server to incoming browser requests on ALL IP addresses. However, for increased security you can specify a single IP address or, ALL IP addresses. An error message is displayed on an invalid entry of the configurable Bind List of IP Address. For the changes to take effect, restart the web server.
attribute=<sessiontimeout>
setting=<valid Session Timeout value between 1� 30>
Allows Server Administrator to time-out if there is no user input for a specified number of minutes. Users whose sessions time-out must log in again to continue.
An example command to set the URL launch point is as follows: omconfig preferences webserver attribute=seturl host=<name, ip, fqdn> port=<number>
The host input must contain a valid IPv4 or IPv6 address, or a valid host name. An example command to set the signing algorithm value is as follows:
omconfig preferences webserver attribute=signalgorithm setting=MD5 An example command to set the JRE versions is as follows:
omconfig preferences webserver attribute=setjre jreversion=<bundled | value> An example command to export a Certificate Signing Request (CSR) is as follows:
omconfig preferences webserver attribute=exportcsr The command creates a file of the format xxxx.csr in the <Server Administrator installation directory>\apache-tomcat\temp folder. An example command to create a web server certificate is as follows:
omconfig preferences webserver attribute=gennewcert cn=HostName org=dell ou=ESG location=RoundRock state=TX country=US validity=300 keysize=2048 algorithm=SHA512 webserverrestart=true An example command to create a web server certificate with san is as follows: omconfig preferences webserver attribute=gennewcert cn=HostName org=dell ou=ESG location=RoundRock state=TX country=US san=alternate domain name validity=300 keysize=2048 algorithm=SHA512 webserverrestart=true An example command to upload a certificate on the Server Administrator web server is as follows: omconfig preferences webserver attribute=uploadcert certfile=C:/xyz.crt webserverrestart=true
96
Omconfig Managing Components Using The Instrumentation Service
An example command to upload a certificate with a PKCS#12 keystore on the Server Administrator web server is as follows: omconfig preferences webserver attribute=uploadcert certfile=C:/xyz.pfx type=pkcs12 password=abc webserverrestart=true
Table 65. Country names and codes Country Names AFGHANISTAN ALBANIA ALGERIA AMERICAN SAMOA ANDORRA ANGOLA ANGUILLA ANTARCTICA ANTIGUA AND BARBUDA ARGENTINA ARMENIA ARUBA AUSTRALIA AUSTRIA AZERBAIJAN BAHAMAS BAHRAIN BANGLADESH BARBADOS BELARUS BELGIUM BELIZE BENIN BERMUDA BHUTAN BOLIVIA BOSNIA AND HERZEGOWINA
Codes AF AL DZ AS AD AO AI AQ AG AR AM AW AU AT AZ BS BH BD BB BY BE BZ BJ BM BT BO BA
Omconfig Managing Components Using The Instrumentation Service
97
Table 65. Country names and codes (continued) Country Names BOTSWANA BOUVET ISLAND BRAZIL BRITISH INDIAN OCEAN TERRITORY BRUNEI DARUSSALAM BULGARIA BURKINA FASO BURUNDI CAMBODIA CAMEROON CANADA CAPE VERDE CAYMAN ISLANDS CENTRAL AFRICAN REPUBLIC CHAD CHILE CHINA CHRISTMAS ISLAND COCOS (KEELING) ISLANDS COLOMBIA COMOROS CONGO CONGO, THE DEMOCRATIC REPUBLIC OF THE COOK ISLANDS COSTA RICA COTE D'IVOIRE CROATIA (local name: Hrvatska) CYPRUS CZECH REPUBLIC
98
Omconfig Managing Components Using The Instrumentation Service
Codes BW BV BR IO BN BG BF BI KH CM CA CV KY CF TD CL CN CX CC CO KM CG CD CK CR CI HR CY CZ
Table 65. Country names and codes (continued) Country Names DENMARK DJIBOUTI DOMINICA DOMINICAN REPUBLIC EAST TIMOR ECUADOR EGYPT EL SALVADOR EQUATORIAL GUINEA ERITREA ESTONIA ETHIOPIA FALKLAND ISLANDS (MALVINAS) FAROE ISLANDS FIJI FINLAND FRANCE FRANCE, METROPOLITAN FRENCH GUIANA FRENCH POLYNESIA FRENCH SOUTHERN TERRITORIES GABON GAMBIA GEORGIA GERMANY GHANA GIBRALTAR GREECE GREENLAND
Codes DK DJ DM DO TP EC EG SV GQ ER EE ET FK FO FJ FI FR FX GF PF TF GA GM GE DE GH GI GR GL
Omconfig Managing Components Using The Instrumentation Service
99
Table 65. Country names and codes (continued) Country Names GRENADA GUADELOUPE GUAM GUATEMALA GUINEA GUINEA-BISSAU GUYANA HAITI HEARD AND MC DONALD ISLANDS HOLY SEE (VATICAN CITY STATE) HONDURAS HONG KONG HUNGARY ICELAND INDIA INDONESIA IRAQ IRELAND ISRAEL ITALY JAMAICA JAPAN JORDAN KAZAKHSTAN KENYA KIRIBATI KOREA, REPUBLIC OF KUWAIT KYRGYZSTAN
100 Omconfig Managing Components Using The Instrumentation Service
Codes GD GP GU GT GN GW GY HT HM VA HN HK HU IS IN ID IQ IE IL IT JM JP JO KZ KE KI KR KW KG
Table 65. Country names and codes (continued) Country Names LAO PEOPLE'S DEMOCRATIC REPUBLIC LATVIA LEBANON LESOTHO LIBERIA LIBYAN ARAB JAMAHIRIYA LIECHTENSTEIN LITHUANIA LUXEMBOURG MACAU MACEDONIA, THE FORMER YUGOSLAV REPUBLIC OF MADAGASCAR MALAWI MALDIVES MALTA MARSHALL ISLANDS MARTINIQUE MAURITANIA MAURITIUS MAYOTTE MEXICO MICRONESIA, FEDERATED STATES OF MOLDOVA, REPUBLIC OF MONACO MONGOLIA MONTSERRAT MOROCCO MOZAMBIQUE MYANMAR
Codes LA LV LB LS LR LY LI LT LU MO MK MG MW MV MT MH MQ MR MY YT MX FM MD MC MN MS MA MZ MM
Omconfig Managing Components Using The Instrumentation Service 101
Table 65. Country names and codes (continued) Country Names NAMIBIA NAURU NEPAL NETHERLANDS NETHERLANDS ANTILLES NEW CALEDONIA NEW ZEALAND NICARAGUA NIGER NIGERIA NIUE NORFOLK ISLAND NORTHERN MARIANA ISLANDS NORWAY OMAN PAKISTAN PALAU PALESTINIAN TERRITORY, OCCUPIED PANAMA PAPUA NEW GUINEA PARAGUAY PERU PHILIPPINES PITCAIRN POLAND PORTUGAL PUERTO RICO QATAR REUNION
102 Omconfig Managing Components Using The Instrumentation Service
Codes NA NR NP ML AN NC NZ NI NE NG NU NF MP NO OM PK PW PS PA PG PY PE PH PN PL PT PR QA RE
Table 65. Country names and codes (continued) Country Names ROMANIA RUSSIAN FEDERATION RWANDA SAINT KITTS AND NEVIS SAINT LUCIA SAINT VINCENT AND THE GRENADINES SAMOA SAN MARINO SAO TOME AND PRINCIPE SAUDI ARABIA SENEGAL SEYCHELLES SIERRA LEONE SINGAPORE SLOVAKIA (Slovak Republic) SLOVENIA SOLOMON ISLANDS SOMALIA SOUTH AFRICA SOUTH GEORGIA AND THE SOUTH SANDWICH ISLANDS SPAIN SRI LANKA ST. HELENA ST. PIERRE AND MIQUELON SURINAME SVALBARD AND JAN MAYEN ISLANDS SWAZILAND SWEDEN SWITZERLAND
Codes RO RU RW KN LC VC WS SM ST SA SN SC SL SG SK SI SB SO ZA GS ES LK SH PM SR SJ SZ SE CH
Omconfig Managing Components Using The Instrumentation Service 103
Table 65. Country names and codes (continued) Country Names TAIWAN TAJIKISTAN TANZANIA, UNITED REPUBLIC OF THAILAND TOGO TOKELAU TONGA TRINIDAD AND TOBAGO TUNISIA TURKEY TURKMENISTAN TURKS AND CAICOS ISLANDS TUVALU UGANDA UKRAINE UNITED ARAB EMIRATES UNITED KINGDOM UNITED STATES UNITED STATES MINOR OUTLYING ISLANDS URUGUAY UZBEKISTAN VANUATU VENEZUELA VIETNAM VIRGIN ISLANDS (BRITISH) VIRGIN ISLANDS (U.S.) WALLIS AND FUTUNA ISLANDS WESTERN SAHARA YEMEN
104 Omconfig Managing Components Using The Instrumentation Service
Codes TW TJ TZ TH TG TK TO TT TN TR TM TC TV UG UA AE GB US UM UY UZ VU VE VN VG VI WF EH YE
Table 65. Country names and codes (continued) Country Names YUGOSLAVIA ZAMBIA ZIMBABWE
Codes YU ZM ZW
Omconfig System Or Omconfig Servermodule
Use the omconfig system or omconfig servermodule commands to clear logs, determine how various shutdown actions occur, set initial values or edit values for cost of ownership information, and determine how to respond to a hung operating system.
Omconfig System Alertaction Or Omconfig Servermodule Alertaction
You can use the omconfig system alertaction or omconfig servermodule alertaction command to determine how Server Administrator responds when a component has a warning or failure event.
Defining alert actions
An alert action is an action that you specify for the system to take when specified conditions are met. Alert actions determine in advance what actions to take for warning or failure events on intrusion, fans, temperatures, voltages, power supplies, memory, and redundancy.
For example, if a fan probe on the system reads a fan RPM of 300 and your minimum warning threshold value for that fan probe is 600 RPM, then the system generates a fan probe warning. Alert action settings determine how users are notified of this event. You can also configure alert actions for temperature, voltage, and probe readings that fall within the warning or failure range.
Syntax For Setting Alert Actions
Setting an alert action requires two name=value pairs. The first name=value pair is the event type. The second name=value pair is the action to take for this event. For example, in the command:
omconfig system alertaction event=powersupply broadcast=true or
omconfig servermodule alertaction event=powersupply broadcast=true The event is a power supply failure and the action is to broadcast a message to all Server Administrator users.
Available alert actions
The following table displays the alert actions for each component that allows you to configure an alert action:
Table 66. Valid Parameters of Alert Actions For Warning and Failure Events
Alert Action Setting
Description
alert=true | false
true: Enables the system's console alert. When enabled, the monitor attached to the system from which you are running Server Administrator displays a visual alert message.
Omconfig Managing Components Using The Instrumentation Service 105
Table 66. Valid Parameters of Alert Actions For Warning and Failure Events (continued)
Alert Action Setting
Description
false: Disables the system's console alert.
broadcast=true | false
true: Enables a message or alert to broadcast to all users who have an active terminal (or Remote Desktop) session (Windows) or to operators that have an active shell on the local system (Linux.)
false: Disables alert broadcasts.
clearall=true execappath=<string>
Clears all actions for this event.
Sets the fully qualified path and file name of the application you want to execute in case of an event for the component described in this window.
NOTE: On Linux systems, user or user groups upgraded to administrator or administrator groups cannot configure this alert action setting.
execapp=false
Disables the executable application.
Components and events for alert actions
The following table provides the events for which you can set alert actions. Components are listed in alphabetical order, except that warning events always precede failure events for a component.
Table 67. Valid Parameters Of Events for Alert Actions
Event Name
Description
event=batterywarn
Sets actions when a battery probe detects a warning value.
event=batteryfail
Sets actions when a battery probe detects a failure value.
event=fanwarn
Sets actions when a fan probe detects a warning value.
event=fanfail
Sets actions when a fan probe detects a failure value.
event=hardwarelogwarn
Sets actions when a hardware log detects a warning value.
event=hardwarelogfull
Sets actions when a hardware log is full.
event=intrusion
Sets actions when a chassis intrusion event is detected.
event=memprefail
Sets actions when a memory probe detects a prefailure value.
event=memfail
Sets actions when a memory probe detects a failure value.
event=systempeakpower
Sets actions when a power consumption probe detects peak power value.
event=systempowerwarn
Sets actions when a power consumption probe detects a warning value.
event=systempowerfail
Sets actions when a power consumption probe detects a failure value.
event=powersupply
Sets actions when a power supply probe detects a failure value.
event=powersupplywarn
Sets actions when a power supply probe detects a warning value.
event=processorwarn
Sets actions when a processor probe detects a warning value.
event=processorfail
Sets actions when a processor probe detects a failure value.
event=redundegrad
Sets actions when a redundant component becomes inoperative, resulting in less than full redundancy for that component.
event=redunlost
Sets actions when one or more redundant components become inoperative, resulting in a lost or a "no redundant components working" condition for that component.
106 Omconfig Managing Components Using The Instrumentation Service
Table 67. Valid Parameters Of Events for Alert Actions (continued)
Event Name
Description
event=tempwarn
Sets actions when a temperature probe detects a warning value.
event=tempfail
Sets actions when a temperature probe detects a failure value.
event=voltwarn
Sets actions when a voltage probe detects a warning value.
event=voltfail
Sets actions when a voltage probe detects a failure value.
event=watchdogasr
Sets actions that Server Administrator performs on the next system startup after a watchdog Automatic System Recovery (ASR) is performed for a hung operating system.
event=removableflashmediapres Sets actions that Server Administrator performs when the system detects a removable flash
ent
media.
event=removableflashmediarem Sets actions that Server Administrator performs when a removable flash media is removed. oved
event=removableflashmediafail Sets actions that Server Administrator performs when a removable flash media fails.
event=storagesyswarn
Sets actions when a storage system detects a warning value.
event=storagesysfail
Sets actions when a storage system detects a failure value.
event=storagectrlwarn
Sets actions when a storage controller detects a warning value.
event=storagectrlfail
Sets actions when a storage controller detects a failure value.
event=pdiskwarn
Sets actions when a physical disk detects a warning value.
event=pdiskfail
Sets actions when a physical disk detects a failure value.
event=vdiskwarn
Sets actions when a virtual disk detects a warning value.
event=vdiskfail
Sets actions when a virtual disk detects a failure value.
event=enclosurewarn
Sets actions when an enclosure detects a warning value.
event=enclosurefail
Sets actions when an enclosure detects a failure value.
event=storagectrlbatterywarn Sets actions when a storage controller battery detects a warning value.
event=storagectrlbatteryfail
Sets actions when a storage controller battery detects a failure value.
Example Set Alert Action Commands
The following are examples of valid example commands. For each successful command issued, the following message is displayed:
Alert action(s) configured successfully.
Example Current Probe Actions
To disable system console alert if a current probe detects a warning event, type: omconfig system alertaction event=currentwarn alert=false
or omconfig servermodule alertaction event=currentwarn alert=false
To enable broadcast messages if a current probe detects a failure event, type: omconfig system alertaction event=currentfail broadcast=true
Omconfig Managing Components Using The Instrumentation Service 107
or omconfig servermodule alertaction event=currentfail broadcast=true
Example Fan Probe Actions
To generate alerts when a fan probe detects a failure value, type: omconfig system alertaction event=fanfail alert=true
or omconfig servermodule alertaction event=fanfail alert=true
Example chassis intrusion actions
To clear all alert actions for chassis intrusion, type: omconfig system alertaction event=intrusion clearall=true
or omconfig servermodule alertaction event=intrusion clearall=true
Commands for clearing logs
You can use the omconfig system or omconfig servermodule command to clear the following logs: the alert log, command log, and hardware or ESM log. To clear the contents of the alert log, type:
omconfig system alertlog action=clear or
omconfig servermodule alertlog action=clear NOTE: Entering an invalid RAC user name may prevent the command log from displaying. Clearing the command log resolves this condition.
To clear the contents of the command log, type: omconfig system cmdlog action=clear
or omconfig servermodule cmdlog action=clear
To clear the contents of the ESM log, type: omconfig system esmlog action=clear
or omconfig servermodule esmlog action=clear NOTE: For more information about alert messages, see the OpenManage Server Administrator Messages Reference Guide at dell.com/support/manuals.
108 Omconfig Managing Components Using The Instrumentation Service
Omconfig system pedestinations or omconfig servermodule pedestinations
Use the omconfig system pedestinations or omconfig servermodule pedestinations command to set IP addresses for alert destinations.
The following table displays the valid parameters for the command.
NOTE: You can either specify the index and IP address as parameters together or you can set only the community string as a parameter.
NOTE: Index 1 to 4 accepts an IPv4 address and index 5 to 8 accepts an IPv6 address. On YX2X generation of PowerEdge systems with iDRAC7 specific versions, the index can accept IPv4, IPv6, or FQDN.
Table 68. Valid Parameters Of Omconfig System Pedestinations Or Omconfig Servermodule Pedestinations
name=Value Pair
Description
destenable=true | false
true: Enables an individual platform event filter destination after a valid IP address has been set.
false: Disables an individual platform event filter.
index=number
ipaddress=<ipv4 address | ipv6 address | fqdn>
Sets the index for the destination.
Sets the IP address for the destination. NOTE: On YX2X generation of PowerEdge systems with iDRAC7 specific versions, ipaddress can also be a Fully Qualified Domain Name (FQDN).
communitystr=text
Sets the text string that acts as a password and is used to authenticate SNMP messages sent between the BMC and the destination management station.
Omconfig system platformevents or omconfig servermodule platformevents
Use the omconfig system platformevents or omconfig servermodule platformevents command to configure shutdown action, if any, taken for a specific platform event. You can also enable or disable platform event filter alert generation.
CAUTION: If you set a platform event shutdown action to anything other than none or power reduction, the system is forcefully shut down when the specified event occurs. This shutdown is initiated by firmware and is carried out without first shutting down the operating system or any of the applications running on your system.
The following table displays the valid parameters for the command.
NOTE: Alert settings are mutually exclusive and you can set one at a time only. The action settings are also mutually exclusive and you can set one at a time only. However, alert and action settings are not mutually exclusive of each other.
Table 69. Parameters For Alert Action Command
Action
Description
action=disable
Disables the SNMP alert.
action=enable
Enables the SNMP alert.
action=none
Takes no action when the system is hung or has crashed.
action=powercycle
Turns off the electrical power to the system, pauses, turns on the power, and reboots the system.
action=poweroff
Turns off the electrical power to the system.
Omconfig Managing Components Using The Instrumentation Service 109
Table 69. Parameters For Alert Action Command (continued)
Action
Description
action=powerreduction
Reduces the processor speed until the power consumption comes down and reaches below the warning threshold. If the system power consumption remains below the warning threshold, increase the processor speed.
NOTE: This action is applicable only for PowerEdge Rack and Tower systems earlier than 11th generation of PowerEdge systems.
action=reboot
Forces the operating system to shut down and initiates system startup, performs BIOS checks, and reloads the operating system.
Components and events of platform events
The following table lists the components and the events for which you can set platform events. Components are listed in alphabetical order, except that warning events always precede failure events for a component.
Table 70. Valid Parameters Of Omconfig System Platformevents
Event Name
Description
alertsenable=true | false
true: Enables generation of platform event filter alerts.
false: Disables generation of platform event filter alerts.
NOTE: This setting is independent of the individual platform event filter alert settings. For a platform event filter to generate an alert, both the individual alert and the global event alert are enabled.
event=batterywarn event=batteryfail event=discretevolt event=fanfail event=hardwarelogfail event=intrusion event=powerwarn
event=powerabsent event=powerfail event=processorwarn event=processorfail event=processorabsent event=redundegrad
Sets action or enables or disables alert generation when a battery device detects that the battery is pending a failure condition.
Sets action or enables or disables alert generation when a battery device detects that the battery has failed.
Sets action or enables or disables alert generation when a discrete voltage probe detects that the voltage is too low for proper operation.
Sets action or enables or disables alert generation when a fan probe detects that the fan is running too slow or not at all.
Enables or disables alert generation when a hardware log detects a failure value.
Sets action or enables or disables alert generation when a chassis is opened.
Sets action or enables or disables alert generation when a power device probe detects that the power supply, voltage regulator module, or DC to DC converter is pending a failure condition.
Sets action or enables or disables alert generation when a processor probe detects that the power supply is absent.
Sets action or enables or disables alert generation when a power device probe detects that the power supply, voltage regulator module, or DC to DC converter has failed.
Sets action or enables or disables alert generation when a processor probe detects that the processor is running at less than peak performance or speed.
Sets action or enables or disables alert generation when a processor probe detects that the processor has failed.
Sets action or enables or disables alert generation when a processor probe detects that the processor is absent.
Sets action or enables or disables alert generation when the system fans and/or power supplies become inoperative, resulting in less than full redundancy for that component.
110 Omconfig Managing Components Using The Instrumentation Service
Table 70. Valid Parameters Of Omconfig System Platformevents (continued)
Event Name
Description
event=redunlost
Sets action or enables or disables alert generation when the system fans and/or power supplies become inoperative, resulting in a lost or a no redundant components working condition for that component.
event=systempowerwarn
Sets actions when a power consumption probe detects a warning value.
event=systempowerfail
Sets actions when a power consumption probe detects a failure value.
event=tempwarn
Sets action or enables or disables alert generation when a temperature probe detects that the temperature is approaching the maximum high or low limits.
event=removableflashmediapresent
Sets actions that Server Administrator performs when the system detects a removable flash media.
event=removableflashmediawarn
Sets actions that Server Administrator performs when a removable flash media warning is displayed.
event=removableflashmediafail
Sets actions that Server Administrator performs when a removable flash media fails.
event=tempfail
Sets action or enables or disables alert generation when a temperature probe detects that the temperature is either too high or low for proper operation.
event=voltfail
Sets action or enables or disables alert generation when a voltage probe detects that the voltage is too low for proper operation.
event=intdualsdcardcritical
Sets actions that Server Administrator performs when an internal dual SD card critical event occurs.
event=intdualsdcardwarn
Sets actions that Server Administrator performs when an internal dual SD card warning is displayed.
event=intdualsdcardabsent
Sets actions that Server Administrator performs when an internal dual SD card is not available.
event=intdualsdcardredunlost
Sets actions that Server Administrator performs when the redundancy of an internal dual SD card is lost.
event=watchdogasr
Enables or disables alert generation configured by the ASR when the system has hung or is not responding.
Omconfig system snmptraptest or omconfig servermodule snmptraptest
Use the omconfig system snmptraptest or omconfig servermodule snmptraptest command to send the snmp test trap to the destination address if Server Administrator SNMP component is configured in the configuration file.
The following table displays the valid parameters for the command:
Table 71. Parameters For Alert Action Command
Action
Description
dest=<ipv4 address | ipv6 address | fqdn>
Send the test trap to the destination IP address.
NOTE: This feature is not supported on VMware ESXi.
Omconfig System Events Or Omconfig Servermodule Events
Use the omconfig system events or omconfig servermodule events command to enable and disable SNMP traps for the components on your system.
Omconfig Managing Components Using The Instrumentation Service
111
NOTE: Not all event types are present on the system.
There are four parameters in the name=value pair component of the omconfig system events command: Source Type Severity Index
Source
At present, source=snmptraps is a required name=value pair because SNMP is currently the only supported source of event notification for the system's components.
omconfig system events source=snmptraps
or
omconfig servermodule events source=snmptraps
Type
Type refers to the name of the component(s) involved in the event. The following table displays the valid parameters for system event types.
Table 72. System Event Type Parameters
name=value pair type=accords
Description Configures events for AC power cords.
type=battery
Configures events for battery.
type=all
Configures events for all device types.
type=fanenclosures
Configures events for fan enclosures.
type=fans
Configures events for fans.
type=intrusion
Configures events for chassis intrusion.
type=log
Configures events for logs.
type=memory
Configures events for memory.
type=powersupplies
Configures events for power supplies.
type=redundancy
Configures events for redundancy.
type=systempower
Configures events for system power.
type=temps
Configures events for temperatures.
type=volts
Configures events for voltages.
type=systempeakpower
Configures events for system peak power.
type=removableflashmedia Configures events for removable flash media.
Severity
In the context of configuring events, severity determines how severe an event is, before Server Administrator notifies you of the event for a component type. When there are multiple components of the same type in the same system chassis, you can specify whether you want notification for event severity according to the number of the component by using the index=<n> parameter. The following table displays the valid severity parameters.
112 Omconfig Managing Components Using The Instrumentation Service
Table 73. System Event Severity Parameters
Command
Result
omconfig system events type=<component name> severity=info or omconfig servermodule events type=<component name> severity=info
Enables notification for informational, warning, and critical events.
omconfig system events type=<component name> severity=warning or omconfig servermodule events type=<component name> severity=warning
Enables notification for warning and critical events.
omconfig system events type=<component name> severity=critical or omconfig servermodule events type=<component name> severity=critical
Enables notification for critical events only.
omconfig system events type=<component name> severity=none or omconfig servermodule events type=<component name> severity=none
Disables event notification.
Description Least restrictive form of event notification.
Omits informational event notification, for example, when a component returns to normal status.
Restrictive form of event notification.
No event notification.
Index
Index refers to the number of an event for a particular component. Index is an optional parameter. When you omit the index parameter, events are configured for all components of the specified type, such as all fans. For example, when a system contains more than one fan, you can enable or disable event notification for a particular fan. An example command is as follows:
omconfig system events type=fan index=0 severity=critical
or
omconfig servermodule events type=fan index=0 severity=critical
As a result of the example command, Server Administrator sends an SNMP trap only when the first fan in the system chassis (index 0) has reached critical fan RPMs.
Omconfig System Webserver Or Omconfig Servermodule Webserver
Use the omconfig system webserver or omconfig servermodule webserver command to start or stop the Web server. The following table displays the valid parameters for the command.
Table 74. Valid Parameters Of Web Server Configuration
name=value pair
Description
action=start
Starts the Web server.
action=stop
Stops the Web server.
action=restart
Restarts the Web server.
Omconfig System Recovery Or Omconfig Servermodule Recovery
Use the omconfig system recovery or omconfig servermodule recovery command to set the action when the operating system hangs or crashes. You can also set the number of seconds that must pass before the system is considered to have a hung operating system. The following table lists the valid parameters for the command
Omconfig Managing Components Using The Instrumentation Service 113
NOTE: The upper and lower limits for the timer depend on the system model and configuration.
Table 75. Valid Parameters Of Omconfig System Recovery Or Omconfig Servermodule Recovery
name=value pair
Description
action=none
Takes no action when the operating system is hung or has crashed.
action=reboot
Shuts down the operating system and initiates system startup, performing BIOS checks, and reloading the operating system.
action=poweroff
Turns off electrical power to the system.
action=powercycle
Turns off electrical power to the system, pauses, turns on the power, and reboots the system. Power cycling is useful when you want to reinitialize system components such as hard drives.
timer=<n>
Number of seconds that must pass before the system is considered to have a hung operating system (from 20 seconds to 480 seconds).
Example Recovery Commands
To set the action on hung operating system detection to powercycle, type: omconfig system recovery action=powercycle
or omconfig servermodule recovery action=powercycle
To set the system to hang for 120 seconds, before a recovery action is initiated, type: omconfig system recovery timer=120
or omconfig servermodule recovery timer=120
Omconfig System Shutdown Or Omconfig Servermodule Shutdown
Use the omconfig system shutdown or omconfig servermodule shutdown command to determine how the system shuts down. During system shutdown, the default is to shut down the operating system before powering off the system. Shutting down the operating system first closes down the file system before powering the system down. If you do not want to shut down the operating system first, use the osfirst=false parameter.
NOTE: The parameter osfirst=false is not available on YX3X generation and later systems. By default, on YX3X generation and later systems, the operating system shuts down before turning off the server during a remote shutdown.
The following table displays the valid parameters for the command.
Table 76. Valid Parameters Of System Shutdown
name=value pair action=reboot
Description
Shuts down the operating system and initiates system startup, performing BIOS checks and reloading the operating system.
action=poweroff
Turns off the electrical power to the system.
action=powercycle
Turns off the electrical power to the system, pauses, turns on the power, and reboots the system. Power cycling is useful when you want to reinitialize system components such as hard drives.
osfirst=true | false
true: Closes the file system and exits the operating system before turning off the server.
false: Does not close the file system or shuts down the operating system before turning off the server.
114 Omconfig Managing Components Using The Instrumentation Service
Table 76. Valid Parameters Of System Shutdown (continued)
name=value pair
Description
NOTE: This command osfirst=false is not available on YX3X and later systems. By default, on YX3X and later systems, the operating system shuts down before turning off the server during a remote shutdown.
Example Shutdown Commands
To set the shutdown action to reboot, type: omconfig system shutdown action=reboot
or omconfig servermodule shutdown action=reboot
To bypass operating system shutdown before the system is powered off, type: omconfig system shutdown action=reboot osfirst=false
or omconfig servermodule shutdown action=reboot osfirst=false NOTE: The parameter osfirst=false is not available on YX3X and later systems. By default, on YX3X and later systems, the operating system shuts down before turning off the server during a remote shutdown.
Omconfig System Thrmshutdown Or Omconfig Servermodule Thrmshutdown
Use the omconfig system thrmshutdown or omconfig servermodule thrmshutdown command to configure a thermal shutdown action. You can configure the system for a thermal shutdown when a temperature probe detects a temperature probe warning or failure event.
The following table displays the valid parameters for the command:
Table 77. Valid Parameters Of Thermal Shutdown
name=value pair
Description
severity=disabled | warning | failure
disabled: Disable thermal shutdown. An administrator must intervene.
warning: Perform a shutdown when a temperature warning event is detected. A warning event occurs when any temperature probe inside a chassis reads a temperature (in degree Celsius) that exceeds the maximum temperature warning threshold value.
failure: Perform a shutdown when a temperature failure event is detected. A failure event occurs when any temperature probe inside a chassis reads a temperature (in degree Celsius) that exceeds the maximum temperature failure threshold value.
Example Thermal Shutdown Commands
To trigger a thermal shutdown when a temperature probe detects a failure event, type: omconfig system thrmshutdown severity=failure
Omconfig Managing Components Using The Instrumentation Service 115
or omconfig servermodule thrmshutdown severity=failure
To disable thermal shutdown so that an administrator has to initiate an omconfig system shutdown, type: omconfig system thrmshutdown severity=disabled
or omconfig servermodule thrmshutdown severity=disabled
116 Omconfig Managing Components Using The Instrumentation Service
5
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
The omconfig system assetinfo or omconfig servermodule assetinfo command helps you to edit a comprehensive set of parameters that make up the total cost of ownership of the system. This section explains the parameters that are reported and configured under the omconfig system assetinfo or omconfig servermodule assetinfo command.
Using the omconfig system assetinfo or omconfig servermodule assetinfo command, you can set governing values for configurable objects. Examples of assetinfo configuration capabilities include setting values for system owner, purchase price, details of any lease that is in effect, depreciation methods and rates, and location of the system, warranty and extended warranty duration, outsourcing details, and service level agreement.
NOTE: Power Users and Administrators can add and edit asset information.
The following table lists the systems on which omconfig commands are applicable:
Table 78. System Availability for the omconfig Command
Command Level 1
Command Level 2
omconfig
servermodule
mainsystem
system
chassis
Applicable to Blade systems Blade systems Rack and Tower systems Rack and Tower systems
Topics:
� Adding acquisition information � Adding depreciation information � Adding extended warranty information � Adding lease information � Adding maintenance information � Adding outsource information � Adding owner information � Adding service contract information � Adding support information � Adding system information � Adding warranty information
Adding acquisition information
Acquisition refers to the facts about a business entity's purchase or lease of a system. Use the omconfig system assetinfo info=acquisition or omconfig servermodule assetinfo info=acquisition command to add detailed information about the purchase or lease of a system. The following table displays the valid parameters for the command:
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 117
Table 79. Valid Parameters Of omconfig system assetinfo info=acquisition or omconfig servermodule assetinfo info=acquisition
Command Level 1
Command Level Command Level Name= Value
2
3
Pair 1
Name= Value Pair 2
Description
omconfig
system or servermodule
assetinfo
info=acquisition costcenter=<text>
The name or code for the business entity that acquired the system.
expensed=yes | no
Whether the system is charged to a specific purpose or department such as research and development or sales.
installdate=<mmddyy>
Date the system was put to service.
ponum=<n>
Number of the document that authorized payment for the system.
purchasecost=<n>
Price the owner paid for the system.
purchasedate=<mmddyy>
Date the owner purchased the system.
signauth=<text>
Name of the person who approved the purchase or the service call on the system.
waybill=<n>
Receipt from the carrier for the goods received.
Example command for adding acquisition information
To provide a value for an acquisition parameter, type a command of the form: omconfig system assetinfo info=acquisition <name=value pair 2> or omconfig servermodule assetinfo info=acquisition <name=value pair 2>. For example, type:
omconfig system assetinfo info=acquisition purchasedate=122101
or
omconfig servermodule assetinfo info=acquisition purchasedate=122101
The following message is displayed:
Asset information set successfully.
118 Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all of the parameters for name=value pair 2 belong to the same name=value pair 1. For example, to type more than one parameter value for info=acquisition, use the following example as a syntax guide:
omconfig system assetinfo info=acquisition purchasecost=5000 waybill=123456 installdate=120501 purchasedate=050601 ponum=9999 signauth="John Smith" expensed=yes costcenter=finance
or
omconfig servermodule assetinfo info=acquisition purchasecost=5000 waybill=123456 installdate=120501 purchasedate=050601 ponum=9999 signauth="John Smith" expensed=yes costcenter=finance
The following message is displayed:
Asset information set successfully.
Adding depreciation information
Depreciation is a set of methods for computing the devaluation of the asset over time. For example, the depreciation of a system that is expected to have a useful life of 5 years is 20 percent. Use the omconfig system assetinfo info=depreciation or omconfig servermodule assetinfo info=depreciation command to add details about how the system's depreciation is computed. The following table shows the valid parameters for the command.
Table 80. Valid Parameters Of omconfig system assetinfo info=depreciation or omconfig servermodule assetinfo info=depreciation
Command Level Command
1
Level 2
omconfig
system or servermodule
Command Level Name= Value
3
Pair 1
assetinfo
info=depreciation
Name= Value Pair 2 duration=<n>
Description
Number of years or months over which a system is depreciated.
method=<text>
Steps and assumptions used to compute the system's depreciation.
percent=<n>
Portion of 100 that an asset is devalued or depreciated.
unit=months | years Unit is months or years.
Example command for adding depreciation information
To provide a value for a depreciation parameter, type a command of the form: omconfig system assetinfo info=depreciation <name=value pair 2> or omconfig servermodule assetinfo info=depreciation <name=value pair 2>. For example, type:
omconfig system assetinfo info=depreciation method=straightline
or
omconfig servermodule assetinfo info=depreciation method=straightline
The following message is displayed:
Asset information set successfully.
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 119
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Commands For Adding Acquisition Information.
Adding extended warranty information
Use the omconfig system extwarranty or omconfig servermodule extwarranty command to assign values for extended warranty information. A warranty is a contract between the manufacturer or dealer and the purchaser of a system. The warranty identifies the components that are covered for repair or replacement for a specified length of time or usage. The extended warranty comes into force after the original warranty expires. For details on how to edit warranty values, see Adding Warranty Information.
The following table displays the valid parameters for the command:
Table 81. Valid Parameters Of omconfig system assetinfo info=extwarranty Or omconfig servermodule assetinfo info=extwarranty
Command Level 1
Command Level 2 Command Level 3
Name= Value Pair 1
Name= Value Pair 2 Description
omconfig
system or servermodule
assetinfo
info=extwarranty cost=<cost>
Cost of the extended warranty service.
enddate=<enddate>
Date the extended warranty agreement ends.
provider=<provider>
Business entity that provides the extended warranty service.
startdate=<startdate> Date the extended warranty service begins.
Example command for adding extended warranty information
To provide a value for an extended warranty parameter, type a command of the form: omconfig system assetinfo info=extwarranty <name=value pair 2> or omconfig servermodule assetinfo info=extwarranty <name=value pair 2>. For example, type:
omconfig system assetinfo info=extwarranty enddate=012503
or
omconfig servermodule assetinfo info=extwarranty enddate=012503
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding lease information
A lease is an agreement to pay for the use of a system for a specified period of time. The lessor retains ownership of the system. The following table displays the valid parameters for the command.
120 Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
Table 82. Valid Parameters Of omconfig system assetinfo info=lease Or omconfig servermodule assetinfo info=lease
Command Level 1
Command Level 2 Command Level 3
Name=
Name= Value Pair 2
Value Pair
1
Description
omconfig
system or servermodule
assetinfo
info=lease buyout=<amount>
Amount of money paid to purchase a system from a lessor.
lessor=<lessor>
Business entity that is leasing the system out.
multischedule=true | false
Whether cost of leasing the system is computed by more than one rate schedule.
ratefactor=<factor>
Factor used to calculate the lease payment.
value=<residual>
Fair market value of the system at the end of the lease period.
Example command for adding lease information
To provide a value for a lease parameter, type a command of the form: omconfig system assetinfo info=lease <name=value pair 2> or omconfig servermodule assetinfo info=lease <name=value pair 2>. For example, type:
omconfig system assetinfo info=lease value=4500
or
omconfig servermodule assetinfo info=lease value=4500
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfocommand at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding maintenance information
Maintenance refers to activities required to keep the system in good working order. The following table displays the valid parameters for adding maintenance information.
Table 83. Valid Parameters Of omconfig system assetinfo info=maintenance Or omconfig servermodule assetinfo info=maintenance
Command Level 1
Command Level Command
2
Level 3
Name= Value Pair 1
Name= Value Pair 2
Description
omconfig
system or servermodule
assetinfo
info=maintenanc enddate=<enddate> e
Date the extended warranty agreement ends.
provider=<provider>
Business entity providing the maintenance service.
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 121
Table 83. Valid Parameters Of omconfig system assetinfo info=maintenance Or omconfig servermodule assetinfo info=maintenance (continued)
Command Level 1
Command Level Command
2
Level 3
Name= Value Pair 1
Name= Value Pair 2
Description
startdate=<startdate> Date the maintenance begins.
restrictions=<string>
Activities not covered by the maintenance contract.
Example command for adding maintenance information
To provide a value for a maintenance parameter, type a command of the form: omconfig system assetinfo info=maintenance <name=value pair 2> or omconfig system assetinfo info=maintenance <name=value pair 2>. For example, type:
omconfig system assetinfo info=maintenance startdate=012504
or
omconfig servermodule assetinfo info=maintenance startdate=012504
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Commands For Adding Acquisition Information.
Adding outsource information
Outsourcing is the practice of contracting with another business to maintain the system in good working order. The following table displays the valid parameters for adding outsource information.
Table 84. Valid Parameters Of omconfig system assetinfo info=outsource Or omconfig servermodule assetinfo info=outsource
Command Command
Level 1
Level 2
Command Name= Value Name= Value Pair 2
Level 3
Pair 1
Description
omconfig
system or
assetinfo
servermodule
info=outsource levels=<n>
Levels of service that the provider offers.
problemcomponent=<component>
System component that requires maintenance.
providerfee=<providerfee>
Amount of money charged for maintenance.
servicefee=<servicefee>
Amount of money charged for service.
signauth=<name>
Person who signed or authorized the service.
122 Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
Example command for adding outsource information
To provide a value for an outsource parameter, type a command of the form: omconfig system assetinfo info=outsource <name=value pair 2> or omconfig servermodule assetinfo info=outsource <name=value pair 2>. For example, type:
omconfig system assetinfo info=outsource providerfee=75
or
omconfig servermodule assetinfo info=outsource providerfee=75
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding owner information
The owner is the party that holds legal property title to the system. The following table displays the valid parameters for adding owner information.
Table 85. Valid Parameters Of omconfig system assetinfo info=owner Or omconfig servermodule assetinfo info=owner
Command Level 1 omconfig
Command Level 2
system or servermodule
Command Level 3 assetinfo
Name= Value Name= Value Pair 2 Pair 1 info=owner insuranceco=<company>
Description
Name of the insurance company that insures the system.
ownername=<business>
Business entity that owns the system.
type=owned | leased | rented
Whether the user of the system owns, leases, or rents the system.
Example command for adding owner information
To provide a value for an owner parameter, type a command of the form omconfig system assetinfo info=owner <name=value pair 2> or omconfig servermodule assetinfo info=owner <name=value pair 2>. For example, type:
omconfig system assetinfo info=owner type=rented
or
omconfig servermodule assetinfo info=owner type=rented
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 123
Adding service contract information
A service contract is an agreement that specifies fees for preventive maintenance and repair of the system. The following table displays the valid parameters for adding contract information.
Table 86. Valid Parameters Of omconfig system assetinfo info=service Or omconfig servermodule assetinfo info=service
Command Level 1 omconfig
Command Level 2
system or servermodule
Command Level 3 assetinfo
Name= Value Pair 1 info=service
Name= Value Pair 2 Description
renewed=true | false Whether the service agreement has been renewed.
type=<string>
Type of service that the contract covers.
vendor=<business>
Business entity that offers service on the system.
Example command for adding service information
To provide a value for a service parameter, type a command of the form omconfig system assetinfo info=service <name=value pair 2> or omconfig system assetinfo info=service <name=value pair 2>. For example, type:
omconfig system assetinfo info=service vendor=fixsystemco
or
omconfig servermodule assetinfo info=service vendor=fixsystemco
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding support information
Support refers to technical assistance that the system user can seek when the user seeks guidance on the proper use of a system to perform tasks. The following table displays the valid parameters for adding support information.
Table 87. Valid Parameters Of omconfig system assetinfo info=support Or omconfig servermodule assetinfo info=support
Command Level 1 omconfig
Command Level 2
system or servermodule
Command Level 3 assetinfo
Name= Value Pair 1 info=support
Name= Value Pair 2 automaticfix=<programname>
Description
Name of any application used to fix a problem automatically.
helpdesk=<text>
The help desk name or contact information such as a phone number, email address, or website address.
outsourced=true | false
Whether an external business entity provides
124 Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
Table 87. Valid Parameters Of omconfig system assetinfo info=support Or omconfig servermodule assetinfo info=support (continued)
Command Command
Level 1
Level 2
Command Level 3
Name= Value Name= Value Pair 2 Pair 1
Description
technical support or the system owner's employees provide technical support.
type=network | storage
Whether support is for network attached devices or for storage devices.
.
Example command for adding support information
To provide a value for a support parameter, type a command of the form omconfig system assetinfo info=support <name=value pair 2> or omconfig servermodule assetinfo info=support <name=value pair 2>. For example, type:
omconfig system assetinfo info=support outsourced=true
or
omconfig servermodule assetinfo info=support outsourced=true
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding system information
System information includes the primary user of the system, the phone number for the primary user, and the location of the system. The following table displays the valid parameters for adding system information.
Table 88. Valid Parameters Of omconfig system assetinfo info=system Or omconfig servermodule assetinfo info=system
Command Level 1 omconfig
Command Level 2
system or servermodule
Command Level 3 assetinfo
Name= Value Pair 1 info=system
Name= Value Pair 2 location=<text>
Description Location of the system.
primaryphone=<n>
Phone number of the primary user of the system.
primaryuser=<user>
Primary user of the system.
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 125
Example command for adding system information
To provide a value for a system parameter, type a command of the form omconfig system assetinfo info=system <name=value pair 2> or omconfig servermodule assetinfo info=system <name=value pair 2>. For example, type:
omconfig system assetinfo info=system location=firstfloor
or
omconfig servermodule assetinfo info=system location=firstfloor
The following message is displayed:
Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Adding warranty information
Use the omconfig system warranty or omconfig servermodule warranty command to assign values for warranty information. A warranty is a contract between the manufacturer or dealer and the purchaser of a system. The warranty identifies the components that are covered for repair or replacement for a specified length of time or usage. For details on editing extended warranty values, see Adding Extended Warranty Information. The following table displays the valid parameters for adding warranty information.
Table 89. Valid Parameters Of omconfig system assetinfo info=warranty Or omconfig servermodule assetinfo info=warranty
Command Level 1 omconfig
Command Level 2
system or servermodule
Command Level 3 assetinfo
Name= Value Pair 1 info=warranty
Name= Value Pair 2 cost=<cost>
Description
Cost of the warranty service.
duration=<duration>
Number of days or months that the warranty is in force.
enddate=<enddate>
Date the warranty agreement ends.
unit=days | months
Whether the number for duration refers to days or months.
Example command for adding warranty information
To provide a value for a warranty parameter, type a command of the form omconfig system assetinfo info=warranty <name=value pair 2> or omconfig servermodule assetinfo info=warranty <name=value pair 2>. For example, type:
omconfig system assetinfo info=warranty unit=days
or
omconfig servermodule assetinfo info=warranty unit=days
126 Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values
The following message is displayed: Asset information set successfully.
You can type more than one omconfig system assetinfo or omconfig servermodule assetinfo command at the same time, as long as all the parameters for name=value pair 2 belong to the same name=value pair 1. For an example, see Example Command For Adding Acquisition Information.
Omconfig System Or Servermodule Assetinfo Editing Cost Of Ownership Values 127
6
Using The Storage Management Service
The CLI of Storage Management enables you to perform reporting, configuration, and management functions of Storage Management from an operating system command shell. The Storage Management CLI also enables you to script command sequences.
The Storage Management CLI provides expanded options for the OpenManage Server Administrator omreport and omconfig commands.
NOTE: For more information, see the Dell EMC Server Administrator Installation Guide and Dell EMC Systems Management Tools And Documentation Guide available at dell.com/openmanagemanuals. For more information on Storage Management, see the Storage Management online Help or the Dell EMC Server Administrator Storage Management User's Guide available at dell.com/openmanagemanuals.
Topics:
� CLI command syntax � Syntax Of Command Elements � User Privileges For Omreport Storage And Omconfig Storage
CLI command syntax
Like all Server Administrator commands, the omreport and omconfig command syntax consists of specifying command levels. The first command level is the command name: omreport or omconfig. Subsequent command levels provide a greater degree of specification regarding the type of object on which the command operates or the information that the command displays.
For example, the following omconfig command syntax has three levels:
omconfig storage pdisk
The following table describes these command levels.
Table 90. Example Command Levels
Command level 1
Command level 2
omconfig
storage
Command level 3 pdisk
Use
Specifies the command
Indicates the Server Administrator service (in this case, Storage Management) that implements the command
Specifies the type of object on which the command operates
Following the command levels, the omreport and omconfig command syntax may require one or more name=value pairs. The name=value pairs specify exact objects (such as a specific physical disk) or options (such as blink or unblink) that the command implements.
For example, the following omconfig command syntax for blinking a physical disk has three levels and three name=value pairs:
omconfig storage pdisk action=blink controller=id pdisk=<PDISKID>
where PDISKID=<onnector:enclosureID:targetID | connector:targetID> In this example, the id in controller=idis the controller number such that controller 1 is specified as controller=1.
128 Using The Storage Management Service
Syntax Of Command Elements
The omreport and omconfig commands have multiple name=value pairs. These name=value pairs may include required, optional, and variable parameters. The following table describes the syntax used to indicate these parameters.
Table 91. Syntax For Name=Value Pairs Syntax controller=id
Description
Indicates the controller ID as reported by the omreport storage controller command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=id to display the IDs for the physical disks attached to the controller.
For example, the controller=id parameter is specified as controller=1.
connector=id
Indicates the connector ID as reported by the omreport command. To obtain this value, type omreport storage controller to display the controller IDs and then type omreport storage connector controller=id to display the IDs for the connectors attached to the controller.
For example, the connector=id parameter is specified as connector=2.
vdisk=id
Indicates the virtual disk ID as reported by the omreport command. To obtain this value, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=id to display the IDs for the virtual disks on the controller.
For example, the vdisk=id parameter is specified as vdisk=3.
enclosure=<ENCLOSUREID>
Indicates a particular enclosure by specifying either enclosure=connector or enclosure=connector:enclosureID.
To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage enclosure controller=id to display the IDs for the enclosures attached to the controller.
pdisk=<PDISKID>
Indicates a particular physical disk by specifying either connector:targetID or connector:enclosureID:targetID.
To obtain the values for the connector, enclosure, and physical disk (targetID), type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=id to display the IDs for the physical disks attached to the controller.
battery=id
Indicates the battery ID as reported by the omreport command. To obtain this value, type omreport storage controller to display the controller IDs and then type omreport storage battery controller=id to display the ID for the controller battery.
< >
The caret symbols (< >) enclose variable elements that you must specify.
For example, the name=<string>parameter is specified as name=VirtualDisk1.
[ ]
The bracket symbols ([ ]) indicate optional elements that you can choose
whether or not to specify.
Using The Storage Management Service 129
Table 91. Syntax For Name=Value Pairs (continued)
Syntax
Description
For example, when creating a virtual disk, the [name=<string>] parameter indicates that you have the option of specifying the virtual disk name. If you omit this parameter from the syntax, then a default name for the virtual disk is chosen for you.
|
The pipe symbol (|) separates two or more options from which only one is
selected.
For example, when creating a virtual disk, the cachepolicy=d | c indicates that the cache policy is specified as either cachepolicy=d or cachepolicy=c.
User Privileges For Omreport Storage And Omconfig Storage
Storage Management requires Administrator privileges to use the omconfig storage command. User and Power User privileges are sufficient to use the omreport storage command.
130 Using The Storage Management Service
7
Omreport storage commands
The omreport command allows you to view storage component information for disks, controllers, enclosures, batteries, global storage properties, connectors and cachecades that are part of the storage system. The omreport command helps to get reports with the level of detail that you want.
The commands may vary in, whether they define the fields that appear in the results of a particular omreport command. Fields are defined only if they have a special or less familiar use.
The following sections provide the omreport command syntax required to display the information of various storage components.
To see a list of valid commands for omreport storage, type:
omreport storage -?
The following table provides the omreport storage command syntax.
Table 92. omreport Storage Help
Command Level 1
Command Level Command Level Use
2
3
omreport
storage
Displays a list of storage components for which omreport commands are available.
pdisk
Displays a list of the omreport storage pdisk parameters for displaying physical disk information.
vdisk
Displays a list of omreport storage vdisk parameters for displaying virtual disk information.
controller
Displays a list of the omreport storage controller parameters for displaying controller information.
enclosure
Displays a list of the omreport storage enclosure parameters for displaying enclosure information.
battery
Displays a list of the omreport storage battery parameters for displaying battery information.
globalinfo
Displays a list of the omreport storage globalinfo parameters for displaying global storage property information.
connector
Displays a list of the omreport storage connector parameters for displaying connector information.
cachecade
Displays a list of the omreport storage cachecade parameters for displaying cachecade properties.
pciessed
Displays the properties of the PCIe SSD subsystem.
nvmeadapter
Displays the list of NVMe adapters.
Topics:
� Omreport Physical Disk Status � omreport Virtual Disk Status � Omreport controller status � Omreport Enclosure Status � Omreport Battery Status � Omreport Global Information
Omreport storage commands 131
� Omreport Connector Status � Omreport Cachecade Status � Omreport Storage Tape � Omreport NVMe adapter
Omreport Physical Disk Status
The following table describes the syntax for the omreport Physical Disk commands.
Table 93. Omreport Physical Disk Commands
Required Command Levels (1, 2, 3) And name=value pair
Optional name=value pairs
omreport storage pdisk
controller=id, where id is the controller number. For example, controller=0
Use
Displays all physical disks attached to the specified controller.
NOTE: If a physical disk was replaced by another disk as part of the replace member operation, the state of the physical disk is displayed as Replacing.
vdisk=id, where id is the virtual disk number. For example, vdisk=1
Displays all physical disks included in the specified virtual disk on the controller.
cachecade=id where id is the cachecade Displays all physical disks included in the
number. For example, cachecade=1
specified cachecade on the controller.
connector=id where id is the connector number. For example, connector=1
Displays all physical disks attached to the specified connector on the controller.
pdisk=connectorID: targetID | connectorID: enclosureID: slotID, where connectorID: targetID is the connector number and the physical disk number and connectorID:enclosureID: slotID is the connector number, enclosure number, and slot number. For example, pdisk=0:2 or pdisk=0:1:2
Displays the specified physical disk on the specified connector on the controller.
omreport Virtual Disk Status
The following table describes the syntax for the omreport Virtual Disk commands:
Table 94. omreport Virtual Disk Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
omreport storage vdisk
Displays property information for all virtual disks on all controllers.
controller=id, where id is the controller number. For example, controller=0.
Displays all virtual disks on the specified controller.
controller=id vdisk=id, where id is the controller number and the virtual disk number. For example, controller=0 vdisk=1.
Displays the specified virtual disk on the controller.
132 Omreport storage commands
Omreport controller status
The following table describes the syntax for the omreport Controller commands.
Table 95. omreport controller commands
Required command levels (1, 2, 3)
omreport storage controller
Optional name=value pairs
Use
Displays property information for all controllers attached to the system.
controller=id, where id is the controller number. For example, controller=0
Displays the specified controller and all attached components such as enclosures, virtual disks, physical disks, HHHL cards, and so on.
controller=id info=foreignkeyids Displays the locked foreign configuration information for import or clear operations.
controller=id info=pdslotreport
Displays the empty and occupied slot details of enclosures in the controller.
NOTE: This command is not supported on Backplane, SCSI, and SWRAID controllers.
Omreport Enclosure Status
The following sections provide the omreport storage enclosure command syntax required to execute the enclosure commands. The following table describes the syntax for the omreport Enclosure commands.
Table 96. omreport Enclosure Commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omreport storage enclosure
controller=id, where id is the controller number
controller=id enclosure=<ENCLOSUREID>, where id is the controller number and <ENCLOSUREID>is the enclosure ID. Example for SCSI controllers: controller=0 enclosure=2. Example for SAS controllers: controller=0 enclosure=1:2.
Use
Displays property information for all enclosures attached to the system.
Displays all enclosures connected to the controller.
Displays the specified enclosure and its components.
Omreport Temperature Probe Status
The following table describes the syntax for the omreport Probe commands:
Table 97. omreport Temperature Probe Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
omreport storage enclosure
Displays property information for all enclosures attached to the system.
controller=id enclosure=<ENCLOSUREID> info=temps where id is the controller number and <ENCLOSUREID> is the enclosure
Displays the temperature probes for the specified enclosure.
Omreport storage commands 133
Table 97. omreport Temperature Probe Commands (continued)
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
ID. Example for SCSI controllers: controller=0 enclosure=2 info=temps. Example for SAS controllers: controller=0 enclosure=1:2 info=temps
controller=id enclosure=<ENCLOSUREID> info=temps index=n where id is the controller number and <ENCLOSUREID> is the enclosure number and n is the number of a temperature probe. For example: controller=0 enclosure=2 info=temps index=1
Displays the temperature probes for the specified enclosure.
Omreport Fan Status
The following table describes the syntax for the omreport Fan commands:
Table 98. omreport Fan Status Required Command Levels (1, 2, 3) and name=value pair omreport storage enclosure
Optional name=value pairs
Use
Displays property information for all enclosures attached to the system.
controller=id enclosure=<ENCLOSUREID> info=fans where id is the controller number and ENCLOSUREID is the enclosure number. For example: controller=0 enclosure=2
Displays the fans for the specified enclosure.
NOTE: For SCSI controllers, the ID specified in enclosure=<ENCLOSUREID> is the connector number and for Serial Attached SCSI (SAS) controllers, ID is the connectorNumber:EnclosureIndex.
controller=id enclosure=<ENCLOSUREID> info=fans index=n where id is the controller number and ENCLOSUREID is the enclosure number and n is the number of a fan. For example: controller=0 enclosure=2 info=fans index=1
Displays the specified fan.
Omreport Power Supply Status
The following table describes the syntax for the omreport Power Supply commands:
Table 99. Omreport Power Supply Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
omreport storage enclosure
Displays property information for all enclosures attached to the system.
134 Omreport storage commands
Table 99. Omreport Power Supply Commands (continued)
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
controller=id enclosure=<ENCLOSUREID> info=pwrsupplies where id is the controller number and ENCLOSUREID is the enclosure number. For example: controller=0 enclosure=2
Displays the power supplies for the specified enclosure.
controller=id enclosure=<ENCLOSUREID> info=pwrsupplies index=n where id is the controller number and ENCLOSUREID is the enclosure number and n is the number of a power supply. For example: controller=0 enclosure=2 info=pwrsupplies index=1
Displays the specified power supply.
Omreport EMM Status
The following table describes the syntax for the omreport EMM commands: NOTE: The status of the EMMs is displayed as degraded if there is a mismatch between the EMM firmware.
Table 100. Omreport EMM Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
omreport storage enclosure
Displays property information for all enclosures attached to the system.
controller=id enclosure=<ENCLOSUREID> info=emms where id is the controller number and ENCLOSUREID is the enclosure number. For example: controller=0 enclosure=2
Displays the enclosure management modules (EMMs) for the specified enclosure.
controller=id enclosure=<ENCLOSUREID> info=emms index=n where id is the controller number and ENCLOSUREID is the enclosure number and n is the number of an EMM. For example: controller=0 enclosure=2 info=emms index=1
Displays the specified EMMs.
Omreport Enclosure Slot Occupancy Report
The following table describes the syntax for the omreport Enclosure Slot Occupancy Report commands:
Table 101. Omreport Enclosure Slot Occupancy Report Commands
Required Command Levels (1, 2, 3) and name=value pair omreport storage enclosure
Optional name=value pairs
Use
Displays property information for all enclosures attached to the system.
controller=id enclosure=<ENCLOSUREID> info=pdslotreport, where id is the controller number and ENCLOSUREID
Displays the empty and occupied slot details for the specified enclosure.
Omreport storage commands 135
Table 101. Omreport Enclosure Slot Occupancy Report Commands (continued)
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
and name=value pair
is the enclosure number. For example: controller=0 enclosure=2
NOTE: This command is not supported on Backplane, SCSI, and SWRAID controllers.
NOTE: On MX5016s, the slot occupancy displays for empty slots and unmapped slots as empty slots for computes MX740c and MX840c.
Omreport Battery Status
The following table describes the syntax for the omreport Battery commands: Table 102. omreport Battery Commands Required Command Levels (1, 2, 3) Optional name=value pairs omreport storage battery
controller=id, where id is the controller number. For example: controller=0 controller=id battery=id, where id is the controller number. For example: controller=0
Use
Displays all batteries present on all controllers on the system (Some controllers do not have batteries).
Displays the battery on the specified controller.
Displays the specified battery.
Omreport Global Information
The following table describes the syntax for the omreport Global Information commands:
Table 103. Omreport Global Information Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
Use
omreport storage globalinfo
Displays whether smart thermal shutdown is enabled or disabled. For more information, see Omconfig Global Enable Smart Thermal Shutdown.
Displays the hot spare protection policy that you have set. For more information on setting hot spare protection policy, see the Dell EMC OpenManage Server Administrator Storage Management User's Guide at dell.com/support/ manuals.
Omreport Connector Status
The following table describes the syntax for the omreport Connector commands:
136 Omreport storage commands
Table 104. omreport Connector Commands Required Command Levels (1, 2, 3) Optional name=value pairs omreport storage connector
Use
Displays all connectors present on all controllers on the system.
NOTE: This command works only when the controller ID is specified.
controller=id, where id is the controller number. For example: controller=0
controller=id connector=id, where id is the connector number. For example, connector=0
Displays the connectors on the specified controller.
Displays the specified connector. NOTE: When the connectors are connected to the enclosure in redundant path mode, the Name of the connector is displayed as Logical Connector.
Omreport Cachecade Status
The following table describes the syntax for the omreport Cachecade commands
Table 105. omreport Cachecade Commands
Required Command Levels (1, Optional name=value pairs 2, 3)
omreport storage cachecade
controller=id, where id is the controller number. For example, controller=0.
controller=id cachecade=id, where id is the controller number and the cachecade number. For example, controller=0 cachecade=1.
Use
Displays property information for all cachecades on all controllers.
Displays all cachecades on the specified controller.
Displays the specified cachecade on the controller.
Omreport Storage Tape
The following table describes the syntax for the omreport storage tape command.
Table 106. Omreport Storage Tape Commands
Required Command Levels (1, 2, 3) omreport storage tape
Optional name=value pairs
Use Display tape drive properties.
controller=id, where id is the controller number. For example: controller=0.
Displays all tape drives.
connector=id
Displays all the tape drives on the specified connector.
tape=<tape id>, where tapeid=id=<connector:targetID>
Displays the specified tape drive.
Omreport storage commands 137
Omreport NVMe adapter
The following table describes the syntax for the omreport nvmeadapter commands.
Table 107. omreport NVMe adapter command
Required Command Levels (1, 2, 3) And name=value pair omreport storage nvmeadapter
Optional name=value pairs
Use
Displays the properties of the NVMe adapters.
controller=id, where id is the controller number. For example, controller=0.
Displays the properties of all the NVMe adapters on the specified controller.
controller=id, nvmeid=id, where id is the Displays the properties of the specified controller number and the NVMe adapter NVMe adapter on the specified respectively. For example, controller=0 controller. nvmeid=1.
138 Omreport storage commands
8
Omconfig storage commands
The omconfig command allows you to configure physical disks, virtual disks, controllers, enclosures, batteries, global information, connectors, and cachecades.
To see a list of valid commands for omconfig storage, type:
omconfig storage -?
The following table provides the omconfig storage command syntax:
Table 108. omconfig Storage Help
Command Level Command Level Command Level
1
2
3
omconfig
storage
pdisk
vdisk
controller
enclosure
battery
globalinfo
connector
cachecade
nvmeadapter
Use
Sets the storage component properties for which omconfig commands are available.
Displays the list of omconfig storage pdisk parameters for configuring physical disks.
Displays the list of omconfig storage vdisk parameters for configuring virtual disks.
Displays a list of the omconfig storage controller parameters for configuring controllers.
Displays a list of the omconfig storage controller parameters for configuring enclosures.
Displays a list of the omconfig storage battery parameters for configuring batteries.
Displays a list of the omconfig storage globalinfo parameters for configuring global storage properties.
Displays a list of the omreport storage connector parameters for configuring connectors.
Displays a list of the omconfig storage cachecade parameters for configuring cachecades.
Displays a list of the omconfig storage nvmeadapter parameters for configuring the NVMe adapters.
Topics:
� Omconfig Physical Disk Commands � Omconfig virtual disk commands � Omconfig controller commands � Omconfig Enclosure Commands � Omconfig Battery Commands � Omconfig Global Commands � Omconfig Connector Commands � Omconfig cachecade commands � Omconfig NVMe adapter configuration commands
Omconfig storage commands 139
Omconfig Physical Disk Commands
The following sections provide the omconfig command syntax required to run physical disk tasks:
Table 109. omconfig Physical Disk Commands
Required Command Levels (1, 2, 3) Optional name=value pairs
omconfig storage pdisk
action=blink controller=id pdisk=<PDISKID>
action=unblink controller=id pdisk=<PDISKID>
action=remove controller=id pdisk=<PDISKID>
action=instantsecureerase controller=id pdisk=<PDISKID>
action=cryptographicerase controller=id pdisk=<PDISKID>
action=initialize controller=id pdisk=<PDISKID>
action=offline controller=id pdisk=<PDISKID>
action=online controller=id pdisk=<PDISKID>
action=assignglobalhotspare controller=id pdisk=<PDISKID> assign=<yes | no>
action=rebuild controller=id pdisk=<PDISKID>
action=cancelrebuild controller=id pdisk=<PDISKID>
action=cancelreplacemember controller=id pdisk=<PDISKID>
action=clear controller=id pdisk=<PDISKID>
action=cancelclear controller=id pdisk=<PDISKID>
action=enabledevicewritecache controller=id pdisk=<PDISKID>
action=disabledevicewritecache controller=id pdisk=<PDISKID>
action=exportlog controller=id pdisk=<PDISKID> [filename=<filename>], the filename mentioned here is optional.
action=exporttelemetrylog controller=id pdisk=<PDISKID> [filename=<filename>], the filename mentioned here is optional.
action=convertraidtononraid controller=id pdisk=<PDISKID>
action=convertnonraidtoraid controller=id pdisk=<PDISKID>
action=setarraydiskcache controller=id pdisk=<PDISKID>
Omconfig Blink Physical Disk
Table 110. omconfig Blink Physical Disk Description
Syntax
Blinks the light (light emitting diode or LED display) on one or more physical disks attached to a controller.
omconfig storage pdisk action=blink controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
140 Omconfig storage commands
Table 110. omconfig Blink Physical Disk (continued)
Example to
Blink physical disk 0 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
Example for SCSI, SATA, and ATA controllers
omconfig storage pdisk action=blink controller=1 pdisk=0:0
Example for SAS controllers
omconfig storage pdisk action=blink controller=1 pdisk=0:2:0
Omconfig Unblink Physical Disk
Table 111. omconfig Unblink Physical Disk Description Syntax
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Unblinks the light (light emitting diode or LED display) on one or more physical disks attached to a controller.
omconfig storage pdisk action=unblink controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Unblink physical disk 0 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=unblink controller=1 pdisk=0:0
omconfig storage pdisk action=unblink controller=1 pdisk=0:2:0
Omconfig Prepare To Remove Physical Disk
Table 112. omconfig Prepare To Remove Physical Disk
Description
Prepares a physical disk for removal.
Syntax
omconfig storage pdisk action=remove controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to
Prepares physical disk 3 on connector 0 of controller 1 for removal. On a SAS controller, the physical disk resides in enclosure 2.
Omconfig storage commands 141
Table 112. omconfig Prepare To Remove Physical Disk (continued)
Example for SCSI, SATA, and ATA controllers
omconfig storage pdisk action=remove controller=1 pdisk=0:3
Example for SAS controllers
omconfig storage pdisk action=remove controller=1 pdisk=0:2:3
Omconfig Instant Erase Secured Physical Disk
Table 113. omconfig Instant Erase Secured Physical Disk
Description
Erases the given encrypted disk.
NOTE: This command is applicable only on Micron devices.
Syntax
omconfig storage pdisk action=instantsecureerase controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Erase physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=instantsecureerase controller=1 pdisk=0:3
omconfig storage pdisk action=instantsecureerase controller=1 pdisk=0:2:3
Omconfig Cryptographic Erase Secured Physical Disk
Table 114. omconfig Cryptographic Erase Secured Physical Disk
Description
Erases the given encrypted disk.
NOTE: This command is applicable only on Non-Volatile Memory Express (NVMe) devices.
Syntax
omconfig storage pdisk action=cryptographicerase controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
142 Omconfig storage commands
Table 114. omconfig Cryptographic Erase Secured Physical Disk (continued)
Example to
Erase physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
Example for SCSI, SATA, and ATA controllers
omconfig storage pdisk action=cryptographicerase controller=1 pdisk=0:3
Example for SAS controllers
omconfig storage pdisk action=cryptographicerase controller=1 pdisk=0:2:3
Omconfig Initialize Physical Disk
Table 115. omconfig Initialize Physical Disk Description Syntax
Initializes a physical disk.
omconfig storage pdisk action=initialize controller=id pdisk=id, where id is the controller ID and physical disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example
Initialize physical disk 4 on controller 1
omconfig storage pdisk action=initialize controller=1 pdisk=1:0:4
Omconfig Offline Physical Disk
Table 116. omconfig Offline Physical Disk Description Syntax
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Makes a physical disk offline.
omconfig storage pdisk action=offline controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Offline physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=offline controller=1 pdisk=0:3
omconfig storage pdisk action=offline controller=1 pdisk=0:2:3
Omconfig storage commands 143
Omconfig Online Physical Disk
Table 117. omconfig Online Physical Disk Description Syntax
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Brings an offline physical disk back online.
omconfig storage pdisk action=online controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Bring physical disk 3 on connector 0 of controller 1 back online. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=online controller=1 pdisk=0:3
omconfig storage pdisk action=online controller=1 pdisk=0:2:30
Omconfig Assign Global Hot Spare
Table 118. omconfig Assign Global Hot Spare Description Syntax
Assigns a physical disk as a global hot spare.
omconfig storage pdisk action=assignglobalhotspare controller=id pdisk=<PDISKID> assign=yes, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Assign physical disk 3 on connector 0 of controller 1 as a global hot spare. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=assignglobalhotspare controller=1 pdisk=0:3 assign=yes
omconfig storage pdisk action=assignglobalhotspare controller=1 pdisk=0:2:3 assign=yes
144 Omconfig storage commands
Omconfig Available Spare
Table 119. omconfig Available Spare Description Syntax
Example to Example for PCIe SSD
Assigns a physical disk as a global hot spare.
omconfig storage globalinfo action=setavailablesparethreshold type=<pcissd> warning_threshold=<1-99>, critical_threshold=<1-99> where id is the controller ID. The <pcissd> variable specifies the PCISSD.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Set available spare threshold on supported NVMe PCIe SSD.
omconfig storage globalinfo action=setavailablesparethreshold type=pciessd warning_threshold=20
Omconfig Rebuild Physical Disk
Table 120. omconfig Rebuild Physical Disk Description Syntax
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Rebuilds a failed physical disk. Rebuilding a disk may take several hours. If you need to cancel the rebuild, use the Cancel Rebuild task. For more information about Rebuild Physical Disk, see the Dell EMC OpenManage Online Help.
omconfig storage pdisk action=rebuild controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Rebuild physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=rebuild controller=1 pdisk=0:3
omconfig storage pdisk action=rebuild controller=1 pdisk=0:2:3
Omconfig storage commands 145
Omconfig Cancel Rebuild Physical Disk
Table 121. omconfig Cancel Rebuild Physical Disk Description
Syntax
Cancels a rebuild that is in progress. If you cancel a rebuild, the virtual disk remains in a degraded state. For more information about Cancel Rebuild Physical Disk, see the Dell EMC OpenManage Online Help.
omconfig storage pdisk action=cancelrebuild controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example for SCSI, SATA, and ATA controllers Example for SAS controllers
Cancel the rebuild of physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=cancelrebuild controller=1 pdisk=0:3
omconfig storage pdisk action=cancelrebuild controller=1 pdisk=0:2:3
Omconfig Cancel Replace Member
Table 122. omconfig Cancel Replace Member Description Syntax
Cancels a replace member operation.
omconfig storage pdisk action=cancelreplacemember controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example
Cancel replace member operation on disk 0:0:1 which is connected to controller 0
omconfig storage pdisk action=cancelreplacemember controller=0 pdisk=0:0:1
146 Omconfig storage commands
Omconfig Clear Physical Disk
Table 123. omconfig Clear Physical Disk Description Syntax
Example to Example for SAS controllers
Clears data or a configuration from a physical disk.
omconfig storage pdisk action=clear controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Clear physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=clear controller=1 pdisk=0:2:3
Omconfig cancel clear physical disk
Table 124. omconfig cancel clear physical disk Description Syntax
Cancels a clear operation in progress on a physical disk.
omconfig storage pdisk action=cancelclear controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example for SCSI, SATA, and ATA controllers
Cancel the clear of physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=cancelclear controller=1 pdisk=0:2:3
Omconfig Enable Device Write Cache
Table 125. omconfig Enable Device Write Cache Description
Syntax
Enables write cache on a physical disk for the PCIe SSD controller.
omconfig storage pdisk action=enabledevicewritecache controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
Omconfig storage commands 147
Table 125. omconfig Enable Device Write Cache (continued)
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to
Enable write cache on physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
Example for SAS controllers
omconfig storage pdisk action=enabledevicewritecache controller=1 pdisk=0:2:3
Omconfig Disable Device Write Cache
Table 126. omconfig Disable Device Write Cache Description
Syntax
Disables write cache on a physical disk for the PCIe SSD controller.
omconfig storage pdisk action=disabledevicewritecache controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to Example for SAS controllers
Disable write cache on physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=disabledevicewritecache controller=1 pdisk=0:2:3
Omconfig Export Reliability Log
Table 127. omconfig Export Reliability Log Description
Syntax
Exports log on a physical disk or the NVMe adapter. The reliability log for the device PCIe SSD device or NVMe device is exported to the Windows folder on systems running Windows, and to /var/log directory on systems running Linux.
omconfig storage pdisk action=exportlog controller=id pdisk=<PDISKID> filename=<filename>, where id is the controller ID . The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk
148 Omconfig storage commands
Table 127. omconfig Export Reliability Log (continued)
controller=ID to display the IDs for the physical disks attached to the controller.
NOTE: The <filename> is optional. If <filename> is not present, a default filename is assigned.
NOTE: Depending on the PCIe SSD or NVMe device the log file name will be PCIeSSD_<device name>_<timestamp>.log or NVMe_<device name>_<timestamp>.log where the <device name> is the name of the device and timestamp is month, day, hour, minute and second during which the command is executed.
Example to
Export log on physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
Example for SAS controllers
omconfig storage pdisk action=exportlog controller=1 pdisk=0:2:3
Omconfig Export Telemetry Log
Table 128. omconfig Export Telemetry Log Description
Syntax
Exports the PCIe SSD or NVMe device telemetry log to Windows folder on systems running Windows operating system, and to /var/log directory on systems running Linux operating systems.
omconfig storage pdisk action=exporttelemetrylog controller=id pdisk=<PDISKID> filename=<filename>, where id is the controller ID . The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
NOTE: The <filename> is optional. If <filename> is not present, a default filename is assigned.
NOTE: The default log file name will be NVME_TELEMETRY_<serial no>_<timestamp>_Host.bin, where <serial no> is the serial number of the device and timestamp is the time of the command executed. The timestamp is in month, day, hour, minute, and second format.
Example to Example for PCIe SSD
Export Telemetry log on supported NVMe physical disk 3 of controller 0.
omconfig storage pdisk action=exporttelemetrylog controller=0 pdisk=0:3
Omconfig storage commands 149
Omconfig Convert RAID To Non-RAID
Table 129. Omconfig Convert RAID To Non-RAID Description Syntax
Converts RAID to non-RAID on a physical disk.
omconfig storage pdisk action=convertraidtononraid controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
NOTE: To convert multiple RAID to non-RAID on a given controller, use omconfig storage controller action=convertraidtononraid command. For more information, see omconfig Convert Multiple RAID To Non-RAID.
Example to Example for SAS controllers
Convert RAID to non-RAID on physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=raidtononraid controller=1 pdisk=0:2:3
Omconfig Convert Non-RAID To RAID
Table 130. omconfig Convert Non-RAID To RAID Description Syntax
Converts non-RAID to RAID on a physical disk.
omconfig storage pdisk action=convertnonraidtoraid controller=id pdisk=<PDISKID>, where id is the controller ID. The <PDISKID> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage pdisk controller=ID to display the IDs for the physical disks attached to the controller.
NOTE: To convert multiple non-RAID to RAID on a given controller, use omconfig storage controller action=convertnonraidtoraid command. For more information, see omconfig Convert Multiple Non-RAID To RAID.
Example to Example for SAS controllers
Convert non-RAID to RAID on physical disk 3 on connector 0 of controller 1. On a SAS controller, the physical disk resides in enclosure 2.
omconfig storage pdisk action=nonraidtoraid controller=1 pdisk=0:2:3
150 Omconfig storage commands
Omconfig Set array disk cache
Table 131. Omconfig Set array disk cache
Description
Setting the disk cache policy on the given physical disk.
Syntax
omconfig storage pdisk action=setarraydiskcache pdisk=<PDISKID> cache=<enable|disabled> controller=id, where PDISKID=<connector:enclosureID:portID | connector:targetID>.
Example to
Set the disk cache policy on the physical disk.
Example
omconfig storage pdisk action=setarraydiskcache pdisk=0:2:3 cache=disabled controller=0
Omconfig virtual disk commands
The following table provides the omconfig command syntax required to run virtual disk tasks.
CAUTION: The omconfig storage vdisk action=deletevdisk controller=id vdisk=id command deletes a virtual disk. Deleting a virtual disk destroys all information including file systems and volumes residing on the virtual disk.
Table 132. Omconfig Manage Virtual Disk Commands
Required Command Levels Optional name=value pairs (1, 2, 3)
omconfig storage vdisk
action=checkconsistency controller=id vdisk=id
action=cancelcheckconsistency controller=id vdisk=id
action=pausecheckconsistency controller=id vdisk=id
action=resumecheckconsistency controller=id vdisk=id
action=checkconsistency controller=id vdisk=id
action=blink controller=id vdisk=id
action=unblink controller=id vdisk=id
action=initialize controller=id vdisk=id
action=fastinit controller=id vdisk=id [force=yes]
action=slowinit controller=id vdisk=id [force=yes]
action=cancelinitialize controller=id vdisk=id
action=cancelbginitialize controller=id vdisk=id
action=assigndedicatedhotspare controller=id vdisk=id pdisk=<PDISKID> assign=<yes | no>
action=deletevdisk controller=id vdisk=id [force=yes]
action=reconfigure controller=id vdisk=id raid=<c | r0 | r1 | r1c | r5 | r10> pdisk=<PDISKID> [size=<size> vdcapacityexpansion=yes sizeinpercent=<1 to 100>]
action=securevd controller=id vdisk=id
action=clearvdbadblocks controller=id vdisk=id
ction=changepolicy controller=id vdisk=id [readpolicy=<ra | nra | ara | rc | nrc> | writepolicy=<wb | wt | wc | nwc | fwb> | cachepolicy=<d | c> diskcachepolicy=<enabled | disabled>]
action=replacememberdisk controller=id vdisk=id source=<PDISKID> destination=<PDISKID>
Omconfig storage commands 151
Table 132. Omconfig Manage Virtual Disk Commands (continued) Required Command Levels Optional name=value pairs (1, 2, 3)
action=rename controller=id vdisk=id action=enablefluidcache controller=id vdisk=id devicename=<string> cachepolicy=<wb | wt> action=disablefluidcache controller=id vdisk=id devicename=<string> action=reactivate controller=id vdisk=id devicename=<string>
Omconfig Check Consistency
Table 133. omconfig Check Consistency
Description
Initiates a check consistency on a virtual disk. The check consistency task verifies the virtual disk's redundant data.
Syntax
omconfig storage vdisk action=checkconsistency controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Run a check consistency on virtual disk 4 on controller 1. omconfig storage vdisk action=checkconsistency controller=1 vdisk=4
Omconfig Pause Check Consistency
Table 134. omconfig Pause Check Consistency
Description
Pauses a check consistency while in progress. For more information, see the Dell EMC OpenManage Online Help.
Syntax
omconfig storage vdisk action=pausecheckconsistency controller=id vdisk=id , where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Pause a check consistency on virtual disk 4 on controller 1
omconfig storage vdisk action=pausecheckconsistency controller=1 vdisk=4
Omconfig cancel check consistency
Table 135. omconfig cancel check consistency
Description
Cancels a check consistency while in progress.
Syntax
omconfig storage vdisk action=cancelcheckconsistency controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
152 Omconfig storage commands
Table 135. omconfig cancel check consistency (continued)
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to
Cancel a check consistency on virtual disk 4 on controller 1.
Example
omconfig storage vdisk action=cancelcheckconsistency controller=1 vdisk=4
Omconfig Resume Check Consistency
Table 136. Omconfig Resume Check Consistency
Description
Resumes a check consistency after it has been paused.
Syntax
omconfig storage vdisk action=resumecheckconsistency controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Resume a check consistency on virtual disk 4 on controller 1.
omconfig storage vdisk action=resumecheckconsistency controller=1 vdisk=4
Omconfig blink virtual disk
Table 137. Omconfig blink virtual disk
Description
Blinks the physical disks included in a virtual disk.
Syntax
omconfig storage vdisk action=blink controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Blink the physical disks in virtual disk 4 on controller 1. omconfig storage vdisk action=blink controller=1 vdisk=4
Omconfig Unblink Virtual Disk
Table 138. omconfig Unblink Virtual Disk
Description
Unblinks the physical disks included in a virtual disk.
Syntax
omconfig storage vdisk action=unblink controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
Omconfig storage commands 153
Table 138. omconfig Unblink Virtual Disk (continued)
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the physical disks attached to the controller.
Example to
Unblink the physical disks in virtual disk 4 on controller 1.
Example
omconfig storage vdisk action=unblink controller=1 vdisk=4
Omconfig Initialize Virtual Disk
Table 139. omconfig Initialize Virtual Disk
Description
Initializes a virtual disk.
Syntax
omconfig storage vdisk action=initialize controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Initialize virtual disk 4 on controller 1 omconfig storage vdisk action=initialize controller=1 vdisk=4
Omconfig Fast Initialize Virtual Disk
Table 140. omconfig Fast Initialize Virtual Disk
Description
Fast initializes a virtual disk.
CAUTION: You may receive a warning message if you attempt to delete the system or boot partition. However, this warning message is not generated always. Ensure that you do not delete the system or boot partition or other vital data when using this command.
Syntax
omconfig storage vdisk action=fastinit controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
NOTE: In some circumstances, you may receive a warning message if this command deletes the system or boot partition. You can override this warning by using the force=yes parameter. In this case, the syntax is as follows:
omconfig storage vdisk action=fastinit controller=id vdisk=id force=yes
Example to Example
Fast initialize virtual disk 4 on controller 1. omconfig storage vdisk action=fastinit controller=1 vdisk=4
154 Omconfig storage commands
Omconfig Slow Initialize Virtualize Disk
Table 141. Omconfig Slow Initialize Virtualize Disk
Description
Slow initializes a virtual disk.
CAUTION: You may receive a warning message if you attempt to delete the system or boot partition. However, this warning message is not generated always. Ensure that you do not delete the system or boot partition or other vital data when using this command.
Syntax
omconfig storage vdisk action=slowinit controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
NOTE: In some circumstances, you may receive a warning message if this command deletes the system or boot partition. You can override this warning by using the force=yes parameter. In this case, the syntax is as follows:
omconfig storage vdisk action=slowinit controller=id vdisk=id force=yes
Example to Example
Slow initialize virtual disk 4 on controller 1. omconfig storage vdisk action=slowinit controller=1 vdisk=4
Omconfig cancel initialize virtual disk
Table 142. omconfig cancel initialize virtual disk
Description
Cancels the initialization of a virtual disk.
Syntax
omconfig storage vdisk action=cancelinitialize controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Cancels the initialization of virtual disk 4 on controller 1. omconfig storage vdisk action=cancelinitialize controller=id vdisk=id
Omconfig cancel background initialize
Table 143. omconfig cancel background initialize
Description
Cancels the background initialization process on a virtual disk.
Syntax
omconfig storage vdisk action=cancelbginitialize controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
Omconfig storage commands 155
Table 143. omconfig cancel background initialize (continued)
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to
Cancel background initialization on virtual disk 4 on controller 1.
Example
omconfig storage vdisk action=cancelbginitialize controller=1 vdisk=4
Omconfig Assign Dedicated Hot Spare
Table 144. omconfig Assign Dedicated Hot Spare
Description
Assigns one or more physical disks to a virtual disk as a dedicated hot spare.
Syntax
omconfig storage vdisk action=assigndedicatedhotspare controller=id vdisk=id pdisk=<PDISKID> assign=yes, where id is the controller ID and virtual disk ID as reported by the omreport command. The <PDISK>variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks and physical disks attached to the controller.
Example to
Example for SCSI, SATA, and ATA controllers
Example for SAS controllers
Assign physical disk 3 on connector 0 of controller 1 as a dedicated hot spare to virtual disk 4. On a Serial Attached SCSI (SAS) controller, the physical disk resides in enclosure 2.
omconfig storage vdisk action=assigndedicatedhotspare controller=1 vdisk=4 pdisk=0:3 assign=yes
omconfig storage vdisk action=assigndedicatedhotspare controller=1 vdisk=4 pdisk=0:2:3 assign=yes
Omconfig Delete Virtual Disk
Table 145. omconfig Delete Virtual Disk
Description
Deletes a virtual disk.
CAUTION: Deleting a virtual disk destroys all information including file systems and volumes residing on the virtual disk. You may receive a warning message if you attempt to delete the system or boot partition. However, this warning message is not generated always. Ensure that you do not delete the system or boot partition or other vital data when using this command.
Syntax
omconfig storage vdisk action=deletevdisk controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
NOTE: In some circumstances, you may receive a warning message if this command deletes the system or boot partition. You can override this warning by using the force=yes parameter. In this case, the syntax is as follows:
omconfig storage vdisk action=deletevdisk controller=id vdisk=id force=yes
156 Omconfig storage commands
Table 145. omconfig Delete Virtual Disk (continued)
Example to
Delete virtual disk 4 on controller 1
Example
omconfig storage vdisk action=deletevdisk controller=1 vdisk=4
Omconfig reconfiguring virtual disks
Table 146. omconfig reconfiguring virtual disks
Description
Reconfigure a virtual disk to change the virtual disk's RAID level or increase its size by either adding physical disks or using the available free space. On some controllers, you can also remove physical disks.
NOTE: If you want to reconfigure with an extra physical disk, the physical disk must be of the supported bus protocol, media type, sector size, T10 Protection Information capability, and encryption capability.
Syntax
omconfig storage vdisk action=reconfigure controller=id vdisk=id raid=<c| r0| r1| r1c| r5| r6| r10> pdisk=<PDISK> [size=<size> vdcapacityexpansion=yes sizeinpercent=<1 to 100>], where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: When you perform the virtual disk reconfiguration operation using the sizeinpercent/vdcapacityexpansion argument, Storage Management does not allow addition of physical disks to the existing reconfigured disk group. On successful operation, the virtual disk capacity is expanded, but the additional physical disk is not considered.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to
Example for SCSI, SATA, and ATA controllers Example for SAS controllers Example to
Example
Reconfigure virtual disk 4 to a size of 800 MB, use RAID-5 and physical disks 0 through 3 on connector 0 of controller 1. On a SAS controller, the physical disks reside in enclosure 2.
omconfig storage vdisk action=reconfigure controller=1 vdisk=4 raid=r5 size=800m pdisk=0:0:0,0:1:1,0:2:0,0:3:2
omconfig storage vdisk action=reconfigure controller=1 vdisk=4 raid=r5 pdisk=0:2:0,0:2:1,0:2:2,0:2:3
Increase the size of the virtual disk by 20 percent using the available free space, use RAID-5 and physical disks 0 through 3 on connector 0 of controller 1. On a SAS controller, the physical disks reside in enclosure 2.
omconfig storage vdisk action=reconfigure controller=1 vdisk=4 raid=r5 pdisk=0:2:0,0:2:1,0:2:2,0:2:3 vdcapacityexpansion=yes sizeinpercent=20
NOTE: The vdcapacityexpansion parameter is supported only on PERC H700 and PERC H800 controllers. If you set vdcapacityexpansion=yes, specify sizeinpercent. If you do not set vdcapacityexpansion, specify size.
NOTE: The sizeinpercent parameter is not supported on PERC S130 controller.
Omconfig storage commands 157
Omconfig Secure Virtual Disk
Table 147. omconfig Secure Virtual Disk
Description
Encrypts a virtual disk.
Syntax
omconfig storage vdisk action=securevd controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Encrypt virtual disk 4 on controller 1. omconfig storage vdisk action=securevd controller=1 vdisk=4
Omconfig Clear Virtual Disk Bad Blocks
Table 148. omconfig Clear Virtual Disk Bad Blocks
Description
Clears virtual disk bad blocks.
Syntax
omconfig storage vdisk action=clearvdbadblocks controller=id vdisk=id, where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Clear bad blocks on virtual disk 4 on controller 1. omconfig storage vdisk action=clearvdbadblocks controller=1 vdisk=4
Omconfig Change Virtual Disk Policy
Table 149. omconfig Change Virtual Disk Policy
Description
Changes a virtual disk's read, write, or cache policy.
Syntax
omconfig storage vdisk action=changepolicy controller=id vdisk=id [diskcachepolicy=<enabled|disabled> | readpolicy=<ra| nra| ara| rc| nrc> | writepolicy=<wb| wt| wc| nwc> | fwb> cachepolicy=<d | c>], where id is the controller ID and virtual disk ID as reported by the omreport command.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
For more information about the controller-specific diskcache, read, write, and cache policy, see the Dell EMC OpenManage Online Help. For information on specifying these parameters using the omconfig command, see the following: [readpolicy=<ra | nra | ara | rc | nrc>] parameter (optional) [writepolicy=<wb | wt | wc | nwc | fwb>] parameter (optional) [cachepolicy=<d | c>] Parameter (optional) [diskcachepolicy=<enabled|disabled>] parameter (optional)
Example to
Change the read policy of virtual disk 4 on controller 1 to no-read-ahead.
158 Omconfig storage commands
Table 149. omconfig Change Virtual Disk Policy (continued)
Example
omconfig storage vdisk action=changepolicy controller=1 vdisk=4 readpolicy=nra
Omconfig Replace Member Virtual Disk
Table 150. omconfig Replace Member Virtual Disk
Description
Replaces the member of a given virtual disk with the destination disk.
Syntax
omconfig storage vdisk action=replacememberdisk controller=id vdisk=id source=<PDISKID> destination=<PDISKID>, where id is the controller ID and virtual disk ID as reported by the omreport command. The <PDISK> variable specifies the physical disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to
Example for SCSI, SATA, and ATA Ccntrollers
Example for SAS controllers
Replace physical disk 3 on connector 0 of controller 1 of virtual disk 4 with physical disk 5. On a Serial Attached SCSI (SAS) controller, the physical disk resides in enclosure 2.
omconfig storage vdisk action=replacememberdisk controller=1 vdisk=4 source=0:3 destination=0:5
omconfig storage vdisk action=replacememberdisk controller=1 vdisk=4 source=0:2:3 destination=0:2:5
Omconfig Rename Virtual Disk
Table 151. omconfig Rename Virtual Disk
Description
Renames a virtual disk.
Syntax
omconfig storage vdisk action=rename controller=id vdisk=id name=<string>, where id is the controller ID and virtual disk ID as reported by the omreport command and <string> is the new name for the virtual disk.
NOTE: To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage vdisk controller=ID to display the IDs for the virtual disks attached to the controller.
Example to Example
Rename virtual disk 4 on controller 1 to vd4. omconfig storage vdisk action=rename controller=1 vdisk=4 name=vd4
Omconfig controller commands
The following table provides the omconfig command syntax required to execute controller tasks. CAUTION: The omconfig storage controller action=resetconfig controller=id resets the controller configuration. Resetting the controller configuration permanently destroys all data on all virtual disks attached to the controller. System or boot partition residing on these virtual disks is destroyed.
Omconfig storage commands 159
NOTE: If the PERC hardware controller is running in HBA mode, you can perform only one action, exporting the log (action=exportlog).
Table 152. omconfig Controller Commands
Required Command Levels (1, Optional name=value pairs 2, 3)
omconfig storage controller
action=rescan controller=id
action=enablealarm controller=id
action=disablealarm controller=id
action=quietalarm controller=id
action=testalarm controller=id
action=resetconfig controller=id [force=yes]
action=createvdisk controller=id raid=<c | r0 | r1| r1c | r5 | r6 | r10 | r50 | r60> size=<number | b | m | g | max | min> pdisk=<PDISKID> [stripesize=< 2kb | 4kb | 8kb | 16kb | 32kb | 64kb | 128kb | 256kb | 512kb | 1mb >] [cachepolicy=<d | c>] [readpolicy=<ra | nra | ara | rc | nrc>] [writepolicy=<wb | wt | wc | nwc | fwb>] [diskcachepolicy=<default | disabled | enabled>] [name=<string>] [spanlength=<n>] | [secureflag=yes] [vdpienabled=yes]
NOTE: For RAID 10 on SAS controllers with firmware version 6.1 and later, spanlength is an optional parameter (default=2).
action=setrebuildrate controller=id rate=<0 to 100>
action=setchangecontrollerproperties controller=<id> [bgirate=<rate>][reconstructrate=<rate>][checkconsistencyrate=<rate>] [rebuildrate=<rate>][clearredundantpath=clear] [rate=<0 to 100>] [abortcheckconsistencyonerror=<enabled/disabled>][loadbalance=<auto/ disabled>][allowrevertiblehotspareandreplacemember=enabled/disabled] [autoreplacememberonpredictivefailure=<enabled/disabled>] [persistenthotspare=enabled/ disabled][nrdiskcachepolicy=<enabled/disabled/unchanged>]
action=discardpreservedcache controller=id force=<enabled/disabled>
action=createsecuritykey controller=id keyid=<keyid> passphrase=<passphrase string> [escrow=yes] [filepath=<Absolute path to the escrow file>]
NOTE: If you set escrow=yes, specify the escrow file path.
action=changesecuritykey controller=id keyid=<keyid> passphrase=<passphrase string> oldpassphrase=<oldpassphrase string> [escrow=yes] [filepath=<Absolute path to the escrow file>]
NOTE: If you set escrow=yes, specify the escrow file path.
action=deletesecuritykey controller=id action=setbgirate controller=id rate=<0 to 100 > action=setreconstructrate controller=id rate=<0 to 100> action=setcheckconsistencyrate controller=id rate=<0 to 100> action=exportlog controller=id action=importsecureforeignconfig controller=id passphrase=<passphrase for imported foreign configuration> action=importforeignconfig controller=id action=importrecoverforeignconfig controller=id action=clearforeignconfig controller=id
160 Omconfig storage commands
Table 152. omconfig Controller Commands (continued) Required Command Levels (1, Optional name=value pairs 2, 3)
action=setpdiskpwrmanagement controller=id spindownunconfigureddrives=<enabled/ disabled> spindownhotspares=<enabled/disabled> spindownconfigureddrives=<enabled/ disabled> idlec=<enabled/disabled> spindowntimeinterval=<30 to 1440>(minutes) spinupstarttime=<HH:MM:AM/PM> spinuptimeinterval=<1 to 24>(hours)
NOTE: Specify spinupstarttime and spinuptimeinterval only when you set spindownconfigureddrives=enabled.
action=setcontrollermode controller=id mode=<raid | hba> action=autoconfigureRAID0 controller=id action=setpatrolreadmode controller=id mode=<manual | auto | disable> action=startpatrolread controller=id action=stoppatrolread controller=id action=createcachecade controller=id pdisk=<PDISKID> [name=<string>]
action=enablelkm controller=id keyid=<keyid> passphrase=<passphrase string> [escrow=yes] [filepath=<Absolute path to the escrow file>]
NOTE: If you set escrow=yes, specify the escrow file path.
action=switchtolkm controller=id keyid=<keyid> passphrase=<passphrase string> [escrow=yes] [filepath=<Absolute path to the escrow file>]
NOTE: If you set escrow=yes, specify the escrow file path.
action=rekeylkm controller=id action=convertraidtononraid controller=id pdisk=<PDISKID> action=convertnonraidtoraid controller=id pdisk=<PDISKID>
Omconfig Rescan Controller
Table 153. Omconfig Rescan Controller
Description
Rescans a controller. For more information, see the Dell EMC OpenManage Online Help .
Syntax
omconfig storage controller action=rescan controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to
Rescan controller 1.
Example
omconfig storage controller action=rescan controller=1
NOTE: The rescan controller is not supported on non-RAID SCSI and SAS controllers. Reboot the system to make the configuration changes visible on non-RAID SCSI controllers.
Omconfig Enable Controller Alarm
Table 154. Omconfig Enable Controller Alarm
Description
Enables the controller alarm. For more information, see the Dell EMC OpenManage Online Help .
Omconfig storage commands 161
Table 154. Omconfig Enable Controller Alarm (continued)
Syntax
omconfig storage controller action=enablealarm controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to
Enable the alarm on controller 1.
Example
omconfig storage controller action=enablealarm controller=1
Omconfig Disable Controller Alarm
Table 155. Omconfig Disable Controller Alarm
Description
Disables the controller alarm. For more information, see the Dell EMC OpenManage Online Help .
Syntax
omconfig storage controller action=enablealarm controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to
Disable the alarm on controller 1.
Example
omconfig storage controller action=disablealarm controller=1
Omconfig Quiet Controller Alarm
Table 156. omconfig Quiet Controller Alarm
Description
Silences an activated controller alarm. For more information, see the Dell EMC OpenManage Online Help.
Syntax
omconfig storage controller action=quietalarm controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to
Quiet the alarm on controller 1.
Example
omconfig storage controller action=quietalarm controller=1
omconfig Test Controller Alarm
Table 157. omconfig Test Controller Alarm
Description
Tests the functionality of the controller alarm. The alarm sounds for about two seconds. For more information, see Dell EMC OpenManage Online Help.
Syntax
omconfig storage controller action=testalarm controller=id , where id is the controller ID as reported by the omreport storage controller command.
Example to
Test the alarm on controller 1.
Example
omconfig storage controller action=testalarm controller=1
Omconfig Reset Controller Configuration
Table 158. Omconfig Reset Controller Configuration
Description
Resets the controller configuration.
162 Omconfig storage commands
Table 158. Omconfig Reset Controller Configuration (continued)
CAUTION: Resetting a configuration permanently destroys all data on all virtual disks attached to the controller. System or boot partition residing on these virtual disks is destroyed. You may receive a warning message if this command results in deleting the system or boot partition. However, this warning message is not generated always. Ensure that you do not delete the system or boot partition or other vital data when using this command.
Syntax
omconfig storage controller action=resetconfig controller=id, where id is the controller ID as reported by the omreport storage controller command.
In some circumstances, you may receive a warning message if this command deletes the system or boot partition. You can override this warning by using the force=yes parameter. In this case, the syntax is as follows:
omconfig storage controller action=resetconfig controller=id force=yes
Example to Example
Reset the configuration on controller 1. omconfig storage controller action=resetconfig controller=1
omconfig Create Virtual Disk
The Dell EMC OpenManage Online Help provides additional information about creating virtual disks. The omconfig syntax for creating a virtual disk has several parameters. You must specify the following parameters: Controller (controller=id) RAID level (raid=<c| r0 | r1 | r1c | r5 | r6 | r10 | r50 | r60> Size (size=<number | max | min>)> Physical disk is specified as either: For SCSI, SATA, and ATA controllers:
pdisk=connector:enclosureID:targetID
where connector:enclosureID:targetID is the connector number, enclosure number, and slot number. For SAS controllers:
pdisk=connector:targetID
where connectorID:targetID is the connector number and the slot number. For example, pdisk=0:2 Storage Management supplies default values for any of the other parameters that you do not specify. For creating an encrypted virtual disk, specify secureflag=yes. You can create encrypted virtual disks only with SED drives. Complete Syntax:
omconfig storage controller action=createvdisk controller=id raid=<c| r0 | r1 | r1c | r5 | r6 | r10 | r50 | r60>size=<number | max | min> pdisk=<PDISKID> [stripesize=stripesize=< 2kb| 4kb| 8kb| 16kb| 32kb| 64kb | 128kb>] [cachepolicy=<d | c>] [diskcachepolicy=<disabled | enabled>][readpolicy=<ra | nra | ara | rc | nrc>] [writepolicy=<wb| wt| wc| nwc | fwb>] [name=<string>] [spanlength=<n>] | [secureflag=yes] [vdpienabled=yes]
NOTE: If the command-line interface does not support commas (,) as parameter separators, then use double quotation marks (") to run the CLI command. Example, use pdisk="0:1:1,0:1:2" instead of pdisk=0:1:1,0:1:2.
Omconfig storage commands 163
NOTE: If you are configuring RAID for SAS controllers with firmware version 6.1 and later, spanlength is an optional parameter (default=2). Spanlength is an even number and is lesser than or equal to half the number of physical disks specified in size.
NOTE: The vdpienabled is an optional argument and is valid only on PERC9 controllers. If set to yes a T10 Protection Information (PI) enabled virtual disk is created.
NOTE: For RAID 10 creation, PERC 9 firmware suggests the layout (number of array disks) with uneven span (spans with unequal number of array disks), though in a span the number of disks remains even. For example, for 32 disks, RAID 10 gets created with all the disks in one span and for 34 disks, RAID 10 gets created with 16 disks in one span and 18 disks in the other span.
Example Syntax:
You can create a RAID-5 virtual disk of 500 MB with a stripe size of 16 KB on a PERC 3/QC controller. The name of the virtual disk is vd1 and it resides on connector 0 of controller 1. Because the virtual disk is a RAID-5, it requires at least three physical disks. In this example, you specify four physical disks. These are physical disks 0 through 3. The virtual disk has read-ahead, write�through caching, and cache I/O policies.
To create a virtual disk:
omconfig storage controller action=createvdisk controller=1 raid=r5 size=500m pdisk= 0:0,0:1,0:2,0:3 stripesize=16kb cachepolicy=c readpolicy=ra writepolicy=wt
The only parameters that require specification are for the controller, RAID level, virtual disk size, and physical disk selection. Storage Management supplies default values for all other unspecified parameters. For more information on read, write, and cache policies that are supported by the controller, see the Dell EMC OpenManage Online Help.
Parameter specification for creating and reconfiguring virtual disk
The following table displays how to specify the omconfig storage controller action=createvdisk parameters:
Table 159. Parameters And Types
Parameters
Type
controller=id
Required
raid=<c | r0 | r1 | r1c | r5 | r6 | r10 | r50 | r60>
Required
size=<number | max | min>
Required
pdisk=<connector:targetID,connector:targetID,.....>
Required
[stripesize=<2k b| 4kb | 8kb | 16kb | 32kb | 64kb | 128kb>]
Optional
[cachepolicy=<d | c>]
Optional
[readpolicy=<ra | nra | ara | rc | nrc>]
Optional
[writepolicy=<wb | wt | wc | nwc | fwb>]
Optional
[name=<string>]
Optional
[spanlength=<n>] parameter
Optional
NOTE: On PERC S140, the maximum virtual disk configuration is 16 and monitoring is 30.
controller=id parameter
Specify the controller ID as reported by the omreport storage controller command. For example,controller=2
raid=<c | r0 | r1 | r1c | r5 | r6 | r10 | r50 | r60>
Use the raid=<c | r0 | r1 | r1c | r5 | r6 | r10 | r50 | r60> parameter to specify a RAID level for a virtual disk. Different controllers support different RAID levels. For more information about RAID levels a controller supports and for general information about RAID levels, see the Dell EMC OpenManage Online Help. The following table displays how to specify the raid=n parameter for each RAID level.
164 Omconfig storage commands
Table 160. Raid level and parameter specification RAID Level RAID-0 RAID-1 RAID-5 RAID-6 RAID-10 RAID-50 RAID-60
raid=n Parameter Specification raid=r0 raid=r1 raid=r5 raid=r6 raid=r10 raid=r50 raid=r60
size=<number | max | min> The following table displays how to specify the size=<number | max | min>
Table 161. Size Parameter size=<number | max | min> Parameter Specification size=<n>
Description
Use this specification to indicate a specific size for the virtual disk. The virtual disk size is specified in b (bytes), m (megabytes), or g (gigabytes). For example, size=500m indicates that the virtual disk is 500 MB.
size=max
To create a virtual disk that is the maximum size possible, specify size=max. When creating an RAID-50 virtual disk, this parameter is specified as size=max.
size=min
To create a virtual disk that is the minimum size possible, specify size=min.
PDISKID=<connector:enclosureID:targetID | connector:targetID>
Use this parameter to specify the physical disks to be included in the virtual disk.
When reconfiguring a virtual disk, you must specify all physical disks to include in the reconfigured virtual disk. The physical disk specification applies to physical disks in the original virtual disk and continues in the reconfigured virtual disk and to any new physical disks being added to the reconfigured virtual disk. Some controllers allow you to remove a physical disk from a virtual disk. In this case, do not specify to remove the physical disk.
The pdisk=<PDISKID> parameter indicates a physical disk by specifying either connector:enclosureID:targetID or connector:targetID.
stripesize=<2kb | 4kb | 8kb | 16kb | 32kb | 64kb | 128kb>
Different controllers support different stripe sizes. For more information on stripe sizes supported for a controller, see the OpenManage Online Help. All stripe sizes are specified in kilobytes. For example, when specifying 128 KB as the stripe size, type: stripesize=128kb
cachepolicy=<d | c>] parameter
Different controllers support different cache policies. The following table displays how to specify the [cachepolicy=<d | c>] parameter for each of the cache policies.
Table 162. Cache Policy Parameters
Cache Policy Direct I/O
cachepolicy=d | c Parameter Specification cachepolicy=d
Cache I/O
cachepolicy=c
diskcachepolicy=<disabled | enabled>
Different controllers support different disk cache policies. The following table indicates how to specify the [diskcachepolicy=<disabled | enabled>] parameter for each of the cache policies.
Omconfig storage commands 165
Table 163. Disk Cache Policy Parameters Disk Cache Policy
Disabled Enabled
diskcachepolicy=disabled | enabled Parameter Specification diskcachepolicy=disabled diskcachepolicy=enabled
readpolicy=ra | nra | ara | rc | nrc>
Different controllers support different read policies. The following table displays how to specify the readpolicy=<ra | nra | ara | rc | nrc> parameter for each of the read policies.
Table 164. Read Policy Parameters Read Policy
Read ahead Adaptive read ahead No read ahead Read cache No read cache
readpolicy=ra | ara | nra | rc | nrc Parameter Specification readpolicy=ra readpolicy=ara readpolicy=nra readpolicy=rc readpolicy=nrc
writepolicy=<wb | wt | wc | nwc>]
Different controllers support different write policies. The following table displays how to specify the writepolicy=<wb | wt | wc | nwc | fwb> parameter for each of the write policies.
Table 165. Write Policy Parameters
Write Policy Write-back cache
writepolicy=wb | wt | wc | fwb | nwc Parameter Specification writepolicy=wb
Write-through cache
writepolicy=wt
Write cache
writepolicy=wc
Force write back
writepolicy=fwb
No write cache
writepolicy=nwc
Controller
Controller=id - Specify the controller ID as reported by the omreport storage controller command. For example,controller=2
Raid
Use the raid=<c| r0 | r1| r1c | r5 | r6 | r10 | r50 | r60> parameter to specify a RAID level for a virtual disk. Different controllers support different RAID levels. For more information about RAID levels a controller supports and for general information about RAID levels, see the Dell EMC OpenManage Online Help. The following table displays how to specify the raid=n parameter for each RAID level.
Table 166. Raid level and parameter specification RAID level RAID-0
raid=n parameter specification raid=r0
RAID-1
raid=r1
RAID-5
raid=r5
166 Omconfig storage commands
Table 166. Raid level and parameter specification (continued)
RAID level
raid=n parameter specification
RAID-6
raid=r6
RAID-10
raid=r10
RAID-50
raid=r50
RAID-60
raid=r60
size parameter
The following table displays how to specify the size=<number | max | min>
Table 167. Size Parameter size=<number | max | min> Parameter Specification size=<n>
size=max
size=min
Description
Use this specification to indicate a specific size for the virtual disk. The virtual disk size is specified in b (bytes), m (megabytes), or g (gigabytes). For example, size=500m indicates that the virtual disk is 500 MB.
To create a virtual disk that is the maximum size possible, specify size=max. When creating a RAID-50 virtual disk, this parameter is specified as size=max.
To create a virtual disk that is the minimum size possible, specify size=min.
stripesize
stripesize=<2kb | 4kb | 8kb | 16kb | 32kb | 64kb | 128kb> Different controllers support different stripe sizes. For more information on stripe sizes supported for a controller, see the Dell EMC OpenManage Online Help. All stripe sizes are specified in kilobytes. For example, when specifying 128 KB as the stripe size, type: stripesize=128kb
PDISKID
PDISKID=<connector:enclosureID:targetID | connector:targetID>
Use this parameter to specify the physical disks to be included in the virtual disk.
When reconfiguring a virtual disk, you must specify all physical disks to include in the reconfigured virtual disk. The physical disk specification applies to physical disks in the original virtual disk and continues in the reconfigured virtual disk and to any new physical disks being added to the reconfigured virtual disk. Some controllers allow you to remove a physical disk from a virtual disk. In this case, do not specify to remove the physical disk.
The pdisk=<PDISKID> parameter indicates a physical disk by specifying either connector:enclosureID:targetID or connector:targetID.
Cachepolicy
cachepolicy=<d | c>] Parameter
Different controllers support different cache policies. The following table displays how to specify the [cachepolicy=<d | c>] parameter for each of the cache policies.
Table 168. Cache Policy Parameters
Cache Policy
cachepolicy=d | c Parameter Specification
Omconfig storage commands 167
Table 168. Cache Policy Parameters (continued) Direct I/O Cache I/O
cachepolicy=d cachepolicy=c
Diskcachepolicy
Diskcachepolicy=<disabled | enabled>
Different controllers support different disk cache policies. The following table indicates how to specify the [diskcachepolicy=<disabled | enabled>] parameter for each of the cache policies.
Table 169. Disk Cache Policy Parameters Disk Cache Policy
Disabled
diskcachepolicy=disabled | enabled Parameter Specification diskcachepolicy=disabled
Enabled
diskcachepolicy=enabled
Readpolicy
Different controllers support different read policies. The following table displays how to specify the readpolicy=<ra | nra | ara | rc | nrc> parameter for each of the read policies.
Table 170. Read Policy Parameters Read Policy
Read ahead
readpolicy=ra | ara | nra | rc | nrc Parameter Specification readpolicy=ra
Adaptive read ahead
readpolicy=ara
No read ahead
readpolicy=nra
Read cache
readpolicy=rc
No read cache
readpolicy=nrc
Writepolicy
Different controllers support different write policies. The following table displays how to specify the writepolicy=<wb | wt | wc | nwc | fwb> parameter for each of the write policies.
Table 171. Write Policy Parameters
Write Policy
writepolicy=wb | wt | wc | fwb | nwc Parameter Specification
Write-back cache
writepolicy=wb
Write-through cache
writepolicy=wt
Write cache
writepolicy=wc
Force write back
writepolicy=fwb
No write cache
writepolicy=nwc
Name
name=<string> Use this parameter to specify a name for the virtual disk. For example:name=VirtualDisk1
168 Omconfig storage commands
spanlength
Use this parameter to specify the number of physical disks in each stripe. This parameter applies only to RAID-50 an RAID 60 and optional for RAID 10 virtual disks. If you are not creating a RAID-50 virtual disk, do not specify this parameter. For example:
spanlength=3
For RAID 10 on SAS controllers with firmware version 6.1 and later, spanlength is optional. Also, you can now specify the spanlength as an even number with a maximum of 8 spans with 32 physical disks each. For example:
omconfig storage controller action=createvdisk controller=1 raid=r10 size=min pdisk= 1:1:0,1:1:1,1:1:3,1:1:4,1:1:6,1:1:7,1:1:8,1:1:9 spanlength=4
Omconfig Set Controller Rebuild Rate
Table 172. Omconfig Set Controller Rebuild Rate Description Sets the controller rebuild rate.
Syntax
omconfig storage controller action=setrebuildrate controller=id rate=<0 to 100>, where id is the controller ID as reported by the omreport storage controller command.
Example to Set the rebuild rate to 50 on controller 1.
Example
omconfig storage controller action=setrebuildrate controller=1 rate=50
omconfig Change Controller Properties
Table 173. omconfig Change Controller Properties Description Syntax
Example to Example Example to Example
Changes any or all of the controller properties.
omconfig storage controller action= setchangecontrollerproperties controller=<id> bgirate=<rate> reconstructrate=<rate> checkconsistencyrate=<rate> rebuildrate=<rate> clearredundantpath=clear abortcheckconsistencyonerror=<enabled | disabled> loadbalance=<auto | disabled> allowrevertiblehotspareandreplacemember=<ena bled | disabled> autoreplacememberonpredictivefailure= <enabled | disabled> persistenthotspare=<enabled | disabled> nrdiskcachepolicy=<enabled | disabled | unchanged>
Enable revertible hot spare and replace member operation.
omconfig storage controller action= setchangecontrollerproperties allowrevertiblehotspare andreplacemember=enabled controller=1
Allows to enable, disable, or not to change the Non-RAID Hard Disk Drives. This is applicable only to Disk Cache Policy.
Omconfig storage commands 169
Table 173. omconfig Change Controller Properties (continued)
omconfig storage controller action= setchangecontrollerproperties controller=1 nrdiskcachepolicy=enabled
Omconfig Discard Preserved Cache
Table 174. Omconfig Discard Preserved Cache
Description
Discards the preserved cache on the controller.
NOTE: To check if the controller has a preserved cache, type omreport storage controller controller=id. If the system displays Preserved Cache=yes, it indicates the presence of the preserved cache.
Syntax
omconfig storage controller action= discardpreservedcache controller=id force=enabled | disabled
If you set force=enabled, the cache is discarded irrespective of whether the controller detects a foreign or an offline virtual disk.
Example to Discard the preserved cache.
Example
omconfig storage controller action= discardpreservedcache controller=1 force=enabled
CAUTION: Discarding the preserved cache can result in data loss. It is recommended that you run this command using the force=disabled option.
NOTE: If a foreign configuration is detected, then the preceding command using force=disabled option fails. To avoid data loss, import the foreign configuration and flush the preserved cache to disk. To discard preserved cache forcefully, either clear the foreign configuration and run the proceeding command, or run the proceeding command using force=enabled option.
Omconfig Create Encryption Key
Table 175. Omconfig Create Encryption Key
Description Creates the encryption key for the controller.
Syntax
omconfig storage controller action= createsecuritykey controller=id keyid=<keyid string> passphrase=<passphrase string>[escrow= yes]
Example to Create the encryption key for the controller.
Example
omconfig storage controller action= createsecuritykey controller=1 keyid=Dell_123 passphrase=Dell_123 escrow=yes
NOTE: If you set escrow=yes, escrow file is copied to the location C:/Windows (for Microsoft Windows) and /var/log (for Linux / ESxi) in Managed Node when the DWS is used.
File name will be generated having combination of dellemc_<ControllerModel>_<SASAddress>.xml as file name. Sample file name for an H740 controller with SAS address xxxyyzz will be dellemc_H740_xxxyyzz.xml.
170 Omconfig storage commands
Omconfig Change Encryption Key
Table 176. Omconfig Change Encryption Key
Description Changes the encryption key for the controller, if passphrase is provided.
Syntax
omconfig storage controller action= changesecuritykey controller=id keyid=<keyid string> passphrase=passphrase string> oldpassphrase=<old passphrase string>[escrow=yes]>
Example to Change the encryption key for the controller.
Example
omconfig storage controller action= changesecuritykey controller=1 keyid=Dell_123 passphrase=Dell_123 oldpassphrase=Dell_321 escrow= yes
NOTE: If you set escrow=yes, escrow file is copied to the location C:/Windows (for Microsoft Windows) and /var/log (for Linux / ESxi) in Managed Node when the DWS is used.
File name will be generated having combination of dellemc_<ControllerModel>_<SASAddress>.xml as file name. Sample file name for an H740 controller with SAS address xxxyyzz will be dellemc_H740_xxxyyzz.xml.
Omconfig Delete Encryption Key
Table 177. Omconfig Delete Encryption Key
Description Deletes the encryption key for the controller.
Syntax
omconfig storage controller action= deletesecuritykey controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to Change the encryption key for the controller.
Example
omconfig storage controller action= deletesecuritykey controller=1
Omconfig Set Background Initialization Rate
Table 178. Omconfig Set Background Initialization Rate
Description Sets the background initialization rate.
Syntax
omconfig storage controller action=setbgirate controller=id rate=<0 to 100>, where id is the controller ID as reported by the omreport storage controller command.
Example to Sets the background initialization rate to 50 on controller 1.
Example
omconfig storage controller action=setbgirate controller=1 rate=50
Omconfig Set Reconstruct Rate
Table 179. Omconfig Set Reconstruct Rate
Description Sets the reconstruct rate.
Syntax
omconfig storage controller action= setreconstructrate controller=id rate=<0 to 100>, where id is the controller ID as reported by the omreport storage controller command.
Omconfig storage commands 171
Table 179. Omconfig Set Reconstruct Rate (continued)
Example to Set the reconstruct rate to 50 on controller 1.
Example
omconfig storage controller action= setreconstructrate controller=1 rate=50
Omconfig Set Check Consistency Rate
Table 180. Omconfig Set Check Consistency Rate
Description Sets the check consistency rate.
Syntax
omconfig storage controller action= setcheckconsistencyrate controller=id rate=<0 to 100>, where id is the controller ID as reported by the omreport storage controller command.
Example to Sets the check consistency rate to 50 on controller 1.
Example
omconfig storage controller action= setcheckconsistencyrate controller=1 rate=50
Omconfig Export The Controller Log
Table 181. Omconfig Export The Controller Log
Description Exports the controller log to a text file. For more information about the exported log file, see the Dell EMC OpenManage Online Help.
Syntax
omconfig storage controller action=exportlog controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to Export the log on controller 1.
Example
omconfig storage controller action=exportlog controller=1
By default, the log file is exported to C:\WINNT or C:\Windows on Microsoft Windows systems (based on the Windows version used) and /var/logon all Linux systems.
Depending on the controller, the log file name is afa_<mmdd>.log or lsi_<mmdd>.log where <mmdd> is the month and date. For more information on the controller log file, see the Dell EMC OpenManage Online Help .
NOTE: The export log file command is not supported on the 4/IM, CERC ATA, and 100/4ch controllers.
Omconfig Import Secure Foreign Configuration
Table 182. Omconfig Import Secure Foreign Configuration
Description Unlocks the encrypted Local Key Management (LKM) foreign configuration drives.
Syntax
omconfig storage controller action= importsecureforeignconfig controller=id passphrase=<passphrase string for the foreign configuration>, where id is the controller ID as reported by the omreport storage controller command.
Example to Unlock the ecncrypted LKM configuration drives on controller 1
Example
omconfig storage controller action= importsecureforeignconfig controller=1 passphrase= Dell_123
172 Omconfig storage commands
Omconfig Import Foreign Configuration
Table 183. Omconfig Import Foreign Configuration
Description Imports all virtual disks that reside on physical disks newly attached to the controller.
Syntax
omconfig storage controller action= importforeignconfig controller=id, where id is the controller ID as reported by the omreport storage controller command.
NOTE: This command is supported only in firmware version 5.0.x.
Example to Import foreign configurations on controller 1.
Example
omconfig storage controller action= importforeignconfig controller=1
Omconfig Import Or Recover Foreign Configuration
Table 184. Omconfig Import Or Recover Foreign Configuration
Description Imports and recovers all virtual disks that reside on physical disks newly attached to the controller.
Syntax
omconfig storage controller action= importrecoverforeignconfig controller=id, where id is the controller ID as reported by the omreport storage controller command.
NOTE: This command is supported on firmware version 5.1.1 and later.
Example to Import foreign configurations on controller 1.
Example
omconfig storage controller action= importrecoverforeignconfig controller=1
Omconfig Clear Foreign Configuration
Table 185. Omconfig Clear Foreign Configuration
Description Clears or deletes all virtual disks that reside on physical disks newly attached to the controller.
Syntax
omconfig storage controller action= clearforeignconfig controller=id, where id is the controller ID as reported by the omreport storage controller command.
NOTE: This command is supported only in firmware version 5.0.x.
Example to Clear foreign configurations on controller 1.
Example
omconfig storage controller action= clearforeignconfig controller=1
Omconfig physical disk power management
Table 186. Omconfig physical disk power management
Description Manages the power of physical disks in a controller by spinning down hot spares, configured drives, and unconfigured drives.
Syntax
omconfig storage controller action= setpdiskpwrmanagement spindownunconfigureddrives= <enabled | disabled> spindownhotspares=<enabled | disabled> spindownconfigureddrives=<enabled | disabled> idlec=<enabled | disabled> spindowntimeinterval=<30 to 1440>(minutes)
Omconfig storage commands 173
Table 186. Omconfig physical disk power management (continued)
spinupstarttime=<HH:MM:AM/PM> spinuptimeinterval= <1 to 24>(hours), where id is the controller ID as reported by the omreport storage controller command.
NOTE: On PERC 7 controllers, only spindownunconfigureddrives, spindownhotspares, and spindowntimeinterval parameters are supported.
NOTE: You can specify spinupstarttime and spinuptimeinterval only when you set spindownconfigureddrives=enabled.
Example to Spin down drives that are not configured or hot spares that are unattended for 30 minutes
Example
omconfig storage controller action= setpdiskpwrmanagement spindownunconfigureddrives= enabled spindownhotspares=enabled spindowntimeinterval=30 controller=1
Omconfig set controller mode
Table 187. Omconfig set controller mode Description Sets the mode of the controller to RAID, HBA or Enhanced HBA.
Syntax
omconfig storage controller action=setcontrollermode controller=id mode=raid| hba|enhancedhba, where id is the controller ID as reported by the omreport storage controller command.
NOTE: If a virtual disk, hotspare, or encryption key is enabled on the controller, the controller mode cannot be changed to HBA. Reboot the system for the change to take effect.
NOTE: If a virtual disk, hotspare or NON-RAID disk is present, the controller mode cannot be changed to RAID from Enhanced HBA mode.
Example to Set the controller mode to HBA.
Example
omconfig storage controller action=setcontrollermode controller=1 mode=hba
Omconfig autoconfigure RAID0
Table 188. Omconfig autoconfigure RAID-0
Description Automatically configures RAID�0 with all disks that are in ready state.
Syntax
omconfig storage controller action=autoconfigureRAID0 controller=id , where id is the controller ID as reported by the omreport storage controller command.
Example to Automatically configure RAID�0 with other disks.
Example
omconfig storage controller action=autoconfigureRAID0 controller=1
Omconfig Set Patrol Read Mode
Table 189. Omconfig Set Patrol Read Mode Description Sets the patrol read mode for the controller.
174 Omconfig storage commands
Table 189. Omconfig Set Patrol Read Mode (continued)
Syntax
omconfig storage controller action= setpatrolreadmode controller=id mode= manual|auto|disable, where id is the controller ID as reported by the omreport storage controller command.
Example to Sets the patrol read on controller 1 to manual mode
Example
omconfig storage controller action= setpatrolreadmode controller=1 mode=manual
Omconfig Start Patrol Read
Table 190. Omconfig Start Patrol Read
Description Starts the patrol read task on the controller.
Syntax
omconfig storage controller action=startpatrolread controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to Start the patrol read task on controller 1.
Example
omconfig storage controller action=startpatrolread controller=1 NOTE: To start patrol read, the current patrol read mode is set to Manual.
Omconfig Stop Patrol Read
Table 191. Omconfig Stop Patrol Read
Description Stops the patrol read task on the controller.
Syntax
omconfig storage controller action=stoppatrolread controller=id, where id is the controller ID as reported by the omreport storage controller command.
Example to Stop the patrol read task on controller 1.
Example
omconfig storage controller action=stoppatrolread controller=1 NOTE: To stop patrol read, the current patrol read mode is set to Manual.
Omconfig Create Cachecade
Table 192. Omconfig Create Cachecade
Description Creates a cachecade on the given controller.
Syntax
omconfig storage controller action=createcachecade controller=id pdisk=<PDISKID> [name=<string>] where id is the controller ID as reported by the omreport storage controller command and PDISKID is specified as:
pdisk=connector:enclosureID:targetID | connector:targetID
Example to Create a cachecade on controller 0.
Example
omconfig storage controller action=createcachecade controller=0 pdisk=0:2:3 name=Cachecade1
Omconfig storage commands 175
Omconfig Enable LKM Controller
Table 193. Omconfig Enable LKM Controller
Description Enables the LKM mode and creates the encryption key for the controller.
Syntax
omconfig storage controller action=enablelkm controller=id keyid=<keyid string> passphrase= <passphrase string> [escrow=yes] [filepath= <Absolute path to the escrow file>, where id is the controller ID as reported by the omreport storage controller command.
Example to Create the encryption key for the controller.
Example
omconfig storage controller action=enablelkm controller=1 keyid=Dell_123 passphrase=Dell_123 escrow= yes filepath=C:/escrow.xml
NOTE: If you set escrow=yes, specify the escrow file path.
Omconfig Rekey LKM Controller
Table 194. Omconfig Rekey LKM Controller
Description Re-keys the encryption key in LKM mode for the controller.
Syntax
omconfig storage controller action=rekeylkm controller=id keyid=<keyid> passphrase=<passphrase string> escrow=yes filepath=<Absolute path to the escrow file>, where id is the controller ID as reported by the omreport storage controller command.
Example to Re-key the encryption key for the controller.
Example
omconfig storage controller action=rekeylkm controller=1
Omconfig Convert Multiple RAID To Non-RAID
Table 195. Omconfig Convert Multiple RAID To Non-RAID
Description
Converts multiple RAID to non-RAID on the given controller.
Syntax
omconfig storage controller action=convertraidtononraid controller=id pdisk=<PDISKID>, where id is the controller ID as reported by the omreport storage controller command and PDISKID is specified as pdisk=connector:enclosureID:targetID | connector:targetID.
Example to
Convert multiple non-RAID to RAID on controller 0.
Example
omconfig storage controller action=convertnonraidtoraid controller=0 pdisk=0:2:3
Omconfig Convert Multiple Non-RAID To RAID
Table 196. Omconfig Convert Multiple Non-RAID To RAID
Description
Converts multiple non-RAID to RAID on the given controller.
Syntax
omconfig storage controller action=convertnonraidtoraid controller=id pdisk=<PDISKID>, where id is the controller ID as reported by the
176 Omconfig storage commands
Table 196. Omconfig Convert Multiple Non-RAID To RAID (continued)
omreport storage controller command and PDISKID is specified as pdisk=connector:enclosureID:targetID | connector:targetID.
Example to
Convert multiple non-RAID to RAID on controller 0,
Example
omconfig storage controller action=convertnonraidtoraid controller=0 pdisk=0:2:3
Omconfig Enclosure Commands
The following table provides the omconfig command syntax required to execute enclosure tasks.
Table 197. Omconfig Enclosure Commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omconfig storage enclosure
action=enablealarm controller=id enclosure=<ENCLOSUREID>
action=disablealarm controller=id enclosure=<ENCLOSUREID>
action=setassettag controller=id enclosure=<ENCLOSUREID> assettag=<string>
action=setassetname controller=id enclosure=<ENCLOSUREID> assetname=<string>
action=settempprobes controller=id enclosure=<ENCLOSUREID> index=id minwarn=n maxwarn=n
action=resettempprobes controller=id enclosure=<ENCLOSUREID> index=id
action=setalltempprobes controller=id enclosure=<ENCLOSUREID> minwarn=n maxwarn=n
action=resetalltempprobes controller=id enclosure=<ENCLOSUREID> minwarn=n maxwarn=n
action=blink controller=id enclosure=<ENCLOSUREID> minwarn=n maxwarn=n
Omconfig Enable Enclosure Alarm
Table 198. Omconfig Enable Enclosure Alarm
Description
Enables the enclosure alarm
Example to
Enable the alarm on the enclosure attached to connector 2 on controller 1.
Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=enablealarm controller=1 enclosure=2
Example for SAS controllers
omconfig storage enclosure action=enablealarm controller=1 enclosure=1:2
Omconfig Disable Enclosure Alarm
Table 199. Omconfig Disable Enclosure Alarm
Description
Disables the enclosure alarm.
Omconfig storage commands 177
Table 199. Omconfig Disable Enclosure Alarm (continued)
Syntax
omconfig storage enclosure action=disablealarm controller=id enclosure=<ENCLOSUREID>, where idis the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
Example to
Disables the alarm on enclosure 2 attached to connector 1 on controller 1.
Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=disablealarm controller=1 enclosure=2
Example for SAS controllers
omconfig storage enclosure action=disablealarm controller=1 enclosure=1:2
Omconfig Set Enclosure Asset Tag
Table 200. Omconfig Set Enclosure Asset Tag
Description
Specifies the enclosure's asset tag.
Syntax
omconfig storage enclosure action=setassettag controller=id enclosure=<ENCLOSUREID> assettag=<string>, where id is the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
In this syntax, <string> is a user-specified alphanumeric string.
Example to
Specify the asset tag to encl20 on the enclosure attached to connector 2 on controller.
Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=setassettag controller=1 enclosure=2 assettag=encl20
Example for SAS controllers
omconfig storage enclosure action=setassettag controller=1 enclosure=1:2 assettag=encl20
Omconfig Set Enclosure Asset Name
Table 201. Omconfig Set Enclosure Asset Name
Description
Specifies the asset name for an enclosure.
Syntax
omconfig storage enclosure action=setassetname controller=id enclosure=<ENCLOSUREID> assetname=<string>, where id is the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
In this syntax, <string> is a user-specified alphanumeric string.
Example to
Specify the asset name to encl43 for the enclosure attached to connector 2 on controller 1.
Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=setassetname controller=1 enclosure=2 assetname=encl43
Example for SAS controllers
omconfig storage enclosure action=setassetname controller=1 enclosure=1:2 assetname=encl43
178 Omconfig storage commands
Omconfig Set Temperature Probe Thresholds
Table 202. Omconfig Set Temperature Probe Thresholds
Description
Sets the minimum and maximum warning temperature thresholds for a specified temperature probe.
NOTE: This command is not supported on SAS controllers.
Syntax
Example to Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=settempprobes controller=id enclosure=<ENCLOSUREID> index=id minwarn=n maxwarn=n, where id is the controller ID and the temperature probe ID. The <ENCLOSUREID> variable specifies the enclosure.
In this syntax, n is a user-specified alphanumeric string.
Set the temperature probe thresholds to 10 and 40 degree Celsius.
omconfig storage enclosure action=settempprobes controller=1 enclosure=2 index=3 minwarn=10 maxwarn=40
NOTE: Here, temperature probe 3 resides in the enclosure attached to connector 2 on controller 1.
Omconfig Reset Temperature Probe Thresholds
Table 203. omconfig Reset Temperature Probe Thresholds
Description
Resets the minimum and maximum warning temperature thresholds back to their default values. NOTE: This command is not supported on SAS controllers.
Syntax
Example to Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=resettempprobes controller=id enclosure=<ENCLOSUREID> index=id, where id is the controller ID and the temperature probe ID. The <ENCLOSUREID> variable specifies the enclosure.
In this syntax, n is a user-specified alphanumeric string.
Reset the thresholds for temperature probe 3, residing in the enclosure attached to connector 2 on controller 1, to the default values.
omconfig storage enclosure action=resettempprobes controller=1 enclosure=2 index=3
NOTE: Here, temperature probe 3 resides in the enclosure attached to connector 2 on controller 1.
Omconfig Set All Temperature Probe Thresholds
Table 204. Omconfig Set All Temperature Probe Thresholds
Description
Sets the minimum and maximum warning temperature thresholds for all temperature probes in the enclosure.
NOTE: This command is not supported on SCSI RAID controllers.
Syntax
omconfig storage enclosure action=setalltempprobes controller=id enclosure=<ENCLOSUREID> minwarn=n maxwarn=n, where id is the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
Omconfig storage commands 179
Table 204. Omconfig Set All Temperature Probe Thresholds (continued)
In this syntax, n is a user-specified alphanumeric string.
Example to
Set the thresholds for all temperature probes residing in enclosure 3 attached to connector 2 on controller 1, to 10 and 40 degree Celsius.
Example for SAS controllers
omconfig storage enclosure action=setalltempprobes controller=1 enclosure=2:3 minwarn=10 maxwarn=40
Omconfig Reset All Temperature Probe Thresholds
Table 205. Omconfig Reset All Temperature Probe Thresholds
Description
Resets the minimum and maximum warning temperature thresholds back to their default value for all temperature probes in the enclosure.
NOTE: This command is not supported on SCSI RAID controllers.
Syntax
Example to Example for SAS controllers
omconfig storage enclosure action=resetalltempprobes controller=id enclosure=<ENCLOSUREID>, where id is the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
In this syntax, n is a user-specified alphanumeric string.
Reset the thresholds for all temperature probes in enclosure 3 attached to connector 2 on controller 1.
omconfig storage enclosure action= resetalltempprobes controller=1 enclosure=2:3
Omconfig Blink
Table 206. omconfig Blink
Description
Blinks the light-emitting diodes (LEDs) on the enclosure.
Syntax
omconfig storage enclosure action=blink controller=id enclosure=<ENCLOSUREID>, where id is the controller ID. The <ENCLOSUREID> variable specifies the enclosure.
Example to
Blink the LEDs for enclosure 3 attached to connector 2 on controller 1.
Example for SAS controllers
omconfig storage enclosure action=blink controller=1 enclosure=2:3
Example for SCSI, SATA, and ATA controllers
omconfig storage enclosure action=blink controller=1 enclosure=2
Omconfig Battery Commands
The following table displays the omconfig command syntax required to execute battery tasks.
180 Omconfig storage commands
Table 207. Omconfig Battery Commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omconfig storage battery action=startlearn controller=id battery=id
action=delaylearn controller=id battery=id days=d hours=h
omconfig Start Battery Learn Cycle
Table 208. Omconfig Start Battery Learn Cycle
Description
Starts the battery learn cycle.
Syntax
omconfig storage battery action=startlearn controller=id battery=id, where id is the controller ID and battery ID as reported by the omreport command. To obtain this value, type omreport storage controller to display the controller IDs and then type omreport storage battery controller=ID to display the ID for the controller battery.
Example to
Start the learn cycle on controller 1.
Example
omconfig storage battery action=startlearn controller=1 battery=0
Omconfig Delay Battery Learn Cycle
Table 209. Omconfig Delay Battery Learn Cycle
Description
Delays the battery learn cycle for a specified period of time. You can delay the battery learn cycle for a maximum of seven days or 168 hours.
Syntax
omconfig storage battery action=delaylearn controller=id battery=id days=d hours=h, where id is the controller ID and battery ID as reported by the omreport command. To obtain this value, type omreport storage controller to display the controller IDs and then type omreport storage battery controller=ID to display the ID for the controller battery.
Example to
Delay the learn cycle for three days and 12 hours on controller 1.
Example
omconfig storage battery action=delaylearn controller=1 battery=0 days=3 hours=12
Omconfig Global Commands
The following table displays the omconfig command syntax required to execute the global commands. When executed, these commands apply to all controllers. These global commands also correspond to the global tasks provided by the Storage tree view object's Information/Configuration subtab.
Table 210. Omconfig Global Commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omconfig storage globalinfo
action=enablests
action=disablests
action=globalrescan
Omconfig storage commands 181
Table 210. Omconfig Global Commands (continued)
Required Command Levels (1, 2, 3)
Optional name=value pairs
action=setprotectionpolicies type=ghs or dhs
action=setremainingratedwriteendurancethreshold type=sassata | pcie threshold=<1-100>
Omconfig Global Enable Smart Thermal Shutdown
By default, the operating system and server shut down when the PV220S and PV221S enclosures reach a critical temperature of 0 or 50 degree Celsius. However, if you have implemented connector redundancy on the PV220S and PV221S enclosures you can specify that only the enclosure and not the operating system and server are shut down when the enclosure reaches a critical temperature of 0 or 50 degree Celsius. Specifying that only the enclosure is shut down during excessive temperatures is known as Smart Thermal Shutdown. For more information about Smart Thermal Shutdown, see the Dell EMC OpenManage Online Help.
Table 211. Omconfig Global Enable Smart Thermal Shutdown
Description
Enables smart thermal shutdown.
Syntax
omconfig storage globalinfo action=enablests
Example to
Enable thermal shutdown. The omconfig command syntax for enabling thermal shutdown does not require a controller or enclosure ID.
NOTE: You can use the omreport storage globalinfo command to determine whether smart thermal shutdown is currently enabled or disabled. The status of smart thermal shutdown is also displayed by the Server Administrator graphical user interface (GUI). To locate this status, select the Storage object and the Information/Configuration tab.
Example
omconfig storage globalinfo action=enablests
Omconfig Global Disable Smart Thermal Shutdown
If you have previously enabled smart thermal shutdown using the omconfig command, you can disable smart thermal shutdown and return the system to its default setting. When smart thermal shutdown is disabled, the operating system and the server shuts down when the PV220S and PV221S enclosures reach a critical temperature of 0 or 50 degree Celsius.
Table 212. Omconfig Global Disable Smart Thermal Shutdown
Description
Disables smart thermal shutdown for all controllers.
Syntax
omconfig storage globalinfo action=disablests
Example to
Disable thermal shutdown. The omconfig command syntax for disabling thermal shutdown does not require a controller or enclosure ID.
NOTE: You can use the omreport storage globalinfo command to determine whether smart thermal shutdown is currently enabled or disabled. The status of smart thermal shutdown is also displayed in the GUI of Server Administrator. To locate this status, select the Storage object and the Information/Configuration tab.
Example
omconfig storage globalinfo action=disablests
182 Omconfig storage commands
Omconfig Global Rescan Controller
Table 213. Omconfig Global Rescan Controller
Description
Rescans all the controllers on the system. For more information about Global Rescan Controller, see the Dell EMC OpenManage Online Help.
Syntax
omconfig storage globalinfo action=globalrescan
Example to
Do a global rescan of all controllers. The omconfig command syntax for rescanning all controllers on the system does not require a controller or enclosure ID.
NOTE: Global rescan is not supported on non-RAID SCSI and SAS controllers. Reboot the system to make visible the OpenManage changes on non-RAID SCSI controllers.
Example
omconfig storage globalinfo action=globalrescan
Omconfig Set Hot Spare Protection Policy
Table 214. Omconfig Set Hot Spare Protection Policy
Description
Sets the hot spare protection policy for dedicated or global hot spares. For more information, see the Dell EMC OpenManage Server Administrator Storage Management User's Guide at dell.com/support/manuals.
Syntax
omconfig storage globalinfo action= setprotectionpolicies type=dhs raid=<r1 | r5 | r6 | r10 | r50 | r60 | all> hscount=<1-16> warnlevel=<0-3> includeghsinvdstate=<yes | no>, where hscount is the number of hot spares assigned to the virtual disk and warnlevel is the severity level you want to assign to the generated alert, if this policy is violated. Use hscount=0 warnlevel=0 to reset the dedicated hot spare protection policy for the RAID level.
Example for
Global hot spare protection policy
Example
omconfig storage globalinfo action=setprotectionpolicies type=dhs hscount=1 warnlevel=1 includeghsinvdstate=yes
Omconfig global threshold for remaining rated write endurance
Table 215. Omconfig Global threshold for remaining rated write endurance
Description
Sets the threshold value for Remaining Rated Write Endurance (RRWE) SMART attribute for SSDs. When the remaining rate write endurance threshold drops below the configured threshold, an alert is logged. For more information about Global Threshold for Remaining Rated Write Endurance, see the Dell EMC OpenManage Online Help.
Syntax
omconfig storage globalinfo action=setremainingratedwriteendurancethreshold type=<sassata| pciessd> threshold=<1-100>
Example to
Settings supported for different threshold values for SAS, SATA and PCIe SSDs. The omconfig command syntax for Threshold RRWE value is set between 0 to 100.
NOTE: The RRWE SMART attribute is not supported for SSDs connected to software RAID Controllers.
Example
omconfig storage globalinfo action=setremainingratedwriteendurancethreshold type=sassata threshold=0.
Omconfig storage commands 183
Omconfig Connector Commands
The following table displays the omconfig command syntax required to execute connector tasks.
Table 216. omconfig Connector Commands
Required Command Levels (1, 2, 3)
omconfig storage connector
Optional name=value pairs action=rescan controller=id connector=id
Omconfig Rescan Connector
Table 217. Omconfig Rescan Connector
Description
Rescans a controller connector. This command rescans all connectors on the controller and is therefore similar to performing a controller rescan.
NOTE: This command is not supported on SAS controllers.
Syntax
Example to Example
omconfig storage connector action=rescan controller=id connector=id, where id is the controller ID and the connector ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage connector controller=ID to display the IDs for the connectors attached to the controller.
Rescan connector 2 on controller 1.
omconfig storage connector action=rescan controller=1 connector=2
Omconfig cachecade commands
The following table displays the omconfig command syntax required to execute cachecade tasks.
Table 218. omconfig Cachecade Commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omconfig storage cachecade
action=blink controller=id cachecade=id
action=unblink controller=id cachecade=id
action=deletecachecade controller=id cachecade=id [force=yes]
action=resize controller=id cachecade=id pdisk= <PDISKID>
action=rename controller=id cachecade=id name=<string>
Omconfig Blink Cachecade
Table 219. Omconfig Blink Cachecade
Description
Blinks the physical disks included in a cachecade.
184 Omconfig storage commands
Table 219. Omconfig Blink Cachecade (continued)
Syntax
omconfig storage cachecade action=blink controller=id cachecade=id, where id is the controller ID and the cachecade ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage cachecade controller=ID to display the IDs for the cachecades of the controller.
Example to
Blinks the physical disk in cachecade 4 on controller 1
Example
omconfig storage cachecade action=blink controller=1 cachecade=4
Omconfig Unblink Cachecade
Table 220. Omconfig Unblink Cachecade
Description
Unblinks the physical disks included in a cachecade.
Syntax
omconfig storage cachecade action=unblink controller=id cachecade=id, where id is the controller ID and the cachecade ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage cachecade controller=ID to display the IDs for the cachecades of the controller.
Example to
Unblinks the physical disk in cachecade 4 on controller 1
Example
omconfig storage cachecade action=unblink controller=1 cachecade=4
Omconfig Delete Cachecade
Table 221. Omconfig Delete Cachecade
Description
Deletes a cachecade.
Syntax
omconfig storage cachecade action=deletecachecade controller=id cachecade=id, where id is the controller ID and the cachecade ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage cachecade controller=ID to display the IDs for the cachecades of the controller.
In some circumstances, you may receive a warning message. You can override this warning by using the force=yes parameter. In this case, the syntax is as follows:
omconfig storage cachecade action=deletecachecade controller=id cachecade=id force=yes
Example to Example
Delete cachecade 4 on controller 1.
omconfig storage cachecade action=deletecachecade controller=1 cachecade=4
Omconfig Resize Cachecade
Table 222. Omconfig Resize Cachecade
Description
Resizes a cachecade by adding or removing physical disks.
Omconfig storage commands 185
Table 222. Omconfig Resize Cachecade (continued)
Syntax
omconfig storage cachecade action=resize controller=id cachecade=id pdisk=<PDISKID>, where id is the controller ID and the cachecade ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage cachecade controller=ID to display the IDs for the cachecades of the controller.
Example to
Resize cachecade 4, use physical disks 0 through 3 on connector 0 of controller 1.
Example for SAS controllers
omconfig storage cachecade action=resize controller=1 cachecade=4 pdisk= 0:2:0,0:2:1,0:2:2,0:2:3
Example for SCSI, SATA, and ATA controllers
omconfig storage cachecade action=resize controller=1 cachecade=4 pdisk=0:0,0:1,0:2,0:3
Omconfig Rename Cachecade
Table 223. Omconfig Rename Cachecade
Description
Renames a cachecade.
Syntax
omconfig storage cachecade action=rename controller=id cachecade=id name=<string>, where id is the controller ID and the cachecade ID as reported by the omreport command. To obtain these values, type omreport storage controller to display the controller IDs and then type omreport storage cachecade controller=ID to display the IDs for the cachecades of the controller.
Example to
Rename cachecade 4 on controller 1 to cc4.
Example
omconfig storage cachecade action=rename controller=1 cachecade=4 name=cc4
Omconfig NVMe adapter configuration commands
The following table displays the omconfig command syntax required to configure NVMe device properties.
Table 224. omconfig NVMe adapter commands
Required Command Levels (1, 2, 3)
Optional name=value pairs
omconfig storage nvmeadapter
action=exportlog controller=id nvmeid=id
action=cryptographicerase controller=id nvmeid=id
Omconfig exporting controller log
Table 225. Omconfig exporting controller log
Description
Exports the NVMe PCIeSSD adapter reliability log of the Samsung NVMe adapter. The controller log is exported to the Windows folder on systems running Windows, and to /var/log directory on systems running Linux.
NOTE: Depending on the device, the log file name for the NVMe PCIeSSD adapter NVME_<device name>_<timestamp>.log where <device name> is the name of the
186 Omconfig storage commands
Table 225. Omconfig exporting controller log (continued)
device and timestamp is month, day, hour, minute and second during which the command is executed.
Syntax
omconfig storage nvmeadapter action=exportlog controller=id nvmeid=<NVMe adapter>
Example to
Export the log of controller 1 on the NVMe adapter 1.
Example
omconfig storage nvmeadapter action=exportlog controller=1 nvmeid=1
Omconfig cryptographic erase
Table 226. Omconfig cryptographic erase
Description
Erases the specified NVMe device. NOTE: This option is supported only on NVMe devices.
Syntax
Example to Example
omconfig storage nvmeadapter action=cryptographicerase controller=id nvmeid=<PCI slot>
Erase the NVMe device on the PCI slot 1 of controller 1.
omconfig storage nvmeadapter action=cryptographicerase controller=1 nvmeid=1
Omconfig storage commands 187
9
Working With CLI Command Results
Server Administrator Command Line Interface (CLI) users can use the command output in various ways. This chapter explains how to save command output to a file and how to select a format for the command results that fits different objectives. The following table displays the systems on which omreport commands are applicable.
Table 227. System Availability For The omreport Command
Command Level 1
Command Level 2
Applicable To
omreport
modularenclosure
Blade systems
servermodule
Blade systems
mainsystem
Blade systems
system
Rack and Tower systems
chassis
Rack and Tower systems
Topics:
� Output Options For Command Results � Controlling command output display � Writing Command Output To A File � Selecting A Format For The CLI Command Output
Output Options For Command Results
CLI command output displays to standard output on the system in a command window, in an X-terminal, or on a screen, depending on the type of the operating system.
You can redirect command results to a file instead of displaying them to standard output. Saving command output to a file allows you to use the command output for later analysis or comparison.
Whether you display command results to standard output or have the command results written to a file, you can format the results. The format you select determines the way the command output is displayed and the way the command output is written to a file.
Controlling command output display
Each operating system provides a means of controlling the way that command results display to standard output. The following is a useful command for ensuring that command results do not scroll by before you can view them. The same command syntax works for the Microsoft Windows command prompt, the Red Hat Enterprise Linux terminal, and the SUSE Linux Enterprise Server terminal. To display command output with control over scrolling, type the CLI command and append the pipe symbol followed by more. For example, type:
omreport system summary | more
or
omreport servermodule summary | more
The multiscreen system summary displays the first screen. When you want to see the next screen of command output, press the spacebar.
188 Working With CLI Command Results
Writing Command Output To A File
When redirecting command results to a file, you can specify a filename (and a directory path if necessary) to which you want to write the command result. When specifying the path to which you want to write the file, use the appropriate syntax for the operating system.
You can save command results in two ways. You can overwrite any file that has the same name as the output file you specify, or you can keep adding results of commands to a file of the same name.
Saving Command Results To A File That Is Overwritten
Use the -outc option when you want to overwrite data stored in previously written files. For example, at 11:00 A.M. you capture fan probe RPM readings for fan probe 0 on the system and write the results to a file called fans.txt. You type:
omreport chassis fans index=0 -outc fans.txt
or
omreport mainsystem fans index=0 -outc fans.txt
Partial results written to the file are: Table 228. Partial Results Index Status Probe Name Reading Minimum Warning Threshold Maximum Warning Threshold Minimum Failure Threshold Maximum Failure Threshold
: 0 : OK : System Board Fan 1 RPM : 2380RPM : 600RPM : 5700RPM : 500RPM : 6000RPM
Four hours later, you repeat the command. You have no interest in the 11:00 A.M. snapshot as written to fans.txt. You type the same command:
omreport chassis fans index=0 -outc fans.txt
or
omreport mainsystem fans index=0 -outc fans.txt
The 3:00 P.M. data overwrites the 11:00 A.M. data in the fans.txt file. Fans.txt now reads as follows:
Table 229. Result
Index
: 0
Status
: OK
Probe Name
: System Board Fan 1 RPM
Reading
: 3001RPM
Minimum Warning Threshold
: 700RPM
Maximum Warning Threshold
: 5500RPM
Minimum Failure Threshold
: 500RPM
Working With CLI Command Results 189
Table 229. Result (continued) Maximum Failure Threshold
: 6000RPM
You cannot refer to the previous command results to compare the earlier fan probe 0 output with the present output because in using the -outc option, you overwrote the fans.txt file.
Append command results to an existing file
Use the -outa option when you want to append new command results to data stored in a previously written file. For example, at 11:00 A.M. you capture fan probe RPM readings for fan probe 0 on the system and write the results to a file called fans.txt. To compare these results with output for the same probe obtained four hours later, you can use the -outa command to append the new output to fans.txt.
Type:
omreport chassis fans index=0 -outa fans.txt
or
omreport mainsystem fans index=0 -outa fans.txt
Fans.txt now reads as follows:
Table 230. Append command results to an existing file
Index
: 0
Status
: OK
Probe Name
: System Board Fan 1 RPM
Reading
: 2380RPM
Minimum Warning Threshold
: 600RPM
Maximum Warning Threshold
: 5700RPM
Minimum Failure Threshold
: 500RPM
Maximum Failure Threshold
: 6000RPM
Index
Status
Probe Name
Reading
Minimum Warning Threshold
Maximum Warning Threshold
Minimum Failure Threshold
Maximum Failure Threshold
: 0 : OK : System Board Fan 1 RPM : 3622RPM : 900RPM
: 3500RPM
: 500RPM
: 6000RPM
You can use a text editor to insert the time that each block of data was captured. In comparing the two snapshots for fan probe 0, you can see that the second report shows several changes. The reading of fan RPM has increased by 621 RPM but is still
190 Working With CLI Command Results
within normal range. Someone has raised the minimum warning threshold by 200 RPM and has decreased the maximum warning threshold by 2000 RPM.
Selecting A Format For The CLI Command Output
You can specify a format for the CLI command results. The format determines how the command output is displayed. If the command results are directed to a file, the format is captured by the file to which you write the command results. The available formats include: List (lst) Semicolon-separated values (ssv) Table (tbl) Custom delimited format (cdv) The syntax for the formatting option is:
<command> -fmt <format option>
For example, type:
omreport system summary -fmt tbl
or
omreport servermodule summary -fmt tbl
where -fmt tbl specifies table format. You can combine the formatting option with the option to direct output to a file. For example, type:
omreport system summary -fmt tbl -outa summary.txt
or
omreport servermodule summary -fmt tbl -outa summary.txt
where -fmt tbl specifies table format and -outa specifies that you append the command results to a file named summary.txt .
List
The default format is lst or list format. Use this format when you want to optimize output for simple readability. You need to specify a format for the command output only if you want a format other than the lst format.
To see the following example command output in lst format, type:
omreport system summary
or
omreport servermodule summary
No special formatting option is required because list format is the default display format. The network data part of the example system summary is displayed as follows:
--------------
Network Data
--------------
Network Interface 0
IP Address
: 143.166.152.108
Subnet Mask
: 255.255.255.0
Default Gateway
: 143.166.152.1
MAC Address
: 00-02-b3-23-d2-ca
Working With CLI Command Results 191
Table
Use the tbl or table formatting option to have the data formatted in table rows and columns. To see the following example command output in table format, type:
omreport system summary -fmt tbl
or
omreport servermodule summary -fmt tbl
The example output displays as follows:
------------------------------
Network Interface 0
------------------------------
| ATTRIBUTE
| VALUE
| IP Address
| 143.166.152.108
| Subnet Mask
| 255.255.255.0
| Default Gateway
| 143.166.152.1
| MAC Address
| 00-02-b3-23-d2-ca
Semicolon-Separated Values
Use the ssv formatting option to deliver output formatted in semicolon-separated value format. This format also allows you to import the command output results into a spreadsheet program such as Microsoft Excel, or into a database program. To see the following example command output in semicolon-separated value format, type:
omreport system summary -fmt ssv
or
omreport servermodule summary -fmt ssv
The example output displays as follows:
-----------------------------Network Data -----------------------------Network Interface 0 IP Address;143.166.152.108 Subnet Mask;255.255.255.0 Default Gateway;143.166.152.1 MAC Address;00-02-b3-23-d2-ca
Custom delimited format
Use the cdv formatting option to report exported data in custom delimited format. You can specify this option with any omreport command. For example, to generate a system summary in custom delimited format, type:
omreport system summary -fmt cdv
or
omreport servermodule summary -fmt cdv
You can also set preferences for the custom delimited format with the omconfig command. The valid values for delimiters are: exclamation, semicolon, at, hash, dollar, percent, caret, asterisk, tilde, question, colon, comma, and pipe. The following example shows how to set the delimiter for separating data fields to asterisk:
omconfig preferences cdvformat delimiter=asterisk
192 Working With CLI Command Results
A
Identifying the series of your Dell EMC PowerEdge servers
The PowerEdge series of servers form Dell EMC are divided into different categories on the basis of their configuration. For easier reference, they are referred to as YX2X, YX3X, YX4X, YX4XX, or YX5XX series of servers. The structure of the naming convention is described below:
The letter Y denotes the alphabets in the server model number. The alphabets denote the form factor of the server. The form factors are described below: Cloud (C) Flexible(F) Modular (M or MX) Rack(R) Tower(T)
The letter X denotes the numbers in the server model number. The numbers denote multiple items about the server. The first X denotes the value stream or class of the server.
1-5--iDRAC basic 6-9--iDRAC Express The digit denotes the series of the server. It is retained in the server naming convention and not replaced by the letter X. 0--series 10 1--series 11 2--series 12 3--series 13 4--series 14 5--series 15 The third X denotes the number of processor sockets a series of server supports. This is applicable only from series 14 of PowerEdge servers. 1 one socket server 2 two socket server The last X always denotes the make of the processor as described below: 0--Intel 5--AMD
Table 231. PowerEdge servers naming convention and examples
YX3X servers
YX4X systems
YX4XX systems
YX5XX
PowerEdge M630
PowerEdge M640
PowerEdge R6415
PowerEdge R6515
PowerEdge M830
PowerEdge R440
PowerEdge R7415
PowerEdge R7515
PowerEdge T130
PowerEdge R540
PowerEdge R7425
PowerEdge R6525
Identifying the series of your Dell EMC PowerEdge servers 193
