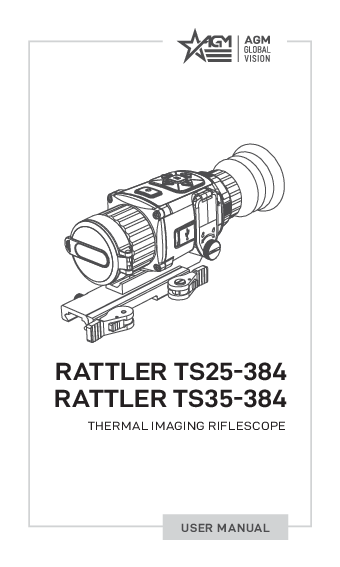

RATTLER TS25-384 RATTLER TS35-384
THERMAL IMAGING RIFLESCOPE
USER MANUAL
© 2020 AGM Global Vision. All rights reserved. This documentation is subject to change without notice. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted by any electronic medium or in machine-readable form without the prior written permission of AGM Global Vision.
If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior to returning a product.
AGM Global Vision 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. 928.333.4300 support@agmglobalvision.com www.agmglobalvision.com
EXPORT INFORMATION
Buyer acknowledges that all products supplied by AGM Global Vision are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S. export control laws. In particular, AGM Global Vision products may not be exported, re-exported, or transferred to prohibited countries, individuals, organizations, or entities, including but not limited to those individuals and entities listed on the List of Specially Designated Nationals and Blocked Persons administered or maintained by the U.S. Office of Foreign Assets Control ("OFAC"), the various lists maintained by the Bureau of Industry and Security of the Department of Commerce, and the U.S. State Department and Buyer represents and warrants that neither Buyer nor any of its officers, directors, or employees are on such lists. Distribution or resale by Buyer to such countries, individuals, organizations, or entities is expressly prohibited. Buyer has and will maintain a positive process to ensure compliance with this Section.
2020.12.28
FCC INFORMATION
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
FCC compliance: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU CONFORMITY STATEMENT
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
INDUSTRY CANADA ICES-003 COMPLIANCE
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
RATTLER TS USER MANUAL
3
LIST OF CONTENTS
TITLE
Safety Summary 1. GENERAL INFORMATION 1.1 System Description 1.2 Key Features 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications
PAGE
5 7 7 8 9 9 15 22 23 23 24 25 25 27 27
4
AGM Global Vision
SAFETY SUMMARY
· Read and follow all instructions · Read all warnings · Only use the attachments/accessories specified by the manufacturer · All service must be provided by the manufacturer
WARNING:
This product contains natural rubber latex, which may cause potentially fatal allergic reactions! If you are allergic to latex, it is important that you strictly avoid exposure to products that contain it.
WARNING:
Always make sure your firearm is unloaded before you place the scope on the firearm. Reconfirm that the chamber is empty if you stop the procedure then resume later. Safe handling rules should be followed at all times.
WARNING:
If a scope is mounted too far to the rear, the eyepiece can injure the shooter's brow. Shooting at an uphill angle also increases this hazard because it shortens the distance between the brow and the rear of the scope. For this reason, AGM scopes are engineered to provide generous eye relief. Therefore, when mounting your scope, we recommend positioning it as far forward in the mounts as possible to take full advantage of this generous eye relief. With hardrecoiling rifles, serious injury or even death can result from eyepiece impact with the shooter during the recoil process when discharging the firearm. Be certain that your installation provides sufficient eye relief for the recoil generated by your rifle before shooting the firearm. NOTE: Give special attention to this warning when shooting uphill and/or from a prone position. These shooting conditions can dramatically reduce eye relief. PLEASE maintain maximum eye relief when shooting heavy recoiling and/or magnum firearms. THE USER ASSUMES ALL RESPONSIBILITY AND LIABILITY FOR HAVING THE AGM RIFLESCOPE PROPERLY MOUNTED TO A FIREARM AND USING THE AGM RIFLESCOPE PROPERLY. ALWAYS CHECK THE CONDITION OF YOUR MOUNTING SYSTEM PRIOR TO USING YOUR FIREARM.
WARNING:
The proper usage of the device is important for safe exploitation! Therefore read carefully the present manual!
WARNING:
If the device was left in storage for a longer period of time, before exploitation check its functionality.
WARNING:
Disassembling of the device is prohibited, except in authorized repair centers.
WARNING:
The external optical surfaces should be clean at all times. Touching the optical surfaces with bare hands is not recommended.
RATTLER TS USER MANUAL
5
WARNING: Sand and sea water can damage the optical coatings!
WARNING: Do not point the device directly at the sun!
WARNING: Image performance is dependent on scenery and atmosphere conditions. Contrast in the same image may vary as a function of the time of day due to the effect of the sun. For example, at sunset objects will have absorbed different levels of heat resulting in greater temperature differences and better contrast.
WARNING: When left in storage for a longer period of time, batteries have to be removed and stored in polyethylene bags to prevent contact with metal. (It is recommended to recharge the batteries every two to three months.)
WARNING: When carrying or transporting the device, put the protective lens cap!
WARNING: Condensation can cause fogging of the optical surfaces! Condensation occurs when the temperature or humidity changes as follows: When moving the device from cold to warm place or vice versa; In places with high humidity. When equalizing the temperature of the device with the environmental, the condensation disappears. Use the towel to remove moisture.
NOTES: · The detector spectral band provides better visibility through smoke, dust,
rain, smog, etc. · Infrared radiation does not travel through glass. As a result, the riflescope
does not detect objects if they are behind glass windows or other barriers.
WARNING: Clean the lens surfaces with the lens cloth or with the napkin!
LEGAL NOTICE Before attaching to weapons, check the regional legal regulations in the area of application. The attachment to a weapon is always the sole responsibility of the user.
6
AGM Global Vision
1 GENERAL INFORMATION
1.1 SYSTEM DESCRIPTION
The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.
Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
5
6
4
3
1
13
USER MANUAL
14
2
8
10
7
12
9
11
ITEM 1 2 3 4 5 6 7
FIGURE 1-1. MAIN PARTS AND COMPONENTS
TABLE 1-1. MAIN PARTS
DESCRIPTION Objective Lens Objective Lens over Objective Focus Ring Power Button Operation Buttons Eyepiece Focus Ring USB Type-C Interface
ITEM 8 9 10 11 12 13 14
DESCRIPTION Battery Compartment Eyecup Mount USB Cable Lens Tissue User Manual Carrying Bag
RATTLER TS USER MANUAL
7
1.2 KEY FEATURES
· 384×288 thermal resolution, high sensitivity detector · Image processing technology: Adaptive AGC, DDE, 3D DNR · 1024×768 resolution 0.39-inch OLED display · 8x digital zoom · Lightweight and compact design · Easy to operate control panel · Automatic or manual (silent) calibration · Video recording and snapshot · Built-in EMMC memory (16 GB) · Supports distance measurement · Adjustable color palettes · Wi-Fi data transmission · Waterproof, shockproof · Powered by two standard CR123A or RCR123A rechargeable batteries · Up to 4.5 hours continuous working · External power supply capability · Limited 3-year warranty
8
AGM Global Vision
2 OPERATING INSTRUCTIONS
2.1. BASIC OPERATIONS
2.1.1 UNPACKING
The following steps must be completed prior to each mission. 1. Open the carrying case, remove the device, and verify that all components
are included.
2. Inspect the device for any obvious evidence of damage to the optical surfaces, body, eyecup, operation buttons, etc. Ensure that all optical surfaces are clean and ready for use. Clean all optical surfaces with a lens tissue.
2.1.2 BATTERIES INSTALLATION
CAUTION: Verify that the equipment is OFF before remove the batteries.
To install the batteries (refer to Figure 2-1): 1. Turn the battery cover knob (A) counterclockwise and then open the battery
cover (B).
2. Install two CR123A or RCR123A batteries (C) into the battery compartment. Align the polarity symbols on the batteries with the polarity symbols on the device body (D).
3. Close the battery cover. Turn the battery cover knob clockwise until stop.
When the device is on a battery charge level is displayed on the status bar.
A
B
C
D
FIGURE 2-1. BATTERY INSTALLATION
RATTLER TS USER MANUAL
9
2.1.3 SELECT BATTERY TYPE
You can change the battery type according to your need. Select the correct battery voltage in the device menu.
1. In the view mode, hold button to show the menu.
2. Select voltage.
Battery Voltage menu item, and press button to switch the
2.1.4 CONNECTING THE DEVICE
1. Open the cable interface cover. 2. Connect the device and power adapter with a Type-C cable to power on the device. Alternatively, connect the device and PC to export files.
FIGURE 2-2. CABLE INTERFACE
2.1.5 CONTROL BUTTONS
The Rattler controls are shown in Figure 2-2 and are defined in Table 2-2. Each button is responsible for some functions selected by short press or long press the button. Pushing a button for 3+ second is considered "long press/ hold."
CAPTURE POWER
SHUTTER ZOOM
MENU
MODE
FIGURE 2-2. CONTROL BUTTONS
10
AGM Global Vision
TABLE 2-2. BUTTON FUNCTIONS
BUTTON
FUNCTIONS
POWER
Press: Sleep Mode/Wake Up Device Hold: Power On/Off
MODE
Press: Switch Palettes
CAPTURE MENU ZOOM
Press: Capture Hold: Start/Stop Record Video
Press: Enable/Disable OSD Hold: Menu Operation
Press: Switch Digital Zoom Hold: Enable/Disable Reticle
SHUTTER
Press: Correct Non-uniformity of Display
2.1.6 POWER ON AND OFF
Power On
Hold the POWER button for 4 seconds to power on the device. An image will appear on the display.
Refer to the figure below for the main view of the riflescope display.
DIGITAL ZOOM HOT SPOT
STORAGE B AT T E R Y
FIGURE 2-3. THE DISPLAY MAIN VIEW
Power Off
When the device is turned on, hold device.
button for 4 seconds to power off the
2.1.7 SLEEP MODE
In the view mode, press the button. After a few seconds, the display will turn off. Press the button again to exit the Sleep Mode.
RATTLER TS USER MANUAL
11
2.1.8 THERMAL VIEW OBSERVATION
1. Power on the riflescope. 2. Hold the riflescope and make sure the eyepiece covers your eye. 3. Adjust the diopter adjustment ring until the OSD text or image is clear. 4. Point the riflescope towards the target of the view. Bring the object into focus
by rotate the objective focus ring.
NOTE: You must perform the focus adjustment before any further use of the riflescope.
5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction), to display the best image effect.
2.1.9 PALETTE SETTINGS
You can select different palettes to display the same scene in different effects. Press button in the view mode to switch palettes.
TABLE 2-3. PALETTE SETTINGS
PA L E T T E WHITE HOT BLACK HOT
FUSION RED HOT
DESCRIPTION
The hot part is white-colored in view. The higher the temperature is, the lighter the color is.
The hot part is black-colored in view. The higher the temperature is, the more black the color is.
The hot part is white-colored. From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.
The hot part is red-colored in view. The higher the temperature is, the redder the color is.
2.1.10 DIGITAL ZOOM
Press
button in the view mode, the live view will switch between 1×, 2×, 4×
and 8× digital zoom.
2.1.11 ON-SCREEN DISPLAY
Press button in the view mode to display or hide the OSD information. When OSD (On-Screen Display) is on the information of Wi-Fi hotspot activation, digital zoom, storage memory status, and battery status displays in top right corner of viewfinder.
2.1.12 DISPLAY OF THE RETICLE
Hold
button in the view mode for 4 seconds, to display or hide the reticle.
The crosshair helps you to aim at the target fast and accurately.
12
AGM Global Vision
2.1.13 SHUTTER RELEASE
Press
button in the view mode to release the shutter once for correction
of the non-uniformity of display.
2.1.14 RECORD/CAPTURE
Video Recording
Hold
button in the view mode and start recording. In the upper left corner,
the recording time displays.
Hold
button again to stop recording.
FIGURE 2-4. VIDEO RECORDING
Snapshot Capturing
Press
button in the view mode, to capture picture.
NOTE:
· When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. · For exporting captured pictures, refer to Export Files.
2.1.15 FILE EXPORT
1. Before connecting the thermal riflescope to a computer, please make sure that the Wi-Fi function of the riflescope is disabled.
2. Connect the thermal riflescope to your PC with USB cable and open the detected disk.
3. Enter DCIM>100EZVIZ to view the videos and snapshots.
- Select and copy the videos to PC and play the file with the player. - Select and copy the snapshots to PC and view the files. 4. Disconnect the device from your PC.
NOTE:
· The device displays images when you connect it to PC. But functions such as recording, capturing and hot spot are disabled. · When you connect the device to PC for the first time, it installs the drive program automatically.
RATTLER TS USER MANUAL
13
2.1.16 INSTALLING THE RATTLERN ON A PICATINNY/WEAVER RAIL
WARNING:
Always make sure your firearm is unloaded before you place the scope on the firearm. Reconfirm that the chamber is empty if you stop the procedure then resume later. Safe firearms handling rules should be followed at all times.
The Rattler comes fully-assembled with a Picatinny/Weaver mount. The mount is attached to the scope with two screws.
To install the Rattler on a Picatinny/ Weaver rail, perform the following (Figure 2-5) :
1. Unlock the clamping device of the scope mount by pushing down on the lever holders (A) and unlocking the levers (B).
2. Install the scope on the Picatinny/ Weaver rail so that the stops (C, see Figure 2-3) slides into the transverse slots on the rail.
3. Affix the scope to the rail by locking the levers (B).
4. Verify that the clamping device is firmly holding the Rattler. If necessary, adjust the clamping device's lever-cam locks as detailed in part 2.1.17 (Clamping Device Adjustment).
LOCKED POSITION
UNLOCK POSITION
A B
A B
UNDERSIDE VIEW
D C
E
C D
FIGURE 2-5. MOUNT
2.1.17 CLAMPING DEVICE ADJUSTMENT
To adjust the mount's clamping device, do the following: 1. Remove the Rattler from the weapon. 2. With the clamping device unlocked (as shown in Figure 2-5), push the cam
(E) towards the arrow, which will cause the nut (D) to slide out of its hole. 3. To tighten/ loosen the clamping device, push down on the cam (E) and turn
the nut (D) CW/ CCW respectively, in one-two increments (see note below).
14
AGM Global Vision
Much like when the cam (E) is released, backward-moving springs will cause the nut (D) to slide back into its hole.
NOTE:
The eight-sided nuts of the mount lever-cam locks will only fit into their holes if turned in one of the discrete positions, using increments equal to 360°/8.
4. Verify that the adjusted lever-cam lock securely holds the weapon mounting rail.
5. Repeat the procedure to adjust the clamping device's second lever-cam lock.
2.2 MAIN FUNCTIONS
2.2.1 MENU OPERATION
When the device powers on, hold display the menu.
button in the view mode for 4 seconds to
Press
and
buttons to move between menu items. The active element
is highlighted in orange. Press button to select menu item or change an
option.
Hold button to exit the menu.
MENU ITEM B AT T E R Y VOLTAGE
BRIGHTNESS CONTRAST
SCENE MODE
FIGURE 2-6. MAIN MENU TABLE 2-4. MENU FUNCTION
SYMBOL OPTION
FUNCTION
3.0 V / 3.7 V Select the battery voltage.
5 Levels of brightness
5 Levels of contrast
Adjust the image brightness. Adjust the image contrast.
Recognition Switch between the Recognition mode and Jungle
Jungle mode.
RATTLER TS USER MANUAL
15
MENU ITEM SYMBOL OPTION
FUNCTION
NETWORK
PIP BORESIGHTING
COLOR
OFF Hotspot
Enable or disable the Wi-Fi hotspot.
Upper Left/ Upper Middle/
Upper Right/
Enable or disable the PIP function. Set the position of the PIP window.
Close
5 Types of Select the reticle type. Set the reticle center of the reticle.
White/ Green/ Red
Select the reticle color.
TRAJECTORY FFC
MEASURE
5 Profiles One shot zero correction.
Auto / Manual / External
0.8m/1.2m/ 1.8m/3.0m
Target Height
Select the FFC mode.
Enter distance measurement mode.
HOT TRACKING
OFF
Enable/disable hot spot mark
(marking the spot of highest
ON
temperature).
DPC
---
Correct dead pixel manually.
CVBS
LANGUAGE VERSION RESTORE
OFF
Turn on and off the CVBS
Output function.
ON
17 Languages
---
Select the language of interface.
View the firmware version number and serial number.
---
Restore the device to defaults.
2.2.2 BATTERY TYPE
You can change the battery type according to your need. Select the correct battery voltage in the device menu. 1. Hold button in the view mode to show the menu.
16
AGM Global Vision
2. Select Battery Voltage menu item, and press battery voltage.
button to switch the
2.2.3 BRIGHTNESS ADJUSTMENT
1. Hold button to show the menu.
2. Select
Brightness menu item and press
brightness.
button to adjust the
In White Hot mode, you can select one of five levels of the brightness to adjust the image lighter or darker.
In Black Hot mode, the brightness of the image turns in the opposite way.
2.2.4 CONTRAST ADJUSTMENT
1. Hold button to go to the menu. 2. Select Contrast menu item and press button to adjust the image contrast. You can select one of five levels of the contrast.
2.2.5 SCENE MODE
You can select proper Scene Mode according to environment temperature to improve the display effect. 1. Hold button to show the menu. 2. Select / Scene Mode menu item ( is default option) and press button to switch scene.
- Recognition mode ( ) improves an image so that the object edge is more distinct. - Jungle mode ( ) is more suitable for hunting environment because of the highlight function of small objects. 3. Hold for 4 seconds to save settings and exit.
2.2.6 NETWORK CONFIGURATION
Connect your phone to the Wi-Fi hotspot of the riflescope, you can configure the parameters and realize functions of the device. 1. Hold button to show the menu.
2. Select menu item to enable Wi-Fi hotspot function. 3. Turn on the WLAN and connect to the Wi-Fi hotspot.
- Hotspot Name: Wlan-IPTS Serial No. - Hotspot Password: Last 9 digits of Serial No. 4. Search the client software on App Store (iOS System) or Google PlayTM (Android System) to download and install the app. T-Vision APP is recommend. 5. Open the APP and connect your phone with the device. You can view the interface of riflescope on your phone.
NOTE:
When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically.
RATTLER TS USER MANUAL
17
2.2.7 PICTURE IN PICTURE MODE
1. Hold button to show the menu. 2. Select PIP menu item and enter PIP mode. The details show in the upper left corner. NOTE: When Boresighting is enabled, the PIP view is the detail of crosshair. When Boresighting is not enabled, the PIP view is the detail of central part.
3. Press button to switch the PIP type. Upper Left, Upper Middle, Upper Right, and OFF are selectable.
NOTE:
When you select Upper Right as PIP type, the OSD will be blocked.
4. Hold button to exit.
If digital zoom is enabled, the PIP view also zooms. If the digital zoom ratio exceeds 4, the PIP does not zoom.
2.2.8 BORESIGHTING
Enable the reticle to aim at the target.
1. Hold button to show the menu.
2. Select view.
Boresighting menu item. A crosshair shows in the center of the
3. Press or buttons to select one of 5 reticle type. Then press button to confirm.
4. Press , ,
and
buttons to move the crosshair position. The
coordinate shows the current position of the crosshair.
5. Hold button to save and exit.
FIGURE 2-7. BORESIGHTING
18
AGM Global Vision
2.2.9 RETICLE COLOR
You can change the color of the crosshairs.
Enable reticle first.
1. Hold button to show the menu.
2. Select Color menu item and press
button to switch the color of
crosshair. White, Green, and Red colors are selectable.
3. Hold button to save and exit.
2.2.10 TRAJECTORY CORRECTING
Enable the trajectory correction to shot the target with high accuracy by marking the offset between the big crosshair and small crosshair.
Select the desired reticle type in the Boresighting menu. 1. Hold button to show the menu.
2. Select Trajectory menu item. Two crosshairs show in the view. The big one is reticle crosshair, and the small one is trajectory correction crosshair.
3. Set the distance.
1). Press button, and then press
or
distance between the target and the device.
buttons to adjust the
2). Press button to save the distance settings. 4. Set the crosshair position of trajectory correction.
1) Aim the big crosshair at the target.
2) Shot and mark the actual drop point of the bullet.
3) Press , ,
and
buttons to move the small cursor to the
position of the actual drop point. You can view the coordinate of the cursor
in the view.
5. Press button to switch to the next distance.
6. Repeat step 3 to 4 to set another trajectory correction position.
You can save up to five corrections for different distances. Corrective aiming points will be displayed with short lines on the reticle.
7. Hold button to exit.
FIGURE 2-8. TRAJECTORY CORRECTING
RATTLER TS USER MANUAL
19
2.2.11 FLAT FIELD CORRECTION
Flat Field Correction (FFC) function can correct non-uniformity of display.
1. Hold button to show the menu.
2. Select FFC menu item and press button to switch the FFC mode.
Auto: The riflescope performs FFC automatically when switching on or rebooting the camera.
Manual: Hold button in live view to correct the non-uniformity of display.
External: Cover the lens cap, then hold non-uniformity of display.
button in live view to correct the
3. Hold button to confirm the setting and exit.
2.2.12 DISTANCE MEASUREMENT
The device can detect the distance between the target and the observation position.
NOTE:
When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.
1. Hold button to show the menu.
2. Select menu item and press mode.
button to enter the Distance Measurement
3. Press
button to go to the target setting interface.
1) Press
or
to select the target from Wolf (0.8m), Bear (3.0m),
Deer (1.2m), and Custom (1.8m). Each target preset can be modified from
0.1 to 9.9m.
2) Set the target and press button to confirm.
4. Align the center of top mark with the edge of target top. Press button.
The cursor blinks on the top edge of the target.
5. Align the center of bottom mark with the edge of target bottom. Press .
The left top of the image displays the distance measurement result and the height of the target.
NOTE:
FIGURE 2-9. DISTANCE MEASUREMENT
Go to distance measurement interface, and press of the previous measuring target.
button to view the result
20
AGM Global Vision
2.2.13 HOT TRACKING
The device can detect the highest temperature spot in the scene and mark it on display.
1. Hold button to show the menu.
2. Select
/ and press
button to enable/disable hot spot mark
(marking the spot of highest temperature).
When the hot spot mark is enabled, the mark displays in the spot of the highest temperature. When the scene changes, the mark moves.
2.2.14 DEFECTIVE PIXELS CORRECTION
Defective Pixels Correction (DPC) function can correct the defective pixels on the screen which are not performed as expected.
Before you start switch the palette to White Hot mode.
1. Hold button to show the menu.
2. Select DPC menu item and press button.
3. Press
, ,
and
buttons to move the cursor to the position
of dead pixel.
6. Hold button to correct the dead pixel.
2.2.15 CVBS OUTPUT
You can view the video on CVBS monitor, to get a better and clear image, more convenient to check the detail. 1. Connect the USB-CVBS cable to USB port of thermal riflescope and to
monitor's CVBS port.
NOTE:
USB-CVBS cable need to be purchase separately.
NOTE:
CVBS Output function doesn't support hot plug, so please connect the cable before power on.
2. Hold button to show the menu.
3. Select CVBS menu item and press video output.
button to turn on or turn off the CVBS
2.2.16 LANGUAGE SETTING
You can select different languages of user interface.
1. Hold button to show the menu. 2. Select Language menu item and press button to select the language. The following languages are supported: English, Russian, German, Czech, French, Spanish, Danish, Norwegian, Swedish, Finnish, Hungarian, Italian, Polish, Portuguese, Romanian, Slovak, Spanish. 3. Hold button to save settings and exit.
RATTLER TS USER MANUAL
21
2.3 CLIENT SOFTWARE INTRODUCTION
We recommend using T-Vision (V5.4.12 and below) software. Install the client software on your mobile phone first, and then connect your phone to the hotspot of the riflescope. Refer to chapter 2.2.6 for details of hotspot connection.
NOTE:
The device password is set by user at first activation. If the password was lost or forgotten, it can be reset. To make a reset, provide the following action:
1. When the riflescope is turned on, hold button to activate the OSD menu.
2. Select menu item and press default settings.
button to restore all parameters to
1. Open the APP and connect the phone or pad with the device.
2. If the device is inactivated, set the password and activate it. If the device is activated, enter the password to add it to app.
3. When the device is added, the live view can be seen. You can view the interface of the riflescope on the software. User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or pad as well as record video on phone/pad memory.
Rattler TS35-384
FIGURE 2-10. CLIENT SOFTWARE
22
AGM Global Vision
3 MAINTENANCE
3.1 MAINTENANCE
3.1.1 CLEANING PROCEDURES
1. Gently brush off any dirt from the body of the device using a clean, soft cloth. 2. Moisten the cloth with fresh water and gently wipe down the external
surfaces (except lenses). 3. Dry any wet surfaces (except lenses) using another dry, clean, soft cloth. 4. Using a lens brush, carefully remove all loose dirt from the lenses. 5. Dampen a cotton swab with ethanol and slowly, gently wipe down the lenses.
Clean the glass surfaces using circular movements, starting from the center of the lens and moving out towards the edge, without touching the lens holder. Change the cotton swab after each circular stroke. Repeat this step until the glass surfaces are clean. 6. Clean the accessories with a soft brush (or cloth) dampened with soap and water.
3.1.2 PREPARING FOR EXTENDED STORAGE
CAUTION:
Thoroughly dry each item before placing them into the storage case.
To prepare the riflescope for extended storage: 1. Clean the riflescope and accessories. 2. Place all items into the storage case.
3.1.3 VIEW DEVICE INFORMATION
1. Hold button to show the menu of device. 2. Select Version menu item and press button. You can view the device
information such as version, and serial No.
3.1.4 UPGRADE DEVICE
Please get the upgrade package first. 1. Connect the device to your PC with USB cable. 2. Open the detected disk, copy the upgrade file and paste it to the root directory
of the device. 3. Disconnect the device from your PC. 4. Reboot the device. The device upgrades automatically. The upgrading process will be displayed in the main interface.
RATTLER TS USER MANUAL
23
3.1.5 RESTORE DEVICE
1. Hold button to show the menu of device.
2. Select Restore menu item and press defaults according to the prompt.
button to restore the device to
3.2 TROUBLESHOOTING
Table 3-1 lists the most common malfunctions that may occur with your equipment. Perform the tests, inspections, and corrective actions in the order they appear in the table.
This table does not list all the malfunctions that may occur with your device, or all of the tests, inspections, and corrective actions that may be necessary to fix them. If the equipment malfunction is not corrected by the suggested actions, or a problem occurs that is not listed in this table, please contact AGM Global Vision's Customer Support center or your retailer.
TABLE 3-1. TROUBLESHOOTING
MALFUNCTION The charge indicator flashes improperly. Device power indicator is off. The image of the riflescope is not clear. Wi-Fi is not found.
Capturing or recording fails.
The PC cannot identify the riflescope.
CORRECTIVE ACTION
Examine whether the device is charged with standard power adapter and the charging temperature is 0°C to 45°C (32°F to 113°F).
Examine whether the device is off-battery.
Perform the sight adjustment referring to section 2.1.
Examine whether the Wi-Fi function is turned on. If not, go to OSD menu and turn on Wi-Fi. Examine the items below: 1. Whether the device is connected to your PC and disabled the capturing and recording. 2. Whether the storage space is full. 3. Whether the device is low-battery. Examine the items below: 1. Whether the device is connected to your PC with standard USB cable. 2. If you use other USB cables, make sure the cable length is no longer than 1 m. 3. Whether the Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi.
24
AGM Global Vision
4 WARRANTY INFORMATION
4.1 WARRANTY INFORMATION AND
REGISTRATION
4.1.1 WARRANTY INFORMATION
This product is guaranteed to be free from manufacturing defects in material and workmanship under normal use for a period of three (3) years from the date of purchase. In the event that a defect covered by the warranty below occurs during the applicable period stated above, AGM Global Vision, at its discretion, will either repair or replace the product; such action on the part of AGM Global Vision shall be the full extent of AGM Global Vision's liability, and the Customer's sole and exclusive reparation. This warranty does not cover a product if it has been (a) used in ways other than its normal and customary manner; (b) subjected to misuse; (c) subjected to alterations, modifications or repairs by the Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as "close-out" merchandise or merchandise sold "as-is" by either AGM Global Vision or the AGM Global Vision dealer; or (e) merchandise that has been discontinued by the manufacturer and either parts or replacement units are not available due to reasons beyond the control of AGM Global Vision. AGM Global Vision shall not be responsible for any defects or damage that in AGM Global Vision's view are a result from the mishandling, abuse, misuse, improper storage or improper operation of the device, including use in conjunction with equipment that is electrically or mechanically incompatible with, or of inferior quality to, the product, as well as failure to maintain the environmental conditions specified by the manufacturer. This warranty is extended only to the original purchaser. Any breach of this warranty shall be enforced unless the customer notifies AGM Global Vision at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties written or oral, statutory, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby and expressly disclaimed.
4.1.2 LIMITATION OF LIABILITY
AGM Global Vision will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages, or liabilities arising out of the use of this product. Operation and use of the product are the sole responsibility of the Customer. AGM Global Vision's sole undertaking is limited to providing the products and services outlined herein in accordance with the terms and conditions of this Agreement. The provision of products sold and services performed by AGM Global Vision to the Customer shall not be interpreted, construed, or regarded, either expressly or implied, as being for the benefit of or creating any
RATTLER TS USER MANUAL
25
obligation toward any third party of legal entity outside AGM Global Vision and the Customer; AGM Global Vision's obligations under this Agreement extend solely to the Customer. AGM Global Vision's liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer's dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential damages, including, but not limited to, lost income, lost revenue, or lost profit, whether such damages were foreseeable or not at the time of purchase, and whether or not such damages arise out of a breach of warranty, a breach of agreement, negligence, strict liability, or any other theory of liability.
4.1.3 PRODUCT REGISTRATION
In order to validate the warranty on your product, the customer must complete and submit AGM Global Vision PRODUCT REGISTRATION FORM on our website (www.agmglobalvision.com/customer-support).
4.1.4 OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, the End-user (Customer) must notify the AGM Global Vision service department via e-mail. Send any requests to support@agmglobalvision.com to receive a Return Merchandise Authorization number (RMA). When returning any device, please take the product to your retailer, or send the product, postage paid and with a copy of your sales receipt, to AGM Global Vision's service center at the address listed above. All merchandise must be fully insured with the correct postage; AGM Global Vision will not be responsible for improper postage or merchandise that becomes lost or damaged during shipment. When sending product back, please clearly write the RMA# on the outside of the shipping box. Please include a letter that indicates your RMA#, the Customer's Name, a Return Address, reason for the return, contact information (valid telephone numbers and/or an e-mail address), and proof of purchase that will help us to establish the valid start date of the warranty. Product merchandise returns that do not have an RMA# listed may be refused, or a significant delay in processing may occur. Estimated Warranty service time is 10-20 business days. The End-user/Customer is responsible for postage to AGM Global Vision for warranty service. AGM Global Vision will cover return postage/shipping after warranty repair to the End-user/ Customer only if the product is covered by the aforementioned warranty. AGM Global Vision will return the product after warranty service by domestic UPS Ground service and/or domestic mail. Should any other requested, required, or international shipping methods be necessary, the postage/shipping fee will be the responsibility of the End-user/Customer.
For service, repair or replacement, please contact:
AGM Global Vision
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. 928.333.4300
support@agmglobalvision.com
www.agmglobalvision.com
26
AGM Global Vision
5 SPECIFICATIONS
5.1 SPECIFICATIONS
Detector Type Resolution Refresh Rate Response Waveband Lens (Focal Length) Aperture Field of View (H×V) Magnification Digital Zoom Observation Distance Eye Relief Monitor FFC (Flat Field Correction) Palettes Highest Temperature Spot Tracking Scene Mode Reticle Distance Measurement Boresight Adjustment Wi-Fi Hotspot Sleep Mode Picture In Picture Mode Built-in Storage Record Video Capture Snapshot CVBS Output Battery Type Battery Operating Time (Wi-Fi off) Battery Capacity Display Power Working Temperature Protection Level Drop Test Height Dimension (with mount) Weight (w/o batteries)
RATTLER TS25-384
RATTLER TS35-384
17 m VOx Uncooled Focal Plane Arrays
384×288
50 Hz
8 m to 14 m
25 mm
35 mm
F1.0
F1.0
14.9° × 11.2°
10.0° × 8.0°
1.5×
2.14×
1×, 2×, 4×, 8×
1×, 2×, 4×, 8×
Up to 882m
Up to 1235 m
45 mm
1024×768, 0.39 inch, OLED
Auto, Manual, External Correction
Black Hot, White Hot, Red Hot, Fusion
Yes
Jungle, Recognition 5 types, 3 colors, on/off Yes (Stadiometric Rangefinder)
Digital Controlled Yes Yes Yes
16 GB EMMC On-board video recording
Yes Yes (via USB) Two CR123A or RCR123A Lithium
Up to 4.5 hours continuous running (@25°C)
Yes 5 VDC/2 A, USB Type-C interface
-20°C to 55°C (-4°F to 131°F) IP67
1.5 m (4.9 feet) 226 × 62 × 59 mm (7.4 × 2.4 × 2.3 in)
610 g (0.9 lb)
All data subject to change without notice.
RATTLER TS USER MANUAL
27
AGM Global Vision MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 USA Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +44.292.255.0509 info@agmglobalvision.eu www.agmglobalvision.eu
AGMglobalvision.com
Adobe PDF Library 15.0 Adobe InDesign 14.0 (Windows)
