Si4133/Si4123/Si4122/Si4113/Si4112 Dual-Band RF Synthesizer with Integrated VCOS for Wireless Communications
Si4133/Si4123/Si4122/Si4113/Si4112 Dual-Band RF Synthesizer with Integrated VCOS for Wireless Communications
File info: application/pdf · 36 pages · 1.14MB
Si4133/Si4123/Si4122/Si4113/Si4112 Dual-Band RF Synthesizer with Integrated VCOS for Wireless Communications
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

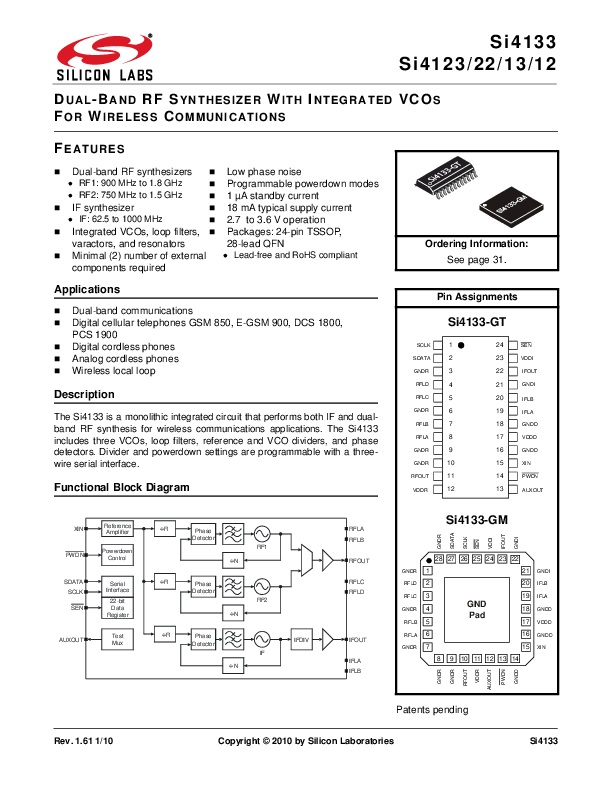

Si4133 Si4123/22/13/12 DUAL-BAND RF SYNTHESIZER WITH INTEGRATED VCOS FOR WIRELESS COMMUNICATIONS FEATURES Dual-band RF synthesizers Low phase noise RF1: 900 MHz to 1.8 GHz Programmable powerdown modes RF2: 750 MHz to 1.5 GHz 1 �A standby current IF synthesizer 18 mA typical supply current IF: 62.5 to 1000 MHz 2.7 to 3.6 V operation Integrated VCOs, loop filters, Packages: 24-pin TSSOP, varactors, and resonators 28-lead QFN Minimal (2) number of external Lead-free and RoHS compliant components required Applications Dual-band communications Digital cellular telephones GSM 850, E-GSM 900, DCS 1800, PCS 1900 Digital cordless phones Analog cordless phones Wireless local loop Description The Si4133 is a monolithic integrated circuit that performs both IF and dualband RF synthesis for wireless communications applications. The Si4133 includes three VCOs, loop filters, reference and VCO dividers, and phase detectors. Divider and powerdown settings are programmable with a threewire serial interface. Functional Block Diagram Ordering Information: See page 31. Pin Assignments Si4133-GT SCLK 1 SDATA 2 GNDR 3 RFLD 4 RFLC 5 GNDR 6 RFLB 7 RFLA 8 GNDR 9 GNDR 10 RFOUT 11 VDDR 12 24 SEN 23 VDDI 22 IFOUT 21 GNDI 20 IFLB 19 IFLA 18 GNDD 17 VDDD 16 GNDD 15 XIN 14 PWDN 13 AUXOUT XIN PWDN Reference Amplifier Powerdown Control SDATA SCLK SEN AUXOUT Serial Interface 22-bit Data Register Test Mux R Phase Detector RF1 N R Phase Detector RF2 N R Phase Detector IF N IFDIV RFLA RFLB RFOUT RFLC RFLD IFOUT IFLA IFLB Si4133-GM GNDR SDATA SCLK SEN VDDI IFOUT GNDI GNDR RFLD RFLC GNDR RFLB RFLA GNDR 28 27 26 25 24 23 22 1 21 GNDI 2 20 IFLB 3 19 IFLA 4 GND 18 GNDD Pad 5 17 VDDD 6 16 GNDD 7 15 XIN 8 9 10 11 12 13 14 GNDR GNDR RFOUT VDDR AUXOUT PWDN GNDD Rev. 1.61 1/10 Patents pending Copyright � 2010 by Silicon Laboratories Si4133 Si4133 2 Rev. 1.61 TABLE OF CONTENTS Si4133 Section Page 1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2. Typical Application Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.1. Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.2. Setting the VCO Center Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.3. Extended Frequency Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.4. Self-Tuning Algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.5. Output Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.6. PLL Loop Dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.7. RF and IF Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.8. Reference Frequency Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.9. Powerdown Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.10. Auxiliary Output (AUXOUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4. Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 5. Pin Descriptions: Si4133-GT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 6. Pin Descriptions: Si4133-GM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 7. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 8. Si4133 Derivative Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 9. Package Outline: Si4133-GT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 10. Package Outline: Si4133-GM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Rev. 1.61 3 Si4133 1. Electrical Specifications Table 1. Recommended Operating Conditions Parameter Symbol Test Condition Min Typ Max Unit Ambient Temperature TA �40 25 85 �C Supply Voltage VDD 2.7 3.0 3.6 V Supply Voltages Difference V (VDDR � VDDD), �0.3 -- 0.3 V (VDDI � VDDD) Note: All minimum and maximum specifications are guaranteed and apply across the recommended operating conditions. Typical values apply at nominal supply voltages and an operating temperature of 25 �C unless otherwise stated. Table 2. Absolute Maximum Ratings1,2 Parameter Symbol Value Unit DC Supply Voltage Input Current3 VDD �0.5 to 4.0 V IIN �10 mA Input Voltage3 VIN �0.3 to VDD+0.3 V Storage Temperature Range TSTG �55 to 150 oC Notes: 1. Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional operation should be restricted to the conditions as specified in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2. This device is a high performance RF integrated circuit with an ESD rating of < 2 kV. Handling and assembly of this device should only be done at ESD-protected workstations. 3. For signals SCLK, SDATA, SEN, PWDN and XIN. 4 Rev. 1.61 Si4133 Table 3. DC Characteristics (VDD = 2.7 to 3.6 V, TA = �40 to 85 �C) Parameter Total Supply Current1 RF1 Mode Supply Current1 RF2 Mode Supply Current1 IF Mode Supply Current1 Symbol Test Condition Min Typ RF1 and IF operating -- 18 -- 10 -- 9 -- 8 Standby Current PWDN = 0 High Level Input Voltage2 Low Level Input Voltage2 High Level Input Current2 Low Level Input Current2 High Level Output Voltage3 Low Level Output Voltage3 VIH VIL IIH VIH = 3.6 V, VDD = 3.6 V IIL VIL = 0 V, VDD= 3.6 V VOH IOH = �500 �A VOL IOH = 500 �A Notes: 1. RF1 = 1.6 GHz, RF2 = 1.1 GHz, IFOUT = 550 MHz, LPWR = 0. 2. For signals SCLK, SDATA, SEN, and PWDN. 3. For signal AUXOUT. -- 1 0.7 VDD -- -- -- �10 -- �10 -- VDD�0.4 -- -- -- Max 27 16 16 13 -- -- 0.3 VDD 10 Unit mA mA mA mA �A V V �A 10 �A -- V 0.4 V Rev. 1.61 5 Si4133 Table 4. Serial Interface Timing (VDD = 2.7 to 3.6 V, TA = �40 to 85 �C) Parameter1 Symbol Test Condition Min Typ Max Unit SCLK Cycle Time tclk Figure 1 40 -- -- ns SCLK Rise Time tr Figure 1 -- -- 50 ns SCLK Fall Time tf Figure 1 -- -- 50 ns SCLK High Time th Figure 1 10 -- -- ns SCLK Low Time tl Figure 1 10 -- -- ns SDATA Setup Time to SCLK2 tsu Figure 2 5 -- -- ns SDATA Hold Time from SCLK2 thold Figure 2 0 -- -- ns SEN to SCLKDelay Time2 ten1 Figure 2 10 -- -- ns SCLK to SENDelay Time2 ten2 Figure 2 12 -- -- ns SEN to SCLKDelay Time2 ten3 Figure 2 12 -- -- ns SEN Pulse Width tw Figure 2 10 -- -- ns Notes: 1. All timing is referenced to the 50% level of the waveforms unless otherwise noted. 2. Timing is not referenced to 50% level of the waveform. See Figure 2. SCLK 80% 50% 20% t t r f t t h l t clk Figure 1. SCLK Timing Diagram 6 Rev. 1.61 SCLK t t su hold Si4133 S DA TA SENB D17 D16 ten1 D15 A1 A0 t en2 ten3 tw Figure 2. Serial Interface Timing Diagram First bit clocked in Last bit clocked in DD DDD DD DDD DD DDD DDD A AA A 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 3 2 1 0 data field Figure 3. Serial Word Format addres s field Rev. 1.61 7 Si4133 Table 5. RF and IF Synthesizer Characteristics (VDD = 2.7 to 3.6 V, TA = �40 to 85 �C) Parameter1 Symbol Test Condition Min Typ Max Unit XIN Input Frequency Reference Amplifier Sensitivity fREF VREF 2 -- 26 MHz 0.5 -- VDD VPP +0.3 V Phase Detector Update Frequency RF1 VCO Center Frequency Range RF1 VCO Tuning Range2 f f= fREF/R 0.010 -- 1.0 MHz fCEN 947 -- 1720 MHz Extended frequency 1850 -- 2050 MHz operation RF2 VCO Center Frequency Range RF Tuning Range from fCEN IF VCO Center Frequency Range IFOUT Tuning Range fCEN fCEN Note: LEXT �10% with IFDIV 789 �5 526 62.5 -- 1429 MHz -- 5 % -- 952 MHz -- 1000 MHz IFOUT Tuning Range from fCEN RF1 VCO Pushing Note: LEXT �10% Open loop �5 -- 5 % -- 500 -- kHz/V RF2 VCO Pushing -- 400 -- kHz/V IF VCO Pushing -- 300 -- kHz/V RF1 VCO Pulling RF2 VCO Pulling IF VCO Pulling RF1 Phase Noise VSWR = 2:1, all phases, open loop 1 MHz offset -- 400 -- kHzPP -- 300 -- kHzPP -- 100 -- kHzPP -- �132 -- dBc/Hz RF1 Integrated Phase Error 10 Hz to 100 kHz -- 0.9 -- degrees rms RF2 Phase Noise 1 MHz offset -- �134 -- dBc/Hz RF2 Integrated Phase Error 10 Hz to 100 kHz -- 0.7 -- degrees rms IF Phase Noise 100 kHz offset -- �117 -- dBc/Hz IF Integrated Phase Error 100 Hz to 100 kHz -- 0.4 -- degrees rms Notes: 1. f = 200 kHz, RF1 = 1.6 GHz, RF2 = 1.2 GHz, IFOUT = 550 MHz, LPWR = 0, for all parameters unless otherwise noted. 2. Extended frequency operation only. VDD 3.0 V, QFN only, VCO Tuning Range fixed by directly shorting the RFLA and RFLB pins. See Application Note 41 for more details on the Si4133 extended frequency operation. 3. From powerup request (PWDN or SEN during a write of 1 to bits PDIB and PDRB in Register 2) to RF and IF synthesizers ready (settled to within 0.1 ppm frequency error). 4. From powerdown request (PWDN, or SENduring a write of 0 to bits PDIB and PDRB in Register 2) to supply current equal to IPWDN. 8 Rev. 1.61 Si4133 Table 5. RF and IF Synthesizer Characteristics (Continued) (VDD = 2.7 to 3.6 V, TA = �40 to 85 �C) Parameter1 Symbol Test Condition Min Typ Max Unit RF1 Harmonic Suppression Second Harmonic -- �26 �20 dBc RF2 Harmonic Suppression -- �26 �20 dBc IF Harmonic Suppression -- �26 �20 dBc RFOUT Power Level RFOUT Power Level2 ZL = 50 �8 �3 ZL = 50RF1 active, �14 �7 Extended frequency operation 1 dBm 1 dBm IFOUT Power Level ZL = 50 �8 �4 0 dBm RF1 Output Reference Spurs Offset = 200 kHz -- �65 -- dBc Offset = 400 kHz -- �71 -- dBc Offset = 600 kHz -- �75 -- dBc RF2 Output Reference Spurs Offset = 200 kHz -- �65 -- dBc Offset = 400 kHz -- �71 -- dBc Powerup Request to Synthesizer Ready3 tpup Time Powerdown Request to Synthesizer Off4 tpdn Time Offset = 600 kHz Figures 4, 5 Figures 4, 5 -- �75 -- dBc -- 40/f 50/f -- -- 100 ns Notes: 1. f = 200 kHz, RF1 = 1.6 GHz, RF2 = 1.2 GHz, IFOUT = 550 MHz, LPWR = 0, for all parameters unless otherwise noted. 2. Extended frequency operation only. VDD 3.0 V, QFN only, VCO Tuning Range fixed by directly shorting the RFLA and RFLB pins. See Application Note 41 for more details on the Si4133 extended frequency operation. 3. From powerup request (PWDN or SEN during a write of 1 to bits PDIB and PDRB in Register 2) to RF and IF synthesizers ready (settled to within 0.1 ppm frequency error). 4. From powerdown request (PWDN, or SENduring a write of 0 to bits PDIB and PDRB in Register 2) to supply current equal to IPWDN. Rev. 1.61 9 Si4133 IT IPWDN SEN RF and IF synthesizers settled to within 0.1 ppm frequency error. tpup tpdn SDATA PDIB = 1 PDRB = 1 PDIB = 0 PDRB = 0 Figure 4. Software Power Management Timing Diagram IT IPWDN RF and IF synthesizers settled to within 0.1 ppm frequency error. tpup tpdn PWDN Figure 5. Hardware Power Management Timing Diagram 10 Rev. 1.61 Si4133 TRACE A: Ch1 FM Main Time A Marker 1.424 kHz 174.04471 us Real 160 Hz /div 711.00 Hz 176 Hz Start: 0 s Stop: 399.6003996 us Figure 6. Typical Transient Response RF1 at 1.6 GHz with 200 kHz Phase Detector Update Frequency Rev. 1.61 11 Si4133 Phase Noise (dBc/Hz) -60 -70 -80 -90 -100 -110 -120 -130 -140 102 103 104 105 106 Offset Frequency (Hz) Figure 7. Typical RF1 Phase Noise at 1.6 GHz with 200 kHz Phase Detector Update Frequency Figure 8. Typical RF1 Spurious Response at 1.6 GHz with 200 kHz Phase Detector Update Frequency 12 Rev. 1.61 Phase Noise (dBc/Hz) Si4133 -60 -70 -80 -90 -100 -110 -120 -130 -140 102 103 104 105 106 Offset Frequency (Hz) Figure 9. Typical RF2 Phase Noise at 1.2 GHz with 200 kHz Phase Detector Update Frequency Figure 10. Typical RF2 Spurious Response at 1.2 GHz with 200 kHz Phase Detector Update Frequency Rev. 1.61 13 Si4133 Phase Noise (dBc/Hz) -70 -80 -90 -100 -110 -120 -130 -140 -150 102 103 104 105 106 Offset Frequency (Hz) Figure 11. Typical IF Phase Noise at 550 MHz with 200 kHz Phase Detector Update Frequency Figure 12. IF Spurious Response at 550 MHz with 200 kHz Phase Detector Update Frequency 14 Rev. 1.61 2. Typical Application Circuits Si4133 From System Controller Printed Trace Inductors 560 pF 2 nH RFOUT 0.022 F VDD VDD Si4133-GT 1 SCLK 2 SDATA 24 SEN 23 VDDI 30 * 0.022 F 3 GNDR 22 IFOUT 4 RFLD 21 GNDI 5 RFLC 20 IFLB 6 GNDR 19 IFLA 7 RFLB 8 RFLA 18 GNDD VDD 17 VDDD 0.022 F 9 GNDR 16 GNDD 10 GNDR 15 XIN 11 RFOUT 14 PWDN 12 VDDR 13 AUXOUT * Add 30 series resistance if using IF output divide values 2, 4, or 8. Figure 13. Si4133-GT From System Controller VDD 30 * 0.022F 28 27 26 25 24 23 22 40 nH 560 pF IFOUT Printed Trace Inductor or Chip Inductor 560 pF External Clock PWDN AUXOUT 40 nH 560 pF IFOUT GND R SDAT A SCLK SE N VDD I IFOU T GND I Printed Trace Inductors 1 GNDR 2 RFLD 3 RFLC 4 GNDR 5 RFLB 6 RFLA 7 GNDR Si4133-GM 21 GNDI 20 IFLB 19 IFLA 18 GNDD 17 VDDD 16 GNDD 15 XIN Printed Trace Inductor or Chip Inductor VDD 0.022 F 560 pF External Clock GNDR GNDR RFOUT VDDR AUXOUT PWDN GNDD PWDN 8 9 10 11 12 13 14 VDD 0.022F * Add 30 series resistance if using IF output divide values 2, 4, or 8. Figure 14. Si4133-GM 2 nH 560 pF AUXOUT RFOUT Rev. 1.61 15 Si4133 3. Functional Description The Si4133 is a monolithic integrated circuit that performs IF and dual-band RF synthesis for wireless communications applications. This integrated circuit (IC), with minimal external components, completes the frequency synthesis function necessary for RF communications systems. The Si4133 has three complete phase-locked loops (PLLs) with integrated voltage-controlled oscillators (VCOs). The low phase noise of the VCOs makes the Si4133 suitable for demanding wireless communications applications. Phase detectors, loop filters, and reference and output frequency dividers are integrated. The IC is programmed with a three-wire serial interface. Two PLLs are provided for dual-band RF synthesis. These RF PLLs are multiplexed so that only one PLL is active at a time, as determined by the setting of an internal register. The active PLL is the last one to be written. The center frequency of the VCO in each PLL is set by the value of an external inductance. Inaccuracies in these inductances are compensated for by the selftuning algorithm. The algorithm is run after powerup or after a change in the programmed output frequency. Each RF PLL, when active, can adjust the RF output frequency by �5% of its VCO's center frequency. Because the two VCOs can be set to have widely separated center frequencies, the RF output can be programmed to service two widely separated frequency bands by programming the corresponding N-Divider. One RF VCO is optimized to have its center frequency set between 947 MHz and 1.72 GHz, while the second RF VCO is optimized to have its center frequency set between 789 MHz and 1.429 GHz. One PLL is provided for IF frequency synthesis. The center frequency of this circuit's VCO is set by the connection of an external inductance. The PLL can adjust the IF output frequency by �5% of the VCO center frequency. Inaccuracies in the value of the external inductance are compensated for by the Si4133's proprietary self-tuning algorithm. This algorithm is initiated each time the PLL is powered-up (by either the PWDN pin or by software) and/or each time a new output frequency is programmed. The IF VCO can have its center frequency set as low as 526 MHz and as high as 952 MHz. An IF output divider divides down the IF output frequencies, if needed. The divider is programmable and is capable of dividing by 1, 2, 4, or 8. The unique PLL architecture used in the Si4133 produces settling (lock) times that are comparable in speed to fractional-N architectures without the high phase noise or spurious modulation effects often associated with those designs. 3.1. Serial Interface A timing diagram for the serial interface is shown in Figure 2 on page 7. Figure 3 on page 7 shows the format of the serial word. The Si4133 is programmed serially with 22-bit words comprised of 18-bit data fields and 4-bit address fields. When the serial interface is enabled (i.e., when SEN is low) data and address bits on the SDATA pin are clocked into an internal shift register on the rising edge of SCLK. Data in the shift register is then transferred on the rising edge of SEN into the internal data register addressed in the address field. The serial interface is disabled when SEN is high. Table 12 on page 21 summarizes the data register functions and addresses. The internal shift register ignores leading bits before the 22 required bits. 3.2. Setting the VCO Center Frequencies The PLLs can adjust the IF and RF output frequencies �5% of the center frequencies of their VCOs. Each center frequency is established by the value of an external inductance connected to the respective VCO. Manufacturing tolerances of �10% for the external inductances are acceptable. The Si4133 compensates for inaccuracies in each inductance by executing a selftuning algorithm after PLL powerup or after a change in the programmed output frequency. Because the total tank inductance is in the low nH range, the inductance of the package must be considered when determining the correct external inductance. The total inductance (LTOT) presented to each VCO is the sum of the external inductance (LEXT) and the package inductance (LPKG). Each VCO has a nominal capacitance (CNOM) in parallel with the total inductance, and the center frequency is as follows: fCEN = -----------------------1-----------------------2 LTOT CNOM or fCEN = -----------------------------------1------------------------------------2 LPKG + LEXT CNOM Tables 6 and 7 summarize the characteristics of each VCO. 16 Rev. 1.61 Si4133 Table 6. Si4133-GT VCO Characteristics VCO fCEN Range CNOM LPKG LEXT Range (MHz) (pF) (nH) (nH) Min Max Min Max RF1 947 1720 4.3 2.0 0.0 4.6 RF2 789 1429 4.8 2.3 0.3 6.2 IF 526 952 6.5 2.1 2.2 12.0 Table 7. Si4133-GM VCO Characteristics VCO fCEN Range CNOM LPKG LEXT Range (MHz) (pF) (nH) (nH) the correct total inductance to the VCO. In manufacturing, the external inductance can vary �10% of its nominal value and the Si4133 corrects for the variation with the self-tuning algorithm. For more information on designing the external trace inductors, refer to Application Note 31: Inductor Design for the Si41xx Synthesizer Family. 3.3. Extended Frequency Operation The Si4133 may operate at an extended frequency range of 1850 MHz to 2050 MHz by connecting the RFLA and RFLB pins directly. For information on configuring the Si4133 for extended frequency operation, refer to Application Note 41: Extended Frequency Operation of Silicon Laboratories Frequency Synthesizers. 3.4. Self-Tuning Algorithm Min Max Min Max RF1 947 1720 4.3 1.5 0.5 5.1 RF2 789 1429 4.8 1.5 1.1 7.0 IF 526 952 6.5 1.6 2.7 12.5 L PKG 2 L E XT L PKG 2 Figure 15. External Inductance Connection As a design example, consider that the goal is to synthesize frequencies in a 25 MHz band between 1120 and 1145 MHz using the Si4133-GT. The center frequency should be defined as midway between the two extremes, or 1132.5 MHz. The PLL can adjust the VCO output frequency �5% of the center frequency, or �56.6 MHz of 1132.5 MHz (i.e., from approximately 1076 to 1189 MHz). The RF2 VCO has a CNOM of 4.8 pF. A 4.1 nH inductance in parallel with this capacitance yields the required center frequency. An external inductance of 1.8 nH should be connected between RFLC and RFLD as shown in Figure 15. This, in addition to 2.3 nH of package inductance, presents The self-tuning algorithm is initiated immediately after powerup of a PLL or, if the PLL is already powered, after a change in its programmed output frequency. This algorithm attempts to tune the VCO so that its freerunning frequency is near the required output frequency. In doing so, the algorithm compensates for manufacturing tolerance errors in the value of the external inductance connected to the VCO. It also reduces the frequency error for which the PLL must correct to get the precise required output frequency. The self-tuning algorithm leaves the VCO oscillating at a frequency in error by somewhat less than 1% of the desired output frequency. After self-tuning, the PLL controls the VCO oscillation frequency. The PLL completes frequency locking, eliminating any remaining frequency error. From then on, it maintains frequency-lock, compensating for effects of temperature and supply voltage variations. The Si4133's self-tuning algorithm compensates for component value errors at any temperature within the specified temperature range. However, the ability of the PLL to compensate for drift in component values that occur after self-tuning is limited. For external inductances with temperature coefficients approximately �150 ppm/oC, the PLL can maintain lock for changes in temperature of approximately �30 oC. Applications where the PLL is regularly powered down or the frequency is periodically reprogrammed minimize or eliminate the potential effects of temperature drift because the VCO is re-tuned in either case. In applications where the ambient temperature can drift substantially after self-tuning, it might be necessary to monitor the lock-detect bar (LDETB) signal on the AUXOUT pin to determine whether a PLL is about to run out of locking capability. See "3.10. Auxiliary Output Rev. 1.61 17 Si4133 (AUXOUT)" for how to select LDETB. The LDETB signal is low after self-tuning is completed but rises when the IF or RF PLL nears the limit of its compensation range. LDETB is also high when either PLL is executing the self-tuning algorithm. The output frequency is still locked when LDETB goes high, but the PLL eventually loses lock if the temperature continues to drift in the same direction. Therefore, if LDETB goes high both the IF and RF PLLs should be re-tuned promptly by initiating the self-tuning algorithm. 3.5. Output Frequencies setting the bits to 11. The values of the available gains, relative to the highest gain, are as follows: Table 8. Gain Values (Register 1) KP Bits 00 01 10 11 Relative P.D. Gain 1 1/2 1/4 1/8 The IF and RF output frequencies are set by programming the R- and N-Divider registers. Each PLL has R and N registers so that each can be programmed independently. Programming either the R- or N-Divider register for RF1 or RF2 automatically selects the associated output. The reference frequency on the XIN pin is divided by R and this signal is input to the PLL's phase detector. The other input to the phase detector is the PLL's VCO output frequency divided by N. The PLL acts to make these frequencies equal. That is, after an initial transient: The gain value bits is automatically set with the Auto KP bit (bit 2) in the Main Configuration register to 1. In setting this bit, the gain values are optimized for a given value of N. In general, a higher phase detector gain decreases in-band phase noise and increase the speed of the PLL transient until the point at which stability begins to be compromised. The optimal gain depends on N. Table 9 lists recommended settings for different values of N. These are the settings when the Auto KP bit is set. Table 9. Optimal KP Settings f--O----U----TN = f--R----E----FR or fOUT = N--R fREF The R values are set by programming the RF1 RDivider register (Register 6), the RF2 R-Divider register (Register 7) and the IF R-Divider register (Register 8). The N values are set by programming the RF1 NDivider register (Register 3), the RF2 N-Divider register (Register 4), and the IF N-Divider register (Register 5). Each N-Divider is implemented as a conventional high speed divider. That is, it consists of a dual-modulus prescaler, a swallow counter, and a lower speed synchronous counter. However, the control of these sub-circuits is automatically handled. Only the appropriate N value should be programmed. 3.6. PLL Loop Dynamics The transient response for each PLL is determined by its phase detector update rate f (equal to fREF/R) and the phase detector gain programmed for each RF1, RF2, or IF synthesizer. See Register 1. Four different settings for the phase detector gain are available for each PLL. The highest gain is programmed by setting the two phase detector gain bits to 00, and the lowest by RF1 N KP1<1:0> 2047 00 2048 to 4095 00 4096 to 8191 00 8192 to 16383 01 16384 to 32767 10 32768 11 RF2 KP2<3:2> 00 00 01 10 11 11 IF KPI<5:4> 00 01 10 11 11 11 The VCO gain and loop filter characteristics are not programmable. The settling time for the PLL is directly proportional to its phase detector update period T (T equals 1/f). A typical transient response is shown in Figure 6 on page 11. During the first 13 update periods the Si4133 executes the self-tuning algorithm. From then on the PLL controls the output frequency. Because of the unique architecture of the Si4133 PLLs, the time required to settle the output frequency to 0.1 ppm error is automatically 25 update periods. The total time after powerup or a change in programmed frequency until the synthesized frequency is settled--including time for self-tuning--is approximately 40 update periods. Note: The settling time analysis holds for RF1 f 500 kHz. For RF1 f > 500 kHz, the settling time is larger. 18 Rev. 1.61 Si4133 3.7. RF and IF Outputs The RFOUT and IFOUT pins are driven by amplifiers that buffer the RF VCOs and IF VCO respectively. The RF output amplifier receives its input from the RF1 or RF2 VCO, depending on which R- or N-Divider register is written last. For example, programming the N-Divider register for RF1 automatically selects the RF1 VCO output. Figures 13 and 14 show application diagrams for the Si4133. The RF output signal must be ac coupled to its load through a capacitor. An external inductance between the RFOUT pin and the ac coupling capacitor is required as part of an output matching network to maximize power delivered to the load. This 2 nH inductance can be realized with a PC board trace. The network is made to provide an adequate match to an external 50 load for both the RF1 and RF2 frequency bands. The matching network also filters the output signal to reduce harmonic distortion. The IFOUT pin must also be ac coupled to its load through a capacitor. The IF output level is dependent upon the load. Figure 18 on page 20 displays the output level versus load resistance for a variety of output frequencies. For resistive loads greater than 500 the output level saturates and the bias currents in the IF output amplifier are higher than required. The LPWR bit in the Main Configuration register (Register 0) can be set to 1 to reduce the bias currents and therefore reduce the power dissipated by the IF amplifier. For loads less than 500 LPWR should be set to 0 to maximize the output level. For IF frequencies greater than 500 MHz, a matching network is required to drive a 50 load. See Figure 16. The value of LMATCH can be determined from Table 10. Table 10. LMATCH Values Frequency 500�600 MHz 600�800 MHz 800 MHz�1 GHz LMATCH 40 nH 27 nH 18 nH For frequencies less than 500 MHz, the IF output buffer can directly drive a 200 resistive load or higher. For resistive loads greater than 500 (f < 500 MHz) the LPWR bit can be set to reduce the power consumed by the IF output buffer. See Figure 17. IFOUT >500 pF >200 Figure 17. IF Frequencies < 500 MHz 3.8. Reference Frequency Amplifier The Si4133 provides a reference frequency amplifier. If the driving signal has CMOS levels it can be connected directly to the XIN pin. Otherwise, the reference frequency signal should be ac coupled to the XIN pin through a 560 pF capacitor. 3.9. Powerdown Modes Table 11 summarizes the powerdown functionality. The Si4133 can be powered down by taking the PWDN pin low or by setting bits in the Powerdown register (Register 2). When the PWDN pin is low, the Si4133 is powered down regardless of the Powerdown register settings. When the PWDN pin is high, power management is in control of the Powerdown register bits. The IF and RF sections of the Si4133 circuitry can be individually powered down by setting the Powerdown register bits PDIB and PDRB low, respectively. The reference frequency amplifier is also powered up if the PDRB and PDIB bits are high. Also, setting the AUTOPDB bit to 1 in the Main Configuration register (Register 0) is equivalent to setting both bits in the Powerdown register to 1. The serial interface remains available and can be written in all powerdown modes. IFOUT LMATCH 560 pF 50 Figure 16. IF Frequencies > 500 MHz Rev. 1.61 19 Si4133 3.10. Auxiliary Output (AUXOUT) The signal appearing on AUXOUT is selected by setting the AUXSEL bits in the Main Configuration register (Register 0). The LDETB signal can be selected by setting the AUXSEL bits to 11. This signal can be used to indicate that the IF or RF PLL is going to lose lock because of excessive ambient temperature drift and should be re-tuned. The LDETB signal indicates a logical OR result if both IF and RF are simultaneously generating a signal. Table 11. Powerdown Configuration PWDN Pin PWDN = 0 AUTOPDB X 0 PDIB X 0 PDRB IF Circuitry RF Circuitry X OFF OFF 0 OFF OFF 0 PWDN = 1 0 0 1 0 1 OFF ON 1 0 ON OFF 1 1 ON ON x x ON ON Output Voltage (mVrms) 450 400 350 LPWR=0 300 LPWR=1 250 200 150 100 50 0 0 200 400 600 800 1000 1200 Load Resistance () Figure 18. Typical IF Output Voltage vs. Load Resistance at 550 MHz 20 Rev. 1.61 Si4133 4. Control Registers Table 12. Register Summary Register Name Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 Main 0 0 0 0 AUXSEL IFDIV 0 0 0 0 LPWR 0 AUTO AUTO RF 0 Configura- [1:0] [1:0] PDB KP PWR tion 1 Phase Detector Gain 0 0 0 0 0 0 0 0 0 0 0 0 KPI[1:0] KP2[1:0] KP1[1:0] 2 Powerdown 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 PDIB PDRB 3 RF1 N-Divider 4 RF2 0 N-Divider 5 IF N-Divider 0 0 6 RF1 000 0 0 R-Divider 7 RF2 000 0 0 R-Divider 8 IF R-Divider 0 0 0 0 0 9 Reserved NRF1[17:0] NRF2[16:0] NIF[15:0] RRF1[12:0] RRF2[12:0] RIF[12:0] . . . 15 Reserved Note: Registers 9�15 are reserved. Writes to these registers might result in unpredictable behavior. Registers not listed here are reserved and should not be written. Rev. 1.61 21 Si4133 Register 0. Main Configuration Address Field = A[3:0] = 0000 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 0 0 AUXSEL IFDIV [1:0] [1:0] 0 0 0 0 LPWR 0 AUTO AUTO RF 0 PDB KP PWR Bit 17:14 13:12 11:10 9:6 5 4 3 2 1 0 Name Reserved AUXSEL[1:0] IFDIV[1:0] Reserved LPWR Reserved AUTOPDB AUTOKP RFPWR Reserved Function Program to zero. Auxiliary Output Pin Definition. 00 = Reserved. 01 = Force output low. 10 = Reserved. 11 = Lock Detect--LDETB. IF Output Divider. 00 = IFOUT = IFVCO Frequency 01 = IFOUT = IFVCO Frequency/2 10 = IFOUT = IFVCO Frequency/4 11 = IFOUT = IFVCO Frequency/8 Program to zero. Output Power-Level Settings for IF Synthesizer Circuit. 0 = RLOAD 500 --normal power mode. 1 = RLOAD 500 --low power mode. Program to zero. Auto Powerdown. 0 = Software powerdown is controlled by Register 2. 1 = Equivalent to setting all bits in Register 2 = 1. Auto KP Setting. 0 = KPs are controlled by Register 1. 1 = KPs are set according to Table 9 on page 18. Program to zero. (Used for extended frequency operation. See AN41 for more information.) Program to zero. 22 Rev. 1.61 Si4133 Register 1. Phase Detector Gain Address Field (A[3:0]) = 0001 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 0 0 0 0 0 0 0 0 0 0 KPI[1:0] KP2[1:0] KP1[1:0] Bit Name Function 17:6 Reserved Program to zero. 5:4 KPI[1:0] IF Phase Detector Gain Constant.* N Value KPI <2048 = 00 2048�4095 = 01 4096�8191 = 10 >8191 = 11 3:2 KP2[1:0] RF2 Phase Detector Gain Constant.* N Value KP2 <4096 = 00 4096�8191 = 01 8192�16383 = 10 >16383 = 11 1:0 KP1[1:0] RF1 Phase Detector Gain Constant.* N Value KP1 <8192 = 00 8192�16383 = 01 16384�32767 = 10 >32767 = 11 *Note: When AUTOKP = 1, these bits do not need to be programmed. When AUTOKP = 0, use these recommended values for programming Phase Detector Gain. Rev. 1.61 23 Si4133 Register 2. Powerdown Address Field (A[3:0]) = 0010 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 Name 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 D2 D1 D0 0 PDIB PDRB Bit Name Function 17:2 Reserved Program to zero. 1 PDIB Powerdown IF Synthesizer. 0 = IF synthesizer powered down. 1 = IF synthesizer on. 0 PDRB Powerdown RF Synthesizer. 0 = RF synthesizer powered down. 1 = RF synthesizer on. Note: Enabling any PLL with PDIB or PDRB automatically powers on the reference amplifier. Register 3. RF1 N-Divider Address Field (A[3:0]) = 0011 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name NRF1[17:0] Bit 17:0 Name NRF1[17:0] N-Divider for RF1 Synthesizer. Function Register 4. RF2 N-Divider Address Field = A[3:0] = 0100 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 NRF2[16:0] Bit Name Function 17 Reserved Program to zero. 16:0 NRF2[16:0] N-Divider for RF2 Synthesizer. 24 Rev. 1.61 Si4133 Register 5. IF N-Divider Address Field (A[3:0]) = 0101 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 NIF[15:0] Bit 17:16 15:0 Name Reserved NIF[15:0] Function Program to zero. N-Divider for IF Synthesizer. Register 6. RF1 R-Divider Address Field (A[3:0]) = 0110 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 0 0 0 RRF1[12:0] 17:13 12:0 Name Reserved RRF1[12:0] Function Program to zero. R-Divider for RF1 Synthesizer. RRF1 can be any value from 7 to 8189 if KP1 = 00 8 to 8189 if KP1 = 01 10 to 8189 if KP1 = 10 14 to 8189 if KP1 = 11 Register 7. RF2 R-Divider Address Field (A[3:0]) = 0111 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 0 0 0 RRF2[12:0] Bit 17:13 12:0 Name Reserved RRF2[12:0] Function Program to zero. R-Divider for RF2 Synthesizer. RRF2 can be any value from 7 to 8189 if KP2 = 00 8 to 8189 if KP2 = 01 10 to 8189 if KP2 = 10 14 to 8189 if KP2 = 11 Rev. 1.61 25 Si4133 Register 8. IF R-Divider Address Field (A[3:0]) = 1000 Bit D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Name 0 0 0 0 0 RIF[12:0] Bit 17:13 12:0 Name Reserved RIF[12:0] Function Program to zero. R-Divider for IF Synthesizer. RIF can be any value from 7 to 8189 if KP1 = 00 8 to 8189 if KP1 = 01 10 to 8189 if KP1 = 10 14 to 8189 if KP1 = 11 26 Rev. 1.61 5. Pin Descriptions: Si4133-GT Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Name SCLK SDATA GNDR RFLD RFLC GNDR RFLB RFLA GNDR GNDR RFOUT VDDR AUXOUT PWDN XIN GNDD VDDD GNDD IFLA IFLB GNDI IFOUT VDDI SEN SCLK 1 SDATA 2 GNDR 3 RFLD 4 RFLC 5 GNDR 6 RFLB 7 RFLA 8 GNDR 9 GNDR 10 RFOUT 11 VDDR 12 24 SEN 23 VDDI 22 IFOUT 21 GNDI 20 IFLB 19 IFLA 18 GNDD 17 VDDD 16 GNDD 15 XIN 14 PWDN 13 AUXOUT Description Serial clock input Serial data input Common ground for RF analog circuitry Pins for inductor connection to RF2 VCO Pins for inductor connection to RF2 VCO Common ground for RF analog circuitry Pins for inductor connection to RF1 VCO Pins for inductor connection to RF1 VCO Common ground for RF analog circuitry Common ground for RF analog circuitry Radio frequency (RF) output of the selected RF VCO Supply voltage for the RF analog circuitry Auxiliary output Powerdown input pin Reference frequency amplifier input Common ground for digital circuitry Supply voltage for digital circuitry Common ground for digital circuitry Pins for inductor connection to IF VCO Pins for inductor connection to IF VCO Common ground for IF analog circuitry Intermediate frequency (IF) output of the IF VCO Supply voltage for IF analog circuitry Enable serial port input Si4133 Rev. 1.61 27 Si4133 Table 13. Pin Descriptions for Si4133 Derivatives--TSSOP Pin Number Si4133 Si4123 Si4122 Si4113 Si4112 1 SCLK SCLK SCLK SCLK SCLK 2 SDATA SDATA SDATA SDATA SDATA 3 GNDR GNDR GNDR GNDR GNDD 4 RFLD GNDR RFLD RFLD GNDD 5 RFLC GNDR RFLC RFLC GNDD 6 GNDR GNDR GNDR GNDR GNDD 7 RFLB RFLB GNDR RFLB GNDD 8 RFLA RFLA GNDR RFLA GNDD 9 GNDR GNDR GNDR GNDR GNDD 10 GNDR GNDR GNDR GNDR GNDD 11 RFOUT RFOUT RFOUT RFOUT GNDD 12 VDDR VDDR VDDR VDDR VDDD 13 AUXOUT AUXOUT AUXOUT AUXOUT AUXOUT 14 PWDN PWDN PWDN PWDN PWDN 15 XIN XIN XIN XIN XIN 16 GNDD GNDD GNDD GNDD GNDD 17 VDDD VDDD VDDD VDDD VDDD 18 GNDD GNDD GNDD GNDD GNDD 19 IFLA IFLA IFLA GNDD IFLA 20 IFLB IFLB IFLB GNDD IFLB 21 GNDI GNDI GNDI GNDD GNDI 22 IFOUT IFOUT IFOUT GNDD IFOUT 23 VDDI VDDI VDDI VDDD VDDI 24 SEN SEN SEN SEN SEN 28 Rev. 1.61 6. Pin Descriptions: Si4133-GM GNDR SDATA SCLK SEN VDDI IFOUT GNDI GNDR RFLD RFLC GNDR RFLB RFLA GNDR 28 27 26 25 24 23 22 1 21 GNDI 2 20 IFLB 3 19 IFLA 4 GND 18 GNDD Pad 5 17 VDDD 6 16 GNDD 7 15 XIN 8 9 10 11 12 13 14 GNDR GNDR RFOUT VDDR AUXOUT PWDN GNDD Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Name GNDR RFLD RFLC GNDR RFLB RFLA GNDR GNDR GNDR RFOUT VDDR AUXOUT PWDN GNDD XIN GNDD VDDD GNDD IFLA IFLB GNDI GNDI IFOUT VDDI SEN SCLK SDATA GNDR Description Common ground for RF analog circuitry Pins for inductor connection to RF2 VCO Pins for inductor connection to RF2 VCO Common ground for RF analog circuitry Pins for inductor connection to RF1 VCO Pins for inductor connection to RF1 VCO Common ground for RF analog circuitry Common ground for RF analog circuitry Common ground for RF analog circuitry Radio frequency (RF) output of the selected RF VCO Supply voltage for the RF analog circuitry Auxiliary output Powerdown input pin Common ground for digital circuitry Reference frequency amplifier input Common ground for digital circuitry Supply voltage for digital circuitry Common ground for digital circuitry Pins for inductor connection to IF VCO Pins for inductor connection to IF VCO Common ground for IF analog circuitry Common ground for IF analog circuitry Intermediate frequency (IF) output of the IF VCO Supply voltage for IF analog circuitry Enable serial port input Serial clock input Serial data input Common ground for RF analog circuitry Rev. 1.61 Si4133 29 Si4133 Table 14. Pin Descriptions for Si4133 Derivatives--QFN Pin Number Si4133 Si4123 Si4122 Si4113 Si4112 1 GNDR GNDR GNDR GNDR GNDD 2 RFLD GNDR RFLD RFLD GNDD 3 RFLC GNDR RFLC RFLC GNDD 4 GNDR GNDR GNDR GNDR GNDD 5 RFLB RFLB GNDR RFLB GNDD 6 RFLA RFLA GNDR RFLA GNDD 7 GNDR GNDR GNDR GNDR GNDD 8 GNDR GNDR GNDR GNDR GNDD 9 GNDR GNDR GNDR GNDR GNDD 10 RFOUT RFOUT RFOUT RFOUT GNDD 11 VDDR VDDR VDDR VDDR VDDD 12 AUXOUT AUXOUT AUXOUT AUXOUT AUXOUT 13 PWDN PWDN PWDN PWDN PWDN 14 GNDD GNDD GNDD GNDD GNDD 15 XIN XIN XIN XIN XIN 16 GNDD GNDD GNDD GNDD GNDD 17 VDDD VDDD VDDD VDDD VDDD 18 GNDD GNDD GNDD GNDD GNDD 19 IFLA IFLA IFLA GNDD IFLA 20 IFLB IFLB IFLB GNDD IFLB 21 GNDI GNDI GNDI GNDD GNDI 22 GNDI GNDI GNDI GNDD GNDI 23 IFOUT IFOUT IFOUT GNDD IFOUT 24 VDDI VDDI VDDI VDDD VDDI 25 SEN SEN SEN SEN SEN 26 SCLK SCLK SCLK SCLK SCLK 27 SDATA SDATA SDATA SDATA SDATA 28 GNDR GNDR GNDR GNDR GNDD 30 Rev. 1.61 7. Ordering Guide Si4133 Ordering Part Number Si4133-D-GM Si4133-D-GT Si4123-D-GM Si4123-D-GT Si4122-D-GM Si4122-D-GT Si4113-D-GM Si4113-D-GT Si4113-D-ZT1 Si4112-D-GM Si4112-D-GT Description RF1/RF2/IF OUT, Lead Free, QFN RF1/RF2/IF OUT, Lead Free, TSSOP RF1/IF OUT, Lead Free, QFN RF1/IF OUT, Lead Free, TSSOP RF2/IF OUT, Lead Free, QFN RF2/IF OUT, Lead Free, TSSOP RF1/RF2 OUT, Lead Free, QFN RF1/RF2 OUT, Lead Free, TSSOP RF1/RF2 OUT, NiPd, TSSOP IF OUT, Lead Free, QFN IF OUT, Lead Free, TSSOP Operating Temperature �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C �40 to 85 �C 8. Si4133 Derivative Devices The Si4133 performs both IF and dual-band RF frequency synthesis. The Si4112, Si4113, Si4122, and the Si4123 are derivatives of this device. Table 15 outlines which synthesizers each derivative device features and the pins and registers that coincide with each synthesizer. Table 15. Si4133 Derivatives Name Si4112 Synthesizer IF Pins IFLA, IFLB Si4113 RF1, RF2 RFLA, RFLB, RFLC, RFLD Si4122 Si4123 Si4133 RF2, IF RF1, IF RF1, RF2, IF RFLC, RFLD, IFLA, IFLB RFLA, RFLB, IFLA, IFLB RFLA, RFLB, RFLC, RFLD, IFLA, IFLB Registers NIF, RIF, PDIB, IFDIV, LPWR, AUTOPDB = 0, PDRB = 0 NRF1, NRF2, RRF1, RRF2, PDRB, AUTOPDB = 0, PDIB = 0 NRF2, RRF2, PDRB, NIF, RIF, PDIB, IFDIV, LPWR NRF1, RRF1, PDRB, NIF, RIF, PDIB, IFDIV, LPWR NRF1, NRF2, RRF1, RRF2, PDRB, NIF, RIF, PDIB, IFDIV, LPWR Rev. 1.61 31 Si4133 9. Package Outline: Si4133-GT Figure 19 illustrates the package details for the Si4133-GT. Table 16 lists the values for the dimensions shown in the illustration. 24 B E1 E ddd C B A 1 2 3 e 1 L A D Detail G A c C b bbb M C B A A1 See Detail G Figure 19. 24-Pin Thin Shrink Small Outline Package (TSSOP) Table 16. Package Diagram Dimensions Symbol A A1 b c D e E E1 L 1 bbb ddd Millimeters Min Nom Max -- -- 1.20 0.05 -- 0.15 0.19 -- 0.30 0.09 -- 0.20 7.70 7.80 7.90 0.65 BSC 6.40 BSC 4.30 4.40 4.50 0.45 0.60 0.75 0� -- 8� 0.10 0.20 32 Rev. 1.61 Si4133 10. Package Outline: Si4133-GM Figure 20 illustrates the package details for the Si4133-GM. Table 17 lists the values for the dimensions shown in the illustration. Figure 20. 28-Pin Quad Flat No-Lead (QFN) Table 17. Package Dimensions Symbol Millimeters Symbol Millimeters A A1 b D, E e D2, E2 Min Nom Max 0.80 0.85 0.90 0.00 0.01 0.05 0.18 0.23 0.30 5.00 BSC 0.50 BSC 2.55 2.70 2.85 Min Nom Max L 0.50 0.60 0.70 aaa -- -- 0.10 bbb -- -- 0.10 ccc -- -- 0.05 ddd -- -- 0.10 -- -- 12 Notes: 1. Dimensioning and tolerancing per ANSI Y14.5M-1994. 2. This package outline conforms to JEDEC MS-220, variant VHHD-1. 3. Recommended card reflow profile is per the JEDEC/IPC J-STD-020B specification for Small Body Components. Rev. 1.61 33 Si4133 DOCUMENT CHANGE LIST Revision 1.4 to Revision 1.5 "7.Ordering Guide" on page 31 updated. Changed MLP to QFN (same package, generic name) Revision 1.5 to Revision 1.6 Updated "7.Ordering Guide" on page 31. Revision 1.6 to Revision 1.61 Updated contact information. 34 Rev. 1.61 NOTES: Si4133 Rev. 1.61 35 Simplicity Studio One-click access to MCU tools, documentation, software, source code libraries & more. Available for Windows, Mac and Linux! www.silabs.com/simplicity MCU Portfolio www.silabs.com/mcu SW/HW www.silabs.com/simplicity Quality www.silabs.com/quality Support and Community community.silabs.com Disclaimer Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons. Trademark Information Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS�, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations thereof, "the world's most energy friendly microcontrollers", Ember�, EZLink�, EZMac�, EZRadio�, EZRadioPRO�, DSPLL�, ISOmodem �, Precision32�, ProSLIC�, SiPHY�, USBXpress� and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders. Silicon Laboratories Inc. 400 West Cesar Chavez Austin, TX 78701 USA http://www.silabs.com
