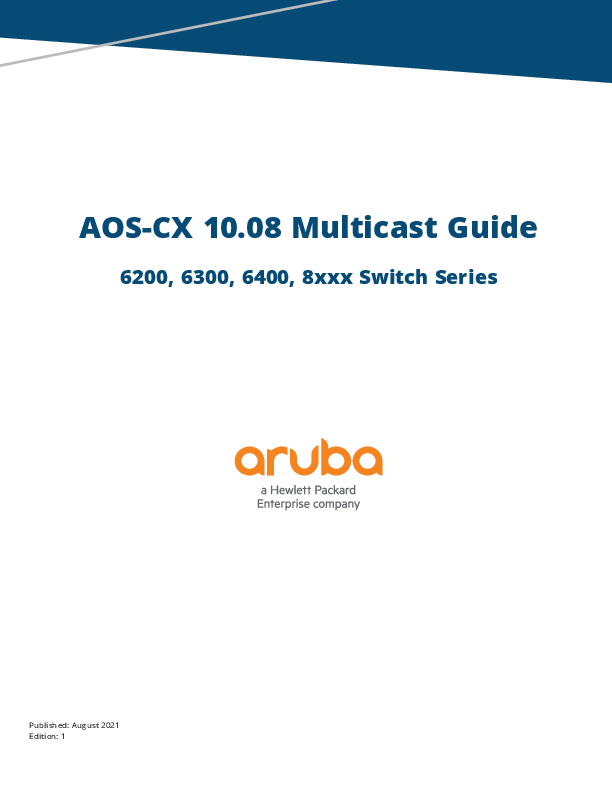

AOS-CX 10.08 Multicast Guide
6200, 6300, 6400, 8xxx Switch Series
Published: August 2021 Edition: 1
Copyright Information � Copyright 2021 Hewlett Packard Enterprise Development LP. Open Source Code This product includes code licensed under the GNU General Public License, the GNU Lesser General Public License, and/or certain other open source licenses. A complete machine-readable copy of the source code corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company. To obtain such source code, send a check or money order in the amount of US $10.00 to: Hewlett Packard Enterprise Company 6280 America Center Drive San Jose, CA 95002 USA
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use, or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license. Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise website.
|2
Contents
Contents
About this document
Applicable products Latest version available online Command syntax notation conventions About the examples Identifying switch ports and interfaces Identifying modular switch components
Multicast overview
Multicast protocols Multicast addresses Sub-interface recommendations and limitations
Internet Group Management Protocol (IGMP)
IGMP defaults, protocols, and supported configuration How the IGMP protocol works Considerations when configuring IGMP IGMP configuration task list Enabling or disabling IGMP Specifying the IGMP version Configuring IGMP static groups Configuring IGMP query and response parameters Disabling IGMP Viewing IGMP information IGMP configuration example IGMP commands
ip igmp ip igmp apply access-list ip igmp last-member-query-interval ip igmp querier ip igmp querier interval ip igmp querier query-max-response-time ip igmp robustness ip igmp router-alert-check ip igmp static-group ip igmp version ip igmp version strict no ip igmp show ip igmp show ip igmp counters show ip igmp group show ip igmp groups show ip igmp interface show ip igmp interface counters show ip igmp interface group show ip igmp interface groups
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
Contents
3
11
11 11 11 12 12 14
15
15 16 16
17
17 17 18 19 19 19 20 20 21 21 22 23 23 24 25 26 27 29 29 30 31 32 32 33 34 37 38 40 43 44 46 48
3
show ip igmp interface statistics show ip igmp static-groups show ip igmp statistics
IGMP snooping
IGMP snooping defaults, protocols, and supported configuration How IGMP snooping works IGMP snooping configuration task list Enabling or disabling IGMP snooping Specifying the IGMP snooping version Configuring IGMP snooping static groups Enabling drop-unknown filters Configuring IGMP snooping fast learn ports globally Configuring IGMP snooping per port filtering Disabling IGMP snooping Viewing IGMP snooping information IGMP snooping commands
ip igmp snooping ip igmp snooping apply access-list ip igmp snooping auto vlan ip igmp snooping blocked ip igmp snooping drop-unknown ip igmp snooping fastlearn ip igmp snooping fastleave vlan ip igmp snooping forced fastleave vlan ip igmp snooping forward vlan ip igmp snooping static-group ip igmp snooping version no ip igmp snooping show ip igmp snooping show ip igmp snooping counters show ip igmp snooping groups show ip igmp snooping static-groups show ip igmp snooping statistics show ip igmp snooping vlan show ip igmp snooping vlan counters show ip igmp snooping vlan group port show ip igmp snooping vlan statistics
MLD snooping
MLD snooping functionality MLD snooping global configuration commands
ipv6 mld snooping MLD snooping VLAN configuration commands
ipv6 mld snooping ipv6 mld snooping apply access-list ipv6 mld snooping auto vlan ipv6 mld snooping blocked vlan ipv6 mld snooping fastlearn ipv6 mld snooping fastleave vlan ipv6 mld snooping forced fastleave vlan ipv6 mld snooping forward vlan ipv6 mld snooping version ipv6 mld snooping static-group MLD snooping show commands show ipv6 mld snooping
50 51 52
55
55 56 57 57 57 58 58 58 59 59 60 60 60 61 62 63 64 65 65 66 67 68 69 69 70 71 72 73 73 74 76 78 79
80
80 80 80 81 81 81 83 83 84 85 86 87 87 88 89 89
Contents | 4
show ipv6 mld snooping counters show ipv6 mld snooping groups show ipv6 mld snooping statistics show ipv6 mld snooping vlan counters show ipv6 mld snooping vlan group port show ipv6 mld snooping vlan group source show ipv6 mld snooping static-groups show ipv6 mld snooping vlan statistics MLD configuration commands for interface VLAN ipv6 mld ipv6 mld apply access-list no ipv6 mld ipv6 mld querier ipv6 mld querier interval ipv6 mld last-member-query-interval ipv6 mld querier query-max-response-time ipv6 mld robustness ipv6 mld static-group ipv6 mld version ipv6 mld version strict MLD show commands for interface VLAN show ipv6 mld show ipv6 mld interface vlan show ipv6 mld vrf all-vrfs show ipv6 mld interface vlan counters show ipv6 mld interface vlan groups show ipv6 mld interface vlan group source show ipv6 mld groups show ipv6 mld groups all-vrfs vrf show ipv6 mld interface counters show ipv6 mld interface statistics show ipv6 mld interface groups show ipv6 mld interface vlan group source show ipv6 mld group all-vrfs vrf show ipv6 mld group source all-vrfs vrf show ipv6 mld interface vlan statistics show ipv6 mld static-groups vrf all-vrfs show ipv6 mld counters vrf MLD configuration commands for interface ipv6 mld ipv6 mld apply access-list no ipv6 mld ipv6 mld querier ipv6 mld querier interval ipv6 mld last-member-query-interval ipv6 mld querier query-max-response-time ipv6 mld robustness ipv6 mld static-group ipv6 mld version ipv6 mld version strict
Protocol Independent Multicast - Sparse Mode (V4 and V6)
Protocol Independent Multicast - Sparse Mode (PIM-SM) overview PIM-SM defaults, protocols, and supported configuration PIM-SM router types How PIM-SM works
89 91 91 92 93 94 96 97 97 98 98 99 100 100 101 102 102 103 104 104 105 105 106 107 108 110 111 112 113 114 116 117 118 119 121 122 123 124 125 125 126 127 128 128 129 129 130 131 131 132
134
134 134 135 137
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
5
Enabling/disabling PIM-SM in an interface Configuring PIM-SM options in an interface Viewing PIM information PIM-SM configuration example PIM-SM configuration task list
Enabling or disabling PIM globally Configuring join/prune interval Enabling/disabling multicast traffic to SPT Configuring an RP Configuring a BSR Configuring RPF override Removing all PIM-SM related configurations on an interface PIM VSX active-active
FAQ and best practices PIM-SM commands for IPv4
accept-register access-list accept-rp active-active bfd all-interfaces bsr-candidate bsm-interval bsr-candidate hash-mask-length bsr-candidate priority bsr-candidate source-ip-interface disable enable ip pim-sparse ip pim-sparse bfd ip pim-sparse dr-priority ip pim-sparse hello-delay ip pim-sparse hello-interval ip pim-sparse ip-addr ip pim-sparse lan-prune-delay ip pim-sparse override-interval ip pim-sparse propagation-delay join-prune-interval multicast-route-limit no ip pim-sparse register-rate-limit router pim rp-address rp-candidate group-prefix rp-candidate hold-time rp-candidate priority rp-candidate source-ip-interface rpf-override show ip mroute show ip mroute brief show ip mroute group-addr show ip pim show ip pim bsr show ip pim bsr elected show ip pim bsr local show ip pim interface show ip pim interface interface-name show ip pim interface interface-name counters show ip pim neighbor
139 140 142 143 145 146 146 147 147 149 151 151 152 153 155 155 156 157 158 159 160 161 161 163 163 164 165 166 167 168 169 170 171 172 173 174 175 176 176 177 178 179 180 181 182 183 184 185 187 188 190 191 192 193 194 195
Contents | 6
show ip pim pending show ip pim rp-candidate show ip pim rp-set show ip pim rp-set learned show ip pim rp-set static show ip pim rpf-override show ip pim rpf-override source sources-per-group spt-threshold PIM-SM commands for IPv6 accept-register access-list accept-rp bsr-candidate bsm-interval bsr-candidate hash-mask-length bsr-candidate priority bsr-candidate source-ip-interface disable enable ipv6 pim6-sparse ipv6 pim6-sparse bfd ipv6 pim6-sparse dr-priority ipv6 pim6-sparse hello-delay ipv6 pim6-sparse hello-interval ipv6 pim6-sparse ipv6-addr ipv6 pim6-sparse lan-prune-delay ipv6 pim6-sparse override-interval ipv6 pim6-sparse propagation-delay join-prune-interval no ipv6 pim6-sparse router pim6 rp-address rp-candidate group-prefix rp-candidate hold-time rp-candidate priority rp-candidate source-ip-interface rpf-override show ipv6 mroute grorp-addr show ipv6 mroute show ipv6 mroute brief show ipv6 pim6 show ipv6 pim6 bsr show ipv6 pim6 bsr elected show ipv6 pim6 bsr local show ipv6 pim6 interface interface-name show ipv6 pim6 interface show ipv6 pim6 neighbor show ipv6 pim6 pending show ipv6 pim6 rp-candidate show ipv6 pim6 rpf-override show ipv6 pim6 rpf-override source show ipv6 pim6 rp-set show ipv6 pim6 rp-set learned show ipv6 pim6 rp-set static spt-threshold
Protocol Independent Multicast - Dense Mode (V4 and V6)
196 197 198 200 201 202 203 204 205 206 206 207 208 209 210 211 212 212 213 214 215 216 217 218 219 220 221 222 223 223 224 225 226 227 227 229 230 232 233 234 235 237 238 239 240 241 242 243 244 245 246 248 249 250
251
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
7
Protocol Independent Multicast - Dense Mode (PIM-DM) overview PIM-DM defaults, protocols, and supported configurations PIM-DM configuration example PIM-DM features PIM-DM commands for IPv4
disable enable no ip pim-dense ip pim-dense bfd ip pim-dense graft-retry-interval ip pim-dense hello-delay ip pim-dense hello-interval ip pim-dense ip-addr ip pim-dense lan-prune-delay ip pim-dense max-graft-retries ip pim-dense override-interval ip pim-dense propagation-delay ip pim-dense ttl-threshold router pim show ip mroute show ip mroute group-addr show ip mroute brief show ip pim show ip pim interface show ip pim interface interface-name show ip pim interface interface-name counters show ip pim neighbor state-refresh-interval PIM-DM commands for IPv6 disable enable ipv6 pim6-dense ipv6 pim6-dense bfd ipv6 pim6-dense graft-retry-interval ipv6 pim6-dense hello-delay ipv6 pim6-dense hello-interval ipv6 pim6-dense ipv6-addr ipv6 pim6-dense lan-prune-delay ipv6 pim6-dense max-graft-retries ipv6 pim6-dense override-interval ipv6 pim6-dense propagation-delay ipv6 pim6-dense ttl-threshold no ipv6 pim6-dense show ipv6 pim6 show ipv6 pim6 interface show ipv6 pim6 interface interface-name show ipv6 mroute show ipv6 mroute brief show ipv6 mroute group-addr show ipv6 pim6 neighbor router pim6 state-refresh-interval
Multicast Source Discovery Protocol (MSDP)
Multicast Source Discovery Protocol (MSDP) overview MSDP router config commands
251 251 252 253 254 254 255 255 256 257 258 259 261 262 263 264 265 266 267 268 269 271 272 273 274 275 276 277 278 278 279 279 280 281 282 284 285 286 287 288 289 290 291 292 293 294 295 296 297 299 300 301
303
303 303
Contents | 8
disable enable router msdp sa-interval MSDP peer configuration commands connection-retry-interval connect-source clear ip msdp peer statistics description disable enable ip msdp peer keepalive mesh-group password sa-filter access-list MSDP show commands show ip msdp count show ip msdp peer show ip msdp sa-cache show ip msdp summary
mDNS gateway
mDNS gateway overview Configuring mDNS gateway mDNS gateway commands
debug mdns description id mdns-sd mdns-sd apply-profile tx mdns-sd enable mdns-sd profile mdns-sd service clear mdns-sd statistics sequence-number show mdns-sd service-entries show mdns-sd statistics show mdns-sd statistics profile show mdns-sd summary show running-config interface show running-config mdns-sd profile show running-config mdns-sd service
Multicast VXLAN
Protocol and feature details Broadcast, unknown unicast, multicast (BUM) traffic replication Overlay multicast support L2 multicast over VXLAN L2 multicast over VXLAN enabled with IGMP snooping Split horizon and L2 multicast VSX and L2 multicast Recommended configuration on the VSX VTEPs IGMP querier positioning L3 multicast over VXLAN Centralized L3 gateway
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
303 304 305 305 306 306 307 308 309 309 310 311 312 312 313 314 315 316 316 318 319
320
320 321 322 322 323 323 324 325 326 327 327 328 329 330 331 332 333 334 335 335
337
338 338 338 338 339 340 340 343 344 344 344
9
Distributed L3 gateways Border VTEP to external (non overlay) network VSX and L3 Multicast VSX Border VTEP with L3 connectivity to external (non overlay) network RP placement and election Supported platforms and standards Scale Supported RFCs and standards Configuration task list Multicast VXLAN and EVPN VSX VTEP IGMP snooping PIM and IGMP on SVI with source and receivers Static RP on VTEP Overlay BSR/RP on VTEP Considerations and best practices Use cases Use case 1: Campus network with centralized L3 gateway Edge Core-vsx-primary Core-vsx-secondary 8320-vsx-pri 8320-vsx-sec 6300-VSF-VTEP1 6300-VTEP2 Use case 2: DC network with distributed L3 gateway Spine01 Spine02 Leaf01-primary Leaf01-secondary Leaf02 8325-border-prim 8325-border-sec Edge-primary Edge-secondary Multicast VXLAN commands ip pim-sparse vsx-virtual-neighbor show ip mroute show ip pim neighbor Debugging and troubleshooting FAQ References
Support and Other Resources
Accessing Aruba Support Accessing Updates
Aruba Support Portal My Networking Warranty Information Regulatory Information Documentation Feedback
345 347 347 348 352 352 352 353 353 353 353 353 354 354 354 355 356 356 357 361 375 387 388 390 402 411 412 414 416 427 439 449 462 474 481 488 488 488 490 491 498 500
501
501 501 501 502 502 502 502
Contents | 10
Chapter 1 About this document
About this document
This document describes features of the AOS-CX network operating system. It is intended for administrators responsible for installing, configuring, and managing Aruba switches on a network.
Applicable products
This document applies to the following products:
n Aruba 6200 Switch Series (JL724A, JL725A, JL726A, JL727A, JL728A) n Aruba 6300 Switch Series (JL658A, JL659A, JL660A, JL661A, JL662A, JL663A, JL664A, JL665A, JL666A,
JL667A, JL668A, JL762A) n Aruba 6400 Switch Series (JL741A, R0X26A, R0X27A, R0X29A, R0X30A) n Aruba 8320 Switch Series (JL479A, JL579A, JL581A) n Aruba 8325 Switch Series (JL624A, JL625A, JL626A, JL627A) n Aruba 8360 Switch Series (JL700A, JL701A, JL702A, JL703A, JL706A, JL707A, JL708A, JL709A, JL710A,
JL711A) n Aruba 8400 Switch Series (JL375A, JL376A)
Latest version available online
Updates to this document can occur after initial publication. For the latest versions of product documentation, see the links provided in Support and Other Resources.
Command syntax notation conventions
Convention example-text
example-text Any of the following: n <example-text> n <example-text> n example-text n example-text
Usage
Identifies commands and their options and operands, code examples, filenames, pathnames, and output displayed in a command window. Items that appear like the example text in the previous column are to be entered exactly as shown and are required unless enclosed in brackets ([ ]).
In code and screen examples, indicates text entered by a user.
Identifies a placeholder--such as a parameter or a variable--that you must substitute with an actual value in a command or in code:
n For output formats where italic text cannot be displayed, variables are enclosed in angle brackets (< >). Substitute the text--including the enclosing angle brackets--with an actual value.
n For output formats where italic text can be displayed, variables might or might not be enclosed in angle brackets. Substitute the text including the enclosing angle brackets, if any, with an actual value.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
11
Convention |
{ } [ ] ... or ...
Usage
Vertical bar. A logical OR that separates multiple items from which you can choose only one. Any spaces that are on either side of the vertical bar are included for readability and are not a required part of the command syntax.
Braces. Indicates that at least one of the enclosed items is required.
Brackets. Indicates that the enclosed item or items are optional.
Ellipsis: n In code and screen examples, a vertical or horizontal ellipsis indicates an
omission of information. n In syntax using brackets and braces, an ellipsis indicates items that can be
repeated. When an item followed by ellipses is enclosed in brackets, zero or more items can be specified.
About the examples
Examples in this document are representative and might not match your particular switch or environment. The slot and port numbers in this document are for illustration only and might be unavailable on your switch.
Understanding the CLI prompts
When illustrating the prompts in the command line interface (CLI), this document uses the generic term switch, instead of the host name of the switch. For example: switch> The CLI prompt indicates the current command context. For example: switch>
Indicates the operator command context. switch#
Indicates the manager command context. switch(CONTEXT-NAME)#
Indicates the configuration context for a feature. For example: switch(config-if)#
Identifies the interface context.
Variable information in CLI prompts
In certain configuration contexts, the prompt may include variable information. For example, when in the VLAN configuration context, a VLAN number appears in the prompt: switch(config-vlan-100)# When referring to this context, this document uses the syntax: switch(config-vlan-<VLAN-ID>)# Where <VLAN-ID> is a variable representing the VLAN number.
Identifying switch ports and interfaces
Physical ports on the switch and their corresponding logical software interfaces are identified using the format:
About this document | 12
member/slot/port
On the 6200 Switch Series
n member: Member number of the switch in a Virtual Switching Framework (VSF) stack. Range: 1 to 8. The primary switch is always member 1. If the switch is not a member of a VSF stack, then member is 1.
n slot: Always 1. This is not a modular switch, so there are no slots. n port: Physical number of a port on the switch.
For example, the logical interface 1/1/4 in software is associated with physical port 4 in slot 1 on member 1.
On the 6300 Switch Series
n member: Member number of the switch in a Virtual Switching Framework (VSF) stack. Range: 1 to 10. The primary switch is always member 1. If the switch is not a member of a VSF stack, then member is 1.
n slot: Always 1. This is not a modular switch, so there are no slots. n port: Physical number of a port on the switch.
For example, the logical interface 1/1/4 in software is associated with physical port 4 on member 1.
On the 6400 Switch Series
n member: Always 1. VSF is not supported on this switch. n slot: Specifies physical location of a module in the switch chassis.
o Management modules are on the front of the switch in slots 1/1 and 1/2. o Line modules are on the front of the switch starting in slot 1/3. n port: Physical number of a port on a line module.
For example, the logical interface 1/3/4 in software is associated with physical port 4 in slot 3 on member 1.
On the 83xx Switch Series
n member: Always 1. VSF is not supported on this switch. n slot: Always 1. This is not a modular switch, so there are no slots. n port: Physical number of a port on the switch.
For example, the logical interface 1/1/4 in software is associated with physical port 4 on the switch.
If using breakout cables, the port designation changes to x:y, where x is the physical port and y is the lane when split to 4 x 10G or 4 x 25G. For example, the logical interface 1/1/4:2 in software is associated with lane 2 on physical port 4 in slot 1 on member 1.
On the 8400 Switch Series
n member: Always 1. VSF is not supported on this switch. n slot: Specifies physical location of a module in the switch chassis.
o Management modules are on the front of the switch in slots 1/5 and 1/6. o Line modules are on the front of the switch in slots 1/1 through 1/4, and 1/7 through 1/10. n port: Physical number of a port on a line module
For example, the logical interface 1/1/4 in software is associated with physical port 4 in slot 1 on member 1.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
13
Identifying modular switch components
n Power supplies are on the front of the switch behind the bezel above the management modules. Power supplies are labeled in software in the format: member/power supply: o member: 1. o power supply: 1 to 4.
n Fans are on the rear of the switch and are labeled in software as: member/tray/fan: o member: 1. o tray: 1 to 4. o fan: 1 to 4.
n Fabric modules are not labeled on the switch but are labeled in software in the format: member/module: o member: 1. o member: 1 or 2.
n The display module on the rear of the switch is not labeled with a member or slot number.
About this document | 14
Chapter 2
Multicast overview
Multicast overview
Multicast addressing allows one-to-many or many-to-many communication among hosts on a network. Typical applications of multicast communication include: audio and video streaming, desktop conferencing, collaborative computing, and similar applications. In a network where IP multicast traffic is transmitted for multimedia applications, such traffic is blocked at routed interface (VLAN) boundaries unless a multicast routing protocol is running. Protocol Independent Multicast (PIM) is a family of routing protocols that form multicast trees to forward traffic from multicast sources to subnets that have used a protocol such as IGMP to request the traffic. PIM relies on the unicast routing tables created by any of several unicast routing protocols to identify the path back to a multicast source (Reverse Path Forwarding, or RPF). With this information, PIM sets up the distribution tree for the multicast traffic. IGMP provides the multicast traffic link between a host and a multicast router running PIMSM. Both PIM-SM and IGMP must be enabled on VLANs whose member ports have directly connected hosts with a valid need to join multicast groups. IGMP snooping (Internet Group Management Protocol controls) can be configured per-VLAN basis to reduce unnecessary bandwidth usage. In the factory default state (IGMP and IGMP snooping disabled), the switch simply floods all IP multicast traffic it receives on a given VLAN through all ports on that VLAN (except the port on which it received the traffic). This can result in significant and unnecessary bandwidth usage in networks where IP multicast traffic is a factor. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP will be configured on the hosts, and multicast traffic will be generated by one or more servers (inside or outside of the local network). Switches in the network (that support IGMP snooping) can then be configured to direct the multicast traffic to only the ports where needed. If multiple VLANs are configured, you can configure IGMP snooping on a per-VLAN basis. Multicast Listener Discovery (MLD) is an IPv6 protocol used on a local link for multicast group management. MLD snooping is a subset of the MLD protocol that operates at the port level and conserves network bandwidth by reducing the flooding of multicast IPv6 packets.
Multicast protocols
Layer 3 multicast protocols include:
n IGMP (Internet Group Management Protocol) for last-hop multicast group management. Current RFCs include: o IGMPv2 (RFC 2236) o IGMPv3 (RFC 3376)
n PIM (Protocol Independent Multicast) for intra-domain multicast routing. o PIM-SM (Sparse mode) (RFC 4601) o PIM-DM (Dense mode) (RFC 3973) o BSR (Bootstrap router) (RFC 5059)
n MSDP (Multicast Source Discovery Protocol) (RFC 3618)
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
15
n MLD (Multicast Listener Discovery) v1 and v2 o MLD v1 - RFC 2710 o MLD v2 - RFC 3810
Layer 2 multicast protocol: n IGMP snooping for IPv4 multicast filtering. n MLD snooping for IPv6 multicast filtering.
Multicast addresses
Each multicast host group is identified by a single IP address in the range of 224.0.0.0 through 239.255.255.255. n For the 8320/8325 switch: AOS-CX supports 4K IPv4 multicast flows. n For the 8400 switch: AOS-CX supports 16K IPv4 multicast flows. n For the 6400/6300 switch: AOS-CX supports 4K IPv4 multicast flows. n For the 6200 switch: AOS-CX supports 1K IPv4 multicast flows. For a list of all reserved and well known multicast addresses, see the standards document at the following links: n https://www.iana.org/assignments/multicast-addresses/multicast-addresses.xhtml n https://www.iana.org/assignments/ipv6-multicast-addresses/ipv6-multicast-addresses.xhtml
Sub-interface recommendations and limitations
(Supported only on the Aruba 6300, 6400, and 8360 Switch Series.) The following recommendations and limitations apply: nWhen ROP/sub-interface as uplink is used towards multicast source, a PIM-enabled point-to-point transit VLAN over ISL between VSX devices should be added to ensure an alternate path to reach the upstream multicast source. This transit VLAN is not carried on VSX LAGs. (A dedicated point-to-point link between VSX primary and secondary can also be used.) nIf KA is used for the P2P sub-interface link, KA has to be in a different VRF. nBFD is not supported on sub-interfaces.
Multicast overview | 16
Chapter 3
Internet Group Management Protocol (IGMP)
Internet Group Management Protocol (IGMP)
In a network where IP multicast traffic is transmitted for various multimedia applications, you can use the switch to reduce unnecessary bandwidth usage on a per-port basis by configuring IGMP (Internet Group Management Protocol). IGMPv3 (RFC 3376) and IGMPv2 (RFC 2236) are the current RFCs for IGMP. In the factory default state (IGMP disabled), the switch simply floods all IP multicast traffic it receives on a given VLAN through all ports on that VLAN (except the port on which it received the traffic). This can result in significant and unnecessary bandwidth usage in networks where IP multicast traffic is a factor. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP is useful in multimedia applications such as LAN TV, desktop conferencing, and collaborative computing, where there is MultiPoint communication; that is, communication from one to many hosts, or communication originating from many hosts and destined for many other hosts. In such MultiPoint applications, IGMP will be configured on the hosts, and multicast traffic will be generated by one or more servers (inside or outside of the local network). Switches in the network (that support IGMP) can then be configured to direct the multicast traffic to only the ports where needed. If multiple VLANs are configured, you can configure IGMP on a per-VLAN basis. Enabling IGMP allows the router to become querier. If there is another querier in the LAN, the router will resume non querier functionality and will respond to query/report packets.
IGMP defaults, protocols, and supported configuration
IGMP default configuration:
n IGMP is disabled by default. n The default IGMP version is IGMPv3.
IGMP supported protocols include:
n IGMPv2 (RFC 2236) n IGMPv3 (RFC 3376)
Static groups:
You can configure a maximum of 32 IGMP static groups on the Aruba 6200 Switch Series.
How the IGMP protocol works
IGMP manages multicast group memberships based on the query and response mechanism. IGMP is an internal protocol of the IP suite. IP manages multicast traffic by using switches, multicast routers, and hosts that support IGMP. A multicast router is not necessary as long as a switch is configured to support IGMP with the querier feature enabled. A set of hosts, routers, and/or switches that send or receive multicast data streams to or from the same sources, is called a multicast group. All devices in the group use the same multicast group address. The multicast group uses three fundamental types of messages to communicate:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
17
n Query: A message sent from the querier (multicast router or switch) asking for a response from each host belonging to the multicast group. If a multicast router supporting IGMP is not present, the switch must assume this function to elicit group membership information from the hosts on the network.
n Join: A message sent by a host to the querier to indicate that the host wants to be or is a member of a given group indicated in the join message.
n Leave group: A message sent by a host to the querier to indicate that the host has ceased to be a member of a specific multicast group.
An IP multicast packet includes the multicast group (address) to which the packet belongs. When an IGMP client connected to a switch port needs to receive multicast traffic from a specific group, it joins the group by sending an IGMP join request to the network. (The multicast group specified in the join request is determined by the requesting application running on the IGMP client.) When the client is ready to leave the multicast group, it sends a Leave Group message to the network and ceases to be a group member. When the leave request is detected, the appropriate IGMP device ceases transmitting traffic for the designated multicast group through the port on which the leave request was received (as long as there are no other current members of that group on the affected port.) Thus, IGMP identifies members of a multicast group (within a subnet) and allows IGMP-configured hosts (and routers) to join or leave multicast groups.
Considerations when configuring IGMP
With the factory default setting, multicast data transmitted from the sources will be flooded on all ports in the VLAN. Configuring IGMP snooping avoids flooding and causes the switch to forward data only to the receivers. The function of the IGMP querier is to poll other IGMP-enabled devices in an IGMP-enabled interface to elicit group membership information. On enabling IGMP, the router performs this function if there is no other device in the interface to act as querier. Basic steps to configure IGMP:
1. Configure VLANs. 2. Configure ports and assign them to the VLANs. 3. Configure the L3 interface (an interface VLAN/route only port/L3 LAG) and assign an IP address to
the interface. 4. Enable IGMP. 5. Choose the desired IGMP version. The default is version 3.
IGMP configuration considerations:
n For IGMP to be operational, the interface has to be administratively up. For interface VLANs, the L2 VLAN has to be up and one of the ports in the VLAN has to be up.
n The IP address must be assigned for the interface to become querier. Without an IP address, the device will remain in a non querier state.
n A querier is required for proper IGMP operation. For this reason, you must enable IGMP on the L3 Interface. If the querier functionality is not configured or disabled, you must ensure that there is an IGMP querier in the same VLAN.
n For IGMP snooping to be operational on a VLAN, the VLAN has to be administratively up and at least one port in the VLAN has to be up.
n If IGMP snooping is enabled on the VLAN, and IGMP is enabled on the interface VLAN, and the configured version does not match, the lowest version is chosen as the operating version.
Internet Group Management Protocol (IGMP) | 18
n If the switch becomes the querier for a particular interface, then subsequently detects queries transmitted from another device on the same VLAN, the switch ceases to operate as the querier for that interface.
n The switch automatically ceases querier operation in an IGMP-enabled interface if it detects another querier on the interface. You can also use the switch CLI to disable the querier capability.
n Multicast traffic will be flooded on the VLAN, if TTL=1 or TTL>255 regardless of IGMP joins and group membership within the VLAN.
IGMP configuration task list
Tasks at a glance.
n Enabling or disabling IGMP n Specifying the IGMP version n Configuring IGMP static groups n Configuring IGMP query and response parameters n Disabling IGMP n Viewing IGMP information
Enabling or disabling IGMP
Prerequisites
You must be in an interface configuration context, as indicated by the switch(config-if)# prompt, switch (config-if-vlan)# prompt, or switch(config-lag-if)# prompt. For IGMP to be operational, the interface has to be up. To become querier, the interface must have an IP address associated with it.
Procedure
IGMP is disabled by default. Enable IGMP on an interface using the following command. ip igmp {enable | disable} For example, the following command enables IGMP on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp enable
Use the disable parameter to disable IGMP on an interface.
Specifying the IGMP version
The version can be either 2 (IGMPv2) or 3 (IGMPv3). The default is 3. IGMPv2 supports filtering based on groups. IGMPv3 is more advanced and includes filtering based on source and groups. If using the strict option, packets that do not match the configured version will be dropped.
Prerequisites
You must be in an interface configuration context, as indicated by the switch(config-if)# prompt, switch (config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
19
Specify the IGMP version for an interface using one of the following commands. ip igmp version <VERSION> ip igmp version <VERSION> strict For example, the following command sets the IGMP version to 2 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp version 2
And the following command sets IGMP strict version to 2 on interface VLAN 5:
switch(config)# interface vlan 5 switch(config-if-vlan)# ip igmp version 2 strict switch(config-if-vlan)# no ip igmp version 2 strict
Configuring IGMP static groups
The switch will always flood the traffic destined for a group configured as static group. So the hosts will receive the traffic for static groups even if they have not subscribed for that group. You can configure a maximum of 32 IGMP static groups.
Prerequisites
You must be in an interface configuration context, as indicated by the switch(config-if)# prompt, switch (config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
Configure an IGMP static group on an interface using the following command. ip igmp static-group <MULTICAST-GROUP-IP> For example, the following command configures an IGMP static multicast group as 239.1.1.1 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp static-group 239.1.1.1
The no form of the command removes an IGMP static group.
Configuring IGMP query and response parameters
Configure query and response parameters such as querier interval, last member query interval, max response time, and robustness.
Prerequisites
You must be in an interface configuration context, as indicated by the switch(config-if)# prompt, switch (config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
Internet Group Management Protocol (IGMP) | 20
Configure IGMP query and response parameters on an interface using the following commands.
n Make sure that the IGMP querier is enabled. (In IGMPv3 the IGMP querier is enabled by default.) Configure the IGMP querier on an interface using the following command: ip igmp querier.
n Configure the IGMP querier interval on an interface using the following command: ip igmp querier interval <INTERVAL-VALUE>. The interval is from 5-300 seconds, with a default of 125.
n Configure the IGMP last member query interval value in seconds on an interface using the following command: ip igmp last-member-query-interval <INTERVAL-VALUE>. The interval is from 1-2 seconds, with a default of 1.
n Configure the IGMP max response time value in seconds on an interface using the following command: ip igmp querier query-max-response-time <RESPONSE-TIME>. The response time is from 10-128 seconds, with a default of 10.
n Configure the IGMP robustness (the number of times to retry a query) on an interface using the following command: ip igmp robustness <VALUE>. The robustness value is from 1-7 with default of 2.
For example, the following command configures the IGMP querier interface interval as 100 on interface VLAN 2. The no form of the command sets the interval to the default.
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp querier interval 100 switch(config-if-vlan)# no ip igmp querier interval
Disabling IGMP
Prerequisites
You must be in an interface configuration context, as indicated by the switch(config-if)# prompt, switch (config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
Remove IGMP from an interface using the following command. no ip igmp For example, the following command removes IGMP on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# no ip igmp
Viewing IGMP information
For some commands, you can specify viewing information by interface or by VRF.
Prerequisites
Use these show commands from the Operator (>) or Manager (#) context.
Procedure
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
21
To view IGMP information, use the following commands.
n To view IGMP configuration details and status, use: show ip igmp or use show ip igmp interface. n To view IGMP statistics and groups joined, use: show ip igmp statistics or use show ip igmp
interface statistics. n To view IGMP counters, use: show ip igmp counters or use show ip igmp interface counters. n To view IGMP static groups, use: show ip igmp static-groups. n To view IGMP group information, use: show ip igmp groups or use show ip igmp interface groups. n To view IGMP group details for a specific group and source, use: show ip igmp group or use show ip
igmp interface group. Optionally you can also display joined group details by VRF.
IGMP configuration example
The output of the following show running-config command shows an example of an IGMP configuration with IGMP snooping. On the 6400 Switch Series, interface identification differs.
switch# show running-config Current configuration: ! ! ! ! ! access-list ip mygroup
10 permit any any 239.1.1.1/24 access-list ip mygroup1
10 permit any any any vlan 1
no shutdown vlan 2
ip igmp snooping enable ip igmp snooping static group 239.1.1.10 ip igmp snooping static group 239.1.1.11 ! 'mygroup' will be ignored in this configuration as 'mygroup1' is configured in 'vlan2'. ip igmp snooping apply access-list mygroup interface 1/1/1 no shutdown ip address 100.1.1.1/24 ip igmp enable interface 1/1/1.1 no shutdown routing ip address 100.100.100.1/24 ip igmp enable ip igmp querier interval 5 ip igmp last-member-query-interval 2 ip igmp query-max-response-time 30 ip igmp static-group 239.1.1.1 ip igmp apply access-list mygroup1 interface 1/1/2 no shutdown ip address 200.1.1.1/24 ip igmp enable ip igmp querier interval 5 ip igmp last-member-query-interval 2
Internet Group Management Protocol (IGMP) | 22
ip igmp query-max-response-time 50 ip igmp static-group 239.1.1.1 ip igmp apply access-list mygroup1 interface 1/1/3 no shutdown no routing vlan access 2 ip igmp snooping blocked vlan 2 interface 1/1/3
no shutdown no routing vlan access 2 ip igmp snooping forward vlan 2 interface vlan2 no shutdown ip address 20.1.1.1/24 ip igmp enable ip igmp querier interval 5 ip igmp robustness 5 ip igmp last-member-query-interval 2 ip igmp query-max-response-time 50 ip igmp static-group 239.1.1.1 ip igmp apply access-list mygroup1
IGMP commands
For commands in the interface configuration context, the interface must be an L3 interface. The supported contexts include: config-if, config-if-vlan, config-lag-if,config-sub-if.
The sub-interface related configuration examples provided in this section apply only to the Aruba 6300, 6400, and 8360 Switch Series.
Only the default VRF is supported on the Aruba 6200 Switch Series.
ip igmp
ip igmp {enable | disable}
Description
Enables or disables IGMP on the current interface. IGMP is disabled by default.
Parameters
enable Enable IGMP.
disable Disable IGMP.
Examples
Enabling IGMP on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp enable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
23
Disabling IGMP on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp disable
Enabling IGMP on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-if)# no shutdown switch(config-if)# routing switch(config-subif)# ip igmp enable
Disabling IGMP on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-subif)# ip igmp disable
Enabling IGMP on sub-interface 1/1/1.1:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# no shutdown switch(config-subif)# ip igmp enable
Disabling IGMP on sub-interface 1/1/1.1:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# ip igmp disable
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp apply access-list
Internet Group Management Protocol (IGMP) | 24
ip igmp apply access-list <ACL-NAME> no ip igmp apply access-list <ACL-NAME>
Description
Configures the ACL on a particular interface to filter the IGMP join or leave packets based on rules set in the particular ACL name. The no form of this command unconfigures the rules set for the ACL.
This configuration will override the ACL associated with IGMP snooping on the corresponding L2 VLAN.
Parameters
access-list Associates an ACL with the IGMP.
<ACL-NAME> Specifies the name of the ACL.
Usage
Existing classifier commands are used to configure the ACL. In case an IGMPv3 packet with multiple group addresses is received, it will only process the permitted group addresses based on the ACL rule set, and any existing joins will time out. If there is no match or if there is a deny rule match, the packet is dropped.
Examples
Configuring the ACL on a VLAN to filter IGMP packets based on rules set in access list mygroup:
switch(config)# access-list ip mygroup switch(config-acl-ip)# permit igmp any 239.1.1.1 switch(config-acl-ip)# exit switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp apply access-list mygroup
Configuring the ACL to remove the rules set in access list mygroup:
switch(config-if-vlan)# no ip igmp apply access-list mygroup
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp last-member-query-interval
ip igmp last-member-query-interval <INTERVAL-VALUE>
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
25
no ip igmp last-member-query-interval <INTERVAL-VALUE>
Description
Configures an IGMP last member query interval value in seconds on an interface, depending on the command context you are in. The no form of this command sets the value to a default of 1 second on an interface.
Parameters
<INTERVAL-VALUE> Specifies an IGMP last-member-query-interval on the interface. Default: 1 second. Range: 1-2 seconds.
Examples
Configuring an IGMP last member query interval of 2 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp last-member-query-interval 2 switch(config-if-vlan)# no ip igmp last-member-query-interval
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp querier
ip igmp querier no ip igmp querier
Description
Configures an IGMP querier on an interface, depending on the command context you are in. This functionality will allow an interface to join in the querier-election process. The no form of this command disables IGMP querier on an interface.
Examples
Configuring an IGMP querier on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp querier
Disabling an IGMP querier on interface VLAN 2:
Internet Group Management Protocol (IGMP) | 26
switch(config)# interface vlan 2 switch(config-if-vlan)# no ip igmp querier
Configuring an IGMP querier on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-if)# no shutdown switch(config-if)# routing switch(config-subif)# ip igmp querier
Disabling an IGMP querier on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-subif)# no ip igmp querier
Configuring an IGMP querier on sub-interface 1/1/1.1
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# no shutdown switch(config-subif)# ip igmp querier
Disabling an IGMP querier on sub-interface 1/1/1.1:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# no ip igmp querier
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp querier interval
ip igmp querier interval <INTERVAL-VALUE> no ip igmp querier interval
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
27
Description
Configures the interval between IGMP queries on an interface, depending on the command context you are in. The no form of this command sets the IGMP querier interval to the default value of 125 seconds on an interface.
Parameters
<INTERVAL-VALUE> Specifies the IGMP querier interval in seconds on the interface. Default: 125 seconds. Range: 5-300.
Examples
Configuring an IGMP querier interface interval of 100 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp querier interval 100
Resetting an IGMP querier interval to the default value:
switch(config-if-vlan)# no ip igmp querier interval
Configuring an IGMP querier interface interval of 100 on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-if)# no shutdown switch(config-if)# routing switch(config-subif)# ip igmp querier interval 100
Configuring an IGMP querier interface interval of 100 on sub-interface 1/1/1.1:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# no shutdown switch(config-subif)# ip igmp querier interval 100
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
config-if-vlan config-if
Authority
Administrators or local user group members with execution rights for this command.
Internet Group Management Protocol (IGMP) | 28
Platforms
Command context
config-lag-if config-subif
Authority
ip igmp querier query-max-response-time
ip igmp querier query-max-response-time <RESPONSE-TIME> no ip igmp querier query-max-response-time <RESPONSE-TIME>
Description
Configures the IGMP querier max response time value in seconds on an interface, depending on the command context you are in. The no form of this command sets the querier max response time value to the default of 10 seconds on an interface.
Parameters
<RESPONSE-TIME> Specifies the IGMP querier max response time value on the interface. Default: 10 seconds. Range: 10128 seconds.
Examples
Configuring the IGMP querier maximum response time of 50 for interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp query-max-response-time 50
Resetting an IGMP querier interval to the default value:
switch(config-if-vlan)# no ip igmp query-max-response-time
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp robustness
ip igmp robustness <VALUE> no ip igmp robustness <VALUE>
Description
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
29
Configures IGMP robustness on an interface, depending on the command context. The robustness parameter allows tuning for the expected packet loss on a subnet. The no form of this command sets the robustness value to the default of 2 on an interface.
Parameters
<VALUE> Specifies an IGMP robustness value on the interface. Default: 2. Range: 1-7.
Examples
Configuring an IGMP robustness of 5 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp robustness 5
Resetting the IGMP robustness to the default:
switch(config-if-vlan)# no ip igmp robustness
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp router-alert-check
ip igmp router-alert-check [enable | disable] no ip igmp router-alert-check [enable | disable]
Description
Enables or disables IGMP router alert check for IGMP packets. IGMP packets without the router alert field set are dropped if router alert check is enabled. Router alert check is disabled by default. The no form of this command disables router alert check for IGMP packets.
Parameters
enable Enable IGMP router alert check.
disable Disable IGMP router alert check.
Examples
Enabling IGMP router alert check on interface VLAN 2:
Internet Group Management Protocol (IGMP) | 30
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp router-alert-check enable
Disabling IGMP router alert check on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp router-alert-check disable
Command History
Release 10.08
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification Command introduced.
Authority Administrators or local user group members with execution rights for this command.
ip igmp static-group
ip igmp static-group <MULTICAST-GROUP-IP> no ip igmp static-group <MULTICAST-GROUP-IP>
Description
Configures an IGMP static multicast group on an interface, depending on the command context you are in. You can configure a maximum of 32 IGMP static groups. The no form of the command unconfigures IGMP static multicast group on an interface.
Parameters
<MULTICAST-GROUP-IP> Specifies an IGMP static multicast group IP address on the interface. Format: A.B.C.D
Examples
Administrators or local user group members with execution rights for this command. Configuring an IGMP static group on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp static-group 239.1.1.1
Resetting an IGMP static group on an interface to the default (none):
switch(config-if)# no ip igmp static-group 239.1.1.10
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
31
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority
ip igmp version
ip igmp version <VERSION>
Description
Configures the IGMP version on an interface, depending on the command context you are in.
Parameters
<VERSION> Specifies the IGMP version on the interface. Select 2 for IGMPv2 (RFC2236). Select 3 for IGMPv3 (RFC3376). Values: 2 or 3.
Examples
Configuring an IGMP version on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp version 2
Configuring an IGMP version on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-if)# ip igmp version 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp version strict
Internet Group Management Protocol (IGMP) | 32
ip igmp version <VERSION> strict no ip igmp version <VERSION> strict
Description
Configures an IGMP strict version on an interface, depending on the command context you are in. Drops packets that do not match the configured version. The no form of the command removes the strict version configuration from the interface.
Parameters
<VERSION> Specifies the IGMP version on the interface. Select 2 for IGMPv2 (RFC2236). Select 3 for IGMPv3 (RFC3376). Values: 2 or 3.
Examples
Configuring the IGMP strict version to 2 on interface VLAN 2:
switch(config)# interface vlan 2 switch(config-if-vlan)# ip igmp version 2 strict
Resetting the IGMP strict version to the default (none):
switch(config-if)# no ip igmp version 2 strict
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ip igmp
no ip igmp
Description
Disables all IGMP configurations on an interface or sub-interface, depending on the command context you are in.
Examples
Removing IGMP on interface VLAN 2:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
33
switch(config)# interface vlan 2 switch(config-if-vlan)# no ip igmp
Removing IGMP on interface 1/1/1:
switch(config)# interface 1/1/1 switch(config-subif)# no ip igmp
Removing IGMP on sub-interface 1/1/1.1: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.1 switch(config-subif)# no ip igmp
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context
config-if-vlan config-if config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
show ip igmp
show ip igmp [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP configuration information and status, or shows information by VRF.
Parameters
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. To show information for all VRFs, specify all-vrfs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP configuration and status:
Internet Group Management Protocol (IGMP) | 34
switch# show ip igmp
VRF Name : default
Interface : vlan2
IGMP Configured Version : 3
IGMP Operating Version
:3
Querier State
: Querier
Querier IP [this switch] : 20.1.1.1
Querier Uptime
: 1m 4s
Querier Expiration Time : 0m 1s
IGMP Snoop Enabled on VLAN : True
Showing IGMP information for VRF test:
switch# show ip igmp vrf test
VRF Name : test
Interface : 1/1/2
IGMP Configured Version : 3
IGMP Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : 100.1.1.1
Querier Uptime
: 2m 55s
Querier Expiration Time : 0m 16s
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
240.100.3.194
3 INC 0m 30s 3m 50s
IGMP is not enabled on interface 1/1/3
VRF Name : test
Interface : vlan2
IGMP Configured Version : 3
IGMP Operating Version
:3
Querier State
: Querier
Querier IP [this switch] : 20.1.1.1
Querier Uptime
: 1m 4s
Querier Expiration Time : 0m 1s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
238.224.153.165
2
0m 38s 3m 42s
VRF Name : test
Interface : vlan10
IGMP Configured Version : 3
IGMP Operating Version
:3
Querier State
: Querier
Querier IP [this switch] : 10.1.1.1
Querier Uptime
: 1m 4s
Querier Expiration Time : 0m 1s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
239.209.3.194
3 INC 0m 38s 3m 42s
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
35
Showing IGMP information for all VRFs:
switch# show ip igmp all-vrfs
VRF Name : test
Interface : 1/1/2
IGMP Configured Version : 3
IGMP Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : 100.1.1.1
Querier Uptime
: 2m 55s
Querier Expiration Time : 0m 16s
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
240.100.3.194
3 INC 0m 30s 3m 50s
VRF Name : test
Interface : vlan2
IGMP Configured Version : 3
IGMP Operating Version
:3
Querier State
: Querier
Querier IP [this switch] : 20.1.1.1
Querier Uptime
: 1m 4s
Querier Expiration Time : 0m 1s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
238.224.153.165
2
0m 38s 3m 42s
VRF Name : default
Interface : vlan5
IGMP Configured Version : 3
IGMP Operating Version
:2
Querier State
: Querier
Querier IP [this switch] : 50.1.1.1
Querier Uptime
: 1m 1s
Querier Expiration Time : 0m 4s
IGMP Snoop Enabled on VLAN : False
VRF Name : test
Interface : vlan10
IGMP Configured Version : 3
IGMP Operating Version
:3
Querier State
: Querier
Querier IP [this switch] : 10.1.1.1
Querier Uptime
: 1m 4s
Querier Expiration Time : 0m 1s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
239.209.3.194
3 INC 0m 38s 3m 42s
Command History
Release 10.07 or earlier
Modification --
Command Information
Internet Group Management Protocol (IGMP) | 36
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp counters
show ip igmp counters [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP counter details, or shows counters by VRF.
Parameters
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. Specify all-vrfs to show information for all VRFs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP counters:
switch# show ip igmp counters
IGMP Counters
Interface Name
: vlan2
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V3 All Hosts Queries V2 Group Specific Queries V3 Group Specific Queries Group And Source Specific Queries V3 Member Reports V2 Member Reports V1 Member Reports V2 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
12
0
0
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
0
N/A
Showing IGMP counters for the default VRF:
switch# show ip igmp counters vrf default
IGMP Counters
Interface Name
: vlan2
VRF Name
: default
Membership Timeout : 0
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
37
V1 All Hosts Queries V2 All Hosts Queries V3 All Hosts Queries V2 Group Specific Queries V3 Group Specific Queries Group And Source Specific Queries V3 Member Reports V2 Member Reports V1 Member Reports V2 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
12
0
0
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
0
N/A
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp group
show ip igmp group <GROUP-IP> [source <SOURCE-IP>] [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP joined group information for the specified group, or shows joined group source and display information by VRF.
Parameters
<GROUP-IP> Specifies the IP address of the group. Format: A.B.C.D
source <SOURCE-IP> Specifies the IP address of the source. Format: A.B.C.D
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. Specify all-vrfs to show information for all VRFs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP joined group details for group 239.1.1.10:
Internet Group Management Protocol (IGMP) | 38
switch# show ip igmp group 239.1.1.10
IGMP group information for group 239.1.1.10
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 16m 34s 2m 27s
Showing IGMP joined group details for group 239.1.1.10 and source 10.1.1.10:
switch# show ip igmp group 239.1.1.10 source 10.1.1.10
Interface Name : vlan2 VRF Name : default Group Address : 239.1.1.10 Source Address : 10.1.1.10
Mode Uptime Expire ---- --------- -------
0m 13s 4m 7s
Showing IGMP joined group details for group 239.1.1.10 for all VRFs:
switch# show ip igmp group 239.1.1.10 all-vrfs
IGMP group information for group 239.1.1.10
Interface Name : vlan10
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 17m 5s 4m 2s
Showing IGMP joined group details for group 239.1.1.10 source 10.1.1.10 for all VRFs:
switch# show ip igmp group 239.1.1.10 source 10.1.1.10 all-vrfs
Interface Name : vlan10 VRF Name : default Group Address : 239.1.1.10 Source Address : 10.1.1.10
Mode Uptime Expire
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
39
---- --------- ------0m 39s 3m 41s
Showing IGMP joined group details group 239.1.1.10 for the default VRF:
switch# show ip igmp group 239.1.1.10 vrf default
IGMP group information for group 239.1.1.10
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 17m 35s 3m 32s
Showing IGMP joined group details group 239.1.1.10 source 10.1.1.10 for the default VRF:
switch# show ip igmp group 239.1.1.10 source 10.1.1.10 vrf default
Interface Name : vlan10 VRF Name : default Group Address : 239.1.1.10 Source Address : 10.1.1.10
Mode Uptime Expire ---- --------- -------
0m 59s 3m 21s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp groups
show ip igmp groups [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP group information, or you can display group information by VRF.
Parameters
Internet Group Management Protocol (IGMP) | 40
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. Specify all-vrfs to show information for all VRFs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP group information:
switch# show ip igmp groups
IGMP group information for group 239.1.1.10
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 36s 3m 44s
IGMP group information for group 239.1.1.11
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.11 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 36s 3m 44s
Showing IGMP groups for all VRFs:
switch# show ip igmp groups all-vrfs IGMP group information for group 239.1.1.1
Interface Name : vlan10
VRF Name
: test
Group Address Last Reporter
: 239.1.1.1 : 100.1.1.20
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 13s 4m 7s
IGMP group information for group 239.1.1.2
Interface Name : vlan10
VRF Name
: test
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
41
Group Address Last Reporter
: 239.1.1.2 : 100.1.1.20
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 13s 4m 7s
IGMP group information for group 239.1.1.1
Interface Name : vlan20
VRF Name
: default
Group Address Last Reporter
: 239.1.1.1 : 200.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 13s 4m 7s
IGMP group information for group 239.1.1.2
Interface Name : vlan20
VRF Name
: default
Group Address Last Reporter
: 239.1.1.2 : 200.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 0m 13s 4m 7s
Showing IGMP groups for the default VRF:
switch# show ip igmp groups vrf default
IGMP group information for group 239.1.1.10
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 9m 23s 3m 20s
IGMP group information for group 239.1.1.11
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.11 : 100.1.1.10
V1
V2
Sources Sources
Internet Group Management Protocol (IGMP) | 42
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 EXC 9m 23s 3m 20s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp interface
show ip igmp interface {<INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>} [vsx-peer]
Description
Shows IGMP configuration information for a specific interface (VLAN, port or LAG).
Parameters
<INTF-ID> Specifies an interface (such as 1/1/2 or LAG10).
<INTF-ID.ID> Required. Specifies a sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
vlan <VLAN-ID> Specifies a VLAN. Values: 1-4094.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP configuration information for interface VLAN 2:
switch# show ip igmp interface vlan 2
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 20.1.1.1
Querier Uptime
: 1m 46s
Querier Expiration Time : 0m 1s
Snoop Enabled on VLAN : True
switch# show ip igmp interface vlan 10
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
43
IGMP is not enabled
Showing IGMP configuration information for the specified interface 1/1/2:
switch# show ip igmp interface 1/1/2
IGMP Configured Version IGMP Operating Version Querier State Querier IP [this switch] Querier Uptime Querier Expiration Time
:3 :3 : Querier : 100.1.1.1 : 51m 44s : 1m 51s
Showing IGMP configuration information for sub-interface 1/1/5.10: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ip igmp interface 1/1/5.10
IGMP Configured Version IGMP Operating Version Querier State Querier IP [this switch] Querier Uptime Querier Expiration Time
:3 :3 : Querier : 200.1.1.1 : 11m 44s : 1m 51s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp interface counters
show ip igmp interface {<INTF-ID> | <INTF-ID.ID>| vlan <VLAN-ID>} counters [vsx-peer]
Description
Shows IGMP counter details for a specific interface or VLAN interface.
Parameters
<INTF-ID> Specifies an interface (such as 1/1/2).
<INTF-ID.ID>
Internet Group Management Protocol (IGMP) | 44
Required: Specifies a sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.) vlan <VLAN-ID>
Specifies a VLAN. Values: 1-4094. vsx-peer
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP counters for interface VLAN 2:
switch# show ip igmp interface vlan 2 counters
IGMP Counters
Interface Name
: vlan2
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V3 All Hosts Queries V2 Group Specific Queries V3 Group Specific Queries Group And Source Specific Queries V3 Member Reports V2 Member Reports V1 Member Reports V2 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
0
0
29
0
0
0
2
0
2
0
N/A
0
N/A
0
N/A
0
N/A
0
N/A
Showing IGMP counters for sub-interface 10: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ip igmp interface 1/1/5.10 counters
IGMP Counters
Interface Name
: 1/1/5.10
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V3 All Hosts Queries V2 Group Specific Queries V3 Group Specific Queries Group And Source Specific Queries V3 Member Reports V2 Member Reports V1 Member Reports V2 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
0
0
9
0
0
0
0
0
0
3
N/A
4
N/A
0
N/A
0
N/A
0
N/A
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
45
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp interface group
show ip igmp [interface {<INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>} [group <GROUP-IP> [source <SOURCE-IP>] [vsx-peer]]]
Description
Shows IGMP joined group information for a specific interface or VLAN interface, or specify a source IP.
Parameters
<INTF-ID> Specifies an interface (such as 1/1/2).
<INTF-ID.ID> Required: Specifies the sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
vlan <VLAN-ID> Specifies a VLAN. Values: 1-4094.
<GROUP-IP> Specifies the IP address of the group. Format: A.B.C.D
source <SOURCE-IP> Specifies the IP address of the source. Format: A.B.C.D
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP joined group details for group 239.1.1.1 for interface VLAN 10:
switch# show ip igmp interface vlan 10 group 239.1.1.1
IGMP group information for group 239.1.1.1
Interface Name : vlan10
VRF Name
: default
Group Address Last Reporter
: 239.1.1.1 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 INC 8m 10s 2m 21s
1
Internet Group Management Protocol (IGMP) | 46
Group Address : 239.1.1.1 Source Address : 10.1.1.1
Mode Uptime Expire ---- --------- ------INC 8m 10s 2m 21s
Showing IGMP joined group details for group 239.1.1.1 for interface VLAN 10 with source details for 10.1.1.1:
switch# show ip igmp interface vlan 10 group 239.1.1.1 source 10.1.1.1
Interface Name : vlan10 VRF Name : default Group Address : 239.1.1.1 Source Address : 10.1.1.1
Mode Uptime Expire ---- --------- ------INC 8m 52s 3m 51s
Showing IGMP joined group details for group 239.1.1.1 for sub-interface 1/1/1.10:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ip igmp interface 1/1/5.10 group 239.1.1.1
IGMP group information for group 239.1.1.1
Interface Name : 1/1/5.10
VRF Name
: default
Group Address Last Reporter
: 239.1.1.1 : 10.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 INC 1m 49s 1m 31s
1
Group Address : 239.1.1.1 Source Address : 10.1.1.1
Mode Uptime Expire ---- --------- ------INC 1m 49s 1m 31s
Showing IGMP joined group details for group 239.1.1.1 for sub-interface 1/1/1.10 with source details for 10.1.1.1:
switch# show ip igmp interface 1/1/5.10 group 239.1.1.1 source 10.1.1.1
Interface Name : 1/1/5.10 VRF Name : default
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
47
Group Address : 239.1.1.1 Source Address : 10.1.1.1
Mode Uptime Expire
---- --------- -------
INC 1m 3s
4m 25s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp interface groups
show ip igmp [interface {<INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>} [groups] [vsx-peer]]
Description
Shows IGMP group information for a specific interface or VLAN interface.
Parameters
<INTF-ID> Specifies an interface (such as 1/1/2).
<INTF-ID.ID> Specifies a sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
vlan <VLAN-ID> Specifies a VLAN. Values: 1-4094.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP groups for interface VLAN 2:
switch# show ip igmp interface vlan 2 groups
IGMP group information for group 239.1.1.1
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.1 : 100.1.1.10
Internet Group Management Protocol (IGMP) | 48
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 INC 4m 40s 3m 51s
1
Group Address : 239.1.1.1 Source Address : 10.1.1.1
Mode Uptime Expire ---------------------INC 4m 40s 3m 51s
IGMP group information for group 239.1.1.2
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: 239.1.1.2 : 100.1.1.10
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
3 INC 4m 40s 3m 51s
1
Group Address : 239.1.1.2 Source Address : 10.1.1.1
Mode Uptime Expire ---- --------- ------INC 4m 40s 3m 51s
Showing IGMP groups for sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ip igmp interface 1/1/5.10 groups
IGMP group information for group 239.1.1.1
Interface Name : 1/1/5.10
VRF Name
: default
Group Address Last Reporter
: 239.1.1.10 : 10.1.1.1
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
2
11m 59s 1m 44s
1m 44s
IGMP group information for group 239.1.1.2
Interface Name : 1/1/5.10
VRF Name
: default
Group Address Last Reporter
: 239.1.1.20 : 10.1.1.10
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
49
V1
V2
Sources Sources
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------- --------
2
11m 59s 1m 44s
1m 44s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp interface statistics
show ip igmp interface {<INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>} statistics [vsx-peer]
Description
Shows IGMP statistics for a specific interface or VLAN interface, including groups joined.
Parameters
<INTF-ID> Specifies an interface (such as 1/1/2 or LAG1).
<INTF-ID.ID> Required: Specifies a sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
vlan <VLAN-ID> Specifies a VLAN. Values: 1-4094.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP statistics for interface VLAN 2:
switch# show ip igmp interface vlan 2 statistics
IGMP statistics
Interface Name : vlan2
VRF Name
: default
Number of Include Groups Number of Exclude Groups
:2 :0
Internet Group Management Protocol (IGMP) | 50
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Showing IGMP statistics for the sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ip igmp interface 1/1/5.10 statistics
IGMP statistics
Interface Name : 1/1/5.10
VRF Name
: default
Number of Include Groups
:0
Number of Exclude Groups
:2
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp static-groups
show ip igmp static-groups [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP static groups, or shows information by VRF.
Parameters
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. Specify all-vrfs to show information for all VRFs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP static-group information:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
51
switch# show ip igmp static-groups
IGMP Static Group Address Information
VRF Name default
Interface Name Group Address
--------------- -----------------
vlan10
238.1.1.1
Showing IGMP statics-group information for all VRFs:
switch# show ip igmp static-groups all-vrfs
IGMP Static Group Address Information
VRF Name :test
Interface Name Group Address
--------------- -----------------
vlan20
239.1.1.1
VRF Name :default
Interface Name Group Address
--------------- -----------------
vlan10
238.1.1.1
Showing IGMP static-group information for VRF test:
switch# show ip igmp static-groups vrf test
IGMP Static Group Address Information
VRF Name :test
Interface Name Group Address
--------------- -----------------
vlan20
239.1.1.1
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp statistics
show ip igmp statistics [vrf <VRF-NAME> | all-vrfs] [vsx-peer]
Description
Shows IGMP statistics, including groups joined, or shows statistics by VRF.
Internet Group Management Protocol (IGMP) | 52
Parameters
vrf <VRF-NAME> | all-vrfs Optional. Used to show information by VRF. Specify the VRF by VRF name. With no <VRF-NAME> specified, the default VRF is implied. Specify all-vrfs to show information for all VRFs.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP statistics:
switch# show ip igmp statistics IGMP statistics
VRF Name
: default
Number of Include Groups
:1
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 1
Showing IGMP statistics for all VRFs:
switch# show ip igmp statistics all-vrfs
IGMP statistics
VRF Name
: test
Number of Include Groups
:2
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 2
VRF Name
: default
Number of Include Groups
:1
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 1
Showing IGMP statistics for VRF test:
switch# show ip igmp statistics vrf test IGMP statistics
VRF Name
: test
Number of Include Groups
:2
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
53
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
Internet Group Management Protocol (IGMP) | 54
Chapter 4 IGMP snooping
IGMP snooping
IGMP snooping runs on a Layer 2 device as a multicast constraining mechanism to improve multicast forwarding efficiency. It creates Layer 2 multicast forwarding entries from IGMP packets that are exchanged between the hosts and the router. When IGMP snooping is not enabled, the snooping switch floods multicast packets to all hosts in a VLAN. IGMP L2 snooping switch provides the benefit of conserving bandwidth on those segments of the network where no node has expressed interest in receiving packets addressed to the group address. When IGMP snooping is enabled, the L2 snooping switch forwards multicast packets of known multicast groups to only the receivers.
IGMP snooping defaults, protocols, and supported configuration
IGMP snooping default configuration:
n IGMP snooping is disabled by default. n Version 3 is used by default.
IGMP snooping related protocols:
n IGMPv2 (RFC 2236) n IGMPv3 (RFC 2276)
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
55
n Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches (RFC 4541)
Static groups:
You can configure a maximum of 32 IGMP snooping static groups.
How IGMP snooping works
IGMP message types include: Query, Report (Join), and Leave Group. An IGMP snooping enabled Layer 2 device performs differently depending on the message type.
Query
A message sent from the querier (multicast router or switch) asking for a response from each host belonging to the multicast group. If a multicast router supporting IGMP is not present, then the switch must assume this function in order to elicit group membership information from the hosts on the network. The IGMP querier periodically sends IGMP general queries to all hosts and routers on the local subnet to check for the existence of multicast group members. After receiving an IGMP general query, the snooping switch forwards the query to all ports in the VLAN except the receiving port.
Report (Join)
A message sent by a host to the querier to indicate that the host wants to be or is a member of a given group indicated in the report message. A host sends an IGMP report to the IGMP querier for the following purposes:
n Responds to queries if the host is a multicast group member. n Applies for a multicast group membership.
After receiving an IGMP report from a host, the snooping switch forwards the report through all the router ports in the VLAN. It also looks up the forwarding table for a matching entry as follows:
n If no match is found, the snooping switch creates a forwarding entry with the receiving port as an outgoing interface. It also starts group membership expiry timer for the port to track the amount of time that must pass before a multicast router decides there are no more members of a group on a network.
n If a match is found but the matching forwarding entry does not contain the receiving port, the snooping switch adds the receiving port to the outgoing interface list. It also starts group membership expiry timer for the port.
n If a match is found and the matching forwarding entry contains the receiving port, the snooping switch restarts the group membership expiry timer for the port.
Leave Group
A message sent by a host to the querier to indicate that the host has ceased to be a member of a specific multicast group. An IGMPv1 receiver host does not send any leave messages when it leaves a multicast group. The snooping switch cannot immediately update the status of the port that connects to the receiver host. The snooping switch does not remove the port from the outgoing interface list in the associated forwarding entry until the group membership timer expires. An IGMPv2 or IGMPv3 host sends an IGMP leave message when it leaves a multicast group. Upon receiving leave message, the switch forwards the IGMP leave message to all router ports in the VLAN . IGMP querier
IGMP snooping | 56
then sends an IGMP group-specific query to the multicast group to identify whether the group has active receivers attached to the receiving port. After receiving the IGMP group-specific query, the switch forwards the query through all router ports and member ports of the group in the VLAN. Then, it waits for the responding IGMP report message from the directly connected hosts. If the port does not receive an IGMP report message when the group membership timer expires, the snooping switch removes the port from the forwarding entry for the multicast group.
IGMP snooping configuration task list
n Enabling or Disabling IGMP Snooping n Specifying the IGMP snooping version n Configuring IGMP snooping static groups n Enabling Drop-Unknown Filters n Configuring IGMP snooping fast learn ports globally n Configuring IGMP snooping per port filtering n Disabling IGMP Snooping n Viewing IGMP snooping information
Enabling or disabling IGMP snooping
IGMP snooping is disabled by default. The default behavior is to flood multicast traffic in the VLAN. Use the following to enable IGMP snooping.
Prerequisites
You must be in the VLAN configuration context, as indicated by the switch(config-vlan)# prompt. The VLAN has to be configured and up.
Procedure
Enable IGMP snooping on a VLAN using the following command. ip igmp snooping {enable | disable} For example, the following command enables IGMP snooping on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping enable
Use the no command to disable IGMP snooping on a VLAN.
Specifying the IGMP snooping version
The IGMP snooping version can be either 2 (IGMPv2) or 3 (IGMPv3). The default is 3. IGMPv2 supports filtering based on groups. IGMPv3 is more advanced and includes filtering based on source and groups.
Prerequisites
You must be in the VLAN configuration context, as indicated by the switch(config-vlan)# prompt.
Procedure
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
57
Specify the IGMP snooping version for a VLAN using the following command. ip igmp snooping version <VERSION> For example, the following command sets the IGMP snooping version to 2 on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping version 2
Configuring IGMP snooping static groups
Configure IGMP snooping static groups.
Prerequisites
You must be in the VLAN configuration context, as indicated by the switch(config-vlan)# prompt.
Procedure
Configure an IGMP snooping static group on a VLAN using the following command. ip igmp snooping static-group <MULTICAST-IP-ADDRESS> For example, the following command configures the IGMP snooping static multicast group as 239.1.1.1 on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping static-group 239.1.1.1
The no form of the command removes the IGMP snooping static group.
Enabling drop-unknown filters
While IGMP snooping is enabled, the traffic will be forwarded only to joined ports. Configuring drop unknown filters, ensures that packets are not forwarded to ports where a request for the traffic stream has not been received. This could either be a filter across all VLANs (vlan-shared) or per VLAN (vlan-exclusive). The default is vlan-shared.
Prerequisites
You must be in the configuration context, as indicated by the switch(config)# prompt.
Procedure
Globally enable dropping multicast data using the following command. ip igmp snooping drop-unknown {vlan-shared | vlan-exclusive} For example, the following command configures a shared VLAN filter on the switch:
switch(config)# ip igmp snooping drop-unknown vlan-shared
Configuring IGMP snooping fast learn ports globally
Configuring fast learn on a port enables faster response to topology change notifications. When spanning tree changes the port state from blocked to forwarding, the device acting as querier will immediately send a
IGMP snooping | 58
general query on the fast learn enabled port. Then the device acting as a non-querier will replay the joins. This will help in faster convergence of multicast flows.
Prerequisites
You must be in the configuration context, as indicated by the switch(config)# prompt.
Procedure
Configure one or more ports as IGMP snooping fast learn ports using the following command. ip igmp snooping fastlearn <PORT-LIST> For example, the following command configures ports 1/1/1-1/1/3 as fast learn ports:
switch(config)# ip igmp snooping fastlearn 1/1/1-1/1/3
Configuring IGMP snooping per port filtering
Configure IGMP snooping traffic handling by specifying auto, blocked, or forward for a port, list of ports or range of ports. In auto mode traffic flow is controlled by the IGMP joins/leaves. Auto mode is the default. In blocked mode, joins and traffic are always blocked on this port. In forward mode traffic is always forwarded on this port, irrespective of joins.
Prerequisites
You must be in the VLAN configuration context, as indicated by the switch(config-vlan)# prompt.
Procedure
Configure IGMP snooping traffic handling for ports on a VLAN using the following commands. n Configure the specified ports in auto mode using the following command: ip igmp snooping auto
<PORT-LIST>. n Configure the specified ports in blocked mode using the following command: ip igmp snooping
blocked <PORT-LIST>. n Configure the specified ports in forward mode using the following command: ip igmp snooping
forward <PORT-LIST>. For example, the following command configures ports 1/1/1, 1/1/2, and 1/1/3 in auto mode for VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping auto 1/1/1,1/1/2-1/1/3
Disabling IGMP snooping
Prerequisites
You must be in the VLAN configuration context, as indicated by the switch(config-vlan)# prompt.
Procedure
Disable IGMP snooping on a VLAN using the following command. no ip igmp snooping
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
59
For example, the following command removes IGMP snooping on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# no ip igmp snooping
Viewing IGMP snooping information
Prerequisites
Use these show commands from the Operator (>) or Manager (#) context.
Procedure
To view IGMP snooping information, use the following commands. n To view IGMP snooping configuration details and status, use: show ip igmp snooping. n To view IGMP snooping query packet Tx, Rx, and Error packet counter details, use: show ip igmp
snooping counters. n To view IGMP snooping group information, use: show ip igmp snooping groups. n To view IGMP snooping protocol information and the number of groups joined, use: show ip igmp
snooping statistics. n To view IGMP snooping query packet Tx, Rx, and Error packet counters for the specified VLAN, use: show
ip igmp snooping vlan counters. n To view IGMP snooping statistics details for the specified VLAN including the number of different groups
joined for the VLAN, use: show ip igmp snooping vlan statistics. n To view IGMP snooping group information for the specified VLAN, use: show ip igmp snooping vlan. n To view IGMP snooping group details for the specified VLAN including information about all IGMP
snooping groups or sources learned on a particular port, use: show ip igmp snooping vlan group port. n To view IGMP snooping static groups details for the specified VLAN, use: show ip igmp snooping static-groups.
IGMP snooping commands
ip igmp snooping
ip igmp snooping {enable | disable}
Description
Enables or disables IGMP snooping on the VLAN. By default, IGMP snooping is disabled.
Parameters
{enable | disable} Specifies enabling or disabling IGMP snooping on the VLAN. Default: disable.
Examples
Enable IGMP snooping on a VLAN:
IGMP snooping | 60
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping enable
Disable IGMP snooping on a VLAN:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping disable
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
ip igmp snooping apply access-list
ip igmp snooping apply access-list <ACL-NAME> no ip igmp snooping apply access-list <ACL-NAME>
Description
Configures the ACL on a particular interface to filter the IGMP join or leave packets based on rules set in the particular ACL name. The no form of this command unconfigures the rules set for the ACL.
This configuration will override the ACL associated with IGMP snooping on the corresponding L2 VLAN.
Parameters
access-list Associates an ACL with the IGMP.
<ACL-NAME> Specifies the name of the ACL.
Usage
Existing classifier commands are used to configure the ACL. In case an IGMPv3 packet with multiple group addresses is received, it will only process the permitted group addresses based on the ACL rule set, and any existing joins will time out. If there is no match or if there is a deny rule match, the packet is dropped.
If the access list is configured for both L2 VLAN and L3 VLAN, the L3 VLAN configuration will be applied.
Examples
Configuring the ACL to filter IGMP packets based on rules set in access list mygroup:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
61
switch(config)# access-list ip mygroup switch(config-acl-ip)# permit igmp any 239.1.1.1 switch(config-acl-ip)# exit switch(config)# interface vlan 2 switch(config-vlan)# ip igmp snooping apply access-list mygroup
Configuring the ACL to remove the rules set in access list mygroup:
switch(config-vlan)# no ip igmp snooping apply access-list mygroup
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
ip igmp snooping auto vlan
ip igmp snooping [auto vlan <VLAN-LIST>] no ip igmp snooping [auto vlan <VLAN-LIST>]
Description
Configures the specified ports in auto mode. In auto mode traffic flow is controlled by the IGMP joins/leaves. Auto mode is the default. The no form of this command removes auto mode ports for the VLAN.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Example
On the 6400 Switch Series, interface identification differs. Configure auto ports for VLAN on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-if)# no shut switch(config-if)# no routing switch(config-if)# vlan trunk allowed 10-20 switch(config-if)# ip igmp snooping auto vlan 10 switch(config-if)# ip igmp snooping auto vlan 10-20
IGMP snooping | 62
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp snooping blocked
ip igmp snooping [blocked vlan <VLAN-LIST>] no ip igmp snooping [blocked vlan <VLAN-LIST>]
Description
Configures the specified ports in blocked mode for the specified VLAN list. In blocked mode, joins and traffic are always blocked on this port. The no form of this command disables blocked ports.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as a blocked port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Examples
On the 6400 Switch Series, interface identification differs. Configuring blocked ports for the VLAN on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-if)# no shut switch(config-if)# no routing switch(config-if)# vlan trunk allowed 10-20 switch(config-if)# ip igmp snooping blocked vlan 10 switch(config-if)# ip igmp snooping blocked vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
63
Platforms All platforms
Command context config-if
Authority
Administrators or local user group members with execution rights for this command.
ip igmp snooping drop-unknown
ip igmp snooping drop-unknown {vlan-shared | vlan-exclusive} no ip igmp snooping drop-unknown
Description
Configures drop-unknown mode. While IGMP snooping is enabled, the traffic will be forwarded only to ports that made an IGMP request for the multicast. Drop unknown filters ensure that packets are not forwarded to ports that did not make a request for the traffic stream. This could either be a filter across all VLANs (vlan-shared) or per VLAN (vlan-exclusive). The default is vlan-shared. The no form of this command disables drop unknown on the switch.
Parameters
vlan-shared Enables shared VLAN filter on the switch. Default: vlan-shared.
vlan-exclusive Enables exclusive drop unknown filter per VLAN.
Examples
Configuring shared VLAN filter on the switch:
switch(config)# ip igmp snooping drop-unknown vlan-shared
Configuring exclusive drop unknown filter per VLAN:
switch(config)# ip igmp snooping drop-unknown vlan-exclusive
Disabling drop unknown on the switch:
switch(config)# no ip igmp snooping drop-unknown
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
IGMP snooping | 64
ip igmp snooping fastlearn
ip igmp snooping fastlearn <PORT-LIST> no ip igmp snooping fastlearn <PORT-LIST>
Description
Enables the port to learn group information when receiving a topology change notification. By default, fast learn is not enabled on ports. The no form of this command disables fast learn on the specified ports.
Parameters
fastlearn <PORT-LIST> Specifies a list of one or more ports to be configured as fast learn ports. You can specify a single port, a comma-separated list of ports or a range of ports such as 1/1/1-1/1/3. You may also enter an L2 LAG (1128).
Examples
On the 6400 Switch Series, interface identification differs. Configuring fast learn ports:
switch(config)# ip igmp snooping fastlearn 1/1/3 switch(config)# ip igmp snooping fastlearn 1/1/1-1/1/2 switch(config)# ip igmp snooping fastlearn 1/1/5,1/1/6
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp snooping fastleave vlan
ip igmp snooping [fastleave vlan <VLAN-LIST>] no ip igmp snooping [fastleave vlan <VLAN-LIST>]
Description
Enables the switch to immediately remove the IGMP client from its IGMP table and cease transmitting multicast traffic to the client. The no form of this command disables fastleave on the specified ports.
Parameters
<VLAN-LIST>
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
65
Specifies a list of VLANs on which the port should be configured as a fastleave port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Usage
IGMP fastleave is configured for ports on a per-VLAN basis. Upon receiving a Leave Group message, the querier sends an IGMP Group-Specific Query message out of the interface to ensure that no other receivers are connected to the interface. If receivers are directly attached to the switch, it is inefficient to send the membership query as the receiver wanting to leave is the only connected host. When a fastleave-enabled switch port is connected to a single host and receives a leave, the switch does not wait for the querier status update interval, but instead immediately removes the IGMP client from its IGMP table and ceases transmitting multicast traffic to the client. (If the switch detects multiple end nodes on the port, Fastleave does not activate regardless of whether one or more of these end nodes are IGMP clients.) This processing speeds up the overall leave process and also eliminates the CPU overhead of having to generate an IGMP Group-Specific Query message.
Examples
On the 6400 Switch Series, interface identification differs. Configuring fastleave ports for the VLAN on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-if)# no shut switch(config-if)# no routing switch(config-if)# vlan trunk allowed 10-20 switch(config-if)# ip igmp snooping fastleave vlan 10 switch(config-if)# ip igmp snooping fastleave vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp snooping forced fastleave vlan
ip igmp snooping [forced-fastleave vlan <VLAN-LIST>] no ip igmp snooping [forced-fastleave vlan <VLAN-LIST>]
Description
Configures the specified ports in forced fastleave mode. The no form of this command disables forced fastleave on the specified ports.
Parameters
IGMP snooping | 66
<VLAN-LIST> Specifies a list of VLANs on which the port should be configured as a forced fastleave port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Usage
With forced fastleave enabled, IGMP speeds up the process of blocking unnecessary multicast traffic to a switch port that is connected to multiple end nodes. When a port having multiple end nodes receives a leave group request from one end node for a given multicast group, forced fastleave activates and waits for a second to receive a join request from any other member of the same group on that port. If the port does not receive a join request for that group within the forced fastleave interval, the switch then blocks any further traffic to that group on that port.
Examples
On the 6400 Switch Series, interface identification differs. Configuring forced-fastleave ports for VLANs on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-if)# no shut switch(config-if)# no routing switch(config-if)# vlan trunk allowed 10-20 switch(config-if)# ip igmp snooping forced-fastleave vlan 10 switch(config-if)# ip igmp snooping forced-fastleave vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp snooping forward vlan
ip igmp snooping forward [vlan <VLAN-LIST>] no ip igmp snooping forward [vlan <VLAN-LIST>]
Description
Configures the specified ports in forward mode in the given VLAN list. In forward mode, traffic is always forwarded on this port, irrespective of joins. The no form of this command disables forward ports.
Parameters
<VLAN-LIST>
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
67
Required: Specifies a list of VLANs on which the port should be configured as a forward port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Examples
On the 6400 Switch Series, interface identification differs. Configuring forward ports for the VLAN on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-if)# no shut switch(config-if)# no routing switch(config-if)# vlan trunk allowed 10-20 switch(config-if)# ip igmp snooping forward vlan 10 switch(config-if)# ip igmp snooping forward vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip igmp snooping static-group
ip igmp snooping static-group <MULTICAST-IP-ADDRESS> no ip igmp snooping static-group <MULTICAST-IP-ADDRESS>
Description
Configures an IGMP snooping static multicast group. You can configure a maximum of 32 IGMP snooping static groups. The no form of this command disables static multicast group.
Parameters
<MULTICAST-IP-ADDRESS> Specifies the IGMP static multicast group IP address. Format: A.B.C.D
Examples
Configuring IGMP snooping static group:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping static-group 239.1.1.1 switch(config-vlan)# no ip igmp snooping static-group 239.1.1.1
Command History
IGMP snooping | 68
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
ip igmp snooping version
ip igmp snooping version <VERSION>
Description
Configures the IGMP snooping version on the VLAN.
Parameters
<VERSION> Specifies the IGMP snooping version. Select 2 for IGMPv2 (RFC2236). Select 3 for IGMPv3 (RFC3376). Values: 2 or 3.
Examples
Configuring IGMP snooping version on the VLAN:
switch(config)# vlan 2 switch(config-vlan)# ip igmp snooping version 2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
no ip igmp snooping
no ip igmp snooping
Description
Disables all IGMP snooping configurations on the VLAN.
Examples
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
69
Disabling all IGMP snooping configurations on the VLAN:
switch(config)# vlan 2 switch(config-vlan)# no ip igmp snooping
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
show ip igmp snooping
show ip igmp snooping [vsx-peer]
Description
Shows IGMP snooping configuration information and status for all VLANs.
Parameters
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping configuration and status:
switch# show ip igmp snooping
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled IGMP Drop Unknown Multicast
:1 : Global
VLAN ID : 1 VLAN Name : DEFAULT_VLAN_1 IGMP Snooping is not enabled
VLAN ID : 2 VLAN Name : VLAN2 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 20.1.1.1 Querier Port :
IGMP snooping | 70
Querier UpTime :0m 21s Querier Expiration Time :0m 2s
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping counters
show ip igmp snooping counters [vsx-peer]
Description
Shows IGMP snooping query packet Tx, Rx, and Error packet counter details.
Parameters
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping packet counters:
switch# show ip igmp snooping counters IGMP Snooping VLAN Counters
Rx Counters :
V1 All Hosts Queries
0
V2 All Hosts Queries
0
V3 All Hosts Queries
3
V2 Group Specific Queries
0
V3 Group Specific Queries
0
Group And Source Specific Queries
0
V1 Member Reports
0
V2 Member Reports
0
V3 Member Reports
2
V2 Member Leaves
0
Tx Counters :
Flood on vlan
44
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
71
V2 Group Specific Queries
0
V3 Group Specific Queries
0
Errors:
Unknown Message Type
0
Malformed Packets
0
Bad Checksum
0
Packet received on IGMP-disabled Interface
0
Interface Wrong Version Queries
0
Packets dropped by ACL
0
Port Counters:
Membership Timeout
0
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping groups
show ip igmp snooping groups [vsx-peer]
Description
Shows IGMP snooping group information.
Parameters
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping groups:
switch# show ip igmp snooping groups IGMP Group Address Information
VLAN ID Group Address Expires UpTime Last Reporter Type
-----------------------------------------------------------------
2
239.1.1.3
0m 4s
0m 10s 10.1.1.1
Filter
Command History
IGMP snooping | 72
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping static-groups
show ip igmp snooping static-groups [vsx-peer]
Description
Shows IGMP snooping static group details.
Parameters
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping static group details:
switch# show ip igmp snooping static-groups
IGMP Static Group Address Information
VLAN ID Group Address
------------------------
10
239.1.1.10
10
239.1.1.11
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping statistics
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
73
show ip igmp snooping statistics [vsx-peer]
Description
Shows IGMP snooping protocol information and the joined group statistics.
Parameters
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping statistics:
switch# show ip igmp snooping statistics IGMP Snooping Protocol Info
Total VLANs with IGMP enabled IGMP Drop Unknown Multicast
:1 : Global
IGMP Snooping Joined Groups Statistics
VLAN ID VLAN Name
Total Static INCLUDE
------- ---------------- ------ ------ -------
1
DEFAULT_VLAN_1 0
0
0
2
VLAN10
2
2
0
EXCLUDE ------0 0
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping vlan
show ip igmp snooping vlan <VLAN-ID> [group [<group-ip>] [source <source-ip>]] [vsx-peer]
Description
Shows IGMP snooping protocol information for the specified VLAN. You can also specify a group and source to show group and source information.
Parameters
<VLAN-ID>
IGMP snooping | 74
Specifies a VLAN. Range: 1-4094. group <group-ip>
Specifies a group to display port and group information. Format: A.B.C.D source <source-ip>
Specifies a source to display source information for the group. Format: A.B.C.D vsx-peer
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping protocol information for VLAN 2:
switch# show ip igmp snooping vlan 2
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled IGMP Drop Unknown Multicast
:1 : Global
VLAN ID : 2 VLAN Name : VLAN2 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 20.1.1.1 Querier Port : 1/1/1 Querier UpTime : Querier Expiration Time :
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
239.1.1.2
Filter 3 INC 0m 27s 0m 13s
Showing IGMP snooping group information for group 239.1.1.2 on VLAN 2:
switch# show ip igmp snooping vlan 2 group 239.1.1.2
IGMP ports and group information for group 239.1.1.2
VLAN ID : 2 VLAN Name : VLAN2
Group Address : 239.1.1.2 Last Reporter : 10.1.1.1 Group Type : Filter
V1
V2
Sources Sources
Port
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------- --------
1/1/6
3 INC 0m 41s 3m 39s
3
0
Group Address : 239.1.1.2 Source Address : 30.1.1.1 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/6
INC 0m 41s 3m 39s Auto
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
75
Group Address : 239.1.1.2 Source Address : 30.1.1.2 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/6
INC 0m 41s 3m 39s Auto
Group Address : 239.1.1.2 Source Address : 30.1.1.3 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/6
INC 0m 41s 3m 39s Auto
Showing IGMP snooping group information for group 239.1.1.2 on VLAN 2 and source 30.1.1.1:
switch# show ip igmp snooping vlan 2 group 239.1.1.2 source 30.1.1.1
VLAN ID : 2 VLAN Name : VLAN2 Group Address : 239.1.1.2 Source Address : 30.1.1.1 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/6
INC 0m 41s 3m 39s Auto
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping vlan counters
show ip igmp snooping vlan <VLAN-ID> counters [vsx-peer]
Description
Shows IGMP snooping query packet Tx, Rx, Error packet counters for the specified VLAN.
Parameters
<VLAN-ID> Specifies a VLAN. Range: 1-4094.
vsx-peer
IGMP snooping | 76
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping counters for VLAN 2:
Switch# show ip igmp snooping vlan 2 counters IGMP Snooping VLAN Counters
VLAN ID : 2 VLAN Name : VLAN2
Rx Counters :
V1 All Hosts Queries
0
V2 All Hosts Queries
0
V3 All Hosts Queries
3
V2 Group Specific Queries
0
V3 Group Specific Queries
0
Group And Source Specific Queries
0
V1 Member Reports
0
V2 Member Reports
0
V3 Member Reports
2
V2 Member Leaves
0
Tx Counters :
Flood on vlan
71
V2 Group Specific Queries
0
V3 Group Specific Queries
0
Errors:
Unknown Message Type
0
Malformed Packets
0
Bad Checksum
0
Packet received on IGMP-disabled Interface
0
Interface Wrong Version Queries
0
Packet dropped by ACL
0
Port Counters:
Membership Timeout
0
Switch#
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
77
show ip igmp snooping vlan group port
show ip igmp snooping vlan <VLAN-ID> group port <PORT-ID> [vsx-peer]
Description
Shows IGMP snooping group details for the specified VLAN. It shows information about all IGMP snooping groups or sources learned on a particular port.
Parameters
<VLAN-ID> Specifies a VLAN. Range: 1-4094.
<PORT-ID> Specifies a port of a VLAN to display information about all IGMPv3 snooping groups/sources learn on a particular port.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping group details for VLAN 2 port 1/1/6:
switch# show ip igmp snooping vlan 2 group port 1/1/6
VLAN ID : 2 VLAN Name : VLAN2
Group Address : 239.1.1.1 Last Reporter : 10.1.1.1 Group Type : Filter
V1
V2
Sources Sources
Port
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------- --------
1/1/6
2 EXC 0m 21s 1m 12s
2m 48s 0
0
VLAN ID : 2 VLAN Name : VLAN2
Group Address : 239.1.1.2 Last Reporter : 10.1.1.1 Group Type : Filter
V1
V2
Sources Sources
Port
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------- --------
1/1/6
2 EXC 0m 21s 1m 32s
2m 48s 0
0
Command History
Release 10.07 or earlier
Modification --
Command Information
IGMP snooping | 78
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip igmp snooping vlan statistics
show ip igmp snooping vlan <VLAN-ID> statistics [vsx-peer]
Description
Shows IGMP snooping statistics details for the specified VLAN. It also shows information on the different groups joined in the VLAN.
Parameters
<VLAN-ID> Specifies a VLAN. Range: 1-4094.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing IGMP snooping statistics for VLAN 2:
switch# show ip igmp snooping vlan 2 statistics IGMP Snooping statistics
VLAN ID : 2 VLAN Name : VLAN2
Number of Include Groups
:1
Number of Exclude Groups
:0
Number of Static Groups
:1
Total Multicast Groups Joined : 2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6200 6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
79
Chapter 5 MLD snooping
MLD snooping
MLD snooping functionality
Multicast Listener Discovery (MLD) snooping optimizes multicast traffic across the network to prevent traffic from flooding ports on a VLAN.
n For example, one of the features of MLD snooping lets you configure the network so that traffic is forwarded only to ports that initiate an MLD request for multicast.
n Another feature of MLD lets you enable a setting so that packets that do not match the configured version are dropped.
n You can also block ports from traffic.
MLD snooping global configuration commands
ipv6 mld snooping
ipv6 mld snooping [drop-unknown [vlan-shared | vlan-exclusive]] [no] ipv6 mld snooping
Description
This command configures the drop unknown mode. While MLD snooping is enabled, the traffic will be forwarded only to ports that initiate an MLD request for multicast. Drop unknown mode can be a filter across all VLANs (vlan-shared) or per VLAN (exclusive-vlan). The default configuration is vlan-shared. The no form of this command disables drop unknown mode on the switch.
Parameters
vlan-shared Required: Enable shared VLAN filter on the switch.
vlan-exclusive Required: Enable exclusive drop unknown filter per VLAN.
Example
switch(config)# ipv6 mld snooping drop-unknown vlan-shared switch(config)# ipv6 mld snooping drop-unknown vlan-exclusive switch(config)# no ipv6 mld snooping drop-unknown
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
80
Command Information
Platforms All platforms
Command context config
Authority
Administrators or local user group members with execution rights for this command.
MLD snooping VLAN configuration commands
ipv6 mld snooping
ipv6 mld snooping {enable | disable}
Description
This command enables or disables MLD snooping on the VLAN. The no form of this command disables all MLD snooping configurations on the VLAN.
Parameters
enable Required: Enable MLD snooping on the VLAN.
disable Required: Disable MLD snooping on the VLAN.
Example
Enable MLD snooping on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# ipv6 mld snooping enable switch(config-vlan)# ipv6 mld snooping disable
Remove all MLD snooping configurations on VLAN 2:
switch(config)# vlan 2 switch(config-vlan)# no ipv6 mld snooping
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
ipv6 mld snooping apply access-list
MLD snooping | 81
ipv6 mld snooping apply access-list <ACL-NAME> no ipv6 mld snooping apply access-list <ACL-NAME>
Description
Configures the ACL on a particular interface to filter the MLD join or leave packets based on rules set in the particular ACL name. The no form of this command disables the rules set for the ACL.
This configuration will override the ACL associated with IGMP snooping on the corresponding L2 VLAN.
Parameters
access-list Associates an ACL with the IGMP.
<ACL-NAME> Specifies the name of the ACL.
Usage
Existing classifier commands are used to configure the ACL. In case an MLDv2 packet with multiple group addresses is received, it will only process the permitted group addresses based on the ACL rule set, and any existing joins will time out. If there is no match or if there is a deny rule match, the packet is dropped.
If the access list is configured for both L2 VLAN and L3 VLAN, the L3 VLAN configuration will be applied.
Examples
Configuring the ACL to filter MLD packets based on rules set in access list mygroup:
switch(config)# access-list ipv6 mygroup switch(config-acl-ip)# permit icmpv6 any ff55::1 switch(config-acl-ip)# exit switch(config)# interface vlan 2 switch(config-vlan)# ipv6 mld snooping apply access-list mygroup
Configuring the ACL to remove the rules set in access list mygroup:
switch(config-vlan)# no ipv6 mld snooping apply access-list mygroup
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
82
ipv6 mld snooping auto vlan
ipv6 mld snooping [auto vlan <VLAN-LIST>] no ipv6 mld snooping [auto vlan <VLAN-LIST>]
Description
This command configures the given ports in auto mode, which is the default port mode. The no form of this command disables auto ports.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Example
On the 6400 Switch Series, interface identification differs. Configuring auto ports for VLANs on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-vlan)# no shut switch(config-vlan)# no routing switch(config-vlan)# ipv6 mld snooping auto vlan 10 switch(config-vlan)# ipv6 mld snooping auto vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld snooping blocked vlan
ipv6 mld snooping [blocked vlan <VLAN-LIST>] no ipv6 mld snooping [blocked vlan <VLAN-LIST>]
Description
By default ports are configured in auto mode. This command configures the given ports in blocked mode. The no form of this command removes blocked ports.
Parameters
<VLAN-LIST>
MLD snooping | 83
Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Example
On the 6400 Switch Series, interface identification differs. Configuring blocked ports for the VLANs on the interface:
switch# configure terminal switch(config)# int 1/1/1 switch(config-vlan)# no shut switch(config-vlan)# no routing switch(config-vlan)# ipv6 mld snooping blocked vlan 10 switch(config-vlan)# ipv6 mld snooping blocked vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld snooping fastlearn
ipv6 mld snooping fastlearn <port-list>
Description
This command enables the port to learn group information on receiving topology change notification. The no form of this command disables fastlearn on the ports.
Parameters
port-list Required: 1/1/1-1/1/2, ports to be configured as fastlearn ports.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# ipv6 mld snooping fastlearn 1/1/3 switch(config)# ipv6 mld snooping fastlearn 1/1/1-1/1/2 switch(config)# ipv6 mld snooping fastlearn 1/1/5,1/1/6
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
84
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld snooping fastleave vlan
ipv6 mld snooping [fastleave vlan <VLAN-LIST>] no ipv6 mld snooping [fastleave vlan <VLAN-LIST>]
Description
Configures the specified ports as fastleave ports. Enables the switch to immediately remove an interface from the bridge table upon receiving the leave group message. The no form of this command disables fastleave configuration on the ports.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Usage
MLD fastleave is configured for ports on a per-VLAN basis. By default, the querier sends a MLD GroupSpecific Query message out of the interface, upon which the leave group message is received to ensure that no other receivers are connected to the interface. If receivers are directly attached to the switch, it is inefficient to send the membership query as the receiver wanting to leave is the only connected host. Fastleave processing eliminates the MLD Group-Specific Query message. Thus, it allows the switch to immediately remove an interface from the bridge table upon receiving the leave Group message. This processing speeds up the overall leave process and also eliminates the CPU overhead of having to generate an MLD Group-Specific Query message.
Example
On the 6400 Switch Series, interface identification differs. Configuring fastleave ports for the VLAN:
switch# configure terminal switch(config)# int 1/1/1 switch(config-vlan)# no shut switch(config-vlan)# no routing switch(config-vlan)# ipv6 mld snooping fastleave vlan 10 switch(config-vlan)# ipv6 mld snooping fastleave vlan 10-20
Command History
MLD snooping | 85
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld snooping forced fastleave vlan
ipv6 mld snooping [forced-fastleave <VLAN-LIST>] no ipv6 mld snooping [forced-fastleave <VLAN-LIST>]
Description
Configures the given ports in forced fastleave mode. The no form of this command disables forced fastleave configuration on the ports.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Usage
With forced fastleave enabled, MLD speeds up the process of blocking unnecessary multicast traffic to a switch port that is connected to multiple end nodes. When a port having multiple end nodes receives a leave group request from one end node for a given multicast group, forced fastleave activates and waits a small amount of time to receive a join request from any other member of the same group on that port. If the port does not receive a join request for that group within the forced fastleave interval, the switch then blocks any further traffic to that group on that port.
Example
On the 6400 Switch Series, interface identification differs. Configuring forced-fastleave ports for the VLAN:
switch# configure terminal switch(config)# int 1/1/1 switch(config-vlan)# no shut switch(config-vlan)# no routing switch(config-vlan)# ipv6 mld snooping forced-fastleave vlan 10 switch(config-vlan)# ipv6 mld snooping forced-fastleave vlan 10-20
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
86
Command Information
Platforms All platforms
Command context config-vlan
Authority
Administrators or local user group members with execution rights for this command.
ipv6 mld snooping forward vlan
ipv6 mld snooping [forward vlan <VLAN-LIST>] no ipv6 mld snooping [forward vlan <VLAN-LIST>]
Description
By default ports are configured in auto mode. This command configures the given ports in forward mode. The no form of this command disables forward ports.
Parameters
<VLAN-LIST> Required: Specifies a list of VLANs on which the port should be configured as an auto port. Specifies the number of a single VLAN or a series of numbers for a range of VLANs, separated by commas (10, 20, 30, 40), dashes (10-40), or both (10-40,60).
Example
On the 6400 Switch Series, interface identification differs. Configuring forward ports for VLANs on the interface:
switch# configureterminal switch(config)# int 1/1/1 switch(config-vlan)# no shut switch(config-vlan)# no routing switch(config-vlan)# ipv6 mld snooping forward vlan 10 switch(config-vlan)# ipv6 mld snooping forward vlan 10-20
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld snooping version
ipv6 mld snooping [version <ver>]
Description
This command configures the MLD snooping version on the VLAN. MLD version 2 is the default.
MLD snooping | 87
Parameters
ver Required: 1-2, MLD snooping version.
Example
switch(config)# vlan 2 switch(config-vlan)# ipv6 mld snooping version 2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
ipv6 mld snooping static-group
ipv6 mld snooping [static-group <X:X::X:X>]
Description
This command configures static multicast group. The no form of this command disables static multicast group.
Parameters
static-group Required: <X:X::X:X>, MLD static multicast group.
Example
switch(config)# vlan 2 switch(config-vlan)# ipv6 mld snooping static-group ff12::c switch(config-vlan)# no ipv6 mld snooping static-group ff12::c
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
88
Platforms All platforms
Command context
Authority
config-vlan-<VLAN-ID> Administrators or local user group members with execution rights for this command.
MLD snooping show commands
show ipv6 mld snooping
show ipv6 mld snooping
Description
This command shows MLD snooping configuration details for all VLANs.
Example
switch# show ipv6 mld snooping
MLD Snooping Protocol Info
Total VLANs with MLD enabled
:1
Current count of multicast groups joined : 0
MLD Drop Unknown Multicast
: Global
VLAN ID VLAN Name MLD Snooping is not enabled
VLAN ID VLAN Name MLD Configured Version MLD Operating Version Querier Address [this switch] Querier Port Querier UpTime Querier Expiration Time
:1 : DEFAULT_VLAN_1
:2 : VLAN2 :2 :2 : fe80::218:71ff:fec4:2f00 : :0m 21s :0m 2s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping counters
MLD snooping | 89
show ipv6 mld snooping [counters]
Description
This command shows MLD snooping query packet Tx, Rx, and Error packet counter details.
Parameters
counters Optional, show MLD snooping counters.
Example
switch# show ipv6 mld snooping counters MLD Snooping VLAN Counters
Rx Counters :
V1 All Hosts Queries
0
V2 All Hosts Queries
0
V2 Group Specific Queries
0
Group And Source Specific Queries
0
V1 Member Reports
0
V2 Member Reports
0
V1 Member Leaves
0
Tx Counters :
Flood on vlan
44
V1 Group Specific Queries
0
V2 Group Specific Queries
0
Errors:
Unknown Message Type
0
Malformed Packets
0
Bad Checksum
0
Packet received on MLD-disabled Interface
0
Interface Wrong Version Queries
0
Packets dropped by ACL
0
Port Counters:
Membership Timeout
0
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
90
show ipv6 mld snooping groups
show ipv6 mld snooping [groups]
Description
This command shows MLD snooping group details for the specified VLAN.
Parameters
groups Optional, show MLD snooping groups information.
Example
switch# show ipv6 mld snooping groups
MLD Group Address Information
VLAN ID Group Address
Expires UpTime Last Reporter
Type
------- ----------------- --------- --------- ------------------------------ ----
10
ff12::c
3m 54s 0m 26s 2001::1
Filter
10
ff12::d
4m 17s 0m 3s
2001::1
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping statistics
show ipv6 mld snooping [statistics]
Description
This command shows MLD snooping statistics information.
Parameters
statistics Optional, show MLD snooping statistics.
Example
switch# show ipv6 mld snooping statistics MLD Snooping Protocol Info
MLD snooping | 91
Total VLANs with MLD enabled
:1
Current count of multicast groups joined : 2
MLD Drop Unknown Multicast
: Global
MLD Snooping Joined Groups Statistics
VLAN ID VLAN Name
Total Static INCLUDE
------- ---------------- ------ ------ -------
1
DEFAULT_VLAN_1 0
0
0
2
VLAN2
2
2
0
EXCLUDE ------0 0
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping vlan counters
show ipv6 mld snooping [vlan <vlan-id> [counters]]
Description
This command shows MLD snooping protocol information and number of different groups joined for the VLAN.
Parameters
vlan-id Required, 1-4094, shows MLD snooping information.
counters Optional, shows MLD query packet Tx, Rx, Error packet counters on a specified VLAN.
Example
switch# show ipv6 mld snooping vlan 2 counters MLD Snooping VLAN Counters
VLAN ID : 2 VLAN Name : VLAN2
Rx Counters :
V1 All Hosts Queries
0
V2 All Hosts Queries
0
V1 Group Specific Queries
0
V2 Group Specific Queries
0
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
92
Group And Source Specific Queries
0
V1 Member Reports
0
V2 Member Reports
0
V1 Member Leaves
0
Tx Counters :
Flood on vlan
71
V1 Group Specific Queries
0
V2 Group Specific Queries
0
Errors:
Unknown Message Type
0
Malformed Packets
0
Bad Checksum
0
Packet received on MLD-disabled Interface
0
Interface Wrong Version Queries
0
Packets dropped by ACL
0
Port Counters:
Membership Timeout
0
switch#
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping vlan group port
show ipv6 mld snooping [vlan <vlan-id> [group [port <port_id>]]
Description
This command shows MLD snooping details for the specified VLAN, including the number of different groups joined for the VLAN.
Parameters
port-id Required: <PORT>, shows MLD protocol information for the specified port of a VLAN.
Example
switch# show ipv mld snooping vlan 2 group port 1/1/1
MLD snooping | 93
VLAN ID : 2 VLAN Name : VLAN2
Group Address : ff05::2:1 Last Reporter : fe80::1 Group Type : Filter
V1
Sources Sources
Port
Vers Mode Uptime Expires Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------
1/1/1
2 INC 1m 46s 2m 34s
3
0
Group Address : ff05::2:1 Source Address : 3000::1 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/1
INC 1m 46s 2m 34s Auto
Group Address : ff05::2:1 Source Address : 3000::2 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/1
INC 1m 46s 2m 34s Auto
Group Address : ff05::2:1 Source Address : 3000::3 Source Type : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/1
INC 1m 46s 2m 34s Auto
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping vlan group source
show ipv6 mld snooping [vlan <vlan-id> [group [<group-ip>] [source <source-ip>]]]
Description
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
94
This command shows MLD snooping details for the specified VLAN, including the number of different groups joined for the VLAN.
Parameters
vlan-id Required: 1-4094, shows MLD protocol information for the specified VLAN.
group-ip Optional: X:X::X:X, MLD source information for the specified group.
source-ip Optional: X:X::X:X, MLD source information for the specified group.
Example
switch# show ipv6 mld snooping vlan 2
MLD Snooping Protocol Info
Total VLANs with MLD enabled
:2
Current count of multicast groups joined : 0
MLD Drop Unknown Multicast
: Global
VLAN ID VLAN Name MLD Configured Version MLD Operating Version Querier Address [this switch] Querier Port Querier UpTime Querier Expiration Time
:2 : VLAN2 :2 :2 : fe80::218:71ff:fec4:2f00 : :0m 21s :0m 2s
Active Group Address
Tracking Vers Mode Uptime Expires
------------------------------------------- --------- ---- ----- --------- ---------
ff05::2:1
Filter 2 EXC 0m 17s 4m 3s
switch# show ipv6 mld snooping vlan 2 group
MLD ports and group information for group ff05::2:1
VLAN ID VLAN Name
:2 : VLAN2
Group Address Last Reporter Group Type
: ff05::2:1 : 2001::1 : Filter
V1
Sources Sources
Port
Vers Mode Uptime Expires Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------
1/1/1
2 EXC 0m 5s
4m 15s 4m 15s 0
0
switch# show ipv6 mld snooping vlan 2 group ff05::2:1
MLD ports and group information for group ff05::2:1
VLAN ID VLAN Name
:2 : VLAN2
MLD snooping | 95
Group Address Last Reporter Group Type
: ff05::2:1 : 2001::1 : Filter
V1
Sources Sources
Port
Vers Mode Uptime Expires Timer
Forwarded Blocked
--------- ---- ---- --------- --------- --------- --------- --------
1/1/1
2 EXC 0m 5s
4m 15s 4m 15s 0
0
switch# show ipv mld snooping vlan 2 group ff05::2:1 source 3000::3
VLAN ID VLAN Name Group Address Source Address Source Type
:2 : VLAN2 : ff05::2:1 : 3000::3 : Filter
Port
Mode Uptime Expires Configured Mode
--------- ---- --------- --------- ----------------
1/1/1
INC 0m 27s 3m 53s Auto
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping static-groups
show ipv6 mld snooping [static-groups]
Description
This command shows MLD snooping static group details, including the number of static groups joined.
Example
switch# show ipv6 mld snooping static-groups
MLD Static Group Address Information
VLAN ID Group Address
------- ----------------------------------------
10
ff12::1
10
ff12::2
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
96
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld snooping vlan statistics
show ipv6 mld snooping [vlan <vlan-id> [statistics]]
Description
This command shows MLD snooping statistics details for the specified VLAN, including the number of different groups joined for the VLAN.
Parameters
vlan-id Required, 1-4094, shows MLD query packet Tx, Rx, error packet counters on VLAN.
Example
switch# show ipv6 mld snooping vlan 2 statistics MLD Snooping statistics
VLAN ID : 2 VLAN Name : VLAN2
Number of Include Groups
:1
Number of Exclude Groups
:0
Number of Static Groups
:1
Total Multicast Groups Joined : 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
MLD configuration commands for interface VLAN
MLD snooping | 97
ipv6 mld
ipv6 mld {enable | disable}
Description
This command enables or disables MLD on the interface VLAN.
Parameters
enable Required: Enable MLD on the interface VLAN.
disable Required: Disable MLD on the interface VLAN.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld enable switch(config-if-vlan)# ipv6 mld disable
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld apply access-list
ipv6 mld apply access-list <ACL-NAME> no ipv6 mld apply access-list <ACL-NAME>
Description
Configures the ACL on a particular interface to filter the MLD join or leave packets based on rules set in the particular ACL name. The no form of this command disables the rules set for the ACL.
Parameters
access-list Associates an ACL with the IGMP.
<ACL-NAME> Specifies the name of the ACL.
Usage
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
98
Existing classifier commands are used to configure the ACL. In case an MLDv2 packet with multiple group addresses is received, it will only process the permitted group addresses based on the ACL rule set, and any existing joins will time out. If there is no match or if there is a deny rule match, the packet is dropped.
Examples
Configuring the ACL to filter MLD packets based on rules set in access list mygroup:
switch(config)# access-list ipv6 mygroup switch(config-acl-ip)# permit icmpv6 any ff55::1 switch(config-acl-ip)# exit switch(config)# interface vlan 2 switch(config-vlan)# ipv6 mld apply access-list mygroup
Configuring the ACL to remove the rules set in access list mygroup:
switch(config-vlan)# no ipv6 mld apply access-list mygroup
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ipv6 mld
no ipv6 mld
Description
This command removes all MLD configurations on the interface.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# no ipv6 mld
Command History
Release 10.07 or earlier
Command Information
Modification --
MLD snooping | 99
Platforms All platforms
Command context config-if
Authority
Administrators or local user group members with execution rights for this command.
ipv6 mld querier
ipv6 mld querier
Description
This command configures MLD querier. The no form of this command disables MLD querier.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld querier switch(config-if-vlan)# no ipv6 mld querier
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld querier interval
ipv6 mld querier [interval <interval-value>]
Description
This command configures MLD querier interval. The default interval-value is 125.
Parameters
interval-value Required: 5-300, configures MLD querier interval.
Default interval-value is 125. Use the no ipv6 mld querier interval command to set interval-value to the default.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
100
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld querier interval 100 switch(config-if-vlan)# no ipv6 mld querier interval
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld last-member-query-interval
ipv6 mld last-member-query-interval <interval-value>
Description
This command configures MLD last member query interval value in seconds. The default interval-value is 1 second.
Parameters
interval-value Required: 1-2, configures MLD last-member-query-interval.
Default interval-value is 1 second. Use the no ipv6 mld last-member-query-interval command to set interval-value to the default.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld last-member-query-interval 2 switch(config-if-vlan)# no ipv6 mld last-member-query-interval
Command History
Release 10.07 or earlier
Command Information
Modification --
MLD snooping | 101
Platforms All platforms
Command context config-if-vlan
Authority
Administrators or local user group members with execution rights for this command.
ipv6 mld querier query-max-response-time
ipv6 mld querier query-max-response-time <response-time>
Description
This command configures MLD max response time value in seconds. The default max-response-time-value is 10 seconds.
Parameters
max-response-time-value Required: 10-128, configures MLD querier max-response-time.
Default max-response-time-value is 10 seconds. Use the no ipv6 mld querier query-max-response-time command to set max-response-time-value to the default.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld query-max-response-time 50 switch(config-if-vlan)# no ipv6 mld query-max-response-time
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld robustness
ipv6 mld robustness <VALUE>
Description
This command configures MLD robustness. The robustness value represents the number of times the querier retries queries on the connected subnets. The default robustness-value is 2 seconds.
Parameters
<VALUE> Required: 1-7, configures MLD robustness.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
102
Default robustness-value is 2 seconds. Use the no ipv6 mld robustness command to set robustness-value to the default.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld robustness 5 switch(config-if-vlan)# no ipv6 mld robustness
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld static-group
ipv6 mld static-group <MULTICAST-GROUP-IP>
Description
This command configures MLD static group.
Parameters
<MULTICAST-GROUP-IP> Required: X:X::X:X, configures MLD static group.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld static-group ff12::c switch(config-if-vlan)# no ipv6 mld static-group ff12::c
Command History
Release 10.07 or earlier
Command Information
Modification --
MLD snooping | 103
Platforms All platforms
Command context config-if-vlan
Authority
Administrators or local user group members with execution rights for this command.
ipv6 mld version
ipv6 mld version <VERSION>
Description
This command configures MLD version.
Parameters
<VERSION> Required: 1-2, configures MLD version.
Example
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld version 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld version strict
ipv6 mld version <VERSION> [strict]
Description
This command configures MLD strict version. Packets that do not match the configured version will be dropped. By default, strict option is not enabled.
Parameters
<VERSION> Required: 1-2, configures MLD version.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
104
switch(config)# interface vlan 2 switch(config-if-vlan)# ipv6 mld version 2 strict switch(config-if-vlan)# no ipv6 mld version 2 strict
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context config-if-vlan
Authority
Administrators or local user group members with execution rights for this command.
MLD show commands for interface VLAN
Only the default VRF is supported on the Aruba 6200 Switch Series.
show ipv6 mld
show ipv6 mld
Description
This command shows MLD configuration on VLAN.
Example
switch# show ipv6 mld
VRF Name Interface MLD Configured Version MLD Operating Version Querier State Querier IP [this switch] Querier Uptime Querier Expiration Time MLD Snoop Enabled on VLAN
: default : vlan10 :2 :2 : Querier : fe80::7272:cfff:fe96:d3ec : 39m 44s : 0m 31s : True
Command History
Release 10.07 or earlier
Modification --
Command Information
MLD snooping | 105
Platforms All platforms
Command context Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan
show ipv6 mld [interface <IFNAME> | <IFNAME.ID> | vlan <VLAN-ID>]
Description
This command shows MLD configuration on a specific VLAN.
Parameters
<VLAN-ID> Required: 1-4094, shows MLD configuration on a specified VLAN.
<IFNAME> Required: Shows MLD configuration on a specified interface.
<IFNAME.ID> Required: Specifies a sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
Examples
Showing MLD configuration on a specified interface:
switch# show ipv6 mld interface vlan 10
MLD Configured Version : 2
MLD Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : fe80::7272:cfff:fe96:d3ec
Querier Uptime
: 40m 42s
Querier Expiration Time : 1m 39s
MLD Snoop Enabled on VLAN : True
switch# show ipv6 mld interface 1/1/2
MLD Configured Version : 2
MLD Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : fe80::7272:cfff:fe96:d3ec
Querier Uptime
: 40m 42s
Querier Expiration Time : 1m 39s
MLD Snoop Enabled on VLAN : True
Showing MLD configuration on sub-interface 1/1/2.10: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ipv6 mld interface 1/1/2.10
MLD Configured Version MLD Operating Version Querier State
:2 :2
: Querier
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
106
Querier IP [this switch] Querier Uptime Querier Expiration Time MLD Snoop Enabled on VLAN
: fe80::7272:cfff:fe96:13ec : 40m 42s : 1m 39s : True
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld vrf all-vrfs
show ipv6 mld [vrf <VRF-NAME> | all-vrfs ]
Description
This command shows MLD information for the specified VRF.
Parameters
<VRF-NAME> Optional: shows MLD information status in a specific VRF.
all-vrfs Optional: shows MLD information status for all VRFs.
Example
switch(config)# show ipv6 mld all-vrfs
VRF Name : default
Interface : vlan2
MLD Configured Version : 2
MLD Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : fe80::a00:9ff:fe06:67cd
Querier Uptime
: 23m 53s
Querier Expiration Time : 0m 17s
MLD Snoop Enabled on VLAN : True
Active Group Address
Vers Mode Uptime Expires
-------------------------------------------- ---- ---- --------- ---------
ff05::2:1
2 INC 3m 56s 1m 47s
VRF Name : red Interface : vlan3 MLD Configured Version MLD Operating Version Querier State
:2 :2
: Querier
MLD snooping | 107
Querier IP [this switch] Querier Uptime Querier Expiration Time MLD Snoop Enabled on VLAN
: fe80::a00:9ff:fe06:67cd : 23m 53s : 0m 17s : True
Active Group Address
Vers Mode Uptime Expires
-------------------------------------------- ---- ---- --------- ---------
ff05::2:1
2 INC 2m 30s 1m 50s
switch(config)# show ipv6 mld vrf red
VRF Name : red
Interface : vlan3
MLD Configured Version : 2
MLD Operating Version : 2
Querier State
: Querier
Querier IP [this switch] : fe80::a00:9ff:fe06:67cd
Querier Uptime
: 24m 13s
Querier Expiration Time : 2m 3s
MLD Snoop Enabled on VLAN : True
Active Group Address
Vers Mode Uptime Expires
-------------------------------------------- ---- ---- --------- ---------
ff05::2:1
2 INC 2m 50s 1m 30s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan counters
show ipv6 mld [interface <INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>] [counters]]
Description
This command shows MLD query packet Tx and Rx on a specific VLAN.
Parameters
<VLAN-ID> Required: 1-4094, shows MLD configuration on a specified VLAN.
<INTF-ID> Required: IFNAME, shows MLD configuration on a specified interface.
<INTF-ID.ID> Required: IFNAME, shows MLD configuration on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
counters Optional: Shows MLD query packet counter Tx-Rx on a specified VLAN.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
108
Example
Showing MLD query packet Tx and Rx on a specified interface:
switch# show ipv6 mld interface vlan 2 counters
MLD Counters
Interface Name
: vlan2
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
0
0
0
0
2
0
2
0
N/A
0
N/A
0
N/A
0
N/A
switch# show ipv6 mld interface 1/1/1 counters
MLD Counters
Interface Name
: 1/1/1
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
0
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
Showing MLD query packet Tx and Rx on a specified sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ipv6 mld interface 1/1/1.10 counters
MLD Counters
Interface Name
: 1/1/1.10
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries
Rx
Tx
------------- -------------
0
0
0
0
0
0
0
0
MLD snooping | 109
Group And Source Specific Queries
0
0
V2 Member Reports
2
N/A
V1 Member Reports
0
N/A
V1 Member Leaves
0
N/A
Packets dropped by ACL
0
N/A
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan groups
show ipv6 mld [interface <INTF-ID> | <INTF-ID.ID> | vlan <VLAN-ID>] [groups]]
Description
This command shows MLD groups joined details.
Parameters
<INTF-ID> Required: 1-4094, shows MLD information on a specified VLAN.
<INTF-ID.ID> Required: IFNAME, shows MLD information on a specified interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
<VLAN-ID> Required: 1-4094, shows MLD configuration on a specified VLAN.
groups Optional: Shows MLD groups information on a specified interface.
Example
Showing MLD groups information on the specified VLAN:
switch# show ipv mld interface vlan 2 groups
MLD group information for group ff05::2:1
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff05::2:1 : fe80::1
V1
Sources Sources
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
110
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 INC 6m 2s
0m 4s
1
Group Address : ff05::2:1 Source Address : 3000::1
Mode Uptime Expire
---- -------- --------
INC 6m 2s
0m 4s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan group source
show ipv6 mld [interface (<intf-id> | <intf-id.id> | vlan <vlan-id>) [group <group_ip>] [source <source_ip>]]]
Description
This command shows MLD joined group details on a specified interface.
Parameters
<VLAN-ID> Required: 1-4094, shows MLD joined group details on a specified VLAN.
<INTF-ID> Required: IFNAME, shows MLD joined group details on a specified interface.
<INTF-ID.ID> Required: IFNAME, shows MLD joined group details on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
group_ip Required: X:X::X:X, shows MLD joined group details.
source_ip Required: X:X::X:X, shows MLD joined group details for a specified source.
Example
switch# show ipv mld interface vlan 2 group ff55::5
MLD group information for group ff55::5
MLD snooping | 111
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff55::5 : fe80::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 INC 6m 2s
0m 4s
1
Group Address : ff55::5 Source Address : 3000::1
Mode Uptime Expire
---- -------- --------
INC 6m 2s
0m 4s
switch# show ipv mld interface vlan 2 group ff55::5 source 3000::1
Interface Name VRF Name Group Address Source Address
: vlan2 : default : ff55::5 : 3000::1
Mode Uptime Expire ---- -------- -------INC 9m 37s 2m 0s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld groups
show ipv6 mld [groups]
Description
This command shows MLD groups joined details.
Parameters
groups Options: shows MLD groups information.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
112
switch# show ipv6 mld groups
MLD group information for group ff05::2:11
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
2m 27s 1m 53s 1m 53s
MLD group information for group ff05::2:12
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff05::2:12 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
0m 3s
4m 18s 4m 18s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld groups all-vrfs vrf
show ipv6 mld groups [all-vrfs | vrf <vrf_name>]
Description
This command shows MLD groups joined details on VRFs.
Parameters
all-vrfs Optional: shows MLD groups joined in all VRFs.
vrf Optional: shows MLD groups joined in a specific VRF.
Example
MLD snooping | 113
switch# show ipv6 mld groups all-vrfs
MLD group information for group ff05::2:11
Interface Name : vlan1
VRF Name
: default
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
4m 4s
2m 38s 2m 38s
MLD group information for group ff05::2:12
Interface Name : vlan3
VRF Name
: red
Group Address Last Reporter
: ff05::2:12 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
1m 36s 2m 45s 2m 45s
switch# show ipv6 mld groups vrf default
MLD group information for group ff05::2:11
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
5m 25s 1m 17s 1m 17s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface counters
show ipv6 mld [interface {<INTF-ID> | <INTF-ID.ID>}[counters]]
Description
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
114
This command shows MLD query packet Tx and Rx on a specific interface.
Parameters
<INTF-ID> Required: shows MLD configuration on a specified interface.
<INTF-ID.ID> Required: shows MLD configuration on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
counters Optional: shows MLD query packet counter Tx-Rx on a specified interface.
Examples
Showing MLD configuration on a specified interface:
switch# show ipv6 mld interface 1/1/1 counters
MLD Counters
Interface Name
: 1/1/1
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
9
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
Showing MLD configuration on a specified sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ipv6 mld interface 1/1/1.10 counters
MLD Counters
Interface Name
: 1/1/1.10
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
9
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
MLD snooping | 115
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface statistics
show ipv6 mld [interface {<INTF-ID> | <INTF-ID.ID>} [statistics]]
Description
This command shows MLD statistics on a specific interface.
Parameters
<INTF-ID> Required: shows MLD statistics on a specified interface.
<INTF-ID.ID> Required: shows MLD statistics on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
statistics Optional: shows MLD statistics on a specified interface.
Examples
Showing MLD statistics on a specified interface:
switch# show ipv6 mld interface 1/1/1 statistics
MLD statistics
Interface Name : 1/1/1
VRF Name
: default
Number of Include Groups
:2
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Showing MLD statistics on a specified sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch# show ipv6 mld interface 1/1/1.10 statistics
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
116
MLD statistics
Interface Name : 1/1/1.10
VRF Name
: default
Number of Include Groups
:2
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface groups
show ipv6 mld [interface {<INTF-ID> | <INTF-ID.ID>}[groups]]
Description
This command shows MLD groups joined details.
Parameters
<INTF-ID> Required: shows MLD configuration on a specified interface.
<INTF-ID.ID> Required: shows MLD configuration on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
groups Optional: shows MLD groups information.
Example
Showing MLD groups information for a specified interface:
switch# show ipv6 mld interface 1/1/1 groups
MLD group information for group ff55::1
Interface Name : 1/1/1
VRF Name
: default
Group Address Last Reporter
: ff55::1 : fe80::a00:9ff:fe77:1062
MLD snooping | 117
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 EXC 0m 14s 4m 6s
Showing MLD groups information for a specified sub-interface:
switch# show ipv6 mld interface 1/1/1.10 groups
MLD group information for group ff56::1
Interface Name : 1/1/1.10
VRF Name
: default
Group Address Last Reporter
: ff56::1 : fe80::a00:9ff:fe77:1062
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 EXC 1m 14s 2m 6s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan group source
show ipv6 mld [interface (<intf-id> | <intf-id.id> | vlan <vlan-id>) [group <group_ip>] [source <source_ip>]]]
Description
This command shows MLD joined group details on a specified interface.
Parameters
<VLAN-ID> Required: 1-4094, shows MLD joined group details on a specified VLAN.
<INTF-ID> Required: IFNAME, shows MLD joined group details on a specified interface.
<INTF-ID.ID> Required: IFNAME, shows MLD joined group details on a specified sub-interface. (Applies only to the Aruba 6300, 6400, and 8360 Switch Series.)
group_ip
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
118
Required: X:X::X:X, shows MLD joined group details. source_ip
Required: X:X::X:X, shows MLD joined group details for a specified source.
Example
switch# show ipv mld interface vlan 2 group ff55::5
MLD group information for group ff55::5
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff55::5 : fe80::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 INC 6m 2s
0m 4s
1
Group Address : ff55::5 Source Address : 3000::1
Mode Uptime Expire
---- -------- --------
INC 6m 2s
0m 4s
switch# show ipv mld interface vlan 2 group ff55::5 source 3000::1
Interface Name VRF Name Group Address Source Address
: vlan2 : default : ff55::5 : 3000::1
Mode Uptime Expire ---- -------- -------INC 9m 37s 2m 0s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld group all-vrfs vrf
show ipv6 mld [group <group_ip> [all-vrfs | vrf <vrf_name>]]
Description
MLD snooping | 119
This command shows MLD joined group details on VRF.
Parameters
group_ip Required: X:X::X:X, shows MLD joined group details.
all-vrfs Optional: shows MLD groups joined in all VRFs.
vrf Optional: shows MLD groups joined in a specific VRF.
Example
switch# show ipv6 mld group ff55::1
MLD group information for group ff55::1
Interface Name : 1/1/1
VRF Name
: default
Group Address Last Reporter
: ff55::1 : fe80::a00:9ff:fe77:1062
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
2 EXC 3m 12s 3m 46s
switch# show ipv6 mld group ff05::2:11 all-vrfs
MLD group information for group ff05::2:11
Interface Name : vlan2
VRF Name
: default
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
1m 16s 3m 4s
3m 4s
MLD group information for group ff05::2:11
Interface Name : vlan3
VRF Name
: red
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
0m 52s 3m 28s 3m 28s
switch# show ipv6 mld group ff05::2:11 vrf red
MLD group information for group ff05::2:11
Interface Name : vlan3
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
120
VRF Name
: red
Group Address Last Reporter
: ff05::2:11 : 2001::1
V1
Sources Sources
Vers Mode Uptime Expires Timer
Forwarded Blocked
---- ---- --------- --------- --------- --------- --------
1
1m 24s 2m 56s 2m 56s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld group source all-vrfs vrf
show ipv6 mld [group <group_ip> [source <source_ip> [all-vrfs | vrf <vrf_name>]]]
Description
This command shows MLD joined group details for a source on VRF.
Parameters
group_ip Required: X:X::X:X, shows MLD joined group details.
source_ip Required: X:X::X:X, shows MLD joined group details for a source.
all-vrfs Optional: shows MLD groups joined in all VRFs.
vrf Optional: shows MLD groups joined in a specific VRF.
Example
switch# show ipv6 mld group ff05::2:1 source 3000::1
Interface Name : vlan2 VRF Name : default Group Address : ff05::2:1 Source Address : 3000::1
Mode Uptime Expire ---- -------- -------INC 0m 53s 3m 27s
MLD snooping | 121
switch# show ipv6 mld group ff05::2:1 source 3000::1 all-vrfs
Interface Name : vlan2 VRF Name : default Group Address : ff05::2:1 Source Address : 3000::1
Mode Uptime Expire ---- -------- -------INC 1m 38s 4m 5s Interface Name : vlan3 VRF Name : red Group Address : ff05::2:1 Source Address : 3000::1
Mode Uptime Expire ---- -------- -------INC 0m 12s 4m 8s
switch# show ipv6 mld group ff05::2:1 source 3000::1 vrf red
Interface Name : vlan3 VRF Name : red Group Address : ff05::2:1 Source Address : 3000::1
Mode Uptime Expire ---- -------- -------INC 0m 23s 3m 57s
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld interface vlan statistics
show ipv6 mld [interface vlan <vlan-id> [statistics]]
Description
This command shows MLD statistics on a specific interface VLAN.
Parameters
vlan-id Required: 1-4094, shows MLD information on a specified VLAN.
statistics Optional: shows MLD query packet Tx, Rx, Error packet counters on a specified VLAN.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
122
Example
switch# show ipv6 mld interface vlan 2 statistics
MLD statistics
Interface Name : vlan2
VRF Name
: default
Number of Include Groups
:2
Number of Exclude Groups
:0
Number of Static Groups
:0
Total Multicast Groups Joined : 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld static-groups vrf all-vrfs
show ipv6 mld [static-groups [vrf <vrf_name> | all-vrfs]]
Description
This command shows MLD static groups.
Parameters
all-vrfs Optional: shows MLD groups joined in all VRFs.
vrf Optional: shows MLD groups joined in a specific VRF.
Example
switch# show ipv6 mld static-groups
MLD Static Group Address Information
VRF Name :default
Interface Name Group Address
--------------- -----------------------------------------
vlan2
ff12::c
vlan2
ff12::d
switch# show ipv6 mld static-groups vrf test
MLD snooping | 123
MLD Static Group Address Information
VRF Name :test
Interface Name Group Address
--------------- -----------------------------------------
vlan3
ff13::1
vlan3
ff13::2
switch# show ipv6 mld static-groups all-vrfs
MLD Static Group Address Information
VRF Name :default
Interface Name Group Address
--------------- -----------------------------------------
vlan2
ff12::c
vlan2
ff12::d
VRF Name :test
Interface Name Group Address
--------------- -----------------------------------------
vlan3
ff13::1
vlan3
ff13::2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context Manager (#)
Modification --
Authority Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mld counters vrf
show ipv6 mld [counters [ vrf <vrf_name> ]]
Description
This command shows MLD counters.
Parameters
vrf Optional: shows MLD counter status in a specific VRF.
Example
switch# show ipv6 mld counters
MLD Counters
Interface Name
: vlan2
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
124
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
12
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
switch# show ipv6 mld counters vrf default
MLD Counters
Interface Name
: vlan2
VRF Name
: default
Membership Timeout : 0
V1 All Hosts Queries V2 All Hosts Queries V1 Group Specific Queries V2 Group Specific Queries Group And Source Specific Queries V2 Member Reports V1 Member Reports V1 Member Leaves Packets dropped by ACL
Rx
Tx
------------- -------------
0
0
0
12
0
0
0
0
0
0
0
N/A
0
N/A
0
N/A
0
N/A
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
MLD configuration commands for interface
ipv6 mld
ipv6 mld {enable | disable}
Description
This command enables or disables MLD on the interface.
Parameters
MLD snooping | 125
enable Required: Enable MLD on the interface.
disable Required: Disable MLD on the interface.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld enable switch(config-if)# ipv6 mld disable
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld apply access-list
ipv6 mld apply access-list <ACL-NAME> no ipv6 mld apply access-list <ACL-NAME>
Description
Configures the ACL on a particular interface to filter the MLD join or leave packets based on rules set in the particular ACL name. The no form of this command removes the rules set for the ACL.
Parameters
access-list Associates an ACL with the IGMP.
<ACL-NAME> Specifies the name of the ACL.
Usage
Existing classifier commands are used to configure the ACL. In case an MLDv2 packet with multiple group addresses is received, it will only process the permitted group addresses based on the ACL rule set, and any existing joins will time out. If there is no match or if there is a deny rule match, the packet is dropped.
Examples
On the 6400 Switch Series, interface identification differs. Configuring the ACL to filter MLD packets based on rules set in access list mygroup:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
126
switch(config)# access-list ipv6 mygroup switch(config-acl-ip)# permit icmpv6 any ff55::1 switch(config-acl-ip)# exit switch(config)# interface 1/1/1interface vlan 1 switch(config-vlan)# ipv6 mld apply access-list mygroup
Configuring the ACL to remove the rules set in access list mygroup:
switch(config-vlan)# no ipv6 mld apply access-list mygroup
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ipv6 mld
no ipv6 mld
Description
This command removes all MLD configurations on the interface.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# no ipv6 mld
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
MLD snooping | 127
ipv6 mld querier
ipv6 mld querier
Description
This command configures MLD querier. This functionality will allow the interface to join in the querierelection process.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld querier switch(config-if)# no ipv6 mld querier
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld querier interval
ipv6 mld querier [interval <interval-value>]
Description
This command configures MLD querier interval. The default interval-value is 125.
Parameters
interval-value Required: 5-300, configures MLD querier interval.
Default interval-value is 125. Use the no ipv6 mld querier interval command to set interval-value to the default.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld querier interval 100 switch(config-if)# no ipv6 mld querier interval
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
128
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld last-member-query-interval
ipv6 mld last-member-query-interval <interval-value>
Description
This command configures MLD last member query interval value in seconds. The default interval-value is 1 second.
Parameters
interval-value Required: 1-2, configures MLD last-member-query-interval.
Default interval-value is 1 second. Use the no ipv6 mld last-member-query-interval command to set interval-value to the default.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld last-member-query-interval 2 switch(config-if)# no ipv6 mld last-member-query-interval
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld querier query-max-response-time
ipv6 mld querier query-max-response-time <response-time>
MLD snooping | 129
Description
This command configures MLD max response time value in seconds. The default max-response-time-value is 10 seconds.
Parameters
max-response-time-value Required: 10-128, configures MLD querier max-response-time.
Default max-response-time-value is 10 seconds. Use the no ipv6 mld querier query-max-response-time command to set max-response-time-value to the default.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld query-max-response-time 50 switch(config-if)# no ipv6 mld query-max-response-time
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld robustness
ipv6 mld robustness <value>
Description
This command configures MLD robustness. The robustness value represents the number of times the querier retries queries on the connected subnets. The default robustness-value is 2 seconds.
Parameters
robustness-value Required: 1-7, configures MLD robustness.
Default robustness-value is 2 seconds. Use the no ipv6 mld robustness command to set robustness-value to the default.
Example
On the 6400 Switch Series, interface identification differs.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
130
switch(config)# interface 1/1l/1interface vlan 1 switch(config-if)# ipv6 mld robustness 5 switch(config-if)# no ipv6 mld robustness
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld static-group
ipv6 mld static-group <multicast-group-ip>
Description
This command configures MLD static group.
Parameters
multicast-group-ip Required: X:X::X:X, configures MLD static group.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld static-group ff12::c switch(config-if)# no ipv6 mld static-group ff12::c
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld version
ipv6 mld version <version>
MLD snooping | 131
Description
This command configures MLD version.
Parameters
version Required: 1-2, configures MLD version.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld version 2
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 mld version strict
ipv6 mld version <version> [strict]
Description
This command configures MLD strict version. Packets that do not match the configured version will be dropped. By default, strict option is not enabled.
Parameters
version Required: 1-2, configures MLD version.
Example
On the 6400 Switch Series, interface identification differs.
switch(config)# interface 1/1/1interface vlan 1 switch(config-if)# ipv6 mld version 2 strict switch(config-if)# no ipv6 mld version 2 strict
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
132
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
MLD snooping | 133
Chapter 6 Protocol Independent Multicast - Sparse
Mode (V4 and V6)
Protocol Independent Multicast - Sparse Mode (V4 and V6)
In a network, IP multicast traffic transmitted for multimedia applications is blocked at routed interface boundaries unless a multicast routing protocol is running. Protocol Independent Multicast (PIM) is a family of routing protocols. It forms multicast trees to forward traffic from multicast sources to subnets which use protocols such as IGMP and MLD to request the traffic.
Protocol Independent Multicast - Sparse Mode (PIM-SM) overview
PIM relies on the unicast routing tables to identify the path back to a multicast source (reverse path forwarding (RPF)). The unicast routing protocols create the unicast routing tables. With this information, PIM sets up the distribution tree for the multicast traffic. PIM-Sparse Mode (PIM-SM) can be configured on physical ports, VLAN interfaces, LAG interfaces, and loopback interfaces. All such configurations work in the mentioned interfaces context. IGMP/MLD provides the multicast traffic link between a host and a multicast router running PIM-SM. Both PIM-SM and IGMP/MLD must be enabled on VLANs whose member ports have directly connected hosts with a valid need to join multicast groups. PIM-SM uses the pull mode for multicast forwarding, and it is suitable for large and medium-sized networks with sparsely and widely distributed multicast group members. PIM-SM assumes that most hosts do not want to receive multicast traffic. It uses a nonflooding multicast model to direct traffic from the source to the interface when there are multicast receivers in the group. As a result, this model sends traffic only to the routers that specifically request it.
PIM-SM defaults, protocols, and supported configuration
Default configuration
PIM-SM is disabled by default. When PIM-SM is enabled, switching to SPT and LAN prune delay are the default configuration activated.
PIM specification
Complies with PIM-SM specification (RFC 4061).
BSR implementation
Complies with RFC 5059 (scope zones are not supported).
Routing protocol support
PIM uses unicast routing information from any of the routing protocols that are running on the system, such as OSPFv2, OSPFv3, BGP. Static routes are also supported with Nexthop IP addresses.
Max interface support per flow
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
134
Up to 127 outbound interfaces (and 1 inbound interface) are supported in the multicast routing table at any given time. The sum of all outbound interfaces across all current flows on a router may not exceed 127.
PIM enabled interfaces (L3 and SVI)
The maximum PIM enabled interface is 1000 with an upper limit of 128 per VRF. On the Aruba 6200 Switch Series, only 16 PIM enabled interfaces are supported.
IGMP and MLD compatibility
PIM-SM is compatible with IGMP version 2 and version 3, MLD version 1 and version 2, and is fully interoperable with IGMP/MLD for determining multicast flows.
VRRP
PIM-SM is fully interoperable with VRRP to quickly transition multicast routes in a failover.
VRF support
PIM-SM can run on multiple VRF instances in parallel. It is supported on all VRFs supported in the system. On the Aruba 6200 Switch Series, PIM-SM only runs on the default VRF.
Static RPs count
PIM-SM supports a maximum of 8 static RPs per VRF.
PIM-SM router types
Within a PIM-SM domain, PIM-SM routers can be configured to fill one or more of the following roles:
n Designated router (DR): A router performing this function forwards multicast traffic from a unicast source to the appropriate distribution (rendezvous) point.
n Bootstrap router (BSR): A router elected to this function keeps all routers in a PIM-SM domain informed of the currently assigned rendezvous point (RP) for each multicast group currently known in the domain.
n Rendezvous point (RP): A router elected as an RP for a multicast group receives requested multicast traffic from a DR and forwards it toward the multicast receivers requesting the traffic. An RP can be manually configured or dynamically elected through the BSR process.
n Static RP: This option forwards traffic in the same way as an RP, but requires manual configuration on all routers in the domain to be effective.
n Candidate RP (C-RP): The C-RP periodically sends advertisement messages to the BSR, which collects RP-set information for RP election. The BSR starts a holdtime timer for a C-RP after it receives an advertisement message. If the BSR does not receive any advertisement message when the timer expires, it considers the C-RP failed or unreachable.
All of these can be enabled on each of several routers in a PIM-SM domain.
DR
In a LAN segment populated by one or more routers running PIM-SM, one such router is elected the DR for that LAN segment. When the DR receives a Join request from a multicast receiver on that LAN segment, it forwards the join toward the router operating as the RP for the requested multicast group. Where multiple PIM-SM routers exist in a LAN segment, the following criteria is used to elect a DR:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 135
1. The router configured with the highest DR priority in the LAN segment is elected. 2. If multiple routers in the LAN segment are configured with the same DR priority, the router having
the highest IP address is elected.
In a given domain, each LAN segment capable of receiving multicast traffic from a unicast source should have at least one DR. (Enabling PIM-SM on a LAN segment automatically enables the router as a DR for that LAN segment.) Because there is an election process for DR on each LAN segment, all routers on a LAN segment must be enabled for DR. Where it is important to ensure that a particular router is elected as the DR for a given LAN segment, you can increase the DR priority on that LAN segment configuration for that router. If it is necessary to prevent a router from operating as a DR on a given LAN segment, disable DR operation by configuring the DR priority as zero (0).
BSR
Before a DR can forward encapsulated packets for a specific multicast group to an RP, it must know which router in the domain is the elected RP for that multicast group. The BSR function enables this operation by doing the following:
1. Learns the group-to-RP mappings on the C-RPs in the domain by reading the periodic advertisements each one sends to the BSR.
2. Distributes the aggregate Candidate-RP (C-RP) information as an RP-set to the PIM-SM routers in the domain. This is followed by an election to assign a specific multicast group or range of groups to the C-RPs in the domain. The software supports assignment of up to four multicast addresses and/or ranges of multicast addresses to a Candidate Rendezvous Point.
The BSR periodically sends bootstrap messages to the other PIM-SM routers in the domain to maintain and update the RP-set data throughout the domain, and to maintain its status as the elected BSR.
RP
Instead of flooding multicast traffic as is done with PIM-DM, PIM-SM uses a set of multiple routers to operate as RPs. Each RP controls multicast traffic forwarding for one or more multicast groups as follows:
n Receives traffic from multicast sources (S) through a DR. n Receives multicast joins from routers requesting multicast traffic. n Forwards the requested multicast traffic to the requesting routers.
The routers requesting multicast traffic are either edge routers or intermediate routers. Edge routers are directly connected to specific multicast receivers using IGMP/MLD to request traffic. Intermediate routers are on the path between edge routers and the RP. This is known as an RP Tree (RPT) where only the multicast address appears in the routing table. For example: ( *, G ), where: * = a variable (wildcard) representing the IP address of any multicast source G = a particular multicast group address.
C-RP
Within a PIM-SM domain, different RPs support different multicast addresses or ranges of multicast addresses. That is, a given PIM-SM multicast group or range of groups is supported by only one active RP, although other C-RPs can also be configured with overlapping or identical support. A C-RP's group-prefix configuration identifies the multicast groups the RP is enabled to support.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
136
If multiple C-RPs have group-prefixes configured so that any of these RPs can support a given multicast group, then the following criteria are used to select the RP to support the group:
1. The C-RP configured with the longest group-prefix mask applicable to the multicast group is selected to support the group. Step 2 of this procedure applies if multiple RP candidates meet this criterion.
2. The C-RP configured with the highest priority is selected. Step 3 of this procedure applies if multiple RP candidates meet this criterion
3. A hash function (using the configured bsr-candidate hash-mask-length value) generates a series of mask length values that are individually assigned to the set of eligible C-RPs. If the hash function matches a single RP candidate to a longer mask length than the other candidates, that candidate is selected to support the group. Apply step 4 of this procedure if the hash function matches the longest mask length to multiple RP candidates.
4. The C-RP having the highest IP address is selected to support the group.
Also, within a PIM-SM domain, a router can be configured as a C-RP available for a given multicast group or range of groups and as the static RP for a given multicast group or range of groups. The recommended practice is to use C-RPs for all multicast groups unless there is a need to ensure that a specific group or range of groups is always supported by the same routing switch. Loopback, Route Only Port (ROP), and Switched Virtual Interface (SVI) are interfaces that can be configured as RPs. Anycast RP is also supported with the help of MSDP mesh groups.
Static RP
Like C-RPs, static RPs control multicast forwarding of specific multicast groups or ranges of contiguous groups. However, static RPs are not dynamically learned, and increase the configuration and monitoring effort to maintain them. As a result, static RPs are not recommended for use except where one of the following conditions applies:
n It is desirable to designate a specific router interface as a backup RP for specific groups. n Specific multicast groups are expected, and a static RP would help to avoid overloading a given RP with a
high volume of multicast traffic. n A C-RP for the same groups is less reliable than another RP that would not normally be elected to support
the groups. n Tighter traffic control or a higher priority is desired for specific multicast groups.
How PIM-SM works
PIM-SM (PIM Sparse Mode) assumes that most hosts do not want to receive multicast traffic. It uses a nonflooding multicast model to direct traffic from the source to the interface when there are multicast receivers in the group. As a result, this model sends traffic only to the routers that specifically request it. In a given PIM-SM domain, routers identified as DRs, RPs, and a BSR participate in delivering multicast traffic to the IP multicast receivers that request it. This approach avoids the flooding method of distributing multicast traffic (employed by PIM-DM) and is best suited for lower bandwidth situations. The software supports the following operation to enable multicast traffic delivery within a PIM-SM domain:
n From a pool of eligible DR candidates in each LAN segment, one DR is elected for each LAN segment interface having at least one PIM-SM router. In a multinetted domain, this DR supports multicast traffic from a source on any subnet in the LAN segment.
n From a pool of eligible BSR candidates in the domain, one BSR is elected for the entire domain.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 137
n From a pool of eligible C-RPs, one is elected to support each multicast group or range of groups allowed in the domain, excluding any group supported only by static RPs. The multicast groups allowed in the domain are determined by the aggregation of the groups allowed by the individually configured RPs and any static RPs. C-RPs and static RPs can be configured with overlapping support for a given set of multicast groups.
Neighbor discovery
In a PIM domain, each PIM interface on a router periodically multicasts PIM hello messages to all other PIM routers (identified by the address 224.0.0.13 for V4 and ff02::d for V6) on the local subnet. Through the exchanging of hello messages, all PIM routers on the subnet determine their PIM neighbors, maintain PIM neighboring relationship with other routers, and build and maintain shortest path trees (SPTs).
DR election
A designated router (DR) is required on both the source-side network and receiver-side network. A sourceside DR acts on behalf of the multicast source to send register messages to the RP. The receiver-side DR acts on behalf of the multicast receivers to send join messages to the RP. The DR election process is as follows:
1. The routers on the shared-media LAN send hello messages to one another. The hello messages contain the DR priority for DR election. The router with the highest DR priority is elected as the DR.
2. The router with the highest IP address wins the DR election under one of following conditions: n All the routers have the same DR election priority. n A router does not support carrying the DR priority in hello messages.
If the DR fails, its PIM neighbor lifetime expires and the other routers will initiate to elect a new DR.
Rendezvous point tree (RPT)
When a DR in a VLAN receives traffic for a particular multicast group from a source on that VLAN, the DR encapsulates the traffic and forwards it to the RP elected to support that multicast group. The RP decapsulates the traffic and forwards it on toward the multicast receivers requesting that group. This forms an RPT extending from the DR through any intermediate PIM-SM routers leading to the PIM-SM edge routers for the multicast receivers requesting the traffic. (If the RP has no current join requests for the group, the traffic is dropped at the RP.)
Shortest path tree (SPT)
SPTs are especially useful in high data-rate applications where reducing unnecessary traffic concentrations and throughput delays are significant. In the default PIM-SM configuration, SPT operation is automatically enabled. In the default PIM-SM configuration, after an edge router receives the first packet of traffic for a multicast group requested by a multicast receiver on that router, it uses Reverse Path Forwarding (RPF) to learn the shortest path to the group source. The edge router then stops using the RPT and begins using the shortest path tree (SPT) connecting the multicast source and the multicast receiver. In this case, when the edge router begins receiving group traffic from the multicast source through the SPT, it sends a prune message to the RP tree to terminate sending the requested group traffic on that route. (This results in entries for both the RP path and the STP in the routing table.) When completed, the switchover from the RPT to a shorter SPT can reduce unnecessary traffic concentrations in the network and reduce multicast traffic throughput delays. The switchover from RPT to SPT is not instantaneous. For a short period, packets for a given multicast group may be received from both the RPT and the SPT. Also, in some topologies, the RPT and SPT to the same edge router may be identical.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
138
Reverse Path Forward
Reverse Path Forward (RPF) checking is a core multicast routing mechanism that ensures that multicast traffic received arrived on the expected router interface before it is considered for further processing. If the RPF check fails for a multicast packet, the packet is discarded. For traffic arriving on the SPT, the expected incoming interface for a given source/group multicast flow is the interface towards the source address of the traffic (as determined by the unicast routing system). For traffic arriving on the RP tree, the expected incoming interface is the interface towards the RP. PIM must be enabled on all paths where the unicast route points an ECMP path to the source. RPF override is a feature that allows the override of the normal RPF lookup mechanism and indicates to the router that it may accept multicast traffic on an interface other than that which would be normally selected by the RPF lookup mechanism. This includes accepting traffic from a source directly connected to the router when the source IP address is invalid for the subnet or VLAN to which it is connected. Traffic may also be accepted from a valid PIM neighbor that is not on the reverse path towards the source of the received multicast traffic. RPF checking is applied to all multicast traffic and is significant in preventing network loops. Up to eight manual RPF overrides can be specified. The RPF-address indicates one of two distinct RPF candidates:
1. A valid PIM neighbor address from which forwarded multicast traffic is accepted with a source address of <source-addr/src-mask>.
2. A local router address on a PIM-enabled interface to which <source-addr/src-mask> is directly connected. The local router will assume the role of DR for this flow and registers the flow with an RP, if configured.
Enabling/disabling PIM-SM in an interface
Prerequisites
You must be in the interface configuration context, as indicated by the switch(config-if)# prompt, switch(config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
Enable or disable PIM-SM in an interface using the following command. For example, the following command enables PIM-SM on interface vlan40: For IPv4 configurations: ip pim-sparse {enable|disable}
switch(config)# interface vlan40 switch(config-if-vlan)# ip address 40.0.0.4/24 switch(config-if-vlan)# ip pim-sparse enable
For IPv6 configurations: ipv6 pim6-sparse {enable|disable}
switch(config)# interface vlan40 switch(config-if-vlan)# ip address 2001::01/64 switch(config-if-vlan)# ipv6 pim6-sparse enable
The no form of the command disables PIM-SM in an interface.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 139
Configuring PIM-SM options in an interface
You can configure various PIM-SM options in an interface as described in the following steps.
Prerequisites
You mustce configuration context, as indicated by the switch(config-if)# prompt, switch(config-ifvlan)# prompt, or switch(config-lag-if)# prompt.
Procedure
1. Configure the frequency at which the router transmits PIM hello messages on the current interface using the following command. For IPv4 configurations: ip pim-sparse hello-interval <INTERVAL-VALUE> For example, the following command sets the V4 hello interval to 60 seconds on the 1/1/4 interface:
switch(config)# interface 1/1/4 switch(config-if)# ip pim-sparse hello-interval 60
For IPv6 configurations: ipv6 pim6-sparse hello-interval <INTERVAL-VALUE> For example, the following command sets the V6 hello interval to 60 seconds on the 1/1/4 interface:
switch(config)# interface 1/1/4 switch(config-if)# ipv6 pim6-sparse hello-interval 60
2. Change the maximum time before the router transmits the initial PIM hello message on the interface using the following command. For IPv4 configurations: ip pim-sparse hello-delay <DELAY-VALUE> For example, the following command sets the hello delay to 4 seconds on the VLAN40 interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-sparse hello-delay 4
For IPv6 configurations: ipv6 pim6-sparse hello-delay <DELAY-VALUE> For example, the following command sets the hello delay to 4 seconds on the VLAN40 interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse hello-delay 4
3. Specify the priority value to use on the interface in the Designated Router (DR) election process using the following command. For IPv4 configurations: ip pim-sparse dr-priority <PRIORITY-VALUE> For example, the following command sets the DR priority to 4444 on the VLAN40 interface:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
140
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-sparse dr-priority 4444
For IPv6 configurations: ipv6 pim6-sparse dr-priority <PRIORITY-VALUE> For example, the following command sets the DR priority to 4444 on the VLAN40 interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse dr-priority 4444
4. Enable the LAN prune delay option on the interface using the following command. For IPv4 configurations: ip pim-sparse lan-prune-delay For IPv6 configurations: ipv6 pim6-sparse lan-prune-delay
5. Configure the value inserted into the Override Interval field of a LAN Prune Delay option on the interface using the following command. For IPv4 configurations: ip pim-sparse override-interval <INTERVAL-VALUE> For example, the following command sets the override interval value to 4000 ms on interface VLAN40:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-sparse override-interval 4000
For IPv6 configurations: ipv6 pim6-sparse override-interval <INTERVAL-VALUE> For example, the following command sets the override interval value to 4000 ms on interface VLAN40:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse override-interval 4000
6. Configure the propagation delay value inserted into the LAN Prune Delay option on the interface using the following command. For IPv4 configurations: ip pim-sparse propagation-delay <DELAY-VALUE> For example, the following command sets the propagation delay value to 400 ms on interface VLAN40:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-sparse propagation-delay 400
For IPv6 configurations: ipv6 pim6-sparse propagation-delay <DELAY-VALUE>
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 141
For example, the following command sets the propagation delay value to 400 ms on interface VLAN40:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse propagation-delay 400
7. Configure the source IP address to be used in PIM packets transmitted from the interface using the following command. For IPv4 configurations: ip pim-sparse ip-addr {<IP-ADDR-VALUE> | any} For example, the following command specifies the IPv4 address 40.0.0.4:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-sparse ip-addr 40.0.0.4
For IPv6 configurations: ipv6 pim6-sparse ipv6-addr {<IPv6-ADDR-VALUE> | any} For example, the following command specifies the IPv6 address 2001::02:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse ipv6-addr 2001::02
Viewing PIM information
For some commands, you can specify viewing information by interface or VRF.
Prerequisites
Use these show commands from the Operator (>) or Manager (#) context.
Procedure
1. To display PIM information for an IPv4 configuration, use the following show commands. n To view PIM router information, use: show ip pim. n To view information about the PIM interfaces configured on the router, use: show ip pim interface. n To view information about a PIM interface, use: show ip pim interface <INTERFACE-NAME>. n To view PIM packet counter information for an interface, use: show ip pim interface <INTERFACE-NAME> counters. n To view PIM neighbor information, use: show ip pim neighbor. n To view RP information, use: show ip pim rp-set. n To view information for statically configured RP assignments, use: show ip pim rp-set static. n To view information for dynamically learned RP assignments, use: show ip pim rp-set learned. n To view candidate RP information, use: show ip pim rp-candidate. n To view information about BSR candidates in the domain, use: show ip pim bsr. n To view information about BSR candidates on the local router, use: show ip pim bsr local. n To view information about the elected BSR in the domain, use: show ip pim bsr elected.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
142
n To view the RPF override configuration, use: show ip pim rpf-override. n To view RPF override configuration for a source, use: show ip pim rpf-override source. n To view pending joins on a PIM router, use: show ip pim pending. n To view multicast routing information, use: show ip mroute or use show ip mroute brief. n To view multicast routing information for a group address, use: show ip mroute <GROUP-ADDR>. 2. To display PIM information for an IPv6 configuration, use the following show commands. n To view PIM router information, use: show ipv6 pim6. n To view information about the PIM interfaces configured on the router, use: show ipv6 pim6
interface. n To view information about a PIM interface, use: show ipv6 pimv6 interface <INTERFACE-NAME>. n To view PIM neighbor information, use: show ipv6 pim6 neighbor. n To view RP information, use: show ipv6 pim6 rp-set. n To view information for statically configured RP assignments, use: show ipv6 pim6 rp-set
static. n To view information for dynamically learned RP assignments, use: show ipv6 pim6 rp-set
learned. n To view candidate RP information, use: show ipv6 pim6 rp-candidate. n To view information about BSR candidates in the domain, use: show ipv6 pim6 bsr. n To view information about BSR candidates on the local router, use: show ipv6 pim6 bsr local. n To view information about the elected BSR in the domain, use: show ipv6 pim6 bsr elected. n To view the RPF override configuration, use: show ipv6 pim6 rpf-override. n To view RPF override configuration for a source, use: show ipv6 pim6 rpf-override source. n To view pending joins on a PIM router, use: show ipv6 pim6 pending. n To view multicast routing information, use: show ipv6 mroute or use show ipv6 mroute brief. n To view multicast routing information for a group address, use: show ipv6 mroute <GROUP-ADDR>.
PIM-SM configuration example
The following is a sample topology diagram for a PIM-SM configuration.
Multicast
+-----------+
+-----------+
Source
|
|1/1/1
1/1/1
|1/1/2
1/1/2 Router1 +------------------+ Router2 +-------------+
+--------|
|CBSR
|
|
IGMP
|
|CRP
|
|
Clients
+-----------+
+-----------+
In this topology, the multicast source is connected to Router1 and Clients are connected to Router2.
Router1 and Router2 are directly connected so you can verify the neighborship using the show ip pim neighbor
command. Secondly Router1 interface 1/1/1 is the BSR candidate and RP candidate in this domain. This information needs to be propagated across the network and needs to be consistent on all routers in the topology. To verify this, use the show ip pim rp-set command for group mapping information and the show ip pim
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 143
bsr command for elected BSR information. If they show inconsistent information, you could see possible multicast outages. If the joins are seen by the routers before the streams can flow, both routes will display those requests in the show ip pim pending command output. Once the multicast source streams start to flow, each router in the path will add multicast router (mroute) entries, which can be verified using the show ip mroute command. The output of the following show running-config command shows an example of PIM-SM configuration for IPv4.
switch# show running-config Current configuration: ! ! ! ! ! Router1 ---------------
router ospf 1 redistribute connected area 0.0.0.0
router pim enable bsr-candidate source-ip-interface 1/1/1 rp-candidate source-ip-interface 1/1/1 rp-candidate group-prefix 224.0.0.0/4
interface 1/1/1 ip address 10.10.10.1/24 ip ospf 1 area 0.0.0.0 ip pim-sparse enable
interface 1/1/2 ip address 20.20.20.1/24 ip pim-sparse enable
Router2 --------------router ospf 1
redistribute connected area 0.0.0.0 router pim enable interface 1/1/1 ip address 10.10.10.2/24 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface 1/1/2 ip address 30.30.30.1/24 ip pim-sparse enable ip igmp enable
The output of the following show running-config command shows an example of PIM-SM configuration for IPv6.
switch# show running-config Current configuration: !
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
144
! ! ! ! Router1 --------------router ospfv3 1 redistribute connected area 0.0.0.0
router pim6 bsr-candidate source-ip-interface loopback1 rp-candidate source-ip-interface loopback1 rp-candidate group-prefix ff00::/8 enable
interface loopback 1 ipv6 address 1000::1000/64 ipv6 ospfv3 1 area 0.0.0.0 ipv6 pim6-sparse enable
interface 1/1/1 ipv6 address 2000::1/64 ipv6 ospfv3 1 area 0.0.0.0 ipv6 pim6-sparse enable
interface 1/1/2 ipv6 address 4000::1/64 ipv6 pim6-sparse enable
Router2 --------------router ospfv3 1 redistribute connected area 0.0.0.0
router pim6 enable
interface 1/1/1 ipv6 address 2000::2/64 ipv6 ospfv3 1 area 0.0.0.0 ipv6 pim6-sparse enable
interface 1/1/2 ipv6 address 5000::1/64 ipv6 pim-sparse enable ipv6 mld enable
PIM-SM configuration task list
Tasks at a glance.
n Enabling or disabling PIM globally n Configuring join/prune interval n Enabling/disabling multicast traffic to SPT n Configuring an RP n Configuring a BSR
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 145
n Configuring RPF override n Enabling/disabling PIM-SM in an interface n Configuring PIM-SM options in an interface n Removing all PIM-SM related configurations on an interface n Viewing PIM information n PIM VSX active-active
Enabling or disabling PIM globally
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6.
Procedure
Enable PIM globally on a router using the following command. enable For example, the following command enables PIM globally: For IPv4 configurations:
switch# configure terminal switch(config)# router pim switch(config-pim)# enable
For IPv6 configurations:
switch# configure terminal switch(config)# router pim6 switch(config-pim6)# enable
You can enable PIM globally and enable PIM-SM at the interface level. When PIM-SM is not enabled on the interface, irrespective of the global PIM status, unknown multicast traffic does not get routed. When PIMSM is enabled on the interface, multicast traffic is routed to the interface where there are clients joined, provided PIM is enabled globally. Use the disable command to disable PIM globally on a router. You could use this command to temporarily disable PIM globally without removing the individual interface configuration.
Configuring join/prune interval
Configure the interval at which the router will send periodic PIM-SM join or prune interval messages.
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6.
Procedure
Configure the join/prune interval using the following command. join-prune-interval <INTERVAL-VALUE> For example, the following command sets the join/prune interval to 400 seconds: For IPv4 configurations:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
146
switch# configure terminal switch(config)# router pim switch(config-pim)# join-prune-interval 400
For IPv6 configurations:
switch# configure terminal switch(config)# router pim6 switch(config-pim6)# join-prune-interval 400
The no form of the command sets the interval to the default of 60 seconds.
Enabling/disabling multicast traffic to SPT
Switching to SPT is enabled by default.
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6.
Procedure
Enable or disable the router's ability to switch multicast traffic flows to the Shortest Path Tree (SPT) using the following command. spt-threshold For example, the following command enables switching traffic flows to the SPT: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# spt-threshold
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# spt-threshold
The no form of the command disables switching to SPT.
Configuring an RP
An RP can be manually configured (static RP) or dynamically elected through the Bootstrap Router (BSR) mechanism (Candidate RP or C-RP).
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6. n A Rendezvous Point (RP) can provide services for multiple or all multicast groups. However, only one RP
can forward multicast traffic for a multicast group at a time.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 147
n For a large-scaled PIM network, configuring static RPs is a tedious job. Generally, static RPs are backups for dynamic RPs to enhance the robustness and operational manageability on a multicast network.
n When configuring a static RP, you must configure the same static RP on all routers in the PIM-SM domain. n When you configure a Candidate RP (C-RP), reserve a relatively large bandwidth between the C-RP and
other devices in the PIM-SM domain.
Procedure
1. Configure a static RP using the following command. rp-address <IP-ADDR> [<GRP-ADDR/GRP-MASK>] [override] For example, the following command configures a static RP of 40.0.0.8 for the multicast group: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# rp-address 40.0.0.8 226.0.0.4/24
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rp-address 2002::02 ff08::1:4/64
2. Configure a C-RP using the following command. rp-candidate source-ip-interface <INTERFACE-NAME> [group-prefix <GRP-ADDR/GRP-MASK>] For example, the following command configures a C-RP using loopback1 as the source for the C-RP router IP address and associates the multicast group with the C-RP router: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# rp-candidate source-ip-interface loopback1 group-prefix 230.0.0.4/24
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rp-candidate source-ip-interface loopback1 group-prefix ff08::1:3/64
For a C-RP, you can configure various options as shown in the following steps. C-RP can be configured on an SVI or ROP interface also. 3. Add or remove multicast groups for the C-RP, as needed, using the following command. rp-candidate group-prefix <GRP-ADDR/GRP-MASK> For example, the following commands configure a C-RP using VLAN 40 as the source for the C-RP router IP address and then adds the multicast group to the C-RP: For IPv4 configurations:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
148
switch(config)# router pim switch(config-pim)# rp-candidate source-ip-interface vlan40 switch(config-pim)# rp-candidate group-prefix 230.0.0.4/24
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rp-candidate source-ip-interface vlan40 switch(config-pim6)# rp-candidate group-prefix ff08::1:3/64
4. Configure the hold-time a C-RP includes in its advertisements to the BSR using the following command. rp-candidate hold-time <TIME-VALUE> For example, the following command sets the hold-time to 250 seconds: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# rp-candidate hold-time 250
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rp-candidate hold-time 250
5. Set the priority for a C-RP using the following command. rp-candidate priority <PRIORITY-VALUE> For example, the following command sets the priority to 250: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# rp-candidate priority 250
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rp-candidate priority 250
Configuring a BSR
Configure the router to advertise itself as the Candidate Bootstrap Router (Candidate-BSR) for the PIM-SM domain.
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6. PIM-SM must be enabled on the interface used as the source IP interface.
Procedure
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 149
1. Configure a Candidate-BSR using the following command. bsr-candidate source-ip-interface <INTERFACE-NAME> For example, the following command configures a Candidate-BSR using interface 1/1/4 as the source for the router IP address. This command can also be applied to an L3 VLAN or L3 LAG. (L3 LAG is not supported on the Aruba 6200 Switch Series.) For IPv4 configurations:
switch(config)# router pim switch(config-pim)# bsr-candidate source-ip-interface 1/1/4
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate source-ip-interface 1/1/4
Candidate-BSR can be enabled on a loopback interface as well. For a Candidate-BSR, you can configure various options as shown in the following steps. 2. Configure the bootstrap message (BSM) interval for sending periodic RP-Set messages using the following command. bsr-candidate bsm-interval <INTERVAL-VALUE> For example, the following command configures a bootstrap message interval of 150 seconds: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# bsr-candidate bsm-interval 150
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate bsm-interval 150
3. Set the priority to apply to the router when a BSR election process occurs in the PIM-SM domain using the following command. bsr-candidate priority <PRIORITY-VALUE> For example, the following command configures the priority as 250: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# bsr-candidate priority 250
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate priority 250
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
150
4. Configure the length (in bits) of the hash-mask using the following command. Used to control the distribution of multicast groups among the C-RP in a domain where there is overlapping coverage of the groups among the RPs. bsr-candidate hash-mask-length <LENGTH-VALUE> For example, the following command configures the hash-mask length to 4: For IPv4 configurations:
switch(config)# router pim switch(config-pim)# bsr-candidate hash-mask-length 4
For IPv6 configurations: switch(config)# router pim6 switch(config-pim6)# bsr-candidate hash-mask-length 4
Configuring RPF override
Configure Reverse Path Forward (RPF) override to allow the override of the normal RPF lookup mechanism, indicating to the router that it may accept multicast traffic on an interface other than the one that would normally be selected by the RPF lookup mechanism. RPF checking ensures that multicast traffic received arrived on the expected router interface before it is considered for further processing. If the RPF check fails for a multicast packet, the packet is discarded. RPF override entry gets precedence over routes learned from routing protocols or static routes. It must also be noted that PIM will not switch to an alternate path if the configured RPF neighbor is not reachable.
Prerequisites
You must be in the PIM configuration context, as indicated by the switch(config-pim)# prompt for IPv4 or the switch(config-pim6)# prompt for IPv6.
Procedure
Add, edit, or delete RPF overrides using the following command. rpf-override <SRC-ADDR/SRC-MASK><RPF-ADDR|INTERFACE-NAME> For IPv4 configurations:
switch(config)# router pim switch(config-pim)# rpf-override 40.0.0.4/24 30.0.0.4
For IPv6 configurations:
switch(config)# router pim6 switch(config-pim6)# rpf-override 50::4/24 40::1
Removing all PIM-SM related configurations on an interface
Prerequisites
You must be in the interface configuration context, as indicated by the switch(config-if)# prompt, switch(config-if-vlan)# prompt, or switch(config-lag-if)# prompt.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 151
Procedure
Remove all PIM-SM related configurations for the interface using the following command. For IPv4 configurations: no ip pim-sparse
For IPv6 configurations: no ipv6 pim6-sparse
PIM VSX active-active
Not supported on the 6200 and 6300 Switch Series. The PIM active-active solution makes one of the VSX devices act as DR and other device as proxy-DR for each of the downstream VLANs. Both the VSX peers behave the same as far as the protocol is concerned with only the DR forwarding the multicast traffic to downstream routers. The PIM active-active feature is enabled on VSX devices connected to access switches on one side with hosts behind the access switches. The DR election depends on the IP address and a single VSX device doesn't be the DR for all of the downstream VLANs. When a VSX device which is acting as DR for some of the downstream VLANs starts rebooting, traffic loss would be seen for the multicast streams in those downstream VLANs for few seconds. The VSX software upgrade process involves rebooting each VSX device with new software. The secondary VSX device is upgraded before primary VSX device. If the secondary is acting as DR for some of downstream VLANs then after the VSX software upgrade is triggered multicast traffic loss will be seen twice for the streams present in those VLANs; once during secondary VSX device reboot and then during primary VSX device reboot. With graceful shutdown traffic loss is not seen for any of multicast streams. Instead, some duplicates are expected for 1-3 seconds for each stream. The sequence of events during each VSX device upgrade is outlined below:
1. The first step is based on device role and is applicable only to the primary device. According to VSX software upgrade process, the device upgrade is triggered in the primary after the secondary upgrade. The secondary should already have all the multicast routes before taking over the DR role from the primary. After the secondary device reboots the primary device waits for few minutes so that the secondary learns the multicast routes and is ready to take over the DR role. The wait time in primary device depends on the number of multicast routes present.
2. DR roles of all the downstream VLANs are offloaded to its peer. At the end of this step the device which is going to reboot will be a proxy-DR for all the downstream VLANs.
3. After the interface role change, each multicast flow in the hardware is changed simultaneously in both the DR and proxy-DR based on the new roles they have taken. The new DR converts bridge entries to route entries and the proxy-DR converts route entries to bridge entries in the hardware.
The wait times for the primary upgrade before multicast graceful shutdown process starts are listed below:
Number of MRoutes 0 < 1024 < 2048 < 4096
Timer value 0 120 seconds 150 seconds 210 seconds
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
152
Number of MRoutes < 8192 < 16284 > 16384
Timer value 300 seconds 360 seconds 480 seconds
The recommended configurations for graceful shutdown are as follows:
1. The multicast graceful shutdown is applicable only to the topologies which are supported for the PIM active-active solution. Other topologies will experience multicast traffic loss during a VSX software upgrade.
2. The robustness timer for IGMP/MLD protocol should be increased. The robustness timer helps to increase the expiration time of IGMP/MLD joins. This is needed during VSX device reboot so that joins don't expire. The configured value depends on how much time the VSX device reboot takes. If the robustness value is configured at the maximum value of 8, then the expiration time of multicast joins can increase up to 16 minutes with default query-interval. Use the below command to configure robustness timer:
switch(config-if)#ip igmp robustness <2-7>
3. If OSPF v2/v3 is enabled, it is recommended not to configure the VSX device as OSPF v2/v3 DR for any of the interfaces. Use following commands to configure the other routers as DR for an interface: ip ospf priority <0-255> ipv6 ospfv3 priority <0-255>
4. If BGP is enabled, it is recommended to increase BGP graceful restart timer for every BGP-enabled interface. The recommended value of BGP graceful restart timer should be the same as the wait time in the primary before the multicast graceful shutdown process starts. Refer to the table in previous section which mentions the wait times. Use following command to reconfigure the BGP graceful restart timer: bgp graceful restart restart-time <1-3600>
PIM Active-Active configuration is not recommended when downstream connectivity is not via MCLAG.
FAQ and best practices
1. Why does the ProxyDR router see additional mroutes that are bridge entries?
Though both DR and Proxy DR router receive the data from the source, only the DR router forwards the streams to the outgoing interface list. Since the outgoing interface list is a shared SVI between VSX pairs, the ProxyDR router also receives a copy of the stream via ISL link on the same outgoing VLANs. Thus the ProxyDR router creates a bridge entry for all these flows with the incoming interface as that of the same downstream host VLANs. If there are many client VLANs that subscribe to the same streams, the ProxyDR router will create a bridge entry on all those client VLANs. This is one of the reasons for the overall scale to go down in an Active-Active setup.
2. Can the DR priority of the interface be modified by configuration?
When Active-Active is configured, DR priority is internally used for its pre-empting functionality and a userconfigured DR priority will not take effect. Therefore, it is not recommended to modify DR priority on the host VLANs when PIM Active-Active is configured.
3. Does PIM Active-Active run on all PIM-enabled SVIs that are members of MCLAG?
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 153
PIM Active-Active is designed to improve the failover time where the multicast clients are located and hence it is only limited to those SVI where IGMP (ip igmp) is enabled and member of MCLAG. PIM Active-Active functionality, like the DR and ProxyDR roles, are only applicable on these VLANs.
4. Is PIM Active-Active supported when the downstream aggregation switch is also configured as a PIM router?
In a PIM Active-Active solution more than one ProxyDR is not supported as that would cause additional bandwidth to fetch the source traffic to all Proxy DR routers. If the protocol detects more than one neighbor on the client SVIs (IGMP enabled) an error will be logged. Therefore, it is not a supported configuration.
RMON LOG: More than one PIM Neighbor detected on Active-Active interface %s. Configuration not supported.
5. Is PIM Active-Active supported when the SVIs on the downstream MCLAG is extended to multiple VSX tiers or other Independent PIM routers?
As explained above PIM Active-Active solution assumes that there are two PIM routers in the host connected SVI segment, where one takes the DR and other the Proxy DR role. If it detects more than one neighbor on those SVIs an error will be logged and traffic outages can be seen. Therefore, it is not a recommended configuration.
RMON LOG: More than one PIM Neighbor detected on Active-Active interface %s. Configuration not supported.
6. Is PIM Active-Active supported on multi-tier VSX deployments?
PIM active-active is supported on multi-tier VSX deployments, however it must be noted that the feature is required to be only enabled on the VSX tier where IGMP clients are connected. Also it is not advisable to enable IGMP (ip igmp) on the infrastructure links which connect the VSX tiers together. If IGMP is enabled on those inter VSX links, PIM detects multiple neighbors and throws a warning.
7. Can the PIM Active-Active configured VSX router also be configured as an RP or BSR router?
It is recommended to configure a non-PIM Active-Active router as RP or BSR. The guidelines for RP are explained in the RP section above.
8. Does PIM Active-Active improve recovery time during MM failover?
The Proxy DR router can detect MM failover and will take up the DR role when MM failover happens. The failed router then becomes the ProxyDR router.
9. Does PIM Active-Active run on all PIM enabled SVIs on the VSX router?
Though PIM Active-Active is enabled from the VRF's context, the SVIs that it picks to run are based on the following criteria. If any of the conditions is not met, active-active will not run on them.
PIM-SM must be enabled on the SVI.
SVI should be a member VLAN of one of the MCLAG links.
IGMP (ip igmp enable) must be enabled on the SVI.
10. Can the DR role be changed manually?
We are working on a command to manually change the DR Role. It should be available on the newer releases.
11. Does PIM Active-Active imply redundancy for RPs ?
PIM Active-Active does not guarantee RP redundancies. This is primarily used for downstream host redundancy when VSX is used as an L3-L2 split. This should not be confused with Active Forwarding for Unicast.
12. Does PIM Active-Active indicate zero traffic loss?
As mentioned in previous sections PIM Active-Active minimizes the traffic loss when the DR is down or there is a role change. It does not guarantee a zero traffic loss for multicast but reduces the downtime from 105
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
154
seconds to 2-3 seconds.
13. Is PIM Active-Active supported for PIM-DM?
PIM-DM does not have a concept of DR and works in flood-prune manner. PIM-DM is not expected to be enabled on a VSX topology. PIM Active-Active is not supported for PIM-DM.
14. What is the impact of disabling PIM Active-Active on a working setup?
The PIM Active-Active feature is applicable only to last hop routers where IGMP joins are present; therefore, ideally it should not be enabled on any other intermediate routers.
General recommendations
n PIM Active/Active configuration is recommended for multicast clients connected to downstream VSX LAGs. PIM Active/Active does not provide DR redundancy for downstream receivers connected over ROP or sub-interfaces (i.e. multicast traffic impact when DR fails).
n When RP is configured on a VSX, anycast RP with MSDP is recommended. For BSR/C-RP, a PIM peering over a point-to-point transit VLAN between VSX devices is needed. In case of BSR/C-RP, convergence time is higher than anycast RP configuration when active RP fails.
PIM-SM commands for IPv4
Only the default VRF is supported on the Aruba 6200 Switch Series.
accept-register access-list
accept-register access-list <ACL-RULE> no accept-register access-list <ACL-RULE>
Description
Configures ACL on RP to filter PIM Register packets from unauthorized sources. The ACL specified will contain the (S,G) traffic in register packets to permitted or denied. The no form of this command removes the currently configured ACL rule.
Parameters
<ACL-RULE> Specifies the ACL rule name.
Usage
When register ACL is associated with a PIM Router, PIM protocol will store the source and destination address details along with the action (permit or deny). If there are any existing flows, the user will need to disable and enable PIM on the interface to apply the ACL. Upon receiving the register messages, a look up is made to check if the S and G in the packet is in the permitted list. If there is no match or if there is a deny rule match, a register stop message is immediately sent and the packet is dropped and no further action is taken. Permitted packets will go through the normal flow. Loopback interfaces are special interfaces where only unicast PIM messages are updated. This includes Register, Register Stop, and Candidate RP Advertisements. When a loopback interface is configured as the RP, the ACL drop counters will be updated on the interface on which the packets are received.
Examples
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 155
Configuring ACL on RP with an ACL rule named pim_reg_acl:
switch(config)# access-list ip pim_reg_acl switch(config-acl-ip)# 10 permit any 20.1.1.1 225.1.1.2 switch(config-acl-ip)# 20 deny any 30.1.1.1 225.1.1.3 switch(config)# router pim switch(config-pim)# accept-register access-list pim_reg_acl
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
accept-rp
accept-rp <IP-ADDR> access-list <ACL-RULE> no accept-rp <IP-ADDR> access-list <ACL-RULE>
Description
Enables PIM router to filter PIM join/prune messages destined for a specific RP and specific groups. The ACL specifies the group addresses which are allowed or denied. Up to 8 RP addresses and group ACL can be associated with the PIM router. The no form of this command removes the currently configured ACL rule.
Parameters
<IP-ADDR> Specifies the IPv4 address of the static RP. Format: A.B.C.D
<ACL-RULE> Specifies the ACL rule name.
Usage
PIM will store the accepted RP address and the associated group ACL. When a join or prune message is received, a RP look up is made for the packet. If the RP is in the configured list and if the group in the join/prune packet is allowed in the ACL, the packet is allowed. Otherwise the packet is dropped. To allow join/prune message from any groups, group address in the ACL can be wild-carded. In this case, only RP address check is performed. This command impacts only (*,G) join/prune messages. If there are any existing flows, the user will need to disable and enable PIM on the interface to apply the ACL.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
156
Loopback interfaces are special interfaces where only unicast PIM messages are updated. This includes Register, Register Stop, and Candidate RP Advertisements. When a loopback interface is configured as the RP, the ACL drop counters will be updated on the interface on which the packets are received.
If there is an active flow which is in the SPT, the traffic flow through the SPT will continue. Only (*,G) join/prune messages are dropped. (S,G) join/prune messages will not be impacted.
Examples
Configuring ACL on a RP with an ACL rule named pim_rp_grp_acl to filter join/prune messages:
switch(config)# access-list ip pim_rp_grp_acl switch(config-acl-ip)# 10 permit any any 225.1.1.2/255.255.255.0 switch(config-acl-ip)# 20 permit any any 239.1.1.2/255.255.255.0 switch(config)-acl-ip# router pim switch(config-pim)# accept-rp 30.1.1.1 access-list pim_rp_grp_acl
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
active-active
active-active no active-active
Description
Enables the PIM active-active mechanism per VRF on VSX. The default is disabled. The no form of this command disables the PIM active-active mechanism.
Usage
PIM active-active keeps the multicast forwarding state synchronized on both VSX peer devices. Synchronization is achieved by electing the VSX peer that has the highest IP address as a designated router (DR) and the other as Proxy-DR. If you want the multicast traffic to flow through VSX primary, assign higher IP addresses to the interfaces in VSX primary. When the VSX peer that is acting as the DR goes down, traffic is recovered faster since the multicast routes are synchronized.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 157
Recommendations:
n Do not configure the DR priority of interfaces when active-active is enabled. The DR priority will be set to high on DR and default on Proxy-DR and any user-configured DR priority will be ignored.
n Always configure keepalive between VSX peers. If the ISL goes down when keepalive is not configured, both VSX peers start acting independently as DRs, resulting in duplicate traffic.
n Do not configure IGMP joins on transit VLANS. n RP redundancy is not supported on the active-active mechanism. If one of the VSX peers is configured
as RP and it goes down, the new traffic flows will not be converged until the RP is elected. For a static RP, new flows will never be converged until the VSX peer is back up.
Examples
Enabling the PIM active-active mechanism:
switch(config)# router pim switch(config-pim)# active-active
Disabling the PIM active-active mechanism:
switch(config)# router pim switch(config-pim)# no active-active
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
bfd all-interfaces
Not supported on the Aruba 6200 Switch Series.
bfd all-interfaces no bfd all-interfaces
Description
Enables BFD on all PIM interfaces. BFD can be disabled at individual PIM interface using the ip pim-sparse bfd disable command. The no form of this command disables BFD for all the interfaces.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
158
Examples
Enabling and disabling BFD on all PIM interfaces:
switch(config)# router pim switch(config-pim)# bfd all-interfaces switch(config-pim)# no bfd all-interfaces
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate bsm-interval
bsr-candidate bsm-interval <INTERVAL-VALUE> no bsr-candidate bsm-interval
Description
Configures the interval in seconds to send periodic RP-Set messages to all PIM-SM interfaces on a router that operates as the BSR in a domain. This setting must be smaller than the rp-candidate hold-time settings (range of 30 to 255; default 150) configured in the RPs operating in the domain. The no form of this command removes the currently configured value and sets it to the default of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the BSR-candidate BSM interval in seconds. Default: 60 seconds. Range: 5-300.
Example
Configuring and removing BSR-candidate BSM-interval:
switch(config)# router pim switch(config-pim)# bsr-candidate bsm-interval 150 switch(config-pim)# no bsr-candidate bsm-interval
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 159
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate hash-mask-length
bsr-candidate hash-mask-length <LENGTH-VALUE> no bsr-candidate hash-mask-length
Description
Controls the distribution of multicast groups among the C-RP, in a domain where there is overlapping coverage of the groups among the RPs. This value specifies the length (number of significant bits) when allocating this distribution. A longer hash-mask-length results in fewer multicast groups, for each block of group addresses assigned to the RPs. Multiple blocks of addresses assigned to each C-RP results in wider dispersal of addresses. Includes enhanced load-sharing for the multicast traffic for the different groups that are used in the domain at the same time. The no form of this command removes currently configured value and sets to the default of 30.
Parameters
<LENGTH-VALUE> Specifies the length (in bits) of the hash mask. Default: 30. Range: 1-32.
Example
Configuring and removing the BSR-candidate hash-mask-length:
switch(config)# router pim switch(config-pim)# bsr-candidate hash-mask-length 4 switch(config-pim)# no bsr-candidate hash-mask-length
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
160
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
bsr-candidate priority
bsr-candidate priority <PRIORITY-VALUE> no bsr-candidate priority
Description
Configures the priority to apply to the router when a BSR election process occurs in the PIM-SM domain. The candidate with the highest priority becomes the BSR for the domain. If the highest priority is shared by multiple routers, the candidate having the highest IP address becomes the BSR of the domain. Zero (0) is the lowest priority. To make BSR selection easily predictable, use this command to assign a different priority to each candidate BSR in the PIM-SM domain. The no form of this command removes currently configured value and sets to the default of 0.
Parameters
<PRIORITY-VALUE> Specifies the priority for the Candidate Bootstrap router. Default: 0. Range: 0-255
Example
Configuring and removing the BSR-candidate priority:
switch(config)# router pim switch(config-pim)# bsr-candidate priority 250 switch(config-pim)# no bsr-candidate priority
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate source-ip-interface
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 161
bsr-candidate source-ip-interface <INTERFACE-NAME> no bsr-candidate source-ip-interface <INTERFACE-NAME>
Description
Configures the router to advertise itself as a candidate PIM-SM BSR on the interface specified, and enables BSR candidate operation. The result makes the router eligible to be elected as the BSR for the PIM-SM domain in which it operates. One BSR candidate interface is allowed per-router. The no form of this command removes the Candidate BSR configuration.
Parameters
<INTERFACE-NAME> Specifies the interface to use as a source for Candidate-BSR router IP address. Interface can be a VLAN interface (such as vlan15) or routed interfaces (such as lag 1 or 1 / 1 / 19). PIM-SM must be enabled on this interface (use the ip pim-sparse enable command).
Example
On the 6400 Switch Series, interface identification differs. Configuring and removing the BSR-candidate interface:
switch(config)# router pim switch(config-pim)# bsr-candidate source-ip-interface 1/1/4 switch(config-pim)# bsr-candidate source-ip-interface vlan5 switch(config-pim)# no rp-candidate source-ip-interface 1/1/4
Configuring and removing sub-interface 1/1/4.10 as the BSR-candidate:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# router pim switch(config-pim)# bsr-candidate source-ip-interface 1/1/4.10 switch(config-pim)# switch(config-pim)# no rp-candidate source-ip-interface 1/1/4.10
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
162
disable
disable
Description
Disables PIM globally on the router. PIM is disabled by default.
Using the disable command will cause all the multicast routes to be erased from hardware.
Example
Disabling PIM router:
switch(config)# router pim switch(config-pim)# disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
enable
enable
Description
Enables PIM globally on the router.
Example
Enabling PIM router:
switch(config)# router pim switch(config-pim)# enable
Command History
Modification --
Authority Administrators or local user group members with execution rights for this command.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 163
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse
ip pim-sparse {enable|disable}
Description
Enables or disables PIM-SM in the current interface. PIM-SM is disabled by default on an interface. IP address must be configured on the interface to enable PIM-SM.
Parameters
enable Specifies PIM SM on the interface. IP address must be configured on the interface to enable PIM-SM.
disable Disables PIM SM on the interface.
Examples
Enabling and disabling PIM-SM:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip address 40.0.0.4/24 switch(config-if-vlan)# ip pim-sparse enable switch(config-if-vlan)# ip pim-sparse disable
Configuring and disabling PIM-SM on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip add 100.100.1.1/24 switch(config-subif)# ip pim-sparse enable switch(config-subif)# switch(config-subif)# ip pim-sparse disable
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
164
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse bfd
Not supported on the Aruba 6200 Switch Series.
ip pim-sparse bfd [disable] no ip pim-sparse bfd
Description
Configures BFD on a per-interface basis for one interface associated with the PIM process. The no form of this command removes the BFD configuration on the interface and sets it to the default configuration.
If BFD is enabled globally, it will be enabled by default on all interfaces. The only exception is when it is disabled specifically on an interface using the ip pim-sparse bfd disable command. If BFD is disabled globally, it will be disabled by default on all interfaces. The only exception is when it is enabled specifically on an interface using the ip pim-sparse bfd command.
Parameters
disable Disables the BFD configuration on the interface.
Examples
Enabling the BFD configuration on the interface:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse bfd
Removing the BFD configuration on the interface:
switch(config-if-vlan)# no ip pim-sparse bfd
Disabling the BFD configuration on the interface and overriding the global setting:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 165
switch(config-if-vlan)# ip pim-sparse bfd disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse dr-priority
ip pim-sparse dr-priority <PRIORITY-VALUE> no ip pim-sparse dr-priority
Description
Changes the router priority for the designated router (DR) election process in the current interface. A numerically higher value means a higher priority. If multiple routes share the highest priority, the router with the highest IP address is selected as the DR. The no form of this command removes currently configured value and sets to the default of 1.
Parameters
<PRIORITY-VALUE> Specifies the priority value to use on the interface in the DR election process. Required. Default: 1. Range: 0- to 294967295.
Examples
Configuring and removing the interface priority value:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse dr-priority 4444 switch(config-if-vlan)# no ip pim-sparse dr-priority
Configuring and removing the interface priority value in the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse dr-priority 1000
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
166
switch(config-subif)# switch(config-subif)# no ip pim-sparse dr-priority
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse hello-delay
ip pim-sparse hello-delay <DELAY-VALUE> no ip pim-sparse hello-delay
Description
Configures the maximum time in seconds before the router actually transmits the initial PIM hello message on the current interface. The no form of this command removes currently configured value and sets to the default of 5 seconds.
Parameters
<DELAY-VALUE> Specifies the hello-delay in seconds, which is the maximum time before a triggered PIM Hello message is transmitted on this interface. Default: 5. Range: 0 to 5.
Usage
n In cases where a new interface activates connections with multiple routers. If all the connected routers sent hello packets at the same time, the receiving router could become momentarily overloaded.
n This command randomizes the transmission delay to a time between zero and the hello delay setting. Using zero means no delay. After the router sends the initial hello packet to a newly detected interface, it sends subsequent hello packets according to the current hello interval setting.
Example
Configuring and removing hello-delay interface:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse hello-delay 4 switch(config-if-vlan)# no ip pim-sparse hello-delay
Configuring and removing hello-delay on the sub-interface:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 167
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse hello-delay 4 switch(config-subif)# switch(config-subif)# no ip pim-sparse hello-delay
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse hello-interval
ip pim-sparse hello-interval <INTERVAL-VALUE> no ip pim-sparse hello-interval
Description
Configures the frequency at which the router transmits PIM hello messages on the current interface. The no form of this command removes the currently configured value and sets to the default of 30 seconds.
Parameters
<INTERVAL-VALUE> Specifies the frequency at which PIM Hello messages are transmitted on this interface. Range: 5 to 300. Default: 30.
Usage
n The router uses hello packets to inform neighbor routers of its presence. n The router also uses this setting to compute the hello holdtime, which is included in hello packets sent to
neighbor routers. n Hello holdtime tells neighbor routers how long to wait for the next hello packet from the router. If
another packet does not arrive within that time, the router removes the neighbor adjacency on that interface from the PIM adjacency table, which removes any flows running on that interface. n Shortening the hello interval reduces the hello holdtime. If they do not receive a new hello packet when expected, it changes how quickly other routers stop sending traffic to the router.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
168
Configuring and removing sparse hello-interval:
switch(config)# interface vlan 20 switch(config-if-vlan)# ip pim-sparse hello-interval 60 switch(config-if-vlan)# no ip pim-sparse hello-interval
Configuring and removing sparse hello-interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse hello-interval 60 switch(config-subif)# switch(config-subif)# no ip pim-sparse hello-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse ip-addr
ip pim-sparse ip-addr {<IP-ADDR-VALUE> | any} no ip pim-sparse ip-addr
Description
Enables the router to dynamically determine the source IP address to use for PIM-SM packets sent from the interface or to use the specific IP address. The no form of this command removes the currently configured value and sets to the default of any.
Parameters
<IP-ADDR-VALUE> Specifies an IP address as the source IP for the interface.
any Specifies dynamically determining the source IP from the current IP address of the interface.
Examples
Configuring and removing source IP address:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 169
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse ip-addr 40.0.0.4 switch(config-if-vlan)# no ip pim-sparse ip-addr
Configuring and removing source IP address on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse ip-addr 10.0.0.1 switch(config-subif)# switch(config-subif)# no ip pim-sparse ip-addr
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse lan-prune-delay
ip pim-sparse lan-prune-delay no ip pim-sparse lan-prune-delay
Description
Enables the LAN prune delay option on the current interface. The default is enabled. With LAN-prune-delay enabled, the router informs downstream neighbors how long it will wait before pruning a flow after receiving a prune request. Other downstream routers on the same interface must send a join to override the prune before the LAN-prune-delay time to continue the flow. Prompts any downstream neighbors with multicast receivers continuing to belong to the flow to reply with a join. If no joins are received after the LAN-prune-delay period, the router prunes the flow. The propagation-delay and override-interval settings determine the LAN-prune-delay setting. The no form of this command disables the LAN prune delay option.
Example
Enabling and disabling the LAN prune delay:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
170
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse lan-prune-delay switch(config-if-vlan)# no ip pim-sparse lan-prune-delay
Enabling and disabling the LAN prune delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# no ip pim-sparse lan-prune-delay switch(config-subif)# switch(config-subif)# ip pim-sparse lan-prune-delay
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse override-interval
ip pim-sparse override-interval <INTERVAL-VALUE> no ip pim-sparse override-interval
Description
Configures the override interval that gets inserted into the Override Interval field of a LAN Prune Delay option. The no form of this command removes the currently configured value and sets the value to the default of 2500 ms.
Parameters
<INTERVAL-VALUE> Specifies the override interval of a LAN Prune Delay option in ms. Range: 500 to 6000. Default: 2500.
Usage
A router sharing a VLAN with other multicast routers uses the override-interval value along with the propagation-delay value to compute the lan-prune-delay setting. The setting specifies how long to wait for a PIM-SM join after receiving a prune packet from downstream for a particular multicast group. Example scenario:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 171
A network may have multiple routers sharing VLAN X. When an upstream router is forwarding traffic from multicast group X to VLAN Y, if one of the routers on VLAN Y does not want this traffic, it issues a prune response to the upstream neighbor. The upstream neighbor then goes into a prune pending state for group X on VLAN Y. During this period, the upstream neighbor continues to forward the traffic. During the pending period, another router on VLAN Y can send a group X join to the upstream neighbor. If this happens, the upstream neighbor drops the prune pending status and continues forwarding the traffic. But if no routers on the VLAN send a join, the upstream router prunes.
Example
Configuring and removing the override interval:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse override-interval 4000 switch(config-if-vlan)# no ip pim-sparse override-interval
Configuring and removing the override interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse override-interval 4000 switch(config-subif)# switch(config-subif)# no ip pim-sparse override-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-sparse propagation-delay
ip pim-sparse propagation-delay <DELAY-VALUE> no ip pim-sparse propagation-delay
Description
Configures the propagation delay that gets inserted into the LAN prune delay field of a LAN Prune Delay option. The no form of this command removes currently configured value and sets to the default of 500 ms.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
172
Parameters
<DELAY-VALUE> Specifies the propagation delay value in ms. Range: 250 to 2000. Default: 500.
Examples
Configuring and removing the propagation delay:
switch(config)# interface vlan 40 switch(config-if-vlan)# ip pim-sparse propagation-delay 400 switch(config-if-vlan)# no ip pim-sparse propagation-delay
Configuring and removing the propagation delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-if)# interface 1/1/10.10 switch(config-subif)# ip pim-sparse propagation-delay 400 switch(config-subif)# switch(config-subif)# no ip pim-sparse propagation-delay
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
join-prune-interval
join-prune-interval <INTERVAL-VALUE> no join-prune-interval
Description
Configures the frequency at which the router will send periodic join or prune-interval messages. The no form of this command sets the interval to the default value of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the join-prune-interval in seconds. Range 5 to 65535 Default: 60.
Examples
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 173
Configuring join prune interval:
switch(config)# router pim switch(config-pim)# join-prune-interval 400 switch(config-pim)# no join-prune-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
multicast-route-limit
multicast-route-limit <limit> no multicast-route-limit <limit>
Description
Configures the limit on the maximum number of multicast route entries that can be programmed. When the limit is configured, multicast route entries created because of IGMP or MLD membership reports, and multicast route entries created because of multicast streams are restricted to the configured limit. The no form of this command removes the currently configured limit value.
Parameters
<limit> Specifies the value to be configured as the multicast route limit. Range: 1 to 4294967295.
Usage
Flows exceeding the configured multicast route limit will be programmed as a bridge entry and will not have the outgoing interfaces list populated. This configuration prevents creation of new multicast routes when limits are reached. At the time of configuration, if the device has more multicast routes than the configured limit, existing multicast routes continue to exist until they are removed. The flows are programmed in the HW on a FCFS basis. There could be scenarios where the flow is forwarded in neighbor router, but it may not be forwarded on the current router because of exceeding the limits configured on the current router. In such cases, it is recommended to configure higher limits to avoid traffic outage.
Examples
Configuring and removing the multicast route rate limit:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
174
switch(config)# router pim switch(config-pim)# multicast-route-limit 1024 switch(config-pim)# no multicast-route-limit
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ip pim-sparse
no ip pim-sparse
Description
Removes all the PIM-SM related configurations for the interface.
Example
Removing PIM-SM configuration:
switch(config)# interface vlan 40 switch(config-if-vlan)# no ip pim-sparse
Removing PIM-SM configuration on the sub-interface: Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/10.10 switch(config-subif)# no ip pim-sparse
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 175
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
register-rate-limit
register-rate-limit <limit> no register-rate-limit <limit>
Description
Configures the limit on the maximum number of register messages sent per second for every unique (S,G) entry. By default, there is no maximum rate set. When the limit is configured, register messages generation is limited to the configured value. The no form of this command removes the currently configured limit value.
Parameters
<limit> Specifies the value to be configured as the register rate limit. Range: 1 to 4294967295.
Examples
Configuring and removing the register rate limit:
switch(config)# router pim switch(config-pim)# register-rate-limit 10 switch(config-pim)# no register-rate-limit
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
router pim
router pim [vrf <VRF-NAME>] no router pim [vrf <VRF-NAME>]
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
176
Description
Changes the current context to the PIM configuration context. If no VRF is specified, the default VRF is assumed. The no form of this command removes the PIM configuration from the specified context or the default VRF.
Parameters
vrf <VRF-NAME> Specifies the name of a VRF.
Examples
Configuring default router PIM:
switch(config)# router pim switch(config-pim)#
Configuring specified router PIM:
switch(config)# router pim vrf green switch(config-pim)#
Removing router PIM:
switch(config)# no router pim
Command History
Release 10.07 or earlier
Modification --
Command Information
Administrators or local user group members with execution rights for this command.
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Authority
rp-address
rp-address <IP-ADDR> [<GRP-ADDR/GRP-MASK>] [override] no rp-address <IP-ADDR> [<GRP-ADDR/GRP-MASK>] [override]
Description
Statically configures the router as the RP for a specified multicast group or range of multicast groups. This must be configured on all PIM-SM routers in the domain. If group address is not specified, it applies to all
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 177
IPv4 multicast addresses (224.0.0.0 - 239.255.255.255). PIM-SM supports a maximum of 8 static RPs per VRF. The no form of this command removes static RP configuration and its precedence.
Parameters
<IP-ADDR> Specifies the address of the static RP in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<GRP-ADDR> Specifies the multicast group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<GRP-MASK> Specifies the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
override Specifies higher precedence to static RP over Candidate RP.
Usage
Where a static RP and a C-RP are configured to support the same multicast groups and the multicast group mask for the static RP is equal to or greater than the same mask for the applicable C-RPs, this command assigns the higher precedence to the static RP, resulting in the C-RP operating only as a backup RP for the configured group. Without override, the C-RP has precedence over a static RP configured for the same multicast group or groups.
Examples
switch(config)# router pim switch(config-pim)# rp-address 40.0.0.4 230.0.0.4/24 ovverride switch(config-pim)# rp-address 40.0.0.8 222.0.0.4/24 switch(config-pim)# no rp-address 40.0.0.4 230.0.0.4/24
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate group-prefix
rp-candidate group-prefix <GRP-ADDR/GRP-MASK> no rp-candidate group-prefix <GRP-ADDR/GRP-MASK>
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
178
Description
Adds multicast group address to the current Candidate Rendezvous Point (C-RP) configuration. The no form of this command removes C-RP multicast group address.
Parameters
<GRP-ADDR> Specifies the multicast group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<GRP-MASK> Specifies the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
Examples
Configuring and removing candidate group prefix:
switch(config)# router pim switch(config-pim)# rp-candidate group-prefix 230.0.0.4/24 switch(config-pim)# no rp-candidate group-prefix 230.0.0.4/24
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate hold-time
rp-candidate hold-time <TIME-VALUE> no rp-candidate hold-time
Description
Changes the hold-time a C-RP includes in its advertisements to the BSR. Hold-time is included in the advertisements the C-RP periodically sends to the elected BSR for the domain. Also updates the BSR on how long to wait after the last advertisement from the reporting RP before assuming it has become unavailable. The no form of this command removes the currently configured value and sets it to the default value 150 seconds.
Parameters
<TIME-VALUE>
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 179
Specifies the hold-time value in seconds to be sent in C-RP-Adv messages. Range: 30 to 250. Default: 150.
Example
Setting and removing the candidate holdtime:
switch(config)# router pim switch(config-pim)# rp-candidate hold-time 250 switch(config-pim)# no rp-candidate hold-time
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate priority
rp-candidate priority <PRIORITY-VALUE> no rp-candidate priority
Description
Changes the current priority setting for a C-RP. Where multiple C-RP configurations are used to support the same multicast groups, the candidate having the highest priority is elected. Zero (0) is the highest priority, and 255 is the lowest priority. The no form of this command removes the currently configured value and sets it to the default of 192.
Parameters
<PRIORITY-VALUE> Specifies the priority value for the Candidate-RP router. Range: 0 to 255. Default: 192.
Example
Configuring and removing candidate priority:
switch(config)# router pim switch(config-pim)# rp-candidate priority 250 switch(config-pim)# no rp-candidate priority
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
180
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate source-ip-interface
rp-candidate source-ip-interface <INTERFACE-NAME> [group-prefix <GRP-ADDR/GRP-MASK>] no rp-candidate source-ip-interface <INTERFACE-NAME> [group-prefix <GRP-ADDR/GRP-MASK>]
Description
Enables the Candidate Rendezvous Point (C-RP) operation, and configures the router to advertise itself as a C-RP to the Bootstrap Router (BSR) for the current domain. This step includes the option to allow the C-RP to be a candidate for all possible multicast groups, or for up to four multicast groups, or ranges of groups. If group-prefix is not given, it considers for all multicast group addresses. The no form of this command removes the C-RP configuration.
Parameters
<INTERFACE-NAME> Specifies the interface to use as a source for the C-RP router IP address.
<GRP-ADDR> Specifies the multicast group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<GRP-MASK> Specifies the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
Examples
Configuring and removing candidate source IP interface:
switch(config)# router pim switch(config-pim)# rp-candidate source-ip-interface vlan40 group-prefix 230.0.0.4/24 switch(config-pim)# no rp-candidate source-ip-interface vlan20
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 181
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
rpf-override
rpf-override <SRC-ADDR/SRC-MASK> <RPF-ADDR|INTERFACE-NAME> no rpf-override <SRC-ADDR/SRC-MASK> <RPF-ADDR|INTERFACE-NAME>
Description
The Reverse Path Forward (RPF) override, allows overriding the normal RPF lookup mechanism, and indicates to the router that it may accept multicast traffic on an interface other than the one that the RPF lookup mechanism would normally select. This includes accepting traffic from an invalid source IP address for the subnet or VLAN that is directly connected to the router. Traffic may also be accepted from a valid PIM neighbor that is not on the reverse path towards the source of the received multicast traffic. The no form of this command removes currently configured RPF entry.
Parameters
<SRC-ADDR/SRC-MASK> Specifies the multicast source IPv4 address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255. And the number of bits in the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
<RPF-ADDR> Specifies the RPF address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<INTERFACE-NAME> Specifies the RPF interface name.
Usage
n Reverse Path Forward (RPF) checking is a core multicast routing mechanism. The RPF ensures that the multicast traffic received arrives on the expected router interface before further processing. If the RPF check fails for a multicast packet, the packet is discarded. For multicast traffic flow that arrives on the SPT, the expected incoming interface for a given source or group is the interface towards the source address of the traffic (determined by the unicast routing system). For traffic arriving on the RP tree, the expected incoming interface is the interface towards the RP.
n RPF checking is applied to all multicast traffic and is significant in preventing network loops. Up to eight manual RPF overrides can be specified. The RPF-address indicates one of two distinct RPF candidates: 1. A valid PIM neighbor address from which forwarded multicast traffic is accepted with a source address of <source-addr/src-mask>. 2. A local router address on a PIM-enabled interface to which <source-addr/src-mask> is directly connected. If configured, the local router will assume the role of DR for this flow and registers the flow with an RP.
Example
Configuring and removing RPF override:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
182
switch(config)# router pim switch(config-pim)# rpf-override 40.0.0.4/24 30.0.0.4 switch(config-pim)# no rpf-override 40.0.0.4/24 30.0.0.4
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
show ip mroute
show ip mroute [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows multicast routing information. Optionally, you can show specific information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows mroute information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IP mroute for all VRFs:
switch# show ip mroute all-vrfs VRF : blue Total number of entries : 1
Group Address Source Address Incoming interface Downstream Interface Interface State --------- -----
: 239.1.1.1 : 40.0.0.5 : vlan3
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 183
vlan2
forwarding
VRF : green Total number of entries : 2
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
vlan5
forwarding
: 239.1.1.1 : 40.0.0.4 : 10.1.1.1 : vlan2
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1
VRF : default Total number of entries : 1
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
1/1/3
forwarding
1/1/1
pruned
: 10.1.1.14 : 40.0.0.6 : 10.1.1.2 : 1/1/5
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip mroute brief
show ip mroute brief [al-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
184
Shows brief version of the multicast routing information. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows mroute information briefly for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing the IP mroute brief:
switch# show ip mroute brief VRF : default Total number of entries : 1
Group Address ------------239.1.1.1
Source Address -------------40.0.0.6
Neighbor -------10.1.1.2
Interface --------vlan5
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip mroute group-addr
show ip mroute <GROUP-ADDR> [<SOURCE-ADDR>] [all-vrfs | vrf <vrf-name>] [vsx-peer]
Description
Shows the multicast routing information for the given group address. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<GROUP-ADDR> Specifies a group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 185
<SOURCE-ADDR> Specifies show information for the group from this source in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
all-vrfs Shows mroute information for the group for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing information for group 239.1.1.1 and VRF green:
switch# show ip mroute 239.1.1.1 vrf green
VRF : green
Group Address
Source Address
Neighbor
Incoming interface
Unicast Routing Protocol
Metric
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1 : connected : 1234 : 1234
Showing information for group 239.1.1.1 from source 40.0.0.5 and all VRFs:
switch# show ip mroute 239.1.1.1 40.0.0.5 all-vrfs
VRF : blue
Group Address
Source Address
Incoming interface
Unicast Routing Protocol
Metric
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan2
forwarding
: 239.1.1.1 : 40.0.0.5 : vlan3 : connected : 1234 : 1234
VRF : green
Group Address Source Address Neighbor Incoming interface Unicast Routing Protocol Metric
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1 : connected : 1234
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
186
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 1234
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim
show ip pim [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the PIM router information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows PIM router information on all VRFs.
vrf <VRF-NAME> Specify the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IP PIM router:
switch# show ip pim
PIM Global Parameters
VRF PIM Status SPT Threshold
: default : enable : enabled
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 187
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim bsr
show ip pim bsr [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about BSR candidates in the domain and multicast groups it supports. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Optional. Shows PIM candidate BSR information for all VRFs.
vrf <VRF-NAME> Optional. Shows PIM candidate BSR information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing information about BSR candidates:
switch# show ip pim bsr all-vrfs
Status and Counters- PIM-SM Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 10.0.0.1 :0 : 30 : 3000 secs : 80 secs
C-BSR Admin Status C-BSR Address
: This system is a Candidate-BSR : 2.2.2.2/24
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
188
C-BSR Priority
: 34
C-BSR Hash Mask Length : 30
C-BSR Message Interval : 76
C-BSR Source IP Interface : vlan10
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 2.2.2.2 : 150 : 60 : 192 : vlan10
Group Address --------------226.2.2.2 228.2.2.2 232.2.2.2
Group Mask --------------255.255.255.255 255.255.255.255 255.255.255.255
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: green : 2.2.2.2 :0 : 30 : 3000 secs : 80 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2.2.2.2/24
C-BSR Priority
: 34
C-BSR Hash Mask Length : 32
C-BSR Message Interval : 60
C-BSR Source IP Interface : vlan10
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 2.2.2.2 : 150 : 60 : 192 : vlan10
Group Address --------------231.2.2.2 232.2.2.2 235.2.2.2
Group Mask --------------255.255.255.255 255.255.255.255 255.255.255.255
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 189
Platforms
8360 8400
Command context
Authority
show ip pim bsr elected
show ip pim bsr elected [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows information about the elected BSR in the domain and multicast groups it supports. Optionally you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM elected bootstrap router information:
switch# show ip pim bsr elected all-vrfs
Status and Counters- PIM-SM Elected Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 10.0.0.1 :0 : 30 : 3000 secs : 80 secs
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: green : 20.0.0.1 :0 : 30 : 3000 secs : 80 secs
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
190
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim bsr local
show ip pim bsr local [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about BSR candidates on the local router and multicast groups it supports. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing local Candidate BSR:
switch# show ip pim bsr local all-vrfs
Status and Counters - PIM-SM Local Candidate-BSR Information
VRF
: default
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2.2.2.2/24
C-BSR Priority
: 34
C-BSR Hash Mask Length : 30
C-BSR Message Interval : 76
C-BSR Source IP Interface : vlan10
VRF
: green
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2.2.2.2/24
C-BSR Priority
: 34
C-BSR Hash Mask Length : 32
C-BSR Message Interval : 60
C-BSR Source IP Interface : vlan10
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 191
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface
show ip pim interface [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about PIM interfaces currently configured in the router. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface:
switch# show ip pim interface
PIM Interfaces
VRF: default
Interface
IP Address
------------------ -----------------
1/1/1
40.0.0.4/24
1/1/2
50.0.0.4/24
mode ---------sparse sparse
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
192
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface interface-name
show ip pim interface <INTERFACE-NAME> [vsx-peer]
Description
Shows detailed information about the PIM interface currently configured.
Parameters
<INTERFACE-NAME> Specifies an interface for showing PIM interface information. Interface can also be a LAG or VLAN.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface information for interface 1/1/2:
switch# show ip pim interface 1/1/2
PIM Interfaces
VRF: default
Interface : 1/1/2
IP Address : 50.0.0.4/24
Mode
: sparse
Designated Router :
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Neighbor Timeout
: 105
Lan Prune Delay DR Priority
: Yes :1
Command History
Release 10.07 or earlier
Command Information
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 193
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface interface-name counters
show ip pim interface <INTERFACE-NAME> counters [vsx-peer]
Description
Shows the PIM packet counters information for the specified interface.
Parameters
<INTERFACE-NAME> Specifies the interface to show packet counter information.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Usage
Loopback interfaces are special interfaces where only unicast PIM messages are updated. This includes Register, Register Stop, and Candidate RP Advertisements. When a loopback interface is configured as the RP, the ACL drop counters will be updated on the interface on which the packets are received.
Example
Showing PIM packet counters:
switch# show ip pim interface vlan1 counters
Interface VRF
: vlan1 : default
Rx Counters :
Hello
4
State Refresh
0
Join/Prune
1
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Register
0
Register Stop
0
Register Drops(Register ACL hitcount) 10
Join/Prune Drops(RP ACL hitcount)
5
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
194
Tx Counters :
Hello
9
State Refresh
0
Join/Prune
0
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Register
0
Register Stop
0
Invalid Rx Counters :
Hello
0
State Refresh
0
Join/Prune
0
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim neighbor
show ip pim neighbor [<IP-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows PIM neighbor information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 195
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM neighbor information:
switch# show ip pim neighbor
PIM Neighbor
VRF IP Address Interface Up Time (sec) Expire Time (sec) DR Priority
: default : 40.0.0.44 : 1/1/1 : 544 : 80 : 40
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim pending
show ip pim pending [<GROUP-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the pending joins on a PIM router. Optionally you can specify display information by VRF. If no options are specified, it shows information for the default VRF. Use this command to determine what flows are being requested on the PIM network. If data availability for a flow is expected, and a join for the flow is pending, the troubleshooting search moves to the source of that flow, since the routers are verified to be seeing the request for data.
Parameters
<GROUP-ADDR> Specifies a group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
196
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing pending PIM joins:
switch# show ip pim pending Join Pending VRF : default
Group 234.0.20.4 (*,G) Pending Incoming Interface:
Group 234.0.20.5 (*,G) Pending Incoming Interface:
Group 234.0.20.6 (*,G) Pending Incoming Interface:
Group 234.0.20.7 (*,G) Pending Incoming Interface:
1/1/32 1/2/32 1/1/32 1/1/2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rp-candidate
show ip pim rp-candidate [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the candidate RP operational and configuration information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME>
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 197
Specifies the name of a VRF. Default: default. vsx-peer
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RP candidate:
switch# show ip pim rp-candidate all-vrfs
Status and Counters- PIM-SM Candidate-RP Information
VRF
: Green
C-RP Admin Status
: This system is a Candidate-RP
C-RP Address
: 10.1.1.27
C-RP Hold Time
: 150
C-RP Advertise Period : 60
C-RP Priority
: 192
C-RP Source IP Interface : Vlan10
Group Address Group Mask
--------------- ---------------
239.10.10.240 255.255.255.252
236.0.0.0
255.255.255.0
VRF
: Red
C-RP Admin Status
: This system is a Candidate-RP
C-RP Address
: 20.1.1.27
C-RP Hold Time
: 150
C-RP Advertise Period : 60
C-RP Priority
: 192
C-RP Source IP Interface : Vlan20
Group Address Group Mask
--------------- ---------------
239.10.10.240 255.255.255.252
236.0.0.0
255.255.255.0
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rp-set
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
198
show ip pim rp-set [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for both the learned C-RP assignments and any statically configured RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RP set information:
switch# show ip pim rp-set all-vrfs
VRF: default
Status and Counters - PIM-SM Static RP-Set Information
Group Address Group Mask
RP Address
Override
--------------- --------------- --------------- --------
233.100.128.255 255.255.255.255 100.10.10.1
Yes
238.100.128.255 255.255.255.255 100.10.10.3
Yes
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
223.2.2.34
255.0.0.0
9.0.0.25
12
Expire Time ----------0
VRF: green
Status and Counters - PIM-SM Static RP-Set Information
Group Address Group Mask
RP Address
Override
--------------- --------------- --------------- --------
226.102.128.255 255.255.255.255 105.10.10.3
Yes
234.102.128.255 255.255.255.255 110.10.10.3
Yes
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
223.2.2.34
255.0.0.0
9.0.0.25
12
229.2.2.34
255.0.0.0
9.0.0.25
10
Expire Time ----------0 0
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 199
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rp-set learned
show ip pim rp-set learned [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for dynamically learned RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RP set learned information:
switch# show ip pim rp-set learned all-vrfs
VRF: default
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
223.2.2.34
255.0.0.0
9.0.0.25
12
Expire Time ----------0
VRF: green
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
223.2.2.34
255.0.0.0
9.0.0.25
12
229.2.2.34
255.0.0.0
9.0.0.25
10
Expire Time ----------0 0
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
200
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rp-set static
show ip pim rp-set static [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for statically configured RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM Static RP set information:
switch# show ip pim rp-set static all-vrfs
VRF: default
Status and Counters - PIM-SM Static RP-Set Information
Group Address Group Mask
RP Address
Override
--------------- --------------- --------------- --------
233.100.128.255 255.255.255.255 100.10.10.1
Yes
238.100.128.255 255.255.255.255 100.10.10.3
Yes
VRF: green
Status and Counters - PIM-SM Static RP-Set Information
Group Address Group Mask
RP Address
Override
--------------- --------------- --------------- --------
226.102.128.255 255.255.255.255 105.10.10.3
Yes
234.102.128.255 255.255.255.255 110.10.10.3
Yes
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 201
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rpf-override
show ip pim rpf-override [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the RPF override configuration, which can be useful information when troubleshooting potential RPF misconfigurations. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF
Parameters
all-vrfs Optional. Shows PIM RPF override information for all VRFs.
vrf <VRF-NAME> Optional. Shows PIM RPF override information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing PIM RPF override:
switch# show ip pim rpf-override all-vrfs
VRF
: default
Static RPF Override
Multicast Source RPF IP Address
-------------------- ------------------
10.0.0.2/32
1.1.1.1
VRF
: green
Static RPF Override
Multicast Source RPF IP Address
-------------------- ------------------
10.0.0.2/32
1.1.1.1
10.1.1.1/32
1.1.1.2
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
202
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim rpf-override source
show ip pim rpf-override source <IP-ADDR> [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the RPF override configuration for the specified source. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
source <IP-ADDR> Specifies the RPF source address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
all-vrfs Selects all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
On the 6400 Switch Series, interface identification differs. Showing PIM RPF override source:
switch# show ip pim rpf-override source 10.0.0.2
VRF
: default
Static RPF Override
Multicast Source RPF IP Address
-------------------- ------------------
10.0.0.2
1.1.1.1
Showing PIM RPF override source for all VRFs:
switch# show ip pim rpf-override source 10.0.0.2 all-vrfs
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 203
VRF
: default
Static RPF Override
Multicast Source RPF IP Address
-------------------- ------------------
10.0.0.2
1.1.1.1
VRF
: green
Static RPF Override
Multicast Source RPF IP Address
-------------------- ------------------
10.0.0.2
1.1.1.1
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
sources-per-group
sources-per-group <limit> no sources-per-group <limit>
Description
Configures the total number of sources allowed for a group on the router. By default, there is no limit on the number of sources for a group. When the number of sources for a group exceeds the configured limit, multicast traffic from additional sources will be dropped. The no form of this command removes the currently configured limit value.
Parameters
<limit> Specifies the value to be configured as the sources allowed per group. Range: 1 to 4294967295.
Usage
Flows exceeding the limit will be programmed as a bridge entry and will not have the outgoing interfaces list populated. This configuration does not allow new sources for the group. At the time of configuration, if the device has more sources for the given group than the configured value, already allowed sources continue to exist until they are removed. The flows are programmed in the HW on a FCFS basis. There could be scenarios where the flow is forwarded in neighbor router, but it may not be forwarded on the current router because of exceeding the limits
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
204
configured on the current router. In such cases, it is recommended to configure higher limits to avoid traffic outage.
Examples
Configuring and removing the sources allowed per group:
switch(config)# router pim switch(config-pim)# sources-per-group 4 switch(config-pim)# no sources-per-group
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
spt-threshold
spt-threshold no spt-threshold
Description
Enables the router to switch the multicast traffic flows to the shortest path tree. Default is enabled. The no form of this command disables the routers ability to switch the multicast traffic flows to the shortest path tree. To apply this configuration a user needs to apply disable/enable PIM globally.
Example
Enabling and disabling the SPT threshold:
switch(config)# router pim switch(config-pim)# spt-threshold switch(config-pim)# no spt-threshold
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 205
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
PIM-SM commands for IPv6
Only the default VRF is supported on the Aruba 6200 Switch Series.
accept-register access-list
accept-register access-list <ACL-RULE> no accept-register access-list <ACL-RULE>
Description
Configures ACL on RP to filter PIM Register packets from unauthorized sources. The ACL specified will contain the (S,G) traffic in register packets to permitted or denied. The no form of this command removes the currently configured ACL rule.
Parameters
<ACL-RULE> Specifies the ACL rule name.
Usage
When register ACL is associated with a PIM Router, PIM protocol will store the source and destination address details along with the action (permit or deny). Upon receiving the register messages, a look up is made to check if the S and G in the packet is in the permitted list. If there is no match or if there is a deny rule match, a register stop message is immediately sent and the packet is dropped and no further action is taken. Permitted packets will go through the normal flow. Loopback interfaces are special interfaces where only unicast PIM messages are updated. This includes Register, Register Stop, and Candidate RP Advertisements. When a loopback interface is configured as the RP, the ACL drop counters will be updated on the interface on which the packets are received.
Examples
Configuring ACL on RP with an ACL rule named pim_regv6_acl:
switch(config)# access-list ipv6 pim_regv6_acl switch(config-acl-ipv6)# 10 permit any 20.::1 ff1e::1 switch(config-acl-ipv6)# 20 deny any 30::1 ff1e::3
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
206
switch(config)# router pim6 switch(config-pim6)# accept-register access-list pim_regv6_acl
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
accept-rp
accept-rp <IPv6-ADDR> access-list <ACL-RULE> no accept-rp <IPv6-ADDR> access-list <ACL-RULE>
Description
Enables PIM router to filter PIM join/prune messages destined for a specific RP and specific groups. The ACL specifies the group addresses which are allowed or denied. Up to 8 RP addresses and group ACL can be associated with the PIM router. The no form of this command removes the currently configured ACL rule.
Parameters
<IPv6-ADDR> Specifies an address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<ACL-RULE> Specifies the ACL rule name.
Usage
PIM will store the accepted RP address and the associated group ACL. When a join or prune message is received, a RP look up is made for the packet. If the RP is in the configured list and if the group in the join/prune packet is allowed in the ACL, the packet is allowed. Otherwise the packet is dropped. To allow join/prune message from any groups, group address in the ACL can be wild-carded. In this case, only RP address check is performed. This command impacts only (*,G) join/prune messages. If there are any existing flows, the user will need to disable and enable PIM on the interface to apply the ACL. Loopback interfaces are special interfaces where only unicast PIM messages are updated. This includes Register, Register Stop, and Candidate RP Advertisements. When a loopback interface is configured as the RP, the ACL drop counters will be updated on the interface on which the packets are received.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 207
If there is an active flow which is in the SPT, the traffic flow through the SPT will continue. Only (*,G) join/prune messages are dropped. (S,G) join/prune messages will not be impacted.
Examples
Configuring ACL on RP with an ACL rule named pim_rpv6_grp_acl to filter join/prune messages:
switch(config-pim)# access-list ip pim_rpv6_grp_acl switch(config-acl-ipv6)# 10 permit any any ff2e::2/64 switch(config-acl-ipv6)# 20 permit any any ff1e::1/64 switch(config-acl-ipv6)# router pim6 switch(config-pim6)# accept-rp 30::1 access-list pim_rpv6_grp_acl
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate bsm-interval
bsr-candidate bsm-interval <INTERVAL-VALUE> no bsr-candidate bsm-interval
Description
Configures the interval in seconds to send periodic RP-Set messages to all PIM-SM interfaces on a router that operates as the BSR in a domain. This setting must be smaller than the rp-candidate hold-time settings (range of 30 to 255; default 150) configured in the RPs operating in the domain. The no form of this command removes the currently configured value and sets it to the default of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the BSR-candidate BSM interval in seconds. Range: 5 to 300. Default: 60.
Example
Configuring and removing BSR-candidate BSM-interval:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
208
switch(config)# router pim6 switch(config-pim6)# bsr-candidate bsm-interval 150 switch(config-pim6)# no bsr-candidate bsm-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate hash-mask-length
bsr-candidate hash-mask-length <LENGTH-VALUE> no bsr-candidate hash-mask-length
Description
Controls the distribution of multicast groups among the C-RP, in a domain where there is overlapping coverage of the groups among the RPs. This value specifies the length (number of significant bits) when allocating this distribution. A longer hash-mask-length results in fewer multicast groups, for each block of group addresses assigned to the RPs. Multiple blocks of addresses assigned to each C-RP results in wider dispersal of addresses. Includes enhanced load-sharing for the multicast traffic for the different groups that are used in the domain at the same time. The no form of this command removes currently configured value and sets to the default of 126.
Parameters
<LENGTH-VALUE> Specifies the length (in bits) of the hash mask. Range: 1 to 128. Default: 126.
Example
Configuring and removing the BSR-candidate hash-mask-length:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate hash-mask-length 4 switch(config-pim6)# no bsr-candidate hash-mask-length
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 209
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
bsr-candidate priority
bsr-candidate priority <PRIORITY-VALUE> no bsr-candidate priority
Description
Configures the priority to apply to the router when a BSR election process occurs in the PIM-SM domain. The candidate with the highest priority becomes the BSR for the domain. If the highest priority is shared by multiple routers, the candidate having the highest IP address becomes the BSR of the domain. Zero (0) is the lowest priority. To make BSR selection easily predictable, use this command to assign a different priority to each candidate BSR in the PIM-SM domain. The no form of this command removes currently configured value and sets to the default of 0.
Parameters
<PRIORITY-VALUE> Specifies the priority for the Candidate Bootstrap router. Range: 0 to 255. Default: 0.
Example
Configuring and removing the BSR-candidate priority:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate priority 250 switch(config-pim6)# no bsr-candidate priority
Command History
Release 10.07 or earlier
Command Information
Platforms 6300
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
210
Platforms
6400 8320 8325 8360 8400
Command context
Authority for this command.
bsr-candidate source-ip-interface
bsr-candidate source-ip-interface <INTERFACE-NAME> no bsr-candidate source-ip-interface <INTERFACE-NAME>
Description
Configures the router to advertise itself as a candidate PIM-SM BSR on the interface specified, and enables BSR candidate operation. The result makes the router eligible to be elected as the BSR for the PIM-SM domain in which it operates. One BSR candidate interface is allowed per-router. The no form of this command removes the Candidate BSR configuration.
Parameters
<INTERFACE-NAME> Specifies the interface to use as a source for Candidate-BSR router IP address. Interface can be a VLAN interface, routed interface, or LAG. PIM-SM must be enabled on this interface with the command ipv6 pimv6-sparse enable.
Example
On the 6400 Switch Series, interface identification differs. Configuring and removing the BSR-candidate interface:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate source-ip-interface 1/1/4 switch(config-pim6)# no rp-candidate source-ip-interface 1/1/4
Configuring and removing the BSR-candidate sub-interface:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate source-ip-interface 1/1/4 switch(config-pim6)# no rp-candidate source-ip-interface 1/1/4
Configuring sub-interface 1/1/19/10 as Candidate BSR:
switch(config)# router pim6 switch(config-pim6)# bsr-candidate source-ip-interface 1/1/19.10
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 211
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
disable
disable
Description
Disables PIMv6 globally on the router.
Authority
Administrators or local user group members with execution rights for this command.
Using the disable command will cause all the multicast routes to be erased from hardware.
Example
Disabling PIM router:
switch(config)# router pim6 switch(config-pim6)# disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
enable
enable
Description
Enables PIMv6 globally on the router.
Modification --
Authority Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
212
Example
Enabling PIM router:
switch(config)# router pim6 switch(config-pim6)# enable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse
ipv6 pim6-sparse {enable | disable}
Description
Enables or disables PIM-SM on the current interface. PIM-SM is disabled by default on an interface. An IPv6 address must be configured on the interface to enable PIM-SM.
Parameters
enable Enables PIM-SM on the interface. IPv6 address must be configured on the interface to enable PIM-SM (use the ipv6 address <X:X::X:X/M> command).
disable Disables PIM SM on the interface.
Examples
Enabling and disabling PIM-SM on an interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 address 2001::01/64 switch(config-if-vlan)# ipv6 pim6-sparse enable switch(config-if-vlan)# ipv6 pim6-sparse disable
Enabling and disabling PIM-SM on a sub-interface:
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 address 90::1/64
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 213
switch(config-subif)# ipv6 pim6-sparse enable switch(config-subif)# ipv6 pim6-sparse disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse bfd
Not supported on the Aruba 6200 Switch Series.
ipv6 pim6-sparse bfd [disable] no ipv6 pim6-sparse bfd
Description
Configures BFD on a per-interface basis for an interface associated with the PIM process. The no form of this command removes the BFD configuration on the interface and sets it to the default configuration.
If BFD is enabled globally, it will be enabled by default on all interfaces. The only exception is when it is disabled specifically on an interface using the ipv6 pim6-sparse bfd disable command. If BFD is disabled globally, it will be disabled by default on all interfaces. The only exception is when it is enabled specifically on an interface using the ipv6 pim6-sparse bfd command.
Parameters
disable Disables the BFD configuration on the interface.
Examples
Enabling the BFD configuration on the interface:
switch(config)# interface vlan 40 switch(config-if-vlan)# ipv6 pim6-sparse bfd
Disabling the BFD configuration on the interface:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
214
switch(config-if-vlan)# ipv6 pim6-sparse bfd disable Removing the BFD configuration on the interface:
switch(config-if-vlan)# no ipv6 pim6-sparse bfd
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse dr-priority
ipv6 pim6-sparse dr-priority <PRIORITY-VALUE> no ipv6 pim6-sparse dr-priority
Description
Changes the router priority for the designated router (DR) election process in the current interface. A numerically higher value means a higher priority. If multiple routes share the highest priority, the router with the highest IP address is selected as the DR. The no form of this command removes currently configured value and sets to the default of 1.
Parameters
<PRIORITY-VALUE> Specifies the priority value to use on the interface in the DR election process. Range: 0 to 4294967295. Default: 1.
Examples
Configuring and removing the interface priority value:
switch(config)# interface vlan 40 switch(config-if-vlan)# ipv6 pim6-sparse dr-priority 4444 switch(config-if-vlan)# no ipv6 pim6-sparse dr-priority
Configuring and removing the interface priority value:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 215
switch(config)# interface 1/1/19.10 switch(config-if-vlan)# ipv6 pim6-sparse dr-priority 2000 switch(config-if-vlan)# no ipv6 pim6-sparse dr-priority
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse hello-delay
ipv6 pim6-sparse hello-delay <DELAY-VALUE> no ipv6 pim6-sparse hello-delay
Description
Configures the maximum time in seconds before the router actually transmits the initial PIM hello message on the current interface. The no form of this command removes currently configured value and sets to the default of 5 seconds.
Parameters
<DELAY-VALUE> Specifies the hello-delay in seconds, which is the maximum time before a triggered PIM Hello message is transmitted on this interface. Range: 0 to 5. Default: 5.
Usage
n In cases where a new interface activates connections with multiple routers. If all the connected routers sent hello packets at the same time, the receiving router could become momentarily overloaded.
n This command randomizes the transmission delay to a time between zero and the hello delay setting. Using zero means no delay. After the router sends the initial hello packet to a newly detected interface, it sends subsequent hello packets according to the current hello interval setting.
Example
Configuring and removing hello-delay interface:
switch(config)# interface vlan 40 switch(config-if-vlan)# ipv6 pim6-sparse hello-delay 4 switch(config-if-vlan)# no ipv6 pim6-sparse hello-delay
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
216
Configuring and removing hello-delay on a sub-interface:
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse hello-delay 4 switch(config-subif)# no ipv6 pim6-sparse hello-delay
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse hello-interval
ipv6 pim6-sparse hello-interval <INTERVAL-VALUE> no ipv6 pim6-sparse hello-interval
Description
Configures the frequency at which the router transmits PIM hello messages on the current interface. The no form of this command removes the currently configured value and sets to the default of 30 seconds.
Parameters
<INTERVAL-VALUE> Specifies the frequency at which PIM Hello messages are transmitted on this interface in seconds. Range: 5 to 300. Default: 30.
Usage
n The router uses hello packets to inform neighbor routers of its presence. n The router also uses this setting to compute the hello holdtime, which is included in hello packets sent to
neighbor routers. n Hello holdtime tells neighbor routers how long to wait for the next hello packet from the router. If
another packet does not arrive within that time, the router removes the neighbor adjacency on that interface from the PIM adjacency table, which removes any flows running on that interface. n Shortening the hello interval reduces the hello holdtime. If they do not receive a new hello packet when expected, it changes how quickly other routers stop sending traffic to the router.
Example
Configuring and removing sparse hello-interval:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 217
switch(config-if)# ipv6 pim6-sparse hello-interval 60 switch(config-if)# no ipv6 pim6-sparse hello-interval
Configuring and removing sparse hello-interval on a sub-interface:
switch)config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse hello-interval 100 switch(config-subif)# no ipv6 pim6-sparse hello-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse ipv6-addr
ipv6 pim6-sparse ipv6-addr {<IPv6-ADDR-VALUE> | any} no ipv6 pim6-sparse ipv6-addr
Description
Enables the router to dynamically determine the source IP address to use for PIM-SM packets sent from the interface or to use the specific IPv6 address. The no form of this command removes the currently configured value and sets to the default of any.
Parameters
<IP-ADDR-VALUE> Specifies the source IP address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
any Specifies dynamically determining the source IP from the current IP address of the interface.
Examples
Configuring and removing source IP address:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse ipv6-addr 2001::02 switch(config-if-vlan)# no ipv6 pim6-sparse ipv6-addr
Configuring and removing source IP address on a sub-interface:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
218
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse ipv6-addr 2001:1::1 switch(config-if-vlan)# no ipv6 pim6-sparse ipv6-addr 2001:1::1
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse lan-prune-delay
ipv6 pim6-sparse lan-prune-delay no ipv6 pim6-sparse lan-prune-delay
Description
Enables the LAN prune delay option on the current interface. The default is enabled. With LAN-prune-delay enabled, the router informs downstream neighbors how long it will wait before pruning a flow after receiving a prune request. Other downstream routers on the same interface must send a join to override the prune before the LAN-prune-delay time to continue the flow. Prompts any downstream neighbors with multicast receivers continuing to belong to the flow to reply with a join. If no joins are received after the LAN-prune-delay period, the router prunes the flow. The propagation-delay and override-interval settings determine the LAN-prune-delay setting. The no form of this command disables the LAN prune delay option.
Example
Enabling and disabling the LAN prune delay:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse lan-prune-delay switch(config-if-vlan)# no ipv6 pim6-sparse lan-prune-delay
Enabling and disabling the LAN prune delay on a sub-interface:
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse lan-prune-delay switch(config-subif)# no ipv6 pim6-sparse lan-prune-delay
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 219
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse override-interval
ipv6 pim6-sparse override-interval <INTERVAL-VALUE> no ipv6 pim6-sparse override-interval
Description
Configures the override interval that gets inserted into the Override Interval field of a LAN Prune Delay option. The no form of this command removes the currently configured value and sets the value to the default of 2500 ms.
Parameters
<INTERVAL-VALUE> Specifies the override interval of a LAN Prune Delay option in ms. Range: 500 to 6000. Default: 2500.
Usage
A router sharing a VLAN with other multicast routers uses the override-interval value along with the propagation-delay value to compute the lan-prune-delay setting. The setting specifies how long to wait for a PIM-SM join after receiving a prune packet from downstream for a particular multicast group. Example scenario: A network may have multiple routers sharing VLAN X. When an upstream router is forwarding traffic from multicast group X to VLAN Y, if one of the routers on VLAN Y does not want this traffic, it issues a prune response to the upstream neighbor. The upstream neighbor then goes into a prune pending state for group X on VLAN Y. During this period, the upstream neighbor continues to forward the traffic. During the pending period, another router on VLAN Y can send a group X join to the upstream neighbor. If this happens, the upstream neighbor drops the prune pending status and continues forwarding the traffic. But if no routers on the VLAN send a join, the upstream router prunes.
Example
Configuring and removing the override interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-sparse override-interval 4000 switch(config-if-vlan)# no ipv6 pim6-sparse override-interval
Configuring and removing the override interval on a sub-interface:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
220
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse override-interval 5000 switch(config-subif)# no ipv6 pim6-sparse override-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-sparse propagation-delay
ipv6 pim6-sparse propagation-delay <DELAY-VALUE> no ipv6 pim6-sparse propagation-delay
Description
Configures the propagation delay that gets inserted into the LAN prune delay field of a LAN Prune Delay option. The no form of this command removes currently configured value and sets to the default of 500 ms.
Parameters
<DELAY-VALUE> Specifies the propagation delay value in ms. Range: 250 to 2000. Default: 500.
Examples
Configuring and removing the propagation delay:
switch(config)# interface vlan 40 switch(config-if-vlan)# ipv6 pim6-sparse propagation-delay 400 switch(config-if-vlan)# no ipv6 pim6-sparse propagation-delay
Configuring and removing the propagation delay on a sub-interface:
switch(config)# interface 1/1/19.10 switch(config-subif)# ipv6 pim6-sparse propagation-delay 1000 switch(config-subif)# no ipv6 pim6-sparse propagation-delay
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 221
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
join-prune-interval
join-prune-interval <INTERVAL-VALUE> no join-prune-interval
Description
Configures the frequency at which the router will send periodic join or prune-interval messages. The no form of this command sets the interval to the default value of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the join-prune-interval in seconds. Range 5 to 65535. Default: 60.
Examples
Configuring join prune interval:
switch(config)# router pim6 switch(config-pim6)# join-prune-interval 400 switch(config-pim6)# no join-prune-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
222
no ipv6 pim6-sparse
no ipv6 pim6-sparse
Description
Removes all the PIM-SM related IPv6 configurations for the interface.
Example
Removing PIM-SM configuration:
switch(config)# interface vlan40 switch(config-if-vlan)# no ipv6 pim6-sparse
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
router pim6
router pim6 [vrf <VRF-NAME>] no router pim6 [vrf <VRF-NAME>]
Description
Changes the current context to the PIMv6 configuration context. If no VRF is specified, the default VRF is assumed. The no form of this command removes the PIM configuration from the specified context or the default VRF.
Parameters
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
Examples
Configuring default router PIM:
switch(config)# router pim6 switch(config-pim6)#
Configuring specified router PIM:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 223
switch(config)# router pim6 vrf Green switch(config-pim6)#
Removing router PIM:
switch(config)# no router pim6
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-address
rp-address <IPv6-ADDR> [<GRP-ADDR/GRP-MASK>] [override] no rp-address <IPv6-ADDR> [<GRP-ADDR/GRP-MASK>] [override]
Description
Statically configures the router as the RP for a specified multicast group or range of multicast groups. This must be configured on all PIM-SM routers in the domain. If group address is not specified, it applies to all IPv6 multicast addresses. The no form of this command removes static RP configuration and its precedence.
Parameters
<IPv6-ADDR> Specifies an address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<GRP-ADDR> Specifies the range of multicast group addresses in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<GRP-MASK> Specifies the number of bits in the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
override Specifies higher precedence to static RP over Candidate RP.
Usage
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
224
Where a static RP and a C-RP are configured to support the same multicast groups and the multicast group mask for the static RP is equal to or greater than the same mask for the applicable C-RPs, this command assigns the higher precedence to the static RP, resulting in the C-RP operating only as a backup RP for the configured group. Without override, the C-RP has precedence over a static RP configured for the same multicast group or groups.
Examples
switch(config)# router pim6 switch(config-pim6)# rp-address 2001::01 ff08::1:3/64 ovverride switch(config-pim6)# rp-address 2002::02 ff08::1:4/64 switch(config-pim6)# no rp-address 2002::02 ff08::1:4/64
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate group-prefix
rp-candidate group-prefix <GRP-ADDR/GRP-MASK> no rp-candidate group-prefix <GRP-ADDR/GRP-MASK>
Description
Adds multicast group address to the current Candidate Rendezvous Point (C-RP) configuration. The no form of this command removes C-RP multicast group address.
Parameters
<GRP-ADDR> Specifies the multicast group address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<GRP-MASK> Specifies the number of bits in the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
Examples
Configuring and removing candidate group prefix:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 225
switch(config)# router pim6 switch(config-pim6)# rp-candidate group-prefix ff08::1:3/64 switch(config-pim6)# no rp-candidate group-prefix ff08::1:3/64
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate hold-time
rp-candidate hold-time <TIME-VALUE> no rp-candidate hold-time
Description
Changes the hold-time a C-RP includes in its advertisements to the BSR. Hold-time is included in the advertisements the C-RP periodically sends to the elected BSR for the domain. Also updates the BSR on how long to wait after the last advertisement from the reporting RP before assuming it has become unavailable. The no form of this command removes the currently configured value and sets it to the default value 150 seconds.
Parameters
<TIME-VALUE> Specifies the hold-time value in seconds to be sent in C-RP-Adv messages. Range: 30 - 255. Default: 150.
Example
Setting and removing the candidate holdtime:
switch(config)# router pim6 switch(config-pim6)# rp-candidate hold-time 250 switch(config-pim6)# no rp-candidate hold-time
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
226
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Authority
Administrators or local user group members with execution rights for this command.
rp-candidate priority
rp-candidate priority <PRIORITY-VALUE> no rp-candidate priority
Description
Changes the current priority setting for a C-RP. Where multiple C-RP configurations are used to support the same multicast groups, the candidate having the highest priority is elected. Zero (0) is the highest priority, and 255 is the lowest priority. The no form of this command removes the currently configured value and sets it to the default of 192.
Parameters
<PRIORITY-VALUE> Specifies the priority value for the Candidate-RP router. Range: 0 to 255. Default: 192.
Example
Configuring and removing candidate priority:
switch(config)# router pim6 switch(config-pim6)# rp-candidate priority 250 switch(config-pim6)# no rp-candidate priority
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
rp-candidate source-ip-interface
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 227
rp-candidate source-ip-interface <INTERFACE-NAME> [group-prefix <GRP-ADDR/GRP-MASK>] no rp-candidate source-ip-interface <INTERFACE-NAME> [group-prefix <GRP-ADDR/GRP-MASK>]
Description
Enables the Candidate Rendezvous Point (C-RP) operation, and configures the router to advertise itself as a C-RP to the Bootstrap Router (BSR) for the current domain. This step includes the option to allow the C-RP to be a candidate for all possible multicast groups, or for up to four multicast groups, or ranges of groups. If group-prefix is not given, it considers for all multicast group addresses. The no form of this command removes the C-RP configuration.
Parameters
<INTERFACE-NAME> Specifies the interface to use as a source for the C-RP router IP address.
group-prefix <GRP-ADDR/GRP-MASK> Specifies the multicast group address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F. And the number of bits in the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
Examples
Configuring a C-RP using VLAN 40 as the source for the C-RP router IP address and associating the ff08::1:3/64 multicast group with the C-RP router:
switch(config)# router pim6 switch(config-pim6)# rp-candidate source-ip-interface vlan40 group-prefix ff08::1:3/64
Configuring a C-RP using loopback1 as the source for the C-RP router IP address and associating the ff08::1:3/64 multicast group with the C-RP router:
switch(config)# router pim6 switch(config-pim6)# rp-candidate source-ip-interface loopback1 group-prefix ff08::1:3/64
Configuring sub-interface 1/1/19.10 as candidate RP:
switch(config)# router pim6 switch(config-pim6)# rp-candidate source-ip-interface 1/1/19.10
Removing the candidate source IP interface:
switch(config-pim6)# no rp-candidate source-ip-interface vlan20
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
228
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Authority
Administrators or local user group members with execution rights for this command.
rpf-override
rpf-override <SRC-ADDR/SRC-MASK> <RPF-ADDR|INTERFACE-NAME> no rpf-override <SRC-ADDR/SRC-MASK> <RPF-ADDR|INTERFACE-NAME>
Description
The Reverse Path Forward (RPF) override, allows overriding the normal RPF lookup mechanism, and indicates to the router that it may accept multicast traffic on an interface other than the one that the RPF lookup mechanism would normally select. This includes accepting traffic from an invalid source IP address for the subnet or VLAN that is directly connected to the router. Traffic may also be accepted from a valid PIM neighbor that is not on the reverse path towards the source of the received multicast traffic. The no form of this command removes currently configured RPF entry.
Parameters
<SRC-ADDR> Specifies the multicast source address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<SRC-MASK> Specifies the number of bits in the address mask in CIDR format (x), where x is a decimal number from 0 to 128.
<RPF-ADDR> Specifies the RPF address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<INTERFACE-NAME> Specifies the RPF interface name.
Usage
n Reverse Path Forward (RPF) checking is a core multicast routing mechanism. The RPF ensures that the multicast traffic received arrives on the expected router interface before further processing. If the RPF check fails for a multicast packet, the packet is discarded. For multicast traffic flow that arrives on the SPT, the expected incoming interface for a given source or group is the interface towards the source address of the traffic (determined by the unicast routing system). For traffic arriving on the RP tree, the expected incoming interface is the interface towards the RP.
n RPF checking is applied to all multicast traffic and is significant in preventing network loops. Up to eight manual RPF overrides can be specified. The RPF-address indicates one of two distinct RPF candidates: 1. A valid PIM neighbor address from which forwarded multicast traffic is accepted with a source address of <source-addr/src-mask>.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 229
2. A local router address on a PIM-enabled interface to which <source-addr/src-mask> is directly connected. If configured, the local router will assume the role of DR for this flow and registers the flow with an RP.
Example
Configuring and removing RPF override:
switch(config)# router pim6 switch(config-pim6)# rpf-override 50::4/24 40::1 switch(config-pim)# no rpf-override 50::4/24 40::1
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
show ipv6 mroute grorp-addr
show ipv6 mroute <GROUP-ADDR> [<SOURCE-ADDR>] [all-vrfs | vrf <vrf-name>] [vsx-peer]
Description
Shows the multicast routing information for the given group address. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<GROUP-ADDR> Specifies a group address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
<SOURCE-ADDR> Specifies a source IP address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
230
Examples
Showing information for group ff08::1:3 and VRF green:
switch# show ipv6 mroute ff08::1:3 vrf green
VRF : green
Group Address
: ff08::1:3
Source Address
: 2001::03
Neighbor
: 2003::04
Incoming interface
: 1/1/1
Outgoing Interface List :
Interface
State
---------
-----
1/1/4
pruned
Showing information for group ff08::1:3 from source 2001::03 and all VRFs:
switch# show ipv6 mroute ff08::1:3 2001::03 all-vrfs
VRF : blue
Group Address
: ff08::1:3
Source Address
: 2001::03
Neighbor
: 2003::04
Incoming interface
: 1/1/1
Outgoing Interface List :
Interface
State
---------
-----
1/1/4
pruned
VRF : green
Group Address
: ff08::1:3
Source Address
: 2001::03
Neighbor
: 2003::04
Incoming interface
: 1/1/2
Outgoing Interface List :
Interface
State
---------
-----
1/1/4
pruned
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 231
Platforms
8325 8360 8400
Command context
Authority
show ipv6 mroute
show ipv6 mroute [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows multicast routing information. Optionally, you can show specific information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IPv6 mroute:
switch# show ipv6 mroute all-vrfs IP Multicast Route Entries
VRF : blu Total number of entries : 2
Group Address
: ff08::1:3
Source Address
: 2002::04
Neighbor
: 2001::04
Incoming interface
: 1/1/2
Outgoing Interface List :
Interface
State
---------
-----
1/1/3
pruned
1/1/4
forwarding
Group Address
: ff08::1:4
Source Address
: 2003::04
Neighbor
: 2001::04
Incoming interface
: 1/1/2
Outgoing Interface List :
Interface
State
---------
-----
1/1/3
pruned
VRF : default Total number of entries : 1
Group Address
: ff08::1:5
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
232
Source Address
: 2001::03
Neighbor
: 2003::04
Incoming interface
: 1/1/1
Outgoing Interface List :
Interface
State
---------
-----
1/1/4
pruned
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mroute brief
show ipv6 mroute brief [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows brief version of the multicast routing information. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing the IPv6 mroute brief:
switch# show ipv6 mroute brief all-vrfs IP Multicast Route Entries
VRF : blu Total number of entries : 2
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 233
Group Address : ff08::1:3
Source Address : 2002::04
Neighbor
: 2003::04
Interface
: 1/1/2
Group Address : ff08::1:4
Source Address : 2002::03
Neighbor
: 2003::05
Interface
: 1/1/3
VRF : default Total number of entries : 1
Group Address : ff08::1:5
Source Address : 2001::03
Neighbor
: 2002::01
Interface
: 1/1/1
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6
show ipv6 pim6 [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the PIM router information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
234
Showing the IPv6 PIM router:
switch# show ipv6 pim6
PIM Global Parameters
VRF PIM Status Join/Prune Interval (sec) SPT Threshold
: default : Enabled : 46 : Disabled
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 bsr
show ipv6 pim6 bsr [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about BSR candidates in the domain and multicast groups it supports. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing information about BSR candidates:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 235
switch# show ipv6 pim6 bsr all-vrfs
Status and Counters- PIM-SM(IPv6) Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: blu : 2006::06 :0 :0 : 0 secs : 0 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2007::01
C-BSR Priority
: 40
C-BSR Hash Mask Length : 36
C-BSR Message Interval : 50
C-BSR Source IP Interface : lag1
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 2007::01 : 60 : 60 : 46 : lag1
Group Prefix Group Prefix Group Prefix
: ff00::/8 : ff08::1:3/64 : ff08::1:4/64
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 2001::01 : 40 : 36 : 53 mins : 88 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2001::01
C-BSR Priority
: 40
C-BSR Hash Mask Length : 36
C-BSR Message Interval : 50
C-BSR Source IP Interface : 1/1/1
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 2001::01 : 60 : 60 : 46 : 1/1/1
Group Prefix Group Prefix Group Prefix
: ff00::/8 : ff08::1:5/64 : ff08::1:6/64
Command History
Release 10.07 or earlier
Modification --
Command Information
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
236
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 bsr elected
show ipv6 pim6 bsr elected [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows information about the elected BSR in the domain and multicast groups it supports. Optionally you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM elected bootstrap router information:
switch# show ipv6 pim6 bsr elected all-vrfs
Status and Counters - PIM-SM(IPv6) Elected Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: blu : 2005::05 :0 :0 : 0 secs : 0 secs
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 2002::02 :0 : 30 : 50 mins : 88 secs
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 237
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 bsr local
show ipv6 pim6 bsr local [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about BSR candidates on the local router and multicast groups it supports. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing local Candidate BSR:
switch# show ipv6 pim6 bsr local all-vrfs
Status and Counters - PIM-SM(IPv6) Local Candidate-BSR Information
VRF
: blu
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2007::01
C-BSR Priority
: 40
C-BSR Hash Mask Length : 36
C-BSR Message Interval : 50
C-BSR Source IP Interface : lag1
VRF
: default
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 2001::01
C-BSR Priority
: 40
C-BSR Hash Mask Length : 36
C-BSR Message Interval : 50
C-BSR Source IP Interface : 1/1/1
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
238
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 interface interface-name
show ipv6 pim6 interface <INTERFACE-NAME> [vsx-peer]
Description
Shows detailed information about the PIM interface currently configured.
Parameters
<INTERFACE-NAME> Specifies an interface for showing PIM interface information. Interface can also be a LAG or VLAN.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing PIM interface information for interface 1/1/1:
switch# show ipv6 pim6 interface 1/1/1
PIM Interfaces
VRF: default
Interface : 1/1/1
IPv6 Address : fe80::a00:9ff:feec:dc0e/64
Mode
: sparse
Designated Router :
Hello Interval (sec) : 30
Hello Delay (sec)
:4
Override Interval (msec) : 500
Propagation Delay (msec) : 350
Neighbor Timeout
:0
Lan Prune Delay DR Priority
: Yes :3
Command History
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 239
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 interface
show ipv6 pim6 interface [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about PIM interfaces currently configured in the router. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface:
switch# show ipv6 pim6 interface PIM Interfaces
VRF: default
Interface
IP Address
mode
------------------ -------------------------------------------------------------- -
---------
1/1/1
fe80::a00:9ff:feec:dc0e/64
sparse
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
240
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 neighbor
show ipv6 pim6 neighbor [<IPv6-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows PIM neighbor information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<IPv6-ADDR> Specifies a neighbor address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing PIM neighbor information:
switch# show ipv6 pim6 neighbor
PIM Neighbor
VRF IP Address Interface Up Time (sec) Expire Time (sec) DR Priority
: default : 2001::02 : 1/1/1 :0 :0 : 44
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 241
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 pending
show ipv6 pim6 pending [<GROUP-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the pending joins on a PIM router. Optionally you can specify display information by VRF. If no options are specified, it shows information for the default VRF. Use this command to determine what flows are being requested on the PIM network. If data availability for a flow is expected, and a join for the flow is pending, the troubleshooting search moves to the source of that flow, since the routers are verified to be seeing the request for data.
Parameters
<GROUP-ADDR> Specifies a group addressin IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing pending PIM joins:
switch# show ipv6 pim6 pending Join Pending
VRF : default Group ff08::1:3 (*,G) Pending Incoming Interface: Group ff08::1:4 (*,G) Pending Incoming Interface:
1/1/1 1/1/1
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
242
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 rp-candidate
show ipv6 pim6 rp-candidate [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the candidate RP operational and configuration information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RP candidate:
switch# show ipv6 pim6 rp-candidate all-vrfs
Status and Counters- PIM-SM(IPv6) Candidate-RP Information
VRF C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: blu : This system is a Candidate-RP : 2007::01 : 60 : 60 : 46 : lag1
Group Prefix Group Prefix Group Prefix
: ff00::/8 : ff08::1:3/64 : ff08::1:4/64
VRF
: default
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 243
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 2001::01 : 60 : 60 : 46 : 1/1/1
Group Prefix Group Prefix Group Prefix
: ff00::/8 : ff08::1:5/64 : ff08::1:6/64
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 rpf-override
show ipv6 pim6 rpf-override [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the RPF override configuration, which can be useful information when troubleshooting potential RPF misconfigurations. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RPF override:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
244
switch# show ipv6 pim6 rpf-override all-vrfs
VRF : Green Static RPF Override Multicast Source : 2003::1/128 RPF IPv6 Address : 2001::01 Multicast Source : 2005::1/128 RPF IPv6 Address : 2007::01 VRF : Red Static RPF Override Multicast Source : 2004::02/128 RPF IPv6 Address : 2002::02
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 rpf-override source
show ipv6 pim6 rpf-override source <IPv6-ADDR> [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the RPF override configuration for the specified source. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
source <IPv6-ADDR> Specifies the RPF source address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing PIM RPF override source:
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 245
switch# show ipv6 pim6 rpf-override source 2004::02
VRF : default Static RPF Override Multicast Source : 2004::02/128 RPF IPv6 Address : 2002::02
Showing PIM RPF override source for all VRFs:
switch# show ipv6 pim6 rpf-override source 2004::02 all-vrfs
VRF : Red Static RPF Override Multicast Source : 2004::02/128 RPF IPv6 Address : 2002::02
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 rp-set
show ipv6 pim6 rp-set [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for both the learned C-RP assignments and any statically configured RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
246
Showing PIM RP set information:
switch# show ipv6 pim6 rp-set all-vrfs
VRF: blu
Status and Counters - PIM-SM(IPv6) Static RP-Set Information
Group Prefix : ff00::/8 RP Address : 2004::04 Override [No] : No
Status and Counters - PIM-SM(IPv6) Learned RP-Set Information
Group Prefix RP Address Hold Time (sec) Expire Time (sec) Group Prefix RP Address Hold Time (sec) Expire Time (sec)
: ff08::1:3/64 : 2007::01 : 60 :0 : ff08::1:4/64 : 2007::01 : 60 : 92
VRF: default
Status and Counters - PIM-SM(IPv6) Static RP-Set Information
Group Prefix : ff00::/8 RP Address : 2003::03 Override [No] : No
Status and Counters - PIM-SM(IPv6) Learned RP-Set Information
Group Prefix RP Address Hold Time (sec) Expire Time (sec) Group Prefix RP Address Hold Time (sec) Expire Time (sec)
: ff08::1:5/64 : 2001::01 : 60 :0 : ff08::1:6/64 : 2002::01 : 60 : 92
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 247
show ipv6 pim6 rp-set learned
show ipv6 pim6 rp-set learned [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for dynamically learned RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM RP set learned information:
switch# show ipv6 pim6 rp-set learned all-vrfs
VRF: blu
Status and Counters - PIM-SM(IPv6) Learned RP-Set Information
Group Prefix
: ff08::1:3/64
RP Address
: 2007::01
Hold Time (sec) : 60
Expire Time (sec) : 0
Group Prefix
: ff08::1:4/64
RP Address
: 2007::01
Hold Time (sec) : 60
Expire Time (sec) : 92
VRF: default
Status and Counters - PIM-SM(IPv6) Learned RP-Set Information
Group Prefix
: ff08::1:5/64
RP Address
: 2001::01
Hold Time (sec) : 60
Expire Time (sec) : 0
Group Prefix
: ff08::1:6/64
RP Address
: 2002::01
Hold Time (sec) : 60
Expire Time (sec) : 92
Command History
Release 10.07 or earlier
Modification --
Command Information
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
248
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 rp-set static
show ipv6 pim6 rp-set static [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the multicast group support for statically configured RP assignments. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM Static RP set information:
switch# show ipv6 pim6 rp-set static all-vrfs
VRF: blu
Status and Counters - PIM-SM(IPv6) Static RP-Set Information
Group Prefix : ff00::/8 RP Address : 2004::04 Override [No] : No
VRF: default
Status and Counters - PIM-SM(IPv6) Static RP-Set Information
Group Prefix : ff00::/8 RP Address : 2003::03 Override [No] : No
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Sparse Mode (V4 and V6) | 249
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
spt-threshold
spt-threshold no spt-threshold
Description
Enables the router to switch the multicast traffic flows to the shortest path tree. Default is enabled. The no form of this command disables the routers ability to switch the multicast traffic flows to the shortest path tree. To apply this configuration a user needs to apply disable/enable PIM globally.
Example
Enabling and disabling the SPT threshold:
switch(config)# router pim6 switch(config-pim6)# spt-threshold switch(config-pim6)# no spt-threshold
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
250
Chapter 7
Protocol Independent Multicast - Dense Mode (V4 and V6)
Protocol Independent Multicast - Dense Mode (V4 and V6)
In a network, IP multicast traffic transmitted for multimedia applications is blocked at routed interface boundaries unless a multicast routing protocol is running. Protocol Independent Multicast (PIM) is a family of routing protocols. It forms multicast trees to forward traffic from multicast sources to subnets which use protocols such as IGMP and MLD to request the traffic.
Protocol Independent Multicast - Dense Mode (PIM-DM) overview
PIM relies on the unicast routing tables to identify the path back to a multicast source. This routing method is known as reverse path forwarding (RPF). The unicast routing protocols create the unicast routing tables. With this information, PIM sets up the distribution tree for the multicast traffic. PIM-DM operates at the router level to direct traffic for a particular multicast group along the most efficient path to the network which has hosts that have joined that group. A unicast source address and a multicast group address comprise a given source/group (S/G) pair. Multicast traffic moving from a source to a multicast group address creates a flow to one or more areas of the network requiring the traffic. The flow destination is the multicast group address and not a specific host or VLAN. A single multicast flow has one source and one multicast group address (destination), but may reach many hosts in different subnets, depending on which hosts have issued joins for the same multicast group. PIM routes the multicast traffic for a particular S/G pair on paths between the source unicast address and to the interfaces where it is requested (by joins from hosts connected to those subnets.) Physical destinations for a particular multicast group can be hosts in different networks. Individual hosts use IGMP/MLD configured per-subnet to send joins requesting membership in a particular multicast group. All hosts that have joined a given multicast group (defined by a multicast address) remain in that group as long as they continue to issue periodic joins. PIM-DM interoperates with IGMP/MLD and the switch's routing protocols. PIM operates independently of the routing protocol that is chosen to run on the switches. So PIM-DM can be used with RIP, OSPF, BGP, or static routes configured. PIM-DM uses a unicast routing table to find the path to the originator of the multicast traffic and sets up multicast trees for distributing multicast traffic.
PIM-DM defaults, protocols, and supported configurations
Default configuration
PIM-DM is disabled by default. Either PIM-SM or PIM-DM can be configured within a VRF at a time. All the interfaces within the VRF must run with same mode.
Routing protocol support
PIM uses unicast routing information from any of the routing protocols that are running on the system, such as OSPFv2, OSPFv3, BGP. Static routes are also supported with Nexthop IP addresses.
PIM enabled interfaces (L3 and SVI)
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
251
PIM can be enabled across all VRFs on a maximum of 1,000 interfaces with an upper limit of 128 per VRF. Although up to 128 PIM DM enabled interfaces can be configured, when configuring trunk interfaces with multiple Dense enabled SVIs, the trunk interfaces must have sufficient bandwidth or have only the required number of trunks it can support. This ensures that the link utilization is not exceeded due to the initial flooding nature of the protocol.
IGMP and MLD compatibility
PIM-DM is compatible with IGMP version 2 and version 3, MLD version 1 and version 2, and is fully interoperable with IGMP/MLD for determining multicast flows.
VRRP
PIM-DM is fully interoperable with VRRP to quickly transition multicast routes in a failover.
VRF support
PIM-DM can run on multiple VRF instances in parallel. It is supported on all VRFs supported in the system.
Limitations
PIM-DM currently does not support the following: n VxLAN, 6in4, 6in6, and GRE interfaces n PIM-DM cannot be enabled on VSX deployments.
PIM-DM configuration example
When the routing switch detects a new multicast flow, it initially floods the traffic throughout the PIM-DM domain, then it prunes the traffic on the branches (network paths) where joins have not been received from individual hosts. The following is a sample topology diagram for a PIM-DM configuration.
Protocol Independent Multicast - Dense Mode (V4 and V6) | 252
Figure 1 PM-DM Configuration Examples
The routing switch maintains individual branches in the multicast tree as long as there is at least one host maintaining a membership in the multicast group. When all the hosts in a particular subnet drop out of the group, PIM-DM prunes that interface from the multicast tree. Similarly, if the routing switch detects a join from a host in a pruned interface, it adds that branch back into the tree. Unlike PIM-SM, the number of mroutes created with dense mode is typically high since the source router floods the traffic initially to all the PIM neighbors. If we have two routers connected with many VLAN trunks, the resulting mroutes on the receiver router will be proportional to the number of SVIs configured. Ensure that the given flows are within the limits of the receiver router's mroute scale.
PIM-DM features
Multicast flow management
Multicast flow management refers to how the routing switch manages forwarding and pruned flows. This is useful when planning topologies to include multicast support and when viewing and interpreting the show command output for PIM-DM features.
Initial flood and prune
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
253
When a router running PIM-DM receives a new multicast flow, it initially floods the traffic to all downstream multicast routers. Branches that do not have members send Prune messages toward the source to prune off the unwanted/unnecessary traffic.
Maintaining the prune state
For a multicast group "X" on a given interface, when the last host belonging to group "X" leaves the group, PIM places that interface in a prune state. Multicast traffic from group "X" is now blocked to that interface. The prune state remains until a host on the same interface issues a join for group "X", in which case the router cancels the prune state and changes the flow to the forwarding state.
State-refresh packets and bandwidth conservation
A multicast switch, if directly connected to a multicast source (such as a video conference application), periodically transmits state-refresh packets to downstream multicast routers. On routers that have pruned the multicast flow, the state-refresh packets keep the pruned state alive. On routers that have been added to the network after the initial flooding and pruning of a multicast group, the state-refresh packets inform the newly added router of the current state of that branch. So if all multicast routers in a network support the state-refresh packet, the multicast router directly connected to the multicast source performs only one flood-prune cycle to the edge of the network when a new flow (multicast group) is introduced and preserves bandwidth for other uses.
PIM-DM commands for IPv4
Only the default VRF is supported on the Aruba 6200 Switch Series.
disable
disable
Description
Disables PIM globally on the router. PIM is disabled by default.
Using the disable command will cause all the multicast routes to be erased from hardware.
Example
Disabling PIM router:
switch(config)# router pim switch(config-pim)# disable
Command History
Release 10.07 or earlier
Command Information
Modification --
Protocol Independent Multicast - Dense Mode (V4 and V6) | 254
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
enable
enable
Description
Enables PIM globally on the router.
Example
Enabling PIM router:
switch(config)# router pim switch(config-pim)# enable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ip pim-dense
no ip pim-dense {enable|disable}
Description
Enables or disables PIM-DM in the current interface. PIM-DM is disabled by default on an interface. IP address must be configured on the interface to enable PIM-DM.
Parameters
enable Specifies PIM-DM on the interface. IP address must be configured on the interface to enable PIM-DM (use the ip address <A.B.C.D/M> command).
disable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
255
Disables PIM-DM on the interface.
Examples
Enabling and disabling PIM-DM in an interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ip address 40.0.0.4/24 switch(config-if-vlan)# ip pim-dense enable switch(config-if-vlan)# switch(config-if-vlan)# ip pim-dense disable
Enabling and disabling PIM-DM in a sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip address 10.0.0.1/24 switch(config-subif)# ip pim-dense enable switch(config-subif)# switch(config-subif)# ip pim-dense disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense bfd
Not supported on the Aruba 6200 Switch Series.
ip pim-dense bfd [disable] no ip pim-dense bfd
Description
Configures BFD on a per-interface basis for an interface associated with the PIM process. The no form of this command removes the BFD configuration on the interface and sets it to the default configuration.
Protocol Independent Multicast - Dense Mode (V4 and V6) | 256
If BFD is enabled globally, it will be enabled by default on all interfaces. The only exception is when it is disabled specifically on an interface using the ip pim-dense bfd disable command. If BFD is disabled globally, it will be disabled by default on all interfaces. The only exception is when it is enabled specifically on an interface using the ip pim-dense bfd command.
Parameters
disable Disables the BFD configuration on the interface.
Examples
Enabling the BFD configuration on the interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense bfd
Removing the BFD configuration on the interface:
switch(config-if-vlan)# no ip pim-dense bfd
Disabling the BFD configuration on the interface and overriding the global setting:
switch(config-if-vlan)# ip pim-dense bfd disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense graft-retry-interval
ip pim-dense graft-retry-interval <INTERVAL-VALUE> no ip pim-dense graft-retry-interval
Description
Configures the interval for which the routing switch waits for the graft acknowledgment from another router before resending the graft request.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
257
The no form of this command removes the currently configured value and sets to the default of 3 seconds.
Parameters
<INTERVAL-VALUE> Specifies the interval the routing switch waits for the graft acknowledgement. Default: 3 seconds. Range: 1-10 seconds.
Usage
Graft packets result when a downstream router transmits a request to join a flow. The upstream router responds with a graft acknowledgment packet. If the graft acknowledgment is not received within the time period of the graft-retry-interval, it resends the graft packet.
Example
Configuring and removing dense graft retry interval on the interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense graft-retry-interval 5 switch(config-if-vlan)# no ip pim-dense graft-retry-interval
Configuring and removing dense graft retry interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense graft-retry-interval 5 switch(config-subif)# switch(config-subif)# no ip pim-dense graft-retry-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense hello-delay
ip pim-dense hello-delay <DELAY-VALUE> no ip pim-dense hello-delay
Description
Protocol Independent Multicast - Dense Mode (V4 and V6) | 258
Configures the maximum time in seconds before the router actually transmits the initial PIM hello message on the current interface. The no form of this command removes currently configured value and sets to the default of 5 seconds.
Parameters
<DELAY-VALUE> Specifies the hello-delay in seconds, which is the maximum time before a triggered PIM Hello message is transmitted on this interface. Default: 5 seconds. Range: 0-5 seconds.
Usage
In cases where a new interface activates connections with multiple routers, if all the connected routers send hello packets at the same time, the receiving router could become momentarily overloaded. This command randomizes the transmission delay to a time between zero and the hello delay setting. Using zero means no delay. After the router sends the initial hello packet to a newly detected interface, it sends subsequent hello packets according to the current hello interval setting.
Example
Configuring and removing hello-delay on the interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense hello-delay 4 switch(config-if-vlan)# no ip pim-dense hello-delay
Configuring and removing hello-delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense hello-delay 4 switch(config-subif)# switch(config-subif)# no ip pim-dense hello-delay
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense hello-interval
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
259
ip pim-dense hello-interval <INTERVAL-VALUE> no ip pim-dense hello-interval
Description
Configures the frequency at which the router transmits PIM hello messages on the current interface. The no form of this command removes the currently configured value and sets to the default of 30 seconds.
Parameters
<INTERVAL-VALUE> Required: Specifies the frequency at which PIM Hello messages are transmitted on this interface. Default: 30 seconds. Range: 5-300 seconds.
Usage
n The router uses hello packets to inform neighbor routers of its presence. n The router also uses this setting to compute the hello holdtime, which is included in hello packets sent to
neighbor routers. n Hello holdtime tells neighbor routers how long to wait for the next hello packet from the router. If
another packet does not arrive within that time, the router removes the neighbor adjacency on that interface from the PIM adjacency table, which removes any flows running on that interface. n Shortening the hello interval reduces the hello holdtime. If they do not receive a new hello packet when expected, it changes how quickly other routers stop sending traffic to the router.
Example
Configuring and removing dense hello-interval:
switch(config)# interface 1/1/4 switch(config-if)# ip pim-dense hello-interval 60 switch(config-if)# no ip pim-dense hello-interval
Configuring and removing dense hello-interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-subif)# interface 1/1/10.10 switch(config-subif)# ip pim-dense hello-interval 60 switch(config-subif)# switch(config-subif)# no ip pim-dense hello-interval
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Dense Mode (V4 and V6) | 260
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ip pim-dense ip-addr
ip pim-dense ip-addr {<IP-ADDR-VALUE> | any} no ip pim-dense ip-addr
Description
Enables the router to dynamically determine the source IP address to use for PIM packets sent from the interface or to use the specific IP address. The no form of this command removes the currently configured value and sets to the default of any.
Parameters
<IP-ADDR-VALUE> Specifies an IP address as the source IP for the interface.
any Specifies dynamically determining the source IP from the current IP address of the interface.
Examples
Configuring and removing source IP address:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense ip-addr 40.0.0.4 switch(config-if-vlan)# no ip pim-dense ip-addr
Configuring and removing source IP address on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense ip-addr 10.1.1.1 switch(config-subif)# switch(config-subif)# no ip pim-dense ip-addr
Command History
Release 10.07 or earlier
Modification --
Command Information
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
261
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ip pim-dense lan-prune-delay
ip pim-dense lan-prune-delay no ip pim-dense lan-prune-delay
Description
Enables the LAN prune delay option on the current interface. The default status is enabled. The no form of this command disables the LAN prune delay option.
Usage
With LAN-prune-delay enabled, the router informs downstream neighbors how long it will wait before pruning a flow after receiving a prune request. Other downstream routers on the same interface must send a join to override the prune before the LAN-prune-delay time to continue the flow. Prompts any downstream neighbors with multicast receivers continuing to belong to the flow to reply with a join. If no joins are received after the LAN-prune-delay period, the router prunes the flow. The propagation-delay and override-interval settings determine the LAN-prune-delay setting.
Example
Enabling and disabling the LAN prune delay:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense lan-prune-delay switch(config-if-vlan)# no ip pim-dense lan-prune-delay
Enabling and disabling the LAN prune delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense lan-prune-delay switch(config-subif)# no ip pim-dense lan-prune-delay
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Dense Mode (V4 and V6) | 262
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ip pim-dense max-graft-retries
ip pim-dense max-graft-retries <ATTEMPT-VALUE> no ip pim-dense max-graft-retries
Description
Configures the number of attempts the routing switch will retry sending the same graft packet to join a flow. The no form of this command removes the currently configured value and sets to the default of 3 attempts.
Parameters
<INTERVAL-VALUE> Specifies the number of retries for the routing switch to resend the graft packet. Default: 3 attempts. Range: 1-10 attempts.
Usage
If a graft acknowledgment response is not received after the specified number of retries, the routing switch ceases trying to join the flow. In this case the flow is removed until either a state-refresh from upstream reinitiates the flow or an upstream router floods the flow. Increasing this value helps to improve multicast reliability.
Example
Configuring and removing dense graft retry interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense max-graft-retries 6 switch(config-if-vlan)# no ip pim-dense max-graft-retries
Configuring and removing dense graft retry interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense max-graft-retries 6 switch(config-subif)# switch(config-subif)# no ip pim-dense max-graft-retries
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
263
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ip pim-dense override-interval
ip pim-dense override-interval <INTERVAL-VALUE> no ip pim-dense override-interval
Description
Configures the override interval that gets inserted into the Override Interval field of a LAN Prune Delay option. The no form of this command removes the currently configured value and sets the value to the default of 2500 ms.
Parameters
<INTERVAL-VALUE> Specifies the override interval of a LAN Prune Delay option in ms. Default: 2500 ms. Range: 500-6000.
Usage
Each router on the LAN expresses its view of the amount of randomization necessary in the Override Interval field of the LAN Prune Delay option. When all routers on a LAN use the LAN Prune Delay Option, all routers on the LAN MUST set their Override_Interval to the largest Override value on the LAN.
Example
Configuring and removing the override interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense override-interval 4000 switch(config-if-vlan)# no ip pim-dense override-interval
Configuring and removing the override interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense override-interval 4000 switch(config-subif)# no ip pim-dense override-interval
Command History
Protocol Independent Multicast - Dense Mode (V4 and V6) | 264
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense propagation-delay
ip pim-dense propagation-delay <DELAY-VALUE> no ip pim-dense propagation-delay
Description
Configures the propagation delay that gets inserted into the LAN prune delay field of a LAN Prune Delay option. The no form of this command removes currently configured value and sets to the default of 500 ms.
Parameters
<DELAY-VALUE> Specifies the propagation delay value in ms. Default: 500 ms. Range: 250-2000 ms.
Usage
The LAN Delay inserted by a router in the LAN Prune Delay option expresses the expected message propagation delay on the link. When all routers on a link use the LAN Prune Delay Option, all routers on the LAN MUST set Propagation Delay to the largest LAN Delay on the LAN.
Examples
Configuring and removing the propagation delay:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense propagation-delay 400 switch(config-if-vlan)# no ip pim-dense propagation-delay
Configuring and removing the propagation delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense propagation-delay 400 switch(config-subif)# no ip pim-dense propagation-delay
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
265
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip pim-dense ttl-threshold
ip pim-dense ttl-threshold <THRESHOLD-VALUE> no ip pim-dense ttl-threshold
Description
Configures the multicast datagram time-to-live (router hop-count) threshold for the interface. A staterefresh packet with a TTL less than this threshold will not be forwarded out the interface. The no form of this command removes the currently configured value and sets to the default of 3 attempts.
Parameters
<THRESHOLD-VALUE> Specifies the time to live threshold. Default: 3 attempts. Range: 0-255.
Usage
The interface connected to the multicast source does not receive state refresh packets and thus is not staterefresh capable. Downstream VLANs in the switches are state-refresh capable. This parameter provides a method for containing multicast traffic within a network, or even within specific areas of a network. Initially, the multicast traffic source sets a TTL value in the packets it transmits. Each time one of these packets passes through a multicast routing device, the TTL setting decrements by 1. If the packet arrives with a TTL lower than the ttl-threshold, the routing switch does not forward the packet. The following aspects of the TTL setting of incoming multicast packets must be considered, before changing this parameter on a routing switch:
n A value that is too high will allow multicast traffic to go beyond the internal network. n A value that is too low may prevent some intended hosts from receiving the desired multicast traffic. n A value of 0 will forward multicast traffic regardless of the packet TTL setting.
Example
Configuring and removing the time-to-live threshold:
switch(config)# interface vlan40 switch(config-if-vlan)# ip pim-dense ttl-threshold 8 switch(config-if-vlan)# no ip pim-dense ttl-threshold
Configuring and removing the time-to-live threshold on the sub-interface:
Protocol Independent Multicast - Dense Mode (V4 and V6) | 266
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ip pim-dense ttl-threshold 8 switch(config-subif)# switch(config-subif)# no ip pim-dense ttl-threshold
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
router pim
router pim [vrf <VRF-NAME>] no router pim [vrf <VRF-NAME>]
Description
Changes the current context to the PIM configuration context. If no VRF is specified, the default VRF is assumed. The no form of this command removes the PIM configuration from the specified context or the default VRF.
Parameters
vrf <VRF-NAME> Specifies the name of a VRF.
Examples
Configuring default router PIM:
switch(config)# router pim switch(config-pim)#
Configuring specified router PIM:
switch(config)# router pim vrf green switch(config-pim)#
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
267
Removing router PIM:
switch(config)# no router pim
Command History
Release 10.07 or earlier
Modification --
Command Information
Administrators or local user group members with execution rights for this command.
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Authority
show ip mroute
show ip mroute [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows multicast routing information. Optionally, you can show specific information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows mroute information for all VRFs. Optional.
vrf <VRF-NAME> Shows mroute information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. Optional.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IP mroute for all VRFs:
switch# show ip mroute all-vrfs VRF : blue Total number of entries : 1
Group Address Source Address Incoming interface
: 239.1.1.1 : 40.0.0.5 : vlan3
Protocol Independent Multicast - Dense Mode (V4 and V6) | 268
Downstream Interface
Interface State
--------- -----
vlan2
forwarding
VRF : green Total number of entries : 2
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
vlan5
forwarding
: 239.1.1.1 : 40.0.0.4 : 10.1.1.1 : vlan2
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1
VRF : default Total number of entries : 1
Group Address
Source Address
Neighbor
Incoming interface
Downstream Interface
Interface State
--------- -----
1/1/3
forwarding
: 10.1.1.14 : 40.0.0.6 : 10.1.1.2 : 1/1/5
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip mroute group-addr
show ip mroute <GROUP-ADDR> [<SOURCE-ADDR>] [all-vrfs | vrf <vrf-name>] [vsx-peer]
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
269
Description
Shows the multicast routing information for the given group address. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<GROUP-ADDR> Specifies a group address in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
<SOURCE-ADDR> Specifies show information for the group from this source in IPv4 format (x.x.x.x), where x is a decimal number from 0 to 255.
all-vrfs Shows mroute information for the group for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing information for group 239.1.1.1 and VRF green:
switch# show ip mroute 239.1.1.1 vrf green
VRF : green
Group Address
Source Address
Neighbor
Incoming interface
Unicast Routing Protocol
Metric
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1 : connected : 1234 : 1234
Showing information for group 239.1.1.1 from source 40.0.0.5 and all VRFs:
switch# show ip mroute 239.1.1.1 40.0.0.5 all-vrfs
VRF : blue
Group Address
Source Address
Incoming interface
Unicast Routing Protocol
Metric
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan2
forwarding
: 239.1.1.1 : 40.0.0.5 : vlan3 : connected : 1234 : 1234
Protocol Independent Multicast - Dense Mode (V4 and V6) | 270
VRF : green
Group Address
Source Address
Neighbor
Incoming interface
Unicast Routing Protocol
Metric
Metric Pref
Downstream Interface
Interface State
--------- -----
vlan6
forwarding
: 239.1.1.1 : 40.0.0.5 : 10.1.1.2 : vlan1 : connected : 1234 : 1234
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip mroute brief
show ip mroute brief [al-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows brief version of the multicast routing information. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows mroute information briefly for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing the IP mroute brief:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
271
switch# show ip mroute brief VRF : default Total number of entries : 1
Group Address ------------239.1.1.1
Source Address -------------40.0.0.6
Neighbor -------10.1.1.2
Interface --------vlan5
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim
show ip pim [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the PIM router information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Optional. Shows PIM router information on all VRFs.
vrf <VRF-NAME> Optional. Shows PIM router information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IP PIM router:
switch# show ip pim
PIM Global Parameters
Protocol Independent Multicast - Dense Mode (V4 and V6) | 272
VRF
:
PIM Status
:
Join/Prune Interval (sec) :
SPT Threshold
:
State Refresh Interval (sec) :
default Enabled 60 Enabled 60
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface
show ip pim interface [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about PIM interfaces currently configured in the router. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Optional. Shows PIM interface information for all VRFs.
vrf <VRF-NAME> Optional. Shows PIM interface information for a particular VRF. If the <VRF-NAME> is not specified, it shows the default VRF information.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface:
switch# show ip pim interface
PIM Interfaces
VRF: default
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
273
Interface
IP Address
------------------ -----------------
1/1/1
40.0.0.4/24
1/1/2
50.0.0.4/24
mode ---------dense dense
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface interface-name
show ip pim interface <INTERFACE-NAME> [vsx-peer]
Description
Shows detailed information about the PIM interface currently configured.
Parameters
<INTERFACE-NAME> Specifies an interface for showing PIM interface information. Interface can also be a LAG or VLAN.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface information for interface 1/1/2:
switch# show ip pim interface 1/1/2
PIM Interfaces
VRF: default
Interface : 1/1/2
IP Address : 50.0.0.4/24
Mode
: dense
Designated Router : Hello Interval (sec)
: 30
Protocol Independent Multicast - Dense Mode (V4 and V6) | 274
Hello Delay (sec)
:5
Graft Retry Interval(sec) : 3
Max Graft Retries
:5
SR TTL Threshold
:8
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Neighbor Timeout
: 105
Lan Prune Delay DR Priority
: Yes :1
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim interface interface-name counters
show ip pim interface <INTERFACE-NAME> counters [vsx-peer]
Description
Shows the PIM packet counters information for the specified interface.
Parameters
<INTERFACE-NAME> Specifies the interface to show packet counter information.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM packet counters:
switch# show ip pim interface vlan1 counters
Interface VRF
: vlan1 : default
Rx Counters :
Hello
4
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
275
State Refresh
0
Join/Prune
1
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Tx Counters :
Hello
9
State Refresh
0
Join/Prune
0
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Invalid Rx Counters :
Hello
0
State Refresh
0
Join/Prune
0
RPadv
0
Graft
0
GraftAck
0
Assert
0
Bsm
0
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim neighbor
show ip pim neighbor [<IP-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows PIM neighbor information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs
Protocol Independent Multicast - Dense Mode (V4 and V6) | 276
Selects all VRFs. vrf <VRF-NAME>
Specifies the name of a VRF. Default: default. vsx-peer
Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM neighbor information:
switch# show ip pim neighbor
PIM Neighbor
VRF IP Address Interface Up Time (sec) Expire Time (sec) DR Priority
: default : 40.0.0.44 : 1/1/1 : 544 : 80 : 40
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
state-refresh-interval
state-refresh <INTERVAL-VALUE> no state-refresh
Description
Configures the interval between successive state-refresh messages originated by the routing switch. Only the routing switch connected directly to the multicast source initiates state-refresh packets. All other PIM routers in the network only propagate these state-refresh packets. The no form of this command sets the interval to the default value of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the state refresh interval in seconds. Default: 60 seconds. Range 10-100.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
277
Examples
Configuring the state refresh interval:
switch(config)# router pim switch(config-pim)# state-refresh 30 switch(config-pim)# no state-refresh
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim
Authority
Administrators or local user group members with execution rights for this command.
PIM-DM commands for IPv6
Only the default VRF is supported on the Aruba 6200 Switch Series.
disable
disable
Description
Disables PIMv6 globally on the router.
Using the disable command will cause all the multicast routes to be erased from hardware.
Example
Disabling PIM router:
switch(config)# router pim6 switch(config-pim6)# disable
Command History
Protocol Independent Multicast - Dense Mode (V4 and V6) | 278
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
enable
enable
Description
Enables PIMv6 globally on the router.
Example
Enabling PIM router:
switch(config)# router pim6 switch(config-pim6)# enable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense
ipv6 pim6-dense {enable | disable}
Description
Enables or disables PIM-DM on the current interface. PIM-DM is disabled by default on an interface. An IPv6 address must be configured on the interface to enable PIM-DM.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
279
Parameters
enable Enables PIM-DM on the interface. IPv6 address must be configured on the interface to enable PIM-SM (use the ipv6 address <X:X::X:X/M> command).
disable Disables PIM-DM on the interface.
Examples
Enabling and disabling PIM-DM on an interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 address 2001::01/64 switch(config-if-vlan)# ipv6 pim6-dense enable switch(config-if-vlan)# ipv6 pim6-dense disable
Enabling and disabling PIM-DM on a sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 address 1001::01/64 switch(config-subif)# ipv6 pim6-dense enable switch(config-subif)# ipv6 pim6-dense disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense bfd
Not supported on the Aruba 6200 Switch Series. ipv6 pim6-dense bfd [disable] no ipv6 pim6-dense bfd
Description
Configures BFD on a per-interface basis for an interface associated with the PIM process.
Protocol Independent Multicast - Dense Mode (V4 and V6) | 280
The no form of this command removes the BFD configuration on the interface and sets it to the default configuration.
If BFD is enabled globally, it will be enabled by default on all interfaces. The only exception is when it is disabled specifically on an interface using the ipv6 pim6-dense bfd disable command. If BFD is disabled globally, it will be disabled by default on all interfaces. The only exception is when it is enabled specifically on an interface using the ipv6 pim6-dense bfd command.
Parameters
disable Disables the BFD configuration on the interface.
Examples
Enabling the BFD configuration on the interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense bfd
Disabling the BFD configuration on the interface:
switch(config-if-vlan)# ipv6 pim6-dense bfd disable
Removing the BFD configuration on the interface:
switch(config-if-vlan)# no ipv6 pim6-dense bfd
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense graft-retry-interval
ipv6 pim6-dense graft-retry-interval <INTERVAL-VALUE> no ipv6 pim6-dense graft-retry-interval
Description
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
281
Configures the interval for which the routing switch waits for the graft acknowledgment from another router before resending the graft request. The no form of this command removes the currently configured value and sets to the default of 3 seconds.
Parameters
<INTERVAL-VALUE> Specifies the interval the routing switch waits for the graft acknowledgement. Default: 3 seconds. Range: 1-10.
Usage
Graft packets result when a downstream router transmits a request to join a flow. The upstream router responds with a graft acknowledgment packet. If the graft acknowledgment is not received within the time period of the graft-retry-interval, it resends the graft packet.
Example
Configuring and removing dense graft retry interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense graft-retry-interval 5 switch(config-if-vlan)# no ipv6 pim6-dense graft-retry-interval
Configuring and removing dense graft retry interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense graft-retry-interval 5 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense graft-retry-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense hello-delay
ipv6 pim6-dense hello-delay <DELAY-VALUE> no ipv6 pim6-dense hello-delay
Protocol Independent Multicast - Dense Mode (V4 and V6) | 282
Description
Configures the maximum time in seconds before the router actually transmits the initial PIM hello message on the current interface. The no form of this command removes currently configured value and sets to the default of 5 seconds.
Parameters
<DELAY-VALUE> Specifies the hello-delay in seconds, which is the maximum time before a triggered PIM Hello message is transmitted on this interface. Default: 5 seconds. Range: 0-5.
Usage
n In cases where a new interface activates connections with multiple routers, if all the connected routers sent hello packets at the same time, the receiving router could become momentarily overloaded.
n This command randomizes the transmission delay to a time between zero and the hello delay setting. Using zero means no delay. After the router sends the initial hello packet to a newly detected interface, it sends subsequent hello packets according to the current hello interval setting.
Example
Configuring and removing hello-delay on the interface:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense hello-delay 4 switch(config-if-vlan)# no ipv6 pim6-dense hello-delay
Configuring and removing hello-delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense hello-delay 4 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense hello-delay
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
283
ipv6 pim6-dense hello-interval
ipv6 pim6-dense hello-interval <INTERVAL-VALUE> no ipv6 pim6-dense hello-interval
Description
Configures the frequency at which the router transmits PIM hello messages on the current interface. The no form of this command removes the currently configured value and sets to the default of 30 seconds.
Parameters
<INTERVAL-VALUE> Specifies the frequency at which PIM Hello messages are transmitted on this interface. Default: 30 seconds. Range: 5-300.
Usage
n The router uses hello packets to inform neighbor routers of its presence. n The router also uses this setting to compute the hello holdtime, which is included in hello packets sent to
neighbor routers. n Hello holdtime tells neighbor routers how long to wait for the next hello packet from the router. If
another packet does not arrive within that time, the router removes the neighbor adjacency on that interface from the PIM adjacency table, which removes any flows running on that interface. n Shortening the hello interval reduces the hello holdtime. If they do not receive a new hello packet when expected, it changes how quickly other routers stop sending traffic to the router.
Example
Configuring and removing dense hello-interval:
switch(config)# interface 1/1/4 switch(config-if)# ipv6 pim6-dense hello-interval 60 switch(config-if)# no ipv6 pim6-dense hello-interval
Configuring and removing dense hello-interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config-subif)# interface 1/1/10.10 switch(config-subif)# ipv6 pim6-dense hello-interval 60 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense hello-interval
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Dense Mode (V4 and V6) | 284
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense ipv6-addr
ipv6 pim6-dense ipv6-addr {<IPV6-ADDR-VALUE> | any} no ipv6 pim6-dense ipv6-addr
Description
Enables the router to dynamically determine the source IP address to use for PIM packets sent from the interface or to use the specific IP address. The no form of this command removes the currently configured value and sets to the default of any.
Parameters
<IPV6-ADDR-VALUE> Specifies an IPv6 address as the source IP for the interface.
any Specifies dynamically determining the source IP from the current IPv6 address of the interface.
Examples
Configuring and removing the source IP address:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense ip-addr 2001::02 switch(config-if-vlan)# no ipv6 pim6-dense ipv6-addr
Configuring and removing the source IP address for the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense ipv6-addr 1001::01 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense ipv6-addr
Command History
Release 10.07 or earlier
Modification --
Command Information
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
285
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense lan-prune-delay
ipv6 pim6-dense lan-prune-delay no ipv6 pim6-dense lan-prune-delay
Description
Enables the LAN prune delay option on the current interface. The default status is enabled. The no form of this command disables the LAN prune delay option.
Usage
With LAN-prune-delay enabled, the router informs downstream neighbors how long it will wait before pruning a flow after receiving a prune request. Other downstream routers on the same interface must send a join to override the prune before the LAN-prune-delay time to continue the flow. Prompts any downstream neighbors with multicast receivers continuing to belong to the flow to reply with a join. If no joins are received after the LAN-prune-delay period, the router prunes the flow. The propagation-delay and override-interval settings determine the LAN-prune-delay setting.
Example
Enabling and disabling the LAN prune delay:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense lan-prune-delay switch(config-if-vlan)# no ipv6 pim6-dense lan-prune-delay
Enabling and disabling the LAN prune delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# no ipv6 pim6-dense lan-prune-delay switch(config-subif)# switch(config-subif)# ipv6 pim6-dense lan-prune-delay
Command History
Release 10.07 or earlier
Modification --
Command Information
Protocol Independent Multicast - Dense Mode (V4 and V6) | 286
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense max-graft-retries
ipv6 pim6-dense max-graft-retries <ATTEMPT-VALUE> no ipv6 pim6-dense max-graft-retries
Description
Configures the number of attempts the routing switch will retry sending the same graft packet to join a flow. The no form of this command removes the currently configured value and sets to the default of 3 attempts.
Parameters
<INTERVAL-VALUE> Specifies the number of retries for the routing switch to resend the graft packet. Default: 3 attempts. Range: 1-10.
Usage
If a graft acknowledgment response is not received after the specified number of retries, the routing switch ceases trying to join the flow. In this case the flow is removed until either a state-refresh from upstream reinitiates the flow or an upstream router floods the flow. Increasing this value helps to improve multicast reliability.
Example
Configuring and removing the dense graft retry interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense max-graft-retries 6 switch(config-if-vlan)# no ipv6 pim6-dense max-graft-retries
Configuring and removing the dense graft retry interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense max-graft-retries 6 switch(config-subif)# no ipv6 pim6-dense max-graft-retries
Command History
Release 10.07 or earlier
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
287
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Authority
Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense override-interval
ipv6 pim6-dense override-interval <INTERVAL-VALUE> no ipv6 pim6-dense override-interval
Description
Configures the override interval that gets inserted into the Override Interval field of a LAN Prune Delay option. The no form of this command removes the currently configured value and sets the value to the default of 2500 ms.
Parameters
<INTERVAL-VALUE> Specifies the override interval of a LAN Prune Delay option in ms. Default: 2500 ms. Range: 500-6000.
Usage
Each router on the LAN expresses its view of the amount of randomization necessary in the Override Interval field of the LAN Prune Delay option. When all routers on a LAN use the LAN Prune Delay Option, all routers on the LAN MUST set their Override_Interval to the largest Override value on the LAN.
Example
Configuring and removing the override interval:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense override-interval 4000 switch(config-if-vlan)# no ipv6 pim6-dense override-interval
Configuring and removing the override interval on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense override-interval 4000 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense override-interval
Command History
Protocol Independent Multicast - Dense Mode (V4 and V6) | 288
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense propagation-delay
ipv6 pim6-dense propagation-delay <DELAY-VALUE> no ipv6 pim6-dense propagation-delay
Description
Configures the propagation delay that gets inserted into the LAN prune delay field of a LAN Prune Delay option. The no form of this command removes currently configured value and sets to the default of 500 ms.
Parameters
<DELAY-VALUE> Specifies the propagation delay value in ms. Default: 500 ms. Range: 250-2000.
Usage
The LAN Delay inserted by a router in the LAN Prune Delay option expresses the expected message propagation delay on the link. When all routers on a link use the LAN Prune Delay Option, all routers on the LAN MUST set Propagation Delay to the largest LAN Delay on the LAN.
Examples
Configuring and removing the propagation delay:
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense propagation-delay 400 switch(config-if-vlan)# no ipv6 pim6-dense propagation-delay
Configuring and removing the propagation delay on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense propagation-delay 400 switch(config-subif)# switch(config-subif)# no ipv6 pim6-dense propagation-delay
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
289
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
ipv6 pim6-dense ttl-threshold
ipv6 pim6-dense ttl-threshold <THRESHOLD-VALUE> no ipv6 pim6-dense ttl-threshold
Description
Configures the multicast datagram time-to-live (router hop-count) threshold for the interface. Any IP multicast datagrams or state-refresh packets with a TTL less than this threshold will not be forwarded out the interface. The no form of this command removes the currently configured value and sets to the default of 3 attempts.
Parameters
<THRESHOLD-VALUE> Specifies the time-to-live threshold. Default: 3 attempts. Range: 0-255.
Usage
The VLAN connected to the multicast source does not receive state refresh packets and thus is not staterefresh capable. Downstream VLANs in the switches are state-refresh capable. This parameter provides a method for containing multicast traffic within a network, or even within specific areas of a network. Initially, the multicast traffic source sets a TTL value in the packets it transmits. Each time one of these packets passes through a multicast routing device, the TTL setting decrements by 1. If the packet arrives with a TTL lower than the ttl-threshold, the routing switch does not forward the packet. The following aspects of the TTL setting of incoming multicast packets must be considered, before changing this parameter on a routing switch:
n A value that is too high will allow multicast traffic to go beyond the internal network. n A value that is too low may prevent some intended hosts from receiving the desired multicast traffic. n A value of 0 will forward multicast traffic regardless of the packet TTL setting.
Example
Configuring and removing the time-to-live threshold:
Protocol Independent Multicast - Dense Mode (V4 and V6) | 290
switch(config)# interface vlan40 switch(config-if-vlan)# ipv6 pim6-dense ttl-threshold 8 switch(config-if-vlan)# no ipv6 pim6-dense ttl-threshold
Configuring and removing the time-to-live threshold on the sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# ipv6 pim6-dense ttl-threshold 8 switch(config-subif)# no ipv6 pim6-dense ttl-threshold
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
no ipv6 pim6-dense
no ip pim-dense
Description
Removes PIM-DM for all IPv6 related configurations for the interface.
Examples
Removing all PIM-DM configurations on an interface:
switch(config)# interface vlan40 switch(config-if-vlan)# no ipv6 pim6-dense
Removing all PIM-DM configurations on a sub-interface:
Applies only to the Aruba 6300, 6400, and 8360 Switch Series.
switch(config)# interface 1/1/1.10 switch(config-subif)# no ipv6 pim6-dense
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
291
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
config-if config-if-vlan config-lag-if config-subif
Modification --
Authority Administrators or local user group members with execution rights for this command.
show ipv6 pim6
show ipv6 pim6 [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the PIM router information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing the IPv6 PIM router:
switch# show ipv6 pim6
PIM Global Parameters
VRF PIM Status Join/Prune Interval (sec) SPT Threshold
: default : Enabled : 46 : Disabled
Command History
Release 10.07 or earlier
Modification --
Protocol Independent Multicast - Dense Mode (V4 and V6) | 292
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 interface
show ipv6 pim6 interface [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows the information about PIM interfaces currently configured in the router. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Optional. Shows PIM interface information for all VRFs.
vrf <VRF-NAME> Optional. Shows PIM interface information for a particular VRF. If the <VRF-NAME> is not specified, it shows the default VRF information.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface:
switch# show ipv6 pim6 interface PIM Interfaces
VRF: default
Interface
IP Address
mode
------------------ -------------------------------------------------------------- -
---------
1/1/1
fe80::a00:9ff:feec:dc0e/64
dense
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
293
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 interface interface-name
show ipv6 pim6 interface <INTERFACE-NAME> [vsx-peer]
Description
Shows detailed information about the PIM interface currently configured.
Parameters
<INTERFACE-NAME> Specifies an interface for showing PIM interface information. Interface can also be a LAG or VLAN.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing PIM interface information for interface 1/1/1:
switch# show ipv6 pim6 interface 1/1/1
PIM Interfaces
VRF: default
Interface IPv6 Address Mode
: 1/1/1 : fe80::a00:9ff:feec:dc0e/64 : dense
Designated Router Hello Interval Hello Delay
: fe80::a00:9ff:febd:8364 : 30 sec : 4 sec
Override Interval Propagation Delay Neighbor Timeout Graft Retry Interval
: 500 msec : 350 msec :0 :9
LAN Prune Delay DR Priority TTL Threshold Max Graft Retries
: Yes :3 : 250 :9
Command History
Release 10.07 or earlier
Command Information
Modification --
Protocol Independent Multicast - Dense Mode (V4 and V6) | 294
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mroute
show ipv6 mroute [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows multicast routing information. Optionally, you can show specific information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing IPv6 mroute:
switch# show ipv6 mroute all-vrfs IP Multicast Route Entries
VRF : blu Total number of entries : 2
Group Address
: ff08::1:3
Source Address
: 2002::04
Neighbor
: 2001::04
Incoming interface
: 1/1/2
Outgoing Interface List :
Interface
State
---------
-----
1/1/3
pruned
1/1/4
forwarding
Group Address
: ff08::1:4
Source Address
: 2003::04
Neighbor
: 2001::04
Incoming interface
: 1/1/2
Outgoing Interface List :
Interface
State
---------
-----
1/1/3
pruned
VRF : default
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
295
Total number of entries : 1
Group Address
: ff08::1:5
Source Address
: 2001::03
Neighbor
: 2003::04
Incoming interface
: 1/1/1
Outgoing Interface List :
Interface
State
---------
-----
1/1/4
pruned
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mroute brief
show ipv6 mroute brief [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows brief version of the multicast routing information. Optionally, you can specify the display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows information for all VRFs.
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
Showing the IPv6 mroute brief:
switch# show ipv6 mroute brief all-vrfs IP Multicast Route Entries
Protocol Independent Multicast - Dense Mode (V4 and V6) | 296
VRF : blu Total number of entries : 2
Group Address : ff08::1:3
Source Address : 2002::04
Neighbor
: 2003::04
Interface
: 1/1/2
Group Address : ff08::1:4
Source Address : 2002::03
Neighbor
: 2003::05
Interface
: 1/1/3
VRF : default Total number of entries : 1
Group Address : ff08::1:5
Source Address : 2001::03
Neighbor
: 2002::01
Interface
: 1/1/1
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 mroute group-addr
show ipv6 mroute <GROUP-ADDR> [<SOURCE-ADDR>] [all-vrfs | vrf <vrf-name>] [vsx-peer]
Description
Shows the multicast routing information for the given group address. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<GROUP-ADDR> Specifies show information for the group address. Format: X:X::X:X
<SOURCE-ADDR> Optional. Specifies show information for the group from this source. Format: X:X::X:X
all-vrfs Optional. Shows mroute information for the group for all VRFs.
vrf <VRF-NAME>
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
297
Optional. Shows mroute information for the group for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Showing information for group ff08::1:3 and VRF green:
switch# show ipv6 mroute ff08::1:3 vrf green
IP Multicast Route Entries
VRF : green
Group Address Source Address Neighbor Incoming Interface Multicast Routing Protocol Unicast Routing Protocol Metric Metric Pref
: ff08::1:3 : 2001::03 : 2003::04 : 1/1/1 : PIM-DM : connected :0 :0
Downstream Interface
Interface
State
---------
-----
1/1/4
pruned
Showing information for group ff08::1:3 from source 2001::03 and all VRFs:
switch# show ipv6 mroute ff08::1:3 2001::03 all-vrfs
IP Multicast Route Entries
VRF : blue
Group Address Source Address Neighbor Incoming Interface Multicast Routing Protocol Unicast Routing Protocol Metric Metric Pref
: ff08::1:3 : 2001::03 : 2003::04 : 1/1/1 : PIM-DM : connected :0 :0
Downstream Interface
Interface
State
---------
-----
1/1/4
pruned
VRF : green
Group Address Source Address Neighbor Incoming Interface Multicast Routing Protocol
: ff08::1:3 : 2001::03 : 2003::04 : 1/1/2 : PIM-DM
Protocol Independent Multicast - Dense Mode (V4 and V6) | 298
Unicast Routing Protocol Metric Metric Pref
Downstream Interface
Interface
State
---------
-----
1/1/4
pruned
VRF : red
Group Address Source Address Neighbor Incoming Interface Multicast Routing Protocol Unicast Routing Protocol Metric Metric Pref
Downstream Interface
Interface
State
---------
-----
vlan10
forwarding
: connected :0 :0
: ff08::1:6 : 2001::04 : 2003::04 : 1/1/2 : PIM-DM : connected :0 :0
By_Proxy_Dr ----------false
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ipv6 pim6 neighbor
show ipv6 pim6 neighbor [<IPv6-ADDR>] [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows PIM neighbor information. Optionally, you can specify display information by VRF. If no options are specified, it shows information for the default VRF.
Parameters
<IPv6-ADDR> Specifies a neighbor address in IPv6 format (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx), where x is a hexadecimal number from 0 to F.
all-vrfs Shows information for all VRFs.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
299
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Example
On the 6400 Switch Series, interface identification differs. Showing PIM neighbor information:
switch# show ipv6 pim6 neighbor
PIM Neighbor
VRF IP Address Interface Up Time (sec) Expire Time (sec) DR Priority
: default : 2001::02 : 1/1/1 :0 :0 : 44
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
router pim6
router pim6 [vrf <VRF-NAME>] no router pim6 [vrf <VRF-NAME>]
Description
Changes the current context to the PIMv6 configuration context. If no VRF is specified, the default VRF is assumed. The no form of this command removes the PIM configuration from the specified context or the default VRF.
Parameters
vrf <VRF-NAME> Specifies the name of a VRF. Default: default.
Protocol Independent Multicast - Dense Mode (V4 and V6) | 300
Examples
Configuring default router PIM:
switch(config)# router pim6 switch(config-pim6)#
Configuring specified router PIM:
switch(config)# router pim6 vrf Green switch(config-pim6)#
Removing router PIM:
switch(config)# no router pim6
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
state-refresh-interval
state-refresh <INTERVAL-VALUE> no state-refresh
Description
Configures the interval between successive state-refresh messages originated by the routing switch. Only the routing switch connected directly to the unicast source initiates state-refresh packets. All other PIM routers in the network only propagate these state-refresh packets. The no form of this command sets the interval to the default value of 60 seconds.
Parameters
<INTERVAL-VALUE> Specifies the state refresh interval in seconds. Default: 60 seconds. Range 10-100.
Examples
Configuring the state refresh interval:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
301
switch(config)# router pim6 switch(config-pim6)# state-refresh 30 switch(config-pim6)# no state-refresh
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-pim6
Authority
Administrators or local user group members with execution rights for this command.
Protocol Independent Multicast - Dense Mode (V4 and V6) | 302
Chapter 8
Multicast Source Discovery Protocol (MSDP)
Multicast Source Discovery Protocol (MSDP)
Multicast Source Discovery Protocol (MSDP) is a mechanism to connect multiple Protocol Independent Multicast sparse mode (PIM-SM) domains. MSDP allows multicast sources for a group to be known to all rendezvous points (RPs) in different domains. An RP runs MSDP over TCP to discover multicast sources in other domains. The main advantage of MSDP is that it reduces the complexity of interconnecting multiple PIM-SM domains by allowing PIM-SM domains to use an interdomain source tree (rather than a common shared tree).
Not supported on the Aruba 6200 Switch Series.
Multicast Source Discovery Protocol (MSDP) overview
When MSDP is configured in a network, RPs running MSDP exchange source information with MSDP enabled RPs in other domains. An RP can join the interdomain source tree for sources that are sending to groups for which it has receivers. The RP can do that because it is the root of the shared tree within its domain, which has branches to all points in the domain where there are active receivers. When a last-hop device learns of a new source outside the PIM-SM domain (through the arrival of a multicast packet from the source down the shared tree), it then can send a join toward the source and join the interdomain source tree, which behaves similar to a local PIM register packet. Benefits of Using MSDP to Interconnect Multiple PIM-SM Domains:
n Allows a rendezvous point (RP) to dynamically discover active sources outside of its domain. n Introduces a more manageable approach for building multicast distribution trees between multiple
domains and thus provides administrative independence. n Allows filtering.
PIM Anycast RP is supported with the help of MSDP mesh groups. The main purpose of an Anycast RP implementation is that the downstream multicast routers will see just one address for an RP.
Currently, only intra-domain MSDP deployments are supported; inter-domain MSDP deployments are not supported.
MSDP router config commands
disable
disable
Description
Disables MSDP on the VRF.
Example
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
303
Disabling MSDP:
switch(config)# router msdp switch(config-msdp)# disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp
enable
enable
Description
Enables MSDP on the VRF.
Example
Enabling MSDP:
switch(config)# router msdp switch(config-msdp)# enable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp
Modification -Authority Administrators or local user group members with execution rights for this command.
Modification -Authority Administrators or local user group members with execution rights for this command.
Multicast Source Discovery Protocol (MSDP) | 304
router msdp
router msdp [vrf <VRF-NAME>] no router msdp [vrf <VRF-NAME>]
Description
Changes the current context to the MSDP router context. If no VRF is specified, the default VRF MSDP context of the router is assumed. The no form of this command removes the MSDP configuration from the specified context or the default VRF.
Parameters
vrf <VRF-NAME> Specifies the context to the specified VRF.
Examples
Configuring default MSDP router context:
switch(config)# router msdp switch(config-msdp)#
Configuring specified router MSDP: switch(config-msdp)# router msdp vrf red
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
sa-interval
sa-interval <INTERVAL-VALUE> no sa-interval
Description
Configures the sa-interval for the frequency at which MSDP source-active messages are sent. The no form of this command sets the interval to the default value of 60 seconds.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
305
Parameters
<INTERVAL-VALUE> Specifies the sa-interval in seconds. Default: 60 seconds. Range 60-65535.
Examples
Configuring the sa-interval:
switch(config)# router msdp switch(config-msdp)# sa-interval 400 switch(config-msdp)# no sa-interval
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp
Authority
Administrators or local user group members with execution rights for this command.
MSDP peer configuration commands
connection-retry-interval
connection-retry-interval <INTERVAL-VALUE> no connection-retry-interval
Description
Configures the connection-retry-interval for which MSDP peers will wait after peering sessions are reset, before attempting to re-establish the peering sessions. The no form of this command removes the currently configured value and sets it to the default value of 30 seconds.
Parameters
<INTERVAL-VALUE> Specify connection-retry-interval in seconds. Range: 1-65535.
Example
Configuring the connection-retry-interval:
Multicast Source Discovery Protocol (MSDP) | 306
switch(config-msdp-peer)# connection-retry-interval 120 switch(config-msdp-peer)# no connection-retry-interval
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
connect-source
connect-source <INTERFACE-NAME>
Description
Configures the connection source interface for the MSDP Peer. The no form of this command removes the existing connection source interface and resets the peer connection.
Parameters
<INTERFACE-NAME> Specifies the interface to use as a source.
Examples
Configuring the connection source interface:
switch(config-msdp-peer)# connect-source 1/1/1
Configuring the connection source as ROP:
switch(config)# router msdp switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# connect-source 1/1/1
Configuring the connection source as a sub-interface:
Supported only on the Aruba 6300, 6400, and 8360 Switch Series.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
307
switch(config)# router msdp switch(config-msdp)# ip msdp peer 20.1.1.1 switch(config-msdp-peer)# connect-source 1/1/10.10
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
clear ip msdp peer statistics
clear ip msdp peer [all-vrfs | vrf <VRF-NAME> | <PEER-IP>]
Description
Clears MSDP SA counters of peer information for the given VRF. If VRF is not specified, it clears SA counters of peers in the default VRF. It also clears MSDP SA counters for a specified peer address.
Parameters
all-vrfs Clears MSDP peer information for all VRFs. Optional.
vrf <VRF-NAME> Clears MSDP peer information for a particular VRF. If the <VRF-NAME> is not specified, it clears information for the default VRF. Optional.
<PEER-IP> Clears MSDP peer information for the specified Peer IP. Format: A.B.C.D. Optional.
Examples
Showing MSDP peer information for VRFs:
switch# clear ip msdp peer statistics all-vrfs switch# clear ip msdp peer statistics 2.2.2.2
Command History
Release 10.07 or earlier
Modification --
Multicast Source Discovery Protocol (MSDP) | 308
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Auditors or Administrators or local user group members with execution rights for this command. Auditors can execute this command from the auditor context (auditor>) only.
description
description <TEXT> no description
Description
Configures a description for a specified MSDP peer to make it easier to identify in a configuration or show command output. The no form of this command removes the peer description.
Parameters
<TEXT> Specifies a description for the MSDP Peer.
Example
Configuring the MSDP peer description:
switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# description Peer_1 switch(config-msdp-peer)# no description
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
disable
disable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
309
Description
Disables MSDP peer on the L3 interface.
Example
Disabling MSDP peering:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# disable
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
enable
enable
Description
Enables MSDP peer on the L3 interface.
Only one MSDP peering session per VRF should be configured between two routers to avoid loops.
Example
Enabling MSDP peering:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# enable
Command History
Multicast Source Discovery Protocol (MSDP) | 310
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
ip msdp peer
ip msdp peer <IP-ADDR> no ip msdp peer
Description
Changes the current context to the MSDP peer context. The no form of this command removes the MSDP peer configuration from the specified context.
Parameters
<IP-ADDR> Specifies the IPv4 address of the MSDP peer. Format: A.B.C.D
Examples
Enabling the MSDP peer context:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)#
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp
Modification --
Authority Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
311
keepalive
keepalive <KEEPALIVE-INTERVAL> <HOLD-TIME> no keepalive
Description
Configures the interval at which a MSDP peer will send keepalive messages, and the interval at which the MSDP peer will wait for keepalive messages from other peers before declaring them down. The no form of this command removes the currently configured value and sets it to the default value.
Parameters
<KEEPALIVE-INTERVAL> Specifies the value for the keepalive interval.
<HOLD-TIME> Specifies the value for the hold time.
Example
Configuring the keepalive interval and the hold time for MSDP peer:
switch(config-msdp-peer)# keepalive 30 45 switch(config-msdp-peer)# no keepalive
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
mesh-group
mesh-group <MESH-NAME> no mesh-group <MESH-NAME>
Description
Associates the given mesh group with the MSDP peer. This feature is used to reduce the amount of SA traffic in an intra-domain setting. The no form of this command removes the peer from the currently configured mesh.
Parameters
<MESH-NAME>
Multicast Source Discovery Protocol (MSDP) | 312
Specifies the MSDP mesh group name.
Usage
All MSDP peers on the router that participate in the mesh group must be fully meshed with all other peers in the mesh group. When MSDP mesh groups are used, SA messages are not flooded to other mesh group peers. It also eliminates RPF checks on arriving SA messages. With MSDP mesh group configured, SA messages are always accepted from mesh group peers.
Example
Associating a mesh group with an MSDP peer:
switch(config-msdp-peer)# mesh-group test-mesh-group
Removing the MSDP peer from the configured mesh:
switch(config-msdp-peer)# no mesh-group test-mesh-group
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
password
password [{ciphertext | plaintext} <PASSWD>] no password
Description
Enables MD5 password encryption for a TCP connection between two MSDP peers. The no form of this command removes MD5 password encryption.
Parameters
{ciphertext | plaintext} Selects the password type.
<PASSWD> Specifies the password.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
313
When the password is not provided on the command line, plaintext password prompting occurs upon pressing Enter. The entered password characters are masked with asterisks.
Examples
Configuring MD5 password encryption with a provided plaintext password:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# password plaintext F82#4eva
Configuring MD5 password encryption with a prompted plaintext password:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# password Enter the MD5 password: ******** Re-Enter the MD5 password: ********
Removing MD5 password encryption:
switch(config)# router msdp switch(config-msdp)# switch(config-msdp)# ip msdp peer 10.1.1.1 switch(config-msdp-peer)# switch(config-msdp-peer)# no password
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Modification --
Authority Administrators or local user group members with execution rights for this command.
sa-filter access-list
sa-filter {in|out} access-list <ACL-RULE> no sa-filter {in|out} access-list <ACL-RULE>
Multicast Source Discovery Protocol (MSDP) | 314
Description
Associates the given ACL to filter MSDP SA messages on the peer. The no form of this command removes the currently configured ACL entry.
Parameters
{in|out} Enables the filter for incoming or outgoing SA messages.
<ACL-RULE> Specifies the ACL rule name.
Usage
By default, the MSDP enabled router forwards all the SA messages, and the peer router processes all the received messages. This command allows the user to configure an ACL on the MSDP peer to filter SA messages. User can prevent the incoming/outgoing SA messages on MSDP router by creating incoming/outgoing filter lists using an ACL.
Example
Filtering incoming SA messages on the MSDP peer for the specified ACL:
switch(config-msdp-peer)# sa-filter in access-list msdp_sa_filter1
Filtering outgoing SA messages on the MSDP peer for the specified ACL:
switch(config-msdp-peer)# sa-filter out access-list msdp_sa_filter2
Removing filter on the MSDP peer for the specified ACL:
switch(config-msdp-peer)# no sa-filter in access-list msdp_sa_filter2
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-msdp-peer
Authority
Administrators or local user group members with execution rights for this command.
MSDP show commands
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
315
show ip msdp count
show ip msdp count [all-vrfs | vrf <VRF-NAME>]
Description
Shows MSDP Peer (S,G) learnt count for a given VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows MSDP (S,G) entries count for all VRFs. Optional.
vrf <VRF-NAME> Shows MSDP (S,G) entries count for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. Optional.
Examples
Showing the MSDP learnt count:
switch# show ip msdp count
VRF: default SA state per Peer counters <Peer>:<#SA learned> 10.1.1.1: 30 20.1.1.1: 100
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager Administrators or local user group members with execution rights
(#)
for this command.
show ip msdp peer
show ip msdp peer [all-vrfs | vrf <VRF-NAME> | <PEER-IP>]
Description
Shows MSDP Peer information for the given VRF. Optionally, you can show specific information by VRF.
Parameters
all-vrfs Shows MSDP peer information for all VRFs. Optional.
Multicast Source Discovery Protocol (MSDP) | 316
vrf <VRF-NAME> Shows MSDP peer information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. Optional.
<PEER-IP> Shows MSDP Peer information for specified Peer IP. Format: A.B.C.D. Optional.
Examples
Showing MSDP peer information for VRFs: (Sub-interface is supported only on the Aruba 6300, 6400, 8360 Switch Series)
switch# show ip msdp peer
VRF: default
MSDP Peer: 10.1.1.1 Connection status State: up Resets: 0 Connection Source: 1/1/1 Uptime(Downtime): 0m 25s SA Messages sent: 0 SA's learned from this peer: 0 SA Filtering Input (S,G) filter: msdp_sa_filter1 (S,G) entries dropped: 0 Output (S,G) filter: msdp_sa_filter2 (S,G) entries dropped: 30 Mesh group: test-mesh-group
MSDP Peer: 30.1.1.1 Connection status State: up Resets: 0 Connection Source: 1/1/10.10(30.1.1.2) Uptime(Downtime): 0m 25s SA Messages sent: 0 SA's learned from this peer: 0 Peer Keepalive interval: 70 Peer Hold time: 90 Peer Connection Retry interval: 40 SA Filtering Input (S,G) filter: msdp_sa_filter1 (S,G) entries dropped: 0 Output (S,G) filter: msdp_sa_filter2 (S,G) entries dropped: 30 Mesh group: test-mesh-group1
switch# show ip msdp peer 20.1.1.1
VRF: default
MSDP Peer: 20.1.1.1 Connection status State: down Resets: 0 Connection Source: 1/1/2 Uptime(Downtime): 1m 25s SA Messages sent: 0 SA's learned from this peer: 0 SA Filtering Input (S,G) filter: msdp_sa_filter1 (S,G) entries dropped: 0 Output (S,G) filter: msdp_sa_filter2 (S,G) entries dropped: 20 Mesh group: test-mesh-group
Command History
Release 10.07 or earlier
Modification --
Command Information
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
317
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager Administrators or local user group members with execution rights
(#)
for this command.
show ip msdp sa-cache
show ip msdp sa-cache [all-vrfs | vrf <VRF-NAME> | <SRC-OR-GRP-IP>]
Description
Shows MSDP Peer SA-Cache information for the given VRF. Optionally, you can show specific information by VRF. The SA-Cache output can be filtered based on the source or group IPv4 address.
Parameters
all-vrfs Shows MSDP SA-Cache information for all VRFs. Optional.
vrf <VRF-NAME> Shows MSDP SA-Cache information for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. Optional.
<SRC-OR-GRP-IP> Shows the filtered SA-cache output for the specified source or group IPv4 address. Format: A.B.C.D. Optional.
Examples
Showing MSDP SA-Cache information for VRFs:
switch# show ip msdp sa-cache
VRF: default (30.0.0.1, 230.1.1.1) (20.0.0.1, 229.1.1.1) (10.0.0.1, 229.1.1.1)
RP: 10.1.1.1 RP: 10.1.1.1 RP: 10.1.1.1
Peer: 10.1.1.2 Peer: 10.1.1.2 Peer: 10.1.1.2
Total entries: 3
switch# show ip msdp sa-cache 229.1.1.1 (20.0.0.1, 229.1.1.1) RP: 10.1.1.1 Peer: 10.1.1.2 (10.0.0.1, 229.1.1.1) RP: 10.1.1.1 Peer: 10.1.1.2
Total entries: 2
Command History
Release 10.07 or earlier
Command Information
Modification --
Multicast Source Discovery Protocol (MSDP) | 318
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Administrators or local user group members with execution rights for this command.
show ip msdp summary
show ip msdp summary [all-vrfs | vrf <VRF-NAME>]
Description
Shows MSDP peer summary for a given VRF. If no options are specified, it shows information for the default VRF.
Parameters
all-vrfs Shows the MSDP peer summary for all VRFs. Optional.
vrf <VRF-NAME> Shows the MSDP peer summary for a particular VRF. If the <VRF-NAME> is not specified, it shows information for the default VRF. Optional.
Examples
Showing the MSDP peer summary:
switch# show ip msdp summary
VRF: default
MSDP Peer Status Summary Peer address State Uptime(Downtime)
10.1.1.1 20.1.1.1
down up
34m 34s 50m 24s
Reset Count
0 0
SA Count
0 50
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Administrators or local user group members with execution rights for this command.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
319
Chapter 9 mDNS gateway
mDNS gateway
Multicast DNS (mDNS) gateway helps users to discover various servers such as printers and Apple TV, across VLANs. mDNS gateway uses the reflection mechanism to achieve service discovery across VLANS. This feature is supported on the 6200, 6300, and 6400 Switch Series only.
mDNS gateway overview
Reflection mechanism
With the reflection mechanism, the mDNS packets received in one VLAN are reflected to all the other mDNS gateway-enabled VLANs based on filters. Only the packets containing the following records are supported for reflection: n PTR record--Contains service-name to service-instance-name mapping. n SRV record--Contains service-instance-name to UDP/TCP port number and hostname mapping. n TXT record--Contains more information about the service-instance, such as, vendor information. n A record--Contains hostname to host IP address mapping.
Filters
Filters are used to control the service discovery both within and across VLANs. You can configure filter rules in the service profiles based on service-name and service-instance-names. If a profile is configured for a VLAN, then the filter rules in the profile will be used to filter packets transmitted out of the VLAN interface.
Filtering is performed based on parameters extracted from the first record.
Example of mDNS service discovery
The following figure shows an example topology where mDNS gateway is useful. Consider the following: n Enable mDNS only on Switch 1 in VLAN 1, 2, and 3. n Create a configuration rule in Switch 1 for VLAN 3--No host in VLAN 3 must discover any external
printers. When Host 1 in VLAN 3 sends an mDNS query to Switch 1, the query is reflected in VLAN 1 and VLAN 2. The Wireless Printer 1 in VLAN 1 generates a response that the Switch 1 receives and reflects to VLAN 2 and not to VLAN 3, because a rule is configured for VLAN 3 to not allow any printer service. However, Host 1 will still be able to access Wireless Printer 2, because it is present in the same VLAN 3.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
320
Figure 1 Example of mDNS service discovery
Limitations
Following are a few limitations when configuring mDNS gateway: n Filtering is performed only based on parameters extracted in the first mDNS record. n Filtering is applied only on the egress mDNS packets. n Only IPv4 mDNS packets are supported. n mDNS gateway is recommended for deployments where mDNS is enabled on lesser VLANs. This is
because the switch allows the mDNS packets to be reflected to a maximum of 256 VLANs for the 6300 and 6400 Switch Series, and 128 VLANs for the 6200 Switch Series, in incremental order of VLAN IDs, and in the VLAN from where the packet was initiated. n mDNS packets are rate limited at 150 packets per second. n When switches are connected directly with each other, you must enable mDNS only on one switch to prevent a reflection loop. n You must enable debug logging only for troubleshooting an issue. Enabling debug logging on a high scale mDNS configuration might lead to high CPU utilization and the system may slow down.
Configuring mDNS gateway
Perform the following steps to configure mDNS gateway:
Procedure
1. Create a service for the mDNS gateway with the mdns-sd service command. You can group multiple service IDs into a single service. Add description to the service and create service IDs with the following commands:
mDNS gateway | 321
a. Add a description to the service with the description command. b. Create unique service IDs with the id command. 2. Create a profile to be applied on a VLAN with the mdns-sd profile command.
Add rules to the profile with the <sequence-number> command. 3. Enable mDNS gateway on a VLAN with the mdns-sd command. 4. Apply a profile on the VLAN with the mdns-sd apply-profile tx command. 5. Enable mDNS gateway globally with the mdns-sd enablecommand.
mDNS gateway commands
Supported on the 6200, 6300, and 6400 Switch Series only.
debug mdns
debug mdns {all | config | init | packet | timer}
Description
Enables mDNS gateway debug logs for all or specific debug modules.
Parameters
all Enables debug logs for all mDNS gateway modules.
config Enables debug logs to trace mDNS gateway configuration changes.
init Enables debug logs to trace mDNS gateway initialization.
packet Enables debug logs to trace mDNS gateway packet processing.
timer Enables debug logs to trace mDNS gateway timer events.
Examples
Enabling debug logs for all modules:
switch# debug mdns all
Enabling debug logs for config module:
switch# debug mdns config
Command History
Release 10.07 or earlier
Command Information
Modification --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
322
Platforms
6300 6400 8320 8325 8360 8400
Command context Manager (#)
Authority
Administrators or local user group members with execution rights for this command.
description
description <SERVICE-DESCRIPTION> no description <SERVICE-DESCRIPTION>
Description
Adds description to a service. The no form of this command deletes the description of a service.
Parameters
<SERVICE-DESCRIPTION> Specifies the service description. Maximum 128 characters.
Examples
Add a service description:
switch(config-mdns-sd-service)# description students-airplay-service
Remove the service description from a service: switch(config-mdns-sd-service)# no description students-airplay-service
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
config-mdns-sd-service Administrators or local user group members with execution rights for this command.
id
id <SERVICE-ID>
mDNS gateway | 323
no id <SERVICE-ID>
Description
Adds a service identifier to a service. The service ID configured here must be same as the service ID that is present in the packet. The no form of this command removes a service ID from the service.
Parameters
<SERVICE-ID> Specifies the service ID. Maximum 128 characters.
Examples
Add a service ID:
switch(config-mdns-sd-service)# id _appletv-v2._tcp
Remove a service ID from a service:
switch(config-mdns-sd-service)# no id _appletv-v2._tcp
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
config-mdns-sd-service Administrators or local user group members with execution rights for this command.
mdns-sd
mdns-sd no mdns-sd
Description
Enables mDNS gateway on a VLAN interface. The no form of this command disables mDNS gateway on a VLAN interface.
This command is applicable only to VLAN interfaces. The switch will not process mDNS packets until the mDNS gateway is enabled globally.
Examples
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
324
Enabling mDNS gateway on VLAN 10:
switch(config)# interface vlan 10 switch(config-if-vlan)# mdns-sd
Disabling mDNS gateway on VLAN 10:
switch(config)# interface vlan 10 switch(config-if-vlan)# no mdns-sd
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
mdns-sd apply-profile tx
mdns-sd apply-profile <PROFILE-NAME> tx no mdns-sd apply-profile <PROFILE-NAME> tx
Description
Configures mDNS gateway profile on the VLAN interface. When a profile is applied in the transmit direction, all the mDNS traffic transmitted on the VLAN interface will be filtered based on the rules specified in the transmit profile. The no form of this command deletes the profile configuration from the VLAN interface in the transmit direction.
This command is applicable only to VLAN interfaces. When no profile is configured on an interface then the default action is permit.
Parameters
<PROFILE-NAME> Specifies the profile name. Maximum 32 characters.
Examples
Configuring mDNS gateway profile on VLAN 10:
mDNS gateway | 325
switch(config)# interface vlan 10 switch(config-if-vlan)# mdns-sd switch(config-if-vlan)# mdns-sd apply-profile student tx
Deleting mDNS gateway profile on VLAN 10:
switch(config)# interface vlan 10 switch(config-if-vlan)# no mdns-sd apply-profile student tx
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
mdns-sd enable
mdns-sd enable no mdns-sd enable
Description
Enables mDNS gateway. The no form of this command disables mDNS gateway. Once the no form of this command is executed, all the SVI VLANs, even though enabled with mDNS gateway, will stop reflecting mDNS packets to the enabled VLANs.
Examples
Enable mDNS gateway:
switch(config)# mdns-sd enable
Disable mDNS gateway:
switch(config)# no mdns-sd enable
Command History
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
326
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
mdns-sd profile
mdns-sd profile <PROFILE-NAME>
Description
Creates a profile that can be applied on one or more L3 VLAN interfaces. The profile contains a set of rules that define various match parameters such as service-name and serviceinstance-name.
Parameters
<PROFILE-NAME> Specifies the name of the profile. Maximum 32 characters.
Examples
Creating a profile:
switch(config)# mdns-sd profile student
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
mdns-sd service
mDNS gateway | 327
mdns-sd service <SERVICE-NAME> no mdns-sd service
Description
Configures a service for mDNS gateway. You can group multiple service IDs into a single user-defined service name. The no form of this command deletes a service.
A service cannot be deleted if it is being used as a match parameter in a filter rule in any profile.
Parameters
<SERVICE-NAME> Specifies the name of the service. Maximum 32 characters.
Examples
Configure a service for mDNS gateway:
switch(config)# mdns-sd service students
Delete a service:
switch(config)# no mdns-sd service students
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
clear mdns-sd statistics
clear mdns-sd statistics
Description
Clears all mDNS gateway statistics.
Examples
Clear mDNS gateway statistics:
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
328
switch(config)# clear mdns-sd statistics
Command History
Release 10.07 or earlier
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context config
Modification --
Authority Administrators or local user group members with execution rights for this command.
sequence-number
<SEQUENCE_NUMBER> {permit | deny} {service-name <SERVICE-NAME> | service-instance-name <SERVICE-INSTANCE-NAME>}
no <SEQUENCE-NUMBER> {permit | deny} {service-name <SERVICE-NAME> | service-instance-name <SERVICE-INSTANCE-NAME>}
Description
Adds a filter rule to the service profile. The sequence number configured determines the priority with which the rule is matched. Lower the sequence number, higher is the priority. Following are the filter match parameters:
n Service-name: mDNS packets are matched against the service IDs configured under the service name. n Service-instance-name: mDNS packets are matched against the service instance name present in the
mDNS packets.
When no match criteria is specified in the rule, then the rule can be matched against any mDNS packet. Once the match is found then either the packet can be permitted or denied based on the action specified in the rule. The no form of this command deletes the filter configured in the service profile.
When an mDNS packet does not match any of the filters configured in the profile, then the packet is denied.
Parameters
<SERVICE-NAME> Specifies the service name. Maximum 32 characters.
<SERVICE-INSTANCE-NAME> Specifies the service instance name. Maximum 128 characters.
Examples
Adding filter rules to a service profile:
mDNS gateway | 329
switch(config)# mdns-sd profile student switch(config-mdns-sd-profile)# 10 permit service-name default-appletv switch(config-mdns-sd-profile)# 20 deny service-name default-appletv serviceinstance-name office._pdl-datastream._tcp.local switch(config-mdns-sd-profile)# 30 permit service-instance-name library._pdldatastream._tcp.local switch(config-mdns-sd-profile)# 40 deny
Deleting filter rules to a service profile:
switch(config)# mdns-sd profile student switch(config-mdns-sd-profile)# 10 permit service-name default-appletv switch(config-mdns-sd-profile)# 20 deny service-name default-appletv serviceinstance-name office._pdl-datastream._tcp.local switch(config-mdns-sd-profile)# 30 permit service-instance-name library._pdldatastream._tcp.local switch(config-mdns-sd-profile)# no 30 permit service-instance-name library._pdldatastream._tcp.local switch(config-mdns-sd-profile)# 40 deny
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
config-mdns-sd-profile Administrators or local user group members with execution rights for this command.
show mdns-sd service-entries
show mdns-sd service-entries {service-id <SERVICE-ID> | record-type <RECORD-TYPE>}
Description
Shows all the services exchanged in the mDNS gateway enabled VLANs.
Parameters
<SERVICE-ID> Specifies the service ID. Maximum 128 characters.
<RECORD-TYPE> Specifies the type of record. Record can be one of the following values:
n PTR n SRV
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
330
n TXT nA
Examples
Displaying service entries learnt from mDNS gateway enabled VLANS:
switch# show mdns-sd service-entries
MAC-Address : 01:00:00:0e:21:23
VLAN Id
: 10
Record Name : _touch-able._tcp.local
Record Type : PTR
TTL
: 4500
MAC-Address : 01:00:00:0e:21:23
VLAN Id
: 10
Record Name : 523899E219D4C562._touch-able._tcp.local
Record Type : SRV
TTL
: 4500
MAC-Address : 01:00:00:0e:21:23
VLAN Id
: 10
Record Name : 523899E219D4C562._touch-able._tcp.local
Record Type : TXT
TTL
: 4500
Displaying service entries for a service and record type:
switch# show mdns-sd service-entries service-id _touch-able._tcp record-type ptr
MAC-Address : 01:00:00:0e:21:23
VLAN Id
: 10
Record Name : _touch-able._tcp.local
Record Type : PTR
TTL
: 4500
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show mdns-sd statistics
show mdns-sd statistics [vlan [<VLAN-ID>]]
mDNS gateway | 331
Description
Shows the mDNS packets received and sent globally, and per VLAN.
Parameters
<VLAN-ID> Specifies the VLAN ID. Required. Range 1 to 4094.
Examples
Displays total packets:
switch# show mdns-sd statistics
Packets Recieved : 100
Packets Sent
: 150
Packets Dropped
: 50
Displays total packets for all VLANs:
switch# show mdns-sd statistics vlan
VLAN 10
Packets Recieved : 100
Packets Sent
: 100
Packets Dropped
:0
VLAN 20 Packets Recieved Packets Sent Packets Dropped
:0 : 50 : 50
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show mdns-sd statistics profile
show mdns-sd statistics profile <PROFILE-NAME>
Description
Displays the number of packets permitted or denied by various filter rules in a profile.
Parameters
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
332
<PROFILE-NAME> Specifies the profile name. Maximum 32 characters.
Examples
Displaying statistics for a profile:
switch# show mdns-sd statistics profile student
--------------------------
Sequence-Number Hit-Count
--------------------------
10
100
20
25
30
150
Total number of packets permitted by the profile : 250 Total number of packets denied by the profile : 50
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show mdns-sd summary
show mdns-sd summary
Description
Shows whether mDNS gateway is enabled globally and at the VLAN interface level. It also shows the profile applied on various VLAN interfaces.
Examples
Displaying mDNS gateway summary:
switch# show mdns-sd summary
global mdns-sd status: enabled
----------------------------
VLAN-Id Status Tx-Profile
----------------------------
1
enabled student
2
enabled employee
3
disabled teacher
mDNS gateway | 333
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show running-config interface
show running-config interface <INTERFACE-NAME>
Description
Shows the configuration of profiles for an interface.
Parameters
<INTERFACE-NAME> Specifies the interface name.
Examples
Displaying configuration of profile at VLAN 10:
switch# show running-config interface vlan10 interface vlan10
mdns-sd mdns-sd apply-profile teacher tx ip address 10.1.1.1/24
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
334
Platforms
8360 8400
Command context
Authority
show running-config mdns-sd profile
show running-config mdns-sd profile <PROFILE-NAME>
Description
Shows the configuration of all or a specific profile.
Parameters
<PROFILE-NAME> Specifies the profile name. Maximum 32 characters.
Examples
Displaying configuration of all profiles:
switch# show running-config mdns-sd profile mdns-sd profile student
10 deny service-type default-print service-instance-name office._pdl-datastream._ tcp.local
50 permit service-type default-airplay 51 permit service-type default-print
mdns-sd profile teacher 10 deny service-type default-print service-instance-name office._pdl-datastream._
tcp.local 50 permit service-type default-airplay 51 permit service-type default-print
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show running-config mdns-sd service
show running-config mdns-sd service <SERVICE-NAME>
Description
mDNS gateway | 335
Shows the running configuration of all or a specific mDNS service.
Parameters
<SERVICE-NAME> Specifies the service name. Maximum 32 characters.
Examples
Displaying running configuration of all mDNS services:
switch# show running-config mdns-sd service mdns-sd service default-airplay
id _airplay._tcp id _appletv-v2._tcp id _roap._tcp
mdns-sd service itunes id _home-sharing._tcp id _apple-mobdev._dev
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms
6300 6400 8320 8325 8360 8400
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
336
Chapter 10 Multicast VXLAN
Multicast VXLAN
The Aruba 6200 and 8320 Switch Series do not support VXLAN. IPv4 multicast forwarding for both L2 and L3 are supported with AOS-CX VXLAN/EVPN deployments. Refer to the VXLAN Guide for more info on VXLAN/EVPN and overlays/underlays. L2 multicast over VXLAN refers to deployments where the multicast sources/receivers are on the same L2 subnet/VLAN and bridging is required between switches that function as VXLAN Tunnel End Points (VTEPs), as seen in Figure 1, L2 multicast over VXLAN: Figure 1 L2 multicast over VXLAN
L3 multicast over VXLAN refers to deployments where the multicast sources/receivers are on different subnets/VLANs and routing is required between VTEPs as seen in Figure 2, L3 multicast over VXLAN.
Figure 2 L3 multicast over VXLAN
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
337
Protocol and feature details
Broadcast, unknown unicast, multicast (BUM) traffic replication
The AOS-CX implementation uses head end replication where BUM packets are replicated from the source connected VTEP towards all destination VTEPs interested in the same VXLAN Network Identifier (VNI). The underlay network between VTEPs should only be configured for unicast routing, multicast PIM should not be configured in the underlay network.
Overlay multicast support
The AOS-CX implementation runs native L2 and L3 multicast protocols over VXLAN tunnels, this is done to make the configuration and debugging of overlay and underlay multicast simpler. With this implementation, multicast traffic will not be part of regular BUM flows and will only be forwarded based on PIM and IGMP forwarding needs. IGMP and PIM-SM (v4) support are added to VXLAN to route and bridge traffic across the tunnels.
L2 multicast over VXLAN
By default, L2 multicast data streams are sent by the source connected VTEP to all other remote VTEPs interested in the same VNI, even if there are devices that are non-receivers (devices that are not interested in that multicast stream). Figure 1 L2 multicast over VXLAN with non-receiver
Multicast VXLAN | 338
L2 multicast over VXLAN enabled with IGMP snooping
IGMP snooping can be configured at the VLAN level with L2 multicast over VXLAN tunnels, this will prevent the source connected VTEP from sending the multicast stream to VTEPs without any interested receivers (non-receivers).
Figure 2 L2 multicast over VXLAN enabled with IGMP snooping
L2 multicast over VXLAN enabled with IGMP snooping has the following characteristics:
n IGMP snooping, once enabled prevents flooding over the L2 VNI; multicast data will only be forwarded to ports where IGMP joins are received.
n VTEPs have full meshed VXLAN tunnels between them. n IGMP snooping is enabled per VLAN; the VLAN is mapped with L2 VNIs. n Joins and leaves are learned over VTEPs. n Packets (data and control) are sent over VXLAN tunnels and regular physical ports. n All versions of IGMP snooping (v1/v2/v3) are supported over VXLAN.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
339
n The querier can be inside or outside the VXLAN network. n VSX is supported and can be L2 extended. n When IGMP snooping is enabled on a VLAN (L2 VNI), all the tunnels are added as forwarded ports
(forwarded tunnels) for control packets; the control packets are flooded to all VTEPs. n As the network is meshed, joins from a non-querier VTEP will be sent to the source VTEP, even if is not the
querier. n Multicast data packets are sent from source VTEP to remote VTEPs. n Split horizon is implemented at the L2 level such that packets that ingress a VXLAN tunnel will not get re-
forwarded to other VTEPs.
Split horizon and L2 multicast
AOS-CX implements split horizon in VXLAN networks to prevent loops; ingressing traffic on a VXLAN tunnel will not be sent to another VXLAN tunnel. This can cause traffic loss to both unknown multicast and L2 multicast as IGMP joins are sent to querier. The querier typically is the middle device that will transmit packets from one port to another. In case of IGMP over an L2 VXLAN tunnel, this will be blocked by split horizon. To prevent this, the receiver-connected VTEP will forward IGMP joins to all VTEPs irrespective of whether they are queriers or not. This will prevent tunnel hop as every source VTEP will only be a single tunnel hop away from every receiver and source data will be sent to the receiver VTEP directly without the involvement of the IGMP querier.
VSX and L2 multicast
In the AOS-CX implementation, two switches/VTEPs configured with Virtual Switching Extension (VSX) are configured as a single logical VTEP. AOS-CX does not use EVPN route type 1 and 4 for load balancing and multihoming; regular VSX-based syncing is used for those purposes. The VSX switches can be access or distribution/core VTEPs in a campus network, and are typically VSX leaf switches in a data center. There are two scenarios that need to be considered for an L2 VNI that is stretched across VTEPs where one (or more) of the VTEPs have a VSX Link Aggregation Group (LAG). n Scenario 1: Receivers connected to VSX LAG and source on the VXLAN overlay network. n Scenario 2: Source connected to VSX LAG and receivers on the VXLAN overlay network.
Scenario 1: Receivers connected to VSX LAG and source on the VXLAN overlay network
There are two cases to consider: dual homed VSX LAG and single homed VSX LAG. Dual-homed VSX LAG with receivers Figure 3 Dual-homed VSX LAG with receivers
Multicast VXLAN | 340
The following operation is done in no particular order:
n IGMP joins from receiver or an access switch are synced between the VSX switches over the ISL link, as a result both VSX switches will learn the join from the VSX LAG link.
n Data traffic from the multicast source through the VXLAN tunnel reaches one of the VSX switches. n Whichever VSX VTEP receives the traffic, will forward it downstream. n When one of the VSX switches is the querier, the traffic will be forwarded to the querier as well via Inter
Switch Link (ISL); otherwise there will be no traffic on the ISL link. n Egress filtering rule prevents ingress data on an ISL port from going down the VSX LAG if it is multi-
homed.
Single-homed VSX LAG with receivers
Figure 4 Single-homed VSX LAG with receivers
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
341
The following operation is done in no particular order: n The IGMP joins from a receiver or an access switch are synced between the VSX switches over the ISL link,
as a result both the VSX switches will learn the join over the VSX LAG link. n The moment the VSX LAG becomes single homed, the ISL port is added as a flood port. This ensures any
data received by one of VSX VTEP, will always be forwarded to the peer n Data traffic from the multicast source through the VXLAN tunnel reaches one of VSX switches, and is
forwarded via ISL to its peer. n Whichever VSX VTEP has its link up will forward the data downstream, either received directly or via ISL. n As the VSX LAG is single-homed, there is no egress filtering that prevents data going from ISL to VSX LAG.
Scenario 2: Source connected to VSX LAG and receivers on the VXLAN overlay network
As shown below, the source can be directly connected to the VSX VTEPs or it could be connected via an L2 switch. In both the cases, data will reach one of the VSX VTEPs because of VSX hash. Figure 5 Source connected to VSX LAG
Multicast VXLAN | 342
The following sequence can happen in no particular order:
n One of the switches in the L2 network will be elected as querier, unknown multicast are always sent to the querier port. IGMP joins are always forwarded to VXLAN tunnels as well as to the querier port.
n Data traffic from the multicast source reaches the VSX switches either because they are in the querier path, or because of the VSX LAG hash (in case directly connected),
n IGMP joins from receiver reaches one of the VSX switches. The joins are sent over ISL port to the peer switch. The peer VSX switch does a MAC lookup to figure out whether the join is to be learned on the ISL port or over the VXLAN tunnel.
n Once the join is learned on the VXLAN tunnel, multicast data is sent over the VXLAN tunnel when received from the VSX LAG. The path is the same for both a single-homed and a dual-homed VSX LAG.
Recommended configuration on the VSX VTEPs
As shown in Figure 5, Source connected to VSX LAG, the receiver-connected VTEP has a VXLAN tunnel to the VSX logical VTEP. The joins from receiver-connected VTEP are received by one of the VSX switches over the VXLAN tunnel and by the other switch via ISL. The VTEP that receives over ISL is a de-capsulated packet and does not have the VXLAN header. That switch needs to perform a MAC lookup and that MAC sometimes might not be available to the VSX VTEP. To avoid this condition, the following two commands are recommended on L2 connected VSX VTEPs:
n redistribute local-mac
This command is used to enable Type-2 route advertisement for local MAC address of all EVPN enabled VLANs.
n redistribute local-svi
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
343
This command is used to enable Type-2 route advertisement for local IP address and MAC address of the SVI interfaces corresponding to the EVPN enabled VLANs (only required if SVI is configured).
IGMP querier positioning
An IGMP querier is one of the routers in the network whose responsibility is to send periodic IGMP queries. In regular IGMP operation, IGMP joins are forwarded to the IGMP querier. In addition, unknown multicast data are also sent to the querier. That is the way that the querier connects source and destination routers. Sending joins towards the querier is a must for the IGMP snooping operation; however in a VXLAN network, because of split-horizon rules, data packets are not sent across VTEPs. The querier does not need to be a centralized router in a VXLAN network as every IGMP join from the receiver connected VTEP is always forwarded to all remote VTEPs with the same VNI. In the AOS-CX implementation, there is no particular recommendation on where to place the querier in a VXLAN network.
L3 multicast over VXLAN
For L3 Multicast over VXLAN, both centralized L3 gateway and distributed L3 gateway use cases are supported.
Centralized L3 gateway
As shown in Figure 6, Centralized L3 gateway, PIM-SM is only enabled at the centralized L3 gateway VTEP which has VLAN mapped to VNIs. The remaining switches function as L2 VTEPs. The L2 VTEPs may or may not have IGMP snooping enabled. n This use case is simple to implement as PIM-SM is enabled only at the centralized L3 gateway VTEP. n Mroute entries are simple as routing is between Switch Virtual Interfaces (SVI)/Routed Only Ports (ROP)
to L2 VNIs. n The only difference is that the downstream VLANs are mapped to L2 VNIs; multicast data stream packets
are tunneled via L2 VNI from the centralized L3 gateway VTEP towards the L2 VTEPs. Figure 6 Centralized L3 gateway
Multicast VXLAN | 344
Distributed L3 gateways
n For distributed L3 gateways (See Figure 7, Distributed L3 Gateways), AOS-CX only supports Symmetric IRB and multicast routing by extension of the PIM-SM protocol in the VXLAN tunnel. Only PIM-SM protocol is supported with L3 multicast over VXLAN tunnels.
n An L3 VNI is used to route traffic from one VLAN to another as the same VLAN/L2 VNI is not present across all VTEPs. PIM creates a logical interface on L3 VNI when router pim is enabled on the overlay VRF. This interface is created once the VXLAN EVPN tunnels are formed.
n All VTEPs create their per-tenant VRF L3 VNI interface and exchange PIM messages (e.g. hellos and joins) to other VTEPs through it. They form PIM neighbors via this interface; when the remote VTEP requests traffic via PIM joins on this interface on the source-connected VTEP, a multicast route entry will be installed with the incoming interface as SVI interface (source-connected SVI) and Outgoing Interface List (OIL) with an L3 VNI<#> interface.
n On the receiver connected VTEP, a multicast route entry will be created to route traffic coming from L3 VNI to the SVI where the receivers are present. Incoming interface will be L3 VNI#, with OIL as the receiver SVI.
Figure 7 Distributed L3 Gateways
Additional details include the following:
n Symmetric IRB with full meshed L3 VNIs. n L2 VNIs can extended across switches. n IGMP joins may be present in some/all the VTEPs for a particular flow. n IGMP snooping will be enabled in VTEPs. n PIM-SM is enabled on all the VRFs on the different VTEPs. n PIM neighbors are formed across L3 VNIs. n RPs can be present on any of the VTEPs. n PIM control (join and prune) packets are sent on the other side of the L3 VNIs (where source is present)
for every IGMP join. n When the source connected VTEP sees a PIM join from an L3 VNI, it adds the L3 VNI as OIL.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
345
n Data traffic from the multicast source is flooded across L3VNIs, split horizon rules will prevent data from flooding across VTEPs (see Figure 8, Distributed L3 Gateways with non-receiver, multicast data stream sent and pruned at remote VTEP).
n Non-interested VTEPs will drop/prune the multicast data (see Figure 8, Distributed L3 Gateways with non-receiver, multicast data stream sent and pruned at remote VTEP).
n In mixed mode there could be some L2VNIs that will be extended over VTEPS whereas L3 VNIs are enabled in all the VTEPs (per VRF).
n Mix of IGMP snooping and PIM-SM for intra VLAN and inter VLAN routing. Figure 8 Distributed L3 Gateways with non-receiver, multicast data stream sent and pruned at remote VTEP
In case there are no interested receivers at remote VTEPs, L3 VNI will not be added as an outgoing interface and data will be pruned at the source-connected VTEP (See Figure 9, Distributed L3 Gateways with nonreceivers, multicast data stream pruned at source VTEP). Figure 9 Distributed L3 Gateways with non-receivers, multicast data stream pruned at source VTEP
Multicast VXLAN | 346
Border VTEP to external (non overlay) network
A border VTEP can be used to connect the VXLAN overlay network to external (non overlay) networks via either L2 or L3, sources and receivers in both networks will be able to send and receive multicast streams. L3 multicast routing using PIM-SM between the VXLAN and external (non overlay) network is recommended for most deployments as this provides clear demarcation between the two networks.
Figure 10 Border VTEP to external (non overlay) network
VSX and L3 Multicast
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
347
The following actions are done for all VSX VTEPs with PIM-SM and/or IGMP enabled: The control packets (PIM packets) are synced between the VSX switches Unknown multicast packets are also synced between the VSX switches One of the VSX switches will forward the packets to prevent duplicates There are different combinations with VSX, with source inside the VXLAN overlay network and receivers on external (non overlay) network and vice versa. The different ways a receiver or a source is connected to a VSX border VTEP are: L2 VSX LAG L2 VSX LAG with SVIs ROP Point-to-Point (P2P) SVIs
VSX Border VTEP with L3 connectivity to external (non overlay) network
Figure 11, VSX Border VTEP with VSX LAG to receiver on external (non overlay) network shows a border VTEP with VSX LAG and SVI connected to an L3 switch with receivers on the external (non overlay) network. Figure 11 VSX Border VTEP with VSX LAG to receiver on external (non overlay) network
The following actions are taken: 1. PIM hello packets are synced between the VSX border VTEPs via L3 over ISL. 2. PIM joins are received by both VSX switches from the VSX LAG with SVI, both switches send PIM joins to the source-connected VTEP via L3 VNI. 3. The source-connected VTEP adds L3 VNI as the OIL even if it gets two PIM joins. 4. Data traffic from the multicast source is hashed from the source-connected VTEP to only one of the VSX switches as a unicast packet over the VXLAN tunnel. 5. The VSX switch that receives the multicast data stream forms the Mroute entry with the SVI connected to VSX LAG as egress.
Multicast VXLAN | 348
6. The data stream packet goes to the other switch via ISL. 7. The egress filtering rule will prevent duplicates as the second switch will have a bridge entry for the
egress SVI. 8. The external L3 Switch will route to the receiver. 9. A similar action will occur for a single-homed border VTEP with VSX LAG.
VSX Border VTEP with VSX LAG to receiver on external (non overlay) network shows a border VTEP with VSX LAG and SVI connected to an L3 switch with source on the external (non overlay) network.
Figure 12 VSX Border VTEP with VSX LAG to source on external (non overlay) network
The following actions are taken:
1. PIM joins from the receiver-connected VTEP will only be sent to one of the VSX border VTEP, this will be synced to the other VSX peer.
2. PIM hello packets are synced between the VSX switches via L3 over ISL. 3. Both VSX border VTEPs that receive the PIM join will add L3 VNI as OIL. 4. Multicast data stream from the external network will reach both VSX border VTEPs via VSX LAG with
SVI followed by ISL. 5. The primary VSX switch will forward the data to receiver-connected remote VTEP (applies to the Aruba
8325 and 8400 Switch Series). 6. When 1 of the VSX border VTEP gets data directly and not via ISL, it will forward to the receiver-
connected remote VTEP (applies to the Aruba 6400 and 8360 Switch Series).
VSX Border VTEP with ROP/P2P SVIs to source on external (non overlay) network shows a border VTEP with ROP/P2P SVIs connected to an L3 switch with source on the external (non overlay) network.
Figure 13 VSX Border VTEP with ROP/P2P SVIs to source on external (non overlay) network
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
349
The following actions are taken: 1. PIM hello packets are synced between the VSX VTEPs via L3 over ISL. 2. Both VTEPs send PIM joins to the external L3 switch via ROPs; the assumption is that the source has Equal Cost Multi Pathing (ECMP) to both VTEPs. 3. The external L3 switch will add two ROPs/P2P SVIs as OIL in its Mroute entry. 4. Multicast data will be sent to both border VTEPs. 5. 8325/8400--only VSX primary VTEP forwards. 6. 6400/8360--only the VTEP that has pending joins will forward. 7. If the link from primary VTEP to the source goes down and primary becomes unreachable, then there can be traffic loss. In such a scenario, it is recommended to connect an additional L3 link per tenant VRF and enable PIM over them. This link will typically be a P2P SVI between the VSX peers. Each tenant VRF will require its own P2P SVI. The ip pim-sparse vsx virtual-neighbor command should not be configured on this P2P SVI.
A. VSX Border VTEP with ROP/P2P SVIs to receivers on external (non-overlay) network and B. VSX Border VTEP with ROP/P2P SVIs to receivers on external (non-overlay) network show a border VTEP with ROP/P2P SVIs connected to an L3 switch with receivers on the external (non overlay) network. The example in Figure 16 shows multicast data and joins sent to different VSX switches, and the example in B. VSX Border VTEP with ROP/P2P SVIs to receivers on external (non-overlay) network shows multicast data and joins sent to the same VSX switch. Figure 14 A. VSX Border VTEP with ROP/P2P SVIs to receivers on external (non-overlay) network
Multicast VXLAN | 350
Figure 15 B. VSX Border VTEP with ROP/P2P SVIs to receivers on external (non-overlay) network
The following actions are taken:
1. PIM hello packets are synced between VSX switches via L3 over ISL. 2. PIM joins from ROP/P2P will reach one of the VSX switches. 3. Only one VSX switch will send the PIM join towards the source-connected VTEP.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
351
4. The source-connected VTEP will only add the L3 VNI as an OIL and forward multicast data to the L3 VNI.
5. Any VSX switch that receives data from the L3 VNI will add the dedicated L3 Interface (as an OIL for all data coming from L3 VNI) and pending joined port as egress interface.
6. The other VSX switch receives data over the dedicated L3 Interface. That VSX switch adds any pending ROP/P2P joins as egress interface. No SVI is added as OIL as the VSX switch which received the data from the L3VNI would have already added the SVI to OIL.
Dedicated interface details for the default forwarder
n One interface will be created per VRF, this will function as a default interface for forwarding packets if the incoming interface is L3 VNI.
n Note that packets will be forwarded to this interface irrespective whether the OIL is ROP/P2P SVI or not. n The receiver side VSX device will also add the OIL on every interface that has pending joins. n Note that when the source is extended via ROP/P2P SVI, it is recommended to create an alternate L3 P2P
interface between the VSX peers. This solution uses those interfaces only.
RP placement and election
Rendezvous Point (RP) placement is very important in a multicast network. The RP should to be located close to the multicast source. The recommendations for RP are: n If there is an existing multicast network with sources and receivers, the new VXLAN network VTEPs
should learn about the existing RPs (on non VXLAN network) via BSR or point to the existing RPs statically. n If the new VXLAN network does not require multicast connectivity with the external network, redundant VTEPs as new BSR/RPs should be deployed (this could be 2 x standalone VTEPs or 1 x VSX logical VTEP that utilizes unique loopback IPs as BSR/RP with the primary VSX switch typically set to preferred. If the primary VSX switch fails, all VTEPs will utilize the secondary VSX switch unique loopback IP as the remaining BSR/RP (refer to Use case 1: Campus network with centralized L3 gateway sample configs for a better understanding).
Supported platforms and standards
IPv4 multicast VXLAN is supported by the Aruba 6300, 6400, 8325, 8360, and 8400 Switch Series.
Scale
Multicast VXLAN | 352
Table 1: Scale
VLANs/L2 VNIs (Multicast support) L3 VNI/VRF (Each VRF requires 1 x L3 VNI) PIM interfaces (SVIs) IGMP groups Mroutes VTEPs
6300 128 16 64 2000 2000 32
6400 128 16 64 2000 2000 32
8325 128 32 64 2000 3500 32
8360 128 32 64 2000 3500 32
8400 128 32 64 8000 8000 32
Supported RFCs and standards
The AOS-CX IPv4 multicast VXLAN implementation is currently proprietary and is not able to inter-operate with other vendors. However, the border VTEP that connects to the external non-VXLAN network uses standards-based protocols such as PIM-SM (RFC 4601) + IGMP (RFC 3376 and RFC 2236).
Configuration task list
Multicast VXLAN and EVPN
Table 1: Configuration task list for Multicast VXLAN and EVPN
Step
Command
1. Enter evpn
evpn
2. Enable redistribute local-mac and local-svi
redistribute local-mac redistribute local-svi
Comments
This should be enabled on all VTEPs at the evpn level
VSX VTEP
Table 2: Configuration task list for VSX VTEPs
Step
Command
1. Enter desired SVI
int vlan number
2. Enable PIM VSX virtual neighbor
ip pim-sparse vsx-virtualneighbor
Comments
Only required on VSX VTEPs to allow the interface to be in the same multicast data path state on both VSX VTEPs. This allows a VTEP to process IGMP and PIM joins received on this interface regardless of its DR or prime neighbor role.
IGMP snooping
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
353
Table 3: Configuration task list for IGMP snooping
Step
Command
1. Enter desired VLAN
vlan number
2. Enable IGMP snooping
ip igmp snooping enable
Comments
This should be enabled on all VTEPs at the VLAN level
PIM and IGMP on SVI with source and receivers
Table 4: Configuration task list for PIM and IGMP to be enabled on an SVI with source and receivers attached to the VXLAN overlay network.
Step
Command
Comments
1. Enter desired SVI
int vlan number
This should be enabled on all VTEPs at the SVI level
2. Attach VRF to loopback
vrf attach name
Loopback should be part of overlay VRF
3. Enable PIM on SVI
4. Enable PIM VSX virtual neighbor
ip pim-sparse enable
Required if source or receivers are expected
ip pim-sparse vsx-virtual-neighbor Only required on VSX VTEPs
5. Enable IGMP on SVI
ip igmp enable
Only required if receivers are expected
6. Add desired IPs and Active Gateway info to SVIs
ip address IP-address active-gateway ip mac MAC-address active-gateway ip IP-address
The SVI and Active Gateway IPs need to be different
Static RP on VTEP
Table 5: Configuration task list for PIM VTEPs that utilize remote static RPs
Step
Command
1. Enter desired PIM VRF
router pim vrf name
2. Enable PIM at the VRF level
enable
3. Point to remote static RP
rp-address IP-address
Comments
This should be enabled on all VTEPs at the PIM VRF level RPs could be in the VXLAN overlay or on the external non-VXLAN network
Overlay BSR/RP on VTEP
Multicast VXLAN | 354
Table 6: Configuration task list to enable redundant BSRs/RPs in the VXLAN overlay (if static RPs are not used and BSR/RP is preferred)
Step
Command
Comments
1. Enter desired SVI
int lo number
This should only be enabled on the 2 VTEPs identified as BSR/RP
2. Attach VRF to loopback
vrf attach name
Loopback should be part of overlay VRF
3. Enable PIM on Loopback
ip pim-sparse enable
4. Add desired IPs 5. Enter desired PIM VRF 6. Enable RP functionality
ip address IP-address
router pim vrf name
rp-candidate source-ipinterface loopback-number rp-candidate group-prefix 224.0.0.0/4
The redundant BSRs/RPs should have different /32 IPs
This should only be enabled on the 2 VTEPs identified as BSR/RP
Specify previously identified loopback as RP Specify prefix for RP
7. Enable BSR functionality
bsr-candidate source-ipinterface loopback-number
Specify previously identified loopback as BSR
Considerations and best practices
The following considerations and best practices are recommended for IPv4 Multicast VXLAN:
n IGMP snooping should be enabled on all VTEPs; multicast traffic flooding will happen without IGMP snooping.
n redistribute local-svi or redistribute local-mac are required on all VTEPs for proper querier information propagation.
n ip pim-sparse vsx-virtual-neighbor in SVIs is required on VSX VTEPs. n A unique virtual-mac should be configured on all VTEPs for a distributed L3 gateway use case; a VSX VTEP
pair should be configured with the same virtual-mac. n It is recommended for RPs to be placed near multicast sources. n Underlay links, which is used to establish overlay connectivity, should not be enabled with multicast
(PIM/IGMP) configuration. n Overlay RPs/BSRs on VSX VTEPs are only supported on the Aruba 6400 and 8360 Switch Series.
These are the supported VSX VTEP use cases:
n VSX switches (logical VTEPs) for IGMP snooping and PIM-SM n VSX border VTEP with VSX LAG, L2 extension to sources/receivers in external/non overlay network n VSX border VTEP with VSX LAG, SVI + PIM-SM L3 extension to sources/receivers in external/non overlay
network n VSX border VTEP with ROP/P2P SVIs + PIM-SM L3 extension to sources in external/non overlay network
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
355
Consider the following when deploying ROP and P2P SVI as uplinks on VSX border VTEPs to non-VXLAN networks: n An additional L3 link per tenant VRF between VSX primary and secondary on overlay is required to
handle failover scenarios, this link will normally be P2P SVIs over ISL. n In the Aruba 6400 and 8360 Switch Series, L3 peering between VSX nodes should be made over an
additional dedicated link (this can be another 802.1Q trunk similar to VSX ISL); the VSX ISL cannot be used. n When using a P2P SVI link extension, do not allow upstream VLANs in ISL; it will make the link non P2P. n ip pim-sparse vsx-virtual-neighbor is not recommended to be enabled on the additional L3 link/P2P SVI link per tenant VRF between VSX peers. The following restrictions are applicable for IPv4 Multicast VXLAN: n MSDP, mDNS, mtrace, Inter VRF Route Leaking (IVRL), and PIM-DM over VXLAN are not supported. n Multicast over static VXLAN tunnels are not supported. n GShut is not supported on VXLAN based overlay networks.
Use cases
The use cases provide examples of networks using multicast VXLAN configuration.
Use case 1: Campus network with centralized L3 gateway
This use case provides the following details: n Sample configurations n Relevant verification commands for a campus network with centralized L3 gateway n Overlay BSRs/RPs on VSX switches n Receivers in overlay n Sources in external non-VXLAN network and external network that learn about overlay BSRs/RPs On the Aruba 8360 VSX centralized L3 gateway, the additional 802.1Q link is required as ROP is used towards the non-VXLAN network (as mentioned in the Considerations and best practices section). Figure 1 Use case 1 � Campus network with centralized L3 gateway topology
Multicast VXLAN | 356
Configuration and verification details for the devices in this use case are provided in the following sections:
n Edge n Core-vsx-primary n Core-vsx-secondary n 8320-vsx-pri n 8320-vsx-sec n 6300-VSF-VTEP1 n 6300-VTEP2
Edge
Configuration
!export-password: default hostname Edge
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
357
profile Leaf ! ! ! ! ! ssh server vrf mgmt vlan 1 interface mgmt
no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12 system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24 system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36 interface 1/1/1 no shutdown interface 1/1/2 no shutdown interface 1/1/25 no shutdown description Connnection to Ixia Sources ip address 60.1.1.1/24 ip ospf 1 area 0.0.0.0 ip ospf passive ip pim-sparse enable interface 1/1/26 no shutdown interface 1/1/53 no shutdown description Conneciton to Core-vsx-primary ip address 80.2.1.2/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point ip pim-sparse enable interface 1/1/54 no shutdown description Conneciton to Core-vsx-secondary ip address 80.3.1.2/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point ip pim-sparse enable interface loopback 0 ip address 20.20.20.20/32 ip ospf 1 area 0.0.0.0 interface loopback 1 ip address 20.20.20.1/32 ip ospf 1 area 0.0.0.0 ip pim-sparse enable ! ! ! ! ! router ospf 1 router-id 20.20.20.20 area 0.0.0.0 router pim enable https-server vrf mgmt
Verification
Multicast VXLAN | 358
Verify OSPF neighbors
Edge# show ip ospf neighbors
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
30.1.1.6
n/a
FULL
80.2.1.1
1/1/53
30.2.1.6
n/a
FULL
80.3.1.1
1/1/54
Verify PIM neighbors
Edge# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: default
Total number of neighbors : 2
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 80.2.1.1 : 1/1/53 : 00:39:17 : 00:01:31 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 80.3.1.1 : 1/1/54 : 00:40:05 : 00:01:41 :1 : 00:01:45
Verify PIM interfaces
Edge# show ip pim interface
PIM Interfaces
VRF: default Total Number of interfaces : 4
Interface : 1/1/53
Neighbor count : 1
IP Address : 80.2.1.2/30
Mode
: sparse
Designated Router : 80.2.1.2
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 1
Neighbor Timeout
: 92
Lan Prune Delay
: Yes
Configured DR Priority : 1
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
359
Interface : 1/1/25
Neighbor count : 0
IP Address : 60.1.1.1/24
Mode
: sparse
Designated Router : 60.1.1.1
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 1
Neighbor Timeout
:0
Interface : 1/1/54
Neighbor count : 1
IP Address : 80.3.1.2/30
Mode
: sparse
Designated Router : 80.3.1.2
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 1
Neighbor Timeout
: 102
Interface : loopback1
Neighbor count : 0
IP Address : 20.20.20.1/32
Mode
: sparse
Verify mroutes
Edge# show ip mroute all-vrfs IP Multicast Route Entries
VRF : default Total number of entries : 10
Group Address
: 225.1.1.1
Source Address
: 60.1.1.10
Neighbor
:
Incoming interface
: 1/1/25
Outgoing Interface List :
Interface
State
-----------
----------
1/1/53
forwarding
1/1/54
forwarding
Group Address
: 225.2.1.1
Source Address
: 60.1.1.10
Neighbor
:
Incoming interface
: 1/1/25
Outgoing Interface List :
Interface
State
-----------
----------
1/1/54
forwarding
1/1/53
forwarding
!snip
Lan Prune Delay
: Yes
Configured DR Priority : 1
Lan Prune Delay
: Yes
Configured DR Priority : 1
Multicast VXLAN | 360
Group Address
: 225.9.1.1
Source Address
: 60.1.1.10
Neighbor
:
Incoming interface
: 1/1/25
Outgoing Interface List :
Interface
State
-----------
----------
1/1/54
forwarding
1/1/53
forwarding
Group Address
: 225.10.1.1
Source Address
: 60.1.1.10
Neighbor
:
Incoming interface
: 1/1/25
Outgoing Interface List :
Interface
State
-----------
----------
1/1/53
forwarding
1/1/54
forwarding
Verify BSR information
Edge# show ip pim bsr all-vrfs Status and Counters- PIM-SM Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 40.1.1.1 : 100 : 30 : 1 hour 11 mins 18 secs : 1 mins 52 secs
C-BSR Admin Status
: This system is not a Candidate-BSR
C-RP Admin Status
: This system is not a Candidate-RP
Verify RP information
Edge# show ip pim rp-set all-vrfs
VRF: default
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
224.0.0.0
240.0.0.0
40.1.1.1
150
224.0.0.0
240.0.0.0
41.1.1.1
150
Expire Time ----------119 119
Core-vsx-primary
Configuration
!export-password: default hostname Core-vsx-primary user admin group administrators password ciphertext
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
361
AQBapY6cG7OGjeUOSUjD8JmBYxBiqulUS3CpBAJhXwz2c6sgYgAAANSAd/CskaIkHsCsIYti0XwXMICwnxbU dzxWRYTg9XM4uyZuVaRCX37T2FpbesioloyEeCYquFNcD82AWH3oGzm8oZVla8yEV52tqYYPJZAxpZRw1giy p+7Yl9z3CSk/32Ct clock timezone us/pacific no ip icmp redirect profile Aggregation-Leaf ! ! ! ! ! ssh server vrf mgmt vlan 1,10,101 vlan 1001
ip igmp snooping enable vlan 1002
ip igmp snooping enable vlan 1003
ip igmp snooping enable vlan 1004
ip igmp snooping enable vlan 1005
ip igmp snooping enable vlan 1006
ip igmp snooping enable vlan 1007
ip igmp snooping enable vlan 1008
ip igmp snooping enable vlan 1009
ip igmp snooping enable vlan 1010
ip igmp snooping enable evpn
redistribute local-svi vlan 1001
rd 172.1.1.5:1001 route-target export 1001:1001 route-target import 1001:1001 redistribute host-route vlan 1002 rd 172.1.1.5:1002 route-target export 1002:1002 route-target import 1002:1002 redistribute host-route vlan 1003 rd 172.1.1.5:1003 route-target export 1003:1003 route-target import 1003:1003 redistribute host-route vlan 1004 rd 172.1.1.5:1004 route-target export 1004:1004 route-target import 1004:1004 redistribute host-route vlan 1005 rd 172.1.1.5:1005 route-target export 1005:1005 route-target import 1005:1005 redistribute host-route vlan 1006 rd 172.1.1.5:1006
Multicast VXLAN | 362
route-target export 1006:1006 route-target import 1006:1006 redistribute host-route vlan 1007 rd 172.1.1.5:1007 route-target export 1007:1007 route-target import 1007:1007 redistribute host-route vlan 1008 rd 172.1.1.5:1008 route-target export 1008:1008 route-target import 1008:1008 redistribute host-route vlan 1009 rd 172.1.1.5:1009 route-target export 1009:1009 route-target import 1009:1009 redistribute host-route vlan 1010 rd 172.1.1.5:1010 route-target export 1010:1010 route-target import 1010:1010 redistribute host-route interface mgmt no shutdown ip dhcp interface lag 10 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed all lacp mode active interface lag 100 no shutdown description ISL no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface 1/1/1 no shutdown lag 100 interface 1/1/2 description additional L3 link no shutdown ip address 80.1.1.1/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point ip pim-sparse enable interface 1/1/3 no shutdown interface 1/1/4 no shutdown interface 1/1/5 no shutdown description KA ip address 192.168.100.1/30 interface 1/1/7 no shutdown interface 1/1/28 no shutdown interface 1/1/47
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
363
no shutdown description Orphan port to Ixia no routing vlan trunk native 1 vlan trunk allowed 1001-1010 interface 1/1/49 no shutdown description Connection to Edge ip address 80.2.1.1/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point ip pim-sparse enable interface 1/1/50 no shutdown interface 1/1/51 no shutdown description Connection to Distro_primary ip address 30.1.1.2/30 ip ospf 1 area 0.0.0.0 ip ospf cost 10 interface 1/1/52 no shutdown description Connection to Distro_secondary ip address 30.1.1.6/30 ip ospf 1 area 0.0.0.0 ip ospf cost 10 interface loopback 1 ip address 172.16.1.5/32 ip ospf 1 area 0.0.0.0 interface loopback 2 ip address 172.1.1.5/32 ip ospf 1 area 0.0.0.0 interface loopback 3 ip address 40.1.1.1/32 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface loopback 12 interface vlan 1001 vsx-sync active-gateways ip address 101.1.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.1.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1002 vsx-sync active-gateways ip address 101.2.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.2.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1003 vsx-sync active-gateways ip address 101.3.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.3.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1004
Multicast VXLAN | 364
vsx-sync active-gateways ip address 101.4.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.4.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1005 vsx-sync active-gateways ip address 101.5.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.5.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1006 vsx-sync active-gateways ip address 101.6.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.6.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1007 vsx-sync active-gateways ip address 101.7.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.7.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1008 vsx-sync active-gateways ip address 101.8.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.8.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1009 vsx-sync active-gateways ip address 101.9.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.9.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1010 vsx-sync active-gateways ip address 101.10.1.252/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.10.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vxlan 1 source ip 172.1.1.5 vxlan-counters aggregate no shutdown vni 1001
vlan 1001 vni 1002
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
365
vlan 1002 vni 1003
vlan 1003 vni 1004
vlan 1004 vni 1005
vlan 1005 vni 1006
vlan 1006 vni 1007
vlan 1007 vni 1008
vlan 1008 vni 1009
vlan 1009 vni 1010
vlan 1010 vsx
inter-switch-link lag 100 role primary keepalive peer 192.168.100.2 source 192.168.100.1 no split-recovery vsx-sync evpn ! ! ! ! ! router ospf 1 router-id 30.1.1.6 distance 210 redistribute connected area 0.0.0.0 router bgp 65535 bgp router-id 172.16.1.5 no bgp fast-external-fallover neighbor 172.16.1.1 remote-as 65535 neighbor 172.16.1.1 update-source loopback 1 neighbor 172.16.1.2 remote-as 65535 neighbor 172.16.1.2 update-source loopback 1 address-family ipv4 unicast
network 40.1.1.1/32 exit-address-family address-family l2vpn evpn
neighbor 172.16.1.1 activate neighbor 172.16.1.1 send-community extended neighbor 172.16.1.2 activate neighbor 172.16.1.2 send-community extended exit-address-family ! router pim enable rp-candidate source-ip-interface loopback3 group-prefix 224.0.0.0/4 rp-candidate priority 200 bsr-candidate source-ip-interface loopback3 bsr-candidate priority 100 https-server vrf mgmt
Verification
Verify OSPF neighbors
Multicast VXLAN | 366
Core-vsx-primary(config)# show ip ospf neighbors all-vrfs
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 3
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
20.20.20.20
n/a
FULL
80.2.1.2
1/1/49
30.1.1.1
1
FULL/BDR
30.1.1.1
1/1/51
30.2.1.1
1
FULL/DR
30.1.1.5
1/1/52
Verify BGP neighbors
Core-vsx-primary(config)# show bgp all summary
VRF : default
BGP Summary
-----------
Local AS
: 65535
BGP Router Identifier
Peers
:2
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 172.16.1.5 : No : 60
Address-family : IPv4 Unicast -----------------------------
Address-family : IPv6 Unicast -----------------------------
Address-family : L2VPN EVPN
-----------------------------
Neighbor
Remote-AS MsgRcvd MsgSent
172.16.1.1
65535
217
180
172.16.1.2
65535
171
181
Up/Down Time State
AdminStatus
02h:03m:15s Established Up
02h:03m:22s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
Leaf01-primary# show interface vxlan
Core-vsx-primary(config)# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
172.1.1.5
172.1.1.1
evpn
operational
1001
disabled 1001 --
172.1.1.5
172.1.1.1
evpn
operational
1002
disabled 1002 --
172.1.1.5
172.1.1.1
evpn
operational
1003
disabled 1003 --
172.1.1.5
172.1.1.1
evpn
operational
1004
disabled 1004 --
172.1.1.5
172.1.1.1
evpn
operational
1005
disabled 1005 --
172.1.1.5
172.1.1.1
evpn
operational
1006
disabled 1006 --
172.1.1.5
172.1.1.1
evpn
operational
1007
disabled 1007 --
172.1.1.5
172.1.1.1
evpn
operational
1008
disabled 1008 --
172.1.1.5
172.1.1.1
evpn
operational
1009
disabled 1009 --
172.1.1.5
172.1.1.1
evpn
operational
1010
disabled 1010 --
172.1.1.5
172.1.1.2
evpn
operational
1001
disabled 1001 --
172.1.1.5
172.1.1.2
evpn
operational
1002
disabled 1002 --
172.1.1.5
172.1.1.2
evpn
operational
1003
disabled 1003 --
172.1.1.5
172.1.1.2
evpn
operational
1004
disabled 1004 --
172.1.1.5
172.1.1.2
evpn
operational
1005
disabled 1005 --
172.1.1.5
172.1.1.2
evpn
operational
1006
disabled 1006 --
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
367
172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5
172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2
evpn evpn evpn evpn
operational operational operational operational
1007 1008 1009 1010
disabled 1007 -disabled 1008 -disabled 1009 -disabled 1010 --
Verify BGP EVPN table
Core-vsx-primary(config)# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 172.16.1.5
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 172.1.1.1:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
172.1.1.1
0
100
0
?
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
Route Distinguisher: 172.1.1.2:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1001
(L2VNI 1001)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
*> [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.1.1.252]
172.1.1.5
0
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
0
?
100
0
?
100
0
?
Route Distinguisher: 172.1.1.1:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
172.1.1.1
0
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.2:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:13:01:00:00:02]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1002
(L2VNI 1002)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
*> [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.2.1.252]
172.1.1.5
0
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
0
?
100
0
?
100
0
?
Route Distinguisher: 172.1.1.1:1003
(L2VNI 1003)
*>i [2]:[0]:[0]:[00:11:01:00:00:03]:[]
172.1.1.1
0
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.2:1003
(L2VNI 1003)
*>i [2]:[0]:[0]:[00:13:01:00:00:03]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
!snip
100
0
?
100
0
?
Route Distinguisher: 172.1.1.2:1009
(L2VNI 1009)
*>i [2]:[0]:[0]:[00:13:01:00:00:09]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1009
(L2VNI 1009)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.9.1.254]
172.1.1.5
0
100
0
?
Multicast VXLAN | 368
*> [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.9.1.252]
172.1.1.5
0
100
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
Route Distinguisher: 172.1.1.1:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:11:01:00:00:0a]:[]
172.1.1.1
0
100
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
Route Distinguisher: 172.1.1.2:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:13:01:00:00:0a]:[]
172.1.1.2
0
100
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
Route Distinguisher: 172.1.1.5:1010
(L2VNI 1010)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
100
*> [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.10.1.252]
172.1.1.5
0
100
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
Total number of entries 70
Verify PIM neighbors
Core-vsx-primary(config)# do show ip pim neighbor all-vrfs PIM Neighbor
VRF
: default
Total number of neighbors : 11
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 80.2.1.2 : 1/1/49 : 01:15:56 : 00:01:25 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 101.1.1.253 : vlan1001 : 02:03:48 : 00:01:33 : 83952044 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 101.2.1.253 : vlan1002 : 02:03:48 : 00:01:32 : 83952044 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) !snip
: 101.3.1.253 : vlan1003 : 02:03:47 : 00:01:32 : 83952044 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority
: 101.8.1.253 : vlan1008 : 02:03:47 : 00:01:30 : 83952044
0
?
0
?
0
?
0
?
0
?
0
?
0
?
0
?
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
369
Hold Time (HH:MM:SS)
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 00:01:45
: 101.9.1.253 : vlan1009 : 02:03:48 : 00:01:29 : 83952044 : 00:01:45
: 101.10.1.253 : vlan1010 : 02:03:48 : 00:01:33 : 83952044 : 00:01:45
Verify PIM interfaces
Core-vsx-primary(config)# show ip pim interface
PIM Interfaces
VRF: default Total Number of interfaces : 13
Interface : vlan1003
Neighbor count : 1
IP Address : 101.3.1.252/24
Mode
: sparse
Designated Router : 101.3.1.252
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 83952044
Neighbor Timeout
: 87
Lan Prune Delay
: Yes
Configured DR Priority : 1
Interface : loopback3
Neighbor count : 0
IP Address : 40.1.1.1/32
Mode
: sparse
Interface : 1/1/2
Neighbor count : 0
IP Address : 80.1.1.1/30
Mode
: sparse
Designated Router : 80.1.1.1
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 1
Neighbor Timeout
:0
Lan Prune Delay
: Yes
Configured DR Priority : 1
Interface : vlan1001
Neighbor count : 1
IP Address : 101.1.1.252/24
Mode
: sparse
Designated Router : 101.1.1.252
Multicast VXLAN | 370
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 83952044
Neighbor Timeout
: 88
!snip
Interface : vlan1002
Neighbor count : 1
IP Address : 101.2.1.252/24
Mode
: sparse
Designated Router : 101.2.1.252
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 83952044
Neighbor Timeout
: 87
Lan Prune Delay
: Yes
Configured DR Priority : 1
Lan Prune Delay
: Yes
Configured DR Priority : 1
Verify mroutes
Core-vsx-primary(config)# show ip mroute all-vrfs IP Multicast Route Entries
VRF : default Total number of entries : 10
Group Address
: 225.1.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.2.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1001
forwarding
Group Address
: 225.2.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.2.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1002
forwarding
Group Address
: 225.3.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.2.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1003
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.4.1.1 : 60.1.1.10 : 80.2.1.2 : 1/1/49
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
371
Outgoing Interface List :
Interface
State
-----------
----------
vlan1004
forwarding
!snip
Group Address
: 225.9.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.2.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1009
forwarding
Group Address
: 225.10.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.2.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1010
forwarding
Verify BSR information
Core-vsx-primary(config)# show ip pim bsr all-vrfs Status and Counters- PIM-SM Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 40.1.1.1 : 100 : 30 : 2 hour 7 mins 49 secs : 14 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 40.1.1.1
C-BSR Priority
: 100
C-BSR Hash Mask Length : 30
C-BSR Message Interval : 60
C-BSR Source IP Interface : loopback3
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 40.1.1.1 : 150 : 60 : 200 : loopback3
Group Address Group Mask
--------------- ---------------
224.0.0.0
240.0.0.0
Verify RP information
Core-vsx-primary(config)# show ip pim rp-set all-vrfs VRF: default
Multicast VXLAN | 372
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
224.0.0.0
240.0.0.0
40.1.1.1
150
224.0.0.0
240.0.0.0
41.1.1.1
150
Expire Time ----------97 97
Verify IGMP snooping
Core-vsx-primary(config)# show ip igmp snooping
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled
: 10
Current count of multicast groups joined : 10
IGMP Drop Unknown Multicast
: Global
VLAN ID : 1001
VLAN Name : VLAN1001
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier Address [this switch] : 101.1.1.252
Querier Port :
Querier UpTime :2h 9m
Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.1.1.1
Filter 2
1h 40m 3m 56s
VLAN ID : 1002 VLAN Name : VLAN1002 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 101.2.1.252 Querier Port : Querier UpTime :2h 9m Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.2.1.1
Filter 2
1h 40m 4m 1s
VLAN ID : 1003 VLAN Name : VLAN1003 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 101.3.1.252 Querier Port : Querier UpTime :2h 9m Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.3.1.1
Filter 2
1h 40m 4m 0s
VLAN ID : 1004 VLAN Name : VLAN1004 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 101.4.1.252
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
373
Querier Port : Querier UpTime :2h 9m Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.4.1.1
Filter 2
1h 40m 4m 2s
!snip
VLAN ID : 1009 VLAN Name : VLAN1009 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 101.9.1.252 Querier Port : Querier UpTime :2h 9m Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.9.1.1
Filter 2
1h 40m 3m 58s
VLAN ID : 1010 VLAN Name : VLAN1010 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address [this switch] : 101.10.1.252 Querier Port : Querier UpTime :2h 9m Querier Expiration Time :1m 37s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.10.1.1
Filter 2
1h 40m 4m 0s
Verify IGMP
Core-vsx-primary(config)# show ip igmp
VRF Name : default
Interface : vlan1001
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 101.1.1.252
Querier Uptime
: 2h 9m
Querier Expiration Time : 1m 30s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
225.1.1.1
2
1h 40m 3m 49s
VRF Name : default
Interface : vlan1002
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 101.2.1.252
Querier Uptime
: 2h 9m
Querier Expiration Time : 1m 30s
Multicast VXLAN | 374
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
225.2.1.1
2
1h 40m 3m 54s
VRF Name : default
Interface : vlan1003
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 101.3.1.252
Querier Uptime
: 2h 9m
Querier Expiration Time : 1m 30s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
225.3.1.1
2
1h 43m 3m 53s
!snip
VRF Name : default
Interface : vlan1010
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 101.10.1.252
Querier Uptime
: 2h 9m
Querier Expiration Time : 1m 30s
IGMP Snoop Enabled on VLAN : True
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
225.10.1.1
2
1h 43m 3m 53s
Core-vsx-secondary
Configuration
!export-password: default hostname Core-vsx-secondary clock timezone us/pacific no ip icmp redirect profile Aggregation-Leaf ! ! ! ! ! ssh server vrf mgmt vlan 1,101 vlan 1001
ip igmp snooping enable vlan 1002
ip igmp snooping enable vlan 1003
ip igmp snooping enable vlan 1004
ip igmp snooping enable vlan 1005
ip igmp snooping enable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
375
vlan 1006 ip igmp snooping enable
vlan 1007 ip igmp snooping enable
vlan 1008 ip igmp snooping enable
vlan 1009 ip igmp snooping enable
vlan 1010 ip igmp snooping enable
evpn redistribute local-svi vlan 1001 rd 172.1.1.5:1001 route-target export 1001:1001 route-target import 1001:1001 redistribute host-route vlan 1002 rd 172.1.1.5:1002 route-target export 1002:1002 route-target import 1002:1002 redistribute host-route vlan 1003 rd 172.1.1.5:1003 route-target export 1003:1003 route-target import 1003:1003 redistribute host-route vlan 1004 rd 172.1.1.5:1004 route-target export 1004:1004 route-target import 1004:1004 redistribute host-route vlan 1005 rd 172.1.1.5:1005 route-target export 1005:1005 route-target import 1005:1005 redistribute host-route vlan 1006 rd 172.1.1.5:1006 route-target export 1006:1006 route-target import 1006:1006 redistribute host-route vlan 1007 rd 172.1.1.5:1007 route-target export 1007:1007 route-target import 1007:1007 redistribute host-route vlan 1008 rd 172.1.1.5:1008 route-target export 1008:1008 route-target import 1008:1008 redistribute host-route vlan 1009 rd 172.1.1.5:1009 route-target export 1009:1009 route-target import 1009:1009 redistribute host-route vlan 1010 rd 172.1.1.5:1010 route-target export 1010:1010 route-target import 1010:1010 redistribute host-route
Multicast VXLAN | 376
interface mgmt no shutdown ip dhcp
interface lag 100 no shutdown description ISL no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active
interface 1/1/1 no shutdown lag 100
interface 1/1/2 no shutdown description Additional L3 link ip address 80.1.1.1/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point
interface 1/1/3 no shutdown
interface 1/1/4 no shutdown
interface 1/1/5 no shutdown description KA ip address 192.168.100.2/30
interface 1/1/7 no shutdown
interface 1/1/28 no shutdown
interface 1/1/47 no shutdown description Orphan port to Ixia no routing vlan trunk native 1 vlan trunk allowed 1001-1010
interface 1/1/49 no shutdown description Connection to Edge ip address 80.3.1.1/30 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point ip pim-sparse enable
interface 1/1/50 no shutdown
interface 1/1/51 no shutdown description Connection to Distro_primary ip address 30.2.1.2/30 ip ospf 1 area 0.0.0.0 ip ospf cost 10
interface 1/1/52 no shutdown description Connection to Distro_secondary ip address 30.2.1.6/30 ip ospf 1 area 0.0.0.0 ip ospf cost 10
interface loopback 1 ip address 172.16.1.4/32 ip ospf 1 area 0.0.0.0
interface loopback 2
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
377
ip address 172.1.1.5/32 ip ospf 1 area 0.0.0.0 interface loopback 3 ip address 41.1.1.1/32 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface vlan 1001 vsx-sync active-gateways ip address 101.1.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.1.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1002 vsx-sync active-gateways ip address 101.2.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.2.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1003 vsx-sync active-gateways ip address 101.3.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.3.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1004 vsx-sync active-gateways ip address 101.4.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.4.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1005 vsx-sync active-gateways ip address 101.5.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.5.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1006 vsx-sync active-gateways ip address 101.6.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.6.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 1007 vsx-sync active-gateways ip address 101.7.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.7.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
Multicast VXLAN | 378
interface vlan 1008 vsx-sync active-gateways ip address 101.8.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.8.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
interface vlan 1009 vsx-sync active-gateways ip address 101.9.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.9.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
interface vlan 1010 vsx-sync active-gateways ip address 101.10.1.253/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 101.10.1.254 ip igmp enable ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
interface vxlan 1 source ip 172.1.1.5 vxlan-counters aggregate no shutdown vni 1001 vlan 1001 vni 1002 vlan 1002 vni 1003 vlan 1003 vni 1004 vlan 1004 vni 1005 vlan 1005 vni 1006 vlan 1006 vni 1007 vlan 1007 vni 1008 vlan 1008 vni 1009 vlan 1009 vni 1010 vlan 1010
vsx inter-switch-link lag 100 role secondary keepalive peer 192.168.100.1 source 192.168.100.2 vsx-sync evpn
! ! ! ! ! router ospf 1
router-id 30.2.1.6 distance 210 redistribute connected
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
379
area 0.0.0.0 router bgp 65535
bgp router-id 172.16.1.4 no bgp fast-external-fallover neighbor 172.16.1.1 remote-as 65535 neighbor 172.16.1.1 update-source loopback 1 neighbor 172.16.1.2 remote-as 65535 neighbor 172.16.1.2 update-source loopback 1 address-family ipv4 unicast
network 41.1.1.1/32 exit-address-family address-family l2vpn evpn
neighbor 172.16.1.1 activate neighbor 172.16.1.1 send-community extended neighbor 172.16.1.2 activate neighbor 172.16.1.2 send-community extended exit-address-family ! router pim enable rp-candidate source-ip-interface loopback3 group-prefix 224.0.0.0/4 bsr-candidate source-ip-interface loopback3 https-server vrf mgmt
Verification
Verify OSPF neighbors
Core-vsx-secondary(config)# show ip ospf neighbors
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 3
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
20.20.20.20
n/a
FULL
80.3.1.2
1/1/49
30.1.1.1
1
FULL/BDR
30.2.1.1
1/1/51
30.2.1.1
1
FULL/BDR
30.2.1.5
1/1/52
Verify BGP neighbors
Core-vsx-secondary(config)# show bgp all summary
VRF : default
BGP Summary
-----------
Local AS
: 65535
BGP Router Identifier
Peers
:2
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 172.16.1.4 : No : 60
Address-family : IPv4 Unicast -----------------------------
Address-family : IPv6 Unicast -----------------------------
Multicast VXLAN | 380
Address-family : L2VPN EVPN
-----------------------------
Neighbor
Remote-AS MsgRcvd MsgSent
172.16.1.1
65535
199
189
172.16.1.2
65535
182
187
Up/Down Time State
AdminStatus
02h:12m:11s Established Up
02h:12m:12s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
Core-vsx-secondary(config)# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
172.1.1.5
172.1.1.1
evpn
operational
1001
disabled 1001 --
172.1.1.5
172.1.1.1
evpn
operational
1002
disabled 1002 --
172.1.1.5
172.1.1.1
evpn
operational
1003
disabled 1003 --
172.1.1.5
172.1.1.1
evpn
operational
1004
disabled 1004 --
172.1.1.5
172.1.1.1
evpn
operational
1005
disabled 1005 --
172.1.1.5
172.1.1.1
evpn
operational
1006
disabled 1006 --
172.1.1.5
172.1.1.1
evpn
operational
1007
disabled 1007 --
172.1.1.5
172.1.1.1
evpn
operational
1008
disabled 1008 --
172.1.1.5
172.1.1.1
evpn
operational
1009
disabled 1009 --
172.1.1.5
172.1.1.1
evpn
operational
1010
disabled 1010 --
172.1.1.5
172.1.1.2
evpn
operational
1001
disabled 1001 --
172.1.1.5
172.1.1.2
evpn
operational
1002
disabled 1002 --
172.1.1.5
172.1.1.2
evpn
operational
1003
disabled 1003 --
172.1.1.5
172.1.1.2
evpn
operational
1004
disabled 1004 --
172.1.1.5
172.1.1.2
evpn
operational
1005
disabled 1005 --
172.1.1.5
172.1.1.2
evpn
operational
1006
disabled 1006 --
172.1.1.5
172.1.1.2
evpn
operational
1007
disabled 1007 --
172.1.1.5
172.1.1.2
evpn
operational
1008
disabled 1008 --
172.1.1.5
172.1.1.2
evpn
operational
1009
disabled 1009 --
172.1.1.5
172.1.1.2
evpn
operational
1010
disabled 1010 --
Verify BGP EVPN table
Core-vsx-secondary(config)# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 172.16.1.4
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 172.1.1.1:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
172.1.1.1
0
100
0
?
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
Route Distinguisher: 172.1.1.2:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1001
(L2VNI 1001)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
*> [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.1.1.253]
172.1.1.5
0
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
381
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
Route Distinguisher: 172.1.1.1:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
172.1.1.1
0
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
Route Distinguisher: 172.1.1.2:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:13:01:00:00:02]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
Route Distinguisher: 172.1.1.5:1002
(L2VNI 1002)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
*> [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.2.1.253]
172.1.1.5
0
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
!snip
Route Distinguisher: 172.1.1.1:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:11:01:00:00:0a]:[]
172.1.1.1
0
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
Route Distinguisher: 172.1.1.2:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:13:01:00:00:0a]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
Route Distinguisher: 172.1.1.5:1010
(L2VNI 1010)
*> [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
*> [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.10.1.253]
172.1.1.5
0
*> [3]:[0]:[172.1.1.5]
172.1.1.5
0
Total number of entries 70
Verify PIM neighbors
Core-vsx-secondary(config)# show ip pim neighbor
PIM Neighbor
VRF
: default
Total number of neighbors : 11
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 80.3.1.2 : 1/1/49 : 01:27:10 : 00:01:37 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
101.1.1.254 !snip
: 101.1.1.252 : vlan1001 : 02:14:14 : 00:01:36 : 83952044 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority
: 101.9.1.252 : vlan1009 : 02:14:14 : 00:01:35 : 83952044
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 382
Hold Time (HH:MM:SS)
: 00:01:45
Secondary IP Addresses :
101.9.1.254
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
101.10.1.254
: 101.10.1.252 : vlan1010 : 02:14:14 : 00:01:35 : 83952044 : 00:01:45
Verify mroutes
Core-vsx-secondary(config)# show ip mroute IP Multicast Route Entries
VRF : default Total number of entries : 20
Group Address
: 225.1.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.3.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1001
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 60.1.1.10 : : vlan1001
Group Address Source Address Neighbor Incoming interface
: 225.2.1.1 : 60.1.1.10 : : vlan1002
Group Address
: 225.2.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.3.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1002
forwarding
!snip
Group Address
: 225.9.1.1
Source Address
: 60.1.1.10
Neighbor
: 80.3.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1009
forwarding
Group Address Source Address
: 225.10.1.1 : 60.1.1.10
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
383
Neighbor
: 80.3.1.2
Incoming interface
: 1/1/49
Outgoing Interface List :
Interface
State
-----------
----------
vlan1010
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.10.1.1 : 60.1.1.10 : : vlan1010
Verify PIM interfaces
Core-vsx-secondary(config)# show ip pim interface
PIM Interfaces
VRF: default Total Number of interfaces : 12
Interface : vlan1001
Neighbor count : 1
IP Address : 101.1.1.253/24
Mode
: sparse
Designated Router : 101.1.1.253
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 83952044
Neighbor Timeout
: 84
Lan Prune Delay
: Yes
Configured DR Priority : 1
Interface : vlan1005
Neighbor count : 1
IP Address : 101.5.1.253/24
Mode
: sparse
Designated Router : 101.5.1.253
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 83952044
Neighbor Timeout
: 83
!snip
Lan Prune Delay
: Yes
Configured DR Priority : 1
Interface : loopback3
Neighbor count : 0
IP Address : 41.1.1.1/32
Mode
: sparse
Interface : vlan1002
Neighbor count : 1
IP Address : 101.2.1.253/24
Mode
: sparse
Designated Router : 101.2.1.253
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Multicast VXLAN | 384
Override Interval (msec) Propagation Delay (msec) Operational DR Priority Neighbor Timeout
: 2500 : 500 : 83952044 : 81
Interface : 1/1/49
Neighbor count : 1
IP Address : 80.3.1.1/30
Mode
: sparse
Designated Router : 80.3.1.2
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 1
Neighbor Timeout
: 85
Lan Prune Delay
: Yes
Configured DR Priority : 1
Lan Prune Delay
: Yes
Configured DR Priority : 1
Verify BSR information
Core-vsx-secondary(config)# show ip pim bsr Status and Counters- PIM-SM Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: default : 40.1.1.1 : 100 : 30 : 2 hour 13 mins 17 secs : 2 mins 4 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 41.1.1.1
C-BSR Priority
:0
C-BSR Hash Mask Length : 30
C-BSR Message Interval : 60
C-BSR Source IP Interface : loopback3
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 41.1.1.1 : 150 : 60 : 192 : loopback3
Group Address Group Mask
--------------- ---------------
224.0.0.0
240.0.0.0
Verify RP information
Core-vsx-secondary(config)# show ip pim rp-set
VRF: default
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
224.0.0.0
240.0.0.0
40.1.1.1
150
224.0.0.0
240.0.0.0
41.1.1.1
150
Expire Time ----------132 132
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
385
Verify IGMP snooping Core-vsx-secondary(config)# show ip igmp snooping
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled
: 10
Current count of multicast groups joined : 10
IGMP Drop Unknown Multicast VLAN ID : 1001 VLAN Name : VLAN1001 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.1.1.252 Querier Port : lag100 Querier UpTime :2h 16m Querier Expiration Time :2m 14s
: Global
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.1.1.1
Filter 2
1h 50m 2m 28s
VLAN ID : 1002 VLAN Name : VLAN1002 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.2.1.252 Querier Port : lag100 Querier UpTime :2h 16m Querier Expiration Time :2m 14s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.2.1.1
Filter 2
1h 50m 2m 30s
!snip
VLAN ID : 1009 VLAN Name : VLAN1009 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.9.1.252 Querier Port : lag100 Querier UpTime :2h 17m Querier Expiration Time :2m 14s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.9.1.1
Filter 2
1h 50m 2m 27s
VLAN ID : 1010 VLAN Name : VLAN1010 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.10.1.252 Querier Port : lag100 Querier UpTime :2h 17m Querier Expiration Time :2m 14s
Active Group Address Tracking Vers Mode Uptime Expires --------------------- ---------- ---- ---- --------- ----------
Multicast VXLAN | 386
225.10.1.1
Filter 2
1h 50m 2m 28s
8320-vsx-pri
Configuration
!export-password: default hostname 8320-vsx-pri no ip icmp redirect profile L3-core ntp server 16.110.135.123 minpoll 4 maxpoll 4 iburst cli-session
timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1,10-11,20,22 interface mgmt
no shutdown ip dhcp interface lag 2 multi-chassis no routing vlan access 1 lacp mode active interface lag 10 multi-chassis no shutdown description MC_LAG to VTEP1 no routing vlan trunk native 1 vlan trunk allowed 11 lacp mode active interface lag 20 multi-chassis no shutdown description MC_LAG to VTEP2 no routing vlan trunk native 1 vlan trunk allowed 20 lacp mode active interface lag 100 no shutdown description ISL no routing vlan trunk native 1 tag vlan trunk allowed all interface 1/1/1 no shutdown interface 1/1/9 no shutdown interface 1/1/15 no shutdown lag 20 interface 1/1/17 no shutdown interface 1/1/18 no shutdown interface 1/1/19 no shutdown interface 1/1/20
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
387
no shutdown interface 1/1/33
no shutdown lag 10 interface 1/1/34 no shutdown lag 10 interface 1/1/39 no shutdown interface 1/1/40 no shutdown interface 1/1/41 no shutdown interface 1/1/42 no shutdown interface 1/1/46 no shutdown lag 100 interface 1/1/47 no shutdown lag 100 interface 1/1/48 no shutdown description KA ip address 2.1.1.1/30 interface 1/1/51 no shutdown description ROP to Core-VSX-primary ip address 30.1.1.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/52 no shutdown description ROP to Core-VSX-secondary ip address 30.2.1.1/30 ip ospf 1 area 0.0.0.0 interface vlan 11 vsx active-forwarding ip address 11.10.1.3/29 ip ospf 1 area 0.0.0.1 interface vlan 20 vsx active-forwarding ip address 11.20.2.3/29 ip ospf 1 area 0.0.0.2 vsx inter-switch-link lag 100 role primary keepalive peer 2.1.1.2 source 2.1.1.1 ! ! ! ! ! router ospf 1 router-id 30.1.1.1 area 0.0.0.0 area 0.0.0.1 area 0.0.0.2 https-server vrf mgmt
8320-vsx-sec
Configuration
Multicast VXLAN | 388
!export-password: default hostname 8320-vsx-sec no ip icmp redirect profile L3-core cli-session
timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1,10-11,20-21 interface mgmt
no shutdown ip dhcp interface lag 1 no shutdown no routing vlan trunk native 1 vlan trunk allowed 21 lacp mode active interface lag 10 multi-chassis no shutdown description MC-LAG to VTEP1 no routing vlan trunk native 1 vlan trunk allowed 11 lacp mode active interface lag 20 multi-chassis no shutdown description MC-LAG to VTEP2 no routing vlan trunk native 1 vlan trunk allowed 20 lacp mode active interface lag 100 no shutdown description ISL no routing vlan trunk native 1 tag vlan trunk allowed all interface 1/1/1 no shutdown interface 1/1/7 no shutdown ip address 30.2.1.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/9 no shutdown interface 1/1/15 no shutdown lag 20 interface 1/1/33 no shutdown lag 10 interface 1/1/34 no shutdown lag 10 interface 1/1/46 no shutdown lag 100
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
389
interface 1/1/47 no shutdown lag 100
interface 1/1/48 no shutdown description KA ip address 2.1.1.2/30
interface 1/1/49 no shutdown
interface 1/1/50 no shutdown
interface 1/1/51 no shutdown description ROP to Core-VSX-primary ip address 30.1.1.5/30 ip ospf 1 area 0.0.0.0
interface 1/1/52 no shutdown description ROP to Core-VSX-secondary ip address 30.2.1.5/30 ip ospf 1 area 0.0.0.0
interface vlan 11 vsx active-forwarding ip address 11.10.1.2/29 ip ospf 1 area 0.0.0.1
interface vlan 20 vsx active-forwarding ip address 11.20.2.2/29 ip ospf 1 area 0.0.0.2
interface vlan 21 ip address 11.20.1.2/30 ip ospf 1 area 0.0.0.1 ip ospf network point-to-point
vsx inter-switch-link lag 100 role secondary keepalive peer 2.1.1.1 source 2.1.1.2
mirror session 1 destination cpu source interface 1/1/51 rx
! ! ! ! ! router ospf 1
router-id 30.2.1.1 area 0.0.0.0 area 0.0.0.1 area 0.0.0.2 https-server vrf mgmt
6300-VSF-VTEP1
!export-password: default hostname 6300-VSF-VTEP1 ! ! ! ! !
Multicast VXLAN | 390
! ssh server vrf default ssh server vrf mgmt vsf secondary-member 2 vsf member 1
type jl668a link 1 1/1/28 link 2 1/1/26 vsf member 2 type jl668a link 1 2/1/28 link 2 2/1/27 vsf member 3 type jl668a link 1 3/1/27 link 2 3/1/26 vlan 1,11,21 vlan 1001 ip igmp snooping enable vlan 1002 ip igmp snooping enable vlan 1003 ip igmp snooping enable vlan 1004 ip igmp snooping enable vlan 1005 ip igmp snooping enable vlan 1006 ip igmp snooping enable vlan 1007 ip igmp snooping enable vlan 1008 ip igmp snooping enable vlan 1009 ip igmp snooping enable vlan 1010 ip igmp snooping enable evpn vlan 1001
rd 172.1.1.1:1001 route-target export 1001:1001 route-target import 1001:1001 redistribute host-route vlan 1002 rd 172.1.1.1:1002 route-target export 1002:1002 route-target import 1002:1002 redistribute host-route vlan 1003 rd 172.1.1.1:1003 route-target export 1003:1003 route-target import 1003:1003 redistribute host-route vlan 1004 rd 172.1.1.1:1004 route-target export 1004:1004 route-target import 1004:1004 redistribute host-route vlan 1005 rd 172.1.1.1:1005 route-target export 1005:1005 route-target import 1005:1005
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
391
redistribute host-route vlan 1006
rd 172.1.1.1:1006 route-target export 1006:1006 route-target import 1006:1006 redistribute host-route vlan 1007 rd 172.1.1.1:1007 route-target export 1007:1007 route-target import 1007:1007 redistribute host-route vlan 1008 rd 172.1.1.1:1008 route-target export 1008:1008 route-target import 1008:1008 redistribute host-route vlan 1009 rd 172.1.1.1:1009 route-target export 1009:1009 route-target import 1009:1009 redistribute host-route vlan 1010 rd 172.1.1.1:1010 route-target export 1010:1010 route-target import 1010:1010 redistribute host-route spanning-tree interface mgmt no shutdown ip dhcp interface lag 1 no shutdown description MC-LAG to Distro-VSX no routing vlan trunk native 1 vlan trunk allowed 11 lacp mode active interface 1/1/1 no shutdown no routing vlan access 1 interface 1/1/2 no shutdown no routing vlan access 1 interface 1/1/3 no shutdown no routing vlan access 1 interface 1/1/4 no shutdown no routing vlan access 1 interface 1/1/5 no shutdown no routing vlan access 1 interface 1/1/6 no shutdown no routing vlan access 1 interface 1/1/7
Multicast VXLAN | 392
no shutdown no routing vlan access 1 interface 1/1/8 no shutdown no routing vlan access 1 interface 1/1/9 no shutdown no routing vlan access 1 interface 1/1/10 no shutdown no routing vlan access 1 interface 1/1/11 no shutdown no routing vlan access 1 interface 1/1/12 no shutdown no routing vlan access 1 interface 1/1/13 no shutdown no routing vlan access 1 interface 1/1/14 no shutdown no routing vlan access 1 interface 1/1/15 no shutdown no routing vlan access 1 interface 1/1/16 no shutdown no routing vlan access 1 interface 1/1/17 no shutdown no routing vlan access 1 interface 1/1/18 no shutdown no routing vlan access 1 interface 1/1/19 no shutdown no routing vlan access 1 interface 1/1/20 no shutdown no routing vlan access 1 interface 1/1/21 no shutdown no routing vlan access 1 interface 1/1/22 no shutdown no routing
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
393
vlan access 1 interface 1/1/23
no shutdown no routing vlan access 1 interface 1/1/24 no shutdown no routing vlan access 1 interface 1/1/25 no shutdown lag 1 interface 1/1/26 no shutdown interface 1/1/27 no shutdown no routing vlan trunk native 1 vlan trunk allowed 1001-1010 interface 1/1/28 no shutdown interface 2/1/1 no shutdown no routing vlan access 1 interface 2/1/2 no shutdown no routing vlan access 1 interface 2/1/3 no shutdown no routing vlan access 1 interface 2/1/4 no shutdown no routing vlan access 1 interface 2/1/5 no shutdown no routing vlan access 1 interface 2/1/6 no shutdown no routing vlan access 1 interface 2/1/7 no shutdown no routing vlan access 1 interface 2/1/8 no shutdown no routing vlan access 1 interface 2/1/9 no shutdown no routing vlan access 1 interface 2/1/10 no shutdown no routing vlan access 1 interface 2/1/11
Multicast VXLAN | 394
no shutdown no routing vlan access 1 interface 2/1/12 no shutdown no routing vlan access 1 interface 2/1/13 no shutdown no routing vlan access 1 interface 2/1/14 no shutdown no routing vlan access 1 interface 2/1/15 no shutdown no routing vlan access 1 interface 2/1/16 no shutdown no routing vlan access 1 interface 2/1/17 no shutdown no routing vlan access 1 interface 2/1/18 no shutdown no routing vlan access 1 interface 2/1/19 no shutdown no routing vlan access 1 interface 2/1/20 no shutdown no routing vlan access 1 interface 2/1/21 no shutdown no routing vlan access 1 interface 2/1/22 no shutdown no routing vlan access 1 interface 2/1/23 no shutdown no routing vlan access 1 interface 2/1/24 no shutdown no routing vlan access 1 interface 2/1/25 no shutdown lag 1 interface 2/1/26 no shutdown lag 1 interface 2/1/27
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
395
no shutdown interface 2/1/28
no shutdown interface 3/1/1
no shutdown no routing vlan access 1 interface 3/1/2 no shutdown no routing vlan access 1 interface 3/1/3 no shutdown no routing vlan access 1 interface 3/1/4 no shutdown no routing vlan access 1 interface 3/1/5 no shutdown no routing vlan access 1 interface 3/1/6 no shutdown no routing vlan access 1 interface 3/1/7 no shutdown no routing vlan access 1 interface 3/1/8 no shutdown no routing vlan access 1 interface 3/1/9 no shutdown no routing vlan access 1 interface 3/1/10 no shutdown no routing vlan access 1 interface 3/1/11 no shutdown no routing vlan access 1 interface 3/1/12 no shutdown no routing vlan access 1 interface 3/1/13 no shutdown no routing vlan access 1 interface 3/1/14 no shutdown no routing vlan access 1 interface 3/1/15 no shutdown no routing
Multicast VXLAN | 396
vlan access 1 interface 3/1/16
no shutdown no routing vlan access 1 interface 3/1/17 no shutdown no routing vlan access 1 interface 3/1/18 no shutdown no routing vlan access 1 interface 3/1/19 no shutdown no routing vlan access 1 interface 3/1/20 no shutdown no routing vlan access 1 interface 3/1/21 no shutdown no routing vlan access 1 interface 3/1/22 no shutdown no routing vlan access 1 interface 3/1/23 no shutdown no routing vlan access 1 interface 3/1/24 no shutdown no routing vlan access 1 interface 3/1/25 no shutdown lag 1 interface 3/1/26 no shutdown interface 3/1/27 no shutdown interface 3/1/28 no shutdown no routing vlan trunk native 1 vlan trunk allowed 1001-1010 interface loopback 1 ip address 172.16.1.1/32 ip ospf 1 area 0.0.0.1 interface loopback 2 ip address 172.1.1.1/32 ip ospf 1 area 0.0.0.1 interface vlan 1 ip dhcp interface vlan 11 ip address 11.10.1.1/29 ip ospf 1 area 0.0.0.1 interface vlan 21 ip address 11.20.1.1/30
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
397
ip ospf 1 area 0.0.0.1 ip ospf network point-to-point interface vxlan 1 source ip 172.1.1.1 no shutdown vni 1001
vlan 1001 vni 1002
vlan 1002 vni 1003
vlan 1003 vni 1004
vlan 1004 vni 1005
vlan 1005 vni 1006
vlan 1006 vni 1007
vlan 1007 vni 1008
vlan 1008 vni 1009
vlan 1009 vni 1010
vlan 1010 ! ! ! ! ! router ospf 1
router-id 11.20.1.1 area 0.0.0.1 router bgp 65535 bgp router-id 172.16.1.1 no bgp fast-external-fallover neighbor 172.16.1.2 remote-as 65535 neighbor 172.16.1.2 update-source 172.16.1.1 neighbor 172.16.1.4 remote-as 65535 neighbor 172.16.1.4 update-source 172.16.1.1 neighbor 172.16.1.5 remote-as 65535 neighbor 172.16.1.5 update-source 172.16.1.1 address-family l2vpn evpn
neighbor 172.16.1.2 activate neighbor 172.16.1.2 send-community extended neighbor 172.16.1.4 activate neighbor 172.16.1.4 send-community extended neighbor 172.16.1.5 activate neighbor 172.16.1.5 send-community extended exit-address-family ! https-server vrf default https-server vrf mgmt
Verification
Verify OSPF neighbors
6300-VSF-VTEP1(config)# show ip ospf neighbors
VRF : default
Process : 1
===================================================
Multicast VXLAN | 398
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
30.1.1.1
1
FULL/DR
11.10.1.3
vlan11
30.2.1.1
1
FULL/BDR
11.10.1.2
vlan11
Verify BGP neighbors
6300-VSF-VTEP1(config)# show bgp all summary
VRF : default
BGP Summary
-----------
Local AS
: 65535
BGP Router Identifier
Peers
:3
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 172.16.1.1 : No : 60
Address-family : IPv4 Unicast -----------------------------
Address-family : IPv6 Unicast -----------------------------
Address-family : L2VPN EVPN
-----------------------------
Neighbor
Remote-AS MsgRcvd MsgSent
172.16.1.2
65535
15521 13377
172.16.1.4
65535
30068 13611
172.16.1.5
65535
27204 14966
Up/Down Time State 01d:08h:25m Established 23h:52m:29s Established 02h:28m:51s Established
AdminStatus Up Up Up
Verify BGP EVPN able
6300-VSF-VTEP1(config)# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 172.16.1.1
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 172.1.1.1:1001
(L2VNI 1001)
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[]
172.1.1.1
0
100
0
?
*> [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
Route Distinguisher: 172.1.1.2:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
399
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.1.1.253] *>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.1.1.252] *>i [3]:[0]:[172.1.1.5] * i [3]:[0]:[172.1.1.5]
172.1.1.5
0
172.1.1.5
0
172.1.1.5
0
172.1.1.5
0
Route Distinguisher: 172.1.1.1:1002
(L2VNI 1002)
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[]
172.1.1.1
0
*> [3]:[0]:[172.1.1.1]
172.1.1.1
0
Route Distinguisher: 172.1.1.2:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:13:01:00:00:02]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
Route Distinguisher: 172.1.1.5:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.2.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.2.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
!snip
Route Distinguisher: 172.1.1.1:1009
(L2VNI 1009)
*> [2]:[0]:[0]:[00:11:01:00:00:09]:[]
172.1.1.1
0
*> [3]:[0]:[172.1.1.1]
172.1.1.1
0
Route Distinguisher: 172.1.1.2:1009
(L2VNI 1009)
*>i [2]:[0]:[0]:[00:13:01:00:00:09]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
Route Distinguisher: 172.1.1.5:1009
(L2VNI 1009)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.9.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.9.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.9.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.9.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
Route Distinguisher: 172.1.1.1:1010
(L2VNI 1010)
*> [2]:[0]:[0]:[00:11:01:00:00:0a]:[]
172.1.1.1
0
*> [3]:[0]:[172.1.1.1]
172.1.1.1
0
Route Distinguisher: 172.1.1.2:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:13:01:00:00:0a]:[]
172.1.1.2
0
*>i [3]:[0]:[172.1.1.2]
172.1.1.2
0
Route Distinguisher: 172.1.1.5:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.10.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.10.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
Total number of entries 100
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Verify VXLAN tunnel, VTEP peers, and VNIs
6300-VSF-VTEP1(config)# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
Multicast VXLAN | 400
172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1 172.1.1.1
172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.2 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5 172.1.1.5
evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn
operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational operational
1001 1002 1003 1004 1005 1006 1007 1008 1009 1010 1001 1002 1003 1004 1005 1006 1007 1008 1009 1010
disabled 1001 -disabled 1002 -disabled 1003 -disabled 1004 -disabled 1005 -disabled 1006 -disabled 1007 -disabled 1008 -disabled 1009 -disabled 1010 -disabled 1001 -disabled 1002 -disabled 1003 -disabled 1004 -disabled 1005 -disabled 1006 -disabled 1007 -disabled 1008 -disabled 1009 -disabled 1010 --
Verify IGMP snooping
6300-VSF-VTEP1(config)# show ip igmp snooping
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled
: 10
Current count of multicast groups joined : 11
IGMP Drop Unknown Multicast VLAN ID : 1001 VLAN Name : VLAN1001 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.1.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :2h 30m Querier Expiration Time :2m 23s
: Global
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.1.1.1
Filter 2
5m 57s 2m 40s
VLAN ID : 1002 VLAN Name : VLAN1002 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.2.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :2h 30m Querier Expiration Time :2m 23s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.2.1.1
Filter 2
5m 55s 2m 35s
!snip
VLAN ID : 1009 VLAN Name : VLAN1009 IGMP Configured Version : 3
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
401
IGMP Operating Version : 3 Querier Address : 101.9.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :2h 30m Querier Expiration Time :2m 18s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.9.1.1
Filter 2
6m 0s
2m 24s
VLAN ID : 1010 VLAN Name : VLAN1010 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.10.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :2h 30m Querier Expiration Time :2m 18s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.10.1.1
Filter 2
5m 55s 2m 21s
6300-VTEP2
Configuration
!export-password: default hostname 6300-VTEP2 user admin group administrators password ciphertext AQBapSlnp7JaPOWttid6/sPULR9294P5Y1I4pcw7Uwm5cXc5YgAAADUrPl5vyqQcFNfTJPou6XByU9MNfYyH enV88cNMkqrOJ68oAmFuxr5STGHWu409uXdKOkXQACuJTpnYsdNeIvjOT0eRHAonCFHKLlgGVdd72RIk73gt lO8ED0qCrosc2Nqn ! ! ! ! ! ! ssh server vrf default ssh server vrf mgmt vsf member 1
type jl668a vlan 1,10,20-21 vlan 1001
ip igmp snooping enable vlan 1002
ip igmp snooping enable vlan 1003
ip igmp snooping enable vlan 1004
ip igmp snooping enable vlan 1005
ip igmp snooping enable vlan 1006
ip igmp snooping enable vlan 1007
ip igmp snooping enable vlan 1008
ip igmp snooping enable vlan 1009
Multicast VXLAN | 402
ip igmp snooping enable vlan 1010
ip igmp snooping enable evpn
redistribute local-mac vlan 1001
rd 172.1.1.2:1001 route-target export 1001:1001 route-target import 1001:1001 redistribute host-route vlan 1002 rd 172.1.1.2:1002 route-target export 1002:1002 route-target import 1002:1002 redistribute host-route vlan 1003 rd 172.1.1.2:1003 route-target export 1003:1003 route-target import 1003:1003 redistribute host-route vlan 1004 rd 172.1.1.2:1004 route-target export 1004:1004 route-target import 1004:1004 redistribute host-route vlan 1005 rd 172.1.1.2:1005 route-target export 1005:1005 route-target import 1005:1005 redistribute host-route vlan 1006 rd 172.1.1.2:1006 route-target export 1006:1006 route-target import 1006:1006 redistribute host-route vlan 1007 rd 172.1.1.2:1007 route-target export 1007:1007 route-target import 1007:1007 redistribute host-route vlan 1008 rd 172.1.1.2:1008 route-target export 1008:1008 route-target import 1008:1008 redistribute host-route vlan 1009 rd 172.1.1.2:1009 route-target export 1009:1009 route-target import 1009:1009 redistribute host-route vlan 1010 rd 172.1.1.2:1010 route-target export 1010:1010 route-target import 1010:1010 redistribute host-route spanning-tree interface mgmt no shutdown ip dhcp interface lag 10 no shutdown description MC-LAG to Distro VSX
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
403
no routing vlan trunk native 1 vlan trunk allowed 20 lacp mode active interface 1/1/1 no shutdown no routing vlan access 1 interface 1/1/2 no shutdown no routing vlan access 1 interface 1/1/3 no shutdown no routing vlan access 1 interface 1/1/4 no shutdown no routing vlan access 1 interface 1/1/5 no shutdown no routing vlan trunk native 1 vlan trunk allowed 1001-1010 interface 1/1/6 no shutdown no routing vlan trunk native 1 vlan trunk allowed 1001-1010 interface 1/1/7 no shutdown no routing vlan access 1 interface 1/1/8 no shutdown no routing vlan access 1 interface 1/1/9 no shutdown no routing vlan access 1 interface 1/1/10 no shutdown no routing vlan access 1 interface 1/1/11 no shutdown no routing vlan access 1 interface 1/1/12 no shutdown no routing vlan access 1 interface 1/1/13 no shutdown no routing vlan access 1 interface 1/1/14 no shutdown no routing vlan access 1
Multicast VXLAN | 404
interface 1/1/15 no shutdown no routing vlan access 1
interface 1/1/16 no shutdown no routing vlan access 1
interface 1/1/17 no shutdown no routing vlan access 1
interface 1/1/18 no shutdown no routing vlan access 1
interface 1/1/19 no shutdown no routing vlan access 1
interface 1/1/20 no shutdown no routing vlan access 1
interface 1/1/21 no shutdown no routing vlan access 1
interface 1/1/22 no shutdown no routing vlan access 1
interface 1/1/23 no shutdown no routing vlan access 1
interface 1/1/24 no shutdown no routing vlan access 1
interface 1/1/25 shutdown no routing vlan access 1
interface 1/1/26 shutdown no routing vlan access 1
interface 1/1/27 no shutdown lag 10
interface 1/1/28 no shutdown lag 10
interface loopback 1 ip address 172.16.1.2/32 ip ospf 1 area 0.0.0.2
interface loopback 2 ip address 172.1.1.2/32 ip ospf 1 area 0.0.0.2
interface vlan 1 ip dhcp
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
405
interface vlan 20 ip address 11.20.2.1/29 ip ospf 1 area 0.0.0.2
interface vxlan 1 source ip 172.1.1.2 no shutdown vni 1001 vlan 1001 vni 1002 vlan 1002 vni 1003 vlan 1003 vni 1004 vlan 1004 vni 1005 vlan 1005 vni 1006 vlan 1006 vni 1007 vlan 1007 vni 1008 vlan 1008 vni 1009 vlan 1009 vni 1010 vlan 1010
! ! ! ! ! router ospf 1
router-id 11.20.2.1 area 0.0.0.2 router bgp 65535 bgp router-id 172.16.1.2 no bgp fast-external-fallover neighbor 172.16.1.1 remote-as 65535 neighbor 172.16.1.1 update-source 172.16.1.2 neighbor 172.16.1.4 remote-as 65535 neighbor 172.16.1.4 update-source 172.16.1.2 neighbor 172.16.1.5 remote-as 65535 neighbor 172.16.1.5 update-source 172.16.1.2 address-family l2vpn evpn
neighbor 172.16.1.1 activate neighbor 172.16.1.1 send-community extended neighbor 172.16.1.4 activate neighbor 172.16.1.4 send-community extended neighbor 172.16.1.5 activate neighbor 172.16.1.5 send-community extended exit-address-family ! https-server vrf default https-server vrf mgmt
Verify OSPF neighbors
6300-VTEP2(config)# show ip ospf neighbors
VRF : default
Process : 1
===================================================
Multicast VXLAN | 406
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
30.1.1.1
1
FULL/DR
11.20.2.3
vlan20
30.2.1.1
1
FULL/BDR
11.20.2.2
vlan20
Verify BGP neighbors
6300-VTEP2(config)# show bgp all summary
VRF : default
BGP Summary
-----------
Local AS
: 65535
BGP Router Identifier
Peers
:3
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 172.16.1.2 : No : 60
Address-family : IPv4 Unicast -----------------------------
Address-family : IPv6 Unicast -----------------------------
Address-family : L2VPN EVPN
-----------------------------
Neighbor
Remote-AS MsgRcvd MsgSent
172.16.1.1
65535
13423 15570
172.16.1.4
65535
30063 15780
172.16.1.5
65535
27210 17141
Up/Down Time State 01d:08h:30m Established 23h:56m:42s Established 02h:33m:21s Established
AdminStatus Up Up Up
Verify VXLAN tunnel, VTEP peers, and VNIs
6300-VTEP2(config)# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
172.1.1.2
172.1.1.1
evpn
operational
1001
disabled 1001 --
172.1.1.2
172.1.1.1
evpn
operational
1002
disabled 1002 --
172.1.1.2
172.1.1.1
evpn
operational
1003
disabled 1003 --
172.1.1.2
172.1.1.1
evpn
operational
1004
disabled 1004 --
172.1.1.2
172.1.1.1
evpn
operational
1005
disabled 1005 --
172.1.1.2
172.1.1.1
evpn
operational
1006
disabled 1006 --
172.1.1.2
172.1.1.1
evpn
operational
1007
disabled 1007 --
172.1.1.2
172.1.1.1
evpn
operational
1008
disabled 1008 --
172.1.1.2
172.1.1.1
evpn
operational
1009
disabled 1009 --
172.1.1.2
172.1.1.1
evpn
operational
1010
disabled 1010 --
172.1.1.2
172.1.1.5
evpn
operational
1001
disabled 1001 --
172.1.1.2
172.1.1.5
evpn
operational
1002
disabled 1002 --
172.1.1.2
172.1.1.5
evpn
operational
1003
disabled 1003 --
172.1.1.2
172.1.1.5
evpn
operational
1004
disabled 1004 --
172.1.1.2
172.1.1.5
evpn
operational
1005
disabled 1005 --
172.1.1.2
172.1.1.5
evpn
operational
1006
disabled 1006 --
172.1.1.2
172.1.1.5
evpn
operational
1007
disabled 1007 --
172.1.1.2
172.1.1.5
evpn
operational
1008
disabled 1008 --
172.1.1.2
172.1.1.5
evpn
operational
1009
disabled 1009 --
172.1.1.2
172.1.1.5
evpn
operational
1010
disabled 1010 --
Verify BGP EVPN table
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
407
6300-VTEP2(config)# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 172.16.1.2
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 172.1.1.1:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
172.1.1.1
0
100
0
?
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
Route Distinguisher: 172.1.1.2:1001
(L2VNI 1001)
*> [2]:[0]:[0]:[00:13:01:00:00:01]:[]
172.1.1.2
0
*> [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1001
(L2VNI 1001)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.1.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.1.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.1.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Route Distinguisher: 172.1.1.1:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
172.1.1.1
0
*>i [3]:[0]:[172.1.1.1]
172.1.1.1
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.2:1002
(L2VNI 1002)
*> [2]:[0]:[0]:[00:13:01:00:00:02]:[]
172.1.1.2
0
*> [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1002
(L2VNI 1002)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.2.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.2.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.2.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
!snip
Route Distinguisher: 172.1.1.2:1010
(L2VNI 1010)
*> [2]:[0]:[0]:[00:13:01:00:00:0a]:[]
172.1.1.2
0
*> [3]:[0]:[172.1.1.2]
172.1.1.2
0
100
0
?
100
0
?
Route Distinguisher: 172.1.1.5:1010
(L2VNI 1010)
*>i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
* i [2]:[0]:[0]:[00:00:20:00:10:01]:[101.10.1.254]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5b:2c:00]:[101.10.1.253]
172.1.1.5
0
*>i [2]:[0]:[0]:[b8:d4:e7:5d:8a:00]:[101.10.1.252]
172.1.1.5
0
*>i [3]:[0]:[172.1.1.5]
172.1.1.5
0
* i [3]:[0]:[172.1.1.5]
172.1.1.5
0
Total number of entries 100
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Verify IGMP snooping
Multicast VXLAN | 408
6300-VTEP2(config)# show ip igmp snooping
IGMP Snooping Protocol Info
Total VLANs with IGMP enabled
: 10
Current count of multicast groups joined : 10
IGMP Drop Unknown Multicast VLAN ID : 1001 VLAN Name : VLAN1001 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.1.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 20s
: Global
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.1.1.1
Filter 2
10m 10s 2m 29s
VLAN ID : 1002 VLAN Name : VLAN1002 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.2.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 20s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.2.1.1
Filter 2
10m 14s 2m 34s
VLAN ID : 1003 VLAN Name : VLAN1003 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.3.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.3.1.1
Filter 2
10m 15s 2m 19s
VLAN ID : 1004 VLAN Name : VLAN1004 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.4.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.4.1.1
Filter 2
10m 11s 2m 19s
VLAN ID : 1005 VLAN Name : VLAN1005
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
409
IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.5.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.5.1.1
Filter 2
10m 16s 2m 24s
VLAN ID : 1006 VLAN Name : VLAN1006 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.6.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.6.1.1
Filter 2
10m 13s 2m 18s
VLAN ID : 1007 VLAN Name : VLAN1007 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.7.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.7.1.1
Filter 2
10m 12s 2m 25s
VLAN ID : 1008 VLAN Name : VLAN1008 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.8.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.8.1.1
Filter 2
10m 17s 2m 24s
VLAN ID : 1009 VLAN Name : VLAN1009 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.9.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.9.1.1
Filter 2
10m 12s 2m 19s
Multicast VXLAN | 410
VLAN ID : 1010 VLAN Name : VLAN1010 IGMP Configured Version : 3 IGMP Operating Version : 3 Querier Address : 101.10.1.252 Querier Port : vxlan1(172.1.1.5) Querier UpTime :10m 19s Querier Expiration Time :2m 15s
Active Group Address Tracking Vers Mode Uptime Expires
--------------------- ---------- ---- ---- --------- ----------
225.10.1.1
Filter 2
10m 11s 2m 22s
Use case 2: DC network with distributed L3 gateway
This use case shows sample configurations and relevant verification commands for a DC network with distributed L3 gateway, external BSR/RPs on a non-VXLAN network, sources in DC VXLAN network, and receivers in a non-VXLAN network.
Figure 1 DC network with distributed L3 gateway topology
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
411
Configuration and verification details for the devices in this use case are provided in the following sections: n Spine01 n Spine02 n Leaf01-primary n Leaf01-secondary n Leaf02 n 8325-border-prim n 8325-border-sec n Edge-primary n Edge-secondary
Spine01
Configuration
Multicast VXLAN | 412
!export-password: default hostname Spine01 module 1/1 product-number jl363a cli-session
timeout 0 ! ! ! ssh server vrf mgmt vlan 1 interface mgmt
no shutdown ip dhcp interface 1/1/4 no shutdown mtu 9198 ip mtu 9198 ip address 20.0.0.2/30 ip ospf 1 area 0.0.0.0 interface 1/1/5 no shutdown mtu 9198 ip mtu 9198 ip address 21.0.0.2/30 ip ospf 1 area 0.0.0.0 interface 1/1/6 no shutdown mtu 9198 ip mtu 9198 ip address 22.0.0.2/30 ip ospf 1 area 0.0.0.0 interface 1/1/28 no shutdown mtu 9198 ip mtu 9198 ip address 24.0.0.2/30 ip ospf 1 area 0.0.0.0 interface 1/1/29 no shutdown mtu 9198 ip mtu 9198 ip address 25.0.0.2/30 ip ospf 1 area 0.0.0.0 interface loopback 0 ip address 4.4.4.4/32 ip ospf 1 area 0.0.0.0 ! ! ! ! ! router ospf 1 router-id 44.44.44.44 area 0.0.0.0 router bgp 1 bgp router-id 4.4.4.4 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 update-source loopback 0 neighbor 1.1.2.1 remote-as 1 neighbor 1.1.2.1 update-source loopback 0 neighbor 6.6.6.6 remote-as 1 neighbor 6.6.6.6 update-source loopback 0
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
413
neighbor 109.0.0.1 remote-as 1 neighbor 109.0.0.1 update-source loopback 0 neighbor 110.0.0.1 remote-as 1 neighbor 110.0.0.1 update-source loopback 0 address-family ipv4 unicast
redistribute connected exit-address-family address-family l2vpn evpn
neighbor 1.1.1.1 activate neighbor 1.1.1.1 route-reflector-client neighbor 1.1.1.1 send-community extended neighbor 1.1.2.1 activate neighbor 1.1.2.1 route-reflector-client neighbor 1.1.2.1 send-community extended neighbor 6.6.6.6 activate neighbor 6.6.6.6 route-reflector-client neighbor 6.6.6.6 send-community extended neighbor 109.0.0.1 activate neighbor 109.0.0.1 route-reflector-client neighbor 109.0.0.1 send-community extended neighbor 110.0.0.1 activate neighbor 110.0.0.1 route-reflector-client neighbor 110.0.0.1 send-community extended exit-address-family ! https-server vrf mgmt
Spine02
Configuration
!export-password: default hostname Spine02 profile Spine cli-session
timeout 0 ! ! ! ssh server vrf mgmt vlan 1 interface mgmt
no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12 system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36 system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48 interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 20.0.0.6/30 ip ospf 1 area 0.0.0.0 interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 21.0.0.6/30
Multicast VXLAN | 414
ip ospf 1 area 0.0.0.0 interface 1/1/5
no shutdown mtu 9198 ip mtu 9198 ip address 22.0.0.6/30 ip ospf 1 area 0.0.0.0 interface 1/1/41 no shutdown mtu 9198 ip mtu 9198 ip address 24.0.0.6/30 ip ospf 1 area 0.0.0.0 interface 1/1/42 no shutdown mtu 9198 ip mtu 9198 ip address 25.0.0.6/30 ip ospf 1 area 0.0.0.0 interface loopback 0 ip address 5.5.5.5/32 ip ospf 1 area 0.0.0.0 ! ! ! ! ! router ospf 1 router-id 45.45.45.45 area 0.0.0.0 router bgp 1 bgp router-id 5.5.5.5 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 update-source loopback 0 neighbor 1.1.2.1 remote-as 1 neighbor 1.1.2.1 update-source loopback 0 neighbor 6.6.6.6 remote-as 1 neighbor 6.6.6.6 update-source loopback 0 neighbor 109.0.0.1 remote-as 1 neighbor 109.0.0.1 update-source loopback 0 neighbor 110.0.0.1 remote-as 1 neighbor 110.0.0.1 update-source loopback 0 address-family ipv4 unicast
redistribute connected exit-address-family address-family l2vpn evpn
neighbor 1.1.1.1 activate neighbor 1.1.1.1 route-reflector-client neighbor 1.1.1.1 send-community extended neighbor 1.1.2.1 activate neighbor 1.1.2.1 route-reflector-client neighbor 1.1.2.1 send-community extended neighbor 6.6.6.6 activate neighbor 6.6.6.6 route-reflector-client neighbor 6.6.6.6 send-community extended neighbor 109.0.0.1 activate neighbor 109.0.0.1 route-reflector-client neighbor 109.0.0.1 send-community extended neighbor 110.0.0.1 activate neighbor 110.0.0.1 route-reflector-client neighbor 110.0.0.1 send-community extended exit-address-family
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
415
! https-server vrf mgmt
Leaf01-primary
Configuration
!export-password: default hostname Leaf01-primary profile Leaf vrf DC
rd 192.1.0.10:1 route-target export 65501:1 evpn route-target import 65501:1 evpn cli-session timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 101 ip igmp snooping enable vlan 102 ip igmp snooping enable vlan 103 ip igmp snooping enable vlan 104 ip igmp snooping enable vlan 105 ip igmp snooping enable vlan 106 ip igmp snooping enable vlan 107 ip igmp snooping enable vlan 108 ip igmp snooping enable vlan 109 ip igmp snooping enable vlan 110 ip igmp snooping enable vlan 111 ip igmp snooping enable vlan 900 description DC_Leaf_L3 vlan 1111 virtual-mac 00:00:00:0a:0a:0a evpn redistribute local-svi vlan 101
rd auto route-target export auto route-target import auto redistribute host-route vlan 102 rd auto route-target export auto route-target import auto redistribute host-route
Multicast VXLAN | 416
vlan 103 rd auto route-target export auto route-target import auto redistribute host-route
vlan 104 rd auto route-target export auto route-target import auto redistribute host-route
vlan 105 rd auto route-target export auto route-target import auto redistribute host-route
vlan 106 rd auto route-target export auto route-target import auto redistribute host-route
vlan 107 rd auto route-target export auto route-target import auto redistribute host-route
vlan 108 rd auto route-target export auto route-target import auto redistribute host-route
vlan 109 rd auto route-target export auto route-target import auto redistribute host-route
vlan 110 rd auto route-target export auto route-target import auto redistribute host-route
vlan 111 rd auto route-target export auto route-target import auto redistribute host-route
interface mgmt no shutdown ip dhcp
system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12
system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24
system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36
system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48
interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
417
interface lag 2 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 101-111 lacp mode active
interface 1/1/5 no shutdown mtu 9198 ip mtu 9198 ip address 20.0.0.1/30 ip ospf 1 area 0.0.0.0
interface 1/1/6 no shutdown mtu 9198 ip mtu 9198 ip address 20.0.0.5/30 ip ospf 1 area 0.0.0.0
interface 1/1/7 no shutdown mtu 9198 lag 2
interface 1/1/32 no shutdown mtu 9198 lag 1
interface 1/1/33 no shutdown mtu 9198 ip mtu 9198 ip address 192.168.1.1/30
interface loopback 0 ip address 1.1.1.1/32 ip ospf 1 area 0.0.0.0
interface loopback 1 ip address 192.1.0.10/32 ip ospf 1 area 0.0.0.0
interface vlan 101 vrf attach DC ip address 192.1.1.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.1.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
interface vlan 102 vrf attach DC ip address 192.1.2.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.2.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
interface vlan 103 vrf attach DC ip address 192.1.3.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.3.1 ip igmp enable ip igmp version 2
Multicast VXLAN | 418
ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 104 vrf attach DC ip address 192.1.4.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.4.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 105 vrf attach DC ip address 192.1.5.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.5.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 106 vrf attach DC ip address 192.1.6.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.6.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 107 vrf attach DC ip address 192.1.7.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.7.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 108 vrf attach DC ip address 192.1.8.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.8.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 109 vrf attach DC ip address 192.1.9.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.9.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 110 vrf attach DC ip address 192.1.10.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.10.1 ip igmp enable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
419
ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 111 vrf attach DC ip address 192.1.11.2/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.11.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 900 description DC_Leaf_L3 ip mtu 9198 ip address 192.1.240.2/31 ip ospf 1 area 0.0.0.0 ip ospf cost 50 ip ospf network point-to-point interface vxlan 1 source ip 192.1.0.10 no shutdown vni 100 vni 101
vlan 101 vni 102
vlan 102 vni 103
vlan 103 vni 104
vlan 104 vni 105
vlan 105 vni 106
vlan 106 vni 107
vlan 107 vni 108
vlan 108 vni 109
vlan 109 vni 110
vlan 110 vni 111
vlan 111 vni 100001
vrf DC routing vsx system-mac 00:00:00:0a:0a:0a inter-switch-link lag 1 role primary keepalive peer 192.168.1.2 source 192.168.1.1 no split-recovery vsx-sync evpn ! ! ! ! ! router ospf 1 router-id 11.11.11.11
Multicast VXLAN | 420
area 0.0.0.0 router bgp 1
bgp router-id 1.1.1.1 no bgp fast-external-fallover neighbor 4.4.4.4 remote-as 1 neighbor 4.4.4.4 update-source loopback 0 neighbor 5.5.5.5 remote-as 1 neighbor 5.5.5.5 update-source loopback 0 address-family ipv4 unicast
redistribute connected exit-address-family address-family l2vpn evpn
neighbor 4.4.4.4 activate neighbor 4.4.4.4 send-community extended neighbor 5.5.5.5 activate neighbor 5.5.5.5 send-community extended exit-address-family ! vrf DC no bgp fast-external-fallover address-family ipv4 unicast
redistribute connected redistribute static exit-address-family ! router pim vrf DC enable https-server vrf mgmt
Verification
Verify OSPF neighbors
Leaf01-primary# show ip ospf neighbors all-vrfs
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
44.44.44.44
1
FULL/DR
20.0.0.2
1/1/5
45.45.45.45
1
FULL/DR
20.0.0.6
1/1/6
Verify BGP EVPN neighbors
Leaf01-primary# show bgp l2vpn evpn summary
VRF : default
BGP Summary
-----------
Local AS
:1
BGP Router Identifier : 1.1.1.1
Peers
:2
Log Neighbor Changes : No
Cfg. Hold Time
: 180
Cfg. Keep Alive
: 60
Confederation Id
:0
Neighbor
Remote-AS MsgRcvd MsgSent Up/Down Time State
AdminStatus
4.4.4.4
1
167
93
00h:11m:41s Established Up
5.5.5.5
1
168
93
00h:11m:41s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
421
Leaf01-primary# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
192.1.0.10
192.1.0.7
evpn
operational
101
disabled 101 --
192.1.0.10
192.1.0.7
evpn
operational
102
disabled 102 --
192.1.0.10
192.1.0.7
evpn
operational
103
disabled 103 --
192.1.0.10
192.1.0.7
evpn
operational
104
disabled 104 --
192.1.0.10
192.1.0.7
evpn
operational
105
disabled 105 --
192.1.0.10
192.1.0.7
evpn
operational
106
disabled 106 --
192.1.0.10
192.1.0.7
evpn
operational
107
disabled 107 --
192.1.0.10
192.1.0.7
evpn
operational
108
disabled 108 --
192.1.0.10
192.1.0.7
evpn
operational
109
disabled 109 --
192.1.0.10
192.1.0.7
evpn
operational
110
disabled 110 --
192.1.0.10
192.1.0.7
evpn
operational
100001 enabled --
DC
192.1.0.10
192.1.0.17
evpn
operational
101
disabled 101 --
192.1.0.10
192.1.0.17
evpn
operational
102
disabled 102 --
192.1.0.10
192.1.0.17
evpn
operational
103
disabled 103 --
192.1.0.10
192.1.0.17
evpn
operational
104
disabled 104 --
192.1.0.10
192.1.0.17
evpn
operational
105
disabled 105 --
192.1.0.10
192.1.0.17
evpn
operational
106
disabled 106 --
192.1.0.10
192.1.0.17
evpn
operational
107
disabled 107 --
192.1.0.10
192.1.0.17
evpn
operational
108
disabled 108 --
192.1.0.10
192.1.0.17
evpn
operational
109
disabled 109 --
192.1.0.10
192.1.0.17
evpn
operational
110
disabled 110 --
192.1.0.10
192.1.0.17
evpn
operational
100001 enabled --
DC
Verify PIM neighbors
Leaf01-primary# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: DC
Total number of neighbors : 43
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.7 : vni100001 : 00:12:01 : 00:03:05 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.17 : vni100001 : 00:11:25 : 00:03:05 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.1.1
: 192.1.1.3 : vlan101 : 00:12:53 : 00:01:23 : 167772608 : 00:01:45
! snip
Multicast VXLAN | 422
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.11.1
: 192.1.11.3 : vlan111 : 00:12:58 : 00:01:17 : 167772608 : 00:01:45
Verify RP information
Leaf01-primary# show ip pim rp-set all-vrfs
VRF: DC
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
224.0.0.0
240.0.0.0
192.1.0.1
150
224.0.0.0
240.0.0.0
192.1.0.2
150
Expire Time ----------124 124
Verify BSR information
Leaf01-primary# show ip pim bsr elected all-vrfs
Status and Counters - PIM-SM Elected Bootstrap Router Information
VRF E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: DC : 192.1.0.2 :0 : 30 : 10 mins 30 secs : 1 mins 40 secs
Verify mroutes
Leaf01-primary# show ip mroute all-vrfs IP Multicast Route Entries
VRF : DC Total number of entries : 39
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 192.1.1.11 : : vlan101
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan101
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan102
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
423
Group Address Source Address Neighbor Incoming interface ! snip
: 225.1.3.1 : 192.1.1.11 : : vlan103
Group Address
: 230.1.1.1
Source Address
: 192.1.11.12
Neighbor
:
Incoming interface
: vlan111
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address
: 230.1.2.1
Source Address
: 192.1.11.12
Neighbor
:
Incoming interface
: vlan111
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address
: 230.1.3.1
Source Address
: 192.1.11.12
Neighbor
:
Incoming interface
: vlan111
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address
: 230.1.4.1
Source Address
: 192.1.11.12
Neighbor
:
Incoming interface
: vlan111
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Verify PIM interfaces
Leaf01-primary# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.2/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Multicast VXLAN | 424
Operational DR Priority : 167772608
Neighbor Timeout
: 91
Leaf01-primary# show ip pim interface vlan 110
PIM Interfaces
VRF: DC
Interface : vlan110
Neighbor count : 4
IP Address : 192.1.10.2/24
Mode
: sparse
Designated Router : 192.1.10.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 167772608
Neighbor Timeout
: 93
Leaf01-primary# show ip pim interface vlan 111
PIM Interfaces
VRF: DC
Interface : vlan111
Neighbor count : 1
IP Address : 192.1.11.2/24
Mode
: sparse
Designated Router : 192.1.11.2
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 167772608
Neighbor Timeout
: 83
Verify BGP EVPN table
Leaf01-primary# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 1.1.1.1
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
425
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 192.1.0.10:101
(L2VNI 101)
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
100
0
?
*> [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
Route Distinguisher: 192.1.0.17:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
*>i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
* i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
*>i [3]:[0]:[192.1.0.17]
192.1.0.17
0
* i [3]:[0]:[192.1.0.17]
192.1.0.17
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Route Distinguisher: 192.1.0.7:101
(L2VNI 101)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
*>i [3]:[0]:[192.1.0.7]
192.1.0.7
0
* i [3]:[0]:[192.1.0.7]
192.1.0.7
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Route Distinguisher: 192.1.0.10:102
(L2VNI 102)
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
*> [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
*> [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
!snip
Route Distinguisher: 192.1.0.10:1 *> [5]:[0]:[0]:[24]:[192.1.1.0] *> [5]:[0]:[0]:[24]:[192.1.10.0] *> [5]:[0]:[0]:[24]:[192.1.11.0] *> [5]:[0]:[0]:[24]:[192.1.2.0] *> [5]:[0]:[0]:[24]:[192.1.3.0] *> [5]:[0]:[0]:[24]:[192.1.4.0] *> [5]:[0]:[0]:[24]:[192.1.5.0] *> [5]:[0]:[0]:[24]:[192.1.6.0] *> [5]:[0]:[0]:[24]:[192.1.7.0]
(L3VNI 100001)
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 426
*> [5]:[0]:[0]:[24]:[192.1.8.0] *> [5]:[0]:[0]:[24]:[192.1.9.0]
192.1.0.10
0
192.1.0.10
0
Route Distinguisher: 192.1.0.10:101
(L3VNI 100001)
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
*> [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
Route Distinguisher: 192.1.0.10:102
(L3VNI 100001)
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
*> [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
Total number of entries 844
Leaf01-secondary
Configuration
hostname Leaf01-secondary profile Leaf vrf DC
rd 192.1.0.10:1 route-target export 65501:1 evpn route-target import 65501:1 evpn ntp server 10.100.0.12 minpoll 4 maxpoll 4 iburst cli-session timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 101 ip igmp snooping enable vlan 102 ip igmp snooping enable vlan 103 ip igmp snooping enable vlan 104 ip igmp snooping enable vlan 105 ip igmp snooping enable vlan 106 ip igmp snooping enable vlan 107 ip igmp snooping enable vlan 108 ip igmp snooping enable vlan 109
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
427
ip igmp snooping enable vlan 110
ip igmp snooping enable vlan 111
ip igmp snooping enable vlan 900 virtual-mac 00:00:00:0a:0a:0a evpn
redistribute local-svi vlan 101
rd auto route-target export auto route-target import auto redistribute host-route vlan 102 rd auto route-target export auto route-target import auto redistribute host-route vlan 103 rd auto route-target export auto route-target import auto redistribute host-route vlan 104 rd auto route-target export auto route-target import auto redistribute host-route vlan 105 rd auto route-target export auto route-target import auto redistribute host-route vlan 106 rd auto route-target export auto route-target import auto redistribute host-route vlan 107 rd auto route-target export auto route-target import auto redistribute host-route vlan 108 rd auto route-target export auto route-target import auto redistribute host-route vlan 109 rd auto route-target export auto route-target import auto redistribute host-route vlan 110 rd auto route-target export auto route-target import auto redistribute host-route vlan 111 rd auto route-target export auto
Multicast VXLAN | 428
route-target import auto redistribute host-route interface mgmt no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12 system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24 system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36 system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48 interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface lag 2 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 101-111 lacp mode active interface 1/1/5 no shutdown mtu 9198 ip mtu 9198 ip address 21.0.0.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/6 no shutdown mtu 9198 ip mtu 9198 ip address 21.0.0.5/30 ip ospf 1 area 0.0.0.0 interface 1/1/7 no shutdown mtu 9198 lag 2 interface 1/1/32 no shutdown mtu 9198 lag 1 interface 1/1/33 no shutdown mtu 9198 ip mtu 9198 ip address 192.168.1.2/30 interface loopback 0 ip address 1.1.2.1/32 ip ospf 1 area 0.0.0.0 interface loopback 1 ip address 192.1.0.10/32 ip ospf 1 area 0.0.0.0 interface vlan 101 vrf attach DC ip address 192.1.1.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.1.1 ip igmp enable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
429
ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 102 vrf attach DC ip address 192.1.2.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.2.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 103 vrf attach DC ip address 192.1.3.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.3.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 104 vrf attach DC ip address 192.1.4.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.4.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 105 vrf attach DC ip address 192.1.5.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.5.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 106 vrf attach DC ip address 192.1.6.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.6.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 107 vrf attach DC ip address 192.1.7.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.7.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 108 vrf attach DC ip address 192.1.8.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.8.1
Multicast VXLAN | 430
ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 109 vrf attach DC ip address 192.1.9.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.9.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 110 vrf attach DC ip address 192.1.10.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.10.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 111 vrf attach DC ip address 192.1.11.3/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.11.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vxlan 1 source ip 192.1.0.10 no shutdown vni 100 vni 101
vlan 101 vni 102
vlan 102 vni 103
vlan 103 vni 104
vlan 104 vni 105
vlan 105 vni 106
vlan 106 vni 107
vlan 107 vni 108
vlan 108 vni 109
vlan 109 vni 110
vlan 110 vni 111
vlan 111 vni 100001
vrf DC routing vsx system-mac 00:00:00:0a:0a:0a
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
431
inter-switch-link lag 1 role secondary keepalive peer 192.168.1.1 source 192.168.1.2 no split-recovery vsx-sync evpn ! ! ! ! ! router ospf 1 router-id 1.1.2.1 area 0.0.0.0 router bgp 1 bgp router-id 1.1.2.1 neighbor 4.4.4.4 remote-as 1 neighbor 4.4.4.4 update-source loopback 0 neighbor 5.5.5.5 remote-as 1 neighbor 5.5.5.5 update-source loopback 0 address-family ipv4 unicast
redistribute connected exit-address-family address-family l2vpn evpn
neighbor 4.4.4.4 activate neighbor 4.4.4.4 send-community extended neighbor 5.5.5.5 activate neighbor 5.5.5.5 send-community extended exit-address-family ! vrf DC address-family ipv4 unicast
redistribute connected redistribute static exit-address-family ! router pim vrf DC enable https-server vrf mgmt
Verification
Verify OSPF neighbors
Leaf01-secondary# show ip ospf neighbors all-vrfs
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
44.44.44.44
1
FULL/DR
21.0.0.2
1/1/5
45.45.45.45
1
FULL/DR
21.0.0.6
1/1/6
Verify BGP EVPN neighbors
Leaf01-secondary# show bgp l2vpn evpn summary VRF : default
Multicast VXLAN | 432
BGP Summary -----------
Local AS Peers Cfg. Hold Time Confederation Id
:1 :2 : 180 :0
BGP Router Identifier : 1.1.2.1
Log Neighbor Changes : No
Cfg. Keep Alive
: 60
Neighbor 4.4.4.4 5.5.5.5
Remote-AS MsgRcvd MsgSent
1
258
93
1
259
93
Up/Down Time State
AdminStatus
00h:12m:51s Established Up
00h:12m:51s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
Leaf01-secondary# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
192.1.0.10
192.1.0.7
evpn
operational
101
disabled 101 --
192.1.0.10
192.1.0.7
evpn
operational
102
disabled 102 --
192.1.0.10
192.1.0.7
evpn
operational
103
disabled 103 --
192.1.0.10
192.1.0.7
evpn
operational
104
disabled 104 --
192.1.0.10
192.1.0.7
evpn
operational
105
disabled 105 --
192.1.0.10
192.1.0.7
evpn
operational
106
disabled 106 --
192.1.0.10
192.1.0.7
evpn
operational
107
disabled 107 --
192.1.0.10
192.1.0.7
evpn
operational
108
disabled 108 --
192.1.0.10
192.1.0.7
evpn
operational
109
disabled 109 --
192.1.0.10
192.1.0.7
evpn
operational
110
disabled 110 --
192.1.0.10
192.1.0.7
evpn
operational
100001 enabled --
DC
192.1.0.10
192.1.0.17
evpn
operational
101
disabled 101 --
192.1.0.10
192.1.0.17
evpn
operational
102
disabled 102 --
192.1.0.10
192.1.0.17
evpn
operational
103
disabled 103 --
192.1.0.10
192.1.0.17
evpn
operational
104
disabled 104 --
192.1.0.10
192.1.0.17
evpn
operational
105
disabled 105 --
192.1.0.10
192.1.0.17
evpn
operational
106
disabled 106 --
192.1.0.10
192.1.0.17
evpn
operational
107
disabled 107 --
192.1.0.10
192.1.0.17
evpn
operational
108
disabled 108 --
192.1.0.10
192.1.0.17
evpn
operational
109
disabled 109 --
192.1.0.10
192.1.0.17
evpn
operational
110
disabled 110 --
192.1.0.10
192.1.0.17
evpn
operational
100001 enabled --
DC
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
433
Verify PIM neighbors
Leaf01-secondary# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: DC
Total number of neighbors : 43
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.7 : vni100001 : 00:12:52 : 00:03:15 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.17 : vni100001 : 00:12:15 : 00:03:15 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.1.1
: 192.1.1.2 : vlan101 : 00:13:42 : 00:01:32 : 167772608 : 00:01:45
! snip IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.11.1
: 192.1.11.2 : vlan111 : 00:13:49 : 00:01:29 : 167772608 : 00:01:45
Verify PIM interfaces
Leaf01-secondary# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.3/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Multicast VXLAN | 434
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 167772608
Neighbor Timeout
: 81
Lan Prune Delay
: Yes
Configured DR Priority : 1
Leaf01-secondary# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.3/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 167772608
Neighbor Timeout
: 79
Leaf01-secondary# show ip pim interface vlan 110
PIM Interfaces
VRF: DC
Interface : vlan110
Neighbor count : 4
IP Address : 192.1.10.3/24
Mode
: sparse
Designated Router : 192.1.10.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 167772608
Neighbor Timeout
: 76
Leaf01-secondary# show ip pim interface vlan 111 PIM Interfaces VRF: DC Interface : vlan111 Neighbor count : 1
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
435
IP Address : 192.1.11.3/24
Mode
: sparse
Designated Router : 192.1.11.3
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 167772608
Neighbor Timeout
: 104
Lan Prune Delay
: Yes
Configured DR Priority : 1
Verify mroutes
Leaf01-secondary# show ip mroute all-vrfs IP Multicast Route Entries
VRF : DC Total number of entries : 39
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 192.1.1.11 : : vlan101
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan102
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan101
Group Address Source Address Neighbor Incoming interface
: 225.1.3.1 : 192.1.1.11 : : vlan101
Group Address Source Address Neighbor Incoming interface ! snip
: 225.1.3.1 : 192.1.1.11 : : vlan103
Group Address Source Address Neighbor Incoming interface
: 239.1.1.1 : 192.1.151.101 : : vlan101
Group Address Source Address Neighbor Incoming interface
: 239.1.2.1 : 192.1.151.101 : : vlan102
Group Address Source Address Neighbor Incoming interface
: 239.1.3.1 : 192.1.151.101 : : vlan103
Multicast VXLAN | 436
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
: 239.1.4.1 : 192.1.151.101 : : vlan104
: 239.1.5.1 : 192.1.151.101 : : vlan105
: 239.1.6.1 : 192.1.151.101 : : vlan106
: 239.1.7.1 : 192.1.151.101 : : vlan107
: 239.1.8.1 : 192.1.151.101 : : vlan108
: 239.1.9.1 : 192.1.151.101 : : vlan109
: 239.1.10.1 : 192.1.151.101 : : vlan110
Verify BGP EVPN table
Leaf01-secondary# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 1.1.2.1
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 192.1.0.10:101
(L2VNI 101)
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
437
*> [2]:[0]:[0]:[00:12:01:00:00:01]:[] * i [2]:[0]:[0]:[00:12:01:00:00:01]:[] * i [2]:[0]:[0]:[00:12:01:00:00:01]:[] *> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] * i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] * i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] *> [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3] * i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2] * i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2] *> [3]:[0]:[192.1.0.10] * i [3]:[0]:[192.1.0.10] * i [3]:[0]:[192.1.0.10]
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
Route Distinguisher: 192.1.0.17:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
*>i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
* i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
*>i [3]:[0]:[192.1.0.17]
192.1.0.17
0
* i [3]:[0]:[192.1.0.17]
192.1.0.17
0
Route Distinguisher: 192.1.0.7:101
(L2VNI 101)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
*>i [3]:[0]:[192.1.0.7]
192.1.0.7
0
* i [3]:[0]:[192.1.0.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.10:102
(L2VNI 102)
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
*> [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*> [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
*> [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
*> [3]:[0]:[192.1.0.10]
192.1.0.10
0
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 438
!snip
Route Distinguisher: 192.1.0.7:109
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:110
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
Total number of entries 1084
Leaf02
Configuration
hostname Leaf02 profile Leaf vrf DC
rd 192.1.0.17:1 route-target export 65501:1 evpn route-target import 65501:1 evpn cli-session timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 101 ip igmp snooping enable vlan 102 ip igmp snooping enable vlan 103 ip igmp snooping enable vlan 104 ip igmp snooping enable vlan 105 ip igmp snooping enable vlan 106 ip igmp snooping enable vlan 107 ip igmp snooping enable vlan 108 ip igmp snooping enable vlan 109 ip igmp snooping enable vlan 110 ip igmp snooping enable virtual-mac 00:00:00:0b:0b:0b evpn redistribute local-svi
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
439
vlan 101 rd auto route-target export auto route-target import auto redistribute host-route
vlan 102 rd auto route-target export auto route-target import auto redistribute host-route
vlan 103 rd auto route-target export auto route-target import auto redistribute host-route
vlan 104 rd auto route-target export auto route-target import auto redistribute host-route
vlan 105 rd auto route-target export auto route-target import auto redistribute host-route
vlan 106 rd auto route-target export auto route-target import auto redistribute host-route
vlan 107 rd auto route-target export auto route-target import auto redistribute host-route
vlan 108 rd auto route-target export auto route-target import auto redistribute host-route
vlan 109 rd auto route-target export auto route-target import auto redistribute host-route
vlan 110 rd auto route-target export auto route-target import auto redistribute host-route
interface mgmt no shutdown ip dhcp
system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12
system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24
system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36
system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48
interface lag 1
Multicast VXLAN | 440
no shutdown no routing vlan access 1 lacp mode active interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 22.0.0.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 22.0.0.5/30 ip ospf 1 area 0.0.0.0 interface 1/1/7 no shutdown mtu 9198 no routing vlan trunk native 1 vlan trunk allowed 101-110 interface 1/1/9 no shutdown no routing vlan trunk native 1 vlan trunk allowed 101-110 interface loopback 0 ip address 6.6.6.6/32 ip ospf 1 area 0.0.0.0 interface loopback 1 ip address 192.1.0.17/32 ip ospf 1 area 0.0.0.0 interface vlan 101 vrf attach DC ip address 192.1.1.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.1.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 102 vrf attach DC ip address 192.1.2.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.2.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 103 vrf attach DC ip address 192.1.3.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.3.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 104 vrf attach DC
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
441
ip address 192.1.4.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.4.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 105 vrf attach DC ip address 192.1.5.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.5.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 106 vrf attach DC ip address 192.1.6.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.6.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 107 vrf attach DC ip address 192.1.7.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.7.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 108 vrf attach DC ip address 192.1.8.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.8.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 109 vrf attach DC ip address 192.1.9.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.9.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 110 vrf attach DC ip address 192.1.10.4/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.10.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vxlan 1
Multicast VXLAN | 442
source ip 192.1.0.17 no shutdown vni 101
vlan 101 vni 102
vlan 102 vni 103
vlan 103 vni 104
vlan 104 vni 105
vlan 105 vni 106
vlan 106 vni 107
vlan 107 vni 108
vlan 108 vni 109
vlan 109 vni 110
vlan 110 vni 100001
vrf DC routing ! ! ! ! ! router ospf 1 router-id 6.6.6.6 area 0.0.0.0 router bgp 1 bgp router-id 6.6.6.6 neighbor 4.4.4.4 remote-as 1 neighbor 4.4.4.4 update-source loopback 0 neighbor 5.5.5.5 remote-as 1 neighbor 5.5.5.5 update-source loopback 0 address-family l2vpn evpn neighbor 4.4.4.4 activate neighbor 4.4.4.4 send-community extended neighbor 5.5.5.5 activate neighbor 5.5.5.5 send-community extended exit-address-family ! vrf DC address-family ipv4 unicast
redistribute connected redistribute static exit-address-family ! router pim vrf DC enable https-server vrf mgmt
Verification
Verify OSPF neighbors
Leaf02# show ip ospf neighbors all-vrfs
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
443
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
44.44.44.44
1
FULL/DR
22.0.0.2
1/1/1
45.45.45.45
1
FULL/DR
22.0.0.6
1/1/2
Verify BGP EVPN neighbors
Leaf02# show bgp l2vpn evpn summary
VRF : default
BGP Summary
-----------
Local AS
:1
Peers
:2
Cfg. Hold Time
: 180
Confederation Id
:0
BGP Router Identifier : 6.6.6.6
Log Neighbor Changes : No
Cfg. Keep Alive
: 60
Neighbor 4.4.4.4 5.5.5.5
Remote-AS MsgRcvd MsgSent
1
196
73
1
190
71
Up/Down Time State
AdminStatus
00h:13m:44s Established Up
00h:13m:37s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
Leaf02# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
--
192.1.0.17
192.1.0.7
evpn
operational
101
disabled 101 --
192.1.0.17
192.1.0.7
evpn
operational
102
disabled 102 --
192.1.0.17
192.1.0.7
evpn
operational
103
disabled 103 --
192.1.0.17
192.1.0.7
evpn
operational
104
disabled 104 --
192.1.0.17
192.1.0.7
evpn
operational
105
disabled 105 --
192.1.0.17
192.1.0.7
evpn
operational
106
disabled 106 --
192.1.0.17
192.1.0.7
evpn
operational
107
disabled 107 --
192.1.0.17
192.1.0.7
evpn
operational
108
disabled 108 --
192.1.0.17
192.1.0.7
evpn
operational
109
disabled 109 --
192.1.0.17
192.1.0.7
evpn
operational
110
disabled 110 --
192.1.0.17
192.1.0.7
evpn
operational
100001 enabled --
DC
192.1.0.17
192.1.0.10
evpn
operational
101
disabled 101 --
192.1.0.17
192.1.0.10
evpn
operational
102
disabled 102 --
Multicast VXLAN | 444
192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17
192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10 192.1.0.10
evpn evpn evpn evpn evpn evpn evpn evpn evpn
operational operational operational operational operational operational operational operational operational
Verify mroutes
Leaf02# show ip mroute all-vrfs IP Multicast Route Entries
VRF : DC Total number of entries : 20
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 192.1.1.11 : : vlan101
Group Address
: 225.1.2.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan102
forwarding
Group Address
: 225.1.3.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan103
forwarding
Group Address
: 225.1.4.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan104
forwarding
Group Address Source Address
: 225.1.5.1 : 192.1.1.11
103
disabled 103 --
104
disabled 104 --
105
disabled 105 --
106
disabled 106 --
107
disabled 107 --
108
disabled 108 --
109
disabled 109 --
110
disabled 110 --
100001 enabled --
DC
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
445
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan105
forwarding
!snip
Group Address
: 239.1.8.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.7
Incoming interface
: vni100001
Outgoing Interface List :
Interface
State
-----------
----------
vlan108
forwarding
Group Address
: 239.1.9.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.7
Incoming interface
: vni100001
Outgoing Interface List :
Interface
State
-----------
----------
vlan109
forwarding
Group Address
: 239.1.10.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.7
Incoming interface
: vni100001
Outgoing Interface List :
Interface
State
-----------
----------
vlan110
forwarding
Verify PIM interfaces
Leaf02# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.4/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 285213120
Neighbor Timeout
: 102
Lan Prune Delay
: Yes
Configured DR Priority : 1
Leaf02# show ip pim interface vlan 102
Multicast VXLAN | 446
PIM Interfaces
VRF: DC
Interface : vlan102
Neighbor count : 4
IP Address : 192.1.2.4/24
Mode
: sparse
Designated Router : 192.1.2.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 285213120
Neighbor Timeout
: 102
Lan Prune Delay
: Yes
Configured DR Priority : 1
Leaf02# show ip pim interface vlan 110
PIM Interfaces
VRF: DC
Interface : vlan110
Neighbor count : 4
IP Address : 192.1.10.4/24
Mode
: sparse
Designated Router : 192.1.10.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 285213120
Neighbor Timeout
: 97
Lan Prune Delay
: Yes
Configured DR Priority : 1
Verify BGP EVPN table
Leaf02# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 6.6.6.6
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 192.1.0.10:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
447
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[] * i [2]:[0]:[0]:[00:11:01:00:00:01]:[] *>i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12] * i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12] *>i [2]:[0]:[0]:[00:12:01:00:00:01]:[] * i [2]:[0]:[0]:[00:12:01:00:00:01]:[] *>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] * i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] *>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3] * i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3] *>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2] * i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2] *>i [3]:[0]:[192.1.0.10] * i [3]:[0]:[192.1.0.10]
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
192.1.0.10
0
Route Distinguisher: 192.1.0.17:101
(L2VNI 101)
*> [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
*> [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
*> [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
*> [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
*> [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
*> [3]:[0]:[192.1.0.17]
192.1.0.17
0
Route Distinguisher: 192.1.0.7:101
(L2VNI 101)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
*>i [3]:[0]:[192.1.0.7]
192.1.0.7
0
* i [3]:[0]:[192.1.0.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.10:102
(L2VNI 102)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
*>i [3]:[0]:[192.1.0.10]
192.1.0.10
0
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
Route Distinguisher: 192.1.0.17:102
(L2VNI 102)
*> [2]:[0]:[0]:[00:13:01:00:00:02]:[192.1.2.13]
192.1.0.17
0
*> [2]:[0]:[0]:[00:13:01:00:00:02]:[]
192.1.0.17
0
*> [2]:[0]:[0]:[00:14:01:00:00:02]:[192.1.2.23]
192.1.0.17
0
*> [2]:[0]:[0]:[00:14:01:00:00:02]:[]
192.1.0.17
0
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.17
0
*> [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.2.4]
192.1.0.17
0
*> [3]:[0]:[192.1.0.17]
192.1.0.17
0
!snip
Route Distinguisher: 192.1.0.7:107
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.7.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.7.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.7.6]
192.1.0.7
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 448
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.7.6] *>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.7.7] * i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.7.7]
192.1.0.7
0
192.1.0.7
0
192.1.0.7
0
Route Distinguisher: 192.1.0.7:108
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.8.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.8.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.8.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.8.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:109
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:110
(L3VNI 100001)
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
*>i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
*>i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
Total number of entries 782
8325-border-prim
Configuration
!export-password: default hostname 8325-border-prim no ip icmp redirect profile Leaf vrf DC
rd 192.1.0.7:1 route-target export 65501:1 evpn route-target import 65501:1 evpn cli-session timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 101 ip igmp snooping enable vlan 102 ip igmp snooping enable vlan 103 ip igmp snooping enable vlan 104 ip igmp snooping enable vlan 105 ip igmp snooping enable vlan 106
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
449
ip igmp snooping enable vlan 107
ip igmp snooping enable vlan 108
ip igmp snooping enable vlan 109
ip igmp snooping enable vlan 110
ip igmp snooping enable vlan 500 virtual-mac 00:00:00:0c:0c:0c evpn
redistribute local-svi vlan 101
rd auto route-target export auto route-target import auto redistribute host-route vlan 102 rd auto route-target export auto route-target import auto redistribute host-route vlan 103 rd auto route-target export auto route-target import auto redistribute host-route vlan 104 rd auto route-target export auto route-target import auto redistribute host-route vlan 105 rd auto route-target export auto route-target import auto redistribute host-route vlan 106 rd auto route-target export auto route-target import auto redistribute host-route vlan 107 rd auto route-target export auto route-target import auto redistribute host-route vlan 108 rd auto route-target export auto route-target import auto redistribute host-route vlan 109 rd auto route-target export auto route-target import auto redistribute host-route vlan 110 rd auto route-target export auto route-target import auto
Multicast VXLAN | 450
redistribute host-route interface mgmt
no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12 system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24 system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36 system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48 interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface lag 2 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 500 lacp mode active interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 24.0.0.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 24.0.0.5/30 ip ospf 1 area 0.0.0.0 interface 1/1/4 no shutdown mtu 9198 lag 2 interface 1/1/6 no shutdown mtu 9198 lag 2 interface 1/1/14 no shutdown interface 1/1/49 no shutdown mtu 9198 lag 1 interface 1/1/55 no shutdown mtu 9198 ip mtu 9198 ip address 192.168.3.1/30 interface loopback 0 ip address 109.0.0.1/32 ip ospf 1 area 0.0.0.0 interface loopback 1 ip address 192.1.0.7/32 ip ospf 1 area 0.0.0.0 interface loopback 2
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
451
vrf attach DC ip address 192.1.0.18/32 ip ospf 2 area 0.0.0.0 interface vlan 101 vrf attach DC ip address 192.1.1.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.1.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 102 vrf attach DC ip address 192.1.2.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.2.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 103 vrf attach DC ip address 192.1.3.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.3.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 104 vrf attach DC ip address 192.1.4.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.4.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 105 vrf attach DC ip address 192.1.5.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.5.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 106 vrf attach DC ip address 192.1.6.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.6.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 107 vrf attach DC ip address 192.1.7.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.7.1
Multicast VXLAN | 452
ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 108 vrf attach DC ip address 192.1.8.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.8.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 109 vrf attach DC ip address 192.1.9.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.9.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 110 vrf attach DC ip address 192.1.10.6/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.10.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 500 vrf attach DC vsx active-forwarding ip address 192.1.0.53/29 ip ospf 2 area 0.0.0.0 ip ospf priority 100 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vxlan 1 source ip 192.1.0.7 no shutdown vni 101
vlan 101 vni 102
vlan 102 vni 103
vlan 103 vni 104
vlan 104 vni 105
vlan 105 vni 106
vlan 106 vni 107
vlan 107 vni 108
vlan 108 vni 109
vlan 109 vni 110
vlan 110
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
453
vni 100001 vrf DC routing
vsx system-mac 00:00:00:0c:0c:0c inter-switch-link lag 1 role primary keepalive peer 192.168.3.2 source 192.168.3.1 no split-recovery vsx-sync evpn
! ! ! ! ! router ospf 2 vrf DC
router-id 192.1.0.18 distance 210 redistribute bgp redistribute connected area 0.0.0.0 router ospf 1 router-id 9.9.9.9 area 0.0.0.0 router bgp 1 bgp router-id 109.0.0.1 neighbor 4.4.4.4 remote-as 1 neighbor 4.4.4.4 update-source loopback 0 neighbor 5.5.5.5 remote-as 1 neighbor 5.5.5.5 update-source loopback 0 address-family l2vpn evpn
neighbor 4.4.4.4 activate neighbor 4.4.4.4 send-community extended neighbor 5.5.5.5 activate neighbor 5.5.5.5 send-community extended exit-address-family ! vrf DC address-family ipv4 unicast
redistribute connected redistribute ospf exit-address-family ! router pim vrf DC enable https-server vrf mgmt
Verification
Verify OSPF neighbors
8325-border-prim# show ip ospf neighbors all-vrfs
VRF : DC
Process : 2
===================================================
Total Number of Neighbors : 3
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
192.1.0.1
1
FULL/DROther
192.1.0.49
vlan500
Multicast VXLAN | 454
192.1.0.2
1
FULL/DROther
192.1.0.50
vlan500
192.1.10.7
200
FULL/DR
192.1.0.54
vlan500
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
44.44.44.44
1
FULL/DR
24.0.0.2
1/1/1
45.45.45.45
1
FULL/DR
24.0.0.6
1/1/2
Verify BGP EVPN neighbors
8325-border-prim# show bgp l2vpn evpn summary
VRF : default
BGP Summary
-----------
Local AS
:1
BGP Router Identifier
Peers
:2
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 109.0.0.1 : No : 60
Neighbor 4.4.4.4 5.5.5.5
Remote-AS MsgRcvd MsgSent
1
303
62
1
300
62
Up/Down Time State
AdminStatus
00h:15m:22s Established Up
00h:15m:22s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
8325-border-prim# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
192.1.0.7
192.1.0.10
evpn
operational
101
disabled 101 --
192.1.0.7
192.1.0.10
evpn
operational
102
disabled 102 --
192.1.0.7
192.1.0.10
evpn
operational
103
disabled 103 --
192.1.0.7
192.1.0.10
evpn
operational
104
disabled 104 --
192.1.0.7
192.1.0.10
evpn
operational
105
disabled 105 --
192.1.0.7
192.1.0.10
evpn
operational
106
disabled 106 --
192.1.0.7
192.1.0.10
evpn
operational
107
disabled 107 --
192.1.0.7
192.1.0.10
evpn
operational
108
disabled 108 --
192.1.0.7
192.1.0.10
evpn
operational
109
disabled 109 --
192.1.0.7
192.1.0.10
evpn
operational
110
disabled 110 --
192.1.0.7
192.1.0.10
evpn
operational
100001 enabled --
DC
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
455
192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7 192.1.0.7
192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17 192.1.0.17
evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn evpn
operational operational operational operational operational operational operational operational operational operational operational
Verify PIM neighbors
8325-border-prim# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: DC
Total number of neighbors : 45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.10 : vni100001 : 00:14:44 : 00:03:24 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.17 : vni100001 : 00:14:47 : 00:03:19 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.49 : vlan500 : 00:14:38 : 00:01:37 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.50 : vlan500 : 00:14:39 : 00:01:40 :1 : 00:01:45
101
disabled 101 --
102
disabled 102 --
103
disabled 103 --
104
disabled 104 --
105
disabled 105 --
106
disabled 106 --
107
disabled 107 --
108
disabled 108 --
109
disabled 109 --
110
disabled 110 --
100001 enabled --
DC
Multicast VXLAN | 456
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) !snip
: 192.1.0.54 : vlan500 : 00:16:12 : 00:01:40 : 117440960 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.10.1
: 192.1.10.7 : vlan110 : 00:16:13 : 00:01:37 : 117440960 : 00:01:45
Verify PIM interfaces
8325-border-prim# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.6/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 88
8325-border-prim# show ip pim interface vlan 102
PIM Interfaces
VRF: DC
Interface : vlan102
Neighbor count : 4
IP Address : 192.1.2.6/24
Mode
: sparse
Designated Router : 192.1.2.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 88
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
457
8325-border-prim# show ip pim interface vlan 500
PIM Interfaces
VRF: DC
Interface : vlan500
Neighbor count : 3
IP Address : 192.1.0.53/29
Mode
: sparse
Designated Router : 192.1.0.53
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 84
8325-border-prim# show ip pim interface vlan 110
PIM Interfaces
VRF: DC
Interface : vlan110
Neighbor count : 4
IP Address : 192.1.10.6/24
Mode
: sparse
Designated Router : 192.1.10.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 80
Verify mroutes
8325-border-prim# show ip mroute all-vrfs IP Multicast Route Entries
VRF : DC Total number of entries : 54
Group Address
: 225.1.1.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
Multicast VXLAN | 458
vlan500
forwarding
Group Address
: 225.1.2.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan102
Group Address
: 225.1.3.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
!snip
Group Address Source Address Neighbor Incoming interface
: 239.1.6.1 : 192.1.151.101 : 192.1.0.50 : vlan106
Group Address
: 239.1.7.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address Source Address Neighbor Incoming interface
: 239.1.7.1 : 192.1.151.101 : : vlan107
Group Address
: 239.1.8.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address Source Address Neighbor Incoming interface
: 239.1.8.1 : 192.1.151.101 : : vlan108
Group Address Source Address Neighbor
: 239.1.9.1 : 192.1.151.101 :
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
459
Incoming interface
: vlan109
Group Address
: 239.1.9.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address Source Address Neighbor Incoming interface
: 239.1.10.1 : 192.1.151.101 : : vlan110
Group Address
: 239.1.10.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Verify BGP EVPN table
8325-border-prim# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 109.0.0.1
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 192.1.0.10:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
100
0
?
*>i [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
Route Distinguisher: 192.1.0.17:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
100
0
?
100
0
?
Multicast VXLAN | 460
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[] * i [2]:[0]:[0]:[00:13:01:00:00:01]:[] *>i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23] * i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23] *>i [2]:[0]:[0]:[00:14:01:00:00:01]:[] * i [2]:[0]:[0]:[00:14:01:00:00:01]:[] *>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] * i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1] *>i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4] * i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4] *>i [3]:[0]:[192.1.0.17] * i [3]:[0]:[192.1.0.17]
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
192.1.0.17
0
Route Distinguisher: 192.1.0.7:101
(L2VNI 101)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7]
192.1.0.7
0
*> [3]:[0]:[192.1.0.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.10:102
(L2VNI 102)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
*>i [3]:[0]:[192.1.0.10]
192.1.0.10
0
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
!snip
Route Distinguisher: 192.1.0.7:106
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.6.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.6.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.6.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.6.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:107
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.7.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.7.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.7.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.7.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:108
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.8.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.8.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.8.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:109
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
461
Route Distinguisher: 192.1.0.7:110
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
*> [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
* i [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
Total number of entries 825
8325-border-sec
Configuration
!export-password: default hostname 8325-border-sec no ip icmp redirect profile Leaf vrf DC
rd 192.1.0.7:1 route-target export 65501:1 evpn route-target import 65501:1 evpn ntp server 10.100.0.12 minpoll 4 maxpoll 4 iburst cli-session timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 101 ip igmp snooping enable vlan 102 ip igmp snooping enable vlan 103 ip igmp snooping enable vlan 104 ip igmp snooping enable vlan 105 ip igmp snooping enable vlan 106 ip igmp snooping enable vlan 107 ip igmp snooping enable vlan 108 ip igmp snooping enable vlan 109 ip igmp snooping enable vlan 110 ip igmp snooping enable vlan 500 virtual-mac 00:00:00:0c:0c:0c evpn redistribute local-svi vlan 101
rd auto route-target export auto route-target import auto redistribute host-route vlan 102 rd auto
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 462
route-target export auto route-target import auto redistribute host-route vlan 103 rd auto route-target export auto route-target import auto redistribute host-route vlan 104 rd auto route-target export auto route-target import auto redistribute host-route vlan 105 rd auto route-target export auto route-target import auto redistribute host-route vlan 106 rd auto route-target export auto route-target import auto redistribute host-route vlan 107 rd auto route-target export auto route-target import auto redistribute host-route vlan 108 rd auto route-target export auto route-target import auto redistribute host-route vlan 109 rd auto route-target export auto route-target import auto redistribute host-route vlan 110 rd auto route-target export auto route-target import auto redistribute host-route interface mgmt no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/12 system interface-group 2 speed 10g !interface group 2 contains ports 1/1/13-1/1/24 system interface-group 3 speed 10g !interface group 3 contains ports 1/1/25-1/1/36 system interface-group 4 speed 10g !interface group 4 contains ports 1/1/37-1/1/48 interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface lag 2 multi-chassis no shutdown
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
463
no routing vlan trunk native 1 vlan trunk allowed 500 lacp mode active interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 25.0.0.1/30 ip ospf 1 area 0.0.0.0 interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 25.0.0.5/30 ip ospf 1 area 0.0.0.0 interface 1/1/13 no shutdown mtu 9198 lag 2 interface 1/1/25 no shutdown lag 2 interface 1/1/49 no shutdown mtu 9198 lag 1 interface 1/1/56 no shutdown mtu 9198 ip mtu 9198 ip address 192.168.3.2/30 interface loopback 0 ip address 110.0.0.1/32 ip ospf 1 area 0.0.0.0 interface loopback 1 ip address 192.1.0.7/32 ip ospf 1 area 0.0.0.0 interface vlan 101 vrf attach DC ip address 192.1.1.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.1.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 102 vrf attach DC ip address 192.1.2.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.2.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 103 vrf attach DC ip address 192.1.3.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.3.1 ip igmp enable
Multicast VXLAN | 464
ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 104 vrf attach DC ip address 192.1.4.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.4.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 105 vrf attach DC ip address 192.1.5.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.5.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 106 vrf attach DC ip address 192.1.6.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.6.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 107 vrf attach DC ip address 192.1.7.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.7.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 108 vrf attach DC ip address 192.1.8.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.8.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 109 vrf attach DC ip address 192.1.9.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.9.1 ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 110 vrf attach DC ip address 192.1.10.7/24 active-gateway ip mac 02:aa:bb:cc:00:01 active-gateway ip 192.1.10.1
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
465
ip igmp enable ip igmp version 2 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vlan 500 vrf attach DC vsx active-forwarding ip address 192.1.0.54/29 ip ospf 2 area 0.0.0.0 ip ospf priority 200 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor interface vxlan 1 source ip 192.1.0.7 no shutdown vni 101
vlan 101 vni 102
vlan 102 vni 103
vlan 103 vni 104
vlan 104 vni 105
vlan 105 vni 106
vlan 106 vni 107
vlan 107 vni 108
vlan 108 vni 109
vlan 109 vni 110
vlan 110 vni 100001
vrf DC routing vsx system-mac 00:00:00:0c:0c:0c inter-switch-link lag 1 role secondary keepalive peer 192.168.3.1 source 192.168.3.2 no split-recovery vsx-sync evpn ! ! ! ! ! router ospf 2 vrf DC distance 210 redistribute bgp redistribute connected area 0.0.0.0 router ospf 1 router-id 99.99.99.99 area 0.0.0.0 router bgp 1 bgp router-id 110.0.0.1 neighbor 4.4.4.4 remote-as 1 neighbor 4.4.4.4 update-source loopback 0
Multicast VXLAN | 466
neighbor 5.5.5.5 remote-as 1 neighbor 5.5.5.5 update-source loopback 0 address-family l2vpn evpn
neighbor 4.4.4.4 activate neighbor 4.4.4.4 send-community extended neighbor 5.5.5.5 activate neighbor 5.5.5.5 send-community extended exit-address-family ! vrf DC address-family ipv4 unicast
redistribute connected redistribute ospf exit-address-family ! router pim vrf DC enable https-server vrf mgmt.
Verification
Verify OSPF neighbors
8325-border-sec# show ip ospf neighbors all-vrfs
VRF : DC
Process : 2
===================================================
Total Number of Neighbors : 3
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
192.1.0.1
1
FULL/DROther
192.1.0.49
vlan500
192.1.0.2
1
FULL/DROther
192.1.0.50
vlan500
192.1.0.18
100
FULL/BDR
192.1.0.53
vlan500
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 2
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
44.44.44.44
1
FULL/BDR
25.0.0.2
1/1/1
45.45.45.45
1
FULL/BDR
25.0.0.6
1/1/2
Verify BGP EVPN neighbors
8325-border-sec# show bgp l2vpn evpn summary
VRF : default
BGP Summary
-----------
Local AS
:1
BGP Router Identifier
Peers
:2
Log Neighbor Changes
Cfg. Hold Time
: 180
Cfg. Keep Alive
Confederation Id
:0
: 110.0.0.1 : No : 60
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
467
Neighbor 4.4.4.4 5.5.5.5
Remote-AS MsgRcvd MsgSent
1
310
64
1
308
63
Up/Down Time State
AdminStatus
00h:16m:33s Established Up
00h:16m:30s Established Up
Verify VXLAN tunnel, VTEP peers, and VNIs
8325-border-sec# show interface vxlan vteps
Source
Destination
Origin
Status
VNI
Routing VLAN VRF
---------------- ---------------- ------------ --------------------- --------- --------- ----- ---
-
192.1.0.7
192.1.0.10
evpn
operational
101
disabled 101 --
192.1.0.7
192.1.0.10
evpn
operational
102
disabled 102 --
192.1.0.7
192.1.0.10
evpn
operational
103
disabled 103 --
192.1.0.7
192.1.0.10
evpn
operational
104
disabled 104 --
192.1.0.7
192.1.0.10
evpn
operational
105
disabled 105 --
192.1.0.7
192.1.0.10
evpn
operational
106
disabled 106 --
192.1.0.7
192.1.0.10
evpn
operational
107
disabled 107 --
192.1.0.7
192.1.0.10
evpn
operational
108
disabled 108 --
192.1.0.7
192.1.0.10
evpn
operational
109
disabled 109 --
192.1.0.7
192.1.0.10
evpn
operational
110
disabled 110 --
192.1.0.7
192.1.0.10
evpn
operational
100001 enabled --
DC
192.1.0.7
192.1.0.17
evpn
operational
101
disabled 101 --
192.1.0.7
192.1.0.17
evpn
operational
102
disabled 102 --
192.1.0.7
192.1.0.17
evpn
operational
103
disabled 103 --
192.1.0.7
192.1.0.17
evpn
operational
104
disabled 104 --
192.1.0.7
192.1.0.17
evpn
operational
105
disabled 105 --
192.1.0.7
192.1.0.17
evpn
operational
106
disabled 106 --
192.1.0.7
192.1.0.17
evpn
operational
107
disabled 107 --
192.1.0.7
192.1.0.17
evpn
operational
108
disabled 108 --
192.1.0.7
192.1.0.17
evpn
operational
109
disabled 109 --
192.1.0.7
192.1.0.17
evpn
operational
110
disabled 110 --
192.1.0.7
192.1.0.17
evpn
operational
100001 enabled --
DC
Verify PIM neighbors
8325-border-sec# show ip pim neighbor all-vrfs
Multicast VXLAN | 468
PIM Neighbor
VRF
: DC
Total number of neighbors : 45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.10 : vni100001 : 00:15:58 : 00:03:10 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.17 : vni100001 : 00:16:01 : 00:03:05 :1 : 00:03:30
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.49 : vlan500 : 00:15:52 : 00:01:23 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) !snip
: 192.1.0.50 : vlan500 : 00:15:54 : 00:01:26 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.10.3 : vlan110 : 00:15:56 : 00:01:25 : 167772608 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.10.4 : vlan110 : 00:15:58 : 00:01:21 : 285213120 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.10.1
: 192.1.10.6 : vlan110 : 00:17:30 : 00:01:24 : 117440960 : 00:01:45
Verify mroutes
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
469
8325-border-sec# show ip mroute all-vrfs IP Multicast Route Entries
VRF : DC Total number of entries : 64
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 192.1.1.11 : : vlan500
Group Address
: 225.1.1.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan500
Group Address
: 225.1.2.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan102
Group Address Source Address Neighbor Incoming interface
: 225.1.3.1 : 192.1.1.11 : : vlan500
Group Address
: 225.1.3.1
Source Address
: 192.1.1.11
Neighbor
:
Incoming interface
: vlan101
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
Group Address Source Address Neighbor Incoming interface
: 225.1.3.1 : 192.1.1.11 : : vlan103
Group Address Source Address Neighbor Incoming interface
: 225.1.4.1 : 192.1.1.11 : : vlan101
Multicast VXLAN | 470
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
!snip
Group Address Source Address Neighbor Incoming interface
: 239.1.8.1 : 192.1.151.101 : 192.1.0.50 : vlan108
Group Address
: 239.1.9.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address Source Address Neighbor Incoming interface
: 239.1.9.1 : 192.1.151.101 : 192.1.0.50 : vlan109
Group Address
: 239.1.10.1
Source Address
: 192.1.151.101
Neighbor
: 192.1.0.50
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
-----------
----------
vni100001
forwarding
Group Address Source Address Neighbor Incoming interface
: 239.1.10.1 : 192.1.151.101 : 192.1.0.50 : vlan110
Verify PIM interfaces
8325-border-sec# show ip pim interface vlan 101
PIM Interfaces
VRF: DC
Interface : vlan101
Neighbor count : 4
IP Address : 192.1.1.7/24
Mode
: sparse
Designated Router : 192.1.1.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 97
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
471
8325-border-sec# show ip pim interface vlan 102
PIM Interfaces
VRF: DC
Interface : vlan102
Neighbor count : 4
IP Address : 192.1.2.7/24
Mode
: sparse
Designated Router : 192.1.2.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 97
8325-border-sec# show ip pim interface vlan 110
PIM Interfaces
VRF: DC
Interface : vlan110
Neighbor count : 4
IP Address : 192.1.10.7/24
Mode
: sparse
Designated Router : 192.1.10.4
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 117440960
Neighbor Timeout
: 95
8325-border-sec# show ip pim interface vlan 500
PIM Interfaces
VRF: DC
Interface : vlan500
Neighbor count : 3
IP Address : 192.1.0.54/29
Mode
: sparse
Designated Router : 192.1.0.54
Proxy DR
: false
Hello Interval (sec) : 30
Multicast VXLAN | 472
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 117440960
Neighbor Timeout
: 93
Lan Prune Delay
: Yes
Configured DR Priority : 1
Verify BGP EVPN table
8325-border-sec# show bgp l2vpn evpn Status codes: s suppressed, d damped, h history, * valid, > best, = multipath,
i internal, e external S Stale, R Removed, a additional-paths Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN Route-Type 2 prefix: [2]:[ESI]:[EthTag]:[MAC]:[OrigIP] EVPN Route-Type 3 prefix: [3]:[EthTag]:[OrigIP] EVPN Route-Type 5 prefix: [5]:[ESI]:[EthTag]:[IPAddrLen]:[IPAddr] VRF : default Local Router-ID 110.0.0.1
Network
Nexthop
Metric
LocPrf Weight Path
------------------------------------------------------------------------------------------------------------
Route Distinguisher: 192.1.0.10:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[192.1.1.11]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:11:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[192.1.1.12]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[00:12:01:00:00:01]:[]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.1.3]
192.1.0.10
0
100
0
?
*>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
100
0
?
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.1.2]
192.1.0.10
0
100
0
?
*>i [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
100
0
?
Route Distinguisher: 192.1.0.17:101
(L2VNI 101)
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[192.1.1.13]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:13:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[192.1.1.23]
192.1.0.17
0
*>i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
* i [2]:[0]:[0]:[00:14:01:00:00:01]:[]
192.1.0.17
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.17
0
*>i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
* i [2]:[0]:[0]:[54:80:28:3c:00:00]:[192.1.1.4]
192.1.0.17
0
*>i [3]:[0]:[192.1.0.17]
192.1.0.17
0
* i [3]:[0]:[192.1.0.17]
192.1.0.17
0
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Route Distinguisher: 192.1.0.7:101
(L2VNI 101)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.1.1]
192.1.0.7
0
100
0
?
100
0
?
100
0
?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
473
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6] * i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.1.6] *> [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.1.7] *> [3]:[0]:[192.1.0.7] * i [3]:[0]:[192.1.0.7] * i [3]:[0]:[192.1.0.7]
192.1.0.7
0
192.1.0.7
0
192.1.0.7
0
192.1.0.7
0
192.1.0.7
0
192.1.0.7
0
Route Distinguisher: 192.1.0.10:102
(L2VNI 102)
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[192.1.2.11]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:11:01:00:00:02]:[]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[192.1.2.12]
192.1.0.10
0
*>i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
* i [2]:[0]:[0]:[00:12:01:00:00:02]:[]
192.1.0.10
0
*>i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.2.1]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e4:42]:[192.1.2.3]
192.1.0.10
0
*>i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
* i [2]:[0]:[0]:[b8:6a:97:21:e9:42]:[192.1.2.2]
192.1.0.10
0
*>i [3]:[0]:[192.1.0.10]
192.1.0.10
0
* i [3]:[0]:[192.1.0.10]
192.1.0.10
0
!snip
?
Route Distinguisher: 192.1.0.7:108
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.8.1]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.8.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.8.6]
192.1.0.7
0
*> [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.8.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:109
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.9.1]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.9.6]
192.1.0.7
0
*> [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.9.7]
192.1.0.7
0
Route Distinguisher: 192.1.0.7:110
(L3VNI 100001)
*> [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
* i [2]:[0]:[0]:[02:aa:bb:cc:00:01]:[192.1.10.1]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
* i [2]:[0]:[0]:[3c:2c:99:ff:da:a5]:[192.1.10.6]
192.1.0.7
0
*> [2]:[0]:[0]:[b8:6a:97:21:f5:42]:[192.1.10.7]
192.1.0.7
0
Total number of entries 1083
Edge-primary
Configuration
!export-password: default hostname Edge-primary no ip icmp redirect profile Aggregation-Leaf ntp server 10.100.0.12 minpoll 4 maxpoll 4 iburst cli-session
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
100
0
?
Multicast VXLAN | 474
timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 301
ip igmp snooping enable vlan 302
ip igmp snooping enable vlan 303
ip igmp snooping enable vlan 304
ip igmp snooping enable vlan 305
ip igmp snooping enable vlan 306
ip igmp snooping enable vlan 307
ip igmp snooping enable vlan 308
ip igmp snooping enable vlan 309
ip igmp snooping enable vlan 310
ip igmp snooping enable vlan 500 interface mgmt
no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/4 interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface lag 2 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 500 lacp mode active interface lag 3 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 1,301-310 lacp mode active interface 1/1/1 no shutdown lag 3 interface 1/1/20 no shutdown ip address 192.168.4.1/30 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface 1/1/31 no shutdown
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
475
lag 2 interface 1/1/32
no shutdown lag 2 interface 1/1/33 no shutdown lag 1 interface 1/1/34 no shutdown lag 1 interface loopback 0 ip address 192.1.0.1/32 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface vlan 301 ip address 192.1.151.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.151.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 302 ip address 192.1.152.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.152.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 303 ip address 192.1.153.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.153.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 304 ip address 192.1.154.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.154.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 305 ip address 192.1.155.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.155.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 306 ip address 192.1.156.3/24 active-gateway ip mac 00:00:20:00:10:01
Multicast VXLAN | 476
active-gateway ip 192.1.156.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 307 ip address 192.1.157.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.157.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 308 ip address 192.1.158.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.158.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 309 ip address 192.1.159.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.159.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 310 ip address 192.1.160.3/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.160.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 500 vsx active-forwarding ip address 192.1.0.49/29 ip ospf 1 area 0.0.0.0 ip pim-sparse enable vsx inter-switch-link lag 1 role primary keepalive peer 192.168.4.2 source 192.168.4.1 ! ! ! ! ! router ospf 1 router-id 192.1.0.1 redistribute connected area 0.0.0.0 router pim enable
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
477
rp-candidate source-ip-interface loopback0 group-prefix 224.0.0.0/4 rp-candidate priority 180 bsr-candidate source-ip-interface loopback0 active-active https-server vrf mgmt
Verification
Verify OSPF neighbors
Edge-primary# show ip ospf neighbors all-vrfs
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 4
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
192.1.0.2
1
FULL/DR
192.168.4.2
1/1/20
192.1.0.2
1
2-WAY/DROther
192.1.0.50
vlan500
192.1.0.18
100
FULL/BDR
192.1.0.53
vlan500
192.1.10.7
200
FULL/DR
192.1.0.54
vlan500
Verify PIM neighbors
Edge-primary# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: default
Total number of neighbors : 14
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.50 : vlan500 : 00:16:45 : 00:01:41 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.53 : vlan500 : 00:16:39 : 00:01:42 : 117440960 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.54 : vlan500 : 00:16:38 : 00:01:40 : 117440960 : 00:01:45
IP Address Interface
: 192.1.151.2 : vlan301
Multicast VXLAN | 478
Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.151.1 !snip
: 00:16:46 : 00:01:30 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.159.1
: 192.1.159.2 : vlan309 : 00:16:46 : 00:01:30 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.160.1
: 192.1.160.2 : vlan310 : 00:16:46 : 00:01:30 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.168.4.2 : 1/1/20 : 00:16:48 : 00:01:27 :1 : 00:01:45
Verify PIM interfaces
Edge-primary# show ip pim interface vlan 301
PIM Interfaces
VRF: default
Interface : vlan301
Neighbor count : 1
IP Address : 192.1.151.3/24
Mode
: sparse
Designated Router : 192.1.151.3
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 4294967295
Neighbor Timeout
: 85
Edge-primary# show ip pim interface vlan 310 PIM Interfaces
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
479
VRF: default
Interface : vlan310
Neighbor count : 1
IP Address : 192.1.160.3/24
Mode
: sparse
Designated Router : 192.1.160.3
Proxy DR
: false
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Propagation Delay (msec) : 500
Operational DR Priority : 4294967295
Neighbor Timeout
: 83
Verify mroutes
Edge-primary# show ip mroute all-vrfs IP Multicast Route Entries
VRF : default Total number of entries : 40
Group Address
: 225.1.1.1
Source Address
: 192.1.1.11
Neighbor
: 192.1.0.54
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan301
forwarding
DR
Group Address
: 225.1.2.1
Source Address
: 192.1.1.11
Neighbor
: 192.1.0.54
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan302
forwarding
DR
!snip
Group Address Source Address Neighbor Incoming interface
: 239.1.8.1 : 192.1.151.101 : : vlan301
Group Address Source Address Neighbor Incoming interface
: 239.1.9.1 : 192.1.151.101 : : vlan301
Group Address Source Address Neighbor Incoming interface
: 239.1.9.1 : 192.1.151.101 : : vlan500
Group Address Source Address
: 239.1.10.1 : 192.1.151.101
Lan Prune Delay
: Yes
Configured DR Priority : 1
Multicast VXLAN | 480
Neighbor Incoming interface
Group Address Source Address Neighbor Incoming interface
: : vlan500
: 239.1.10.1 : 192.1.151.101 : : vlan301
Edge-secondary
Configuration
!export-password: default hostname Edge-secondary no ip icmp redirect profile Aggregation-Leaf ntp server 10.100.0.12 minpoll 4 maxpoll 4 iburst cli-session
timeout 0 ! ! ! ! ! ssh server vrf mgmt vlan 1 vlan 301
ip igmp snooping enable vlan 302
ip igmp snooping enable vlan 303
ip igmp snooping enable vlan 304
ip igmp snooping enable vlan 305
ip igmp snooping enable vlan 306
ip igmp snooping enable vlan 307
ip igmp snooping enable vlan 308
ip igmp snooping enable vlan 309
ip igmp snooping enable vlan 310
ip igmp snooping enable vlan 500 interface mgmt
no shutdown ip dhcp system interface-group 1 speed 10g !interface group 1 contains ports 1/1/1-1/1/4 interface lag 1 no shutdown no routing vlan trunk native 1 tag vlan trunk allowed all lacp mode active interface lag 2 multi-chassis no shutdown no routing
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
481
vlan trunk native 1 vlan trunk allowed 500 lacp mode active interface lag 3 multi-chassis no shutdown no routing vlan trunk native 1 vlan trunk allowed 1,301-310 lacp mode active interface 1/1/1 no shutdown lag 3 interface 1/1/3 no shutdown ip address 192.168.4.2/30 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface 1/1/31 no shutdown lag 2 interface 1/1/32 no shutdown lag 2 interface 1/1/35 no shutdown lag 1 interface 1/1/36 no shutdown lag 1 interface loopback 0 ip address 192.1.0.2/32 ip ospf 1 area 0.0.0.0 ip pim-sparse enable interface vlan 301 ip address 192.1.151.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.151.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 302 ip address 192.1.152.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.152.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 303 ip address 192.1.153.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.153.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 304 ip address 192.1.154.2/24
Multicast VXLAN | 482
active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.154.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 305 ip address 192.1.155.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.155.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 306 ip address 192.1.156.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.156.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 307 ip address 192.1.157.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.157.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 308 ip address 192.1.158.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.158.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 309 ip address 192.1.159.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.159.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 310 ip address 192.1.160.2/24 active-gateway ip mac 00:00:20:00:10:01 active-gateway ip 192.1.160.1 ip ospf 1 area 0.0.0.0 ip ospf passive ip igmp enable ip igmp version 2 ip pim-sparse enable interface vlan 500
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
483
vsx active-forwarding ip address 192.1.0.50/29 ip ospf 1 area 0.0.0.0 ip pim-sparse enable vsx inter-switch-link lag 1 role secondary keepalive peer 192.168.4.1 source 192.168.4.2 ! ! ! ! ! router ospf 1 router-id 192.1.0.2 redistribute connected area 0.0.0.0 router pim enable rp-candidate source-ip-interface loopback0 group-prefix 224.0.0.0/4 bsr-candidate source-ip-interface loopback0 active-active https-server vrf mgmt
Verification
Verify OSPF neighbors
Edge-secondary# show ip ospf neighbors all-vrfs
VRF : default
Process : 1
===================================================
Total Number of Neighbors : 4
Neighbor ID
Priority State
Nbr Address
Interface
-------------------------------------------------------------------------
192.1.0.1
1
FULL/BDR
192.168.4.1
1/1/3
192.1.0.1
1
2-WAY/DROther
192.1.0.49
vlan500
192.1.0.18
100
FULL/BDR
192.1.0.53
vlan500
192.1.10.7
200
FULL/DR
192.1.0.54
vlan500
Verify PIM neighbors
Edge-secondary# show ip pim neighbor all-vrfs PIM Neighbor
VRF
: default
Total number of neighbors : 14
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority
: 192.1.0.49 : vlan500 : 00:17:05 : 00:01:45 :1
Multicast VXLAN | 484
Hold Time (HH:MM:SS)
: 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.53 : vlan500 : 00:17:02 : 00:01:18 : 117440960 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.1.0.54 : vlan500 : 00:17:01 : 00:01:17 : 117440960 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.151.1
: 192.1.151.3 : vlan301 : 00:17:08 : 00:01:37 : 4294967295 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.152.1
: 192.1.152.3 : vlan302 : 00:17:08 : 00:01:37 : 4294967295 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.153.1
: 192.1.153.3 : vlan303 : 00:17:08 : 00:01:37 : 4294967295 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.154.1 !snip
: 192.1.154.3 : vlan304 : 00:17:08 : 00:01:37 : 4294967295 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS) Secondary IP Addresses :
192.1.160.1
: 192.1.160.3 : vlan310 : 00:17:09 : 00:01:36 : 4294967295 : 00:01:45
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
485
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 192.168.4.1 : 1/1/3 : 00:17:11 : 00:01:39 :1 : 00:01:45
Verify PIM interfaces
Edge-secondary# show ip pim interface vlan 301
PIM Interfaces
VRF: default
Interface : vlan301
Neighbor count : 1
IP Address : 192.1.151.2/24
Mode
: sparse
Designated Router : 192.1.151.2
Proxy DR
: true
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 1
Neighbor Timeout
: 87
Edge-secondary# show ip pim interface vlan 310
PIM Interfaces
VRF: default
Interface : vlan310
Neighbor count : 1
IP Address : 192.1.160.2/24
Mode
: sparse
Designated Router : 192.1.160.2
Proxy DR
: true
Hello Interval (sec) : 30
Hello Delay (sec)
:5
Override Interval (msec) : 2500
Lan Prune Delay
: Yes
Propagation Delay (msec) : 500
Configured DR Priority : 1
Operational DR Priority : 1
Neighbor Timeout
: 85
Verify mroutes
Edge-secondary# show ip mroute all-vrfs IP Multicast Route Entries
VRF : default Total number of entries : 50
Multicast VXLAN | 486
Group Address
: 225.1.1.1
Source Address
: 192.1.1.11
Neighbor
: 192.1.0.54
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan301
forwarding
Proxy DR
Group Address Source Address Neighbor Incoming interface
: 225.1.1.1 : 192.1.1.11 : : vlan301
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan500
Group Address Source Address Neighbor Incoming interface
: 225.1.2.1 : 192.1.1.11 : : vlan302
Group Address Source Address Neighbor Incoming interface
: 225.1.3.1 : 192.1.1.11 : 192.1.0.54 : vlan303
Group Address
: 225.1.3.1
Source Address
: 192.1.1.11
Neighbor
: 192.1.0.54
Incoming interface
: vlan500
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan303
forwarding
Proxy DR
!snip
Group Address
: 239.1.8.1
Source Address
: 192.1.151.101
Neighbor
:
Incoming interface
: vlan301
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan500
forwarding
DR
Group Address
: 239.1.9.1
Source Address
: 192.1.151.101
Neighbor
:
Incoming interface
: vlan301
Outgoing Interface List :
Interface
State
VSX Role
-----------
----------
--------
vlan500
forwarding
DR
Group Address Source Address Neighbor Incoming interface
: 239.1.10.1 : 192.1.151.101 : : vlan301
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
487
Outgoing Interface List :
Interface
State
-----------
----------
vlan500
forwarding
VSX Role -------DR
Multicast VXLAN commands
ip pim-sparse vsx-virtual-neighbor
ip pim-sparse vsx-virtual-neighbor no ip pim-sparse vsx-virtual-neighbor
Description
Once configured, the router processes IGMP/MLD and PIM joins received on this interface regardless of its DR or Prime Neighbor role. The command must be enabled for VSX VXLAN leaf switches for both L2 and L3 extensions. This allows for the interface to be in the same multicast data path state on both the VSX peers. The no form of the command disables the vsx-virtual-neighbor on the interface.
This command is applicable for normal SVI interfaces and L2 VNI mapped SVI interfaces. It is valid for VXLANenabled VLANs only and has no effect on non-VXLAN-enabled VLANs.
Examples
switch(config)# interface vlan40 switch(config-if-vlan)# ip address 40.0.0.4/24 switch(config-if-vlan)# ip pim-sparse enable switch(config-if-vlan)# ip pim-sparse vsx-virtual-neighbor
Command History
Release 10.07 or earlier
Command Information
Platforms All platforms
Command context config-if-vlan
Modification --
Authority Administrators or local user group members with execution rights for this command.
show ip mroute
show ip mroute [all-vrfs | vrf <VRF-NAME>] [vsx-peer]
Description
Shows multicast routing information. Optionally, you can show specific information by VRF. If no options are specified, it shows information for the default VRF.
Multicast VXLAN | 488
Parameters
all-vrfs Shows all PIM neighbors information.
vrf <VRF-NAME> Shows PIM neighbor information for a specific VRF.
vsx-peer Shows the output from the VSX peer switch. If the switches do not have the VSX configuration or the ISL is down, the output from the VSX peer switch is not displayed. This parameter is available on switches that support VSX.
Examples
Multicast route with L3VNI in Incoming Interface List:
switch# show ip mroute all-vrfs IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 225.1.1.1
Source Address
: 80.1.1.11
Neighbor
: 1.1.1.1
Incoming interface
: vni2
Outgoing Interface List :
Interface
State
-----------
----------
vlan10
forwarding
switch# show ip mroute 225.1.1.1 80.1.1.11 all-vrfs
IP Multicast Route Entries
VRF : red
Group Address
Source Address
Neighbor
Incoming interface
Multicast Routing Protocol
Unicast Routing Protocol
Metric
Metric Pref
Uptime (HH:MM:SS)
Downstream Interface
Interface
State
-----------
----------
vlan10
forwarding
: 225.1.1.1 : 80.1.1.11 : 1.1.1.1 : vni2 : PIM-SM : BGP :0 : 200 : 00:07:23
Multicast route with L3VNI in Outgoing Interface List:
switch# show ip mroute all-vrfs IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 225.1.1.1
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
489
Source Address
: 80.1.1.11
Neighbor
:
Incoming interface
: vlan20
Outgoing Interface List :
Interface
State
-----------
----------
vni2
forwarding
switch# show ip mroute 225.1.1.1 80.1.1.11 vrf red
IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 225.1.1.1
Source Address
: 80.1.1.11
Neighbor
:
Incoming interface
: vlan20
Multicast Routing Protocol : PIM-SM
Unicast Routing Protocol
: connected
Metric
:0
Metric Pref
:0
Uptime (HH:MM:SS)
: 00:06:32
Downstream Interface
Interface
State
-----------
----------
vni2
forwarding
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Authority
Operator (>) or Manager (#)
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
show ip pim neighbor
show ip pim neighbor [<IP-ADDR>] [all-vrfs | vrf <VRF-NAME>]
Description
Displays the information about PIM interfaces currently configured in the router for the given VRF. If VRF is not given, it displays for default VRF.
Parameters
<IP-ADDR> Shows PIM neighbor information.
all-vrfs Shows all PIM neighbors information.
vrf <VRF-NAME>
Multicast VXLAN | 490
Shows PIM neighbor information for a specific VRF.
Examples
Show information for all VRFs:
switch# show ip pim neighbor all-vrfs
PIM Neighbor
VRF
: Test_1
Total number of neighbors : 2
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 100.1.1.252 : vlan100 : 00:44:38 : 00:01:32 :1 : 00:01:45
IP Address Interface Up Time (HH:MM:SS) Expire Time (HH:MM:SS) DR Priority Hold Time (HH:MM:SS)
: 172.1.1.1 : vni1000 : 00:44:35 : 00:03:25 :1 : 00:03:30
Command History
Release 10.07 or earlier
Modification --
Command Information
Platforms All platforms
Command context
Operator (>) or Manager (#)
Authority
Operators or Administrators or local user group members with execution rights for this command. Operators can execute this command from the operator context (>) only.
Debugging and troubleshooting
The recommended IPv4 multicast VXLAN troubleshooting flow is provided in Figure 1, Recommended IPv4 multicast VXLAN troubleshooting flow. Additional tips and guidance for each step are provided below.
Figure 1 Recommended IPv4 multicast VXLAN troubleshooting flow
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
491
The recommended IPv4 multicast VXLAN troubleshooting procedure includes the following sequence of steps:
Step 1: Check underlay network reachability and VXLAN tunnels between VTEPs.
a. Ensure tunnel source/destination loopback IPs are correctly advertised in the underlay network. b. Use extended pings on VTEPs to confirm network connectivity between tunnel source/destination
loopback IPs. c. Fix underlay connectivity issues if discovered. d. If there are no underlay network issues, validate VXLAN tunnels, ensure they are operational.
Multicast VXLAN | 492
VTEP1# sh int vx vtep
Source
Destination
Origin Status
VNI
Routing VLAN VRF
------------- ---------------- -------- --------------- --------- --------- ----- ---
192.168.2.6 192.168.2.5
evpn
operational
100001 enabled --
VRF1
192.168.2.6 192.168.2.5
evpn
operational
100111 disabled 111 --
192.168.2.6 192.168.11.3
evpn
operational
100001 enabled --
VRF1
192.168.2.6 192.168.11.3
evpn
operational
100002 enabled --
VRF2
e. If EVPN tunnel is down, ensure correct EVPN configs are used.
Step 2: Validate multicast specific configurations.
a. In a distributed L3 gateway deployment, virtual-mac configuration is needed on all the VTEPs. Make sure virtual-mac is configured and it is unique per VTEP, a VSX VTEP peer would share 1 virtual-mac:
VTEP1# show run | i virtual-mac virtual-mac 00:00:22:00:00:21
b. On VSX VTEPs, ip pim-sparse vsx-virtual-neighbor is required on all SVIs where PIM is enabled.
interface vlan40 no shutdown vrf attach red ip address 40.40.40.1/24 ip pim-sparse enable ip pim-sparse vsx-virtual-neighbor
c. If IGMP is enabled on any VLAN, the redistribute local-svi or redistribute local-mac command must be enabled under the evpn context. This is needed for proper querier information propagation.
d. Validate unicast reachability to the multicast sources/DR/RP/BSR addresses across all the VTEPs. Use show ip route command to validate the routes. For example:
VTEP1# show ip route 80.1.1.1 vrf red
VRF: red
Prefix Nexthop Origin Distance Age Encap Type
: 80.1.1.0/24 : 11.1.1.1 : bgp : 200 : 02h:08m:19s : vxlan
VRF(egress) Interface Type Metric Tag Encap Details
::: bgp_evpn :0 :0 : l3vni 2
Step 3: Check PIM neighbors.
a. Ensure that PIM neighbors are formed between L3 VNI interfaces. For a L3 VNI neighbor, neighbor IP will be the underlay VTEP IP in the default VRF and this will be same for all the tenant VRFs.
b. If the same VLAN is extended across VTEPs, ensure that the PIM neighbors are formed on the extended VLANs across the VTEPs.
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
493
VTEP1# show ip pim neighbor all-vrfs PIM Neighbor
VRF : red Total number of neighbors : 2 IP Address : 1.1.1.1 Interface : vni2 Up Time (HH:MM:SS) : 00:33:30 Expire Time (HH:MM:SS) : 00:03:01 DR Priority : 1 Hold Time (HH:MM:SS) : 00:03:30
IP Address : 100.100.1.3 Interface : vlan10 Up Time (HH:MM:SS) : 00:33:29 Expire Time (HH:MM:SS) : 00:01:17 DR Priority : 16843009 Hold Time (HH:MM:SS) : 00:01:45
c. If PIM neighbors are not formed, validate the configurations and ensure ip pim-sparse is enabled on the interface and router pim is enabled on the corresponding VRF.
d. If the configurations are correct, validate PIM Hello packets are exchanged between the VTEPs. See Step 8: Check multicast packet exchanges between VTEPs for instructions.
Step 4: Check PIM interface states and DR role.
a. Validate PIM Interface configurations using the show ip pim interface command. Ensure that the DR election is successful and updated in the show command.
b. If the VLAN is extended across VTEPs. ensure only one VTEP is elected as DR on the VLAN. If the VTEP is a pair of VSX switches, both VSX peers will be elected as DR. Only one VSX peer will route the data.
VTEP1# show ip pim interface vlan 10 PIM Interfaces VRF: red Interface : vlan10 Neighbor count : 1 IP Address : 100.100.1.3/24 Mode : sparse Designated Router : 100.100.1.4 Proxy DR : false Hello Interval (sec) : 30 Hello Delay (sec) : 5 Override Interval (msec) : 2500 Lan Prune Delay : Yes Propagation Delay (msec) : 500 Configured DR Priority : 1 Operational DR Priority : 16843009 Neighbor Timeout : 93
Step 5: Check PIM BSR and RP-SET information.
a. If BSR is configured, ensure that E-BSR is learnt on all the VTEPs.
VTEP1# show ip pim bsr Status and Counters- PIM-SM Bootstrap Router Information
VRF
: default
Multicast VXLAN | 494
E-BSR Address E-BSR Priority E-BSR Hash Mask Length E-BSR Up Time Next Bootstrap Message
: 172.1.1.1 :0 : 30 : 49 secs : 21 secs
C-BSR Admin Status
: This system is a Candidate-BSR
C-BSR Address
: 172.1.1.1
C-BSR Priority
:0
C-BSR Hash Mask Length : 30
C-BSR Message Interval : 60
C-BSR Source IP Interface : loopback1
C-RP Admin Status C-RP Address C-RP Hold Time C-RP Advertise Period C-RP Priority C-RP Source IP Interface
: This system is a Candidate-RP : 172.1.1.1 : 150 : 60 : 192 : loopback1
Group Address Group Mask
--------------- ---------------
224.0.0.0
240.0.0.0
b. Ensure RP-set is learned on all the VTEPs. If the RP is a static-RP, make sure all the VTEPs have the static RP configured.
VTEP1# show ip pim rp-set all-vrfs
VRF: red
Status and Counters - PIM-SM Learned RP-Set Information
Group Address Group Mask
RP Address
Hold Time
--------------- --------------- --------------- ---------
224.0.0.0
240.0.0.0
172.1.1.1
150
Expire Time ----------94
c. If the BSR or RP-set is not learned, make sure of the unicast reachability to BSR/RP IP address. The show ip route command should display unicast routes to reach BSR/RP address.
d. Ensure that PIM is enabled on the next-hop pointed by the unicast route. If PIM is not enabled, EBSR/RP-Set information will not be updated correctly.
e. If the unicast routes are present and PIM is enabled on the nexthop interface, check packet captures to validate that BSR bootstrap packets and candidate RP advertisement messages are exchanged across VTEPs.
Step 6: Check IGMP joins across VTEPs.
a. Ensure IGMP joins are present on the DR in the client VLAN.
VTEP1# show ip igmp interface vlan 10
VRF Name : red
Interface : vlan10
IGMP Configured Version : 3
IGMP Operating Version : 3
Querier State
: Querier
Querier IP [this switch] : 100.100.1.2
Querier Uptime
: 2m 29s
Querier Expiration Time : 0m 41s
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
495
IGMP Snoop Enabled on VLAN : False
Active Group Address Vers Mode Uptime Expires
---------------------- ---- ---- --------- ---------
239.1.1.1
2
0m 17s 4m 3s
b. If IGMP snooping is enabled, ensure that the joins are learned on the correct VTEP/port.
VTEP1# show ip igmp snooping vlan 10 group 239.1.1.1
IGMP ports and group information for group 239.1.1.1
VLAN ID : 10 VLAN Name : VLAN10
Group Address : 239.1.1.1 Last Reporter : 200.200.1.1 Group Type : Filter
V1
V2
Sources Sources
Port
Vers Mode Uptime Expires Timer
Timer
Forwarded Blocked
------------------------ ---- ---- --------- --------- --------- --------- ---
------ --------
vxlan1(1.1.1.1)
2 EXC 5h 24m 3m 38s
3m 38s 0
0
c. If joins are not shown, make sure that the querier is elected successfully in the interface and the periodic AHQ packet reaches the clients.
d. Ensure joins are refreshed periodically and are not removed. Check uptime in show ip igmp and show ip igmp snooping outpus to ensure joins are stable.
e. On a VSX VTEP, IGMP joins are synchronized amongst the VSX switches. If IGMP snooping is enabled, make sure that the joined VTEP is the same in both VSX peers. Similarly querier port should be the same across both VSX peers. If they are different, ensure that the redistribute local-svi or redistribute local-mac command is configured on all VTEPS.
f. Make sure there are no COPP drops for IGMP class.
VTEP1# show copp-policy statistics class igmp Statistics for CoPP policy 'default': Class: igmp Description: Internet Group Management Protocol. priority : 4 rate (pps) : 1600 burst size (pkts) : 450 packets passed : 294267766 packets dropped : 0
Step 7: Check multicast routes across VTEPs.
a. Ensure multicast routes are formed correctly across VTEPS. Make sure L3 VNI interface is added correctly in the incoming/outgoing interface list in a distributed L3 gateway use case. n Mroutes on Source DR (routing to L3 VNI Interface):
Multicast VXLAN | 496
VTEP1# show ip mroute all-vrfs IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 225.1.1.1
Source Address
: 73.1.1.11
Neighbor
: 100.100.1.3
Incoming interface
: vlan10
Outgoing Interface List :
Interface
State
-----------
----------
vni2
forwarding
n Mroutes on last hop router (routing from L3 VNI interface to receiver SVI):
VTEP2# show ip mroute all-vrfs IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 225.1.1.1
Source Address
: 73.1.1.11
Neighbor
: 5.5.5.5
Incoming interface
: vni2
Outgoing Interface List :
Interface
State
-----------
----------
vlan20
forwarding
b. In the centralized L3 gateway use case, ensure multicast routes are formed correctly on the routers. In this case the multicast routes will have SVI/ROP/L3 LAG as incoming/outgoing interfaces.
c. If the outgoing interface is SVI and it contains VTEPs, multicast data traffic will be encapsulated and transmitted to the VTEP.
L3VTEP# show ip mroute all-vrfs IP Multicast Route Entries
VRF : red Total number of entries : 1
Group Address
: 239.1.1.1
Source Address
: 80.1.1.11
Neighbor
:
Incoming interface
: vlan20
Outgoing Interface List :
Interface
State
-----------
----------
vlan30
forwarding
d. If the multicast routes are not formed as expected, there will be traffic loss. If the interface is missing in multicast routes or the mroute is in bridge state (no outgoing interfaces):
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
497
n On the client VLAN, ensure IGMP joins are present on the DR. n Validate unicast reachability to RP and multicast source on the last hop router (LHR). n Validate IGMP joins are processed by PIM using the show ip pim pending command. If the
multicast data is seen by the router, there will not be any pending entries. n If the joins are seen, check the packet captures between LHR to ensure PIM *,G joins are sent
towards RP. n If RP has received the *,G join, check the packet captures between RP and Source DR to ensure
(S,G) joins are sent towards the source. n Once LHR receives the data via RPT, ensure that the LHR is sending (S,G) joins towards source via
packet captures. e. If the multicast routes is not present in show ip mroute in the source DR:
n Ensure that the flow is active. n If the flow is active, but mroutes are not shown, it indicates an issue in the PIM registration path. n Make sure Source DR can reach RP and RP can reach back to the source DR. n Check that the virtual-mac is configured correctly, this is needed for Register/Register-Stop packets
to be processed correctly. f. If the clients are seeing duplicate traffic:
n Ensure the vsx-virtual-neighbor command is enabled on all the VSX routers. n In a VSX setup, only one of the routers is responsible for routing the traffic. Ensure this by
monitoring interface statistics/packet captures.
Step 8: Check multicast packet exchanges between VTEPs.
n All the multicast packets (IGMP/PIM control packets, multicast data frames) exchanged across the VTEPS are encapsulated with VXLAN.
n The packets exchanged over VTEPs can be inspected by configuring a mirror session on non-VTEP core/spine switches. The mirror destination should be a port where a packet capture is running.
l2:/home/admin# tcpdump -i 1 tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on MirrorRxNet, link-type EN10MB (Ethernet), capture size 262144 bytes 08:58:51.562444 IP 1.1.1.1.35569 > 3.3.3.3.4789: VXLAN, flags [I] (0x08), vni 30 --> Encapsulated PIM Hello packet IP 1.1.1.1 > 224.0.0.13: PIMv2, Hello, length 34
FAQ
1. Can I enable multicast on both the overlay (leaf/access VTEP) and underlay (core/spine non-VTEP)?
No, it should not be done and is not recommended. The solution will not work if PIM or IGMP is enabled on the core/spine switches connected to VTEPs.
2. Does the solution require EVPN control plane?
Yes, the solution requires EVPN based control plane both for L2 and L3 multicast. Remote VTEPs are learned via EVPN type 3. In addition, remote hosts and routes are learned via EVPN type 2 and EVPN type 5. IGMP and PIM protocols rely on this information to forward packets.
3. Is PIM-SM used in underlay for BUM traffic replication?
Multicast VXLAN | 498
No, the solution does not use PIM-SM at underlay to replicate BUM traffic. The solution uses Head End Replication to send multicast traffic to remote VTEPs, this means that each broadcast/multicast is encapsulated and replicated to all VTEPs from the source VTEP. The list of VTEPs to be replicated can be learned via EVPN type 3 or through multicast protocols running in the overlay.
4. Are there are any platform differences to be aware of?
n For the VSX VTEPs on the Aruba 8325 and 8400 Switch Series, when a packet is routed from a SVI/L3VNI to a L3VNI/L2VNI, only the primary VSX VTEP forwards. This prevents duplication of packets.
n For the VSX VTEPs on the Aruba 6400 and 8360 Switch Series , whichever device gets data directly (not via ISL) will forward. This is done because these platforms have a predicate rule programmed that any packet over ISL will not be sent over tunnel. This means there will never be a case when packets go over the VSX ISL and into a VXLAN tunnel.
5. Is the Active-Active command required on VSX VTEPs?
The Active-Active command is optional for VSX VTEPs. This is because VSX peers act as logical VTEPs and work in Active-Active mode by default. The command can be added without any side effect.
6. Why is the VSX virtual neighbor command required?
n The VSX virtual neighbor command needs to be enabled on all SVIs on VSX VTEPs, the command once enabled does multiple things.
n If the VLAN is the first hop connected router, then both the VSX VTEPs will become DR and will forward PIM joins for every IGMP join that received.
n If the VLAN is the not the first-hop connected router, then both the VSX VTEPs will ignore the prime neighbor check and will forward PIM joins upstream.
7. Does PIM need to be enabled on the L3 VNI?
No, PIM-SM does not need to be enabled on the L3 VNI. It will be automatically enabled when PIM-SM is enabled on the tenant VRF. A VTEP forms PIM neighbors with the other remote VTEPs over L3VNI. AOS-CX forms automatic PIM-SM neighbors with peer VTEPs over L3VNI as soon as PIM-SM is enabled on the tenant VRF.
8. Does the solution work for all types of underlay interfaces?
The solution work with all types of underlay interfaces that are currently supported in AOS-CX. The only restriction is IGMP or PIM cannot be enabled in the underlay.
9. If I change the DR priority of my DR on an SVI with multicast VXLAN, will it work?
In a logical VSX VTEP, DR priority is automatically derived from the VTEP address. This ensures that the VSX VTEPs have identical priorities with both of them functioning as DRs or as non DRs. In case DR priority is changed, one of the VSX peer will start behaving differently from the other. To conclude, do not change DR priority on SVIs of VSX VTEPs.
10. In a VSX VTEP, are VSX keepalive links mandatory for multicast VXLAN?
The VSX keepalive is not mandatory as private IP is used between VSX peers is used to sync joins received over L3 VNIs
11. Why do I require an additional L3 link between VSX border VTEPs when there is ROP/P2P SVI extension?
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
499
The additional connectivity is required from the VSX border VTEP to provide an additional link in case the main uplink connectivity from the primary VSX peer goes down. In general the rule that is programmed is that only VSX primary VTEP will forward. If uplink connectivity from the primary VTEP goes down then PIM joins from primary are sent to the secondary and the traffic is pulled from secondary towards the primary.
References
n VXLAN Guide n AOS-CX VXLAN EVPN Symmetric IRB Distributed L3 Gateways n AOS-CX Switch Simulator
Multicast VXLAN | 500
Chapter 11 Support and Other Resources
Support and Other Resources
Accessing Aruba Support
Aruba Support Services Aruba Support Portal North America telephone
International telephone
https://www.arubanetworks.com/support-services/
https://asp.arubanetworks.com/
1-800-943-4526 (US & Canada Toll-Free Number) +1-408-754-1200 (Primary - Toll Number) +1-650-385-6582 (Backup - Toll Number - Use only when all other numbers are not working)
https://www.arubanetworks.com/support-services/contactsupport/
Be sure to collect the following information before contacting Support:
n Technical support registration number (if applicable) n Product name, model or version, and serial number n Operating system name and version n Firmware version n Error messages n Product-specific reports and logs n Add-on products or components n Third-party products or components
Other useful sites
Other websites that can be used to find information:
Airheads social forums and Knowledge Base
Software licensing
End-of-Life information
Aruba software and documentation
https://community.arubanetworks.com/
https://lms.arubanetworks.com/ https://www.arubanetworks.com/support-services/end-of-life/ https://asp.arubanetworks.com/downloads
Accessing Updates
You can access updates from the Aruba Support Portal or the HPE My Networking Website.
Aruba Support Portal
AOS-CX 10.08 Multicast Guide | 6200, 6300, 6400, 8xxx Switch Series
501
https://asp.arubanetworks.com/downloads If you are unable to find your product in the Aruba Support Portal, you may need to search My Networking, where older networking products can be found:
My Networking
https://www.hpe.com/networking/support To view and update your entitlements, and to link your contracts and warranties with your profile, go to the Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page: https://support.hpe.com/portal/site/hpsc/aae/home/ Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HP Passport set up with relevant entitlements. Some software products provide a mechanism for accessing software updates through the product interface. Review your product documentation to identify the recommended software update method. To subscribe to eNewsletters and alerts: https://asp.arubanetworks.com/notifications/subscriptions (requires an active Aruba Support Portal (ASP) account to manage subscriptions). Security notices are viewable without an ASP account.
Warranty Information
To view warranty information for your product, go to https://www.arubanetworks.com/supportservices/product-warranties/.
Regulatory Information
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at https://www.hpe.com/support/SafetyCompliance-EnterpriseProducts
Additional regulatory information
Aruba is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements, environmental data (company programs, product recycling, energy efficiency), and safety information and compliance data, (RoHS and WEEE). For more information, see https://www.arubanetworks.com/company/about-us/environmental-citizenship/.
Documentation Feedback
Aruba is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (docsfeedbackswitching@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page.
Support and Other Resources | 502
