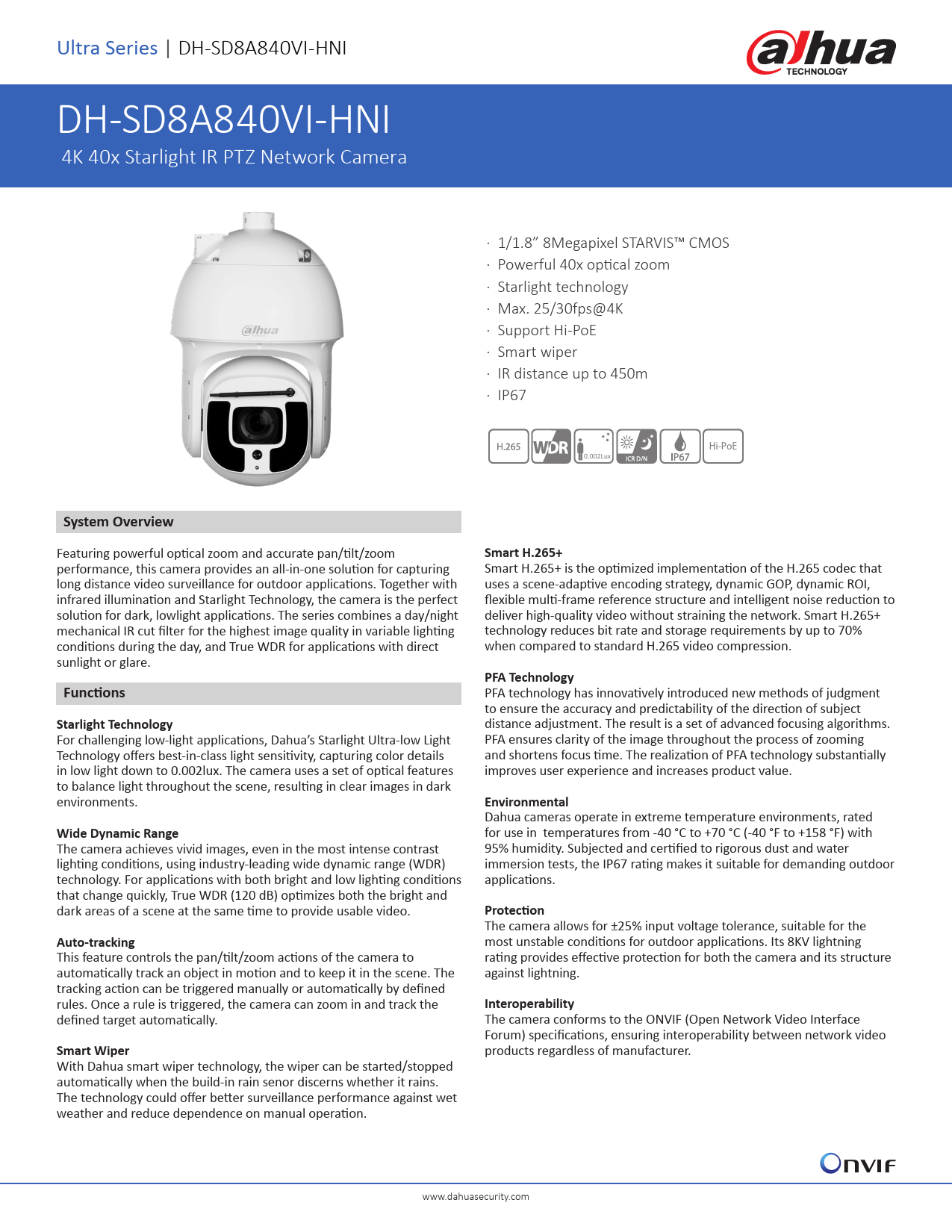

Ultra Series | DH-SD8A840VI-HNI
DH-SD8A840VI-HNI
4K 40x Starlight IR PTZ Network Camera

� 1/1.8" 8Megapixel STARVISTM CMOS � Powerful 40x optical zoom � Starlight technology � Max. 25/30fps@4K � Support Hi-PoE � Smart wiper � IR distance up to 450m � IP67

0.002Lux

Hi-PoE

System Overview
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.
Functions
Starlight Technology For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.002lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Wide Dynamic Range The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Auto-tracking This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Smart Wiper With Dahua smart wiper technology, the wiper can be started/stopped automatically when the build-in rain senor discerns whether it rains. The technology could offer better surveillance performance against wet weather and reduce dependence on manual operation.

Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
PFA Technology PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.
Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 �C to +70 �C (-40 �F to +158 �F) with 95% humidity. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
Protection The camera allows for �25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.
Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

www.dahuasecurity.com

Ultra Series | DH-SD8A840VI-HNI

Technical Specification

Camera

Image Sensor

1/1.8" STARVISTM CMOS

Effective Pixels

3840(H) x 2160(V), 8 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.002Lux@F1.4; B/W: 0.0002Lux@F1.4; 0Lux@F1.4 (IR on)

S/N Ratio

More than 56dB

IR Distance

Distance up to 450m (1476ft)

IR On/Off Control

Auto/Manual

IR LEDs

10

Smart Wiper

Support

Lens

Focal Length

5.6mm~223mm

Max. Aperture

F1.4~ F4.8

Angle of View

H: 63.9� ~ 2.0�

Optical Zoom

40x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

*Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

4400m(14435ft)

1740m(5708ft)

880m(2887ft)

440m(1443ft)

PTZ

Pan/Tilt Range

Pan: 0� ~ 360� endless; Tilt: -30� ~ 90�,auto flip 180�

Manual Control Speed Preset Speed Presets PTZ Mode Speed Setup Power up Action
Idle Motion

Pan: 0.1� ~240� /s; Tilt: 0.1� ~100� /s
Pan: 240� /s; Tilt: 120� /s
300
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Human-oriented focal Length/ speed adaptation Auto restore to previous PTZ and lens status after power failure Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

Auto Tracking IVS Advanced Intelligent Functions Video Compression Streaming Capability
Resolution
Frame Rate
Bit Rate Control Bit Rate Day/Night Backlight Compensation White Balance Gain Control Noise Reduction Motion Detection Region of Interest Electronic Image Stabilization (EIS) Optical Defog Digital Zoom Flip Privacy Masking Audio Compression Network Ethernet
Protocol
Interoperability Streaming Method Max. User Access Edge Storage Web Viewer Management Software Smart Phone

Support Tripwire, Intrusion, Abandoned/Missing Face Detection, Heat Map
H.265+/H.265/H.264+/H.264 3 Streams 4K(3840x2160)/1080P(1920�1080)/1.3M(1280x 960)/720P(1280�720)/D1(704�576/ 704�480)/ CIF(352�288/352�240) Main stream: 4K(1~25/30fps), 1080P/1.3MP/720P (1~25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P (1 ~ 25/30fps) CBR/VBR H.265/H.264: 512K ~ 8192Kbps Auto(ICR) / Color / B/W BLC / HLC / WDR(120dB) Auto, ATW, Indoor, Outdoor, Manual Auto / Manual Ultra DNR (2D/3D) Support Support
Support
Support 16x 180� Up to 24 areas
G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2
RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x ONVIF Profile S&G, API Unicast / Multicast 20 users NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB IE, Chrome, Firefox, Safari Smart PSS, DSS, DMSS IOS, Android

www.dahuasecurity.com

Ultra Series | DH-SD8A840VI-HNI

Certifications
Certifications
Interface Video Interface RS485 Audio I/O Alarm I/O Electrical Power Supply Power Consumption Environmental Operating Conditions Ingress Protection Vandal Resistance Construction Casing Dimensions Net Weight Gross Weight

CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1
1 port(BNC, 1.0V[p-p], 75) 1 1/1 7/2
AC24V/3A(�25%), Hi-PoE 26W, 38W (IR on, Heater on)
-40�C ~ 70�C (-40�F ~ +158�F) / Less than 95% RH IP67 N/A
Metal 262(mm) x 415.6 (mm) 8.5kg(18.74lb) 14.3kg(31.53lb)

Ordering Information

Type

Part Number

DH-SD8A840VI-HNI

4K PTZ Camera

DH-SD8A840VIN-HNI SD8A840VI-HNI

Accessories

SD8A840VIN-HNI PFB306W AC24V/3A PFA120 PFA140 PFA150 PFA151

Description 4K 40x Starlight IR PTZ Network Camera, WDR, PAL 4K 40x Starlight IR PTZ Network Camera, WDR, NTSC 4K 40x Starlight IR PTZ Network Camera, WDR, PAL 4K 40x Starlight IR PTZ Network Camera, WDR, NTSC
Wall Mount
Power Adapter
Junction Box
Power Box
Pole Mount
Corner Mount

Accessories
Included:

Optional

PFA120 Junction Box

PFA140 Power Box

PFA150 Pole Mount

PFA151 Corner Mount
Juncon Mount
PFB306W + PFA120

Power Box Mount
PFB306W + PFA140

Corner Mount
PFB306W + PFA151

Pole Mount
PFB306W + PFA150

Dimensions (mm)

25.9mm

160.0mm

415.6mm

225.6mm 262.0mm

PFB306W Wall Mount

AC24V/3A Power Adapter

Rev 001.001 � 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
