AMX-PR-0808 - Sheet1
File info: application/pdf · 1 pages · 388.91KB
AMX-PR-0808 - Sheet1
$// 0$7(5,$/6 86(' ,1 7 ,6 3$57 0867 %( & 12 $1*/( ,163(&7,21 21/< 5()(5 72 &$' 02'(/ ',0(16,216 6 2:1 $5( )25 5()(5(1&( $1' 7,7/(':* 3,&725,$/ 35
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

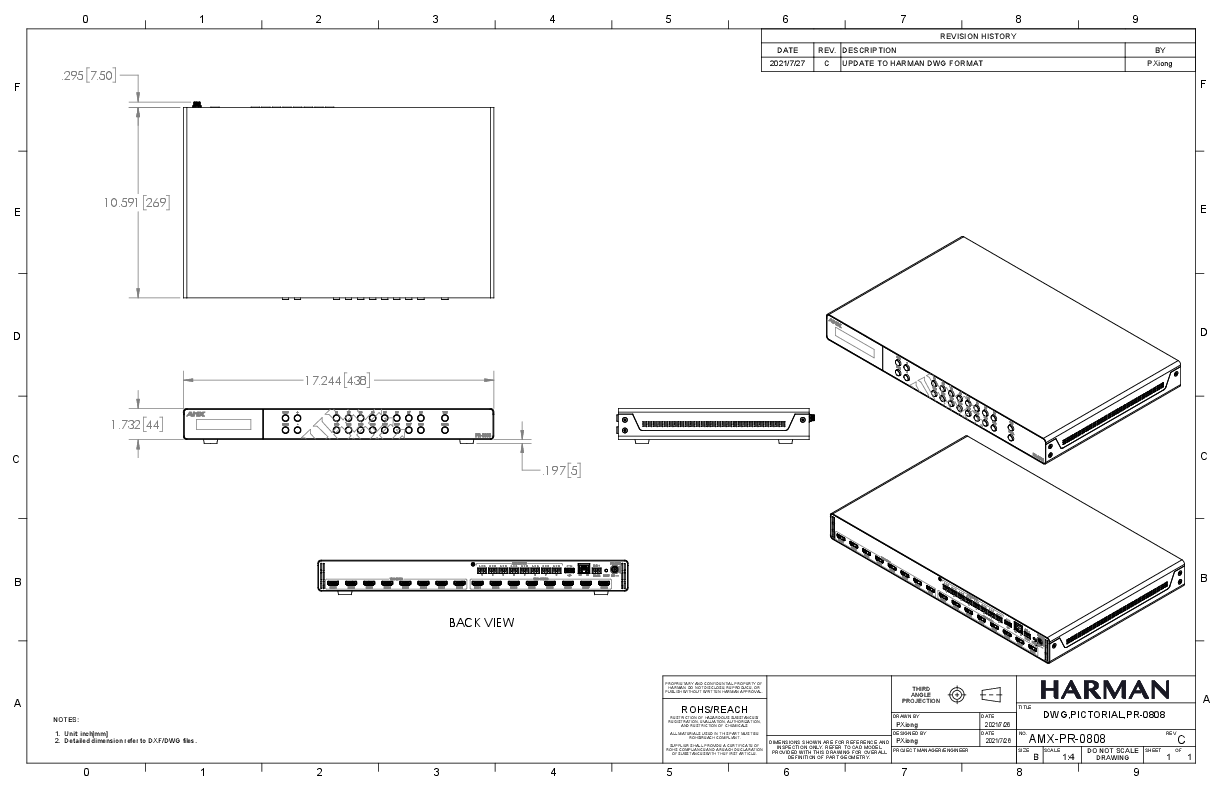

0 1 2 3 4 5 6 7 8 9 .295 7.50 F DATE 2021/7/27 REVISION HISTORY REV. DESCRIPTION C UPDATE TO HARMAN DWG FORMAT BY PXiong F 10.591 269 E E D D 17.244 438 1.732 44 C C .197 5 B A NOTES: 1. Unit: inch[mm] 2. Detailed dimension refer to DXF/DWG files. 0 1 2 BACK VIEW 3 4 B PROPRIETARY AND CONFIDENTIAL PROPERTY OF HARMAN. DO NOT DISCLOSE, REPRODUCE, OR PUBLISH WITHOUT WRITTEN HARMAN APPROVAL. ROHS/REACH RESTRICTION OF HAZARDOUS SUBSTANCES/ REGISTRATION, EVALUATION, AUTHORIZATION, AND RESTRICTION OF CHEMICALS ALL MATERIALS USED IN THIS PART MUST BE ROHS/REACH COMPLIANT. SUPPLIER SHALL PROVIDE A CERTIFICATE OF ROHS COMPLIANCE AND A REACH DECLARATION OF SUBSTANCES WITH THE FIRST ARTICLE. THIRD ANGLE PROJECTION DRAWN BY PXiong DESIGNED BY DIMENSIONS SHOWN ARE FOR REFERENCE AND PXiong INSPECTION ONLY. REFER TO CAD MODEL PROVIDED WITH THIS DRAWING FOR OVERALL PROJECT MANAGER/ENGINEER DEFINITION OF PART GEOMETRY. 5 6 7 A TITLE DATE DWG,PICTORIAL,PR-0808 2021/7/26 DATE 2021/7/26 NO. AMX-PR-0808 REV C SIZE SCALE DO NOT SCALE SHEET OF B 1:4 DRAWING 11 8 9
