DTX-PRO Data List
Manual Development Group ©2020 Yamaha Corporation Published 12/2020 YJ-A0 . Kit No. Kit name: Description ...
DTX-PRO Data List - Yamaha Corporation
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

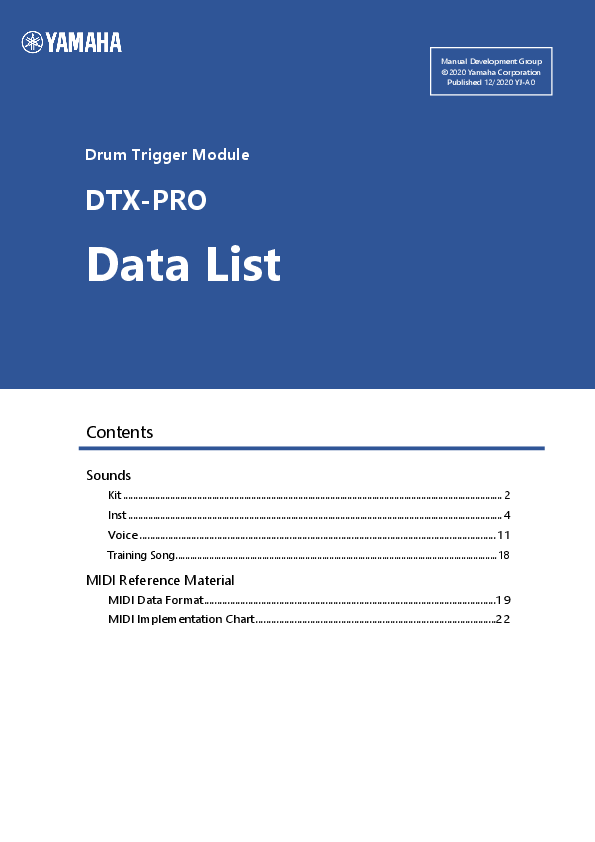

Drum Trigger Module DTX-PRO Data List Manual Development Group �2020 Yamaha Corporation Published 12/2020 YJ-A0 Contents Sounds Kit .......................................................................................................................................................... 2 Inst ........................................................................................................................................................ 4 Voice .......................................................................................................................................... 11 Training Song...................................................................................................................................... 18 MIDI Reference Material MIDI Data Format.................................................................................................................19 MIDI Implementation Chart .............................................................................................22 Kit No. Kit name Showcase 1 AbsoHybMaple 2 Steel Ring 3 Spiralizer 4 Bop Groove 5 SwedishMetal 6 VintNashvlle 7 Off The Hook 8 Black Vinyl 9 D-Funk 10 OldStudioKit 11 Jet Reverb 12 Short Stack Acoustic Kits 13 ModrnCountry 14 ExcitedSnare 15 Olden Days 16 Little Kit 17 26" BassDrum 18 Mix Vibe 19 Hollywood 20 Engraved Description The sound of the Yamaha Absolute Hybrid Maple series. The perfect modern drum sound. A more rock sounding drum kit. The steel snare has lots of mid range ring to help it cut through music. This kit features an effect which continuously moves the pitch up without ever reaching the top. A more jazz sounding kit with open drum sounds and thinner cymbals. Perfect for more acoustic styles. A punchy, mid-scooped drum sound with lots of attack. This is a perfect processed drum sound for metal music. Typical of the drum sound found on country music in the 1960's and 1970's. A highly processed, very electronic drum kit that punches through the mix. A typical 1990's metal drum sound with reverb � very dark! This kit features a very highly tuned snare for contemporary funk and similar styles. This mimics a kit that has been recorded in an old studio through very old microphones and an overloaded mixing desk - it is slightly distorted. This kit features a long reverb and a phaser effect to make the drum sound feel like it is swirling around you. Great on headphones. A drum kit made of short, layered, acoustic and electronic drum sounds. A contemporary acoustic pop drum kit with lots of attack. This kit has bright, high snare sound. The Presence effect on the [EFFECT] knob adds even more brightness and cut to the whole kit. This kit recreates a open, tuned-down old drum kit in larger sizes. This kit is designed to sound like a drum set in small sizes � 16" bass drum, 10, 12, 13" toms and 12" snare. The classic 1970's big open rock drum sound with 26" bass drum and oversized toms. This kit features a heavily dampened snare sound for ultra tight groove playing. This kit recreates a classic 1960's American drum sound � the sounds of 1960's FM radio. This kit features a Yamaha brass 13x6.5" snare drum and the sound of closely recorded toms and kick. A very tight drum sound. DTX-PRO Data List 2 No. Kit name Description Acoustic + Effect Kit The sound of this kit changes dramatically with your playing dynamics. It has a dynamic 21 Filter Smack filter effect meaning the filter opens and lets more high frequencies through as you hit 22 Classic Gate harder. This kit features a gated reverb effect that first became popular in 1980's. It's a big drum sound with no ring, and very dry. 23 Radio Dark This kit simulates the lo-fi sound of an old radio. 24 Distorted 25 EarlyReflctn Electronic Kits This kit features a distortion effect on the whole drum kit sound. You can adjust the distortion amount with [EFFECT] knob on the module. This kit has early-reflection reverb on it which is less harsh than gated reverb and still lets some of the natural ring of the drums come through. 26 >Classic 8< This kit features classic analog drum machine sounds. 27 >The RX5< This kit has sounds from the legendary Yamaha RX5 digital drum machine. 28 Selector This kit has a more 'chopped up loop' sound and is ideal for drum'n'bass music. 29 45rpm This kit is for dub-step and other more dance based styles. 30 Club Floor This kit is more useful for hard dance music. 31 Mellow Volts This kit features more mellow electronic drum sounds for a more chilled vibe. 32 Heavy Kick This kit features a heavier kick sound for filling dance floors. 33 Crunch Delay This kit features a more lo-fi sound and light delay effect on the snare. Percussion Kits 34 Percussion This kit has a Latin percussion set up on it including congas, timbales, shakers, cowbell and splash with a cajon bass drum sound. 35 Japan Kit This kit features various traditional Japanese percussion sounds. Demonstration Kits 36 AHM+DynPhasr 37 AHM+Modulatr 38 AHM+AnalgDly 39 AHM+Symphnic 40 AHM+VCMFlngr Each of these kits uses kit no.1 "AbsoHybMaple," as its basis, but each has a different effect assigned to it. Turn the [EFFECT] knob on the module to experience the power of the internal effects of this module. You can create your own effected versions of your favorite kits by following the examples set here. There are many other effects to be used and almost infinite variations available, so you can find exactly the sound you want. DTX-PRO Data List 3 Inst (*1) Supports RealAmbi. (*2) Supports position sensing for bow shots. Kick1 0 No Assign 1 22MplAHM1 (*1) 2 18MplAHM2 (*1) 3 22x18Rock1 (*1) 4 24x16Rock2 (*1) 5 22Vintage1 (*1) 6 22Vintage2 (*1) 7 20Vintage3 (*1) 8 20x16Jazz1 (*1) 9 22x14Jazz2 (*1) 10 18x18Jazz3 (*1) Kick2 0 No Assign 1 RX5 2 RX11 3 T8-1 4 T8-2 5 T8-3 6 T8-4 7 T8-5 8 T8-6 9 T8-7 10 T8-8 11 T9-1 12 T9-2 13 T9-3 14 T9-4 15 T9-5 16 T9-6 17 T9-7 18 EDM 1 19 EDM 2 20 EDM 3 21 EDM 4 22 EDM 5 23 EDM 6 24 Trance PWR 25 Gate 1 26 Gate 2 27 Gate 3 28 Gate 4 29 Electro 1 30 Electro 2 31 Electro 3 32 Electro 4 33 Electro 5 34 Electro 6 35 Electro 7 36 Electro 8 37 Electro 9 38 Electro 10 39 Electro 11 40 Electro 12 41 Electro 13 42 Electro 14 43 Electro 15 44 Electro 16 45 Electro 17 46 Electro 18 47 Electro 19 48 Electro 20 49 R&B 1 50 R&B 2 51 HipHop 1 52 HipHop 2 53 HipHop 3 54 HipHop 4 55 HipHop 5 56 HipHop 6 57 HipHop 7 58 HipHop 8 59 HipHop 9 60 HipHop 10 61 HipHop 11 62 Break 63 DNB 1 64 DNB 2 DTX-PRO Data List 4 Snare1 0 No Assign 1 14x5MplAHM (*1) 2 13x6BrassY (*1) 3 14x5CopprY (*1) 4 14x5 D20 (*1) 5 10x5MplCsY (*1) 6 14x5 Rock1 (*1) 7 14x6 Rock2 (*1) 8 14x6 Rock3 (*1) 9 14x5Vintg1 (*1) 10 14x6Vintg2 (*1) 11 14x5 Jazz1 (*1) 12 13x5 Jazz2 (*1) Snare2 0 No Assign 1 RX5 2 RX11-1 3 RX11-2 4 T8-1 5 T8-2 6 T9-1 7 T9-2 8 T9-3 9 EDM 1 10 EDM 2 11 EDM 3 12 EDM 4 13 TrancePWR1 14 TrancePWR2 15 Gate 1 16 Gate 2 17 Gate 3 18 Gate 4 19 Electro 1 20 Electro 2 21 Electro 3 22 Electro 4 23 Electro 5 24 Electro 6 25 Electro 7 26 Electro 8 27 Electro 9 28 Electro 10 29 Electro 11 30 Electro 12 31 Electro 13 32 Electro 14 33 Electro 15 34 Electro 16 35 Electro 17 36 Electro 18 37 Electro 19 38 Electro 20 39 Electro 21 40 R&B 1 41 R&B 2 42 HipHop 1 43 HipHop 2 44 Break 45 DMB 46 Dub 1 47 Dub 2 48 Trap 1 49 Trap 2 50 Trap 3 51 House 1 52 House 2 DTX-PRO Data List 5 Tom1 0 No Assign 1 10MplAHM H (*1) 2 12MplAHM M (*1) 3 14MplAHM L (*1) 4 16MplAHM F (*1) 5 10 Rock H (*1) 6 12 Rock M (*1) 7 14 Rock L (*1) 8 18 Rock F (*1) 9 12 Vintg H (*1) 10 13 Vintg M (*1) 11 16 Vintg L (*1) 12 18 Vintg F (*1) 13 10 Jazz H (*1) 14 12 Jazz M (*1) 15 14 Jazz L (*1) 16 16 Jazz F (*1) Tom2 0 No Assign 1 RX5 H 2 RX5 M 3 RX5 L 4 RX11 H 5 RX11 M 6 RX11 L 7 T8-1 H 8 T8-1 M 9 T8-1 L 10 T8-2 H 11 T8-2 M 12 T8-2 L 13 T9-1 H 14 T9-1 M 15 T9-1 L 16 T9-2 H 17 T9-2 M 18 T9-2 L 19 EDM 1 H 20 EDM 1 M 21 EDM 1 L 22 EDM 2 H 23 EDM 2 M 24 EDM 2 L 25 EDM 3 H 26 EDM 3 M 27 EDM 3 L 28 EDM 4 H 29 EDM 4 M 30 EDM 4 L 31 EDM 5 H 32 EDM 5 M 33 EDM 5 L 34 Gate 1 H 35 Gate 1 M 36 Gate 1 L 37 Gate 2 H 38 Gate 2 M 39 Gate 2 L 40 Gate 3 H 41 Gate 3 M 42 Gate 3 L 43 Electro1 H 44 Electro1 M 45 Electro1 L 46 Electro2 H 47 Electro2 M 48 Electro2 L 49 HipHop 1 H 50 HipHop 1 M 51 HipHop 1 L 52 HipHop 2 H 53 HipHop 2 M 54 HipHop 2 L 55 DNB H 56 DNB M 57 DNB L 58 House H 59 House M 60 House L DTX-PRO Data List 6 Cymbal1 0 No Assign 1 16Cr Rock1 2 19Cr Rock2 3 16Cr Vntg1 4 16Cr Vntg2 5 18Cr Jazz1 6 18Cr Jazz2 7 22Rd Rock 8 22Rd Vintg 9 21Rd Jazz 10 18 China 1 11 22 China 2 12 8 Splash1 13 9 Splash2 (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*2) (*1) (*1) (*1) (*1) Cymbal2 0 No Assign 1 RX5 Crash 2 RX11 Crash 3 T8 Crash 4 T8 Ride 5 T9 Crash 6 T9 Ride 7 EDMCrash1 8 EDMCrash2 9 EDMCrash3 10 EDMCrash4 11 EDMCrash5 12 EDMCrash6 13 EDMCrash7 14 EDMCrash8 15 EDMCrash9 16 EDMCrash10 17 EDM Ride1 18 EDM Ride2 19 EDM Ride3 20 EDM Ride4 21 EDM Ride5 22 EDM Ride6 23 EDM Ride7 24 EDM Ride8 25 EDM Ride9 26 HipHopCr 1 27 HipHopCr 2 28 HipHopCr 3 29 HipHopCr 4 30 HipHopCr 5 31 HipHopCr 6 32 HipHopCr 7 33 HipHopCr 8 34 HipHopCr 9 35 HipHop Rd 36 FX Cymbal1 37 FX Cymbal2 38 FX Cymbal3 39 FX Cymbal4 40 FX Cymbal5 41 Reverse 42 Trap Crash 43 Trap Ride 44 HouseCrash DTX-PRO Data List 7 HiHat1 0 No Assign 1 14 Pop (*1) 2 15 Rock (*1) 3 14 Vintage (*1) 4 14 Jazz (*1) HiHat2 0 No Assign 1 RX5 2 RX11 3 T8-1 4 T8-2 5 T9-1 6 T9-2 7 EDM 1 8 EDM 2 9 EDM 3 10 EDM 4 11 EDM 5 12 Elec 1 13 Elec 2 14 Elec 3 15 Elec 4 16 Elec 5 17 Elec 6 18 Elec 7 19 Elec 8 20 Elec 9 21 Elec 10 22 R&B 1 23 R&B 2 24 HipHop 1 25 HipHop 2 26 HipHop 3 27 DNB DTX-PRO Data List 8 Perc 0 No Assign 1 Conga H SW 2 Conga L SW 3 Bongo H SW 4 Bongo L SW 5 Timbales H 6 Timbales L 7 Surdo SW 8 PndeiroOp 9 PndeiroTap 10 PndeiroShk 11 PndeiroSld 12 Tambarin 1 13 Tambarin 2 14 Cowbell1SW 15 Cowbell 2 16 Cowbell 3 17 Claves 18 Maracas 19 TriangleOp 20 TriangleMt 21 GuiroShort 22 GuiroLong 23 Agogo H 24 Agogo L 25 WoodBlockH 26 WoodBlockL 27 Shaker 1 28 Shaker 2 29 Caxixi Hit 30 Whistle S 31 Whistle L 32 Djambe Lo 33 Djambe Op 34 Djambe Slp 35 Djambe Mt 36 Cajion Lo 37 Cajion Ft 38 Cajion Slp 39 Cajion Mt 40 TalkDr Op 41 PotDrum Op 42 Dundun Op 43 Dundun Cl 44 Darbuka Op 45 Darbuka Sl 46 Darbuka Mt 47 Sangban Op 48 Kenkeni Op 49 AfricanBlH 50 AfricanBlL 51 Tombak Op 52 Daf Open 53 Daf Slap 54 Daf Mute 55 Riq Open 56 Riq Slap 57 Riq Shake 58 Riq Hit 59 Sagat Op 60 Sagat Cl 61 Sagat SW 62 Tabla Na 63 Bayan Ge 64 Dhol RH Op 65 Dhol RH Cl 66 Dhol LH Op 67 Dhol LH Cl 68 KanjiraHit 69 KanjiraSlp 70 KanjiraShk 71 ZangGu 72 ZangGu Rim 73 BianGu 74 BianGu Rim 75 BianGuHand 76 TangGu 77 TangGu Rim 78 PaiGu 1 79 PaiGu 2 80 PaiGu 3 81 XiaoBo Opn 82 XiaoBo Cls 83 DaBo Opn 84 DaBo Cls 85 XiaoLuo 86 ZhongLuo 87 FengLuo 88 ShangNao 1 89 ShangNao 2 90 Qing H 91 Qing L 92 Taiko Don 93 Taiko Ka 94 KoTaik1Ten 95 KoTaik1Tsu 96 KoTaik2Ten 97 KoTaik2Tsu 98 TsuzumiPon 99 TsuzumiBnd 100 OokawaChon 101 Temple Blk 102 KontikiKon 103 Kontiki Ki 104 Atari Kon 105 Atari Chi 106 Ainote 1 107 Ainote 2 108 GranCasaOp 109 Field Sn 110 FldSn OpRm 111 FldSn ClRm 112 OrchSn 113 OrchSnOpRm 114 OrchSnClRm 115 OrTambHtOp 116 OrTambHtCl 117 OrTambHtSk 118 Castanet 119 Vibraslap 120 SleighBel 121 WindChime 122 HandCym Op 123 HandCym Mt 124 FingrCymOp 125 RibonCrash 126 Timpani 127 Tamtam DTX-PRO Data List 9 Effect 0 No Assign 1 Clap 1 T8 2 Clap 2 T8 3 Clap 3 T9 4 Clap 4 T9 5 Clap 5 6 Clap 6 7 Clap 7 8 Clap 8 9 Clap 9 10 Clap 10 11 Clap 11 12 Clap 12 13 Snap 1 14 Snap 2 15 Snap 3 16 Snap 4 17 Snap 5 18 Snap 6 19 T8-1 Cng H 20 T8-1 Cng M 21 T8-1 Cng L 22 T8-1 Cowbl 23 T8-1 Clavs 24 T8-2 Cng H 25 T8-2 Cng M 26 T8-2 Cng L 27 T8-2 Cowbl 28 T8-2 Clavs 29 T8 Bass 1 30 T8 Bass 2 31 EDM Maracs 32 EDM Trangl 33 EDM Click 34 EDM Shker1 35 EDM Shker2 36 EDM Perc 1 37 EDM Perc 2 38 EDM Perc 3 39 EDM Perc 4 40 EDM Perc 5 41 HipHopPc 1 42 HipHopPc 2 43 HipHopPc 3 44 HipHopPc 4 45 HipHopPc 5 46 HipHopPc 6 47 HipHopPc 7 48 HipHopPc 8 49 HipHopPc 9 50 HipHopPc10 51 HipHopPc11 52 ElecCabasa 53 Elec Guiro 54 Elec WdBlk 55 Ripper 56 Indus Tom 57 Zap 1 58 Zap 2 59 Hi Q 1 60 Hi Q 2 61 Scratch H 62 Scratch L 63 ScratchR&B 64 Flex 65 Elec FX 1 66 Elec FX 2 67 Elec FX 3 68 Elec FX 4 69 Elec FX 5 70 Elec FX 6 71 Elec FX 7 72 Elec FX 8 73 Elec FX 9 74 Elec FX 10 75 Elec FX 11 76 Elec FX 12 77 Elec FX 13 78 Elec FX 14 79 Elec FX 15 80 Elec FX 16 81 Elec FX 17 82 Elec FX 18 83 Elec FX 19 84 Elec FX 20 85 Elec FX 21 86 Elec FX 22 87 Elec FX 23 88 Elec FX 24 89 Elec FX 25 90 Elec FX 26 91 Elec FX 27 92 Elec FX 28 93 Elec FX 29 94 Elec FX 30 95 Elec FX 31 96 Elec FX 32 97 Elec FX 33 98 Elec FX 34 99 Elec FX 35 100 Elec FX 36 101 Elec FX 37 102 Elec FX 38 103 Elec FX 39 104 Elec FX 40 105 Elec FX 41 106 Elec FX 42 107 Elec FX 43 108 Elec FX 44 109 Elec FX 45 110 Elec FX 46 111 Elec FX 47 112 Elec FX 48 113 Elec FX 49 114 Elec FX 50 115 Elec FX 51 116 Clk 1 Acc 117 Clk 1 4th 118 Clk 1 8th 119 Clk 1 16th 120 Clk 1 Trp 121 Clk 2 Acc 122 Clk 2 Beat 123 Clk 3 Acc 124 Clk 3 Beat 125 Clk 4 126 Clk 5 DTX-PRO Data List 10 Voice (*1) Supports RealAmbi. (*2) Supports position sensing for bow shots. Kick1 0 No Assign 1 22MplAHM1 (*1) 2 18MplAHM2 (*1) 3 22x18Rock1 (*1) 4 24x16Rock2 (*1) 5 22Vintage1 (*1) 6 22Vintage2 (*1) 7 20Vintage3 (*1) 8 20x16Jazz1 (*1) 9 22x14Jazz2 (*1) 10 18x18Jazz3 (*1) Kick2 0 No Assign 1 RX5 2 RX11 3 T8-1 4 T8-2 5 T8-3 6 T8-4 7 T8-5 8 T8-6 9 T8-7 10 T8-8 11 T9-1 12 T9-2 13 T9-3 14 T9-4 15 T9-5 16 T9-6 17 T9-7 18 EDM 1 19 EDM 2 20 EDM 3 21 EDM 4 22 EDM 5 23 EDM 6 24 Trance PWR 25 Gate 1 26 Gate 2 27 Gate 3 28 Gate 4 29 Electro 1 30 Electro 2 31 Electro 3 32 Electro 4 33 Electro 5 34 Electro 6 35 Electro 7 36 Electro 8 37 Electro 9 38 Electro 10 39 Electro 11 40 Electro 12 41 Electro 13 42 Electro 14 43 Electro 15 44 Electro 16 45 Electro 17 46 Electro 18 47 Electro 19 48 Electro 20 49 R&B 1 50 R&B 2 51 HipHop 1 52 HipHop 2 53 HipHop 3 54 HipHop 4 55 HipHop 5 56 HipHop 6 57 HipHop 7 58 HipHop 8 59 HipHop 9 60 HipHop 10 61 HipHop 11 62 Break 63 DNB 1 64 DNB 2 DTX-PRO Data List 11 Snare1 0 No Assign 1 14x5AHM (*1) 2 14x5AHMRm1 (*1) 3 14x5AHMRm2 (*1) 4 13x6Brs (*1) 5 13x6BrsRm1 (*1) 6 13x6BrsRm2 (*1) 7 14x5Cpr (*1) 8 14x5CprRm1 (*1) 9 14x5CprRm2 (*1) 10 14x5D20 (*1) 11 14x5D20Rm1 (*1) 12 14x5D20Rm2 (*1) 13 10x5MC (*1) 14 10x5MC Rm1 (*1) 15 10x5MC Rm2 (*1) 16 14x5Rk1 (*1) 17 14x5Rk1Rm1 (*1) 18 14x5Rk1Rm2 (*1) 19 14x6Rk2 (*1) 20 14x6Rk2Rm1 (*1) 21 14x6Rk2Rm2 (*1) 22 14x6Rk3 (*1) 23 14x6Rk3Rm1 (*1) 24 14x6Rk3Rm2 (*1) 25 14x5Vn1 (*1) 26 14x5Vn1Rm1 (*1) 27 14x5Vn1Rm2 (*1) 28 14x6Vn2 (*1) 29 14x6Vn2Rm1 (*1) 30 14x6Vn2Rm2 (*1) 31 14x5Jz1 (*1) 32 14x5Jz1Rm1 (*1) 33 14x5Jz1Rm2 (*1) 34 13x5Jz2 (*1) 35 13x5Jz2Rm1 (*1) 36 13x5Jz2Rm2 (*1) Snare2 0 No Assign 1 RX5 2 RX5 Rm1 3 RX5 Rm2 4 RX11-1 5 RX11-2 6 RX11-3 7 RX11 Rim 8 T8-1 9 T8-2 10 T8-3 11 T8-4 12 T8 Rim 13 T9-1 14 T9-2 15 T9-3 16 T9-4 17 T9-5 18 T9-6 19 T9 Rim 20 EDM 1 21 EDM 1 Rm1 22 EDM 1 Rm2 23 EDM 2 24 EDM 2 Rm 25 EDM 3 26 EDM 3 Rm 27 EDM 4 28 EDM 4 Rm 29 TrancePWR1 30 TrancePWR2 31 Gate 1 32 Gate 2 33 Gate 3 34 Gate 4 35 Gate Rim 36 Electro 1 37 Electro 2 38 Electro 3 39 Electro 4 40 Electro 5 41 Electro 6 42 Electro 7 43 Electro 8 44 Electro 9 45 Electro 10 46 Electro 11 47 Electro 12 48 Electro 13 49 Electro 14 50 Electro 15 51 Electro 16 52 Electro 17 53 Electro 18 54 Electro 19 55 Electro 20 56 Electro 21 57 Electro Rm 58 R&B 1 59 R&B 1 Rim 60 R&B 2 61 R&B 2 Rim 62 HipHop1 63 HipHop1Rm1 64 HipHop1Rm2 65 HipHop2 66 HipHop2Rm1 67 HipHop2Rm2 68 Break 69 Break Rm1 70 Break Rm2 71 DNB 72 DNB Rm1 73 DNB Rm2 74 Dub 1 75 Dub 2 76 Trap 1 77 Trap 2 78 Trap 3 79 House 1 80 House 2 DTX-PRO Data List 12 Tom1 0 No Assign 1 10AHM H (*1) 2 10AHM H Rm (*1) 3 12AHM M (*1) 4 12AHM M Rm (*1) 5 14AHM L (*1) 6 14AHM L Rm (*1) 7 16AHM F (*1) 8 16AHM F Rm (*1) 9 10Rck H (*1) 10 10Rck H Rm (*1) 11 12Rck M (*1) 12 12Rck M Rm (*1) 13 14Rck L (*1) 14 14Rck L Rm (*1) 15 18Rck F (*1) 16 18Rck F Rm (*1) 17 12Vnt H (*1) 18 12Vnt H Rm (*1) 19 13Vnt M (*1) 20 13Vnt M Rm (*1) 21 16Vnt L (*1) 22 16Vnt L Rm (*1) 23 18Vnt F (*1) 24 18Vnt F Rm (*1) 25 10Jaz H (*1) 26 10Jaz H Rm (*1) 27 12Jaz M (*1) 28 12Jaz M Rm (*1) 29 14Jaz L (*1) 30 14Jaz L Rm (*1) 31 16Jaz F (*1) 32 16Jaz F Rm (*1) Tom2 0 No Assign 1 RX5 H 2 RX5 M 3 RX5 L 4 RX11 H 5 RX11 M 6 RX11 L 7 T8-1 H 8 T8-1 M 9 T8-1 L 10 T8-2 H 11 T8-2 M 12 T8-2 L 13 T9-1 H 14 T9-1 M 15 T9-1 L 16 T9-2 H 17 T9-2 M 18 T9-2 L 19 EDM 1 H 20 EDM 1 M 21 EDM 1 L 22 EDM 2 H 23 EDM 2 M 24 EDM 2 L 25 EDM 3 H 26 EDM 3 M 27 EDM 3 L 28 EDM 4 H 29 EDM 4 M 30 EDM 4 L 31 EDM 5 H 32 EDM 5 M 33 EDM 5 L 34 Gate 1 H 35 Gate 1 M 36 Gate 1 L 37 Gate 2 H 38 Gate 2 M 39 Gate 2 L 40 Gate 3 H 41 Gate 3 M 42 Gate 3 L 43 Electro1 H 44 Electro1 M 45 Electro1 L 46 Electro2 H 47 Electro2 M 48 Electro2 L 49 HipHop 1 H 50 HipHop 1 M 51 HipHop 1 L 52 HipHop 2 H 53 HipHop 2 M 54 HipHop 2 L 55 DNB H 56 DNB M 57 DNB L 58 House H 59 House M 60 House L DTX-PRO Data List 13 Cymbal1 0 No Assign 1 16CrRck1 2 16CrRck1Eg 3 16CrRck1Cp 4 19CrRck2 5 19CrRck2Eg 6 19CrRck2Cp 7 16CrVnt1 8 16CrVnt1Eg 9 16CrVnt1Cp 10 16CrVnt2 11 16CrVnt2Eg 12 16CrVnt2Cp 13 18CrJaz1 14 18CrJaz1Eg 15 18CrJaz1Cp 16 18CrJaz2 17 18CrJaz2Eg 18 18CrJaz2Cp 19 22RdRock 20 22RdRockEg 21 22RdRockCp 22 22RdVint 23 22RdVintEg 24 22RdVintCp 25 21RdJazz 26 21RdJazzEg 27 21RdJazzCp 28 18 China 1 29 22 China 2 30 8 Splash1 31 9 Splash2 (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*2) (*1) (*1) (*1) (*1) (*1) (*1) Cymbal2 0 No Assign 1 RX5 Crash 2 RX5 Cp 3 RX11 Crash 4 RX11 Cp 5 T8 Crash 6 T8 Ride 7 T9 Crash 8 T9 Ride 9 EDMCrash1 10 EDMCrash2 11 EDMCrash3 12 EDMCrash4 13 EDMCrash5 14 EDMCrash6 15 EDMCrash7 16 EDMCrash8 17 EDMCrash9 18 EDMCrash10 19 EDM Ride1 20 EDM Ride2 21 EDM Ride3 22 EDM Ride4 23 EDM Ride5 24 EDM Ride6 25 EDM Ride7 26 EDM Ride8 27 EDM Ride9 28 HipHopCr 1 29 HipHopCr 2 30 HipHopCr 3 31 HipHopCr 4 32 HipHopCr 5 33 HipHopCr 6 34 HipHopCr 7 35 HipHopCr 8 36 HipHopCr 9 37 HipHop Rd 38 HipHop Cp 39 FX Cymbal1 40 FX Cymbal2 41 FX Cymbal3 42 FX Cymbal4 43 FX Cymbal5 44 Reverse 45 Trap Crash 46 Trap Ride 47 HouseCrash DTX-PRO Data List 14 HiHat1 0 No Assign 1 14Pop Op (*1) 2 14Pop OpEg (*1) 3 14Pop Cl (*1) 4 14Pop ClEg (*1) 5 14Pop Ft (*1) 6 14Pop Spl (*1) 7 15Rock Op (*1) 8 15RockOpEg (*1) 9 15RockCl (*1) 10 15RockClEg (*1) 11 15RockFt (*1) 12 15RockSpl (*1) 13 14Vint Op (*1) 14 14VintOpEg (*1) 15 14VintCl (*1) 16 14VintClEg (*1) 17 14VintFt (*1) 18 14VintSpl (*1) 19 14Jazz Op (*1) 20 14JazzOpEg (*1) 21 14JazzCl (*1) 22 14JazzClEg (*1) 23 14JazzFt (*1) 24 14JazzSpl (*1) HiHat2 0 No Assign 1 RX5 Op 2 RX5 Cl 3 RX11 Op 4 RX11 Cl 5 T8-1 Op 6 T8-1 Cl 7 T8-2 Op 8 T8-2 Cl 9 T9-1 Op 10 T9-1 Cl 11 T9-2 Op 12 T9-2 Cl 13 EDM 1 Op 14 EDM 1 Cl 15 EDM 1 Ft 16 EDM 2 Op 17 EDM 2 OpEg 18 EDM 2 Cl 19 EDM 2 ClEg 20 EDM 2 Ft 21 EDM 2 Spl 22 EDM 3 Op 23 EDM 3 OpEg 24 EDM 3 Cl 25 EDM 3 ClEg 26 EDM 3 Ft 27 EDM 3 Spl 28 EDM 4 Op 29 EDM 4 OpEg 30 EDM 4 Cl 31 EDM 4 ClEg 32 EDM 5 Op 33 EDM 5 OpEg 34 EDM 5 Cl 35 EDM 5 Ft 36 Elec 1 Op 37 Elec 1 Cl 38 Elec 2 Op 39 Elec 2 Cl 40 Elec 3 Op 41 Elec 3 Cl 42 Elec 4 Op 43 Elec 4 Cl 44 Elec 5 Op 45 Elec 5 Cl 46 Elec 6 Op 47 Elec 6 Cl 48 Elec 7 Op 49 Elec 7 Cl 50 Elec 8 Op 51 Elec 8 Cl 52 Elec 9 Op 53 Elec 9 Cl 54 Elec 10 Op 55 Elec 10 Cl 56 R&B 1 Op 57 R&B 1 Cl 58 R&B 2 Op 59 R&B 2 Cl 60 R&B 2 Ft 61 HpHp1 Op 62 HipHp1 Cl 63 HipHp1 Ft 64 HipHp2 Op 65 HipHp2OpEg 66 HipHp2 Cl 67 HipHp2ClEg 68 HipHp2 Ft 69 HipHp3 Op 70 HipHp3 Cl 71 HipHp3ClEg 72 HipHp3 Ft 73 DNB Op 74 DNB Cl 75 DNB Ft DTX-PRO Data List 15 Perc 0 No Assign 1 Conga H SW 2 Conga L SW 3 Bongo H SW 4 Bongo L SW 5 Timbales H 6 Timbales L 7 Surdo SW 8 PndeiroOp 9 PndeiroTap 10 PndeiroShk 11 PndeiroSld 12 Tambarin 1 13 Tambarin 2 14 Cowbell1SW 15 Cowbell 2 16 Cowbell 3 17 Claves 18 Maracas 19 TriangleOp 20 TriangleMt 21 GuiroShort 22 GuiroLong 23 Agogo H 24 Agogo L 25 WoodBlockH 26 WoodBlockL 27 Shaker 1 28 Shaker 2 29 Caxixi Hit 30 Whistle S 31 Whistle L 32 Djambe Lo 33 Djambe Op 34 Djambe Slp 35 Djambe Mt 36 Cajion Lo 37 Cajion Ft 38 Cajion Slp 39 Cajion Mt 40 TalkDr Op 41 PotDrum Op 42 Dundun Op 43 Dundun Cl 44 Darbuka Op 45 Darbuka Sl 46 Darbuka Mt 47 Sangban Op 48 Kenkeni Op 49 AfricanBlH 50 AfricanBlL 51 Tombak Op 52 Daf Open 53 Daf Slap 54 Daf Mute 55 Riq Open 56 Riq Slap 57 Riq Shake 58 Riq Hit 59 Sagat Op 60 Sagat Cl 61 Sagat SW 62 Tabla Na 63 Bayan Ge 64 Dhol RH Op 65 Dhol RH Cl 66 Dhol LH Op 67 Dhol LH Cl 68 KanjiraHit 69 KanjiraSlp 70 KanjiraShk 71 ZangGu 72 ZangGu Rim 73 BianGu 74 BianGu Rim 75 BianGuHand 76 TangGu 77 TangGu Rim 78 PaiGu 1 79 PaiGu 2 80 PaiGu 3 81 XiaoBo Opn 82 XiaoBo Cls 83 DaBo Opn 84 DaBo Cls 85 XiaoLuo 86 ZhongLuo 87 FengLuo 88 ShangNao 1 89 ShangNao 2 90 Qing H 91 Qing L 92 Taiko Don 93 Taiko Ka 94 KoTaik1Ten 95 KoTaik1Tsu 96 KoTaik2Ten 97 KoTaik2Tsu 98 TsuzumiPon 99 TsuzumiBnd 100 OokawaChon 101 Temple Blk 102 KontikiKon 103 Kontiki Ki 104 Atari Kon 105 Atari Chi 106 Ainote 1 107 Ainote 2 108 GranCasaOp 109 Field Sn 110 FldSn OpRm 111 FldSn ClRm 112 OrchSn 113 OrchSnOpRm 114 OrchSnClRm 115 OrTambHtOp 116 OrTambHtCl 117 OrTambHtSk 118 Castanet 119 Vibraslap 120 SleighBel 121 WindChime 122 HandCym Op 123 HandCym Mt 124 FingrCymOp 125 RibonCrash 126 Timpani 127 Tamtam DTX-PRO Data List 16 Effect 0 No Assign 1 Clap 1 T8 2 Clap 2 T8 3 Clap 3 T9 4 Clap 4 T9 5 Clap 5 6 Clap 6 7 Clap 7 8 Clap 8 9 Clap 9 10 Clap 10 11 Clap 11 12 Clap 12 13 Snap 1 14 Snap 2 15 Snap 3 16 Snap 4 17 Snap 5 18 Snap 6 19 T8-1 Cng H 20 T8-1 Cng M 21 T8-1 Cng L 22 T8-1 Cowbl 23 T8-1 Clavs 24 T8-2 Cng H 25 T8-2 Cng M 26 T8-2 Cng L 27 T8-2 Cowbl 28 T8-2 Clavs 29 T8 Bass 1 30 T8 Bass 2 31 EDM Maracs 32 EDM Trangl 33 EDM Click 34 EDM Shker1 35 EDM Shker2 36 EDM Perc 1 37 EDM Perc 2 38 EDM Perc 3 39 EDM Perc 4 40 EDM Perc 5 41 HipHopPc 1 42 HipHopPc 2 43 HipHopPc 3 44 HipHopPc 4 45 HipHopPc 5 46 HipHopPc 6 47 HipHopPc 7 48 HipHopPc 8 49 HipHopPc 9 50 HipHopPc10 51 HipHopPc11 52 ElecCabasa 53 Elec Guiro 54 Elec WdBlk 55 Ripper 56 Indus Tom 57 Zap 1 58 Zap 2 59 Hi Q 1 60 Hi Q 2 61 Scratch H 62 Scratch L 63 ScratchR&B 64 Flex 65 Elec FX 1 66 Elec FX 2 67 Elec FX 3 68 Elec FX 4 69 Elec FX 5 70 Elec FX 6 71 Elec FX 7 72 Elec FX 8 73 Elec FX 9 74 Elec FX 10 75 Elec FX 11 76 Elec FX 12 77 Elec FX 13 78 Elec FX 14 79 Elec FX 15 80 Elec FX 16 81 Elec FX 17 82 Elec FX 18 83 Elec FX 19 84 Elec FX 20 85 Elec FX 21 86 Elec FX 22 87 Elec FX 23 88 Elec FX 24 89 Elec FX 25 90 Elec FX 26 91 Elec FX 27 92 Elec FX 28 93 Elec FX 29 94 Elec FX 30 95 Elec FX 31 96 Elec FX 32 97 Elec FX 33 98 Elec FX 34 99 Elec FX 35 100 Elec FX 36 101 Elec FX 37 102 Elec FX 38 103 Elec FX 39 104 Elec FX 40 105 Elec FX 41 106 Elec FX 42 107 Elec FX 43 108 Elec FX 44 109 Elec FX 45 110 Elec FX 46 111 Elec FX 47 112 Elec FX 48 113 Elec FX 49 114 Elec FX 50 115 Elec FX 51 116 Clk 1 Acc 117 Clk 1 4th 118 Clk 1 8th 119 Clk 1 16th 120 Clk 1 Trp 121 Clk 2 Acc 122 Clk 2 Beat 123 Clk 3 Acc 124 Clk 3 Beat 125 Clk 4 126 Clk 5 DTX-PRO Data List 17 Training Song No. Name 01 POP1 02 POP2 03 ROCK1 04 ROCK2 05 METAL 06 FUNK 07 HIPHOP 08 EDM 09 JAZZ 10 LATIN 11 POP ROCK 12 POP SHUFFLE 13 MODN BALLAD 14 POP PUNK 15 HARD ROCK 16 HALF-8BT RCK 17 POWER ROCK 18 6/8 BALLAD 19 PROG ROCK 20 THRASH METAL 21 60S FUNK 22 70S FUNK 23 JAZZ FUNK 24 SLOW BLUES 25 ROCK'N'ROLL 26 HIPHOP2 27 HIPHOP3 28 EDM2 29 REGGAETON 30 DISCO 31 JAZZ WALTZ 32 FUSION 33 LATIN ROCK 34 AFRO CUBAN 35 SAMBA 36 BOSSA 37 REGGAE DTX-PRO Data List 18 MIDI Data Format 1. General 1.1 Scope The specifications described herein apply to transmission and reception of MIDI data by a DTX-PRO drum trigger module. 1.2 Compliance The specifications described herein comply with the MIDI 1.0 standard. 1.3 Legend The following symbol has a special meaning herein. � $: Placed in front of hexadecimal numbers. 2. Channel Messages 2.1 Key On & Key Off Key On and Key Off messages are transmitted and received. Range of notes received: 0 (C-2) to 127 (G8) Velocity range: 1 to 127 (i.e., Note On only) 2.2 Control Change 2.2.1 Bank Select MSB (0), LSB (32) Bank Select MSB and LSB messages are transmitted and received. MSB=125, LSB=0: Preset Kit MSB=125, LSB=1: User Kit (1 to 100) MSB=125, LSB=2: User Kit (101 to 200) MIDI Ch 10 only. 2.2.2 Foot Controller (4) Foot Controller messages are transmitted and received. MIDI Ch 10 only. 2.2.3 General Controller (17) General Controller messages are transmitted and received. Corresponds to the location of the strike on the Ride. MIDI Ch 10 only. DTX-PRO Data List 19 2.2.4 General Controller (80) General Controller messages are received. Corresponds to the AMBIENCE knob value. MIDI Ch 10 only. 2.2.5 General Controller (81) General Controller messages are received. Corresponds to the COMP knob value. MIDI Ch 10 only. 2.2.6 General Controller (82) General Controller messages are received. Corresponds to the EFFECT knob value. MIDI Ch 10 only. 2.2.7 Message Type (1 to 95) When the MENU/Kit Edit/Voice/MessageType parameter setting is CC01 to CC95, control change messages set here are sent whenever the pad is hit. 2.2.8 Pad Function (1 to 95) When CC01 to CC95 is selected in the MENU/Utility/Pad/PadFunction, control change messages set here are sent whenever the pad is hit. 2.3 Channel Mode Channel Mode messages are neither transmitted nor received. 2.4 Program Change Program Change messages are transmitted and received. MSB=125, LSB=0: Preset Kit (1 to 40) MSB=125, LSB=1: User Kit (1 to 100) MSB=125, LSB=2: User Kit (101 to 200) MIDI Ch 10 only. 2.5 Pitch Bend Pitch Bend messages are neither transmitted nor received. 2.6 Channel Aftertouch Channel Aftertouch messages are neither transmitted nor received. 2.7 Polyphonic Aftertouch Polyphonic Aftertouch messages are transmitted and received. DTX-PRO Data List 20 3. System Exclusive Messages 3.1 Universal Non-Real Time 3.1.1 Identity Request $F0 $7E $0n $06 $01 $F7 n is ignored. Identity Request messages are received but not transmitted. Upon receipt of the above message, the DTX-PRO transmits an Identity Reply message. 3.1.2 Identity Reply $F0 $7E $7F $06 $02 $43 $00 $41 $5D $06 $00 $00 $00 $7F $F7 Identity Reply messages are transmitted but not received. 4. System Common Messages System Common messages are neither transmitted nor received. 5. System Real Time Messages 5.1 Timing Clock Timing Clock messages are transmitted. 5.2 Start & Stop Start and Stop messages are neither transmitted nor received. 5.3 Active Sensing Reception: If, following receipt of an Active Sensing message, no subsequent MIDI data is received for approximately 300 milliseconds, the DTX-PRO will mute all voices currently playing. Transmission: The DTX-PRO constantly transmits Active Sensing messages at intervals within approximately 300 milliseconds DTX-PRO Data List 21 YAMAHA [ Drum Trigger Module ] Model DTX-PRO MIDI Implementation Chart Function... Transmitted Recognized Basic Channel Default Changed 1 - 16 1 - 16 1 - 16 1 - 16 Mode Default x 3 Messages x x Altered ************** x Note 0 - 127 Number : True voice ************** 0 - 127 0 - 127 Velocity Note ON Note OFF o 9nH,v=1-127 x 9nH,v=0 o 9nH,v=1-127 x After Key's o o Touch Ch's x x Pitch Bend x x Control 0,32 o 4o 17 o 80,81,82 x 1-95 o o o o o *1 x Change Date :09-Nov-2020 Version : 1.01 Remarks Memorized Bank Select Prog Change : True # o 0 - 99 ************** o 0 - 99 System Exclusive o o : Song Pos. x x Common : Song Sel. x x : Tune x x System : Clock o x Real Time: Commands x x : All Sound Off x x Aux : Reset All Cntrls x x : Local ON/OFF x x Mes- : All Notes OFF x x sages : Active Sense o o : Reset x x Notes: *1 depend on Message Type or Pad Function setting. Mode 1 : OMNI ON , POLY Mode 3 : OMNI OFF, POLY Mode 2 : OMNI ON ,MONO Mode 4 : OMNI OFF,MONO o : Yes x : No DTX-PRO Data List 22
