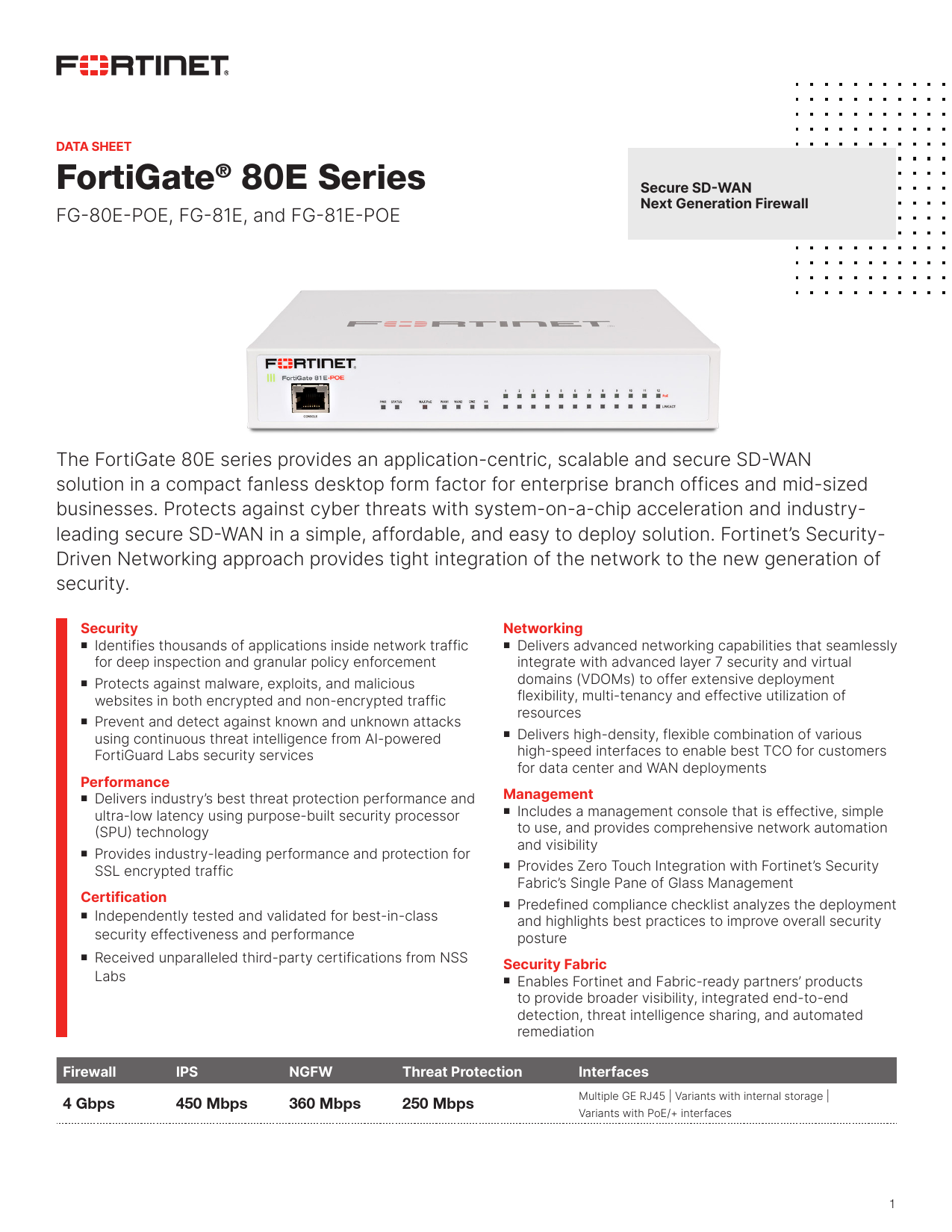

DATA SHEET FortiGate® 80E Series FG-80E-POE, FG-81E, and FG-81E-POE Secure SD-WAN Next Generation Firewall The FortiGate 80E series provides an application-centric, scalable and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's SecurityDriven Networking approach provides tight integration of the network to the new generation of security. Security n Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement n Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic n Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services Performance n Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology n Provides industry-leading performance and protection for SSL encrypted traffic Certification n Independently tested and validated for best-in-class security effectiveness and performance n Received unparalleled third-party certifications from NSS Labs Networking n Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources n Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments Management n Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility n Provides Zero Touch Integration with Fortinet's Security Fabric's Single Pane of Glass Management n Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture Security Fabric n Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation Firewall 4 Gbps IPS 450 Mbps NGFW 360 Mbps Threat Protection 250 Mbps Interfaces Multiple GE RJ45 | Variants with internal storage | Variants with PoE/+ interfaces 1 DATA SHEET | FortiGate® 80E Series DEPLOYMENT Next Generation Firewall (NGFW) § Reduce the complexity and maximize your ROI by integrating threat protection security capabilities into a single high-performance network security appliance, powered by Fortinet's Security Processing Unit (SPU) § Full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location § Protect against network exploitable vulnerabilities with industry-validated IPS that offers low latency and optimized network performance § Automatically block threats on decrypted traffic using the Industry's highest SSL inspection performance, including the latest TLS 1.3 standard with mandated ciphers § Proactively block newly discovered sophisticated attacks in real-time with AI-powered FortiGuard Labs and advanced threat protection services included in the Fortinet Security Fabric Secure SD-WAN § Consistent business application performance with accurate detection, dynamic WAN path steering on any best-performing WAN transport § Accelerated Multi-cloud access for faster SaaS adoption with cloud-on-ramp § Self-healing networks with WAN edge high availability, sub-second traffic switchover-based and real-time bandwidth compute-based traffic steering § Automated Overlay tunnels provides encryption and abstracts physical hybrid WAN making it simple to manage. § Simplified and intuitive workflow with SD-WAN Orchestrator for management and zero touch deployment § Enhanced analytics both real-time and historical provides visibility into network performance and identify anomalies. § Strong security posture with next generation firewall and real- time threat protection FortiGate Cloud · Cloud Device Management · Cloud Analytics-powered Security and Log Management · Cloud Sandboxing FortiGate NGFW SMALL OFFICE FortiClient Endpoint Protection Small Office Deployment (NGFW) FortiAnalyzer Analytics-powered Security & Log Management SD-WAN Orchestrator Centralized Provisioning & Automated Overlay Management FortiSwitch Secure Access Switch FortiAP Secure Access Point ENTERPRISE BRANCH IPSec Tunnels MPLS FortiGate Secure SD-WAN Enterprise Branch Deployment (Secure SD-WAN) 2 HARDWARE FortiGate 81E FortiGate 81E CONSOLE 1 PWR STATUS WAN1 WAN2 DMZ HA 1 2 3 4 5 6 7 8 9 10 11 12 LINK/ACT 11 9 7 5 3 1 DMZ WAN1 Shared DC+12V USB 12 10 8 6 4 2 2 3 Hardware Features / SOC3 Desktop 128GB HA WAN2 Shared 4 5 Interfaces 1. Console Port 2. USB Port 3. 12x GE RJ45 Ports 4. 2x GE RJ45 DMZ/HA Ports 5. 2x GE RJ45/SFP Shared Media Pairs DATA SHEET | FortiGate® 80E Series FortiGate 80E-POE and 81E-POE FortiGate 80E-POE CONSOLE 1 PWR STATUS MAX PoE WAN1 WAN2 DMZ HA 1 2 3 4 5 6 7 8 9 10 11 12 PoE LINK/ACT 11 9 7 5 3 1 DMZ WAN1 Shared DC+54V USB 12 10 8 6 4 2 2 3 Hardware Features / SOC3 Desktop POE/+ 128GB HA WAN2 Shared 45 Interfaces 1. Console Port 2. USB Port 3. 12x GE RJ45 POE/+ Ports 4. 2x GE RJ45 DMZ/HA Ports 5. 2x GE RJ45/SFP Shared Media Pairs Powered by SPU SoC3 § Combines a RISC-based CPU with Fortinet's proprietary SPU content and network processors for unmatched performance § Simplifies appliance design and enables breakthrough performance for smaller networks § Supports firewall acceleration across all packet sizes for maximum throughput § Delivers accelerated UTM content processing for superior performance and protection § Accelerates VPN performance for high speed and secure remote access 3 3G/4G WAN Connectivity The FortiGate 80E Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability. Compact and Reliable Form Factor Fortinet's ninth generation custom SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection. DATA SHEET | FortiGate® 80E Series FORTINET SECURITY FABRIC Security Fabric The industry's highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security. § Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users § Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem § Automated: Context aware, self-healing network & security postureleveragingcloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across theFabric The Fabric empowers organizations of any size to secure and simplify their hybrid infrastructure on the journey to digital innovation. Fabric Management Center NOC Fabric Security Operations SOC Zero Trust Access Adaptive Cloud Security FORTI OS FortiGuard Threat Intelligence Security-Driven Networking Open Ecosystem FortiOSTM Operating System FortiOS, Fortinet's leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric's ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions. SERVICES FortiGuardTM Security Services FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies. FortiCareTM Services Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments. 4 SPECIFICATIONS Hardware Specifications GE RJ45/SFP Shared Media Pairs GE RJ45 Ports GE RJ45 PoE/+ Ports GE RJ45 DMZ/HA Ports USB Ports Console (RJ45) Internal Storage System Performance -- Enterprise Traffic Mix IPS Throughput 2 NGFW Throughput 2, 4 Threat Protection Throughput 2, 5 System Performance Firewall Throughput (1518 / 512 / 64 byte UDP packets) Firewall Latency (64 byte UDP packets) Firewall Throughput (Packets Per Second) Concurrent Sessions (TCP) New Sessions/Second (TCP) Firewall Policies IPsec VPN Throughput (512 byte) 1 Gateway-to-Gateway IPsec VPN Tunnels Client-to-Gateway IPsec VPN Tunnels SSL-VPN Throughput Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) SSL Inspection Throughput (IPS, avg. HTTPS) 3 SSL Inspection CPS (IPS, avg. HTTPS) 3 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 Application Control Throughput (HTTP 64K) 2 CAPWAP Throughput (HTTP 64K) Virtual Domains (Default / Maximum) Maximum Number of FortiSwitches Supported Maximum Number of FortiAPs (Total / Tunnel Mode) Maximum Number of FortiTokens High Availability Configurations Dimensions and Power Height x Width x Length (inches) Height x Width x Length (mm) Weight Form Factor Input Rating Power Required Maximum Current Total Available PoE Power Budget* Power Consumption (Average/Maximum) Heat Dissipation DATA SHEET | FortiGate® 80E Series FORTIGATE 80E-POE 2 -- 12 2 1 1 -- FORTIGATE 81E 2 12 -- 2 1 1 1x 128 GB SSD FORTIGATE 81E-POE 2 -- 12 2 1 1 1x 128 GB SSD 450 Mbps 360 Mbps 250 Mbps 4 / 4 / 4 Gbps 3 s 6 Mpps 1.3 Million 30,000 5,000 2.5 Gbps 200 2,500 200 Mbps 200 135 Mbps 135 95,000 900 Mbps 920 Mbps 10 / 10 16 32 / 16 500 Active / Active, Active / Passive, Clustering 1.65 x 8.5 x 7 42 x 216 x 178 2.65 lbs (1.2 kg) Desktop 54Vdc, 2.78A 12Vdc, 3A 54Vdc, 2.78A Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz 115V AC / 1.2A, 230V AC / 0.6A 100V AC / 0.27A, 240V AC / 0.12A 115V AC / 1.2A, 230V AC / 0.6A 110 W 110 W 20 W / 137 W 20 W / 72 W 20 W / 137 W 467.5 BTU/h 92.1 BTU/h 467.5 BTU/h * Maximum loading on each PoE/+ port is 30 W (802.3at). Note: All performance values are "up to" and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 5 4. NGFW performance is measured with Firewall, IPS and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. DATA SHEET | FortiGate® 80E Series SPECIFICATIONS Operating Environment and Certifications Operating Temperature Storage Temperature Humidity Noise Level Operating Altitude Compliance Certifications FORTIGATE 80E-POE FORTIGATE 81E FORTIGATE 81E-POE 35 dBA 32104°F (040°C) -31158°F (-3570°C) 1090% non-condensing Fanless 0 dBA Up to 16,404 ft (5,000 m) FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN 35 dBA ORDERING INFORMATION Product FortiGate 80E-PoE FortiGate 81E SKU FG-80E-POE FG-81E FortiGate 81E-PoE Optional Accessories 1 GE SFP RJ45 Transceiver Module 1 GE SFP SX Transceiver Module 1 GE SFP LX Transceiver Module FG-81E-POE FN-TRAN-GC FN-TRAN-SX FN-TRAN-LX Description 16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x PoE ports) 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12 x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots),128 GB onboard storage 16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x PoE ports). 128 GB onboard storage 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots. 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. BUNDLES FortiGuard Bundle FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with one of these FortiGuard Bundles. Bundles FortiCare FortiGuard App Control Service FortiGuard IPS Service FortiGuard Advanced Malware Protection (AMP) -- Antivirus, Mobile Malware, Botnet, CDR, Virus Outbreak Protection and FortiSandbox Cloud Service FortiGuard Web and Video2 Filtering Service FortiGuard Antispam Service FortiGuard Security Rating Service FortiGuard IoT Detection Service FortiGuard Industrial Service FortiConverter Service SD-WAN Orchestrator Entitlement SD-WAN Cloud Assisted Monitoring SD-WAN Overlay Controller VPN Service Fortinet SOCaaS FortiAnalyzer Cloud FortiManager Cloud 360 Protection ASE 1 · · · · · · · · · · · · · · · Enterprise Protection 24x7 · · · · · · · · · Unified Threat Protection 24x7 · · · Advanced Threat Protection 24x7 · · · · · 1. 24x7 plus Advanced Services Ticket Handling 2. Available when running FortiOS 7.0 www.fortinet.com Copyright © 2021 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet's General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet's internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. FG-80E-DAT-R29-20210812Adobe PDF Library 15.0
