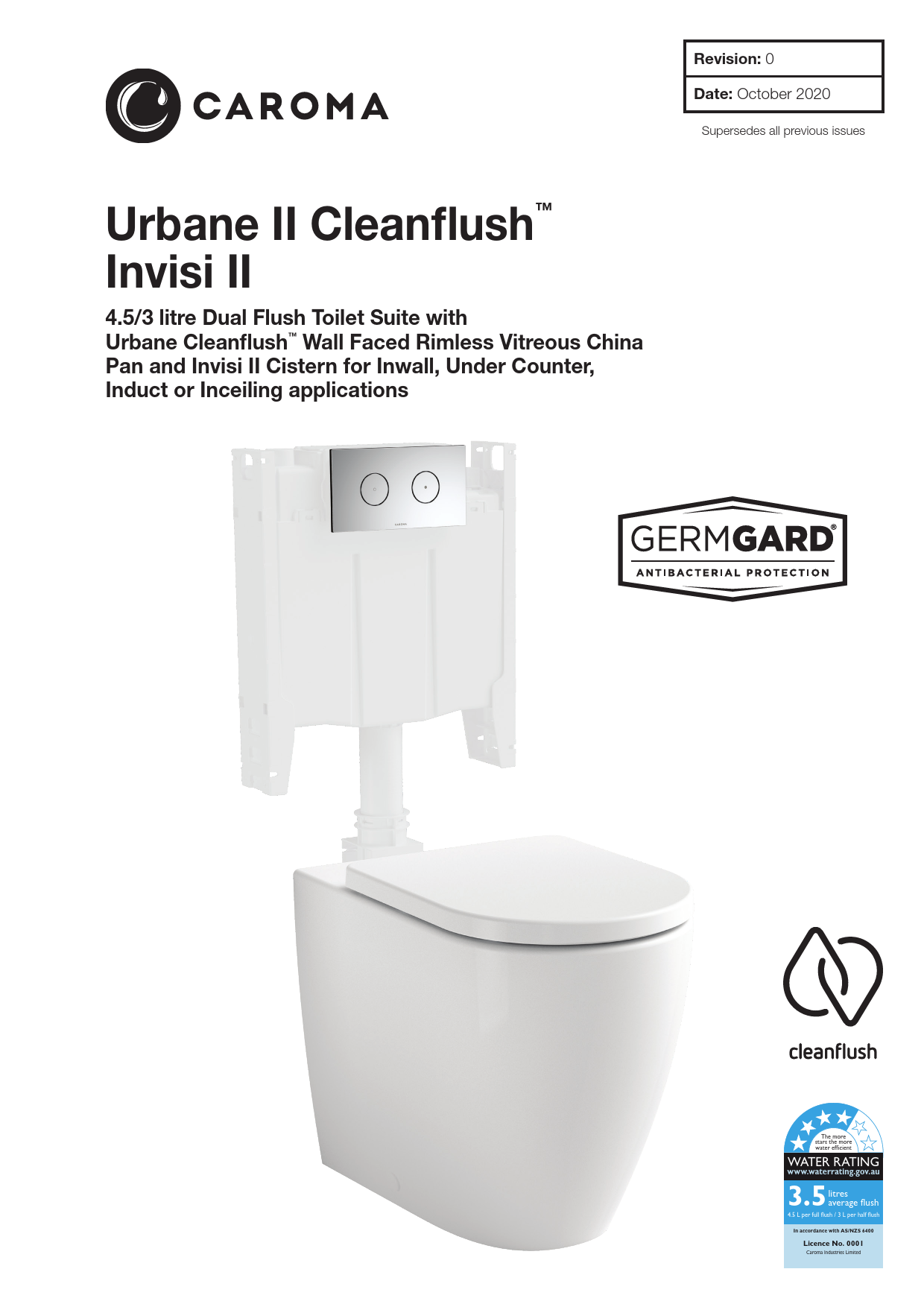

Caroma Industries imited BN 35 4 Sales Offlces in all States. Urbane II Cleanflush™ Invisi II or Inceiling applications 4.5/3 litre Dual Flush Toilet Suite with
Revision: 0 Date: October 2020 Supersedes all previous issues Urbane II CleanflushTM Invisi II 4.5/3 litre Dual Flush Toilet Suite with Urbane CleanflushTM Wall Faced Rimless Vitreous China Pan and Invisi II Cistern for Inwall, Under Counter, Induct or Inceiling applications The more stars the more water efficient WATER RATING www.waterrating.gov.au 3.5 litres average flush 4.5 L per full flush / 3 L per half flush In accordance with AS/NZS 6400 Licence No. 0001 Caroma Industries Limited Urbane II CleanflushTM Invisi II 4.5/3 litre Dual Flush Toilet Suite with Urbane CleanflushTM Vitreous China Wall Faced Rimless Pan and Invisi II Cistern for Inwall, Under Counter, Induct or Inceiling applications Pictured with Caroma Vogue soft close seat Combining universal design and rimless pan technology, the Urbane II CleanflushTM is a superior flushing system suitable for domestic and commercial applications. Incorporating several patented technologies: Caroma Flow SplitterTM, Caroma Flow BalancerTM and Caroma Uni-Orbital® Connector, the Cleanflush pan is innovative and the next evolution in toilets. The Flow Splitter evenly flows water around the top of the bowl to meet at the Flow Balancer which directs the water powerfully into the sump, reducing the need for brush cleaning. The rimless pan is easy to clean and unlike traditional pan profiles, provides full visibility of any grime build up. Caroma CleanflushTM provides a cleaner clean for peace of mind. The adjustable flush pipe is a new feature for the Invisi II system. If the pan inlet hole is higher than the flush pipe due to floor tiling height variations, the flush pipe can be raised by up to 25mm. Pan: Traps: Inlet: Cisterns and Flushvalves: Fixing: Seats: Colours: Installation: Dimensions: Urbane CleanflushTM wall faced back inlet 4.5 litre full flush rimless pan. Universal trap for S or P-trap installations. Fully glazed 50mm back inlet for concealed cistern. Invisi II Cistern suitable for inwall, under counter, induct and inceiling applications. The Vogue Round Push Buttons and Access Plate (supplied separately) are available in 5 finishes: Chrome (C), Black (B), Brushed Brass (BB), Brushed Nickel (BN) and Gunmetal Grey (GM). Code No.687071. The pan can be fixed to the floor by either bedding into mortar or using the supplied D82 Concealed Fixing Bracket. The Vogue soft close quick release thermoset toilet seat with GermGard® Antibacterial Protection; a unique technology which kills harmful bacteria, is provided as standard with seat caps in Stainless Steel (SS). Optional seat caps are available in 3 finishes, Brushed Brass (BB), Black (B) or Gunmetal Grey (GM). Code No.254213. White only. The installation of the toilet suite shall be in accordance with the normal minimum drainline grade requirements in AS/NZS 3500.2. All dimensions are in millimetres and are subject to normal manufacturing variations. Caroma pursues a policy of continuing improvement in design and performance of its products. The right is therefore reserved to vary specifications without notice. Urbane II CleanflushTM Invisi II Wall Faced Suite Inwall/Under Counter Installations Adjustable flush pipe included Urbane II CleanflushTM Invisi II 4.5/3 litre Wall Faced Toilet Suite with Back Inlet Pan, Internal Overflow Cistern and Seat with Stainless Steel Seat Caps: Inwall/Under Counter/Induct/Inceiling with Vogue Soft Close Quick Release Seat Button options: see 6.15.1 Code No. 746280W Inwall Installation 400 420 Frame 45 Integrated isolating valve supplied 55 min. to underside of noggin 582 6 min. 45 max. wall thickness 90 min Under Counter Installation (optional under counter flush pipe 237222 is required) Access plate and buttons 210 570 25 110 90mm min. front button installation 100mm min. top button installation Access plate front mount buttons Note: Seat will partially cover push button in this installation Invisi II cistern Finished wall 45mm max. for top push buttons Access plate Top mount buttons 940 (adjustable from 812 982) 55 min. 440 55 (adjustable from 882 982) centre of inlet (adjustable from 482 582) 25 to top of flush pipe support noggin 982 400 90 recommended setout, range 60 120 (up to 50mm sideways adjustment) Caroma Industries Limited ABN 35 000 189 499 185 Uni-Orbital® connector Integrated flush pipe support Note: access to cistern internals can be achieved through either front or top mount button plate option. Sales Offices in all States.Adobe PDF Library 15.0 Adobe InDesign 15.1 (Windows)
