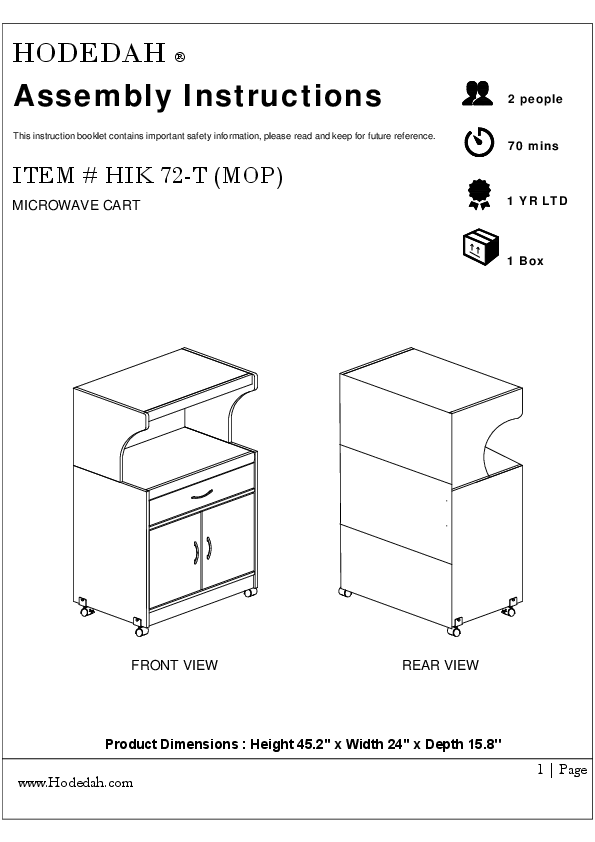

Assembly Instructions This instruction booklet contains important safety information, please read and keep for future reference. ITEM # HIK 72-T (MOP) MICROWAVE CART FRONT VIEW REAR VIEW Product Dimensions : Height 45.2'' x Width 24'' x Depth 15.8'' www.Hodedah.com 1 | Page 2 people 70 mins 1 YR LTD 1 Box HODEDAH Questions, need parts, we are ...
HODEDAH IMPORT Microwave Kitchen Cart, White : Hodedah: Home & Kitchen
HODEDAH Assembly Instructions This instruction booklet contains important safety information, please read and keep for future reference. ITEM # HIK 72-T (MOP) MICROWAVE CART 2 people 70 mins 1 YR LTD 1 Box FRONT VIEW REAR VIEW Product Dimensions : Height 45.2'' x Width 24'' x Depth 15.8'' www.Hodedah.com 1 | Page HODEDAH Questions, need parts, we are here to help! Phone Mon - Fri | 9:30am to 5pm EST Email Send us an email Website Visit our website to open a case 1 - 855 - HODEDAH Support@Hodedah.com www. Hodedah.com 1 - 855 - 463 - 3324 FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY DO NOT RETURN PRODUCT TO THE STORE If parts are missing or damaged please contact our customer service team and we will gladly ship your replacement parts FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way. To obtain warranty service, original purchaser must present the following; original bill of sale, date of purchase, where the product was purchased and images if applicable. Components replaced warranted through the remainder of the original warranty only. The defective part will be replaced without charge, subject to the terms and conditions described above. WARNING xThis product contains small parts, keep away from children. xThis product contains plastic bags, keep away from children. xSerious or fatal crushing injuries can occur from furniture tip-over. To help prevent this, place heaviest items on the lower shelves and drawers. Do not set heavy object on top shelves and drawers. xNever allow children to climb or hang on drawers, shelves and doors. xNever open more than one drawer at a time. xThe use of tip-over restraints may reduce but not eliminate the risk of tip-over. www.Hodedah.com 2 | Page HODEDAH Let's get started... Helpful hints, read before beginning assembly xMake sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. xRead each step carefully. It is very important that each step is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur. xWork in a spacious level area, preferably carpet, near the place the unit will be used. xDO NO USE power tools to assemble your furniture, it will strip and damage parts. xYour package should include the following hardware and parts. Parts are labeled or stamped on the raw edge. Please inspect contents to ensure you have received all components. If you are missing any hardware or parts please contact customer service right away before assembly. (not supplied) Assembly Tools Required Hammer Philips Screwdriver 5m Tape Measure No Power Tools Needed Product Care and Maintenance xWipe clean with dry soft cloth, never use chemicals or cleaning products they will damage the finish. xAvoid placing your furniture in direct sunlight, as sunlight causes fading. xNever push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location. xAvoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. www.Hodedah.com 3 | Page HODEDAH Hardware List A M8x25MM QTY 24 Pcs B M8x40MM QTY 4 Pcs C M3.5X12MM QTY 28 Pcs D1 Moon Handle 96MM D2 D3 3 4 2 Pcs M4X20MM Pcs M4X32MM Pcs E 8 M4X38MM Pcs F Allen Key G 1 1 Pcs 2 Pin Stopper Pcs H Nail 5/8 I1 I2 37 18 18 Pcs Minifix Nut Pcs Minifix Bolt Pcs I3 J K 18 Minifix Cap Pcs 4 Shelf Support Pcs 4 Hinges 7/8 Pcs L1 Double 8 Head Minifix Nut Pcs L2 Double 4 Head Minifix Bolt Pcs L3 Double 8 Head Minifix Cap Pcs M1 M2 N1 2 2 Caster 2 Drawer Slide ''14 Pcs Drawer Slide ''14 Pcs With Stopper Pcs Important 1.Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2.Check and measure the bolts before applying them to parts. 3.Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. www.Hodedah.com 4 | Page HODEDAH Hardware List N2 Caster 2 W/Out Stopper Pcs N3 4 Caster's Screw Pcs N4 Caster's Nut QTY 4 Pcs Important 1.Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2.Check and measure the bolts before applying them to parts. 3.Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. www.Hodedah.com 5 | Page HODEDAH Parts List 1 QTY 2 QTY 3 QTY 1 700x400x15mm Pcs 4 1 580x398x15mm Pcs 5 2 580x66x15mm Pcs 6 1 580X66X15mm Pcs 7 2 610x333x2.5mm Pcs 8 1 580x380x15mm Pcs 9 1 580x51x15mm Pcs 10 1 700x400x15mm Pcs 11 1 398x398x15mm Pcs 12 1 610x362x2.5mm Pcs 13 1 580x355x15mm Pcs 14 1 580x51x15mm Pcs 15 1 398x398x15mm Pcs 16 1 580x235x12mm Pcs 17 1 574x130x12mm Pcs 18 2 357x116x12mm Pcs 1 531x116x12mm Pcs 1 554x356x2.5mm Pcs www.Hodedah.com 6 | Page HODEDAH Parts List 19 QTY 20 QTY 1 400x284x12mm Pcs 1 400x284x12mm Pcs www.Hodedah.com 7 | Page HODEDAH The Breakdown... I) Main Unit : 11 19 20 9 12 7 6 4 1 14 2 10 13 5 5 8 II) Door & Drawer : www.Hodedah.com 3 16 17 15 16 18 8 | Page HODEDAH Step 1 A 24 WOOD DOWEL M8x25MM 11 2 A 6 3 4 1. Insert 24 x wood dowels (A) into panel (2,3,4,6 & 11) with hammer to gently tap them in. www.Hodedah.com 9 | Page HODEDAH Step 2 I2 MINIFIX BOLT 18 I2 9 12 7 1 13 8 1. Insert 18 x minifix bolt (I2) into panel (1,7,8,9,12 & 13). www.Hodedah.com 10 | Page HODEDAH Step 3 C J M1 CB SCREW M3.5X12MM 6 SHELF SUPPORT 4 DRAWER SLIDE ''14 2 M1 C 1 8 J 1. Place the drawer slide (M1) onto 3 holes area shown at left side panel (1). Then tighten it with 3 x cb screw M3.5x12mm (C). 2. Place the drawer slide (M1) onto 3 holes area shown at right side panel (8). Then tighten it with 3 x cb screw M3.5x12mm (C). 3. Insert 4 x shelf support (J) into panel (1 & 8). www.Hodedah.com 11 | Page HODEDAH Step 4 C CB SCREW M3.5X12MM 8 K HINGES 7/8 4 D1 MOON HANDLE 96MM 2 D2 CB SCREW M4X20MM 4 K C 19 20 19 20 1. Fix 2 x moon handle (D1) to panel (19 & 20) front by using 2 x cb screw M4x20mm (D2) for fix it. 2. Insert 4 x slot hinges (K) into panel (19 & 20) non-thru holes as shown, then tighten 8 x cb screw M3.5x12mm (C) through slot hinges (K) thru hole. www.Hodedah.com 12 | Page HODEDAH Step 5 C D1 D3 CB SCREW M3.5X12MM 6 MOON HANDLE 96MM 1 CB SCREW M4X32MM 2 E H M2 CB SCREW M4X38MM 8 NAIL 5/8 10 DRAWER SLIDE ''14 2 E 16 17 15 H 17 18 COMPLETED C M2 18 D3 D1 15 1. Place 2 x panels (16) next to each side of panel (15 & 17). (As Shown). Then tighten 8 x screws (E) from the sides of panel (16) to the edges of panel (15 & 17) with screwdriver. 2. Flip down bottom side up, take panel (18) and using nail (H) slighty hammer nails into the edges thru panel (18) onto panel (15 #Draw Front) and panel (17 #Draw Back). 4. Then place drawer slides (M2) onto the edges of panels (16 #Both sides) and screw in three Letter (C) screws onto each hole of the drawer slides connecting it to panels (16) with screwdriver. (As Shown). 5. Flip down around and attach (D1) handle to front panel (15) using 2 x screws (D3) from the inner side panel (15) with screwdriver. www.Hodedah.com 13 | Page HODEDAH Step 6 G 2 PIN STOPPER 1 G 4 1. Insert the 2 pin stopper (G) into panel (4)'s non-thru holes as shown. www.Hodedah.com 14 | Page HODEDAH Step 7 3 1 1. Fix 2 x panel (3) to panel (1) by pushing the 4 x (Left) dowels into the non-thru holes at lower corner area of panel (3). www.Hodedah.com 15 | Page HODEDAH Step 8 I1 MINIFIX NUT 3 13 MINIFIX CAP 3 F ALLEN KEY 1 I1 F I3 4 1 2 1. Fix panel (2 & 4) to panel (1) by using 3 x minifix nut (I1) into panel (2 & 4) 's L-thru holes as shown with allen key (F) to tighten it. After that insert 3 x cap (I3). www.Hodedah.com 16 | Page HODEDAH Step 9 I1 MINIFIX NUT 3 13 MINIFIX CAP 3 F ALLEN KEY 1 I1 F I3 7 6 1 1. Fix panel (6 & 7) to panel (1) by using 3 x minifix nut (I1) into panel (6 & 7) 's L-thru holes as shown with allen key (F) to tighten it. After that insert 3 x cap (I3). www.Hodedah.com 17 | Page HODEDAH Step 10 I1 MINIFIX NUT 6 13 MINIFIX CAP 6 F ALLEN KEY 1 F I1 I3 46 7 2 8 1. Fix panel (2,4,6 & 7) to panel (8) by using 6 x minifix nut (I1) into panel (2,4,6 & 7) 's R-thru holes with allen key (F) to tighten it. After that insert 6 x cap (I3). www.Hodedah.com 18 | Page HODEDAH Step 11 N1 CASTER WITH STOPPER 2 N4 CASTER'S NUT 4 N2 2 CASTER W/OUT STOPPER N3 CASTER'S SCREW 4 N4 N2 N3 N4 N1 N3 8 1. Take caster (N1 & N2) (One By One). Slot the ''U'' metal part of caster onto the bottom edge (At Each Corner Area), insert and push the caster's screw (N3) thru from outside to inside, then tighten the nut (N4) as shown for all 4 casters. www.Hodedah.com 19 | Page HODEDAH Part 1 www.Hodedah.com 20 | Page HODEDAH Step 12 I1 MINIFIX NUT 3 13 MINIFIX CAP 3 F ALLEN KEY 1 I1 F I3 12 11 9 1. Fix panel (11 & 12) to panel (9) by using 3 x minifix nut (I1) into panel (11 & 12) 's L-thru holes with allen key (F) to tighten it. After that insert 3 x cap (I3). www.Hodedah.com 21 | Page HODEDAH Step 13 I1 MINIFIX NUT 3 13 MINIFIX CAP 3 F ALLEN KEY 1 I1 F I3 12 11 13 1. Fix panel (11 & 12) to panel (13) by using 3 x minifix nut (I1) into panel (11 & 12) 's L-thru holes with allen key (F) to tighten it. After that insert 3 x cap (I3). www.Hodedah.com 22 | Page HODEDAH Part 2 www.Hodedah.com 23 | Page HODEDAH Step 14 L1 8 DOUBLE HEAD MINIFIX NUT B L2 4 DOUBLE HEAD MINIFIX BOLT F L3 8 DOUBLE HEAD MINIFIX CAP L1 L3 F L2 9 B B 4 WOOD DOWEL M8X40MM ALLEN KEY 1 PART 2 13 B B 1 8 PART 1 1. Insert 4 x dowels (B) into panels (9 & 13) bottom side. 2. Insert 8 x minifix nut (L1) into panels (1,8,9 & 13) with allen key (F) to tighten it. 3. Place panels (9 & 13) to panels (1 & 8) by using 4 x minifix bolt (L2). 3. Then, insert 8 x cap (L3) into (L1) at panel (9 & 13). www.Hodedah.com 24 | Page HODEDAH Step 15 H NAIL 5/8 27 H 10 5 5 1. At face down position, place panel (5 & 10) onto the back of main unit, and alight it properly for nailing. Use hammer to nail 27 x nails (H) one by one at the line drawer and center of 4 side edges. Gap between 2 nails is about 100mm for all. www.Hodedah.com 25 | Page HODEDAH Step 16 15 1 8 14 1. Slide in the drawer by slotting the rollers at each end of drawer slide (M2) onto the rail of drawer slide (M1) fixed at side panel (1 & 8) and slide the drawer in slowly. Then take the panel (14) and place it on the 4 shelf supports top sides. www.Hodedah.com 26 | Page HODEDAH Step 17 Final step... C CB SCREW M3.5X12MM 8 K HINGES 7/8 4 K C Adinju&stoduotor Aledftju&stridgohot r 19 1 20 8 1. Fix hinges (K) into panels (1 & 8)'s non-thru holes as shown, then tighten 8 x cb screws M3.5x12mm (C) through hinges (K) thru hole. www.Hodedah.com 27 | Page HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! www.Hodedah.com 28 | Page HODEDAH Installation of Anti-Tip Restraint Kit includes: A (x2) Long screw B (x4) Mounting bracket (x2) C Restraint strap D (x2) Short screw Serious of fatal crushing injuries can occur from furniture tip-over. To help Prevent tip-over: xInstall tip-over restraint provided xPlace heaviest items in the lower drawers xDo not set TV's or other heavy objectS on top of this product x Never allow children to climb or hang on drawers, doors or shelves xNever open more than one drawer at a time x Do not defeat or remove the drawer interlock system Use tip-over restraints may only reduce but not eliminate the risk of tip-over. IMPORTANT: Use of this safety kit is mandatory. This restraint is not a substitute for proper adult supervision. Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture. www.Hodedah.com 29 | Page HODEDAH FITTING OF ANTI-TIP SAFETY STRAP bd STEP 1: x Attach the mounting bracket b to the furniture in the solid part below the top panel a few inches away from the side of the unit. x Screw d through the smallest hole of b . BACK SIDE OF TOP PANEL b STEP 2: x Locate a stud in a behind the have to x Place the other mounting bracket b on the wall stud 2 inches below the mounting bracket secured to the back of c your unit. FURNITURE WALL x Attach to the wall stud using c through the smaller hole of b . STEP 3: x Repeat the same step a few inches away from the other side of the unit. x Place the furniture into position so both mounting brackets are vertically in line. x Lace the end of the restraint strap through the larger holes in each mounting bracket. x Secure the straps and lock into place. a TP 8#x2'' Screw 2 Pcs. b Mounting bracket 4 Pcs. c Restraint strap 2 Pcs. d TP 6#x5/8'' Screw 2 Pcs. www.Hodedah.com 30 | PagePDFsam Basic v3.3.7 SAMBox 1.1.41 (www.sejda.org)
