Step 1: Initial Folded State
The Multi-functional Health Plate is shown in its compact, folded configuration. It features two padded footrests and a central handle with a textured grip, designed for portability and storage.
ℹ️ Document Conversion Notice:
This page was converted from the original file for easier reading. Diagrams/images may appear only in the original PDF below.
File info: application/pdf · 1 pages · 1.16MB

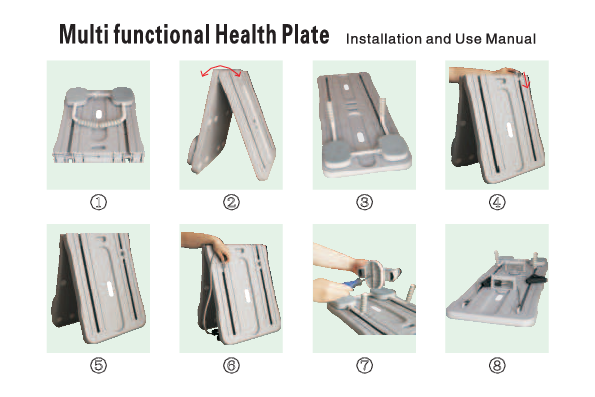

Multi-functional Health Plate Installation and Use Manual
Comprehensive guide for setting up and utilizing the Multi-functional Health Plate.
Installation and Usage Steps
Step 2: Unfolding the Plate
To begin setup, gently unfold the health plate. The two main sections pivot open, revealing the internal structure and connection points. An arrow indicates the direction of unfolding.
Step 3: Fully Extended Configuration
Once fully unfolded, the health plate lies flat, showcasing its full length. The padded footrests are positioned at one end, and two vertical handles with ribbed grips are extended upwards, ready for use.
Step 4: Adjusting the Support Panel
The health plate is shown in an angled position, with a hand adjusting a sliding mechanism on one of the main panels. A red arrow indicates the upward movement of a locking pin or adjustment slider, suggesting a height or angle modification.
Step 5: Upright Angled Position
The health plate is now set in an upright, angled position, resembling a back support or incline board. The base is stable, and the main panel is locked into place, ready for exercises requiring an elevated surface.
Step 6: Attaching the Carrying Strap
A hand is shown attaching a black carrying strap to the health plate, which is still in its upright, angled position. This indicates the plate's portability feature, allowing it to be easily transported.
Step 7: Component Assembly/Adjustment
A person is using a screwdriver to secure or adjust a circular component on the health plate's surface. This step highlights the modularity or adjustable nature of certain parts, possibly for different exercise configurations.
Step 8: Fully Configured with Accessories
The health plate is displayed in a flat, extended position with various accessories attached or positioned. These include the footrests, vertical handles, and potentially other exercise aids, demonstrating its multi-functional capabilities for a complete workout.
Models: Compact and Foldable Pilates Reformer Board, Foldable Pilates Reformer Board, Pilates Reformer Board, Board
