LED drivers, modules, controls, overvoltage protection

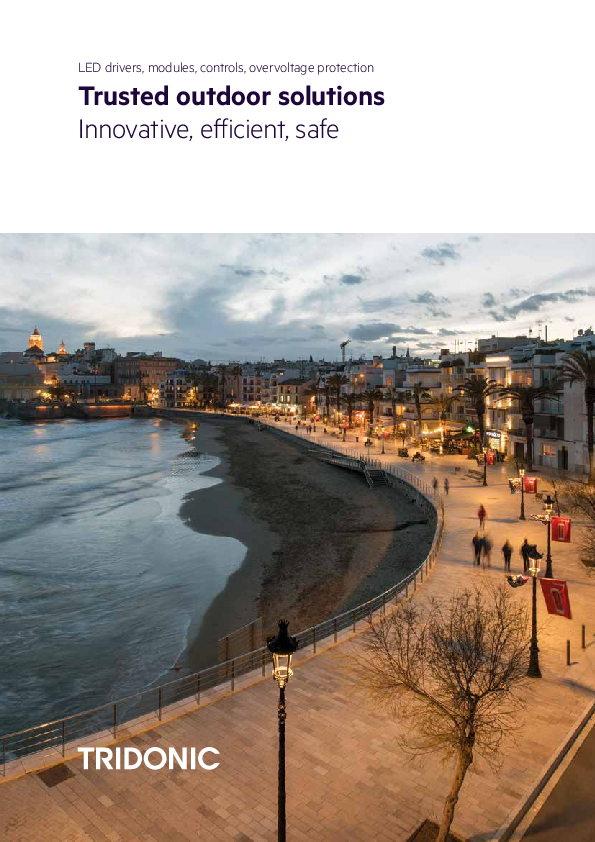

Trusted outdoor solutions Innovative, efficient, safe

Trusted outdoor solutions
Expertise in outdoor lighting Intelligent added value for the municipal space

Street

Tunnel

Parking

Squares and parks

Tridonic ­ Expertise in outdoor lighting
In towns, cities and in the country the lighting for roads, bridges and public spaces makes an important contribution to safety and quality of life. Lighting solutions from Tridonic offer the highest quality components meeting the tough requirements of outdoor applications.

From users perspective, the function of light is to provide optimum illumination of pavements, paths and pedestrian areas therefore offering safety and security. Appropriate lighting levels encourage people to spend time outdoors. For the operator, however, the main focus is on energy efficiency and ease of maintenance, followed by maximum flexibility in configuring the street lighting. LED drivers from Tridonic provide the perfect basis for all these requirements.

2

Trusted outdoor solutions
Everything necessary for outdoor lighting Portfolio overview

companionSUITE page 4

Surge Protection Device page 9

Tridonic´s Outdoor Portfolio enables innovative luminaires.

Innovation

Tridonic Portfolio

Efficiency

Clever functionalities and the latest LED technology, power electronic to drivers and SMDs create enormous potential for savings in terms of energy consumption and maintenance.

Module page 14

Safety
Safety being paramount, Tridonic's Outdoor Portfolio offers a host of protective features to ensure long lifetime and safe operation.

Driver page 10

Tridonic combines quality, safety and efficiency in intelligent LED lighting solutions that impress with low maintenance costs and a high level of reliability. Streets, tunnels, car parks and public places are therefore perfectly lit around the clock.
Demanding conditions and environmental influences can affect any outdoor lighting system. Thanks to their robustness and reliability, Tridonic's outdoor solutions can easily withstand extreme temperature fluctuations, vibration and humidity and offer comprehensive functionality at all times.

At a glance: The benefits of Tridonic products
-- Innovation Simple configuration via NFC interface with the Tridonic companionSUITE, ready2mains programmer or U6Me2
-- Efficiency Low operating costs thanks to high energy efficiency and durability (special driver functions).
-- Safety Protection level thanks to increased dielectric strength (surge/burst) of 10 kV; conform with IEC 61000-4-5 and extended temperature range from ­40 to +70 °C

3

Trusted outdoor solutions
Innovation Technology+ companionSUITE ­ Chat with your driver

The Tridonic companionSUITE software collection supports luminaire manufacturers with the generation, transmission and control of driver settings. These include current, corridorFUNCTION, chronoSTEP, Constant Light Output and DC level for emergency lighting. companionSUITE is compatible with commonly used interfaces such as DALI-2 or NFC. Their objective is to optimise processes in the long-term and counteract production errors. During subsequent quality management, Tridonic companionSUITE also makes it easier to analyse and correct potential sources of error.

Production technology
deviceGENERATOR Software for easy parameter creation. >Tell the driver what to do

Interface
Download Configuration file

Production
deviceCONFIGURATOR Software for easy and secure programming of the LED driver >Tell the driver what to do

Interface
NFC, DALI, ready2mains, (U6Me2)

Customer service/ quality
deviceANALYSER Software for easy driver diagnostic >Ask the driver what it did

Interface NFC, DALI

4

Electrician
4service NFC app Software for adjusting driver functions on site >tells the driver what it
needs to do differently

Interface NFC

Trusted outdoor solutions
Configuration via the mains The smart way to configure your luminaires

Tridonic's sophisticated lighting management functions create enormous potential for additional savings. For example, the output current can be adjusted or the light can be movement or time controlled. The enhanced constant light output function (eCLO) also ensures efficient luminaire operation. Whichever function is selected ­ the level of safety remains unchanged.

Power consumption (W)
Old installation Refurbishment

New installation

Example 90 luminaires each with 125 W high intensity discharge lamps and pole spacings of 50, 45 and 40 metres (every 30 luminaires) consume 55 MWh per year and generate 17.9 tonnes of CO emissions. To reduce energy
2
consumption, conventional luminaires will initially be replaced by LED luminaires with a 52 W (P1) power input. Based on a maximum life time of 100,000 hours and a cleaning interval of three years, the maintenance factor is 0.8. The additional use of the functions described above results in the following savings per year:

Measure
Refurbishment: LED luminaires Adjustable current CLO function chronoSTEP corridorFunction

CO2 saving
12t
4t 1.7t 4t 3.75t

Energy saving
33MWh
11MWh 5MWh 11MWh 10MWh

Since the savings take effect simultaneously the table values cannot be added. Nevertheless there is an overall reduction in CO of 15.7 t.
2

Lifetime (Years) 10.000
Energy saving LED Module (P1)

20.000

30.000

40.000

Energy saving adjustable current (P2)

Energy saving CLO (P3) (Constant Light Output)

50.000

60.000

70.000

80.000

Energy saving chronoSTEP/ corridorFUNCTION

Energy consumption

90.000 100.000

Adjustable current (P2) Tridonic LED drivers can be individually controlled and easily adjusted. This is particularly advantageous when the light cones of several luminaires overlap, for example at intersections and entrances. Individually adjustable output currents make it possible to reduce the lighting level of the luminaires without great effort.
Constant Light Output (CLO P3) The Constant Light Output function (eCLO) supports efficient operation. It ensures a constant illumination level throughout the life of the luminaire. Initially the LED light sources will not be brighter than required because less current will be supplied to them and they will therefore consume less energy.
inputDIM The function makes it possible to dim via the mains voltage. Based on the defined minimum and maximum dimming levels, the corresponding mains voltage is selected within the voltage range of 170 and 250 V AC. If the minimum value defined via inputDIM is higher than the allowed dimming level of the input voltage regulation (IVG+), the value of the IVG+ has priority.

chronoSTEP (Virtual mignight) Using the chronoSTEP function, the lighting level can be regulated for certain times of the night. Eight individual dimming levels and day segments can be defined. This allows individual outdoor LED luminaires or entire streets to be programmed as desired from the control cabinet.

I I

III

chronoSTEP
100% 70%
0% midnight I I I

I I

corridorFUNCTION V2 The corridorFUNCTION ensures that high luminous flux is produced only when it is actually needed. As soon as the sensor detects movement the luminous intensity is increased. Once the sensor no longer detects movement the luminous flux can be automatically reduced after a predefined delay.

corridorFUNCTION V2
100% 70%
0% M1 M2 M3 M4

5

Trusted outdoor solutions
Driver for outdoor lighting Robust and reliable

Tridonic's innovative outdoor solutions meet the diverse and demanding requirements of outdoor lighting and offer optimum protection. Individual protection classes in the project fulfil all requirements with the protective earth.

Application Class I Metal lamp head with protective earth

PE

-- All luminaire parts have a proper and defined

connection to the protective earth (PE)

-- The metal parts of the LED module create a parasitic capacitance to PE

Application Class II Metal lamp head with equipotential connection
PE
-- Metal lamp head and metal core of the LED PCB are connected to the LED driver via equipotential connector

Application Class II Lamp head with non-conductive materials or no equipotential connection

LED module LED driver

-- All touchable parts of the system are either made of non-conductive materials or insulated according to safety class II

Intelligent Voltage Guard+ (IVG+) If the mains voltage is unstable, voltage surges can occur above or below the rated voltage level. Ideally, the driver should be operated within the range from 192 to 264 Volts. Between 192 and 80 Volts, the LED driver falls into under-voltage and dims to 10 percent. Below 80 Volts, the driver shuts down. This prevents the LED from being overloaded. When the voltage increases to 90 volts again, the driver automatically restarts and dims again linearly. A voltage greater than 280 Volts also results in shut down. When the voltage falls below 270 Volts again, the driver restarts without a reset. If the inputDIM function is also in use, IVG+ has priority.

Dimming

Intelligent Voltage Guard+ (IVG+)
100
10 restart 90 V
0 80 V
Input Voltage

AC Voltage range

192 V 220 V

restart 270 V

264 V

280 V

300 V

Shutdown

External Temperature Monitoring (ETM + NTC) External Temperature Monitoring (ETM) protects the connected LED against thermal damage. It has three temperature values with which five further reference points can be calculated automatically. These also ensure greater precision of the temperature curve in specific areas. Temperature values within these desired values are interpolated linearly. On the one hand, the temperature sensor (NTC) is defined via the resistance value at 25°C (R25) and, on the other hand, via the sensor constant (BETA).

Intelligent Temperature Guard (ITG) The "Intelligent Temperature Guard (ITG)" function provides effective protection against thermal overload. If the predefined temperature is exceeded, the ITG reduces the output power in small two-minute steps. If the temperature falls, the output power is increased again successively in 10-minute cycles. All temperature thresholds of the ITG function fall by the value entered.

6

Trusted outdoor solutions
Programmer ready2mains & U6Me2

You can easily configure your LED luminaires with the programmer ready2mains & U6Me2. There is no need for an additional interface as the existing mains interface is used.
Thanks to ready2mains and the use of user-defined configuration scripts, the risk of configuration errors has been significantly reduced. Simple and flexible integration in the municipal infrastructure is also possible.

At a glance: Programmer ready2mains & U6Me2
-- Programming in luminaire production or test environments -- Suitable for the use in streets and switching cabinets -- Up to 500 scripts can be stored (ready2mains, U6Me2 and DALI scripts) -- Supporting software for fast programming -- Integrated USB interface for programming via DALI,
ready2mains and U6me2 -- Current can be set in 1mA steps (ready2mains and DALI)

Type Programmer ready2mains U6Me2

Size 173 x 87 x 47 mm

Order No. 28001206

Programmer ready2mains & U6Me2

Parameters

Feature Distance No. of devices programmable in parallel Programming options
Programming speed Dimming
Best application * Autonomous midnight-settings

ready2mains
Short (~400m)
5 LED drivers (max 400VA)
Current, CLO, chronoSTEP*, corridorFUNCTION Fast Yes
Flexible on-site and at the factory

U6Me2 Long (~1.5km)
No limit
chronoSTEP* Slow No
Outdoors at the cabinet

Did you
know

Centralised telecontrol-system via U6Me2 technology Remote control system that brings smart and connected lighting functionality based on U6Me2

-- Remote configuration of chronoSTEP 2 and enhanced
constant light output (eCLO)
-- Cost efficient and quick programming of a whole street
or a single pole via a connected
cabinet and U6Me2
-- Utilizes existing network/infrastructure

Script Generator
ready2mains und U6Me2 Programmer

network

Communication of pre-programmed
profiles
GSM
Power switch in cabinet

For more information on the implementation of a reference project, see page 19/20.
7

Trusted outdoor solutions
Surge protection device (SPD) Protection against overvoltage

SPD 10kV EU

At a glance:
Surge protection device (SPD) SNC EU
-- IP20 For luminaires with protection class II -- Protection up to 10 kV L-N (IEC 61643-11) -- Universal use for street, tunnel or object lighting -- Flexible installation, fixed via integrated elongated holes -- Compact design -- Optical status indicator -- Double or reinforced insulation -- Type of protection IP20 -- 5-year guarantee

Type SPD 10kV CE SNC

Size 56 x 36,5 x 34 mm

Order No. 28002383

Fitted to the luminaire head or pole, the surge protection device prevents a luminaire being damaged at an overvoltage up to 10 kV. In the event of a lightning strike, for example, the surge protection device (SPD) may be damaged itself, but the lighting remains functional.

8

SPD 10kV SNC

At a glance:
Surge protection device (SPD) Class I
-- SPD with additional earth conductor for country-specific requirements -- For luminaires with protection class II -- Protection up to 10 kV L-N (IEC 61643-11) -- Universal application in street, tunnel or building lighting -- Flexible installation, mounting via integrated long holes -- Compact design -- Optical status display -- Doubled/reinforced insulation -- Degree of protection IP20 -- 5-year guarantee

Type SPD 10kV PC1 CE SNC

Size 56 x 36,5 x 34 mm

Order No. 28003023

Did you
know

LED luminaires are becoming increasingly energy-efficient. At the same time however, their sensitivity to overvoltage is also increasing. An overvoltage protection device is advisable for several reasons:

Why use a surge protection device:

High

1. Extend the life time of LED luminaires Compared with conventional lighting solutions, the electronic components of LED luminaires react more sensitively to transients.

Energy Consumption

2. Avoid unexpected costs Identifying a damaged component on site involves a great deal of effort. Therefore, in most cases the entire luminaire head is replaced. Errors of this kind are costly Low and should be avoided from the outset.

Sensitivity to Overvoltage

3. Improve light availability in safety-relevant areas

Evolution of Lighting

Energy consumption Sensitivity

High Low
9

Trusted outdoor solutions
Ready for the future Functions for smart outdoor solutions
With the premium (PRE3) driver, cities and municipalities can equip themselves for the digital future, today. In addition to the connection option for IoT devices, it is the first D4i-ready driver worldwide to meet the latest DALI standards, which define the provision of devices, vital data and consumption data of the drivers. In combination with RF node, PIR sensor and Zhaga socket, Tridonic presents a future-proof outdoor solution that can be used to implement a wide range of digital and IoT concepts.

One of the best thermal management From -40 °C to +65 °C
DALI D4i IoT interface

-40 °C +65°C

4service NFC App
NFC interface NFC scanner area Product ID

NEW
DALI bus power supply(+) DALI part 250 AUX 24V power supply DALI bus power supply (-) DALI part 250

sensorMODE D4i certified
10 kV overvoltage protection (nodes) Higher overcoltage protection 10kV
More information about LED drivers OUTDOOR compact dimming

NEW

Type

Output current (mA)

LCO 14/100-550/38 D4i+ NF C PRE3

100­550

LCO 24/200­1050/39 D4i+ NF C PRE3

200­1,050

LCO 40/200­1050/64 D4i+ NF C PRE3

200­1,050

LCO 60/200­1050/100 D4i+ NF C PRE3

200­1,050

LCO 90/200­1050/165 D4i+ NF C PRE3*

200­1,050

LCO 135/200­1050/220 D4i+ NF C PRE3*

200­1,050

LCO 200/200­1050/355 D4i+ NF C PRE3*

200­1,050

1) Depending on the selected output current; Further details can be found in datasheet

10

Output power1) (W)
14 24 40 60 90 135 200

Output voltage range1)
(V)
28­38 28­38 38.1­64 57.1­100 85.7­165 128.6­220 190.5­355

Input voltage (V)
220~240 220~240 220~240 220~240 220~240 220~240 220~240

Size (mm)
123 x 77 x 31 123 x 77 x 31 123 x 77 x 31 133 x 77 x 31 150 x 90 x 37.5 150 x 90 x 37.5 170 x 100 x 40

Order No.
87500828 87500829 87500830 87500831 87500832 87500833 87500834

Trusted outdoor solutions
Driver premium Series (PRE) generation 3 D4i ready with IoT connection

Driver 14/24/40/60/90/135/200W PRE3

At a glance: NFC interface
Innovative -- Standardized supply for the 24V
AUX- and DALI Supply
Safe -- Currentless and contactless programming
Flexible & fast -- NFC multiprogramming with companionSUITE software:
simultaneous programming of up to 20 packaging units -- Interface for a field reader to later use the 4ServiceAPP
Reliable -- -40 °C to +65 °C -- Transient protection 10 kV (SKI) up to 6 kV (SKII)

Interfaces -- Integrated DALI power supply -- 24 V auxiliary power supply (Book 250) -- NTC -- DALI-2 -- ready2mainsTM, U6Me2, NFC
Big operating window -- Wide, effective operating window -- Optimised inventory management and improved efficiency
24 V auxiliary power supply -- AUX 24 V ­ integrated DALI power supply -- Supports ideal operation of communication modules and sensors.
Sensors and basicDIM Wireless (Casambi-ready) modules

Did you know
SIDEREA

DIIA and Zhaga is standardising control device communication, irrespective of manufacturer.

With D4i, the new DALI standard for the Internet of Things (IoT), the Digital Illumination Interface Alliance (DiiA) is defining a new standard for the DALI bus within the luminaire.

Control devices can not only receive group and address functions, but also send them. DALI-2 takes this fact into account and enables several control devices to be connected to one bus. Certified products can be easily replaced by others, and the manufacturer can be chosen as required. Another advantage is that sensors obtain their power directly from the DALI line and do not require an additional power supply from batteries.

The connection of LED drivers to other DALI-2 control modules is regulated in two core areas. Firstly, D4i defines how data is saved, transported and processed in DALI-2 drivers. Secondly, it determines how a driver with an integrated DALI bus connection can supply other devices with power. The AUX 24 V power supply has also been standardised for control devices with higher electricity requirements (wireless).
The specifications at a glance -- DALI Part 250: Integrated bus power supply -- DALI Part 251: Memory bank extension for luminaire-related data -- DALI Part 252: Energy reporting -- DALI Part 253: Diagnostics & maintenance -- 24 V AUX power supply

11

Trusted outdoor solutions
RF node and Zhaga socket

RF Multi Master Controller Zhaga Socket

At a glance: RF node and Zhaga socket
-- Based on Zhaga Book 18 Ed. 2.0 interface with paradox IPv6 6LoWPAN mesh technology (868 MHz)
-- Full self-healing mesh network and unicast (data transfer from luminaire to luminaire) for light-on-demand function
-- DALI multi-master controller for controlling several DALI-2 LED devices
-- Designed for the IP-based monitoring and control of luminaires according to Zhaga-D4i standard
-- 24 V auxiliary power supply (Book xx) and integrated DALI power supply -- Supports the operation of communication modules and sensors. -- Zhaga-certified interface according to Zhaga Book 18 Ed. 1 -- Designed for harsh environments with life time of up to
100,000 hours (at tc = 72 °C) -- Degree of protection IP66 and impact resistance IK09

Type CIS 30 RF868 DA2 Zhaga-Socket*

Size (mm) 79,7x38,5 Zhaga book 18

Order No. 28002647 28002647

Compatible with the DALI specifications book 250-253, the radio communication module supports the latest standards for improved control functions and the monitoring of various categories of luminaire data on energy, diagnostics and maintenance. Several RF nodes build their own mesh network, allowing them to bridge distances of up to 100 metres. Six connection points between node and paradox gateway allow interaction with up to 300 nodes per network. A real-time clock also supports accurate dimming, which can be conveniently controlled remotely via the central control platform. Thanks to the innovative interface, which complies with the latest Zhaga standard Book 18 Ed. 2.0, the node can be mounted without tools via plug-and-play.

12

Trusted outdoor solutions
Sensor PCell SSI 31 PC DA2 SA

sensorMODE PCell Sensor
Zhaga Socket

At a glance:
Sensor PCell SSI 31 PC DA2 SA
-- Photocell sensor with ambient light detection -- Detection angle: 150° -- Designed for harsh outdoor conditions: IP66, IK09 -- Life time up to 100,000 hours at tc 60° -- Low energy consumption of max. 0.23W

Type PCell SSI 31 PC DA2 SA

Size (mm) ø12

Order No. 28003310

The ambient light detection sensor has a detection range of up to 150 degrees and functions even in very harsh conditions. The integrated sensorMODE function, in combination with Tridonic OUT drivers, offers a simple, cost-effective solution for creating and saving dimming profiles in individual street lights, without a network connection. Everything required to do this is installed along with the sensor in the luminaire itself. Complex programming is also not required. The dimming profiles are set using the corridorFUNCTION during production but can also be uploaded, adapted and confirmed directly via a status LED at a later date using the 4service NFC app. With Zhaga Book 18 and DALI-2, the sensor also meets key standards for convenient handling and installation.

Did you
know

sensorMODE

sensorMODE

chronoSTEP

corridorFUNCTION

Tridonic's sensorMODE offers an easy way to control outdoor luminaires. Integrated in the sensor and driver, sensorMODE is used to create different dimming profiles. Four control modes, which use motion and ambient light either individually or in combination to control the light, can be selected as required and depending on the sensor. Tridonic's sensor portfolio has something for every application. Threshold values and dimming profiles are preset during production by the sensorMODE wizard in the companionSUITE. Settings can also be changed on site using the 4service NFC app. The result? Cost-effective intelligent solutions for individual light points, with few components and which reduce energy consumption and increase safety for road users.
Four control modes: -- Ambient light control -- Motion control -- Ambient light and motion -- Mains with motion control

NFC 4service app

13

Trusted outdoor solutions
PIR sensor
Street light motion sensor
+

At a glance: PSensor SSI 31 2xPIR 8DP DG
-- 2 x PIR multisensor for motion and ambient light detection -- Mid-bay sensor for heights up to 8 metres -- 2 x PIR sensor -- Easy and flexible installation thanks to
Zhaga Book 18 Ed. 1.2-certified interface -- Rectangular/asymmetric detection range of up to 16 m -- Mains overvoltage protection up to 10 kV in combination
with the PRE driver -- Degree of protection IP66

Type PSensor SSi 31 2xPIR 8DP DG

Size ø79,7x52,8 mm

Order no. 28002642

The D4i certified multisensor has been specially designed for outdoor lighting. Equipped with two PIR elements, the sensor has a very wide detection range of 156 to 560 m², enabling detection of objects with lateral orientation. In addition to conventional roads, two different zones, such as pavements and cycle paths, can also be detected and illuminated separately. Thanks to an integrated temperature measurement function, the sensor also measures the ambient temperature of the luminaire, enabling detailed heatmaps to be created and evaluated.

SIDEREA

14

Terrassa/Spain Energia Inteligente 15

Trusted outdoor solutions
Driver excite serie (EXC3) generation 3 DALI-dimmable, flexible

Driver 90/135/200W EXC3

Driver 14/24/40/60W EXC3

At a glance: Driver EXC3
-- Dimmable built-in constant current LED Driver -- Output current adjustable between 200­1.050mA
via NFC*, DALI or ready2mains Programmer -- Nominal life-time of 100,000h and 8-year guarantee
Innovative: -- Flexible configuration via DALI, ready2mains, U6Me2 -- In-field programming possible after installation with NFC
interface* and ready2mains
Safe: -- High overvoltage protection: up to 10kV asymmetric
(protection class I und II) -- Protective features (overtemperature, short-circuit, overload,
no-load, input voltage range, reduced surge amplification) -- For luminaires of protection class I and protection class II
Efficient: -- Dimming area 5­100% (min. 5mA) -- Dimming through mains voltage (inputDIM)

Type

Output current (mA)

Made in Europe

LCO 14/100-500/38 o4a NF C EXC3

100­500

LCO 24/200­1050/38 o4a NF C EXC3

200­1,050

LCO 40/200­1050/64 o4a NF C EXC3

200­1,050

LCO 40/200­1050/64 o4a NF C EXC3

200­1,050

LCO 60/200­1050/100 o4a NF C EXC3

200­1,050

LCO 60/200­1050/100 o4a NF C EXC3

200­1,050

LCO 90/200­1050/165 o4a NF C EXC3

200­1,050

LCO 135/200­1050/220 o4a NF C EXC3

200­1,050

LCO 200/200­1050/355 o4a NF C EXC3

200­1,050

Made in China

LCO 14/100-500/38 o4a NF C EXC3

100­500

LCO 24/200­1050/38 o4a NF C EXC3

200­1,050

LCO 40/200­1050/64 o4a NF C EXC3

200­1,050

LCO 60/200­1050/100 o4a NF C EXC3

200­1,050

LCO 90/200­1050/165 o4a NF C EXC3

200­1,050

LCO 135/200­1050/220 o4a NF C EXC3

200­1,050

LCO 200/200­1050/355 o4a NF C EXC3

200­1,050

1) Depending on the set output current, Further details can be found in our data sheet

Output power1) (W)
14 24 40 40 60 60 90 135 200
14 24 40 60 90 135 200

Output voltage range1)
(V)1)
28­38 28­38 38­64 38­64 57­100 57­100 88­165 129­220 191­355
28­38 28­38 38­64 57­100 88­165 129­220 191­355

Input voltage (V)
220~240 220~240 220~240 220~240 220~240 220~240 220~240 220~240 220~240
220~240 220~240 220~240 220~240 220~240 220~240 220~240

Size (mm)
105 x 70 x 31 123 x 77 x 31 123 x 77 x 31 123 x 77 x 31 133 x 77 x 31 133 x 77 x 31 133 x 77 x 31 150 x 90 x 38 170 x 100 x 40
105 x 70 x 31 123 x 77 x 31 123 x 77 x 31 133 x 77 x 31 133 x 77 x 34 150 x 90 x 38 170 x 100 x 40

Order No
28003165 28003166 28003160 28003167 28003168 28003161 28003162 28003163 28003164
87500707 87500708 87500709 87500710 87500717 87500716 87500711

16

Trusted outdoor solutions
Driver advanced series (ADV3) generation 3 Dimmable, configurable

Driver 90/135/200W ADV3

Driver 14/24/40/60W ADV3

At a glance: Driver ADV3
-- Dimmable built-in constant current LED Driver -- Output current adjustable between 200­1,050mA via NFC
and ready2mains programmer -- Lifetime of up to 100,000 hours and 8-year guarantee
Innovative: -- Flexible configuration via ready2mains, U6Me2 and NFC -- In-field programming possible after installation with
ready2mains and NFC interface -- High overvoltage protection: 10kV
Efficient: -- Dimming range 5­100% -- Dimming through mains voltage (inputDIM)
Safe: -- For luminaires of protection class I and II -- High overvoltage protection: up to 10 kV asymmetric
(protection class I and II) -- Protective functions (overtemperature, short circuit, overload, idling,
input voltage range, reduced surge current amplification)

Type

Output current (mA)

LCO 14/100-500/38 NF C ADV3

100­500

LCO 24/200-1050/39 NF C ADV3

200­1,050

LCO 40/200-1050/64 NF C ADV3

200­1,050

LCO 60/200-1050/100 NF C ADV3

200­1,050

LCO 90/200­1050/165 o4a NF C ADV3

200­1,050

LCO 135/200­1050/220 o4a NF C ADV3

200­1,050

LCO 200/200­1050/355 o4a NF C ADV3

200­1,050

1) Depending on the selected output current; Further details can be found in datasheet

Output power1) (W)
14 24 40 60 90 135 200

Output voltage range1)
(V)
28­38 28­38 38.1­64 57.1­100 85.7­165 128.6­220 190.5­355

Input voltage (V)
220~240 220~240 220~240 220~240 220~240 220~240 220~240

Size (mm)
105x70 x31 123x77x 31 123 x 77 x 31 133 x 77 x 31 133 x 77 x 34 150 x 90 x 37 170 x 100 x 40

Order No
87500821 87500822 87500823 87500824 87500825 87500826 87500827

yDyDooiidudu kknnooww

Tridonic drivers have overvoltage protection up to 10kV and meet protection classes I and II in accordance with standard IEC 61000-4-5.
When protecting against overvoltage, the place at which it occurs is crucial. For example, lightning results in overvoltage between the current-carrying mains lines and the ground. In this case, LED drivers from Tridonic offer protection up to 10kV ­ including

for the LED module. If the distance between the lightning strike and the pole is 150 metres or more, the LED module remains undamaged. PRE outdoor drivers protect 5 out of 10 luminaires. By comparison: Protection up to 6kV only protects one out of 10 luminaires against damage. Thus, with the PRE outdoor driver series, maintenance costs can be saved, as significantly fewer luminaires have to be repaired or completely replaced.

17

Trusted outdoor solutions
Driver Product overview

Product portfolio ­ Overview

Benefit

Function

essence (SNC)
Cost-effective Fixed Output, IP67

Innovative Efficient Safe

Power Lifetime/ Guarantee AUX LVPS 24V
pDALI (DT49)
DALI-2/one4all
NFC
ready2mains/U6Me2
corridorFUNCTION V2 chronoSTEP 2 (Virtual Midnight) inputDIM
eCLO**
ETM*, NTC
ITM*** IVG+ (Intelligent Voltage Guard Plus) Transient protection ta range

75, 100, 150, 200W
50.000 h/5 yrs

6kV ­30°C to +60°C

advanced (ADV) Simplicity itself NFC programming, IP20



10kV ­40°C to +70°C

excite (EXC) Flexible DALI connectivity, NFC programming, IP20
14, 24, 40, 60, 90, 135, 200W 100.000 h/8 yrs

10kV
­40°C to +70°C

premium (PRE) Convenient powered DALI, Sensor-ready, Data-logging, AUX, IP20


10kV
­40°C to +70°C

*External temperature management; **Anticipated constant light output; ***Internal temperature management

18

Trusted outdoor solutions
RLE 2nd generation modules Efficient, innovative, versatile

CRI 70/80

2×4 2×6

Module RLE EXC2 High-Power
4×8

2×8
2,000/3,000/4,000lm
4×16

At a glance: Module RLE ADV/EXC 2nd generation
-- High efficiency outdoor modules -- Small luminous flux tolerances -- Suitable for harsh and humid outdoor conditions tested acc. to salt
spray test (IEC 60068-2-52) and harmful gas test (GR-1217-CORE) -- Surge tested 6kV with Tridonic LED Driver -- Push-in terminals for simple and quick wiring

2,000/4,000lm

Module RLE ADV2 Mid-Power

CRI > 80

The new RLE module generation is designed for modular and versatile luminaire designs. It provides an ideal basis for exceptional lighting solutions in outdoor areas and industrial applications.
Versatility, efficiency and safety ­ the second generation of RLE modules combines three of the Tridonic outdoor portfolio's fundamental values in a completely new way. The long life time of 100,000 hours (High-Power LineUp modules) and 80,000 hours (Mid-Power modules) has been established under harsh conditions and in numerous tests

such as salt spray or pollutant tests. The extended temperature range from -40°C to +105°C ensures perfect operation even under the harshest climatic conditions. Combined with Tridonic outdoor drivers, the RLE modules can easily withstand voltages of up to 6 kV. The Mid-Power modules boast industry-leading efficiency of up to 190 lumens per watt, thanks to the latest LED technology. Designed according to Zhaga standards, the entire module generation is compatible with numerous lenses such as LEDiL Strada 2x2, IP-2x6 and Stradella 16.

19

Trusted outdoor solutions
Module RLE excite series (EXC2) generation 2 High power

RLE EXC2 2x4

RLE EXC2 2x8

RLE EXC2 2x6
Made to be used with IP6x - lenses (e.g. LEDIL Strada IP-2X6)

At a glance: Module RLE EXC2 High Power
-- Life time of 100,000 hours and 8-year guarantee -- Broad temperature range from -40 to +105°C -- CRI > 70 for high efficiency and CRI > 80 for
perfect colour rendering -- Luminous flux: 2,000 lm, 3,000 lm, 4,000 lm
At a glance: RLE EXC2 2x4 and RLE EXC2 2x8
Efficient: Efficacy of up to 175lm/W Safe: Integrated NTC for overtemperature protection Versatile: Zhaga Book 15 compliant (2x4, 2x8) and Zhaga Book 19 (2x6); for use with standard 2x2 lenses
At a glance: RLE EXC2 2x6
Efficient: Efficacy of up to 155 lm/W Versatile: For use with IP6x lenses (e.g. LEDIL Strada IP-2X6)

Module RLE EXC2 OTD high power

Type

Colour temperature
(K)

Mac Adam

Typ. luminous flux1)
(lm)

CRI

Typ. power Module efficacy1)

consumption1)

tp = 75°C

(W)

(lm/W)

Size (mm)

Order No.

RLE 2x4 2000lm 827 HP EXC2 OTD

2,700

2,020

RLE 2x4 2000lm 830 HP EXC2 OTD RLE 2x4 2000lm 840 HP EXC2 OTD RLE 2x4 2000lm 850 HP EXC2 OTD

3,000

2,220

>80

4,000

2,300

SDCM 5

5,000

2,320

RLE 2x4 2000lm 730 HP EXC2 OTD RLE 2x4 2000lm 740 HP EXC2 OTD

3,000 4,000

2,050 >70
2,190

RLE 2x6 3000lm 830 HP EXC2 OTD

3,000

3,540

RLE 2x6 3000lm 840 HP EXC2 OTD

4,000

SDCM 5

3,670

>80

RLE 2x6 3000lm 850 HP EXC2 OTD

5,000

3,300

RLE 2x8 4000lm 827 HP EXC2 OTD

2,700

4,040

RLE 2x8 4000lm 830 HP EXC2 OTD RLE 2x8 4000lm 840 HP EXC2 OTD

3,000 4,000

4,440

>80

4,120

RLE 2x8 4000lm 850 HP EXC2 OTD RLE 2x8 4000lm 730 HP EXC2 OTD

5,000

4,640

SDCM 5

3,000

4,090

>70

RLE 2x8 4000lm 740 HP EXC2 OTD

4,000

4,340

>70

RLE 2x8 4000lm 757 HP EXC2 OTD

5,700

4,350

>70

RLE 2x8 4000lm 765 HP EXC2 OTD

6,500

4,100

>70

1) Tolerance range for electrical and optical data: ±10 %; NM tp bei 75 °C

up to 139

89603156

up to 153

89603157

14.6

up to 158

89603158

121.4x49.5

up to 159

89603160

up to 167 12.3
up to 179

89603432 89603433

up to 150

89603167

23.6

up to 155

146x45 89603168

up to 145

89603169

up to 139

89603161

up to 153 29.1
up to 141

89603162 89603163

up to 159 up to 167

89603164
223x49.5 89603434

up to 177 24.5
up to 178

89603165 89603435

up to 168

89603166

20

Trusted outdoor solutions
Modules RLE AMB excite Series (EXC2), generation 2 Safe, environmentally friendly and decorative

At a glance: Modul RLE AMB EXC2
-- Outdoor modules with amber light colour (1800 K) -- Better visibility in fog due to reduced glare -- Ideal for harbour or coastal lighting as well as
roads in mountainous areas and conflict zones -- such as pedestrian crossings -- Insect-friendly light spectrum -- Decorative lighting in old town or star parks -- Wide temperature range from -40 to +100 °C -- Lifetime of 100,000 hours -- 8 year guarantee

Module RLE EXC2 OTD high power

Type

Colour temperature
(K)

RLE 2x4 2000lm AMB HP EXC2 OTD RLE 2x4 2000lm 827 HP EXC2 OTD RLE 2x4 2000lm 830 HP EXC2 OTD RLE 2x4 2000lm 840 HP EXC2 OTD RLE 2x4 2000lm 850 HP EXC2 OTD RLE 2x4 2000lm 722 HP EXC2 OTD RLE 2x4 2000lm 730 HP EXC2 OTD RLE 2x4 2000lm 740 HP EXC2 OTD RLE 2x4 2000lm 765 HP EXC2 OTD RLE 2x6 3000lm 830 HP EXC2 OTD RLE 2x6 3000lm 840 HP EXC2 OTD RLE 2x6 3000lm 850 HP EXC2 OTD RLE 2x8 4000lm AMB HP EXC2 OTD RLE 2x8 4000lm 827 HP EXC2 OTD RLE 2x8 4000lm 830 HP EXC2 OTD RLE 2x8 4000lm 840 HP EXC2 OTD RLE 2x8 4000lm 850 HP EXC2 OTD RLE 2x8 4000lm 722 HP EXC2 OTD RLE 2x8 4000lm 730 HP EXC2 OTD RLE 2x8 4000lm 740 HP EXC2 OTD RLE 2x8 4000lm 757 HP EXC2 OTD RLE 2x8 4000lm 765 HP EXC2 OTD 1) Tolerance range for electrical and optical data: ±10 %; NM tp bei 75 °C

1.800 2.700 3.000 4.000 5.000 2.200 3.000 4.000 6.500 3.000 4.000 5.000 1.800 2.700 3.000 4.000 5.000 2.200 3.000 4.000 5.700 6.500

Mac Adam
--
SDCM 5
SDCM 5 --
SDCM 5

Typ. luminous flux1)
(lm)
1.750 2.020 2.220 2.300 2.320 1.740 2.050 2.190 2.190 3.540 3.670 3.300 3.500 4.040 4.440 4.120 4.640 3.470 4.090 4.340 4.350 4.100

Typ. power Moduleffizienz1)

CRI consumption1)

tp = 75°C

(W)

(lm/W)

>80

14,6

>70

12,3

>80

23,6

>80

29,1

>70

24,5

bis zu 108 bis zu 139 bis zu 153 bis zu 158 bis zu 159 bis zu 142 bis zu 167 bis zu 179 bis zu 179 bis zu 150 bis zu 155 bis zu 157 bis zu 108 bis zu 139 bis zu 153 bis zu 141 bis zu 159 bis zu 142 bis zu 167 bis zu 177 bis zu 178 bis zu 168

Size (mm)

Order No.

121,4x49,5 146x45 223x49,5

28003869 89603156 89603157 89603158 89603160 28003706 89603432 89603433 28003707 89603167 89603168 89603169 28003870 89603161 89603162 89603163 89603164 28003708 89603434 89603165 89603435 89603166

21

22

Trusted outdoor solutions
Module RLE advanced series (ADV) Mid power

RLE ADV2 2x8

RLE ADV2 4x16

At a glance: Module RLE ADV2 mid power
-- Lifetime of 80,000 hours -- Increased temperature range from ­40 to +95°C -- CRI > 80 -- Luminous flux: 2,000lm/4,000lm -- 5-year guarantee

Efficient: -- Efficacy of up to 190 lm/W
Safe: -- Integrated NTC for
overtemperature protection

Versatile:
-- For use with x16 lenses (e.g. LEDIL Stradella 16)

Type

Colour temperature
(K)

Mac Adam

Typ. luminous flux1)
(lm)

CRI

Typ. power consumption1)
(W)

Module efficacy1) tp = 75 °C (lm/W)

Size (mm)

Order No.

RLE 4x8 2000lm 827 MP ADV2 OTD

2.700

1.970

up to 179

28003053

RLE 4x8 2000lm 830 MP ADV2 OTD

3.000

2.020

up to 182

89603170

RLE 4x8 2000lm 840 MP ADV2 OTD

4.000

SDCM 3

2.080

80

11,1

up to 187

121,4x49,5 89603171

RLE 4x8 2000lm 850 MP ADV2 OTD

5.000

2.110

up to 190

89603172

RLE 4x8 2000lm 865 MP ADV2 OTD

6.500

2.050

up to 185

89603173

RLE 4x16 4000lm 830 MP ADV2 OTD

3.000

4.040

up to 182

89603174

RLE 4x16 4000lm 840 MP ADV2 OTD RLE 4x16 4000lm 850 MP ADV2 OTD

4.000

4.160

SDCM 3

80

5.000

4.220

up to 187

89603175

22,2

223x45

up to 190

89603176

RLE 4x16 4000lm 865 MP ADV2 OTD

6.500

4.100

up to 185

89603177

1) Tolerance range for electrical and optical data: ±10 %; Operation mode of 500mA

23

Trusted outdoor solutions
Module RLE excite (EXC)/advanced (ADV)

Matching driver

Driver

Designation

Output current (mA)

Driver excite3 (EXC3)/advanced 3 (ADV3)

LCO 14/100-500/38 o4a NF C EXC3 LCO 14/100-500/38 NF C ADV3 LCO 24/200-1050/39 o4a NF C EXC3 LCO 24/200-1050/39 NF C ADV3
LCO 40/200-1050/64 o4a NF C EXC3 LCO 40/200-1050/64 NF C ADV3
LCO 60/200-1050/100 o4a NF C EXC3 LCO 60/200-1050/100 NF C ADV3
Driver essence2 (SNC2)

200

350

500

200 HV

350 HV

500 HV

550 HV

650 HV

700 HV

200 HV

LV 350
HV

LV 500
HV

LV

550

HV

LV 650
HV

700

LV

HV

LV 1,050
HV

200 HV

LV 350
HV

LV 500
HV

LV

550

HV

LV 650
HV

700

LV

HV

1,050 LV

LCO 75/500/150 fixC L SNC2

500

LCO 75/700/108 fixC L SNC2

700

LCO 75/1050/72 fixC L SNC2

1,050

LCO 100/500/200 fixC L SNC2

500

LCO 100/700/143 fixC L SNC2

700

LCO 100/1050/95 fixC L SNC2

1,050

LCO 150/500/300 fixC L SNC2

500

LCO 150/700/214 fixC L SNC2

700

LCO 150/1050/142 fixC L SNC2

1,050

LCO 200/500/400 fixC L SNC2

500

LCO 200/700/285 fixC L SNC2

700

LCO 200/1050/190 fixC L SNC2

1,050

Specification: Number of possible modules per LED driver

Order no.
87500707 87500821
87500708 87500822
87500709 87500823
87500710 87500824
28002297 28002298 28002299 28002301 28002302 28002303 28002305 28002306 28002307 28002309 28002310 28002311

RLE 2x4 2000lm HP EXC2 OTD

RLE 2x8 4000lm HP EXC2 OTD

RLE 2x6 3000lm HP EXC2 OTD

RLE 4x8 2000lm MP ADV2 OTD

RLE 4x16 4000lm MP ADV2 OTD

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

2

1

1

0

2

1

1

0

2

1

1

0

2

1

1

0

2

1

1

0

2

1

1

0

0

0

3­4

2

2

1

3­4

2

2

1

3­4

2

2

1

3­4

2

2

1

3

0

2

1

3

0

2

1

1

1

0

1

1

0

0

1

0

1

1

0

1

1

0

1

1

0

1

1

0

1

1

0

0

1

0

0

2

1

1

1

0

1

2

1

1

1

0

1

2

1

1

1

0

1

2

1

1

1

0

1

2

1

1

1

0

1

2

1

1

1

0

1

0

0

2

3­4

2

1

2

1

2

3­4

2

1

2

1

2

3­4

2

1

2

1

2

0

2

1

2

1

2

3

0

1

2

1

2

3

0

1

2

1

3­6

2­3

2­4

3­6

2­3

2­4

1­2

1­2

2­4

1­2

1­2

1

1

0

0

3­8

2­4

2­5

3­8

2­4

2­5

1­2

2­3

2­5

1­2

2­3

1

1­2

0

0

5­12

3­6

3­8

5­12

3­6

3­8

2­4

2­5

3­8

2­4

2­5

1­2

2­3

0

0

7­16

4­8

5­10

7­16

4­8

5­11

3­5

3­7

2­3

3­7

5­11

3­5

2­5

0

0

24

Trusted outdoor solutions
Modules RLE excite (EXC)/advanced (ADV) series

The corresponding drivers (number of possible LED modules connected in series per LED driver)

Type

Driver
Output current (mA)

Order no.

RLE 2x4 2000lm HP EXC2 OTD

200 HV

7­9

LV

4­5

350

HV

5­9

LV

3­5

500

HV

5­9

LV

3­5

LCO 135/200-1050/220 o4a NF C EXC3 550

87500716

LCO 135/200-1050/220 NF C ADV3

HV

87500826

5­9

LV

3­5

650

HV

5­8

LV

3­5

700

HV

5­7

LV

3­5

1.050

HV

5

LV 200
HV

8 9­15

LV 350
HV

LV 500
HV

LCO 200/200-1050/355 o4a NF C EXC3 LCO 200/200-1050/355 NF C ADV3

550

LV

HV

LV 650
HV

LV 700
HV

1.050 LV

Driver essence (SNC) 2

LCO 75/500/150 fixC L SNC2

500

LCO 75/700/108 fixC L SNC2

700

LCO 75/1050/72 fixC L SNC2

1.050

LCO 100/500/200 fixC L SNC2

500

87500711 87500827
28002297 28002298 28002299 28002301

5­8 9­14 5­8 8­14 5­8 8­14 5­8 8­12 5­8 8­11 5­7
3­6 2­4 1­2 3­8

LCO 100/700/143 fixC L SNC2

700

28002302

2­5

LCO 100/1050/95 fixC L SNC2

1.050

28002303

2­3

LCO 150/500/300 fixC L SNC2

500

28002305

5­12

LCO 150/700/214 fixC L SNC2

700

28002306

3­8

LCO 150/1050/142 fixC L SNC2

1.050

28002307

2­5

LCO 200/500/400 fixC L SNC2

500

28002309

7­16

LCO 200/700/285 fixC L SNC2

700

28002310

5­11

LCO 200/1050/190 fixC L SNC2

1.050

28002311

3­7

Specification: Number of possible modules per LED driver; parallel or mixed circuits can be found in the Setbuilder

RLE 2x8 4000lm HP EXC2 OTD
4 2 3­4 2 3­4 2 3­4 2 3­4 2 3 2 0 4 5­7 3­4 5­7 3­4 4­7 3­4 4­7 3­4 4­6 3­4 4­5 3
2­3 1­2
1 2­4 1­2
1 3­6 2­4 1­2 4­8 3­5 2­3

RLE 2x6 3000lm HP EXC2 OTD
5­6 3
4­6 2­3 4­6 2­3 4­6 2­3 4­5 2­3 4­5 2­3
0 0 6­10 4­5 6­9 4­5 6­9 4­5 6­9 4­5 6­8 4­5 6­7 4­5
2­4 1­2
1 2­5 2­3 1­2 3­8 2­5 2­3 5­10 3­7 2­5

RLE 4x8 2000lm MP ADV2 OTD

RLE 4x16 4000lm MP ADV2 OTD

7­9

4

4­5

2

5­9

3­4

3­5

2

5­8

3­4

3­5

2

5­8

3­4

3­5

2

5­8

3­4

3­5

2

5­7

3

3­4

2

0

0

8­9

4

9­15

5­7

5­8

3­4

8­14

4­7

5­8

3­4

8­14

4­7

5­8

3­4

8­14

4­7

5­8

3­4

8­12

4­6

5­8

3­4

8­11

4­5

5­7

3

3­6

2­3

2­4

1­2

0

0

3­8

2­4

2­5

1­2

0

0

5­12

3­6

3­8

2­4

0

0

7­16

4­8

5­11

3­5

0

0

25

Trusted outdoor solutions
Reference projects Schallbergtunnel, Switzerland
Following the general refurbishment, the 500 m long Schallbergtunnel is shining in a new light. The luminaires were developed by Rigamonti, the Swiss specialist in tunnel lighting, and executed with LED components by Tridonic. The result is an efficient lighting system with high visual comfort, which has a positive impact on the perception of safety. New LED modules, based on the highly efficient RLE series, are used in the adaptation luminaires of the entrance and exit areas.
26

Trusted outdoor solutions
Reference project Street lighting with partner SECE, Spain
The Spanish towns of Lloret de Mar, Tarragona and Granollers commissioned outdoor lighting that could adapt to the widely varying visitor frequency, be controlled centrally and consume as little energy as possible. The possibility of central control and the existing lighting infrastructure were to be maintained. Dimmable outdoor premium drivers with universal one4all interface were used as the control gear for the new LED luminaires. The illuminance can be adjusted via the GridControl function. With the U6Me2 protocol, signals can be transmitted directly via the mains line, which enables a particularly convenient luminaire configuration at the control cabinet. Requirements: -- More efficient lighting while maintaining
the existing lighting infrastructure -- Improved comfort and flexibility of the
existing control options -- Adaptable illuminance with regard to seasons
and number of visitors Solution: -- Premium dimmable drivers equipped with a universal one4all
interface as control devices for the new LED lamps -- Centralised Telecontrol-system via GridControl (U6Me2) Technology:
SECE, a Spanish Utility company developed a remote control system that brings smart and connected lighting functionality based on U6Me2 -- chronoSTEP function to adapt dimming level automatically or manually to dusk and dawn
27

Prepared for the future Our activities and locations

Spennymoor, UK
Emergency technology

Ennenda, Switzerland
Sensor technology

Dornbirn, Austria
Networked hardware technology

Highland N.Y. , USA Sales North America

Porto, Portugal
IoT applications

Jennersdorf, Austria
LED module technology
Nis, Serbia
LED driver technology
Shenzhen, China
LED driver technology

Headquarters

Production site

Research and developement

Sales o ice

1,932
Around 1,900 employees throughout the world are committed to helping you with their know-how and creativity to create the perfect light.

6
There are six research and development centres in which new LEDs and networked lighting technologies are being developed.

3
There are three things you can rely on at Tridonic: optimum product quality, decades of expertise and our committed and flexible support.

1
In our unique software competence center in Porto (Portugal), information technology experts are developing new solutions for smart buildings and smart cities. They are working on a range of products from intelligent lighting management and control systems to highly advanced IoT solutions and their matching digital services.
328

21
With 21 branch o ices on five continents we are there for you wherever you are in the world.

2,600
That`s how many patents and inventions testify to Tridonic`s extraordinary powers of innovation.

Details
For further information, data sheets, product catalogues and ordering details, please go to www.tridonic.com.

Close light We attach great importance to a strong international presence ­ this allows us to stay su iciently close to our customers

AUSTRALIA Tridonic Australia Pty Ltd 2/7 Millner Ave Horsley Park, NSW 2175 Australia T +61 2 9832 6600 F +61 2 9832 6688 www.tridonic.com infoau@tridonic.com
AUSTRIA Tridonic GmbH & Co KG (Headquarters) Färbergasse 15 6851 Dornbirn, Austria T +43 5572 395-0 F +43 5572 20176 www.tridonic.com sales@tridonic.com
Tridonic GmbH & Co KG Sales Austria Archenweg 58 6022 Innsbruck, Austria T +43 512 3321 554 F +43 512 3321 995554 www.tridonic.com vertrieb.austria@tridonic.com
CHINA Tridonic (Shanghai) Co., Ltd. (Headquarters) Room 602, Buliding B Zhongshan International Plaza No. 789 Tianshan Road Shanghai, 200335, China T +86 21 52400 599 F +86 21 52400 230 www.tridonic.com china@tridonic.com
Tridonic (Shanghai) Co., Ltd. Beijing Branch Room 1207, No. 3, Yard 1 Tian Xin Street, Fang Shan District Beijing, 102446, China T +86 10 6522 6163 F +86 10 6522 7003 www.tridonic.com china@tridonic.com
Tridonic (Shanghai) Co., Ltd. Guangzhou Branch Room 505, R & F Profit Plaza 76 Huangpu Xi Road, Tianhe District Guangzhou, 510623, China T +86 20 3839 2483 F +86 20 3839 2482 www.tridonic.com china@tridonic.com

FRANCE Tridonic France SARL 8 Rue de Bruxelles ZI Krafft 67150 Erstein, France T +33 3 88 59 62 70 F +33 3 88 59 62 75 www.tridonic.fr info.france@tridonic.com
GERMANY Tridonic Deutschland GmbH Edisonallee 1 89231 Neu-Ulm Germany T +49 731 176629-0 F +49 731 176629-15 www.tridonic.de vertrieb.deutschland@tridonic.com
ITALY Tridonic Italia srl Via G. Savelli, 86 35129 Padova Italy T +39 049 89 45 127 www.tridonic.it vendite.italia@tridonic.com
KOREA Tridonic Korea LLC Lee Seok-Jun #808 HanHwa BizMetro II 551-24 Yangcheon-ro Gangseo-gu Seoul Republic of Korea (South) T +82 (2) 2013 8051 T +82 10 2230 2221 www.tridonic.kr seokjun.lee@tridonic.com
MALAYSIA Tridonic Malaysia Sdn Bhd V03-10-01 Designer Office, Lingkaran SV, Sunway Velocity, Cheras 55100 Kuala Lumpur Malaysia T +60 3 2733 6484 T +60 3 2733 6485 www.tridonic.com asean@tridonic.com

MIDDLE EAST Tridonic Middle East (FZE) Warehouse LB 4 Blue Shed Area, JAFZA North, Jebel Ali P.O. Box 17972 Dubai, United Arab Emirates T +971 4 8833 664 F +971 4 8833 665 www.tridonic.ae sales.middleeast@tridonic.com
NEW ZEALAND Tridonic New Zealand PO Box 71134, Rosebank Auckland 1348 27 Jomac Place, Avondale Auckland 1026 T +64 9820 1119 F +64 9820 4471 www.tridonic.com sales@tridonic.co.nz
POLAND Tridonic Rep. Office Poland Poland www.tridonic.com marek.michalski@tridonic.com
PORTUGAL Tridonic Portugal, Unipessoal Lda. Rotunda Engenheiro Edgar Cardoso, 23, piso 8 Vila Nova de Gaia 4400-676 Portugal T +351 938 448 467 www.tridonic.com ventas@tridonic.com
SINGAPORE Tridonic S. E. A. Pte Ltd 158 Kallang Way #06-02 349245 Singapore Singapore T +65 6749 9071 F +65 6293 3700 www.tridonic.com asean@tridonic.com
SOUTH AFRICA Tridonic SA (Pty) Ltd Unit A7, Centurion Business Park Cnr. Bosmansdam Road & Democracy Way Milnerton, SA, 7441 South Africa T +27 21 110 5687 www.tridonic.com info@tridonic.com

SPAIN Tridonic Iberia, S.L. Calle Carpinteros nº 8, 2a 28670 Villaviciosa de Odón Spain T +34 916 162 095 www.tridonic.es ventas@tridonic.com
SWITZERLAND Tridonic AG Obere Allmeind 2 8755 Ennenda Switzerland T +41 55 645 4747 www.tridonic.ch vertrieb.schweiz@tridonic.com
TURKEY Tridonic Aydinlatma TC.LTD. T. Kemanke Mah., Necatibey cad. Akçe Sok., Akçe Han 10 34420 Karaköy / Beyolu Istanbul, Turkey T +90 212 244 78 05 F +90 212 244 78 06 www.tridonic.com satis@tridonic.com
UNITED KINGDOM Tridonic UK Limited Unit 7 Lindenwood Chineham Business Park Crockford Lane, Chineham RG24 8LB Basingstoke Hampshire United Kingdom T +44 1256 374300 www.tridonic.com enquiries.uk@tridonic.com
USA Tridonic Inc. USA 3300 Route 9W Highland, NY 12528 United States www.tridonic.us sales.us@tridonic.com

08/21 Subject to change without notice. Errors and omission excepted.

Headquarters Tridonic GmbH & Co KG Färbergasse 15 | 6851 Dornbirn, Austria T +43 5572 395-0 | F +43 5572 20176 www.tridonic.com | sales@tridonic.com

Light you want to follow. 29
